HS-6300
BX Dual Pentium® II/III LAN/VGA I.S.B.
•
Full Size•All-in-one•VGA/Flat-Panel Interface•DMA33-IDE•
•
LAN•ATX Power•WDT•DOC•CTA•USB•
•
IrDA PICMG Bus Industri al Single Board Computer•
HS-6300V
BX Dual Pentium® II/III VGA I.S.B.
•
Full Size•All-in-one•VGA/Flat-Panel Interface•DMA33-IDE•
•
ATX Power•WDT•DOC•CTA•USB•
•
IrDA PICMG Bus Industri al Single Board Computer
•
HS-6300
BX Dual Pentium® II/III LAN I.S.B.
•
Full Size•All-in-one•DMA33-IDE•
•
LAN•ATX Power•WDT•DOC•CTA•USB•
•
IrDA PICMG Bus Industri al Single Board Computer
•
Page 2
Copyrights
This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reduced to any electronic
or machine readable in whole or in part form without prior written consent
from the manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use
the product or documentation, even if advised of the possibility of such
damages.
The proprietary information contains in this document is protected by the
copyright. All rights are reserved. It is not allow any non authorization in
copied, photocopied, translated or reduced to any electronic or machine
readable in whole or in part form without prior written consent from the
manufacturer except for copied retained by the purchaser for backup
purposes.
The manufacturer keeps the rights in the subject to change the contents of
this manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for
any errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.
Trademarks
IBM PC is a registered trademark of International Bus i ness Machines Corporation.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software International, Inc.
All other trademarks, products and or product’s name mentioned herein are mentioned
for identification purpos es only, and maybe trademarks and or registered trademarks
of their respective companies or owners.
© Copyright 1999
All Rights Reserved.
User Manual edition 1.0, May.10 1999
Page 3
Contents
HS-6300...................................................................................................... 1

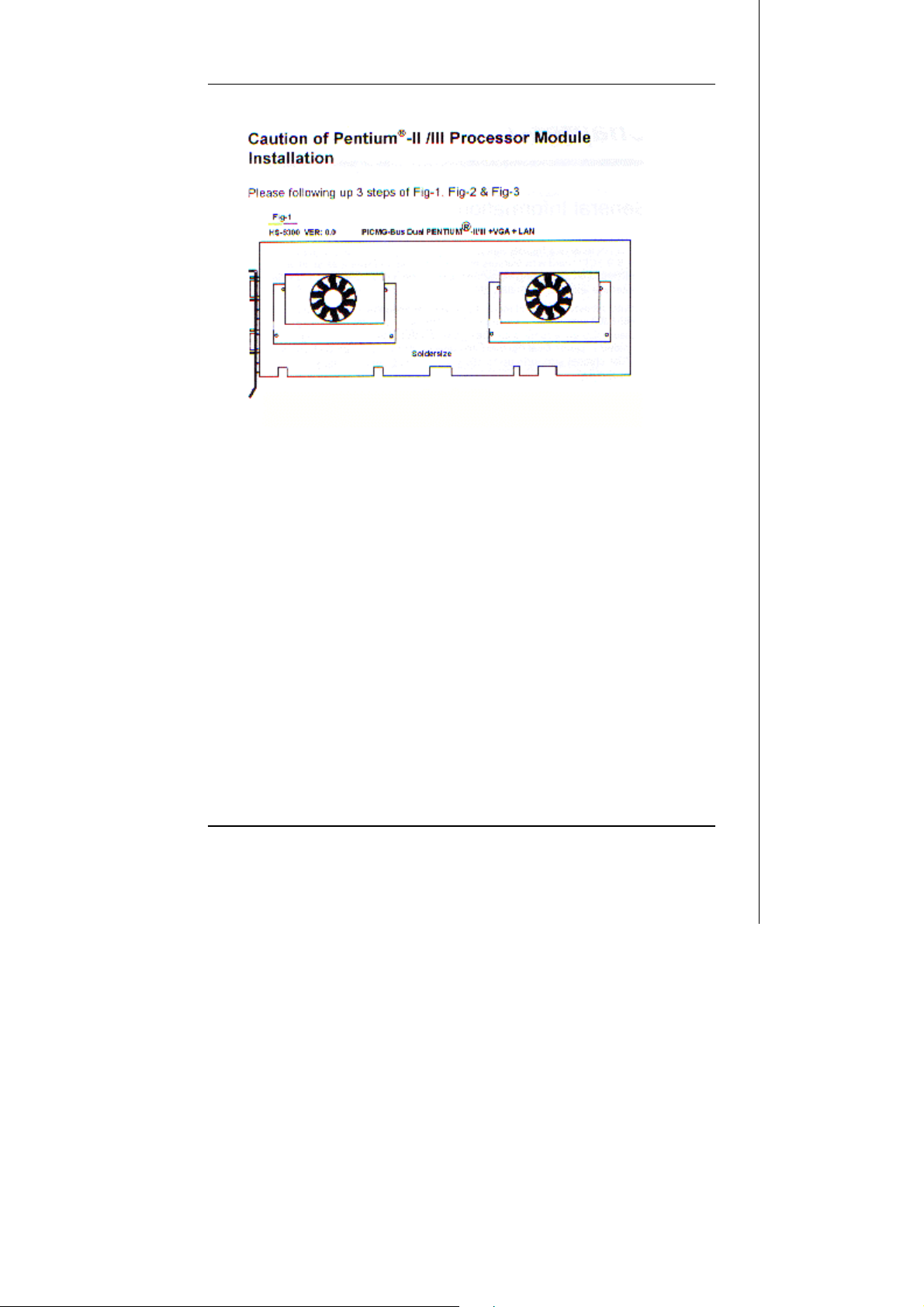

CAUTION OF PENTIUM
®
II/III PROCESSOR MODULE
INSTALLATION...........................................................錯誤! 尚未定義書籤。
GENERAL INFORMATION .......................................錯誤! 尚未定義書籤。
AJOR FEATURES
1.1 M
PECIFICATIONS
1.2 S
ELIVERY PACKAGE
1.3 D
.....................................................................................5
................................................... 錯誤
............................................. 錯誤
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
GENERAL INSTALLATION............................................................................6
AUTION OF STATIC ELECTRICITY
2.1 C
AUTION ON UNPACKING AND BEFORE INSTALLATION
2.2 C
2.3 HS-6300'
UICK LISTING OF JUMPERS
2.4 Q
UICK LISTING OF CONNECTORS
2.5 Q
UMPER SETTING DESCRIPTION
2.6 J
ANUFACTURE DEFAULT SETTING
2.7 M
ETTING THE
S
2.8
ISKONCHIPTM ADDRESS SETTING
2.9 D
2.10 W
2.11 USB P
2.12 S
2.13 S
2.14 PCI VGA C
S LAYOUT
CPU'S P
ATCH-DOG TIMER
ORTS CONNECTOR
ETTING THE
YSTEM MEMORY
RTC C
ONTROLLER
............................................ 錯誤
ROCESSOR CORE FREQUENCY
.............................................................................12
ONFIGURATION
DRAM
......................................................................18
............................................................6
錯誤
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
............................... 錯誤
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
..........................................................12
......................... 錯誤
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
........................................................14
& CPU B
ASE CLOCK
....14
......................................................18
................................ 錯誤
錯誤! 尚未定義書籤。
尚未定義書籤。
錯誤錯誤
尚未定義書籤。尚未定義書籤。
...................................................14
....................................................................14
CONNECTION.................................................................................................15
OWER CONNECTOR
3.1 P
3.2 IDE'
3.3 E
S
LED, K
XTERNAL SPEAKER
3.4 PS/2 P
3.5 PCI E-IDE D
ARALLEL PORT CONNECTOR
3.6 P
HE FLOPPY DISK DRIVE CONNECTOR
3.7 T
ERIAL PORTS CONNECTORS
3.8 S
EYLOCK AND RESET BUTTON
OWER
RIVE CONNECTOR
..............................................................................15
...........................................16
..............................................................................17
ON/OFF C
ONTROL
........................................................17
............................................................18
...............................................................19
.................................................19
..............................................................20
Contents •••• i
Page 4
EYBOARD CONNECTORS
3.9 K
3.10 PS/2 M
3.11 VGA C
3.12 F
3.13 IR C
3.14 F
OUSE 6-PIN MINI-DIN CONNECTOR
ONNECTORS
LAT-PANEL CONNECTOR
ONNECTOR
AST ETHERNET CONNECTOR
.....................................................................................21
......................................................................20
.........................................21
..............................................................................21
....................................................................21
..............................................................21
AWARD BIOS SETUP....................................................................................22
AIN MENU
4.1 M
TANDARD
4.2 S
4.3 BIOS F
HIPSET FEATURES SETUP
4.4 C
NTEGRATED PERIPHERALS
4.5 I
OWER MANAGEMENT SETUP
4.6 P
.............................................................................................23
CMOS S
EATURES SETUP
ETUP
......................................................................24
.........................................................................25
....................................................................26
....................................................................27
................................................................28
ii ••••Contents
Page 5
Contents •••• iii
Page 6
Chapter-1
General Information
The HS-6300 is a PICMG Bus Dual Pentium® II/III Industrial Single Board CPU
Card with features combine together to make it as an ideal add-in-one industrial
single board computer, enhanced I/O effects and VGA interface and Intel
82558B LAN.
With on board DMA33 of mode 4 to IDE drive interface architecture, the HS-6300
supports with maximum 33.3MB/sec in data transfer rating to 4 pieces IDE drive
connection. Design with Intel
1024 x 768 6535 colors display resolution.
The advanced PICMG Bus add-on connection of HS-6300 allows user could
easily obtain both ISA’s 16bit and PCI’s 32bit full set signals from a full size
operating. The HS-6300 provides with four pieces 168pin DIMM sockets that
supports up to 2GB of main system memory.
A single Flash chip holds the system BIOS, and you can change the Flash BIOS
by the Utility Update. Advanced USB and IR ports also provide for faster and
easily in data transmission. You can also use the DOS version of the
DiskOnChip
necessity of other software supports up to 144MB.
If a non-expect program cause halts, the on board Watch-Dog Timer will
automatically reset the CPU or generate an interrupt. The Watch-Dog is designed
with hardware only and doesn’t need any arithmetical functions of a real-time
clock chip. This ensures the reliability in an unmanned or standalone system.
TM
socket by issuing commands from the DOS prompt without the
®
82443BX core logic VGA chipset supports up to
®
4
Page 7
1.1 Major Features
PICMG Bus supported.
9
Two Slot 1 sockets for Dual Intel® Pentium® II/III Processors.
9
Intel® 82443 BX chipset.
9
Intel® 82558B LAN chip on board.
9
Four pieces DIMM sockets supports DRAM & SDRAM up to 2GB.
9
Fast PCI DMA33 controller supports four IDE drives include large hard
9
disks, CD-ROM and tape backup etc.
PnP I/O address & IRQ selection.
9
On board W83977 super I/O chipset.
9
Two high speed RS-232 serial ports with 16C550 UART 16byte FIFO.
9
One enhanced bi-directional parallel port supports SPP/EPP/ECP.
9
On board PS/2 Keyboard and PS/2 Mouse connector.
9
On board C&T 69000 SVGA adapter.
9
DiskOnChipTM socket supports memory size up to 144MB.
9
BIOS level pre-scale setting of the CPU Temperature Alarm
9
supported.
5
Page 8
1.2 Specifications
CPU：One or two pieces Intel
9
Bus Interface：PICMG Bus.
9
Chipset：Intel
9
Data Bus：64bit.
9
Processing Ability：64bit.
9
CRT SVGA Controller：C&T 69000 chipset with 2MB memory
9
supports CRT up to 1024x768 256 colors.
PCI Enhanced IDE Interfaces：Four IDE drives supports modes 3/4
9
with DMA 33 function provide data transfer rate up to 33MB/sec.
RAM Memory：Four pieces 168pin DIMM sockets provide up to 2GB.
9
LAN：Intel
9
Cache Memory：Slot 1 socket supports Intel
9
build-in 512KB Pipeline burst cache memory.
Floppy Disk Drive Interface：Supports up to two floppy disk drives.
9
Parallel Port：One bi-directional parallel port. Supports
9
SPP/ECP/EPP.
Serial Ports：Two RS-232 ports. Both use 16C550 UART with 16byte
9
FIFO.
BIOS：Award Flash BIOS.
9
Watch-Dog Timer：Hardware circuit can be set by 1, 2, 10, 20, 110,
9
220 seconds period reset or NMI were generated when CPU did not
periodically trigger the timer.
DMA Channels：7
9
Interrupt Levels：15
9
Keyboard：6-pin mini din connector or 5-pin header supports
9
standard PC/AT keyboard.
Mouse：6-pin mini din connector support PS/2 mouse.
9
USB：Supports 2 USB header.
9
IR Interface：Supports one IrDA TX/RX header.
9
Flash Memory Disk：Socket for DiskOnChip
9
Flash memory disk.
Extra Power：Provides one ATX power input connector.
9
®
82443 BX.
®
82558B 100 Based LAN.
®
Pentium® II/III 233MHz higher.
®
Pentium® II/III CPU with
TM
support up to 144MB
6
Page 9
CMOS：Real-time clock/calendar and battery backup by DS12B887
9
or equivalent device.
Power Supply Voltage：+5V(4.75 to 5.25V), +12V, -12V.
9
Max. Power Requirement：+5V@22A(350MHz
9
Operating Temperature：0-55°C (CPU need cooler).
9
Board Size：13.26”(L) x 4.8”(W) (337mm x 122mm).
9
), +12V/-12V@20mA.
7
Page 10
1.3 Delivery Package
The Delivery package of HS-6300 includes all following items：
HS-6300 Industrial Single Board
¾
One Printer Port Flat Cable
¾
One COM Port Flat Cable
¾
Two IDE Port Flat Cable
¾
FDD Port Flat Cable
¾
One PS/2 to Standard Keyboard Transfer Cable
¾
VGA Utility Diskette
¾
LAN Utility Diskette
¾
User’s Manual
¾
Please contact with your dealer if any each of these items is missing or
damaged when purchasing. And please keep all parts of the delivery
package with packing materials in case of you want to ship or store the
product in feature.
8
Page 11
Chapter-2
Hardware Installation
This chapter provides the information on how to install the hardware of
HS-6300. At first, please follow up sections 1.3, 2.1 and 2.2 in check the
delivery package and carefully unpacking. Following after, the jumpers
setting of switch, Watch-Dog Timer and the DiskOnChip
selection etc.
2.1 Caution of Static Electricity
The HS-6300 has been well package with an anti-static bag in protect its
sensitive computer components and circuitry from the damage of static
electric discharge.
Note：DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.
You should follow the steps as following to protect the board in against
the static electric discharge whenever you handle the board：
TM
address
1. Please use a grounding wrist strap on whoever needs to handle the
HS-6300. Well clip the ALLIGATOR clip of the strap to the end of
shielded wire lead from a grounded object. Please put on and
connect the strap before handle the HS-6300 for harmlessly
discharge any static electricity through the strap.
2. Please use anti-static pad for put any components or parts or tools
on the pad whenever you work on them outside the computer. You
may also in use the anti-static bag instead the pad. Please ask from
your local supplier in help up your necessary parts on anti-static
requirement.
9
Page 12
2.2 Caution on Unpacking and Before Installation
First of all, please follow with all necessary steps of section 2.1 in
protection the HS-6300 from electricity discharge. With refer to section
1.3, please check the delivery package again with following steps：
1. Unpacking the HS-6300, keep well storage of all packing material,
manual and diskette etc.
2. Is there any components lose or drop from the board？ DO NOT
INSTALL IF IT HAPPENED.
3. Is there any visual damaged of the board？ DO NOT INSTALL IF
HAPPENED.
4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers setting
to jumper pin-set and CMOS setup correctly. Please also reference
to all information of jumpers setting in this manual.
5. Well check from your external devices (i.e. Add-On-Card, Driver
Type etc.) for completed add-in or connection and CMOS setup
correctly. Please also reference to all information of connector
connection in this manual.
6. Please keep all necessary manual and diskette in a good condition
for your necessary re-installation if you change your Operating
System or whatever needs.
10
Page 13

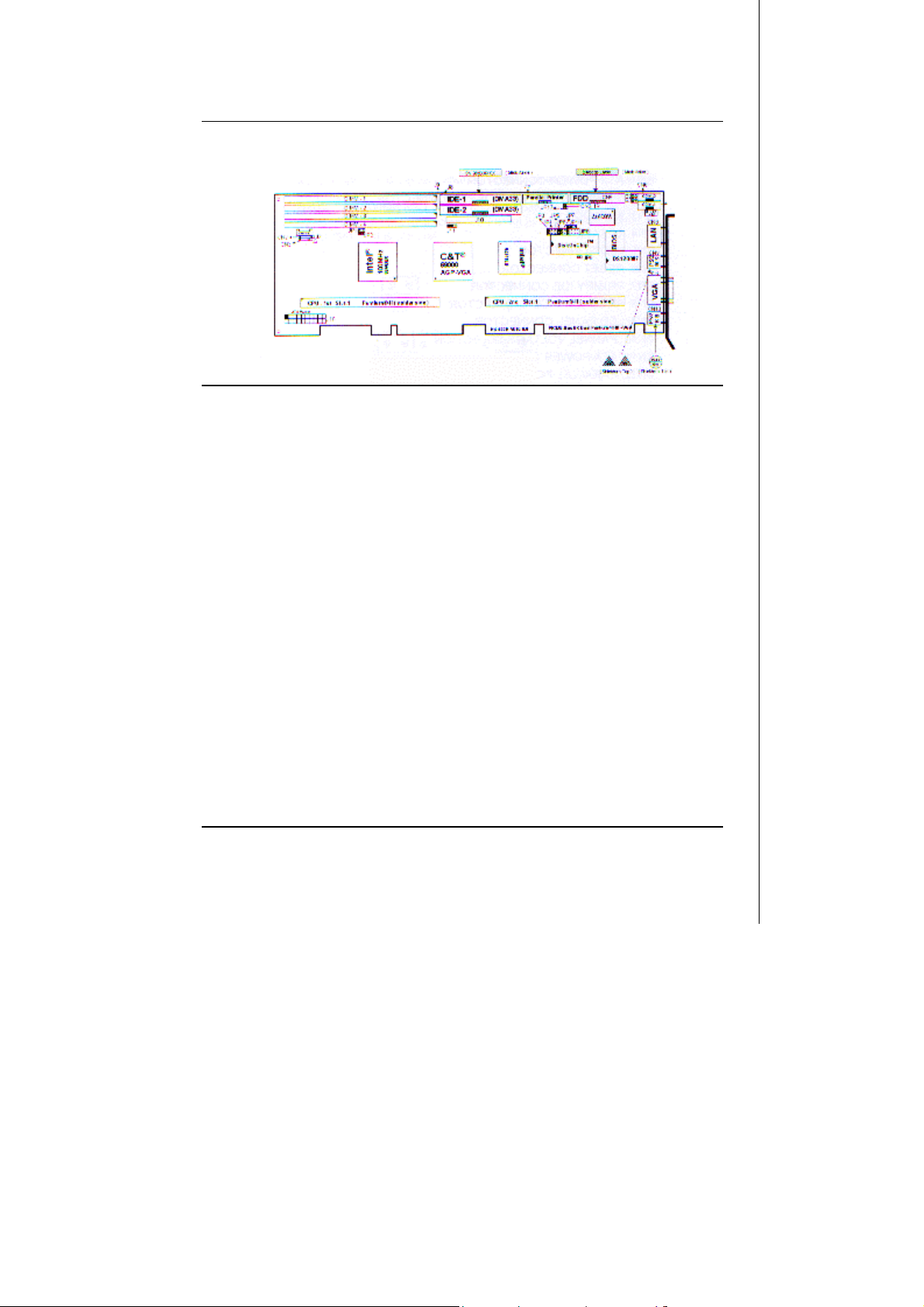

2.3 HS-6300’s Layout
2.4 Quick Listing of Jumpers
JP1 IOQ DEPTH Select
JP2 Base Clock
JP3 Clock Ratio Select
JP4 Clock Ratio Select
JP5 Clock Ratio Select
JP6 Clock Ratio Select
JP7 D.O.C Address setting
JP8 Time of Watch-Dog
JP9 ATX Power ON JMP
JP10 Watch-Dog Active Select
JP11 CMOS Clear
JP12 USB 0 Connector
JP13 USB 1 Connector
JP14 LAN Enable/Disable
JP15 VGA Enable/Disable
11
Page 14
2.5 Quick Listing of Connectors
CN1：ATX Power Connector
CN2：5-pin Header Keyboard Connector
CN3：Keylock
CN4：Speaker
CN5：LED Connector
CN6：Reset Connector
CN7：Primary IDE Connector
CN8：Secondary IDE Connector
CN9：LCD Panel Connector
CN10：Panel Voltage Selection
CN11：ATX Power & AT Power Selector
CN12：Parallel Port
CN13：FDD Connector
CN14：COM2 (5x2 Header)
CN15：COM1 (5x2 Header)
CN16：10/100 Based LAN Connector
CN17：Mini-Din PS/2 Mouse Connector
CN18：VGA Connector
CN19：Mini-Din PS/2 Keyboard Connector
CN20：COM Port 1 (DB9)
CN21：COM Port 2 (DB9)
CN22：IR Connector
CN23、CN24：FAN
12
Page 15

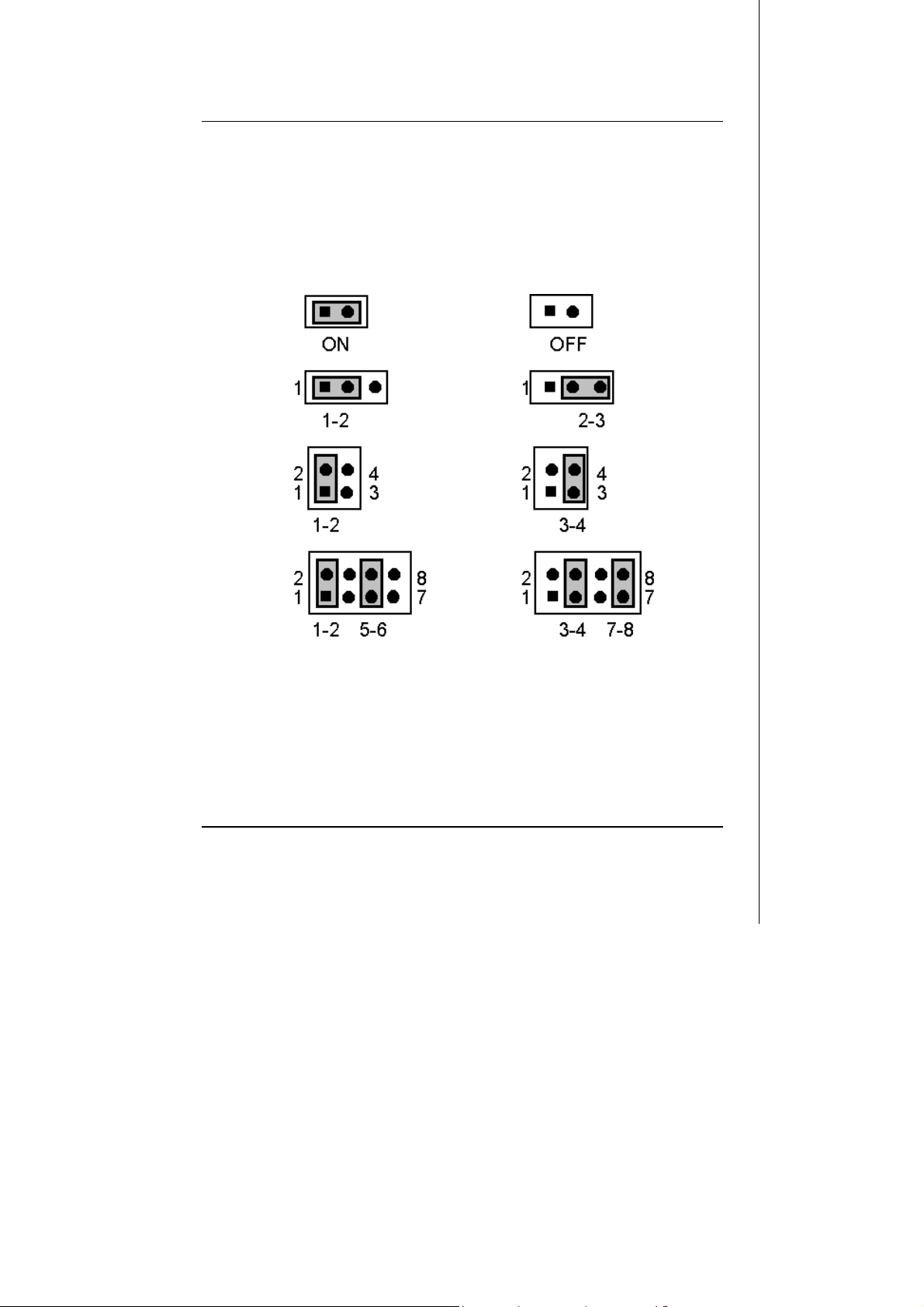

2.6 Jumper Setting Description
A jumper pin-set is ON as a shorted circuit with a plastic cap inserted
over two pins. A jumper pin-set is OFF as a open circuit with a plastic cap
inserted over one or no pin between pins. The below figure 2.2 shows the
examples of different jumper pin-set setting as ON or OFF in this
manual.
Figure 2.2
All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting may reference in this manual with a “*” symbol in front of the
selected item.
13
Page 16
2.7 Manufacture Default Setting
The HS-6300 has an on board manufacture default setting of JP1 as
following：
z
Default Setting of JP1：：：：
IOQ Depth Setting JP1
IOQ Depth of 4 *OFF
IOQ Depth of 1 ON
2.8 Setting the CPU’s Processor Core Frequency &
CPU Base Clock
z
JP2 the CPU Base Clock：：：：
CPU Clock In JP2
66MHz ON
*100MHz OFF
z
CPU’s Processor Core Frequency Setting of Jp3 ~JP6：：：：
Processor Core Frequency JP3 JP4 JP5 JP6
2.5x ON ON OFF ON
14
3.0x ON OFF ON ON
*3.5x ON OFF OFF ON
4.0x OFF ON ON ON
4.5x OFF ON OFF ON
5.0x OFF OFF ON ON
5.5x ON ON OFF ON
7.0x ON OFF OFF ON
Page 17
2.9 DiskOnChipTM Address Setting
The HS-6300 provides a U22 socket for install the DiskOnChipTM
module.
A JP7 (pin 1-2, 3-4) may select the starting memory address of the
DiskOnChip
devices. If you have another extra memory devices in the system with
the same memory, neither the HS-6011 nor the extra memory devices
will function normally. Please setting both at different memory address
mapping.
z
JP7：：：：DiskOnChipTM Address
（*）：
The D.O.C. function allows the system is in us ing without FDD or HDD.
The D.O.C. may formatting as driver C: or driver A:. User may also easily
uses the DOS’s comm ands such as FORMAT, SYS, COPY, XCOPY,
DISCOPY and DISKCOMP etc. This is means that the D.O.C. may uses
as driver A if the system without FDD-A f or am bient applic ation. Pleas e
contact with your supplier for different size D.O.C. module.
TM
for avoid the mapping area with any other memory
Memory Address Mapping JP7 3-4 JP7 1-2
D000 *OFF *ON
D800 ON OFF
default setting
15
Page 18
2.10 Watch-Dog Timer
There are three access cycles of Watch-Dog Timer as Enable, Refresh
and Disable. The Enable cycle should proceed by READ PORT 443H.
The Disable cycle after a first Enable cycle means Refresh.
Once if the Enable cycle activity, a Refresh cycle is request before the
time-out period for restart counting the WDT’s period. Otherwise, it will
assume that the program operation is abnormal when the time counting
over the period preset of WDT Timer. A system reset signal to start again
or a NMI cycle to the CPU comes if over.
The JP8 is using for select the active function of Watch-Dog Timer in
disable the Watch-Dog Timer, or presetting the Watch-Dog Timer
activity at the reset trigger, or presetting the Watch-Dog Timer activity at
the NMI trigger.
z
JP8：：：：Time of Watch-Dog
Period 1-2 3-4 5-6 7-8
*1 sec OFF OFF ON OFF
2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec OFF ON OFF ON
110 sec ON OFF OFF OFF
220 sec ON OFF OFF ON
z
JP10：：：：Watch-Dog Active Type Setting
JP8 Description
*1-2 System Reset
2-3 Active NMI
OFF Disable
The Watch-Dog Timer is disabled after the system Power On. The
Watch-Dog Timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port (443H)
and a Disable cycle by reading the Watch-Dog Timer disable control port
(043H). After a Enable cycle of WDT, user must constantly proceed a
16
Page 19
Refresh cycle to WDT before its period setting comes ending of every 1,
2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not active before
WDT period cycle, the on board WDT architecture will issue a Reset or
NMI cycl e to the system.
The Watch-Dog Timer is controlled by two I/O ports.
443H I/O Read The Enable Cycle
443H I/O Read The Refresh Cycle
043H I/O Read The Disable Cycle
The following sample programs showing how to Enable, Disable and
Refresh the Watch-Dog Timer：
WDT_EN_RF EQU 0433H
WDT_DIS EQU 0043H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get bac k AX, DX
POP AX
RET
WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get bac k AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog ti mer
IN AL,DX
POP DX ; get bac k AX, DX
RET
POP AX
17
Page 20
2.11 USB Ports Connector
The HS-6300 provides two internal 8-pin USB ports connectors. Please
refer to the following detail pin information.
z
JP12, JP13：：：：8-pin Header USB Connector
PIN No. JP12 PIN No. JP13
1 VCC 2 VCC
3 BD0- 4 BD15 BD0+ 6 BD1+
7 Ground 8 Ground
2.12 Setting the RTC Configuration
The HS-6300 provides a setting for the selection of the RTC Clear
Jumper of JP4 setting as following：
z
JP11：：：：CMOS Setting
JP11 CMOS Clear Jumper
*OFF Normal
ON Clear CMOS
2.13 System Memory DRAM
The HS-6300 provides a wide range on board DRAM memory by four
pieces DIMM sockets request the access time should be 70 n-second or
faster. The maximum capacity of the on board memory is 2GB.
See the figure on section 2.3 for get the identifying the banks.
18
Page 21
2.14 PCI VGA Controller
The HS-6300 has built-in a C&T 69000 VGA Controller. If you want to
use the external VGA Card, the BIOS will automatically disable the on
board VGA controller and use the external one.
Video Modes
C&T 69000 Chipset with 2MB memory, support resolutions up to
1280x1024 256 colors.
To get more VGA drivers information, please refer to the Intel
address：www.intel.com
z
JP14 : VGA Enable/Disable
1-2 Enable
2-3 Disable
®
Internet
19
Page 22
Chapter-3
Connection
This chapter gives all necessary information of the peripheral’s
connections, switches and indicators.
3.1 Power Connector
The HS-6300 provides one ATX power connector as following CN1 pin
information. 20-pin ATX power connector.
3.2 IDE’s LED, Keylock and Reset Button
The following provides the pin information for IDE’s LED indicator,
Keylock and Reset Button connections from CN3, CN5 and CN6.
20
z
CN3 : Power LED & Keylock
PIN NO. Description
1 Power LED Anode
2 NC
3 Ground
4 Keylock
5 Ground
z
CN6 : Reset Button
PIN NO. Description
1 External Reset
2 Ground
Page 23
z
CN5 : IDE LED Connector
PIN NO. Description
1 +5V
2 HDD Active#
3.3 External Speaker
The HS-6300 has an on board buzzer. And it also provides the CN4 in
allows user to connecting to the external speaker.
z
CN7 : Speaker Connector
PIN NO. Description
1 Speaker Signal
2 N/C
3 Ground
4 +5V
3.4 PS/2 Power ON/OFF Control
The HS-6300 reserved a JP9 for PS/2 Power ON/OFF Control.
z
JP9 : PS/2 Power ON/OFF Control
JP9 Description
Low High 1
Switch Power OFF Switch Power ON
2 GND
21
Page 24
3.5 PCI E-IDE Drive Connector
Two standard 40-pin header daisy-chain driver connectors provide as
CN11 & CN12 with following pin assignment. Total four IDE drivers may
connect.
CN7(IDE 1)：Primary IDE Connector
CN8(IDE 2)：Secondary IDE Connector
z
CN7/CN8 : IDE Interface Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND
22
Page 25
3.6 Parallel Port Connector
A standard 26-pin flat cable driver connector provides as CN12 with
following pin assignment for connection to parallel printer.
z
CN12 : Parallel Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND
23
Page 26
3.7 The Floppy Disk Drive Connector
A standard 34-pin header daisy-chain driver connector provides as
CN13 with following pin assignment. Total two FDD drivers may connect.
z
CN13 : FDD Connector
24
Page 27
3.8 Serial Ports
The HS-5010 offers two high speed NS16C550 compatible UARTs with
Read/Receive 16byte FIFO serial ports.
z
CN12 : Serial Port DB9 Connector
PIN NO. DESCRIPTION
1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 Ring Indicator (RI)
z
CN14/15 : Serial Port 10pin Header
PIN NO. Description PIN No. Description
1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC
25
Page 28
3.9 Keyboard Connector
The HS-6300 offers two possibilities for keyboard connections to
external PS/2 type keyboard at CN19, or an internal 5-pin header at CN2.
z
CN2 : 5-pin Header Keyboard Connector
PIN NO. Description
1 Keyboard Clock
2 Keyboard Data
3 N/C
4 Ground
5 +5V
z
CN19 : 6pin Mini-din Keyboard Connector
PIN NO. Description
1 Keyboard Data
2 N/C
3 Ground
4 +5V
5 Keyboard Clock
6 N/C
26
Page 29
3.10 PS/2 Mouse 6-pin Mini Din Connector
The HS-6300 provides an external PS/2 mouse connector at CN17 with
following pin information.
z
CN17 : PS/2 Mouse Connector
PIN NO. Description
1 MS Data
2 N/C
3 Ground
4 +5V
5 KBT1
6 N/C
3.11 VGA Connector
The HS-6300 provides two possible connectives of VGA connections.
One standard DB15 external VGA connector as following CN18
information.
z
CN18 : 15-pin Female VGA Connector
PIN NO. Description PIN NO. Description
1 Red 2 Green
3 Blue 4 N/C
5 Ground 6 Ground
7 Ground 8 Ground
9 N/C 10 Ground
11 N/C 12 N/C
13 HSYNC 14 VSYNC
15 N/C
27
Page 30
3.12 Flat-Panel Connector
The HS-6300 provides a 50-pin 2.0mm pitch header connector (CN9) for
3.3V Flat Panel connection with following pin assignment.
+12V 1 2 +12V
GND 3 4 GND
+3V PVcc 5 6 ENAVdd
FPVee 7 8 GND
P
P
P
P
P
P
P
P
P
P
P
P
P
SHFCLK 35 36 FLM
M 37 38 LP
GND 39 40 ENABKL
P26 41 42 P27
P28
P30 45 46 P31
P32 47 48 P33
P34 49 50 P35
9 10 P1
0
11 12 P3
2
13 14 P5
4
15 16 P7
6
17 18 P9
8
19 20 P11
10
21 22 P13
12
23 24 P15
14
25 26 P17
16
27 28 P19
18
29 30 P21
20
31 32 P23
22
33 34 P25
24
43 44 P29
28
Page 31
3.13 IR Connector
The HS-6300 provides a 5-pin internal IR communication connector as
following CN19 pin information. The CN19 provides for IrDA 1.0
specification application.
z
CN22 : 5-pin IR Connector
PIN NO. Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
29
Page 32
3.14 Fast Ethernet Connector
The Fast Ethernet controller provides with 32bit performance, PCI Bus
master capability, and full compliance with IEEE 802.3 10/100 Based-T
specifications.
For 10/100 Base-T operation, please connect the network connection by
plugging one end of the cable into the 9-pin RF-45 CN16 connector.
z
CN16 : Ethernet Connector ( 9-pin RJ-45)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX+ 2 TX3 RX+ 4 NC
5 NC 6 RX7 NC 8 NC
9 Ground
For indication out the LAN operating status, the board provides three LED
indicators in show out the status at follows：
LE1：LED indicator lighting shows 10 Based data rating
LE2：LED indicator lighting shows 100 Based data rating
LE4：LED indicator lighting shows LAN in active
z
JP15 : LAN Enable/Disable
OFF Enable
ON Disable
30
Page 33
Chapter-4
AWARD BIOS Setup
The HS-6300 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.
To access Award PCI/ISA BIOS setup program, press <Del> key.
The main menu will be displayed at this time.
31
Page 34
4.1 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press ＜Enter＞ to enter the sub-menu.
ROM PCI/ISA BIOS (2A69KD2B)
CMOS SETUP UTILITY
AWARD SOFT WARE, INC .
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS
Esc : Quit
F10 : Save & Exit
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
INTEGRATE D PERIPH ERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
HDD LOW LEVEL FORMAT
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
ÇÈÆÅ
(Shift)F2 : Change Color
: Select Item
32
Page 35
4.2 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the IDE
Setup Utility in BIOS Setup to install the HDD correctly.
ROM PCI/ISA BIOS (2A69KD2B)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Data (mm:dd:yy) : Fri, Oct 19 1999
Time (hh:mm:ss) : 00:00:00
CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master
Primary Slave
Secondary Master
Secondary Slave
Drive A : 1.44M, 3.5in
Drive B : None
Base Memory : 640K
Video : AUTO Extended Memory : 64512K
Other Memory : 384K
Halt On : All Errors Total Memory : 65536K
ESC : Quit
F1 : Help
Nono 0 0 0 0 0 AUTO
:
Nono 0 0 0 0 0 AUTO
:
Nono 0 0 0 0 0 AUTO
:
Nono 0 0 0 0 0 AUTO
:
: Select Item
ÇÈÆÅ
(Shift) F2: Change Color
PU/PD/ + / - : Modify
33
Page 36
4.3 BIOS Features Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot up sequence, keyboard operation, shadowing and
security.
ROM PCI/ISA BIOS (2A69KD2B)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFFF Shadow : Disabled
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled
Processor Number Feature : Enabled D4000-D7FFF Shadow : Disabled
Quick Power On Self Test : Disabled D8000-DBFFF Shadow : Disabled
Boot From LAN First : Disabled DC000-DFFFF Shadow : Disabled
Boot Sequence : A, C, SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
MPS Version Control For OS : 1.1 ESC : Quit
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify
Report No FDD For WIN95 Yes F5 : Old Values (Shift) F2 : Color
G6 : Lo ad BI OS Defaults
G7 : Lo ad Setup Defaults
ÇÈÆÅ
: Select Item
34
Page 37
4.4 Chipset Features Setup
This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.
ROM PCI/ISA BIOS (2A69KD2B)
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
Auto Configuration : Enabled Auto Detect DIMM/PCI Clk : Enabled
EDO DRAM Speed Selection : 60ns Spread S pectrum : Disabled
EDO CASx# MA Wait State : 2 Current CPU Temperature : *35°C
EDO RASx# Wait State : 1 Current CPU Temperature : *35°C
SDRAM RAS-to-CAS Delay : 3
SDRAM RAS Precharge Time : 3
SDRAM CAS latency Time : 3
SDRAM Orecharge Control : Disabled
DRAM Date Integrity Mode : Non-ECC
System BIOS Cacheable : Enabled
Video BIOS Cacheable : Enabled
Video RAM Cacheable : Enabled
8 Bit I/O Recovery : 1
16 Bit I/O Recovery : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled ESC : Quit
Delayed Transation : Disabled F1 : Help PU/PD/+/-: Modify
AGP Aperture Size : 64 F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
ÇÈÆÅ
: Select Item
35
Page 38
4.5 Integrated Peripherals
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from the
disk drive, PIO allows the BIOS to tell the controller what it wants and
then let the controller and the CPU perform the complete task by
them. This is much simpler and more efficient (also faster).
ROM PCI/ISA BIOS (2A69KD2B)
INTEGRATE D PERIPH ERALS
AWARD SOFTWARE, INC.
IDE HDD Block Mode : Enabled Onboard Serial Port 2 : 2F8/IRQ3
IDE Primary Master PIO : Auto UART Mode Select : Normal
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto Onboard Parallel Port : 378/IRQ7
IDE Secondary Slave PIO : Auto Parallel Port Mode : SPP
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Secondary Master UDMA : Auto LCD Panel Type : Panel5
IDE Secondary Slave UDMA : Auto
On Chip Primary PCI IDE : Enabled
On Chop Secondary PCI IDE : Enabled
USB Keyboard Support : Disabled
Init Display First : PCI Slot
Power On Function : Any Key
KB Power ON Password : Enabled
Hot Key Power ON : Ctrl-F1
KBC input clock : 8 MHz
On board FDC C ontroller : Enabled
Onboard Serial Port1 : 3F8/IRQ4
ESC : Quit
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
ÇÈÆÅ
: Select Item
36
Page 39
4.6 Power Management Setup
The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
ROM PCI/ISA BIOS (2A69KD2B)
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
ACPI function : Enabled ** Reload Global Timer Events **
Power Management : User Define IRQ3 [3-7, 9-15], NMI : Disabled
PM Control by APM : Yes Primary IDE0 : Disabled
Video Off Method : V/H Sync + Blank Primary IDE1 : Disabled
Video Off After : Standby Secondary IDE0 : Disabled
Modem Use IRQ : 3 Secondary IDE1 : Disabled
Doze Mode : Disabled Floppy Disk : Disabled
Standby Mode : Disabled Serial Port : Enabled
Suspend Mode : Disabled Parallel Port : Disabled
HDD Power Down : Disabled
Throttle Duty Cycle : 62.5%
PCI/VGA Act-Monitor : Disabled
Soft-Off by PWR-BTTN : Instant-Off
Power On by Ring : Enabled
Resume by Alarm Disab led ESC : Quit
F1 : Help PU/PD/+/-: Modify
IRQ 8 Break Suspend : Disabled F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
: Select Item
ÇÈÆÅ
37
Loading...
