Boser HS-6254, HS-6654 User Manual

HS-6254/HS-6654

VIA V4 Eden processor

PCI-ISA Bus/ISA Bus SBC

•CompactFlash•SO-DDRII•CRT/LVDS•

•Dual LAN•Audio•Serial ATA•

•ATA/33/66/100•RS-232/422/485•4 COM•

•USB2.0•PC/104•DOC•WDT•H/W Monitor•

Copyright Disclaimers

The accuracy of contents in this manual has passed through checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The

not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,

of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the contents of

this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.

T

r

a

d

e

m

T

r

T

r

BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

a

a

d

e

m

a

a

d

e

m

a

r

k

s

r

k

s

r

k

s

electronic, mechanical, photocopying, recording)

manufacturer will

© Copyright 2008 BOSER Technology Co., Ltd.

All Rights Reserved.
Edition 1.9, April 6, 2010

Table of Contents

Chapter 1 General Description ..................................1

1.1 Major Features....................................................................... 2

1.2 Specifications ........................................................................ 3

1.3 Board Dimensions................................................................. 5

Chapter 2 Unpacking .................................................. 7

2.1 Opening the Delivery Package............................................. 7

2.2 Inspection............................................................................... 7

Chapter 3 Hardware Installation ..............................9

3.1 Before Installation ................................................................. 9

3.2 Board Layout ....................................................................... 10

3.3 Jumper List .......................................................................... 11

3.4 Connector List ..................................................................... 11

3.5 Configuring the CPU ........................................................... 12

3.6 System Memory................................................................... 12

3.7 VGA Controller .................................................................... 12

3.8 PCI E-IDE Drive Connector................................................. 14

3.9 Serial ATA Connector ......................................................... 14

3.10 Floppy Disk Drive Connector ............................................. 15

3.11 Serial Port Connectors ....................................................... 16

3.12 Ethernet Connector............................................................. 17

3.13 USB Connector.................................................................... 18

3.14 CMOS Data Clear................................................................. 18

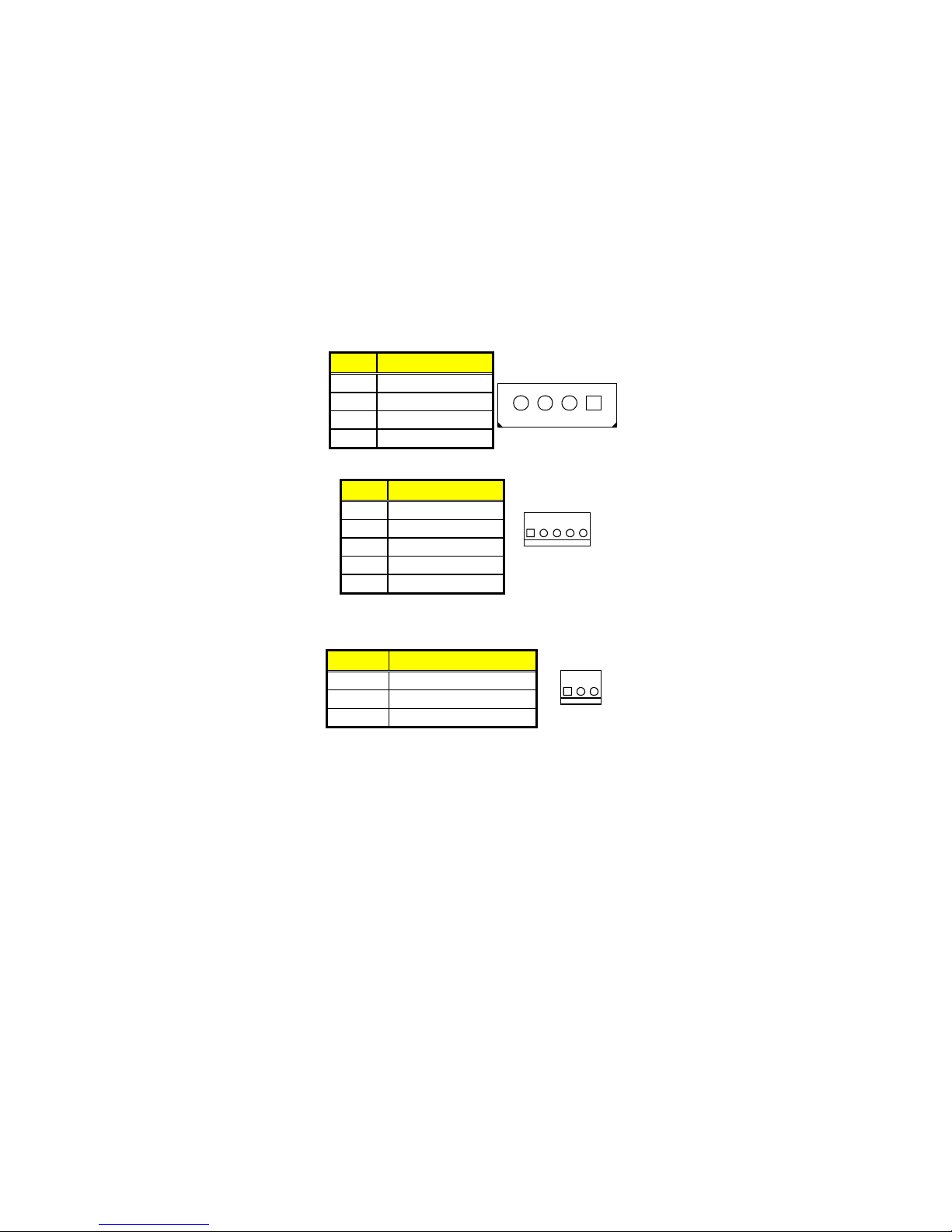

3.15 Power and Fan Connectors................................................ 19

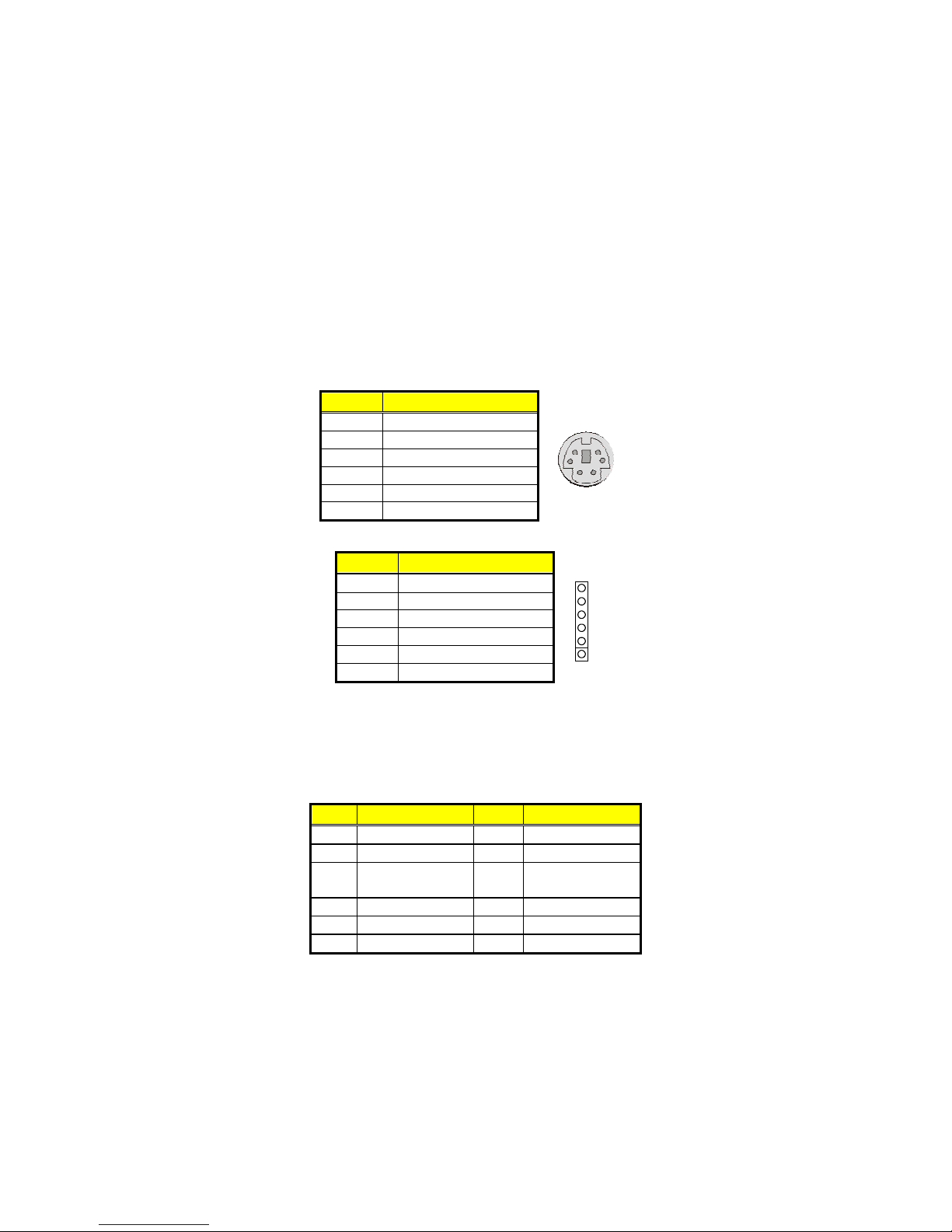

3.16 Keyboard/Mouse Connectors ............................................ 20

3.17 System Front Panel Control ............................................... 20

3.18 Watchdog Timer .................................................................. 21

3.19 PC/104 Connectors ............................................................. 22

3.20 Audio Connectors ............................................................... 25

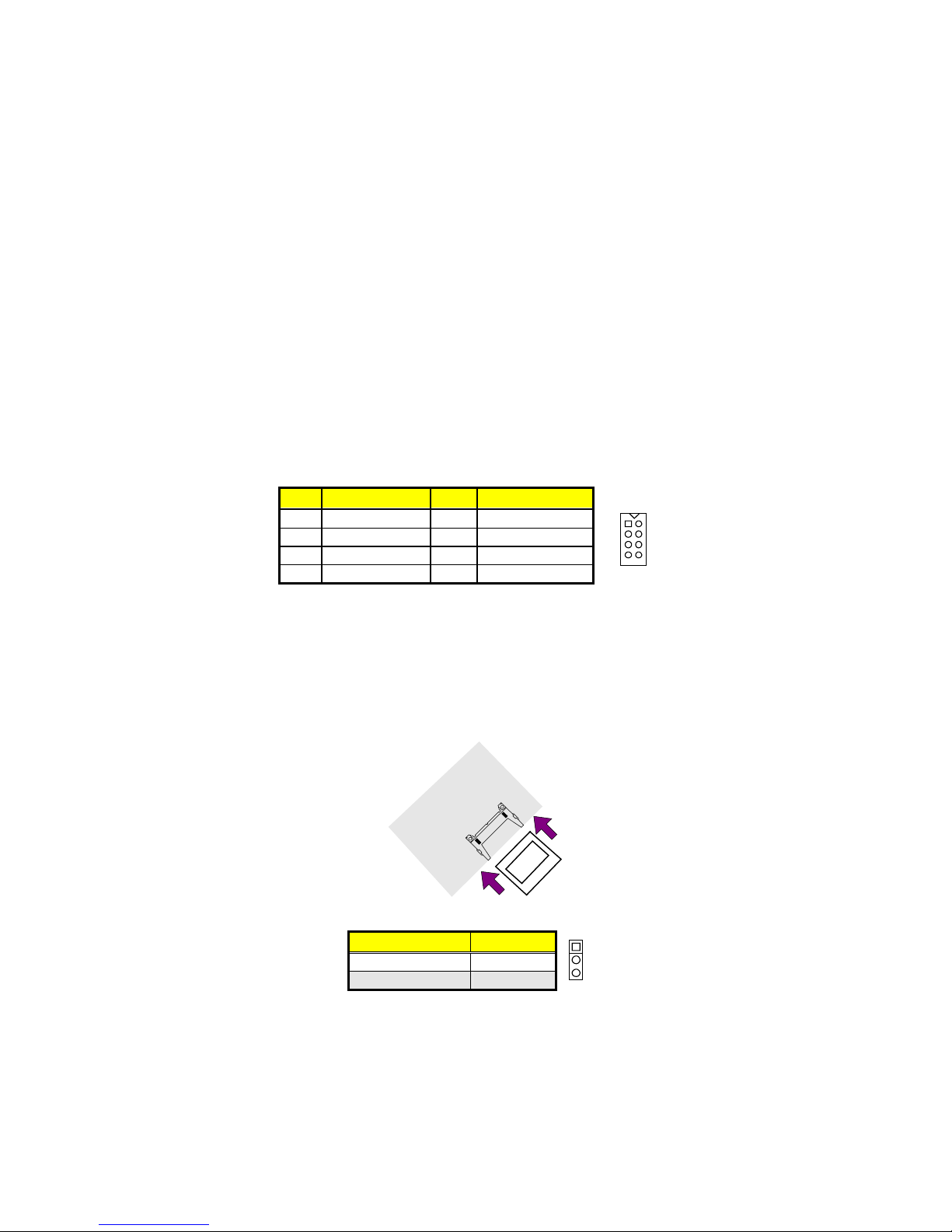

3.21 CompactFlash Connector................................................ 25

Chapter 4 AMI BIOS Setup..................................... 27

4.1 Starting Setup...................................................................... 27

4.2 Using Setup ......................................................................... 28

4.3 Main Menu............................................................................ 29

4.4 Advanced Settings.............................................................. 30

4.5 Advanced PCI/PnP Settings............................................... 35

4.6 Boot Settings ....................................................................... 36

4.7 Security Settings ................................................................. 37

4.8 Advanced Chipset Settings................................................ 37

4.9 Exit Options ......................................................................... 40

Chapter 5 Award BIOS Setup .................................41

5.1 Starting Setup...................................................................... 41

5.2 Using Setup ......................................................................... 42

5.3 Main Menu............................................................................ 43

5.4 Standard CMOS Features................................................... 44

5.5 Advanced BIOS Features ................................................... 45

5.6 Advanced Chipset Features............................................... 46

5.7 Integrated Peripherals ........................................................ 48

5.8 Power Management Setup ................................................. 50

5.9 PnP/PCI Configurations...................................................... 51

5.10 PC Health Status ................................................................. 52

5.11 Frequency/Voltage Control ................................................ 52

Chapter 6 Software Utilities.....................................53

6.1 VGA Driver Installation ....................................................... 53

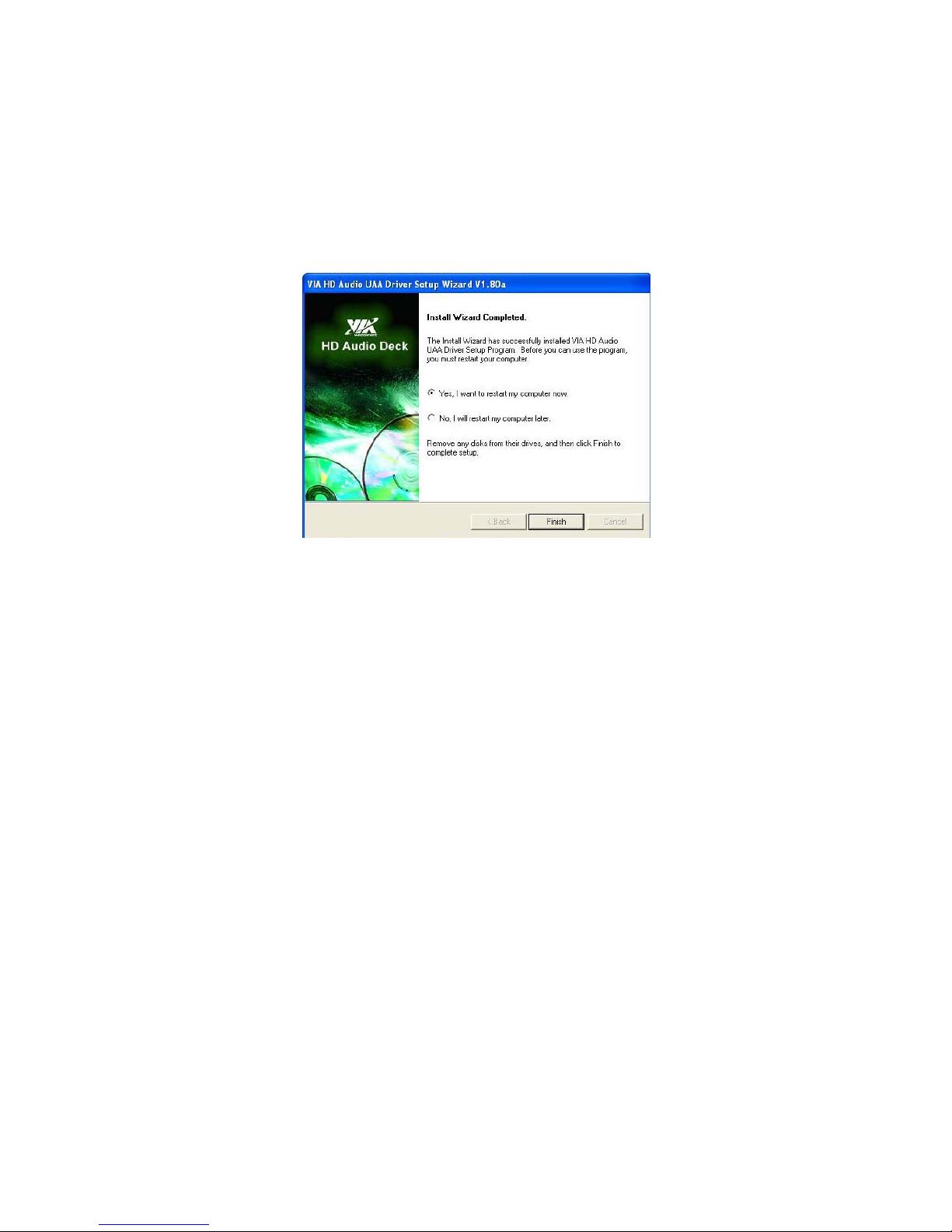

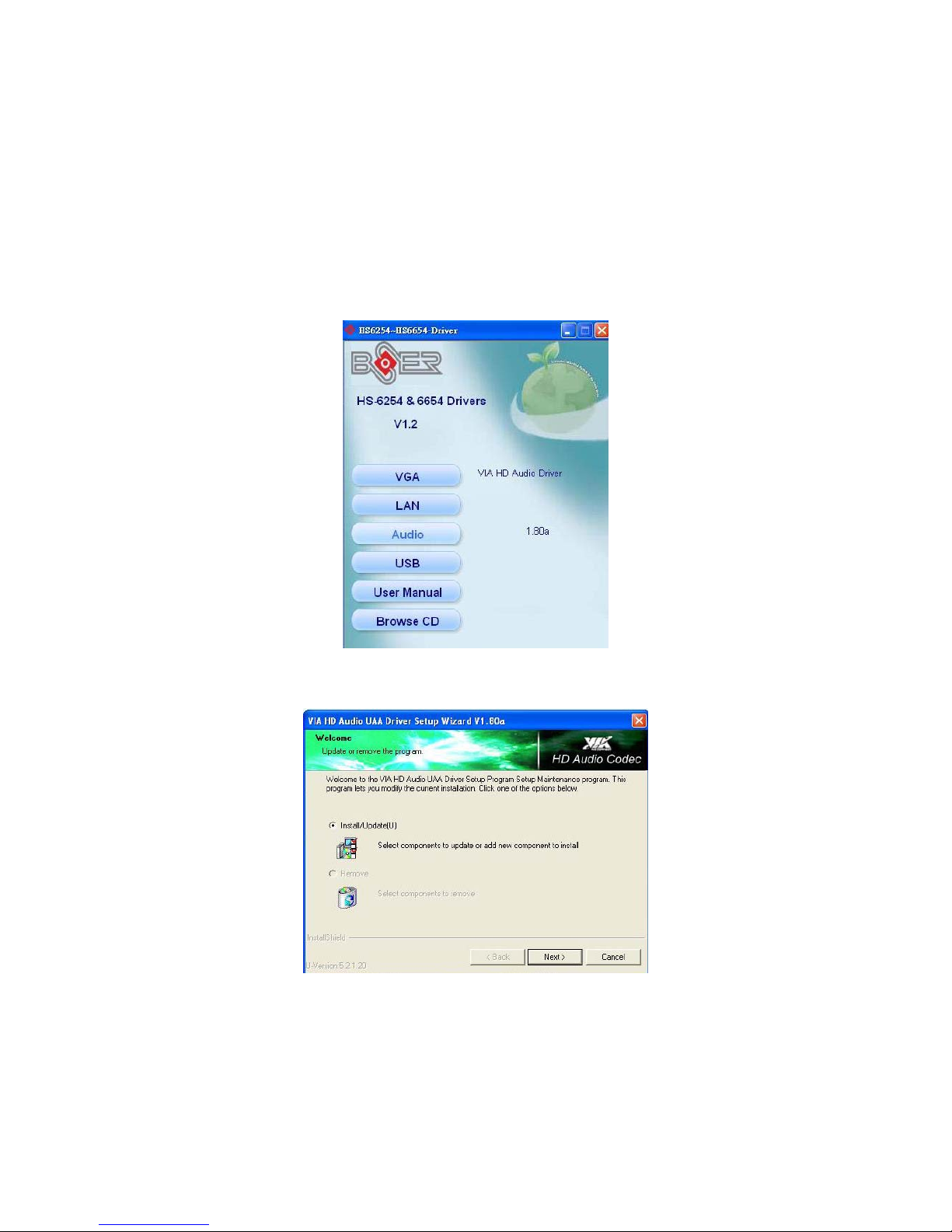

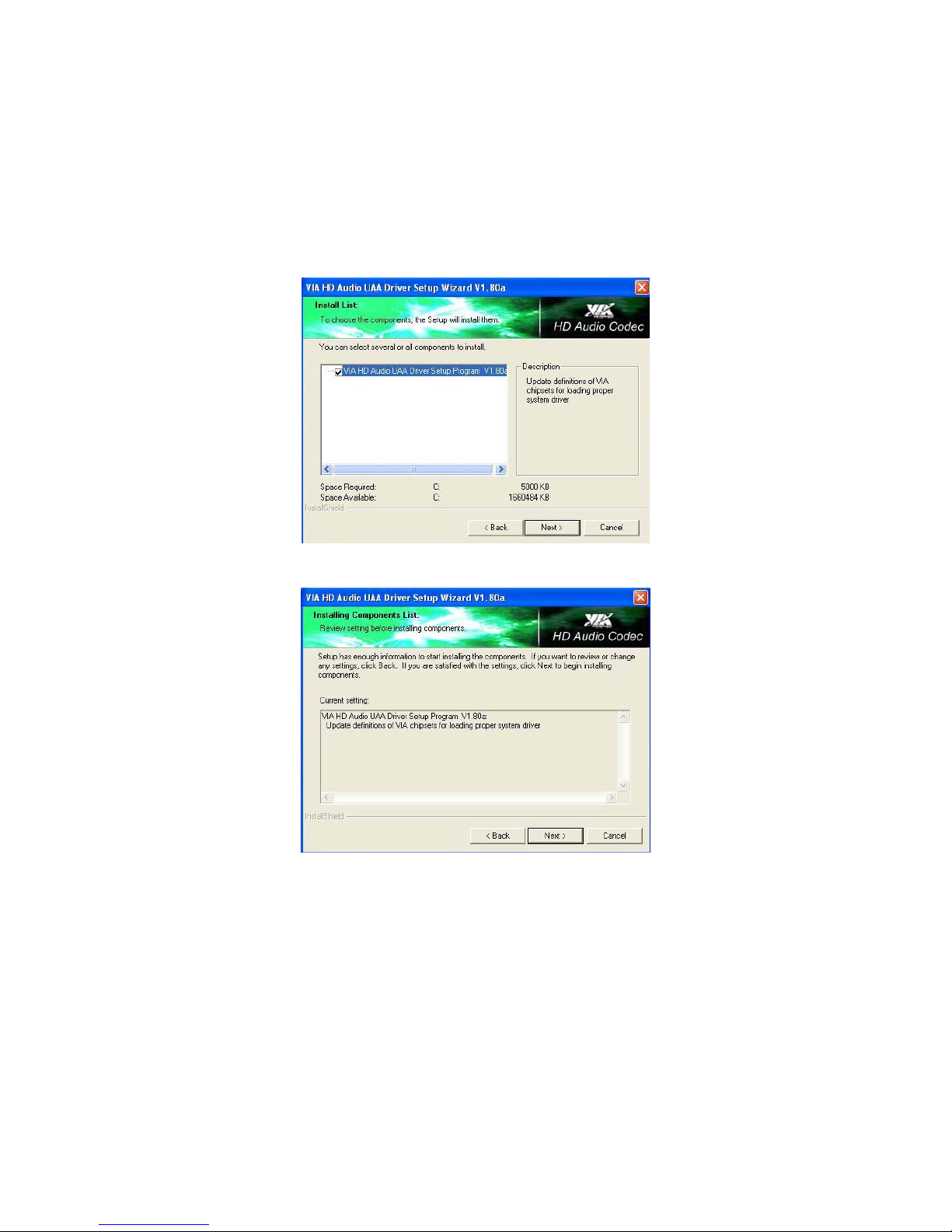

6.2 Audio Driver Installation..................................................... 55

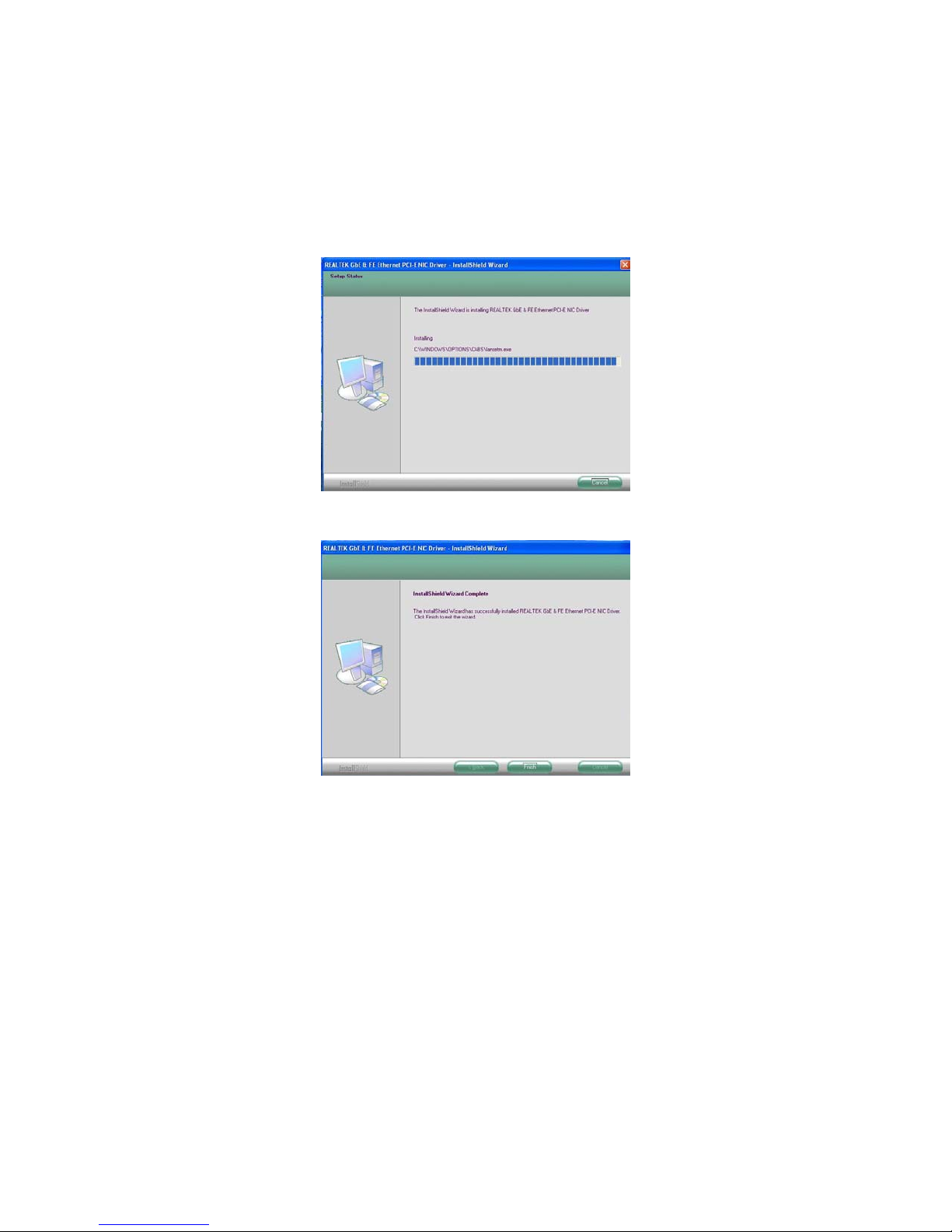

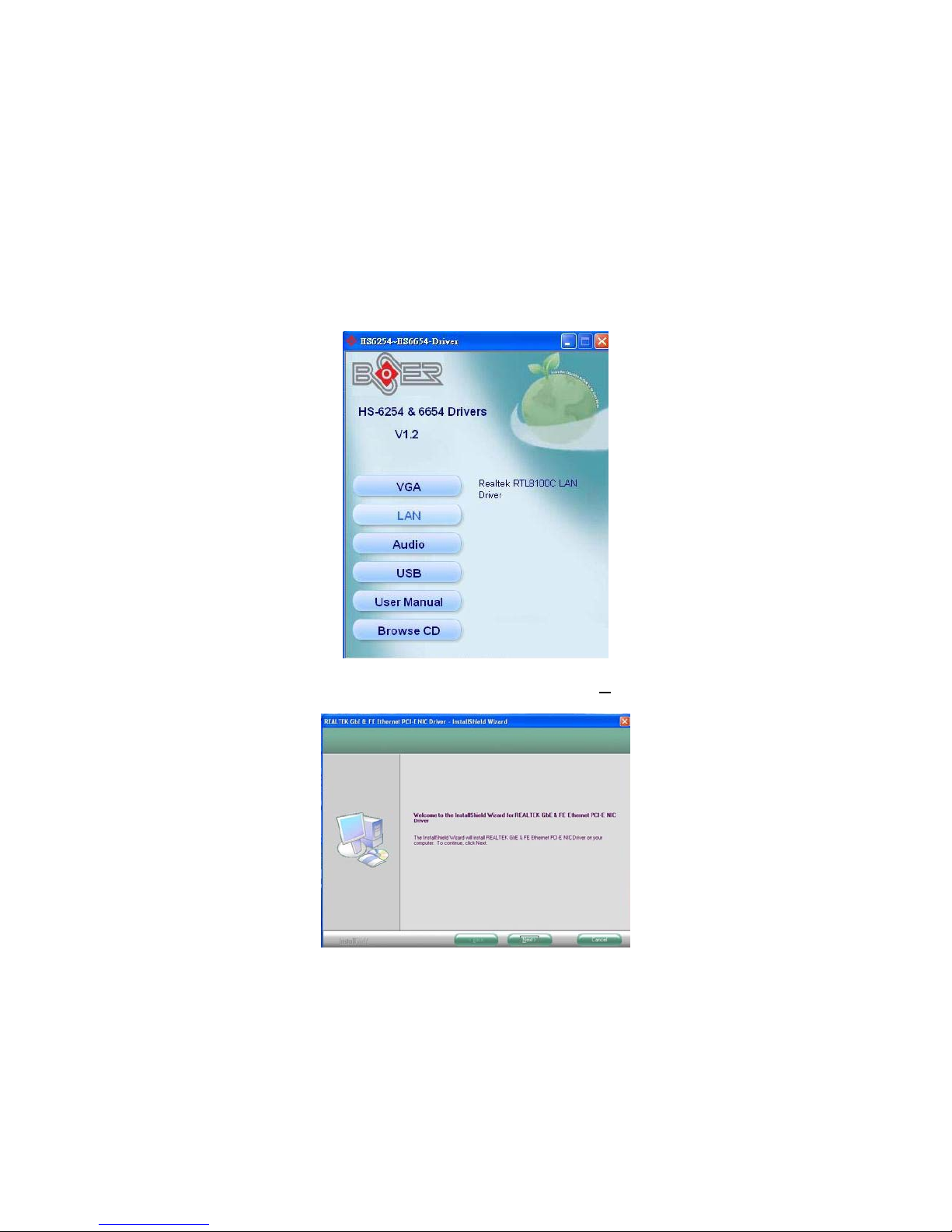

6.3 LAN Driver Installation........................................................ 59

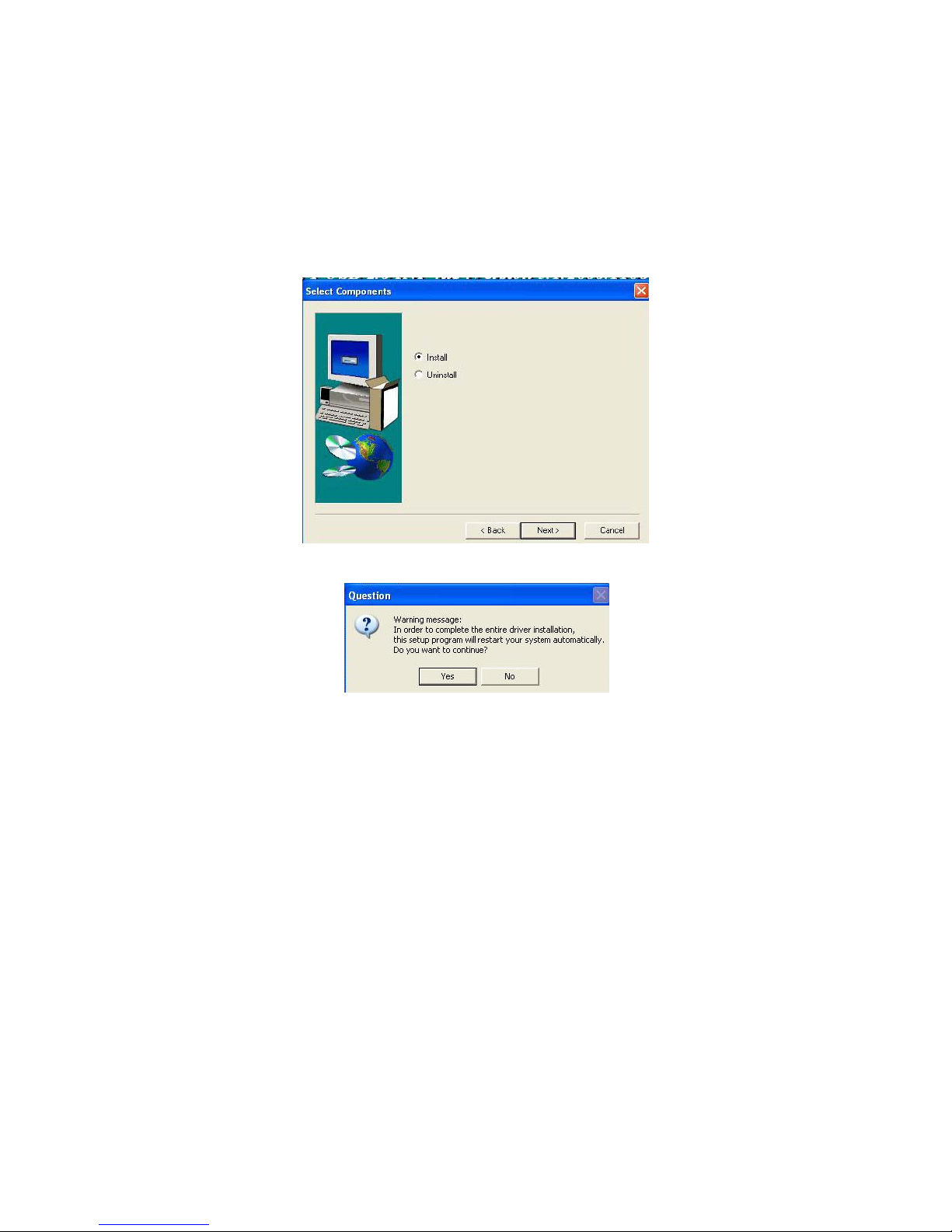

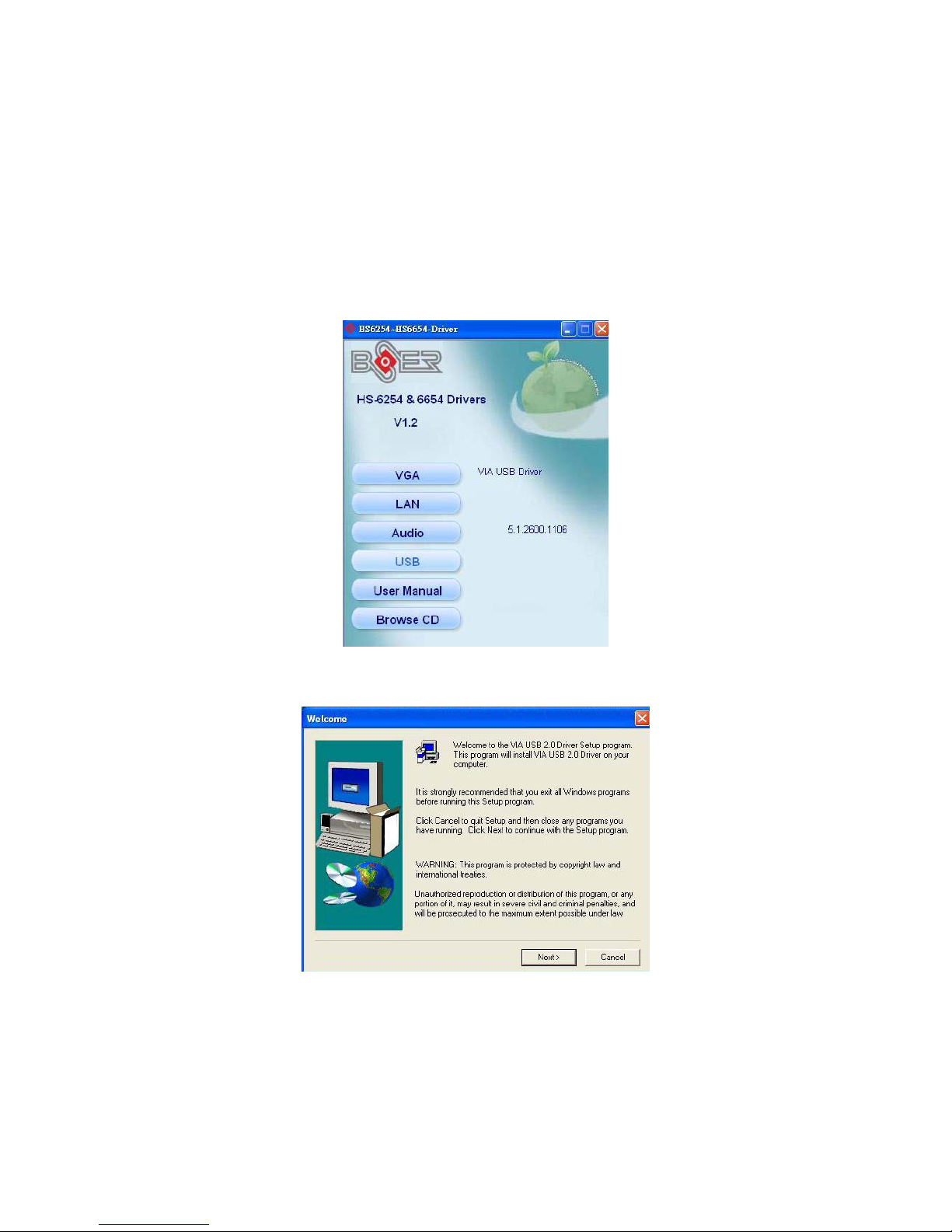

6.4 USB2.0 Driver Installation .................................................. 61

Declaration of Conformity -- CE Mark

BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:

Equipment Class: Information Technology Equipment
Product Model Series: HS-6254, HS-6654
This Product Complies With: EN55022: Class A for Radiated emissions

EN50082-2: Heavy Industrial EMC Immunity

We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.

Manufacturer:

BOSER TECHNOLOGY CO., LTD.

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:



Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the product to ensure
harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or parts or

tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

Chapter 1

General Description

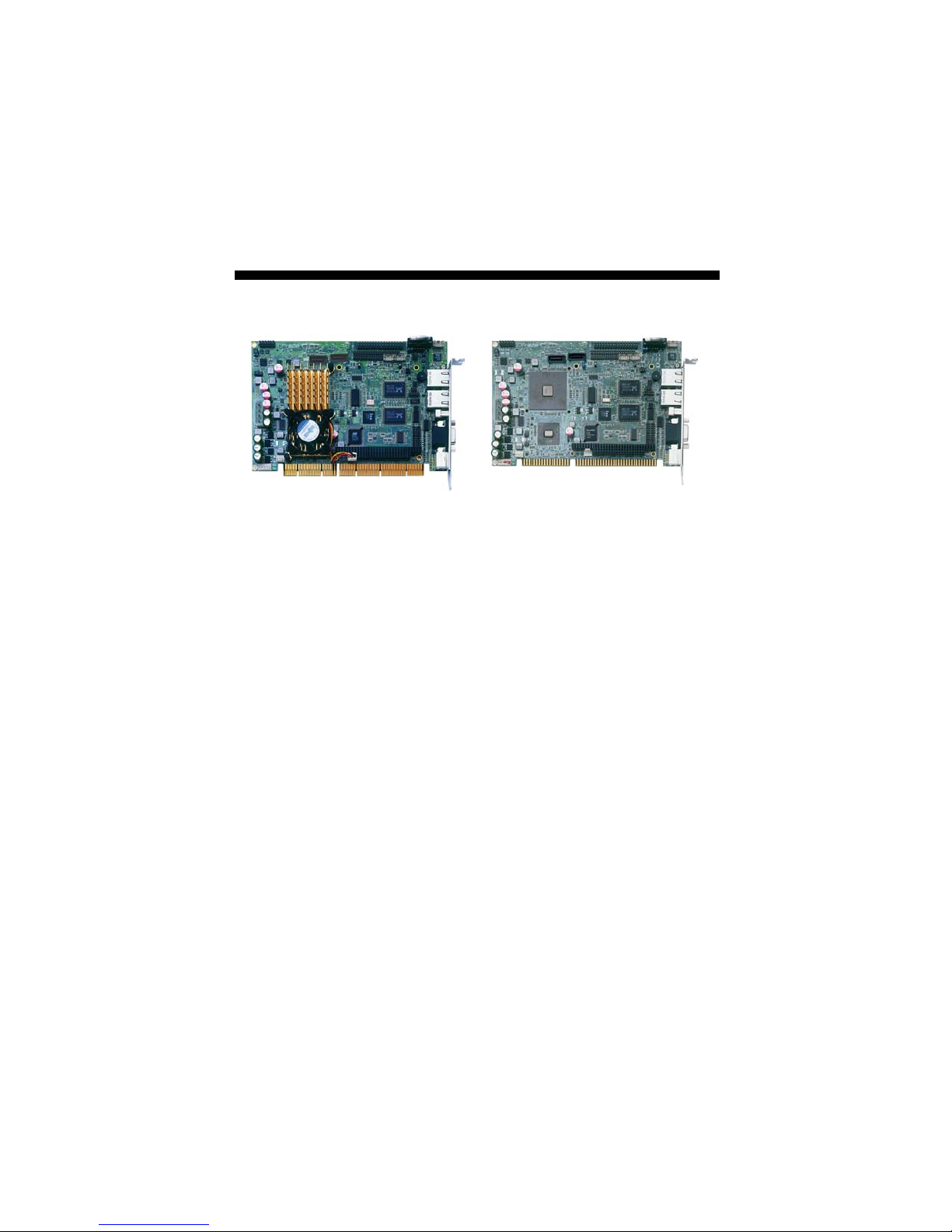

HS-6254 HS-6654

The HS-6254/HS-6654 is a VIA CX700(M) chipset-based board
designed. The HS-6254/HS-6654 is an ideal all-in-one single board
computer. Additional features include an enhanced I/O with CF,
CRT/LVDS, dual LAN, audio, SATA, 4 COM, USB2.0, and PC/104
interfaces.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-6254/HS-6654 to support data transfers of 33, 66 or
100MB/sec. to one IDE drive connection. Designed with the VIA
CX700(M), the board supports VIA V4 Eden 1GHz CPU.

The VIA CX700(M) with 32/64/128MB shared main memory supporting
CRT/Panel displays up to 1920 x 1440. It also supports 24-bit
single/dual-channel LVDS interface supporting up to 1600 x 1200.

System memory is also sufficient with the one SO-DDRII socket that
can support up to 1G.

Additional onboard connectors include five USB2.0 ports providing
faster data transmission. And two external RJ-45 connectors for
10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system
watchdog timer (WDT) onboard HS-6254/HS-6654 is designed with
software that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard WDT will automatically reset the CPU or generate an interrupt
to resolve such condition.

, the

1

1.1 Major Features

2

The HS-6254/HS-6654 comes with the following features:

 VIA C7 or V4 Eden processor 1GHz, supports 800/400MHz FSB
 1 x SO-DIMM up to 1GB DDR2 SDRAM
 VIA CX700(M) system chipset
 VIA CX700(M) integrated VGA for CRT & LVDS
 2 x 10/100 Mbps ethernet
 AC’97 audio codec
 Supports CF, 2 x SATA, 4 x COM, 5 x USB2.0, PC/104, DOC
 Supports 24-bit LVDS, H/W Monitor function

1.2 Specifications

System

 CPU

VIA V4 Eden processor 1GHz
VIA C7 processor 1GHz

 FSB

800/400MHz FSB

 BIOS

Award PnP Flash BIOS

 System Chipset

VIA CX700(M)

 I/O Chipset

Winbond W83697UF

 System Memory

1 x 200-pin SO-DIMM socket DDR2 533MHz up to 1GB

 Storage

1 x Type II CF socket
1 x M-Systems DiskOnChip

 Watchdog Timer

Software programmable time-out intervals from 1~255 sec. or 1~255
min.

 H/W Status Monitor

Monitoring temperatures, voltages, and cooling fan status (only for PCB
VER:0.5 or later version)

 Expansion Slot

PC/104

 Operating Temperature

0~60 degrees C

 Operating Humidity

0~95%, non-condensing

 Size (L x W)

186 x 122 mm

3

I/O Interface

 MIO

3 x RS-232
1 x RS-232/422/485
5 x USB2.0 (4 x interface, 1 x external)
1 x IDE
1 x FDD
2 x SATA
1 x PS/2 for KB/MS
1 x 6-pin header for PS/2 KB/MS

Display

 Chipset

VIA CX700(M)

 Display Memory

32/64/128MB video memory

 LVDS

24-bit single/dual-channel

 Resolution

CRT Mode: 1920 x 1440
LVDS Mode: 1600 x 1200

Audio

 Chipset

VIA VT1708A

 Audio Interface (w/pin header)

MIC In, Line Out

Ethernet

 Chipset

Dual RealTek RTL8100C 10/100 Mbps LAN

 Ethernet Interface

2 x RJ-45

4

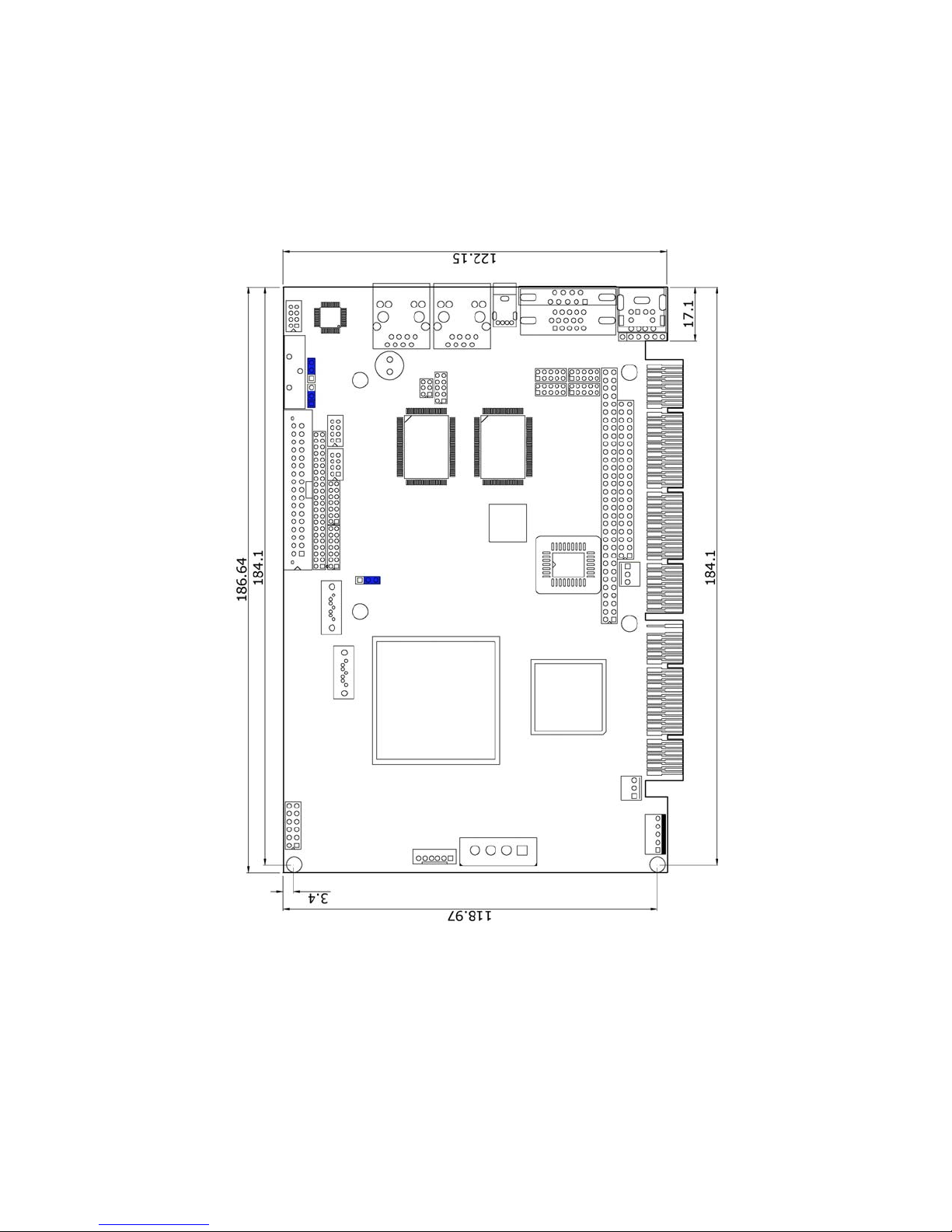

1.3 Board Dimensions

5

This page is the blank page.

6

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6254/HS-6654 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-6254/HS-6654 delivery
package contains the following items:

 HS-6254/HS-6654 Board x 1
 Utility CD Disk x 1, including User’s manual
 Cables (as following table)

7

Cables Package

NO. Description QTY.

1 SPK 8P(2.0) phone jack x 2 27cm w/bracket 1
2 2RS232 (2.0-pitch) w/bracket 1
3 FDC 34P(2.54)*3 56cm 1
4 1-to-2 Mini DIN cable 19cm 1
5 5P ATX Power Control 38cm 1
6 SATA device cable 50cm (w/lock) 1

It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

Option Accessories

NO. Description

1 SATA power cable 15cm
2 1-to-2 USB cable w/bracket
3 2RS232 (2.0-pitch) w/bracket
4 40P(2.54)*2 to 44P(2.0)*2 IDE flat cable 48.5cm

8

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware
using the HS-6254/HS-6654. This chapter also contains information
related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (JP5, short 1-2)

2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future
reference and use.

9

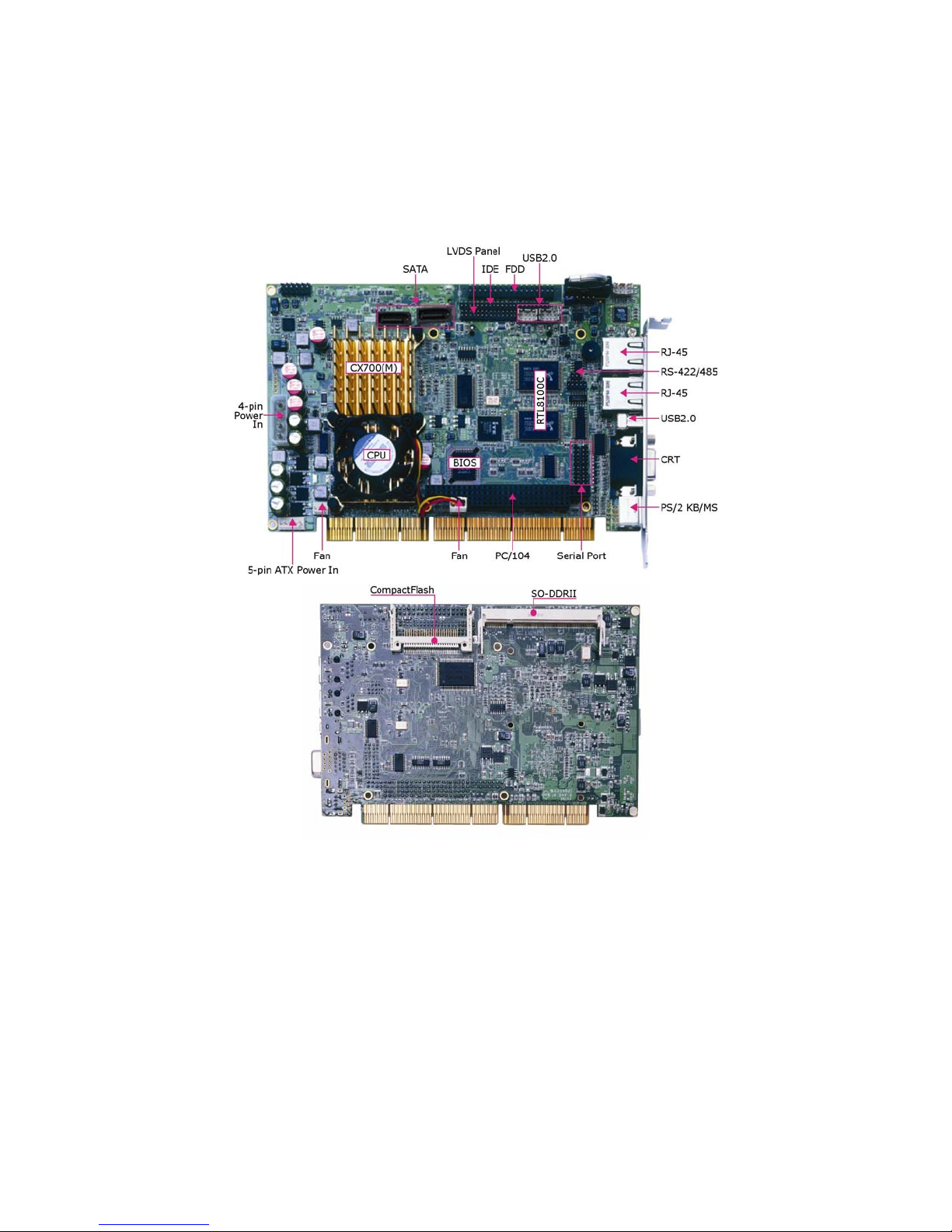

3.2 Board Layout

10

3.3 Jumper List

Jumper Default Setting Setting Page

JP1

JP5 Clear CMOS: Normal Operation Short 1-2 17
JP8 CF Use Master/Slave Select: Slave Short 2-3 25

JP10 Panel Voltage Select: +3.3V Short 2-3 10

COM4 Use RS-232 or RS-422/485 Select:
RS-232

Open 15

3.4 Connector List

Connector Definition Page

CN1 Inverter Power Connector 10
CN2 4-pin Power Connector 18
CN3 5-pin ATX Power Connector 18

CN4 System Front Panel Control 19
CN5/CN8 Fan Power Connector 18
CN6/CN7 Serial ATA Connector 13

CN9/CN10 LVDS Panel Connector 10

CN11 IDE Connector 12

CN12/CN14 PC/104 Bus 64-pin/40-pin Connector 22

CN13 Floppy Connector 14

CN15/CN16 Internal USB2.0 Port 17

CN19/CN17/CN20/CN32 COM 1~COM 4 Connector (5x2 header) 15

CN21 PS/2 6-pin Mini DIN KB/MS Connector 19

CN23/CN24 RJ-45 Connector 16

CN25 15-pin CRT Connector 10
CN28 External USB2.0 Port 17
CN27 6-pin KB/MS Connector 19
CN29 COM 1 (DB9) 15
CN30 CompactFlash Connector 25
CN31 SO-DDRII Socket 10
CN33 MIC In/Line Out Connector 24

JP6 RS-422/485 Connector (3x2 header) 15

11

3.5 Configuring the CPU

The HS-6254/HS-6654 embedded with VIA V4 Eden processor

1.0GHz CPU. User don’t need to adjust the frequently and check
speed of CPU.

3.6 System Memory

The HS-6254/HS-6654 provides one SO-DDRII socket at locations
CN31. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The HS-6254/HS-6654 provides two connection methods of a VGA
device. CN25 offers a single standard CRT connector and CN9/CN10
are the LVDS interface connectors onboard reserved for flat panel
installation.

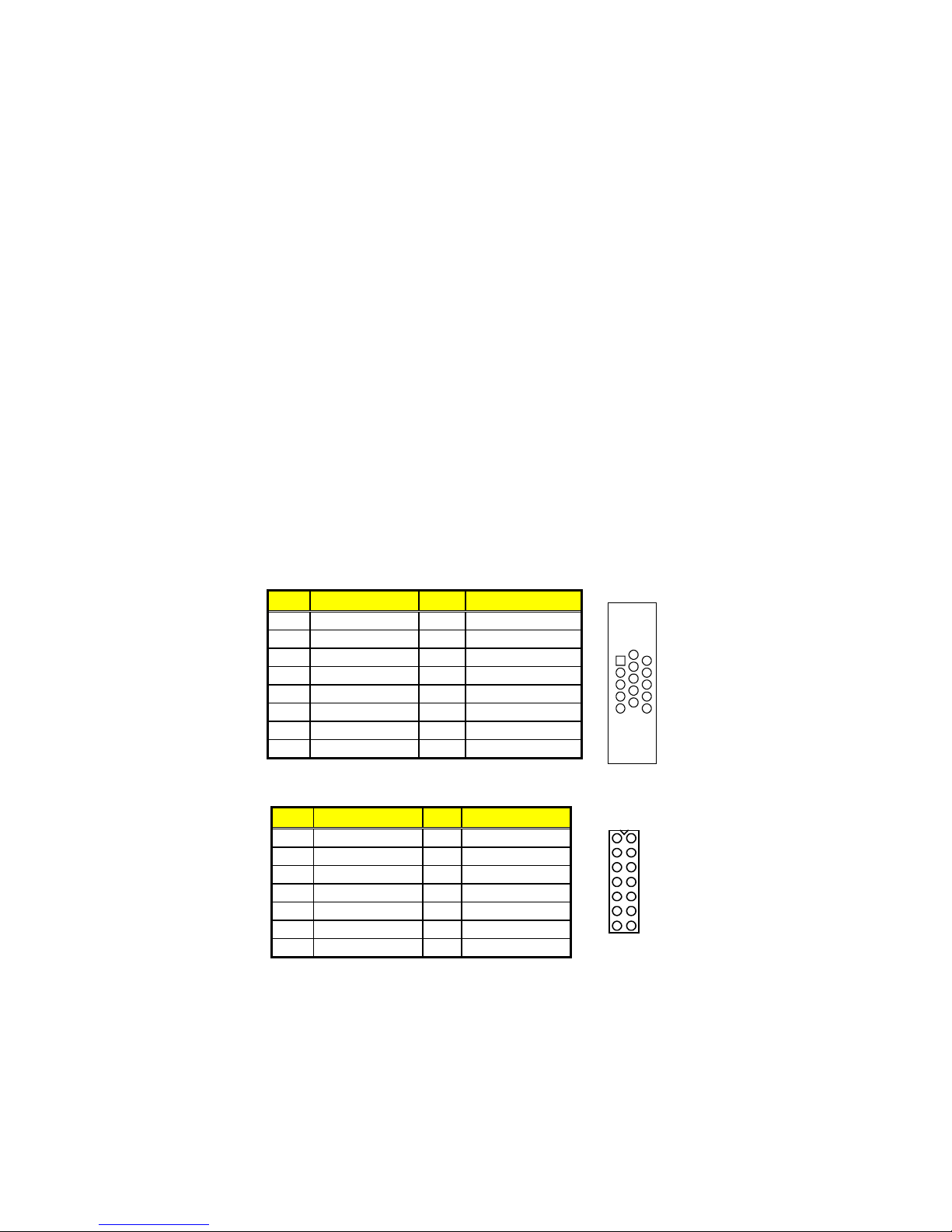

 CN25: 15-pin CRT Connector

PIN Description PIN Description

1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND

9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL

 CN9/CN10: LVDS Interface Connector

PIN Description PIN Description

1 V
3 GND 4 GND
5 Y0-/Z0- 6 Y0+/Z0+
7 Y1-/Z1- 8 Y1+/Z1+

9 Y2-/Z2- 10 Y2+/Z2+
11 CLK- 12 CLK+
13 Y3-/Z3- 14 Y3+/Z3+

2 V

LCD

LCD

13 14

11

6

1

10

5

15

12

12

NOTE: LVDS cable should be produced very carefully. Y0- & Y0+ have to

be fabricated in twister pair (Y1- & Y1+, Y2- & Y2+ and so on)
otherwise the signal won’t be stable. Please set the proper voltage
of your panel using JP10 before proceeding on installing it.

NOTE: If use CN9 only, it just supports 24-bit single channel LVDS panel;

If you want to use 48-bit dual channel LVDS panel, please use CN9
and CN10 combined.

The HS-6254/HS-6654 has an onboard jumper that selects the working
voltage of the flat panel connected to the system. Jumper JP10 offers
two voltage settings for the user.

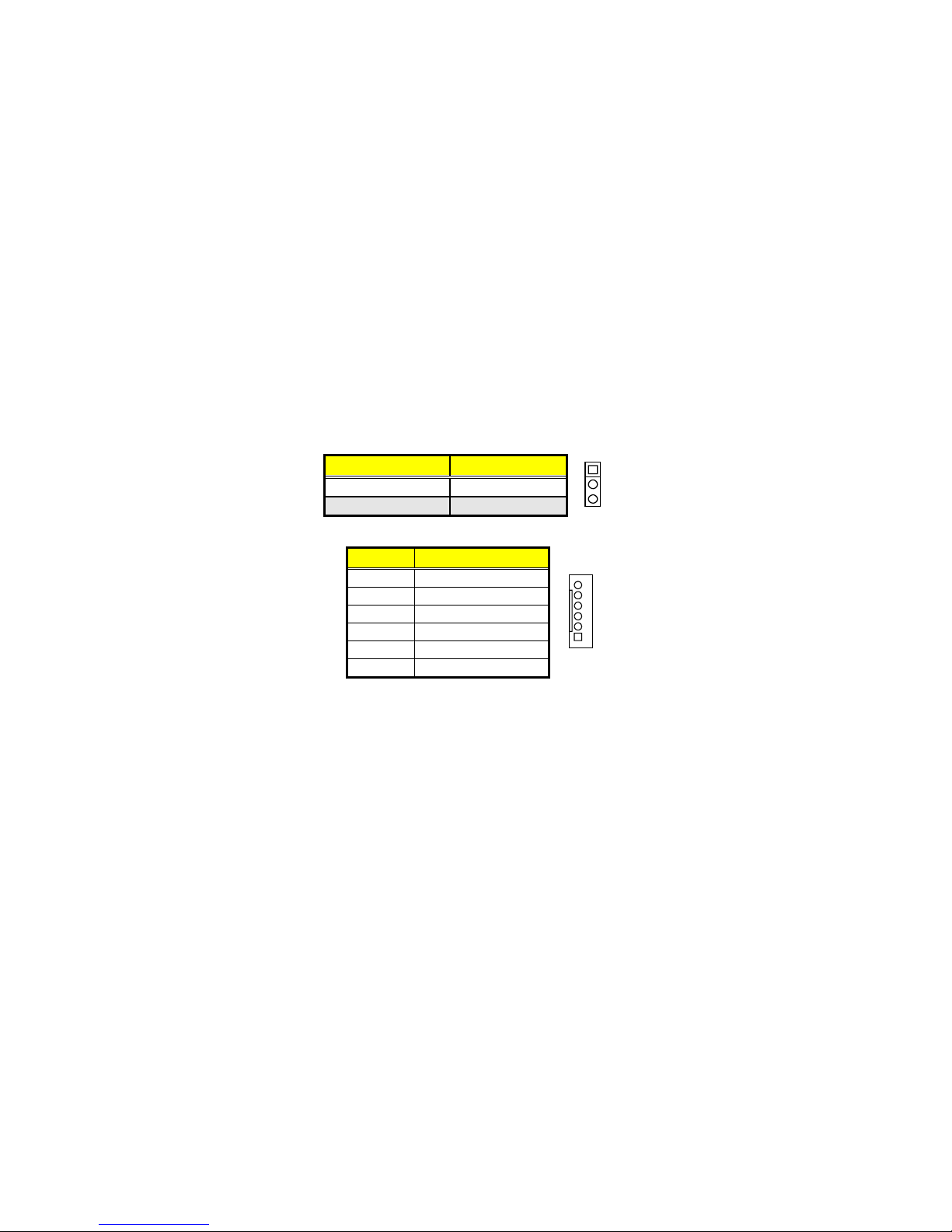

 JP10: Panel Voltage Select

Options Settings

+5V Short 1-2

+3.3V (default) Short 2-3

1

3

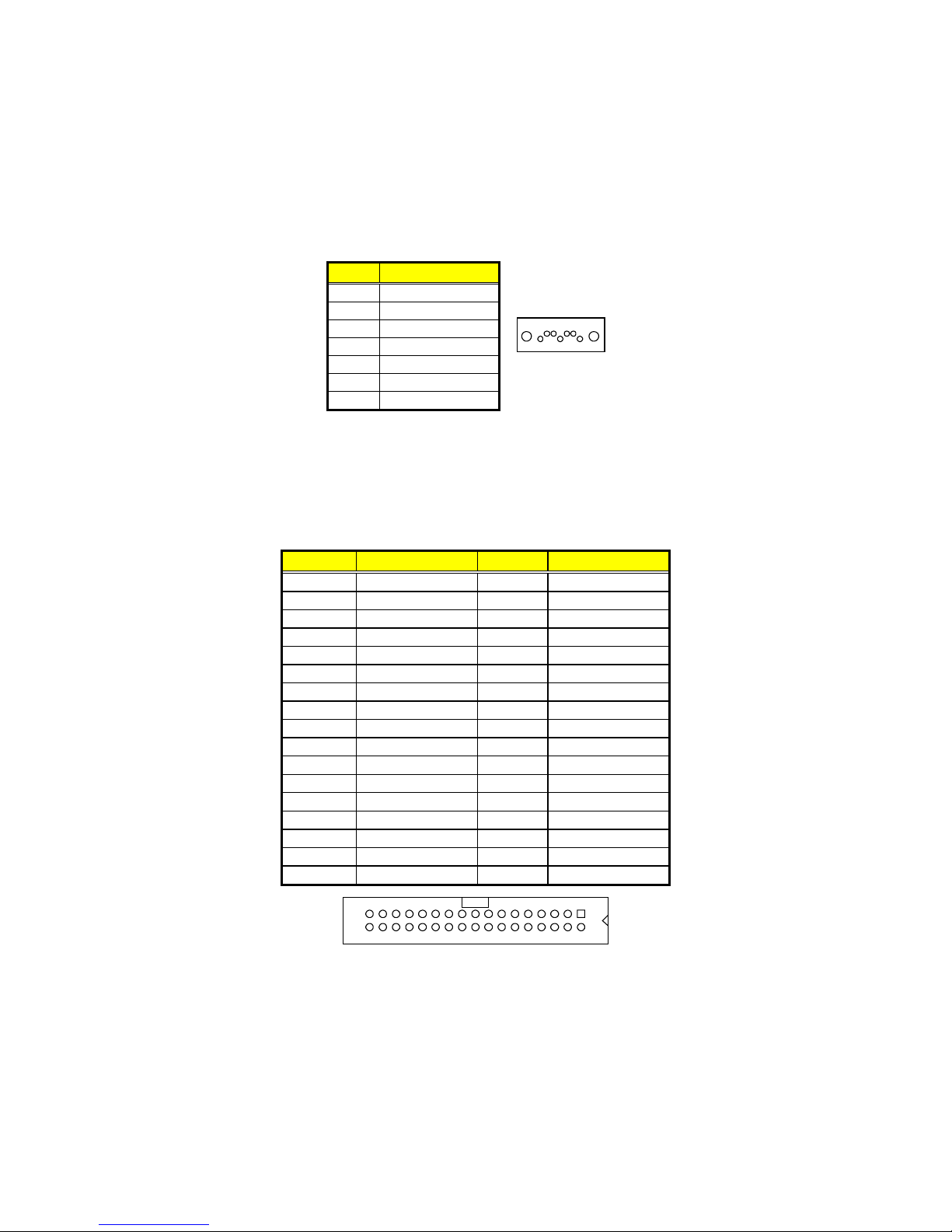

 CN1: Inverter Power Connector

PIN Description

1 N/C
2 N/C
3 +5V
4 BK_EN
5 ENVDD
6 GND

6

1

13

3.8 IDE Drive Connector

CN11 is a standard 44-pin 2.0-pitch connector which support up to two
ATA/33/66/100 IDE drives can be connected to the HS-6254/HS-6654
via CN11.

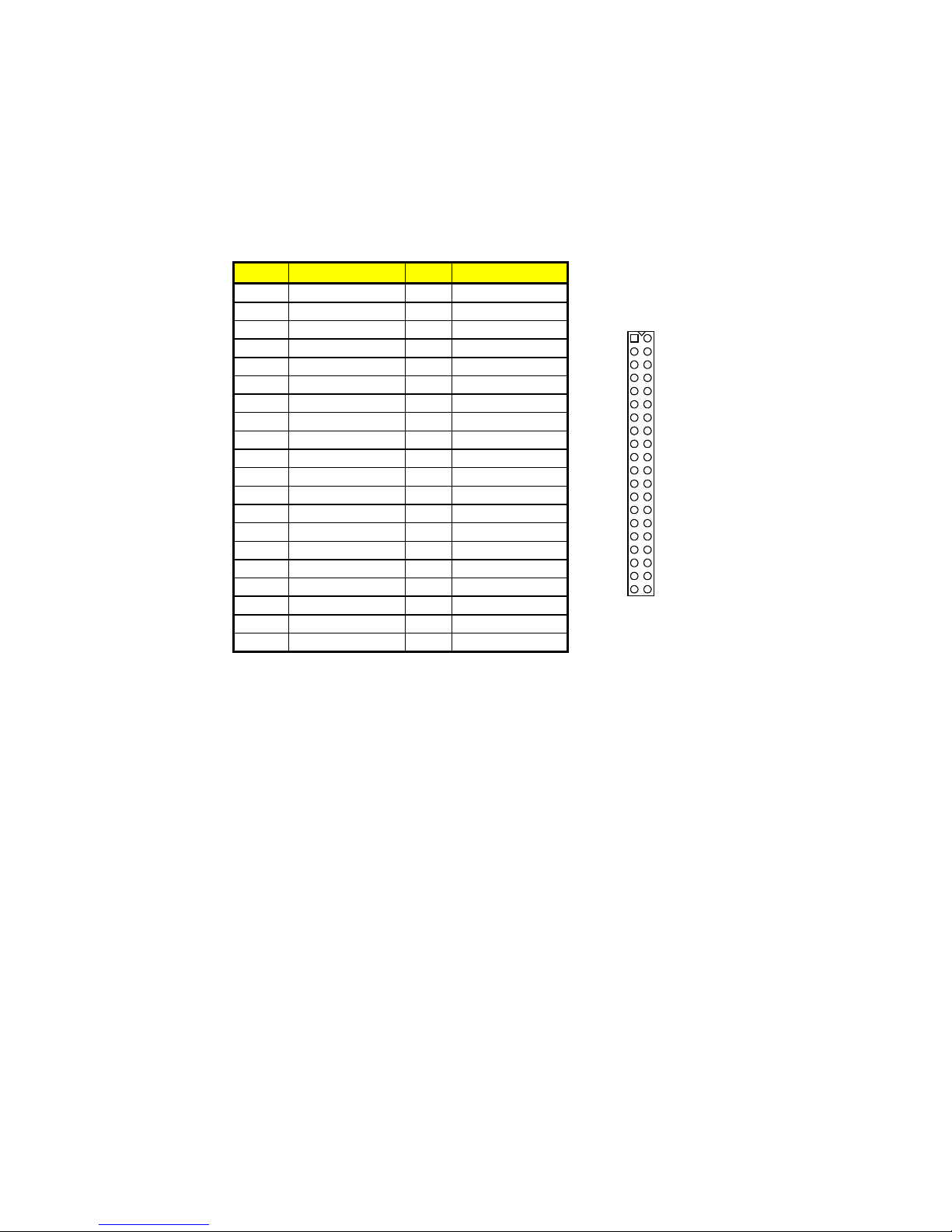

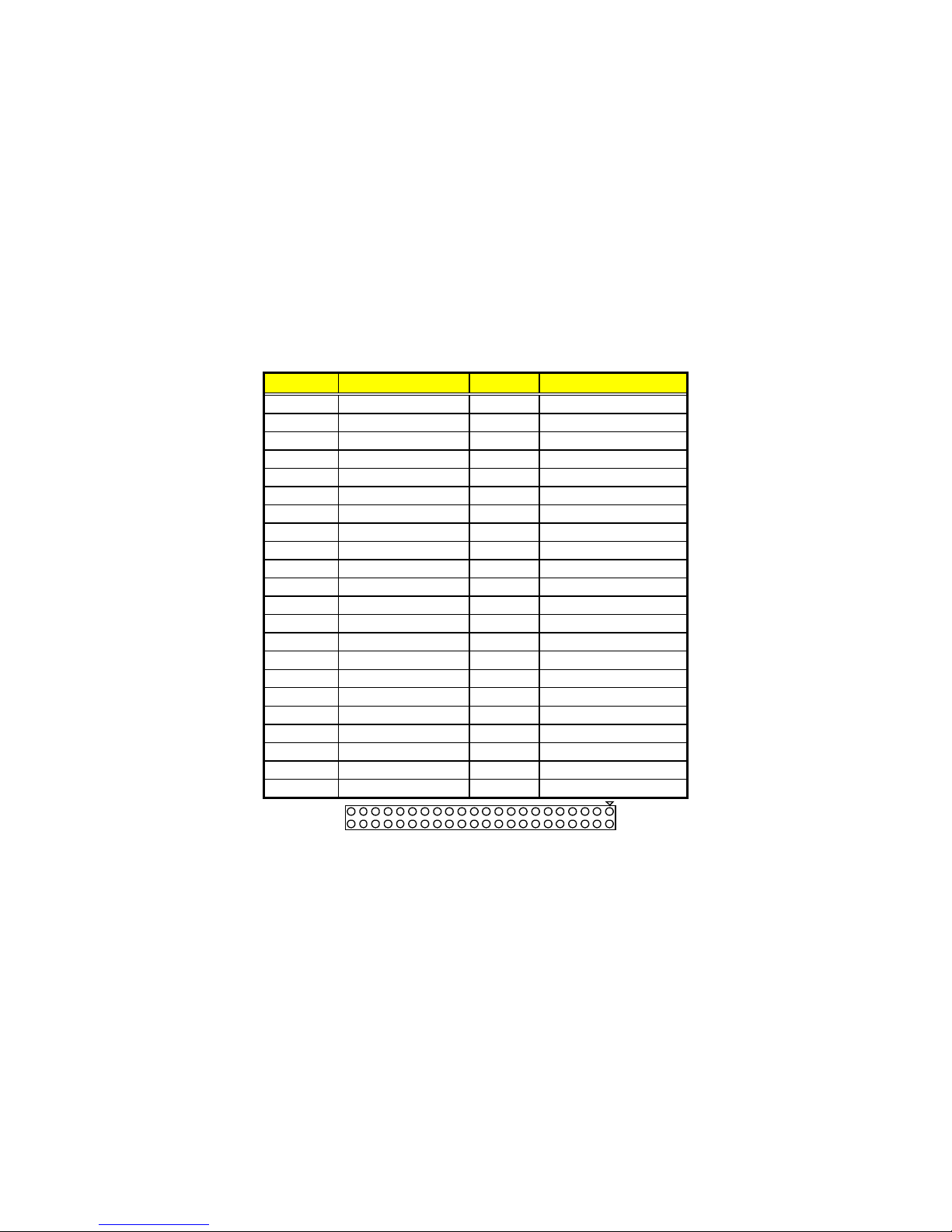

 CN11: IDE Connector

PIN Description PIN Description

1 IDERST 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10

9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 470Ω with GND
29 PDDACK# 30 GND
31 IRQ14 32 N/C
33 PDA1 34 PD33/66
35 PDA0 36 PDA2
37 PDCS1# 38 PDCS3#
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C

43
44

1

2

3.9 Serial ATA Connector

You can connect the Serial ATA device that provides you high speeds
transfer rates (150MB/sec.). If you wish to use RAID function, please
note that these two serial ATA connectors just support RAID0 and only
compatible with WIN XP.

14

 CN6/CN7: Serial ATA Connector

PIN Description

1 GND
2 SATATXP
3 SATATXN
4 GND
5 SATARXN
6 SATARXP
7 GND

71

3.10 Floppy Disk Drive Connector

The HS-6254/HS-6654 uses a standard 34-pin header connector,
CN14, for floppy disk drive connection. A total of two FDD drives may
be connected to CN13 at any given time.

 CN13: Floppy Connector

PIN Description PIN Description

1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#

9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31 GND 32 HDSEL#
33 GND 34 DSKCHG#

33

34

1

2

15

3.11 Serial Port Connectors

The HS-6254/HS-6654 offers NS16C550 compatible UARTs with
Read/ Receive 16-byte FIFO serial ports and four internal 10-pin
headers and one RS-422/485 connector.

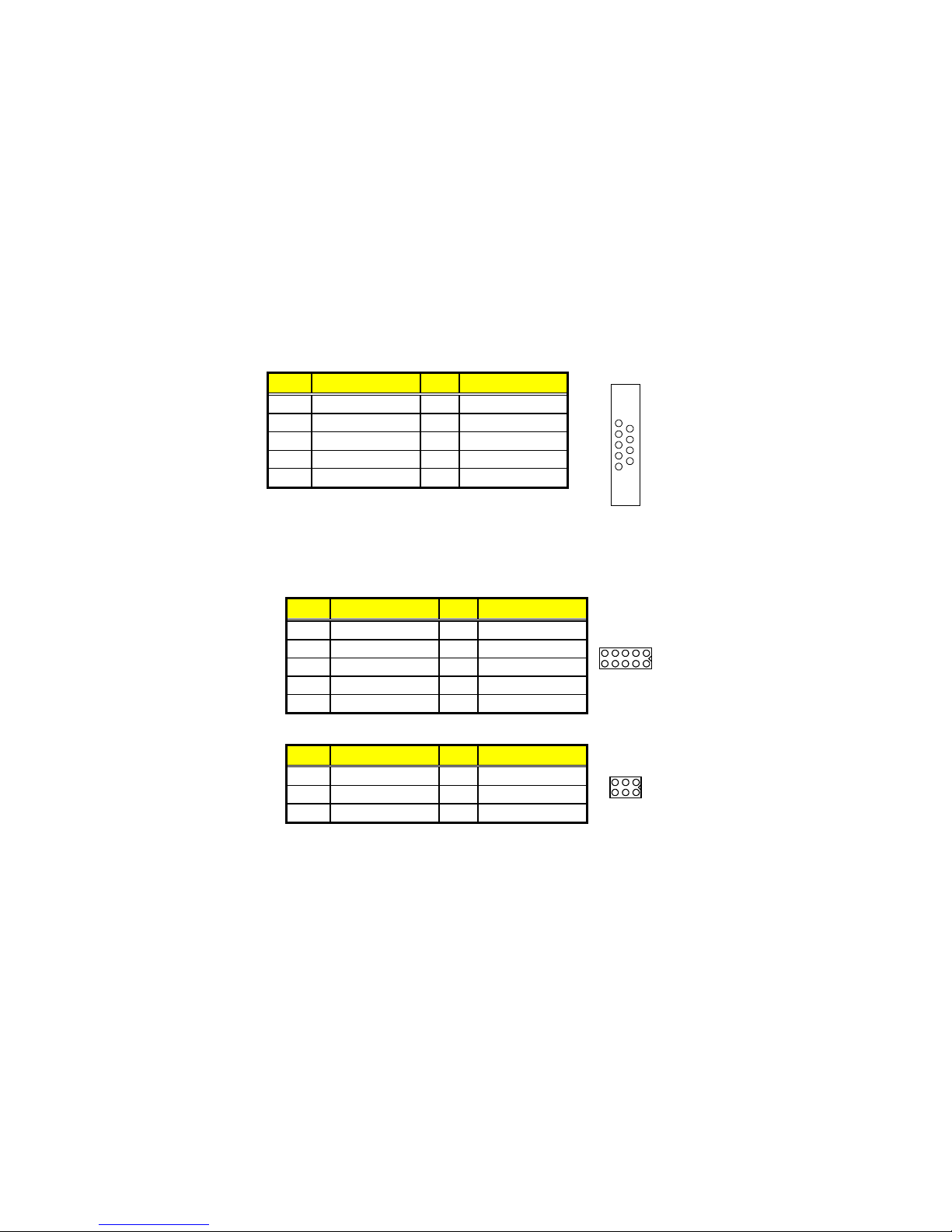

 CN29: COM 1 Connector (DB9)

PIN Description PIN Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND

NOTE: CN29 is optional connector, if use CN29, 15-pin CRT connector

(CN25) will be disabled.

 CN19/CN17/CN20/CN32: COM 1~COM 4 Connector (5x2

Header)

PIN Description PIN Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 N/C

5

9

6

1

10 2

19

 JP6: RS-422/485 Connector (3x2 Header, COM4)

PIN Description PIN Description

1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 +5V

NOTE: The terminal resistance of RX & TX is set at 180Ω.

16

62

15

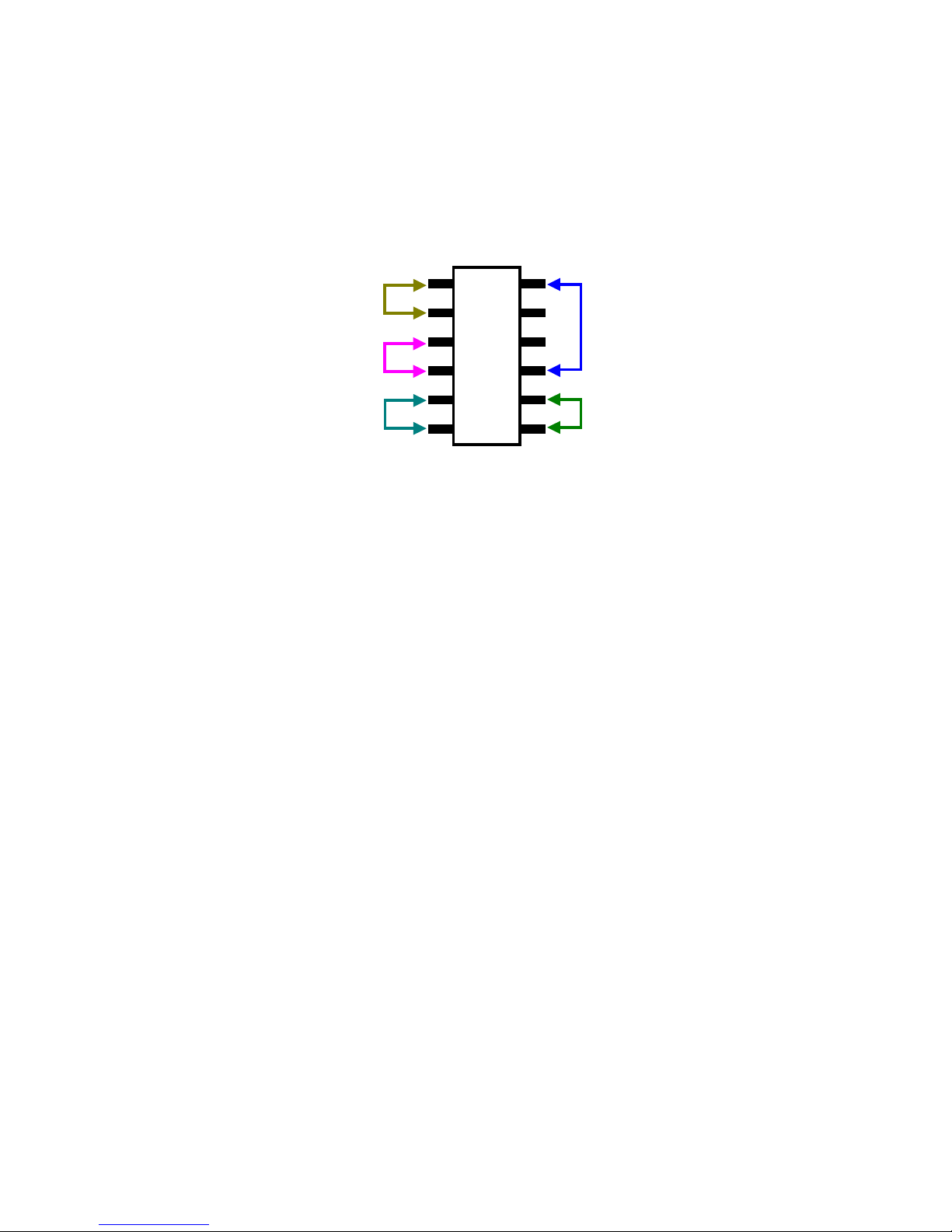

 JP1: COM 4 use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default) Open

RS-485 by Auto (*1) Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

10 2

19

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

3.12 Ethernet Connector

The HS-6254/HS-6654 provides two external RJ-45 interface
connectors. Please refer to the following for its pin information.

When installs OS, this driver namely can automatically install. User
does not need to renewal.

 CN23/CN24: RJ-45 Connector

PIN Description

1 TX+
2 TX-
3 RX+
4 R/C GND
5 R/C GND
6 RX-
7 R/C GND
8 R/C GND

1

8

17

2

3.13 USB Connector

The HS-6254/HS-6654 provides two 8-pin connectors, at location

CN15/CN16, for 4 USB2.0 ports, and one external USB2.0 ports at
CN28.

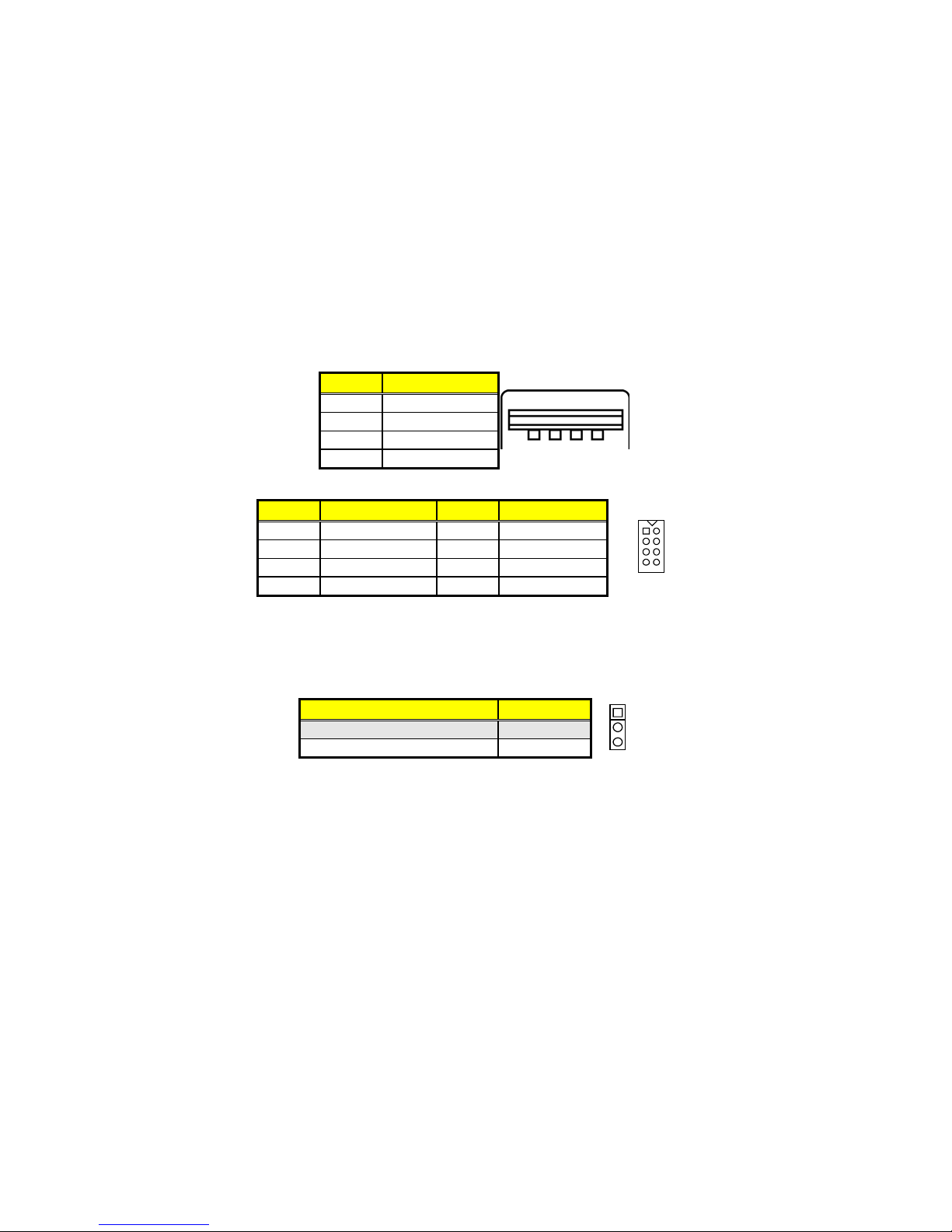

 CN28: External USB2.0 Port

PIN Description

1 VCC
2 BD4-
3 BD4+
4 GND

 CN15/CN16: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC
3 BD0-/BD2- 4 BD1-/BD3-
5 BD0+/DB2+ 6 BD1+/DB3+
7 GND 8 GND

1

78

3.14 CMOS Data Clear

The HS-6254/HS-6654 has a Clear CMOS jumper on JP5.

 JP5: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Clear CMOS Short 2-3

1

3

IMPORTANT: Before turn on the power of your system, please set

18

JP5 to Short 1-2 for normal operation.

3.15 Power and Fan Connectors

HS-6254/HS-6654 provides one 4-pin power in at CN2, one 5-pin ATX
power in at CN3.

 CN2: 4-pin Power Connector

PIN Description

1 VCC
2 GND
3 GND
4 N/C

 CN3: 5-pin ATX Power Connector

PIN Description

1 GND
2 PS_ON
3 VCC
4 5VSB
5 VCC

NOTE: If want to use AT Power Function, please set CN3 short 4-5.

 CN5/CN8: Fan Power Connector

PIN Description

1 GND
2 +5V
3 N/C

14

51

13

Connector CN5/CN8 onboard HS-6254/HS-6654 is a 3-pin fan power
output connector. And HS-6254/HS-6654 supports +5V Fan only.

19

6

3.16 Keyboard/Mouse Connectors

The HS-6254/HS-6654 offers two possibilities for keyboard/mouse
connections. The connections are via CN21 for an external PS/2 type
keyboard/mouse or via CN27 for an internal 6-pin cable converter to a
keyboard/mouse.

 CN21: PS/2 6-pin Mini DIN Keyboard/Mouse Connector

PIN Description

1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock

 CN27: 6-pin Keyboard/Mouse Connector

PIN Description

1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock

56

34

12

1

3.17 System Front Panel Control

The HS-6254/HS-6654 has front panel control at location CN4 that
indicates the power-on status.

 CN4: System Front Panel Control

PIN Description PIN Description

1 VCC 2 Speaker
3 HDD LED 4 N/C
5 ATX Power

Button

7 GND 8 GND
9 Reset Switch 10 +3.3V

11 GND 12 PWR LED

20

6 GND

Connector CN4 Orientation

1

2

HDD LED

3

4

Speaker

5

7

9

11

6

8

10

PWR LED

12

ATX Power

Button

Reset

Button

3.18 Watchdog Timer

Once the Enable cycle is active a Refresh cycle is requested before the
time-out period. This restarts counting of the WDT period. When the
time counting goes over the period preset of WDT, it will assume that
the program operation is abnormal. A system reset signal will restart
when such error happens.

The following sample programs show how to enable, disable and
refresh the watchdog timer:

;---------------------------------------------------------------­;Enter the WDT function mode, interruptible double-write
;---------------------------------------------------------------­ MOV DX, 2EH
MOV AL, 87H
OUT DX, AL
OUT DX, AL
MOV DX, 2EH
MOV AL, 07H
OUT DX, AL
MOV DX, 2FH
MOV AL, 08H
OUT DX, AL
MOV DX, 2EH
MOV AL, F5H
OUT DX, AL ;select CRF0
MOV DX, 2FH
MOV AL, 80H
OUT DX, AL
MOV DX, 2EH
MOV AL, F7H
OUT DX, AL
MOV DX, 2FH

MOV AL, 00H
OUT DX, AL
MOV DX, 2EH

21

MOV AL, F6H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H ; *00H=Disabled
OUT DX, AL
;---------------------------------------------------------------­;Exit extended function mode
;---------------------------------------------------------------­ MOV DX, 2EH
MOV AL, AAH
OUT DX, AL

User can also use AL, 00H’s defined time for reset purposes, e.g.00H
for Disable, 01H = 1sec, 02H=2sec….FFH=255sec.

3.19 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16-bit PC standard bus, thousands
of PC/104 modules from multiple venders can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors CN14 and CN12 are listed on the following tables:

NOTE1: The PC/104 connector allows direct plugging or stack-through

piling of PC/104 modules without requiring the PC/104 mounting
kit.

NOTE2: PC/104 Bus connector only for 16-bit ISA Bus, DO NOT support

DMA mode.

22

 CN14: PC/104 40-pin Connector

PIN Description PIN Description

1 GND 21 GND
2 -MEMCS16 22 -SBHE
3 -IOSC16 23 LA23
4 IRQ10 24 LA22
5 IRQ11 25 LA21
6 IRQ12 26 LA20
7 IRQ15 27 LA19
8 IRQ14 28 LA18

9 -DACK0 29 LA17
10 DRQ0 30 -MEMR
11 -DACK5 31 -MEMW
12 DRQ5 32 SD8
13 -DACK6 33 SD9
14 DRQ6 34 SD10
15 -DACK7 35 SD11
16 DRQ7 36 SD12
17 +5V 37 SD13
18 -MASTER 38 SD14
19 GND 39 SD15
20 GND 40 N/C

Connector diagram

rotated 90 degrees

clockwise from

original position

1

21

20

40

23

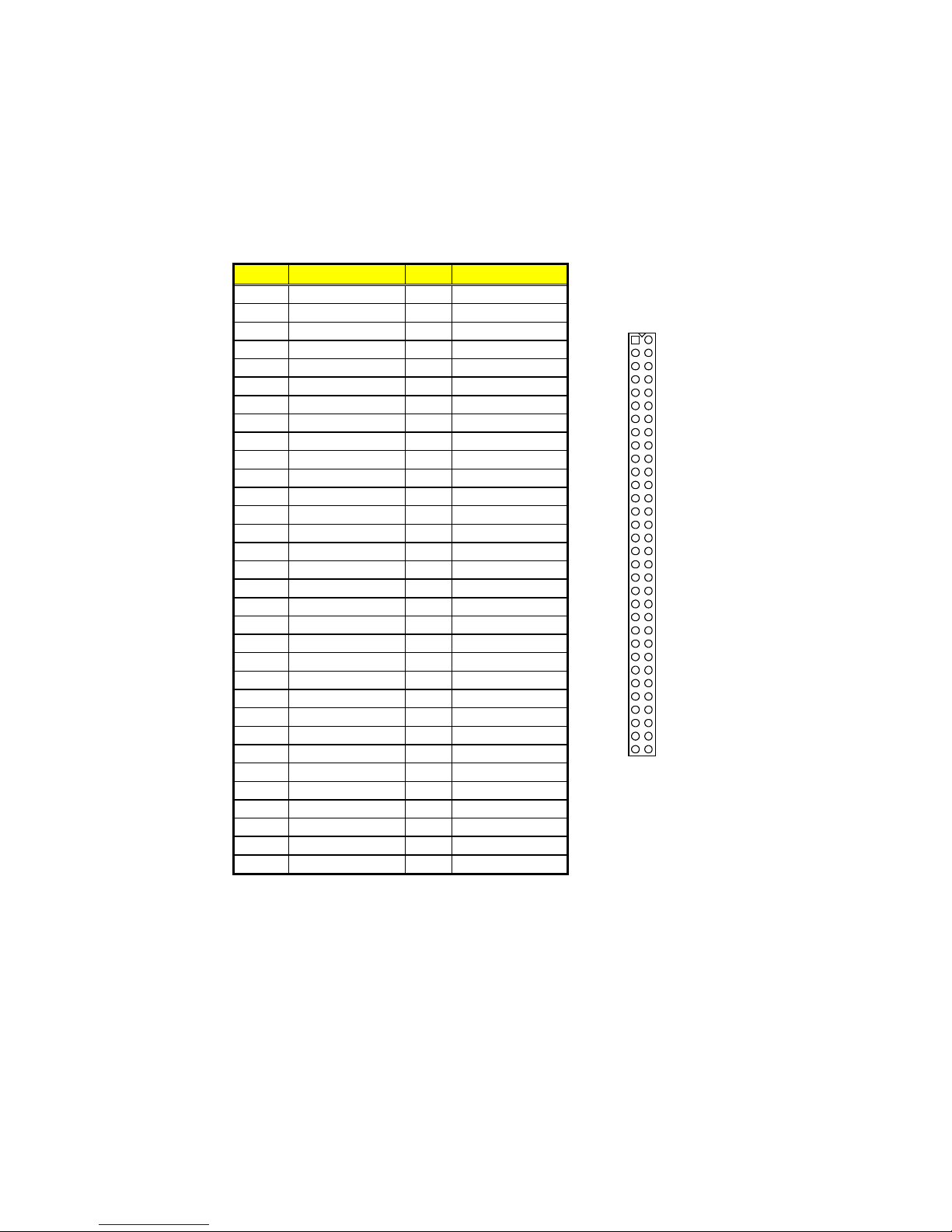

 CN12: PC/104 64-pin Connector

PIN Description PIN Description

1 -IOCHECK 33 GND

2 SD7 34 RESETDRV

3 SD6 35 +5V

4 SD5 36 IRQ9

5 SD4 37 -5V

6 SD3 38 DRQ2

7 SD2 39 -12V

8 SD1 40 NOW-

9 SD0 41 +12V
10 IOCHRDY 42 GND
11 AEN 43 -SMEMW
12 SA19 44 -SMEMR
13 SA18 45 -IOW
14 SA17 46 -IOR
15 SA16 47 -DACK3
16 SA15 48 DRQ3
17 SA14 49 -DACK1
18 SA13 50 DRQ1
19 SA12 51 -REFRESH
20 SA11 52 SYSCLK
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 -DACK2
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 N/C
32 GND 64 GND

Connector diagram

rotated 90 degrees

clockwise from

original position

1

33

32

64

24

3.20 Audio Connectors

2

The HS-6254/HS-6654 has an onboard VIA VT1708A High Definition
Audio CODEC. The following tables list the pin assignments of the Line
In/Audio Out connector.



4 stereo DACs support 24-bit, 192KHz samples

 DAC with 100dB S/N Ratio
 2 stereo ADCs support 24-bit, 192KHz samples
 ADC with 95dB S/N ratio
 8-channels of DAC support 16/20/24-bit PCM format for 7.1 audio

solution

 CN33: MIC In/Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR
3 GND 4 GND
5 MIC IN L 6 MIC IN R
7 GND 8 GND

1

78

3.21 CompactFlash Connector

The HS-6254/HS-6654 also offers a Type I/II CompactFlash
connector which is IDE interface located at the solder side of the board.
The designated CN30 connector, once soldered with an adapter, can
hold CompactFlash cards of various sizes. Please turn off the power
before inserting the CF card.

 JP8: CF Use Master/Slave Select

r

e

d

l

w

o

e

S

i

V

B

e

C

d

P

i

S

M

T

ash

Fl

act

p

e

Com

R

F

C

C

Options Setting

Master Short 1-2

Slave (default) Short 2-3

e
d

i

/

S

n

n

r

o

a

p

a

p

a

a

J

J

u

n

i

A

e

e

d

u

a

q

i

M

r
b

a

F

E

1

3

25

NOTE: When use CF card, IDE device function will be disabled.

 CN30: CompactFlash Connector

PIN Description PIN Description

1 GND 2 IDE_PDD3
3 IDE_PDD4 4 IDE_PDD5
5 IDE_PDD6 6 IDE_PDD7
7 IDE_PDCS1# 8 GND

9 GND 10 GND
11 GND 12 GND
13 +3.3V 14 GND
15 GND 16 GND
17 GND 18 IDE_PDA2
19 IDE_PDA1 20 IDE_PDA0
21 IDE_PDD0 22 IDE_PDD1
23 IDE_PDD2 24 GND
25 GND 26 GND
27 IDE_PDD11 28 IDE_PDD12
29 IDE_PDD13 30 IDE_PDD14
31 IDE_PDD15 32 IDE_PDCS3#
33 GND 34 IDE_PDIOR#
35 IDE_PDIOW# 36 +3.3V
37 INT_IRQ14 38 +3.3V
39 +3.3V 40 N/C
41 RESET# 42 IDE_PDIORDY
43 CF_PDERQ 44 CF_REGB
45 IDE_ACTP# 46 DETECT
47 IDE_PDD8 48 IDE_PDD9
49 IDE_PDD10 50 GND

Inserting a CompactFlash card into the adapter is not a difficult task.
The socket and card are both keyed and there is only one direction for
the card to be completely inserted. Refer to the diagram on the
following page for the traditional way of inserting the card.

26

Chapter 4

AMI BIOS Setup

The HS-6254/HS-6654 uses AMI BIOS for the system configuration.
The AMI BIOS setup program is designed to provide the maximum
flexibility in configuring the system by offering various options that
could be selected for end-user requirements. This chapter is written to
assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.

While the BIOS is in control, the Setup program can be activated in one
of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

27

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
and press <Esc> to quit. The following table provides more detail about
how to navigate in the Setup program using the keyboard.

↑ Move to previous item
↓ Move to next item
← Move to previous item
→ Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu

PgUp key Decrease the numeric value or make changes
PgDn key Increase the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key Reserved
F2 key Change color from total 8 colors. F2 to select color forward
F3 key F2 to select color backward
F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

28

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.

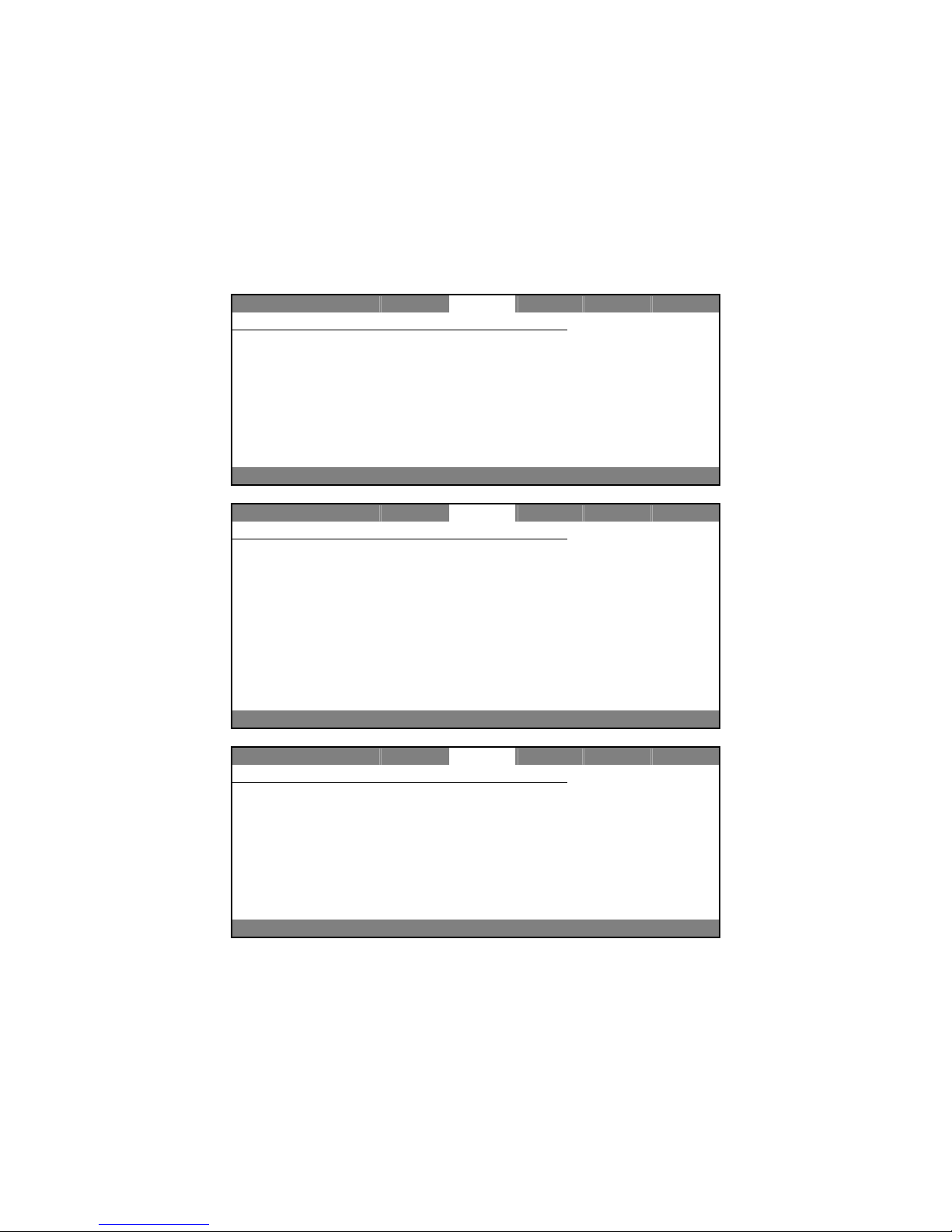

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit
System Overview
AMI BIOS

Version : 08.00.13
Build Date : 11/27/06
ID : HS625402

Processor
Type : VIA Esther processor 1000MHz
Speed : 1000MHz
Count : 1

System Memory
Size : 1016MB

System Time [00:29:32]
System Date [Tue 01/01/2002] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

←

Select Screen

↑↓

Select Item

+ -

Change Field

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

29

4.4 Advanced Settings

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings
WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



Floppy Configuration



SuperIO Configuration



Hardware Health Configuration



ACPI Configuration



APM Configuration ª - Change Field



USB Configuration Tab Select Field

F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure advanced CPU settings
Module Version –13.00

Manufacturer : VIA

Brand String : VIA Esther processor 1000MHz

Frequency : 1.00GHz

FSB Speed : 400MHz

Cache L1 : 128 KB

Cache L2 : 128 KB

Ratio Status : Unlocked (Max:10, Min:08)

Ratio Actual Value : 10 ª - Change Field

Tab Select Field

CMPXCHG8B instruction support [Disabled] F1 General Help

VIA Processor Power Management [Enabled] F10 Save and Exit

ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

30

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

IDE Configuration

Parallel ATA IDE device



Primary IDE Master : [Not Detected]



Primary IDE Slave : [Not Detected]



Secondary IDE Master : [Not Detected]



Secondary IDE Slave : [Not Detected]

Parallel ATA IDE Controller [Both]
Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]



Select Screen



Select Item

ATA(PI) 80Pin Cable Detection [Host] ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Floppy Configuration

Floppy A [1.44 MB 3.5”]
Floppy B [Disabled]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

31

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure WIN697UF Super IO Chipset

OnBoard Floppy Controller [Enabled]
Floppy Drive Swap [Disabled]
Serial Port1 Address [3F8/IRQ4]
Serial Port2 Address [2F8/IRQ3]
Serial Port3 Address [3E8]
Serial Port3 IRQ Select [IRQ11]
Serial Port4 Address [2E8] ª - Change Field
Serial Port4 IRQ Select [IRQ10] Tab Select Field
Parallel Port Address [378] F1 General Help
Parallel Port Mode [Normal] F10 Save and Exit
Parallel Port IRQ [IRQ7] ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Hardware Health Configuration

H/W Health Function [Enabled]
Chassis Intrusion [Disabled]

Hardware Health Event Monitoring
CPU Temperature :
System Temperature :

System Fan : ª - Change Field
VcoreA : Tab Select Field
+3.3Vin : F1 General Help
VBAT : F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

ACPI Settings

ACPI Aware O/S [No]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item



Select Screen



Select Item

32

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Power Management/APM [Enabled]

Power Button Mode [On/Off]
Suspend Power Saving Type [C3]
Restore on AC/Power Loss [Power On]
Manual Throttle Ratio [50%-56.25%]

Standby Time Out [Disabled]
Suspend Time Out [Disabled]
Hard Disk Time Out (Minute) [Disabled]

Green PC Monitor Power State [Suspend]
Video Power Down Mode [Suspend]
Hard Disk Power Down Mode [Suspend]

Advanced Monitor Events Controls
Display Activity [Ignore]
Monitor IRQ3 [Monitor]
Monitor IRQ4 [Ignore]
Monitor IRQ5 [Ignore]
Monitor IRQ7 [Ignore]
Monitor IRQ9 [Ignore]
Monitor IRQ10 [Ignore]
Monitor IRQ11 [Ignore]
Monitor IRQ13 [Ignore]
Monitor IRQ14 [Monitor]
Monitor IRQ15 [Ignore]

Advanced Resume Events Controls
Resume On Ring [Disabled]
Resume On PME# [Disabled]
Resume On KBC [Disabled]
Wake-Up Key [Any Key] ª - Change Field
Resume On PS/2 Mouse [Disabled] Tab Select Field
Resume On RTC Alarm [Disabled] F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

33

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

USB Configuration

Module Version – 2.24.0-11.4

USB Devices Enabled :
None

USB 1.1 Ports Configuration [USB 6 Ports]
USB 2.0 Ports Enable [Enabled]
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

34

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to
malfunction.

Clean NVRAM [No]
Plug & Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
PCI IDE BusMaster [Disabled]
OffBoard PCI/ISA IDE Card [Auto]

IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]

DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available] ª - Change Field
DMA Channel 6 [Available] Tab Select Field
DMA Channel 7 [Available] F1 General Help
F10 Save and Exit
Reserved Memory Size [Disabled] ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.





Select Screen

Select Item

35

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings



Boot Settings Configuration



Boot Device Priority



Removable Drives ª - Change Field

Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Nom-Lock [On]
PS/2 Mouse Support [Auto]
Wait For ‘F1’ If Error [Enabled]
Hit ‘DEL’ Message Display [Enabled] ª - Change Field
Interrupt 19 Capture [Disabled] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Device Priority

1st Boot Device [1st FLOPPY DRIVE]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item



Select Screen



Select Item

36

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Removable Drives

1st Drive [1st FLOPPY DRIVE]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed
User Password : Not Installed

Change Supervisor Password
Change User Password ª - Change Field
Boot Sector Virus Protection [Disabled] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings
WARNING: Setting wrong values in below

sections may cause system to
malfunction.



NorthBridge VIA CX700 Configuration



SouthBridge VIA CX700 Configuration ª - Change Field

Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

37

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

NorthBridge VIA CX700 Configuration



DRAM Clock/Timing Configuration



AGP & P2P Bridge Configuration



V-Link & PCI Bus Configuration

Top Performance [Disabled]
Software Reset E2 issue [Escape Patch]
Change DCLK using RDCKM [Program]



OnChip VGA Configuration ª - Change Field

Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

DRAM Frequency/Timing Configuration

DRAM Frequency [Auto]
DRAM Timing [Auto]
DRAM Command Rate [2T Command]
RDSAIT/RDSBIT mode [Auto]
Memory Chip Driving [Normal]
DDR2 Memory Chip ODT [Auto]
DDR DQSSBAR [Disabled]
BA0 SEL [A13]
BA1 SEL [A14]
BA2 SEL [A15]
BA Scramble [Disabled]
DQSO scanning mode [Disabled]
ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

38

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

AGP & P2P Bridge Configuration

Primary Graphics Adapter [PCI]

AGP Aperture Size [128MB]
AGP 3.0 Mode [8X]
AGP Driving Control [Auto]
AGP Fast Write [Enabled]
AGP Master 1 WS Read [Disabled]
AGP Master 1 WS Write [Disabled]

AGP 3.0 Calibration cycle [Disabled]



Select Screen



Select Item

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

V-Link & PCI Bus Configuration

PCI Master 0 WS Write [Enabled]
V-Link mode selection [Auto]
V-Link 8X Supported [Enabled]
V-Link Data 2X Support [Disabled]
DRDY Timing [Default]
RCONV [Enabled]
Dynamic CKE select [Auto]
Dynamic Clock Stop Control [00]
PCI Read Caching Select [EE] ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

39

OnChip VGA Configuration

Main Advanced PCIPnP Boot Security Chipset Exit

VGA Frame Buffer Size [64MB]
CPU Direct Access Frame Buffer [Enabled
Select Display Device [CRT]
Panel Type [00:640X480]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

SouthBridge VIA CX700 Configuration

Main Advanced PCIPnP Boot Security Chipset Exit

* High Definition Audio [Auto]

PCI Delay Transaction [Disabled]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit
Discard Changes and Exit
Discard Changes

Load Optimal Defaults
Load Failsafe Defaults
ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

40



Select Screen



Select Item

Chapter 5

AWARD BIOS Setup

The HS-6254/HS-6654 uses AWARD BIOS for the system
configuration. The AWARD BIOS setup program is designed to provide
the maximum flexibility in configuring the system by offering various
options that could be selected for end-user requirements. This chapter
is written to assist you in the proper usage of these features.

5.1 Starting Setup

The AWARD BIOS is immediately activated when you first power on
the computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.

While the BIOS is in control, the Setup program can be activated in one
of two ways:

3. By pressing <Del> immediately after switching the system on, or

4. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

41

5.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
and press <Esc> to quit. The following table provides more detail about
how to navigate in the Setup program using the keyboard.

↑ Move to previous item
↓ Move to next item
← Move to previous item
→ Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu

PgUp key Decrease the numeric value or make changes
PgDn key Increase the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key Reserved
F2 key Change color from total 8 colors. F2 to select color forward
F3 key F2 to select color backward
F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

42

5.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to enter the sub-menu.

Phoenix - AwardBIOS CMOS Setup Utility

 Standard CMOS Features  Frequency/Voltage Control
 Advanced BIOS Features Load Fail-Safe Defaults
 Advanced Chipset Features Load Optimized Defaults
 Integrated Peripherals Set Supervisor Password
 Power Management Setup Set User Password
 PnP/PCI Configurations Save & Exit Setup
 PC Health Status Exit Without Saving

Esc: Quit F9: Menu in BIOS ↑↓← →: Select Item
F10: Save & Exit Setup

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

43

5.4 Standard CMOS Features

The standard CMOS is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to LBA mode. Please use the IDE setup utility in
BIOS setup to install the HDD correctly.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Wed, Aug 20 2008 Item Help
Time (hh:mm:ss) 10 : 32 : 57

 IDE Channel 0 Master [None]
 IDE Channel 0 Slave [None]
 IDE Channel 1 Master [None]
 IDE Channel 1 Slave [None]

Drive A [1.44M, 3.5 in.]

Video [EGA/VGA]
Halt On [All, But Keyboard]

Base Memory 640K
Extended Memory 252928K
Total Memory 253952K

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

44

5.5 Advanced BIOS Features

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced CMOS Features

 CPU Feature [Press Enter] Item Help
 Hard Disk Boot Priority [Press Enter]

Virus Warning [Disabled]
CPU L1 & L2 Cache [Enabled]
CPU L2 Cache ECC Checking [Enabled]
Quick Power On Self Test [Enabled]
First Boot Device [Hard Disk]
Second Boot Device [CDROM]
Third Boot Device [LS120]
Boot Other Device [Enabled]
Swap Floppy Drive [Disabled]
Boot Up Floppy Seek [Enabled]
Boot Up NumLock Status [On]

Typematic Rate Setting [Disabled]
X Typematic Rate (Chars/Sec) 6
X Typematic Delay (Msec) 250

Security Option [Setup]

MPS Version Control For OS [1.4]

OS Select For DRAM > 64MB [Non-OS2]

Video BIOS Shadow [Enabled]

Full Screen LOGO Show [Disabled]

Small Logo(EPA) Show [Disabled]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

45

5.6 Advanced Chipset Features

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You must consider making any changes only if you discover that the
data has been lost while using your system.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

 DRAM Clock/Drive Control [Press Enter] Item Help
 AGP & P2P Bridge Control [Press Enter]
 CPU & PCI Bus Control [Press Enter]

Memory Hole [Disabled]

System BIOS Cacheable [Enabled]

Video RAM Cacheable [Disabled]

Init Display First [PCI Slot]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

DRAM Clock/Drive Control

Current FSB Frequency 100MHz Item Help

Current DRAM Frequency 200MHz

DRAM Timing [Auto By SPD]
X SDRAM CAS Latency [DDR/DDR 2.5/4
X Bank Interleave Disabled
X Precharge to Active(Trp) 4T
X Active to Precharge(Tras) 07T
X Active to CMD(Trcd) 4T
X REF to ACT/REF(Trfc) 25T
X ACT(0) to ACT(1) (TRRD) 3T

Read to Precharge (Trtp) [2T]

Write to Read CMD (Twtr) [1T/2T]

Write Recovery Time (Twr) [4T]

DRAM Command Rate [2T Command]

RDSAIT mode [Auto]
X RDSAIT selection 03

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

46

Phoenix - AwardBIOS CMOS Setup Utility

AGP & P2P Bridge Control

AGP Aperture Size [128M] Item Help

AGP3.0 Mode [8X]

AGP Driving Control [Auto]
X AGP Driving Value DA

AGP Fast Write [Disabled]

AGP Master 1 WS Write [Enabled]

AGP Master 1 WS Read [Enabled]

AGP 3.0 Calibration cycle [Enabled]

VGA Share Memory Size [64M]

Direct Frame Buffer [Enabled]

Select Display Device [CRT]

Panel Type [00]

Outport Port [DIO]

Dithering [Disabled]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

CPU & PCI Bus Control

PCI Master 0 WS Write [Enabled] Item Help

PCI Delay Transaction [Enabled]

DRDY_Timing [Optimize]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

47

5.7 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers – a primary and a
secondary – so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by
themselves. This is much simpler and more efficient (also faster).

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

 VIA OnChip IDE Device [Press Enter] Item Help
 VIA OnChip PCI Device [Press Enter]
 SuperIO Device [Press Enter]

KBC input clock [8 MHz]

Onboard Serial Port 3 [3E8]

Onboard Serial Port 4 [2E8]

Serial Port 3 Use IRQ [IRQ11]

Serial Port 4 Use IRQ [IRQ10]

 USB Device Setting [Press Enter]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

VIA OnChip IDE Device

SATA Controller [Enabled] Item Help

IDE DMA transfer access [Enabled]

OnChip IDE Channel1 [Enabled]

IDE Prefetch Mode [Enabled]

Secondary Master PIO [Auto]

Secondary Slave PIO [Auto]

Secondary Master UDMA [Auto]

Secondary Slave UDMA [Auto]

IDE HDD Block Mode [Enabled]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

48

Phoenix - AwardBIOS CMOS Setup Utility

VIA OnChip PCI Device

Azaliz HDA Controller [Auto] Item Help

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

SuperIO Device

Onboard FDC Controller [Enabled] Item Help

Onboard Serial Port 1 [3F8/IRQ4]

Onboard Serial Port 2 [2F8/IRQ3]

UART Mode Select [Normal]
X RxD, TxD Active Hi, Lo
X IR Transmission Delay Enabled
X UR2 Duplex Mode Half
X Use IR Pins IR-Rx2Tx2

Onboard Parallel Port [378/IRQ7]

Parallel Port Mode [SPP]
X EPP Mode Select EPP1.7
X ECP Mode Use DMA 3

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix - AwardBIOS CMOS Setup Utility

USB Device Setting

USB 1.0 Controller [Enabled] Item Help

USB 2.0 Controller [Enabled]

USB Operation Mode [High Speed]

USB Keyboard Function [Enabled]

USB Mouse Function [Enabled]

USB Storage Function [Enabled]

*** USB Mass Storage Device Boot Setting ***

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

49

5.8 Power Management Setup

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI function [Disabled] Item Help

ACPI Suspend Type [S1&S3]

Power Management Option [User Define]

HDD Power Down [Disable]

Suspend Mode [Disable]

Video Off Option [[Suspend => Off]

Video Off Method [V/H SYNC+Blank]

MODEM Use IRQ [3]

Soft-Off by PWRBTN [[Instant-Off]

Run VGABIOS if S3 Resume [Auto]

Ac Loss Auto Restart [Off]

 Wakeup Event Detect [Press Enter]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

50

5.9 PnP/PCI Configurations

This section describes the configuration of the PCI bus system.
Peripheral Components Interconnect (PCI), is a system that allows I/O
devices to operate at speeds nearing the speed the CPU itself uses
when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that
only experienced users should make any changes to the default
settings.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

PNP OS Installed [No] Item Help

Reset Configuration Data [Disabled]

Resources Controlled By [Auto(ESCD)]
X IRQ Resources Press Enter

PCI/VGA Palette Snoop [Disabled]

Assign IRQ For VGA [Enabled]

Assign IRQ For USB [Enabled]

** PCI Express relative items **

Maximun ASPM supported [L0s&L1]

Maximum Payload Size [4096]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

51

5.10 PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Current CPU Temperature Item Help

Current System Temp.

Current CPUFAN1 Speed

Current CPUFAN2 Speed

Vcore

+3.3V

+5V

VBAT(V)

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

5.11 Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

CPU Clock Ratio [10 X] Item Help

Auto Detect PCI Clk [Enabled]

Spread Spectrum [Disabled]

CPU Clock [100MHz]

↑↓← →: Select Item +/-/PU/PD: Value F10: Save Esc: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

52

Chapter 6

Software Utilities

This chapter contains the detailed information about installation
procedures of chipset, VGA, LAN, audio and other drivers. The utility
CD disk that comes with the package contains an auto-run program
that invokes the installation programs for the chipset, VGA, LAN and
audio drivers. The following sections describe the installation
procedures of each driver based on WinXP operating systems. Other
operation system may be slightly different.

6.1 VGA Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive.
Click VGA to install VIA VGA driver.

53

2. When the display below appears on your screen, setup is ready
to install and copy the related files onto your hard drive.

3. After the installation finishes, you will be prompted to restart
your system. We recommend you to reboot your computer to
allow the new settings to take effect. Click on the Finish button
to reboot.

54

6.2 Audio Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive.
Click Audio to install VIA HD Audio driver.

2. Once the Setup Wizard appears on the screen, make sure to
close applications that are running, and then tick Install/Update,
and click on the Next> button.

55

3. Setup Wizard will display the install list. Select on VIA HD……
V1.80a, and then click on Next> to continue.

4. Make sure the Current Setting is ok, and then click on Next>
button.

56

5. After the audio driver installation finishes, select the Finish
button to complete the installation process.

6. When the display below appears on your screen, tick on Yes, this
time only, and then click on Next> to continue.

57

7. After all installation finish, you will be prompted to start your
system, click on the Finish button to reboot.

58

6.3 LAN Driver Installation

1. Insert Utility CD Disk into your CD-ROM drive. The main
menu will pop up as shown below. Select “LAN” to launch
the installation program.

2. When the dialog box below appears, make sure you close
all other Windows applications the click “Next>” to
proceed.

59

3. The Setup Status dialog box then appears on the screen.

4. When setup is finished, please reboot your computer to
take the effect.

60

6.4 USB2.0 Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive.
Click USB to install VIA USB driver.

2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click on Next>
button.

61

3. The Select Components dialog box is now displayed. Select on
Install and then click on Next>.

4. After all installation finish, you will be prompted to start your
system, click on the Yes button to reboot.

62
