HS-6253

VIA C3 800MHz Embedded CPU

Industrial Single Board Computer

•Half Size•All-in-One•CRT/Panel•133MHz FSB•

ATA/3 3/6 6/1 00•Dual LAN•Audi o•

•

•RS-232/422/485•4COM•PC/104•

IrDA•USB•DOC•WDT•H/W Monitor•

•

•PCI-ISA Bus Industrial Single Board computer•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

this document without due notice. responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the contents of

electronic, mechanical, photocopying, recording)

BOSER Technology Co., Ltd. assumes no

manufacturer will

Page 3

Table of Contents

Chapter 1 Gneeral Description ..................................1

1.1 Major Features ....................................................................... 2

1.2 Specifications ........................................................................ 3

1.3 Board Dimensions................................................................. 4

Chapter 2 Unpacking ..................................................5

2.1 Opening the Delivery Package............................................. 5

2.2 Inspection............................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1 Before Installation ................................................................. 7

3.2 Board Layout .................................................. ....................... 8

3.3 Jumper List ....................... .... ... .... .... .... ... .... .... .... ....... .... .... ... . 9

3.4 Connector List ....................................................................... 9

3.5 Configuring the CPU ........................................................... 10

3.6 System Memory ................................................................... 10

3.7 DiskOnChip Address Setting .......................................... 10

3.8 VGA Controller .................................................................... 12

3.9 PCI E-IDE Drive Connector ................................................. 15

3.10 Floppy Disk Drive Connector ............................................. 16

3.11 Serial Port Connectors ....................................................... 17

3.12 Parallel Connector............................................................... 18

3.13 Ethernet Connector ............................................................. 19

3.14 IrDA Connector .................................................................... 19

3.15 USB Connector .................................................................... 20

3.16 CMOS Data Clear ....................................................... .......... 20

3.17 Power and Fan Connectors ................................................ 21

3.18 Keyboard Connectors ......................................................... 21

3.19 PS/2 Mouse Connector ....................................................... 22

3.20 System Front Panel Connectors ........................................ 23

3.21 Thernal Sensor ................................................... .... ... .... .... .. 23

3.22 Watchdog Timer .................................................................. 24

3.23 PC/104 Connectors ............................................................. 26

3.24 Audio Connectors ............................................................... 28

Page 4

Chapter 4 AMI BIOS Setup..................................... 29

4.1 Starting Setup ...................................................................... 29

4.2 Using Setup ........................................................................ . 30

4.3 Main Menu ............................................................................ 31

4.4 Standard CMOS Setup ........................................................ 32

4.5 Advanced CMOS Setup ...................................................... 33

4.6 Advanced Chipset Setup .................................................... 34

4.7 Power Management Setup ................................................. 35

4.8 PCI / Plug and Play Setup................................................... 36

4.9 Peripheral Setup .................................................................. 37

4.10 Hardware Monitor Setup..................................................... 38

4.11 Auto-Detect Hard Disks ........ ......................................... ..... 39

4.12 Change Supervisor/User Passwor d .................................. 40

4.13 Auto Configuration w ith Optimal Settings ....................... 41

4.14 Auto Configuration with Fail Safe Settings ...................... 42

4.15 Save Settings and Exit........................................................ 43

4.16 Exit Without Saving............................................................. 44

Chapter 5 Software Utilities..................................... 45

5.1 IDE and Audio Driver Installation ...................................... 45

5.2 LAN Driver Installation for WIN95 & WIN98 ...................... 58

5.3 LAN Driver Installation for WIN NT4.0 ............................... 64

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6253 to ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

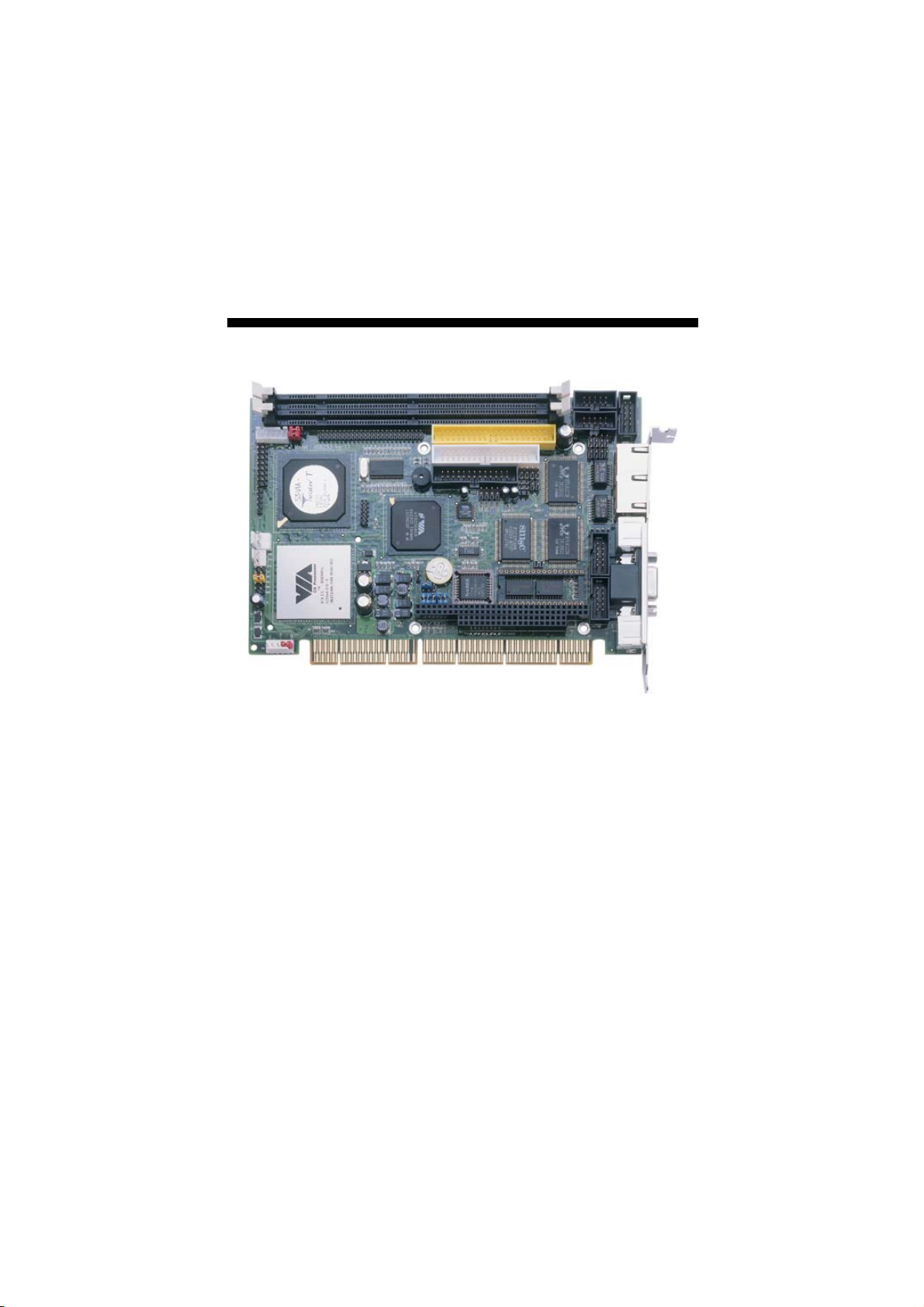

Chapter 1

General Description

The HS-6253 is a 133MHz FSB VIA VT8606 chipset-based board designed for PCI-ISA Bus VIA C3 800MHz Embedded CPU. These features combine and make the HS-6253 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CRT/Panel, Dual LAN, Audio, and 4 COM ports interfaces.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-6253 to support data transfers of 33, 66 or 100MB/sec. to one IDE drive connection. Designed with the VIA VT8606 core logic chipset, the board supports VIA C3 800MHz Embedded CPU. The 8606 integrated S3 3D supporting AGP Bus

For suitable installation into any size system with 8/16/32-bit ISA and/or PCI slots operation, the board’s advanced PCI-ISA bus add-on feature allows user to easily obtain both ISA's 16-bit and PCI's 32-bit full set signals from a half size PCI-ISA slot. System memory is also sufficient with the two DIMM sockets that can support up to 1GB.

Page 8

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, a DOS-compatible DiskOnChip socket with a maximum capacity of 288MB, and two external RJ-45 connectors for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-6253 is designed with pure hardware that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-6253 comes with the following features:

 VIA C3 800MHz Embedded CPU  VIA VT8606/VT82C686B system chipset  Supports 66/100/133MHz FSB  Two DIMM sockets with a max. capacity of 1GB  SMC 37C669, VIA VT82C686B super I/O chipset  Fast PCI ATA/33/66/100 IDE controller  Three RS-232 and one RS-232/422/485 serial ports  PC/104 Bus connector  VIA VT8606 CRT/Panel display controller  Dual RealTek RTL8100 10/100 Based LAN  AC97 3D audio controller  DiskOnChip socket supporting memory size of up to 288MB  Four USB connectors  Supports Hardware Monitor function  Supports Single +5V power in

Page 9

1.2 Specifications



CPU: VIA C3 800MHz embedded CPU



Bus Interface: PCI-ISA Bus



Memory: Two DIMM sockets supporting up to 1GB



Chipset: VIA VT8606/VT82C686B



I/O Chipset: SMC 37C669, VIA VT82C686B



VGA: VIA VT8606 integrated S3 3D supporting AGP Bus



IDE: Two IDE disk drives supporting ATA/33/66/100 and with transfer rates of up to 33/66/100MB/sec.

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP



LAN: Dual RealTek RTL8100 10/100 Based LAN



Audi o: AC97 3D audio controller supporting speaker out



Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232 x 3 serial ports with 16-byte FIFO

 PC/104: PC/104 connector for 16-bit ISA Bus  IrDA: One IrDA TX/RX header  USB: Four USB connectors 

Keyboard:



Mouse:



DiskOnChip:

288MB



BIOS: AMI PnP Flash BIOS



Watchdog Timer: Sets 1, 2, 10, 20, 110, 220 seconds, activity trigger with Reset or NMI



CMOS:



DMA Channels:



Interrupt Levels:



Operating Temperature:



Hardware Monitor: VIA VT82C686B



Board Size: 18.5 x 12.2 cm

PS/2 6-pin Mini DIN or 5-pin connector

PS/2 6-pin Mini DIN or 4-pin connector

Battery backup

DiskOnChip socket supporting memory sizes of up to

0~60°C

Page 10

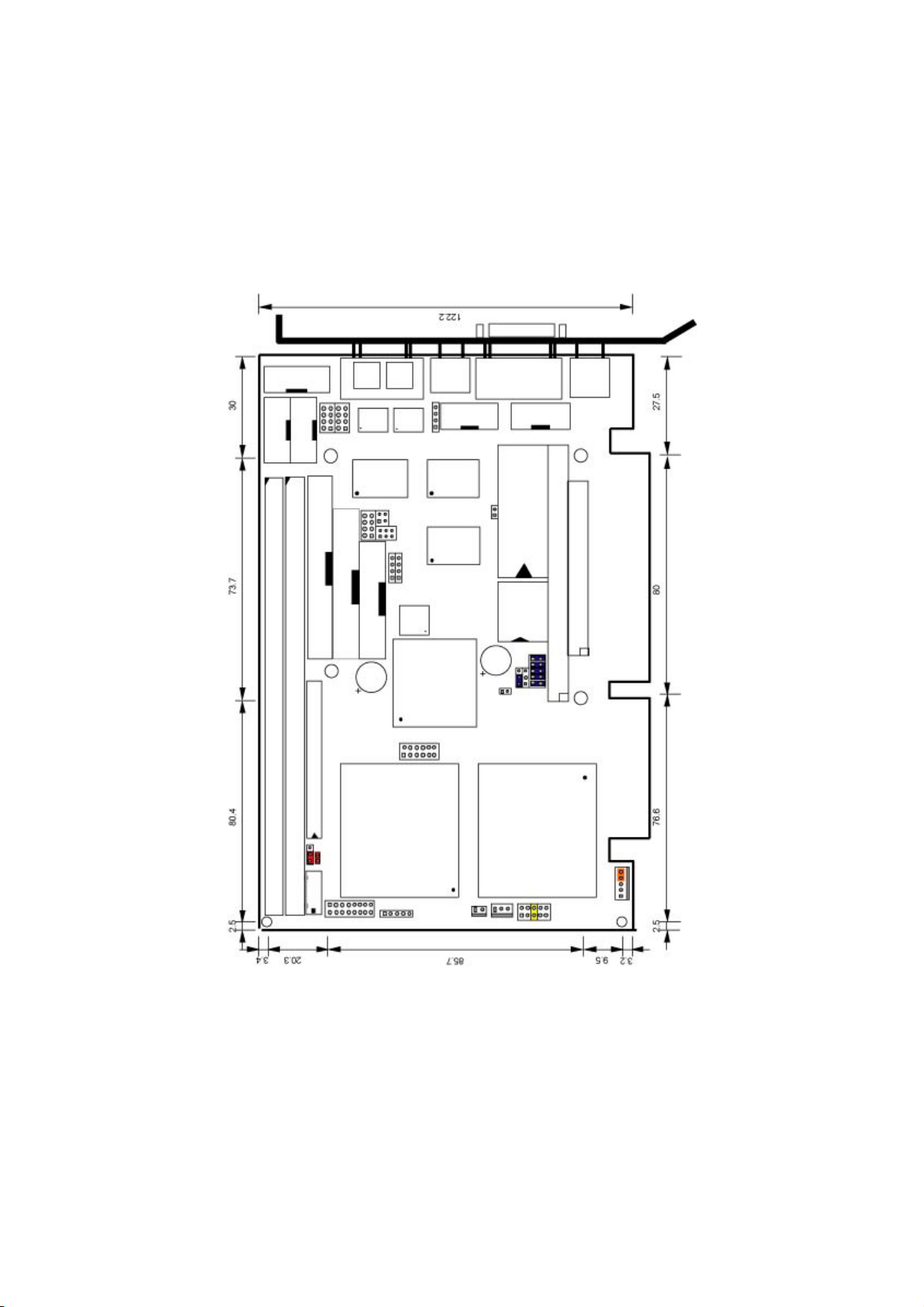

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6253 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-6253 delivery package contains the following items:



HS-6253 Board x 1

 Utility CD Disk x 1 

ATA/100 IDE flat cable x 1

 FDD flat cable x 1 

Printer cable with bracket x 1

 RS-232 COM Port cables with bracket x 2 

8-pin USB split type cable with bracket x 1

 MIC/Audio 8-pin cable + 2 phone jacks x 1 

Jumper Bag x 1

 User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-6253. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

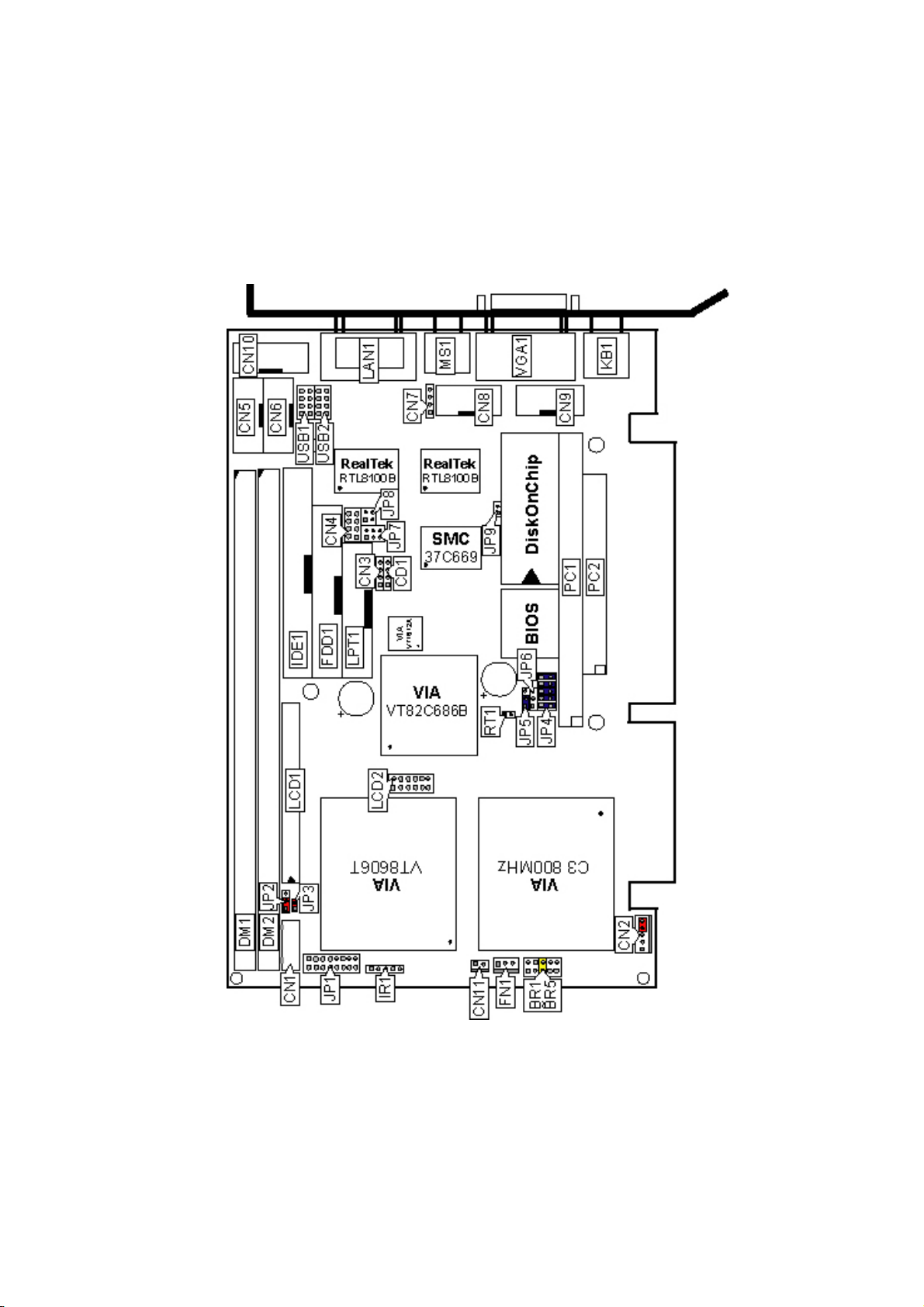

3.2 Board Layout

Page 15

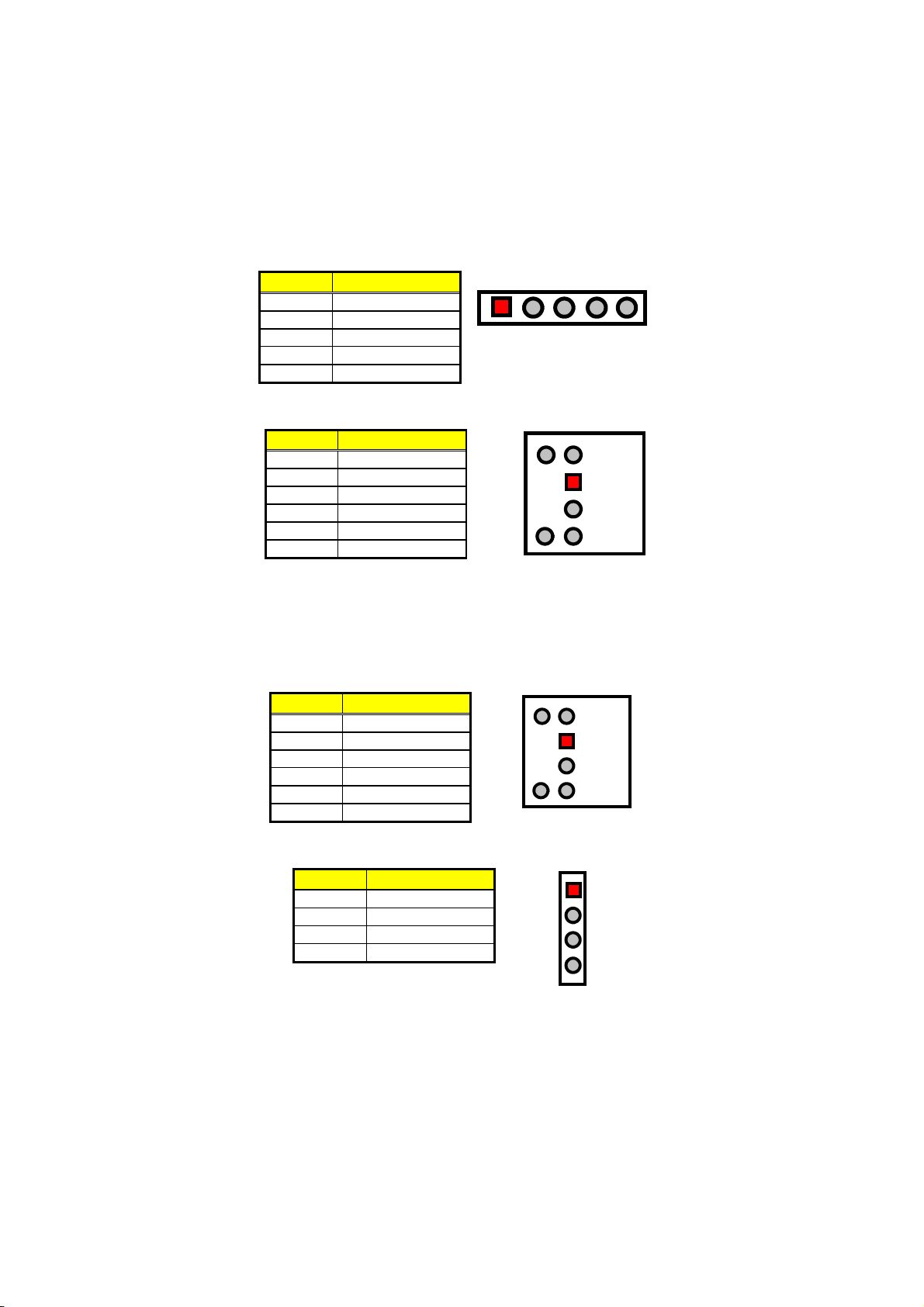

3.3 Jumper List

Jumper

JP2 Panel Voltage: +3.3V Short 1-2 JP3 Panel Voltage +12V In: +12V Short

JP4(1-4)

JP4(5-10) WDT Timer Select: 1sec. Short 5-6, 7-8, 9-10

JP5 Clear CMOS: Normal Operation Short 1-2 JP6 WDT Active Type Setting: Reset Short 2-3

JP7

JP8

JP9 COM2 Use RS-232 or RS-422/485: RS-232 Open

DOC Address Select: D000 Short 1-2, 3-4

RS-422/485 Transceiver Enabled/Disabled Select: Disabled RS-422/485 Receiver Enabled/Disabled Select: Disabled

Default Setting Setting

Open

3.4 Connector List

Connector Definition

CD1 CD-ROM Line In Connector CN1 5-pin Keyboard Connector CN2 5-pin ATX Power In Connector CN3 Line In Connector CN4 Audio Out/Line In Connector CN5 COM 3 Connector CN6 COM 4 Connector CN7 4-pin Mouse Connector

CN8

CN9 COM 1 Connector CN10 RS-422/485 Connector CN11 2-pin Power In Connector

COM1 COM 1 Connector (DB9)

DM1 & 2

FDD1 Floppy Connector

FN1 Fan Connector (Supports +5V Fan only)

IDE1 IDE Connector

IR1 IrDA Connector

JP1(1-3-5-7) Speaker Connector

JP1(2-4) Power LED JP1(6-8) EXT SMI Connector

JP1(9-11) Reset Switch JP1(10-12) Power Button JP1(13-15) HDD LED

COM 2 Connector

168-pin DIMM Sockets

. . . More on next page . . .

Page 16

Connector Definition

JP1(14-16) SLP Button

KB1 6-pin Mini DIN Keyboard Connector

LAN1A & 1B Dual RJ-45 Connector

LCD1 Panel Connector

LCD2

LPT1 Parallel Connector

MS1 6-pin Mini DIM Mouse Connector

PC1 PC/104 64-pin Connector PC2 PC/104 40-pin Connector RT1 Power Temperature Sensing

U6 DiskOnChip Socket

USB1 & 2 USB Connectors

VGA1 VGA Connector

LVDS Interface Connector

3.5 Configuring the CPU

The HS-6253 embedded with a VIA C3 800MHz CPU. User don’t need to adjust the frequently and check speed of VIA C3 800MH CPU.

3.6 System Memory

The HS-6253 provides two DIMM sockets at locations DM1 and DM2. The maximum capacity of the onboard memory is 1GB.

3.7 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate without a FDD or a HDD. DiskOnChip modules may be formatted as drive C or A. With DiskOnChip, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U6 location onboard the HS-6253 is the DiskOnChip module socket. Jumper JP4(1-2) assigns the starting memory address of the installed module. If you have another memory device that has a similar memory capacity with that of the DOC in your system, please set both at different memory address mapping to avoid the mapping area conflicts. Failing to do so will not make the HS-6253 and the additional memory device function properly.

Page 17



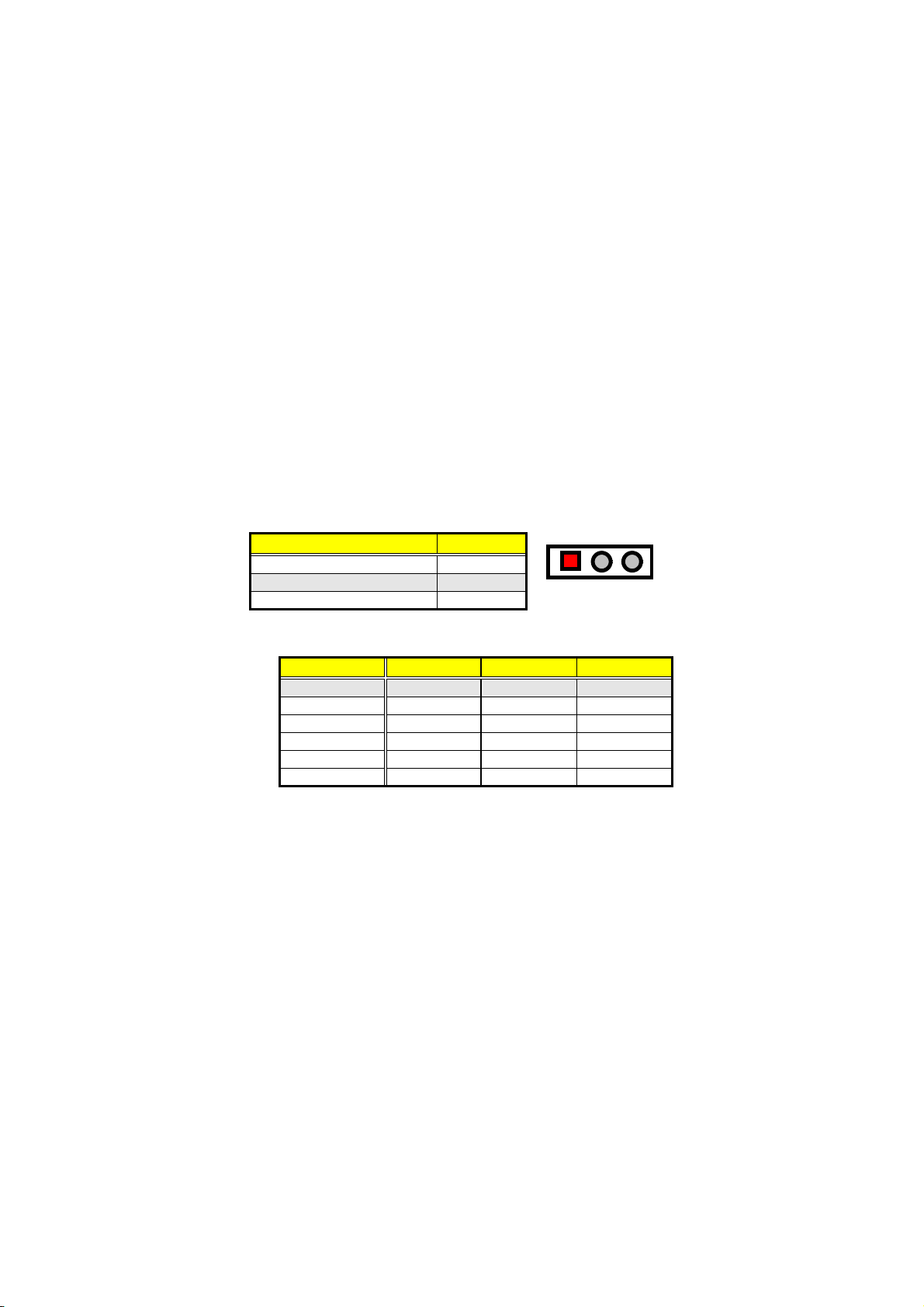

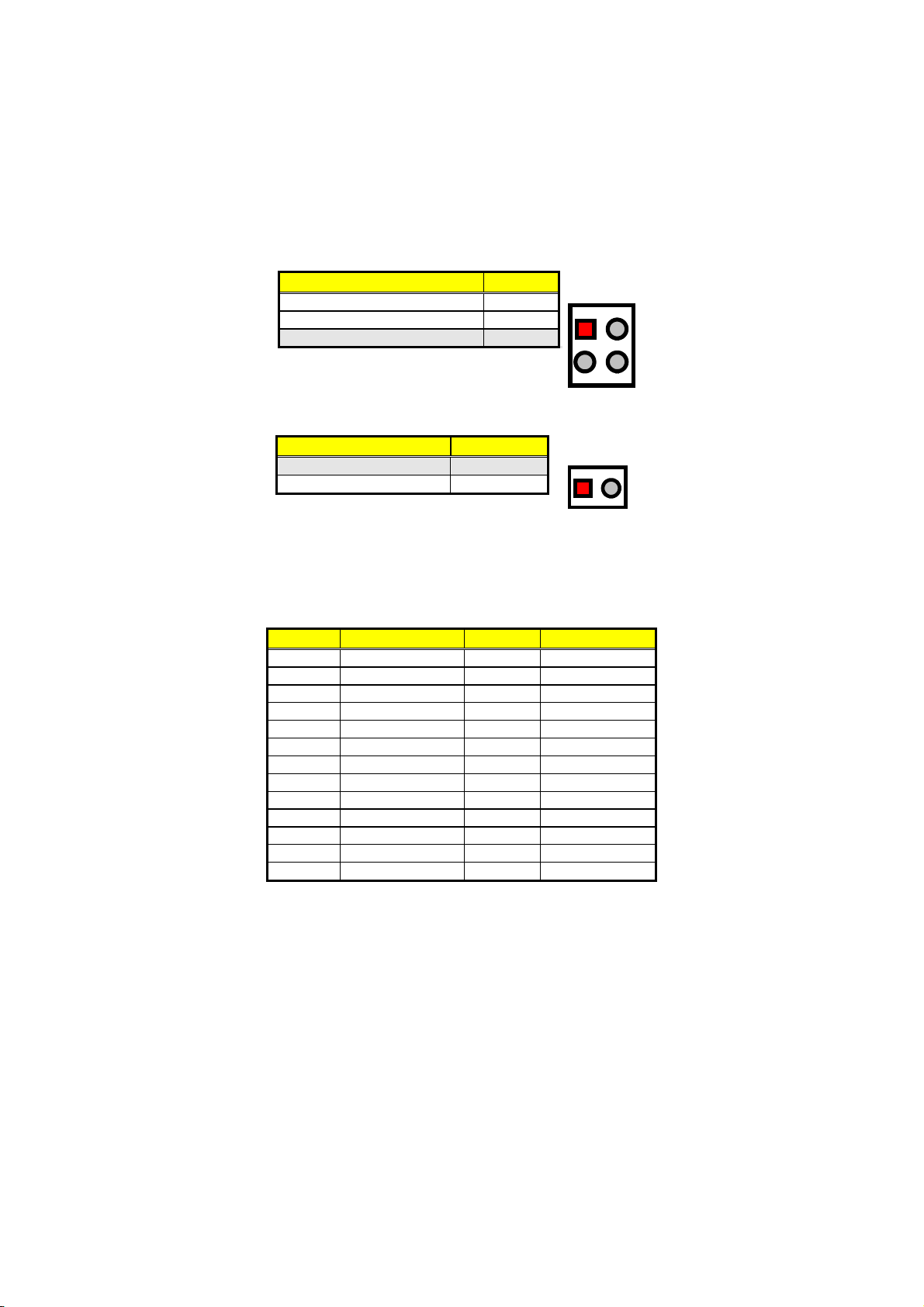

JP4(1-4): DiskOnChip Address Select

Address PINS 1-2 PINS 3-4

* D000 Short Short

D800 Open Short

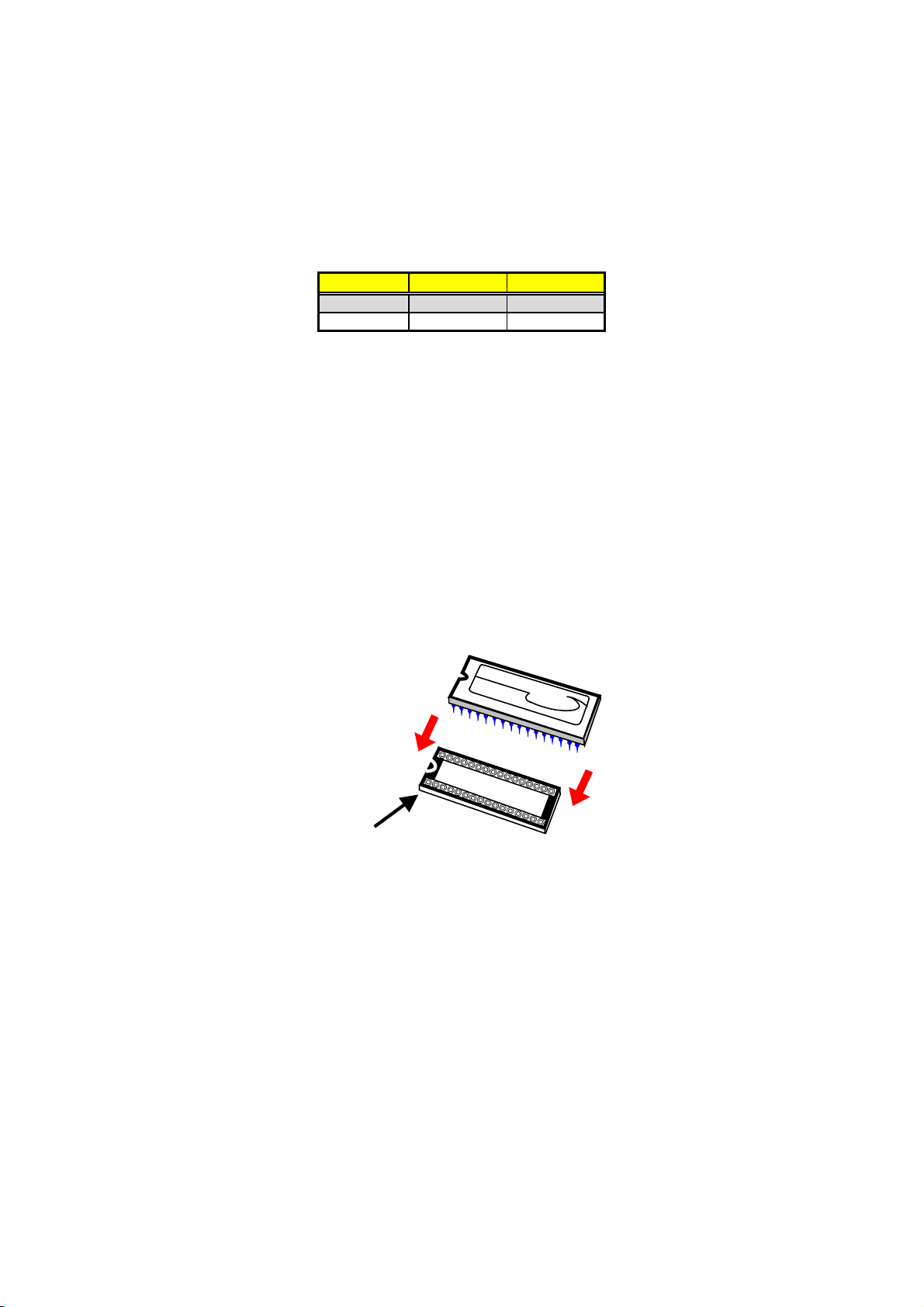

3.7.1 Installing DiskOnChip Modules

When installing a DiskOnChip module onto your board, please take note of the following:

1. Orient yourself properly with the location of the DiskOnChip socket. Try to locate the pin 1 location on your socket. Pin numbers are usually printed on either the component side or the solder side of your board.

2. Locate the Pin 1 location on your DiskOnChip module. More often than not, Pin 1 can be found on the lower right corner of the chip. Please refer to the diagram for the exact location.

3. Once you have figured out where the pin 1 locations are on both chip and socket, align the module’s pins on an upright angle against the socket. Using both thumbs, gently press the module into the socket until all the pins are secured to their designations.

Pin 1

Location

4. The installation is now complete and your module is now ready for use.

If you encounter difficulty installing your DiskOnChip

NOTE:

please consult a qualified technician or engineer to perform the installation.

module,



Page 18

3.7.2 Removing DiskOnChip Modules

When removing a DiskOnChip module from its socket, please take note of the following:

1. Loosen the contact of the module from its socket using a screwdriver.

2. Insert the screwdriver’s flat head into a gap on either end of the socket. Do not insert the screwdriver head on either side where the pins are located. Doing so might damage the pins in the process.

3. Slowly lift the screwdriver handle upwards. This will disengage the module from its socket.



If you encounter difficulty removing your DiskOnChip

NOTE:

module, please consult a qualified technician or engineer to remove it for you.

3.8 VGA Controller

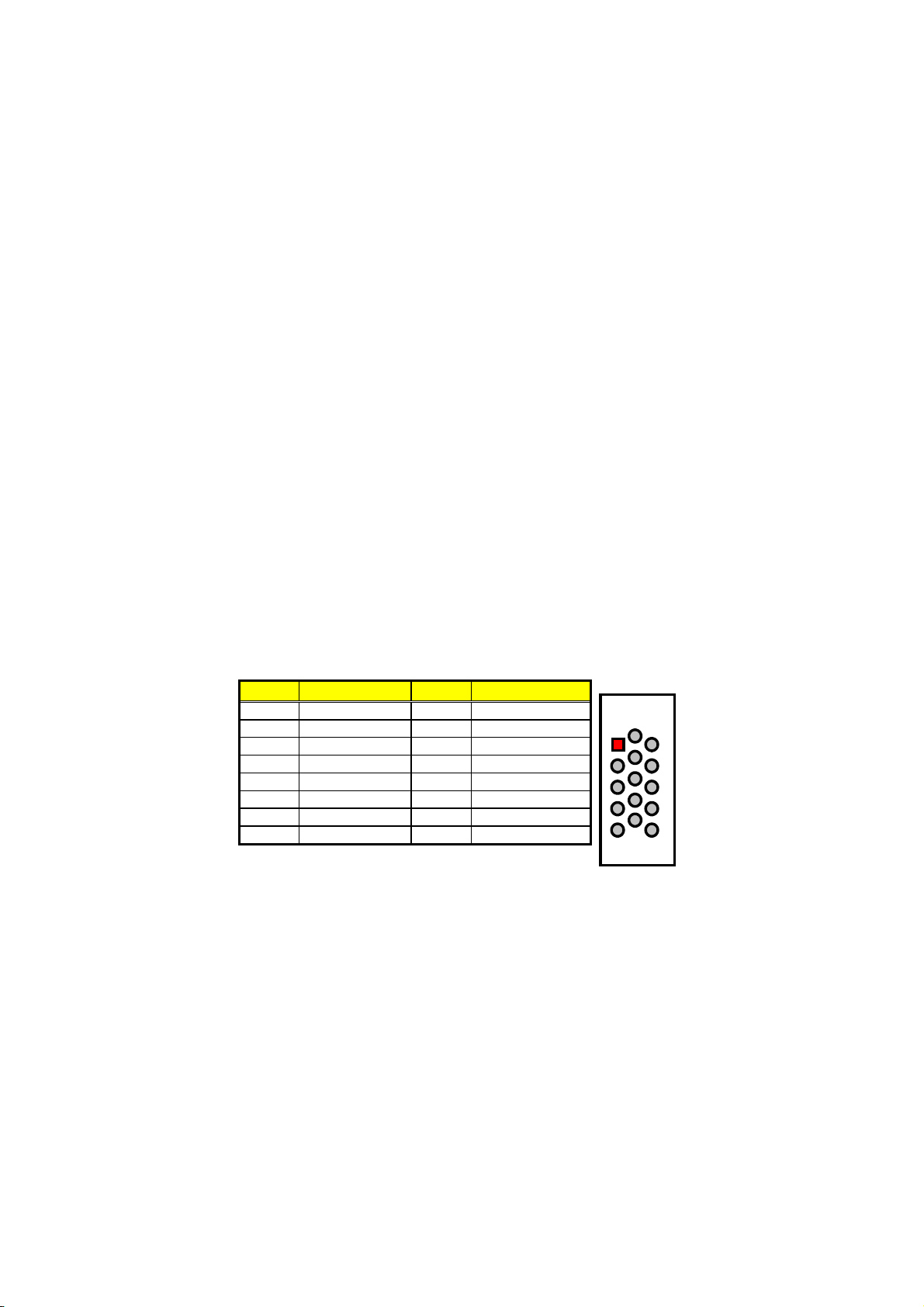

The HS-6253 provides three connection methods of a VGA device. VGA1 offers a single standard CRT connector (DB15) while LCD1 is the 50-pin panel connector and LCD2 is the LVDS interface connector onboard reserved for flat panel installation.



VGA1: 15-pin CRT Connector (DB15)

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 N/C 10 GND 11 N/C 12 SDA2 13 HSYNC 14 VSYNC 15 SCL2

Page 19



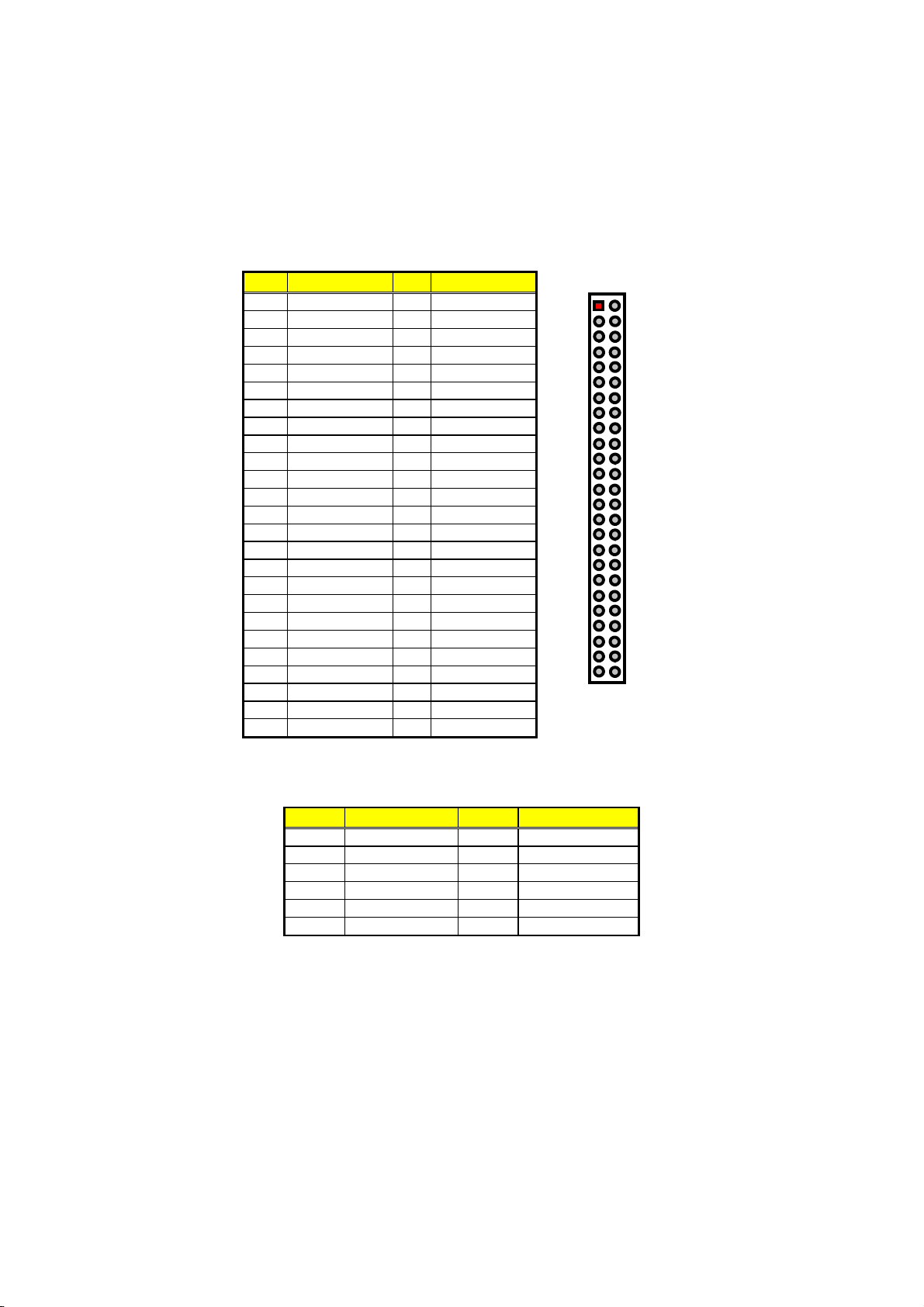

LCD1: 50-pin Panel Connector

PIN. Description PIN Description

1 +12V 2 +12V 3 GND 4 GND 5 3.3V / 5V 7 ENVEE 8 GND 9 PD0 10 PD1

11 PD2 12 PD3 13 PD4 14 PD5 15 PD6 16 PD7 17 PD8 18 PD9 19 PD10 20 PD11

23 PD14 24 PD15 25 PD16 26 PD17 27 PD18 28 PD19 29 PD20 30 PD21

33 PD24 34 PD25 35 SHFCLK 36 FPVS 37 FPDEN 38 FPHS 39 GND 40 ENABKL 41 PD26 42 PD27 43 PD28 44 PD29 45 PD30 46 PD31 47 PD32 48 PD33 49 PD34 50 PD35

PD12

PD22

Note

6 ENVDD

PD13

PD23

+12V

GND

3.3V/5V

ENVEE

PD0

PD2

PD4

PD6

PD8

PD10

PD12

PD14

PD16

PD18

PD20

PD22

PD24

SHFCLK

FPDEN

GND

PD26

PD28

PD30

PD32

PD34

+12V

GND

ENVDD

GND

PD1

PD3

PD5

PD7

PD9

PD11

PD13

PD15

PD17

PD19

PD21

PD23

PD25

FPVS

FPHS

ENABKL

PD27

PD29

PD31

PD33

PD35

NOTE:

Please set the proper voltage of your panel using JP2 before proceeding on installing it.



LCD2: LVDS Interface Connector

PIN Description PIN Description

1 VCC3 2 VCC3 3 Y0M 4 Y0P 5 Y1M 6 Y1P 7 Y2M 8 Y2P 9 YCM 10 YCP

11 GND 12 GND

Page 20

VCC3

Y0P

Y1P

Y2P

YCP

GND

Y0M

Y1M

VCC3

Y2M

YCM

GND

NOTE:

Please set the proper voltage of your panel using JP2

JP3 before proceeding on installing it.

and

The HS-6253 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper JP2 offers two voltage settings and JP3 is +12V out for the user.



JP2: Panel Voltage Select

Options Settings

* 3.3 V Short 1-2

5 V Short 2-3

+3.3V

VCC

GND



JP3: Panel Voltage +12V In

PIN Description

1 +12V In

to LCD1

+12V

to LCD1

WARNING: Please conta ct the supplier of your panel and

make sure of the correct voltage it uses. Incorrect

settings on

JP2

damage to your panel.

and

JP3

may cause internal

Page 21

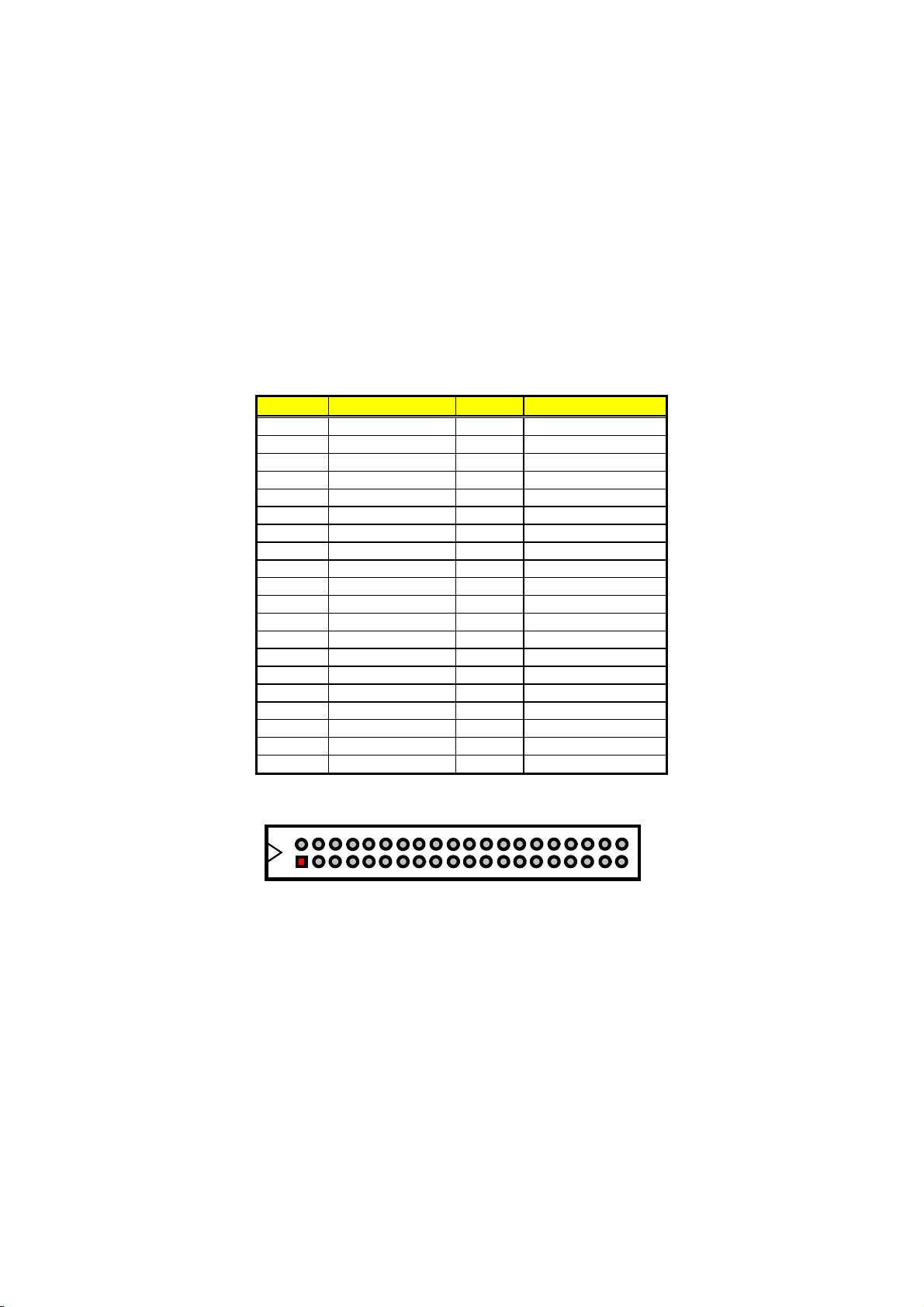

3.9 PCI E-IDE Drive Connector

IDE1 is a standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-6253. A maximum of two ATA/33/66/100 IDE drives can connect to the HS-6253 via IDE1.



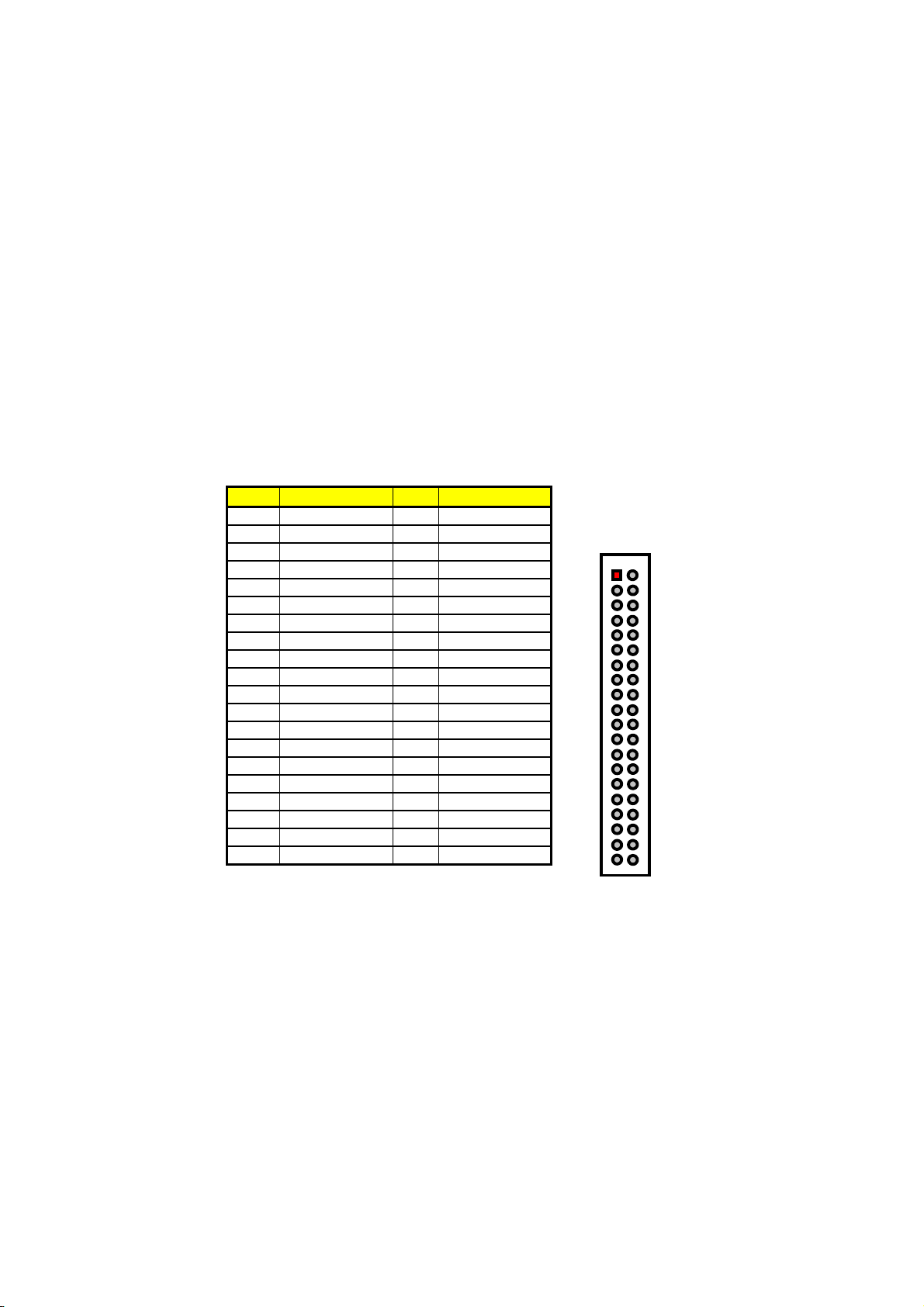

IDE1: IDE Connector

PIN Description PIN Description

-IDERST

3 PDD7 4 PDD8 5 PDD6 6 PDD9 7 PDD5 8 PDD10 9 PDD4 10 PDD11

PDD3

13 PDD2 14 PDD13 15 PDD1 16 PDD14 17 PDD0 18 PDD15 19 GND 20 N/C

PDDREQ

23 -PDIOW 24 GND 25 -PDIOR 26 GND 27 PIORDY 28 GND 29 -PDDACK 30 GND 31 IRQ14 32 N/C 33 PDA1 34 PD33 35 PDA0 36 PDA2 37 -PDCS1 38 -PDCS3 39 HDD ACTIVE 40 GND

GND

PDD12

GND

PDD8

PDD9

PDD10

PDD11

PDD12

-IDERST

PDD7

PDD6

PDD5

PDD4

PDD3

PDD13

PDD2

PDD14

PDD1

PDD15

PDD0

N/C

GND

GND’GND

-PDIOW

PDDREQ

GND

-PDIOR

GND

PIORDY

GND

-PDDACK

N/C

IRQ14

PD33

PDA2

-PDCS3

GND

PDA1

PDA0

-PDCS1

HDD ACTIVE

Page 22

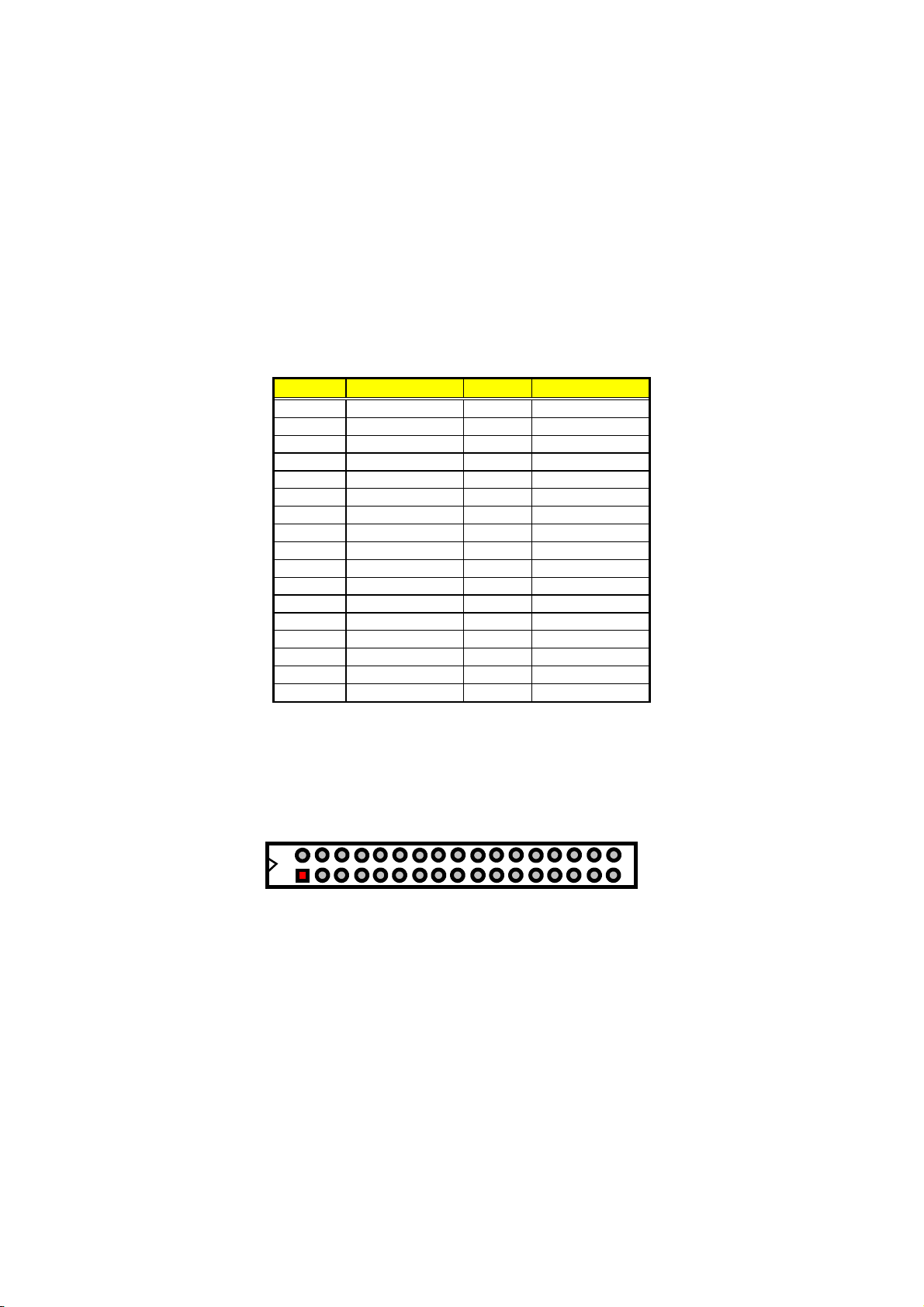

3.10 Floppy Disk Drive Connector

The HS-6253 uses a standard 34-pin header connector, FDD1, for floppy disk drive connection. A total of two FDD drives may be connected to FDD1 at any given time.



FDD1: FDD Connector

PIN Description PIN Description

1 GND 2 DRVDEN0 3 GND 4 N/C 5 GND 6 DRVDEN1 7 GND 8 INDEX#

9 GND 10 MTR0# 11 GND 12 DS1# 13 GND 14 DS0# 15 GND 16 MTR1# 17 GND 18 DIR# 19 GND 20 STEP# 21 GND 22 WDATA# 23 GND 24 WGATE# 25 GND 26 TRAK00# 27 GND 28 WRTPRT#

GND

31 GND 32 HDSEL# 33 GND 34 DSKCHG#

RDATA#

DRVDEN0

N/C

DRVDEN1

INDEX#

MTR0#

DS1#

DS0#

MTR1#

DIR#

STEP#

WDATA#’WGATE#

TRAK00#

WRTPRT#

RDATA#

HDSEL#

DSKCHG#

GND

Page 23

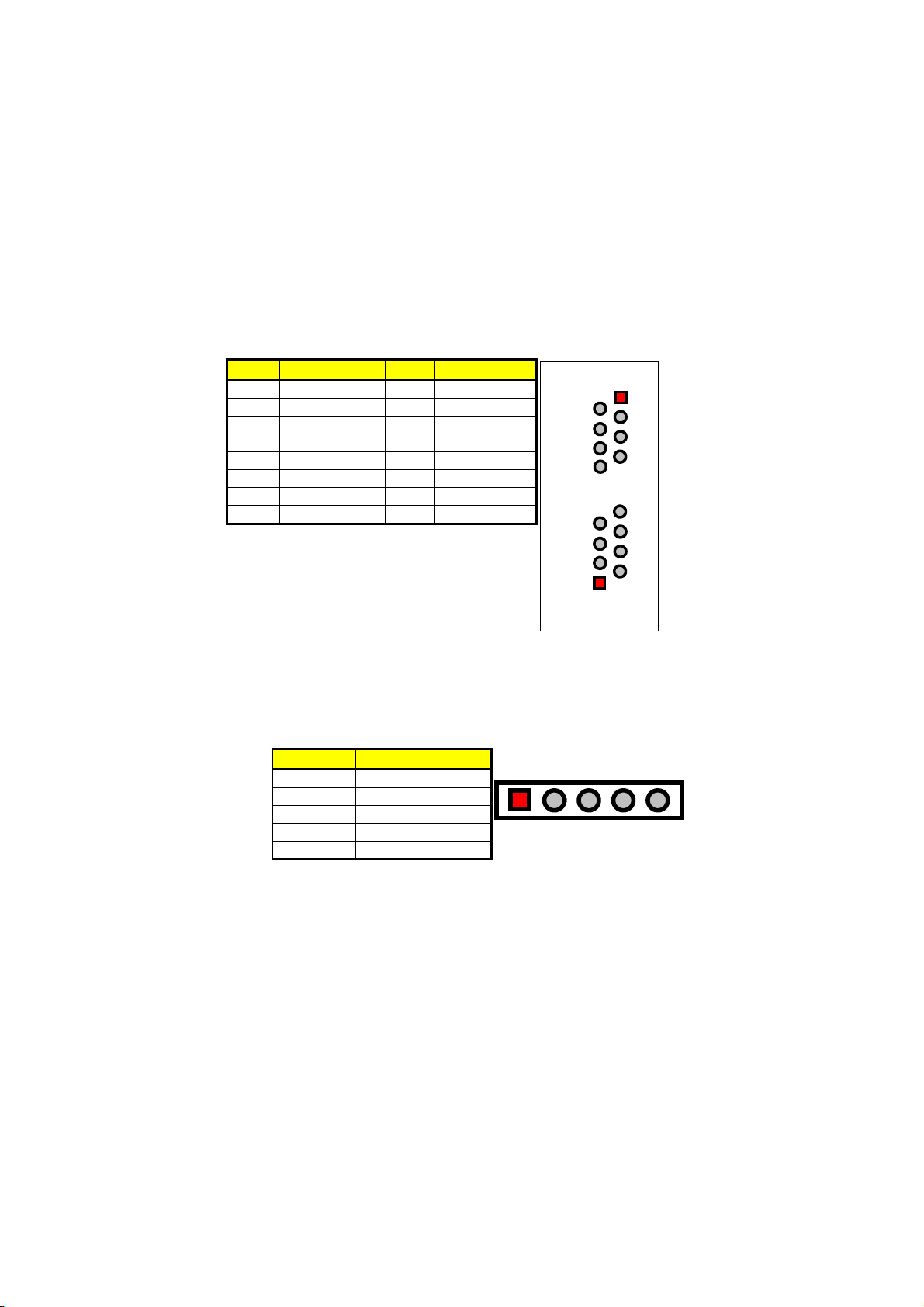

3.11 Serial Port Connectors

The HS-6253 offers two NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and two internal 10-pin headers.



CN9, CN8, CN5 and CN6: COM1/COM2/COM3/COM4 Connectors (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR

RXD

RTX

5 TXD 6 CTX 7 DTR 8 RI 9 GND 10 N/C



CN10: RS-422/485 Connector (5x2 Header)

DCD

RXD

TXD

DTR

GND

PIN Description PIN Description

TX-

3 RX+ 4 RX- 5 GND 6 RTS- 7 RTS+ 8 CTS+ 9 CTS- 10 N/C



JP7: RS-422/485 Transceiver Enabled/Disabled Select

TX+

TX-

RX+

GND

RTS+

CTS-

Options Settings

Always Enable Short 1-2

Enable by “-RTS” signal Short 3-4

Enable by writing the REG:2 EFH

BIT0=1

* Always Disabl ed OPEN

Short 5-6

DSR

RTS

CTS

N/C

TX+

RX-

RTS-

CTS+

N/C

Page 24



JP8: RS-422/485 Receiver Enabled/Disabled Select

Options Settings

Always Enable Short 1-2

02Efh BIT1 Enabled/Disabled Short 3-4

* Always Disabled



JP9: COM2 use RS-232 or RS-422/485 Selection

Open

Serial Port Setting JP9

* RS-232

RS-422/485 SHORT

OPEN

1 2

3.12 Parallel Connector

LPT1 is a standard 26-pin flat cable connector deigned to accommodate parallel port connection onboard the HS-6253.



LPT1: Parallel Connector

PIN Description PIN Description

1 Strobe 14 Auto Form Feed 2 DATA 0 15 ERROR# 3 DATA 1 16 Initialize 4 DATA 2 17 Printer Select LN# 5 DATA 3 18 GND 6 DATA 4 19 GND 7 DATA 5 20 GND 8 DATA 6 21 GND

9 DATA 7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND

Printer Select

N/C

Page 25

3.13 Ethernet Connector

The HS-6253 provides one external dual RJ-45 interface connector. Please refer to the following for its pin information.



LAN1A & 1B: Dual RJ-45 Connector

PIN Description PIN Description

1 1TX+ 9 2TX+ 2 1TX- 10 2TX- 3 1RX+ 11 2RX+

1RC-GND

5 1RC-GND 13 2RC-GND 6 1RX- 14 2RX- 7 1RC-GND 15 2RC-GND 8 1RC-GND 16 2RC-GND

2RC-GND

1TX-

1RC-GND

1RX-

1RC-GND

2TX-

2RC-GND

2RX-

2RC-GND

1TX+

1RX+

1RC-GND

2TX+

2RX+

2RC-GND

3.14 IrDA Connector

IR1 is a 5-pin internal IR communication connector for connection of an IrDA device.



IR1: IrDA Connector

PIN Description

1 VCC 2 N/C 3 IRRX 4 GND 5 IRTX

2345

N/C

VCC

IRRX

GND

IRTX

Page 26

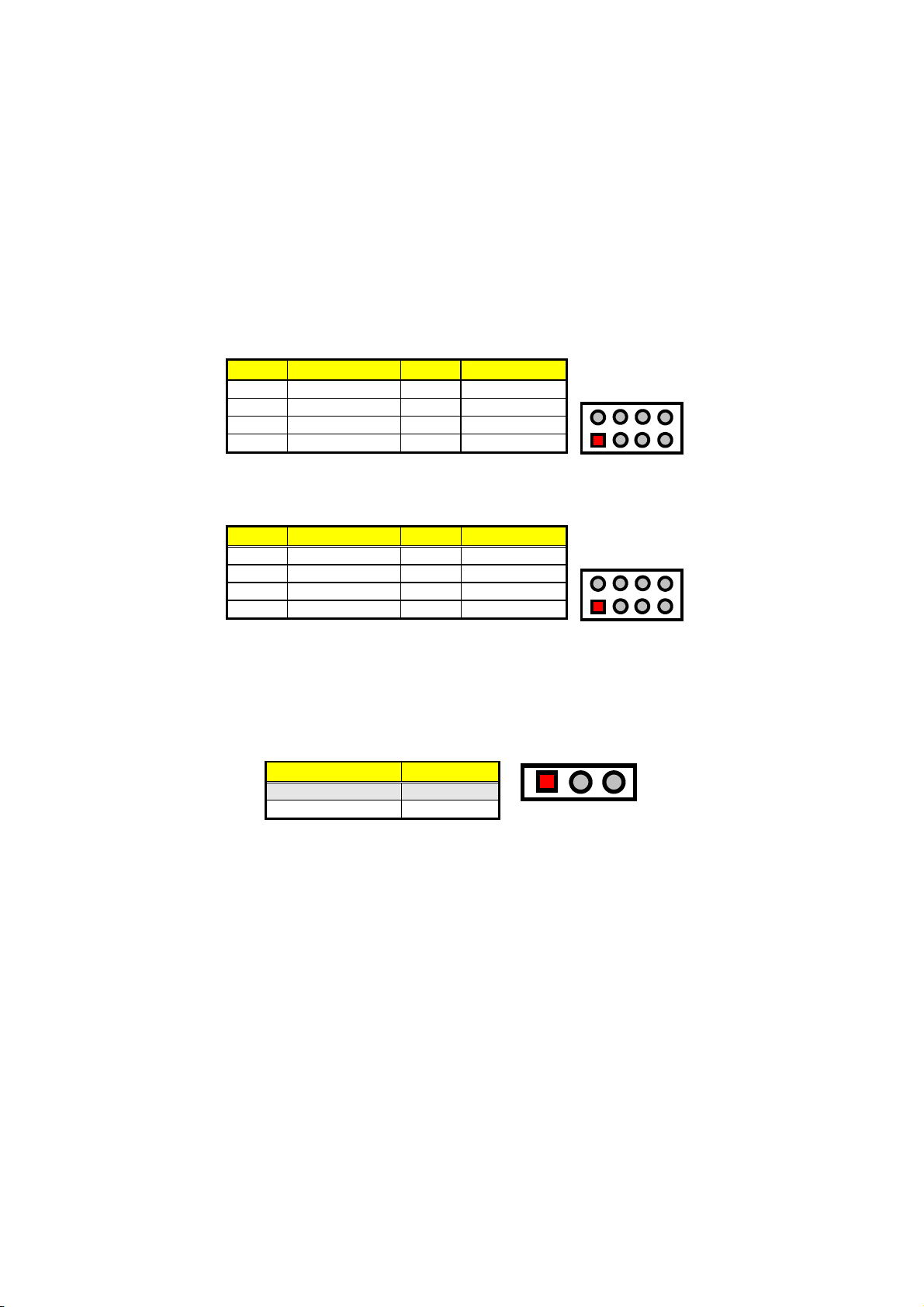

3.15 USB Connector

The HS-6253 provides two 8-pin connectors, at locations USB1 and USB2, for four USB connections to the HS-6253.



USB1: USB Connector

PIN Description PIN Description

1 VCC 2 VCC 3 USBD2- 4 USBD3- 5 USBD2+ 6 USBD3+

GND



USB2: USB Connector

VCC

USBD3-

USBD3+

GND

VCC

USBD2-

GND

USBD2+

PIN Description PIN Description

1 VCC 2 VCC 3 USBD0- 4 USBD1- 5 USBD0+ 6 USBD1+ 7 GND 8 GND

VCC

USBD1-

USBD1+

GND

VCC

USBD0-

GND

USBD0+

3.16 CMO S Data Clear

The HS-6253 has a Clear CMOS jumper on JP5.



JP5: Clear CMOS

Options Settings

* Normal Operation Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

Before you turn on the power of your system, please

set JP5 to Short 1-2 for normal operation.

VDD3

GND

VBAT

Page 27

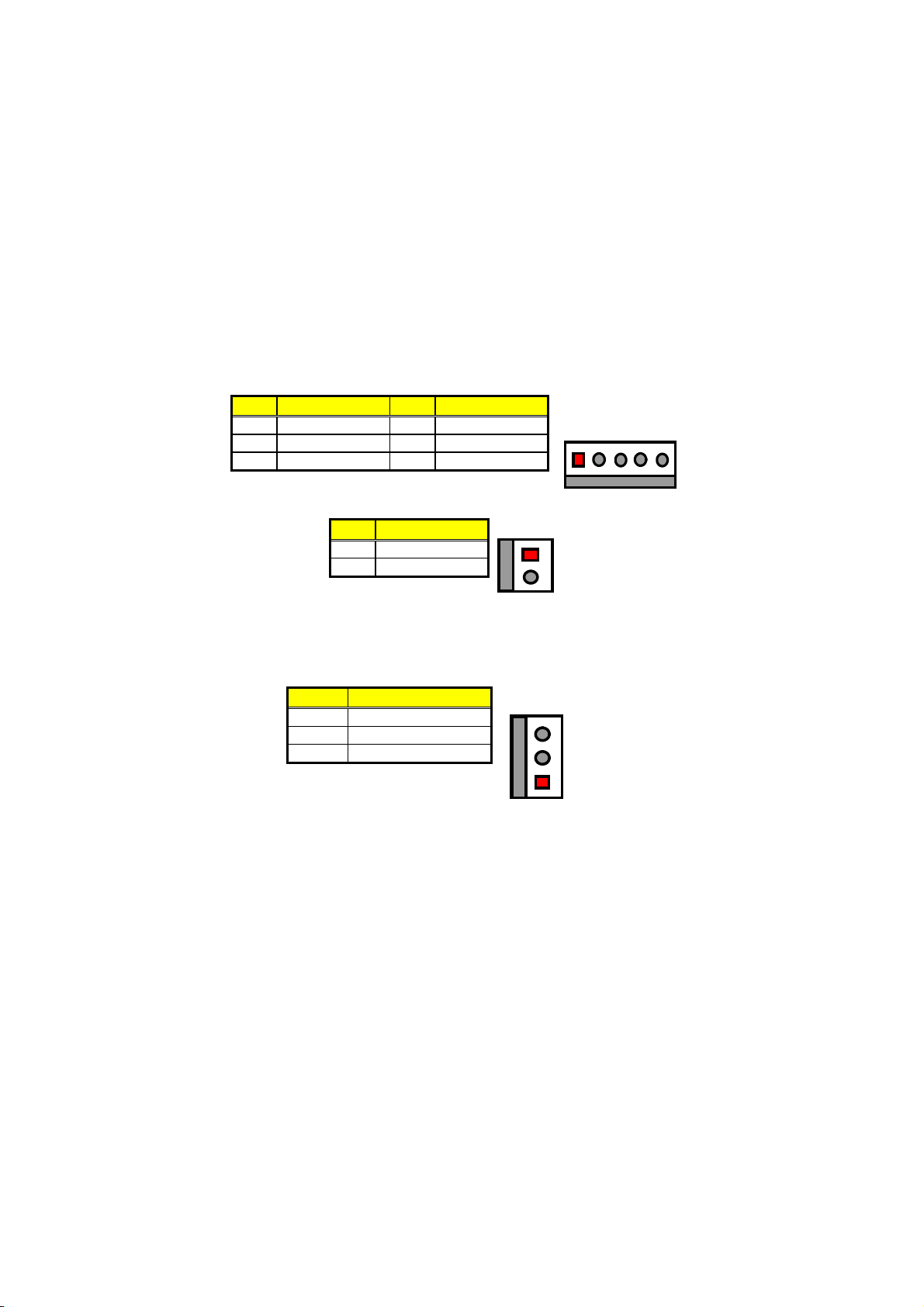

3.17 Pow er and Fan Connectors

HS-6253 provides one 5-pin power connectors at CN2. If you need to use the board on a non-backplane system, power supply connections to both CN2 is a must. To guarantee worry-free power installation, we highly recommend you to always connect power signals to CN2.



CN2: 5-pin ATX Power In Connector (For ATX function)

PIN Description PIN Description

1 GND 2 PS_ON 3 +12V 4 5VSB 5 VCC



CN11: 2-pin Power In Connector (For Single +5V function)

PIN Description

1 VCC 2 GND

VCC

GND

PS_ON

Connector FN1 onboard HS-6253 is a 3-pin fan power output connector. And HS-6253 supports +5V Fan only.



FN1: Fan Connector

PIN Description

1 GND 2 +5V 3 FAN In 1

FAN In 1

+5V

GND

+12V

5VSB

VCC

3.18 Keyboard Connectors

The HS-6253 offers two possibilities for keyboard connections. The connections are via KB1 for an external PS/2 type keyboard or via CN1 for an internal 5-pin cable converter to an AT keyboard.

Page 28



CN1: 5-pin Keyboard Connector

PIN Description

12 34 5

1 Keyboard Clock 2 Keyboard Data

4 GND 5 +5V



KB1: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C

N/C

Keyboard Data

Keyboard

Clock

N/C

Data

Clock

Keyboard

GND

Keyboard

Data

N/C

+5V

3.19 PS/2 Mouse Connector

MS1 is a 6-pin mini DIN connector for connections to an external PS/2 mouse connector or via CN7 for an internal 4-pin cable to mouse.



MS1: PS/2 6-pin Mini Din Mouse Connector

PIN Description

1 Mouse Data 2 N/C 3 GND 4 +5V 5 Mouse CLK 6 N/C



CN7: 4-pin Mouse Connector

PIN Description

1 Mouse Clock

3 VCC 4 GND

Mouse Data

Mouse

Clock

N/C

Mouse

Clock

Mouse

Data

VCC

GND

Mouse Data

N/C

+5V

Page 29

3.20 System Front Panel Connector s

The HS-6253 has one LED at location D1 that indicates the power-on status. This visual feature of the IDE LED may also be connected to an external IDE LED, Speaker, Reset Switch, Power LED, EXT SMI, Power Button, and SLP Button via connector JP1(13-15), JP1(1-3-5-7), JP1(9-11), JP1(2-4), JP1(6-8), JP1(10-12), JP1(14-16).



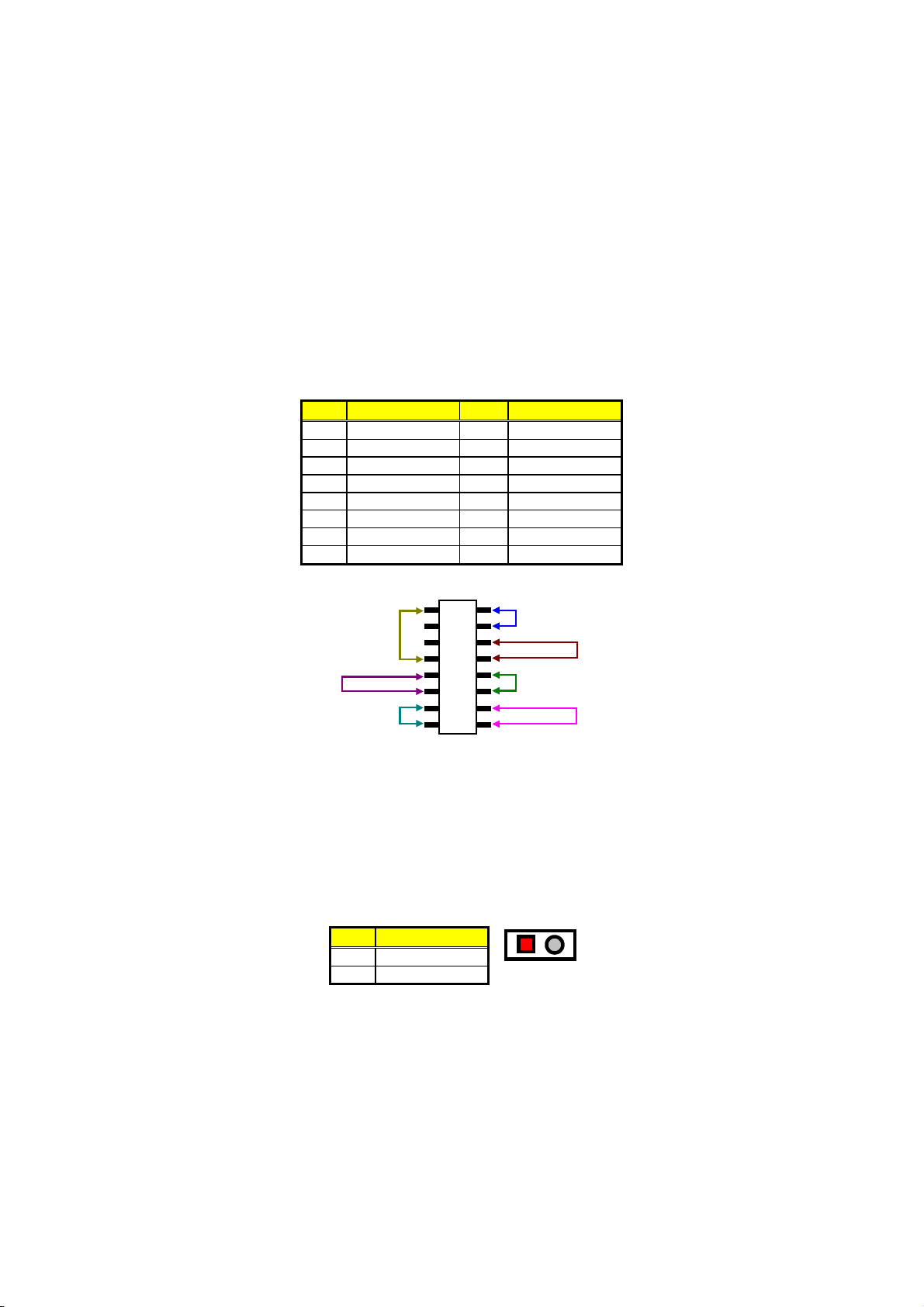

JP1: System Front Panel Connector

PIN Description PIN Description

1 +5V 2 330Ω Pull +5V 3 GND 4 GND 5 N/C 6 EXT SMI 7 Speaker 8 GND

9 GND 10 PW Bottom 11 Reset 12 GND 13 330Ω Pull +5V 14 SLP Bottom 15 HDD LED 16 GND

Connector JP1 Orientation

SPEAKER

RST_SW

HD_LED

PWR LED

EXT_SMI

PWR button

SLP button

3.21 Thernal Sensor

In relevance to the Hardware Monitoring feature provided by the onboard VIA VT82C686B, the board allows the installation of a thermal sensor via connector RT1. The thermal connector monitors and displays the current system temperature from the Chipset Features Setup screen on your BIOS utility program. The value displayed are read-only figures and may not be altered.



RT1: Thernal Sensor

PIN Description

1 GND 2 TSEN2

GND

TSEN2

Page 30

3.22 Watchdog Timer

There are three access cycles of Watch-Dog Timer as

Enable, Refresh and Disable are the three access cycles of Watchdog Timer. The Enable cycle proceeds via READ PORT 443H whereas the Disable cycle proceeds via READ PORT 045H. A continued Enable cycle after a first Enable cycle means Refresh.

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start or a NMI cycle to the CPU transpires when such error happens. Jumper JP6 is used to select the function of Watchdog Timer.



JP6: Watchdog Timer Active Type Setting

Options Settings

Active NMI Short 1-2

* System Reset Short 2-3

Disabled Watchdog Timer Open



JP4(5-10): WDT Timeout Period Select

Period PINS 5-6 PINS 7-8 PINS 9-10

* 1 sec Short Short Short

2 sec Open Short Short 10 sec Short Open Short 20 sec Open Open Short

110 sec

220 sec Open Short Open

Short Short Open

The Watchdog Timer is disabled after the system Power-On. It can be enabled via an Enable cycle and reading the control port (443H), or via a Refresh cycle and reading the control port (443H), or via a Disable cycle and reading the disable control port (045H).

After an Enable cycle of WDT, user must immediately execute a Refresh cycle to WDT before its period setting comes to an end every 1, 2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not activate before WDT period cycle, the onboard WDT architecture will issue a Reset or NMI cycle to the system. There are three I/O ports that control the Watchdog Timer.

Page 31

443H I/O Read The Enable cycle 443H I/O Read The Refresh cycle

045H

I/O Read The Disable cycle

The following sample program shows how to Enable, Disable and Refresh the Watchdog Timer:

WDT_EN_RF EQU 0433H

WDT_DIS EQU 0045H

WT_Enable PUSH AX ; keep AX DX

PUSH DX

MOV DX,WDT_EN_RF ; enable the WDT

IN AL,DX

POP DX ; get back AX, DX

POP AX

RET

WT_Refresh PUSH AX ; keep AX, DX

PUSH DX

MOV DX,WDT_ET_RF ; refresh the WDT

IN AL,DX

POP DX ; get back AX, DX

POP AX

RET

WT_DISABLE PUSH AX

PUSH DX

MOV DX,WDT_DIS ; disable the WDT

IN AL,DX

POP DX ; get back AX, DX

POP AX

RET

Page 32

3.23 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors PC1 and PC2 are listed on the following tables:

NOTE：



PIN Description PIN Description

11 DACK5- 31 MEMW- 12 DREQ5 32 SD8 13 DACK6- 33 SD9 14 DREQ6 34 SD10 15 DACK7- 35 SD11 16 DREQ7 36 SD12 17 +5V 37 SD13 18 MASTER- 38 SD14 19 GND 39 SD15 20 GND 40 N/C

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.

PC2: PC/104 40-pin Connector

Connector diagram

1 GND 21 GND 2 MEMCS16- 22 SBHE-

4 IRQ10 24 LA22 5 IRQ11 25 LA21 6 IRQ12 26 LA20 7 IRQ15 27 LA19 8 IRQ14 28 LA18 9 DACK0- 29 LA17

IOSC16-

DREQ0

LA23

MEMR-

rotated 90 degrees

clockwise from

original position

121

Page 33



PC1: PC/104 64-pin Connector

PIN Description PIN Description

1 IOCHECK- 33 GND 2 SD7 34 RESETDRV

4 SD5 36 IRQ9 5 SD4 37 -5V 6 SD3 38 DREQ2 7 SD2 39 -12V

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW- 12 SA19 44 SMEMR- 13 SA18 45 IOW- 14 SA17 46 IOR-

16 SA15 48 DREQ3 17 SA14 49 DACK1- 18 SA13 50 DREQ1 19 SA12 51 REFRESH- 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2-

28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 N/C 32 GND 64 GND

SD6

SD1

SA16

SA4

+5V

OWS-

DACK3-

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

Page 34

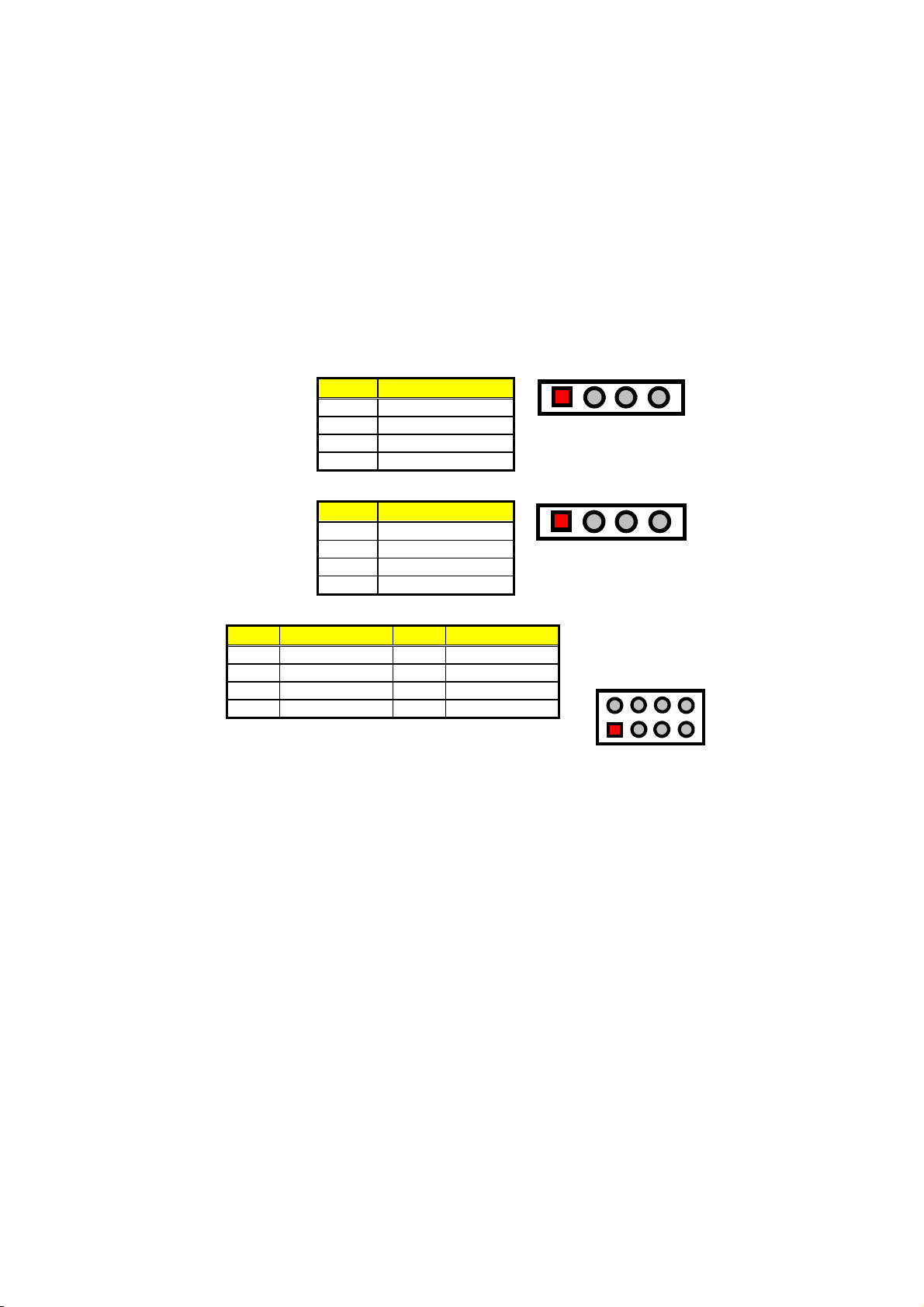

3.24 Audio Connectors

The HS-6253 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line In and the MIC In / Line Out connectors.



CD1: CD-ROM Line In Connector

PIN Description

1 CD IN_L 2 GND

GND

4 CD IN_R



CN3: Line In Connector

PIN Description

1 LINE_R 2 GND 3 GND 4 LINE_L



CN4: MIC In / Line Out Connector

PIN Description PIN Description

1 AOUT_L 2 AOUT_R

3 GND 4 GND

5 MIC IN 6 N/C

7 GND 8 GND

GND

CD IN_L

GND

LINE_R

CD IN_R

GND

LINE_L

GND

AOUT_R

N/C

GND

AOUT_L

GND

MIC IN

Page 35

Chapter 4

AMI BIOS Setup

The HS-6253 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 36

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

(Shift)F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

Option Page Setup Menu

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 37

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Save Settings and Exit

Exit Without Saving

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Page 38

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Thu Jan 03, 2002 Base Memory : 0 KB Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB

Floppy Drive A: 1.44MB, 3.5” Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Auto Pri Slave : Auto Sec Master : Auto Sec Slave : Auto

Boot Sector Virus Protection : Disabled Month: Jan - Dec ESC:Exit

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

Page 39

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Disabled Pri Master ARMD Emulated as Auto Pri Slave ARMD Emulated as Auto Enabled Sec Master ARMD Emulated as Auto Sec Slave ARMD Emulated as Auto 1st Boot Device Floppy 2nd Boot Device IDE-0 3rd Boot Device CD-ROM Try Other Boot Devices Yes S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock Off Floppy Drive Swap Disabled Floppy Drive Seek Disabled PS/2 Mouse Support Disabled Primary Display Absent Password Check Setup Boot To OS/2 No L1 Cache Enabled L2 Cache Enabled System BIOS Cacheable Enabled C000,32k Shadow Cache C800,16k Shadow Disabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled

Available Options:

Disabled



:Sel

F1:Help F2/F3:Color

Page 40

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

******** DRAM Timing ******** Available Options: Configure SDRAM Timing by SPD Enabled

DRAM Frequency 100MHz Enabled SDRAM CAS# Latency 3

DRAM Bank Interleave Disabled Memory Hole Disabled AGP Mode 4x AGP Fast Write Disabled AGP Comp. Driving Manual Manual AGP Comp. Driving CB AGP Aperture Size 256MB AGP Master 1 W/S Write Disabled AGP Master 1 W/S Read Disabled Search for MDA Resources No PCI Delay Transaction Disabled ISA Bus Clock PCI CLK/4 USB Controller Disabled USB Device Legacy Support Disabled ESC:Exit Port 64/60 Emulation Disabled PgUp/PgDn: Modify ATX Power Supply Disabled F1:Help F2/F3:Color

Disabled



:Sel

Page 41

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S No ACPI Standby State S1/POS USB Device Wakeup From S3-S5 Disabled Ye s Re-Call VGA BIOS at S3 Resuming Disabled Power Management / APM Disabled Video Power Down Mode Disabled Hard Disk Power Down Mode Disabled Standby Time Out (Minute) Disabled Suspend Time Out (Minute) Disabled Throttle Slow Clock Ratio Reserved Display Activity Ignore IRQ3 Ignore IRQ4 Ignore IRQ5 Ignore IRQ7 Ignore IRQ9 Ignore IRQ10 Ignore IRQ11 Ignore IRQ12 Ignore IRQ13 Ignore IRQ14 Ignore IRQ15 Ignore System Thermal Disabled Thermal Active Temperature 40°C / 104°F Thermal Slow Clock Ratio Reserved Power Button Function On / Off Restore on AC / Power Loss Power Off Resume On Ring Disabled Resume On LAN Disabled Resume On PME# Disabled Resume On KBC Disabled Wake-Up Key N/A Wake-Up Password N/A Resume On PS/2 Mouse Disabled Resume On RTC Alarm Disabled RTC Alarm Date Every Day RTC Alarm Hour 00 ESC:Exit RTC Alarm Minute 00 PgUp/PgDn: Modify RTC Alarm Second 00

Available Options:



:Sel

F1:Help F2/F3:Color

Page 42

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM No OnChip VGA Frame Buffer Size None PCI Latency Timer (PCI Clocks) 32 Yes Primary Graphics Adapter PCI Boot Screen Select Auto LCD Panel Type 640 x 480 DMA Channel 0 PnP DMA Channel 1 PnP DMA Channel 3 PnP DMA Channel 5 PnP DMA Channel 6 PnP DMA Channel 7 PnP IRQ3 PCI/PnP IRQ4 PCI/PnP IRQ5 PCI/PnP IRQ7 PCI/PnP IRQ9 PCI/PnP IRQ10 PCI/PnP IRQ11 PCI/PnP ESC:Exit IRQ14 PCI/PnP PgUp/PgDn: Modify IRQ15 PCI/PnP F1:Help F2/F3:Color



:Sel

Page 43

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC Auto Available Options: OnBoard Serial Port 1 3F8/IRQ3 OnBoard Serial Port 2 2F8/IRQ4 Primary

Serial Port2 Mode Normal Secondary Duplex Mode N/A Both OnBoard Prarllel Port 378

Parallel Port Mode Normal EPP Version N/A

Parallel Port DMA Channel N/A Parallel Port IRQ IRQ7 OnBoard Secondary IDE Reserved OnBoard Serial Port3 3E8 Serial Port3 IRQ IRQ10 OnBoard Serial Port4 2E8 Serial Port4 Mode Normal Serial Port4 IRQ IRQ11 Receiver Polarity Non-Inverted Transmitter Polarity Non-Inverted OnBoard IDE Reserved OnBoard AC’97 Audio Enabled

OnBoard Legacy Audio Disabled MPU-401 Disabled MPU-401 I/O Address 300h-303h ESC:Exit Game Port (200h-207h) Disabled PgUp/PgDn: Modify F1:Help F2/F3:Color

Disabled



:Sel

Page 44

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

*** System Hardware Monitor *** Available Options:

Chassis Intrusion Disabled TSENS1 Temperature Enabled TSENS2 Temperature Reset TSENS3 Temperature CPU Fan Speed Chassis Fan Speed

Vcore + 2.500V +3.300V +5.000V

+12.000V ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color

Disabled



:Sel

Page 45

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 46

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:



supervisor password:

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

can enter and change the options of the setup

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

Page 47

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal

Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 48

4.14 Auto Configuration with Fail Safe

Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 49

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Page 50

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Abandon all Data & Exit Setup

Page 51

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, Audio and LAN driver installation procedures.

5.1 IDE and Audio Driver Installation

The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA and Audio drivers. The following describes the installation procedures of each driver.

5.1.1 VIA VT82C686B AGP Bus Driver Installation

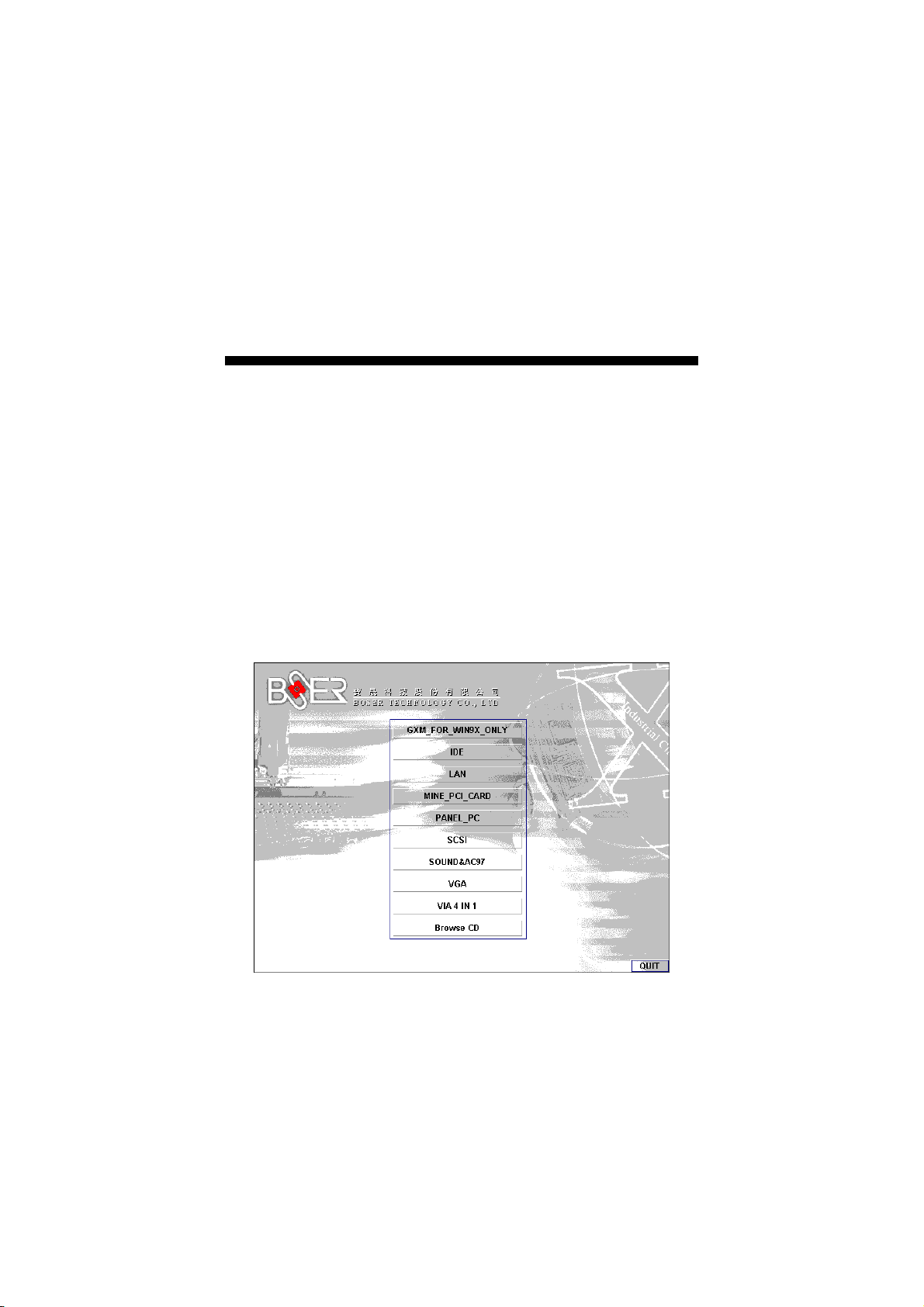

1. Insert Utility CD Disk to your CD ROM. The main menu will pop up as shown below.

Page 52

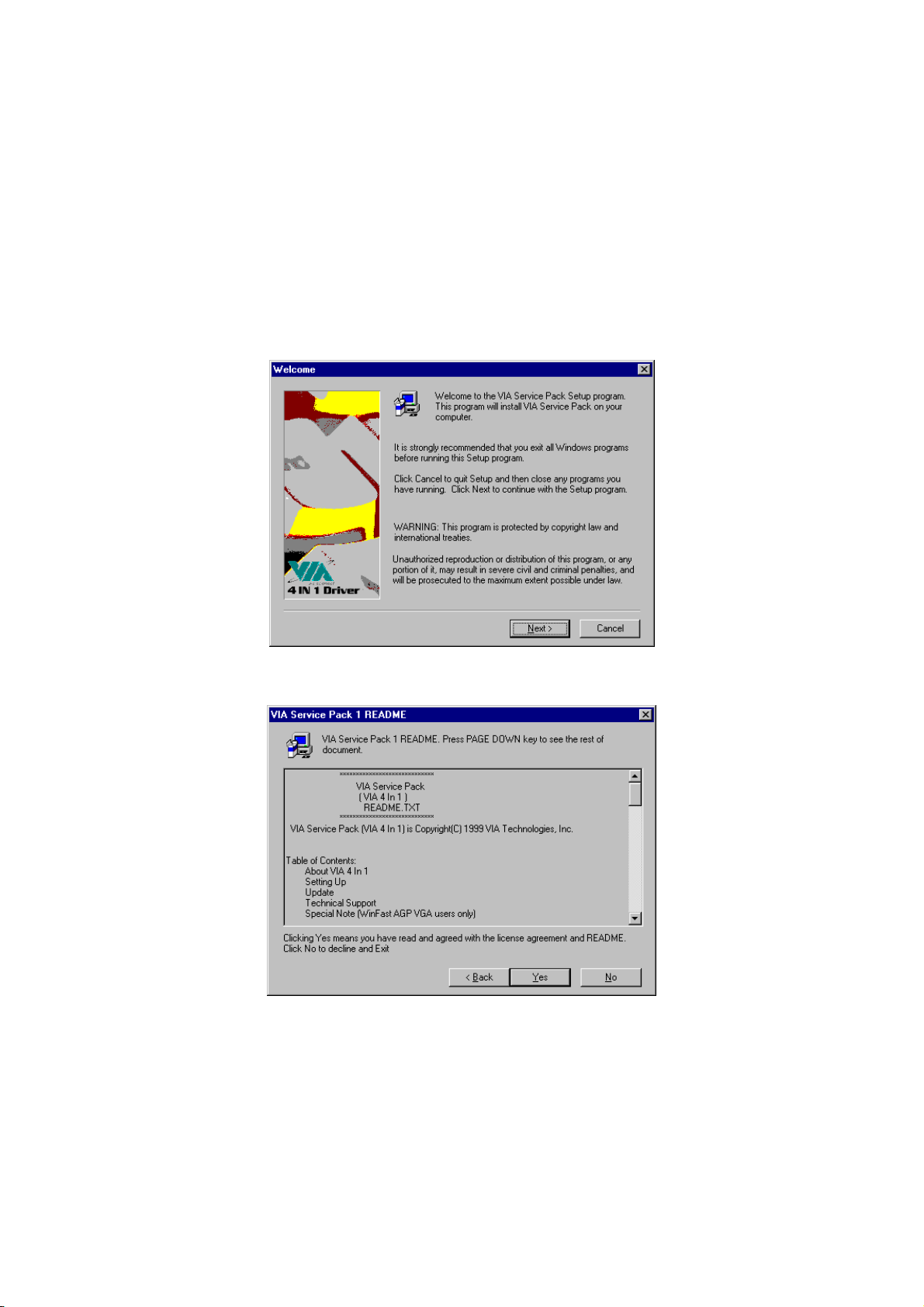

2. Press “VIA 4 IN 1” and to go Setup.

3. Once the Welcome screen appears on the screen, make sure to close any applications running and then click on the Next button.

4. When the Readme window pops on the screen, you may read the whole document including the license agreement or just press Yes to skip through and continue installation.

Page 53

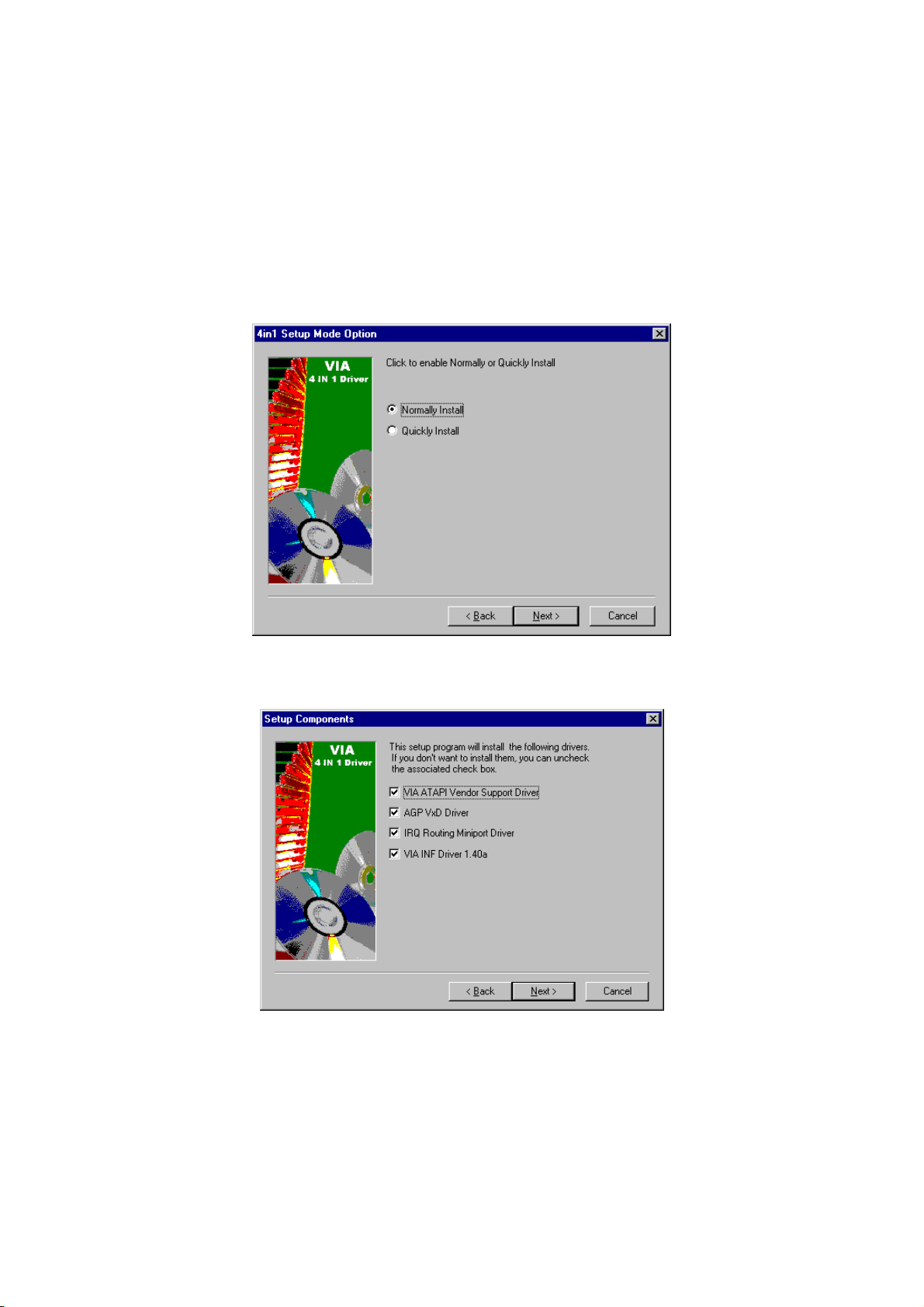

5. The 4 in 1 Setup dialog is now displayed. Select on Normally Install and then click on Next.

6. The next window lists all components detected in your system and asks you to select the ones requiring drivers. Tick on all items then proceed by clicking on the Next button below the screen.

Page 54

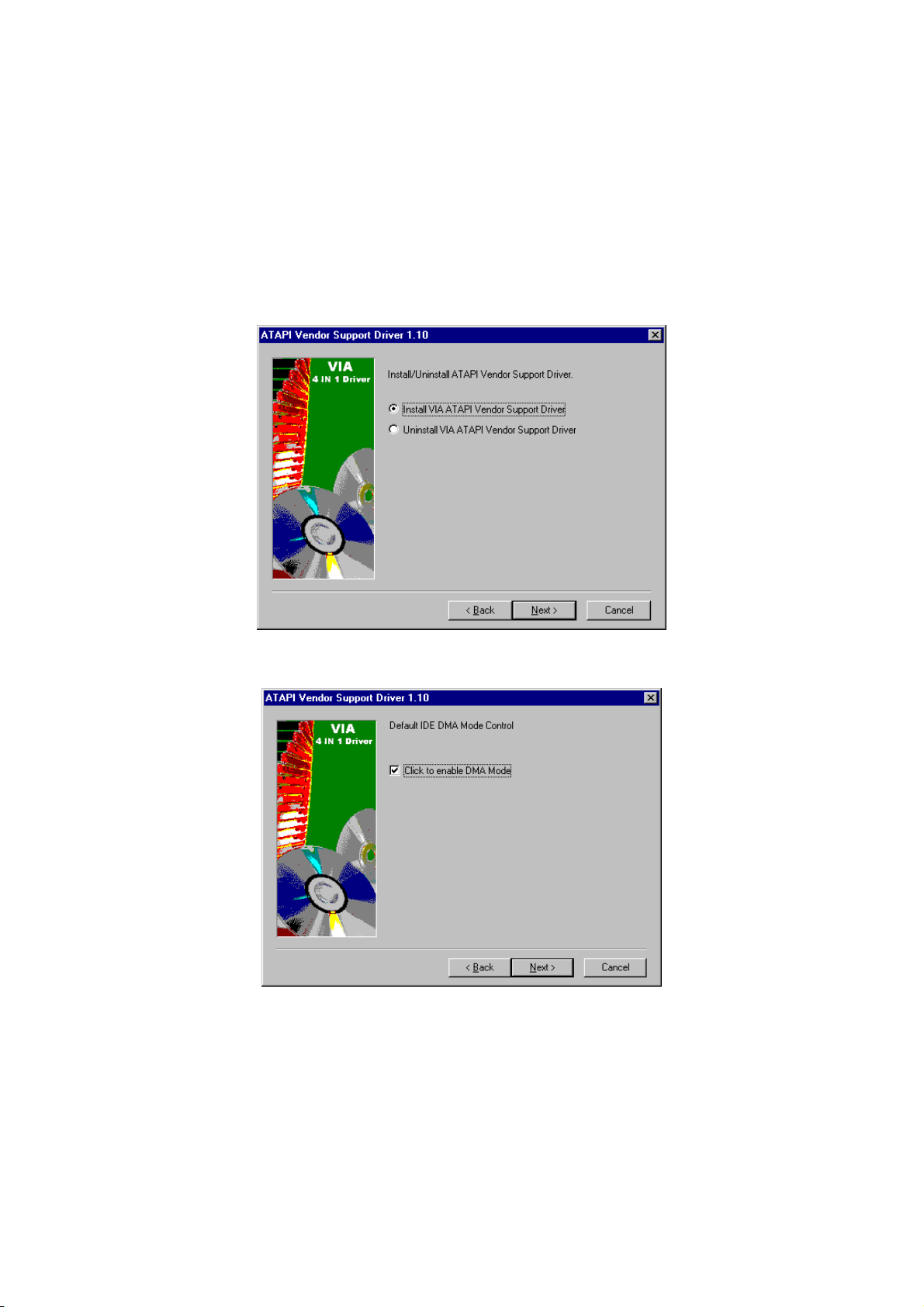

7. The program starts to install the ATAPI driver when you click the Next button on the screen below.

8. When the ATAPI driver is completely installed. The utility then displays your DMA mode status and allows you to enable it. Tick on the box and press on the Next button to continue.

Page 55

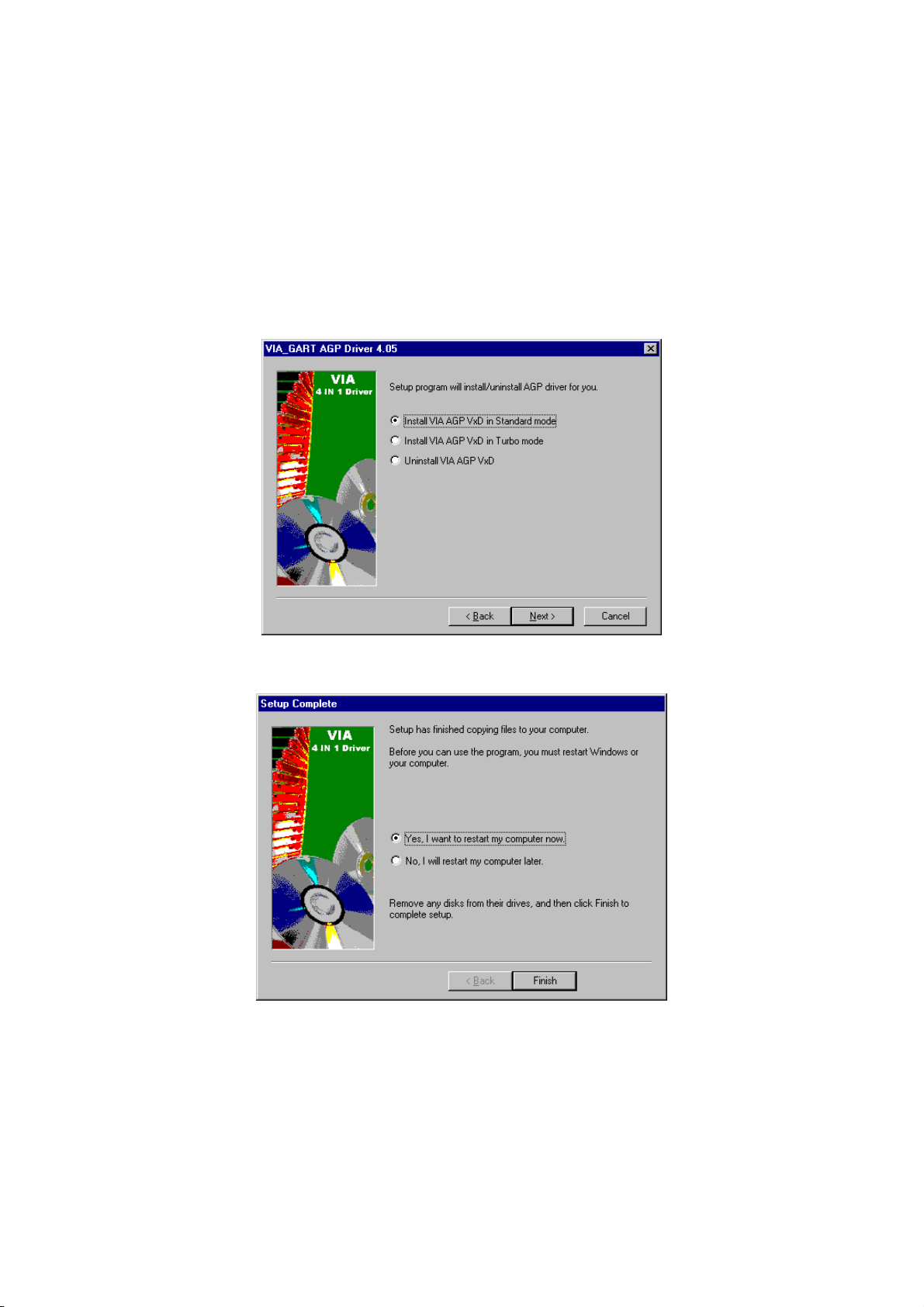

9. The following screen then gives you the choice of installing the AGP driver in standard o turbo mode. Select on the Standard Mode and then click on Next to proceed.

10. Installation of the AGP driver is now complete. Once the screen below appears, select on restarting your computer to activate all drivers/settings completed.

Page 56

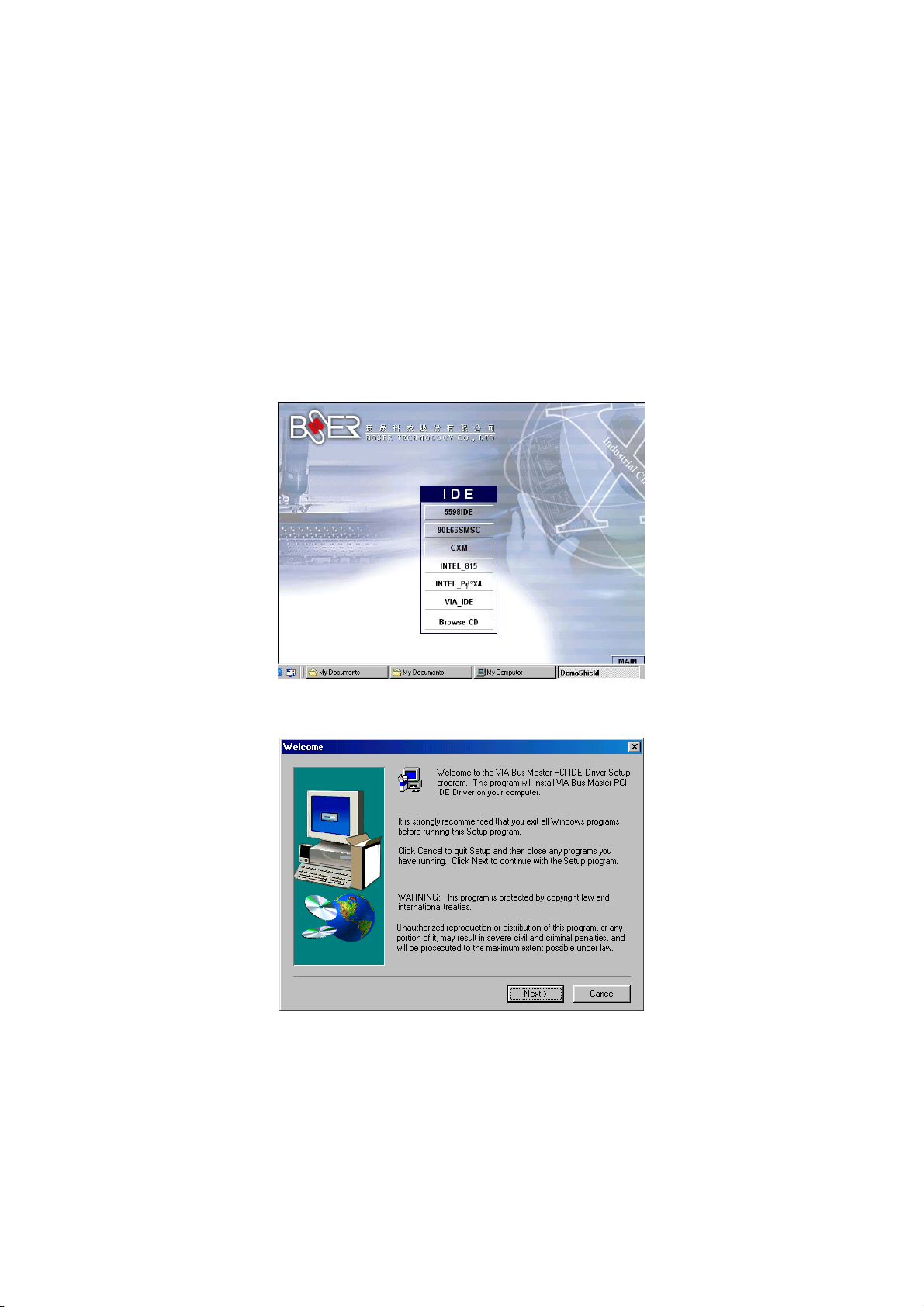

5.1.2 VIA IDE Tool Installation

1. With the Utility CD Disk still in your CD ROM drive, open the File Manager and then select the CD-ROM drive. As soon as the system reads the disk, the following screen will appear on your display. Click on VIA_IDE from the main menu to start installing the VIA ID Tool.

2. Once the Welcome screen appears on the screen, make sure to close applications that are running and then click the Next button.

Page 57

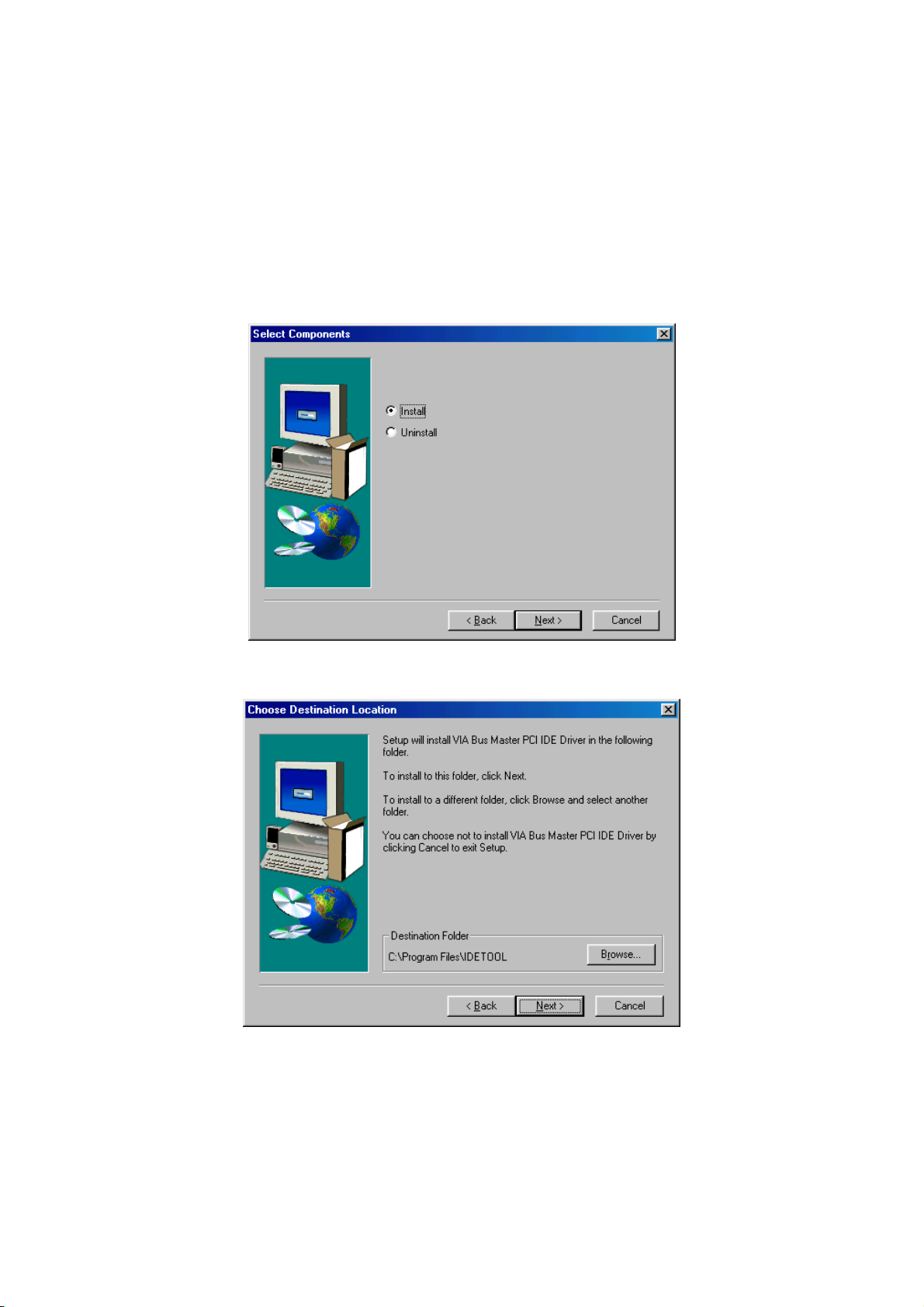

3. The Select Components dialog box is now displayed. Select on Install and then click on Next.

4. Choose the folder to where the program will install the driver. Select the default folder (C:\Program Files\IDETOOL) and then click on Next to proceed.

Page 58

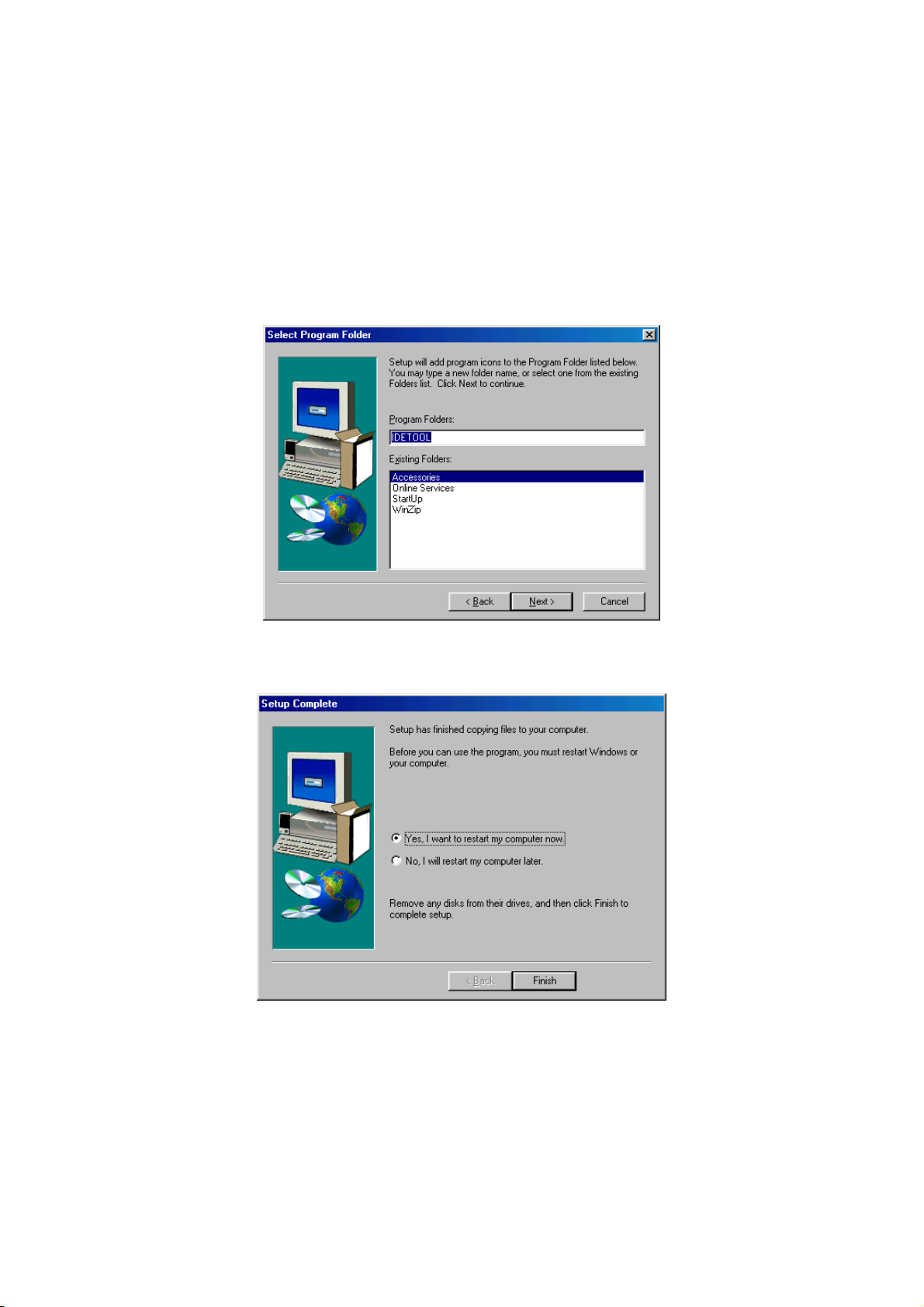

5. The program will now create an icon for the IDETOOL. Simply press Next to continue with the installation.

6. The program now installs and transfers the files to your system. After it finishes, you will be prompted to restart your system. We recommend you to reboot your computer to allow the new settings to take effect. Click on the Finish button to reboot.

Page 59

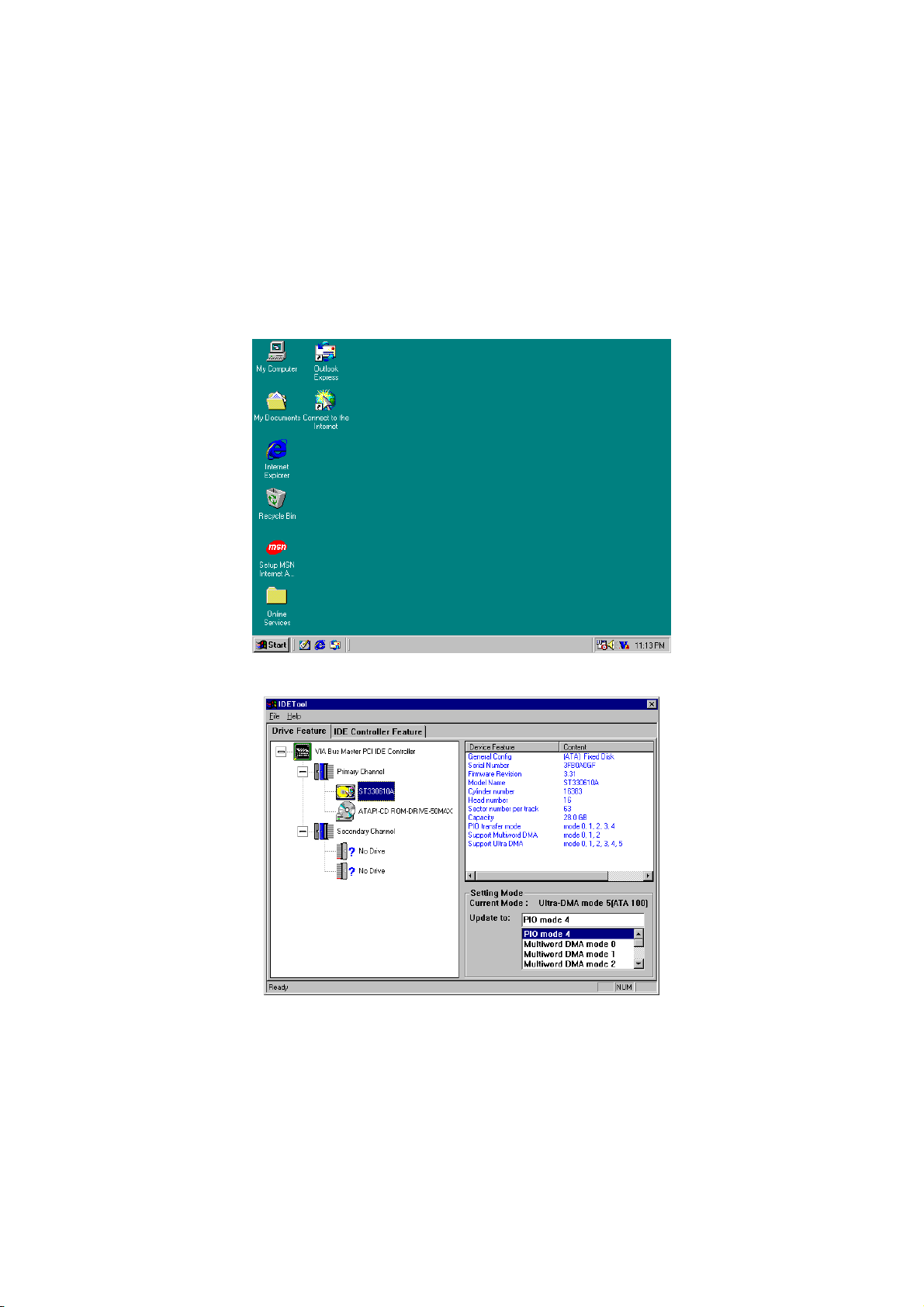

7. Once the system enters the main Windows screen, it will display a new icon along the right hand task bar. This icon represents the IDE Tool quick launch program.

8. Double-clicking on this new task bar icon will launch the IDE Tool’s Drive Feature dialog box, as shown below.

Page 60

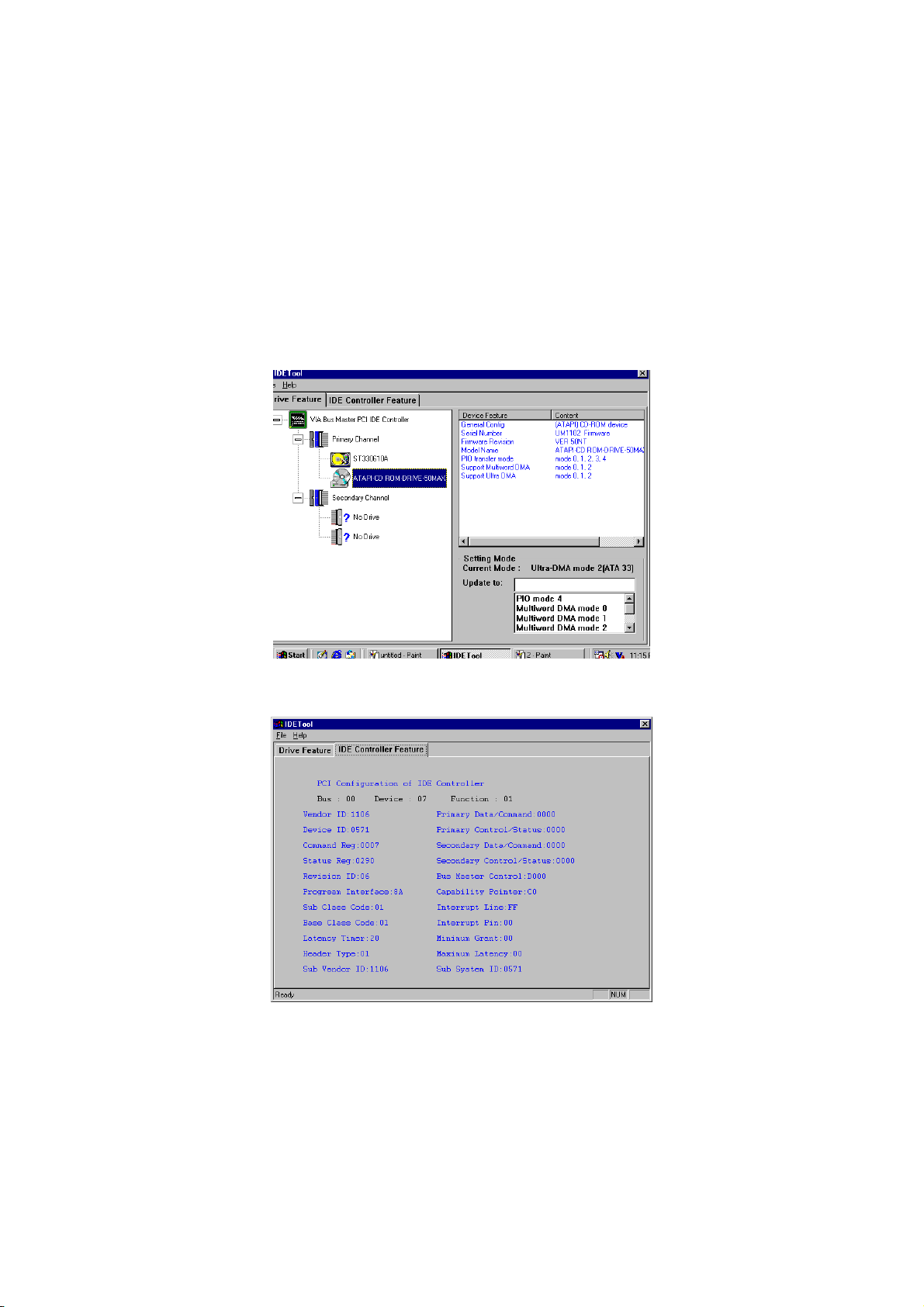

9. The Drive Feature dialog box has 2 columns of information. The left column lets you to view the hardware installed on your system. When you select any hardware, the right column displays the device’s information and specifications. You may also update the settings of your devices from the right column.

10. Once you select the IDE Controller Feature from the IDE Tool dialog box, a list of read-only information related to the system’s IDE controller is shown.

Page 61

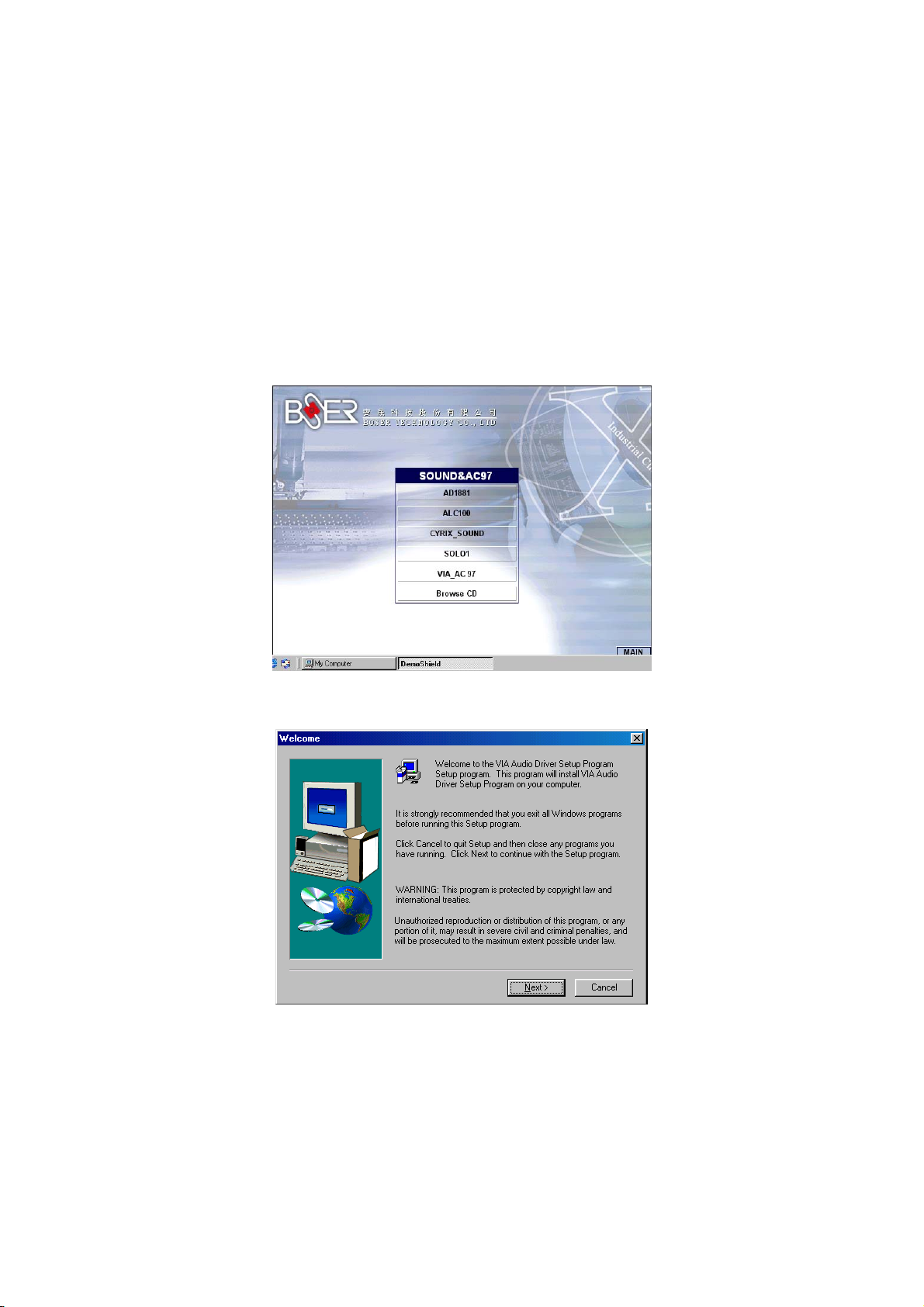

5.1.3 Audio Driver Installation

1. With the Utility CD Disk still in your CD ROM drive, open the File Manager and then select the CD-ROM drive. As soon as the system reads the disk, the VGA Menu screen below will appear on your display. Click on VIA_AC97 from the main menu.

2. Once the Welcome screen appears on the screen, make sure to close applications that are running and then click the Next button.

Page 62

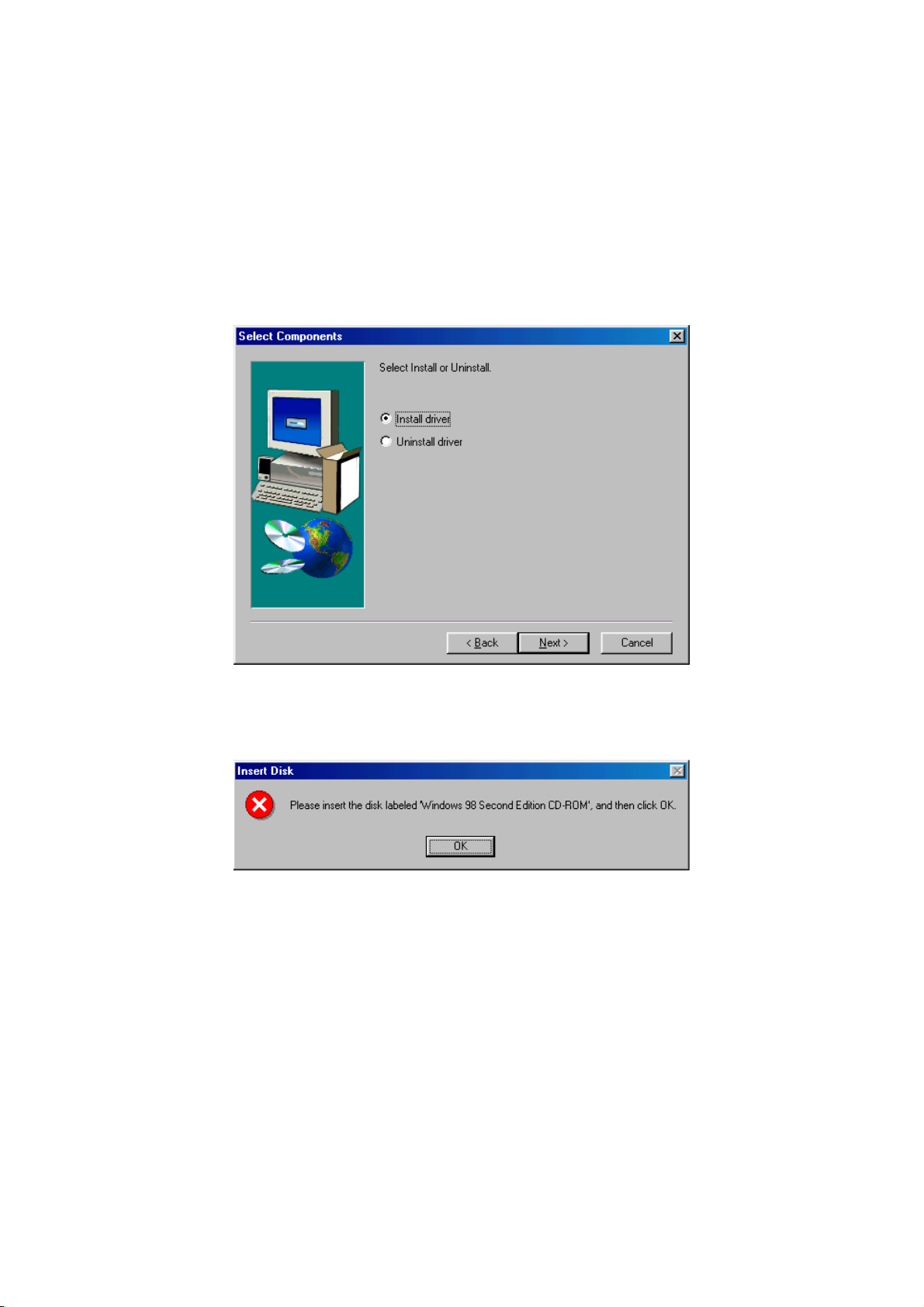

3. The Select Components dialog box is now displayed. Select on Install driver and then click on Next.

4. The program will now require the Windows installation disk for proper hardware installation. Insert the CD and then click on Next.

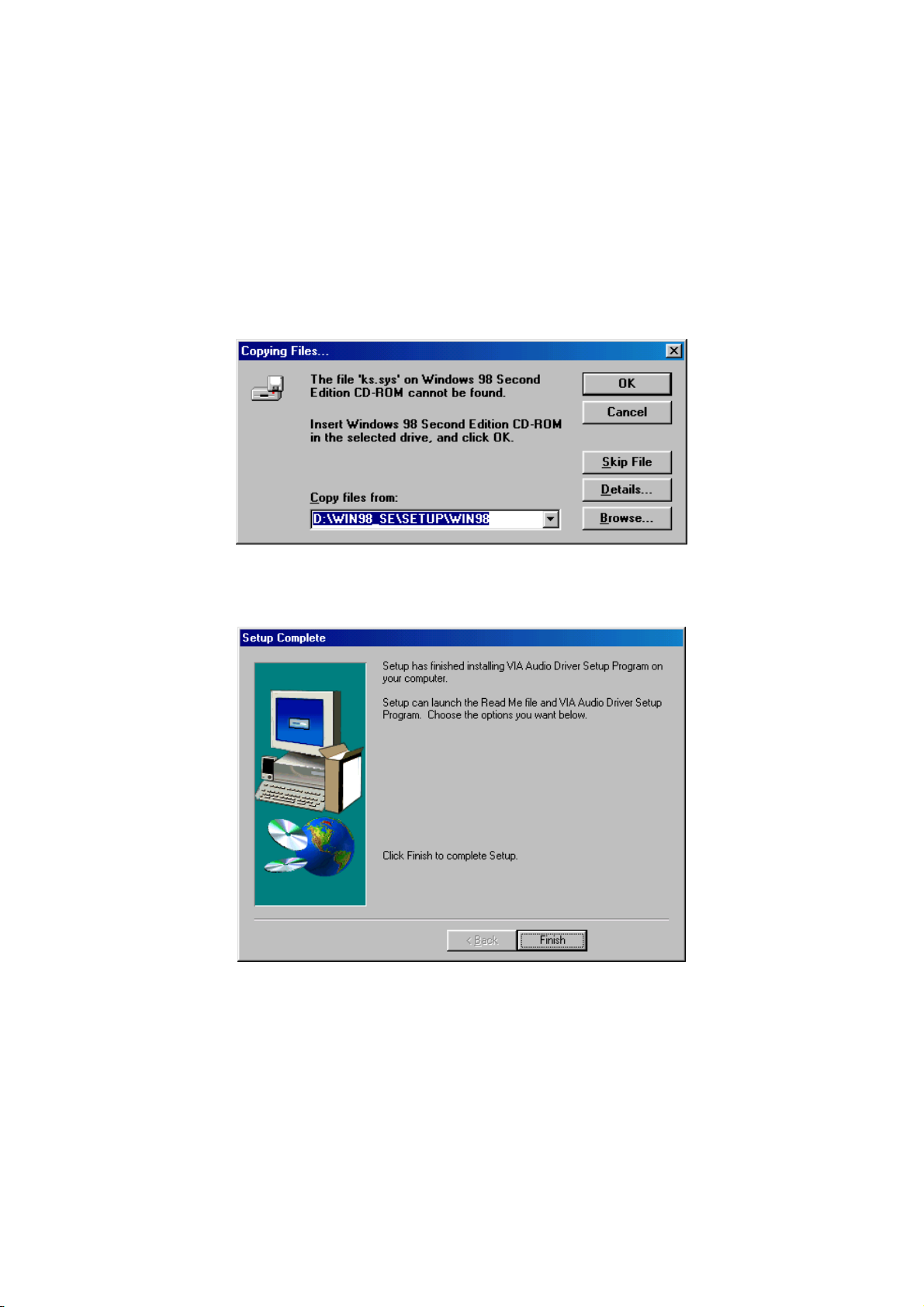

Page 63

5. When the display below appears on your screen, Setup is already installing and copying the related files onto your hard drive. Click on the Next button to proceed.

6. After the audio driver installation finishes, select the Finish button to complete the installation process.

Page 64

5.2 LAN Driver Installation for WIN95 &

WIN98

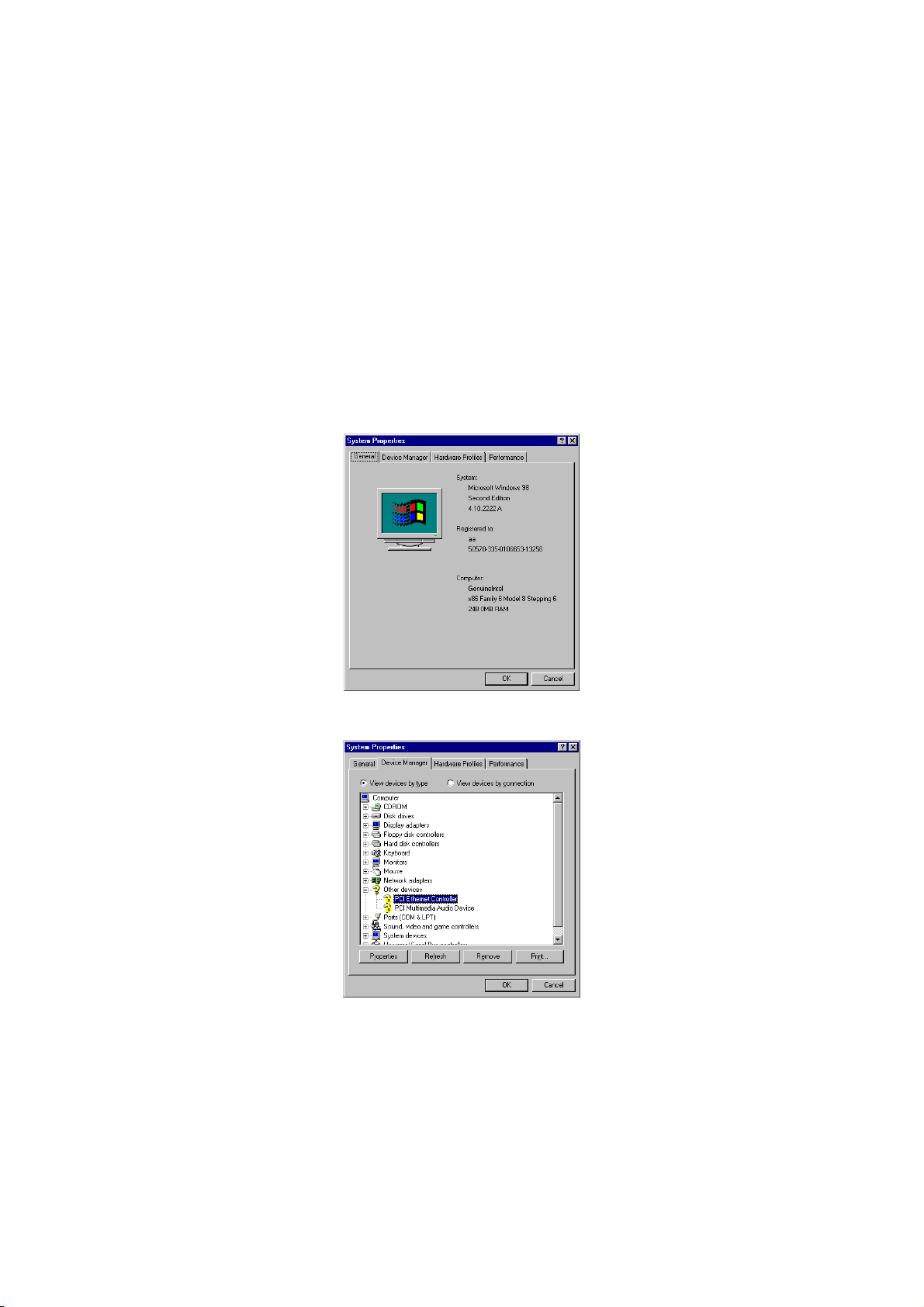

1. With the Utility CD Disk still in your CD ROM drive, right click on My Computer icon from the Windows menu. Select on System Properties and then proceed to the Device Manager from the main menu.

2. Select on Other Devices from the list of devices then double-click on PCI Ethernet Controller.

Page 65

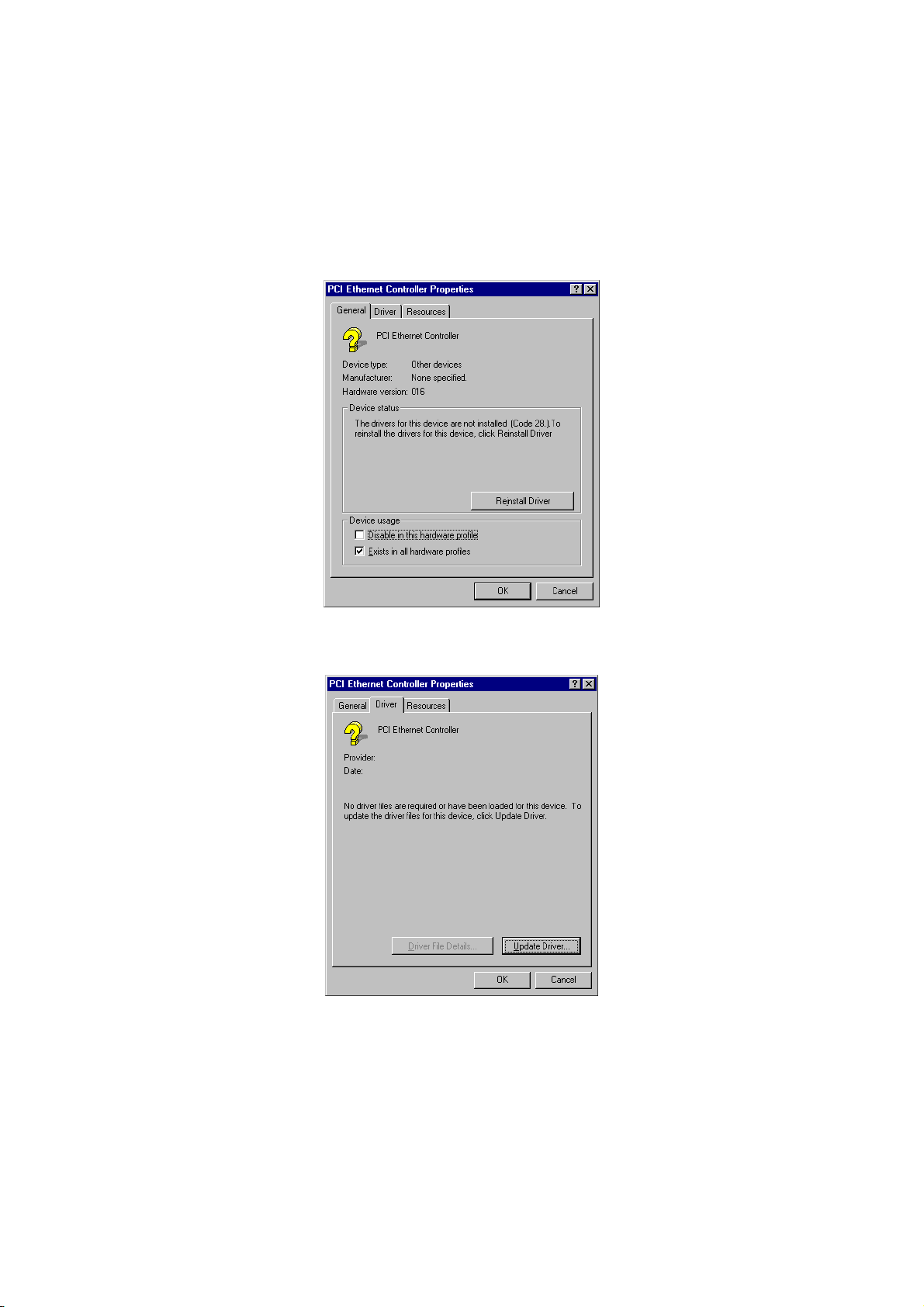

3. The PCI Ethernet Controller Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.

Page 66

4. The window then displays the current status of your LAN driver. Press on Update Driver button to continue.

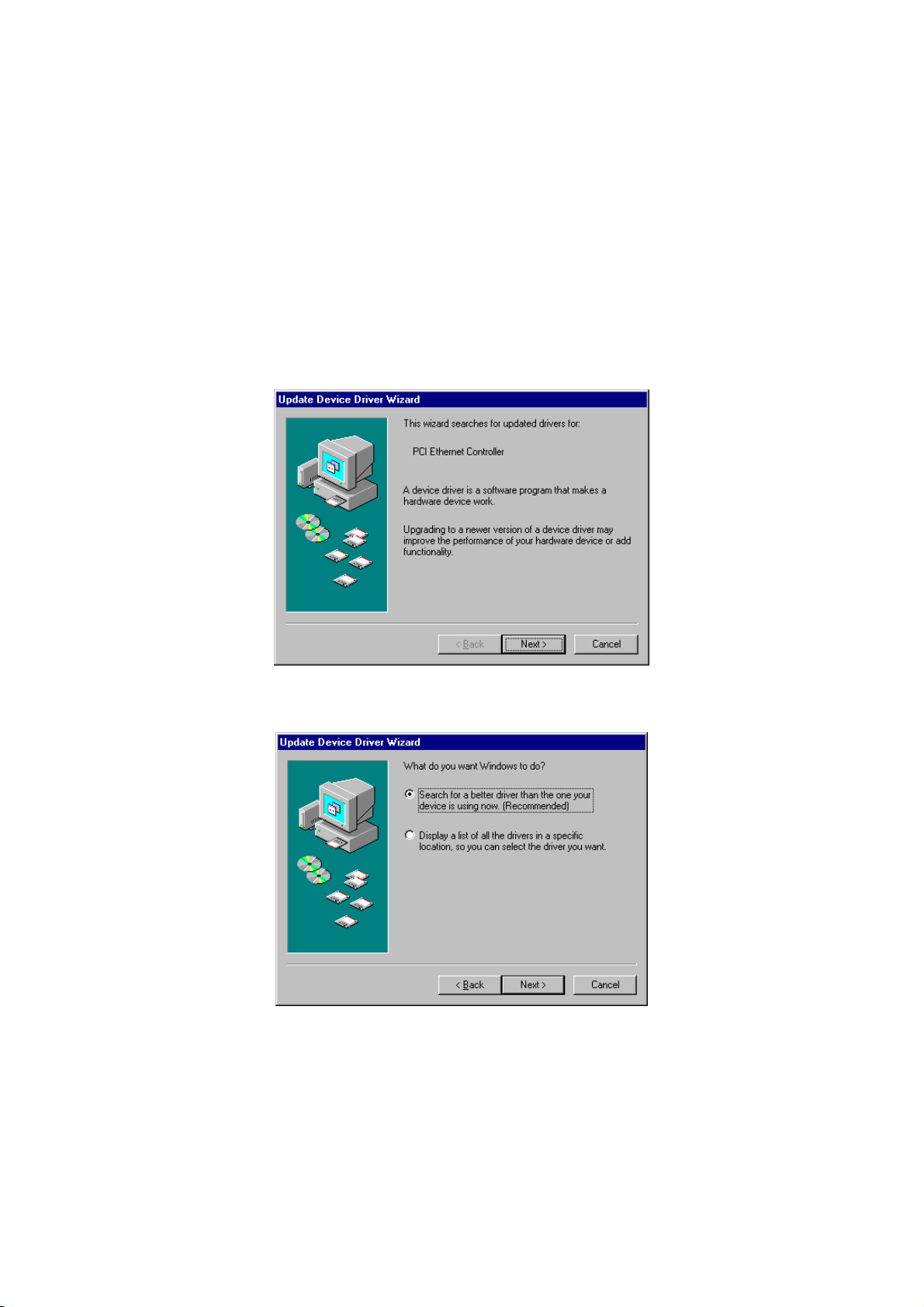

5. The program will then launch the Update Device Driver Wizard window that will install your device driver. Click on the Next button to proceed to the next step.

6. When the succeeding window asks you what you wish Windows to do, tick on the “Search for a better driver….” Click on the Next button to proceed.

Page 67

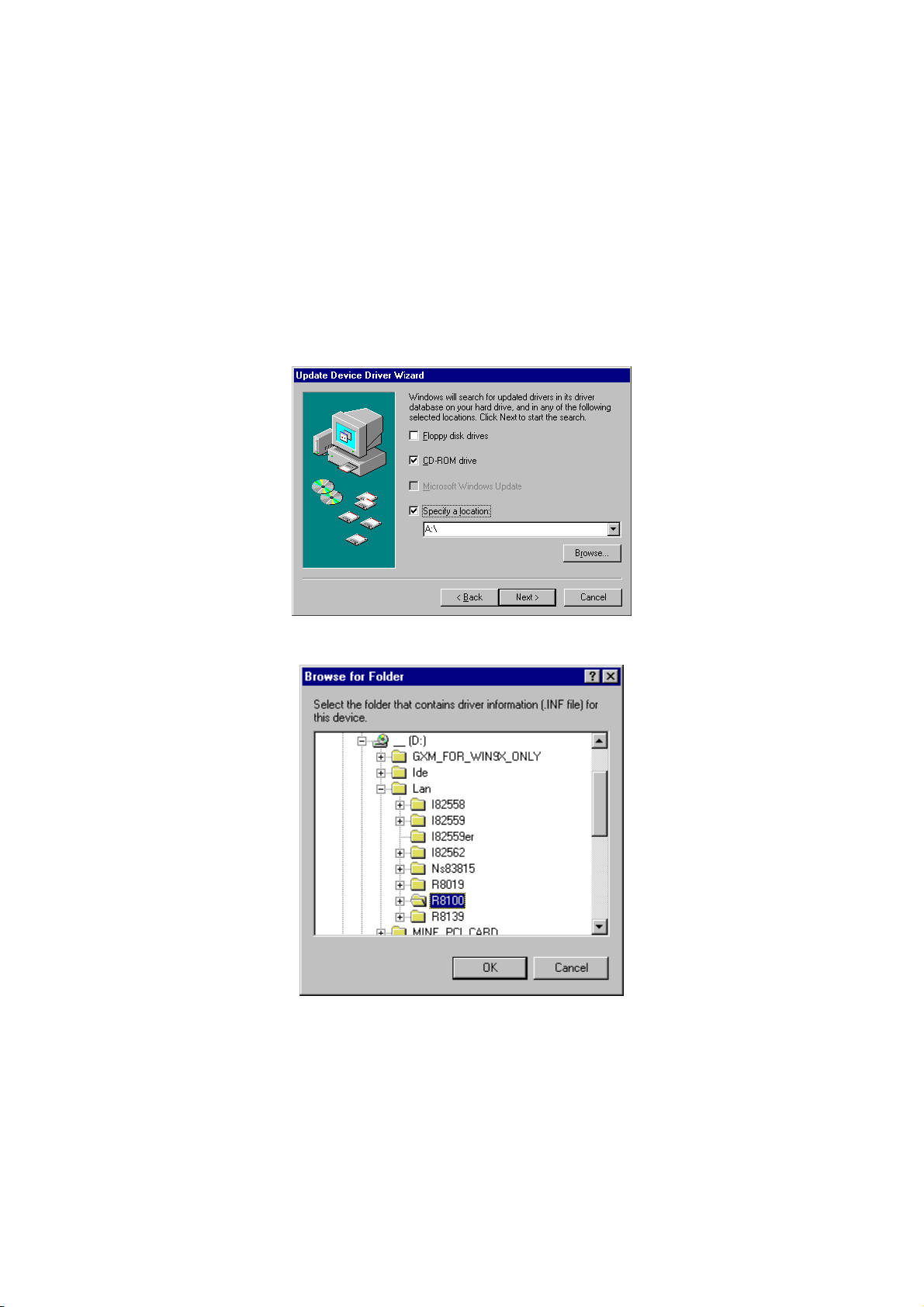

7. The Update Device Driver Wizard will then ask you to specify, by ticking, the path of the new driver. Tick on the open boxes where you require the program to search for the device driver then click on the Browse button to manually specify the path.

8. Press on the OK button as soon as you have located the path of your driver.

Page 68

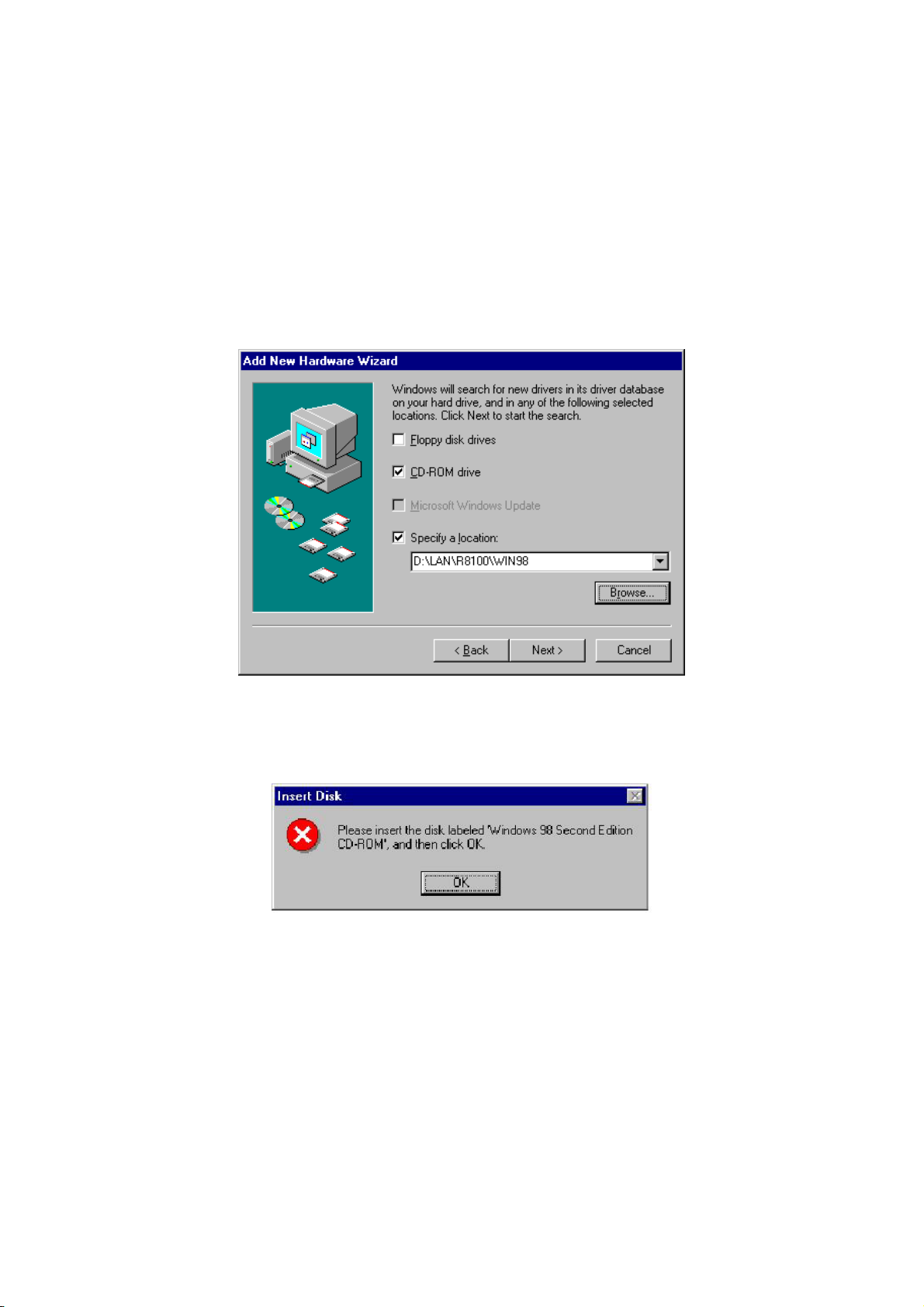

9. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the Next button to continue.

10. Once the program detects the device driver (*.inf) file from your

specified location, it will automatically copy the files into your hard drive.

11. When copying of driver files finishes, the program will then ask

you to insert your Windows.

Page 69

12. The program then copies the necessary files from your Windows

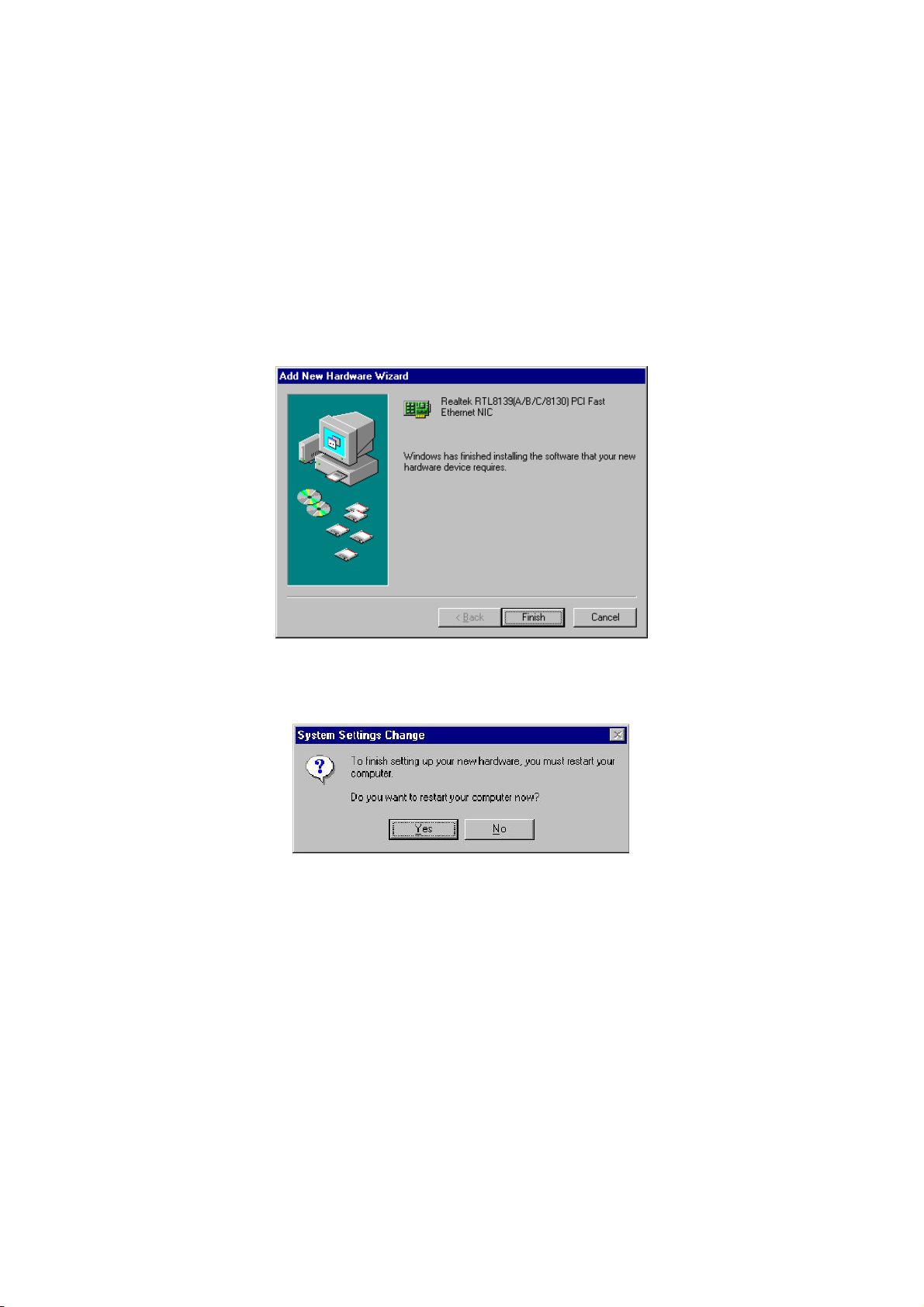

installation disk to complete the driver setup process. Once the driver is completely installed, the following message appears on your display. Click on the Finish button to proceed.

13. Restart your computer to make the new system settings take

effect. Click on the Yes button when the screen below appears and your LAN Driver for Win95 and Win98 are now completely installed.

Page 70

5.3 LAN Driver Installation for WIN

NT4.0

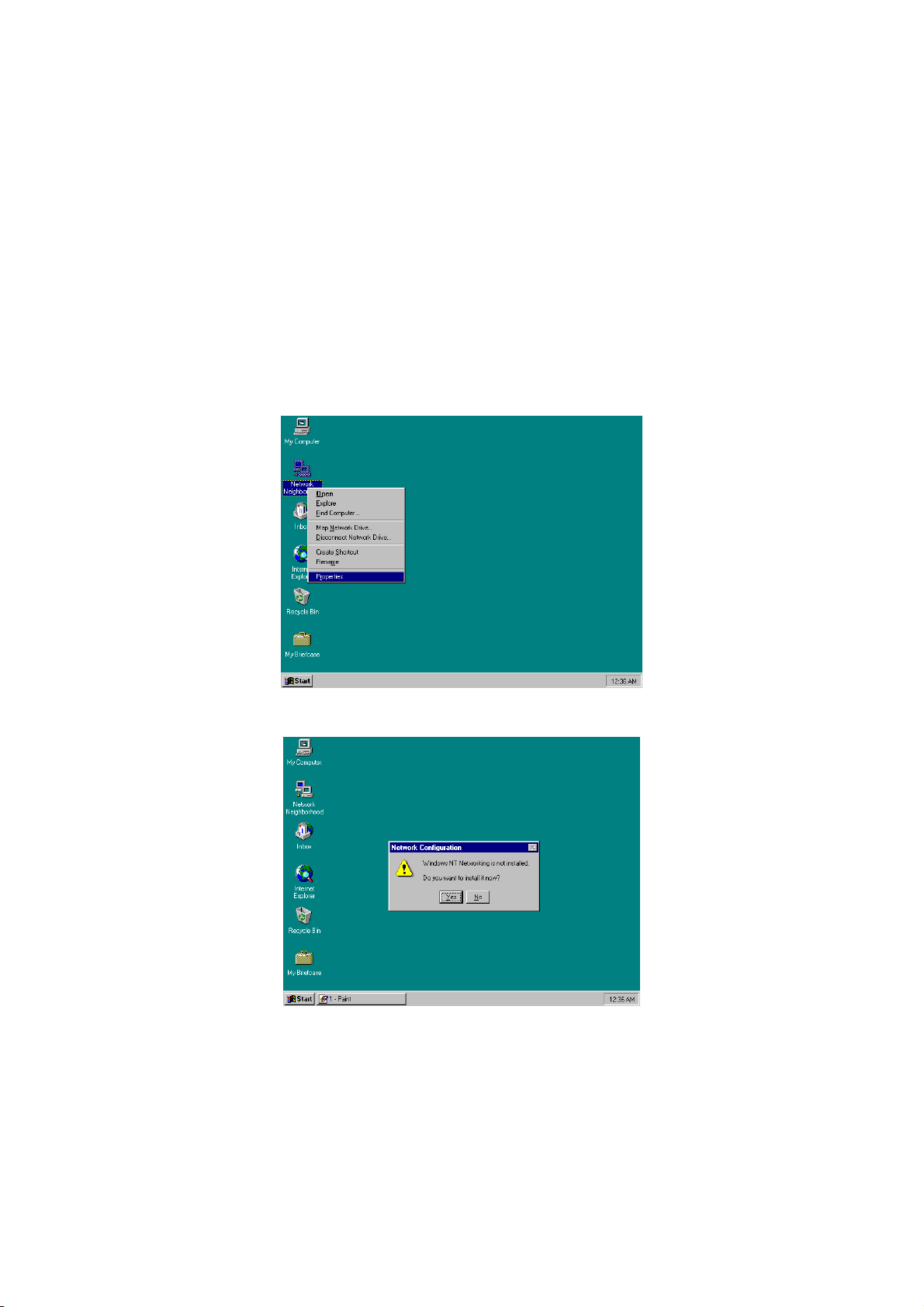

1. With the Utility CD Disk still in your CD ROM drive, right click on Network Neighborhood icon from the Windows menu. Select on Properties.

2. The system automatically detects the absence of Windows NT Networking. Click on the Yes button to start installation.

Page 71

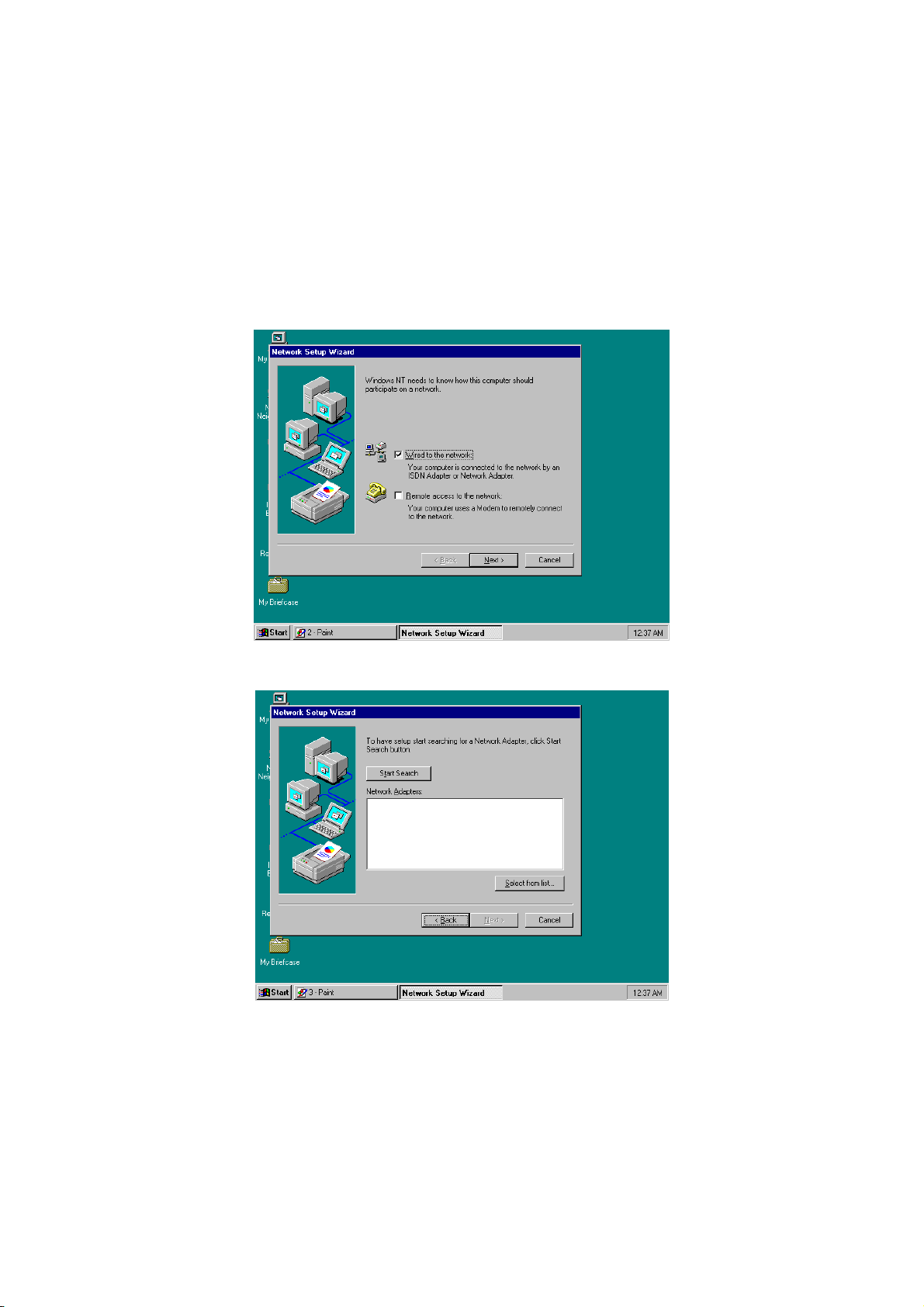

3. Tick on the “Wired to Network” once the following screen appears. Click on the Next to proceed.

4. Click on the Start Search button for the program to locate the Network Adapter.

Page 72

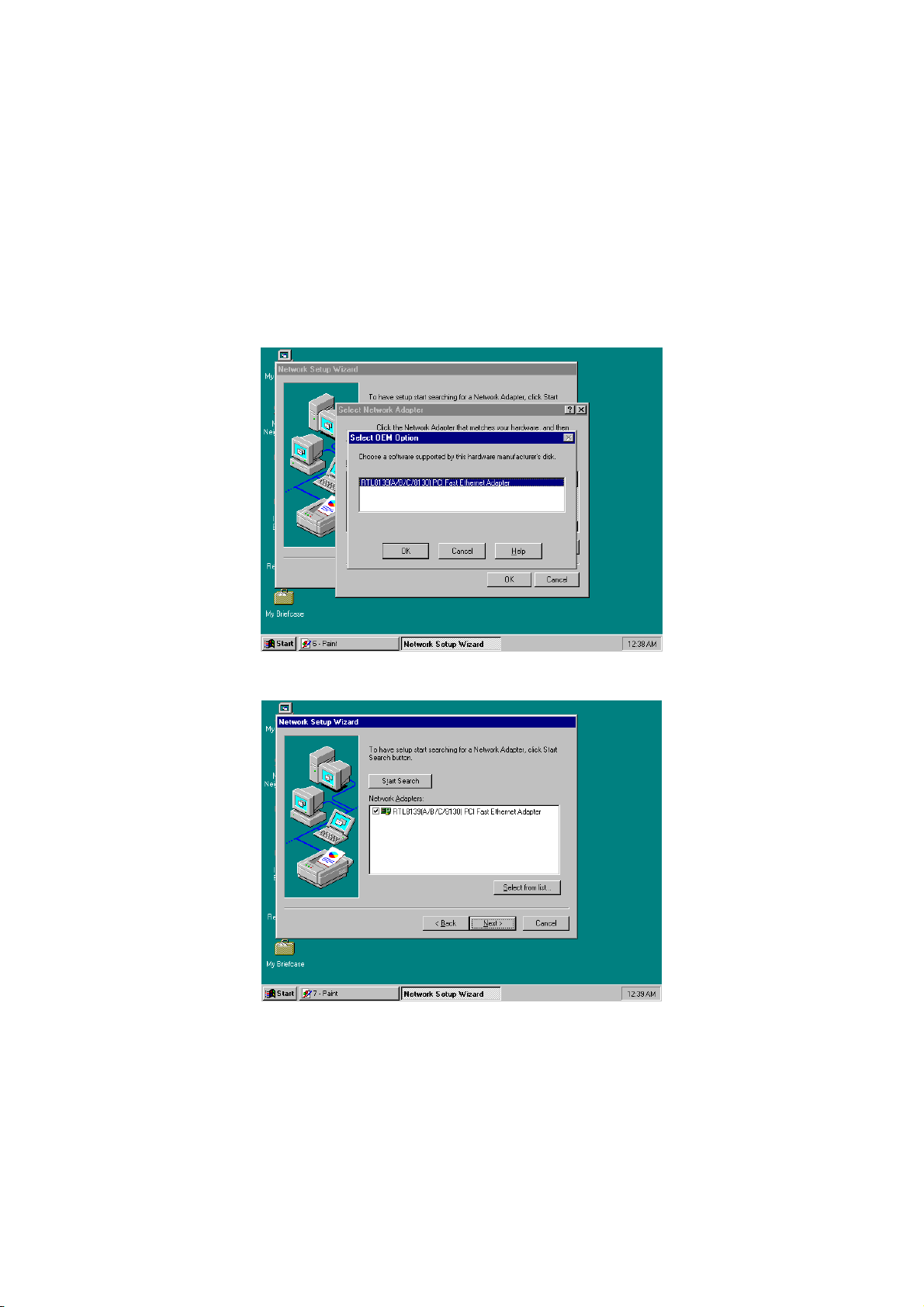

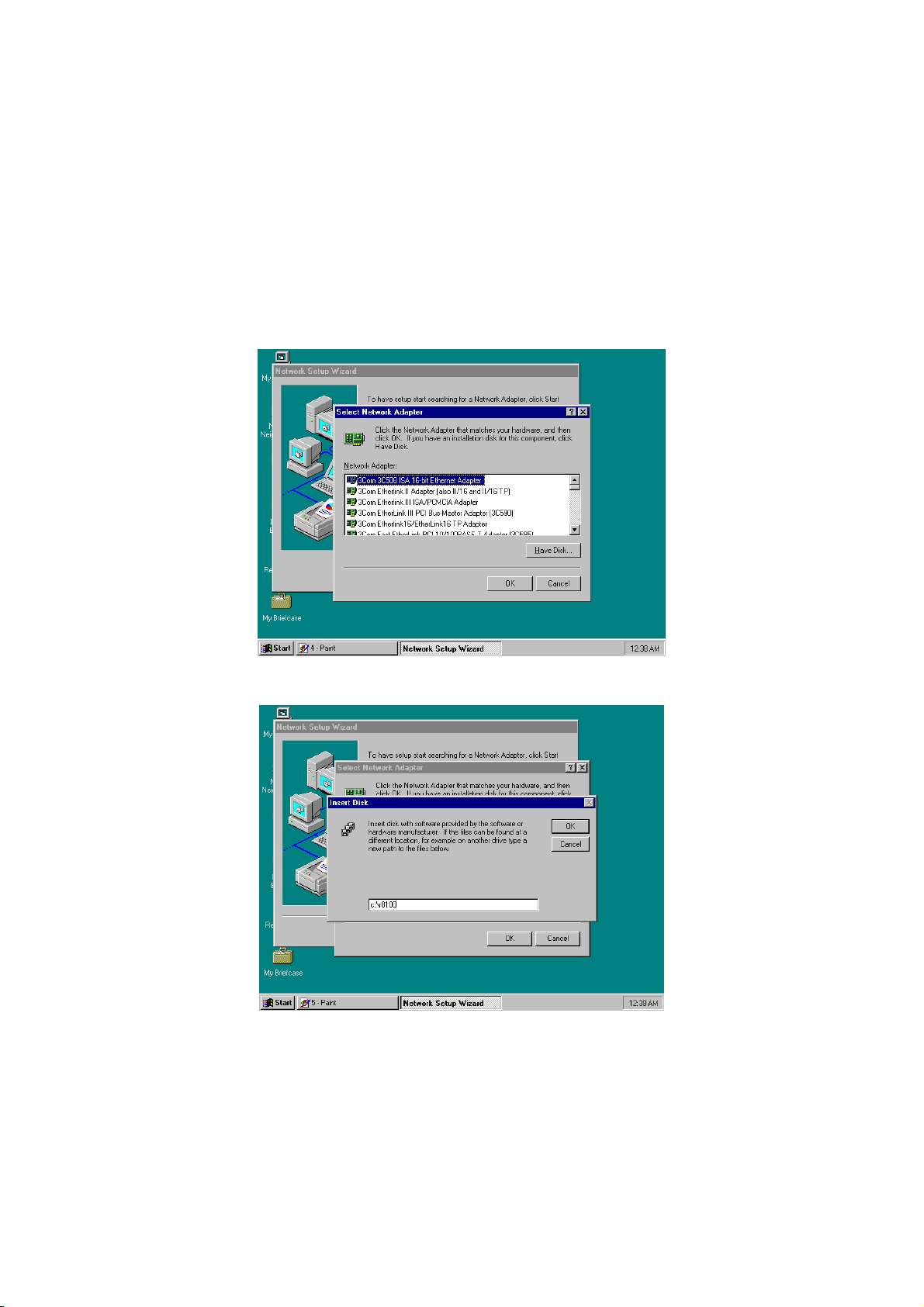

5. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the Have Disk button to assign the driver path location.

6. Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue.

Page 73

7. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Press on the OK button to accept and proceed.

8. Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on Next to continue.

Page 74

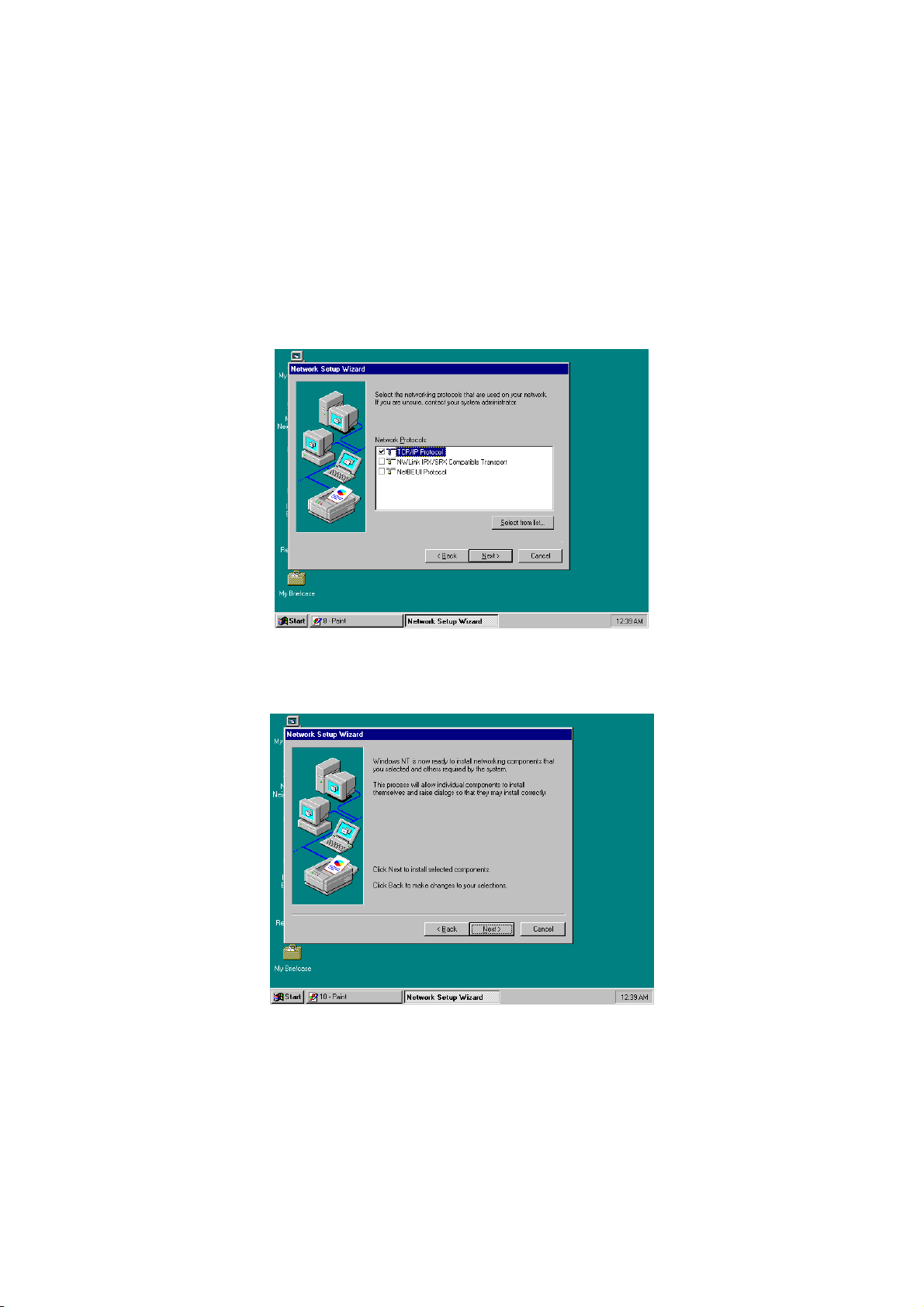

9. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.

10. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the Next button once you are sure of your devices.

Page 75

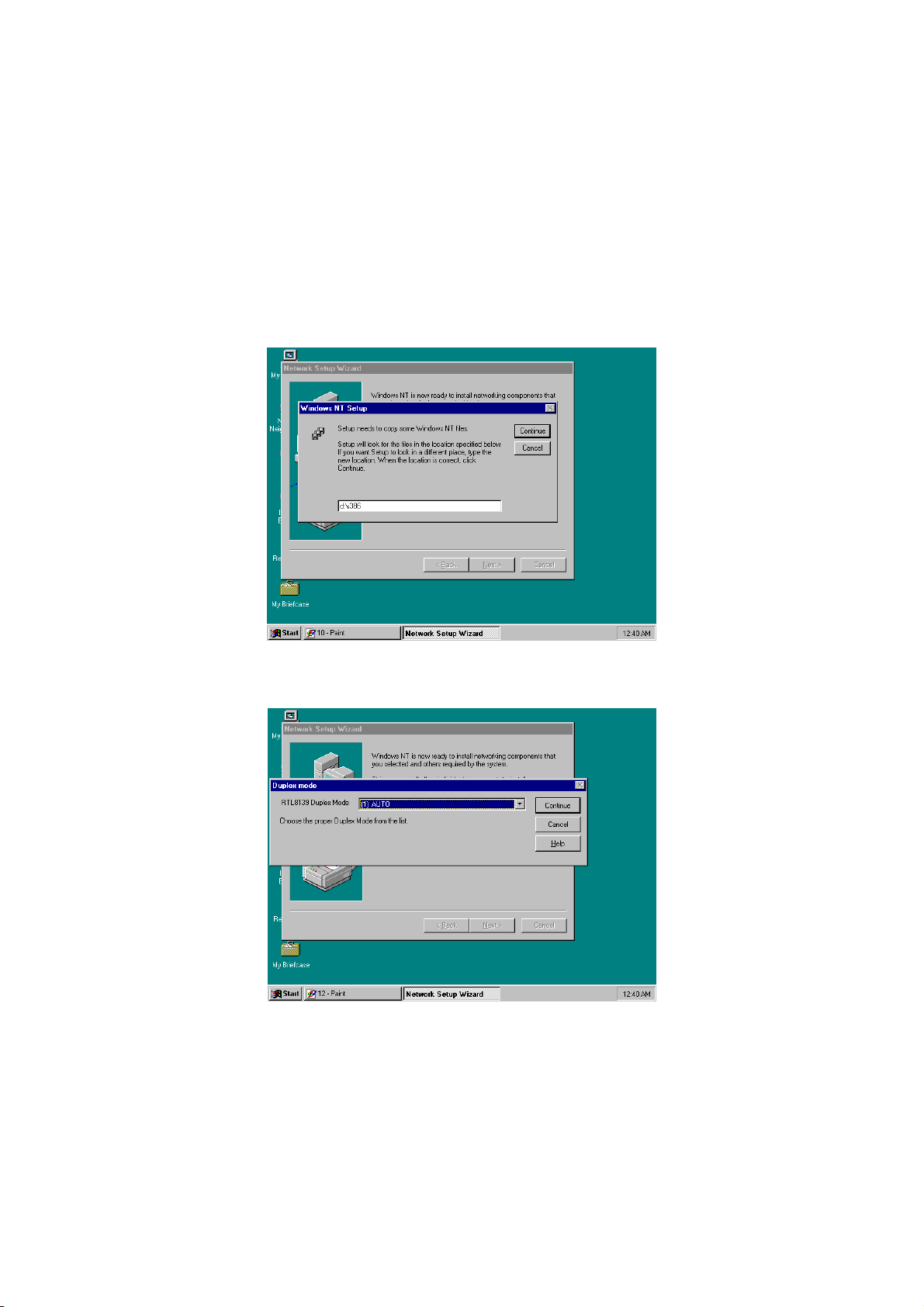

11. Windows NT Setup will then need to copy files necessary to update the system information. Specify the path then press Continue.

12. Once it finishes copying the files, Setup will now allow you to choose the Duplex Mode of your LAN controller. Press on the Continue button after making your selection.

Page 76

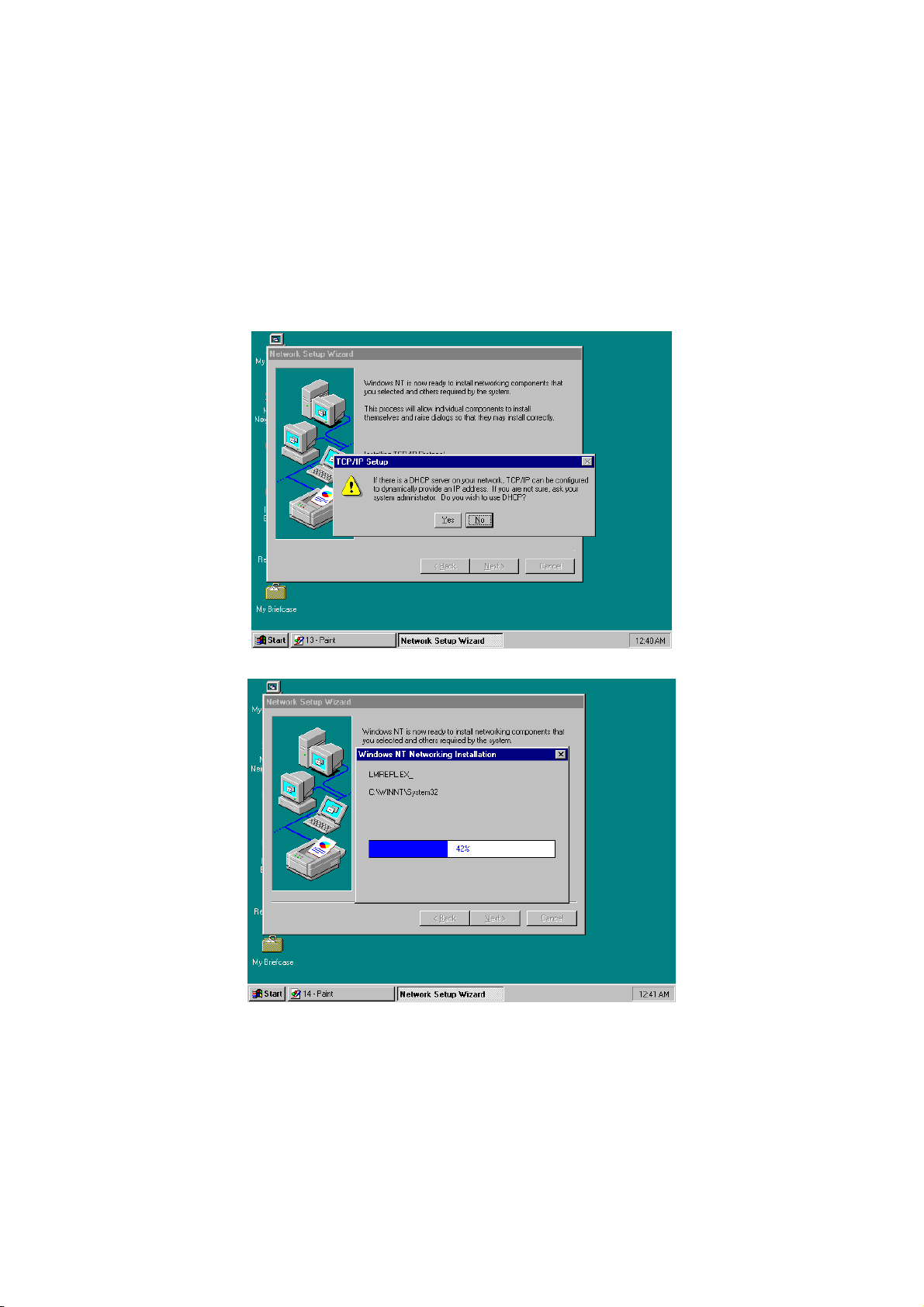

13. When Setup asks if you wish to change the TCP/IP settings of your system, select the appropriately. The default choice is No.

14. Setup then starts the Networking installation and copies the files.

Page 77

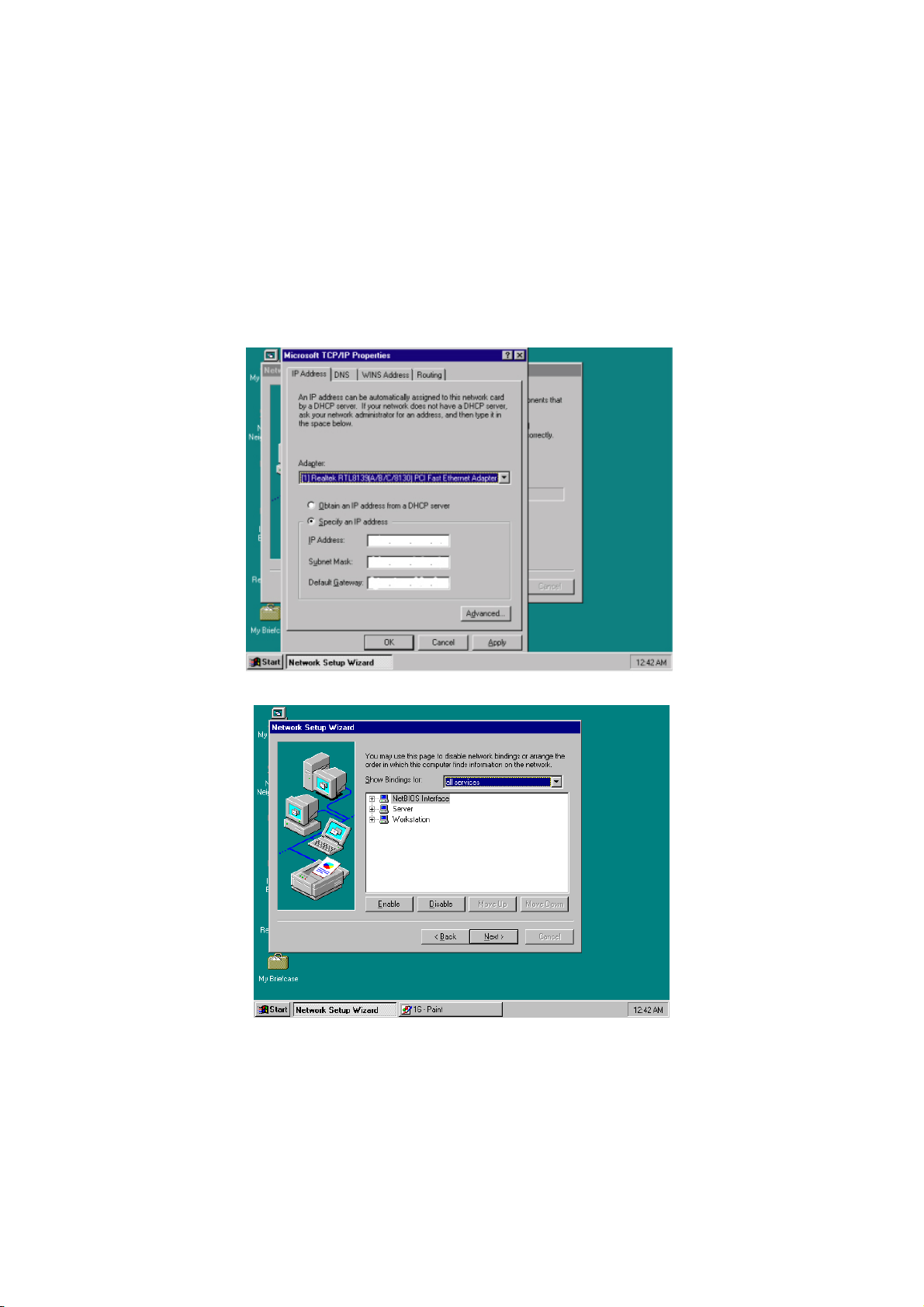

15. When Setup finishes copying, the TCP/IP properties of your system will then pop up on your screen like the one shown below. Make the necessary changes then click on OK to continue.

16. When the screen below appears, click on Next to continue.

Page 78

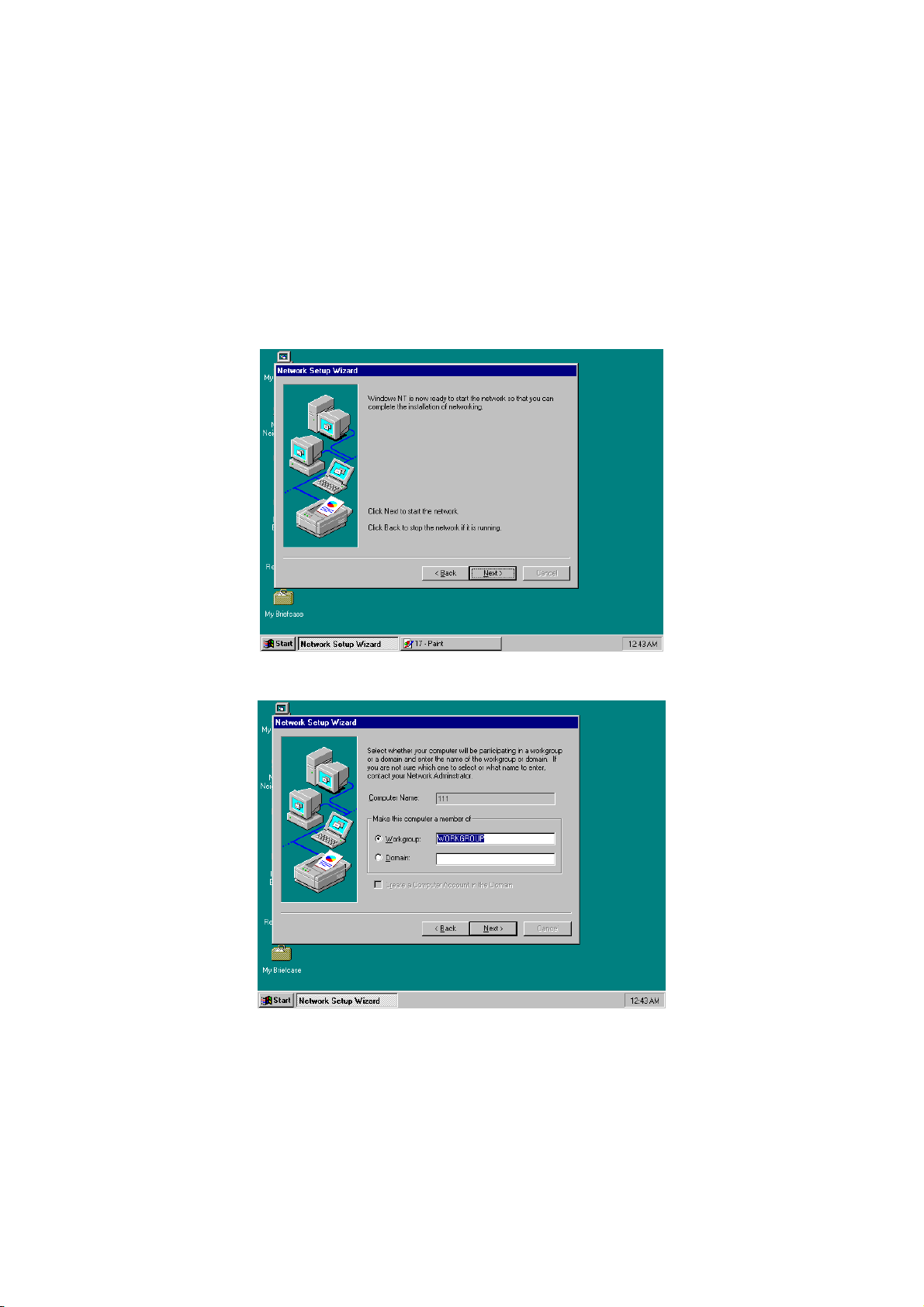

17. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on Next to continue.

18. Assign the workgroup or domain setting of your computer. Click on Next to continue.

Page 79

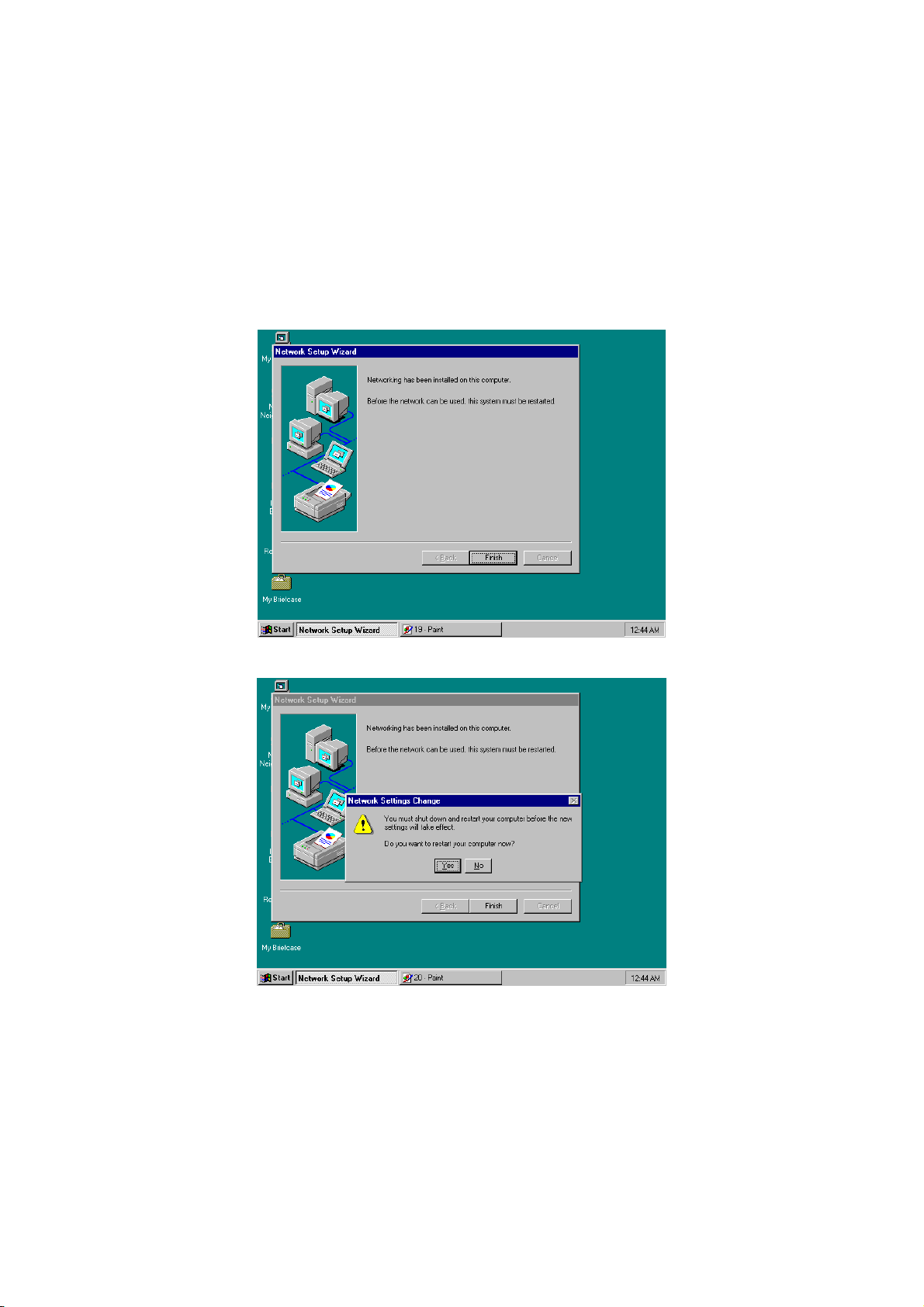

19. Restart your computer once the screen below appears. Click on Finish to continue.

20. Click on the Yes button to restart your computer. The LAN driver installation for WIN NT4.0 is now complete.

Page 80

This page is intentionally left blank.
