Boser HS-6252 User Manual

HS-6252

VIA C3 800MHz Embedded CPU

Industrial Single Board Computer

•Half Size•All-in-One•CRT•133MHz FSB•
ATA/33/66/100•Dual LAN•Audio•

•

•RS-232/422/485•4COM•PC/104•

IrDA•USB•DOC•WDT•H/W Monitor•

•

•PCI-ISA Bus Industrial Single Board computer•

Copyright Disclaimers

The accuracy of contents in this manual has passed thorough checking and review
before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is
not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special,
incidental or consequential damages arising from the use of this product or
documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation,
and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted
permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice.
assumes no responsibility for any errors or omissions that may appear in this
manual, nor does it make any commitment to update the information contained
herein.

T

r

a

d

e

m

a

r

k

s

T

r

a

d

e

m

T

r

a

d

e

m

BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

a

r

k

s

a

r

k

s

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

© Copyright 2002 BOSER Technology Co., Ltd.

All Rights Reserved.
Edition 1.3, December 27, 2002

Table of Contents

Chapter 1 General Description ..................................1

1.1 Major Features....................................................................... 2

1.2 Specifications ........................................................................ 3

1.3 Board Dimensions................................................................. 4

Chapter 2 Unpacking ..................................................5

2.1 Opening the Delivery Package............................................. 5

2.2 Inspection............................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1 Before Installation ................................................................. 7

3.2 Board Layout ......................................................................... 8

3.3 Jumper List ............................................................................ 9

3.4 Connector List ....................................................................... 9

3.5 Configuring the CPU ........................................................... 10

3.6 System Memory ................................................................... 10

3.7 DiskOnChip Address Setting .......................................... 10

3.8 VGA Controller .................................................................... 12

3.9 PCI E-IDE Drive Connector................................................. 13

3.10 Floppy Disk Drive Connector ............................................. 14

3.11 Serial Port Connectors ....................................................... 15

3.12 Parallel Connector............................................................... 16

3.13 Ethernet Connector............................................................. 16

3.14 IrDA Connector .................................................................... 17

3.15 USB Connector .................................................................... 17

3.16 CMOS Data Clear................................................................. 17

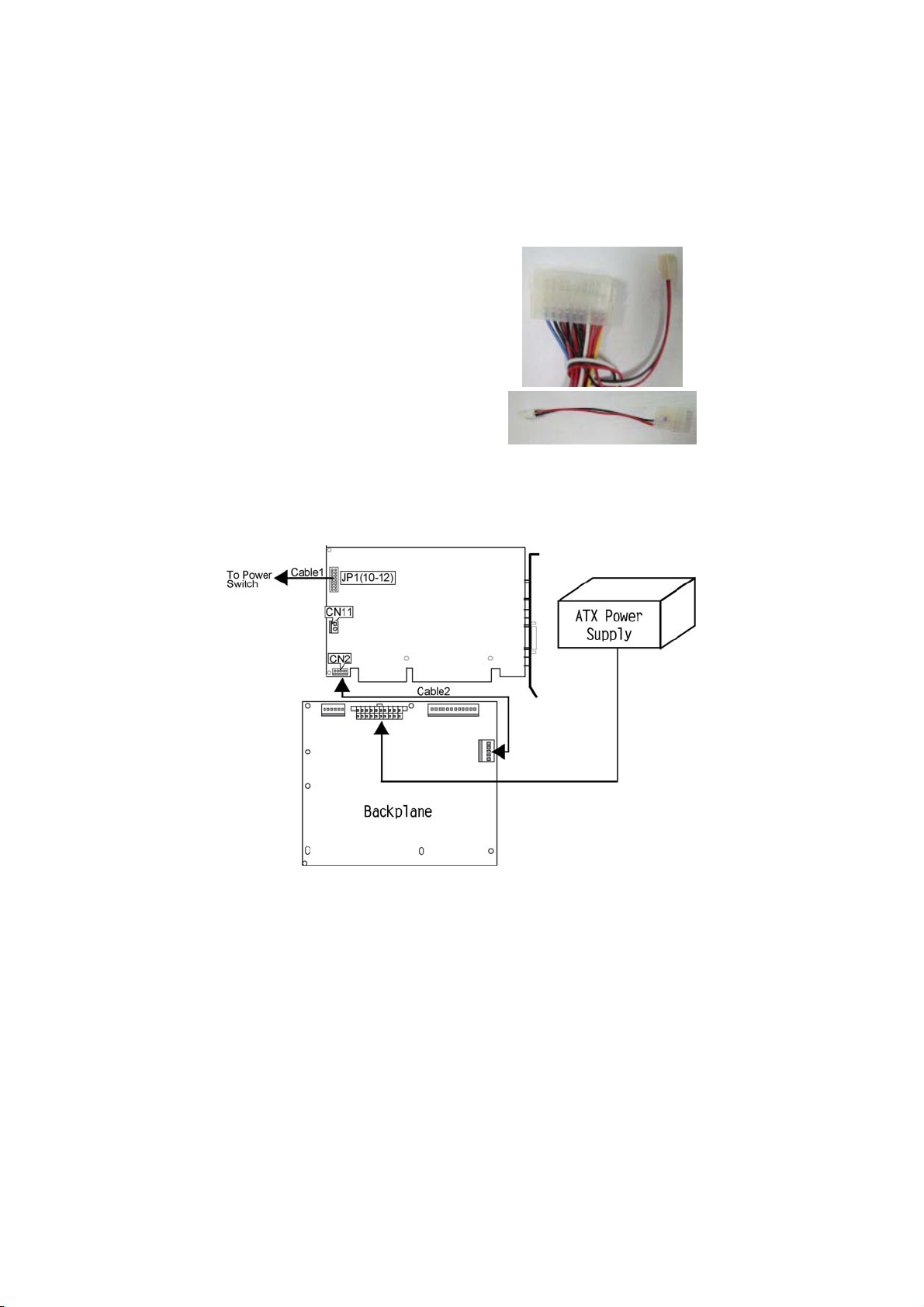

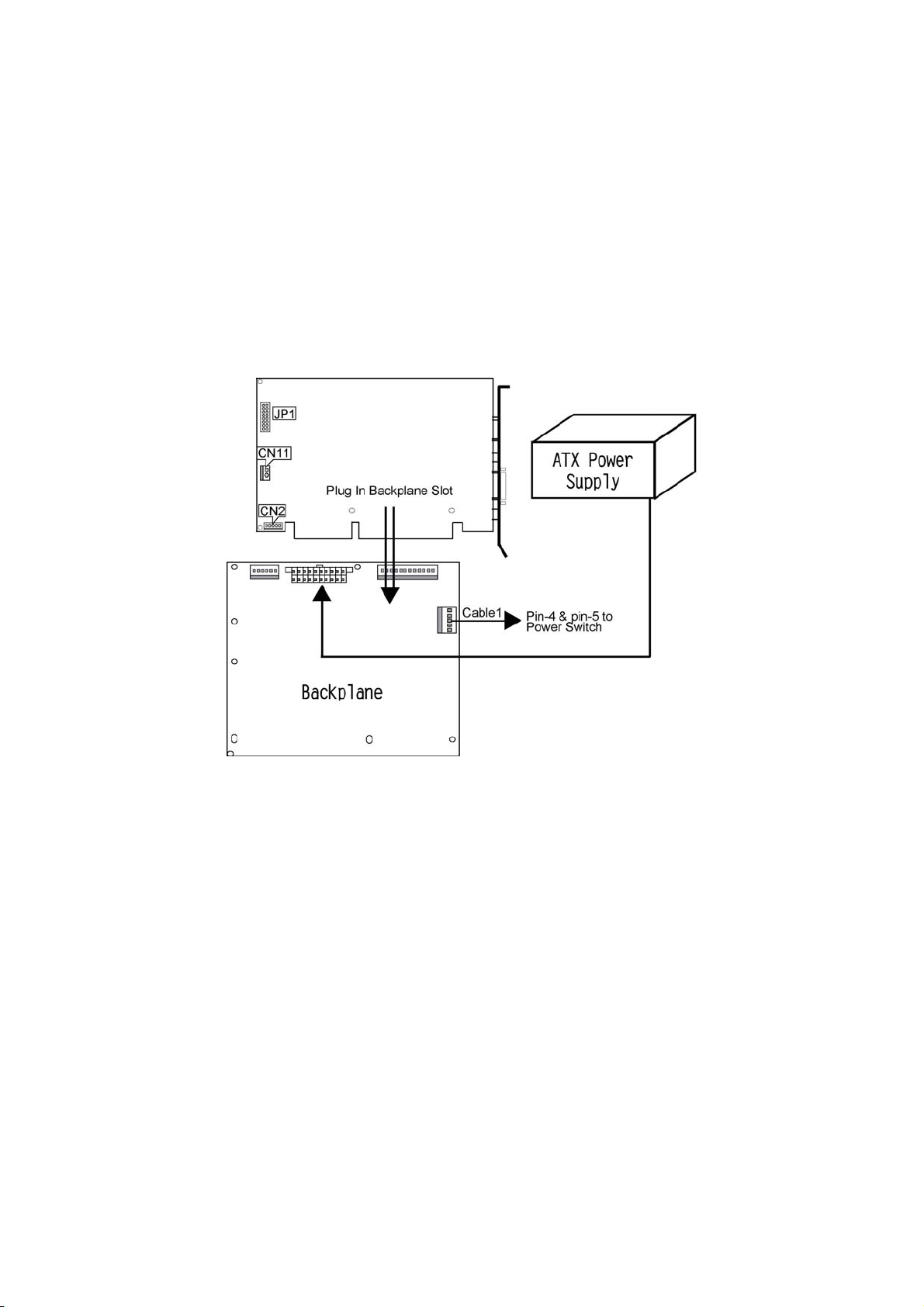

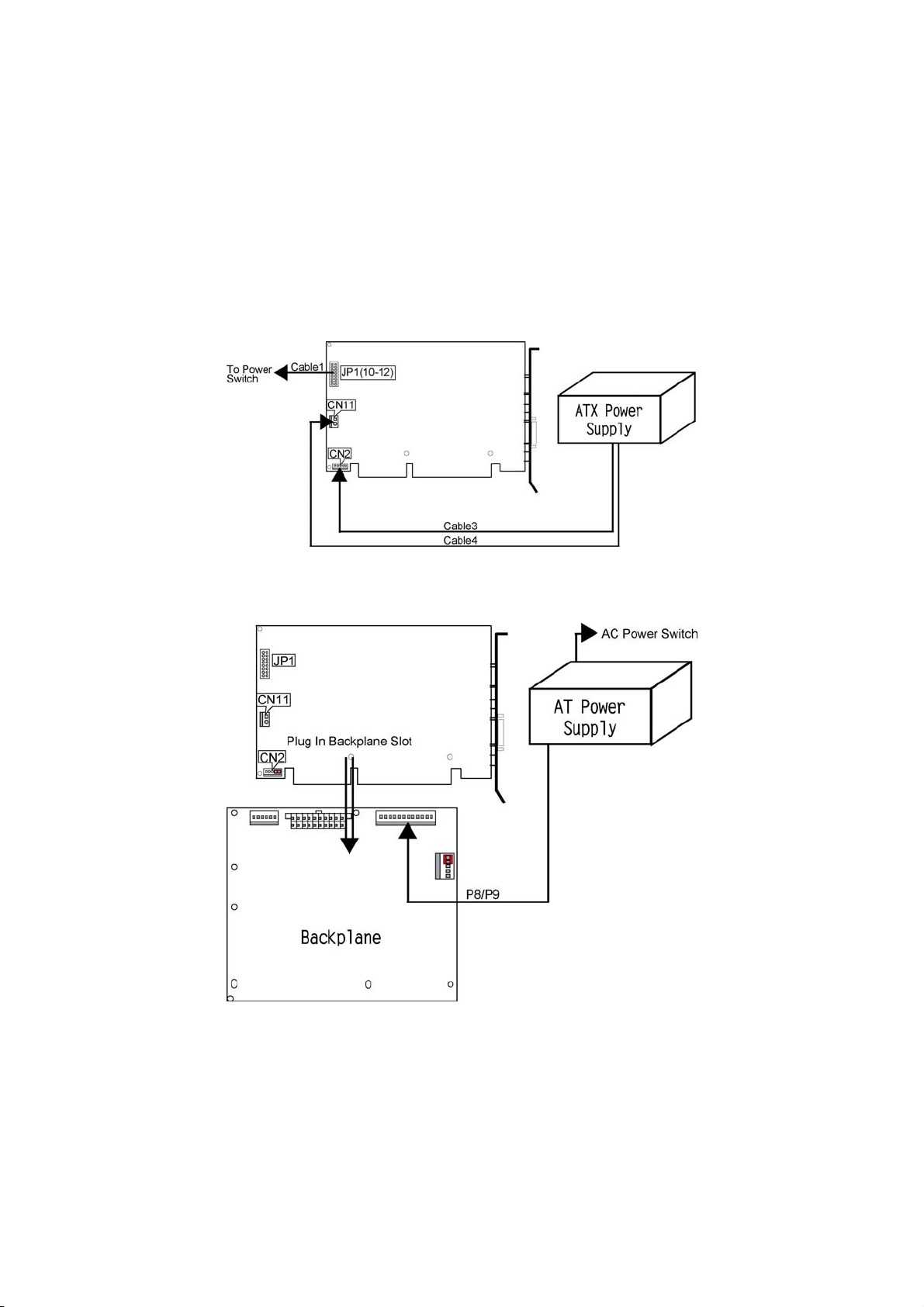

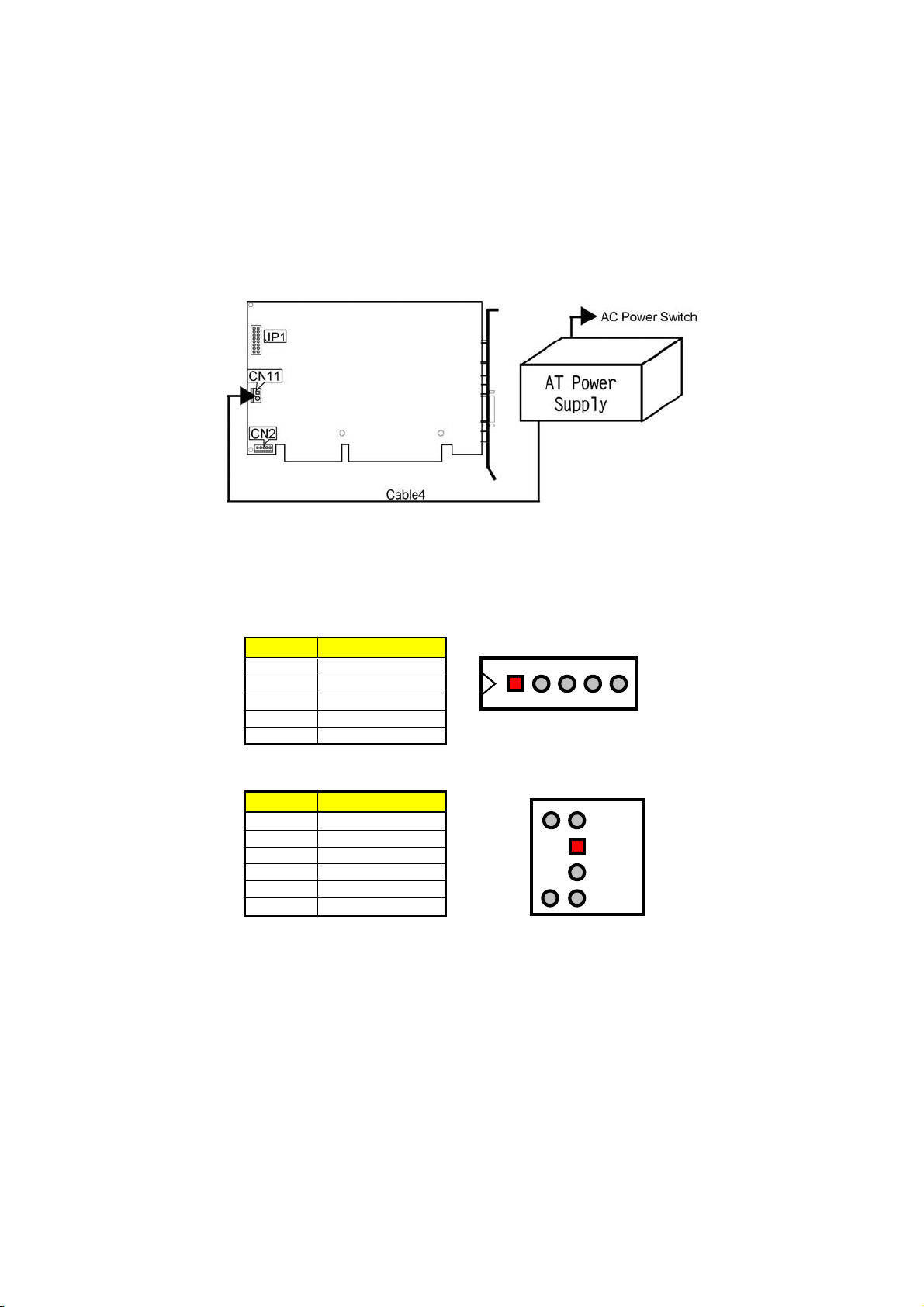

3.17 Power, ATX Power Controller and Fan Connectors ........ 18

3.18 Keyboard Connectors......................................................... 22

3.19 PS/2 Mouse Connector ....................................................... 23

3.20 System Front Panel Connectors........................................ 24

3.21 Thermal Input Connector.................................................... 24

3.22 Watchdog Timer .................................................................. 25

3.23 PC/104 Connectors ............................................................. 27

3.24 Audio Connectors ............................................................... 29

Chapter 4 AMI BIOS Setup .....................................31

4.1 Starting Setup ...................................................................... 31

4.2 Using Setup.......................................................................... 32

4.3 Main Menu ............................................................................ 33

4.4 Standard CMOS Setup ........................................................ 35

4.5 Advanced CMOS Setup ...................................................... 38

4.6 Advanced Chipset Setup .................................................... 41

4.7 Power Management Setup ................................................. 42

4.8 PCI / Plug and Play Setup................................................... 44

4.9 Peripheral Setup.................................................................. 45

4.10 Hardware Monitor Setup..................................................... 47

4.11 Auto-Detect Hard Disks ...................................................... 48

4.12 Change Supervisor/User Password .................................. 49

4.13 Auto Configuration with Optimal Settings ....................... 50

4.14 Auto Configuration with Fail Safe Settings ...................... 51

4.15 Save Settings and Exit........................................................ 52

4.16 Exit Without Saving............................................................. 53

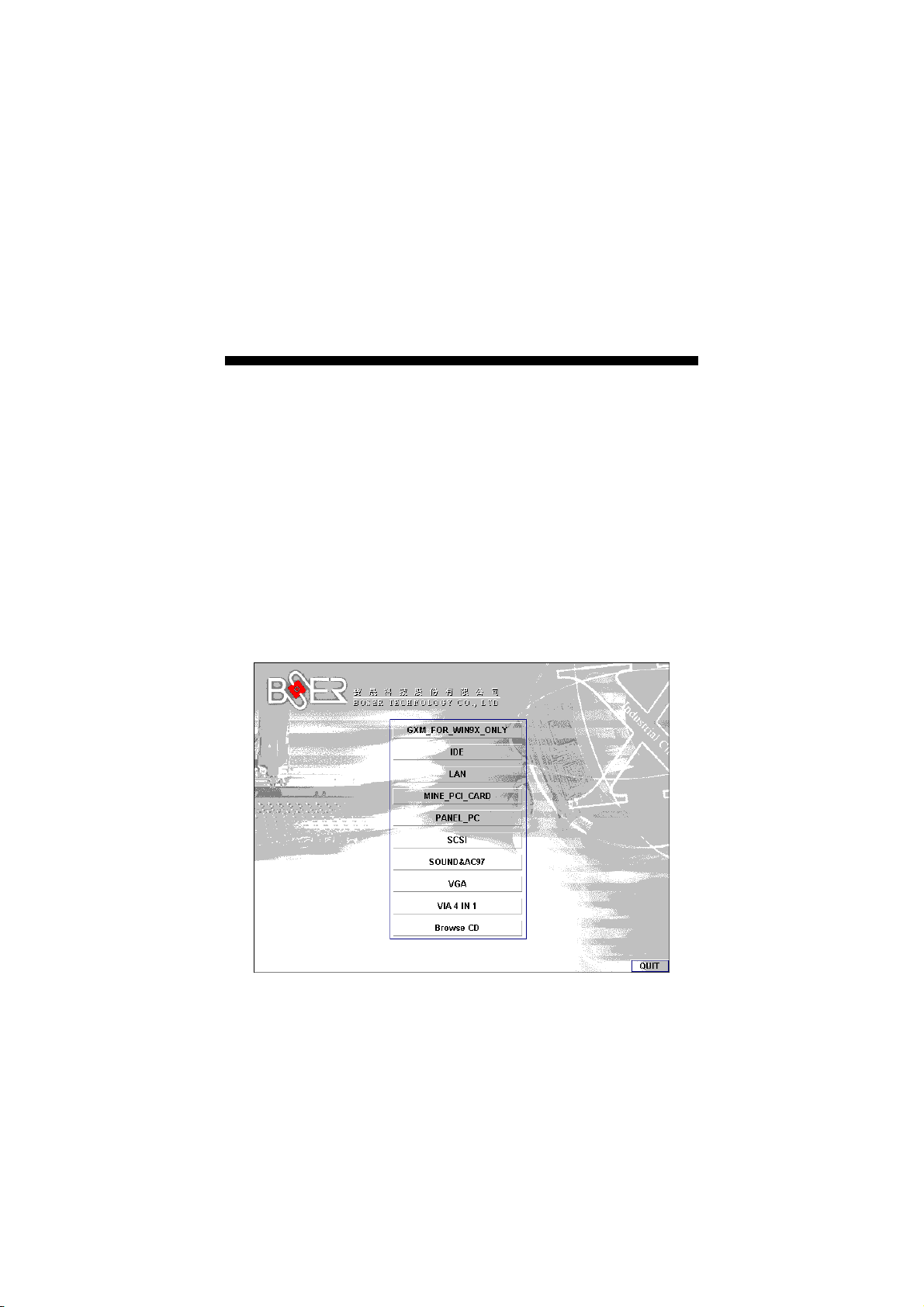

Chapter 5 Software Utilities.....................................55

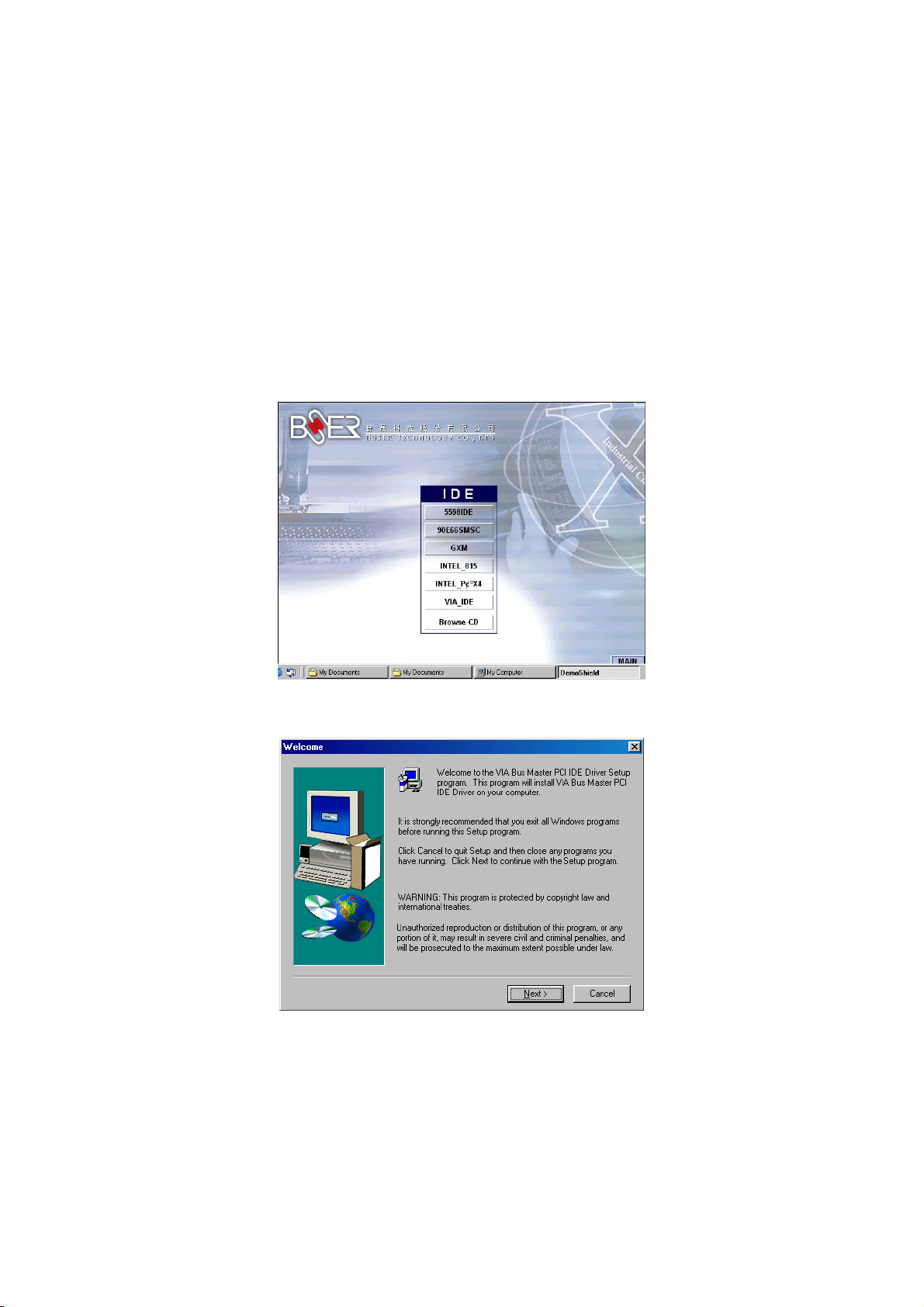

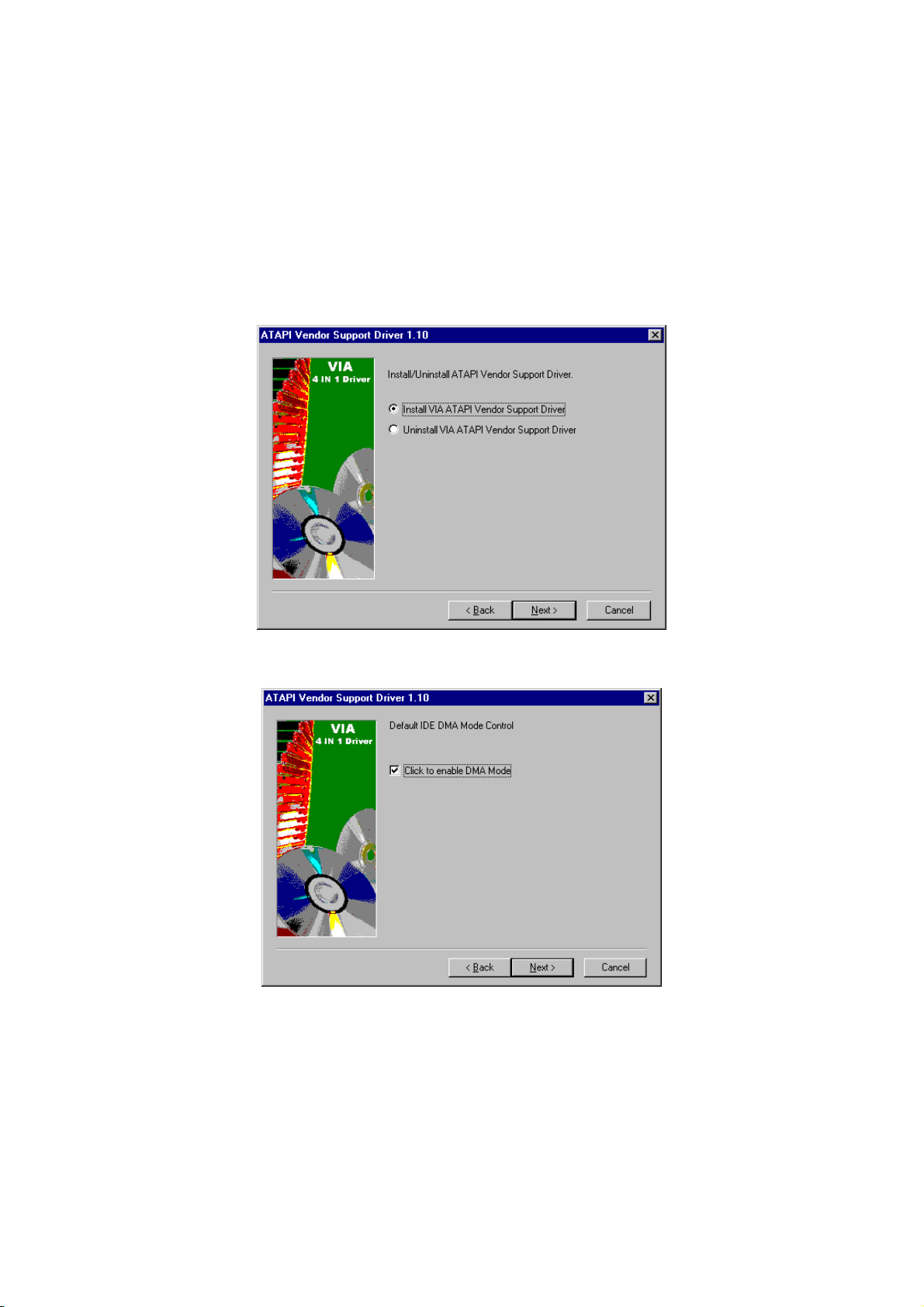

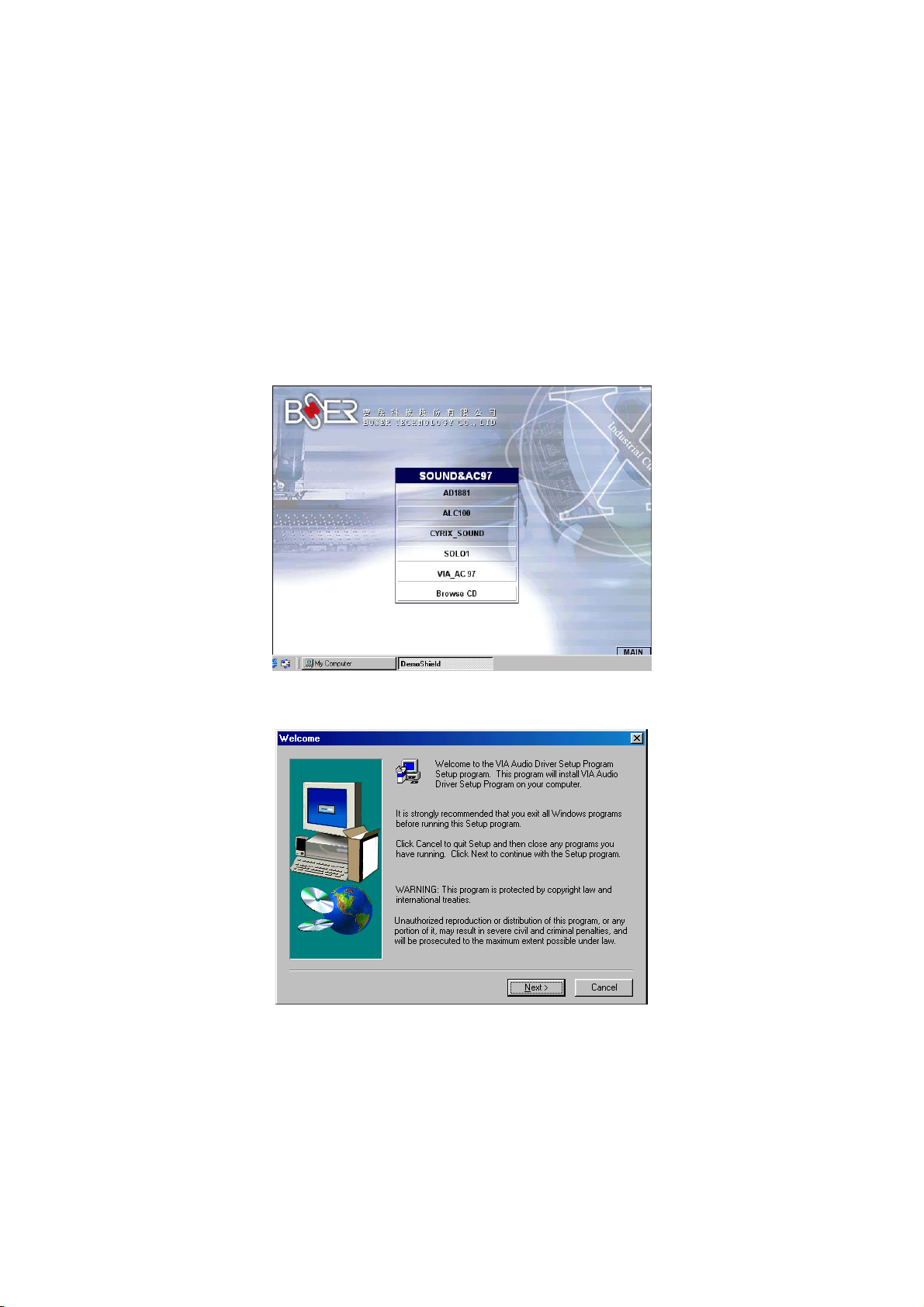

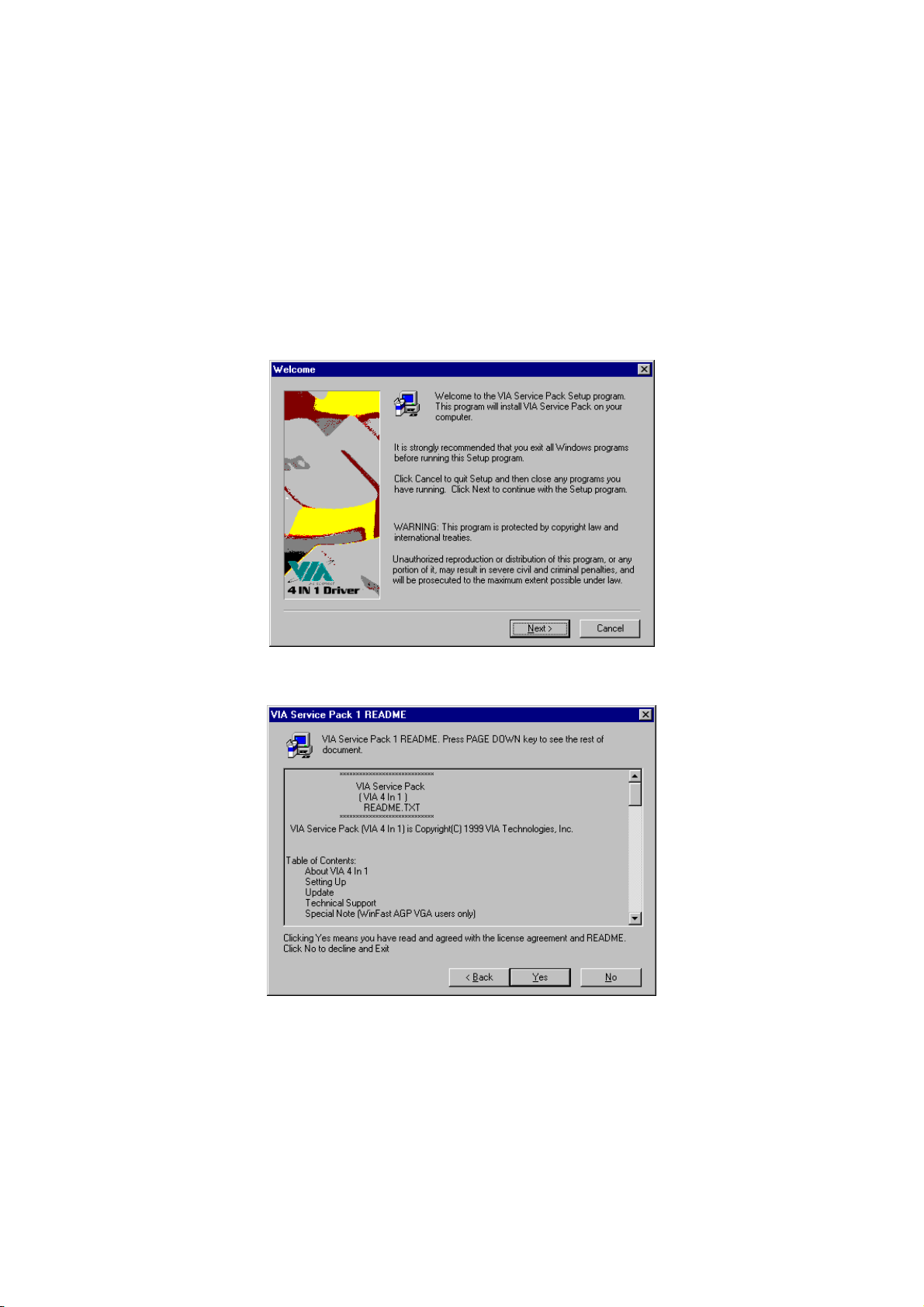

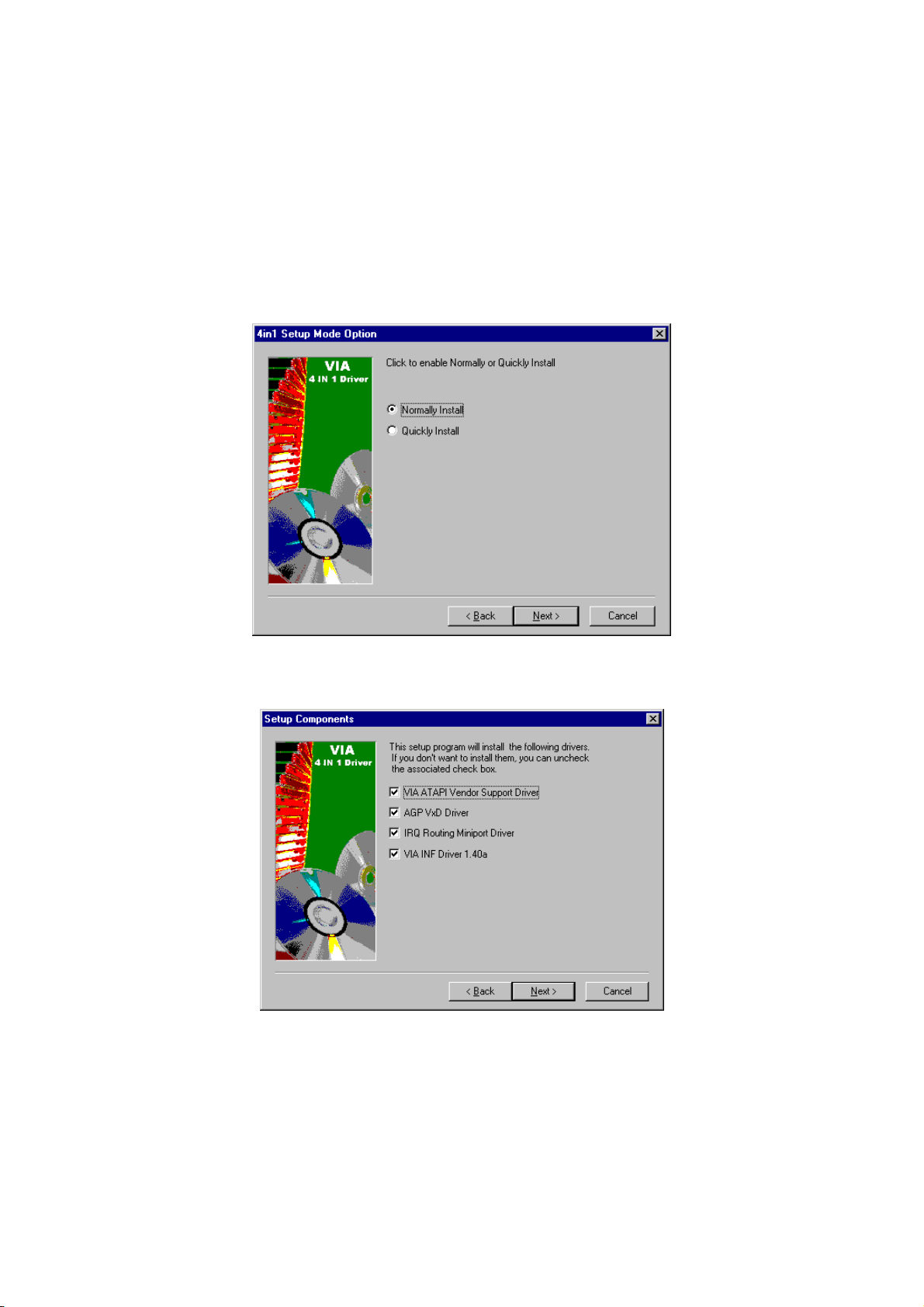

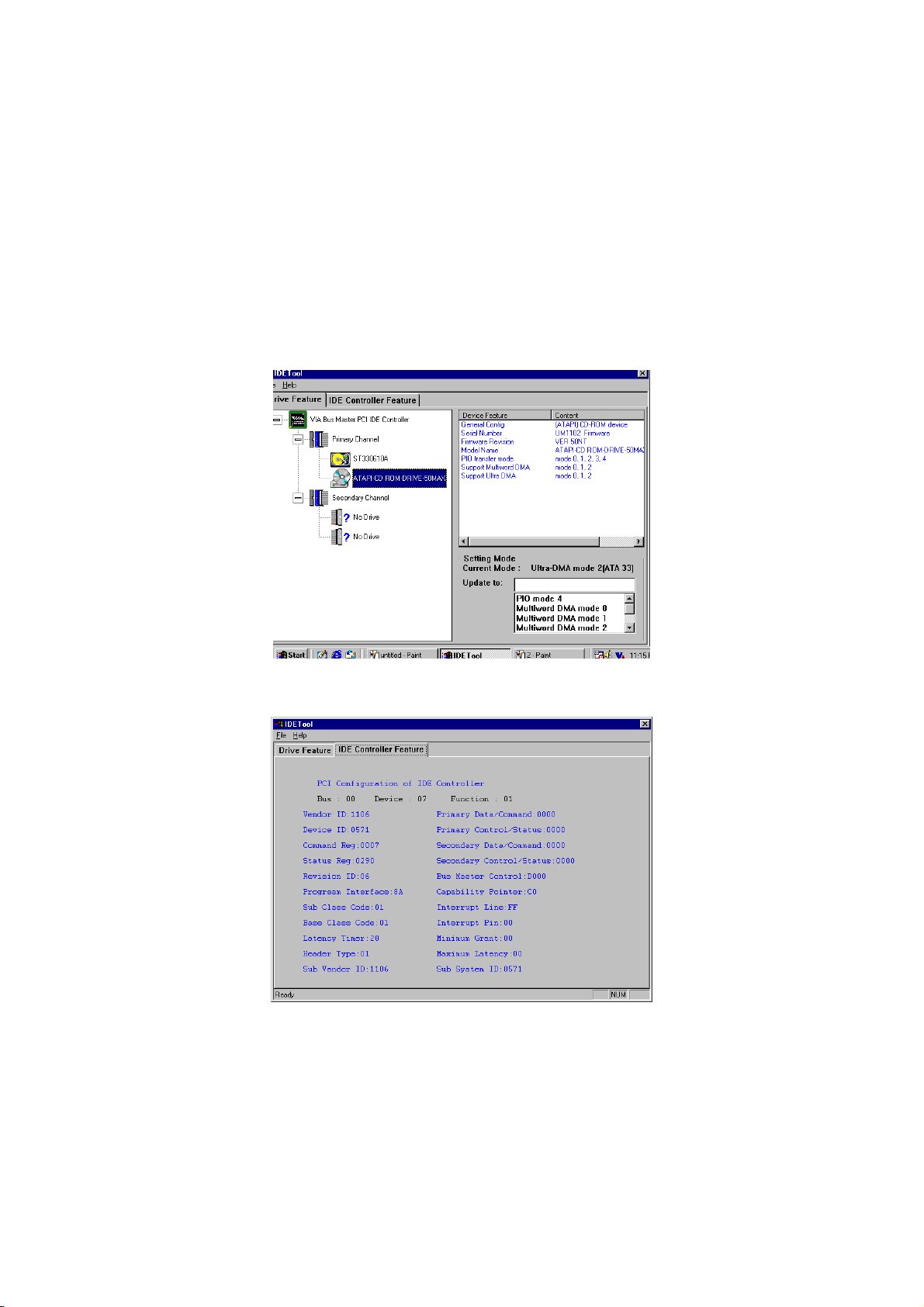

5.1 IDE and Audio Driver Installation ...................................... 55

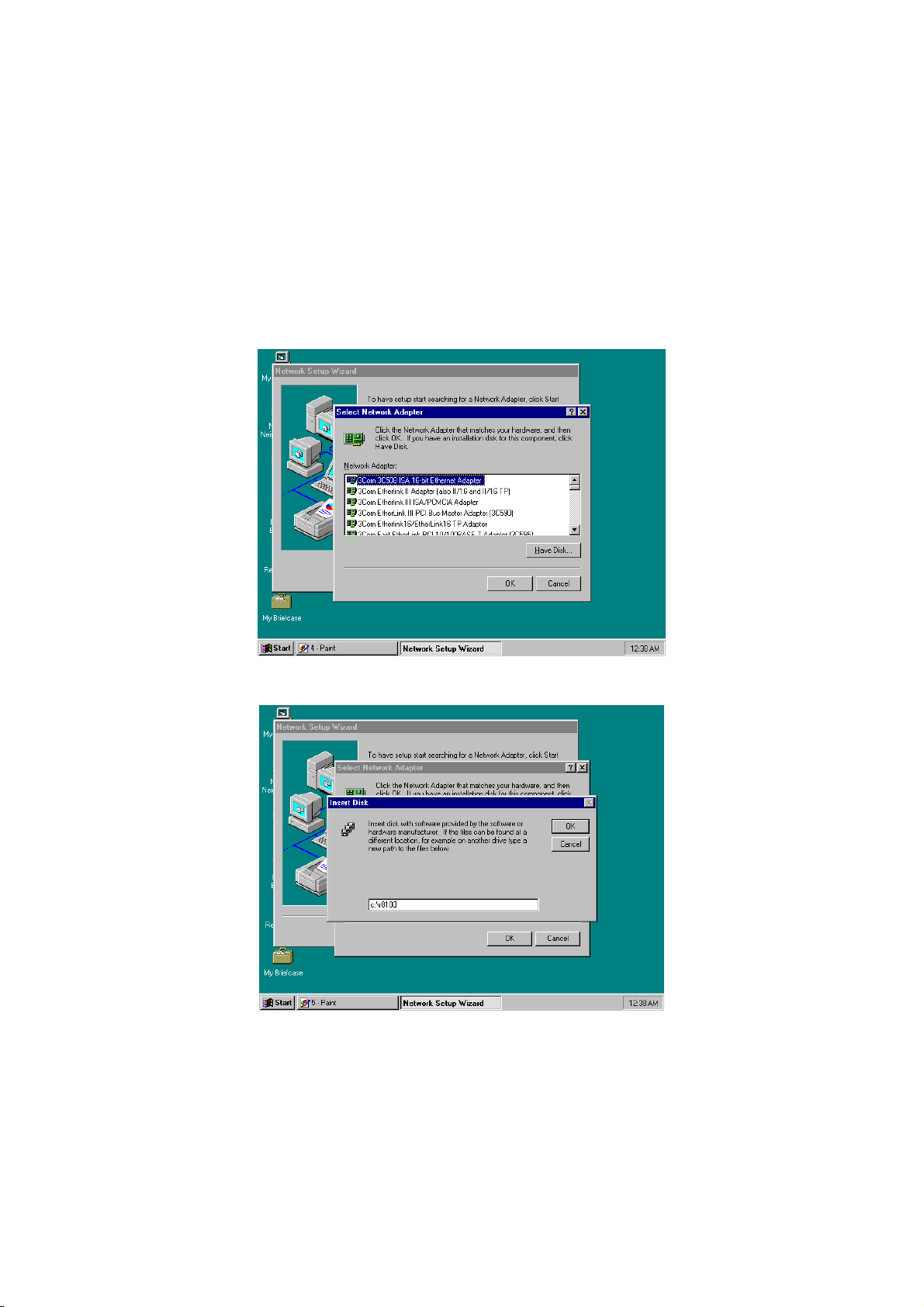

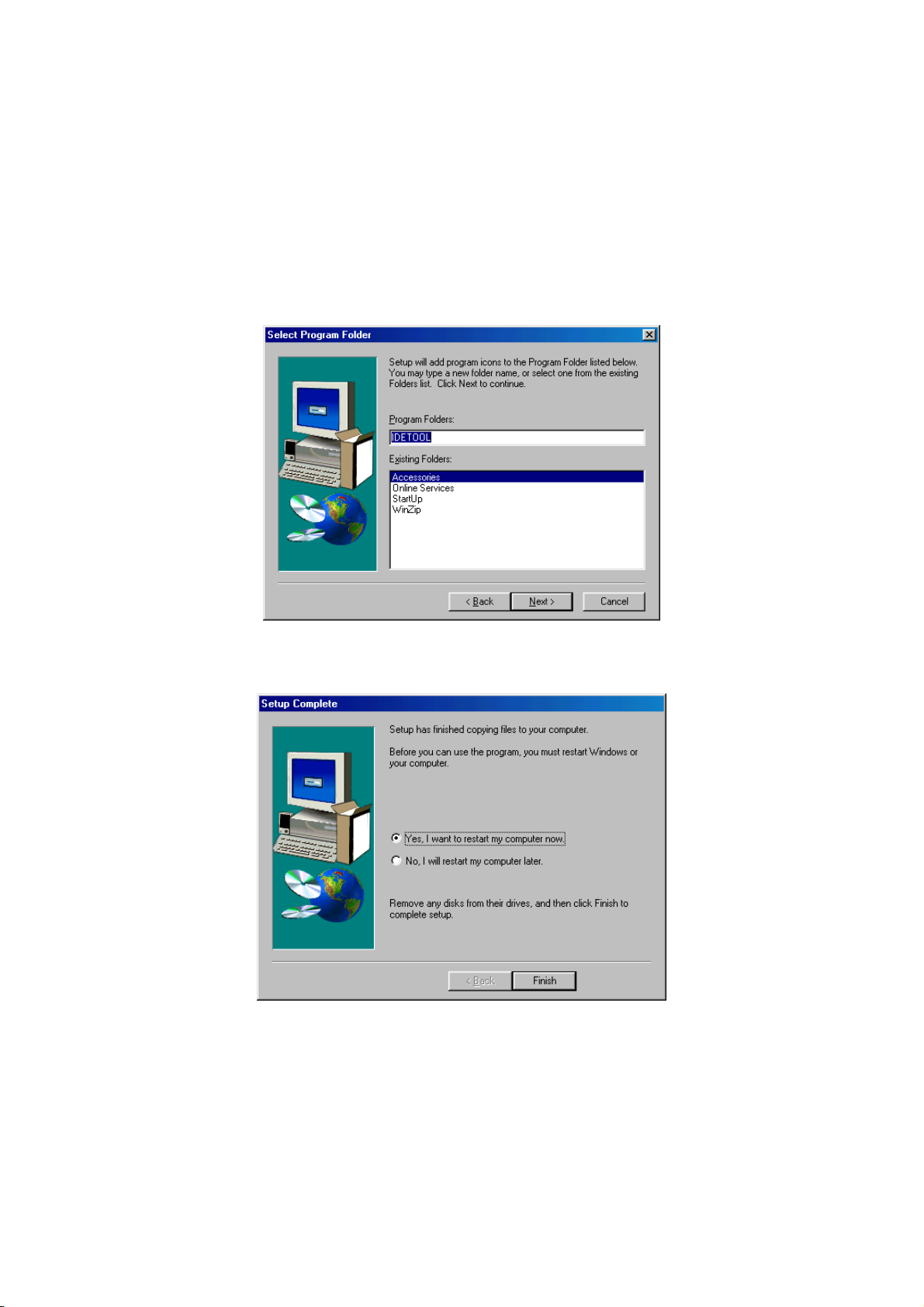

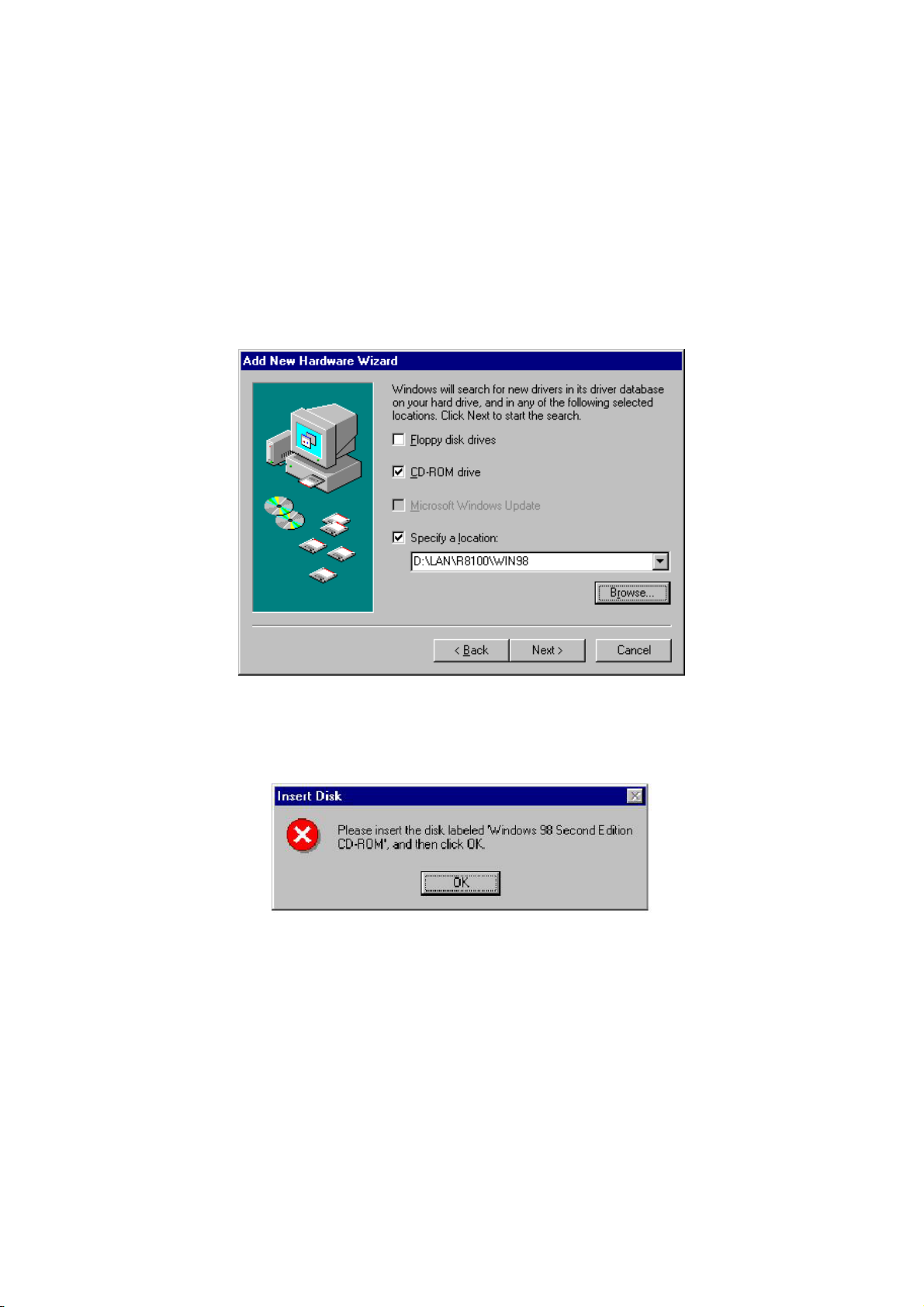

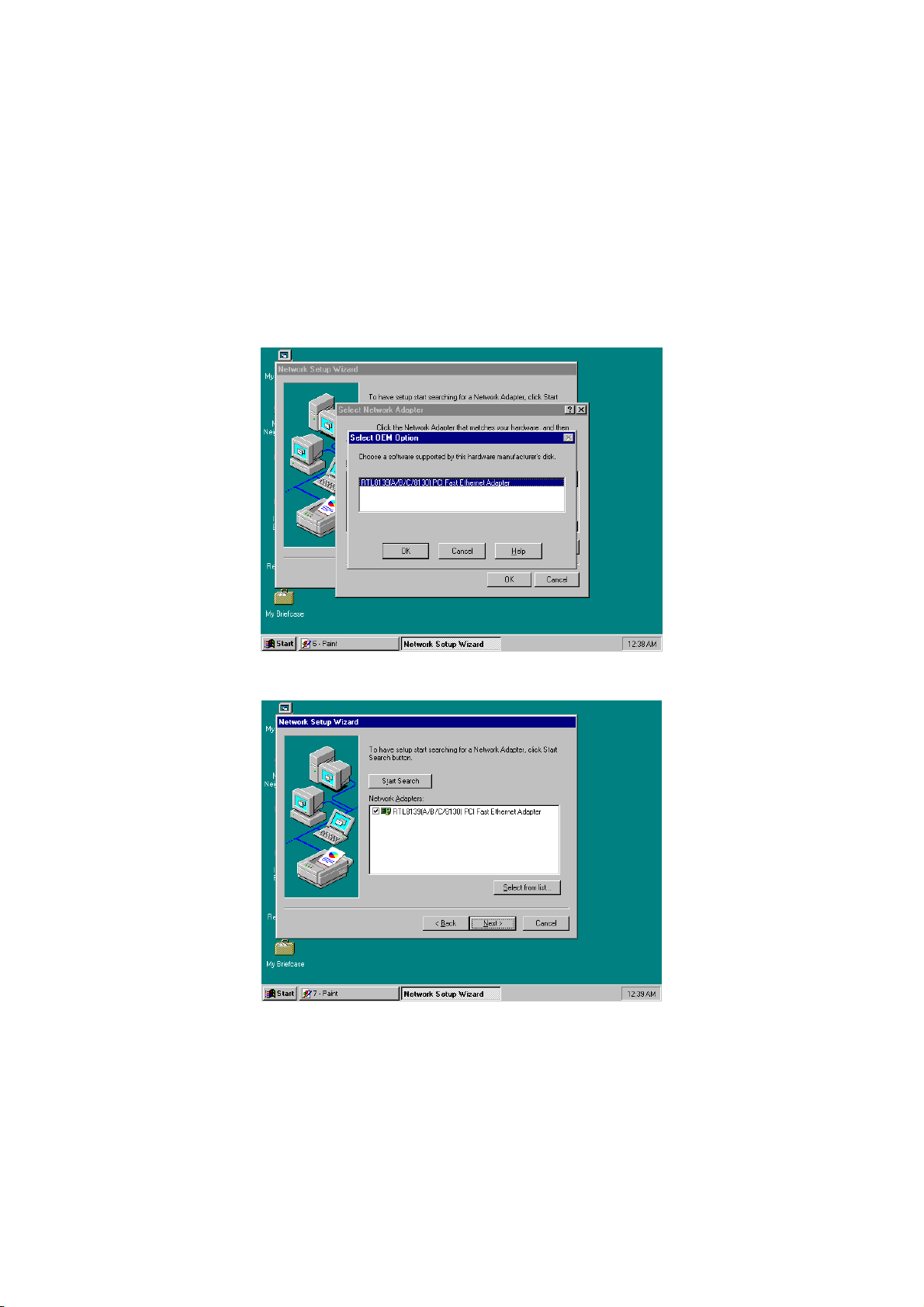

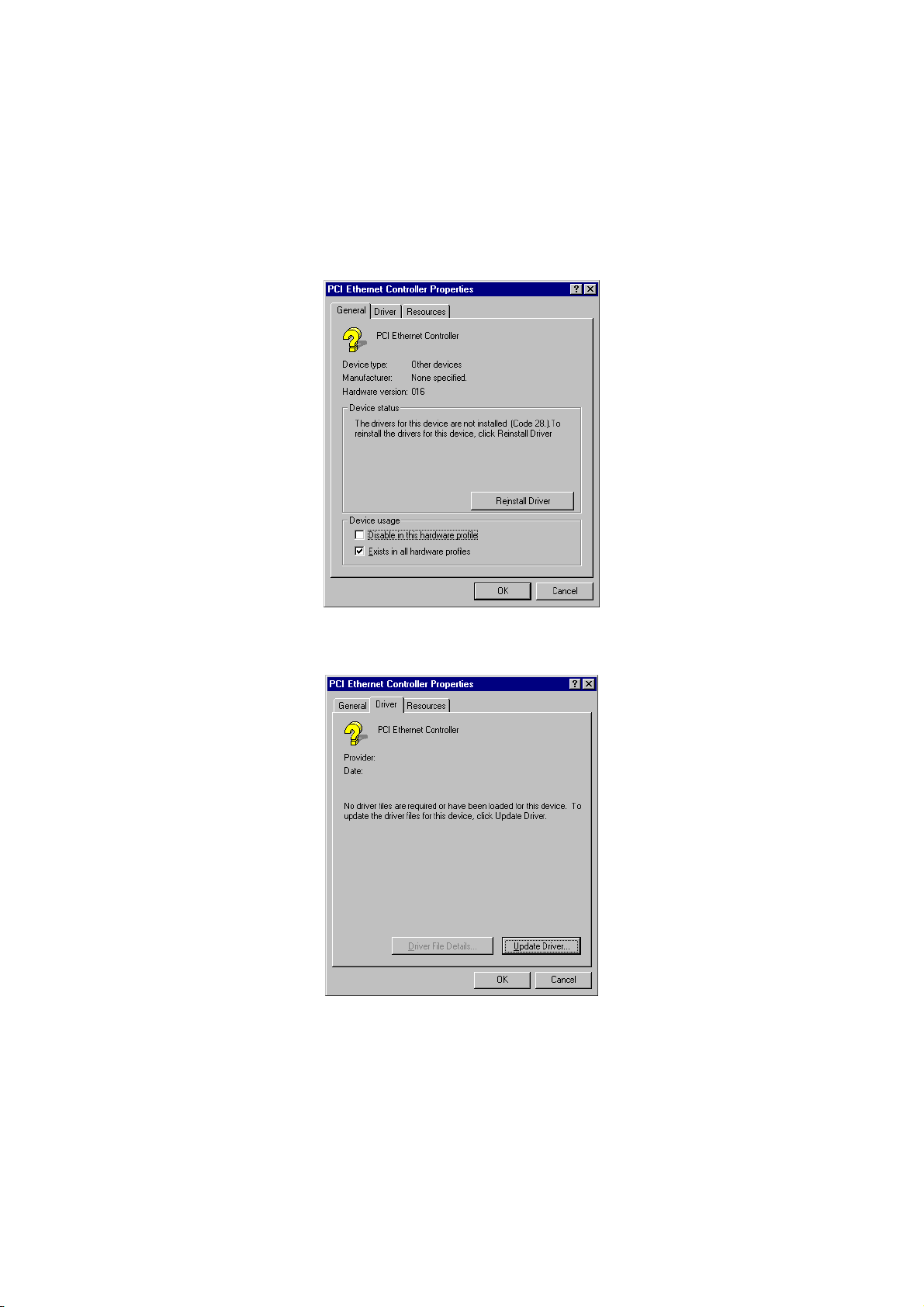

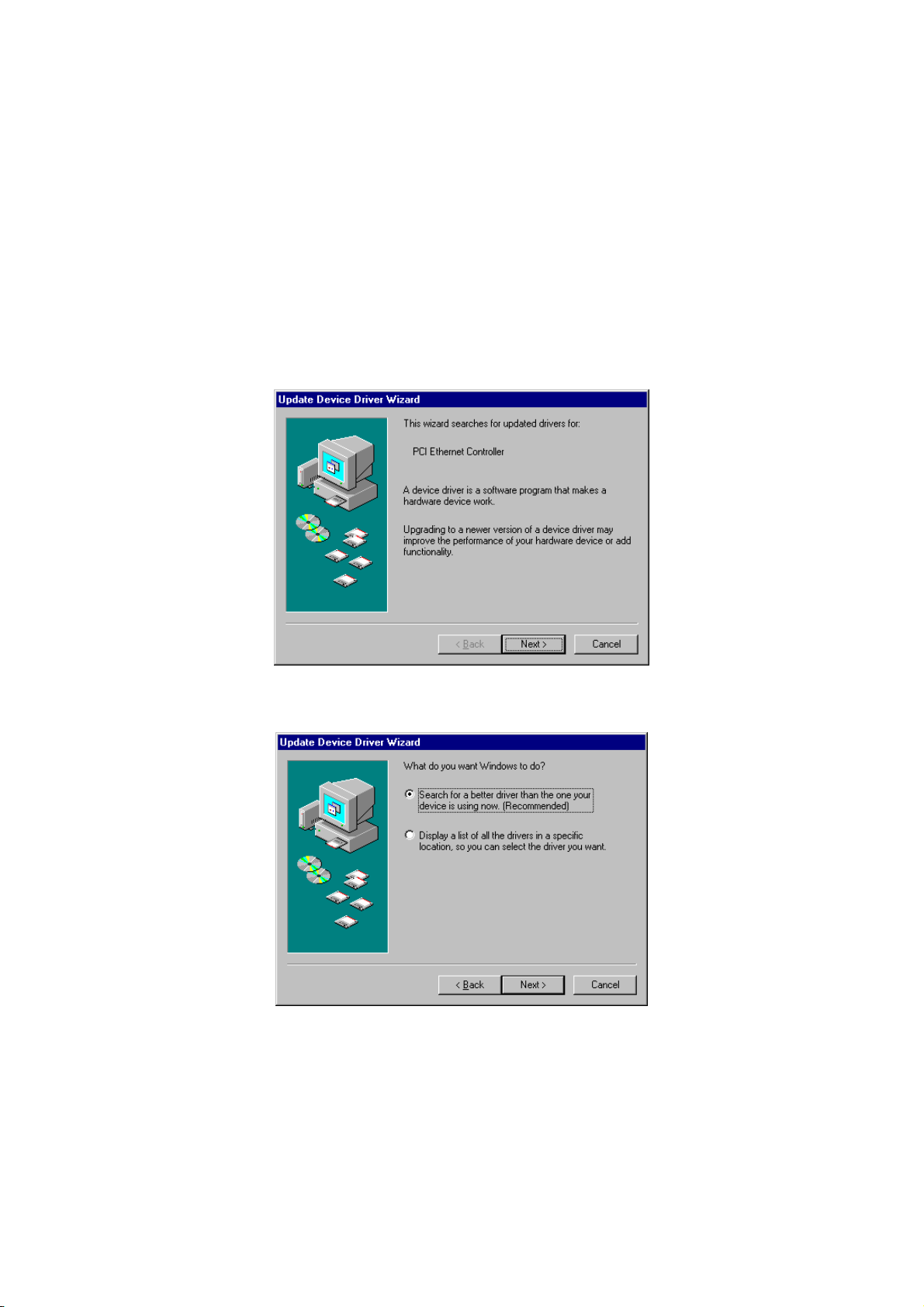

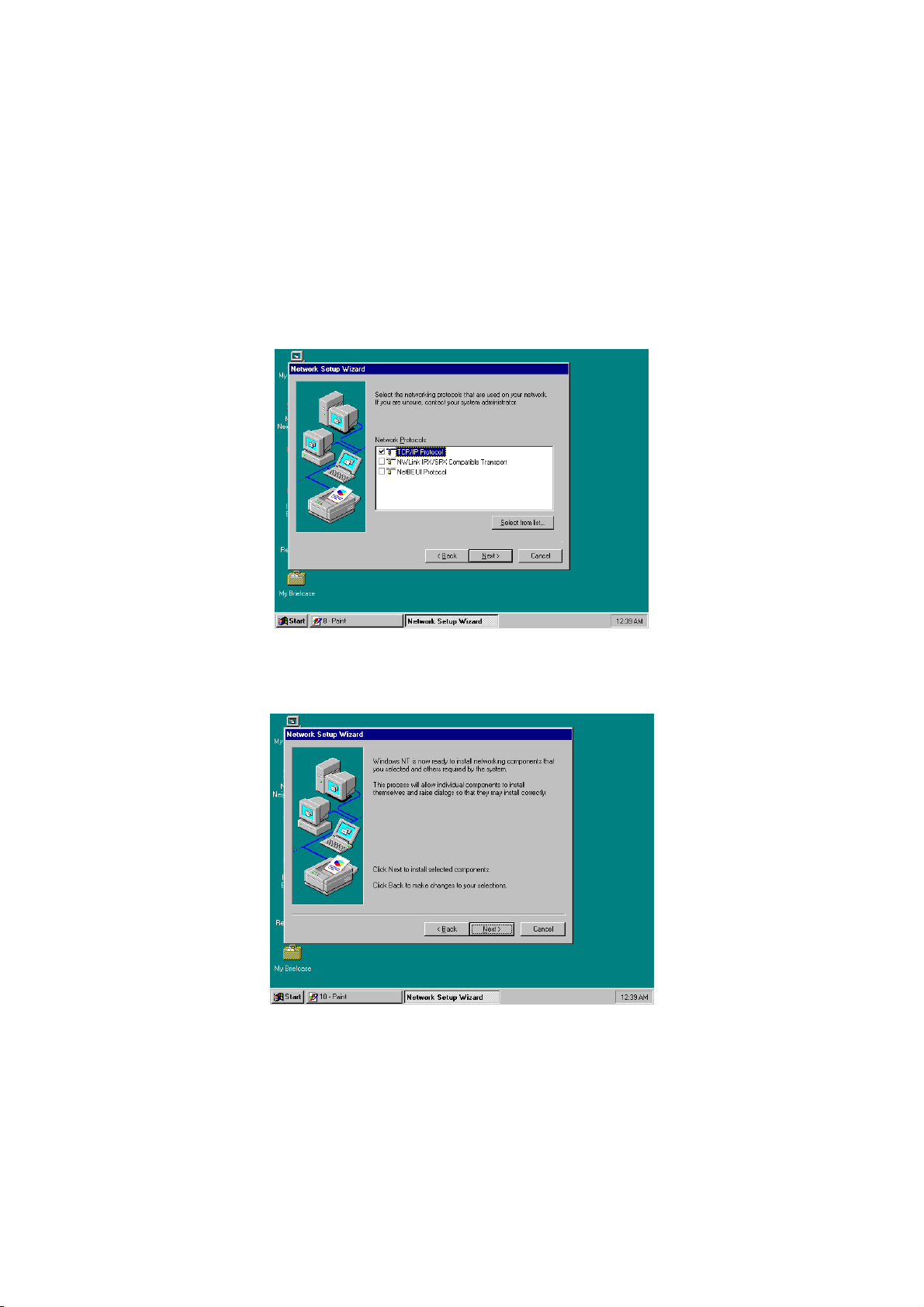

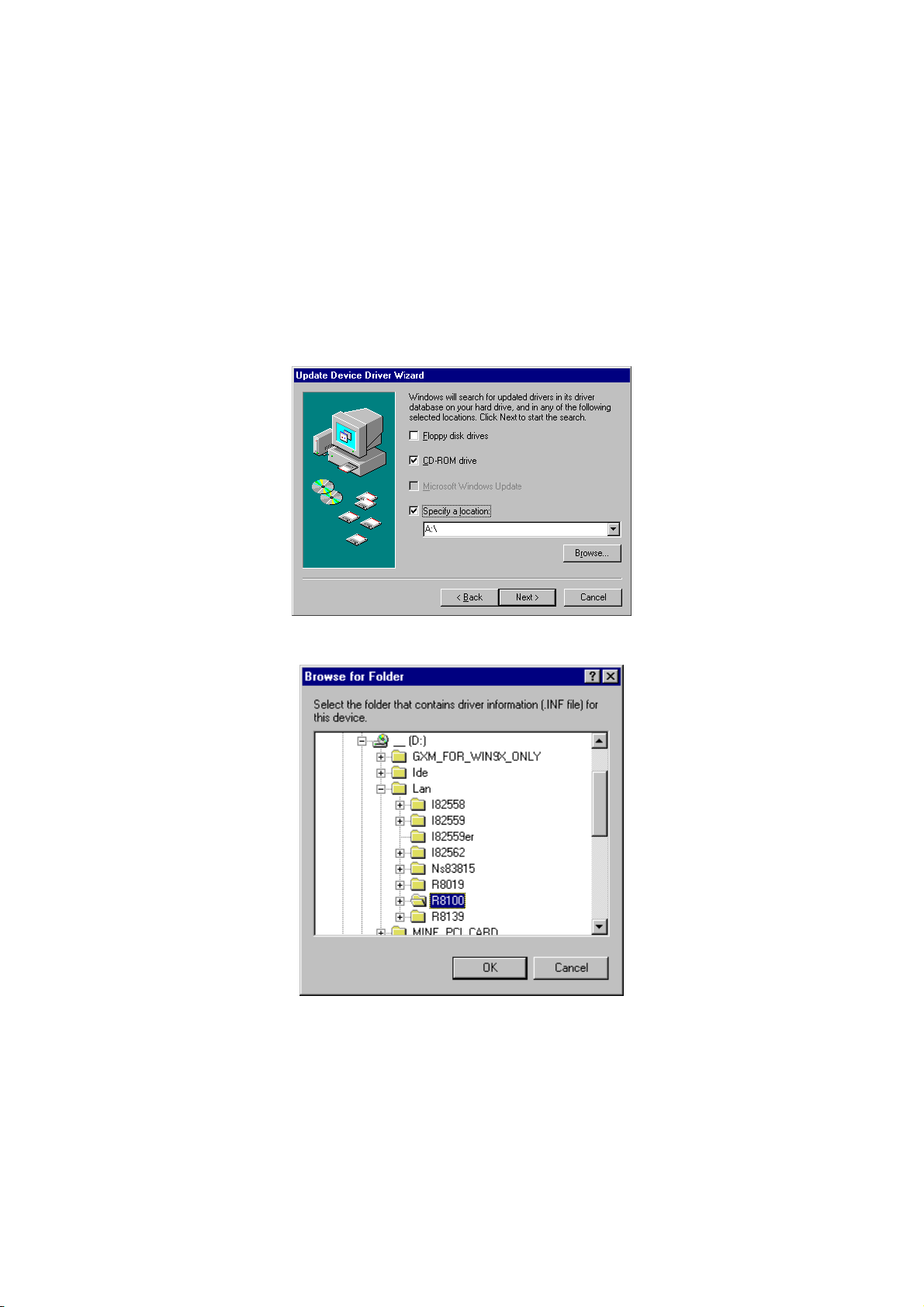

5.2 LAN Driver Installation for WIN95 & WIN98 ...................... 68

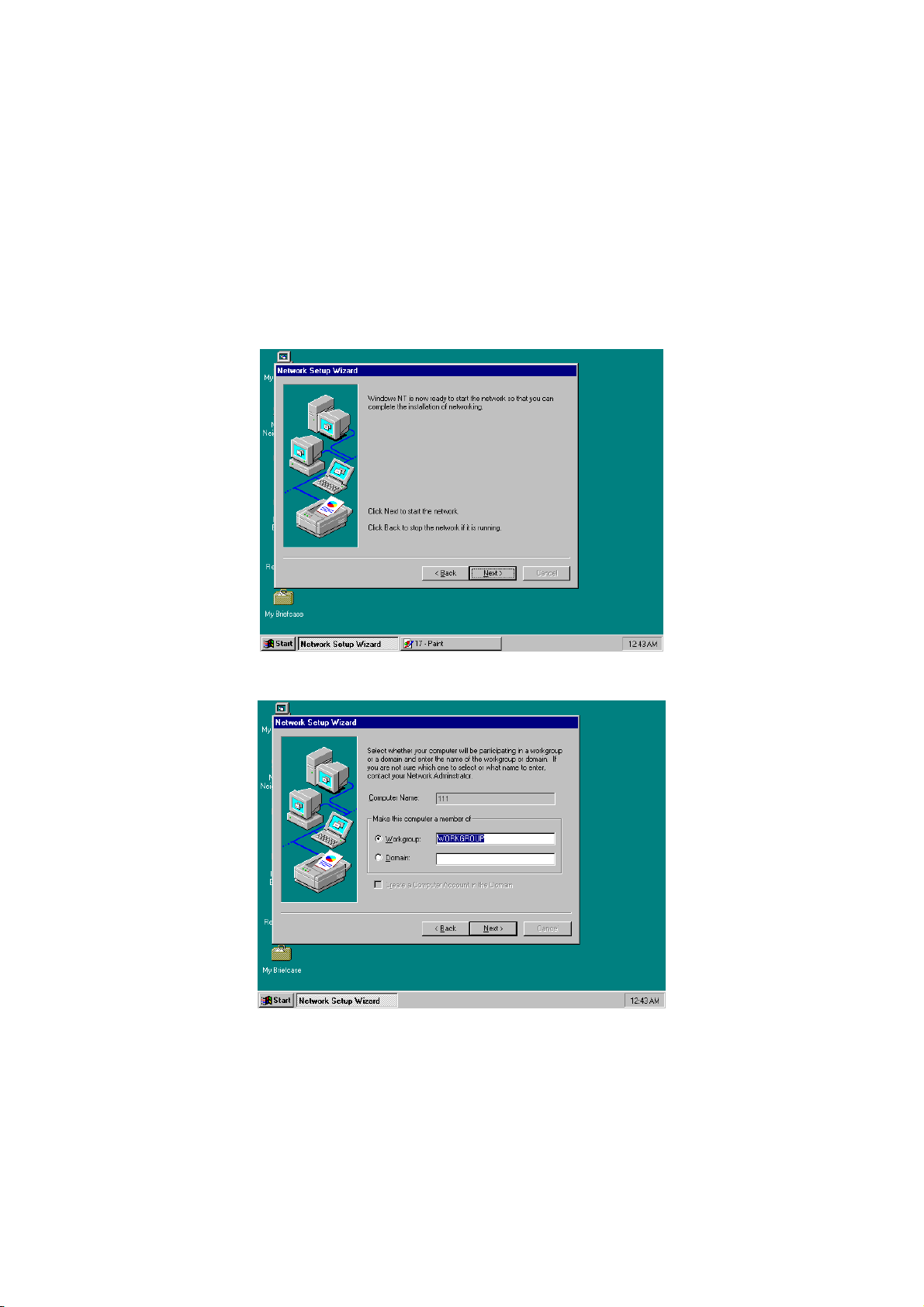

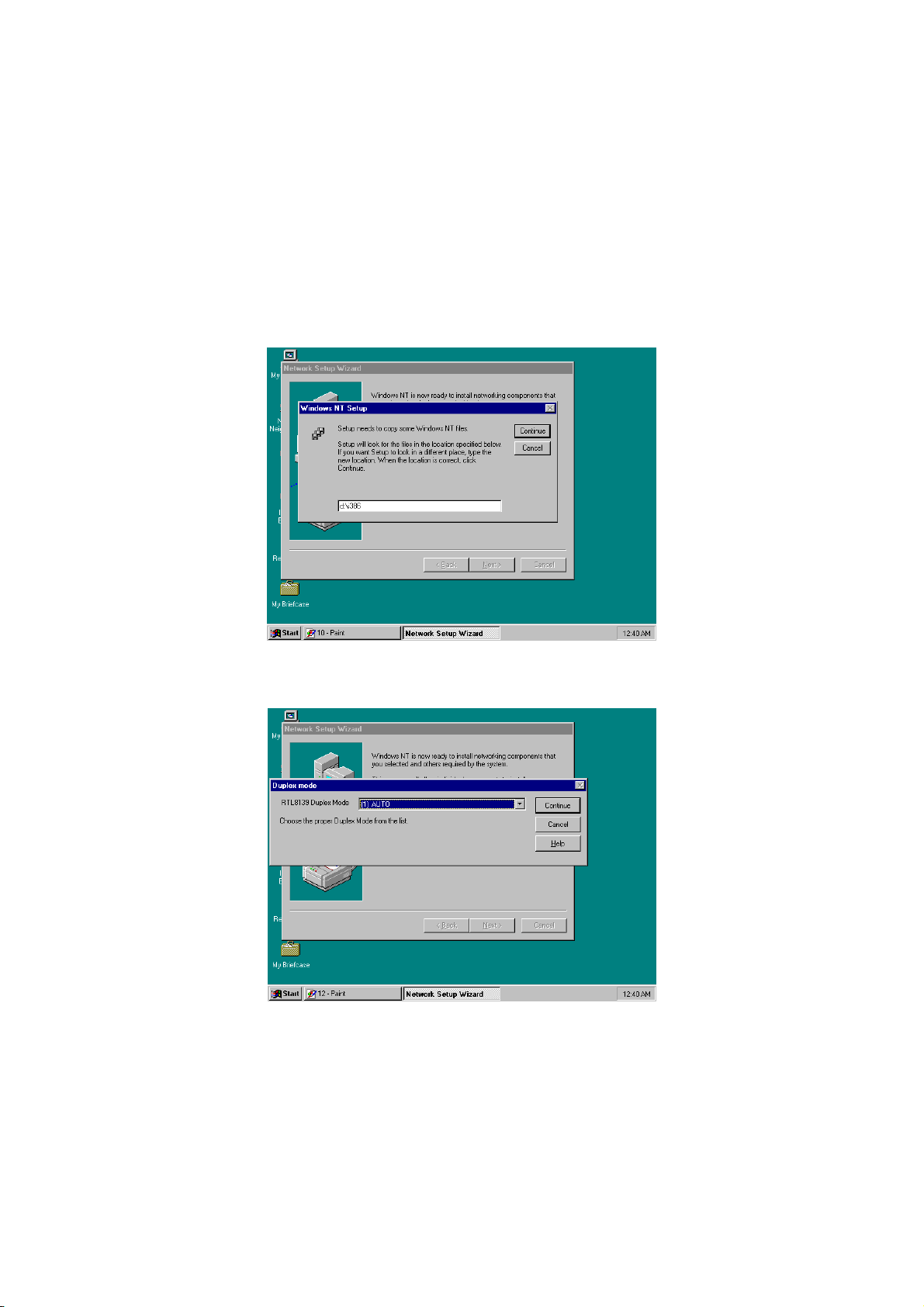

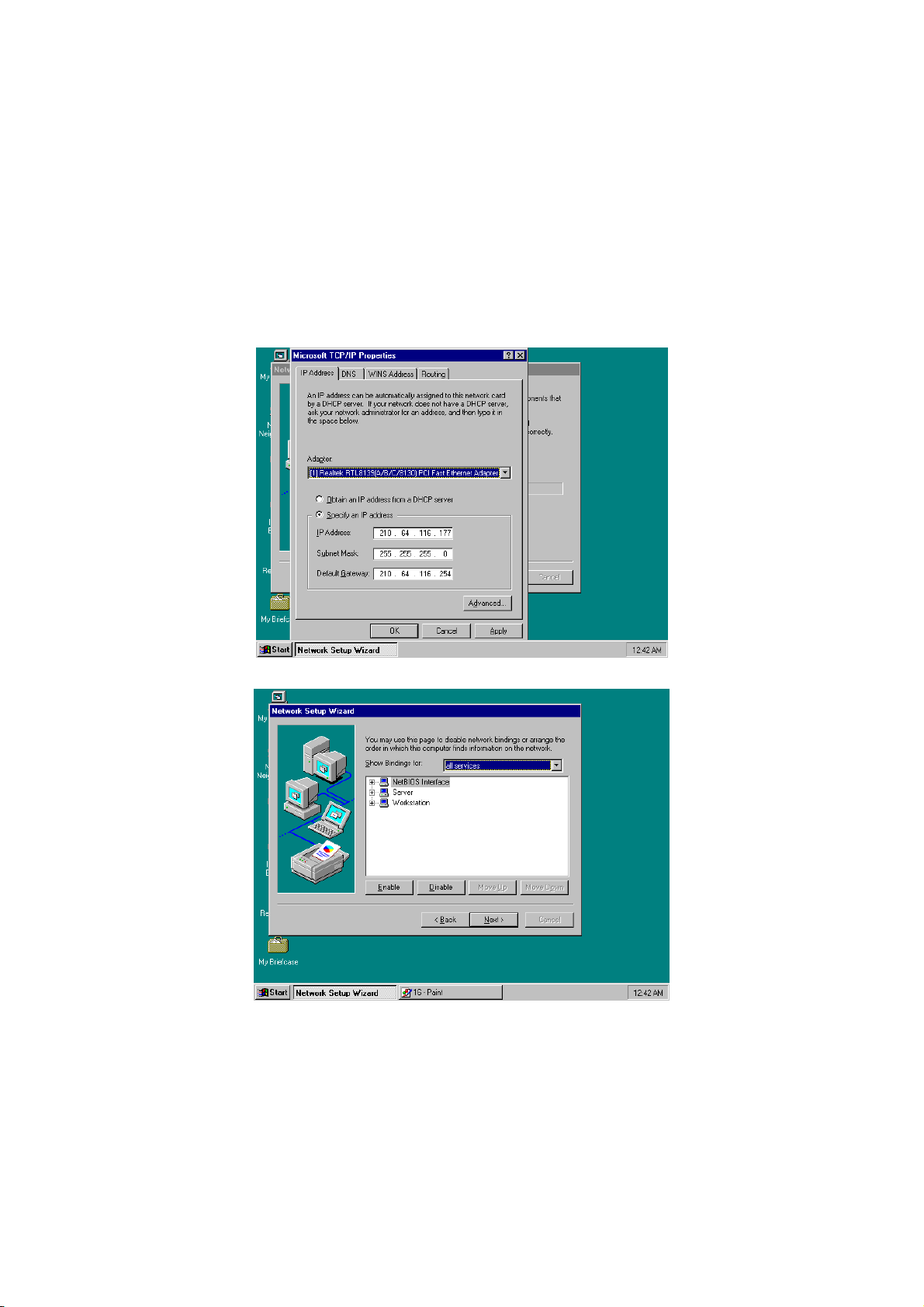

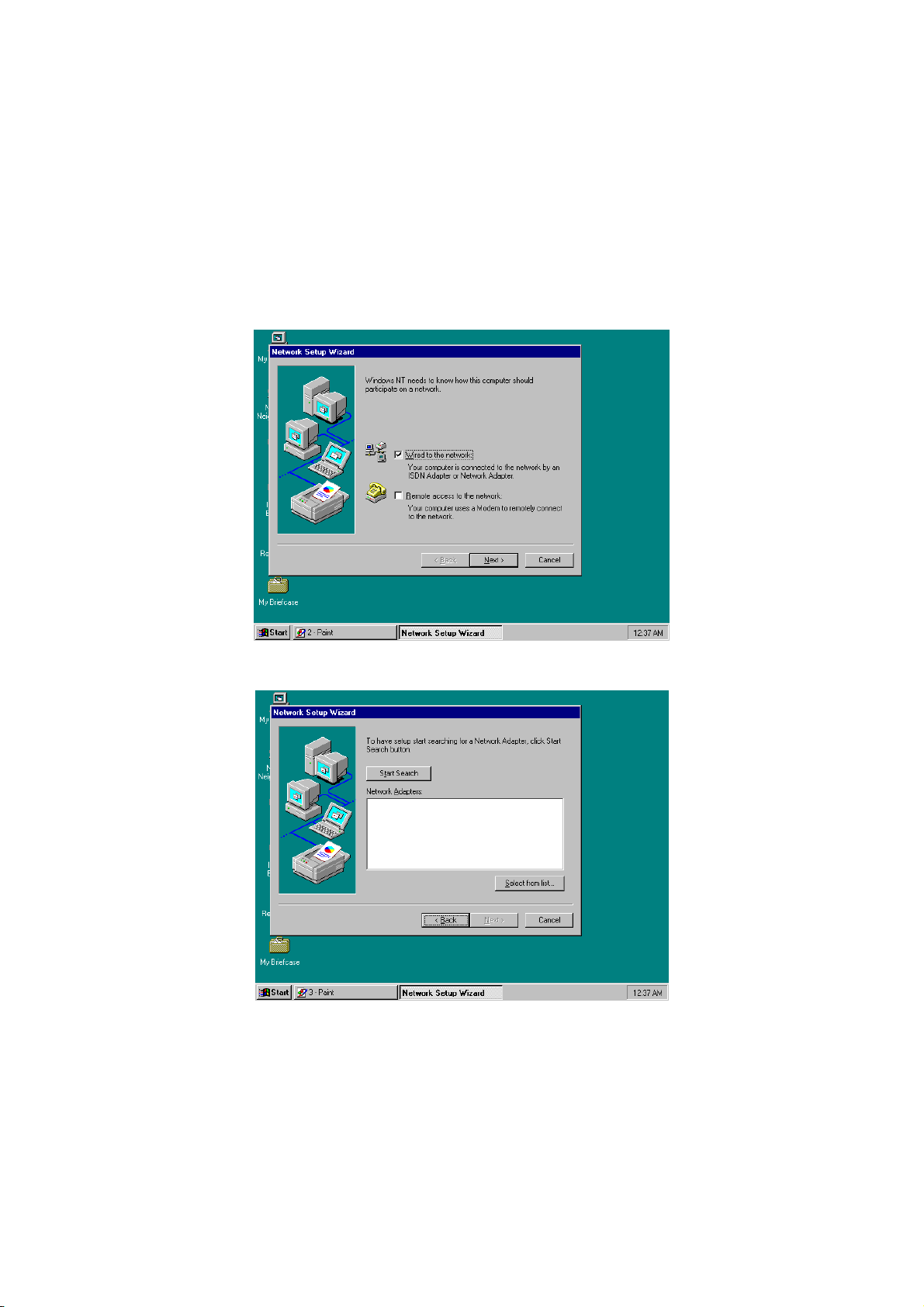

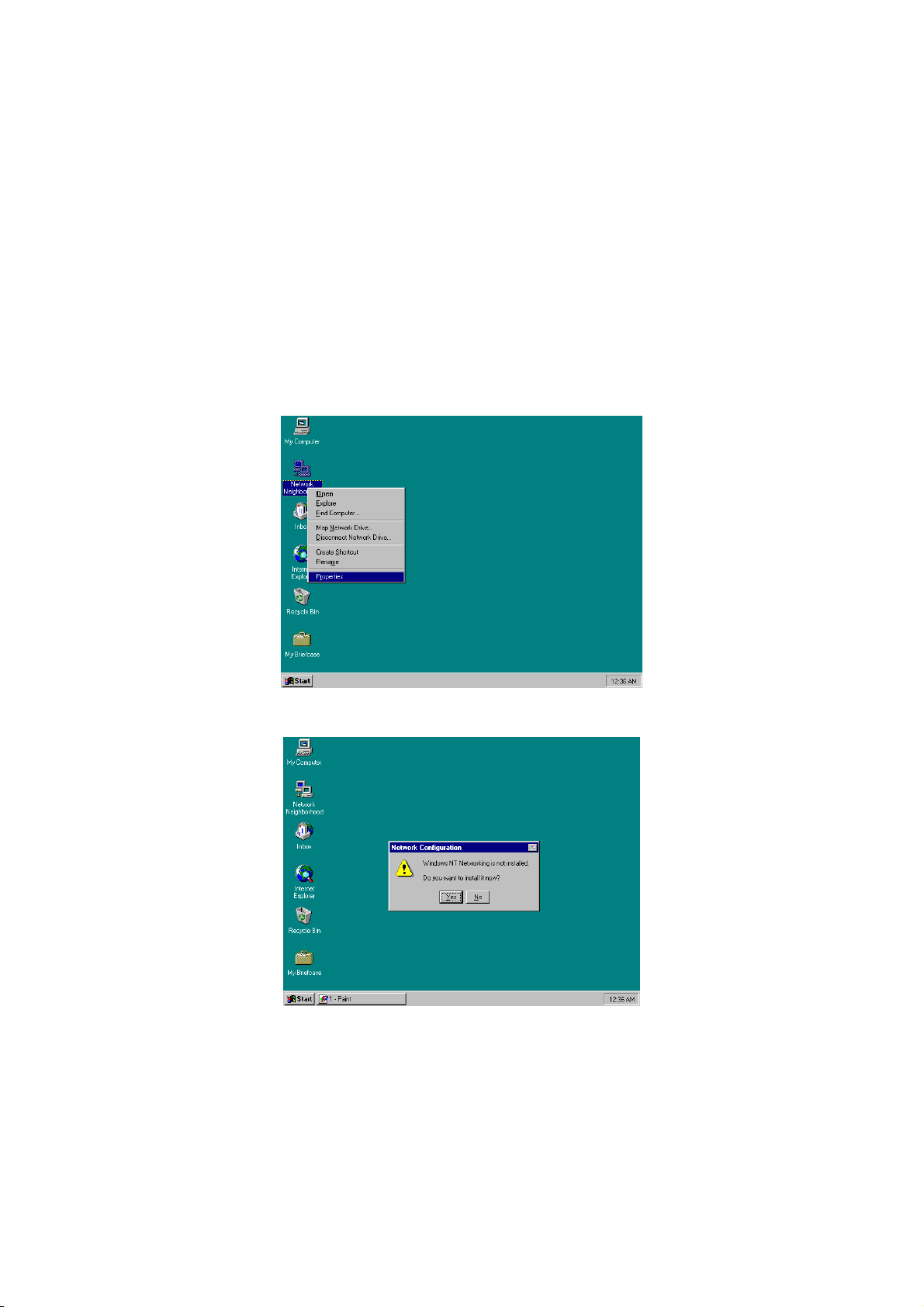

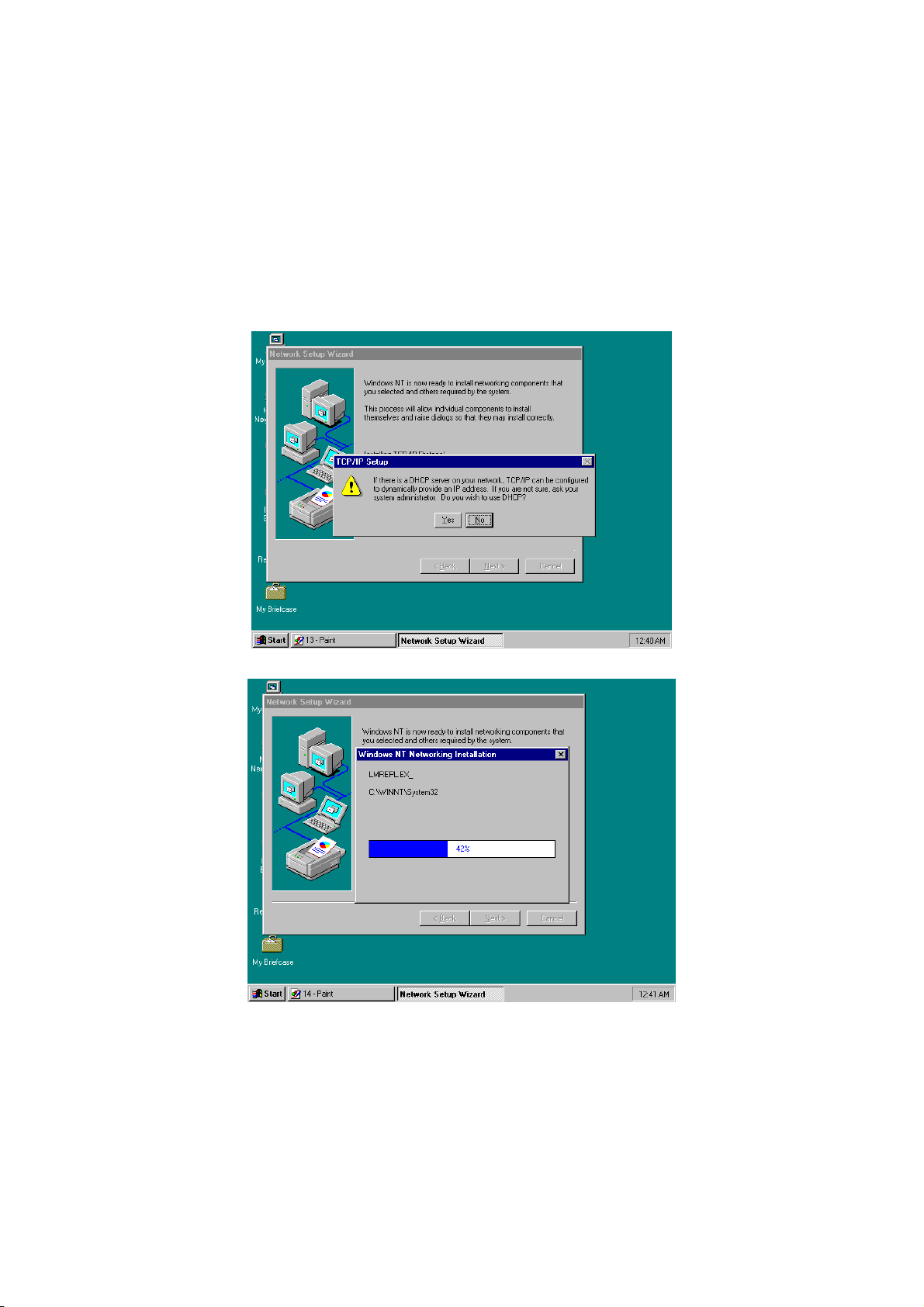

5.3 LAN Driver Installation for WIN NT4.0............................... 74

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity.
To avoid damaging chips from electrostatic discharge, observe the
following precautions:



Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any
static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR
clip of the strap to the end of the shielded wire lead from a grounded
object. Please wear and connect the strap before handle the HS-6252 to
ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or
parts or tools outside the computer. You may also use an anti-static bag
instead of the pad. Please inquire from your local supplier for additional
assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION

This page intentionally left blank.

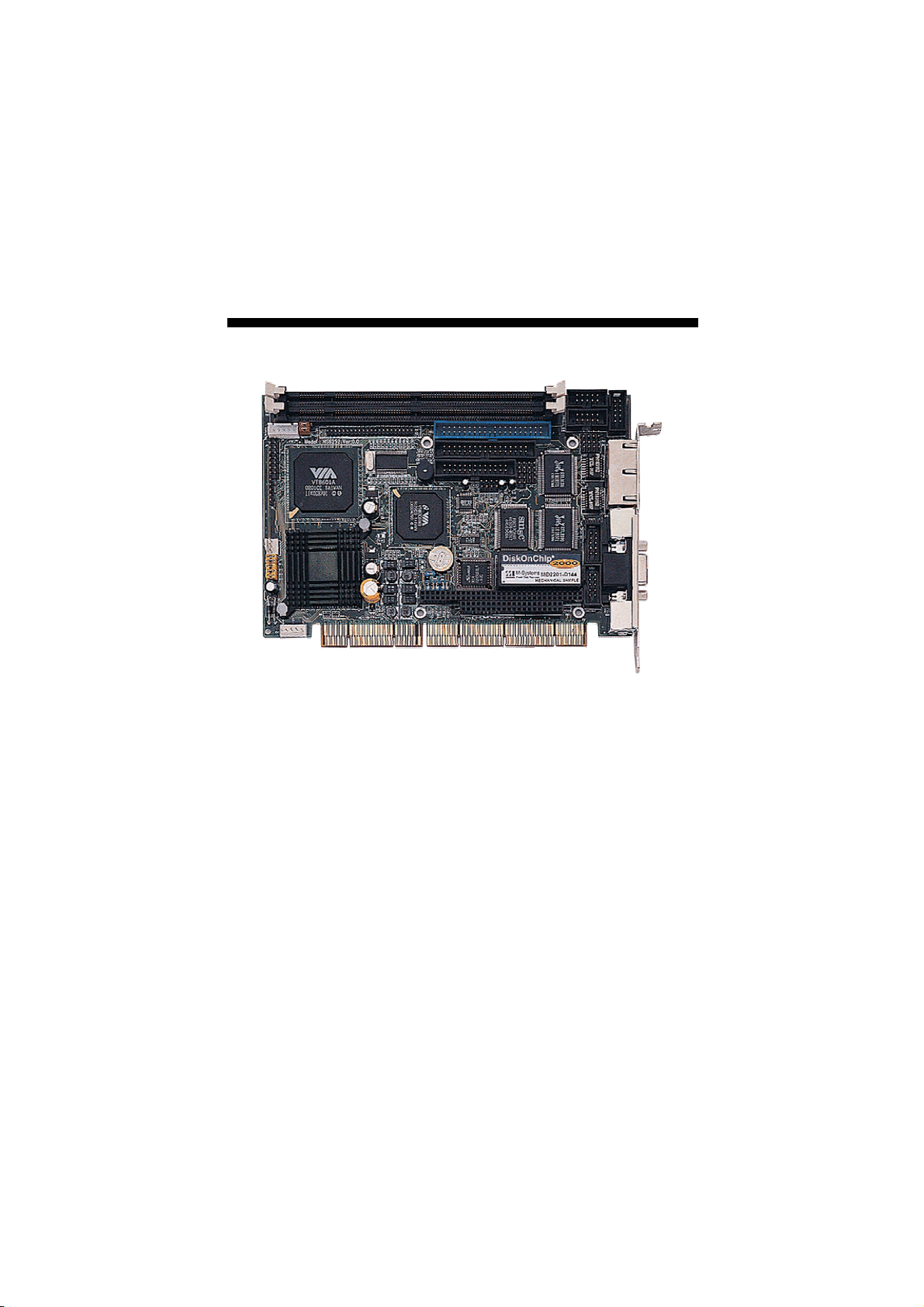

Chapter 1

General Description

The HS-6252 is a 133MHz FSB VIA VT8601 chipset-based board
designed for PCI-ISA Bus with VIA C3 800MHz Embedded CPU.
These features combine and make the HS-6252 an ideal all-in-one
industrial single board computer. Additional features include an
enhanced I/O with CRT, Dual LAN, and 4 COM ports interface.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-6252 to support data transfers of 33, 66 or 100MB/sec. to each
IDE drive connection. Designed with the VIA VT8601 core logic
chipset, the board supports VIA C3 800MHz Embedded CPU. The VIA
VT8601 integrated Trident 3D supporting AGP Bus.

For suitable installation into any size system with 8/16/32-bit ISA and/or
PCI slots operation, the board’s advanced PCI-ISA bus add-on feature
allows user to easily obtain both ISA's 16-bit and PCI's 32-bit full set
signals from a half-size PCI-ISA slot. System memory is also sufficient
with the two DIMM sockets that can support up to 1GB.

1

Additional onboard connectors include an advanced USB and IrDA
ports providing faster data transmission, a DOS-compatible
DiskOnChip socket with a maximum capacity of 288MB, and two
external RJ-45 connectors for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system, the
Watchdog Timer (WDT) onboard HS-6252 is designed with pure
hardware that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard Watchdog Timer (WDT) will automatically reset the CPU or
generate an interrupt to resolve such condition.

1.1 Major Features

The HS-6252 comes with the following features:

 VIA C3 800MHz Embedded CPU
 VIA VT8601/VT82C686B system chipset
 Supports 66/100/133MHz FSB
 Two DIMM sockets with a max. capacity of 1GB
 SMC 37C669, VIA VT82C686B super I/O chipset
 Fast PCI ATA/33/66/100 IDE controller
 Three RS-232 and one RS-232/422/485 serial ports
 PC/104 Bus connector
 VIA VT8601 CRT display controller
 Dual RealTek RTL8100 10/100 Based LAN
 AC97 3D audio controller
 DiskOnChip socket supporting memory sizes of up to 288MB
 Supports four USB connectors
 Supports Hardware Monitor function
 Supports Single +5V power in

2

1.2 Specifications



CPU: VIA C3 800MHz embedded CPU



Bus Interface: PCI-ISA Bus



Memory: Two DIMM sockets supporting up to 1GB



Chipset: VIA VT8601/VT82C686B



I/O Chipset: SMC 37C669, VIA VT82C686B



VGA: VIA VT8601 integrated Trident 3D supporting AGP Bus



IDE: Two IDE disk drives supporting ATA/33/66/100 and with transfer
rates up to 33/66/100MB/sec.

 FDD: Supports up to two floppy disk drives
 Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP



LAN: Dual RealTek RTL8100 10/100 Based LAN



Audio: AC97 3D audio controller supporting speaker out



Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO

 PC/104: PC/104 connector for 16-bit ISA Bus
 IrDA: One IrDA TX/RX header
 USB: Four USB connectors


Keyboard:



Mouse:



DiskOnChip:

288MB



BIOS: AMI PnP Flash BIOS



Watchdog Timer: Sets 1, 2, 10, 20, 110, 220 seconds, activity trigger
with Reset or NMI



CMOS:



DMA Channels: 7



Interrupt Levels:



Operating Temperature:



Hardware Monitor: VIA VT82C686B



Board Size: 18.5 x 12.2 cm

PS/2 6-pin Mini DIN or 5-pin connector

PS/2 6-pin Mini DIN or 4-pin connector

Battery backup

DiskOnChip socket supporting memory sizes of up to

15

0~60°C

3

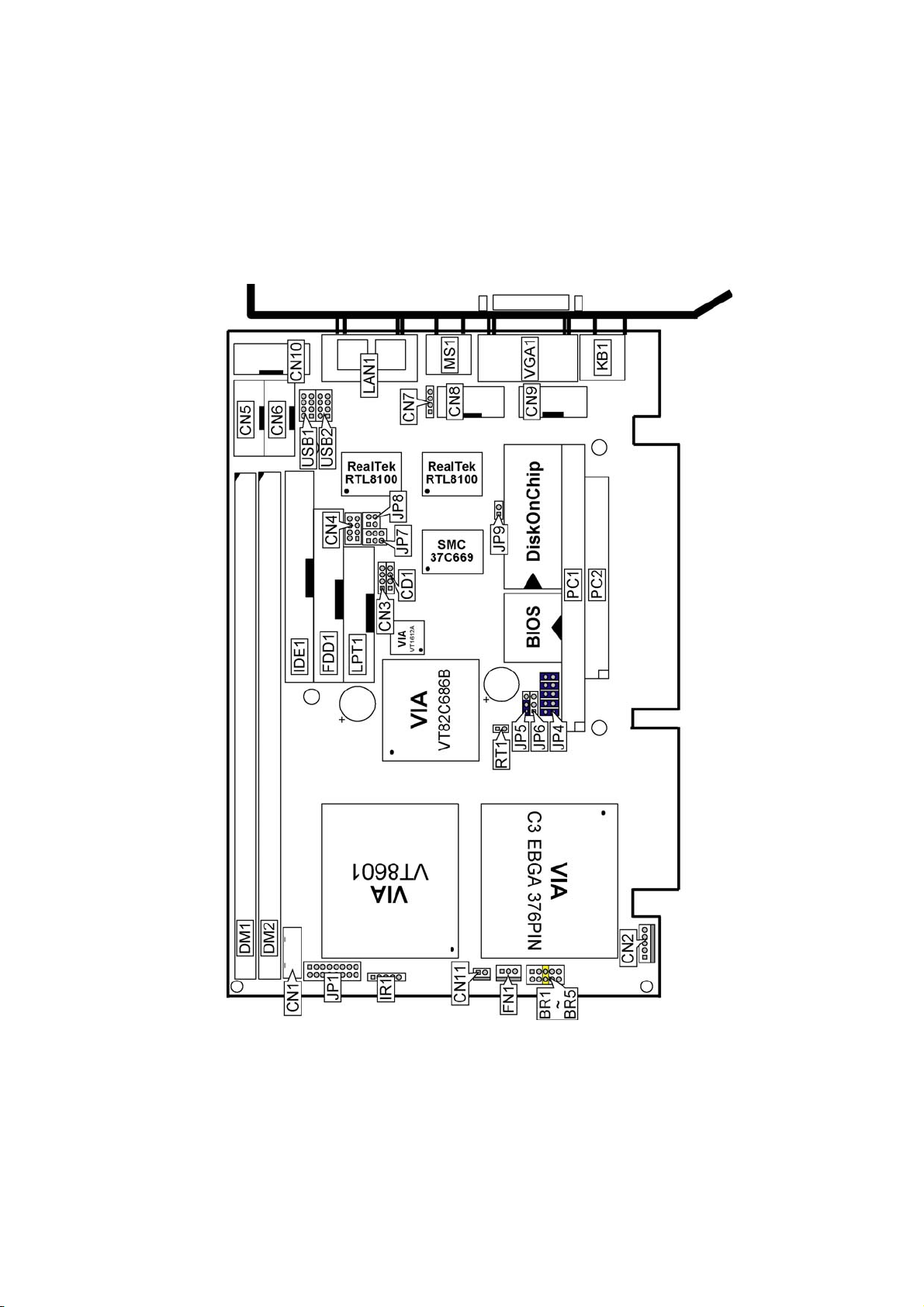

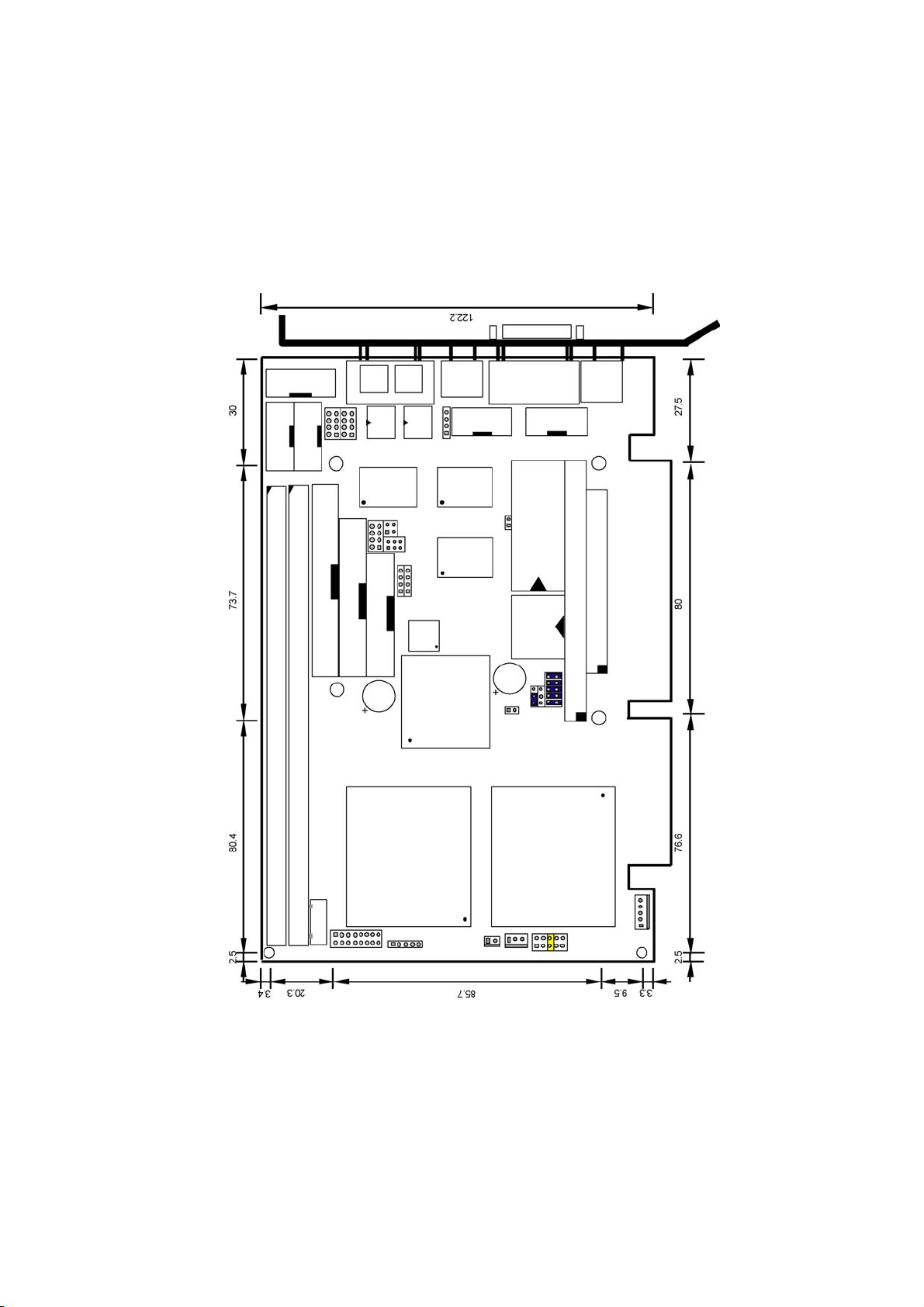

1.3 Board Dimensions

4

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6252 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-6252 delivery package
contains the following items:



HS-6252 Board x 1

 Utility CD Disk x 1


ATA/100 IDE flat cable x 1

 FDD flat cable x 1


Printer cable with bracket x 1

 RS-232 COM Port cables with bracket x 2


8-pin USB split type cable with bracket x 1

 MIC In/Speaker In 8-pin cable + 2 phone jacks with bracket x 1


5-pin ATX power cable x 1

 Jumper Bag x 1


User’s Manual

IMPORTANT:

Before you turn on the power of your system, please

set JP5 to Short 1-2 for normal operation.

5

It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

6

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware
using the HS-6252. This chapter also contains information related to
jumper settings of switch, watchdog timer, and the DiskOnChip
address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.

2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future
reference and use.

7

3.2 Board Layout

8

3.3 Jumper List

Jumper Default Setting Setting

BR3 CPU Clock Frequency: 800MHz Short

JP4(1-4) DOC Address Select: D000 Short 1-2

JP4(5-10)

JP5 Clear CMOS: Normal Operation Short 1-2
JP6 WDT Active Type Setting: Reset Short 2-3

JP7

JP8

JP9

WDT Timer Select: 1sec. Short 5-6, 7-8, 9-10

RS-422/485 Transceiver Enabled/Disabled
Select: Disabled
RS-422/485 Receiver Enabled/Disabled
Select: Disabled
COM2 Use RS-232 or RS-422/485: Disabled Open

Open 1-2, 3-4, 5-6

Open 1-2, 3-4

3.4 Connector List

Connector Definition

CD1 CD-ROM Line In Connector
CN1 5-pin Keyboard Connector
CN2 5-pin ATX Power In Connector
CN3 Line In Connector
CN4 Audio Out/MIC In Connector
CN5 COM 3 Connector
CN6 COM 4 Connector
CN7 4-pin Mouse Connector
CN8 COM 2 Connector
CN9

CN10 RS-422/485 Connector
CN11 2-pin Power In Connector

DM1 & 2 168-pin DIMM Sockets

FDD1 Floppy Connector

FN1

IDE1 IDE Connector

IR1 IrDA Connector
JP1 Front Panel Connector
KB1 6-pin Mini DIN Keyboard Connector

LAN1A & 1B Dual RJ-45 Connector

LPT1 Parallel Connector

MS1 6-pin Mini DIM Mouse Connector

PC1 & PC2 PC/104 64-pin/40-pin Connector

RT1 Thermal Input Connector

USB1 & 2 USB Connectors

VGA1 VGA Connector

COM 1 Connector

Fan Connector

9

3.5 Configuring the CPU

TheHS-6252 embedded with a VIA C3 800MHz CPU. User don’t need
to adjust the frequently and check speed of VIA C3 800MH CPU

3.6 System Memory

The HS-6252 provides two DIMM sockets at locations DM1 and DM2.
The maximum capacity of the onboard memory is 1GB.

3.7 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate
without a FDD or a HDD. DiskOnChip modules may be formatted as
drive C or A. With DiskOnChip, user may also execute DOS
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc.

The U6 location onboard the HS-6252 is the DiskOnChip module
socket. Jumper JP4(1-4) assigns the starting memory address of the
installed module. If you have another memory device that has a similar
memory capacity with that of the DOC in your system, please set both
at different memory address mapping to avoid the mapping area
conflicts. Failing to do so will not make the HS-6252 and the additional
memory device function properly.



JP4(1-4): DiskOnChip Address Select

Address PINS 1-2 PINS 3-4

* D000 Short Short

D800 Open Short

3.7.1 Installing DiskOnChip Modules

When installing a DiskOnChip module onto your board, please take
note of the following:

1. Orient yourself properly with the location of the DiskOnChip
socket. Try to locate the pin 1 location on your socket. Pin
numbers are usually printed on either the component side or the
solder side of your board.

2. Locate the Pin 1 location on your DiskOnChip module. More
often than not, Pin 1 can be found on the lower right corner of
the chip. Please refer to the diagram for the exact location.

10

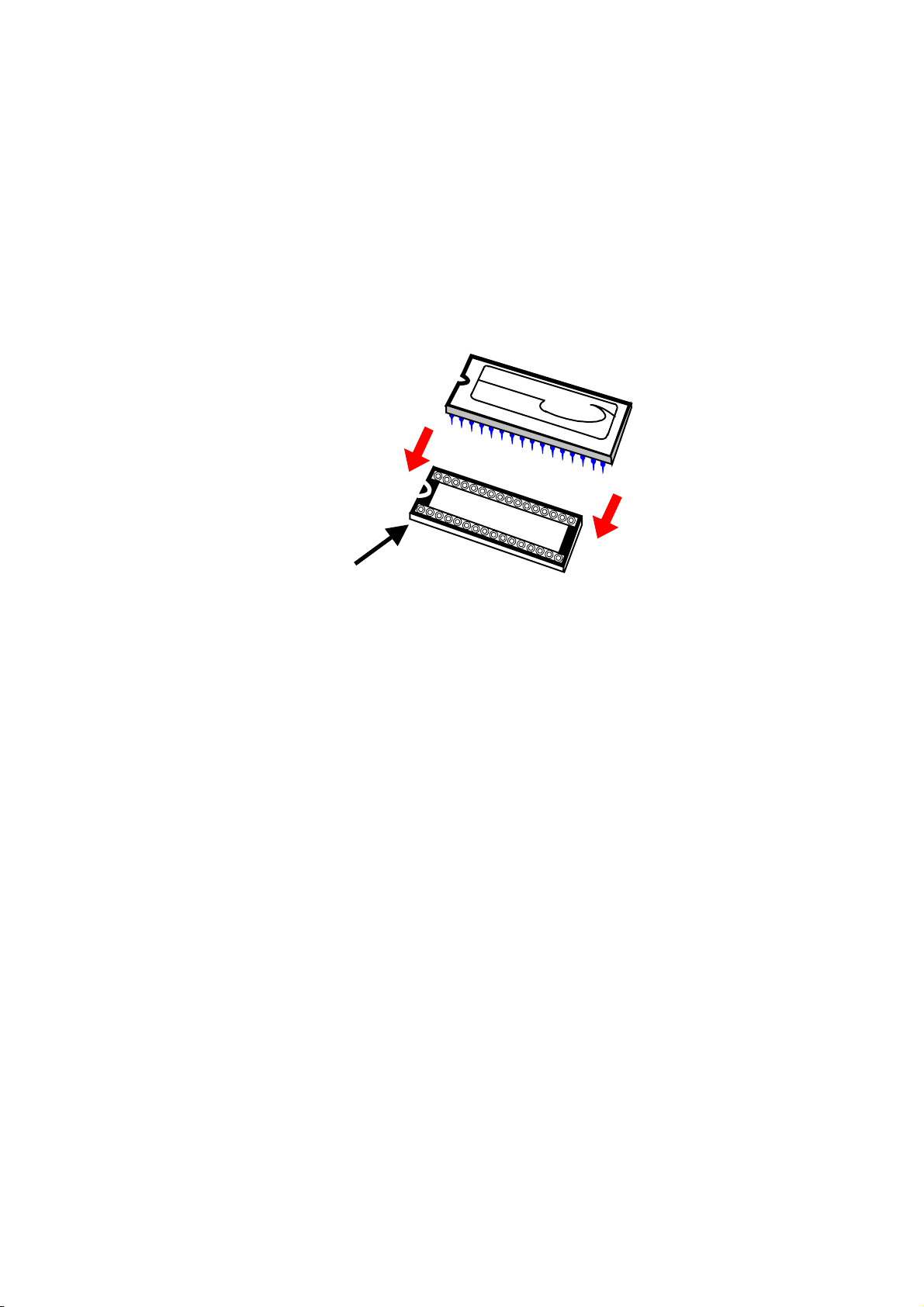

3. Once you have figured out where the pin 1 locations are on both
chip and socket, align the module’s pins on an upright angle
against the socket. Using both thumbs, gently press the module
into the socket until all the pins are secured to their
designations.

D

i

s

k

O

n

C

h

i

p

Pin 1

Location

4. The installation is now complete and your module is now ready
for use.

NOTE:

If you encounter difficulty installing your DiskOnChip

module,



please consult a qualified technician or engineer to perform the
installation.

3.7.2 Removing DiskOnChip Modules

When removing a DiskOnChip module from its socket, please take
note of the following:

1. Loosen the contact of the module from its socket using a
screwdriver.

2. Insert the screwdriver’s flat head into a gap on either end of the
socket. Do not insert the screwdriver head on either side where
the pins are located. Doing so might damage the pins in the
process.

3. Slowly lift the screwdriver handle upwards. This will disengage
the module from its socket.



NOTE:

If you encounter difficulty removing your DiskOnChip

please consult a qualified technician or engineer to remove it for
you.

module,

11

3.8 VGA Controller

The HS-6252 has an onboard VGA controller, provides 8MB shared
memory. The HS-6252 provides one connection method of a VGA
device. VGA1 offers a single standard CRT connector (DB15).



VGA1: 15-pin CRT Connector (DB15)

PIN Description PIN Description

1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND

9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL

12

3.9 PCI E-IDE Drive Connector

IDE1 is a standard 40-pin connector daisy-chain driver connector
serves the PCI E-IDE drive provisions onboard the HS-6252. A
maximum of two ATA/33/66/100 IDE drives can connect to the
HS-6252 via IDE1.



IDE1: IDE Connector

PIN Description PIN Description

1
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11

11
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 INTERRUPT 32 N/C
33 RPDA1- 34 PATA66
35 RPDA0- 36 RPDA2-
37 RPCS1- 38 RPCS3-
39 HDD ACTIVE 40 GND

RESET

DATA 3

PDREQ

2

12

22

GND

DATA 12

GND

13

3.10 Floppy Disk Drive Connector

The HS-6252 uses a standard 34-pin header connector, FDD1, for
floppy disk drive connection. A total of two FDD drives may be
connected to FDD1 at any given time.



FDD1: FDD Connector

PIN Description PIN Description

1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#

9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29
31 GND 32 HDSEL#
33 GND 34 DSKCHG#

GND

30

RDATA#

14

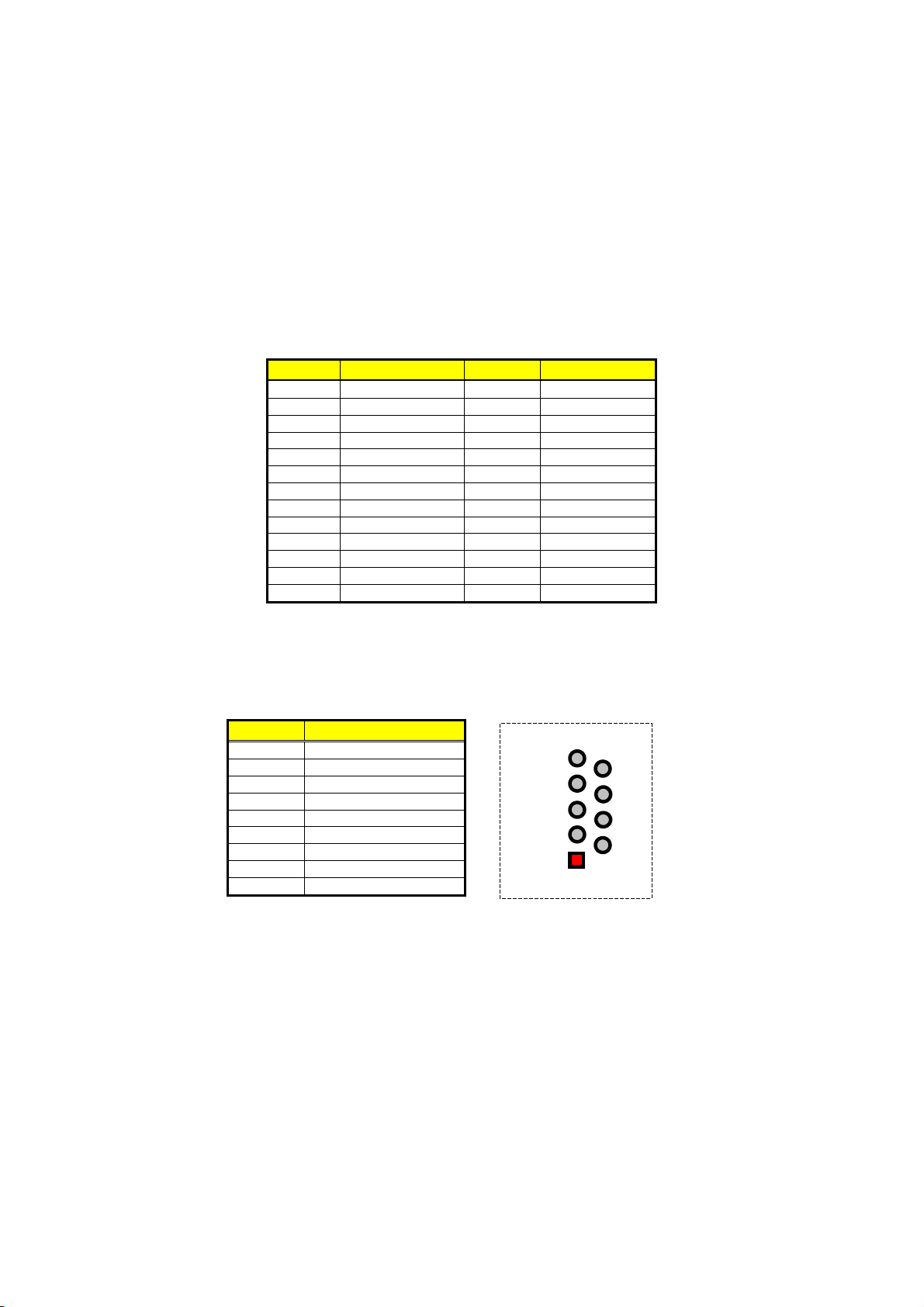

3.11 Serial Port Connectors

The HS-6252 offers two NS16C550 compatible UARTs with
Read/Receive 16-byte FIFO serial ports and two internal 10-pin
headers.



CN9, CN8, CN5 and CN6: COM1/COM2/COM3/COM4
Connectors (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR
3
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 N/C



CN10: RS-422/485 Connector (5x2 Header)

RXD

4

PIN Description PIN Description

1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 RTS-
7 RTS+ 8 CTS+
9



JP7: RS-422/485 Transceiver Enabled/Disabled Select

CTS-

10

Options Settings

Always Enable Short 1-2

Enable by “-RTS” signal Short 3-4

Enable by writing the REG:2 EFH BIT0=1 Short 5-6

* Always Disabled OPEN



JP8: RS-422/485 Receiver Enabled/Disabled Select

Options Settings

Always Enable Short 1-2

Enable by “-RTS” signal Short 3-4

* Always Disabled OPEN



JP9: COM2 use RS-232 or RS-422/485 Selection

Serial Port Setting JP9

* RS-232 OPEN

RS-422/485 SHORT

RTX

N/C

15

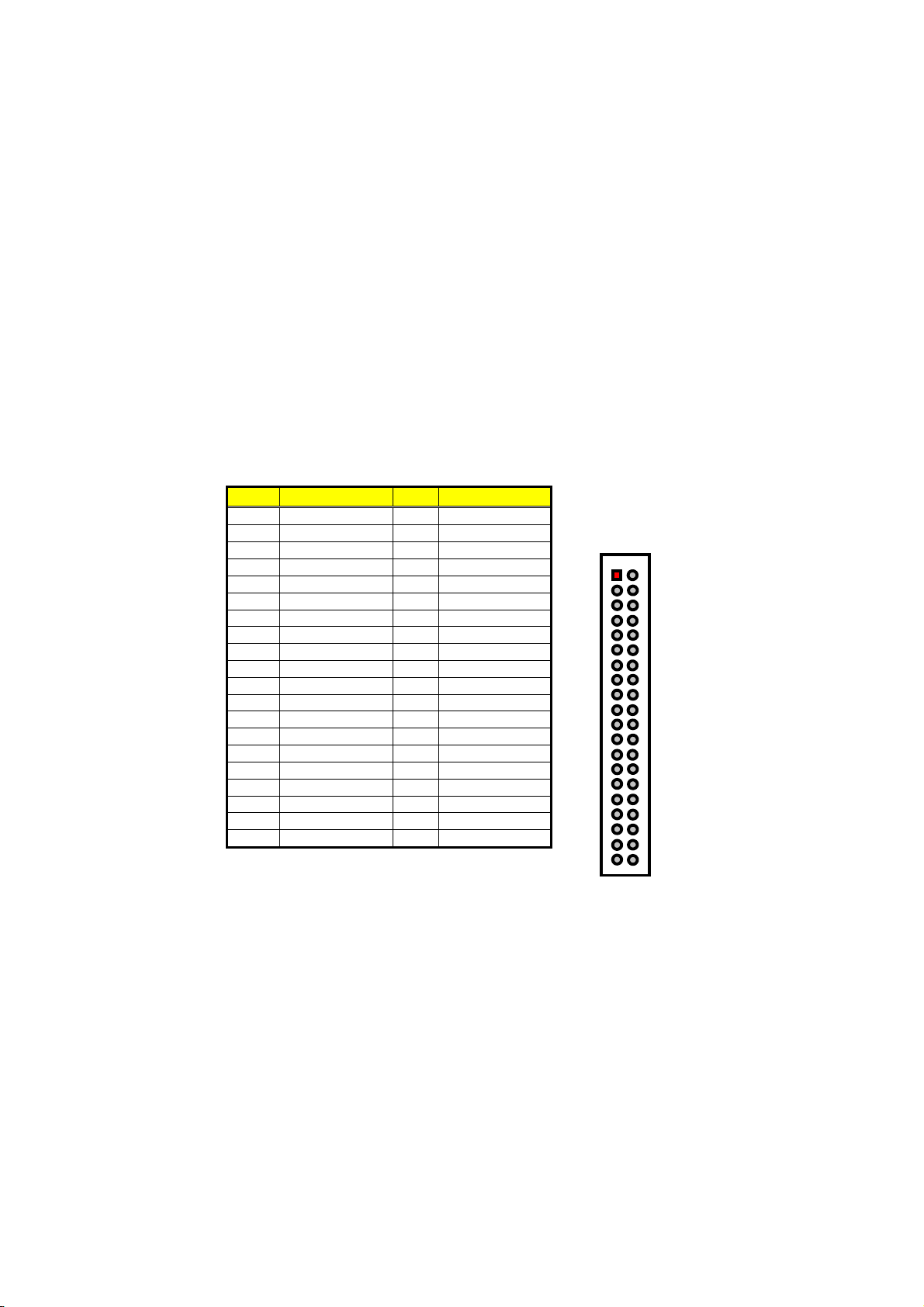

3.12 Parallel Connector

LPT1 is a standard 26-pin flat cable connector deigned to
accommodate parallel port connection onboard the HS-6252.



LPT1: Parallel Connector

PIN Description PIN Description

1 Strobe 2 DATA 0
3 DATA 1 4 DATA 2
5
7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge
11 Busy 12 Paper Empty
13 Printer Select 14 Auto Form Feed
15 ERROR# 16 Initialize
17 Printer Select LN# 18 GND
19
21 GND 22 GND
23 GND 24 GND
25 GND 26 GND

DATA 3

GND

6

20

DATA 4

GND

3.13 Ethernet Connector

The HS-6252 provides one external dual RJ-45 10/100 Based LAN
interface connector. Please refer to the following for its pin information.



LAN1A & 1B: Dual RJ-45 Connector

PIN Description

1 TX+
2 TX-
3 RX+
4 N/C
5 N/C
6 RX-
7 No Use
8 No Use
9 GND

N/C

N/C

RX+

TX-

TX+

5

9

GND

No Use

No Use

RX-

6

1

16

3.14 IrDA Connector

IR1 is a 5-pin internal IR communication connector for connection of an
IrDA device.



IR1: IrDA Connector

PIN Description

1 VCC
2 N/C
3
4 GND
5 IRTX

IRRX

3.15 USB Connector

The HS-6252 provides two 8-pin connectors, at locations USB1 and
USB2, for four USB connections to the HS-6252.



USB1 and USB2: USB Connector

PIN Description PIN Description

1 VCC 2 VCC
3 BD0- / BD2- 4 BD1- / BD3-
5 BD0+ / BD2+ 6 BD1+ / BD3+
7 GND 8 GND

3.16 CMOS Data Clear

The HS-6252 has a Clear CMOS jumper on JP5.



JP5: Clear CMOS

Options Settings

* Normal Operation Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

Before you turn on the power of your system, please

set JP5 to Short 1-2 for normal operation.

17

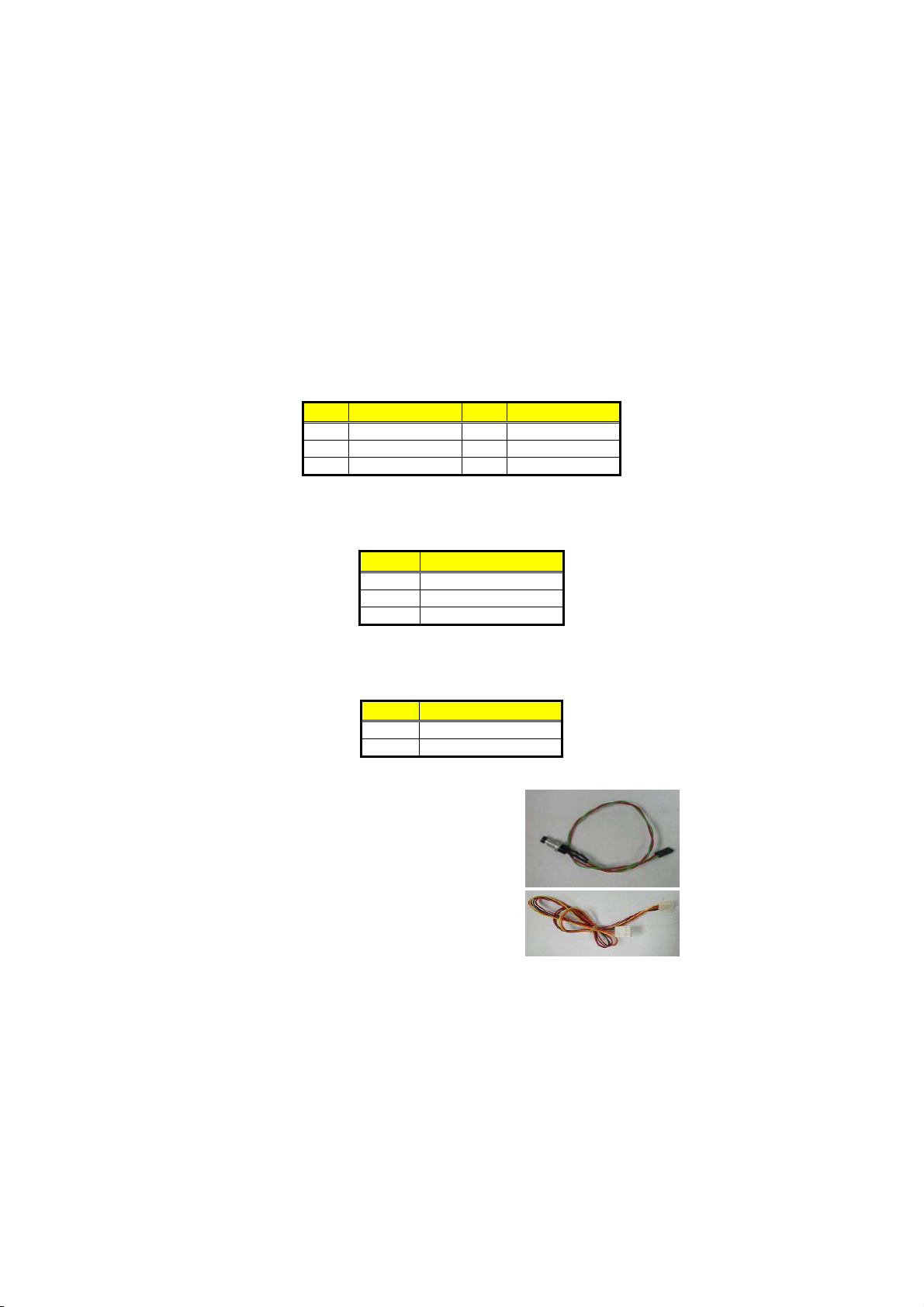

3.17 Power Supply, ATX Power
Controller and Fan Connectors

HS-6252 provides one 5-pin power control connector at CN2. If you
need to use ATX power supply, power supply connections to both CN2
and CN11 are must.



CN2: 5-pin Power Connector

PIN Description PIN Description

1 GND 2 PS_ON
3 +12V 4 5VSB
5 VCC

Connector FN1 onboard HS-6252 is a 3-pin fan power output
connector.



FN1: CPU Fan Connector

PIN Description

1 GND
2 +5V
3 Speed

HS-6252 provides one 5-pin power control connector at CN2 to support
ATX function.



CN11: 2-pin +5V Power In Connector

PIN Description

1 VCC
2 GND

Also, it supports various power connections. Please refer the following:

Cable1 

Power Switch cable supplied by chassis
vendor (not attached in cable package)

Cable2 

5-pin ATX power cable (attached in cable
package)

18

•••

More On Next Page

•••

Cable3 

ATX power supply transfer cable for use
ATX function without Backplane (not
attached in cable package)

Cable4 

2-pin 5V power in cable (not attached in
cable package)

3.17.1 HS-6252 Connect with ATX Power Supply and

BOSER Backplane (ATX function)

1. HS-6252 CN2 connects to 5-pin connector (Backplane). ATX power

supply connect to backplane ATX connector.

2. Power switch cable (cable1) connects to JP1(10-12).

19

3.17.2 HS-6252 Connect with ATX Power Supply and

BOSER Backplane (AT power function)

1. 20-pin ATX power connector (Backplane) connects to ATX power

supply.

2. Use Cable1 connect to pin-4 and pin-5 of 5-pin connector on

BOSER’s backplane.

20

3.17.3 HS-6252 Connect with ATX Power Supply

(Without Backplane)

1. Use Cable3 connect CN2 & CN11 with ATX power supply.

2. Cable1 connect to JP1(10-12).

3.17.4 HS-6252 Connect with AT Power Supply and

BOSER Backplane

1. Connects P8P9 connector to AT power supply.

21

3.17.5 HS-6252 Connect with AT Power Supply

1. Connects CN11 to AT power supply. (Through cable4)

3.18 Keyboard Connectors

The HS-6252 offers two possibilities for keyboard connections. The
connections are via KB1 for an external PS/2 type keyboard or via CN1
for an internal 5-pin cable converter to an AT keyboard.



CN1: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock
2 Keyboard Data
3 N/C
4 GND
5 +5V



KB1: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1
2 N/C
3 GND
4 +5V
5 Keyboard Clock
6 N/C

Keyboard Data

12345

N/C

Data

Clock

Keyboard

Keyboard

Keyboard

Clock

5

6

N/C

GND

GND

3

Keyboard

1

Data

2

N/C

+5V

4

+5V

22

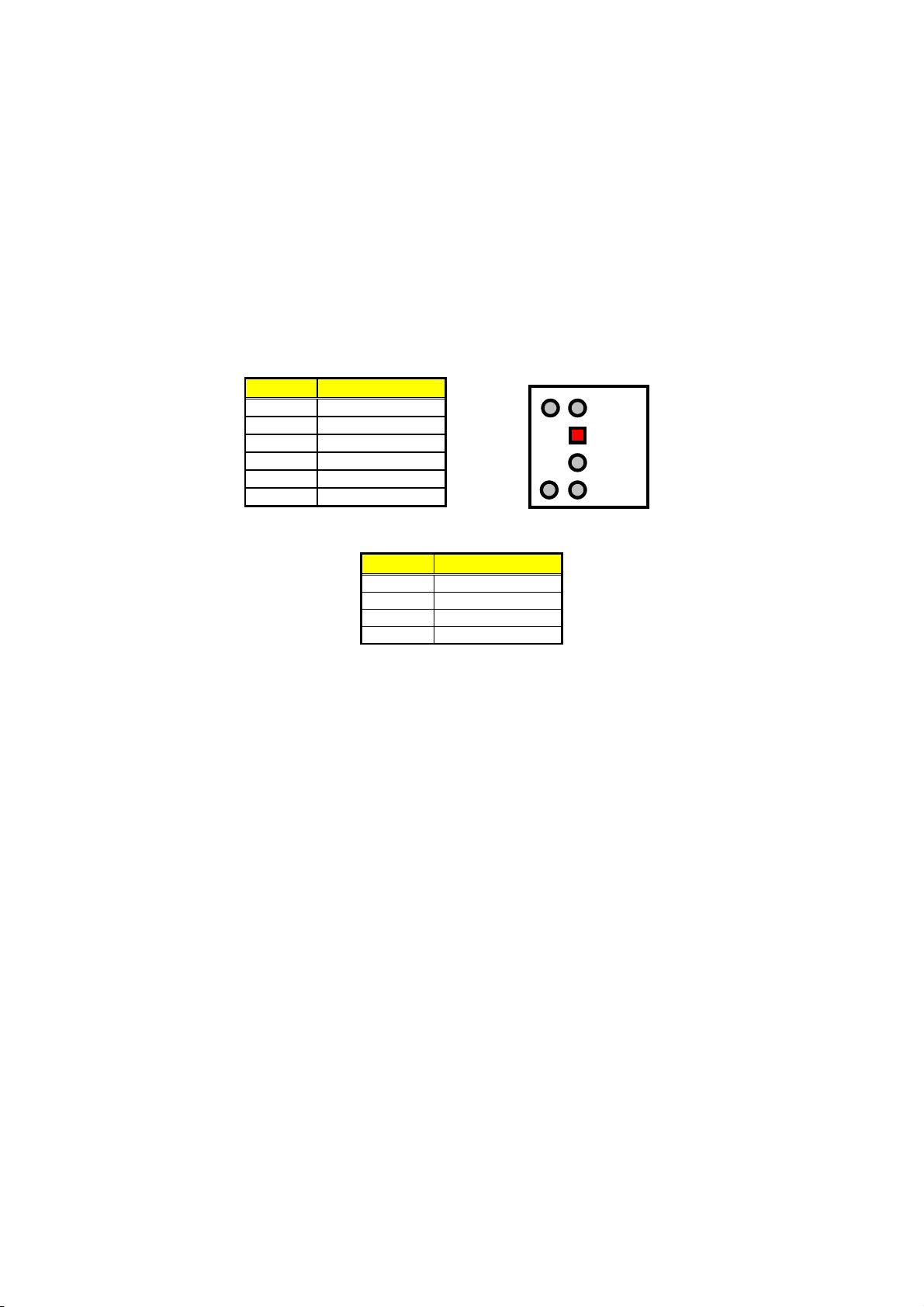

3.19 PS/2 Mouse Connector

MS1 is a 6-pin mini DIN connector for connections to an external PS/2
mouse connector. CN7 is an internal 4-pin header for cable converter
to PS/2 mouse.



MS1: PS/2 6-pin Mini Din Mouse Connector

PIN Description

1 Mouse Data
2 N/C
3
4 +5V
5 Mouse Clock
6 N/C



CN7: 4-pin Mouse Connector

MS Clock

5

GND

6

N/C

GND

3

MS Data

1

2

N/C

+5V

4

PIN Description

1 Keyboard Clock
2 Keyboard Data
3
4 GND

VCC

23

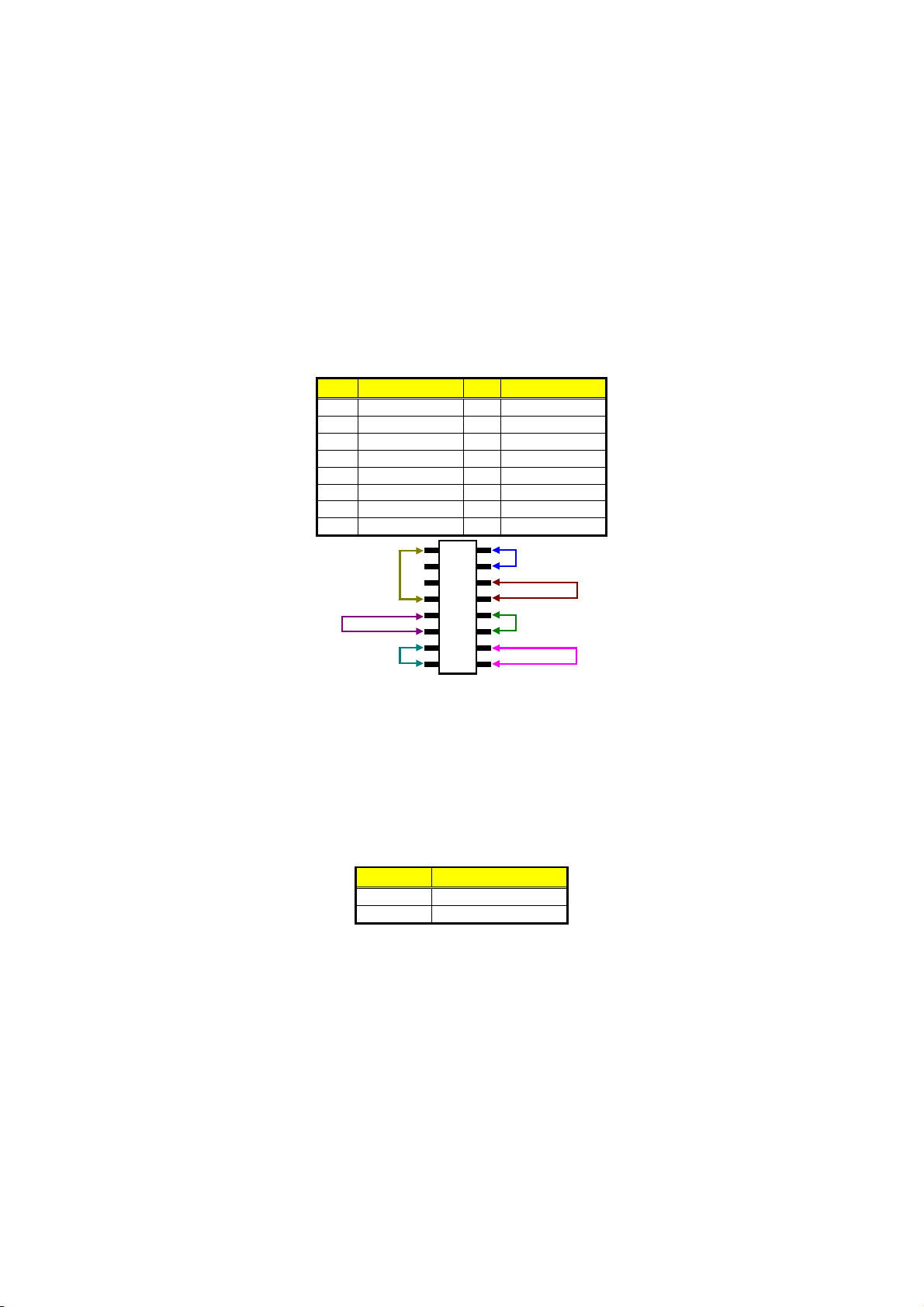

3.20 System Front Panel Connectors

The HS-6252 has one LED at location JP1(2-4) that indicates the
power-on status. This visual feature of the IDE LED may also be
connected to an external IDE LED via connector JP1(13-15).



JP1: System Front Panel Connector

PIN Description PIN Description

1 VCC 2 330Ω Pull +5V
3 GND 4 GND
5 N/C 6 EXT SMI
7 Speaker 8 GND

9 GND 10 Power Button
11 Reset Switch 12 GND
13 330Ω Pull +5V 14 Sleep Button
15 HDD LED 16 GND

2

SPEAKER

RST_SW

HD_LED

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

PWR LED

EXT_SMI

PWR button

SLP button

3.21 Thermal Input Connector

In relevance to the Hardware Monitoring feature provided by the
onboard VIA VT82C686B, the board allows the installation of a thermal
sensor via connector RT1. The thermal connector monitors and
displays the current system temperature from the Chipset Features
Setup screen on your BIOS utility program. The value displayed is
read-only figures and may not be altered.



RT1: Thermal Input Connector

PIN Description

1 Sensor In
2

GND

24

3.22 Watchdog Timer

There are three access cycles of Watch-Dog Timer as

Enable, Refresh
and Disable are the three access cycles of Watchdog Timer. The
Enable cycle proceeds via READ PORT 443H whereas the Disable
cycle proceeds via READ PORT 045H. A continued Enable cycle after
a first Enable cycle means Refresh.

Once the Enable cycle is active, a Refresh cycle is requested before
the time-out period. This restarts counting of the WDT period. When
the time counting goes over the period preset of WDT, it will assume
that the program operation is abnormal. A System Reset signal to
re-start or a NMI cycle to the CPU transpires when such error happens.
Jumper JP6 is used to select the function of Watchdog Timer.



JP6: Watchdog Timer Active Type Setting

Options Settings

Active NMI Short 1-2

System Reset Short 2-3

* Disabled Watchdog Timer Open



JP4(5-10): WDT Timeout Period Select

Period PINS 5-6 PINS 7-8 PINS 9-10

* 1 sec Short Short Short

2 sec Open Short Short
10 sec Short Open Short
20 sec Open Open Short

110 sec
220 sec Open Short Open

Short Short Open

The Watchdog Timer is disabled after the system Power-On. It can be
enabled via an Enable cycle and reading the control port (443H), or via
a Refresh cycle and reading the control port (443H), or via a Disable
cycle and reading the disable control port (045H).

After an Enable cycle of WDT, user must immediately execute a
Refresh cycle to WDT before its period setting comes to an end every
1, 2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not activate
before WDT period cycle, the onboard WDT architecture will issue a
Reset or NMI cycle to the system. There are three I/O ports that control
the Watchdog Timer.

25

443H I/O Read The Enable cycle
443H I/O Read The Refresh cycle
045H

I/O Read The Disable cycle

The following sample program shows how to Enable, Disable and
Refresh the Watchdog Timer:

WDT_EN_RF EQU 0433H
WDT_DIS EQU 0045H

WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_Refresh PUSH AX ; keep AX, DX

PUSH DX
MOV DX,WDT_ET_RF ; refresh the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_DISABLE PUSH AX

PUSH DX
MOV DX,WDT_DIS ; disable the WDT
IN AL,DX

POP DX ; get back AX, DX
POP AX
RET

26

3.23 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16-bit PC standard bus, thousands
of PC/104 modules from multiple venders can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors PC1 and PC2 are listed on the following tables:

NOTE：



PIN Description PIN Description

10 DRQ0 30 MEMR*
11 DACK5* 31 MEMW*
12 DRQ5 32 SD8
13
14 DRQ6 34 SD10
15 DACK7* 35 SD11
16 DRQ7 36 SD12
17 +5V 37 SD13
18 MASTER* 38 SD14
19 GND 39 SD15
20

The PC/104 connector allows direct plugging or stack-through
piling of PC/104 modules without requiring the PC/104 mounting
kit.

PC2: 40-pin PC/104 Expansion Slot

Connector diagram

1 GND 21 GND
2 MEMCS16* 22 SBHE*
3 IOSC16* 23 LA23
4 IRQ10 24 LA22
5 IRQ11 25 LA21
6
7 IRQ15 27 LA19
8 IRQ14 28 LA18
9 DACK0* 29 LA17

IRQ12

DACK6*

GND

26

33

40

LA20

SD9

N/C

rotated 90 degrees

clockwise from

original position

121

20

40

27



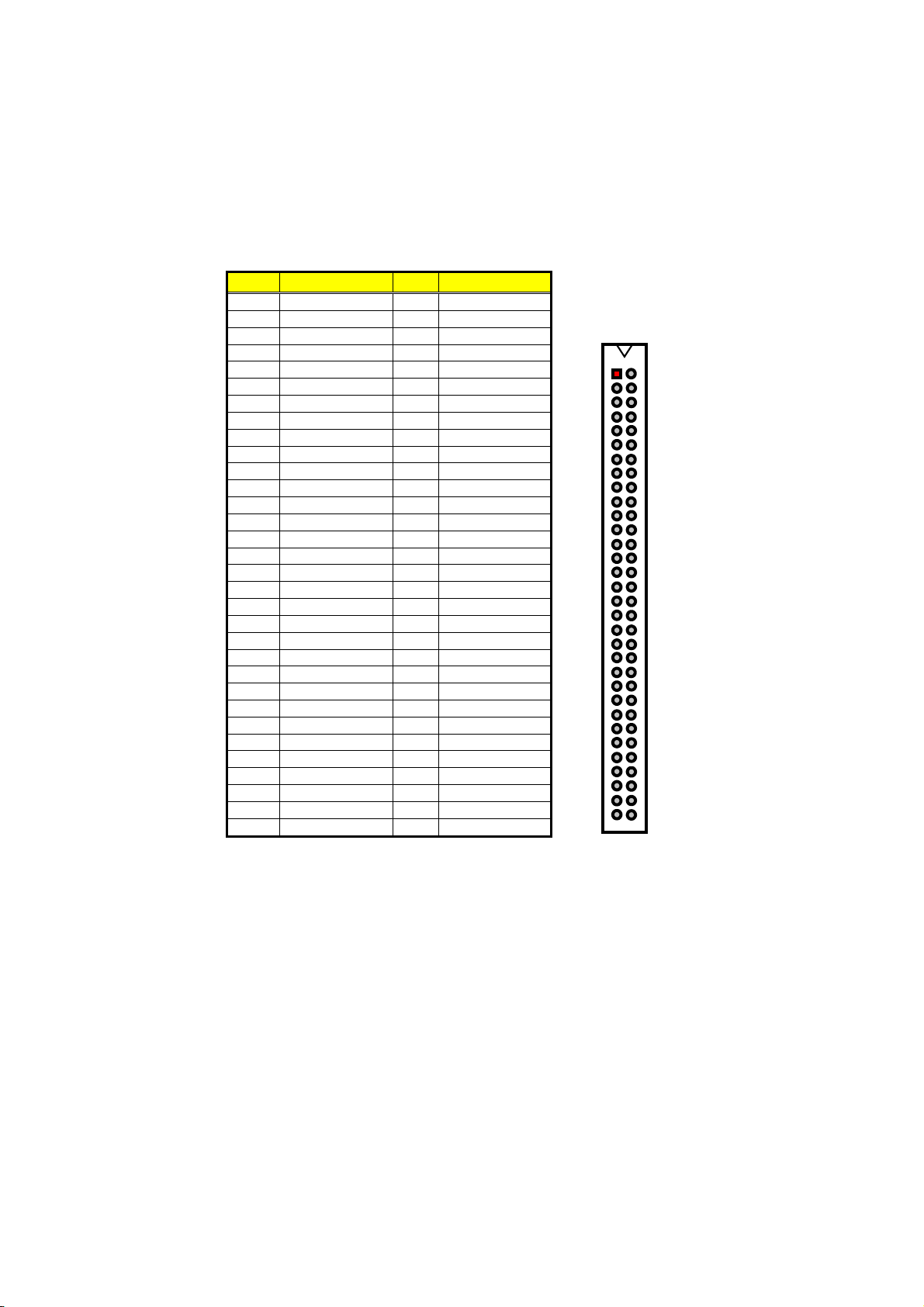

PC1: 64-pin PC/104 Expansion Slot

PIN Description PIN Description

1 IOCHECK* 33 GND
2 SD7 34 RESETDRV
3 SD6 35 +5V
4 SD5 36 IRQ9
5 SD4 37 -5V
6 SD3 38 DRQ2
7
8 SD1 40 NOW*

9 SD0 41 +12V
10 IOCHRDY 42 GND
11 AEN 43 SMEMW*
12 SA19 44 SMEMR*
13 SA18 45 IOW*
14
15 SA16 47 DACK3*
16 SA15 48 DRQ3
17 SA14 49 DACK1*
18 SA13 50 DRQ1
19 SA12 51 REFRESH*
20 SA11 52 SYSCLK
21
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 N/C
32 GND 64 GND

SD2

SA17

SA10

SA3

39

46

53

60

-12V

IOR*

IRQ7

BALE

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

28

3.24 Audio Connectors

The HS-6252 has an onboard AC97 3D audio interface. The following
tables list the pin assignments of the CD-ROM Analog Input, the Line In
and the MIC In / Line Out connectors.



CD1: CD-ROM Line In Connector

PIN Description

1 CDL
2 GND
3
4 CDR



CN3: Line In Connector

PIN Description

1 LINE_R
2 GND
3 GND
4



CN4: MIC In / Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR
3 GND 4 GND
5 MIC IN 6 N/C
7 GND 8 GND

GND

LINE_L

29

This page intentionally left blank.

30

Chapter 4

AMI BIOS Setup

The HS-6252 uses AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options that could be
selected for end-user requirements. This chapter is written to assist
you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.

While the BIOS is in control, the Setup program can be activated in one
of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

31

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
press <F1> for help and press <Esc> to quit. The following table
provides more detail about how to navigate in the Setup program using
the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default
F8 key Reserved
F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu
Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit
the Help Window press <Esc> or the F1 key again.

32

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom
of the screen.

Save Settings and Exit

Exit Without Saving



Standard CMOS Setup

This setup page includes all the items in a standard, AT-compatible BIOS.



Advanced CMOS Setup

This setup page includes all the items of AMI special enhanced features.



Advanced Chipset Setup

This setup page includes all the items of chipset special features.



Power Management Setup

This entry only appears if your system supports Power Management,
“Green PC”, standards.



PCI/Plug and Play Setup

This entry appears if your system supports PNP/PCI.



Peripheral Setup

This section page includes all the items of IDE hard drive and Programmed
Input / Output features.

33



Hardware Monitor Setup

This menu contains the system’s auto-detect functions for CPU Vcore, CPU
voltage, and CPU temperature.



Auto-Detect Hard Disks

Automatically detect and configure hard disk parameters. The AMI BIOS
includes this ability in the event you are uncertain of your hard disk’s
parameters.



Change User/Supervisor Password

Change, set, or disable password. It allows you to limit access to the system
and Setup, or just to Setup.



Auto Configuration with Optimal Settings

The BIOS defaults have been set by the manufacturer and represent
settings that provide the minimum requirements for your system to operate.



Auto Configuration with Fail Safe Settings

The chipset defaults are settings that provide for maximum system
performance. While AMI has designed the custom BIOS to maximize
performance, the manufacturer has the right to change these defaults to
meet their needs.



Save Settings and Exit

Save CMOS value changes to CMOS and exit setup.



Exit Without Saving

Abandon all CMOS value changes and exit setup.

34

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

Date (mm/dd/yyyy) : Thu Jan 03, 2002 Base Memory : 0 KB
Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB

Floppy Drive A: 1.44MB, 3.5”
Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master : Auto
Pri Slave : Auto
Sec Master : Auto
Sec Slave : Auto

Boot Sector Virus Protection : Disabled
Month: Jan - Dec ESC:Exit

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

 Date:

The date format is <day>, <date> <month> <year>. Press <F3> to
show the calendar.

day The day, from Sun to Sat, determined by the BIOS and is

display-only

date The date, from 1 to 31 (or the maximum allowed in the month)

month The month, Jan through Dec.

year The year, from 1900 through 2099

 Time:

The time format is <hour> <minute> <second>. The time is
calculated based on the 24-hour military-time clock. For example,
1 p.m. is 13:00:00.

35

 Floppy A / B:

The category identifies the types of floppy disk drive A or drive B
that have been installed in the computer.

None No floppy drive installed

360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte

capacity

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

 Pri Master/Slave & Sec Master/Slave:

The categories identify the types of 4 channels that have been
installed in the computer. There are 45 predefined types with 4
user-definable types for Enhanced IDE BIOS. Type 1 to Type 45
are predefined. Type user is user-definable.

Press PgUp or PgDn to select a numbered hard disk type or type
the number and press <Enter>. Note that the specifications of
your drive must match with the drive table. The hard disk will not
work properly if you enter improper information for this category. If
your hard disk drive type is not matched or listed, you can use
Type “User” to define your own drive type manually.

If you select Type “User”, you will need to know the information
listed below. Enter the information directly from the keyboard and
press <Enter>. This information should be included in the
documentation from your hard disk vendor or the system
manufacturer.
If the controller of HDD interface is ESDI, the selection shall be
“Type 1”.

If the controller of HDD interface is SCSI, the selection shall be
“None”.

If you select Type ”Auto”, BIOS will Auto-Detect the HDD &
CD-ROM Drive at the POST stage and showing the IDE for HDD
& CD-ROM Drive.

If a hard disk has not been installed select NONE and press
<Enter>.

TYPE

CYLS. number of cylinders

HEADS number of heads
PRECOMP write precompensation
SECTORS number of sectors

MODE mode type

drive type

36

 Boot Sector Virus Protection:

Disabled

If set to Enabled, this category will flash on the screen when there
is any attempt to write to the boot sector or partition table of the
hard disk drive. The system will halt and an error message will
appear. You may run anti-virus program to locate the problem.

Enabled Activates automatically when the system boots up causing a

warning message to appear when anything attempts to access
the boot sector or hard disk partition table.
No warning message will appear when anything attempts to

(default)

access the boot sector or hard disk partition table.

37

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

AMIBIOS SETUP – STANDARD CMOS SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

Quick Boot Enabled
1st Boot Device Floppy
2nd Boot Device IDE-0 Enabled
3rd Boot Device CD-ROM
Try Other Boot Devices Yes
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
Wait For ‘F1’ If Error Enabled
Hit ‘DEL’ Message Display Enabled
CPU MicroCode Updation Enabled
CPU Serial Number Enabled
L1 Cache Enabled
L2 Cache Enabled
System BIOS Cacheable Enabled
C000,32k Shadow Cached
C800,16k Shadow Disabled
CC00,16k Shadow Disabled
D000,16k Shadow Disabled
D400,16k Shadow Disabled ESC:Exit
D800,16k Shadow Disabled PgUp/PgDn: Modify
DC00,16k Shadow Disabled

S

Available Options:

`

Disabled



:Sel

T

F1:Help F2/F3:Color

 Quick Boot:

When set as enabled, the program disables the DRAM testing
function. The available options are Enabled, and Disabled.

 1st Boot Device:

This option sets the type of device from where the BIOS will
FIRST seek to boot from after AMIBIOS POST completes. The
available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3,
Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

38

 2nd Boot Device:

This option sets the type of SECOND device from where the BIOS
will seek to boot from, if and when the 1st
AMIBIOS POST completes. The available settings are Disabled,
IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD,
CDROM, and SCSI.

Boot Device fails after

 3rd Boot Device:

This option sets the type of THIRD device from where the BIOS
will seek to boot from, if and when the 1st
fail after AMIBIOS POST completes. The available settings are
Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD,
ARMD-HDD, CDROM, and SCSI.

 Try Other Boot Devices:

Set this option to Yes to instruct AMIBIOS to attempt to boot from
any other drive in the system. This is useful if the BIOS cannot find
a boot drive among the drives specified in the 1st /2nd/3rd/4th
Boot Devices. The available settings are Yes, and No.

 S.M.A.R.T. for Hard Disks:

Self-Monitoring, Analysis and Reporting Technology. This option
can help the BIOS in warning the user of possible device failure,
giving user a chance to back up the device before actual failure
happens. The available options are Enabled, and Disabled.

 BootUp Num-Lock:

When set as On, this option turns off numeric lock when the
system is powered, allowing the end user to use the arrow keys on
both the numeric keypad and the keyboard.

 Floppy Drive Seek:

Set this option to Enabled to specify that floppy drive A: will
perform a Seek operation at system boot. The available options
are Enabled, and Disabled.

 PS/2 Mouse Support:

When this option is enabled, BIOS allows the system to support a
PS/2 type mouse. The available options are Enabled, and
Disabled.

and 2nd Boot Devices

 Primary Display:

Select this option to configure the type of monitor attached to the
computer. The available settings are Monochrome, Color 40x25,
Color 80x25, VGA/PGA/EGA, and Absent.

39

 Password Check:

 Wait For ‘F1’ If Error: Enabled/Disabled

 Hit ‘DEL’ Message Display: Enabled/Disabled

 CPU Micro Code Updation: Enabled/Disabled

 CPU Serial Number: Enabled/Disabled

 Boot To OS/2:

This option enables the password check option every time the
system boots or the end user runs Setup. If set as Always, a user
password prompt appears every time the computer is tuned on. If
setup is chosen, the password prompt appears if BIOS is
executed.

Set this option to Enabled if running OS/2 operating system and
using more than 64MB of system memory on the system board.
The available options are Yes, and No.

 L1 Cache:

 L2 Cache:



 C000,16k/C400,16k/C800,16k/ CC00,16k/D000,16k/D400,16k/D800,16k/

This option enables or disables the internal cache memory of the
installed processor.

This option enables/disables the secondary cache memory of
your board. The available options are Enabled, and Disabled.

System BIOS Cacheable:

When this option is enabled, the System ROM area from
C000-DC00 is copied (shadowed) to RAM for faster execution.

DC00,16k Shadow:

These options enable shadowing of the contents of the ROM area
named in the option title. The available settings are Enable
Disable, Cached. The ROM area that is not used by ISA adapter
cards will be allocated to PCI adapter cards.

Enabled Video ROM area from C0000-C7FFF is copied

(shadowed) from ROM to RAM for faster execution.

Disabled The contents of the video ROM are not copied to RAM

Cached The contents of the video ROM area from

C0000h-C7FFFh are copied from ROM to RAM and can
be written to or read from cache memory.

40

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

******** DRAM Timing ******** Available Options:
Configure SDRAM Timing by SPD Disabled
DRAM Frequency 133Mhz Enabled
SDRAM CAS# Latency 3

DRAM Bank Interleave Enabled
Memory Hole Disabled
AGP Mode 4x
AGP Read Synchronization Enabled
AGP Fast Write Disabled
AGP Aperture Size 64MB
AGP Master 1 W/S Write Disabled
AGP Master 1 W/S Read Disabled
Search for MDA Resources Yes
PCI Delay Transaction Enabled
ISA Bus Clock PCI CLK/4
USB Controller All USB Port
USB Device Legacy Support Disabled
Port 64/60 Emulation Disabled ESC:Exit
PgUp/PgDn: Modify
F1:Help F2/F3:Color

`

Disabled



:Sel

41

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

ACPI Aware O/S No
ACPI Standby State Auto
USB Device Wakeup From S3-S5 Disabled Ye s
Re-Call VGA BIOS at S3 Resuming Enabled
Power Management / APM Enabled
Video Power Down Mode Suspend
Hard Disk Power Down Mode Standby
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50%~56.25%
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ12 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
System Thermal Disabled
Thermal Active Temperature 65°C / 149°F
Thermal Slow Clock Ratio 50%~56.25%
Power Button Function On / Off
Restore on AC / Power Loss Last State
AT/ ATX M ODE AT
Resume On Ring Disabled
Resume On LAN Disabled
Resume On PME# Disabled
Resume On KBC Disabled
Wake-Up Key N/A
Wake-Up Password N/A
Resume On PS/2 Mouse Disabled
Resume On RTC Alarm Disabled
RTC Alarm Date 15
RTC Alarm Hour 12 ESC:Exit
RTC Alarm Minute 30 PgUp/PgDn: Modify
RTC Alarm Second 30

S

Available Options:

`

No



:Sel

T

F1:Help F2/F3:Color

42

 ACPI Aware O/S:

This item is the Advanced Configuration and Power Interface
(ACPI) function switch. The available options are Yes, and No.

 ACPI Standby State:

 Power Management/APM:

 Standby Time Out:

 Restore on AC/Power Loss:

 Wake Up On Ring:



This item serves as the switch setting of STR (S3) or POS (S1)
function. Configuration options are S3/STR, and S1/POS.

Set this option to Enabled to switch on the APM (Advanced Power
Management). The available options are Enabled, and Disabled.

This option specifies the length of system inactivity period while in
the Standby state. When this length of time expires, the computer
enters Suspend power state.

This field registers the last power supply unit attached to your
system. If an ATX power was last used before changing to AT
power supply, setting this field to Last State (default) will NOT
make the AT power supply function properly on your next boot up
process. Setting this field to Power On auto-detects the power
supply installed each time you boot up.

An input signal on the serial Ring Indicator (RI) line (in other
words, an incoming call on the modem) awakens the system from
a soft off state. The available choices are Enabled, Disabled.

Wake Up On Lan

An input signal on the local area network (LAN) awakens the
system from a soft off state.

 Wake Up On PME

A PME# detected resumes or wakes the system from a Soft Off
state.

 Resume By Alarm

When this option is set enabled, system will according to you set
time then wakeup from soft off mode.

 Alarm Date/Hour/Minute/Second

You can set these fields to specify the alarm settings of your
system.

43

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

Plug and Play Aware O/S No Available Options:
Clear NVRAM No
OnChip VGA Frame Buffer Size 8MB
PCI Latency Timer (PCI Clocks) 32 Yes
Primary Graphics Adapter PCI
PCI Slot1 IRQ Priority Auto
PCI Slot2 IRQ Priority Auto
PCI Slot3 IRQ Priority Auto
PCI Slot4 IRQ Priority Auto
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP ESC:Exit
IRQ14 PCI/PnP PgUp/PgDn: Modify
IRQ15 PCI/PnP F1:Help F2/F3:Color

`

No



:Sel

 Plug and Play Aware O/S:

If enabled, BIOS will configure only PnP ISA boot devices (i.e., all
PnP ISA cards with boot flag set) then configure all other devices.
If disabled, the BIOS will configure all devices without following
any sequence.

 PCI Latency Timer (PCI Clocks):

This option specifies the latency timings (in PCI clocks) of PCI
devices installed in the PCI expansion slots. The available
settings are 32, 64, 96, 128, 160, 192, 224, and 248.

44

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them. This
is much simpler and more efficient (also faster).

(C)2001 American Megatrends, Inc. All Rights Reserved

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC Auto Available Options:
OnBoard Serial Port 1 3F8/COM1
OnBoard Serial Port 2 2F8/COM2 Primary

Serial Port2 Mode Normal Secondary
Duplex Mode N/A Both
OnBoard Serial Port 3 3E8
Serial Port3 IRQ 10
OnBoard Serial Port 4 2E8

Serial Port4 Mode Normal
Serial Port4 IRQ 11
OnBoard Prarllel Port Auto

Parallel Port Mode Normal
EPP Version N/A

Parallel Port DMA Channel N/A
Parallel Port IRQ Auto
OnBoard IDE Both
OnBoard AC’97 Audio Enabled
OnBoard Legacy Audio Enabled
Sound Blaster Disabled
SB I/O Base Address 200h-22Fh ESC:Exit
SB IRQ Select 5 PgUp/PgDn: Modify
SB DMA Select 1 F1:Help F2/F3:Color

`

Disabled



 OnBoard IDE/FDD:

Set this option to Enabled to activate the floppy drive controller on
the system board. The available settings are Auto (AMIBIOS
automatically determines if the floppy controller should be
enabled), Enabled, and Disabled.

:Sel

45

 OnBoard Parallel Port:

 Parallel Port Mode:

 Parallel Port IRQ:



This option specifies the base I/O port address of parallel port on
the system board. The available settings are Disabled, 378h,
278h, and 3BCh.

This option specifies the parallel port mode. The available
settings are Normal, Bi-Dir, EPP, and ECP.

Normal: The normal parallel port mode is used.
Bi-Dir: Use this setting to support bi-directional transfers on

the parallel port.
EPP: The parallel port can be used with devices that adhere
to the Enhanced Parallel Port (EPP) specification. EPP uses
the existing parallel port signals to provide asymmetric
bi-directional data transfer driven by the host device.
ECP: The parallel port can be used with devices that adhere
to the Extended Capabilities Port (ECP) specification. ECP
uses the DMA protocol to achieve data transfer rates up to

2.5 Megabits per second. ECP provides symmetric
bi-directional communication.

This option specifies the IRQ used by the parallel port. The
available settings are Auto, (IRQ)5, and (IRQ)7.

Parallel Port DMA Channel:

This option is only available if the setting for the Parallel Port
Mode option is ECP. This option sets the DMA channel used
by the parallel port. The available settings are DMA Channel
0, 1, and 3.

46

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

(C)2001 American Megatrends, Inc. All Rights Reserved

*** System Hardware Monitor *** Available Options:

Chassis Intrusion Disabled
TSENS1 Temperature Enabled
CPU Fan Speed Reset
Chassis Fan Speed

Vcore
+ 2.500V
+3.300V
+5.000V

+12.000V
ESC:Exit
PgUp/PgDn: Modify
F1:Help F2/F3:Color

`

Disabled



:Sel

 System Hardware Monitor:

This field determines which component will detect the CPU
temperature. If your board comes with a provision for a thermal
connector, you may set this field as Thermistor. Otherwise, please
configure it as CPU (also default setting).



TSENS1 Temperature:

This read-only field displays the current CPU temperature as
part of the hardware monitoring feature of your board.

 Current CPU/FAN Speeds:

These fields display the current speed of up to CPU, chassis
(system) and Power supply fans, if your computer contains a
monitoring system.

 +5V/+12V/+3.3V/+2.5V:

Once the hardware monitoring IC detects the current
voltages of voltage regulators and power supply unit, it shows
the values on these fields for read-only purposes.

47

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and
automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each
appearing in sequence inside a box. To accept the displayed entries,
press the “Y” key; to skip to the next drive, press the “N” key. If you
accept the values, the parameters will appear listed beside the drive
letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

48

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The
differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may
also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

PASSWORD DISABLED.

49

When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.

4.13 Auto Configuration with Optimal
Settings

When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

50

4.14 Auto Configuration with Fail Safe
Settings

When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

51

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

52

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

(C)2001 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Abandon all Data & Exit Setup

53

This page intentionally left blank.

54

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, Audio and
LAN driver installation procedures.

5.1 IDE and Audio Driver Installation

The utility disk that came with the delivery package contains an
auto-run program that invokes the installation programs for the IDE,
VGA and Audio drivers. The following describes the installation
procedures of each driver.

5.1.1 VIA VT82C686B AGP Bus Driver Installation

1. Insert Utility CD Disk to your CD ROM. The main menu will pop
up as shown below.

55

2. Press “VIA 4 IN 1” and to go Setup.

3. Once the Welcome screen appears on the screen, make sure to
close any applications running and then click on the Next
button.

4. When the Readme window pops on the screen, you may read
the whole document including the license agreement or just
press Yes to skip through and continue installation.

56

5. The 4 in 1 Setup dialog is now displayed. Select on Normally
Install and then click on Next.

6. The next window lists all components detected in your system
and asks you to select the ones requiring drivers. Tick on all
items then proceed by clicking on the Next button below the
screen.

57

7. The program starts to install the ATAPI driver when you click the
Next button on the screen below.

8. When the ATAPI driver is completely installed. The utility then
displays your DMA mode status and allows you to enable it. Tick
on the box and press on the Next button to continue.

58

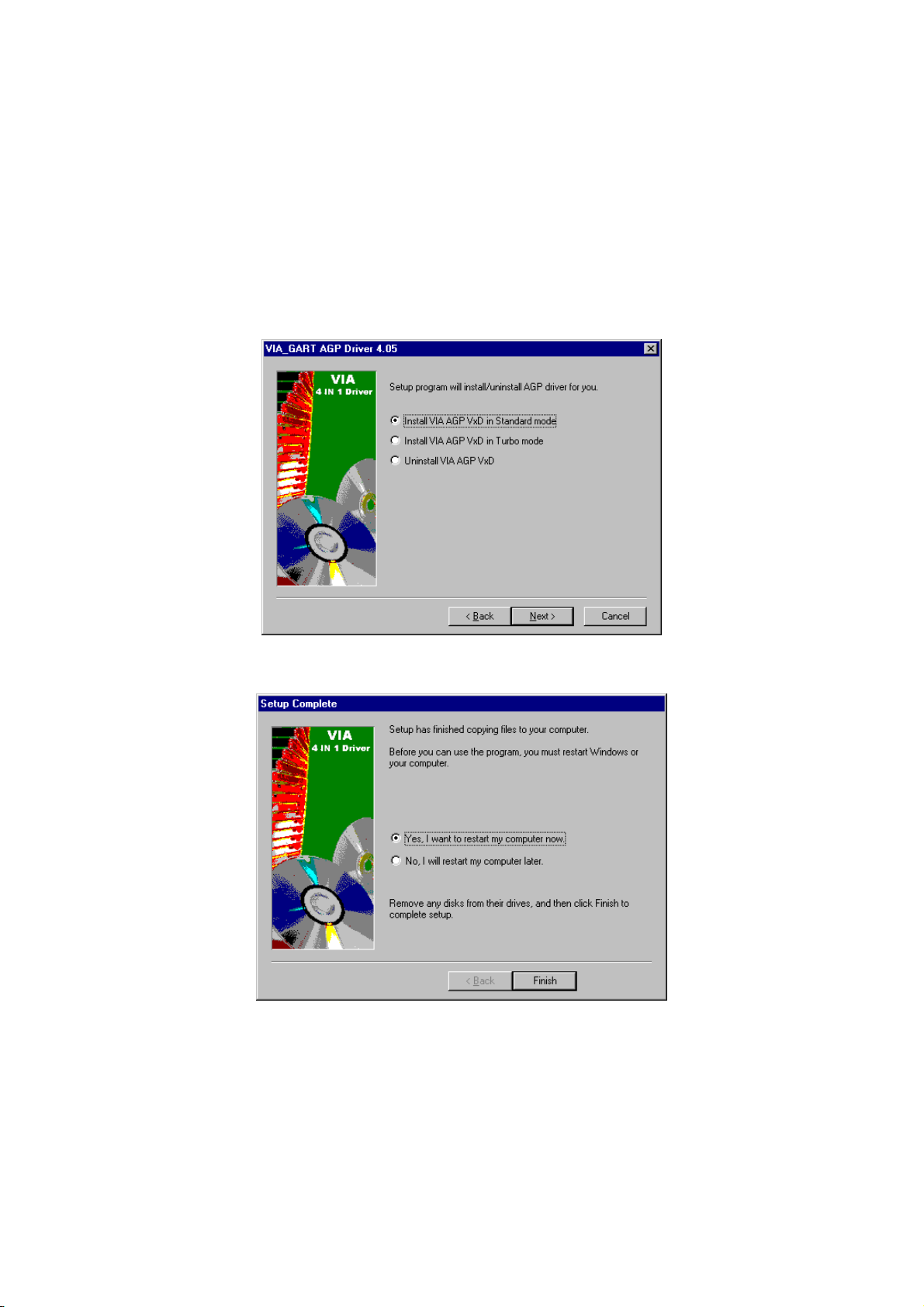

9. The following screen then gives you the choice of installing the
AGP driver in standard o turbo mode. Select on the Standard
Mode and then click on Next to proceed.

10. Installation of the AGP driver is now complete. Once the screen
below appears, select on restarting your computer to activate all
drivers/settings completed.

59

5.1.2 VIA IDE Tool Installation

1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the following screen will appear on your
display. Click on VIA_IDE from the main menu to start installing
the VIA ID Tool.

2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.

60

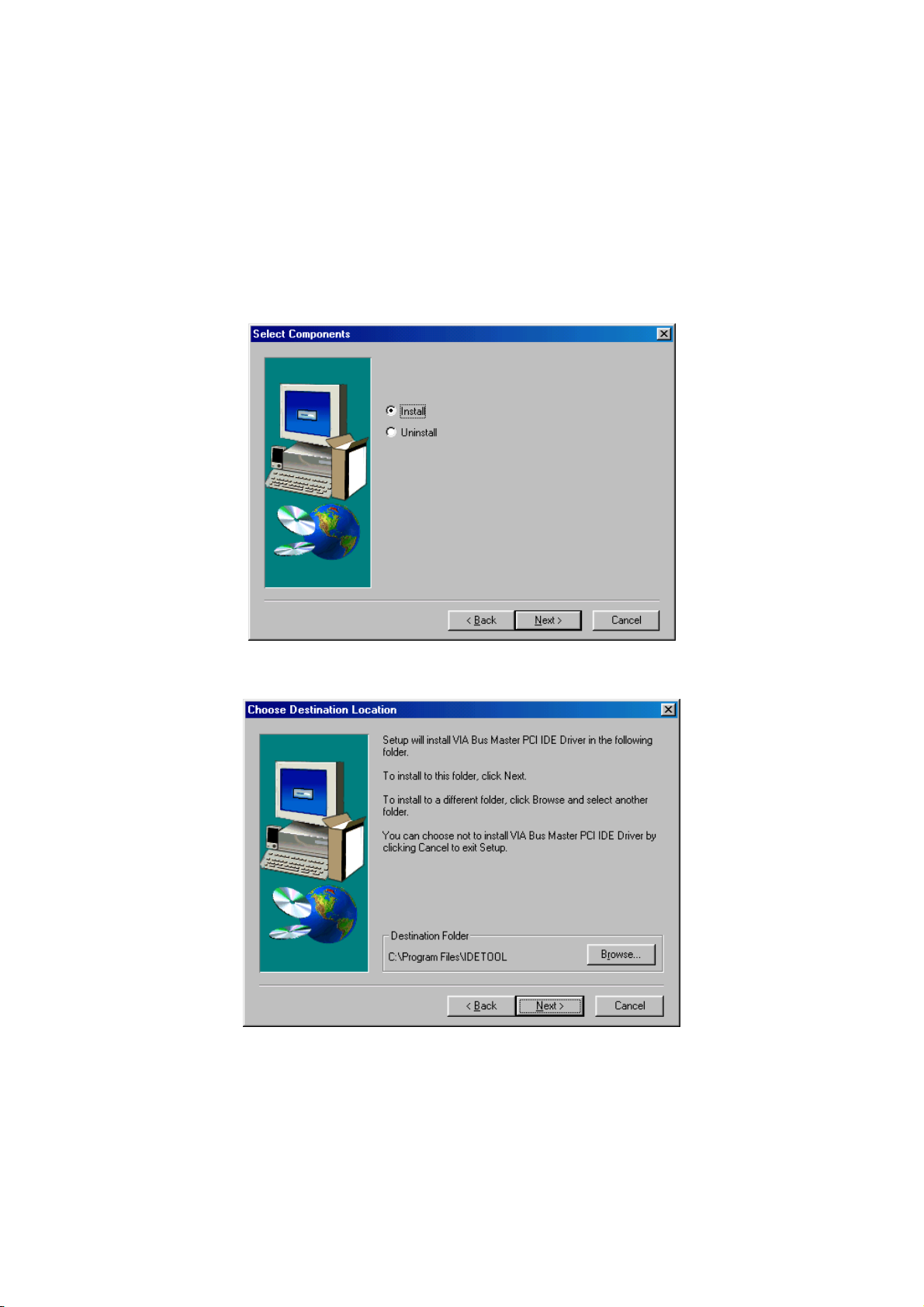

3. The Select Components dialog box is now displayed. Select on
Install and then click on Next.

4. Choose the folder to where the program will install the driver.
Select the default folder (C:\Program Files\IDETOOL) and then
click on Next to proceed.

61

5. The program will now create an icon for the IDETOOL. Simply
press Next to continue with the installation.

6. The program now installs and transfers the files to your system.
After it finishes, you will be prompted to restart your system.
We recommend you to reboot your computer to allow the new
settings to take effect. Click on the Finish button to reboot.

62

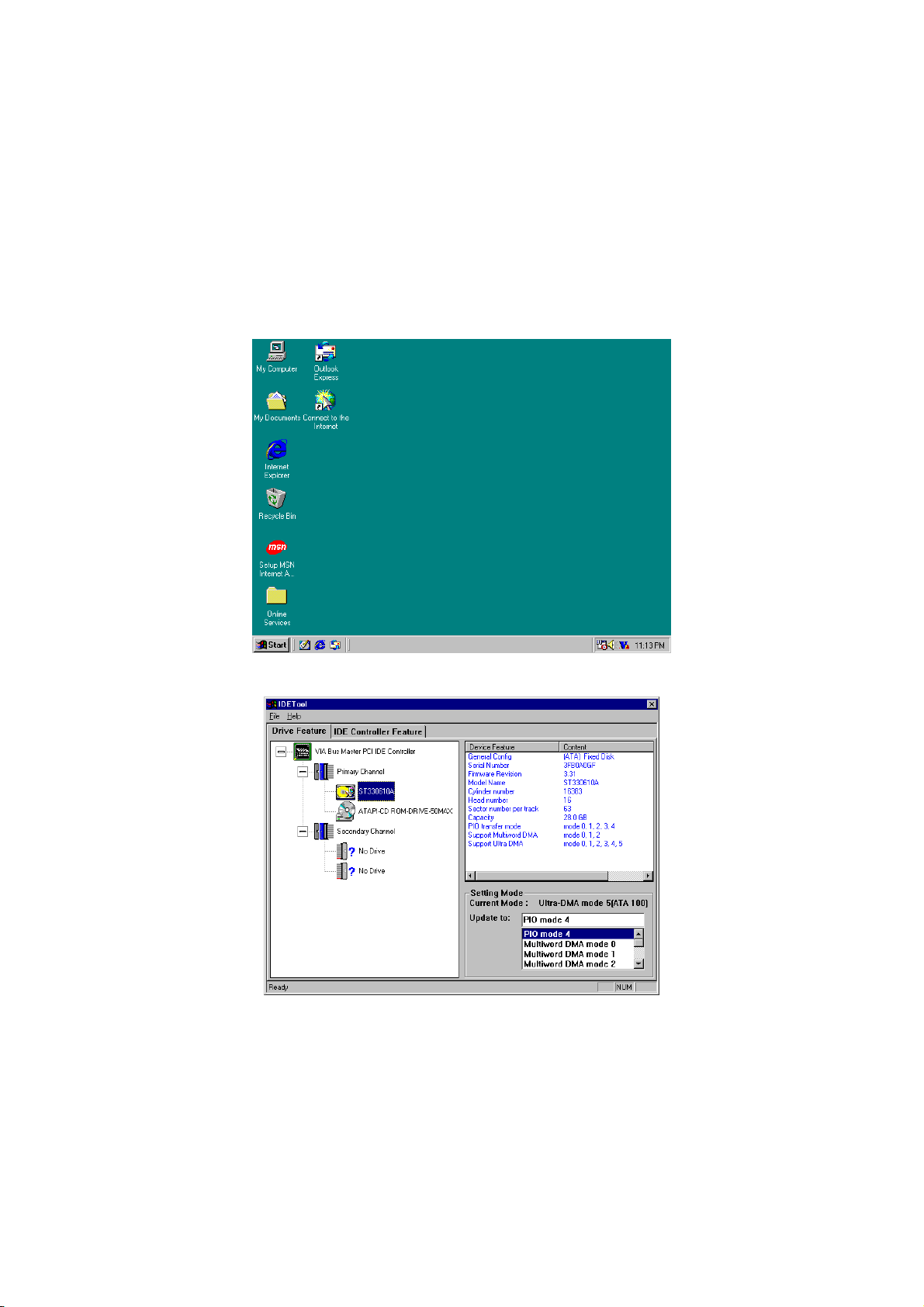

7. Once the system enters the main Windows screen, it will display
a new icon along the right hand task bar. This icon represents
the IDE Tool quick launch program.

8. Double-clicking on this new task bar icon will launch the IDE
Tool’s Drive Feature dialog box, as shown below.

63

9. The Drive Feature dialog box has 2 columns of information. The
left column lets you to view the hardware installed on your
system. When you select any hardware, the right column
displays the device’s information and specifications. You may
also update the settings of your devices from the right column.

10. Once you select the IDE Controller Feature from the IDE Tool
dialog box, a list of read-only information related to the
system’s IDE controller is shown.

64

5.1.3 Audio Driver Installation

1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_AC97 from the main menu.

2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.

65

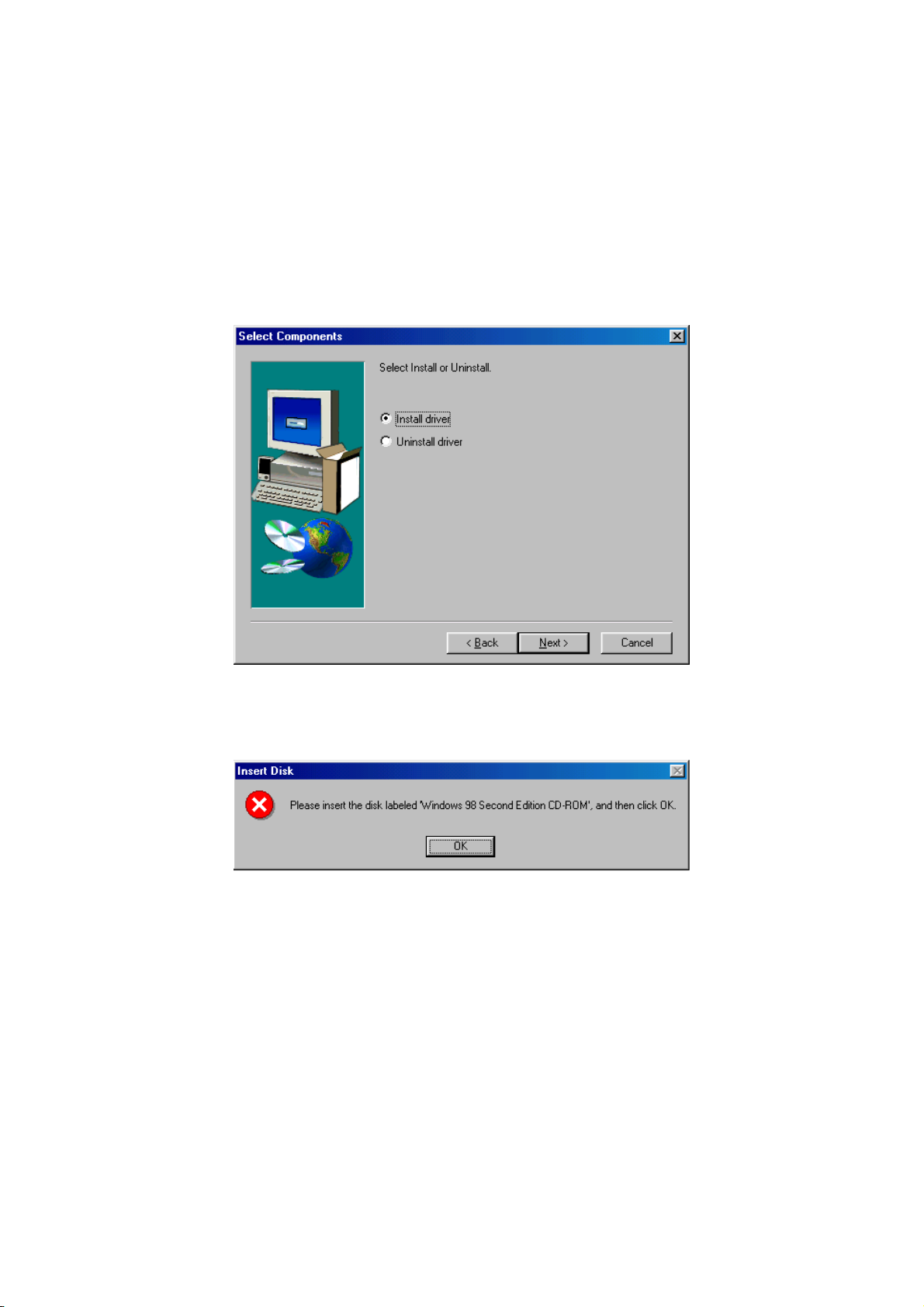

3. The Select Components dialog box is now displayed. Select on
Install driver and then click on Next.

4. The program will now require the Windows installation disk for
proper hardware installation. Insert the CD and then click on
Next.

66

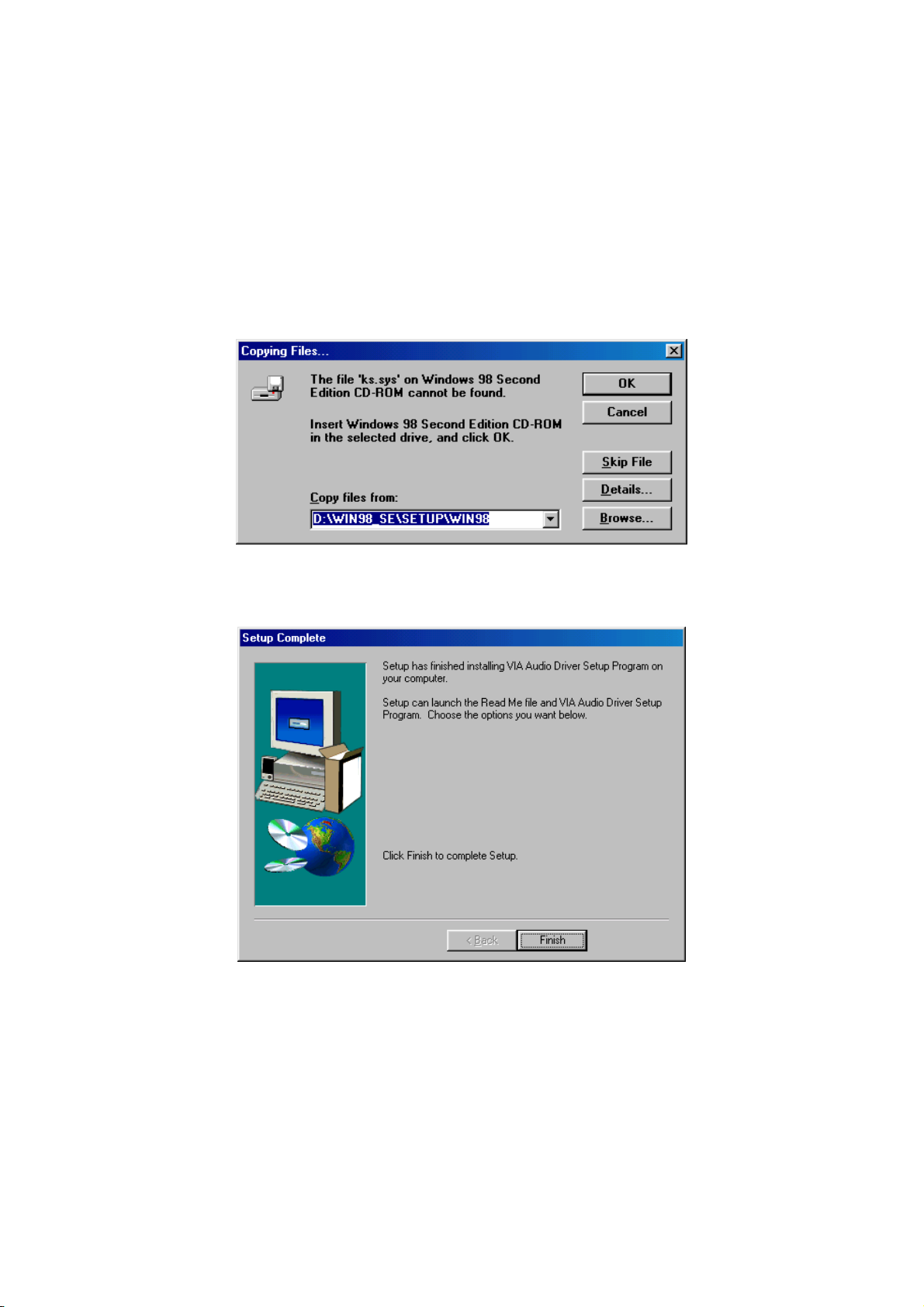

5. When the display below appears on your screen, Setup is
already installing and copying the related files onto your hard
drive. Click on the Next button to proceed.

6. After the audio driver installation finishes, select the Finish
button to complete the installation process.

67

5.2 LAN Driver Installation for WIN95 &
WIN98

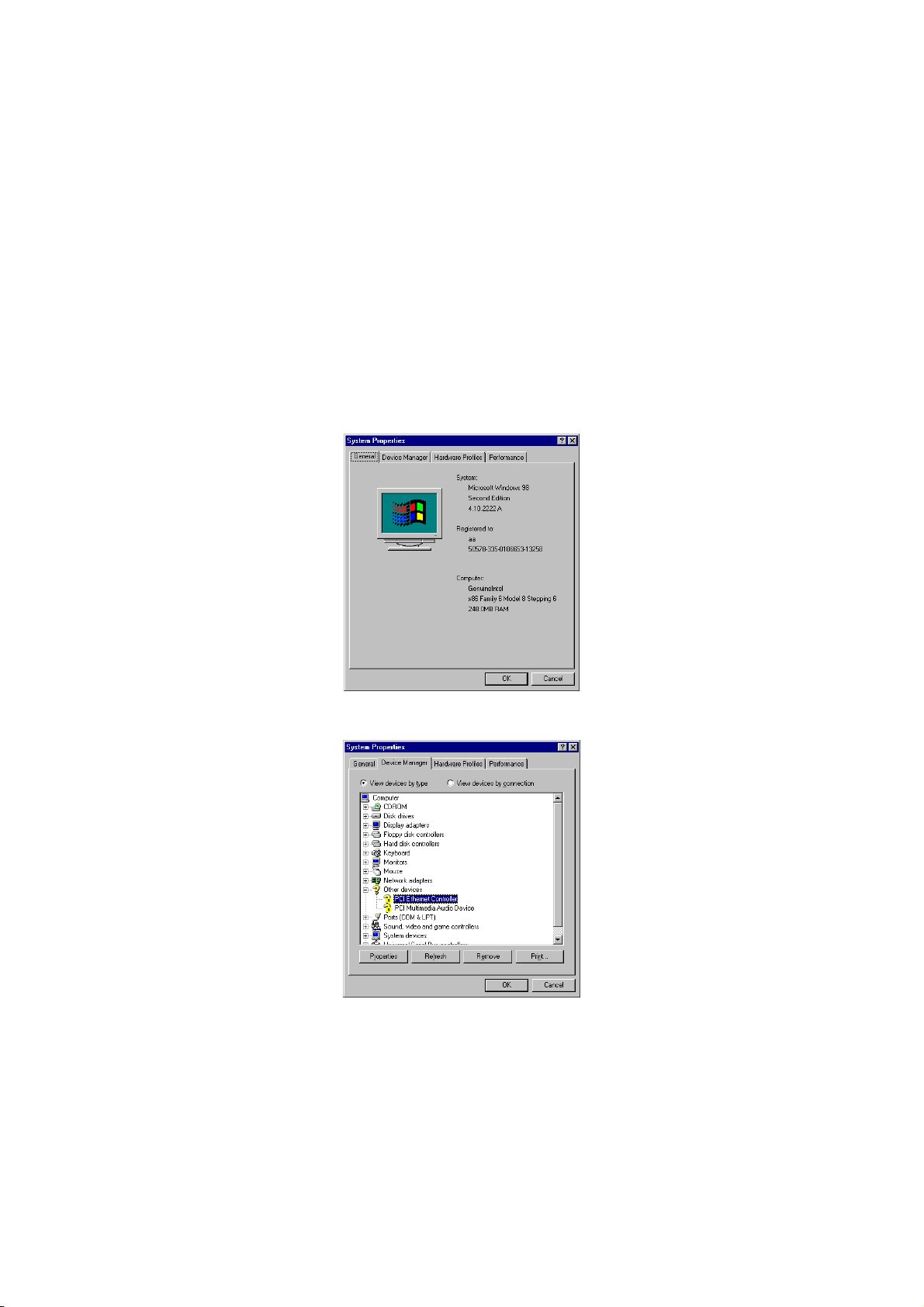

1. With the Utility CD Disk still in your CD ROM drive, right click on My

Computer icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the main
menu.

2. Select on Other Devices from the list of devices then double-click

on PCI Ethernet Controller.

68

3. The PCI Ethernet Controller Properties screen then appears,

allowing you to re-install the driver. Select Driver from the main
menu to proceed.

69

4. The window then displays the current status of your LAN driver.

Press on Update Driver button to continue.

5. The program will then launch the Update Device Driver Wizard

window that will install your device driver. Click on the Next button
to proceed to the next step.

6. When the succeeding window asks you what you wish Windows to

do, tick on the “Search for a better driver….” Click on the Next
button to proceed.

70

7. The Update Device Driver Wizard will then ask you to specify, by

ticking, the path of the new driver. Tick on the open boxes where
you require the program to search for the device driver then click
on the Browse button to manually specify the path.

8. Press on the OK button as soon as you have located the path of

your driver.

71

9. Once the program returns to the Add New Hardware Wizard

screen, your specified location will appear. Press on the Next
button to continue.

10. Once the program detects the device driver (*.inf) file from your

specified location, it will automatically copy the files into your
hard drive.

11. When copying of driver files finishes, the program will then ask

you to insert your Windows.

72

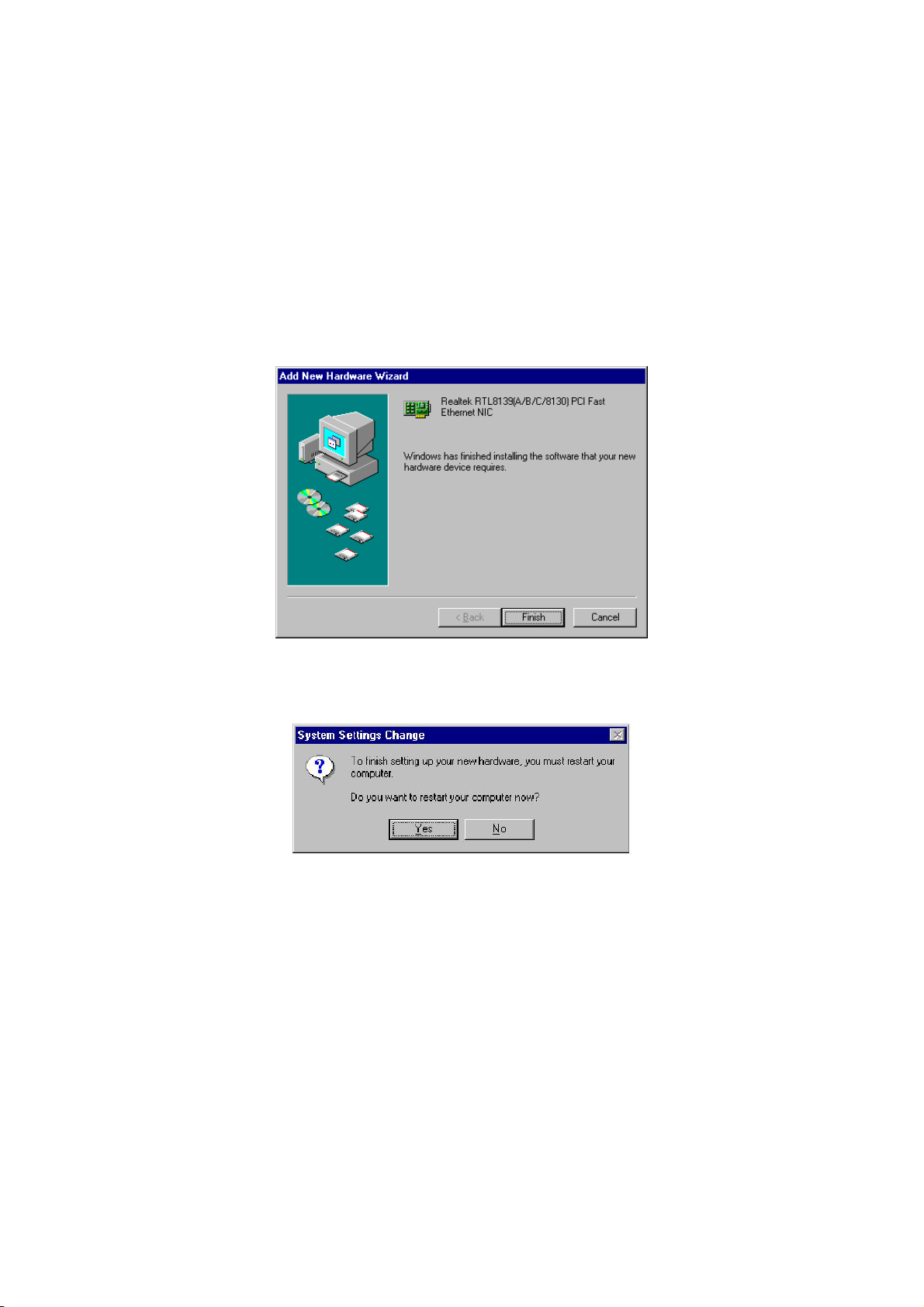

12. The program then copies the necessary files from your Windows

installation disk to complete the driver setup process. Once the
driver is completely installed, the following message appears on
your display. Click on the Finish button to proceed.

13. Restart your computer to make the new system settings take

effect. Click on the Yes button when the screen below appears
and your LAN Driver for Win95 and Win98 are now completely
installed.

73

5.3 LAN Driver Installation for WIN
NT4.0

1. With the Utility CD Disk still in your CD ROM drive, right click on
Network Neighborhood icon from the Windows menu. Select on
Properties.

2. The system automatically detects the absence of Windows NT
Networking. Click on the Yes button to start installation.

74

3. Tick on the “Wired to Network” once the following screen
appears. Click on the Next to proceed.

4. Click on the Start Search button for the program to locate the
Network Adapter.

75

5. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the Have Disk button to assign
the driver path location.

6. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.

76

7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press on
the OK button to accept and proceed.

8. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on Next to continue.

77

9. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and
then click on Next to continue.

10. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the Next
button once you are sure of your devices.

78

11. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press
Continue.

12. Once it finishes copying the files, Setup will now allow you to
choose the Duplex Mode of your LAN controller. Press on the
Continue button after making your selection.

79

13. When Setup asks if you wish to change the TCP/IP settings of
your system, select the appropriately. The default choice is No.

14. Setup then starts the Networking installation and copies the files.

80

15. When Setup finishes copying, the TCP/IP properties of your
system will then pop up on your screen like the one shown below.
Make the necessary changes then click on OK to continue.

16. When the screen below appears, click on Next to continue.

81

17. Setup then prompts you that it is ready to start the network. You
may complete the installation thereafter. Click on Next to
continue.

18. Assign the workgroup or domain setting of your computer. Click
on Next to continue.

82

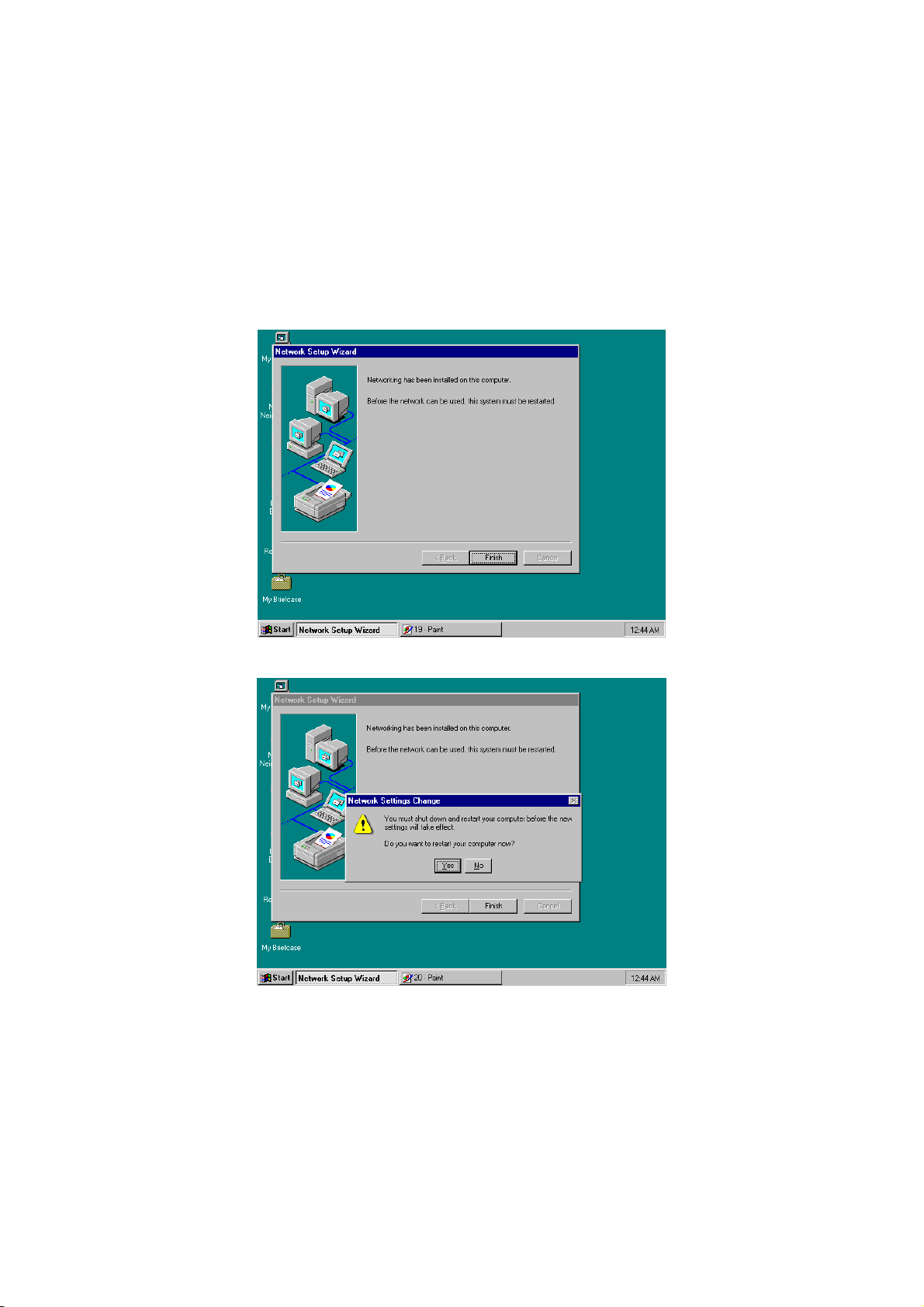

19. Restart your computer once the screen below appears. Click on
Finish to continue.

20. Click on the Yes button to restart your computer. The LAN driver
installation for WIN NT4.0 is now complete.

83

This page intentionally left blank.

84
