Page 1

HS-6238

Celeron™/Coppermine™/Tualatin™

Industrial Single Board Computer

•Half Size•All-in-One•CRT/Panel•133MHz FSB• CompactFlash•ATA/33/66/100•Dual LAN•

•

•Audio•4COM•PC/104•IrDA•USB•WDT•

PCI-ISA Bus Industrial Single Board Computer•

•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of American Megatrends, Inc. Award is a registered trademark of Award Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 General Description ---------------------------------1

1.1 Major Features ------------------------------------------------------ 2

1.2 Specifications ------------------------------------------------------- 3

1.3 Board Dimensions ------------------------------------------------- 4

Chapter 2 Unpacking ---------------------------------------------5

2.1 Opening the Delivery Package--------------------------------- 5

2.2 Inspection------------------------------------------------------------- 5

Chapter 3 Hardware Installation-------------------------------7

3.1 Before Installation-------------------------------------------------- 7

3.2 Board Layout -------------------------------------------------------- 8

3.3 Jumper List----------------------------------------------------------- 9

3.4 Connector List ------------------------------------------------------ 9

3.5 Configuring the CPU -------------------------------------------- 10

3.6 System Memory--------------------------------------------------- 10

3.7 VGA Controller ---------------------------------------------------- 10

3.8 IDE Drive Connector--------------------------------------------- 12

3.9 Floppy Disk Drive Connector--------------------------------- 13

3.10 Serial Port Connectors ----------------------------------------- 13

3.11 Parallel Connector ----------------------------------------------- 14

3.12 Ethernet Connector---------------------------------------------- 14

3.13 IrDA Connector --------------------------------------------------- 15

3.14 USB Connector --------------------------------------------------- 15

3.15 CMOS Data Clear ------------------------------------------------- 16

3.16 Power and Fan Connectors ----------------------------------- 16

3.17 Keyboard Connectors ------------------------------------------ 17

3.18 PS/2 Mouse Connector ----------------------------------------- 18

3.19 System Front Panel Connectors ---------------------------- 18

3.20 External Speaker ------------------------------------------------- 19

3.21 Thermal Input Connectors ------------------------------------ 19

3.22 Audio Connectors------------------------------------------------ 19

3.23 SMI Signal Input Switch ---------------------------------------- 20

3.24 Watchdog Timer -------------------------------------------------- 20

3.25 CompactFlash Connector ----------------------------------- 22

3.26 PC/104 Connectors ---------------------------------------------- 22

Page 4

Chapter 4 AMI BIOS Setup ----------------------------------- 25

4.1 Starting Setup ----------------------------------------------------- 25

4.2 Using Setup -------------------------------------------------------- 26

4.3 Main Menu ---------------------------------------------------------- 27

4.4 Standard CMOS Setup------------------------------------------ 29

4.5 Advanced CMOS Setup ---------------------------------------- 32

4.6 Advanced Chipset Setup -------------------------------------- 35

4.7 Power Management Setup ------------------------------------ 37

4.8 PCI / Plug and Play Setup-------------------------------------- 39

4.9 Peripheral Setup-------------------------------------------------- 41

4.10 Hardware Monitor Setup --------------------------------------- 43

4.11 Auto-Detect Hard Disks ---------------------------------------- 44

4.12 Change Supervisor/User Password ------------------------ 45

4.13 Auto Configuration with Optimal Settings --------------- 46

4.14 Optimal Configuration with Fail Safe Settings---------- 47

4.15 Save Settings and Exit------------------------------------------ 48

4.16 Exit Without Saving---------------------------------------------- 49

Chapter 5 Software Utilities ----------------------------------- 51

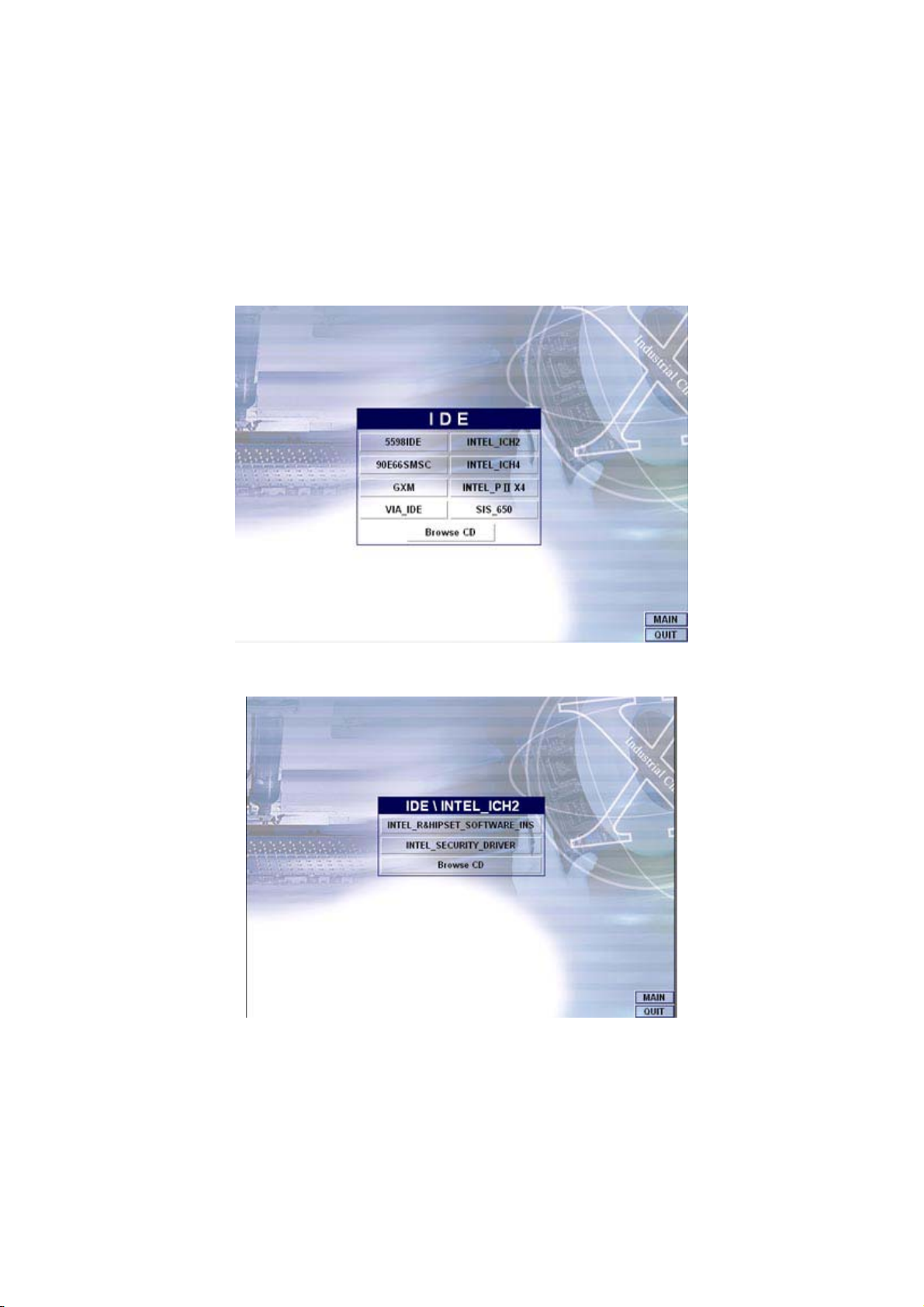

5.1 IDE Driver Installation------------------------------------------- 51

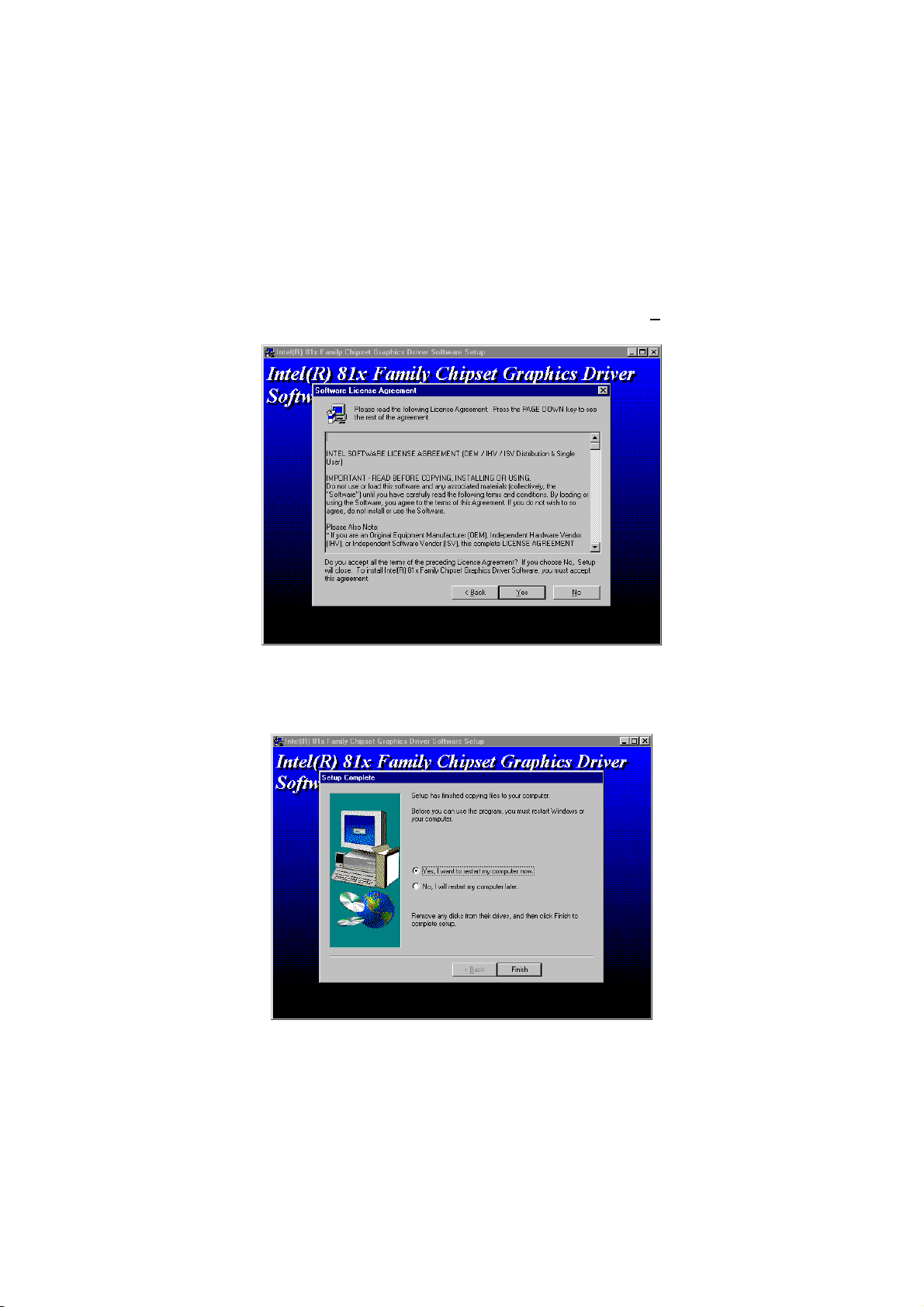

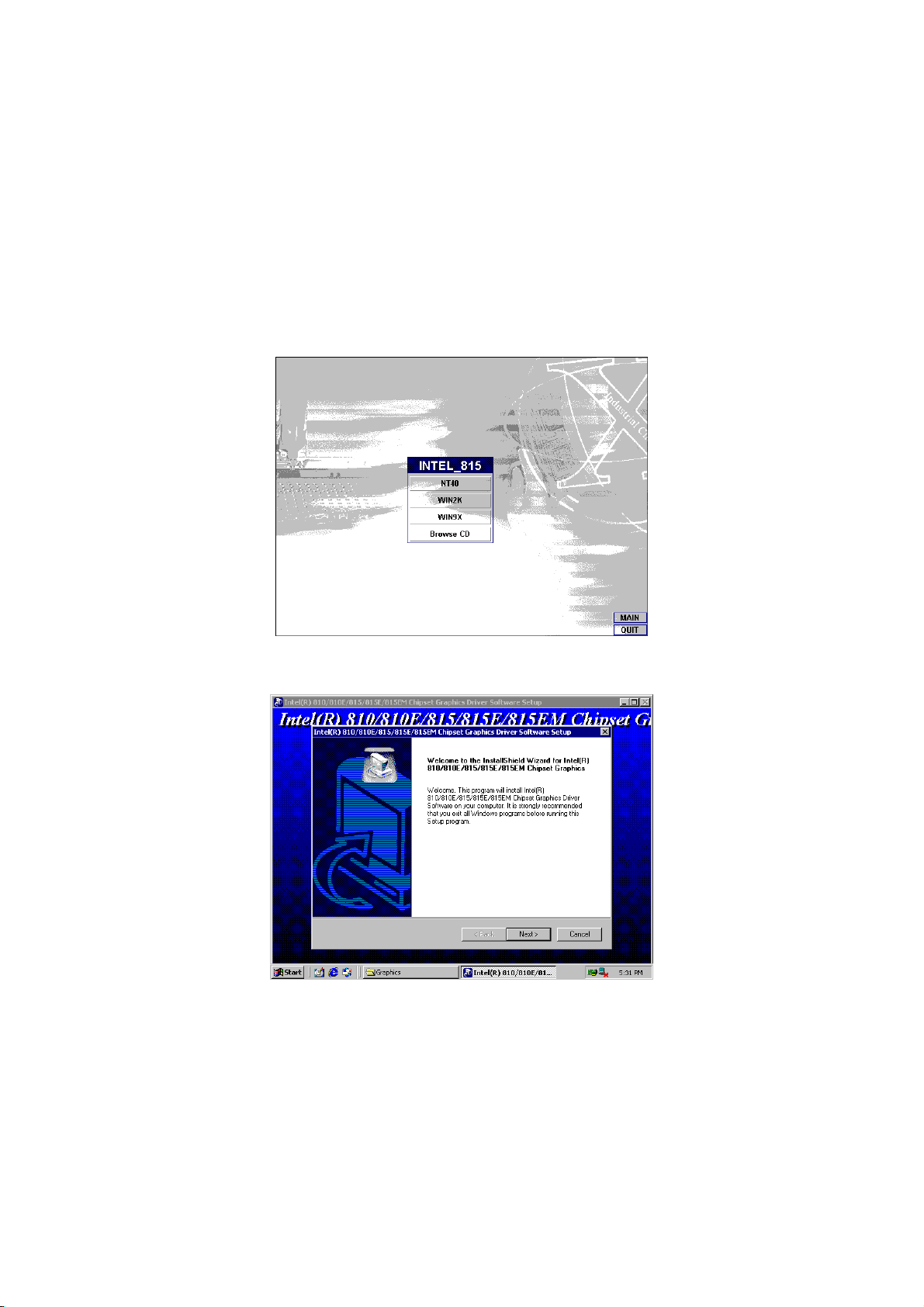

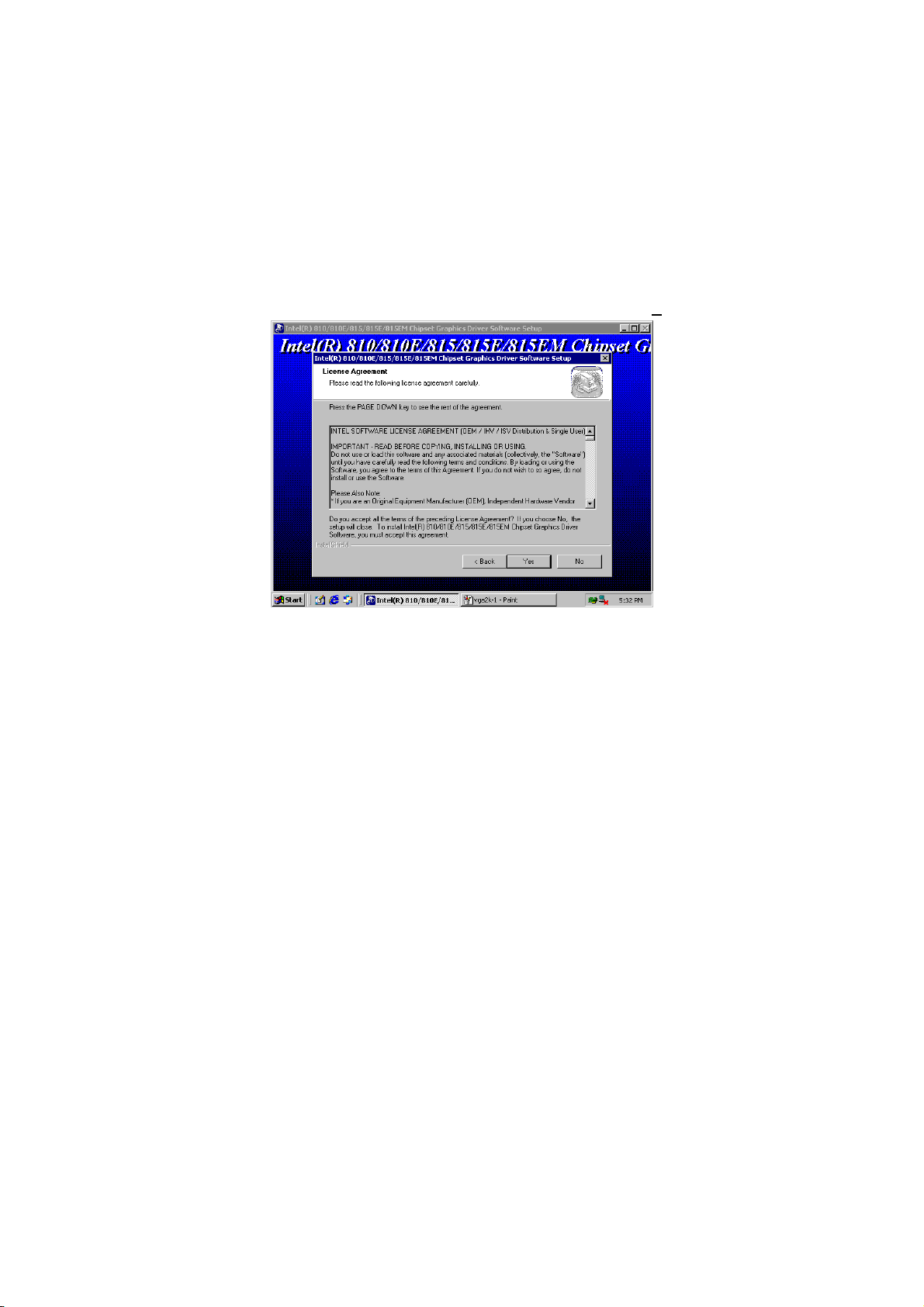

5.2 VGA Driver Installation ----------------------------------------- 58

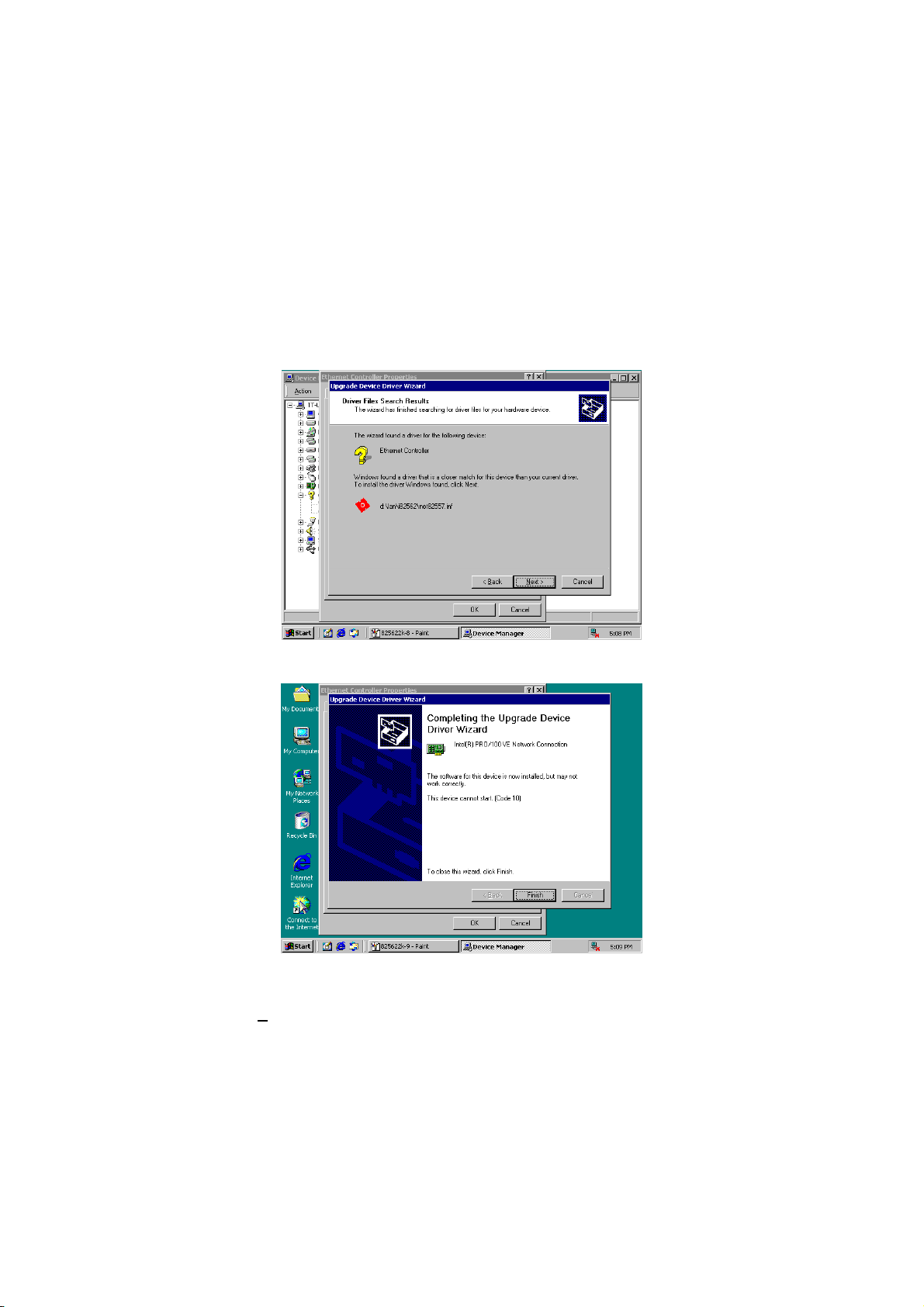

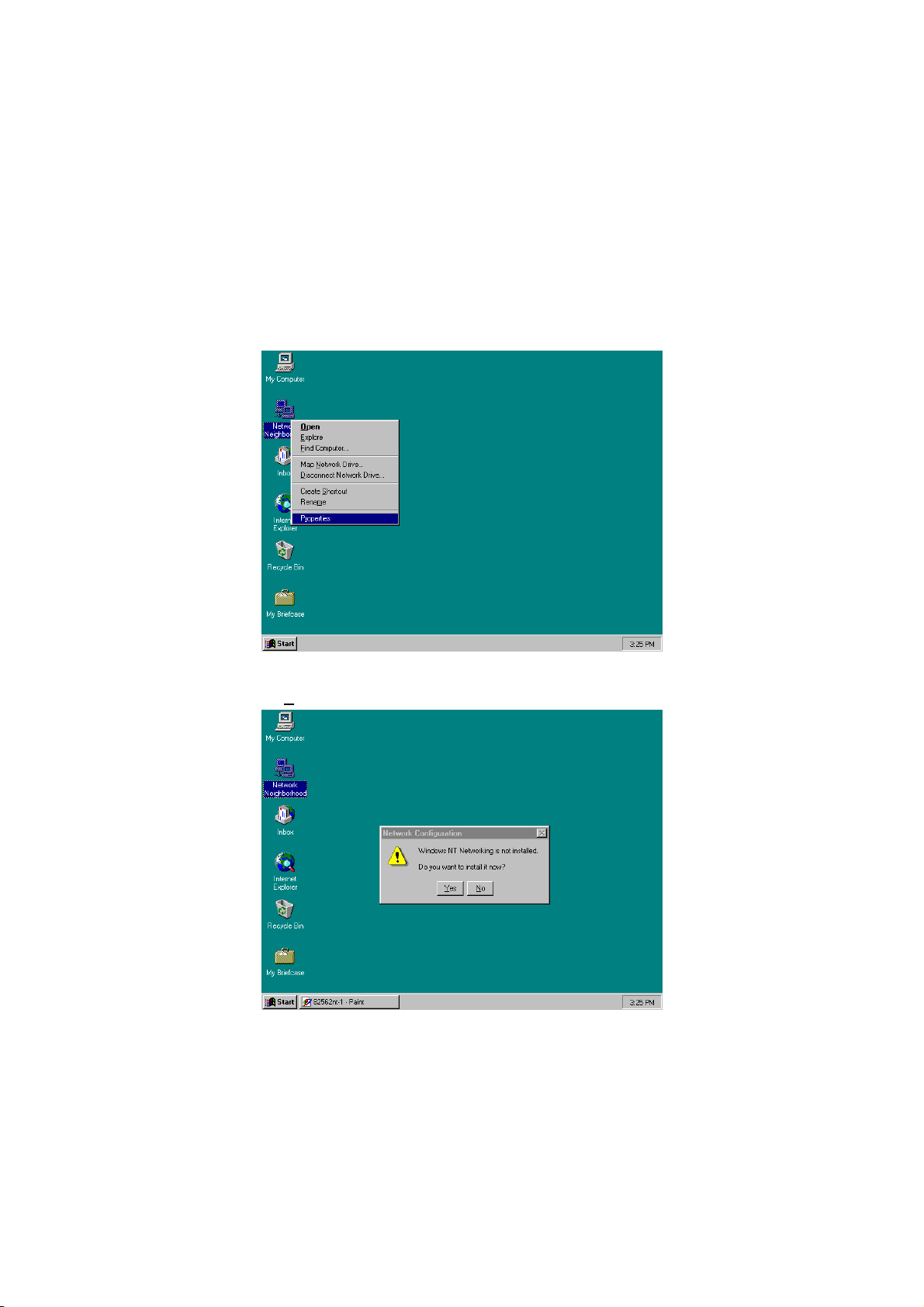

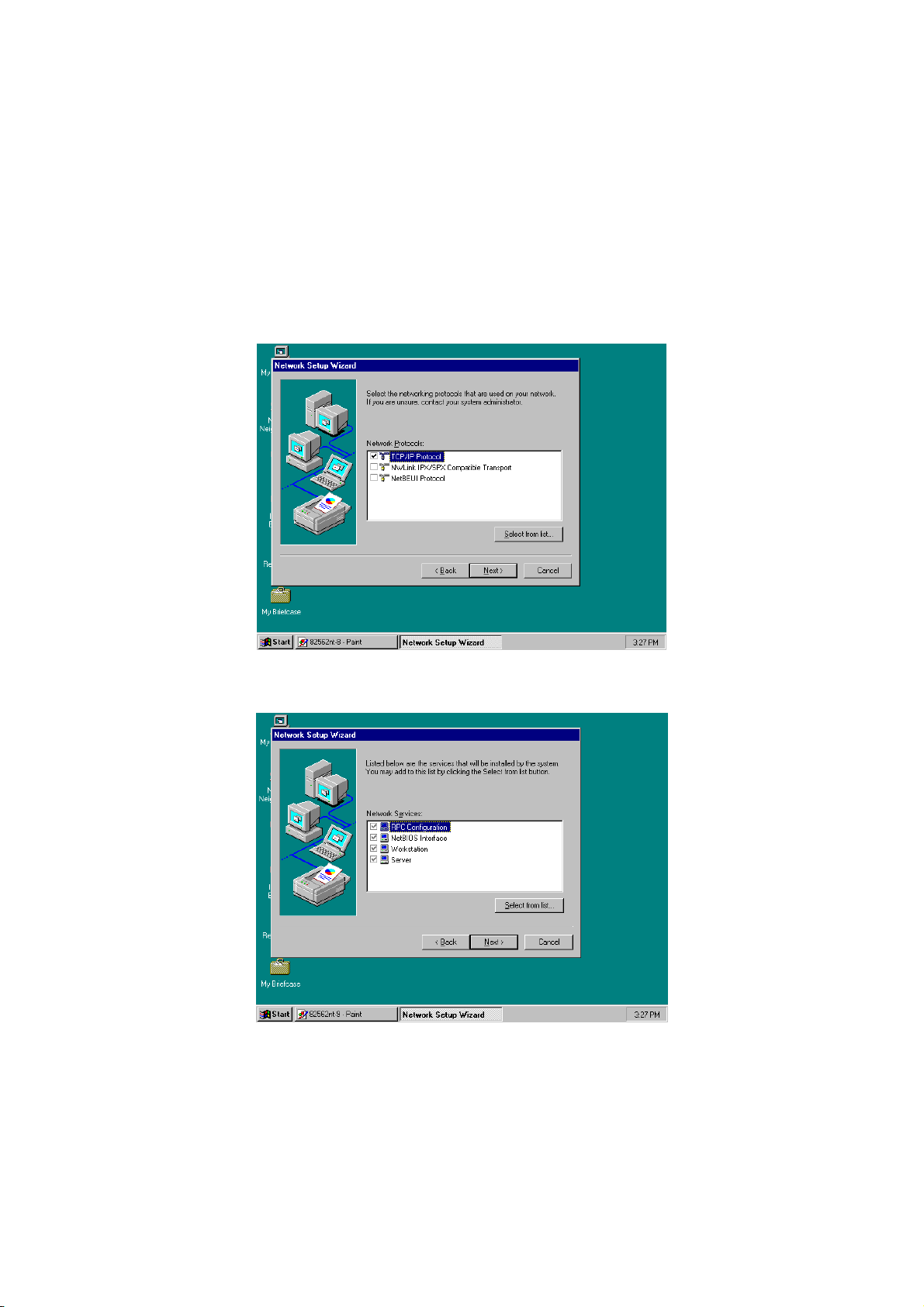

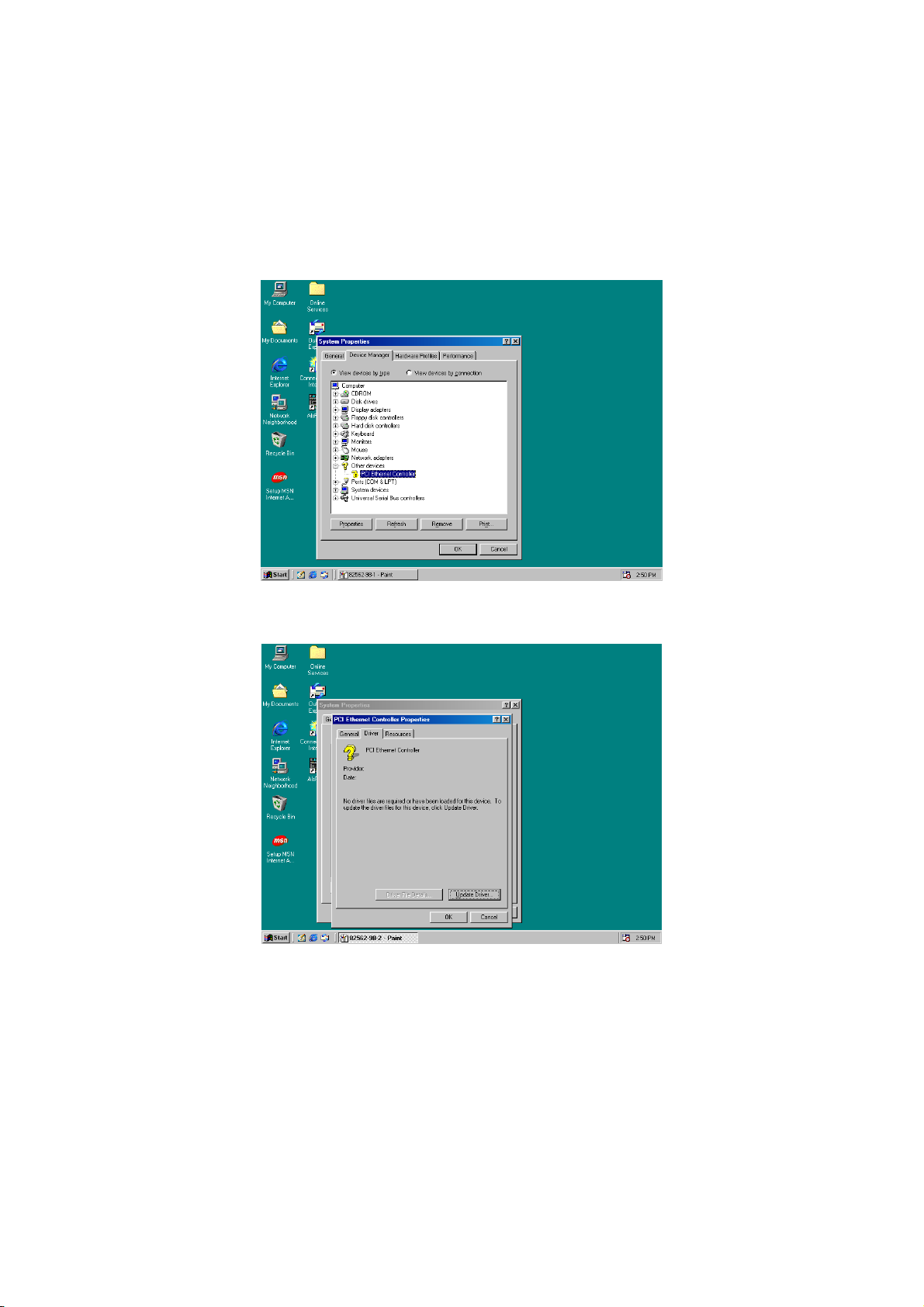

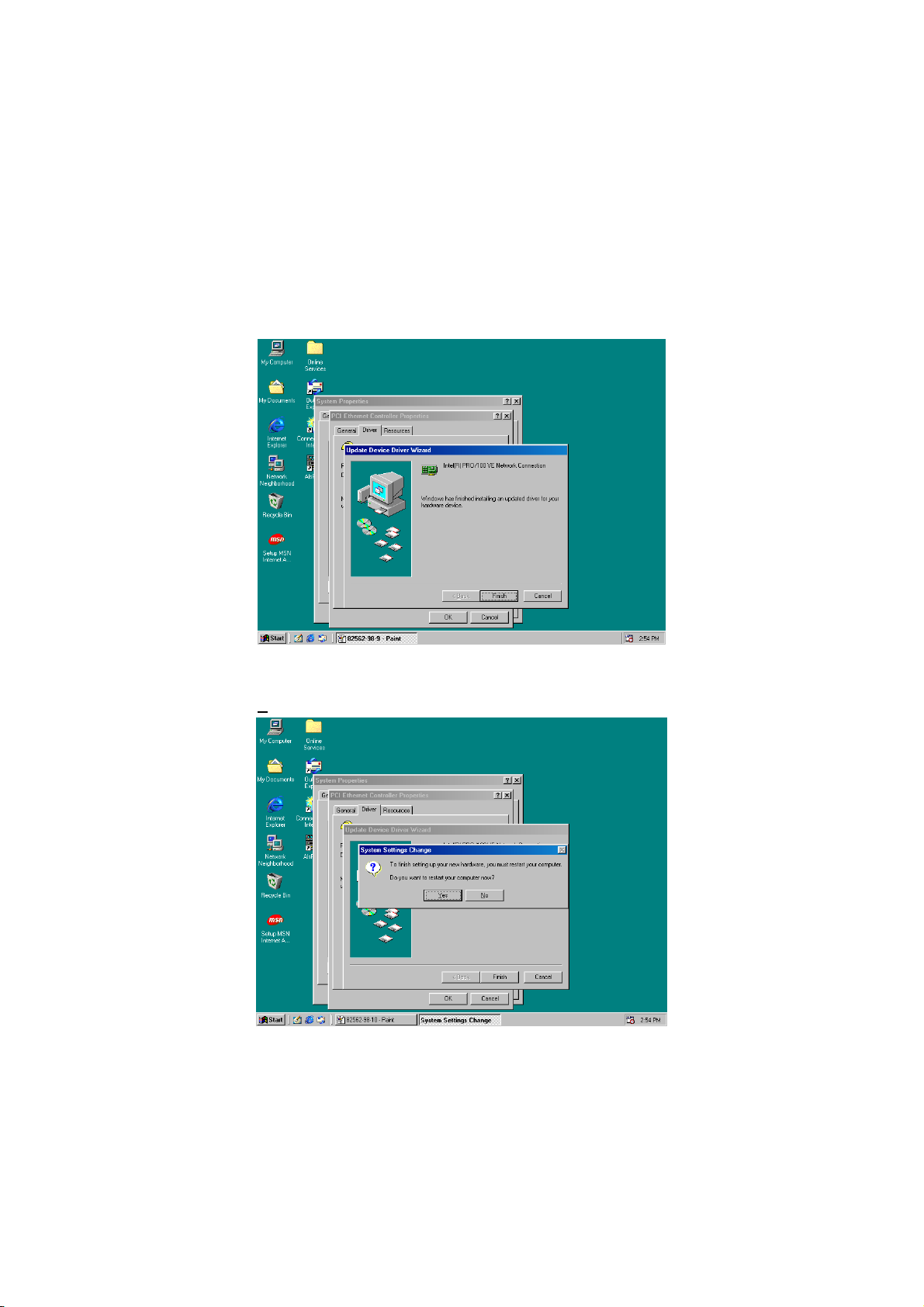

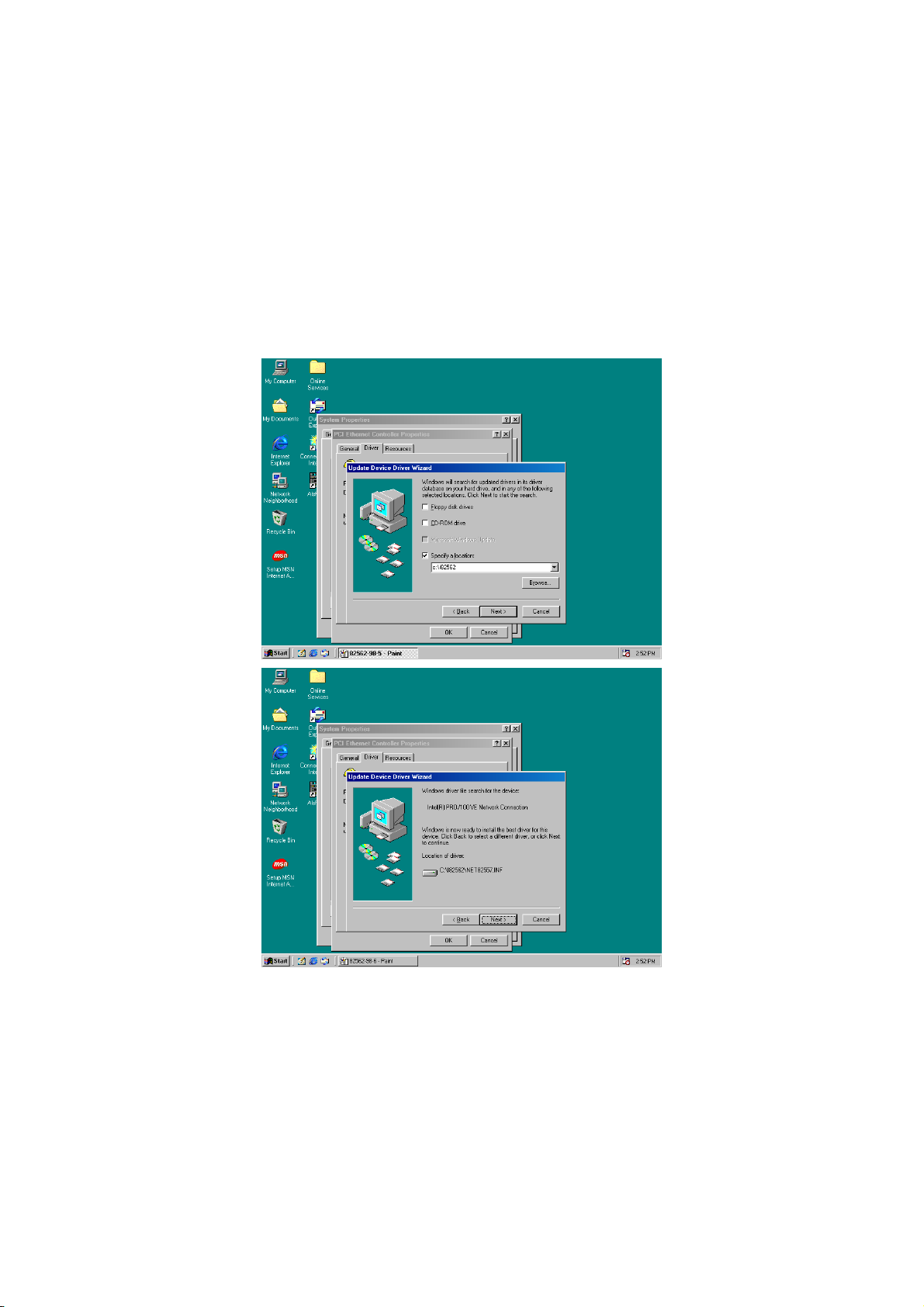

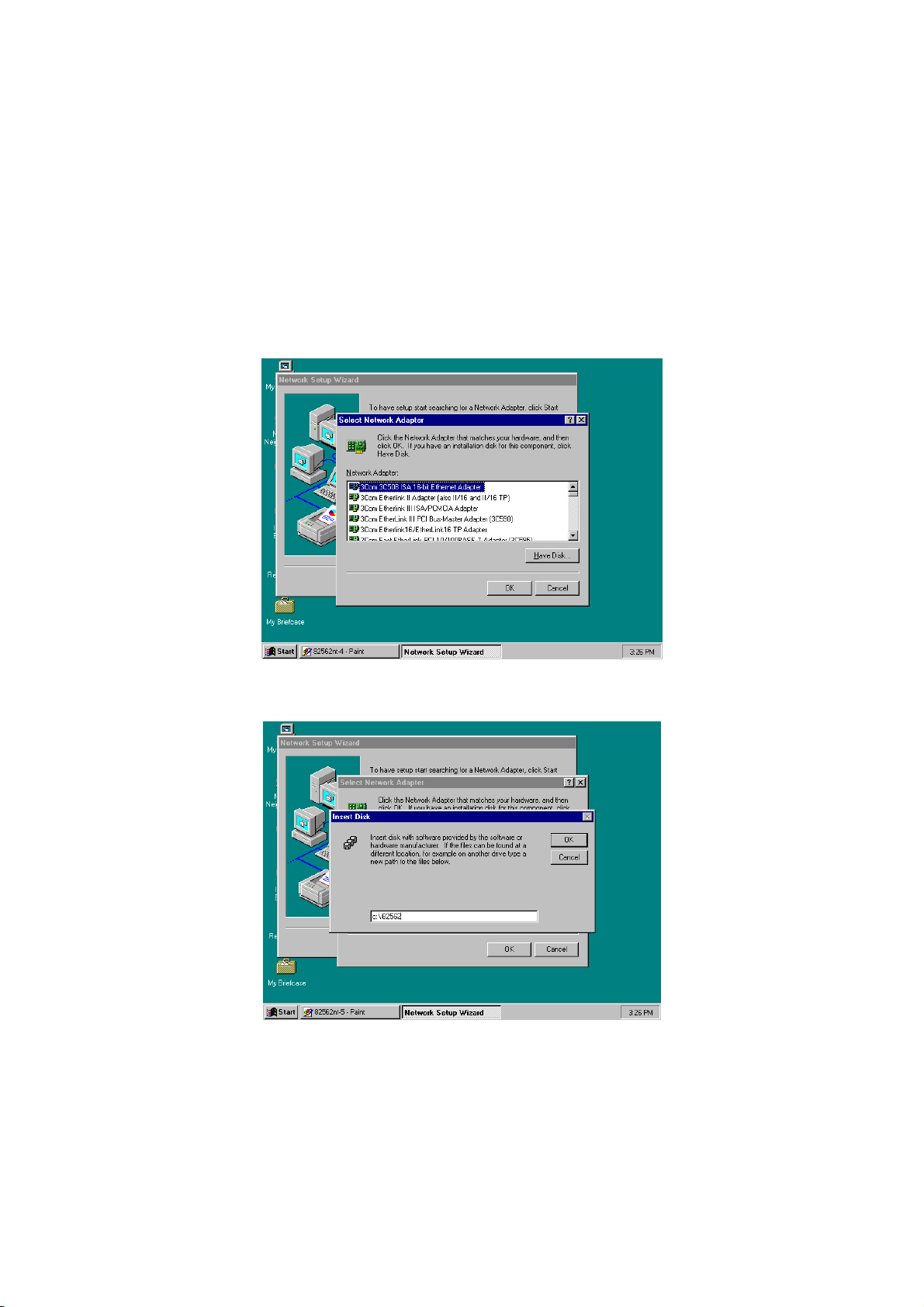

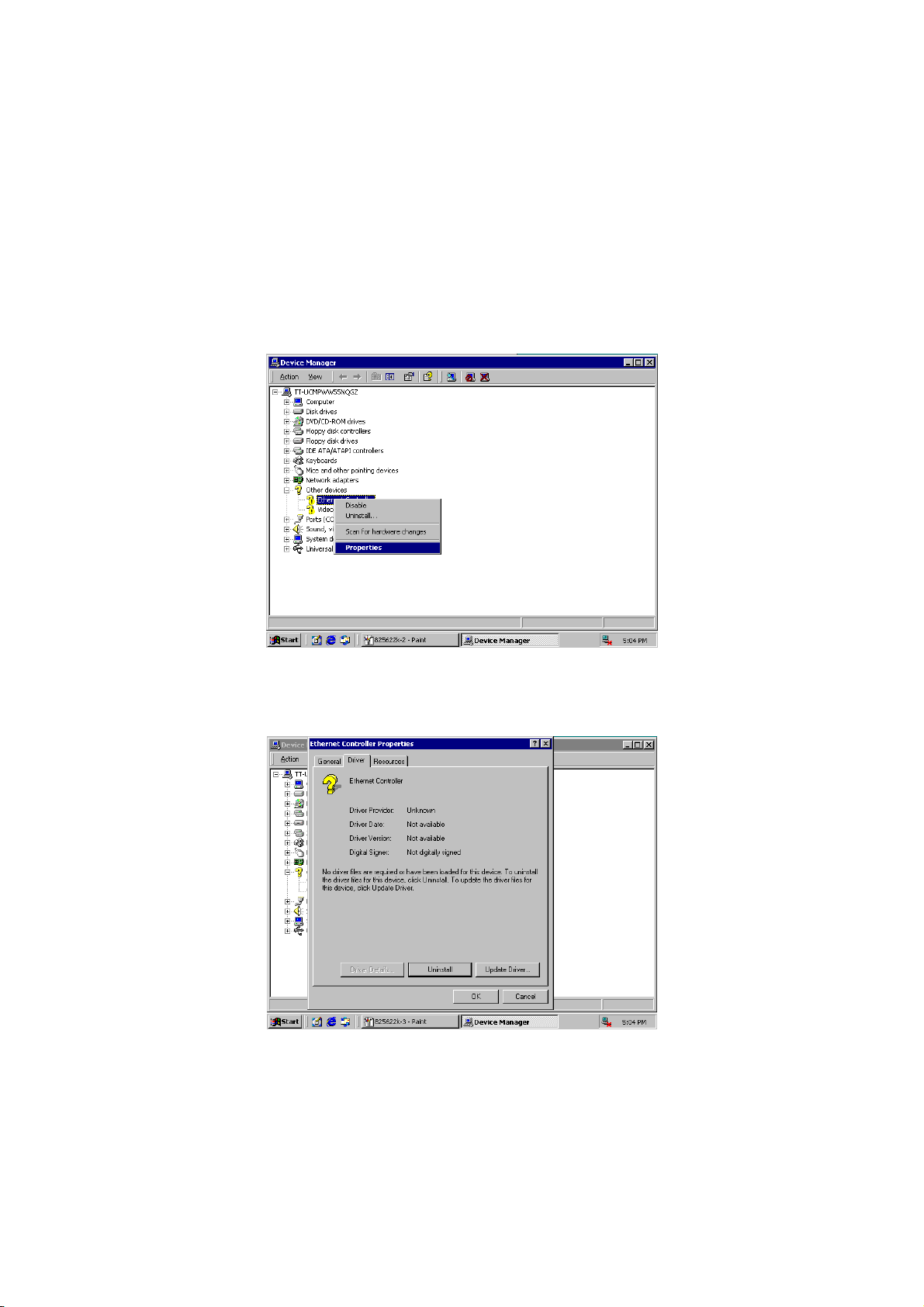

5.3 LAN Driver Installation ----------------------------------------- 64

5.4 Audio Driver Installation --------------------------------------- 83

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:

 Do not remove boards or integrated circuits from their anti-static

packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6238 to ensure harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

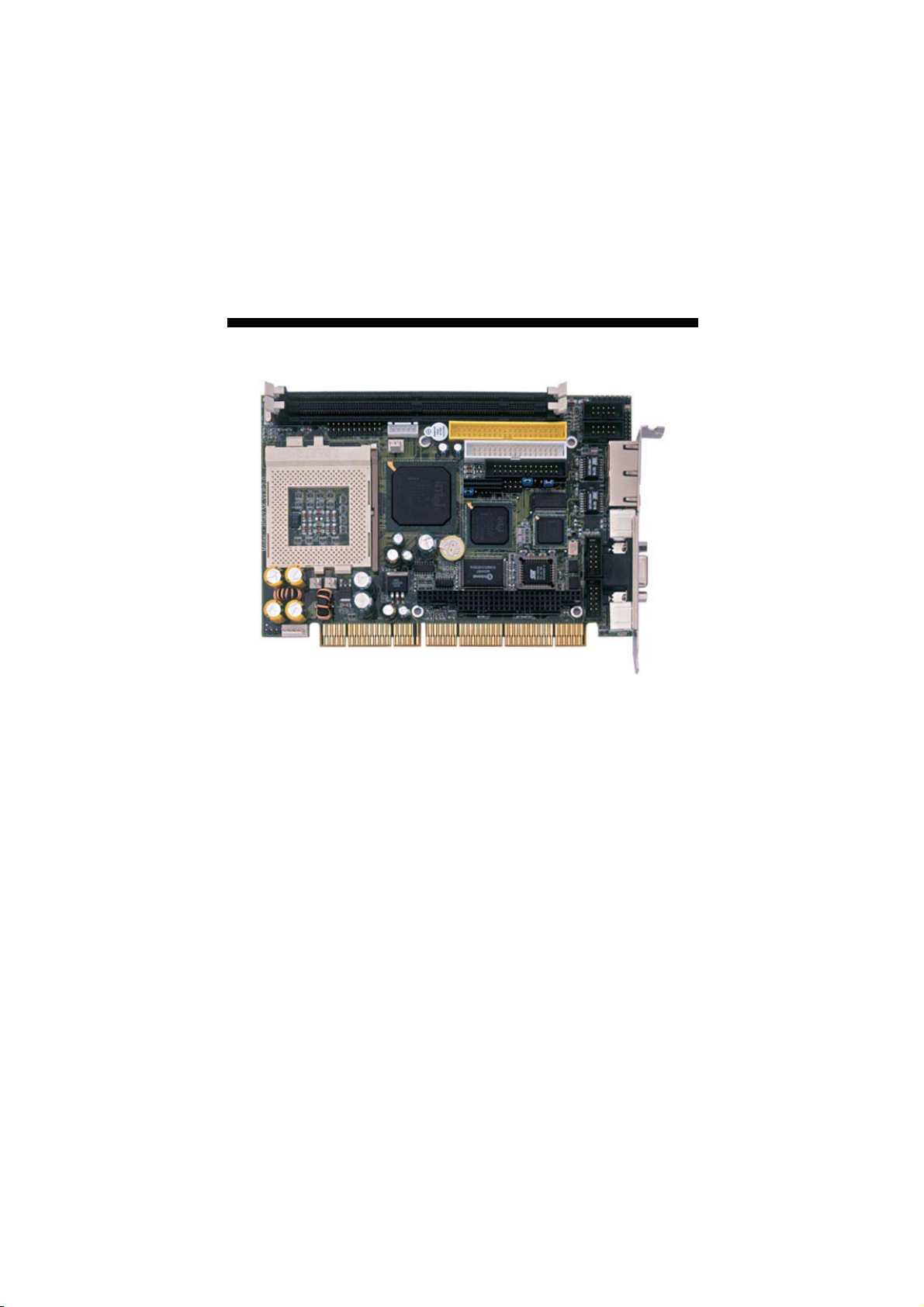

Chapter 1

General Description

The HS-6238 is a 133MHz FSB Intel® 82815 chipset-based board designed for PCI-ISA Bus Celeron™/Coppermine™/Tualatin™ 800MHz~1.2GHz CPU compatibility. These features combine and make the HS-6238 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with 4COM ports, Dual LAN and CRT/Panel interface.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-6238 to support data transfers of 33, 66 or 100MB/sec. to each IDE drive connection. Designed with the Intel chipset, the board supports all Celeron™/Coppermine™/Tualatin™ CPU series operating at 800MHz to 1.2GHz. The 82815 integrated CRT/Panel display controller supports up to 1280 x 1024 at 16-bit CRT high color resolution, and a digital RGB interface for panel displays.

For suitable installation into any size system with 8/16/32-bit ISA and/or PCI slots operation, the board’s advanced PCI-ISA bus add-on feature allows user to easily obtain both ISA's 16-bit and PCI's 32-bit full set signals from a half-size PCI-ISA slot. System memory is also sufficient with the two DIMM sockets that can support up to 512MB.

82815 core logic

Page 8

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, and two external RJ-45 connectors for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-6238 is designed with pure hardware that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-6238 comes with the following features:

 Socket 370 for Intel® Celeron/Coppermine/Tualatin

800MHz~1.2GHz CPU

 Intel  Supports 66/100/133MHz FSB  Two DIMM sockets with a max. capacity of 512MB  Winbond W83977 and Intel  Fast PCI ATA/33/66/100 IDE controller  Four RS-232 serial ports with 16byte FIFO  PC/104 Bus connector  Intel   AC97 3D audio controller  Four USB connectors  Supports CompactFlash card reader  Supports digital RGB interface

82815 system chipset

82801 super I/O chipset



82815 CRT/Panel display controller

Dual 10/100 Based LAN

Page 9

1.2 Specifications

 CPU: Socket 370 for Intel Celeron/Coppermine/Tualatin

800MHz~1.2GHz CPU

 Bus Interface: PCI-ISA Bus  Memory: Two DIMM sockets supporting up to 512MB  Chipset: Intel  I/O Chipset: Winbond W83977, Intel  CompactFlash: One standard CompactFlash adapter onboard

(solder side)

 VGA: Intel

16-bit colors

 Panel Display: Digital RGB interface (need Mini PCI add-on card)  IDE: Two IDE disk drives supporting ATA/33/66/100 and with transfer

rates of up to 33/66/100MB/sec.

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP

 Dual LAN: Intel  Audio: AC97 3D audio controller supporting speaker out  Serial Port: 16C550 UART-compatible RS-232 x 4 serial ports with

16-byte FIFO

 PC/104: PC/104 connector for 16-bit ISA Bus  IrDA: One IrDA TX/RX header  USB: Four USB connectors  Keyboard: PS/2 6-pin Mini DIN or 5-pin connector  Mouse: PS/2 6-pin Mini DIN  BIOS: AMI PnP Flash BIOS  Watchdog Timer: Jumper selectable for system Reset and NMI;

Software program time-out intervals from 1~256 sec.

 CMOS: Battery backup  DMA Channels: 7  Interrupt Levels: 15  Maximum Power Consumption: +5V@10A (1GHz CPU),

+12V@120mA

 Operating Temperature: 0~60°C  Board Size: 18.5 x 12.1 cm

82815



82815 supporting CRT/Panel displays up to 1280 x 1024 at

82801

82559 and Intel® ICHII 10/100 Based LAN

Page 10

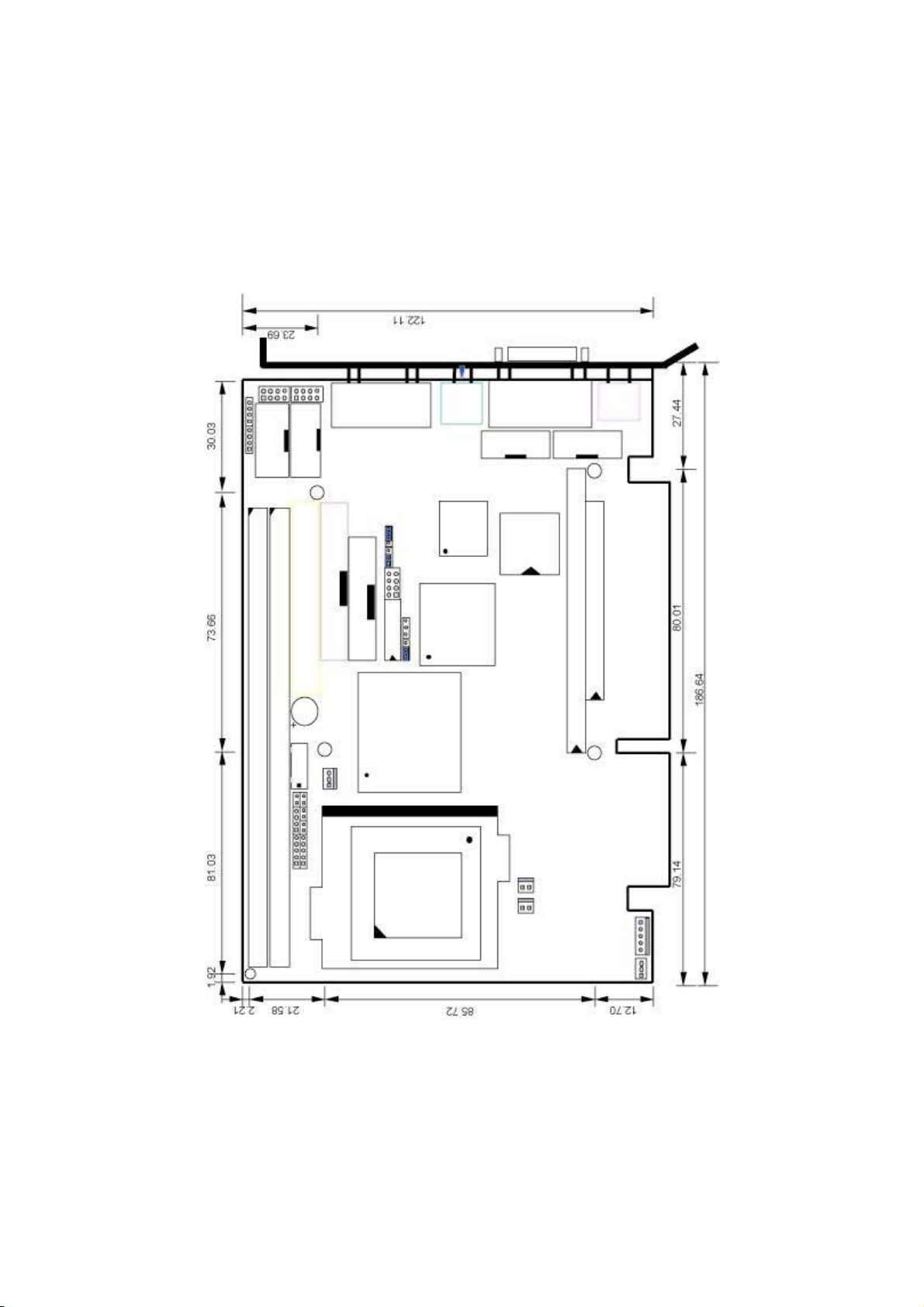

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6238 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-6238 delivery package contains the following items:

 HS-6238 Industrial Single Board Computer  Ultra 100 IDE port Flat Cable x 1  FDD port Flat Cable x 1  Printer Port Flat Cable x 1  PS/2 to Standard type Keyboard Transfer Cable x 1 

8-pin USB Cable x 1

 Speaker Connector with bracket x 1  Dual-ported RS-232 connector with bracket x 2  ATX 5-pin power connector x 1  Jumper Bag  Utility CD-ROM x 1  User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-6238. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

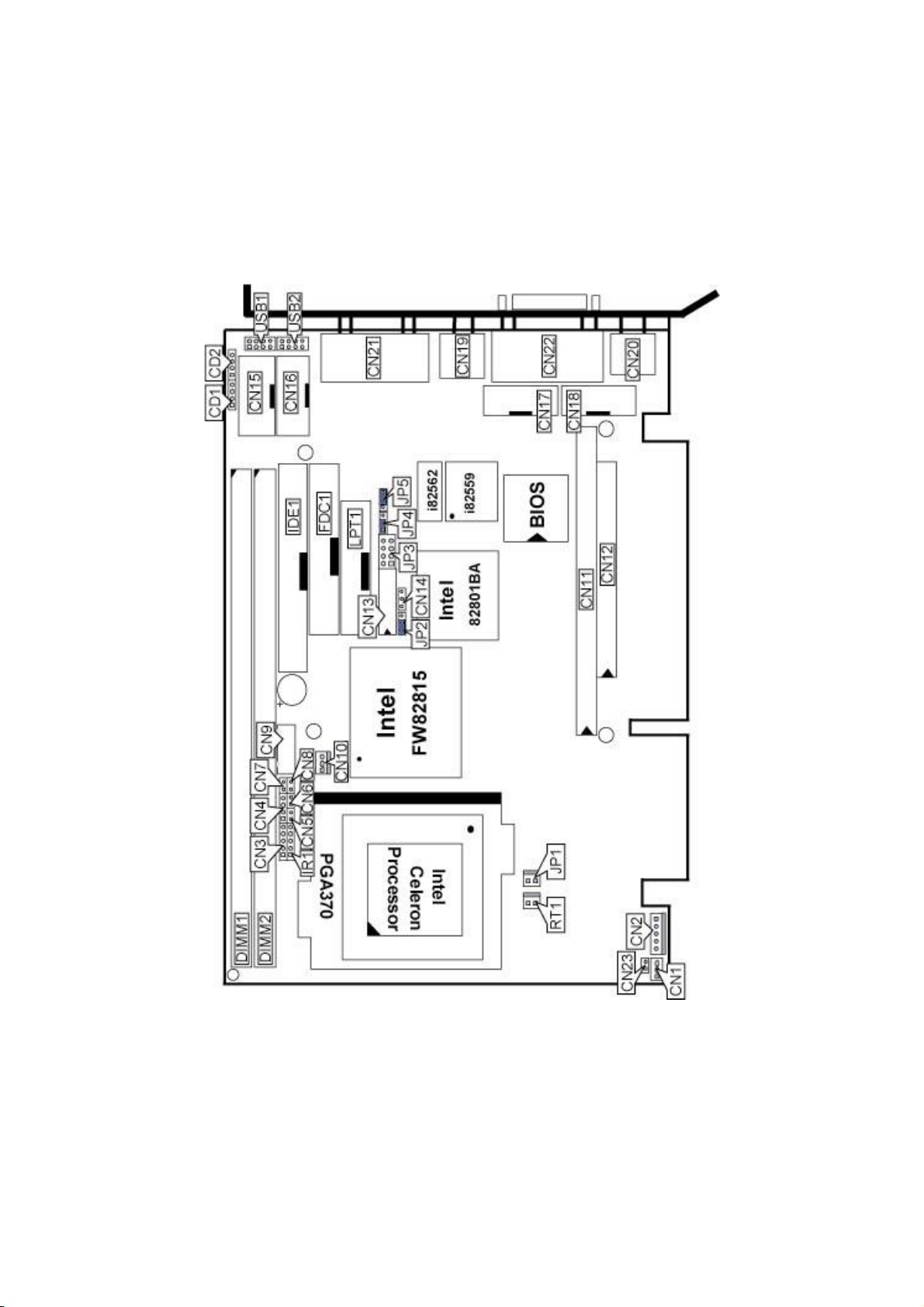

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper Definition Page

JP2 Clear CMOS Jumper: Clear CMOS 16 JP4 LAN2 Enable/Disable Select: Disable 14 JP5 WDT Active Type Setting: Reset 20

CN23 66/100 or 133MHz FSB Select: 133MHz 10

3.4 Connector List

Connector Definition Page

CD1 CD-ROM Line In Connector 19 CD2 Line In Connector 19 CN1 CN2 5-pin ATX Power In 16 CN3 Keylock Connector 18 CN4 Speaker Connector 19 CN5 HDD LED 18 CN6 Reset 18 CN7 SMI Switch Connector 20 CN8 CN9 5-pin Keyboard Connector 17

CN10 Fan Connector 16 CN11 PC/104 64-pin Connector 22 CN12 PC/104 40-pin Connector 22 CN13 CN14 Wake On LAN Connector 14 CN15 COM 3 Connector 13 CN16 COM 4 Connector 13 CN17 COM 2 Connector 13 CN18 COM 1 Connector 13 CN19 PS/2 Mouse Connector 18 CN20

CN21A LAN 1 RJ-45 Connector 14 CN21B LAN 2 RJ-45 Connector 14

DIM1/DIM2 DIMM Socket 10

FDC1 Floppy Connector 13

IDE1 IDE2 CompactFlashTM Connector 22

IR1 IrDA Connector 15

JP1 System Sensing 19

C Bus Connector 10

2-pin ATX Power Connector 16

Panel Connector 10

PS/2 Keyboard Connector 17

ATA/100 IDE Connector 12

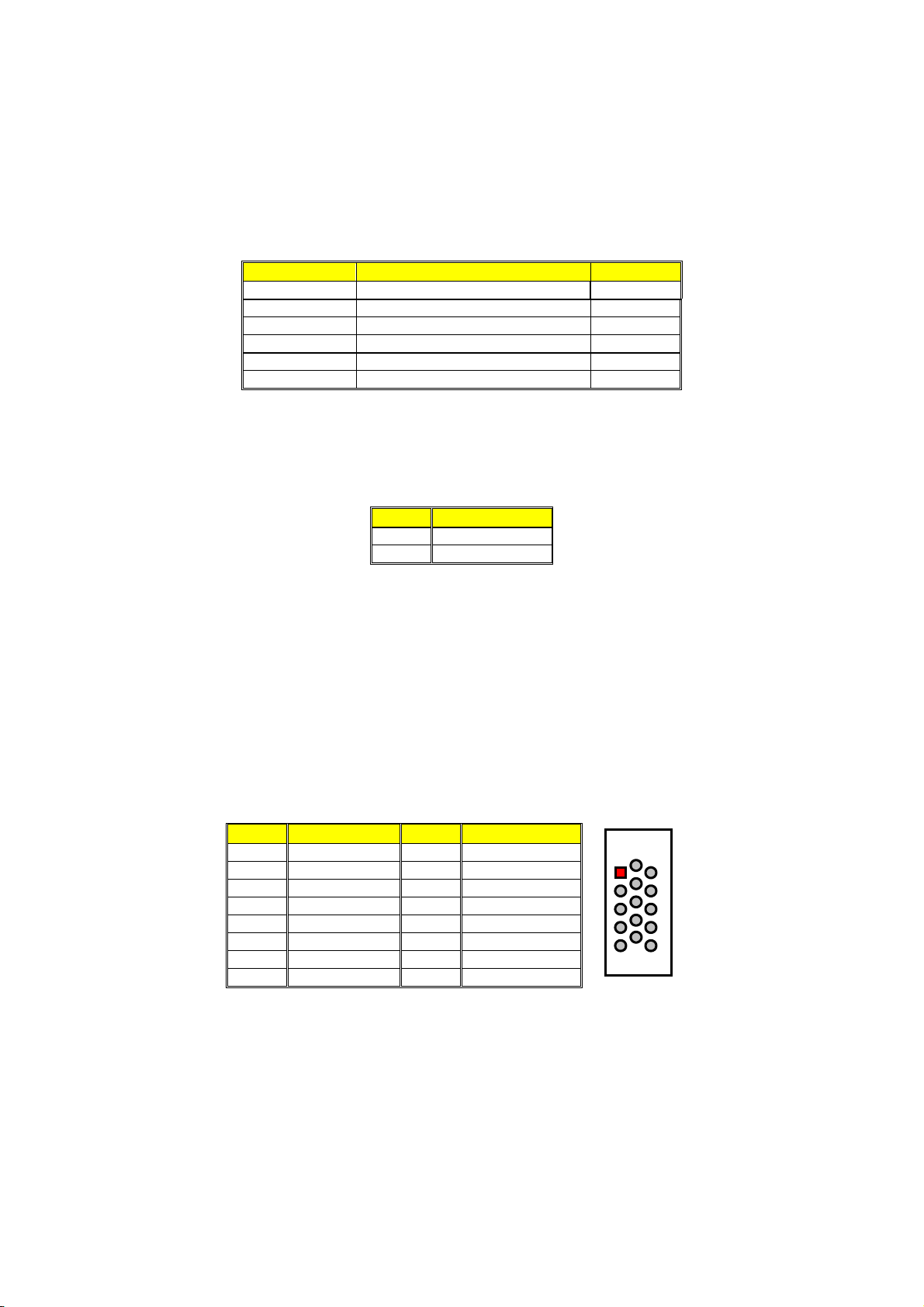

Page 16

…More on next page…

Connector Definition Page

JP3 Audio Out / MIC In Connector 19

LPT1

RT2 Power Sensing 19

USB1/USB2 USB Connectors 15

VGA1 VGA Connector 10 CN22 COM1 Connector (DB9) ----

Parallel Connector 14

3.5 Configuring the CPU

The HS-6238 offers the convenience in CPU installation by CN23 select.



CN23: 66/100 or 133MHz FSB Select

CN23 Description

ON 66/100MHz

OFF 133MHz

3.6 System Memory

The HS-6238 provides two DIMM sockets at locations DIM1 and DIM2. The maximum capacity of the onboard memory is 512MB. Please note that only memory modules complying with PC133 standard are compatible with the HS-6238.

3.7 VGA Controller

The HS-6238 provides two connection methods of a VGA device. VGA1 offers a single standard CRT connector (DB15) while CN13 is the 30-pin panel connector onboard reserved for flat panel installation.



VGA1: CRT Connector (DB15)

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 VCC 5 GND 6 GND 7 GND 8 GND 9

11 VCC 12 DDCDA 13 HSYNC 14 VSYNC 15 DDCCL

VCC

GND

Page 17



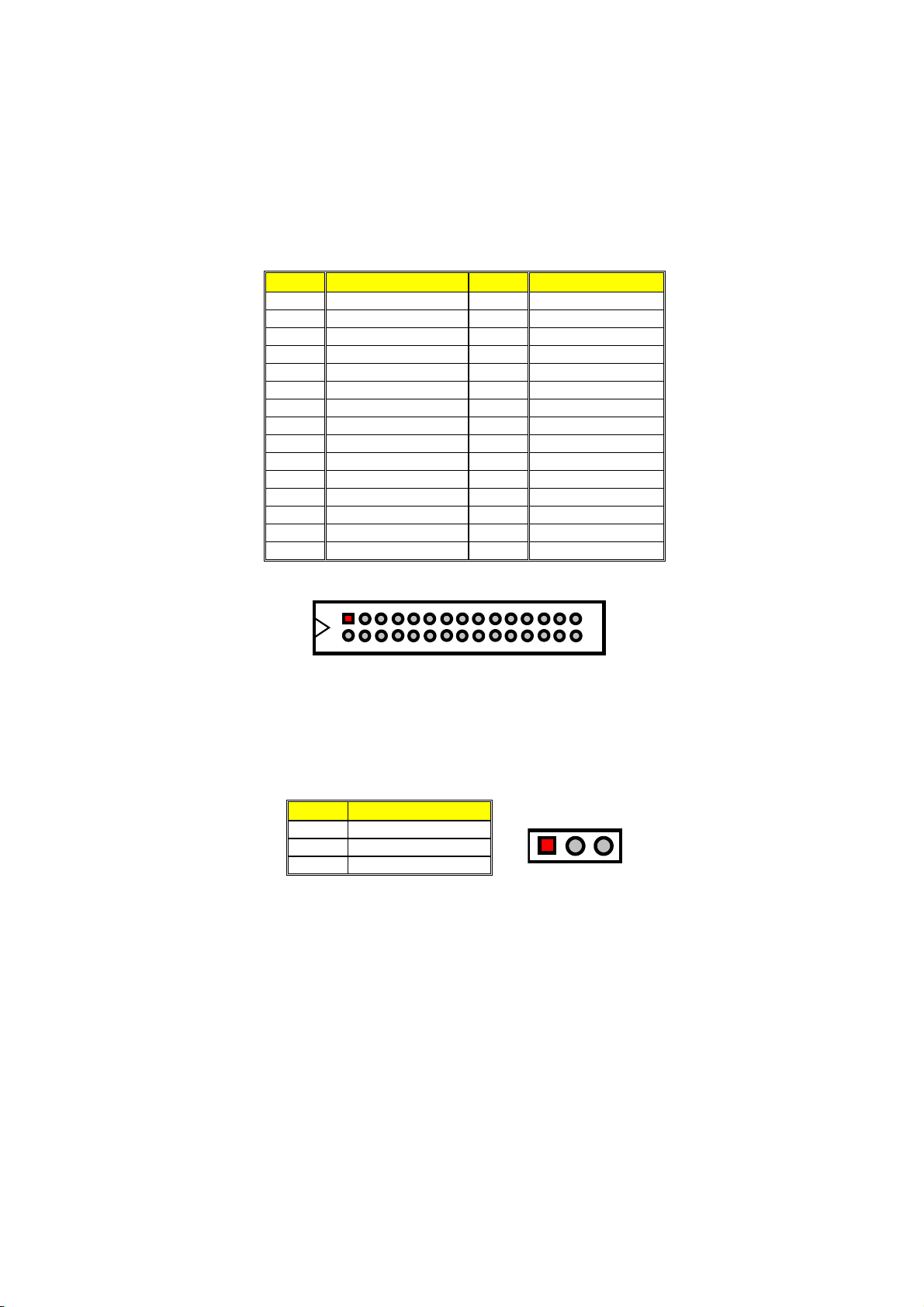

CN13: Panel Connector

PIN Description PIN Description

1 PCIRST 2 Vcc 3.3 3 FTD0 4 FTCLK0 5 FTD1 6 FTCLK1 7

9 FTD3 10 FTHSYNC 11 FTD4 12 FTBLNK 13 FTD5 14 3VFTSCL 15 FTD6 16 3VFTSDA 17 FTD7 18 TVCLKIN 19 FTD8 20 GND 21 23 FTD10 24 VCC 25 FTD11 26 VCC 27 VCC3 28 +12V 29 VCC3 30 +12V

FTD2

FTD9

FTVSYNC

VCC_1.8V

3 5 7 9 11 19 21 23 25 27

4 6 8 10 182022242628

13 15 17

12 14 16

NOTE:

Please set the proper voltage of your panel using JP8 before proceeding on installing it.

An Inter-IC connector, on CN1 onboard, also offers the flexibility of installing an I



CN1: I

C digital signal-based device.

C Bus Connector

PIN Description

1 SMBDATA 2 SMBCLK 3 GND

123

Page 18

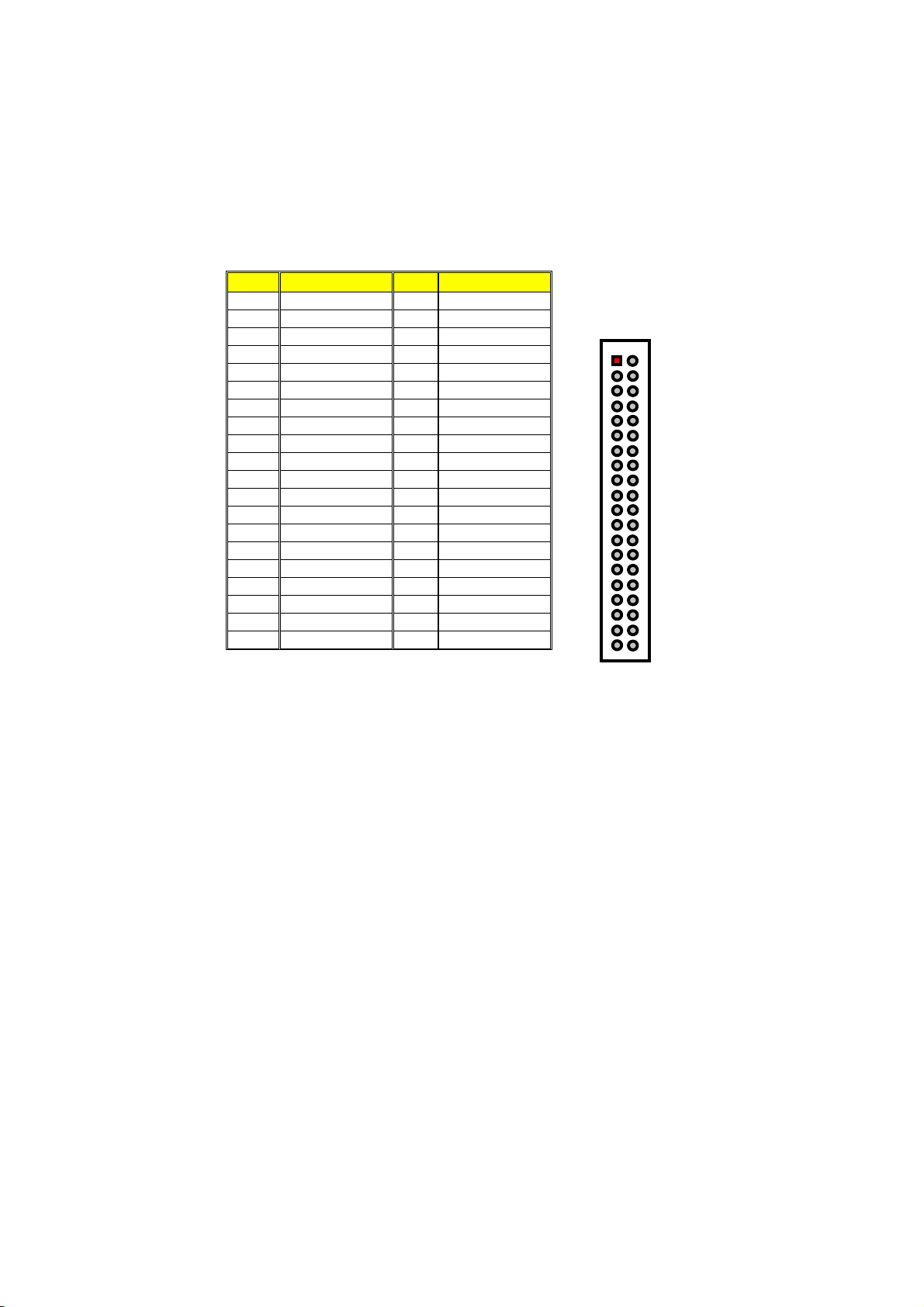

3.8 IDE Drive Connector

IDE1 is a standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-6238. A maximum of two IDE drives can connect to the HS-6238 via IDE1.



IDE1: IDE Connector

PIN Description PIN Description

1 RESET 2 GND 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21 PDREQ 22 GND 23 PDIOW# 24 GND 25 PDIOR# 26 GND 27 PIORDY 28 GND 29 31 IRQ14 32 N/C 33 RPDA1- 34 PATA66DET 35 RPDA0- 36 RPDA2- 37 RPCS1- 38 RPCS3- 39

RPDACK-

HDD ACTIVE

GND

Page 19

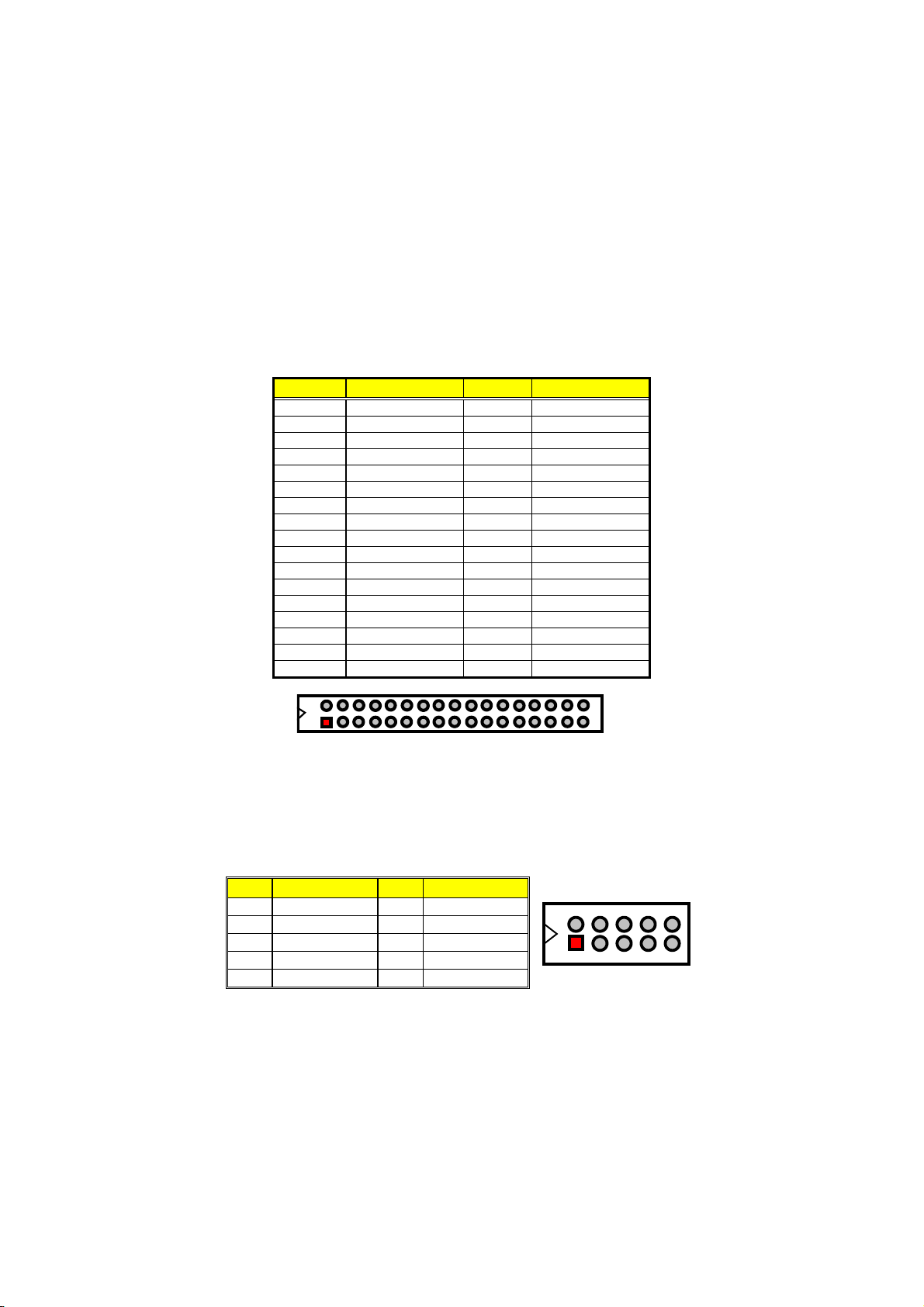

3.9 Floppy Disk Drive Connector

The HS-6238 uses a standard 34-pin header connector, FDC1, for floppy disk drive connection. A total of two FDD drives may be connected to FDC1 at any given time.



FDC1: FDD Connector

PIN Description PIN Description

1 GND 2 RWC- 3 GND 4 N/C 5 GND 6 DS1- 7 9

11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 WD- 23 GND 24 WE- 25 GND 26 Track 0# 27 GND 28 WP- 29 N/C 30 RDATA- 31 GND 32 HEAD- 33 N/C 34 DSKCHG-

GND GND

Index#

Motor Enable A#

3.10 Serial Port Connectors

The HS-6238 offers two NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports.



CN18, CN17, CN15 and CN16: COM1/COM2/COM3/COM4 Connectors (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTX 5 TXD 6 CTX 7 DTR 8 RI 9 GND 10 N/C

246810

13579

Page 20

3.11 Parallel Connector

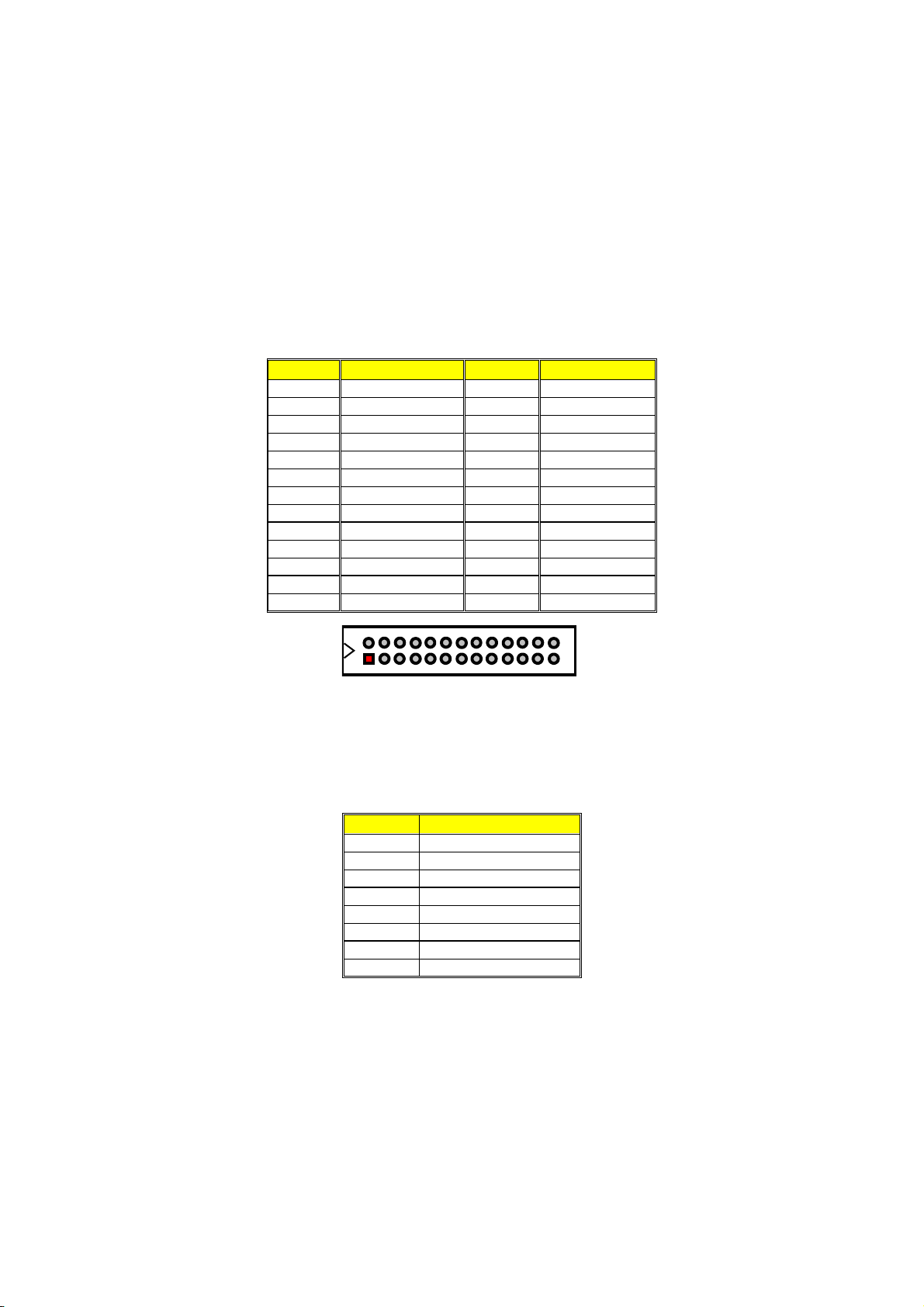

LPT1 is a standard 26-pin flat cable connector deigned to accommodate parallel port connection onboard the HS-6238.



LPT1: Parallel Connector

PIN Description PIN Description

1 Strobe 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge 11 Busy 12 Paper Empty 13 Printer Select 14 Auto Form Feed 15 ERROR# 16 Initialize 17 Printer Select LN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 25 GND 26 GND

GND

3.12 Ethernet Connector

The HS-6238 provides two external RJ-45 10/100 Based LAN interface connectors. Please refer to the following table for their identical pin assignments.



CN21A & CN21B: RJ-45 Connectors

PIN Description

1 TX+ 2 TX- 3 RX+ 4 N/C 5 N/C 6 RX- 7 8 N/C

N/C

Page 21



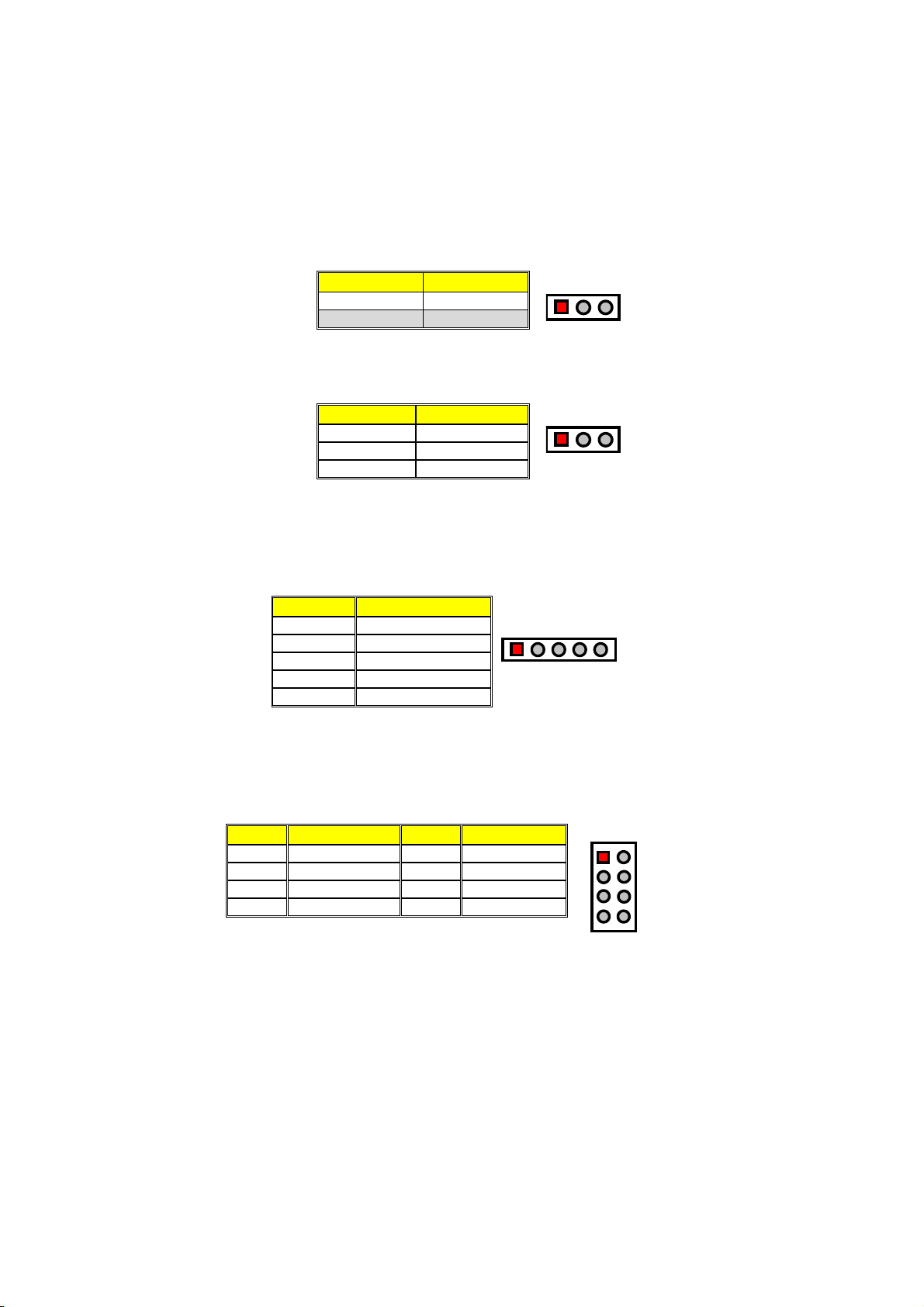

JP4: LAN2 Enable/Disable Select

Options Settings

Enabled Short 1-2

Disabled Short 2-3

123

CN14 connector is connected to external LAN card for Wake On LAN function.



CN14: Wake On LAN Connector

PIN Description

1 2 GND 3 5VSBY

PCI_PME#

123

3.13 IrDA Connector

IR1 is a 5-pin internal IR communication connector for connection of an IrDA device.



IR1: IrDA Connector

PIN Description

1 VCC 2 N/C 3 IRRX 4 GND 5 IRTX

12345

3.14 USB Connector

The HS-6238 provides two 8-pin connectors, at locations USB1 and USB2, for dual USB connections to the HS-6238.



USB1: USB Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD0- 4 BD1- 5 BD0+ 6 BD1+ 7 GND 8 GND

Page 22



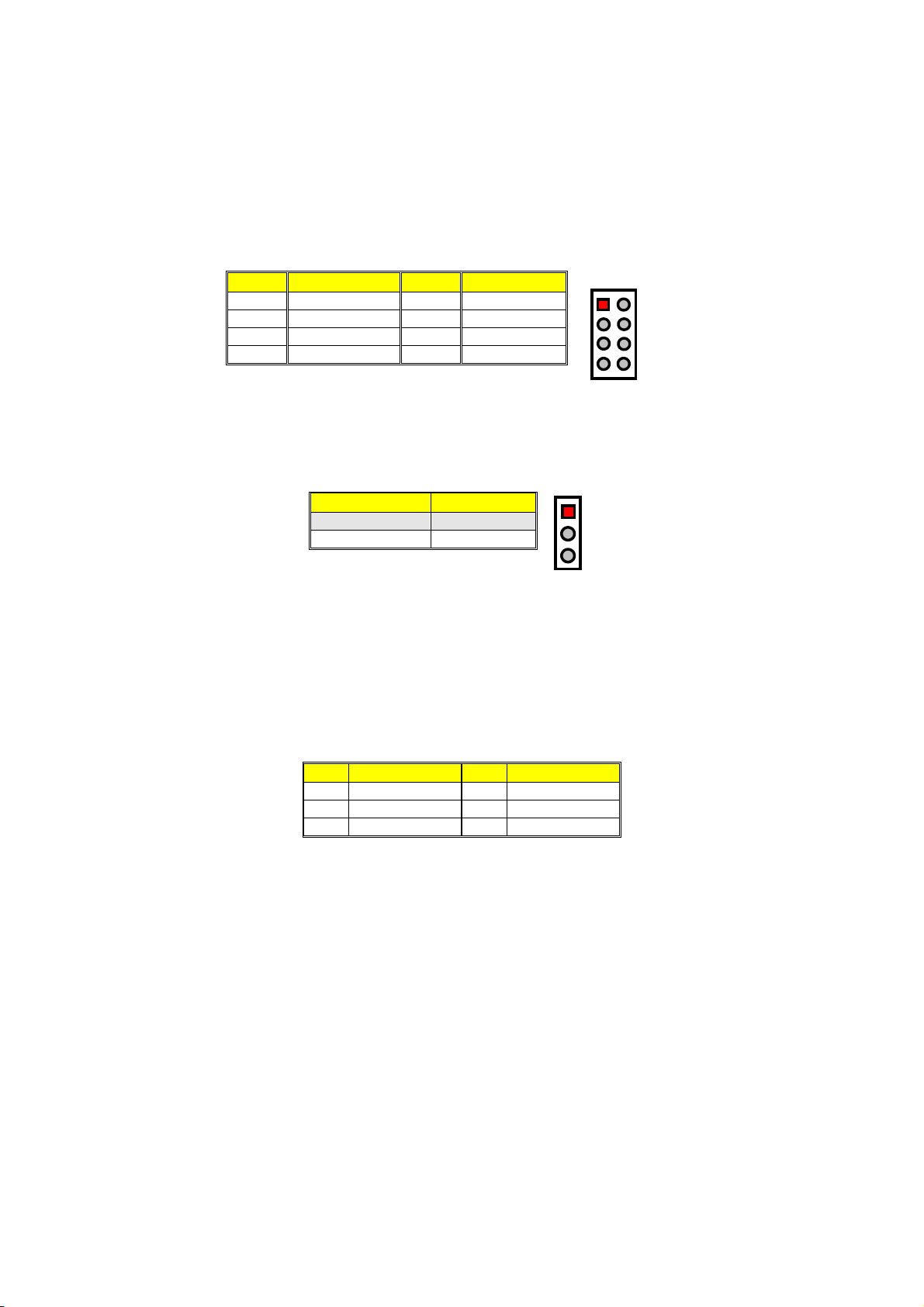

USB2: USB Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD02- 4 BD3- 5 BD02+ 6 BD3+ 7

GND

3.15 CMOS Data Clear

The HS-6238 has a Clear CMOS jumper on JP2.



JP2: Clear CMOS

Options Settings

Normal Operation Short 1-2

Clear CMOS Short 2-3

NOTE:

The default setting of JP2 is Short 2-3 in storage. Before you turn on

the power of your system, please set JP2 to Short 1-2 for normal operation.

3.16 Power and Fan Connectors

The HS-6238 provides one 5-pin ATX Power On connector at CN2, one 2-pin ATX Power ON switch at CN8, and a single 3-pin FAN out connector at CN10.



CN2: 5-pin Power Connector

PIN Description PIN Description

1 GND 2 PS_ON 3 VCC13 4 5Vsb 5 VCC

If the system is not using the ATX power function, you may SHORT pins 4 and 5 of CN2 so that the ATX power supply can be used as an AT power unit. If not, CN2 must be connected to a corresponding connector on a PCI-ISA Bus backplane in order to use the ATX Power function.

When using the ATX Power, CN8 is used to turn on the power. In this case, a BOSER PCI-ISA Bus backplane must complement HS-6238 for proper operation.

Page 23



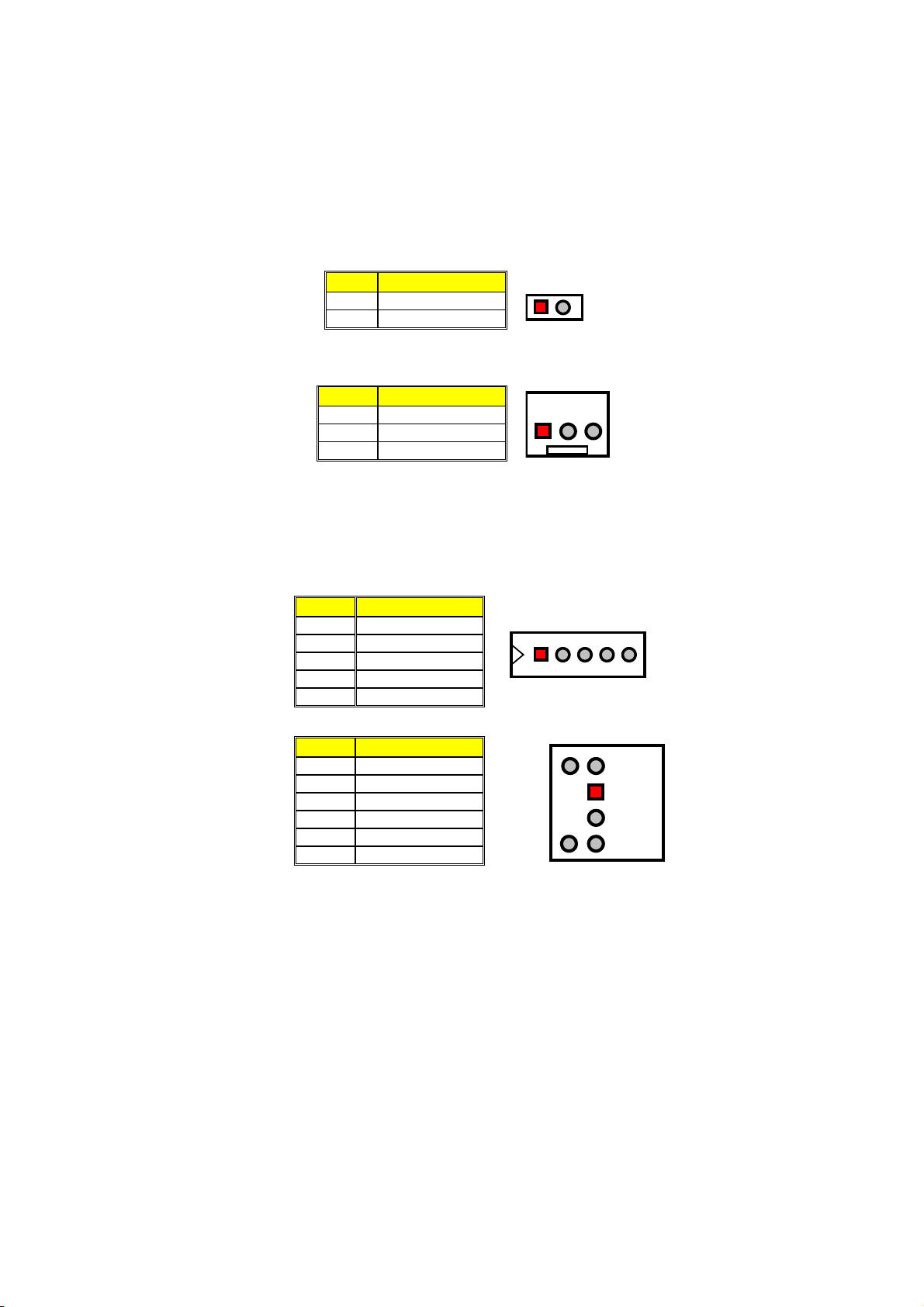

CN8: 2-pin ATX Power On Switch

PIN Description

1 5VSBY 2 PANSWIN

CN5 onboard HS-6238 is a 3-pin fan power output connector.



CN10: Fan Connector

PIN Description

1 GND

123

2 +12V 3 FAN In 1

3.17 Keyboard Connectors

The HS-6238 offers two possibilities for keyboard connections. The connections are via CN20 for an external PS/2 type keyboard or via CN9 for an internal 5-pin cable converter to an AT keyboard.



CN9: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock 2 Keyboard Data 3 N/C 4 GND 5 +5V



CN20: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1 Keyboard Data 2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C

12345

Keyboard

Clock

N/C

GND

Keyboard

Data

N/C

+5V

Page 24

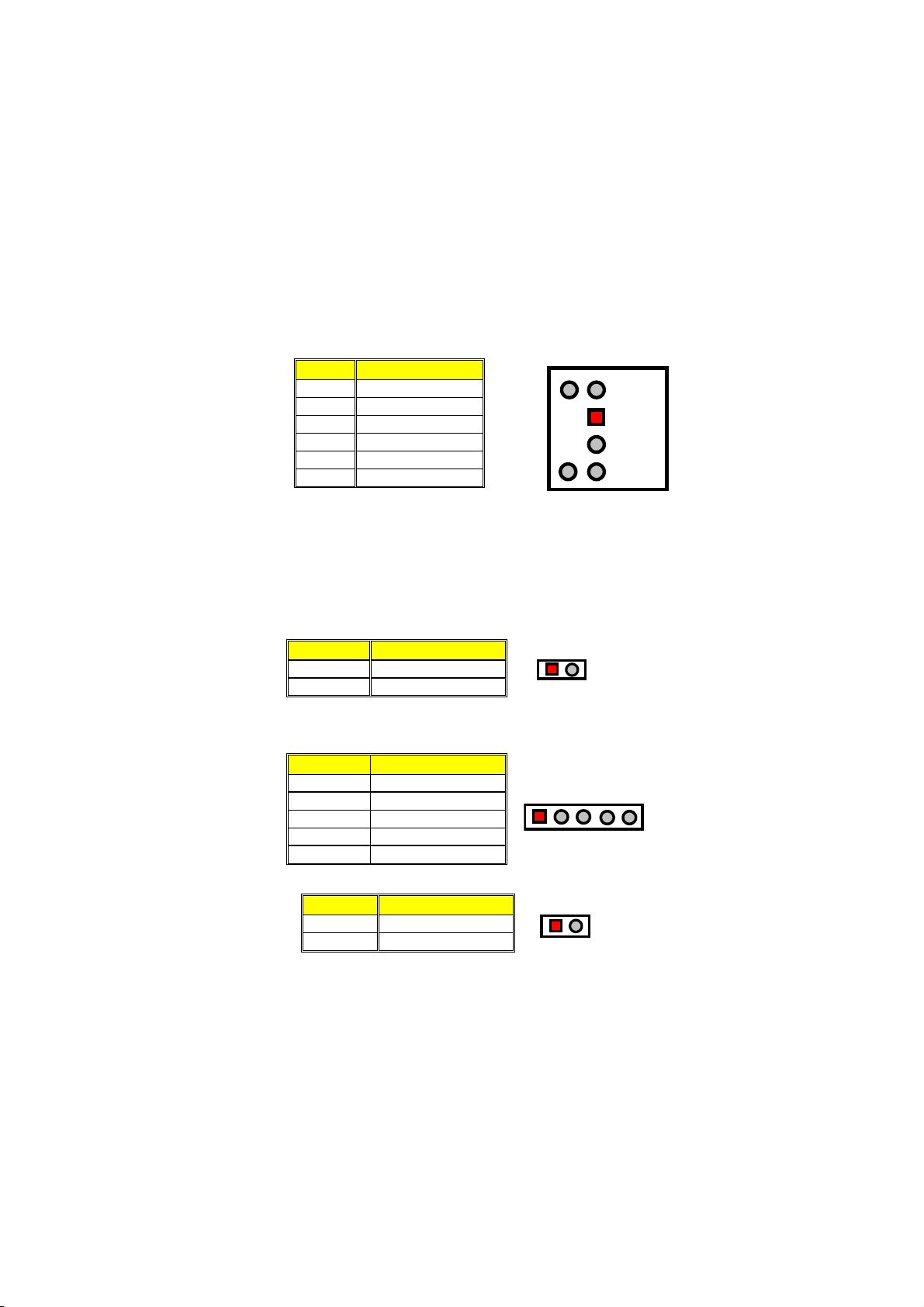

3.18 PS/2 Mouse Connector

CN19 is a 6-pin mini DIN connector for connections to an external PS/2 mouse connector.



CN19: PS/2 6-pin Mini DIN Mouse Connector

PIN Description

1 MS Data 2 N/C 3 GND 4 +5V 5 MS Clock 6 N/C

MS Clock

N/C

GND

MS Data

N/C

+5V

3.19 System Front Panel Connectors

The HS-6238 has one LED at location D1 that indicates the power-on status. This visual feature of the IDE LED may also be connected to an external IDE LED via connector CN5.



CN5: IDE LED

PIN Description

1 +5V 2

HDD ACTIVE#

CN3 and CN6 are the Keylock and Reset Button connectors onboard.



CN3: Keylock Connector

PIN Description

1 Vcc 2 N/C 3 GND 4 Keylock

GND



CN6: Reset

PIN Description

1 2 H/W Reset

GND

12345

Page 25

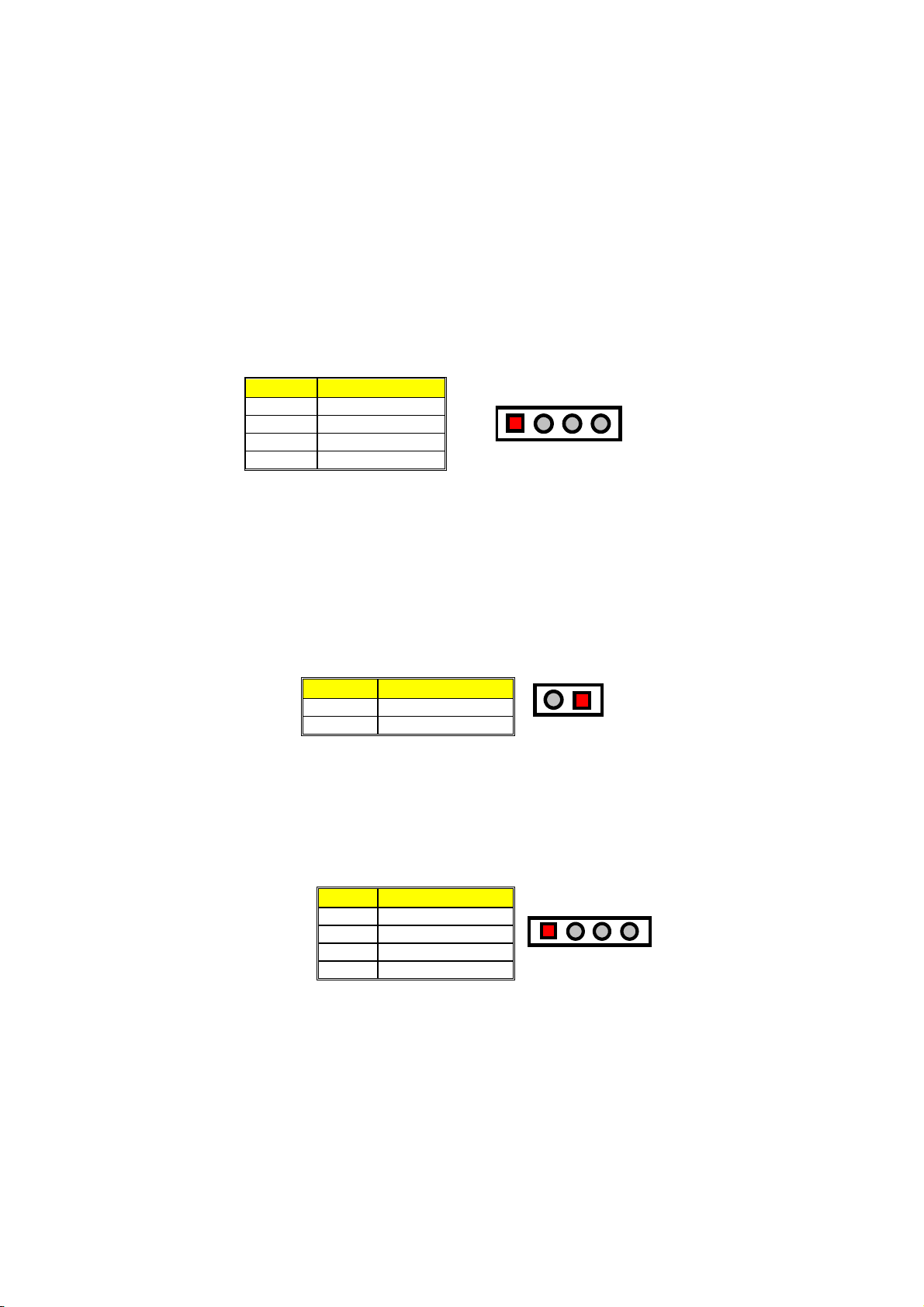

3.20 External Speaker

Aside from the buzzer at location BZ1 onboard, the HS-6238 also offers a connector (CN4) for an external speaker connection. The table below lists the pin assignments of CN4.



CN4: Speaker Connector

PIN Description

1 Speaker Signal 2 GND 3 GND 4 +5V

1234

3.21 Thermal Input Connectors

In relevance to the Hardware Monitoring feature provided by the onboard Winbond W83627, the board allows the installation of a thermal sensor via connectors RT2 and JP1. The thermal connector

JP1 monitors and displays the current system temperature whereas RT2 monitors the temperature conditions along the area where the

power supply system sits. The displayed values are read-only figures and may not be altered.



JP1 and RT2: Power/System Sensing Connectors

PIN Description

1 Sensing 2 GND

3.22 Audio Connectors

The HS-6238 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line In and the MIC In / Audio Out connectors.



CD1: CD-ROM Analog Input Connector

PIN Description

1 CD IN_R 2 CD REF 3 CD REF 4 CD IN_L

1234

Page 26



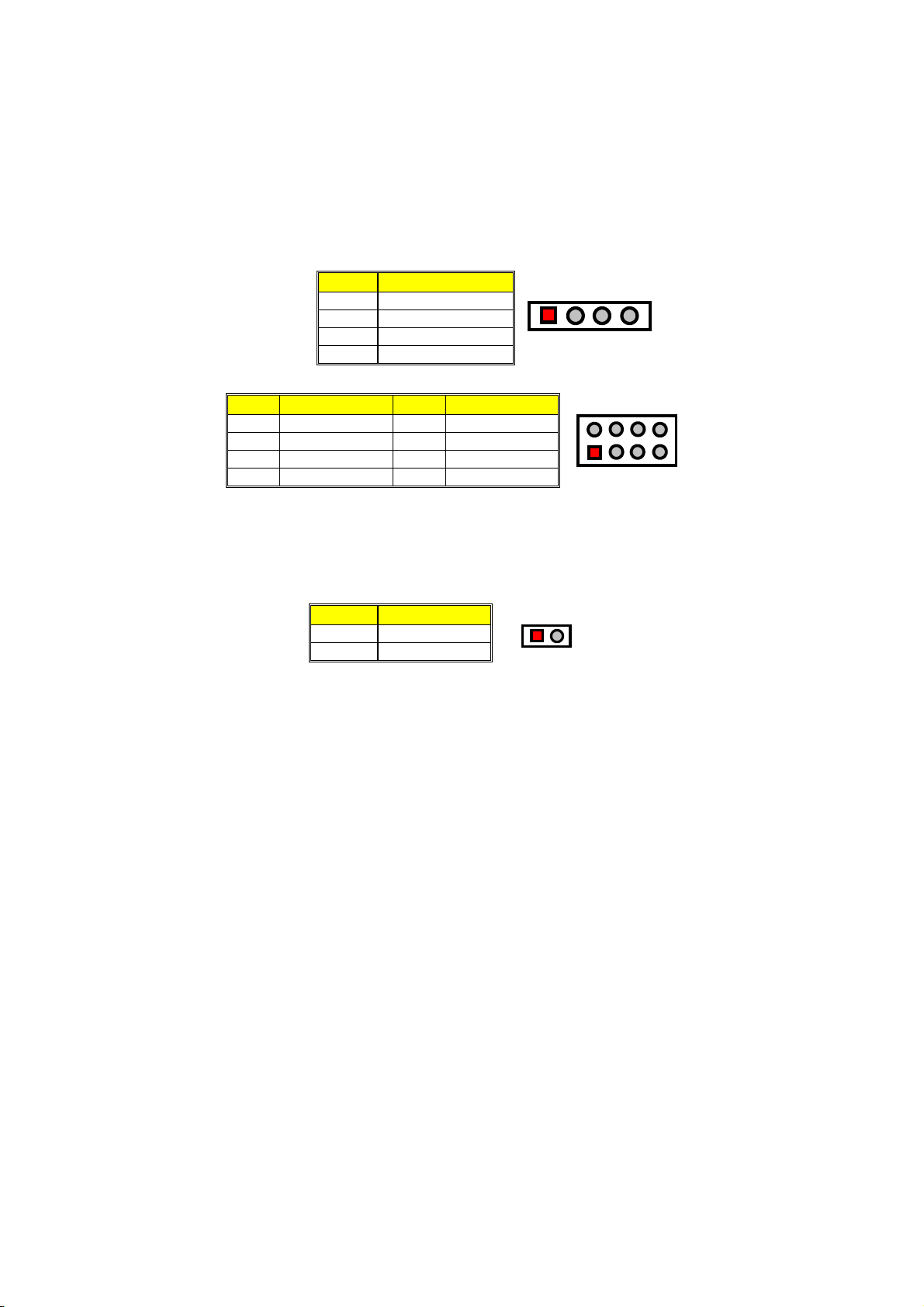

CD2: Line In Connector

PIN Description

1 LINE_R 2 GND 3 GND 4



JP3: Mic In / Audio Out Connector

LINE_L

1234

PIN Description PIN Description

1 OUT_L 2 OUT_R 3 GND 4 GND 5 MIC IN 6 N/C 7 GND 8 GND

3.23 SMI Signal Input Switch

HS-6238 has an SMI connector at location CN7. If there is an external SMI Signal Input Switch, this input switch will be able to receive signals.



CN7: SMI Signal Input Switch

PIN Description

1 GND 2 EXTSMI

3.24 Watchdog Timer

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start when such error happens.

Page 27



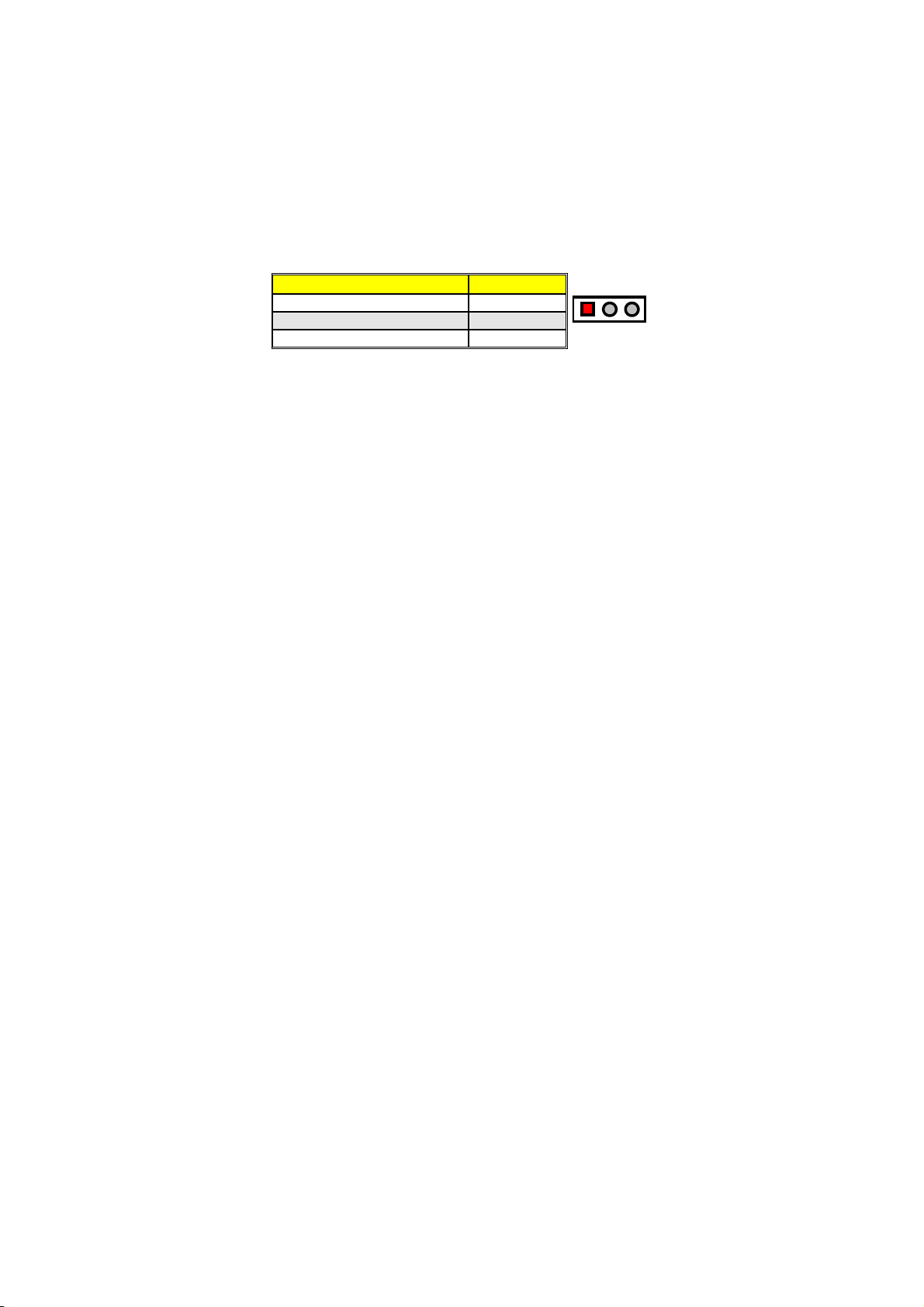

JP5: Watchdog Timer Active Type Setting

Options Settings

123

Active NMI Short 1-2

System Reset (default) Short 2-3

Disabled Watchdog Timer Open

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;-------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, AAH OUT DX, AL

* User can also use AL, 00H’s defined time for reset purposes,

e.g.00H for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec

Page 28

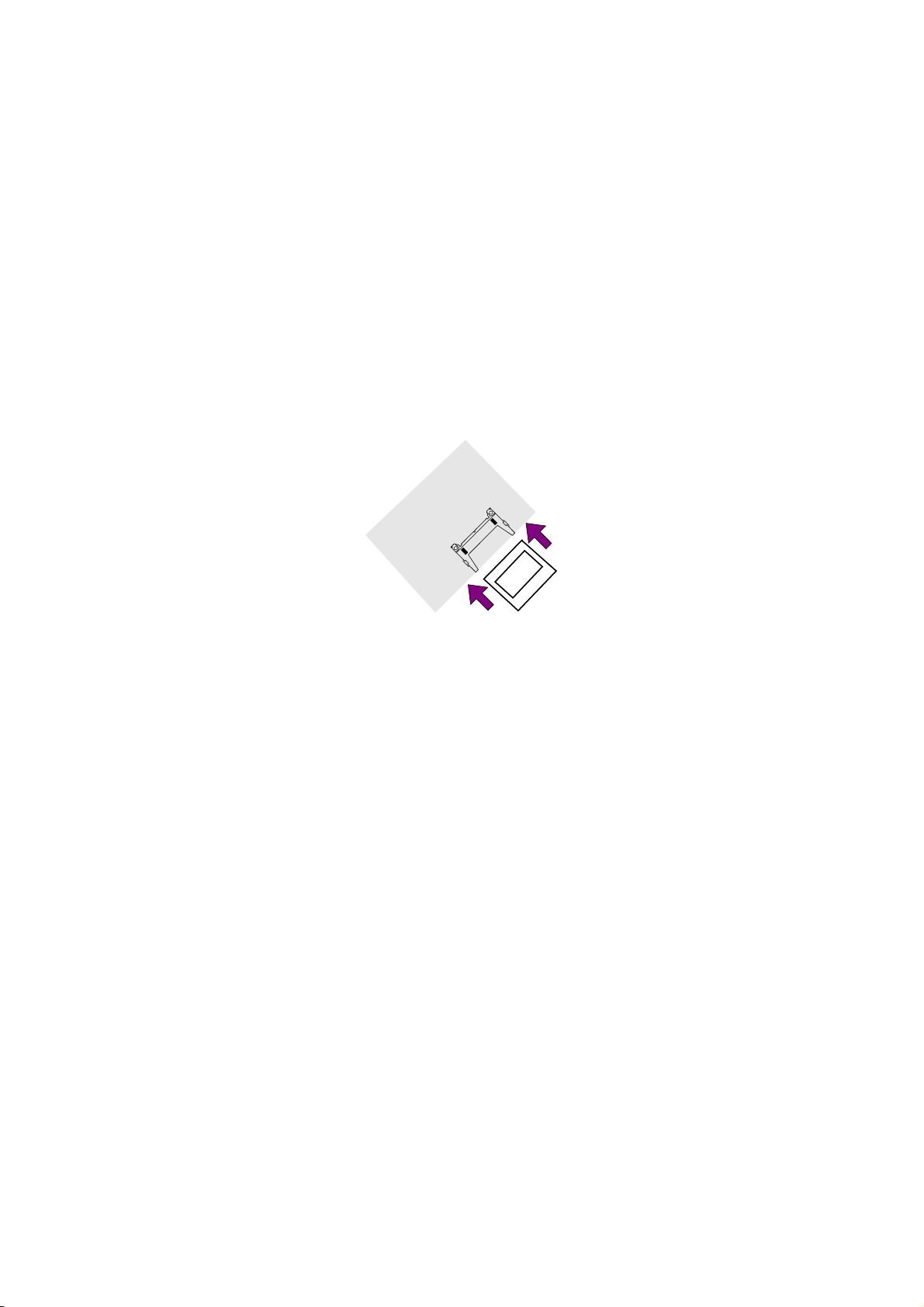

3.25 CompactFlash Connector

The HS-6238 also offers an optional CompactFlash connector which is IDE interface located at the solder side of the board. The designated IDE2 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card. Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram below for the traditional way of inserting the card.

CompactFlash

e d i

r b a

3.26 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors CN11 and CN12 are listed on the following tables:

NOTE：

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.

Page 29



CN12: 40-pin PC/104 Expansion Slot

PIN Description PIN Description

1 GND 21 GND 2 MEMCS16* 22 SBHE* 3 IOSC16* 23 LA23 4 5 IRQ11 25 LA21 6 IRQ12 26 LA20 7 IRQ15 27 LA19 8 IRQ14 28 LA18 9 DACK0* 29 LA17

10 DRQ0 30 MEMR* 11 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 DACK7* 35 SD11 16 DRQ7 36 SD12 17 +5V 37 SD13 18 MASTER* 38 SD14 19 GND 39 SD15 20 GND 40 GND

IRQ10

DACK5*

LA22

MEMW*

Connector diagram

rotated 90 degrees

clockwise from

original position

121

Page 30



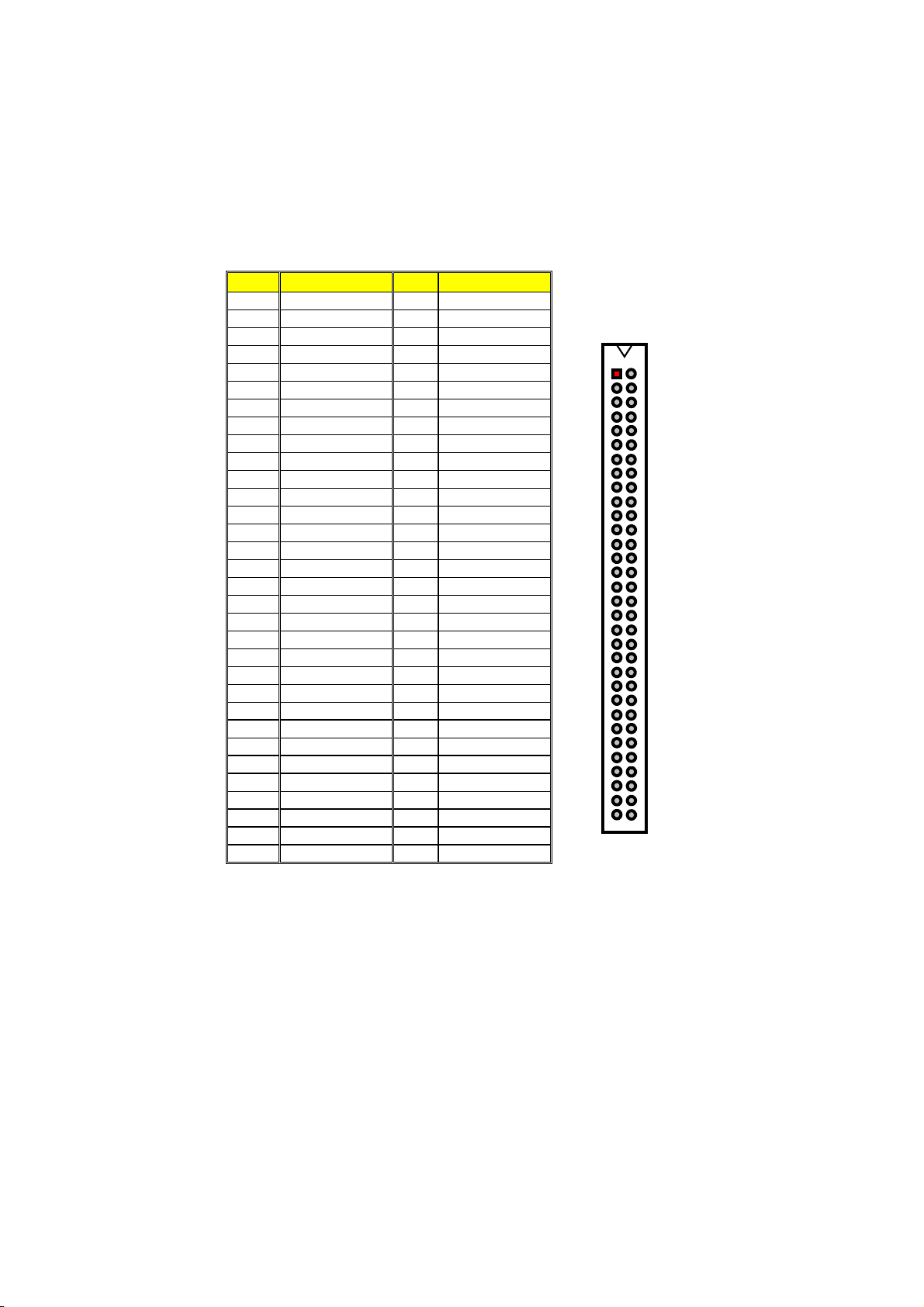

CN11: 64-pin PC/104 Expansion Slot

PIN Description PIN Description

1 IOCHECK* 33 GND 2 SD7 34 RESETDRV 3 SD6 35 +5V 4 5 SD4 37 N/C 6 SD3 38 DRQ2 7 SD2 39 -12V 8 SD1 40 OWS 9 SD0 41 +12V

10 IOCHRDY 42 GND 11 12 SA19 44 SMEMR* 13 SA18 45 IOW* 14 SA17 46 IOR* 15 SA16 47 DACK3* 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 SA13 50 DRQ1 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 SA4 59 TC 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

SD5

AEN

SA8

IRQ9

SMEMW*

IRQ5

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

Page 31

Chapter 4

AMI BIOS Setup

The HS-6238 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 32

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 33

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Setup Hdd Security Password

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Save Settings and Exit

Exit Without Saving



Standard CMOS Setup

This setup page includes all the items in a standard, AT-compatible BIOS.



Advanced CMOS Setup

This setup page includes all the items of AMI special enhanced features.



Advanced Chipset Setup

This setup page includes all the items of chipset special features.



Power Management Setup

This entry only appears if your system supports Power Management, “Green PC”, standards.



PCI/Plug and Play Setup

This entry appears if your system supports PNP/PCI.



Peripheral Setup

This section page includes all the items of IDE hard drive and Programmed Input / Output features.

Page 34



Hardware Monitor Setup

This menu contains the system’s auto-detect functions for CPU Vcore, CPU voltage, and CPU temperature.



Auto-Detect Hard Disks

Automatically detect and configure hard disk parameters. The AMI BIOS includes this ability in the event you are uncertain of your hard disk’s parameters.



Change User/Supervisor Password

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.



Auto Configuration with Optimal Settings

The BIOS defaults have been set by the manufacturer and represent settings that provide the minimum requirements for your system to operate.



Auto Configuration with Fail Safe Settings

The chipset defaults are settings that provide for maximum system performance. While AMI has designed the custom BIOS to maximize performance, the manufacturer has the right to change these defaults to meet their needs.



Save Settings and Exit

Save CMOS value changes to CMOS and exit setup.



Exit Without Saving

Abandon all CMOS value changes and exit setup.

Page 35

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Tue Jul 30, 2002 Base Memory : 0 KB Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB

Floppy Drive A: Not Installed Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Not Installed Pri Slave : Not Installed Sec Master : Not Installed Sec Slave : Not Installed

Boot Sector Virus Protection : Disabled Month: Jan - Dec ESC:Exit

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

 Date:

The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar.

day The day, from Sun to Sat, determined by the BIOS and is

display-only

date The date, from 1 to 31 (or the maximum allowed in the month)

month The month, Jan through Dec.

year The year, from 1900 through 2099

 Time:

The time format is <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Page 36

 Floppy A / B:

The category identifies the types of floppy disk drive A or drive B that have been installed in the computer.

None

360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

No floppy drive installed

capacity

 Pri Master/Slave & Sec Master/Slave:

The categories identify the types of 4 channels that have been installed in the computer. There are 45 predefined types with 4 user-definable types for Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type user is user-definable. Press PgUp or PgDn to select a numbered hard disk type or type the number and press <Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Type “User” to define your own drive type manually. If you select Type “User”, you will need to know the information listed below. Enter the information directly from the keyboard and press <Enter>. This information should be included in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is ESDI, the selection shall be “Type 1”. If the controller of HDD interface is SCSI, the selection shall be “None”. If you select Type ”Auto”, BIOS will Auto-Detect the HDD & CD-ROM Drive at the POST stage and showing the IDE for HDD & CD-ROM Drive. If a hard disk has not been installed select NONE and press <Enter>.

TYPE drive type

CYLS. number of cylinders

HEADS number of heads PRECOMP write precompensation SECTORS number of sectors

MODE mode type

Page 37

 Boot Sector Virus Protection:

Disabled

If set to Enabled, this category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and an error message will appear. You may run anti-virus program to locate the problem.

Enabled Activates automatically when the system boots up causing a

warning message to appear when anything attempts to access the boot sector or hard disk partition table. No warning message will appear when anything attempts to

(default)

access the boot sector or hard disk partition table.

 Memory:

The category is display-only that is determined by POST (Power On Self Test) of the BIOS.

 Base Memory: The POST will determine the amount of base

 Extd Memory: The BIOS determines how much extended

(or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for systems with 640K or more memory installed

on the motherboard.

memory is present during the POST. This is the amount of memory located above 1MB in the CPU's memory address map.

Page 38

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Enabled 1st Boot Device Floppy 2nd Boot Device IDE-0 Enabled 3rd Boot Device CD-ROM Try Other Boot Devices Yes Initial Display Mode BIOS Display Mode at Add-On ROM nit Force BIOS Floppy Access Control Read-Write S.M.A.R.T. for hard Disks Disabled BootUp Num-Lock On Floppy Drive Seek Disabled PS/2 Mouse Support Enabled Primary Display VGA/EGA Password Check Setup Boot To OS/2 No Wait For ‘F1’ If Error Enabled Hit ‘DEL’ Message Display Enabled CPU Serial Number Enabled L1 Cache Writeback L2 Cache Writeback System BIOS Cacheable Disabled C000,16k Shadow Enabled C400,16k Shadow Enabled C800,16k Shadow Enabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled

Available Options:

Disabled



:Sel

F1:Help F2/F3:Color

 Quick Boot:

When set as enabled, the program disables the DRAM testing function. The available options are Enabled, and Disabled.

 1st Boot Device:

This option sets the type of device from where the BIOS will FIRST seek to boot from after AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

Page 39

 2nd Boot Device:

This option sets the type of SECOND device from where the BIOS will seek to boot from, if and when the 1st AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

 3rd Boot Device:

This option sets the type of THIRD device from where the BIOS will seek to boot from, if and when the 1st fail after AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

 Try Other Boot Devices:

Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system. This is useful if the BIOS cannot find a boot drive among the drives specified in the 1st /2nd/3rd/4th Boot Devices. The available settings are Yes, and No.

 Initial Display Mode:

This feature can control the display on/off settings of your OEM full logo screen.

 Floppy Access Control:

This option specifies the read/write access that is set when booting from a floppy drive. The available settings are Read/Write, and Read-Only.

 S.M.A.R.T. for Hard Disks:

Self-Monitoring, Analysis and Reporting Technology. This option can help the BIOS in warning the user of possible device failure, giving user a chance to back up the device before actual failure happens. The available options are Enabled, and Disabled.

 BootUp Num-Lock:

When set as On, this option turns off numeric lock when the system is powered, allowing the end user to use the arrow keys on both the numeric keypad and the keyboard.

 Floppy Drive Seek:

Set this option to Enabled to specify that floppy drive A: will perform a Seek operation at system boot. The available options are Enabled, and Disabled.

 PS/2 Mouse Support:

When this option is enabled, BIOS allows the system to support a PS/2 type mouse. The available options are Enabled, and Disabled.

Boot Device fails after

and 2nd Boot Devices

Page 40

 Primary Display:

 Password Check:

 Boot To OS/2:

 L1 Cache:

 L2 Cache:

 System BIOS Cacheable:

 C000,16k/C400,16k/C800,16k/ CC00,16k/D000,16k/D400,16k/D800,16k/

Select this option to configure the type of monitor attached to the computer. The available settings are Monochrome, Color 40x25, Color 80x25, VGA/PGA/EGA, and Absent.

This option enables the password check option every time the system boots or the end user runs Setup. If set as Always, a user password prompt appears every time the computer is tuned on. If setup is chosen, the password prompt appears if BIOS is executed.

Set this option to Enabled if running OS/2 operating system and using more than 64MB of system memory on the system board. The available options are Yes, and No.

This option enables or disables the internal cache memory of the installed processor.

This option enables/disables the secondary cache memory of your board. The available options are Enabled, and Disabled.

When this option is enabled, the System ROM area from C000-DC00 is copied (shadowed) to RAM for faster execution.

DC00,16k Shadow:

These options enable shadowing of the contents of the ROM area named in the option title. The available settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

Enabled

Disabled The contents of the video ROM are not copied to RAM

Cached The contents of the video ROM area from

Video ROM area from C0000-C7FFF is copied (shadowed) from ROM to RAM for faster execution.

C0000h-C7FFFh are copied from ROM to RAM and can be written to or read from cache memory.

Page 41

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

CPU Ratio Selection Safe Mode Available Options: CPU BIST Enable Disabled ICH Delayed Transaction Disabled 3.0x DMA Collection Buffer Enable Disabled 3.5x DRAM Page Closing Policy Open 4.0x Memory Hole Disabled 4.5x Auto detect PCI Clock Disabled 5.0x

ClkGen Spread Spectrum Enabled 5.5x System memory Frequency 133MHz 6.0x SDRAM Timing by SPD Enabled 6.5x

DRAM Refresh 7.8us 7.0x DRAM Cycle time (SCLKs) 5/7 7.5x CAS# Latency (SCLKs) 2 8.0x

RAS to CAS delay (SCLKs) 3 SDRAM RAS# Precharge (SCLKs) 3 Internal Graphics Mode Select 1MB Display Cache Window Size 64MB AGP Aperture Window 64MB Local memory Frequency 100MHz Initialize Display Cache Memory Enabled Paging Mode Control Close RAS – to CAS Default RAS Latency Slow RAS Timing Slow RAS Precharge Timing Slow CPU Latency Timer Disabled USB Function All USB Port ESC:Exit USB Device Legacy Support Disabled PgUp/PgDn: Modify Port 64/60 Emulation Disabled F1:Help F2/F3:Color

Safe Mode



:Sel

 ICH Delayed Transaction:

This function allows you to enable or disable PCI 2.1 features including passive release and delayed transaction.

Page 42

 DMA Collection Buffer Enable:

 DRAM Page Closing Policy:

 Memory Hole:

 Internal Graphics Mode Select:

 Display Cache Window Size:

 AGP Aperture Window :

 Initialize Display Cache Memory:

 CPU Latency Timer:

 USB Function:

This option allows the BIOS to auto-detect the DMA mode of the Intel 82801BA chip. When disabled, the drive mode settings on the Standard CMOS Setup screen may be manually configured according to user’s preference. The available choices are Enabled and Disabled.

After a page miss cycle, this item controls whether the Graphics and Memory Controller Hub (GMCH) will issue a "precharge only the bank" or a "precharge all" command to a specific opened SDRAM bank.

This field allows you to reserve an address space for ISA devices that require it. The available options are Disabled, and 15MB-16MB.

This option assigns the memory size to be allocated as shared memory of the Intel 82815 VGA chip. The available choices are 1MB, 512K and Disabled. Disabling this item will shut off the VGA capabilities of your HS-6238.

This feature allows you to select the size of mapped memory for Display Cache data.

This feature allows you to select the size of mapped memory for AGP graphic data.

This field must be enabled to see other "Display Cache" related configuration fields.

 Paging Mode Control:

The available options are Closed, and Open.

 RAS-to-CAS:

With the default setting [Determined by DCCAS],this field has the same configuration as "Display Cache CAS Latency (DCCAS)".

 CAS Latency / RAS Timing / RAS Precharge Timing:

The available options are Slow, and Fast.

Leave this option to its default setting, Disabled, for best performance vs. stability.

This system board supports Universal Serial Bus (USB) devices. Set to "All USB Port" if you want to use USB devices.

Page 43

 USB Device Legacy Support:

This system board supports Universal Serial Bus (USB) devices. If detected, USB controller legacy mode will be enabled. If not detected, USB controller legacy mode will be disabled.

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S No Available Options: Sleep State S1/POS Power Management/APM Enabled Yes Suspend Time Out Disabled Keyboard & PS/2 Mouse Monitor System Thermal Ignore Power Button Function On/OFF Restore On AC/Power Loss Last State Wake Up On Ring Disabled Wake Up On LAN Disabled Wake Up On PME Disabled Resume By alarm Disabled Alarm Date 15 Alarm Hour 12 ESC:Exit Alarm Minute 30 PgUp/PgDn: Modify Alarm Second 30 F1:Help F2/F3:Color



:Sel



ACPI Aware O/S:

This item is the Advanced Configuration and Power Interface (ACPI) function switch. The available options are Enabled, and Disabled.

 Sleep State:

This item serves as the switch setting of STR (S3) or POS (S1) function. Configuration options are S3/STR, and S1/POS.

 Power Management/APM:

Set this option to Enabled to switch on the APM (Advanced Power Management). The available options are Enabled, and Disabled.

Page 44

 Suspend Time Out:

This option specifies the length of system inactivity period while in the Standby state. When this length of time expires, the computer enters Suspend power state.

 Keyboard & PS/2 Mouse:

Enabling these options monitors the IRQ input of inactive and active devices. This allows the system to determine whether to enter Auto_mode/SMI_mode when it detects an inactive device, or Normal_mode once an active device is detected.

 Restore on AC/Power Loss:

This field registers the last power supply unit attached to your system. If an ATX power was last used before changing to AT power supply, setting this field to Last State (default) will NOT make the AT power supply function properly on your next boot up process. Setting this field to Power On auto-detects the power supply installed each time you boot up.

 Wake Up On Ring:

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state. The available choices are Enabled, Disabled.

 Wake Up On Lan

An input signal on the local area network (LAN) awakens the system from a soft off state.

 Wake Up On PME

A PME# detected resumes or wakes the system from a Soft Off state.

 Resume By Alarm

When this option is set enabled, system will according to you set time then wakeup from soft off mode.

 Alarm Date/Hour/Minute/Second

You can set these fields to specify the alarm settings of your system.

Page 45

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM on Every Boot No PCT latency Timer (PCI Clocks) 64 Yes Primary Graphics Adapter Auto Allocate IRQ to PCI VGA Yes PCI IDE BusMaster Enabled DMA Channel 0 PnP DMA Channel 1 PnP DMA Channel 3 PnP DMA Channel 5 PnP DMA Channel 6 PnP DMA Channel 7 PnP IRQ3 PCI/PnP IRQ4 PCI/PnP IRQ5 PCI/PnP IRQ7 PCI/PnP IRQ9 PCI/PnP IRQ10 PCI/PnP IRQ11 PCI/PnP ESC:Exit IRQ14 PCI/PnP PgUp/PgDn: Modify IRQ15 PCI/PnP F1:Help F2/F3:Color



:Sel



Plug and Play Aware O/S:

If enabled, BIOS will configure only PnP ISA boot devices (i.e., all PnP ISA cards with boot flag set) then configure all other devices. If disabled, the BIOS will configure all devices without following any sequence.

 Clear NVRAM on Every Boot:

When this option is set to Yes, the system can auto clear NVRAM.

 PCI Latency Timer (PCI Clocks):

This option specifies the latency timings (in PCI clocks) of PCI devices installed in the PCI expansion slots. The available settings are 32, 64, 96, 128, 160, 192, 224, and 248.

Page 46

 Primary Graphics Adapter:

 Allocate IRQ to PCI VGA:

 DMA Channel 0/1/3/5/6/7:

 IRQ3/4/5/7/9/10/11/14/15

The settings made on this field identify the type of display controller used in the system. The available choices are Auto, Internal, and External AGP/External PCI.

Set this option to Yes when allocating an IRQ to the VGA device on the PCI bus. The available settings are Yes, and No.

These options allow you to specify the bus type used by each DMA channel. The available settings are PnP, and ISA/EISA.

These options specify the bus on which the specified IRQ line is used. The options allow you to reserve IRQs for legacy ISA adapter cards. The options also determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If user needs to remove more IRQs from the pool, he can use each option to reserve the IRQ by assigning an ISA/EISA setting to each. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured as PCI/PnP.

Page 47

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC Enabled Available Options: OnBoard Serial Port 1 3F8/COM1 OnBoard Serial Port 2 2F8/COM2 Enabled OnBoard Serial Port 3 3E8

Serial Port3 IRQ IRQ10

OnBoard Serial Port 4 2E8

Serial Port4 Mode Normal Serial Port4 IRQ IRQ11

Receiver Polarity Non-Inverted Transmitter Polarity Non-Inverted

OnBoard Parallel Port 378

Parallel Port Mode ECP EPP Version N/A Parallel Port IRQ 7

Parallel Port DMA Channel 3 On-Chip IDE Both AC97 Audio Controller Auto OnBoard LAN Disabled

ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color

Disabled



:Sel

 OnBoard FDC:

Set this option to Enabled to activate the floppy drive controller on the system board. The available settings are Auto (AMIBIOS automatically determines if the floppy controller should be enabled), Enabled, and Disabled.

Page 48

 OnBoard Serial Port1/2/3/4:

 OnBoard Parallel Port:

 On-Chip IDE:



This option specifies the base I/O port address of serial ports 1, 2, 3 and 4. The available settings are Auto (AMIBIOS automatically determines the correct base I/O port address), Disabled, 3F8h, 2F8h, 2E8h, and 3E8h.

 Serial Port3/4 IRQ:

This category assigns the interrupt request for both serial ports 3 and 4. The available options are IRQ10 and IRQ11.

This option specifies the base I/O port address of parallel port on the system board. The available settings are Disabled, 378h, 278h, and 3BCh.

 Parallel Port Mode:

This option specifies the parallel port mode. The available settings are Normal, Bi-Dir, EPP, and ECP.

Normal: The normal parallel port mode is used. Bi-Dir: Use this setting to support bi-directional transfers on

the parallel port. EPP: The parallel port can be used with devices that adhere to the Enhanced Parallel Port (EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bi-directional data transfer driven by the host device.

The parallel port can be used with devices that adhere

ECP:

to the Extended Capabilities Port (ECP) specification. ECP uses the DMA protocol to achieve data transfer rates up to

2.5 Megabits per second. ECP provides symmetric bi-directional communication.

 Parallel Port IRQ:

This option specifies the IRQ used by the parallel port. The available settings are Auto, (IRQ)5, and (IRQ)7.

 Parallel Port DMA Channel:

This option is only available if the setting for the Parallel Port Mode option is ECP. This option sets the DMA channel used by the parallel port. The available settings are DMA Channel 0, 1, and 3.

This option specifies the IDE channel used by the onboard IDE controller. The available settings are Disabled, Primary, and Secondary.

AC97 Audio Controller

When set as Enabled, this item allows the BIOS program to auto-detect the presence of the AC’97 audio controller onboard. Disabling this item will automatically null the use of the controller, if there is one onboard. The available settings are Enabled and Disabled.

Page 49

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Temperature Detected by CPU Available Options:

CPU Temperature System Temperature Thermistor Power Temperature CPU Fan Speed Chassis Fan Speed Power Fan Speed CPU VID 2.00V Vcore Vtt Vio + 5.000V +12.000V

-12.000V

- 5.000V Battery

+5V SB ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color



CPU Temperature Detected by:

This field determines which component will detect the CPU temperature. If your board comes with a provision for a thermal connector, you may set this field as Thermistor. Otherwise, please configure it as CPU (also default setting).

 CPU Temperature:

This read-only field displays the current CPU temperature as part of the hardware monitoring feature of your board.

 System Temp by:

This field displays the current system and power supply temperatures, if your computer contains a monitoring system. The available choices are Both and Supervisor.

 CPU/Chassis/Power FAN Speeds:

These fields display the current speed of up to CPU, chassis (system) and Power supply fans, if your computer contains a monitoring system.



Vcore/Vtt/Vio/-5V/-12V/+5V/+12V/Battery/+5V SB:

Once the hardware monitoring IC detects the current voltages of voltage regulators and power supply unit, it shows the values on these fields for read-only purposes.

CPU



:Sel

Page 50

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 51

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

Page 52

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 53

4.14 Optimal Configuration with Fail Safe Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 54

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Page 55

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 56

This page intentionally left blank.

Page 57

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN and Audio driver installation procedures. The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

5.1 IDE Driver Installation

5.1.1 Installing Intel 815 Chipset Software

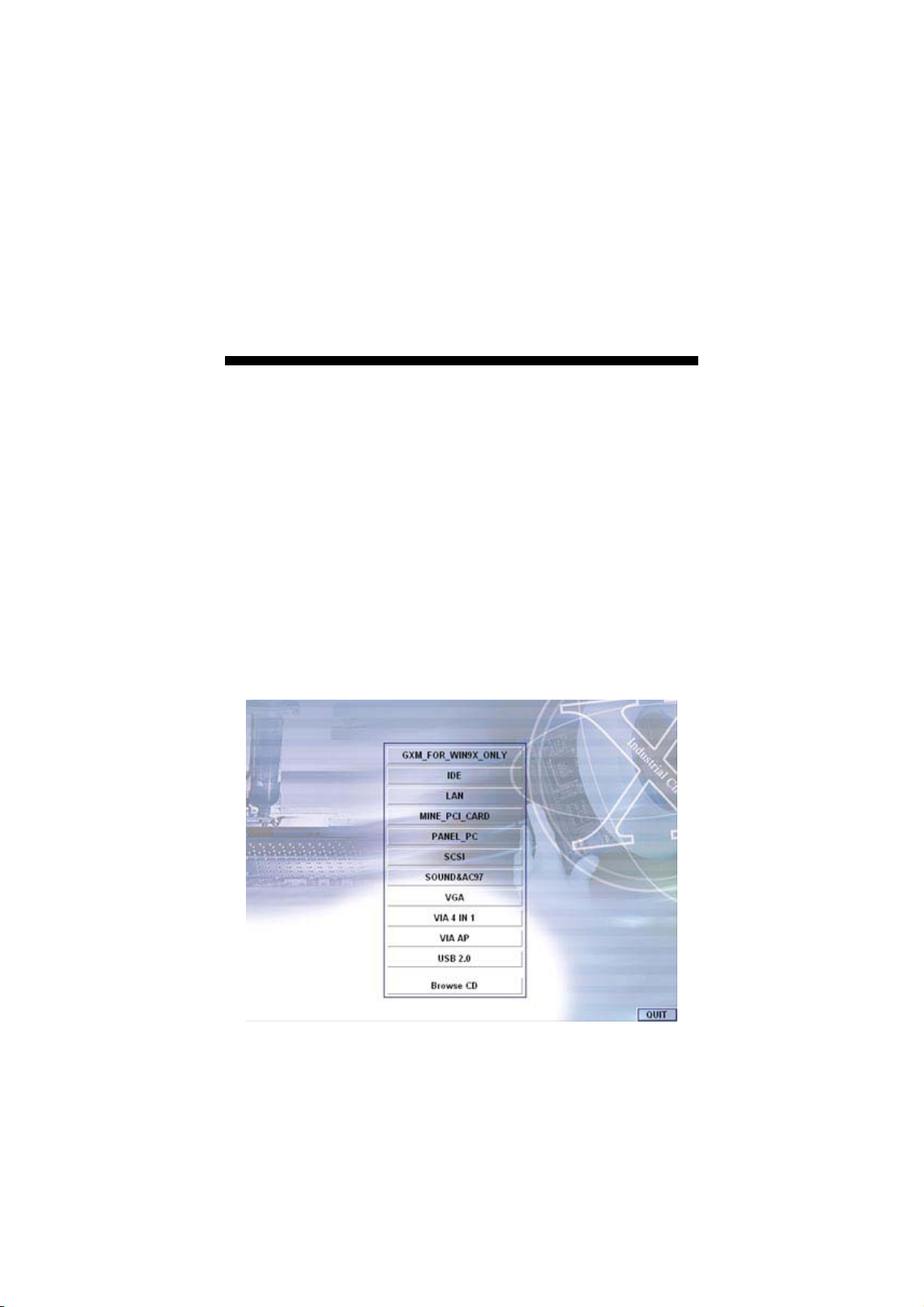

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the IDE button to launch the installation program.

Page 58

2. Click on the

3. When the click on the the IDE plug and play information files into your system.

INTEL_ICH2

IDE \ INTEL_ICH2

INTEL_R&HIPSET_SOFTWARE_INS

button to continue.

box appears on your screen,

to install

Page 59

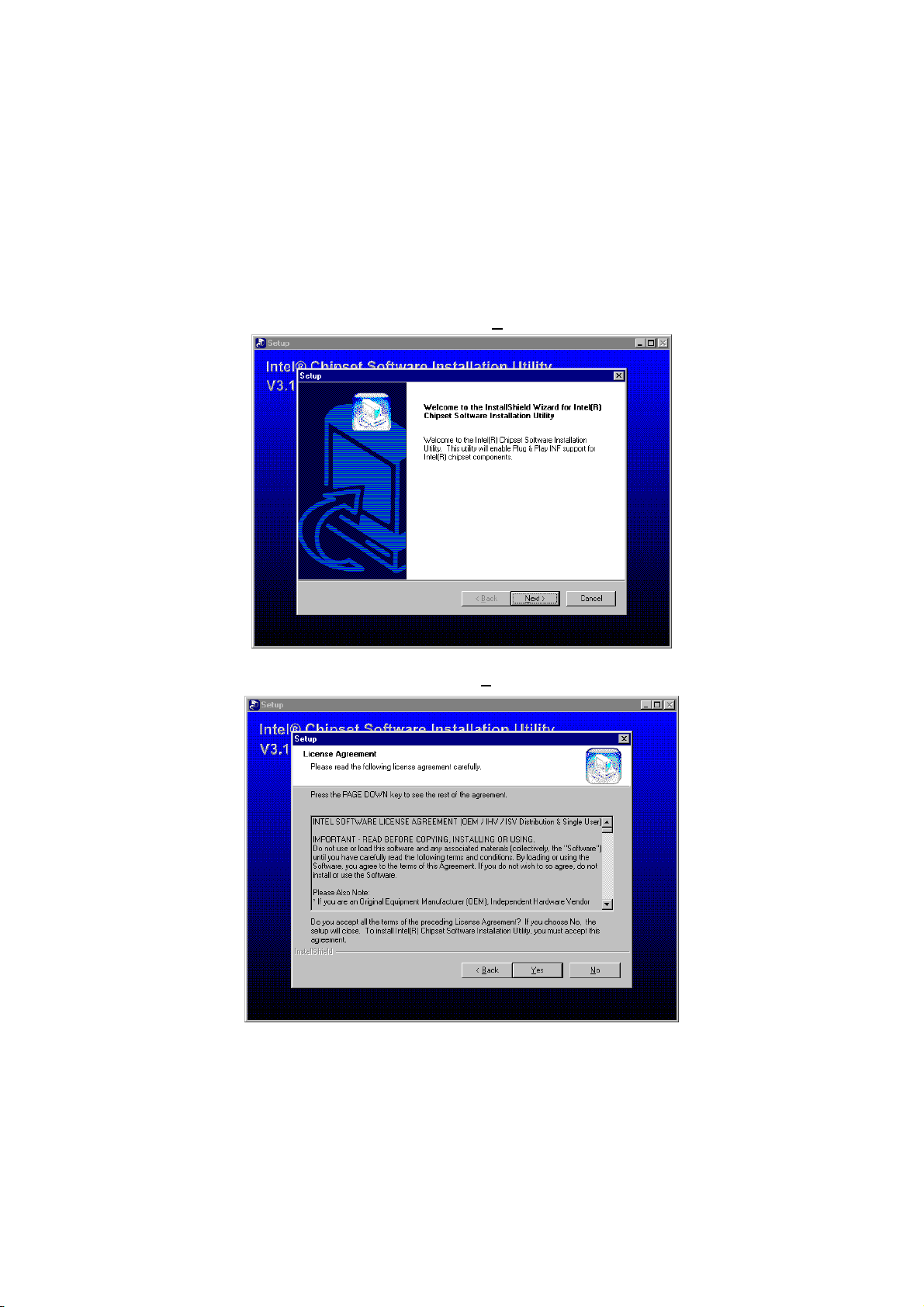

4. Immediately after clicking the IDE button i n S t e p 1 , t h e p r og r a m launches the InstallShield Wizard that will assist you in the installation process. Click on the

ext >

button to proceed.

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose

to proceed.

Page 60

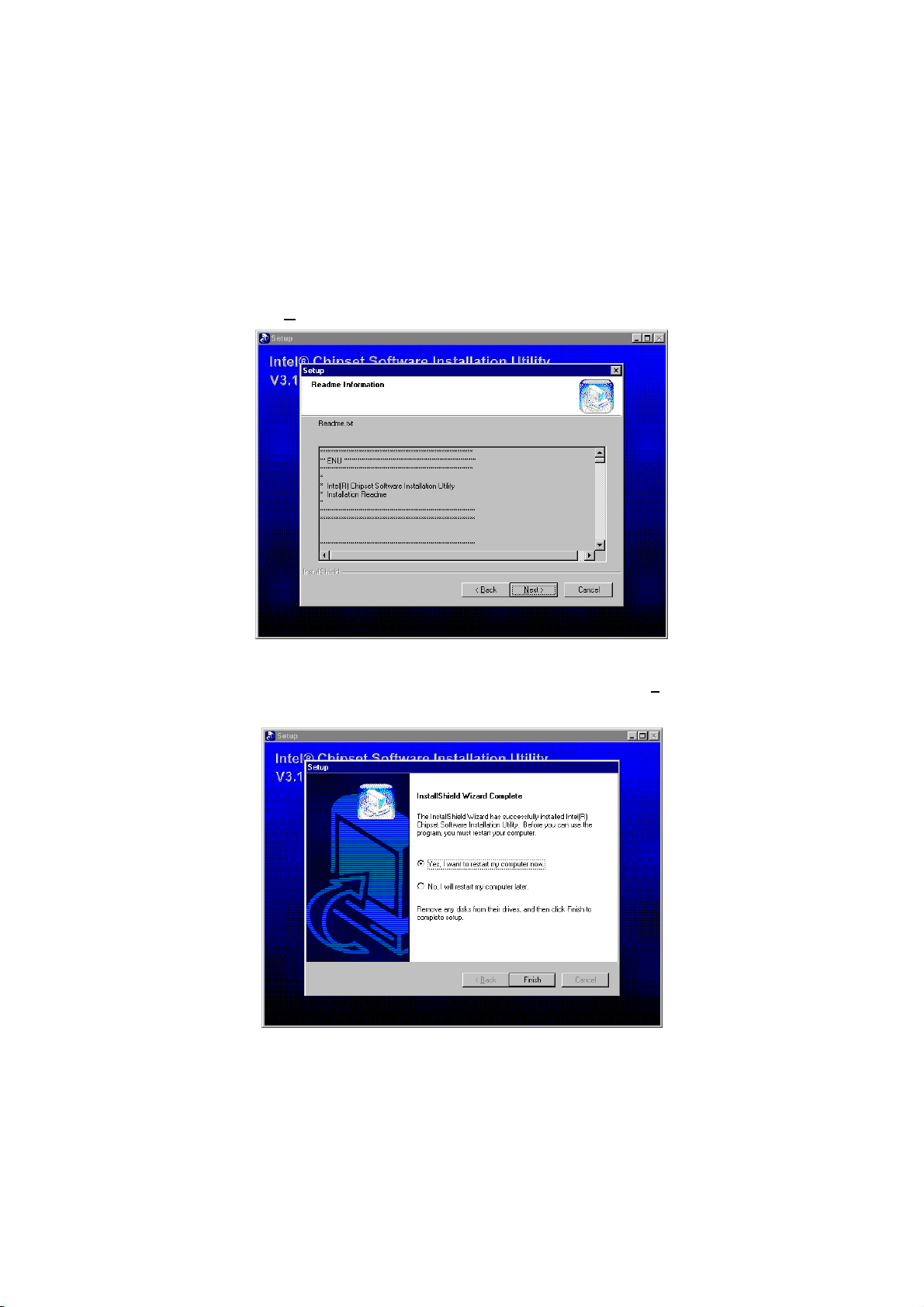

6. When the Readme Information dialog box pops up, just click on the

ext

button to proceed.

7. Once the InstallShield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the

to restart my computer now

button to reboot. Only after your computer boots will the new settings take effect.

followed by a click on the

Yes, I want

inish

Page 61

5.1.2 Installing Intel Security Driver

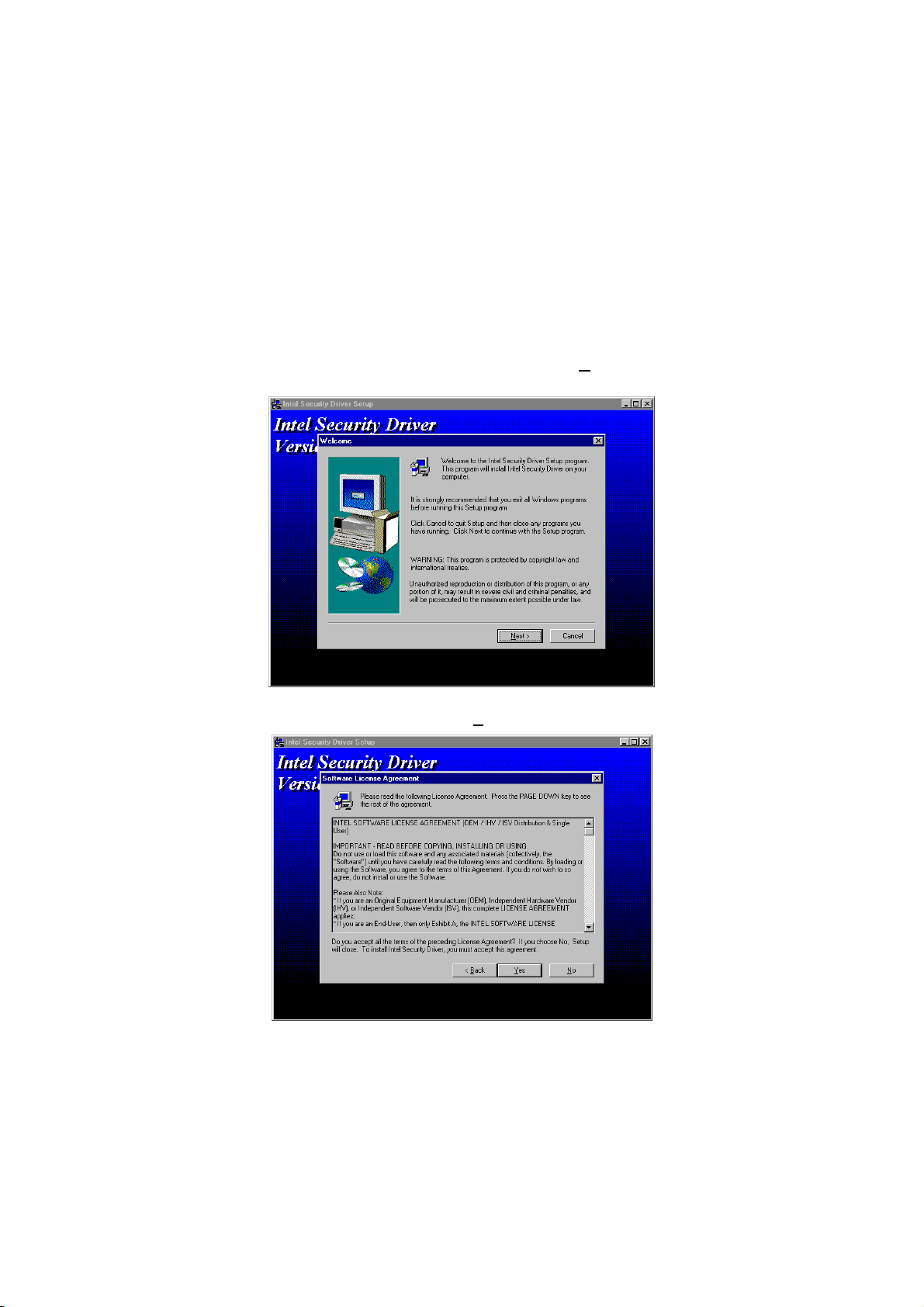

1. Following Steps 1 ~ 3 of the Intel 815 chipset software (from the preceding section), click on the button. When the dialog box below appears, make sure you close all other Windows applications then click on the proceed.

2. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose

INTEL_SECURITY_ DRIVER

ext >

button to

to proceed.

Page 62

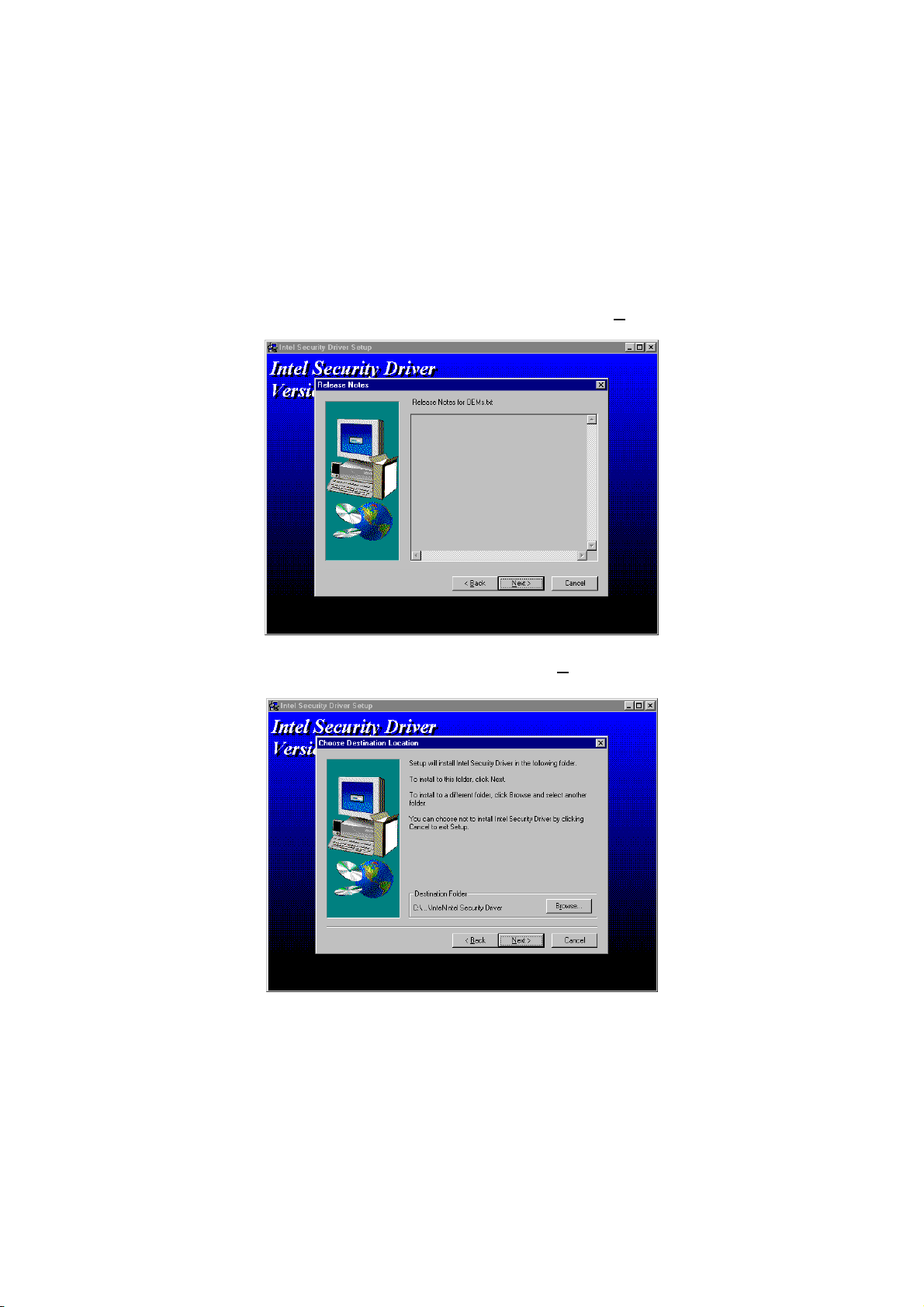

3. When the any important information listed before clicking the button.

Release Notes

box pops on the screen, read through

ext >

4. Setup will then prompt you to specify the path where you would like the Security driver installed. Select the you have made your path/installation choice.

ext >

button after

Page 63

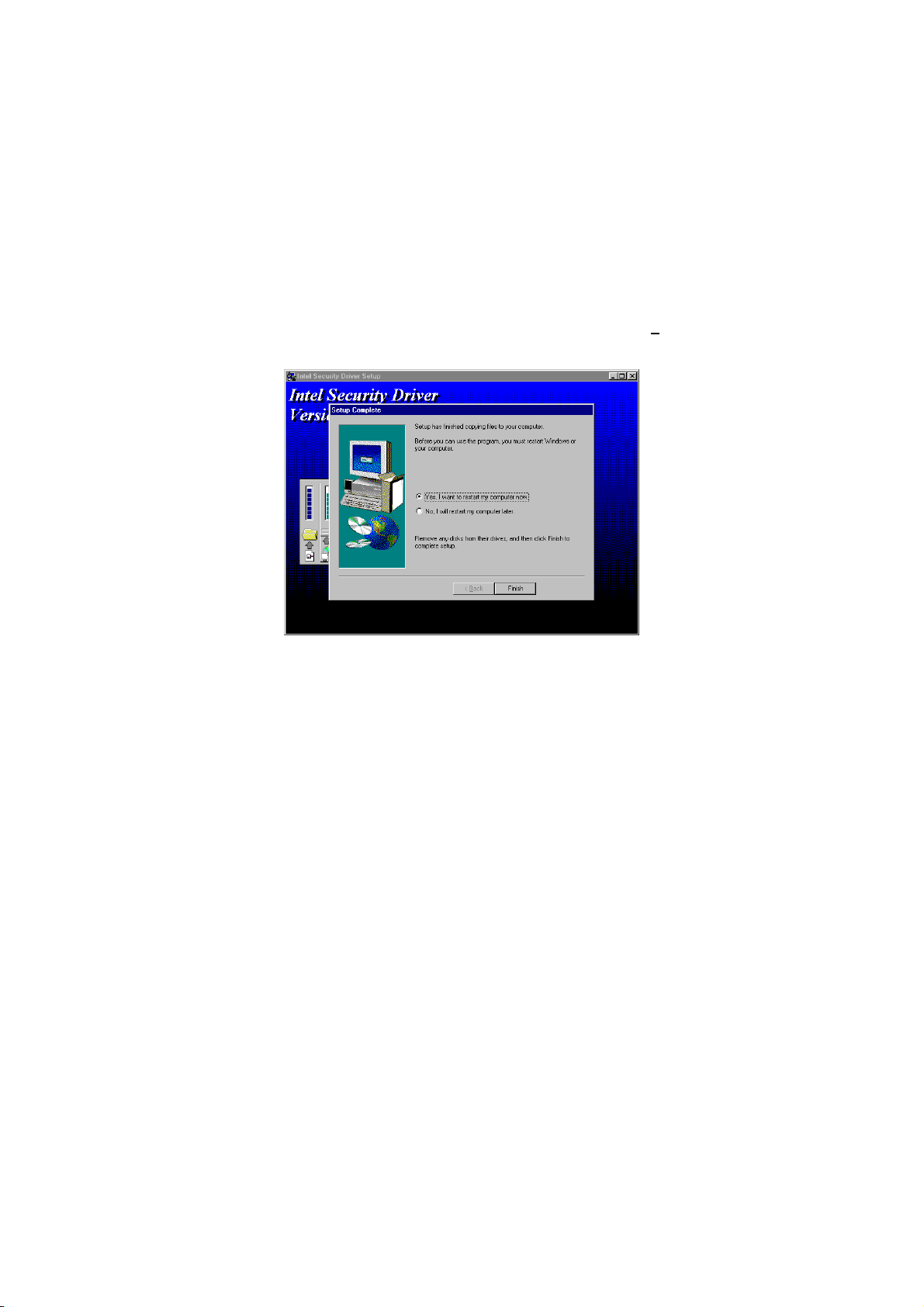

5. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the

to restart my computer now

button to reboot. Only after your computer boots will the new settings take effect.

followed by a click on the

Yes, I want

inish

Page 64

5.2 VGA Driver Installation

5.2.1 Win 95/98

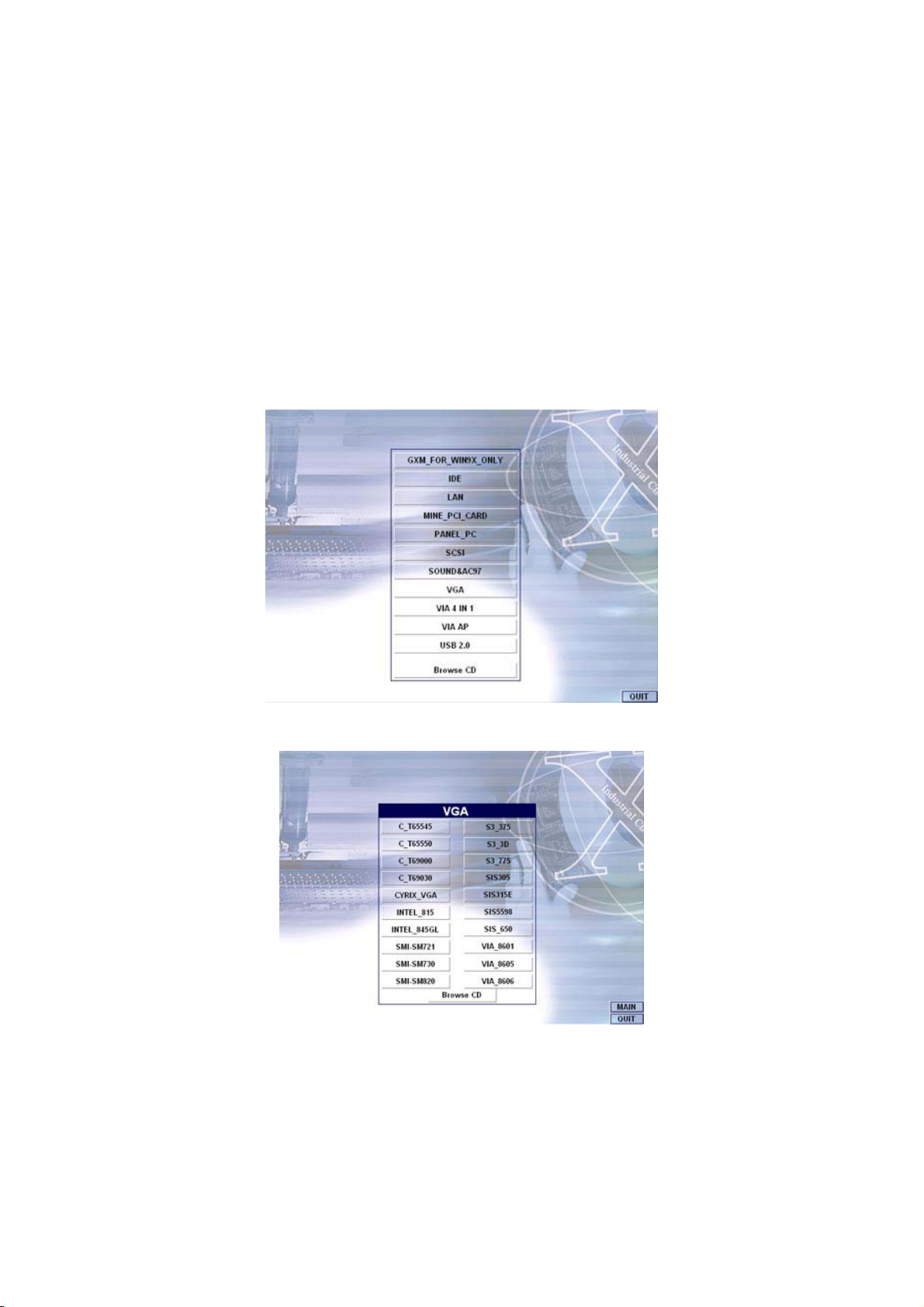

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press utilities window pops on the screen, select the

2. When the VGA main utility window is displayed. Select

INTEL_815

Enter

to proceed installing. When the main

to continue.

VGA

button.

Page 65

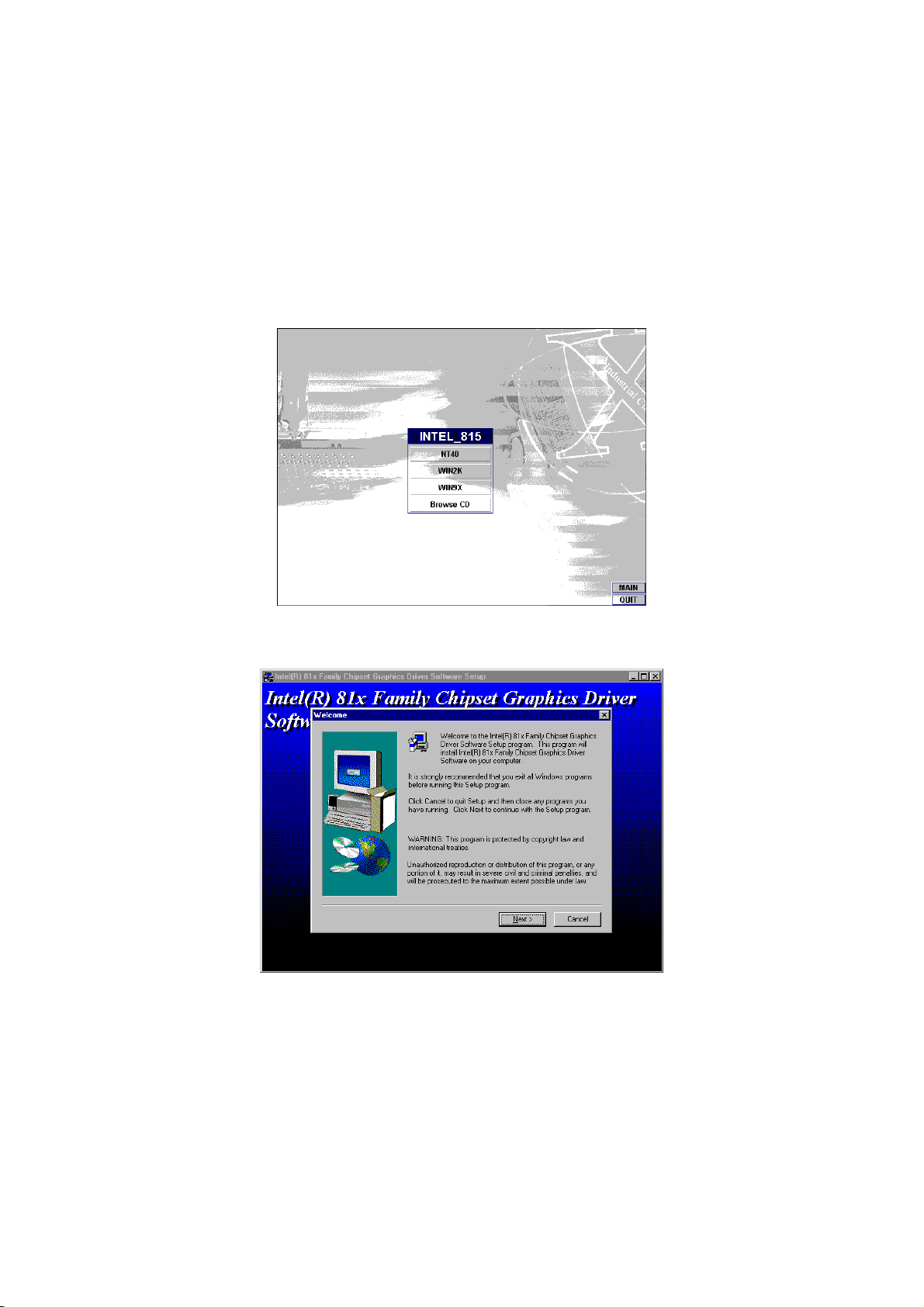

3. The INTEL_815 window shows up next. Select the corresponding installation program.

WIN9X

to invoke

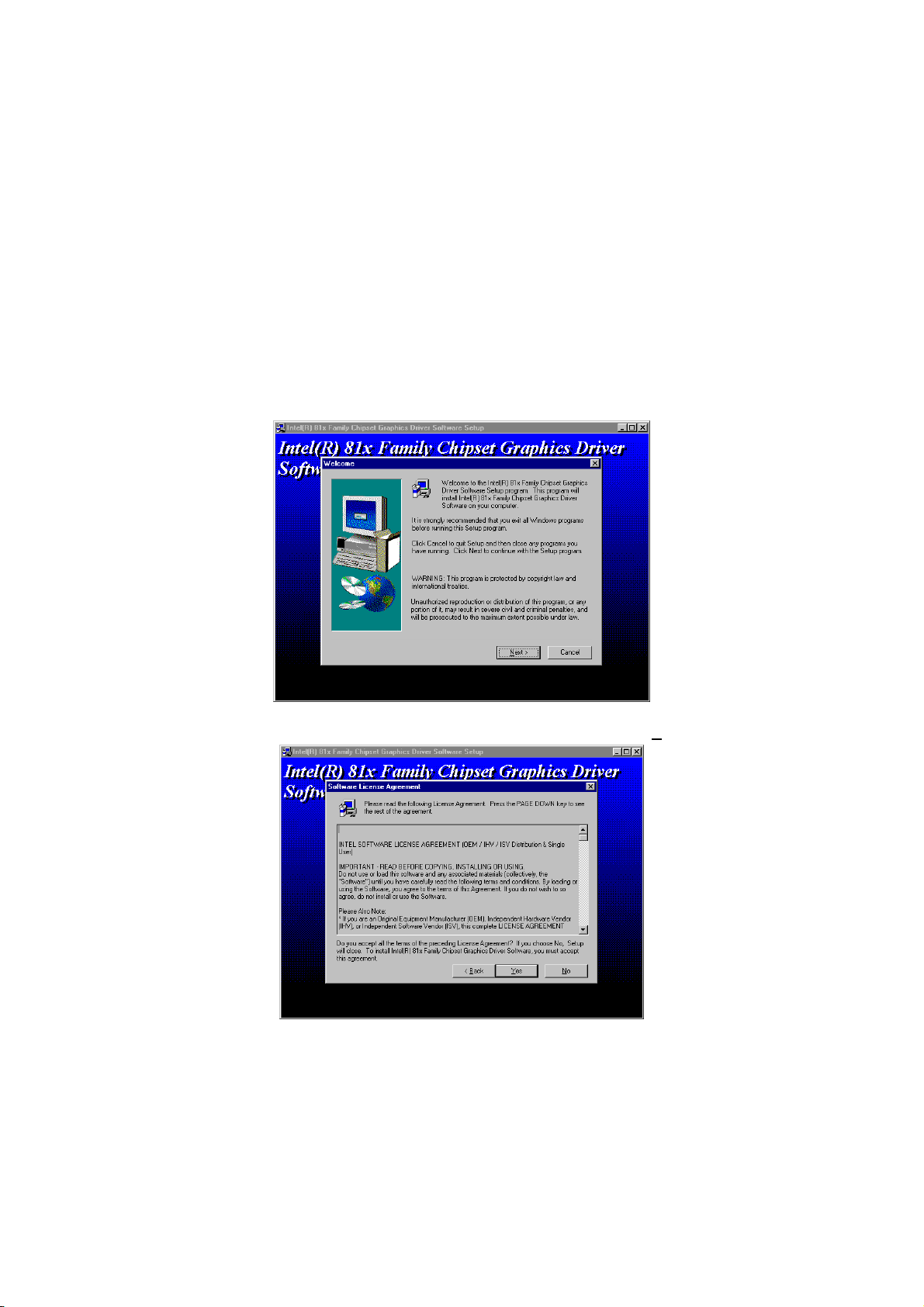

4. The program launches an introduction screen of what graphics driver it will install. Close all other running Windows applications then click on the

Next >

button to proceed.

Page 66

5. Immediately after clicking on the Software License Agreement pops on the screen. Choose proceed.

6. The VGA driver utility program starts copying files needed by your Win98 to invoke the VGA capabilities. Once finishes, the system will prompt you to restart your computer. Tick on the

Yes, I want to restart my computer now

on the

Finish

button to complete the installation.

Next >

button, the Intel OEM

followed by a click

Page 67

5.2.2 Win 2000

1. Follow steps 1 and 2 from the Win9x installation procedure. When the INTEL_815 window shows up, select WIN2K to invoke the installation program to your Win 2000 OS.

2. The program launches the InstallShield Wizard for Intel 810/810E/815/815E/815EM chipset graphics. Close all other running Windows applications then click on the

Next >

button.

Page 68

3. Immediately after clicking the Software License Agreement pops on the screen. Choose

Next >

button, the Intel OEM

4. Once the utility program finishes copying and installing all the necessary files into your system, it will prompt you to restart your computer. Tick on the

computer now

complete the installation.

followed by a click on the

Yes, I want to restart my

Finish

button to

Page 69

5.2.3 Win NT4.0

1. Follow steps 1 and 2 from the Win9x installation procedure. When the INTEL_815 window shows up, select the installation program to your Win 2000 OS.

2. The program launches an introduction screen of the graphics it will install. Close all other running Windows applications then click on the

3. Immediately after clicking on the Software License Agreement pops on the screen. Choose

Next >

button to proceed.

Next >

NT40

to invoke

button, the Intel OEM

Page 70

4. Once the utility program finishes copying and installing all the necessary files into your system, it will prompt you to restart your computer. Tick on the

computer now

complete the installation.

followed by a click on the

Yes, I want to restart my

Finish

button to

5.3 LAN Driver Installation

5.3.1 Win 95/98

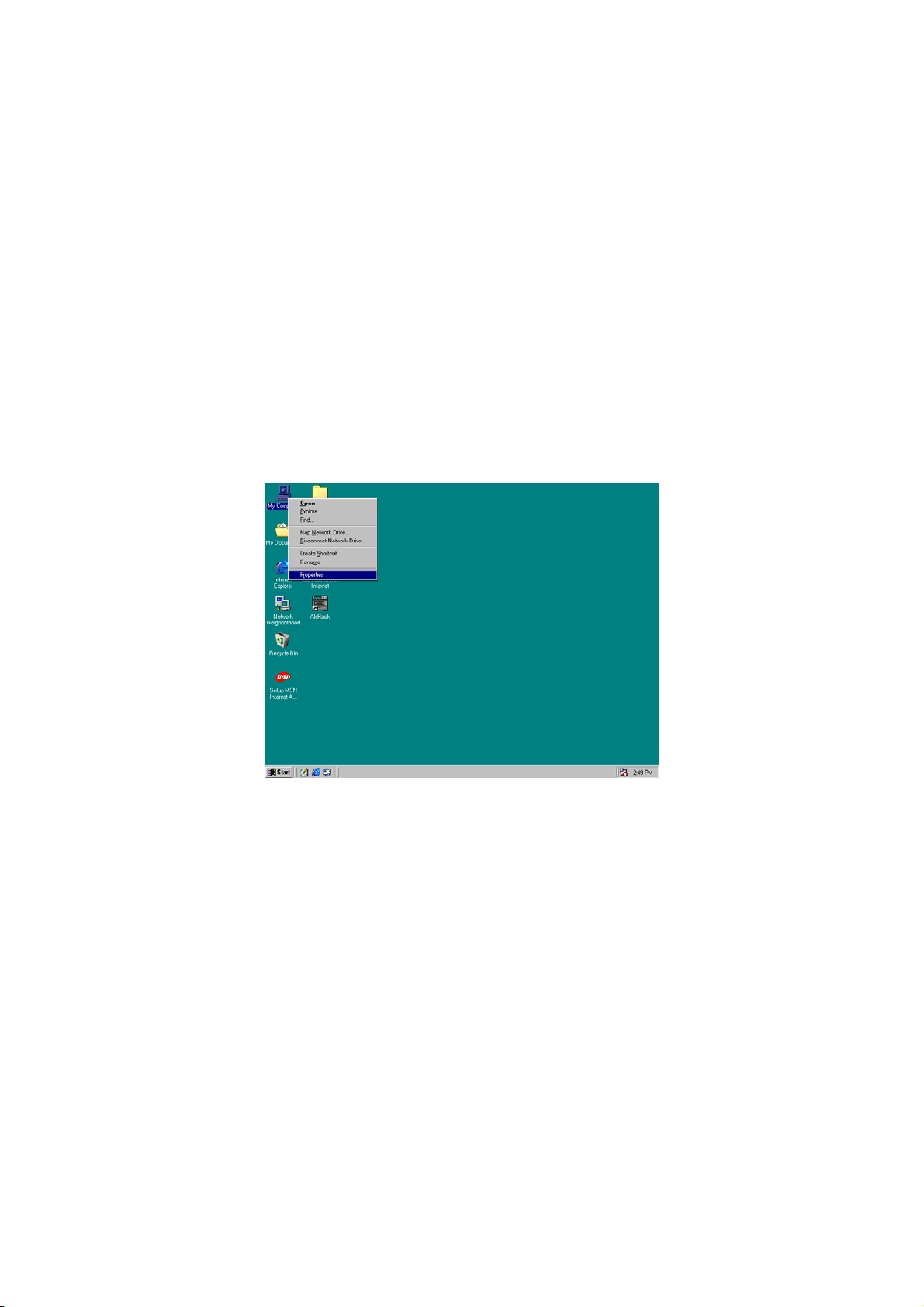

1. Right click on item from the pop-up menu.

My Computer

icon then scroll to the

Properties

2. Select

Device Manager

devices installed appears, scroll down to the then select on button to access the details of this unknown device. Refer to the following screen shot for an clearer explanation of this step.

PCI Ethernet Controller

from the top menu bar. A list of all

Other devices

. Select the Properties

and

Page 71

3. Once the the screen, click on the

Update Device Driver Wizard

PCI Ethernet Controller Properties

Update Driver …

screen.

screen pops on

button to launch the

Page 72

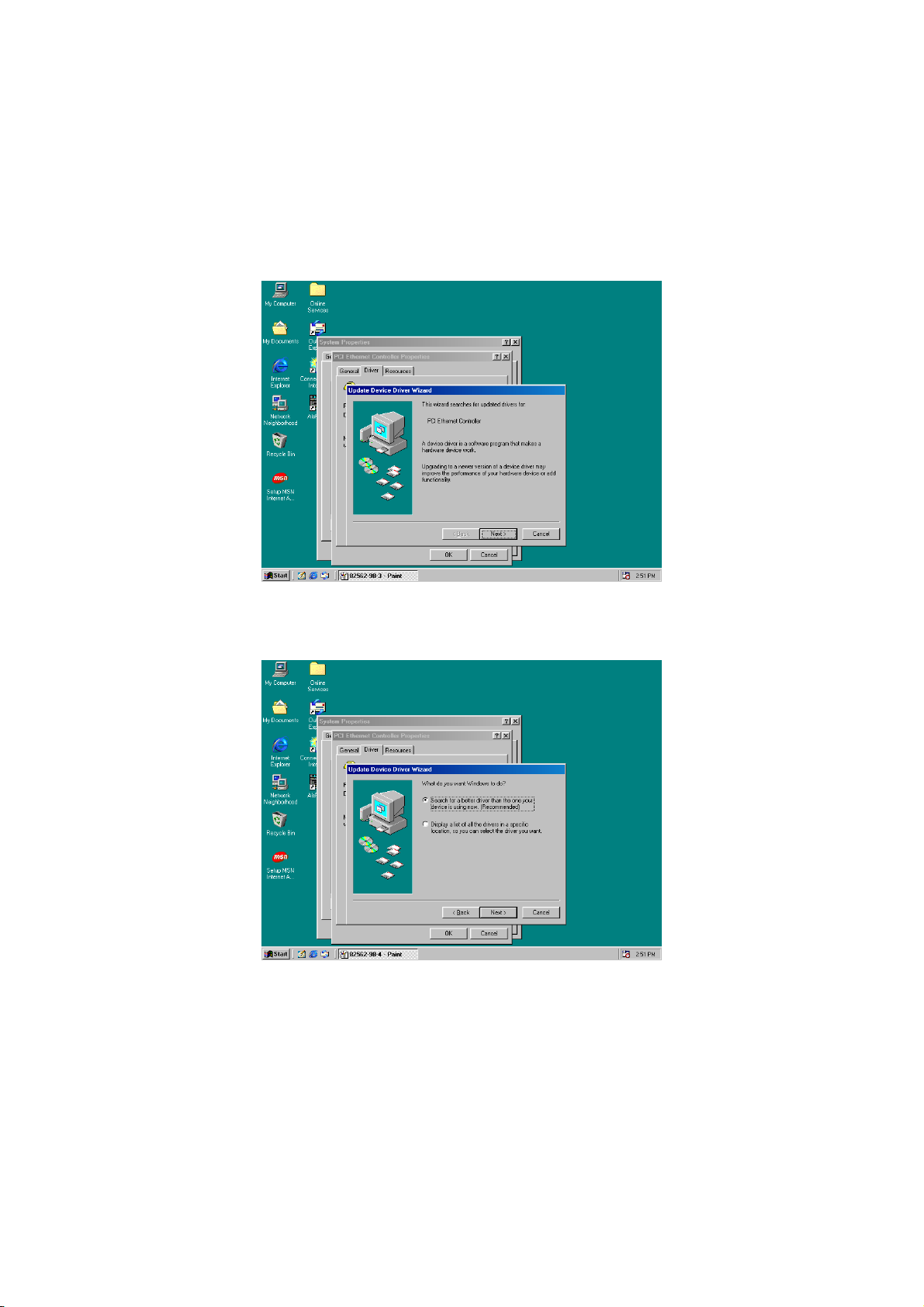

4. The succeeding screen then lets you choose whether to search for a better driver for the LAN or display the available list of drivers.

Search for a better driver than the one your device

Select

is using now

followed by a click on the

Next >

button.

Page 73

5. The wizard program will then require you to specify the location of the driver file. Tick on the select the path where the driver files exist (c:\i82562). Click on

Next >

the

button to proceed.

Specify a location:

and type or

Page 74

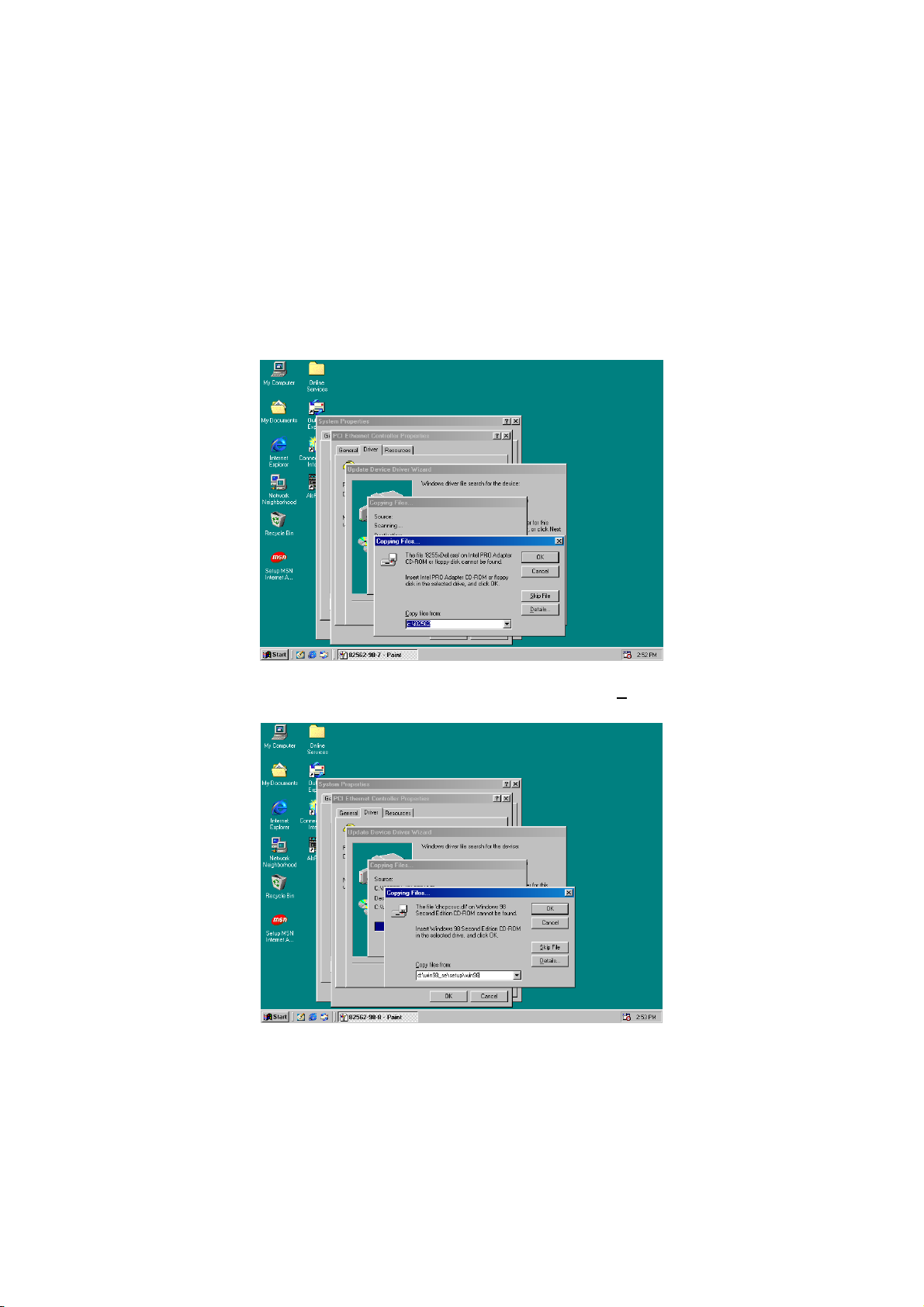

6. The program now starts copying the file(s) needed by your Win98 . W h e n t h e p r o g r a m fa i l s t o s e e k f or 8 2 5 5 x De l . e x e f i l e f r o m your specified location, it will prompt you to specify the path where the Intel Pro Adapter exists.

7. With the Utility CD Disk on your CD drive, key in

d:\win98_se\setup\win98

from:

then press the OK button.

on the blank space below

opy files

Page 75

8. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click on the to proceed.

Finish

button

9. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change Y

button to complete the installation.

window below pops up. Click on the

Page 76

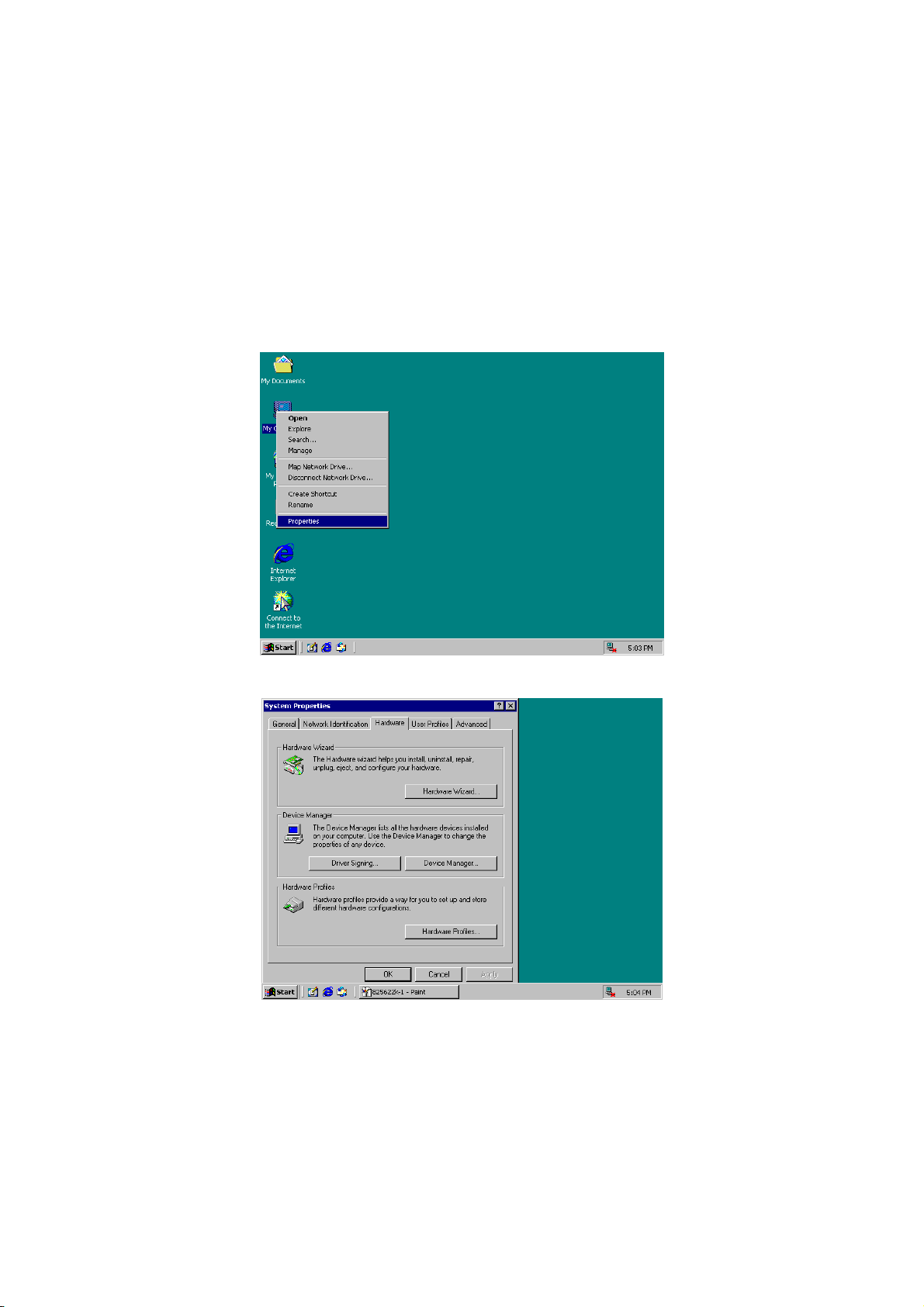

5.3.2 Win 2000

1. Right click on item from the pop-up menu.

2. When the System Properties window pops up on the screen, click on the

Device Manager

My Computer

button.

icon then scroll to the

Properties

Page 77

3. A list of all devices installed appears, scroll down to the

devices

the Properties button Refer to the following screen shot for an clearer explanation of this step.

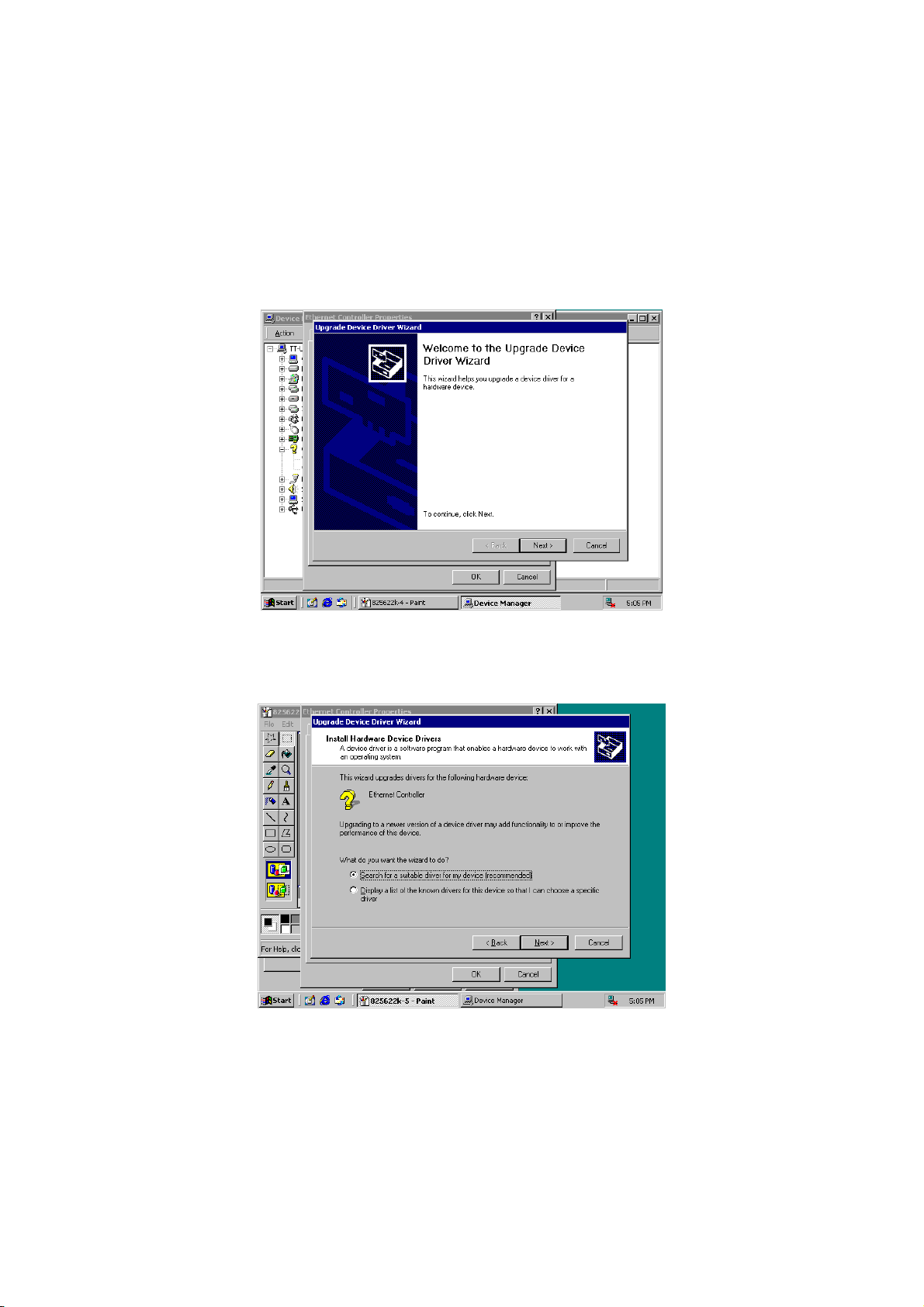

4. Once the screen, click on the

Update Device Driver Wizard Device Driver Wizard Driver …

and then right click on

Ethernet Controller Properties

Update Driver …

screen pops on the screen, click

to launch the Win 2000 driver installation program.

Ethernet Controller

screen pops on the

button to launch the

screen. Once the

Upgrade

to select

Other

Update

Page 78

5. Click on

Next >

button to proceed with the installation.

6. The wizard will then inform you the unknown device it detected

from the system. Since the Win200 drivers list do not include Intel chip driver onboard HS-6238, tick

than the one your device is using now

Next >

the

button to continue.

Search for a better driver

followed by a click on

Page 79

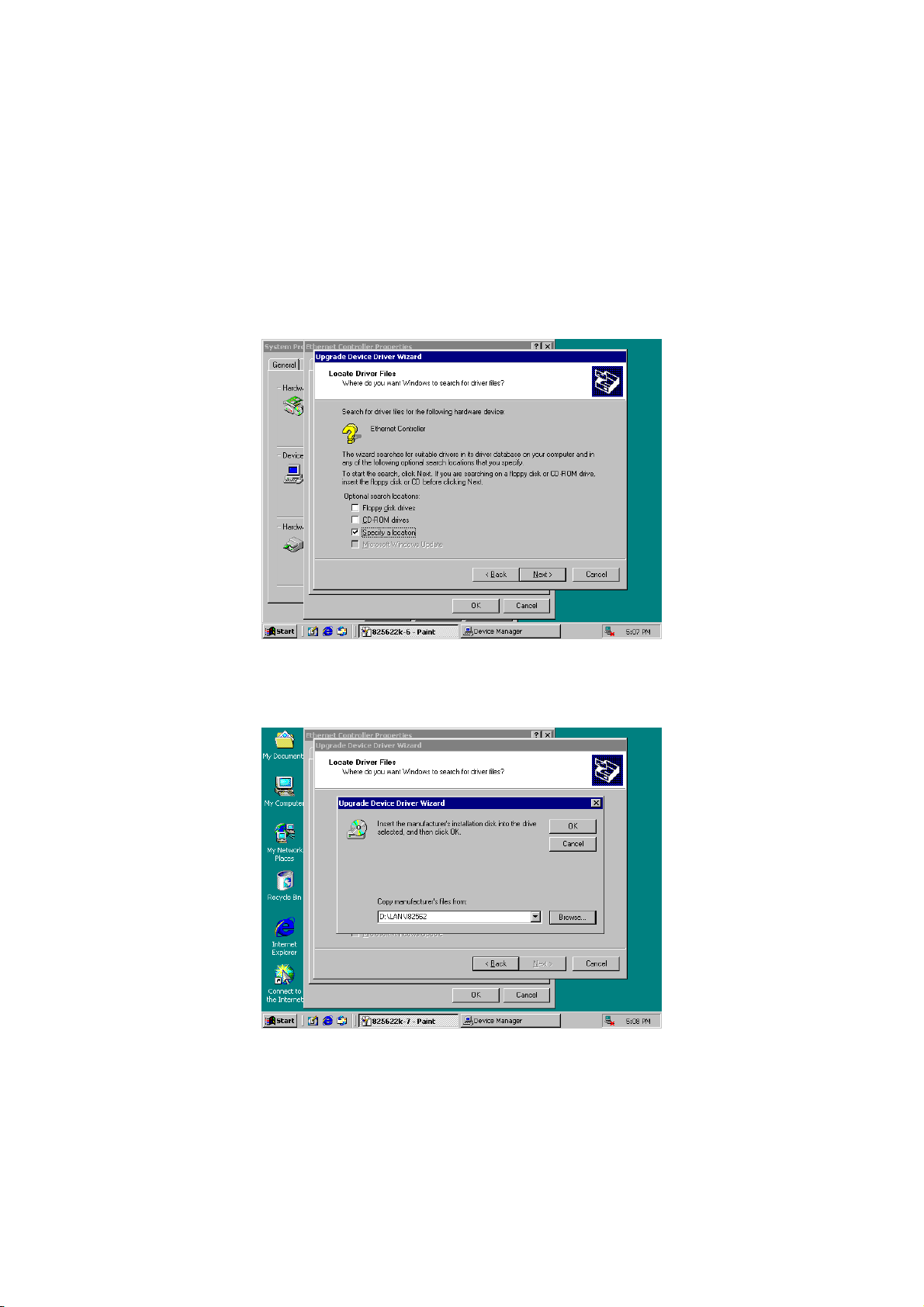

7. The wizard program will then prompt you to specify the location

where it will start searching for the driver. Tick on the

location:

and then click on the

Next >

button to proceed.

Specify a

8. The wizard program will then require you to insert the

manufacturer disk at your specified location (entered at the

manufacturer’s files from:

Utility CD disk inserted in the drive, type on the OK button to proceed.

space) of the driver file. With your

d:lan\i82562

Copy

then click

Page 80

9. The wizard program will start to scan and search for the driver(s) located at your specified location. After which, the wizard program will show the result of its search. When it finds a more suitable driver fitting your device, it will list the driver name and path. Just click on the

Next >

button to continue installing.

10. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click

Finish

to proceed.

11. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change

button to complete the installation.

window below pops up. Click on the

Page 81

5.3.3 Win NT

1. Right click on

Properties

2. The Network Configuration dialog box then appears, notifying the user that there is no Windows NT Networking available. Click on

the

Network Neighborhood

item from the pop-up menu.

button to start the installation process.

icon then scroll to the

Page 82

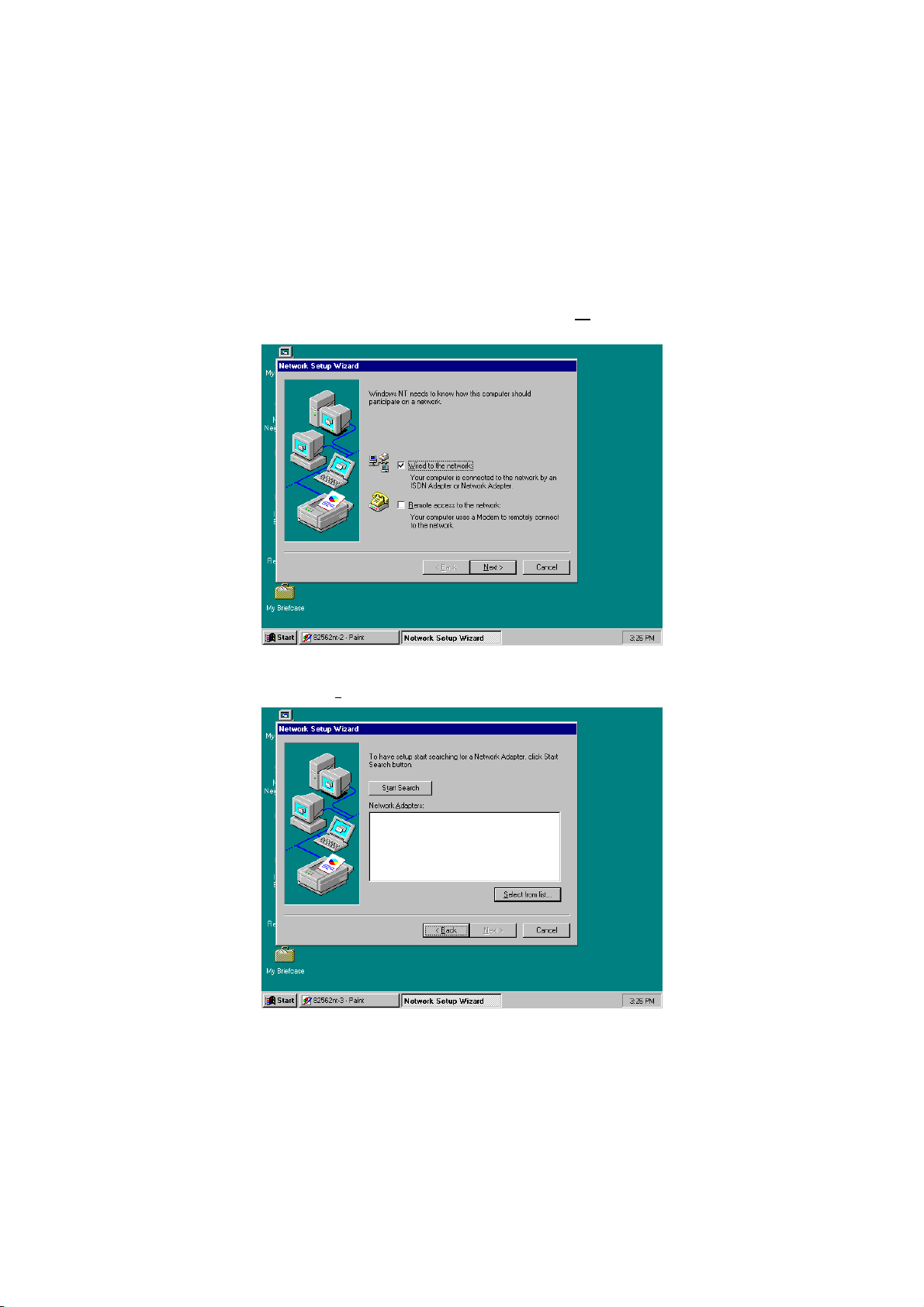

3. The Network Setup Wizard will then ask you to identify the network connection of your computer. Select

network

and click on the

Next >

to continue.

ired to the

4. The succeeding screen then indicated that the wizard will initially search for Network Adapter from the available list of drivers. Select on

art Search

Page 83

5. When it is done searching for available network drivers, the wizard will show a list and allow you to locate and choose the appropriate Network Adapter. Since the LAN device driver is in the Utility CD Disk, select on Have Disk … to proceed.

6. The wizard program will then require you to insert the manufacturer disk and specify the location of the driver file (i.e., c:\i82562). Click on the OK button to proceed.

Page 84

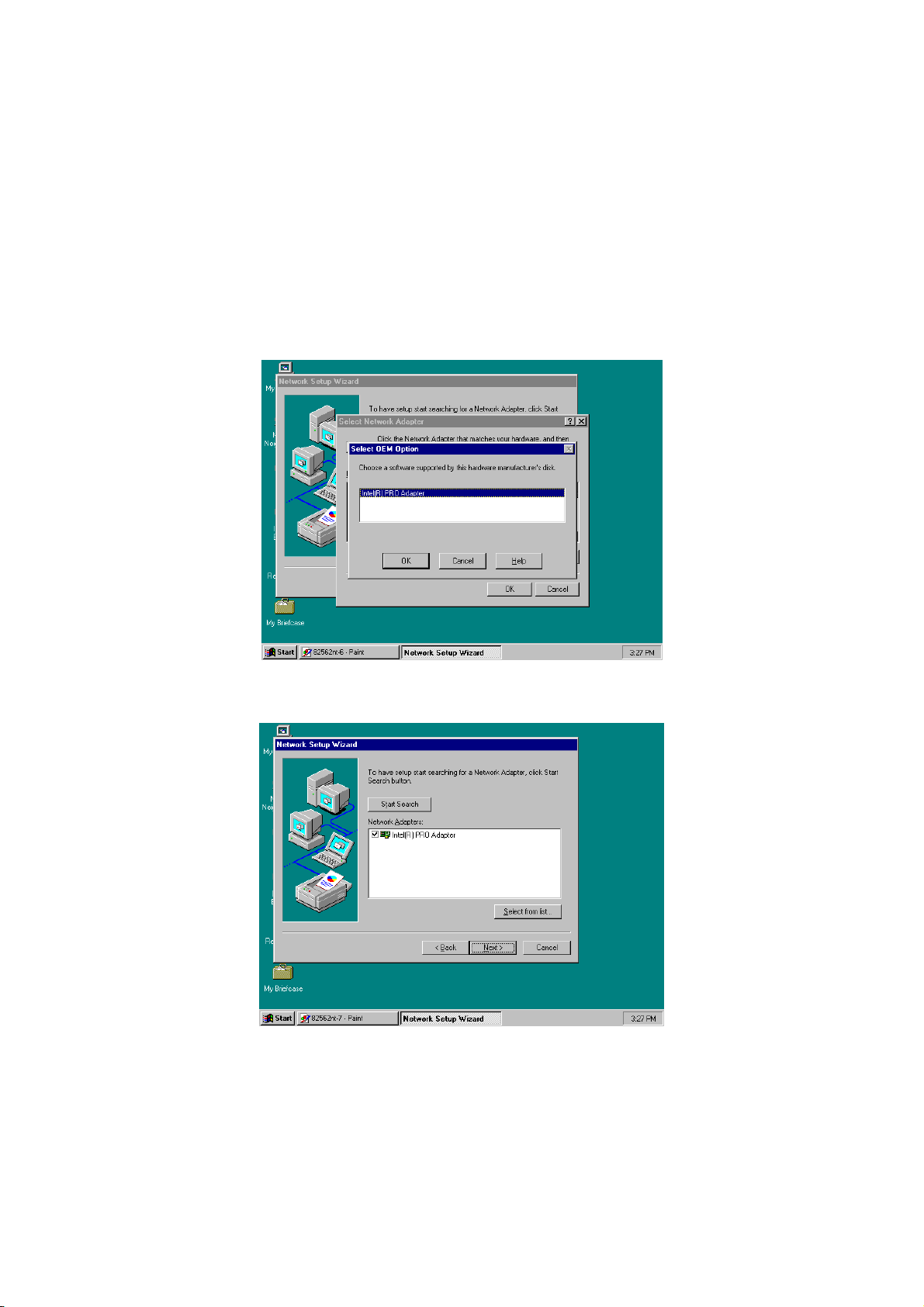

7. The Select OEM Option then appears, prompting you to select the software supported by the network hardware device you will install. Select Intel(R) PRO Adapter and click on the OK button to continue installing.

8. The wizard program now displays on the screen that it has detected the Intel() PRO Adapter. Click on the continue installing.

Next >

button to

Page 85

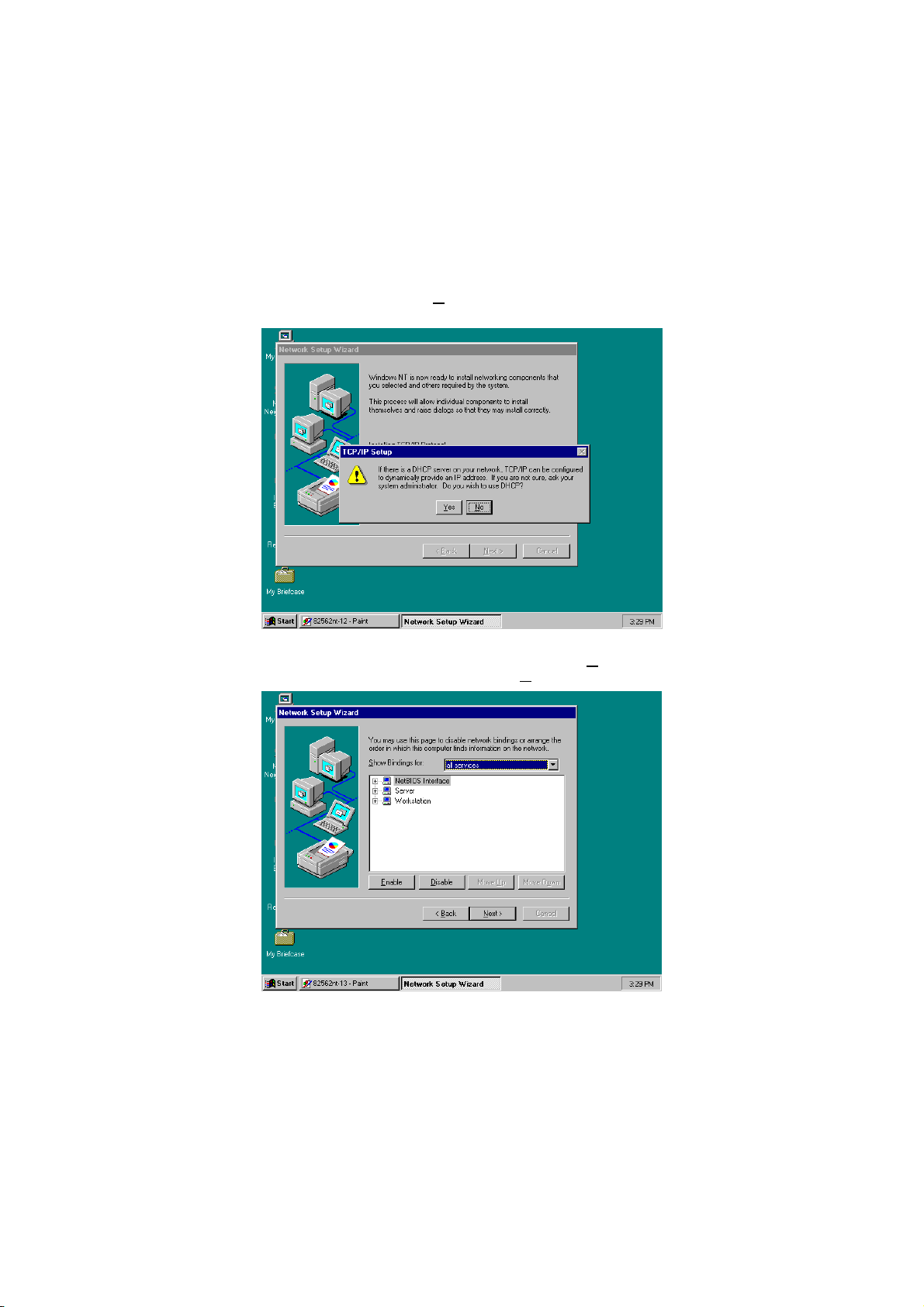

9. The wizard program now prompts you to specify the networking protocols used on your network structure. Tick on the TCP/IP Protocol and click on the

Next >

button to proceed.

10. The next screen will allow you to customize the Network Services the wizard program intends to install. Tick services as needed and then click on the

Next >

button to continue.

Page 86

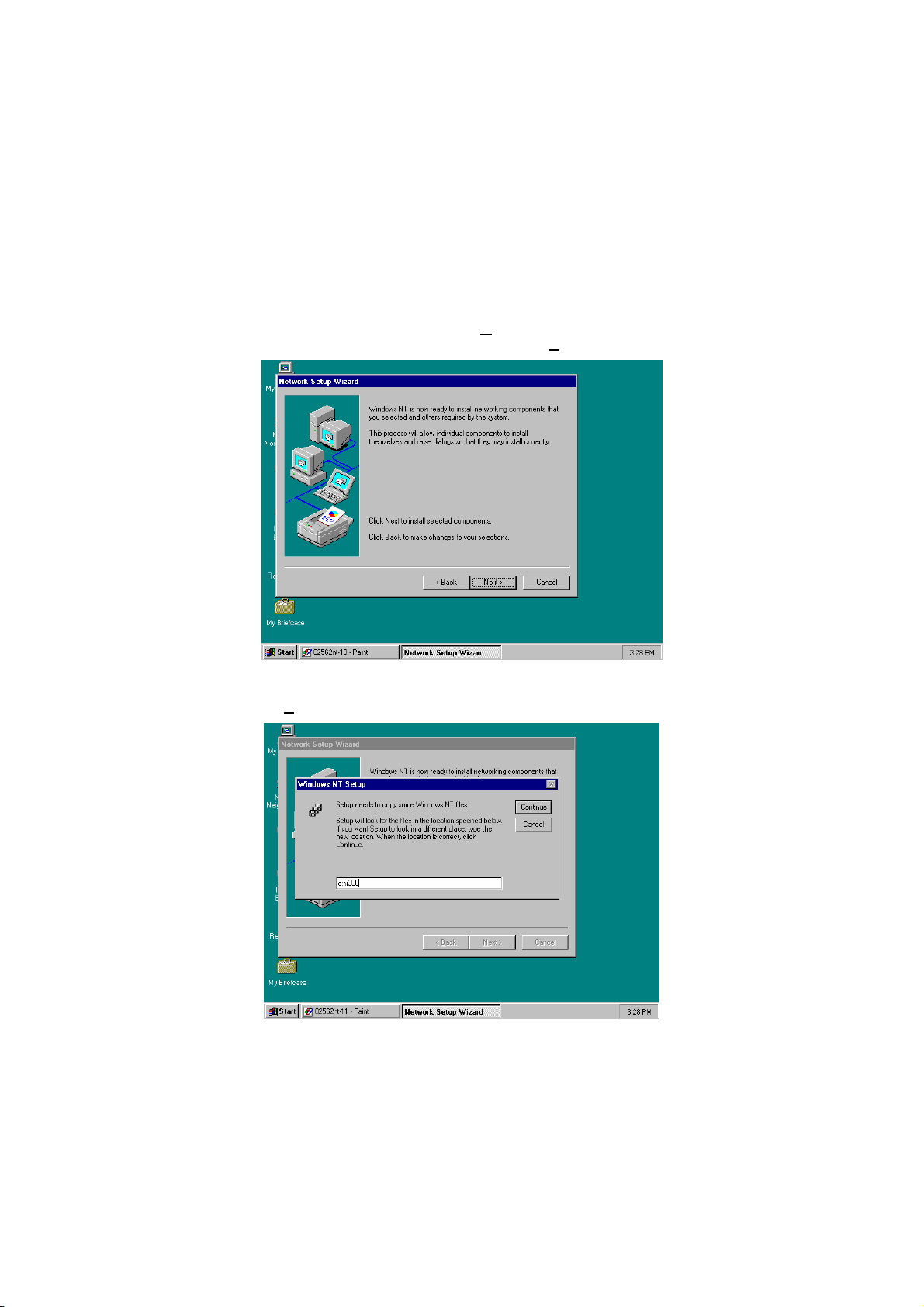

11. The Network Setup Wizard then prompts you that it is ready to install the network components based on your selection. You may start installing by clicking on he modifications on your choices using the

ext >

button or make

< B

ack

button.

12. The Network Setup Wizard will then need to copy the drive file(s). Specify the path of your device driver(s) (i.e., d:\i386) and click

ontinue

the

button.

Page 87

13. Choose the default entry, the screen.

, when the following screen pops on

14. If you need to disable network bindings on the network services installed, select the service and then click on the Otherwise, proceed by clicking on the N

ext > button.

isable

button.

Page 88

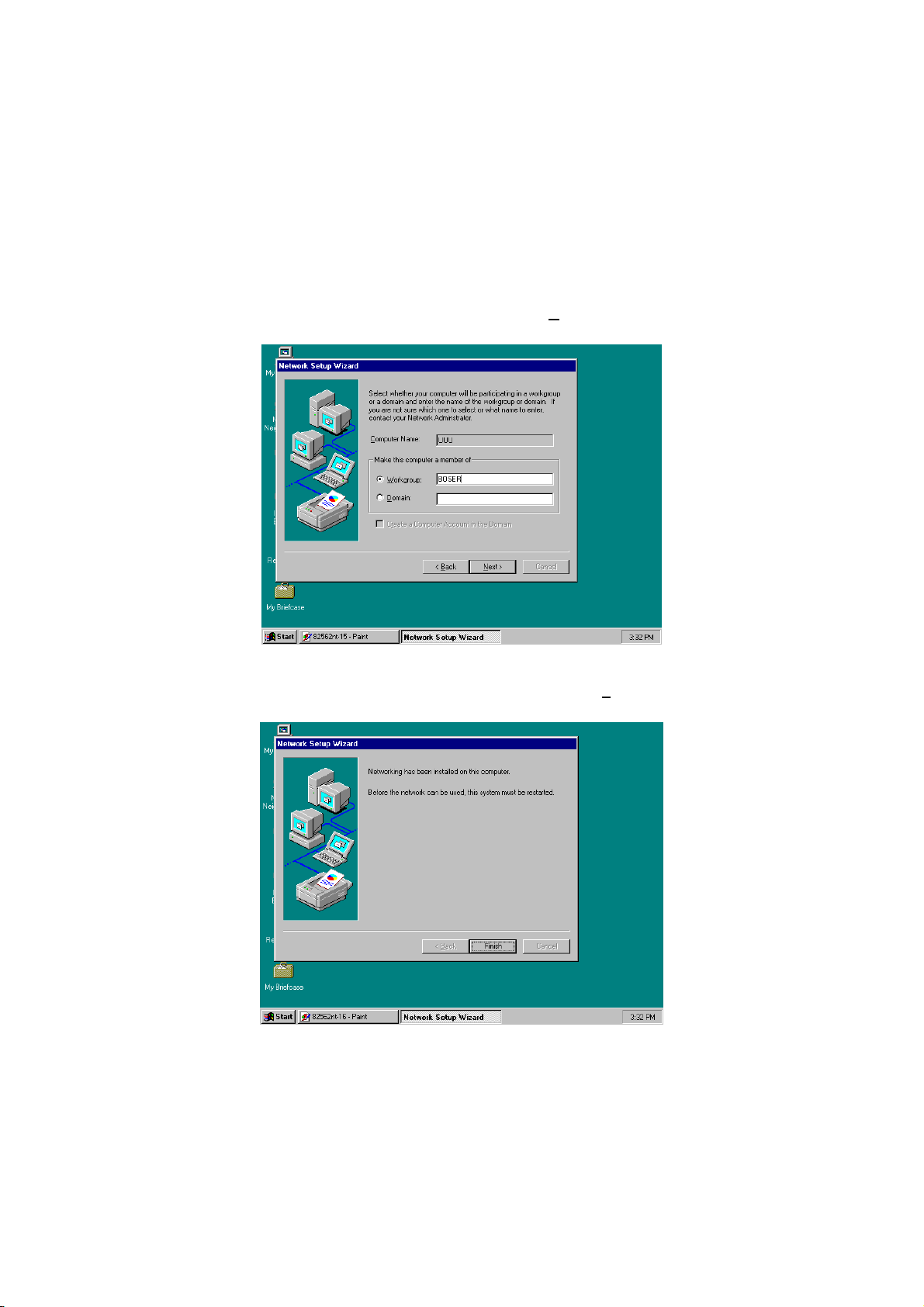

15. Specify the network participation type of your computer, either to a Workgroup or a Domain. Click on the identifying the network group installed on your computer.

ext >

button after

16. The wizard program then informs you that Networking is now installed on your system. You must restart your computer to make the setting changes take effect. Click on the to close the wizard program.

inish

button

Page 89

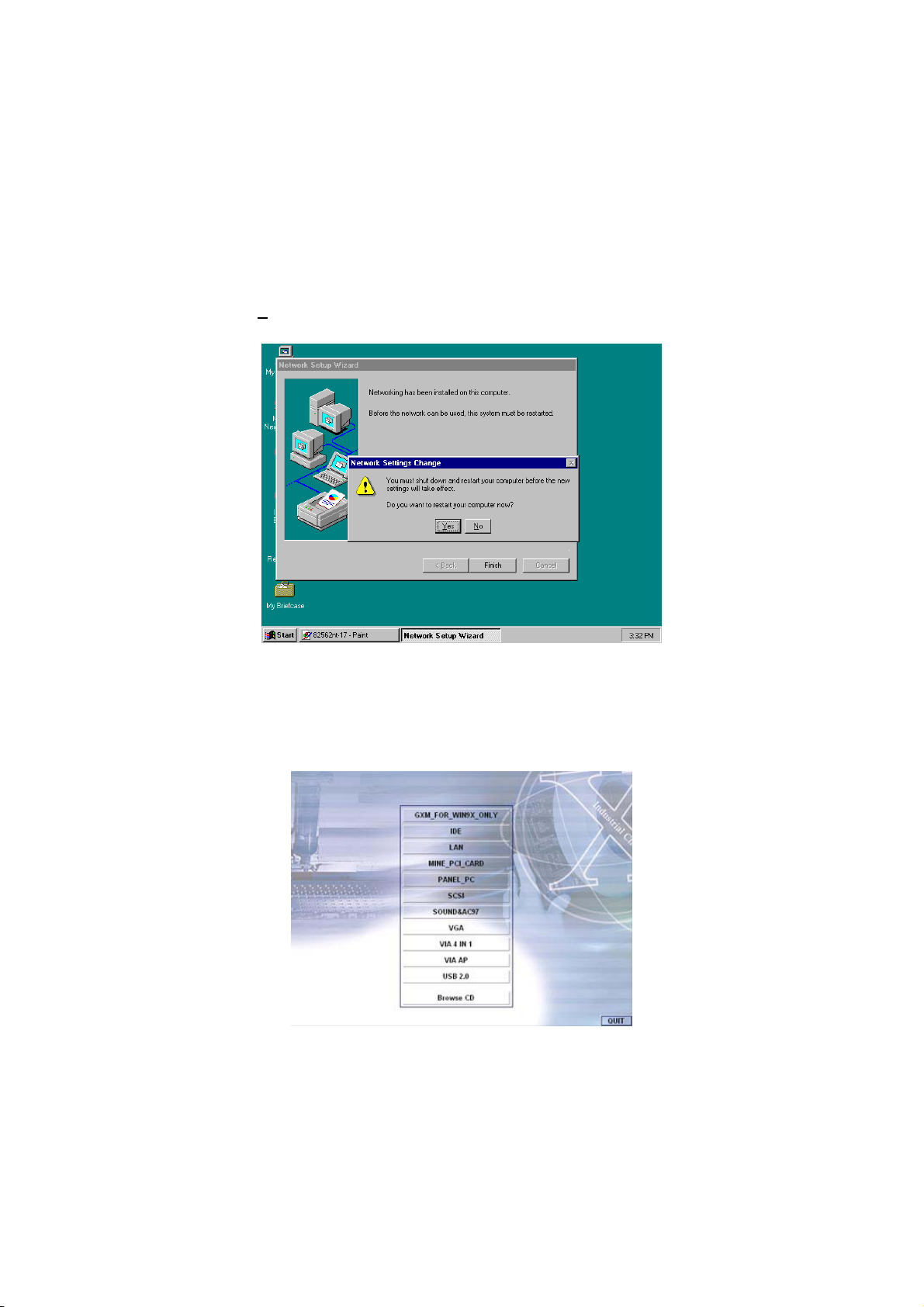

17. When the following dialog box pops on your screen, click on the

button to restart your computer and make the setting

changes take effect.

5.4 Audio Driver Installation

5.4.1 Win 95/98

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press utilities window pops on the screen, select

Enter

to proceed installing. When the main

SOUND&AC7

Page 90

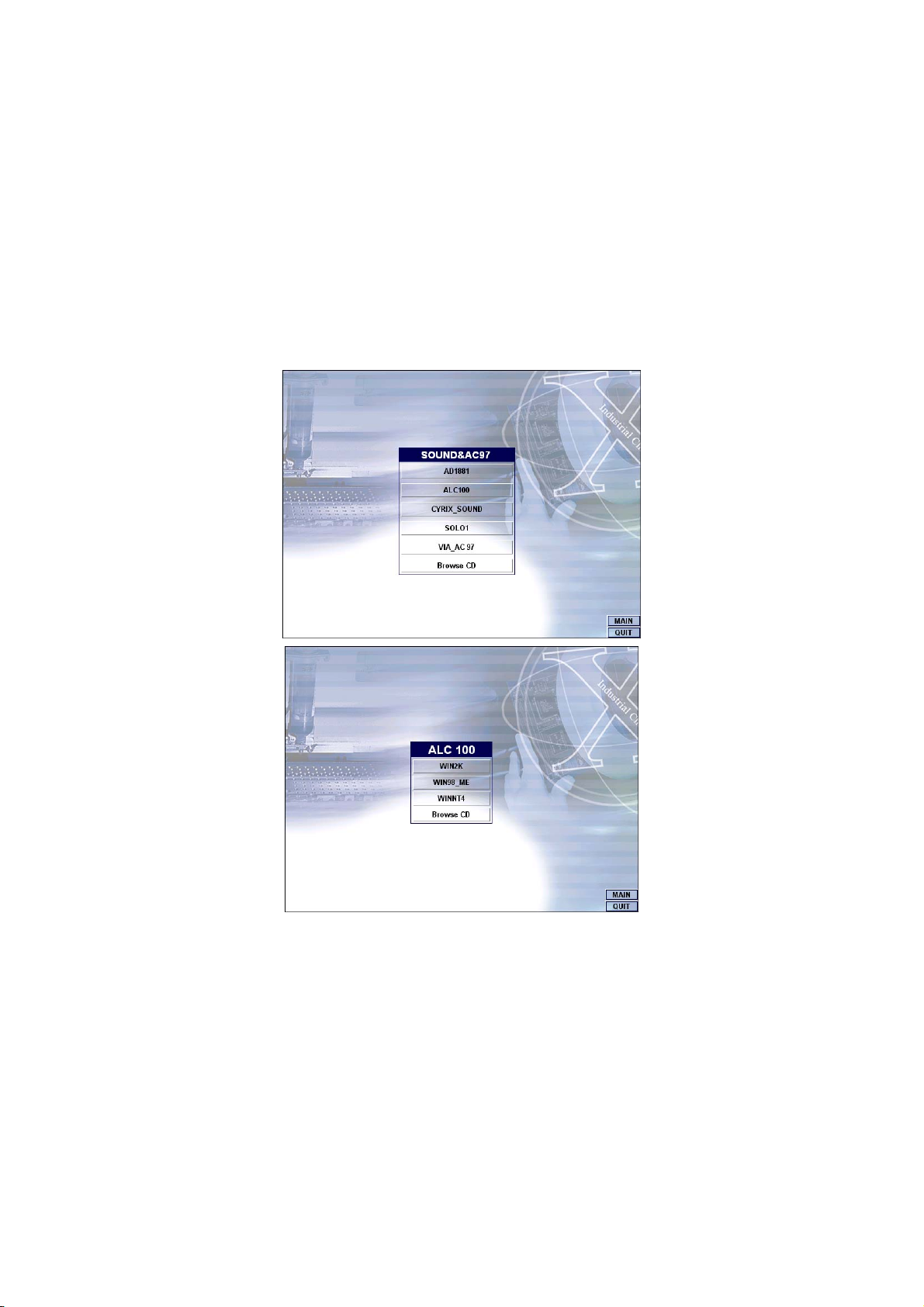

2. The succeeding screen will then show you the main menu. Select on the ALC100 dialog box appears, pick on take you to the ALC 100 menu. Refer to the following screen shots for a graphical description of this step.

ALC 100

to continue installation. When

SOUND&AC97

WIN98_ME

and it will

Page 91

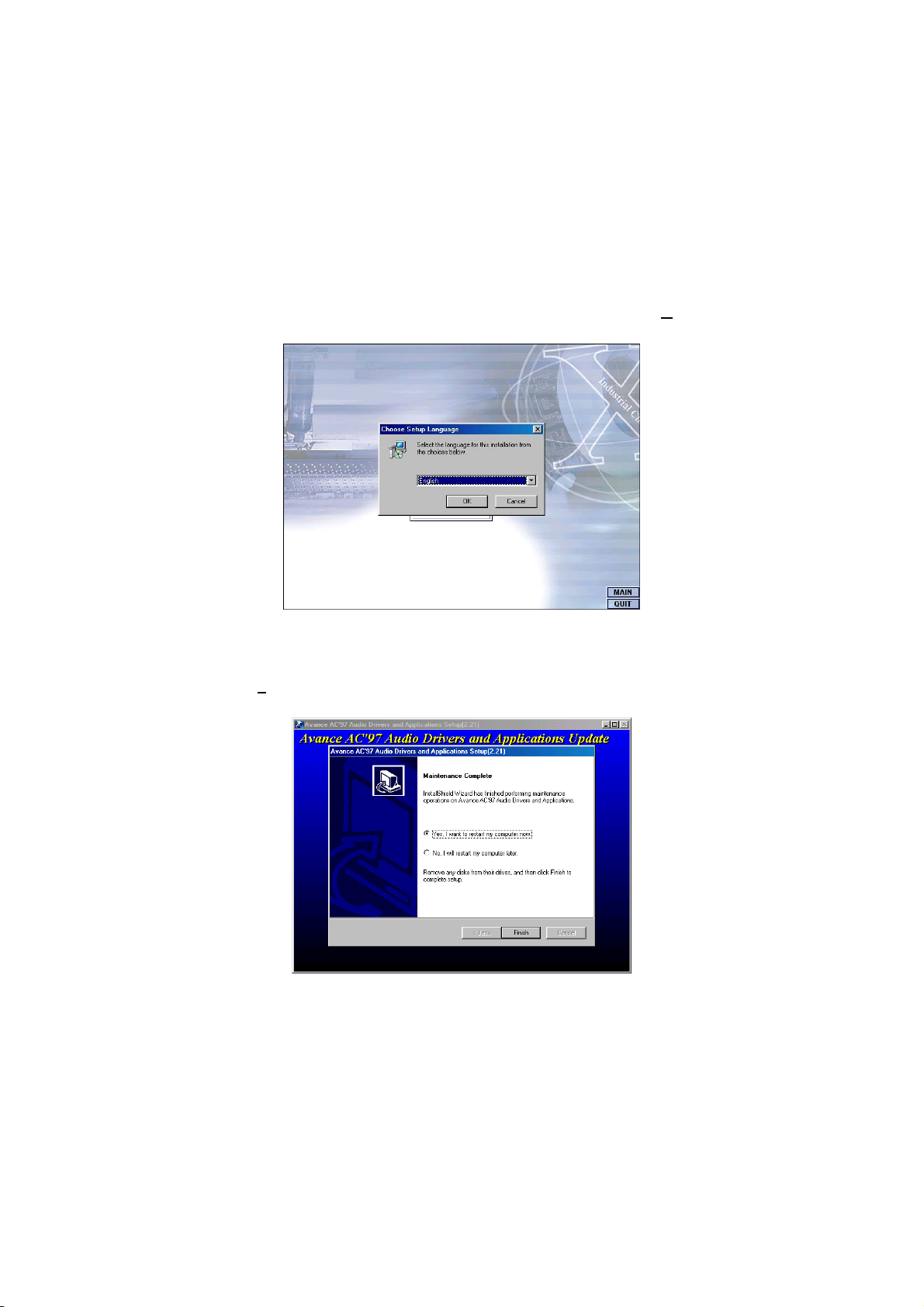

3. Select the language you intend to use for the installation. The default is button to proceed.

English

. After making your choice, press on the

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the Yes, I want to restart my computer now. Afterwards, click on the

inish

button to complete the installation process. The system

changes you made will take effect after the system restarts.

Page 92

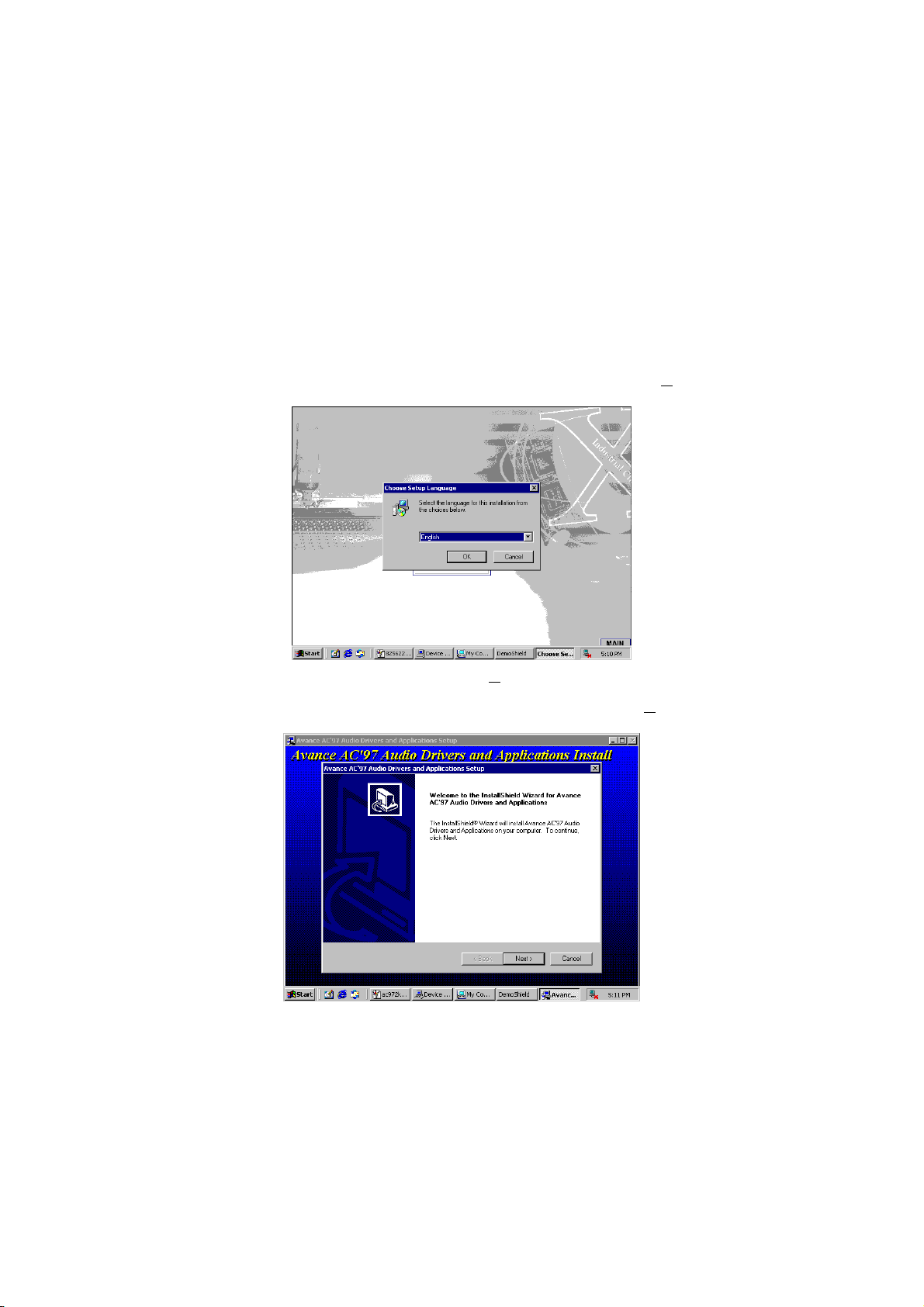

5.4.2 Win 2000

1. Following steps 1 and 2 of the Win95/98 AC97 installation, select

WIN2K

2. Select the language you intend to use for the installation. The default is button to proceed.

3. Immediately after clicking on the step, the

Setup

button to continue.

button when the ALC100 dialog box appears screen.

English

. After making your choice, press on the

Avance AC’97 Audio Drivers and Applications

dialog box will appear on screen. Just click on the

button from the preceding

ext >

Page 93

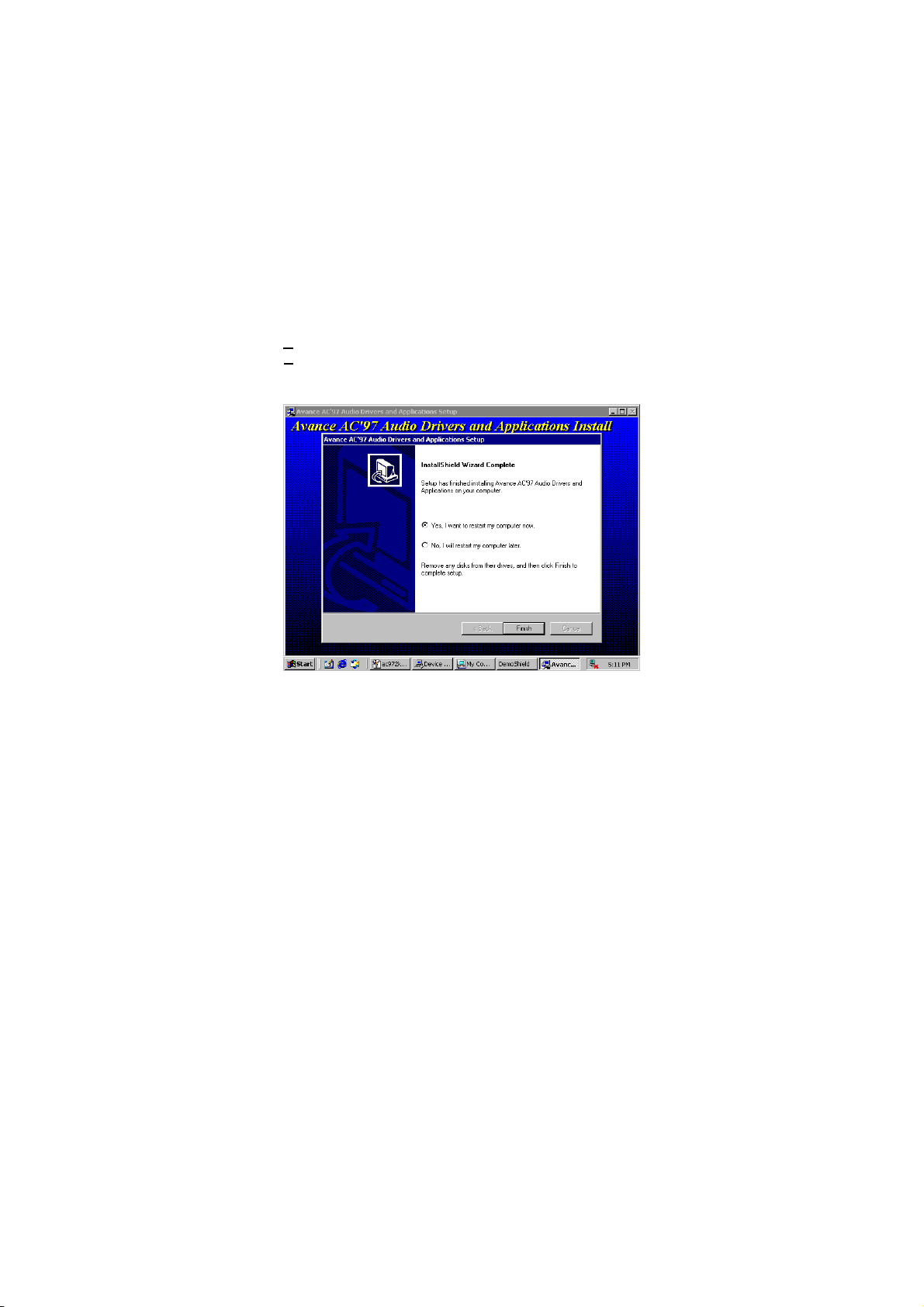

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on

the the system changes you made will take effect after the system restarts.

, I want to restart my computer now. Afterwards, click on

inish

button to complete the installation process. The

Page 94

5.4.3 Win NT

1. Following steps 1 and 2 of the Win95/98 OR step 1 of Win 2000 AC97 installation, select box appears screen.

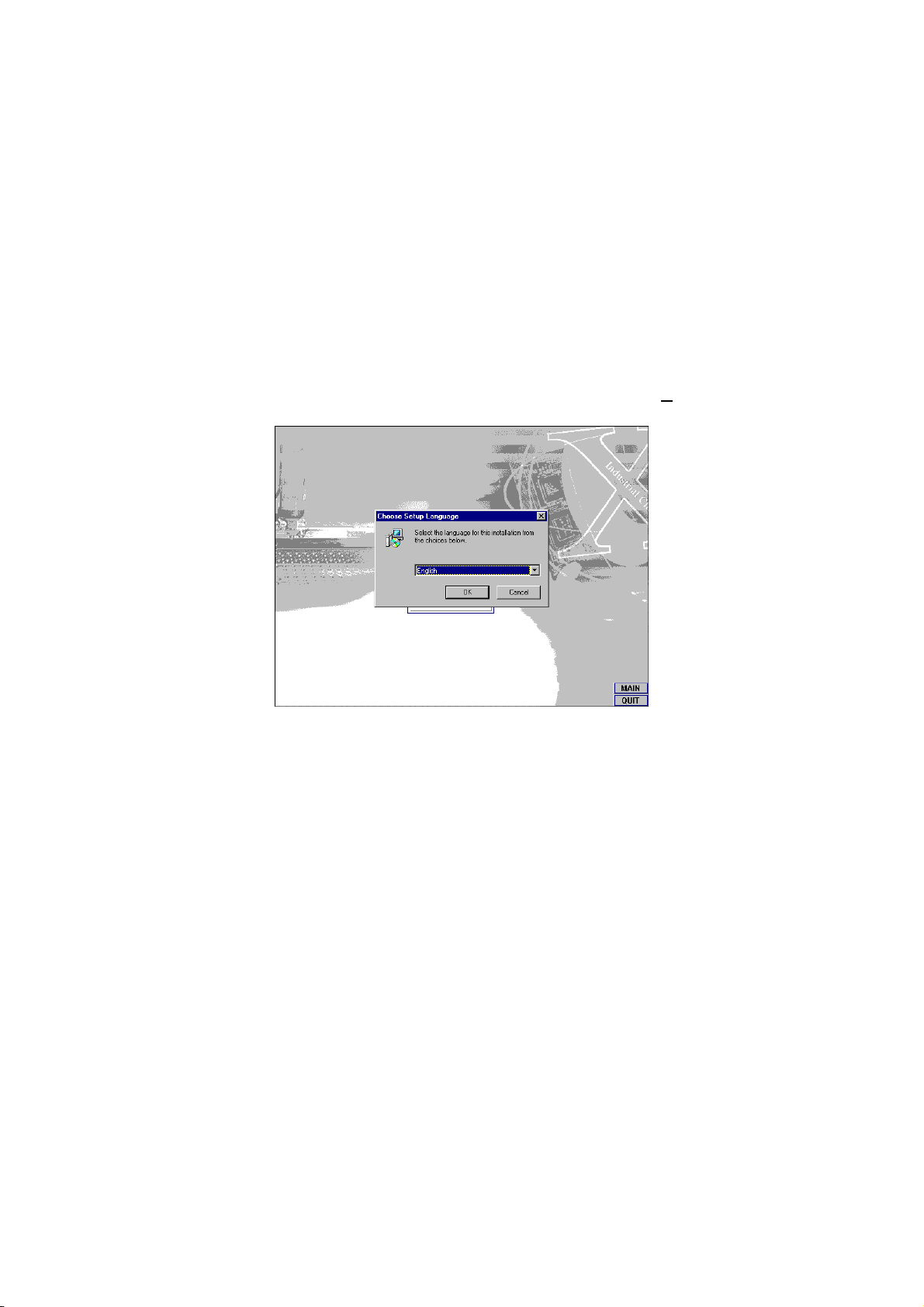

2. Select the language you intend to use for the installation. The default is button to proceed.

English

WINNT

. After making your choice, press on the

button when the ALC100 dialog

Page 95

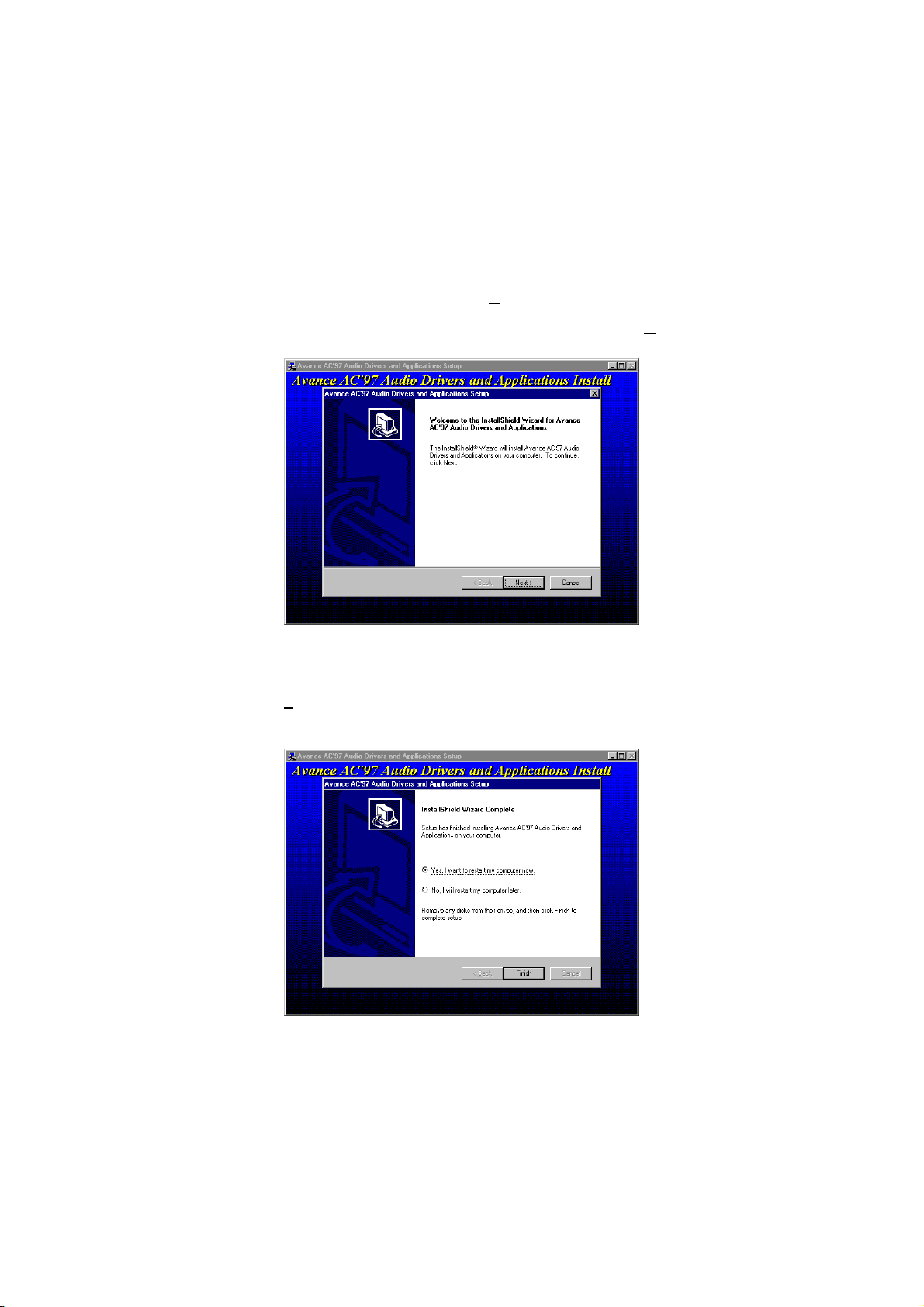

3. Immediately after clicking on the step, the

Setup

button to continue.

Avance AC’97 Audio Drivers and Applications

dialog box will appear on screen. Just click on the

button from the preceding

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on

the the system changes you made will take effect after the system restarts.

, I want to restart my computer now. Afterwards, click on

inish

button to complete the installation process. The

ext >
