HS-6237/HS-6637

Socket 370 Celeron/Coppermine

Industrial Single Board Computer

•CRT/Panel•LAN•PC/104•IrDA•

USB•DOC•WDT•H/W Monitor•

•

•PCI-ISA/ISA Bus Industrial Single Board computer•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

this document without due notice. responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the contents of

manufacturer will

electronic, mechanical, photocopying, recording)

BOSER Technology Co., Ltd. assumes no

Page 3

Table of Contents

Chapter 1 General Description……………………..1

1.1 Major Features........................................................................2

1.2 Specifications .........................................................................3

1.3 Board Dimensions..................................................................4

Chapter 2 Unpacking………………………………..5

2.1 Opening the Delivery Package..............................................5

2.2 Inspection................................................................................5

Chapter 3 Hardware Installation…………………...7

3.1 Before Installation ..................................................................7

3.2 Board Layout ..........................................................................8

3.3 Jumper List .............................................................................9

3.4 Connector List ........................................................................9

3.5 Configuring the CPU ............................................................10

3.6 System Memory ....................................................................10

3.7 DiskOnChip Address Setting ...........................................10

3.8 VGA Controller .....................................................................10

3.9 PCI E-IDE Drive Connector..................................................14

3.10 Floppy Disk Drive Connector ..............................................15

3.11 Serial Port Connectors ........................................................16

3.12 Parallel Connector................................................................17

3.13 Ethernet Connector..............................................................18

3.14 IrDA Connector .....................................................................18

3.15 USB Connector .....................................................................19

3.16 Power and Fan Connectors.................................................19

3.17 Keyboard Connectors..........................................................20

3.18 PS/2 Mouse Connector ........................................................21

3.19 System Front Panel Connectors.........................................21

3.20 External Speaker ..................................................................22

3.21 Thermal Input Connector.....................................................22

3.22 Watchdog Timer ...................................................................22

3.23 PC/104 Connectors ..............................................................24

Page 4

Chapter 4 Award BIOS Setup……………………..27

4.1 Starting Setup.......................................................................27

4.2 Using Setup ..........................................................................28

4.3 Main Menu.............................................................................29

4.4 Standard CMOS Setup.........................................................30

4.5 BIOS Features Setup ...........................................................31

4.6 Chipset Features Setup .......................................................32

4.7 Power Management Setup ..................................................33

4.8 PCI Configuration Setup......................................................34

4.9 Load BIOS Defaults..............................................................35

4.10 Load Setup Defaults ............................................................36

4.11 Integrated Peripherals .........................................................37

4.12 Supervisor/User Password Setting ....................................38

4.13 IDE HDD Auto Detection......................................................40

4.14 Save & Exit Setup.................................................................41

4.15 Exit Without Saving..............................................................42

Chapter 5 Software Utilities……………………….43

5.1 VGA Driver Installation ........................................................43

5.2 LAN Driver Installation.........................................................46

Page 5

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6237/HS-6637 to ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

Chapter 1

General Description

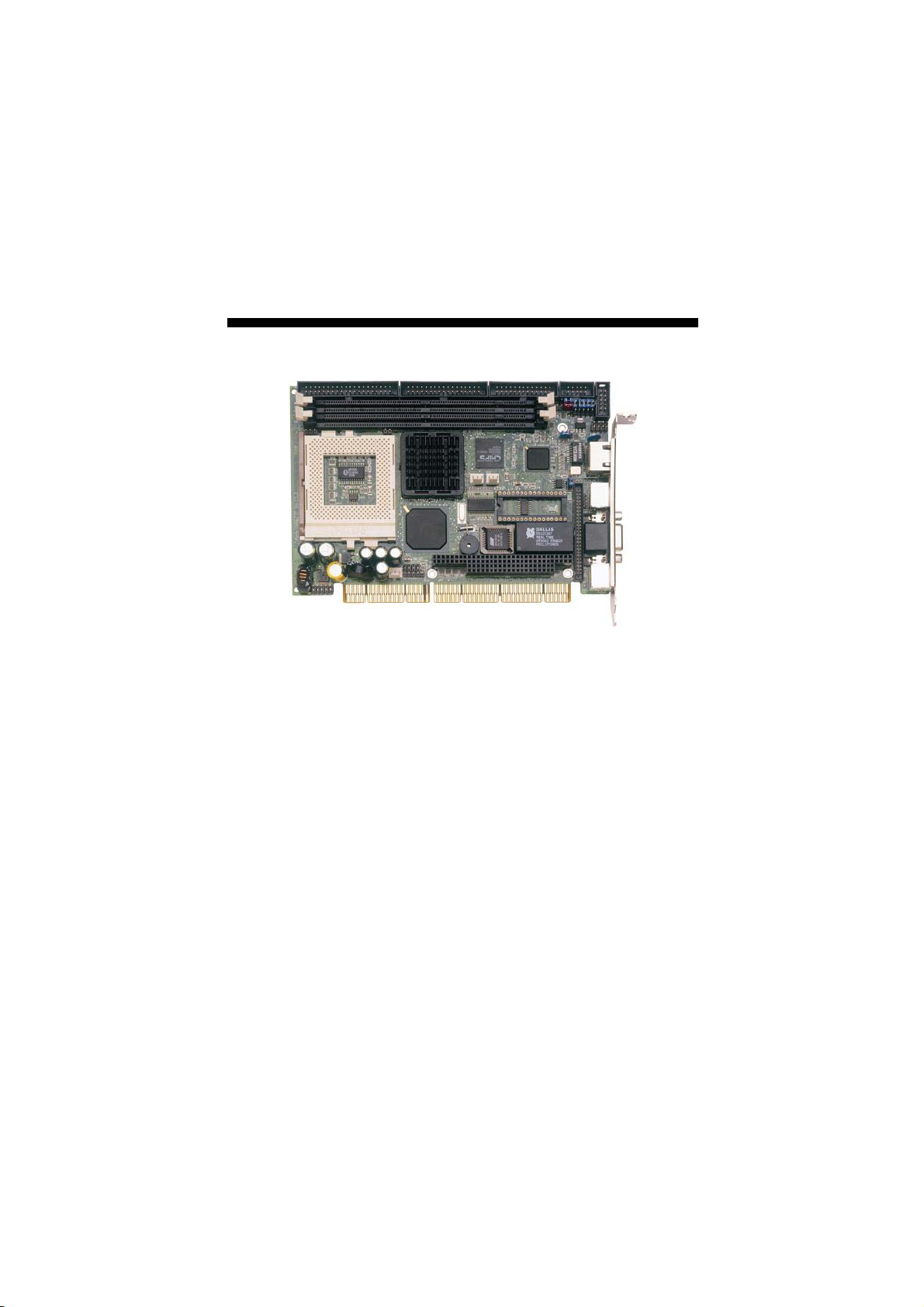

The HS-6237/HS-6637 is a Intel® BX chipset-based board designed for PCI-ISA/ISA Bus Celeron™/Coppermine™ compatibility. These features combine and make the HS-6237/ HS-6637 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CRT/Panel and LAN interface.

The onboard ATA/33 for mode 3 to IDE drive interface architecture supports a maximum data transfer rate of 33.3 MB/sec to a single IDE drive connection. Designed with the Intel logic chipset, the board supports all Celeron™/Coppermine™ CPU series operating at 500MHz to 850MHz. The C&T 69000 CRT/Panel display controller offers an on-chip 2MB memory that supports up to 1280 x 1024 x 256 colors display resolution.

For suitable installation into any size system with 8/16/32-bit ISA and/or PCI slots operation, the board’s advanced PCI-ISA bus add-on feature allows user to easily obtain both ISA's 16-bit and PCI's 32-bit full set signals from a half size PCI-ISA slot. System memory is also sufficient with the two DIMM sockets that can support up to 512MB.

82443BX/82371EB core

Page 8

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, a DOS-compatible DiskOnChip socket with a maximum capacity of 288MB, and one external RJ-45 connector for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-6237/HS-6637 is designed with pure hardware that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-6237/HS-6637 comes with the following features:

 Socket 370 for Intel® CeleronTM/CoppermineTM 500MHz~850MHz

 Two DIMM sockets with a max. capacity of 512MB

 Intel

 Winbond W83977 super I/O chipset

 C&T 69000 CRT/Panel display controller

 Intel

 Two COM, two USB connectors

 PC/104 Bus connector

 DiskOnChip socket supporting memory sizes of up to 288MB

 Supports Hardware Monitor function

82443BX/82371EB system chipset

82559ER 10/100 Based LAN

Page 9

1.2 Specifications



CPU: Socket 370 for Intel Celeron/Coppermine 500~850MHz CPU (100MHz FSB)

 Bus Interface: HS-6237 is PCI-ISA Bus, HS-6637 is ISA Bus  Memory: Two DIMM sockets supporting up to 512MB  Chipset: Intel  I/O Chipset: Winbond W83977  VGA: C&T 69000 with 2MB memory supporting CRT/Panel displays up

to 1280 x 1024 at 256 colors



LAN: Intel® 82559ER 10/100 Based LAN



IDE: Two IDE disk drives supporting ATA/33 and with a transfer rate up to 33MB/sec.

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting SPP/

EPP/ECP



Serial Port: 16C550 UART-compatible RS-232 x 2 serial ports with 16-byte FIFO



PC/104: PC/104 connector for 16-bit ISA Bus



IrDA: One TX/RX IrDA header

 USB: Two USB connectors  Keyboard: PS/2 6-pin Mini DIN or 5-pin connector  Mouse: PS/2 6-pin Mini DIN  DiskOnChip

288MB



BIOS: Award PnP Flash BIOS



Watchdog Timer: Sets 1/2/10/20/110/220 seconds activity trigger with Reset or NMI

 CMOS: DS12C887 or equivalent device  Power Connectors: One 10-pin +5V/+12V power connector  Power Consumption: +5V/5A, +12V/120mA  Operating Temperature: 0~60  Hardware Monitor: Winbond W83783S  Board Size: 18.6 x 12.2 cm

82443BX/82371EB

: DiskOnChipTM socket supporting memory sizes of up to

Page 10

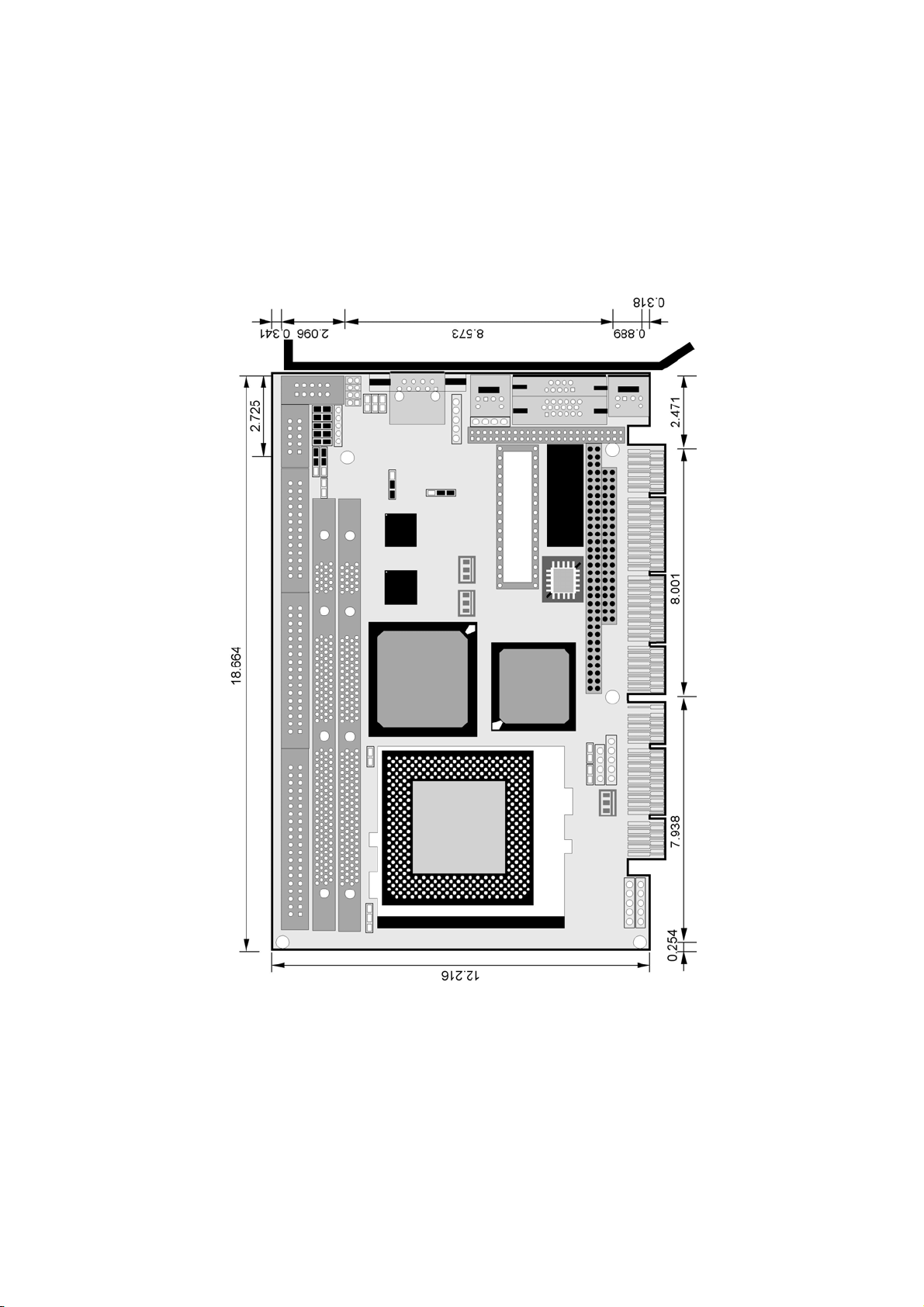

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6237/HS-6637 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-6237/HS-6637 delivery package contains the following items:

 HS-6237/HS-6637 Board x 1  IDE flat cable with bracket x 1  FDD flat cable x 1  Printer cable with bracket x 1  Two RS-232 COM Port cable with bracket x 1 

8-pin USB port split type cable with bracket x 1

 PS/2 to standard type keyboard transfer cable x 1  Utility CD Disk x 1  User’s Manual x 1  Jumper Bag x 1

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-6237/HS-6637. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

3.2 Board Layout

Page 15

3.3 Jumper List

Jumpe

JP2

JP7

JP8 Panel Voltage Select: +3.3V Short 2-3 10

JP9(1-4) DiskOnChip Address Select: D000

JP9(5-10) Watchdog Timer Out Period Select: 1sec.

JP11

VGA Enabled/Disabled Select by Hardware: Enabled Watchdog Timer Active Type Setting: Reset System

LAN Enabled/Disabled by Hardware: Enabled

Definition Setting Page

Short 1-2 10

Short 2-3 22

Short 1-2,

3-4

Short 5-6,

7-8, 9-10

Open 18

3.4 Connector List

Connector Definition Page

CN1 IDE Connector 14

CN2 / CN25 / CN26

CN3 HDD LED 21 CN4 Speaker Connector 22

CN5 / CN15 5-pin Power Connector 19

CN6 Keylock Connector 21

CN7 / CN8

CN9 Floppy Connector 15

CN10 / CN11 PC/104 64-pin/40-pin Connector 24

CN12 Parallel Connector 17 CN13 IrDA Connector 18

CN14 / CN22 COM1/COM2 Connector (5x2 Header) 16

CN16 50-pin Panel Connector 10 CN17 5-pin Keyboard Connector 20

CN18 RJ-45 Connector 18 CN19 PS/2 6-pin Mini Din Mouse Connector 21 CN20 15-pin CRT Connector 10 CN21 PS/2 6-pin Mini Din Keyboard Connector 20

CN23 / CN24 COM1/COM2 Connector (DB9) 16

JP4

JP10 USB Connector 19 JP12 I2C Connector 10 JP14 Thermal Input Connector 22

Fan Power Connector 19

168-pin DIMM Sockets 10

Reset Connector 21

Page 16

3.5 Configuring the CPU

The HS-6237/HS-6637 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-6237/HS-6637 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-6237/HS-6637 provides two DIMM sockets at locations CN7 and CN8. The maximum capacity of the onboard memory is 512MB.

3.7 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate without a FDD or a HDD. DiskOnChip modules may be formatted as drive C or A. With DiskOnChip, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U9 location onboard the HS-6237/HS-6637 is the DiskOnChip module socket. JP9 (1-4) assigns the starting memory address of the installed module. If you have another memory device that has a similar memory capacity with that of the DOC in your system, please set both at different memory address mapping to avoid the mapping area conflicts. Failing to do so will not make the HS-6237/HS-6637 and the additional memory device function properly.



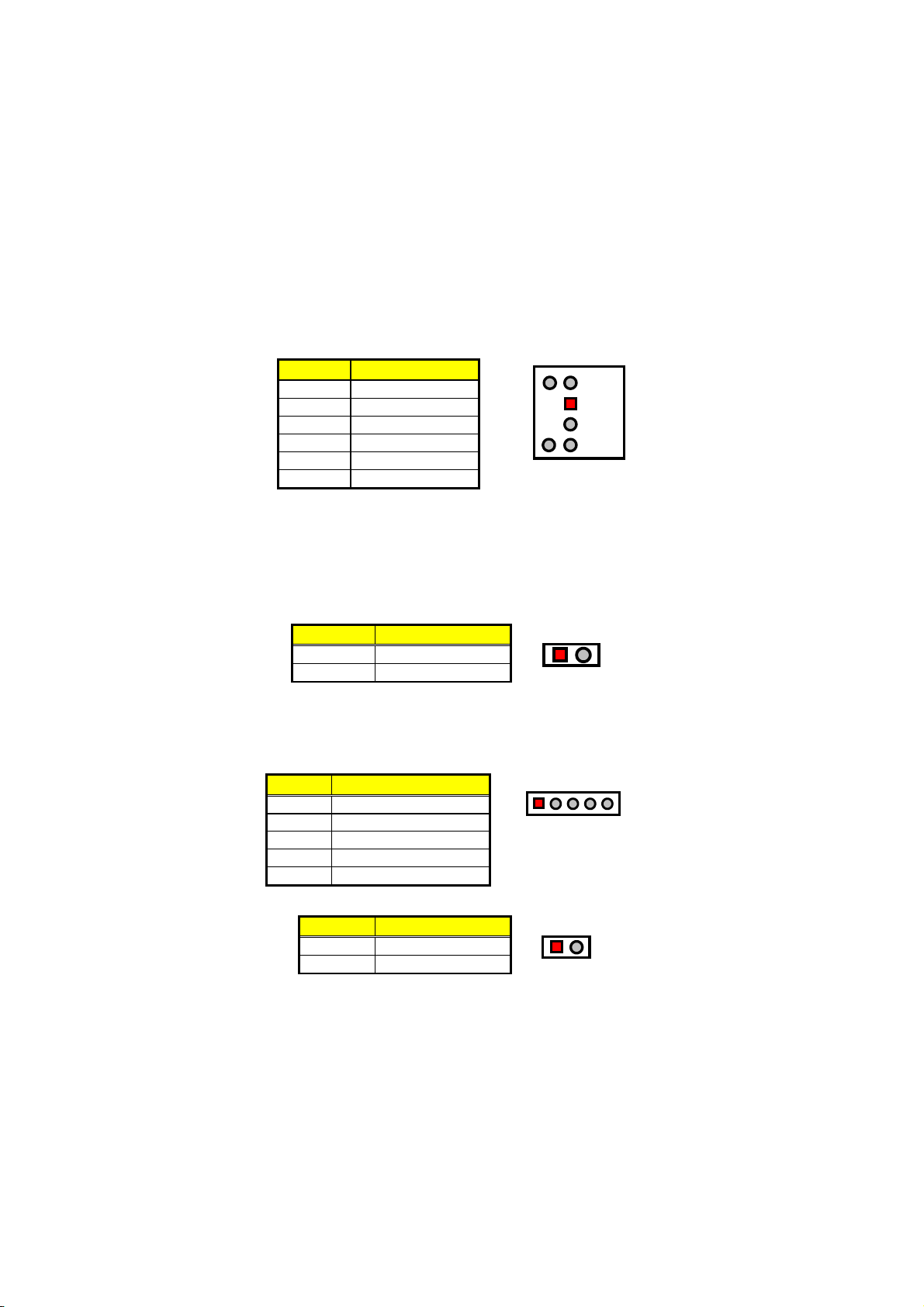

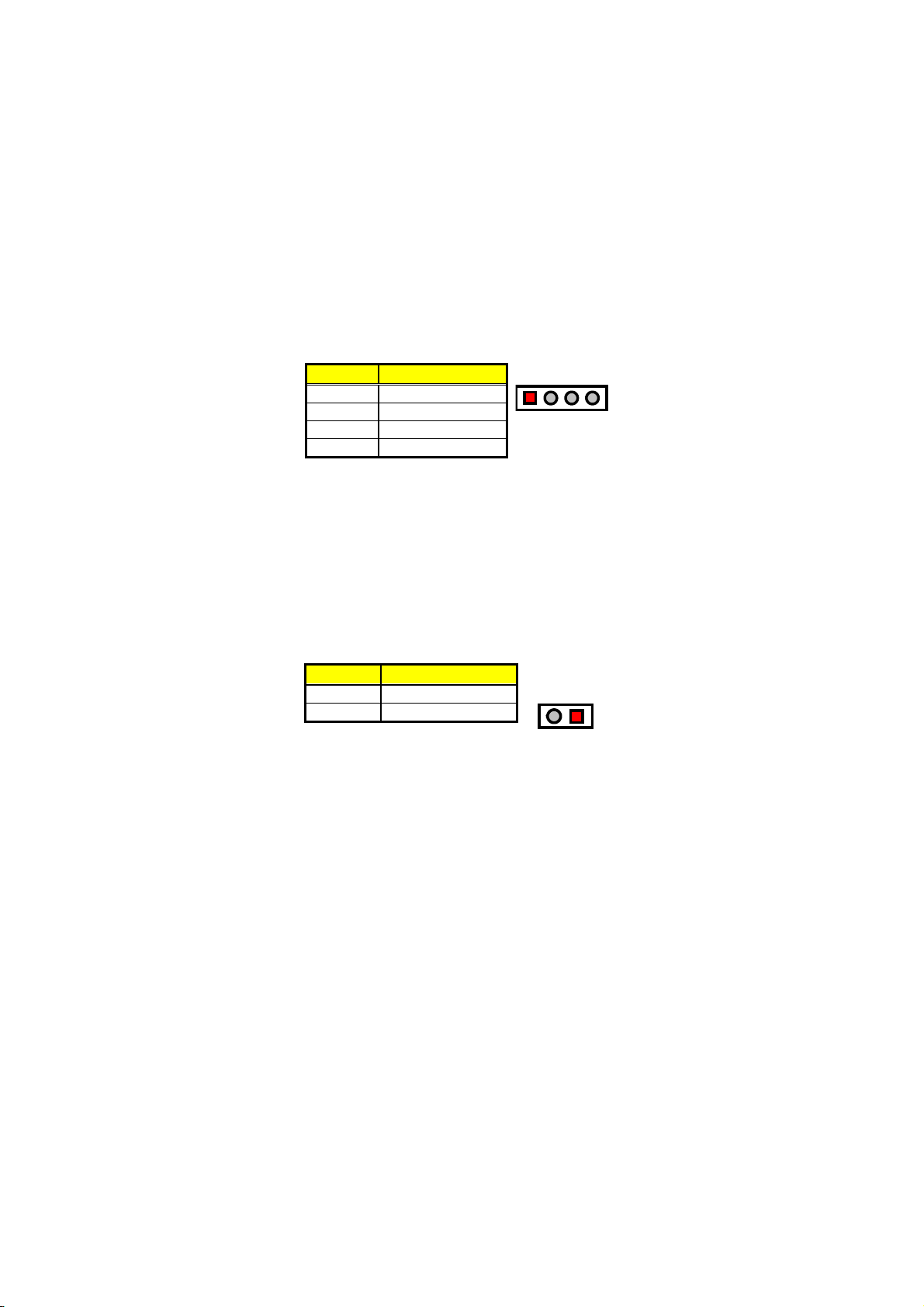

JP9(1-4): DiskOnChip Address Select

Address PINS 1-2 PINS 3-4

D000 (default) Short Short

D800 Open Short

3.8 VGA Controller

The HS-6237/HS-6637 has an onboard jumper that selects the working voltage of the flat panel connected to the system. JP8 offers two voltage settings for the user.

Page 17



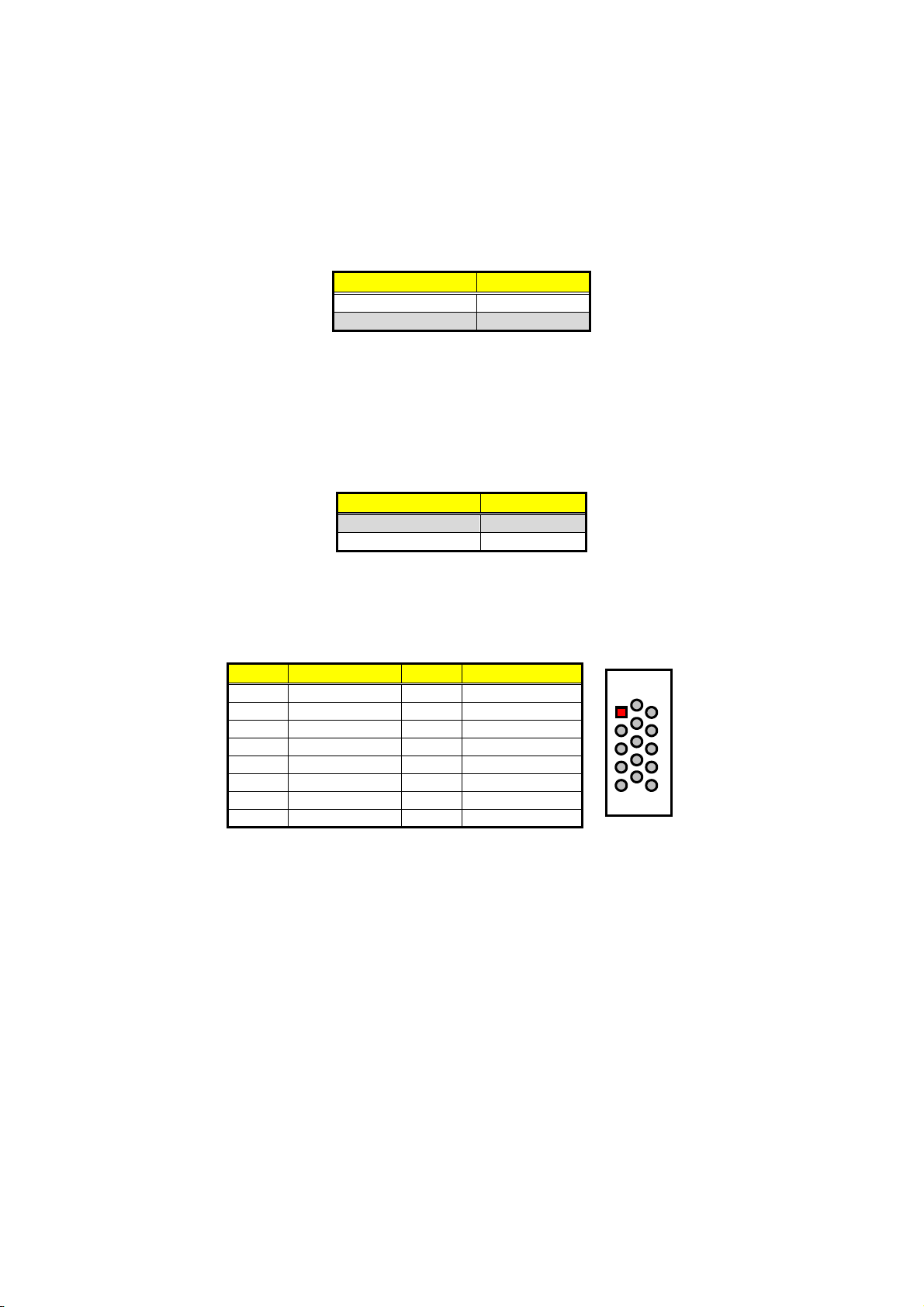

JP8: Panel Voltage Select

Options Settings

+5V Short 1-2

+3.3V (default) Short 2-3

WARNING: Please contact the supplier of your panel and make sure of

the correct voltage it uses. Incorrect settings on JP8 may cause internal damage to your panel.

The HS-6237/HS-6637 has a built-in C&T 69000 CRT/Panel display controller. The controller uses 2MB memory to support resolutions up to 1280 x 1024 at 256 colors. JP2 selects the operating mode of the VGA.



JP2: VGA Enabled/Disabled Select by Hardware

Options Settings

Enabled (default) Short 1-2

Disabled Short 2-3

The HS-6237/HS-6637 provides two connection methods of a VGA device. CN20 offers a single standard CRT connector (DB15) while CN16 is the 50-pin panel connector onboard reserved for flat panel installation.



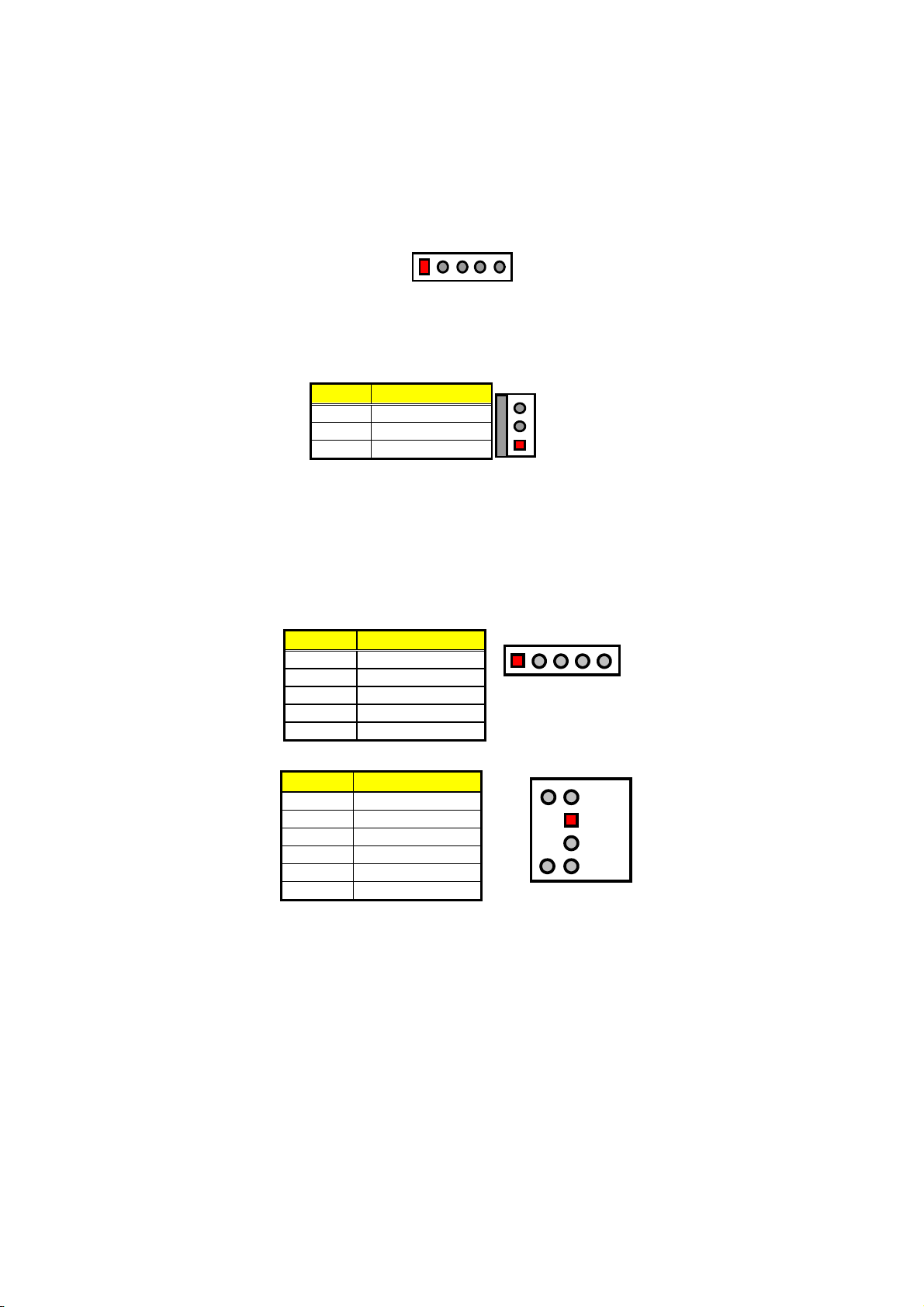

CN20: 15-pin CRT Connector

PIN Description PIN Description

1 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 N/C 10 GND 11 N/C 12 DDCDATA 13 HSYNC 14 VSYNC 15 DDCK

Red

Green

Page 18



CN16: 50-pin Panel Connector

PIN Description PIN Description

1 +12V 2 +12V 3 GND 4 GND 5

3.3V / 5V

7 ENAVEE 8 GND

9 P0 10 P1 11 P2 12 P3 13 P4 14 P5 15 17 P8 18 P9 19 P10 20 P11 21 P12 22 P13 23 P14 24 P15 25 P16 26 P17 27 P18 28 P19 29 31 P22 32 P23 33 P24 34 P25 35 SHFCLK 36 FLM 37 M 38 LP 39 GND 40 ENABKL 41 P26 42 P27 43 P28 44 P29 45 P30 46 P31 47 P32 48 P33 49 P34 50 P35

P20

Note

ENAVDD

P21

5049

NOTE:

Please set the proper voltage of your panel using JP8 before proceeding on installing it.

An Inter-IC connector, on JP12 onboard, also offers the flexibility of installing an I



JP12: I

C digital signal-based device.

C Connector

PIN Description

1 2 SMBCLK 3 GND

SMBDATA

123

GND

SMBCLK

SMBDATA

Page 19

3.8.1 Flat Panel Display Interface

HS-6237 HS-6637

PIN# Name 8-bit 16 -bit

9 P0 D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0 10 P1 D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0 11 P2 D2 UD1 UD5 B2 B0 B2 FB2 FB2 G2 B1 UB1 UB0 UB0 12 P3 D3 UD0 UD4 B3 B1 B3 FB3 FB3 R3 R2 UR2 UR1 LR0 13 P4 D4 LD3 UD3 B4 B2 B4 FB4 SB0 B3 G2 LR1 UR0 LG0 14 P5 D5 LD2 UD2 G0 B3 B5 FB5 SB1 G4 B2 LG1 LG0 LB0 15 P6 D6 LD1 UD1 G1 B4 B6 SB0 SB2 R5 R3 LB1 LB0 UR1 16 P7 D7 LD0 UD0 G2 B5 B7 SB1 SB3 B5 G3 LR2 LR1 UG1 17 P8 LD7 G3 G0 SB2 FG0 B3 UG1 UB1 18 P9 LD6 G4 G1 SB3 FG1 R4 UB1 LR1 19 P10 LD5 G5 G0 G2 SB4 FG2 G4 UR2 LG1 20 P11 LD4 R0 G1 G3 SB5 FG3 B4 UG2 LB1 21 P12 LD3 R1 G2 G4 FG0 SG0 R5 LG1 UR2 22 P13 LD2 R2 G3 G5 FG1 SG1 G5 LB1 UG2 23 P14 LD1 R3 G4 G6 FG2 SG2 B5 LR2 UB2 24 P15 LD0 R4 G5 G7 FG3 SG3 R6 LG2 LR2 25 P16 R0 FG4 FR0 LG2 26 P17 R1 FG5 FR1 LB2 27 P18 R0 R2 SG0 FR2 UR3 28 P19 R1 R3 SG1 FR3 UG3 29 P20 R2 R4 SG2 SR0 UB3 30 P21 R3 R5 SG3 SR1 UR3 31 P22 R4 R6 SG4 SR2 LG3 32 P23 R5 R7 SG5 SR3 LB3 33 P24 FR0 34 P25 FR1 41 P26 FR2 42 P27 FR3 43 P28 FR4 44 P29 FR5 45 P30 SR0 46 P31 SR1 47 P32 SR2 48 P33 SR3 49 P34 SR4 50 P35 SR5 35 SHFCLK: Pixel clock .Shift Clock 36 FLM.VSYNC: First line marker 37 M: Panel AC driver control 38 LP,DE,HSYNC: Latch pulse 40 ENABKL: Power sequencing control for enabling the backlight.(high active)

Mono Color

SS DD TFT STN-HR STN-SS STN-DD

9/12/16-

bit

18-bit

18/24-

bit

36-bit 18/24-bit

8-bit

(4bP)

16-bit (4bP)

8-bit

(4bP)

16-bit (4bP)

24-bit

Page 20

3.9 PCI E-IDE Drive Connector

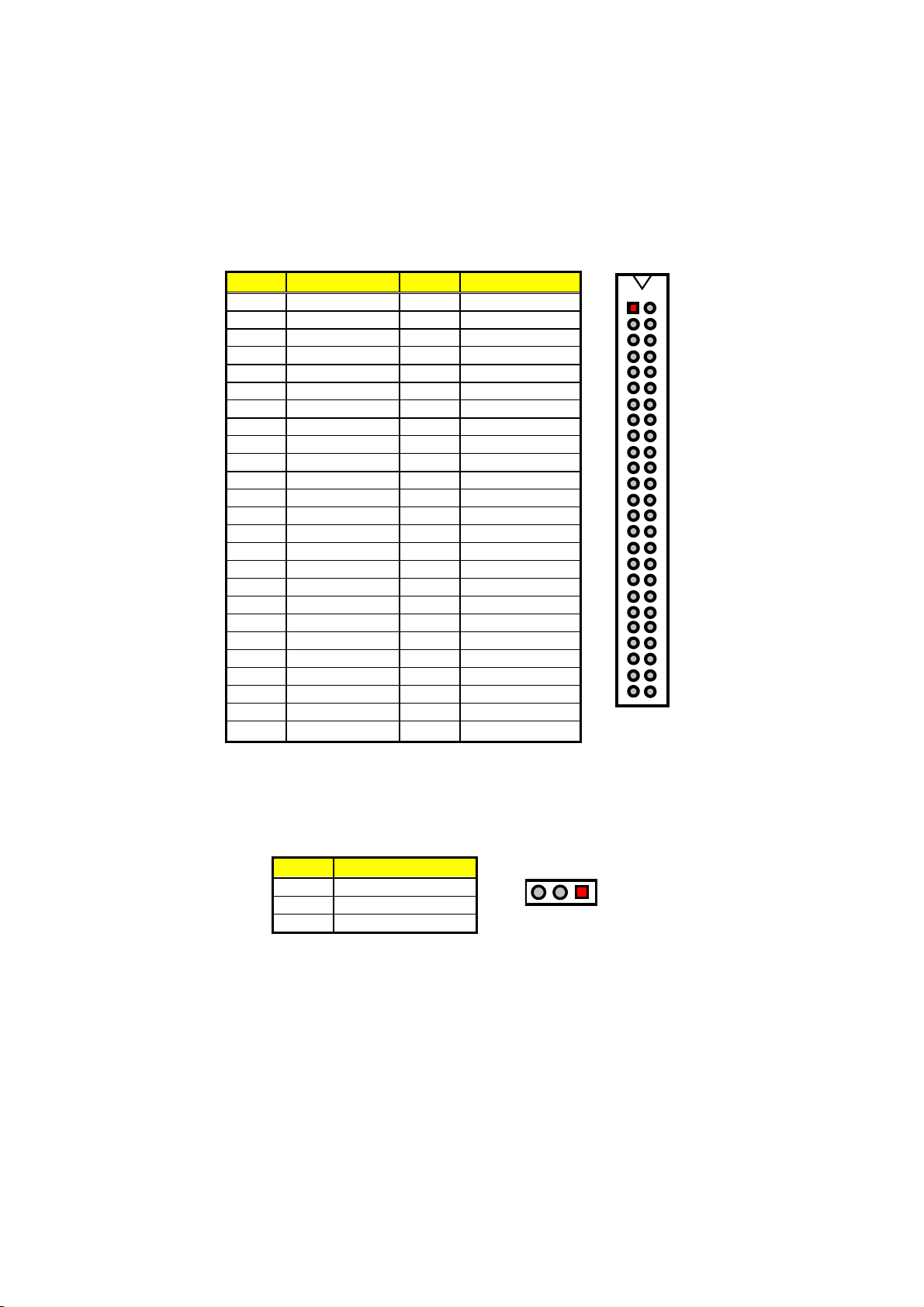

CN1 is a standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-6237/HS-6637. A maximum of two IDE drives can connect to the HS-6237/HS-6637 via CN1.



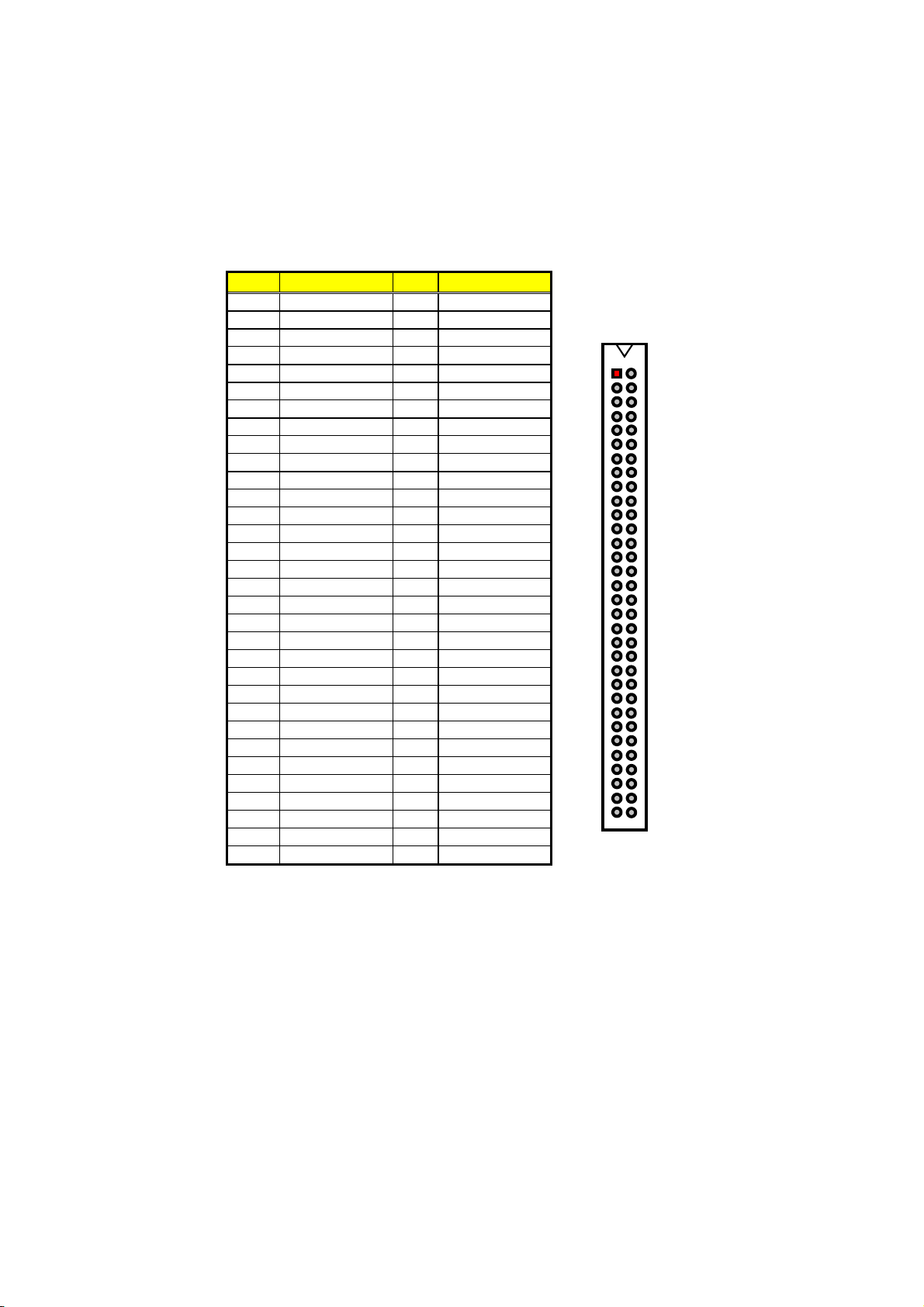

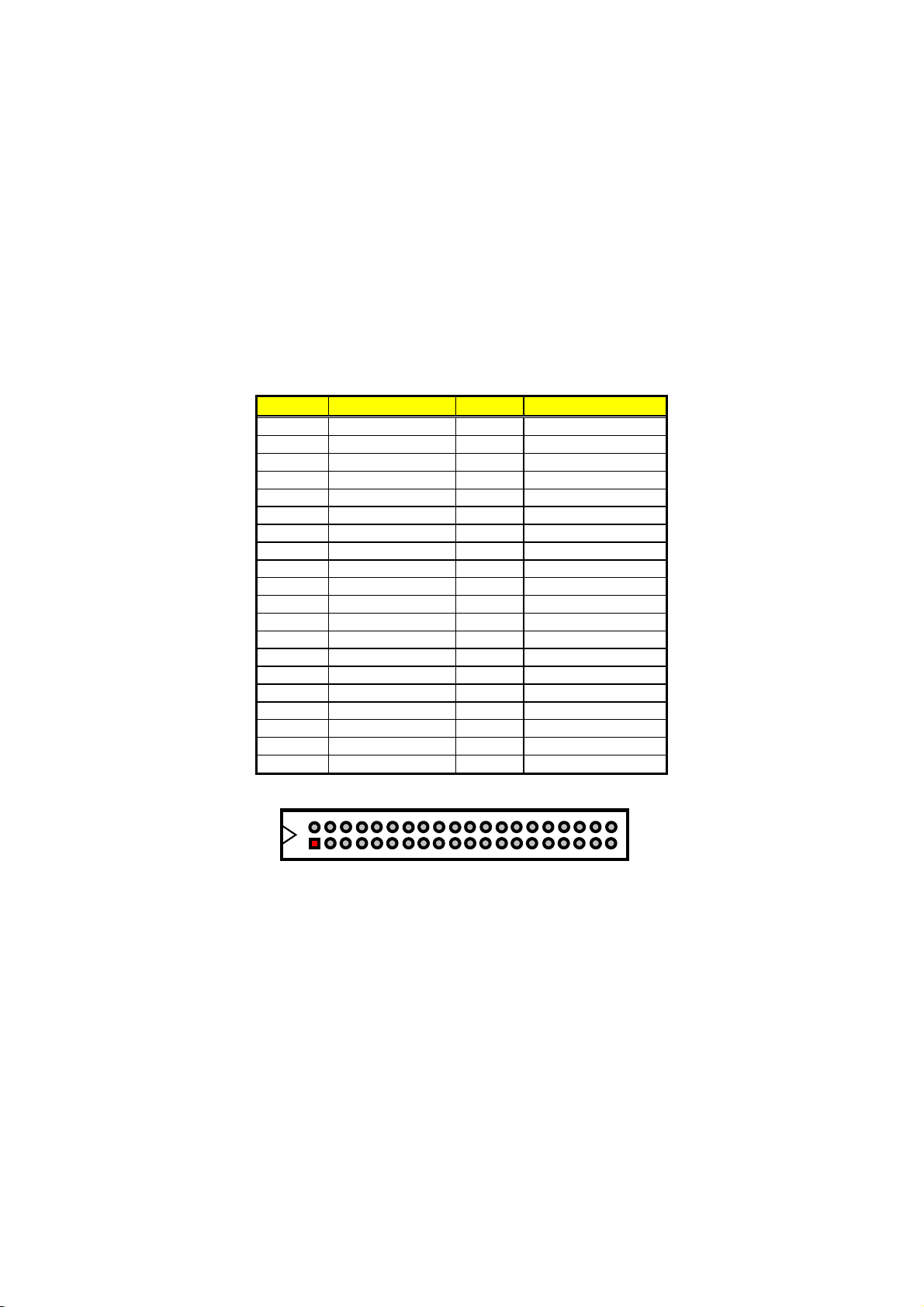

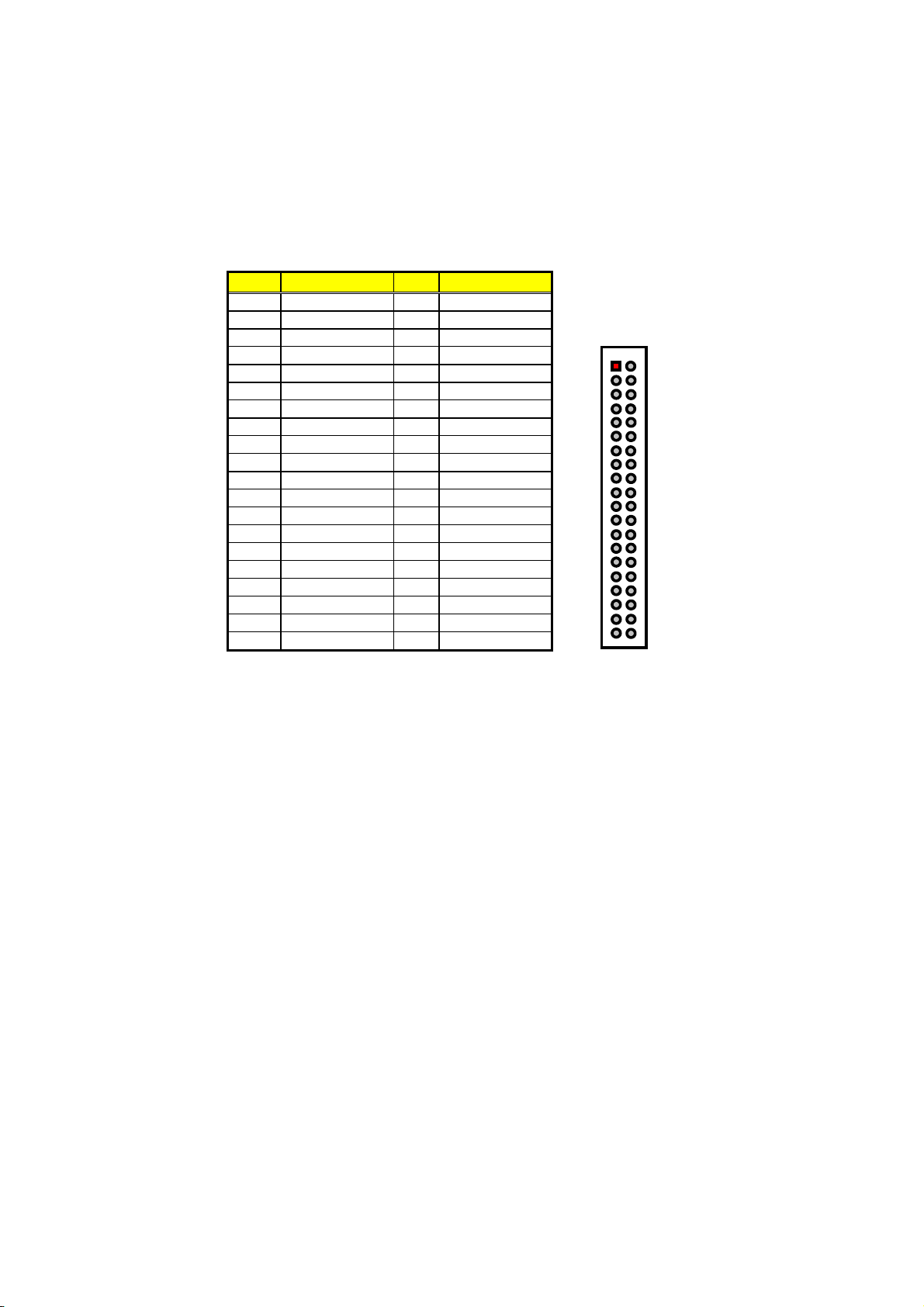

CN1: IDE Connector

PIN Description PIN Description

RESET

3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10 9 DATA 4 10 DATA 11

DATA 3

13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21

RPDDREQ#

23 RPDIOW# 24 GND 25 RPDIOR# 26 GND 27 PIORDY 28 PRIPD1# 29 RPDACK# 30 GND 31 IRQ14 32 N/C 33 RPDA1# 34 PATA66 35 RPDA0# 36 RPDA2# 37 RPCS1# 38 RPCS3# 39 HDD ACTIVE 40 GND

GND

DATA 12

GND

46810

3 5 7 9 17 19 21 23 25 27 29 31

12 14

11 13 15 35 37

202224 262830

16 36

32 34

Page 21

3.10 Floppy Disk Drive Connector

The HS-6237/HS-6637 uses a standard 34-pin header connector, CN9, for floppy disk drive connection. A total of two FDD drives may be connected to CN9 at any given time.



CN9: Floppy Connector

PIN Description PIN Description

1 GND 2 RWC- 3 GND 4 N/C 5 GND 6 DS1- 7 GND 8 Index#

9 GND 10 Motor Enable A# 11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 WD- 23 GND 24 WE- 25 GND 26 Track 0# 27 GND 28 WP- 29

N/C

31 GND 32 HEAD- 33 N/C 34 DSKCHG-

RDATA-

RWC-

N/C

DS1-

INDEX#

MOTOR ENABLE A#

DRIVE SELECT B#

DRIVE SELECT A#

MOTOR ENABLE B#

DIRECTION#

STEP#

WD-’WE-

TRACK 0#

WP-

RDATA-

HEAD-

DSKCHG-

GND

N/C

GND

N/C

Page 22

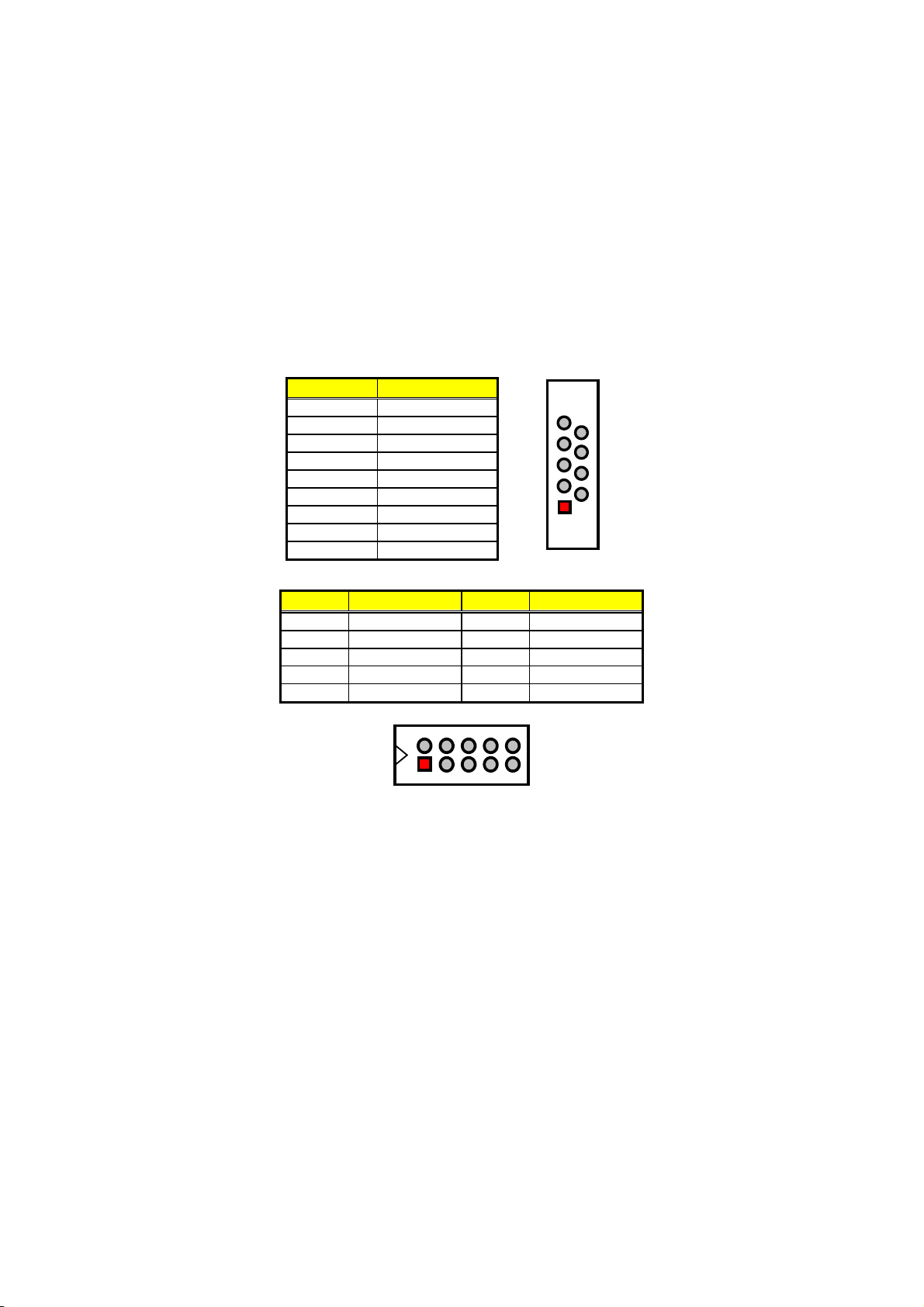

3.11 Serial Port Connectors

The HS-6237/HS-6637 offers two NS16C550 compatible UARTs with Read/Receive 16byte FIFO serial ports and two internal 10-pin headers.



CN23, CN24: COM1/COM2 Connector (DB9)

PIN Description

1 DCD 2 SIN 3

SOUT

4 DTR 5 GND 6 DSR 7 RTS

GND

DTR

SOUT

SIN

DCD

8 CTS 9 RI



CN14, CN22: COM1/COM2 Connector (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3 SIN 4 RTS 5 SOUT 6 CTS 7 DTR 8 RI 9 GND 10 N/C

DSR

RTS

CTS

N/C

CTS

RTS

DSR

SIN

DCD

DTR

GND

SOUT

Page 23

3.12 Parallel Connector

CN12 is a standard 26-pin flat cable connector deigned to accommodate parallel port connection onboard the HS-6237/HS-6637.



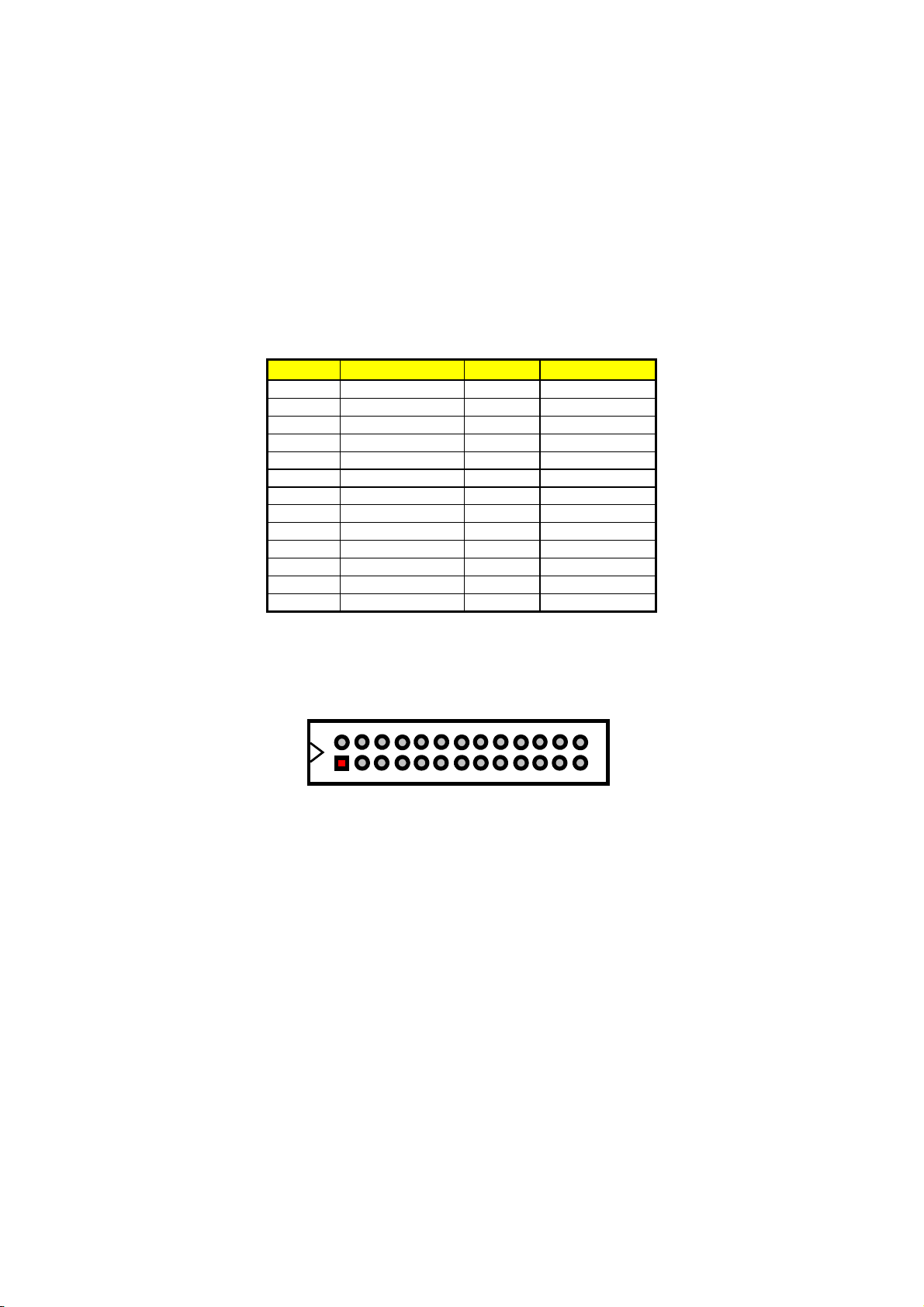

CN12: Parallel Connector

PIN Description PIN Description

1 Strobe 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge 11 Busy 12 Paper Empty 13 Printer Select 14 Auto Form Feed 15 ERROR# 16 Initialize 17 Printer Select LN# 18 GND 19 GND 20 GND 21 GND 22 GND 23

GND

25 GND 26 GND

Error#

Initialize

Print Select LN#

GND

Strobe

Data 0

Data 1

Data 2

Data 3

Data 4

Data 5

Data 6

Data 7

Acknowledge

Print Select

Paper Empty

Auto Form Feed

Page 24

3.13 Ethernet Connector

The HS-6237/HS-6637 provides one external RJ-45 10/100 Based LAN interface connector. Please refer to the following detail of pin information.



CN18: RJ-45 Connector

PIN Description

1 TX+ 2 TX- 3 4 N/C 5 N/C 6 RX- 7 N/C 8 N/C 9 GND

RX+

Aside from the RJ-45 provision onboard the HS-6237/HS-6637, the board also features three LED indicators, LE1, LE2 and LE3 that display the running conditions of the LAN.



LE1: 10T speed running



LE2: 100T speed running



LE3: LAN active



JP11: LAN Enabled/Disabled by Hardware

Options Settings

Disabled

Enabled (default) Open

N/C

RX+

TX-

TX+

Short

GND

N/C

RX-

3.14 IrDA Connector

CN13 is a 5-pin internal IR communication connector for connection of an IrDA device.



CN13: IrDA Connector

PIN Description

1 VCC 2 FIRRX 3 IRRX 4 GND 5

IRTX

2345

N/C

VCC

IRRX

VCC

IRTX

Page 25

3.15 USB Connector

The HS-6237/HS-6637 provides one 8-pin connector for USB0 and USB1 port connections at location JP10.



JP10: USB Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD0- 4 BD1- 5

BD0+

BD1+

7 GND 8 GND

VCC

BD1-

BD1+

GND

VCC

BD0-

BD0+

GND

3.16 Power and Fan Connectors

HS-6237/HS-6637 provides two 5-pin power connectors at CN5 and CN15. If you need to use the board on a non-backplane system, power

supply connections to both CN5 and CN15 is a must. If a backplane is attached to the HS-6237/HS-6637, power supply connection to only CN15 is possible provided that you do not use a CPU with high clock rating. To guarantee worry-free power installation, we highly recommend you to always connect power signals to both CN5 and CN15



CN5: 5-pin Power Connector

PIN Description PIN Description

1 VCC 2 GND 3 GND 4 VCC 5 VCC



CN15: 5-pin Power Connector

PIN Description PIN Description

1 VCC 2 GND 3 GND 4 +12V 5 -12V

VCC

GND

VCC

GND

Page 26

VCC

GND

-12V

GND

+12V

Connector CN2, CN25 and CN26 onboard HS-6237/HS-6637 are 3-pin fan power connectors.



CN2, CN25, CN26: Fan1~Fan3 Power Connector (v3.x only)

PIN Description

1 2 +12V 3 Fan1/Fan2/Fan3

GND

Fan1/Fan2/Fan3

+5V

GND

3.17 Keyboard Connectors

The HS-6237/HS-6637 offers two possibilities for keyboard connections. The connections are via CN21 for an external PS/2 type keyboard or via CN17 for an internal 5-pin cable converter to an AT keyboard.



CN17: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock 2 Keyboard Data 3 N/C 4 GND 5 +5V



CN21: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1 Keyboard Data 2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C

12345

N/C

Keyboard Data

Keyboard Clock

Keyboard

Clock

N/C

GND

Keyboard

Data

N/C

+5V

Page 27

3.18 PS/2 Mouse Connector

CN19 is a 6-pin mini DIN connector for connections to an external PS/2 mouse connector.



CN19: PS/2 6-pin Mini Din Mouse Connector

PIN Description

1 MS Data 2 N/C 3 GND 4 5 MS CLK 6 N/C

+5V

MS Clock

N/C

MS Data

N/C

+5V

GND

3.19 System Front Panel Connectors

The HS-6237/HS-6637 has one LED at location D1 that indicates the power-on status. This visual feature of the IDE LED may also be connected to an external IDE LED via connector CN3.



CN3: HDD LED

PIN Description

1 +5V 2 HDD ACTIVE

CN6 and JP4 are the Keylock and Reset Button connectors onboard.



CN6: Power LED & Keylock Connector

PIN Description

1 Power LED Anode 2 N/C 3 GND 4 Keylock 5 GND



JP4: Reset Connector

PIN Description

1 GND 2 External Reset

+5V

HDD Active

12345

N/C

GND

Keylock

Power LED Anode

GND

Ext. Reset

Page 28

3.20 External Speaker

Aside from the buzzer at location BZ1 onboard, the HS-6237/HS-6637 also offers a connector (CN4) for an external speaker connection. The table below lists the pin assignments of CN4.



CN4: Speaker Connector

PIN Description

1 Speaker Signal 2 N/C 3 GND 4 +5V

1234

N/C

+5V

GND

Speaker Signal

3.21 Thermal Input Connector

In relevance to the Hardware Monitoring feature provided by the onboard Winbond W83783S, the board allows the installation of a thermal sensor via connector JP14. The thermal connector monitors and displays the current system temperature from the Chipset Features Setup screen on your BIOS utility program. The value displayed are read-only figures and may not be altered.



JP14: Thermal Input Connector

PIN Description

1 Sensor In 2 GND

SensorInGND

3.22 Watchdog Timer

There are three access cycles of Watchdog Timer as

Disable are the three access cycles of Watchdog Timer. The Enable cycle proceeds via READ PORT 443H whereas the Disable cycle proceeds via READ PORT 045H. A continued Enable cycle after a first Enable cycle means Refresh.

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start or a NMI cycle to the CPU transpires when such error happens. Jumper JP7 is used to select the function of Watchdog Timer.

Enable, Refresh and

Page 29



JP7: Watchdog Timer Active Type Setting

Options Settings

Active NMI Short 1-2

System Reset (default) Short 2-3

Disabled Watchdog Timer



JP9 (5-10): WDT Timeout Period Select

Open

Period PINS 5-6 PINS 7-8 PINS 9-10

1 sec (default) Short Short Short

2 sec Open Short Short

10 sec Short Open Short 20 sec

110 sec Short Short Open 220 sec Open Short Open

Open Open Short

The Watchdog Timer is disabled after the system Power-On. It can be enabled via an Enable cycle and reading the control port (443H), or via a Refresh cycle and reading the control port (443H), or via a Disable cycle and reading the disable control port (045H).

After an Enable cycle of WDT, user must immediately execute a Refresh cycle to WDT before its period setting comes to an end every 1, 2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not activate before WDT period cycle, the onboard WDT architecture will issue a Reset or NMI cycle to the system. There are three I/O ports that control the Watchdog Timer.

443H I/O Read The Enable cycle 443H I/O Read The Refresh cycle 045H I/O Read The Disable cycle

The following sample program shows how to Enable, Disable and Refresh the Watchdog Timer：

WDT_EN_RF EQU 0433H WDT_DIS EQU 0045H

WT_Enable PUSH AX ; keep AX DX PUSH DX MOV DX,WDT_EN_RF ; enable the WDT IN AL,DX POP DX ; get back AX, DX POP AX RET

WT_Refresh PUSH AX ; keep AX, DX

PUSH DX MOV DX,WDT_ET_RF ; refresh the WDT

Page 30

IN AL,DX POP DX ; get back AX, DX POP AX RET

WT_DISABLE PUSH AX

PUSH DX MOV DX,WDT_DIS ; disable the WDT IN AL,DX

POP DX ; get back AX, DX POP AX RET

3.23 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors CN10 and CN11 are listed on the following tables:

NOTE：

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.

Page 31



CN11: PC/104 40-pin Connector

PIN Description PIN Description

1 GND 21 GND 2 MEMCS16* 22 SBHE* 3 4 IRQ10 24 LA22 5 IRQ11 25 LA21 6 IRQ12 26 LA20 7 IRQ15 27 LA19 8

9 DACK0* 29 LA17 10 DRQ0 30 MEMR* 11 DACK5* 31 MEMW* 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 16 DRQ7 36 SD12 17 +5V 37 SD13 18 MASTER* 38 SD14 19 GND 39 SD15 20 GND 40 N/C

IOSC16*

IRQ14

DACK7*

LA23

LA18

SD11

Connector diagram

rotated 90 degrees

clockwise from

original position

121

4020

Page 32



CN10: PC/104 64-pin Connector

PIN Description PIN Description

1 IOCHK* 33 GND 2 SD7 34 RESETDRV 3 4 SD5 36 IRQ9 5 SD4 37 -5V 6 SD3 38 DRQ2 7 SD2 39 -12V 8

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW* 12 SA19 44 SMEMR* 13 SA18 45 IOW* 14 SA17 46 IOR* 15 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 SA13 50 DRQ1 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC1 31 SA0 63 GND 62 GND 64 GND

SD6

SD1

SA16

SA4

+5V

ZEROWS#

DACK3*

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

Page 33

Chapter 4

Award BIOS Setup

The HS-6237/HS-6637 uses Award PCI/ISA BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 34

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 35

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

ROM PCI/ISA BIOS (2A69KD2H)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANGEMENT SETUP

PCI CONFIGURATION SETUP

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc：Quit F10：Save & Exit

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING



：

(Shift)F2：Change Color

Select Item

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Page 36

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

ROM PCI/ISA BIOS (2A69KD2H)

Data (mm:dd:yy) : Fri, Dec 19 1998

Time (hh:mm:ss) : 00:00:00

CYLS HEAD PRECOMP LANDZ SECTOR MODE

Driver C : Auto ( 0Mb) 0 0 0 0 0 Auto

Driver D : Auto ( 0Mb) 0 0 0 0 0 Auto

Drive A : 1.44M , 3.5in.

Drive B : None Base Memory : 640K

LCD&CRT : Auto Extended Memory : 15360K

Other Memory : 384K

Halt On : All Errors Total Memory : 16384K

ESC : Quit F1 : Help

mode. Please use the IDE Setup Utility in

LBA

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.



(Shift) F2: Change Color

: Select Item

PU/PD/ + / - : Modify

Page 37

4.5 BIOS Features Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

ROM PCI/ISA BIOS (2A69KD2H)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled External Cache : Enabled CC000-CFFF Shadow : Disabled CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled Processor Number Feature : Enabled D4000-D7FFF Shadow : Disabled Quick Power On Self Test : Disabled D8000-DBFFF Shadow : Disabled DC000-DFFFF Shadow : Disabled Boot Sequence : A,C,SCSI Swap Floppy Drive : Disabled Boot Up Floppy Seek : Enabled Boot Up NumLock Status : On Gate A20 Option : Fast Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec) : 6 Typematic Delay (Msec) : 250 Security Option : Setup PS/2 mouse function control : Enabled ESC : Quit PCI/VGA Palette Snoop : Disabled F1 : Help PU/PD/+/-: Modify OS Select For DRAM > 64MB : Non-OS2 F5 : Old Values (Shift) F2 : Color G6 : Load BIOS Defaults Report No FDD For WIN 95 : Yes G7 : Load Setup Defaults



: Select Item

Page 38

4.6 Chipset Features Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

ROM PCI/ISA BIOS (2A69KD2H)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled Auto Detect DIMM/PCI Clk : Enabled EDO DRAM Speed Selection : 60ns Spread Spectrum : Disabled EDO CASx# MA Wait State : 2 CPU Host Clock (CPU/PCI) EDO RASx# Wait State : 2 CPU Warning Temperature SDRAM RAS-to-CAS Delay : 3 Current System Temp. SDRAM RAS Precharge Time : 3 Current CPU1 Temperature SDRAM CAS Latency Time : 3 Current CPUFAN1 Speed SDRAM Precharge Control : Enabled Current CPUFAN2 Speed DRAM Data Integrity Mode : Non-ECC Current CPUFAN3 Speed System BIOS Cacheable : Enabled Vcore : +3.3V : Video BIOS Cacheable : Enabled +5V : +12V : Video RAM Cacheable : Enabled -12V : : 8 Bit I/O Recovery : 1 Shutdown Temperature : Disabled 16 Bit I/O Recovery : 1 Memory Hole At 15M-16M : Disabled Passive Release : Enabled ESC : Quit Delayed Transaction : Disabled F1 : Help PU/PD/+/-: Modify AGP Aperture Size : 64M F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults



: Select Item

Page 39

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

ROM PCI/ISA BIOS (2A69KD2H) POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function : Enabled ** Reload Global Timer Events ** Power Management : User Define IRQ3 [3-7, 9-15], NMI : Enabled PM Control by APM : Yes Primary IDE0 : Disabled Video Off Method : V/H Sync + Blank Primary IDE1 : Disabled Video Off After : Standby Secondary IDE0 : Disabled MODEM Use IRQ : 3 Secondary IDE1 : Disabled Doze Mode : Disabled Floppy Disk : Disabled Standby Mode : Disabled Serial Port : Enabled Suspend Mode : Disabled Parallel Port : Disabled HDD Power Down : Disabled Throttle Duty Cycle : 62.5% PCI/VGA Act-Monitor : Disabled Power On by Ring : Enabled IRQ8 Break Suspend : Disabled

ESC : Quit F1 : Help PU/PD/+/-: Modify F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults



: Select Item

Page 40

4.8 PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or

ersonal Computer Interconnect, is a system that allows I/O devices to

operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

ROM PCI/ISA BIOS (2A69KD2H)

PCI CONFIGURATION SETUP

AWARD SOFTWARE, INC.

PnP OS Installed : Yes Assign IRQ For VGA : Enabled Resources Controlled by : Auto SLOT 1 Use IRQ No : Auto Reset Configuration Data : Disabled SLOT 2 Use IRQ No : Auto SLOT 3 Use IRQ No : Auto SLOT 4 Use IRQ No : Auto Assign IRQ For USB : Enabled

ESC : Quit F1 : Help PU/PD/+/-: Modify F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults



: Select Item

Page 41

4.9 Load BIOS Defaults

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

ROM PCI/ISA BIOS (2A69KD2H)

LOAD BIOS DEFAULTS

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PCI CONFIGURATION S ETUP

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

Load BIOS Defaults (Y/N)? N

   

Load BIOS Defaults except Standard CMOS Setup

: Select Item

SAVING

Page 42

4.10 Load Setup Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

ROM PCI/ISA BIOS (2A69KD2H)

LOAD SETUP DEFAULTS

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PCI CONFIGURATION S ETUP

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

Load SETUP Defaults (Y/N)? N

   

Load BIOS Defaults except Standard CMOS Setup

: Select Item

SAVING

Page 43

4.11 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

ROM PCI/ISA BIOS (2A69KD2H)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled IDE Primary Master PIO : Auto LCD Panel Type : Panel 5 IDE Primary Slave PIO : Auto IDE Primary Master UDMA : Auto IDE Primary Slave UDMA : Auto On Chip Primary PCI IDE : Enabled USB Keyboard Support : Disabled Init Display First : PCI Slot KBC input clock : 8M Onboard FDC Controller : Enabled Onboard Serial Port 1 : 3F8/IRQ4 Onboard Serial Port 2 : 2F8/IRQ3 UART Mode Select : Normal ESC : Quit F1 : Help PU/PD/+/-: Modify Onboard Parallel Port : 378/IRQ7 F5 : Old Values (Shift) F2 : Color Onboard Parallel Mode : SPP F6 : Load BIOS Defaults F7 : Load Setup Defaults



: Select Item

Page 44

Panel# Panel Type

0 1024*768 Dual Scan STN Color Panel 1 128*1024 TFT Color Panel 2 640*480 Dual Scan STN Color Panel 3 800*600 Dual Scan STN Color Panel 4 640*480 Sharp TFT Color Panel 5 640*480 18-bit TFT Color Panel 6 1024*768 TFT Color Panel 7

800*600 TFT Color Panel

8 800*600 TFT Color Panel (Large BIOS ONLY) 9

800*600 TFT Color Panel (Large BIOS ONLY)

10 800*600 Dual Scan STN Color Panel (Large BIOS ONLY) 11 800*600 Dual Scan STN Color Panel (Large BIOS ONLY) 12

1024*768 TFT Color Panel (Large BIOS ONLY)

13 1280*1024 Dual Scan STN Color Panel (Large BIOS ONLY) 14

1024*600 Dual Scan STN Color Panel (Lange BIOS ONLY)

15 1024*600 TFT Color Panel (Lange BIOS ONLY)

4.12 Supervisor/User Password Setting

ROM PCI/ISA BIOS (2A69KD2H)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

Enter Password :

   

SAVING

: Select Item

Change / Set / Disable Password

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

Page 45

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Page 46

4.13 IDE HDD Auto Detection

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

ROM PCI/ISA BIOS (2A69KD2H)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master:

Select Primary Master Option (N=SKIP) : N OPTIONS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE 1 (Y) 0 0 0 0 0 0 0 NORMAL

NOTE: Some OSes (like SCO-UNIX) must use ”NORMAL” for installation

Page 47

4.14 Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

ROM PCI/ISA BIOS (2A69KD2H)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

SAVE to CMOS and EXIT (Y/N)? N

   

Saves all Data & Exit Setup

SAVING

: Select Item

Page 48

4.15 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

ROM PCI/ISA BIOS (2A69KD2H)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

Quit Without Saving (Y/N)? N

   

Abandon all Data & Exit Setup

SAVING

: Select Item

Page 49

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, Audio and LAN driver installation procedures.

5.1 VGA Driver Installation

5.1.1 Win95/98

1. Click Start, then Setting, then Control Panel.

2. Start the Display applet program.

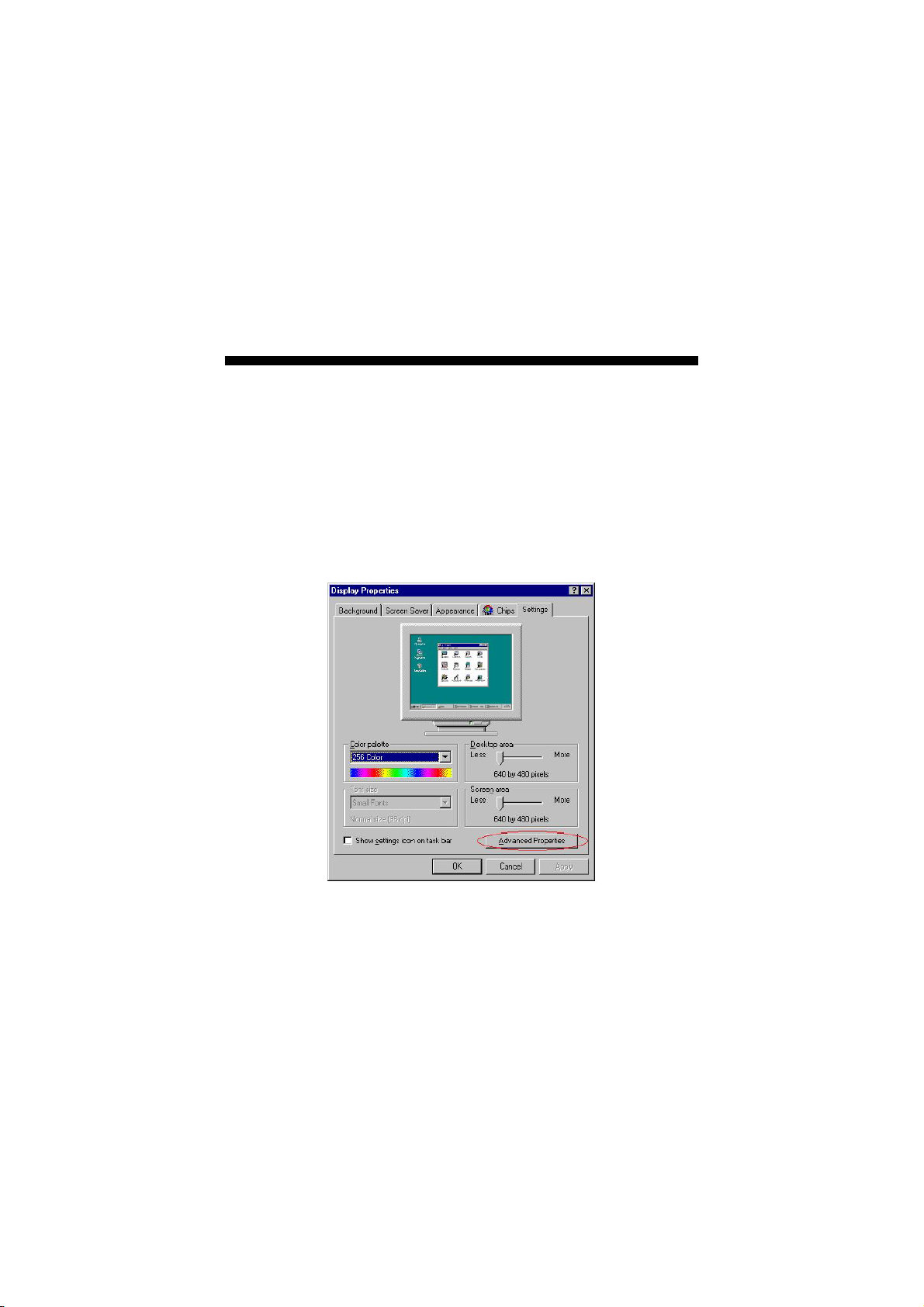

3. Select the setting page, click on the Advanced properties button.

4. Press the Change button in the adapter area.

Page 50

5. Click on Next to continue and then select

Display a list of all drivers in a specific location,

so you can select the drivers you want.

6. Click on Next.

7. Select the Specify a location checkbox then Browse.

8. Specify the path to the new driver and then press the <ENTER> key (if in driver A: select a:\win95).

9. Once completed, the Select device dialog box will appear. Choose on:

Chips and Tech. 69000 PCI

10. Continue choosing until asked to restart machine.

11. After the system has restarted, you can go back into the display applet and select alternate screen resolutions and color depths.

NOTE:

Installation procedure for Windows 98 is similar to Windows95.

Page 51

5.1.2 WIN NT

1. Click the Start button, then go to Settings and click on Control Panel.

2. Click on Display icon to start the Display Properties window.

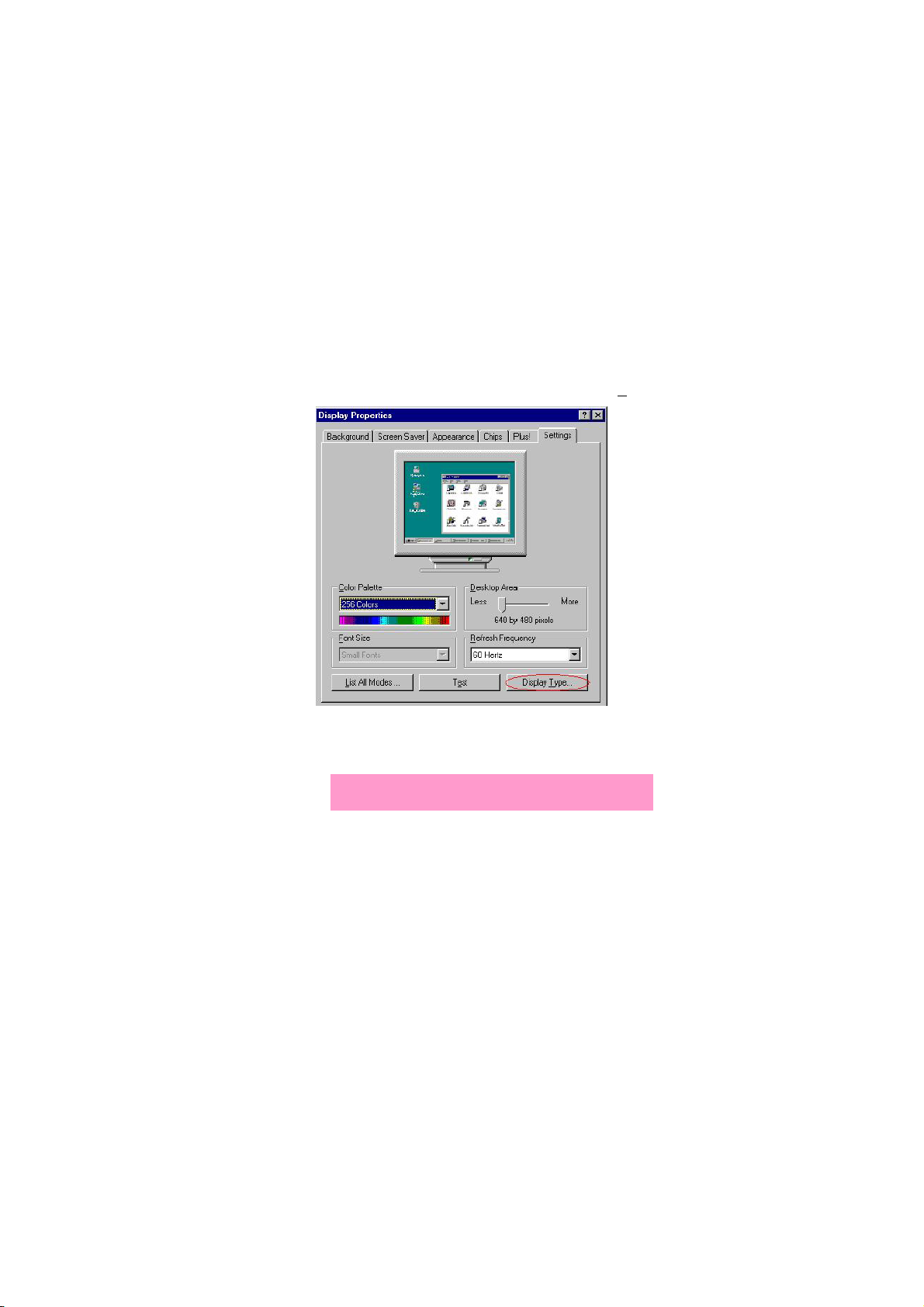

3. Click on the Settings tab, and then click on Display T

4. In the Change Display Type window, click on Have Disk.

5. Specify the path to the new driver and press the <ENTER>key (if in driver A:, type a:\nt40). Select

Chips Video Accelerator

(655545/48/50/54/55/68554 69000)

6. Click OK or press Enter.

7. You will then see warning panel about Third Party Drivers. Click on Yes to complete installation.

8. Once the installation is complete, the system must be shut down and restarted for the new driver to take effect.

9. After restarting, check on the VGA driver and make sure the properties of the driver look similar to the following figure.

ype.

Page 52

5.2 LAN Driver Installation

5.2.1 WIN95/98

1. Click My Computer, Right Button, select Properties.

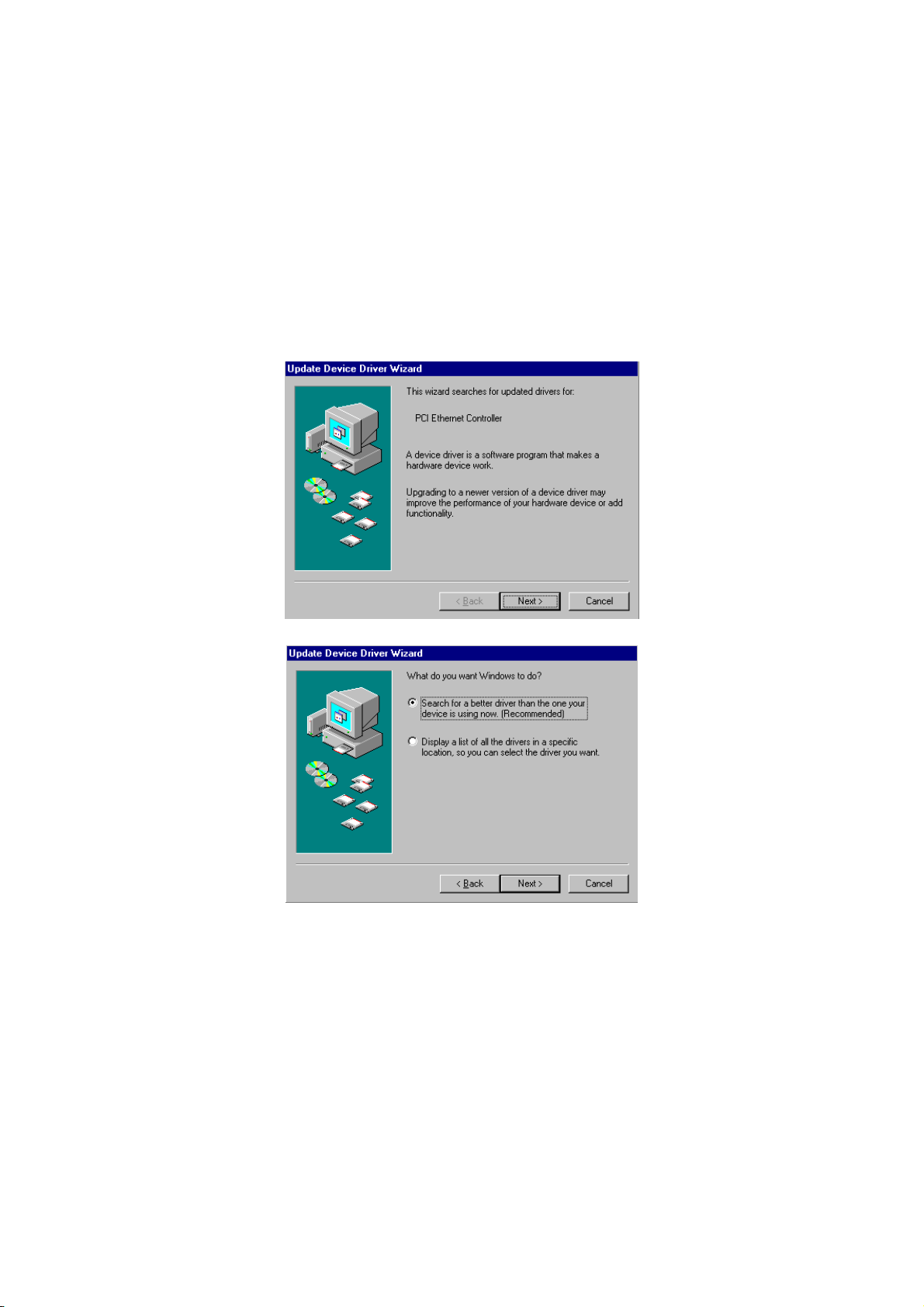

2. Select Other devices\PCI Ethernet Controller, the click on

operties.

3. Click Reinstall Driver button.

Page 53

4. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the Next button once you are sure of your devices.

5. Click on Next

Page 54

6. Select the Specify a location checkbox then Browse. Specify the path to the new driver and then press the <ENTER> key (if in drive A: select a:\win95).

7. Click on Next to install driver

Page 55

8. Click on Finish button to restart machine.

5.3.2 Win NT

NOTE:

1. The system automatically detects the absence of Windows NT

Please make sure you have already installed

Networking. Click on the Y

es button to start installation.

Service Pack 6.0.

Page 56

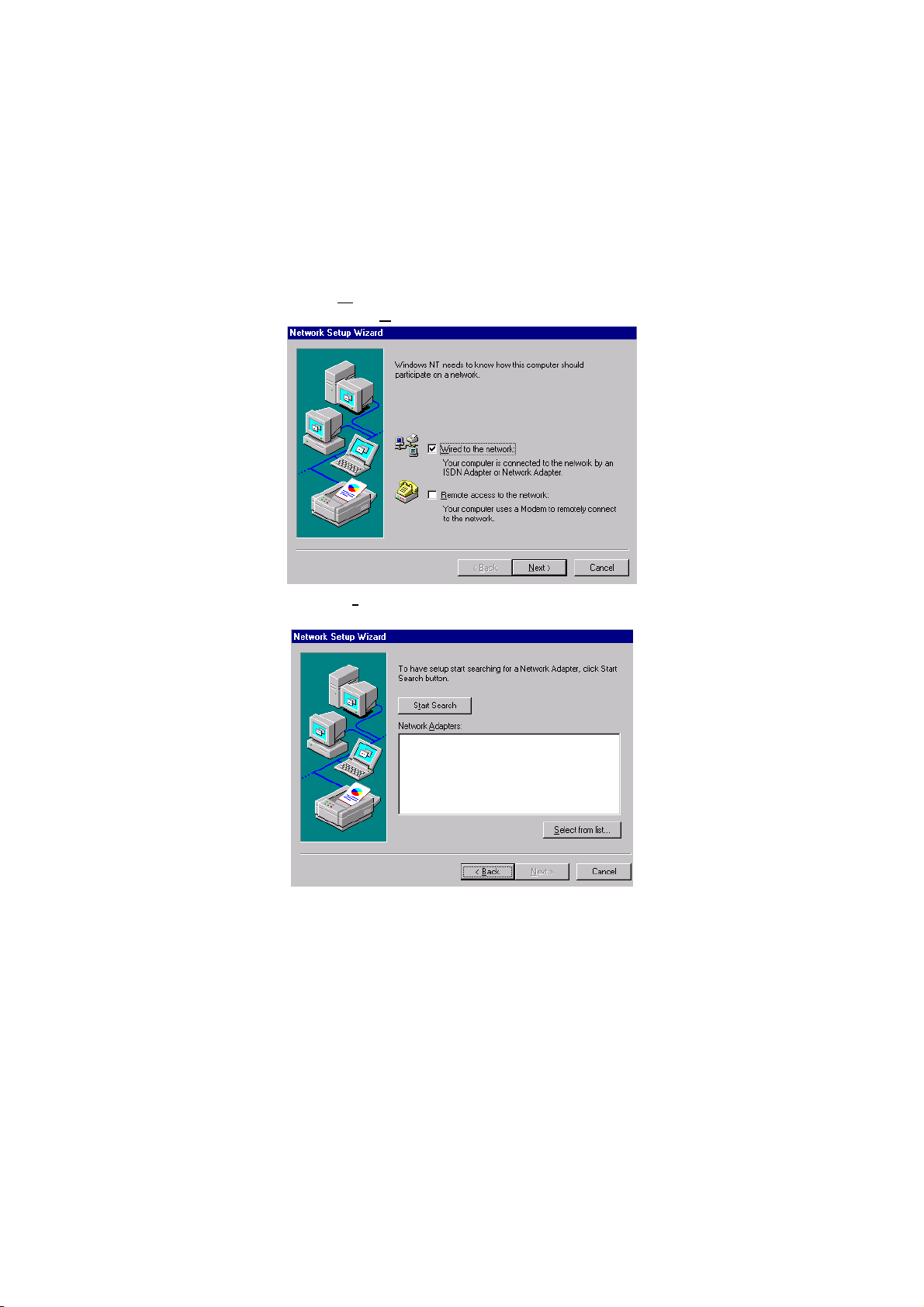

2. Tick on the Wired to Network once the following screen appears. Click on N

3. Click on the St Network Adapter.

ext > to proceed.

art Search button for the program to locate the

Page 57

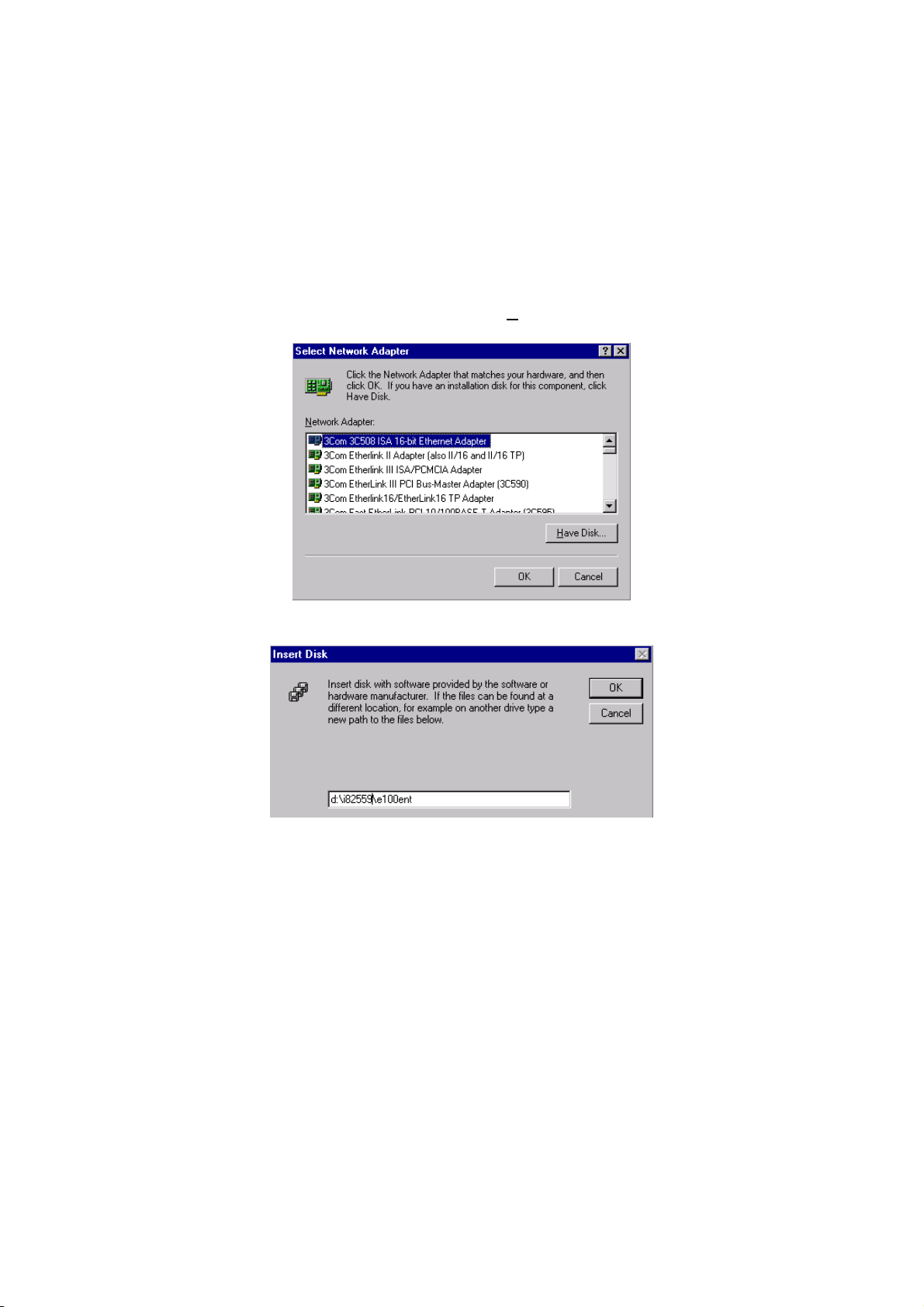

4. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the H the driver path location.

5. Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue.

ave Disk button to assign

Page 58

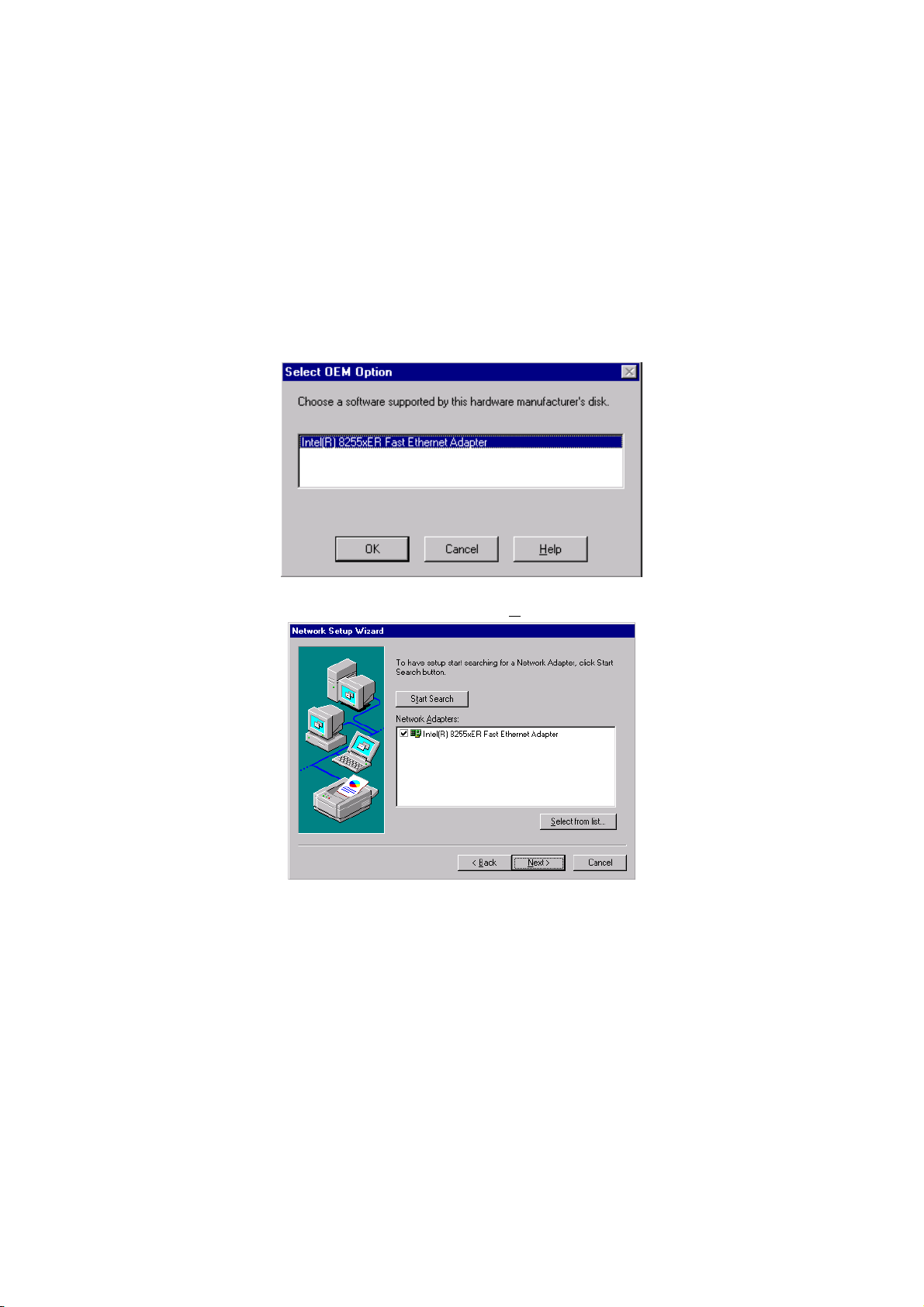

6. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Please choose “Intel(R) PRO/100 Family Adapter”. Press on the OK button to accept and proceed.

7. Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on N

ext to continue.

Page 59

8. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.

9. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the N button once you are sure of your devices.

ext

Page 60

10. Windows NT Setup will then need to copy files necessary to update the system information. Specify the path and then press Continue.

11. When Setup asks if you wish to change the TCP/IP settings of your system, select them appropriately. The default choice is N

12. Setup then starts the Networking installation and copies the files.

13. When the screen below appears, click on N

ext to continue.

Page 61

14. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on N continue.

15. Assign the workgroup or domain setting of your computer. Click on Next to continue.

ext to

Page 62

16. Click on the Yes button to restart your computer. The LAN1 driver installation for WIN NT4.0 is now complete.
