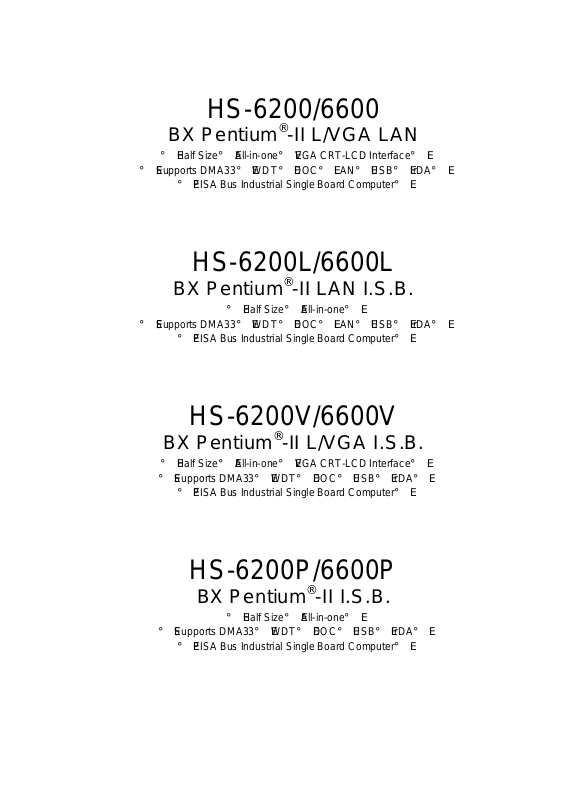

Boser HS-6600, HS-6200 User Manual

HS-6200/6600

BX Pentium®-II L/VGA LAN

¡EHalf Size¡EAll-in-one¡EVGA CRT-LCD Interface¡E

¡ESupports DMA33¡EWDT¡EDOC¡ELAN¡EUSB¡EIrDA¡E

¡EPISA Bus Industrial Single Board Computer¡E

HS-6200L/6600L

BX Pentium®-II LAN I.S.B.

¡EHalf Size¡EAll-in-one¡E

¡ESupports DMA33¡EWDT¡EDOC¡ELAN¡EUSB¡EIrDA¡E

¡EPISA Bus Industrial Single Board Computer¡E

HS-6200V/6600V

BX Pentium®-II L/VGA I.S.B.

¡EHalf Size¡EAll-in-one¡EVGA CRT-LCD Interface¡E

¡ESupports DMA33¡EWDT¡EDOC¡EUSB¡EIrDA¡E

¡EPISA Bus Industrial Single Board Computer¡E

HS-6200P/6600P

BX Pentium®-II I.S.B.

¡EHalf Size¡EAll-in-one¡E

¡ESupports DMA33¡EWDT¡EDOC¡EUSB¡EIrDA¡E

¡EPISA Bus Industrial Single Board Computer¡E

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reduced to any electronic or
machine readable in whole or in part form without prior written consent from the
manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The proprietary information contains in this document is protected by the copyright.
All rights are reserved. It is not allow any non authorization in copied, photocopied,
translated or reduced to any electronic or machine readable in whole or in part form
without prior written consent from the manufacturer except for copied retained by
the purchaser for backup purposes.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.

Trademarks

IBM PC is a registered trademark of International Business Machines Corporation.
Intel® is a registered trademark of Intel Corporation.
AWARD is a registered trademark of AWARD International Inc.
ISB is a registered trademark of Boser Technology Co., Ltd.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

© Copyright 1999
All Rights Reserved.
User Manual edition 1.0, Jul.29.1999

Contents

HS-6200/6600........................................................................................ 1

HS-6200L/6600L....................................................................................1

HS-6200V/6600V...................................................................................1

HS-6200P/6600P...................................................................................1

GENERAL INFORMATION ......................................................................... 3

1.1 MAJOR FEATURES ................................................................................. 4

1.2 SPECIFICATIONS ....................................................................................5

1.3 DELIVERY PACKAGE...............................................................................7

HARDWARE INSTALLATION.....................................................................8

2.1 CAUTION OF STATIC ELECTRICITY..........................................................8

2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION............................9

2.3 HS-6200/6600’S LAYOUT ...................................................................10

2.4 QUICK LISTING OF JUMPERS ................................................................10

2.5 QUICK LISTING OF CONNECTORS .........................................................11

2.6 JUMPER SETTING DESCRIPTION...........................................................12

2.7 MANUFACTURE DEFAULT SETTING ......................................................13

2.8 SETTING THE BUS-CLOCK FREQUENCY ...............................................13

2.9 FREQUENCY MULTIPLIER SETTING .......................................................13

2.10 SETTING THE RTC CONFIGURATION..................................................15

2.11 SYSTEM MEMORY DRAM..................................................................15

2.12 SETTING THE FLAT PANEL VOLTAGE..................................................15

2.13 WATCH-DOG TIMER ..........................................................................16

2.14 PCI VGA CONTROLLER....................................................................18

2.15 DISKONCHIP ADDRESS SETTING....................................................18

CONNECTION ............................................................................................19

3.1 POWER AND FAN CONNECTORS.........................................................19

3.2 IDE'S LED, KEY-LOCK AND RESET BUTTON........................................20

3.3 EXTERNAL SPEAKER............................................................................20

3.4 PCI E-IDE DRIVE CONNECTOR...........................................................21

3.5 PS/2 POWER ON/OFF CONTROL.......................................................22

3.6 PARALLEL PORT CONNECTOR..............................................................22

Contents • i

3.7 THE FLOPPY DISK DRIVE CONNECTOR ................................................23

3.8 SERIAL PORTS CONNECTORS..............................................................24

3.9 KEYBOARD CONNECTORS ....................................................................25

3.10 PS/2 MOUSE 6-PIN MINI-DIN CONNECTOR.......................................25

3.11 VGA CRT AND LCD CONNECTORS ..................................................26

3.12 IR CONNECTOR .................................................................................27

3.13 USB PORTS CONNECTOR.................................................................28

3.14 LAN INTERFACE CONNECTOR...........................................................28

AWARD BIOS SETUP ...............................................................................29

4.1 MAIN MENU .........................................................................................30

4.2 STANDARD CMOS SETUP...................................................................31

4.3 BIOS FEATURES SETUP......................................................................32

4.4 CHIPSET FEATURES SETUP .................................................................33

4.5 INTEGRATED PERIPHERALS..................................................................34

4.6 POWER MANAGEMENT SETUP .............................................................35

A BRIEF INFORMATION OF 10/100 BASED-T LAN.............................36

ii •Contents

Chapter-1

General Information

The HS-6200/6600 is a bus-100MHz Intel® BX chipset design PISA/ISA bus
Pentium®II/III Industrial Single Board (I.S.B.) CPU card with features
combine together to make it an ideal all-in-one industrial single board
computer, enhanced I/O effects with LAN and VGA CRT-LCD interface.

With onboard DMA33 of mode 4 to IDE drive interface architecture, the
HS-6200/6600 supports with maximum 33.3 MB/sec in data transfer rating
to 2 pieces IDE drive connection. Design with Intel®82443 BX core logic
chipset supports all series Pentium®II/III operating at 233MHz, 266MHz,
300MHz, 333MHz, 400MHz and 650MHz. The on-board INTEL® 69000

VGA chipset whick has 2 MB VGA RAM supports up to 1280 x 1024
256 colors display resolution. And it also provides one internal 50-pin
connector for various type of the LCD Panel connection.

The advanced ISA bus backplane system of HS-6200/6600 allows user
could easily obtain one 16-bit ISA slot. The HS-6200/6600 provides with two
pieces 168-pin DIMM sockets support up to 1GBytes of main system
memory.

A single Flash chip holds the system BIOS, and you can easy update the
Flash BIOS by the Utility Update. Advanced USB and IR ports also provide
for faster and easily in data transmission. You can also use the DOS version
of the "DiskOnChip" socket by issuing commands from the DOS prompt
without the necessity of other software supports up to 144MB.

The HS-6200/6600 features includes one Intel® 82558B 100-Based LAN
chipset on-board. Also has one external RJ-45 connector on board for user’s
LAN application.

If a non-expect program cause halts, the onboard watchdog timer will
automatically reset the CPU or generate an interrupt. The watchdog is
designed with in hardware only and doesn’t need any arithmetical functions
of a real-time clock chip. This ensures the reliability in an unmanned or
standalone system.

3

1.1 Major Features

ü ISA bus supported for HS-6200.

PISA bus supported for HS-6600.

ü One axial-horizontal type Slot-1 socket for Intel

¡ã650 MHz Processors.

ü Intel
ü Two pieces DIMM sockets supports memory up to 1 GB.
ü Fast PCI DMA33 controller supports two IDE drives include large

®

82443 BX chipset.

hard disks, CD-ROM and tape backup etc.

ü PnP I/O address & IRQ selection
ü On-board Intel
ü Two high-speed RS-232 serial ports with 16C550 UART 16-byte

®

82558B 100-Based LAN chipset.

FIFO.

ü One enhanced bi-directional parallel port supports SPP/EPP/ECP.
ü On-board PS/2 Keyboard and PS/2 Mouse connector.
ü On-board INTEL
ü On-board one 50-pin for various types LCD Panel connection.

®

69000 SVGA adapter.

®

Pentium®II 233

ü DiskOnChip Socket supports memory size up to 144 MB.
ü On-board two USB ports and one IrDA port.
ü Build-in one industrial WDT Watch-Dog-Timer.
ü AWARD PnP Y2K Flash BIOS.

4

1.2 Specifications

² CPU: One piece Intel® Pentium®II 233/266/300/333/400/450/650

MHz.

² Bus interface: ISA bus
² Chipset: Intel® 82443 BX with bus-100MHz frequency.
² Data bus: 64-bit
² Processing ability: 64-bit
² CRT-LCD SVGA Controller: INTEL® 69000 chipset with on-chip

2MB memory supports CRT up to 1280x1024 256 colors. Provides
internal 50-pin LCD connector.

² LAN Interface: Intel® 82558B 100-Based LAN provides 10-Based or

100-Based ability.

² PCI Enhanced IDE Interfaces: Two IDE drives supports modes 3&4

with DMA33 function provide data transfer rate up to 33MB/Sec.

² RAM memory: Two pieces 168-pin DIMM sockets provide up to 1

GBytes.

² Cache memory: Slot-1 socket supports Intel's Pentium®II/III CPU

with build-in 512KB Pipeline burst cache memory.

² Floppy disk drive interface: Supports up to two floppy disk drives.
² Parallel port: One bi-directional parallel port. Supports

SPP/ECP/EPP.

² Serial ports: Two RS-232 ports. Both use 16C550 UART with 16-

byte FIFO.

² BIOS: AWARD PnP Y2K Flash BIOS.
² Watchdog timer: Hardware circuit can be set by 1, 2, 10, 20, 110, or

220 seconds period Reset or NMI were generated when CPU did not
periodically trigger the timer.

² DMA channels: 7

5

² Interrupt levels: 15
² Keyboard: 6-pin mini DIN connector or 5-pin header supports

standard PC/AT keyboard.

² Mouse: 6-pin mini DIN connector support PS/2 type mouse.
² USB: Supports 2 USB header.
² IR interface: Supports one lrDA TX/RX header.
² Flash memory Disk: Socket for DiskOnChip™ (DOC), support up to

144MB Flash memory disk.

² Extra Power Input: Provides one 4-PIN extra DC +5V/+12V power

input connector.

² CMOS: Real-time clock/calendar and battery backup by DS12B887

or equivalent device.

² Power supply voltage: +5V (4.75 to 5.25V), +12V.
² Max. Power requirement: +5V @12A(266MHz), +12V@20mA.
² Operating temperature: 0-55°C (CPU need cooler)
² Board size: 7.3"(L) x 5" (W) (158mm x 127mm)

The HS-6200/6600 provides with VGA CRT-LCD Interface, supports
DMA33, WDT, DOC, LAN, USB and IrDA.

The HS-6200/6600V provides with VGA CRT-LCD Interface, supports
DMA33, WDT, DOC, USB and IrDA. (A version without LAN of HS­6200/6600).

The HS-6200/6600L provides with support DMA33, WDT, DOC, LAN, USB
and IrDA. (A version without VGA CRT-LCD on-board of HS-6200/6600).

The HS-6200/6600P provides with support DMA33, WDT, DOC, USB and
IrDA. (A version without LAN and VGA CRT-LCD on-board of HS­6200/6600 ).

6

1.3 Delivery Package

The delivery package of HS-6200/6600 includes all following items:

R PISA Bus supported.( HS-6200 )
R ISA Bus supported.( HS-6600 )
R One Printer Ports Bracketed Flat Cable
R One COM Ports Bracketed Flat Cable
R One IDE port Flat Cable
R One FDD port Flat Cable
R One PS/2 to Standard DIN type Keyboard Transfer Cable
R Utility Diskette
R User’s Manual

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the
delivery package with packing materials in case of you want to ship
or store the product in feature.

There are a few differences with in different versions of HS­6200/6600, please also check the dealer.

7

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware
of HS-6200/6600. At first, please follow up sections 1.3, 2.1 and 2.2
in check the delivery package and carefully unpacking. Following
after, the jumpers setting of switch, watchdog timer and the
DiskOnChip address selection etc.

2.1 Caution of Static Electricity

The HS-6200/6600 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the
damage of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER

SENSITIVE COMPONENTS WITHOUT ALL NECESSARY
ANTI-STATIC PROTECTION.

You should follow the steps as following to protect the board in
against the static electric discharge whenever you handle the board:

1. Please use a grounding wrist strap on whoever needs to handle
the HS-6200/6600. Well clip the ALLIGATOR clip of the strap to
the end of the shielded wire lead from a grounded object. Please
put on and connect the strap before handle the HS-6200/6600 for
harmlessly discharge any static electricity through the strap.

2. Please use anti-static pad for put any components or parts or tools
on the pad whenever you work on them outside the computer.
You may also in use the anti-static bag instead the pad. Please
ask from your local supplier in help up your necessary parts on
anti-static requirement.

8

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS-6200/6600 from electricity discharge. With refer
to section 1.3, please check the delivery package again with
following steps:

1. Unpacking the HS-6200/6600, keep well storage of all packing
material, manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT
INSTALL IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers
setting to jumper pin-set and CMOS setup correctly. Please also
reference to all information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver
Type etc.) for completed add-in or connection and CMOS setup
correctly. Please also reference to all information of connector
connection in this manual.

6. Please keep all necessary manual and diskette in a good
condition for your necessary re-installation if you change your
Operating System or whatever needs.

9

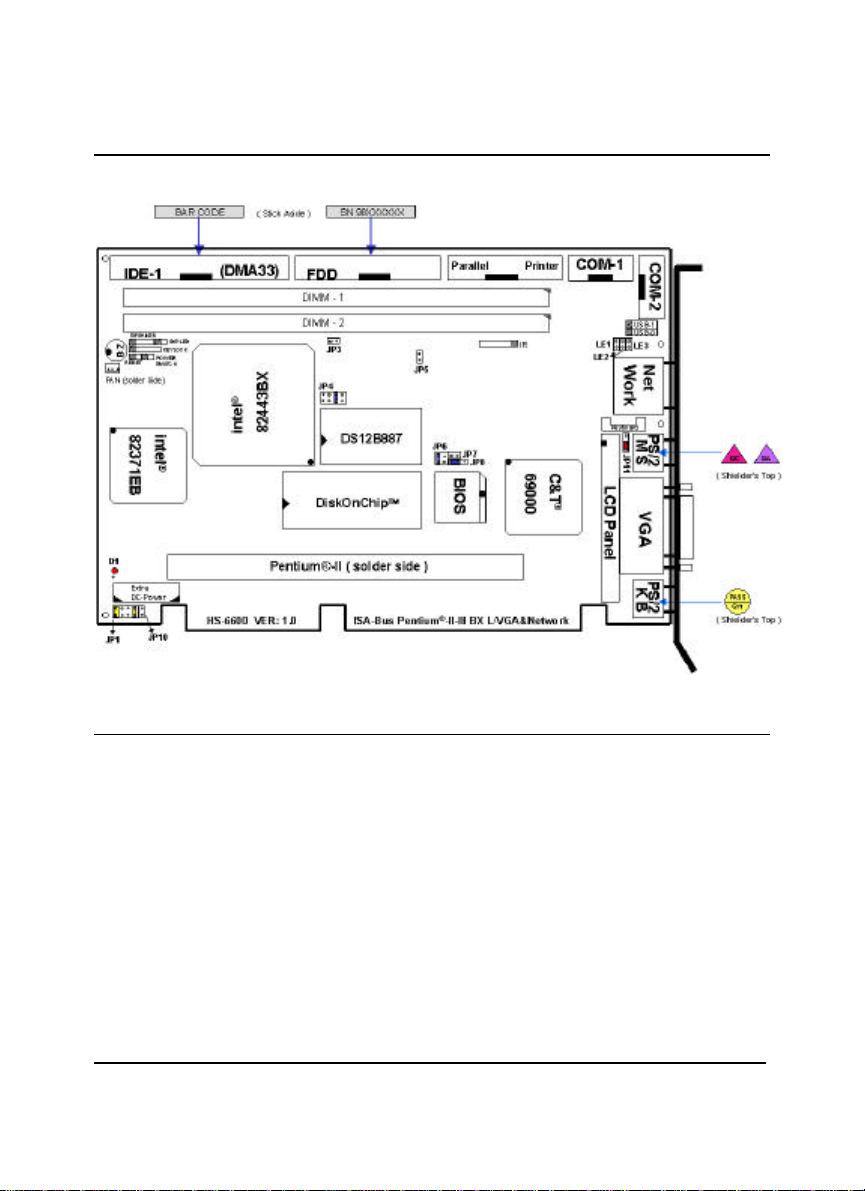

2.3 HS-6200/6600’s Layout

HS-6200/6600’s Layout

2.4 Quick Listing of Jumpers

JP1 ( 1-2,7-8 ON ) ¡XFrequency Multiplier setting of System Bus to

Processor Core

JP3 ( 1-2 OFF ) ¡XManufacture Default Setting
JP4 ( 5-6 ON ) ¡XTime scale of Watch-Dog Timer
JP5 ( 1-2 OFF ) ¡XBus-Clock Select
JP6 ( 1-2 ON ) ¡XDiskOnChip™ Address setting
JP7 ( 1-2 OFF ) ¡XRTC Clear Jumper
JP8 ( 1-2 ON ) ¡XWATCHDOG Active Select
JP10 ( 1-2 OFF ) ¡XBus-Clock Select
JP11 ( 2-3 ON ) ¡XFlat Panel Voltage Select

10

2.5 Quick Listing of Connectors

BZ1: ON-BOARD BUZZER
CN1: FAN POWER CONNECTOR
CN2: POWER 4-PIN CONNECTOR
CN3: SPEAKER CONNECTOR
CN4: KEYLOCK CONNECTOR
CN5: PS/2 POWER SWITCH CONNECTOR
CN6: 1st IDE CONNECTOR
CN7: HDD LED CONNECTOR
CN10: FDD CONNECTOR
CN11: IR CONNECTOR (5-PIN)
CN12: PARALLEL PORT CONNECTOR
CN13: COM1 (HEADER 5x2)
CN14: INTERNAL VGA LCD CONNECTOR (HEADER 25x2)
CN15: INTERNAL 5-PIN KEYBOARD CONNECTOR
CN16: COM2 (HEADER 5x2)
CN17: 100-BASED LAN CONNECTOR
CN18: EXTERNAL MINI-DIN PS/2 MOUSE CONNECTOR
CN19: EXTERNAL VGA CONNECTOR (DB15)
CN20: EXTERNAL MINI-DIN PS/2 KEYBOARD CONNECTOR
CN21: EXTERNAL COM1 CONNECTOR (DB9) (HS-6200P/6600P

only)
CN22: EXTERNAL COM2 CONNECTOR (DB9) (HS-6200P/6600P

only)
D1: ON-BOARD POWER-ON LED INDICATOR
JP2: RESET PIN
JP9: USB PORTS CONNECTOR
LE1: 10T LED INDICATOR OF LAN
LE2: 100T LED INDICATOR OF LAN
LE3: ACTIVE LED INDICATOF OF LAN
U5: DiskOnChip™ SOCKET

11

2.6 Jumper Setting Description

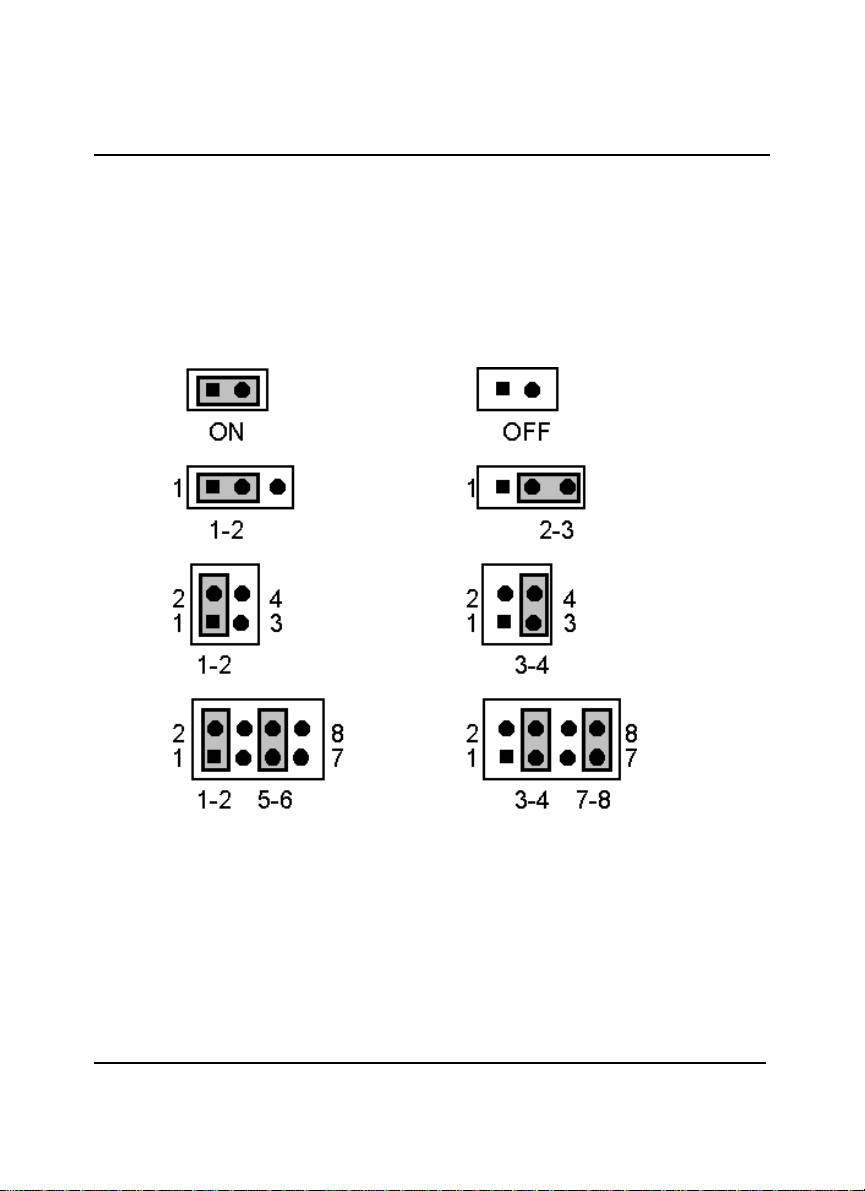

A jumper pin-set is ON as a shorted circuit with a plastic cap inserted
over two pins. A jumper pin-set is OFF as a open circuit with a
plastic cap inserted over one or no pin(s) between pins. The below
figure 2.2 shows the examples of different jumper pin-set setting as
ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The
default setting may reference in this manual with a " * " symbol in
front of the selected item.

12

2.7 Manufacture Default Setting

The following shows the manufacture’s default setting, no change
allows.

l Default Setting of JP3:

Manufacture Setting JP3

default setting * OFF

2.8 Setting the Bus-Clock Frequency

The HS-6200/6600 provides all necessary by jumper setting in
using Bus-Clock frequency as the system bus clocking with JP5 and
HP10 setting as following:

l Bus-Clock Frequency Setting of JP5 and JP10:

Bus-Clock Frequency JP10 JP5

* 100MHz OFF OFF

66MHz ON ON

2.9 Frequency Multiplier Setting

The HS-6200/6600 provides JP1 for define the selection of the
Frequency Multiplier value of system bus to processor core in
following table:

l Frequency Multiplier Setting of JP1:

Frequency Multiplier:

( System Bus to Processor Core )

3x ON ON OFF ON 200 300
4x ON ON ON OFF 266 400
5x ON ON OFF OFF 333 500

2.5x ON OFF ON ON 166 250

* 3.5x ON OFF OFF ON 233 * 350

4.5 ON OFF ON OFF 300 450

5.5x ON OFF ON ON 366 550

7.0x ON OFF OFF ON 466 700

7-8 5-6 3-4 1-2

The bus-clock is setting by JP5 and JP10. The default setting is for Intel

Bus-

66MHz

Bus-

100MHz

®

13

Pentium®II/III 350MHz processor.

14

2.10 Setting the RTC Configuration

The HS-6200/6600 provides a setting for the selection of the RTC
Clear Jumper by JP7 setting as following:

l CMOS Setting of JP7:

CMOS Clear Jumper JP7

Normal * OFF

Clear CMOS ON

2.11 System Memory DRAM

The HS-6200/6600 provides a wide range on-board DRAM memory
by two pieces DIMM sockets (DIMM-1, DIMM-2) request the access
time should meet PC-100 standard. The maximum capacity of the
on board memory is 1GBytes.

See the figure on section 2.3 for get the identifying the banks.

2.12 Setting the Flat Panel Voltage

The HS-6200/6600 provides a setting for the selection of the
working voltage of individual flat panel by JP11 setting as following:

l Flat Panel Voltage Selecting of JP11:

Panel’s Working Voltage JP11

5.0 V * 2-3

3.3 V 1-2

Please contact with your flat panel supplier for make sure a correct
Panel’s Working Voltage. Any mistake will cause defect to your flat
panel.

15

2.13 Watch-Dog Timer

There are three access cycles of Watch-Dog Timer as Enable,
Refresh and Disable. The Enable cycle should proceed by READ
PORT 443H. The Disable cycle should proceed by READ PORT
043H. A continue Enable cycle after a first Enable cycle means
Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before
the time-out period for restart counting the WDT Timer's period.
Otherwise, it will assume that the program operation is abnormal
when the time counting over the period preset of WDT Timer. A
System Reset signal to start again or a NMI cycle to the CPU comes
if over.

The JP8 is using for select the active function of watch-dog timer in
disable the watch-dog timer, or presetting the watch-dog timer
activity at the reset trigger, or presetting the watch-dog timer activity
at the NMI trigger.

l JP8 : Watch-Dog Active Type Setting

JP8 DESCRIPTION
*1-2 System Reset

2-3 Active NMI

OFF disable Watch-dog timer

l JP4 : WDT Time - Out Period

PERIOD 1-2 3-4 5-6 7-8

*1 sec OFF OFF ON OFF

2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec OFF ON OFF ON

110 sec ON OFF OFF OFF
220 sec ON OFF OFF ON

16

The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port
(443H) and a Disable cycle by reading the Watch-dog timer disable
control port (043H). After a Enable cycle of WDT, user must
constantly proceed a Refresh cycle to WDT before its period setting
comes ending of every 1, 2, 10, 20, 110 or 120 seconds which pre­setting by JP4. If the Refresh cycle does not active before WDT
period cycle, the on board WDT architecture will issue a Reset or
NMI cycle to the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.

The following sample programs showing how to Enable, Disable and
Refresh the Watch-dog timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H
WT_Enable PUSH AX ; keep AX DX

WT_Rresh PUSH AX ; keep AX, DX

WT_DISABLE PUSH AX

PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

17

2.14 PCI VGA Controller

The HS-6200/6600 has built-in a Intel® 69000 VGA Controller with
on-chip 2 MB memory, support resolutions up to 1280 x 1024 256
colors, reserved internal 50-pin LCD Panel connector.

To get more VGA drivers information, please refer to the INTEL
Internet address : WWW.CHIPS.COM

2.15 DiskOnChip Address Setting

The HS-6200/6600 provides a U5 socket for install the
DiskOnChip module.

A JP6 may select the starting memory address of the DiskOnChip
(D.O.C.) for avoid the mapping area with any other memory
devices. If you have another extra memory devices in the system
with the same memory, neither the HS-6200/6600 nor the extra
memory devices will function normally. Please setting both at
different memory address mapping.

l JP6 : DiskOnChip

Memory Address Mapping JP6

*) : default setting

The D.O.C. function allows the system in using without FDD nor
HDD. The D.O.C. may formatting as driver C: or driver A:. User may
also easily uses the DOS's commands such as FORMAT, SYS,
COPY, XCOPY, DISCOPY and DISKCOMP etc. This is means that
the D.O.C. may uses as driver-A if the system without FDD-A for
ambient application. Please contact with your supplier for different
size D.O.C. module.

18



Address

D000 * 1-2

D800 3-4

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 Power and FAN Connectors

The HS-6200/6600 provides one 4-pin DC-Power connector as
following CN2 pin information. And also provides one 3-pin fan out
connector as following CN1 pin information.

l CN2 : 4-PIN POWER CONNECTOR

PIN NO. DESCRIPTION

1 Vcc
2 GND
3 GND
4 +12V

l CN1 : 3-PIN FAN OUT CONNECTOR

PIN NO. DESCRIPTION

1 GND
2 +12V
3 N.C.

19

3.2 IDE's LED, Key-Lock and Reset Button

The HS-6200/6600 has one LED ( D1 ) indicates out power-on
status. And the following provides the pin information for IDE's LED
indicator, Key-Lock and Reset Button connections from CN7, CN4
and JP2.

l CN7 : IDE LED connector

PIN NO. DESCRIPTION

1 +5V
2 HDD ACTIVE#

l CN4 : POWER LED & KEYLOCK

PIN NO. DESCRIPTION

1 POWER LED ANODE
2 NC
3 GROUND
4 KEYLOCK
5 GROUND

l JP2 : RESET BUTTON

PIN NO. DESCRIPTION

1 EXTERNAL RESET
2 GROUND

3.3 External Speaker

The HS-6200/6600 has an on-board buzzer ( BZ1 ). And it also
provides the CN3 in allows user to connecting to the external
speaker.

l CN3 : Speaker Connector

PIN NO. DESCRIPTION

1 SPEAKER SIGNAL
2 NC
3 GROUND

20

4 +5V

3.4 PCI E-IDE Drive Connector

One standard 40-pin header daisy-chain driver connector provides
as CN6 with following pin assignment. Total two IDE (Integrated
Device Electronics) drivers may connect.

CN6(IDE 1) : Primary IDE Connector

l CN6 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

21

3.5 PS/2 Power ON/OFF Control

The HS-6200/6600 reserved a CN5 for PS/2 Power ON/OFF
Control.

l CN5 : PS/2 Power ON/OFF Control

CN5 DESCRIPTION

LOW HIGH1

Switch Power OFF Switch Power ON

2 GND

3.6 Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN12 with
following pin assignment for connection to parallel printer.

l CN12 : Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE

11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

22

3.7 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as
CN10 with following pin assignment. Total two FDD drivers may
connect.

l CN10 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

23

3.8 Serial Ports Connectors

The HS-6200/6600 offers two high speed NS16C550 compatible
UARTs with Read/Receive 16 byte FIFO serial ports with two
internal 10-pin header. The HS-6200P/6600P which is with two
external DB-9 connectors without VGA nor LAN on-board. All pin­assignment are listing at below:

l CN21/22 : Serial Port DB-9 Connector (COM1/COM2)

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

l CN13/16 : Serial Port 10-pin Header (COM1/COM2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

24

3.9 Keyboard Connectors

The HS-6200/6600 offers two possibilities for keyboard connections
to external PS/2 type keyboard at CN20, or an internal 5-pin header
at CN15.

l CN15 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V

l CN20 : 6-pin Mini-DIN Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 N/C
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 N/C

3.10 PS/2 Mouse 6-pin Mini-DIN Connector

The HS-6200/6600 provides an external PS/2 mouse connector at
CN18 with following pin information.

l CN18 : PS/2 Mouse Connector

PIN NO. DESCRIPTION

1 DATA
2 NC
3 GROUND
4 +5V
5 CLK
6 NC

25

3.11 VGA CRT and LCD Connectors

Note-1

The HS-6200/6600 provides two possible connectives of VGA
connections. One standard DB-15 external VGA connector as
following CN19 pin information. Another internal 50-pin header for
LCD Panel connection as following CN14 pin information.

l CN14 : 50-pin Internal LCD Panel Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +12V 2 +12V
3 Ground 4 Ground
5 3.3V / 5V
7 ENAVEE 8 Ground

9 P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 P24 34 P25
35 SHFCLK 36 FP
37 M 38 LP
39 Ground 40 FPBACK
41 P26 42 P27
43 P28 44 P29
45 P30 46 P31
47 P32 48 P33
49 P34 50 P35

Note-1: Please setting the voltage correctly of individual panel by JP11.

6 ENAVDD

26

CN19 : 15-pin DB-15 Female VGA connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

3.12 IR Connector

The HS-6200/6600 provides a 5-pin internal IR communication
connector as following CN11 pin information.

l CN11 : 5-PIN IR CONNECTOR

PIN NO. DESCRIPTION

1 Vcc
2 FIRRX
3 IRRX
4 GROUND
5 IRTX

27

3.13 USB Ports Connector

The HS-6200/6600 provides two internal 8-pin USB ports
connectors. Please refer to the following detail pin information.

l JP9 : 8-pin Header USB Connector

PIN NO. JP9 PIN NO. JP9

1 Vcc 2 Vcc
3 BD0- 4 BD1­5 BD0+ 6 BD1+
7 GROUND 8 GROUND

3.14 LAN Interface Connector

The HS-6200/6600 provides one external RJ-45 100-based LAN
interface connector. Please refer to the following detail of pin
information.

l CN17 : RJ-45 9-pin LAN Connector

PIN NO. JP9

1 TX+
2 TX­3 RX+
4 N/C
5 N/C
6 RX­7 N/C
8 N/C
9 Ground

There are three LED indicators provide the running conditions of
the LAN with LE1, LE2 and LE3:

LE1: 10T speed running
LE2: 100T speed running
LE3: LAN active

28

Chapter-4

AWARD BIOS Setup

The HS-6200/6600 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by
offering various options which could be selected for end-user
requirements. This chapter is written to assist you in the proper
usage of these features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key.
The Main Menu will be displayed at this time.

29

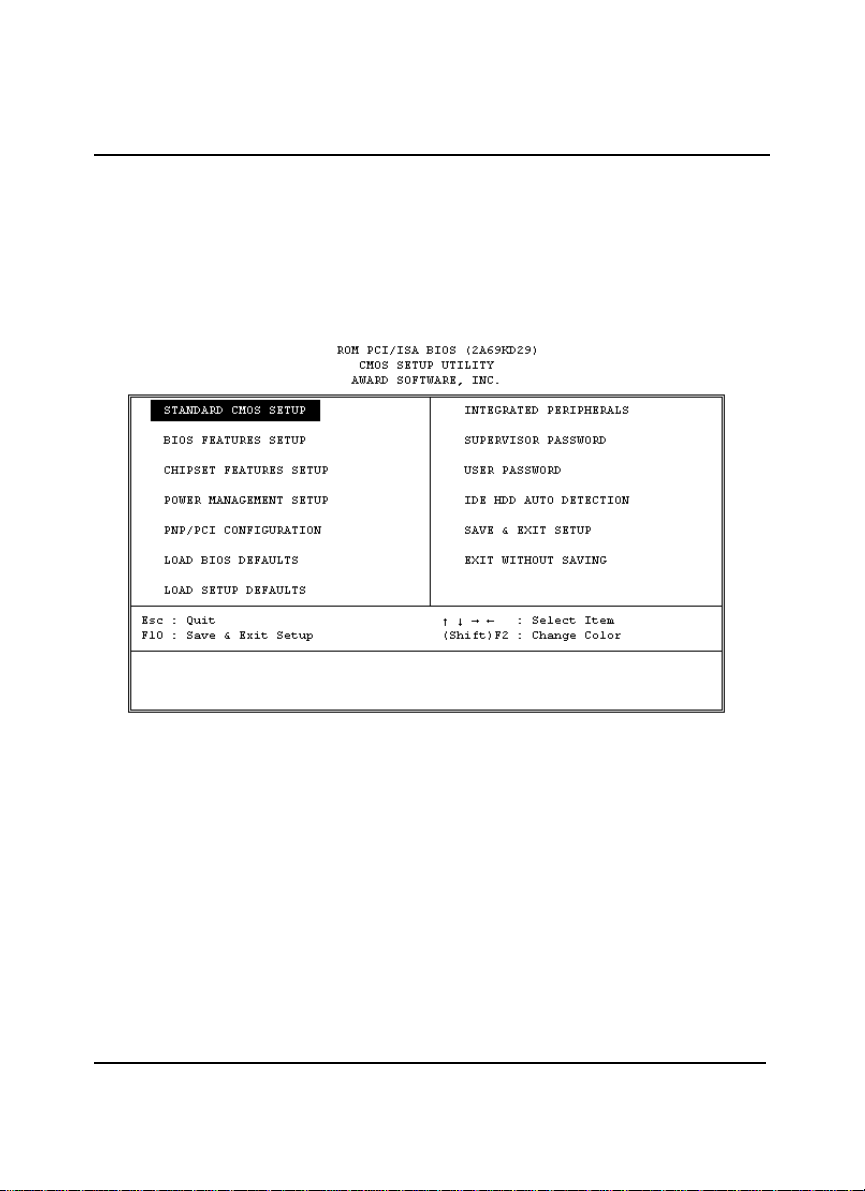

4.1 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow
keys to select among the items and press <Enter> to enter the
sub-menu.

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

30

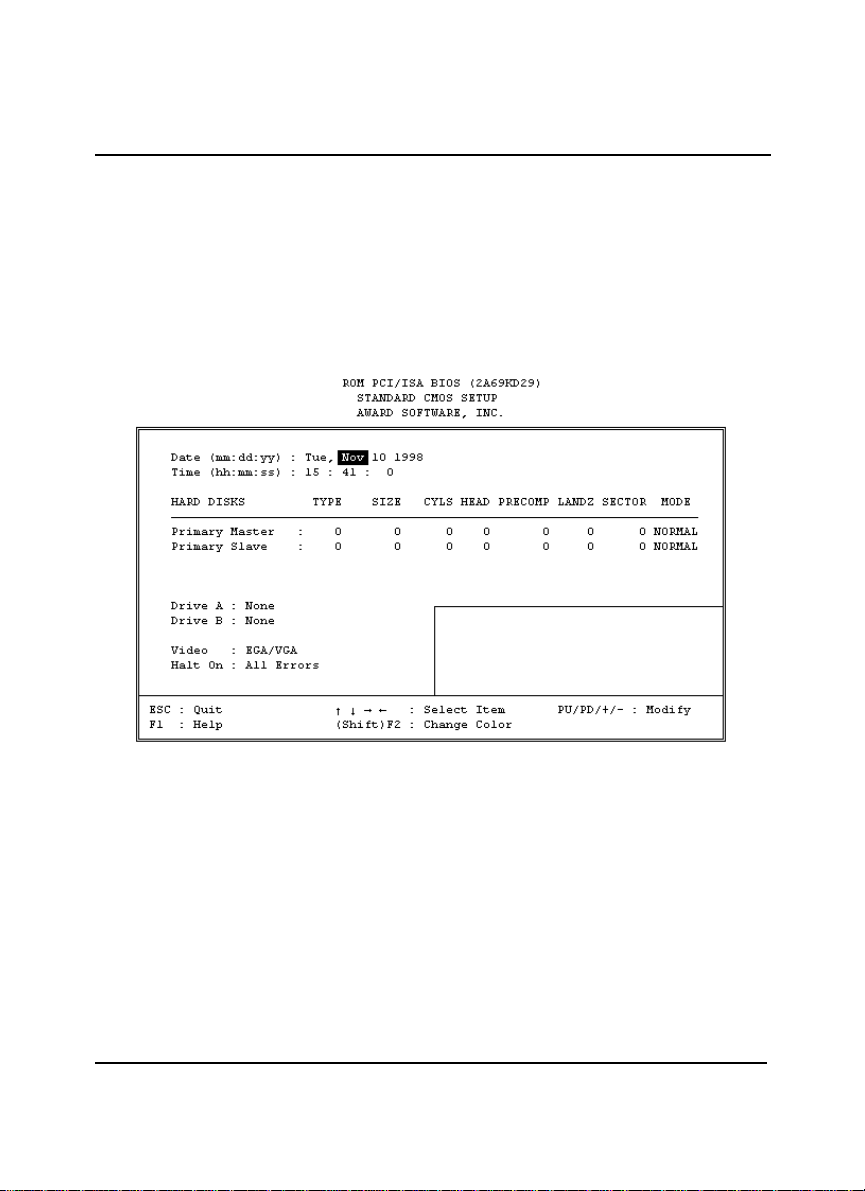

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.

31

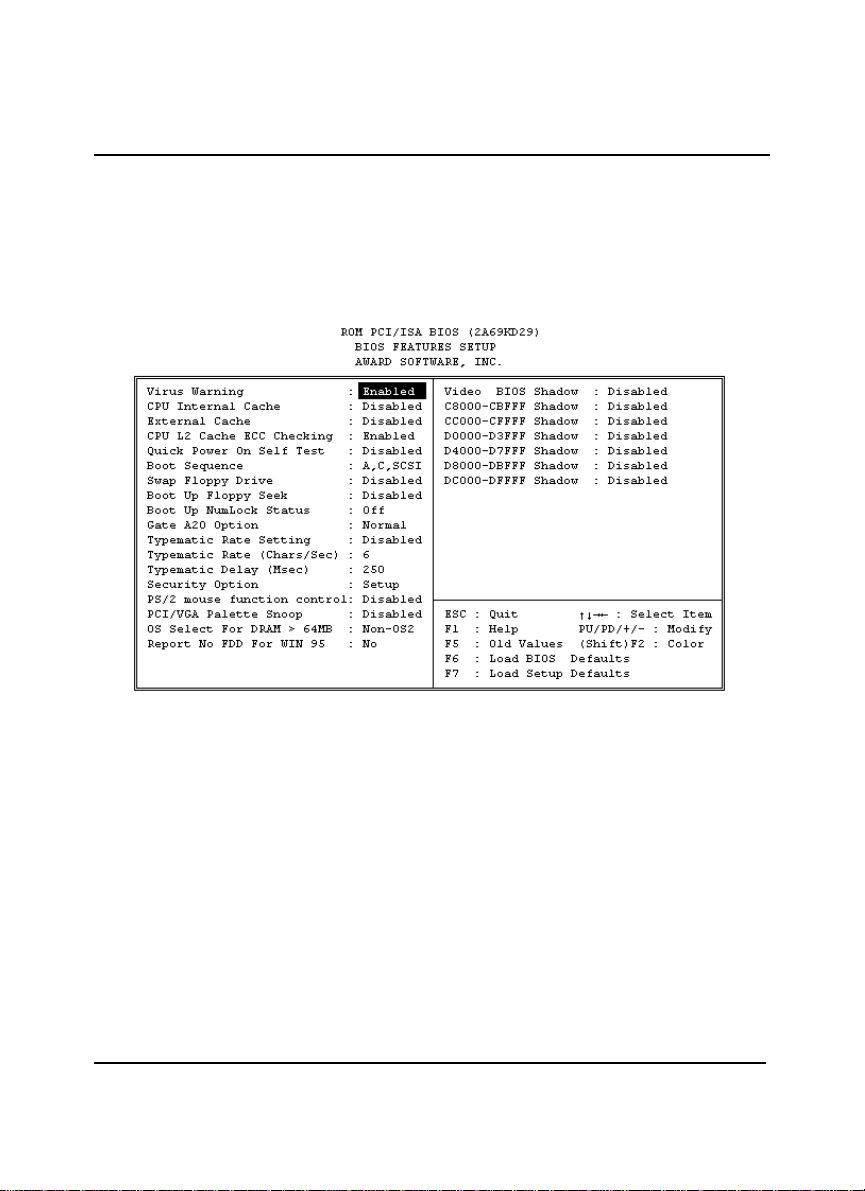

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

32

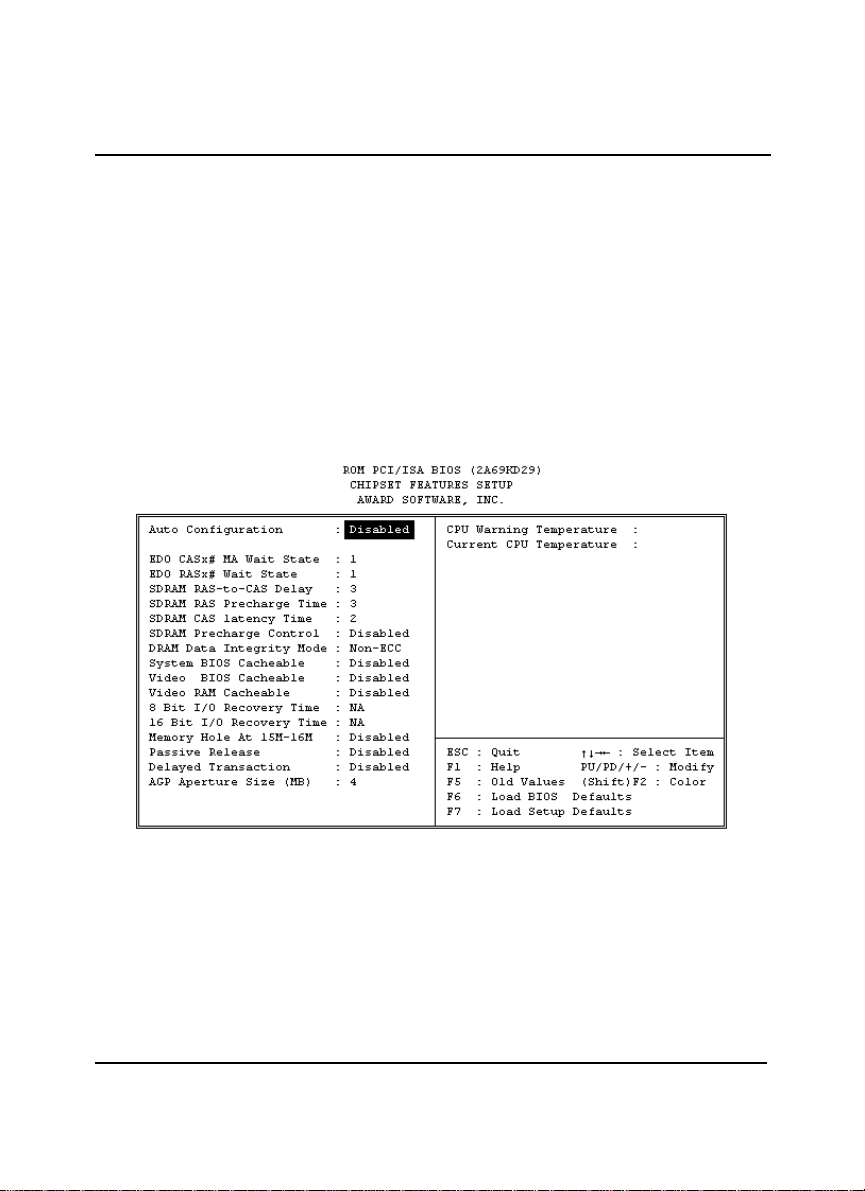

4.4 Chipset Features Setup

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.

33

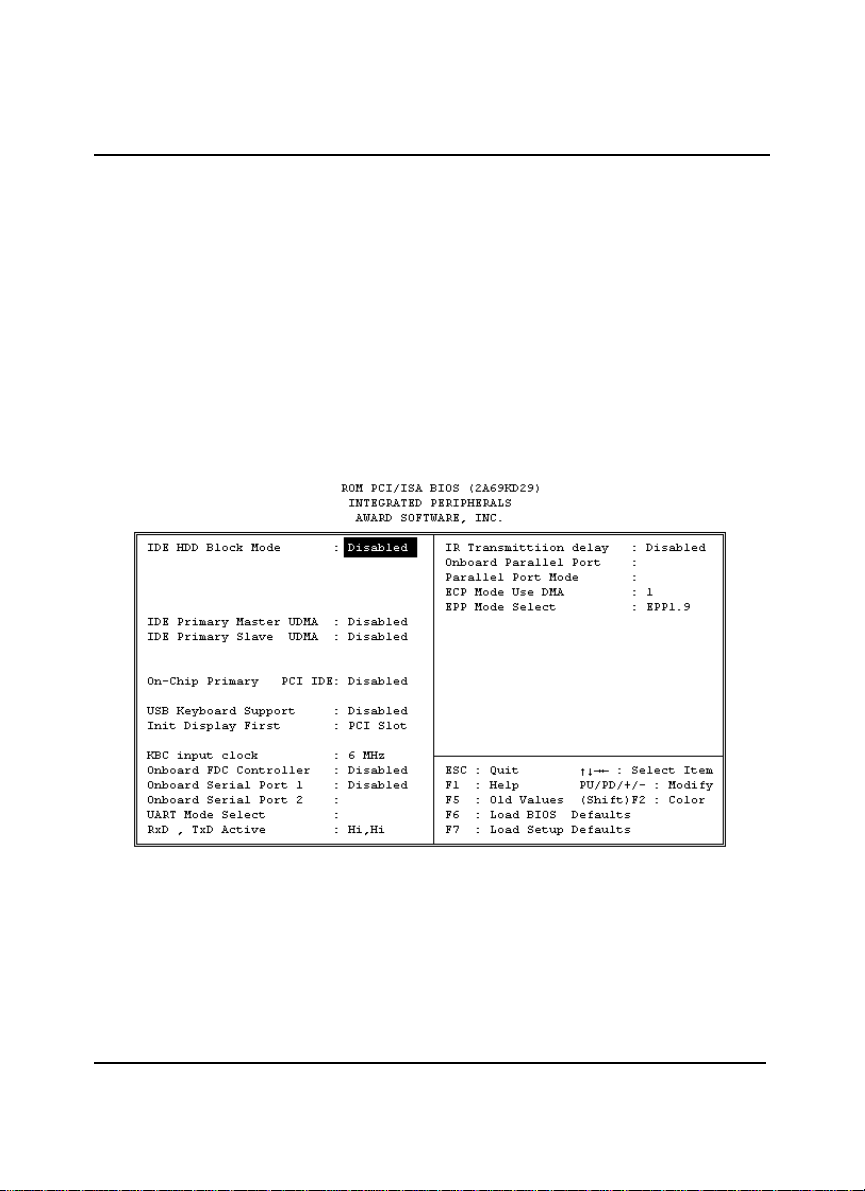

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).

34

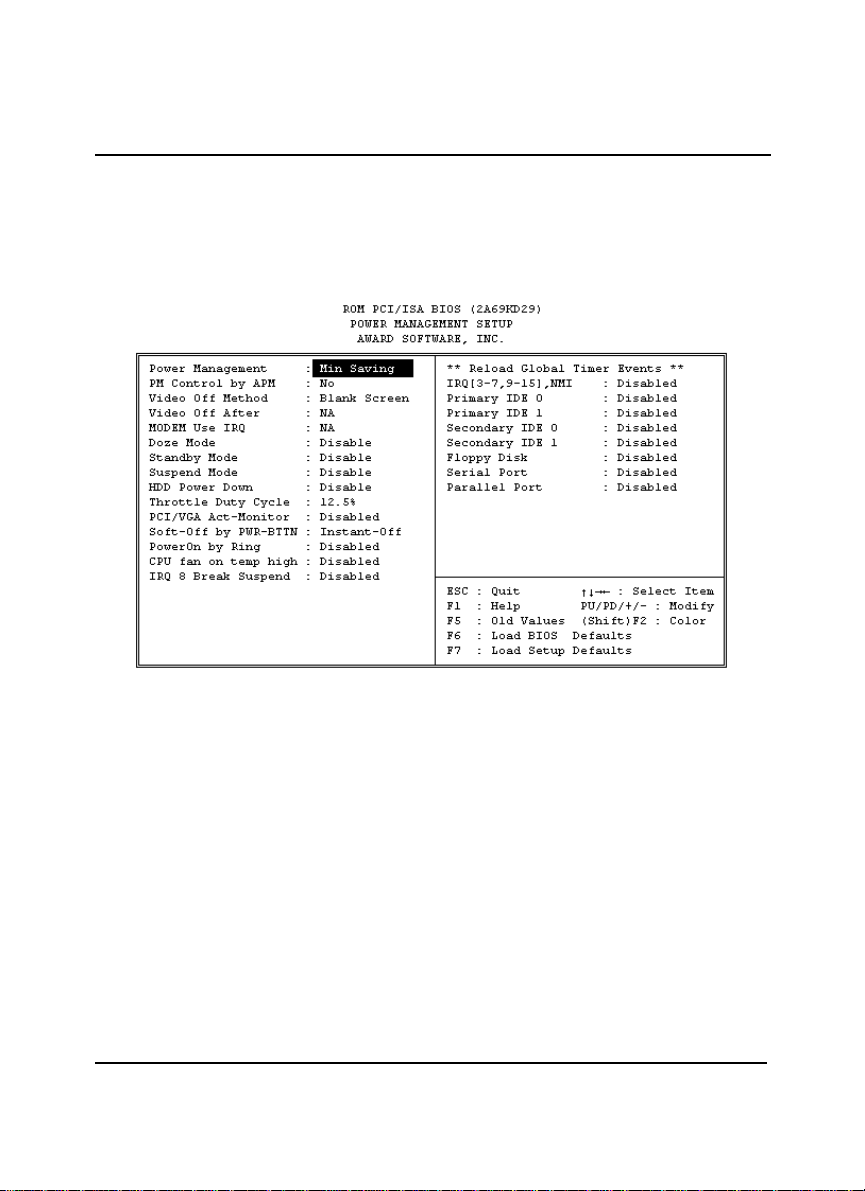

4.6 Power Management Setup

The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.

35

Chapter-5

A Brief Information of 10/100 based-T LAN

The HS-6200/6600 provides an on board 32-bit PCI 10/100 based-T
Intel® 82558B Ethernet LAN interface RJ-45 connection for easy using
the HS-6200/6600 half size all-in-one Pentium® VGA CRT-LCD
interface with 100-based network industrial single board in connection
to-with Novell NE2000 compatible LAN network system.

The HS-6200/6600’s design that is basing on Intel® 82558B chipset with
provides a RJ-45 100 base-T NE2000 compatible interfaces. For more
information, please contact with your supplier.

For completed information, please visit Intel® Web and Internet Sites:

Support: http://support.intel.com

News: news://cs.intel.com

Network Products: http://www.intel.com/comm-net.sns

Corporate: http://www.intel.com

FTP Directory:

36

FTP Host: ftp.intel.com

/pub/support/enduser_reseller/etherexpress_lan_adapters
