Boser HS-6050 User Manual

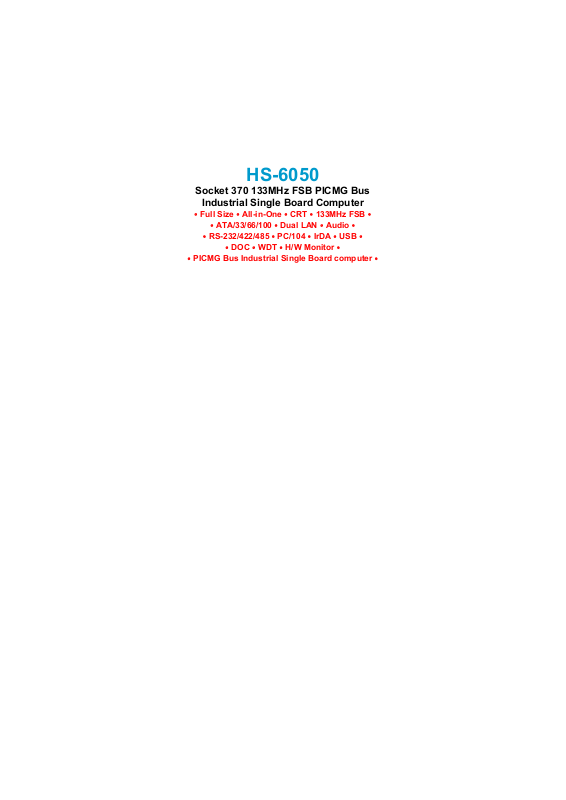

HS-6050

Socket 370 133MHz FSB PICMG Bus

Industrial Single Board Computer

•Full Size•All-in-One•CRT•133MHz FSB• ATA/33/66/100•Dual LAN•Audio•

•

•RS-232/422/485•PC/104•IrDA•USB•

DOC•WDT•H/W Monitor•

•

•PICMG Bus Industrial Single Board computer•

Copyright Disclaimers

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

T

r

a

d

e

m

a

r

k

s

T

r

a

d

e

m

T

r

a

d

e

m

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of AMI Software, Inc. Award is a registered trademark of All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

a

r

k

s

a

r

k

s

Award International Inc.

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Table of Contents

Chapter 1 General Description ..................................1

1.1 Major Features....................................................................... 2

1.2 Specifications ........................................................................ 3

1.3 Board Dimensions................................................................. 4

Chapter 2 Unpacking ..................................................5

2.1 Opening the Delivery Package............................................. 5

2.2 Inspection............................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1 Before Installation ................................................................. 7

3.2 Board Layout ......................................................................... 8

3.3 Jumper List ............................................................................ 9

3.4 Connector List ....................................................................... 9

3.5 Configuring the CPU ........................................................... 10

3.6 System Memory ................................................................... 10

3.7 DiskOnChip Address Setting .......................................... 10

3.8 VGA Controller .................................................................... 12

3.9 PCI E-IDE Drive Connector................................................. 13

3.10 Floppy Disk Drive Connector ............................................. 14

3.11 Serial Port Connectors ....................................................... 15

3.12 Parallel Connector............................................................... 16

3.13 Ethernet Connector............................................................. 17

3.14 IrDA Connector .................................................................... 17

3.15 USB Connector .................................................................... 18

3.16 CMOS Data Clear................................................................. 18

3.18 Power and Fan Connectors................................................ 18

3.19 Keyboard Connectors......................................................... 19

3.20 PS/2 Mouse Connector ....................................................... 20

3.21 System Front Panel Connectors........................................ 21

3.22 Watchdog Timer .................................................................. 21

3.23 PC/104 Connectors ............................................................. 24

3.24 Audio Connector ................................................................. 26

Chapter 4 AMI BIOS Setup .....................................27

4.1 Starting Setup ...................................................................... 27

4.2 Using Setup.......................................................................... 28

4.3 Main Menu ............................................................................ 29

4.4 Standard CMOS Setup ........................................................ 30

4.5

Advanced CMOS Setup ...................................................... 31

4.6 Advanced Chipset Setup .................................................... 32

4.7 Power Management Setup ................................................. 33

4.8 PCI / Plug and Play Setup................................................... 34

4.9 Peripheral Setup.................................................................. 35

4.10 Hardware Monitor Setup..................................................... 36

4.11 Auto-Detect Hard Disks ...................................................... 37

4.12 Change Supervisor/User Password .................................. 38

4.13 Auto Configuration with Optimal Settings ....................... 39

4.14 Optimal Configuration with Fail Safe Settings ................. 40

4.15 Save Settings and Exit........................................................ 41

4.16 Exit Without Saving............................................................. 42

Chapter 4-1 Award BIOS Setup .................................43

4.1 Starting Setup ...................................................................... 43

4.2 Using Setup.......................................................................... 44

4.3 Main Menu ............................................................................ 45

4.4 Standard CMOS Features ................................................... 46

4.5 Advanced BIOS Features ................................................... 47

4.6 Advanced Chipset Features............................................... 48

4.7 Integrated Peripherals ........................................................ 49

4.8 Power Management Setup ................................................. 50

4.9 PnP/PCI Configurations...................................................... 51

4.10 PC Health Status ................................................................. 52

4.11 Load Fail-Safe Defaults....................................................... 53

4.12 Load Optimized Defaults .................................................... 54

4.13 Set Supervisor/User Password.......................................... 55

4.14 Save & Exit Setup................................................................ 56

4.15 Exit Without Saving............................................................. 57

Chapter 5 Software Utilities..................................... 59

5.1 IDE and Audio Driver Installation ...................................... 59

5.1.1 VIA VT82C686B AGP Bus Driver Installation ..................................59

5.1.2 VIA IDE Tool Installation............................................................................64

5.1.3 Audio Driver Installation.......................................................................... 69

5.2 LAN Driver Installation for WIN95 & WIN98 ...................... 72

5.3 LAN Driver Installation for WIN NT4.0............................... 78

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6050 to ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

This Page is intentionally left blank.

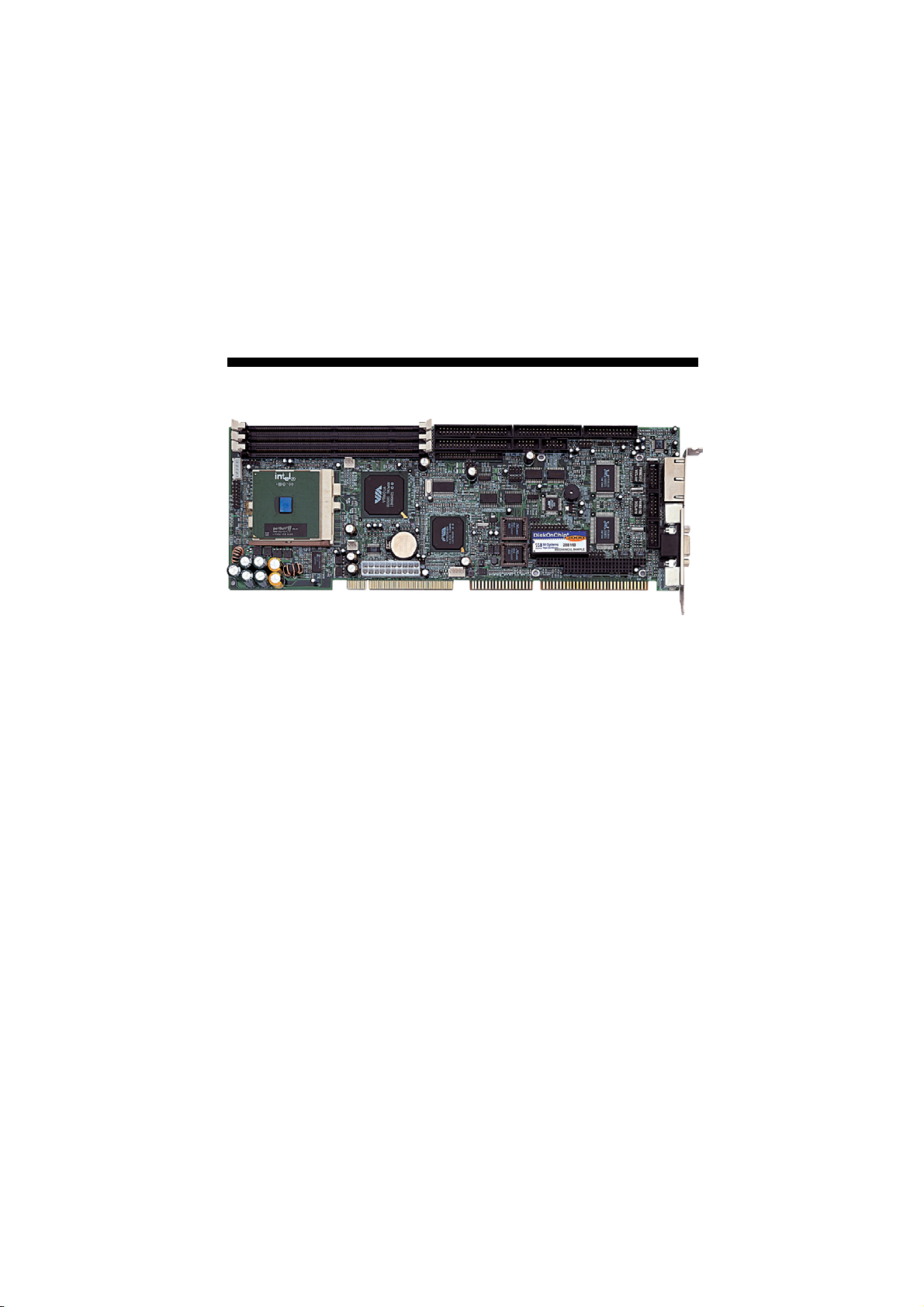

Chapter 1

General Description

The HS-6050 is a 133MHz FSB VIA VT8601 chipset-based board designed for PICMG Bus Intel C3 800MHz~1.3GHz CPU. These features combine and make the HS-6050 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with 2 COM ports, dual LAN and CRT interface.

®

Celeron/Coppermine/Tualatin and VIA

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-6050 to support data transfers of 33, 66 or 100MB/sec. to each IDE drive connection. Designed with the VIA VT8601 core logic chipset, the board supports Intel VIA C3 800MHz~1.3GHz CPU. The 8601 integrated Trident 3D supporting AGP Bus

For suitable installation into any size system with 8/16/32-bit ISA and/or PCI slots operation, the board’s advanced PCI and ISA bus add-on feature allows user to easily obtain both ISA's 16-bit and PCI's 32-bit full set signals from a full-size PICMG slot. System memory is also sufficient with the three DIMM sockets that can support up to 1.5GB.

®

Celeron/Coppermine/Tualatin and

1

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, a DOS-compatible DiskOnChip socket with a maximum capacity of 288MB, and two external RJ-45 connectors for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-6050 is designed with pure hardware that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-6050 comes with the following features:



Socket 370 for Intel 800MHz~1.3GHz CPU

 VIA VT8601/VT86C686B system chipset  Supports 66/100/133MHz FSB  Three DIMM sockets with a max. capacity of 1.5GB  VIA VT82C686B super I/O chipset  Fast PCI ATA/33/66/100 IDE controller  One RS-232 and one RS-232/422/485 serial ports  PC/104 Bus connector  VIA VT8601 CRT display controller  Dual RealTek RTL8100 10/100 Based LAN  AC97 3D audio controller  DiskOnChip socket supports memory sizes of up to 288MB  Supports Hardware Monitor function

®

Celeron/Coppermine/Tualatin and VIA C3

2

1.2 Specifications



CPU: Socket 370 for Intel® Celeron/Coppermine/Tualatin and VIA C3 800MHz~1.3GHz CPU

 Bus Interface: PICMG Bus  Memory: Three DIMM sockets supporting up to 1.5GB  Chipset: VIA VT8601/VT82C686B  I/O Chipset: VIA VT82C686B  VGA: VIA VT8601 integrated Trident 3D supporting AGP Bus  IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer

rates of up to 33/66/100MB/sec.



FDD: Supports up to two floppy disk drives



Parallel: One enhanced bi-directional parallel port supporting SPP/ECP/EPP

 LAN: Dual RealTek RTL8100 10/100 Based LAN  Audio: AC97 3D audio controller supporting speaker out  Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232

x 1 serial ports with 16-byte FIFO



PC/104: PC/104 connector for 16-bit ISA Bus



IrDA: One IrDA TX/RX header



USB: Two USB connectors



Keyboard: PS/2 6-pin Mini DIN or 5-pin connector



Mouse: PS/2 6-pin Mini DIN or 4-pin connector



DiskOnChip: DiskOnChip socket supporting memory sizes of up to 288MB

 BIOS: AMI PnP Flash BIOS  Watchdog Timer: Sets 1, 2, 10, 20, 110, 220 seconds, activity trigger

with Reset or NMI



CMOS: Battery backup



DMA Channels: 7



Interrupt Levels: 15



Operating Temperature: 0~60°C



Hardware Monitor: VIA VT82C686B



Board Size: 33.8 x 12.1 cm

3

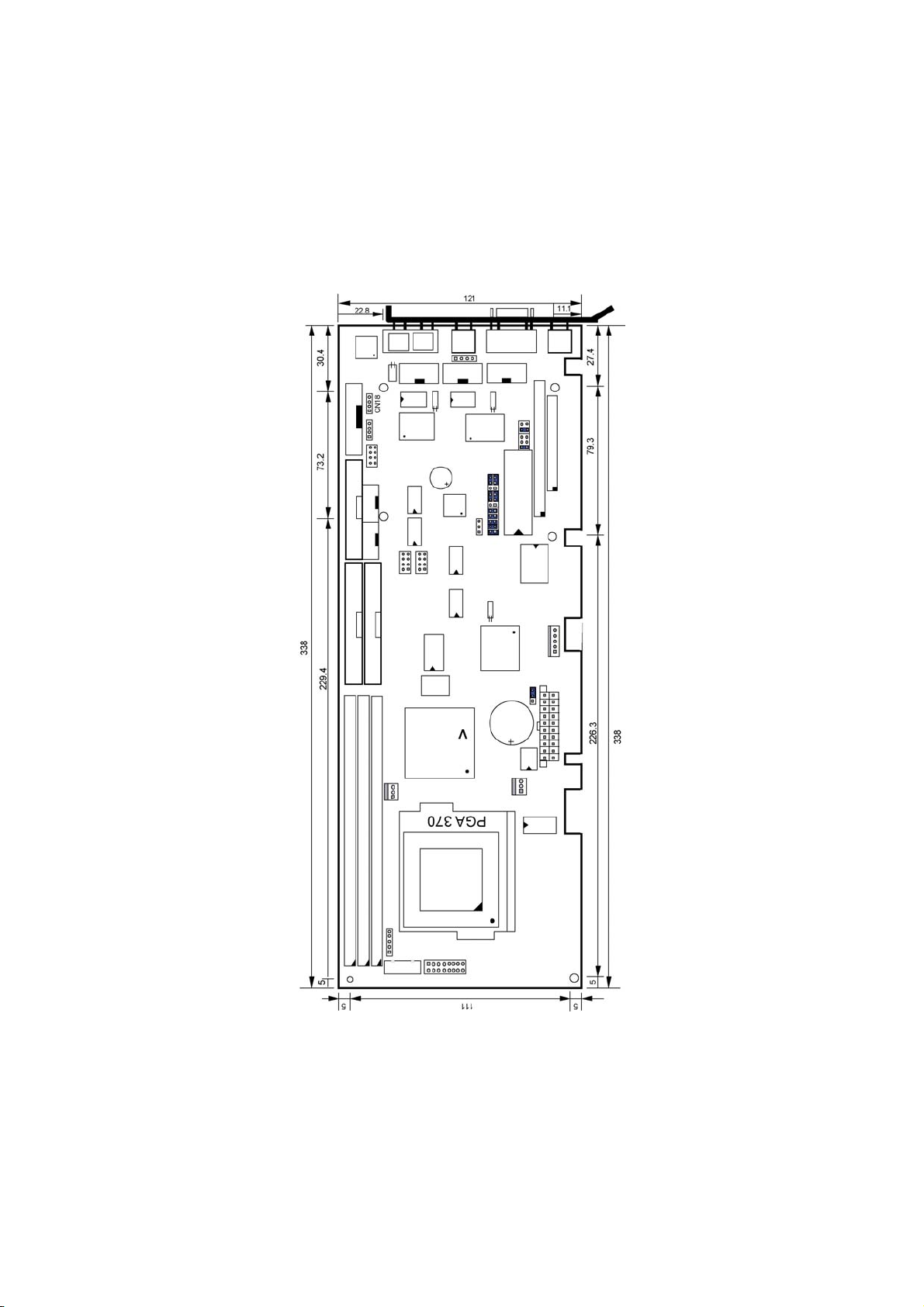

1.3 Board Dimensions

4

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6050 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-6050 delivery package contains the following items:



HS-6050 Board x 1

 Utility CD Disk x 1 

ATA/100 IDE flat cable x 2

 FDD flat cable x 1 

Printer cable with bracket x 1

 RS-232 COM Port cables with bracket x 1 

8-pin USB split type cable with bracket x 1

 MIC/Audio 8-pin cable + 2 phone jacks with bracket x 1 

Jumper Bag x 1

 User’s Manual

IMPORTANT:

The default setting of JP1 is Short 1-2. Before you turn on the power of your system, please check JP1 to Short 1-2 for normal operation.

5

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

6

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-6050. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

4. The default setting of JP1 is Short 1-2. Before you turn on the power of your system, please check JP1 to Short 1-2 for normal operation.

7

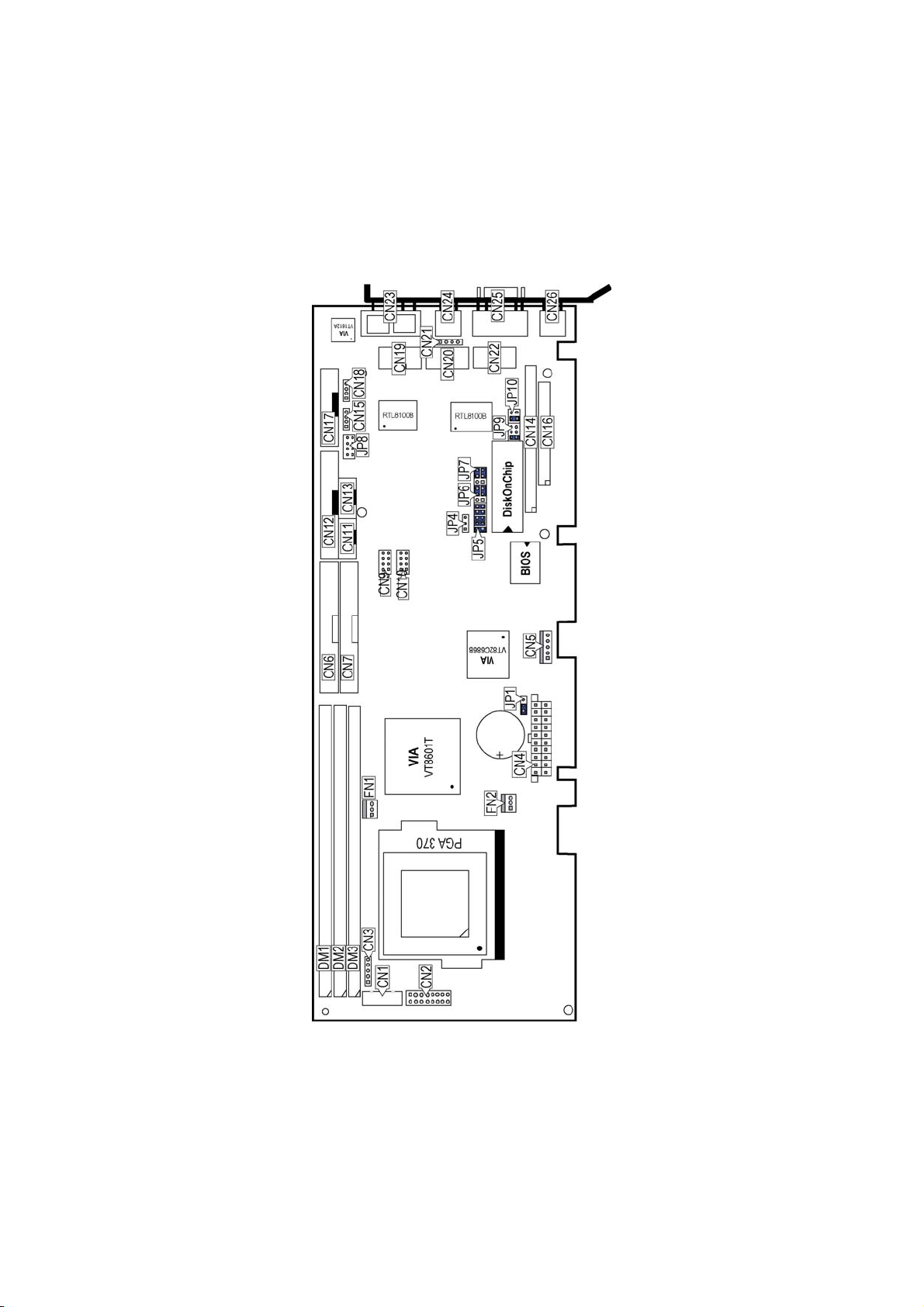

3.2 Board Layout

8

3.3 Jumper List

Jumper Default Setting Setting

JP1 Clear CMOS: Normal Operation Short 1-2 JP4 WDT Active Type Setting: Disabled Open

JP5(1-4)

JP5(5-10) WDT Timer Select: 1sec. Short 5-6, 7-8, 9-10

JP6 RS-232 or RS-422/485 Select: RS-232 Short 3-5, 4-6 JP7 RS-232 or RS-422/485 Select: RS-232 Short 3-5, 4-6

JP9

JP10

DiskOnChip Address Select: D000 Short 1-2

RS-422/485 Transceiver Enable/Disable Select: Enable RS-422/485 Receiver Enable/Disable Select: Enable

Short 1-2

3.4 Connector List

Connector Definition

CN1 5-pin Keyboard Connector CN2 Front Panel Signal Connector CN3 IrDA Connector CN4 ATX Power Connector CN5 5-pin ATX Power Controller CN6 Primary IDE Connector CN7 Secondary IDE Connector

CN9 USB 3 & 4 CN10 USB 1 & 2 CN11 CN12 FDD Connector CN13 COM 2 Connector CN14 PC/104 64-pin Connector CN15 CD_IN Connector CN16 CN17 Parallel Connector CN18 LINE_IN Connector CN19 Internal LAN 1 Connector CN20 Internal LAN 2 Connector CN21 4-pin Mouse Connector CN22 RS-422/485 Connector CN23 Dual RJ-45 Connector CN24 6-pin Mini DIN Mouse Connector CN25 VGA Connector CN26 6-pin Mini DIN Keyboard Connector

COM 1 Connector

PC/104 40-pin Connector

. . . More on next page . . .

9

Connector Definition

CN27 COM 1 Connector (DB9)

DM1, 2, 3 168-pin DIMM Socket

FN1 FAN1 Connector FN2 FAN2 Connector JP8

Line Out/MIC In Connector

3.5 Configuring the CPU

The HS-6050 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-6050 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-6050 provides three DIMM sockets at locations DM1, DM2 and DM3. The maximum capacity of the onboard memory is 1.5GB.

3.7 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate without a FDD or a HDD. DiskOnChip modules may be formatted as drive C or A. With DiskOnChip, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U18 location onboard the HS-6050 is the DiskOnChip module socket. Jumper JP5 (1-4) assigns the starting memory address of the installed module. If you have another memory device that has a similar memory capacity with that of the DOC in your system, please set both at different memory address mapping to avoid the mapping area conflicts. Failing to do so will not make the HS-6050 and the additional memory device function properly.



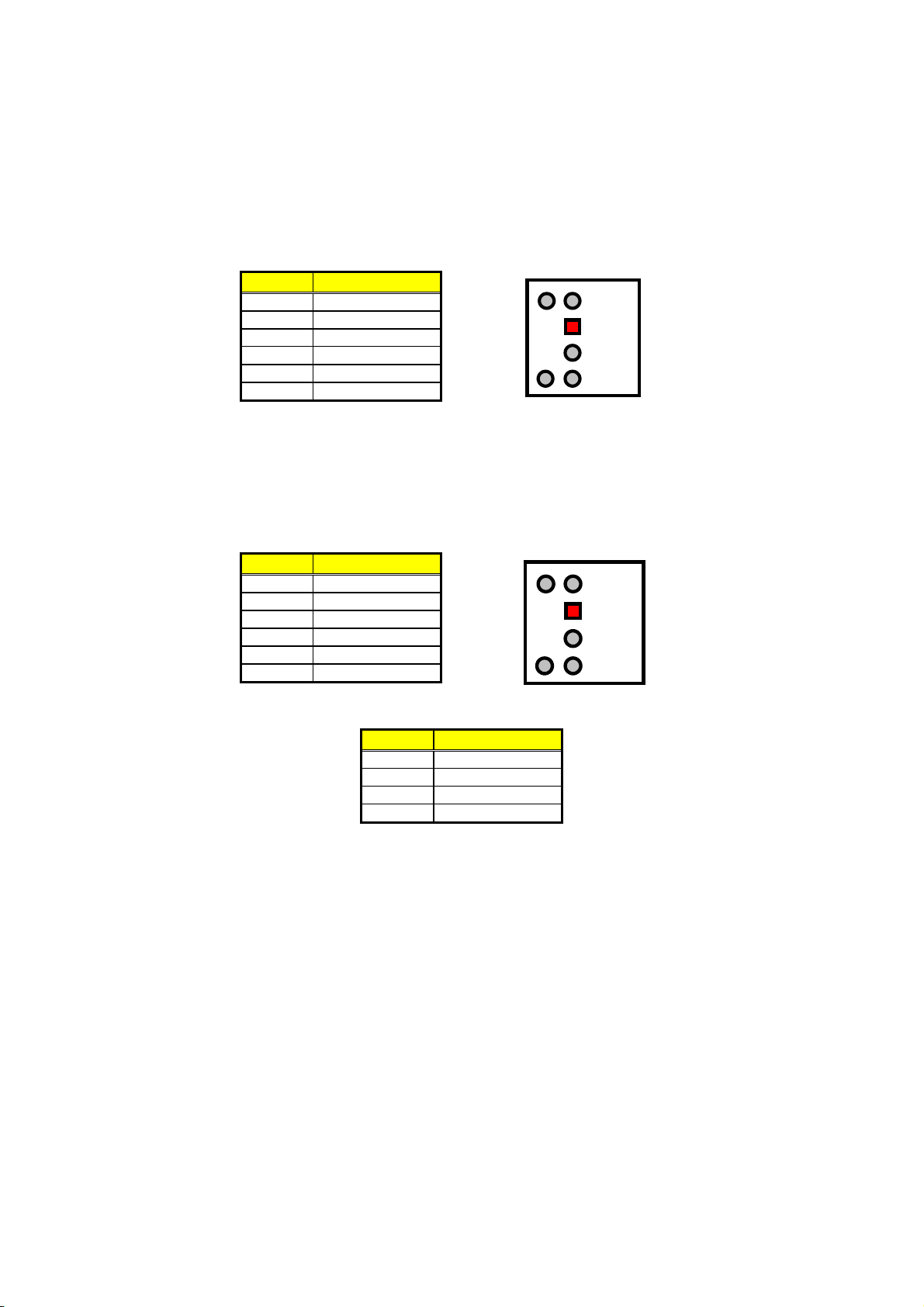

JP5(1-4): DiskOnChip Address Select

Address PINS 1-2 PINS 3-4

* D000 Short Short

D800 Open Short

10

3.7.1 Installing DiskOnChip Modules

When installing a DiskOnChip module onto your board, please take note of the following:

1. Orient yourself properly with the location of the DiskOnChip socket. Try to locate the pin 1 location on your socket. Pin numbers are usually printed on either the component side or the solder side of your board.

2. Locate the Pin 1 location on your DiskOnChip module. More often than not, Pin 1 can be found on the lower right corner of the chip. Please refer to the diagram for the exact location.

3. Once you have figured out where the pin 1 locations are on both chip and socket, align the module’s pins on an upright angle against the socket. Using both thumbs, gently press the module into the socket until all the pins are secured to their designations.

D

i

s

k

O

n

C

h

i

p

Pin 1

Location

4. The installation is now complete and your module is now ready for use.



NOTE:

If you encounter difficulty installing your DiskOnChip

please consult a qualified technician or engineer to perform the installation.

module,

11

3.7.2 Removing DiskOnChip Modules

When removing a DiskOnChip module from its socket, please take note of the following:

1. Loosen the contact of the module from its socket using a screwdriver.

2. Insert the screwdriver’s flat head into a gap on either end of the socket. Do not insert the screwdriver head on either side where the pins are located. Doing so might damage the pins in the process.

3. Slowly lift the screwdriver handle upwards. This will disengage the module from its socket.



NOTE:

If you encounter difficulty removing your DiskOnChip

module, please consult a qualified technician or engineer to remove it for you.

3.8 VGA Controller

The HS-6050 provides one connection method of a VGA device. CN25 offers a single standard CRT connector (DB15).



CN25: CRT Connector

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 N/C 10 GND 11 13 HSYNC 14 VSYNC 15 SCLK

N/C

12

SDA

12

3.9 PCI E-IDE Drive Connector

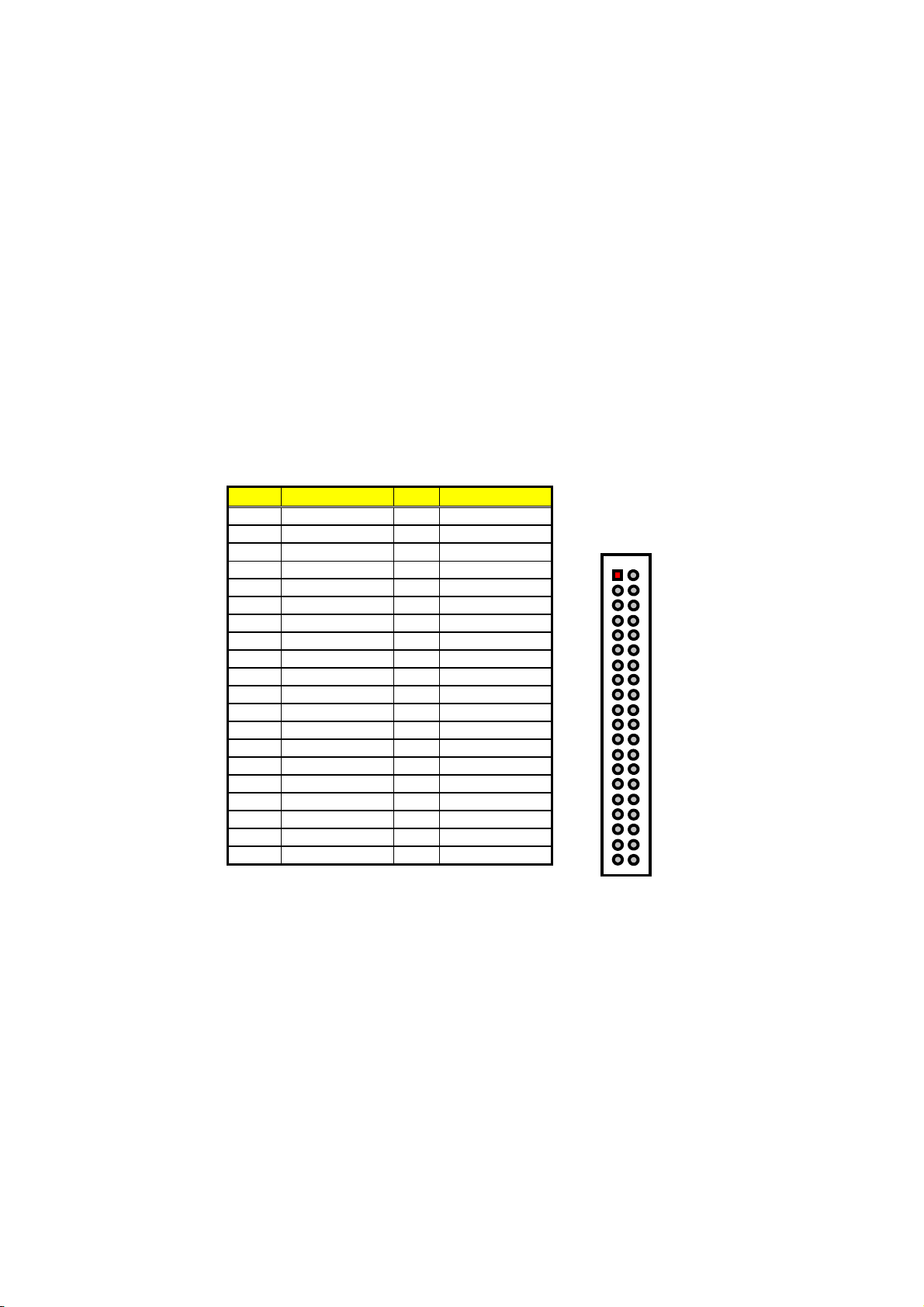

CN6, CN7 are standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-6050. A maximum of four ATA/33/66/100 IDE drives can connect to the HS-6050 via CN6, CN7.



CN6, CN7: Primary/Secondary IDE Connector

PIN Description PIN Description

1 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11 11 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21 23 IOW# 24 GND 25 IOR# 26 GND 27 PIORDY 28 PR1PD1- 29 RPDACK- 30 GND 31 IRQ14/15 32 N/C 33 RPDA1- 34 PATA66 35 RPDA0- 36 RPDA2- 37 RPCS1- 38 RPCS3- 39 HDD ACTIVE 40 GND

RESET

DATA 3

PDREQ

2

12

22

GND

DATA 12

GND

13

3.10 Floppy Disk Drive Connector

The HS-6050 uses a standard 34-pin header connector, CN12, for floppy disk drive connection. A total of two FDD drives may be connected to CN12 at any given time.



CN12: FDD Connector

PIN Description PIN Description

1 GND 2 RWC- 3 GND 4 N/C 5 GND 6 DS1- 7 GND 8 Index#

9 GND 10 Motor Enable A# 11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 WD- 23 GND 24 WE- 25 GND 26 Track 0# 27 GND 28 WP- 29 31 GND 32 HEAD- 33 GND 34 DSKCHG-

GND

30

RDATA-

14

3.11 Serial Port Connectors

The HS-6050 offers one NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and two internal 10-pin headers. CN22 is the onboard serial port supporting RS-422/485. Please refer to the following JP6 and JP7 settings when enabling/disabling the RS-232 or RS-422/485 function.



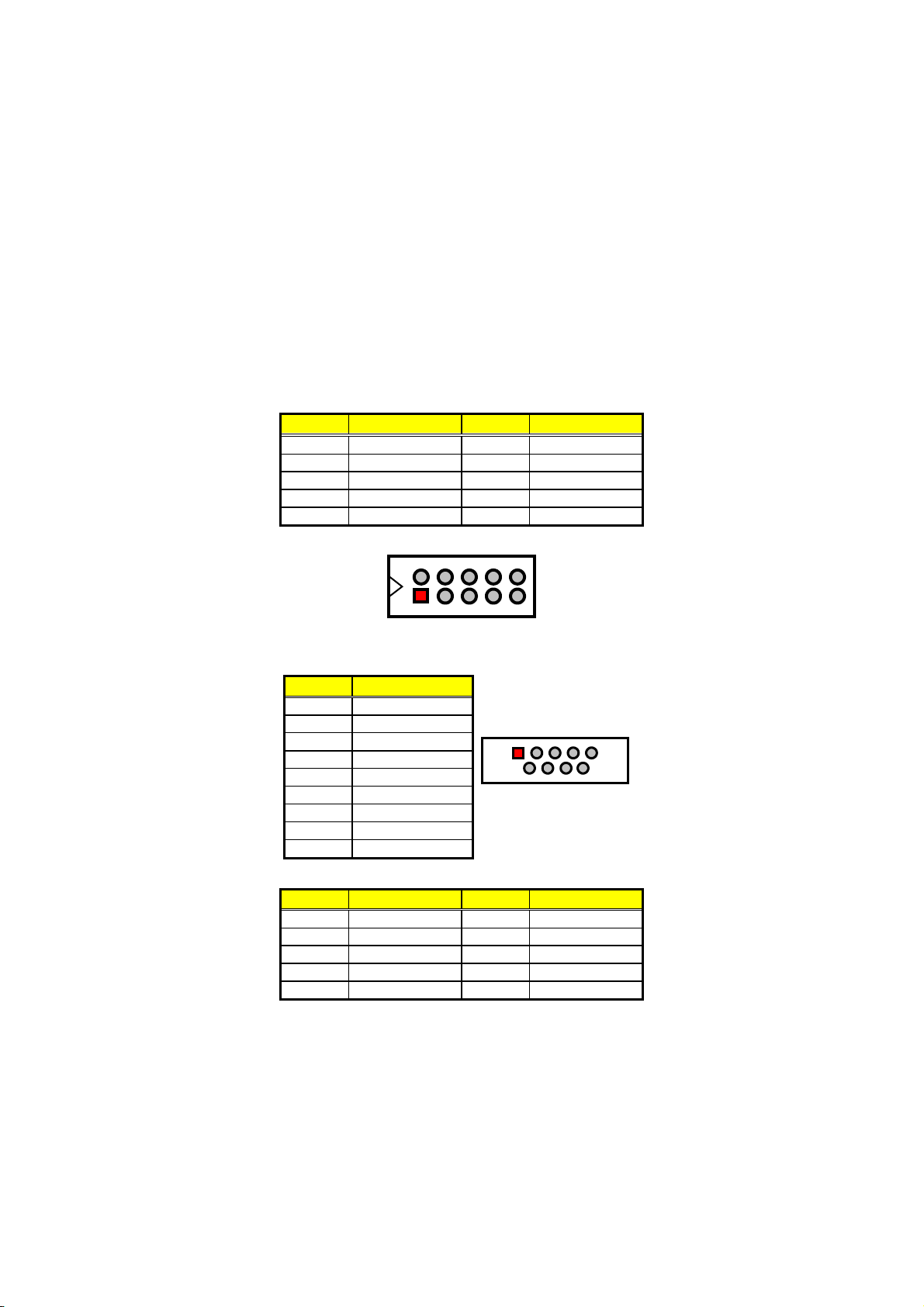

CN11, CN13: COM1/COM2 Connectors (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3

RXD

4 5 TXD 6 CTX 7 DTR 8 RI 9 GND 10 N/C

DSR

RTX

CTX

TXD

RI

DTR



CN27: COM1 Connector (DB9)

246810

13579

RXD

DCD

PIN Description

1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6

DSR

7 RTS 8 CTS 9 RI



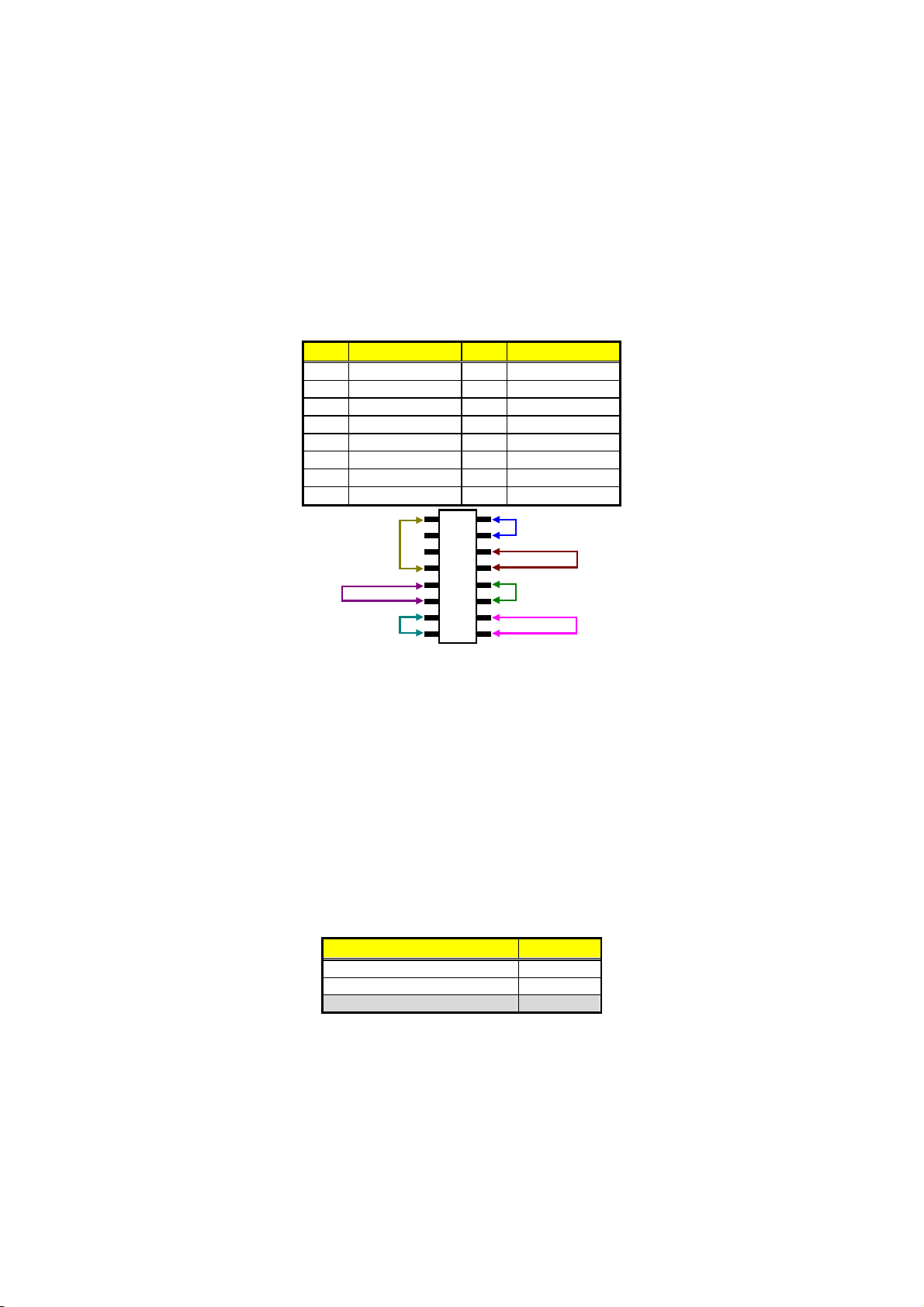

CN22: RS-422/485 Connector (5x2 Header)

PIN Description PIN Description

1 TX- 2 TX+ 3 5 GND 6 RTS- 7 RTS+ 8 CTS+ 9 CTS- 10 N/C

RX+

4

N/C

GND

DCD

16

DSR

RXD

RTX

GND

TXD

DTR

5

9

RTS

CTS

RI

RX-

15



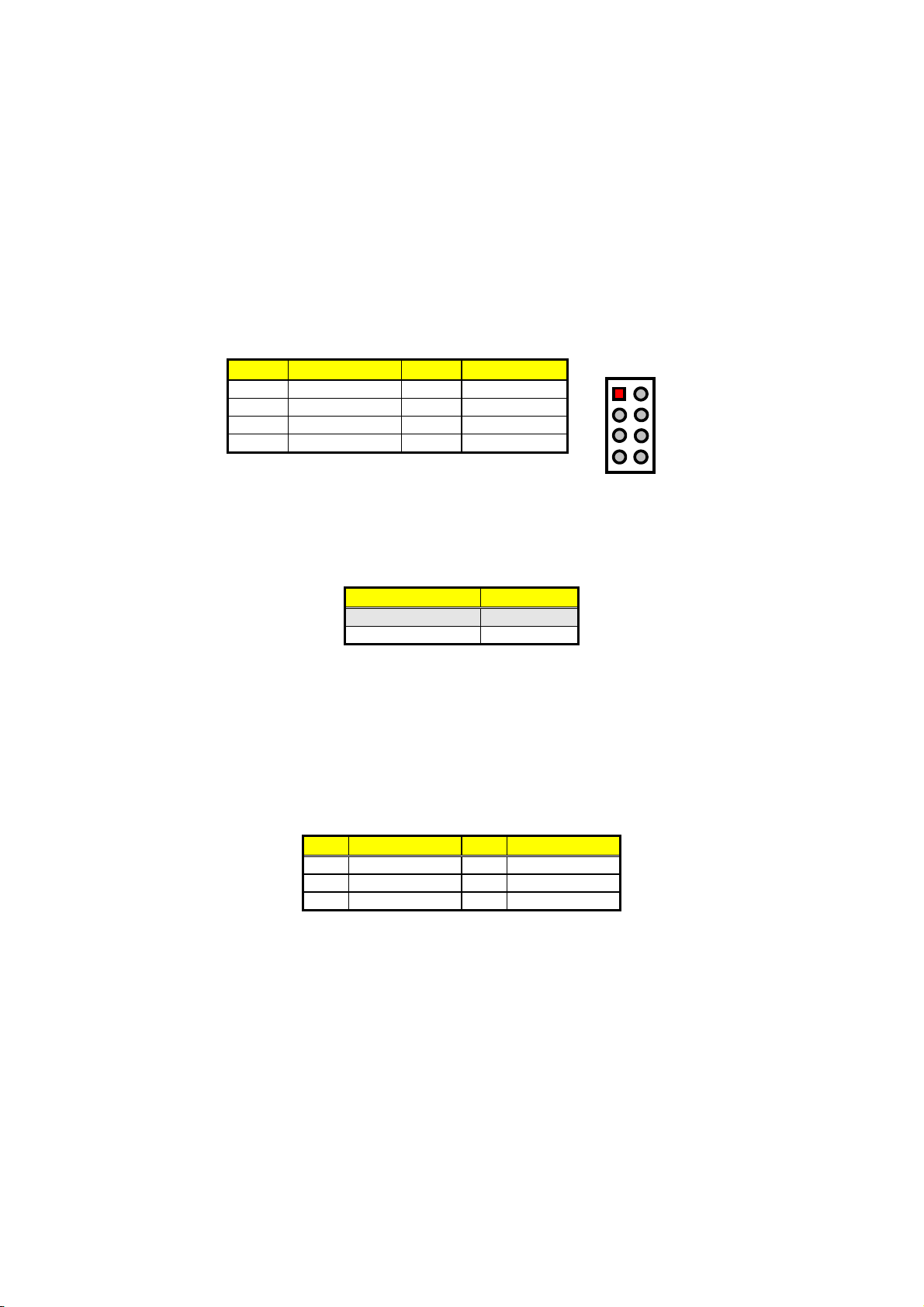

JP10: RS-422/485 Receiver Enabled/Disabled Select

Options Settings

Always Enable Short 1-2

Enable by “-RTS” signal Short 3-4

* Always Disabled



JP9: RS-422/485 Transceiver Enabled/Disabled Select

OPEN

Options Settings

Always Enable Short 1-2

Enable by “-RTS” signal Short 3-4

Enable by writing the REG:2 EFH BIT0=1 Short 5-6

* Always Disabled OPEN



JP6, JP7: RS-232 or RS-422/485 Selection

Serial Port Setting JP6 JP7

* RS-232 Short 3-5, 4-6 Short 3-5, 4-6

RS-422/485 Short 1-3, 2-4 Short 1-3, 2-4

3.12 Parallel Connector

CN17 is a standard 26-pin flat cable connector deigned to accommodate parallel port connection onboard the HS-6050.



CN17: Parallel Connector

PIN Description PIN Description

1 Strobe 14 Auto Form Feed 2 3 DATA 1 16 Initialize 4 DATA 2 17 GND 5 DATA 3 18 GND 6 DATA 4 19 GND 7 DATA 5 20 GND 8 DATA 6 21 GND

9 DATA 7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND 13 Printer Select 26 GND

DATA 0

15

ERROR#

16

3.13 Ethernet Connector

The HS-6050 provides one external dual RJ-45 10/100 Based LAN interface connector. Please refer to the following for its pin information.



CN23: Dual RJ-45 Connector

PIN Description PIN Description

1 1TX+ 2 1TX- 3 1RX+ 4 1RC-GND 5 1RC-GND 6 1RX- 7 1RC-GND 8 1RC-GND

9 2TX+ 10 2TX- 11 2RX+ 12 2RC-GND 13 2RC-GND 14 2RX- 15 2RC-GND 16 2RC-GND



CN19, CN20: Internal LAN1 and LAN2 Connector

PIN Description PIN Description

1 VCC3 2 LINK LED

3 RRX+ 4 RRX-

5 ACTIVE LED 6 LANC1

7

9 TTX+ 10 TTX-

SPEED LED

8

LANC2

3.14 IrDA Connector

CN3 is a 5-pin internal IR communication connector for connection of an IrDA device.



CN3: IrDA Connector

PIN Description

1 VCC 2 N/C 3 IRRX 4 GND 5 IRTX

17

3.15 USB Connector

The HS-6050 provides two 8-pin connectors, at locations CN9 and CN10, for four USB connections to the HS-6050.



CN9, CN10: USB Connector

VCC

BD0-

BD0+

GND

12

VCC

BD1-

BD1+

GND

78

PIN Description PIN Description

1 VCC 2 VCC 3 BD0- 4 BD1- 5 BD0+ 6 BD1+ 7

GND

8

GND

3.16 CMOS Data Clear

The HS-6050 has a Clear CMOS jumper on JP1.



JP1: Clear CMOS

Options Settings

* Normal Operation Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

The default setting of JP1 is Short 1-2. Before you turn on the power of your system, please check JP1 to Short 1-2 for normal operation.

3.18 Power and Fan Connectors

HS-6050 provides one 2-pin power button connector at CN2. If you need to use the board on a non-backplane system, power supply connections to both CN5 is a must.



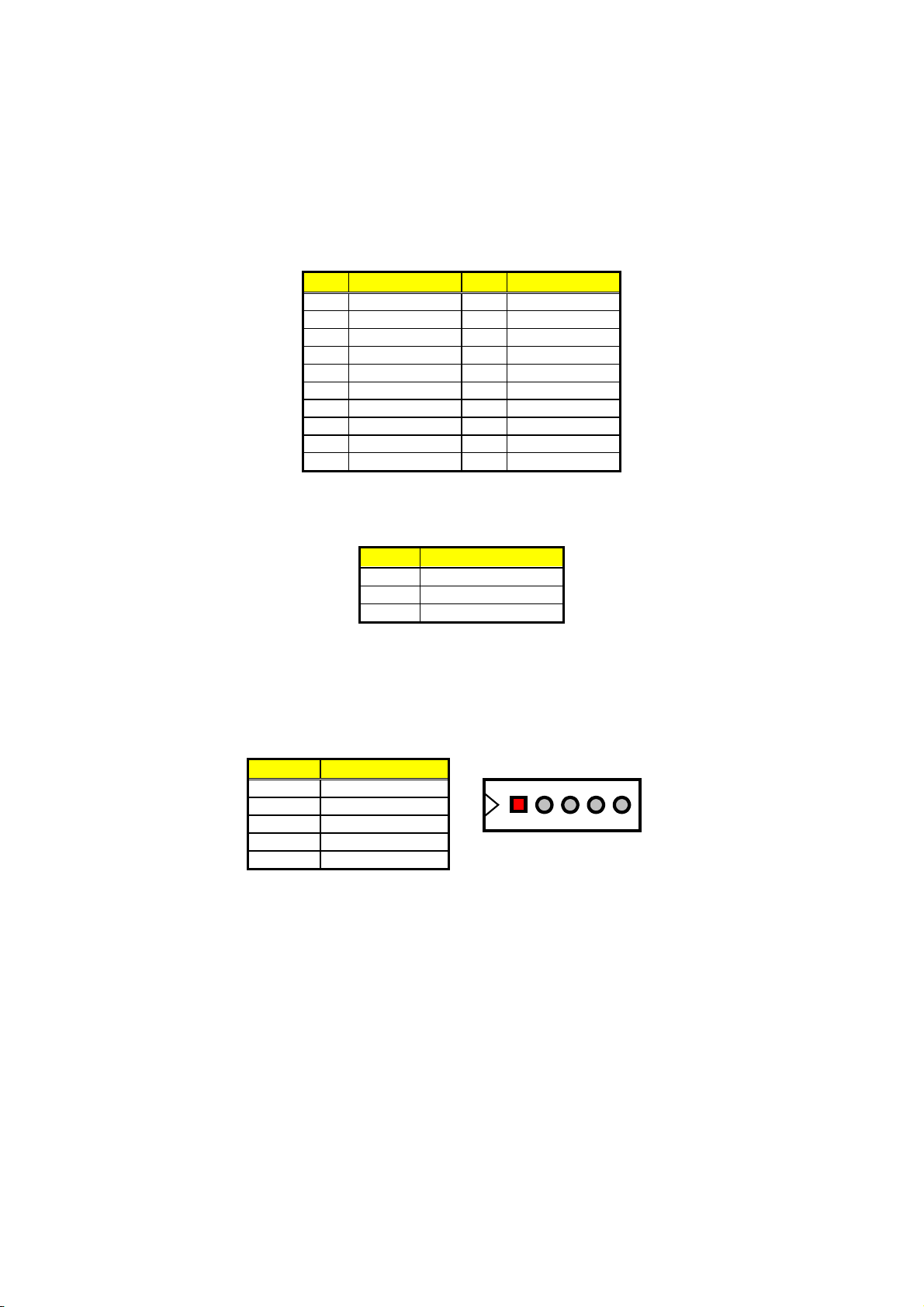

CN5: 5-pin ATX Power Controller

PIN Description PIN Description

1 VCC 2 5V_SB 3 +12V 4 PS_ON 5 GND

18



CN4: ATX Power Connector

PIN Description PIN Description

1 3V 11 3V 2 3V 12 -12V 3 GND 13 GND 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 PG 18 -5V 9 5VSB 19 +5V

10 +12V 20 +5V

Connector FN1, FN2 onboard HS-6050 are 3-pin fan power output connectors.



FN1, FN2: Fan1/Fan2 Connectors

PIN Description

1 Fan Speed 2 +12V 3 GND

3.19 Keyboard Connectors

The HS-6050 offers two possibilities for keyboard connections. The connections are via CN26 for an external PS/2 type keyboard or via CN1 for an internal 5-pin cable converter to an AT keyboard.



CN1: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock 2 Keyboard Data 3 N/C 4 GND 5 +5V

12345

N/C

Data

Clock

Keyboard

GND

+5V

19



CN26: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1 Keyboard Data 2 N/C 3 4 +5V 5 Keyboard Clock 6 N/C

GND

Keyboard

Clock

N/C

GND

5

6

3

Keyboard

1

Data

2

N/C

+5V

4

3.20 PS/2 Mouse Connector

The HS-6050 offers two possibilities for keyboard connections. The connections are via CN24 for an external PS/2 type keyboard or via CN21 for an internal 4-pin connector.



CN24: PS/2 6-pin Mini Din Mouse Connector

PIN Description

1 MS Data 2 N/C 3 GND 4 +5V 5 MS CLK 6 N/C



CN21: 4-pin Mouse Connector

PIN Description

1 MS CLK 2 MS Data 3 VCC 4 GND

MS Clock

N/C

GND

5

6

3

MS Data

1

2

N/C

+5V

4

20

3.21 System Front Panel Connectors

The HS-6050 has one IDE LED, Reset, SLP button at location CN2.



CN2: System Front Panel Connector

PIN Description PIN Description

1 VCC 2 330Ω Pull +5V 3 GND 4 GND 5

N/C

6 7 Speaker 8 GND 9 GND 10 Power Bottom

11 Reset Switch 12 GND 13 330Ω Pull +5V 14 SLPB 15

HDD LED

SPEAKER

RST_SW

HD_LED

16

2

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

EXT SMI

GND

PWR LED

EXT_SMI

PWR button

SLP button

3.22 Watchdog Timer

There are three access cycles of Watch-Dog Timer as

Enable, Refresh and Disable are the three access cycles of Watchdog Timer. The Enable cycle proceeds via READ PORT 443H whereas the Disable cycle proceeds via READ PORT 045H. A continued Enable cycle after a first Enable cycle means Refresh.

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start or a NMI cycle to the CPU transpires when such error happens. Jumper JP4 is used to select the function of Watchdog Timer.



JP4: Watchdog Timer Active Type Setting

Options Settings

Active NMI Short 1-2

System Reset

Short 2-3

* Disabled Watchdog Timer Open

21



JP5(5-10): WDT Timeout Period Select

Period PINS 5-6 PINS 7-8 PINS 9-10

* 1 sec Short Short Short

2 sec Open Short Short 10 sec Short Open Short 20 sec Open Open Short

110 sec Short Short Open 220 sec Open Short Open

The Watchdog Timer is disabled after the system Power-On. It can be enabled via an Enable cycle and reading the control port (443H), or via a Refresh cycle and reading the control port (443H), or via a Disable cycle and reading the disable control port (045H).

After an Enable cycle of WDT, user must immediately execute a Refresh cycle to WDT before its period setting comes to an end every 1, 2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not activate before WDT period cycle, the onboard WDT architecture will issue a Reset or NMI cycle to the system. There are three I/O ports that control the Watchdog Timer.

443H I/O Read The Enable cycle 443H I/O Read The Refresh cycle 045H I/O Read The Disable cycle

22

The following sample program shows how to Enable, Disable and Refresh the Watchdog Timer:

WDT_EN_RF EQU 0433H WDT_DIS EQU 0045H

WT_Enable PUSH AX ; keep AX DX PUSH DX MOV DX,WDT_EN_RF ; enable the WDT IN AL,DX POP DX ; get back AX, DX POP AX RET

WT_Refresh PUSH AX ; keep AX, DX

PUSH DX MOV DX,WDT_ET_RF ; refresh the WDT IN AL,DX POP DX ; get back AX, DX POP AX RET

WT_DISABLE PUSH AX

PUSH DX MOV DX,WDT_DIS ; disable the WDT IN AL,DX

POP DX ; get back AX, DX POP AX RET

23

3.23 PC/104 Connectors

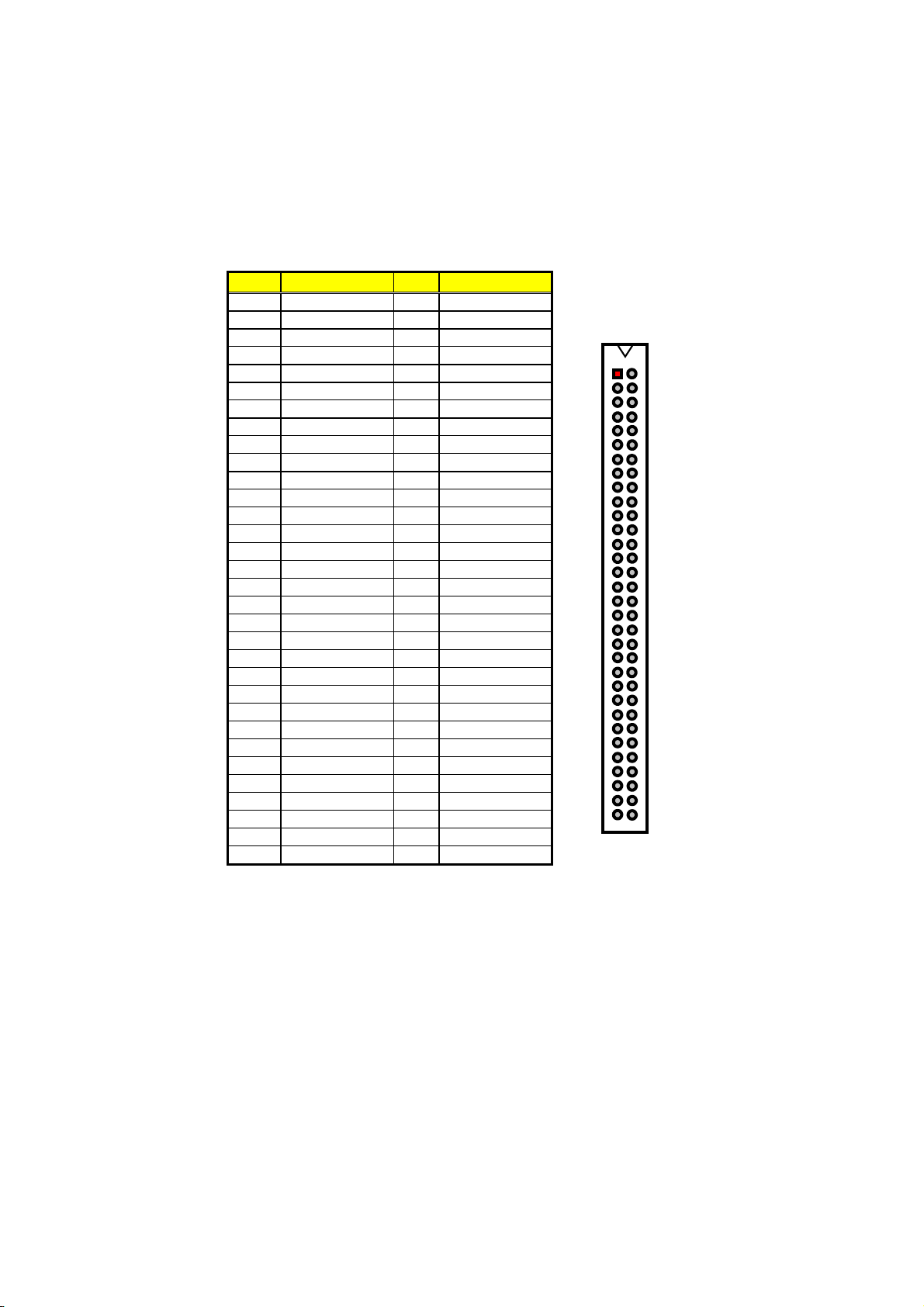

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors CN14 and CN16 are listed on the following tables:

NOTE：



PIN Description PIN Description

10 11 DACK5* 31 MEMW* 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 DACK7* 35 SD11 16 DRQ7 36 SD12 17 +5V 37 SD13 18 MASTER* 38 SD14 19 GND 39 SD15 20 GND 40 N/C

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.

CN16: 40-pin PC/104 Expansion Slot

Connector diagram

1 GND 21 GND 2 MEMCS16* 22 SBHE* 3 IOSC16* 23 SA23 4 IRQ10 24 SA22 5 IRQ11 25 SA21 6 IRQ12 26 SA20 7 IRQ15 27 SA19 8 IRQ14 28 SA18 9 DACK0* 29 SA17

DRQ0

30

MEMR*

rotated 90 degrees

clockwise from

original position

121

20

40

24



CN14: 64-pin PC/104 Expansion Slot

PIN Description PIN Description

1 IOCHECK* 33 GND 2 SD7 34 RESETDRV 3 4 SD5 36 IRQ9 5 SD4 37 -5V 6 SD3 38 DRQ2 7 SD2 39 -12V 8

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW* 12 SA19 44 SMEMR* 13 SA18 45 IOW* 14 SA17 46 IOR* 15 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 SA13 50 DRQ1 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

SD6

SD1

SA16

SA4

35

40

47

59

+5V

NOW*

DACK3*

TC

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

25

3.24 Audio Connector

The HS-6050 has an onboard AC97 audio interface. The following tables list the pin assignments of the CD In, Line In and Line Out connectors. This CD In, Line In and Line Out port supports a preamp function that allows user to connect either a passive set of speakers or earphones.



JP8: Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR 3 GND 4 GND 5 MIC In 6 N/C 7 GND 8 GND



CN18: Line In Connector

PIN Description PIN Description

1 3 GND 4 Line L



CN15: CD In Connector

PIN Description PIN Description

1 CDL 2 CD GND 3 CD GND 4 CDR

Line R

2

GND

26

Chapter 4

AMI BIOS Setup

The HS-6050 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

27

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

28

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Save Settings and Exit

Exit Without Saving

29

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Thu Jan 03, 2002 Base Memory : 0 KB Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB

Floppy Drive A: 1.44MB, 3.5” Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Auto Pri Slave : Auto Sec Master : Auto Sec Slave : Auto

Boot Sector Virus Protection : Disabled Month: Jan - Dec ESC:Exit

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

30

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Enabled 1st Boot Device Floppy 2nd Boot Device IDE-0 Enabled 3rd Boot Device CD-ROM Try Other Boot Devices Yes S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock On Floppy Drive Swap Disabled Floppy Drive Seek Disabled PS/2 Mouse Support Enabled Primary Display VGA/EGA Password Check Setup Boot To OS/2 No CPU MicroCode Updation Enabled CPU Serial Number Enabled L1 Cache Enabled L2 Cache Enabled System BIOS Cacheable Enabled C000,32k Shadow Disabled C800,16k Shadow Disabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled

S

Available Options:

`

Disabled



:Sel

T

F1:Help F2/F3:Color

31

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

******** DRAM Timing ******** Available Options: Configure SDRAM Timing by SPD Enabled DRAM Frequency Auto Enabled SDRAM CAS# Latency 3

DRAM Bank Interleave Enabled Memory Hole Disabled AGP Mode 4x AGP Read Synchronization Enabled AGP Fast Write Enabled AGP Aperture Size 64MB AGP Master 1 W/S Write Disabled AGP Master 1 W/S Read Disabled Search for MDA Resources Yes PCI Delay Transaction Enabled ISA Bus Clock PCI CLK/4 USB Controller All USB Port USB Device Legacy Support Disabled Port 64/60 Emulation Disabled ESC:Exit ATX Power Supply Enabled PgUp/PgDn: Modify F1:Help F2/F3:Color

`

Disabled



:Sel

32

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S No ACPI Standby State Auto USB Device Wakeup From S3-S5 Disabled Ye s Re-Call VGA BIOS at S3 Resuming Enabled Power Management / APM Enabled Video Power Down Mode Disabled Hard Disk Power Down Mode Disabled Standby Time Out (Minute) Disabled Suspend Time Out (Minute) Disabled Throttle Slow Clock Ratio 50%~56.25% Display Activity Ignore IRQ3 Ignore IRQ4 Ignore IRQ5 Monitor IRQ7 Ignore IRQ9 Ignore IRQ10 Monitor IRQ11 Ignore IRQ12 Ignore IRQ13 Ignore IRQ14 Ignore IRQ15 Ignore System Thermal Disabled Thermal Active Temperature 65°C / 149°F Thermal Slow Clock Ratio 50%~56.25% Power Button Function On / Off Restore on AC / Power Loss Last State Resume On Ring Disabled Resume On LAN Disabled Resume On PME# Disabled Resume On KBC Disabled Wake-Up Key N/A Wake-Up Password N/A Resume On PS/2 Mouse Disabled Resume On RTC Alarm Disabled RTC Alarm Date 15 RTC Alarm Hour 12 ESC:Exit RTC Alarm Minute 30 PgUp/PgDn: Modify RTC Alarm Second 30

S

Available Options:

`

No



:Sel

T

F1:Help F2/F3:Color

33

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM Yes OnChip VGA Frame Buffer Size None PCT Latency Timer (PCI Clocks) 32 Yes Allocate IRQ to PCI VGA No PCI IDE BusMaster Enabled PCI SLOT1 IRQ Priority Auto PCI SLOT2 IRQ Priority Auto PCI SLOT3 IRQ Priority Auto PCI SLOT4 IRQ Priority Auto DMA Channel 0 PnP DMA Channel 1 PnP DMA Channel 3 PnP DMA Channel 5 PnP DMA Channel 6 PnP DMA Channel 7 PnP IRQ3 PCI/PnP IRQ4 PCI/PnP IRQ5 PCI/PnP IRQ7 PCI/PnP IRQ9 PCI/PnP IRQ10 PCI/PnP IRQ11 PCI/PnP ESC:Exit IRQ14 PCI/PnP PgUp/PgDn: Modify IRQ15 PCI/PnP F1:Help F2/F3:Color

`

No



:Sel

34

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC Auto Available Options: OnBoard Serial Port 1 3F8/COM1 OnBoard Serial Port 2 2F8/COM2 Primary

Serial Port2 Mode Normal Secondary Duplex Mode N/A Both OnBoard Prarllel Port 378

Parallel Port Mode ECP EPP Version N/A

Parallel Port DMA Channel 3 Parallel Port IRQ 7 OnBoard IDE Both OnBoard AC’97 Audio Enabled OnBoard Legacy Audio Enabled Sound Blaster Enabled SB I/O Base Address 220h-22fh SB IRQ Select 5 SB DMA Select 1 ESC:Exit MPU-401 Disabled PgUp/PgDn: Modify MPU-401 I/O Address 330h-333h F1:Help F2/F3:Color

`

Disabled



:Sel

35

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

*** System Hardware Monitor *** Available Options:

Chassis Intrusion Disabled TSENS1 Temperature Enabled TSENS2 Temperature Reset CPU Fan Speed Chassis Fan Speed

Vcore + 2.500V +3.300V +5.000V

+12.000V ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color

`

Disabled



:Sel

36

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

37

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

38

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

39

4.14 Optimal Configuration with Fail Safe Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

40

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

41

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

42

Abandon all Data & Exit Setup

Chapter 4-1

Award BIOS Setup

The HS-6050 uses Award PCI/ISA BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

43

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key Load the default CMOS value from BIOS default table, only

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu

for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

44

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

`

Standard CMOS Features

`

Advanced BIOS Features

`

Advanced Chipset Features

`

Integrated Peripherals

`

Power Management Setup

`

PnP/PCI Configurations

`

PC Health Status

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

`

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving



：

Select Item

45

4.4 Standard CMOS Features

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

Date (mm:dd:yy) Wed, Jul 11 2001 Item Help Time (hh:mm:ss) 10 : 32 :57 Menu Level X

X

IDE Primary Master [None]

X

IDE Primary Slave [None] Change the day, month,

X

IDE Secondary Master [None] year and century

X

IDE Secondary Slave [None]

Drive A [1.44M, 3.5in.] Drive B [None]

Video [EGA/VGA] Halt On [All, But Keyboard]

Base Memory 640K Extended Memory 65472K Total Memory 1024K

: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

mode. Please use the IDE Setup Utility in

LBA

Standard CMOS Features

46

4.5 Advanced BIOS Features

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Virus Warning Disabled Item Help CPU Internal Cache Enabled Menu Level X External Cache Enabled CPU L2 Cache ECC Checking Enabled Processor Number Feature Enabled Change the day, month, Quick Power On Self Test Enabled year and century First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device CD-ROM Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up Num Lock Status On Gate A20 Option Normal Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM>64MB Non-OS2 Report on FDD for WIN95 NO Video BIOS Shadow Enabled C8000-CBFFF Shadow Disabled CC000-CFFFF Shadow Disabled D0000-D7FFF Shadow Disabled D8000-DBFFF Shadow Disabled DC000-DFFFF Shadow Disabled Small Logo (EPA) Show Enabled



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Advanced BIOS Features

47

4.6 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

DRAM Clock Host Clock Item Help DRAM Timing by SPD Enabled Menu Level X SDRAM Cycle Length 3 Bank Interleave Disabled Memory Hole at 15M-16M Disabled Change the day, month, P2C/C2P Concurrency Enabled year and century Fast R-W Turn Around Enabled System BIOS Cacheable Enabled Video BIOS Cacheable Enabled Video RAM Cacheable Enabled Frame Buffer Size 8M AGP Aperture Size 64M On Chip USB Enabled USB Keyboard Support Disabled On Chip Sound Auto CPU to PCI Write Buffer Enabled PCI Dynamic Bursting Enabled PCI Master 0 WS Write Enabled PCI Delay Transaction Enabled PCI#2 Access#1 Retry Disabled AGP Master 1WS Write Disabled Memory Parity/ECC Check Disabled



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Advanced Chipset Features

48

4.7 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

On chip IDE Channel 0 Auto Item Help On chip IDE Channel 1 Auto Menu Level X IDE Prefetch Mode Enabled IDE Primary Master PIO Auto IDE Primary Slave PIO Auto Change the day, month, IDE Second Master PIO Auto year and century IDE Second Slave PIO Auto IDE Primary Master UDMA Auto IDE Primary Slave UDMA Auto IDE Second Master UDMA Auto IDE Second Slave UDMA Auto Init Display First PCI Slot IDE HDD Block Mode Enabled Onboard FDC Controller Enabled Onboard Serial Port1 3F8/IRQ4 Onboard Serial Port2 2F8/IRQ3 UART Mode Select Normal UART2 Duplex Mode Half RXD, TXD Active Hi, Lo IR Transmission delay Enabled Onboard Parallel Port 378/IRQ7 Parallel Port Mode SPP ECP Mode Use DMA 3 EPP Mode Select EPP1.7 Onboard Legacy Audio Enabled Sound blaster Enabled S/B I/O Base Address 220H S/B IRQ Select IRQ5 S/B DMA Select DMA1 MPU-401 Disabled MPU-401 I/O Address 330H-333H



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Integrated Peripherals

49

4.8 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

ACPI function Disabled Item Help Power Management User Define Menu Level X Doze Mode User Define Standby Mode Disabled Suspend Mode Disabled Change the day, month, HDD Power Down Disabled year and century ACPI Suspend Type S1 PM Control by APM Yes Video Off Option Suspend  Off Modem use IRQ 3 Soft-off by PWRBTN Delay 4Sec Wake Up Event VGA VGA LPT & COM LPT/COM HDD & FDD On PCI Master Off Modem Ring Resume Disabled RTC Alarm Resume Disabled Date (of Month) 0 Resume Time 0 IRQ Active Primary INTR Enabled IRQ3 (COM2) Enabled IRQ4 (COM1) Enabled IRQ5 (LPT2) Enabled IRQ6 (Floppy) Enabled IRQ7 (LPT1) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir) Disabled IRQ10 (Reserved) Disabled IRQ11 (Reserved) Disabled IRQ12 (PS/2 Mouse) Disabled IRQ13 (Coprocessor) Disabled IRQ14 (Hard Disk) Disabled IRQ15 (Reserved) Disabled



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Power Management Setup

50

4.9 PnP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or

ersonal Computer Interconnect, is a system that allows I/O devices to

P

operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PNP OS Installed No Item Help Reset Configuration Date Disabled Menu Level X Resources controlled By Auto (ESCD) IRQ Resources IRQ3 Assign PCI/ISA PNP Change the day, month, IRQ4 Assign PCI/ISA PNP year and century IRQ5 Assign PCI/ISA PNP IRQ6 Assign PCI/ISA PNP IRQ7 Assign PCI/ISA PNP IRQ8 Assign PCI/ISA PNP IRQ9 Assign PCI/ISA PNP IRQ10 Assign PCI/ISA PNP IRQ11 Assign PCI/ISA PNP IRQ12 Assign PCI/ISA PNP IRQ13 Assign PCI/ISA PNP IRQ14 Assign PCI/ISA PNP IRQ15 Assign PCI/ISA PNP

DMA Resources DMA0 PCI/ISA PNP DMA1 PCI/ISA PNP DMA2 PCI/ISA PNP DMA3 PCI/ISA PNP DMA4 PCI/ISA PNP DMA5 PCI/ISA PNP DMA6 PCI/ISA PNP DMA7 PCI/ISA PNP

PCI/VGA Palette Snoop Disabled Assign IRQ for VGA Enabled Assign IRQ for USB Enabled



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PnP/PCI Configurations

51

4.10 PC Health Status

Current CPU Temp Item Help Current System Temp Menu Level X Current CPUFAN1 Speed Current CPUFAN2 Speed Change the day, month, year and century Vcore +3.3V +5V +12V

-12V

Shutdown Temperature



: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PC Health Status

52

4.11 Load Fail-Safe Defaults

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

STANDARD CMOS Features

X

Advanced BIOS Features Load Fail-Safe Defaults

X

Advanced Chipset Features Load Optimized Defaults

X

Integrated Peripherals Set Supervisor Password

X

Power Management

X

PnP/PCI Configura

X

PC Health Status

X

word

Load Fail-Safe Defaults (Y/N)? N

Saving

Esc : Quit

F10 : Save & Exit Setup

Load Fail-Safe Defaults

Frequency/Voltage Control

X

etup

   

: Select Item

53

4.12 Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

Standard CMOS Features

X

Advanced BIOS Features Load Fail-Safe Defaults

X

Advanced Chipset Features Load Optimized Defaults

X

Integrated Peripherals Set Supervisor Password

X

Power Management

X

PnP/PCI Configura

X

PC Health Status

X

word

Load Optimized Defaults (Y/N)? N

Saving

Esc : Quit

F10 : Save & Exit Setup

Frequency/Voltage Control

X

etup

   

: Select Item

54

Load Optimized Defaults

4.13 Set Supervisor/User Password

Standard CMOS Features

X

Advanced BIOS Features Load Fail-Safe Defaults

X

Advanced Chipset Features Load Optimized Defaults

X

Integrated Peripherals Set Supervisor Password

X

Power Management Setup

X

PnP/PCI Configurati

X

PC Health Status

X

Enter Password :

Esc : Quit

F10 : Save & Exit Setup

Frequency/Voltage Control

X

Set User Password

   

: Select Item

t Setup

ut Saving

Change / Set / Disable Password

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

55

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.14 Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Standard CMOS Features

X

Frequency/Voltage Control

X

Advanced BIOS Features Load Fail-Safe Defaults

X

Advanced Chipset Features Load Optimized Defaults

X

Integrated Peripherals Set Supervisor Password

X

Power Management

X

PnP/PCI Configura

X

PC Health Status

X

word

SAVE to CMOS and EXIT (Y/N)? N

etup

Saving

Esc : Quit

F10 : Save & Exit Setup

Save Data to CMOS

56

   

: Select Item

4.15 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

Standard CMOS Features

X

Advanced BIOS Features Load Fail-Safe Defaults

X

Advanced Chipset Features Load Optimized Defaults

X

Integrated Peripherals Set Supervisor Password

X

Power Management

X

PnP/PCI Configura

X

PC Health Status

X

word

Quit Without Saving (Y/N)? N:

Saving

Esc : Quit

F10 : Save & Exit Setup

Abandon all Data

Frequency/Voltage Control

X

etup

   

: Select Item

57

This page is intentionally left blank.

58

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, Audio and LAN driver installation procedures.

5.1 IDE and Audio Driver Installation

The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA and Audio drivers. The following describes the installation procedures of each driver.

5.1.1 VIA VT82C686B AGP Bus Driver Installation

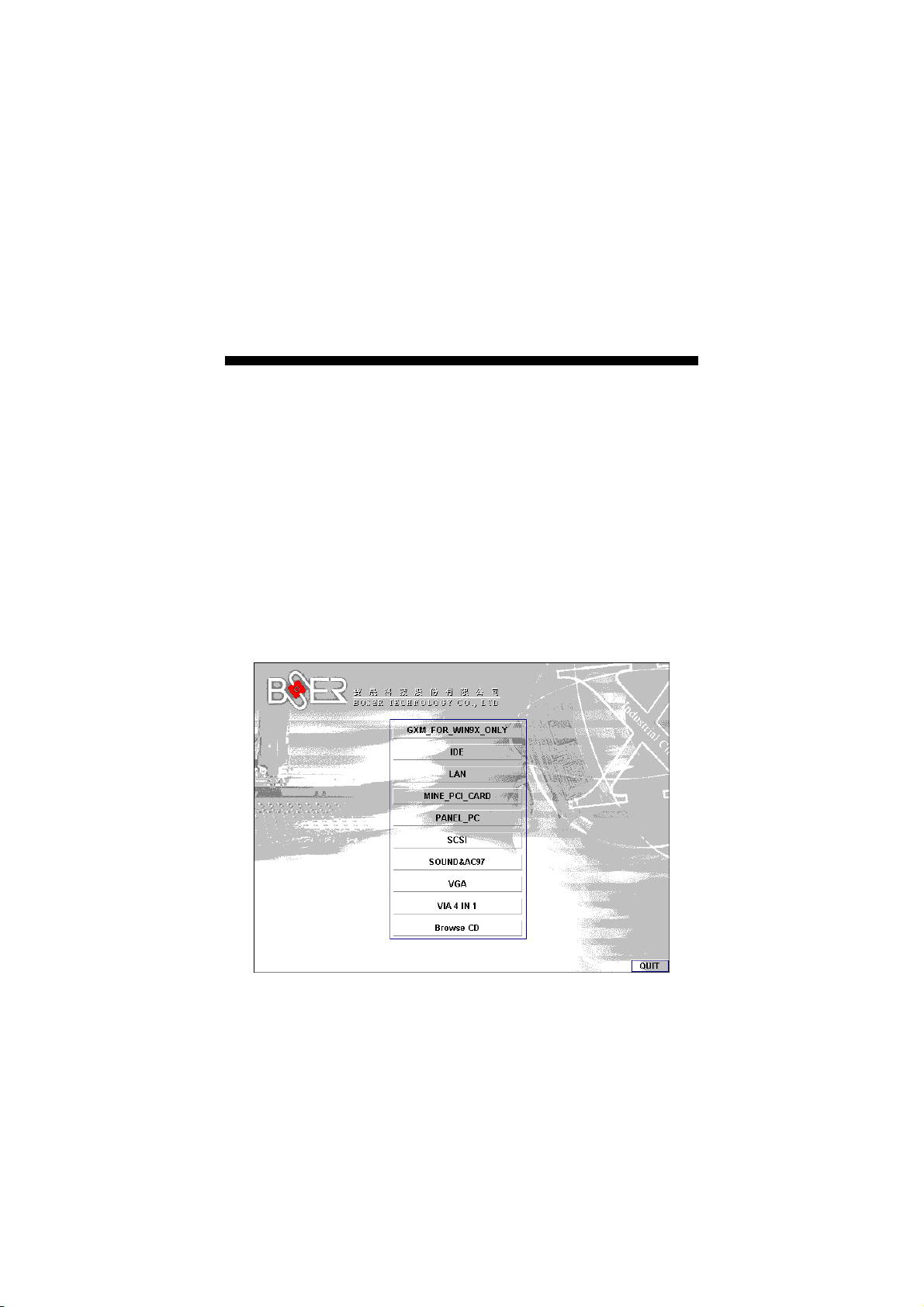

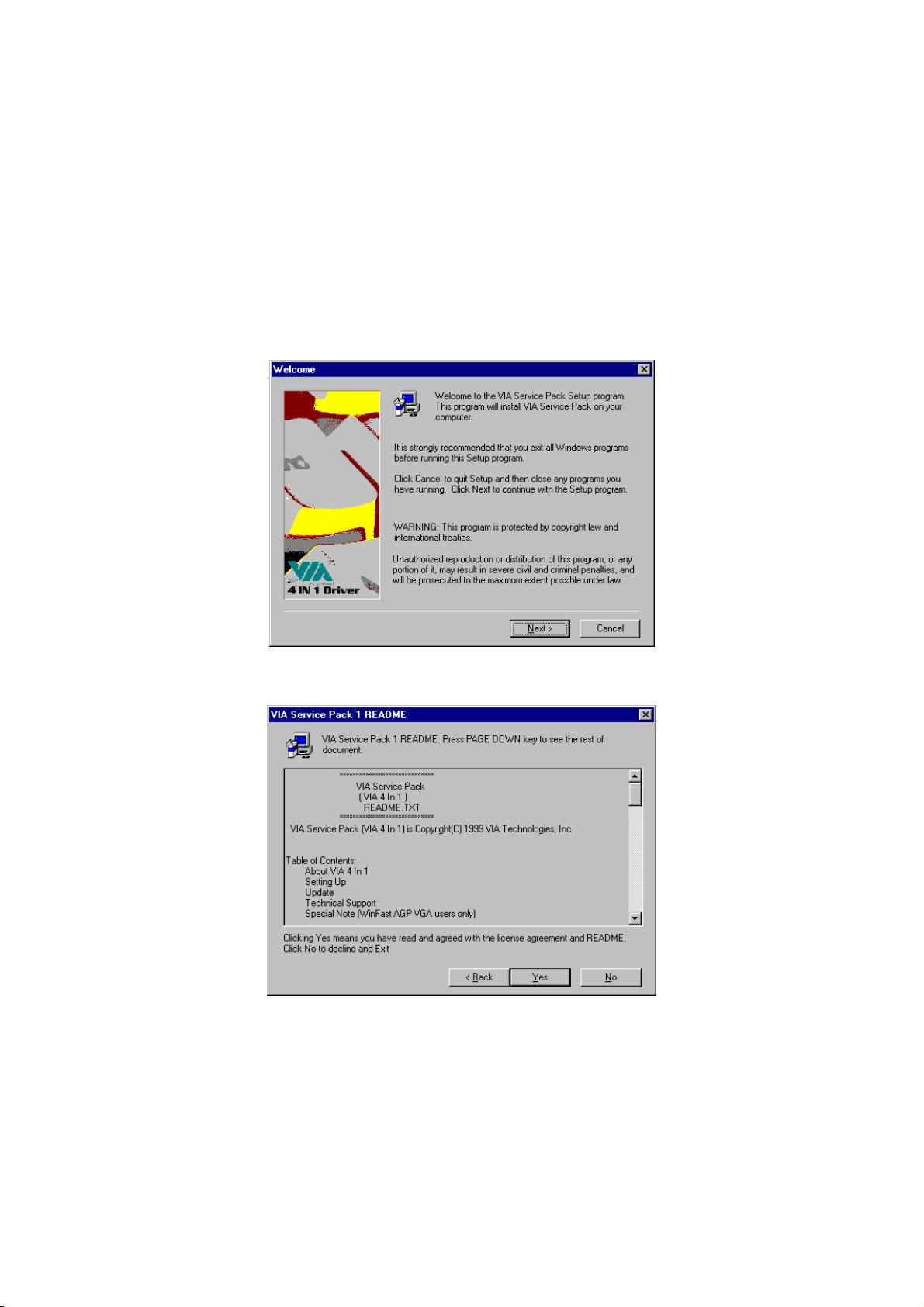

1. Insert Utility CD Disk to your CD ROM. The main menu will pop up as shown below.

59

2. Press “VIA 4 IN 1” and to go Setup.

3. Once the Welcome screen appears on the screen, make sure to close any applications running and then click on the Next button.

4. When the Readme window pops on the screen, you may read the whole document including the license agreement or just press Yes to skip through and continue installation.

60

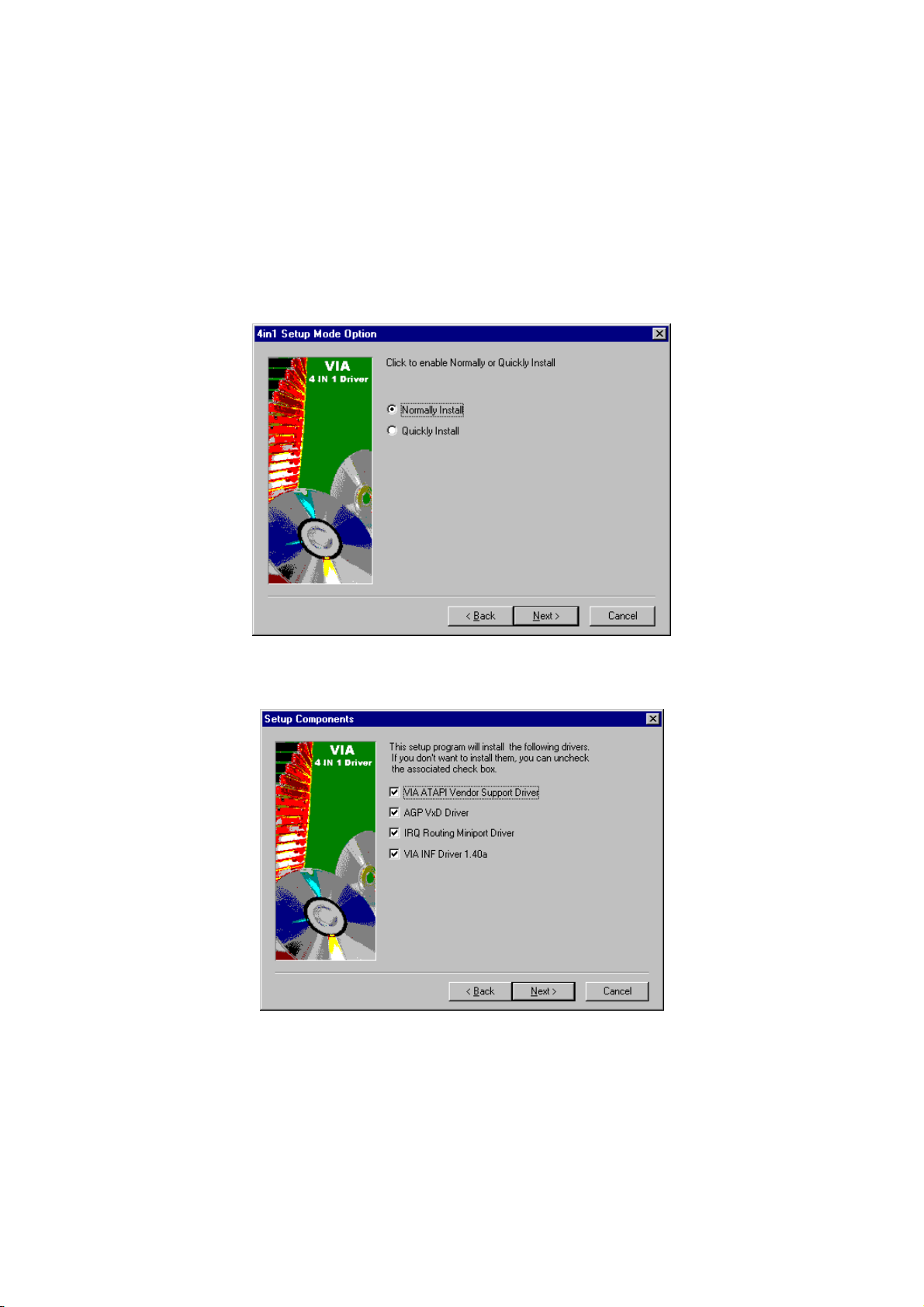

5. The 4 in 1 Setup dialog is now displayed. Select on Normally Install and then click on Next.

6. The next window lists all components detected in your system and asks you to select the ones requiring drivers. Tick on all items then proceed by clicking on the Next button below the screen.

61

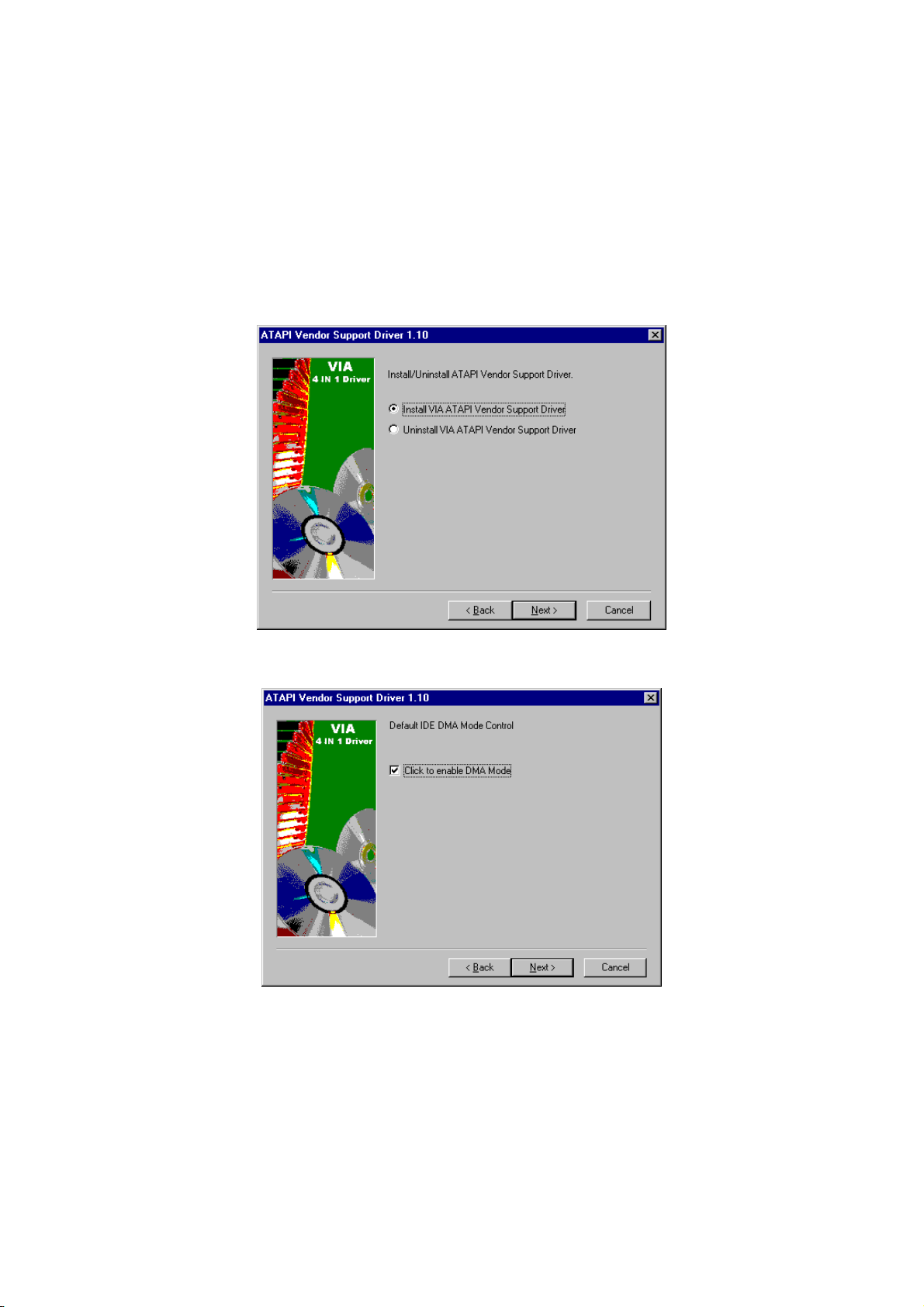

7. The program starts to install the ATAPI driver when you click the Next button on the screen below.

8. When the ATAPI driver is completely installed. The utility then displays your DMA mode status and allows you to enable it. Tick on the box and press on the Next button to continue.

62

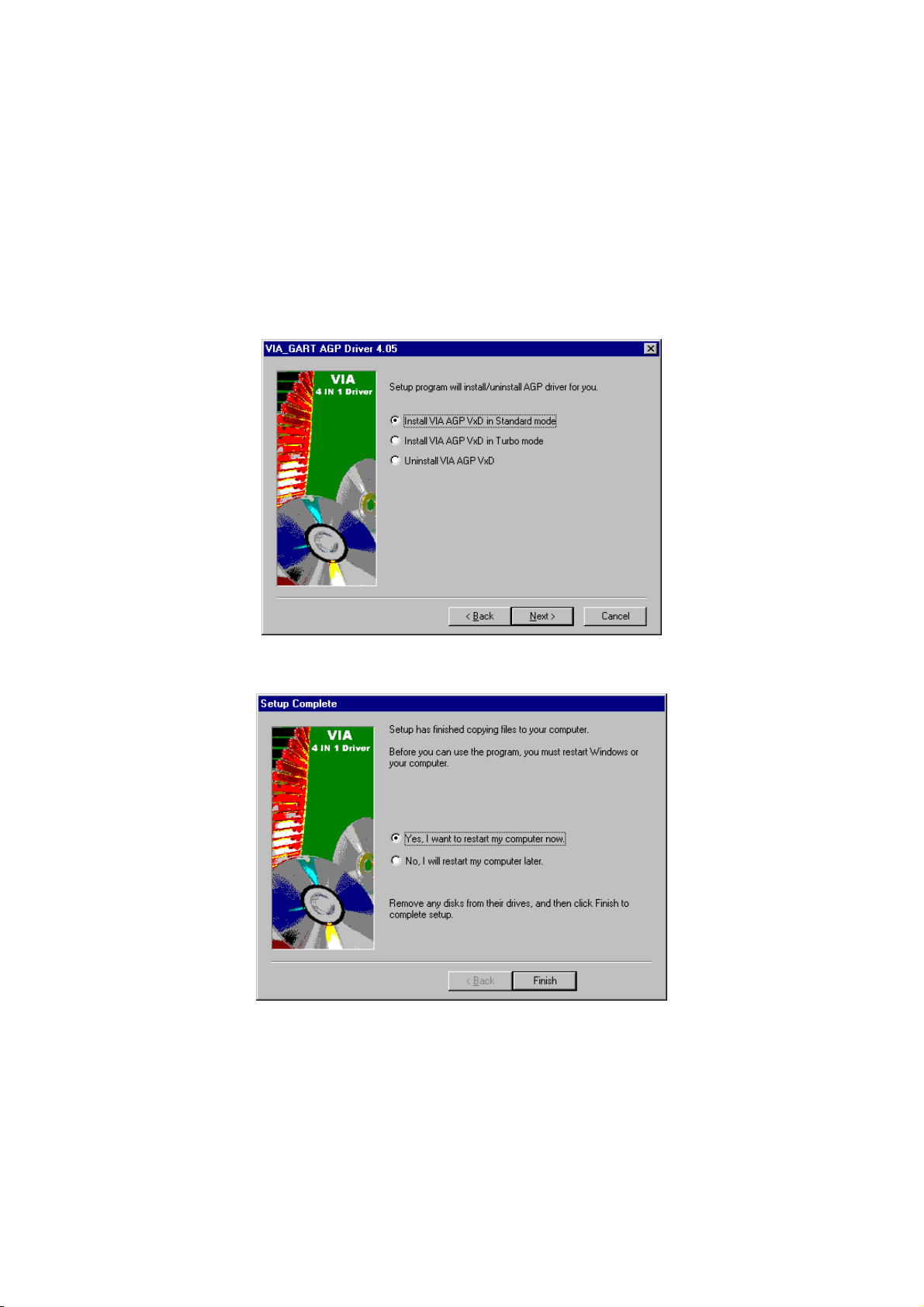

9. The following screen then gives you the choice of installing the AGP driver in standard o turbo mode. Select on the Standard Mode and then click on Next to proceed.

10. Installation of the AGP driver is now complete. Once the screen below appears, select on restarting your computer to activate all drivers/settings completed.

63

5.1.2 VIA IDE Tool Installation

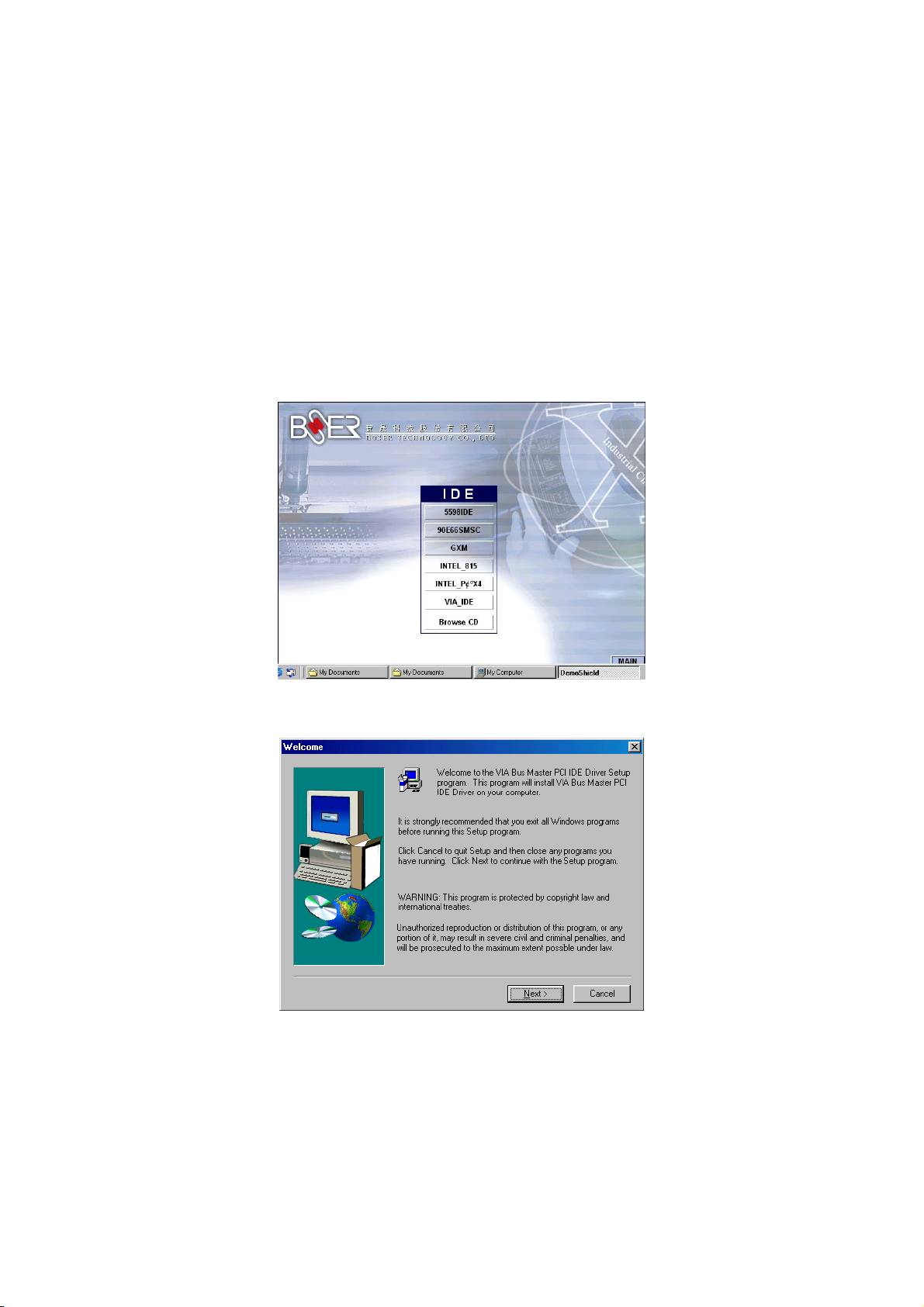

1. With the Utility CD Disk still in your CD ROM drive, open the File Manager and then select the CD-ROM drive. As soon as the system reads the disk, the following screen will appear on your display. Click on VIA_IDE from the main menu to start installing the VIA ID Tool.

2. Once the Welcome screen appears on the screen, make sure to close applications that are running and then click the Next button.

64

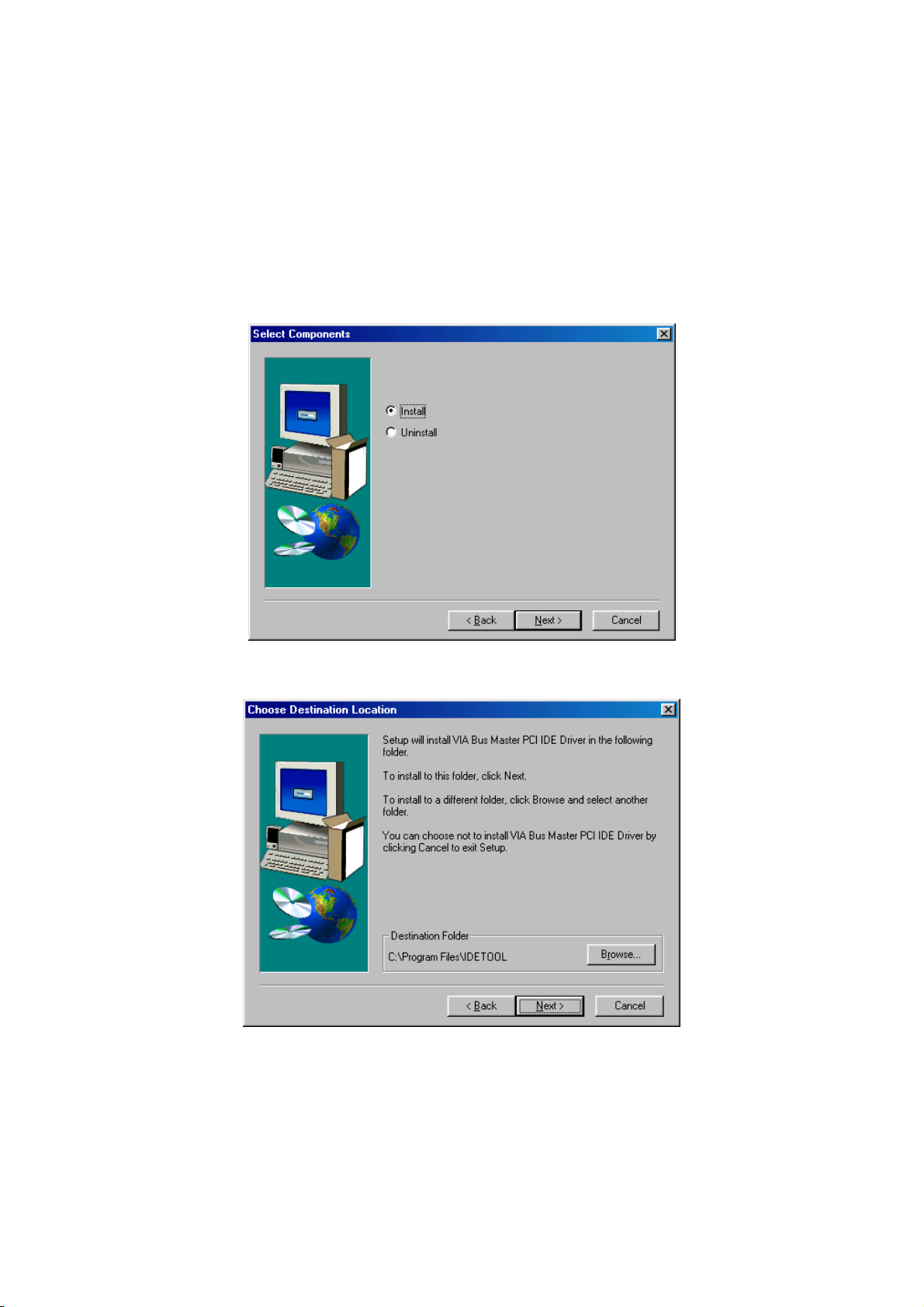

3. The Select Components dialog box is now displayed. Select on Install and then click on Next.

4. Choose the folder to where the program will install the driver. Select the default folder (C:\Program Files\IDETOOL) and then click on Next to proceed.

65

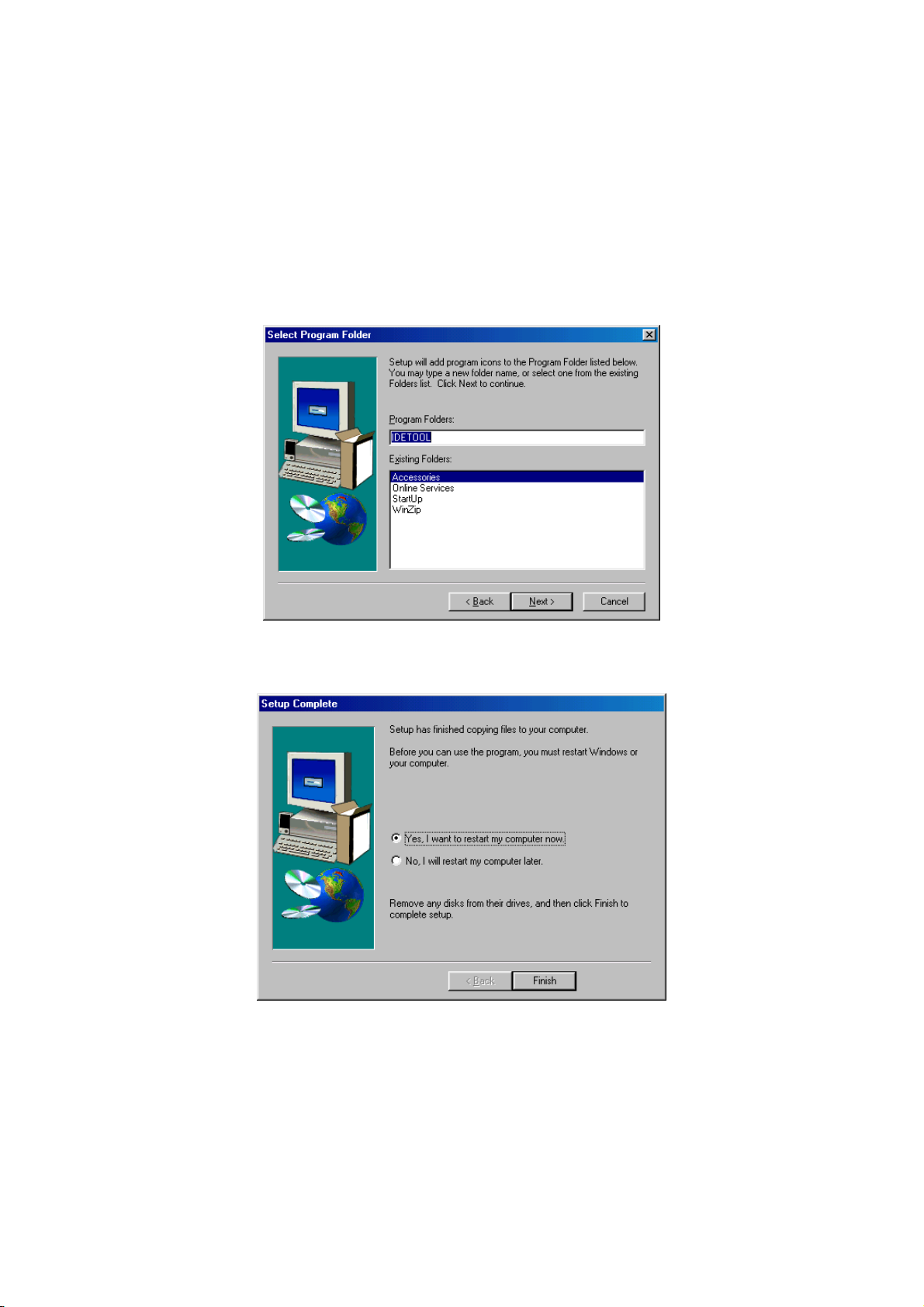

5. The program will now create an icon for the IDETOOL. Simply press Next to continue with the installation.

6. The program now installs and transfers the files to your system. After it finishes, you will be prompted to restart your system. We recommend you to reboot your computer to allow the new settings to take effect. Click on the Finish button to reboot.

66

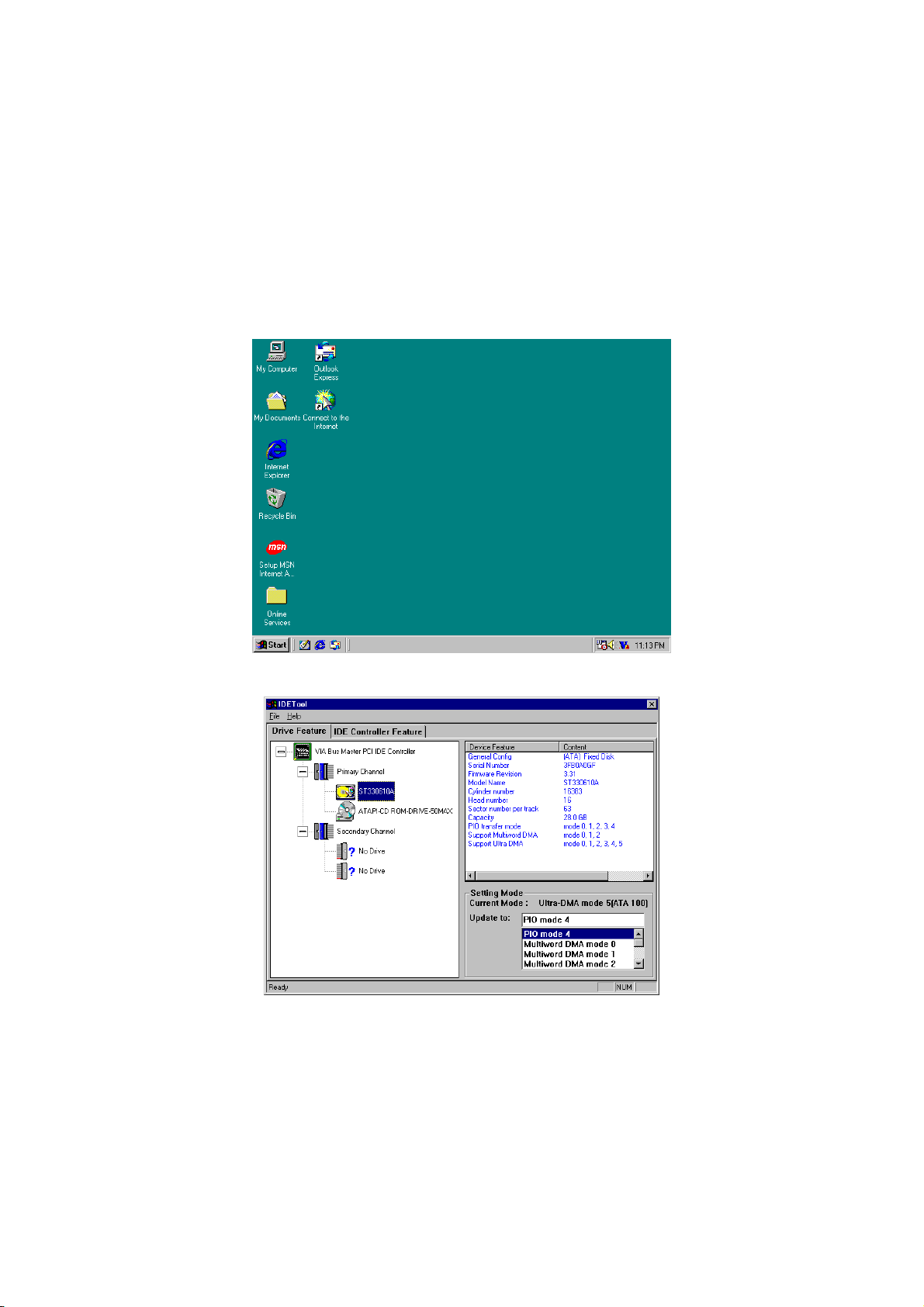

7. Once the system enters the main Windows screen, it will display a new icon along the right hand task bar. This icon represents the IDE Tool quick launch program.

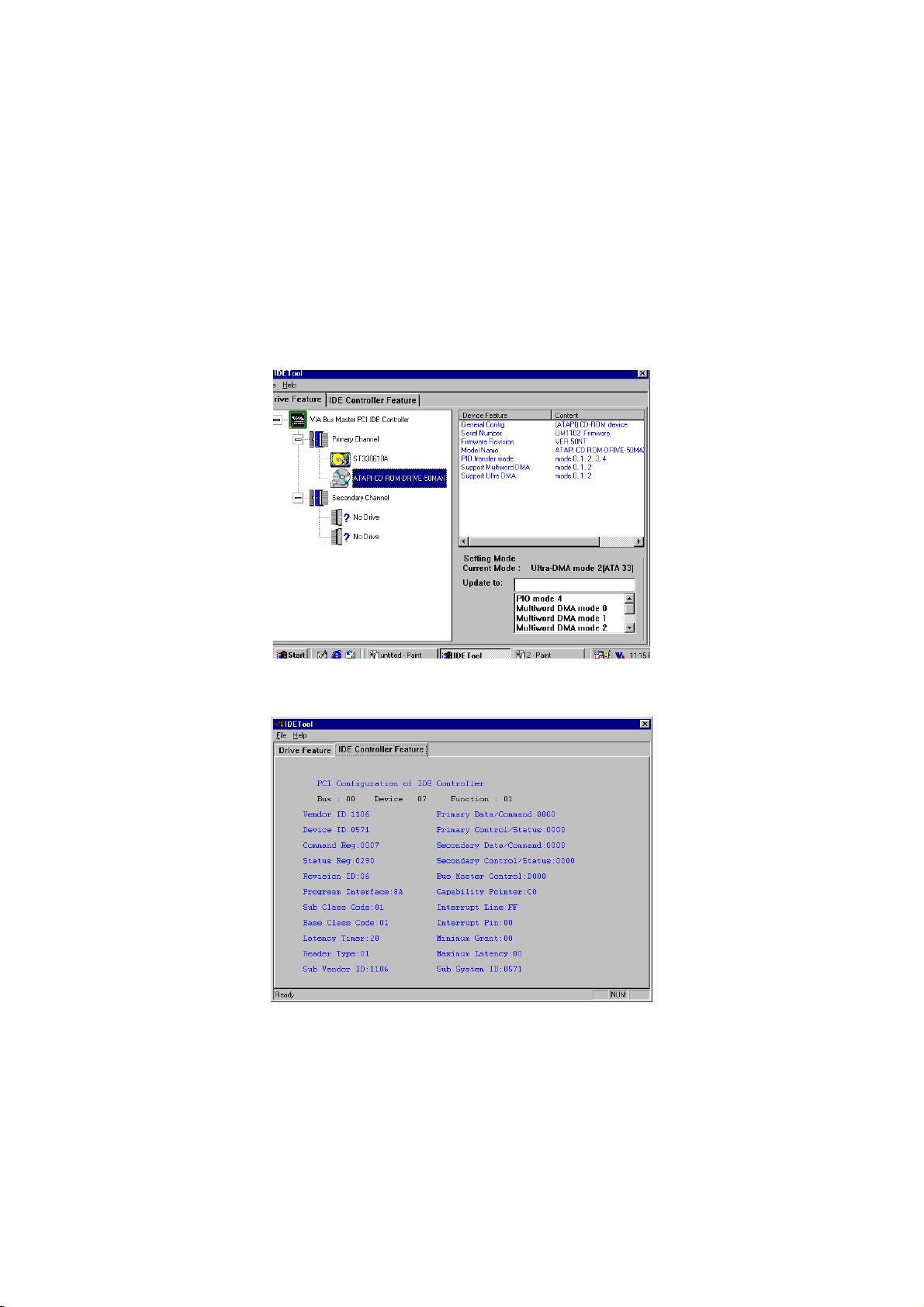

8. Double-clicking on this new task bar icon will launch the IDE Tool’s Drive Feature dialog box, as shown below.

67

9. The Drive Feature dialog box has 2 columns of information. The left column lets you to view the hardware installed on your system. When you select any hardware, the right column displays the device’s information and specifications. You may also update the settings of your devices from the right column.

10. Once you select the IDE Controller Feature from the IDE Tool dialog box, a list of read-only information related to the system’s IDE controller is shown.

68

5.1.3 Audio Driver Installation

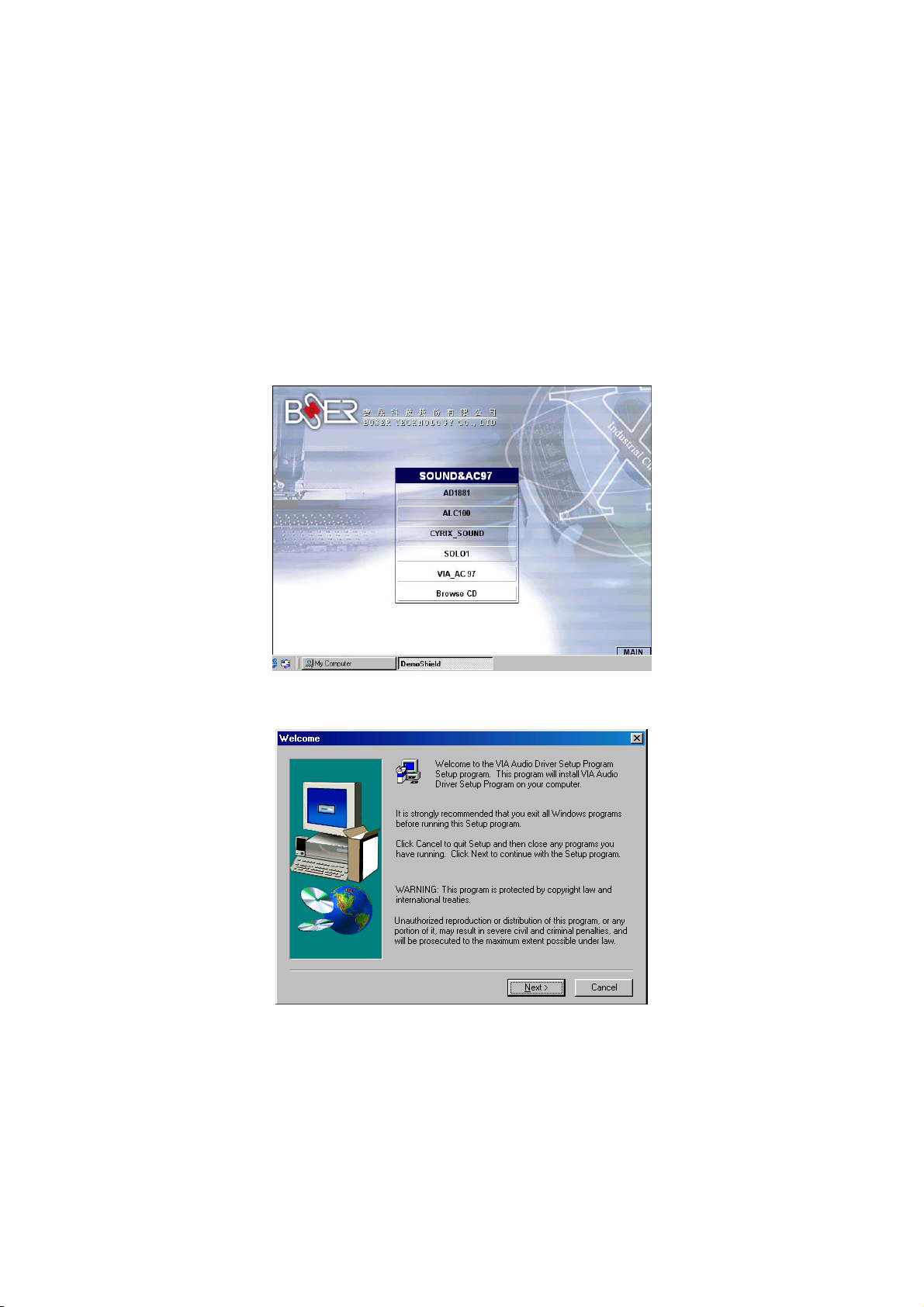

1. With the Utility CD Disk still in your CD ROM drive, open the File Manager and then select the CD-ROM drive. As soon as the system reads the disk, the VGA Menu screen below will appear on your display. Click on VIA_AC97 from the main menu.

2. Once the Welcome screen appears on the screen, make sure to close applications that are running and then click the Next button.

69

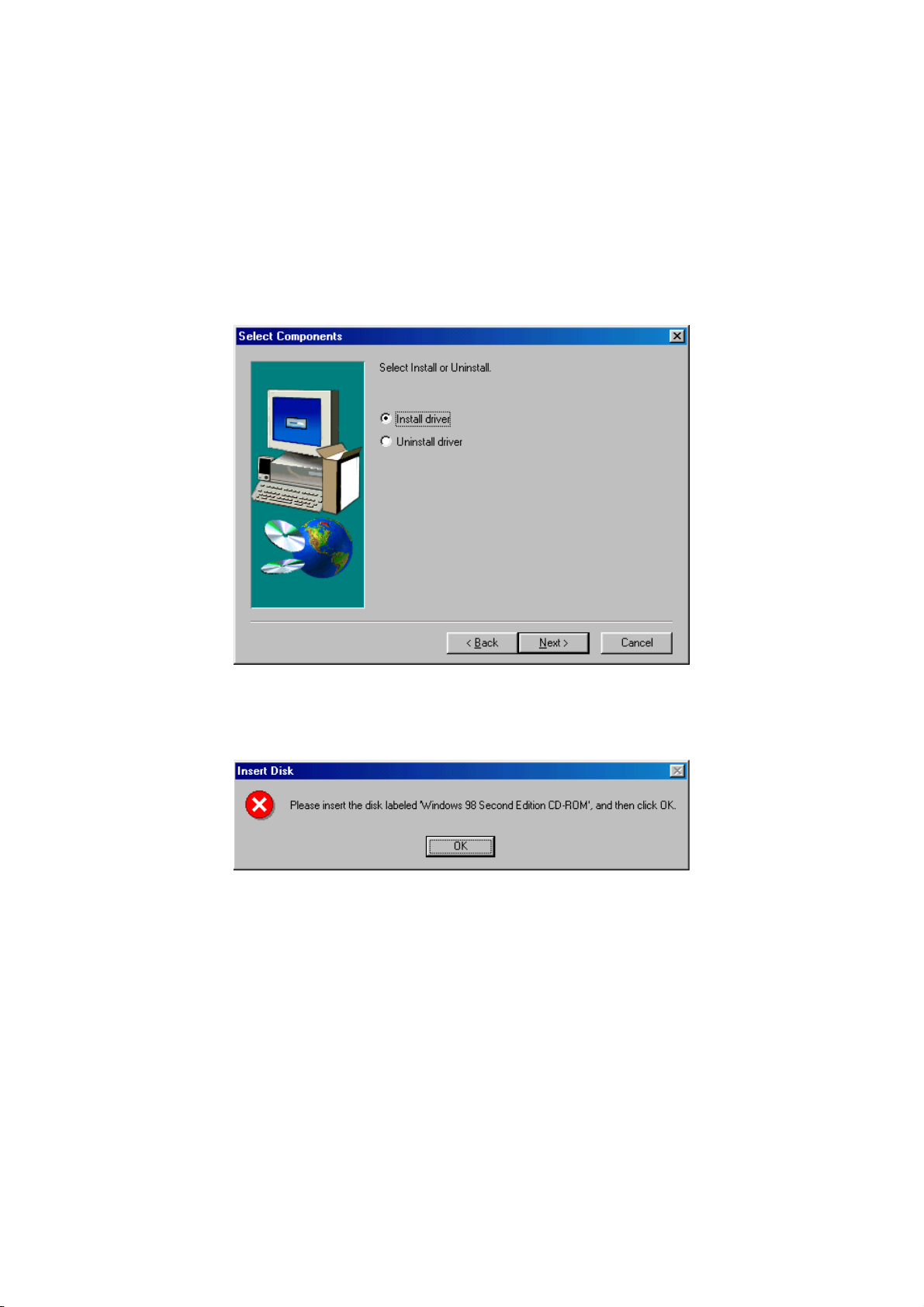

3. The Select Components dialog box is now displayed. Select on Install driver and then click on Next.

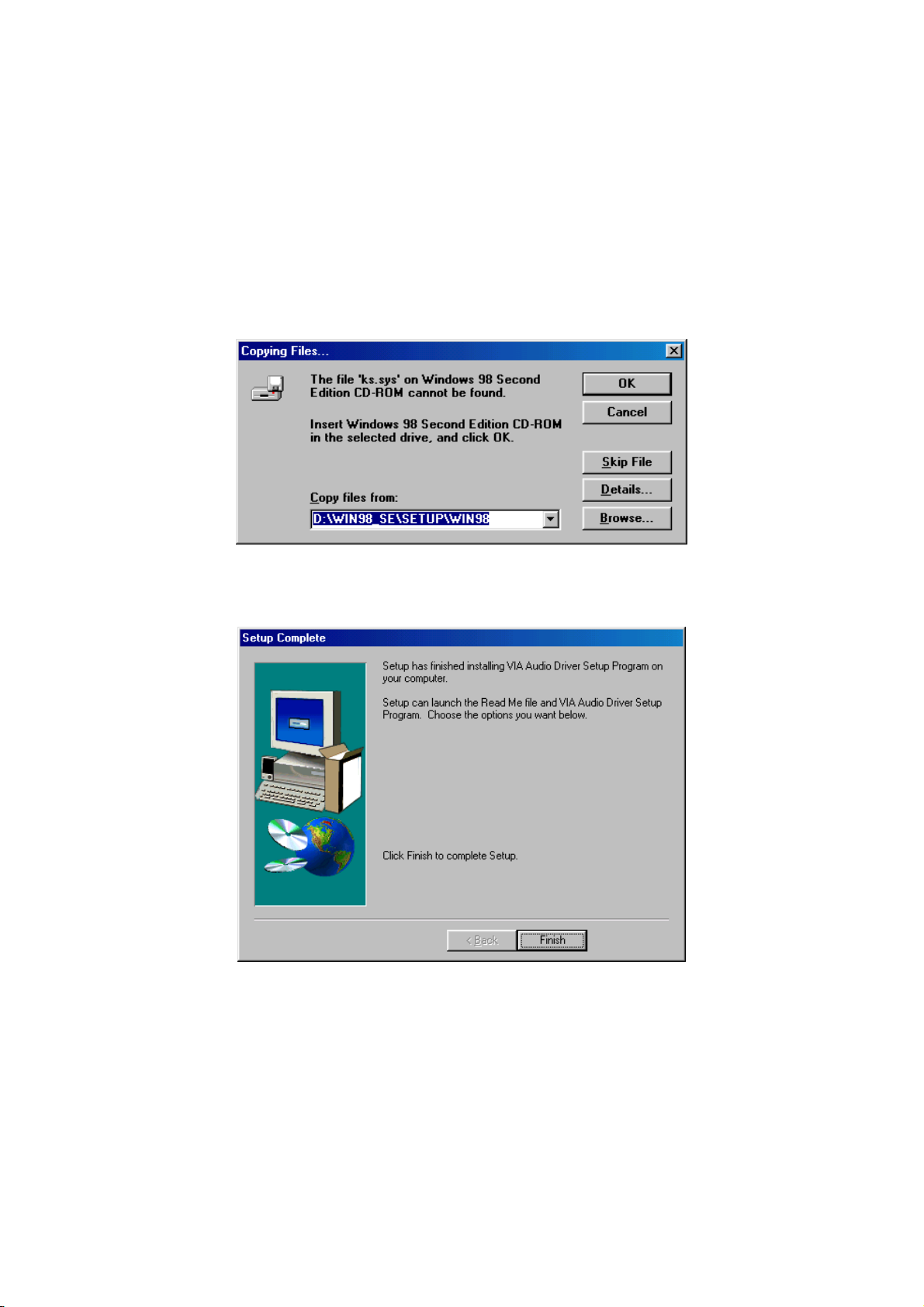

4. The program will now require the Windows installation disk for proper hardware installation. Insert the CD and then click on Next.

70

5. When the display below appears on your screen, Setup is already installing and copying the related files onto your hard drive. Click on the Next button to proceed.

6. After the audio driver installation finishes, select the Finish button to complete the installation process.

71

5.2 LAN Driver Installation for WIN95 & WIN98

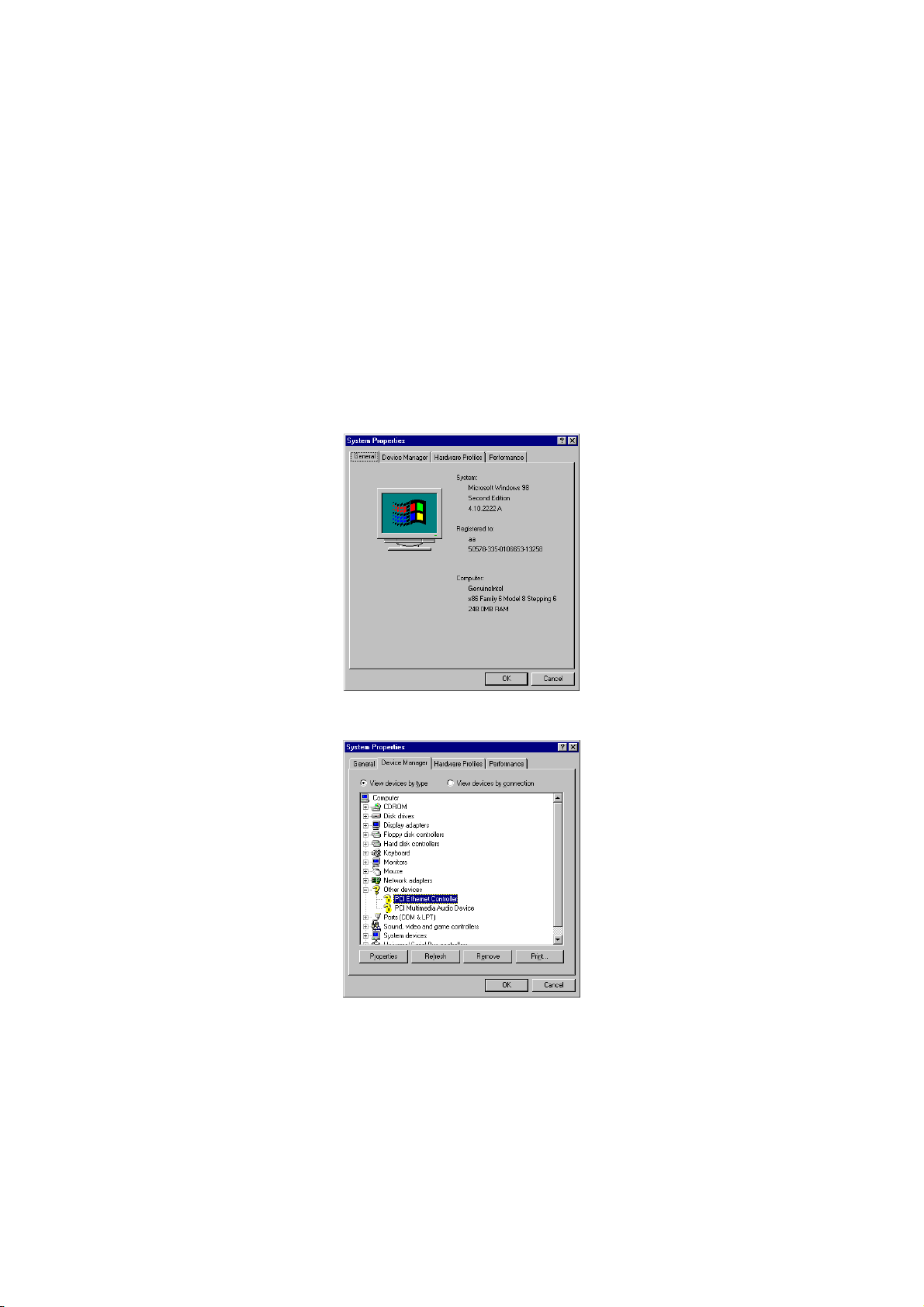

1. With the Utility CD Disk still in your CD ROM drive, right click on My

Computer icon from the Windows menu. Select on System Properties and then proceed to the Device Manager from the main menu.

2. Select on Other Devices from the list of devices then double-click

on PCI Ethernet Controller.

72

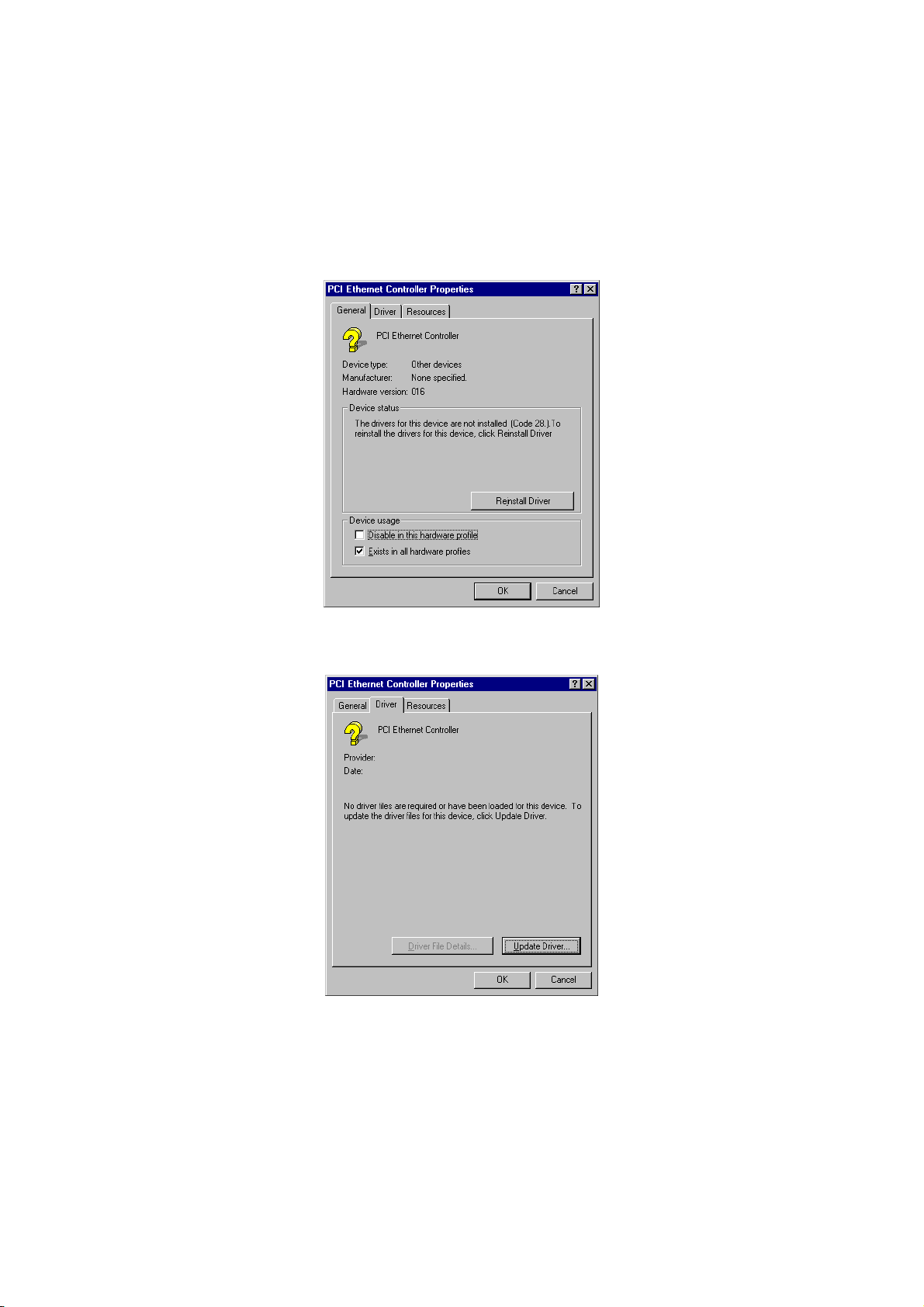

3. The PCI Ethernet Controller Properties screen then appears,

allowing you to re-install the driver. Select Driver from the main menu to proceed.

73

4. The window then displays the current status of your LAN driver.

Press on Update Driver button to continue.

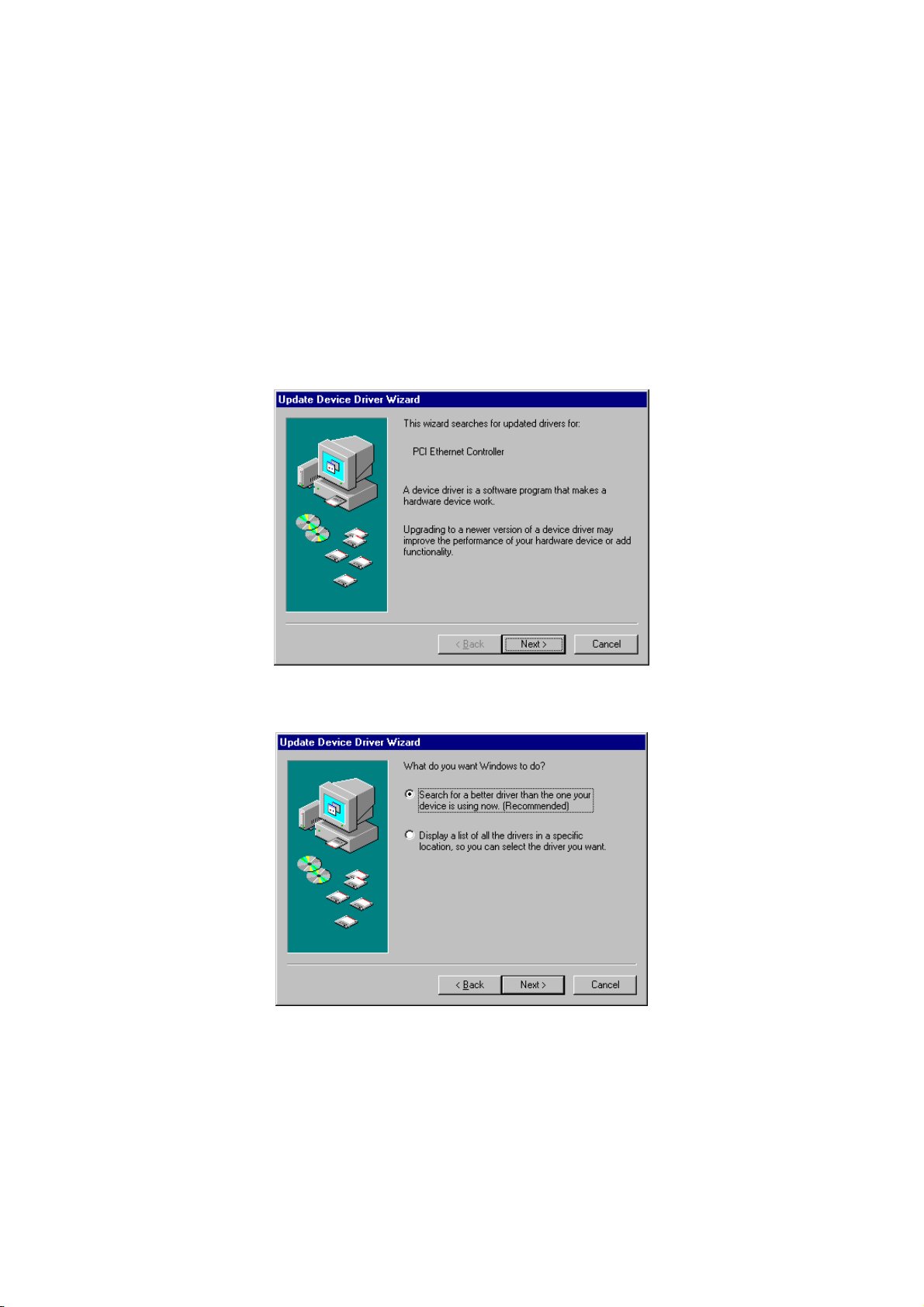

5. The program will then launch the Update Device Driver Wizard

window that will install your device driver. Click on the Next button to proceed to the next step.

6. When the succeeding window asks you what you wish Windows to

do, tick on the “Search for a better driver….” Click on the Next button to proceed.

74

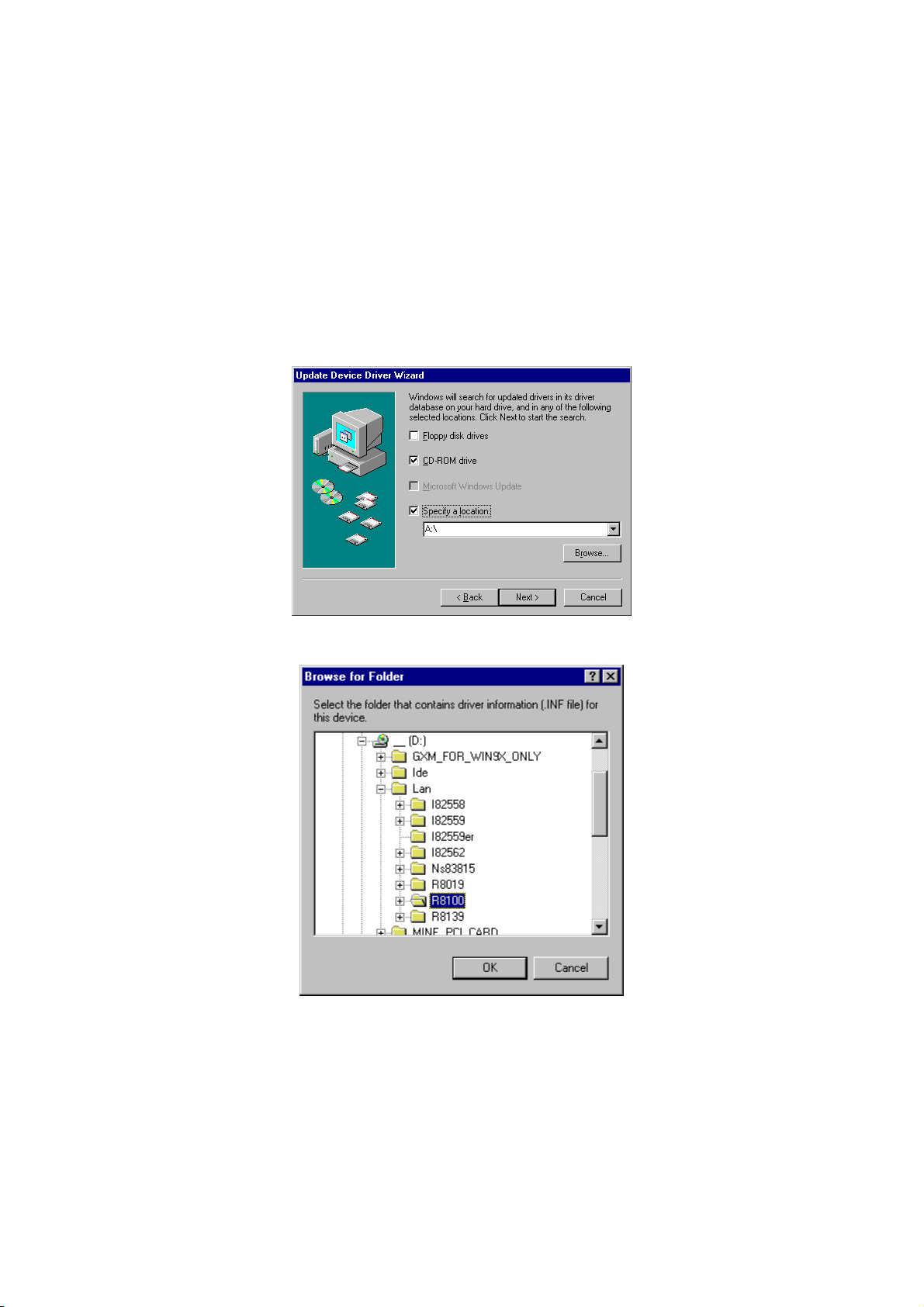

7. The Update Device Driver Wizard will then ask you to specify, by

ticking, the path of the new driver. Tick on the open boxes where you require the program to search for the device driver then click on the Browse button to manually specify the path.

8. Press on the OK button as soon as you have located the path of

your driver.

75

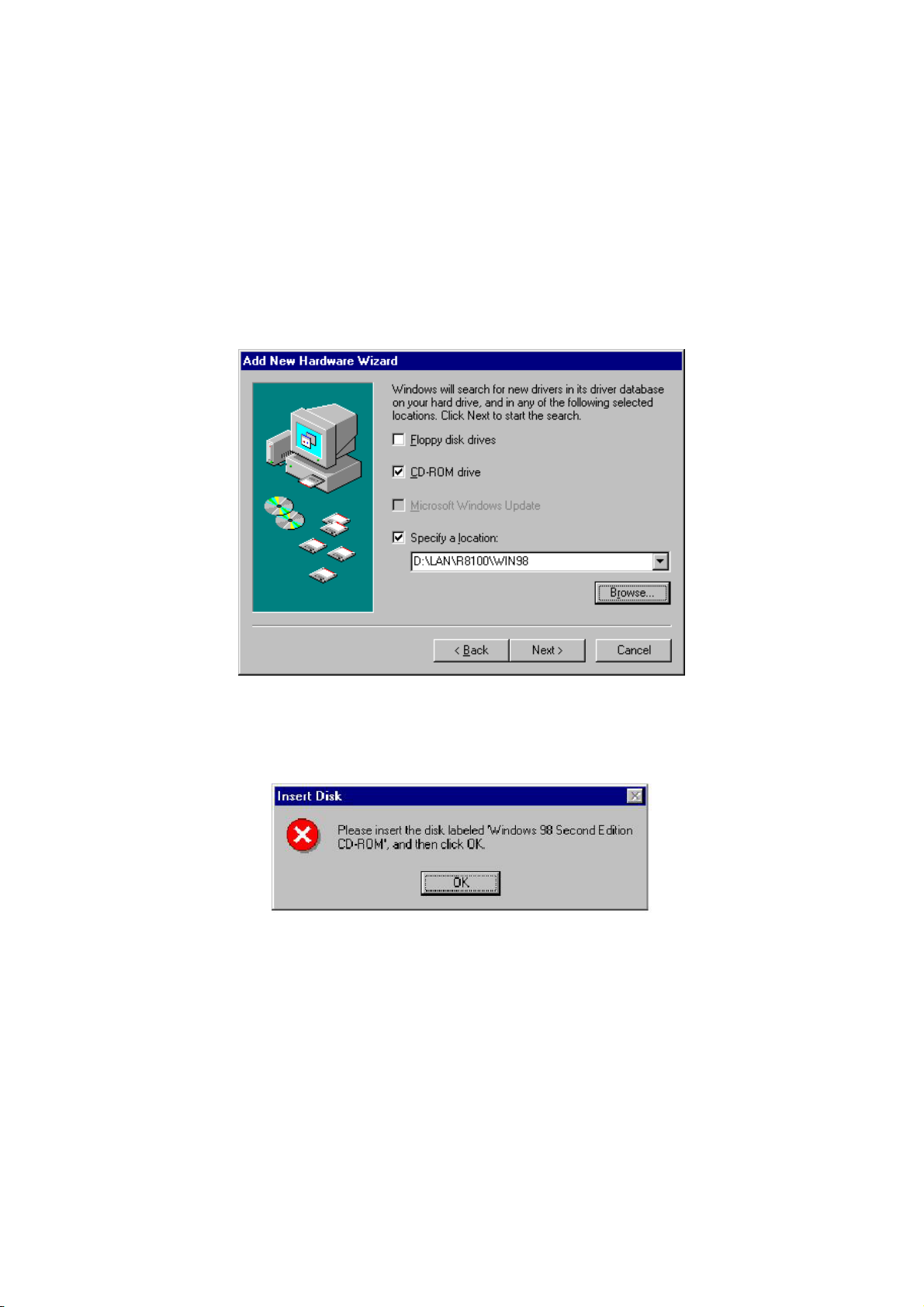

9. Once the program returns to the Add New Hardware Wizard

screen, your specified location will appear. Press on the Next button to continue.

10. Once the program detects the device driver (*.inf) file from your

specified location, it will automatically copy the files into your hard drive.

11. When copying of driver files finishes, the program will then ask

you to insert your Windows.

76

12. The program then copies the necessary files from your Windows

installation disk to complete the driver setup process. Once the driver is completely installed, the following message appears on your display. Click on the Finish button to proceed.

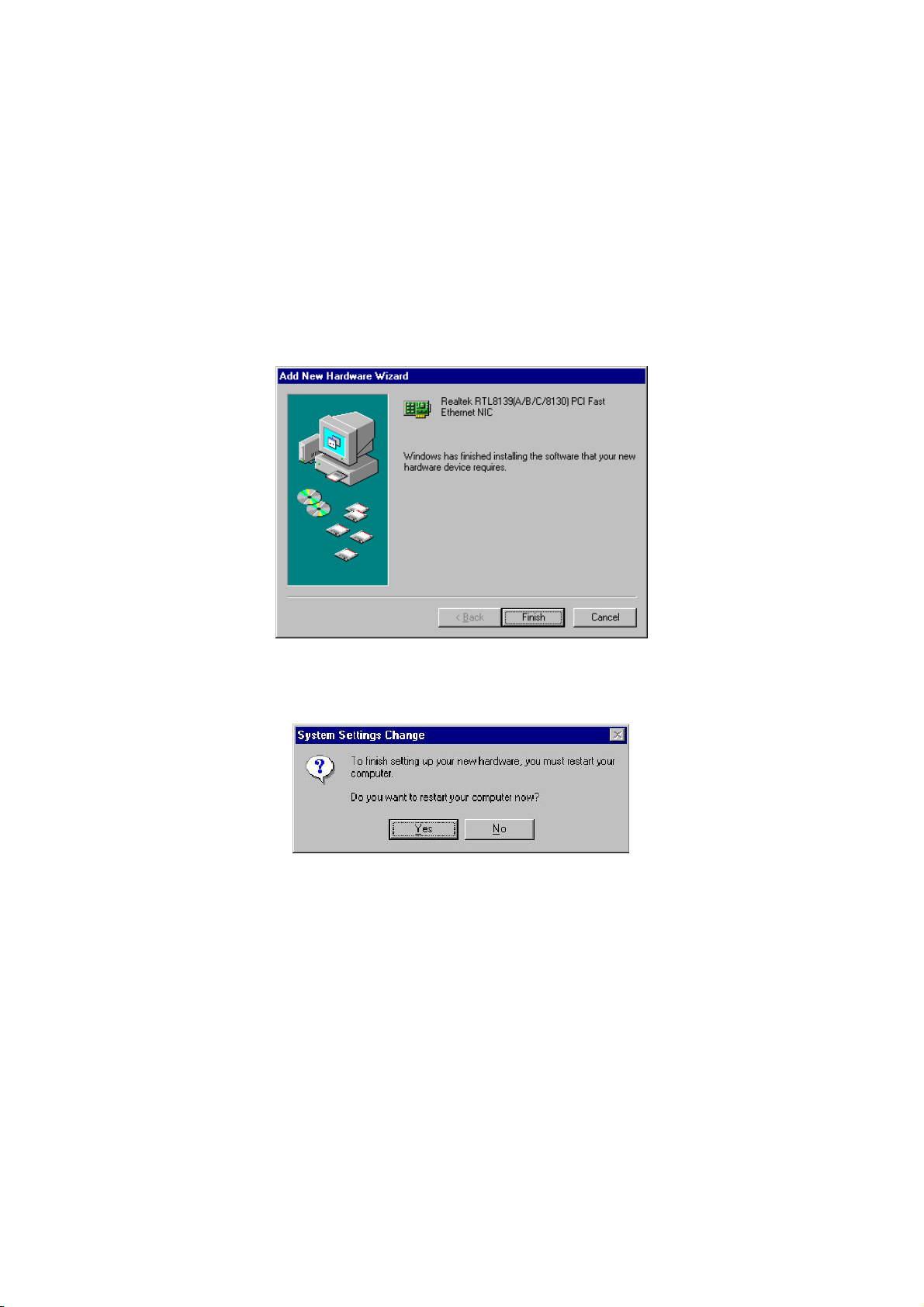

13. Restart your computer to make the new system settings take

effect. Click on the Yes button when the screen below appears and your LAN Driver for Win95 and Win98 are now completely installed.

77

5.3 LAN Driver Installation for WIN NT4.0

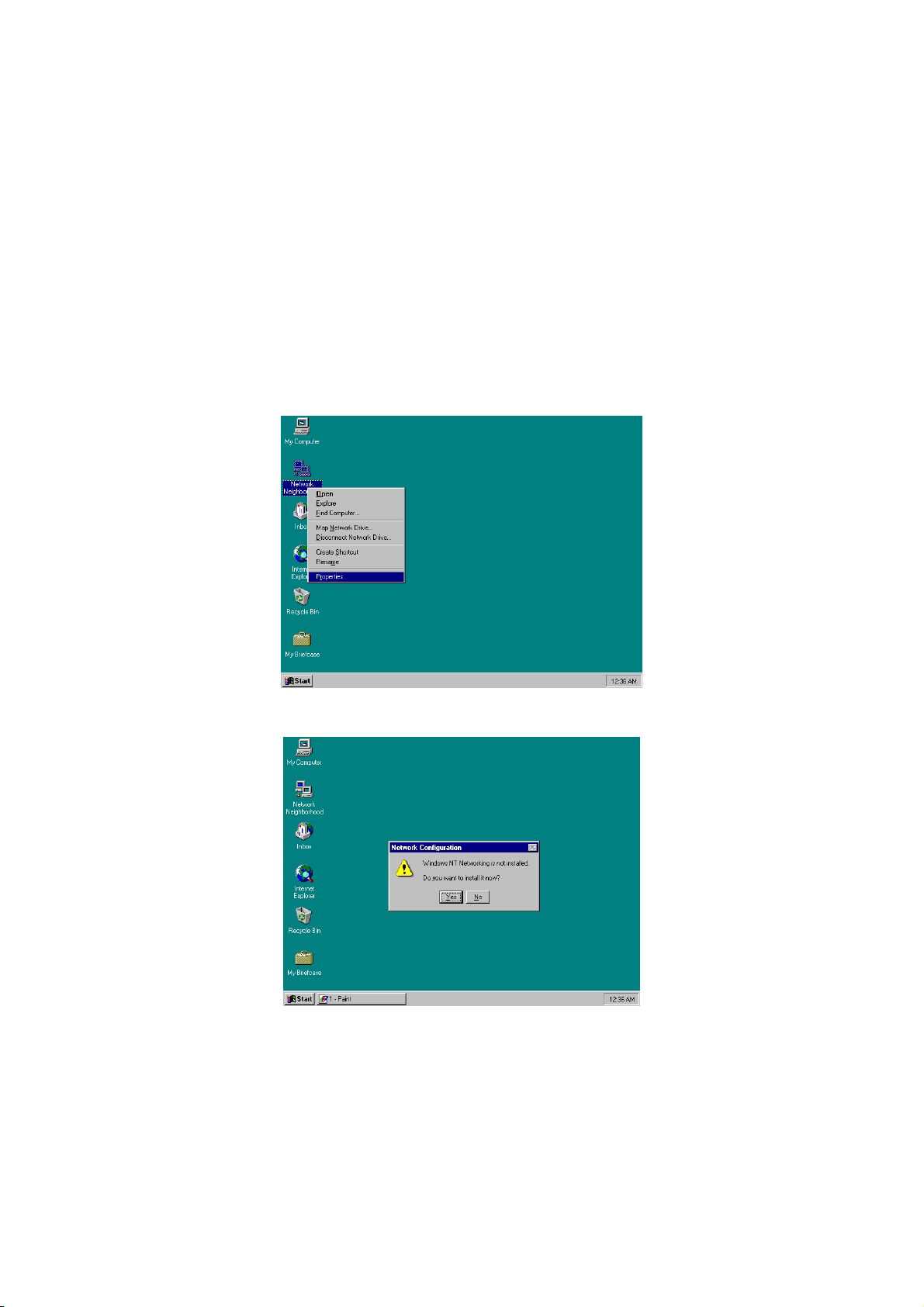

1. With the Utility CD Disk still in your CD ROM drive, right click on Network Neighborhood icon from the Windows menu. Select on Properties.

2. The system automatically detects the absence of Windows NT Networking. Click on the Yes button to start installation.

78

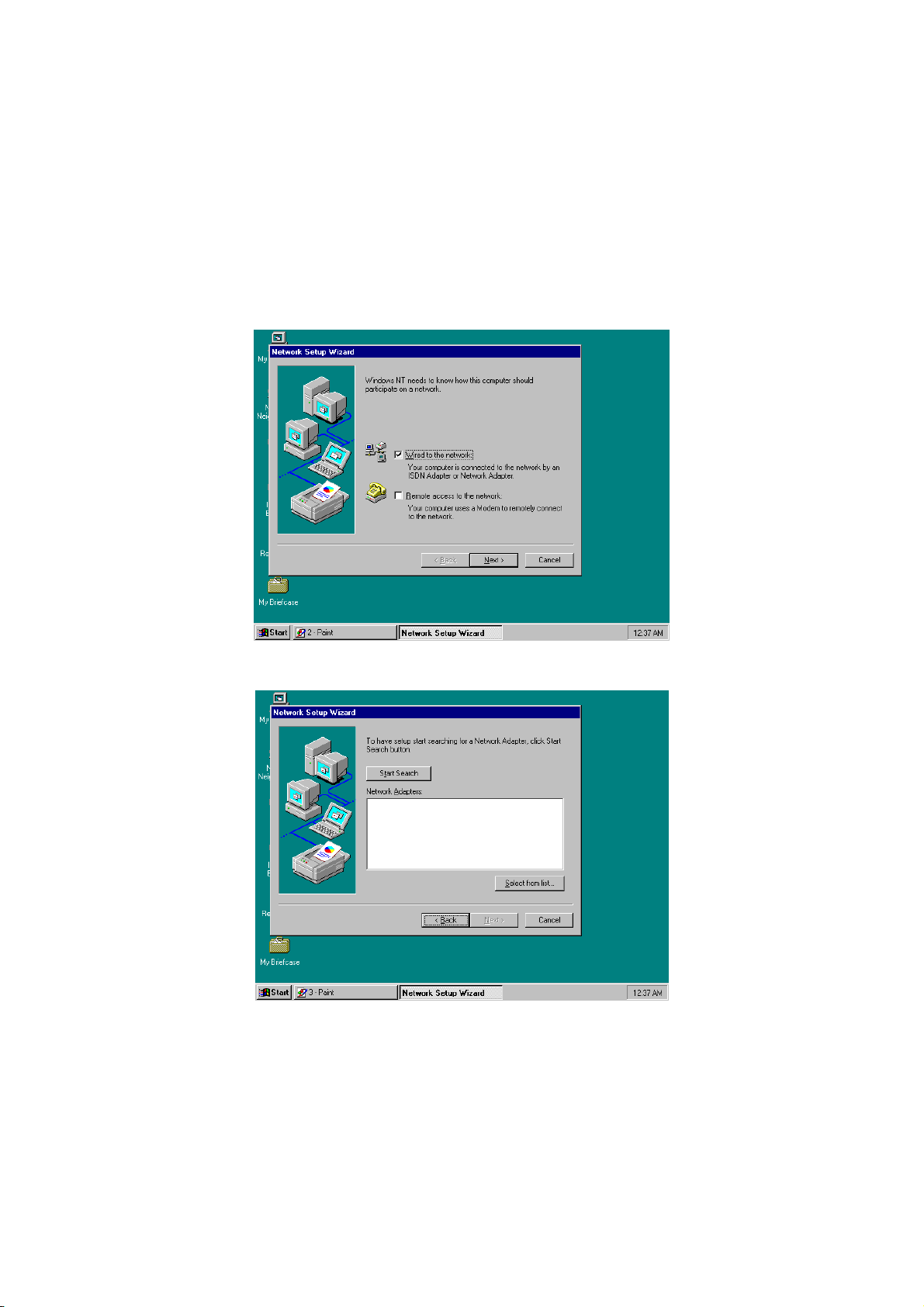

3. Tick on the “Wired to Network” once the following screen appears. Click on the Next to proceed.

4. Click on the Start Search button for the program to locate the Network Adapter.

79

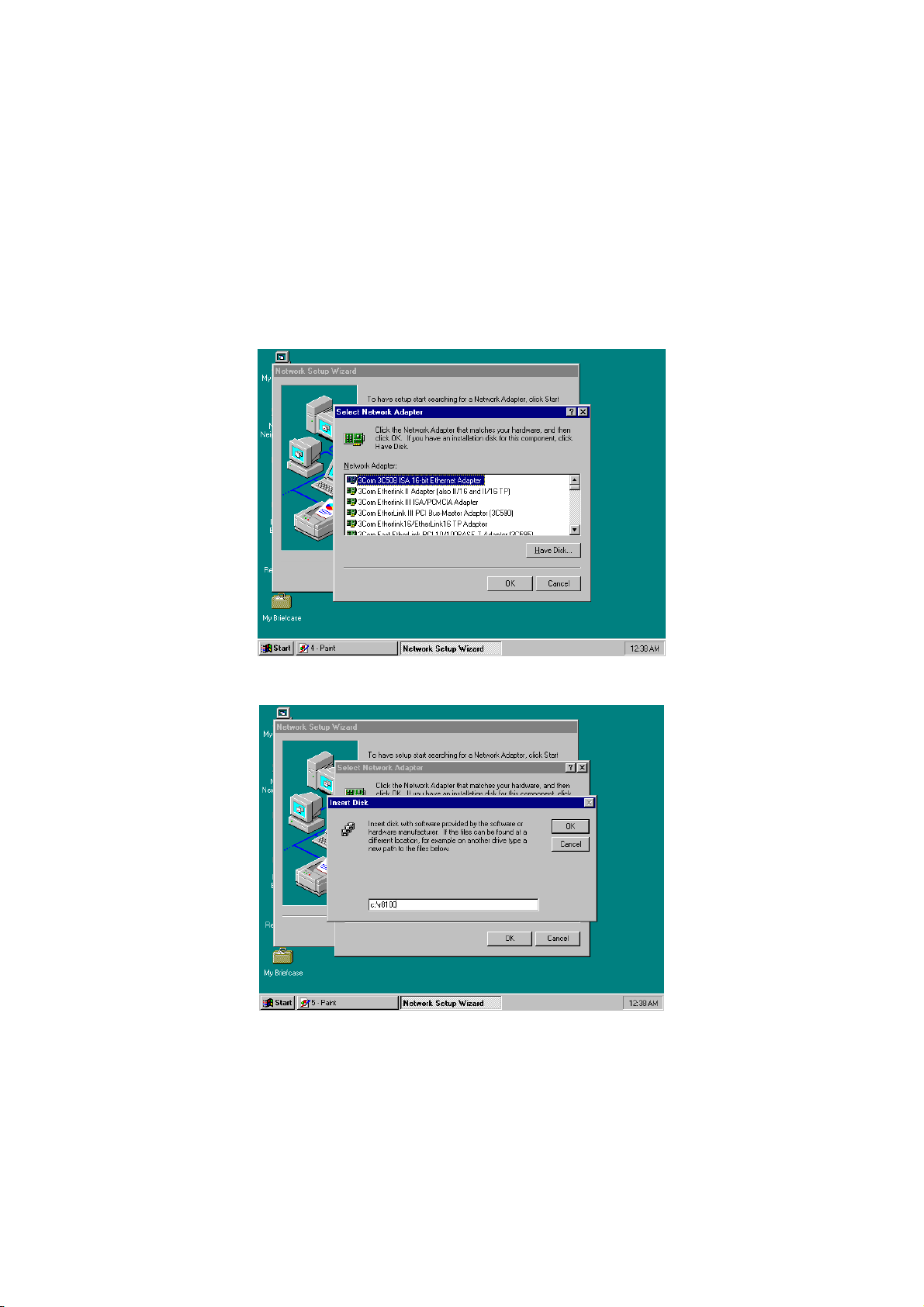

5. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the Have Disk button to assign the driver path location.

6. Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue.

80

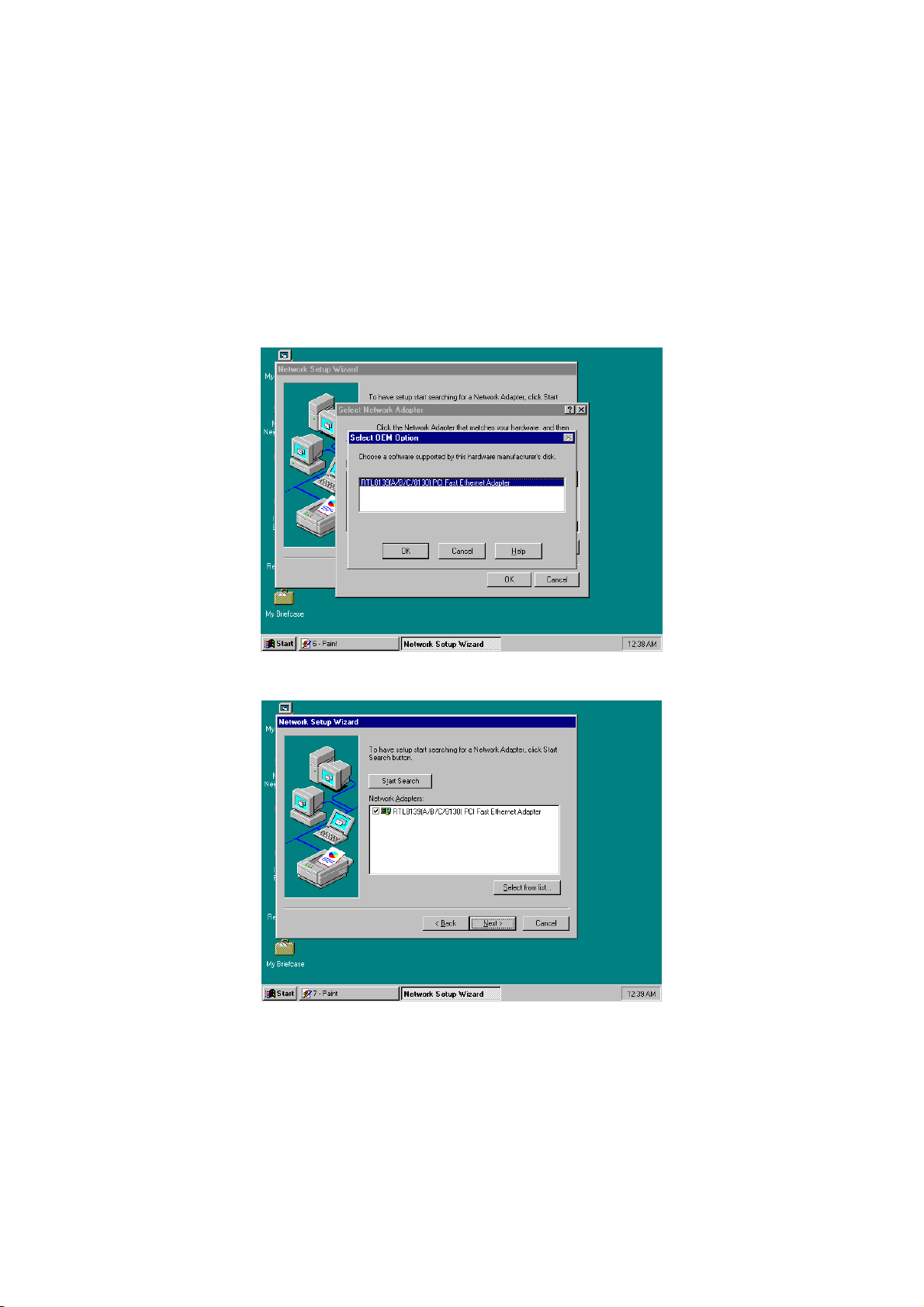

7. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Press on the OK button to accept and proceed.

8. Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on Next to continue.

81

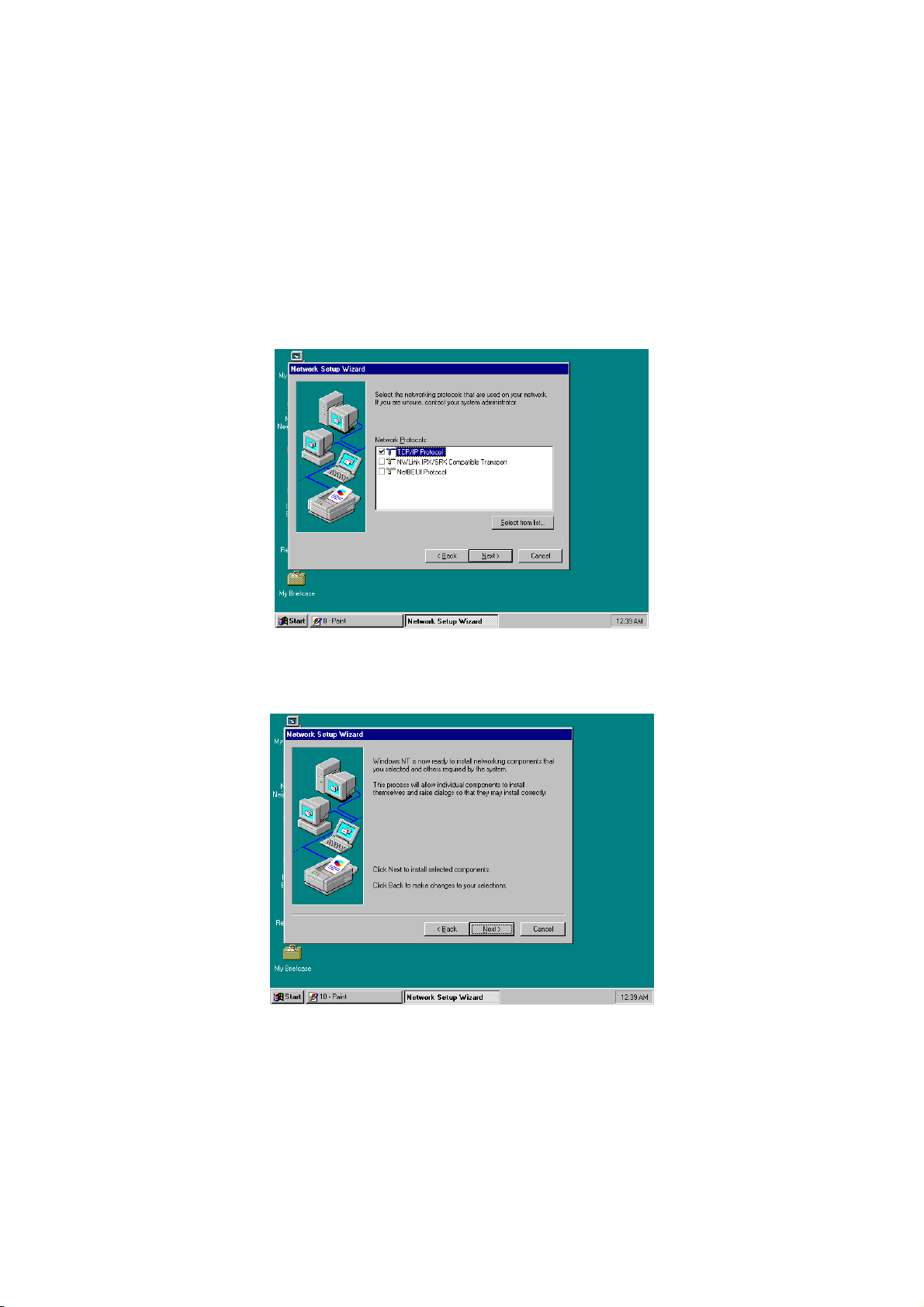

9. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.

10. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the Next button once you are sure of your devices.

82

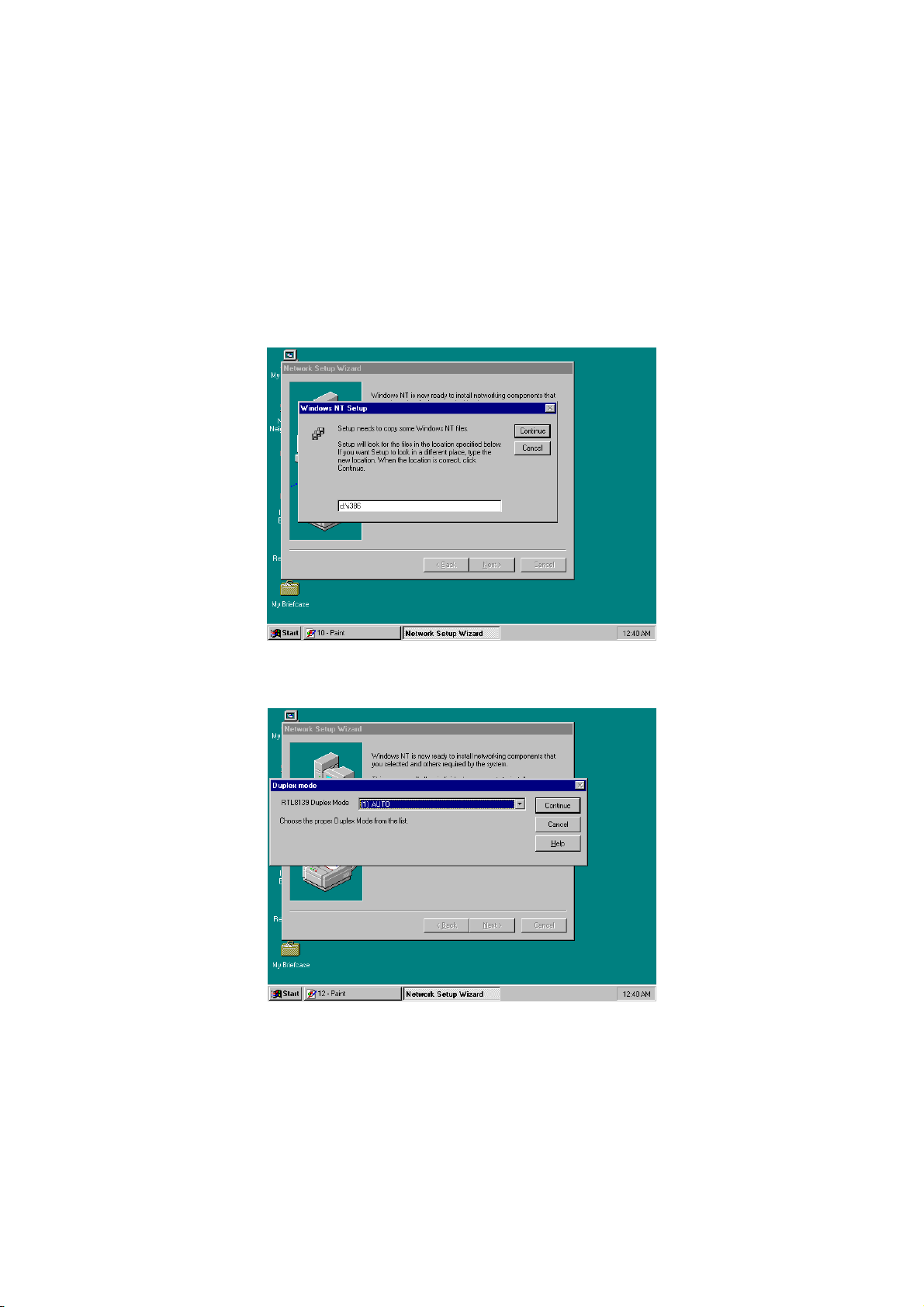

11. Windows NT Setup will then need to copy files necessary to update the system information. Specify the path then press Continue.

12. Once it finishes copying the files, Setup will now allow you to choose the Duplex Mode of your LAN controller. Press on the Continue button after making your selection.

83

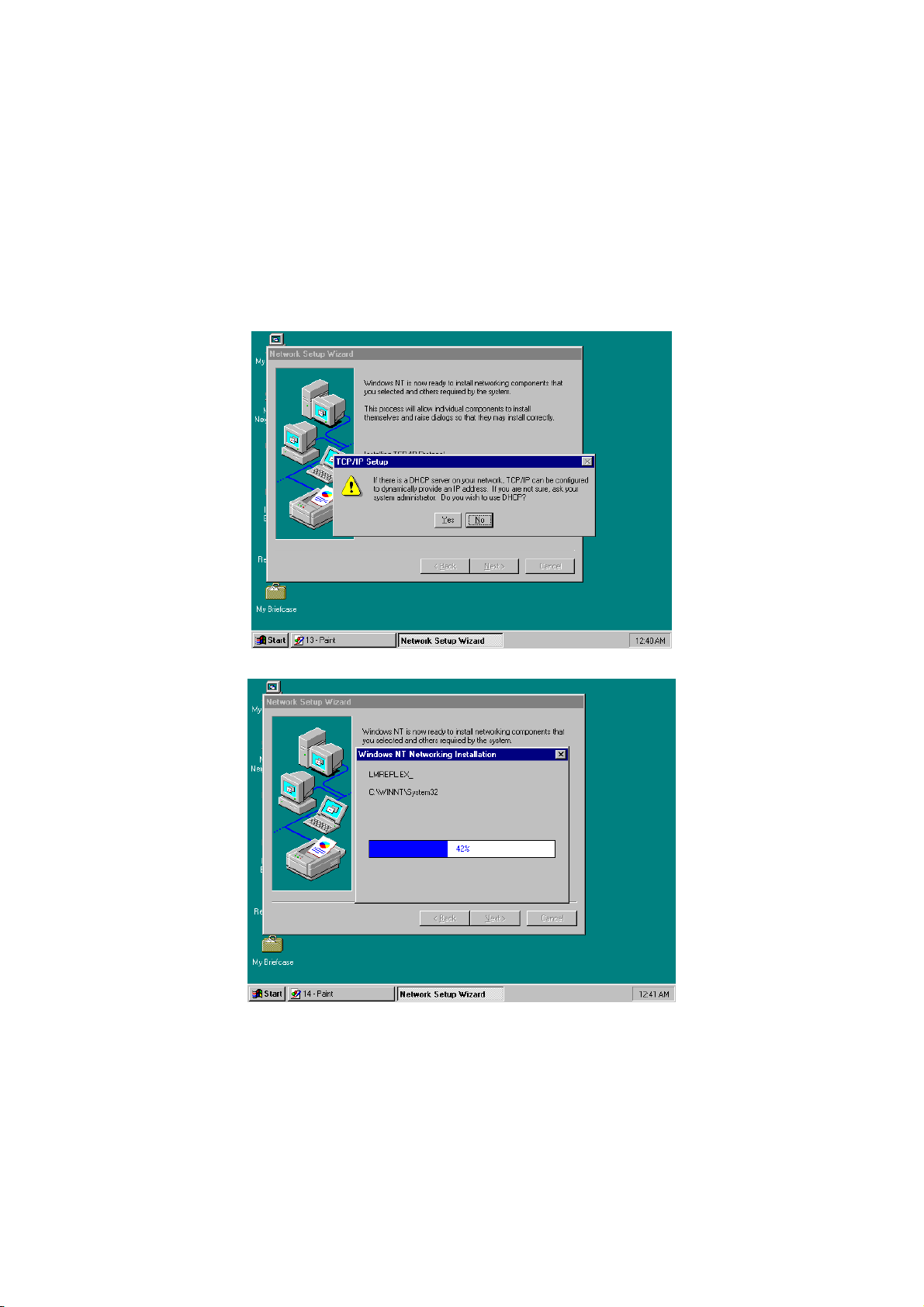

13. When Setup asks if you wish to change the TCP/IP settings of your system, select the appropriately. The default choice is No.

14. Setup then starts the Networking installation and copies the files.

84

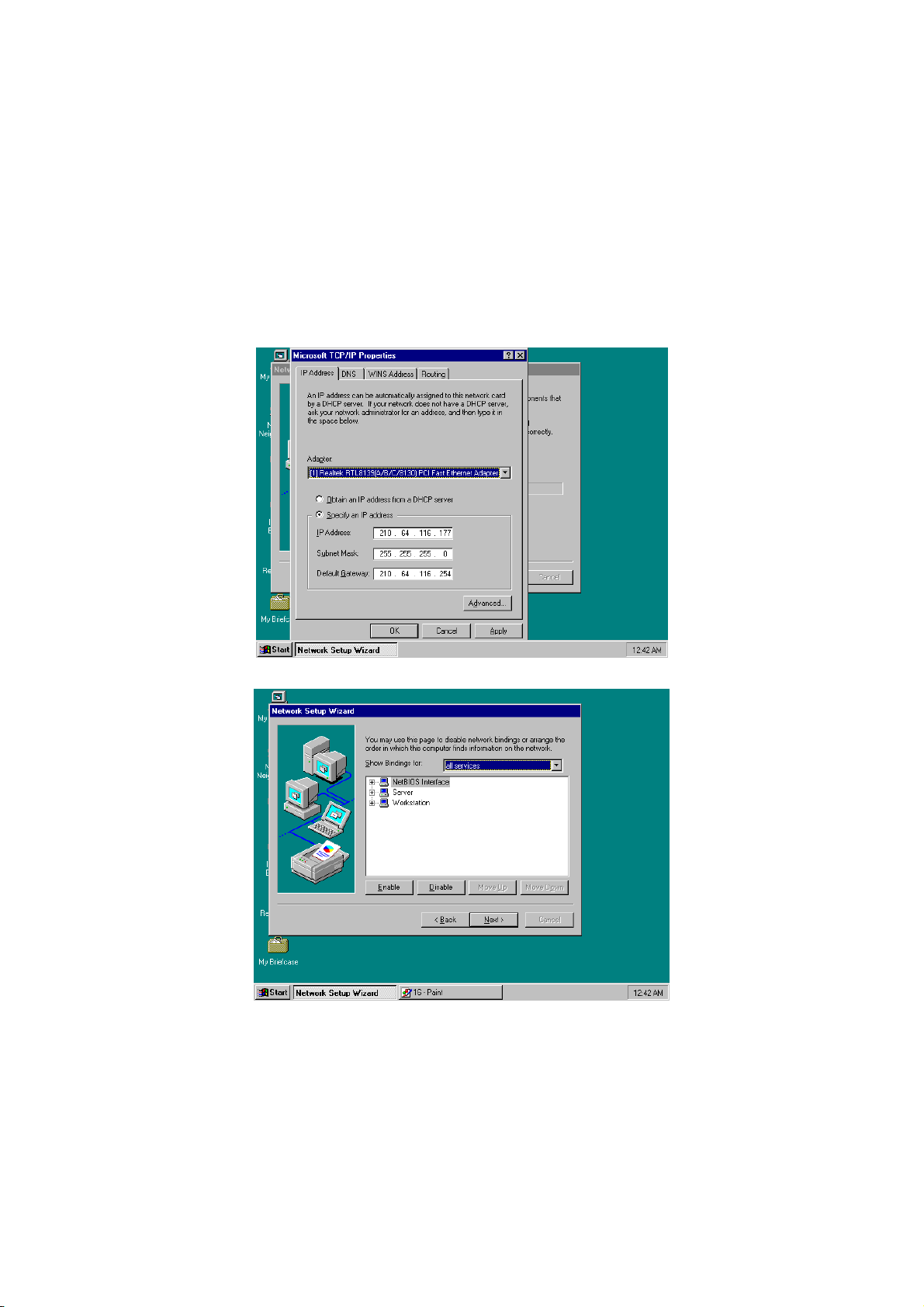

15. When Setup finishes copying, the TCP/IP properties of your system will then pop up on your screen like the one shown below. Make the necessary changes then click on OK to continue.

16. When the screen below appears, click on Next to continue.

85

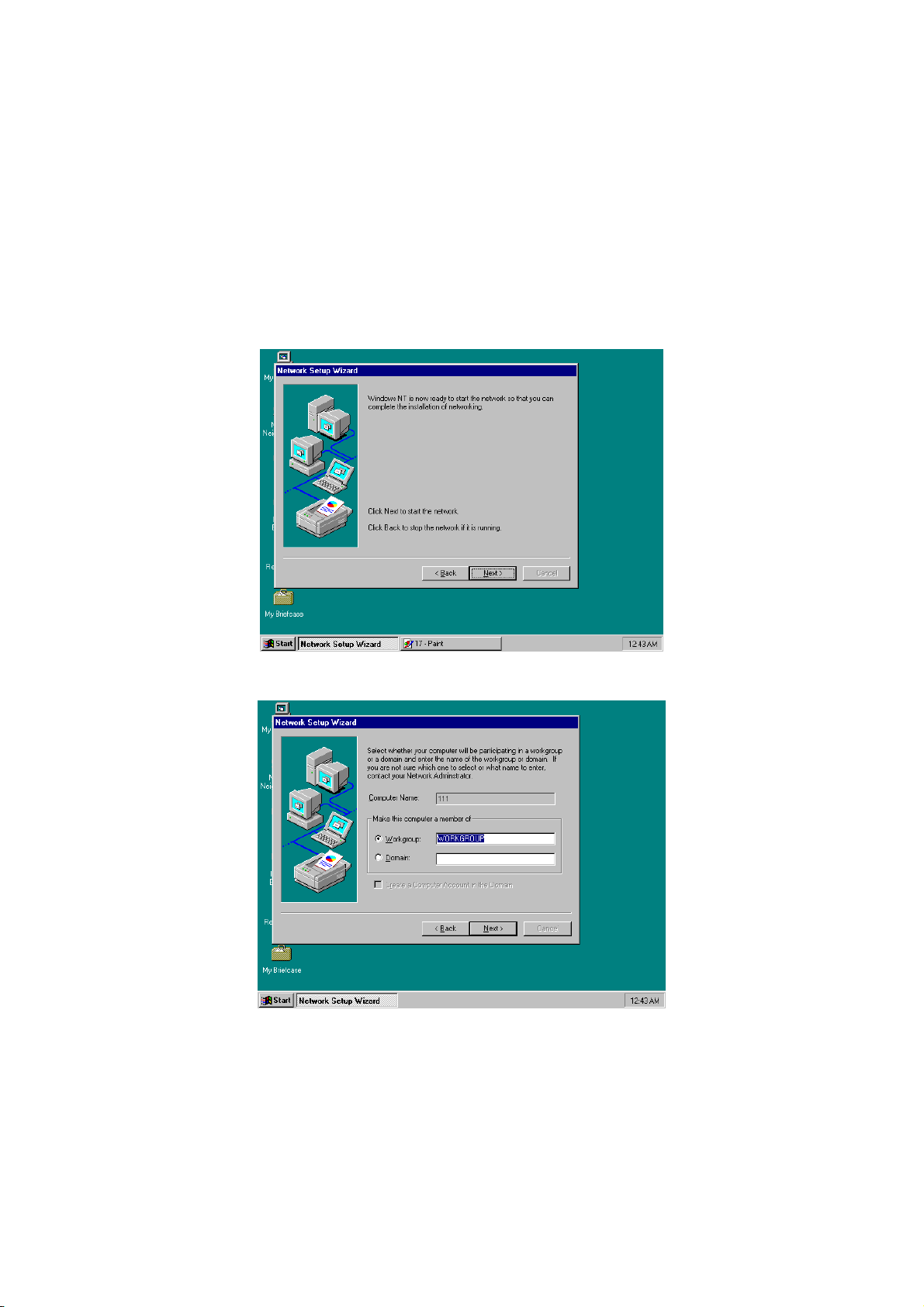

17. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on Next to continue.

18. Assign the workgroup or domain setting of your computer. Click on Next to continue.

86

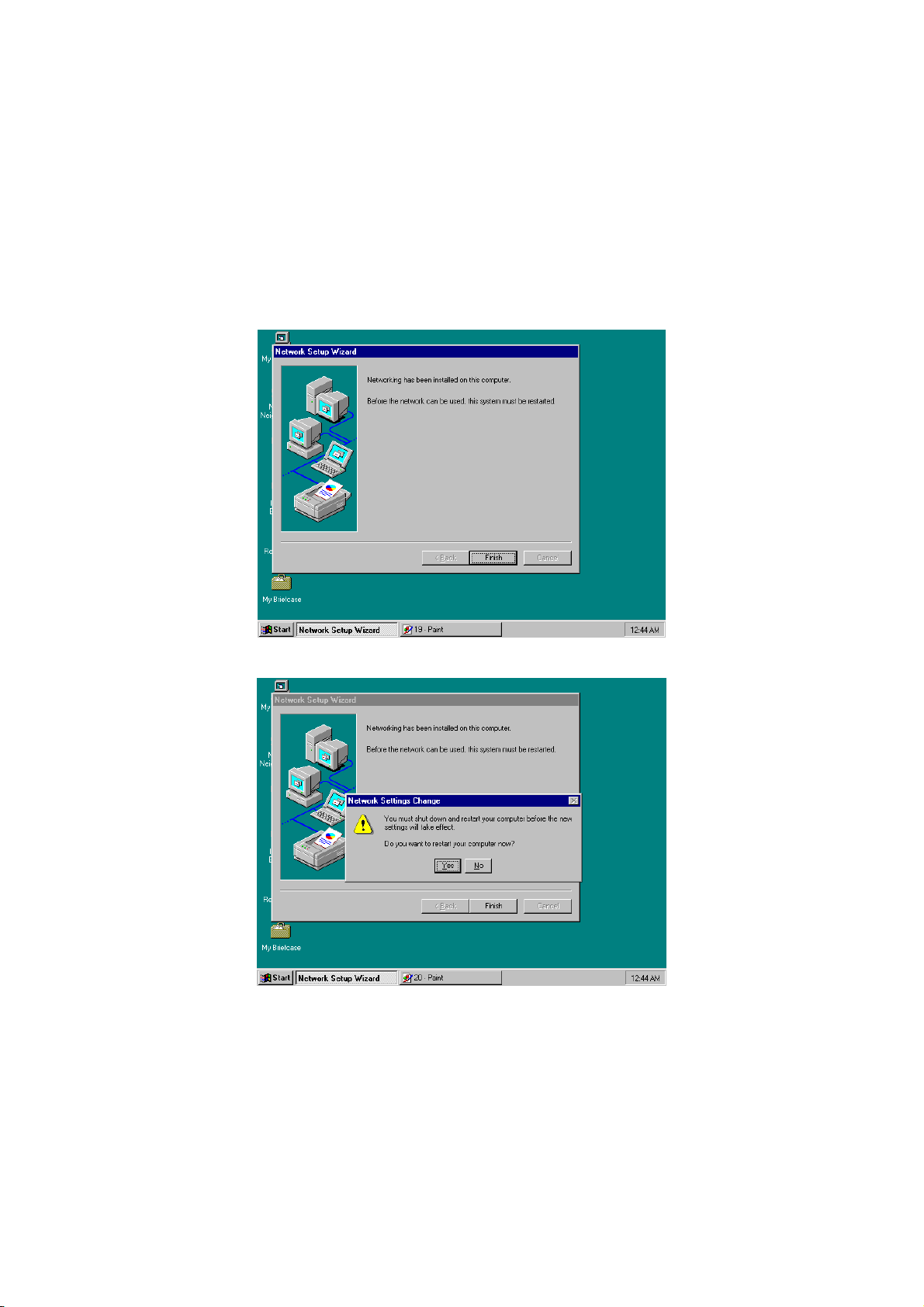

19. Restart your computer once the screen below appears. Click on Finish to continue.

20. Click on the Yes button to restart your computer. The LAN driver installation for WIN NT4.0 is now complete.

87

This Page is intentionally left blank.

88
