Boser HS-6039 User Manual

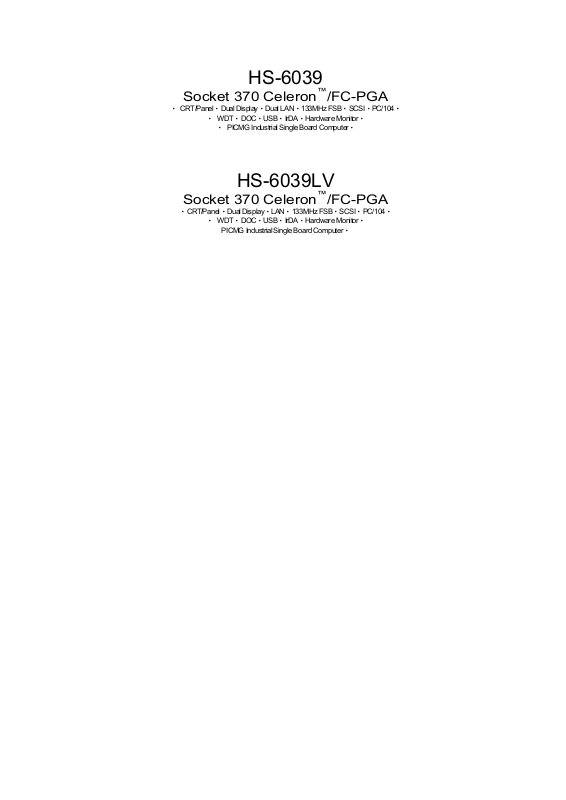

HS-6039

Socket 370 Celeron

• CRT/Panel•Dual Display•Dual LAN•133MHz FSB•SCSI•PC/104•

• WDT•DOC•USB•IrDA•Hardware Monitor•

• PICMG Industrial Single Board Computer•

™

/FC-PGA

HS-6039LV

Socket 370 Celeron

•CRT/Panel•Dual Display•LAN•133MHz FSB•SCSI•PC/104•

• WDT•DOC•USB•IrDA•Hardware Monitor•

PICMG Industrial Single Board Computer•

™

/FC-PGA

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.

Trademarks

BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or registered
trademarks of their respective companies or owners.

© Copyright 2001
All Rights Reserved.
User Manual edition 1.2, March 06 2003

Contents

HS-6039 ......................................................................................................1

HS-6039LV....................................................................................................

GENERAL INFORMATION .............................................................................3

AJOR FEATURES .....................................................................................4

1.1 M

PECIFICATIONS.........................................................................................5

1.2 S

ELIVERY PACKAGE...................................................................................6

1.3 D

HARDWARE INSTALLATION ........................................................................8

2.1 C

AUTION OF STATIC ELECTRICITY.............................................................8

AUTION ON UNPACKING AND BEFORE INSTALLATION .............................9

2.2 C

2.3 HS-6039’

UICK LISTING OF JUMPERS ...................................................................11

2.4 Q

UICK LISTING OF CONNECTORS ............................................................12

2.5 Q

UMPER SETTING DESCRIPTION..............................................................13

2.6 J

ETTING THE CPU HOST CLOCK FREQUENCY.......................................14

2.7 S

ETTING THE RTC CONFIGURATION.......................................................14

2.8 S

YSTEM MEMORY DRAM........................................................................14

2.9 S

2.10 W

2.11 SCSI C

2.12 VGA C

2.13 D

2.14 CPU T

S LAYOUT.................................................................................10

ATCH-DOG TIMER...............................................................................15

ONTROLLER...............................................................................17

ONTROLLER................................................................................18

ISKONCHIP ADDRESS SETTING.......................................................22

EMPERATURE ALARM .................................................................22

CONNECTION .................................................................................................23

3.1 P

OWER AND FAN CONNECTORS ............................................................23

3.2 IDE'

3.3 E

3.4 PCI E-IDE D

3.5 P

3.6 T

3.7 S

3.8 K

3.9 PS/2 M

3.10 IR C

3.11 USB P

3.12 LAN I

S LED, KEYLOCK AND RESET BUTTON............................................24

XTERNAL SPEAKER................................................................................25

RIVE CONNECTOR ..............................................................26

ARALLEL PORT CONNECTOR .................................................................28

HE FLOPPY DISK DRIVE CONNECTOR...................................................29

ERIAL PORTS CONNECTORS .................................................................30

EYBOARD CONNECTORS .......................................................................30

OUSE 6PIN MINI DIN CONNECTOR ..............................................31

ONNECTOR .....................................................................................31

ORTS CONNECTOR.....................................................................32

NTERFACE CONNECTOR ..............................................................32

Contents • i

3.13 ULTRAⅡSCSI INTERFACE CONNECTOR ..............................................34

3.14 P

C/104 BUS CONNECTION....................................................................35

AWARD BIOS SETUP....................................................................................37

4.1 M

AIN MENU ..............................................................................................38

TANDARD CMOS SETUP.......................................................................39

4.2 S

4.3 BIOS F

4.4 C

NTEGRATED PERIPHERALS .....................................................................42

4.5 I

4.6 P

4.7 P

EATURES SETUP..........................................................................40

HIPSET FEATURES SETUP.....................................................................41

OWER MANAGEMENT SETUP.................................................................44

NP/PCI CONFIGURATION SETUP ..........................................................45

SOFTWARE UTILITIES .................................................................................46

5.1 V

GA DRIVER INSTALL FOR WIN95&98....................................................47

GA DRIVER INSTALL FOR WIN NT4.0 ..................................................51

5.2 V

ETWORK DRIVER INSTALL FOR WIN 95&98 .........................................54

5.3 N

ETWORK DRIVER INSTALL FOR WIN NT4.0..........................................57

5.4 N

LTRA II SCSI INSTALL FOR WIN95&98 .................................................59

5.5 U

LTRA II SCSI INSTALL FOR WIN NT4.0.................................................62

5.6 U

ii •Contents

Chapter-1

General Information

The HS-6039 is a 100MHz system clock provides up to 133MHz PICMG Bus
Socket 370 for Intel
Card with features combine together to make it an ideal all-in-one industrial
single board computer, enhanced I/O effects with LAN and CRT/Panel
interface and Ultra II SCSI interface.

With on board DMA33 of Mode 3/4 to IDE disk drive interface architecture,
the HS-6039 supports with maximum 33MB/sec in data transfer rating to two
IDE disk drive connections.

On board 4MB Intel® 69030 CRT/Panel display controller provides up to 1280
x 1024 64K colors resolution. And it also provides one internal 50pin
connector for carious type of the Panel connection.

The advanced PICMG Bus add on connection of HS-6039 allows user could
easily obtain both ISA’s 16bit and PCI’s 32bit full set signals from a full-size
PICMG slot for suitable plug into a any size system with 8/16/32bit ISA and
PCI slots operating. The HS-6039 provides with four DIMM sockets provides
up to 1GB of main system memory.

A single Flash chip holds the system BIOS, and you can easy update the
Flash BIOS by the Utility Update. Advanced USB and IR ports also provide
for faster and easily in data transmission. You can also use the DOS version
of the DiskOnChip
without the necessity of other software supports up to 144MB.

The HS-6039 features include Dual Intel® 82559 100 Based LAN design on
board. With two RJ-45 and two 10pin header connector provides an easily for
user’s LAN application.

If a non-expect program cause halts, the on board Watch-Dog Timer will
automatically Reset the COU or generate an interrupt. The Watch-Dog is
designed with hardware only and doesn’t need any arithmetical functions of

a real-time clock chip. This ensures the reliability in an unmanned or
standalone system.

®

Celeron™/CoppermineTM Industrial Single Board CPU

™ socket by issuing commands from the DOS prompt

3

1.1 Major Features

 Socket 370 for Intel

 Four DIMM sockets provides up to 1GB (Only for PCB v1.3)

 Fast PCI DMA33 controller supports four IDE disk drives

 100MHz system clock provides up to 133MHz

 Two RS-232 serial ports include 16C550 UART with 16byte FIFO

 One enhanced bi-directional parallel port supports SPP/ECP/EPP

 On board PS/2 Keyboard and PS/2 Mouse connector

 On board Winbond W83977 super I/O chipset

 On board 69030 CRT/Panel Dual display controller

 On board Dual Intel

 On board Symbios 53C895 Ultra II SCSI

 On board PCI Bridge

 DiskOnChip memory size up to 144MB

 PC/104 Bus connector

 ATX Power Function support

 Hardware Monitor support

®

CeleronTM/CoppermineTM 266~933MHz CPU

®

82559 100 Based LAN

4

1.2 Specifications

 CPU：Socket 370 for Intel® CeleronTM/CoppermineTM

266~933MHz CPU

 Bus Interface：PICMG Bus

 Bus Clock Rate：100MHz system clock provides up to 133MHz

 Memory：Four DIMM sockets provides up to 1GB (Only for PCB

v1.3)

®

 Chipset：Intel

 I/O Chipset：Winbond W83977

 PCI Bridge：Intel

 VGA：69030 with 4MB memory support CRT/Panel display

controller

 IDE：Four IDE disk drives support DMA33 transfer rate up to

33MB/sec

 Floppy：Support up to two floppy disk drives

 Parallel Port：Support SPP/ECP/EPP

 Dual LAN：Dual Intel

82443BX

®

21152 or equivalent device

®

82559 100 Based LAN

 SCSI：Symbios 53C895 Ultra II SCSI

 Serial Port：Two RS-232 serial ports include 16C550 UART with

16byte FIFO

 PC/104：PC/104 connector for 16bit ISA Bus

 IR：One IrDA TX/RX header

 USB：Support two USB ports

 Keyboard：PS/2 6pin Mini Din or 5pin connector

5

 Mouse：PS/2 6pin Mini Din or 4pin header

 DiskOnChip：Socket for DiskOnChip and memory size up to

144MB

 BIOS：Award Y2K PnP Flash BIOS

 Watch-Dog Timer：Set 1, 2, 10, 20, 110, 220 seconds activity

trigger with Reset or NMI

 CMOS：DS12C887 or equivalent device

 DMA Channels：7

 Interrupt Levels：15

 Maximum Power Consumption：+5V@8A(933MHz)、

+12V@120mA、-12V@50mA

 Operating Temperature：0~60℃

 Hardware Monitor：W83783S

 Board Size：13.26”(L)x4.8”(W)

1.3 Delivery Package

6

The delivery package of HS-6039 includes all following items:

 One HS-6039 Industrial Single Board

 One Printer Ports Bracket Flat Cable

 One com port Bracket Flat Cable

 Two IDE port Flat Cable

 One FDD port Flat Cable

 Utility CD

 User’s Manual

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the
delivery package with packing materials in case of you want to ship
or store the product in feature.

7

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware
of HS-6039. At first, please follow up sections 1.3, 2.1 and 2.2 in
check the delivery package and carefully unpacking. Following
after, the jumpers setting of switch, Watch-Dog Timer and the
DiskOnChip address selection etc.

2.1 Caution of Static Electricity

The HS-6039 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the
damage of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER

SENSITIVE COMPONENTS WITHOUT ALL NECESSARY
ANTI-STATIC PROTECTION.

You should follow the steps as following to protect the board in
against the static electric discharge whenever you handle the
board:

1. Please use a grounding wrist strap on whoever needs to handle
the HS-6039. Well clip the ALLIGATOR clip of the strap to the end
of the shielded wire lead from a grounded object. Please put on
and connect the strap before handle the HS-6039 for harmlessly
discharge any static electricity through the strap.

2. Please use anti-static pad for put any components or parts or
tools on the pad whenever you work on them outside the
computer. You may also in use the anti-static bag instead the
pad. Please ask from your local supplier in help up your
necessary parts on anti-static requirement.

8

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS-6039 from electricity discharge. With refer to
section 1.3, please check the delivery package again with following
steps:

1. Unpacking the HS-6039, keep well storage of all packing material,
manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT
INSTALL IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers
setting to jumper pin-set and CMOS setup correctly. Please also
reference to all information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver
Type etc.) for completed add-in or connection and CMOS setup
correctly. Please also reference to all information of connector
connection in this manual.

6. Please keep all necessary manual and diskette in a good
condition for your necessary re-installation if you change your
Operating System or whatever needs.

9

2.3 HS-6039’s Layout

10

2.4 Quick Listing of Jumpers

JP1 RESET PIN....................................................................... P.25

JP3 BUS CLOCK RATE SELECT ............................................... P.14

JP4 BUS CLOCK RATE SELECT ............................................... P.14

JP5 VGA ENABLE / DISABLE SELECT...................................... P.18

JP6 SCSI ENABLE / DISABLE SELECT ..................................... P.17

JP7 LCD VOLTAGE SELECT ................................................... P.18

JP8 CTA ENABLE / DISABLE SELECT ..................................... P.22

JP9 CLEAR CMOS................................................................. P.14

JP11(1-4)

JP11(5-10)TIME OF WATCH-DOG SELECT ........................................ P.15

JP12 WATCH-DOG TIMER ACTIVE TYPE SETTING....................... P.15

JP13 LAN1 ENABLE / DISABLE SELECT ................................... P.32

JP14 LAN2 ENABLE / DISABLE SELECT .................................... P.32

DISKONCHIP ADDRESS ................................................ P.22

11

2.5 Quick Listing of Connectors

S1 ATX POWER SWITCH ...................................................... P.23

CN1 SPEAKER ........................................................................ P.25

CN2 HDD LED ....................................................................... P.25

CN3 FAN ............................................................................... P.23

CN4 KEYLOCK ......................................................................... P.25

CN5 5PIN KEYBOARD CONNECTOR ........................................... P.30

CN6 IR CONNECTOR................................................................ P.31

CN8 PRIMARY IDE CONNECTOR............................................... P.26

CN9 SECONDARY IDE CONNECTOR.......................................... P.26

CN10 68PIN SCSI CONNECTOR................................................. P.34

CN11 ATX POWER CONNECTOR ............................................... P.23

CN12 5PIN ATX POWER CONNECTOR ........................................ P.23

CN13 FDD CONNECTOR ........................................................... P.29

LCD PANEL CONNECTOR................................................. P.18

CN14
CN15

PC/104 64PIN CONNECTOR ............................................. P.35

CN16 PC/104 40PIN CONNECTOR ............................................ P.35

CN17 USB ............................................................................... P.32

CN18 PARALLEL CONNECTOR.................................................... P.28

CN19 COM2 (2X5 HEADER) .................................................... P.30

LAN2 INTERNAL CONNECTOR (2X5 HEADER).................... P.32

CN20
CN21

INTERNAL CRT CONNECTOR ............................................ P.18

CN22 COM1 (2X5 HEADER) ..................................................... P.30

CN23 LAN1 INTERNAL CONNECTOR (2X5 HEADER).................... P.32

CN24 4PIN MOUSE CONNECTOR

CN25 PS/2 6PIN MINI DIN MOUSE CONNECTOR ......................... P.31

CN26 CRT DB15 CONNECTOR ................................................. P.18

CN27 PS/2 6PIN MINI DIN KEYBOARD CONNECTOR .................... P.30

CN28 LAN1 AND LAN2 RJ-45 CONNECTOR .............................. P.32

12

2.6 Jumper Setting Description

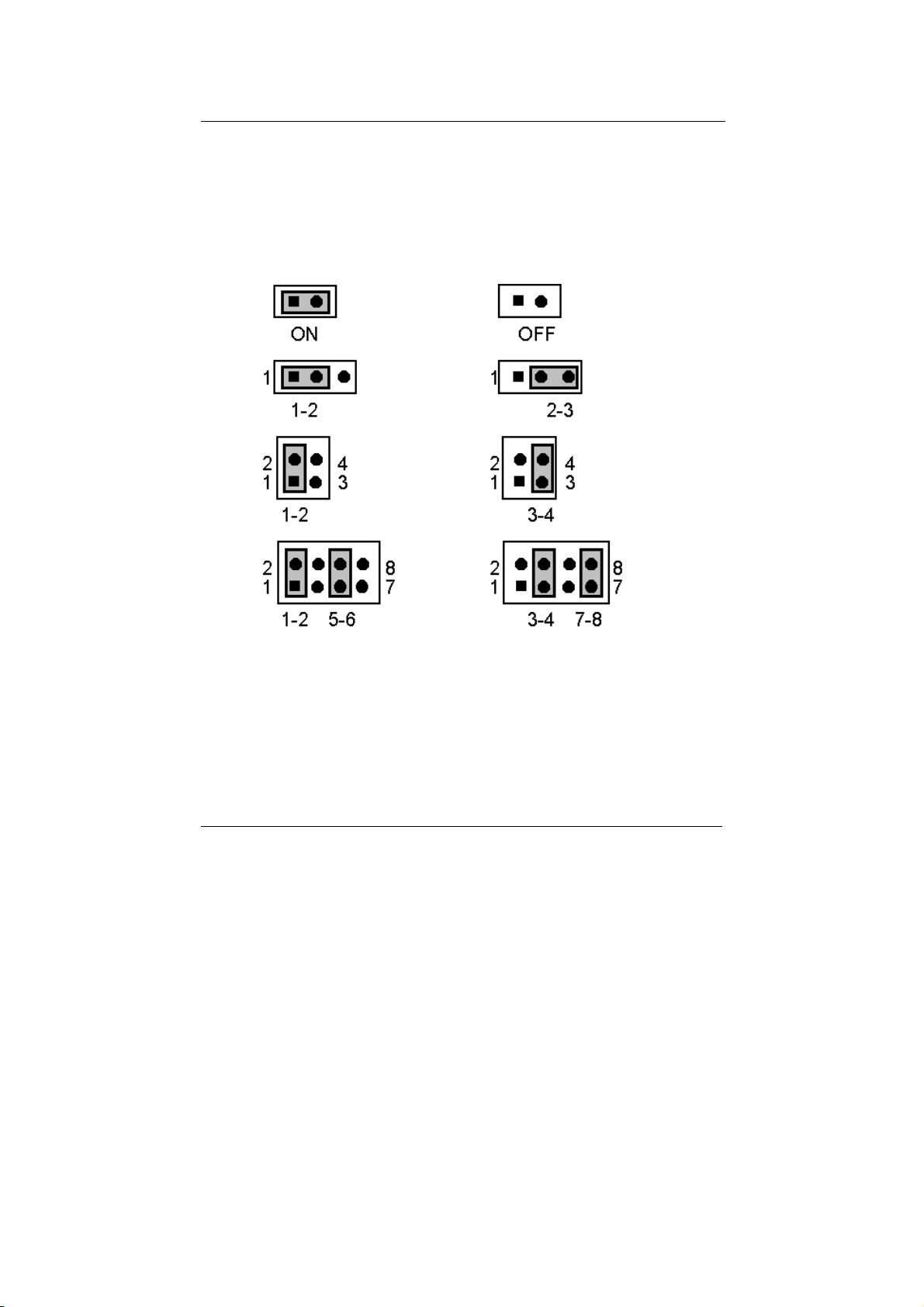

A jumper pin-set is ON as a shorted circuit with a plastic cap
inserted over two pins. A jumper pin-set is OFF as a open circuit
with a plastic cap inserted over one or no pin(s) between pins. The
below figure 2.2 shows the examples of different jumper pin-set
setting as ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The
default setting may reference in this manual with a " * " symbol in
front of the selected item.

13

2.7 Setting the CPU Host Clock Frequency

The HS-6039 provides all necessary by jumper setting in using
Bus-Clock frequency as the system bus clocking with JP3 setting as
following:

 Setting the CPU Host Clock of JP3 :

Host Clock JP3

66MHz 1-2

100MHz 1-2

*133MHz 2-3

 Setting the CPU Host Clock of JP4 :

Host Clock 1-2 3-4

*Auto ON ON

BIOS Setting OFF OFF

2.8 Setting the RTC Configuration

The HS-6039 provides a setting for the selection of the RTC Clear
Jumper by JP9 setting as following:

 CMOS Setting of JP9(Only for DS12B887)：

CMOS Clear Jumper JP9

Normal * OFF

Clear CMOS ON

2.9 System Memory DRAM

The HS-6039 provides a wide SDRAM memory by four DIMM
sockets request the access time should meet PC-133 standard. The
maximum capacity of the on board memory is 1GB.

14

2.10 Watch-Dog Timer

There are three access cycles of Watch-Dog Timer as Enable,
Refresh and Disable. The Enable cycle should proceed by READ
PORT 443H. The Disable cycle should proceed by READ PORT
045H. A continue Enable cycle after a first Enable cycle means
Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before
the time-out period for restart counting the Watch-Dog Timer period.
Otherwise, it will assume that the program operation is abnormal
when the time counting over the period preset of Watch-Dog Timer.
A System Reset signal to start again or a NMI cycle to the CPU
comes if over.

The JP12 is using for select the active function of Watch-Dog Timer
in disable the Watch-Dog Timer, or presetting the Watch-Dog Timer
activity at the reset trigger, or presetting the Watch-Dog Timer
activity at the NMI trigger.

JP12 : Watch-Dog Active Type Setting

JP12 DESCRIPTION

*1-2 System Reset

2-3 Active NMI

OFF Disable Watch-Dog Timer

The Watch-Dog Timer is disabled after the system Power-On. The
Watch-Dog Timer can be enabled by a Enable cycle with reading
the control port (443H), a Refresh cycle with reading the control port
(443H) and a Disable cycle by reading the Watch-Dog Timer
disable control port (045H). After a Enable cycle of Watch-Dog
Timer, user must constantly proceed a Refresh cycle to Watch-Dog
Timer before its period setting comes ending of every 1, 2, 10, 20,
110 or 220 seconds which pre-setting by JP11(5-10). If the Refresh
cycle does not active before Watch-Dog Timer period cycle, the on
board Watch-Dog Timer architecture will issue a Reset or NMI cycle
to the system.

15

 JP11 (5-10) : Watch-Dog Timer - Out Period

PERIOD 5-6 7-8 9-10

*1 sec ON ON ON

2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON

110 sec ON ON OFF
220 sec OFF ON OFF

The Watch-Dog Timer is control by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
045H I/O Read The Disable cycle.

The following sample programs showing how to Enable, Disable
and Refresh the Watch-Dog Timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer

POP DX ; get back AX, DX

IN AL,DX

POP AX

RET

16

2.11 SCSI Controller

The HS-6039 provides SYMBIOS 53C895 Ultra II SCSI Controller
transferred rate up to 80 Mbytes/Sec, and can drive up to 15 set SCSI
HDD. A JP6 is using for select the enable or disable function of SCSI
control.

 JP6 : SCSI Enable/Disable Select

JP12 DESCRIPTION

*1-2 Enable

2-3 Disable

17

2.12 VGA Controller

The HS-6039 provides three possible connectives of VGA connections. One
standard DB15 internal VGA connector as following CN26 pin information.
Another header is 5X2 internal VGA connector. Others internal 50-pin header
for LCD Panel connection as following CN14 pin information.

 CN14 : 50pin Internal LCD Panel Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +12V 2 +12V
3 Ground 4 Ground
5 3.3V / 5V
7 ENAVEE 8 Ground

9 P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 P24 34 P25
35 SHFCLK 36 FP
37 M 38 LP
39 Ground 40 FPBACK
41 P26 42 P27
43 P28 44 P29
45 P30 46 P31
47 P32 48 P33
49 P34 50 P35

Note-1: Please setting the voltage correctly of individual panel by JP7

Note-1

6 ENAVDD

18

Flat Panel Display Interface

HS-6039

PIN# Pin

Name

9 P0 D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0

10 P1 D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0

11 P2 D2 UD1 UD5 B2 B0 B2 FB2 FB2 G2 B1 UB1 UB0 UB0

12 P3 D3 UD0 UD4 B3 B1 B3 FB3 FB3 R3 R2 UR2 UR1 LR0

13 P4 D4 UD3 UD3 B4 B2 B4 FB4 SB0 B3 G2 LR1 UR0 LG0

14 P5 D5 UD2 UD2 G0 B3 B5 FB5 SB1 G4 B2 LG1 LG0 LB0

15 P6 D6 UD1 UD1 G1 B4 B6 SB0 SB2 R5 R3 LB1 LB0 UR1

16 P7 D7 UD0 UD0 G2 B5 B7 SB1 SB3 B5 G3 LR2 LR1 UG1

17 P8 UD7 G3 G0 SB2 FG0 B3 UG1 UB1

18 P9 UD6 G4 G1 SB3 FG1 R4 UB1 LR1

19 P10 UD5 G5 G0 G2 SB4 FG2 G4 UR2 LG1

20 P11 UD4 R0 G1 G3 SB5 FG3 B4 UG2 LB1

21 P12 UD3 R1 G2 G4 FG0 SG0 R5 LG1 UR2

22 P13 UD2 R2 G3 G5 FG1 SG1 G5 LB1 UG2

23 P14 UD1 R3 G4 G6 FG2 SG2 B5 LR2 UB2

24 P15 UD0 R4 G5 G7 FG3 SG3 R6 LG2 LR2

25 P16 R0 FG4 FR0 LG2

26 P17 R1 FG5 FR1 LB2

27 P18 R0 R2 SG0 FR2 UR3

28 P19 R1 R3 SG1 FR3 UG3

29 P20 R2 R4 SG2 SR0 UB3

30 P21 R3 R5 SG3 SR1 UR3

31 P22 R4 R6 SG4 SR2 LG3

32 P23 R5 R7 SG5 SR3 LB3

33 P24 FR0

34 P25 FR1

41 P26 FR2

42 P27 FR3

43 P28 FR4

44 P29 FR5

45 P30 SR0

46 P31 SR1

47 P32 SR2

48 P33 SR3

49 P34 SR4

50 P35 SR5

35 SHFCLK: Pixel clock .Shift Clock

36 FLM.VSYNC: First line marker

37 M, DE: Panel AC driver control

38 LP, HSYNC: Latch pulse

40 ENABKL: Power sequencing control for enabling the back-light.(high active)

Mono Color

SS DD DD TFT TFT TFT TFT

8-bit 8-bit 16-bit

9/12/16

bit 18bit

18/24

bit

STN-HRSTN-SSSTN-SSSTN-DDSTN-DD STN-D

36-bit 18/24

8-bit

16-bit

bit

(4bP)

(4bP)

8-bit

(4bP)

16-bit
(4bP)

D

24-bit

19

The HS-6039 has built-in a Intel

®

69030 VGA Controller with on chip
4MB memory, support resolutions up to 1024x768x16M colors,
reserved internal 50pin Panel connector.

To get more VGA drivers information, please refer to the Intel
Internet address: www.intel.com

 JP5 : VGA Enable/Disable Select

JP5 Description

*1-2 Enable

2-3 Disabled



The HS-6039 provides a setting for the selection of the working
voltage of individual flat panel by JP7 setting as following:

 Flat Panel Voltage Selecting of JP7:

Panel’s Working Voltage JP7

5.0 V 1-2

3.3 V * 2-3

®

20

CN21 : 10pin Header 5X2 VGA connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GROUND
3 GREEN 4 GROUND
5 BLUE 6 GROUND
7 HSYNC 8 GROUND
9 VSYNC 10 GROUND

 CN26 : 15pin DB-15 Female VGA connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

21

2.13 DiskOnChip Address Setting

The HS-6039 provides a U16 socket for install the DiskOnChip
module.

A JP11 may select the starting memory address of the
DiskOnChip (D.O.C.) for avoid the mapping area with any other
memory devices. If you have another extra memory devices in the
system with the same memory, neither the HS-6039 nor the extra
memory devices

will function normally. Please setting both at different memory
address mapping.

 JP11(1-4) : DiskOnChip Address Select

Memory Address Mapping 1-2 3-4

D000 ON ON

D800 OFF ON

E000 ON OFF
E800 OFF OFF

*) : default setting

The D.O.C. function allows the system in using without FDD nor
HDD. The D.O.C. may formatting as driver C: or driver A: User may
also easily uses the DOS's commands such as FORMAT, SYS,
COPY, XCOPY, DISCOPY and DISKCOMP etc. This is means that
the D.O.C. may uses as driver-A if the system without FDD-A for
ambient application. Please contact with your supplier for different
size D.O.C. module.

2.14 CPU Temperature Alarm

The HS-6039 provides CPU Temperature Alarm Function. A JP8 is
using for select the enable or disable function of CTA.

 JP8 : CPU Temperature Alarm Enable/Disable Select

1-2 Enable

2-3 Disable

22

Chapter-3

Connection

This chapter gives all necessary information of the peripheral
connections, switches and indicators.

3.1 Power and FAN Connectors

The HS-6039 provides one 3pin FAN out connector as following
CN3 pin information.

S1 is ATX Power Switch, CN11 is ATX Power Connector, CN12 is
5pin ATX Power Connector.

 CN3 : 3pin FAN Connector

PIN NO. DESCRIPTION

1 GND
2 +12V
3 N.C.

 S1 : ATX Power Function Switch

PIN NO. DESCRIPTION

1 3VSB
2 Power On Single

 CN12 : 5pin ATX Power Connector

PIN NO. DESCRIPTION

1 VCC (+5V)
2 5VSB
3 +12V
4 SUSC (ATX Power ON/OFF Single)
5 GND

23

The HS-6039 support ATX Power function by CN11. The connector of
CN12 can control the 5pin ATX Power via the extension cable from the
Backplane.

CN11 DESCRIPTION CN11 DESCRIPTION

1 3V 11 3V

2 3V 12 -12V

3 GND 13 GND

4 +5V 14 PS_ON

5 GND 15 GND

6 +5V 16 GND

7 GND 17 GND

8 PG 18 -5V

9 5VSB 19 +5V

10 +12V 20 +5V

24

3.2 IDE's LED, Keylock and Reset Button

The HS-6039 has one LED indicates out power-on status. And the
following provides the pin information for IDE's LED indicator,
Keylock and Reset Button connections from CN2, CN4 and JP1.

 CN2 : IDE LED Connector

PIN NO. DESCRIPTION

1 HDD ACTIVE#

 CN4 : Keylock

 JP1 : Reset Button

2 +5V

PIN NO. DESCRIPTION

1 VCC (with 330 resist)
2 N.C.
3 GND
4 KEYLOCK­5 GND

PIN NO. DESCRIPTION

1 GROUND
2 EXTERNAL RESET

3.3 External Speaker

The HS-6039 has an on-board buzzer (BZ1). And it also provides
the CN1 in allows user to connecting to the external speaker.

 CN1 : Speaker Connector

PIN NO. DESCRIPTION

1 SPEAKER SINGAL
2 N.C.
3 GND
4 +5V

25

3.4 PCI E-IDE Drive Connector

Two standard 40pin header daisy chain drive connector provides as
CN8 and CN9 with following pin assignment. Total four IDE disk
(Integrated Device Electronics) drivers may connect.

 CN8: Primary IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

26

 CN9: Secondary IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND

3 DATA 7 4 DATA 8

5 DATA 6 6 DATA 9

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11

11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

27

3.5 Parallel Port Connector

A standard 26pin flat cable driver connector provides as CN18 with
following pin assignment for connection to parallel printer.

 CN18: Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

28

3.6 The Floppy Disk Drive Connector

A standard 34pin header daisy-chain drive connector provides as
CN13 with following pin assignment. Total two FDD drivers may
connect.

 CN13 : FDD Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

29

3.7 Serial Ports Connectors

The HS-6039 offers two high speeds 16C550 compatible UART
with Read/Receive 16byte FIFO serial ports with two internal 10pin
header.

 CN22/19 : Serial Port 10pin Header (COM1/COM2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

3.8 Keyboard Connectors

The HS-6039 offers two possibilities for keyboard connections to
external PS/2 type keyboard at CN27 or an internal 5pin header at
CN5.

 CN5: 5pin Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N.C.
4 GND
5 +5V

 CN27 : 6pin Mini Din Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 N.C.
3 GND
4 +5V
5 KEYBOARD CLOCK
6 N.C.

30

3.9 PS/2 Mouse 6pin Mini Din Connector

The HS-6039 provides an external PS/2 mouse connector at CN25.

 CN25 : PS/2 6pin Mini Din Mouse Connector

PIN NO. DESCRIPTION

1 DATA
2 N.C.
3 GND
4 +5V
5 CLK
6 N.C.

3.10 IR Connector

The HS-6039 provides a 5pin internal IR communication connector
as following CN6 pin information.

 CN6 : 5pin IR Connector

PIN NO. DESCRIPTION

1 VCC
2 FIRRX
3 IRRX
4 GROUND
5 IRTX

31

3.11 USB Ports Connector

The HS-6039 provides two internal 8pin USB ports connectors.
Please refer to the following detail pin information.

 CN17：USB Connector

PIN NO. CN17 PIN NO. CN17

1 VCC 2 VCC
3 BD0- 4 BD1­5 BD0+ 6 BD1+
7 GROUND 8 GROUND

3.12 LAN Interface Connector

The HS-6039 provides two external (RJ-45) and two internal
(Header 5x2) 100 Based LAN interface connector. Please refer to
the following detail of pin information.

 CN28 : LAN1/LAN2 RJ-45 Connector

PIN NO. CN28

1 TX+
2 TX­3 RX+
4 R/C GND
5 R/C GND
6 RX­7 R/C GND
8 R/C GND
9 GND

32

CN20, CN23：LAN1 & LAN2 Connector (Header 5x2 )

PIN NO. CN20, CN23

1 VCC
2 LED
3 RX+
4 RX­5 LED
6 R/C GND
7 LED
8 R/C GND
9 TX+

10 TX-

 JP13 : LAN1 Enable/Disable Select

PIN NO. DESCRIPTION

*1-2 Enable

2-3 Disable

 JP14 : LAN2 Enable/Disable Select

PIN NO. DESCRIPTION

*1-2 Enable

2-3 Disable



33

3.13 UltraⅡSCSI Interface Connector

This HS-6039 provides one internal UltraⅡ SCSI connector for all
kinds of user application and easy connection, one 68pin female

D-Sub connector for 16bit UltraⅡ SCSI port. Please reference to
the following for detail pin assignment.

Pin CN10 pin assignment Pin CN10 pin assignment

1 +SD12 35 -SD12
2 +SD13 36 -SD13
3 +SD14 37 -SD14
4 +SD15 38 -SD15
5 +SDP1 39 -SDP1
6 +SD0 40 -SD0
7 +SD1 41 -SD1
8 +SD2 42 -SD2

9 +SD3 43 -SD3
10 +SD4 44 -SD4
11 +SD5 45 -SD5
12 +SD6 46 -SD6
13 +SD7 47 -SD7
14 +SDP0 48 -SDP0
15 GROUND 49 GROUND
16 DIFFSEN 50 NC
17 TPW-EX 51 TPW-EX
18 TPW-EX 52 TPW-EX
19 NC. 53 NC.
20 GROUND 54 GROUND
21 +SATN 55 -SATN
22 GROUND 56 GROUND
23 +SBSY 57 -SBSY
24 +SACK 58 -SACK
25 +SRST 59 -SRST
26 +SMSG 60 -SMSG
27 +SSEL 61 -SSEL
28 +SCD 62 -SCD
29 +SREQ 63 -SREQ
30 +SIO 64 -SIO
31 +SD8 65 -SD8
32 +SD9 66 -SD9
33 +SD10 67 -SD10
34 +SD11 68 -SD11

34

3.14 PC/104 Bus Connection

The HS-6039’s PC/104 expansion bus provides you to connect all
kind of PC/104 modules. The PC/104 bus has been already
become the industrial embedded 16bit PC standard bus. You can
easily install over thousands type of PC/104 modules from
hundreds of venders in the world. The detailed pin assignment of
the PC/104 expansion bus connectors CN15 and CN16 are
specified as following tables:

Note : The PC/104 connector allows to directly plug-in

Stack-thru PC/104 modules without the PC/104
mounting kit.

35

 CN15&CN16 : PC/104 Expansion Bus

(CN15 = 64pin female connector; CN16 = 40pin female connector.)

Pin
No.

CN15

Row A

Pin

No.

CN15

Row B

Pin

No.

CN16

Row D

Pin
No.

CN16

Row C
1 IOCHECK* 33 0V 1 0V 21 0V
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17

10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)

21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 0V
32 0V 64 0V

36

Chapter-4

AWARD BIOS Setup

The HS-6039 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key.
The Main Menu will be displayed at this time.

37

4.1 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to
select from several setup functions and two exit choices. Use the
arrow keys to select among the items and press <Enter> to enter
the sub-menu.

ROM PCI/ISA BIOS (2A69KD2L)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit

INTEGRATED PERIPHERALS

PASSWORD SETTING

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

 : Select Item

(Shift)F2 : Change Color

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

38

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.

ROM PCI/ISA BIOS (2A69KD2L)

STANDARD CMOS SETUP
AWARD SOFTWARE, INC.

Data (mm:dd:yy) : Wed, May 9 2001

Time (hh:mm:ss) : 20: 7: 47

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master : Auto 0M 0 0 0 0 0 Auto
Primary Slave
Secondary Master : Auto 0M 0 0 0 0 0 Auto
Secondary Slave : Auto 0M 0 0 0 0 0 Auto

Drive A : 1.44M , 3.5 in.
Drive B : None Base Memory : 640K
Extended Memory : 785408K
LCD&CRT : CRT Other Memory : 384K
Halt On : All, But Keyboard Total Memory : 786432K

ESC : Quit
F1 : Help

Auto 0M 0 0 0 0 0 Auto

:

 : Select Item
(Shift) F2: Change Color

PU/PD/ + / - : Modify

39

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

ROM PCI/ISA BIOS (2A69KD2L)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFF Shadow : Disabled
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled
Processor Number Feature : Enabled D4000-D7FFF Shadow : Disabled
Quick Power On Self Test : Disabled D8000-DBFFF Shadow : Disabled
Boot From LAN First : Disabled DC000-DFFFF Shadow : Disabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled ESC : Quit : Select Item
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify
Report No FDD For WIN 95 : Yes F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults

40

4.4 Chipset Features Setup

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.

ROM PCI/ISA BIOS (2A69KD2L)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled Power-Supply Type : Auto
EDO DRAM Speed Selection : 60NS

EDO CASx# MA Wait State : 2 CPU Clock/Spread Spectrum : Default
EDO RASx# Wait State : 2 CPU Warning Temperature : Disabled
SDRAM RAS-to-CAS Delay : 3 Current System Temp. :
SDRAM RAS Precharge Time : 3 Current CPU1 Temperature :
SDRAM CAS latency Time : 3 Current CPUFAN1 Speed :
SDRAM Precharge Control : Enabled
DRAM Date Integrity Mode : Non-ECC Vcore : +3.3V :
System BIOS Cacheable : Enabled +5V : +12V :

Video BIOS Cacheable : Enabled -12V :
Video RAM Cacheable : Enabled Shutdown Temperature : Disabled
8 Bit I/O Recovery Time : 3
16 Bit I/O Recovery Time : 2
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled ESC : Quit : Select Item
Delayed Transation : Disabled F1 : Help PU/PD/+/-: Modify
AGP Aperture Size : 64 F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Auto Detect DIMM/PCI Clk : Enabled

41

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).

ROM PCI/ISA BIOS (2A69KD2L)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled Onboard Serial Port 2 : 2F8/IRQ3
IDE Primary Master PIO : Auto UART Mode Select : Normal
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
IDE Primary Master UDMA : Auto Onboard Parallel Port : 378/IRQ7
IDE Primary Slave UDMA : Auto Parallel Mode : SPP
IDE Secondary Master UDMA : Auto
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled LCD Panel Type : Panel 5 *
On-Chip Secondary PCI IDE : Enabled
USB Keyboard Support : Disabled
Init Display First : PCI Slot

Power ON Function : Button Only
ESC : Quit : Select Item
KBC input clock : 8MHz F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
Onboard FDC Controller : Enabled F6 : Load BIOS Defaults
Onboard Serial Port 1 : 3F8/IRQ4 F7 : Load Setup Defaults

*It allows the system BIOS to select one of sixteen LCD panel types

upon power up.

42

Panel# Panel Type

0 1024*768 Dual Scan STN Color Panel
1 128*1024 TFT Color Panel
2 640*480 Dual Scan STN Color Panel
3 800*600 Dual Scan STN Color Panel
4 640*480 Sharp TFT Color Panel
5 640*480 18-bit TFT Color Panel
6 1024*768 TFT Color Panel
7 800*600 TFT Color Panel
8 800*600 TFT Color Panel

9 800*600 TFT Color Panel
10 800*600 Dual Scan STN Color Panel
11 800*600 Dual Scan STN Color Panel
12 1024*768 TFT Color Panel
13 1280*1024 Dual Scan STN Color Panel
14 1024*600 Dual Scan STN Color Panel
15 1024*600 TFT Color Panel

43

4.6 Power Management Setup

The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.

ROM PCI/ISA BIOS (2A69KD2L)

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI Management : Disabled ** Reload Global Timer Events **
Power Management : User Define IRQ3 [3-7, 9-15], NMI : Disabled
PM Control by APM : Yes Primary IDE0 : Disabled
Video Off Method : V/H Sync + Blank Primary IDE1 : Disabled
Video Off After : Standby Secondary IDE0 : Disabled
MODEM Use IRQ : 3 Secondary IDE1 : Disabled
Doze Mode : Disabled Floppy Disk : Disabled
Standby Mode : Disabled Serial Port : Enabled
Suspend Mode : Disabled Parallel Port : Disabled
HDD Power Down : Disabled
Throttle Duty Cycle : 62.5%
PCI/VGA Act-Monitor : Disabled
Soft-off by PWR-BTTN : Instant-off
CPUFAN Off In Suspend : Enabled
Power On by Ring : Enabled
Resume by Alarm : Disabled ESC : Quit : Select Item
F1 : Help PU/PD/+/-: Modify
Wake Up On LAN : Enabled F5 : Old Values (Shift) F2 : Color
IRQ8 Break Suspend : Disabled F6 : Load BIOS Defaults
F7 : Load Setup Defaults

44

4.7 PnP/PCI Configuration Setup

In this section, the PnP/PCI configuration setup allows you to configure
the ISA and PCI devices installed in your system by manually or auto.

ROM PCI/ISA BIOS (2A69KD2L)

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

PnP OS Installed : Yes Assign IRQ For VGA : Enabled
Resources Controlled by : Auto Slot 1 Use IRQ No. : Auto
Reset Configuration Data : Disabled Slot 2 Use IRQ No. : Auto
Slot 3 Use IRQ No. : Auto
Slot 4 Use IRQ No. : Auto

Assign IRQ For USB : Enabled

ESC : Quit : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

45

Chapter-5

Software Utilities

This chapter provides the detailed information of VGA、LAN and
SCSI function. How to install the configuration is also included.

Section include:

n

VGA DRIVER INSTALLATION

n NETWORK DRIVER INSTALLATION

n SCSI DRIVER INSTALLATION

46

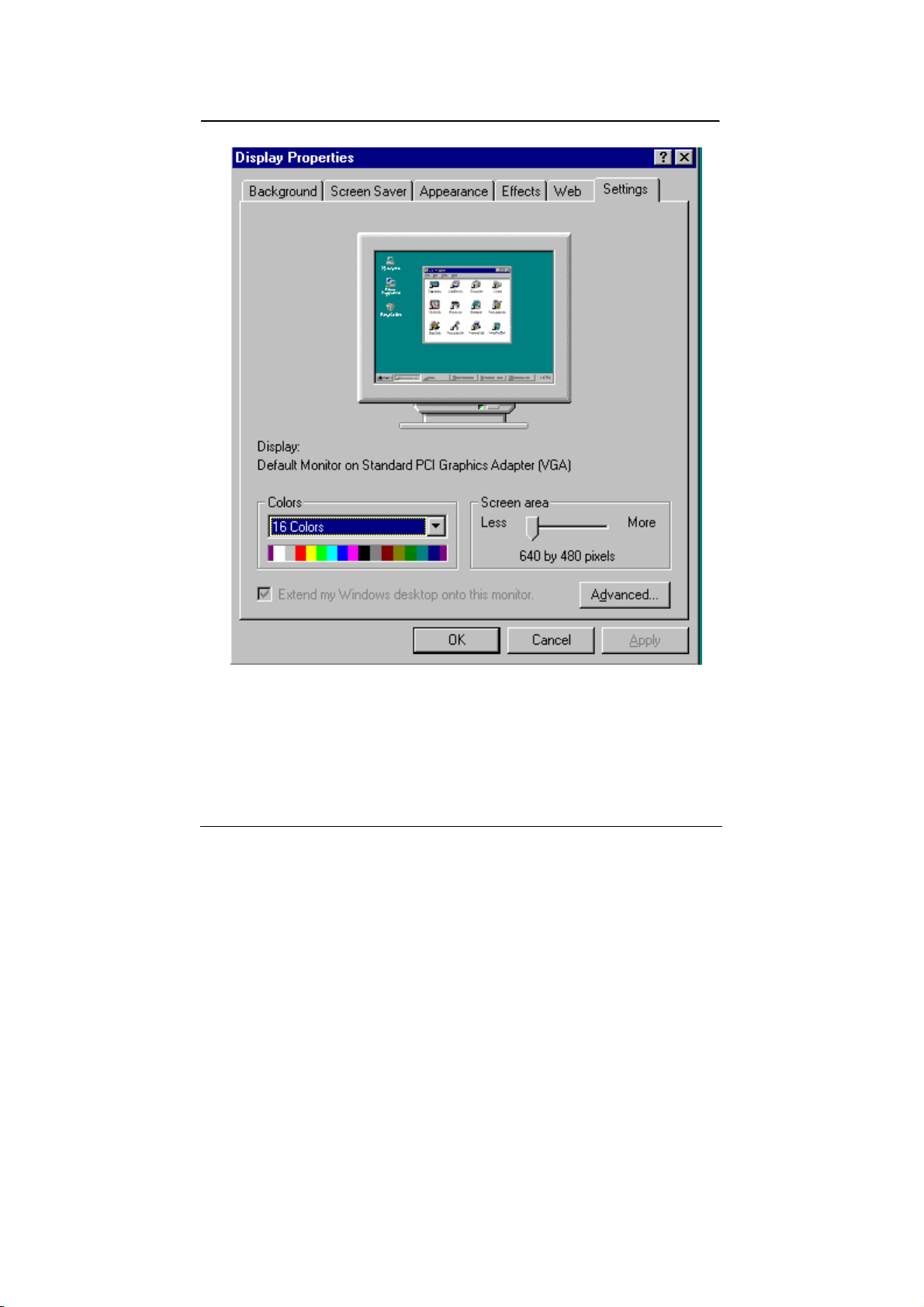

5.1 VGA DRIVER INSTALL FOR WIN95&98

1. Click Start, then Setting, then Control Panel, start the Display

applet program.

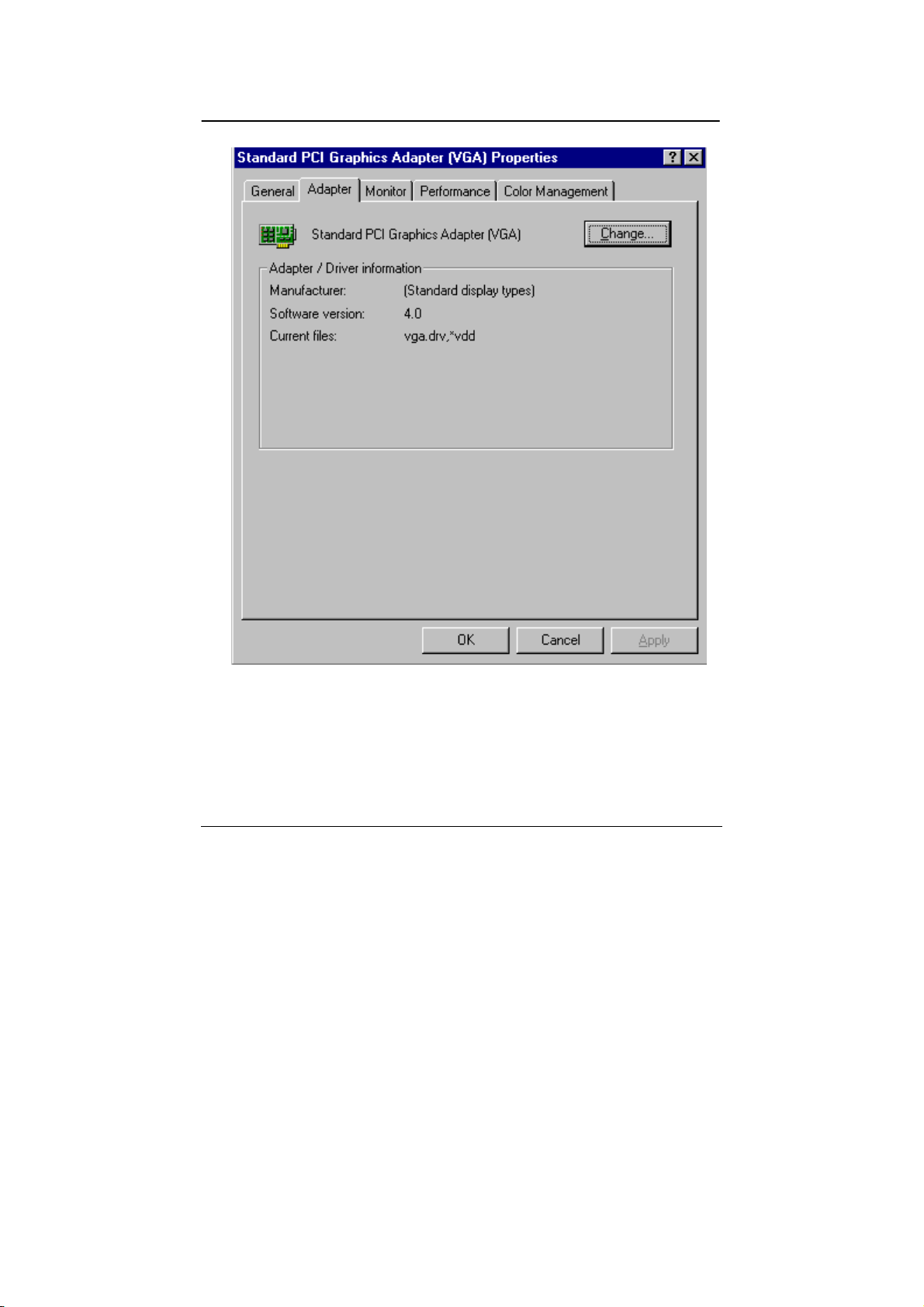

2. Select the setting page, push the advanced properties button.

Push the change button in the adapter area.

3. Continue to click “Next”. Select Display a list of all drivers in a

specific location, so you can select the drivers you want.

4. Click “Next”. Select the Specify a location checkbox and click

“Browse”.

5. Specify the path to the new driver and press the <ENTER> key.

(if in driver A:, select a:\win98)

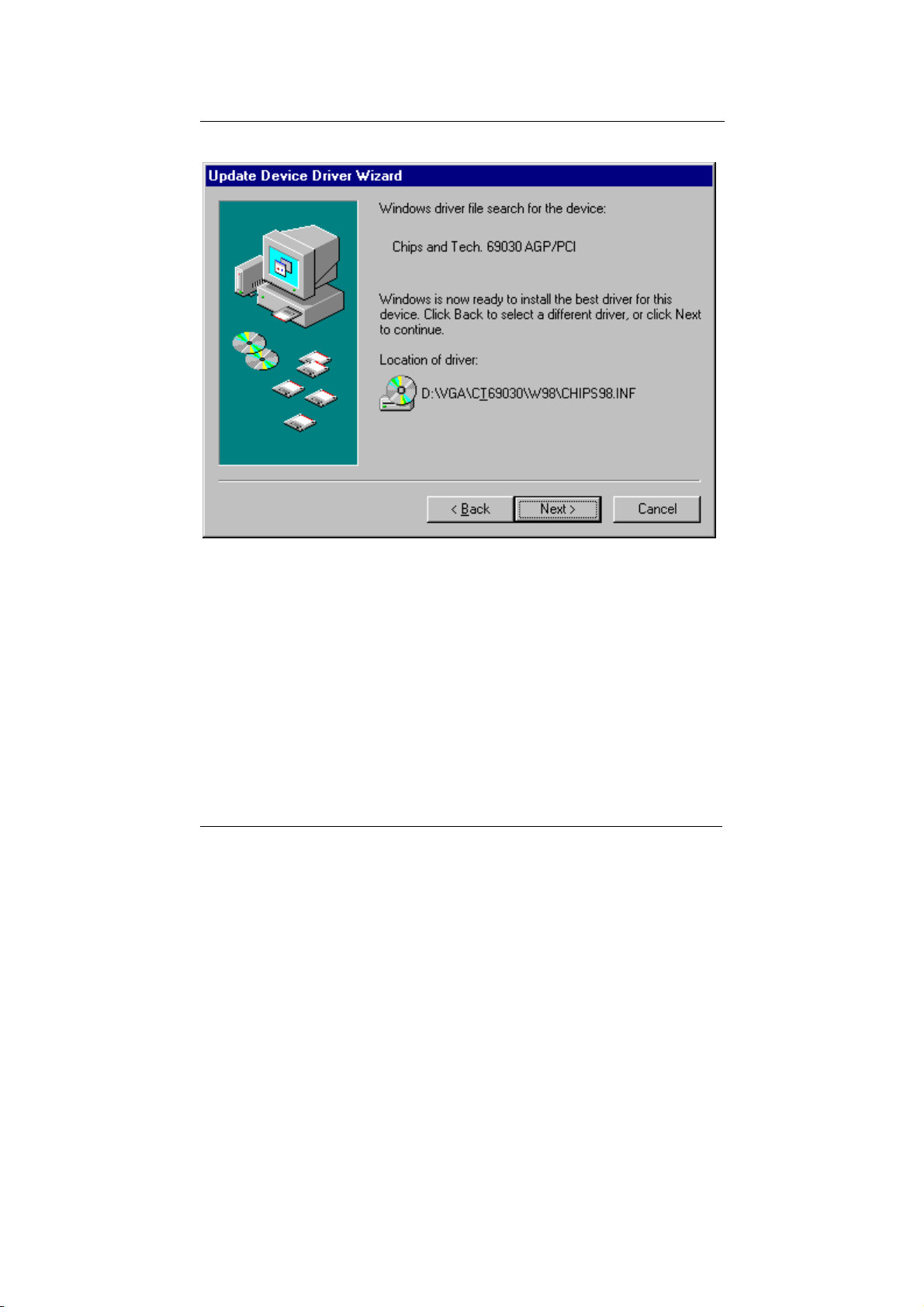

6. The Select device dialog box will appear.

Select Chips and Tech. 69030 PCI

7. Continue choosing close until asked to restart machine.

8. After the system has restarted, you can go back into the display

applet and select alternate screen resolutions and color depths.

Note: Installation procedure for Windows 95 is similar to
Windows98.

47

48

49

50

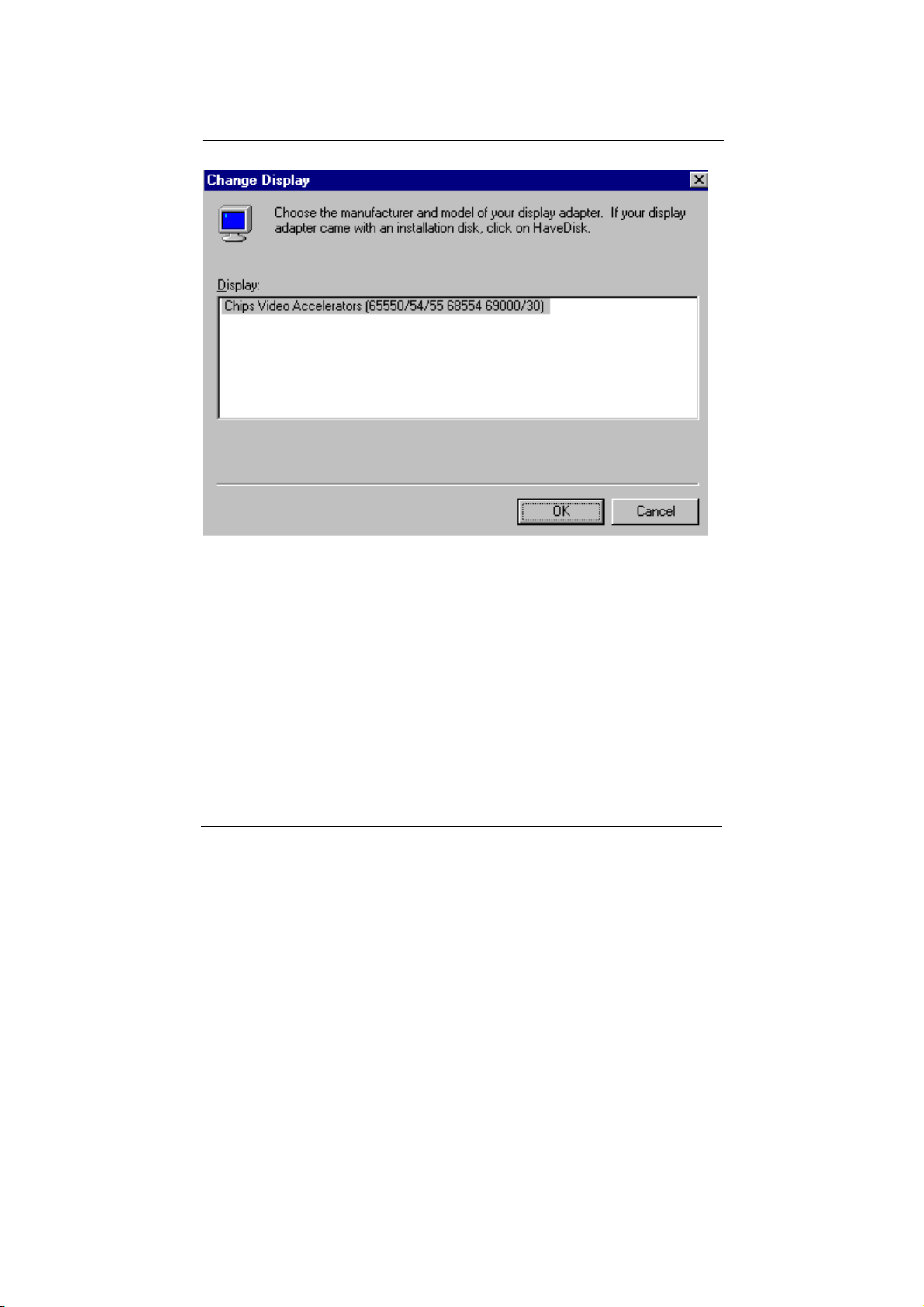

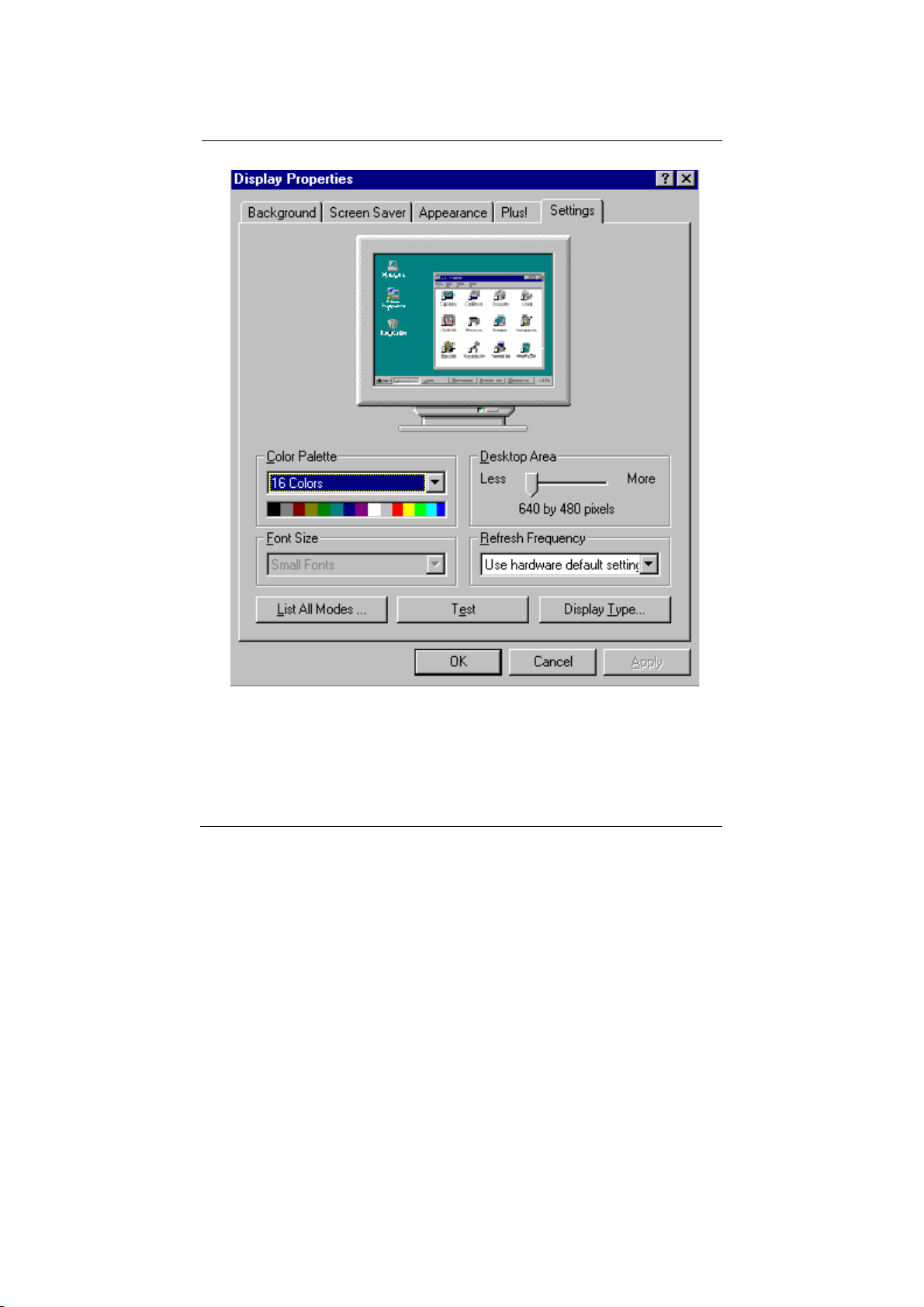

5.2 VGA DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Setting and click on Control
Panel.

2. Click on Display icon to start the Display Properties Window.

3. Click on the Settings tab, and then click on Display Type.

4. In the Change Display Type window, click on “Have Disk”.

5. Specify the path to the new driver and press the <ENTER>key.

(if in driver A:, type a:\nt40)

Select

Chips Video Accelerator (655545/54/55/68554

69000/69030)

6. Click OK or press Enter

7. You will see warning panel about Third Party Drivers. Click on
Yes to finish the installation.

8. Once the installation is completed, the system must shut down
and restart for the new driver to take effect.

9. After restart, checking on the VGA driver, the properties of the
driver should look similar to the following figure.

51

52

53

5.3 NETWORK DRIVER INSTALL FOR WIN98&95

Win98

Windows 98 will detect the network driver automatically.

Win95

1. Click Start, then Setting, in the “Setting” select Control panel.

2. Start the network applet program.

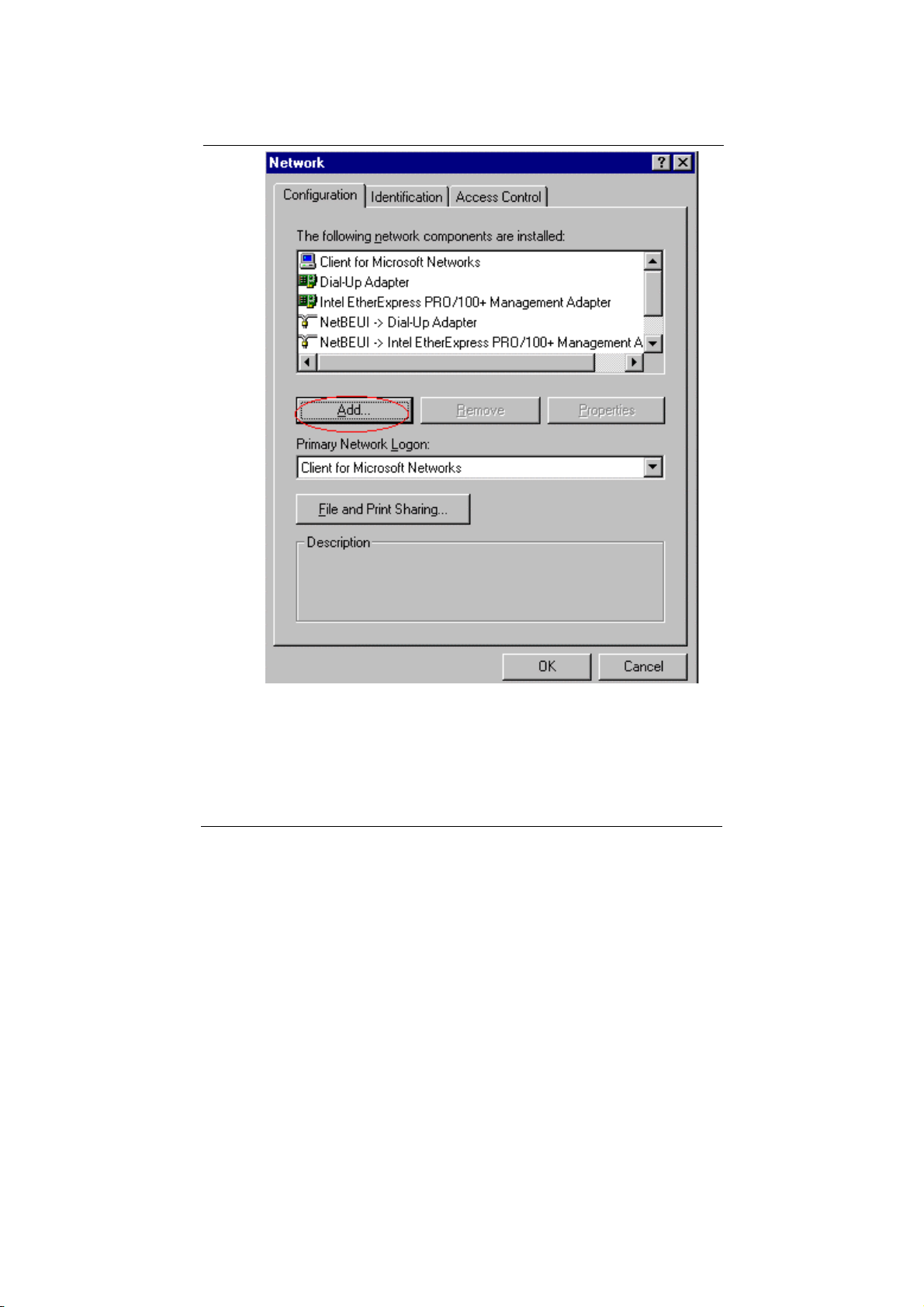

3. In the Network window, click “Add”.

4. In the Select Network Component Type, select Adapter then click

“Add”.

5. When the Select Network Component Type, Select Adapter, then

click “Add”.

6. Specify the path the new driver and press <ENTER> key.(If in

driver a:, type a:\)

(If you’re not sure exactly where the drivers are, choose the “Browse”
button and find it)

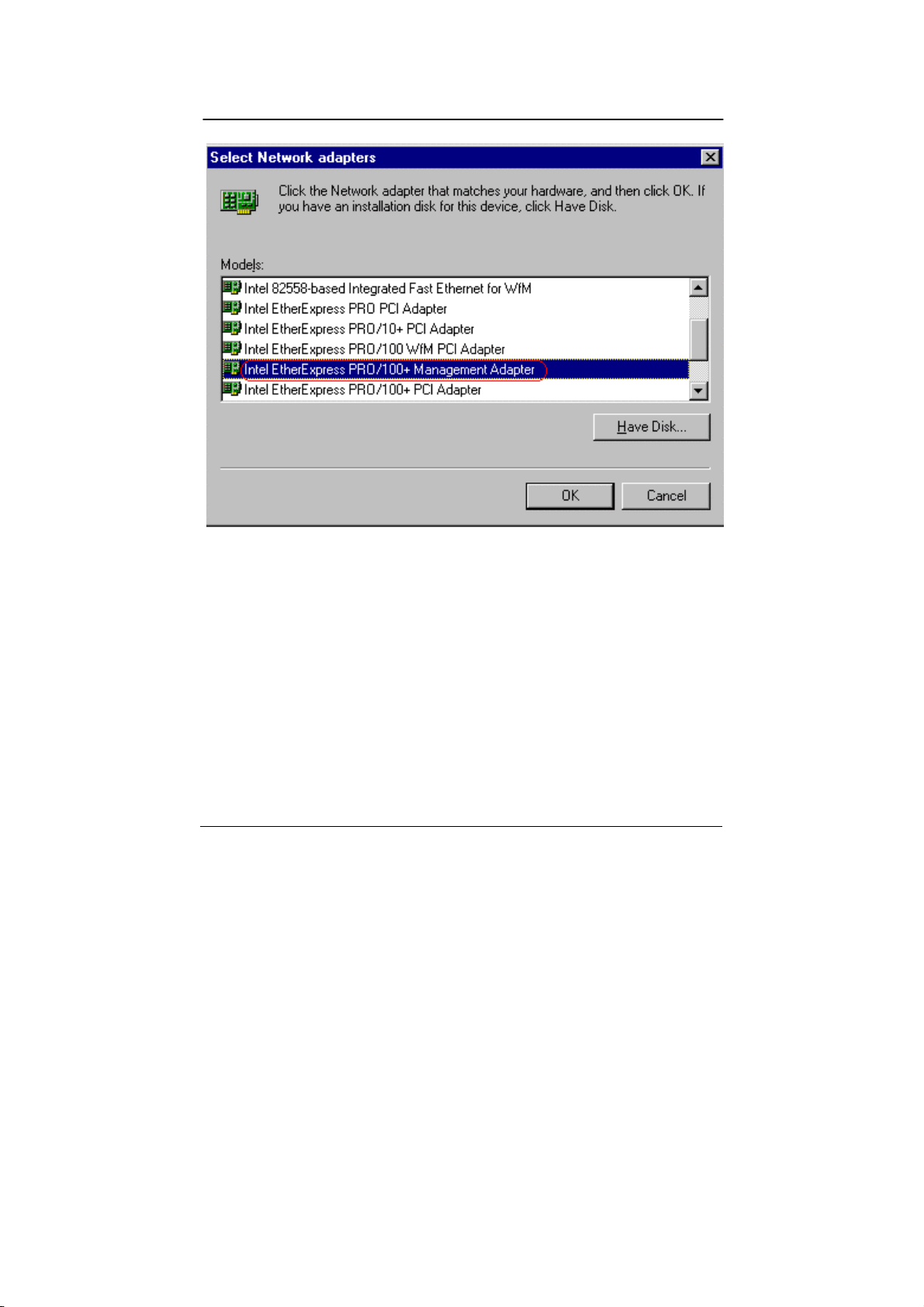

Select Intel EtherExpress PRO/100+ Management Adapter

7. Click OK.

8. Windows 95 will copy the network drivers to the proper directories

on your system.

9. Continue choosing “OK”, util asked to restart your system.

10. After restart, checking on the network driver , the Properties of

the driver should look similar to the following figure.

54

55

56

5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Setting and click on Control

Panel.

2. Click on the Network icon to start the Network Window.

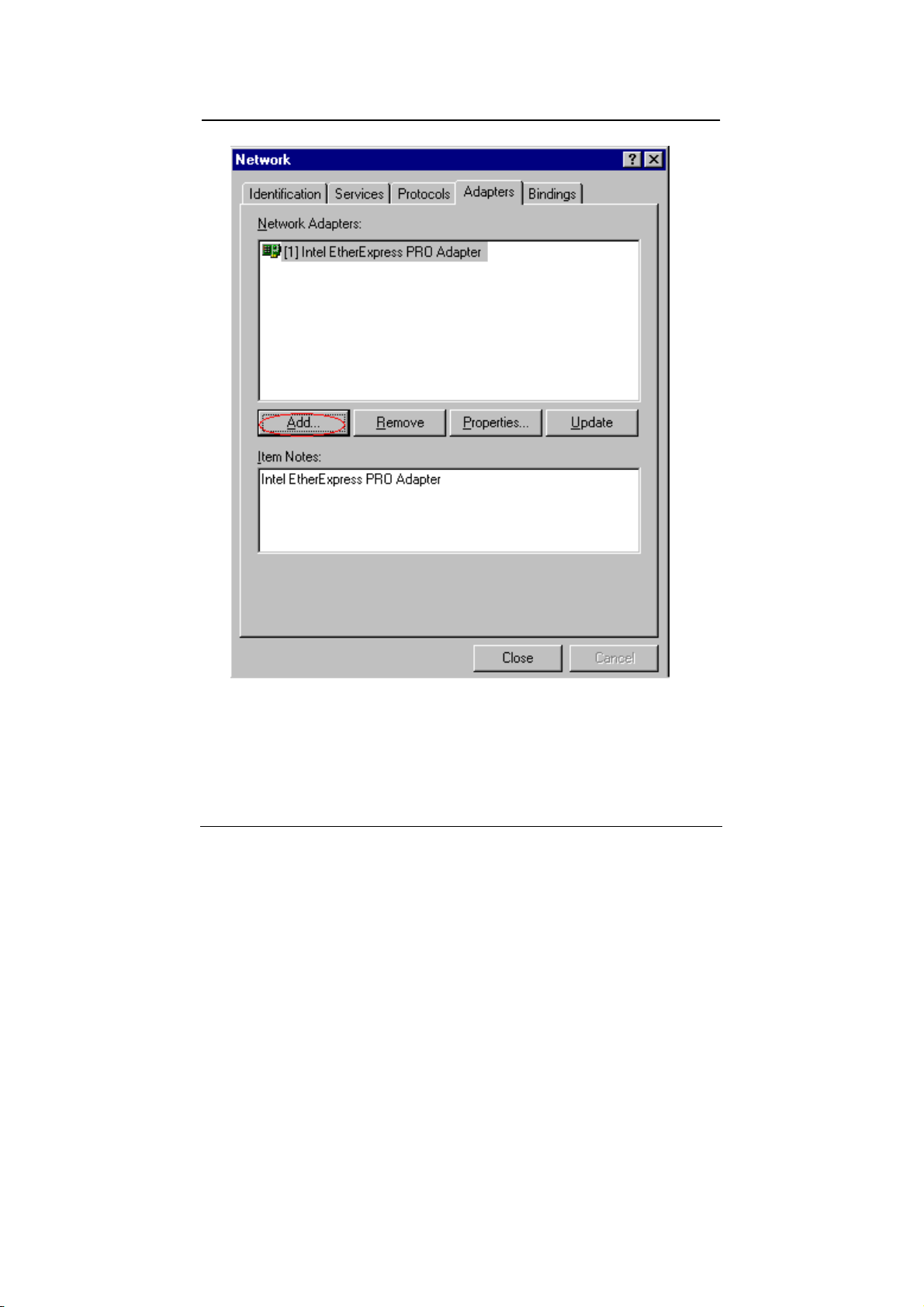

3. Click on the Adapters tab, and then click “Add”.

4. In the Select Network Adapter window, click “Have Disk”. This will

bring up the Insert Disk window.

5. Supply the directory where the Windows NT driver files are

located.

(If in driver a: , type a:\)

6. The Select OEM Option window will show up.

Select Intel EtherExpress PRO Adapter

7. Click OK to finish the installation.

8. Once the installation is completed, the system must be shut down

and restarted for the new driver to take effect.

9. After restart, checking on the Network driver, the Properties of the

driver should look similar to the following figure.

57

58

5.5 ULTRAⅡSCSI INSTALL FOR WIN95 & 98

WINDOWS 98

WINDOWS 98 will detect the SYMBIOS LOGIC 895
UltraⅡ SCSI driver

WINDOWS 95

1. Click Start, then Setting, in the “Setting” select Control panel.

2. Start the System applet program. Select Device Manager page.

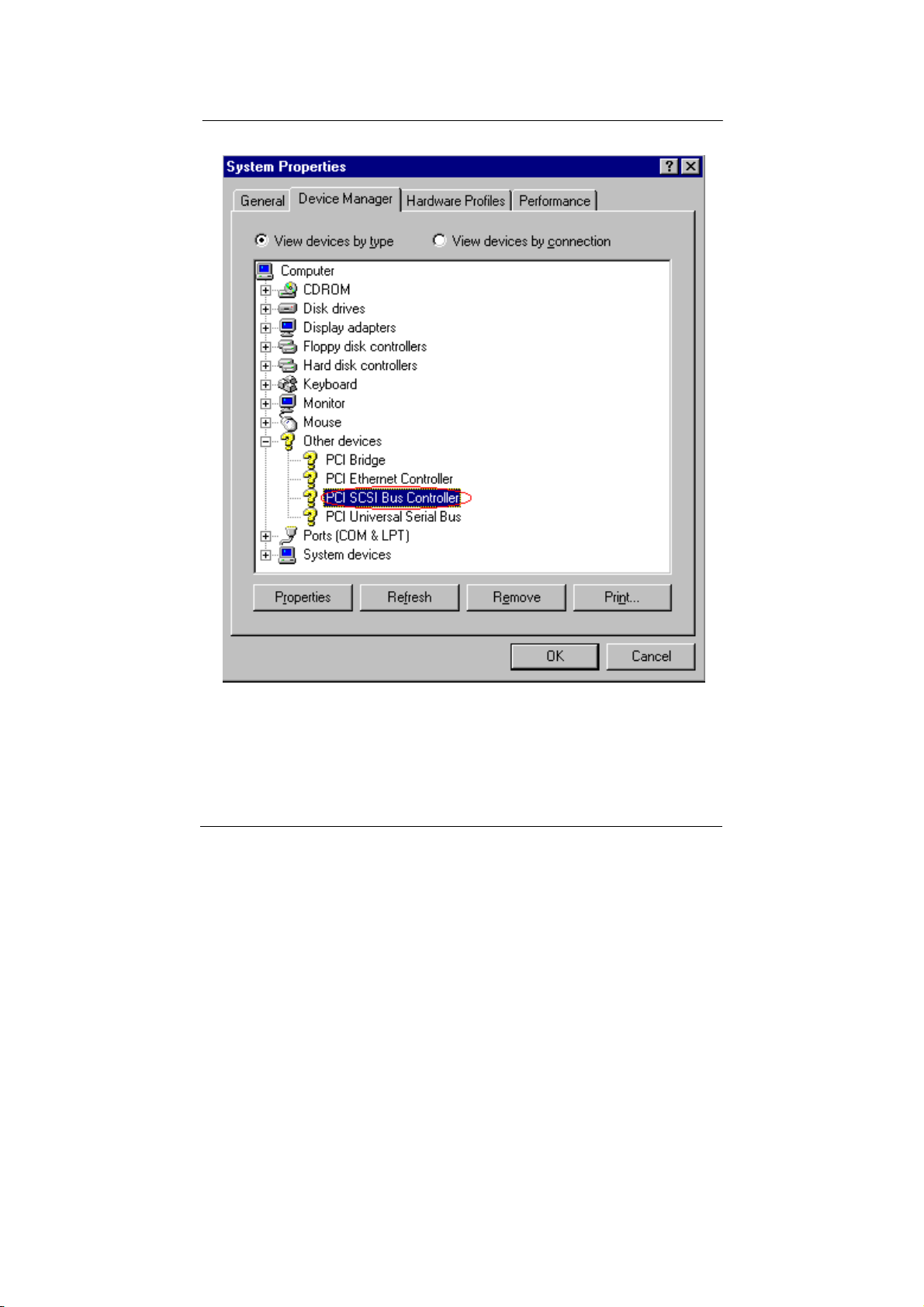

3. In the “Other Device“ double click left button, select PCI SCSI Bus

Controller, then click Properties.

4. In the PCI SCSI Bus Controller Window, select Driver page.

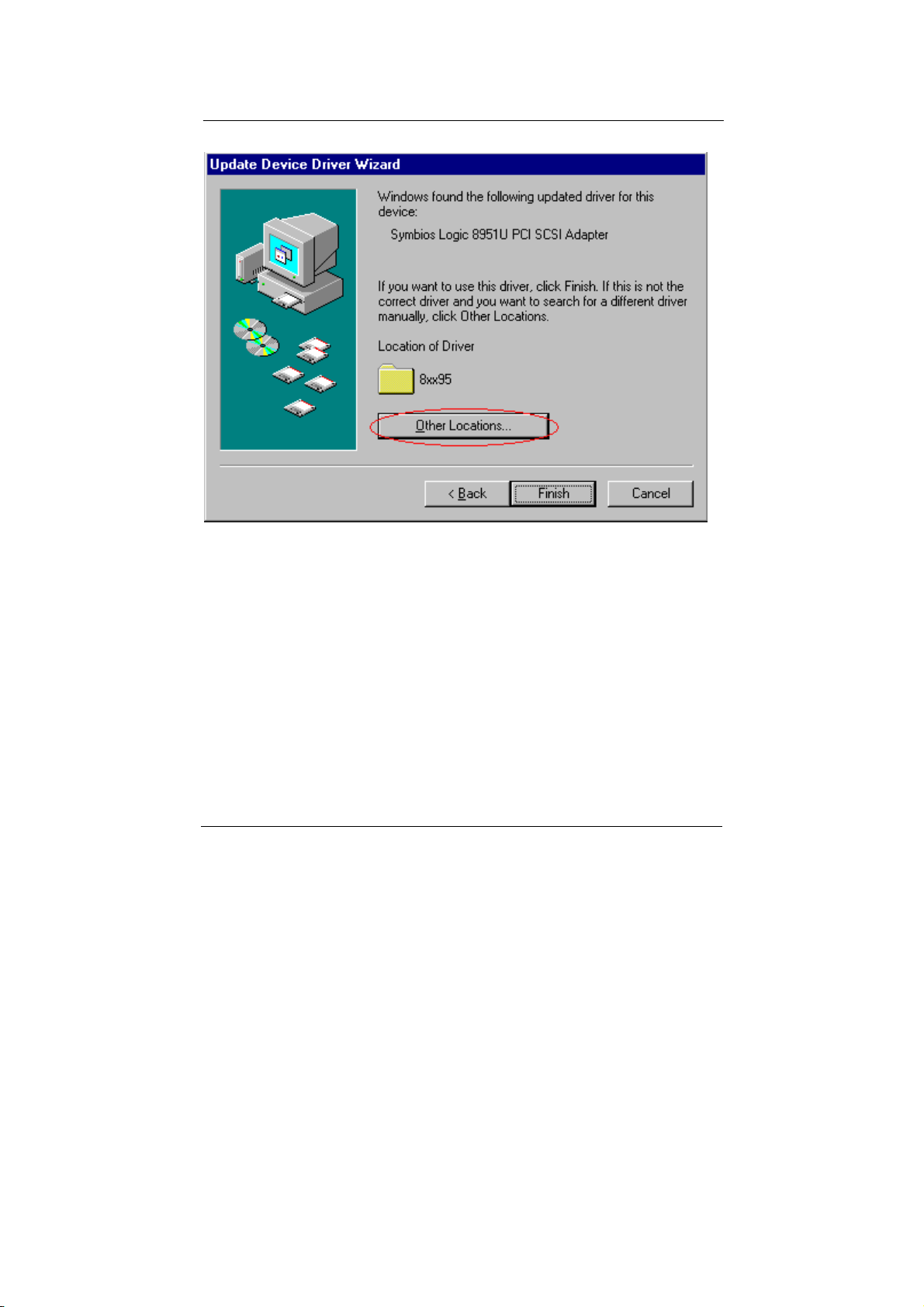

5. Click Update Driver. In Update Driver Wizard select YES, then

click NEXT.

6. Specify the path to the new driver and press <ENTER>

(If in driver a: , click Finish.)

(If you want to search for a different driver manually, click “Other
Location” and click “Browse”.)

7. Windows 95 will copy the SCSI drivers to the proper directories on

your system.

8. Continue choosing “OK”, util asked to restart your system.

9. After restart, checking on the SCSI driver, the properties of the

driver should look similar to the following figure.

59

60

61

5.6 ULTRAⅡSCSI INSTALL FOR WINDOWS NT 4.0

1. Change Boot sequence in CMOS Setup Utility select CDROM.

2. Boot from CDROM (WINDOWS NT 4.0)

3. When WINDOWS NT SETUP start, press “F6”.

4. To specify additional SYMBIOS SCSI adapter, press “S”.

5. In square windows select “Other”.

6. Insert SCSI driver disk into Driver A: , press “ENTER“ when

ready.

7. WINDOWS NT 4.0 will continue to setup until finish.

62
