Page 1
HS-6036
Socket 370 Celeron
Coppermine
•VGA •133MHz FSB•ATA/33/66•LAN•
•PC/104•IrDA•USB•WDT•H/W Monitor•
•PICMG Industrial Single Board Computer•
™
/Tualatin™
™
/
HS-6036V
Socket 370 Celeron
Coppermine
•VGA •133MHz FSB•ATA/33/66•
•PC/104•IrDA•USB•WDT•H/W Monitor•
•PICMG Industrial Single Board Computer•
™
/Tualatin™
™
/
Page 2
Copyrights
This manual is copyrighted and all rights are reserved. Unauthorized reproduction
any electronic or machine readable form in whole or in part without prior written
consent from the manufacturer is prohibited.
In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.
The manufacturer reserves the right to change the contents of this manual without
prior notice in order to improve the function design, performance, quality and
reliability. The author assumes no responsibility for any errors or omissions, which
may appear in this manual, nor does it make a commitment to update the information
contained herein.
Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or registered
trademarks of their respective companies or owners.
© Copyright 2002
All Rights Reserved.
User Manual edition 1.3, Nov.21.2002
Page 3
Contents
HS-6036 ......................................................................................................1
HS-6036V...................................................................................................II
GENERAL INFORMATION .............................................................................3
AJOR FEATURES .....................................................................................4
1.1 M
PECIFICATIONS.........................................................................................5
1.2 S
ELIVERY PACKAGE...................................................................................7
1.3 D
HARDWARE INSTALLATION ........................................................................8
2.1 C
AUTION OF STATIC ELECTRICITY.............................................................8
AUTION ON UNPACKING AND BEFORE INSTALLATION .............................9
2.2 C
2.3 HS-6036’
UICK LISTING OF JUMPERS ...................................................................11
2.4 Q
UICK LISTING OF CONNECTORS ............................................................12
2.5 Q
UMPER SETTING DESCRIPTION..............................................................13
2.6 J
ETTING THE CPU HOST CLOCK FREQUENCY.......................................14
2.7 S
ETTING THE RTC CONFIGURATION.......................................................14
2.8 S
YSTEM MEMORY DRAM........................................................................15
2.9 S
2.10 W
2.11 VGA C
2.12 D
S LAYOUT.................................................................................10
ATCH-DOG TIMER...............................................................................15
ONTROLLER................................................................................17
ISKONCHIP ADDRESS SETTING.......................................................18
CONNECTION .................................................................................................19
OWER AND FAN CONNECTORS ............................................................19
3.1 P
3.2 IDE'
3.3 E
3.4 PCI E-IDE D
3.5 P
3.6 T
3.7 S
3.8 K
3.9 PS/2 6
3.10 IR C
3.11 USB P
3.12 LAN I
3.13 I
S LED, KEYLOCK AND RESET BUTTON............................................21
XTERNAL SPEAKER................................................................................21
RIVE CONNECTOR ..............................................................22
ARALLEL CONNECTOR ...........................................................................24
HE FLOPPY DISK DRIVE CONNECTOR...................................................25
ERIAL PORTS CONNECTORS .................................................................26
EYBOARD CONNECTORS .......................................................................26
PIN MINI DIN MOUSE CONNECTOR ..............................................27
ONNECTOR .....................................................................................28
ORTS CONNECTOR.....................................................................28
NTERFACE CONNECTOR ..............................................................29
2
C BUS INTERFACE CONNECTOR.........................................................29
Contents • i
Page 4
3.14 PC/104 BUS CONNECTION....................................................................30
AWARD BIOS SETUP....................................................................................32
AIN MENU ..............................................................................................33
4.1 M
TANDARD CMOS SETUP.......................................................................34
4.2 S
DVANCED CMOS FEATURES ................................................................35
4.3 A
DVANCED CHIPSET FEATURES..............................................................36
4.4 A
NTEGRATED PERIPHERALS .....................................................................37
4.5 I
POWER MANAGEMENT SETUP .................................................................39
4.6
NP/PCI CONFIGURATION SETUP ..........................................................40
4.7 P
4.8 PC H
4.9 F
EALTH STATUS................................................................................41
REQUENCY/VOLTAGE CONTROL............................................................42
SOFTWARE UTILITIES .................................................................................43
5.1 VGA D
5.2 VGA D
5.3 VGA D
5.4 N
5.5 N
5.6 SMSC D
5.7 SMSC D
RIVER INSTALL FOR WIN95 & WIN98 .........................................44
RIVER INSTALL FOR WIN NT4.0..................................................47
RIVER INSTALL FOR WIN2000.....................................................51
ETWORK DRIVER INSTALL FOR WIN98 .................................................55
ETWORK DRIVER INSTALL FOR WIN NT4.0..........................................59
RIVER INSTALL FOR WIN95 & WIN98......................................66
RIVER INSTALL FOR WIN2000..................................................71
ii •Contents
Page 5
Chapter-1
General Information
The HS-6036 is a 100MHz FSB PICMG Bus System that also supports
133MHz clock. It features Socket 370 for Intel
Tualatin
ideal all-in-one industrial single board computer. HS-6036 uses the Intel
440BX chipset that offers better stability than other 133MHz FSB based
systems in the ISA bus and software compatibility.
With onboard ATA/33/66 and Mode 3/4 IDE disk drive interface architecture,
HS-6036 supports a maximum of 33/66MB/sec in data transfer rating with
two IDE disk drive connections.
The onboard 16MB SiS 305 display controller provides up to 1280 x 1024 x
16M colors resolution and high performance 3D acceleration.
The advanced PICMG Bus add on connection of HS-6036 allows users to
easily obtain both ISA’s 16bit and PCI’s 32-bit full set signals from a full-size
PICMG slot for suitable plug-in to systems with 8/16/32-bit ISA and PCI slots.
The HS-6036 provides four DIMM sockets supporting up to 1GB of main
system memory.
A single Flash chip holds the system BIOS, and you can easily update the
Flash BIOS by the Utility Update software. Advanced USB and IR ports also
provide for faster data transmission. You can also use the DOS version of the
DiskOnChip
the need of other software to support up to 288MB.
The HS-6036 features also include Realtek RTL8100 10/100 Based LAN
design on board. One RJ-45 connector provide a easy connections to user
for LAN applications.
If a program unexpectedly causes a halt, the on board Watchdog Timer will
automatically Reset the COU or generate an interrupt. The Watchdog is
designed with hardware only and doesn’t need any arithmetical functions of
a real-time clock chip. This ensures the reliability in an unmanned or
stand-alone system.
TM
Industrial Single Board CPU Card and functions that make it an
™ socket by issuing commands from the DOS prompt without
®
Celeron™/CoppermineTM/
3
Page 6
1.1 Major Features
Socket 370 for Intel® CeleronTM/CoppermineTM/TualatinTM
266MHz~1.2GHz CPU
Intel 82443BX/SMSC SLC90E66 system chipset
100MHz FSB provides up to 133MHz FSB
Four DIMM sockets with a max. capacity of 1GB
Winbond W83977 super I/O chipset
Fast PCI ATA/33/66 IDE controller
Two RS-232 serial ports
PC/104 Bus connector
SiS 305 3D display controller
Realtek RTL8100 10/100 Based LAN
DiskOnChip socket supporting memory sizes of up to 288MB
Supports ATX power function
Supports Hardware Monitor function
4
Page 7
1.2 Specifications
CPU：Socket 370 for Intel® CeleronTM/CoppermineTM/TualatinTM
266MHz~1.2GHz CPU
Bus Interface：PICMG Bus
Bus Clock Rate：100MHz FSB up to 133MHz FSB
Memory：Four DIMM sockets provides up to 1GB
®
Chipset：Intel
I/O Chipset：Winbond W83977
VGA：SiS 305 with 16MB memory support hardware DVD
IDE：Four IDE disk drives support ATA/33/66 and with transfer rates of up
to 33/66MB/sec
Floppy：Support up to two floppy disk drives
Parallel Port：One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
LAN：Realtek RTL8100 10/100 Based LAN
Serial Port：16C550 UART-compatible RS-232 x 2 serial ports with
16-byte FIFO
PC/104：PC/104 connector for 16-bit ISA Bus
82443BX/SMSC SLC90E66
IrDA：One IrDA TX/RX header
USB：Two USB connectors
Keyboard：PS/2 6-pin Mini DIN or 5-pin connector
Mouse：PS/2 6-pin Mini DIN or 4-pin header
DiskOnChip：DiskOnChip socket with memory sizes of up to 288MB
BIOS：Award PnP Flash BIOS
5
Page 8
Watchdog Timer：Set 1, 2, 10, 20, 110, 220 seconds activity trigger with
Reset or NMI
CMOS：DS12C887 or equivalent device
DMA Channels：7
Interrupt Levels：15
Maximum Power Consumption：+5V@8A(933MHz)、+12V@120mA、
-12V@50mA
Operating Temperature：0~60°C
Hardware Monitor：Winbond W83783S
Board Size：33.6 x 12.1 cm
6
Page 9
1.3 Delivery Package
The delivery package of HS-6036 includes all following items:
One HS-6036 Industrial Single Board Computer
One Printer Ports Bracket Flat Cable
One com port Bracket Flat Cable
Two IDE port Flat Cable
One FDD port Flat Cable
Utility CD
User’s Manual
Please contact your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the
delivery package with packing materials in case of you want to ship
or store the product in feature.
7
Page 10
Chapter-2
Hardware Installation
This chapter provides the information on how to install the hardware
of HS-6036. First, proceed with sections 1.3, 2.1 and 2.2 to check
the delivery package. Then, proceed with the jumpers setting of
switches, Watch-Dog Timer and the DiskOnChip address
selection etc.
Please be advised that we have upgrade HS-6036 v2.1 to support
Tualatin CPU by selecting JP10. Please refer Jumper Setting P.14.
2.1 Caution of Static Electricity
The HS-6036 has been well packaged with an anti-static bag to
protect sensitive computer components and circuitry from the
damage of static electric discharge.
Note: DO NOT TOUCH THE BOARD OR ANY OTHER
SENSITIVE COMPONENTS WITHOUT ALL NECESSARY
ANTI-STATIC PROTECTION.
Follow the steps below to protect the board in against the static
electric discharge whenever you handle the board:
1. Use a grounding wrist strap in handling the HS-6036. Clip the
ALLIGATOR clip of the strap to the end of the shielded wire lead
from a grounded object. Please put on and connect the strap
before handle the HS-6036 for harmlessly discharge any static
electricity through the strap.
2. Use an anti-static pad to place any components or parts or tools
on whenever working on them outside the computer. You may
also in use the anti-static bag instead the pad. Please ask from
your local supplier for your needs on anti-static requirement.
8
Page 11
2.2 Caution on Unpacking and Before Installation
First, follow all the necessary steps of section 2.1 to protect the
HS-6036 from electricity discharge. Refer to section 1.3 to check
the delivery package again with following steps:
1. Unpack the HS-6036, Store well all packing materials, manual
and diskette, etc.
2. Are there any components missing or disconnected from the
board? DO NOT INSTALL IF THIS HAPPENED.
3. Is there any visual damage ob the board? DO NOT INSTALL IF
THIS HAPPENED.
4. Check the optional parts (i.e. CPU, SRAM, DRAM, ROM-Disk
etc.) to completely set all necessary jumpers settings and CMOS
setup correctly. Refer to all information on jumpers setting in this
manual.
5. Check the needed external devices (i.e. Add-On-Card, Driver
Type etc.) to complete add-in or connection and CMOS setup
correctly. Refer to all information of connector connection in this
manual.
6. Keep all necessary manual and diskette in good condition for
re-installation purposes in the future if you change your Operating
System or when need arises.
9
Page 12
2.3 HS-6036’s Layout
10
Page 13
2.4 Quick Listing of Jumpers
JP1 RESET PIN....................................................................... P.21
JP3 AGP VGA CLOCK SELECT .............................................. P.14
JP4 CPU HOST CLOCK SELECT ............................................. P.14
JP6 CLEAR CMOS................................................................. P.14
JP8(1-4)
JP8(5-10) TIME OF WATCH-DOG SELECT ......................................... P.15
JP9 WATCH-DOG TIMER ACTIVE TYPE SETTING ...................... P.15
JP10
DISKONCHIP ADDRESS................................................. P.18
COPPERMINE OR TUALATIN SELECT ................................ P.14
11
Page 14
2.5 Quick Listing of Connectors
S1 ATX POWER SWITCH ...................................................... P.19
CN1 SPEAKER CONNECTOR ..................................................... P.21
CN2 HDD LED ....................................................................... P.21
CN3 KEYLOCK ......................................................................... P.21
CN4 5PIN KEYBOARD CONNECTOR ........................................... P.26
CN5 IR CONNECTOR................................................................ P.27
CN6 FAN CONNECTOR ............................................................ P.19
CN7 I
CN8 PRIMARY IDE CONNECTOR............................................... P.22
CN9 SECONDARY IDE CONNECTOR.......................................... P.22
CN10 ATX POWER CONNECTOR ............................................... P.19
CN11 5PIN ATX POWER CONNECTOR ........................................ P.19
CN12 FDD CONNECTOR ........................................................... P.25
CN13
CN14
CN15 USB CONNECTOR ........................................................... P.28
CN16 PARALLEL CONNECTOR.................................................... P.24
CN17 COM1 (2X5 HEADER) ..................................................... P.26
CN18 COM2 (2X5 HEADER) ..................................................... P.26
CN19
CN20
CN21 COM1 (DB9)
CN22 RJ-45 CONNECTOR ......................................................... P.28
CN23 PS/2 6PIN MINI DIN MOUSE CONNECTOR ......................... P.27
CN24 CRT DB15 CONNECTOR ................................................. P.17
CN25 COM2 (DB9)
CN26 PS/2 6PIN MINI DIN KEYBOARD CONNECTOR .................... P.26
FN2 FAN POWER CONNECTOR ............................................... P.19
FN3 FAN POWER CONNECTOR ............................................... P.19
2
C BUS CONNECTOR ....................................................... P.29
PC/104 64PIN CONNECTOR ............................................. P.29
PC/104 40PIN CONNECTOR ............................................. P.29
4PIN MOUSE CONNECTOR ................................................ P.27
INTERNAL CRT CONNECTOR ............................................ P.17
12
Page 15
2.6 Jumper Setting Description
A jumper pin-set is ON as a shorted circuit with a plastic cap
inserted over two pins. A jumper pin-set is OFF as a open circuit
with a plastic cap inserted over one or no pin(s) between pins. The

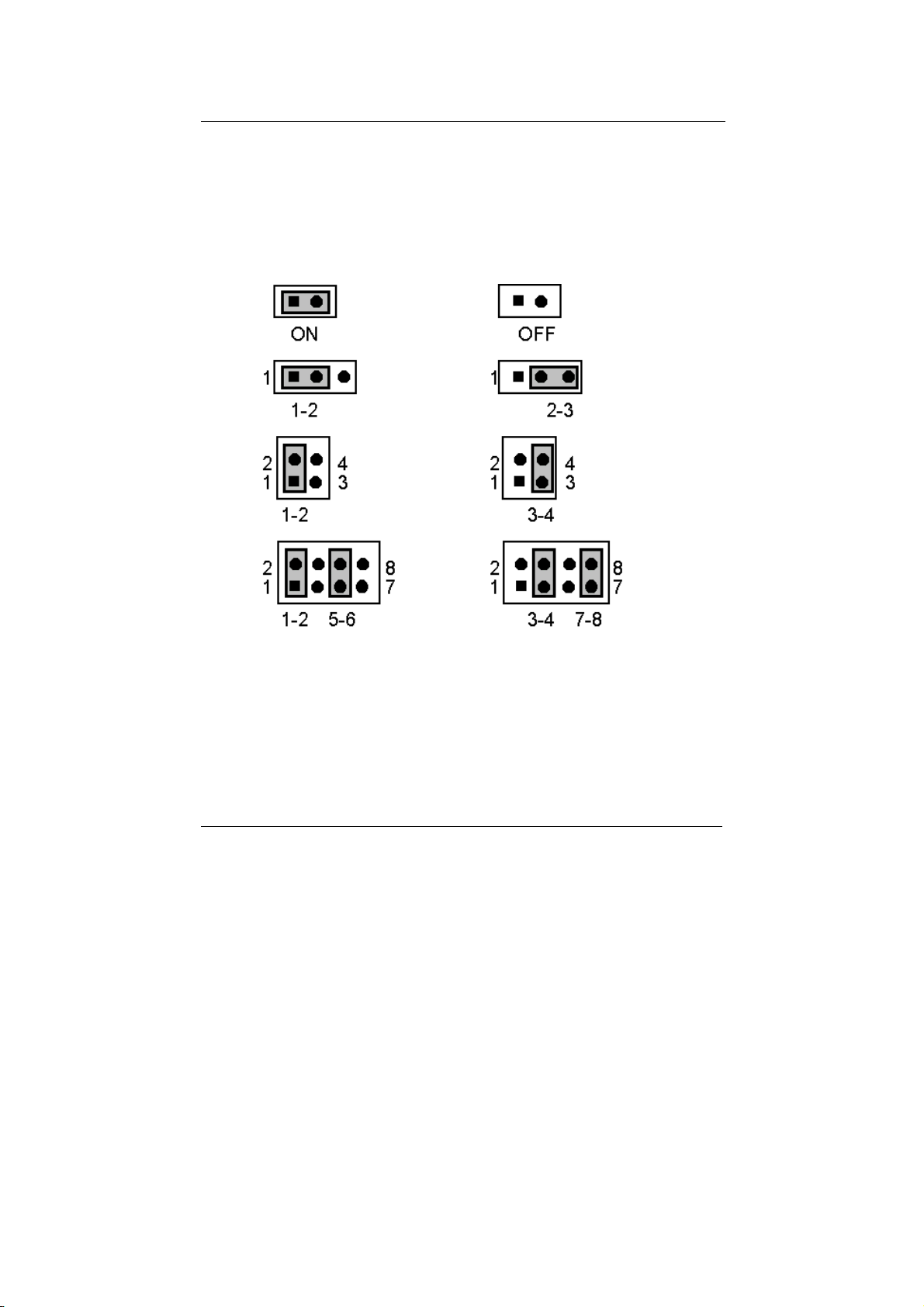

below figure 2.2 shows the examples of different jumper pin-set
setting as ON or OFF in this manual.
Figure 2.2
All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The
default setting may reference in this manual with a " * " symbol in
front of the selected item.
13
Page 16
2.7 Setting the CPU Host Clock Frequency
The HS-6036 provides all necessary by jumper setting in using Bus
Clock frequency as the system bus clocking with JP3 & JP4 setting
as follows:
Setting the AGP VGA Clock of JP3 :
AGP VGA Clock JP3
66MHz 1-2
* 100MHz 1-2
133MHz 2-3
Setting the CPU Host Clock of JP4 :
Host Clock 1-2 3-4
*Auto ON ON
BIOS Setting OFF OFF
Coppermine or Tualatin CPU Select of JP10：
CPU Type JP10
*Tualatin ON
Coppermine OFF
2.8 Setting the RTC Configuration
The HS-6036 provides a setting for the selection of the RTC Clear
Jumper by JP6 setting as follows:
CMOS Setting of JP6(Only for DS12B887)：
CMOS Clear Jumper JP6
Normal * OFF
Clear CMOS ON
14
Page 17
2.9 System Memory DRAM
The HS-6036 provides a wide SDRAM memory support with four
DIMM sockets request the access time should meet PC-133
standard (if use 133MHz FSB). The maximum capacity of the on
board memory is 1GB. Use memory module of the same brand and
size to avoid instability due to different access time.
2.10 Watchdog Timer
There are three access cycles of Watchdog Timer which are
Enable, Refresh and Disable. The Enable cycle should proceed by
READ PORT 443H. The Disable cycle should proceed by READ
PORT 045H. A continue Enable cycle after a first Enable cycle
means Refresh.
Once if the Enable cycle activity, a Refresh cycle is request before
the time-out period for restart counting the Watch-Dog Timer period.
Otherwise, it will assume that the program operation is abnormal
when the time counting over the period preset of Watchdog Timer. A
System Reset signal to start again or a NMI cycle to the CPU comes
if over.
The JP9 is using for select the active function of Watchdog Timer in
disable the Watchdog Timer, or presetting the Watchdog Timer
activity at the reset trigger, or presetting the Watchdog Timer activity
at the NMI trigger.
JP9 : Watchdog Active Type Setting
JP9 DESCRIPTION
1-2 Active NMI
*2-3 System Reset
OFF Disable Watch-Dog Timer
The Watchdog Timer is disabled after the system Power-On. The
Watchdog Timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port
(443H) and a Disable cycle by reading the Watchdog Timer disable
control port (045H). After a Enable cycle of Watchdog Timer, user
15
Page 18
must constantly proceed a Refresh cycle to Watchdog Timer before its
period setting comes ending of every 1, 2, 10, 20, 110 or 220 seconds
which pre-setting by JP8(5-10). If the Refresh cycle does not active
before Watchdog Timer period cycle, the on board Watchdog Timer
architecture will issue a Reset or NMI cycle to the system.
JP8 (5-10) : Watchdog Timer - Out Period
PERIOD JP8(5-6) JP8(7-8) JP8(9-10)
*1 sec ON ON ON
2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON
110 sec ON ON OFF
220 sec OFF ON OFF
The Watchdog Timer is control by two I/O ports.
443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
The following sample programs showing how to Enable, Disable
and Refresh the Watchdog Timer:
WDT_EN_RF EQU 0443H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
POP DX ; get back AX, DX
POP AX
RET
045H I/O Read The Disable cycle.
IN AL,DX
16
Page 19
2.11 VGA Controller
The HS-6036 provides three possible VGA connections. One uses a standard
DB15 internal VGA connector, CN24 (see below). Another header is 5X2
internal VGA connector, CN20.
The HS-6036 has built-in a SiS 503 VGA controller with on chip 16MB
memory that supports resolutions up to 1024x768x16M colors.
CN20 : VGA connector (5x2 Header)
PIN NO. Description PIN NO. Description
1 RED 2 GND
3 GREEN 4 GND
5 BLUE 6 GND
7 HSYNC 8 GND
9 VSYNC 10 GND
CN24 : VGA connector (DB15)
PIN NO. Description PIN NO. Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 NC 10 GND
11 NC 12 DDC Data
13 HSYNC 14 VSYNC
15 DDC CLK
17
Page 20
2.12 DiskOnChip Address Setting
The HS-6036 provides a U17 socket for install the DiskOnChip
module.
A JP8(1-4) may select the starting memory address of the
DiskOnChip (D.O.C.) to avoid the mapping area with any other
memory devices. If you have another extra memory devices in the
system with the same memory, neither the HS-6036 nor the extra
memory devices will function normally. Please set both at different
memory address mapping.
JP8(1-4) : DiskOnChip Address Select
Memory Address Mapping 1-2 3-4
D000 ON ON
D800 OFF ON
E000 ON OFF
E800 OFF OFF
*) : default setting
The D.O.C. function allows the system to run without FDD nor HDD.
The D.O.C. may be used as drive C: or drive A: User may also
easily use the DOS's commands such as FORMAT, SYS, COPY,
XCOPY, DISCOPY and DISKCOMP etc. This means that the
D.O.C. may be used as drive A if the system is without FDD-A for
ambient application. Please contact your supplier for different
D.O.C. module sizes.
18
Page 21
Chapter-3
Connection
This chapter gives all necessary information of the peripheral
connections, switches and indicators.
3.1 Power and FAN Connectors
The HS-6036 provides three 3pin FAN out connector - CN6, FN2,
FN3.
S1 is the ATX Power Switch, CN10 is the ATX Power Connector,
CN11 is the 5pin ATX Power Connector.
CN6 : 3pin FAN Connector
PIN NO. Description
1 FAN ON/OFF
2 +12V
3 FAN Speed
S1 : ATX Power Function Switch
PIN NO. Description
1 3VSB
2 Power On Signal
CN11 : 5pin ATX Power Connector
PIN NO. Description
1 VCC (+5V)
2 5VSB
3 +12V
4 SUSC (ATX Power ON/OFF Signal)
5 GND
19
Page 22
The HS-6036 supports ATX Power function by CN10. The connector of
CN11 can control the 5pin ATX Power via the extension cable from the
Backplane.
CN10 Description CN10 Description
1 3V 11 3V
2 3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 PG 18 -5V
9 5VSB 19 +5V
10 +12V 20 +5V
FN2, FN3 : 3pin FAN Connector
PIN NO. Description
1 GND
2 +12V
3 FAN Speed
20
Page 23
3.2 IDE's LED, Keylock and Reset Button
The HS-6036 has one LED indicates out power-on status. And the
following provides the pin information for IDE's LED indicator,
Keylock and Reset Button connections from CN2, CN3 and JP1. If
user doesn’t need keylock function, CN3 could be use for power led
connect pin-1 + pin-3 OR pin-1 + pin-5.
CN2 : IDE LED Connector
PIN NO. Description
1 HDD ACTIVE#
CN3 : Keylock
JP1 : Reset Button
2 +5V (with 330resist)
PIN NO. Description
1 VCC (with 330 resist)
2 N.C.
3 GND
4 Keylock5 GND
PIN NO. Description
1 GND
2 External Reset
3.3 External Speaker
The HS-6036 has an on-board buzzer (BZ1). And it also provides
the CN1 to allow user to connecting to the external speaker.
CN1 : Speaker Connector
PIN NO. Description PIN NO. Description
1 Speaker Signal 3 GND
2 NC 4 +5V
21
Page 24
3.4 PCI E-IDE Drive Connector
Two standard 40pin header daisy chain drive connectors provide as
CN8 and CN9 with following pin assignment. A total four IDE disk
(Integrated Device Electronics) drivers may be connected.
CN8: Primary IDE Connector
PIN NO. Description PIN NO. Description
1 Reset 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 NC
21 NC 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 NC 28 BALE - DEFAULT
29 NC 30 GND# -DEFAULT
31 Interrupt 32 IOCS16#-DEFAULT
33 SA 1 34 NC
35 SA 0 36 SA 2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GND
22
Page 25
CN9: Secondary IDE Connector
PIN NO. Description PIN NO. Description
1 Reset 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 NC
21 NC 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 NC 28 BALE - DEFAULT
29 NC 30 GND# -DEFAULT
31 Interrupt 32 IOCS16#-DEFAULT
33 SA 1 34 NC
35 SA 0 36 SA 2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GND
23
Page 26
3.5 Parallel Connector
A standard 26pin flat cable driver connector is provided as CN16
with the following pin assignment for connection to parallel printer.
CN16: Parallel Connector
PIN NO. Description PIN NO. Description
1 Strobe 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 Acknowledge
11 Busy 12 Paper Empty
13 Printer Select 14 Auto Form Feed
15 ERROR# 16 Initialize
17 Printer Select LN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND 26 GND
24
Page 27
3.6 The Floppy Disk Drive Connector
A standard 34pin header daisy-chain drive connector is provided as
CN12 with following pin assignment. A total two FDD drivers may be
connected.
CN12 : FDD Connector
PIN NO. Description PIN NO. Description
1 GND 2 Reduce Write
3 GND 4 NC
5 GND 6 NC
7 GND 8 Index#
9 GND 10 Motor Enable A#
11 GND 12 Drive Select B#
13 GND 14 Drive Select A#
15 GND 16 Motor Enable B#
17 GND 18 Direction#
19 GND 20 Step#
21 GND 22 Write Data#
23 GND 24 Write Data#
25 GND 26 Track 0#
27 GND 28 Write Protect#
29 GPI 21 30 Read Data#
31 GND 32 Side1 Select
33 GND 34 Disk Change#
25
Page 28
3.7 Serial Ports Connectors
The HS-6036 offers two high speeds 16C550 compatible UART
with Read/Receive 16byte FIFO serial ports with two internal 10pin
header.
CN17, CN18 : COM1, COM2 Connector (5x2 Header)
PIN NO. Description PIN NO. Description
1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC
3.8 Keyboard Connectors
The HS-6036 offers two possibilities for keyboard connections to
external PS/2 type keyboard at CN26 or an internal 5pin header at
CN4.
CN4: 5pin Keyboard Connector
PIN NO. Description
1 Keyboard Clock
2 Keyboard Data
3 NC
4 GND
5 +5V
26
Page 29
CN26 : 6pin Mini Din Keyboard Connector
PIN NO. Description
1 Keyboard Data
2 NC
3 GND
4 +5V
5 Keyboard Clock
6 NC
3.9 PS/2 6pin Mini Din Mini Connector
The HS-6036 provides an external PS/2 mouse connector at CN23
and 4pin connector at CN19.
CN23 : PS/2 6pin Mini Din Mouse Connector
PIN NO. Description
1 Data
2 NC
3 GND
4 +5V
5 CLK
6 NC
CN19 : 4pin Mouse Connector
PIN NO. Description
1 CLK
2 Data
3 VCC
4 GND
27
Page 30
3.10 IrDA Connector
The HS-6036 provides a 5pin internal IrDA communication
connector as following CN5 pin information.
CN5 : IrDA Connector
PIN NO. Description
1 VCC
2 FIRRX
3 IRRX
4 GND
5 IRTX
3.11 USB Ports Connector
The HS-6036 provides two internal 8pin USB ports connectors.
Please refer to the following detail pin information.
CN15：USB Connector
PIN NO. CN15 PIN NO. CN15
1 VCC 2 VCC
3 BD0- 4 BD15 BD0+ 6 BD1+
7 GND 8 GND
28
Page 31
3.12 LAN Interface Connector
The HS-6036 provides RJ-45 10/100 Based LAN interface
connector. Please refer to the following detail of pin information.
CN22 : RJ-45 Connector
PIN NO. CN22
1 TX+
2 TX3 RX+
4 R/C GND
5 R/C GND
6 RX7 R/C GND
8 R/C GND
9 GND
3.13 I2C Bus Interface Connector
HS-6036 provides a set of external I2C Bus signals with the use of
CN7.
CN7：I
2
C Bus Signal
PIN NO. Description
1 Data
2 Clk
3 GND
29
Page 32
3.14 PC/104 Bus Connection
The HS-6036’s PC/104 expansion bus allows you to connect all
kind of PC/104 modules. The PC/104 bus has already become the
industrial embedded 16bit PC standard bus. You can easily install
over thousands type of PC/104 modules from hundreds of vendors
in the world. The detailed pin assignment of the PC/104 expansion
bus connectors CN13 and CN14 are specified as following tables:
Note : The PC/104 connector allows to directly plug-in
Stack-thru PC/104 modules without the PC/104
mounting kit.
30
Page 33
CN13&CN14 : PC/104 Expansion Bus
(CN13 = 64pin female connector; CN14 = 40pin female connector.)
Pin
No.
CN13
Row A
Pin
No.
CN13
Row B
Pin
No.
CN14
Row D
Pin
No.
CN14
Row C
1 IOCHECK* 33 0V 1 0V 21 0V
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17
10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 0V
32 0V 64 0V
31
Page 34
Chapter-4
AWARD BIOS Setup
The HS-6036 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.
To access AWARD PCI/ISA BIOS Setup program, press <Del> key.
The Main Menu will be displayed at this time.
32
Page 35
4.1 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to
select from several setup functions and two exit choices. Use the
arrow keys to select among the items and press <Enter> to enter
the sub-menu.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status
Esc : Quit F9：Menu in BIOS : Select Item
F10 : Save & Exit Setup
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
X Frequency/Voltage Control
X Load Fail-Safe Defaults
X Load Optimized Defaults
X Set Supervisor Password
X Set User Password
X Save & Exit Setup
X Exit Without Saving
33
Page 36
4.2 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Standard CMOS Features
Date (mm：dd：yy) Wed, Jul 11 2001
Time (hh：mm：ss) 10 ： 32 ：57
X IDE Primary Master [None]
X IDE Primary Slave [None] Change the day, month,
X IDE Secondary Master [None] year and century
X IDE Secondary Slave [None]
Drive A [1.44M, 3.5in.]
Drive B [None]
Video [EGA/VGA]
Halt On [All, But Keyboard]
Base Memory 640K
Extended Memory 65472K
Total Memory 1024K
：Select Item + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
Menu Level X
34
Page 37
4.3 BIOS Features Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Advanced CMOS Features
Virus Warning [Disabled] Menu Level X
CPU Internal Cache [Enabled]
External Cache [Enabled]
CPU L2 Cache ECC Checking [Enabled] Allows you to choose
Processor Number Feature [Enabled] the VIRUS warning
Quick Power On Self Test [Disabled] feature for IDE Hard
First Boot Device [Floppy] Disk boot sector
Second Boot Device [HDD-0] protection. If this
Third Boot Device [LS-120] function is enabled
Boot Other Device [Enabled] and someone attempt to
Swap Floppy Drive [Disabled] write data into this
Boot Up Floppy Seek [Enabled] area, BIOS will show
Boot Up NumLock Status [On] a warning message on
Gate A20 Option [Fast] screen and alarm beep
Typematic Rate Setting [Disabled]
Typematic Rate(Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option [Setup]
OS Select For DRAM > 64MB [Non-OS2]
Report No FDD For WIN 95 [No]
Video BIOS Shadow [Enabled]
C8000-CBFFF Shadow [Disabled]
CC000-CFFFF Shadow [Disabled]
D000-D3FFF Shadow [Disabled]
D4000-D7FFF Shadow [Disabled]
D8000-DBFFF Shadow [Disabled]
DC000-DFFFF Shadow [Disabled]
Small Logo (EPA) Show [Enabled]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
35
Page 38
4.4 Chipset Features Setup
This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Advanced Chipset Features
SDRAM RAS-to CAS Delay [3] Menu Level X
SDRAM RAS Precharge Time [3]
SDRAM CAS latency Time [3]
SDRAM Precharge Control [Enabled]
DRAM Data Integrity Mode [Non-ECC]
System BIOS Cacheable [Enabled]
Video BIOS Cacheable [Enabled]
Video RAM Cacheable [Enabled]
8 Bit I/O Recovery Time [3]
16 Bit I/O Recovery Time [2]
Memory Hole At 15M-16M [Disabled]
AGP Aperture Size (MB) [64]
Power-Supply Type [Auto]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
36
Page 39
4.5 Integrated Peripherals
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Integrated Peripherals
IDE Primary Master PIO [Auto] Menu Level X
IDE Primary Slave PIO [Auto]
IDE Secondary Master PIO [Auto]
IDE Secondary Slave PIO [Auto]
IDE Primary Master UDMA [Auto]
IDE Primary Slave UDMA [Auto]
IDE Secondary Master UDMA [Auto]
IDE Secondary Slave UDMA [Auto]
On-Chip Primary PCI IDE [Enabled]
On-Chip Secondary PCI IDE [Enabled]
USB Keyboard Support [Enabled]
Init Display First [PCI Slot]
IDE HDD Block Mode [Enabled]
KBC input clock [8 MHz]
Onboard FDC Controller [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
UART2 Duplex Mode [Half]
RxD, TxD Active [Hi,Lo]
IR Transmission delay [Enabled]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
ECP Mode Use DMA [3]
EPP Mode Select [EPP1.7]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
37
Page 40
4.6 Power Management Setup
The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Power Management Setup
ACPI function [Enabled] Menu Level X
Power Management [User Define]
PM Control by APM [Yes]
Video Off Method [V/H SYNC+Blank]
Video Off After [Standby]
MODEM Use IRQ [3]
Doze Mode [Disable]
Standby Mode [Disable]
Suspend Mode [Disable]
HDD Power Down [Disable]
Throttle Duty Cycle [62.5%]
VGA Active Monitor [Disabled]
Soft-Off by PWR-BTTN [Instant-Off]
PowerOn by Ring [Enabled]
IRQ 8 Break Suspend [Disabled]
** Reload Global Timer Events**
IRQ[3-7, 9-15], NMI [Disabled]
Primary IDE 0 [Disabled]
Primary IDE 1 [Disabled]
Secondary IDE 0 [Disabled]
Secondary IDE 1 [Disabled]
Floppy Disk [Disabled]
Serial Port [Enabled]
Parallel Port [Disabled]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
38
Page 41
4.7 PnP/PCI Configuration Setup
In this section, the PnP/PCI configuration setup allows you to configure
the ISA and PCI devices installed in your system by manually or auto.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
PnP/PCI Configurations
PNP OS Installed [Yes] Menu Level X
Reset Configuration Data [Disabled]
Resources Controlled By [Auto(ESCD)] Select Yes if you are
IRQ Resources
DMA Resources Press Enter capable operating
Memory Resources Press Enter system. Select No
if you need the BIOS
PCI/VGA Palette Snoop [Disabled] to configure
non-boot devices
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Press Enter
Item Help
using a plug and
play
39
Page 42
4.8 PC Health Status
CMOS Setup Utility－Copyright ©1984-2001 Award Software
PC Health Status
CPU Warning Temperature [Disabled] Menu Level X
Current System Temp.
Current CPU1 Temperature
Current CPUFAN1 Speed
Current CPUFAN2 Speed
Current CPUFAN3 Speed
Vcore
+3.3V
+5 V
+12 V
-12 V
Shutdown Temperature [Disabled]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
40
Page 43
4.9 Frequency/Voltage Control
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Frequency/Voltage Control
Auto Detect DIMM/PCI Clk [Enabled] Menu Level X
CPU Clock/Spread Spectrum [Default]
：Move Enter：Select + / - /PU/PD：Value F10：Save ESC：Quit F1：General Help
F5：Previous Values F6：Fail-Safe Defaults F7：Optimized Defaults
Item Help
41
Page 44
Chapter-5
Software Utilities
This chapter provides the detailed information of VGA、LAN and
SMSC DMA66 function. How to install the configuration is also
included.
Section include:
n
VGA DRIVER INSTALLATION
n NETWORK DRIVER INSTALLATION
n SMSC DRIVER INSTALLATION
42
Page 45
5.1 VGA DRIVER INSTALL FOR WIN95&98

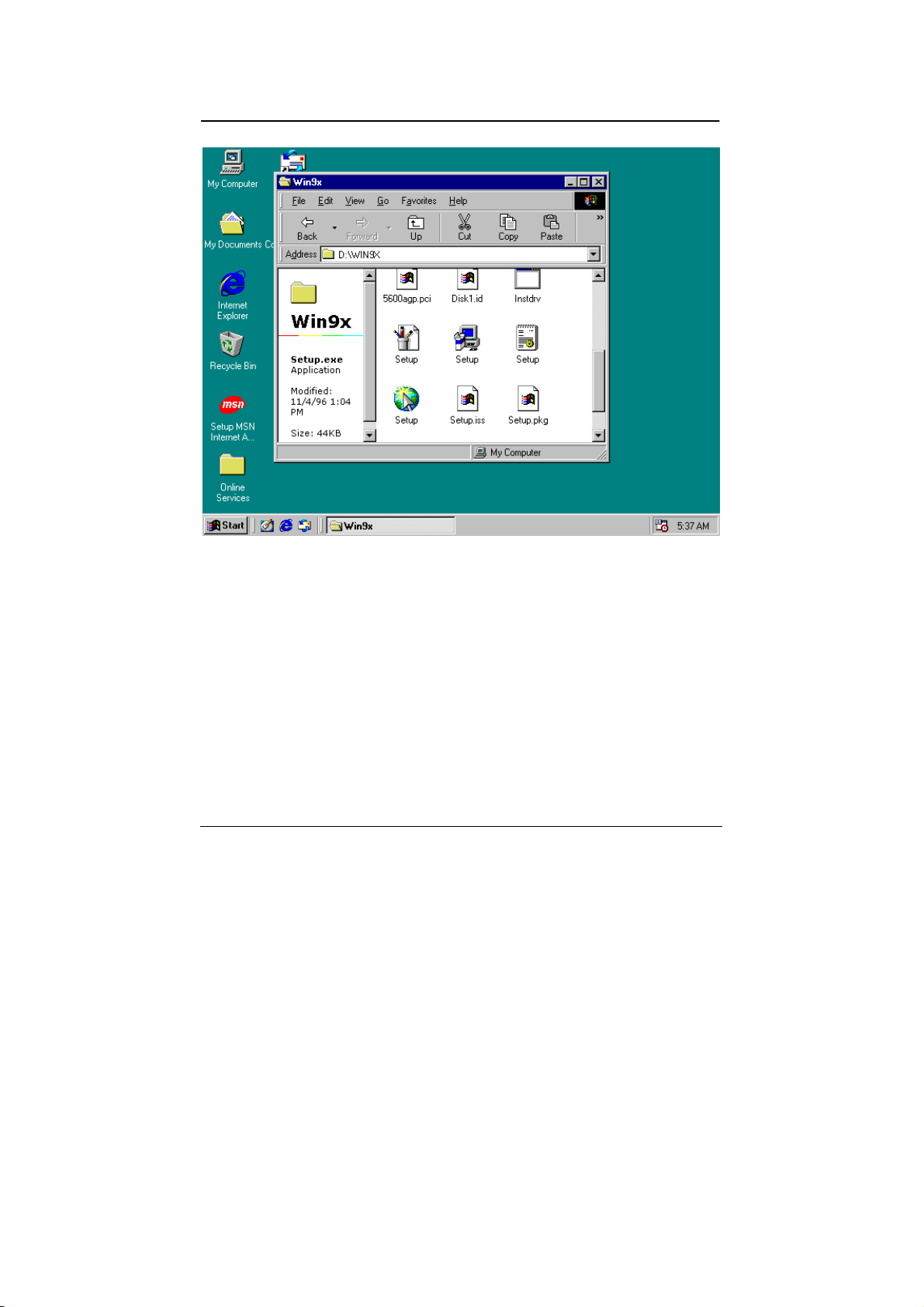

1. Enter Explorer and move to source location
2. Execute “Setup”
3. Follow the installation procedure

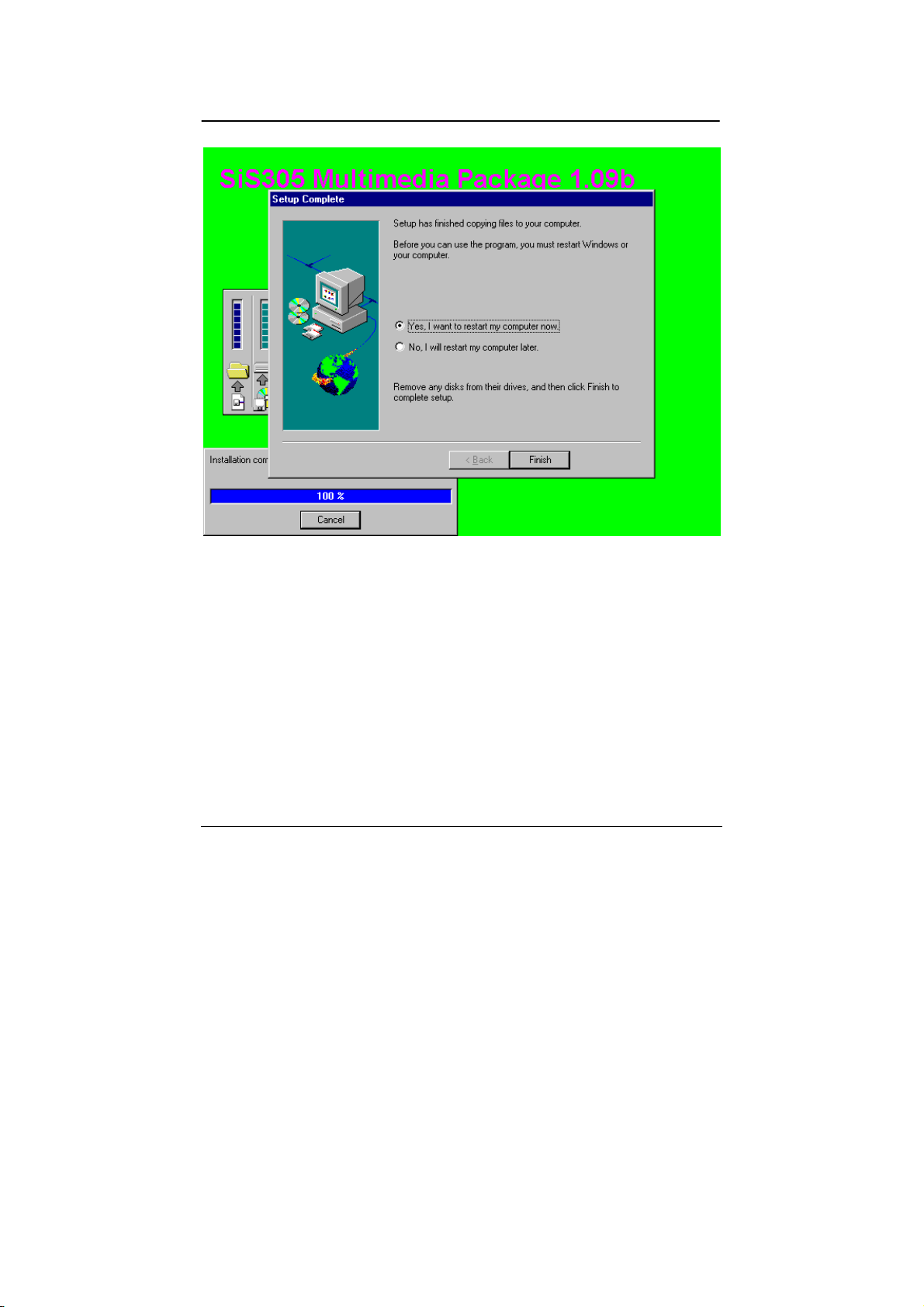

4. Re-start Computer and driver will be properly installed
43
Page 46
44
Page 47
45
Page 48

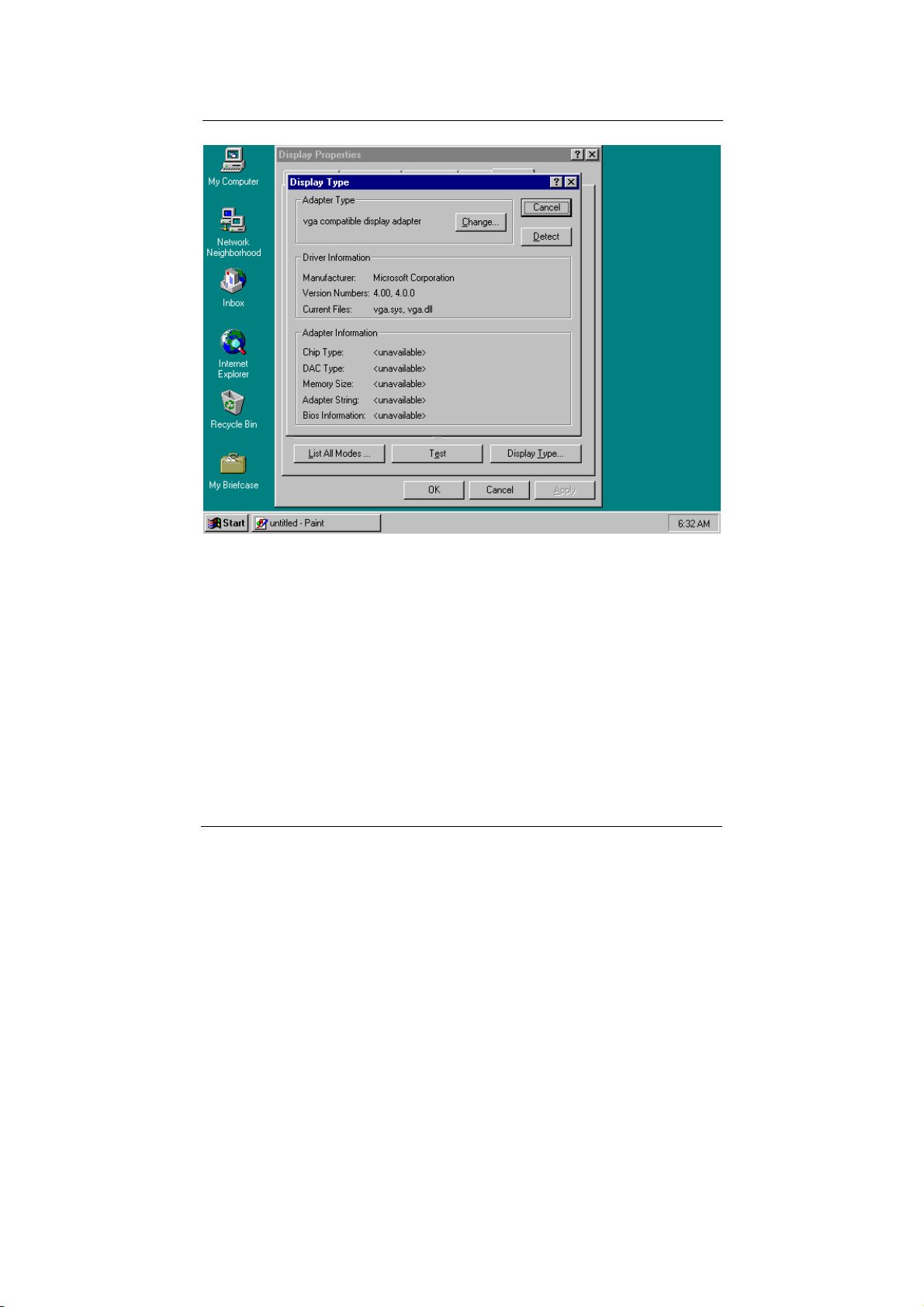

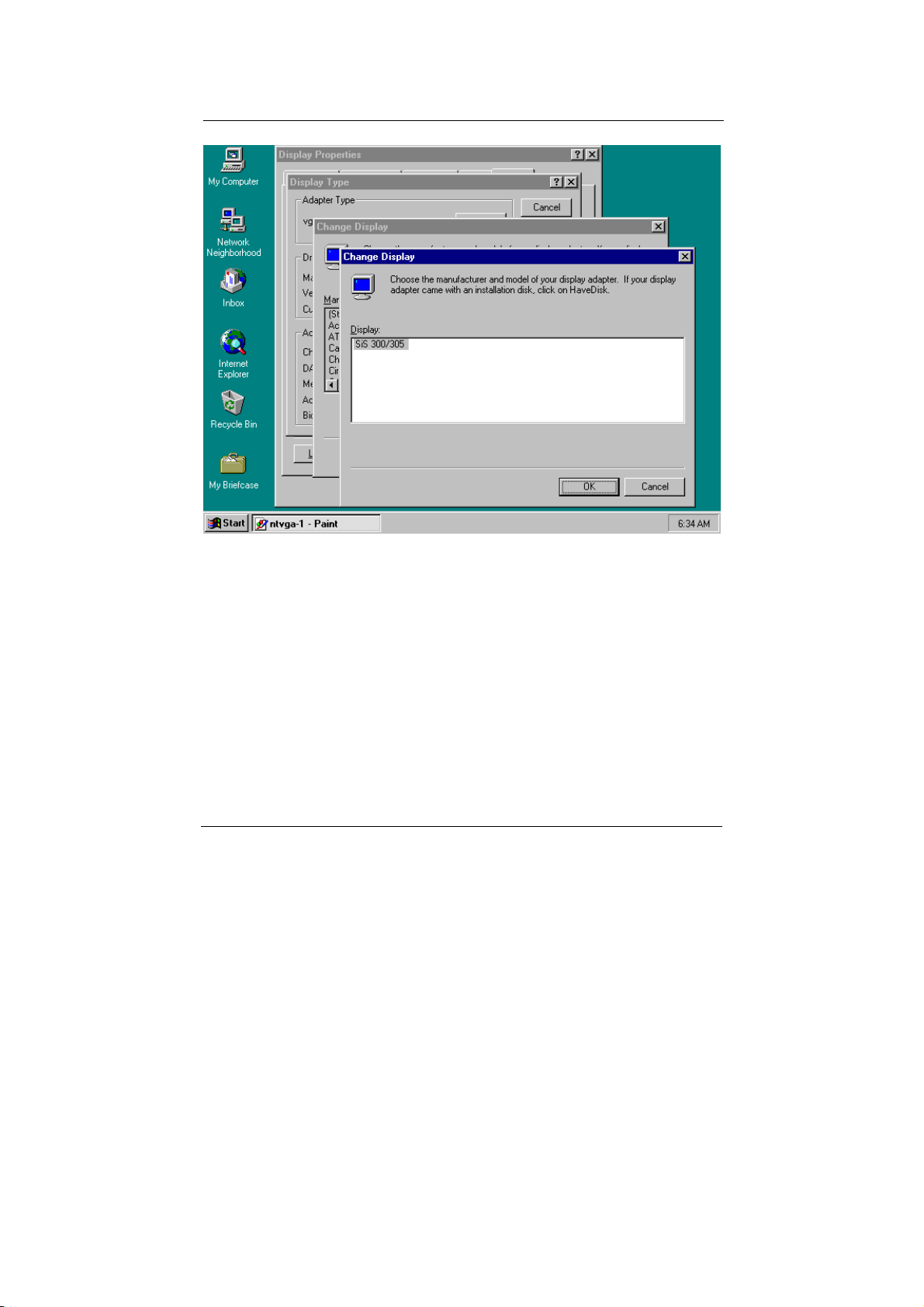

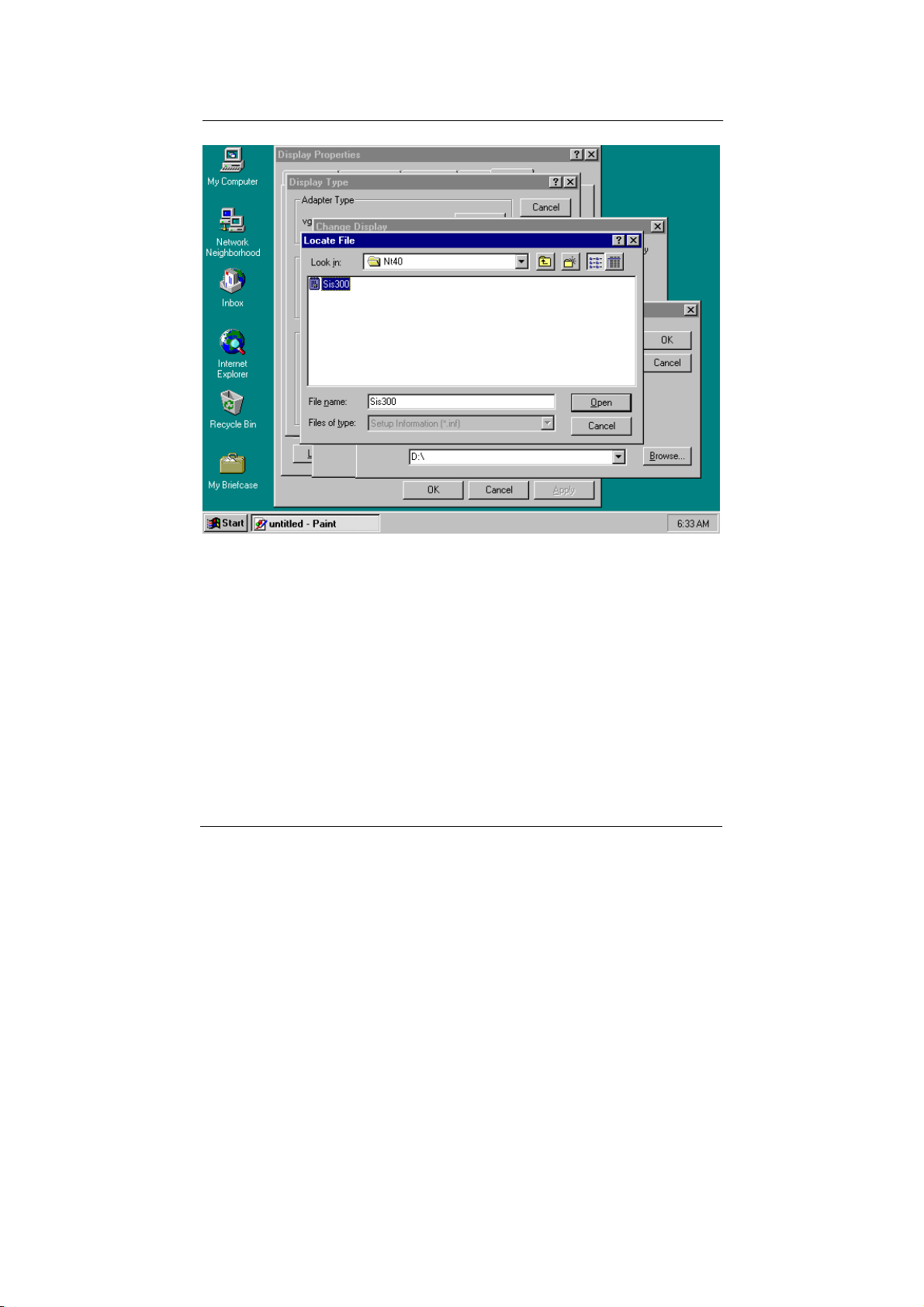

5.2 VGA DRIVER INSTALL FOR WIN NT4.0
1. Click the Start button, then go to Setting and click on Control
Panel.
2. Click on Display icon to start the Display Properties Window.
3. Click on the Settings tab, and then click on Display Type.
4. In the Change Display Type window, click on “Have Disk”.
5. Specify the path to the new driver and press the <ENTER>key.
(if in driver A:, type a:\nt40)
Select
SiS 300/305
6. Click OK or press Enter
7. You will see warning panel about Third Party Drivers. Click on
Yes to finish the installation.
8. Once the installation is completed, the system must shut down
and restart for the new driver to take effect.
9. After restart, checking on the VGA driver, the properties of the
driver should look similar to the following figure.
Note：Install Service Pack 6 First
46
Page 49
47
Page 50
48
Page 51
49
Page 52

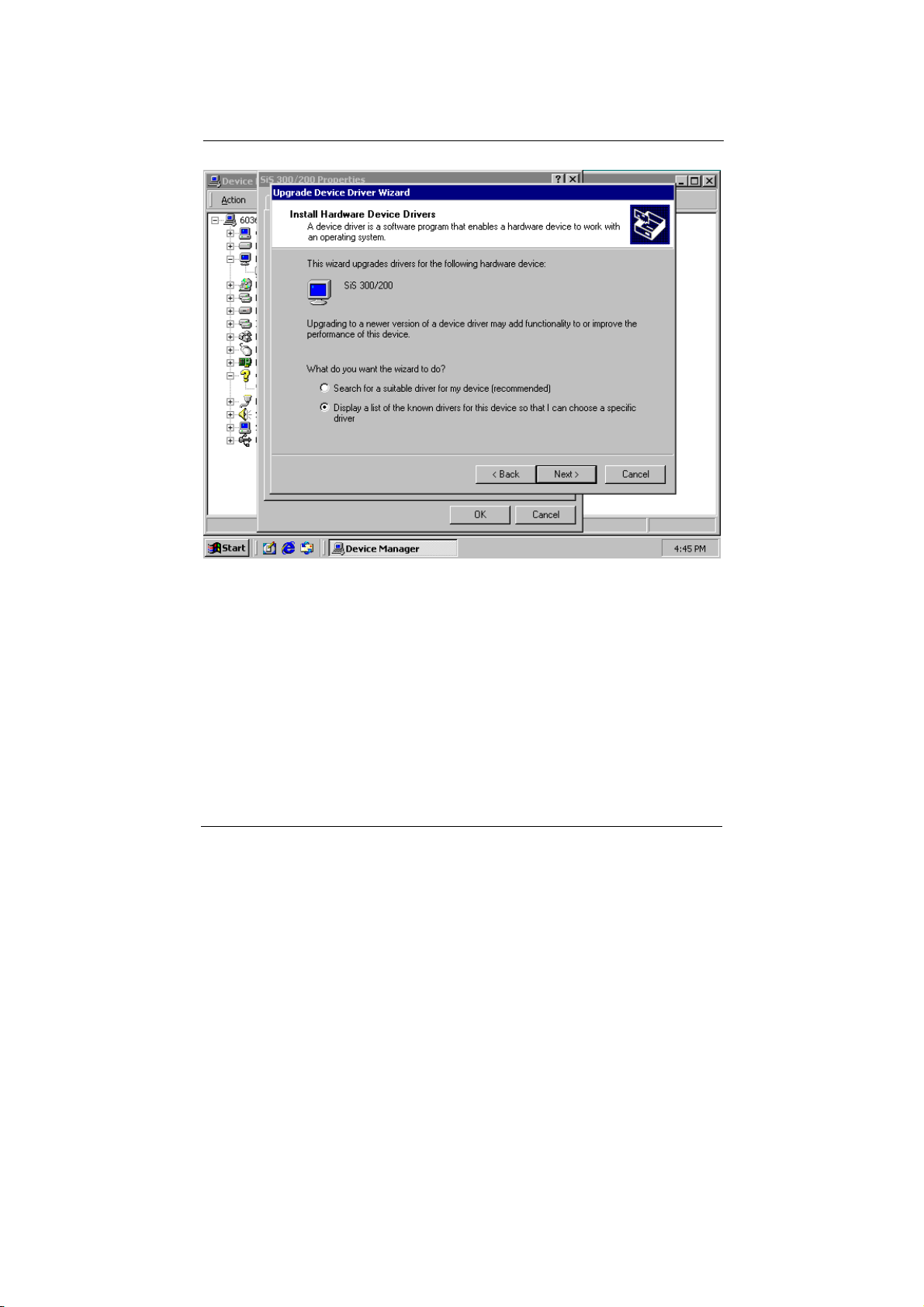

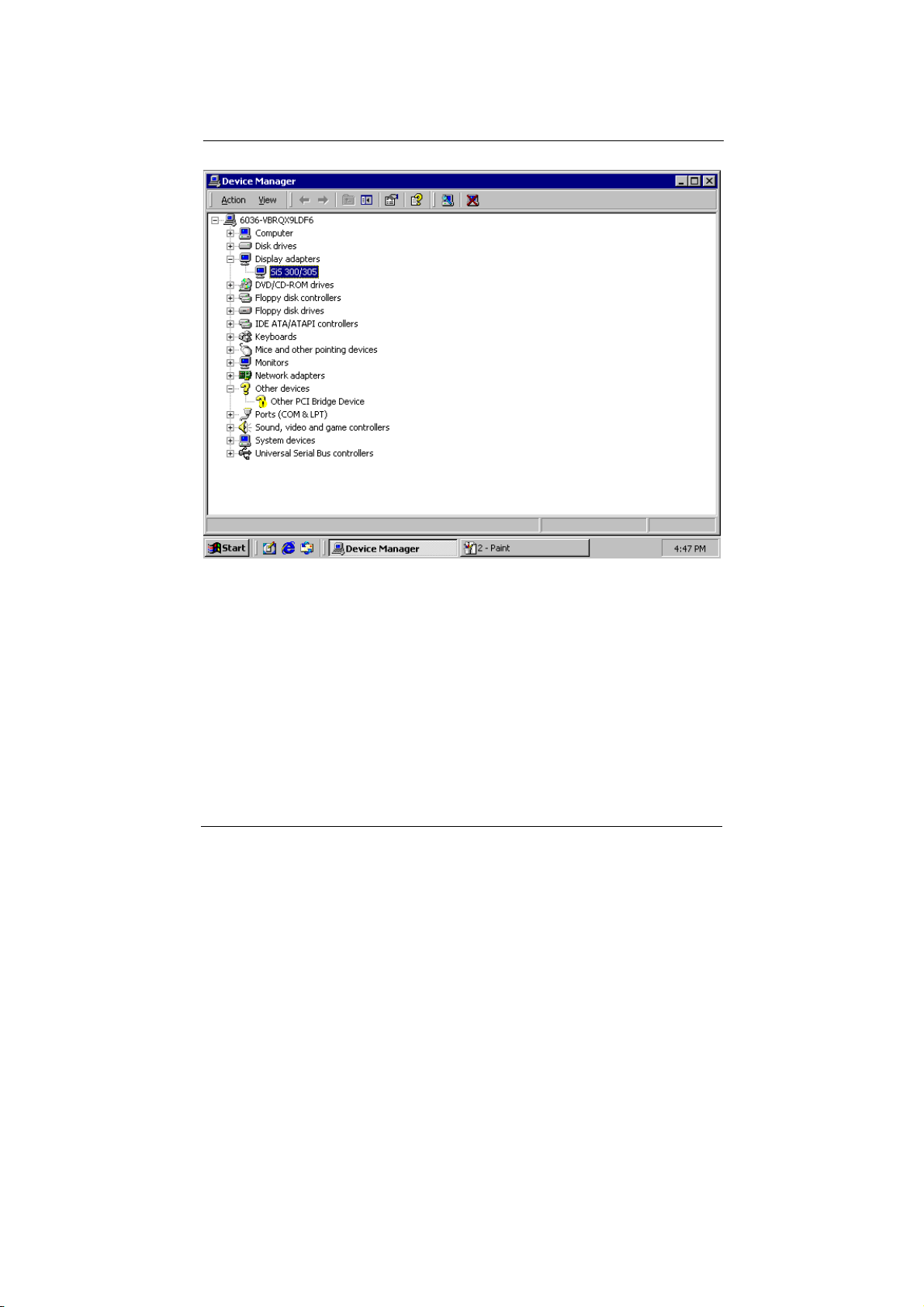

5.3 VGA DRIVER INSTALL FOR WIN 2000
1. Click the Start button, then go to Setting and click on Control
Panel.
3. Click on Display icon to start the Display Properties Window.
4. Click on the Settings tab, and then click on Display Type.
5. In the Change Display Type window, click on “Have Disk”.
6. Specify the path to the new driver and press the <ENTER>key.
(if in driver A:, type a:\nt40)

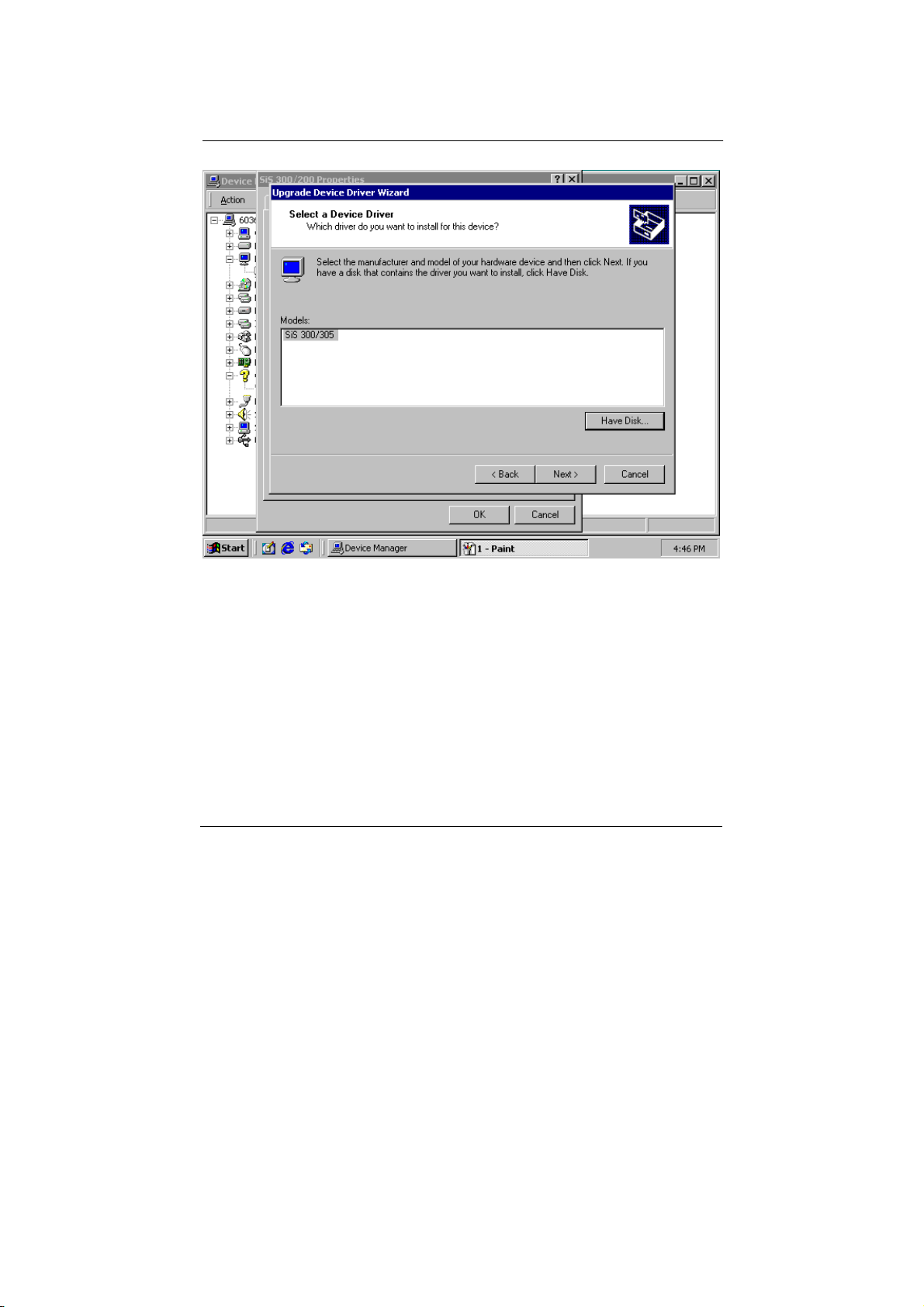

Select
SiS 300/305
7. Click OK or press Enter
8. You will see warning panel about Third Party Drivers. Click on
Yes to finish the installation.
9. Once the installation is completed, the system must shut down
and restart for the new driver to take effect.
After restart, checking on the VGA driver, the properties of the driver
should look similar to the following figure.
50
Page 53
51
Page 54
52
Page 55
53
Page 56
5.4 NETWORK DRIVER INSTALL FOR WIN98
1. Click Start, then Settings, in the “Setting” select Control panel.
2. Start the network applet program.
3. In the Network window, click Add.
4. In the Select Network Component Type, select Adapter then click
Add.
5. Specify the path the new driver and press <ENTER> key.
(If in driver a:, type a:\)
(If you’re not sure exactly where the drivers are, choose the
“Browse” button and find it)
Select RTL8139 Fast Ethernet Adapter
6. Click OK. Windows 95 will copy the network drivers to the proper
directories on your system.
7. Continue choosing “OK”, util asked to restart your system.

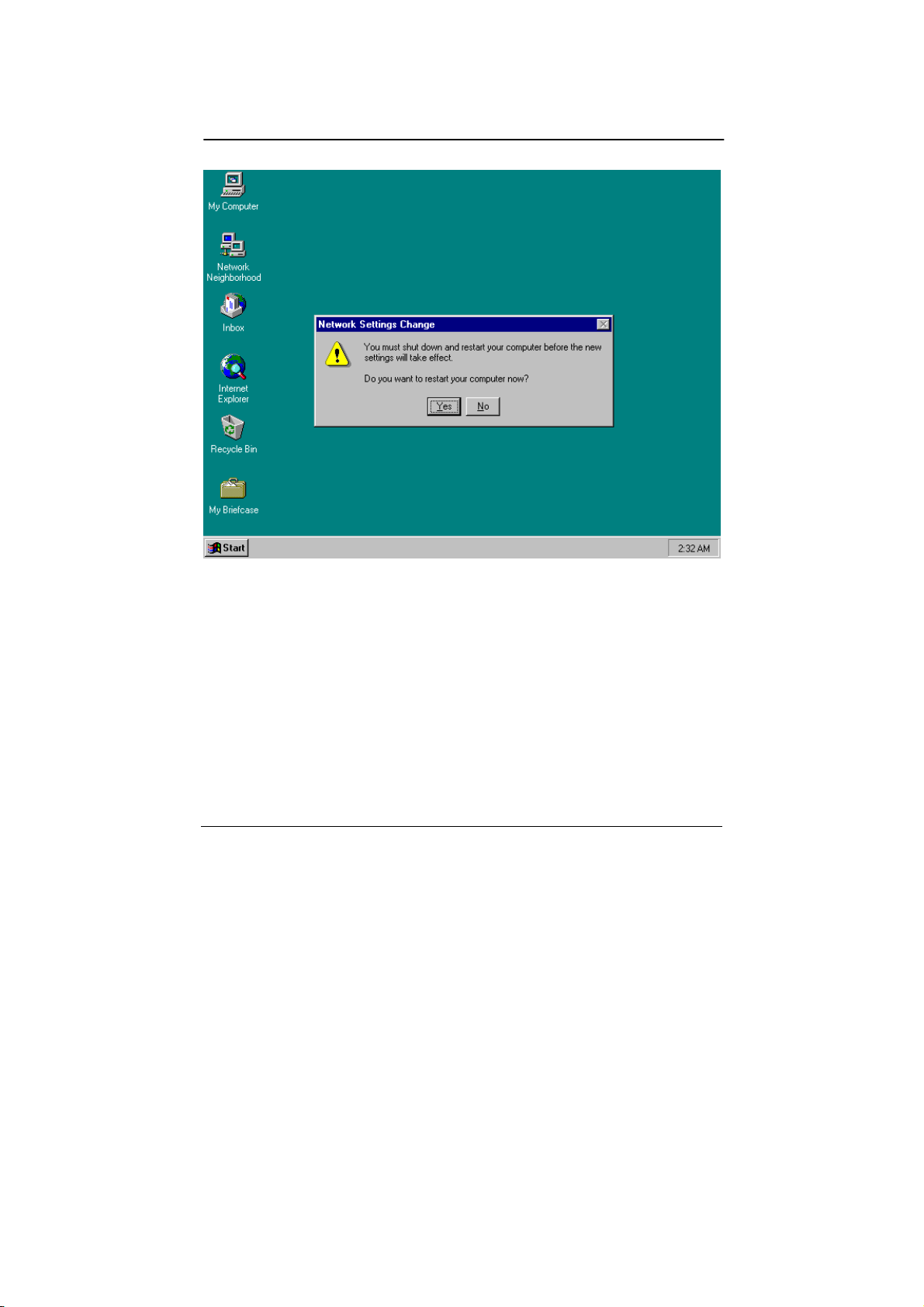

8. After restarting, checking on the network driver, the Properties of
the driver should look similar to the following figure.
NOTE：RTL8139 Driver is the same as RTL8100
54
Page 57
55
Page 58
56
Page 59
57
Page 60

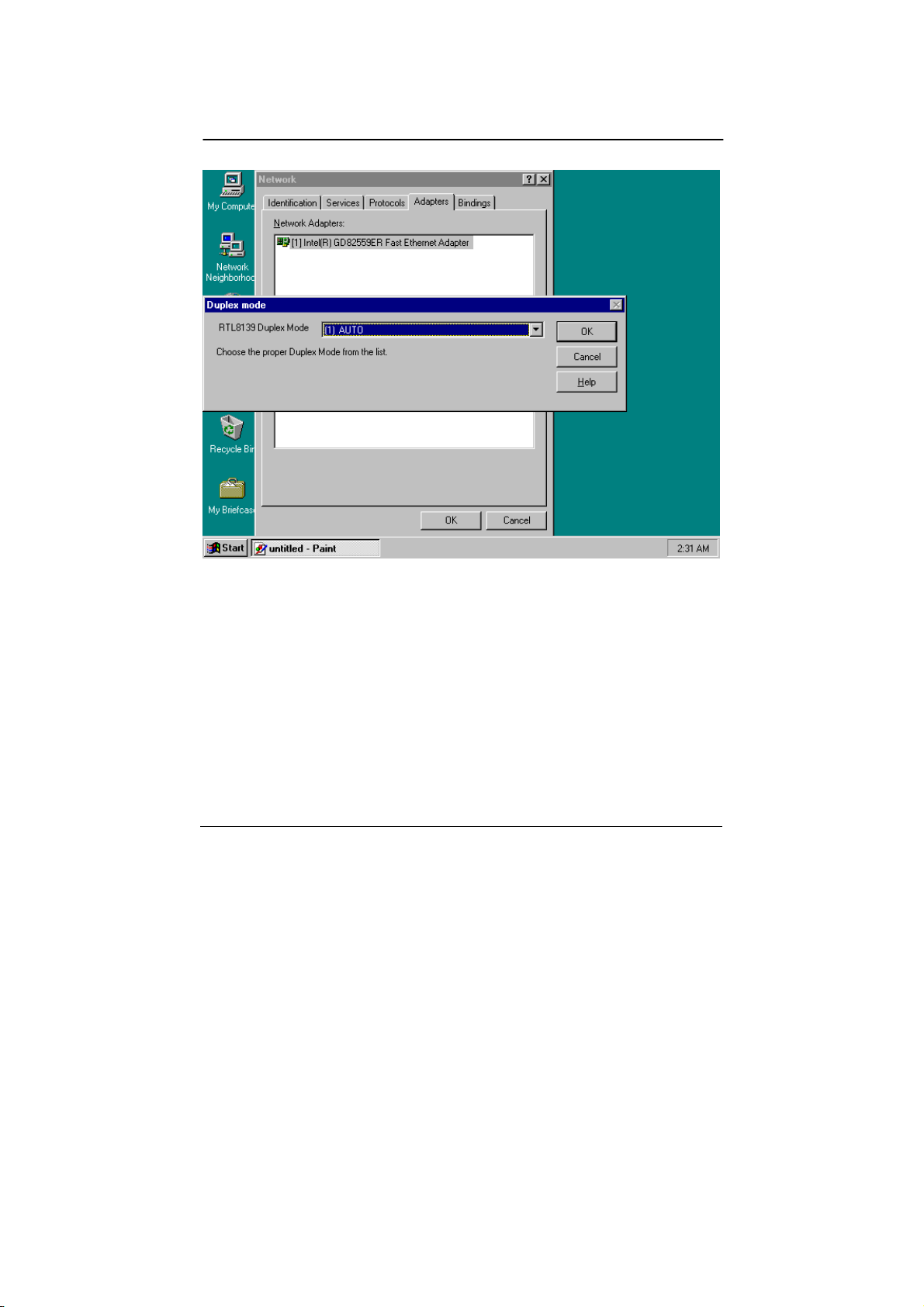

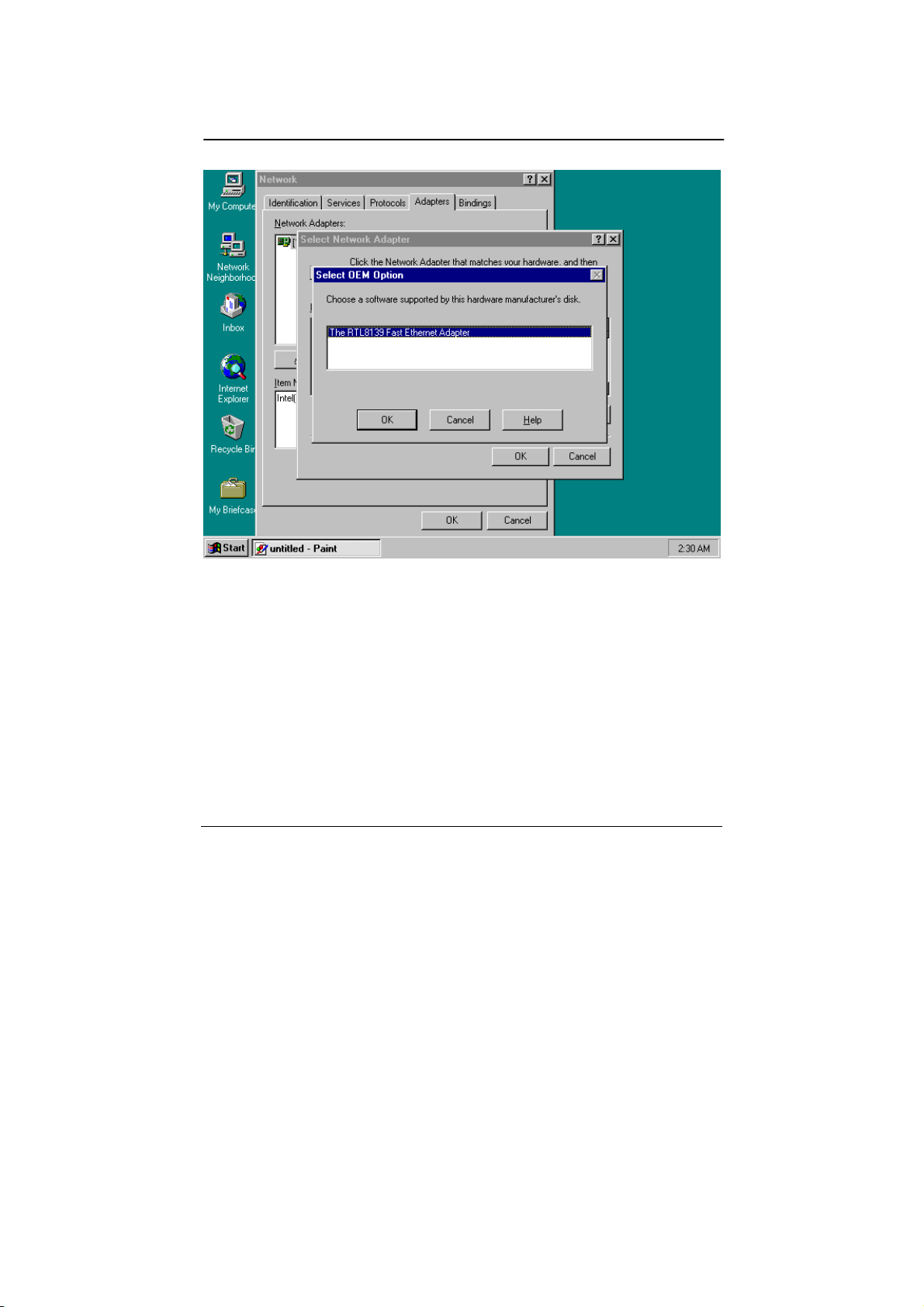

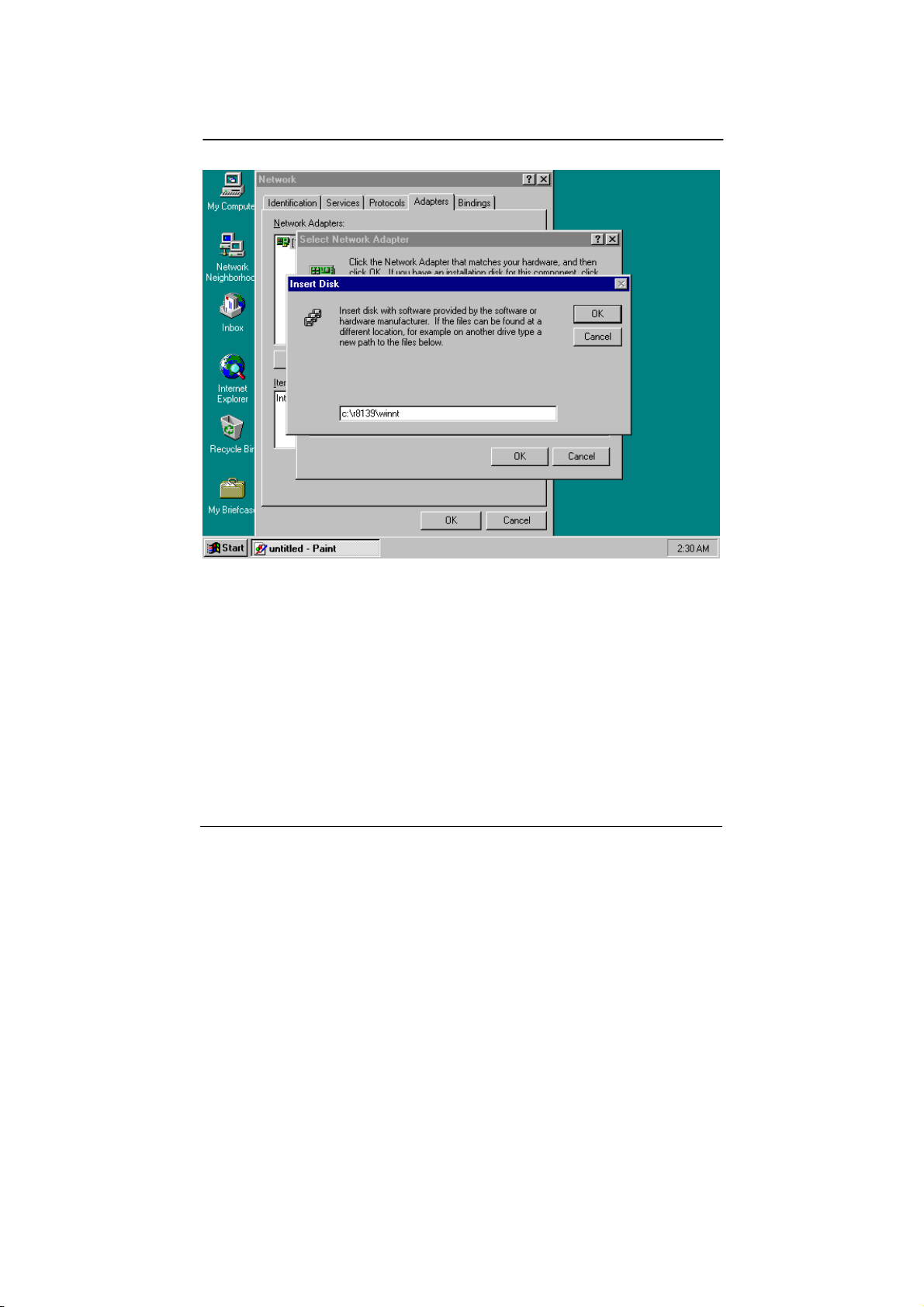

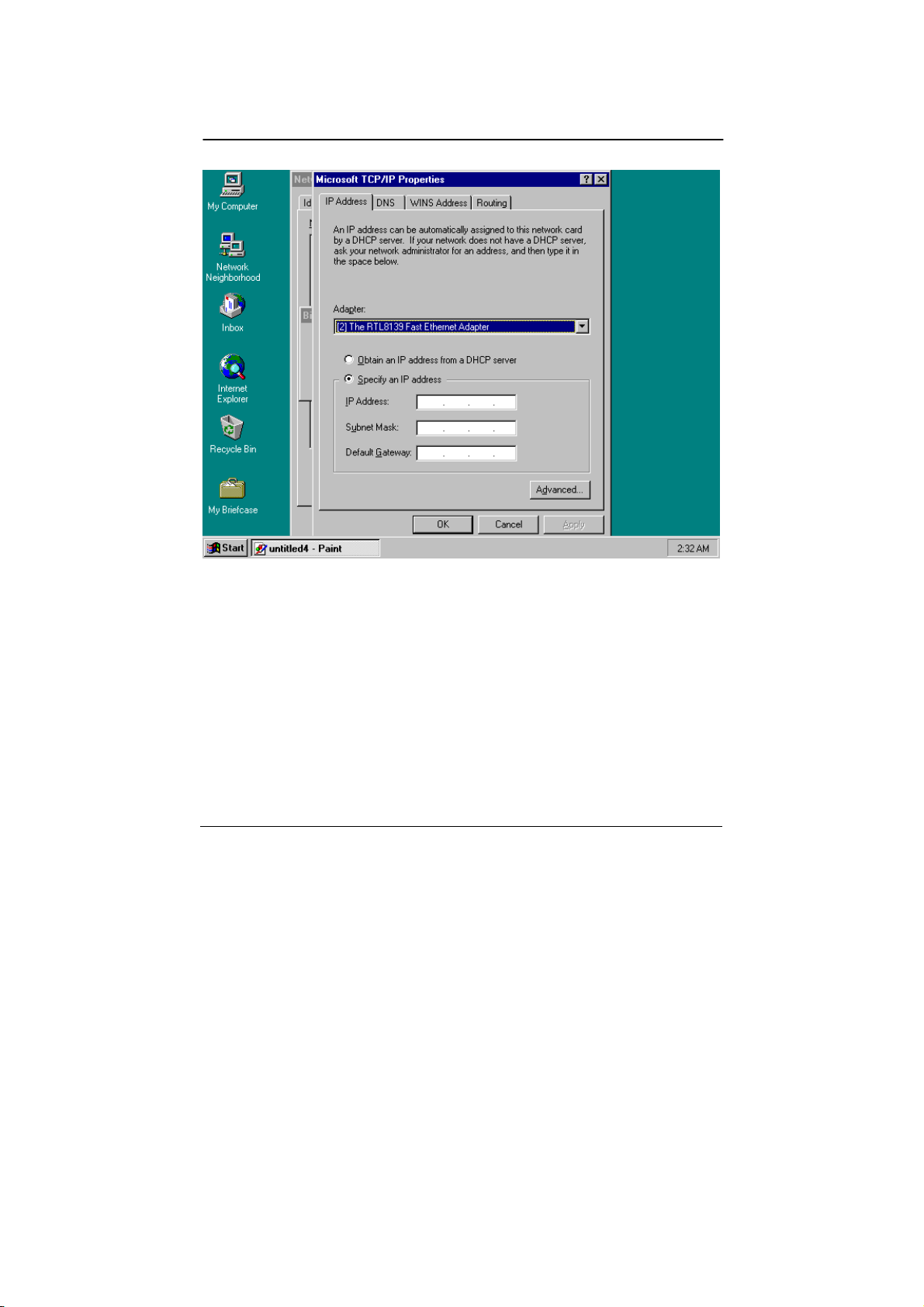

5.5 NETWORK DRIVER INSTALL FOR WIN NT4.0
1. Click the Start button, then go to Settings and click on Control
Panel.
2. Click on the Network icon to start the Network window. Click on
the Adapters tab, and then click on Add.

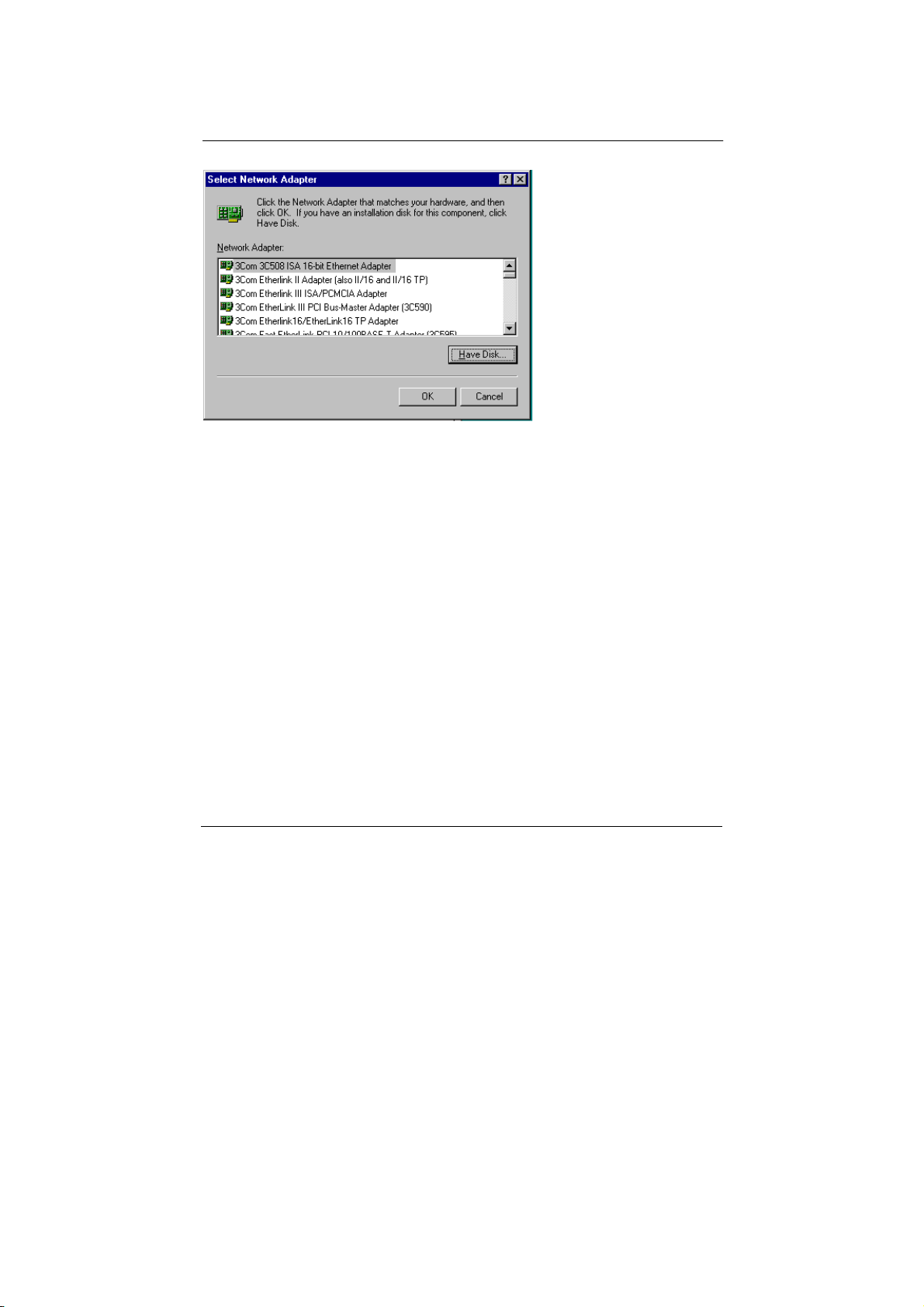

3. In the Select Network Adapter window, click on Have Disk.
4. This will bring up the Insert Disk window.
5. Supply the directory where the Windows NT driver file are
located.
(If in driver a:, type a:\)
6. The Select OEM Option window will show up.
Select RTL8139 Fast Ethernet Adapter
7. Click OK to finish the install.
8. Once the installation is complete, the system must be shut down
and restarted for the new driver to take effect.

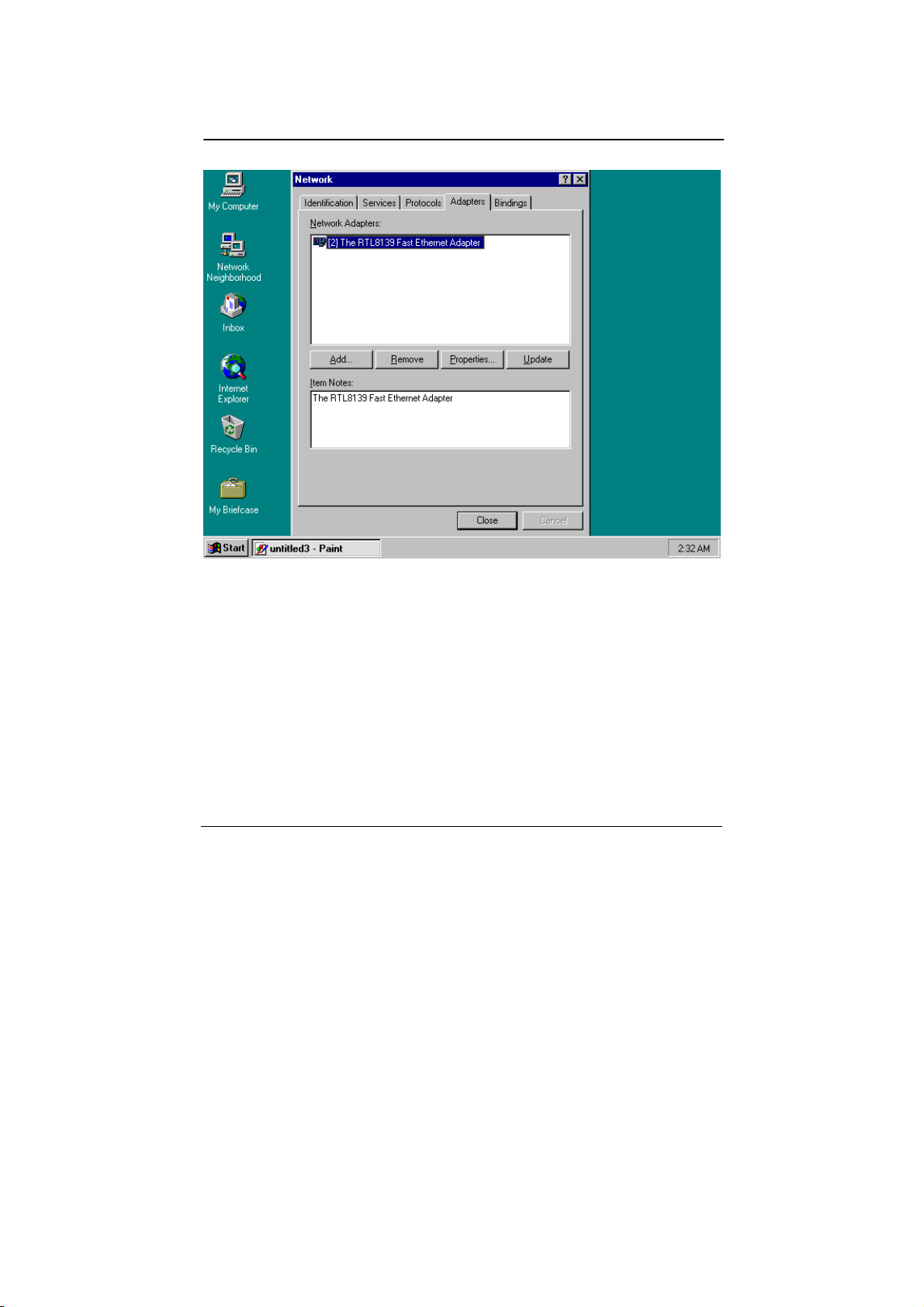

9. After restart, checking on the Network driver, the Properties of
the driver should look similar figure.
NOTE：RTL8139 Driver is the same as RTL8100
58
Page 61
59
Page 62
60
Page 63
61
Page 64
62
Page 65
63
Page 66
64
Page 67
65
Page 68

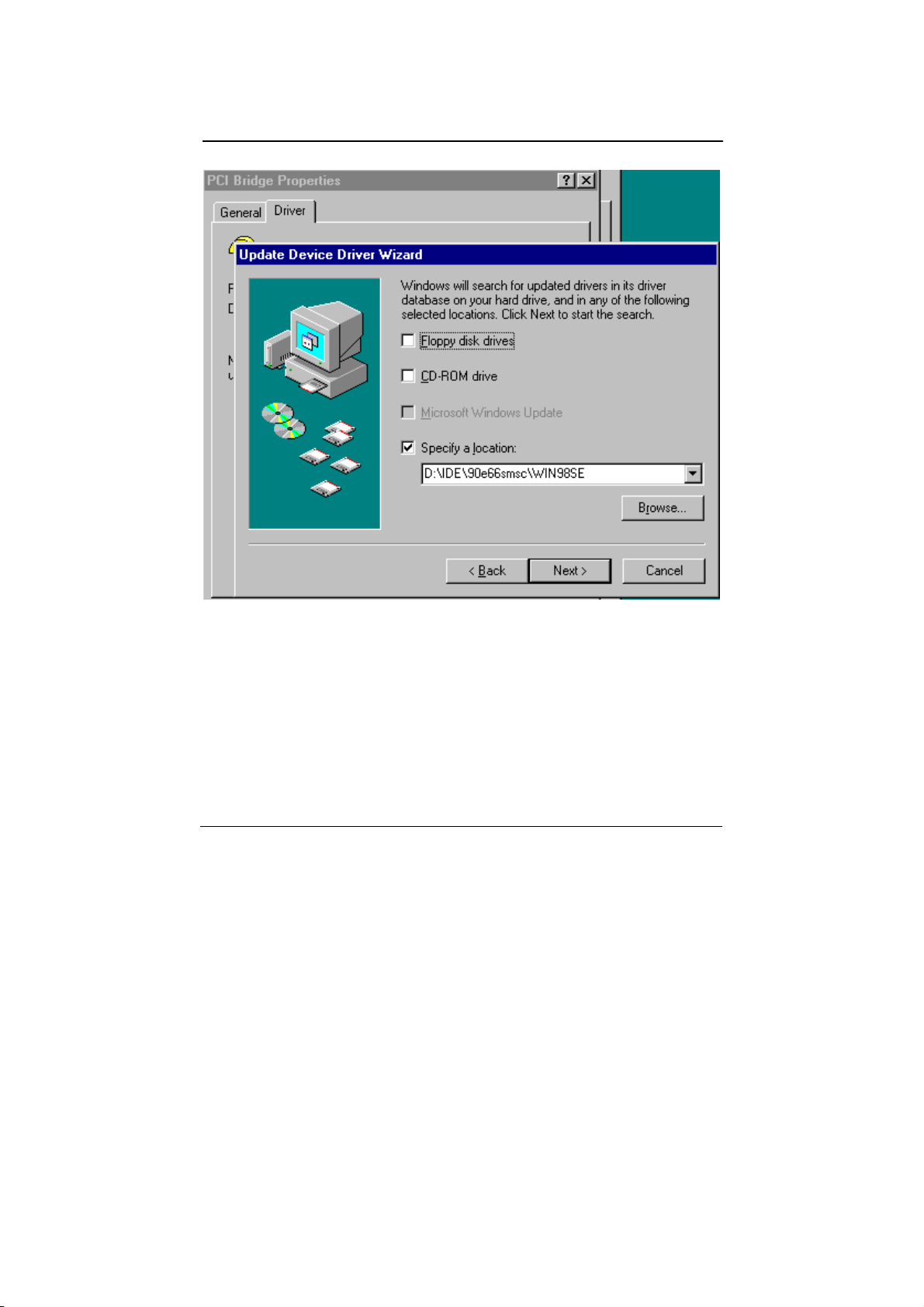

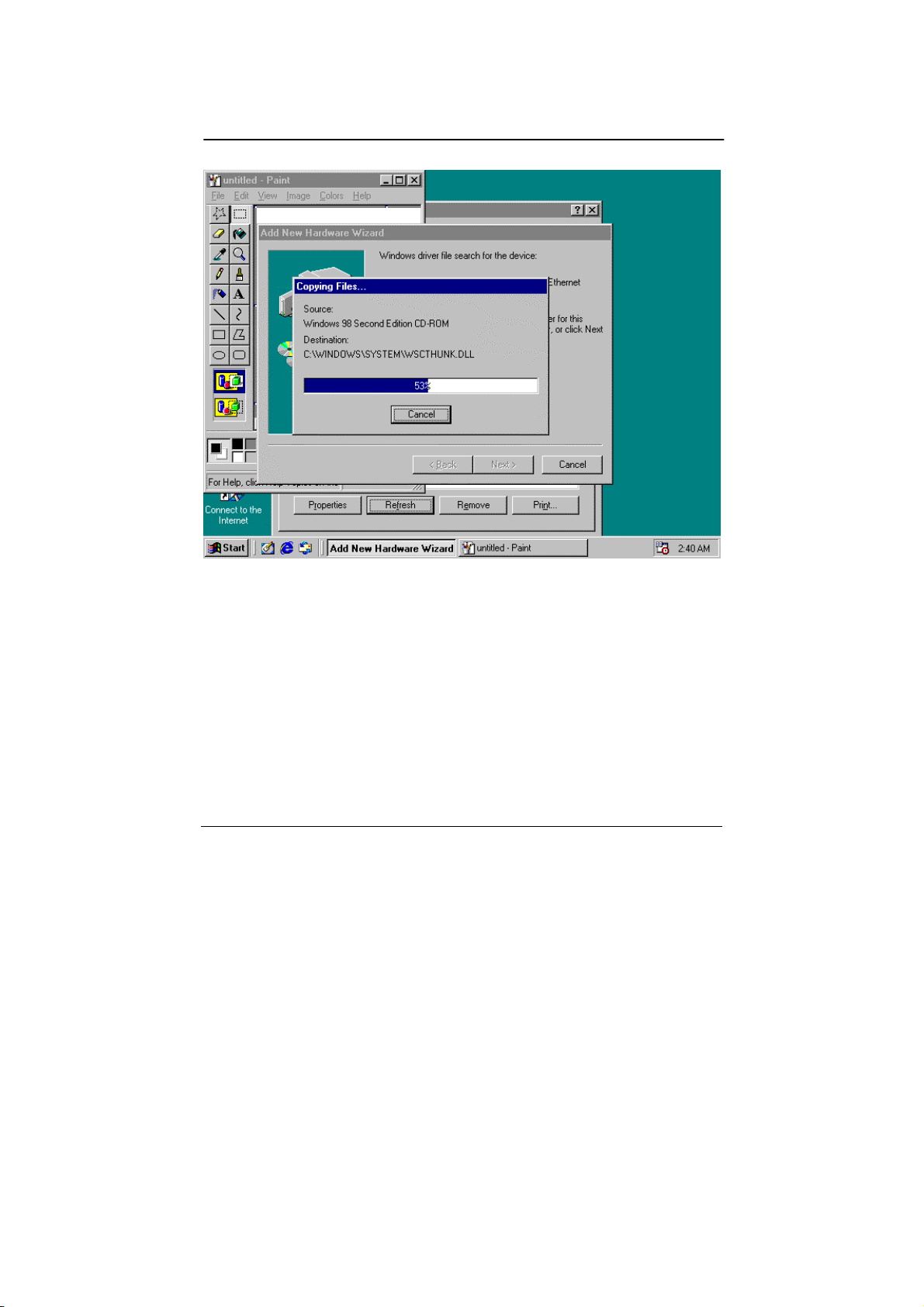

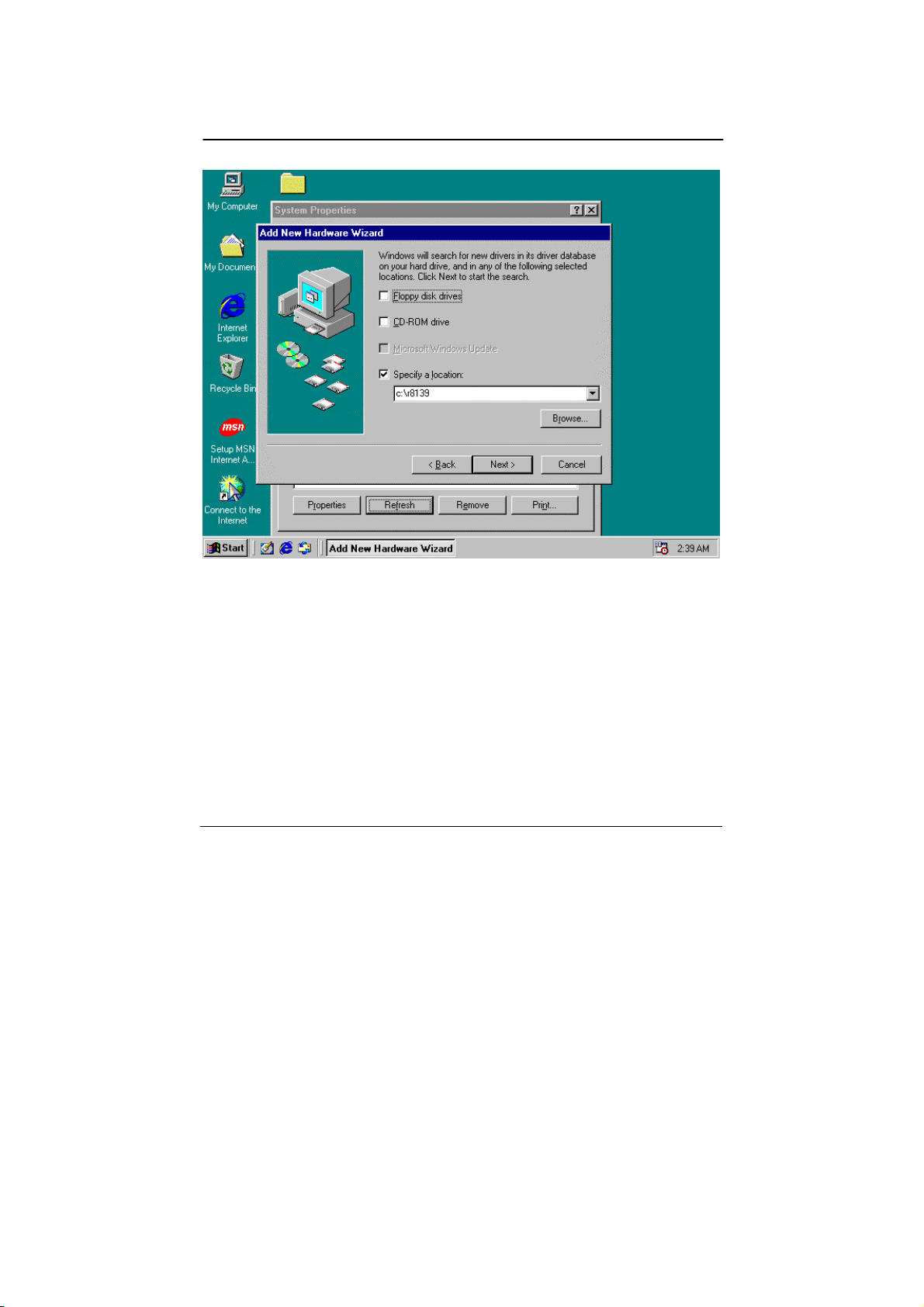

5.6 SMSC INSTALL FOR WIN95 & WIN98
1. Click Start, then Setting, in the “Setting” select system
2. Select PCI Bridge, run properties
3. Select update device driver
4. Select specify a location (if in driver D:\IDE)

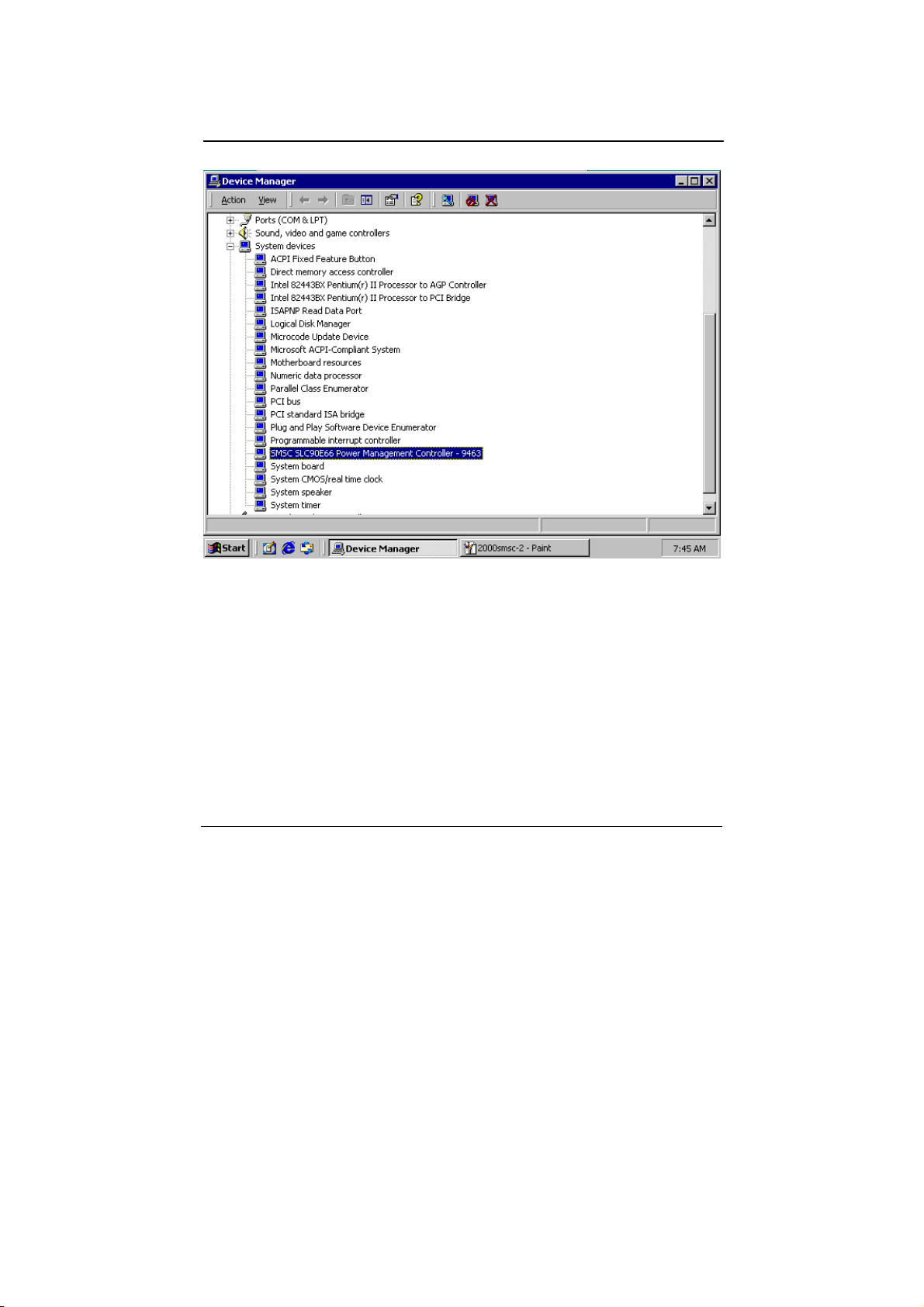

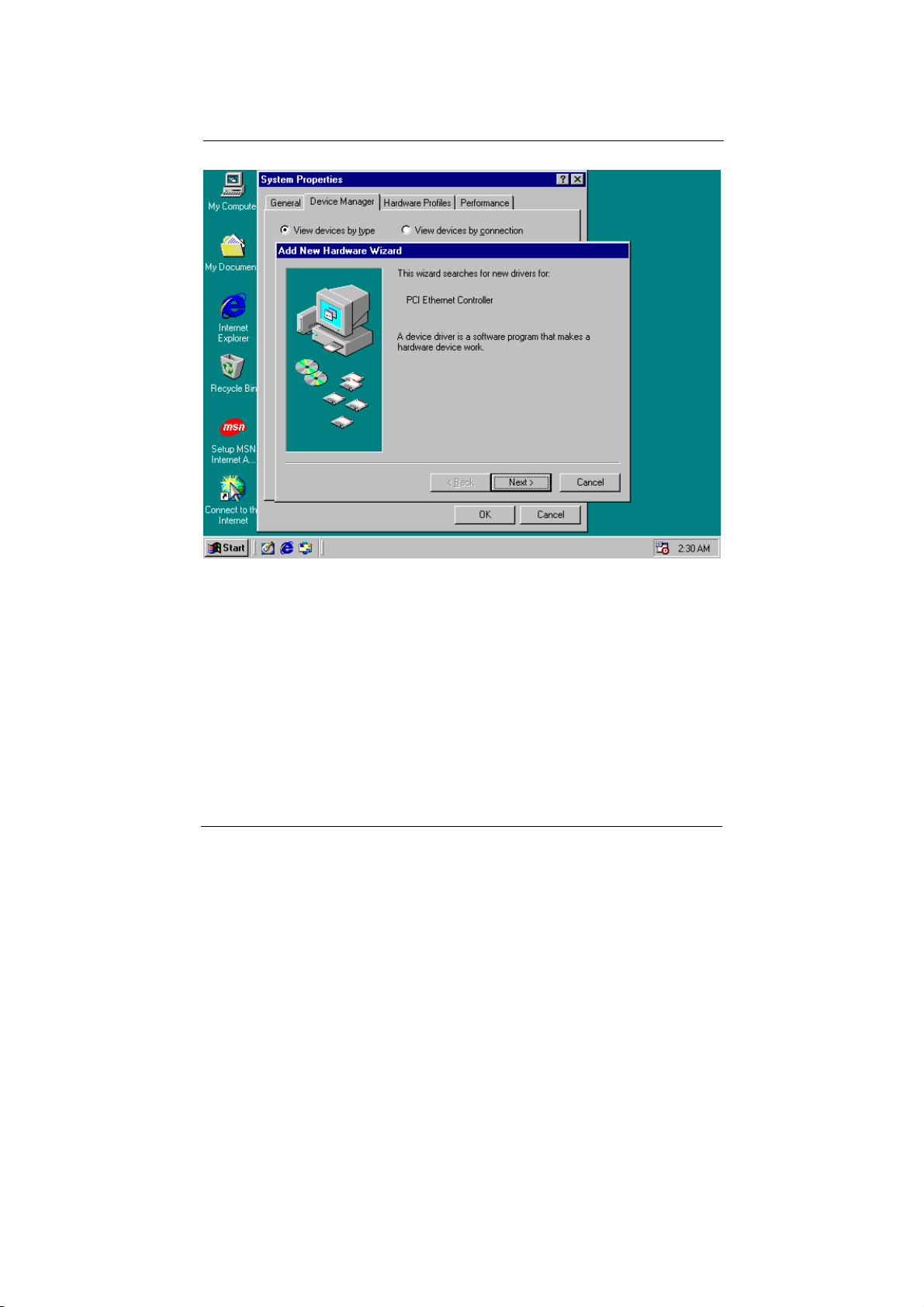

5. After restart, check on the SMSC driver, the properties of the
driver should look similar to the following figure
66
Page 69
67
Page 70
68
Page 71
69
Page 72
70

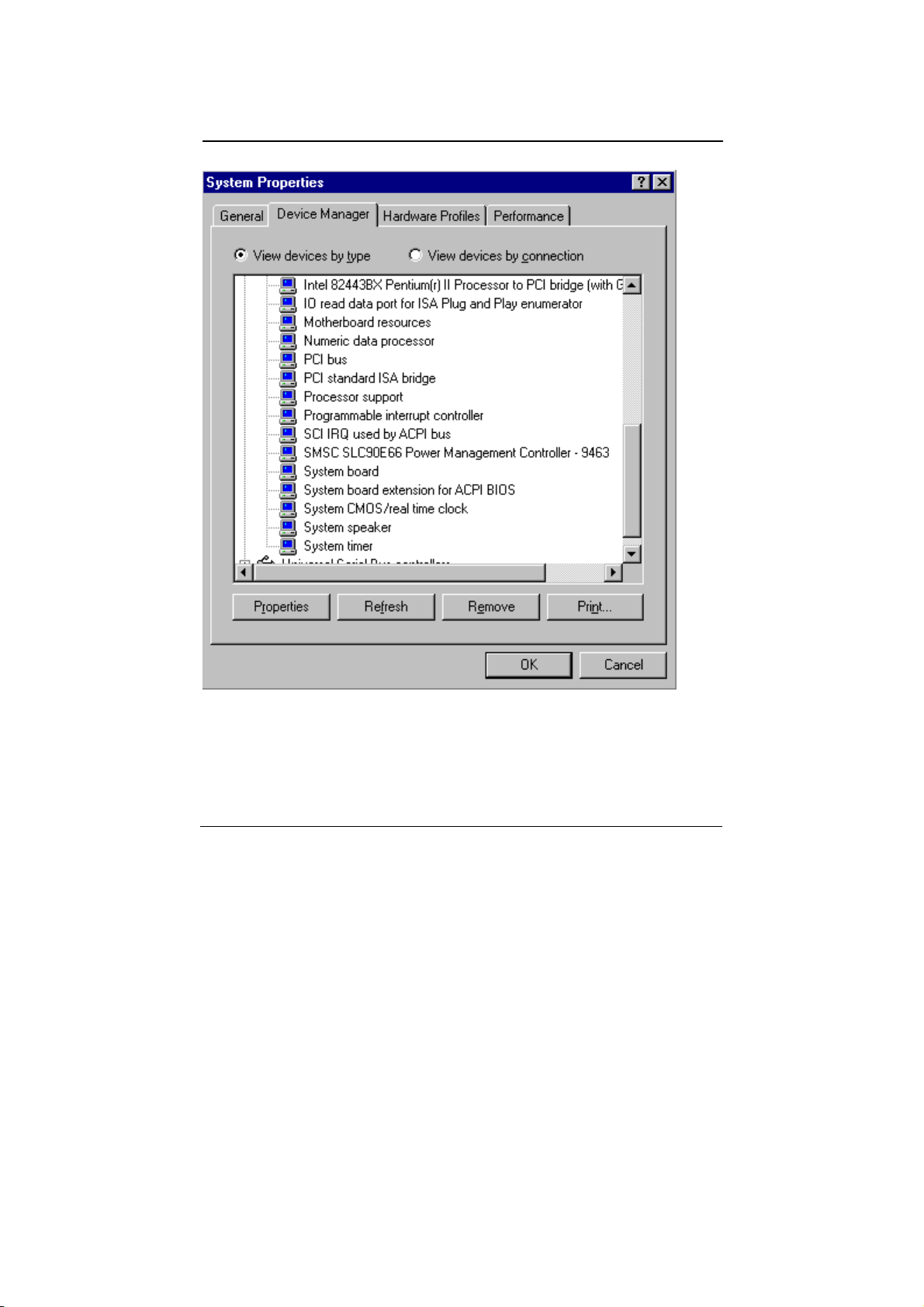

Page 73

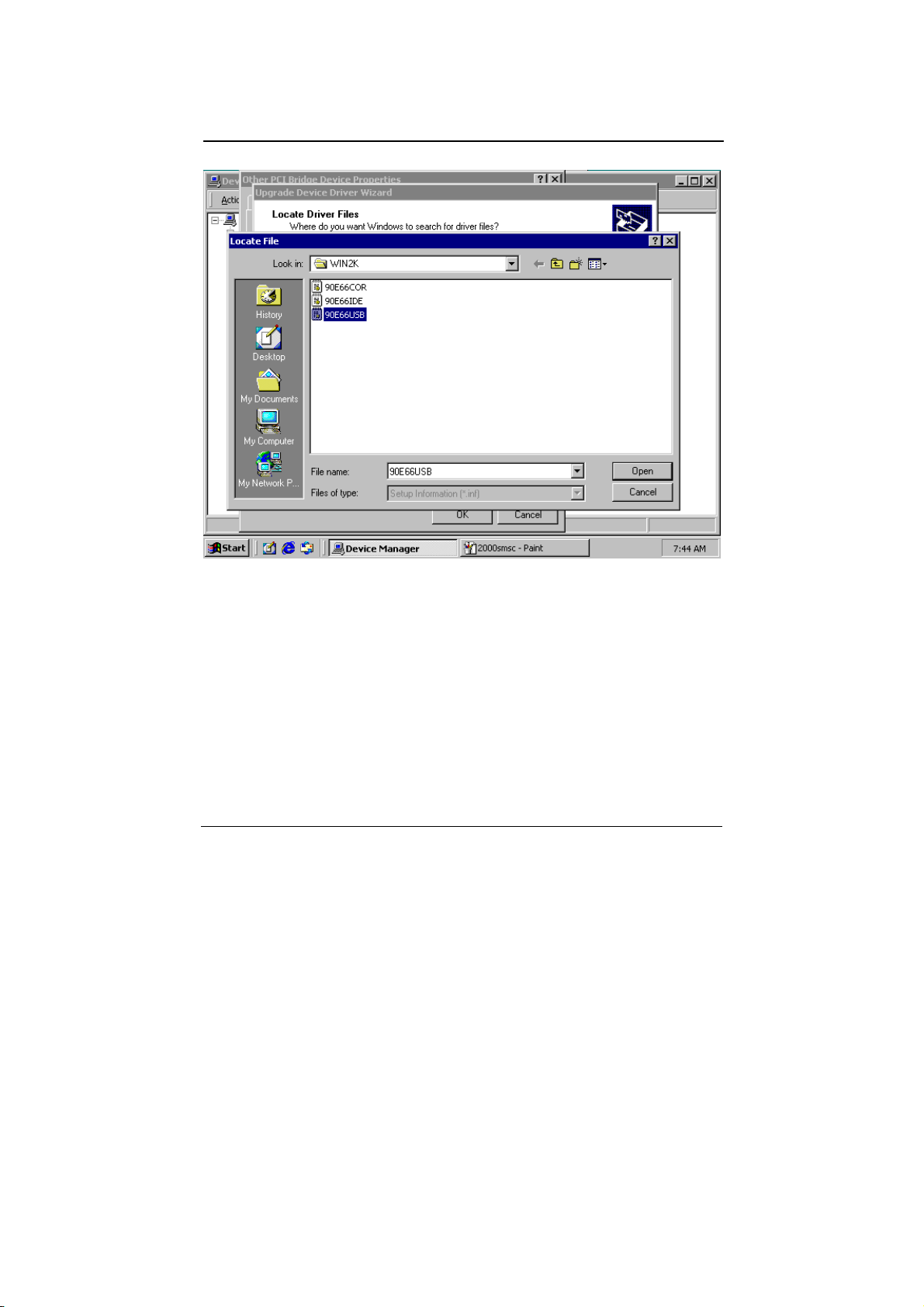

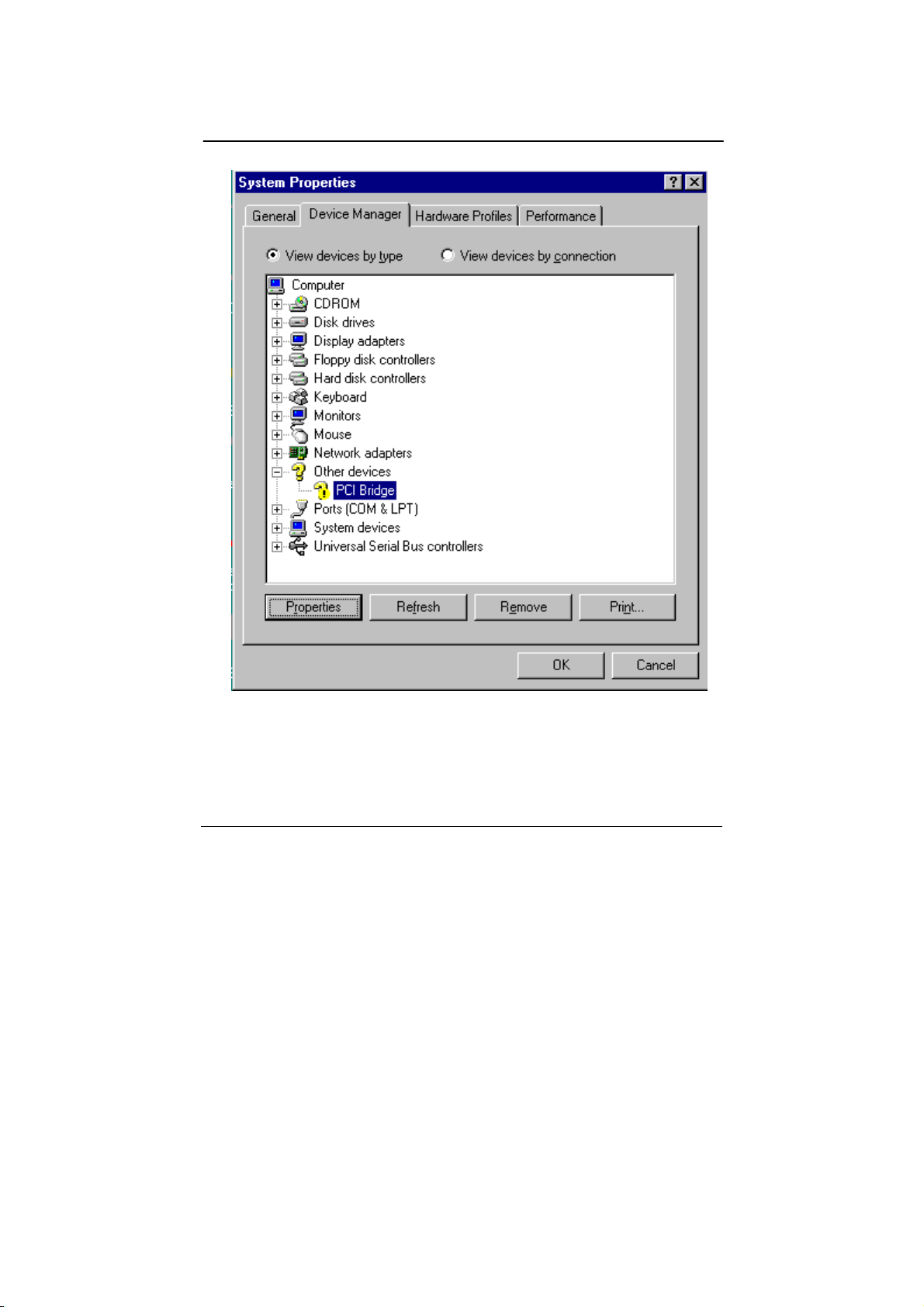

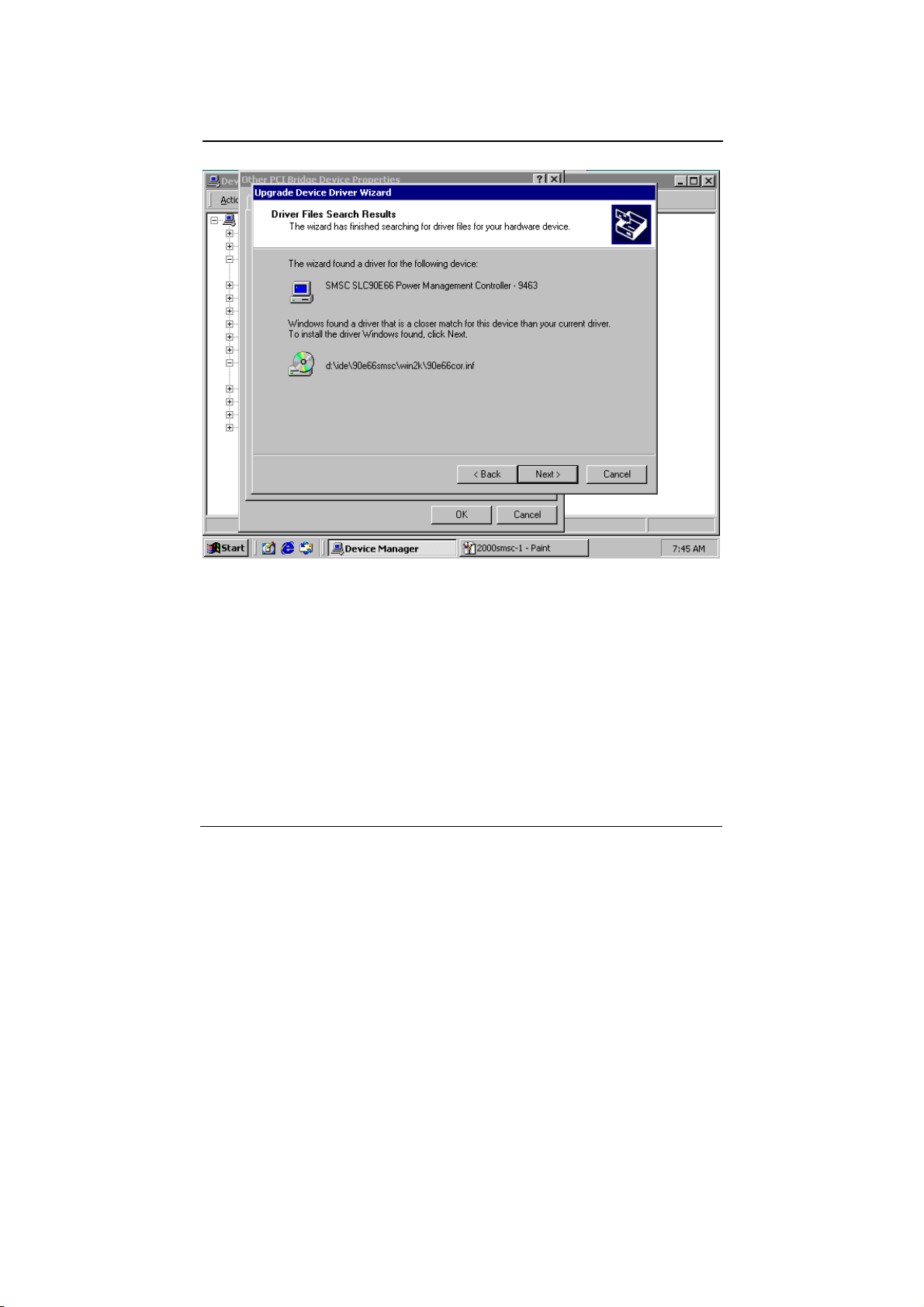

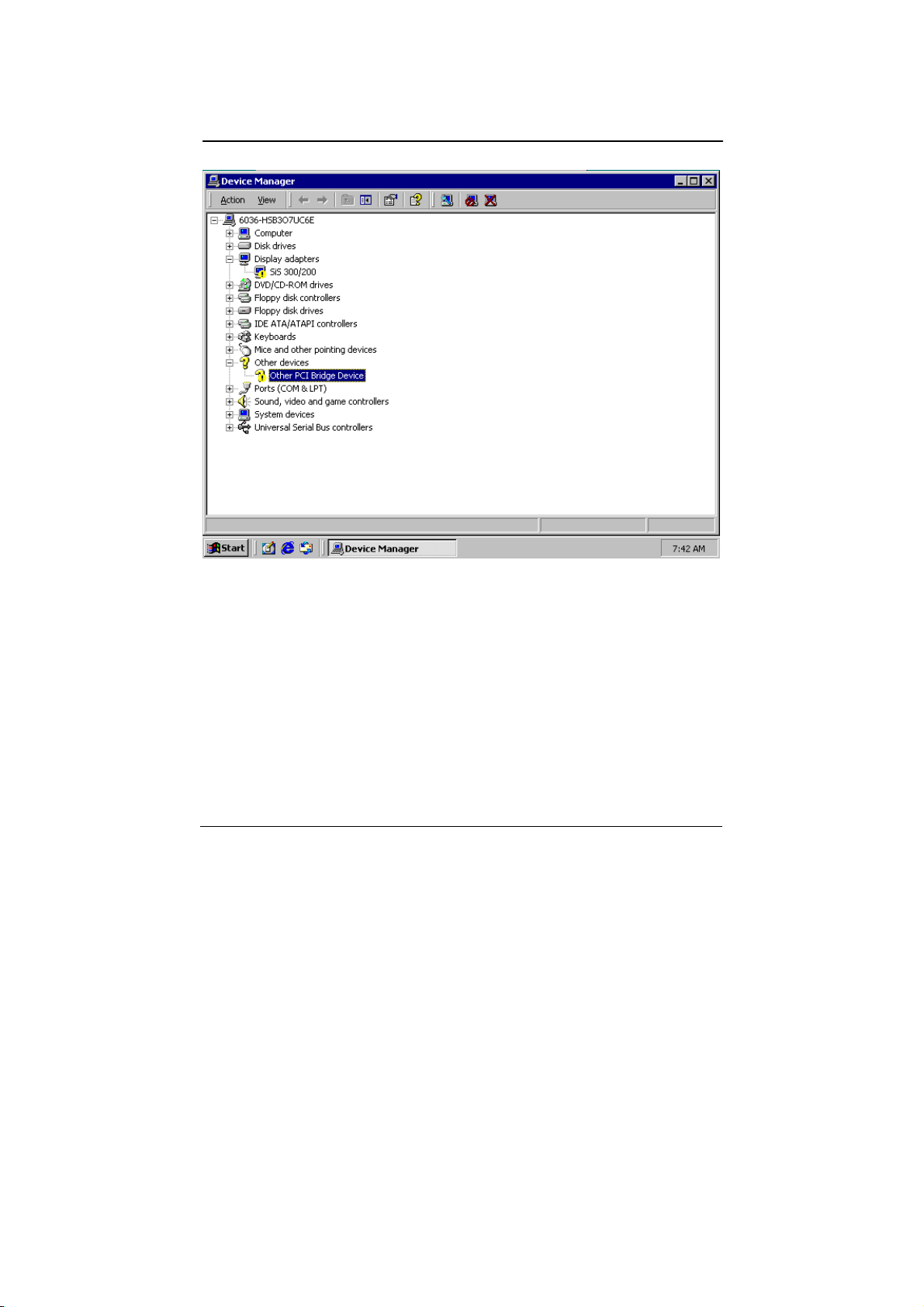

5.7 SMSC INSTALL FOR WIN2000
1. Select My Computer, type mouse right butter, click device
2. Click other PCI Bridge Device, upgrade new driver
3. Enter source path and select “90E66USB”
4. Re-start system and driver will be properly installed
71
Page 74
72
Page 75
73
Page 76
74
Page 77
75
Loading...
