Boser HS-6011 User Manual

HS-6011

Pentium®-II-III-Celeron

•PICMG Bus Full Size•All-in-one•CRT/Panel•RS-232/422/485•

•DMA33•WDT•DOC•USB•IrDA•LAN•PC/104•CTA•

•100MHz Bus•Pentium

®

-II-III-Celeron CPU at Face-Side•



BX L/VGA LAN

HS-6011V

Pentium®-II-III-Celeron

•PICMG Bus Full Size•All-in-one•CRT/Panel•RS-232/422/485•

•DMA33•WDT•DOC•USB•IrDA•PC/104•CTA•

•100MHz Bus•Pentium

®

-II-III-Celeron CPU at Face-Side•



BX L/VGA

HS-6011L

Pentium®-II-III-Celeron

•PICMG Bus Full Size•All-in-one•RS-232/422/485•

•DMA33•WDT•DOC•USB•IrDA•LAN•PC/104•CTA•

•100MHz Bus•Pentium

®

-II-III-Celeron CPU at Face-Side•



BX LAN

HS-6011P

Pentium®-II-III-Celeron

•PICMG Bus Full Size•All-in-one•RS-232/422/485•

•DMA33•WDT•DOC•USB•IrDA•PC/104•CTA•

•100MHz Bus•Pentium

®

-II-III-Celeron CPU at Face-Side•



BX ISB

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.

Trademarks

BOSER is registered trademark of BOSER Technology Co., Ltd.
ISB is registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award International Inc.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or registered
trademarks of their respective companies or owners.

© Copyright 1999
All Rights Reserved.
User Manual edition 1.7, Aug.24 2001

Contents

HS-6011 ......................................................................................................1

HS-6011V....................................................................................................1

HS-6011L ....................................................................................................1

HS-6011P....................................................................................................1

GENERAL INFORMATION .............................................................................3

AJOR FEATURES .....................................................................................4

1.1 M

PECIFICATIONS.........................................................................................5

1.2 S

ELIVERY PACKAGE...................................................................................7

1.3 D

HARDWARE INSTALLATION ........................................................................8

2.1 C

AUTION OF STATIC ELECTRICITY.............................................................8

AUTION ON UNPACKING AND BEFORE INSTALLATION .............................9

2.2 C

2.3 HS-6011’

UICK LISTING OF JUMPERS ...................................................................11

2.4 Q

UICK LISTING OF CONNECTORS ............................................................12

2.5 Q

UMPER SETTING DESCRIPTION..............................................................13

2.6 J

ETTING THE BUS-CLOCK FREQUENCY ..................................................14

2.7 S

REQUENCY MULTIPLIER SETTING..........................................................15

2.8 F

ETTING THE RTC CONFIGURATION.......................................................16

2.9 S

2.10 S

2.11 ATX/AT P

2.12 W

2.13 PCI VGA C

2.14 D

2.15 LCD 3.3/5.0

2.16 M

2.17 T

2.18 R

S LAYOUT.................................................................................10

YSTEM MEMORY DRAM .....................................................................16

OWER SELECT ......................................................................16

ATCH-DOG TIMER...............................................................................17

ONTROLLER........................................................................19

ISKONCHIP ADDRESS SETTING.......................................................19

V POWER SELECT.............................................................20

ANUFACTURER’S DEFAULT SETTING ..................................................20

EMPERATURE ALARM ..........................................................................20

ETENTION MECHANISM .......................................................................21

CONNECTION .................................................................................................22

3.1 P

OWER AND FAN CONNECTORS ............................................................22

3.2 IDE'

3.3 E

3.4 PCI E-IDE D

3.5 PS/2 P

S LED, KEY-LOCK AND RESET BUTTON..........................................23

XTRA SPEAKER CONNECTOR ................................................................24

RIVE CONNECTOR ..............................................................25

OWER ON/OFF CONTROL ..........................................................27

Contents • i

3.6 PARALLEL PORT CONNECTOR.................................................................27

HE FLOPPY DISK DRIVE CONNECTOR...................................................28

3.7 T

ERIAL PORTS CONNECTORS .................................................................29

3.8 S

EYBOARD CONNECTORS .......................................................................31

3.9 K

3.10 PS/2 M

3.11 VGA-CRT C

3.12 F

3.13 IR C

3.14 USB P

3.15 PC/104 B

3.16 F

3.17 ATX P

OUSE 6-PIN MINI-DIN CONNECTOR .........................................31

ONNECTOR .......................................................................32

LAT-PANEL CONNECTOR .....................................................................33

ONNECTOR .....................................................................................35

ORT CONNECTOR.......................................................................35

US CONNECTION ...................................................................36

AST ETHERNET CONNECTOR ..............................................................38

OWER CONTROLLER CONNECTOR .............................................39

AWARD BIOS SETUP....................................................................................40

4.1 M

AIN MENU ..............................................................................................41

TANDARD CMOS SETUP.......................................................................42

4.2 S

4.3 BIOS F

4.4 C

NTEGRATED PERIPHERALS .....................................................................45

4.5 I

4.6 P

EATURES SETUP..........................................................................43

HIPSET FEATURES SETUP.....................................................................44

OWER MANAGEMENT SETUP.................................................................46

ii •Contents

Chapter-1

General Information

The HS-6011 is a bus-100MHz Intel® BX chipset design PICMG bus
Pentium
combine together to make it an ideal all-in-one industrial single board computer,
enhanced I/O effects with VGA interface supports LCD Display panel and CRT
Monitor on-board.

The HS-6011 also provides one set of PC/104 bus for 8/16-bit industrial
application with based on PC/104 standard bus.

With onboard DMA33 of mode 4 to IDE drive interface architecture, the HS-6011
supports with maximum 33.3 MB/sec in data transfer rating to 4 pieces IDE drive

connection. Design with Intel
HS-6011 supports all series Pentium
The on-board C&T

display resolution with on-chip 2MBytes memory, and it provides both VGA CRT
Monitor and LCD Panel display connection.

The advanced PICMG bus add-on connection of HS-6011 allows user could
easily obtain both ISA's 16-bit and PCI's 32-bit full set signals from a full size
PICMG slot for suitable plug into system with 8/16/32-bit ISA and-or PCI slots
operating. The HS-6011 provides with two pieces 168-pin DIMM sockets support
up to 1.0GBytes of main system memory.

A single Flash chip holds the system BIOS, and you can easy update the Flash
BIOS by the Utility Update. Advanced USB and IR ports also provide for faster
and easily in data transmission. You can also use the DOS version of the
"DiskOnChip" socket by issuing commands from the DOS prompt without the
necessity of other software supports up to 144MB.

If a non-expect program cause halts, the onboard WDT Watch-Dog Timer will
automatically reset the CPU or generate an interrupt. The watchdog is designed
with hardware only and doesn’t need any arithmetical functions of a real-time
clock chip. This ensures the reliability in an unmanned or standalone system.

®

II-III-Celeron Industrial Single Board (I.S.B.) CPU card with features

®

82443BX and 82371EB core logic chipset, the

®

®

69000 VGA chipset supports up to 1280 x 1024 256 colors

II-III-Celeron operating at 233 ~ 650MHz.

3

1.1 Major Features

 One axial-horizontal type Slot-1 socket at face-side for Intel

Pentium

 Intel

 PICMG add-on bus with on-board PC/104 bus connector for

®

II-III-Celeron 233〜650 MHz Processors.

®

82443 BX chipset.

8/16-bit supported.

 Two pieces DIMM sockets supports DRAM up to 1.0 GB.

 Two fast PCI DMA33-IDE connector support four IDE drives

include large size hard disks, CD-ROM, tape backup etc.

 PnP I/O address & IRQ selection.

 Two high-speed RS-232 serial ports support 16C550 UART with

16-byte FIFO. One port provides RS-422/485 selection.

 One enhanced bi-directional parallel port, supports SPP/EPP/ECP.

 On board PS/2 Keyboard and PS/2 Mouse connector.

 On board W83977 super I/O.

 On-board C&T

®

69000 SVGA adapter with on-chip 2MBytes

memory supports VGA LCD Panel and CRT Monitor display.

 On board Intel

 “DiskOnChip

®

82558 100-Based Network.

TM

” Socket supported memory size up to 72 MB.

®

 On-board two USB ports and one IrDA port.

 Build-in one industrial WDT Watch-Dog-Timer.

 AWARD Y2K PnP Flash BIOS.

 Hardware Temperature Alarm

*It will be a Warning “beep” come out if the CPU’s temperature reached
60℃. And it will stop as the CPU’s temperature going down below 60℃

again.

4

1.2 Specifications

 CPU: One piece Intel® Pentium®II-III-Celeron 233/ 266/ 300/ 333/

400/450/500/650MHz.

 Bus interface: PICMG bus, comply with ISA and PCI slot One

on-board PC/104 bus connector.

 Chipset: Intel

 Data bus: 64-bit

 Processing ability: 64-bit

®

 C&T

VGA Controller: C&T® 69000 VGA, on-chip 2 MB memory

included, supports up to 1280x1024 256 colors VGA modes
resolution. Also provides one 50-pin LCD Panel connector, one
internal 10-pin VGA-CRT connector.

 PCI Enhanced IDE Interfaces: Total four IDE drives supports with

Mode 3 & 4 DMA33 function provides transfer rate up to 33.3MB/sec.

 RAM memory: Two pieces 168-pin DIMM sockets supports up to

1.0 GBytes.

®

82443 BX bus-100MHz chipset.

 Cache memory: Slot-1 socket supports Intel's

Pentium

®

II-III-Celeron CPU with build-in 512KB Pipeline burst

cache memory.

 Floppy disk drive interface: Supports up to two floppy disk drives.

®

 LAN: Intel

82558 supports 100-Based.

 Parallel port: Supports SPP/ECP/EPP.

 Serial ports: Two RS-232 ports with 16-byte FIFO 16C550 UART.

One port provides RS-422/485 selection.

 BIOS: AWARD Y2K PnP Flash BIOS.

 WDT Watchdog timer: Periods set 1, 2, 10, 20 , 110 or 220

seconds, activity trigger with Reset or NMI.

 DMA channels: 7

5

 Temperature Alarm: Hardware monitoring.

 Interrupt levels: 15

 Keyboard: 6-pin mini-DIN connector or 5-pin header.

 Mouse: 6-pin mini-DIN connector support PS/2 type mouse.

 USB: Supports 2 USB header.

 IR interface: Supports one lrDA TX/RX header.

 Flash memory Disk: Socket for DiskOnChip™ (DOC).

 Fuse: Automatically resumes polyswitch resettable fuse.

 Extra Power: Provides one 4-PIN extra DC +5V/+12V power

connector.

 CMOS: DS12B887 or equivalent device.

 Power voltage requested: +5V, +12V and -12V.

 Maximum Power Consumption: +5V@5A(350MHz PII),

+12V@20mA,

-12V@20mA.

 Operating temperature: 0-55°C (CPU need cooler).

 Board size: 7.3"(L) x 4.8" (W) (185mm x 122mm).

The HS-6011 provides with VGA Interface to LCD and Monitor, IDE-DMA33,
WDT, DOC, USB, IrDA and LAN etc.

The HS-6011V provides with all function but without LAN.
The HS-6011L provides with all function but without VGA.
The HS-6011P provides with all function but without VGA and without LAN.

6

1.3 Delivery Package

The delivery package of HS-6011 includes all following items:

 One HS-6011 Industrial Single Board

 One Printer Port Bracketed Flat Cable

 One COM Port Bracketed Flat Cable

 Two IDE port Flat Cable

 One FDD port Flat Cable

 One PS/2 to Standard DIN type Keyboard Transfer Cable

 Utility Diskette

 User’s Manual

 5 pin ATX Power Connector Cable

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the
delivery package with packing materials in case of you want to ship
or store the product in feature.

7

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware
of HS-6011. At first, please follow up sections 1.3, 2.1 and 2.2 in
check the delivery package and carefully unpacking. Following
after, the jumpers setting of switch, watchdog timer and the
DiskOnChip address selection etc.

2.1 Caution of Static Electricity

The HS-6011 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the
damage of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER

SENSITIVE COMPONENTS WITHOUT ALL NECESSARY
ANTI-STATIC PROTECTION.

You should follow the steps as following to protect the board in
against the static electric discharge whenever you handle the
board:

1. Please use a grounding wrist strap on whoever needs to handle
the HS-6011. Well clip the ALLIGATOR clip of the strap to the end
of the shielded wire lead from a grounded object. Please put on
and connect the strap before handle the HS-6011 for harmlessly
discharge any static electricity through the strap.

2. Please use anti-static pad for put any components or parts or
tools on the pad whenever you work on them outside the
computer. You may also in use the anti-static bag instead the
pad. Please ask from your local supplier in help up your
necessary parts on anti-static requirement.

8

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS-6011 from electricity discharge. With refer to
section 1.3, please check the delivery package again with following
steps:

1. Unpacking the HS-6011, keep well storage of all packing material,
manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT
INSTALL IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers
setting to jumper pin-set and CMOS setup correctly. Please also
reference to all information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver
Type etc.) for completed add-in or connection and CMOS setup
correctly. Please also reference to all information of connector
connection in this manual.

6. Please keep all necessary manual and diskette in a good
condition for your necessary re-installation if you change your
Operating System or whatever needs.

9

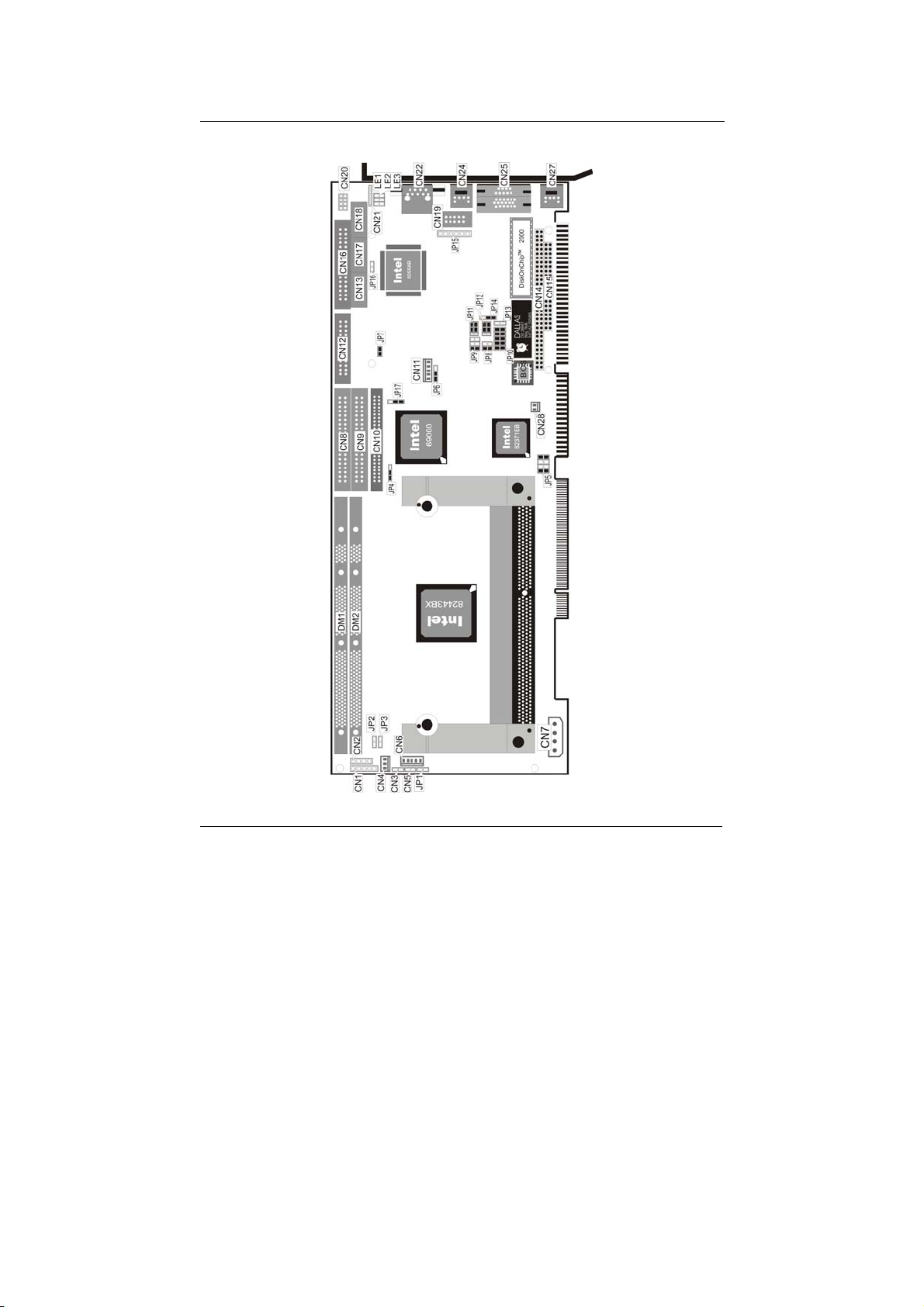

2.3 HS-6011’s Layout

10

2.4 Quick Listing of Jumpers

JP1 RESET ............................................................................ P.14

JP2 BUS CLOCK SELECT ........................................................ P.26

JP4 PANEL VOLTAGE SELECT ................................................. P.19

JP5 CLOCK RATIO SELECT...................................................... P.14

JP6 AT/ATX POWER FUNCTION SELECT................................. P.14

JP7 CPU TEMPERATURE ALARM ............................................ P.15

JP8 RS-422/485 RECEIVER ENABLED/DISABLED SELECT ........ P.27

JP9 RS-422/485 TRANSCEIVER ENABLED/DISABLED SELECT.. P.17

JP10(1-4) DISKONCHIP ADDRESS SELECT ....................................... P.29

JP10(5-10) WATCH-DOG TIMER PERIOD SELECT ............................... P.30

JP11 RS-232 OR RS-422/485 SELECT ................................... P.29

JP12 RS-232 OR RS-422/485 SELECT .................................... P.30

JP13 CLEAR CMOS ................................................................ P.29

JP14 WATCH-DOG TIMER ACTIVE TYPE SELECT ........................ P.30

LAN ENABLED/DISABLED SELECT ................................... P.29

JP16
JP17 VGA E

NABLED/DISABLED SELECT.................................... P.30

11

2.5 Quick Listing of Connectors

CN1 KEYLOCK CONNECTOR.................................................... P.21

CN2 SPEAKER CONNECTOR.................................................... P.18

CN3 IDE LED........................................................................ P.19

CN4 3PIN FAN CONNECTOR................................................... P.20

CN5 2PIN ATX POWER CONNECTOR....................................... P.18

CN6 5PIN KEYBOARD CONNECTOR ......................................... P.19

CN7 4PIN POWER CONNECTOR............................................... P.14

CN8 PRIMARY IDE CONNECTOR ............................................. P.14

CN9 SECONDARY IDE CONNECTOR......................................... P.23

CN10 PANEL CONNECTOR........................................................ P.31

CN11 5PIN ATX POWER CONNECTOR ....................................... P.31

CN12 PARALLEL CONNECTOR ................................................... P.22

CN13 RS-422/485 CONNECTOR (5X2 HEADER) ........................ P.29

PC/104 64PIN CONNECTOR ............................................ P.24

CN14
CN15

PC/104 40PIN CONNECTOR ............................................ P.18

CN16 FLOPPY CONNECTOR ...................................................... P.26

CN17 COM1 (5X2 HEADER) ..................................................... P.25

CN18 COM2 (5X2 HEADER) ..................................................... P.30

CN19 CRT CONNECTOR (5X2 HEADER) .................................... P.25

USB CONNECTOR .......................................................... P.26

CN20
CN21

IRDA CONNECTOR ......................................................... P.25

CN22 RJ45 CONNECTOR.......................................................... P.24

CN23 COM1 (DB9).................................................................. P.24

CN24

CN25 CRT CONNECTOR (DB15) .............................................. P.25

CN26 COM2 (DB9) ................................................................ P.24

CN27 PS/2 6PIN MINI DIN KEYBOARD CONNECTOR .................. P.24

CN28 2PIN FAN CONNECTOR .................................................. P.24

PS/2 6PIN MINI DIN MOUSE CONNECTOR......................... P.24

12

2.6 Jumper Setting Description

A jumper pin-set is ON as a shorted circuit with a plastic cap
inserted over two pins. A jumper pin-set is OFF as a open circuit
with a plastic cap inserted over one or no pin(s) between pins. The

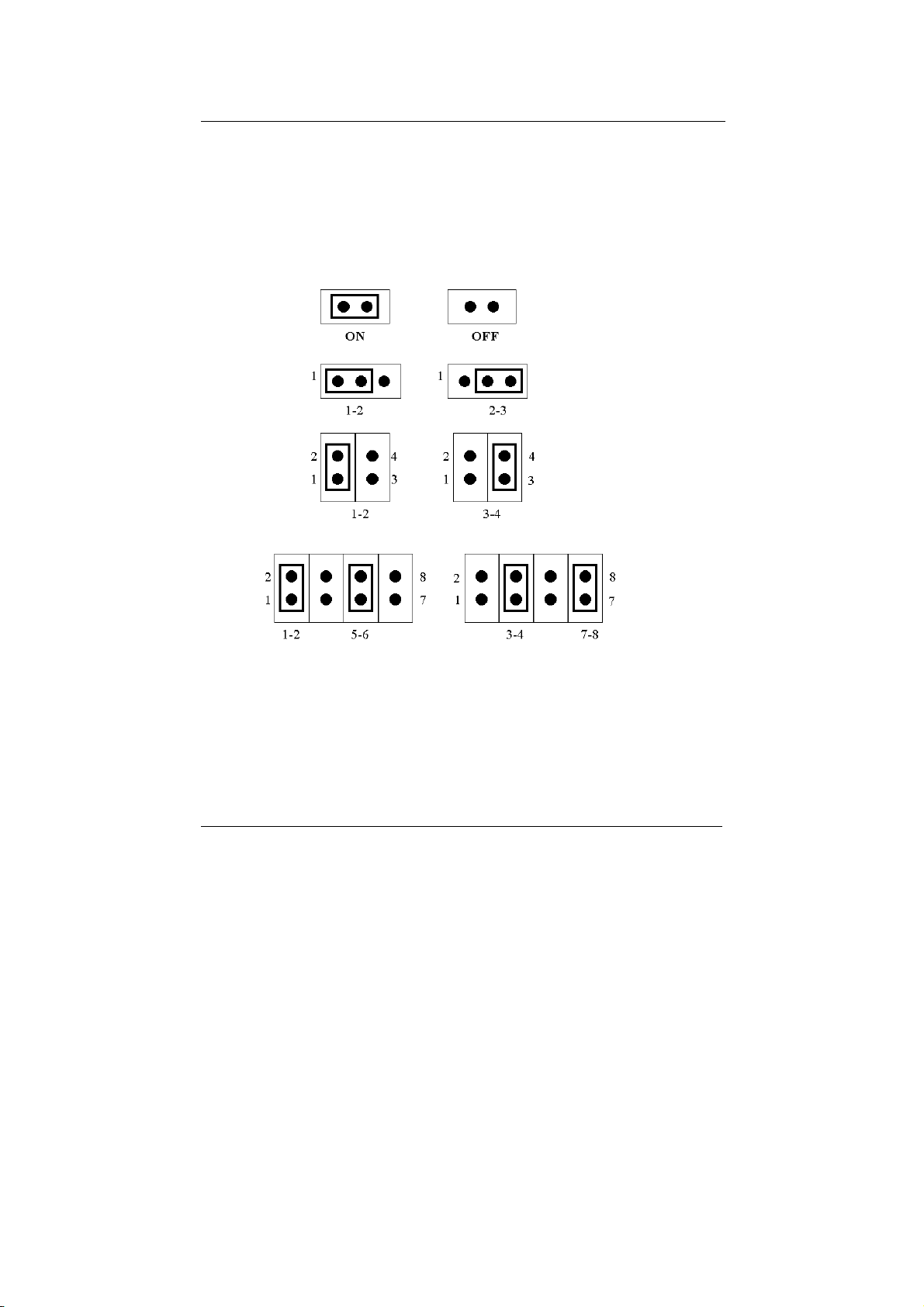

below figure 2.2 shows the examples of different jumper pin-set
setting as ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The
default setting may reference in this manual with a " * " symbol in
front of the selected item.

13

2.7 Setting the Bus-Clock Frequency

The HS-6011 provides all necessary by jumper setting in using
Bus-Clock frequency as the system bus clocking with JP2 setting as
following:

 Bus-Clock Frequency Setting of JP2:

Bus-Clock Frequency JP2

* 100MHz OFF

66MHz ON

14

2.8 Frequency Multiplier Setting

The HS-6011 provides JP5 for define the selection of the Frequency
Multiplier value of system bus to processor core in following table:

 Frequency Multiplier Setting of JP5:

Frequency Multiplier: System Clock

System Bus to

Processor Core

3x ON ON OFF ON 200 300

4x ON ON ON OFF 266 400

5x ON ON OFF OFF 333 500

2.5x ON OFF ON ON 166 250

* 3.5x ON OFF OFF ON 233 * 350

4.5x ON OFF ON OFF 300 450

5.5x OFF ON OFF OFF 366 550

6x ON OFF ON ON 400 600

6.5x OFF OFF ON ON 430 650

7x ON OFF OFF ON 460 700

7.5x OFF OFF OFF ON 500 750

8x ON OFF ON OFF 530 800

The bus-clock is setting by JP2 and JP5 The default setting is for Intel
Pentium

®

II 350MHz processor. If the bus Frequency not match

7-8 5-6 3-4 1-2

processor frequency, the system will be unstable.

JP5 ON JP5 OFF

66

* 100

15

2.9 Setting the RTC Configuration

The HS-6011 provides a setting for the selection of the RTC Clear
Jumper by JP13 setting as following:

 CMOS Setting of JP13: (DS12B887)

CMOS Clear Jumper JP13

Normal * OFF

Clear CMOS ON

2.10 System Memory DRAM

The HS-6011 provides a wide range on-board DRAM memory by
two pieces DIMM sockets (DIMM-1, DIMM-2) request the access
time should meet PC-100 standard.. The maximum capacity of the
on board memory is 1.0GBytes.

See the figure on section 2.3 for get the identifying the banks.

2.11 ATX/AT Power Select

The HS-6011 provides a selection by a three-pin jumper JP6 for setting
the power supply type in using.

 ATX/AT Power Select Setting of JP6:

Power Supply In Using JP6

ATX Power Supply 2-3

AT Power Supply * 1-2

16

2.12 Watch-Dog Timer

There are three access cycles of Watch-Dog Timer as Enable,
Refresh and Disable. The Enable cycle should proceed by READ
PORT 443H. The Disable cycle should proceed by READ PORT
045H. A continue Enable cycle after a first Enable cycle means
Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before
the time-out period for restart counting the WDT Timer's period.
Otherwise, it will assume that the program operation is abnormal
when the time counting over the period preset of WDT Timer. A
System Reset signal to start again or a NMI cycle to the CPU comes
if over.

The JP14 is using for select the active function of watch-dog timer in
disable the watch-dog timer, or presetting the watch-dog timer
activity at the reset trigger, or presetting the watch-dog timer activity
at the NMI trigger.

 JP14 : Watch-Dog Active Type Setting

JP14 DESCRIPTION

*2-3 System Reset

1-2 Active NMI

OFF disable Watch-dog timer

 JP10 ( pin 5-6, 7-8, 9-10 ) : WDT Time - Out Period

PERIOD

*1 sec ON ON ON

2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON

110 sec ON ON OFF
220 sec OFF ON OFF

WD2 WD1 WD0
5 – 6 7 – 8 9 – 10

17

The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port
(443H) and a Disable cycle by reading the Watch-dog timer disable
control port (045H). After a Enable cycle of WDT, user must
constantly proceed a Refresh cycle to WDT before its period setting
comes ending of every 1, 2, 16 or 256 seconds which pre-setting by
JP10 ( PIN 5-6, 7-8 ). If the Refresh cycle does not active before
WDT period cycle, the on board WDT architecture will issue a Reset
or NMI cycle to the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.

443H I/O Read The Refresh cycle.

The following sample programs showing how to Enable, Disable
and Refresh the Watch-dog timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the WDT
IN AL,DX
POP DX ; get back AX, DX

POP AX

RET

045H I/O Read The Disable cycle.

18

2.13 PCI VGA Controller

The HS-6011 has built-in a C&T 69000 VGA Controller with on-chip
2 MB memory, support resolutions up to 1280 x 1024 256 colors to
VGA-CRT monitor. The HS-6011 also provides one 50-pin internal
LCD Panel connector CN10, and reserved internal 10-pin
VGA-CRT header connector.

2.14 DiskOnChip Address Setting

The HS-6011 provides a U24 socket for install the DiskOnChip
module.

A JP10 ( pin 1-2, 3-4 ) may select the starting memory address of
the DiskOnChip (D.O.C.) for avoid the mapping area with any
other memory devices. If you have another extra memory devices in
the system with the same memory, neither the HS-6011 nor the
extra memory devices will function normally. Please setting both at
different memory address mapping.

 JP10 : DiskOnChip Address

Memory Address Mapping JP10 3-4 JP10 1-2

D000 * ON * ON

D800 ON OFF
E000 OFF ON
E800 OFF OFF

*) : default setting

The D.O.C. function allows the system in using without FDD nor
HDD. The D.O.C. may formatting as driver C: or driver A:. User may
also easily uses the DOS's commands such as FORMAT, SYS,
COPY, XCOPY, DISCOPY and DISKCOMP etc. This is means that
the D.O.C. may uses as driver-A if the system without FDD-A for
ambient application. Please contact with your supplier for different
size D.O.C. module.

19

2.15 LCD 3.3/5.0v Power Select

The HS-6011 provides a select for unsing the LCD Panel with 3.3V
or 5.0V as setting in the following:

 LCD Power Select of JP4:

LCD Power Type JP4

5.0V 2-3

* 3.3V 1-2

2.16 Manufacturer’s Default Setting

The HS-6011 has some jumpers which are for design use only.
Please set as the board provides of the manufacturer’s default
setting in the following:

 Manufacturer’s Default Setting of JP3 :

Manufacturer’s Setting

JP3 * OFF

2.17 Temperature Alarm

The HS-6011 provides a select for Hardware temperature Alarm. If
the CPU’s temperature reached 60°C±10%, the warning “beep” will
be come out. And it will stop as the CPU’s temperature going down
below 60°C±10% again.

 Temperature Alarm Default Setting of JP7:

Temperature Alarm JP7

Enabled ON

Disabled OFF

20

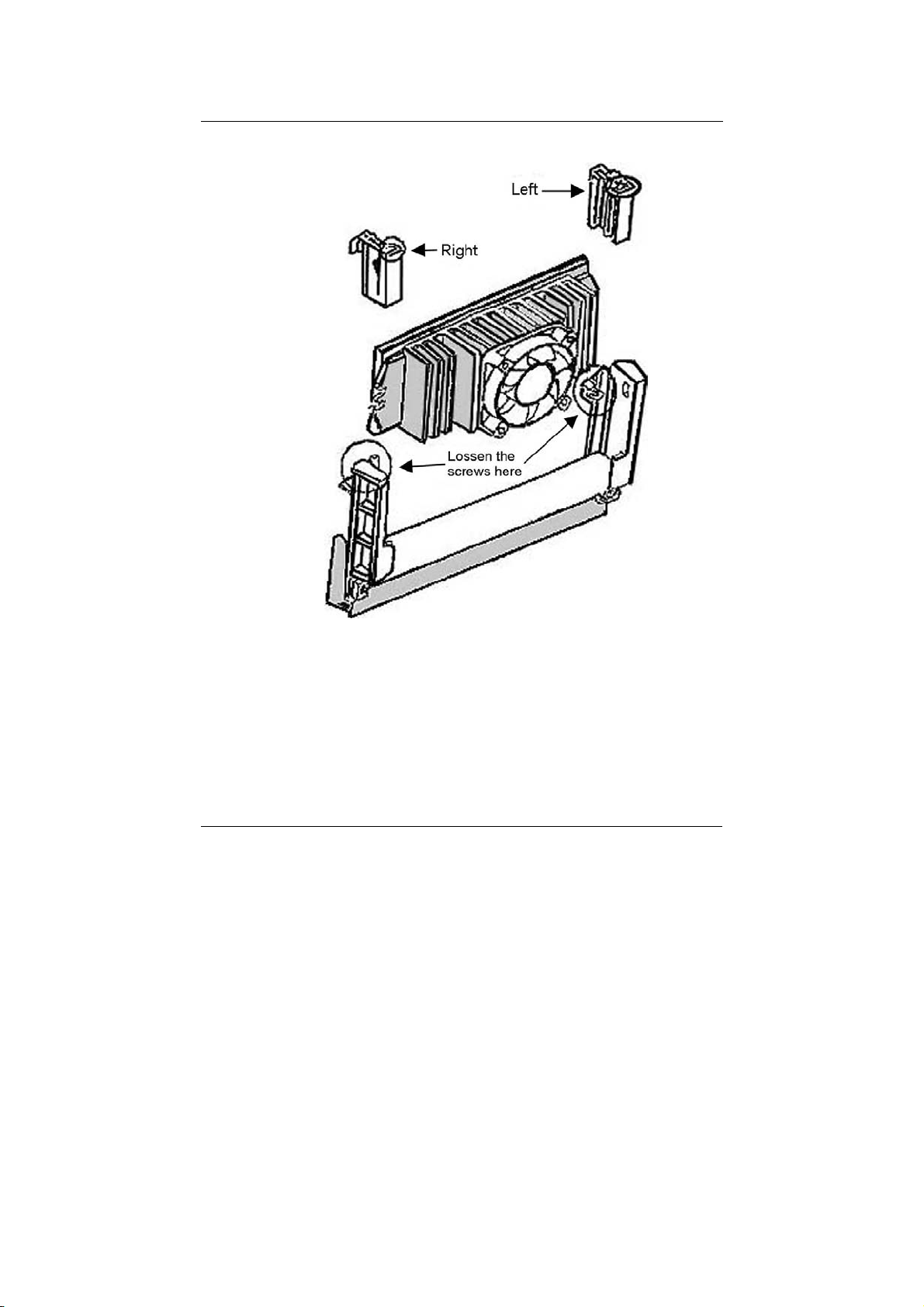

2.18 Retention Mechanism

For SECC2 PII/III processor types, use the two caps on both ends
after installing the processor to secure the installation. SECC types
do not require these caps.

21

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 Power and FAN Connectors

The HS-6011 provides one 4-pin DC-Power connector as following
CN7 pin information. And also provides one 3-pin fan out connector
at solder side as following CN4 pin information.

 CN7 : 4-PIN POWER CONNECTOR

PIN NO. DESCRIPTION

1 Vcc
2 GND
3 GND
4 +12V

 CN4 : 3-PIN FAN IN/OUT CONNECTOR

PIN NO. Type DESCRIPTION

1 To FAN GND
2 To FAN +12V
3 NC NC

The output pin-2 ( +12V ) is a DC power to FAN.

22

3.2 IDE's LED, Key-Lock and Reset Button

The HS-6011 has one LED ( D4 ) indicates out power-on status.
And the following provides the pin information for IDE's LED
connector, Key-Lock and Reset Button connections from CN3, CN1
and JP1.

 CN3 : IDE LED connector

PIN NO. DESCRIPTION

1 HDD ACTIVE#

 CN1 : POWER LED & KEYLOCK

 JP1 : RESET BUTTON

2 +5V

PIN NO. DESCRIPTION

1 POWER LED ANODE
2 NC
3 GROUND
4 KEYLOCK
5 GROUND

PIN NO. DESCRIPTION

1 GROUND
2 EXTERNAL RESET

23

3.3 Extra Speaker Connector

The HS-6011 has an on-board buzzer ( BZ1 ). And it also provides
the CN2 in allows user to connecting to the external speaker.

 CN2 : Speaker Connector

PIN NO. DESCRIPTION

1 SPEAKER SIGNAL
2 NC
3 GROUND
4 +5V

24

3.4 PCI E-IDE Drive Connector

Two standard 40-pin header daisy-chain driver connectors provide as
CN8 and CN9 with following pin assignment. Total four IDE (Integrated
Device Electronics) drivers may connect.

CN8 (IDE 1) : Primary IDE Connector

 CN8 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

25

CN9 (IDE 2) : Secondary IDE Connector

 CN9 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

26

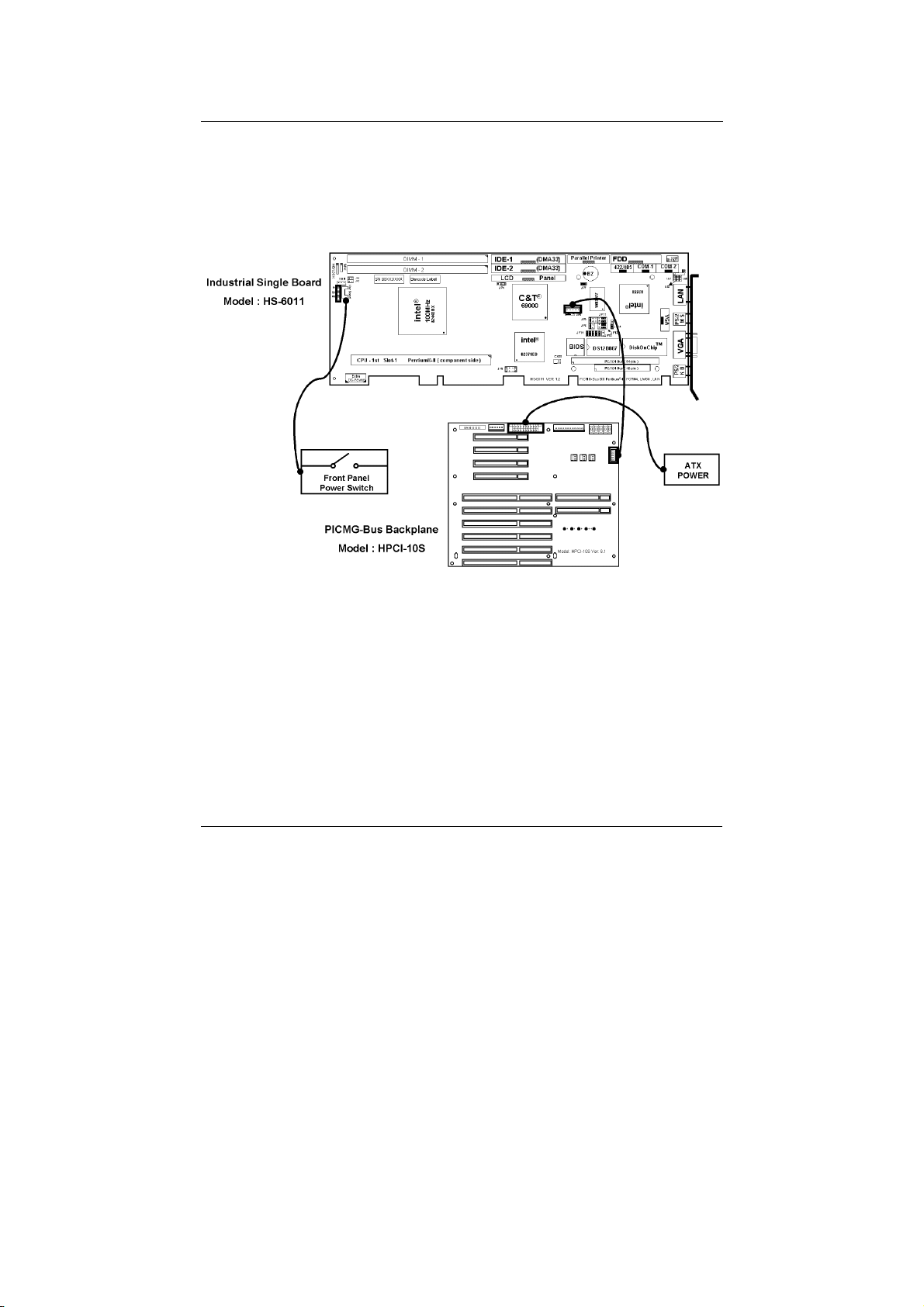

3.5 PS/2 Power ON/OFF Control

The HS-6011 reserved a CN5 for ATX Power ON/OFF Control.

 CN5 : ATX Power ON/OFF Control

CN5 DESCRIPTION

Pin 1-2 OFF ( LOW ) Pin 1-2 ON ( HIGH ) 2

Remain Power Status Change Power ON / OFF

1 Standby 3.3V

3.6 Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN12 with
following pin assignment for connection to parallel printer.

 CN12 : Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIINTELZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

27

3.7 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as
CN16 with following pin assignment. Total two FDD drivers may
connect.

 CN16 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

28

3.8 Serial Ports Connectors

According to different configuration, the HS-6011, HS-6011V,
HS-6011L and HS-6011P provides with different COM ports
assignment.

 COM-1 RS-232 at external connector CN23 of all models.
 COM-2 RS-232 at external connector CN26 of HS-6011P.
 COM-1 RS-232 also at internal connector CN17 of all models.
 COM-2 RS-232 also at internal connector CN18 of all models.
 COM-2 RS-422/485 at internal connector CN13 of all models.

All COM ports provides with high speeds NS16C550 compatible UARTs
with Read/Receive 16 byte FIFO serial ports. Please see the following
pin assignment.

 CN23/26 : RS-232 Serial Port DB-9 Connector

(COM1/COM2)

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

 CN17/18 : RS-232 Serial Port 10-pin Header (COM1/COM2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

29

 CN13 : RS422/485

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 TX- 2 TX+
3 RX+ 4 RX­5 GND 6 RTS­7 RTS+ 8 CTS+
9 CTS- 10 NC

The table here in show out on how to select and setting the COM-2 as
RS-232 as CN26 or CN18, or RS-422/485 at CN13.

Jumper RS-232 RS-422/485

JP11 3-5, 4-6 1-3, 2-4
JP12 3-5, 4-6 1-3, 2-4

JP8 OPEN 3-4 or 1-2
JP9 OPEN 3-4 or 5-6

 JP8 : Receiver Enable Control

JP9 DESCRIPTION

1-2 ON Always Enable
3-4 ON Enable by writing the REG : 2 EFH BIT1=1

*1-2 OFF Always Disable

 JP9 : Transceiver Enable Control

JP9 DESCRIPTION

1-2 ON Always Enable
3-4 ON Enable by ”-RTS” signal
5-6 ON Enable by writing the REG : 2 EFH BIT0=1

*1-2 OFF Always Disable

30

3.9 Keyboard Connectors

The HS-6011 offers two possibilities for keyboard connections to
external PS/2 type keyboard at CN27 and an internal 5-pin header
at CN6.

 CN6 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V

 CN27 : 6-pin Mini-DIN Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 N/C
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 N/C

3.10 PS/2 Mouse 6-pin Mini-DIN Connector

The HS-6011 provides an external PS/2 mouse connector at CN24
with following pin information.

 CN24 : PS/2 Mouse Connector

PIN NO. DESCRIPTION

1 DATA
2 NC
3 GROUND
4 +5V
5 CLK
6 NC

31

3.11 VGA-CRT Connector

The HS-6011 provides two possible connectives of VGA-CRT
connections. One standard DB-15 external VGA connector as
following CN25 pin information. Another internal 10-pin header for
VRA-CRT connection as following CN19 pin information.

 CN25 : 15-pin DB-15 Female VGA-CRT connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GREEN

3 BLUE 4 NC

5 GROUND 6 GROUND

7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

 CN19 : 10-pin 5x2 Header VGA-CRT connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GROUND

3 GREEN 4 GROUND

5 BLUE 6 GROUND

7 HSYNC 8 GROUND

9 VSYNC 10 GROUND

32

3.12 Flat-Panel Connector

The HS-6011 provides a 50-pin 2.0 mm pitch header connector (CN10)
for 3.3Vor 5V Panel connection with following pin-assignment.

+12V 1 2 +12V
GND 3 4 GND
* +3.3 or +5V PVcc 5 6 ENAVdd
FPVee 7 8 GND
P
P
P
P
P
P
P
P
P
P
P
P
P
SHFCLK 35 36 FLM
M 37 38 LP
GND 39 40 ENABKL
P26 41 42 P27
P28
P30 45 46 P31
P32 47 48 P33
P34 49 50 P35

9 10 P1

0

11 12 P3

2

13 14 P5

4

15 16 P7

6

17 18 P9

8

19 20 P11

10

21 22 P13

12

23 24 P15

14

25 26 P17

16

27 28 P19

18

29 30 P21

20

31 32 P23

22

33 34 P25

24

43 44 P29

*PVcc default +5V

33

Flat Panel Display interface

HS­XXXX

PIN#

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

41

42

43

44

45

46

47

48

49

50

35 SHFCLK: Pixel clock .Shift Clock

36 FLM.VSYNC: First line marker

37 DE,M: Panel AC driver control

38 LP,HSYNC: Latch pulse

40 ENABKL: Power sequencing control for enabling the backlight.(high active)

Mono Mono Mono Color Color Color Color Color Color Color Color Color Color

SS DD DD TFT

Pin

8-bit 8-bit 16-bit

Name

P0 D0 UD3 UD7 B0

P1 D1 UD2 UD6 B1

P2 D2 UD1 UD5 B2

P3 D3 UD0 UD4 B3

P4 D4 UD3 UD3 B4

P5 D5 UD2 UD2 G0

P6 D6 UD1 UD1 G1

P7 D7 UD0 UD0 G2

P8 UD7 G3 G0 SB2 FG0 B3 UG1 UB1

P9 UD6 G4 G1 SB3 FG1 R4 UB1 LR1

P10 UD5 G5

P11 UD4 R0

P12 UD3 R1

P13 UD2 R2

P14 UD1 R3

P15 UD0 R4

P16 R0 FG4 F R0 LG2

P17 R1 FG5 FR1 LB2

P18

P19

P20

P21

P22

P23

P24 FR0

P25 FR1

P26 FR2

P27 FR3

P28 FR4

P29 FR5

P30 SR0

P31 SR1

P32 SR2

P33 SR3

P34 SR4

P35 SR5

9/12/16

bit

TFT TFT STN-HR STN-SS STN-SS STN-DD STN-DD STN-DD

TFT

18

18/24

36-bit 18/24

bit

bit

B0 FB0 FB0 R1 R1 UR1 UR0 UR0

B1 FB1 FB1 B1 G 1 UG1 UG0 UG0

B2 FB2 FB2 G2 B1 UB1 UB0 UB0

B0

B3 FB3 FB3 R3 R2 UR2 UR1 LR0

B1

B4 FB4 SB0 B3 G2 LR1 UR0 LG0

B2

B5 FB5 SB1 G4 B2 LG1 LG 0 LB0

B3

B6 SB0 SB2 R5 R3 LB1 LB0 UR1

B4

B7 SB1 SB3 B5 G3 LR2 LR1 UG1

B5

G2 SB4 FG2 G4 UR2 LG1

G0

G3 SB5 FG3 B4 UG2 LB1

G1

G4 FG0 SG0 R5 LG1 UR2

G2

G5 FG1 SG1 G5 LB1 UG2

G3

G6 FG2 SG2 B5 LR2 UB2

G4

G7 FG3 SG3 R6 LG2 LR2

G5

R2 SG0 FR2 UR3

R0

R3 SG1 FR3 UG3

R1

R4 SG2 SR0 UB3

R2

R5 SG3 SR1 UR3

R3

R6 SG4 SR2 LG3

R4

R7 SG5 SR3 LB3

R5

8-bit

16-bit

bit

(4bP)

(4bP)

8-bit

(4bP)

16-bit
(4bP)

24-bit

34

R = RED G = GREEN B = BLUE F = FIRST S = SECOND U = UPER L = LOWER

3.13 IR Connector

The HS-6011 provides a 6-pin internal IR communication connector as
following CN21 pin information.

 CN21 : 6-PIN IR CONNECTOR

PIN DESCRIPTION PIN DESCRIPTION

1 Vcc 4 GROUND
2 FIRRX 5 IRTX
3 IRRX 6 CVROFF

3.14 USB Port Connector

The HS-6011 provides a internal 8-pin header for two USB ports
connection. Please refer to the following detail pin information.

 CN20 : 8-pin Header USB Connector

PIN NO. CN20 PIN NO. CN20

1 Vcc 2 Vcc
3 BD0- 4 BD1­5 BD0+ 6 BD1+
7 GROUND 8 GROUND

35

3.15 PC/104 Bus Connection

The HS-6011’s PC/104 expansion bus provides you in connect to
all kind of PC/104 modules. The PC/104 bus has been already
become the industrial embedded 16-bit PC standard bus. You can
easily install to over thousands type of PC/104 modules from
hundreds of venders in the world. The detailed pin assignment of
the PC/104 expansion bus connectors CN14 and CN15 are
specified as following tables:

Note : The PC/104 connector allows to directly plug-in

Stack-thru PC/104 modules without the PC/104
mounting kit.

36

 CN14&CN15 : PC/104 Expansion Bus

(CN14 = 64-pin female connector; CN15 = 40-pin female
connector.)

Pin CN14 CN14 CN15 CN15
No. RowA RowB RowC RowD
0 -- -- 0V 0V
1 IOCHECK* 0V SBHE* MEMCS16*
2 SD7 RESETDRV LA23 IOSC16*
3 SD6 +5V LA22 IRQ10
4 SD5 IRQ9 LA21 IRQ11
5 SD4 -5V LA20 IRQ12
6 SD3 DRQ2 LA19 IRQ15
7 SD2 -12V LA18 IRQ14
8 SD1 NOWS* LA17 DACK0*
9 SD0 +12V MEMR* DRQ0
10 IOCHRDY (KEY) MEMW* DACK5*
11 AEN SMEMW* SD8 DRQ5
12 SA19 SMEMR* SD9 DACK6*
13 SA18 IOW* SD10 DRQ6
14 SA17 IOR* SD11 DACK7*
15 SA16 DACK3* SD12 DRQ7
16 SA15 DRQ3 SD13 +5V
17 SA14 DACK1* SD14 MASTER*
18 SA13 DRQ1 SD15 0V
19 SA12 REFRESH* (KEY) 0V
20 SA11 SYSCLK -- -­21 SA10 IRQ7 -- -­22 SA9 IRQ6 -- -­23 SA8 IRQ5 -- -­24 SA7 IRQ4 -- -­25 SA6 IRQ3 -- -­26 SA5 DACK2* -- -­27 SA4 TC -- -­28 SA3 BALE -- -­29 SA2 +5V -- -­30 SA1 OSC -- -­31 SA0 0V -- -­32 0V 0V -- --

37

3.16 Fast Ethernet Connector

The Fast Ethernet controller provides with 32-bit performance, PCI bus
master capability, and full compliance with IEEE 802.3 10/100Based-T
specifications.

For 10/100Base-T operation, please connect the network connection by
plugging one end of the cable into the 9-pin RJ-45 CN22 Connector.

 CN22 : Ethernet Connector ( 9-pin RJ-45 )

PIN NO. DESCRIPTION

1 TX+
2 TX­3 RX+
4 NC
5 NC
6 RX­7 NC
8 NC
9 Ground

For indication out the LAN operating status, the board provides three
LED indicators in show out the status at follows:

LE1: LED indicator lighting shows 10-Based data rating
LE2: LED indicator lighting shows 100-Based data rating
LE4: LED indicator lighting shows LAN in active

38

3.17 ATX Power Controller Connector

The HS-6011 support ATX Power function by CN11. The connector of
CN11 can control the 5 pin ATX Power via the extension cable from the
Backplane (from the version 6.1).

39

Chapter-4

AWARD BIOS Setup

The HS-6011 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key.
The Main Menu will be displayed at this time.

40

4.1 Main Menu

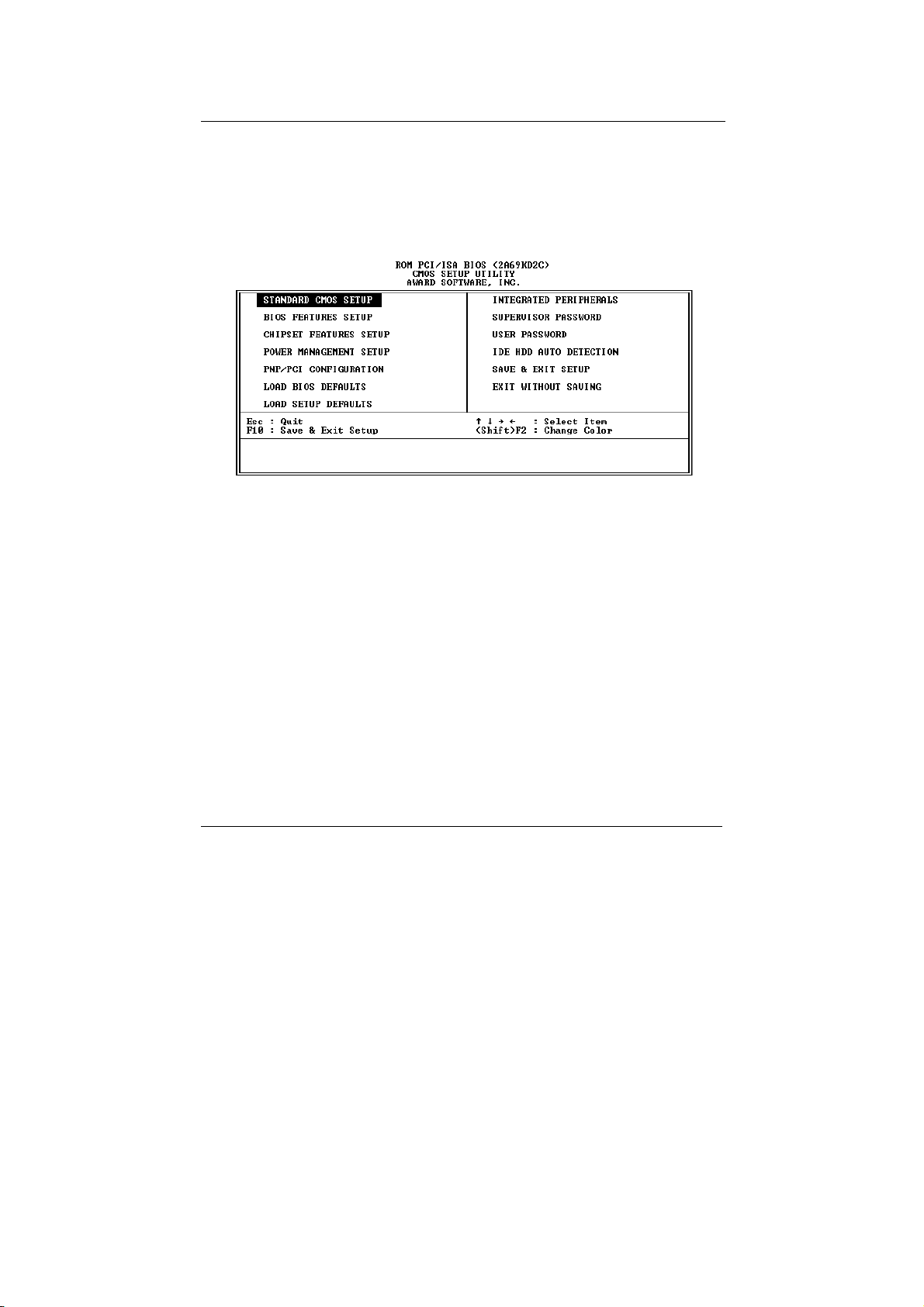

Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to
select from several setup functions and two exit choices. Use the
arrow keys to select among the items and press <Enter> to enter
the sub-menu.

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

41

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.

ROM PCI／ISA BIOS <2A69KD2C>

STANDARD CMOS SETUP
AWARD SOFTWARE, INC.

Data (mm:dd:yy) : Tue, Jul 13 1999
Time (hh:mm:ss) : 15 : 3 : 6

HARD HISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0 0 0 0 0 0 AUTO
Primary Slave : Auto 0 0 0 0 0 0 AUTO
Secondary Master : Auto 0 0 0 0 0 0 AUTO
Secondary Slave : Auto 0 0 0 0 0 0 AUTO

Drive A : 1.44M , 3.5 in
Drive B : None Base Memory : 640k

Extended Memory : 31744k

LCD&CRT : Auto Other Memory : 384k
Halt On : All Errors Total Memory : 32768k

ESC : Quit
F1 : Help

 : Select Item
(Shift) F2 : Change Color

PU/PD/ + / - : Modify

42

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

ROM PCI／ISA BIOS <2A69KD2C>

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shado w : Disab led
External Cache : Enabled CC000-CFFF Shadow : Disabl ed
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Sha dow : Disa bled
Quick Power On Self Test : Disabled D4000-D7FFF Shadow : Di sabled
Boot Sequence : A,C,SCSI D8000-DBFFF Shadow : Disab led
Swap Floppy Drive : Disabled DC000-DFFFF Shadow : D isabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PS/2 mouse function conltrol : Enabled
PCI/VGA Palette Snoop : Disabled ESC : Quit : Select Item
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU / PD / + /- : Modify
Report No FDD For WIN 95 : Yes F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults

43

4.4 Chipset Features Setup

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.

ROM PCI／ISA BIOS <2A69KD2C>

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled Auto Detect DIMM/PCI Clk : Enabled
EDO DRAM Speed Selection : 60ns Spread Spectrum : Disabled
EDO CASx# MA Wait State : 2 CPU Host Clock : Default
EDO RASx# Wait State : 2 CPU Warning Temperature : Disabled
SDRAM RAS-to-CAS Delay : 3 Cu rrent CPU Temperature : 35°C / 95°F
SDRAM RAS Precharge Time : 3
SDRAM CAS latency Time : 3
SDRAM Precharge Control : Disabled
DRAM Date Integrity Mode : Non-ECC
System BIOS Cacheable : Enabled
Video BIOS Cacheable : Enabled
Video RAM Cacheable : Enabled
8 Bit I/O Recovery : 1
16 Bit I/O Recovery : 1
Memory Hole At 15M-16M : Disabled
Passive Release : Disabled ESC : Quit : Select Item
Delayed Transation : Enabled F1 : Help PU/PD/+/- : Modify

AGP Aperture Size : 64 F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

44

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).

ROM PCI／ISA BIOS <2A69KD2C>

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto Onboard Parallel Port : 378 / IRQ7
IDE Primary Slave PIO : Auto Parallel Port Mod e : S PP
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled LCD Panel Type : Panel 5
On-Chip Secondary PCI IDE : Enabled
USB Keyboard Support : Disabled
Init Display First : PCI Slot

KBC input clock : 8MHz
Onboard FDC Controller : Enabled ESC : Quit  : Select Item
Onboard Serial Port 1 : 3F8/IRQ4 F1 : Help PU/PD/+/- : Modify
Onboard Serial Port 2 : 2F8/IRQ3 F5 : Old Values (Shift) F2 : Color
UART Mode Select : Normal F6 : Load BIOS Defaults
F7 : Load Setup Defaults

45

4.6 Power Management Setup

The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.

ROM PCI-ISA BIOS <2A69KD2C>

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Power Management : User Define ** Reload Global Timer Events **

PM Control by APM : Yes IRQ3 [3-7, 9-15], NMI : Disabled

Video Off Method : V/H SYNC + Blank Primary IDE0 : Disabled

Video Off After : Standby Primary IDE1 : Disabled

MODEM Use IRQ : 3 Secondary IDE 0 : Disabled

Doze Mode : Disable Secondary IDE 1 : Disabled

Standby Mode : Disable Floppy Disk : Disabled

Suspend Mode : Disable Serial Port : Enabled

HDD Power Down : Disable Parallel Port : Disabled

Throttle Duty Cycle : 62.5%

PCI/VGA Act-Monitor : Disabled

Power On by Ring : Instant-Off

CPU fan on temp high : Enabled

IRQ8 Break Suspend : Disabled

ESC : Quit  : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

46
