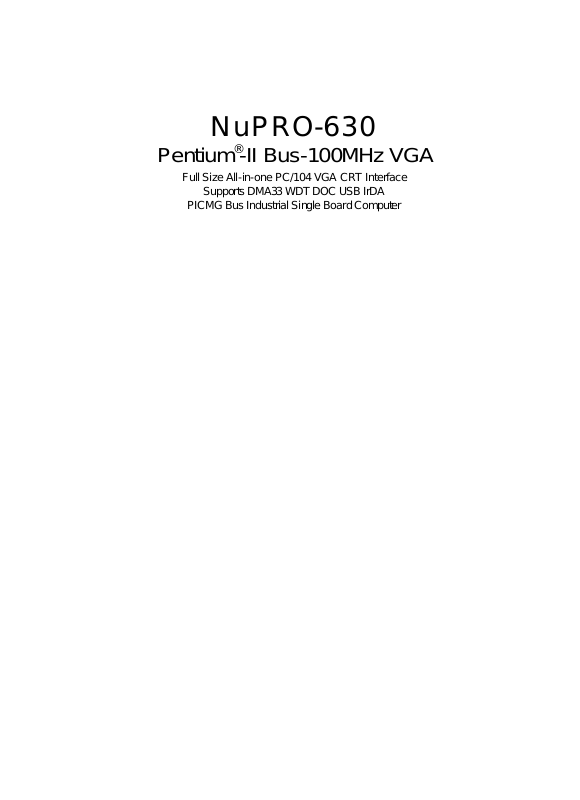

Boser HS-6010 User Manual

NuPRO-630

Pentium®-II Bus-100MHz VGA

Full Size All-in-one PC/104 VGA CRT Interface

Supports DMA33 WDT DOC USB IrDA

PICMG Bus Industrial Single Board Computer

© Copyright 1999
All Rights Reserved.
Manual Rev 1.0, February 22.1999

This manual is copyrighted and all rights are reserved. It is not allow any non authorization in
copied, photocopied, translated or reduced to any electronic or machine readable in whole or in
part form without prior written consent from the manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special, incidental or
consequential damages arising from the use of inability to use the product or documentation,
even if advised of the possibility of such damages.

The proprietary information contains in this document is protected by the copyright. All rights
are reserved. It is not allow any non authorization in copied, photocopied, translated or reduced
to any electronic or machine readable in whole or in part form without prior written consent
from the manufacturer except for copied retained by the purchaser for backup purposes.

The manufacturer keeps the rights in the subject to change the contents of this manual without
prior notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this manual,
nor does it make a commitment to update the information contained herein.

Trademarks
IBM PC is a registered trademark of International Business Machines Corporation.

ALi is a registered trademark of ALi Corporation.
AWARD is a registered trademark of AWARD International Inc.

NuPRO is a registered trademark of ADLink Technology Inc.
All other trademarks, products and or product's name mentioned herein are mentioned for

identification purposes only, and may be trademarks and/or registered trademarks of their
respective companies or owners.

Contents

CHAPTER1 GENERAL INFORMATION...............................................................1-1

1.1 MAJOR FEATURES..............................................................................................1-2

1.2 S PECIFICATIONS..................................................................................................1-3

1.3 DELIVERY PACKAGE ..........................................................................................1-4

CHAPTER2 HARDWARE I NSTALLATION.........................................................2-1

2.1 CAUTION OF S TATIC ELECTRICITY................................................................2-1

2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION............................2-2

2.3 NUPRO-630’S LAYOUT......................................................................................2-3

2.4 QUICK LISTING OF JUMPERS.............................................................................2-3

2.5 QUICK LISTING OF CONNECTORS.....................................................................2-4

2.6 JUMPER S ETTING DESCRIPTION...................................................................... 2-5

2.7 S ETTING THE BUS-CLOCK FREQUENCY.........................................................2-6

2.8 FREQUENCY MULTIPLIER S ETTING...............................................................2-6

2.9 S ETTING THE RTC CONFIGURATION..............................................................2-7

2.10 S YSTEM MEMORY DRAM...............................................................................2-7

2.11 ATX/AT POWER S ELECT................................................................................. 2-7

2.12 W ATCH-DOG TIMER.........................................................................................2-8

2.13 PCI VGA CONTROLLER (NUPRO-630 ONLY)...............................................2-9

2.14 DISKONCHIP ADDRESS SETTING..............................................................2-10

CHAPTER3 CONNECTION......................................................................................3-1

3.1 POWER AND FAN CONNECTORS......................................................................3-1

3.2 IDE'S LED, KEY-LOCK AND RESET BUTTON..................................................3-2

3.3 E XTRA SPEAKER CONNECTOR.........................................................................3-2

3.4 PCI E -IDE DRIVE CONNECTOR.........................................................................3-3

3.5 PS/2 POWER ON/OFF CONTROL ....................................................................... 3-4

3.6 PARALLEL PORT CONNECTOR ......................................................................... 3-5

3.7 THE FLOPPY DISK DRIVE CONNECTOR .......................................................... 3-5

3.8 S ERIAL PORTS CONNECTORS............................................................................3-6

3.9 KEYBOARD CONNECTORS.................................................................................3-8

3.10 PS/2 MOUSE 6-PIN MINI-DIN CONNECTOR..................................................3-8

3.11 VGA-CRT CONNECTOR...................................................................................3-9

3.12 IR CONNECTOR...............................................................................................3-10

Contents • i

3.13 USB PORTS CONNECTOR...............................................................................3-10

CHAPTER4 AWARD BIOS SETUP........................................................................4-1

4.1 MAIN MENU........................................................................................................4-2

4.2 S TANDARD CMOS SETUP .................................................................................4-3

4.3 BIOS FEATURES S ETUP .....................................................................................4-4

4.4 CHIPSET FEATURES S ETUP...............................................................................4-5

4.5 INTEGRATED PERIPHERALS..............................................................................4-6

4.6 POWER MANAGEMENT S ETUP ........................................................................4-7

ii •Contents

Chapter-1

General Information

The NuPRO-630 is a bus-100MHz ALi® BX-Level chipset design PICMG bus
Pentium®II Industrial Single Board (I.S.B.) CPU card with features combine together
to make it an ideal all-in-one industrial single board computer, enhanced I/O effects
with VGA interface on-board.

The NuPRO-630 also provides one set of PC/104 bus for 8/16-bit industrial
application with based on PC/104 standard bus.

With onboard DMA33 of mode 4 to IDE drive interface architecture, the NuPRO -630
supports with maximum 33.3 MB/sec in data transfer rating to 4 pieces IDE drive
connection. Design with ALi™ M1621 BX-Level core logic chipset supports all series
Pentium®II operating at 233MHz, 266MHz, 300MHz, 333MHz, 400MHz and
450MHz. The on-board S3® 86C375 VGA chipset supports up to 1280 x 1024 256

colors display resolution. And it also provides one extra 10-pin connector for
internal VGA connection.

The advanced PICMG bus add-on connection of NuPRO-630 allows user could easily
obtain both ISA's 16-bit and PCI's 32-bit full set signals from a full size PICMG slot for
suitable plug into system with 8/16/32-bit ISA and-or PCI slots operating. The
NuPRO-630 provides with three pieces 168-pin DIMM sockets support up to

1.5GBytes of main system memory.
A single Flash chip holds the system BIOS, and you can easy update the Flash BIOS by

the Utility Update. Advanced USB and IR ports also provide for faster and easily in data
transmission. You can also use the DOS version of the "DiskOnChip" socket by

issuing commands from the DOS prompt without the necessity of other software
supports up to 72MB.

If a non-expect program cause halts, the onboard watchdog timer will automatically
reset the CPU or generate an interrupt. The watchdog is designed with hardware only
and doesn’t need any arithmetical functions of a real -time clock chip. This ensures the
reliability in an unmanned or standalone system.

General Information 1-1

1.1 Major Features

ü PICMG bus supported.
ü PC/104 bus connector for 8/16-bit supported.
ü One axial-horizontal type Slot-1 socket for Intel™ Pentium

Processors.

ü ALi™ M1621 BX-Level chipset.
ü Three pieces DIMM sockets supports DRAM up to 1.5 GB.
ü Fast PCI DMA33 controller supports four IDE drives include large hard disks,

CD-ROM and tape backup etc.

ü PnP I/O address & IRQ selection
ü Two high-speed RS-232 serial ports with 16C550 UART 16-byte FIFO.
ü One enhanced bi-directional parallel port supports SPP/EPP/ECP.
ü On-board PS/2 Keyboard and PS/2 Mouse connector.
ü On-board S3

ü DiskOnChip Socket supports memory size up to 72 MB.
ü On-board two USB ports and one IrDA port.
ü Build-in one industrial WDT Watch-Dog-Timer.
ü AWARD PnP Y2K Flash BIOS.

®

86C375 SVGA adapter.

®

II 233∼450 MHz

1-2 General Information

1.2 Specifications

² CPU: One Intel Pentium®II 233/266/300/333/400/450MHz.
² Bus interface: PICMG bus, PC/104 bus.
² Chipset: ALi™ M1621 BX-Level with bus-100MHz facility.
² Data bus: 64-bit
² Processing ability: 64-bit
² SVGA Controller: S3® 86C375 chipset with 2MB memory supports CRT up to

1280x1024 256 colors. Provides internal 10-pin VGA connector.

² PCI Enhanced IDE Interfaces: Supports four IDE drives modes 3&4 with

DMA33 function provide data transfer rate up to 33MB/Sec.

² RAM memory: Three pieces 168-pin DIMM sockets provide up to 1.5 GBytes.
² Cache memory: Slot-1 socket supports Intel's Pentium®II CPU with build-in

512KB Pipeline burst cache memory.

² Floppy disk drive interface: Supports up to two floppy disk drives.
² Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP.
² Serial ports: Two RS-232 ports. Both use 16C550 UART with 16-byte FIFO.
² BIOS: AWARD PnP Y2K Flash BIOS.
² Watchdog timer: Hardware circuit can be set by 1, 2, 10, 20, 110, or 220 seconds

period Reset or NMI were generated when CPU did not periodically trigger the
timer.

² DMA channels: 7
² Interrupt levels: 15
² Keyboard: 6-pin mini DIN connector or 5-pin header supports standard PC/AT

keyboard.

² Mouse: 6-pin mini DIN connector support PS/2 type mouse.
² USB: Supports 2 USB header.
² IR interface: Supports one lrDA TX/RX header.

General Information 1-3

² Flash memory Disk: Socket for DiskOnChip™ (DOC), support up to 72MB

Flash memory disk.

² Extra Power Input: Provides one 4-PIN extra DC +5V/+12V power input

connector.

² CMOS: Real-time clock/calendar and battery backup by DS12B887 or equivalent

device.

² Power supply voltage: +5V (4.75 to 5.25V), +12V, -12V.
² Max. Power requirement: +5V @12A(266MHz), +12V@20mA,

-12V@20mA.

² Operating temperature: 0-55°C (CPU need cooler)
² Board size: 13.26"(L) x 4.8" (W) (337mm x 122mm)

The NuPRO-630 provides with VGA Interface, supports DMA33, WDT, DOC, USB and
IrDA.

The NuPRO-631 design is same as NuPRO-630 but without VGA interface.

1.3 Delivery Package

The delivery package of NuPRO-630 includes all following items:

R One NuPRO-630 Industrial Single Board

R One Printer & COM Ports Bracketed Flat Cable
R One IDE port Flat Cable
R One FDD port Flat Cable
R One PS/2 to Standard DIN type Keyboard Transfer Cable
R Manual & Utility CD-ROM
R User’s Manual

Please contact with your dealer if any of these items are missing or damaged when
purchasing. And please keep all parts of the delivery package with packing
materials in case of you want to ship or store the product in feature.

1-4 General Information

Chapter-2

Hardware Installation

This ch apter provides the information on how to install the hardware of
NuPRO-630. At first, please follow up sections 1.3, 2.1 and 2.2 in check the
delivery package and carefully unpacking. Following after, the jumpers setting of

switch, watchdog timer and the DiskOnChip address selection etc.

2.1 Caution of Static Electricity

The NuPRO-630 has been well package with an anti-static bag in protect its
sensitive computer components and circuitry from the damage of static electric
discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

You should follow the steps as following to protect the board in against the
static electric discharge whenever you handle the board:

1. Please use a grounding wrist strap on whoever needs to handle the
NuPRO-630. Well clip the ALLIGATOR clip of the strap to the end of the
shielded wire lead from a grounded object. Please put on and connect the strap
before handle the NuPRO-630 for harmlessly discharge any static electricity
through the strap.

2. Please use anti-static pad for put any components or parts or tools on the pad
whenever you work on them outside the computer. You may also in use the
anti-static bag instead the pad. Please ask from your local supplier in help up
your necessary parts on anti-static requirement.

Hardware Installation 2-1

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in protection the
NuPRO-630 from electricity discharge. With refer to section 1.3, please check the
delivery package again with following steps:

1. Unpacking the NuPRO-630, keep well storage of all packing material, manual

and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT INSTALL

IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF

HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM, ROM-Disk

etc.) for completed setting all necessary jumpers setting to jumper pin-set and
CMOS setup correctly. Please also reference to all information of jumpers
setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver Type etc.) for

completed add-in or connection and CMOS setup correctly. Please also
reference to all information of connector connection in this manual.

6. Please keep all necessary manual and diskette in a good condition for your

necessary re-installation if you change your Operating System or whatever
needs.

2-2 Hardware Installation

2.3 NuPRO-630’s Layout

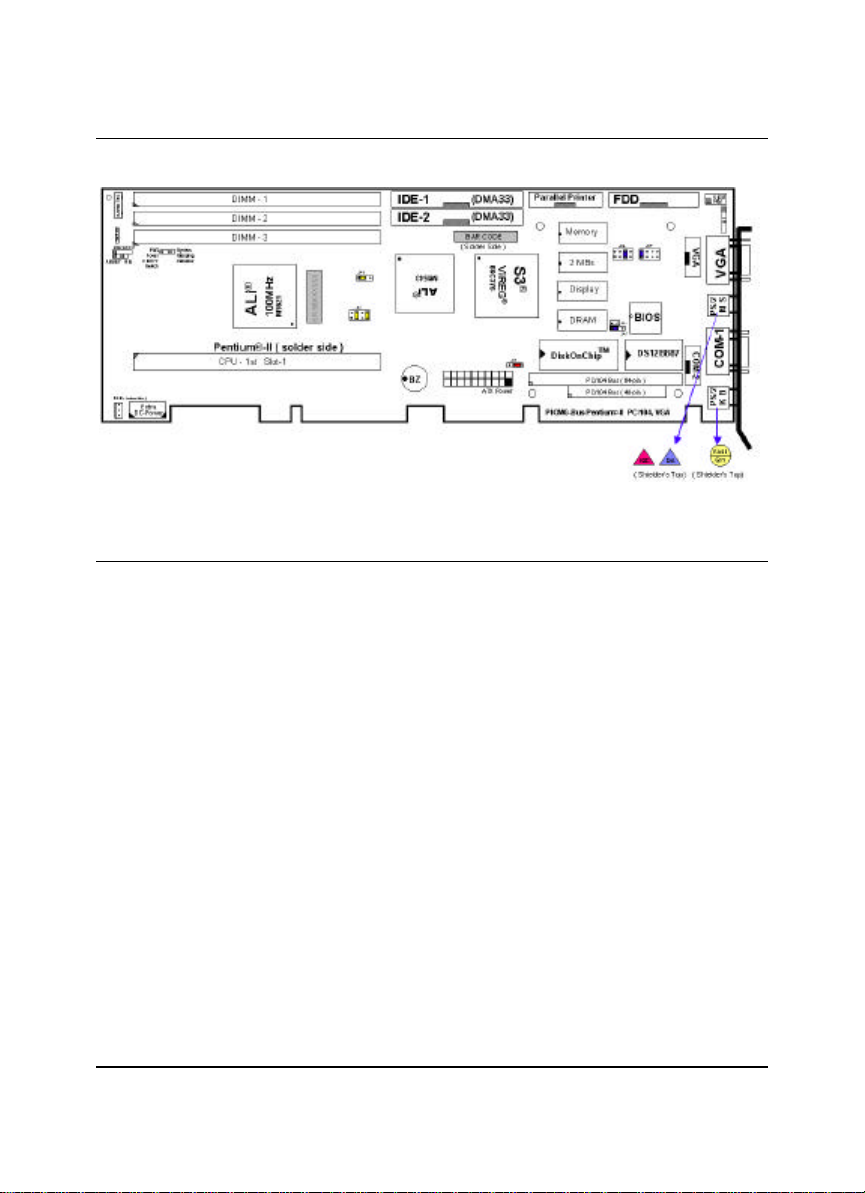

NuPRO-630’s Layout

2.4 Quick Listing of Jumpers

JP1 ( 1-2 ON ) — Bus-Clock Select
JP3 ( 3-4,7-8 ON ) — Frequency Multiplier setting of System Bus to

Processor Core

JP4 ( 1-2 OFF ) — RTC Clear Jumper
JP5 ( 1-2 ON ) — WATCHDOG Active Select
JP6 ( 5-6 ON ) — Time scale of Watch-Dog Timer
JP7 ( 1-2 ON ) — DiskOnChip™ Address setting
JP8 ( 2-3 ON ) — ATX/AT Power Select

Hardware Installation 2-3

2.5 Quick Listing of Connectors

BZ1: ON-BOARD BUZZER
CN1: INTERNAL 5-PIN KEYBOARD CONNECTOR
CN2: RESET PIN
CN3: SPEAKER CONNECTOR
CN4: KEYLOCK CONNECTOR
CN5: HDD LED CONNECTOR
CN6: PS/2 POWER SWITCH CONNECTOR
CN7: POWER 4-PIN CONNECTOR
CN9: 1st IDE CONNECTOR
CN10: 2nd IDE CONNECTOR
CN13: PARALLEL PORT CONNECTOR
CN16: FDD CONNECTOR
CN17: INTERNAL VGA LCD CONNECTOR (HEADER 25x2)
CN18: COM2 (HEADER 5x2)
CN19: USB PORTS CONNECTOR
CN20: EXTERNAL COM1 CONNECTOR (DB9)
CN21: IR CONNECTOR (6-PIN)
CN22: EXTERNAL VGA CONNECTOR (DB15)
CN23: EXTERNAL MINI-DIN PS/2 MOUSE CONNECTOR
CN24: EXTERNAL MINI-DIN PS/2 KEYBOARD CONNECTOR
CN26: EXTERNAL COM2 CONNECTOR (DB9) (NuPRO-630P only)
CN35: FAN POWER CONNECTOR
LD1: ON-BOARD POWER-ON LED INDICATOR
U17: DiskOnChip™ SOCKET

2-4 Hardware Installation

2.6 Jumper Setting Description

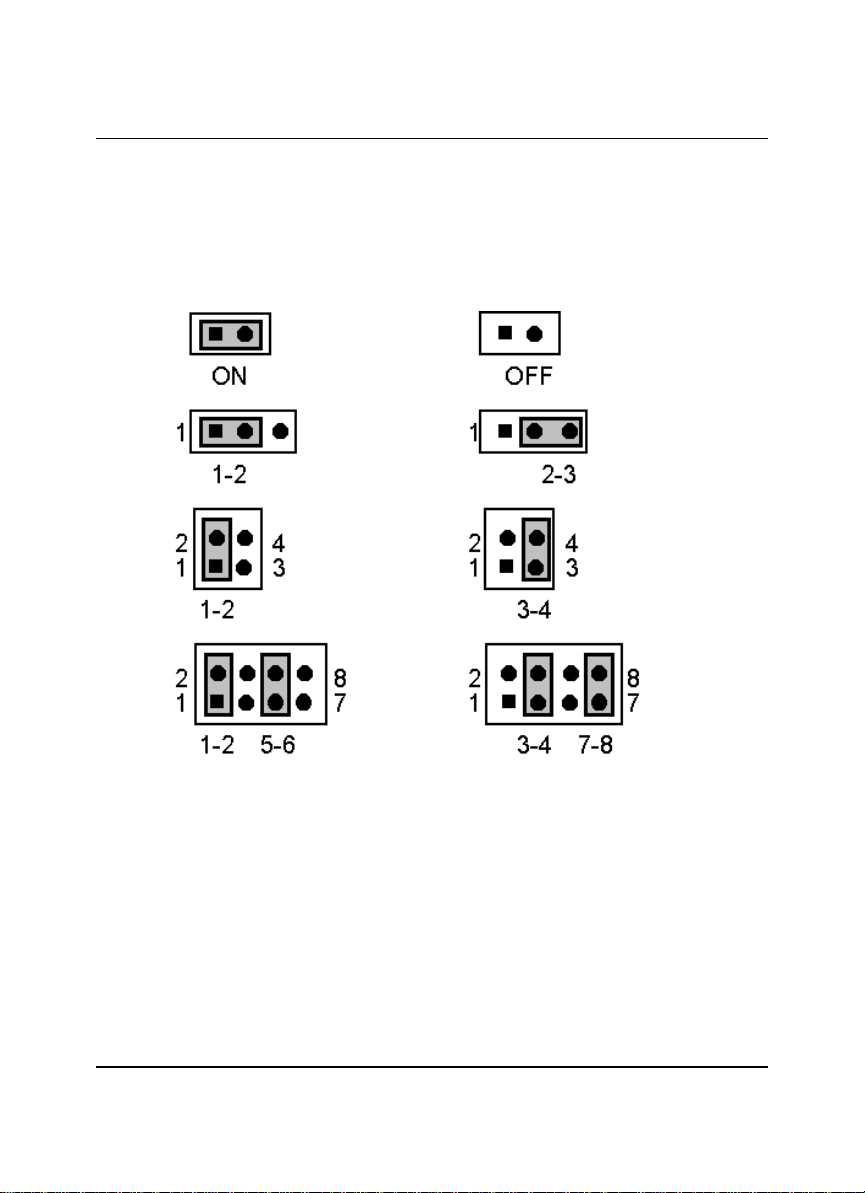

A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over two
pins. A jumper pin-set is OFF as a open circuit with a plastic cap inserted over
one or no pin(s) between pins. The below figure 2.2 shows the examples of
different jumper pin-set setting as ON or OFF in this manual.

Figure 2.2
All jumper pin-set already has its default setting with the plastic cap inserted as

ON, or without the plastic cap inserted as OFF. The default setting may reference
in this manual with a " * " symbol in front of the selected item.

Hardware Installation 2-5

2.7 Setting the Bus-Clock Frequency

The NuPRO-630 provides all necessary by jumper setting in using Bus-Clock
frequency as the system bus clocking with JP1 setting as following:

l Bus-Clock Frequency Setting of JP1:

Bus-Clock Frequency JP1

* 100MHz 1-2

66MHz 2-3

2.8 Frequency Multiplier Setting

The NuPRO-630 provides JP3 for define the selection of the Frequency
Multiplier value of system bus to processor core in following table:

l Frequency Multiplier Setting of JP3:

Frequency Multiplier:

( System Bus to Processor Core )

2x ON ON ON ON

2.5x ON ON ON OFF
6x ON ON OFF ON

6.5x ON ON OFF OFF
3x ON OFF ON ON

* 3.5x ON OFF ON OFF

7x ON OFF OFF ON

7.5x ON OFF OFF OFF
4x OFF ON ON ON

4.5x OFF ON ON OFF
8x OFF ON OFF ON

1.5x OFF ON OFF OFF
5x OFF OFF ON ON

5.5x OFF OFF ON OFF
Reserved OFF OFF OFF ON

7-8 5-6 3-4 1-2

The bus-clock is setting by JP1 and JP2 The default setting is for Intel Pentium®II
350MHz processor.

2-6 Hardware Installation

2.9 Setting the RTC Configuration

The NuPRO-630 provides a setting for the selection of the RTC Clear Jumper by
JP4 setting as following:

l CMOS Setting of JP4:

CMOS Clear Jumper JP4

Normal * OFF

Clear CMOS ON

2.10 System Memory DRAM

The NuPRO-630 provides a wide range on-board DRAM memory by three
pieces DIMM sockets (DIMM-1, DIMM-2, DIMM-3) request the access time
should meet PC-100 standard.. The maximum capacity of the on board memory
is 1.5GBytes.

See the figure on section 2.3 for get the identifying the banks.

2.11 ATX/AT Power Select

The NuPRO-630 provides a selection by a three-pin jumper JP8 for setting the
power supply type in using.

l ATX/AT Power Select Setting of JP8:

Power Supply In Using JP8

AT Power Supply * 2-3

ATX Power Supply 1-2

Hardware Installation 2-7

2.12 Watch -Dog Timer

There are three access cycles of Watch-Dog Timer as Enable, Refresh and Disable.
The Enable cycle should proceed by READ PORT 443H. The Disable cycle
should proceed by READ PORT 043H. A continue Enable cycle after a first
Enable cycle means Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before the time-out
period for restart counting the WDT Timer's period. Otherwise, it will assume
that the program operation is abnormal when the time counting over the period
preset of WDT Timer. A System Reset signal to start again or a NMI cycle to the
CPU comes if over.

The JP5 is using for select the active function of watch-dog timer in disable the
watch-dog timer, or presetting the watch-dog timer activity at the reset trigger, or
presetting the watch-dog timer activity at the NMI trigger.

l JP5 : Watch-Dog Active Type Setting

JP5 DESCRIPTION
*1-2 System Reset

2-3 Active NMI
OFF disable Watch-dog timer

l JP6 : WDT Time - Out Period

PERIOD 1-2 3-4 5-6 7-8
*1 sec OFF OFF ON OFF

2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec OFF ON OFF ON
110 sec ON OFF OFF OFF
220 sec ON OFF OFF ON

The Watch-dog timer is disabled after the system Power-On. The watch -dog
timer can be enabled by a Enable cycle with reading the control port (443H), a
Refresh cycle with reading the control port (443H) and a Disable cycle by reading
the Watch-dog timer disable control port (043H). After a Enable cycle of WDT,
user must constantly proceed a Refresh cycle to WDT before its period setting
comes ending of every 1, 2, 10, 20, 110 or 120 seconds which pre-setting by JP6.

2-8 Hardware Installation

If the Refresh cycle does not active before WDT period cycle, the on board WDT
architecture will issue a Reset or NMI cycle to the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.

The following sample programs showing how to Enable, Disable and Refresh
the Watch-dog timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX

POP AX

RET

2.13 PCI VGA Controller (NuPRO-630 Only)

The NuPRO-630 has built-in a S3 86C375 VGA Controller with on-board 2 MB
memory, support resolutions up to 1280 x 1024 256 colors, reserved internal
10-pin VGA-CRT header connector.

To get more VGA drivers information, please refer to the S3’s internet addre ss:

WWW.S3.COM

Hardware Installation 2-9

2.14 DiskOnChip Address Setting

The NuPRO-630 provides a U17 socket for install the DiskOnChip module.
A JP7 may select the starting memory address of the DiskOnChip (D.O.C.)

for avoid the mapping area with any other memory devices. If you have another
extra memory devices in the system with the same memory, neither the
NuPRO-630 nor the extra memory devices will function normally. Please setting
both at different memory address mapping.

l JP7 : DiskOnChip

Memory Address Mapping JP7

D000 * 1-2

D800 3-4
E000 5-6
E800 7-8

*) : default setting

The D.O.C. function allows the system in using without FDD nor HDD. The
D.O.C. may formatting as driver C: or driver A:. User may also easily uses the
DOS's commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc. This is means that the D.O.C. may uses as driver-A if the
system without FDD-A for ambient application. Please contact with your
supplier for different size D.O.C. module.



Address

2-10 Hardware Installation

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's connections,
switches and indicators.

3.1 Power and FAN Connectors

The NuPRO-630 provides one 4-pin DC-Power connector as following CN7
pin information. And also provides one 3-pin fan out connector at solder side as
following CN35 pin information.

l CN7 : 4-PIN POWER CONNECTOR

PIN NO. DESCRIPTION
1 Vcc

2 GND
3 GND
4 +12V

l CN35 : 3-PIN FAN IN/OUT CONNECTOR

PIN NO. Type DESCRIPTION
1 To FAN GND

2 To FAN +12V

3

The input pin-2 ( +12V ) is a DC power to FAN. The pin-3 ( Indicator ) shows
out the activity of the FAN. “Low” means that the FAN is in running, “High”
means that the FAN is stop.

From
FAN

FAN Activity Indicator
Low High
FAN Running FAN Stop

Connection 3-1

3.2 IDE's LED, Key -Lock and Reset Button

The NuPRO-630 has one LED ( LD1 ) indicates out power-on status. And the
following provides the pin information for IDE's LED indicator, Key-Lock and
Reset Button connections from CN5, CN4 and CN2.

l CN5 : IDE LED connector

PIN NO. DESCRIPTION
1 +5V

2 HDD ACTIVE#

l CN4 : POWER LED & KEYLOCK

PIN NO. DESCRIPTION
1 POWER LED ANODE

2 NC
3 GROUND
4 KEYLOCK
5 GROUND

l CN2 : RESET BUTTON

PIN NO. DESCRIPTION
1 EXTERNAL RESET

2 GROUND

3.3 Extra Speaker Connector

The NuPRO-630 has an on-board buzzer ( BZ1 ). And it also provides the CN3
in allows user to connecting to the external speaker.

l CN3 : Speaker Connector

PIN NO. DESCRIPTION
1 SPEAKER SIGNAL

2 NC
3 GROUND
4 +5V

3-2 Connection

3.4 PCI E-IDE Drive Connector

Two standard 40-pin header daisy -chain driver connectors provide as CN9 and
CN10 with following pin assignment. Total four IDE (Integrated Device
Electronics) drivers may connect.

CN9 (IDE 1) : Primary IDE Connector

l CN9 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET 2 GROUND

3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

Connection 3-3

CN10 (IDE 2) : Primary IDE Connector

l CN10 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET 2 GROUND

3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

3.5 PS/2 Power ON/OFF Control

The NuPRO-630 reserved a CN6 for PS/2 Power ON/OFF Control.

l CN6 : PS/2 Power ON/OFF Control

CN6 DESCRIPTION

LOW HIGH 1
Switch Power OFF Switch Power ON

2 GND

3-4 Connection

3.6 Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN13 with following
pin assignment for connection to parallel printer.

l CN13 : Parallel Port Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE 2 DATA 0

3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

3.7 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as CN16 with
following pin assignment. Total two FDD drivers may connect.

Connection 3-5

l CN16 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 REDUCE WRITE

3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

3.8 Serial Ports Connectors

The NuPRO-630 offers two high speeds NS16C550 compatible UARTs with
Read/Receive 16 byte FIFO serial ports with one external DB-9 connector CN20
and one internal 10-pin header CN18. The NuPRO-630P which is with two
external DB-9 RS-232 connectors CN20/26 and without VGA on-board. All
pin-assignment are listing at below:

l CN20/26 : Serial Port DB-9 Connector (COM1/COM2)

PIN NO. DESCRIPTION

3-6 Connection

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

l CN18 : Serial Port 10-pin Header (COM2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR

3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

Connection 3-7

3.9 Keyboard Connectors

The NuPRO-630 offers two possibilities for keyboard connections to external
PS/2 type keyboard at CN24 and an inte rnal 5-pin header at CN1.

l CN1 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION
1 KEYBOARD CLOCK

2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V

l CN24 : 6-pin Mini-DIN Keyboard Connector

PIN NO. DESCRIPTION
1 KEYBOARD DATA

2 N/C
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 N/C

3.10 PS/2 Mouse 6-pin Mini-DIN Connector

The NuPRO-630 provides an external PS/2 mouse connector at CN23 with
following pin information.

l CN23 : PS/2 Mouse Connector

PIN NO. DESCRIPTION
1 DATA

2 NC
3 GROUND
4 +5V
5 CLK
6 NC

3-8 Connection

3.11 VGA-CRT Connector

The NuPRO-630 provides two possible connectives of VGA-CRT connections.
One standard DB-15 external VGA connector as following CN22 pin
information. Another internal 10-pin header for VRA-CRT connection as
following CN17 pin information.

l CN22 : 15-pin DB-15 Female VGA-CRT connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN

3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND
9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

l CN17 : 10-pin 5x2 Header VGA-CRT connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GROUND

3 GREEN 4 GROUND
5 BLUE 6 GROUND
7 HSYNC 8 GROUND
9 VSYNC 10 GROUND

Connection 3-9

3.12 IR Connector

The NuPRO-630 provides a 6-pin internal IR communication connector as
following CN21 pin information.

l CN21 : 6-PIN IR CONNECTOR

PIN DESCRIPTION PIN DESCRIPTION
1 Vcc 4 GROUND

2 FIRRX 5 IRTX
3 IRRX 6 CVROFF

3.13 USB Ports Connector

The NuPRO-630 provides a internal 8-pin header for two USB ports connection.
Please refer to the following detail pin information.

l JP19 : 8-pin Header USB Connector

PIN NO. JP19 PIN NO. JP19
1 Vcc 2 Vcc

3 BD0- 4 BD1­5 BD0+ 6 BD1+
7 GROUND 8 GROUND

3-10 Connection

Chapter-4

AWARD BIOS Setup

The NuPRO-630 uses the Award PCI/ISA BIOS for the system configuration.
The Award BIOS setup program is designed to provide the maximum flexibility
in configuring the system by offering various options which could be selected for
end-user requirements. This chapter is written to assist you in the proper usage
of these features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key. The Main
Menu will be displayed at this time.

AWARD BIOS Setup 4-1

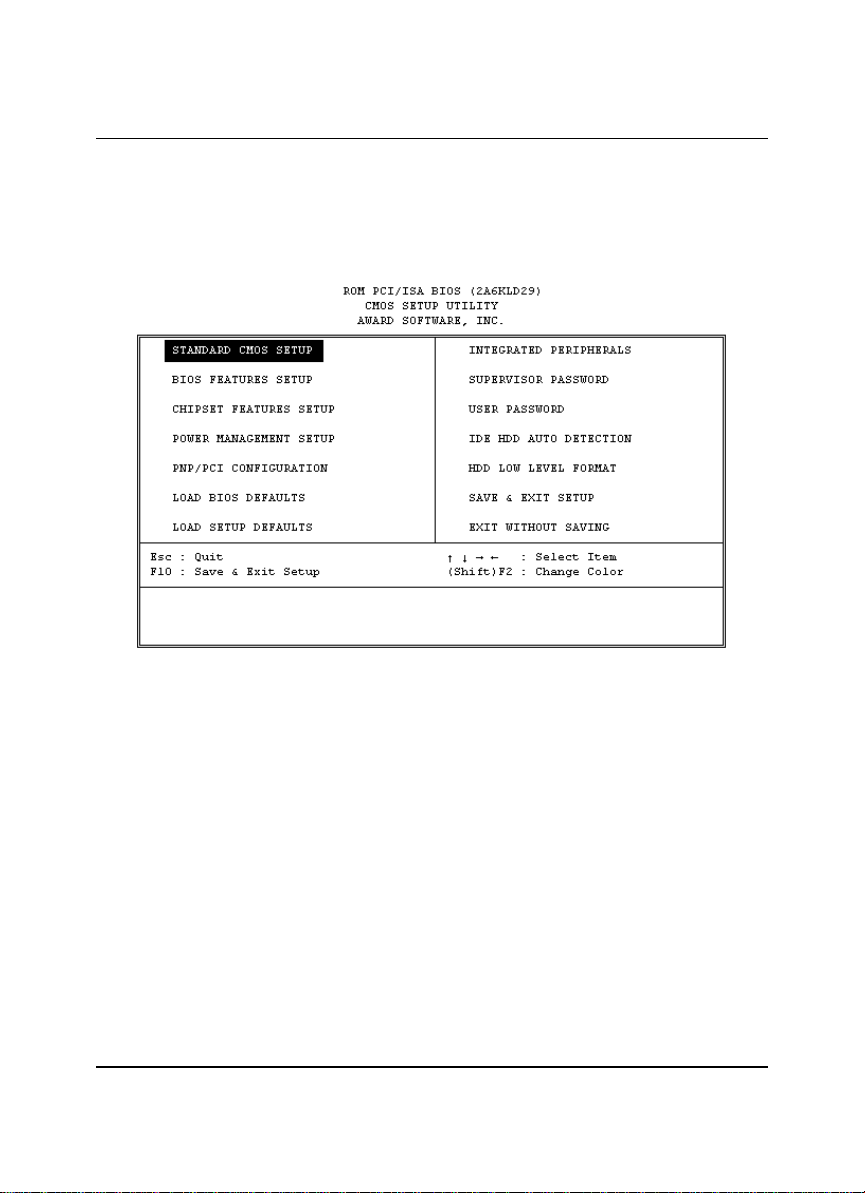

4.1 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from several setup functions
and two exit choices. Use the arrow keys to select among the items and press
<Enter> to enter the sub-menu.

Note that a brief description of eac h highlighted selection appears at the bottom
of the screen.

4-2 AWARD BIOS Setup

4.2 Standard CMOS Setup

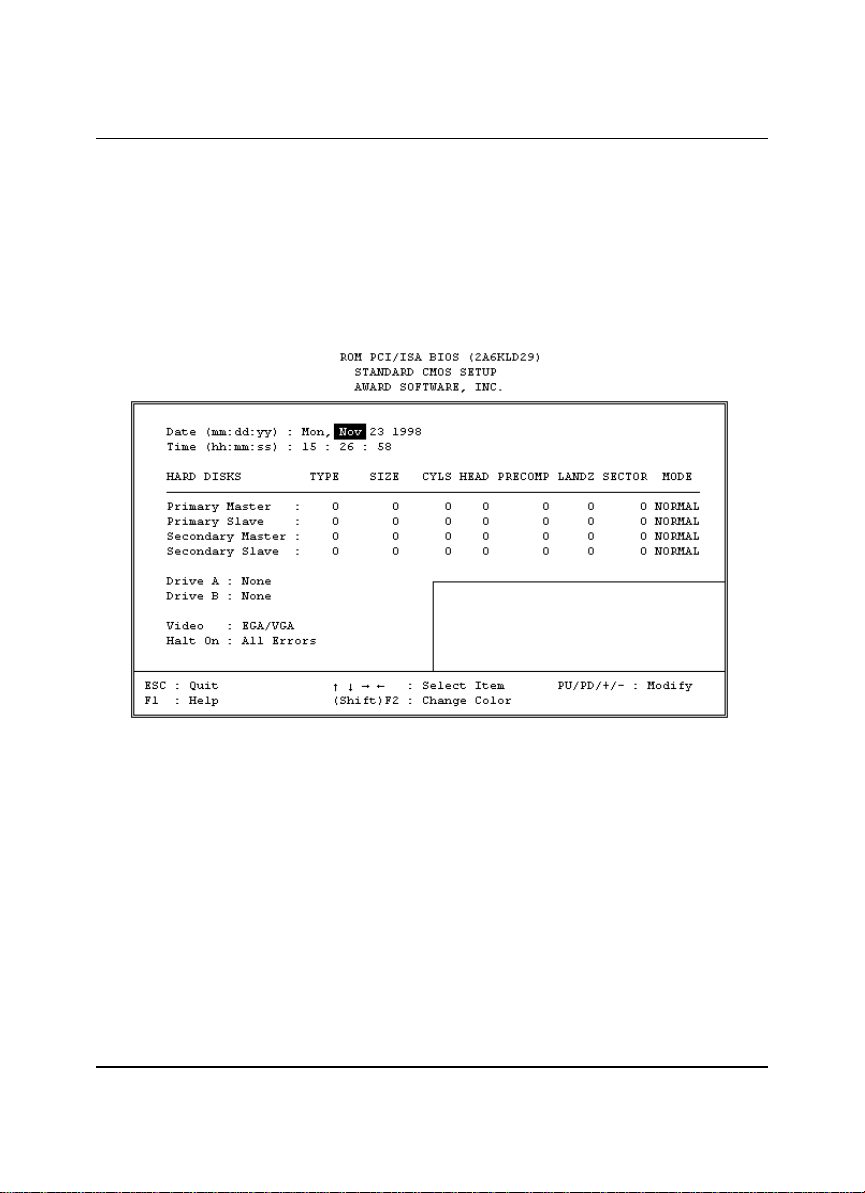

The Standard Setup is used for the basic hardware system configuration. The
main function is for Data/Time and Floppy/Hard Disk Drive settings. Please
refer to the following screen for the setup. When the IDE hard disk drive you are
using is larger than 528MB, please set the HDD mode to LBA mode. Please use
the IDE Setup Utility in BIOS SETUP to install the HDD correctly.

AWARD BIOS Setup 4-3

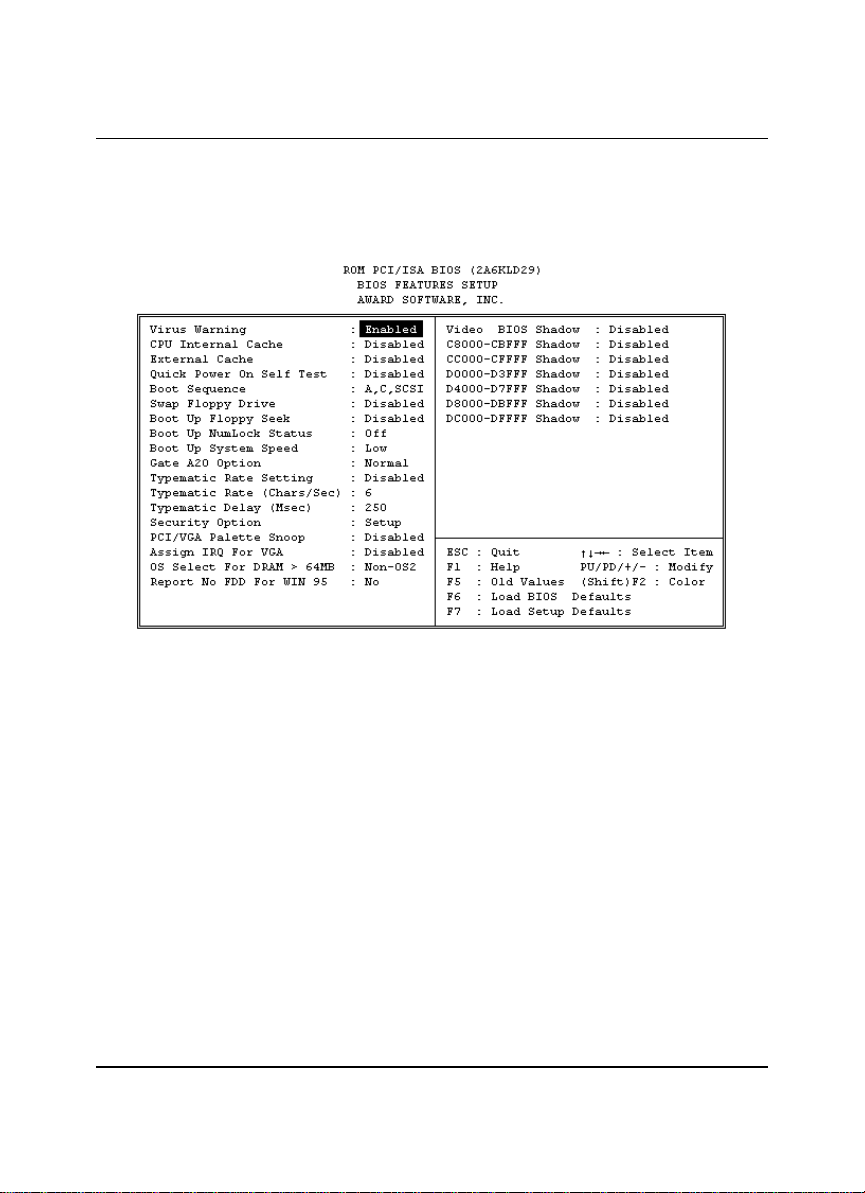

4.3 BIOS Features Setup

This section allows you to configure your system for the basic operation. You
have the opportunity to select the system’s default speed, boot -up sequence,
keyboard operation, shadowing and security.

4-4 AWARD BIOS Setup

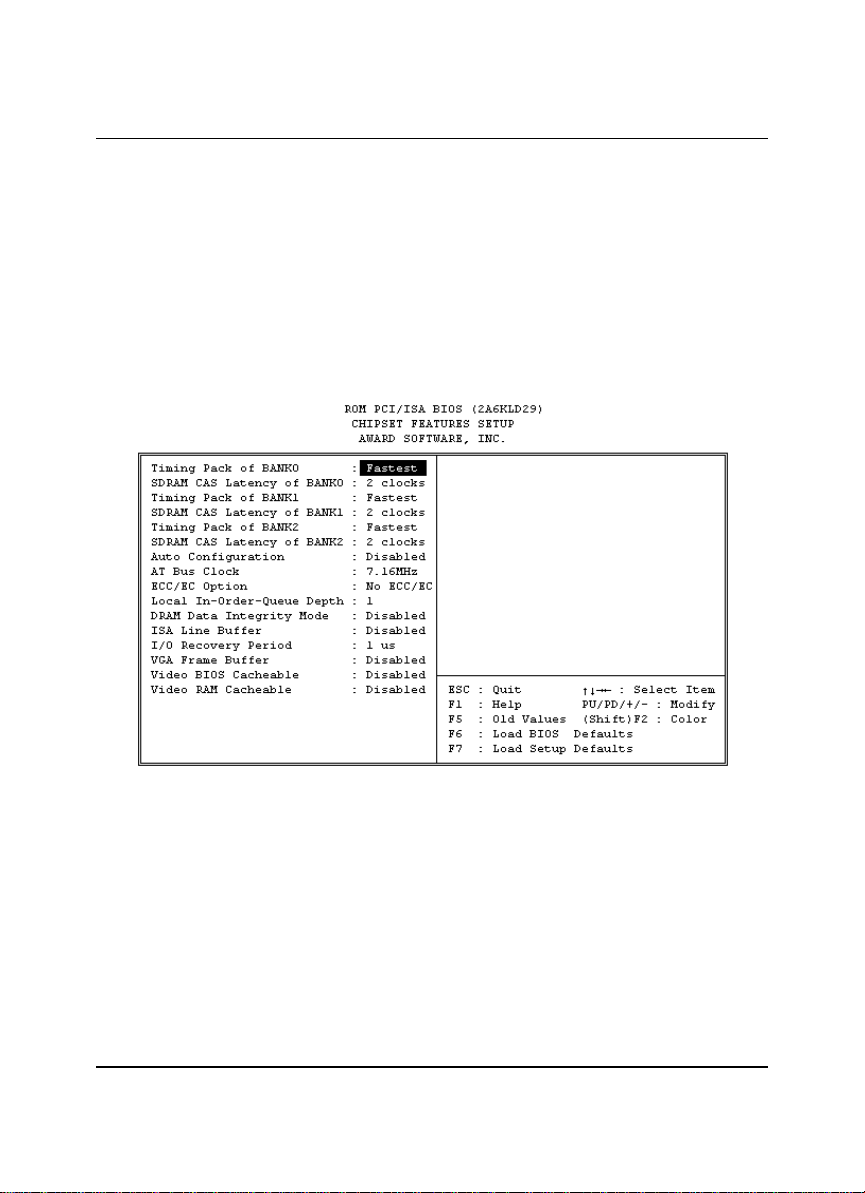

4.4 Chipset Features Setup

This section allows you to configure the sy stem based on the specific features of
the installed chipset. This chipset manages bus speeds and the access to the
system memory resources, such as DRAM and the external cache. It also
coordinates the communications between the conventional ISA and PCI buses.
It must be stated that these items should never be altered. The default settings
have been chosen because they provide the best operating conditions for your
system. You might consider and make any changes only if you discover that the
data has been lost while using your system.

AWARD BIOS Setup 4-5

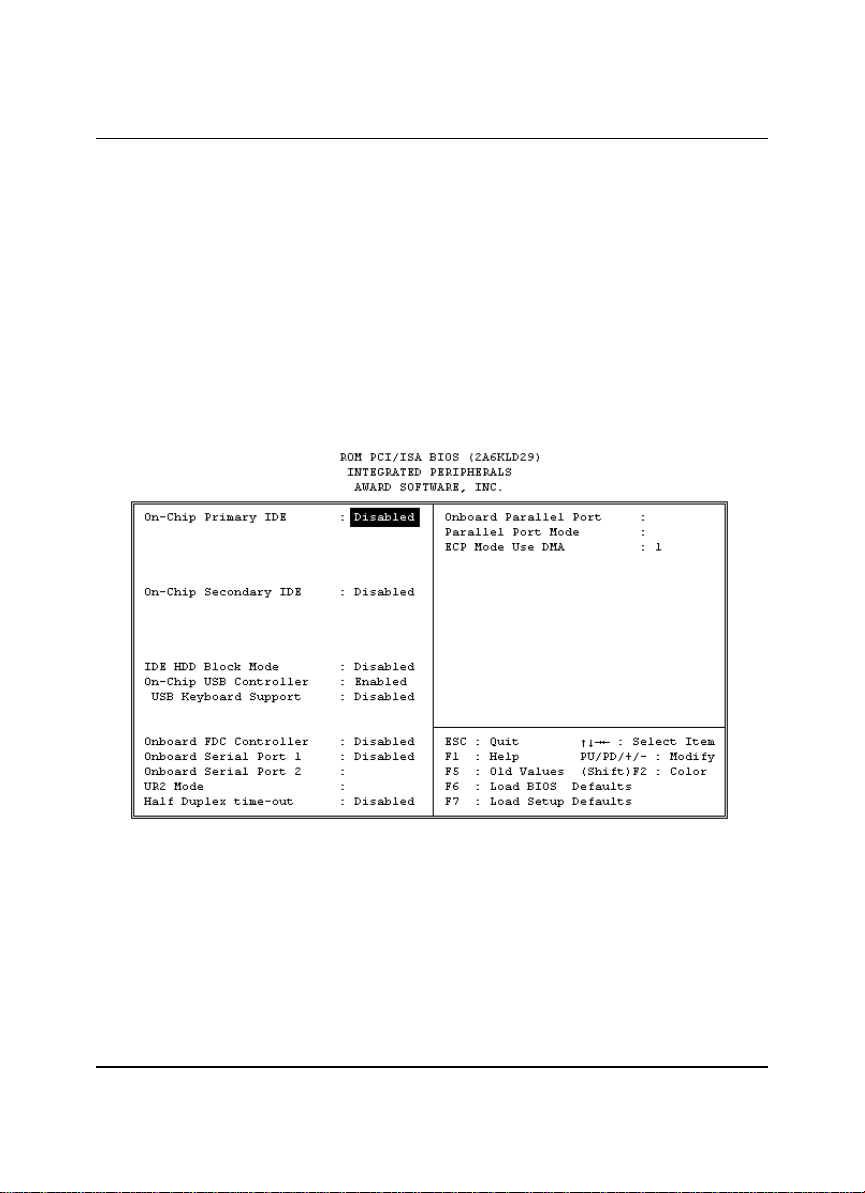

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives.
These drives have a master/slave relationship which is determined by the cabling
configuration used to attach them to the controller. Your system supports two
IDE controllers--a primary and a secondary--so you can install up to four
separate hard disks.

PIO means Programmed Input /Output. Rather than having the BIOS issue a
series of commands to affect the transfer to or from the disk drive, PIO allows
the BIOS to tell the controller what it wants and then let the controller and the
CPU perform the complete task by them. This is much simpler and more
efficient (also faster).

4-6 AWARD BIOS Setup

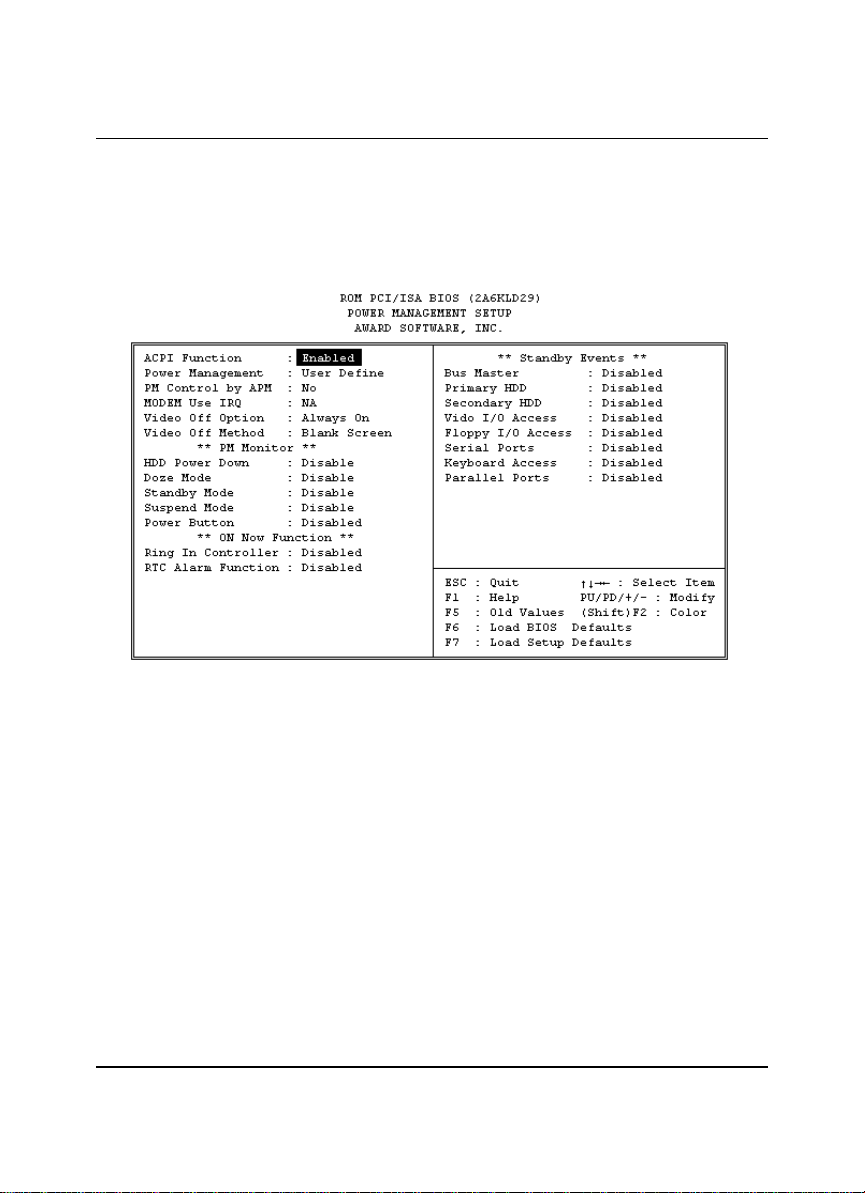

4.6 Power Management Setup

The Power Management Setup allows user to configure the system for saving
energy in a most effective way while operating in a manner consistent with his
own style of computer use.

AWARD BIOS Setup 4-7
