Page 1
HS-5220/HS-5620
100MHz FSB / VGA / LAN / Sound
• 100MHz FSB•Half Size•All-in-one•
• CRT/Panel•LAN•Sound•WDT•4COM•PC/104•
• DMA33/66•DOC•USB•IrDA•Single +5V•
• PISA Bus / ISA Bus Industrial Single Board Computer•
HS-5220P/HS-5620P
100 MHz FSB
•PISA Bus / ISA Bus Industrial Single Board Computer•
Page 2
Copyrights
This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.
Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.
All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2003
All Rights Reserved.
User Manual edition 1.5, March 06, 2003
Page 3
Contents
HS-5220/HS-5620......................................................................................1
HS-5220P/HS-5620P ................................................................................1
GENERAL INFORMATION .............................................................................1
AJOR FEATURES .....................................................................................2
1.1 M
PECIFICATIONS.........................................................................................3
1.2 S
ELIVERY PACKAGE...................................................................................4
1.3 D
HARDWARE INSTALLATION ........................................................................5
2.1 C
AUTION OF STATIC ELECTRICITY.............................................................5
AUTION ON UNPACKING AND BEFORE INSTALLATION .............................6
2.2 C
2.3 HS-5220/HS-5620’
UICK LISTING OF JUMPERS .....................................................................8
2.4 Q
UICK LISTING OF CONNECTORS ..............................................................9
2.5 Q
UMPER SETTING DESCRIPTION..............................................................10
2.6 J
2.7 VGA C
2.8 D
2.9 S
2.10 W
2.11 S
ONTROLLER..................................................................................11
ISKONCHIP ADDRESS SETTING .........................................................11
ETTING THE CPU OF HS-5220/HS-5620............................................12
ATCH-DOG TIMER...............................................................................13
YSTEM MEMORY SDRAM...................................................................15
CONNECTION .................................................................................................16

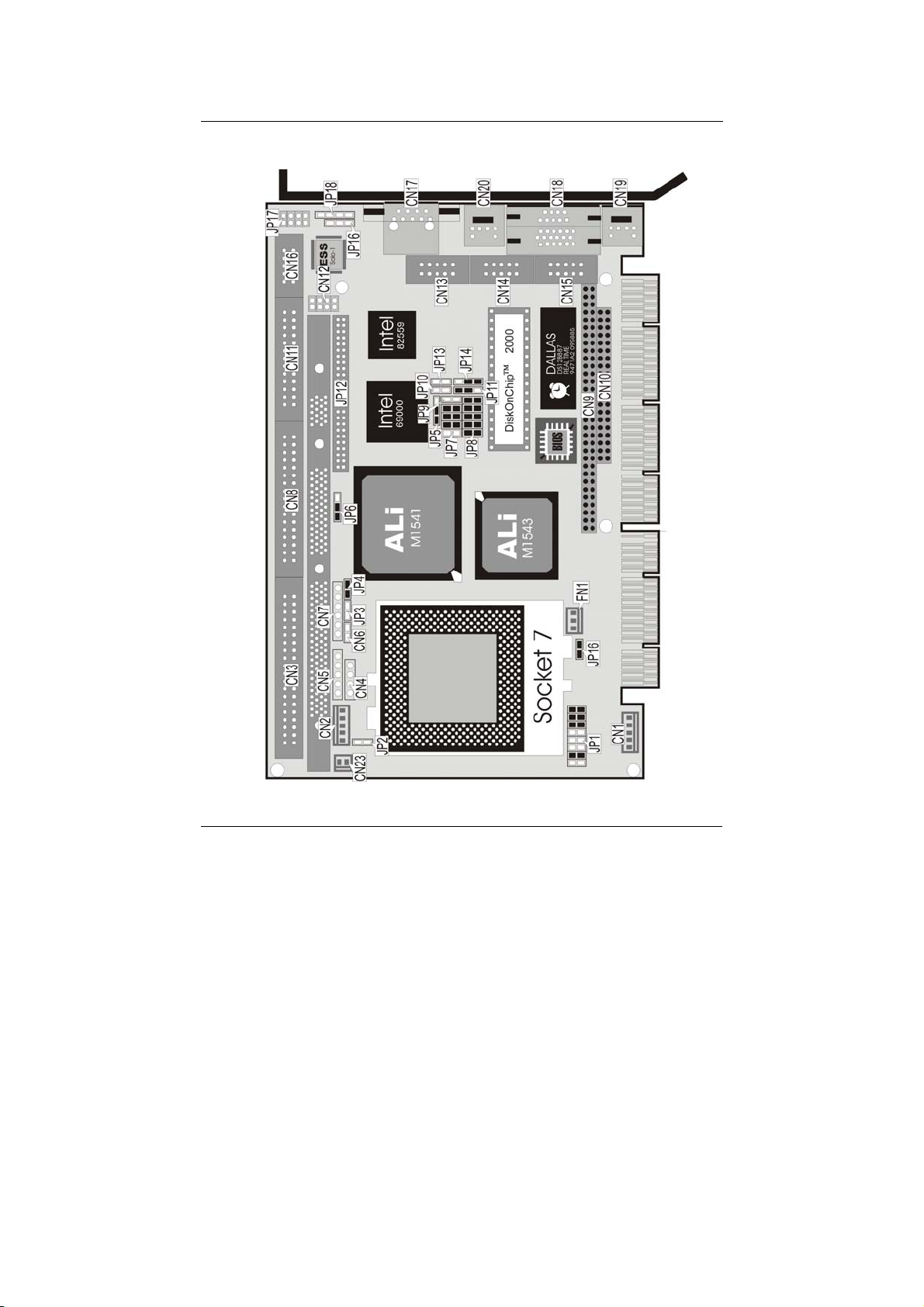

S LAYOUT ..................................................................7
3.1 VGA C
3.2 S
3.3 K
3.4 PS/2 M
3.5 PCI E-IDE D
3.6 P
3.7 K
3.8 ATX P
3.9 T
3.10 C
3.11 F
3.12 PC/104 B
3.13 F
3.14 USB P
ONNECTORS .................................................................................16
ERIAL PORTS CONNECTORS .................................................................17
EYBOARD CONNECTOR..........................................................................18
OUSE 6-PIN MINI DIN CONNECTOR............................................19
RIVE CONNECTOR ..............................................................20
ARALLEL PORT CONNECTOR .................................................................21
EYLOCK CONNECTOR ............................................................................21
OWER CONNECTOR ......................................................................22
HE FLOPPY DISK DRIVE CONNECTOR...................................................22
ONNECTORS OF THE ON BOARD SOUND ADAPTER............................23
AST ETHERNET CONNECTOR ..............................................................24
US CONNECTION ...................................................................24
LAT-PANEL CONNECTOR .....................................................................26
ORTS CONNECTOR.....................................................................27
Contents • i
Page 4
AWARD BIOS SETUP....................................................................................28
AIN MENU ..............................................................................................29
4.1 M
TANDARD CMOS SETUP.......................................................................30
4.2 S
4.3 BIOS F
4.4 C
NTEGRATED PERIPHERALS .....................................................................33
4.5 I
4.6 P
EATURES SETUP..........................................................................31
HIPSET FEATURES SETUP.....................................................................32
OWER MANAGEMENT SETUP.................................................................35
SOFTWARE UTILITIES .................................................................................36
5.1 V

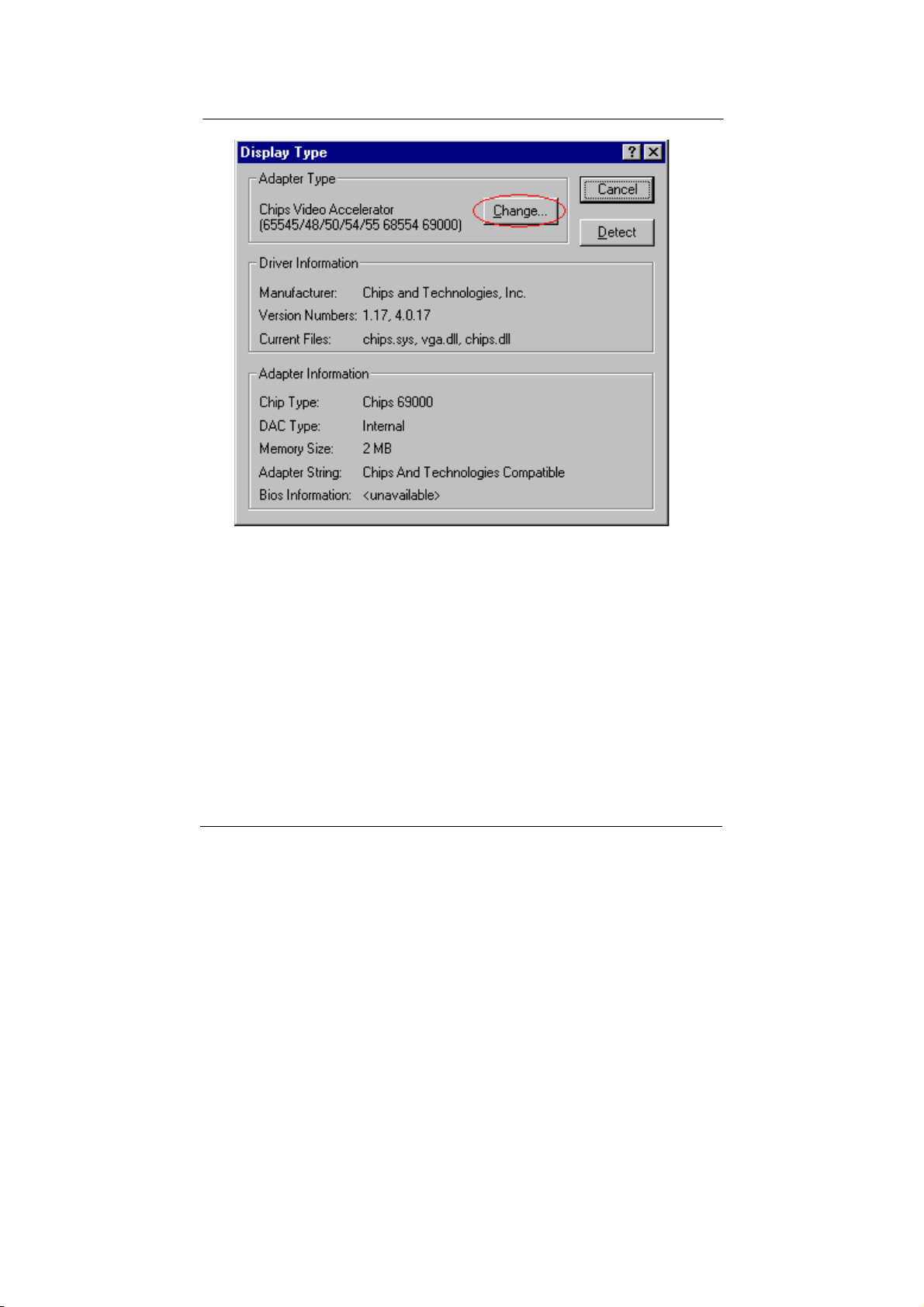

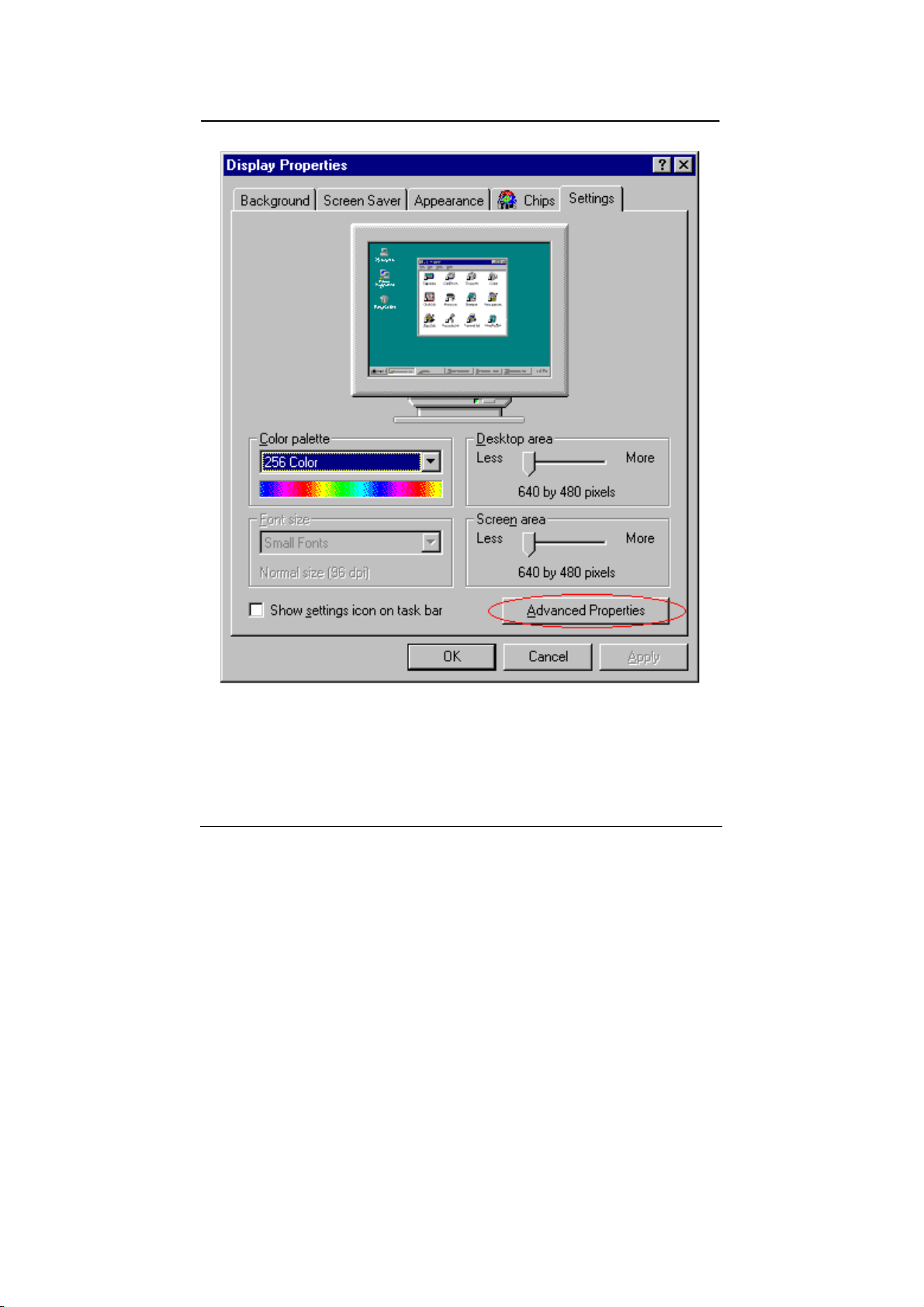

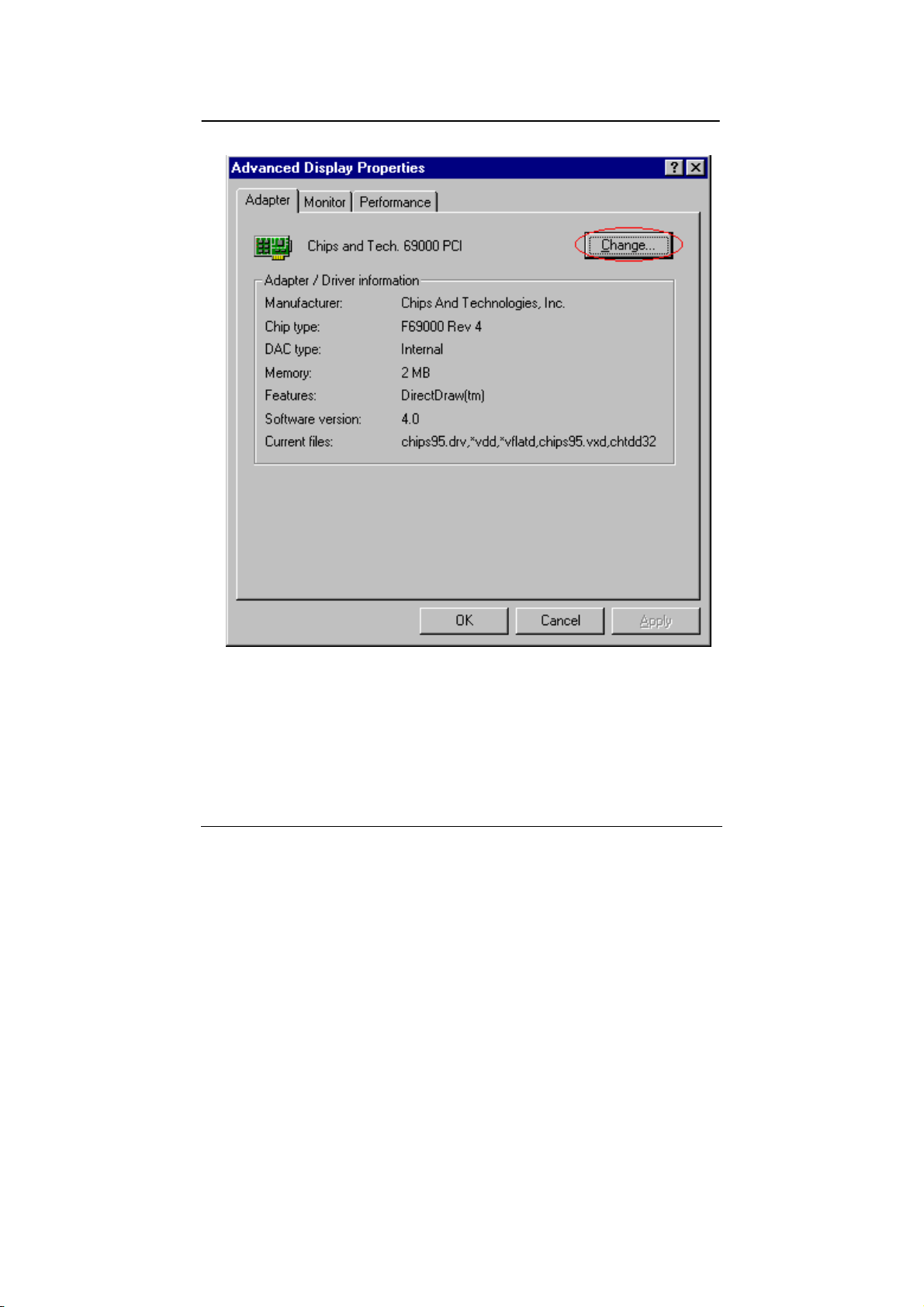

GA DRIVER INSTALL FOR WIN95&98 ..................................................40
GA DRIVER INSTALL FOR WIN NT4.0..............................................43
5.2 V

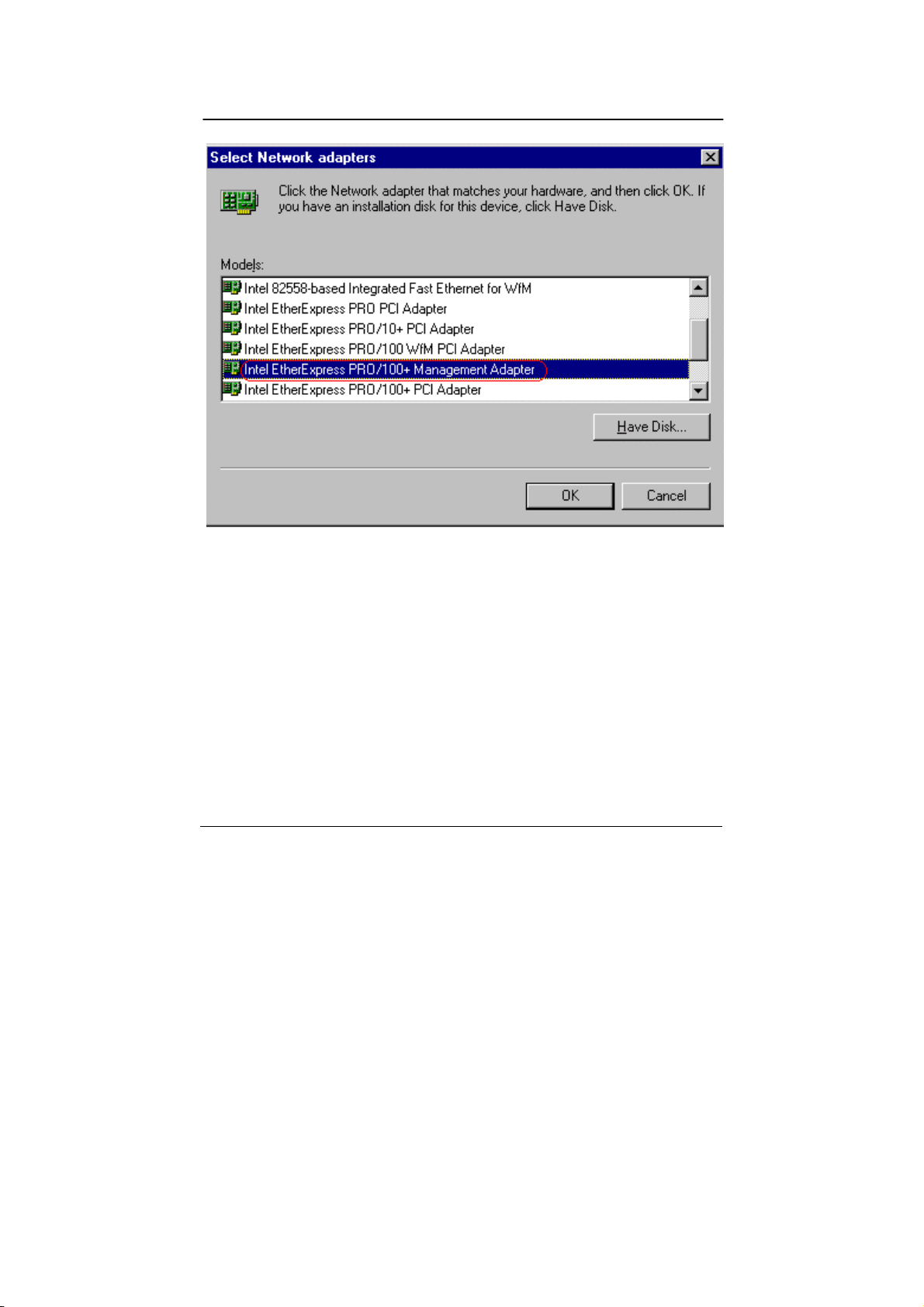

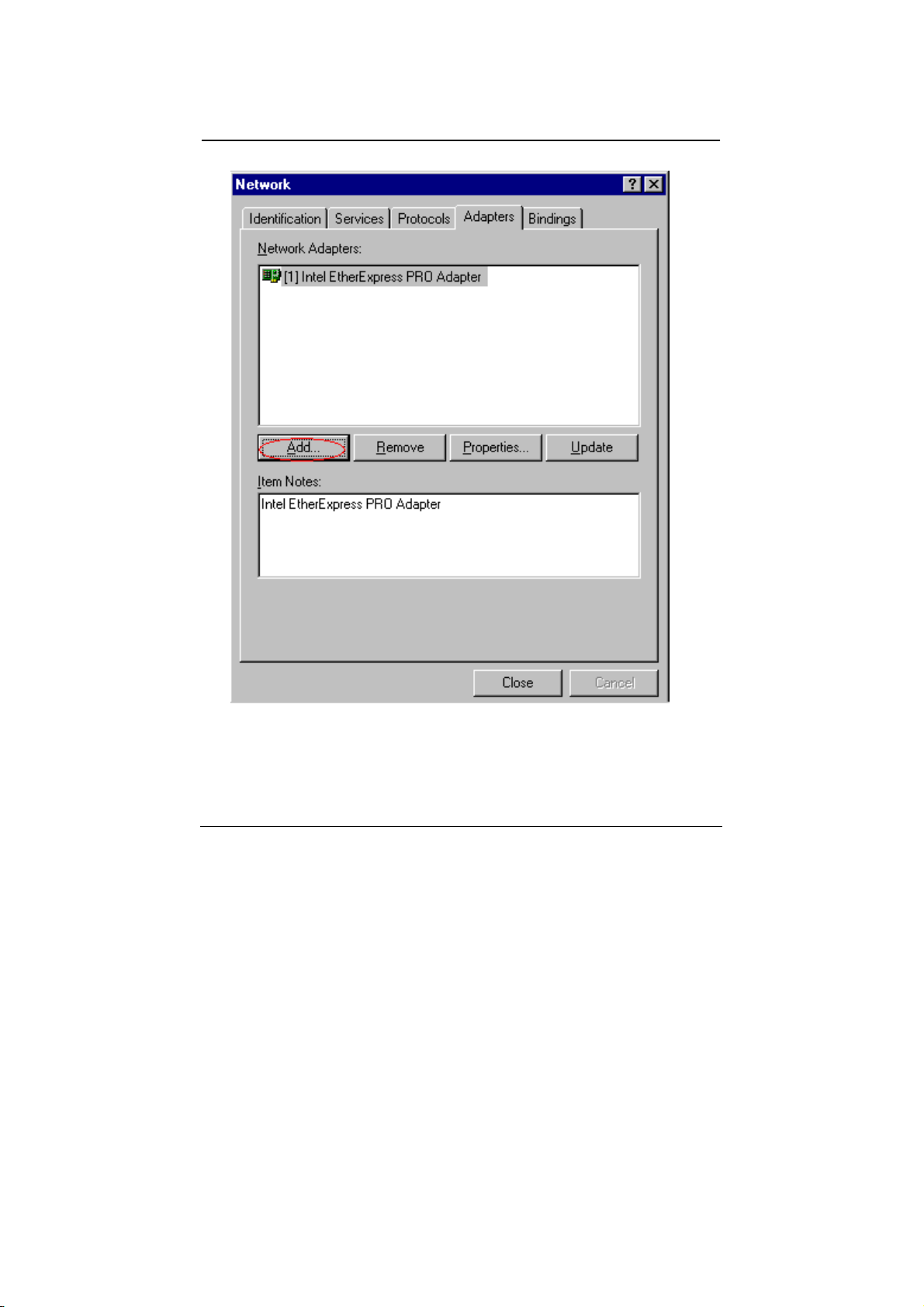

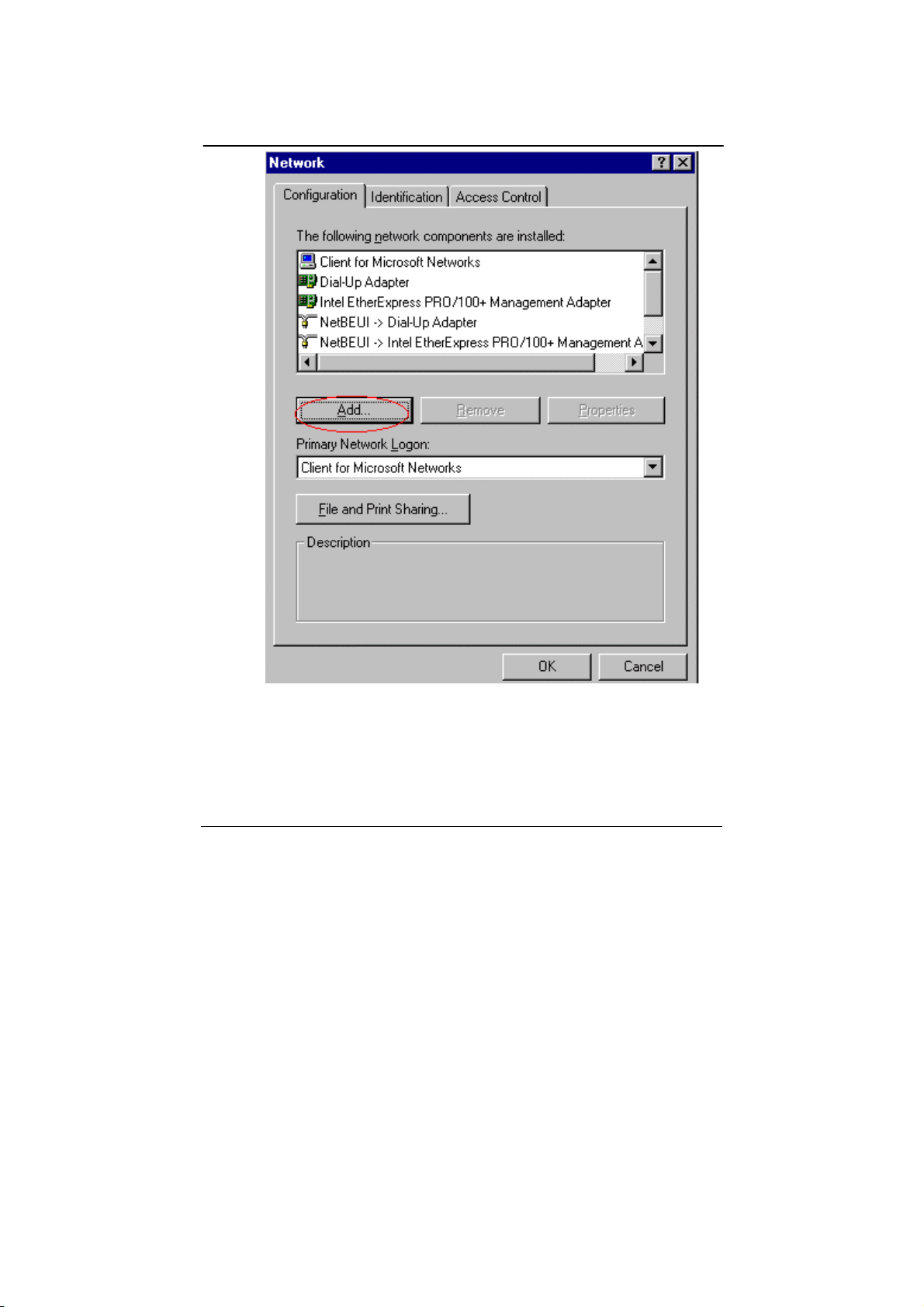

ETWORK DRIVER INSTALL FOR WIN95&98 .........................................44
5.3 N
NETWORK DRIVER INSTALL FOR WIN NT4.0.........................................47
5.4
ii •Contents
Page 5
Chapter-1
General Information
The HS-5220/HS-5620 is a PISA/ISA Bus Industrial Single Board (I.S.B.) The
board design combine together with all necessary input and output effects
interfaces which makes it an ideal all-in-one industrial single board computer. The
board design with 100 MHz internal bus clock rate architecture.
The advance PISA/ISA Bus add-on connection of HS-5220/HS-5620 allows user
could easily obtain both ISA’s 16bit PISA slot for suitable plug into a small size
system with 8/16/32 bit operating. One set of PC/104 bus connector for industrial
PC/104 board add-in. The board also design with an ESS
interface which provides an ideas sound adapter in any sound application. The
IDE interface with DMA33/66 access of mode 4 to IDE drive interface architecture,
supports with maximum 66 MB/sec in data transfer rating to 2 pieces IDE drive
connection. The board also provides an on-board 10/100-based LAN for easy
network connection.
A single Flash chip holds the system BIOS, and you can change the Flash BIOS
by the Utility Update. Advanced IR port also provide a faster data transmission.
You can also use the DOS version of the "DiskOnChip" socket by issuing
commands from the DOS prompt without the necessity of other software supports
up to 144MB.
The board design with 69000 VGA provides internal connections to VGA Monitor
and-or Flat Panel. The VGA supports up to 1280x1024 256 colors resolution.
The HS-5220/HS-5620 support SDRAM memory at one DIMM socket. This gives
you the flexibility of configuring your system from 8 to 256MB DRAM by using the
most economical DIMM memory modules for its on board system SDRAM.
If a non-expect program cause halts, the on board Watch-Dog Timer (WDT) will
automatically reset the CPU or generate an interrupt. The WDT is designed with
pure hardware and doesn’t need any arithmetical functions of a real-time clock
chip. This ensures the reliability in an unmanned or standalone system.
®
Solo1 3D sound
1
Page 6
1.1 Major Features
75~500MHz CPU for Intel
Cyrix 6x86
ALi M1541, M1543 chipsets
One DIMM socket provides up to 256MB
Fast PCI DMA33/66 controller support two IDE disk drives
100MHz system clock support
Four RS-232 serial ports include 16C550 UART with 16byte FIFO
One enhanced bi-directional parallel port supports SPP/ECP/EPP
On board PS/2 Keyboard and PS/2 Mouse connector
On board SMC 37C669 super I/O chipset
On board 69000 CRT/Panel display controller
On board ESS Solo1 3D Sound
DiskOnChip memory size up to 144MB
Single +5V support
PC/104 Bus support
ATX Power Function support
CPU Temperature Alarm support
®
Pentium® MMXTM, Tillamook, AMD K5/K6,
2
Page 7
1.2 Specifications
CPU：75~500MHz CPU for Intel
Cyrix 6x86
Bus Interface：HS-5220 is PISA Bus, HS-5620 is ISA Bus
Memory：One DIMM socket provides up to 256MB
Cache Memory：512KB pipeline burst
Chipset：ALi M1541/M1543
I/O Chipset：SMC 37C669
VGA：69000 with 2MB memory support CRT/Panel display up to 1280x1024,
256 colors
IDE：Two IDE disk drives support DMA33/66 transfer rate up to 33/66MB/sec
Floppy：Support up to two floppy disk drives
Parallel Port：Support SPP/ECP/EPP
LAN：Intel® 82559 10/100 Based LAN
Sound：ESS Solo1 3D Sound
Serial Port：Four RS-232 serial ports include 16C550 UART with 16byte FIFO
PC/104：PC/104 connector for 16bit ISA Bus
IR：One IrDA TX/RX header
USB：Support two USB ports
Keyboard：PS/2 6pin Mini Din or 5pin connector
Mouse：PS/2 6pin Mini Din
DiskOnChip：Socket for DiskOnChip and memory size up to 144MB
BIOS：Award Y2K PnP Flash BIOS
Watch-Dog Timer：Set 1, 2, 10, 20, 110, 220 seconds activity trigger with
Reset or NMI
CMOS：DS12C887 or equivalent device
DMA Channels：7
Interrupt Levels：15
Extra Power：One 5pin connector
®
Pentium® MMXTM, Tillmook, AMD K5/K6,
3
Page 8
Power Voltage：+5V(4.75V to 5.25V)
Maximum Power Consumption
Operating Temperature：0~60°C
Board Size：7.3”(L) x 4.8”(W)
1.3 Delivery Package
The delivery package of HS-5220/HS-5620 includes all following items:
● HS-5220/HS-5620 Industrial Single Board
● One Printer
● One IDE port Flat Cable
● One FDD port Flat Cable
● Two RS232 port Flat Cable
● One Sound interface Cable
● Utility CD Disk
● User’s Manual
Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the delivery
package with packing materials in case of you want to ship or store the
product in feature.
4
Page 9
Chapter-2
Hardware Installation
This chapter provides the information on how to install the hardware of
HS-5220/HS-5620. At first, please follow up sections 1.3, 2.1 and 2.2 in
check the delivery package and carefully unpacking. Following after, the
jumpers setting of switch, watchdog timer, and the DiskOnChip
address selection etc.
2.1 Caution of Static Electricity
The HS-5220/HS-5620 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the
damage of static electric discharge.
Note: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.
You should follow the steps as following to protect the board in against
the static electric discharge whenever you handle the board:
1. Please use a grounding wrist strap on whoever needs to handle the
HS-5220/HS-5620. Well clip the ALLIGATOR clip of the strap to the
end of the shielded wire lead from a grounded object. Please put on
and connect the strap before handle the HS-5220/HS-5620 for
harmlessly discharge any static electricity through the strap.
2. Please use anti-static pad for put any components or parts or tools on
the pad whenever you work on them outside the computer. You may
also in use the anti-static bag instead the pad. Please ask from your
local supplier in help up your necessary parts on anti-static
requirement.
5
Page 10
2.2 Caution on Unpacking and Before Installation
First of all, please follow with all necessary steps of section 2.1 in
protection the HS-5220/HS-5620 from electricity discharge. With refer to
section 1.3, please check the delivery package again with following
steps:
1. Unpacking the HS-5220/HS-5620, keep well storage of all packing
material, manual and diskette etc. if has.
2. Is there any components lose or drop from the board? DO NOT
INSTALL IF HAPPENED.
3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.
4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers setting to
jumper pin-set and CMOS setup correctly. Please also reference to all
information of jumpers setting in this manual.
5. Well check from your external devices (i.e. Add-On-Card, Driver Type
etc.) for completed add-in or connection and CMOS setup correctly.
Please also reference to all information of connector connection in this
manual.
6. Please keep all necessary manual and diskette in a good condition for
your necessary re-installation if you change your Operating System or
whatever needs.
6
Page 11
2.3 HS-5220/HS-5620’s Layout
7
Page 12
2.4 Quick Listing of Jumpers
JP1 ( 1-6 ) CPU‘s Core / Bus Clock-Ratio setting
JP1 (7-16) CPU‘s Vcore Voltage level selection setting
JP2 ATX power switch
JP3 Hard Drive Active LED connector
JP4 CPU Temperature Alarm Enabled/Disabled
JP5 69000 Active Select.
JP6 Panel Voltage Select
JP7 CPU clock in Select
JP8 DiskOnChip™ Address & Time of Watch-Dog
JP9 LAN speed LED
JP10 LAN Link Integrity LED
JP11 LAN Enabled/Disabled Select
JP12 LCD Panel connector
JP13 LAN Activity LED
JP14 Watch-Dog Timer Active Select
JP16 Sound Connector
JP17 Audio out & Mic in connector
JP18 Audio Line In connector
JP19 Dual/Single Voltage Select
8
Page 13
2.5 Quick Listing of Connectors
CN1： ATX Power Connector
CN2： 5pin Keyboard Connector
CN3： IDE Connector
CN4： Speaker Connector
CN5： KEYLOCK Connector
CN6： RESET
CN7： IR Connector
CN8： FDD Connector
CN9： PC/104 64pin Connector
CN10：PC/104 40pin Connector
CN11：Parallel Port
CN12：USB
CN13：COM3 Connector (HEADER 5X2)
CN14：COM4 Connector (HEADER 5X2)
CN15：COM2 Connector (HEADER 5X2)
CN16：COM1 Connector (HEADER 5X2)
CN17：RJ-45 Connector
CN18：CRT Connector (DB15)
CN19：PS/2 6pin Mini Din Keyboard Connector
CN20：PS/2 6pin Mini Din Mouse Connector
CN21：COM2 (DB9 For HS-5220P/HS-5620P)
CN22：COM1 (DB9 For HS-5220P/HS-5620P)
9
Page 14
2.6 Jumper Setting Description
A jumper pin-set is ON as a shorted circuit with a plastic cap inserted
over two pins. A jumper pin-set is OFF as a open circuit with a plastic

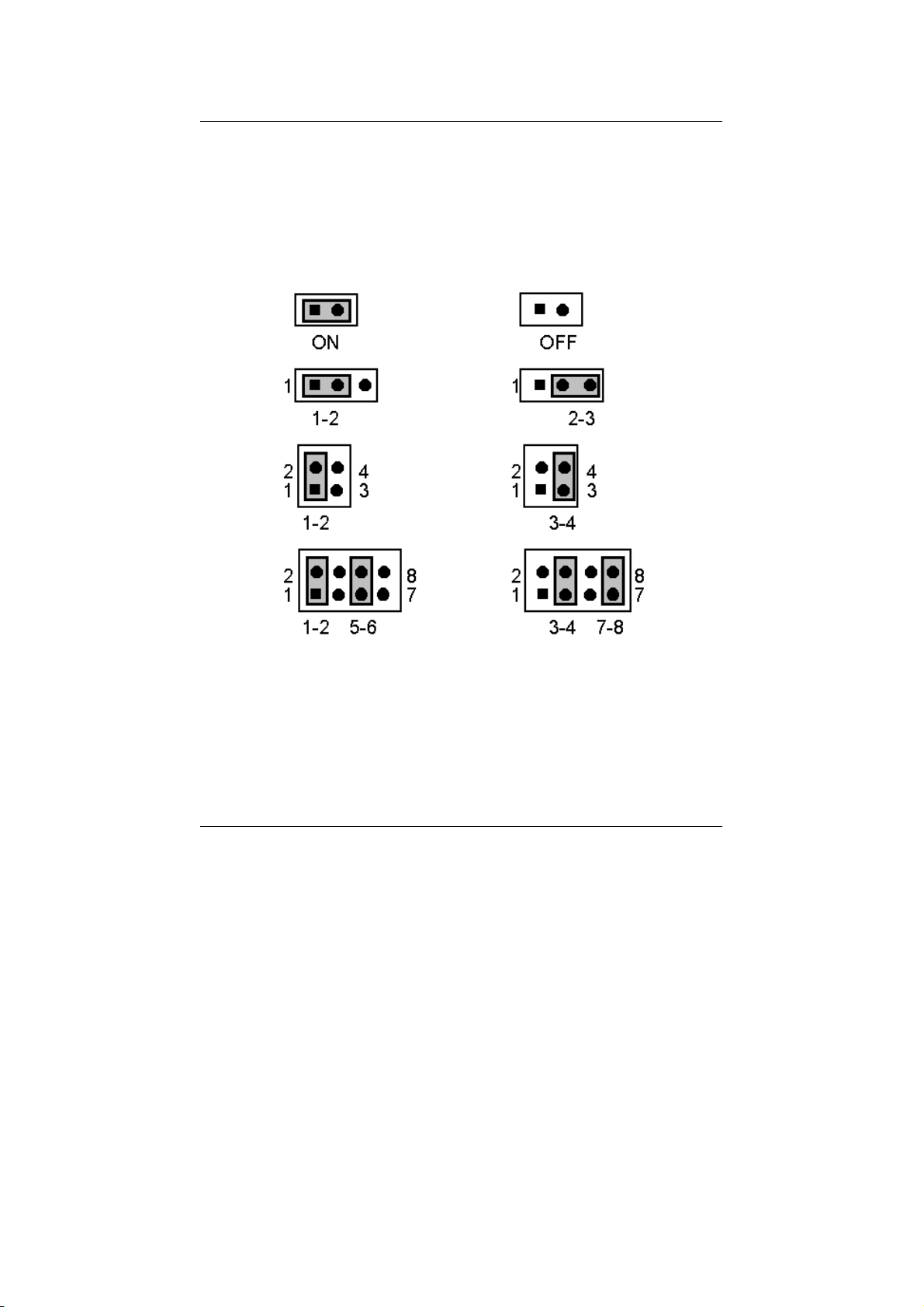

cap inserted over one or no pin(s) between pins. The below figure 2.2
shows the examples of different jumper pin-set setting as ON or OFF in
this manual.
Figure 2.2
All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting may reference in this manual with a " * " symbol in front of the
selected item.
10
Page 15
2.7 VGA Controller
The on board 69000 chipset provides with up to 1280x1024 256 colors
resolution. The board provides the user to auto disable VGA if another
PCI-bus display card is pluged in into the PCI-slot.
There is no need to set any jumper to disable the on board VGA if any
2nd PCI-bus VGA card is pluged-in into the PCI-slot.
If you want to disable VGA by Hardware, you can select JP5.
JP5 : VGA Controller
*1-2
2-3
ON
OFF
2.8 DiskOnChip Address Setting
The HS-5220/HS-5620 provides an U8 socket to install the
DiskOnChip module.
A JP8 may select the starting memory address of the DiskOnChip
(D.O.C.) for avoid the mapping area with any other memory devices. If
you have other memory devices in the system, please set both at
different memory address mapping.
JP8 : DiskOnChip Address
PIN NO. Address
*1-2 D000
3-4 D800
The D.O.C. function allows the system in using without FDD nor HDD. The
D.O.C. may be format as driver C: or driver A:. User may also uses the DOS's
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc. This means that the D.O.C. may be used as driver-A if the
system works without FDD-A for ambient application. Please contact with your
supplier for different size D.O.C. module.
11
Page 16
2.9 Setting the CPU of HS-5220/HS-5620
The HS-5220/HS-5620 provides all possibility in jumper setting for
types of CPU with JP1 ( 7-16 ) for CPU Vcore Voltage, JP7 ( 1-8 ) for
internal Host Bus Clock Rate and JP1 ( 1-6 ) for CPU Clock-in Multiplex
Weighted Value setting as following. For Dual Voltage and Tillamook
CPU, JP19 ON. Please contact with your CPU’s supplier in getting
those information for correctly setting. Any wrong setting may
cause CPU defect.
CPU Vcore Voltage Selection ( *ON )
CPU Type System Clock
JP7 (1-8)
Pin NO. 1-2 3-4 5-6 7-8 1-2 3-4 5-6 17-8 9-10 11-12 13-14 15-16
AMD K6-II/300 * * *
AMD K6-II/333 * * * * * *
AMD K6-II/366 * * * * *
AMD K6-II/400 * * * *
AMD K6-II/450 * *
AMD K6-II/500 * * * * *
AMD K6-II/550 * * *
Intel MMX-200 * * * * *
Intel MMX-233 * * * * *
Cyrix-266 * * * * * *
Cyrix-300 * * * * * * *
Cyrix-333 * * * * * *
Tillamook233 * * * * * * *
Tillamook266 * * * * * * *
CPU Click-in
JP1 (1-6)
CPU Vcore Voltage
JP1 (7-16)
12
Page 17
JP9：Dual/Single Voltage Select
JP19 DESCRIPTION
ON Dual Voltage
OFF Single Voltage
2.10 Watch-Dog Timer
There are three access cycles of Watch-Dog Timer as Enable, Refresh and
Disable. The Enable cycle should proceed by READ PORT 443H. The
Disable cycle should proceed by READ PORT 045H. A continue Enable
cycle after a first Enable cycle means Refresh.
Once if the Enable cycle is active, a Refresh cycle is requested before the
time-out period for restarting counts the WDT Timer's period. Otherwise, it
will assume that the program operation is abnormal when the time counting
over the period preset of WDT Timer. A System Reset signal to start again
or a NMI cycle to the CPU comes if over.
The JP14 is using to select the active function of watch-dog timer in disable
the watch-dog timer, or presetting the watch-dog timer activity at the reset
trigger, or presetting the watch-dog timer activity at the NMI trigger.
JP14 : Watch-Dog Active Type Setting
JP14 DESCRIPTION
*2-3 System Reset
1-2 Active NMI
OFF disable Watch-dog timer
13
Page 18
JP8(5-10) : WDT Time - Out Period
PERIOD 5-6 7-8 9-10
*1 sec ON ON ON
2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON
110 sec ON ON OFF
220 sec OFF ON OFF
The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by an Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port (443H)
and a Disable cycle by reading the Watch-dog timer disable control port
(045H). After a Enable cycle of WDT, user must constantly proceed a
Refresh cycle to WDT before
its period setting comes ending of every 1, 2, 10, 20, 110 or 220
seconds ( Please reference to the selection table of JP8 for WDT
Time-Out period setting ). If the Refresh cycle does not
active before WDT period cycle, the on board WDT architecture will
issue a Reset or NMI cycle to the system.
The Watch-Dog Timer is controlled by two I/O ports.
443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
045H I/O Read The Disable cycle.
14
Page 19
The following sample programs is showing how to Enable, Disable and
Refresh the Watch-dog timer:
WDT_EN_RF EQU 0433H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
2.11 System Memory SDRAM
The HS-5220/HS-5620 provides SDRAM memory on board with one
DIMM socket for maximum 256MB capacity,.
15
Page 20
Chapter-3
Connection
This chapter gives all necessary information of the peripheral's
connections, switches and indicators.
3.1 VGA Connectors
The HS-5220/HS-5620 provides one external connector for the VGA
monitor connection.
CN18 : 15pin CRT connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 NC 10 GND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC
16
Page 21
3.2 Serial Ports Connectors
The HS-5220/HS-5620 offer four high speed NSIGC550 compatible UARTS with
Read/ Receive 16 byte FIFO serial ports with two DB-9 external connector
(HS-5220P/HS-5620P only) and four internal 10-pin header connector.
CN13,14,15,16: 10Pin Serial Port Header
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC
CN21,22: For HS-5220P/HS-5620P only
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTX 8 CTX
9 RI
17
Page 22
3.3 Keyboard Connector
The HS-5220/HS-5620 offers two possibilities for Keyboard connections
to external PS/2 keyboard at CN19 or an internal 5 pin header at CN2.
CN19 : PS/2 6pin Mini Din Keyboard Connector
PIN NO. DESCRIPTION
1 Keyboard data
2 N/C
3 GND
4 +5V
5 Keyboard clock
6 N/O
CN2 : 5pin Keyboard Connector
PIN NO. DESCRIPTION
1 Keyboard clock
2 Keyboard data
3 N/C
4 GND
5 +5V
18
Page 23
3.4 PS/2 Mini DIN 6-pin Mouse Connector
The HS-5220 provides an external PS/2 mouse connector at CN20 with
following pin information.
CN20 : PS/2 6pin Mini Din Mouse Connector
PIN NO. DESCRIPTION
1 Data
2 NC
3 GND
4 +5V
5 CLK
6 NC
19
Page 24
3.5 PCI E-IDE Drive Connector
One standard 40pin header daisy-chain driver connector provides as
CN3 with following pin assignment. Total two IDE (Integrated Device
Electronics) drivers may connect.
CN3 : IDE Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND
20
Page 25
3.6 Parallel Port Connector
A standard 26pin flat cable driver connector provides as CN11 with
following pin assignment for connection to parallel printer.
CN11 : Parallel Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND
3.7 Keylock Connector and POWER LED
The following provides the pin information for Keylock with Power's LED
indicator connection from CN5.
CN5 : KEYLOCK and POWER LED Connector
PIN NO. DESCRIPTION
1 POWER LED ANODE
2 N.C.
3 GROUND
4 KEYLOCK
5 GROUND
21
Page 26
3.8 ATX Power Connector
The HS-5220/HS-5620 reserved a CN1 for ATX Power funtion CN1 can
control the 5 pin ATX via the extension cable from the Backplane.
3.9 The Floppy Disk Drive Connector
A standard 34-pin header daisy-chain driver connector provides as CN8
with following pin assignment. Total two FDD drivers may connect.
CN8 : FDD CONNECTOR
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#
22
Page 27
3.10 Connectors of the on board Sound Adapter
The HS-5220/HS-5620 has an on board ESS® Solo1 3D sound
interface. The following are the connectors of LINE IN, AUXB and
MIC/SPEAKER connectors.
The LINE IN and AUXB connectors are for audio sound input. The LINE
IN provides for 4pin connection, and AUXB provides for 3pin
connection.
JP18 : LINE IN Connector
PIN NO. DESCRIPTION
1 LINE L
2 GND
3 LINE R
JP16 : AUXB Connector
JP17 : MIC/SPEAKER Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
With MIC/SPEAKER cable, user may connect R/L Speaker to the
AOUTL and AOUTR pins of JP18, and connect Microphone to the MIC
pin of JP17.
4 GND
PIN NO. DESCRIPTION
1 AUXAL
2 GND
3 AUXAR
1 AOUTL Red 2 AOUTR White
3 GND Black 4 GND Key
5 MIC Red 6 N.C. White
7 GND Black 8 GND Key
23
Page 28
3.11 Fast Ethernet Connector
The Fast Ethernet controller provides with 32-bit performance, PCI bus
master capability, and full compliance with IEEE 802.3 10/100Based-T
specifications.
For 10/100Base-T operation, please connect the network connection by
plugging one end of the cable into the RJ-45 of the CN17 Connector.
CN17 : RJ-45 Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX+ 2 TX3 RX+ 4 NC
5 NC 6 RX7 NC 8 NC
3.12 PC/104 Bus Connection
The HS-5220/HS-5620’s PC/104 expansion bus provides you to
connect all kind of PC/104 modules. The PC/104 bus has been
already become the industrial embedded 16bit PC standard bus.
You can easily install over thousands type of PC/104 modules from
hundreds of venders in the world. The detailed pin assignment of
the PC/104 expansion bus connectors CN9 and CN10 are specified
as following tables:
Note : The PC/104 connector allows to directly plug-in
Stack-thru PC/104 modules without the PC/104
mounting kit.
24
Page 29
CN9&CN10 : PC/104 Expansion Bus
(CN9 = 64pin female connector; CN10 = 40pin female connector.)
Pin
No.
CN9
Row A
Pin
No.
CN9
Row B
Pin
No.
CN10
Row D
Pin
No.
CN10
Row C
1 IOCHECK* 33 0V 1 0V 21 0V
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17
10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 0V
32 0V 64 0V
25
Page 30
3.13 Flat-Panel Connector
The HS-5220/HS-5620 provides a 50pin 2.0 mm pitch header connector
(JP12) for 3.3V Flat panel connection with following pin-assignment.
+12V 1 2 +12V
GND 3 4 GND
+3V PVcc 5 6 ENAVdd
FPVee 7 8 GND
P
P
P
P
P
P
P
P
P
P
P
P
P
SHFCLK 35 36 FLM
M 37 38 LP
GND 39 40 ENABKL
P26 41 42 P27
P28
P30 45 46 P31
P32 47 48 P33
P34 49 50 P35
JP6 : Panel Power Selection
JP6 DESCRIPTION
* 1-2 3.3V Power
2-3 5V Power
9 10 P1
0
11 12 P3
2
13 14 P5
4
15 16 P7
6
17 18 P9
8
19 20 P11
10
21 22 P13
12
23 24 P15
14
25 26 P17
16
27 28 P19
18
29 30 P21
20
31 32 P23
22
33 34 P25
24
43 44 P29
26
Page 31
3.14 USB Ports Connector
The HS-5220/HS-5620 provides one 8pin connector for USB-0 & USB-1
ports. Please refer to the following default pin information.
CN12 : USB Ports Connector
PIN NO. USB-0 PIN NO. USB-1
1 VCC 2 VCC
3 USB PO- 4 USB P15 USB PO+ 6 USB P1+
7 GND 8 GND
3.15 CMOS Setup
JP15 : Clean CMOS (only for DS12B887)
JP15 Description
ON Clean CMOS
OFF Normal
27
Page 32
Chapter-4
AWARD BIOS Setup
The HS-5220/HS-5620 uses Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.
To access AWARD PCI/ISA BIOS Setup program, press <Del> key
during memory testing when first power on. The Main Menu will be
displayed at this time.
28
Page 33
4.1 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to
select from several setup functions and two exit choices. Use the
arrow keys to select among the items and press <Enter> to enter
the sub-menu.
ROM PCI/ISA BIOS (2A5KKD2B)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS
Esc : Quit
F10 : Save & Exit
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
HDD LOW LEVEL FORMAT
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
: Select Item
(Shift)F2 : Change Color
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
29
Page 34
4.2 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.
ROM PCI/ISA BIOS (2A5KKD2B)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Data (mm:dd:yy) : Fri, Oct 19 1999
Time (hh:mm:ss) : 00:00:00
CYLS HEAD PRECOMP LANDZ SECTOR MODE
Driver C
Driver D
Drive A :1.44M ,
Drive B : None
Base Memory : 640K
LCD&CRT : CRT Extended Memory : 130048K
Other Memory : 384K
Halt On : No Errors Total Memory : 131072K
ESC : Quit
F1 : Help
Auto ( 0Mb) 0 0 0 0 0 Auto
:
Auto ( 0Mb) 0 0 0 0 0 Auto
:
3.5in.
: Select Item
(Shift) F2: Change Color
PU/PD/ + / - : Modify
30
Page 35
4.3 BIOS Features Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
ROM PCI/ISA BIOS (2A5KKD2B)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFF
FF
Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled
Boot Sequence : A,C,SCSI D4000-D7FFF Shadow : Disabled
Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled
Boot Up Floppy Seek : Enabled DC000-DFF
FF
Boot Up NumLock Status : On Cyrix 6x86/MII CPUID : Enabled
Boot Up System Speed : High
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
Assign IRQ For VGA : Enabled ESC : Quit : Select
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify
Report No FDD For WIN 95 : Yes F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults
Shadow : Disabled
Shadow : Disabled
Item
31
Page 36
4.4 Chipset Features Setup
This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.
ROM PCI/ISA BIOS (2A5KKD2B)
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
Auto Configuration : Enabled
AT Bus Clock : CLK2/4
L2 TA RAM Size : 8
DRAM Timing : Nomal
SDRAM CAS Latency : 3
Pipilined Function : Enabled
Graphics Aperture Size : 64 MB
DRAM Date Integrity Mode : Disabled
Memory Hole At 15M-16M : Disabled
Host Read DRAM Command
Mode
AGP Read Burst : Enabled
ISA Line Buffer : Enabled
Passive Release : Enabled
Delay Transaction : Disabled
Primary Frame Buffer : All
VGA Frame Buffer : Enabled ESC : Quit : Select Item
:Syn.
Data Merge : Disabled F1 : Help PU/PD/+/-: Modify
IO Recovery Period : 1 us F5 : Old Values (Shift) F2 : Color
Auto Detect DIMM/PCI Slk Enable F6 : Load BIOS Defaults
Spread Spectrum Disable F7 : Load Setup Defaults
32
Page 37
4.5 Integrated Peripherals
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).
ROM PCI/ISA BIOS (2A5KKD2B)
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
On-Chip Primary IDE : Enabled
Master PIO : Auto
Slave PIO : Auto KBC clock source : 8 MHz
Master Ultra DMA : Auto Onboard FDC Controller : Enabled
Slave Ultra DMA : Auto Onboard UART Port 1 : 3F8/IRQ4
Onboard UART Port 2 : 2F8/IRQ3
IDE HDD Block Mode : Enabled Onboard Parallel Port : 378/IRQ7
On-Chip USB Controller : Disabled Parallel Port Mode : ECCEPP 1.9
ECP Mode Use DMA : 3
Init Display First : PCI Slot Onboard IrDA Port : Disabled
Ring/Wake On LAN
Control
RTC Alarm Controller : Disabled Onboard Serial Port 3 : 3E8
Serial Part 3 Use IRQ : IRQ10
Onboard Serial Port 4 : 2E8
Serial Port 4 Use IRQ : IRQ11
Power On Function : Button Only LCD Panel Type : Panel 5
: Disabled
33
Page 38
Panel# Panel Type
0 1024*768 Dual Scan STN Color Panel
1 128*1024 TFT Color Panel
2 640*480 Dual Scan STN Color Panel
3 800*600 Dual Scan STN Color Panel
4 640*480 Sharp TFT Color Panel
5 640*480 18-bit TFT Color Panel
6 1024*768 TFT Color Panel
7 800*600 TFT Color Panel
8 800*600 TFT Color Panel (Large BIOS ONLY)
9 800*600 TFT Color Panel (Large BIOS ONLY)
10 800*600 Dual Scan STN Color Panel (Large BIOS ONLY)
11 800*600 Dual Scan STN Color Panel (Large BIOS ONLY)
12 1024*768 TFT Color Panel (Large BIOS ONLY)
13 1280*1024 Dual Scan STN Color Panel (Large BIOS ONLY)
14 1024*600 Dual Scan STN Color Panel (Lange BIOS ONLY)
15 1024*600 TFT Color Panel (Lange BIOS ONLY)
34
Page 39
4.6 Power Management Setup
The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.
ROM PCI/ISA BIOS (2A5KKD2B)
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
Power Management : User Define ** External Switch **
PM Control by APM : Yes Power Button Mode : Instant-off
MODEM Use IRQ : 3 DOCK I/O SMI : Disabled
Video Off Option : Susp, stby
->Off
Video Off Method : DPMS
Support
** PM Times **
HDD Off After : Disabled
Doze Mode : Disabled
Standby Mode : Disabled
Suspend Mode : Disabled
FAN Off Option : Suspend->
Off
Wake on LAN Use : NA
** PM Events **
Primary HDD : Disabled ESC : Quit : Select Item
Floppy : Disabled F1 : Help PU/PD/+/-: Modify
COM Ports : Enabled F5 : Old Values (Shift) F2 : Color
Keyboard : Enabled F6 : Load BIOS Defaults
LPT Ports Activity ; Disable F7 : Load Setup Defaults
AC Power SMI : Disabled
Thermal SMI mode : Disabled
35
Page 40
Chapter-5
Software Utilities
This chapter the detailed information of VGA and LAN function. How to
install the configuration is also included.
Section include:
n VGA DRIVER INSTALLATION
n NETWORK DRIVER INSTALLATION
36
Page 41
5.1 VGA DRIVER INSTALL FOR WIN95&98
1. Click Start, then Setting, then Control Panel. Start the Display
applet program.
2. Select the setting page, push the advanced properties button.
Push the change button in the adapter area.
3. Continue to click “Next”. Select Display a list of all drivers in a
specific location, So you can select the drivers you want. Click
“Next”.
4. Select the Specify a location checkbox and click “Browse”.
Specify the path to the new driver and press the <ENTER> key.
(if in driver A:, select a:\win95)
5. The Select device dialog box will appear.
Select
6. Continue choosing close until asked to restart machine.
7. After the system has restarted, you can go back into the display
applet and select alternate screen resolutions and color depths.
Chips and Tech. 69000 PCI
Note: Installation procedure for Windows 98 is similar to
Windows95.
37
Page 42
38
Page 43
39
Page 44
5.2 VGA DRIVER INSTALL FOR WIN NT4.0

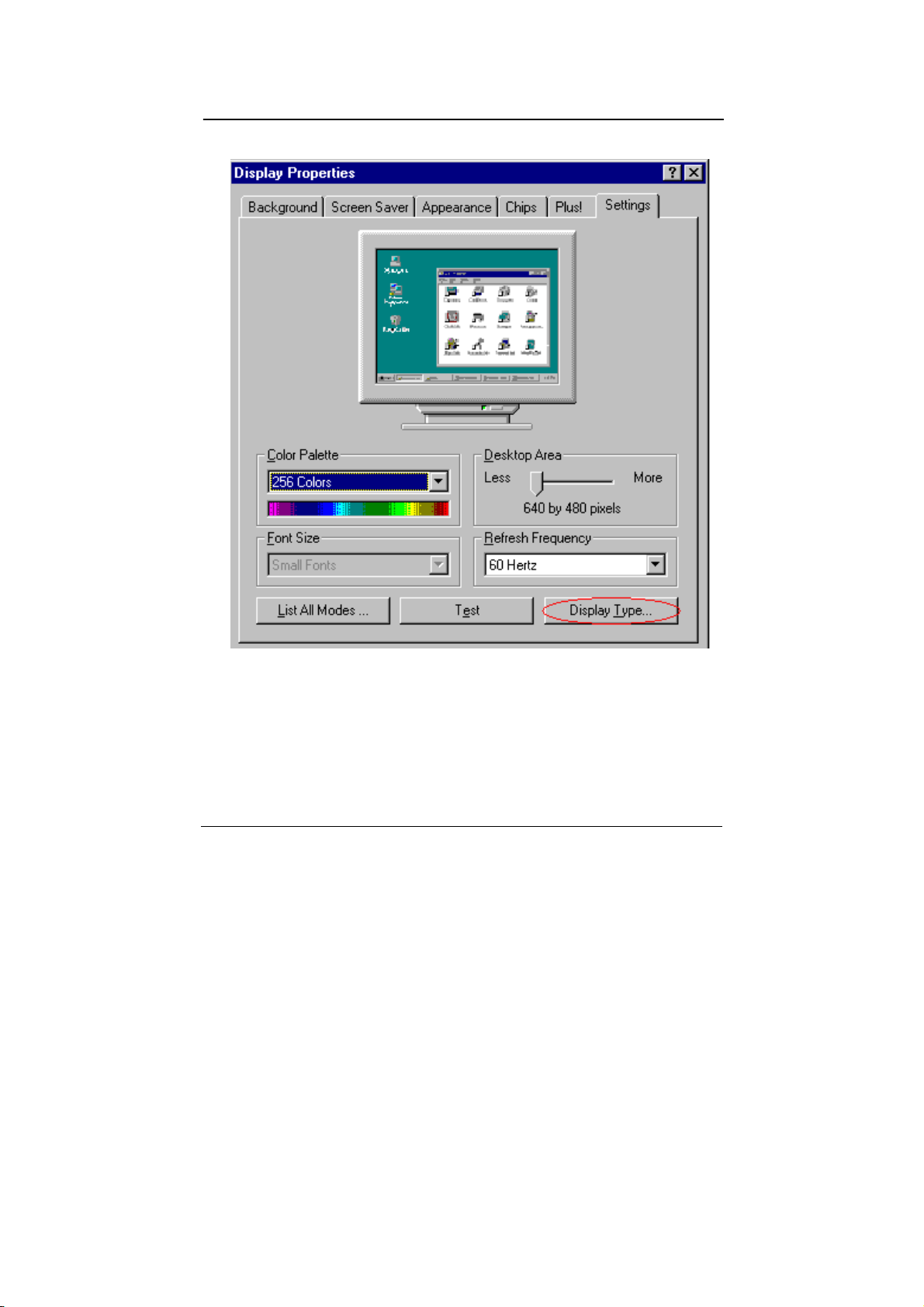

1. Click the Start button, then go to Setting and click on Control
Panel. Click on Display icon to start the Display Properties
Window.
2. Click on the Settings tab, and then click on Display Type. In the
Change Display Type window, click on “Have Disk”.
3. Specify the path to the new driver and press the <ENTER>key.
(if in driver A:, type a:\nt40)

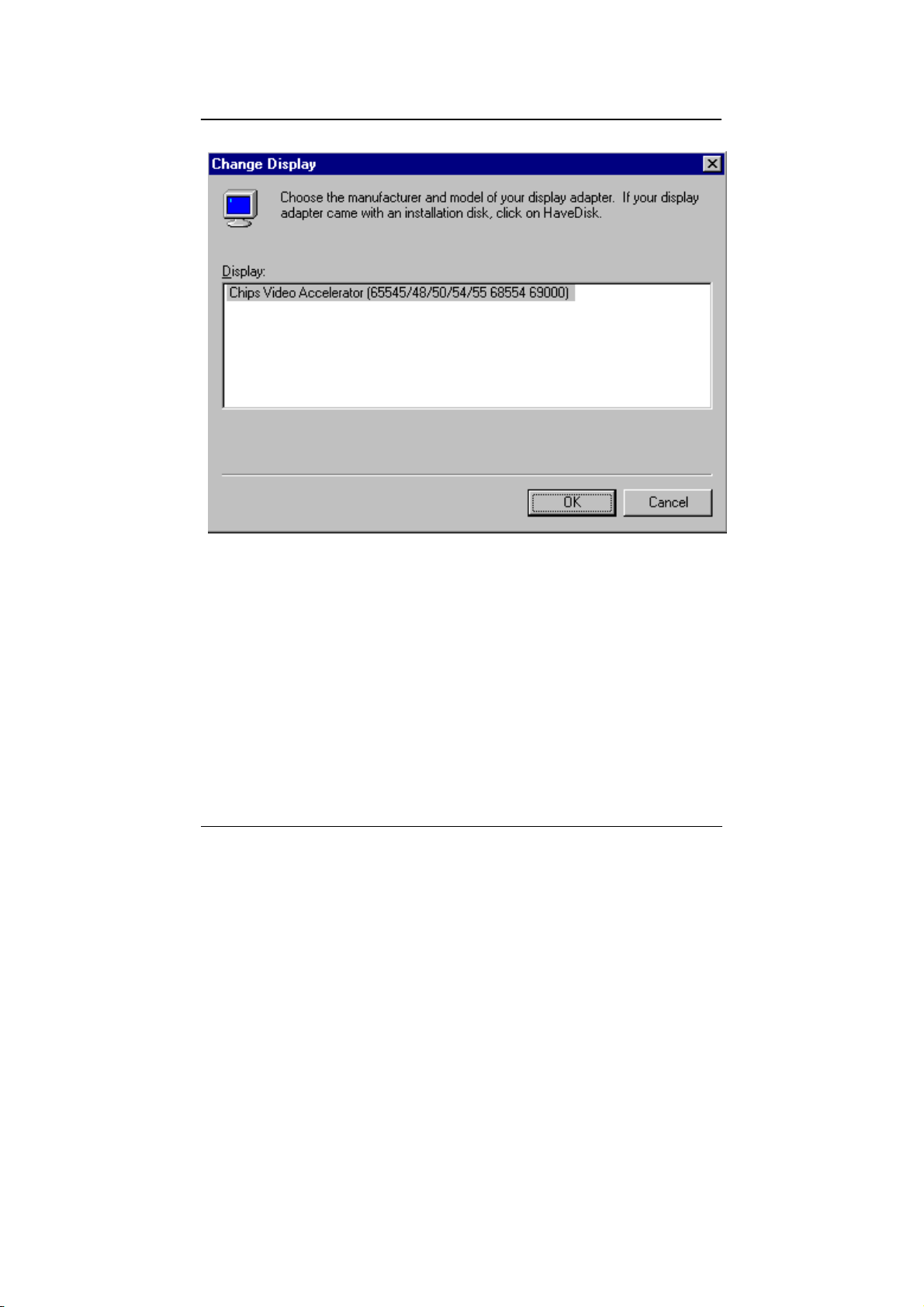

Select
Chips Video Accelerator
(655545/48/50/54/55/68554 69000)
4. Click OK or press Enter. You will see warning panel about Third
Party Drivers. Click on Yes to finish the installation.
5. Once the installation is completed, the system must shut down
and restart for the new driver to take effect.
6. After restart, checking on the VGA driver, the properties of the
driver should look similar to the following figure.
40
Page 45
41
Page 46
42
Page 47
43
Page 48
5.3 NETWORK DRIVER INSTALL FOR WIN98&95
Win98
Windows 98 will detect the network driver automatically.
Win95
1. Click Start, then Setting, in the “Setting” select Control panel. Start
the network applet program.
2. In the Network window, click “Add”. In the Select Network
Component Type, select Adapter then click “Add”.
3. When the Select Network Component Type, Select Adapter, then
click “Add”. Specify the path the new driver and press <ENTER>
key.
(If in driver a:, type a:\)
(If you’re not sure exactly where the drivers are, choose the “Browse”
button and find it)
Select Intel EtherExpress PRO/100+ Management Adapter
4. Click OK.
5. Windows 95 will copy the network drivers to the proper directories
on your system.
6. Continue choosing “OK”, until asked to restart your system.
7. After restart, checking on the network driver , the Properties of the
driver should look similar to the following figure.
44
Page 49
45
Page 50
46
Page 51
5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0
1. Click the Start button, then go to Setting and click on Control
Panel. Click on the Network icon to start the Network Window.
2. Click on the Adapters tab, and then click “Add”. In the Select
Network Adapter window, click “Have Disk”.
3. This will bring up the Insert Disk window.
4. Supply the directory where the Windows NT driver files are
located. (If in driver a: , type a:\)
5. The Select OEM Option window will show up.
Select Intel EtherExpress PRO Adapter
6. Click OK to finish the installation.
7. Once the installation is completed, the system must be shut down
and restarted for the new driver to take effect.
8. After restart, checking on the Network driver, the Properties of the
driver should look similar to the following figure.
47
Page 52
48
Loading...
