Boser HS-5210, HS-5020 User Manual

HS-5210/5020

Half Pentium

Half Size All-in-one with VGA Interface•100-Based Network

Supports DMA33•WDT•DOC•CTA•USB•IrDA

ISA Bus Industrial Single Board Computer

®

MMXTM VGA LAN

HS-5210V/5020V

Half Pentium

Half Size All-in-one with VGA Interface

Supports DMA33•WDT•DOC•CTA•USB•IrDA

ISA Bus Industrial Single Board Computer

®

MMXTM VGA I.S.B.

HS-5210P/5020P

Half Pentium

Half Size All-in-one •Supports DMA33

WDT•DOC•CTA•USB•IrDA

ISA Bus Industrial Single Board Computer

®

MMXTM I.S.B.

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any
electronic or machine readable form in whole or in part without prior written
consent from the manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use
the product or documentation, even if advised of the possibility of such
damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for
any errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.

Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.

Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Sof tware, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

© Copyright 1998
All Rights Reserved.
User Manual edition 2. 2, Aug.24 2001

Contents

HS-5210/5020........................................................................................................1

HS-5210V/5020V ..................................................................................................1

HS-5210P/5020P ..................................................................................................1

GENERAL INFORMATION.........................................................................................3

1.1 MAJOR FEATURES..................................................................................................4

1.2 SPECIFICATIONS ......................................................................................................5

1.3 DELIVERY PACKAGE..............................................................................................6

HARDWARE INSTALLATION...................................................................................7

2.1 CAUTION OF STATIC ELECTRICITY........................................................................7

2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION......................................8

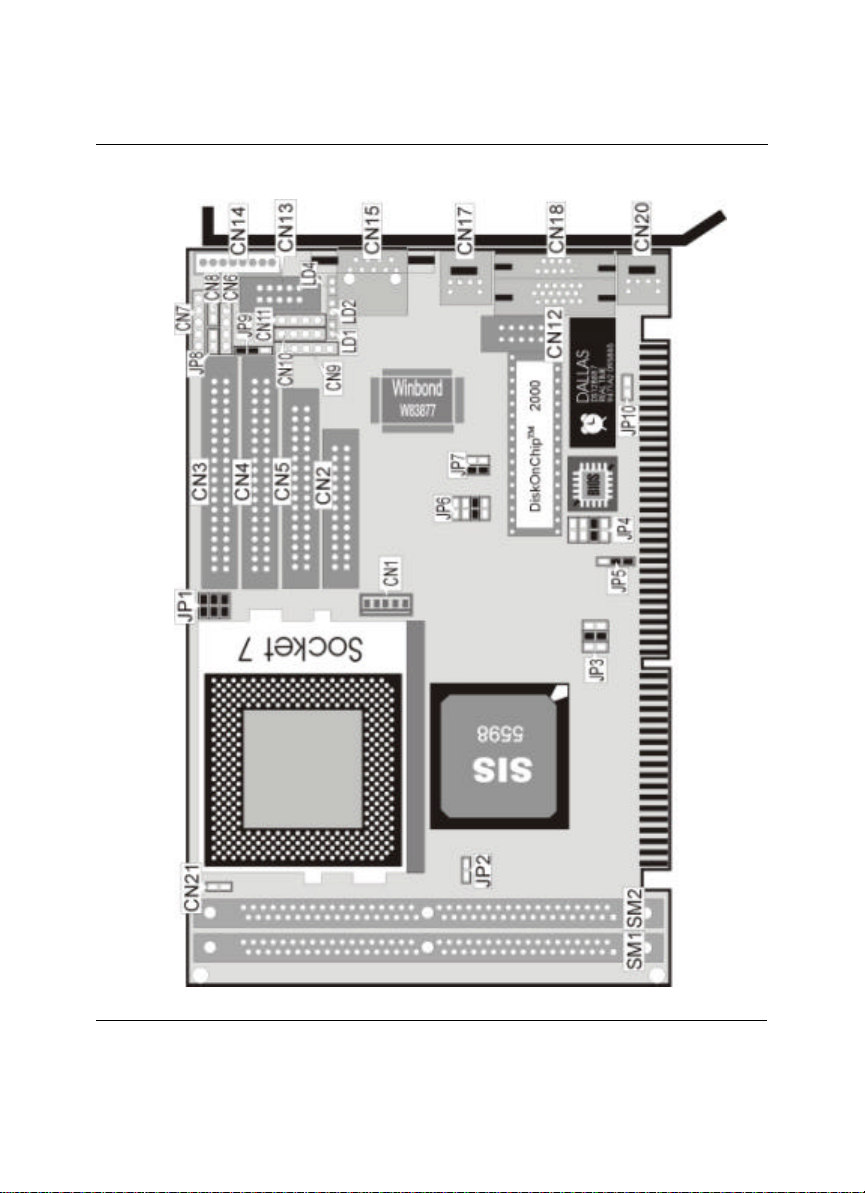

2.3 HS -5210/5020’S LAYOUT....................................................................................9

2.4 QUICK LISTING OF JUMPERS.................................................................................10

2.5 QUICK LISTING OF CONNECTORS ........................................................................10

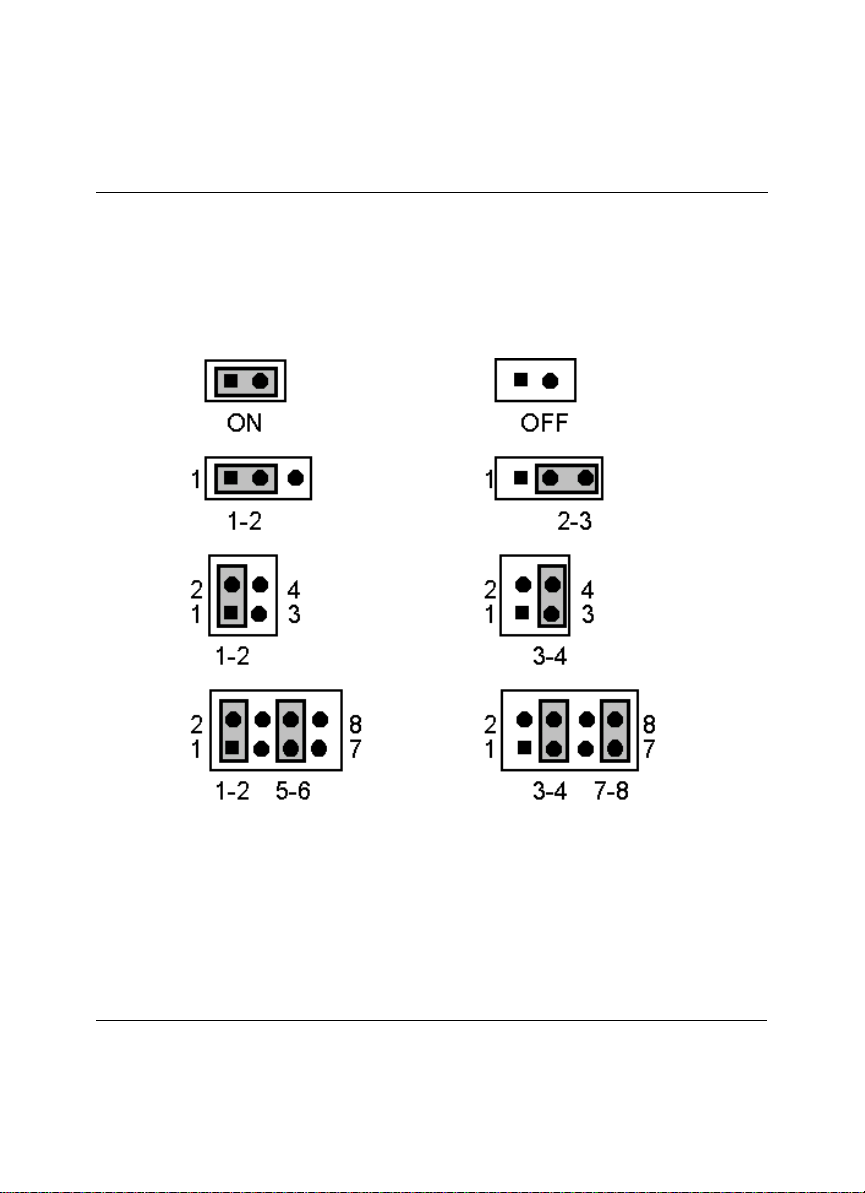

2.6 JUMPER SETTING DESCRIPTION............................................................................11

2.7 SETTING THE CPU OF HS-5210/5020..............................................................12

2.8 SYSTEM MEMORY DRAM...................................................................................14

2.9 WATCH-DOG TIMER..............................................................................................14

2.10 VGA CONTROLLER............................................................................................17

2.11 DISKONCHIP? ADDRESS SETTING..................................................................18

2.12 BIOS TYPE SELECTION.....................................................................................18

CONNECTION..............................................................................................................19

3.1 THE FLOPPY DISK DRIVE CONNECTOR...............................................................19

3.2 PCI E-IDE DRIVE CONNECTOR..........................................................................20

3.3 PARALLEL PORT CONNECTOR............................................................................21

3.4 SERIAL PORTS CONNECTORS.............................................................................22

3.5 KEYBOARD CONNECTORS...................................................................................23

3.6 POWER'S LED, KEY-LOCK AND RESET BUTTON.............................................23

3.7 EXTERNAL SPEAKER............................................................................................24

3.8 PS/2 MOUSE 6-PIN MINI-DIN CONNECTOR.......................................................24

3.9 VGA CONNECTORS .............................................................................................25

3.10 IR CONNECTOR...................................................................................................25

3.11 EXTRA POWER CONNECTOR............................................................................26

3.12 USB PORTS CONNECTOR................................................................................26

Contents ? i

3.13 FAST ETHERNET CONNECTOR..........................................................................27

AWARD BIOS SETUP ...............................................................................................28

4.1 MAIN MENU...........................................................................................................29

4.2 STANDARD CMOS SETUP..................................................................................30

4.3 BIOS FEATURES SETUP......................................................................................31

4.4 CHIPSET FEATURES SETUP..................................................................................32

4.5 INTEGRATED PERIPHERALS..................................................................................33

4.6 POWER MANAGEMENT SETUP............................................................................34

A BRIEF BROWSE OF 10/100 BASED-T LAN RTL-8139’S

INSTALLATION SOFTWARE.................................................................................35

ii ? Contents

Chapter-1

General Information

The HS-5020 is a ISA bus (HS-5210 for PISA bus) MMX™/Pentium® Industrial Single Board
(I.S.B.) CPU card with features combine together to make it an ideal all-in-one industrial
single board computer, enhanced I/O effects, VGA and NE2000 compatible Network
interface. The model HS-5210P/5020P is based on HS-5210/5020’s features but without
LAN on-board.

With on-board DMA33 of mode 4 to IDE drive interface architecture, the HS-5210/5020
supports with maximum 33.3 MB/sec in data transfer rating to 4 pieces IDE drive
connection. Design with SiS5598 UMA VGA, a new generation and memory share
controller built-in. Up to share 4MB main memory and supports 1280 x 1024 64K colors &
Virtual screen up to 2048 x 2048 resolutions.

The advanced ISA bus add-on connection of HS-5020 (PISA bus is for HS-5210) allows
user could easily obtain ISA's full set signals from a small 16-bit ISA slot for suitable plug
into a small size system with 8/16-bit operating. The HS-5210/5020 supports BEDO, EDO
and FPM DRAM sockets. This gives you the flexibility of configuring your system from 1 to
128 MB DRAM by using the most economical SIMMs. It also provides two 72-pin SIMM
sockets for its on-board system DRAM.

A single Flash chip holds the system BIOS, and you can change the Flash BIOS by the
Utility Update. Advanced USB and IR ports also provide a faster data transmission. You
can also use the DOS version of the "DiskOnChip? " socket by issuing commands from the
DOS prompt without the necessity of other software supports up to 144MB.

The HS-5210/5020 features include a temperature-warning sensor installed under the
CPU socket. The sensor monitors the CPU temperature and generates a warning buzzer in
response to the temperature increases that may cause a system malfunctions.

If a non-expect program cause halts, the on-board watchdog timer will automatically reset
the CPU or generate an interrupt. The watchdog is designed for pure hardware and
doesn’t need any arithmetical functions of a real-time clock chip. This ensures the reliability
in an unmanned or standalone system.

3

1.1 Major Features

?? ISA bus supported.
?? Intel Pentium

Cyrix 6x86, M2 300MHz, Intel MMX™, Socket 7 ZIF socket.

?? SiS 5598 chipset.
?? 100 base Network on board, NE2000 compatible. ( HS-5210/5020

only ).

?? Ultra DMA33 Supported four fast PCI enhanced IDE drives (large hard

disks, CD-ROM, tape backup, etc.)

?? Supports EDO or Fast Page DRAM up to 128 MB.
?? PnP I/O address & IRQ selection
?? On-board W83877 super I/O. Two high-speed serial RS-232 ports (with

16C550 UART 16-byte FIFO). One enhanced bi-directional parallel port
supports SPP/EPP/ECP.

?? On-board keyboard and PS/2 Mouse connector.
?? On-board SiS 5598 UMA VGA, a new generation and memory share

controller built-in. Up to share 4MB main memory and supports 1280 x
1024 64K colors & Virtual screen up to 2048 x 2048 resolutions.

?? "DiskOnChip? " socket supports, memory size up to 144 MB.
?? Switch Power Regulator.

®

CPU 75∼300 MHz, AMD k5, k6,k6 -2 333MHz, 350MHz

4

1.2 Specifications

?? CPU: Intel MMX/Pentium 75~300MHz, AMD k5, k6, k6-2 350MHz Cyrix

6x86,M2 300MHz.

?? Bus interface: ISA bus / PISA bus
?? Chipset: SiS 5598
?? Data bus: 64-bit
?? Processing ability: 64-bit
?? VGA Controller: SiS 5598 chipset built in GUI/Video accelerator and 24 bit

true color RAMDAC, new generation UMA architecture with CPU Bus/Data
compression and share system memory up to 4MB.

?? VGA Resolution: Resolutions up to 1280 x 1024 64K color and support

virtual screen up to 2048 x 2048.

?? PCI Enhanced IDE interfaces: Supports up to four IDE devices, support

Ultra DMA/33, data transfer rate 33MB/Sec.

?? RAM memory: Up to 128MB, uses two 72-pin SIMM sockets, supports

BEDO, EDO and FastPage DRAM.

?? Cache memory: 512KB Pipeline burst cache memory.
?? Ethernet: RJ-45 100 based PCI Ethernet, Novell NE2000 compatible. Used

RTL8139 Chipset.

?? Floppy disk drive interface: Supports up to two floppy disk drives.
?? Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP.
?? Serial ports: Two RS-232 ports. Both use 16C550 UART with 16-byte FIFO.
?? BIOS: AWARD PnP flash BIOS.
?? Watchdog timer: Hardware circuit can be set by 1, 2, 10, 20, 110, or 220

seconds period Reset or NMI were generated when CPU did not
periodically trigger the timer.

?? DMA channels: 7
?? Interrupt levels: 15
?? Keyboard: 6-pin mini DIN connector or 5-pin header supports standard

PC/AT keyboard.

?? Mouse: 6-pin mini DIN connector support PS/2 standard mouse.
?? USB: Supports 2 USB header.
?? IR interface: Supports one lrDA TX/RX header.
?? Flash memory Disk: Reserved socket for "DiskOnChip™", support up to

144MB Flash memory disk.

?? Extra power: Supports 8-PIN extra power connector.
?? CMOS: Real-time clock/calendar and battery backup by DS12B887 or

5

equivalent device.

?? Power supply voltage: +5V (4.75 to 5.25V), +12V / -12V power supply.
?? Max. Power requirement: +5V @3.5A, +12V/-12V @20mA.
?? Operating temperature: 0~55°C (CPU need cooler)
?? Board size: 7.3"(L) x 4.8" (W) (185mm x 122mm)

1.3 Delivery Package

The delivery package of HS -5210/5020 includes all following items:

?? HS-5210/5020 Industrial Single Board
?? One Printer & COM2 Bracketed Flat Cable
?? Two IDE port Flat Cables
?? FDD port Flat Cable
?? COM port Cable
?? One PS/2 Keyboard to Standard Keyboard Cable
?? VGA Utility Diskette ( 2 pcs )
?? User’s Manual

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the delivery
package with packing materials in case of you want to ship or store the
product in feature.

6

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware of
HS-5210/5020. At first, please follow up sections 1.3, 2.1 and 2.2 in check the
delivery package and carefully unpacking. Following after, the jumpers set ting of
switch, watchdog timer, and the DiskOnChip? address selection.

The CN15 only available of model HS-5210/5020, and CN16 only available of
model HS-5210P/5020P.

2.1 Caution of Static Electricity

The HS -5210/5020 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the damage
of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

You should follow the steps as following to protect the board in against the
static electric discharge whenever you handle the board:

1. Please use a grounding wrist strap on whoever needs to handle the
HS-5210/5020. Well clip the ALLIGATOR clip of the strap to the end of
the shielded wire lead from a grounded object. Please put on and
connect the strap before handle the HS -5210/5020 for harmlessly
discharge any static electricity through the strap.

2. Please use anti-static pad for put any components or parts or tools on
the pad whenever you work on them outside the computer. You may
also in use the anti-static bag instead the pad. Please ask from your
local supplier in help up your necessary parts on anti-static requirement.

7

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS -5210/5020 from electricity discharge. With refer to
section 1.3, please check the delivery package again with following steps:

1. Unpacking the HS-5210/5020, keep well storage of all packing material,
manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT INSTALL
IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF
HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,
ROM-Disk etc.) for completed setting all necessary jumpers setting to
jumper pin-set and CMOS setup correctly. Please also reference to all
information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver Type
etc.) for completed add-in or connection and CMOS setup correctly.
Please also reference to all information of connector connection in this
manual.

6. Please keep all necessary manual and diskette in a good condition for
your necessary re-installation if you change your Operating System or
whatever needs.

8

2.3 HS-5210/5020’s Layout

9

2.4 Quick Listing of Jumpers

JP1 — for CPU type setting
JP2 — VGA Enable Selection
JP3 — CPU Clock-in Select
JP4 — WATCH-DOG Time -out period selection
JP5 — Type setting of Flash BIOS
JP6 — CPU's Vcore voltage level selection setting
JP7 — for DiskOnChip™ address setting
JP9 — WATCH-DOG Active Select
JP10 — CMOS Data Clear

2.5 Quick Listing of Connectors

CN1: 5P KEYBOARD CONNECTOR
CN2: PARALLEL PORT
CN3: 1st HDD (IDE) CONNECTOR
CN4: 2nd HDD (IDE) CONNECTOR
CN5: FDD CONNECTOR
CN6: SPEAKER CONNECTOR
CN7: KEYLOCK
CN8: HDD LED
CN9: IR CONNECTOR
CN10: USB1 CONNECTOR
CN11: USB0 CONNECTOR
CN12: COM2 (HEADER 5x2)
CN13: COM1 (HEADER 5x2)
CN14: 8P POWER CONNECTOR
CN15: RJ-45 NETWORK CONNECTOR ( HS-5210/5020 only )
CN16: COM1 ( HS -5210P/5020P only )
CN17: MINI-DIN 6-PINS MOUSE CONNECTOR (PS/2)
CN18: EXTERNAL VGA CONNECTOR (DB15)
CN20: MINI-DIN 6-PINS KEYBOARD CONNECTOR (PS/2)
LD1, LD2, LD4: LAN’s LED INDICATOR CONNECTORs
JP8: RESET BUTTON CONNECTOR

10

2.6 Jumper Setting Description

A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over
two pins. A jumper pin-set is OFF as a open circuit with a plastic cap
inserted over one or no pin(s) between pins. The below figure 2.2 shows the
examples of different jumper pin-set setting as ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting may reference in this manual with a " * " symbol in front of the
selected item.

11

2.7 Setting the CPU of HS-5210/5020

The HS -5210/5020 provides all possibility in jumper setting for wide using
all types of CPU with JP1 and JP3 setting.

The following table shows all possibility of the setting with JP3. The JP3
used to setting the System clock base rate. The System clock setting will
preset the system operating clocking base rate. The setting of JP3 also
shows the PCI Bus Clock rate in selection.

?? System Clock select

JP3 System Clock PCI Bus Clock

1-2, 3-4 50 MHz 25 MHz

OFF 55 MHz 27.5 MHz

1-2 60 MHz 30 MHz

3-4 *66.6 MHz *33.3 MHz

1-2, 5-6 75 MHz 32 MHz
3-4, 5-6 83.3 MHz 32 MHz

*) : default setting

The JP1 sets the multi-times ratio of the CPU’s specification. Please
reference to the following table for all type CPU in used.

?? CPU’s Clock Ratio select

Clock Ratio

Intel AMD

JP1

P54C P55C K6 5-6 3-4 1-2

2.5 2.5 *2.5 OFF ON ON

3.0 3.0 3.0 OFF ON OFF

2.0 2.0 2.0 OFF OFF ON

1.5 3.5 3.5 OFF OFF OFF

2.5 2.5 4.5 ON ON ON

3.0 3.0 5.0 ON ON OFF

1.5 2.0 4.0 ON OFF ON

2.5 3.5 5.5 ON OFF OFF

*) : default setting

12

Correspond to different type CPU, it is request to set JP6 for match the
CPU's Vcore operating voltage. Here shows at below of the proper jumper
settings for their respective Vcore at range 2.0V to 3.5V.

?? CPU Vcore Voltage Selection

CPU Vcore Voltage

JP6

2.0V ALL OFF

2.1V 1-2

2.2V 3-4

2.3V 1-2, 3-4

2.4V 5-6

2.5V 1-2, 5-6

2.6V 3-4, 5-6

2.7V 1-2, 3-4, 5-6

2.8V 7-8

*2.9V 1-2, 7-8

3.0V 3-4, 7-8

3.1V 1-2, 3-4, 7-8

3.2V 5-6, 7-8

3.3V 1-2, 5-6, 7-8

3.4V 3-4, 5-6, 7-8

3.5V 1-2, 3-4, 5-6, 7-8

*) : default setting

The above default setting of JP1, JP3 and JP6 show a AMDK6-166(2.9V)
CPU in used. ( i.e. 66.6 x 2.5 ˜ 166 MHz ). Please contact with your CPU
supplier for detail specification in correcting selected setting of JP1, JP3
and JP6.

13

2.8 System Memory DRAM

The HS-5210/5020 provides a wide range on-board DRAM memory by two
pieces SIMM sockets (Bank0 & Bank1) to accept 1 MB, 2MB, 4MB, 8MB,
16MB, 32MB or 64MB. The SIMMs (Single In-Line Memory Modules) RAM
request the access time should be 70 n-second or faster. The total
capacity of the on board memory are between 2MB to 128MB.

See the figure on section 2.3 for get the identifying the banks. Please take
notes that the memory capacity of both SIMMs should be the same.

The HS-5210/5020 requires at least 2pcs of the RAM modules on SIMM
socket.

2.9 Watch -Dog Timer

There are three access cycles of Watch-Dog Timer as Enable, Refresh
and Disable. The Enable cycle should proceed by READ PORT 443H. The
Disable cycle should proceed by READ PORT 043H. A continue Enable
cycle after a first Enable cycle means Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before the
time-out period for restart counting the WDT Timer's period. Otherwise, it
will assume that the program operation is abnormal when the time
counting over the period preset of WDT Timer. A System Reset signal to
start again or a NMI cycle to the CPU comes if over.

The JP9 is using for select the active function of watch -dog timer in disable
the watch -dog timer, or presetting the watch -dog timer activity at the reset
trigger, or presetting the watch-dog timer activity at the NMI trigger.

?? JP9 : Watch-Dog Active Type Setting

JP9 DESCRIPTION
*1-2 System Reset

2-3 Active NMI

OFF disable Watch-dog timer

14

?? JP4 : WDT Time - Out Period

PERIOD

1-2 3-4 5-6 7-8

*1 sec OFF OFF ON OFF

2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec

110 sec
220 sec

OFF ON OFF ON

ON OFF OFF OFF
ON OFF OFF ON

The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by a Enable cycle with reading the control
port (443H), a Refresh cycle with reading the control port (443H) and a
Disable cycle by reading the Watch -dog timer disable control port (043H).
After a Enable cycle of WDT, user must constantly proceed a Refresh
cycle to WDT before its period setting comes ending of every 1, 2, 10, 20,
110 or 120 seconds. If the Refresh cycle does not active before WDT
period cycle, the on board WDT architecture will issue a Reset or NMI
cycle to the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.

The following sample programs showing how to Enable, Disable and
Refresh the Watch-dog timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H

WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX

15

RET

16

WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX

POP AX

RET

2.10 VGA Controller

The SiS 5598 Chip with built-in VGA controller is a highly integrated single
chip solution for Pentium PCI/ISA system. A portion of on-board DRAM is
shared of maximum 4 Mbytes by the integrated VGA controller.

The SiS 5598 Chip consists of Host-to-PCI bridge function, PCI to ISA
bridge function, PCI/IDE function, Universal Serial Bus host/hub function,
Integrated RTC, Integrated Keyboard Controller and Graphics/Video
accelerate function.

SiS 5598 Chip supports Enhanced Power Management, including legacy
Power Management Unit and Advanced Configuration and Power Interface
(ACPI). It also supports ATA Synchronous DMA transfer protocol to
improve the IDE performance and Common Architecture for moving ISA
function to PCI to improve system performance.

?? JP2 : VGA Enable Selection

PIN NO. Address

*OFF Enable

ON Disable

*) : default setting

17

2.11 DiskOnChip? Address Setting

The HS -5210/5020 provides a U9 socket for install the DiskOnChip?
module.

A JP7 may select the starting memory address of the DiskOnChip?
(D.O.C.) for avoid the mapping area with any other memory devices. If you
have another extra memory devices in the system with the same memory,
neither the HS -5210/5020 nor the extra memory devices will function
normally. Please setting both at different memory address mapping.

?? JP7 : DiskOnChip? Address

PIN NO. Address

*1-2 D000

3-4 D800

*) : default setting

The D.O.C. function allows the system in using without FDD nor HDD. The
D.O.C. may formatting as driver C: or driver A:. User may also easily uses
the DOS's commands such as FORMAT, SYS, COPY, XCOPY,
DISCOPY and DISKCOMP etc. This is means that the D.O.C. may uses
as driver-A if the system without FDD-A for ambient application. Please
contact with your supplier for different size D.O.C. module.

2.12 BIOS Type Selection

The HS-5210/5020 provides a JP5 for selects the type of flash chip in using
as the BIOS. The manufacturer provides 29C010 on the board.

?? JP5 : BIOS Type Selection

PIN NO. Address

1-2 29C010

*2-3 28F010

*) : default setting

18

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as CN5
with following pin assignment. Total two FDD drivers may connect.

?? CN5 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

19

3.2 PCI E-IDE Drive Connector

Two standard 40-pin header daisy-chain driver connectors provides as CN3
& CN4 with following pin assignment. Total four IDE (Integrated Device
Electronics) drivers may connect.

CN3(IDE 1) : Primary IDE Connector
CN4(IDE 2) : Secondary IDE Connector

?? CN3/CN4 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO.

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

DESCRIPTION

20

3.3 Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN2 with following
pin assignment for connection to parallel printer.

?? CN2 : Parallel Port Connector

PIN NO.

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

DESCRIPTION PIN NO.

DESCRIPTION

21

3.4 Serial Ports Connectors

The HS -5210/5020 offers two high speed NS16C550 compatible UARTs
with Read/Receive 16 byte FIFO serial ports with one DB -9 external
connector, and one internal 10-pin header connector.

?? CN16 COM-1: Serial Port DB-9 Connector ( HS -5210P/5020P

only )

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

?? CN12 COM-2 / CN13 COM-1 : Serial Ports 10-pin Header

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

22

3.5 Keyboard Connectors

The HS -5210/5020 offers two possibilities for keyboard connections to
external PS/2 type keyboard at CN20, or an internal 5-pin header at CN1.

?? CN1 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V

?? CN20 : 6-pin Mini-DIN Keyboard Connector

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 N/C
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 N/C

3.6 Power's LED, Key-Lock and Reset Button

The following provides the pin information for Power's LED indicator,
Key-Lock and Reset Button connections from CN8, CN7 and JP8.

?? CN7 : POWER LED & KEYLOCK

PIN NO. DESCRIPTION

1 POWER LED ANODE
2 NC
3 GROUND
4 KEYLOCK
5 GROUND

23

?? JP8 : RESET BUTTON

PIN NO. DESCRIPTION

1 EXTERNAL RESET
2 GROUND

?? CN8 : HDD LED connector

PIN NO. DESCRIPTION

1 HDD ACTIVE#
2 +5V

3.7 External Speaker

The HS -5210/5020 has an on-board buzzer. And it also provides the CN6
in allows user to connecting to the external speaker.

?? CN6 : Speaker Connector

PIN NO. DESCRIPTION

1 SPEAKER SIGNAL
2 NC
3 GROUND
4 +5V

3.8 PS/2 Mouse 6-pin Mini-DIN Connector

The HS -5210/5020 provides an external PS/2 mouse connector at CN17
with following pin information.

?? CN17 : PS/2 Mouse Connector

PIN NO. DESCRIPTION

1 DATA
2 NC
3 GROUND
4 +5V
5 CLK
6 NC

24

3.9 VGA Connectors

The HS -5210/5020 provides two possible connectives of VGA
connections. One standard DB -15 external VGA connector as following
CN14 pin information.

?? CN18 : 15-pin DB-15 Female VGA connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

3.10 IR Connector

The HS -5210/5020 provides a 5-pin internal IR communication connector.
The CN9 provides for IrDA 1.0 specification application.

?? CN9 : 5-PIN IR CONNECTOR

PIN NO. DESCRIPTION

1 Vcc
2 NC
3 IRRX
4 GROUND
5 IRTX

25

3.11 Extra Power Connector

The HS -5210/5020 provides an 8-pin extra DC power connector CN14 for
internal power connection at a single board application. Please refer to the
following table for detail pin information.

?? CN14 : 8P Extra Power Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Vcc 2 +12V

3 -12V 4 GROUND

5 GROUND 6 -5V

7 +12V 8 Vcc

3.12 USB Ports Connector

The HS -5210/5020 provides two internal 4-pin USB ports connectors.
Please refer to the following detail pin information.

?? CN10, CN11 : 4-pin Header USB connector

PIN NO. CN10(USB0) PIN NO. CN11(USB1)

1 Vcc 1 Vcc

2 BD0- 2 BD1-

3 BD0+ 3 BD1+

4 GROUND 4 GROUND

26

3.13 Fast Ethernet Connector

The Fast Ethernet controller provides with 32-bit performance, PCI bus
master capability, and full compliance with IEEE 802.3 10/100Based-T
specifications.

For 10/100Base-T operation, please connect the network connection by
plugging one end of the cable into the 9-pin RJ-45 CN13 Connector.

?? CN13 : Ethernet Connector ( 9-pin RJ-45 )

PIN NO. DESCRIPTION

1 TX+
2 TX­3 RX+
4 NC
5 NC
6 RX­7 NC
8 NC
9 Ground

For indication out the LAN operating status, the board provides three LED
indicators in show out the status at follows:

LD1: LED indicator lighting shows 10-Based data rating
LD2: LED indicator lighting shows 100-Based data rating
LD4: LED indicator lighting shows LAN in active

27

Chapter-4

AWARD BIOS Setup

The board uses Award PCI/ISA BIOS for the system configuration.
The Award BIOS setup program is designed to provide the maximum
flexibility in configuring the system by offering various options which
could be selected for end-user requirements. This chapter is written to
assist you in the proper usage of these features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key
during memory testing when first power on. The Main Menu will be
displayed at this time.

28

4.1 Main Menu

F10 : Save & Exit

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to enter the sub-menu.

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

ROM PCI/ISA BIOS (xxxxxxxx)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PCI CONFIGURATION SETUP
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc : Quit

??? ? : Select Item
(Shift)F2 : Change Color

29

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the setup.
When the IDE hard disk drive you are using is larger than 528MB,
please set the HDD mode to LBA mode. Please use the IDE Setup
Utility in BIOS SETUP to install the HDD correctly.

ROM PCI/ISA BIOS (xxxxxxxx)

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Data (mm:dd:yy) : Tue, Oct. 19 1999
Time (hh:mm:ss) : 00:00:00

Primary Master : AUTO 0M 0 0 0 0 0 AUTO
Primary Slave ? AUTO 0M 0 0 0 0 0 AUTO
Secretary Master AUTO 0M 0 0 0 0 0 AUTO
Secretary Slave

Drive A : 1.44M , 3.5 in.
Drive B : None Base Memory :

Vedio : EGA/VGA Other Memory :
Halt On : All Errors Total Memory :

ESC : Quit
F1 : Help

TYPE SIZE CYLS HEAD PRECOMP

AUTO 0M 0 0 0 0 0 AUTO

Extended Memory :

??? ? : Select Item
(Shift) F2: Change Color

LANDZ SECTOR MODE

640K

14336K

384K

15360K

PU/PD/ + / - : Modify

30

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot -up sequence, keyboard operation, shadowing and
security.

ROM PCI/ISA BIOS (xxxxxxxx)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFF Shadow : Disabled
Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled
Boot Sequence : A,C,SCSI D4000-D7FFF Shadow : Disabled
Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled
Boot Up Floppy Seek : Enabled DC000-DFFFF Shadow : Disabled
Boot Up NumLock Status : On
Boot Up System Speed : High
Gate A20 Option : Fast
Memory Parity Check : Enabled
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled ESC : Quit ??? ? : Select Item
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify

F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults

31

4.4 Chipset Features Setup

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds
and the access to the system memory resources, such as DRAM and
the external cache. It also coordinates the communications between
the conventional ISA and PCI buses. It must be stated that these
items should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that
the data has been lost while using your system.

ROM PCI/ISA BIOS (xxxxxxxx)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled CPU to PCI Burst Mem. WR : Disabled
ISA Bus Clock Frequency : PCICLK/4
L2 (WB) Tag Bit Length : 8bits System BIOS Cacheable : Enabled
SDRAM RAS-to-CAS Delay : Enabled Video BIOS Cacheable : Enabled
NA# Enable : Enabled Memory Hole at 15M-16M : Disabled
Starting Point of Paging : 1T VGA Shared Memory Size : 1MB
Refresh Cycle Time (us) : 187.2 VGA Memory Clock (MHz) : 55
RAS Pulse Width Refresh : 6T
RAS Precharge Time : 4T
RAS to CAS Delay : 4T
CAS# Pulse Width (FP) : 2T
CAS# Pulse Width (EDO) : 1T
RAMW# Assertion Timing : 3T
CAS Precharge Time (FP) : 1T/2T
CAS Precharge Time (EDO) : 1T/2T
SDRAM Wait State Control : 1WS ESC : Quit ??? ? : Select Item
Enhanced Memory Write : Disabled F1 : Help PU/PD/+/-: Modify
Read Prefetch Memory RD : Enabled F5 : Old Values (Shift) F2 : Color
CPU to PCI Post Write : 3T F6 : Load BIOS Defaults
F7 : Load Setup Defaults

32

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them.
This is much simpler and more efficient (also faster).

ROM PCI/ISA BIOS (xxxxxxxx)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Both USB Keyboard Support : Disabled
IDE Primary Master PIO : Auto Power Button Over Ride : Enabled
IDE Primary Slave PIO : Auto Ring Power Up Control : Enabled
IDE Secretary Master PIO : Auto GPIO5 Power Up Control : Enabled
IDE Secretary Slave PIO : Auto Power Up by Alarm : Disabled
IDE Burst Mode :
IDE Data Port Post Write : Enabled
IDE HDD Block Mode :

Onboard FDD Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
UART 2 Mode : Standard

Onboard Parallel Port : 378/IRQ7 ESC : Quit ??? ? : Select Item
Onboard Parallel Mode : SPP F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
USB Controller : Enabled F7 : Load Setup Defaults

33

4.6 Power Management Setup

The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.

ROM PCI/ISA BIOS (xxxxxxxx)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

Power Management : Disabled VGA Activity : Disabled
PM Control by APM : Yes IRQ3 (COM2) : Enabled
Video Off Method : Susp, stby ->Off IRQ4 (COM1) : Enabled
Video Off After : V/H SYNC + Blank IRQ5 (LPT2) : Enabled
Switch Function : Break/Wake IRQ6 (Floppy Dick) : Enabled
Doze Speed (div by) : 2 IRQ7 (LPT1) : Enabled
Standby Speed (div by) : 3 IRQ8 (RTC Alarm) : Disabled
MODEM Use IRQ : 3 IRQ9 (IRQ2 Redir) : Enabled
Hot Key Power Off : Disabled IRQ10 (Reserved) : Enabled
IRQ11 (Reserved) : Enabled

** PM Times ** IRQ12 (PS/2 Mouse) : Enabled
HDD Off After : Disabled IRQ13 (Coprocessor) : Enabled
Doze Mode : Disabled IRQ14 (Hard Disk) : Enabled
Standby Mode : Disabled IRQ15 (Reserved) : Enabled
Suspend Mode : Disabled
ESC : Quit ??? ? : Select Item

** PM Events ** F1 : Help PU/PD/+/-: Modify
COM Ports Activity : Enabled F5 : Old Values (Shift) F2 : Color
LPT Ports Activity : Enabled F6 : Load BIOS Defaults

HDD Ports Activity : Enabled F7 : Load Setup Defaults

34

Chapter-5

A Brief Browse of 10/100 based -T LAN

RTL-8139’s Installation Software

This chapter only provides for HS-5210/5020. The content herein is not for
HS-5210P/5020P.

The on board provides one 32-bit PCI 10/100 based-T Ethernet LAN
interface connection for easy using this Industrial Single Board in
connection to-with Novell NE2000 compatible LAN network system.

The design is base on RTL 8139 chipset with, provides a 10/100 based-T
NE2000 compatible interfaces. We here provide some information on the
installation for your first reference.

The delivery of the software packages with HS -5210/5020 which including
a easy access help manual by files from. Please read all following help
manual first before your installation of this LAN system.

For completed information, please browse at
http:\\www.realtek.com.tw

35
