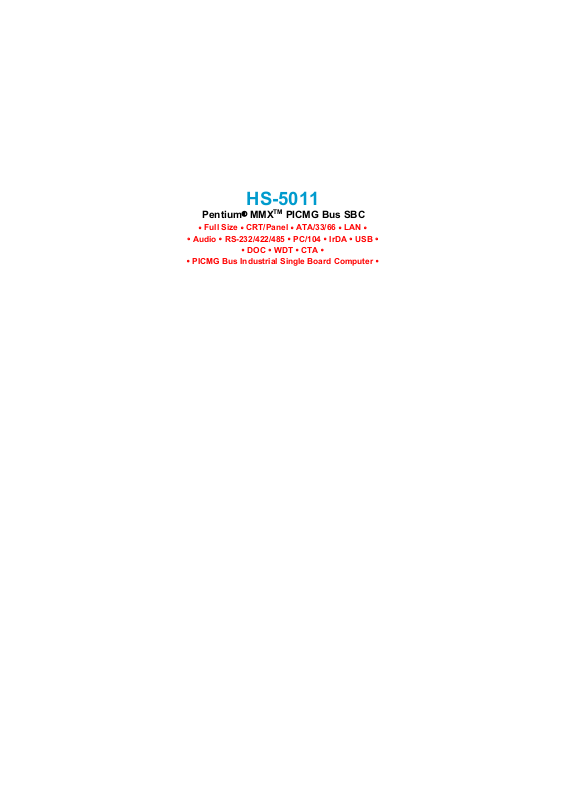

HS-5011

Pentium® MMXTM PICMG Bus SBC

Full Size•CRT/Panel•ATA/33/66•LAN•

•

•Audio•RS-232/422/485•PC/104•IrDA•USB•

DOC•WDT•CTA•

•

•PICMG Bus Industrial Single Board Computer•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 General Description..............................1

1.1 Major Features.................................................................. 2

1.2 Specifications ................................................................... 3

1.3 Board Dimensions............................................................ 4

Chapter 2 Unpacking .............................................5

2.1 Opening the Delivery Package........................................ 5

2.2 Inspection.......................................................................... 5

Chapter 3 Hardware Installation ..........................7

3.1 Before Installation ............................................................ 7

3.2 HS-5011 Board Layout ..................................................... 8

3.3 HS-5011 Jumper List........................................................ 9

3.4 HS-5011 Connector List................................................. 10

3.5 System Memory.............................................................. 11

3.6 DiskOnChip Address Setting ..................................... 11

3.7 Setting the CPU of HS-5011........................................... 11

3.8 Watchdog Timer ............................................................. 13

3.9 CMOS Data Clear............................................................ 15

3.10 VGA Controller................................................................ 15

3.11 Serial Port Connectors .................................................. 18

3.12 Keyboard & Mouse Connector...................................... 19

3.13 Front Panel Connector................................................... 20

3.14 PCI E-IDE Drive Connector............................................ 21

3.15 Parallel Connector.......................................................... 22

3.16 Floppy Disk Drive Connector ........................................ 23

3.17 Audio Connectors .......................................................... 23

3.18 CPU Temperature Alarm Setting................................... 24

3.19 Fast Ethernet Connector ............................................... 25

3.20 IrDA Connector ............................................................... 25

3.21 PC/104 Bus Connection................................................. 26

3.22 USB Connector ............................................................... 27

3.23 Power and FAN Connectors.......................................... 28

Page 4

Chapter 4 Award BIOS Setup .............................29

4.1 Starting Setup ................................................................. 29

4.2 Using Setup..................................................................... 30

4.3 Main Menu ....................................................................... 31

4.4 Standard CMOS Setup ................................................... 33

4.5 BIOS Features Setup...................................................... 35

4.6 Chipset Features Setup ................................................. 40

4.7 Power Management Setup............................................. 41

4.8 Integrated Peripherals ................................................... 42

4.9 PNP/PCI Configuration Setup ....................................... 44

4.10 Load BIOS Defaults........................................................ 45

4.11 Load Setup Defaults....................................................... 46

4.12 Supervisor/User Password Setting .............................. 47

4.13 IDE HDD Auto Detection ................................................ 48

4.14 Save & Exit Setup........................................................... 49

4.15 Exit Without Saving........................................................ 50

Chapter 5 Software Utilities.................................51

5.1 VGA Driver Installation for Win 95/98........................... 51

5.2 VGA Driver Installation for Win NT4.0.......................... 53

5.3 Audio Driver Installation for Win 98/95 ........................ 55

5.4 Audio Driver Installation for Win NT4.0 ....................... 57

5.5 Network Driver Installation for Win95/98 ..................... 59

5.6 Network Driver Installation for Win NT4.0 ................... 61

Page 5

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:

Do not remove boards or integrated circuits from their anti-static



packaging until you are ready to install them. Before handling a board or integrated circuit, touch an unpainted portion



of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.

Wear a wrist-grounding strap, available from most electronic component



stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-5011 to ensure harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

This page is intentionally left blank.

Page 7

Chapter 1

General Description

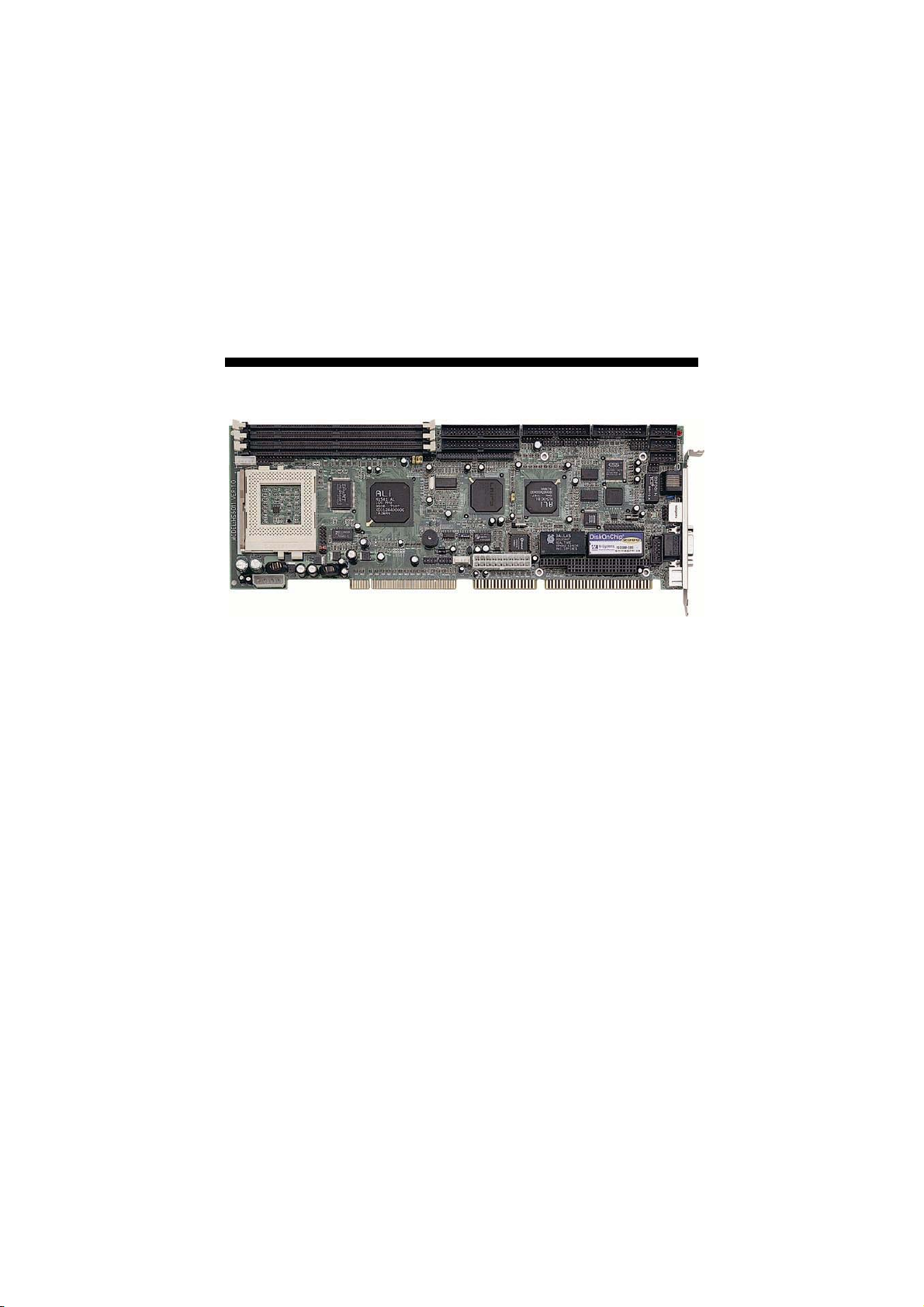

The HS-5011 is Full size PICMG Bus Pentium® MMX™ Industrial Single Board Computer. The board design combine together with all necessary input and output effects interfaces which makes it an ideal all-in-one industrial single board computer. The board design with 100MHz FSB clock rate architecture.

The HS-5011 provides one set of PC/104 bus connector for 16-bit ISA bus. The board also designs with an ESS ideas audio adapter in any audio application.

The IDE interface with ATA/33/66 access of mode 4 to IDE drive interface architecture, supports with maximum 66MB/sec in data transfer rating to four IDE drive connection and provides an onboard

82559 10/100 based LAN for easy network connection.

Intel

The board design with C&T 69000 CRT/Panel display controller provides internal connection to CRT and Panel display. It can supports up to 1280 x 1024 at 256 colors.

A single Flash chip holds the system BIOS, and you can change the Flash BIOS by the Utility Update. Advanced IR also provides a faster data transmission. You can also use the DOS version of the "DiskOnChip" socket by issuing commands from the DOS prompt without the necessity of other software supports up to 288MB.

Solo1 3D audio provides an

Page 8

The HS-5011 supports memory at three DIMM sockets. This gives you the flexibility of configuring your system from 8MB to 1.5GB by using the most economical DIMM memory modules for its onboard system SDRAM.

If a non-expect program cause halts, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt. The WDT is designed with pure hardware and doesn’t need any arithmetical functions of a real-time clock chip. This ensures the reliability in an unmanned or standalone system.

1.1 Major Features

The HS-5011 comes with the following features:

 75~500MHz CPU for Intel

 Ali M1541/M1543 system chipset

 Fast PCI ATA/33/66 IDE controller

 Three DIMM sockets with a maximum capacity of 1.5GB

 ALi M1543 super I/O chipset

 One RS-232 and one RS-232/422/485 serial ports

 PC/104 Bus connector

 C&T 69000 CRT/Panel display controller

 Intel 82559 10/100 Based LAN

 ESS

 DiskOnChip

 Two USB connectors

 Supports ATX power function

 Supports CPU Temperature Alarm function

 Switching power regulator

Solo1 3D audio controller

socket supporting memory sizes of up to 288MB

Pentium

MMXTM/Tillamook/K5/K6

Page 9

1.2 Specifications

 CPU: 75~500MHz CPU for Intel

Pentium

 Bus Interface: PICMG Bus  Memory: Three DIMM sockets supporting up to 1.5GB  Chipset: ALi M1541/M1543  I/O Chipset: ALi M1543  VGA: C&T69000 with 2MB memory supporting CRT/Panel displays up

to 1280 x 1024 at 256 colors IDE: Four IDE disk drives supporting ATA/33/66 and with a transfer rate



of up to 33/66MB/sec.

 Floppy: Supports up to two floppy disk drives  Parallel Port: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP LAN: Intel® 82559 10/100 Based LAN



Audio: ESS® Solo1 3D audio controller



Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232



x 1 serial ports with 16-byte FIFO

 PC/104: PC/104 connector for 16-bit ISA Bus  IrDA: One IrDA TX/RX header  USB: Two USB connectors  Keyboard: PS/2 6-pin Mini DIN or 5-pin connector  Mouse: PS/2 6-pin Mini DIN or 4-pin connector  DiskOnChip

288MB

 BIOS:  Watchdog Timer:

with Reset or NMI

: DiskOnChipTM socket supporting memory sizes of up to

Award PnP Flash BIOS

Sets 1, 2, 10, 20, 110, 220 seconds activity trigger

 CMOS: DS12C887 or equivalent device  DMA Channels: 7  Interrupt Levels: 15  Power: +5V, +12V, -12V  Maximum Power Consumption: +5V@6A, +12V@120mA,

-12V@50mA

 Operating Temperature: 0~60°C  CPU Temperature Alarm: Beeping alarm when CPU temperature

exceeds temperature limits

 Board Size: 33.8 x 12.1 cm

MMX

/Tillamook/K5/K6

Page 10

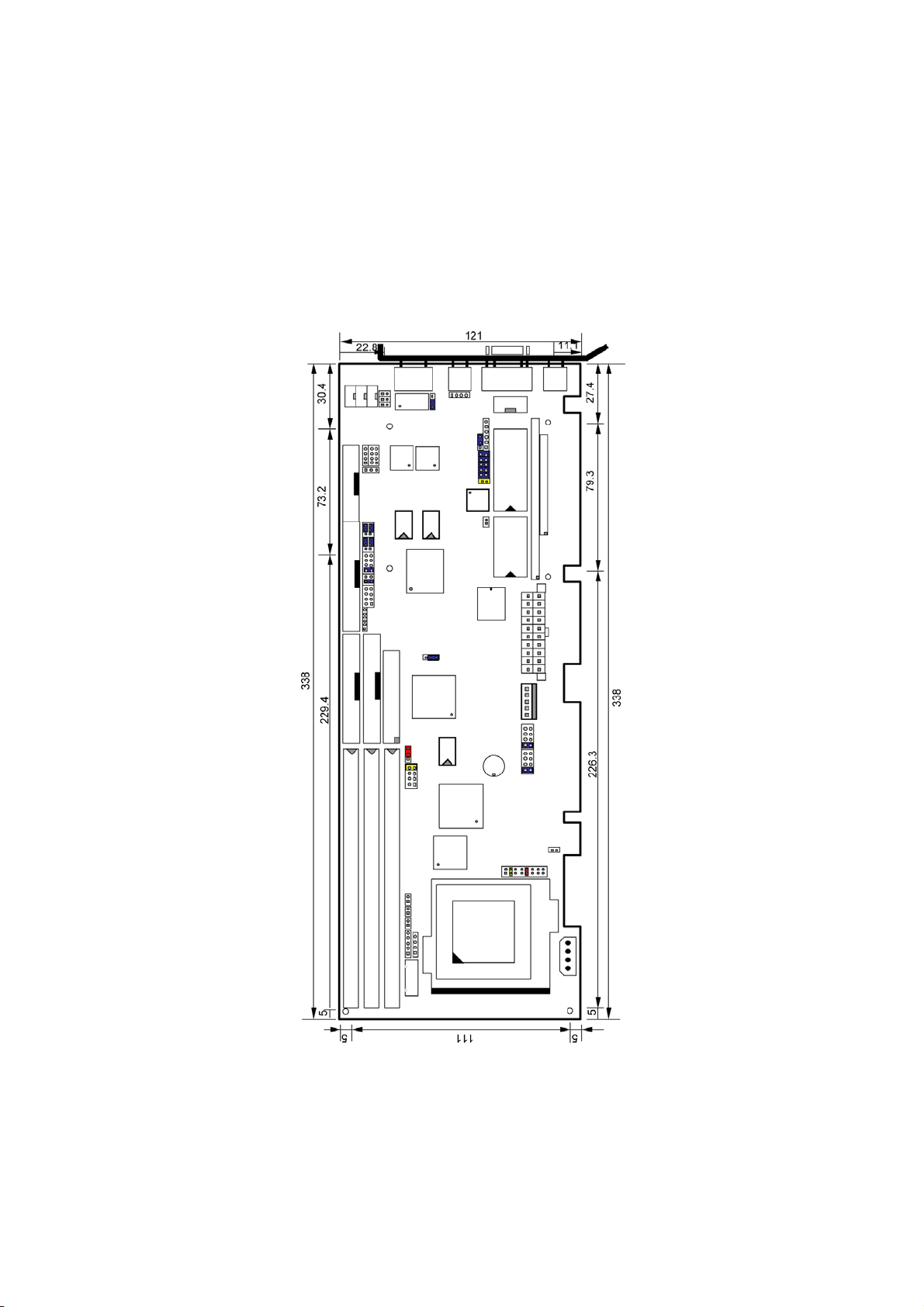

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

This chapter explains unpacking the board, checking the equipment and documentation and where to go from there.

2.1 Opening the Delivery Package

The HS-5011 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity. Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-5011 delivery package contains the following items:

 HS-5011 Board  IDE port flat cable x 2  FDD port flat cable x 1  Printer port flat cable with bracket x 1  COM Port cable with bracket x 1  MIC/Audio 8-pin cable + 2 phone jacks with bracket x 1  5-pin ATX power cable x 1  Jumper bag x 1  Utility CD Disk  User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-5011. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

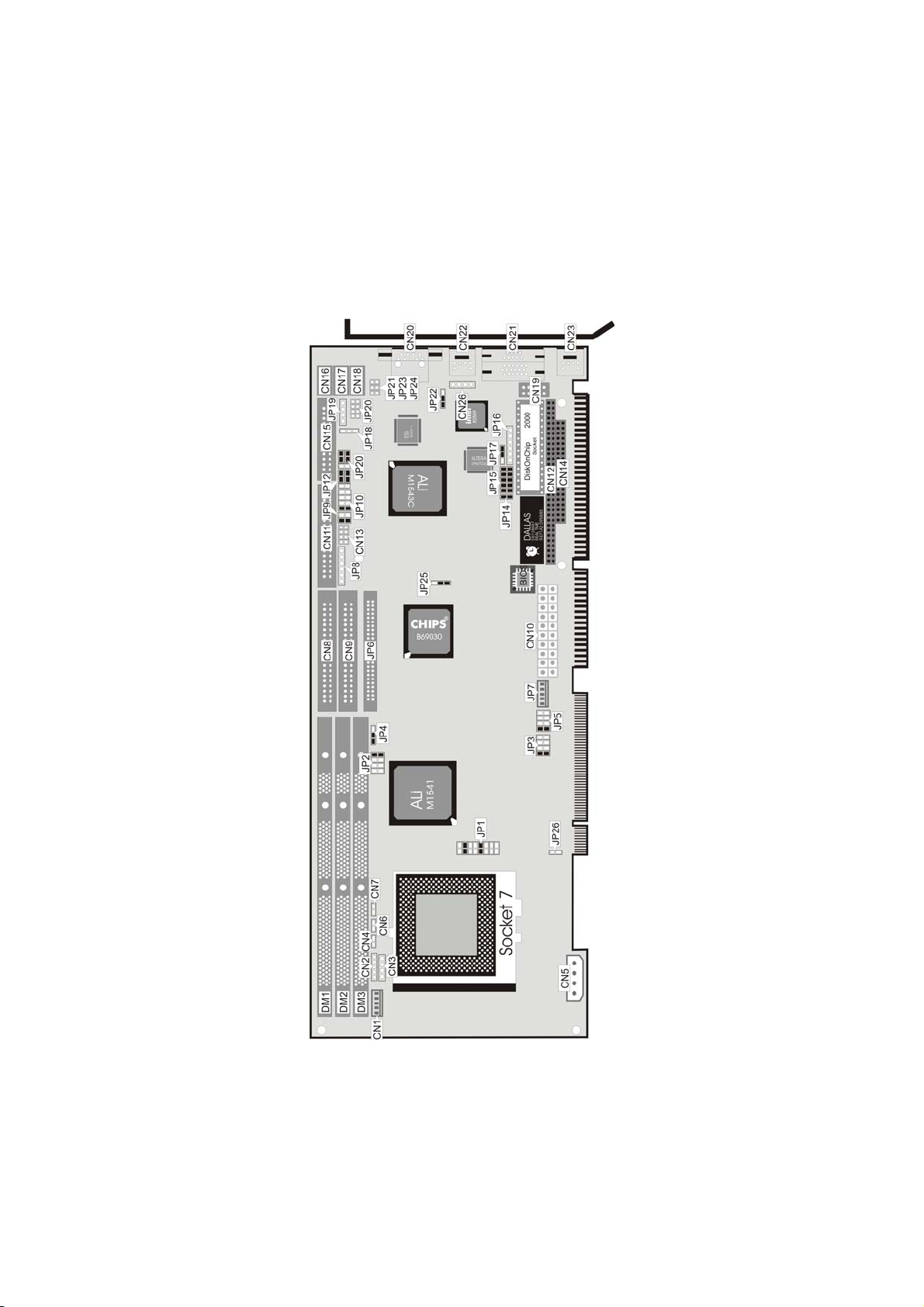

3.2 HS-5011 Board Layout

Page 15

3.3 HS-5011 Jumper List

Jumper Definition Setting Page

JP1(1-6)

JP1(7-16) CPU Vcore Voltage Select: 2.9V Short 7-8, 13-14 11

JP2 Host Bus Clock Rate Select: 100MHz Short 7-8 11

JP3

JP4

JP5

JP9

JP10

JP11 Clear CMOS: Normal Operation Open 15

JP12

JP13

JP14 Temperature Alarm Setting: Enabled Short 24

JP15(1-4) DiskOnChipTM Address Select: D000 Short 1-2 11

JP15(5-10) WDT Time Out Period Select: 1sec.

JP17

JP22

JP25

JP26

CPU Clock-in Multiplex Weighted Value Select: x3

Audio Chipset “REQ” & “GNT” Select: PCI1 Panel Voltage Select: 3.3V Short 1-2 15 Audio Chipset “REQ” & “GNT” Select: PCI1 RS-422/485 Receiver Enabled/ Disabled Select: Always Disabled RS-422/485 Transceiver Enabled/ Disabled Select: Always Disabled

RS-232 or RS-422/485 Select: RS-232 RS-232 or RS-422/485 Select: RS-232

Watchdog Timer Active Type Select: System Reset LAN Enabled/Disabled by Hardware: Tillamook VGA Enabled/Disabled by Hardware: Enabled Tillamook CPU Enabled/Disabled Select: Tillamook 266MHz

Short 3-4 11

Short 1-2 23

All Open 18

Short 7-8 18

Short 3-5, 4-6 18

Short 5-6, 7-8,

9-10

Short 2-3 13

Short 1-2 25

Short 2-3 15

Short 11

Page 16

3.4 HS-5011 Connector List

Connector Definition Page

CN1 5-pin Keyboard Connector 19 CN2 Keylock Connector 20 CN3 Speaker Connector 20 CN4 2-pin ATX Power On/Off Connector 28 CN5 CN6 Reset Connector 20 CN7 IDE LED Connector 20

CN8 & CN9 IDE1 & IDE2 Connector 21

CN10 20-pin ATX Power Connector 28 CN11 FDD Connector 23 CN12 64-pin PC/104 Bus Connector 26 CN13 USB Connector 27 CN14 CN15 Parallel Connector 22 CN16 COM1 Connector (5x2 header) 18 CN17 COM2 Connector (5x2 header) 18 CN18 RS-422/485 Connector (5x2 header) 18 CN19 CN20 RJ-45 Connector 25 CN21 15-pin CRT Connector 15 CN22 PS/2 6-pin Mini DIN Mouse Connector 19 CN23 PS/2 6-pin Mini DIN Keyboard Connector 19 CN24 COM2 Connector (DB9) 18 CN26 4-pin Mouse Connector 19

DM1 & DM2 & DM3 DIMM Socket 11

JP6 JP7 5-pin ATX Power Connector 28

JP8 IrDA Connector 25 JP18 Aux Audio Input Connector 23 JP19 Line In Connector 23 JP20 JP21 LAN Connection LED 25 JP23 LAN Active LED 25 JP24 LAN Speed LED 25

4-pin +5V/+12V Power Connector 28

40-pin PC/104 Bus Connector 26

CRT Connector (5x2 header) 15

Panel Connector 15

MIC In/Audio Out Connector 23

Page 17

3.5 System Memory

The HS-5011 provides three DIMM sockets at locations DM1, DM2 and DM3. The maximum capacity of the onboard memory is 1.5GB.

3.6 DiskOnChip Address Setting

The DiskOnChip without a FDD or a HDD. DiskOnChip drive C or A. With DiskOnChip commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U18 location onboard the HS-5011 is the DiskOnChip module socket. Jumper JP15(1-4) assigns the address setting of the installed module. Setting the 4 pins of JP15(1-4) allows you to select the starting memory address of the DiskOnChip memory devices in the system, please set both at different memory address mapping to avoid the mapping area conflicts.



JP15(1-4): DiskOnChip Address Select

function allows the system to boot or operate

PIN Address

Short 1-2 D000 Short 2-3

modules may be formatted as

, user may also execute DOS

(D.O.C.). If you have additional

E000

3.7 Setting the CPU of HS-5011

The HS-5011 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-5011 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it. The HS-5011 provides all possibility in jumper setting for wide using all types of CPU with JP1(7-16) for CPU Vcore Voltage, JP2 for Host Bus Clock Rate and JP1(1-6) for CPU Clock-in Multiplex Weighted Value setting as following. Please contact with your CPU’s supplier in getting those information for correctly setting. Any wrong setting may cause CPU defect.

Correspond to different type CPU, it is request to set JP1(7-16) for match the CPU's Vcore operating voltage. Here shows at below of the proper jumper settings for their respective Vcore at range 1.8V to 3.5V.

Page 18

 JP1(7-16): CPU Vcore Voltage Select

CPU Vcore Voltage JP1(7-16)

1.8V Short 9-10, 13-14, 15-16

1.9V Short 11-12, 13-14, 15-16

2.0V Short 9-10, 11-12, 13-14, 15-16

2.1V Short 7-8

2.2V Short 9-10

2.3V Short 7-8, 9-10

2.4V

2.5V Short 7-8, 11-12

2.6V Short 9-10, 11-12

2.7V Short 7-8, 9-10, 11-12

2.8V Short 13-14

2.9V

3.0V Short 9-10, 13-14

3.1V Short 7-8, 9-10, 13-14

3.2V Short 11-12, 13-14

3.3V Short 7-8, 11-12, 13-14

3.4V Short 9-10, 11-12, 13-14

3.5V Short 7-8, 9-10, 11-12, 13-14

JP2 used to setting the Host Bus clock Rate. The setting of internal host bus clock rate is for defined the defined the operating clock base rate of the internal bus of core logic.

Short 11-12

Short 7-8, 13-14



JP2: Host Bus Clock Rate Select

Host Bus Clock Rate JP2

60MHz Short 1-2, 3-4, 5-6, 7-8

66.8MHz Short 3-4, 5-6, 7-8 75MHz Short 1-2, 3-4, 7-8

100MHz Short 7-8

JP1(1-6) used to setting the CPU Clock-in Multiplex Weighted Value. The setting value is for multiplex to internal host bus clock rate and obtain the CPU operating clock value.

Page 19

 JP1(1-6): CPU Clock-in Multiplex Weighted Value Select

JP1(1-6)

1-2 3-4 5-6

Short Open Open X 2 Short Short Open X 2.5

Open Short Open X 3 Open Open Open X 3.5(1.5)

Short Open Short X 4 Short Short Short

Open Short Short X 5 Open Open Short X 5.5

The HS-5011 provides jumper for setting Intel® Tillamook low power CPU by JP26 and select JP1, JP2 to match Tillamook CPU requirement.



JP26: Tillamook CPU Enabled/Disabled Select

Tillamook 266MHz(4x) Description

JP26 ON Dual Power

JP1

JP2 3-4, 5-6, 7-8 66.6MHz

1-2 3-4 5-6 ON OFF ON

11-12 13-14 15-16

ON ON ON

CPU Clock In Multiplex

Weighted Value

X 4.5

3.5x or 4x

1.9V

3.8 Watchdog Timer

There are three access cycles of watchdog timer as Enable, Refresh and Disable. The Enable cycle should proceed by READ PORT 443H. The Disable cycle should proceed by READ PORT 045H. A continue Enable cycle after a first Enable cycle means Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before the time-out period for restart counting the WDT Timer’s period. Otherwise, it will assume that the program operation is abnormal when the time counting over the period preset of WDT Timer. A System Reset signal to start again or a NMI cycle to the CPU comes if over.

The JP17 is using for select the active function of watchdog timer in disable the watchdog timer, or presetting the watchdog timer activity at the reset trigger, or presetting the watchdog timer activity at the NMI trigger.

Page 20

 JP17: Watchdog Timer Active Type Setting

JP17 Description

Short 1-2 Active NMI Short 2-3 System Reset

Open Disabled Watchdog Timer

 JP15(5-10): Watchdog Timer Out Period Select

Period 5-6 7-8 9-10

1 sec Short Short Open

2 sec Open Short Open 10 sec Short Open Open 20 sec Open Open Open

110 sec Short Short Short 220 sec Open Short Short

The watchdog timer is disabled after the system power-on. The watchdog timer can be enabled by a Enable cycle with reading the control port(443H), a Refresh cycle with reading the control port(443H) and a Disable cycle by reading the watchdog timer disable control port(045H). After a Enable cycle of WDT, user must constantly proceed a Refresh cycle to WDT before its period setting comes ending of every 1, 2, 10, 20, 110 or 220 seconds (Please reference to the selection table of JP8 for WDT Time Out period setting). If the Refresh cycle does not active before WDT period cycle, the onboard WDT architecture will issue a Reset or NMI cycle to the system. The watchdog timer is controlled by two IO port.

443H I/O Read The Enable cycle 443H I/O Read The Refresh cycle 043H I/O Read The Disable cycle

The following sample program shows how to Enable, Disable and Refresh the watchdog timer：

WDT_EN_RF EQU 0433H WDT_DIS EQU 0043H

WT_Enable PUSH AX ; keep AX DX PUSH DX MOV DX,WDT_EN_RF ; enable the WDT

IN AL,DX

POP DX ; get back AX, DX POP AX RET

Page 21

WT_Refresh PUSH AX ; keep AX, DX

PUSH DX MOV DX,WDT_ET_RF ; refresh the WDT IN AL,DX POP DX ; get back AX, DX POP AX RET

WT_DISABLE PUSH AX PUSH DX MOV DX,WDT_DIS ; disable the WDT IN AL,DX POP DX ; get back AX, DX

RET

POP AX

3.9 CMOS Data Clear

The HS-5011 provides a setting for the selection of the CMOS Clear jumper by JP11. But only use to DS12B887, the DS12C887 is not clear pin, HS-5011 provides RTC socket. You can remove the DS12C887 and change the new one.

 JP11: Clear CMOS(Only for DS12B887)

JP11 Description

Short Clear CMOS Open Normal Operation

3.10 VGA Controller

The onboard C&T 69000 CRT/Panel display controller provides up to 1280 x 1024 at 256 colors resolution. The board provides an auto disable VGA once a display card is plugged into the PCI slot. The HS-5011 provides two connection methods of CRT and Panel device. CN19 offers an internal 10-pin CRT connector, CN21 is 15-pin CRT connector and JP6 is 50-pin Panel connector.

 CN19: 10-pin CRT Connector

CN19 Description CN19 Description

1 RED 2 GND 3 GREEN 4 GND 5 BLUE 6 GND 7 HSYNC 8 GND 9 VSYNC 10 GND

Page 22

 CN21: 15-pin CRT Connector

CN21 Description CN21 Description

1 RED 2 GREEN 3 BLUE 4 N/C 5 GND 6 GND 7 GND 8 GND 9 N/C 10 GND

11 N/C 12 DDCLK 13 15 DDDA

HSYNC

VSYNC

 JP25: VGA Enabled/Disabled by Hardware

JP25 Description

Short 1-2 Disabled Short 2-3 Enabled

The HS-5011 provides a 50-pin 2.0mm pitch header connector (JP6). JP4 is Panel voltage select jumper.

 JP4: Panel Voltage Select

JP4 Description

Short 1-2 3.3V (default) Short 2-3 5V



JP6: Panel Connector

JP6 Description JP6 Description

1 +12V 2 +12V 3 5 +3V PVcc 6 ENAVdd 7 FPVee 8 GND

9 P0 10 P1 11 P2 12 P3 13 P4 14 P5 15 P6 16 P7 17 P8 18 P9 19 P10 20 P11 21 P12 22 P13 23 P14 24 P15 25 P16 26 P17 27 P18 28 P19 29

GND

…More On Next Page…

GND

P21

Page 23

JP6 Description JP6 Description

31 P22 32 P23 33

P25

35 SHFCLK 36 FLM 37 M 38 LP 39 GND 40 ENABKL 41 P26 42 P27 43

P29

45 P30 46 P31 47 P32 48 P33 49 P34 50 P35

3.9.1 Flat Panel Display Interface

HS-5011

PIN# Name 8-bit 16-bit

9 P0 D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0 10 P1 D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0 11 P2 D2 UD1 UD5 B2 B 0 B2 FB2 FB2 G2 B1 UB1 UB0 UB0 12 P3 D3 UD0 UD4 B3 B1 B3 FB3 FB3 R3 R2 UR2 UR1 LR0 13 P4 D4 LD3 UD3 B4 B2 B4 FB4 SB0 B3 G2 LR1 UR0 LG0 14 P5 D5 LD2 UD2 G0 B3 B5 FB5 SB1 G4 B2 LG1 LG0 LB0 15 P6 D6 LD1 UD1 G1 B4 B6 SB0 SB2 R5 R3 LB1 LB0 UR1 16 P7 D7 LD0 UD0 G2 B5 B7 SB1 SB3 B5 G3 LR2 LR1 UG1 17 P8 LD7 G3 G0 SB2 FG0 B3 UG1 UB1 18 P9 LD6 G4 G1 SB3 FG1 R4 UB1 LR1 19 P10 LD5 G5 G0 G2 SB4 FG2 G4 UR2 LG1 20 P11 LD4 R0 G1 G3 SB5 FG3 B4 UG2 LB1 21 P12 LD3 R1 G2 G4 FG0 SG0 R5 LG1 UR2 22 P13 LD2 R2 G3 G5 FG1 SG1 G5 LB1 UG2 23 P14 LD1 R3 G4 G6 FG2 SG2 B5 LR2 UB2 24 P15 LD0 R4 G5 G7 FG3 SG3 R6 LG2 LR2 25 P16 R0 FG4 FR0 LG2 26 P17 R1 FG5 FR1 LB2 27 P18 R0 R2 SG0 FR2 UR3 28 P19 R1 R3 SG1 FR3 UG3 29 P20 R2 R4 SG2 SR0 UB3 30 P21 R3 R5 SG3 SR1 UR3 31 P22 R4 R6 SG4 SR2 LG3 32 P23 R5 R7 SG5 SR3 LB3 33 P24 FR0 34 P25 FR1 41 P26 FR2 42 P27 FR3 43 P28 FR4 44 P29 FR5 45 P30 SR0 46 P31 SR1 47 P32 SR2 48 P33 SR3 49 P34 SR4 50 P35 SR5 35 SHFCLK: Pixel clock .Shift Clock 36 FLM.VSYNC: First line marker 37 M: Panel AC driver control 38 LP,DE,HSYNC: Latch pulse 40 ENABKL: Power sequencing control for enabling the backlight.(high active)

Mono Color

SS DD TFT STN-HR STN-SS STN-DD

9/12/16-

bit

18-bit

18/24-

bit

36-bit 18/24-bit

8-bit

(4bP)

16-bit (4bP)

8-bit

(4bP)

16-bit (4bP)

24-bit

Page 24

3.11 Serial Port Connectors

The HS-5011 offer four high speed NSIGC550 compatible UARTS with Read/Receive 16-byte FIFO serial ports. The HS-5011 also provides one RS-422/485 connector, the CN18 for uses as or RS-422 or RS-485. Please reference to the following for setting JP12, JP13 at enabled or disabled the RS-232 or RS-422/485 function.

 CN16, 17: COM1, COM2 Connector (5x2 header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTX 5 TXD 6 CTX 7 DTR 8 RI 9

GND

 CN18: RS-422/485 Connector (5x2 header)

PIN Description PIN Description

1 3 RX+ 4 RX- 5 GND 6 RTS- 7 RTS+ 8 CTS+ 9 CTS- 10 N/C

TX-

N/C

TX+

 JP9: RS-422/485 Receiver Enabled/Disabled Select

JP9 Description

Short 1-2 Always Enable Short 3-4 Enable by “-RTS” Signal

All Open

Always Disable

 JP10: RS-422/485 Transceiver Enabled/Disabled Select

JP10 Description

Short 1-2 Short 3-4 Enable by ”-RTS” Signal Short 5-6 Enable by writing the REG：2 EFH BIT0=1 Short 7-8 Always Disable

Always Enable

 JP12, JP13: RS-232 or RS-422/485 Select

JP12 JP13 Description

Short 3-5, 4-6 Short 3-5, 4-6 RS-232 Short 1-3, 2-4 Short 1-3, 2-4 RS-422/485

Page 25

 CN24: COM2 Connector (DB9)

PIN Description PIN Description

1 3 TXD 4 DTR 5 GND 6 DSR 7 RTX 8 CTX 9 RI

DCD

RXD

3.12 Keyboard & Mouse Connector

The HS-5011 offers two possibilities for keyboard connections to external PS/2 keyboard at CN23 or an internal 5-pin connector at CN1.

 CN23: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description PIN Description

1 Keyboard Data 4 +5V 2 N/C 5 Keyboard Clock 3 GND 6 N/C



CN1: 5-pin Keyboard Connector

PIN Description PIN Description

1 Keyboard Clock 4 GND 2 Keyboard Data 5 +5V 3 N/C

The HS-5011 offers two possibilities for mouse connections to external PS/2 mouse at CN22 or an internal 5-pin connector at CN26.

 CN22: PS/2 6-pin Mini DIN Mouse Connector

PIN Description PIN Description

1 Mouse Data 4 +5V 2 N/C 5 Mouse Clock 3 GND 6 N/C

 CN26: 4-pin Mouse Connector

PIN Description PIN Description

1 Mouse Clock 3 +5V 2 Mouse Data 4 GND

Page 26

3.13 Front Panel Connector

The onboard connector CN2, CN6, CN3, CN7 provides a multi connection to keylock, reset button, speaker connector and IDE-Drives activity indicator.

The following provides the pin information for keylock connector from CN2.

 CN2: Keylock Connector

CN2 Description

1 5V_ON 2 N/C 3 4 KBINH 5 GND

The HS-5011 has an onboard buzzer (BZ1). And it also provides the CN3 in allows user to connecting to the external speaker.

 CN3: Speaker Connector

CN3 Description

1 Speaker Signal 2 N/C 3 GND 4 +5V

GND

The HS-5011 has one connector (CN7) indicates out power-on status. Reset button connection from CN6.

 CN7: IDE LED Connector

CN7 Description

1 +5V 2 HDD Active#

 CN6: Reset Connector

CN6 Description

1 Reset 2 GND

Page 27

3.14 PCI E-IDE Drive Connector

One standard 40-pin header daisy-chain driver connector provides as CN8, CN9 with following pin assignment. Total four IDE (Integrated Device Electronics) drivers may connect.

 CN8, CN9: IDE1, IDE2 Connector

CN8, CN9 Description CN8, CN9 Description

1 Reset 2 GND 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10 9

11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21 DMARQ 22 GND 23 IOW# 24 GND 25 27 IORDY 28 CSEL 29 DMACK# 30 Ground# - Default 31 Interrupt 32 N/C 33 SA1 34 ATA/33/66 Select 35 37 HDC CS0 38 HDC CS1# 39 HDD Active 40 GND

DATA 4

IOR#

SA0

DATA 11

GND

DA2

Page 28

3.15 Parallel Connector

A standard 26-pin flat cable driver connector provides as CN15 with following pin assignment for connection to parallel printer.

 CN15: Parallel Connector

PIN Description PIN Description

1 STROBE 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge 11 Busy 12 Paper Empty 13 Printer Select 14 Auto Form Feed 15 ERROR# 16 Initialize 17 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND 26 N/C

Printer Select LN#

GND

Page 29

3.16 Floppy Disk Drive Connector

The HS-5011 uses a standard 34-pin header connector, CN11, for floppy disk drive connection. A total of two FDD drives may be connected at any given time.

 CN11: FDD Connector

CN11 Description CN11 Description

1 GND 2 Reduce Write 3 GND 4 N/C 5 GND 6 N/C 7 GND 8 Index# 9

11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 Write Data# 23 GND 24 Write Gate # 25 27 GND 28 Write Protect# 29 GND 30 Read Data# 31 GND 32 Side 1 Select 33 GND 34 Disk Change#

GND

Motor Enable A#

Track 0#

3.17 Audio Connectors

The HS-5011 has an onboard ESS Solo1 3D audio interface. The following are the connectors of Line In, AUX Audio input connector and MIC In/Audio Out connectors.

The Line In and AUX Audio input connectors are for audio sound input. The Line in provides for 4-pin connection, and AUX Audio input connector provides for 3-pin connection.

The HS-5011 has a REQ & GNT signal select jumper for change PCI IRQ routing.

 JP19: Line In Connector

JP19 Description JP19 Description

1 Line L 3 Line R 2 GND 4 GND

Page 30

 JP18: AUX Audio Input Connector

JP18 Description

1 2 GND 3 AUXAR

AUXAL

 JP20: MIC In/Audio Out Connector

JP18 Description JP18 Description

1 AOUTL 2 AOUTR 3 GND 4 GND 5 MIC 6 N/C 7 GND 8 GND

 JP3, JP5: Audio Chipset “REQ” & “GNT” Signal Select

JP3 JP5 Description

Short 1-2 Short 1-2 Short 3-4 Short 3-4 PCI 2 Short 5-6 Short 5-6 PCI 3 Short 7-8 Short 7-8 PCI 4

When using a MIC In/Audio Out cable, user can connect right/left speakers to the AOUTL and AOUTR pins of JP20 and connect microphone to the MIC pin of JP20.

PCI 1

3.18 CPU Temperature Alarm Setting

The HS-5011 provides a select for Hardware temperature alarm. It will be a warning “beep” come out if the CPU’s temperature reached 70°C, and it will stop as the CPU’s temperature going down below 70° C again.



JP14: Temperature Alarm Enabled/Disabled Select

JP14 Description

Short Enabled

Open

Disabled

Page 31

3.19 Fast Ethernet Connector

The Fast Ethernet controller provides with 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3 10/100 based specifications.

For 10/100 based operation, please connect the network connection by plugging one end of the cable into the RJ-45 of the CN20 connector.

For indication out the LAN operating status, the board provides three LED connectors, JP21 is connection LED, JP23 is active LED, and JP24 is speed LED, in show out the status at follows.

 CN20: RJ-45 Connector

PIN Description PIN Description

1 TX+ 2 TX- 3 RX+ 4 N/C 5 N/C 6 RX- 7 N/C 8 N/C



JP22: LAN Enabled/Disabled by Hardware

JP22 Description

Short 1-2 Enabled Short 2-3 Disabled

3.20 IrDA Connector

The HS-5011 provides a 6-pin internal FIR communication connector as following JP8 pin information.

 JP8: IrDA Connector

PIN Description

1 VCC 2 3 IRRX 4 GND 5 IRTX 6 OVEROFF

FIRRX

Page 32

3.21 PC/104 Bus Connection

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors CN12 and CN14 are listed on the following tables.

NOTE： The PC/104 connector allows direct plugging or stack-through

 CN12: 64-pin PC/104 Bus Connector

piling of PC/104 modules without requiring the PC/104 mounting kit.

PIN CN12 Row A PIN CN12 Row B

1 IOCHECK* 33 GND 2 SD7 34 RESETDRV 3 SD6 35 +5V 4 SD5 36 IRQ9 5 6 SD3 38 DRQ2 7 SD2 39 -12V 8 SD1 40 NOW*

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW* 12 SA19 44 SMEMR* 13 14 SA17 46 IOR* 15 SA16 47 DACK3* 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 SA4 59 TC

SD4

SA18

SA13

-5V

IOW*

DRQ1

…More on next page…

Page 33

PIN CN12 Row A PIN CN12 Row B

28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

 CN14: 40-pin PC/104 Bus Connector

PIN CN14 Row D PIN CN14 Row C

1 GND 21 GND

2 MEMCS16* 22 SBHE*

3 IOSC16* 23 LA23

4 IRQ10 24 LA22

5 IRQ11 25 LA21

6 MSDATA 26 LA20

7 IRQ15 27 LA19

9 DACK0* 29 LA17 10 DRQ0 30 MEMR* 11 DACK5* 31 MEMW* 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 DACK7* 35 SD11 16 DRQ7 36 SD12 17 +5V 37 SD13 18 MASTER* 38 SD14 19 20 GND 40 N/C

IRQ14

GND

LA18

SD15

3.22 USB Connector

The HS-5011 provides one 8-pin connector for USB0 & USB1 ports at location CN13.



CN13: USB Connector

CN13 USB CN13 USB

1 VCC 2 VCC 3 USB PO- 4 USB P1- 5 USB PO+ 6 USB P1+ 7 GND 8 GND

Page 34

3.23 Power and FAN Connectors

The HS-5011 provides ATX power function by CN7. The connector of CN10 can control the 5-pin ATX power via the extension cable from the

backplane (from the ver6.1).

The HS-5011 reserved a CN4 for ATX power function it can control the 5-pin ATX via the extension cable from the backplane.

 CN4: 2-pin ATX Power On/Off Connector

PIN Description

1 PWRBTNJ 2 GND



CN5: 4-pin +5V/+12V Power Connector

PIN Description

1 +12V 2 GND 3 GND 4 +5V

 CN10: 20-pin ATX Power Connector

PIN Description PIN Description

1 3.3V 11 3.3V 2 3.3V 12 -12V 3 GND 13 GND 4 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 POW_OK 18 -5V 9 5V_SB 19 +5V

10 +12V 20 +5V

+5V

PS_ON

 JP7: 5-pin ATX Power Connector

PIN Description

1 +5V 2 5V_SB 3 +12V 4 PS_ON 5

GND

Page 35

Chapter 4

Award BIOS Setup

The HS-5011 uses Award PCI/ISA BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 36

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key

F6 key Load the default CMOS value from BIOS default table, only

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key

Move to the item in the right hand

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Decrease the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

for Option Page Setup Menu

Save all the CMOS changes, only for Main Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 37

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

ROM PCI/ISA BIOS (xxxxxxxx)

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS Esc：Quit F10：Save & Exit

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

HDD LOW LEVEL FORMAT

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

：

(Shift)F2：Change Color

Select Item

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

 Standard CMOS Setup

This setup page includes all the items in a standard, AT-compatible BIOS.

 BIOS Features Setup

This setup page includes all the items of Award special enhanced features.



Chipset Features Setup

This setup page includes all the items of chipset special features.

 Power Management Setup

This entry only appears if your system supports Power Management, “Green PC”, standards.

 PNP/PCI Configuration

This entry appears if your system supports PNP/PCI.

 Load BIOS Defaults

The BIOS defaults have been set by the manufacturer and represent settings that provide the minimum requirements for your system to operate.

Page 38

 Load Setup Defaults

The chipset defaults are settings that provide for maximum system performance. While Award has designed the custom BIOS to maximize performance, the manufacturer has the right to change these defaults to meet their needs.

 Integrated Peripherals

This section page includes all the items of IDE hard drive and Programmed Input / Output features.

 Supervisor / User Password

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

 IDE HDD Auto Detection

Automatically detect and configure hard disk parameters. The Award BIOS includes this ability in the event you are uncertain of your hard disk’s parameters.

 Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

 Exit Without Saving

Abandon all CMOS value changes and exit setup.

Page 39

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, please set the HDD mode to LBA mode. Please use the IDE Setup Utility in BIOS SETUP to install the HDD correctly.

Data (mm:dd:yy)：Fri, Oct 19 1999 Time (hh:mm:ss)：14：50：1

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master : Auto (0Mb) 0 0 0 0 0 Auto Primary Slave : Auto (0Mb) 0 0 0 0 0 Auto Secondary Master Auto (0Mb) 0 0 0 0 0 Auto Secondary Slave Auto (0Mb) 0 0 0 0 0 Auto

Drive A : 1.44M, 3.5in Drive B : None

LCD&CRT : Auto Extended Memory : 31744K

Halt On : All, but keyboard Total Memory : 32768K ESC : Quit F1 : Help

ROM PCI/ISA BIOS (xxxxxxxx)

STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Base Memory : 640K

Other Memory : 384K

 : Select Item (Shift) F2 : Change Color

PU/PD/ + / - : Modify

 Date:

The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar.

day The day, from Sun to Sat, determined by the BIOS and is

display-only

date

The date, from 1 to 31 (or the maximum allowed in the month)

month The month, Jan through Dec.

year The year, from 1900 through 2099



Time:

The time format is <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Page 40

 Drive C/Drive D:

The categories identify the types of 2 channels that have been installed in the computer. There are 45 predefined types and 4 user definable types are for Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type user is user-definable.

Press PgUp or PgDn to select a numbered hard disk type or type the number and press <Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Type “User” to define your own drive type manually.

If you select Type “User”, you will need to know the information listed below. Enter the information directly from the keyboard and press <Enter>. This information should be included in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is ESDI, the selection shall be “Type 1”. If the controller of HDD interface is SCSI, the selection shall be “None”.

If you select Type ”Auto”, BIOS will Auto-Detect the HDD & CD-ROM Drive at the POST stage and showing the IDE for HDD & CD-ROM Drive.

If a hard disk has not been installed select NONE and press <Enter>.

PRECOMP

LANDZONE landing zone

SECTORS number of sectors

TYPE drive type

CYLS. number of cylinders

HEADS number of heads

write precompensation

MODE mode type

 Drive A Type/Drive B Type:

360K, 5.25 in

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity 720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

 LCD&CRT:

The category identifies the types of floppy disk drive A or drive B that have been installed in the computer.

None No floppy drive installed

5-1/4 inch PC-type standard drive; 360 kilobyte capacity

The category selects the type of video adapter used for the system monitor. Although secondary monitors are supported, you do not have to select the type in Setup.

Page 41

BOTH Enables display of both CRT and LCD

LCD Enables display of LCD displays only CRT Enables display of CRT displays only

Auto Auto detects the installed display on the system

 Halt On: The category determines whether the computer will stop if an

error is detected during power up.

No errors The system boot will not be stopped for any error

that may be detected.

All errors Whenever the BIOS detects a non-fatal error the

system will be stopped and you will be prompted.

All, But Keyboard The system boot will not stop for a keyboard

error; it will stop for all other errors.

All, But Diskette The system boot will not stop for a disk error; it

will stop for all other errors.

All, But Disk/Key

The system boot will not stop for a keyboard or disk error; it will stop for all other errors.

4.5 BIOS Features Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

ROM PCI/ISA BIOS (xxxxxxxx)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Enabled CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled External Cache : Enabled CC000-CFFFF Shadow : Disabled Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled Boot Sequence : A, C, SCSI D4000-D7FFF Shadow : Disabled Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled Boot Up Floppy Seek : Enabled DC000-DFFFF Shadow : Disabled Boot Up NumLock Status : On Boor Up System Speed High Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) : 6 Typematic Delay (Msec) : 250 Security Option : Setup ESC : Quit PCI/VGA Palette Snoop : Disabled F1 : Help PU/PD/+/-: Modify Assign IRQ For VGA : Enabled F5 : Old Values (Shift) F2: Color OS Select For DRAM > 64MB : Non-OS2 F6 : Load BIOS Defaults Report No FDD For WIN 95 : Yes F7 : Load Setup Defaults

Cyrix 6x86/MII CPUID



: Enabled

: Select Item

Page 42

 Virus Warning:

Enabled

Disabled No warning message will appear when anything attempts to

When this item is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive for any attempt at modification. If an attempt is made, the BIOS will halt the system and the following error message will appear. Afterwards, if necessary, you will be able to run an anti-virus program to locate and remove the problem before any damage is done.

! WARNING !

Disk boot sector is to be modified

Type "Y" to accept write or "N" to abort write

Award Software, Inc.

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.

access the boot sector or hard disk partition table.

NOTE: Many disk diagnostic programs which attempt to access the boot

sector table can cause the above warning message. If you will be running such a program, we recommend that you first disable Virus Protection beforehand.

 CPU Internal Cache/External Cache:

These two categories speed up memory access. However, it depends on CPU/chipset design. The default value is en able.

Enabled Enable cache

Disabled Disable cache

 Quick Power On Self Test:

This category speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST.

Enabled Enable quick POST

Disabled Normal POST

Page 43

 Boot Sequence:

This category determines which drive to search first for the disk operating system (i.e., DOS). The available options are:

 A, C, SCSI  SCSI, C, A  C, A, SCSI  C only  C, CD-ROM, A  LS, C

CD-ROM, C, A



D, A, SCSI



E, A, SCSI



F, A, SCSI



SCSI, A, C



 Swap Floppy Drive:

 Boot Up Floppy Seek:

This item allows you to determine whether enable the swap floppy drive or not. The available choices are Enabled/Disabled.

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and

1.44M are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or

80 tracks. Note that BIOS cannot tell from 720K, 1.2M or

1.44M drive type as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track

number. Note that there will not be any warning message if the drive installed is 360K.

Zip100, C



USB-FDD, C



USB-Zip, C



USB-CD, C



USB-HDD, C



 Boot Up NumLock Status:

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on.

On Keypad is number keys Off Keypad is arrow keys

 Gate A20 Option:

This entry allows you to select how the gate A20 is handled. The gate A20 is a device used to address memory above 1 Mbytes. Initially, the gate A20 was handled via a pin on the keyboard. Today, while keyboards still provide this support, it is more common, and much faster, for the system chipset to provide support for gate A20.

Normal keyboard

Fast

chipset

Page 44

 Typematic Rate Setting:

 Typematic Rate (Chars/Sec):

 Typematic Delay (Msec):

This determines if the typematic rate is to be used. When disabled, continually holding down a key on your keyboard will generate only one instance. In other words, the BIOS will only report that the key is down. When the typematic rate is enabled, the BIOS will report as before, but it will then wait a moment, and, if the key is still down, it will begin the report that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys.

Enabled Enable typematic rate

Disabled

When the typematic rate is enabled, this selection allows you select the rate at which the keys are accelerated.

6 6 characters per second

8 8 characters per second 10 10 characters per second 12 12 characters per second 15 20 20 characters per second 24 24 characters per second 30 30 characters per second

When the typematic rate is enabled, this selection allows you to select the delay between when the key was first depressed and when the acceleration begins.

15 characters per second

250 250 msec 500 500 msec 750

1000 1000 msec

Disable typematic rate

750 msec

 Security Option:

NOTE:

This category allows you to limit access to the system and Setup, or just to Setup.

System The system will not boot and access to Setup will be denied if

the correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if the

correct password is not entered at the prompt.

To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.

Page 45

 PCI/VGA Palette Snoop:

 OS Select For DRAM > 64MB:

 Report No FDD For WIN 95:

 Video BIOS Shadow:

 C8000 - CBFFF Shadow/D0000 - DFFFF Shadow:

It determines whether the MPEG ISA/VESA VGA Cards can work with PCI/VGA or not.

Enabled When PCI/VGA working with MPEG ISA/VESA VGA Card

Disabled When PCI/VGA not working with MPEG ISA/VESA VGA Card

This item allows you to access the memory that over 64MB in OS/2. The available choices are Non-OS2, OS2.

Whether report no FDD for Win 95 or not. The available choices are Yes, No.

Determines whether video BIOS will be copied to RAM. However, it is optional depending on chipset design. Video Shadow will increase the video speed.

These categories determine whether option ROMs will be copied to RAM. An example of such option ROM would be support of on-board SCSI.

Enabled Video shadow is enabled

Disabled

Enabled

Disabled Optional shadow is disabled

Video shadow is disabled

Optional shadow is enabled

Page 46

4.6 Chipset Features Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

Auto Configuration : AT Bus Clock : 7.16MHz L2 TA RAM Size : 8 DRAM Timing : Normal SDRAM CAS Latency : 3 Pipelined Function : Enabled Graphics Aperture Size : 64 DRAM Date Integrity Mode : Disabled Memory Hole At 15M-16M : Disabled Host Read DRAM Command Mode : Syn. AGP Read Burst : Enabled ISA Line Buffer : Enabled Passive Release : Enabled Delay Transaction : Disabled Primary Frame Buffer : All VGA Frame Buffer : Enabled ESC : Quit : Select Item Data Merge : Disabled F1 : Help PU/PD/+/-: Modify IO Recovery Period : 1 us F5 : Old Values (Shift) F2: Color Auto Detect DIMM/PCI Slk : Enabled F6 : Load BIOS Defaults Spread Spectrum : Disabled F7 : Load Setup Defaults

ROM PCI/ISA BIOS (xxxxxxxx)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Enabled

Page 47

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

ROM PCI/ISA BIOS (xxxxxxxx)

POWER MANAGEMENT SETUP

Power Management : User Define ** External Switch ** PM Control by APM : Yes Power Button Mode : Instant-off MODEM Use IRQ : 3 DOCK I/O SMI : Disabled Video Off Option : Susp, stby  Off AC Power SMI : Disabled Video Off Method : DPMS Support Thermal SMI Mode : Disabled

** PM Monitor ** HDD Power Down : Disabled Doze Mode : Disabled Standby Mode : Disabled Suspend Mode : Disabled FAN Off Option : Suspend  Off Wake On LAN Use : NA

** PM Events ** Primary HDD : Disabled ESC : Quit Floppy : Disabled F1 : Help PU/PD/+/-: Modify COM Ports : Enabled F5 : Old Values (Shift) F2: Color Keyboard : Enabled F6 : Load BIOS Defaults LPT Ports : Disabled F7 : Load Setup Defaults

AWARD SOFTWARE, INC.



: Select Item

Page 48

4.8 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship which is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers – a primary and a secondary – so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

On-Chip Primary IDE :

Master PIO : Auto Slave PIO : Auto KBC clock Source : 8 MHz Master Ultra DMA : Auto Onboard FDC Controller : Enabled Slave Ultra DMA : Auto Onboard UART Port 1 : 3F8/IRQ4

On-Chip Secondary IDE : Enabled Onboard UART Port 2 : 2F8/IRQ3

Master PIO : Auto Slave PIO : Auto Onboard Parallel Port : 378/IRQ7 Master Ultra DMA : Auto Parallel Port Mode : ECCEPP 1.9

Slave Ultra DMA : Auto ECP Mode Use DMA : 3 IDE HDD Block Mode : Enabled Onboard IrDA Port : Disabled On-Chip USB Controller : Disabled

Init Display Mode : PCI Slot Ring/Wake On LAN Control : Disabled RTC Alarm Controller : Disabled LCD Panel Type : Panel 5 Power On Function : BUTTON ONLY

ROM PCI/ISA BIOS (2A69KD2I)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

Enabled

Page 49

Panel# Panel Type

0 1024 x 768 Dual Scan STN Color Panel 1 1280 x 1024 TFT Color Panel 2 640 x 480 Dual Scan STN Color Panel 3 800 x 600 Dual Scan STN Color Panel 4 640 x 480 Sharp TFT Color Panel 5 640 x 480 18-bit TFT Color Panel 6 1024 x 768 TFT Color Panel 7 800 x 600 TFT Color Panel 8 800 x 600 TFT Color Panel (Large BIOS ONLY)

9 800 x 600 TFT Color Panel (Large BIOS ONLY) 10 800 x 600 Dual Scan STN Color Panel (Large BIOS ONLY) 11 800 x 600 Dual Scan STN Color Panel (Large BIOS ONLY) 12 1024 x 768 TFT Color Panel (Large BIOS ONLY) 13 1280 x 1024 Dual Scan STN Color Panel (Large BIOS ONLY) 14 1024 x 600 Dual Scan STN Color Panel (Large BIOS ONLY) 15 1024 x 600 Dual Scan STN Color Panel (Large BIOS ONLY)

Page 50

4.9 PNP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or

ersonal Computer Interconnect, is a system that allows I/O devices to

operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PNP OS Installed : Yes PCI IDE 2nd Channel : Enabled Resources Controlled by : Manual PCI IRQ Actived By : Level Reset Configuration Data : Disabled PCI IDE IRQ Map To : ISA IRQ3 : PCI/ISA PNP IRQ4 : PCI/ISA PNP IRQ5 : PCI/ISA PNP IRQ7 : Legacy ISA IRQ9 : PCI/ISA PNP IRQ10 : PCI/ISA PNP IRQ11 : PCI/ISA PNP IRQ12 : PCI/ISA PNP IRQ14 : Legacy ISA IRQ15 : Legacy ISA DMA0 : PCI/ISA PNP DMA1 : PCI/ISA PNP ESC : Quit     : Select Item DMA3 : PCI/ISA PNP F1 : Help PU/PD/+/- : Modify DMA5 : PCI/ISA PNP F5 : Old Values (Shift)F2 : Color DMA6 : PCI/ISA PNP F6 : Load BIOS Defaults DMA7 : PCI/ISA PNP F7 : Load Setup Defaults

ROM PCI/ISA BIOS (xxxxxxxx)

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Page 51

4.10 Load BIOS Defaults

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

Load BIOS Defaults (Y/N)? N

   

Load BIOS Defaults except Standard CMOS Setup

: Select Item

SAVING

Page 52

4.11 Load Setup Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit     : Select Item

F10 : Save & Exit Setup (Shift) F2 : Change Color

Load SETUP Defaults (Y/N)? N

SAVING

Load BIOS Defaults except Standard CMOS Setup

Page 53

4.12 Supervisor/User Password Setting

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setup (Shift) F2 : Change Color

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

Enter Password :

   

Change / Set / Disable Password

SAVING

: Select Item

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

Page 54

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 IDE HDD Auto Detection

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

ROM PCI/ISA BIOS (2A69KD2I)

STANDARD CMOS SETUP AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master:

Select Primary Master Option (N=SKIP) : N OPTIONS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE 1 (Y) 0 0 0 0 0 0 0 NORMAL

NOTE: Some OSes (like SCO-UNIX) must use ”NORMAL” for installation

Page 55

4.14 Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit     : Select Item

F10 : Save & Exit Setup (Shift) F2 : Change Color

SAVE to CMOS and EXIT (Y/N)? N

SAVING

Saves all Data & Exit Setup

Page 56

4.15 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES SETUP USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PNP/PCI CONFIGURA ETUP

LOAD BIOS DEFAULT

LOAD SETUP DEFAULTS

Esc : Quit     : Select Item

F10 : Save & Exit Setup (Shift) F2 : Change Color

Quit Without Saving (Y/N)? N

SAVING

Abandon all Data & Exit Setup

Page 57

Chapter 5

Software Utilities

This chapter contains the detailed information of VGA, Audio and LAN driver installation procedures.

5.1 VGA Driver Installation for Win 95/98

1. Click Start, then Setting, then Control Panel.

2. Start the

Display

applet program.

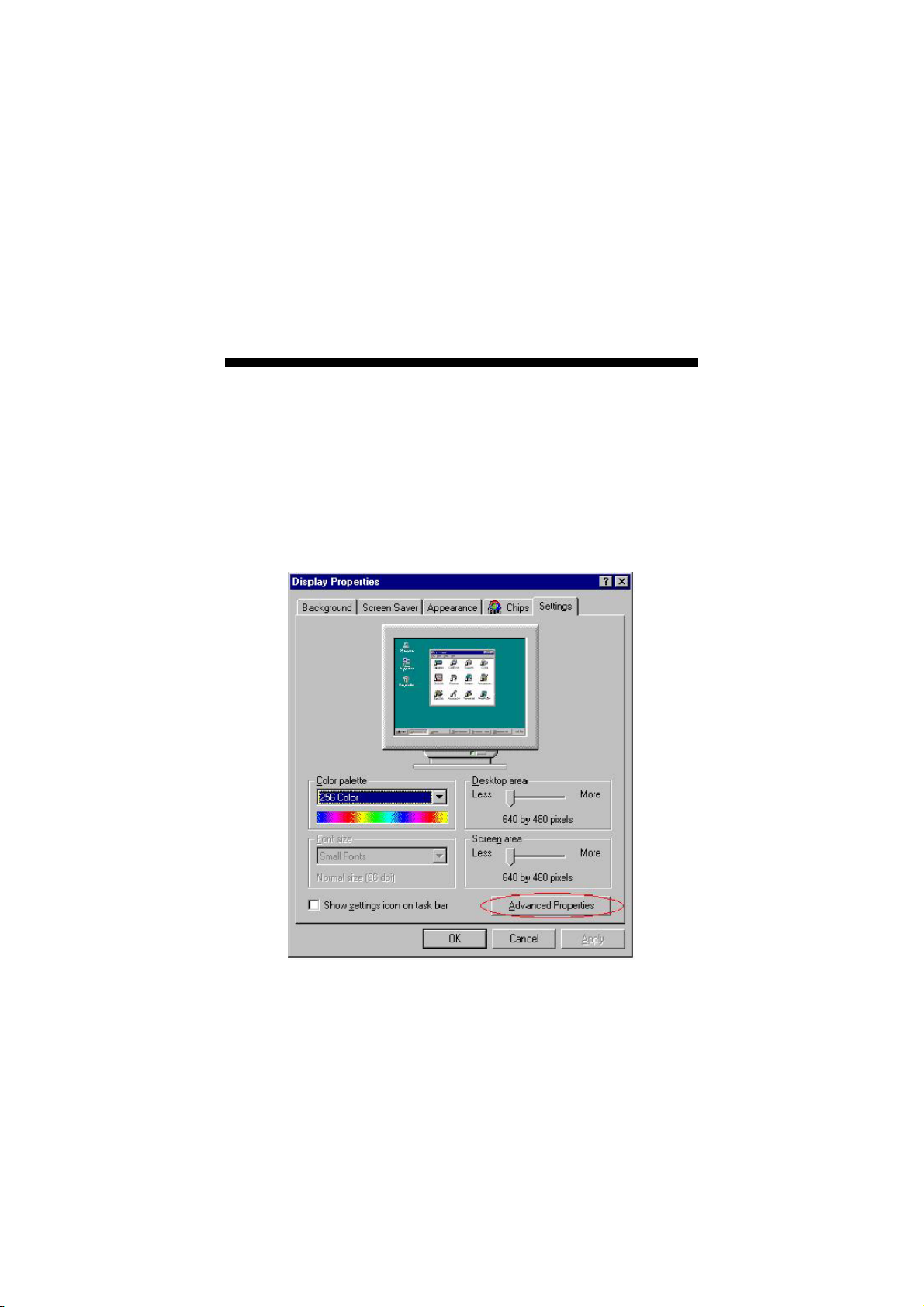

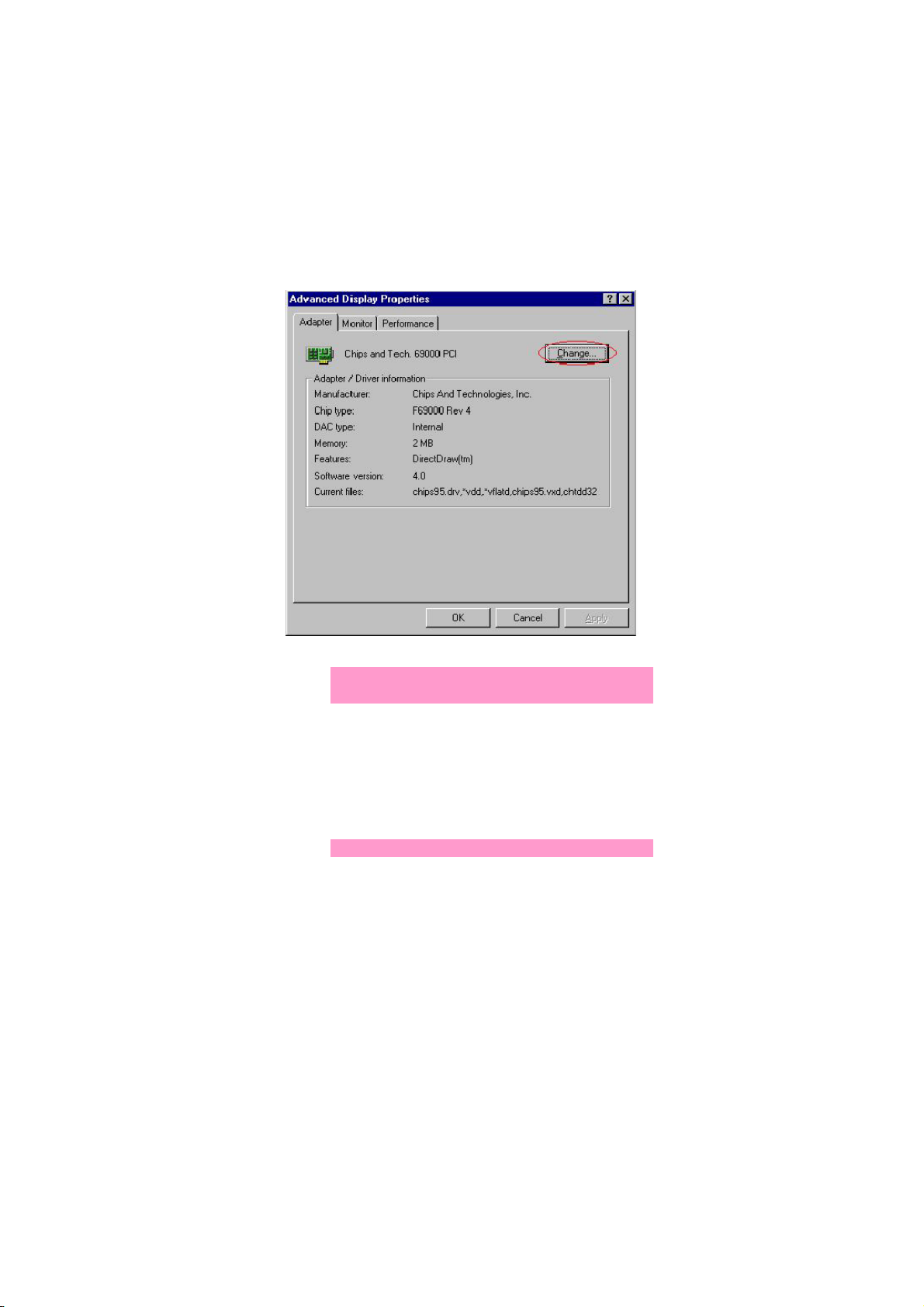

3. Select the setting page, click on the Advanced properties button.

4. Press the Change button in the adapter area.

Page 58

5. Click on Next to continue and then select

Display a list of all drivers in a specific location,

so you can select the drivers you want.

6. Click on Next.

7. Select the Specify a location checkbox then Browse.

8. Specify the path to the new driver and then press the <ENTER> key (if in driver A: select a:\win95).

9. Once completed, the Select device dialog box will appear. Choose on:

Chips and Tech. 69000 PCI

10. Continue choosing until asked to restart machine.

11. After the system has restarted, you can go back into the display applet and select alternate screen resolutions and color depths.

NOTE: Installation procedure for Windows 98 is similar to Windows95.

Page 59

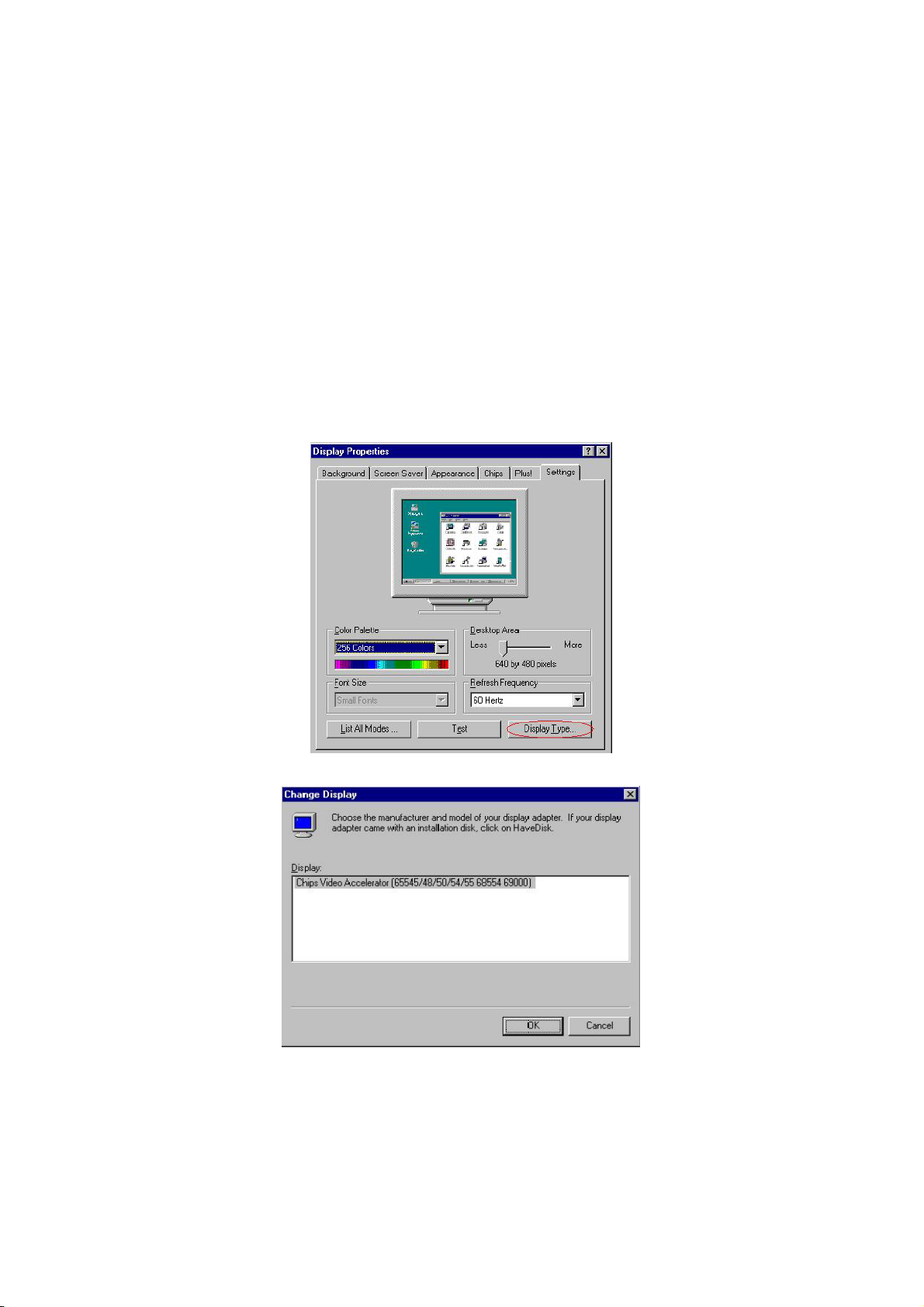

5.2 VGA Driver Installation for Win NT4.0

1. Click the Start button, then go to Settings and click on Control Panel.

2. Click on Display icon to start the Display Properties window.

3. Click on the Settings tab, and then click on Display Type.

4. In the Change Display Type window, click on Have Disk.

Page 60

5. Specify the path to the new driver and press the <ENTER>key (if in driver A:, type a:\nt40). Select

Chips Video Accelerator

(655545/48/50/54/55/68554 69000)

6. Click OK or press Enter.

7. You will then see warning panel about Third Party Drivers. Click on Yes to complete installation.

8. Once the installation is complete, the system must be shut down and restarted for the new driver to take effect.

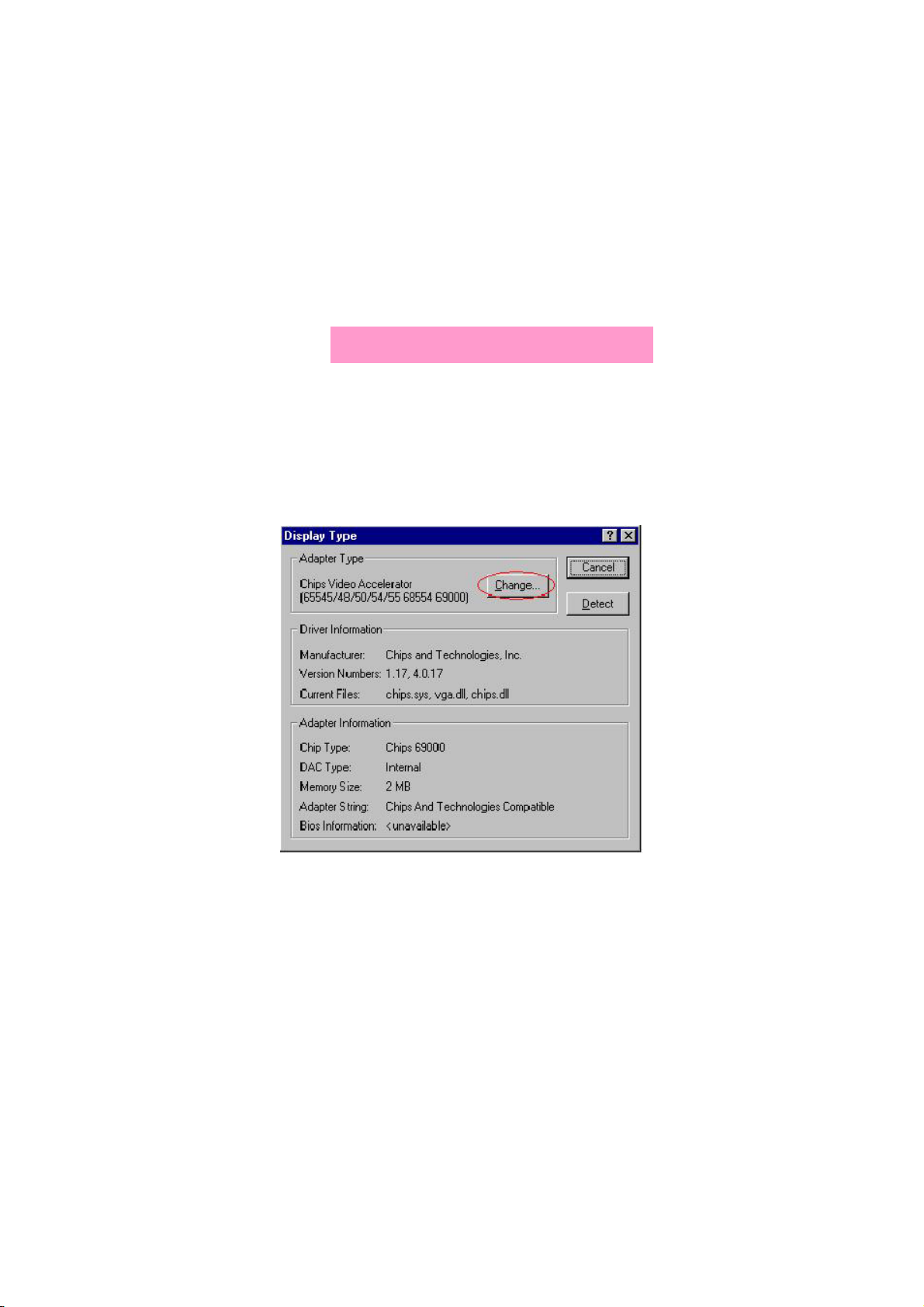

9. After restarting, check on the VGA driver and make sure the properties of the driver look similar to the following figure.

Page 61

5.3 Audio Driver Installation for Win 98/95

5.3.1 Win98

Windows 98 will detect the audio driver automatically therefore there is no need for further configuration.

5.3.2 Win95

1. Click Start, then go to Setting and select Control panel.

2. Click on the Add New Hardware icon to start the applet program.

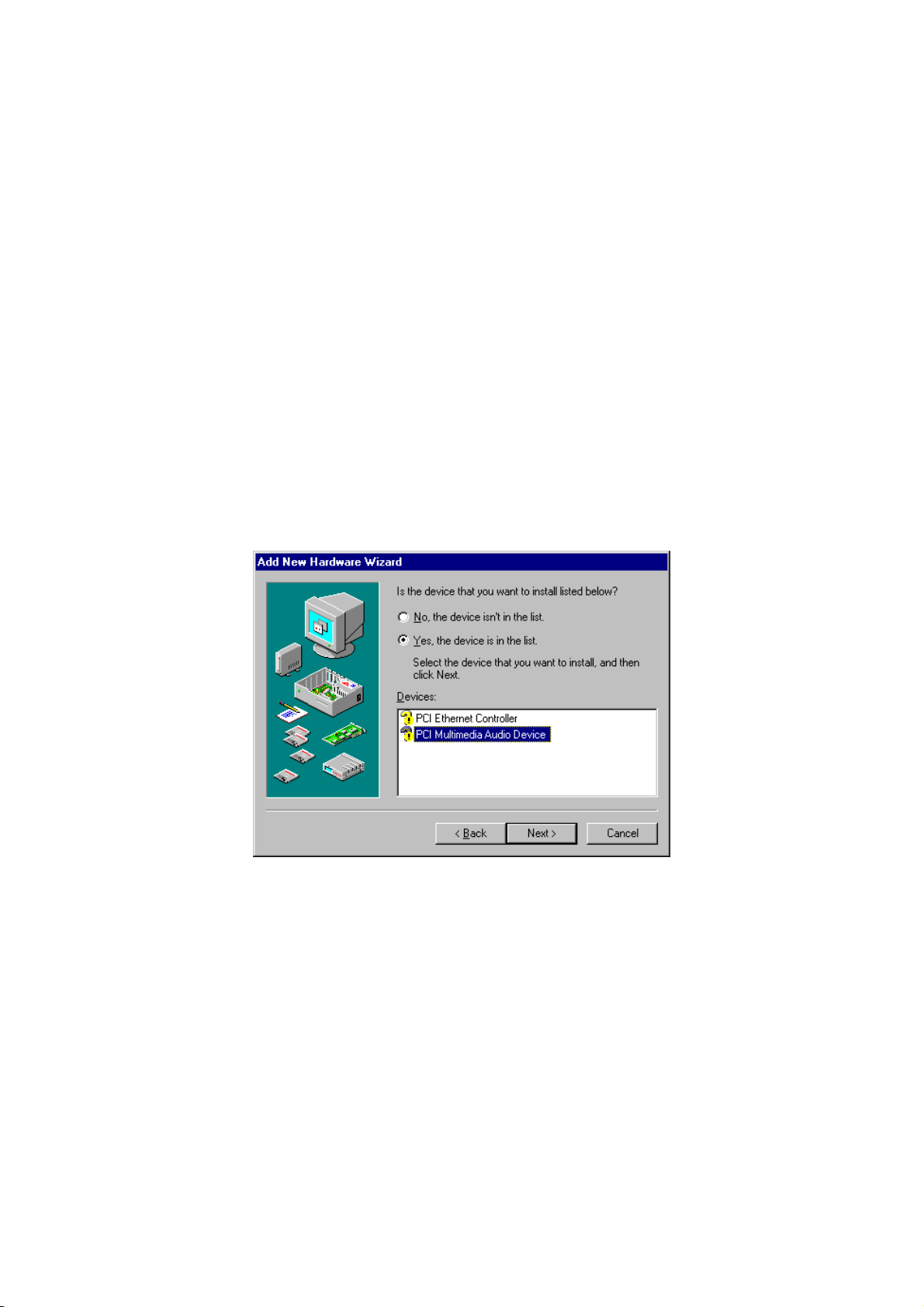

3. In the window, click Next, choose PCI Multimedia Audio

Device, and click Next.

Page 62

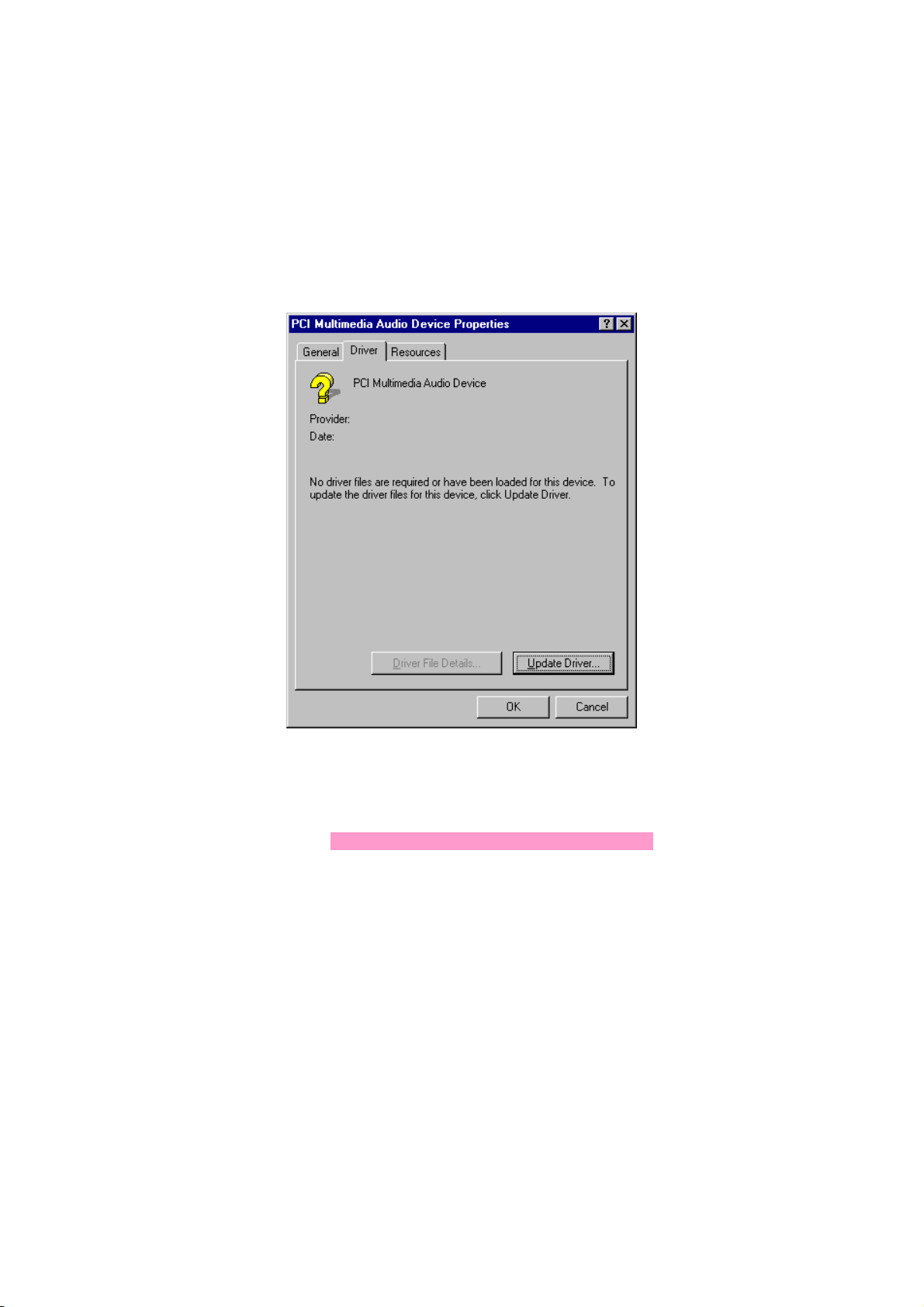

4. In the Driver window, select Update Driver then click Next.

5. This will bring up the Insert Disk window.

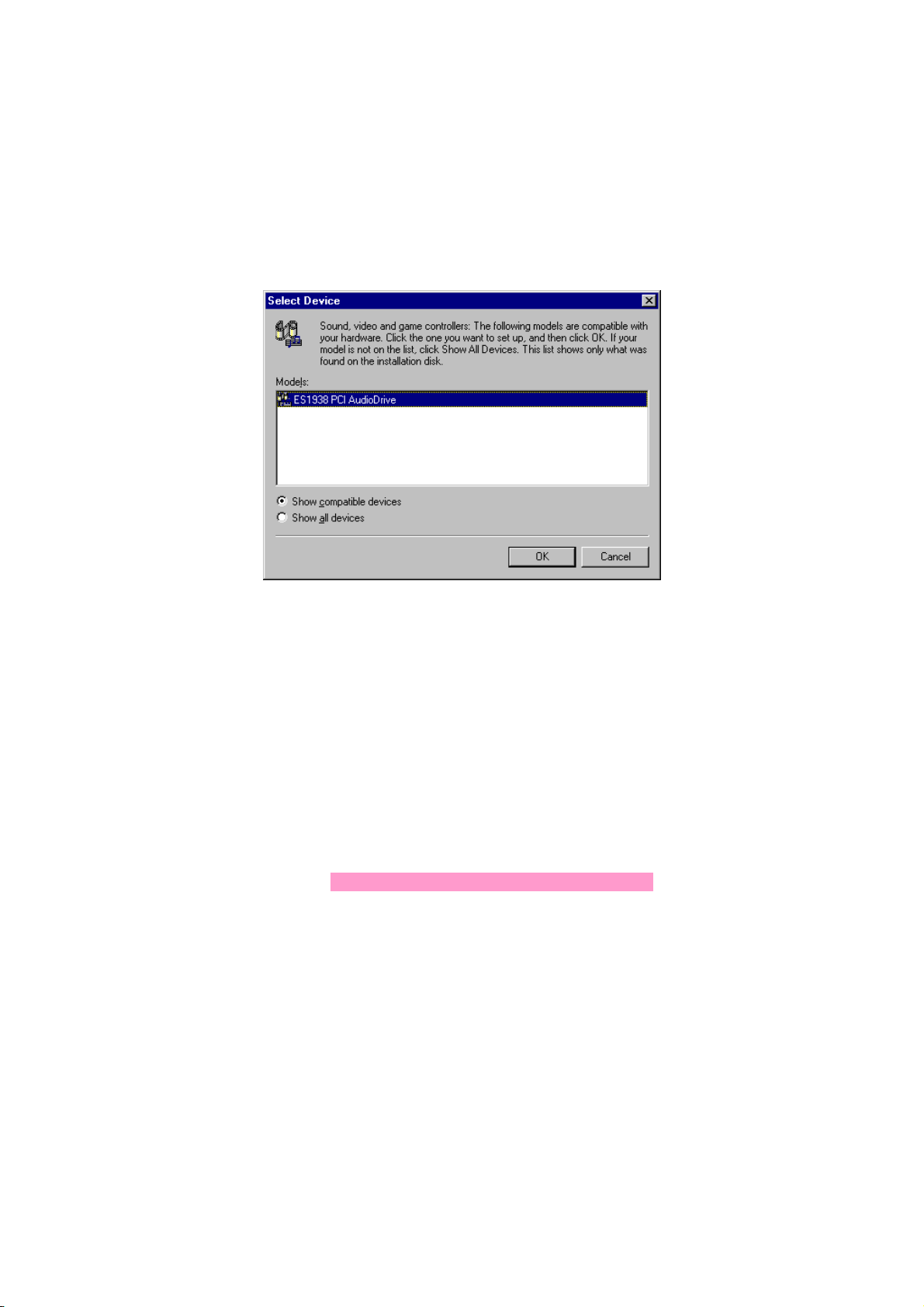

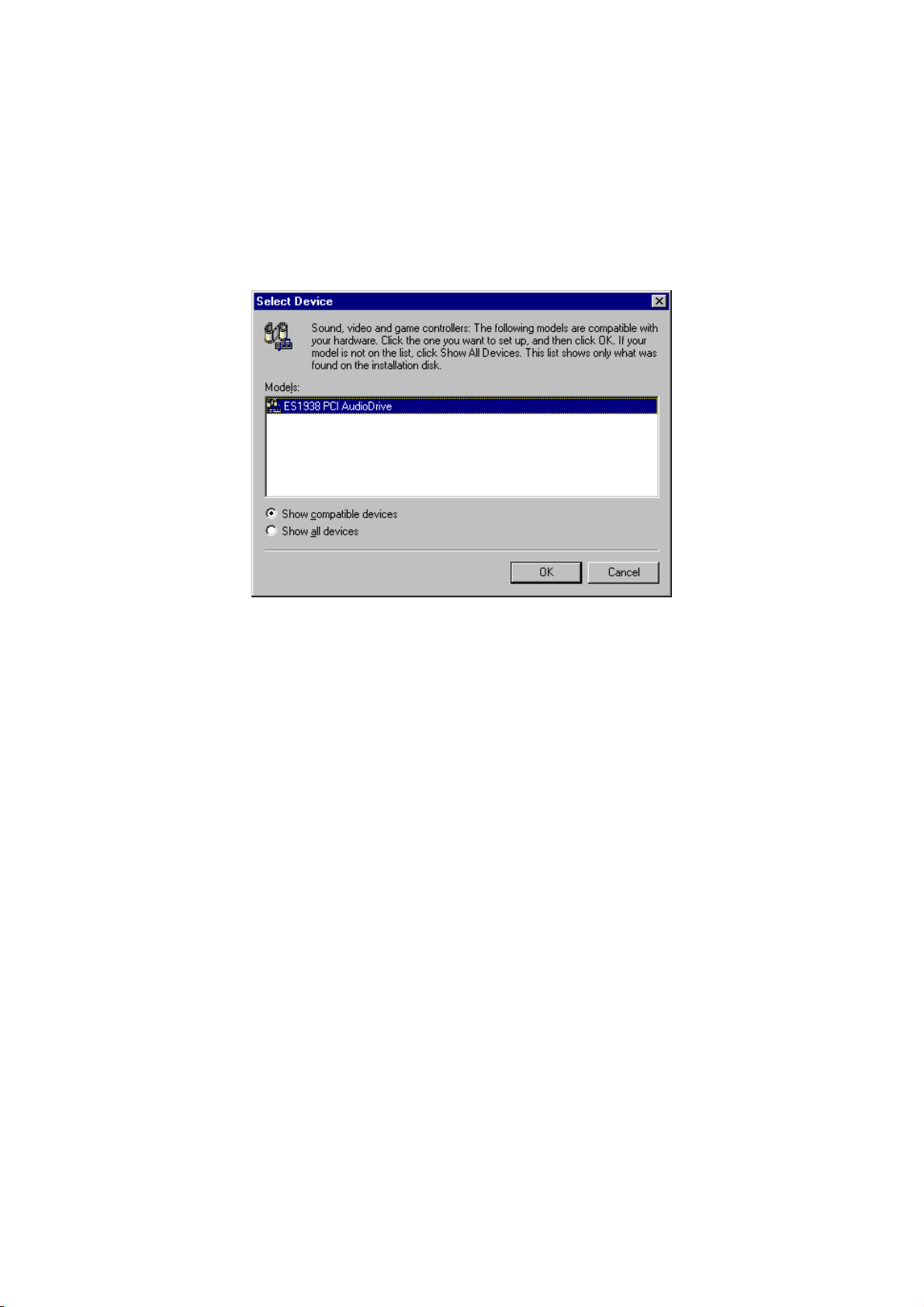

6. Specify the path where the new driver is and then press <ENTER>. (If in driver a:, type a:\) If you’re not sure exactly where the drivers are, choose the Browse button and locate the file.

ES1938 PCI Audio Drive

7. Click OK.

8. Windows 95 will copy the sound drivers to the proper directories on your system.

9. Continue choosing OK until asked to restart your system.

10. After restarting your system, check the sound driver and its properties. Be sure it looks similar with the following figure.

Page 63

5.4 Audio Driver Installation for Win NT4.0

5.4.1 WinNT

1. Click Start, then go to Setting and select Control panel.

2. Click on the Add New Hardware icon to start the applet program.

3. In the window, click Device, and click Next.

4. In the Driver window, select Update Driver then click Next.

5. This will bring up the Insert Disk window.

6. Specify the path the new driver and press <ENTER> key. (If in driver a:, type a:\). If you’re not sure exactly where the drivers are, choose the Browse button and locate it.

, choose

ES1938 PCI Audio Drive

PCI Multimedia Audio

7. Click OK.

8. Windows 95 will copy the sound drivers to the proper directories on your system.

9. Continue choosing OK until asked to restart your system.

10. After restart your computer, check the sound driver and its properties. Be sure that the driver looks similar to the following figure.

Page 64

Page 65

5.5 Network Driver Installation for Win95/98

5.5.1 Win98

Windows 98 will detect the network driver automatically therefore there is no need for further configuration.

5.5.2 Win95

1. Click Start, then Setting then select Control panel.

2. Start the network applet program.

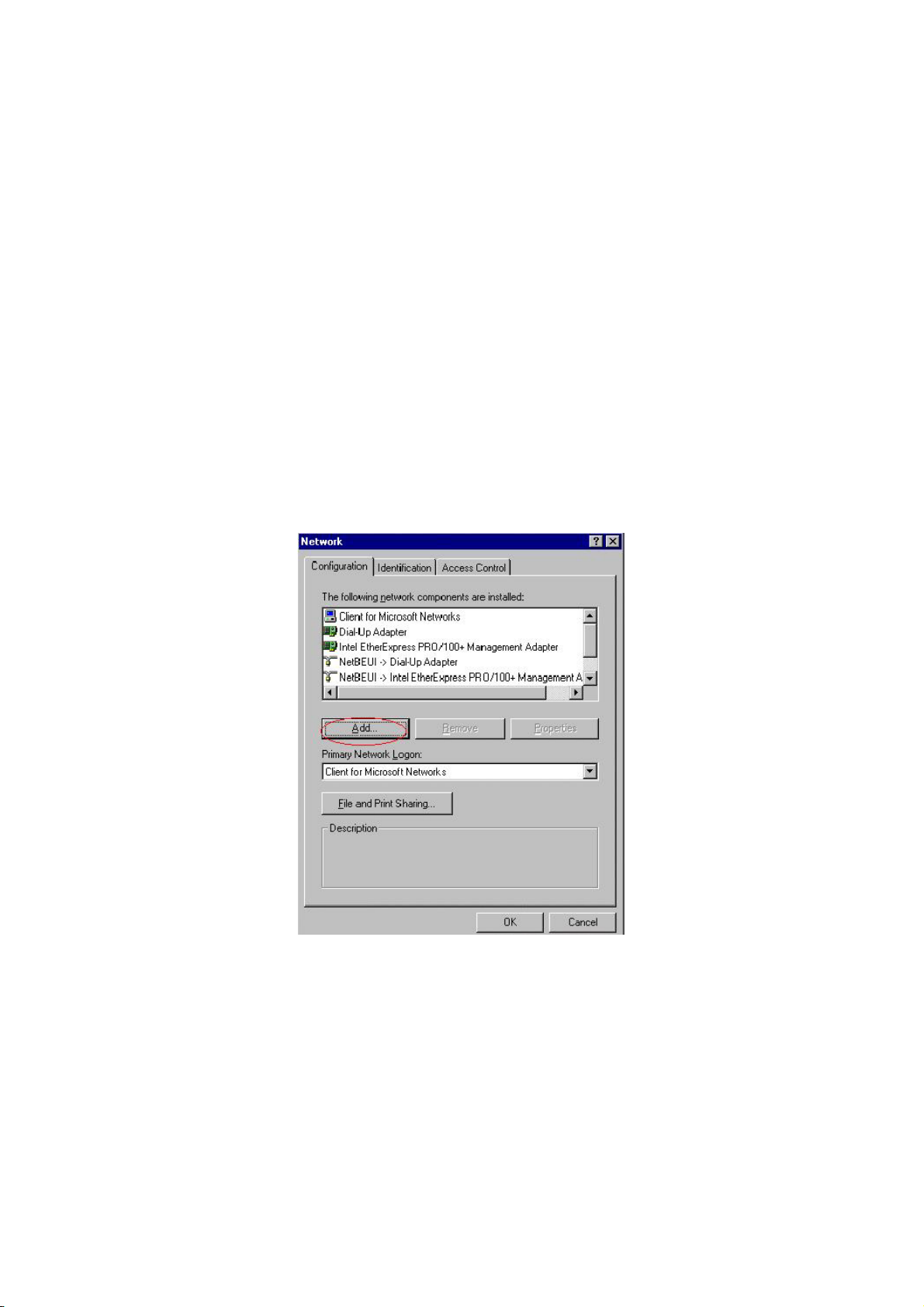

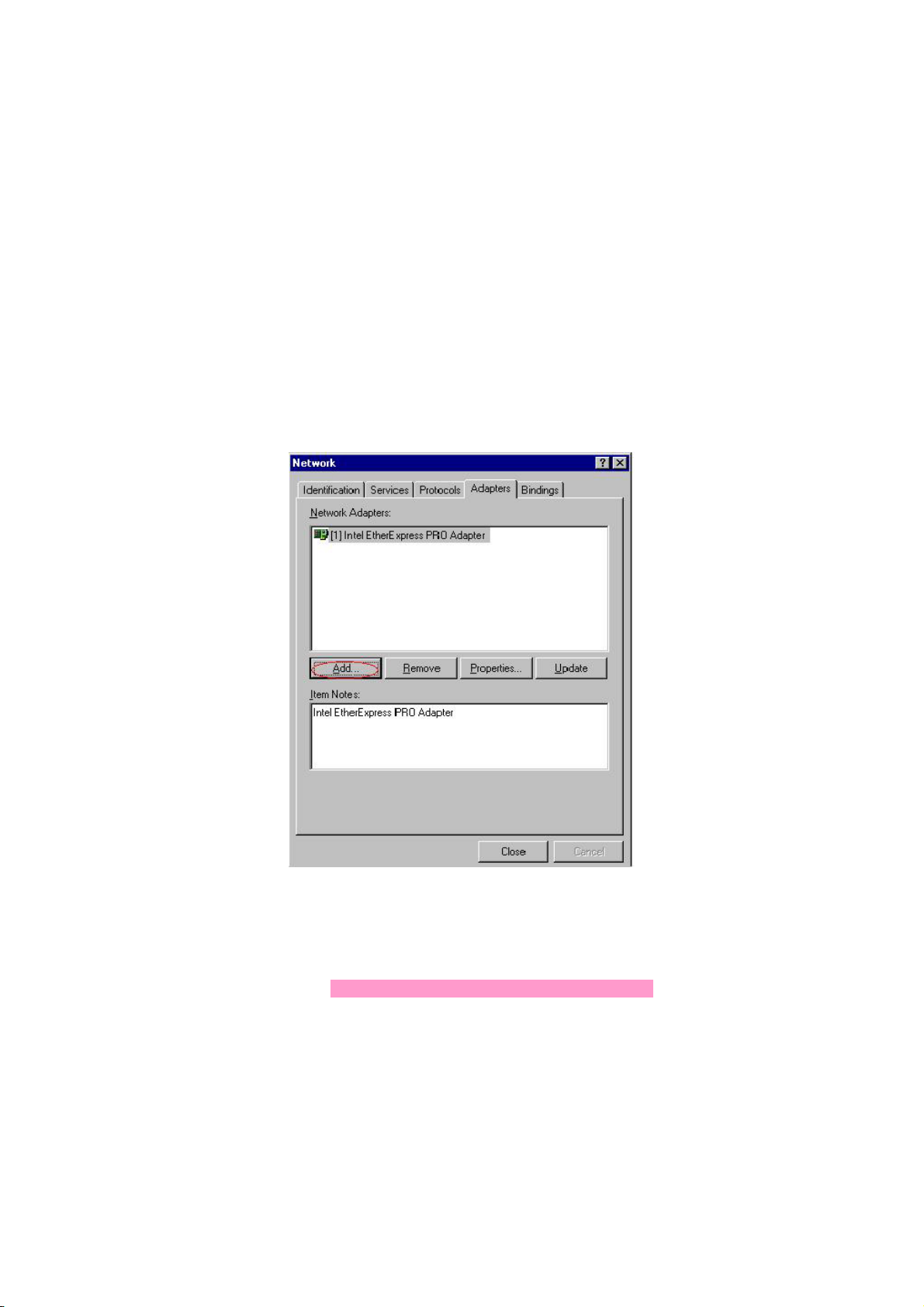

3. In the Network window, click Add.

Page 66

4. From the Select Network Component Type, select Adapter then click Add.

5. Specify the path the new driver and press <ENTER> key (if in driver a:, type a:\). If you’re not sure exactly where the drivers are, choose the Browse button and find it.

6. Click OK.

7. Windows 95 will copy the network drivers to the proper directories into your system.

8. Continue choosing OK until asked to restart your system.

9. After restarting your computer, check the network driver and its properties. Be sure it looks similar with the following figure.

Page 67

5.6 Network Driver Installation for Win NT4.0

1. Click the Start button, then go to Setting and click on Control Panel.

2. Click on the Network icon to start the Network Window

3. Click on the Adapters tab, and then click Add.

4. In the Select Network Adapter window, click Have Disk.

5. This will bring up the Insert Disk window.

6. Supply the directory where the Windows NT driver files are located (If in driver a: type a:\).

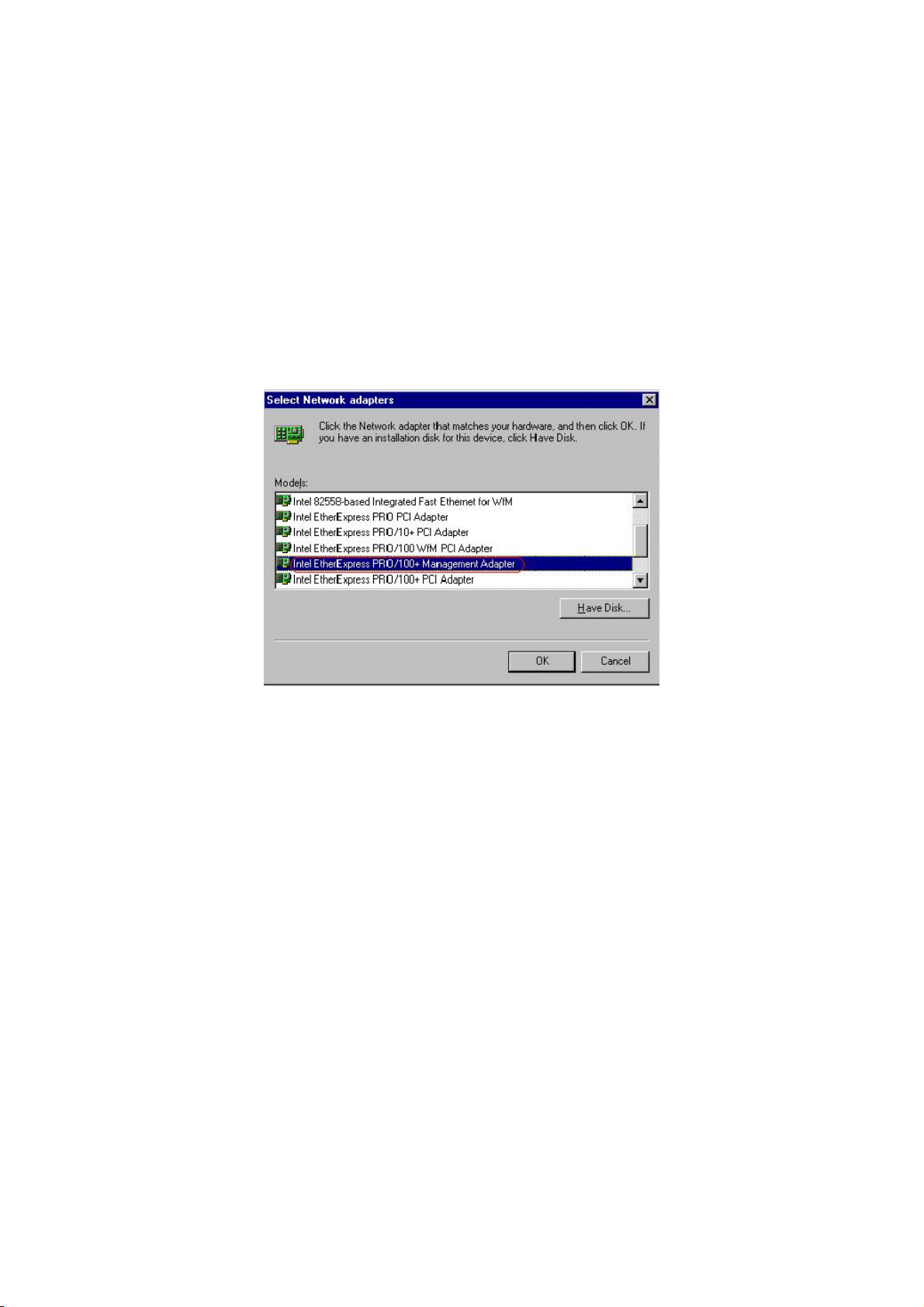

7. The Select OEM Option window will show up. Select

Intel EtherExpress PRO Adapter

8. Click OK to finish the installation.

Page 68

9. Once the installation is completed, the system must be shut down and restarted for the new driver to take effect.

10. After restart, confirm the network driver and its properties.
