Boser HS-5010 User Manual

HS-5010

Pentium® VGA I.S.B.

Full Size TritonTM VX All-in-one

PICMGTM Bus Industrial Single Board Computer

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non authorization
in copied, photocopied, translated or reproduced to any electronic or machine readable
form in whole or in part without prior written consent from the manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for any
errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.

Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.

Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

© Copyright 1998

All Rights Reserved.
User Manual edition 1.6, Aug.24 2001

Contents

HS-5010...................................................................................................................1

INTRODUCTION..................................................................錯誤! 尚未定義書籤。

1.1 SPECIFICATIONS ......................................................................................................4

1.2 WHAT YOU HAVE.....................................................錯誤! 尚未定義書籤。

INSTALLATION.............................................................................................................6

2.1 HS -5010'S LAYOUT...............................................................................................6

2.2 CAUTION!!..................................................................錯誤! 尚未定義書籤。

2.3 JUMPER DESCRIPTION...............................................錯誤! 尚未定義書籤。

2.4 SETTING THE CPU....................................................錯誤! 尚未定義書籤。

2.5 SYSTEM MEMORY DRAM（EDO RAM SUPPORTED）................................12

2.6 WATCH-DOG TIMER..................................................錯誤! 尚未定義書籤。

2.7 PCI VGA CONTROLLER......................................................................................14

2.8 DISKONCHIP? ADDRESS SETTING.....................................................................14

2.9 CPU TEMPERATURE ALARM...............................................................................12

CONNECTION..............................................................................................................15

3.1 FLOPPY DISK DRIVE CONNECTOR......................................................................15

3.2 PCI E-IDE DRIVE CONNECTOR..........................................................................16

3.3 PARALLEL PORT..................................................................................................17

3.4 SERIAL PORTS......................................................................................................17

3.5 KEYBOARD CONNECTOR.....................................................................................18

3.6 EXTERNAL SWITCHES AND INDICATORS ............................................................19

3.7 EXTERNAL SPEAKER............................................................................................19

3.8 6-PIN MINI-DIN PS/2 MOUSE CONNECTOR.........................................................20

3.9 VGA CONNECTOR................................................................................................20

3.10 USB PORTS CONNECTOR................................................................................21

3.11 INTERNAL VGA CONNECTOR............................................................................21

3.12 IR CONNECTOR...................................................................................................21

Contents ? i

AWARD BIOS SETUP ...............................................................................................22

4.1 MAIN MENU...........................................................................................................23

4.2 STANDARD CMOS SETUP..................................................................................24

4.3 BIOS FEATURES SETUP......................................................................................25

4.4 CHIPSET FEATURES SETUP..................................................................................26

4.5 INTEGRATED PERIPHERALS..................................................................................27

4.6 POWER MANAGEMENT SETUP............................................................................28

ii ? Contents

Chapter-1

Introduction

The HS-5010 is an all-in-one full-size card with a full features in a small package
for the industrial applications. The Intel VX chipset provides major core logic, in
addition to the support for various CPU, it also includes Intel MMX.

The HS-5010’s integral switch system provides a wide range of power regulation
from 2.8V to 3.45V to maintain a constant temperature between 50°C and 60°C.
The HS-5010 has designed with a feature of on board temperature sensor. If the
temperature range up to 60°C, then the warning buzzer alarm will be triggered
until the temperatures stabilized.

The HS-5010 supports VGA equipped using S3 86C775 chipset with 2MB
memory. The HS-5010 takes advantage of both 32bit PCI and 16bit ISA bus to
provide high performance graphics accelerator. VGA resolution is supported up
to 1024 by 768, at 256 colors, with a reserved internal 10pin VGA connector to the
monitor.

The HS-5010 provides an optional DiskOnChipTM socket supports the memory
up to 72MB. That means you can issue commands directly from DOS, and you
don’t need any other driver or application.

USB and IR ports are also on board to reserve the upgrade space for the interface
transmission.

Additional safety features include the HS-5010 polyswitch resettable fuse
system. In the event of the keyboard, PS/2 mouse, or USB circuit short, the fuse
breaks the contact. Resumption of the normal power flow will, however, prompt
an automatic reconnection without any reinstallation.

3

1.1 Major Features

?? CPU：Intel Pentium CPU 75~233MHz, AMD K5、K6, Cyrix M2, 6x86 or

Intel MMX; Socket 7 ZIF socket.

?? Bus Interface：PCI/ISA Bus; Comply to PICMG standard.
?? Chipset：Intel Triton VX chipset.
?? Data Bus ：64bit.
?? Processing Ability：64bit.
?? VGA Controller ： S3 86C775 chipset with 2MB memory, support

resolutions up to 1280 x 1024 256u colors, reserved internal 10pin VGA
connector.

?? PCI Enhanced IDE Interface：Supports up to four IDE devices support

mode3/4 hard disk, data transfer rate 11.1MB/sec minimum.

?? RAM Memory：Up to 128MB, uses four 72pin SIMM or one DIMM

sockets, supports BEDO, EDO, Fast Page DRAM and SDRAM.

?? Cache Memory ：512KB pipeline burst cache memory.
?? Floppy Disk Drive Interface：Supports up to two floppy disk drives.
?? Parallel Port：One bi-directional parallel port. Supports SPP/ECP/EPP

mode.

?? Serial Port ：Two RS -232 ports. Both use 16C550 UART with 16byte

FIFO.

?? BIOS：Award flash BIOS. Supports PnP, Green features.
?? Watch-Dog Timer：Hardware circuit can be set to 1, 2, 10, 20, 110 or

220 seconds period. Reset or NMI were generated when CPU did not
periodically trigger the timer.

?? DMA Channel：7.
?? Interrupt Levels：15.
?? Keyboard： 6-pin Mini-din connector or 5-pin header. Supports the

standard PC/AT Keyboard.

?? Mouse：6-pin Mini-din connector support PS/2 standard mouse.
?? USB：Supports 2 USB ports.
?? IR Interface：Supports one IrDA TX/RX header.
?? CMOS：Real-time clock/calendar and battery backup by DS12887 or

equivalent devices.

?? DiskOnChip

4

TM

：A socket provides for SSD up to 72MB.

?? CPU Temperature Alarm：Hardware circuit is designed via beeping

alarm if CPU’s temperature is over heating 60°C limited.

?? Power Supply Voltage：+5V（4.75 to 5.25V）, +12V/-12V power supply.
?? Max. Power Requirement ：+5V@6A, +12V/-12V power supply.
?? Operating Temperature：0~55°C（CPU needs a cooler）.
?? Dimension：13.26”（L）x 4.8”（W）（337mm x 122mm）.

1.2 What do you have

The HS -5010 package includes the following items：

?? HS-5010 Industrial Single Board Computer.
?? Printer port flat cable.
?? IDE port flat cable.
?? FDD port flat cable.
?? COM port cable.
?? 6-pin mini-din to 5-pin din keyboard adapter cable.
?? VGA Utility Diskette.
?? User’s Manual.

If any of these items are missing or damaged, please contact your dealer.
Keep all the shipping materials and packing box in case you want to ship or
store the product in feature.

5

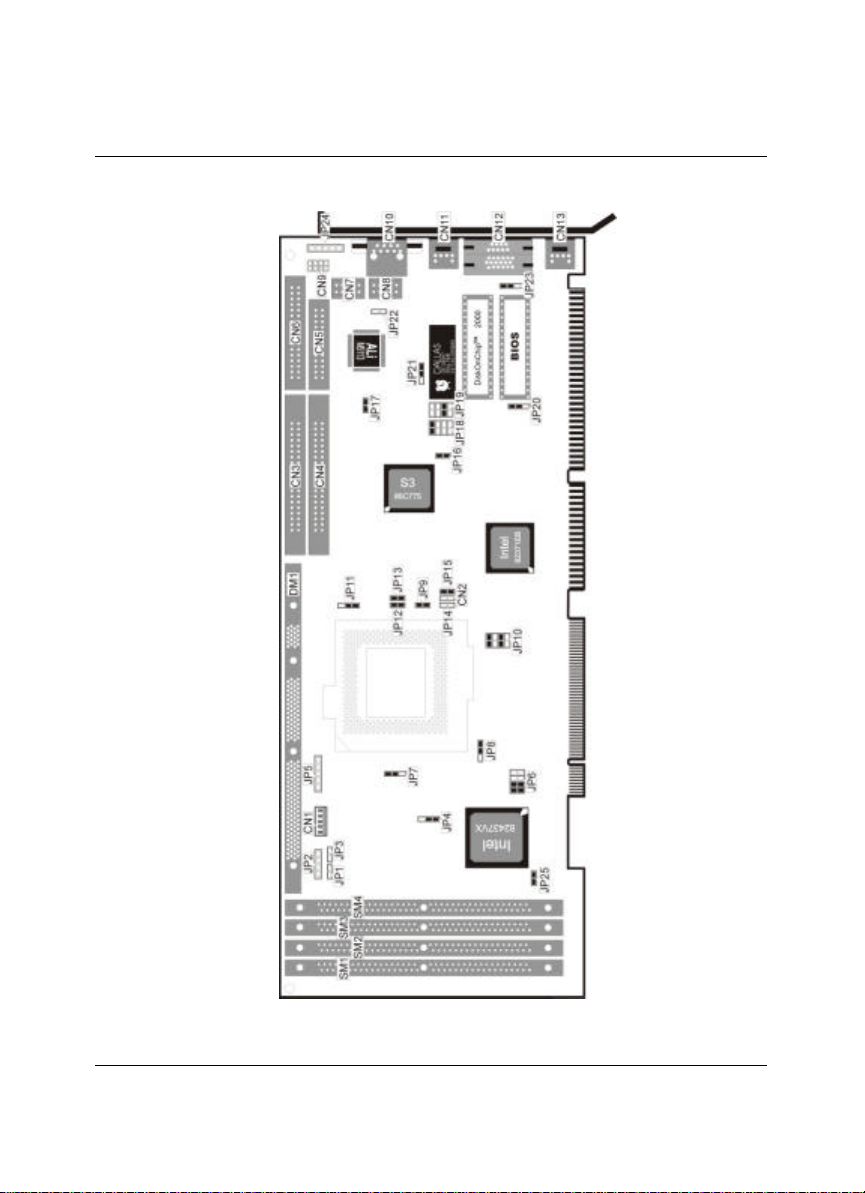

2.1 HS-5010’s Layout

6

2.2 Caution!

Your HS -5010 Industrial Single Board contains sensitive electronic
components that can be easily damaged by the static electricity.

We have described the precautions in this section. And please pay
attention when unpacking, as well as during installation. It is very
important that the instructions to be followed correctly to avoid the static
damage and to have a successfully installation.

The system board can be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as
the anti-static mat.

Be sure that there are no shipping and handling damages on the board
before unpacking.

After opening the packing box, extract the board and place it only on a
grounded anti-static surface material with the component side up.

Again, inspect the board for damages. Press all the sockets IC’s to make
sure they are properly seated. Do this only when the board is placed on a
anti-static’s firm and lat surface.

Note： DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

You are now ready to install your HS -5010 Industrial Single Board.

7

2.3 Jumper Description

This board’s default jumpers are present at the factory. If you want to
change the HS -5010’s configuration, please follow the instructions.

A jumper switch is closed（sometimes referred to as shorted with a plastic
cap inserted over two pins of the jumper）. A jumper is open with a plastic

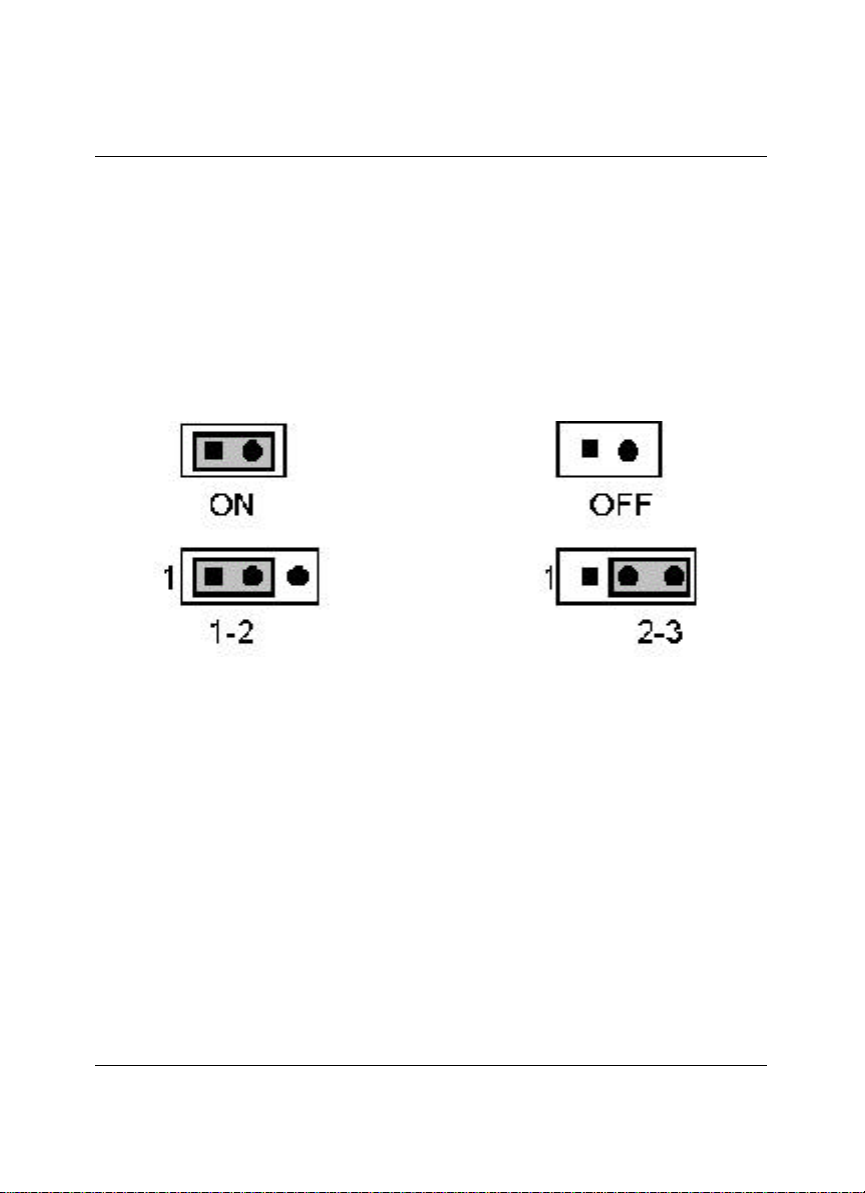

cap inserted over one or no pin of the jumper. Figure 2.2 below shows

different jumper settings which will be used in this chapter.

8

2.4 Setting the CPU

All CPU Card provides all possibility in jumper setting for wide using all
types of CPU with JP6, JP8, JP9, JP10, JP12, JP13, JP14 and JP15
setting in following.

The JP9, JP12, JP13 sets the multi-times ratio of the CPU’s specification.
Please reference to the following table for all type CPU in used.

?? CPU’s Clock Ratio Select

Clock Ratio BF2 BF1 BF0

Intel AMD JP9 JP13 JP12

P54C P55C K6 1-2 1-2 1-2

2.5 2.5 *2.5 OFF ON ON

3.0 3.0 3.0 OFF ON OFF

2.0 2.0 2.0 OFF OFF ON

1.5 3.5 3.5 OFF OFF OFF

2.5 2.5 4.5 ON ON ON

3.0 3.0 5.0 ON ON OFF

1.5 2.0 4.0 ON OFF ON

2.5 3.5 5.5 ON OFF OFF

（*）：default setting

CPU Type JP8

P54, P55 2-3

*P55C Dual Voltage 1-2

（*）：default setting

9

?? CPU Voltage Selection

The HS-5010 provides all necessary setting for the all CPU operating. User
may selected from 2.8V to 3.5V.

CPU Voltage

2.8V 7-8

*2.9V 5-6

3.2V All Open

3.3V 1-2

3.5V 3-4

（*）：default setting

CPU Clock-in Select JP10

50MHz 1-2, 3-4
55MHz 1-2, 3-4

JP6

60MHz 3-4, 5-6

*66MHz 1-2, 5-6

68MHz All Open
75MHz Off, 3-4
83MHz 1-2, Off

（*）：default setting

10

Refresh Based

60MHz ON

*66MHz OFF

（*）：default setting

Sysclk Configuration

Divided by 4 ON

*Divided by 3 OFF

（*）：default setting

JP14

JP15

11

2.5 System Memory DRAM （EDO RAM supported）

There are four 72pin SIMM sockets to accept 1MB, 2MB, 4MB, 8MB,
16MB, or 32MB memory modules.

The total capacity of on board memory are between 2MB to 128MB.
The HS-5010 requires at least 2pcs of the RAM modules on SIMM sockets

SM1/SM2 or SM3/SM4 or 1pcs SDRAM module.

2.6 Watch -Dog Timer

The Watch-Dog Timer is enabled by reading the port 443H. It should be
triggered before the time-out period ends; otherwise, it will assume that the
program operation is abnormal and will either issue a reset signal to start
again or activate a NMI to the CPU. The Watch-Dog Timer is disabled by
reading the port 043H.

JP23 determines the Watch-Dog Timer function. It can disable the
Watch-Dog Timer or connect the Watch-Dog Timer to the reset trigger or
NMI trigger.

?? JP23：Watch-Dog Active Type Setting

JP23 Description

*1-2 System Reset

2-3 Active NMI

Open Disable Watch-Dog Timer

（*）：default setting

?? JP19：WDT Time-Out Period

Period 1-2 3-4 5-6 7-8

*1 sec Open Open Close Open

2 sec Open Open Close Close
10 sec Open Close Open Open
20 sec Open Close Open Close

110 sec Close Open Open Open
220 sec Close Open Open Close

（*）：default setting

12

When the power of HS-5010 is turned on, the Watch-Dog Timer is
disabled. The Watch -Dog Timer can be enabled by reading the Watch-Dog
Timer enable/refresh control port （443H）and disabled by reading the

Watch-Dog Timer disable control port（43H）. After the Watch -Dog Timer
is enabled, the user must constantly refresh the Watch-Dog Timer by

reading the Watch -Dog Timer enable/refresh port（443H）every 1, 2, 10, 20,
110 or 220 seconds. If the user fails to do so or the system hangs, the

Watch-Dog timer will automatically reset the system or issue a NMI
（Non-maskable interrupt ）.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read Enable/refresh the Watch-Dog Timer.
043H I/O Read Disable the Watch-Dog Timer.

The following program are the examples of how to enable, disable and
refresh the Watch-Dog Timer：

WDT_EN_RF EQU 0433H
WDT_DIS EQU 0043H

WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer

13

IN AL,DX
POP DX ; get back AX, DX

POP AX

RET

14

2.7 VGA Controller

The HS -5010 has built-in a S3 VGA Controller. If you want to use the
external VGA Card, the BIOS will automatically disable the on board VGA
Controller and use the external one.

Video Modes
S3 86C775 Chipset with 2MB memory , support resolutions up to 1280 x

1024 256 colors, reserved internal 10pin VGA connector.
To get more VGA drivers information, please refer to the S3 Internet

address：www.s3.com.

2.8 DiskOnChipTM Address Setting

Install the DiskOnChipTM in U21 socket.
Please select the memory address：

?? JP18 : DiskOnChip

PIN NO. Address

*1-2 D000

3-4 D800
5-6 E000
7-8 E800

（*）：default setting

TM

Address

2.9 CPU Temperature Alarm

If the CPU’s temperatures to rise above the 60°C will trigger the HS-5010’s
warning buzzer alarm until temperatures stabilize.

?? JP25 : CPU Temperature Alarm Type Setting

JP25 Description

*Close Enable

Open Disable

（*）：default setting

15

Chapter-3

Connection

This chapter describes how to connect the peripherals, switches and
indicators to the HS -5010 board.

3.1 Floppy Disk Drive Connector

HS-5010 board is equipped with a 34pin daisy-chain driver connector
cable.

?? CN6 : FDD Connector

16

3.2 PCI E-IDE Drive Connector

The HS -5010 has on board IDE interface. It can be connected up to four
IDE(Integrated Device Electronics) hard disk drives to the HS -5010 IDE
controller.
CN3(IDE 1)：Primary IDE Connector

CN4(IDE 2)：Secondary IDE Connector

?? CN3/CN4 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO.

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

DESCRIPTION

17

3.3 Parallel Port

The HS-5010 includes an on board parallel port which accesses through a
26pin flat cable connector CN5.

?? CN5 : Parallel Port Connector

PIN NO.

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE

11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN#
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

DESCRIPTION PIN NO.

18 GROUND

DESCRIPTION

3.4 Serial Ports

The HS -5010 offers two high speed NS16C550 compatible UARTs with
Read/Receive 16byte FIFO serial ports.

?? CN12 : Serial Port DB9 Connector

PIN NO. DESCRIPTION

1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 Ring Indicator (RI)

18

?? CN7 : Serial Port 10pin Header

PIN NO. Description PIN No. Description

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

3.5 Keyboard Connector

The HS -5010 provides two keyboard connector.

?? CN1 : 5pin Header Keyboard Connector

PIN NO. Description

1 Keyboard Clock
2 Keyboard Data
3 N/C
4 Ground
5 +5V

?? CN13 : 6pin Mini-din Keyboard Connector

PIN NO. Description

1 Keyboard Data
2 N/C
3 Ground
4 +5V
5 Keyboard Clock

N/C

19

3.6 External Switches and Indicators

There are many external switches and indicators to monitor and control
the CPU board.

?? JP5 : Power LED & Keylock

PIN NO. Description

1 Power LED Anode
2 Key
3 Ground
4 Keylock
5 Ground

?? JP1 : Reset Button

PIN NO. Description

1 External Reset
2 Ground

?? JP3 : IDE LED Connector

PIN NO. Description

1 +5V
2 HDD Active#

3.7 External Speaker

The HS -5010 has its own buzzer, and JP2 allows user to connect to the
external speaker.

?? JP2 : Speaker Connector

PIN NO.

1 Speaker Signal
2 N/C
3 Ground
4 +5V

20

Description

3.8 6-pin Mini Din PS/2 Mouse Connector

The HS-5010 has a PS/2 mouse on board which uses IRQ12. If you do not
use the PS/2 mouse and wish to assign IRQ12 for other purposes, you
may change JP16 to disconnect PS/2 interrupt from IRQ12.

JP16 Description

Open No Interrupt for PS/2

*Close IRQ12

（*）：default setting

?? CN11 : PS/2 Mouse Connector

PIN NO.

1 MS Data

2 N/C

3 Ground

4 +5V

5 KBT1

6 N/C

Description

3.9 VGA Connector

The HS -5010 has on board 15-pin external VGA connector.

?? CN10 : 15-pin Female VGA Connector

PIN NO.

1 Red 2 Green

3 Blue 4 N/C

5 Ground 6 Ground

7 Ground 8 Ground

9 N/C 10 Ground
11 N/C 12 N/C
13 HSYNC 14 VSYNC
15 N/C

Description PIN NO.

Description

21

3.10 USB Ports Connector

The HS -5010 provides two USB ports into one connector.

?? CN9 : 8-pin Header USB Connector

PIN NO.

1 VCC 2 VCC

3 BD0- 4 BD1-

5 BD0+ 6 BD1+

7 Ground 8 Ground

Description PIN NO.

3.11 Internal VGA Connector

?? CN8 : 10-pin Internal VGA Connector

PIN NO.

1 Red 2 Ground

3 Green 4 Ground

5 Blue 6 Ground

7 HSYNC 8 Ground

9 VSYNC 10 Ground

Description PIN NO.

3.12 IR Connector

Description

Description

The HS -5010 provides a 5-pin internal IR communication connector. The
JP24 provides for IrDA 1.0 specification application.

?? JP24 : 5-pin IR Connector

PIN NO.

1 VCC

2 N/C

3 IRRX

4 Ground

5 IRTX

22

Description

Chapter-4

AWARD BIOS Setup

The HS -5010 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to provide
the maximum flexibility in configuring the system by offering various
options which could be selected for end-user requirements. This
chapter is written to assist you in the proper usage of these features.

To access Award PCI/ISA BIOS setup program, press ＜Del＞ key.
The main menu will be displayed at this time.

23

4.1 Main Menu

F10 : Save & Exit

Once you ente r the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press ＜Enter＞ to enter the sub-menu.

ROM PCI/ISA BIOS (2A59GD3G)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS

Esc : Quit

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
HDD LOW LEVEL FORMAT
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

??? ? : Select Item
(Shift)F2 : Change Color

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

24

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the setup.
When the IDE hard disk drive you are using is larger than 528MB,
please set the HDD mode to LBA mode. Please use the IDE Setup
Utility in BIOS Setup to install the HDD correctly.

ROM PCI/ISA BIOS (2A59GD3G)

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Data (mm:dd:yy) : Fri, Oct 19 1999
Time (hh:mm:ss) : 00:00:00

CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master ? Nono 0 0 0 0 0 --------­Primary Slave ? Nono 0 0 0 0 0 --------­Secondary Master ? Nono 0 0 0 0 0 --------­Secondary Slave ? Nono 0 0 0 0 0 ---------

Drive A : Nono
Drive B : None
Base Memory :
Video : EGA/VGA Extended Memory :
Other Memory :
Halt On : All Errors Total Memory :
ESC : Quit
F1 : Help

??? ? : Select Item
(Shift) F2: Change Color

0K
0K

512K

PU/PD/ + / - : Modify

512K

25

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot up sequence, keyboard operation, shadowing and
security.

ROM PCI/ISA BIOS (2A59GD3G)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Enabled Video BIOS Shadow : Disabled
CPU Internal Cache : Disabled C8000-CBFFF Shadow : Disabled
External Cache : Disabled CC000-CFFFF Shadow : Disabled
Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled
Boot Sequence : A, C, SCSI D4000-D7FFF Shadow : Disabled
Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled
Boot Up Floppy Seek : Disabled DC000-DFFFF Shadow : Disabled
Boot Up NumLock Status : Off
Boot Up System Speed : Low
Gate A20 Option : Normal
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
Assign IRQ For VGA : Enabled ESC : Quit ??? ? : Select Item
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify

F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults

26

4.4 Chipset Features Setup

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds
and the access to the system memory resources, such as DRAM and
the external cache. It also coordinates the communications between
the conventional ISA and PCI buses. It must be stated that these
items should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that
the data has been lost while using your system.

ROM PCI/ISA BIOS (2A59GD3G)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled Delayed Transaction : Disabled
:
DRAM RAS# Precharge Time : 3
DRAM R/W Leadoff Timing : 7
Fast RAS To CAS Delay : 3
DRAM Read Burst (EDO/FP) : x444/x444
DRAM Write Burst Timing : x444
Fast MA to RAS# Delay CLK : 2
Fast EDO Path Select : Disabled
Refresh RAS# Assertion : 4 Clks
ISA Bus Clock : PCI CLK/4
SDRAM (CAS Lat/RAS-to-CAS) : 3/3
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1 ESC : Quit ??? ? : Select Item
Memory Hole At 15M-16M : Disabled F1 : Help PU/PD/+/-: Modify
Peer Concurrency : Disabled F5 : Old Values (Shift) F2 : Color
Passive Release

Disabled F6 : Load BIOS Defaults
F7 : Load Setup Defaults

27

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them.
This is much simpler and more efficient (also faster).

ROM PCI/ISA BIOS (2A59GD3G)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Disabled
:
:
:
On-Chip Primary PCI IDE : Disabled
On-Chip Secondary PCI IDE Disabled
PCI Slot IDE 2nd Channel Disabled
USB Controller : Disabled
:
Onboard FDC Controller Disabled
OnBoard UART 1 : Disabled
OnBoard UART 2 : Disabled
:
OnBoard Parallel Port Disabled

ESC : Quit ??? ? : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

28

4.6 Power Management Setup

The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.

ROM PCI/ISA BIOS (2A59GD3G)

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Power Management : User Define ** Power Down & Resume Events **
PM Control by APM : No IRQ3 (COM 2) : OFF
Video Off Method : Blank Screen IRQ4 (COM 1) : OFF
MODEM Use IRQ NA IRQ5 (LPT 2) : OFF
: IRQ6 (Floppy Disk) : OFF
Doze Mode : Disabled IRQ7 (LPT 1)
Standby Mode : Disabled IRQ8 (RTC Alarm)
Suspend Mode : Disabled IRQ9 (IRQ2 Redir)
HDD Power Down : Disabled IRQ10 (Reserved)
IRQ11 (Reserved)

** Wake Up Events In Doze & Standby** IRQ12 (PS/2 Mouse)
IRQ3 (Wake-Up Event) : OFF IRQ13 (Coprocessor)
IRQ4 (Wake-Up Event) : OFF IRQ14 (Hard Disk)
IRQ8 (Wake-Up Event) : OFF IRQ15 (Reserved)
IRQ12 (Wake-Up Event) : OFF

ESC : Quit ??? ? : Select Item

F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults

F7 : Load Setup Defaults

OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF

29
