Page 1

HS-4705

400MHz FSB Pentium® M Embedded Engine Board

400MHz FSB•DDR•PCI Slot•

•

•CRT/LVDS Panel•Giga LAN•

Audio•ATA/33/66/100•IrDA•

•

•USB2.0•WDT•H/W Monitor•

Industrial Embedded Engine Board•

•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 Gerneral Description…………………….1

1.1

1.2

1.3

Major Features ..............................................................2

Specifications ...............................................................2

Board Dimensions........................................................4

Chapter 2 Unpacking………………………………..5

2.1

2.2

Opening the Delivery Package....................................5

Inspection......................................................................5

Chapter 3 Hardware Installation…………………...7

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

3.10

3.11

3.12

3.13

3.14

3.15

3.16

3.17

3.18

3.19

3.20

Before Installation ........................................................7

Board Layout ................................................................8

Jumper List ...................................................................9

Connector List ..............................................................9

Configuring the CPU ..................................................10

System Memory ..........................................................10

VGA Controller............................................................10

PCI E-IDE Drive Connector........................................11

Floppy Disk Drive Connector ....................................14

Serial Port Connectors...............................................15

Parallel Connector......................................................15

Ethernet Connector ....................................................16

USB Connector ...........................................................16

CMOS Data Clear ........................................................17

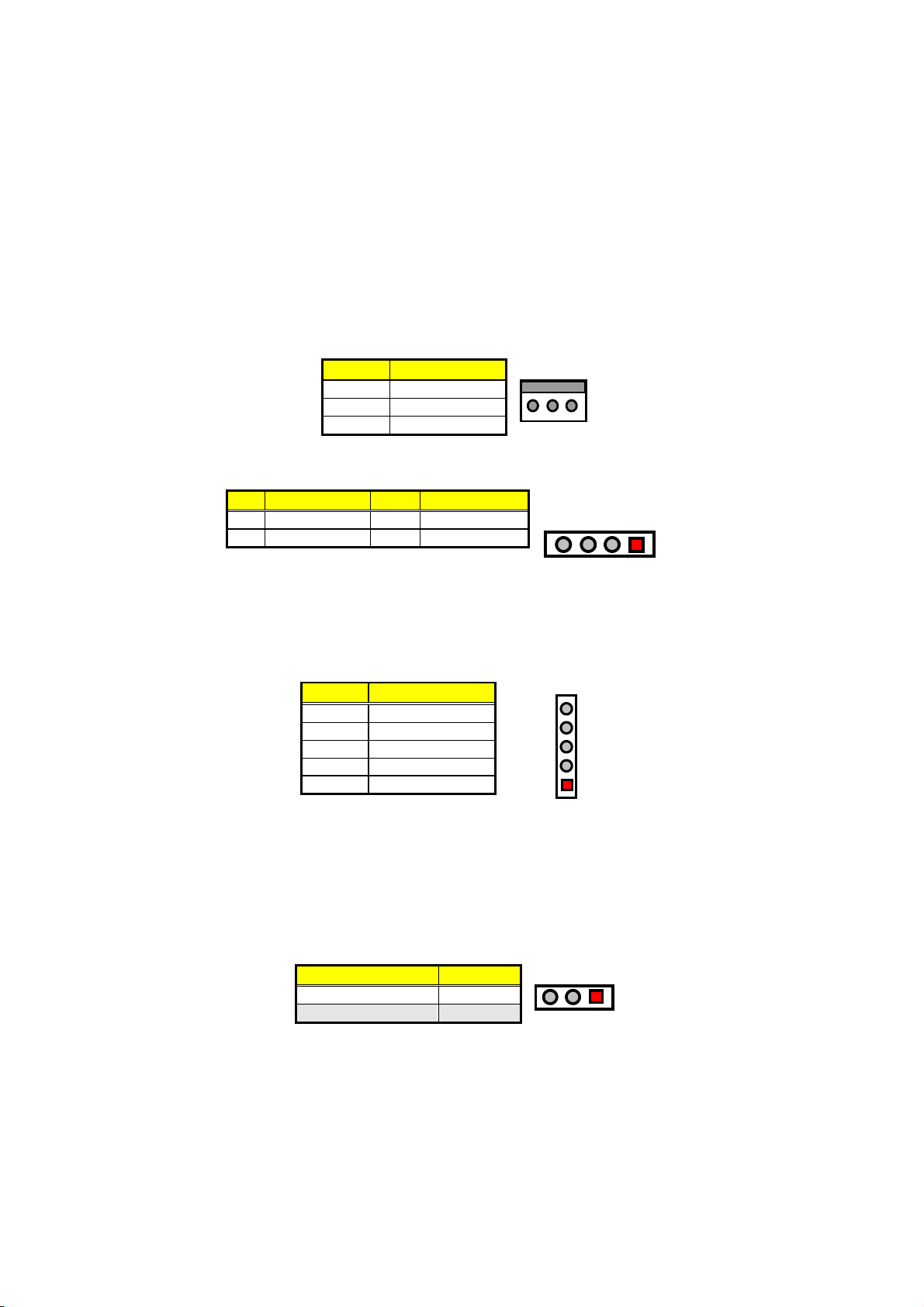

Power and Fan Connectors.......................................17

Keyboard/Mouse Connectors ...................................18

System Front Panel Connectors...............................18

Audio Connectors ......................................................19

IrDA Connector ...........................................................19

Watchdog Timer..........................................................19

Chapter 4 Award BIOS Setup……………………..21

4.1

4.2

4.3

4.4

4.5

4.6

4.7

Starting Setup .............................................................21

Using Setup.................................................................22

Main Menu ...................................................................23

Standard CMOS Setup ...............................................24

Advanced CMOS Setup..............................................25

Advanced Chipset Setup ...........................................26

Power Management Setup.........................................27

Page 4

4.8

4.9

4.10

4.11

PCI / Plug and Play Setup..........................................28

Peripheral Setup .........................................................29

PC Health Status.........................................................30

Frequency/Voltage Control........................................30

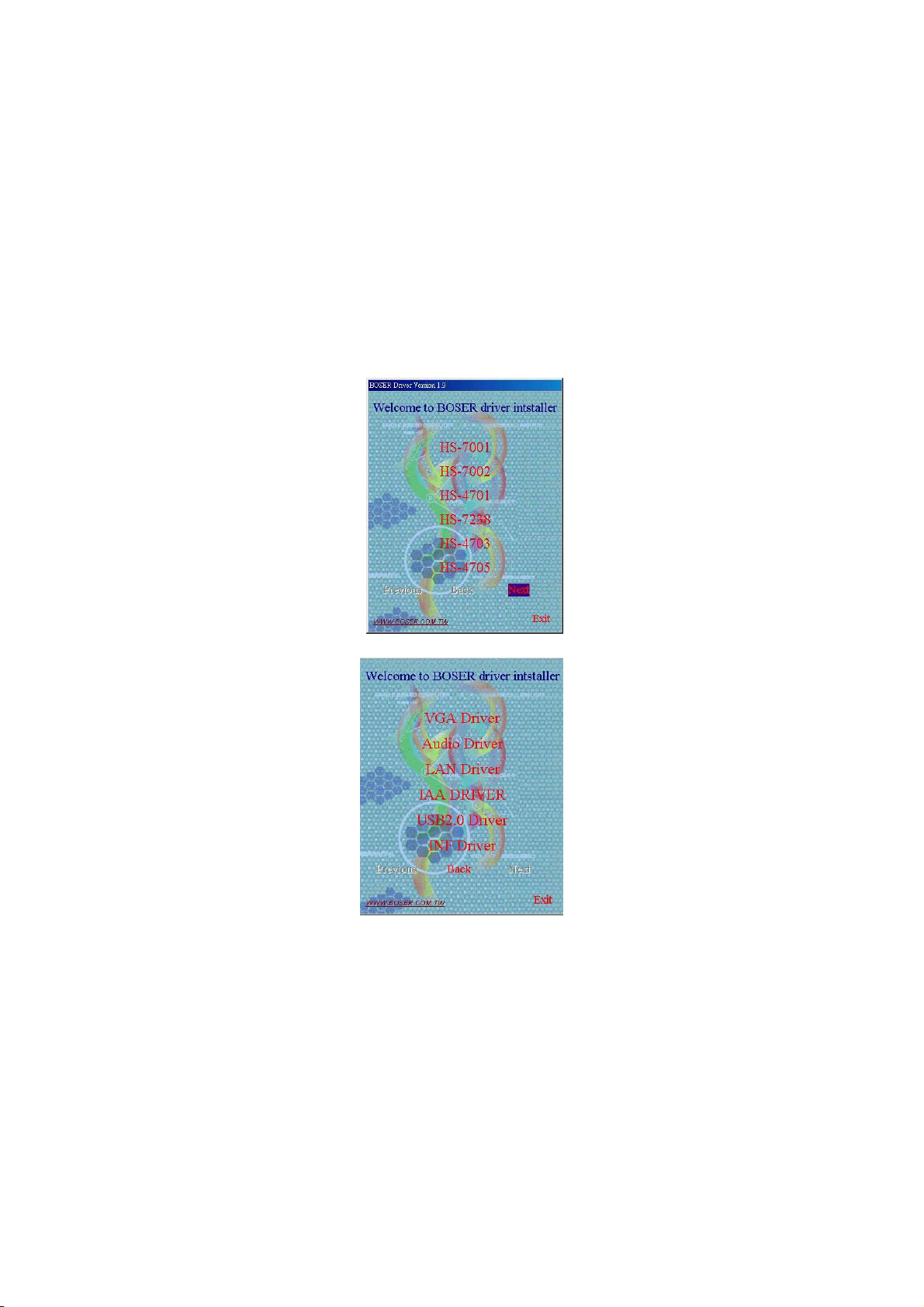

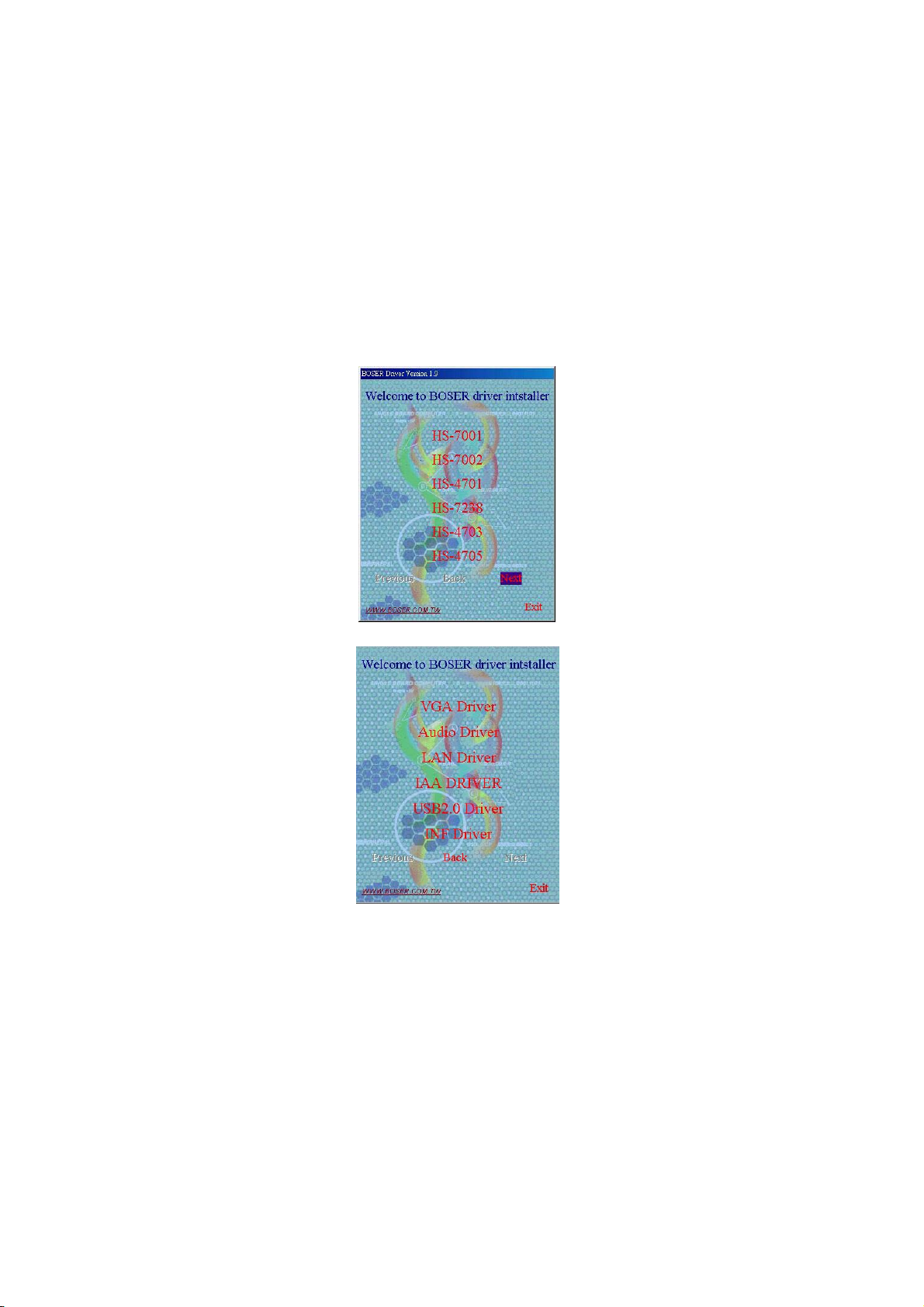

Chapter 5 Software Utilities……………………….31

5.1

5.2

5.3

5.4

5.5

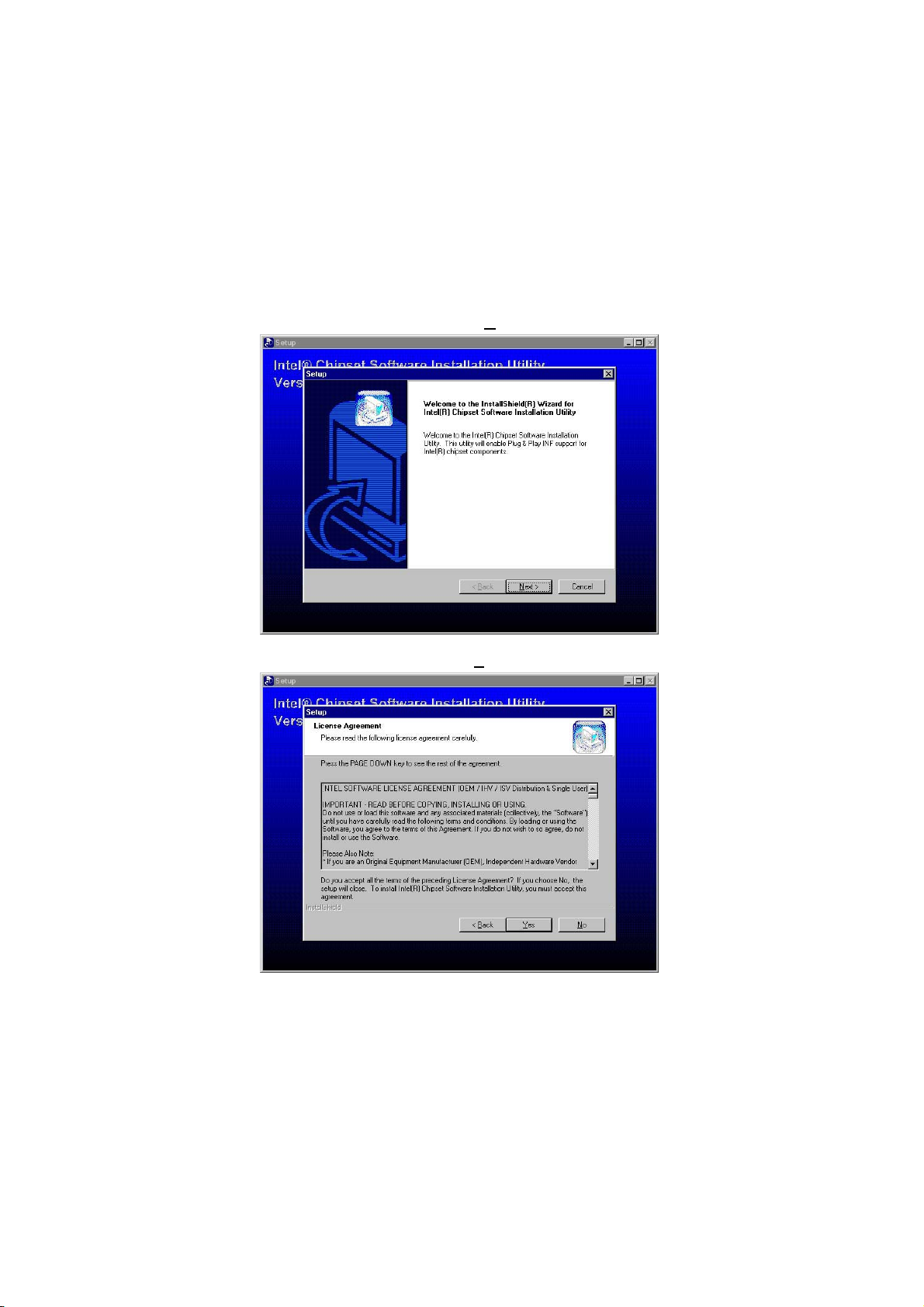

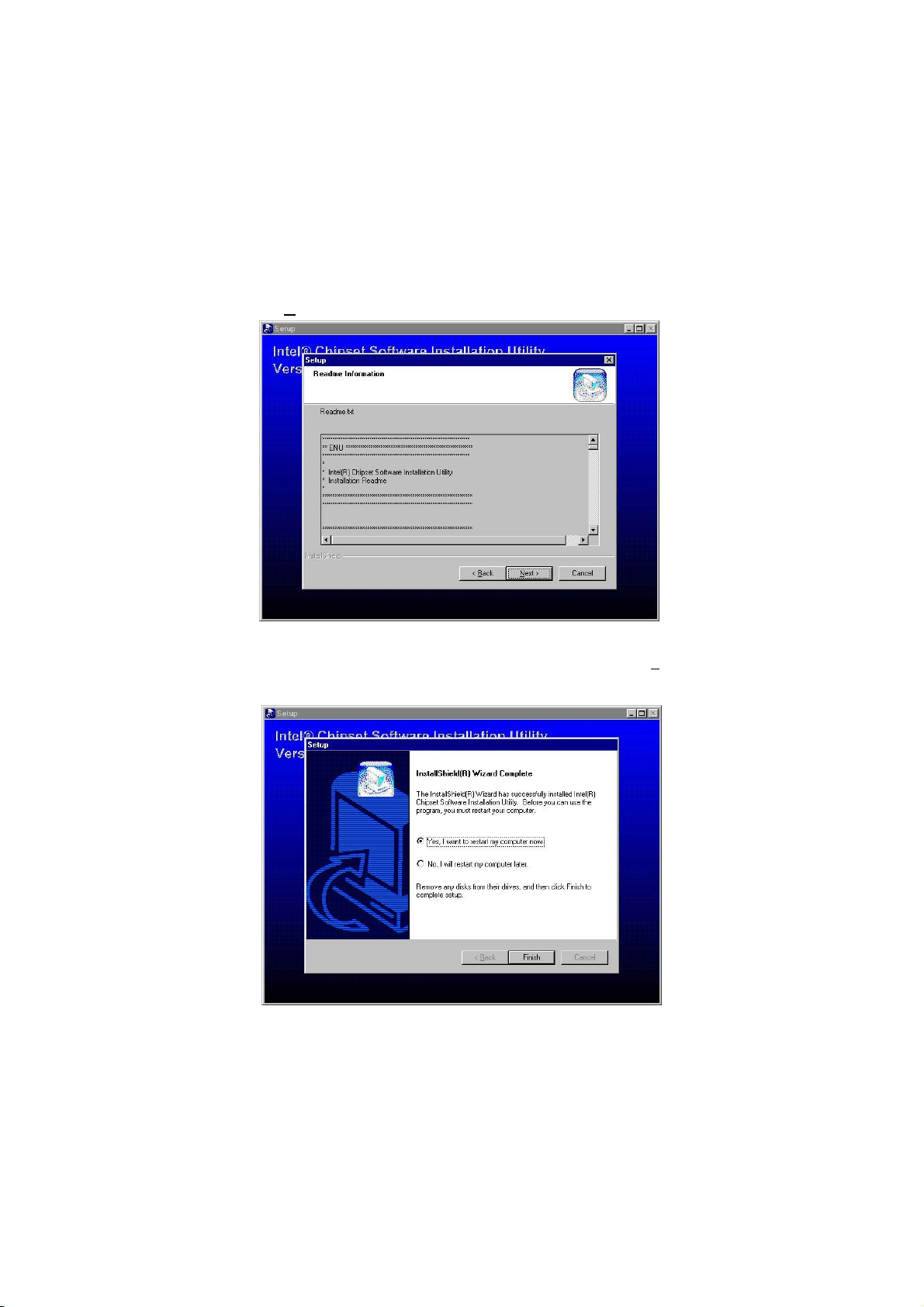

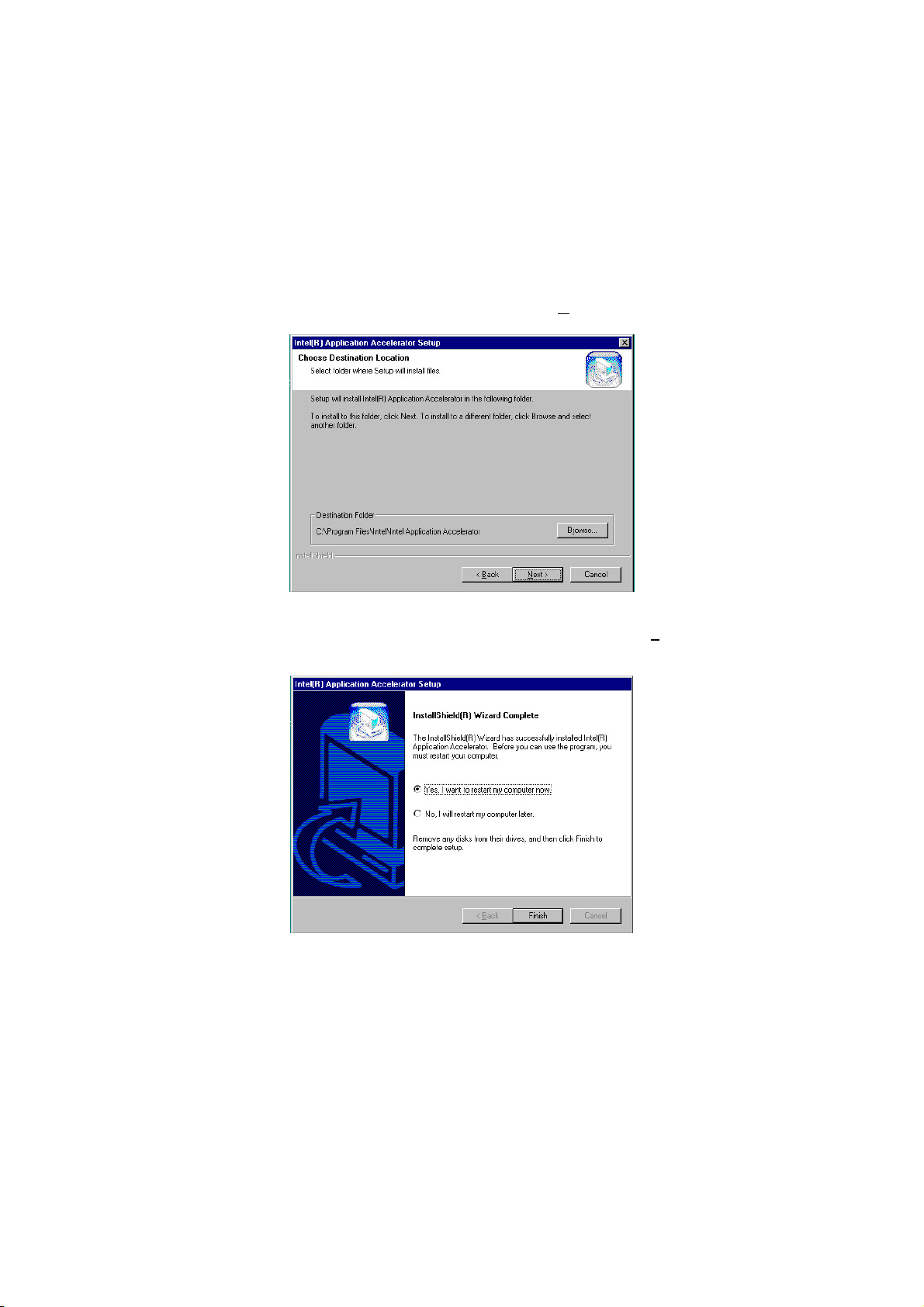

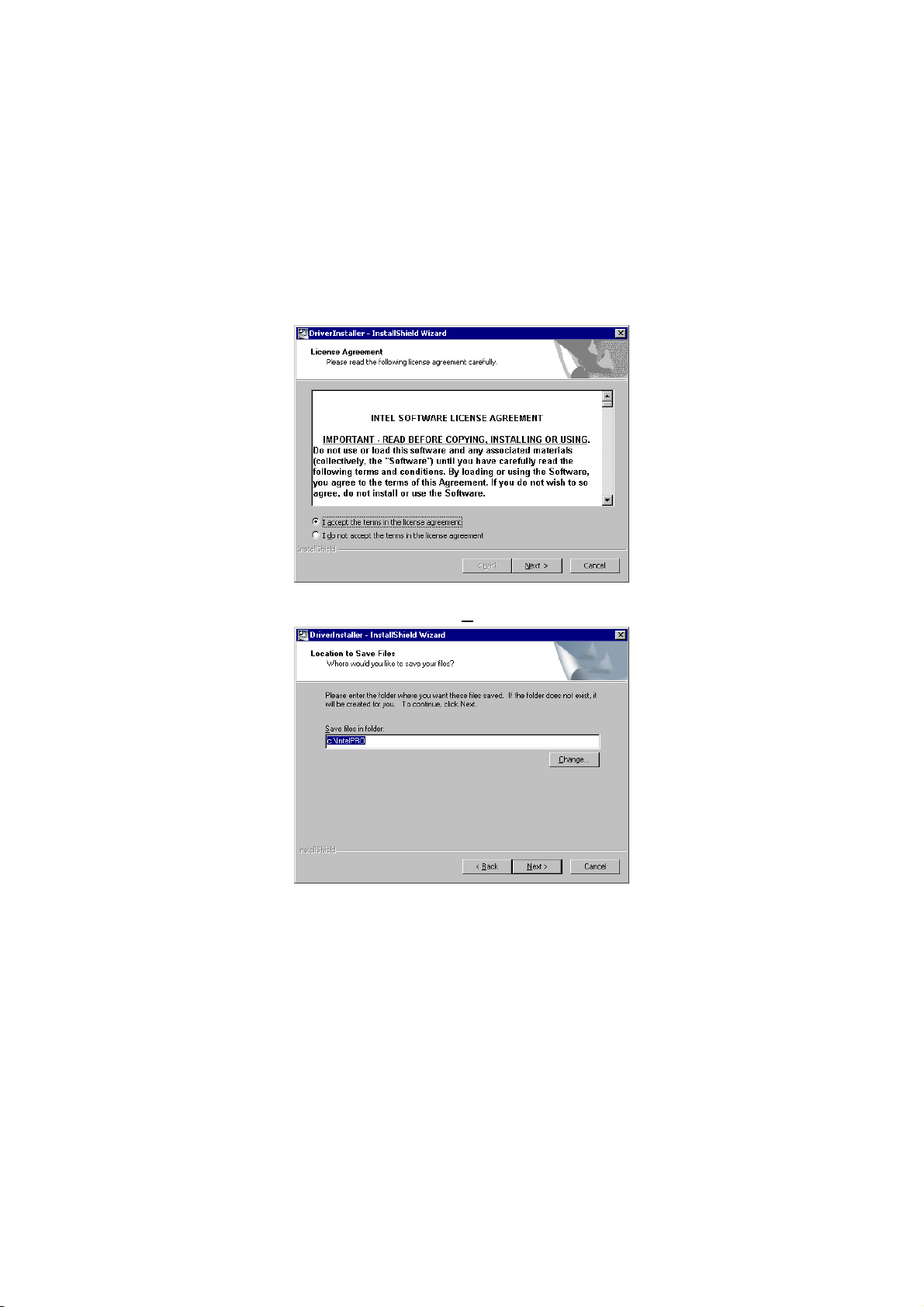

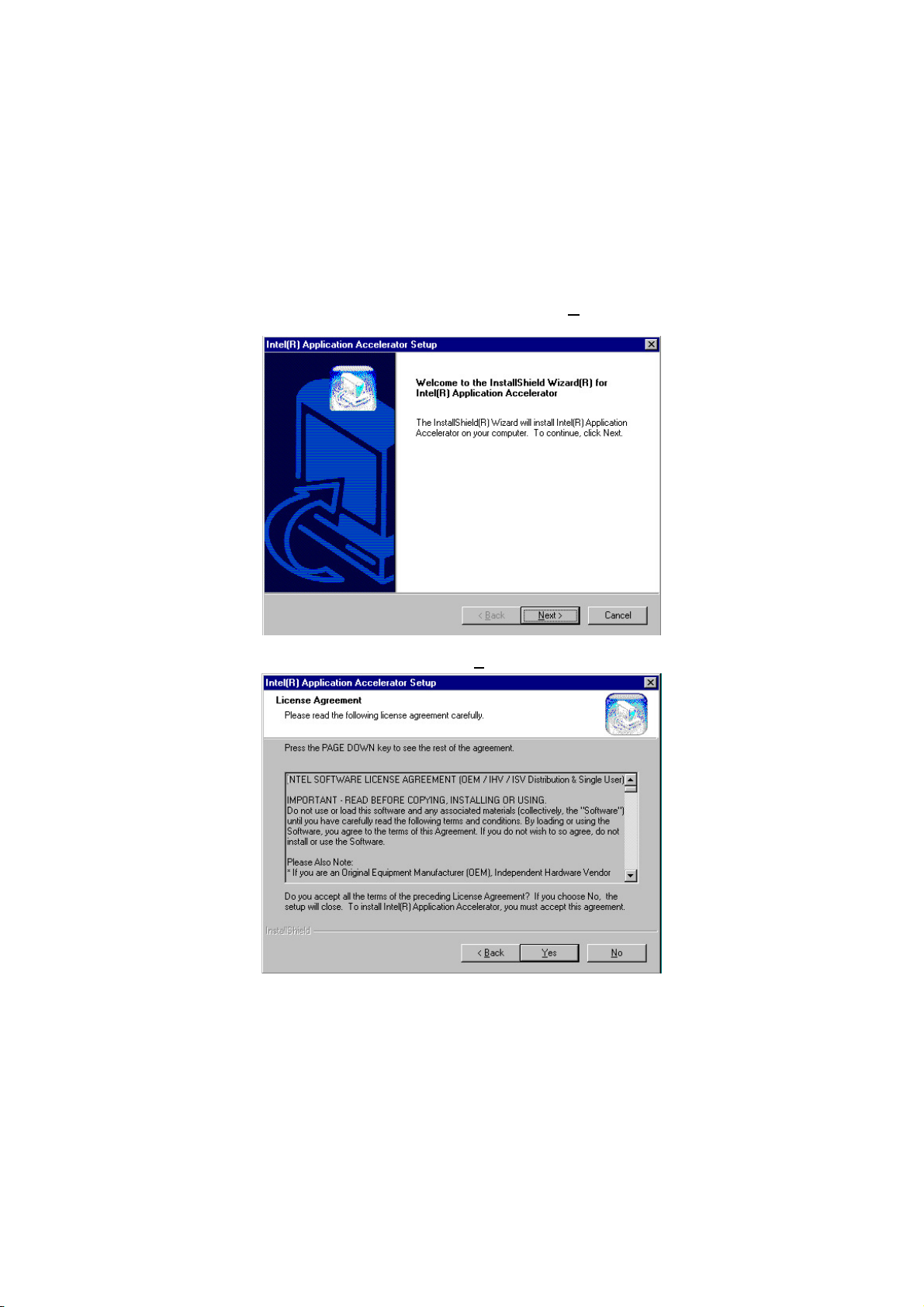

IDE Driver Installation ................................................31

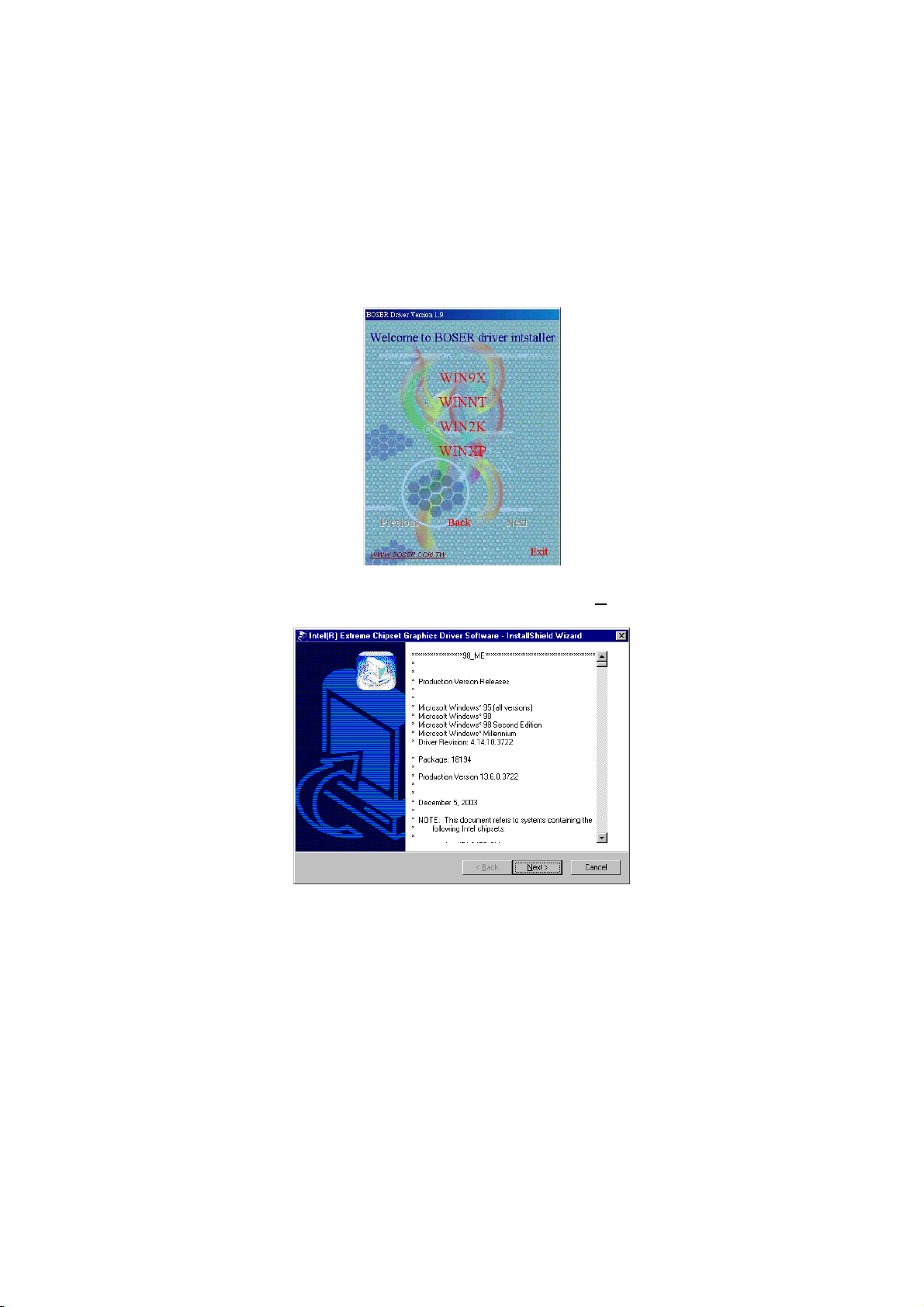

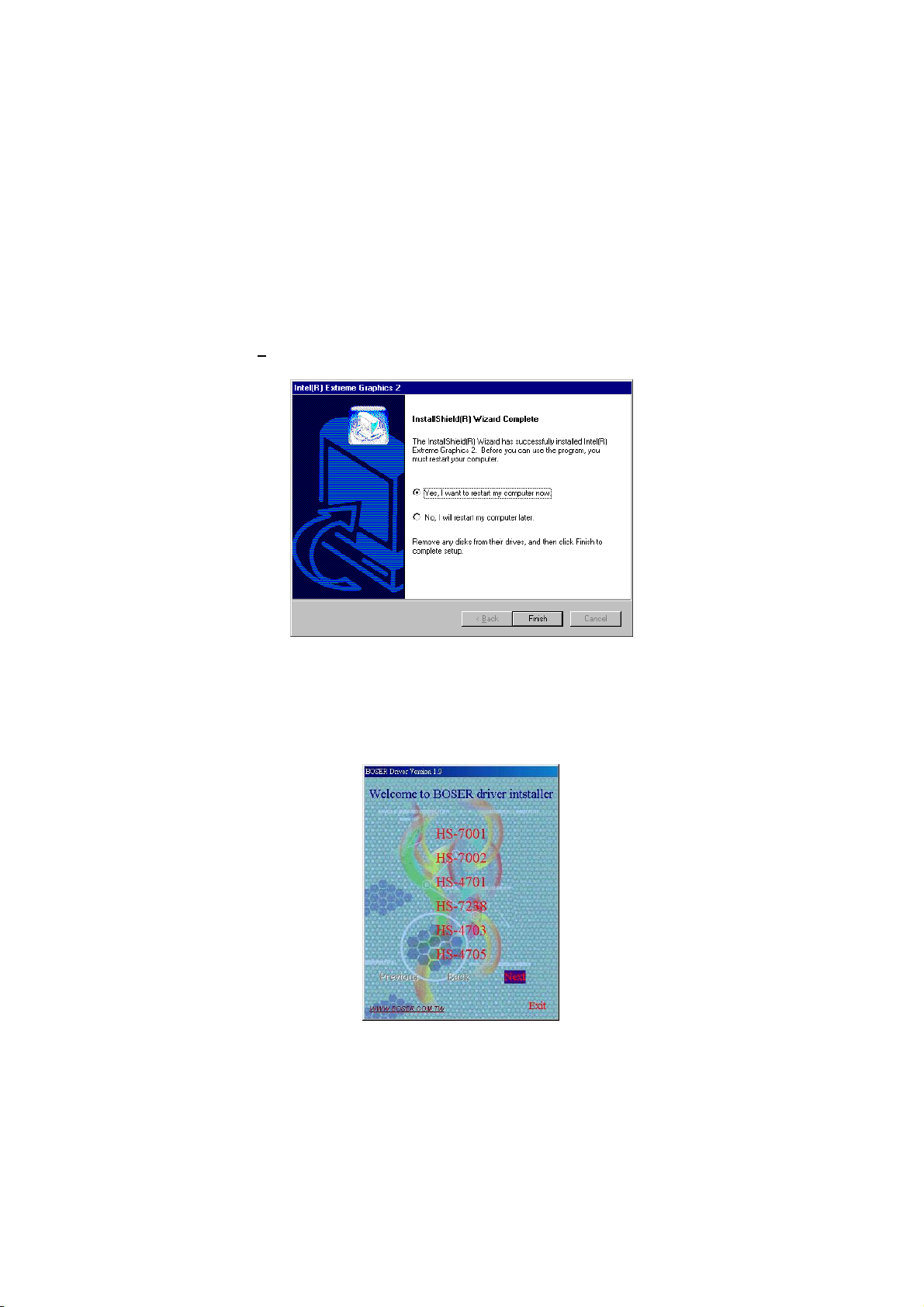

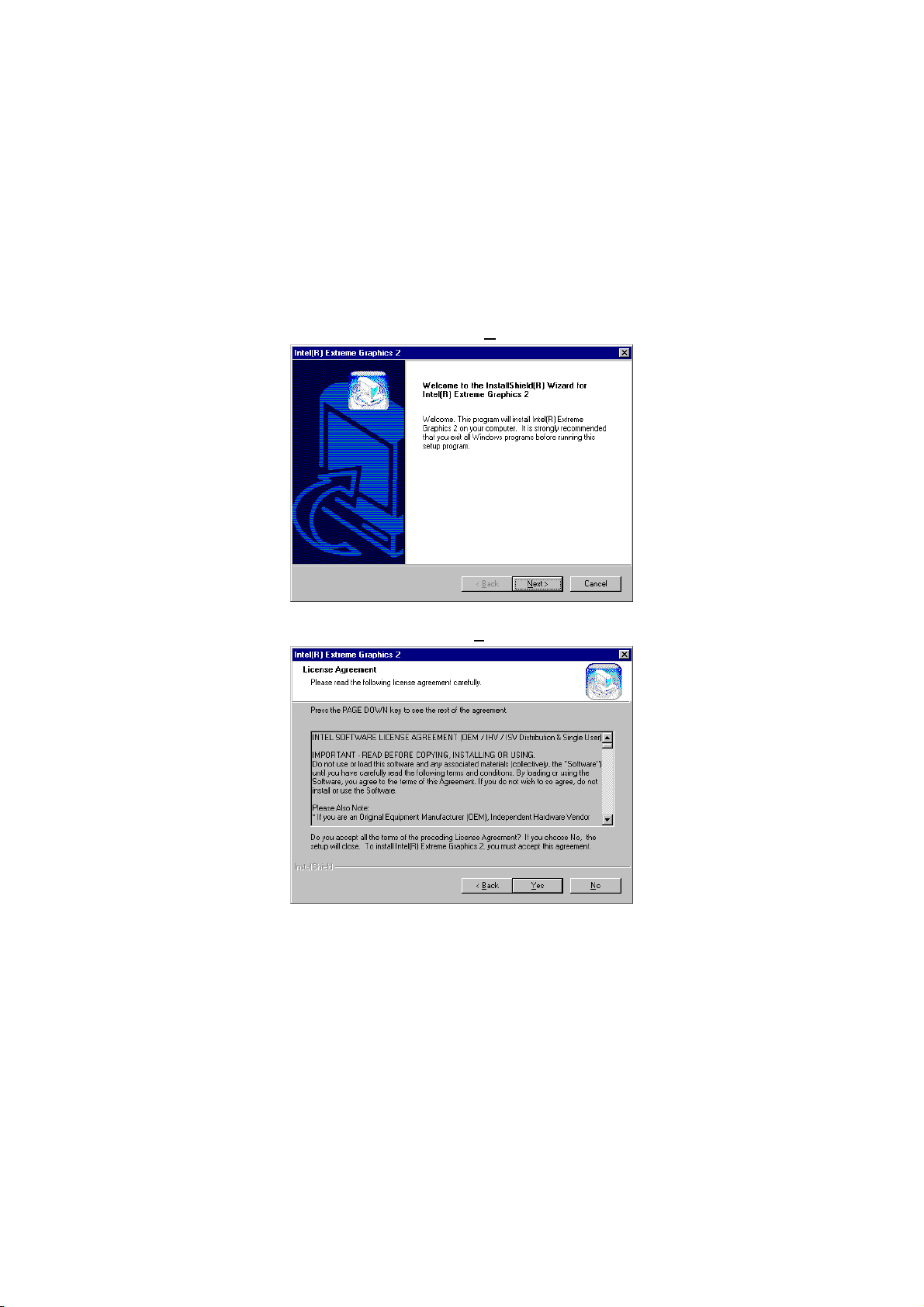

VGA Driver Installation...............................................38

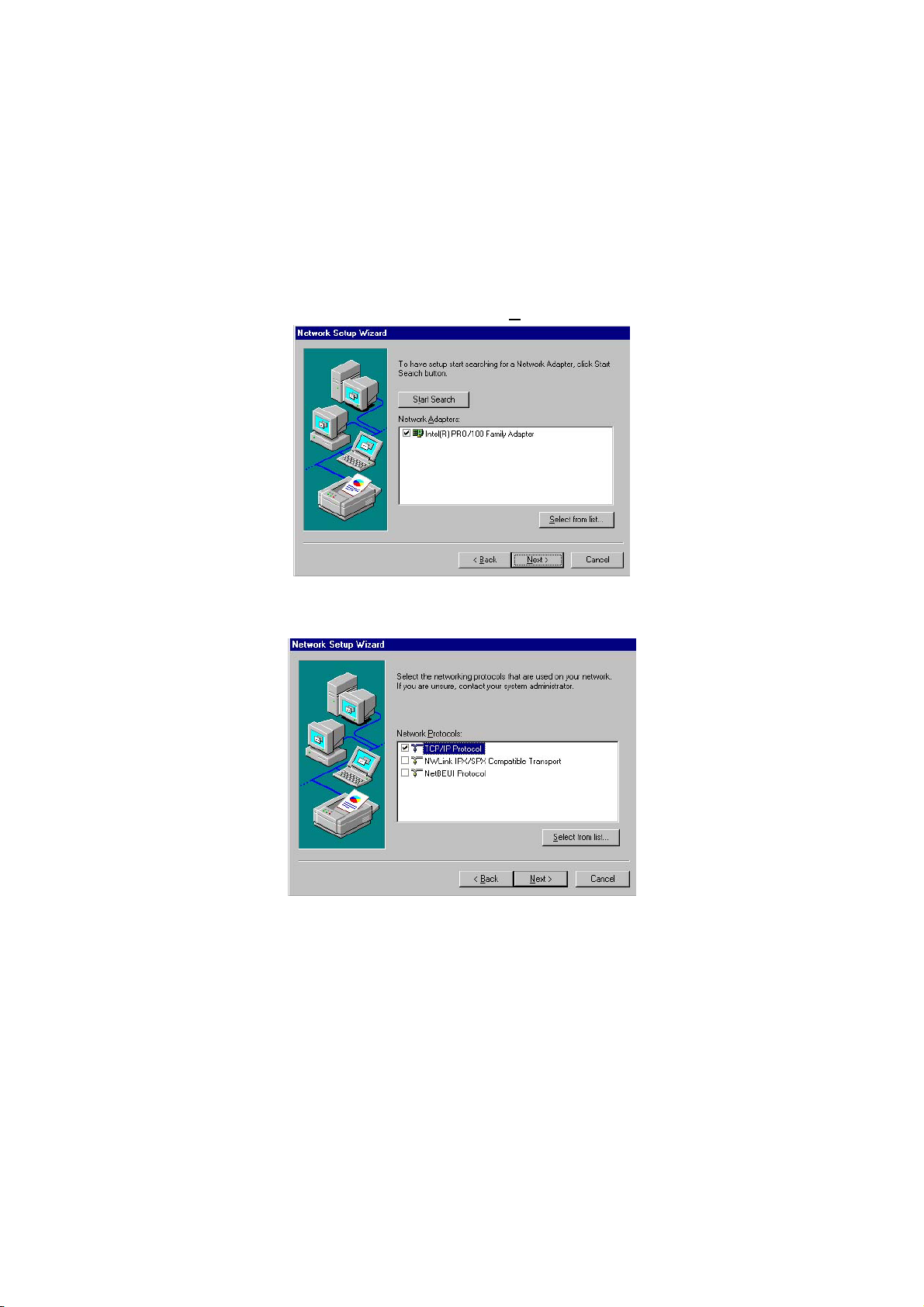

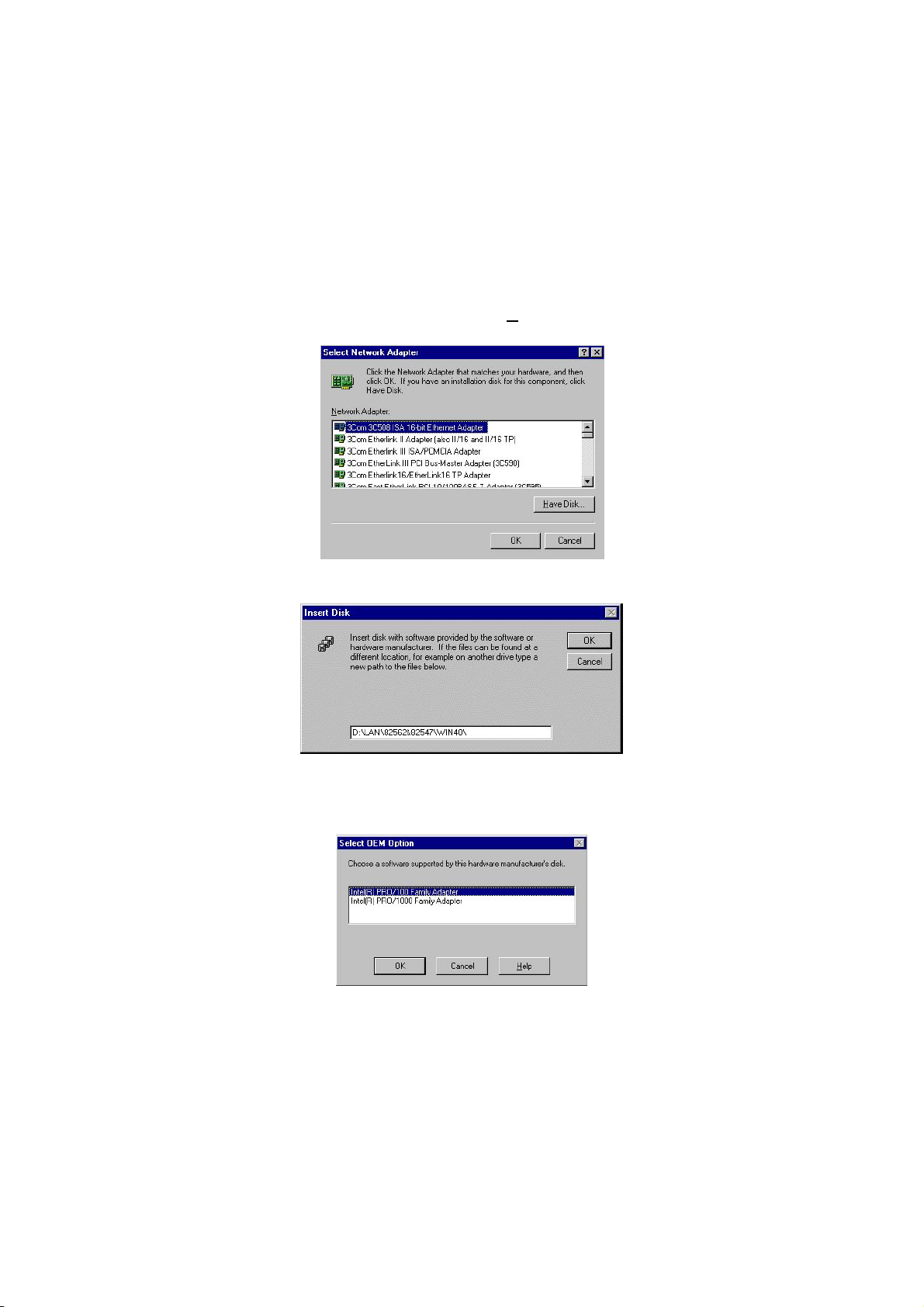

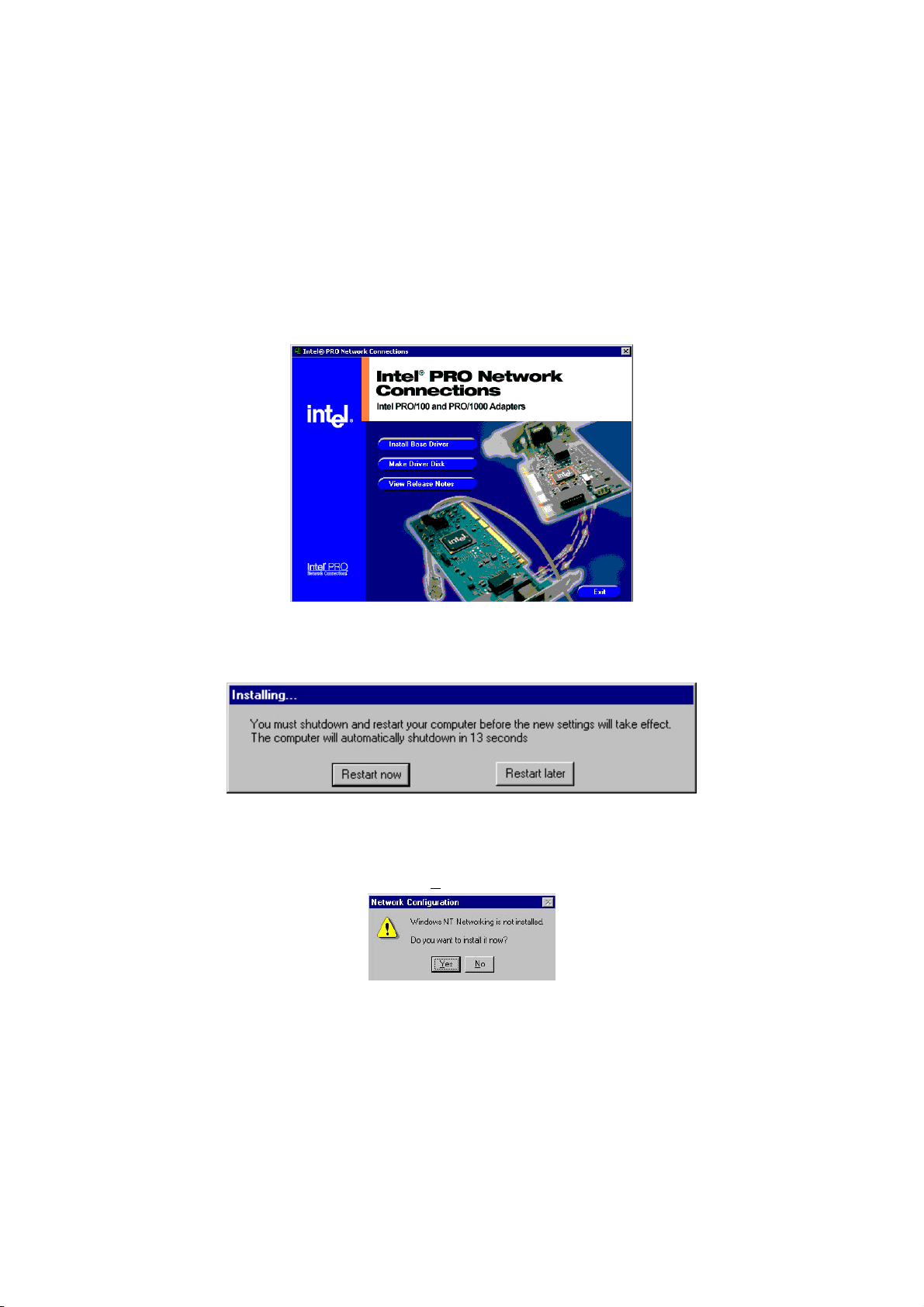

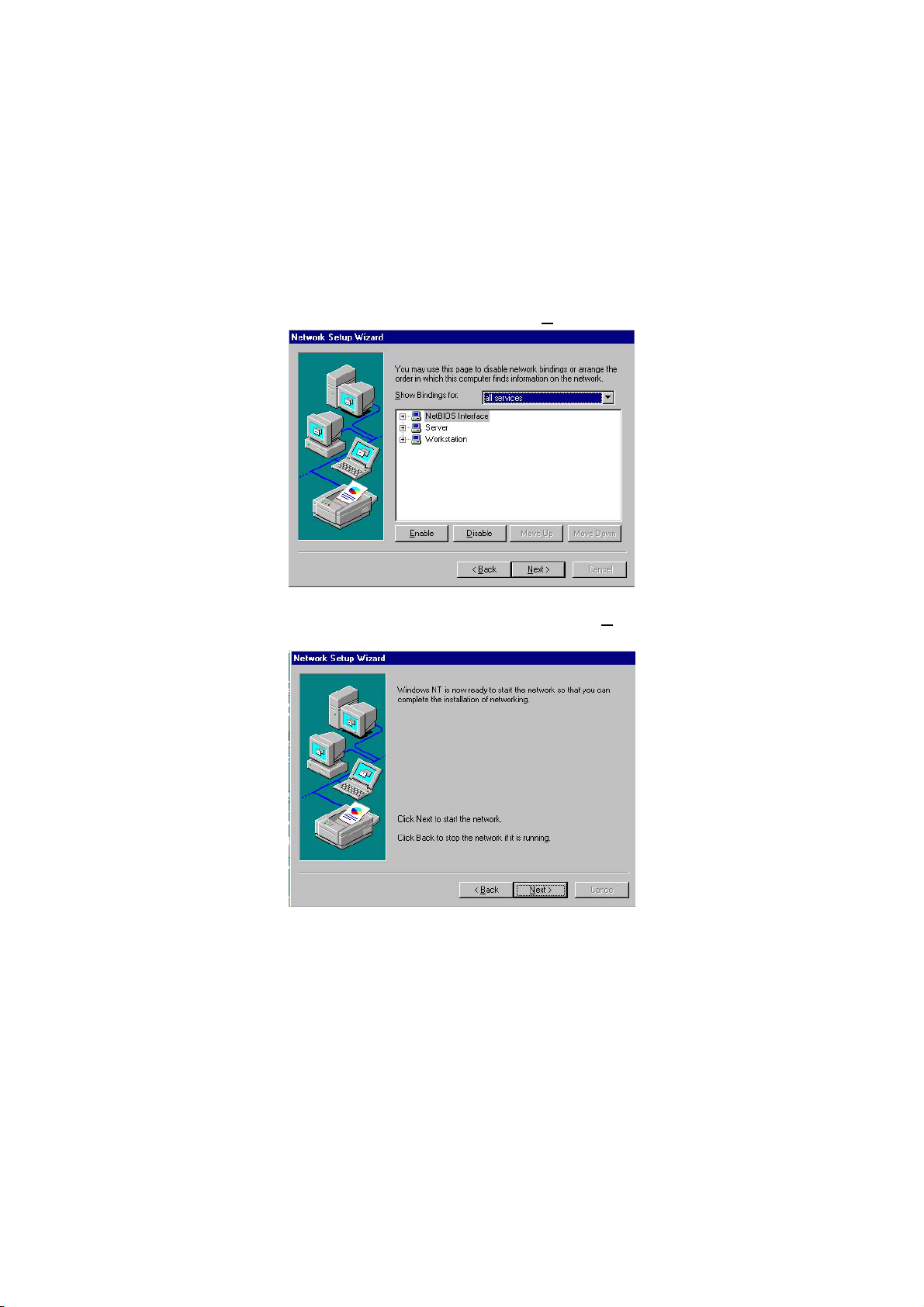

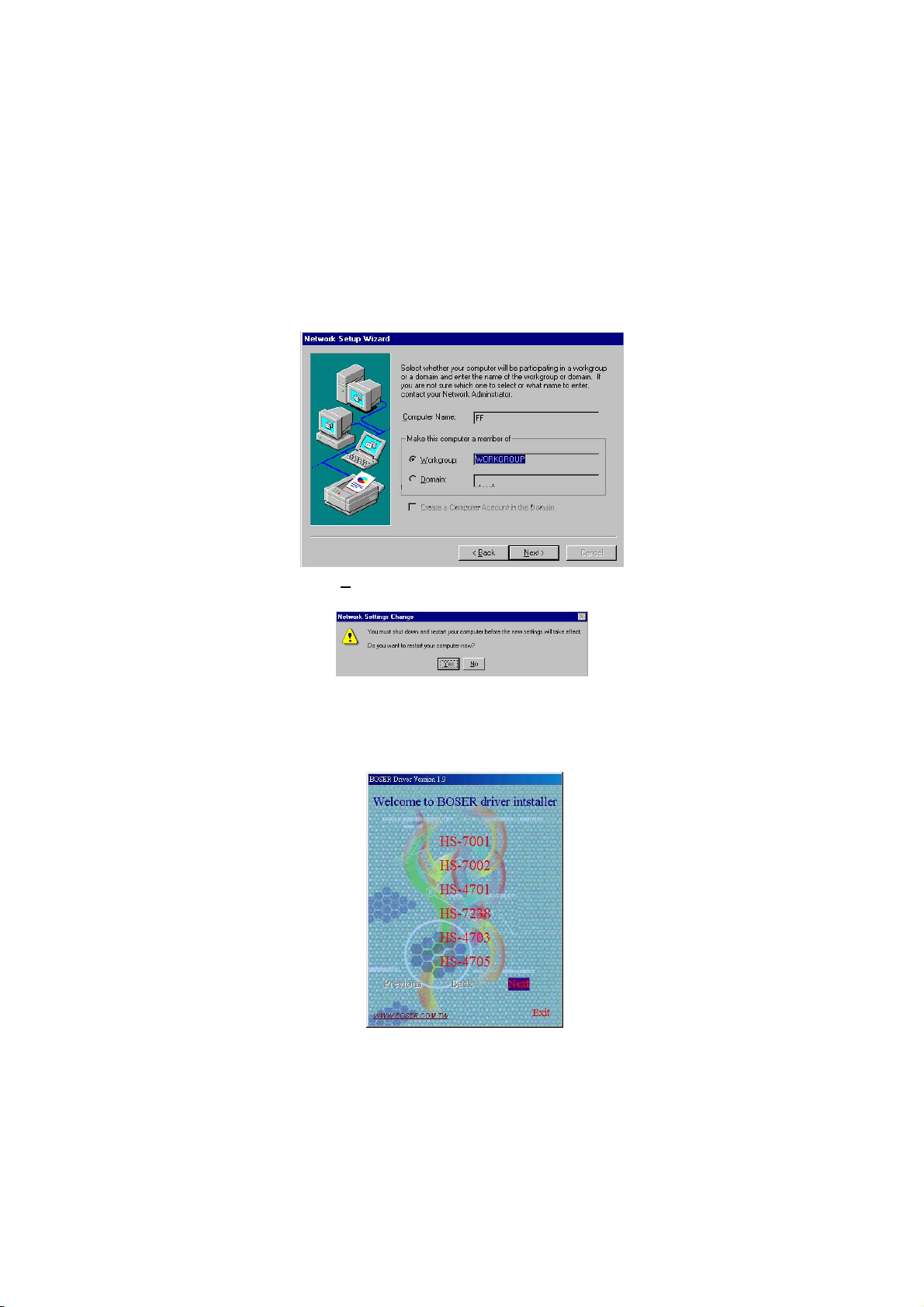

LAN Driver Installation...............................................41

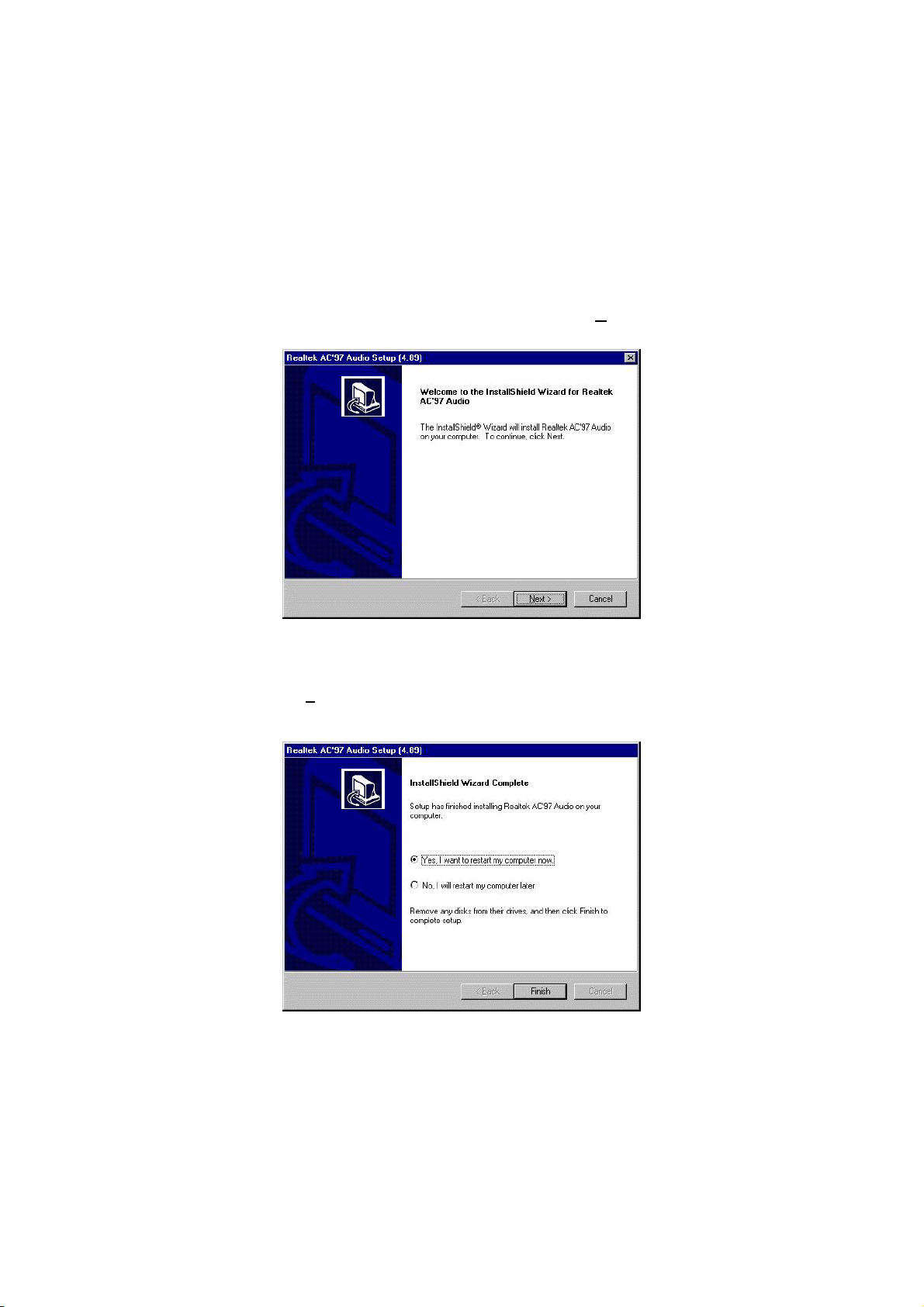

Audio Driver Installation ............................................50

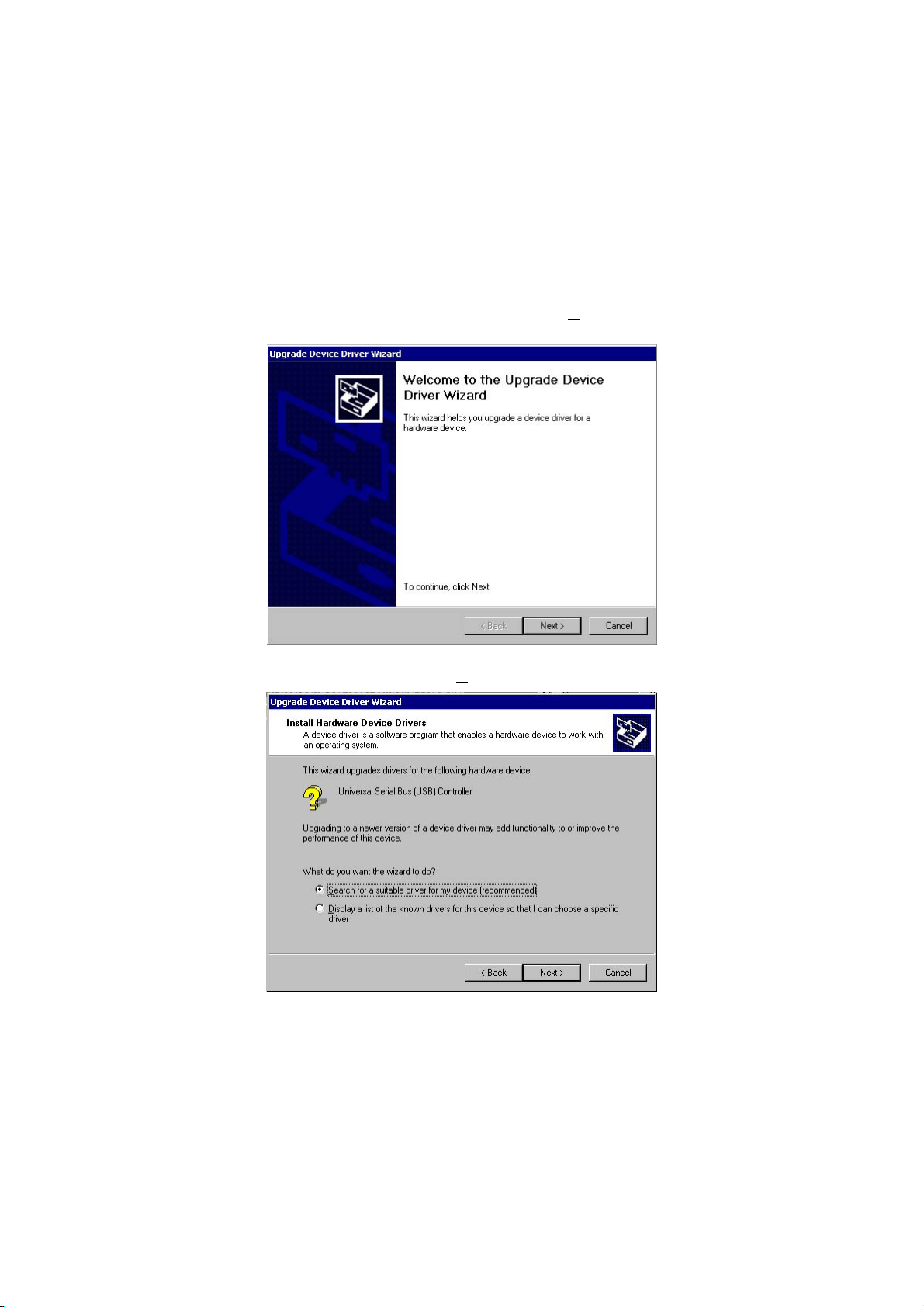

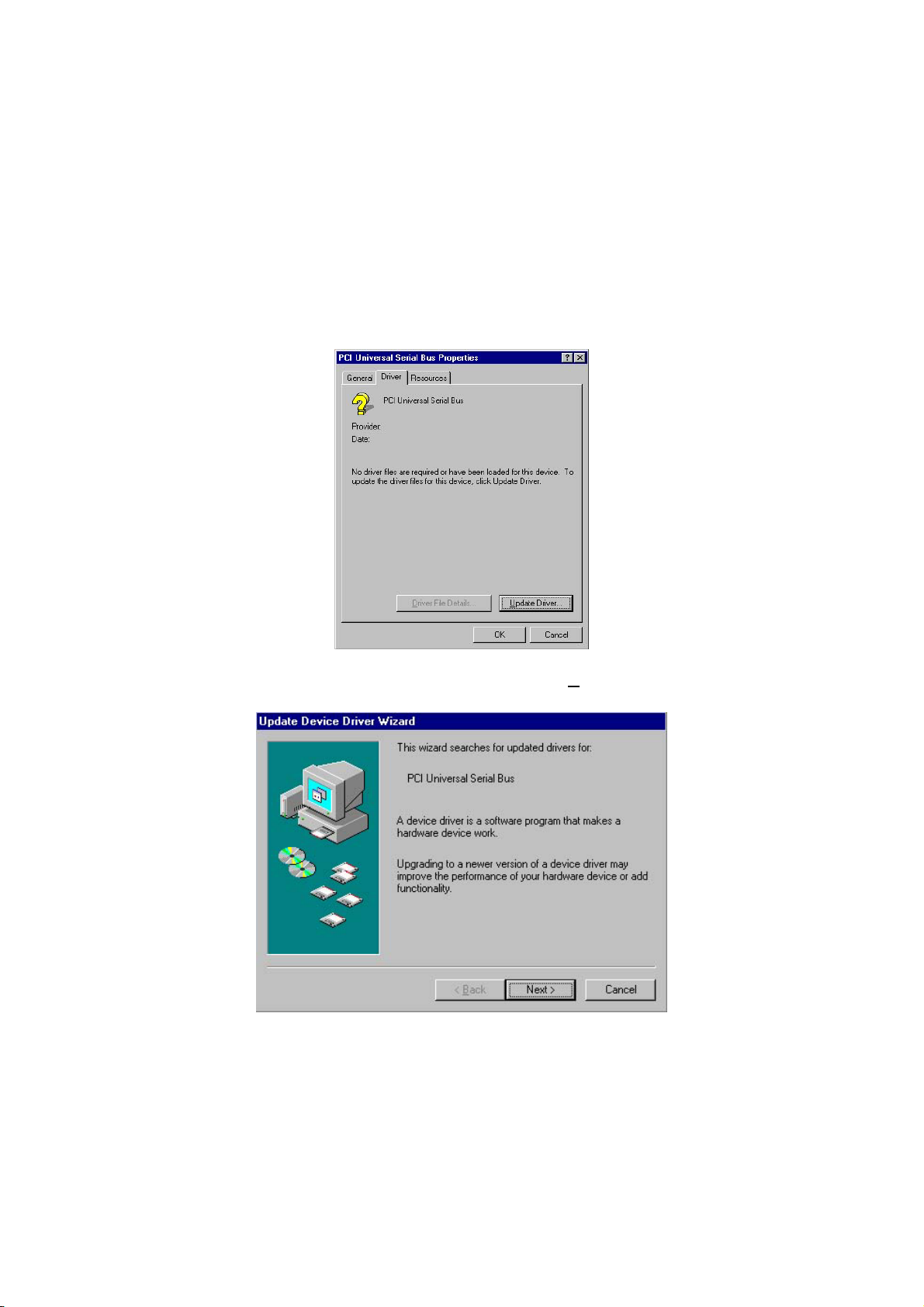

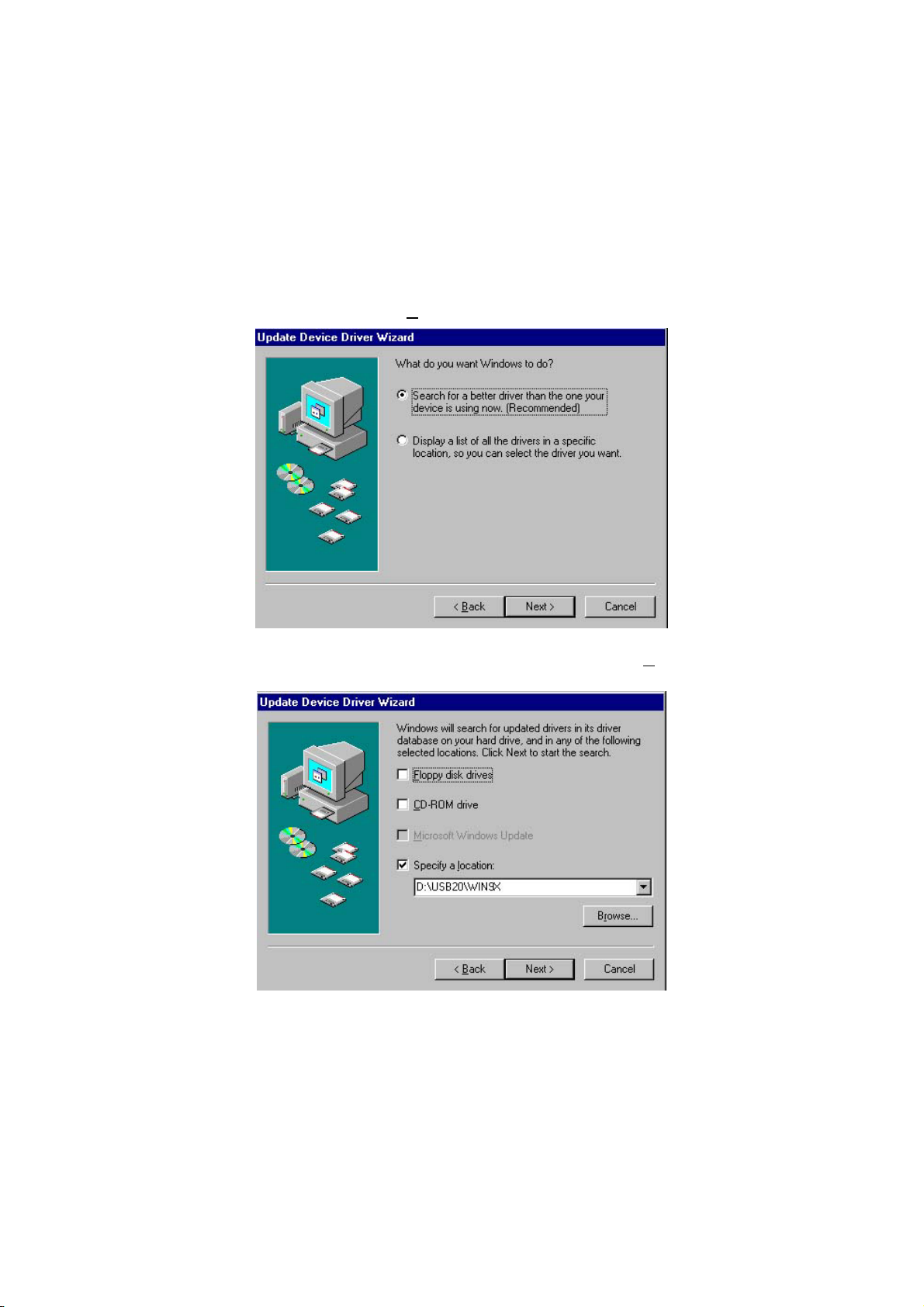

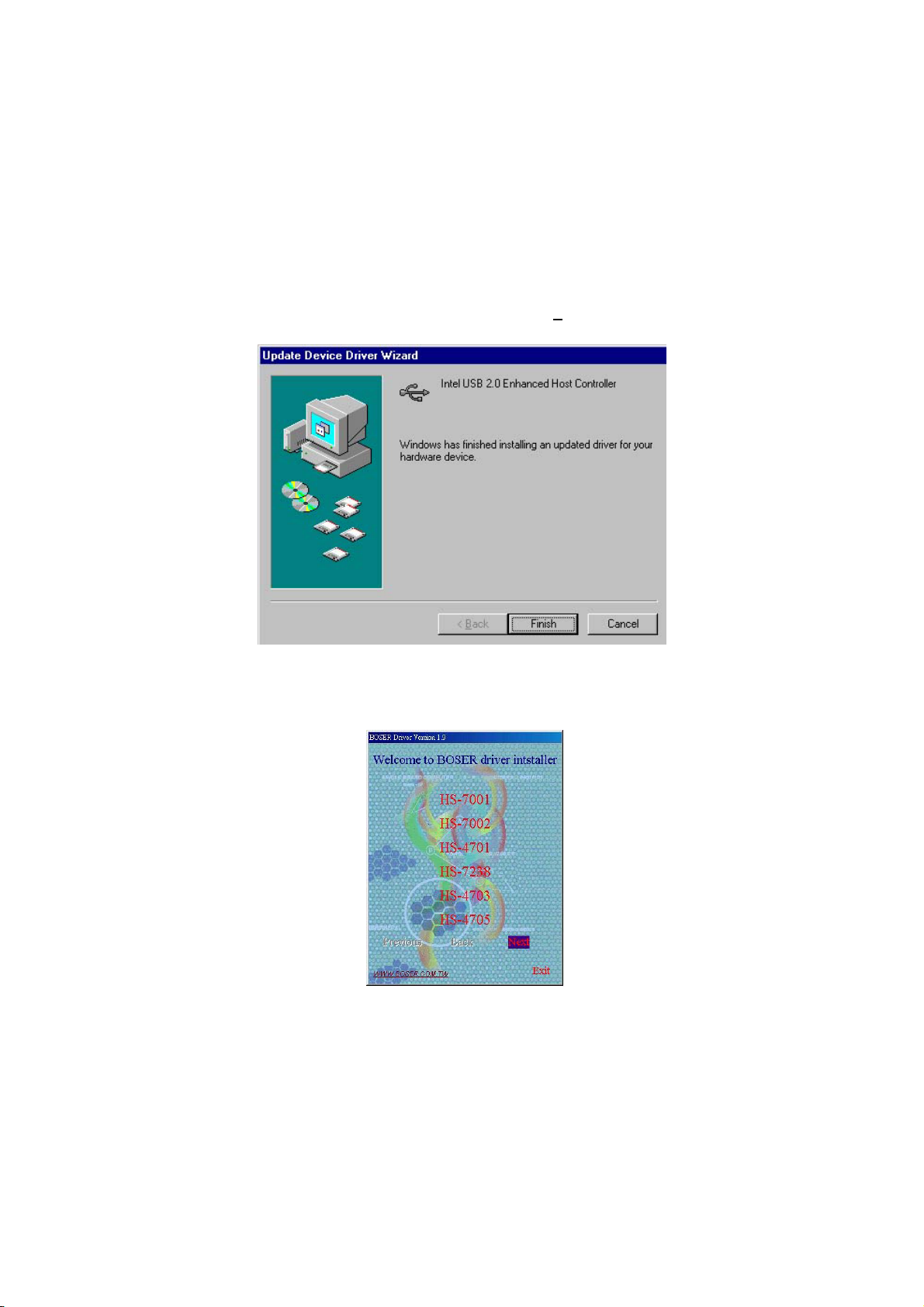

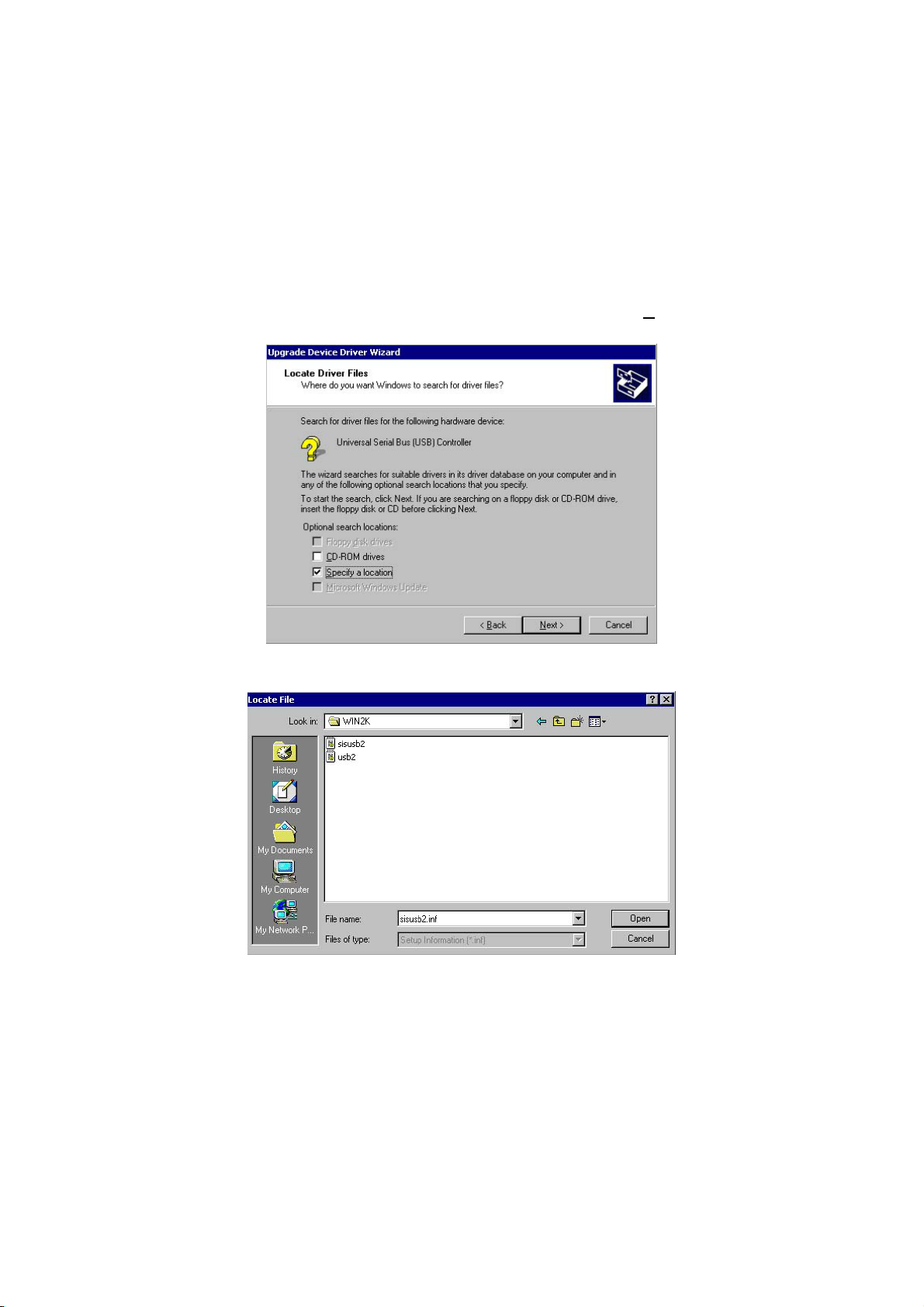

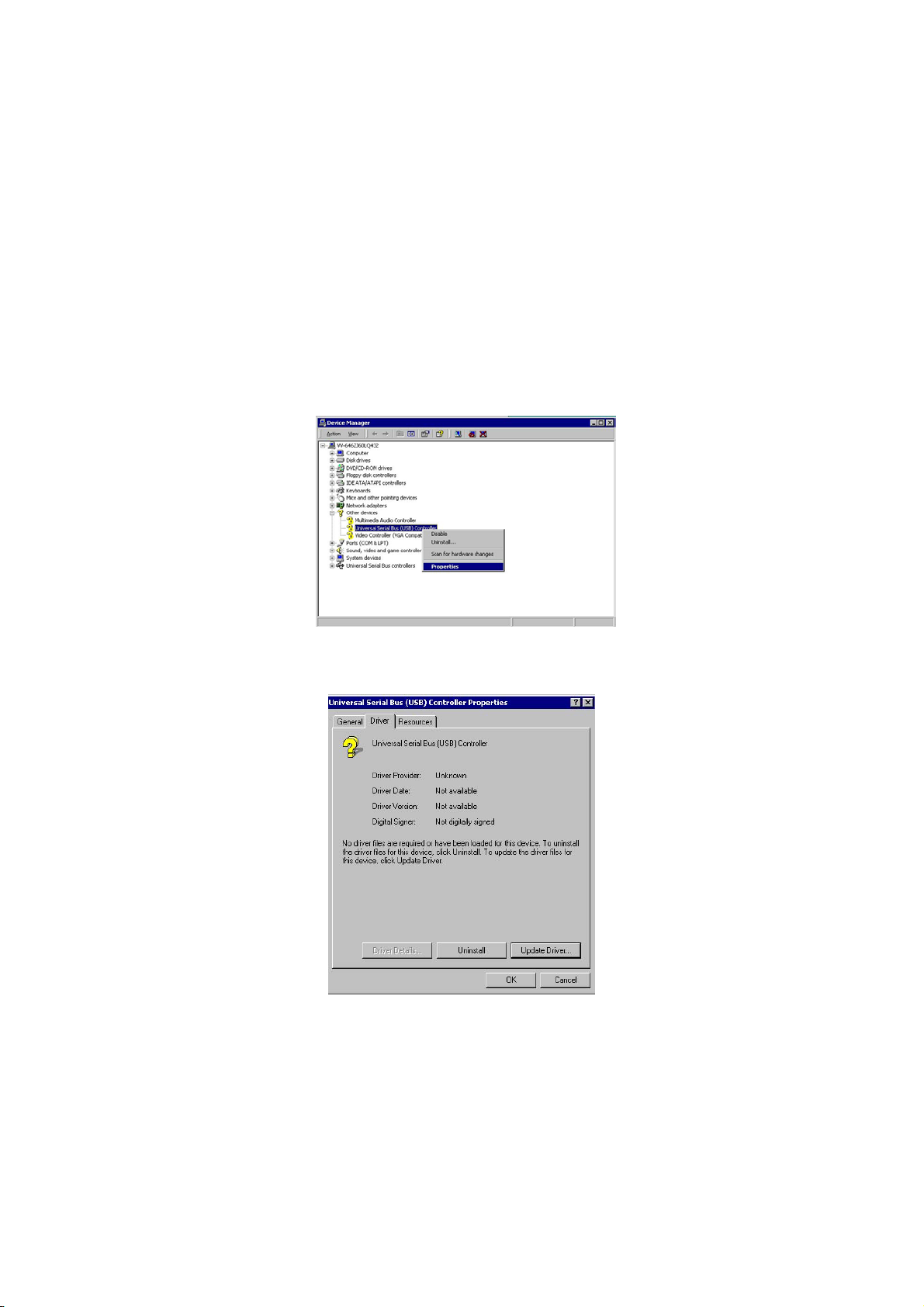

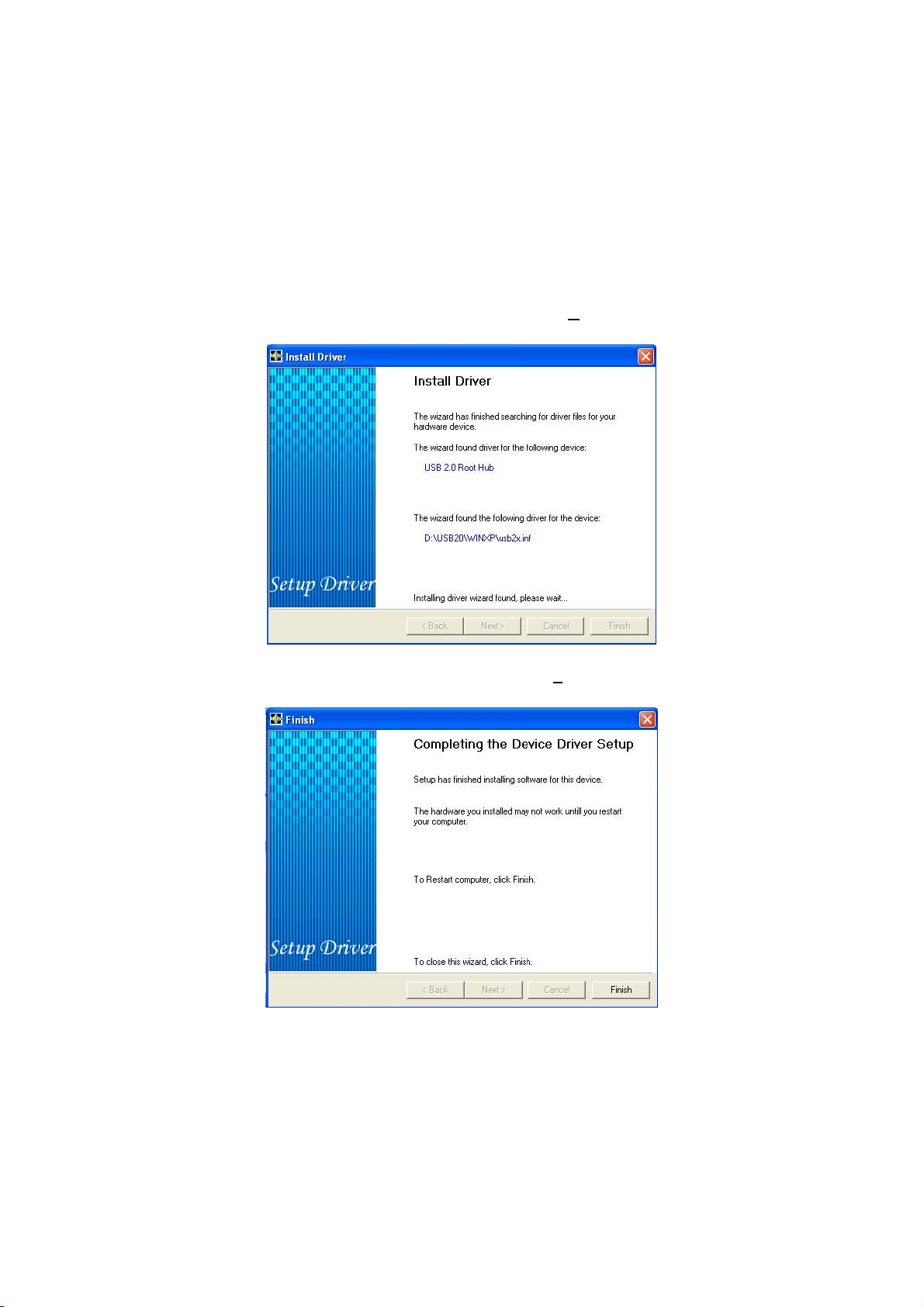

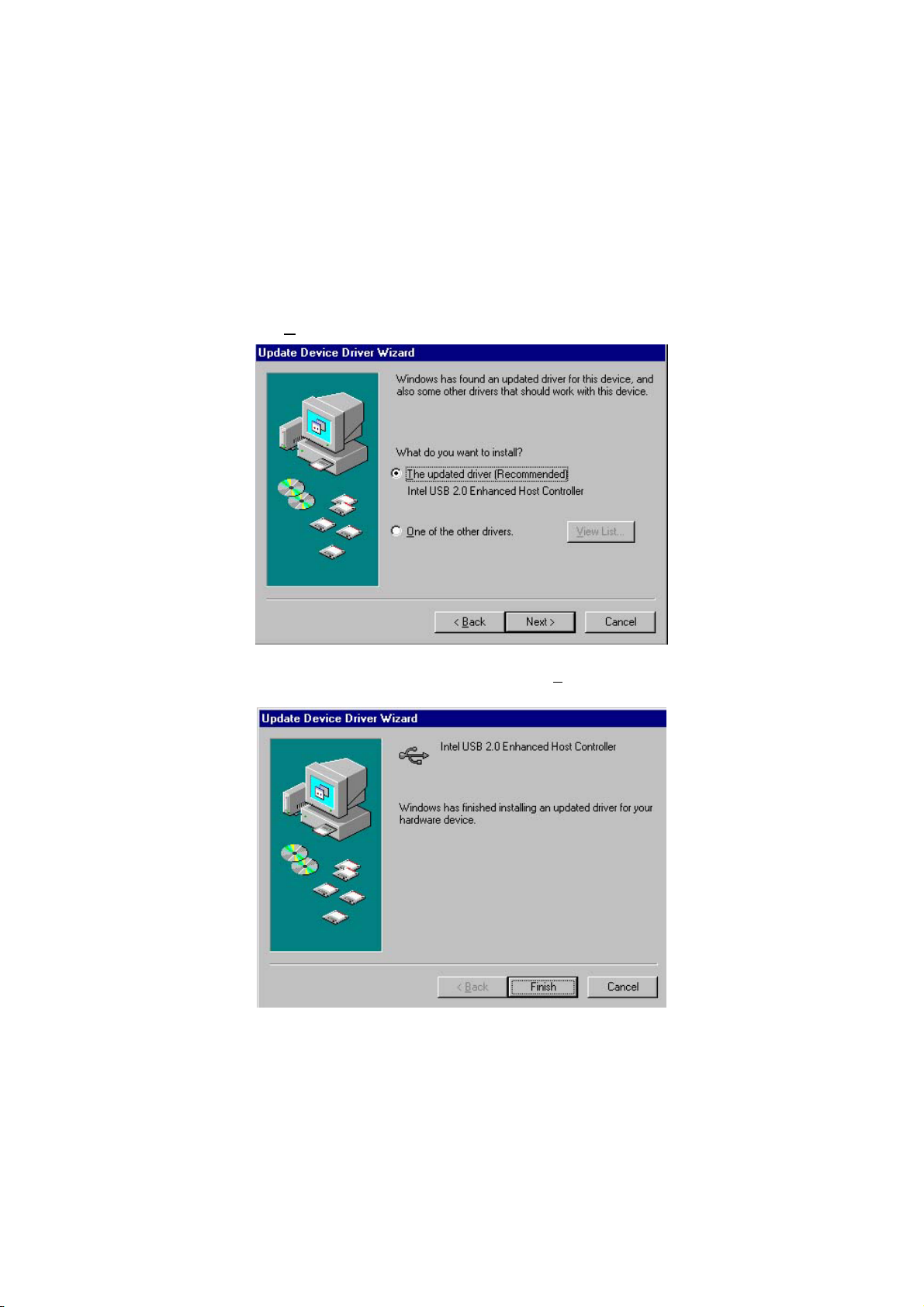

USB2.0 Driver Installation..........................................53

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handling the HS-4705 to protect yourself from the discharge of any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENT WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

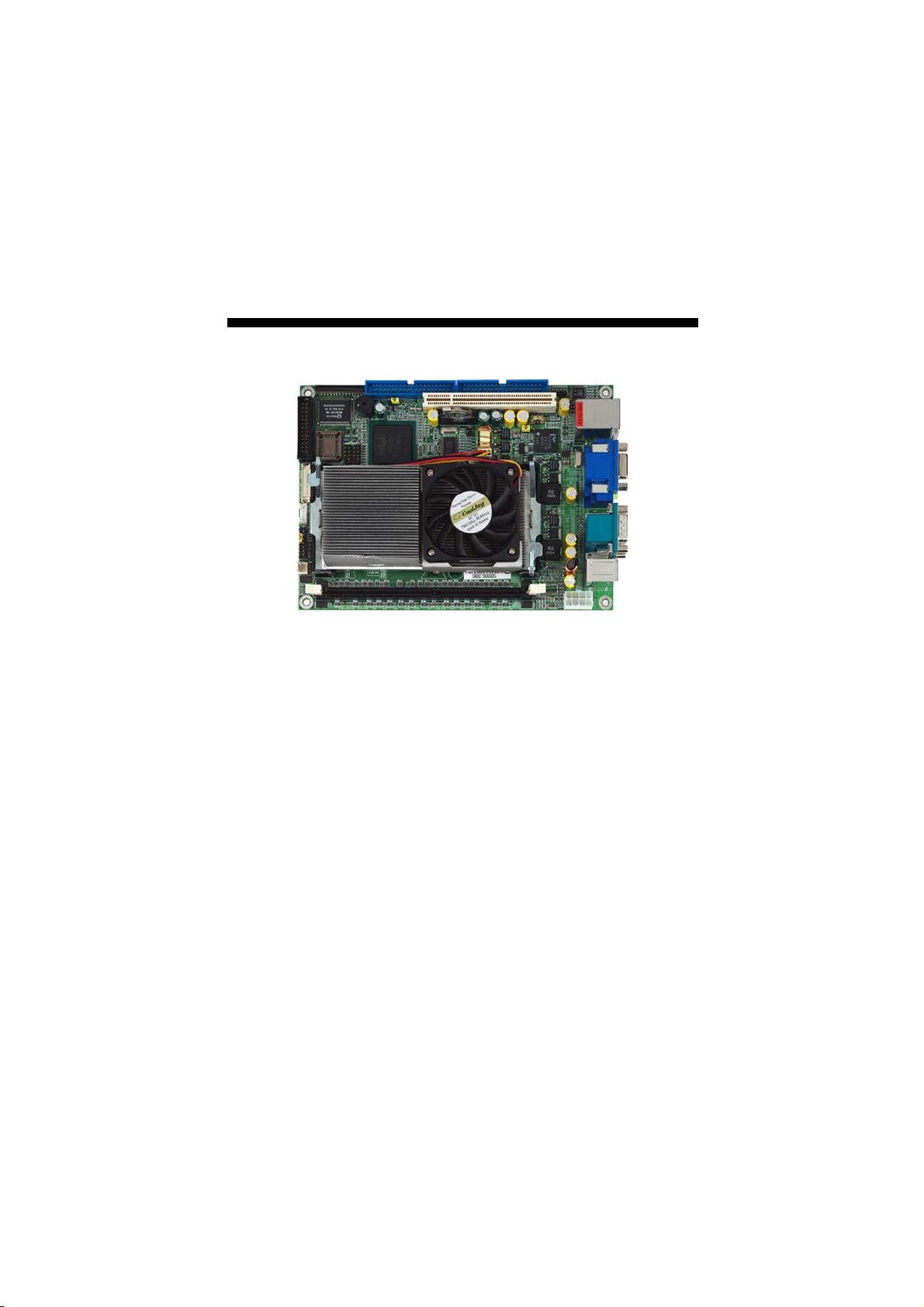

Chapter 1

General Description

The HS-4705 is an Intel® 82855GME/ICH4 chipset-based board designed for PCI Bus PGA 479 Intel compatibility. These features combine and make the HS-4705 an ideal all-in-one industrial single board computer. Additional features include and enhanced I/O with CRT/LVDS Panel, Giga LAN, audio and USB2.0 ports interface.

Pentium® M 1.2~1.7GHz CPU

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-4705 to support data transfers of 33, 66 or 100MB/sec. to each IDE drive connection. Designed with the Intel logic chipset, the board supports all PGA 479 Pentium operating 1.2~1.7GHz. The display controller is Intel supporting CRT display up to 1600 x 1200, and also provides 24-bit single channel LVDS panel interface.

System memory is also sufficient with one DDR socket that can support up to 1GB.

Additional onboard connectors include an advanced USB2.0 port providing faster data transmission, and one RJ-45 connector for 10/100 Base-TX Ethernet use.

82855GME/ICH4 core

M CPU series

82855GME

Page 8

1.1 Major Features

The HS-4705 comes with the following features:

 PGA 479 for Intel® Pentium® M 1.2~1.7GHz  Supports 400MHz FSB  One DDR socket with a max. capacity of 1GB  Intel  Winbond W83627HF super I/O chipset  Intel 82855GME CRT display controller  Intel 82540 100/1000 Based LAN  AC97 3D audio controller  Fast PCI ATA/33/66/100 IDE controller  Two COM, six USB2.0 connectors  Supports LVDS Panel interface  Supports Hardware Monitor function

82855GME/ICH4 system chipset

1.2 Specifications



CPU: PGA 479 for Intel® Pentium® M 1.2~1.7GHz



Bus Interface: PCI Bus



Front Side Bus:



Memory: One DDR socket supporting up to 1GB (DDR-200/DDR-266)



Chipset: Intel® 82855GME/ICH4



I/O Chipset: Winbond W83627HF



PCI Slot:



VGA: Intel 82855GME supporting CRT display up to 1600 x 1200

 Panel Display:  LAN: Intel

One standard PCI slot

Supports 24-bit single channel LVDS Panel interface

82540 100/1000 Based LAN

 Audio: AC97 3D audio controller

Supports 400MHz FSB

 IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer

rates of up to 33/66/100MB/sec.



FDD: Supports one slim floppy disk drive

Page 9



Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP

 Serial Port: 16C550 UART-compatible RS-232 x 2 serial ports with

16-byte FIFO



IrDA: One TX/RX IrDA header



USB: Supports six USB2.0 connectors



Keyboard/Mouse: PS/2 6-pin Mini DIN



BIOS: Award PnP Flash BIOS



Watchdog Timer:

sec.

Software program time-out intervals from 1~256

 CMOS: Battery backup 

Power Connector:



Temperature:



Humidity:



Hardware Monitor: Winbond W83627HF



Board Size: 20.3 x 14.6 cm

10~90%; non-condensing (operating)

One 8-pin +5V/+12V ATX power connector

0~60°C (operating); -20~+80°C (storage)

Page 10

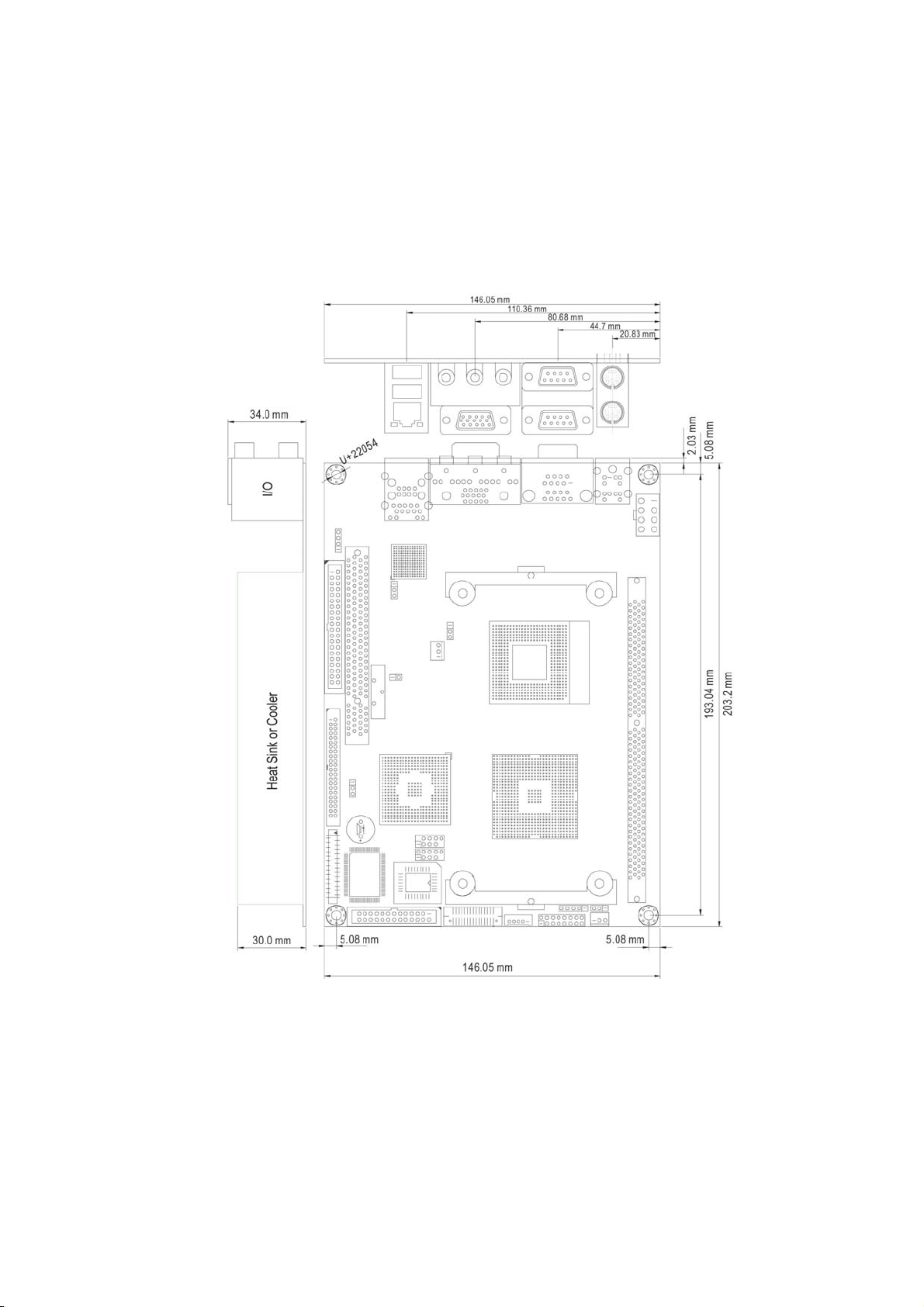

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-4705 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, and keyboard controller chip to ensure that they are firmly seated. The HS-4705 delivery package contains the following items:



HS-4705 Board x 1

 Utility CD Disk x 1 

ATA/66/100 IDE flat cable

 Parallel flat cable x 1 

USB2.0 cable

 ATX power cable 

Low Profile Heatsink with Fan

 User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the returned shipment of the product. In case you discover anything missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-4705. This chapter also contains information related to jumper settings of switch, watchdog timer selection, etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections in this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

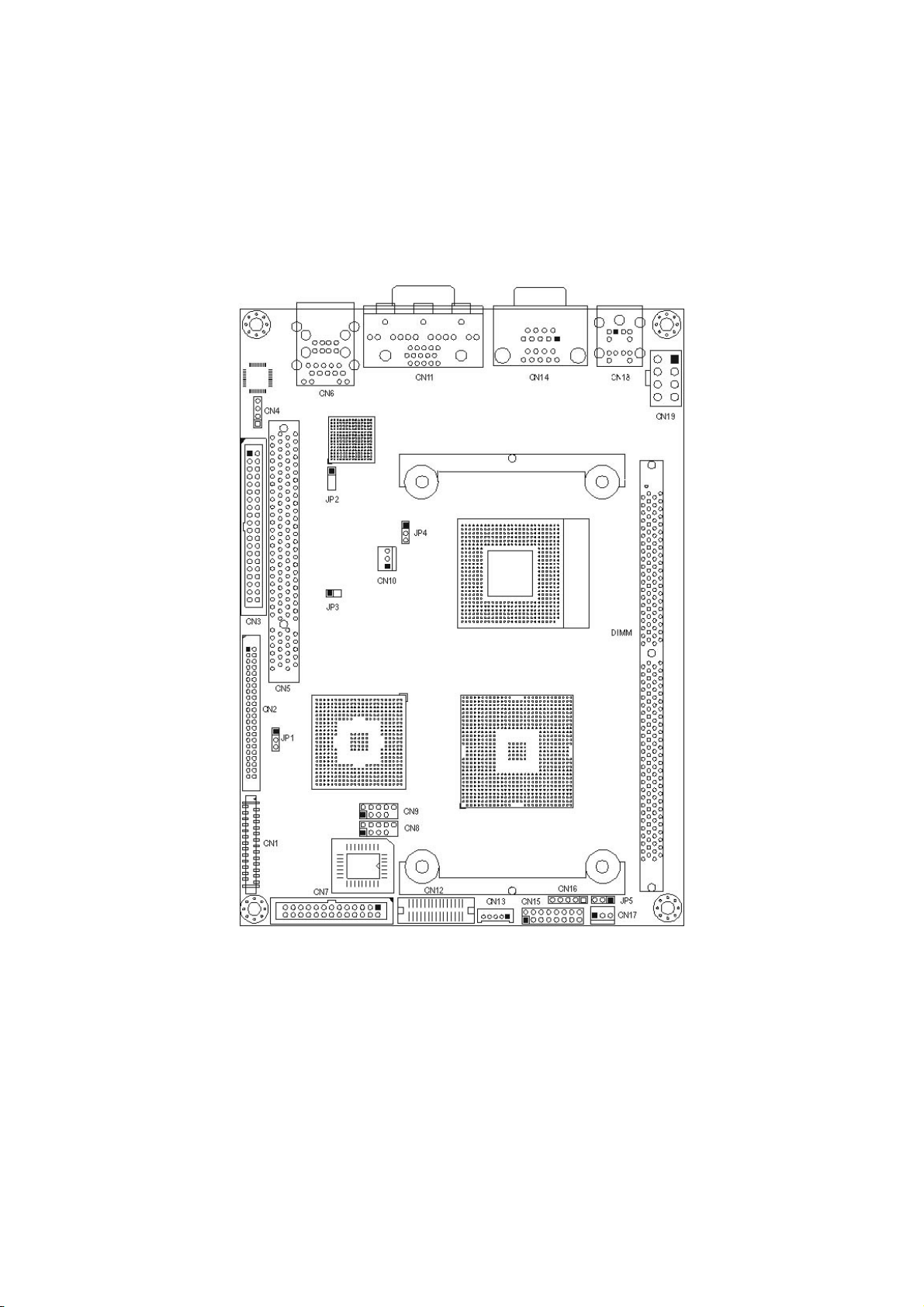

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper

JP1 Clear CMOS Select: Normal Operation Short 1-2 17 JP2 Watchdog Timer Select: Reset Short 2-3 19 JP3 JP4 Fan1 Voltage Select: +12V Short 1-2 17 JP5 Fan1 Voltage Select: +12V Short 1-2 17

Bus Clock Rate Select: 400MHz FSB Short 1-2 10

Default Setting Setting Page

3.4 Connector List

Connector Definition Page

CN1 Slim FDD Connector 14 CN2 Secondary IDE Connector 11 CN3 CN4 CD-In Connector 19 CN6 RJ-45 & USB 0/USB 1 Connectors 16/16 CN7 Parallel Connector 15 CN8 USB 4/USB 5 Connector 16 CN9

CN10 Fan1 Power Connector 17 CN11 CRT & Audio Connectors 10/19 CN12 24-bit LVDS Panel Connector 10 CN13 LVDS Power Connector 10 CN14 CN15 System Front Panel Connector 18 CN16 IrDA Connector 19 CN17 Fan2 Power Connector 17 CN18 PS/2 6-pin Mini DIN KB/MS Connector 18 CN19 8-pin ATX Power Connector 17

DIMM1 184-pin DDR Socket 10

Primary IDE Connector 11

USB 2/USB 3 Connector 16

COM 1 & COM 2 Connectors 15

Page 16

3.5 Configuring the CPU

The HS-4705 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-4705 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.



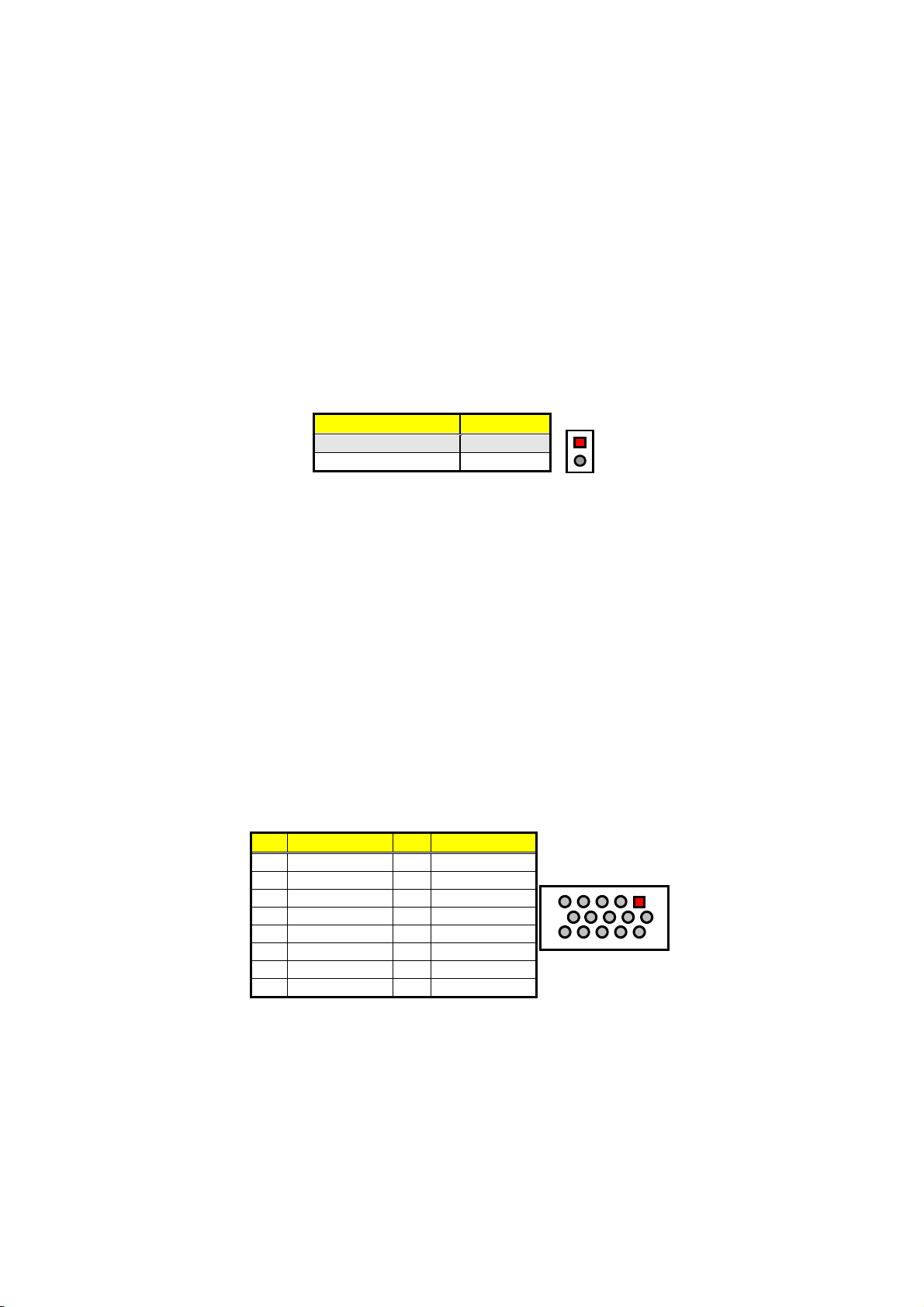

JP3: Bus Clock Rate Select

Options Settings

400MHz FSB (default) Short 1-2

533MHz FSB Open 1-2

3.6 System Memory

The HS-4705 provides one DDR socket at location DIMM1. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

NOTE 1:

NOTE 2:

NOTE 3:

HS-4705 does not support DSTN/STN Panel.

HS-4705 does not support 640 x 480 TFT Panel.

There are specific panel cable and inverter for each different LCD.

If customers need other LCDs (different from TOSHIBA LTM10C348F), please contact your sale representatives.

The onboard Intel 82845GME supports CRT display up to 1600 x 1200. The HS-4705 provides two connection methods of CRT and LVDS Panel device. CN11 offers a CRT connector, and CN12 offers 24-bit single channel LVDS Panel connectors.



CN11: CRT Connector

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 VCC 10 GND 11 N/C 12 DDDATA 13 HSYNC 14 VSYNC 15 DDCLK

Page 17



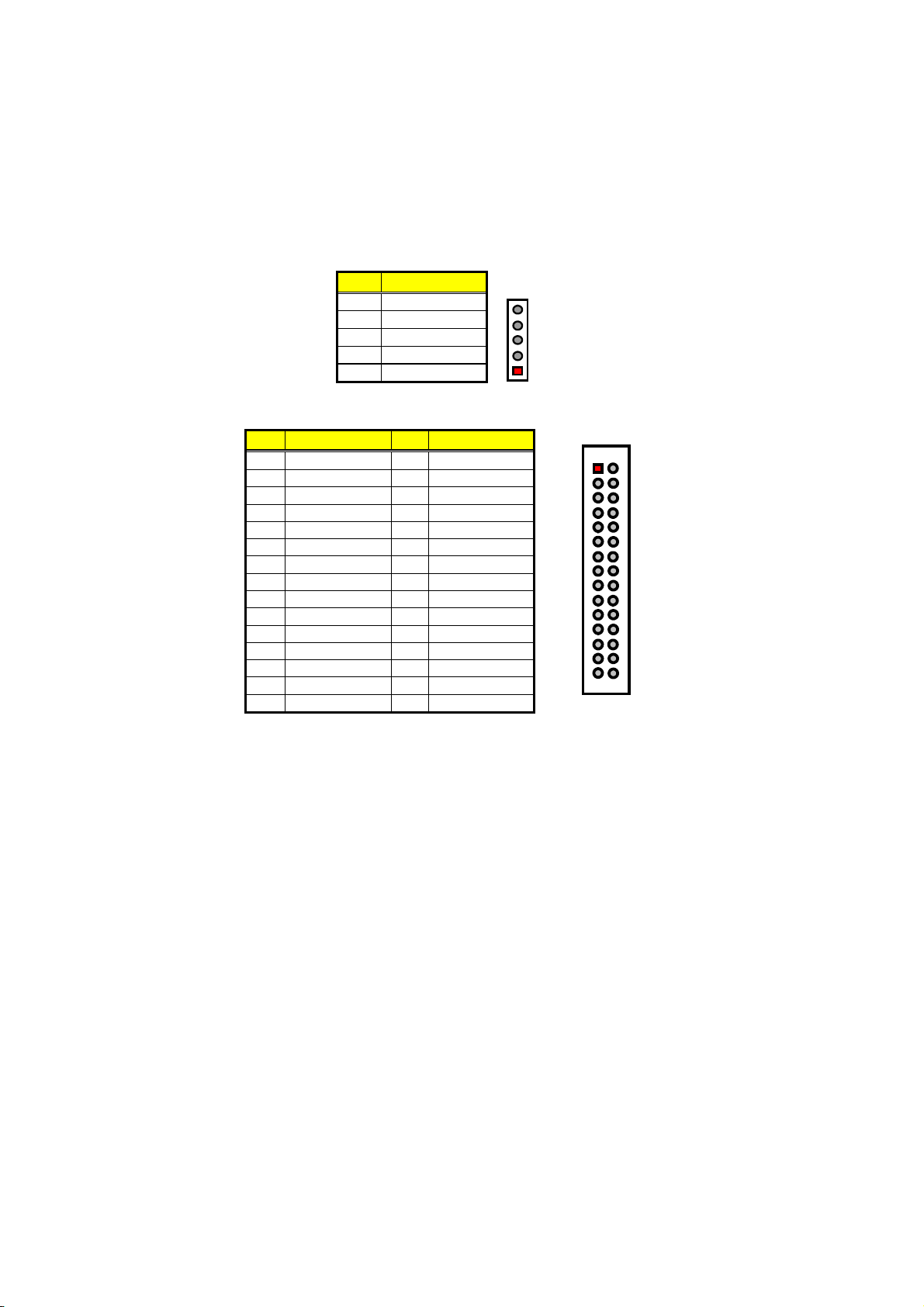

CN13: LVDS Power Connector

PIN. Description

1 GND 2 N/C 3 LCD_BKL 4 GND 5 +12V



CN12: 24-bit LVDS Connector

PIN Description PIN Description

1 LVDS_YAM0 2 LVDS_YAM1 3 LVDS_YAP0 4 LVDS_YAP1 5 GND 6 GND 7 GND 8 GND 9 LVDS_YAM2 10 LVDS_CLKAM

11 LVDS_YAP2 12 LVDS_CLKAP 13 GND 14 GND 15 GND 16 GND 17 LVDS_YAM3 18 GND 19 LVDS_YAP3 20 GND 21 GND 22 GND 23 GND 24 GND 25 VCC 26 VCC 27 VCC 28 VCC 29

VCC

+12V

GND

LCD_BKL

N/C

GND

3029

3.8 PCI E-IDE Drive Connector

CN3 and CN2 are standard 40-pin and 44-pin daisy-chain driver connectors that serve the PCI E-IDE drive provisions onboard the HS-4705. A maximum of four ATA/33/66/100 IDE drives can be connected to the HS-4705 via CN3 and CN2.

Page 18

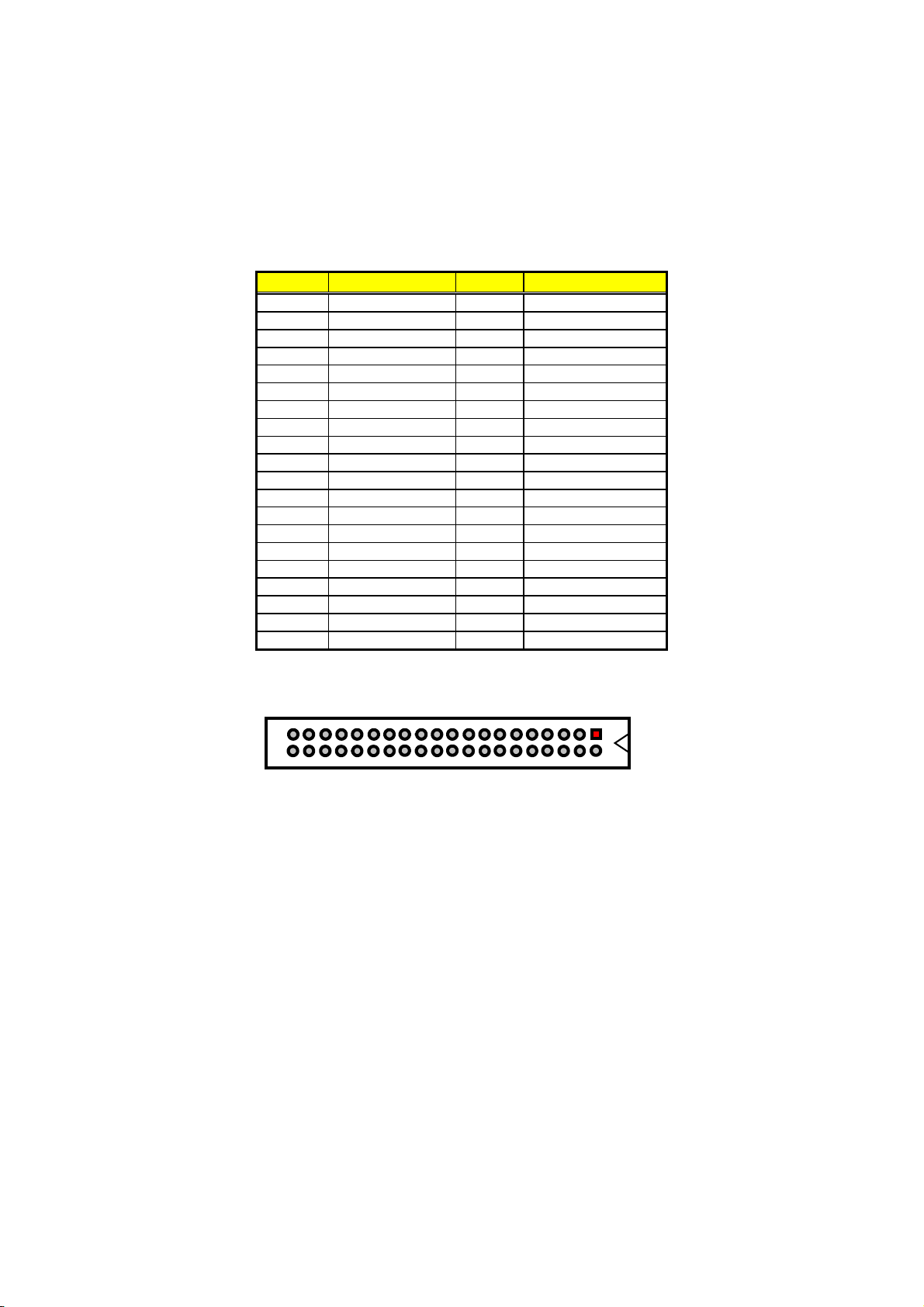

 CN3: Primary IDE Connector

PIN Description PIN Description

1 Reset IDE 2 GND 3 Host Data 7 4 Host Data 8 5 Host Data 6 6 Host Data 9 7 Host Data 5 8 Host Data 10

Address 0

Chip Select 0

Host Data 4

GND

IOCHRDY

DACK 0

IRQ 14

Address 1

Host IOR

Host IOW

Host Data 0

GND

DRQ 0

11 Host Data 3 12 Host Data 12 13 Host Data 2 14 Host Data 13 15 Host Data 1 16 Host Data 14 17 Host Data 0 18 Host Data 15 19 21 DRQ 0 22 GND 23 Host IOW 24 GND 25 Host IOR 26 GND 27 IOCHRDY 28 Host ALE 29 DACK 0 30 GND 31 IRQ14 32 N/C 33 Address 1 34 N/C 35 Address 0 36 Address 2 37 Chip Select 0 38 Chip Select 1 39 Activity 40 GND

Activity

Host Data 1

Host Data 3

Host Data 2

Host Data 11

Host Data 7

Host Data 6

Host Data 5

Host Data 4

N/C

Reset IDE

GND

Chip Select 1

N/C

Address 2

N/C

GND

N/C

GND

Host ALE

Host Data 15

Host Data 13

Host Data 14

Host Data 10

Host Data 11

Host Data 12

GND

Host Data 8

Host Data 9

Page 19

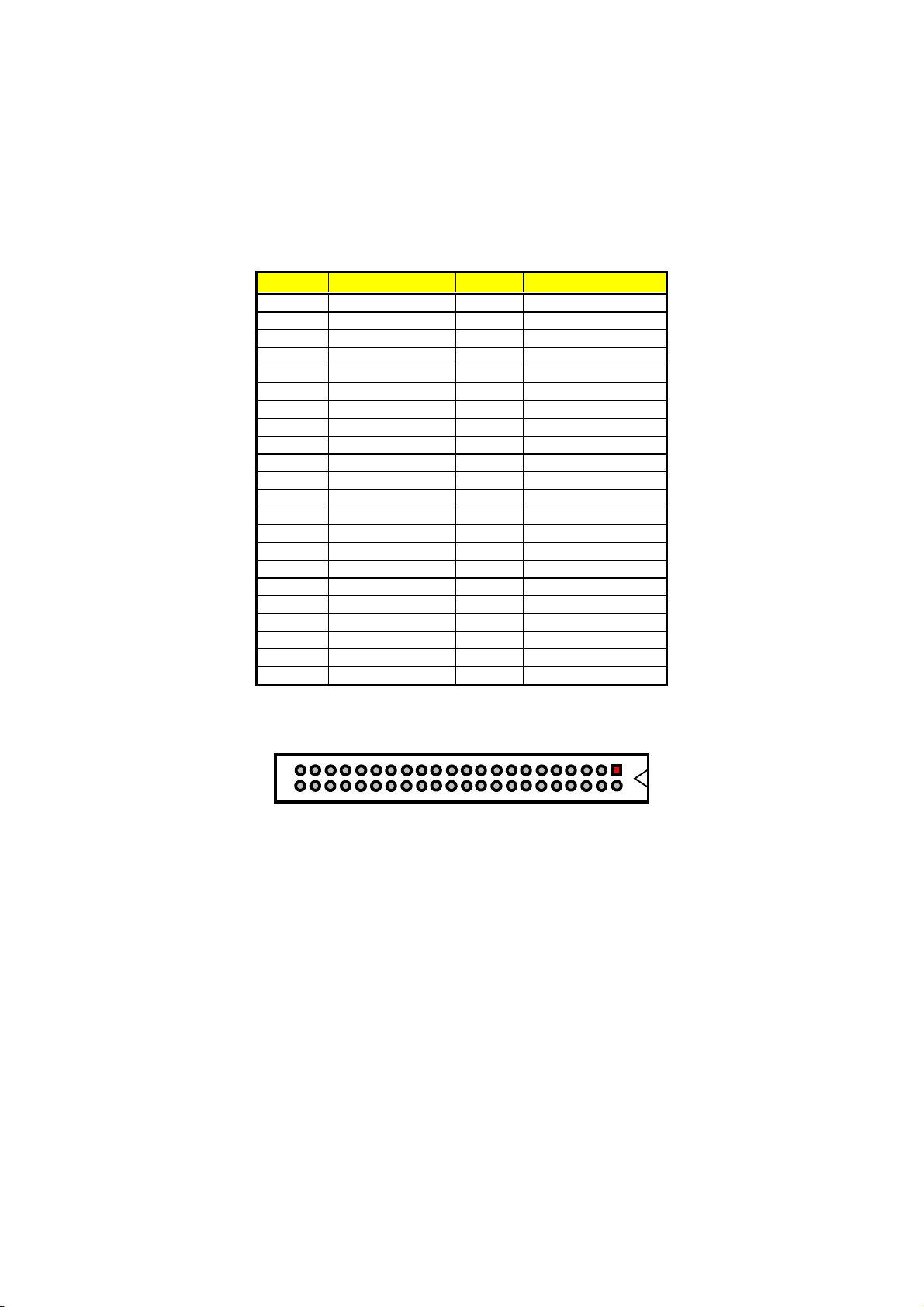

 CN2: Secondary IDE Connector

PIN Description PIN Description

1 Reset IDE 2 GND 3 Host Data 7 4 Host Data 8 5 Host Data 6 6 Host Data 9 7 Host Data 5 8 Host Data 10 9

11 Host Data 3 12 Host Data 12 13 Host Data 2 14 Host Data 13 15 Host Data 1 16 Host Data 14 17 Host Data 0 18 Host Data 15 19 21 DRQ 1 22 GND 23 Host IOW 24 GND 25 Host IOR 26 GND 27 IOCHRDY 28 Host ALE 29 DACK 1 30 GND 31 IRQ15 32 N/C 33 Address 1 34 N/C 35 Address 0 36 Address 2 37 Chip Select 0 38 Chip Select 1 39 Activity 40 GND 41 VCC_5V 42 VCC_5V 43 GND 44 N/C

Host Data 4

GND

Host Data 11

N/C

Host Data 0

GND

DRQ 1

Host IOW

Host IOR

IOCHRDY

DACK 1

IRQ 15

Address 1

Address 0

Chip Select 0

Activity

VCC_5V

GND

N/C

GND

VCC_5V

N/C

GND

Address 2

Chip Select 1

Host ALE

N/C

GND

Host Data 15

Host Data 4

Host Data 3

Host Data 2

Host Data 1

GND

Host Data 8

Host Data 9

Host Data 10

Host Data 11

Host Data 12

Host Data 13

Host Data 14

Reset IDE

Host Data 7

Host Data 6

Host Data 5

Page 20

3.9 Floppy Disk Drive Connector

The HS-4705 uses a slim 26-pin header connector, CN1, for floppy disk drive connection. A total of one FDD drive may be connected to CN1 at any given time.



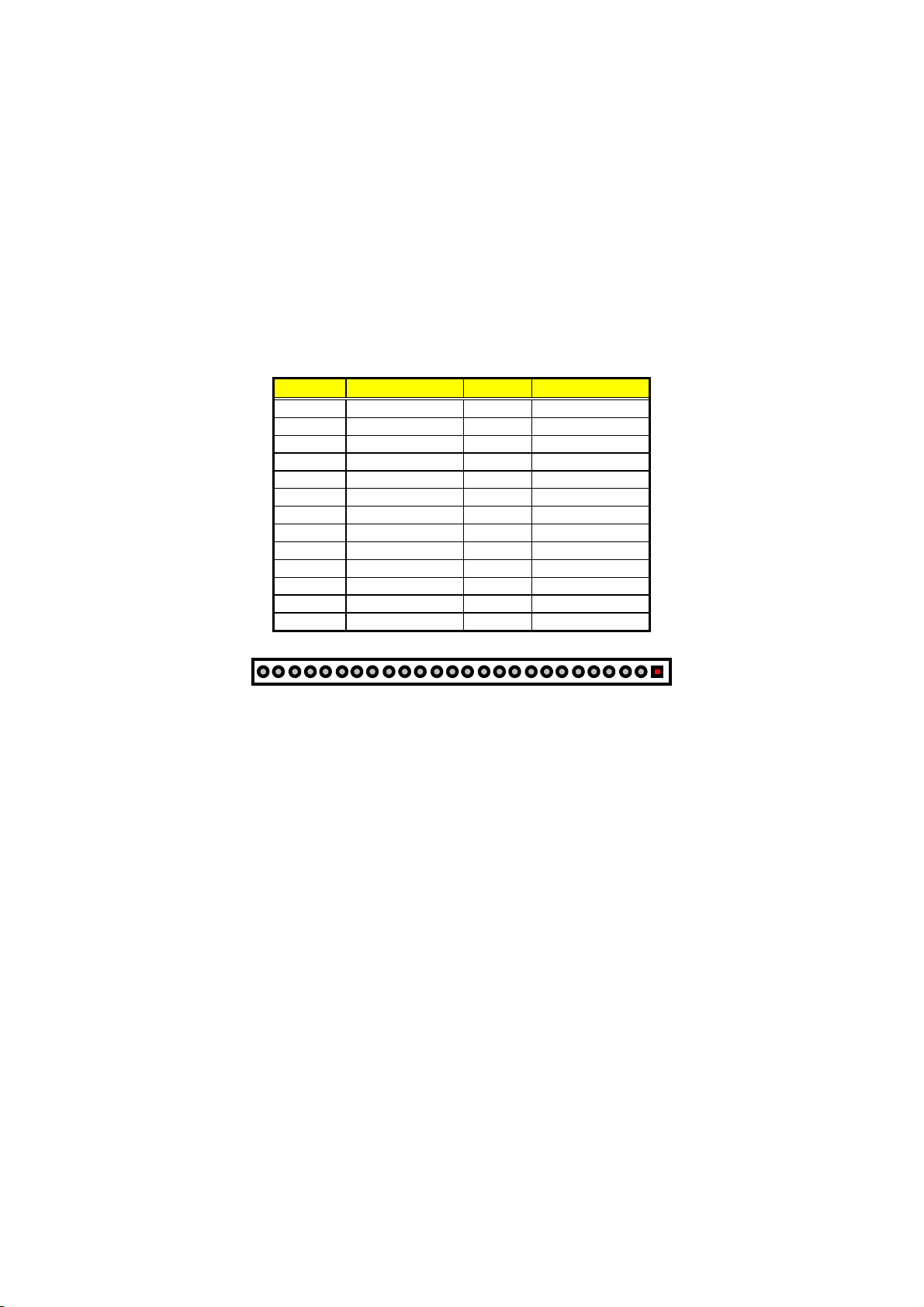

CN1: Slim FDD Connector

PIN Description PIN Description

1 +5V 14 Step 2 Index 15 GND 3 +5V 16 Write_Data 4 Drive_Select 17 GND 5 +5V 18 Write_Gate 6 Disk_Change 19 GND 7 N/C 20 Track 8 Ready 21 GND

9 HD_Out 22 Write_Protect 10 Motor_On 23 GND 11 Reserve 24 Read_Date 12 Direction 25 GND 13 N/C 26 Side_One

Page 21

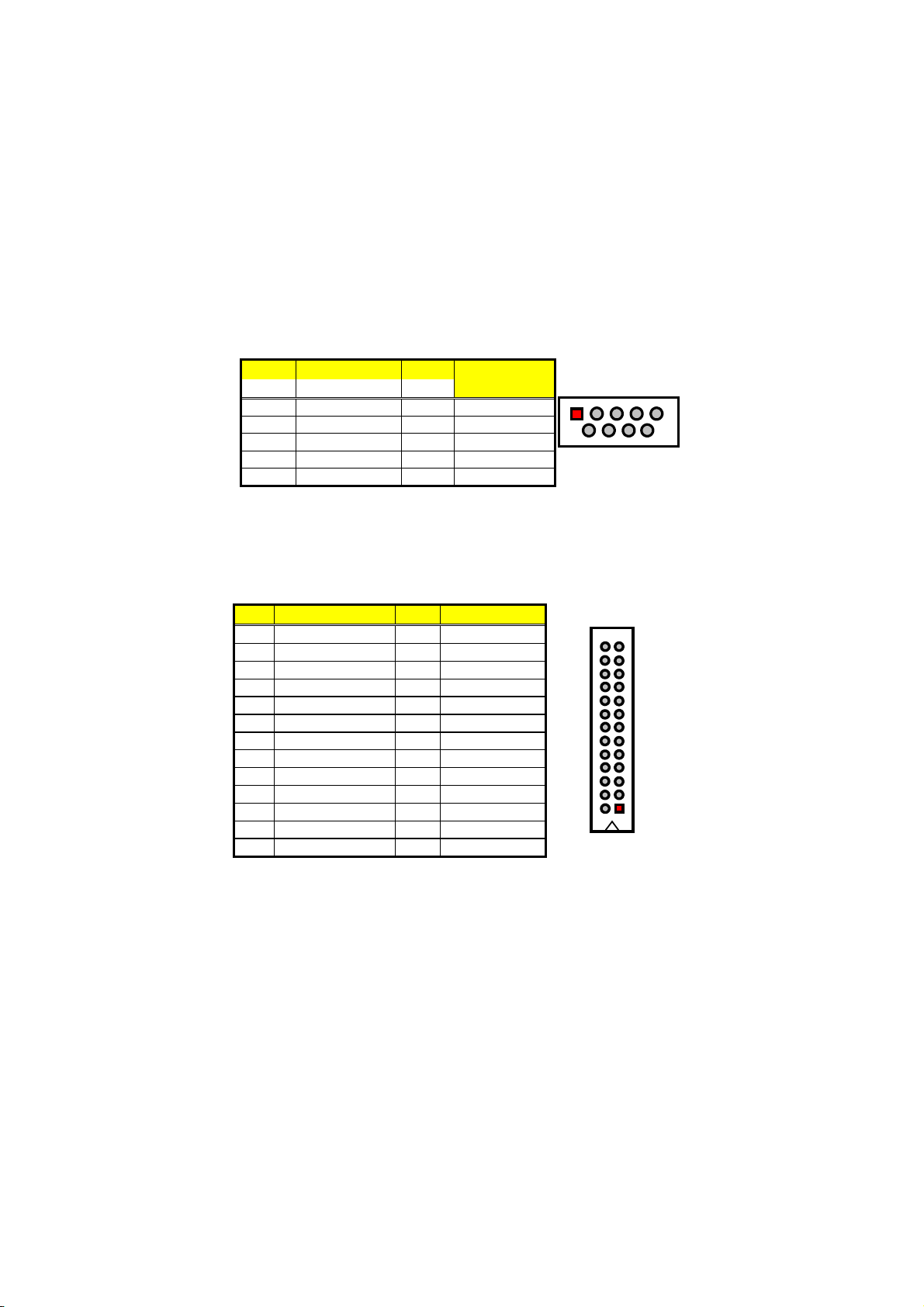

3.10 Serial Port Connectors

The HS-4705 offers one NS16C550 compatible UART with Read/Receive 16-byte FIFO serial ports and two DB9 connectors.



CN14: COM1/COM2 Connectors (DB9)

PIN Description PIN Descriptio

1 DCD 6 DSR 2 RXD 7 RTS 3 TXD 8 CTS 4

DTR

5 GND

3.11 Parallel Connector

CN7 is a standard 26-pin flat cable connector designed to accommodate parallel port connection onboard the HS-4705.



CN7: Parallel Connector

PIN Description PIN Description

1 Line Printer Strobe 2 Auto Feed 3 PD 0 4 Error 5 PD 1 6 Initialize 7 PD 2 8 Select

9 PD 3 10 GND 11 PD 4 12 GND 13 PD 5 14 GND 15 PD 6 16 GND 17 PD 7 18 GND 19 Acknowledge 20 GND 21 Busy 22 GND 23 Paper Empty 24 GND 25 Select 26 N/C

N/C

GND

Select

Initialize

Error

Auto Feed

26 25

Select

Paper Empty

Busy

Acknowledge

PD 7

PD 6

PD 5

PD 4

PD 3

PD 2

PD 1

PD 0

Strobe

Page 22

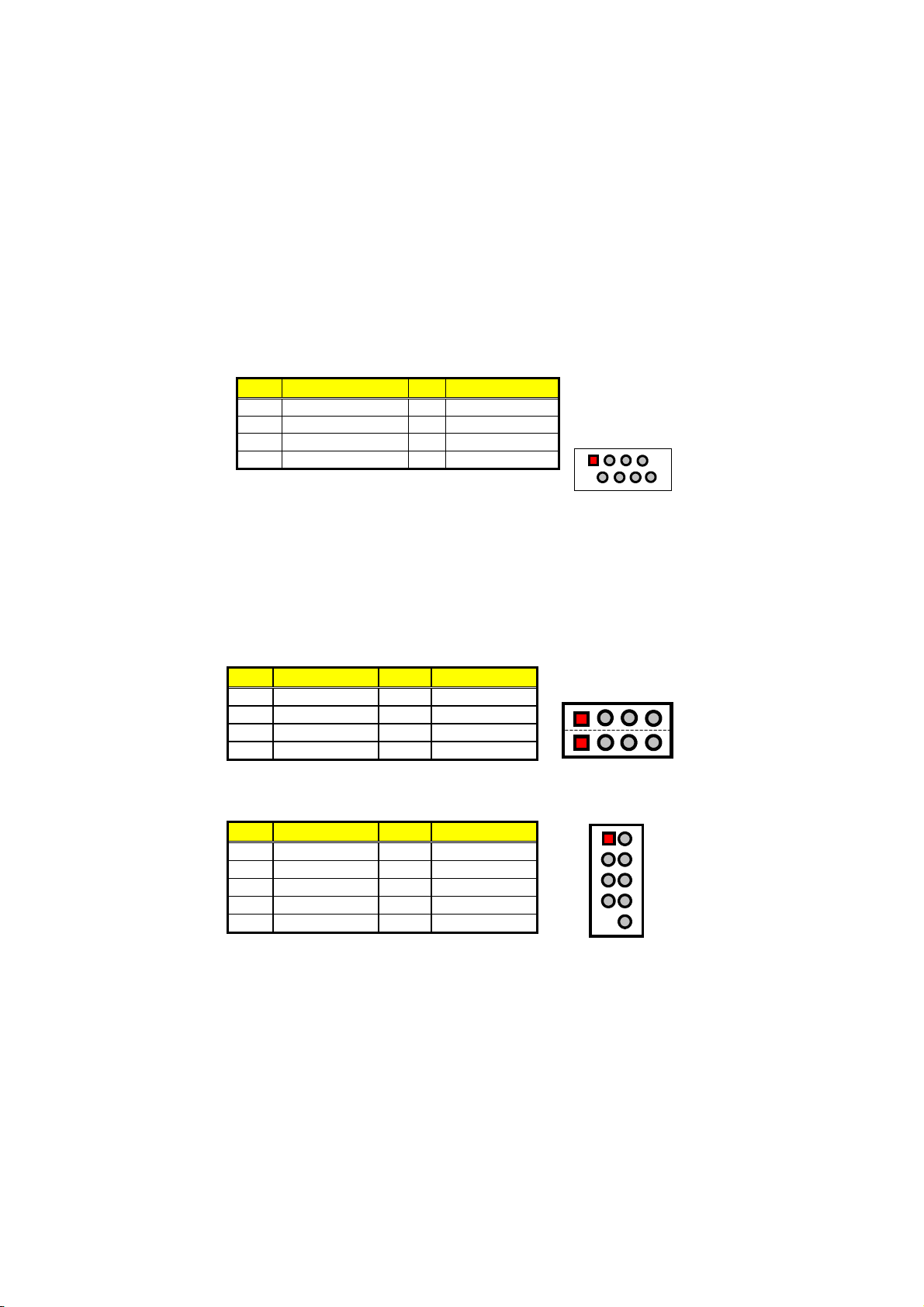

3.12 Ethernet Connector

The HS-4705 has Intel® 82540 100/1000 Based LAN controller and provides one RJ-45 connector. Please refer to the following for its pin information.



CN6: Gigabit Ethernet RJ-45 Connector

PIN Description PIN Description

1 Transmit Output (+) 5 FLD0- 2 Transmit Output (-) 6 Receive Input (-)

Receive Input (+)

3 Receive Input (+) 7 FLD1+ 4

FLD0+

FLD1-

Transmit Output (+)

FLD1+

FLD0-

FLD1-

FLD0+

Receive Input (-)

Transmit Output (-)

3.13 USB Connector

The HS-4705 provides six USB ports at locations CN6, CN9 and CN8 for six USB connections to the HS-4705.



CN6: USB 0/1 Connector

PIN Description PIN Description

VCC

USB0-

USB0+

USB1+

VCC

USB3-

USB3+

GND

N/C

GND

1a VCC 1b VCC 2a USB0- 2b USB1- 3a

USB0+

USB2+

4a Signal GND 4b Signal GND



CN9: USB 2/3 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 USB2- 4 USB3- 5

USB2+

USB3+

7 GND 8 GND 9 ---- 10 N/C

VCC

USB1-

VCC

USB2-

USB2+

GND

----

Page 23



CN8: USB 4/5 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 USB4- 4 USB5- 5

USB4+

USB5+

7 GND 8 GND 9 ---- 10 N/C

3.14 CMOS Data Clear

VCC

USB4-

USB4+

GND

----

VCC

USB5-

USB5+

GND

N/C

The HS-4705 has a Clear CMOS jumper on JP1.



JP1: Clear CMOS

Options Settings

Normal Operation

IMPORTANT:

(default)

Short 1-2

Clear CMOS Short 2-3

Before you turn on the power of your system, please set JP1 to short 1-2 for normal operation.

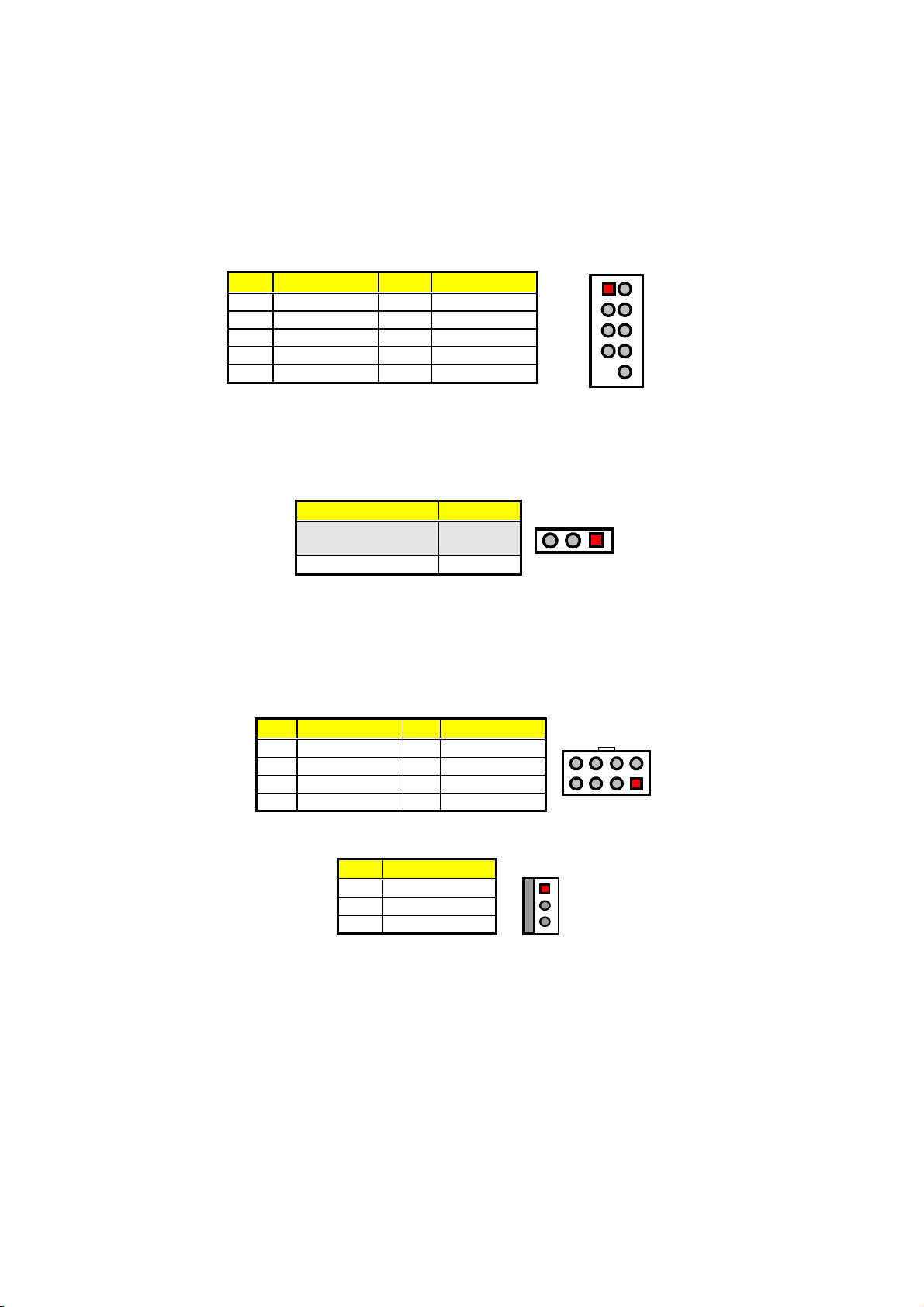

3.15 Power and Fan Connectors

HS-4705 provides one 8-pin ATX power connector at CN19.



CN19: 8-pin ATX Power Connector

PIN Description PIN Description

1 GND 5 +5V 2 GND 6 +5V 3 GND 7 +5V 4

GND



CN10/CN17: Fan Power Connector

PIN Description

1 GND 2 VCC 3 Fan Status Signal

+12V

GND

+5V

GND

+5V

GND

+5V

GND

Page 24



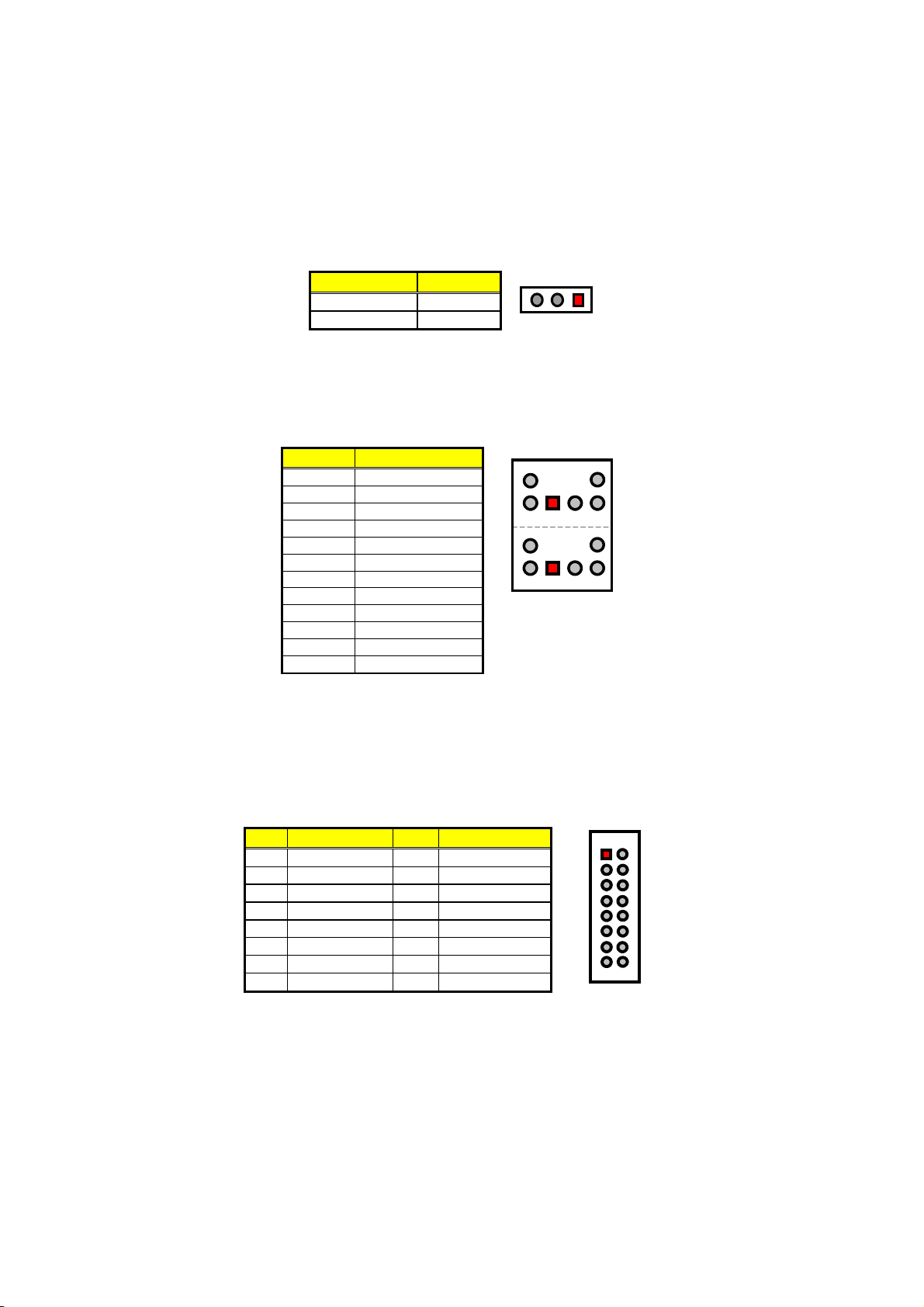

JP4/JP5: Fan Voltage Select

Options Settings

+12V (default) Short 1-2

+5V Short 2-3

3.16 Keyboard/Mouse Connectors

The HS-4705 offers one possibility for keyboard/mouse connection via CN18.



CN18: PS/2 6-pin Mini DIN Keyboard/Mouse Connector

PIN Description

1 KB_Data 2 N/C 3 GND 4 +5V 5 6 N/C 7 MS_Data 8 N/C

9 GND 10 +5V 11 MS_CLK 12

KB_CLK

N/C

123

3.17 System Front Panel Connectors

The HS-4705 has one LED at location CN15(9-11) that indicates the HDD status. CN15(13-15) is the Reset Button connector onboard. CN15(1-3-5-7) is speaker, CN15(2-4-6) is power LED, CN15(8-10-12) is keylock, and CN15(14-16) is power switch.



CN15: System Front Panel Connector

PIN Description PIN Description

1 3 N/C 4 N/C 5 BZ 6 PWLED- 7 SPKR 8 KBLOCK

9 HDLED+ 10 GND 11 HDLED- 12 N/C 13 RESET+ 14 PWRBT+ 15 RESET- 16 PWRBT-

+5V

PWLED+

1615

Page 25

3.18 Audio Connectors

The HS-4705 has an onboard AC97 3D audio interface. The following table list the pin assignments of the CD In and Audio connector.



CN11: Audio Connector

PIN Description

Red MIC In

Blue Line In

Green Line Out



CN4: CD In Connector

PIN Description PIN Description

1 CDL 2 GND 3 GND 4 CDR

GREEN

BLUE

CDR

RED

GND

CDL

3.19 IrDA Connector

CN16 is a 5-pin internal FIR communication connector for connection to an IrDA device.



CN16: IrDA Connector

PIN Description

1 +5V 2 FIRTX 3 4 GND 5 IRTX

IRRX

IRTX

GND

IRRX

FIRTX

+5V

3.20 Watchdog Timer

Once the Enabled cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will be assumed that the program operation is abnormal.



JP2: Clear CMOS

Options Settings

NMI Short 1-2

Reset (default) Short 2-3

Page 26

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH

MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;------------- ------------------------------------------------------------------ MOV DX, 2EH MOV AL, AAH OUT DX, AL

* User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec.

Page 27

Chapter 4

Award BIOS Setup

The HS-4705 uses Award BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 28

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more details about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 29

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Esc：Quit F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving



Select Item

：

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Page 30

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

mode. Please use the IDE Setup Utility in

LBA

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Wed, Oct 31 2001 Item Help Time (hh:mm:ss) 10 : 32 :57 Menu Level X

IDE Primary Master 13579 MB

IDE Primary Slave None Change the day, month,

IDE Secondary Master None year and century

IDE Secondary Slave None

Drive A 1.44M, 3.5in. Drive B None

Video EGA/VGA Halt On All, But Keyboard

Base Memory 640K Extended Memory 65472K Total Memory 1024K



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 31

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix – AwardBIOS CMOS Setup Utility

Item Help

CPU Feature Press Enter Menu Level X Virus Warning Disabled CPU L1& L2 Cache Enabled Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device LS-120 Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Gate A20 Option Fast

Typematic Rate Setting Disabled X Typematic Rate (Chars/Sec) 6 X Typematic Delay (Msec) 250

Security Option Setup

APIC Mode Enabled

MPS Version Control For OS 1.4

OS Select For DRAM > 64MB Non-OS2

Console Redirection Disabled

Baud Rate 19200

Agent Commect via NULL

Agent wait time (min) 1

Agent after boot Disabled

Report No FDD for WIN95 NO

Thermal Management Thermal Monitor 1 X TM2 Bus Ratio 9X X TM2 Bus VID 1.004V



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Advanced BIOS Features

Page 32

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced Chipset Features

Item Help DRAM Timing Selectable By SPD Menu Level X X CAS Latency Time 2.5 X Active to Precharge Delay 7 X DRAM RAS# to CAS# Delay 3 X DRAM RAS# Precharge 3 DRAM Data Integrity Mode Non-ECC MGM Core Frequency Auto Max 266MHz System BIOS Cacheable Enabled Video BIOS Cacheable Disabled Memory Hole At 15M-16M Disabled Delayed Transaction Enabled Delay Prior to Thermal 16Min. AGP Aperture Size (MB) 64

On-Chip VGA Enabled On-Chip Frame Buffer size 32MB Boot Display VBIOS Default Panel Number 1

** ON-Chip VGA Setting **



F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

NOTE:

Panel Number: 1 (Default Panel 1: TOSHIBA LTM10C348F)

Page 33

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

Phoenix – AwardBIOS CMOS Setup Utility

Power Management Use Define

Video Off Method DPMS Item Help

Video Off In Suspend Yes Menu Level X

Suspend Type Stop Grant

MODEM Use IRQ 3

Suspend Mode Disabled

HDD Power Down Disabled

Soft-off by PWR-BTTN Instant-Off

CPU THRM-Throttling 50.00%

** Reload Global Timer Events **

Primary IDE 0 Disabled

Primary IDE 1 Disabled

Secondary IDE 0 Disabled

Secondary IDE 1 Disabled

FDD, COM, LPT Port Disabled

PCI PIRQ[A-D]# Disabled



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Power Management Setup

Page 34

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or

eripheral Components Interconnect, is a system that allows I/O

devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix – AwardBIOS CMOS Setup Utility

Item Help

Reset Configuration Data Disabled Menu Level X

Resources Controlled By Auto(ESCD) Default is Disabled. Select

IRQ Resources Press Enter enabled to reset Extended

system Configuration Data

(ESCD) when you exit Setup

PCI/VGA Palette Snoop Disabled if you have installed a new add-on

and the system reconfiguration

has caused such a serious

conflict that the OS cannot boot



F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

PnP/PCI Configurations

Page 35

4.9 Peripheral Setup

The IDE hard drive controllers can support up to four separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

Phoenix – AwardBIOS CMOS Setup Utility

OnChip IDE Device Press Enter Item Help

Onboard Device Press Enter Menu Level X

SuperI/O Device Press Enter

Watch Dog Timer Select Disabled



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

On-Chip Primary PCI IDE Enabled Item Help IDE Primary Master PIO Auto Menu Level X IDE Primary Slave PIO Auto IDE Primary Master UDMA Auto IDE Primary Slave UDMA Auto On-Chip Secondary PCI IDE Enabled IDE Secondary Master PIO Auto IDE Secondary Slave PIO Auto IDE Secondary Master UDMA Auto IDE Secondary Slave UDMA Auto

IDE HDD Block Mode Enabled



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

USB Controller Enabled Item Help USB 2.0 Controller Enabled Menu Level X USB Keyboard Support Disabled USB Mouse Support Disabled AC97 Audio Auto Init Display First Onboard/AGP. Onboard LAN Chip Enabled



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Integrated Peripherals

OnChip IDE Device

Onboard Device

Page 36

Super I/O Device

Onboard FDC Controller Enabled Item Help Onboard Serial Port 1 3F8/IRQ4 Menu Level X Onboard Serial Port 2 2F8/IRQ3 UART Mode Select Normal X RxD, TxD Active Hi, Lo X IR Transmission delay Enabled X UR2 Duplex Mode Half x Use IR Pins IR-Rx2Tx2 Onboard Parallel Port 378/IRQ7 Parallel Port Mode SPP X EPP Mode Select EPP1.7 X ECP Mode Use DMA 3



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

4.10 PC Health Status

Phoenix – AwardBIOS CMOS Setup Utility

CPU Warning Temperature Disabled Item Help

Current System Temp. Menu Level X

Current CPU1 Temperature

Current CPUFan1 Speed

Current CPUFan2 Speed

Vdimm

Vcore

3.3V

+5V

+12V

VBAT(V)



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PC Health Status

4.11 Frequency/Voltage Control

Phoenix – AwardBIOS CMOS Setup Utility

Item Help

Auto Detect PCI CLK Enabled Menu Level X

Spread Specturm Disabled



Move Enter: Select + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Frequency/Voltage Control

Page 37

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN and Audio driver installation procedures. The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

5.1 IDE Driver Installation

5.1.1 Installing Intel Chipset Software Utility

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

Page 38

2. Click on the INF Driver button to continue.

3. Click on the OS button to continue.

Page 39

4. Immediately after clicking the IDE button in Step 1, the program launches the InstallShield Wizard that will assist you in the installation process. Click on the N

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

ext > button to proceed.

es to proceed.

Page 40

6. When the Readme Information dialog box pops up, just click on

7. Once the Install Shield Wizard finishes updating your system, it

ext button to proceed.

the N

will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

inish

Page 41

5.1.2 Installing Intel Application Accelerator

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

2. Click on the IAA Driver button to continue.

Page 42

3. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

4. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

ext > button to

Page 43

5. Setup will then prompt you to specify the path where you would like the Security driver installed. Select the N you have made your path/installation choice.

6. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

ext > button after

inish

NOTE:

If after restart your computer can’t find CD-ROM device, please remove IAA driver

Page 44

5.2 VGA Driver Installation

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

2. Click on the VGA Driver button to continue.

Page 45

3. Click on the OS button to continue.

4. When the dialog box below appears, make sure you close all other Windows applications and then click on the N to proceed.

ext > button

Page 46

5. Immediately after clicking the IDE button in Step 1, the program launches the InstallShield Wizard that will assist you in the installation process. Click on the N

6. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

ext > button to proceed.

es to proceed.

Page 47

7. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the “Yes, I

want to restart my computer now” followed by a click on the

inish button to reboot. Only after your computer boots will the

new settings take effect.

5.3 LAN Driver Installation

5.3.1 Win 95/98/2K/XP

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

Page 48

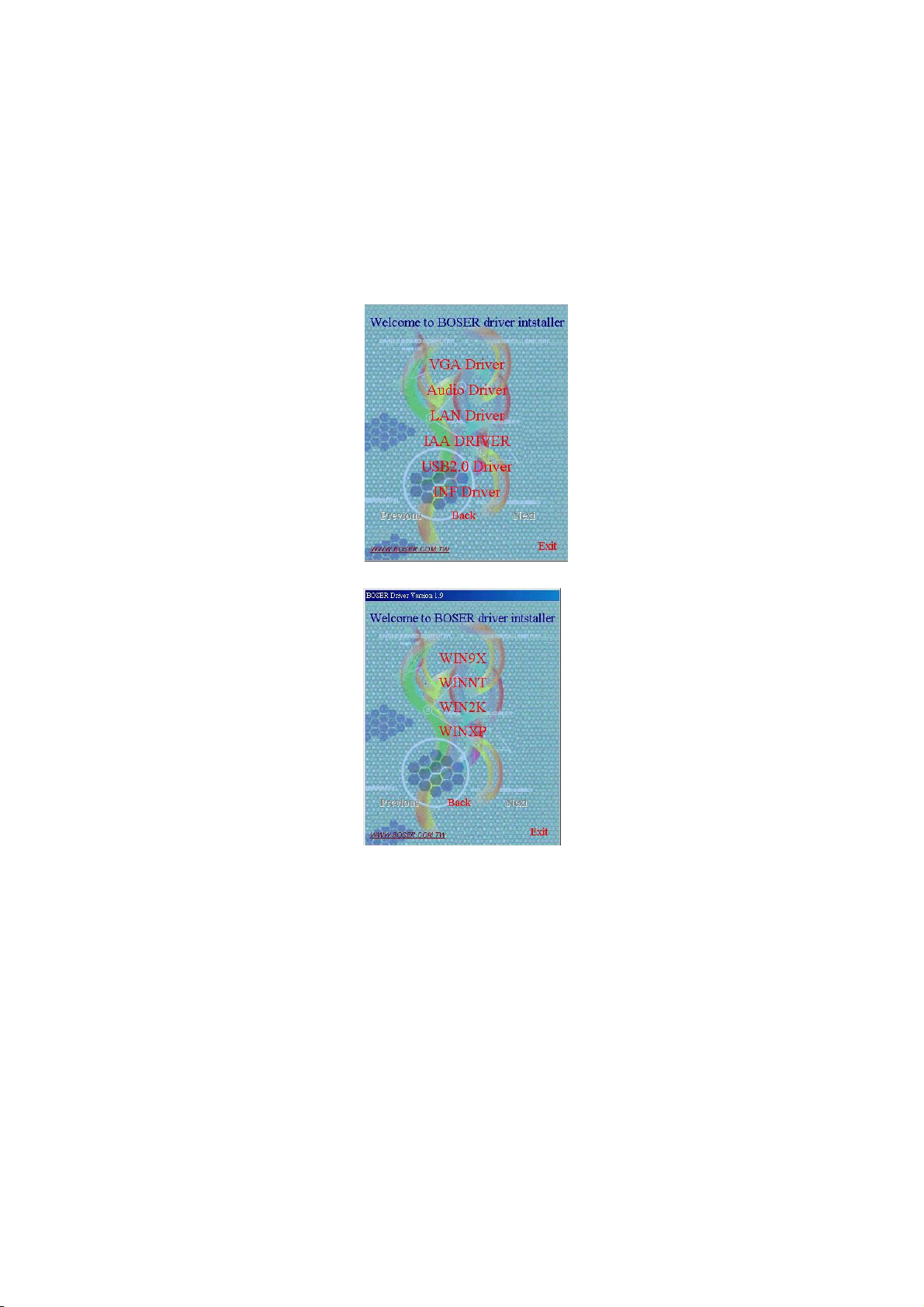

2. Click on the LAN Driver button to continue.

3. Click on the WIN9X/WIN2K/WINXP button to continue.

Page 49

4. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Accept to proceed.

5. When the dialog box below appears, make sure the folder you’ll save file in, then Click on the N

ext >

Page 50

6. When the dialog box below appears, make sure you close all other Windows applications and then click on the Install Base Driver button to proceed.

7. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Restart now to reboot. Only after your computer boots will the new settings take effect.

5.3.2 Win NT

NOTE:

1. The system automatically detects the absence of Windows NT

Please make sure you have already installed Service Pack 6.0.

Networking. Click on the Y

es button to start installation.

Page 51

2. Tick on the Wired to Network once the following screen appears. Click on N

3. Click on the St Network Adapter.

ext > to proceed.

art Search button for the program to locate the

Page 52

4. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the H the driver path location.

5. Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue.

ave Disk button to assign

6. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Please choose “Intel(R) PRO/1000 Family Adapter”. Press on the OK button to accept and proceed.

Page 53

7. Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on N

8. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.

ext to continue.

Page 54

9. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the N button once you are sure of your devices.

10. Windows NT Setup will then need to copy files necessary to update the system information. Specify the path and then press

Continue.

ext

11. When Setup asks if you wish to change the TCP/IP settings of your system, select them appropriately. The default choice is N

Page 55

12. Setup then starts the Networking installation and copies the files.

13. When the screen below appears, click on N

14. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on N continue.

ext to continue.

ext to

Page 56

15. Assign the workgroup or domain setting of your computer. Click on Next to continue.

16. Click on the Yes button to restart your computer. The LAN driver installation for WIN NT4.0 is now complete.

5.4 Audio Driver Installation

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

Page 57

2. Click on the AUDIO Driver button to continue.

3. Click on the OS button which you use.

Page 58

4. When the dialog box below appears, make sure you close all other Windows applications and then click on the N to proceed.

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the “Yes, I want to restart my computer now”. Afterwards, click on the F system changes you made will take effect after the system restarts.

inish button to complete the installation process. The

ext > button

Page 59

5.5 USB2.0 Driver Installation

5.5.1 Win 95/98

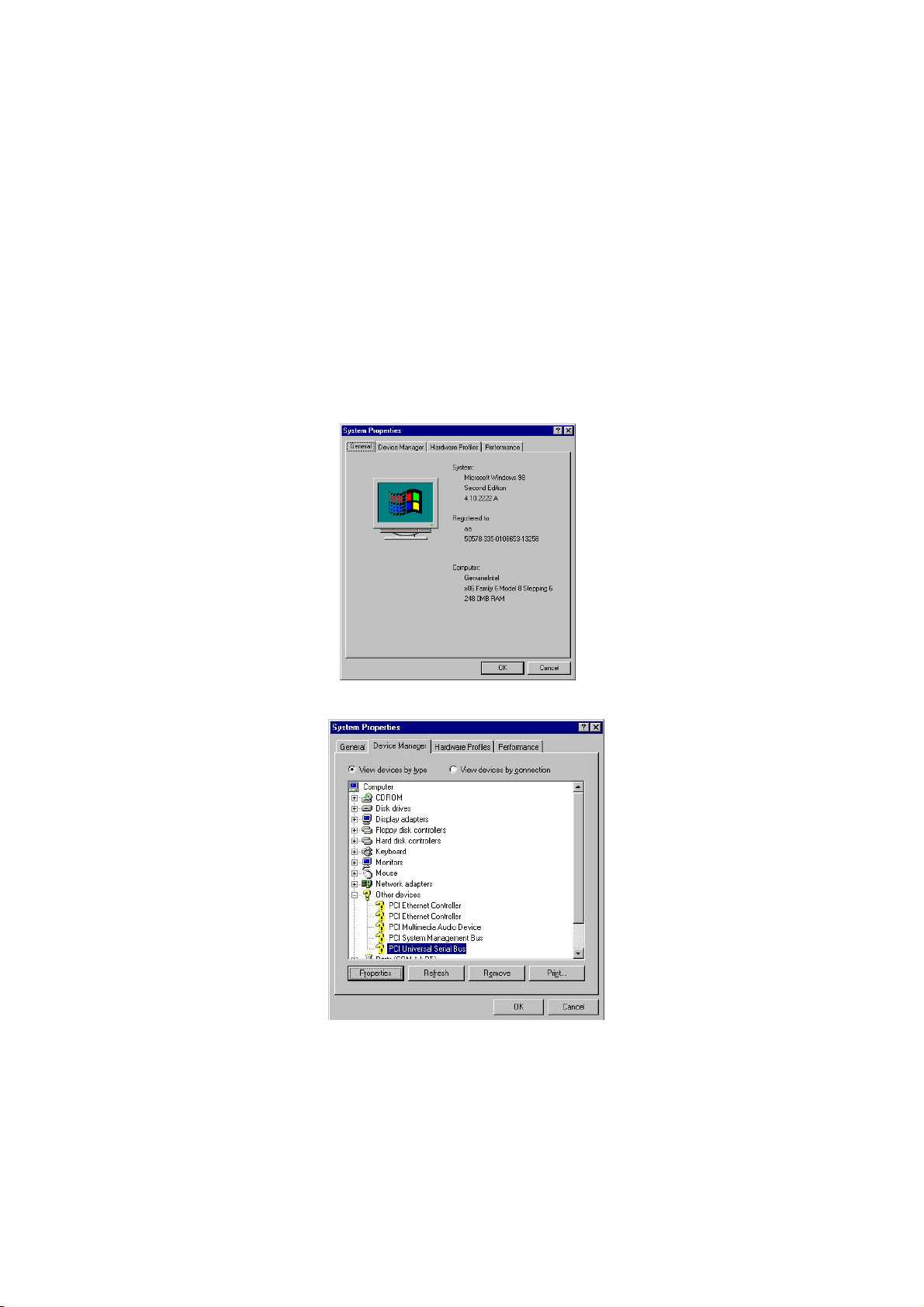

1. With the Utility CD Disk still in your CD ROM drive, right click on “My Computer” icon from the Windows menu. Select on System Properties and then proceed to the Device Manager from the main menu.

2. Select on Other Devices from the list of devices then double-click on PCI Universal Serial Bus.

Page 60

3. The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 61

5. Tick on the “Search for a better driver” once the following screen appears. Click on the N

6. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the N button to continue

ext to proceed.

ext

Page 62

7. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Press on the N

ext button to accept and proceed.

8. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

inish button to

Page 63

5.4.2 Win 2000

2. Select on Other Devices from the list of devices then double-click on PCI Universal Serial Bus.

3. The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.

Page 64

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

5. Tick on the “Search for a suitable driver” once the following screen appears. Click on the N

ext to proceed.

ext > button to

Page 65

6. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the N button to continue

7. Choose sisusb2.inf and press on the Open button to accept and proceed.

ext

Page 66

8. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

inish button to

5.4.3 Win XP

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4705 button to launch the installation program.

Page 67

2. Click on the USB2.0 Driver button to continue.

3. Click on the Windows XP button to continue.

Page 68

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

5. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

ext > button to

inish button to
