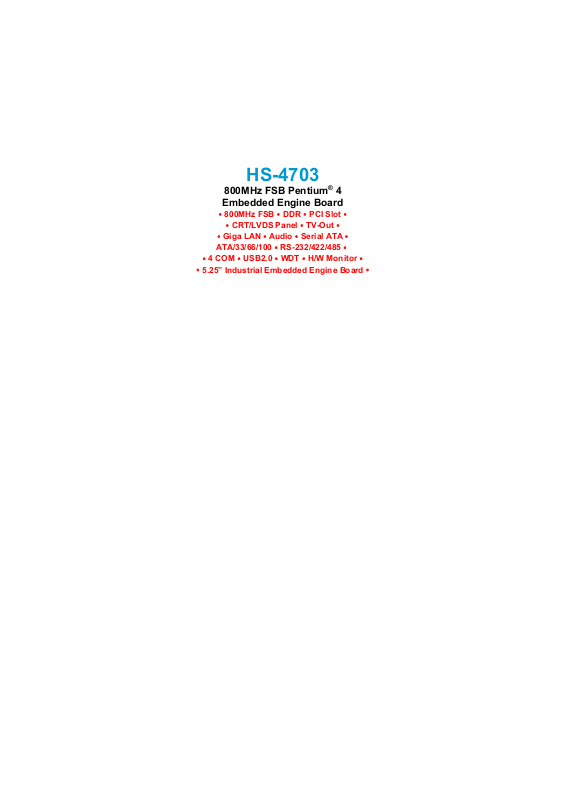

HS-4703

800MHz FSB Pentium® 4

Embedded Engine Board

•800MHz FSB•DDR•PCI Slot• CRT/LVDS Panel•TV-Out•

•

•Giga LAN•Audio•Serial ATA•

ATA/33/66/100•RS-232/422/485•

•4 COM•USB2.0•WDT•H/W Monitor•

5.25” Industrial Embedded Engine Board•

•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 General Description ..................................1

1.1

1.2

1.3

Major Features ............................................................. 2

Specifications .............................................................. 3

Board Dimensions....................................................... 4

Chapter 2 Unpacking .................................................. 5

2.1

2.2

Opening the Delivery Package................................... 5

Inspection..................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

3.10

3.11

3.12

3.13

3.14

3.15

3.16

3.17

3.18

3.19

3.20

3.21

3.22

Before Installation ....................................................... 7

Board Layout ............................................................... 8

Jumper List .................................................................. 9

Connector List ............................................................. 9

Configuring the CPU ................................................. 10

System Memory ......................................................... 10

VGA Controller........................................................... 10

Serial ATA Function ....................................................11

PCI E-IDE Drive Connector....................................... 12

Floppy Disk Drive Connector ................................... 13

Serial Port Connectors.............................................. 14

Parallel Connector..................................................... 15

Ethernet Connector ................................................... 16

USB Connector .......................................................... 16

CMOS Data Clear ....................................................... 17

Power and Fan Connectors...................................... 18

Keyboard and Mouse Connector ............................. 19

TV-Out Function......................................................... 19

GPIO Connector......................................................... 19

System Front Panel Connectors.............................. 20

Watchdog Timer......................................................... 21

Audio Connectors ..................................................... 22

Page 4

Chapter 4 Award BIOS Setup ................................. 23

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

4.10

4.11

4.12

4.13

4.14

4.15

4.16

Starting Setup ............................................................ 23

Using Setup................................................................ 24

Main Menu .................................................................. 25

Standard CMOS Features ......................................... 26

Advanced BIOS Features ......................................... 27

Advanced Chipset Features ..................................... 28

Integrated Peripherals............................................... 29

Power Management Setup........................................ 31

PnP/PCI Configurations ............................................ 32

PC Health Status........................................................ 33

Frequency/Voltage Control....................................... 33

Load Fail-Safe Defaults............................................. 34

Load Optimized Defaults .......................................... 35

Set Supervisor/User Password ................................ 35

Save & Exit Setup ...................................................... 37

Exit Without Saving................................................... 38

Chapter 5 Software Utilities..................................... 39

5.1

5.2

5.3

5.4

5.5

IDE Driver Installation ............................................... 40

VGA Driver Installation.............................................. 43

LAN Driver Installation.............................................. 50

Audio Driver Installation ........................................... 60

USB2.0 Driver Installation......................................... 62

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handling the HS-4703 to protect yourself from the discharge of any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENT WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

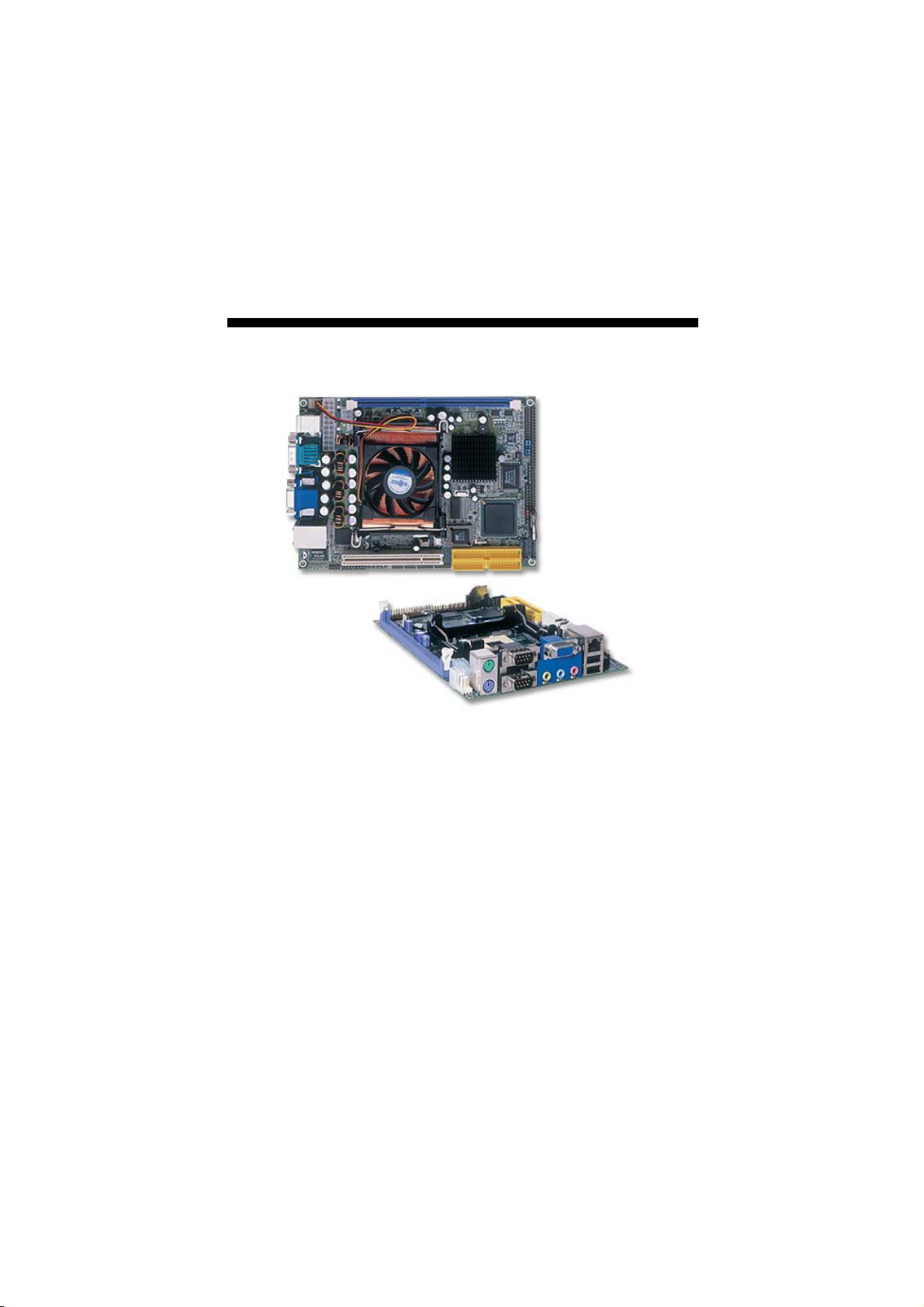

Chapter 1

General Description

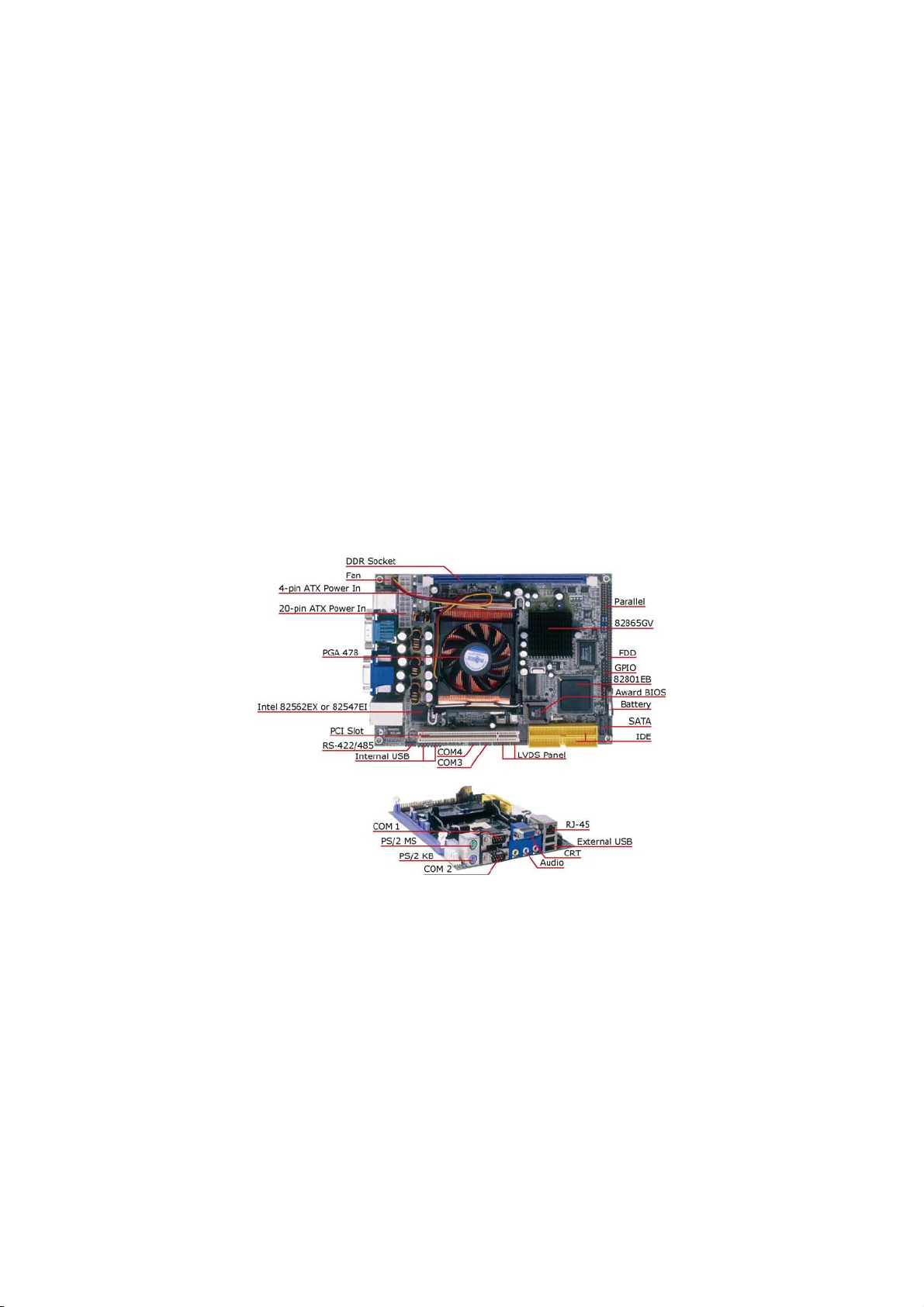

The HS-4703 is an Intel® 82865GV/82801ER chipset-based board designed for PCI Bus PGA 478 Intel compatibility. The combination of these features makes the HS-4703 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CRT/LVDS Panel, TV-Out, Giga LAN, audio, 4 COM and USB2.0 port interface.

Pentium® 4 CPU up to 3.06GHz

Its onboard ATA/33/66/100 connected to IDE drive interface architecture allows the HS-4703 to support data transfers of 33, 66 or 100MB/sec. for each IDE drive connection. Designed with the Intel 82865GV/82801ER core logic chipset, the board supports all PGA 478 Pentium® 4 CPU up to 3.06GHz. The display controller is Intel® 82865GV supporting CRT displays up to 1600 x 1200. It also provides 24-bit/48-bit LVDS Panel display interface.

Page 8

Serial ATA is the revolutionary ATA interface that provides scalable performance for IDE device. With up to 150MB/sec. data transfer rate, serial ATA is faster than the current parallel ATA and delivers superior input/output performance. In addition, the serial ATA interface is furnished with RAID 0/1 function for extra performance enhancement and data protection.

System memory is also sufficient with the one DDR socket that can supports DDR-266/333/400 up to 1GB. 800MHz FSB CPU can support DDR-400, 533MHz FSB CPU, can supports DDR-333, and 400MHz FSB CPU can supports DDR-266.

Additional onboard connectors include an advanced USB2.0 port providing faster data transmission, and one external RJ-45 connector for use of 100/1000 or 10/100 Based Ethernet interface.

1.1 Major Features

The HS-4703 comes with the following features:

 PGA 478 for Intel® Pentium® 4 (Northwood/0.13 micron/512KB L2 cache)

up to 3.06GHz CPU

 Supports 400/533/800MHz FSB

 One DDR socket with a max. capacity of 1GB

Page 9

 Intel® 82865GV/82801ER system chipset

 Winbond W83627HF and Fintek F81216D super I/O chipset

 Intel

 AC97 3D audio controller

 Supports Serial ATA controller

 Fast PCI ATA/33/66/100 IDE controller

 Four COM, eight USB2.0 connectors

 Supports Hardware Monitor

 Supports LVDS Panel interface (optional)

 Supports TV-Out function (optional)

82865GV CRT display controller

82562EX 10/100 Based or 82547EI 100/1000 Based LAN

1.2 Specifications



CPU: PGA 478 for Intel® Pentium® 4 (Northwood/0.13 micron/512KB L2 cache) up to 3.06GHz CPU



Bus Interface: PCI Bus



Front Side Bus: Supports 400/533/800MHz FSB



Memory: One DDR socket supporting DDR-333/400 up to 1GB



Chipset: Intel® 82865GV/82801ER



I/O Chipset: Winbond W83627HF, Fintek 81216D



PCI Slot: One standard PCI slot



VGA: Intel® 82865GV supporting CRT display up to 1600 x 1200



LVDS Panel: Supports 24-bit dual channel LVDS Panel interface (optional)



TV-Out: Supports PAL or NTSC TV systems (optional)



LAN: Intel® 82562EX 10/100 Based or 82547EI 100/1000 Based LAN



Audio: AC97 3D audio controller



Serial ATA: Intel® ICH5 controller and with two ports supporting transfer rate up to 150MB/sec.

 IDE: Four IDE disk drives supporting ATA/33/66/100 with transfer rates of

up to 33/66/100MB/sec.



FDD: Supports up to two floppy disk drives



Parallel: One enhanced bi-directional parallel port supporting SPP/ECP/ EPP

 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232 x

3 serial ports with 16-byte FIFO



USB: Eight USB2.0 connectors, six internal and two external



Keyboard: PS/2 6-pin Mini DIN



Mouse: PS/2 6-pin Mini DIN

Page 10



BIOS: Award PnP Flash BIOS



Watchdog Timer: Software programmable time-out intervals from 1~256sec.

    

Battery backup

CMOS: Power Connector: Temperature: Hardware Monitor: Board Size: 20.3(L) x 14.6(W) x 3.3(H) cm

One 4-pin and one 20-pin ATX power connectors

0~+60°C (operating); -20~+80°C (storage)

Winbond W83627HF

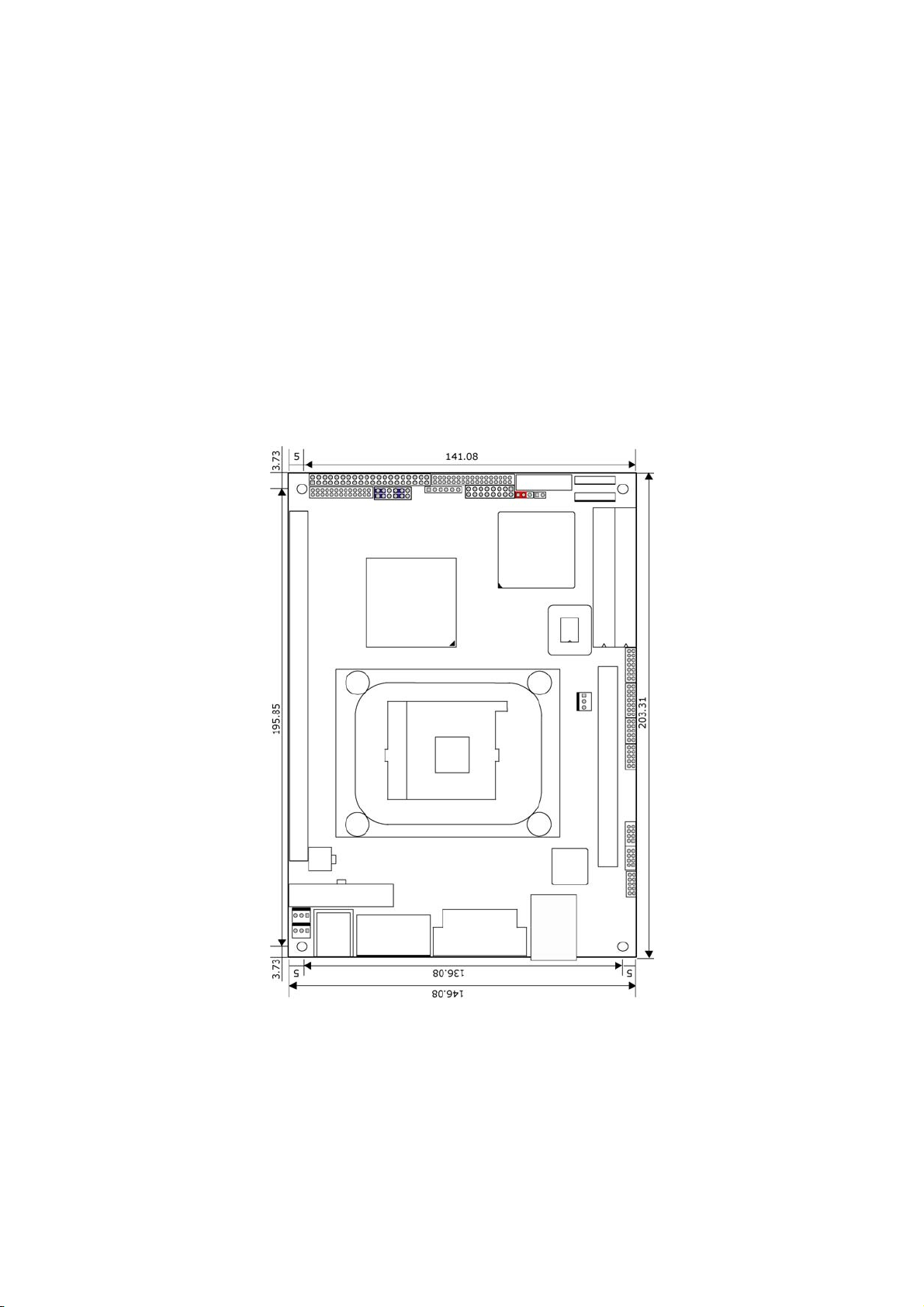

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-4703 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Make sure all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip are firmly seated. The HS-4703 delivery package contains the following items:



HS-4703 Board x 1

 Utility CD Disk x 1 

Cables Package x 1

 Cooling Fan x 1 

Jumper Bag x 1

 User’s Manual

Page 12

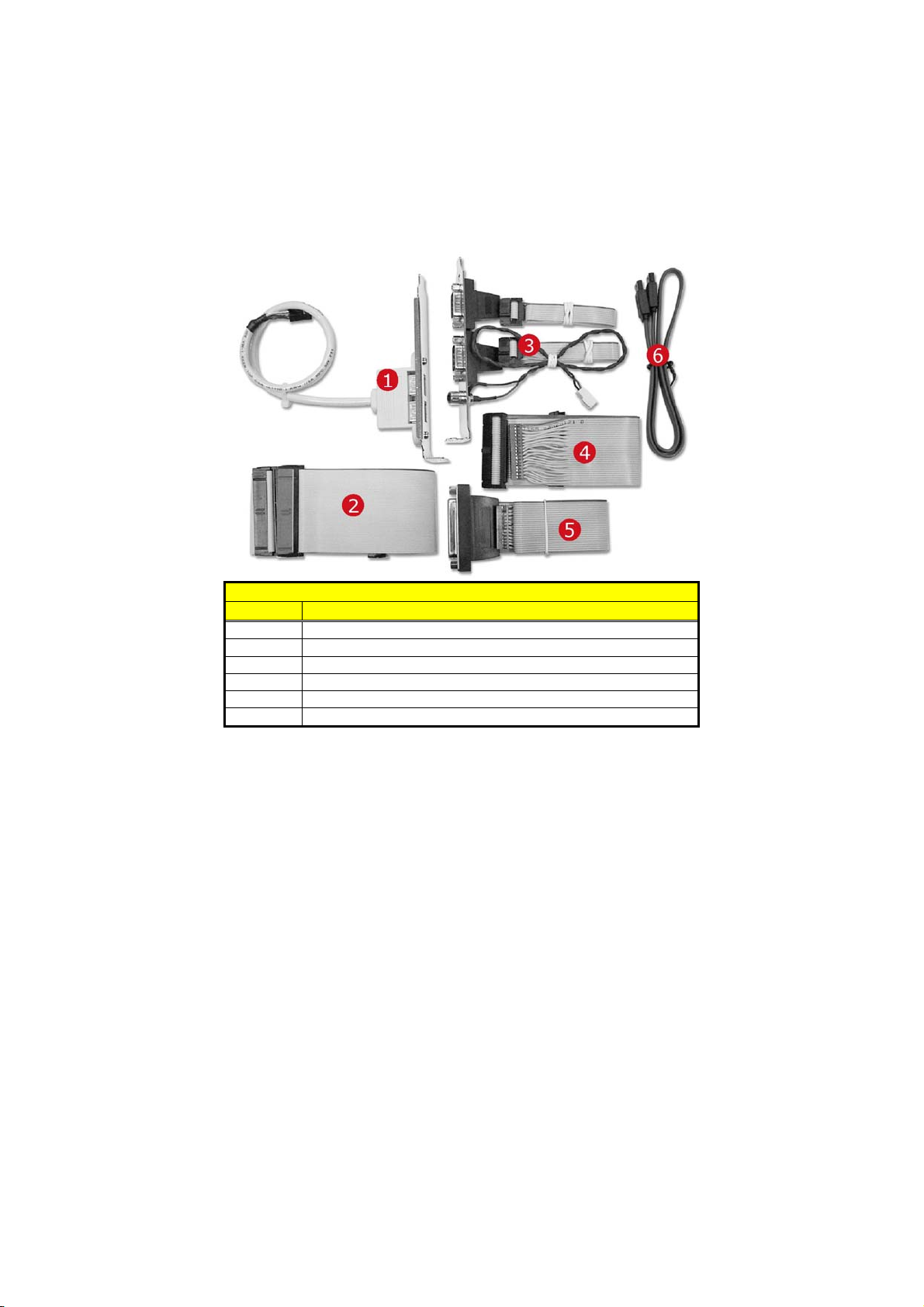

Cables Package

NO. Description

1 Two USB flat cable with bracket x 1 2 ATA/100 IDE flat cable x 2 3 Two COM and RCA Jack flat cable with bracket x 1 4 Floppy flat cable x 1 5 Parallel port flat cable x 1 6 Serial ATA cable x 1

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-4703. This chapter also contains information related to jumper settings of switch, watchdog timer etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP2 1-2)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

Page 14

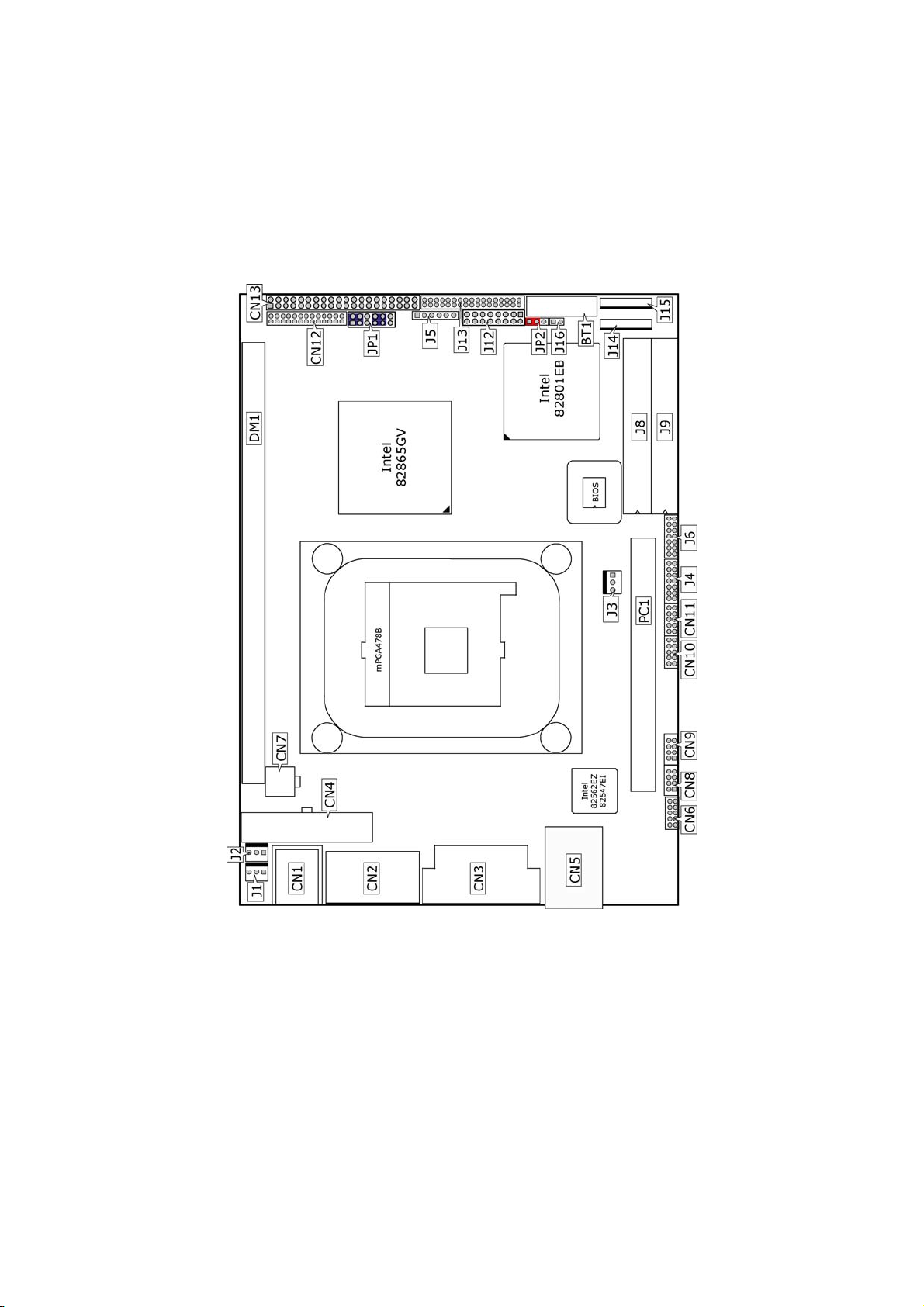

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper

JP1

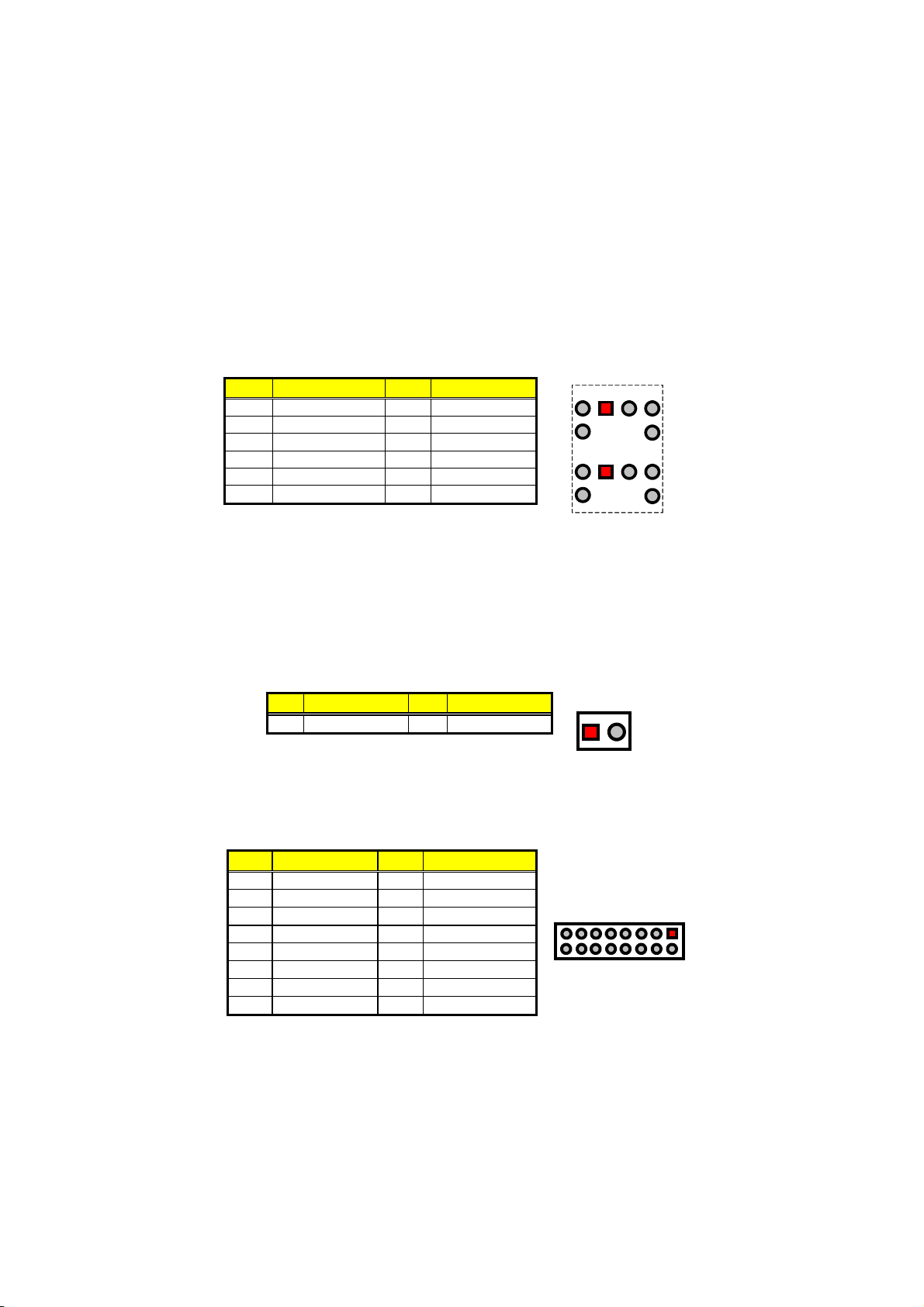

JP2 Clear CMOS: Normal Operation 1-2 Short 17

COM2 Use RS-232 or RS-422/485 Select: RS-232

Default Setting Setting Page

Short 1-3, 2-4,

7-9, 8-10

3.4 Connector List

Connector Definition Page

CN1(1-6) PS/2 6-pin Mini DIN Keyboard Connector 19

CN1(7-12) PS/2 6-pin Mini DIN Mouse Connector 19

CN2(1-9) COM1 Connector (DB9) 14

CN2(10-18) COM2 Connector (DB9) 14

CN3(1-15) 15-pin CRT Connector (DB15) 10

CN3(17-32) External Audio Connector 22

CN4 20-pin ATX Power In Connector 18

CN5(1-12) RJ-45 Connector 16

CN5(17-26) External USB2.0 Connector 16

CN6 RS-422/485 Connector (5x2 header) 14 CN7

CN8 / CN9 / CN13(33-40) Internal USB2.0 Connector 16

CN11 / CN10 COM3/COM4 Connector (5x2 header) 14

CN12 Parallel Connector 15

CN13(1-16) System Front Panel Connector 20 CN13(17-22) CN13(25-32) Internal Mic In/Audio Out Connector 22

DM1 188-pin DDR Socket 10

J1 / J2 / J3 Fan Power Connector 18

J4 / J6 24-bit LVDS Panel Connector 10

J5 Inverter Power In Connector 10

J8 /J9 IDE Connector 12

J12 GPIO Connector 19 J13 FDD Connector 13

J14 / J15 Serial ATA Connector 11

J16 TV-Out Connector 19

4-pin ATX Power In Connector 18

Internal LAN Link/Active LED Connector 16

Page 16

3.5 Configuring the CPU

The HS-4703 provides 800MHz FSB Intel® Pentium® 4 (0.13 micron/512KB L2 cache) up to 3.06GHz CPU. It offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-4703 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-4703 provides one DDR socket at location DM1. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The onboard Intel® 82865GV supports CRT display up to 1600 x 1200. The HS-4703 provides two methods of connecting VGA device. CN3(1-16) offers a single standard CRT connector (DB15), or J4/J6 offer 24-bit/48-bit LVDS panel connectors.



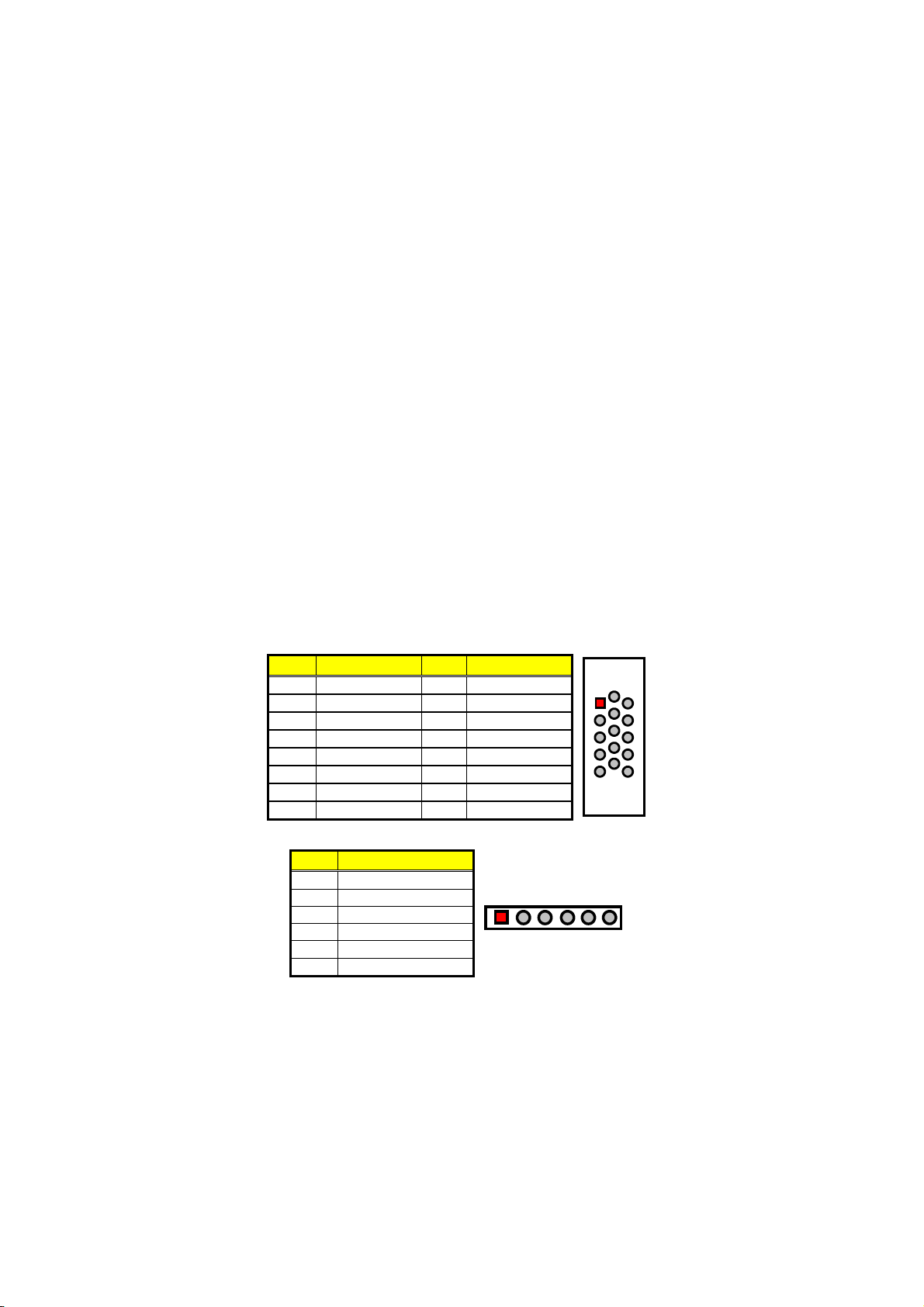

CN3(1-15): 15-pin CRT Connector (DB15)

PIN Description PIN Description

1 RED 2 GREEN 3 5 GND 6 GND 7 GND 8 GND

9 N/C 10 GND 11 N/C 12 SDA 13 HSYNC 14 VSYNC 15 SCL



J5: Inverter Power In Connector

BLUE

PIN Description

1 +12V 2 +12V 3 VCC 4 BackLight Enabled 5 LCD Enabled 6 GND

N/C

1 6

Page 17



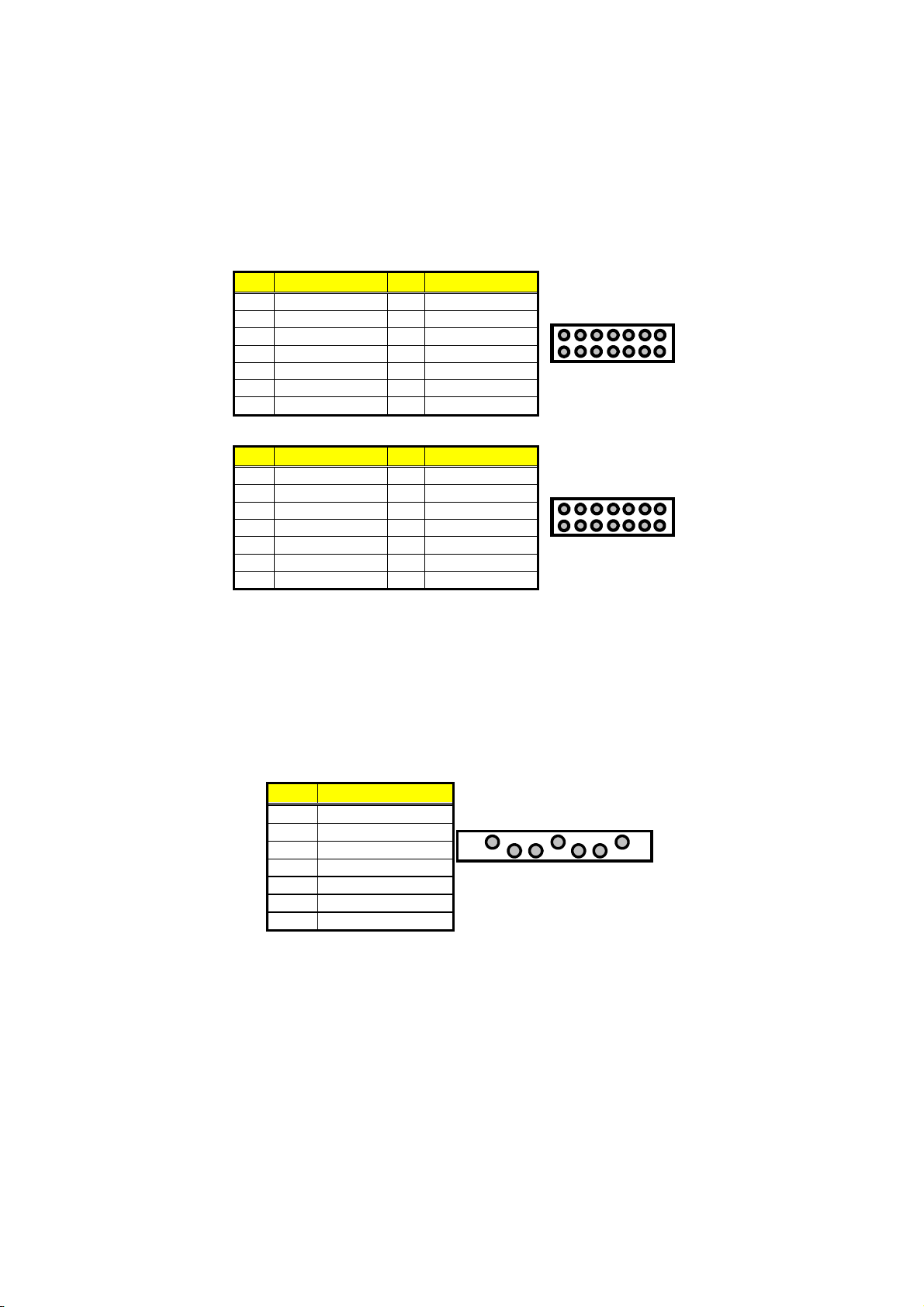

J4: 24-bit LVDS Panel Connector

PIN Description PIN Description

1 VCC3 2 VCC3 3 GND 4 GND 5 A0- 6 A0+ 7 A1- 8 A1+

9 A2- 10 A2+ 11 CLK1- 12 CLK1+ 13 A3- 14 A3+



J6: 24-bit LVDS Panel Connector

PIN Description PIN Description

VCC3

2 3 GND 4 GND 5 A4- 6 A4+ 7 A5- 8 A5+ 9

A6-

10 11 CLK2- 12 CLK2+ 13 A7- 14 A7+

VCC3

A6+

NOTE:

If using J6 only, it just supports 24-bit LVDS Panel; If you want to use 48-bit LVDS Panel, please using J6 and J4 combined.

3.8 Serial ATA Function

You can connect the Serial ATA device to this connector provides you high speeds transfer rates (150MB/sec.). If you wish to use RAID function, please note that these two Serial ATA connectors just support RAID0 and only compatible with WIN XP.



J14/J15: Serial ATA Connector

PIN Description

1 GND 2 SATATXP 3 SATATXN 4

GND

5 SATARXN 6 SATARXP 7 GND

GND

SATATXP

SATATXN

GND

SATARXP

SATARXN

Page 18

IDE and Serial ATA Device Configurations

Following are the IDE and Serial ATA device configurations supported by Intel ICH5 specifications.

Native operating systems (OS) are Windows 2000/XP. ICH5 supports a maximum of six devices using these OS.

Legacy OS are MS-DOS, Windows 95/98/Me/NT4.0. ICH5 supports a maximum of four devices using these OS.

Operating System

WIN 2000/XP Primary/Secondary Port0/Port1

WIN 95/98/Me/NT4.0

IDE Serial ATA

Primary Port0/Port1

Secondary Port0/Port1

Primary/Secondary ----

3.9 PCI E-IDE Drive Connector

J8 and J9 are standard 40-pin daisy-chain driver connector that serves the PCI E-IDE drive provisions onboard the HS-4703. A maximum of four ATA/33/66/100 IDE drives can be connected to the HS-4703 via J8 and J9.

 J8/J9: IDE Connector

PIN Description PIN Description

1 RESET 2 GND 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 17 DATA 0 18 DATA 15 19 GND 20 N/C 21 PDREQ 22 GND 23 IOW# 24 GND 25 27 PIORDY 28 PR1PD1- 29 RPDACK- 30 GND 31 Interrupt 32 N/C 33 RPDA1- 34 PATA66 35 RPDA0- 36 RPDA2-

DATA 1

IOR#

…More On Next Page…

DATA 14

GND

Page 19

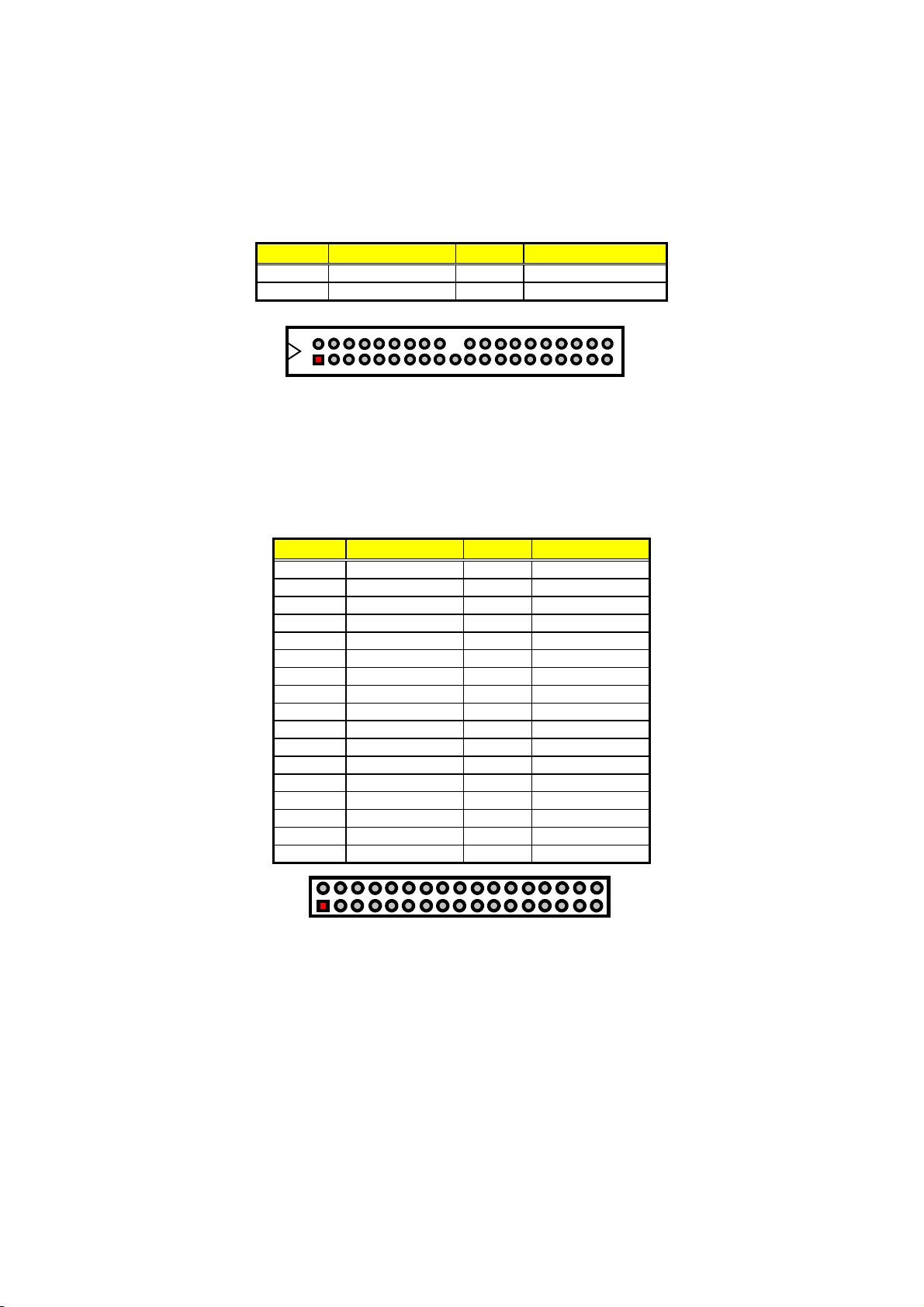

PIN Description PIN Description

37 RPCS1- 38 RPCS3- 39 HDD Active 40 GND

46810

202224 262830

16 36

12 14

32 34

3 5 7 9 17 19 21 23 25 27 29 31

11 13 15 35 37

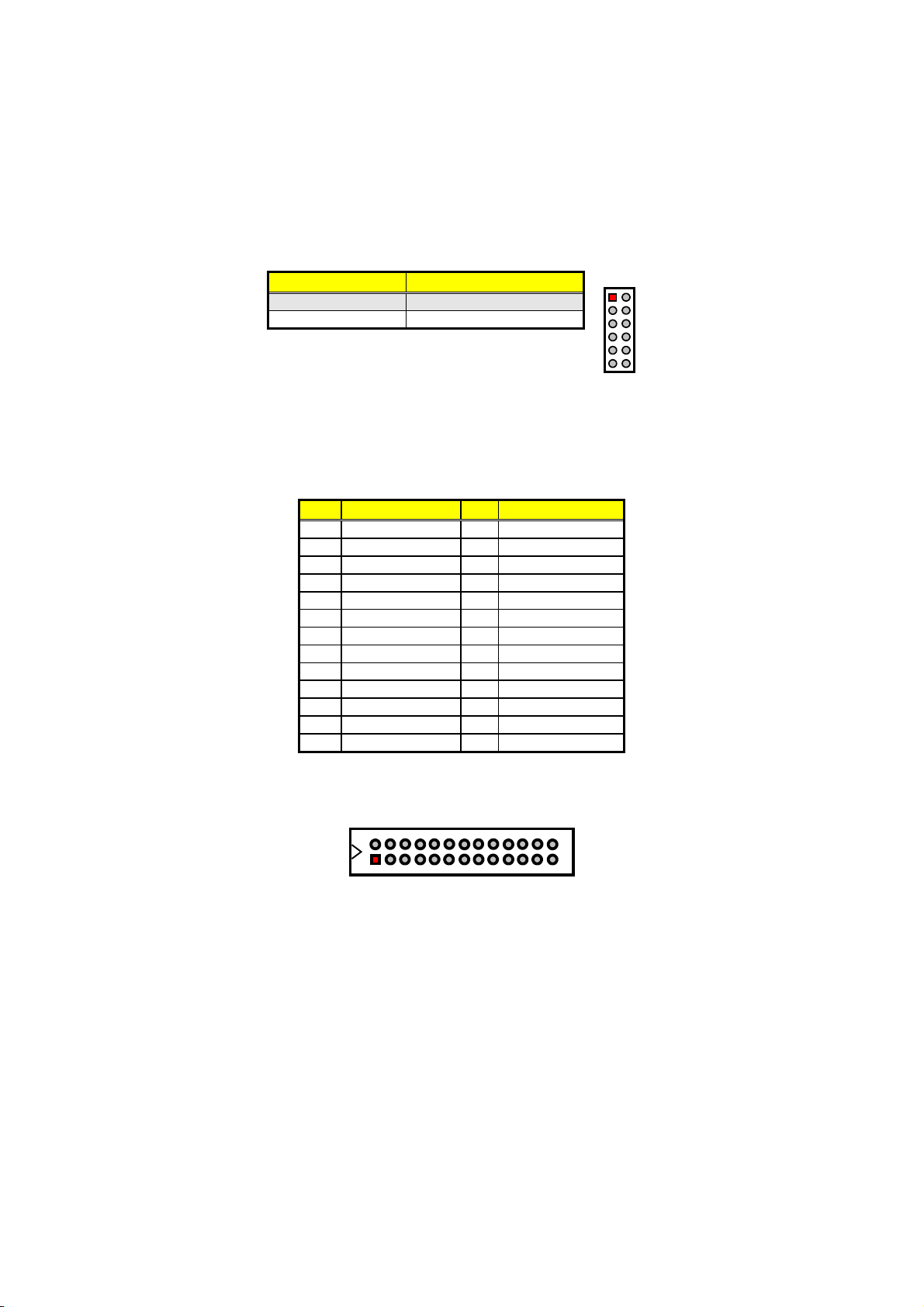

3.10 Floppy Disk Drive Connector

The HS-4703 uses a standard 34-pin header connector, J13, for floppy disk drive connection. A total of two FDD drives may be connected to J13 at any given time.



J13: FDD Connector

PIN Description PIN Description

1 GND 2 DRVDEN0 3 GND 4 N/C 5 GND 6 DRVDEN1 7 GND 8 INDEX#

9 GND 10 MTR0# 11 GND 12 DS1# 13 GND 14 DS0# 15 GND 16 MTR1# 17 GND 18 DIR# 19

GND

20 21 GND 22 WDATA# 23 GND 24 WGATE# 25 GND 26 TRAK00# 27 GND 28 WRTPRT# 29

GND

30 31 GND 32 HDSEL# 33 GND 34 DSKCHG#

STEP#

RDATA#

Page 20

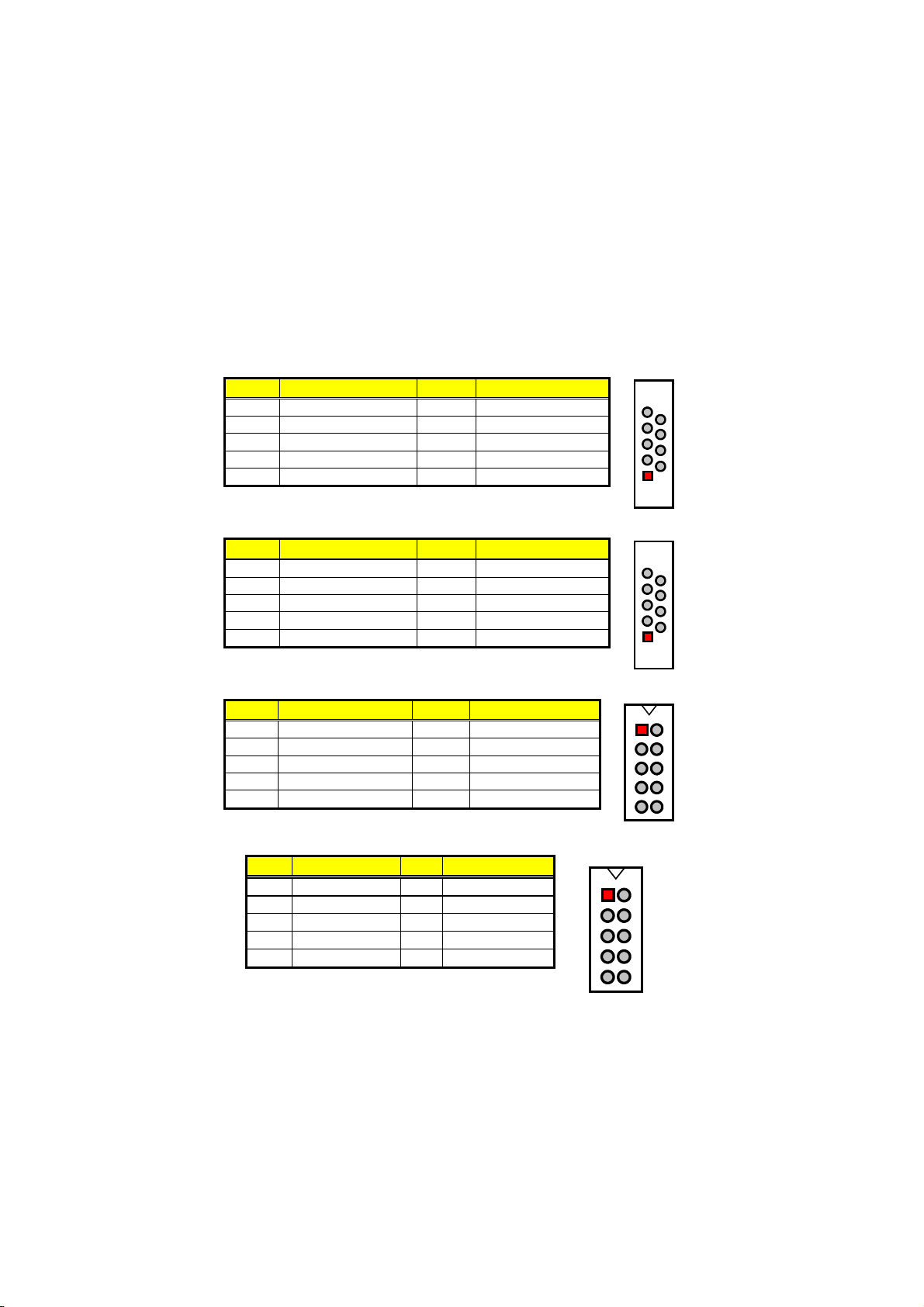

3.11 Serial Port Connectors

The HS-4703 offers two NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and four internal 10-pin headers.



CN2(1-9): COM1 Connector (DB9)

PIN Description PIN Description

1 DCD1 6 DSR1 2 RXD1 7 RTS1 3 TXD1 8 CTS1 4

DTR1

RI1

5 GND

 CN2(10-18): COM1 Connector (DB9)

PIN Description PIN Description

10 DCD2 15 DSR2 11 RXD2 16 RTS2 12 TXD2 17 CTS2 13 DTR2 18 RI2 14 GND

 CN11/CN10: COM3/COM4 Connector (5x2 header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 N/C

 CN6: RS-422/485 Connector (5x2 header)

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 RTS- 7

RTS+

CTS+

9 CTS- 10 N/C

TX-

RX+

GND

RTS+

CTS-

DCD

RXD

TXD

DTR

GND

TX+

RX-

RTS-

CTS+

N/C

DSR

RTS

CTS

N/C

Page 21

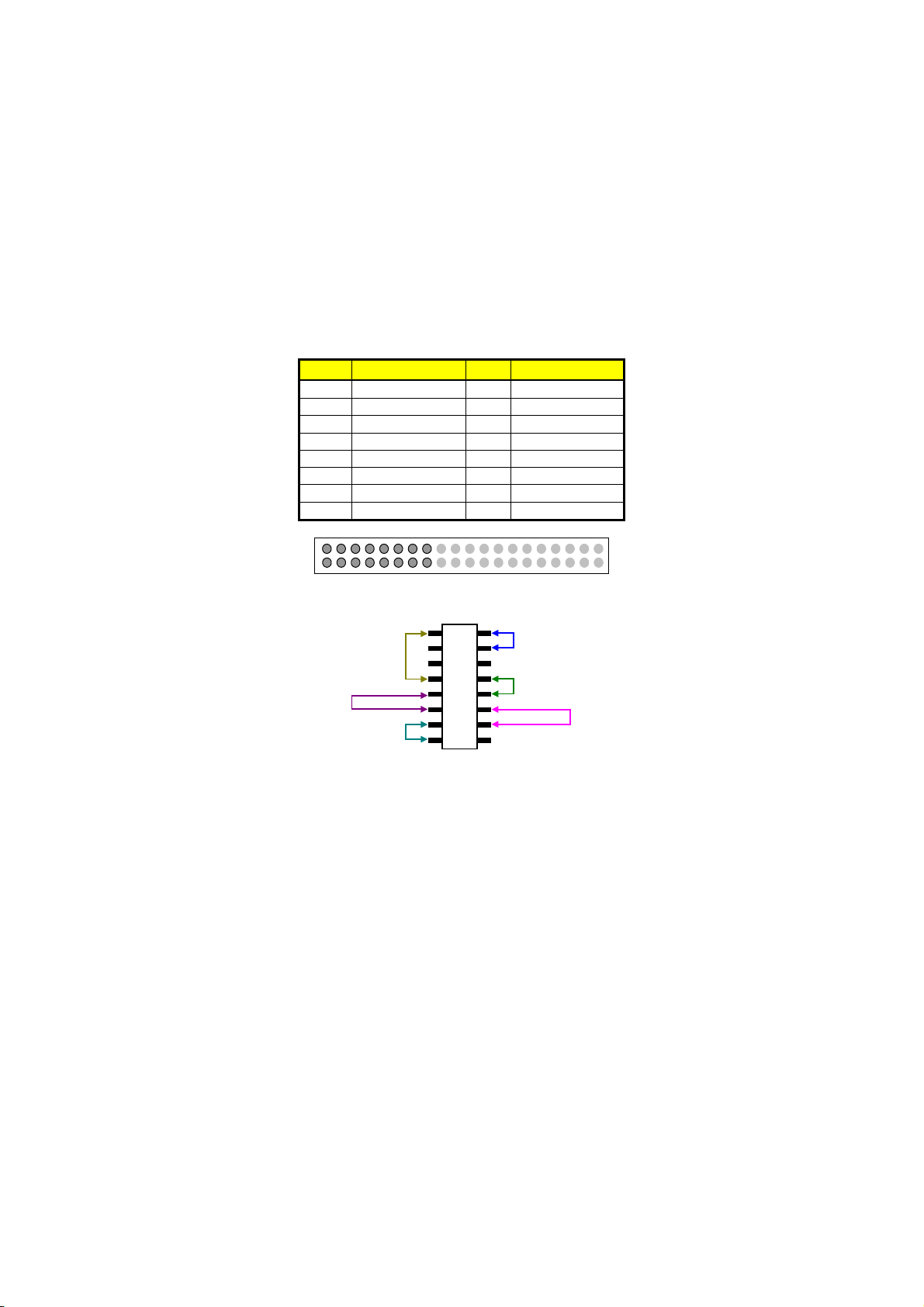

 JP1: COM2 Use RS-232 or RS-422/485 Select

Options Setting

RS-232 (default) Short 1-3, 2-4, 7-9, 8-10

RS-422/485 Short 3-5, 4-6, 9-11, 10-12

1211

3.12 Parallel Connector

CN12 is a standard 26-pin flat cable connector designed to accommodate parallel port connection onboard the HS-4703.



CN12: Parallel Connector

PIN Description PIN Description

1 Strobe 14 Auto Form Feed 2 DATA 0 15 ERROR# 3 DATA 1 16 Initialize 4 DATA 2 17 Printer Select LN# 5 DATA 3 18 GND 6 DATA 4 19 GND 7 DATA 5 20 GND 8

DATA 6

9 DATA 7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND 13

Printer Select

GND

Auto Form Feed

ERROR#

Initialize

Printer Select LN#

GND

PDD0

PDD1

PDD2

PDD3

PDD4

PDD5

PDD6

Strobe

PDD7

GND

Acknowledge

GND

Busy

Paper Empty

Printer Select

Page 22

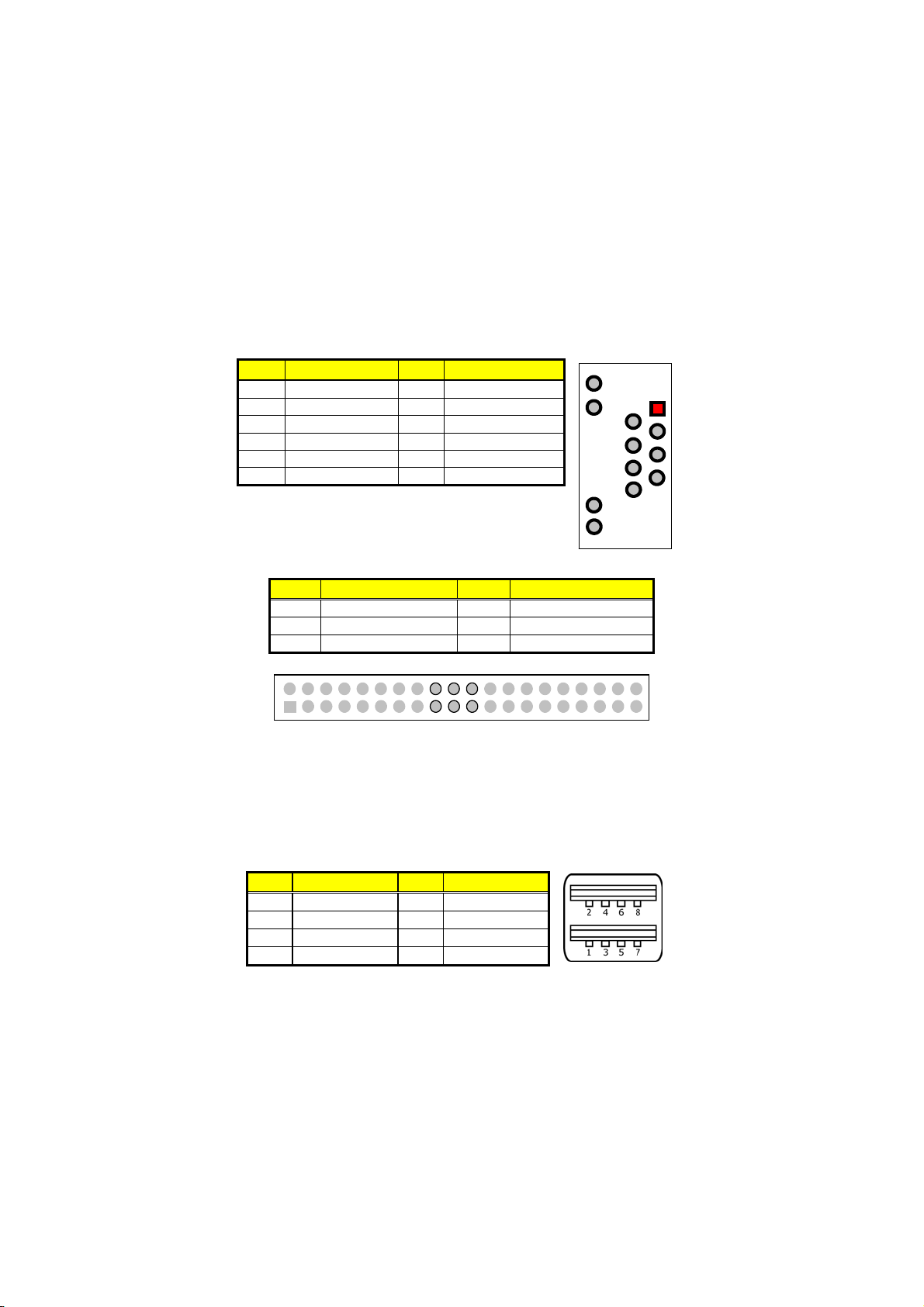

3.13 Ethernet Connector

The HS-4703 provides one RJ-45 connector. Please refer to the following for its pin information.



CN5(1-12): RJ-45 Connector

PIN Description PIN Description

1 TX+ 2 TX- 3 5 R/C GND 6 RX- 7 R/C GND 8 R/C GND 9 Link LED 10 330Ω Pull 3VSB

RX+

Active LED

R/C GND

330Ω Pull 3VSB



CN13(17-22): Internal LAN Link/Active LED Connector

PIN Description PIN Description

17 Link LED 18 330Ω Pull 3VSB 19 N/C 20 330Ω Pull 3VSB 21 Active LED 22 330Ω Pull 3VSB

1718192021

3.14 USB Connector

The HS-4703 provides three 8-pin internal connector, at location CN8, CN9 and CN13(33-40), and two 4-pin external connector, at locations CN5(17~26), for eight USB2.0 connections to the HS-4703.



CN5(17-26): External USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD1- 4 BD2- 5 BD1+ 6 BD2+ 7 GND 5 GND

Page 23



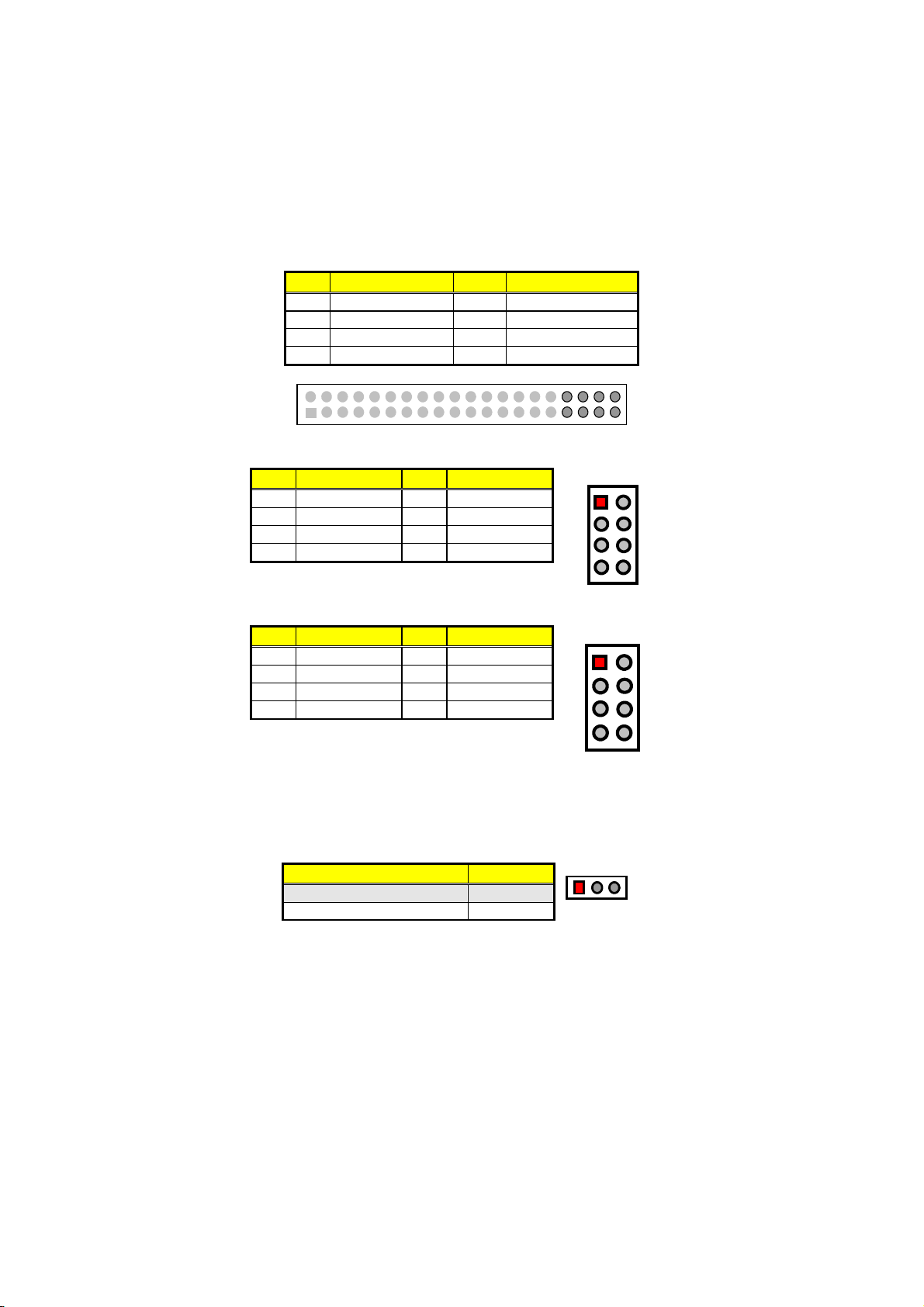

CN13(33-40): Internal USB2.0 Connector

PIN Description PIN Description

33 VCC 34 VCC 35 BD3- 36 BD4- 37 BD3+ 38 BD4+ 39 GND 40 GND



CN8: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD5- 4 BD6- 5 BD5+ 6 BD6+ 7 GND 8 GND



CN9: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD7- 4 BD8- 5 BD7+ 6 BD8+ 7

GND

VCC

BD5-

BD5+

GND

VCC

BD7-

BD7+

GND

3536373839

VCC

BD6-

BD6+

GND

VCC

BD8-

BD8+

GND

3.15 CMOS Data Clear

The HS-4703 has a Clear CMOS jumper on JP2.



JP2: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Short 2-3

IMPORTANT:

Clear CMOS

Before you turn on the power of your system, please set JP2 to short 1-2 for normal operation.

Page 24

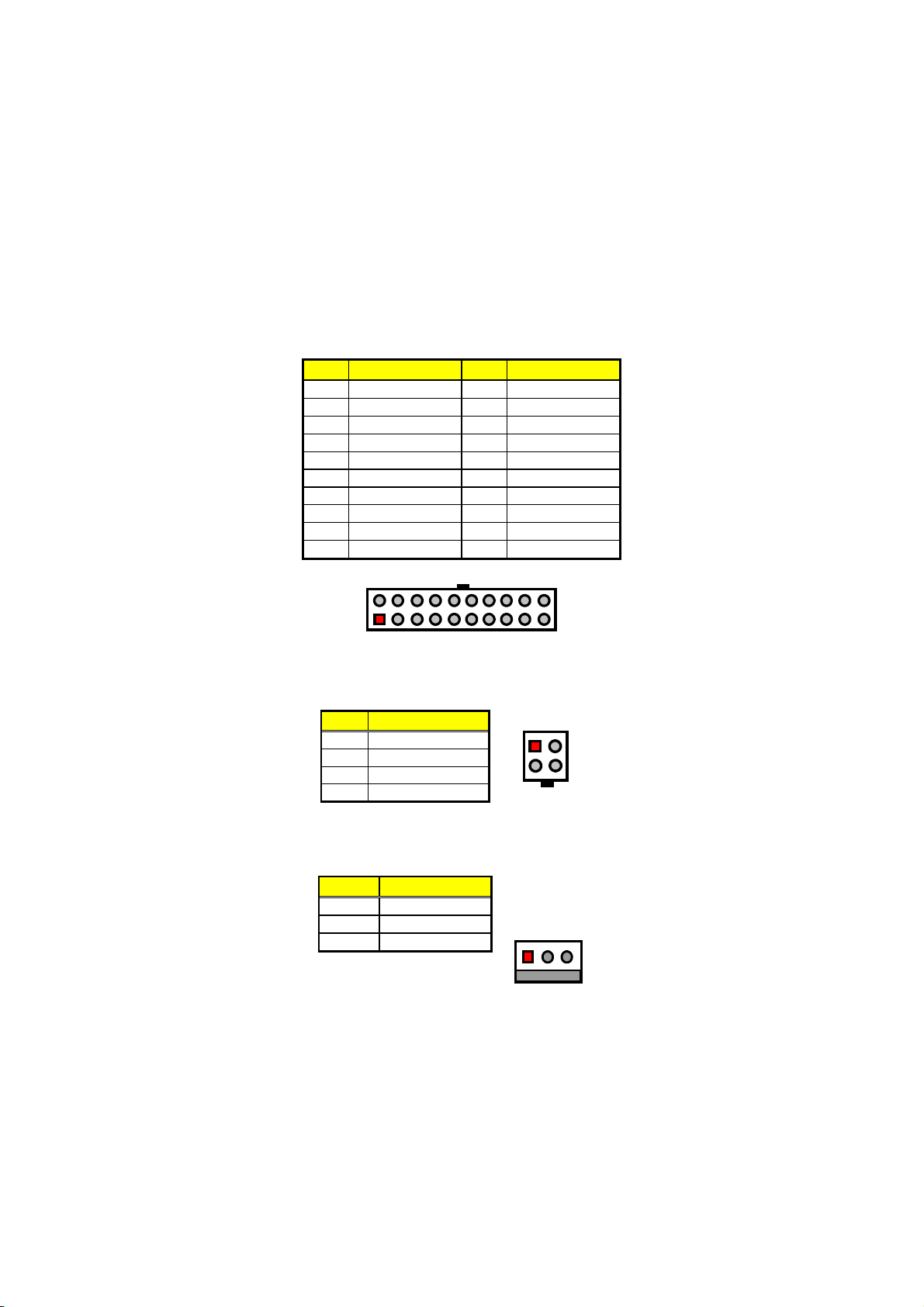

3.16 Power and Fan Connectors

HS-4703 provides one 4-pin ATX power in connector at CN7, and one 20-pin ATX power in connector at CN4.



CN4: 20-pin ATX Power In Connector

PIN Description PIN Description

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 GND 13 GND 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 PWORK 18 N/C 9 +5Vsb 19 +5V

10 +12V 20 +5V

+3.3V

-12V

GND

PS_ON

GND

-5V

+5V

GND

+3.3V

GND

Button View



CN7: 4-pin ATX Power In Connector

PIN Description

1 GND 2 GND 3 +12V 4 +12V

+5V

GND

PWORK

GND

+12V

+5Vsb

Top View

GND

+12V

J1, J2 and J3 onboard HS-4703 are 3-pin fan power connectors.



J1/J2/J3: Fan Power In Connector

PIN Description

1 GND 2 +12V 3 Fan Speed

Fan Speed

+12V

GND

Page 25

3.17 Keyboard and Mouse Connector

The HS-4703 offers one possibility for keyboard/mouse connection. The connections are done via CN1 for an external PS/2 type keyboard and mouse connections.



CN1: PS/2 6-pin Mini DIN Keyboard/Mouse Connector

PIN Description PIN Description

1 Keyboard Data 7 Mouse Data 2 N/C 8 N/C 3 GND 9 GND 4 5 Keyboard Clock 11 Mouse Clock 6 N/C 12 N/C

+5V

3412

5 6

91078

3.18 TV-Out Function

The HS-4703 can support TV-Out function whose input could be up to 800 x 600 graphics resolutions. World Wide Video standards are supported including NTSC-M (North America, Taiwan), NTSC-J (Japan), PAL-B, D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N (Uruguay, Paraguay) and PAL-NC (Argentina).

 J16: TV-Out Connector

PIN Description PIN Description

1 GND 2 CVB

1 2

3.19 GPIO Connector

The HS-4703 provides a J12 connector for GPIO function.



J12: GPIO Connector

PIN Description PIN Description

1 BIT7 2 10KΩ Pull 3VSB 3 BIT6 4 10KΩ Pull 3VSB 5 BIT5 6 10KΩ Pull 3VSB 7 BIT4 8 10KΩ Pull 3VSB

9 BIT3 10 10KΩ Pull 3VSB 11 13 BIT1 14 10KΩ Pull 3VSB 15 BIT0 16 10KΩ Pull 3VSB

BIT2

10KΩ Pull 3VSB

Page 26

3.20 System Front Panel Connectors

The HS-4703 has one system front panel at location CN13(1-16) that indicates the system front panel status.



CN13(1-16): System Front Panel Connector

PIN Description PIN Description

1 VCC 2 330Ω Pull VCC 3

GND

4 5 GND 6 GND 7 Speaker 8 PS_ON 9 GND 10 330Ω Pull +5Vsb

Reset Button

12 13 330Ω Pull VCC 14 330Ω Pull +5Vsb 15 HDD LED 16 N/C

GND

SUS LED

Connector CN13(1-16) Orientation

SPEAKER

RST_SW

HDD_LED

PWR LED

PWR Button

SUS LED

Page 27

3.21 Watchdog Timer

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal will re-start when such error happens.

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH

MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;------------- ------------------------------------------------------------------ MOV DX, 2EH MOV AL, AAH OUT DX, AL

User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H = 2sec to FFH = 255sec.

Page 28

3.22 Audio Connectors

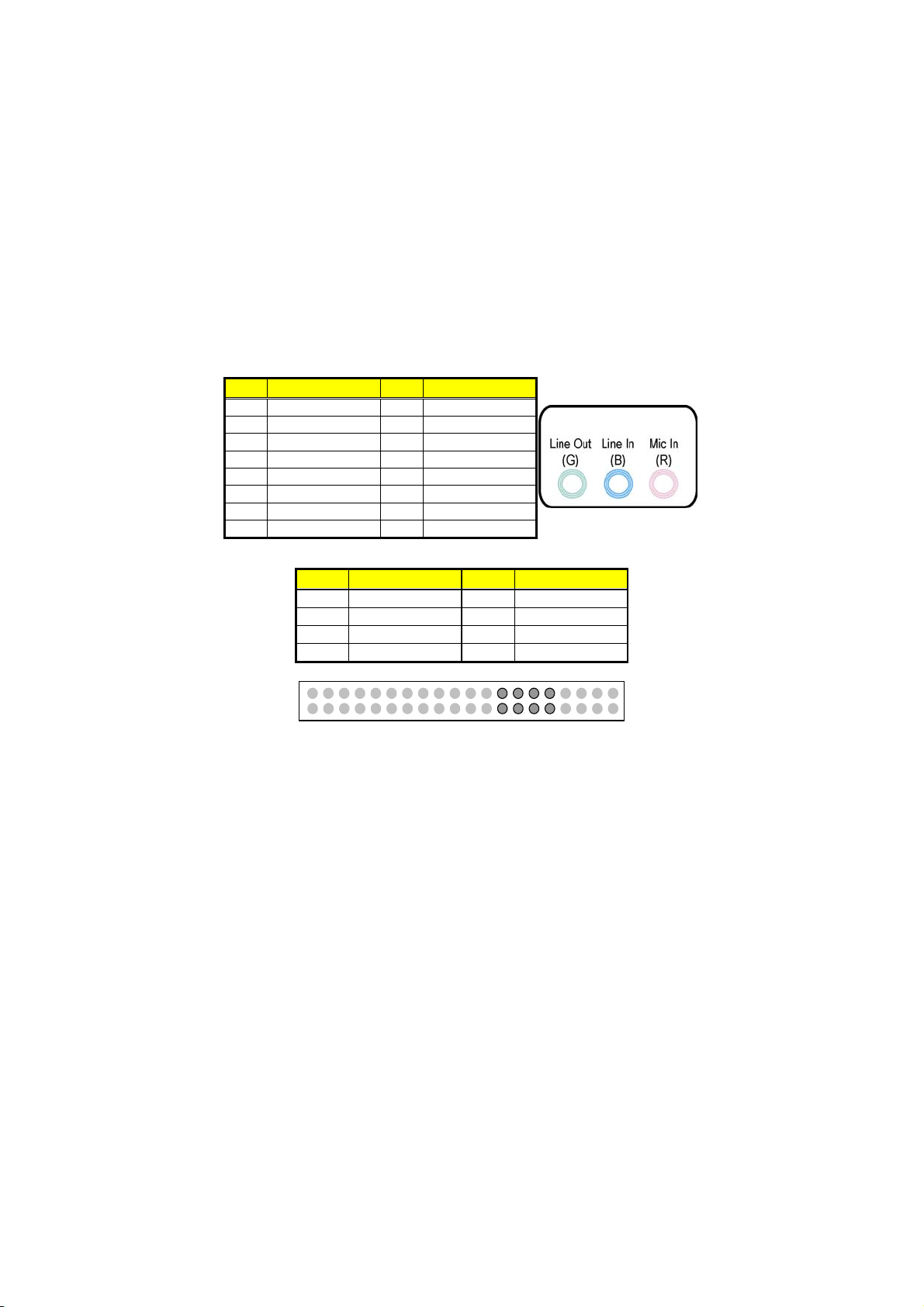

The HS-4703 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the MIC In, Line Out, and Line In connectors.



CN3(17-32): External Audio Connector

PIN Description PIN Description

17 GND 25 GND 18 N/C 26 GND 19 GND 27 Line In L 20 21 GND 29 N/C 22 MIC In 1 30 GND 23 Line In R 31 N/C 24



CN13(25-32): Internal MIC In/Audio Out Connector

GND

PIN Description PIN Description

25 Font Audio Out L 26 Font Audio Out R 27 Audio GND 28 Audio GND 29 MIC In 2 30 N/C 31 Audio GND 32 Audio GND

Audio Out R

Audio Out L

Page 29

Chapter 4

Award BIOS Setup

The HS-4703 uses Award BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 30

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

(Shift)F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

Option Page Setup Menu

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 31

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

` Advanced BIOS Features

` Advanced Chipset Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving



：Select Item

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Page 32

4.4 Standard CMOS Features

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

Phoenix – AwardBIOS CMOS Setup Utility

Date (mm:dd:yy) Wed, Nov 17 2004 Item Help Time (hh:mm:ss) 10 : 32 : 57 Menu Level X

IDE Channel 0 Master [Auto] Change the day, month,

IDE Channel 0 Slave [Auto] year and century

IDE Channel 1 Master [Auto]

X X IDE Channel 1 Slave [Auto]

Drive A [1.44M, 3.5in.] Drive B [None]

Video [EGA/VGA] Halt On [All Errors]

Base Memory 640K Extended Memory 65535K Total Memory 1024K



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

mode. Please use the IDE Setup Utility in

LBA

Standard CMOS Features

Page 33

4.5 Advanced BIOS Features

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Hard Disk Boot Priority [Press Enter] Item Help Virus Warning [Disabled] Menu Level X CPU L1 & L2 Cache [Enabled] CPU L3 Cache [Enabled] Hyper-Threading Technology [Enabled] Quick Power On Self Test [Enabled] First Boot Device [Floppy] Second Boot Device [Hard Disk] Third Boot Device [CDROM] Boot Other Device [Enabled] Swap Floppy Drive [Disabled] Boot Up Floppy Seek [Enabled] Boot Up NumLock Status [Off] Gate A20 Option [Fast] Typematic Rate Setting [Disabled]

X Typematic Rate (Chars/Sec) 6 X Typematic Delay (Msec) 250

Security Option [Setup] APIC Mode [Enabled] MPS Version Control For OS [1.4] OS Select For DRAM > 64MB [Non-OS2] Report No FDD For WIN 95 [No] Full Screen LOGO Show [Disabled] Small Logo(EPA) Show [Enabled]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

Hard Disk Boot Priority

1. Pri.Master : Item Help

2. Pri.Slave : Menu Level X

3. Sec.Master :

4. Sec.Slave :

5. USBHDD0 :

6. USBHDD1 :

7. USBHDD2 :

8. Bootable Add-in Cards



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 34

4.6 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider making any changes only if you discover that the data has been lost while using your system.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced Chipset Features

DRAM Timing Selectable [By SPD] Item Help CAS Latency Time [2] Menu Level X Active to Precharge Delay [8] DRAM RAS# to CAS# Delay [4] DRAM RAS# Precharge [4] Memory Frequency For [Auto] System BIOS Cacheable [Enabled] Video BIOS Cacheable [Enabled] Memory Hole At 15M-16M [Disabled] Delay Prior to Thermal [16 Min] AGP Aperture Size (MB) [128] Init Display First [PCI Slot] ** ON-Chip VGA Setting ** On-Chip VGA [Enabled] On-Chip Frame Buffer size [8MB] Boot Display [CRT] Panel Scaling [Auto] Panel Number [1] TV Standard [Off] Video Connector [Automatic] TV Format [Auto] Onboard LAN Control [Enabled]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 35

4.7 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. This is much simpler and more efficient (also faster).

Phoenix – AwardBIOS CMOS Setup Utility

Integrated Peripherals

OnChip IDE Device [Press Enter] Item Help

Onboard Device [Press Enter] Menu Level X

SuperIO Device [Press Enter]

Onboard Serial Port 3 [3E8] Serial Port 3 Use IRQ [IRQ10] Onboard Serial Port 4 [2E8] Serial Port 4 Use IRQ [IRQ11]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

OnChip IDE Device

IDE HDD Block Mode [Enabled] Item Help IDE DMA transfer access [Enabled] Menu Level X On-Chip Primary PCI IDE [Enabled] IDE Primary Master PIO [Auto] IDE Primary Slave PIO [Auto] IDE Primary Master UDMA [Auto] IDE Primary Slave UDMA [Auto] On-Chip Secondary PCI IDE [Enabled] IDE Secondary Master PIO [Auto] IDE Secondary Slave PIO [Auto] IDE Secondary Master UDMA [Auto] IDE Secondary Slave UDMA [Auto] ** On-Chip Serial ATA Setting ** SATA Mode [IDE] On-Chip Serial ATA [Auto] Serial ATA Port0 Mode [Primary Master]

Serial ATA Port1 Mode [Primary Master



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 36

Phoenix – AwardBIOS CMOS Setup Utility

USB Controller [Enabled] Item Help USB 2.0 Controller [Enabled] Menu Level X USB Keyboard Support [Disabled] AC97 Audio [Auto]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

POWER ON Function [BUTTON ONLY] Item Help KB Power ON Password [Enter] Menu Level X Hot Key Power ON [Ctrl-F1] Onboard FDC Controller [Enabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3] UART Mode Select [Normal] RxD, TxD Active [Hi, Lo] IR Transmission Delay [Enabled] UR2 Duplex Mode [Half] Use IR Pins [IR-Rx2Tx2] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [SPP] EPP Mode Select [EPP1.7] ECP Mode Use DMA [3] PWRON After PWR-Fail [Off] Midi Port Address [330] Mini Port IRQ [5]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Onboard Device

SuperIO Device

Page 37

4.8 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

Phoenix – AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI Function [Enabled] Item Help

ACPI Suspend Type [S1(POS)] Menu Level X

X Run VGA BIOS if S3 Resume [Auto

Power Management [User Define]

Video Off Method [DPMS]

Video Off In Suspend [Yes]

Suspend Type [Stop Grant]

MODEM Use IRQ [NA]

Suspend Mode [Disabled]

HDD Power Down [Disabled]

Soft-Off by PWR-BTTN [Instant-Off]

CPU THRM-Throttling [50.0%]

Wake-Up by PCI card [Disabled]

Power On by Ring [Disabled]

Wake Up On LAN [Disabled]

X USB KB Wake-Up From S3 [Disabled

Resume by Alarm [Disabled]

X Date(of Month) Alarm [0 X Time(hh:mm:ss) Alarm [0 : 0 : 0

** Reload Global Timer Events **

Primary IDE 0 [Disabled]

Primary IDE 1 [Disabled]

Secondary IDE 0 [Disabled]

Secondary IDE 1 [Disabled]

FDD, COM, LPT Port [Disabled]

PCI PIRQ[A-D]# [Disabled]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 38

4.9 PnP/PCI Configurations

This section describes the configuration of the PCI bus system. PCI, or

eripheral Components Interconnect, is a system that allows I/O

devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix – AwardBIOS CMOS Setup Utility

Reset Configuration Data [Disabled] Item Help Menu Level X Resources Controlled By [Auto(ESCD)]

X IRQ Resources Press Enter Default is Disabled.

Select Enabled to PCI/VGA Palette Snoop [Disabled] reset Extended System Configuration Data ESCD) when you exit Setup if you have Installed a new add-on And the system Reconfiguration has Caused such a serious Conflict that the OS Cannot boot



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PnP/PCI Configurations

Page 39

4.10 PC Health Status

Phoenix – AwardBIOS CMOS Setup Utility

CPU Warning Temperature [Disabled] Item Help

Current SYSTEM Temp. Menu Level X Current CPU1 Temperature Current CPUFAN1 Speed Current CPUFAN2 Speed Current CPUFAN3 Speed IN0(V) IN1(V) IN2(V) +5V +12V

-12V

-5V VBAT(V) 5VSB(V)

Shutdown Temperature [Disabled]



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PC Health Status

4.11 Frequency/Voltage Control

Phoenix – AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

CPU Clock Ratio [ 8 X] Item Help Menu Level X



: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 40

4.12 Load Fail-Safe Defaults

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

Phoenix – AwardBIOS CMOS Setup Utility

` Standard CMOS Features ` Frequency/Voltage Control

` Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults

` Integrated Peripherals Set Supervisor Password

` Power Management Load Fail-Safe Defaults (Y/N)? N word

` PnP/PCI Configurations Save & Exit Setup

PC Health Status Exit Without Saving



：

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Select Item

Page 41

4.13 Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults

` Integrated Peripherals Set Supervisor Password

` Power Manageme Load Optimized Defaults (Y/N)? N word

` PnP/PCI Configurations Save & Exit Setup

` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control



：Select Item

4.14 Set Supervisor/User Password

Phoenix – AwardBIOS CMOS Setup Utility

` Standard CMOS Features ` Frequency/Voltage Control

` Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults

` Integrated Peripherals Set Supervisor Password

Power Manageme

PnP/PCI Configurations Save & Exit Setup

` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Enter Password: word

：

Select Item

Time, Date, Hard Disk Type…

Page 42

You can set either supervisor or user password, or both of them. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message is confirmed and the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Page 43

4.15 Save & Exit Setup

Press <Enter> on this item for confirmation:

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Phoenix – AwardBIOS CMOS Setup Utility

` Standard CMOS Features ` Frequency/Voltage Control

` Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults

` Integrated Peripherals Set Supervisor Password

` Power Manageme SAVE to CMOS and EXIT (Y/N)? N word

` PnP/PCI Configurations Save & Exit Setup

PC Health Status Exit Without Saving



：

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Select Item

Page 44

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing any change in CMOS. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults

` Integrated Peripherals Set Supervisor Password

` Power Manageme Quit without Saving (Y/N)? N word

` PnP/PCI Configurations Save & Exit Setup

` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control



：Select Item

Page 45

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN, audio and USB2.0 driver installation procedures. The utility disk that comes with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

The drivers are located in the following directories of the utility disk:

 Chipset driver:  VGA driver:  LAN driver:  Audio driver:  USB2.0 driver:

\ICH5

\VGA\865GV

\LAN\82562&82547

\Audio\AC97_ALC201

\USB20

Page 46

5.1 IDE Driver Installation

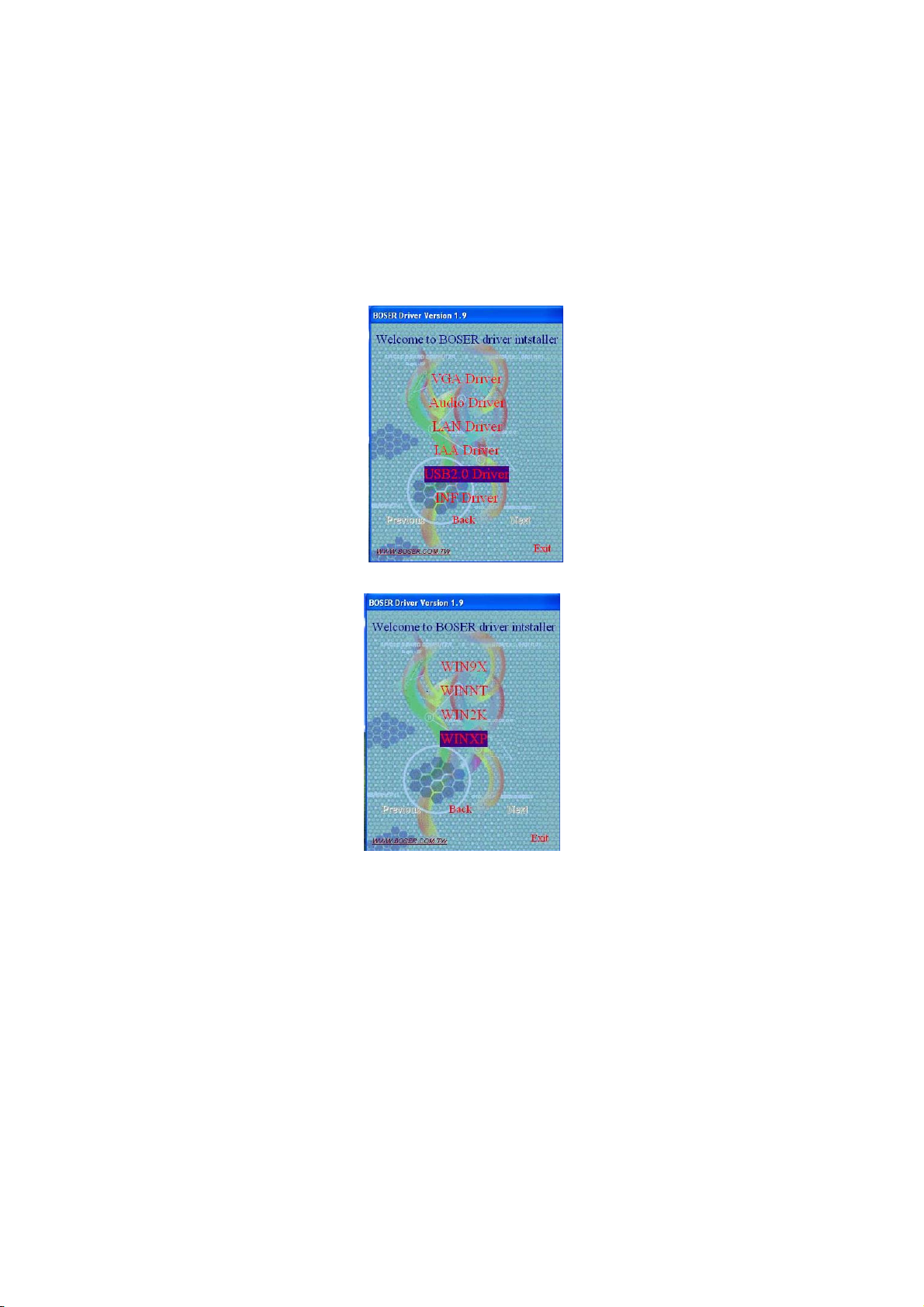

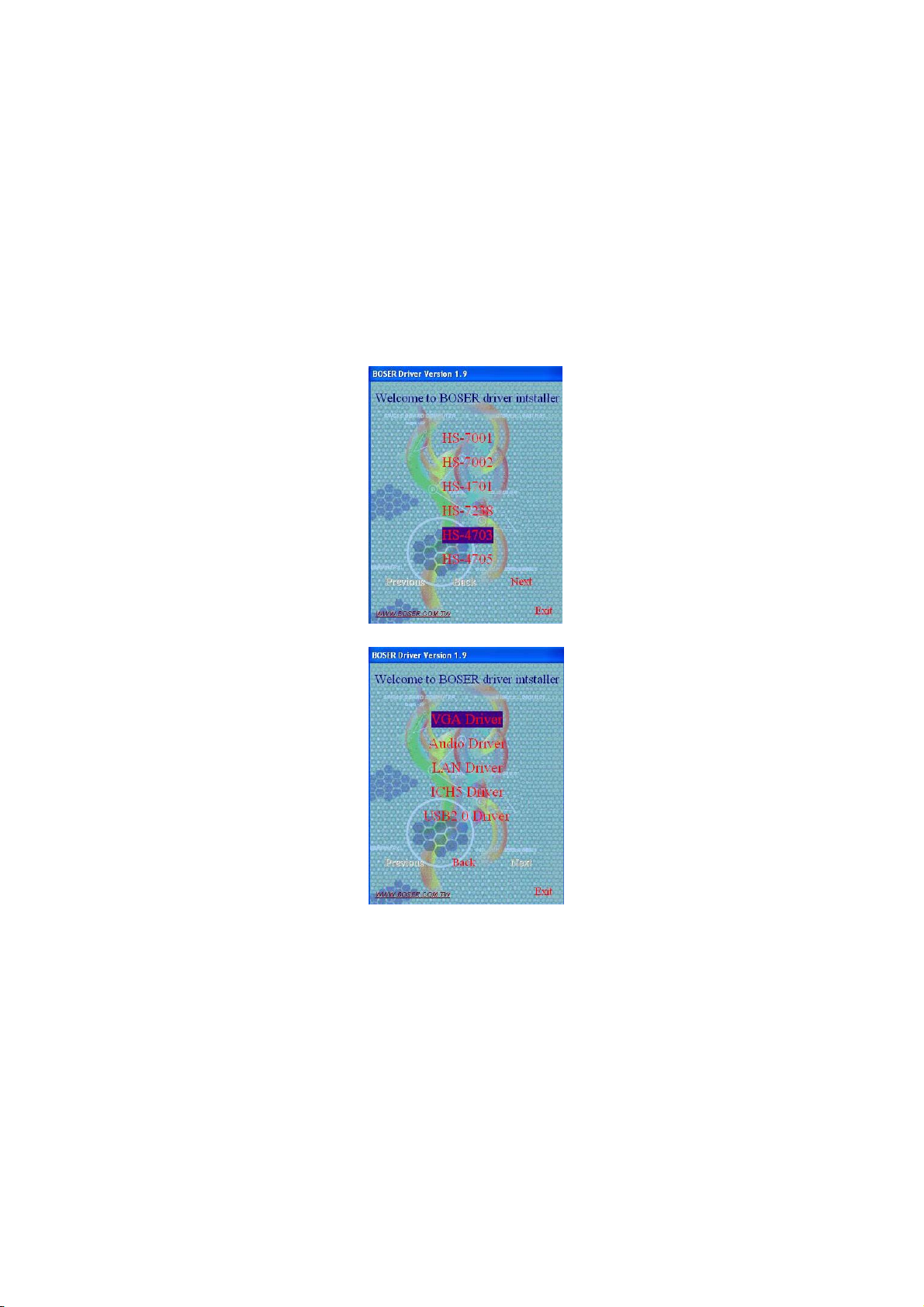

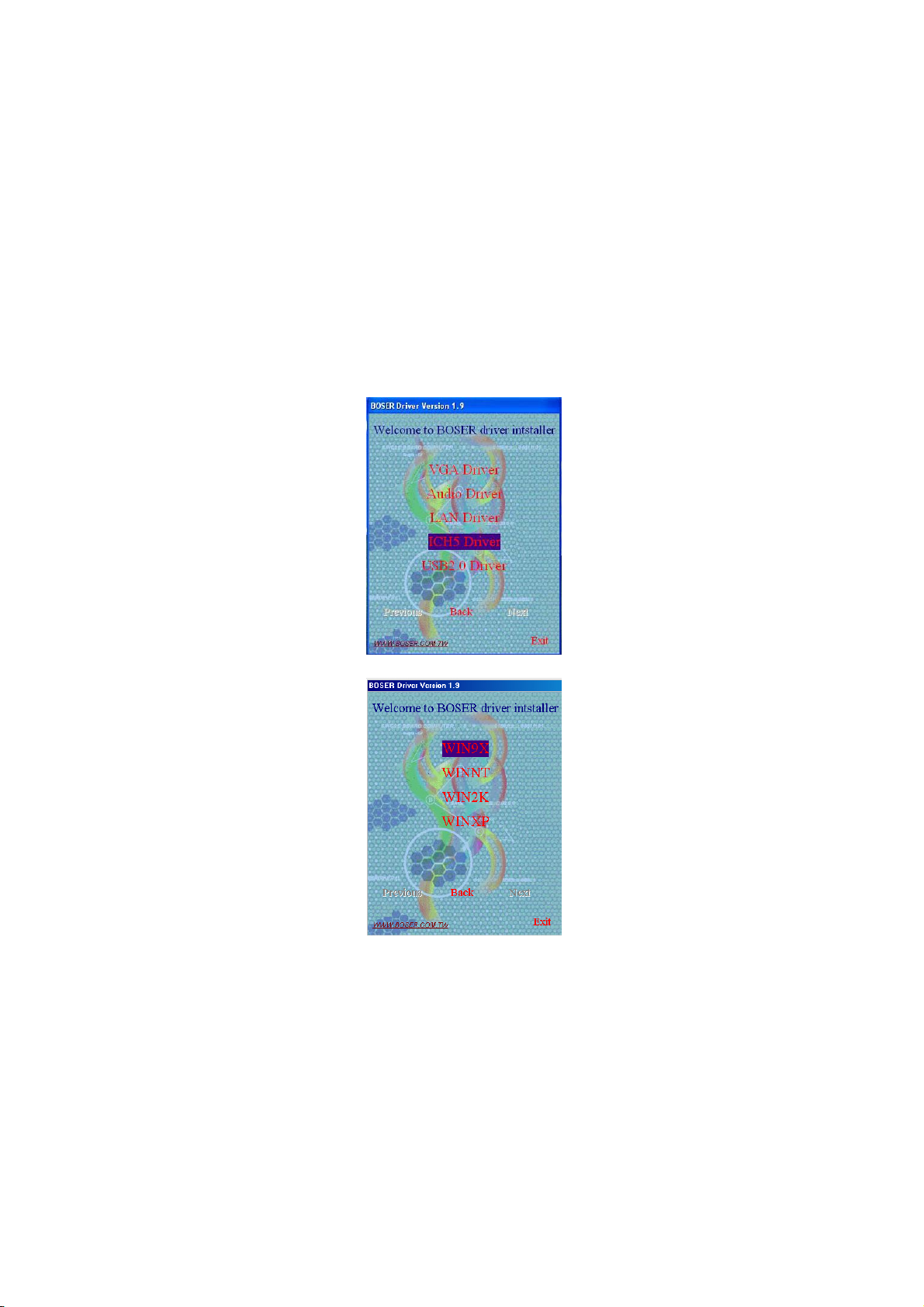

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

2. Click on the ICH5 Driver button to continue.

3. Click on the appropriate OS button to continue.

Page 47

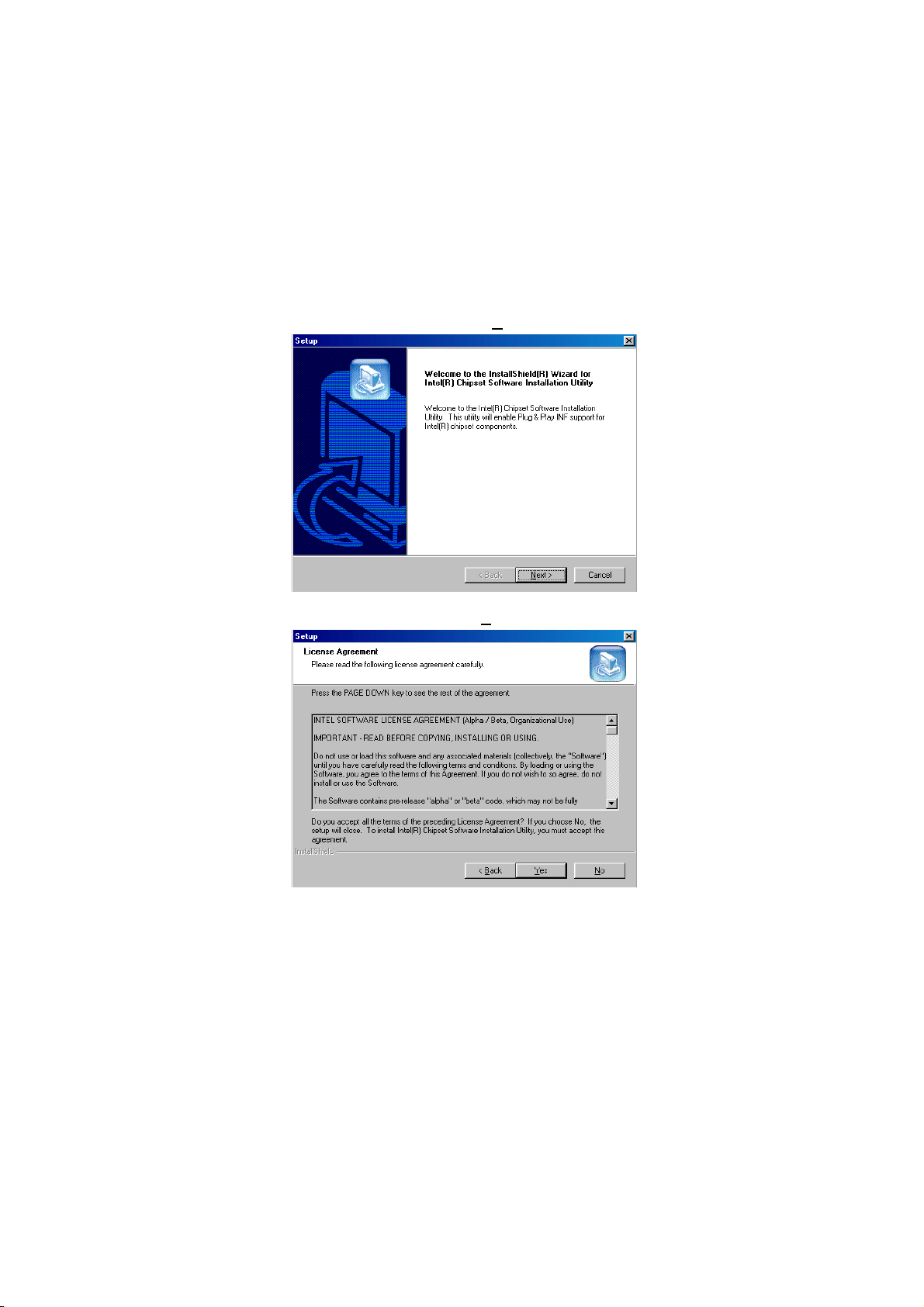

4. Immediately after clicking the IDE but t o n i n S te p 1 , th e p r og r a m launches the InstallShield Wizard that will assist you in the installation process. Click on the N

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

ext > button to proceed.

es to proceed.

Page 48

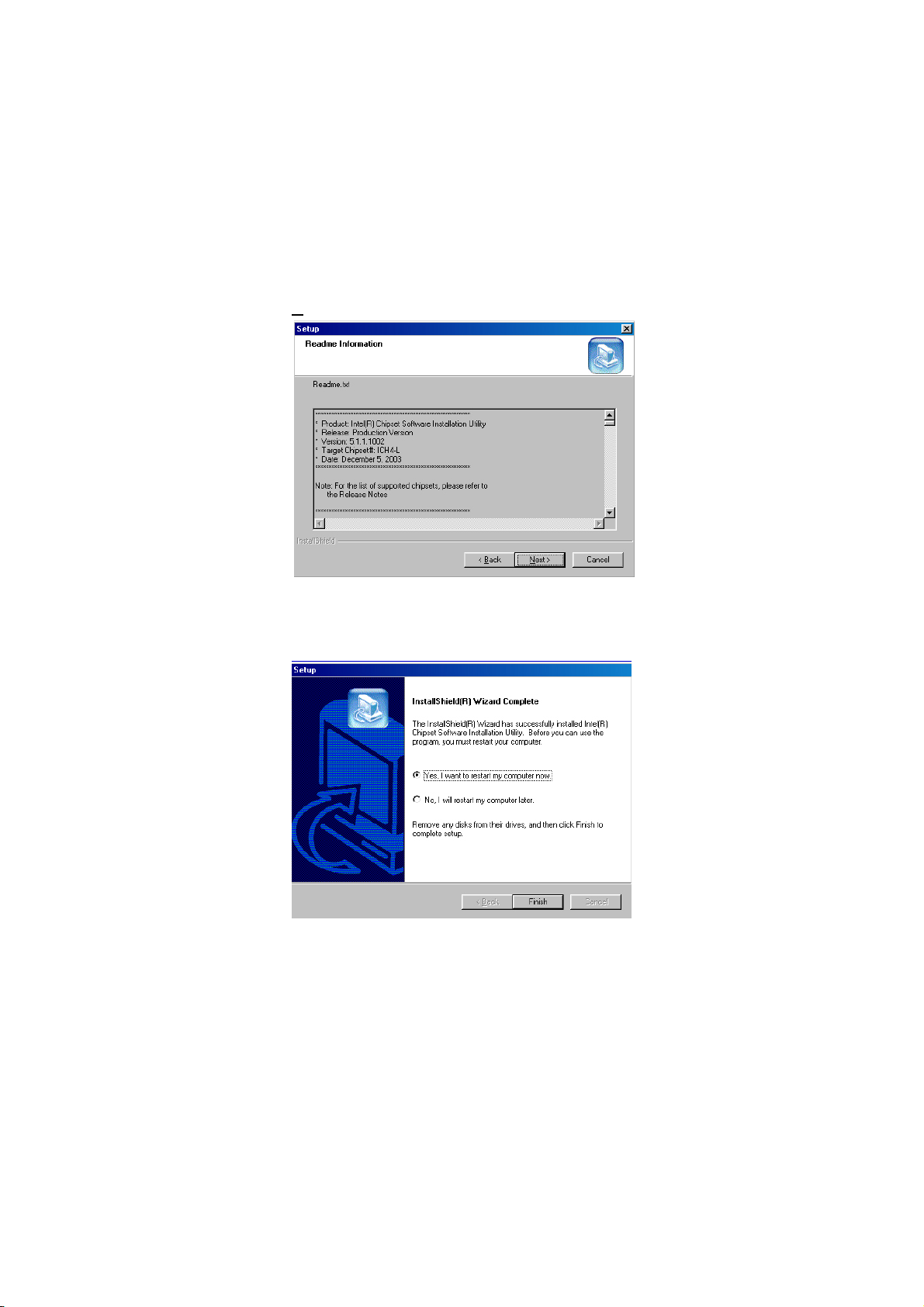

6. When the Readme Information dialog box pops up, just click on

7. Once the Install Shield Wizard finishes updating your system, it

ext> button to proceed.

the N

will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the Finish button to r eboot. O n l y after y o ur compu t e r boots w i ll the

new settings take effect.

NOTE:

WIN98/2K/XP IDE driver installations are the same.

Page 49

5.2 VGA Driver Installation

5.2.1 Win 98

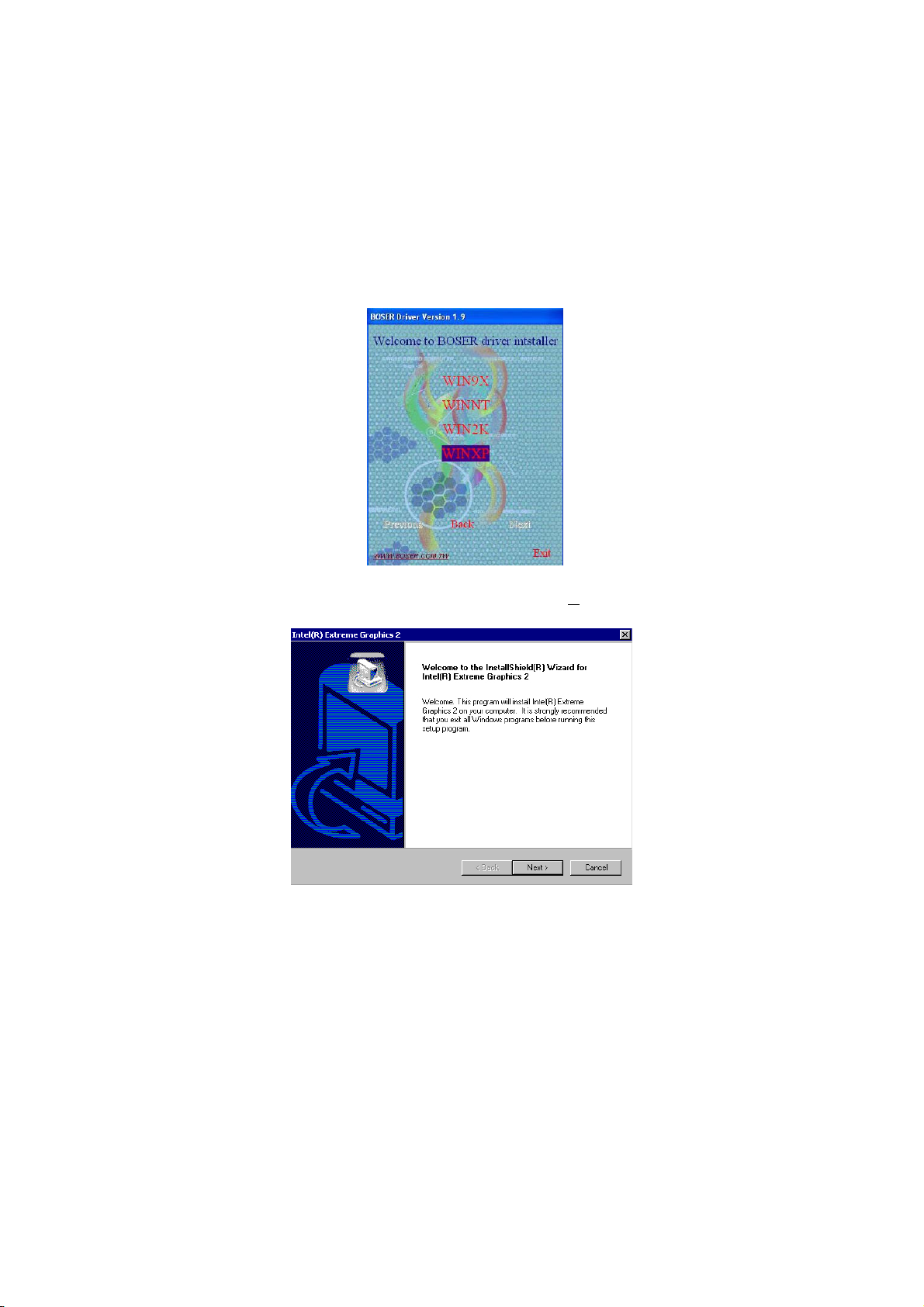

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

2. Click on the VGA Driver button to continue.

3. Click on the WIN9X button to continue.

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 50

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

6. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

es to proceed.

inish

Page 51

5.2.2 Win NT

NOTE:

1. Insert Utility CD Disk into your CD ROM drive. The main menu will

2. Click on the VGA Driver button to continue.

3. Click on the WINNT button to continue.

4. When the dialog box below appears, make sure you close all

Please make sure you have already installed Service Pack 6.0.

pop up as shown below. Select on the HS-4703 button to launch the installation program.

other Windows applications then click on the N proceed.

ext > button to

Page 52

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

inish

Page 53

5.2.3 Win 2000

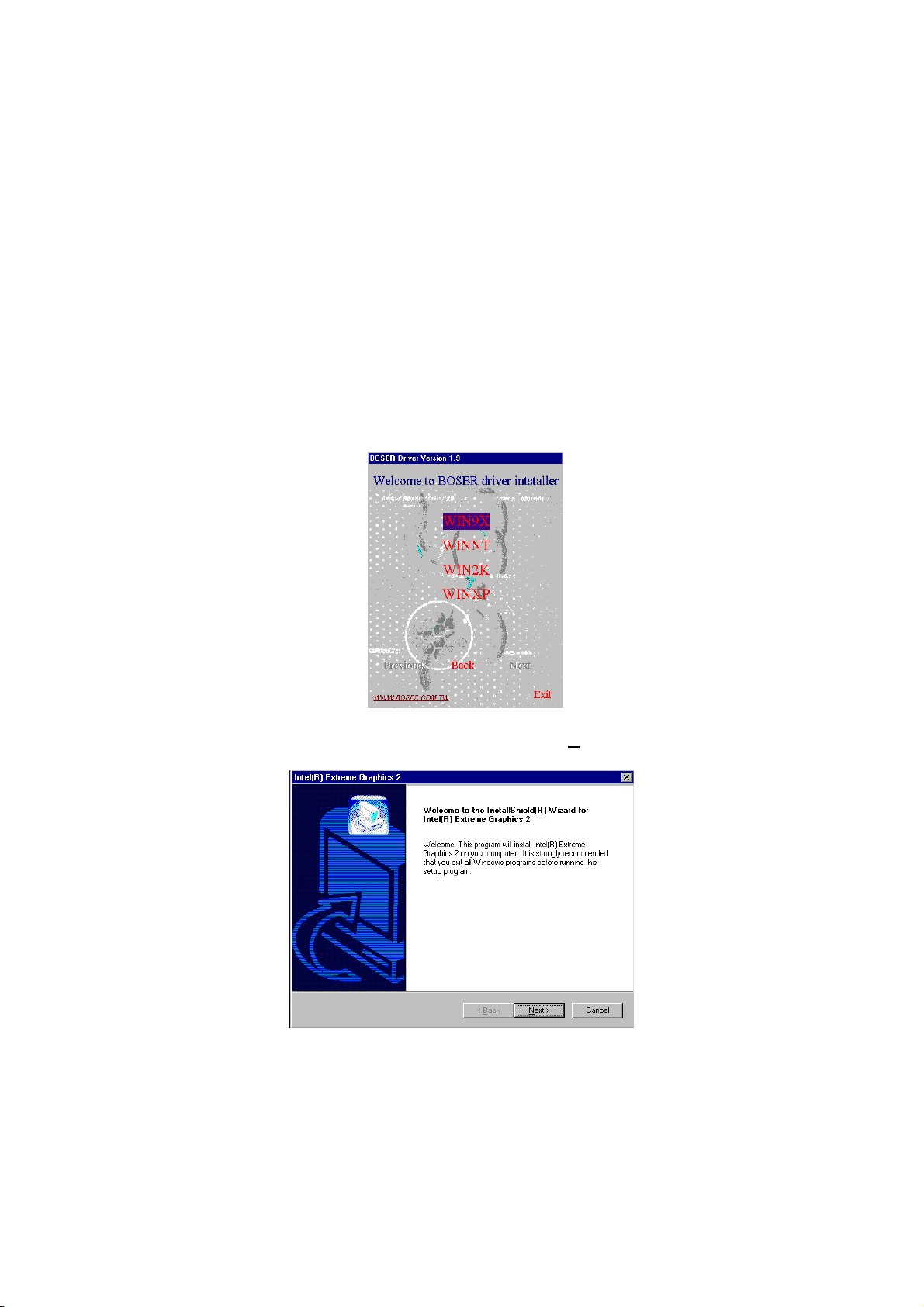

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

2. Click on the VGA Driver button to continue.

Page 54

3. Click on the WIN2K button to continue.

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 55

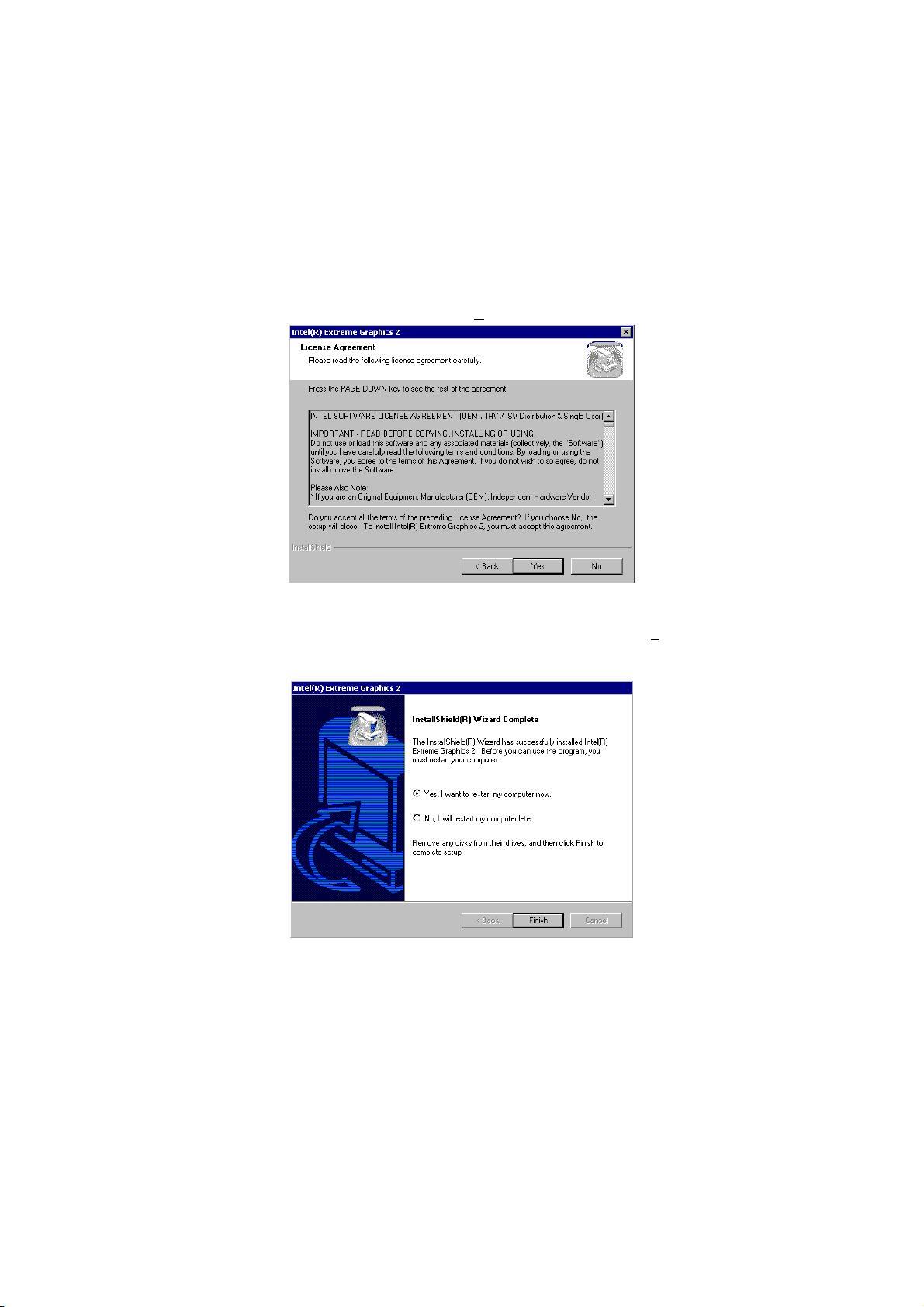

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

inish

NOTE:

WINXP driver installation is the same as WIN2K.

Page 56

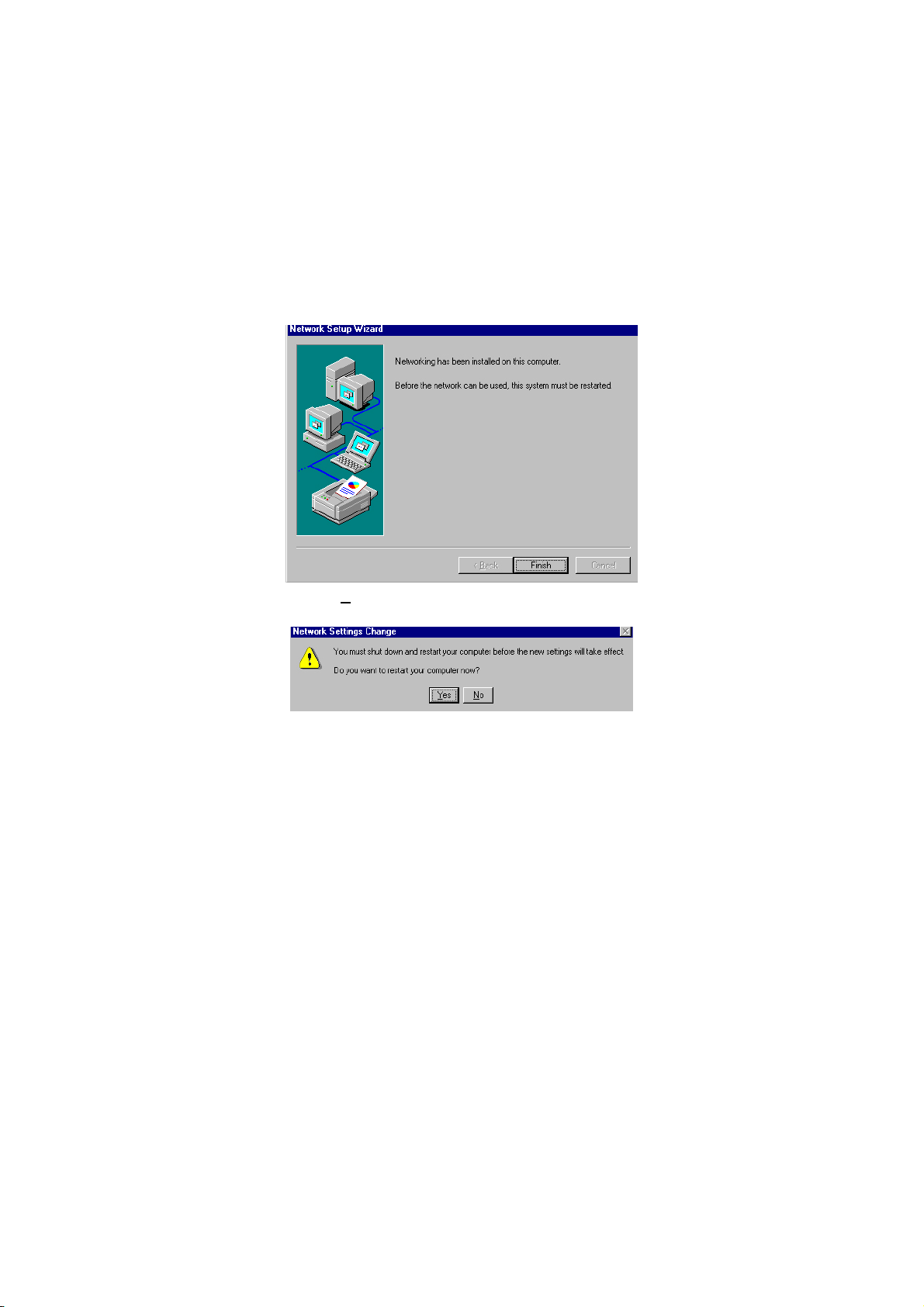

5.3 LAN Driver Installation

5.3.1 Win 98/Win2K/WINXP

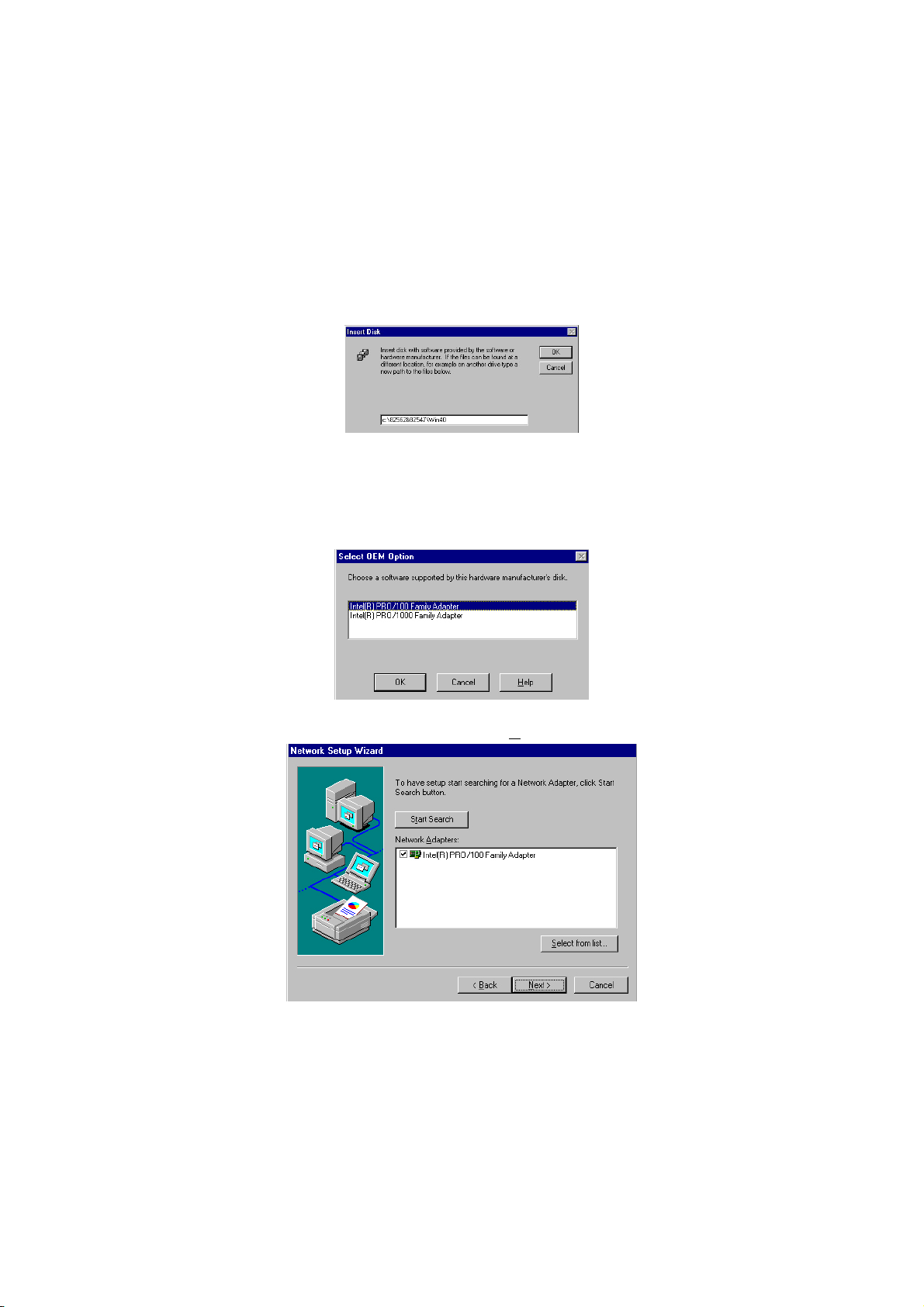

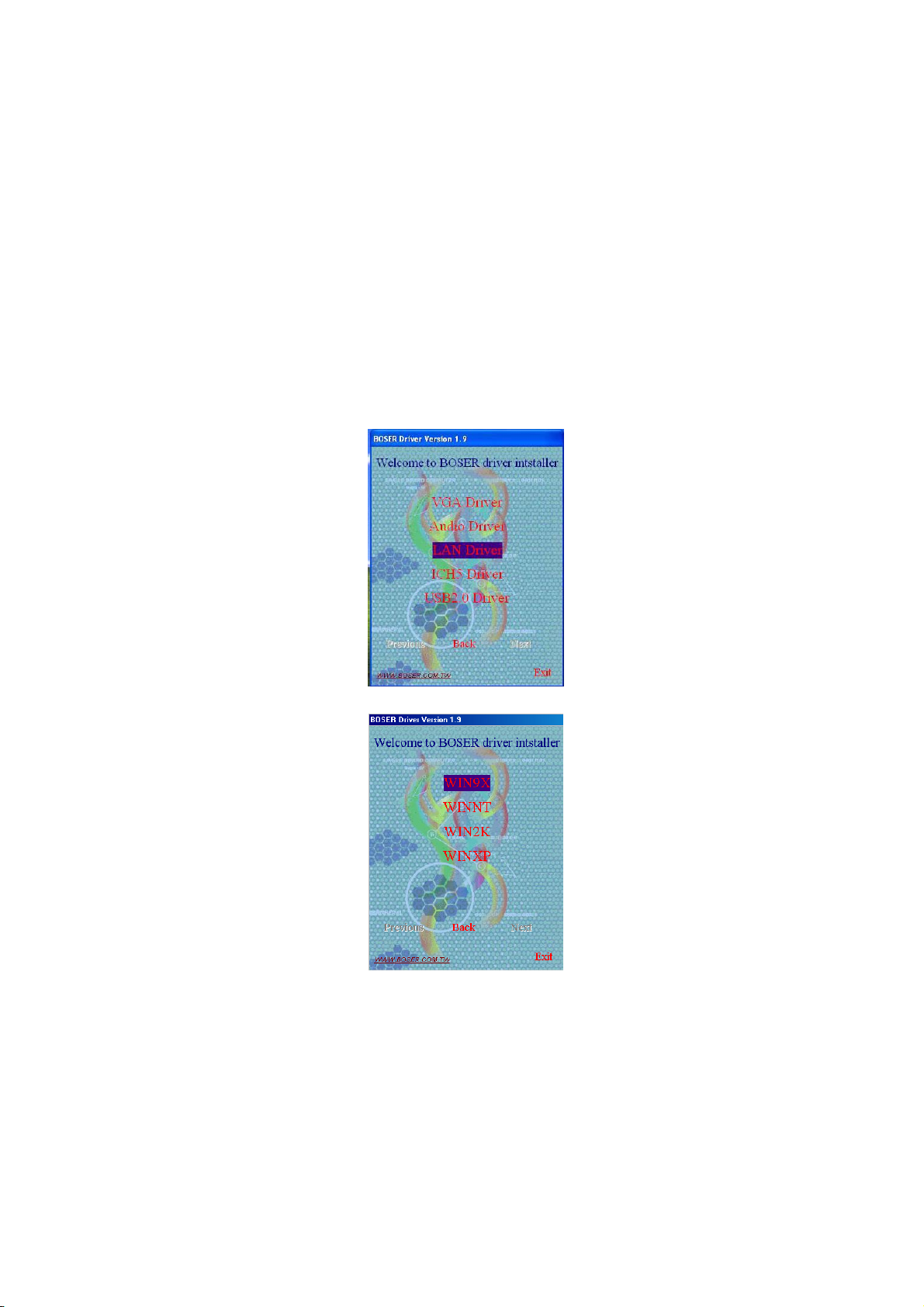

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

2. Click on the LAN Driver button to continue.

3. Click on the OS button to continue.

Page 57

4. When the dialog box below appears, make sure you close all other Windows applications then click on the Install Base Driver button to proceed.

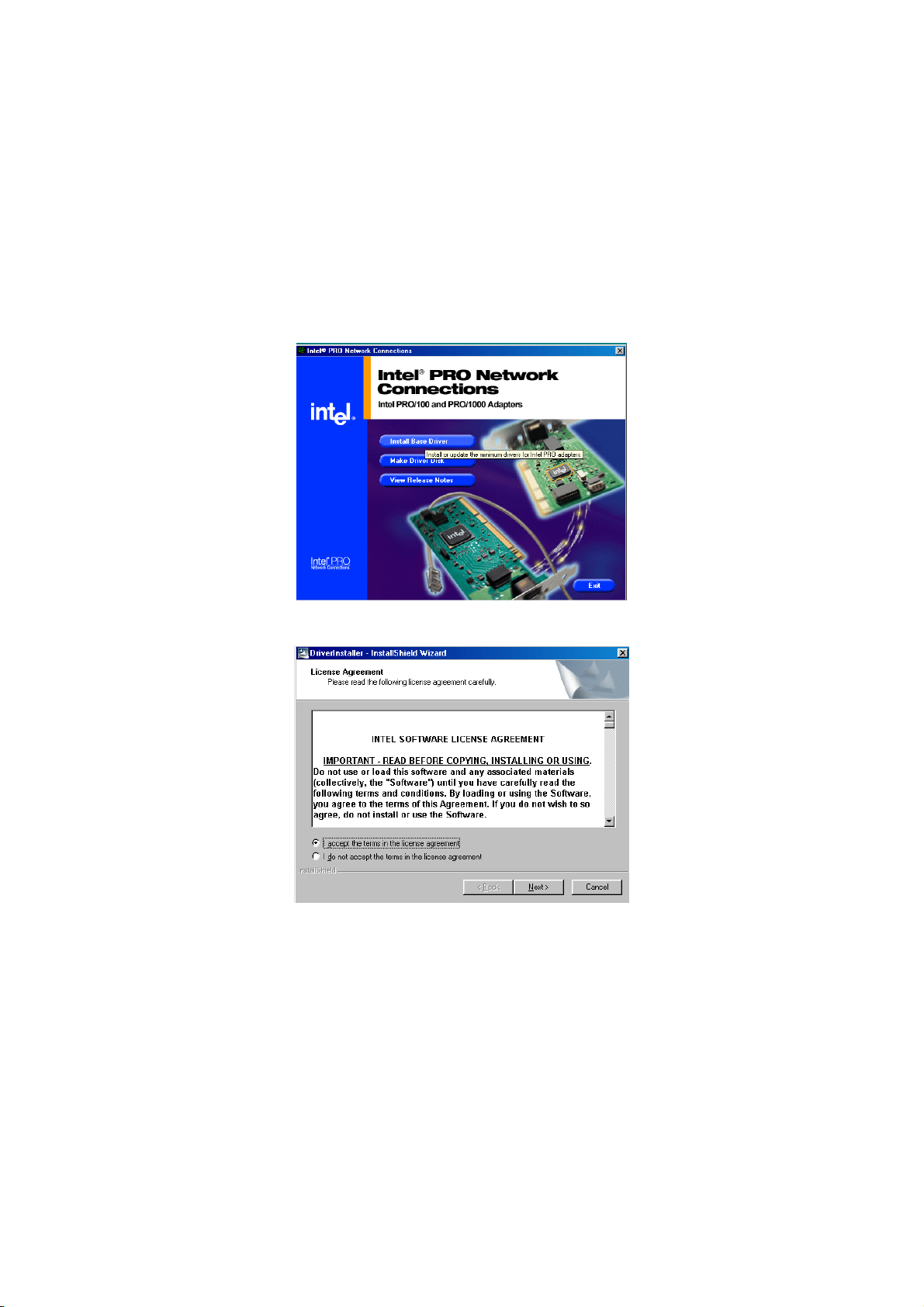

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Accept to proceed.

Page 58

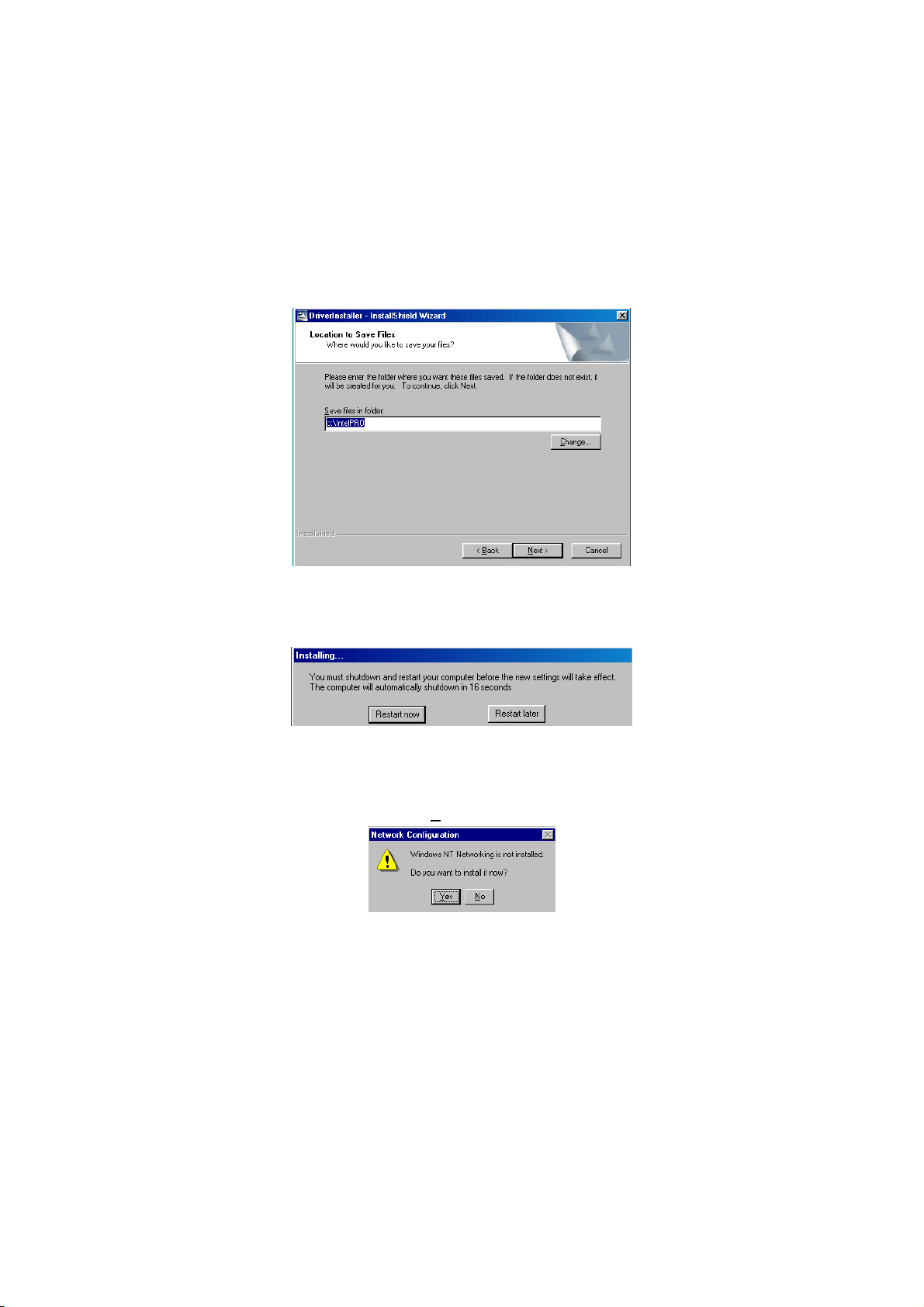

6. Choose the drivers install location. (ex: c:\IntelPRO)

7. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Restart now to reboot. Only after your computer boots will the new settings take effect.

5.3.2 Win NT

NOTE:

1. The system automatically detects the absence of Windows NT

Please make sure you have already installed Service Pack 6.0.

Networking. Click on the Y

es button to start installation.

Page 59

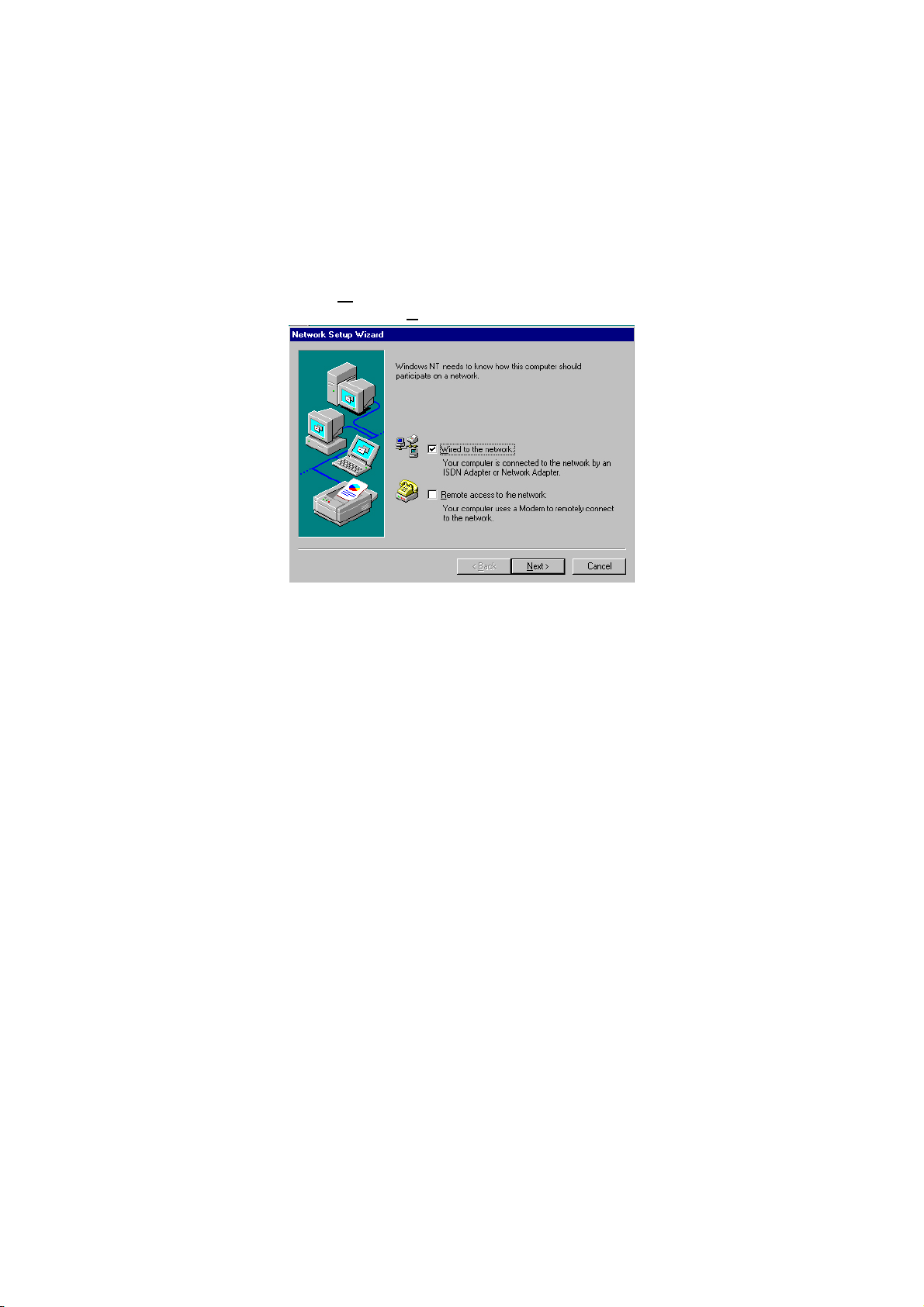

2. Tick on the Wired to the network once the following screen appears. Click on the N

ext> to proceed.

Page 60

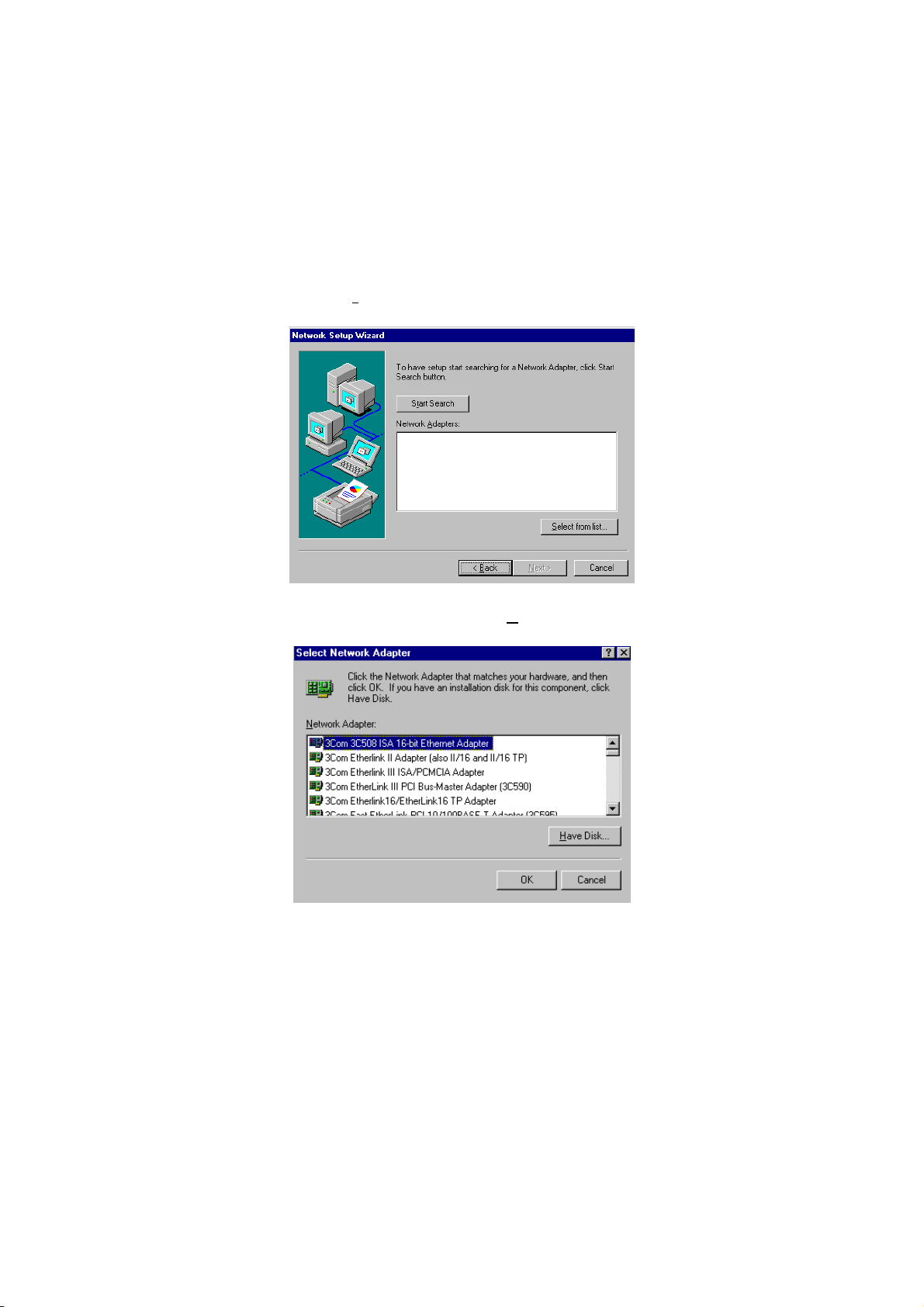

3. Click on the Start Search button for the program to locate the Network Adapter.

4. Once setup finishes the search, it will list a number of adapters for you to choose from. Press on the H the driver path location.

ave Disk button to assign

Page 61

5. Setup now asks you for the location of the driver. When you have entered the new driver path, press on the OK button to continue.

6. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. If using 82562EZ, please choose ”Intel(R) PRO/100 Family

Adapter”. If using 82547EI, please choose ”Intel(R) PRO/1000 Family Adapter”. Press on the OK button to accept

and proceed.

7. Setup then returns to Network Setup Wizard screen and displays your new Network Adapter. Click on N

ext to continue.

Page 62

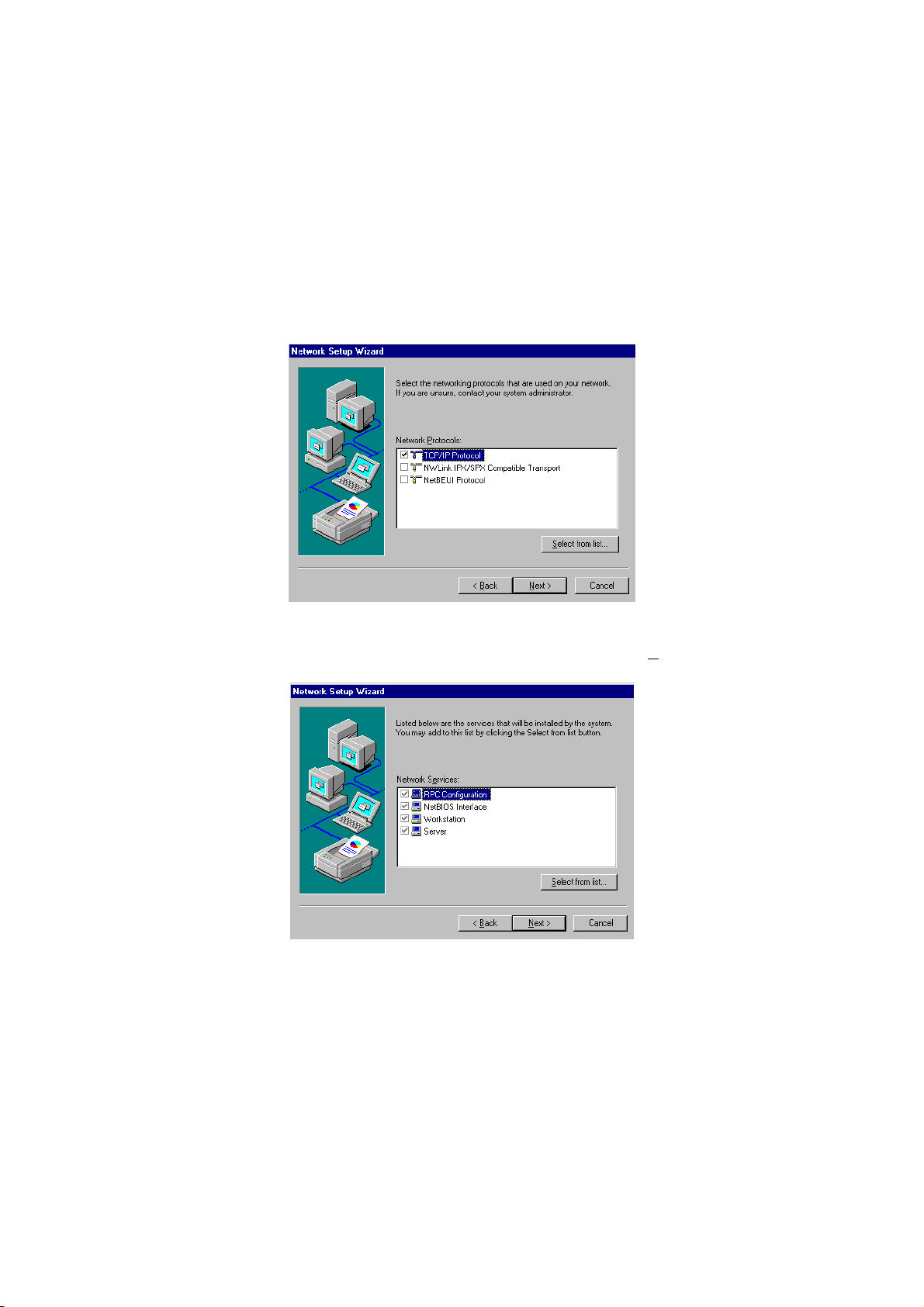

8. The Network Setup Wizard then allows you to set the Network Protocols on your network. Select the appropriate protocol and then click on Next to continue.

9. Before Setup starts installing the components found and the settings you made, it will give you the option to proceed or go back for changes from the following screen. Click on the N button once you are sure of your devices.

ext

Page 63

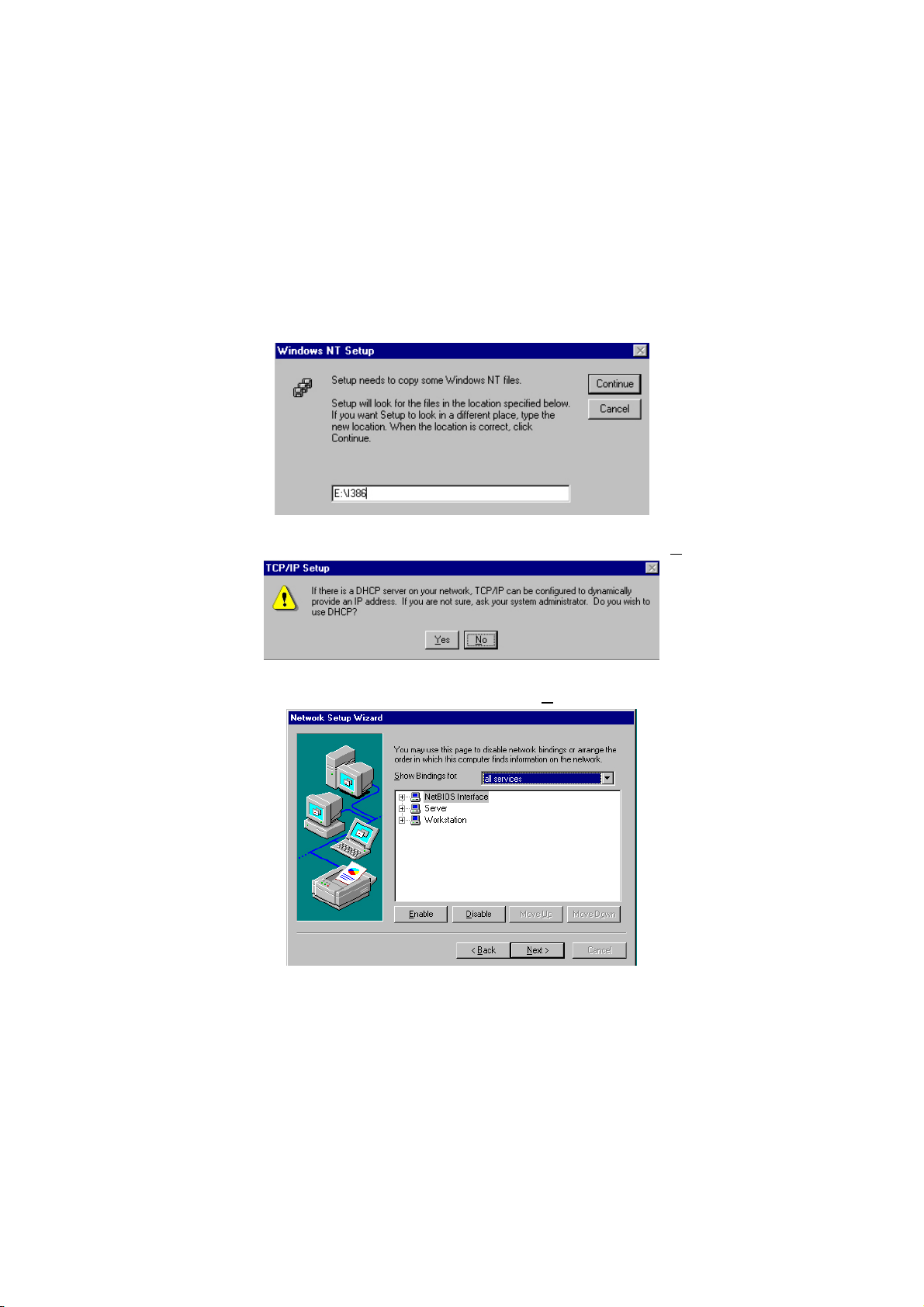

10. Windows NT Setup will then need to copy files necessary to update the system information. Specify the path then press Continue.

11. When Setup asks if you wish to change the TCP/IP settings of your system, select them appropriately. The default choice is N

12. Setup then starts the Networking installation and copies the files.

13. When the screen below appears, click on N

ext> to continue.

Page 64

14. Setup then prompts you that it is ready to start the network. You may complete the installation thereafter. Click on N continue.

15. Assign the workgroup or domain setting of your computer. Click on Next to continue.

ext> to

Page 65

16. When the dialog box below appears, it means your driver is install completed. Click Finish button to proceed.

17. Click on the Y installation for WIN NT4.0 is now complete.

es button to restart your computer. The LAN driver

Page 66

5.4 Audio Driver Installation

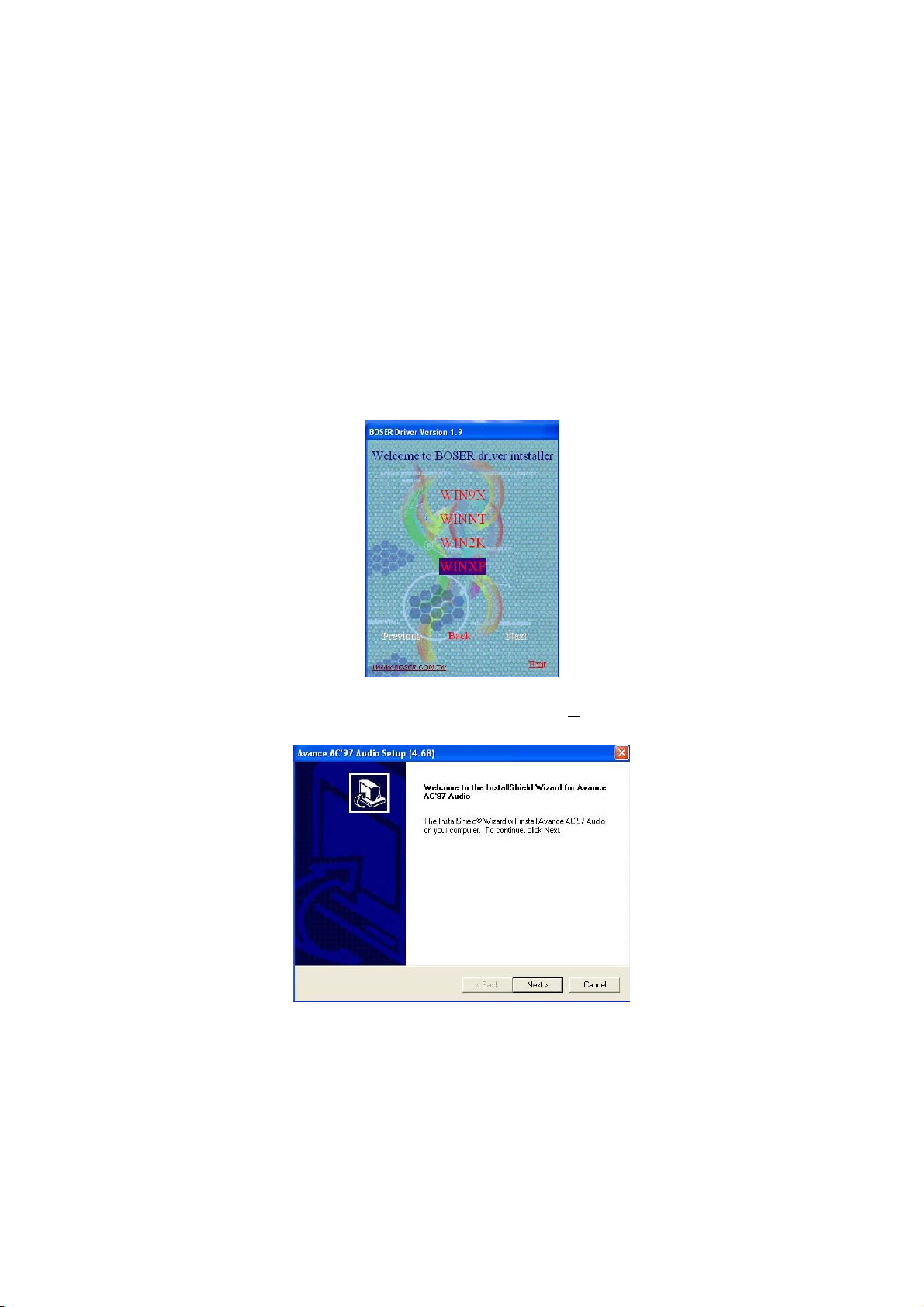

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

2. Click on the Audio Driver button to continue.

3. Choose on the OS button to continue.

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 67

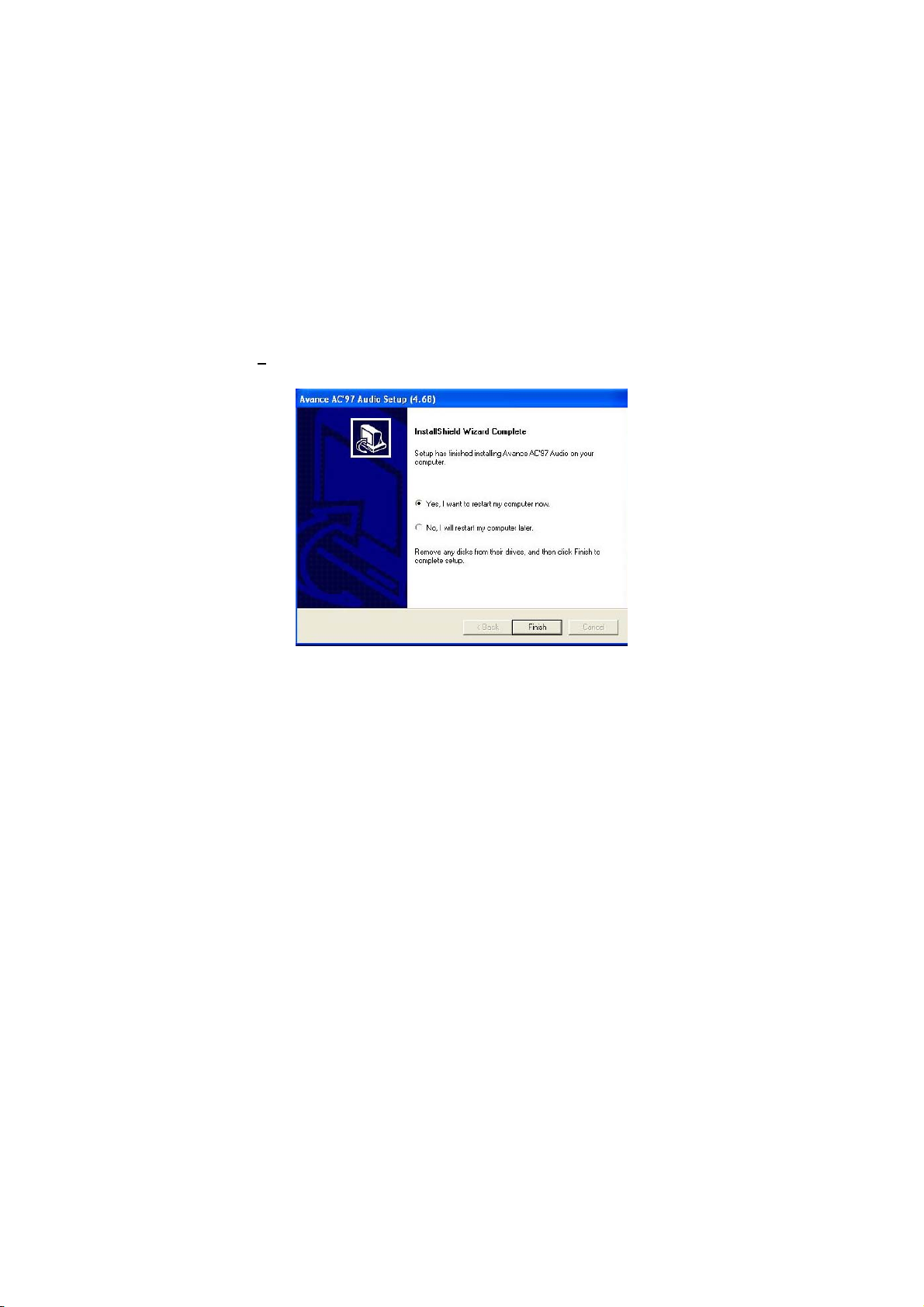

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the Yes, I want to restart my computer now. Afterwards, click on the

inish button to complete the installation process. The system

changes you made will take effect after the system restarts.

NOTE:

WIN98/2K/NT audio driver installations are the same as WINXP.

Page 68

5.5 USB2.0 Driver Installation

5.5.1 Win 98

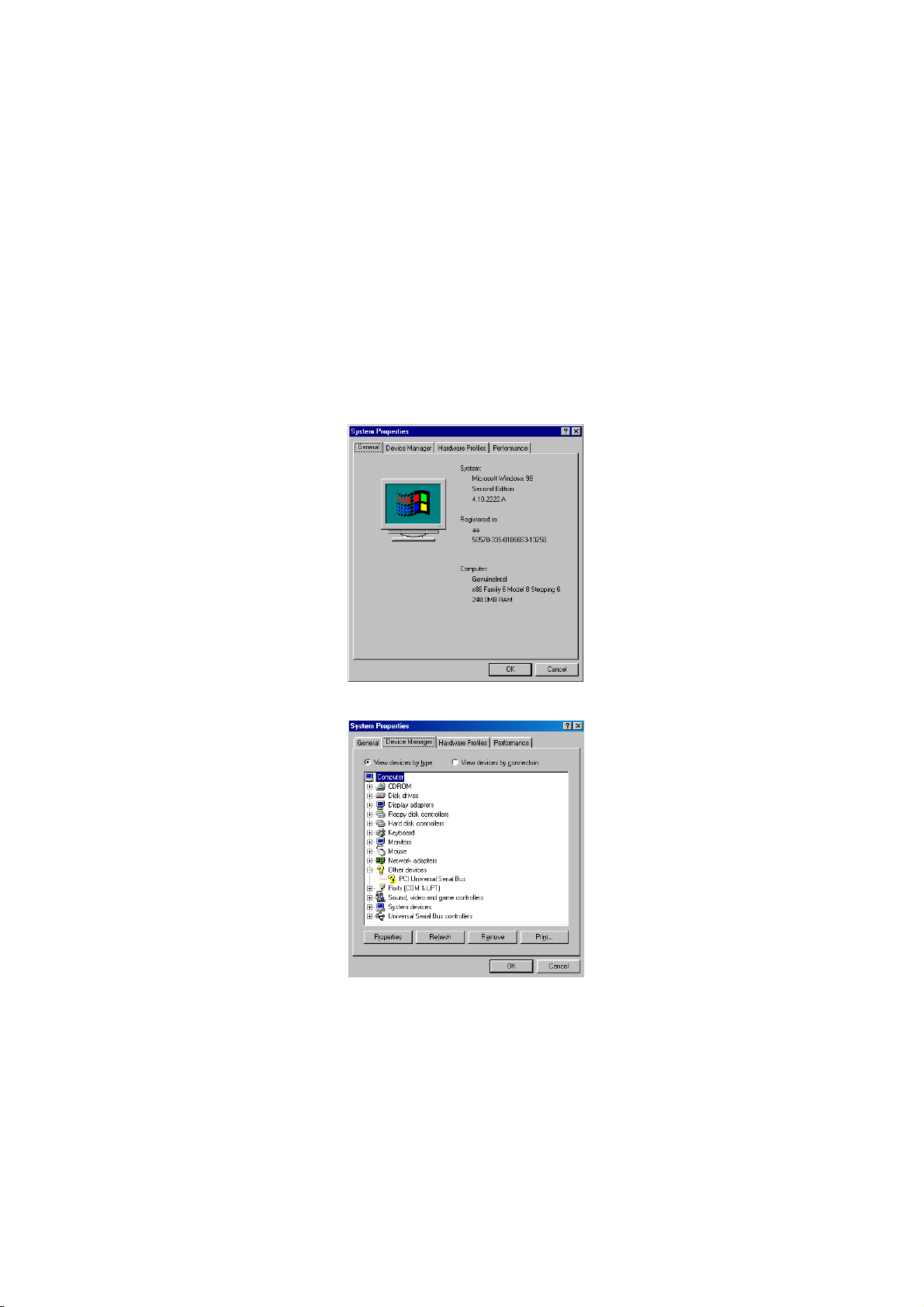

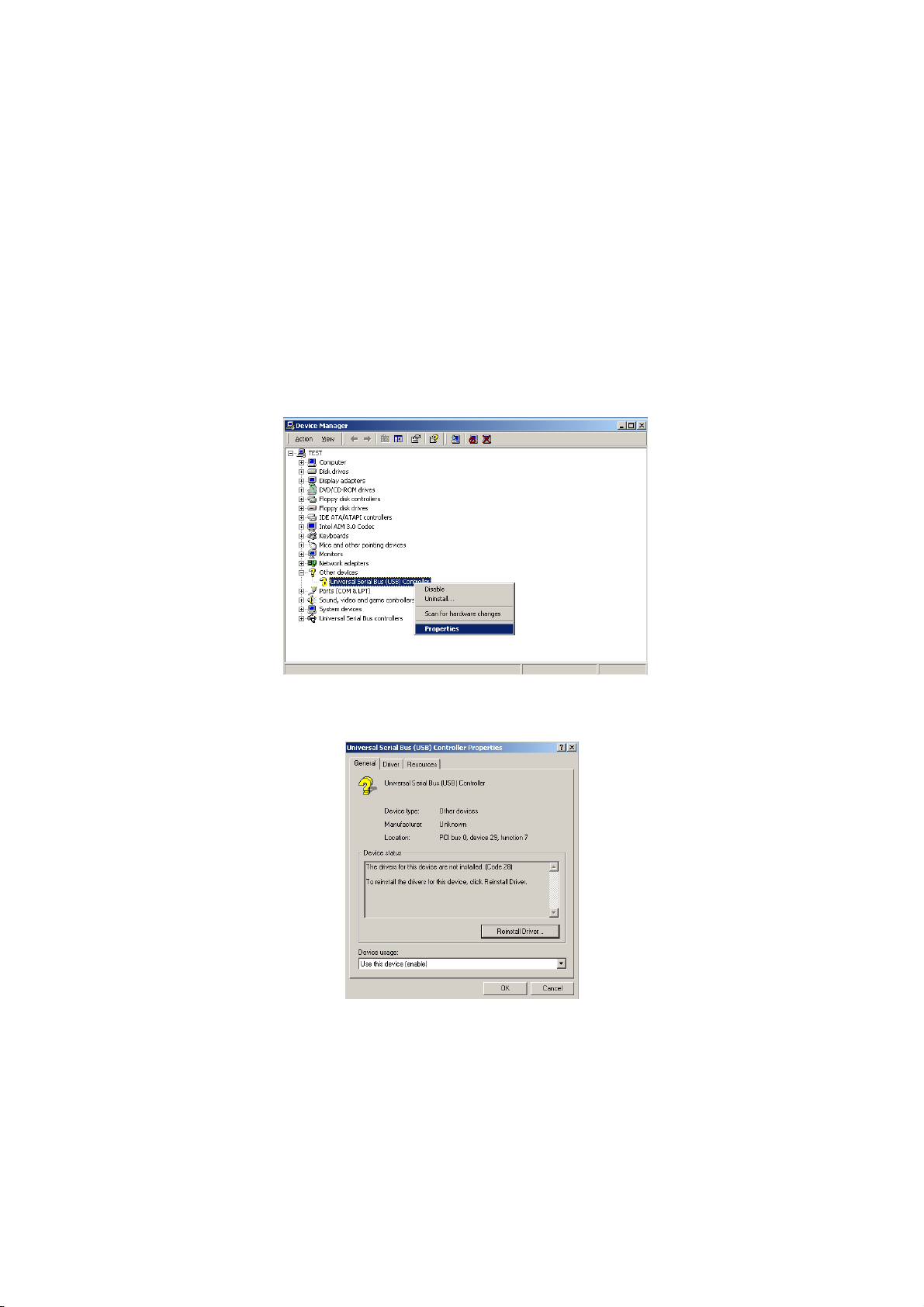

1. With the Utility CD Disk still in your CD ROM drive, right click on “My Computer” icon from the Windows menu. Select on System Properties and then proceed to the Device Manager from the main menu.

2. Select on Other Devices from the list of devices then double-click on PCI Universal Serial Bus.

Page 69

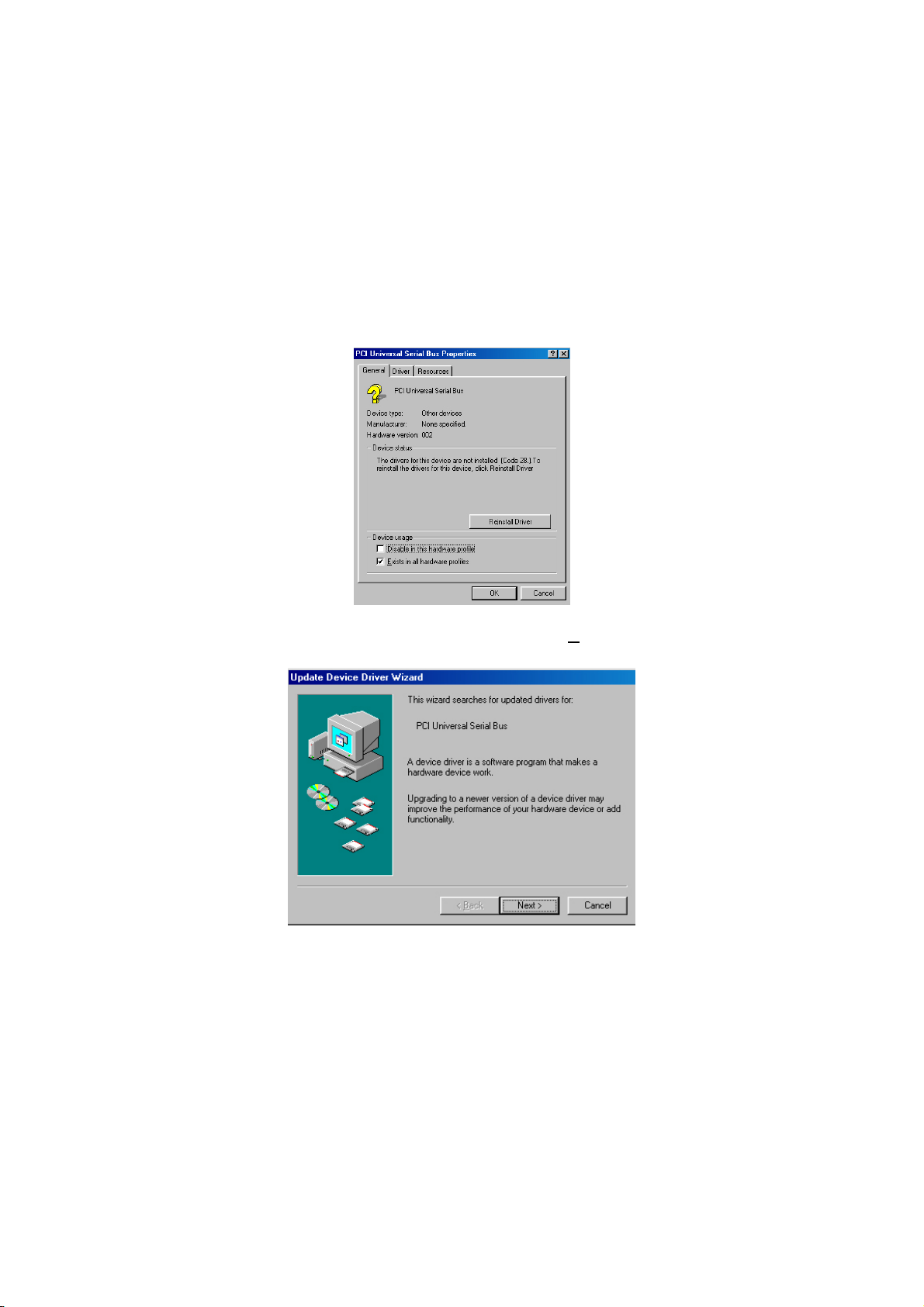

3. The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 70

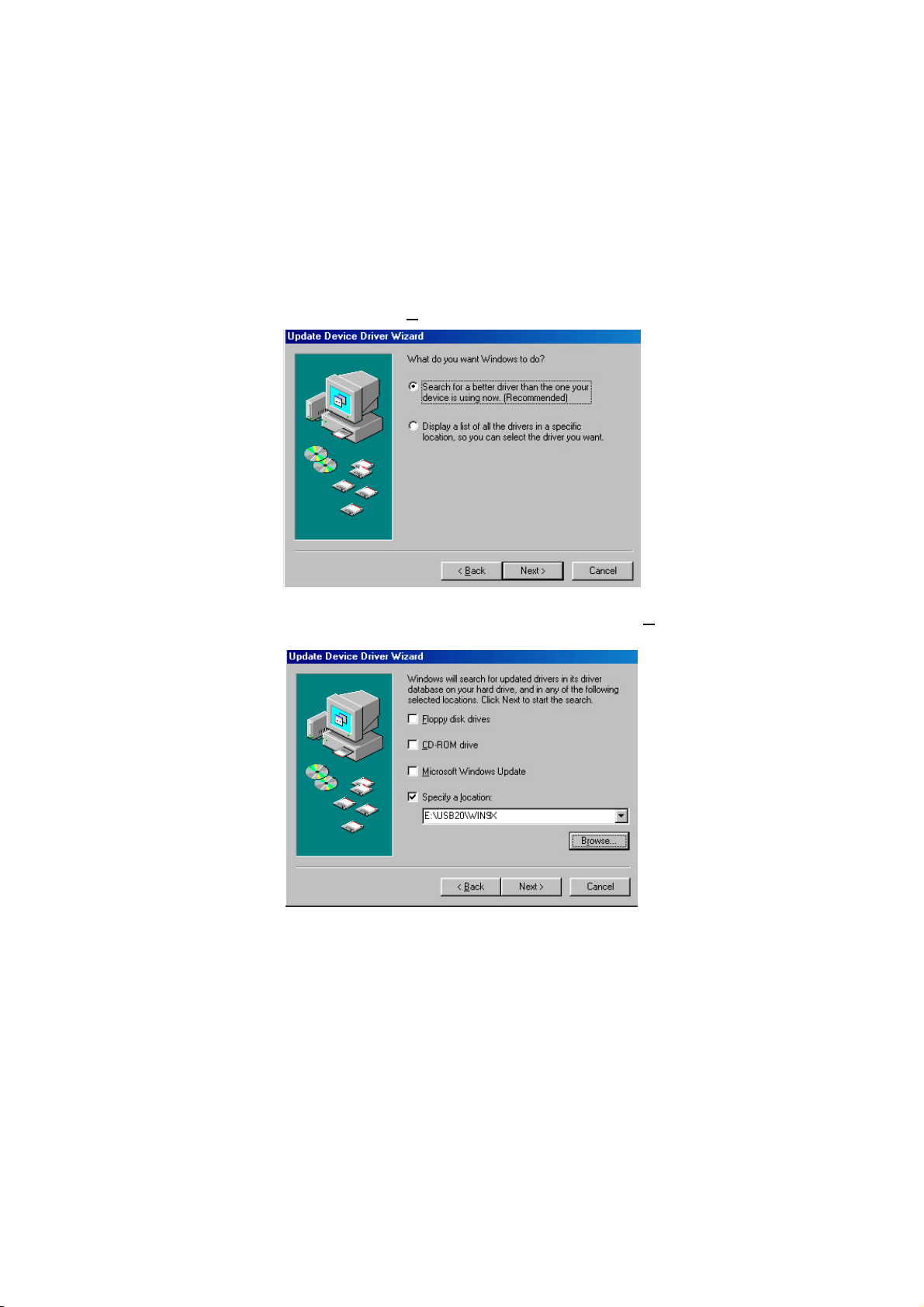

5. Tick on the “Search for a better driver” once the following screen appears. Click on the N

6. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the N button to continue

ext to proceed.

ext

Page 71

7. When Setup finds the information it needs about the new driver, it will display the device it found on the following screen. Press on the N

ext button to accept and proceed.

8. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

inish button to

Page 72

5.5.2 Win 2000

2. Select on Other Devices from the list of devices then double-click on PCI Universal Serial Bus.

3. The PCI Universal Serial Bus Properties screen then appears, allowing you to re-install the driver. Select Driver from the main menu to proceed.

Page 73

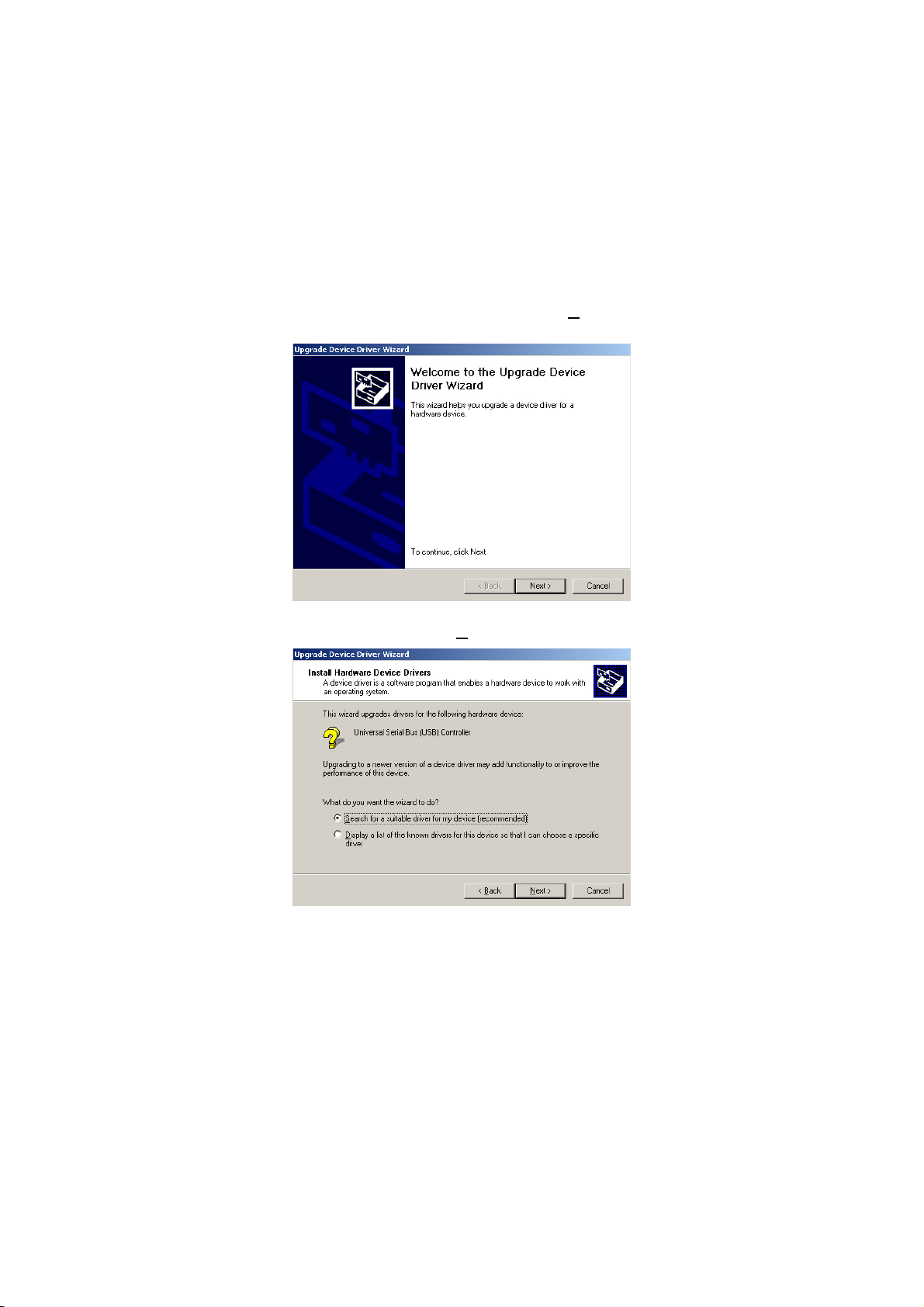

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

5. Tick on the “Search for a suitable driver” once the following screen appears. Click on the N

ext to proceed.

ext > button to

Page 74

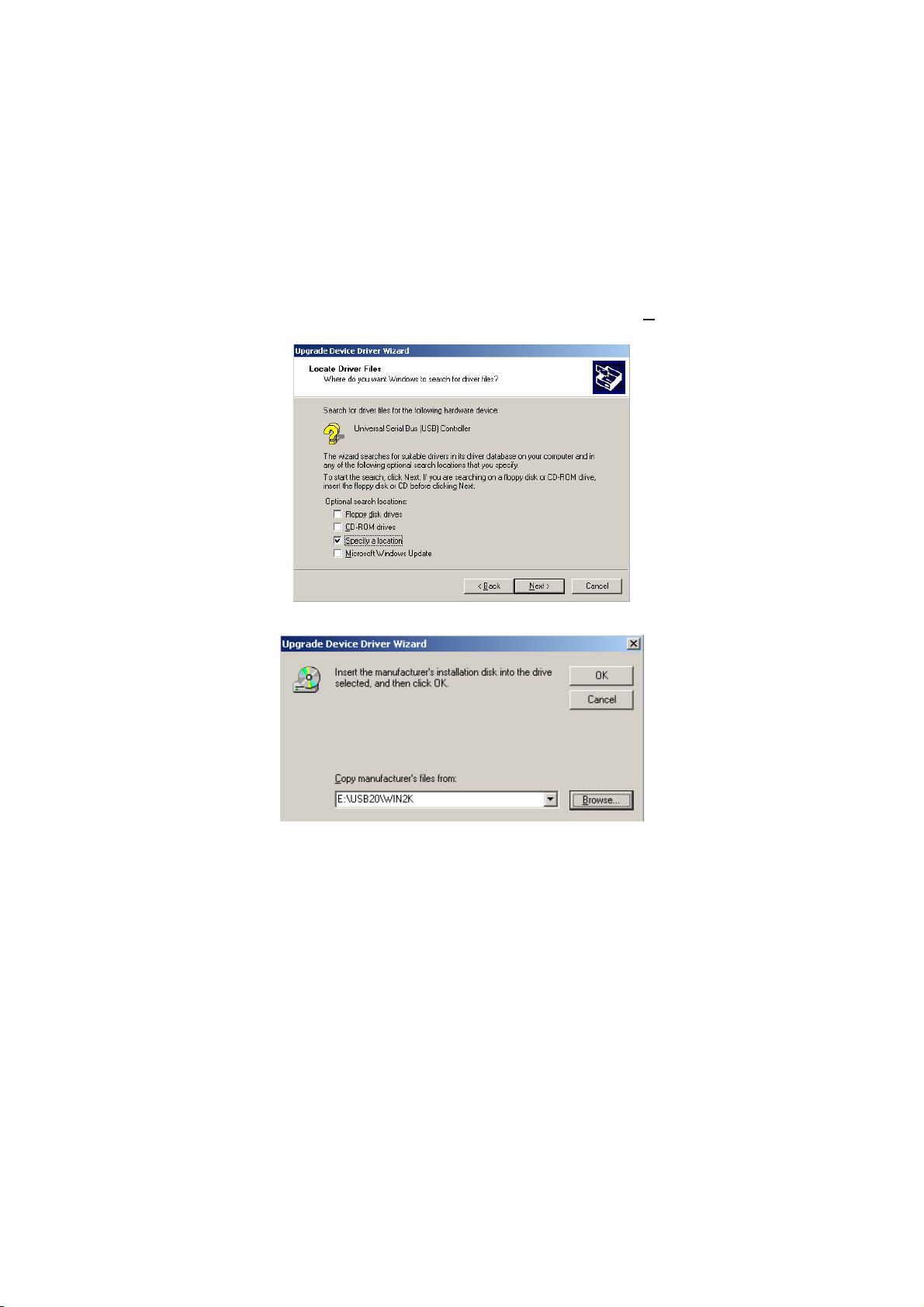

6. Once the program returns to the Add New Hardware Wizard screen, your specified location will appear. Press on the N button to continue

7. Choose the driver disk location.

ext

Page 75

8. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

inish button to

5.5.3 Win XP

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the HS-4703 button to launch the installation program.

Page 76

2. Click on the USB2.0 Driver button to continue.

3. Click on the WINXP button to continue.

Page 77

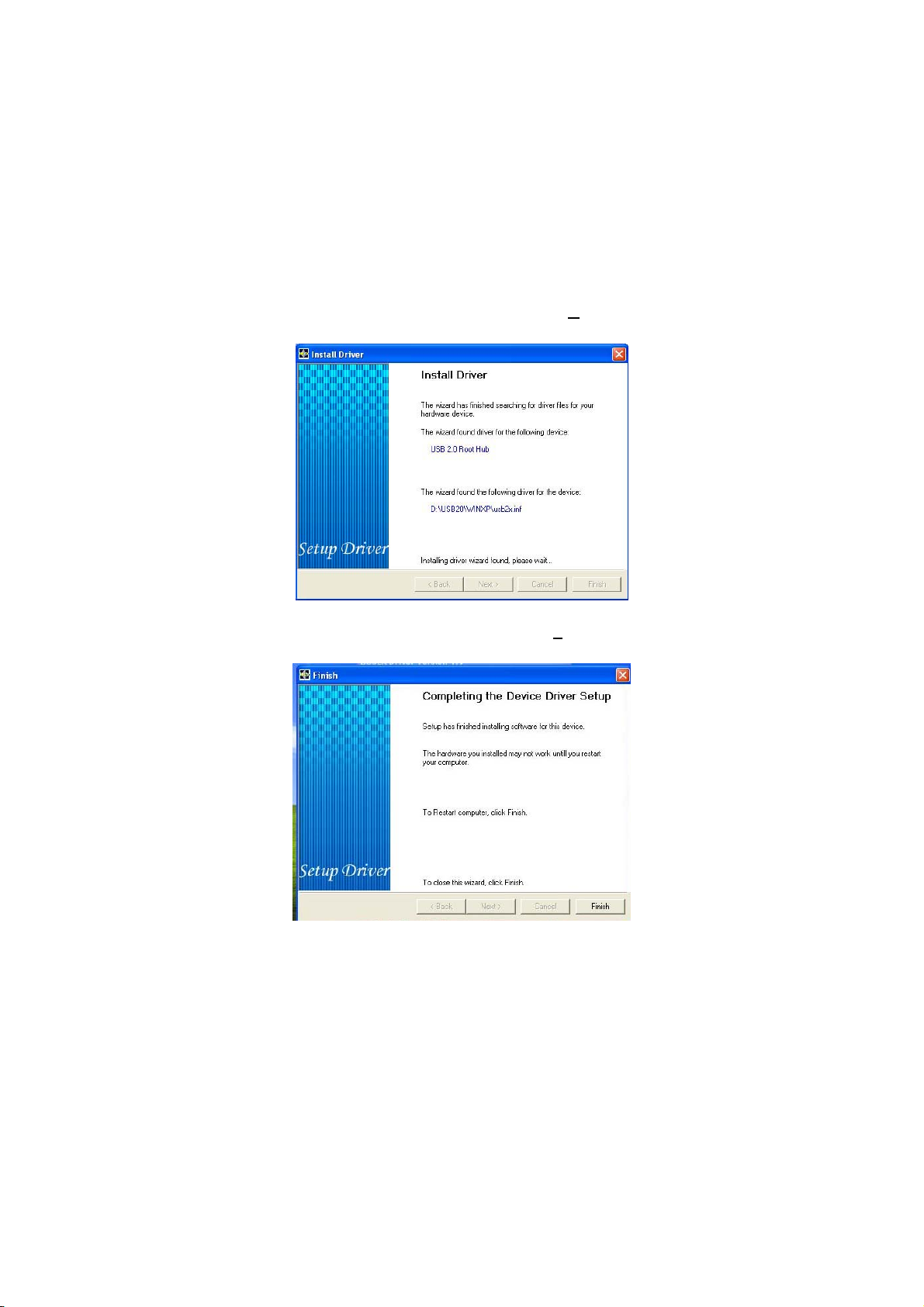

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

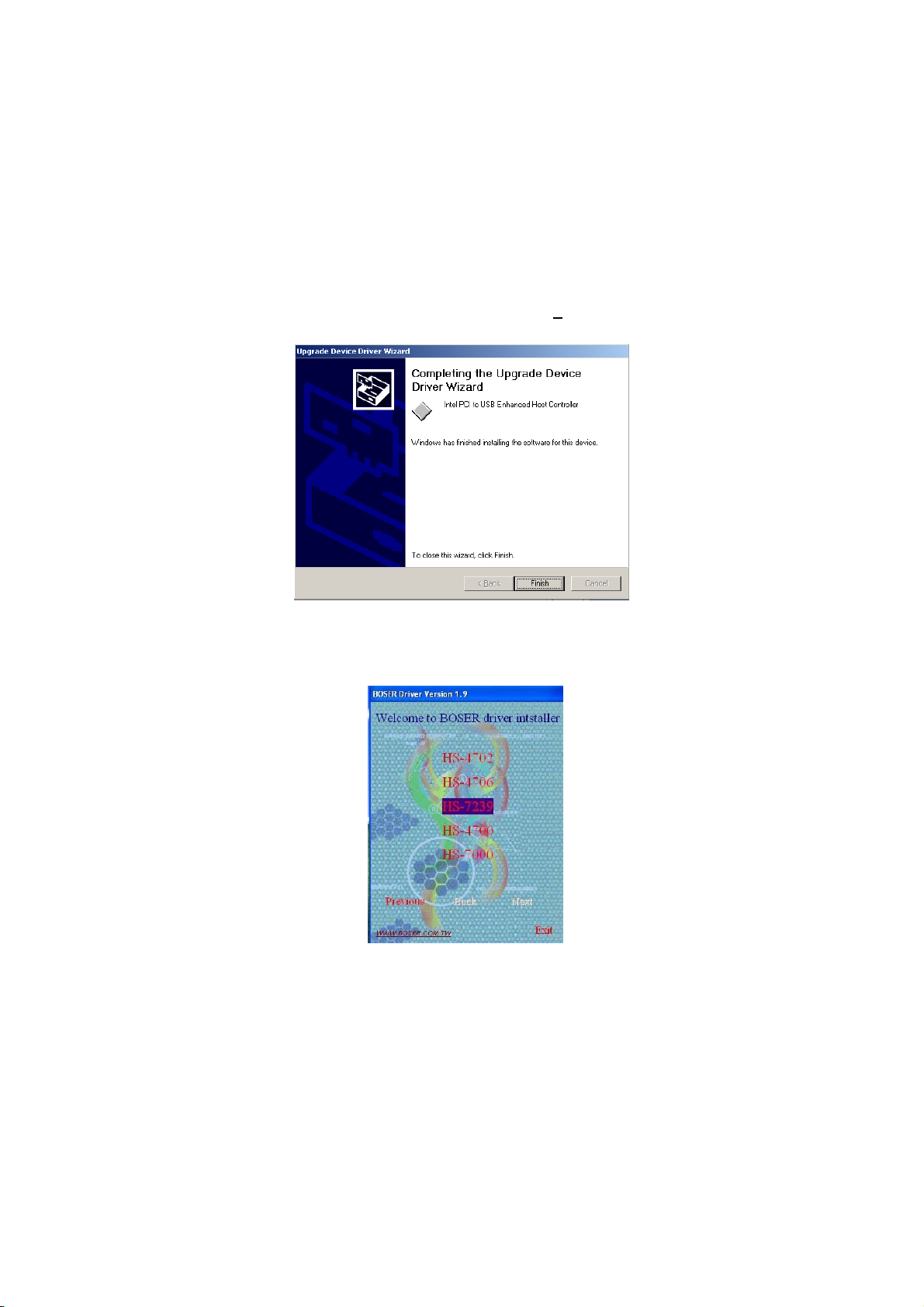

5. Once the InstallShield Wizard completes the operation and update of your USB2.0 driver. Click on the F complete the installation process.

ext > button to

inish button to

Page 78

This page is intentionally left blank.
