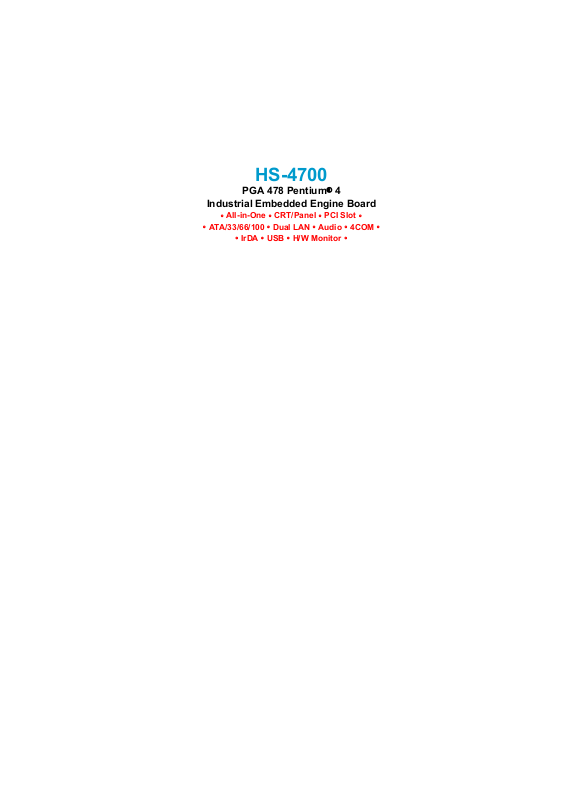

HS-4700

PGA 478 Pentium® 4

Industrial Embedded Engine Board

All-in-One•CRT/Panel•PCI Slot•

•

•ATA/33/66/100•Dual LAN•Audio•4COM•

IrDA•USB•H/W Monitor•

•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

this document without due notice. responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the contents of

electronic, mechanical, photocopying, recording) of

BOSER Technology Co., Ltd. assumes no

manufacturer will

Page 3

Table of Contents

Chapter 1 General Description……………………….1

1.1 Major Features....................................................................2

1.2 Specifications .....................................................................3

1.3 Board Dimensions..............................................................4

Chapter 2 Unpacking…………………………………5

2.1 Opening the Delivery Package..........................................5

2.2 Inspection............................................................................5

Chapter 3 Hardware Installation…………………….7

3.1 Before Installation ..............................................................7

3.2 Board Layout ......................................................................8

3.3 Jumper List .........................................................................9

3.4 Connector List ....................................................................9

3.5 Configuring the CPU ........................................................10

3.6 System Memory................................................................10

3.7 VGA Controller .................................................................10

3.8 SMI Signal Input Switch...................................................12

3.9 PCI E-IDE Drive Connector..............................................12

3.10 Floppy Disk Drive Connector ..........................................14

3.11 Serial Port Connectors ....................................................15

3.12 Parallel Connector............................................................16

3.13 Ethernet Connector..........................................................17

3.14 USB Connector.................................................................18

3.15 CMOS Data Clear..............................................................18

3.16 Power and Fan Connectors.............................................19

3.17 Keyboard/Mouse Connectors .........................................20

3.18 System Front Panel Connectors.....................................21

3.19 External Speaker ..............................................................22

3.20 IrDA Connector.................................................................22

3.21 Audio Connectors ............................................................23

Page 4

Chapter 4 AMI BIOS Setup…………………………25

4.1 Starting Setup...................................................................25

4.2 Using Setup ......................................................................26

4.3 Main Menu.........................................................................27

4.4 Standard CMOS Setup.....................................................28

4.5 Advanced CMOS Setup ...................................................29

4.6 Advanced Chipset Setup.................................................30

4.7 Power Management Setup ..............................................31

4.8 PCI / Plug and Play Setup................................................32

4.9 Peripheral Setup...............................................................33

4.10 Hardware Monitor Setup .................................................34

4.11 Auto-Detect Hard Disks...................................................35

4.12 Change Supervisor/User Password...............................36

4.13 Auto Configuration with Optimal Settings ....................37

4.14 Auto Configuration with Fail Safe Settings...................38

4.15 Save Settings and Exit.....................................................39

4.16 Exit Without Saving .........................................................40

Chapter 5 Software Utilities………………………...41

5.1 IDE Driver Installation......................................................41

5.2 VGA Driver Installation for Win 95/98 ............................47

5.3 LAN Driver Installation ....................................................49

5.4 Audio Driver Installation..................................................69

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of the

system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-4700 to ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

This Page is intentionally left blank.

Page 7

Chapter 1

General Description

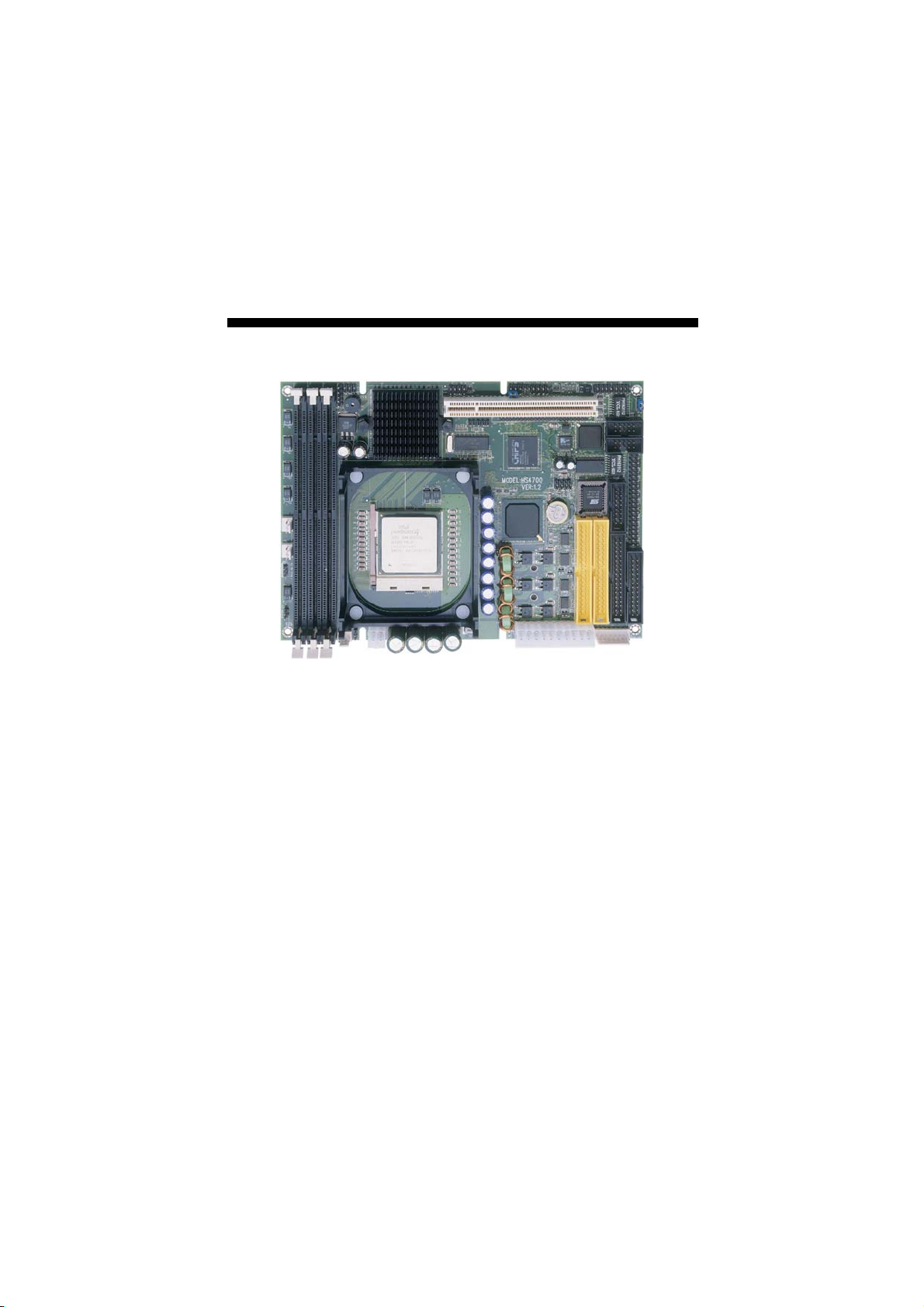

The HS-4700 is an Intel® 82845 chipset-based board designed for PCI Bus PGA 478 Intel compatibility. These features combine and make the HS-4700 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CRT/Panel, Dual LAN, Audio and 4COM ports interface.

Pentium® 4 1.2~2.2GHz(400MHz FSB) CPU

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-4700 to support data transfers of 33, 66 or 100MB/sec. to each IDE drive connection. Designed with the Intel chipset, the board supports all PGA 478 Pentium® 4 CPU series operating at 1.2GHz to 2.2GHz(400MHz FSB). The CRT/Panel display controller is C&T 69030 with 4MB memory supporting up to 1600 x 1200 at 64K colors.

System memory is also sufficient with the three DIMM sockets that can support up to 1.5GB.

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, and two internal 5x2 connectors for 10/100 Base-TX Ethernet use.

82845 core logic

Page 8

1.1 Major Features

The HS-4700 comes with the following features:

 PGA 478 for Intel® Pentium® 4 1.2~2.2GHz(400MHz FSB) CPU  Intel  Three DIMM sockets with a max. capacity of 1.5GB  Winbond W83627 super I/O chipset  Fast PCI ATA/33/66/100 IDE controller  Four RS-232 serial ports  C&T 69030 CRT/Panel display controller  Intel  AC97 3D audio controller  Supports ATX power function 

82845/82801BA system chipset

82559 and Intel® 82562 10/100 Based LAN

Supports Hardware Monitor function

Page 9

1.2 Specifications



CPU: PGA 478 for Intel® Pentium® 4 1.2~2.2GHz(400MHz FSB) CPU



Bus Interface: PCI Bus



Memory: Three DIMM sockets supporting up to 1.5GB



Chipset: Intel® 82845/82801BA



I/O Chipset: Winbond W83627 x 2



VGA: C&T 69030 with 4MB memory supporting CRT/Panel displays up to 1600 x 1200 at 64K colors

 IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer

rates of up to 33/66/100MB/sec.



FDD: Supports up to two floppy disk drives



Parallel: One enhanced bi-directional parallel port supporting SPP/ECP/EPP

 LAN: Intel

82559 and one Intel® 82562 10/100 Based LAN

 Audio: AC97 3D audio controller  Serial Port: 16C550 UART-compatible RS-232 x 4 serial ports with

16-byte FIFO



IrDA: One IrDA TX/RX header



USB: Two USB connectors (USB 1.1)



Keyboard/Mouse: 8-pin connector supporting standard PC/AT keyboard and PS/2 mouse

 BIOS: AMI PnP Flash BIOS  CMOS: Battery backup  Power Connector: One 4-pin and one 20-pin ATX power connector  Operating Temperature: 0~60°C  Hardware Monitor: Winbond W83627 

Board Size:

20.3 x 16.1 cm

Page 10

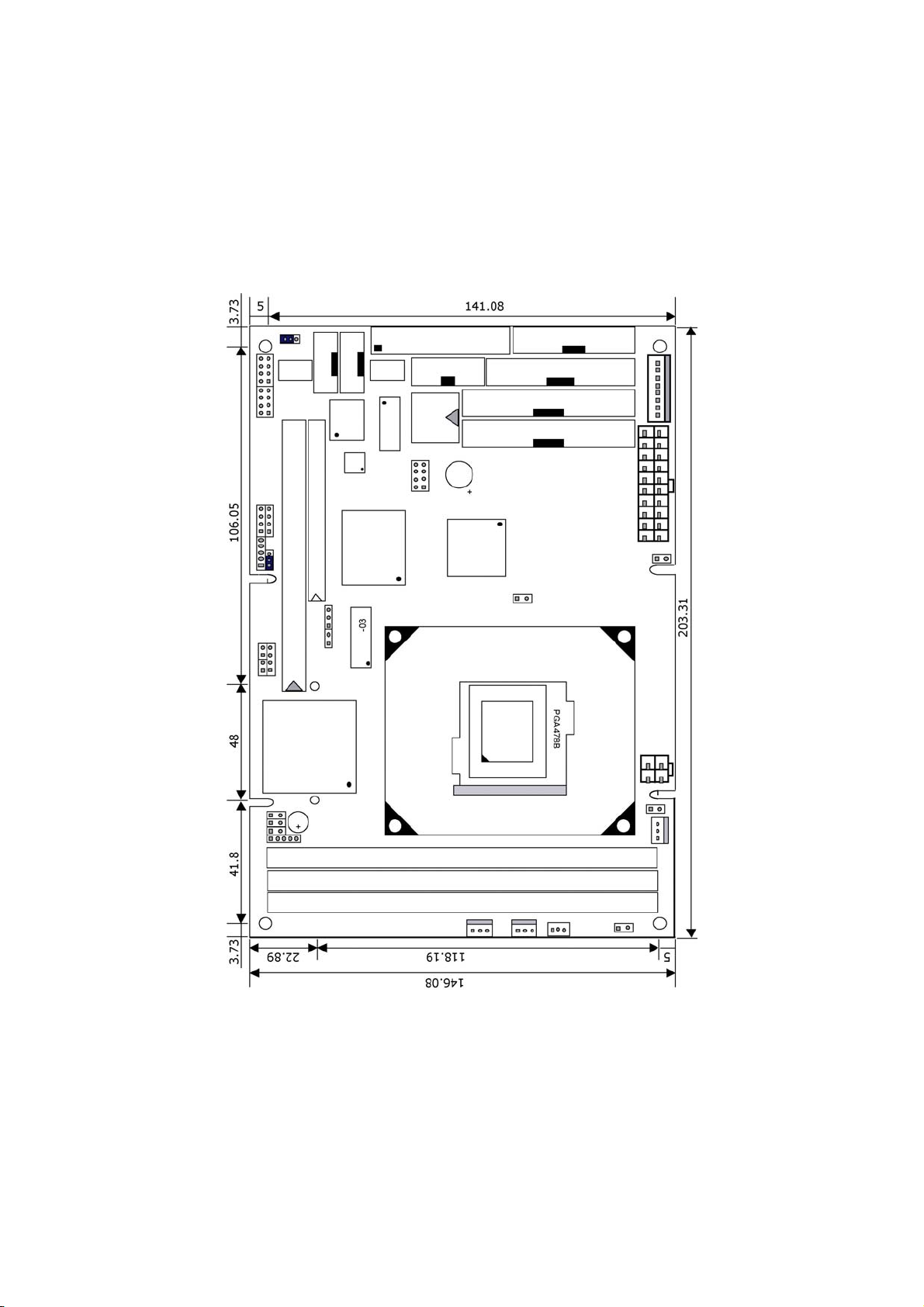

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-4700 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, and keyboard controller chip to ensure that they are firmly seated. The HS-4700 delivery package contains the following items:



HS-4700 Board x 1

 Utility CD Disk x 1 

ATA/100 IDE flat cable x 2

 FDD flat cable x 1 

Parallel flat cable x 1

 VGA cable +DB15 x 1 

10-pin LAN cable + RJ-45 connector x 2

 8-pin USB split type cable with bracket x 1 

MIC/Audio 8-pin cable + 2 phone jacks x 1

 4-in-1 COM Port cable + DB9 connectors x 1 

PS/2 K/B & Mouse split-type cable x 1

 Jumper Bag x 1 

User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-4700.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP3 1-2)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

4. Make sure you r power suppl y i s using for P4 on ly . One of 4-pin connector is for +12V lead which should connect to PW1 and 20-pin ATX connector to PW2.

Page 14

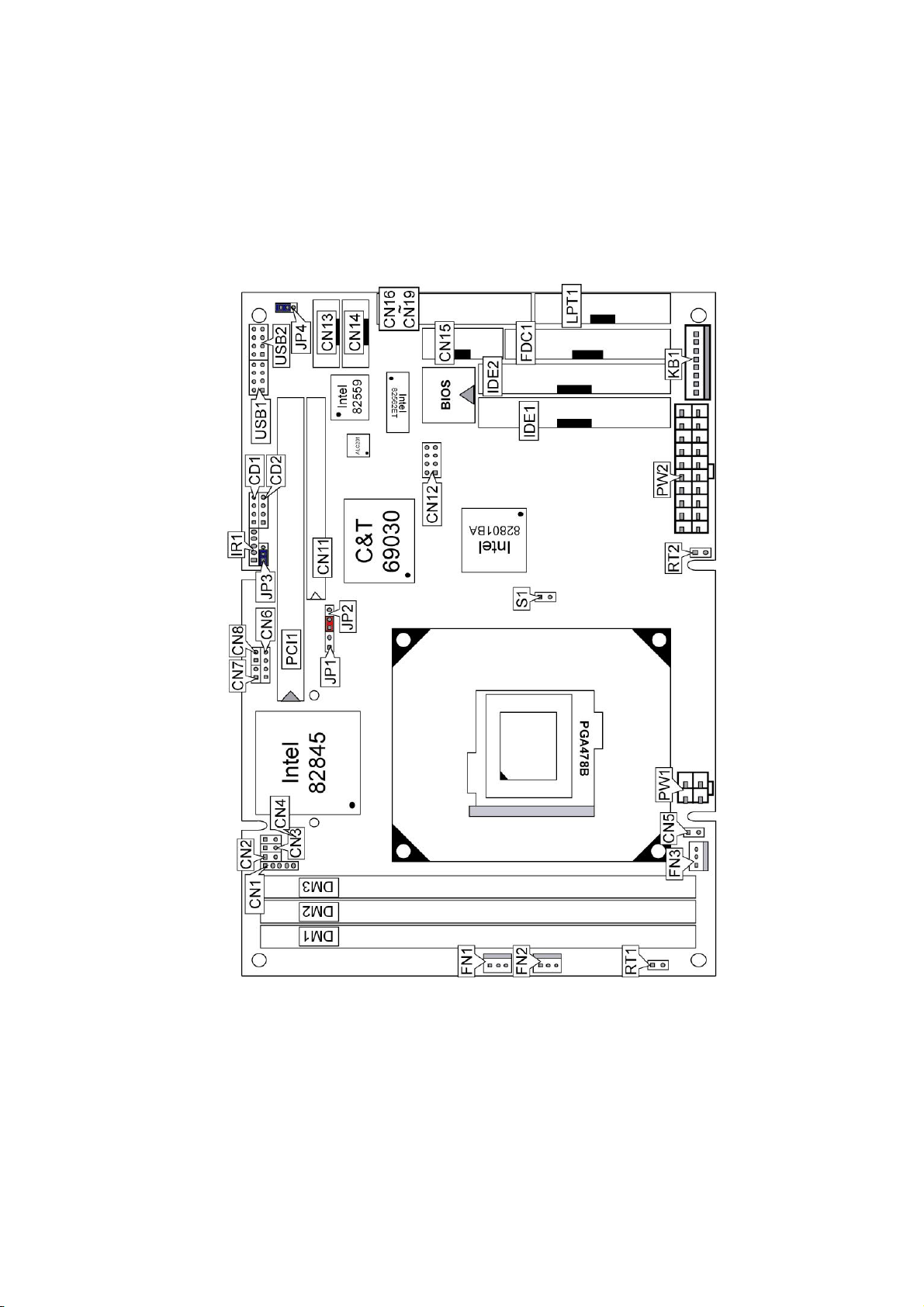

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper

JP1 Panel Voltage +12V In Enabled/Disabled: Enabled Short JP2 Panel Voltage Select: +3.3V Short 1-2 JP3 JP4 LAN2 Enabled/Disabled Select: Enabled Short 1-2

Clear CMOS: Normal Operation Short 2-3

Default Setting Setting

3.4 Connector List

Connector Definition

CD1 CD Analog Input Connector CD2 Line In Analog Input Connector CN1 Keylock Connector CN2 CN3 2-pin ATX Power On/Off Switch CN4 HDD LED Connector CN6 External Speaker Connector CN7 Reset Connector CN8

CN11 50-pin Panel Connector CN12 MIC In/Audio Out Connector CN13 LAN2 Connector CN14 LAN1 Connector CN15 CN16 COM1 Connector CN17 COM2 Connector CN18 COM3 Connector CN19 COM4 Connector

DM1, DM2, DM3 168-pin DIMM Sockets

PW1 4-pin ATX Power Connector PW2 20-pin ATX Power Connector PCI1 PCI Connector

IR1 IrDA Connector

FDC1 Floppy Connector

FN1, FN2, FN3 Fan Connectors

IDE1, IDE2 IDE Connectors

KB1

LPT1 Parallel Connector

USB1, USB2 USB Connectors

S1 Chassis Open Switch Connector

SMI Signal Input Connector

Green LED Connector

CRT Connector

KB/Mouse Connector

Page 16

3.5 Configuring the CPU

The HS-4700 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-4700 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-4700 provides three DIMM sockets at locations DM1, DM2 and DM3. The maximum capacity of the onboard memory is 1.5GB.

3.7 VGA Controller

The onboard C&T 69030 with 4MB memory supporting CRT/Panel displays up to 1600 x 1200 at 64K colors. The HS-4700 provides two connection methods of CRT and Panel device. CN15 offers an internal CRT connector, and CN11 offers a 50-pin Panel connector.



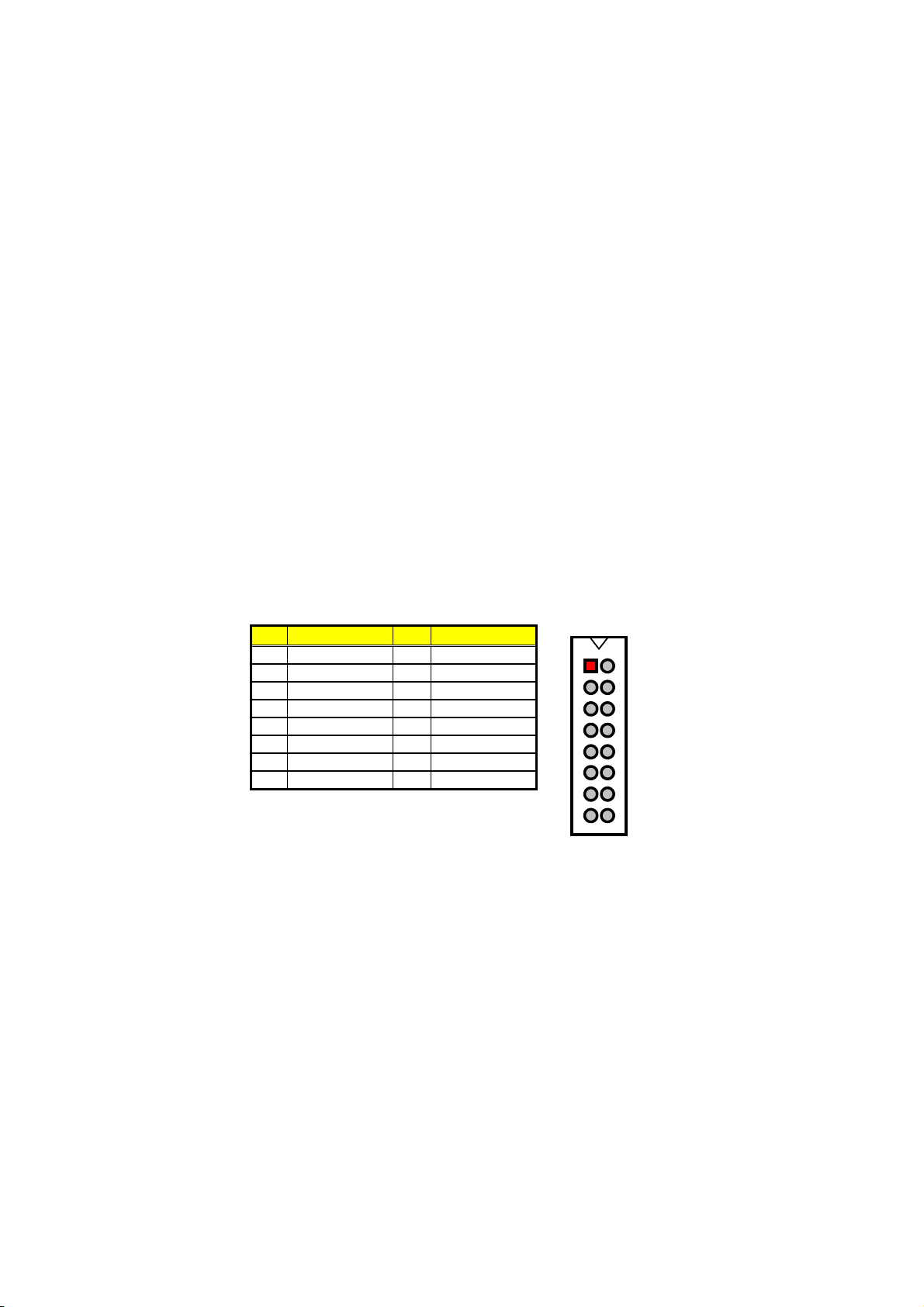

CN15: CRT Connector

PIN Description PIN Description

1 Red 2 GND 3 Green 4 GND 5 Blue 6 GND 7 GND 8 DDCDTA

9 GND 10 HSYNC 11 GND 12 VSYNC 13 GND 14 DDCK 15 GND 16 N/C

115Red

Green

Blue

GND

DDCDTA

HSYNC

VSYNC

DDCK

N/C

Page 17



CN11: 50-pin Panel Connector

PIN. Description PIN Description

1 +12V 2 +12V 3 GND 4 GND 5 3.3V / 5V 7 ENAVEE 8 GND 9 P0 10 P1

11 13 P4 14 P5 15 P6 16 P7 17 P8 18 P9 19 P10 20 P11 21 23 P14 24 P15 25 P16 26 P17 27 P18 28 P19 29 P20 30 P21 31 33 P24 34 P25 35 FPSCLK 36 FLM 37 M 38 LP 39 GND 40 ENABKL 41 P26 42 P27 43 P28 44 P29 45 P30 46 P31 47 P32 48 P33 49 P34 50 P35

P12

P22

Note

6 ENAVDD

P13

P23

ENAVEE

FPSCLK

+12V

GND

3.3V/5V

P10

P12

P14

P16

P18

P20

P22

P24

GND

P26

P28

P30

P32

P34

5049

+12V

GND

ENAVDD

GND

P11

P13

P15

P17

P19

P21

P23

P25

FLM

ENABKL

P27

P29

P31

P33

P35

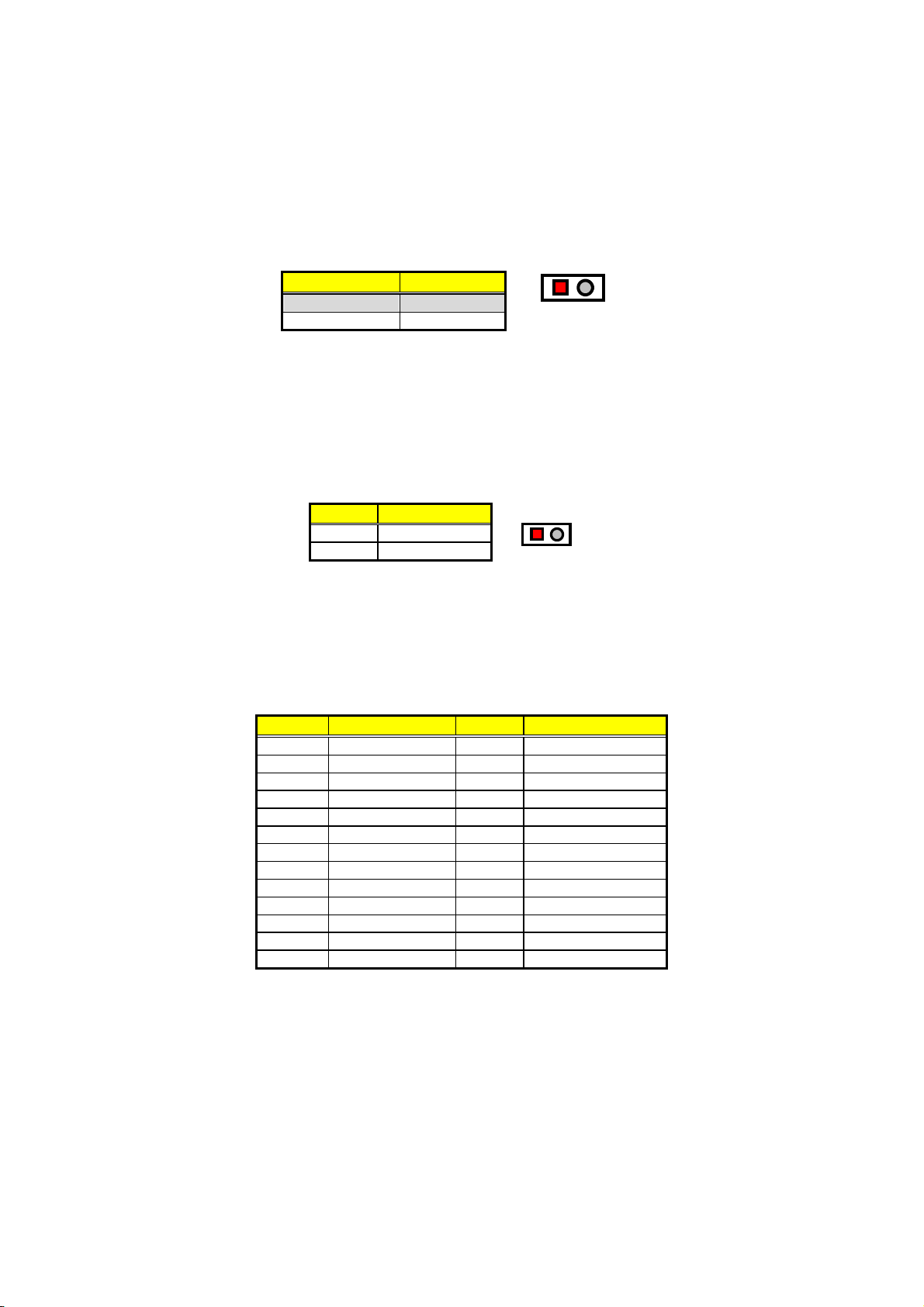

Jumper JP2 offers two voltage settings and JP1 is +12V in for the user.



JP2: Panel Voltage Select

Options Settings

+3.3V (default)

+5V Short 2-3

Short 1-2

+3.3V

VCC

To CN11 pin-5

Page 18



JP1: Panel Voltage +12V In Enabled/Disabled Select

Options Settings

* Enabled Short

Disabled Open

+12V

to CN11 pin-1, pin-2

3.8 SMI Signal Input Switch

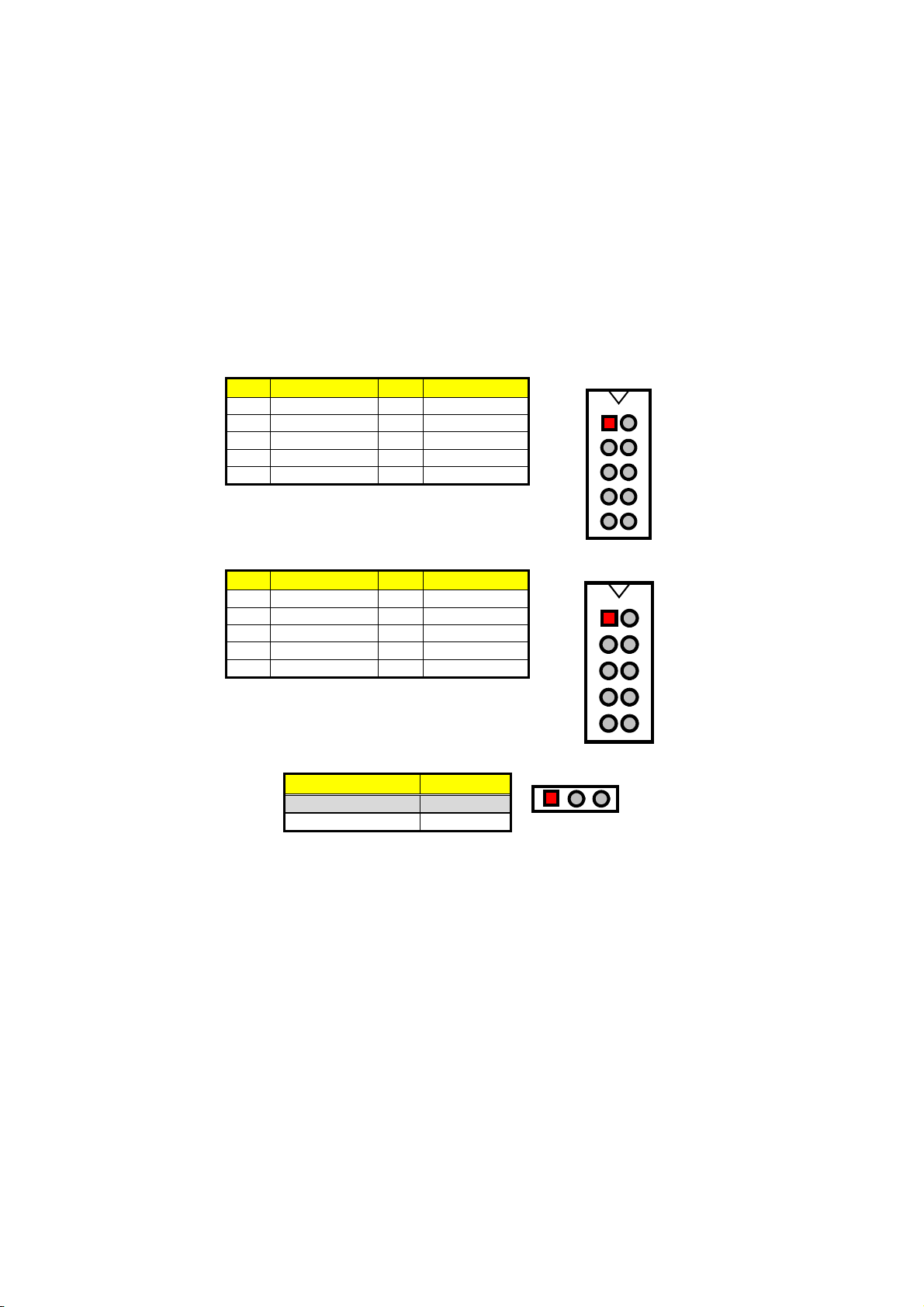

HS-4700 has an SMI connector at location CN2. If there is an external SMI Signal Input Switch, this input switch will be able to receive signals.



CN2: SMI Signal Input Switch

PIN Description

1 EXT_SMI 2 GND

3.9 PCI E-IDE Drive Connector

IDE1 and IDE2 are standard 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-4700. A maximum of four ATA/33/66/100 IDE drives can connect to the HS-4700 via IDE1 and IDE2.

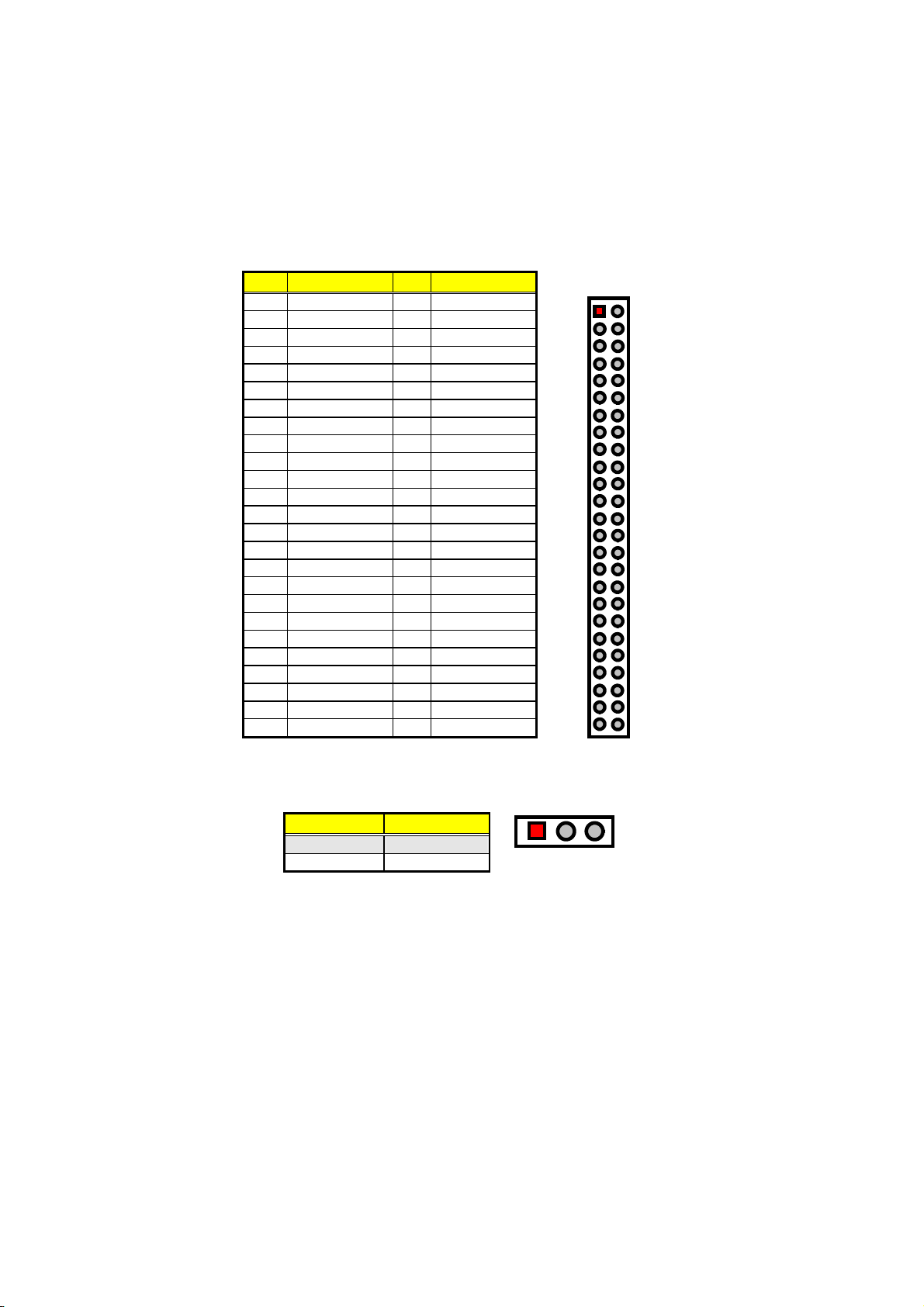

 IDE1: Primary IDE Connector

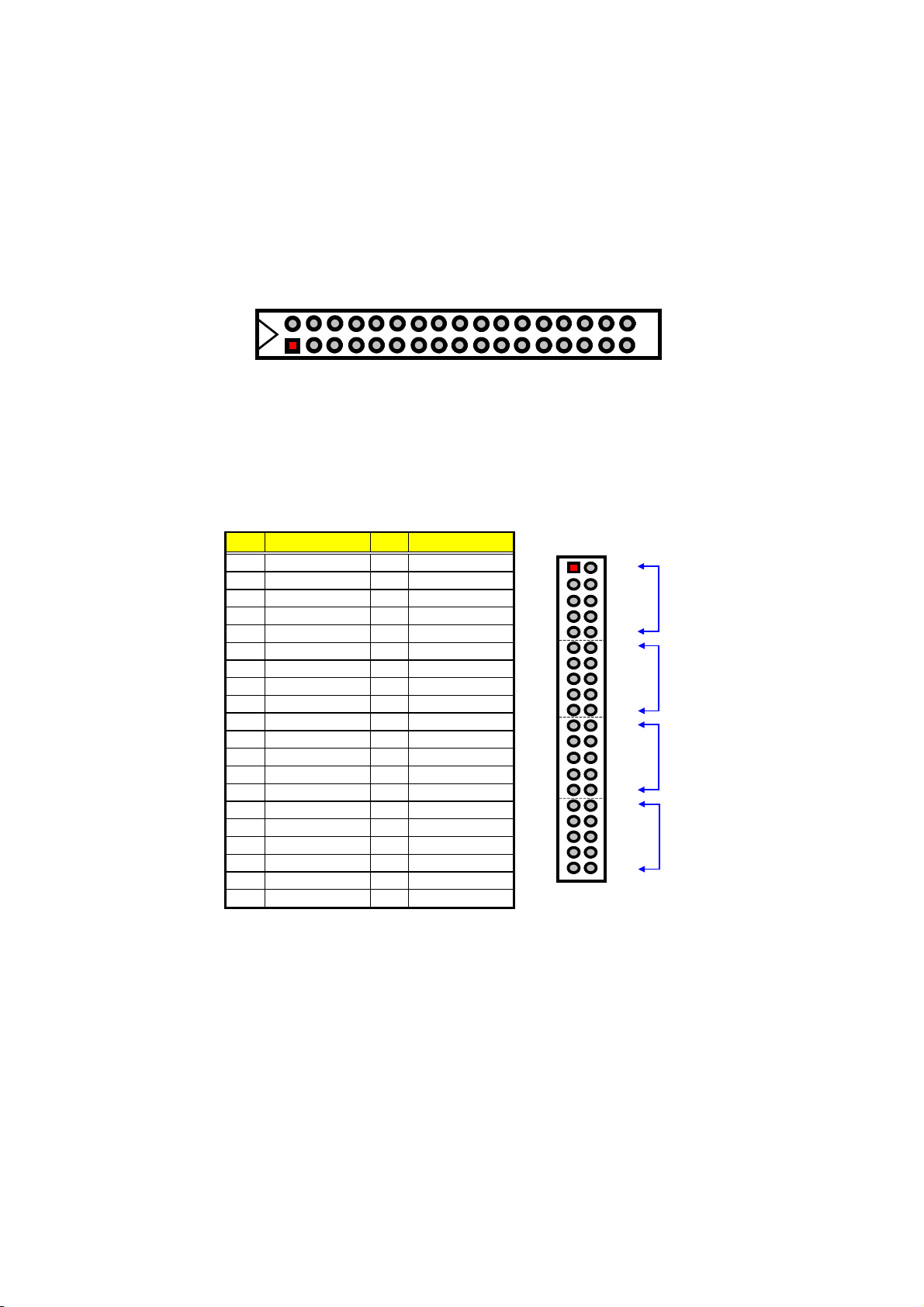

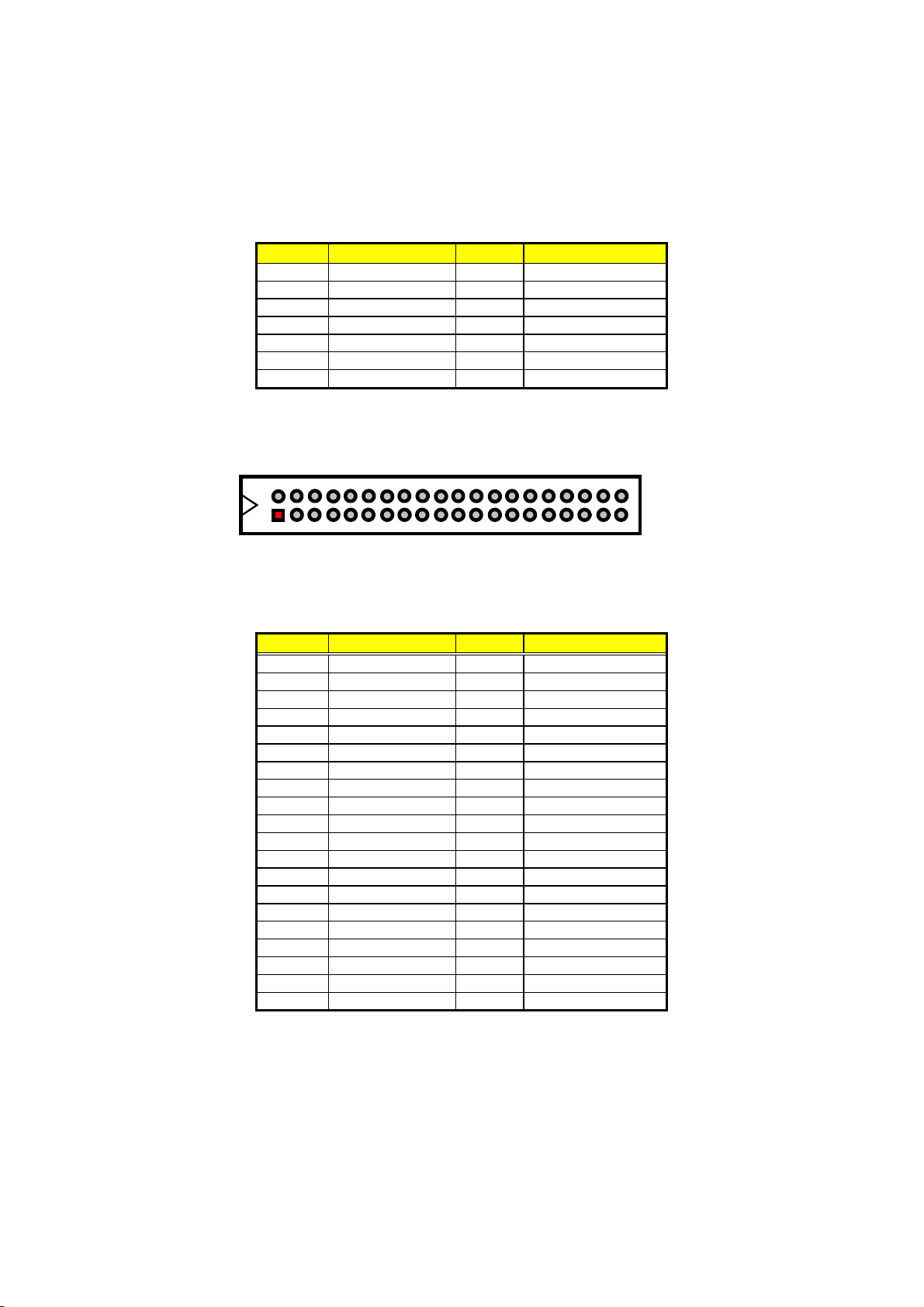

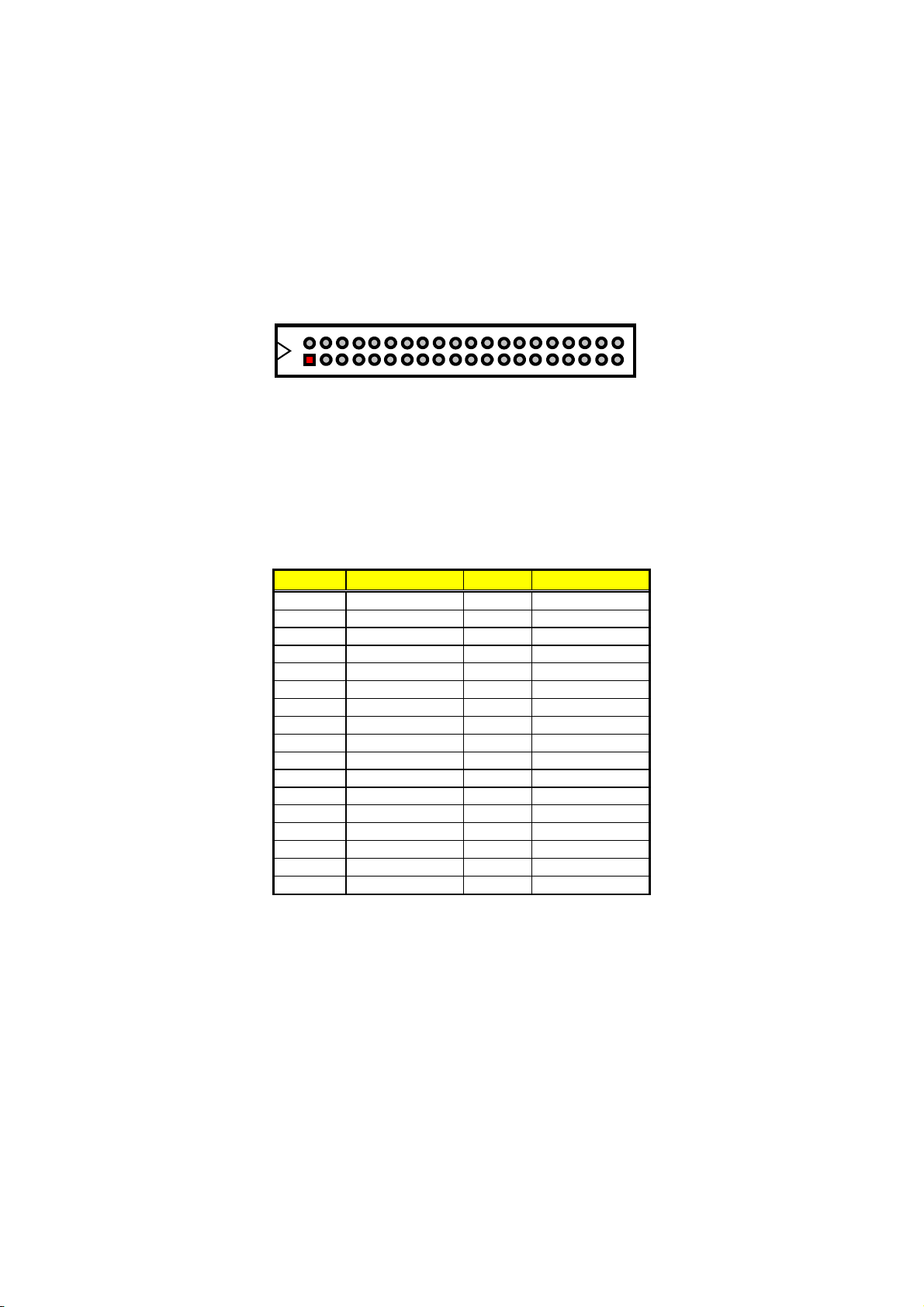

PIN Description PIN Description

1 IDERST# 2 GND 3 PDD7 4 PDD8 5 PDD6 6 PDD9 7 PDD5 8 PDD10 9 PDD4 10 PDD11

11 13 PDD2 14 PDD13 15 PDD1 16 PDD14 17 PDD0 18 PDD15 19 GND 20 N/C 21 23 PDIOW# 24 GND 25 PDIOR# 26 GND

PDD3

PDREQ

•••

More On Next Page

PDD12

•••

GND

Page 19

PIN Description PIN Description

PIORDY

29 PDDACK# 30 GND 31 IRQ14 32 N/C 33 PDA1 34 P66DET 35 PDA0 36 PDA2 37

PDCS#1

39 IDEACTP# 40 GND

GND

PDD8

PDD9

PDD10

PDD11

PDD12

PDD15

N/C

GND’GND

PDD13

PDD14

GND

470Ω Pull GND

PDCS#3

470Ω Pull GND

GND

N/C

P66DET

PDA2

PDCS#3

GND

PDD0

PDD1

PDREQ

IDERST#

PDD7

PDD6

PDD5

PDD4

PDD3

PDD2

 IDE2: Secondary IDE Connector

PIN Description PIN Description

1 IDERST# 2 GND 3 SDD7 4 SDD8 5 SDD6 6 SDD9 7 SDD5 8 SDD10

9 SDD4 10 SDD11 11 SDD3 12 SDD12 13 SDD2 14 SDD13 15 SDD1 16 SDD14 17 SDD0 18 SDD15 19 GND 20 N/C 21 23 SDIOW# 24 GND 25 SDIOR# 26 GND 27 SIORDY 28 470Ω Pull GND 29 SDDACK# 30 GND 31 33 SDA1 34 S66DET 35 SDA0 36 SDA2 37 SDCS#1 38 SDCS#3 39 IDEACTP# 40 GND

SDREQ

IRQ15

PDIOW#

PDIOR#

PIORDY

PDDACK#

PDA1

PDA0

IRQ14

PDCS#1

IDEACTP#

GND

N/C

Page 20

GND

SDD8

SDD9

SDD10

SDD11

SDD12

SDD13

SDD14

SDD15

N/C

GND’GND

GND

470Ω Pull GND

GND

N/C

S66DET

SDA2

SDCS#3

GND

SDCS#1

IDEACTP#

SDD7

SDD6

SDD5

SDD4

SDD3

IDERST#

SDD2

GND

SDD0

SDD1

SDREQ

SDIOW#

SDIOR#

SIORDY

SDA1

IRQ15

SDDACK#

SDA0

3.10 Floppy Disk Drive Connector

The HS-4700 uses a standard 34-pin header connector, FDC1, for floppy disk drive connection. A total of two FDD drives may be connected to FDC at any given time.

 FDC1: FDD Connector

PIN Description PIN Description

GND

3 GND 4 N/C 5 GND 6 DS1# 7 GND 8 Index#

9 GND 10 MOA# 11 GND 12 DSB# 13 GND 14 DSA# 15 GND 16 MOB# 17 GND 18 DIR# 19 GND 20 STEP# 21 GND 22 WD# 23 GND 24 WE# 25 GND 26 TRACK0# 27

GND

29 N/C 30 RDATA# 31 GND 32 HEAD# 33 N/C 34 DSKCHG#

RWC#

WP#

Page 21

RWC#

N/C

DS1#

INDEX#

MOA#

DSB#

DSA#

MOB#

DIR#

STEP#

WD#’WE#

TRACK0#

WP#

RDATA#

HEAD#

DSKCHG#

N/C

GND

N/C

3.11 Serial Port Connectors

The HS-4700 offers two NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and four internal 10-pin headers.

 CN16~CN19: COM1~COM4 Connectors (5x2 Header)

PIN Description PIN Description

1 DCD0 2 DSR0 3 RXDD0 4 RTS0 5 TXDD0 6 CTS0 7 DTR0 8 RI0

9 GND 10 N/C 11 DCD1 12 DSR1 13 RXDD1 14 RTS1 15

TXDD1

17 DTR1 18 RI1 19 GND 20 N/C 21 DCD2 22 DSR2 23 RXDD2 24 RTS2 25 TXDD2 26 CTS2 27 DTR2 28 RI2 29 GND 30 N/C 31 DCD3 32 DSR3 33 RXDD3 34 RTS3 35 TXDD3 36 CTS3 37

DTR3

39 GND 40 N/C

CTS1

RI3

RXDD0

RXDD1

TXDD1

RXDD2

TXDD2

RXDD3

TXDD3

DCD0

TXDD0

DTR0

GND

DCD1

DTR1

GND

DCD2

DTR2

GND

DCD3

DTR3

GND

DSR0

RTS0

CTS0

RI0

N/C

DSR1

RTS1

CTS1

RI1

N/C

DSR2

RTS2

CTS2

RI2

N/C

DSR3

RTS3

CTS3

RI3

N/C

CN16

COM1

CN17

COM2

CN18

COM3

CN19

COM4

Page 22

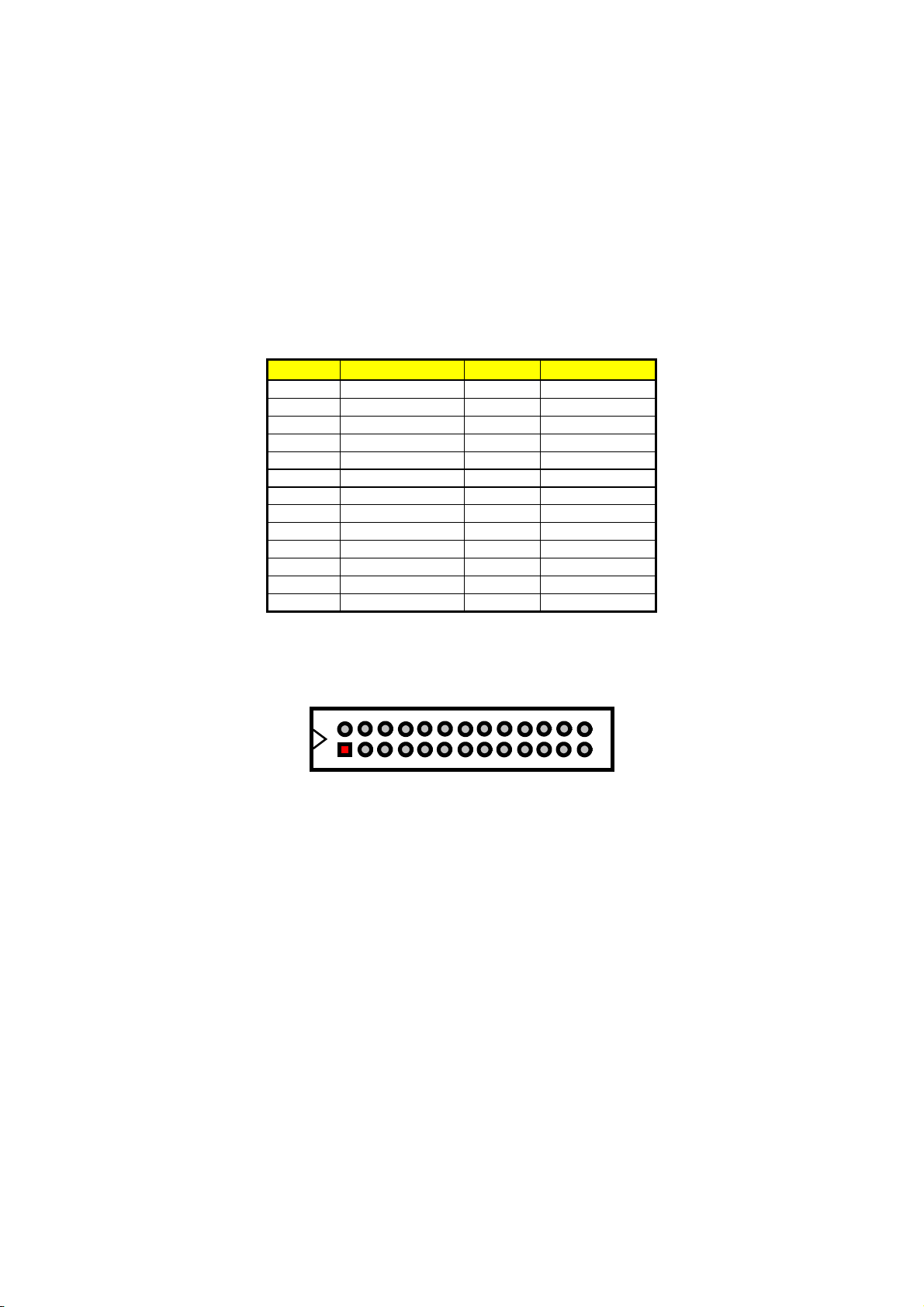

3.12 Parallel Connector

LPT1 is a standard 26-pin flat cable connector deigned to accommodate parallel port connection onboard the HS-4700.



LPT1: Parallel Connector

PIN Description PIN Description

1 STB# 14 AFD# 2 PDR0 15 ERR# 3 PDR1 16 INIT# 4 PDR2 17 SLIN# 5 PDR3 18 GND 6 PDR4 19 GND 7 PDR5 20 GND 8 PDR6 21 GND

9 PDR7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12

Paper Empty

13 Printer Select 26 N/C

AFD#

ERR#

INIT#

SLIN#

GND

N/C

STB#

PDR0

PDR1

PDR2

PDR3

PDR4

PDR5

PDR6

PDR7

Busy

Acknowledge

Paper empty

Printer Select

Page 23

3.13 Ethernet Connector

The HS-4700 provides two 10-pin internal 10/100 Based LAN interface connector. Please refer to the following for its pin information. LAN1 is

Intel

82562 and LAN2 is Intel® 82559 chipset.



CN14: LAN1 Connector (Intel 82562)

PIN Description PIN Description

1 3.3VSTBY 2 1LILED# 3

1RRX+

1RRX-

5 1ACTLED# 6 1LANC1 7 1SPLED# 8 1LANC2 9 1TTX+ 10 1TTX-



CN13: LAN2 Connector (Intel 82559)

PIN Description PIN Description

1 3.3VSTBY 2 2LILED# 3 2RRX+ 4 2RRX- 5 2ACTLED# 6 2LANC1 7

2SPLED#

2LANC2

9 2TTX+ 10 2TTX-



JP4: LAN2 Enable/Disable Select

Options Settings

* Enable Short 1-2

Disable

Short 2-3

3.3VSTBY

1ACTLED#

1SPLED#

3.3VSTBY

2ACTLED#

2SPLED#

1RRX+

1TTX+

2RRX+

2TTX+

1LILED#

1RRX-

1LANC1

1LANC2

1TTX-

2LILED#

2RRX-

2LANC1

2LANC2

2TTX-

Page 24

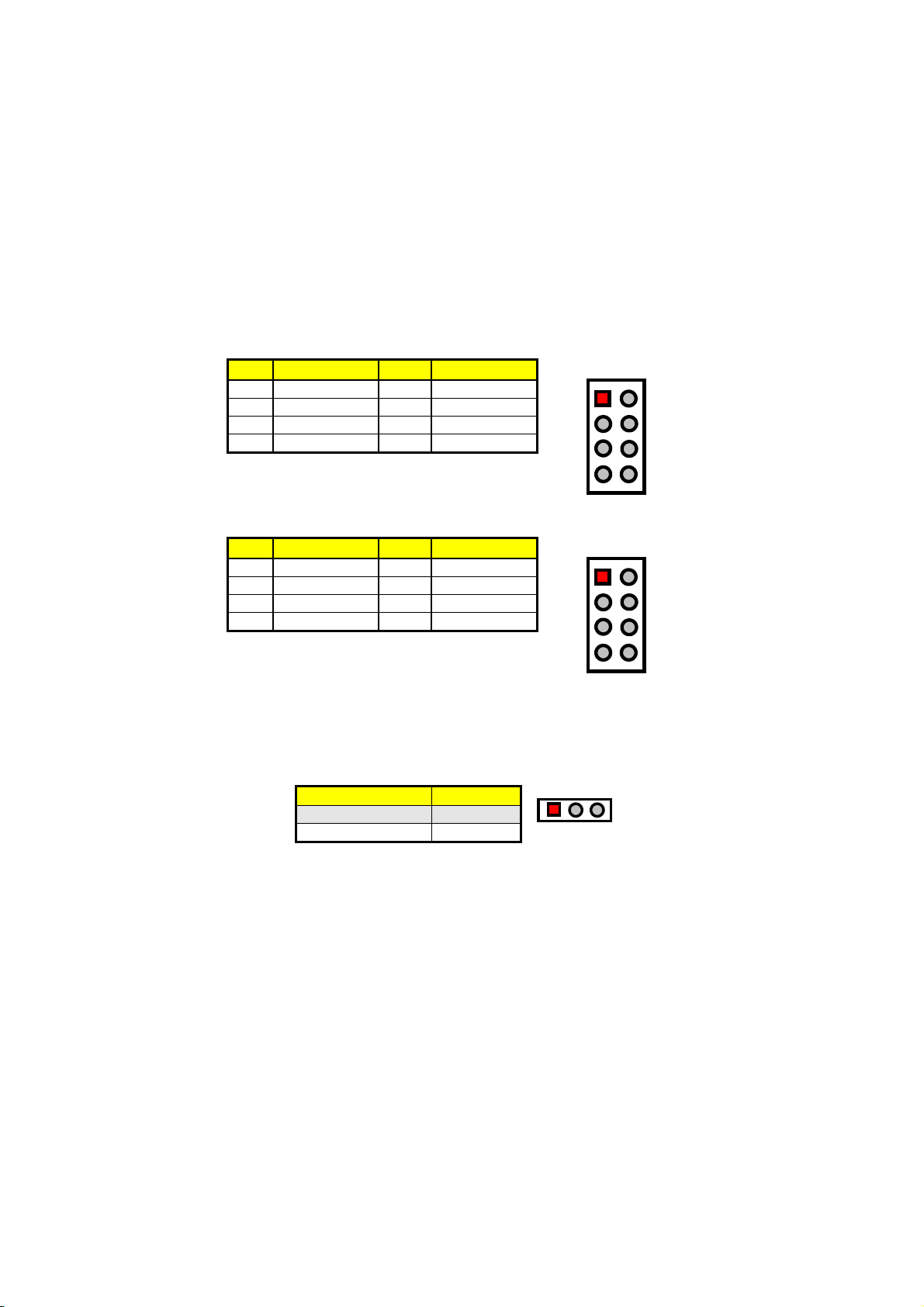

3.14 USB Connector

The HS-4700 provides four USB ports, at locations USB1 and USB2, for four USB connections to the HS-4700.



USB1: USB Connector

VCC

GND

VCC

GND

VCC

USBP1N

USBP1P

GND

VCC

USBP3N

USBP3P

GND

PIN Description PIN Description

1 VCC 2 VCC 3 USBP0N 4 USBP1N 5 USBP0P 6 USBP1P 7

GND



USB2: USB Connector

PIN Description PIN Description

1 VCC 2 VCC 3 USBP2N 4 USBP3N 5 USBP2P 6 USBP3P 7 GND 8 GND

USBP0N

USBP0P

USBP2N

USBP2P

3.15 CMOS Data Clear

The HS-4700 has a Clear CMOS jumper on JP3.



JP3: Clear CMOS

Options Settings

* Normal Operation Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

Before you turn on the power of your system, please set JP3 to short 1-2 for normal operation.

GND

Battery

RTCRST#

Page 25

3.16 Power and Fan Connectors

HS-4700 provides one 4-pin and one 20-pin ATX power connectors at PW1 and PW2.

HS-4700 must using P4 power supply. One of 4-pin connector is for +12V lead which should connect to PW1.

20-pin ATX Power Connector can connect to Backplane or to PW2.



PW1: 4-pin ATX Power In Connector

PIN Description PIN Description

1 GND 2 GND 3 +12V 4 +12V



PW2: 20-pin ATX Power In Connector

PIN Description PIN Description

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 GND 13 GND 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 PWROK 18 -5V 9 5VSB 19 +5V

10 +12V 20 +5V



CN3: 2-pin ATX Power On/Off Switch

PIN Description

1 2 Power On/Off

5VSTBY

11011

Page 26

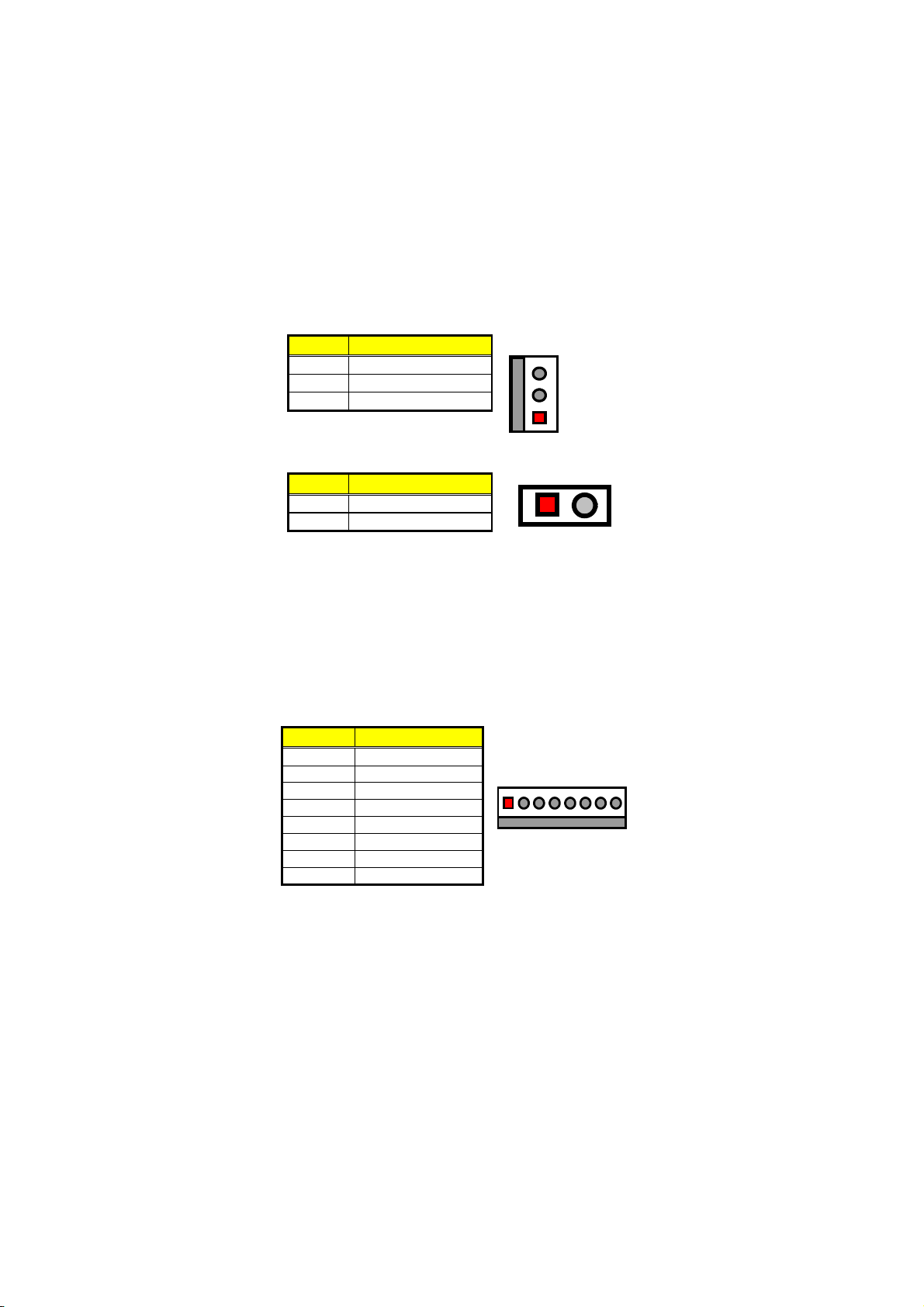

Connector FN1, FN2 and FN3 onboard HS-4700 are 3-pin PWR, CPU, and Chassis fan connectors. If chassis is open, S1 switch should be closed.



FN1, FN2 and FN3: PWR/CPU/Chassis Fan Connectors

PIN Description

1 GND 2 +12V 3 Fan Speed



S1: Chassis Open Switch Connector

Fan Speed

+12V

GND

PIN Description

1 Open Single# 2 GND

GND

Open Single#

3.17 Keyboard/Mouse Connectors

The HS-4700 offers one possibility for keyboard/mouse connection is via KB1.



KB1: 8-pin Keyboard/Mouse Connector

PIN Description

1 GND 2 VCC 3 MS_DATA 4 MS_CLK 5 GND 6

VCC

7 KB_DATA 8 KB_CLK

GND

MS_DATA

VCC

GND

MS_CLK

VCC

KB_CLK

KB_DATA

Page 27

3.18 System Front Panel Connectors

The HS-4700 has one LED at location CN4 that indicates the HDD status.



CN4: HDD LED Connector

PIN Description

1 150Ω Pull +5V 2 HDD ACTIVE#

CN1 and CN7 are the Keylock and Reset Button connectors onboard. The CN8 is Green function LED indicates.



CN1: Keylock Connector

PIN Description

1 2 N/C 3 GND 4 Keylock# 5 GND



CN7: Reset Button Connector

PIN Description

1 GND 2 External Reset

220Ω Pull +5V

GND

Ext. Reset



CN8: Green LED Connector

PIN Description

1 150Ω Pull +5V 2 ACTIVE#

Page 28

3.19 External Speaker

Aside from the buzzer at location BZ1 onboard, the HS-4700 also offers a connector (CN6) for an external speaker connection. The table below lists the pin assignments of CN6.



CN6: External Speaker Connector

PIN Description

1 VCC 2 GND 3 4 Speaker Signal

GND

VCC

GND

Speaker Signal

3.20 IrDA Connector

IR1 is a 5-pin internal IR communication connector for connection of an IrDA device.



IR1: IrDA Connector

PIN Description

1 VCC 2 N/C 3 IRRX 4 GND 5

IRTX

2345

N/C

VCC

IRRX

GND

IRTX

Page 29

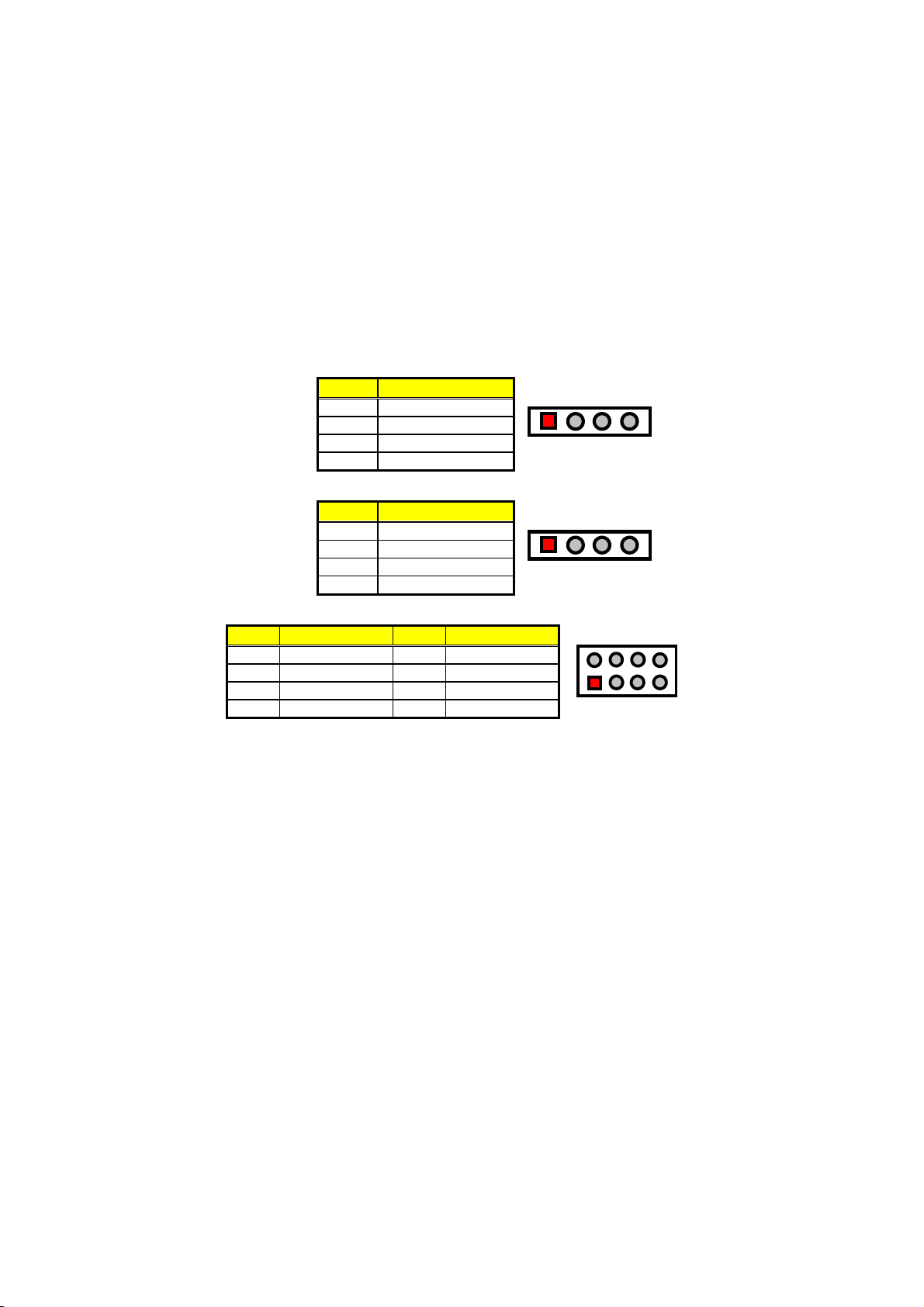

3.21 Audio Connectors

The HS-4700 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line_ In analog Input and the MIC In / Audio Out connectors.



CD1: CD Analog Input Connector

PIN Description

1 CD_INR 2 CD_REF 3 4 CD_INL



CD2: Line In Analog Input Connector

CD_REF

PIN Description

1 LINE_IN_R 2 GND 3 GND 4 LINE_IN_L



CN12: Mic In / Audio Out Connector

PIN Description PIN Description

1 AOUT_L 2 AOUT_R 3 GND 4 GND 5 MIC_IN 6 N/C 7 GND 8 GND

1234

Page 30

This page is intentionally left blank.

Page 31

Chapter 4

AMI BIOS Setup

The HS-4700 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 32

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 33

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Setup Hdd Security Password

Auto-Detect Hard Disks Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Save Settings and Exit

Exit Without Saving

Page 34

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Mon Oct 07, 2002 Base Memory: 0 KB Time (hh/mm/ss) : 11:13:43 Extd Memory: 0 MB

Floppy Drive A: 1.44MB, 3.5” Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Auto Pri Slave : Auto Sec Master : Auto Sec Slave : Auto

Boot Sector Virus Protection: Disabled Month: Jan - Dec ESC:Exit

Day: 01 - 31 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

Page 35

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Disabled Pri Master ARMD Emulated as Auto Pri Slave ARMD Emulated as Auto Enabled Sec Master ARMD Emulated as Auto Sec Slave ARMD Emulated as Auto 1st Boot Device Floppy 2nd Boot Device IDE-0 3rd Boot Device CD-ROM Try Other Boot Devices Yes S.M.A.R.T. for hard Disks Disabled BootUp Num-Lock ON Floppy Drive Swap Disabled Floppy Drive Seek Disabled PS/2 Mouse Support Enabled Primary Display VGA/EGA Password Check Setup Boot To OS/2 No CPU MicroCode Updation Enabled L1 Cache Enabled L2 Cache Enabled System BIOS Cacheable Enabled C000,32k Shadow Disabled C800,16k Shadow Disabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled

Available Options:

Disabled



:Sel

F1:Help F2/F3:Color

Page 36

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

******** DRAM Timing ******** Available Options:

SDRAM Frequency Auto Configure SDRAM Timing by SPD Enabled 133Mhz

SDRAM CAS# Latency 3 Clocks Auto SDRAM RAS# Precharge 3 Clocks SDRAM RAS# to CAS# Delay 3 Clocks SDRAM Precharge Delay 7 Clocks

SDRAM Idle Timer Infinite SDRAM Read Thermal Management Disabled DRAM Integrity Mode Disabled Memory Hole Disabled AGP Aperture Size 64MB USB Controller All USB Port USB Device Legacy Support Disabled ESC:Exit Port 64/60 Emulation Disabled PgUp/PgDn: Modify F1:Help F2/F3:Color

100Mhz



:Sel

Page 37

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

Keyboard PowerOn Function Disabled Specific Key for PowerOn N/A Mouse PowerOn Function Disabled Yes ACPI Aware O/S Yes ACPI Standby State Auto USB Device Wakeup From S3 Disabled Re-Call VGA BIOS at S3 Resuming Enabled Power Management / APM Enabled Video Power Down Mode Disabled Hard Disk Power Down Mode Disabled Standby Time Out (Minute) Disabled Suspend Time Out (Minute) Disabled Throttle Slow Clock Ratio 50.0% FDC / LPT / COM Ports Ignore MIDI Ports Ignore Primary Master IDE Monitor Primary Slave IDE Ignore Secondary Master IDE Monitor Secondary Slave IDE Ignore System Thermal Disabled Thermal Active Temperature 65°C / 149°F Thermal slow Clock Ratio 50.0% Power Button Function On/Off Restore on AC / Power Loss Last State Resume On Ring Disabled Resume On LAN Disabled Resume On PME# Disabled Resume On RTC Alarm Disabled RTC Alarm Date 15 RTC Alarm Hour 12 ESC:Exit RTC Alarm Minute 30 PgUp/PgDn: Modify RTC Alarm Second 30

Available Options:



:Sel

F1:Help F2/F3:Color

Page 38

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM No PCT Latency Timer (PCI Clocks) 32 Yes Primary Graphics Adapter PCI Allocate IRQ to PCI VGA No PCI IDE BusMaster Enabled OffBoard PCI IDE Card Auto OffBoard PCI IDE Primary IRQ Disabled OffBoard PCI IDE Secondary IRQ Disabled

ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color



:Sel

Page 39

4.9 Peripheral Setup

The IDE hard drive controllers can support up to four separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard IDE Both Available Options: OnBoard LAN Enabled OnBoard AC’97 Audio Auto Primary LCD CRT Selection CRT Only Secondary LCD Type Type 6 Both OnBoard FDC Enabled OnBoard Serial Port A 3F8/COM1 OnBoard Serial Port B 2F8/COM2

Serial Port B Mode Normal

IR Duplex Mode Half Duplex IR Pin Select IRRX/IRTX

OnBoard Serial Port C 3E8/COM3

Serial Port C IRQ 10

OnBoard Serial Port D 2E8/COM4

Serial Port D IRQ 11

OnBoard Prarllel Port 378

Parallel Port Mode ECP EPP Version N/A Parallel Port IRQ 7 Parallel Port DMA Channel 3 ESC:Exit

OnBoard Midi Port Disabled PgUp/PgDn: Modify

Mide IRQ Select 5 F1:Help F2/F3:Color

Disabled



:Sel

Page 40

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Ratio Selection 8.0x

*** System Hardware Monitor ***

Chassis Intrusion Disabled Current CPU Temperature Current System Temperature Current CPU Fan Speed Current Chassis Fan Speed Current Power Fan speed Vcore Vtt Vio + 5.000V +12.000V

-12.000V

- 5.000V Battery +5V SB

ESC:Exit PgUp/PgDn: Modify F1:Help F2/F3:Color



:Sel

Page 41

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Setup Hdd Security Password

Auto-Detect Hard Disks Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Save Settings and Exit

Exit Without Saving

Page 42

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

Page 43

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 44

4.14 Auto Configuration with Fail Safe Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 45

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Page 46

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Abandon all Data & Exit Setup

Page 47

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN and Audio driver installation procedures. The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

5.1 IDE Driver Installation

5.1.1 Installing Intel 815 Chipset Software

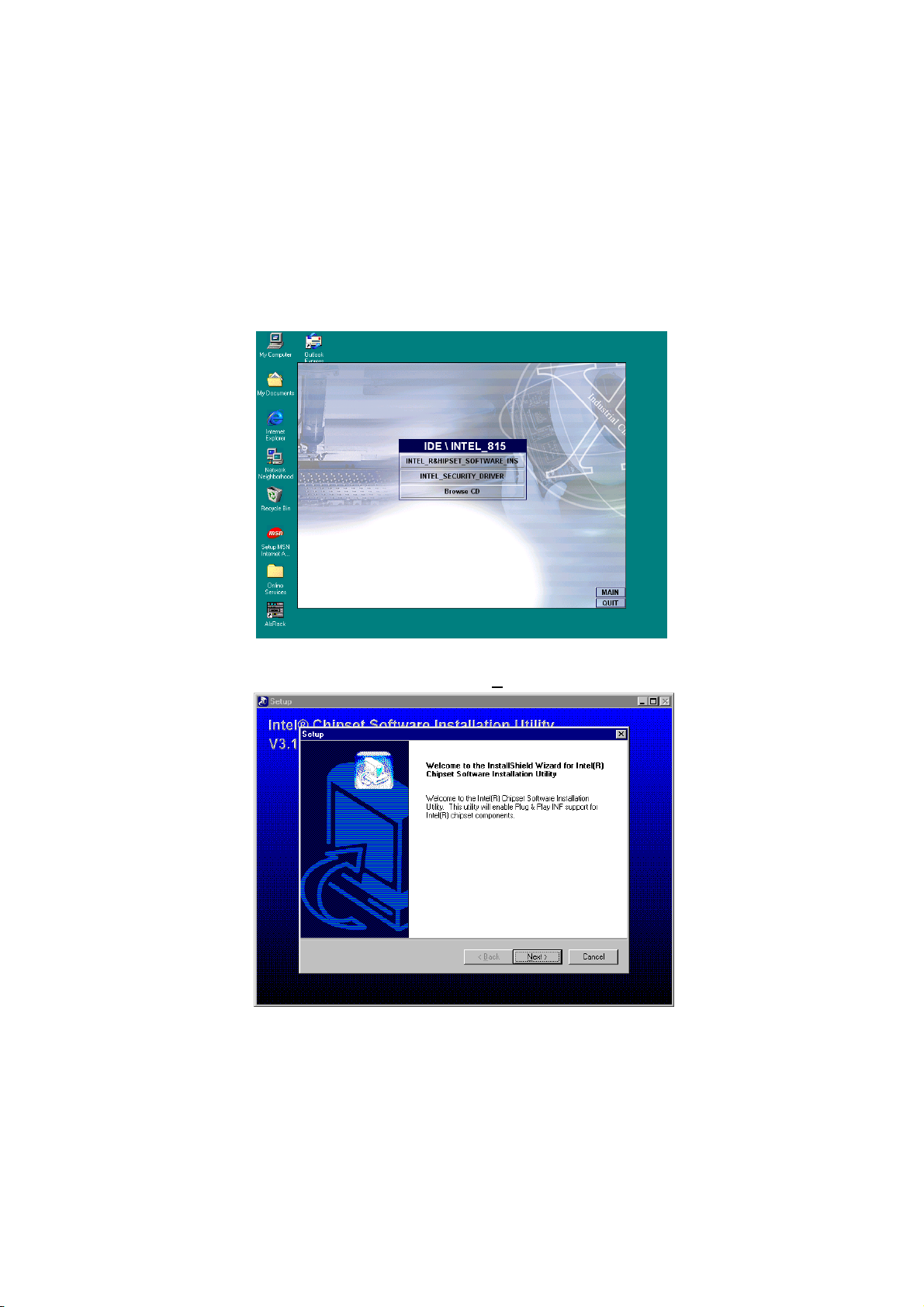

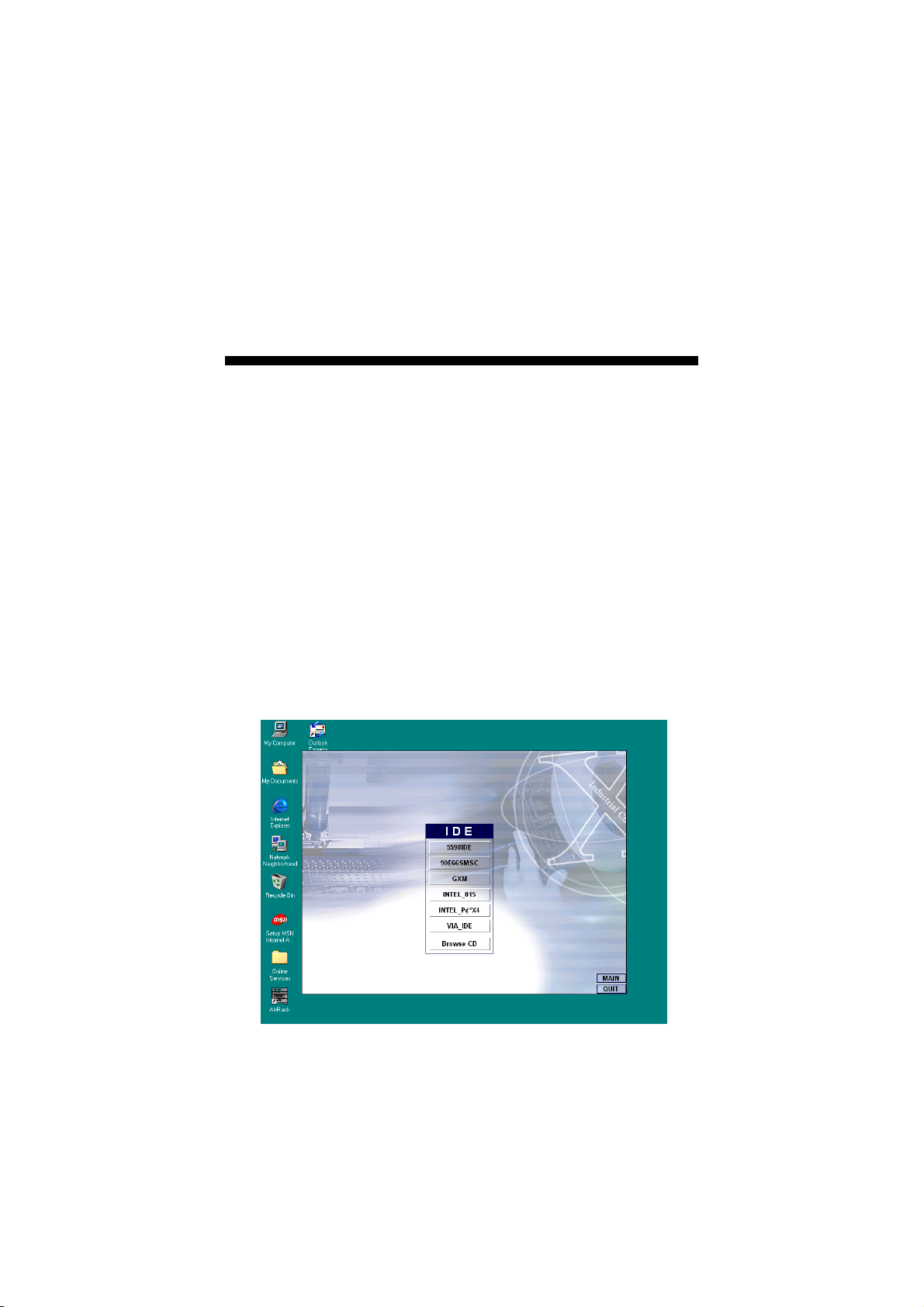

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the IDE button to launch the installation program.

2. Click on the INTEL_815 button to continue.

Page 48

3. When the IDE \ INTEL_815 box appears on your screen, click on the INTEL_R&HIPSET_SOFTWARE_INS to install the IDE plug and play information files into your system.

4. Immediately after clicking the IDE b u tton i n Ste p 1, th e prog r am launches the InstallShield Wizard that will assist you in the installation process. Click on the N

ext > button to proceed.

Page 49

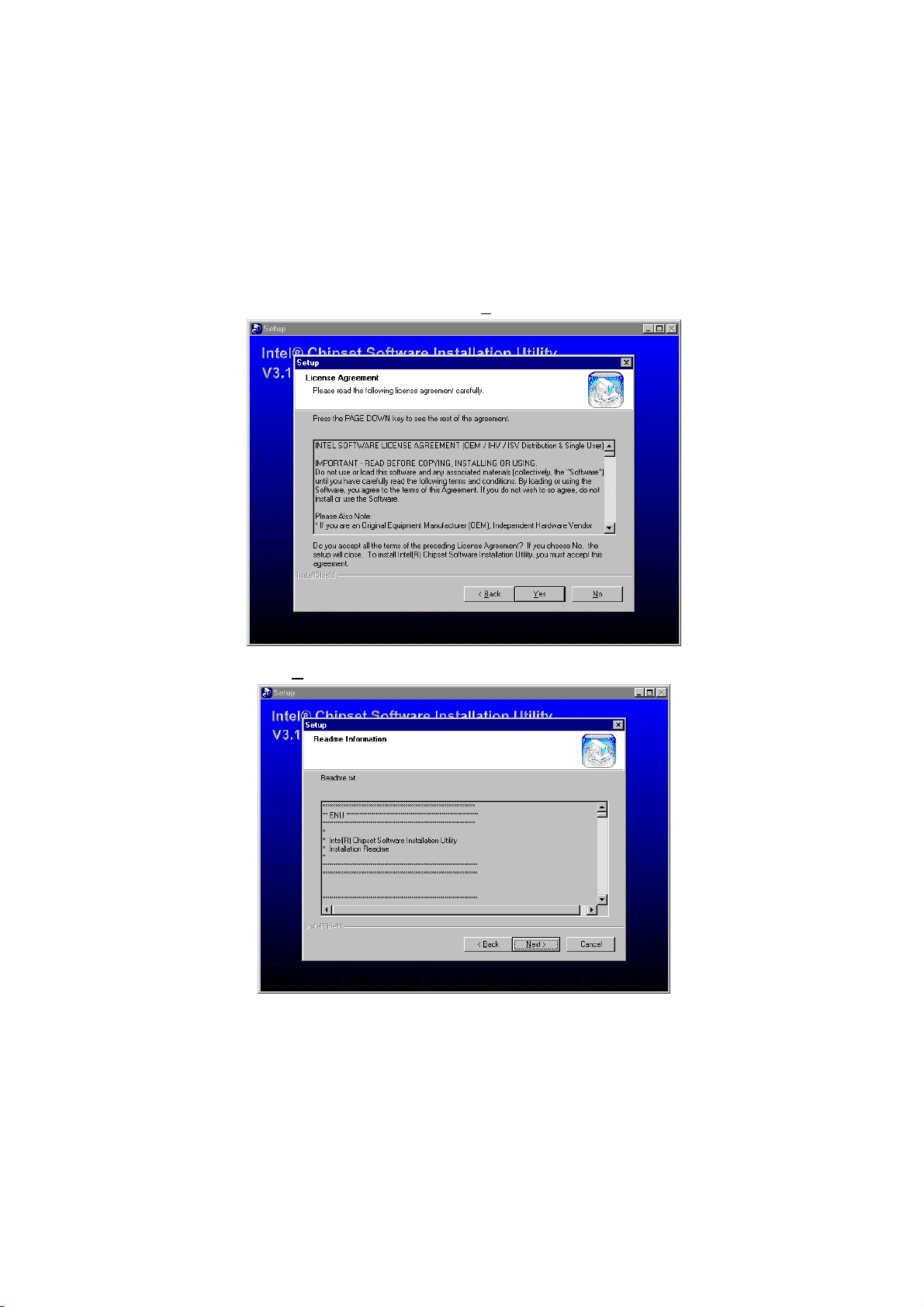

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

6. When the Readme Information dialog box pops up, just click on the N

ext button to proceed.

es to proceed.

Page 50

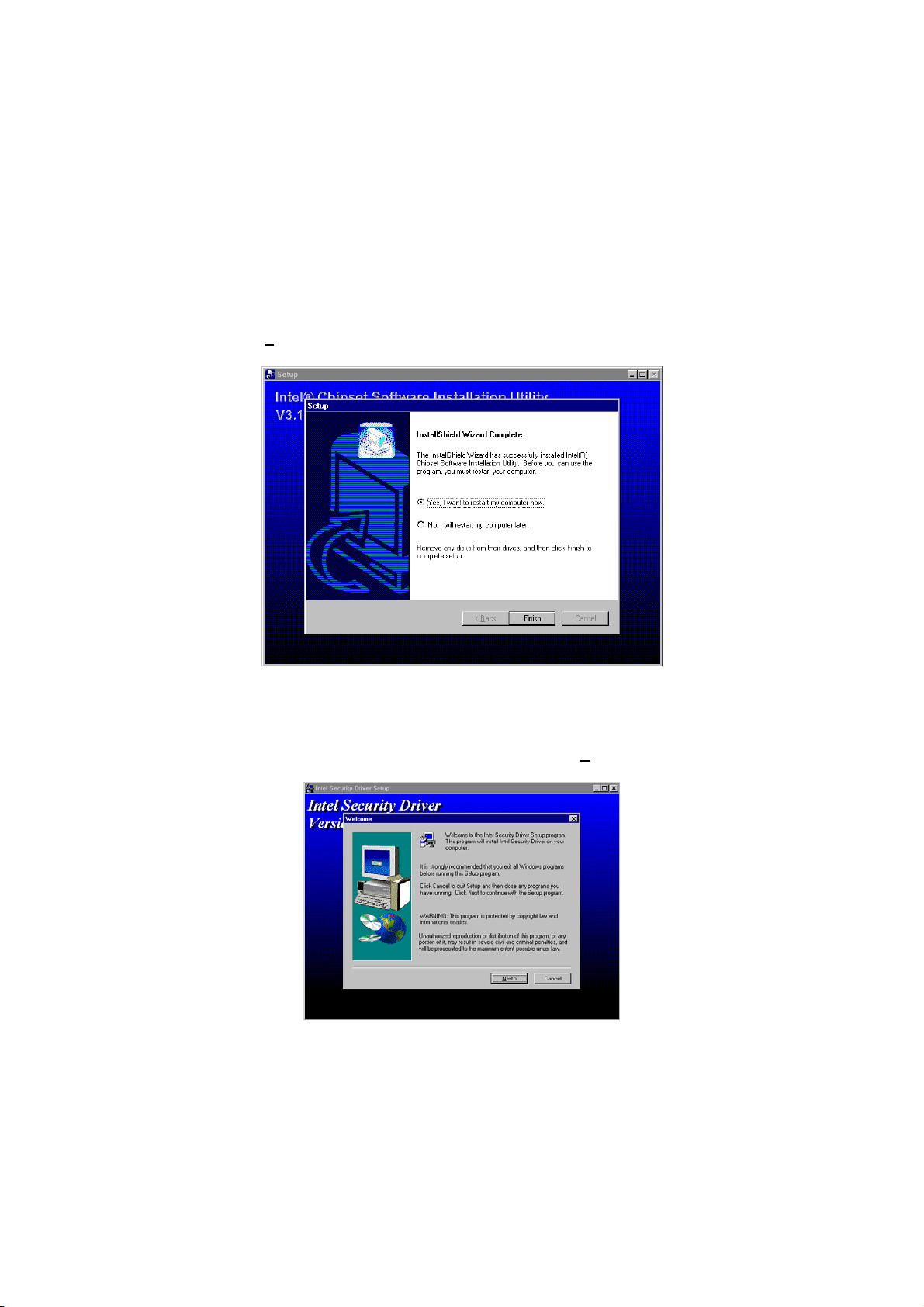

7. Once the Install Shield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the F

inish butto n t o reboot . Only af ter yo ur compu ter boot s w ill the

new settings take effect.

5.1.2 Installing Intel Security Driver

1. Following Steps 1 ~ 3 of the Intel 815 chipset software (from the preceding section), click on the INTEL_SECURITY_ DRIVER button. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 51

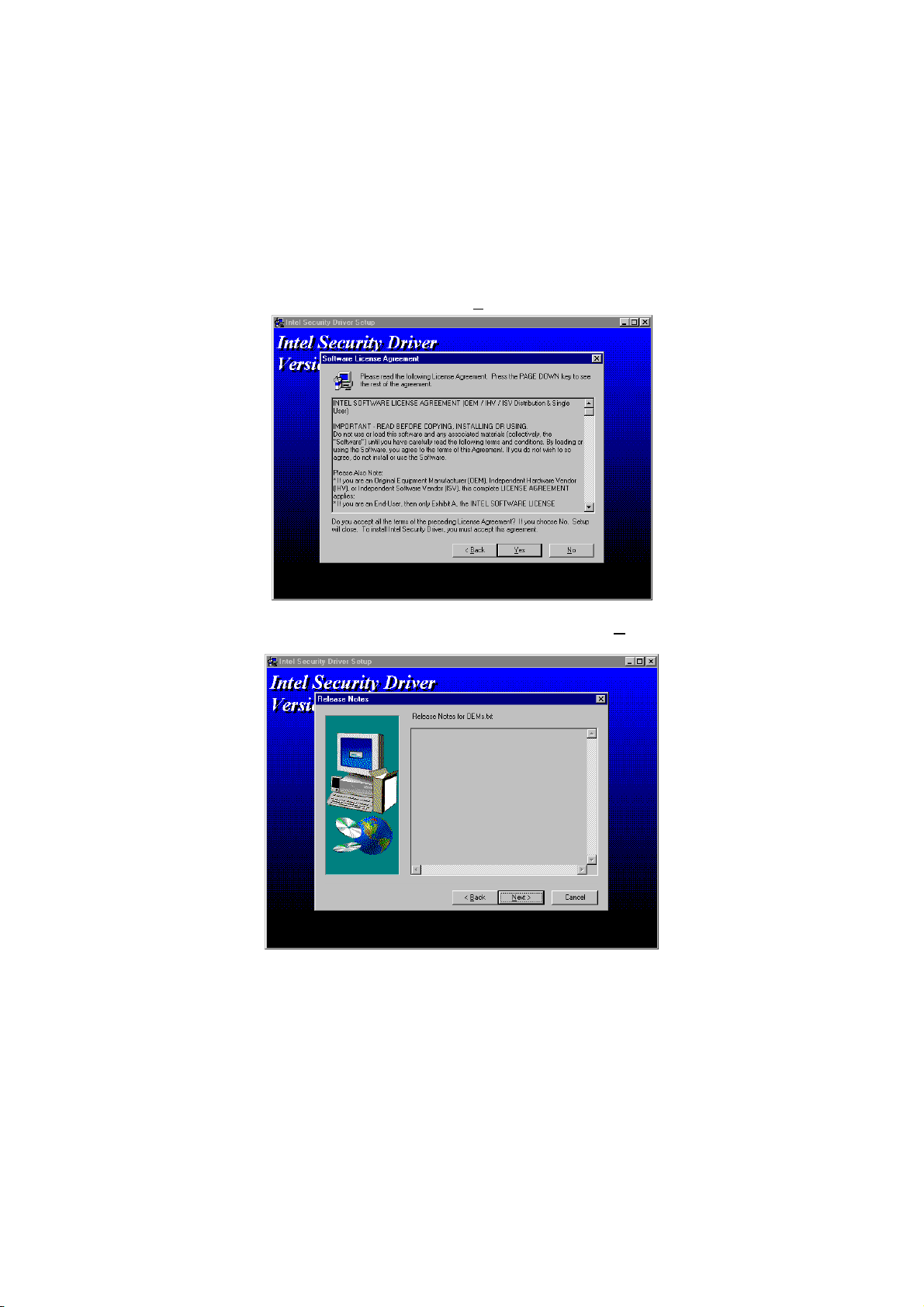

2. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

3. When the Release Notes box pops on the screen, read through any important information listed before clicking the N button.

es to proceed.

ext >

Page 52

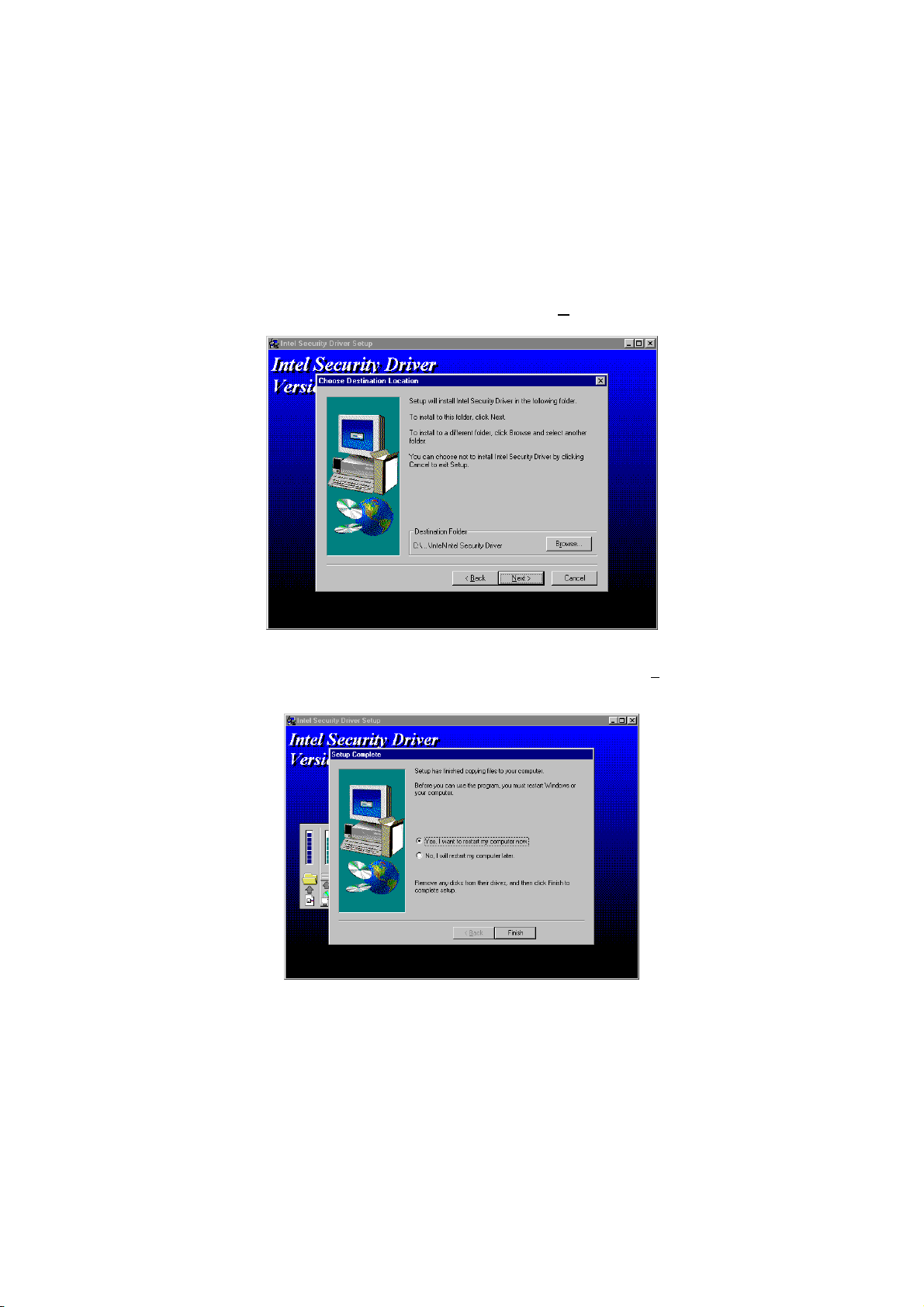

4. Setup will then prompt you to specify the path where you would like the Security driver installed. Select the N you have made your path/installation choice.

5. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

ext > button after

inish

Page 53

5.2 VGA Driver Installation for Win

95/98

1. Click Start, then Setting, then Control Panel.

2. Start the Display applet program.

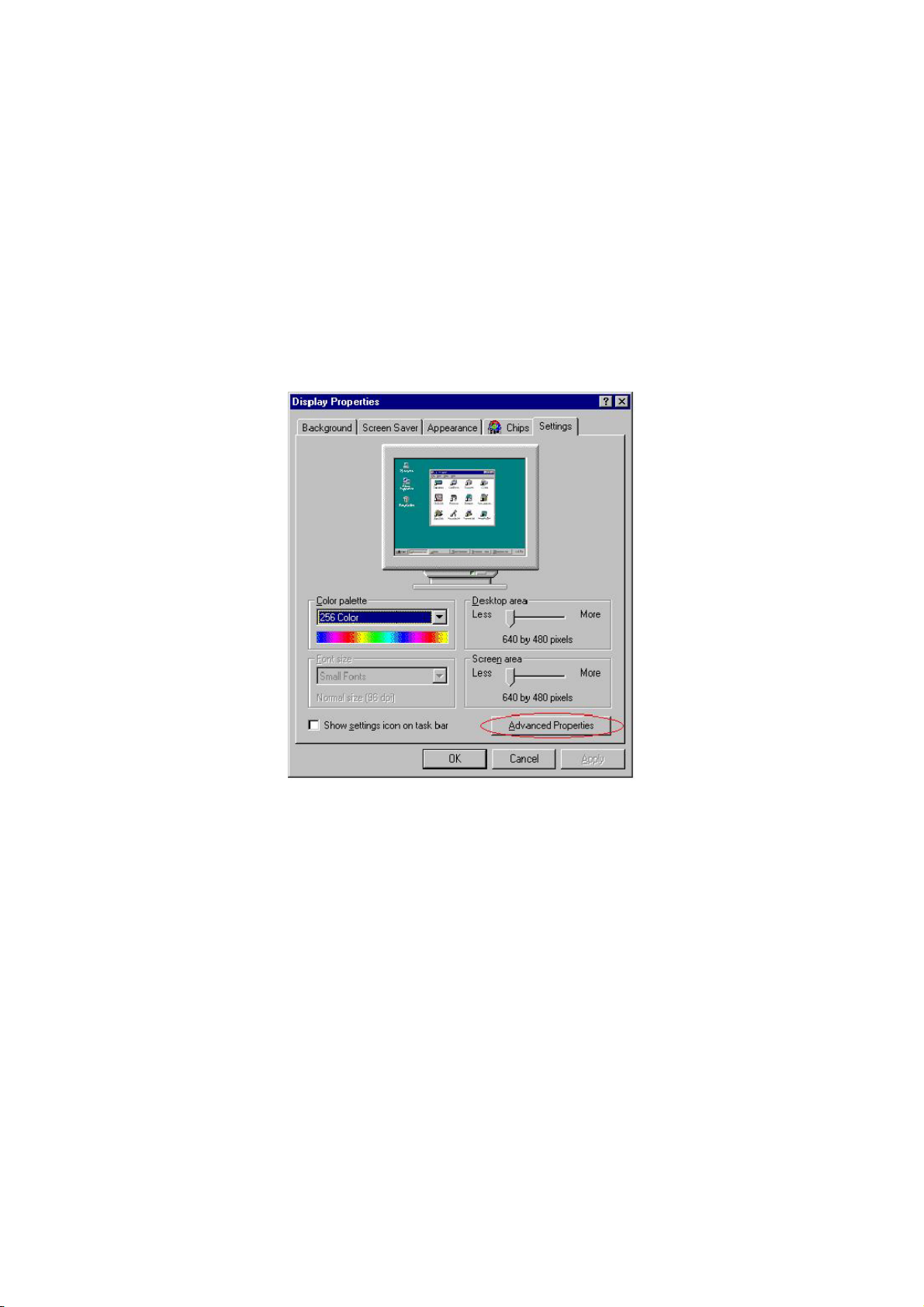

3. Select the setting page, click on the Advanced properties button.

Page 54

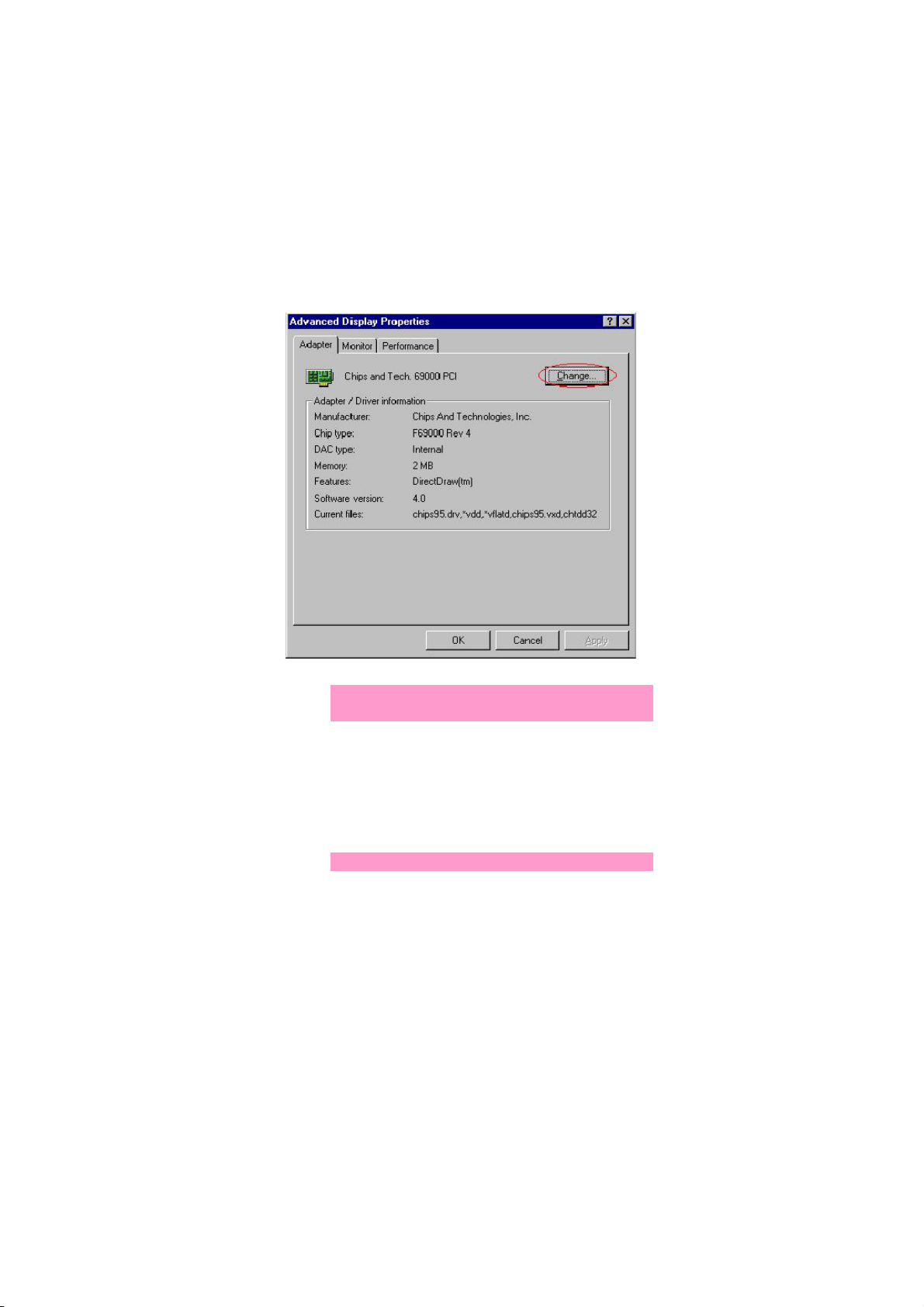

4. Press the Change button in the adapter area.

5. Click on Next to continue and then select

Display a list of all drivers in a specific location,

so you can select the drivers you want.

6. Click on Next.

7. Select the Specify a location checkbox then Browse.

8. Specify the path to the new driver and then press the <ENTER> key (if in driver A: select a:\win95).

9. Once completed, the Select device dialog box will appear. Choose on:

C&T69000 Rev 4

10. Continue choosing until asked to restart machine.

11. After the system has restarted, you can go back into the display applet and select alternate screen resolutions and color depths.

NOTE:

Installation procedure for Windows 98 is similar to Windows95.

Page 55

5.3 LAN Driver Installation

5.3.1 Win 95/98

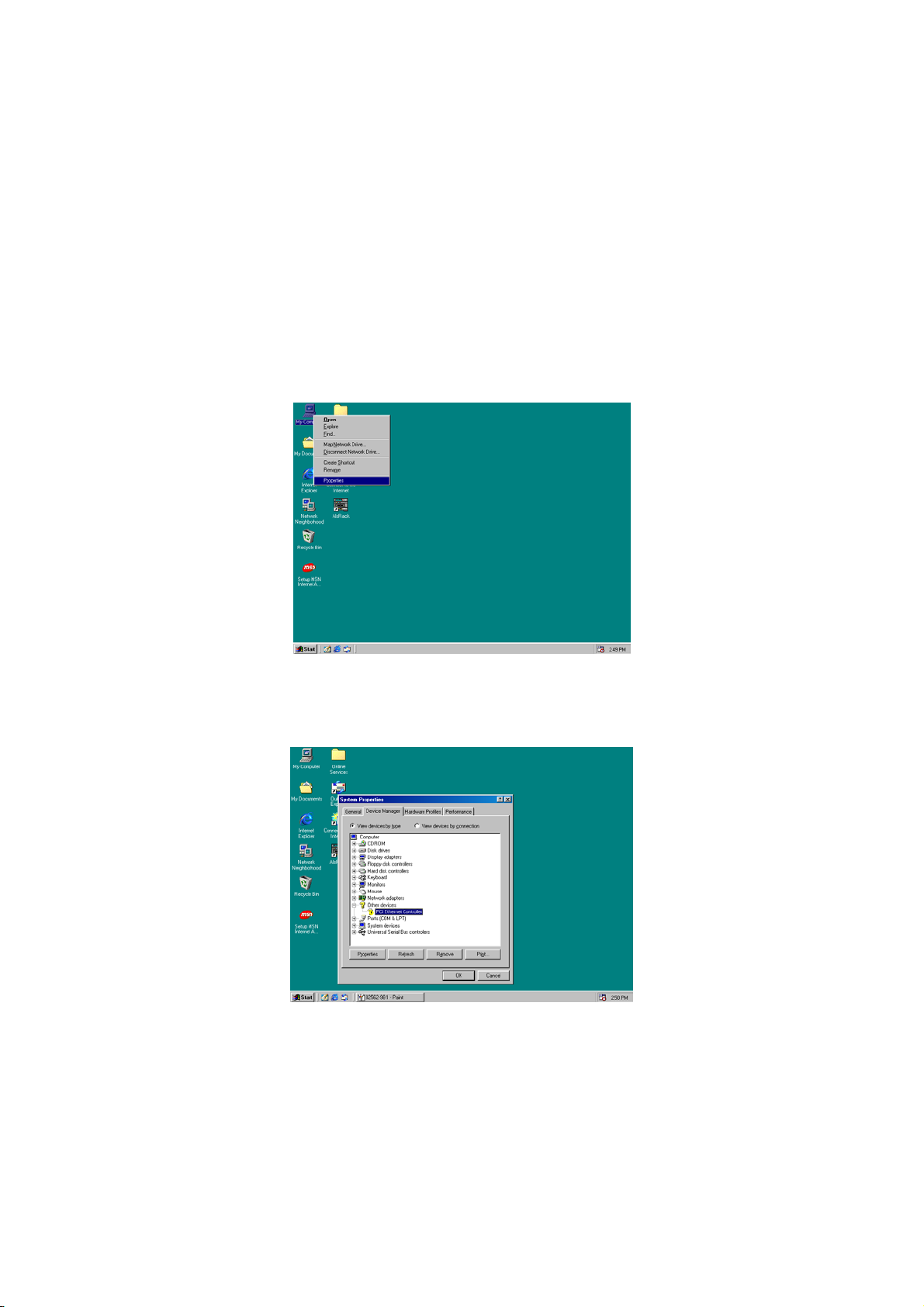

1. Right click on My Computer icon then scroll to the Properties item from the pop-up menu.

2. Select Device Manager from the top menu bar. A list of all devices installed appears, scroll down to the Other devices and then select on PCI Ethernet Controller. Select the Properties button to access the details of this unknown device. Refer to the following screen shot for an clearer explanation of this step.

Page 56

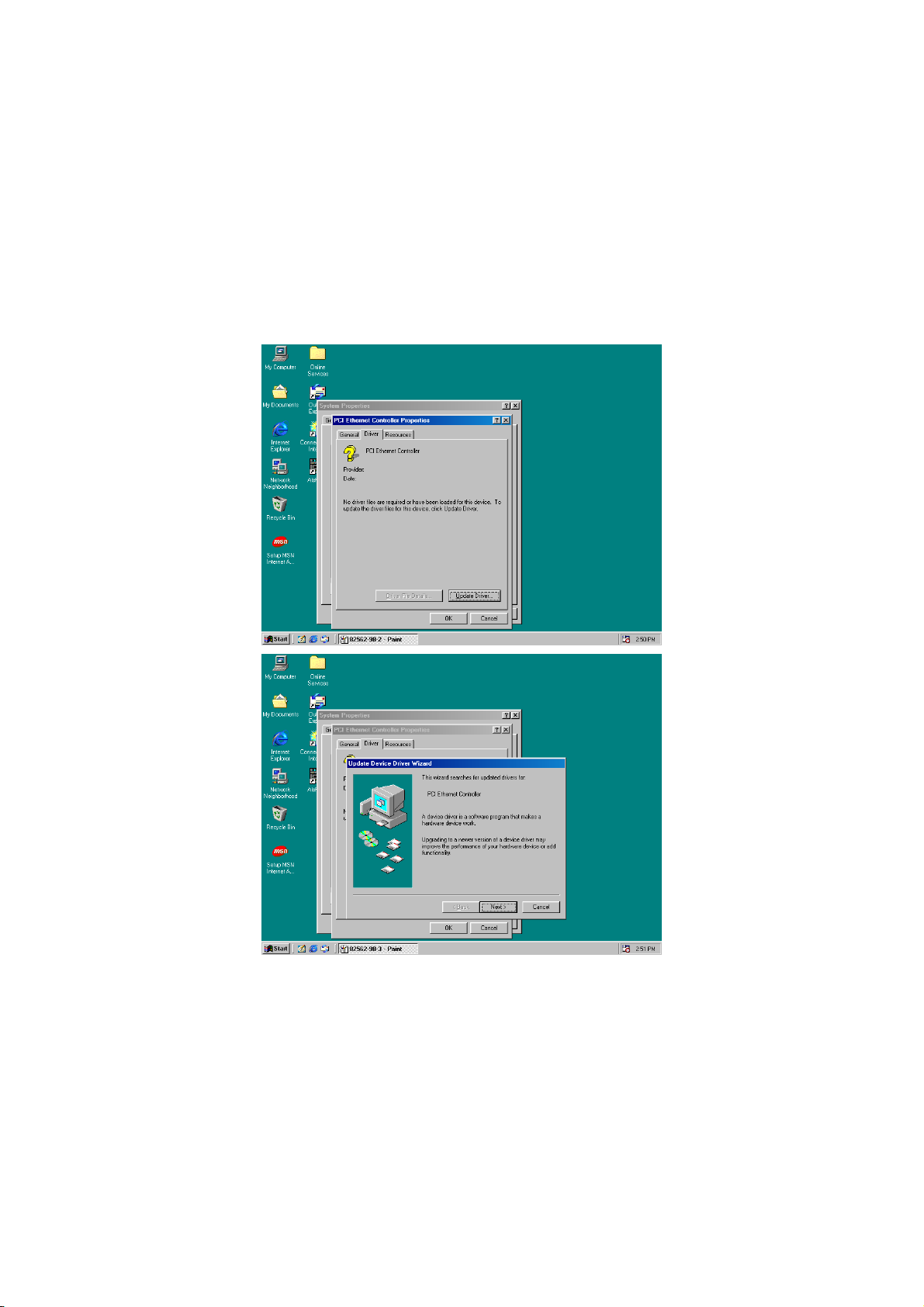

3. Once the PCI Ethernet Controller Properties screen pops on the screen, click on the Update Driver … button to launch the Update Device Driver Wizard screen.

Page 57

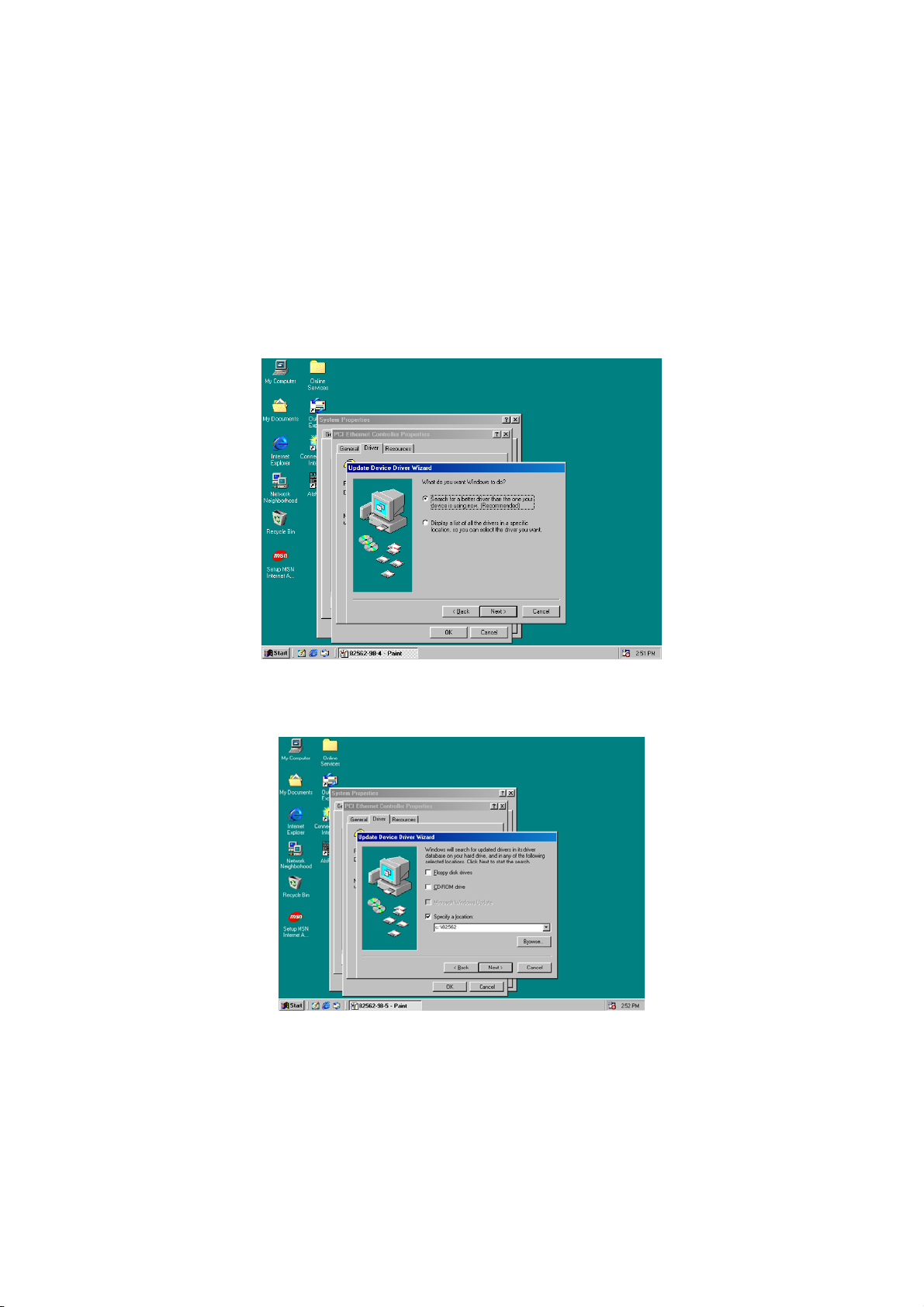

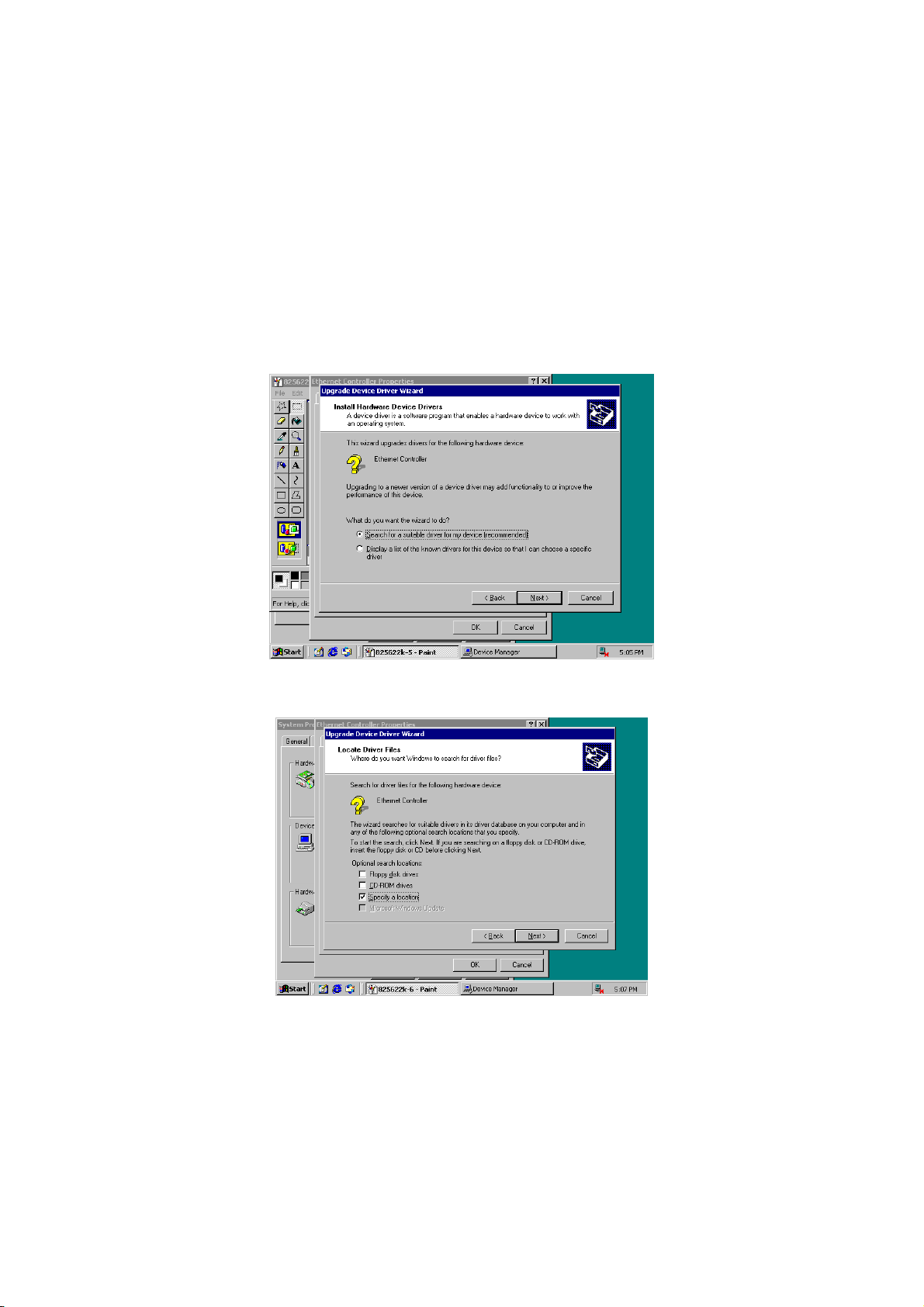

4. The succeeding screen then lets you choose whether to search for a better driver for the LAN or display the available list of drivers. Select Search for a better driver than the one your device is using now followed by a click on the Next > button.

5. The wizard program will then require you to specify the location of the driver file. Tick on the Specify a location: and type or select the path where the driver files exist (c:\i82562). Click on the Next > button to proceed.

Page 58

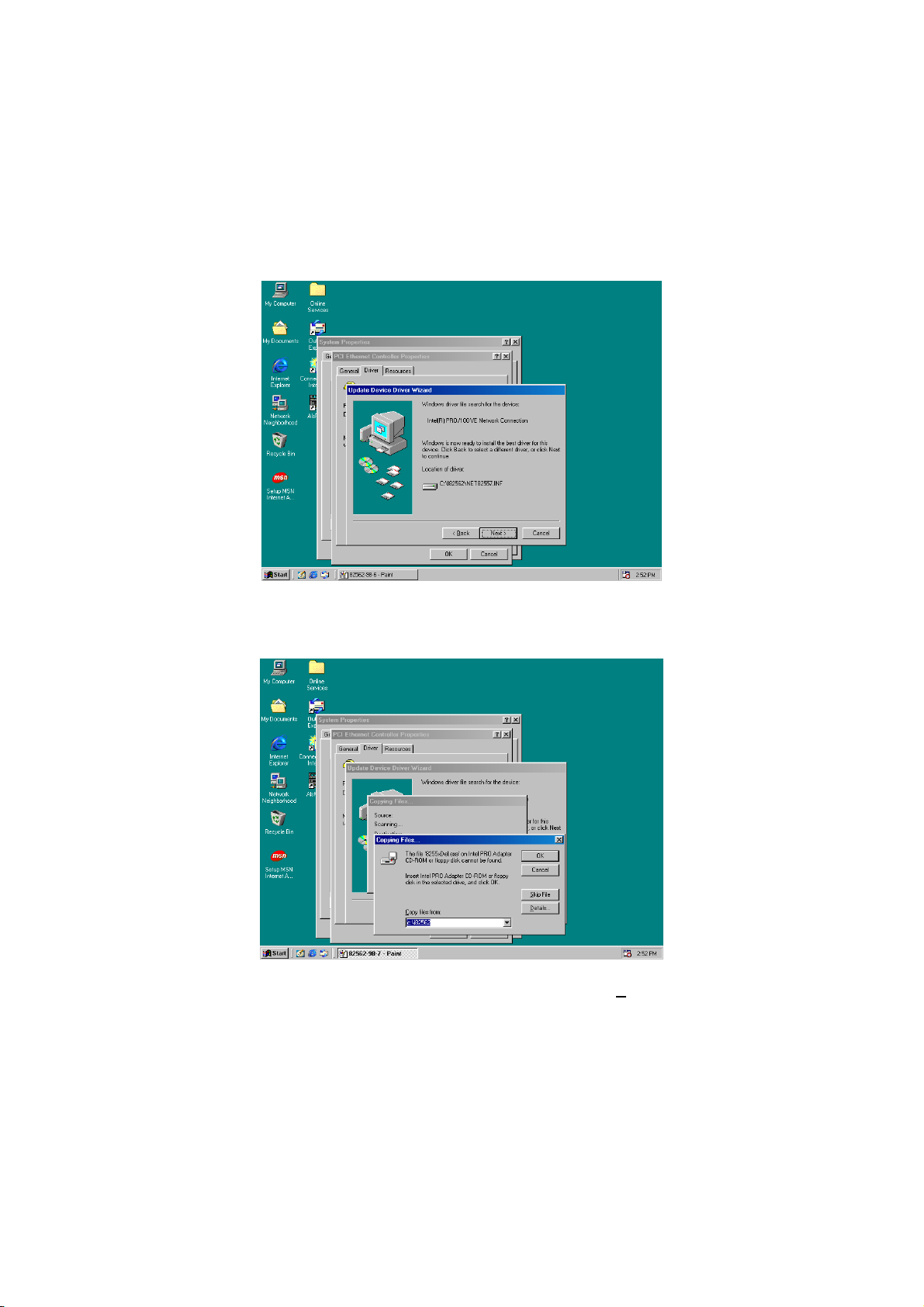

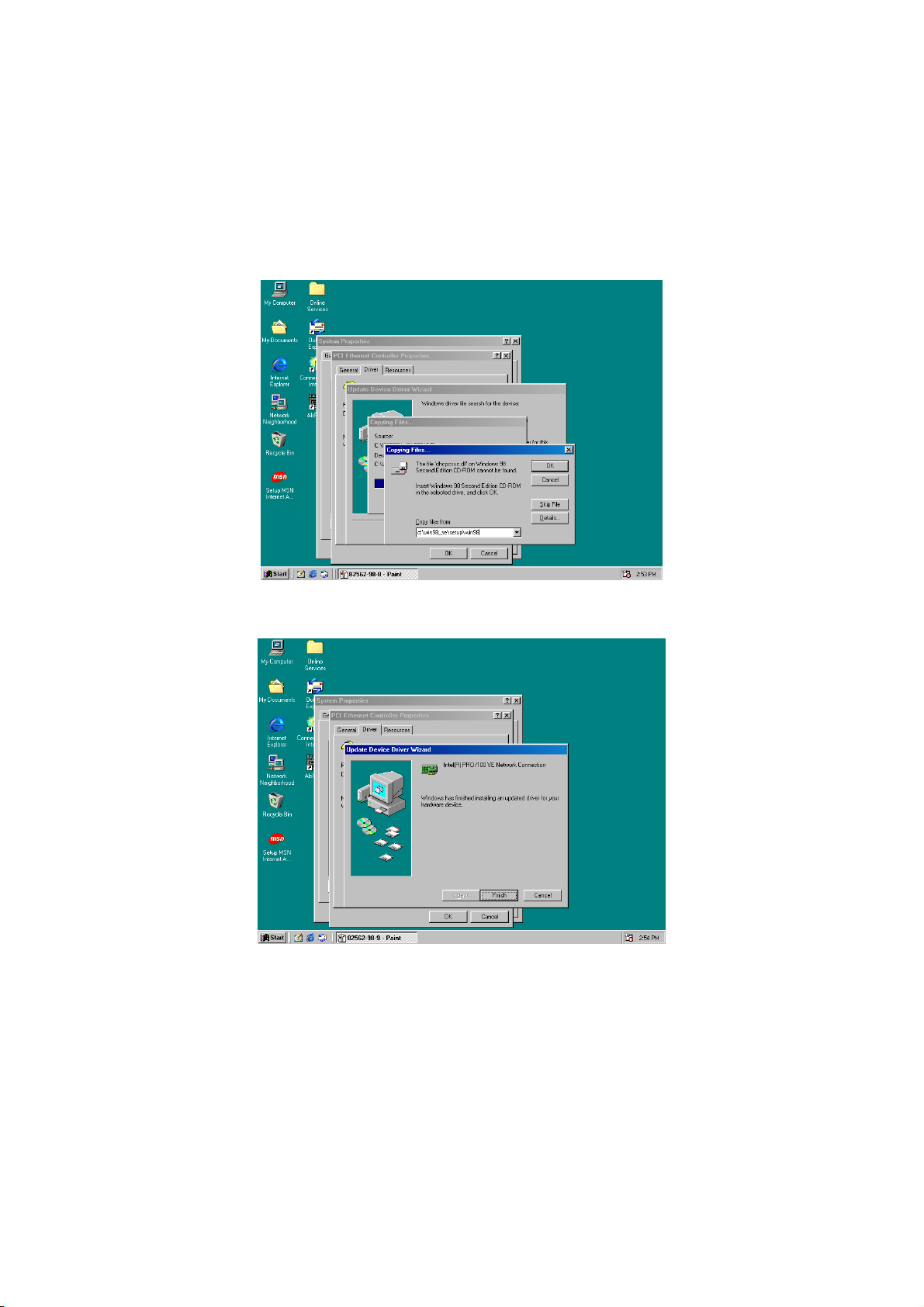

6. The program now starts copying the file(s) needed by your Win9 8 . Wh e n the p rogr a m fai l s to s e ek fo r 8255 x Del. e xe fi l e from your specified location, it will prompt you to specify the path where the Intel Pro Adapter exists.

7. With the Utility CD Disk on your CD drive, key in

d:\win98_se\setup\win98 on the blank space below C from: then press the OK button.

opy files

Page 59

8. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click on the Finish button to proceed.

Page 60

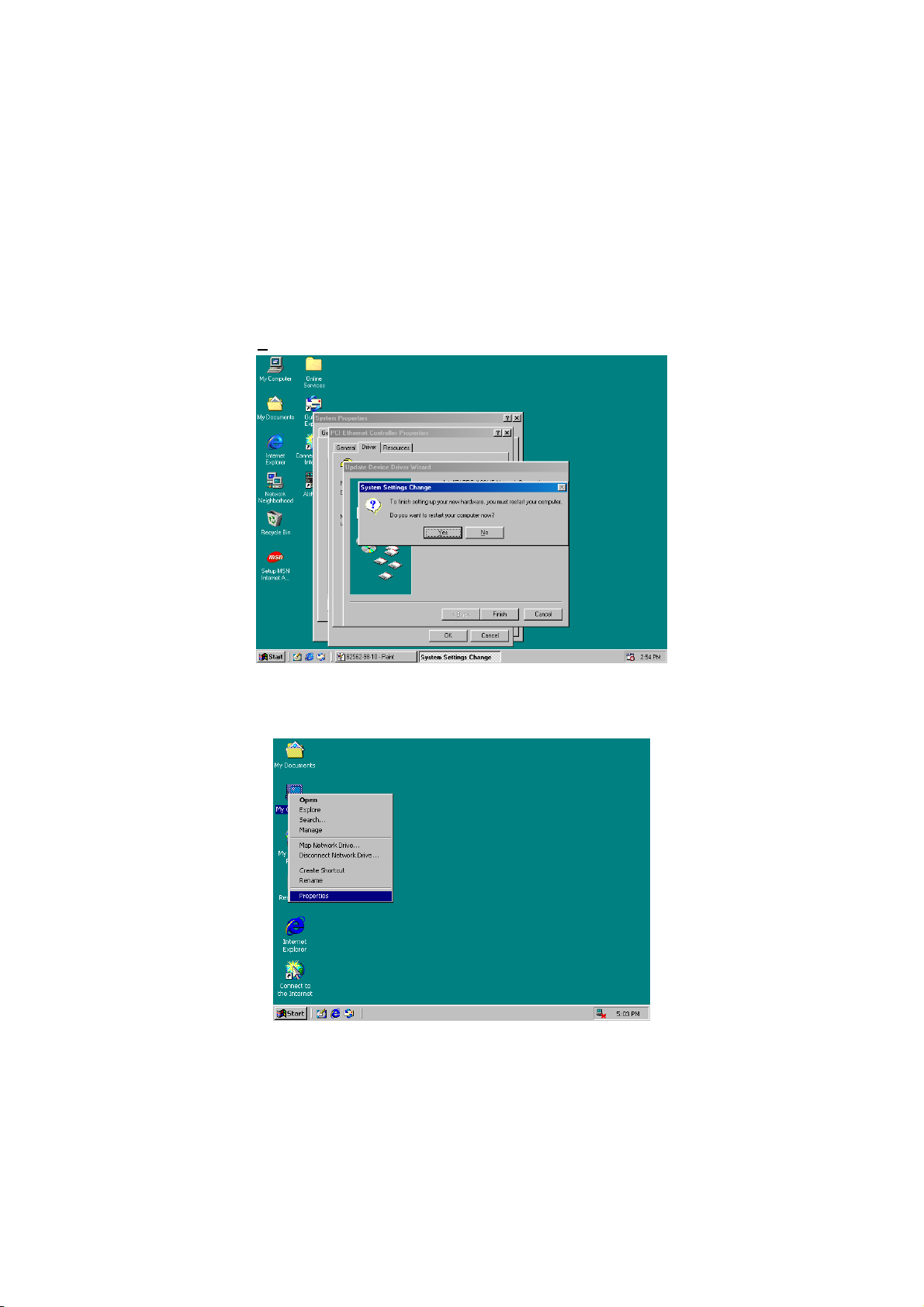

9. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

5.3.2 Win 2000

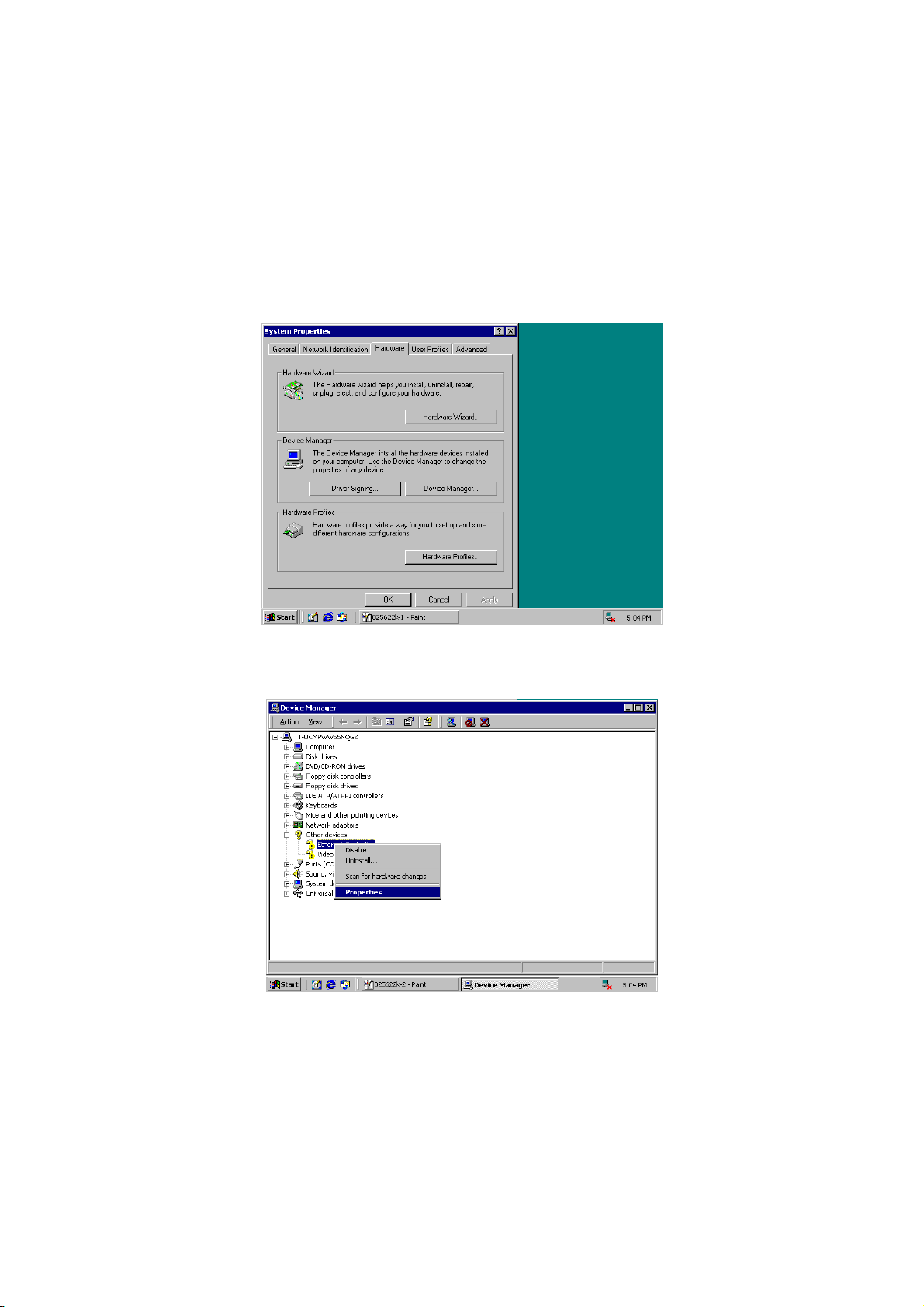

1. Right click on My Computer icon then scroll to the Properties item from the pop-up menu.

Page 61

2. When the System Properties window pops up on the screen, click on the Device Manager button.

3. A list of all devices installed appears, scroll down to the Other devices and then right click on Ethernet Controller to select the Properties button Refer to the following screen shot for an clearer explanation of this step.

Page 62

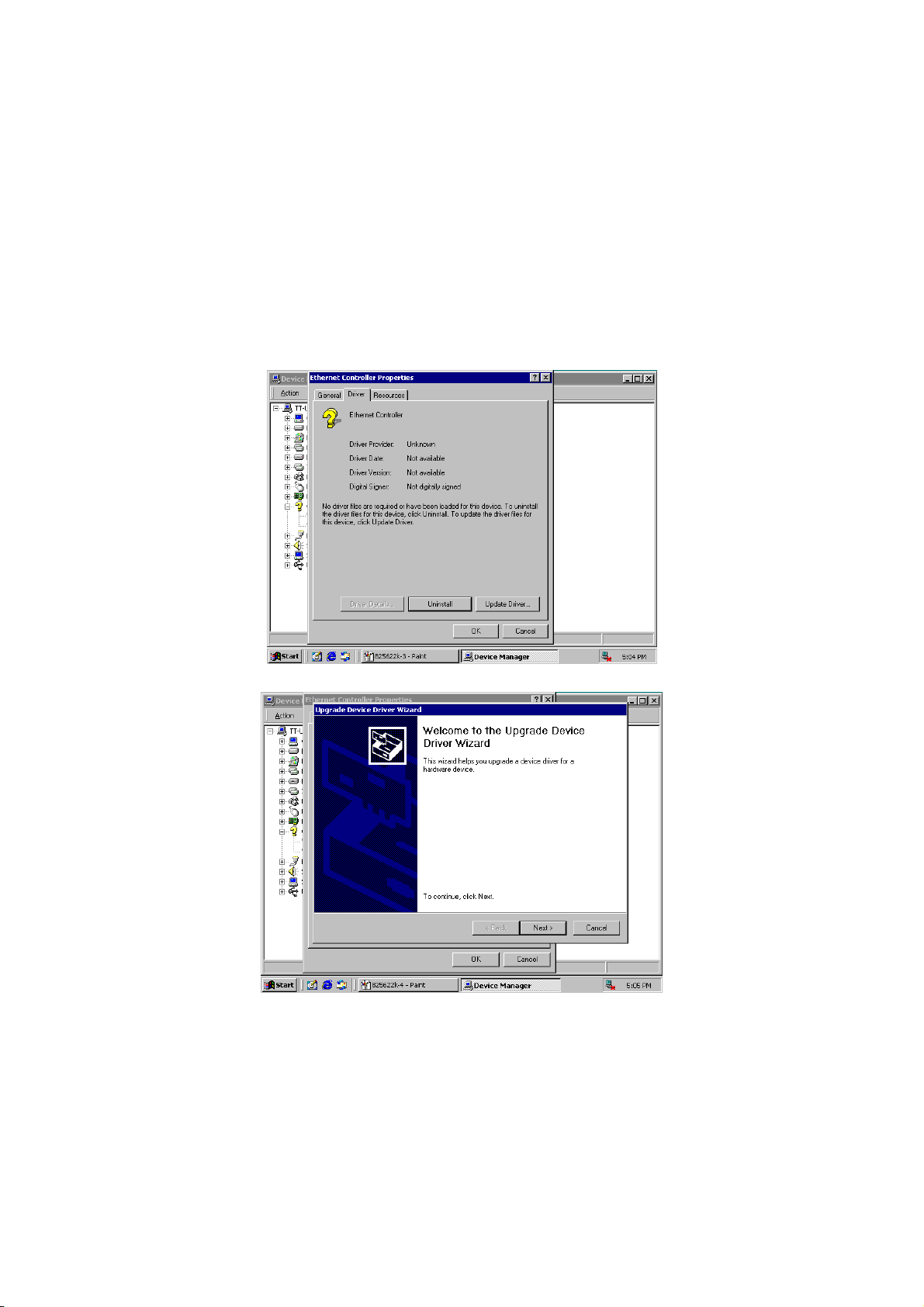

4. Once the Ethernet Controller Properties screen pops on the screen, click on the Update Driver … button to launch the

Update Device Driver Wizard screen. Once the Upgrade Device Driver Wizard screen pops on the screen, click Update Driver … to launch the Win 2000 driver installation program.

5. Click on Next > button to proceed with the installation.

Page 63

6. The wizard will then inform you the unknown device it detected

from the system. Since the Win200 drivers list do not include Intel chip driver onboard HS-6238, tick Search for a better driver than the one your device is using now followed by a click on the Next > button to continue.

7. The wizard program will then prompt you to specify the location

where it will start searching for the driver. Tick on the Specify a location: and then click on the Next > button to proceed.

Page 64

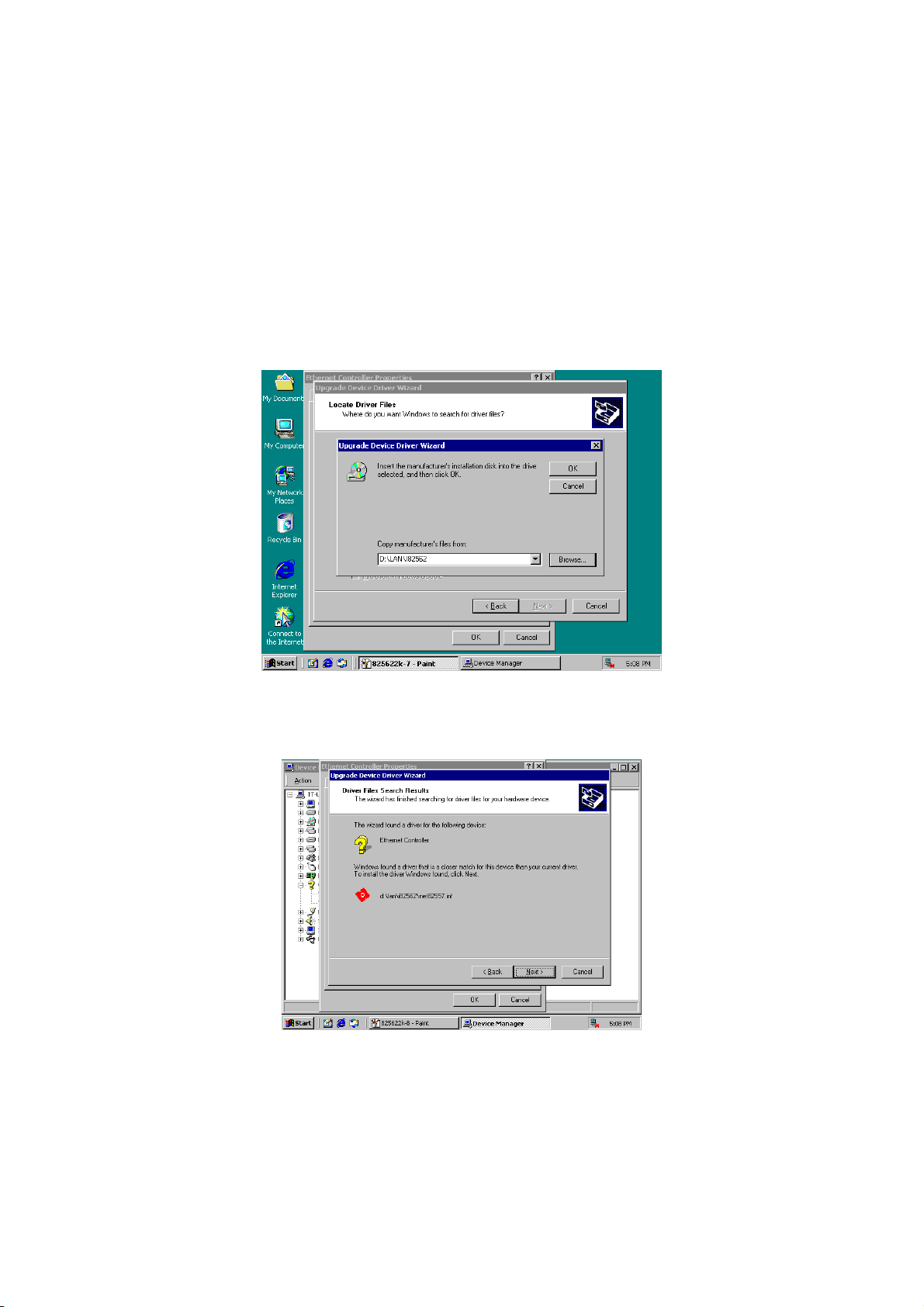

8. The wizard program will then require you to insert the

manufacturer disk at your specified location (entered at the Copy manufacturer’s files from: space) of the driver file. With your Utility CD disk inserted in the drive, type d:lan\i82562 then click on the OK button to proceed.

9. The wizard program will start to scan and search for the driver(s) located at your specified location. After which, the wizard program will show the result of its search. When it finds a more suitable driver fitting your device, it will list the driver name and path. Just click on the Next > button to continue installing.

Page 65

10. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click Finish to proceed.

11. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

Page 66

5.3.3 Win NT

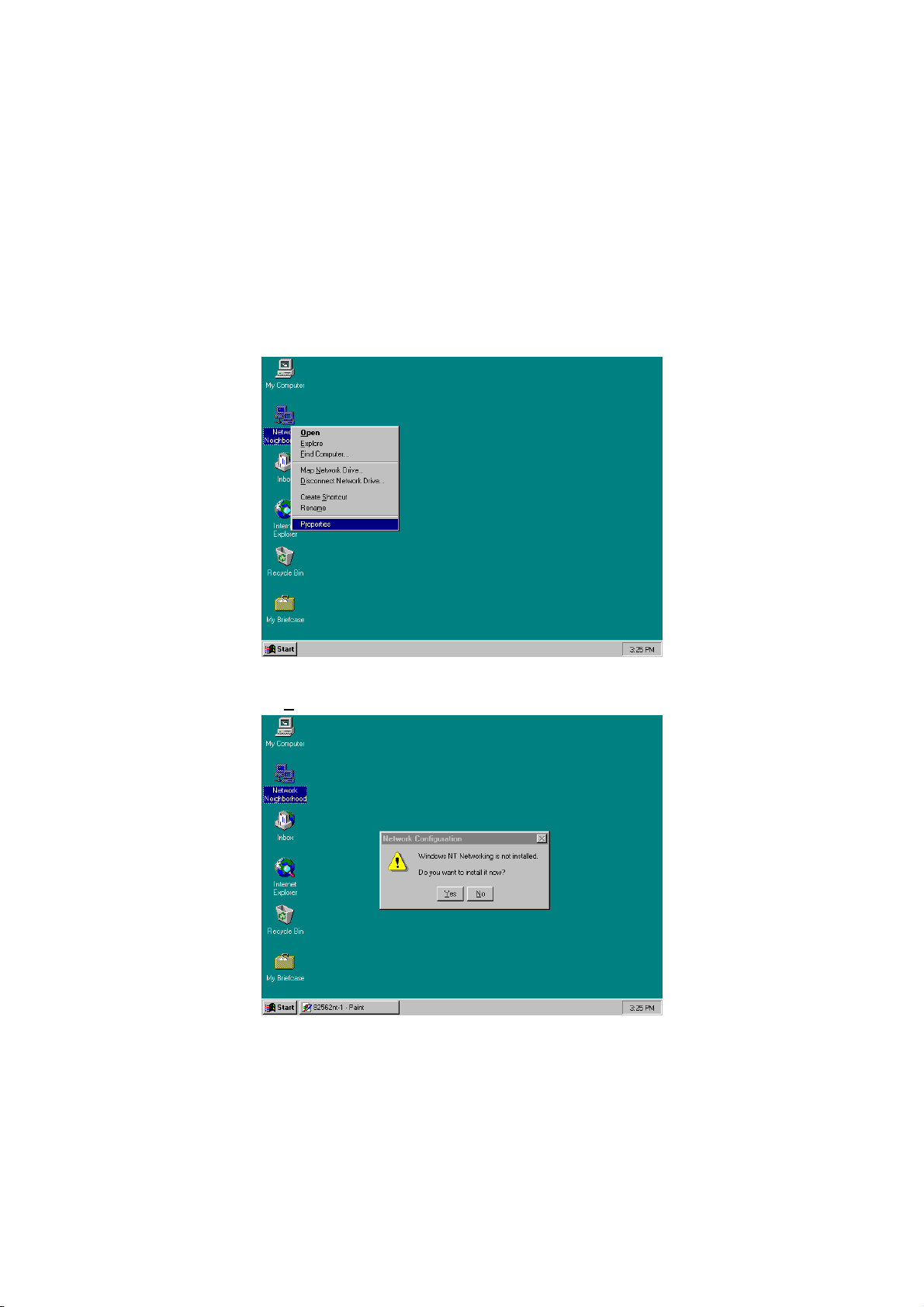

1. Right click on Network Neighborhood icon then scroll to the Properties item from the pop-up menu.

2. The Network Configuration dialog box then appears, notifying the user that there is no Windows NT Networking available. Click on the Y

es button to start the installation process.

Page 67

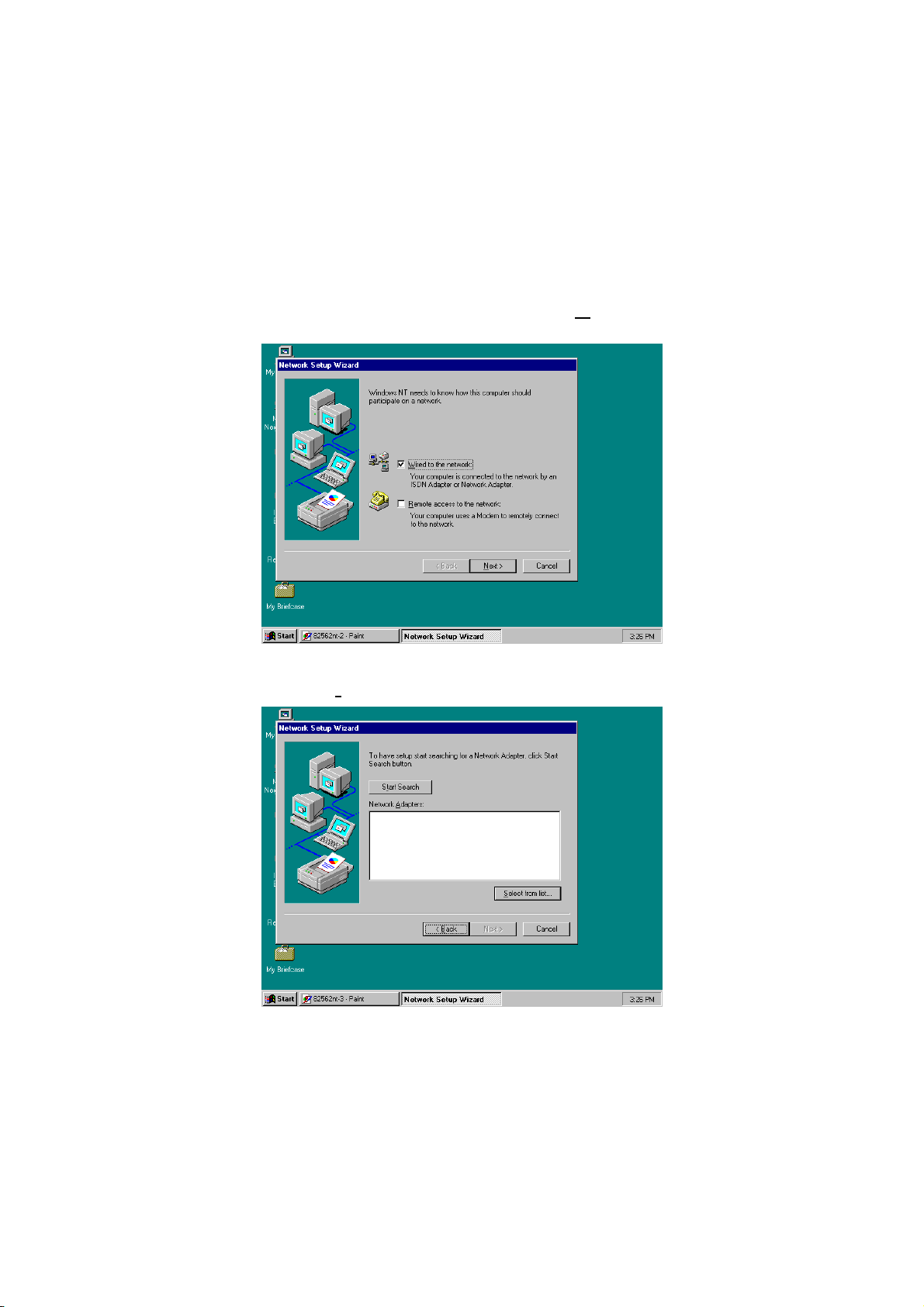

3. The Network Setup Wizard will then ask you to identify the network connection of your computer. Select W

network and click on the Next > to continue.

ired to the

4. The succeeding screen then indicated that the wizard will initially search for Network Adapter from the available list of drivers. Select on St

art Search.

Page 68

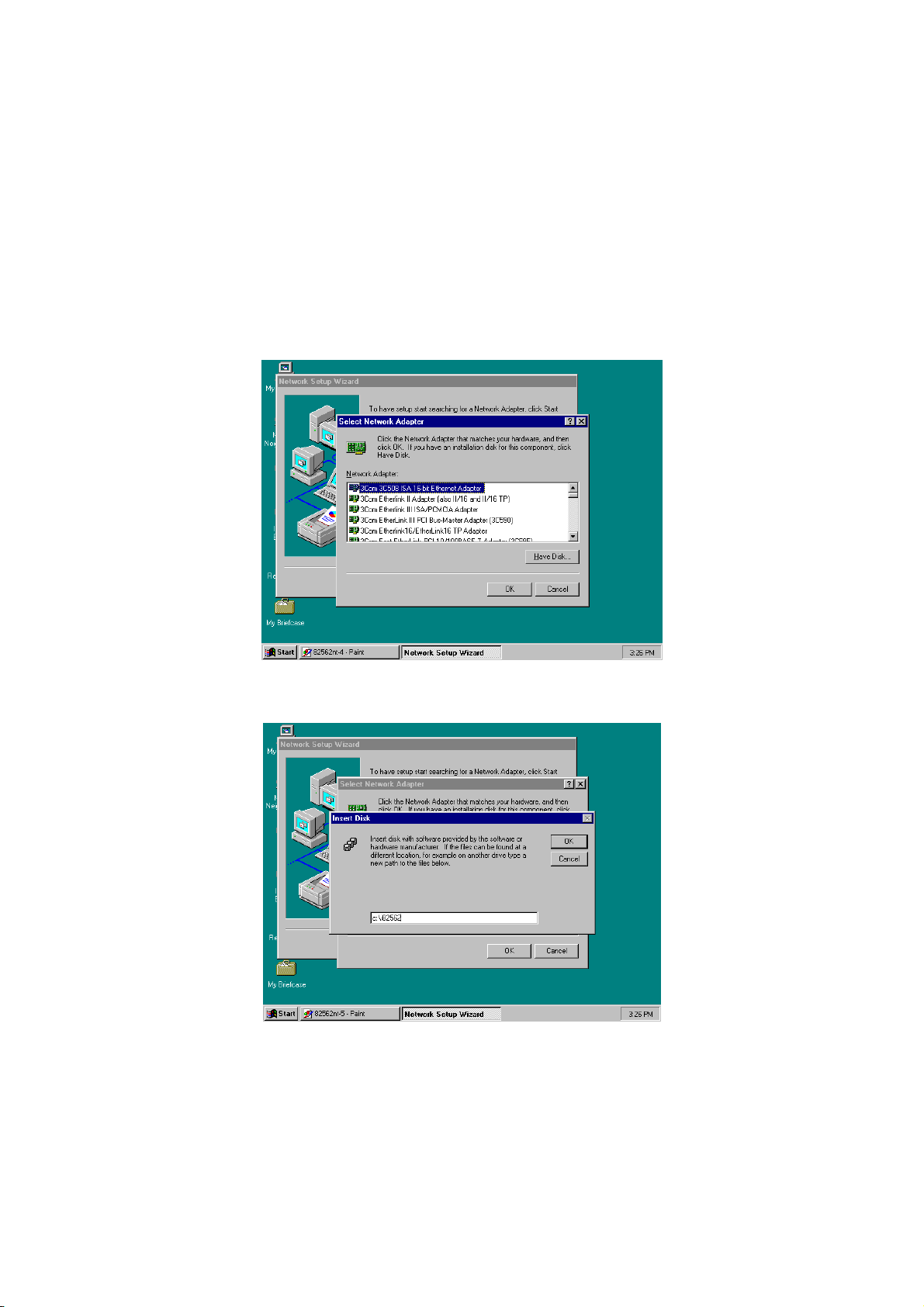

5. When it is done searching for available network drivers, the wizard will show a list and allow you to locate and choose the appropriate Network Adapter. Since the LAN device driver is in the Utility CD Disk, select on Have Disk … to proceed.

6. The wizard program will then require you to insert the manufacturer disk and specify the location of the driver file (i.e., c:\i82562). Click on the OK button to proceed.

Page 69

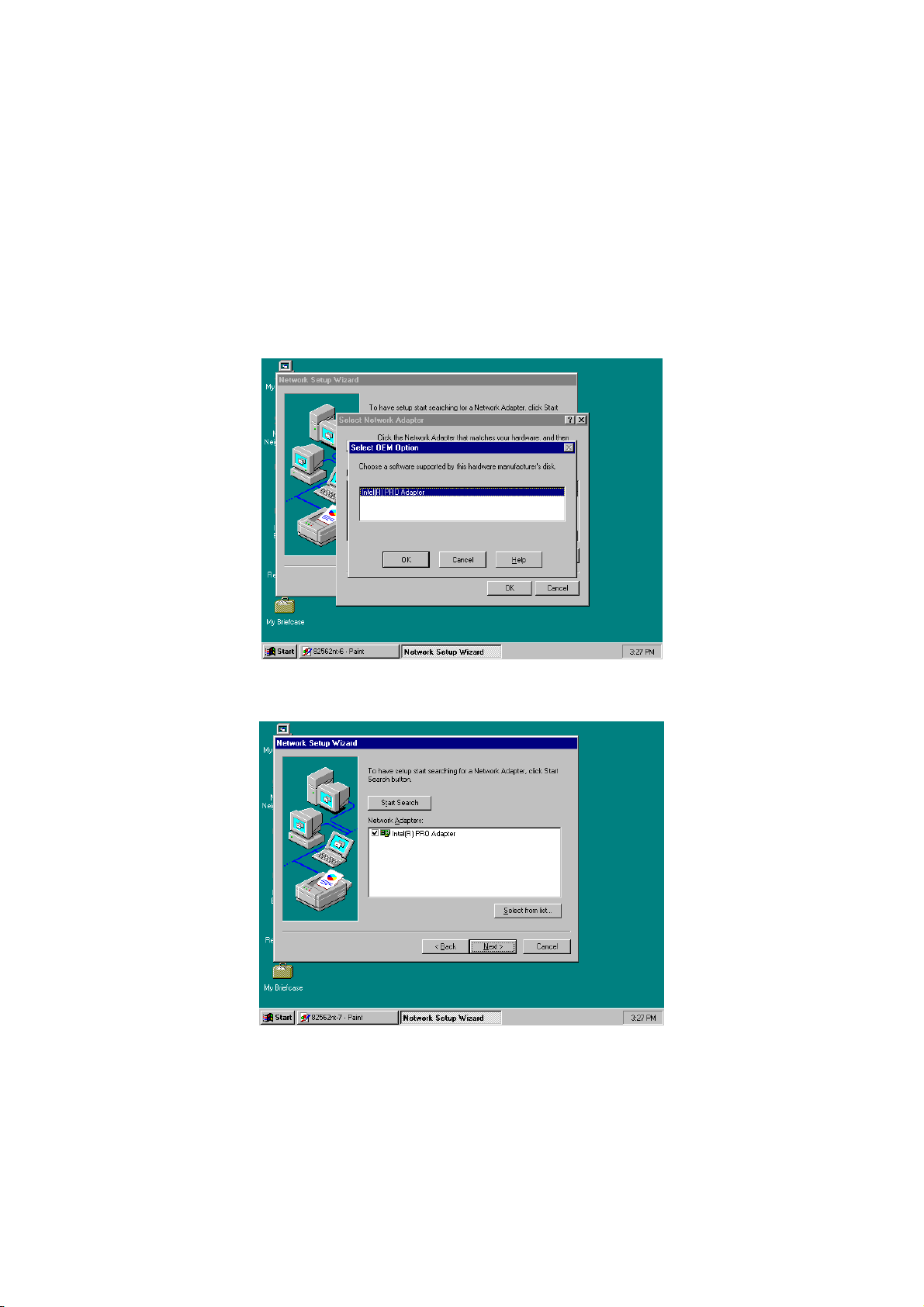

7. The Select OEM Option then appears, prompting you to select the software supported by the network hardware device you will install. Select Intel(R) PRO Adapter and click on the OK button to continue installing.

8. The wizard program now displays on the screen that it has detected the Intel() PRO Adapter. Click on the Next > button to continue installing.

Page 70

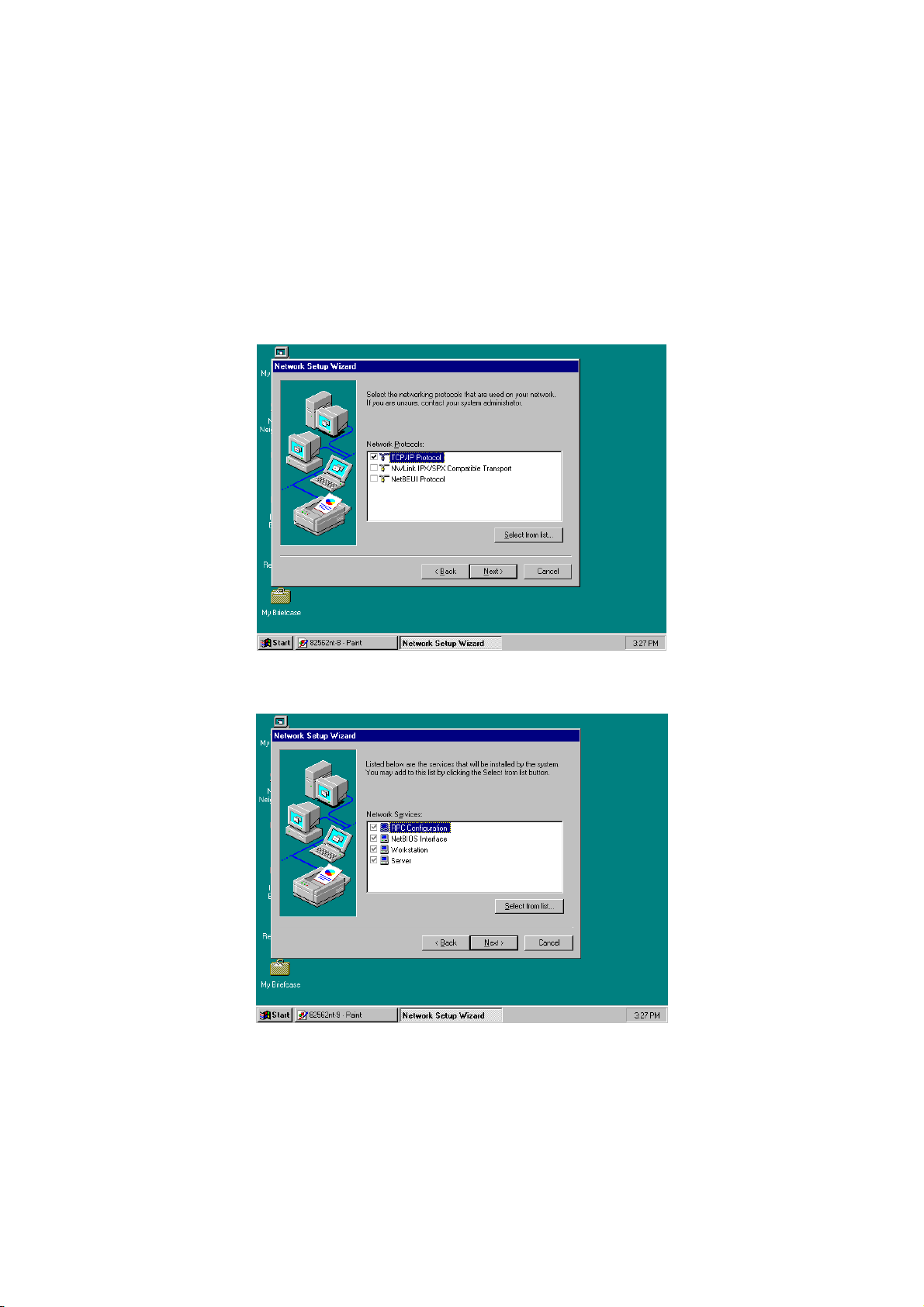

9. The wizard program now prompts you to specify the networking protocols used on your network structure. Tick on the TCP/IP Protocol and click on the Next > button to proceed.

10. The next screen will allow you to customize the Network Services the wizard program intends to install. Tick services as needed and then click on the Next > button to continue.

Page 71

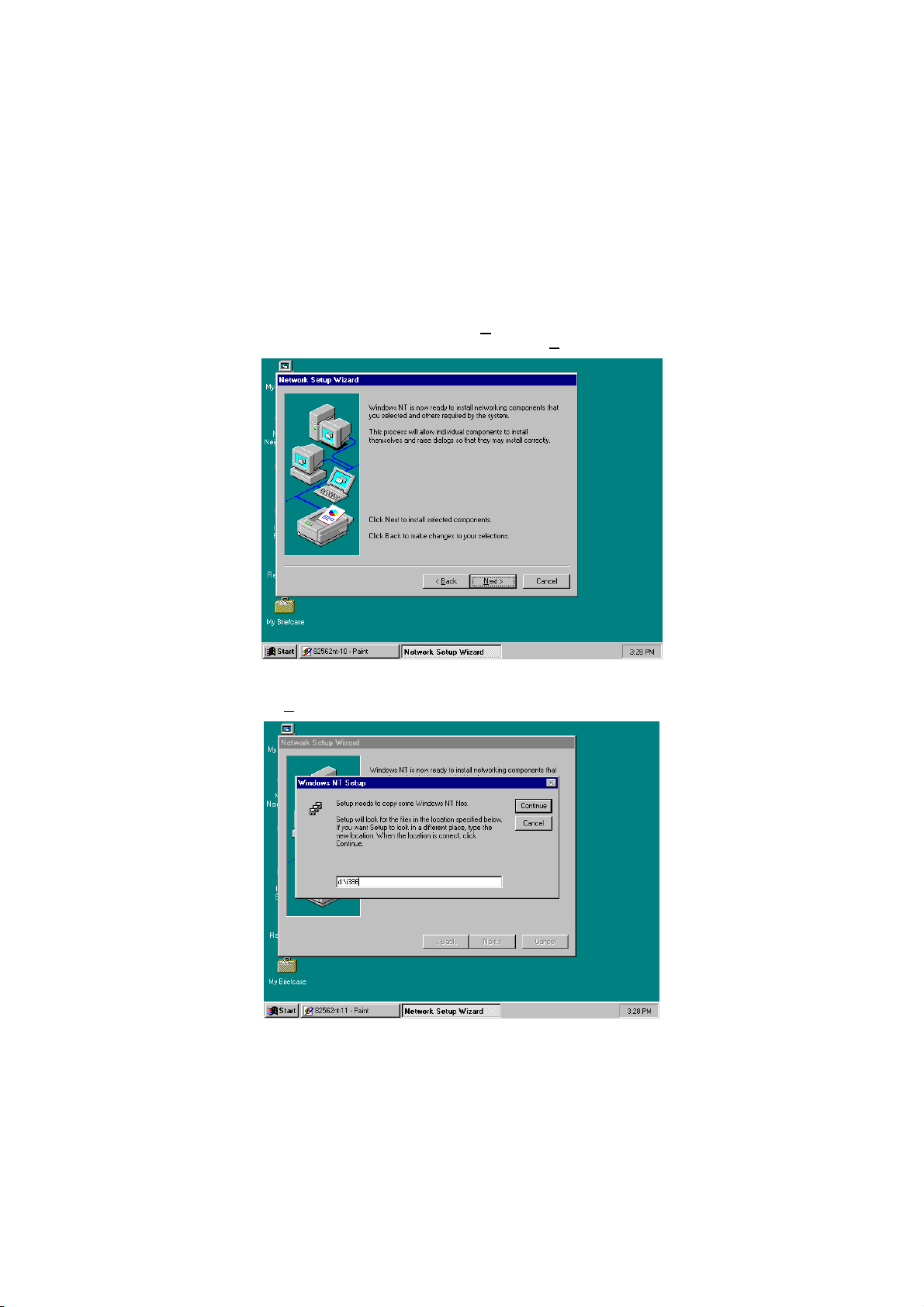

11. The Network Setup Wizard then prompts you that it is ready to install the network components based on your selection. You may start installing by clicking on he N modifications on your choices using the < B

ext > button or make

ack button.

12. The Network Setup Wizard will then need to copy the drive file(s). Specify the path of your device driver(s) (i.e., d:\i386) and click the C

ontinue button.

Page 72

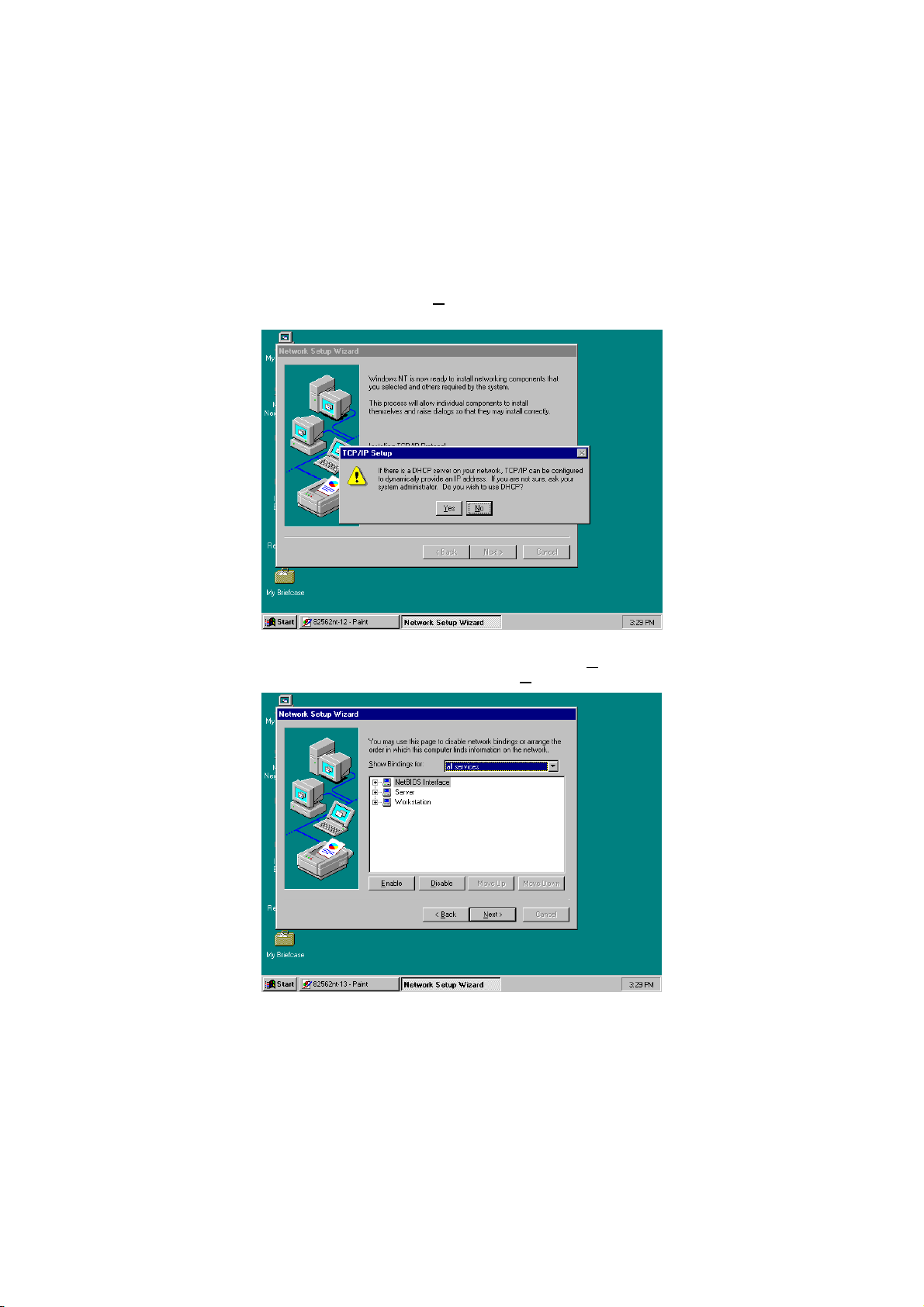

13. Choose the default entry, No, when the following screen pops on the screen.

14. If you need to disable network bindings on the network services installed, select the service and then click on the D Otherwise, proceed by clicking on the N

ext > button.

isable button.

Page 73

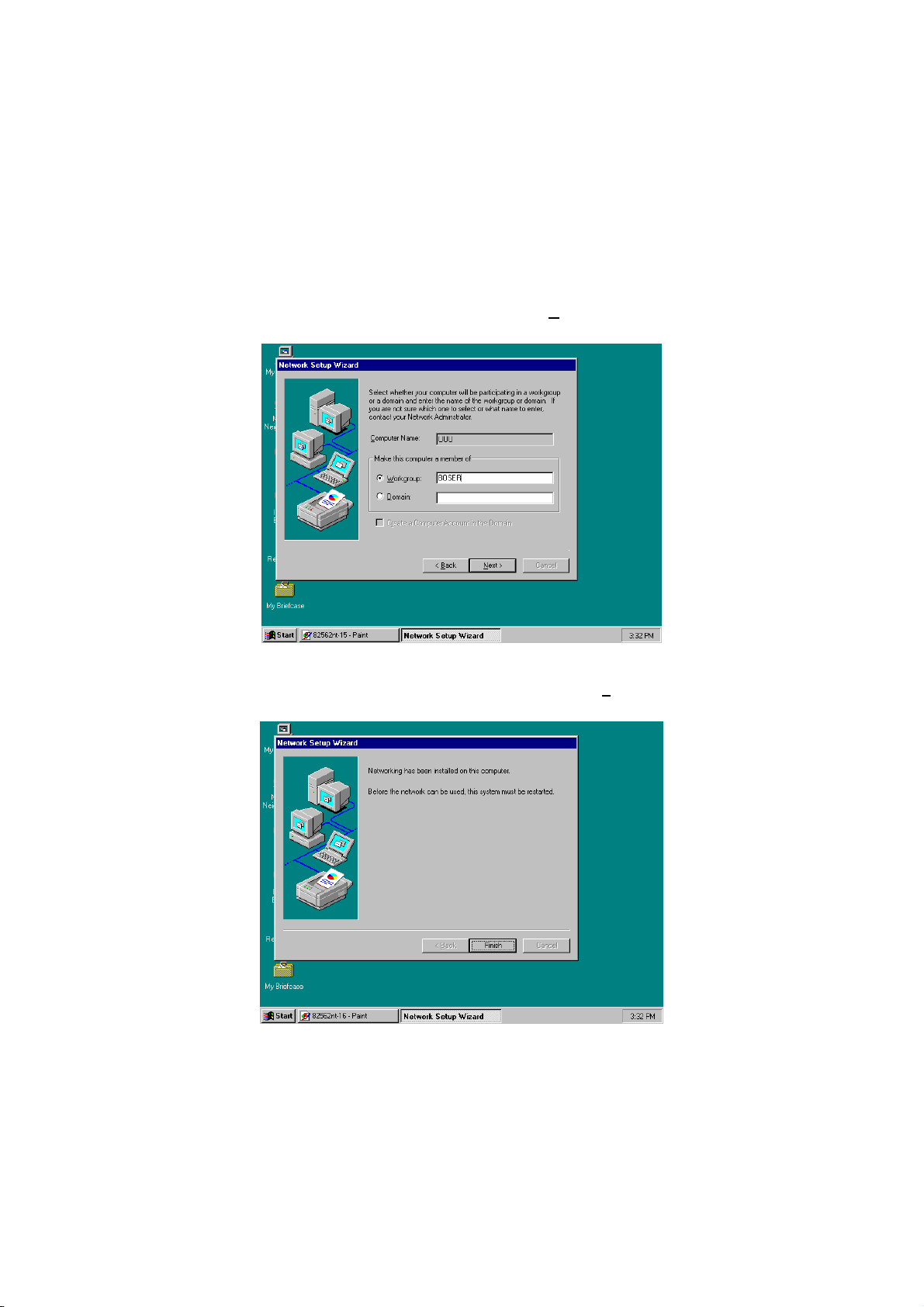

15. Specify the network participation type of your computer, either to a Workgroup or a Domain. Click on the N identifying the network group installed on your computer.

ext > button after

16. The wizard program then informs you that Networking is now installed on your system. You must restart your computer to make the setting changes take effect. Click on the F to close the wizard program.

inish button

Page 74

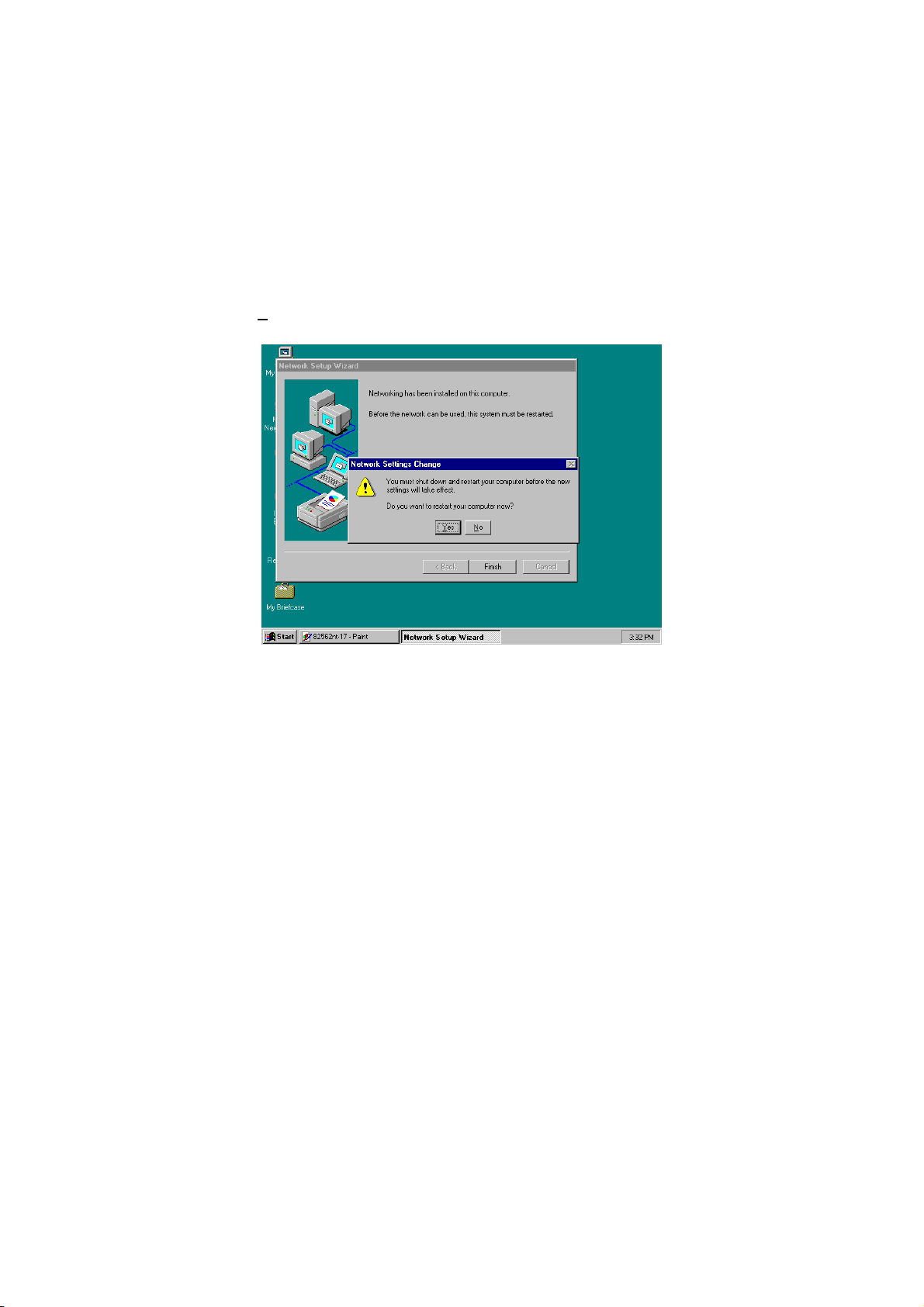

17. When the following dialog box pops on your screen, click on the

es button to restart your computer and make the setting

changes take effect.

Page 75

5.4 Audio Driver Installation

5.4.1 Win 95/98

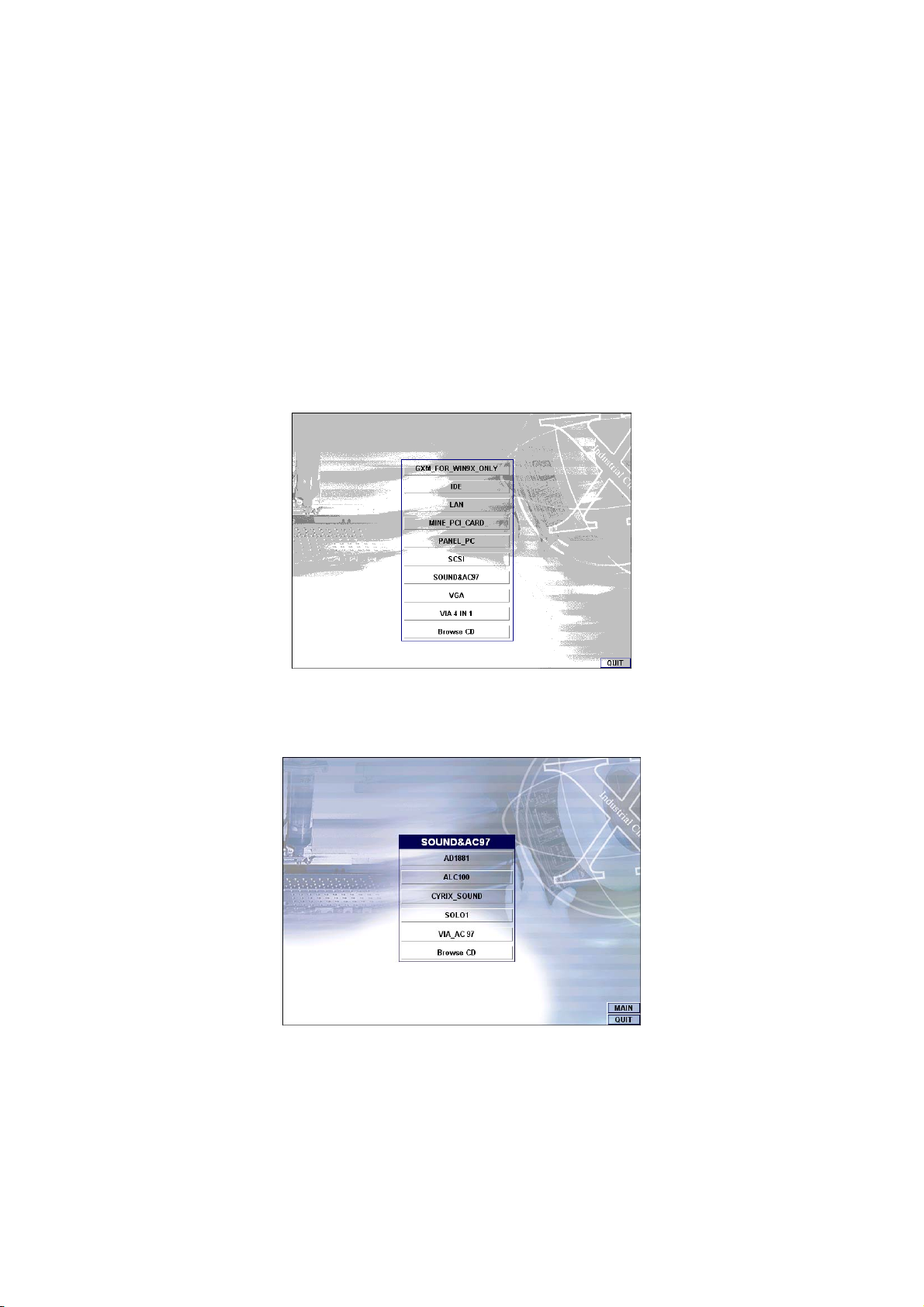

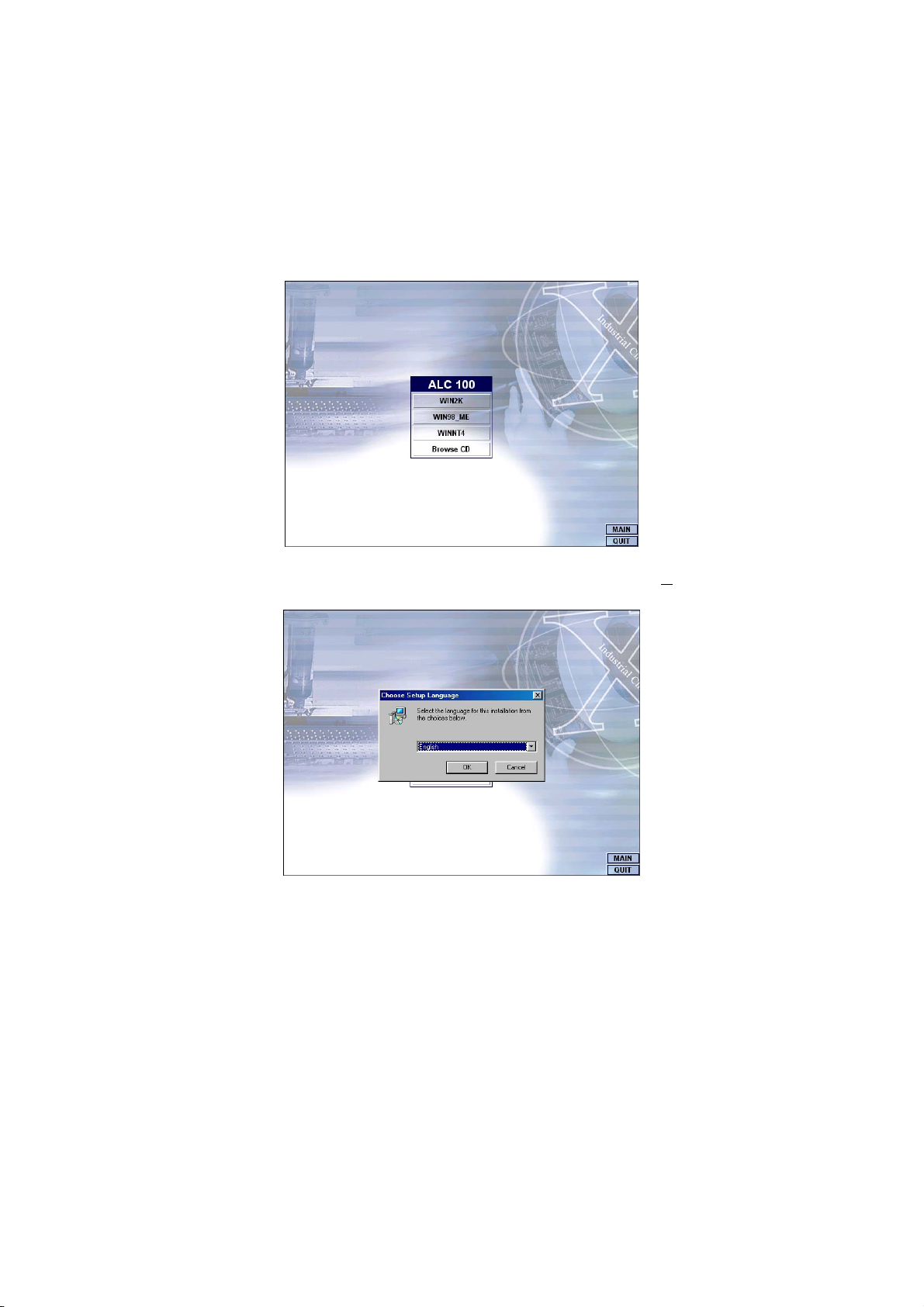

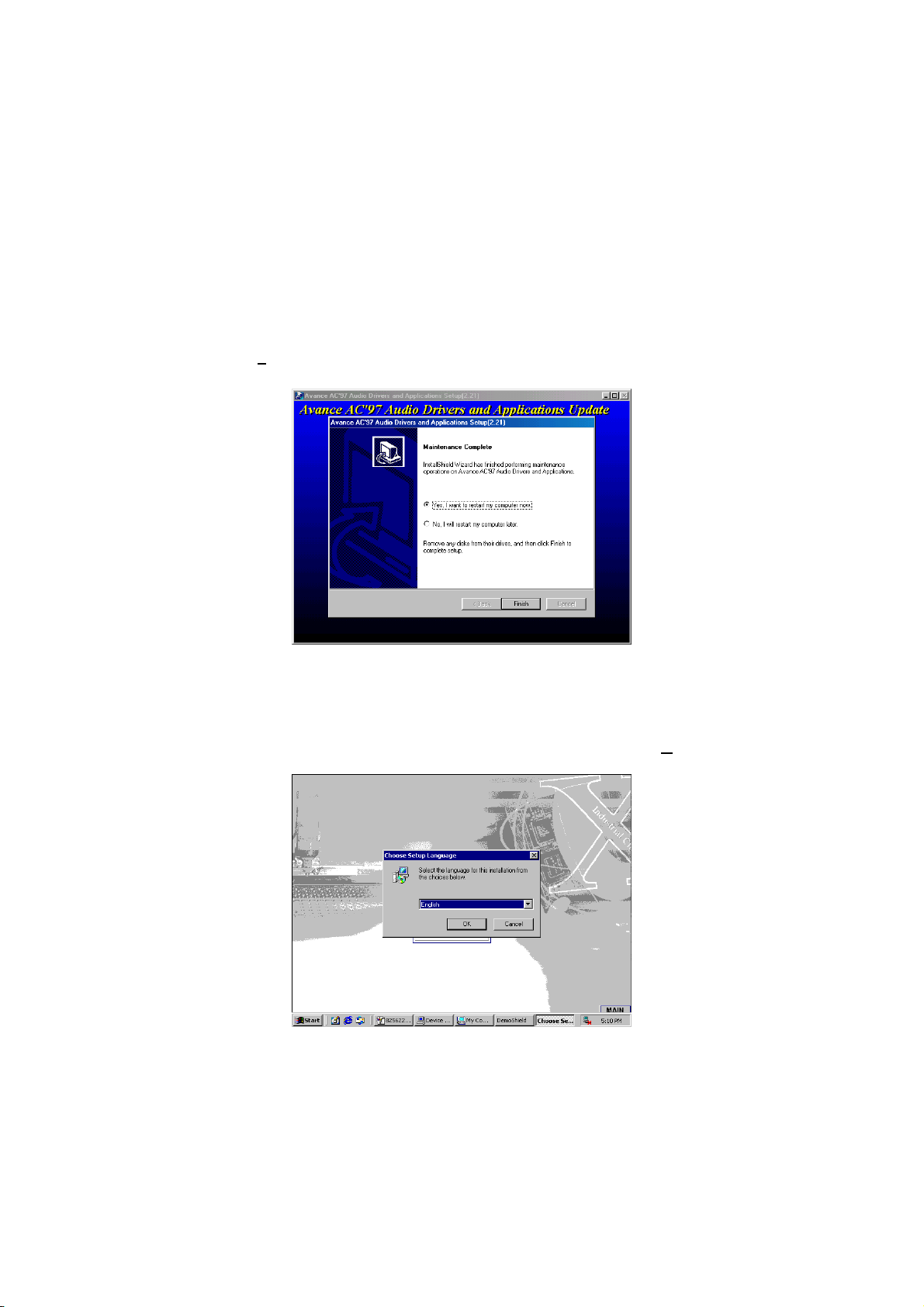

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press Enter to proceed installing. When the main utilities window pops on the screen, select SOUND&AC7.

2. The succeeding screen will then show you the SOUND&AC97 main menu. Select on ALC 100 to continue installation. When the ALC100 dialog box appears, pick on WIN98_ME and it will take you to the ALC 100 menu. Refer to the following screen shots for a graphical description of this step.

Page 76

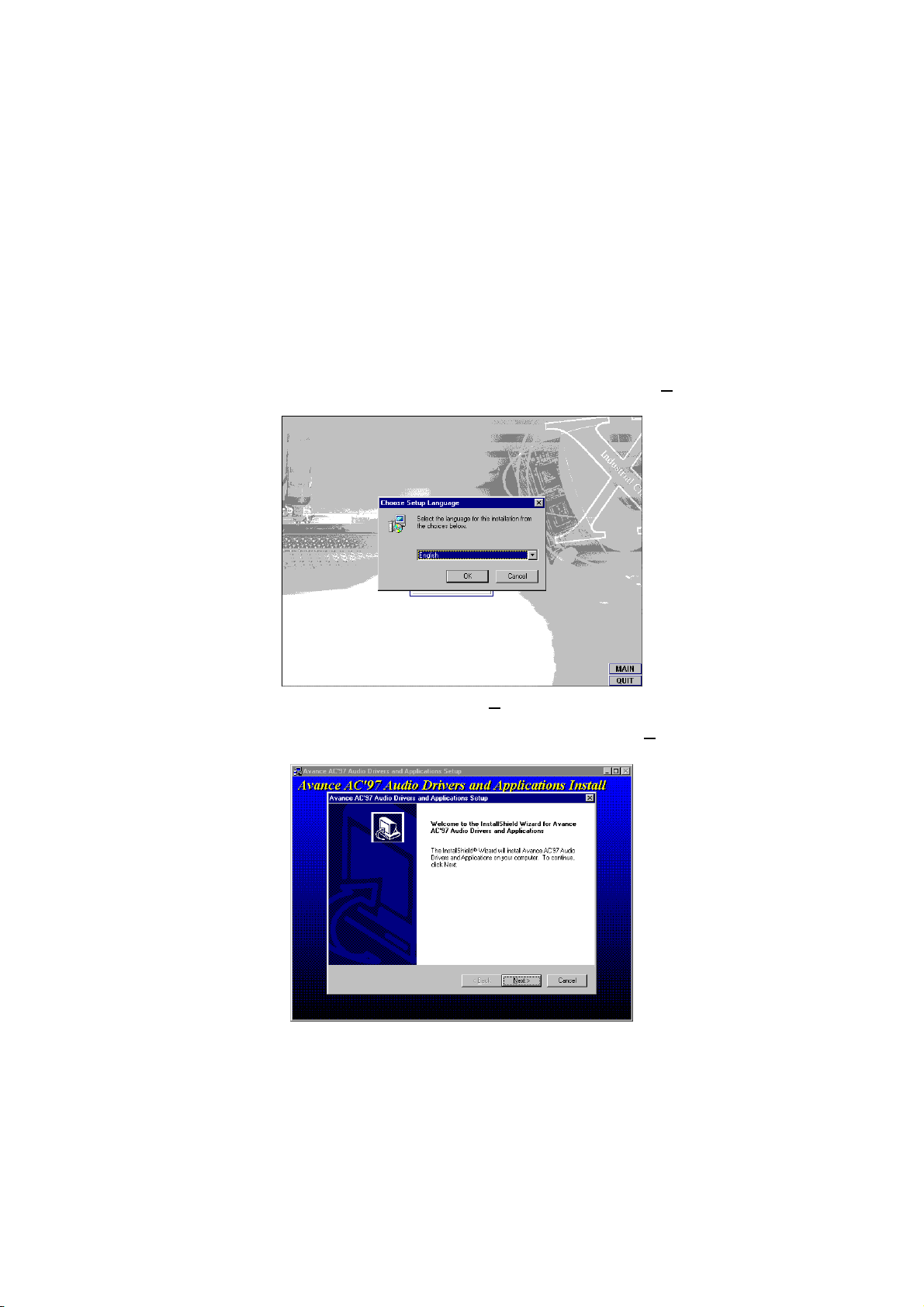

3. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

Page 77

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the Yes, I want to restart my computer now. Afterwards, click on the

inish button to complete the installation process. The system

changes you made will take effect after the system restarts.

5.4.2 Win 2000

1. Following steps 1 and 2 of the Win95/98 AC97 installation, select WIN2K button when the ALC100 dialog box appears screen.

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

Page 78

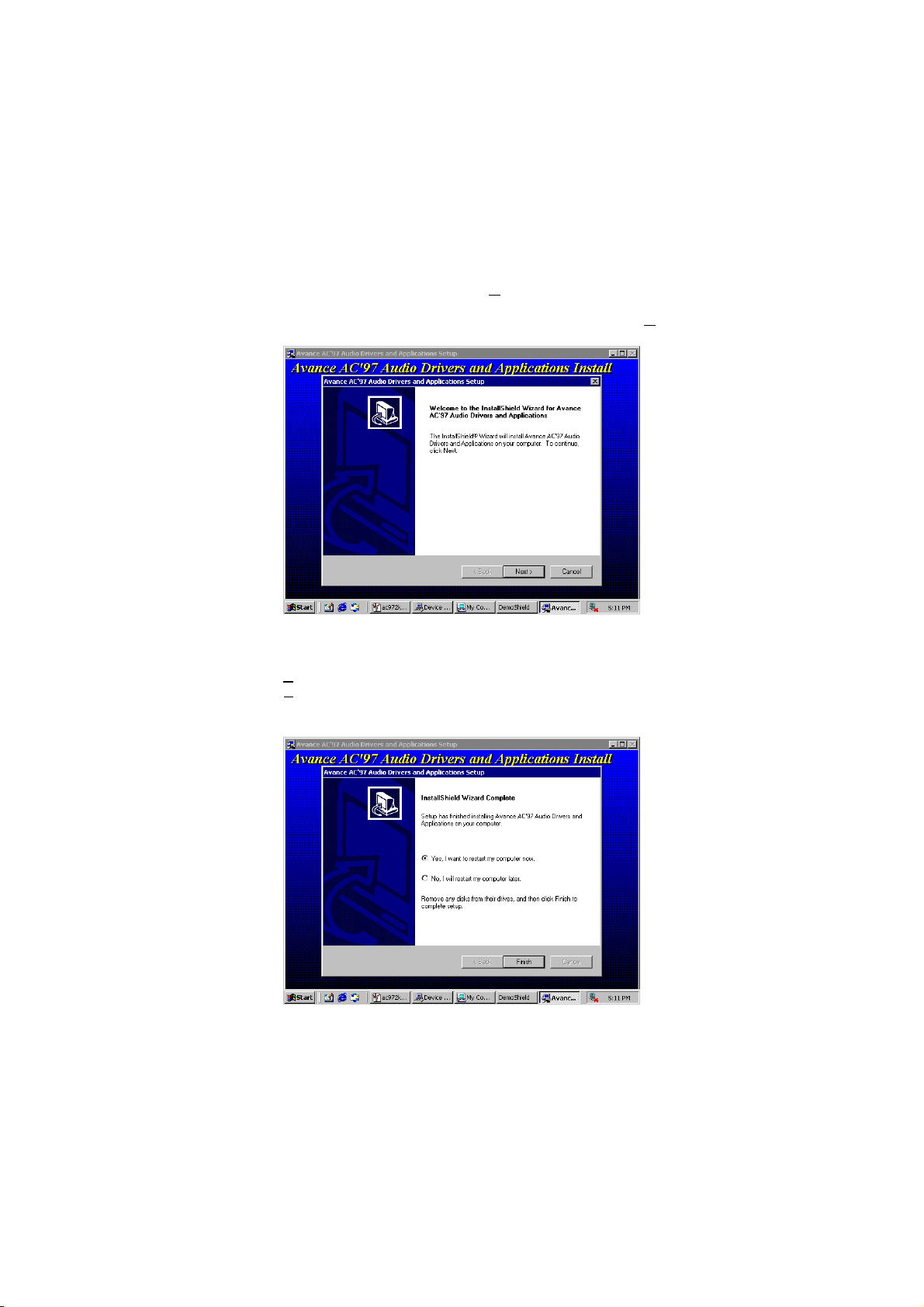

3. Immediately after clicking on the OK button from the preceding step, the Avance AC’97 Audio Drivers and Applications Setup dialog box will appear on screen. Just click on the N button to continue.

ext >

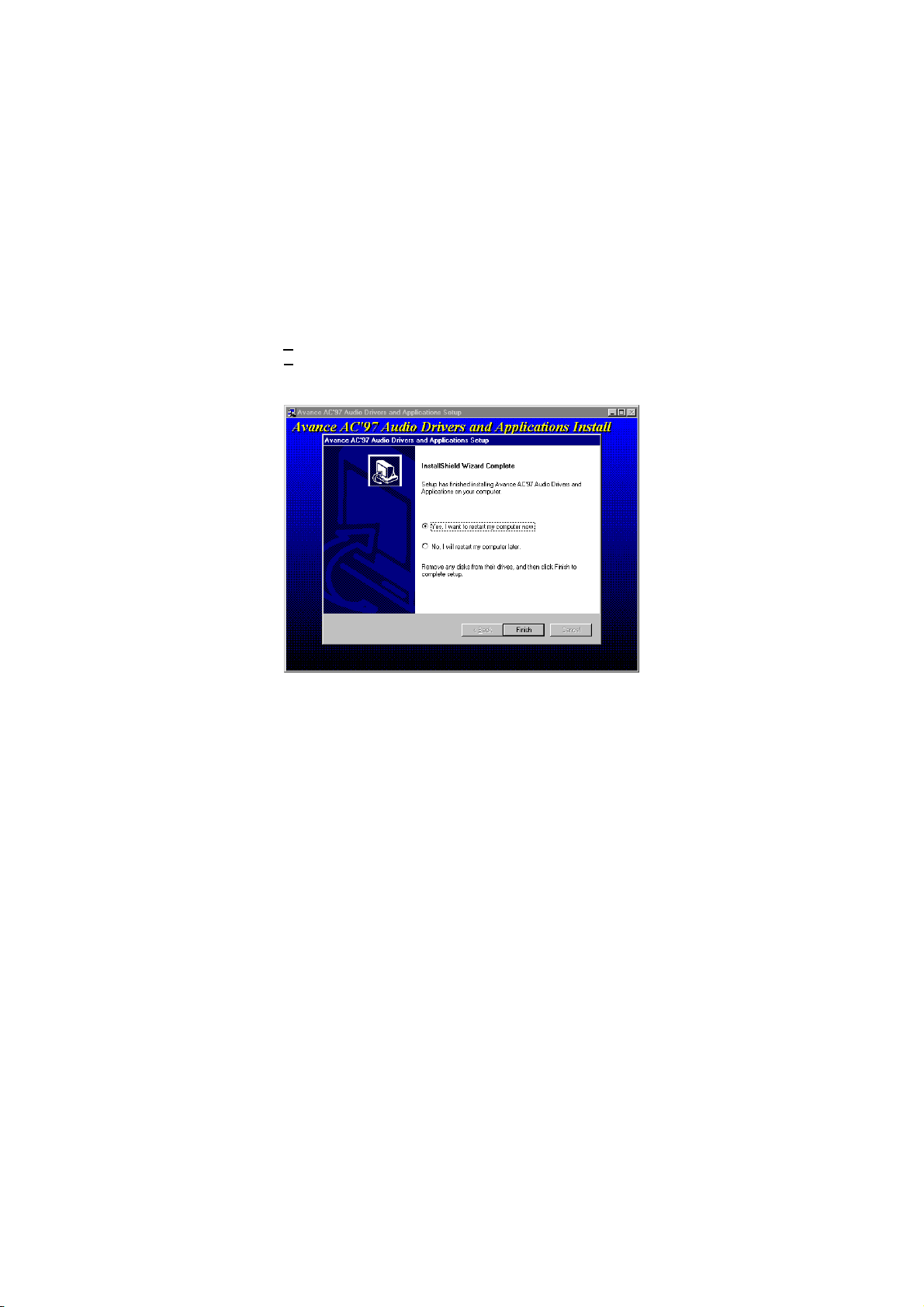

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on inish button to complete the installation process. The

the F system changes you made will take effect after the system restarts.

Page 79

5.4.3 Win NT

1. Following steps 1 and 2 of the Win95/98 OR step 1 of Win 2000 AC97 installation, select WINNT button when the ALC100 dialog box appears screen.

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

ext >

Page 80

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on inish button to complete the installation process. The

the F system changes you made will take effect after the system restarts.
