Page 1
HS-4650
Socket 370 133MHz FSB
Embedded Engine Board
•CRT/Panel•133MHz FSB•PCI Slot•
Four LAN•Audio•RS-232/422/485•
•
•4COM•IrDA•USB•TV-Out•H/W Monitor•
Industrial Embedded Single Board computer•
•
Page 2
Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd.
this document without due notice.
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
r
a
d
e
m
T
r
T
r
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
VIA is a registered trademark of VIA Technologies, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
a
d
e
m
a
a
d
e
m
a
reserves the right to change or improve the contents of
r
k
s
r
k
s
r
k
s
electronic, mechanical, photocopying, recording)
BOSER Technology Co., Ltd. assumes no
manufacturer will
© Copyright 2003 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.0, May 13, 2003
Page 3
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 10
3.7 VGA Controller .................................................................... 11

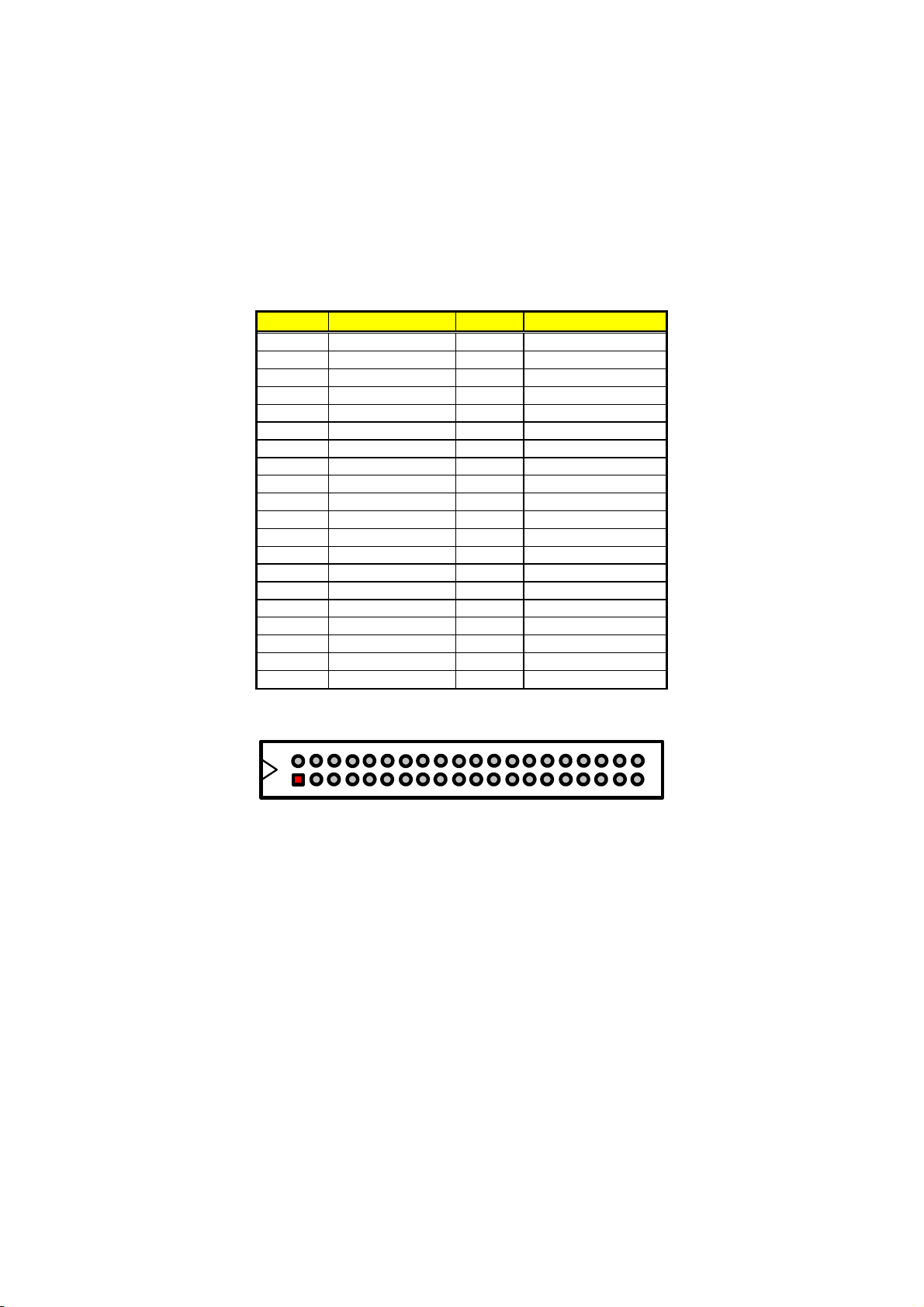

3.8 PCI E-IDE Drive Connector................................................. 13
3.9 Floppy Disk Drive Connector ............................................. 15
3.10 Serial Port Connectors ....................................................... 16
3.11 Parallel Connector............................................................... 18
3.12 Ethernet Connector............................................................. 19
3.13 USB Connector .................................................................... 20
3.14 CMOS Data Clear................................................................. 20
3.15 Power and Fan Connectors................................................ 21
3.16 Keyboard and Mouse Connectors..................................... 21
3.17 System Front Panel Connectors........................................ 22
3.18 IrDA Connector .................................................................... 23
3.19 Digital I/O Connector........................................................... 23
3.20 Audio Connectors ............................................................... 24
3.21 TV Out Function .................................................................. 25
3.22 PCI Expansion Slot ............................................................. 25
Page 4
Chapter 4 AMI BIOS Setup..................................... 27
4.1 Starting Setup...................................................................... 27
4.2 Using Setup ......................................................................... 28
4.3 Main Menu............................................................................ 29
4.4 Standard CMOS Setup........................................................ 30
4.5 Advanced CMOS Setup ...................................................... 31
4.6 Advanced Chipset Setup.................................................... 32
4.7 Power Management Setup ................................................. 33
4.8 PCI / Plug and Play Setup................................................... 34
4.9 Peripheral Setup.................................................................. 35
4.10 Hardware Monitor Setup..................................................... 36
4.11 Auto-Detect Hard Disks ...................................................... 36
4.12 Change Supervisor/User Password .................................. 37
4.13 Auto Configuration with Optimal Settings ....................... 39
4.14 Auto Configuration with Fail Safe Settings ...................... 40
4.15 Save Settings and Exit........................................................ 41
4.16 Exit Without Saving............................................................. 42
Chapter 5 Software Utilities..................................... 43

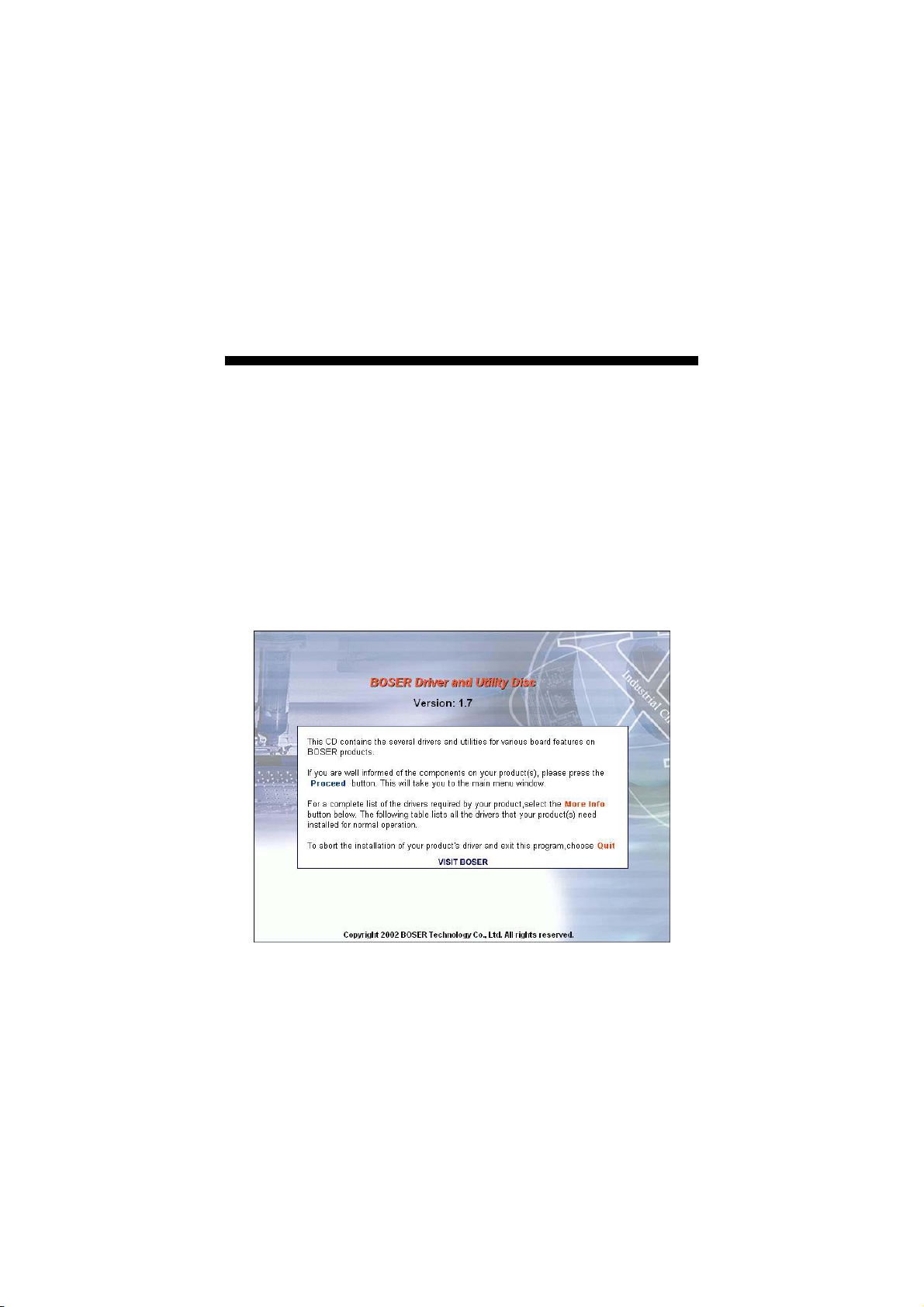

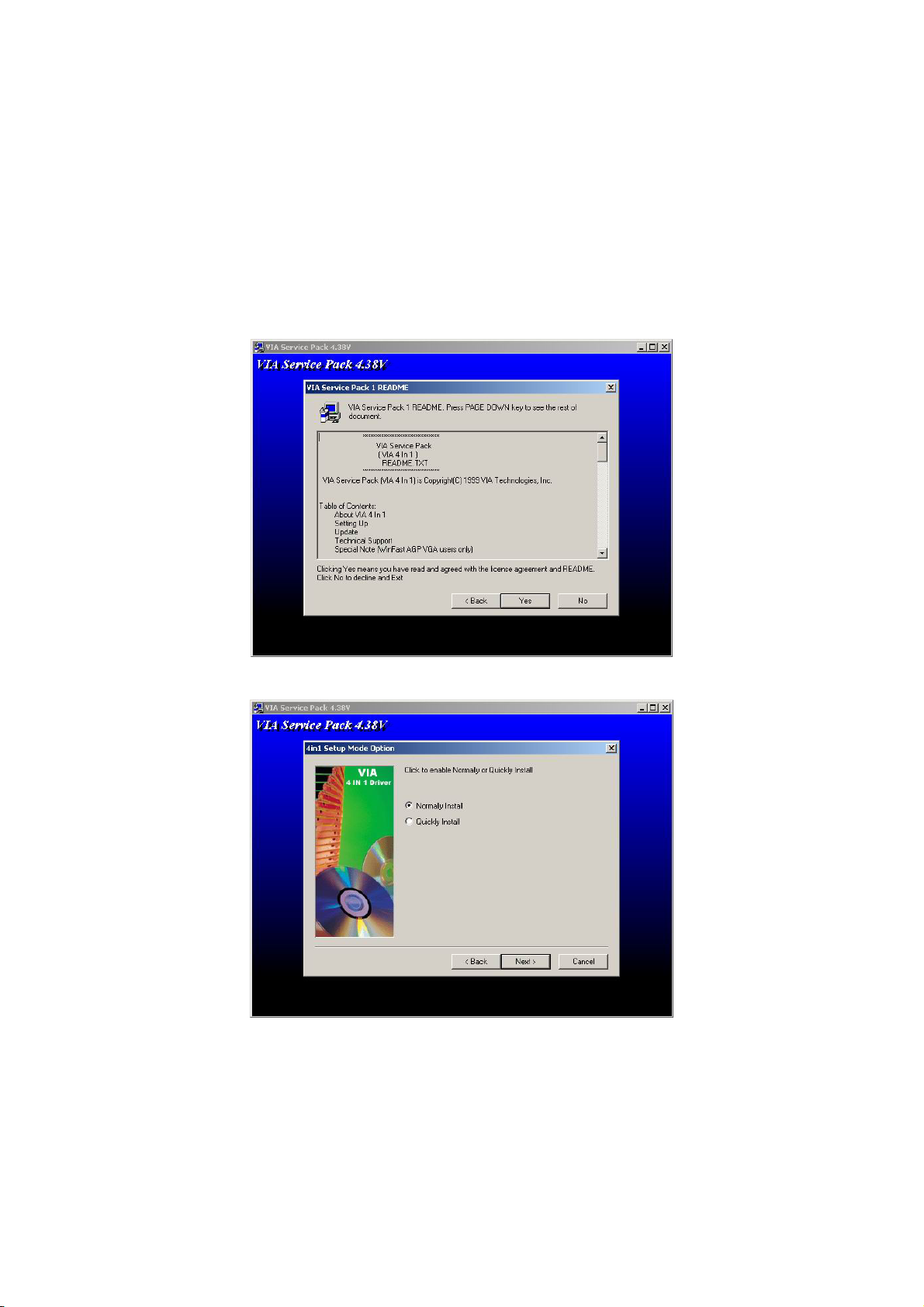

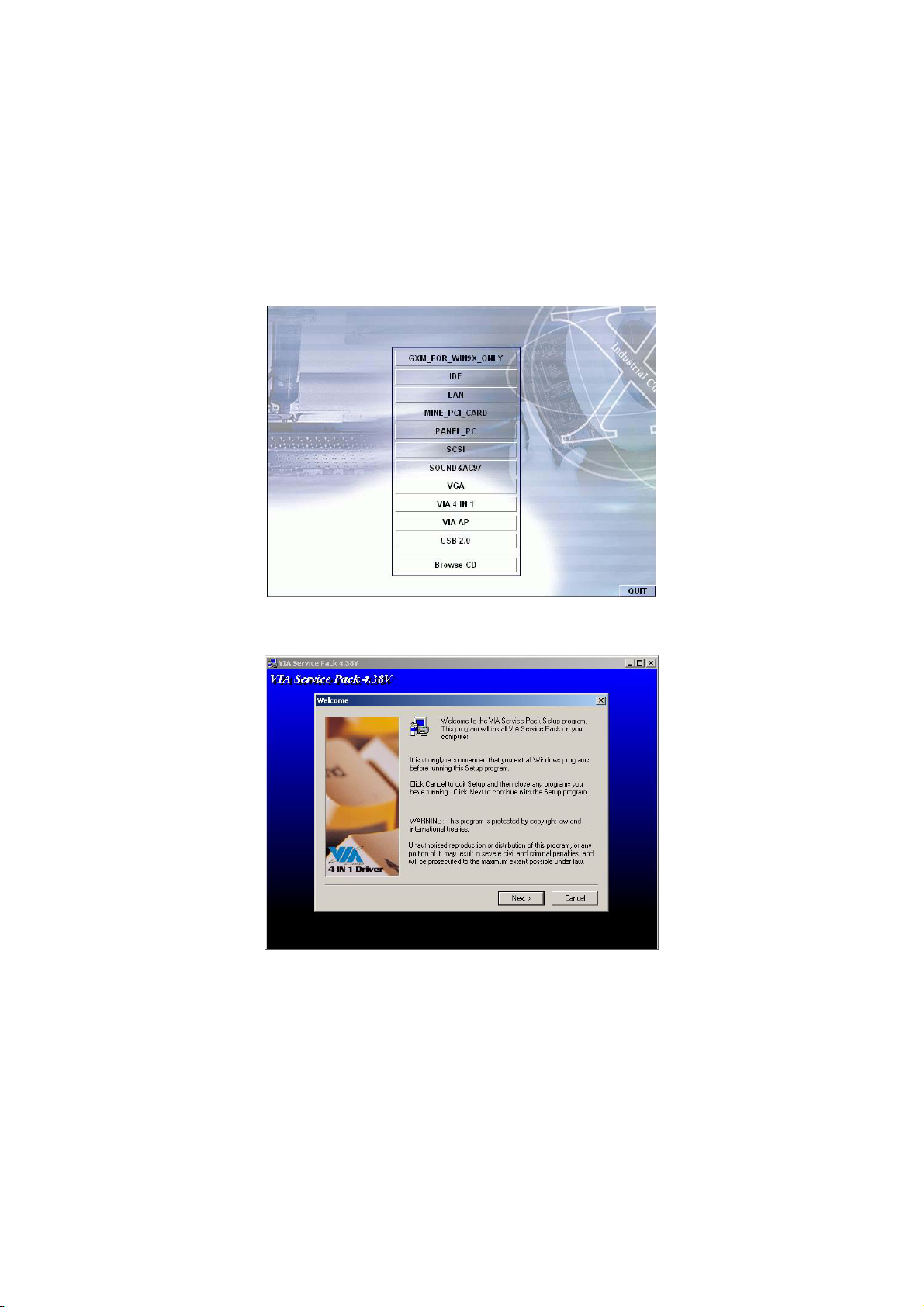

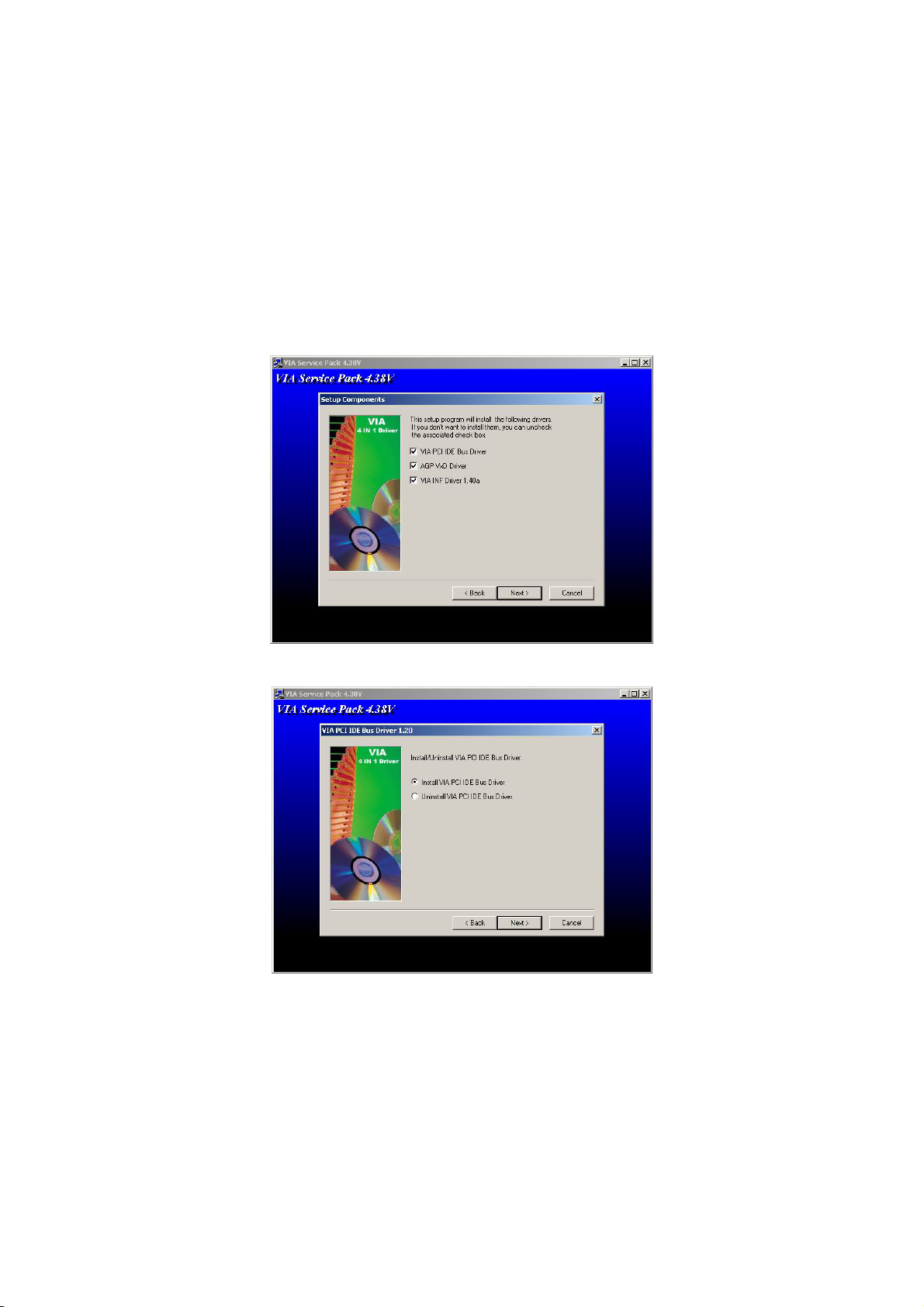

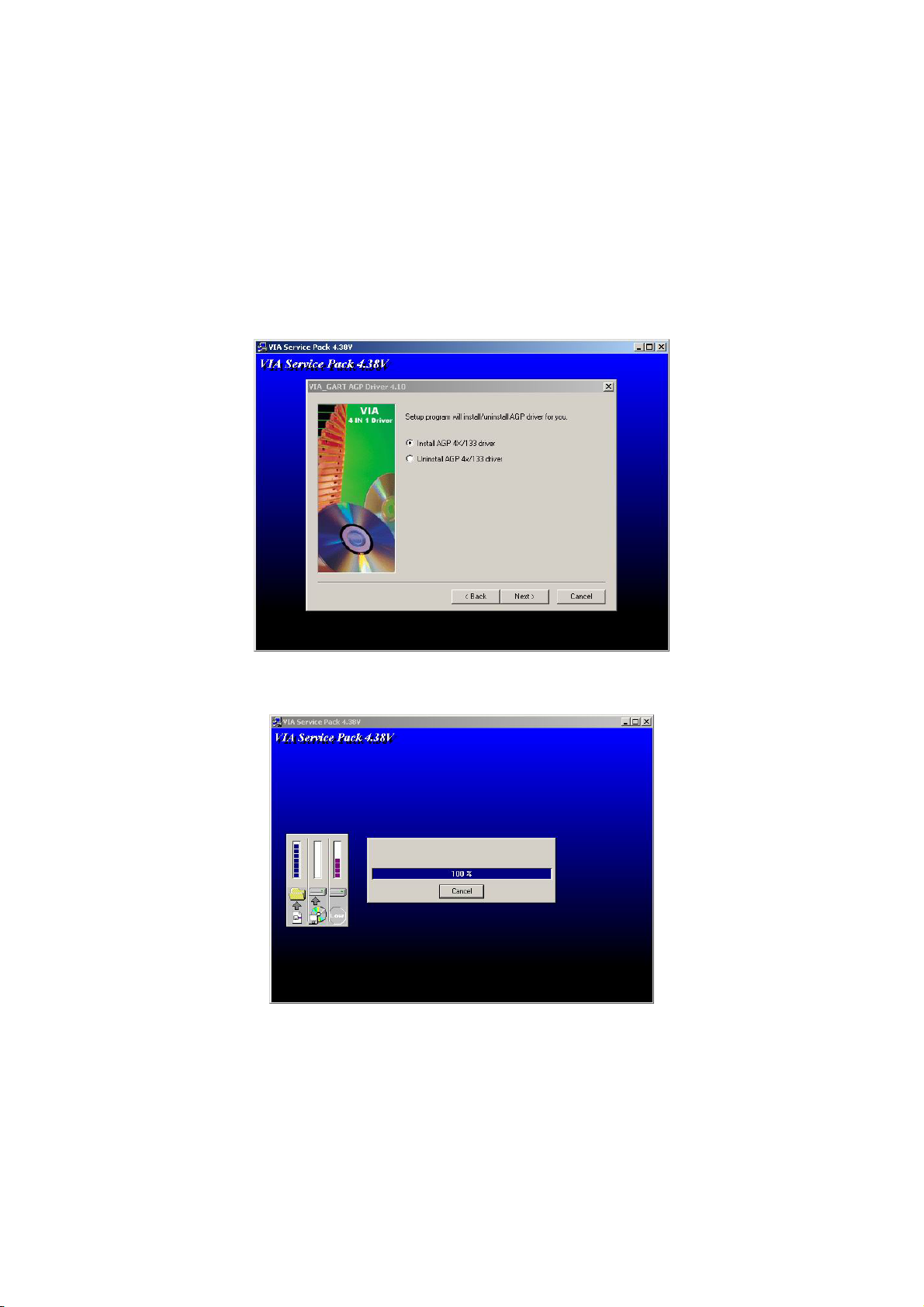

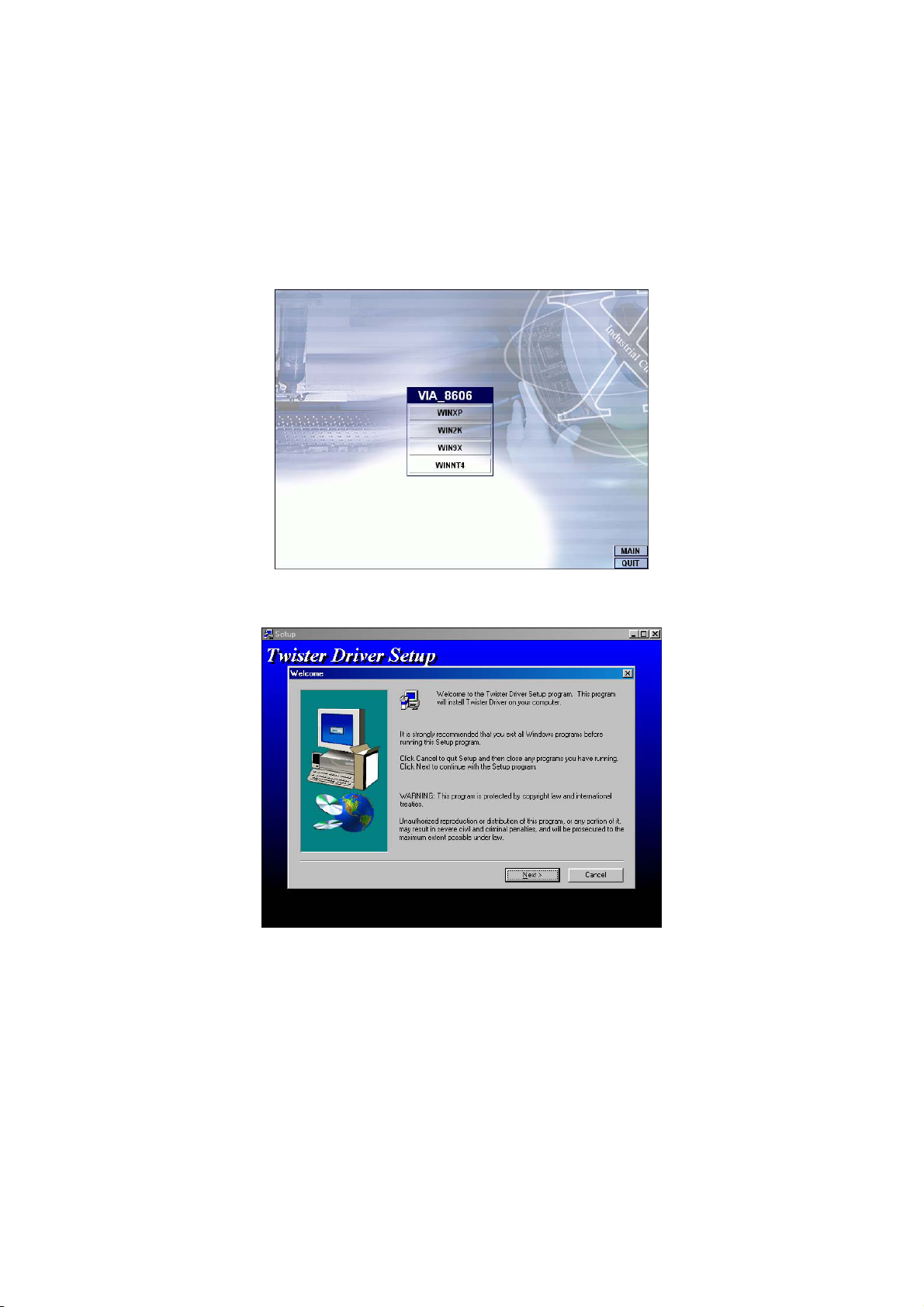

5.1 VIA 4 in 1 Driver Installation............................................... 43

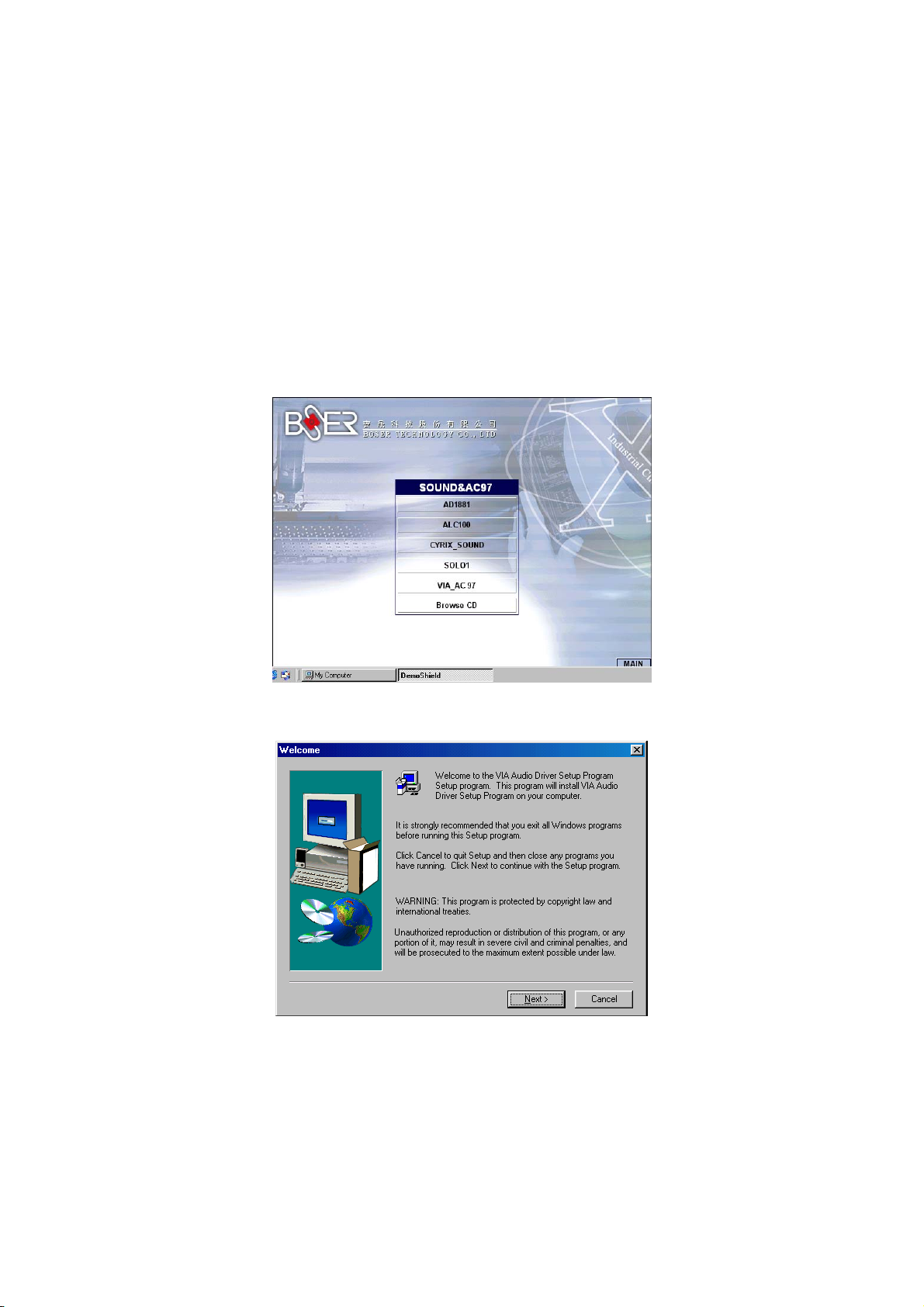

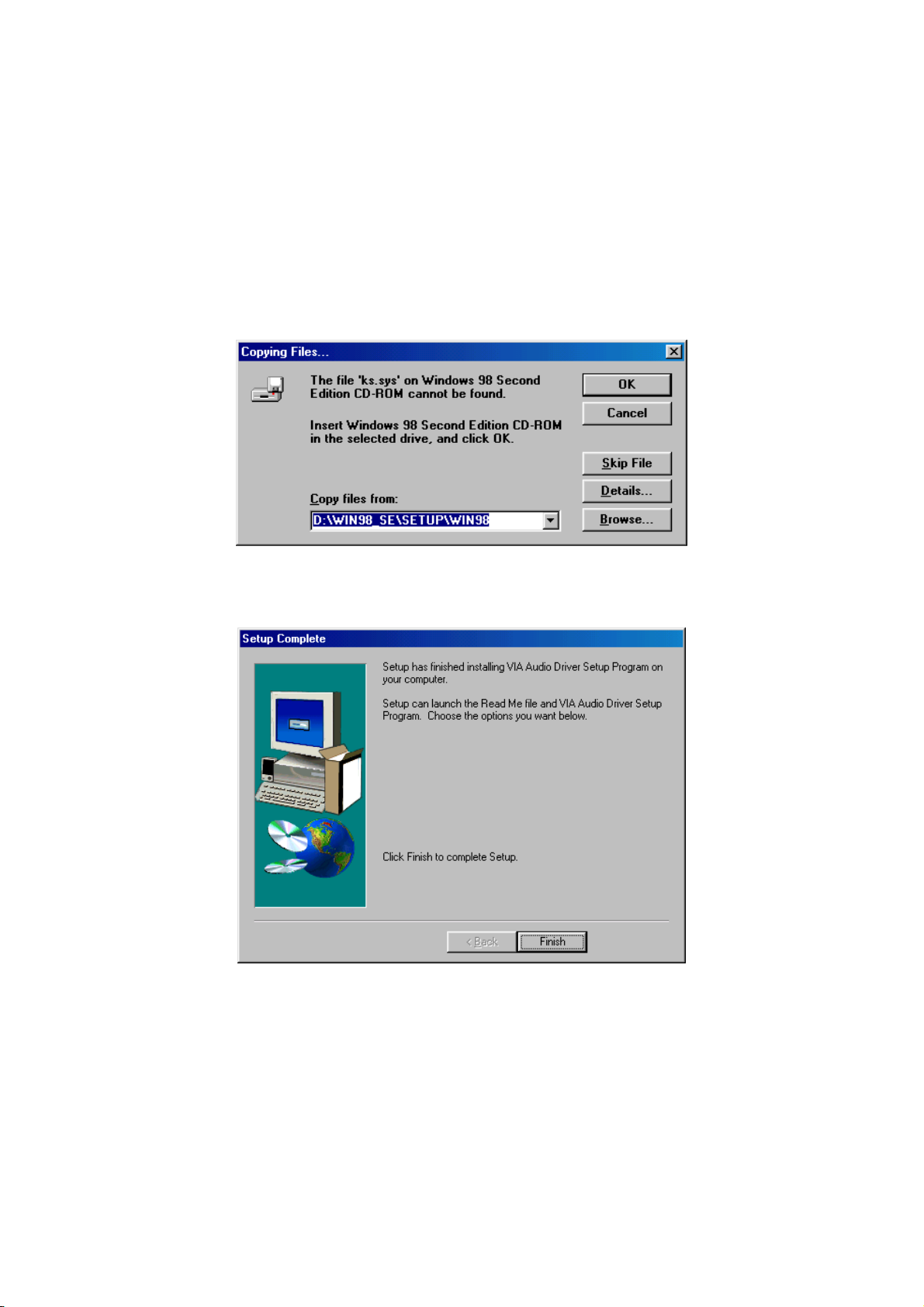

5.2 Audio Driver Installation..................................................... 48

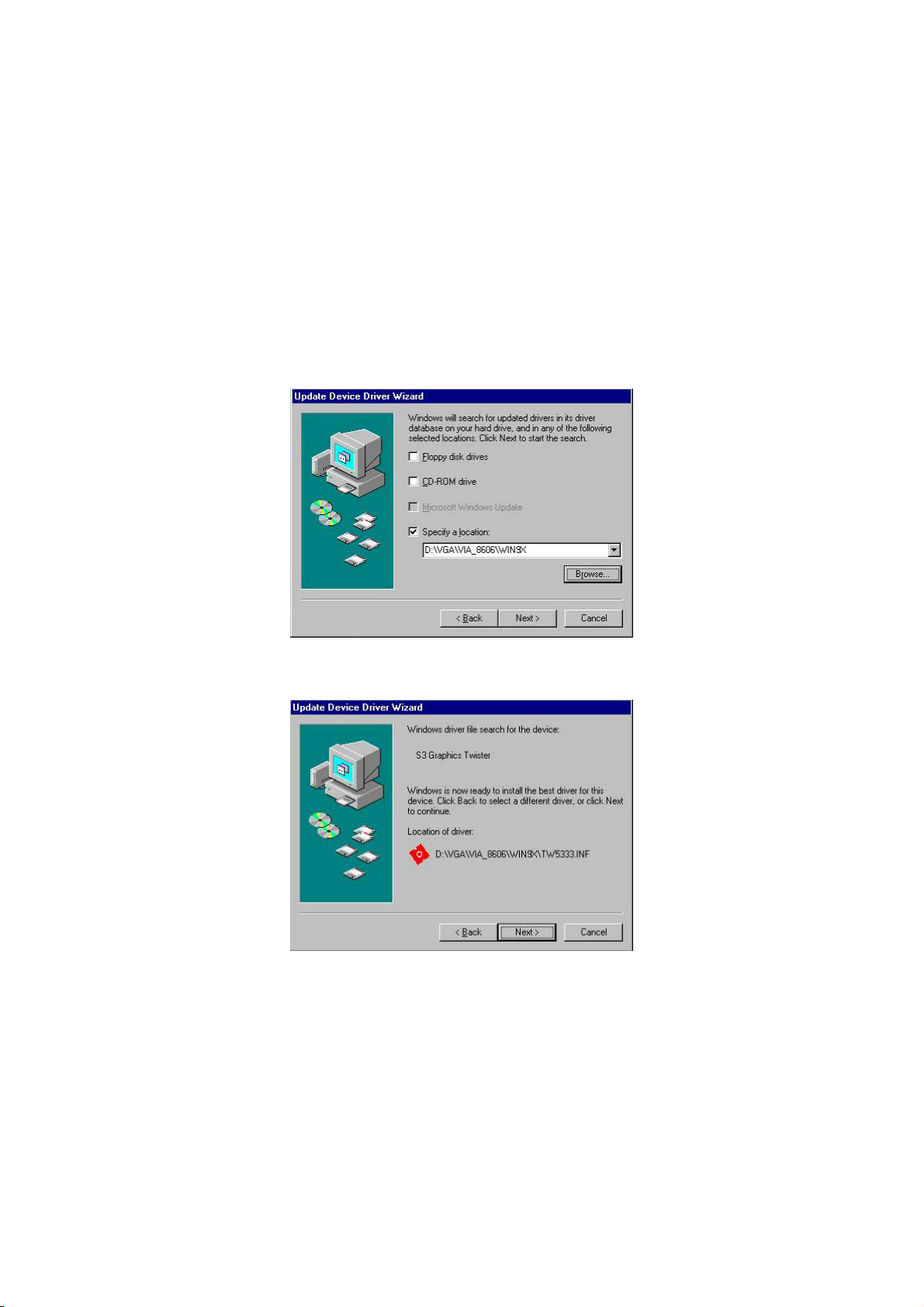

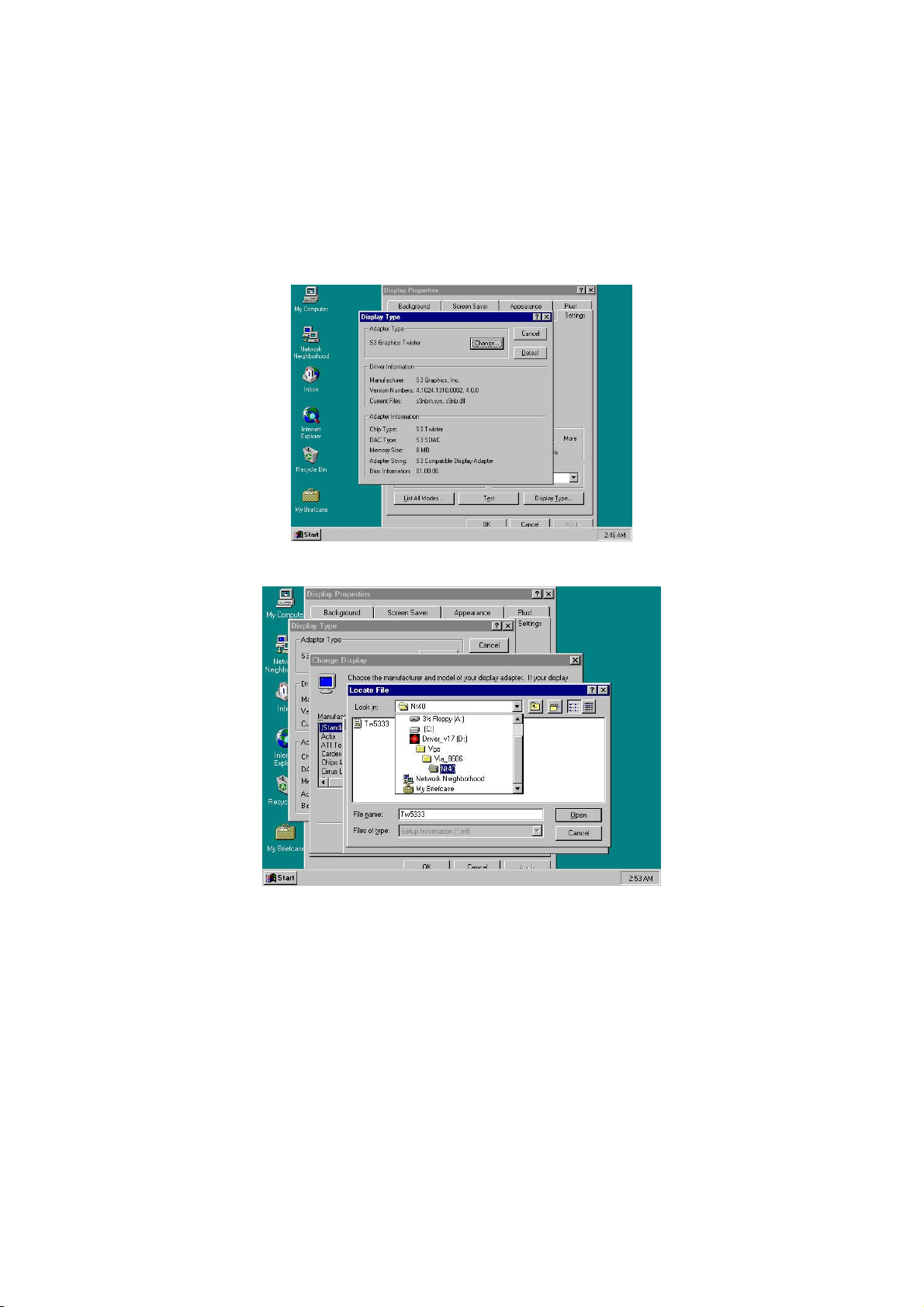

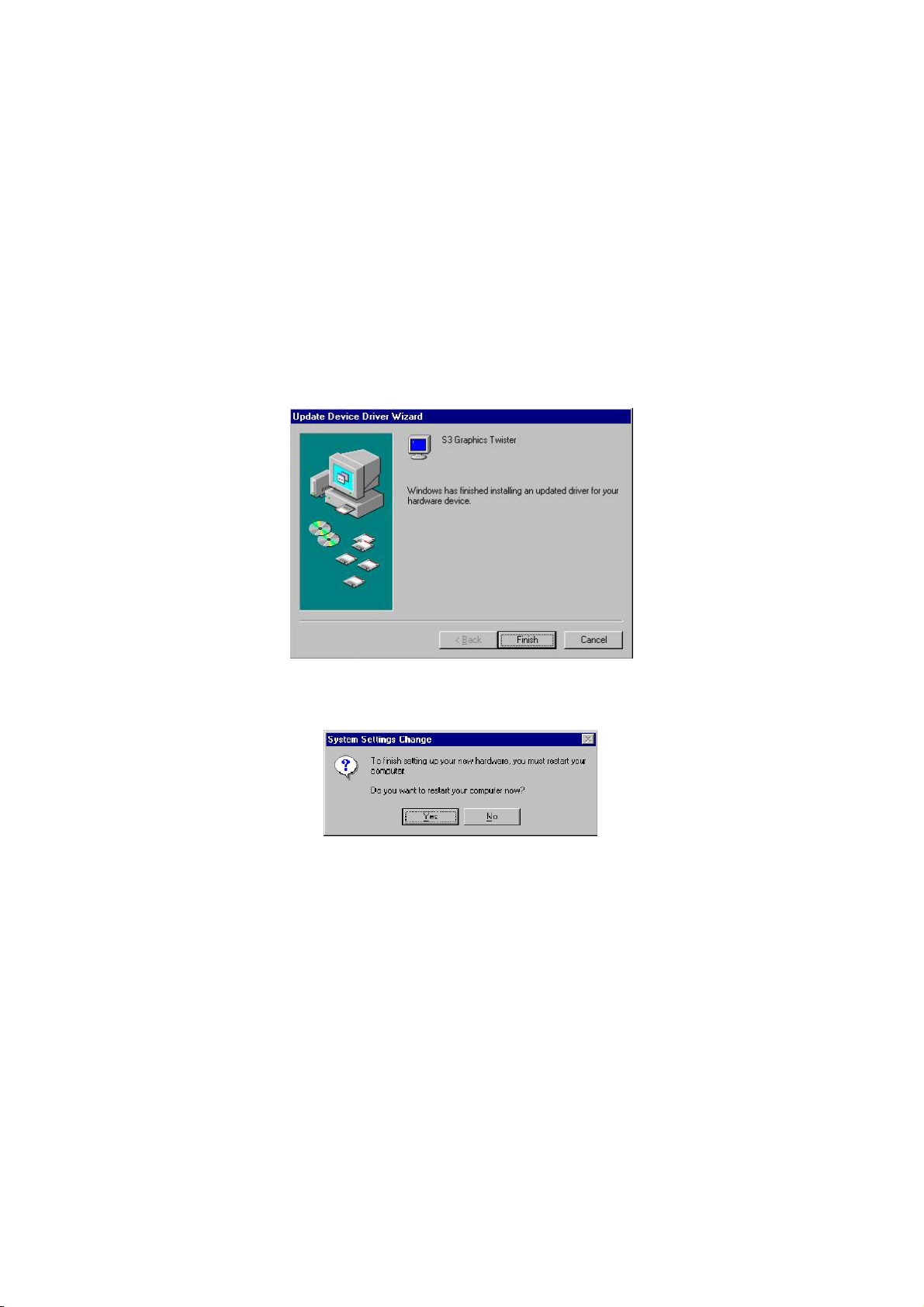

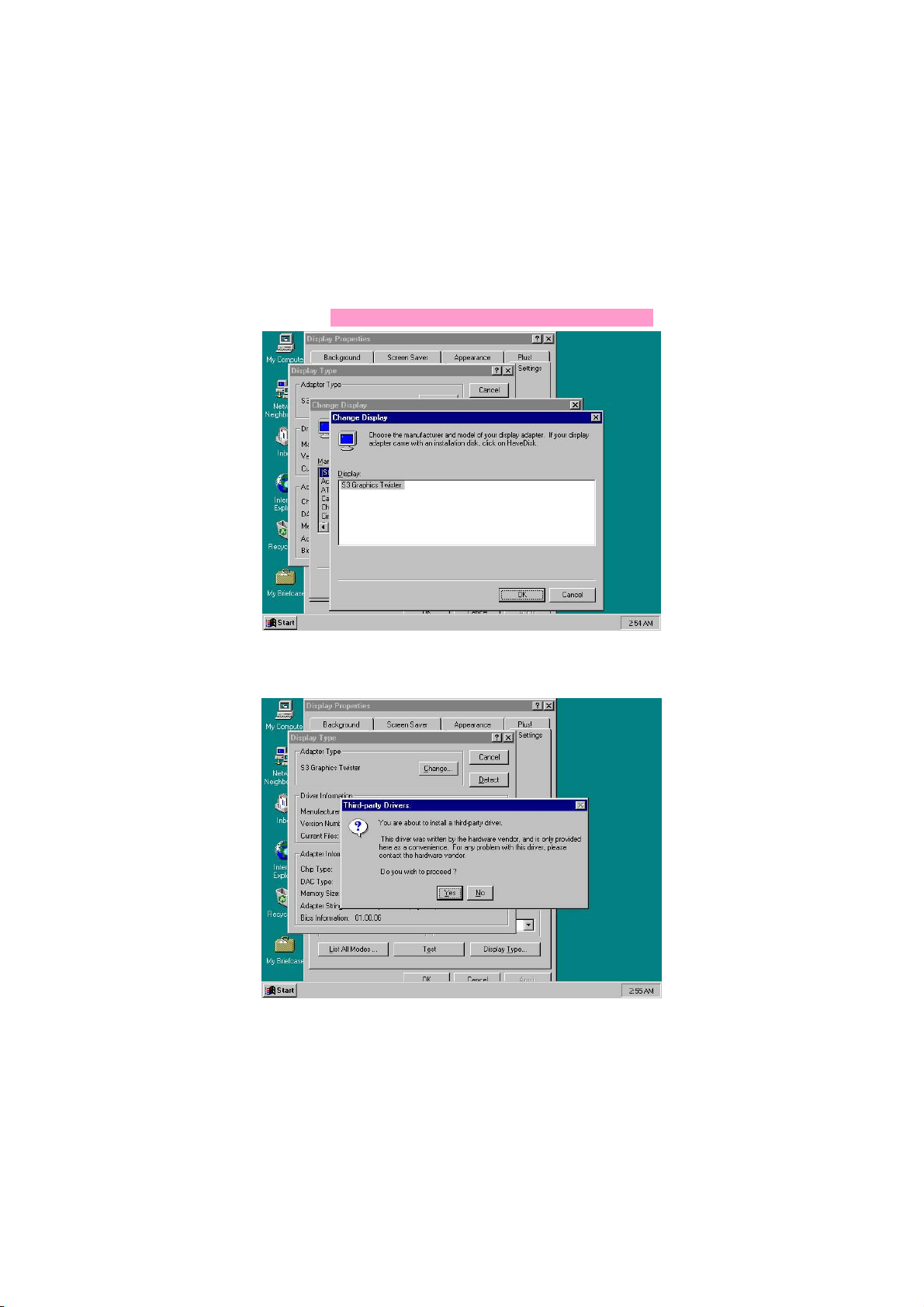

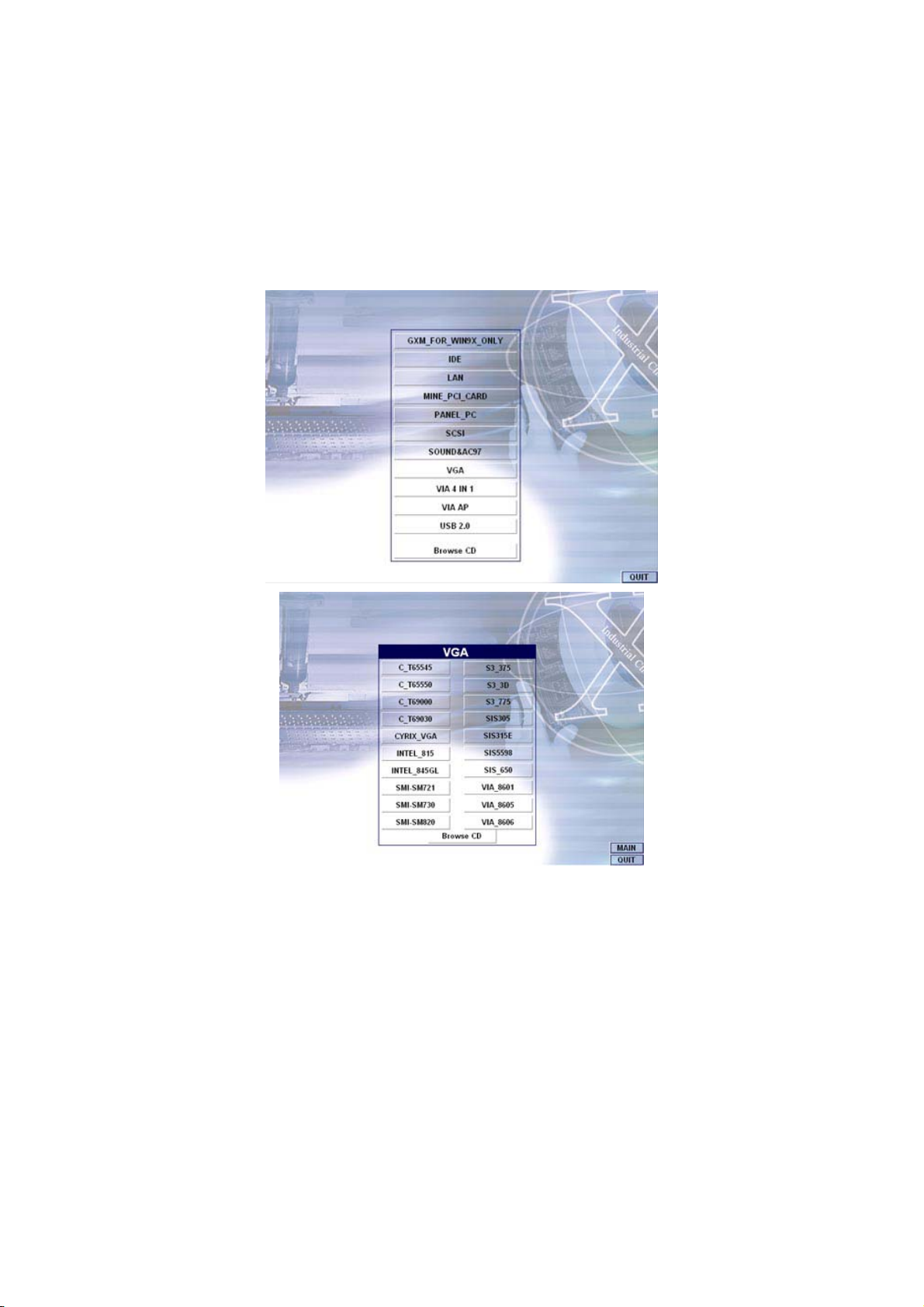

5.3 VGA Driver Installation ....................................................... 51

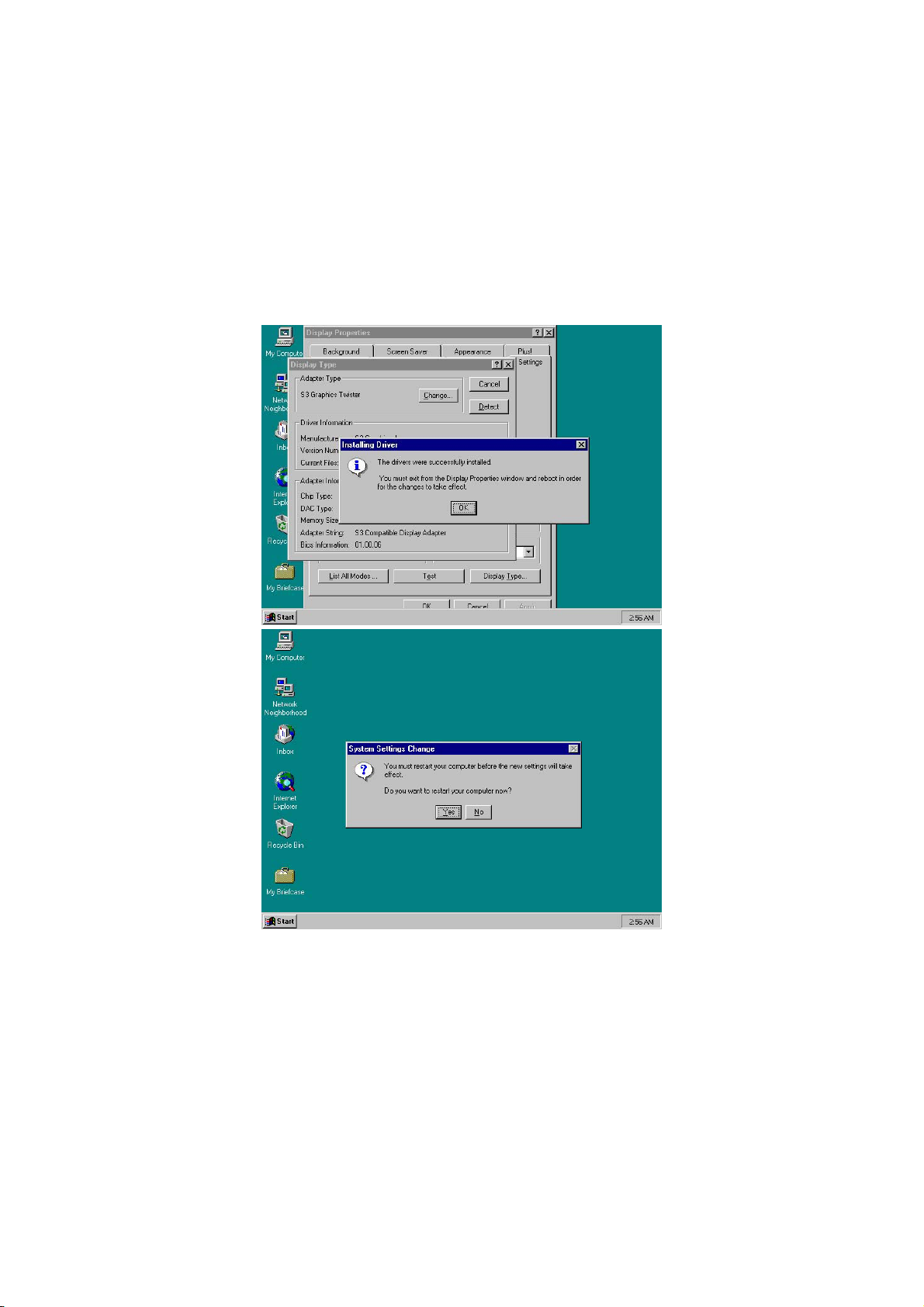

5.3.1 VGA Driver Installation for WIN98........................................................ 51
5.3.2 VGA Driver Installation for WIN NT4.0 ................................................54

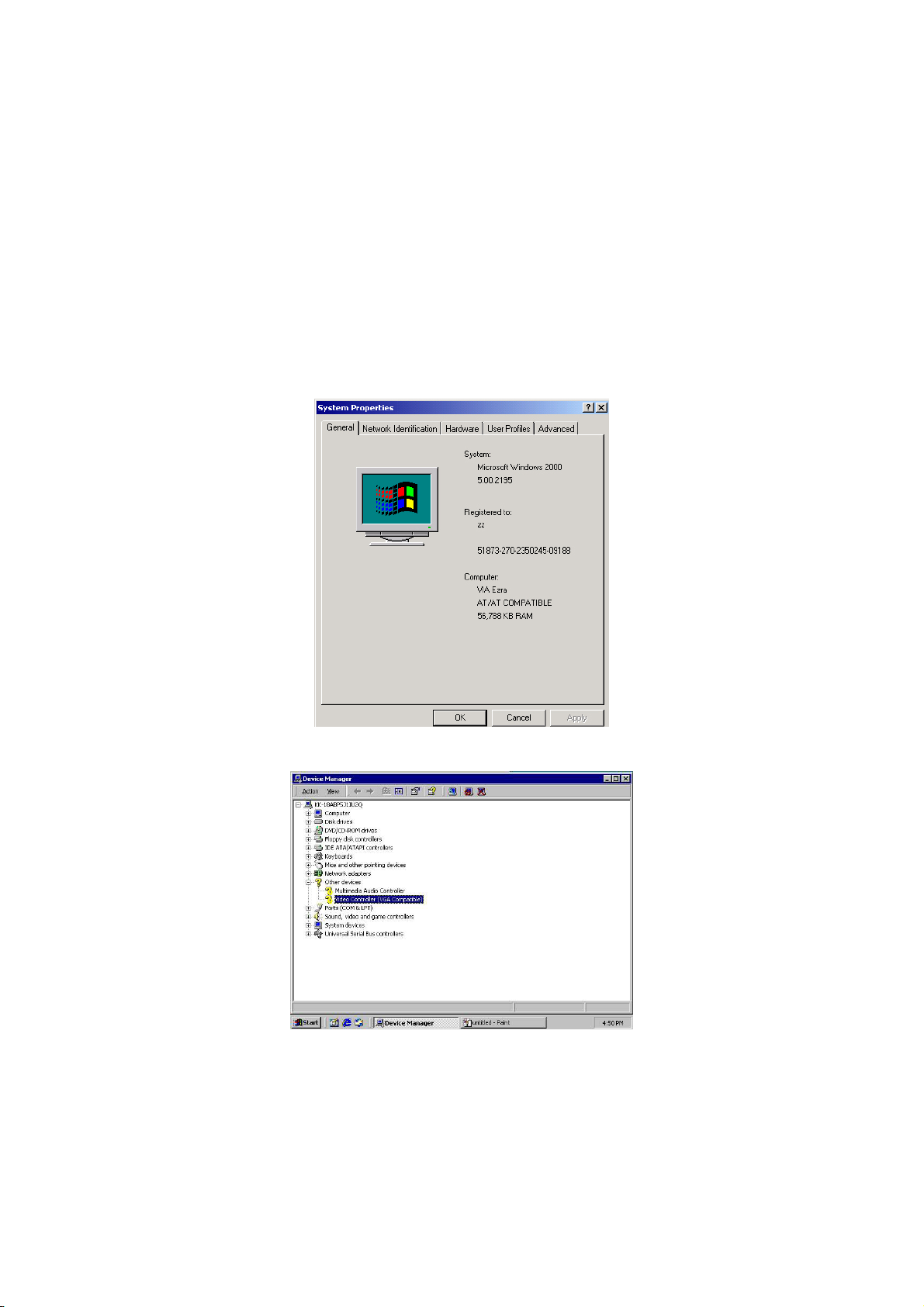

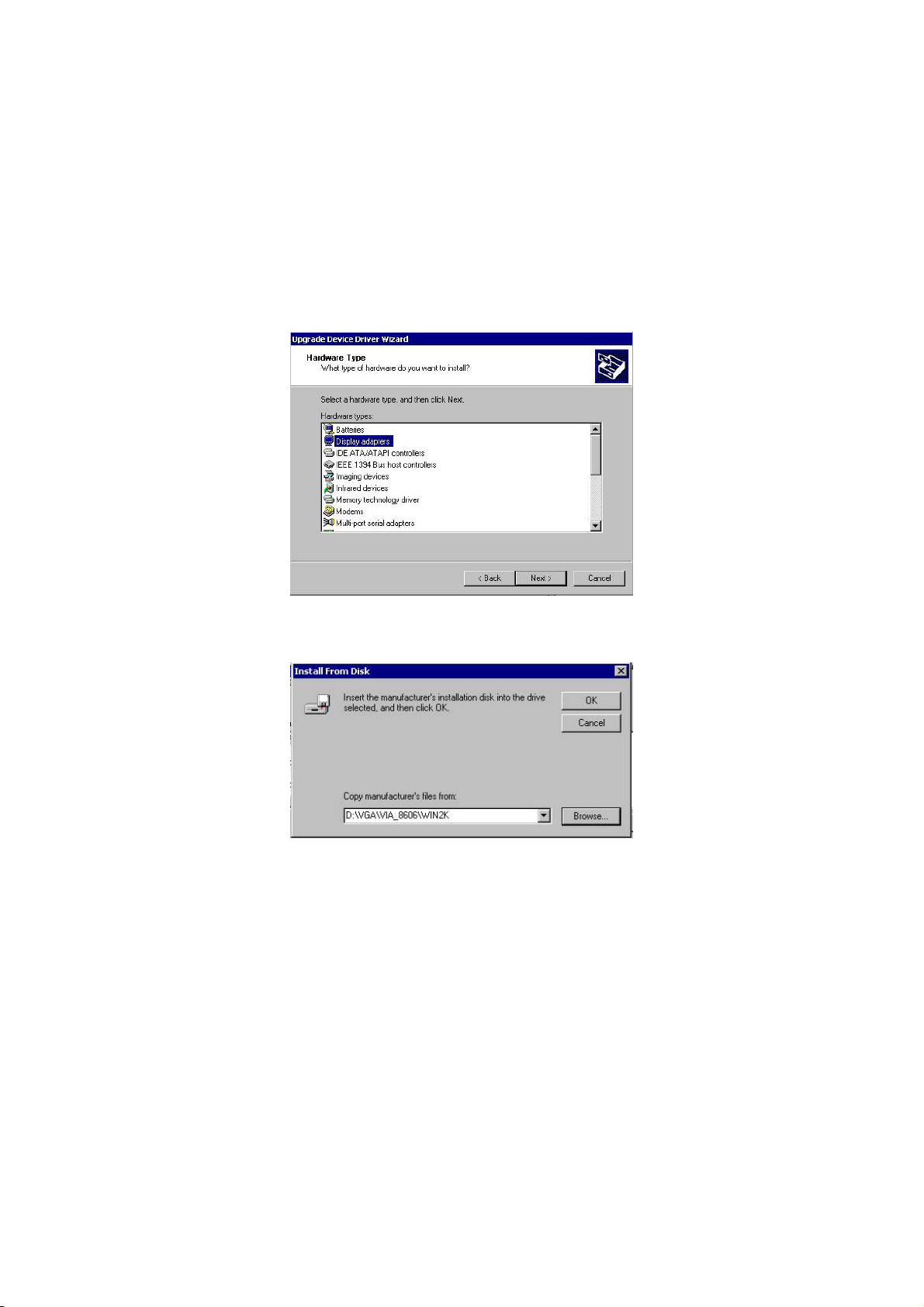

5.3.3 VGA Driver Installation for WIN 2K.......................................................58
5.3.4 VGA Driver Installation for WIN XP....................................................... 61

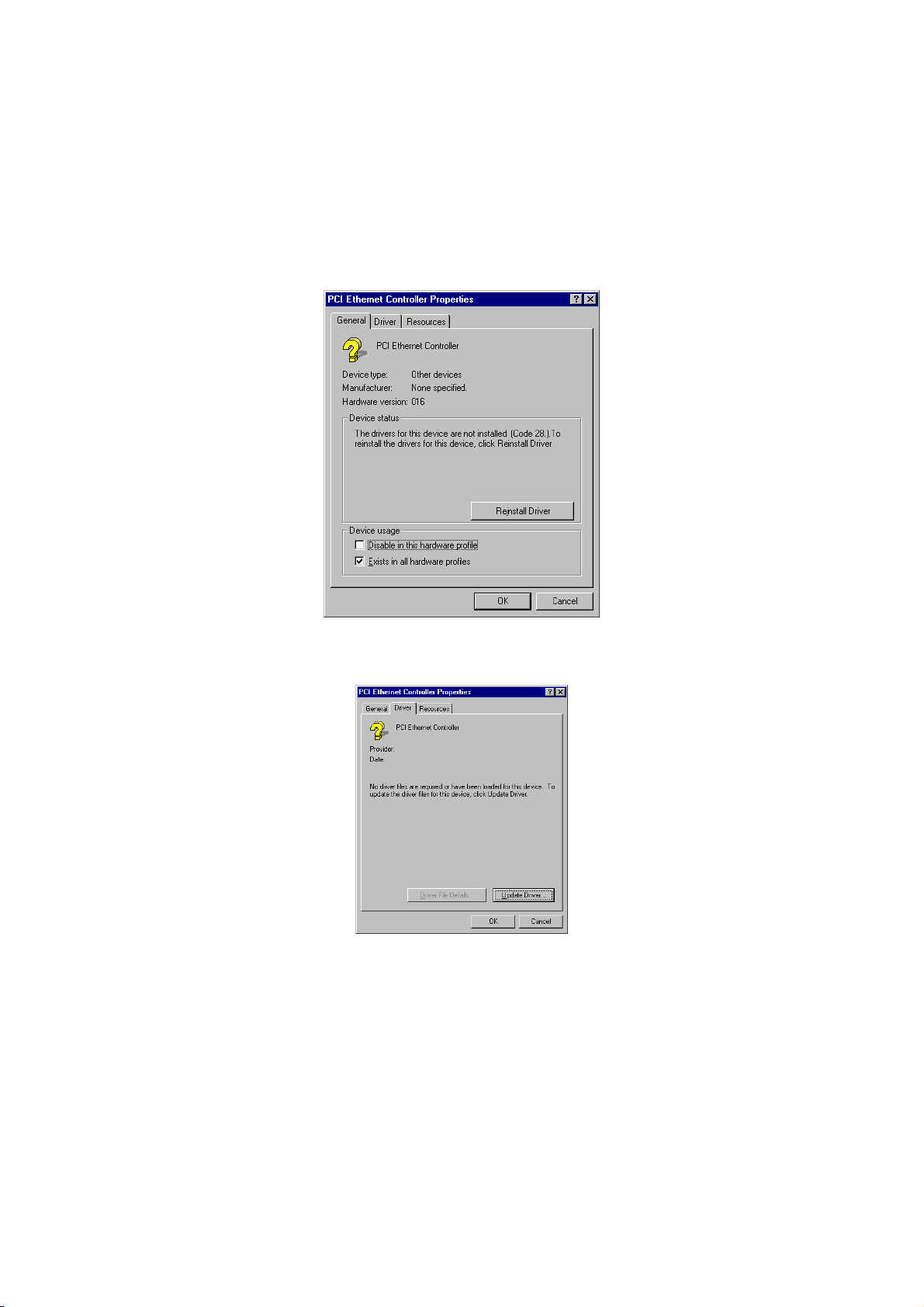

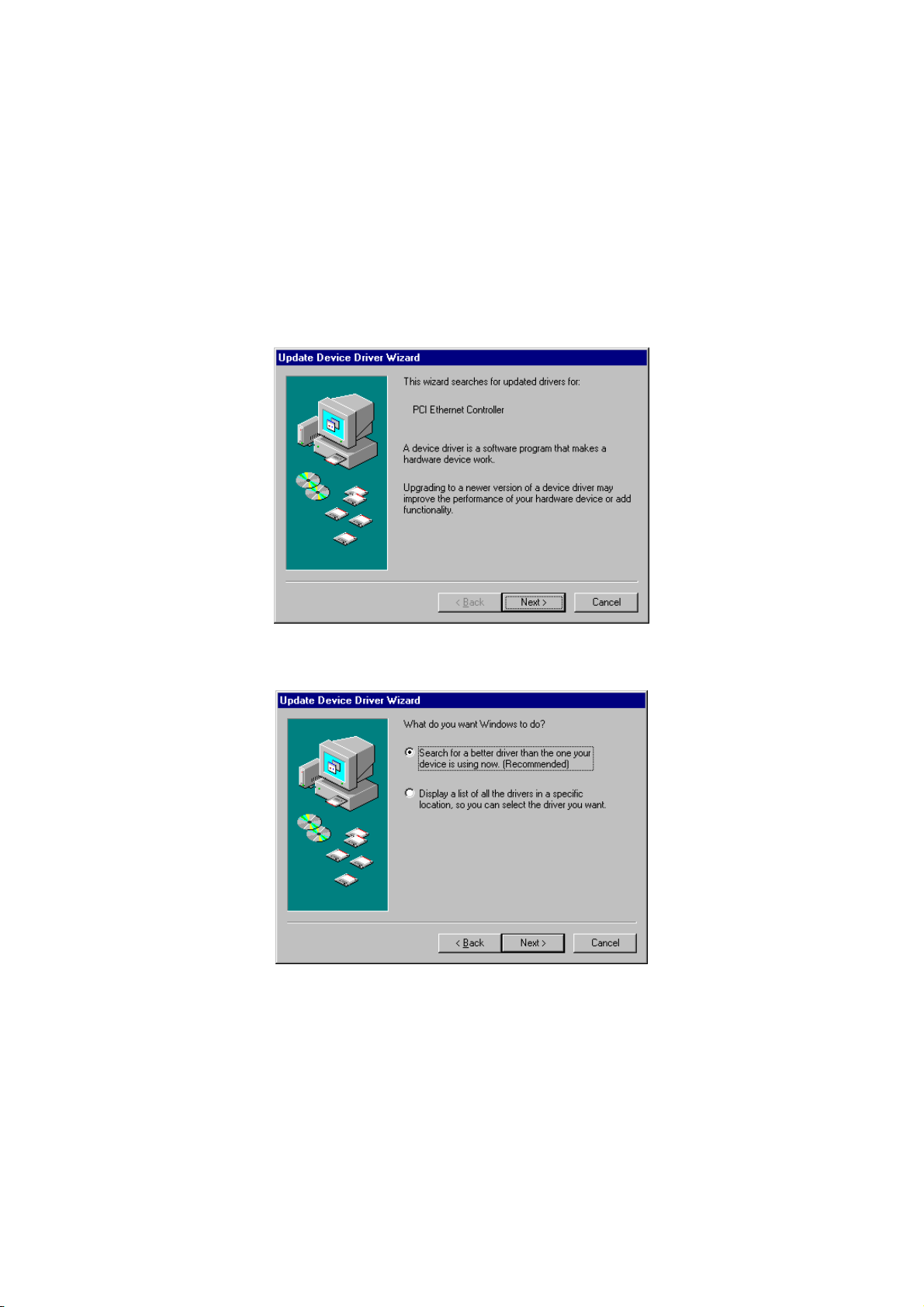

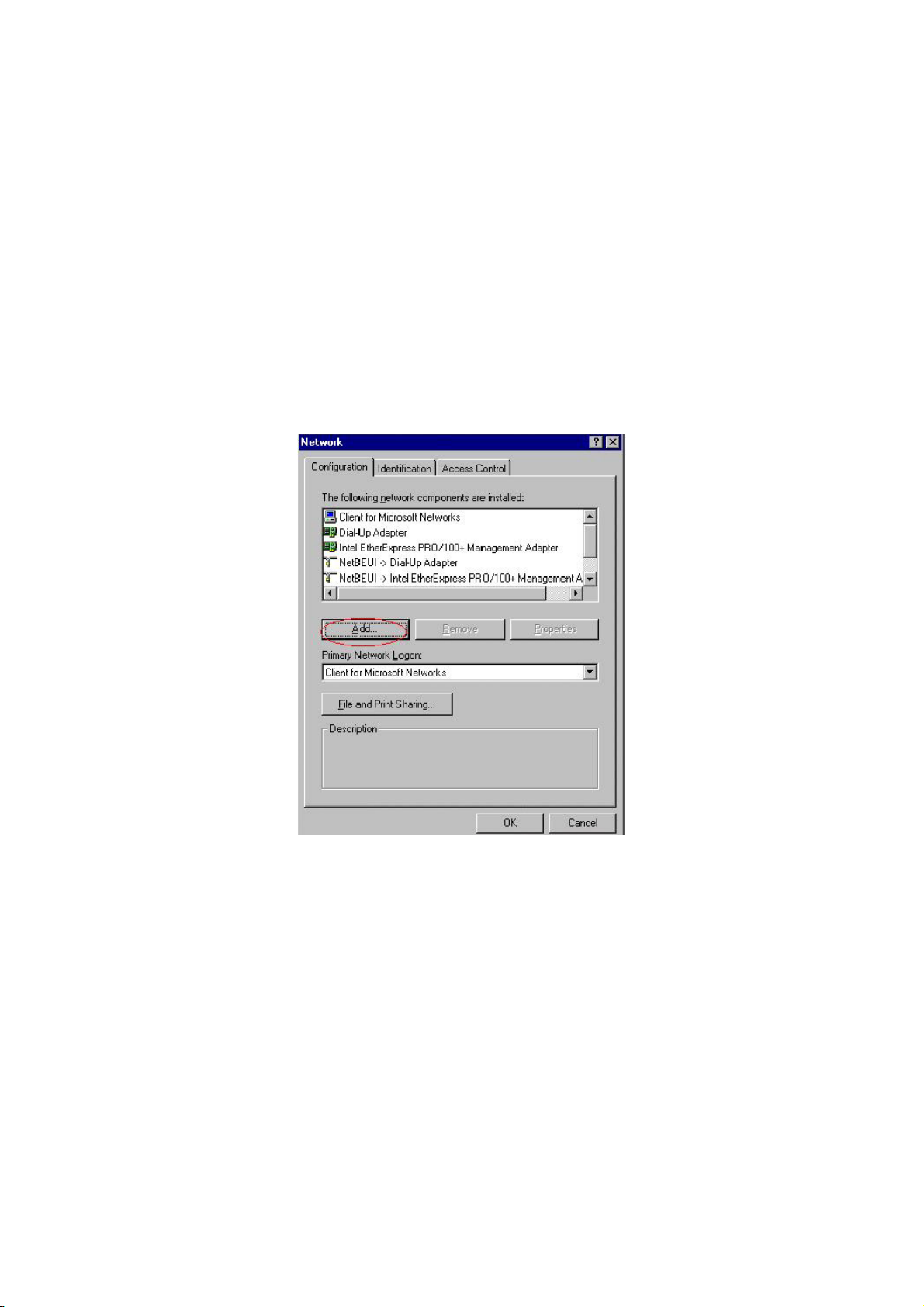

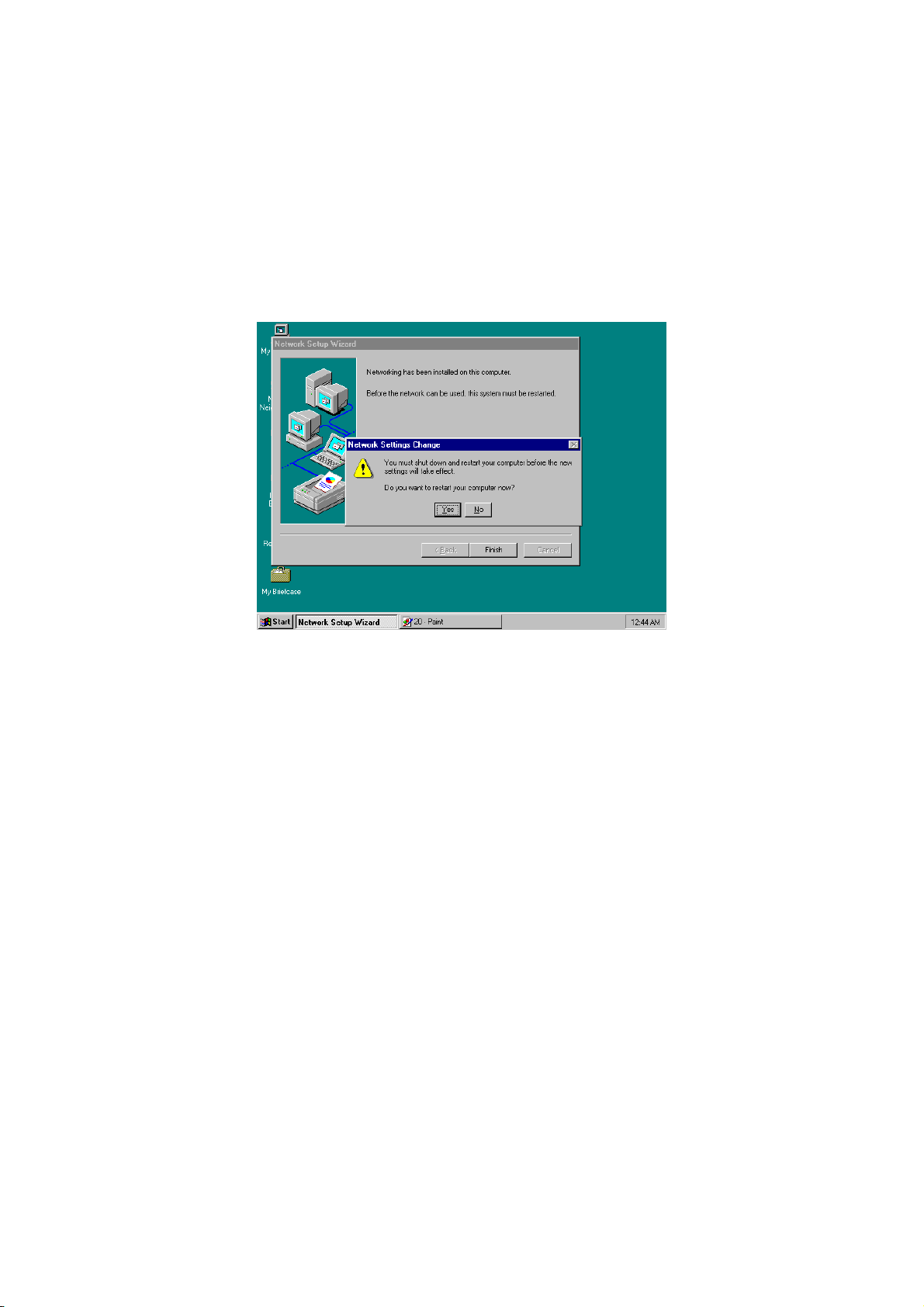

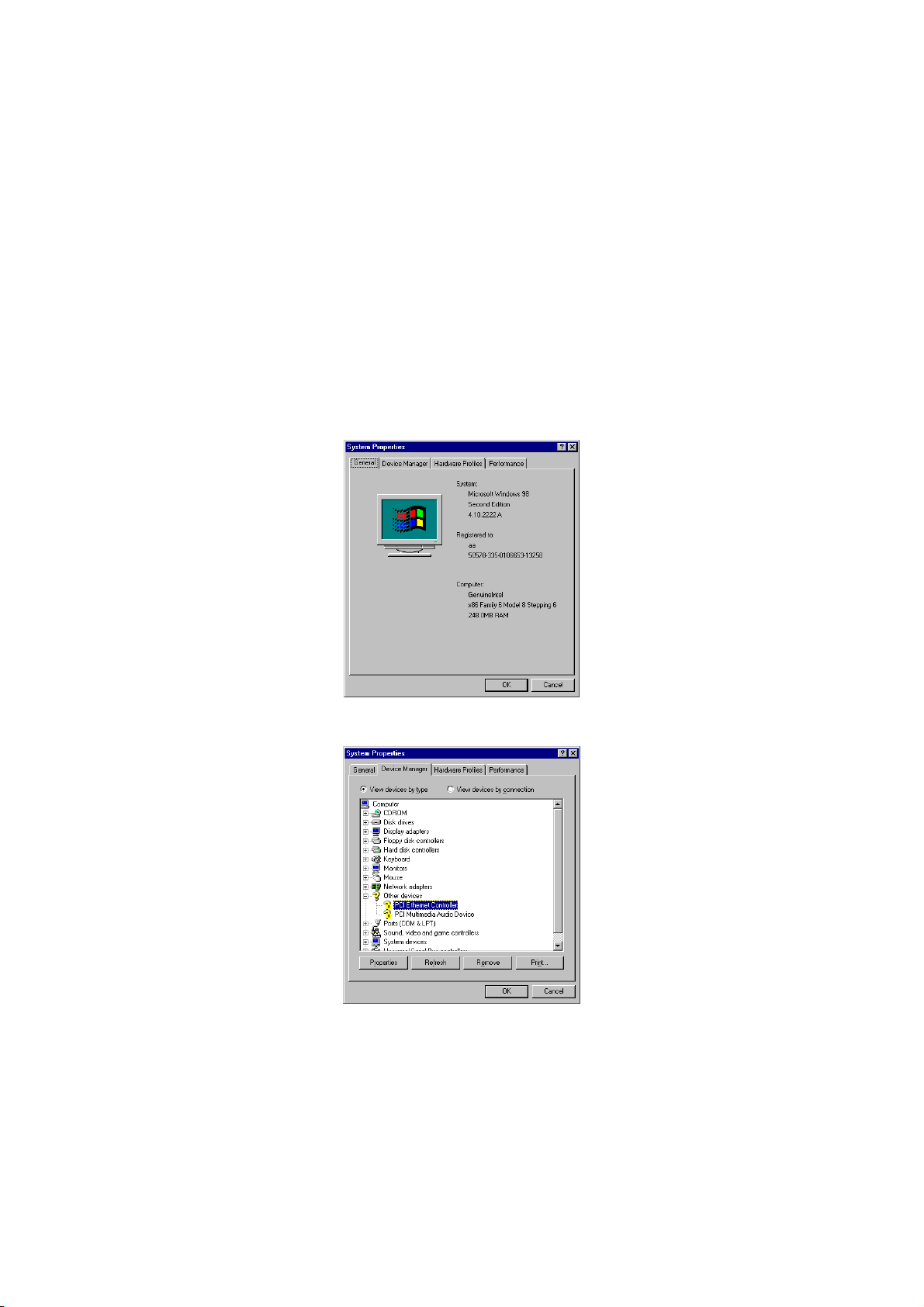

5.4 LAN Driver Installation........................................................ 65

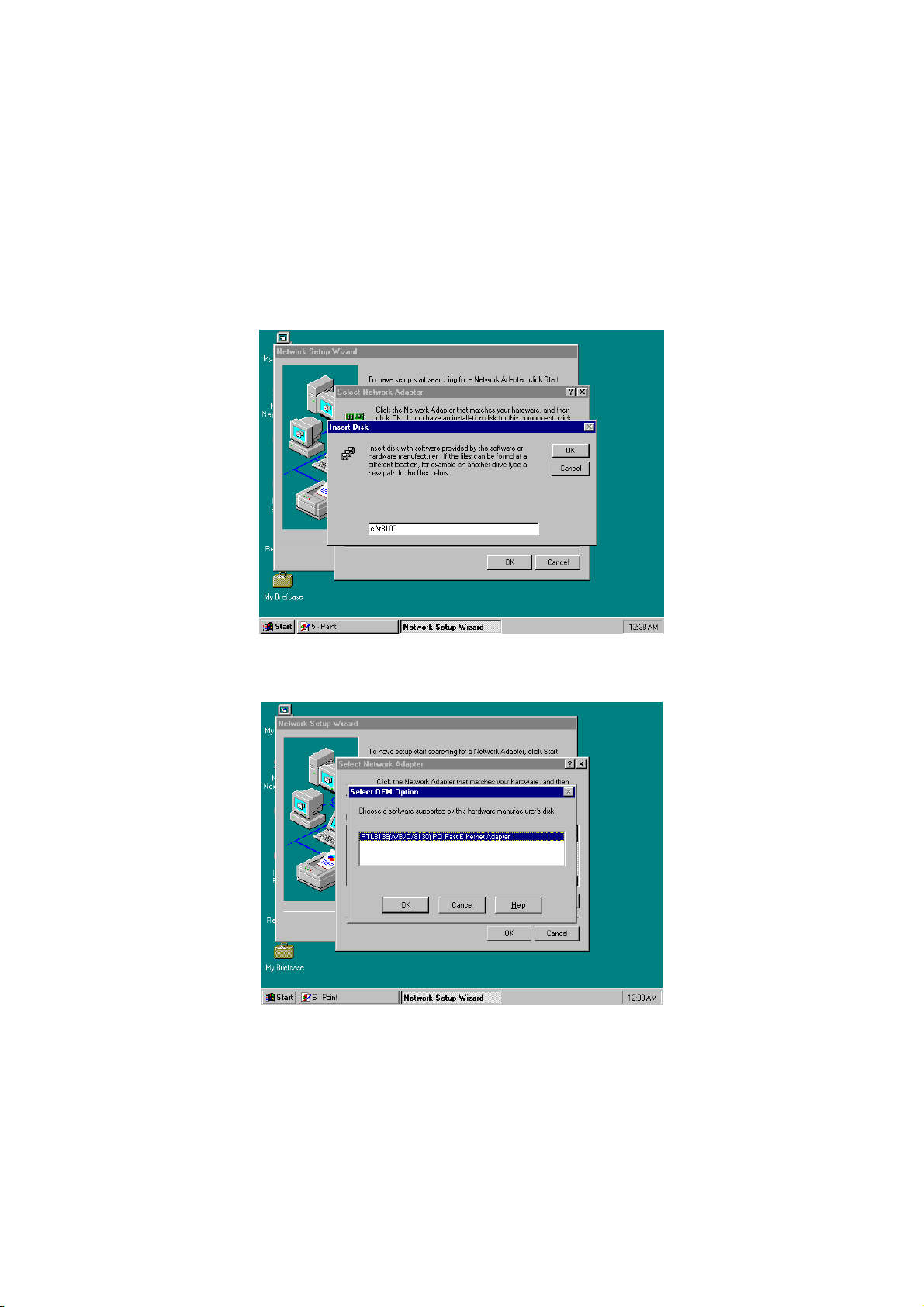

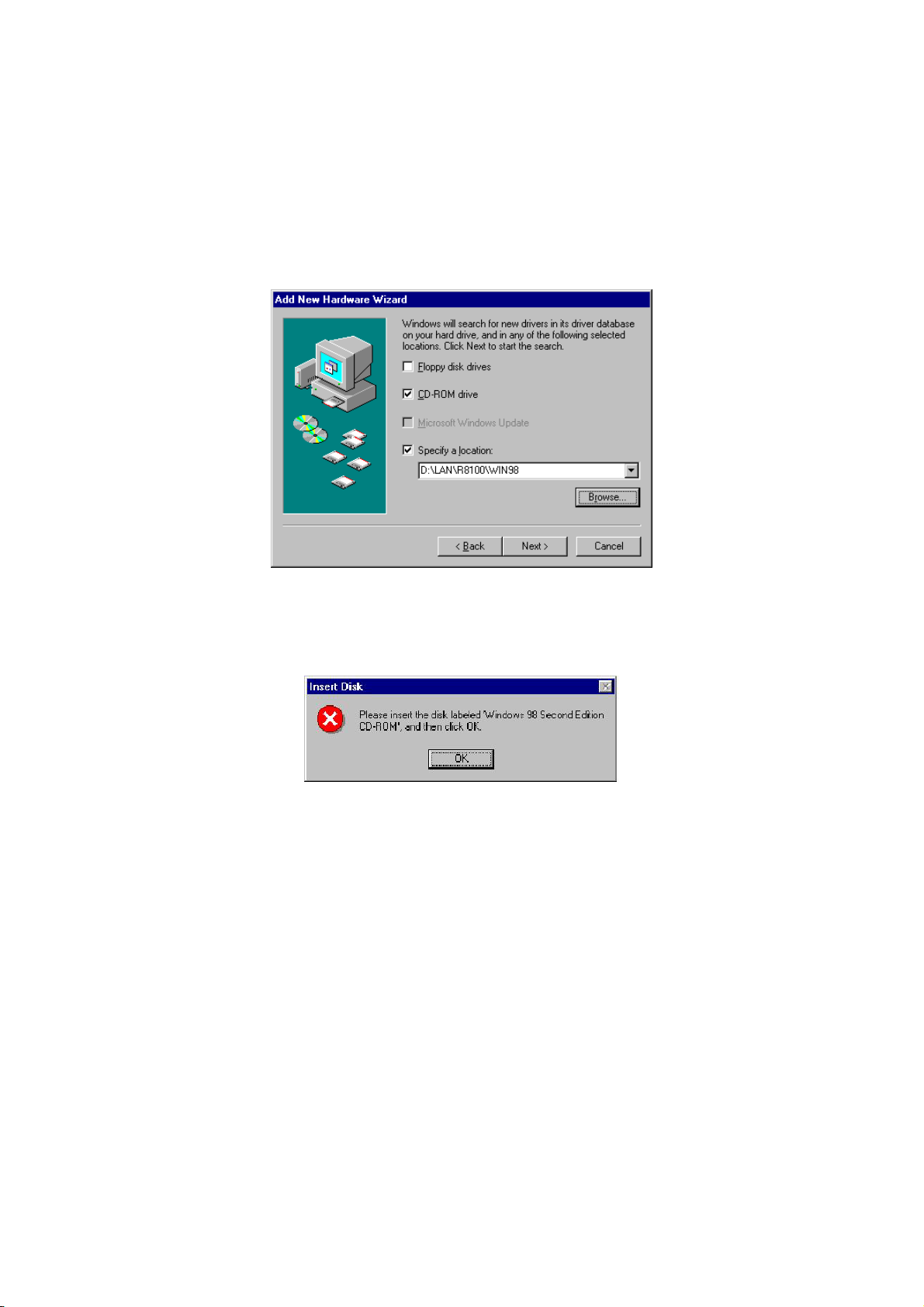

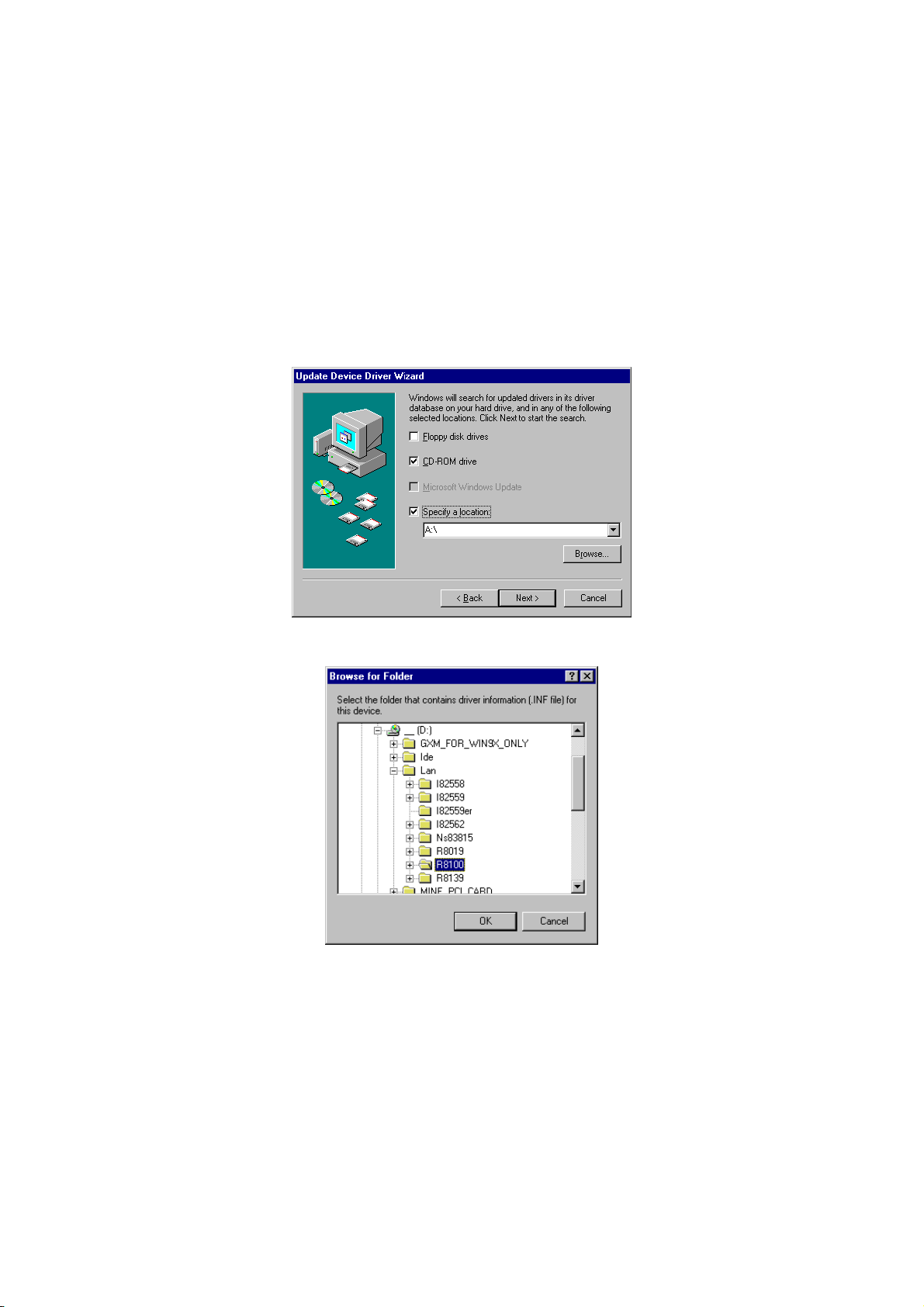

5.4.1 RTL8100 Driver Installation for WIN98..............................................65

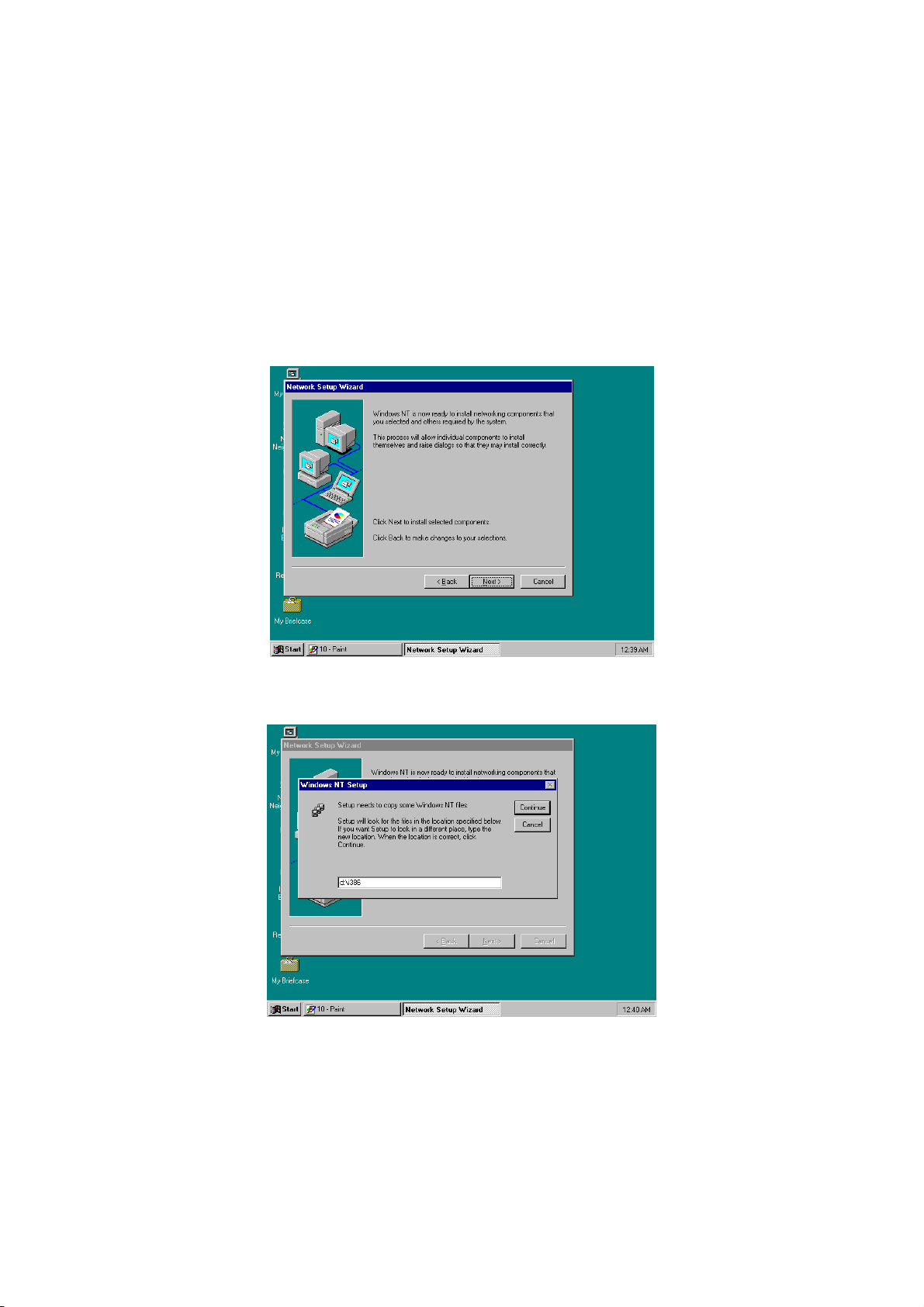

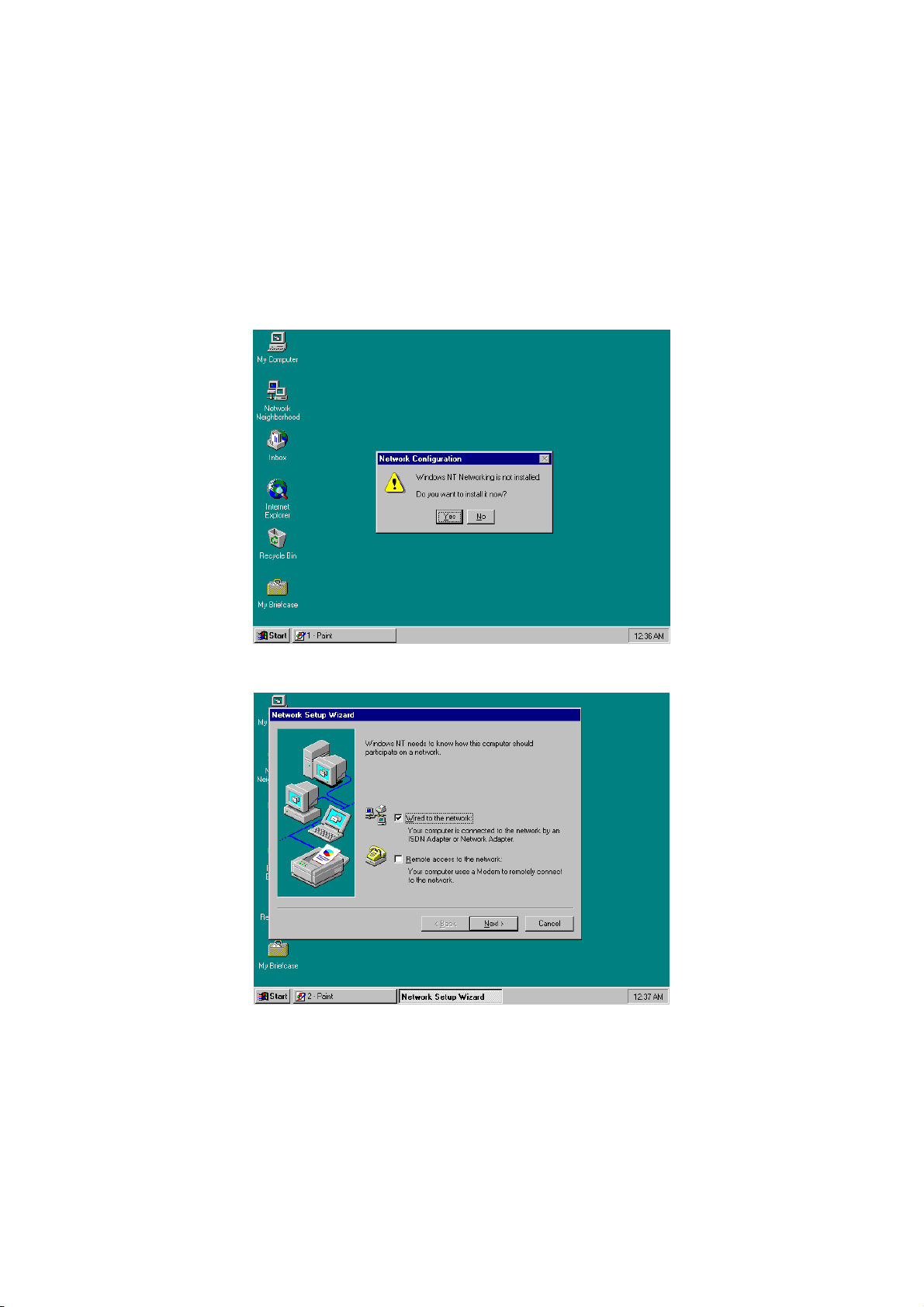

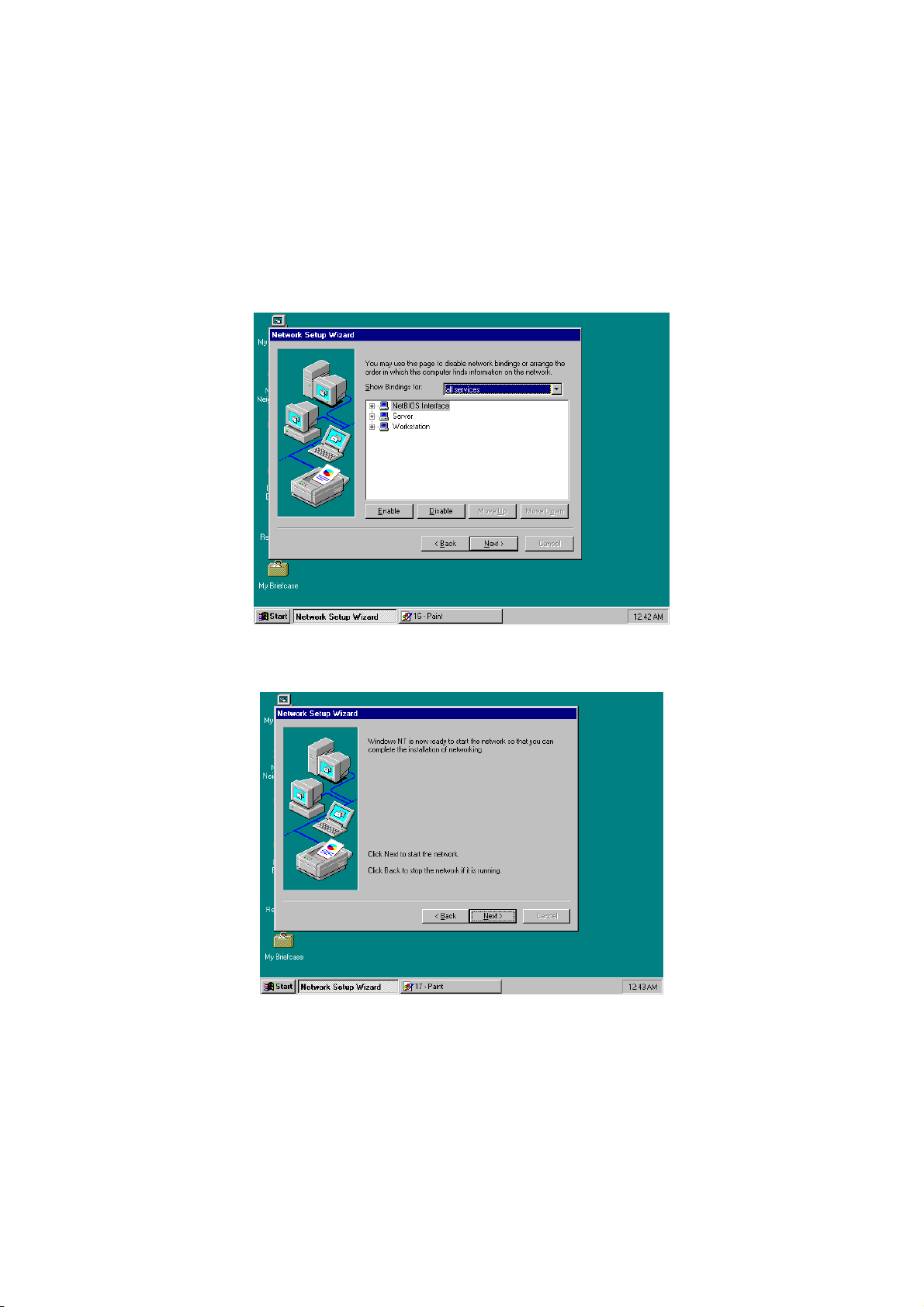

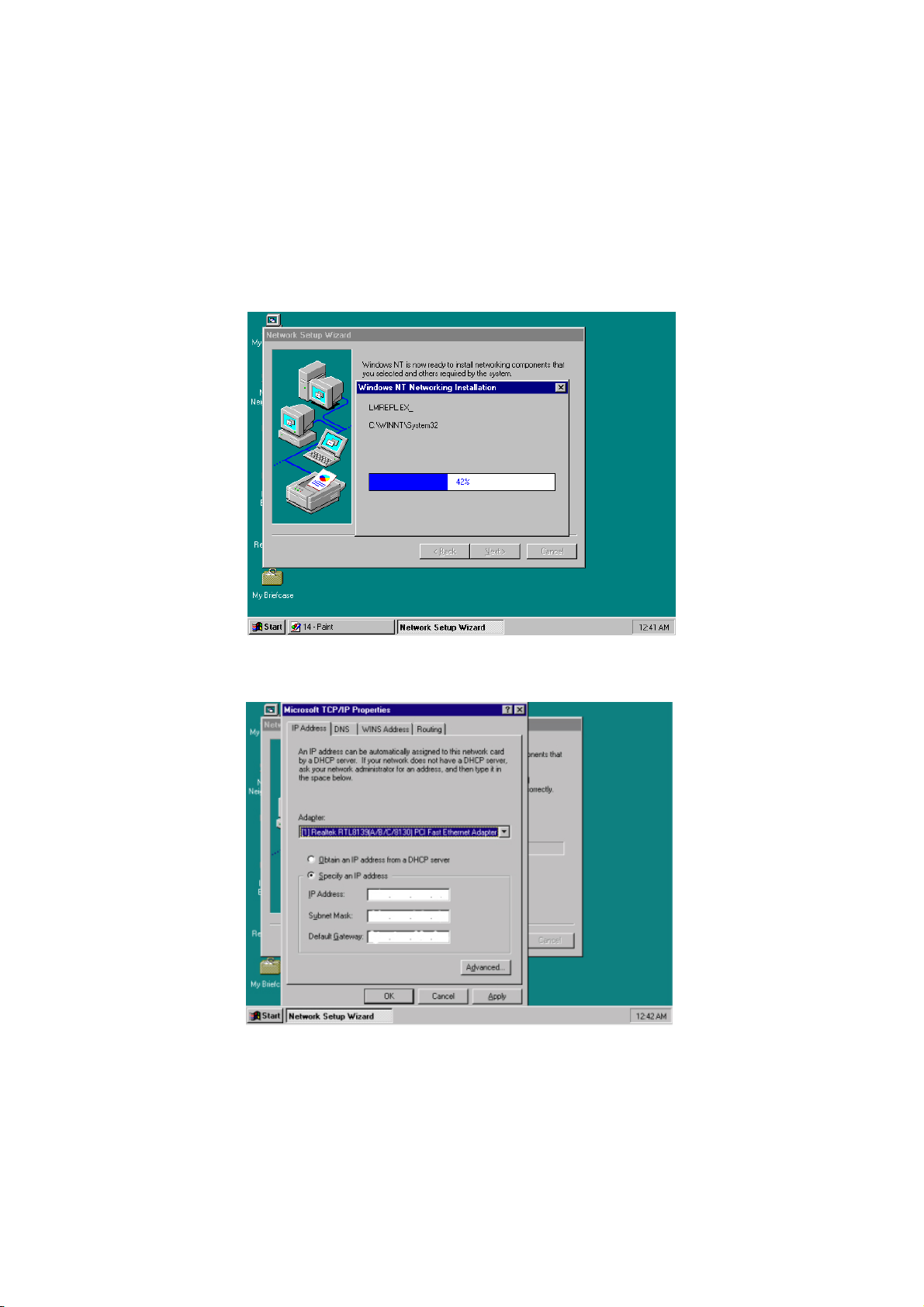

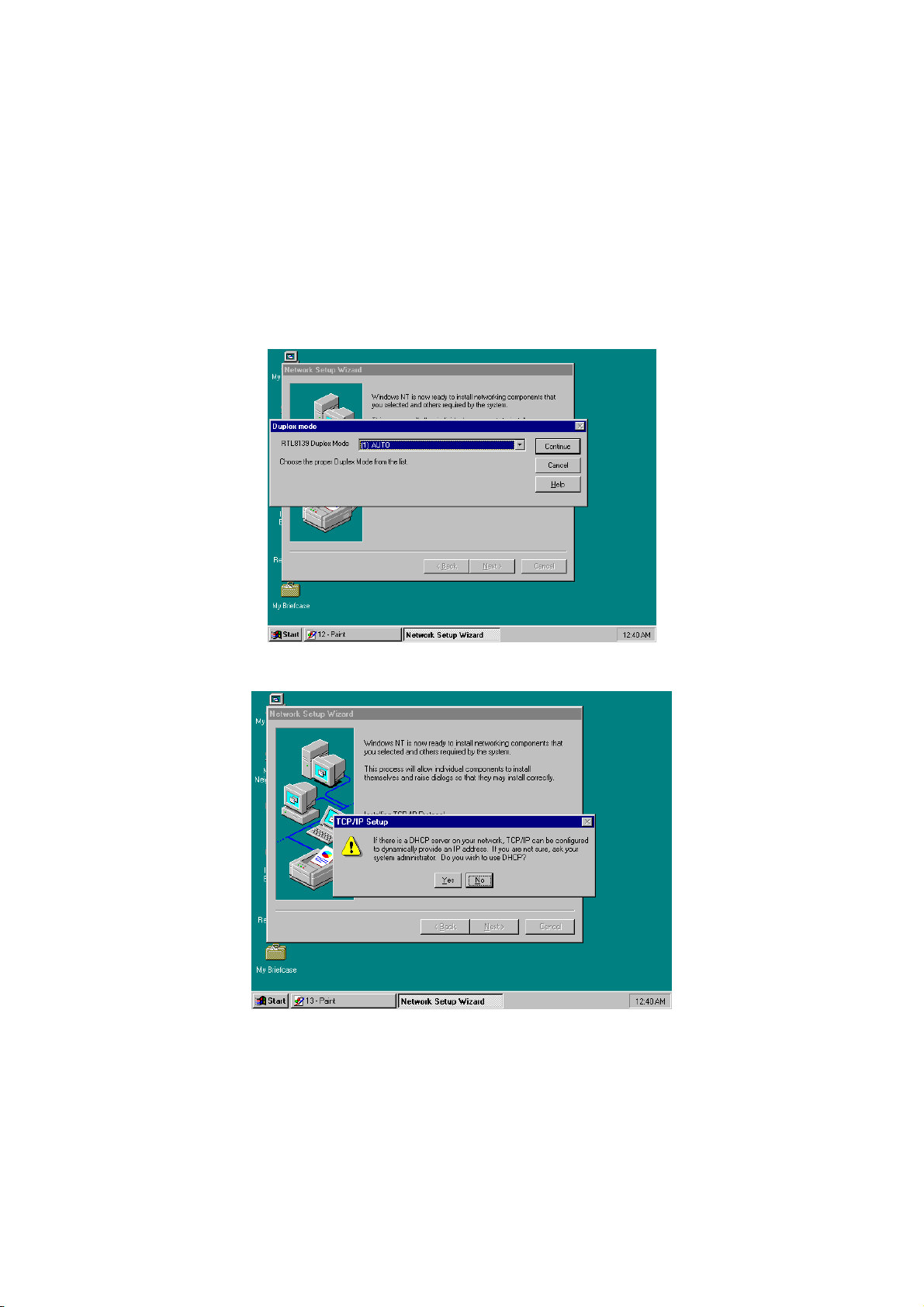

5.4.2 RTL8100 Driver Installation for WIN NT4.0....................................... 70
5.4.3 82559 Driver Installation for WIN 98................................................. 81

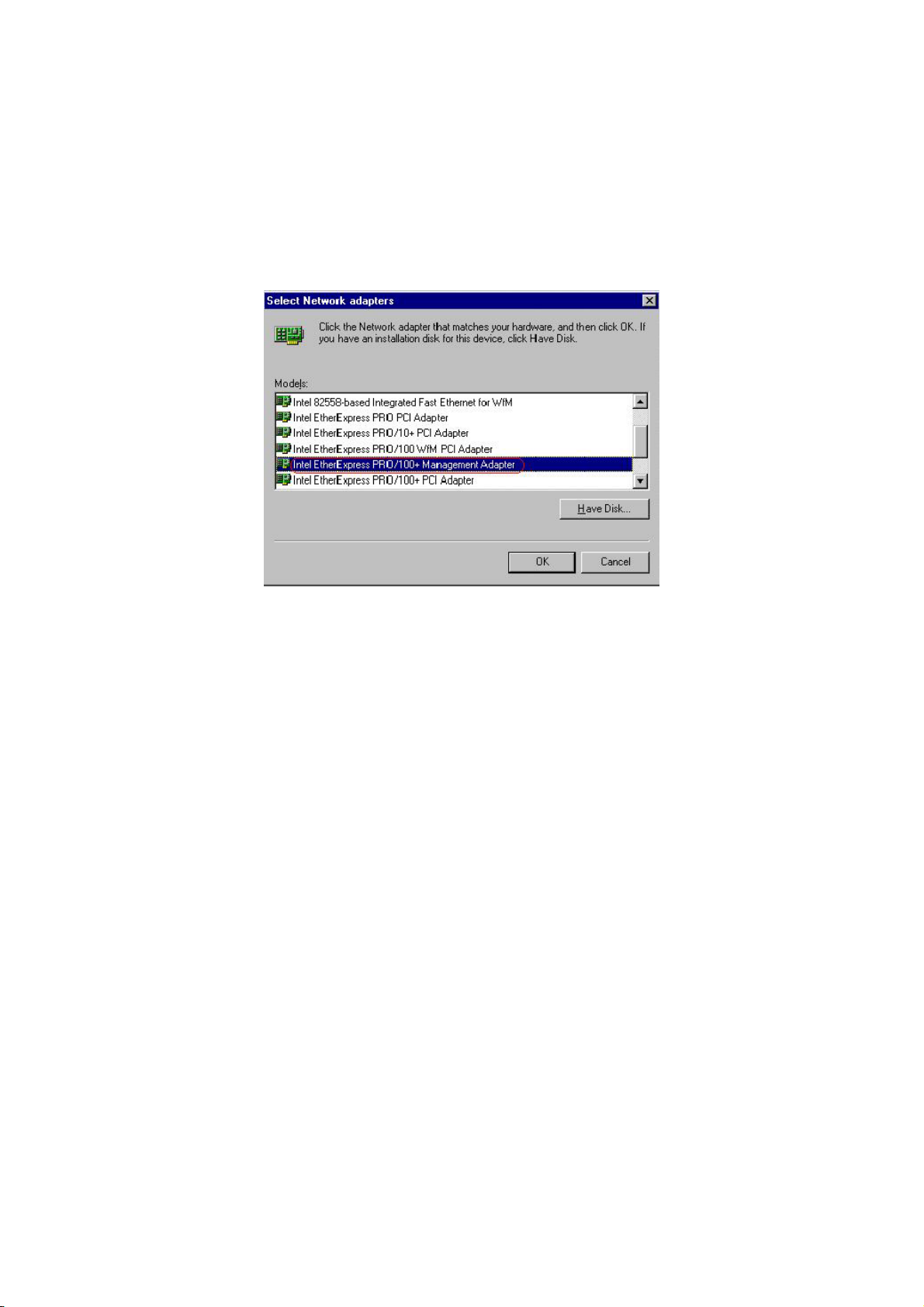

5.4.4 82559 Driver Installation for WIN NT4.0........................................... 82
Page 5
Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the HS-4650 to ensure
harmlessly discharge any static electricity through the strap.
Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE:
DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.
Page 6
Page 7

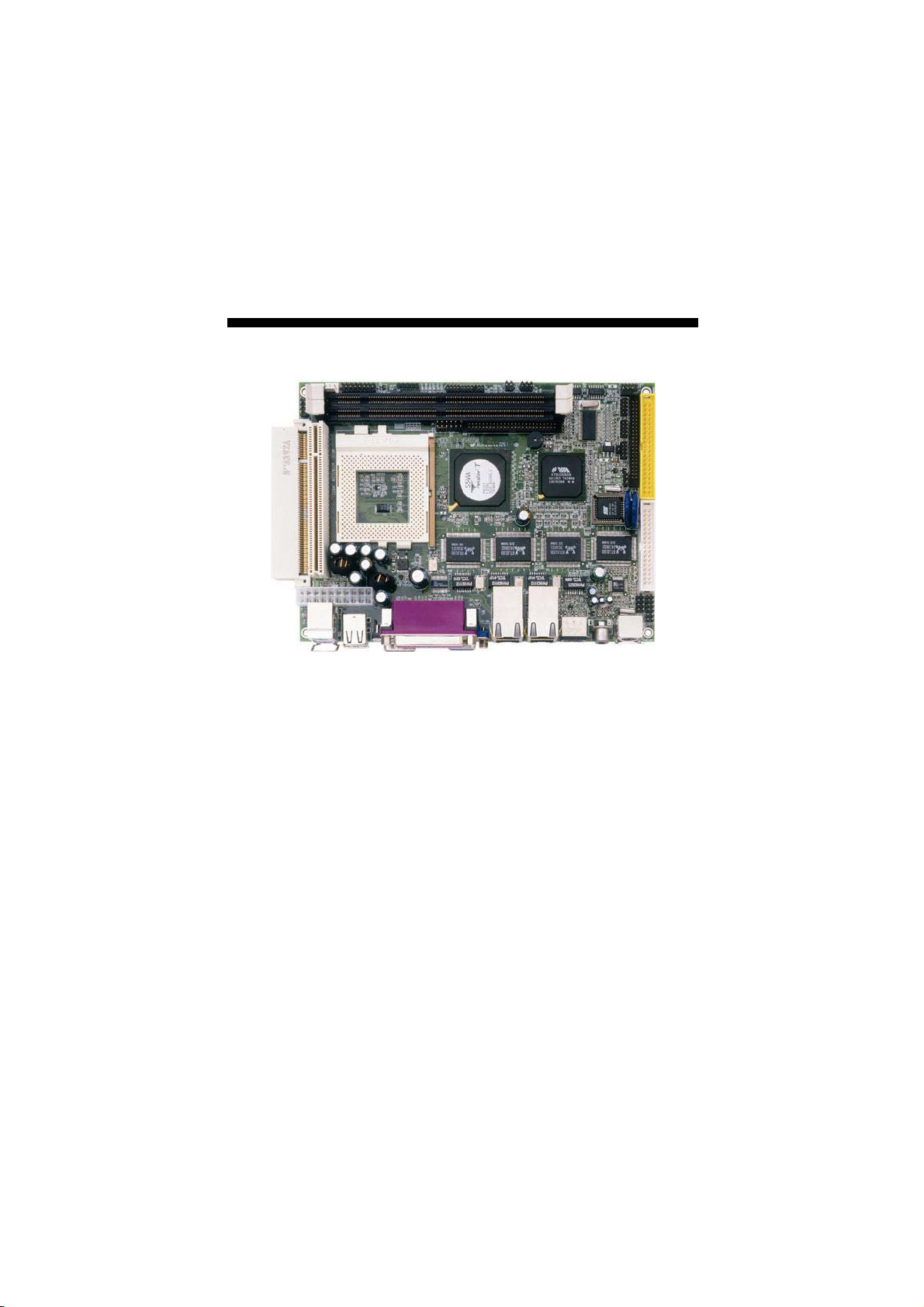

Chapter 1
General Description
The HS-4650 is a 133MHz FSB VIA VT8606 chipset-based board
designed for PCI Bus Socket 370 Intel® Celeron/Coppermine/Tualatin
and VIA C3 800MHz~1.3GHz CPU. These features combine and make
the HS-4650 an ideal all-in-one industrial single board computer.
Additional features include an enhanced I/O with CRT/Panel, four LAN,
audio, 4COM ports, and TV-Out interfaces.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-4650 to support data transfers of 33, 66 or 100MB/sec. to two
IDE drive connection. Designed with the VIA VT8606 core logic
chipset, the board supports Socket 370 Intel®
Celeron/Coppermine/Tualatin and VIA C3 800MHz~1.3GHz CPU. The
VIA VT8606 integrated S3 3D supporting CRT/Panel displays up to
1920 x 1440.
System memory is also sufficient with the two DIMM sockets that can
support up to 1GB.
Additional onboard connectors include two advanced USB ports
providing faster data transmission. And four external RJ-45 connectors
for 10/100 Based Ethernet use.
1
Page 8

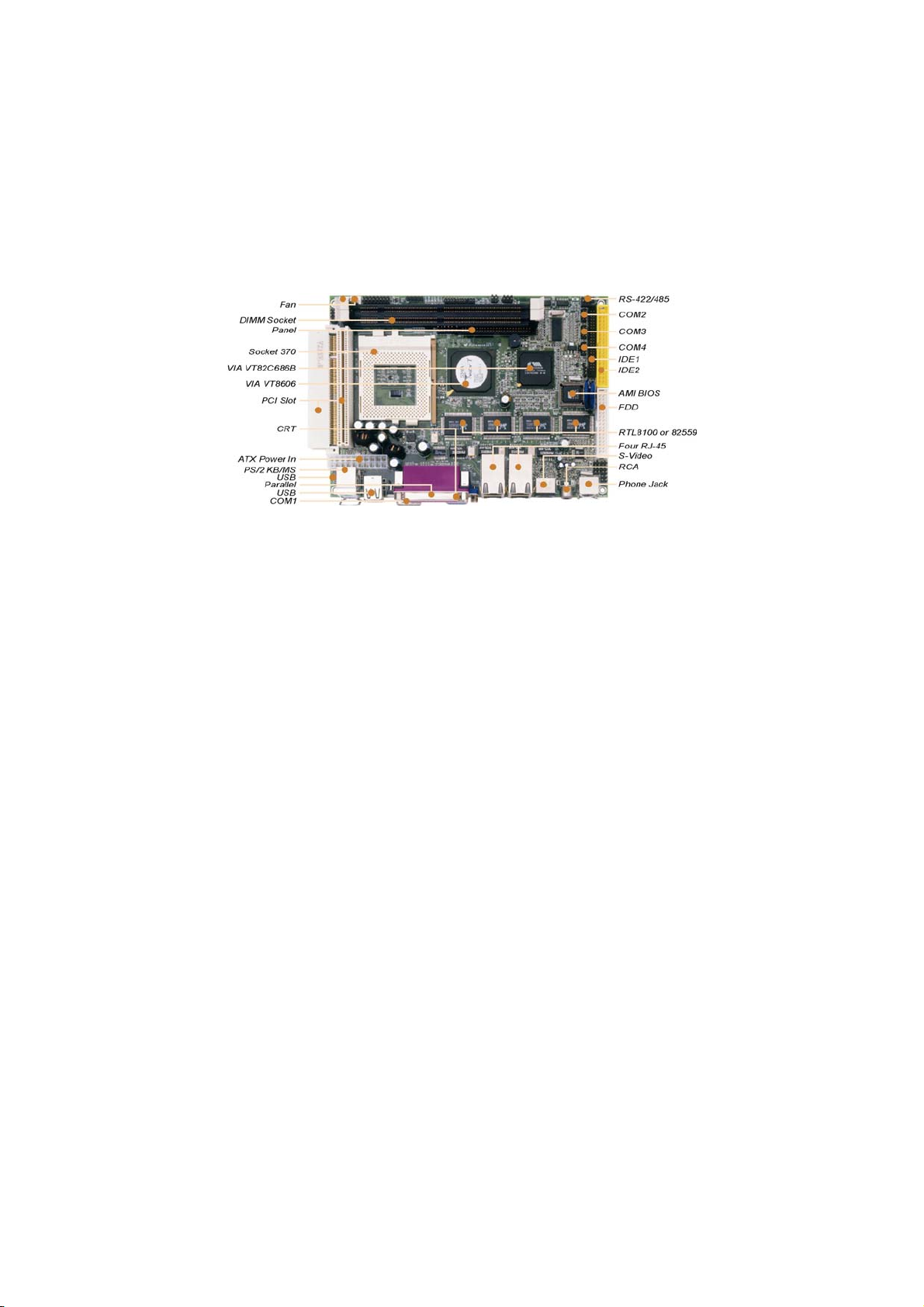

1.1 Major Features
The HS-4650 comes with the following features:
Socket 370 for Intel® Celeron/Coppermine/Tualatin and VIA C3
800MHz~1.3GHz CPU
VIA VT8606/VT82C686B system chipset
Supports 66/100/133MHz FSB
Two DIMM sockets with a max. capacity of 1GB
SMC 37E760, VIA VT82C686B super I/O chipset
One vertical and one horizontal PCI Slots
Fast PCI ATA/33/66/100 IDE controller
Three RS-232 and one RS-232/422/485 serial ports
VIA VT8606 CRT/Panel display controller
Four RealTek RTL8100 or Intel® 82559 (optional) 10/100 Based LAN
AC97 3D audio controller
Four USB connectors
Supports TV-Out function (optional)
Supports Hardware Monitor function
2
Page 9
1.2 Specifications
CPU: Socket 370 for Intel® Celeron/Coppermine/Tualatin and VIA C3
800MHz~1.3GHz CPU
Bus Interface: PCI Bus
Bus Clock Rate: 66/100/133MHz FSB
Memory: Two DIMM sockets supporting up to 1GB
Chipset: VIA VT8606/VT82C686B
I/O Chipset: SMC 37E760, VIA VT82C686B
PCI Slot:
Two standard PCI Slots, vertical x 1 and horizontal x 1
VGA: VIA VT8606 integrated S3 3D supporting CRT/Panel displays up
to 1920 x 1440
IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
FDD: Supports up to two floppy disk drives
Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
LAN: Four RealTek RTL8100 or Intel 82559 (optional) 10/100 Based
LAN
Audio:
AC97 3D audio controller
Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
IrDA: One IrDA TX/RX header
USB: Four USB connectors
TV-Out: Supports PAL or NTSC TV systems (optional)
Keyboard: PS/2 6-pin Mini DIN
Mouse: PS/2 6-pin Mini DIN
BIOS: AMI PnP Flash BIOS
CMOS: Battery backup
DMA Channels: 7
Interrupt Levels: 15
Power: Supports ATX power function
Operating Temperature: 0~+60°C
Hardware Monitor: VIA VT82C686B
Board Size: 20.33 x 14.6 cm
3
Page 10

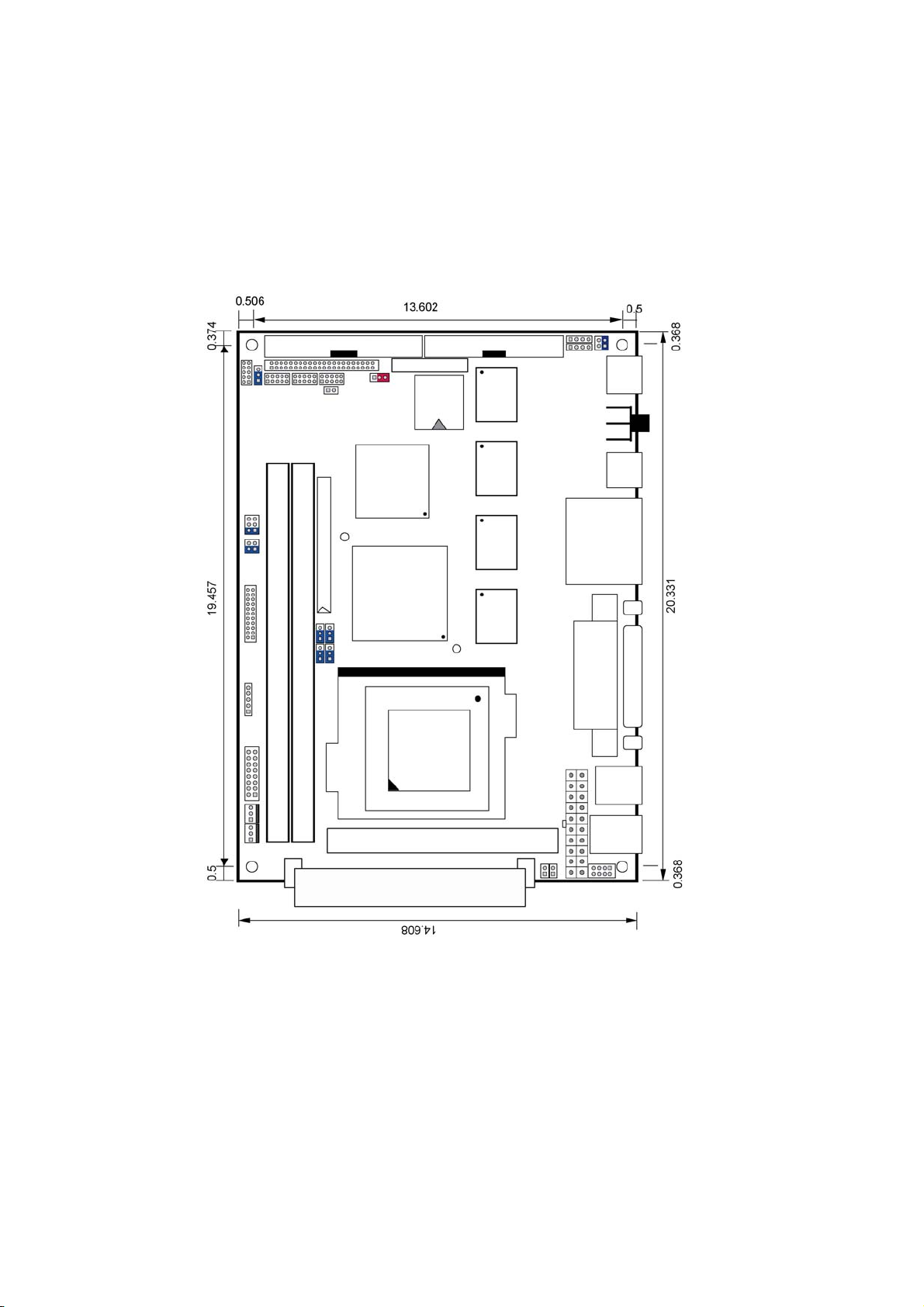

1.3 Board Dimensions
4
Page 11
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-4650 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-4650 delivery package
contains the following items:
HS-4650 Board x 1
Utility CD Disk x 1
ATA/100 IDE flat cable x 1
2.0m/m IDE transfer to 2.0m/m and 2.54m/m cable x 1
FDD flat cable x 1
One RS-232 COM Port cable x 3
8-pin USB split type cable x 1
Jumper Bag x 1
User’s Manual
5
Page 12
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
6
Page 13
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-4650. This chapter also contains information related to
jumper settings of switch, jumpers and connectors.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
7
Page 14
3.2 Board Layout
NOTE:
8
JP10/JP11/JP14/JP15 only for Intel 82559.
Page 15
3.3 Jumper List
Jumper
JP1~JP4 RS-232 Enabled/Disabled Select: Enabled Short 1-2 16
JP5
JP6
JP7
JP8 Panel Voltage Select: +3.3V Short 2-3 11
JP9 Clear CMOS: Normal Operation Short 1-2 20
JP10 LAN1 Enabled/Disabled Select: Enabled Short 1-2 19
JP11 LAN2 Enabled/Disabled Select: Enabled Short 1-2 19
JP12
JP13 CPU Host Clock Select: Auto Detect Open 10
JP14 LAN3 Enabled/Disabled Select: Enabled Short 1-2 19
JP15 LAN4 Enabled/Disabled Select: Enabled Short 1-2 19
CN19 Video/Audio Output Connector Short 1-2 25
RS-422/485 Receiver Enabled/Disabled
Select: Disabled
RS-422/485 Transceiver Enabled/
Disabled Select: Disabled
COM2 Use RS-232 or RS-422/485 Select:
RS-232
CPU Host Clock Select: Auto Detect Open 10
Default Setting Setting Page
Short 1-2 16
Short 1-2 16
Open 16
3.4 Connector List
Connector Definition Page
CN1/CN4
CN2 PS/2 6-pin Mini DIN KB/MS Connector 21
CN3 20-pin ATX Power In Connector 21
CN5 System Front Panel Connector 22
CN6 IrDA Connector 23
CN7
CN8 Digital I/O Connector 23
CN11 Dual RJ-45 Connector 19
CN10 50-pin Panel Connector 11
CN12 Video Jack Connector 25
CN13 RCA Connector 25
CN14 COM 2 Connector (5x2 header) 16
CN15 COM 3 Connector (5x2 header) 16
CN16 COM 4 Connector (5x2 header) 16
CN17 RS-422/485 Connector (5x2 header) 16
CN18 CD-In Connector 24
CN20 Line In Connector 24
USB Connector 20
COM1 Connector (DB9) 16
. . . More on next page . . .
9
Page 16
Connector Definition Page
CN21 LVDS Connector 11
DM1/DM2 168-pion DIMM Socket 10
FN1/FN2 Fan Power Connector 21
FD1 Floppy Connector 15
ID1/ID2 Primary/Secondary IDE Connectors 13
J1 MIC In/Audio Out Connector 24
LPT Parallel Connector 18
PC1/PC2
VGA 15-pin CRT Connector 11
PCI Expansion Slot 25
3.5 Configuring the CPU
The HS-4650 provides all necessary by jumper setting in using CPU
Host Clock as the system bus clocking with JP12 and JP13.
JP12, JP13: CPU Host Clock Select
Options JP12 JP13
66MHz Short Short
100MHz Open Short
133MHz (default) Open Open
The HS-4650 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-4650 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.
3.6 System Memory
The HS-4650 provides two DIMM sockets at locations DM1 and DM2.
The maximum capacity of the onboard memory is 1GB.
10
Page 17
3.7 VGA Controller
The HS-4650 provides three connection methods of a VGA device.
VGA offers a single standard CRT connector while CN10 is the 50-pin
panel connector and CN21 is the LVDS interface connector reserved
for flat panel installation.
VGA: 15-pin CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5
GND
6
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
CN21: LVDS Connector
PIN Description PIN Description
NOTE:
1 V
3 GND 4 GND
5 Y0M 6 Y0P
7 GND 8 Y1M
9
11 Y2M 12 Y2P
13 GND 14 YCM
15 YCP 16 GND
17 N/C 18 N/C
19
Please set the proper voltage of your panel using JP8 before
2 V
LCD
Y1P
GND
10
20
proceeding on installing it.
GND
LCD
GND
GND
GND
Y0M
GND
Y1P
Y2M
GND
YCP
N/C
GND
V
1
5
12
LCD
6
11
10
15
V
LCD
GND
Y0P
Y1M
GND
Y2P
YCM
GND
N/C
GND
2019
11
Page 18
CN10: 50-pin Panel Connector
PIN. Description PIN Description
1
3 GND 4 GND
5 3.3V / 5V
+12V
2
Note
6 ENAVDD
7 ENAVEE 8 GND
9 PD0 10 PD1
11
PD2
12
13 PD4 14 PD5
15 PD6 16 PD7
17 PD8 18 PD9
19 PD10 20 PD11
21 PD12 22 PD13
23 PD14 24 PD15
25 PD16 26 PD17
27 PD18 28 PD19
29 PD20 30 PD21
31 PD22 32 PD23
33 PD24 34 PD25
35 FPCLKOUT 36 FPVS
37
FPDEN
38
39 GND 40 LCDBL
41 PD26 42 PD27
43 PD28 44 PD29
45 PD30 46 PD31
47
PD32
48
49 PD34 50 PD35
+12V
PD3
FPHS
PD33
+12V
GND
3.3V/5V
ENAVEE
PD0
PD2
PD4
PD6
PD8
PD10
PD12
PD14
PD16
PD18
PD20
PD22
PD24
FPCLKOUT
FPDEN
GND
PD26
PD28
PD30
PD32
PD34
12
+12V
GND
ENAVDD
GND
PD1
PD3
PD5
PD7
PD9
PD11
PD13
PD15
PD17
PD19
PD21
PD23
PD25
FPVS
FPHS
LCDBL
PD27
PD29
PD31
PD33
PD35
5049
NOTE:
Please set the proper voltage of your panel using JP8 before
proceeding on installing it.
The HS-4650 has an onboard jumper that selects the working voltage
of the flat panel connected to the system. Jumper JP8 offers two
voltage settings for the user.
JP8: Panel Voltage Select
Options Settings
13
+5V Short 1-2
+3.3V (default) Short 2-3
VCC
+3.3V
3.3V/5V
12
Page 19
3.8 PCI E-IDE Drive Connector

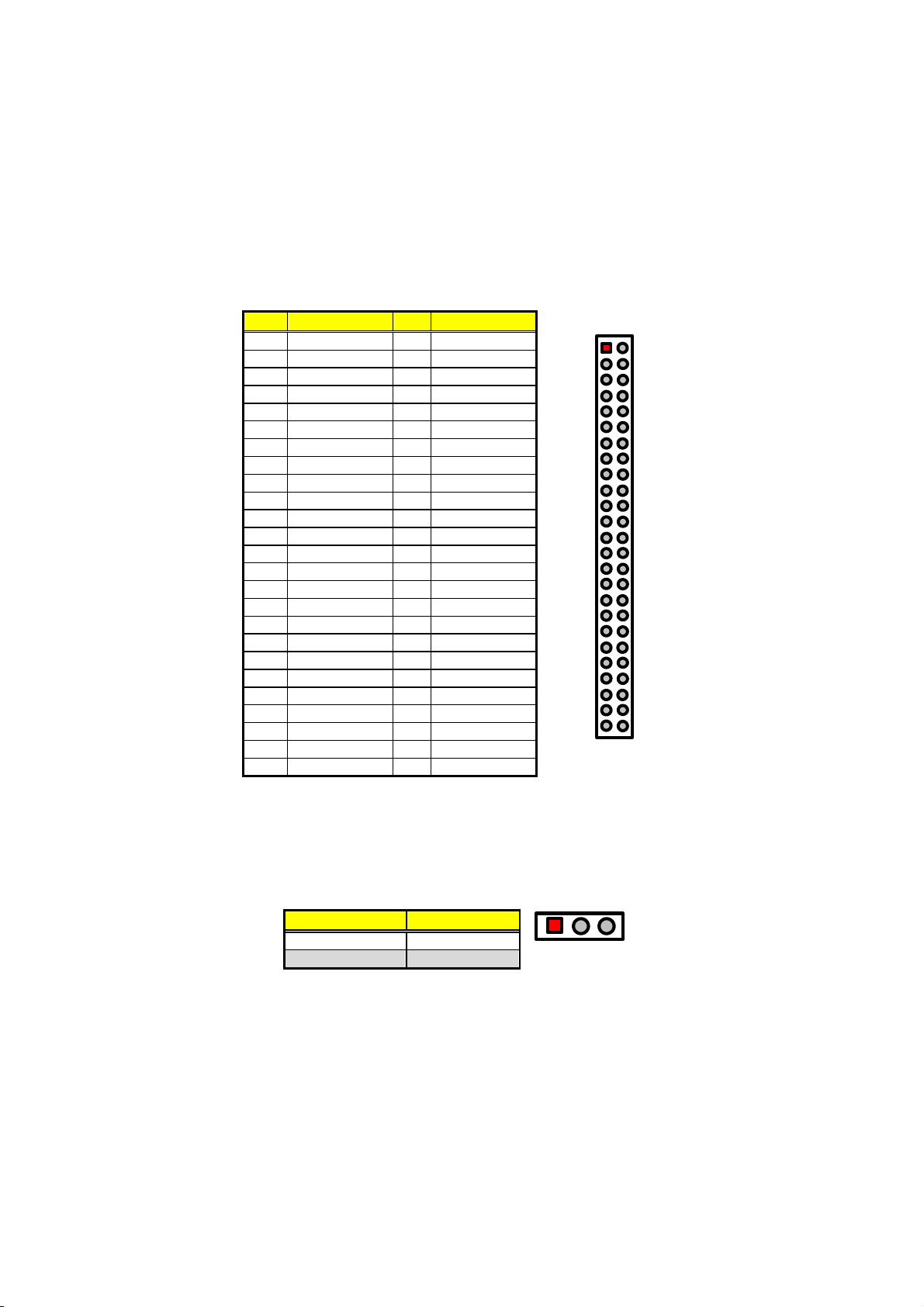

ID1 is a standard 44-pin 2.0mm pitch and ID2 is 40-pin 2.54mm pitch
connectors daisy-chain driver connector serves the PCI E-IDE drive
connection to HS-4650. A maximum of four ATA/33/66/100 IDE drives
can connect to the HS-4650 via ID1 and ID2.

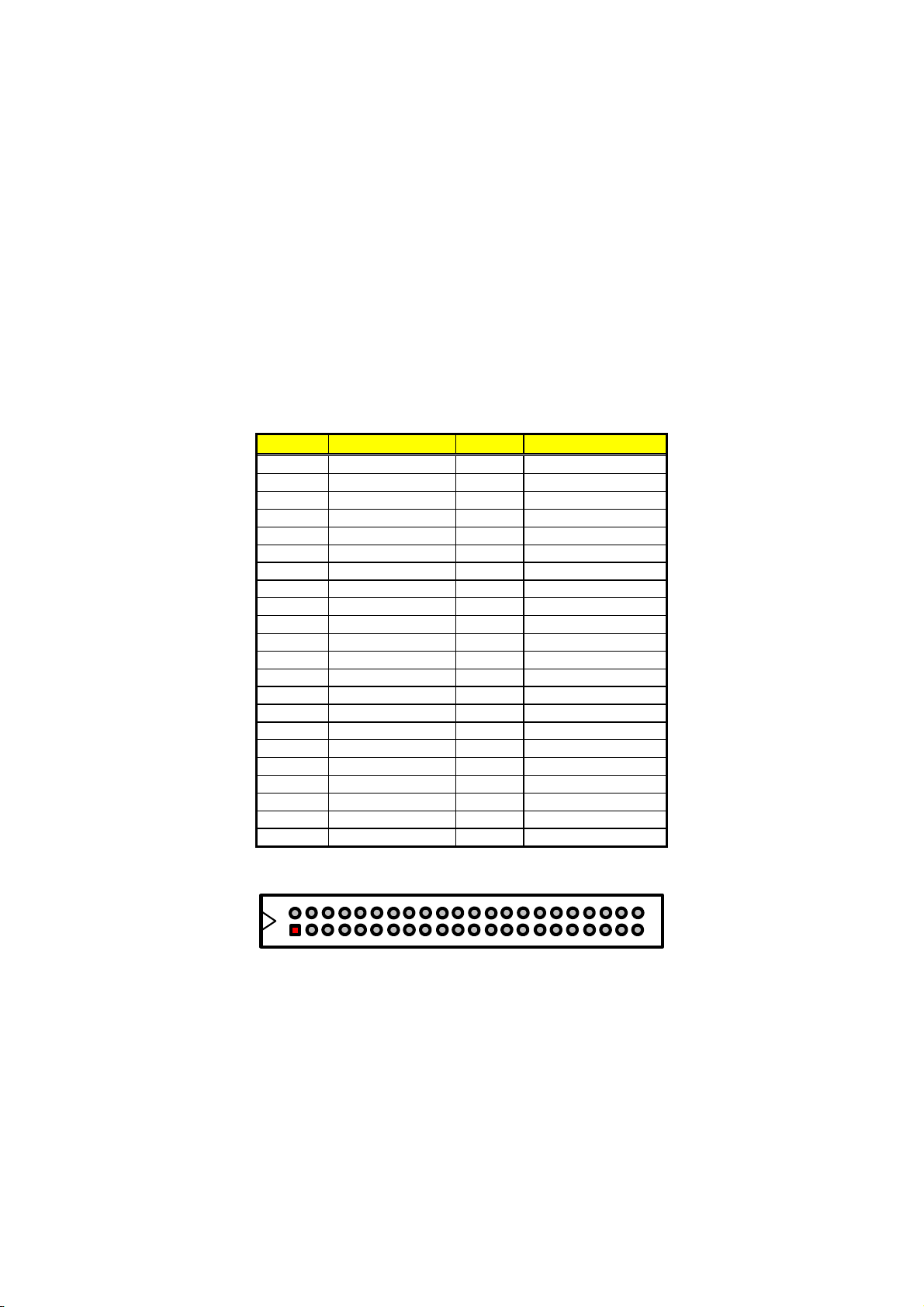

ID1: Primary IDE Connector
PIN Description PIN Description
1 Reset 2 GND
3
DATA 7
4
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 PDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/c
33 RPDA1- 34 PATA 66
35 RPDA0- 36 RPDA2-
37 RPCS1- 38 RPCS3-
39
HDD Active
40
41 VCC 42 VCC
43 GND 44 GND
DATA 8
GND
GND
DATA 8
DATA 9
DATA 10
DATA 11
DATA 12
2
1
Reset
DATA 7
DATA 6
DATA 5
DATA 4
DATA 3
DATA 13
DATA 2
DATA 14
DATA 1
DATA 15
DATA 0
N/C
GND
GND
PDREQ
GND
IOW#
GND
IOR#
PR1PD1-
GND
PIORDY
RPDACK-
N/C
Interrupt
PATA 66
RPDA1-
RPDA2-
RPCS3-
GND
VCC
GND
44
43
VCC
HDD ACTIVE
GND
RPDA0-
RPCS1-
13
Page 20
ID2: Secondary IDE Connector
PIN Description PIN Description
1 Reset 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 PDREQ 22 GND
23 IOW# 24 GND
25
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/C
33 RPDA1- 34 PATA 66
35
37 RPCS1- 38 RPCS3-
39 HDD Active 40 GND
IOR#
RPDA0-
26
36
GND
RPDA2-
14
GND
DATA 8
DATA 9
DATA 10
DATA 11
DATA 12
2
1
Reset
DATA 7
DATA 6
DATA 5
DATA 4
DATA 3
DATA 13
DATA 2
DATA 14
DATA 1
DATA 15
DATA 0
N/C
GND
GND
GND
IOW#
PDREQ
GND
IOR#
PR1PD1-
PIORDY
GND
RPDACK-
N/C
Interrupt
RPDA1-
PATA 66
RPDA2-
RPDA0-
RPCS3-
RPCS1-
GND
40
39
HDD ACTIVE
Page 21

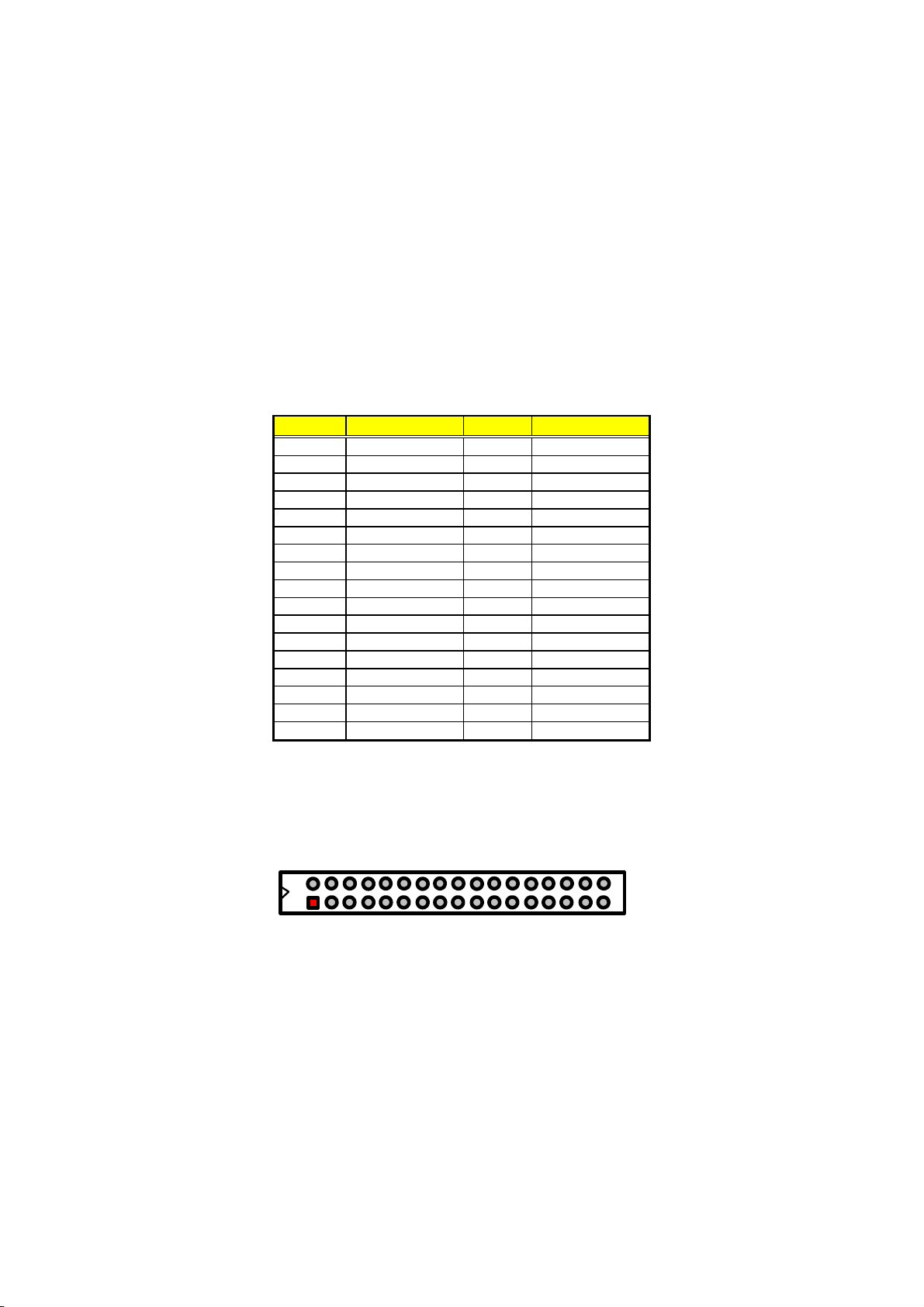

3.9 Floppy Disk Drive Connector
The HS-4650 uses a standard 34-pin header connector, FD1, for
floppy disk drive connection. A total of two FDD drives may be
connected to FD1 at any given time.
FD1: Floppy Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11
GND
12
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21
GND
22
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31
GND
32
33 GND 34 DSKCHG#
DS1#
WDATA#
HDSEL#
DRVDEN0
N/C
DRVDEN1
INDEX#
MTR0#
DS1#
DS0#
MTR1#
DIR#
STEP#
WDATA#’WGATE#
TRAK00#
WRTPRT#
RDATA#
HDSEL#
DSKCHG#
2
u
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
34
33
GND
GND
15
Page 22

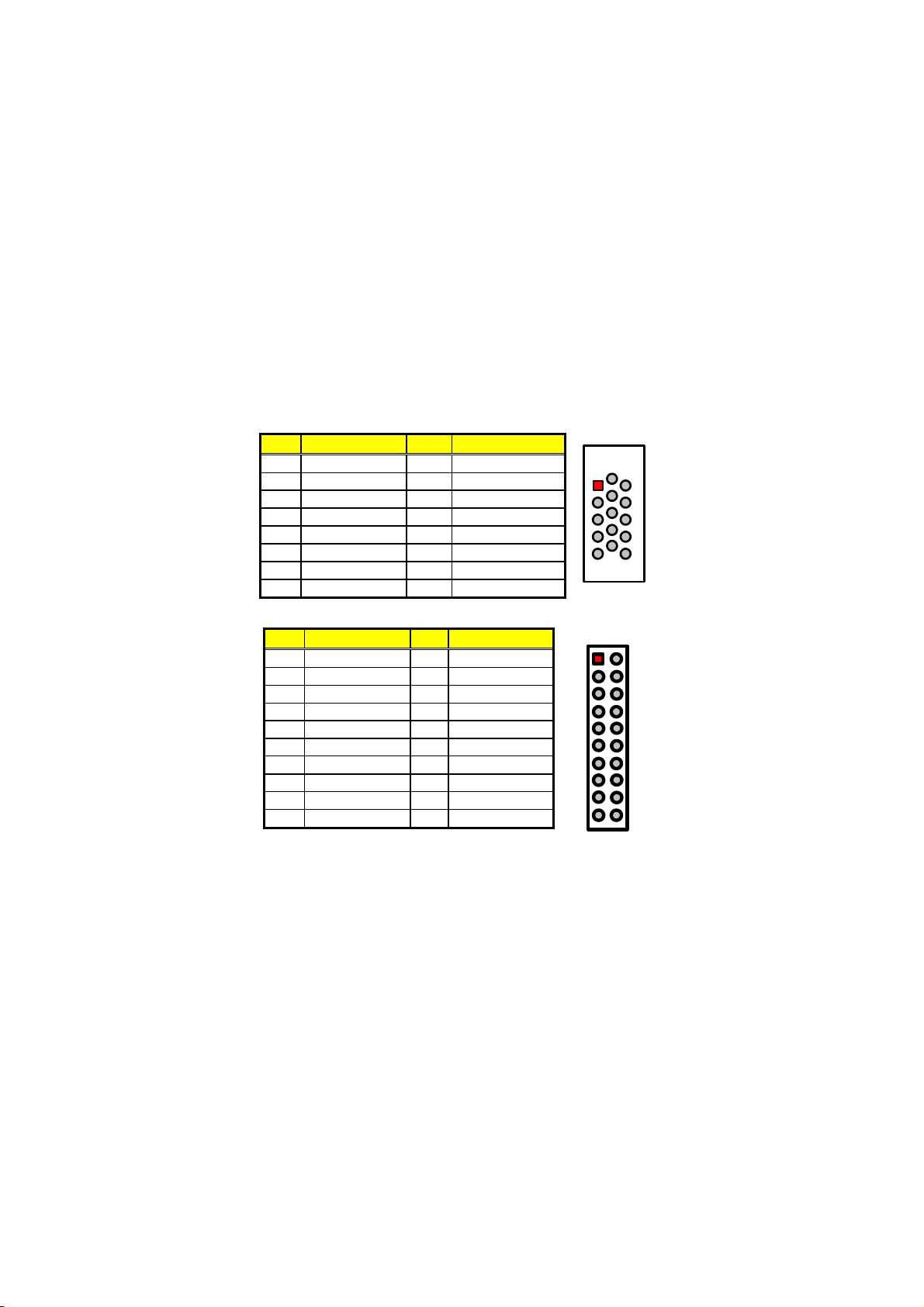

3.10 Serial Port Connectors
The HS-4650 offers two NS16C550 compatible UARTs with
Read/Receive 16-byte FIFO serial ports and three internal 10-pin
headers, one DB9 connector, and one RS-422/485 connector.
CN7: COM1 Connector (DB9)
PIN Description PIN Description
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTX1 8 CTX1
9 RI1
CN14: COM2 Connector (5x2 Header)
PIN Description PIN Description
1 DCD2 2 DSR2
3
RXD2
4
5 TXD2 6 CTX2
7 DTR2 8 RI2
9 GND 10 N/C
CN15: COM3 Connector (5x2 Header)
PIN Description PIN Description
1 DCD3 2 DSR3
3 RXD3 4 RTX3
5 TXD3 6 CTX3
7 DTR3 8 RI3
9 GND 10 N/C
RTX2
DCD2
RXD2
TXD2
DTR2
GND
DCD3
RXD3
TXD3
DTR3
GND
GND
DTR1
TXD1
RXD1
DCD1
5
16
1
3
5
7
9
1
3
5
7
9
9
RI1
CTX1
RTX1
DSR1
DSR2
2
RTX2
4
CTX2
6
RI2
8
N/C
10
DSR3
2
RTX3
4
CTX3
6
RI3
8
N/C
10
16
Page 23

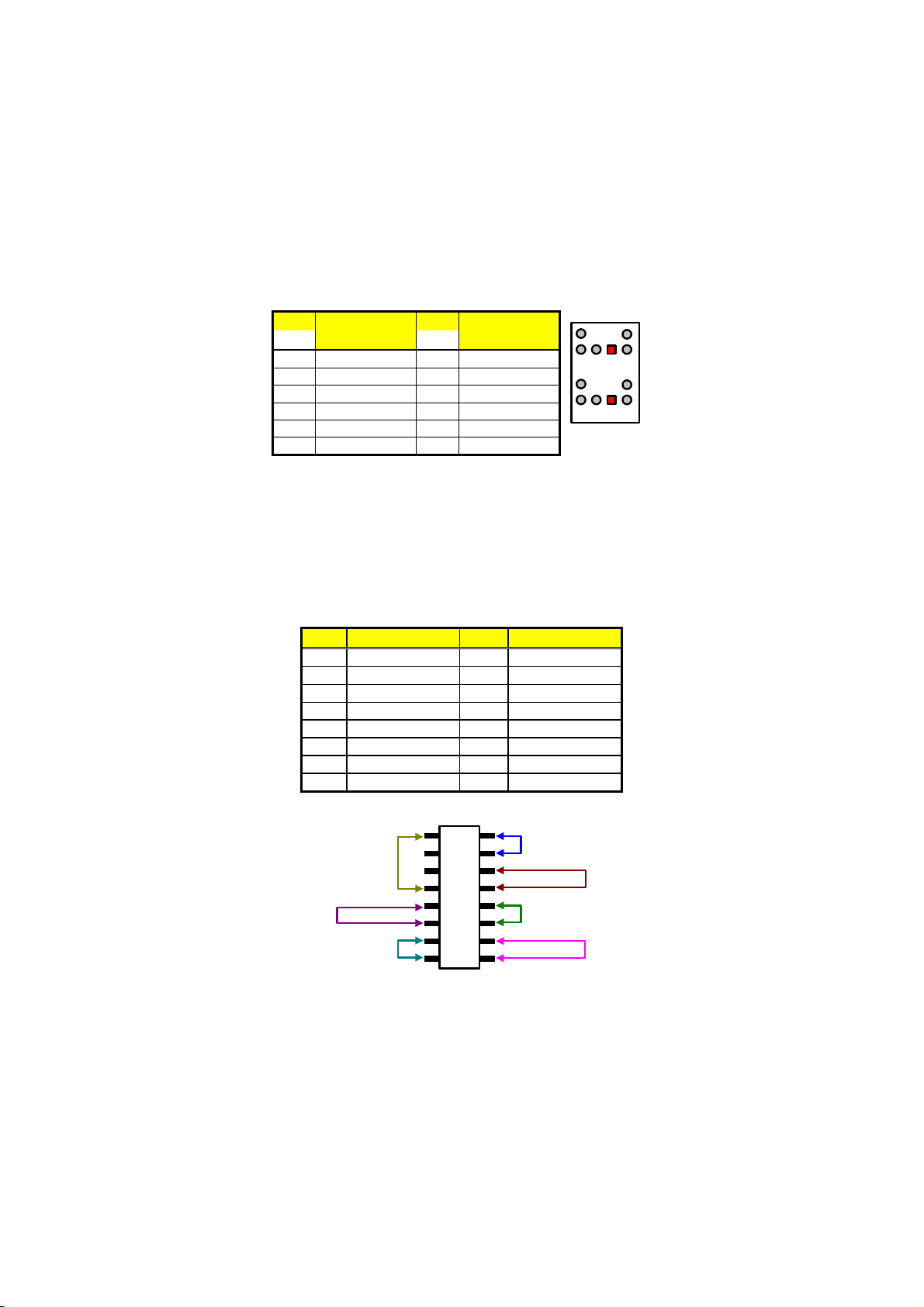

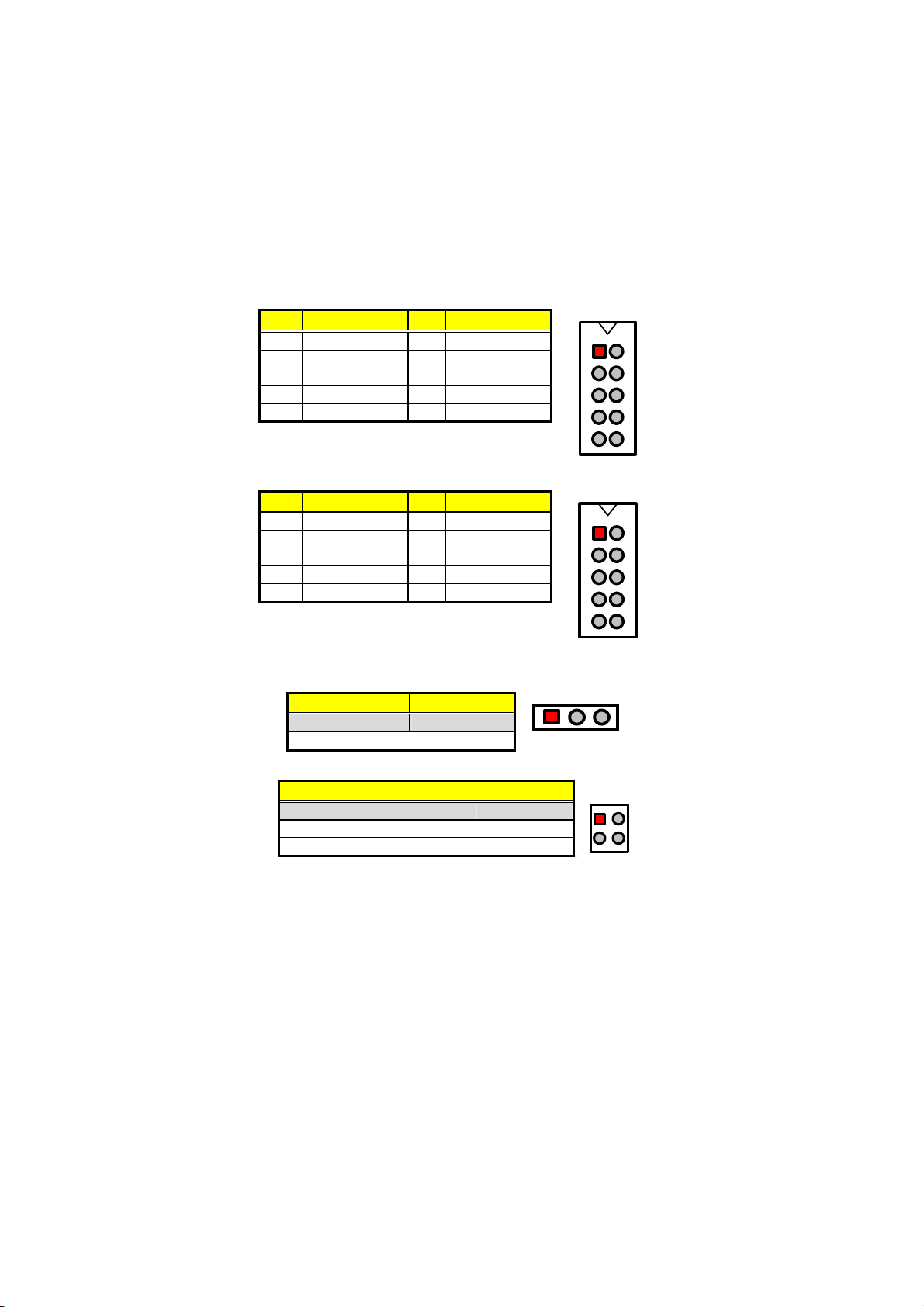

CN16: COM4 Connector (5x2 Header)
PIN Description PIN Description
1 DCD4 2 DSR4
3 RXD4 4 RTX4
5 TXD4 6 CTX4
7 DTR4 8 RI4
9 GND 10 N/C
CN17: RS-422/485 Connector (5x2 Header)
PIN Description PIN Description
1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 RTX-
7
RTX+
8
CTX+
9 CTX- 10 N/C

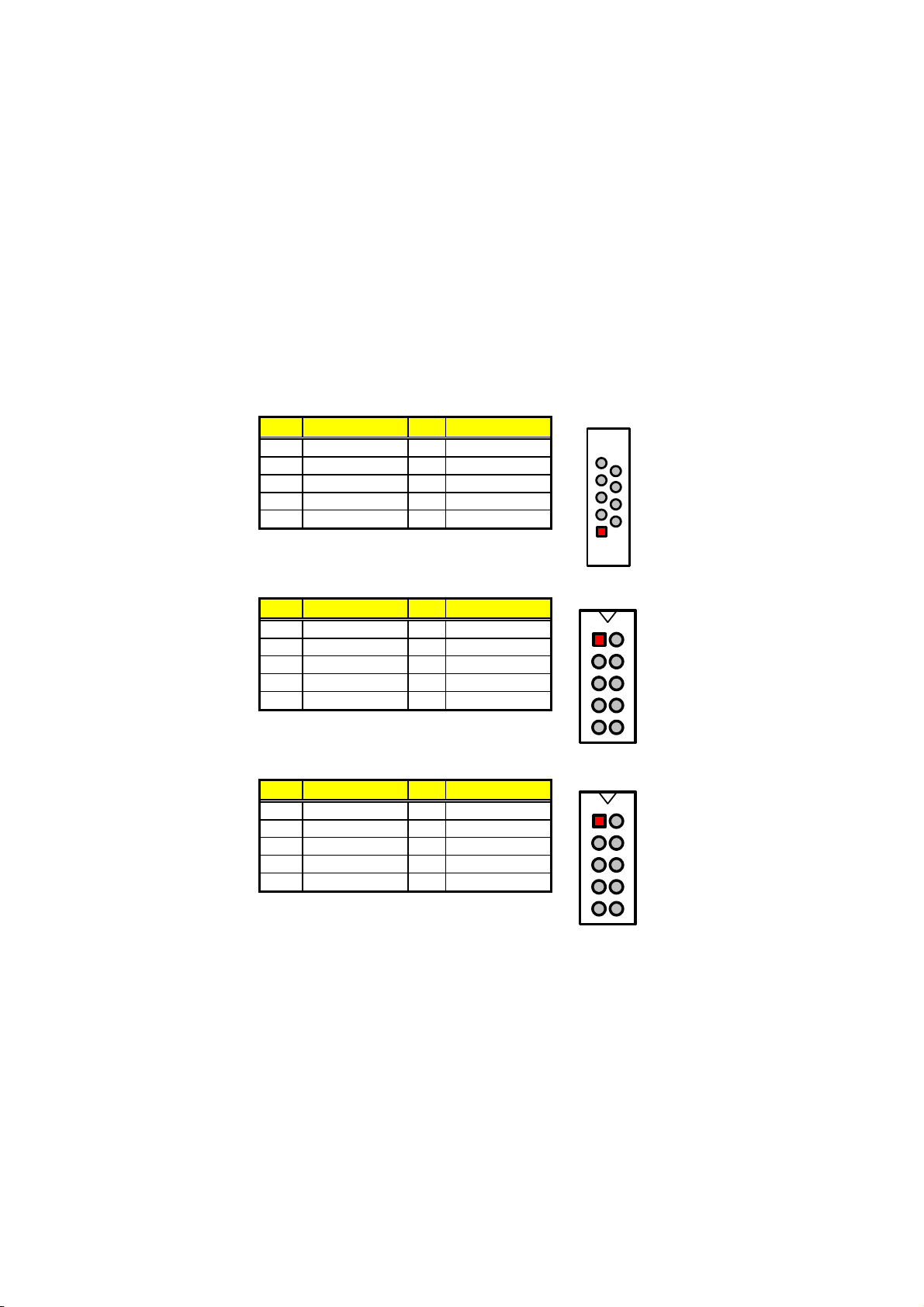

NOTE:
The terminal resistance of RX & TX is set in 180
JP1~JP4: COM2 use RS-232 or RS-422/485 Select
Options Settings
RS-232 (default)
Short 1-2
13
RS-422/485 Short 2-3
JP5: RS-422/485 Receiver Enabled/Disabled Select
Options Settings
Always Enabled (default) Short 1-2
Enable by “-RTS“ Signal Short 3-4
Always Disabled All Open
DCD4
RXD4
TXD4
DTR4
GND
TX-
RX+
GND
RTX+
CTX-
DSR4
2
1
RTX4
4
3
CTX4
6
5
8
7
9
RI4
10
N/C
TX+
2
1
RX-
4
3
RTX-
6
5
CTX+
8
7
N/C
10
9
.
Ω
1
2
4
3
17
Page 24

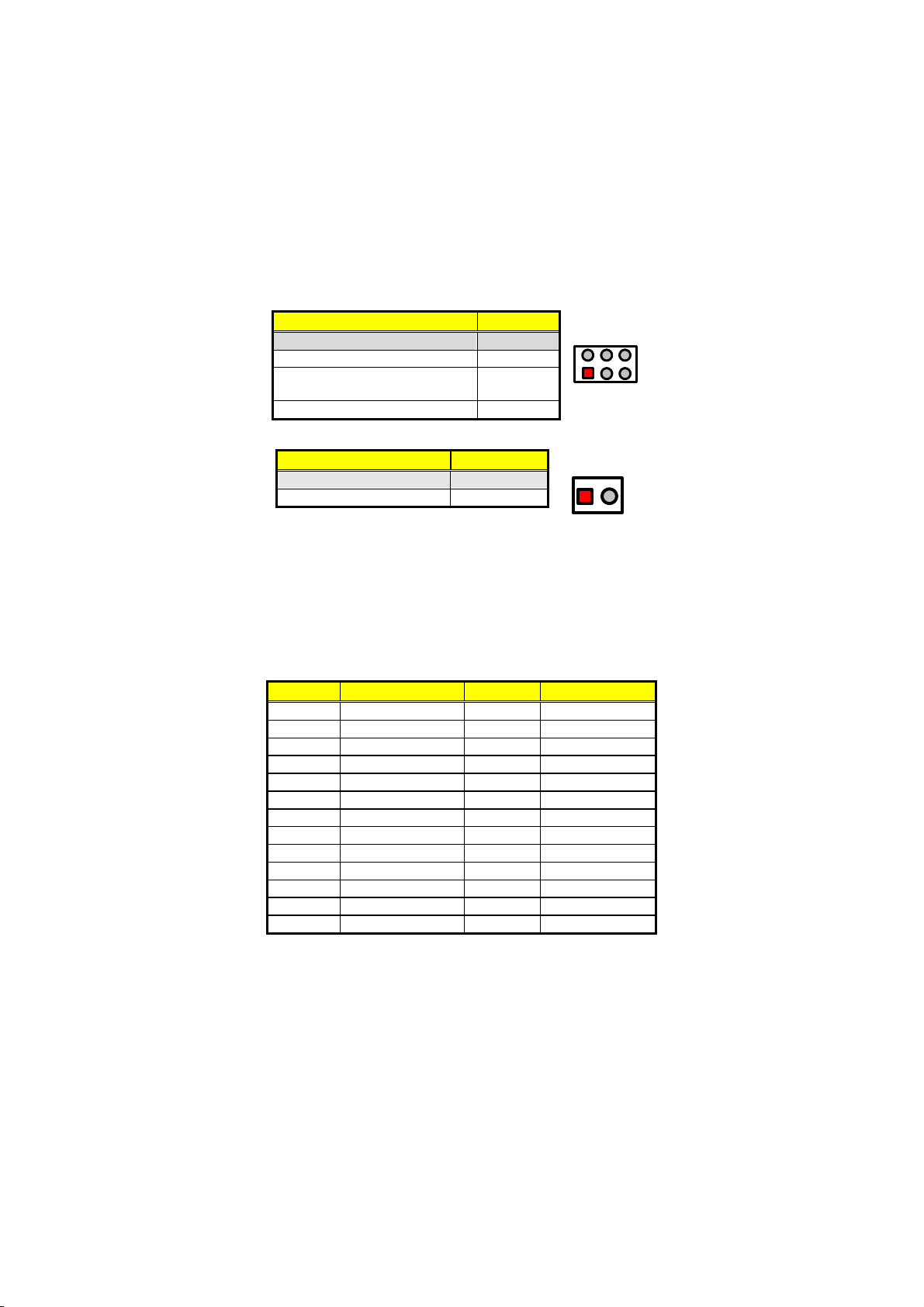

JP6: RS-422/485 Transceiver Enabled/Disabled Select
Options Settings
Short 1-2
Short 5-6
2
1
1 2
6
5
Always Enabled (default)
Enable by “-RTS“ Signal Short 3-4
Enable by writing the REG:2
EFH BIT0=1
Always Disabled All Open
JP7: COM2 use RS-232 or RS-422/485 Select
Options Settings
RS-232 (default) Open
RS-422/485 Short
NOTE:
RS-422/485 port use COM2. RS-232 of COM2 cannot be used
while RS-422/485 enable.

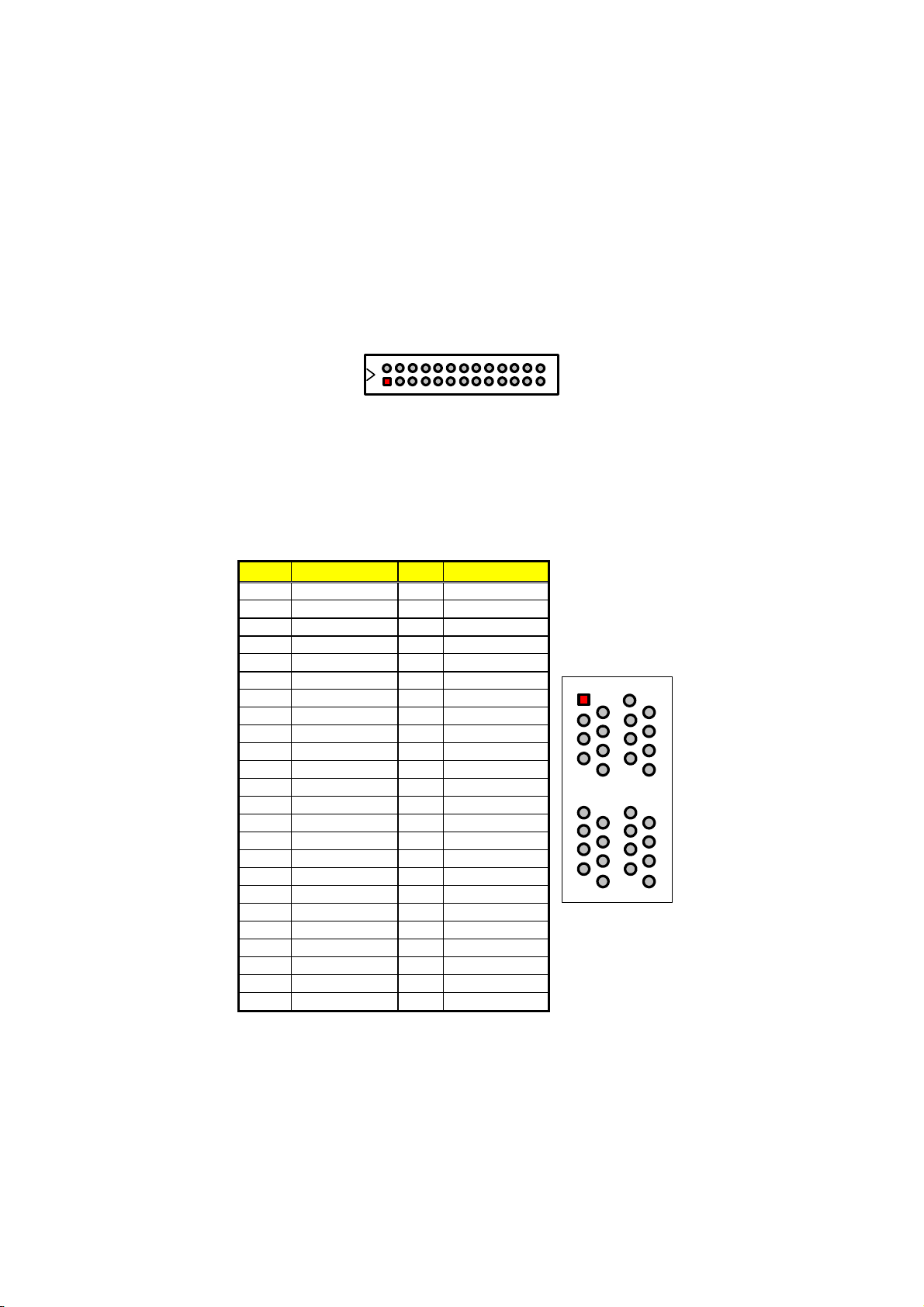

3.11 Parallel Connector
LPT is a standard 26-pin flat cable connector deigned to accommodate
parallel port connection to HS-4650.
LPT: Parallel Connector
PIN Description PIN Description
1 Strobe 14 Auto Form Feed
2 DATA 0 15 ERROR#
3 DATA 1 16 Initialize
4 DATA 2 17 Printer Select LN#
5
6 DATA 4 19 GND
7 DATA 5 20 GND
8 DATA 6 21 GND
9 DATA 7 22 GND
10
11 Busy 24 GND
12 Paper Empty 25 GND
13 Printer Select 26 GND
DATA 3
Acknowledge
18
23
GND
GND
18
Page 25
Auto Form Feed
ERROR#
Initialize
Printer Select LN#
GND
GND
GND
GND
GND
GND
GND
GND
GND
14
1
26
13
Strobe
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
Busy
DATA6
DATA7
Paper Empty
Acknowledge
Printer Select
3.12 Ethernet Connector
The HS-4650 provides two external dual RJ-45 interface connectors.
Please refer to the following for its pin information.
CN11: RJ-45 Connector
PIN Description PIN Description
1
TX+
2
3 RX+ 4 N/C
5 N/C 6 RX-
7 N/C 8 N/C
9 1LED1 10 VDD3
11 1LED0 12 VDD3
13 TX+ 14 TX-
15 RX+ 16 N/C
17 N/C 18 RX-
19 N/C 20 N/C
21 2LED1 22 VDD3
23 2LED0 24 VDD3
25
TX+
26
27 RX+ 28 N/C
29 N/C 30 RX-
31 N/C 32 N/C
33 3LED1 34 VDD3
35 3LED0 36 VDD3
37 TX+ 38 TX-
39
RX+
40
41 N/C 42 RX-
43 N/C 44 N/C
45 4LED1 46 VDD3
47 4LED0 48 VDD3
TX-
TX-
N/C
1
20
2
19
7
14
8
13
25
44
26
31
32
43
38
37
19
Page 26

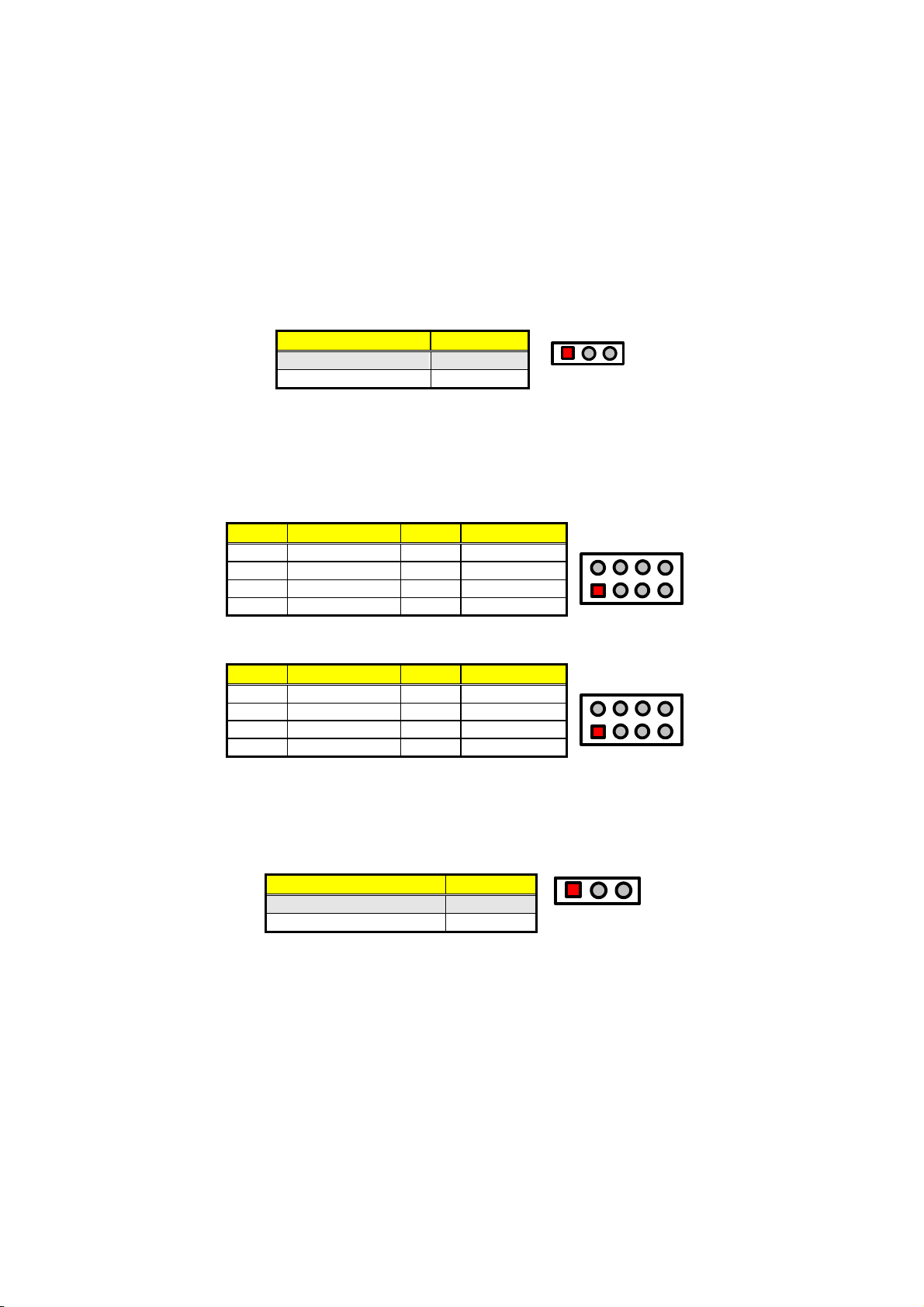

JP10/JP11/JP14/JP15: LAN1/LAN2/LAN3/LAN4 Enabled/
Disabled Select (for Intel 82559 only)
Options Settings
Enabled (default)
Disabled Short 2-3
Short 1-2
13
3.13 USB Connector
The HS-4650 provides one 8-pin and two external connectors, at
locations CN1 and CN4, for four USB connections to the HS-4650.
CN1: USB Connector
PIN Description PIN Description
1 VCC 2 VCC
3 BD2- 4 BD3-
5 BD2+ 6 BD3+
7 GND 8 GND
CN4: USB Connector
PIN Description PIN Description
1 VCC 2 VCC
3 BD0- 4 BD1-
5
BD0+
6
BD1+
7 GND 8 GND
VCC
BD3-
2
1
VCC
BD2-
VCC
BD1-
2
1
VCC
BD0-
BD3+
BD2+
BD1+
BD0+
GND
8
7
GND
GND
8
7
GND
3.14 CMOS Data Clear
The HS-4650 has a Clear CMOS jumper on JP9.
JP9: Clear CMOS
Options Settings
Normal Operation (default) Short 1-2
Clear CMOS Short 2-3
IMPORTANT:
Before you turn on the power of your system, please
set JP9 to Short 1-2 for normal operation.
20
13
VCC3
GND
VBAT
Page 27

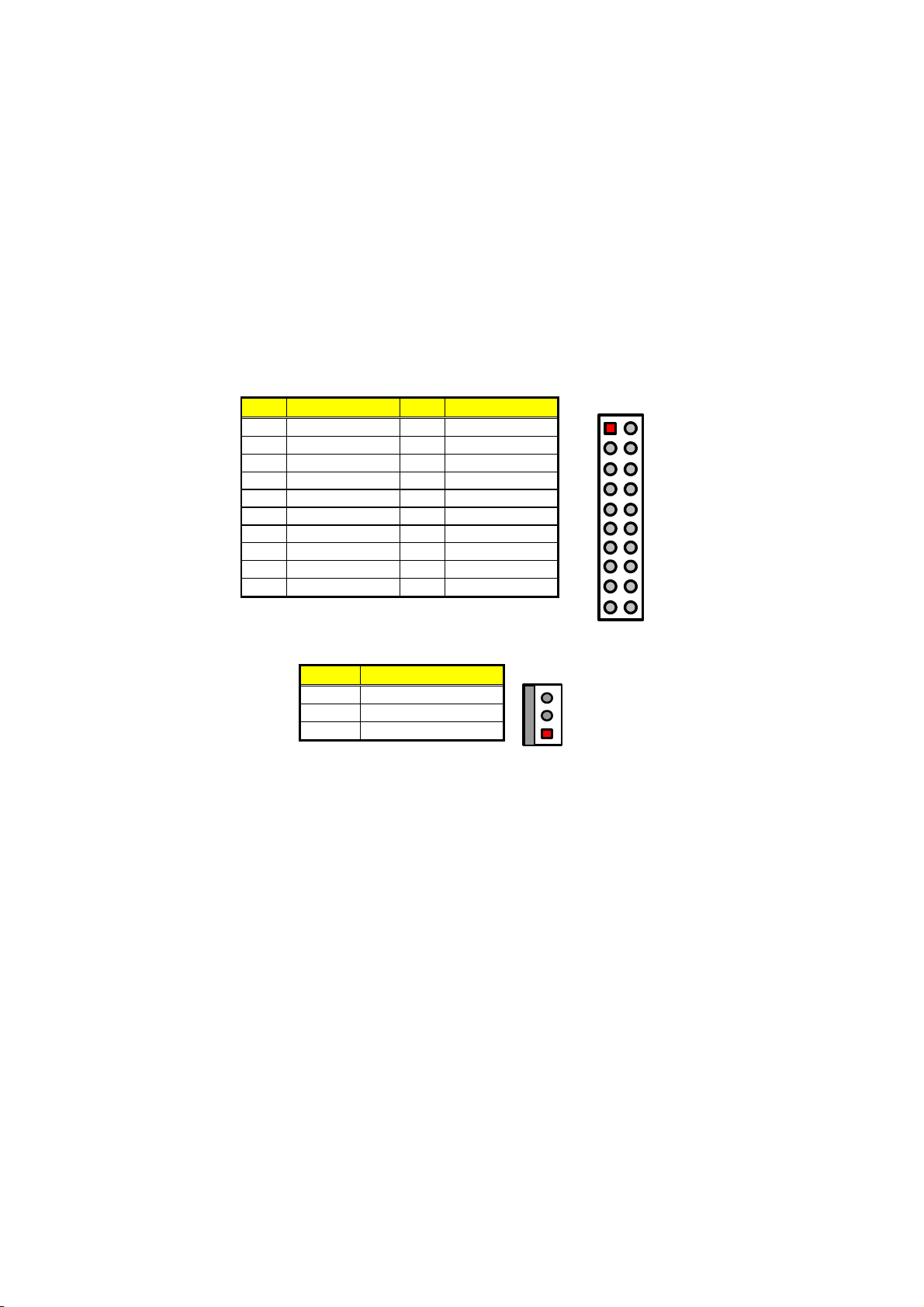

3.15 Power and Fan Connectors
HS-4650 provides one 20-pin power connectors at CN3.And two 3-pin
fan power in at FN1 and FN2.
CN3: 20-pin ATX Power In Connector
3.3V
3.3V
GND
+5V
GND
+5V
GND
N/C
5VSB
+12V
GND
+12V
CPU Fan
111
10 20
3.3V
-12V
GND
PS_ON
GND
GND
GND
-5V
+5V
+5V
PIN Description PIN Description
1 3.3V 11 3.3V
2 3.3V 12 -12V
3
GND
13
GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8
PW_OK
18
-5V
9 5VSB 19 +5V
10 +12V 20 +5V
FN1, FN2: Fan Power Connector
PIN Description
3
1 CPU Fan1/2
2
+12V
3 GND
1
Connector FN1 and FN2 onboard HS-4650 are 3-pin fan power output
connectors.
3.16 Keyboard and Mouse Connectors
The HS-4650 offers one possibility for keyboard and mouse
connections. The connections are via CN2 for an external PS/2 type
keyboard and mouse.
21
Page 28
CN2: PS/2 6-pin Mini DIN Keyboard/Mouse Connector
PIN Description PIN Descriptio
12
11
n
1 Keyboard Data 7 Mouse Data
2 N/C 8 N/C
3
GND
9
GND
4 +5V 10 +5V
5 Keyboard Clock 11 Mouse Clock
6 N/C 12 N/C
78910
56
1234
3.17 System Front Panel Connectors
The HS-4650 has one LED at location CN5 that indicates the power-on
status. This visual feature of the IDE LED may also be connected to an
external IDE LED, Speaker, Reset Switch, Power LED, EXT SMI,
Power Button, and SLP Button via connector CN5 (13-15), CN5
(1-3-5-7), CN5 (9-11), CN5 (2-4), CN5 (6-8), CN5 (10-12), CN5(14-16).
CN5: System Front Panel Connector
PIN Description PIN Description
1 +5V 2 330Ω Pull +5V
3 GND 4 GND
5
N/C
6
7 Speaker 8 GND
9 GND 10 PW Button
11 Reset 12 GND
13 330Ω Pull +5V 14 SLP Button
15
HDD LED
16
EXT SMI
GND
Connector CN5 Orientation
1
SPEAKER
RST_SW
HD_LED
22
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
PWR LED
EXT_SMI
PWR Button
SLP Button
Page 29

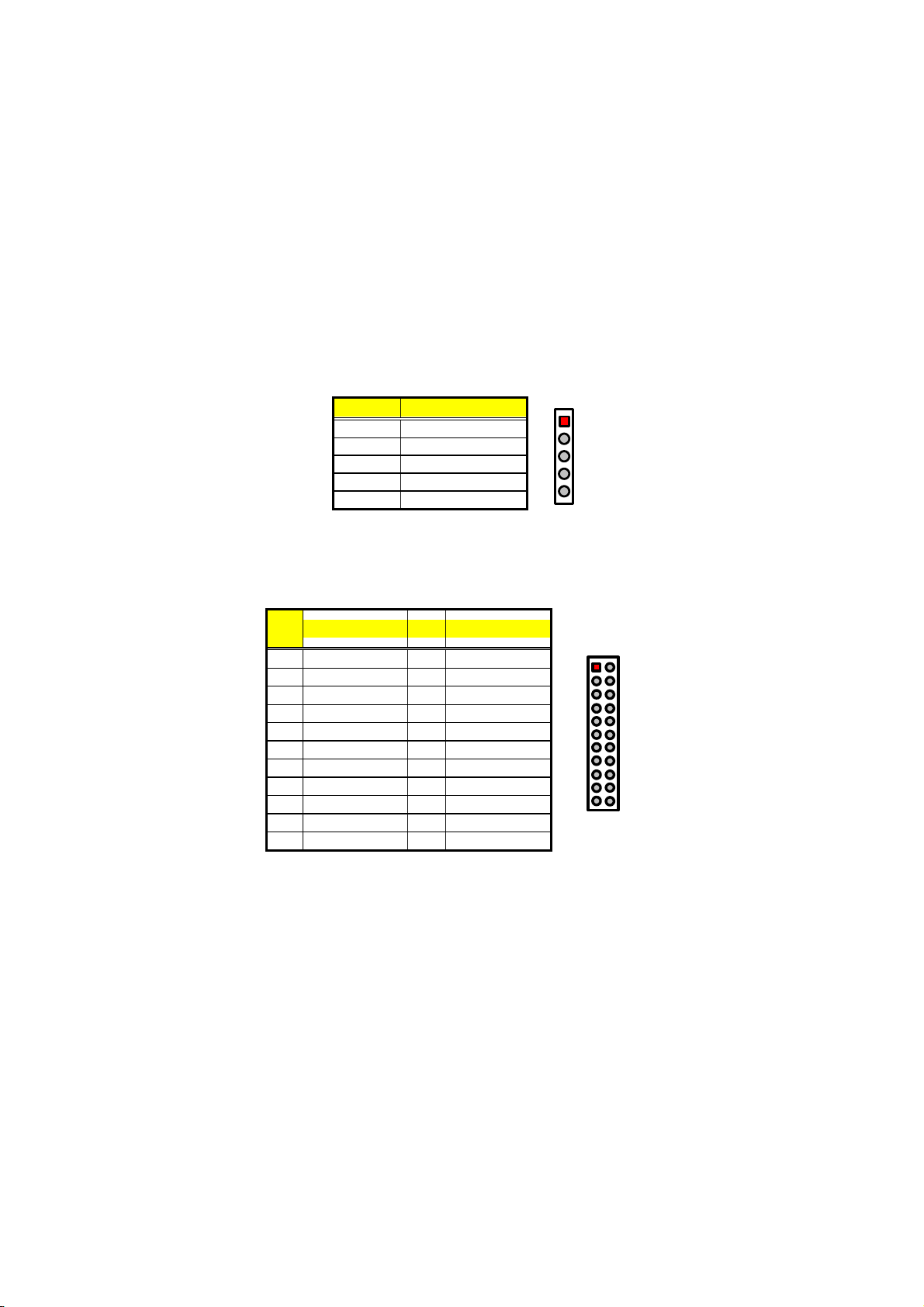

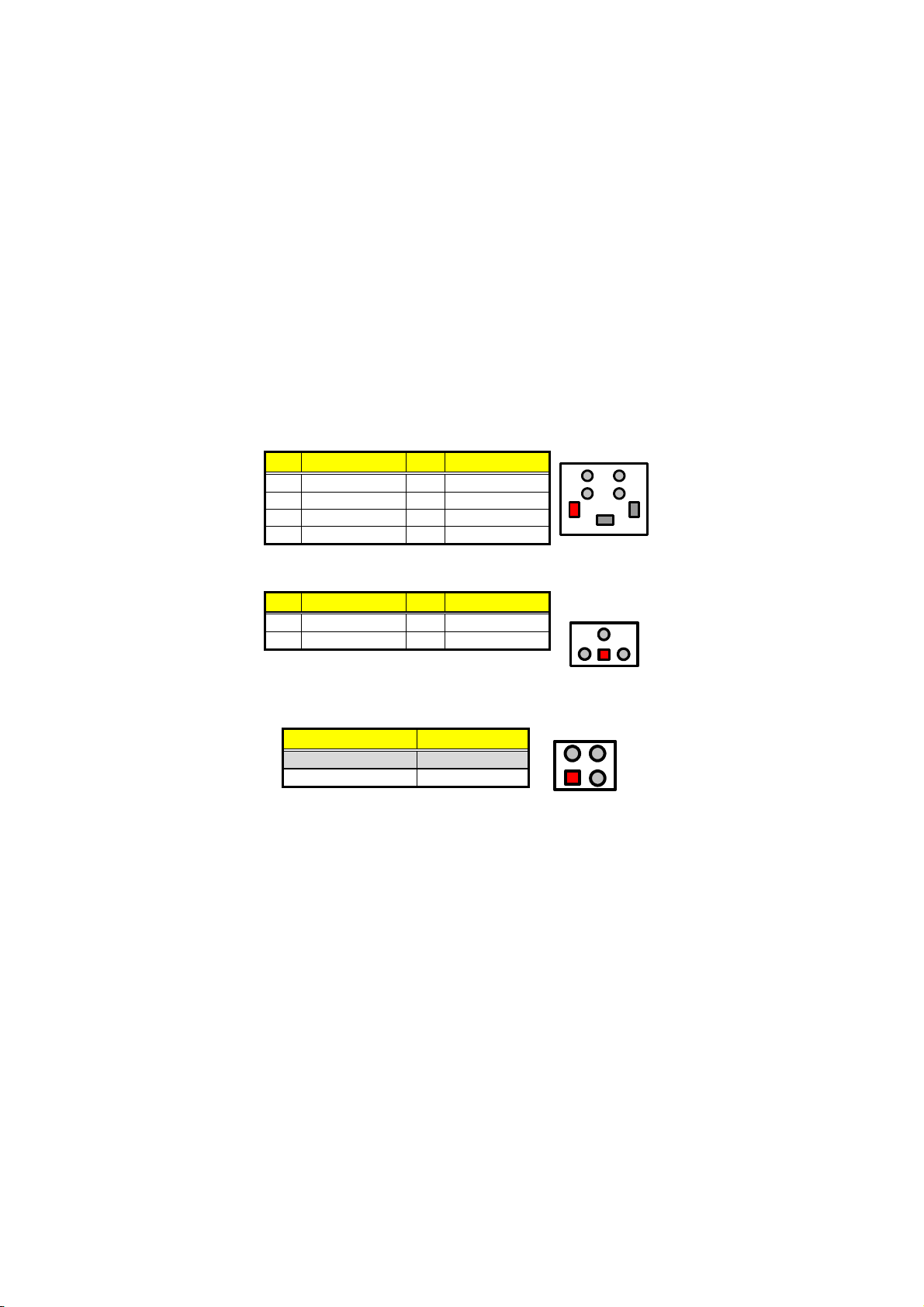

3.18 IrDA Connector
CN6 is a 5-pin internal FIR communication connector for connection of
an IrDA device.
CN6: IrDA Connector
PIN Description
1 VCC
2
3 IRRX
4 GND
5 IRTX
N/C
VCC
IRRX
GND
IRTX
1
N/C
2
3
4
5
3.19 Digital I/O Connector
The HS-4650 provides a CN8 connector for Digital I/O function.
CN8: Digital I/O Connector
PI
Description PIN Description
N
1 VCC 2 LD0
3 LD1 4 LD2
5 LD3 6 LD4
7 LD5 8 LD6
9 LD7 10 LD8
11 LD9 12 LD10
13 LD11 14 LD12
15 LD13 16 LD14
17 LD15 18 HREF
19 VS 20 LCLK
21 N/C 22 GND
VCC
LD1
LD3
LD5
LD7
LD9
LD11
LD13
LD15
N/C
VS
12
LD0
LD2
LD4
LD6
LD8
LD10
LD12
LD14
HERF
LCLK
GND
2221
23
Page 30

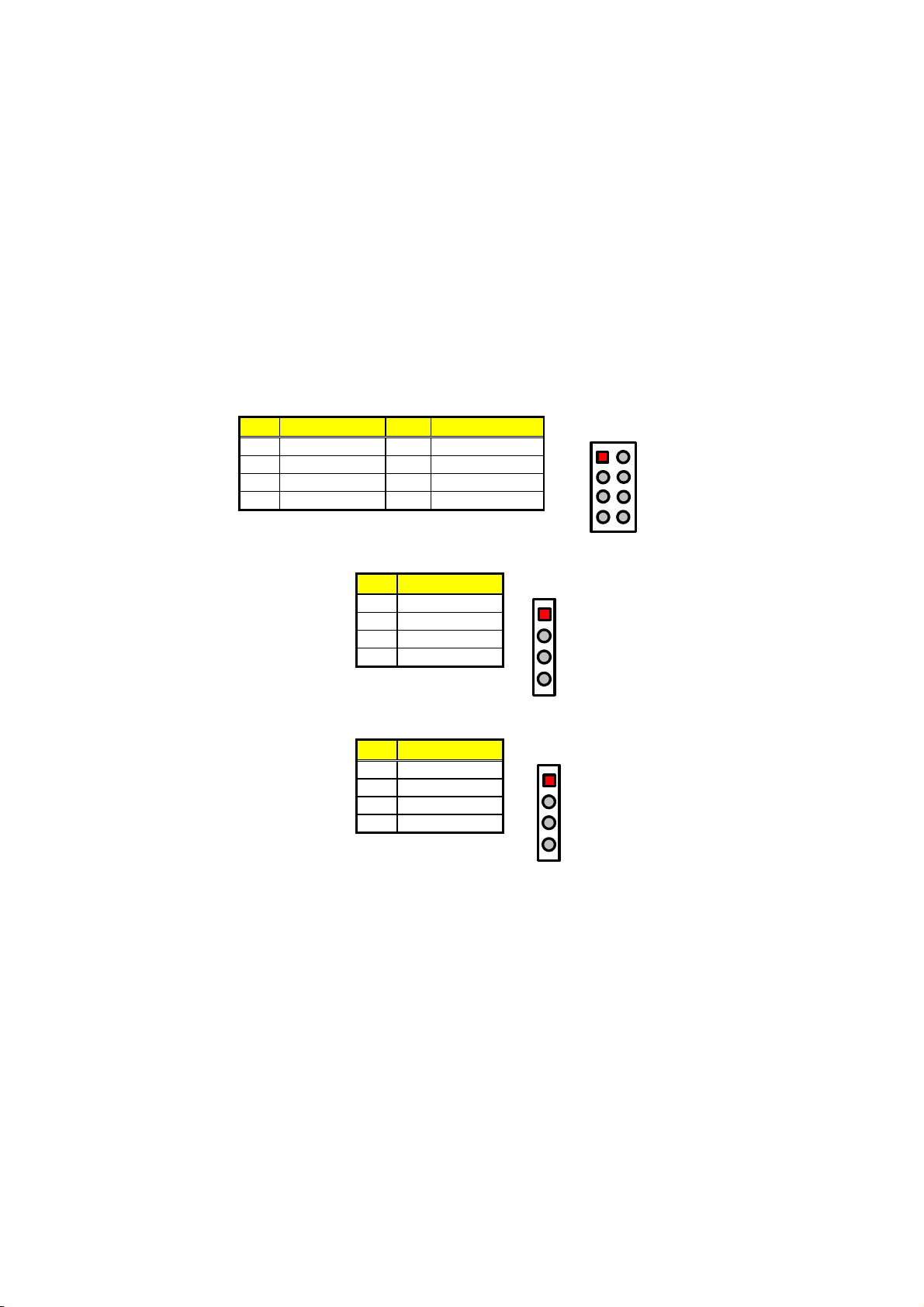

3.20 Audio Connectors
The HS-4650 has an onboard AC97 3D audio interface. The following
tables list the pin assignments of the CD In, Line In, and MIC In/Audio
Out connectors.
J1: MIC In/Audio Out Connector
PIN Description PIN Description
1 AOUTL 2 AOUTR
3 GND 4 GND
5
MIC IN
6
N/C
7 GND 8 GND
CN18: CD In Connector
PIN Description
1 CDL
2 GND
3 GND
4
CDR
CN20: Line In Connector
PIN Description
1 Line_R
2 GND
3 GND
4 Line_L
1
CDL
GND
GND
CDR
4
1
LINE_R
GND
GND
LINE_L
4
AOUT_L
GND
MIC IN
GND
12
78
AOUT_R
GND
N/C
GND
24
Page 31
3.21 TV Out Function
HS-4650 can support TV-Out function which input could be up to 800 x
600 graphics resolutions. World Wide Video standards are supported
including NTSC-M (North America, Taiwan), NTSC-J (Japan), PAL-B,
D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N (Uruguay, Paraguay)
and PAL-NC (Argentina).
CN12: Video Jack Connector
PIN Description PIN Description
1 GND 2 GND
3 C 4 GND
5 Y 6 GND
8 GND
CN13: RCA Jack Connector
PIN Description PIN Description
1 CVBS/SPDIFO 2 GND
3 GND 4 GND
CN19: Video/Audio Output Select
Setting Description
Short 1-2 (default) CVSB
Short 3-4 SPDIFO
6
3
14
2
GND
GND
SPDIFO
2
1
8
5
GND
4
3
3.22 PCI Expansion Slot
HS-4650 provides two standard PCI expansion slots, one is vertical
and one is horizontal. We will ship this board with the horizontal slot
installed, and you can use another slot for expansion when necessary.
25
Page 32
This page is intentionally left blank.
26
Page 33
Chapter 4
AMI BIOS Setup
The HS-4650 uses AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options that could be
selected for end-user requirements. This chapter is written to assist
you in the proper usage of these features.
4.1 Starting Setup
The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.
While the BIOS is in control, the Setup program can be activated in one
of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
27
Page 34
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
press <F1> for help and press <Esc> to quit. The following table
provides more detail about how to navigate in the Setup program using
the keyboard.
↑ Move to previous item
Move to next item
↓
← Move to previous item
Move to previous item
→
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
PgUp key Decrease the numeric value or make changes
PgDn key Increase the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
F1 key Reserved
F2 key Change color from total 8 colors. F2 to select color forward
F3 key F2 to select color backward
F4 key
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
Reserved
28
Page 35
4.3 Main Menu
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Save Settings and Exit
Exit Without Saving
NOTE:
A brief description of the highlighted choice appears at the bottom
of the screen.
29
Page 36
4.4 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy) : Thu May 08, 2003 Base Memory : 639KB
Time (hh/mm/ss) : 19:04:12 Extd Memory : 247MB
Floppy Drive A: 1.44MB 3 1/2
Floppy Drive B: Not Installed
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master : Auto On
Pri Slave : Auto On
Sec Master : Auto On
Sec Slave : Auto On
Boot Sector Virus Protection: Disabled
Month: Jan - Dec ESC:Exit
Day: 01 – 31 PgUp/PgDn: Modify
Year: 1980 - 2099 F2/F3:Color
mode. Please use the IDE Setup Utility in
LBA
:Sel
30
Page 37
4.5 Advanced CMOS Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
AMIBIOS SETUP – ADVANCED CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Quick Boot Enabled
1st Boot Device Floppy
2nd Boot Device IDE-0 Enabled
3rd Boot Device CD-ROM
Try Other Boot Devices Yes
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
CPU MicroCode Updation Enabled
CPU Serial Number Disabled
L1 Cache Enabled
L2 Cache Enabled
System BIOS Cacheable Enabled
C000,32k Shadow Cached
C800,16k Shadow Disabled
CC00,16k Shadow Disabled
D000,16k Shadow Disabled
D400,16k Shadow Disabled ESC: Exit
D800,16k Shadow Disabled PgUp/PgDn: Modify
DC00,16k Shadow Disabled
S
Available Options:
`
Disabled
T
F2/F3: Color
: Sel
31
Page 38
4.6 Advanced Chipset Setup
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
******** DRAM Timing ******** Available Options:
Configure SDRAM Timing by SPD Enabled
DRAM Frequency 100Mhz Enabled
SDRAM CAS# Latency 3
DRAM Bank Interleave Enabled
Memory Hole Disabled
AGP Mode 4x
AGP Fast Write Disabled
AGP Aperture Size 64MB
AGP Master 1 W/S Write Disabled
AGP Master 1 W/S Read Disabled
Search for MDA Resources Yes
PCI Delay Transaction Enabled
ISA Bus Clock PCICLK/4
USB Controller All USB Port ESC: Exit
USB Device Legacy Support Disabled PgUp/PgDn: Modify
Port 64/60 Emulation Disabled F2/F3: Color
`
Disabled
: Sel
32
Page 39
4.7 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
ACPI Aware O/S Ye s
ACPI Standby State Auto No
USB Device Wakeup From S3-S5 Disabled
Re-Call VGA BIOS at S3 Resuming Disabled
Power Management/APM Disabled
Video Power Down Mode Disabled
Hard Disk Power Down Mode Disabled
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50%-56.25%
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
System Thermal Disabled
Thermal Active Temperature 65°C/149°F
Thermal Slow Clock Ratio 50%-56.25%
Power Button Function On/Off
Restore on AC / Power Loss Last State
Resume On Ring Disabled
Resume On LAN Disabled
Resume On PME# Disabled
Resume On KBC N/A
Wake-Up Key N/A
Wake-Up Password N/A
Resume On PS/2 Mouse N/A
Resume On RTC Alarm Disabled
RTC Alarm Date 15
RTC Alarm Hour 12 ESC: Exit
RTC Alarm Minute 30 PgUp/PgDn: Modify
RTC Alarm Second 30
S
Available Options:
`
Yes
T
F2/F3: Color
: Sel
33
Page 40
4.8 PCI / Plug and Play Setup
This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.
AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Plug and Play Aware O/S No Available Options:
Clear NVRAM No
OnChip VGA Frame Buffer Size 8MB Yes
PCI Latency Timer (PCI Clocks) 32
Primary Graphics Adapter OnChip AGP
Boot Screen Select CRT
TV Out Type U.S. NTSC
LCD Panel Type 1 800x600 TFT
PCI IDE BusMaster Enabled
Off Board PCI IDE Card Auto
Off Board PCI IDE Primary IRQ Disabled
Off Board PCI IDE Secondary IRQ Disabled
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP ESC: Exit
IRQ14 PCI/PnP PgUp/PgDn: Modify
IRQ15 PCI/PnP F2/F3: Color
`
No
: Sel
34
Page 41
4.9 Peripheral Setup
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them. This
is much simpler and more efficient (also faster).
(C)2001 American Megatrends, Inc. All Rights Reserved
AMIBIOS SETUP – PERIPHERAL SETUP
OnBoard Serial Port3 3E8/COM3 Available Options:
Serial Port3 IRQ 11
OnBoard Serial Port4 2E8/COM4 Primary
Serial Port4 Mode Normal Secondary
Serial Port4 IRQ 10 Both
OnBoard FDC Enabled
OnBoard Serial Port1 3F8/COM1
OnBoard Serial Port2 2F8/COM2
Serial Port2 Mode Normal
IR Pins N/A
Duplex Mode N/A
Receiver Polarity N/A
Transmitter Pdarity N/A
OnBoard Prarllel Port 378
Parallel Port Mode Normal
EPP Version N/A
Parallel Port DMA Channel 3
Parallel Port IRQ 7
OnBoard IDE Both
OnBoard AC’97 Audio Enabled
ESC: Exit
MPU-401 Disabled PgUp/PgDn: Modify
MPU-401 I/O Address 330h-333h F2/F3: Color
`
Disabled
: Sel
35
Page 42
4.10 Hardware Monitor Setup
AMIBIOS SETUP – HARDWARE MONITOR SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
*** System Hardware Monitor *** Available Options:
Chassis Intrusion Disabled
TSENS1 Temperature Enabled
TSENS2 Temperature Reset
TSENS3 Temperature
CPU Fan Speed
Chassis Fan Speed
Vcore
+ 2.500V
+ 3.300V ESC: Exit
+ 5.000V PgUp/PgDn: Modify
+12.000V F2/F3: Color
`
Disabled
: Sel
4.11 Auto-Detect Hard Disks
This option detects the parameters of an IDE hard disk drive, and
automatically enters them into the Standard CMOS Setup screen.
Up to four IDE drives can be detected, with parameters for each
appearing in sequence inside a box. To accept the displayed entries,
press the “Y” key; to skip to the next drive, press the “N” key. If you
accept the values, the parameters will appear listed beside the drive
letter on the screen.
36
Page 43
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
Auto-detect all hard disk parameters
4.12 Change Supervisor/User Password
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Enter new supervisor password: _
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Change the supervisor password
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
37
Page 44
You can set either supervisor or user password, or both of then. The
differences between are:
supervisor password: can enter and change the options of the setup
menus.
user password: just can only enter but do not have the right to change the
options of the setup menus.
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may
also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.
38
Page 45
4.13 Auto Configuration with Optimal
Settings
When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load high performance settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Load configuration settings giving highest performance
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
39
Page 46
4.14 Auto Configuration with Fail Safe
Settings
When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load failsafe settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
40
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
Load failsafe configuration settings
Page 47
4.15 Save Settings and Exit
Pressing <Enter> on this item asks for confirmation:
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Save current settings and exit (Y/N) ? Y
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Write the current settings to CMOS and exit
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
41
Page 48
4.16 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Quit without saving (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
42
Exit without saving the current settings
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
Page 49
Chapter 5
Software Utilities
This chapter contains the detailed information of IDE, VGA, Audio and
LAN driver installation procedures.
5.1 VIA 4 in 1 Driver Installation
The utility disk that came with the delivery package contains an
auto-run program that invokes the installation programs for the VIA 4 in
1 driver. The following describes the installation procedures of each
driver.
1. Insert Utility CD Disk to your CD ROM. The main menu will pop
up as shown below.
43
Page 50
2. Press “VIA 4 IN 1” and to go Setup.
3. Once the Welcome screen appears on the screen, make sure to
close any applications running and then click on the Next
button.
44
Page 51
4. When the Readme window pops on the screen, you may read
the whole document including the license agreement or just
press Yes to skip through and continue installation.
5. The 4 in 1 Setup dialog is now displayed. Select on Normally
Install and then click on Next.
45
Page 52
6. The next window lists all components detected in your system
and asks you to select the ones requiring drivers. Tick on all
items then proceed by clicking on the Next button below the
screen.
7. The program starts to install the ATAPI driver when you click the
Next button on the screen below.
8. When the ATAPI driver is completely installed. The utility then
displays your DMA mode status and allows you to enable it. Tick
on the box and press on the Next button to continue.
46
Page 53
9. The following screen then gives you the choice of installing the
AGP driver in standard o turbo mode. Select on the Standard
Mode and then click on Next to proceed.
10. Installation of the AGP driver is now complete. Once the screen
below appears, select on restarting your computer to activate all
drivers/settings completed.
47
Page 54
5.2 Audio Driver Installation
1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_AC97 from the main menu.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
48
Page 55

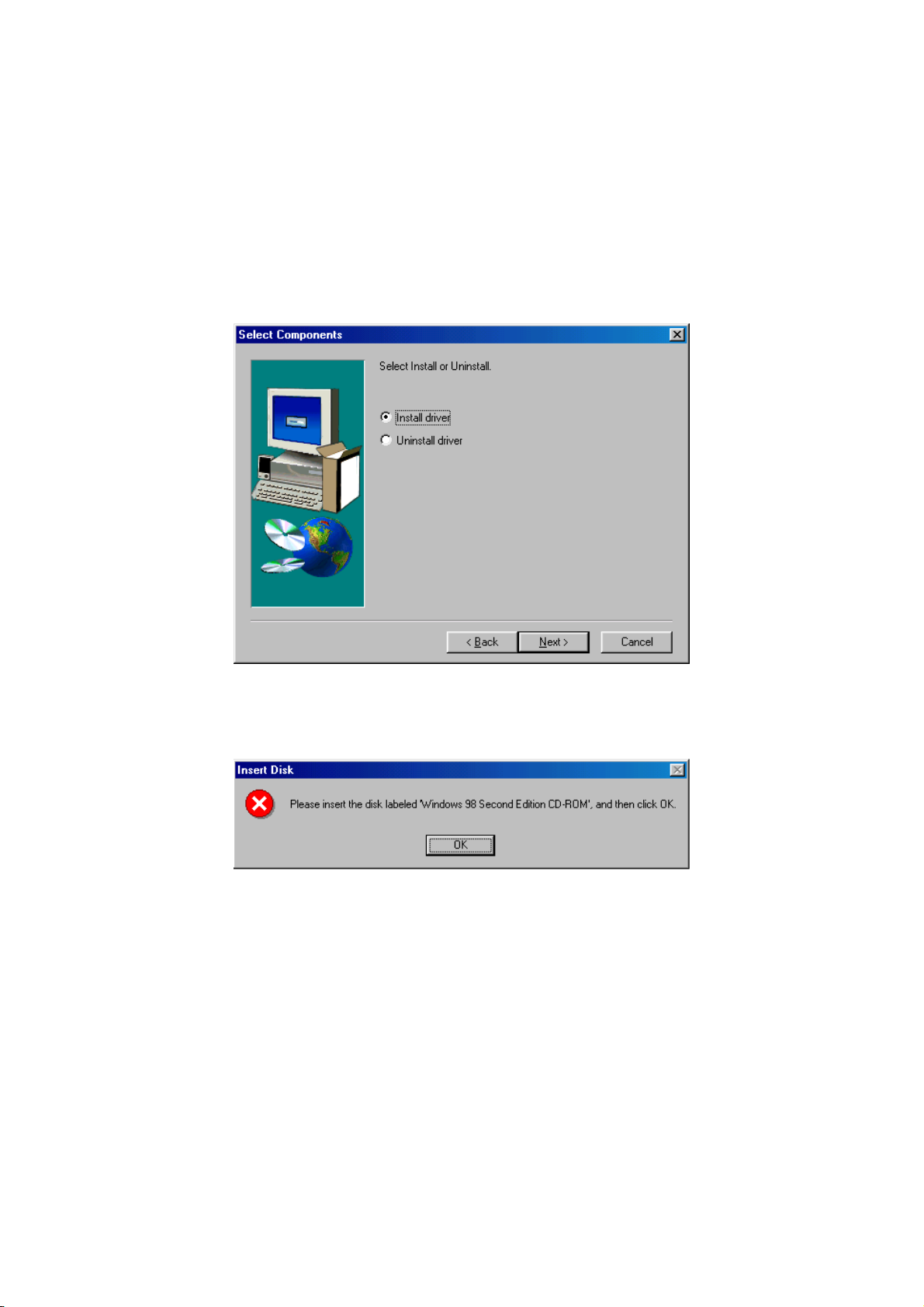

3. The Select Components dialog box is now displayed. Select on
Install driver and then click on Next.
4. The program will now require the Windows installation disk for
proper hardware installation. Insert the CD and then click on
Next.
49
Page 56
5. When the display below appears on your screen, Setup is
already installing and copying the related files onto your hard
drive. Click on the Next button to proceed.
6. After the audio driver installation finishes, select the Finish
button to complete the installation process.
50
Page 57
5.3 VGA Driver Installation
5.3.1 VGA Driver Installation for WIN98

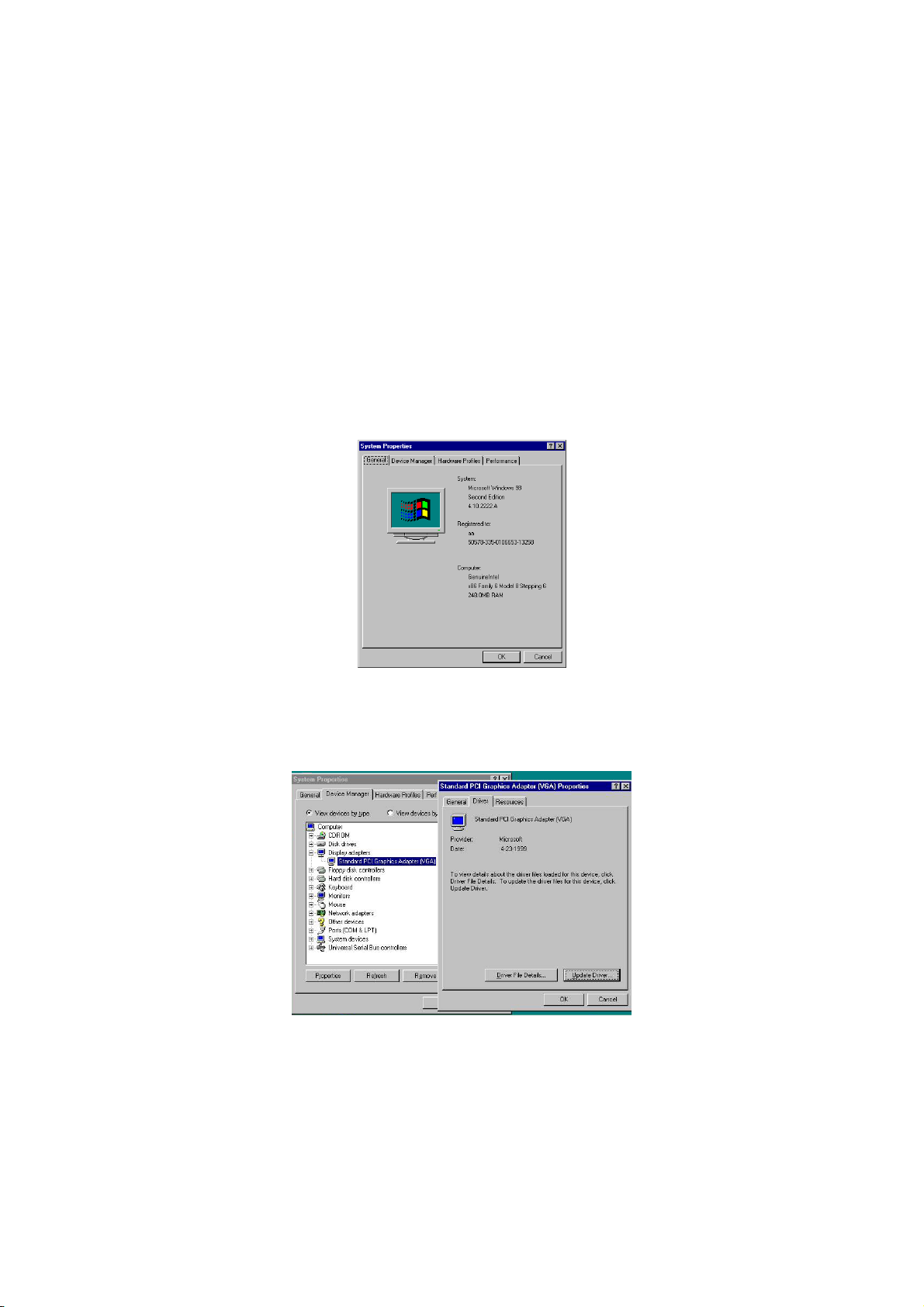

1. With the Utility CD Disk still in your CD ROM drive, right click on My
Computer icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the main
menu.
2. Select on Display Adapters from the list of devices then
double-click on Standard PCI Graphics Adapter (VGA). The
Standard PCI Graphics Adapter (VGA) Properties screen then
appears, allowing you to re-install the driver. Select Driver from
the main menu to proceed.
51
Page 58

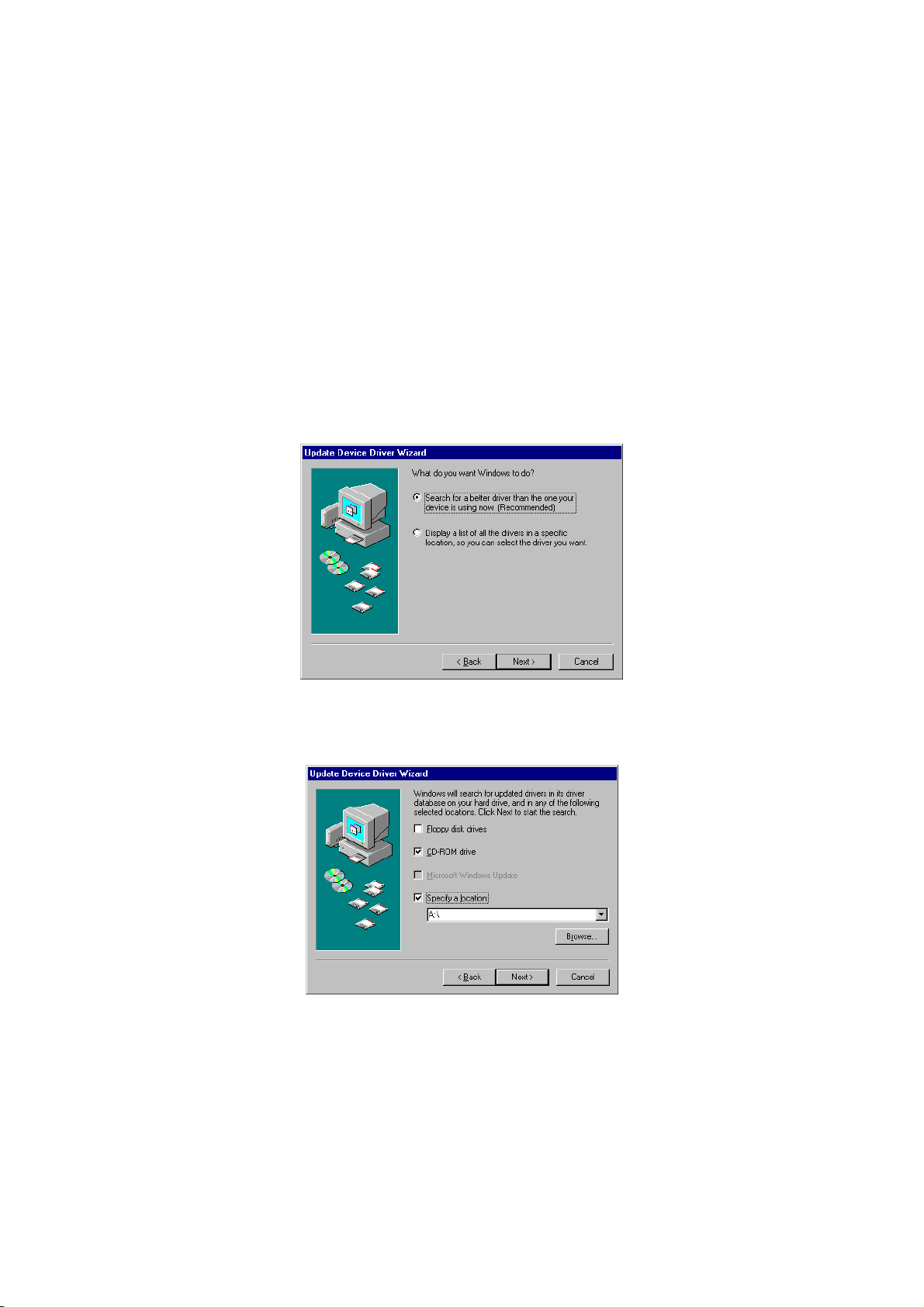

3. The window then displays the current status of your VGA driver.
Press on Update Driver button to continue. The program will then
launch the Update Device Driver Wizard window that will install
your device driver. Click on the Next button to proceed to the next
step.
4. When the succeeding window asks you what you wish Windows to
do, tick on the “Search for a better driver….” Click on the Next
button to proceed.
5. The Update Device Driver Wizard will then ask you to specify, by
ticking, the path of the new driver. Tick on the open boxes where
you require the program to search for the device driver then click
on the Browse button to manually specify the path.
52
Page 59
6. Press on the OK button as soon as you have located the path of
your driver.
7. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the Next
button to continue.
8. Once the program detects the device driver (*.inf) file from your
specified location, it will automatically copy the files into your
hard drive.
53
Page 60
9. When copying of driver files finishes, the program will then ask
you to insert your Windows.
10. The program then copies the necessary files from your Windows
installation disk to complete the driver setup process. Once the
driver is completely installed, the following message appears on
your display. Click on the Finish button to proceed.
11. Restart your computer to make the new system settings take
effect. Click on the Yes button when the screen below appears
and your VGA Driver for Win98 are now completely installed.
5.3.2 VGA Driver Installation for WIN NT4.0
1. Click the Start button on the lower left hand corner of your
screen, then select Setting. Choose Control Panel and
double-click on the Display icon to launch its Display
Properties window. Click on the Settings tab, and then choose
Display Type. In the Change Display Type window, click on
Have Disk.
54
Page 61
2. Specify the path of the new driver and then press on Enter. (If in
driver D:, type d:\Vga/Via_8606/Nt40)
55
Page 62
3. Select
S3 Graphics Twister
4. Click OK or press Enter.
5. You will see warning panel about Third Party Drivers. Click on
Yes to finish the installation.
56
Page 63
6. Once the installation is completed, you must shut down the
system and restart for the new driver to take effect.
57
Page 64
5.3.3 VGA Driver Installation for WIN 2K
1. With the Utility CD Disk still in your CD ROM drive, right click on
My Computer icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the
main menu.
2. Select on Other Devices from the list of devices then
double-click on Video Controller (VGA Compatible).
58
Page 65

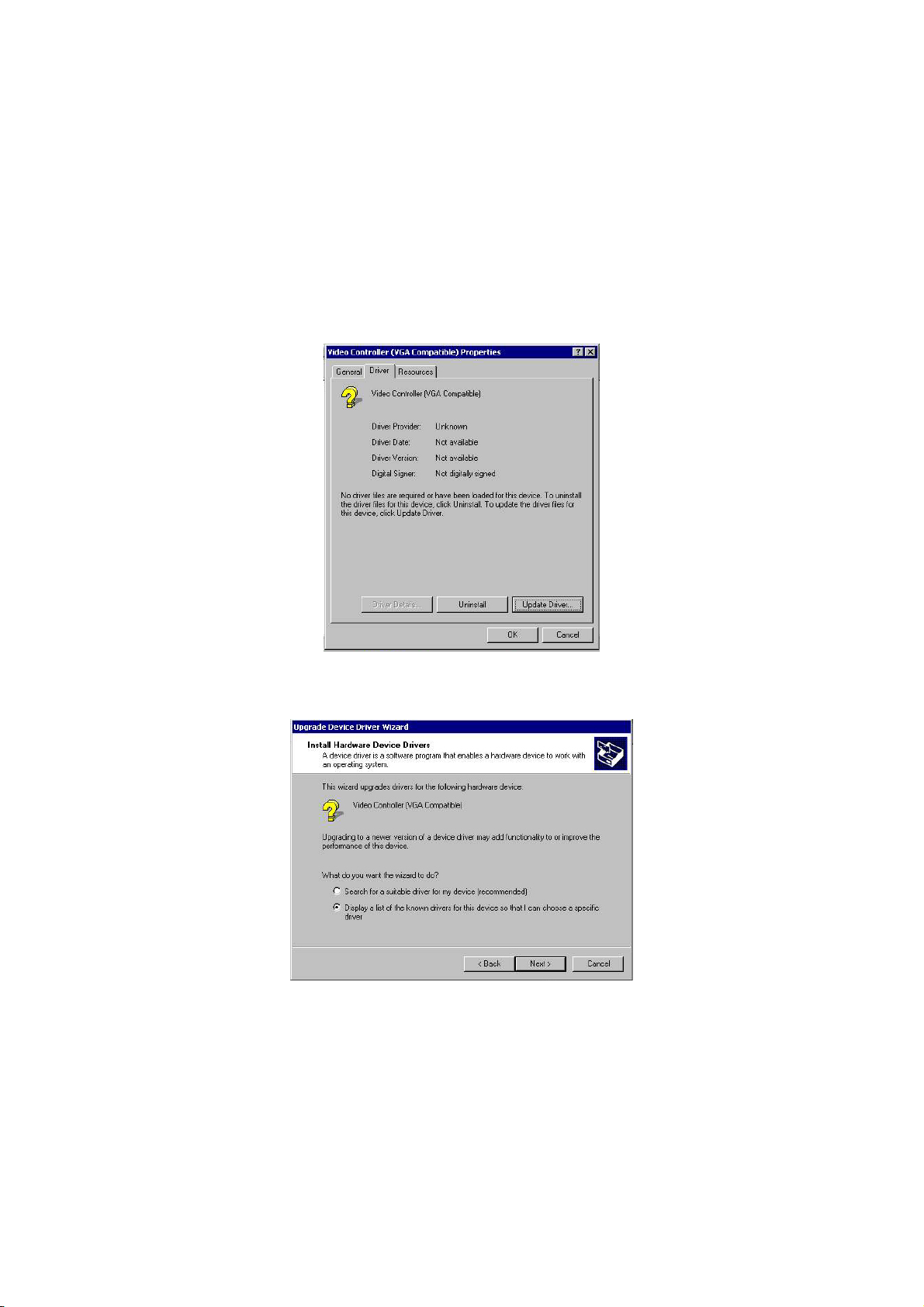

3. The Video Controller (VGA Compatible) Properties screen then
appears, allowing you to re-install the driver. Select Driver from
the main menu to proceed.
4. When the succeeding window asks you what you wish Windows
to do, tick on the “Search for a better driver….” Click on the Next
button to proceed.
59
Page 66
5. Upgrade Device Driver Wizard screen appear, select Display
adapters and click on Next.
6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the Next
button to continue.
7. The program then copies the necessary files from your Windows
installation disk to complete the driver setup process. Once the
driver is completely installed, the following message appears on
your display. Click on the Finish button to proceed.
60
Page 67

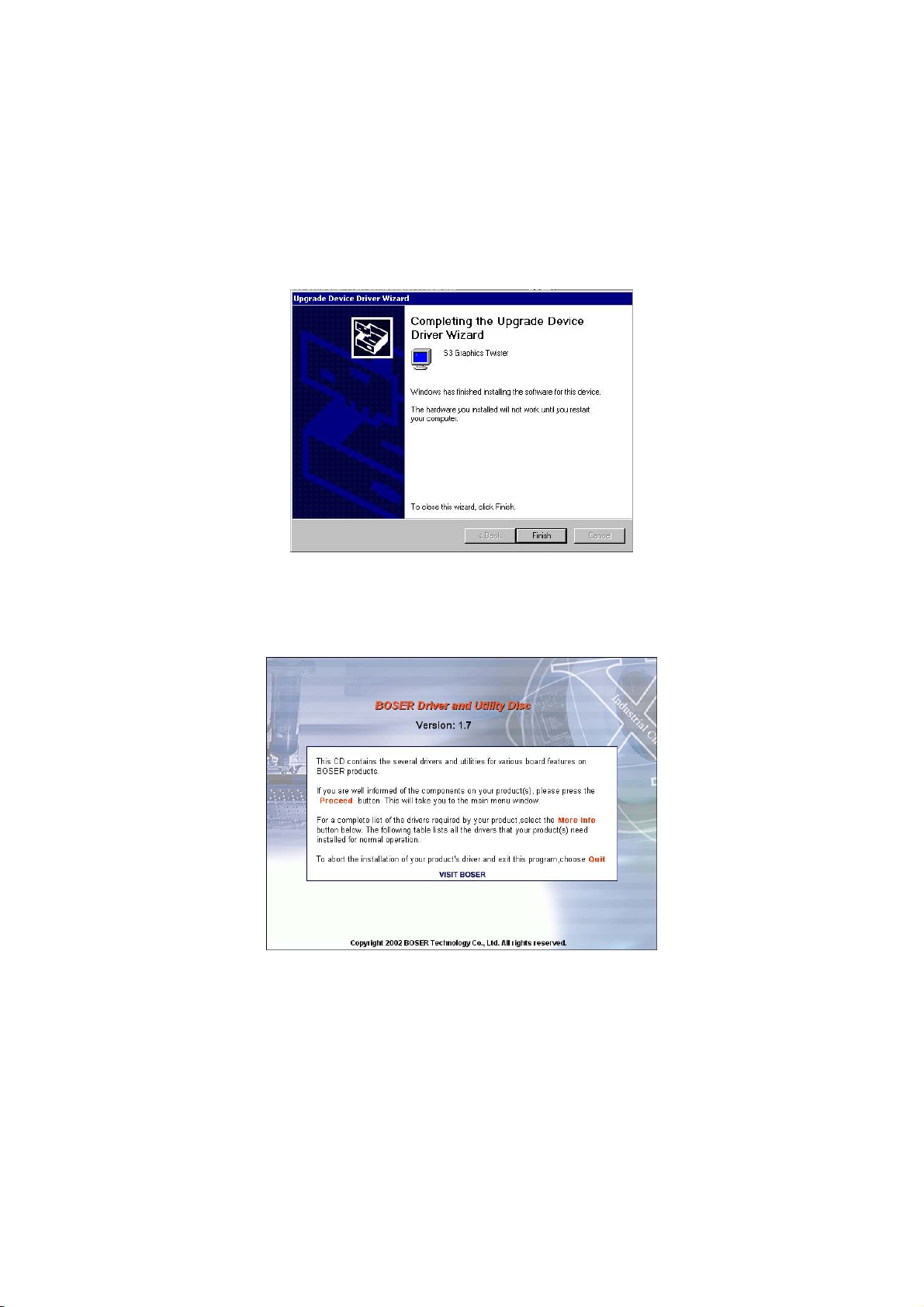

5.3.4 VGA Driver Installation for WIN XP
1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_8606 from the main menu.
61
Page 68
2. Select the operating system of your computer to proceed with
the installation process.
62
Page 69
3. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
63
Page 70

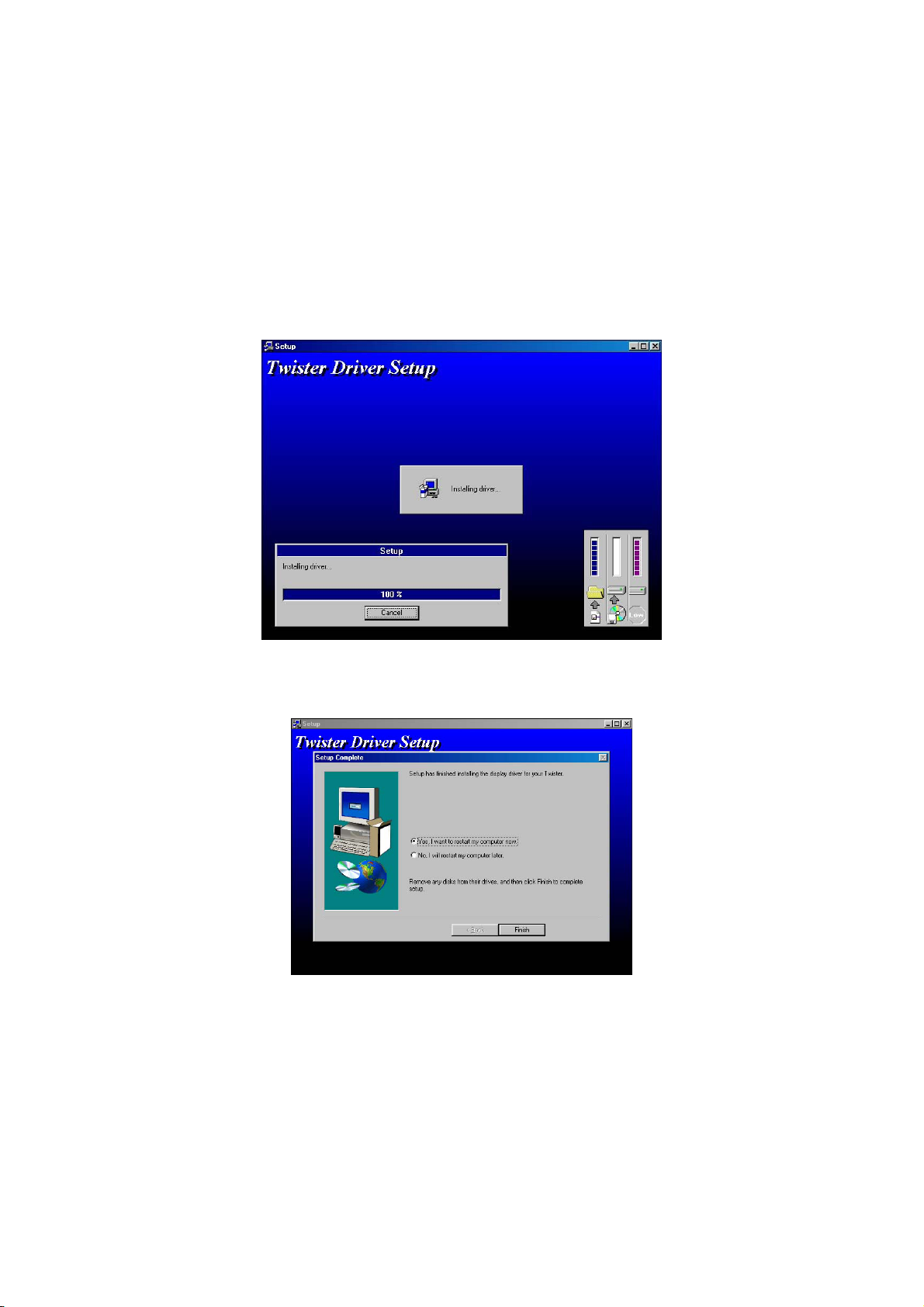

4. When the display below appears on your screen, Setup is
already ready to install and copy the related files onto your hard
drive. Click on the Next button to proceed.
5. After the installation finishes, you will be prompted to restart
your system. We recommend you to reboot your computer to
allow the new settings to take effect. Click on the Finish button
to reboot.
64
Page 71
5.4 LAN Driver Installation
5.4.1 RTL8100 Driver Installation for WIN98
1. With the Utility CD Disk still in your CD ROM drive, right click on
My Computer icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the
main menu.
2. Select on Other Devices from the list of devices then
double-click on PCI Ethernet Controller.
65
Page 72
3. The PCI Ethernet Controller Properties screen then appears,
allowing you to re-install the driver. Select Driver from the main
menu to proceed.
4. The window then displays the current status of your LAN driver.
Press on Update Driver button to continue.
66
Page 73
5. The program will then launch the Update Device Driver Wizard
window that will install your device driver. Click on the Next
button to proceed to the next step.
6. When the succeeding window asks you what you wish Windows
to do, tick on the “Search for a better driver….” Click on the Next
button to proceed.
67
Page 74
7. The Update Device Driver Wizard will then ask you to specify, by
ticking, the path of the new driver. Tick on the open boxes where
you require the program to search for the device driver then
click on the Browse button to manually specify the path.
8. Press on the OK button as soon as you have located the path of
your driver.
9. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the Next
button to continue.
68
Page 75
10. Once the program detects the device driver (*.inf) file from your
specified location, it will automatically copy the files into your
hard drive.
11. When copying of driver files finishes, the program will then ask
you to insert your Windows.
12. The program then copies the necessary files from your Windows
installation disk to complete the driver setup process. Once the
driver is completely installed, the following message appears on
your display. Click on the Finish button to proceed.
69
Page 76

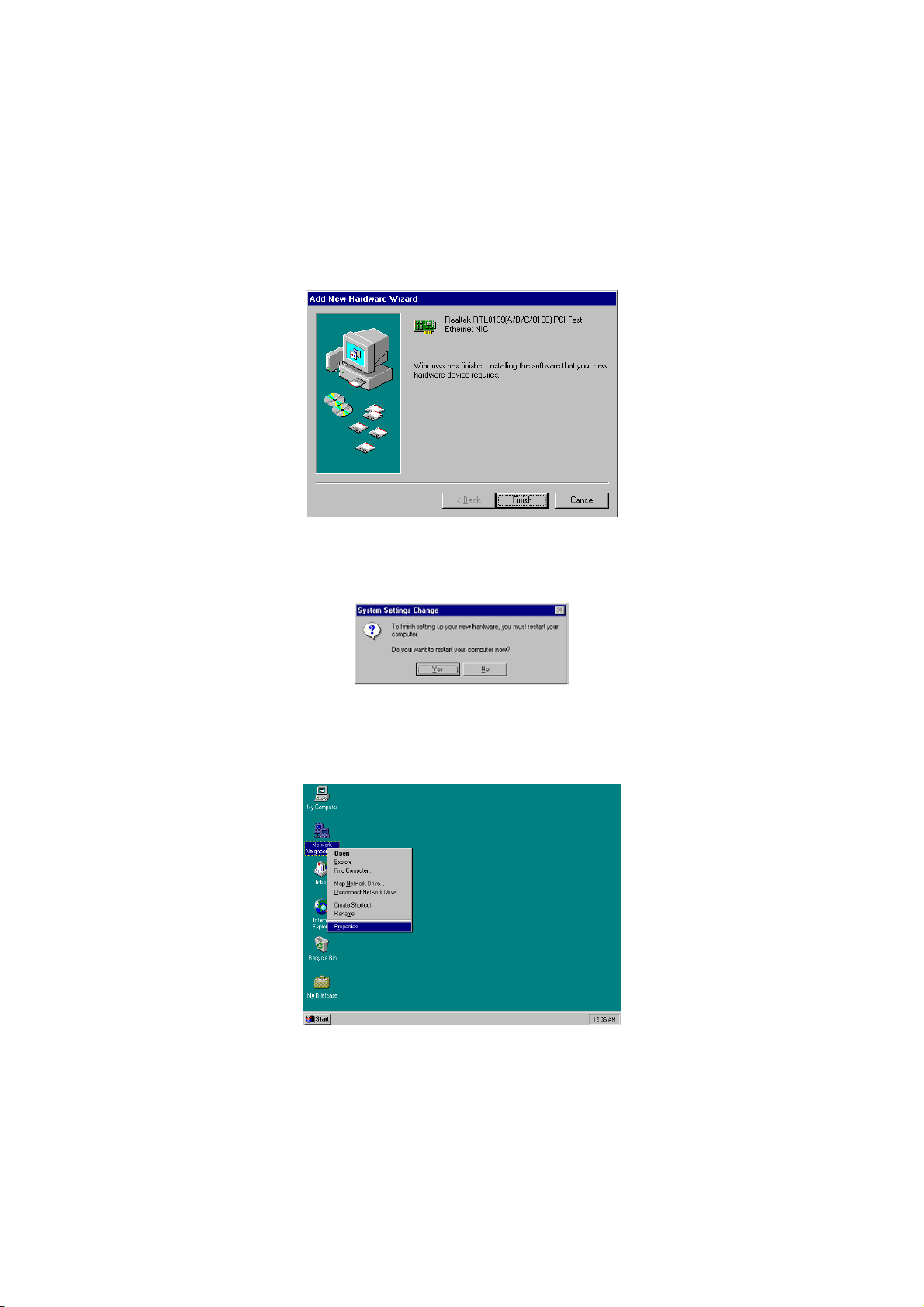

13. Restart your computer to make the new system settings take
effect. Click on the Yes button when the screen below appears
and your LAN Driver for Win95 and Win98 are now completely
installed.
5.4.2 RTL8100 Driver Installation for WIN NT4.0
1. With the Utility CD Disk still in your CD ROM drive, right click on
Network Neighborhood icon from the Windows menu. Select on
Properties.
70
Page 77
2. The system automatically detects the absence of Windows NT
Networking. Click on the Yes button to start installation.
3. Tick on the “Wired to Network” once the following screen
appears. Click on the Next to proceed.
71
Page 78

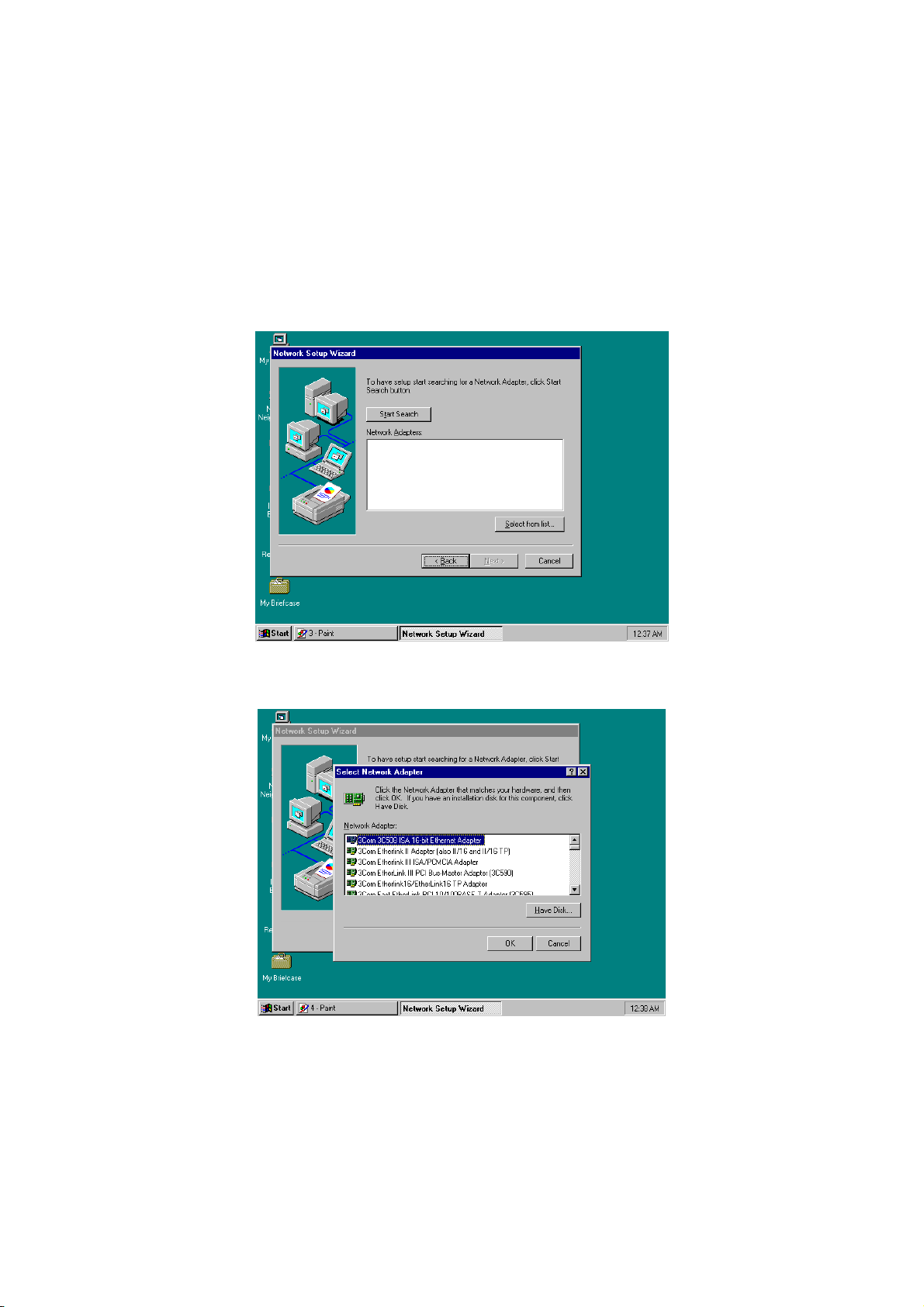

4. Click on the Start Search button for the program to locate the
Network Adapter.
5. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the Have Disk button to assign
the driver path location.
72
Page 79
6. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.
7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press on
the OK button to accept and proceed.
73
Page 80

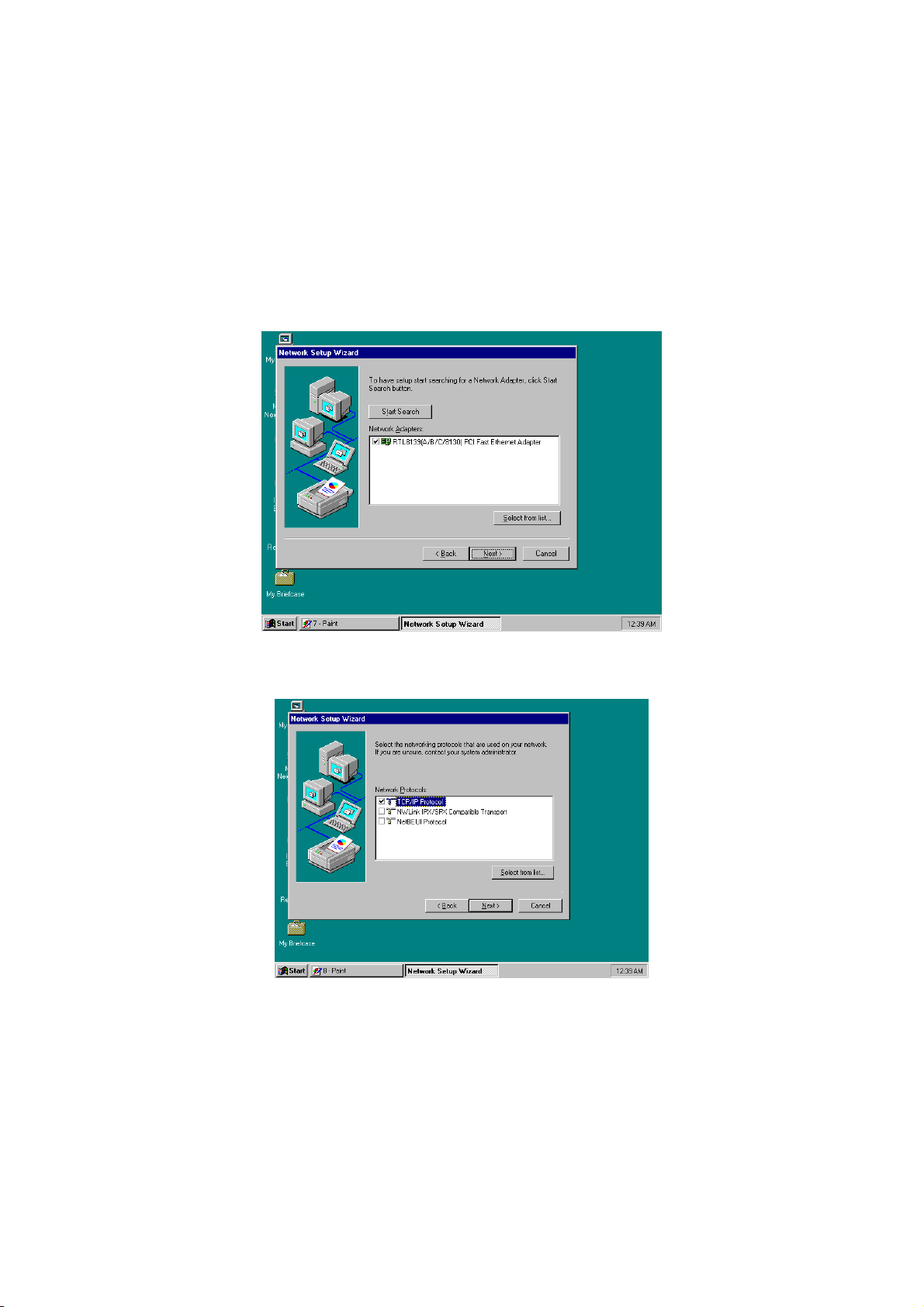

8. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on Next to continue.
9. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and
then click on Next to continue.
74
Page 81
10. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the Next
button once you are sure of your devices.
11. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press
Continue.
75
Page 82
12. Once it finishes copying the files, Setup will now allow you to
choose the Duplex Mode of your LAN controller. Press on the
Continue button after making your selection.
13. When Setup asks if you wish to change the TCP/IP settings of
your system, select the appropriately. The default choice is No.
76
Page 83
14. Setup then starts the Networking installation and copies the files.
15. When Setup finishes copying, the TCP/IP properties of your
system will then pop up on your screen like the one shown below.
Make the necessary changes then click on OK to continue.
77
Page 84
16. When the screen below appears, click on Next to continue.
17. Setup then prompts you that it is ready to start the network. You
may complete the installation thereafter. Click on Next to
continue.
78
Page 85

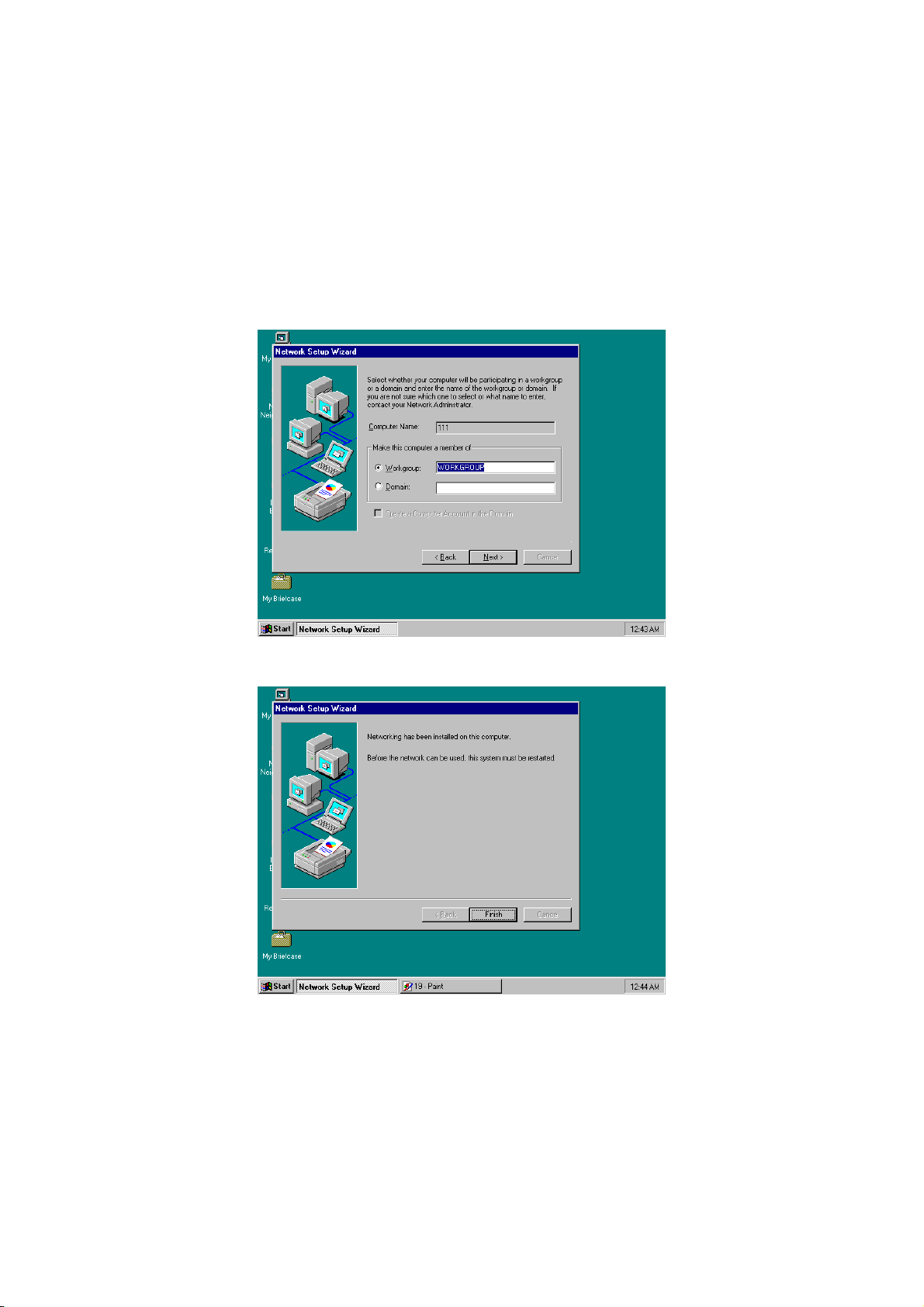

18. Assign the workgroup or domain setting of your computer. Click
on Next to continue.
19. Restart your computer once the screen below appears. Click on
Finish to continue.
79
Page 86
20. Click on the Yes button to restart your computer. The LAN driver
installation for WIN NT4.0 is now complete.
80
Page 87
5.4.3 82559 Driver Installation for WIN 98
Windows 98 will detect the network driver automatically therefore there
is no need for further configuration.
1. Click Start, then Setting then select Control panel.
2. Start the network applet program.
3. In the Network window, click Add.
4. From the Select Network Component Type, select Adapter
then click Add.
5. Specify the path the new driver and press <ENTER> key (if in
driver a:, type a:\). If you’re not sure exactly where the drivers
are, choose the Browse button and find it.
81
Page 88
6. Click OK.
7. Windows 95 will copy the network drivers to the proper
directories into your system.
8. Continue choosing OK until asked to restart your system.
9. After restarting your computer, check the network driver and its
properties. Be sure it looks similar with the following figure.
5.4.4 82559 Driver Installation for WIN NT4.0
1. Click the Start button, then go to Setting and click on Control
Panel.
2. Click on the Network icon to start the Network Window.
3. Click on the Adapters tab, and then click Add.
82
Page 89

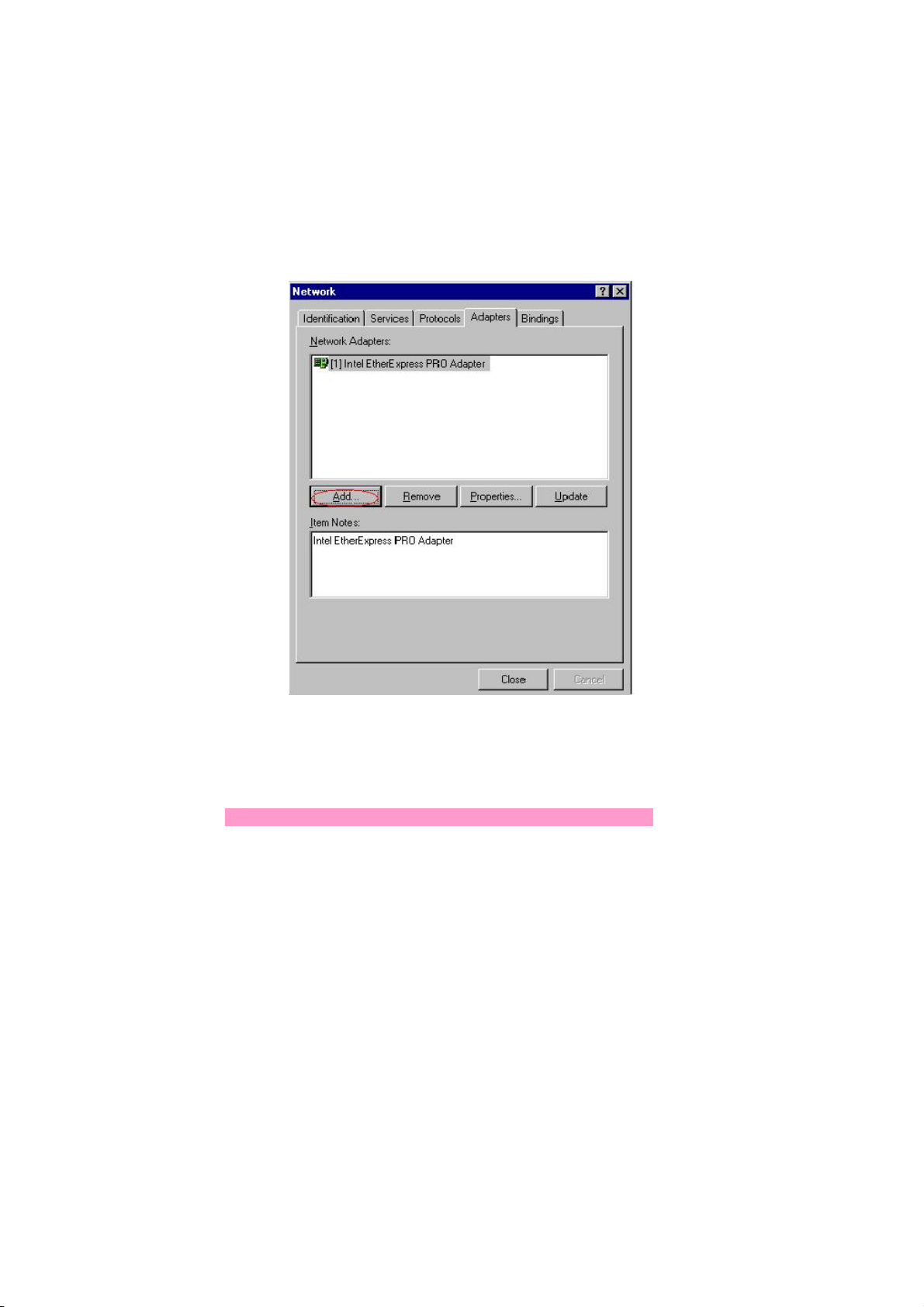

4. In the Select Network Adapter window, click Have Disk.
5. This will bring up the Insert Disk window.
6. Supply the directory where the Windows NT driver files are
located (If in driver a: type a:\).
7. The Select OEM Option window will show up. Select
Intel EtherExpress PRO Adapter
8. Click OK to finish the installation.
9. Once the installation is completed, the system must be shut
down and restarted for the new driver to take effect.
10. After restart, confirm the network driver and its properties.
83
Page 90
This page is intentionally left blank.
84
Loading...
