Boser HS-4020 User Manual

HS-4020

586 Embedded MediaGXm

?

VGA/LCD LAN Sound

• Half Size•MediaGXm ? •CRT/Panel•LAN•

• Sound•4COM •PC/104•DOC•RS-232/422/485•

• USB•WDT•IrDA•

• ISA Bus Industrial Single Board Computer•

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic
or machine readable form in whole or in part without prior written consent from
the manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the cont ents of this
manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for any
errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.

Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.

Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

© Copyright 2000
All Rights Reserved.
User Manual edition 1. 4, Aug.24 2001

Contents ? i

Contents

HS-4020...................................................................................................................1

GENERAL INFORMATION.........................................................................................3

1.1 MAJOR FEATURES..................................................................................................4

1.2 SPECIFICATIONS ......................................................................................................5

1.3 DELIVERY PACKAGE..............................................................................................6

HARDWARE INSTALLATION...................................................................................7

2.1 CAUTION OF STATIC ELECTRICITY........................................................................7

2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION......................................8

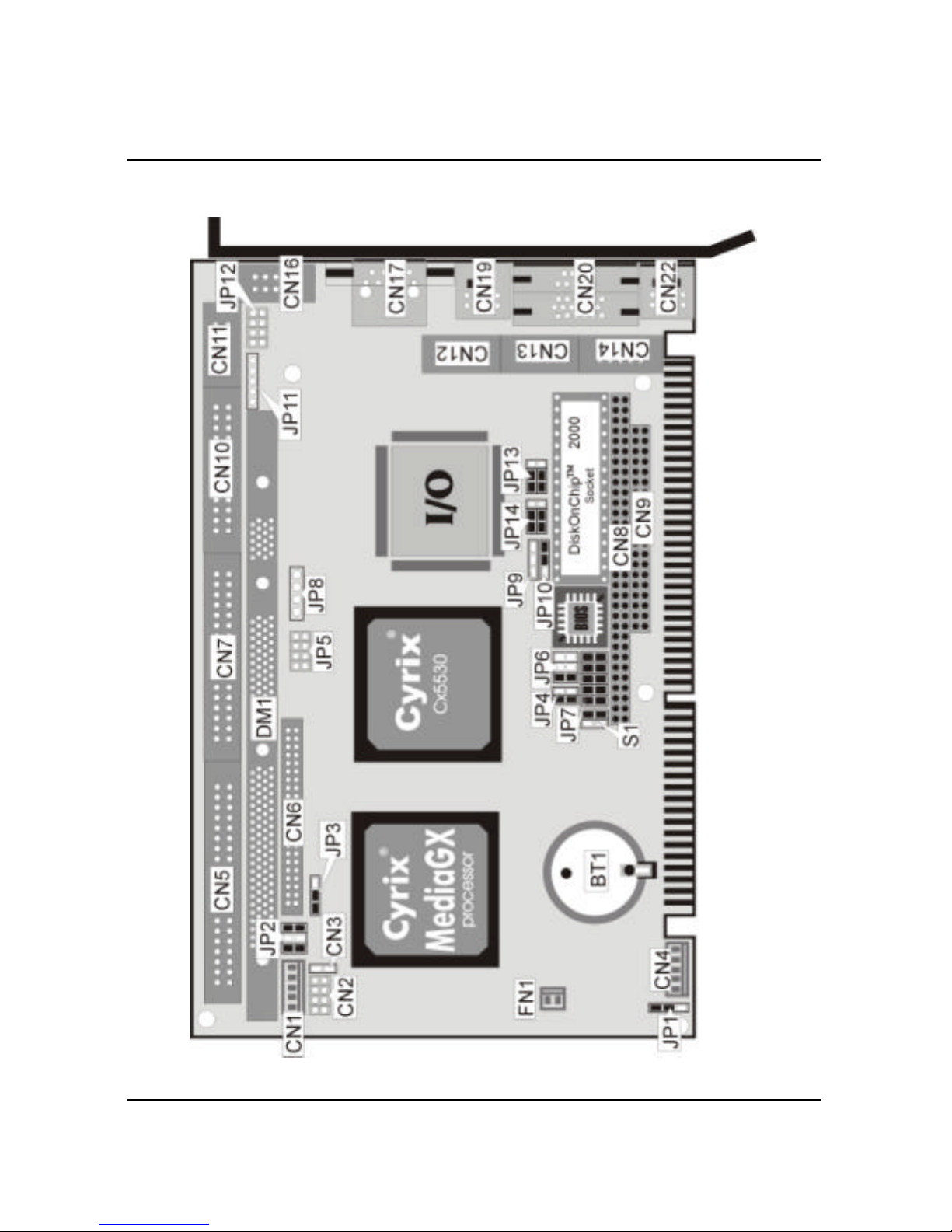

2.3 HS -4020'S LAYOUT...............................................................................................9

2.4 QUICK LISTING OF JUMPERS.................................................................................10

2.5 QUICK LISTING OF CONNECTORS ........................................................................11

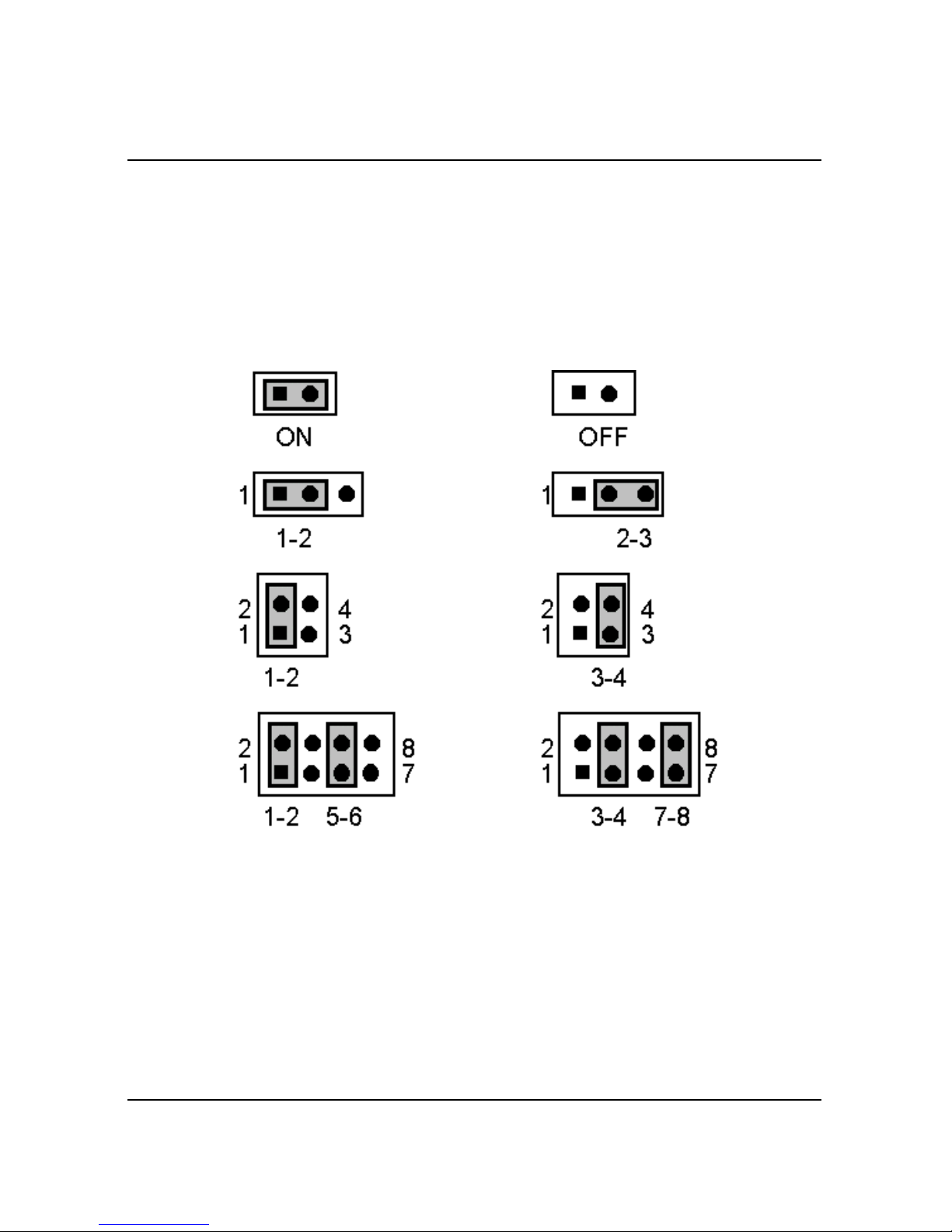

2.6 JUMPER SETTING DESCRIPTION............................................................................12

2.7 VGA CONTROLLER..............................................................................................13

2.8 RTC CONFIGURATION...........................................................................................13

2.9 DISKONCHIP? ADDRESS SETTING.....................................................................14

2.10 SETTING THE CPU OF HS-4020......................................................................15

2.11 WATCH-DOG TIMER...........................................................................................16

2.12 AUDIO SETTING...................................................................................................18

2.13 SYSTEM MEMORY SDRAM.............................................................................19

2.14 ATX POWER CONTROL CONNECTOR...............................................................19

2.15 IR CONNECTOR...................................................................................................19

CONNECTION..............................................................................................................20

3.1 VGA/LCD CONNECTORS....................................................................................22

3.2 SERIAL PORTS CONNECTORS.............................................................................22

3.3 KEYBOARD CONNECTOR.....................................................................................24

3.4 MOUSE CONNECTOR............................................................................................25

3.5 PCI E-IDE DRIVE CONNECTOR..........................................................................26

3.6 PARALLEL PORT CONNECTOR............................................................................27

3.7 THE FLOPPY DISK DRIVE CONNECTOR...............................................................28

3.8 FAST ETHERNET CONNECTOR.............................................................................31

3.9 PC/104 BUS CONNECTION.................................................................................32

ii ?Contents

3.10 USB PORTS CONNECTOR................................................................................32

3.11 PANEL SIGNAL CONNECTOR.............................................................................34

3.12 REMOTE POWER SWITCH...................................................................................34

AWARD BIOS SETUP ...............................................................................................36

4.1 MAIN MENU...........................................................................................................37

4.2 STANDARD CMOS SETUP..................................................................................38

4.3 BIOS FEATURES SETUP......................................................................................39

4.4 CHIPSET FEATURES SETUP..................................................................................40

4.5 INTEGRATED PERIPHERALS..................................................................................41

4.6 POWER MANAGEMENT SETUP............................................................................42

SOFTWARE UTILITIES............................................................................................43

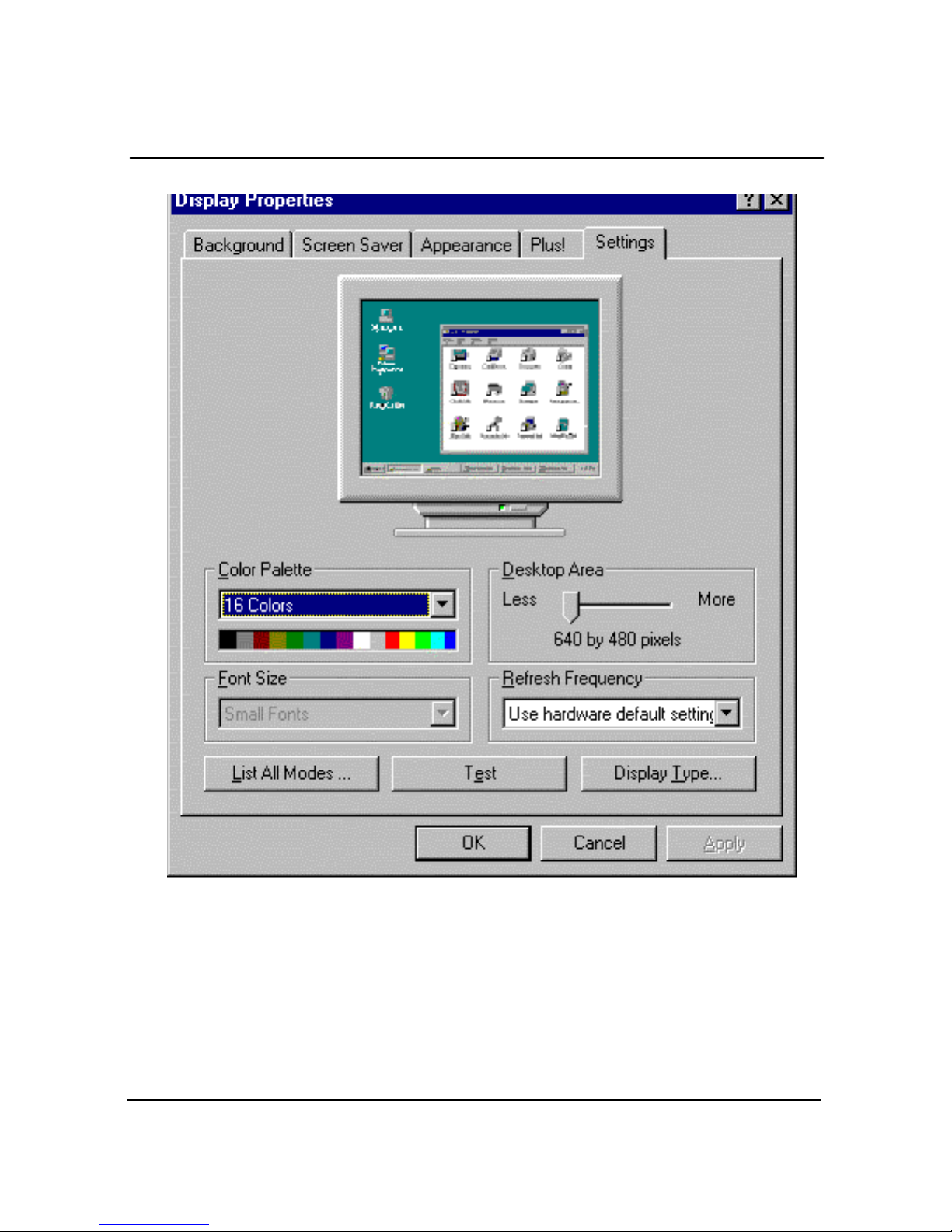

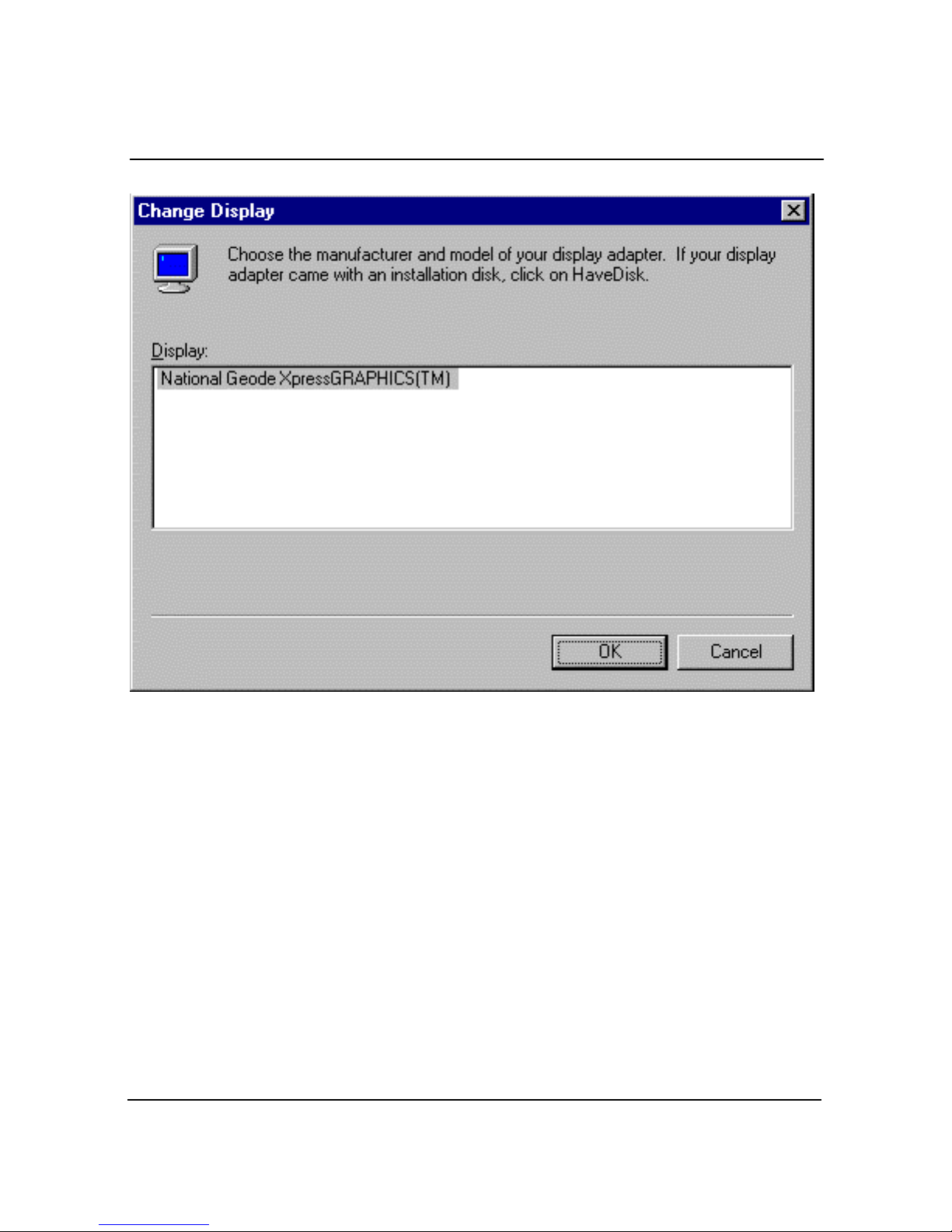

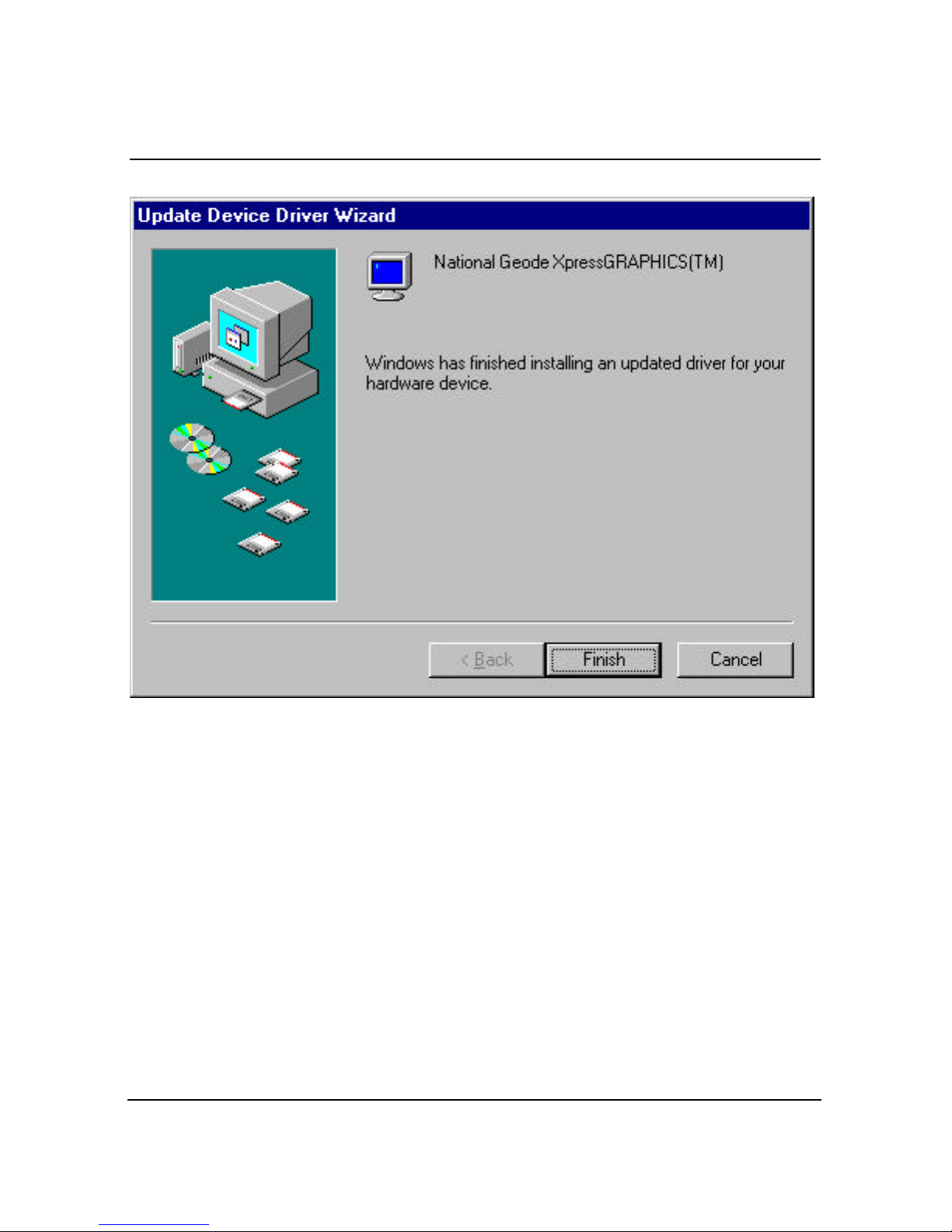

5.1 VGA DRIVER INSTALL FOR WIN95&98 ...........................................................42

5.2 VGA DRIVER INSTALL FOR WIN NT4.0.............................................44

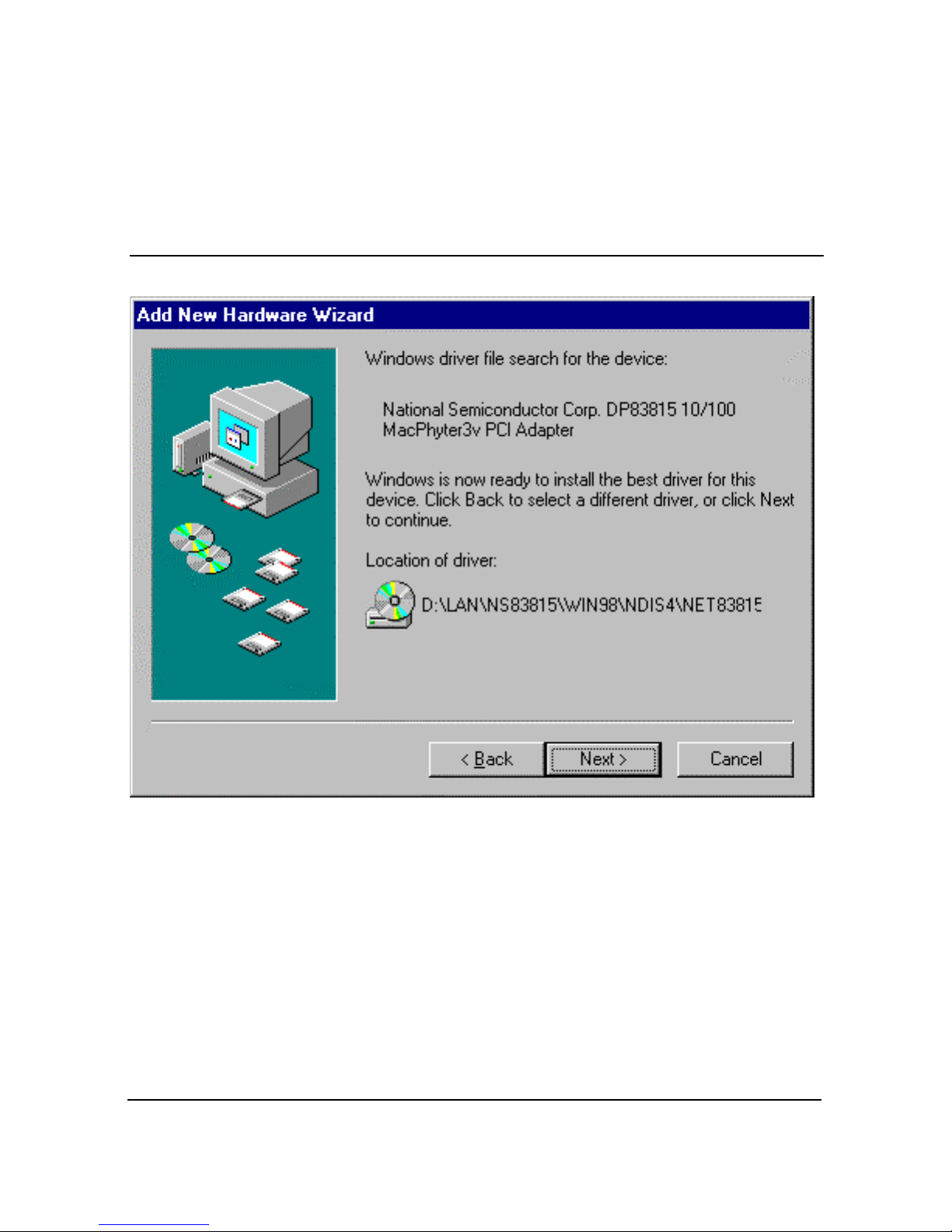

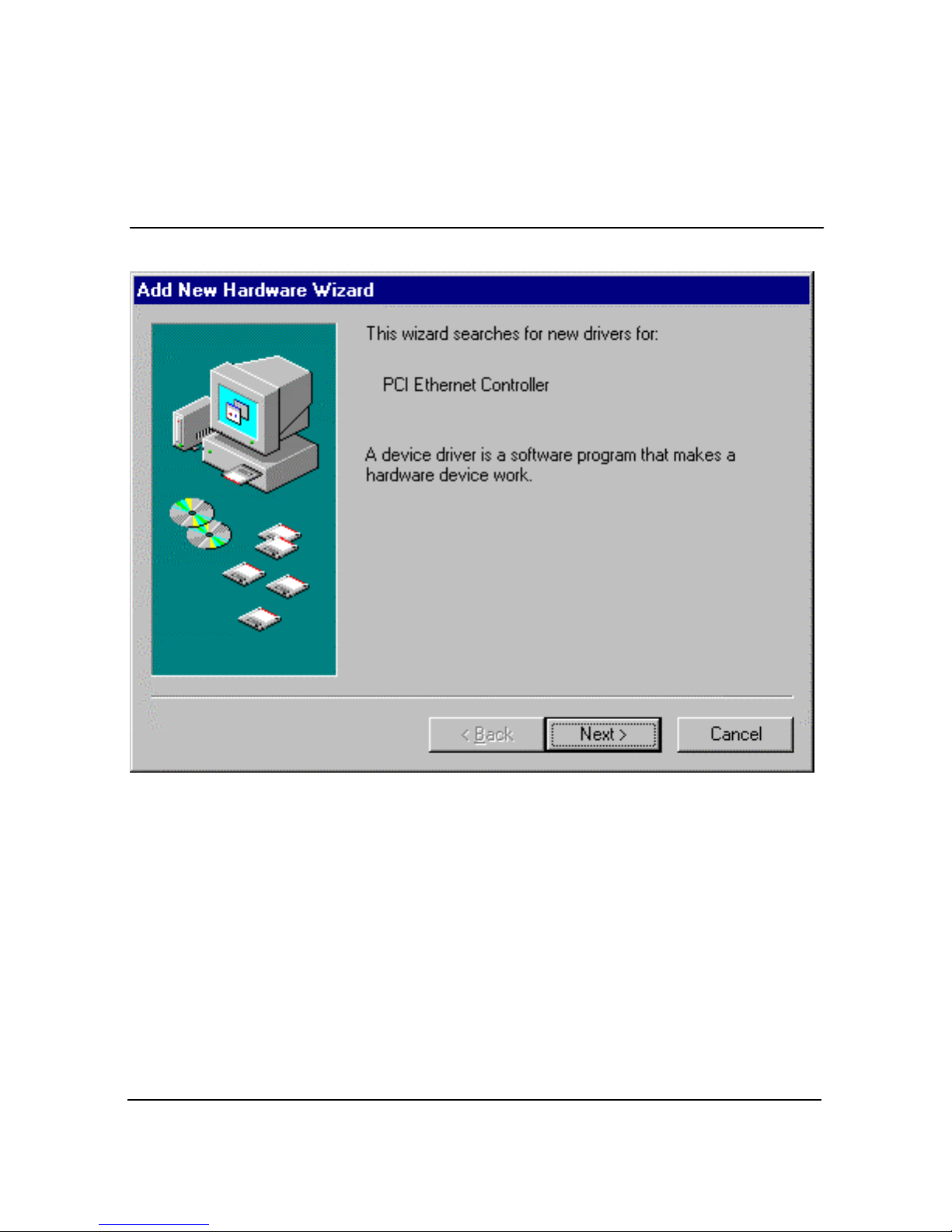

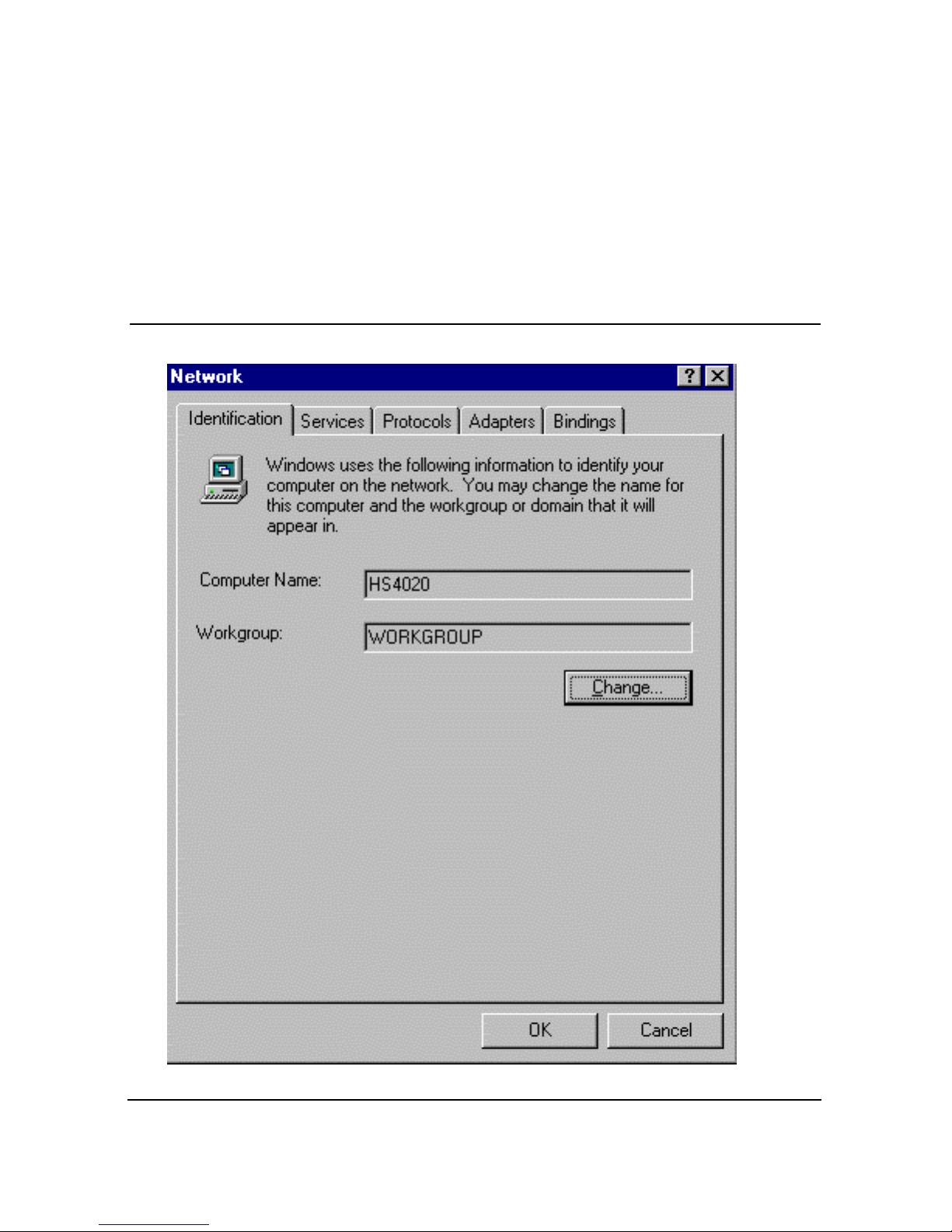

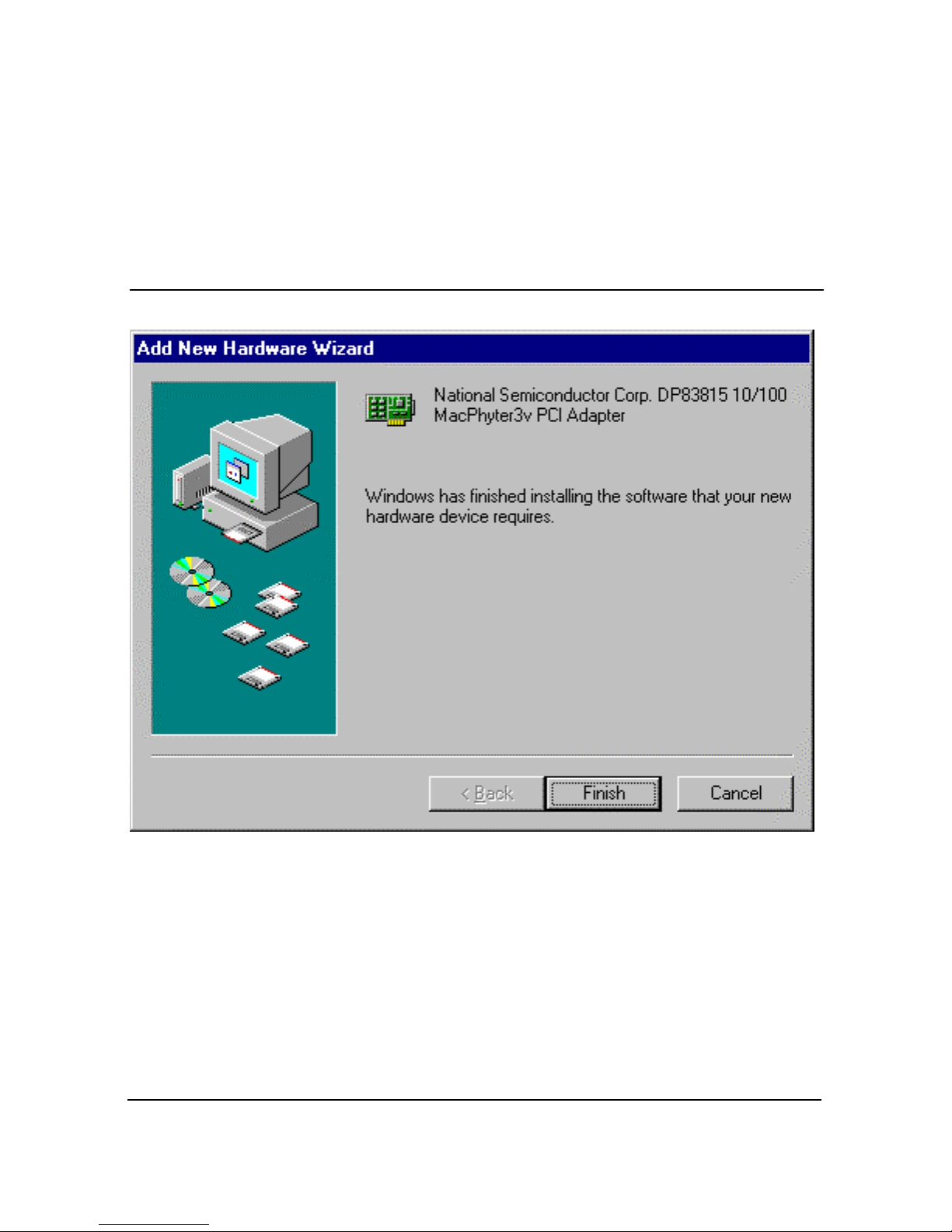

5.3 NETWORK DRIVER INSTALL FOR WIN95&98...................................................49

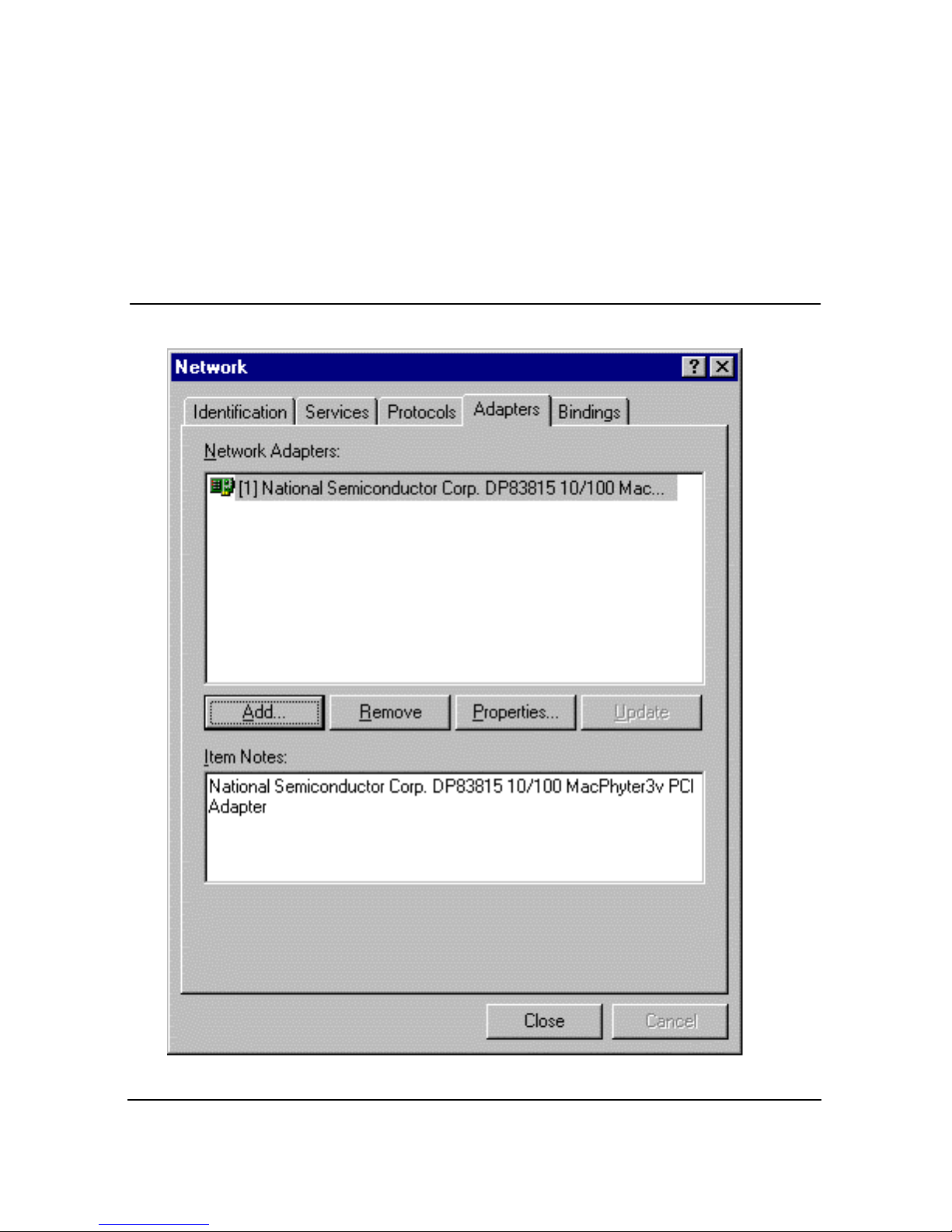

5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0...................................................53

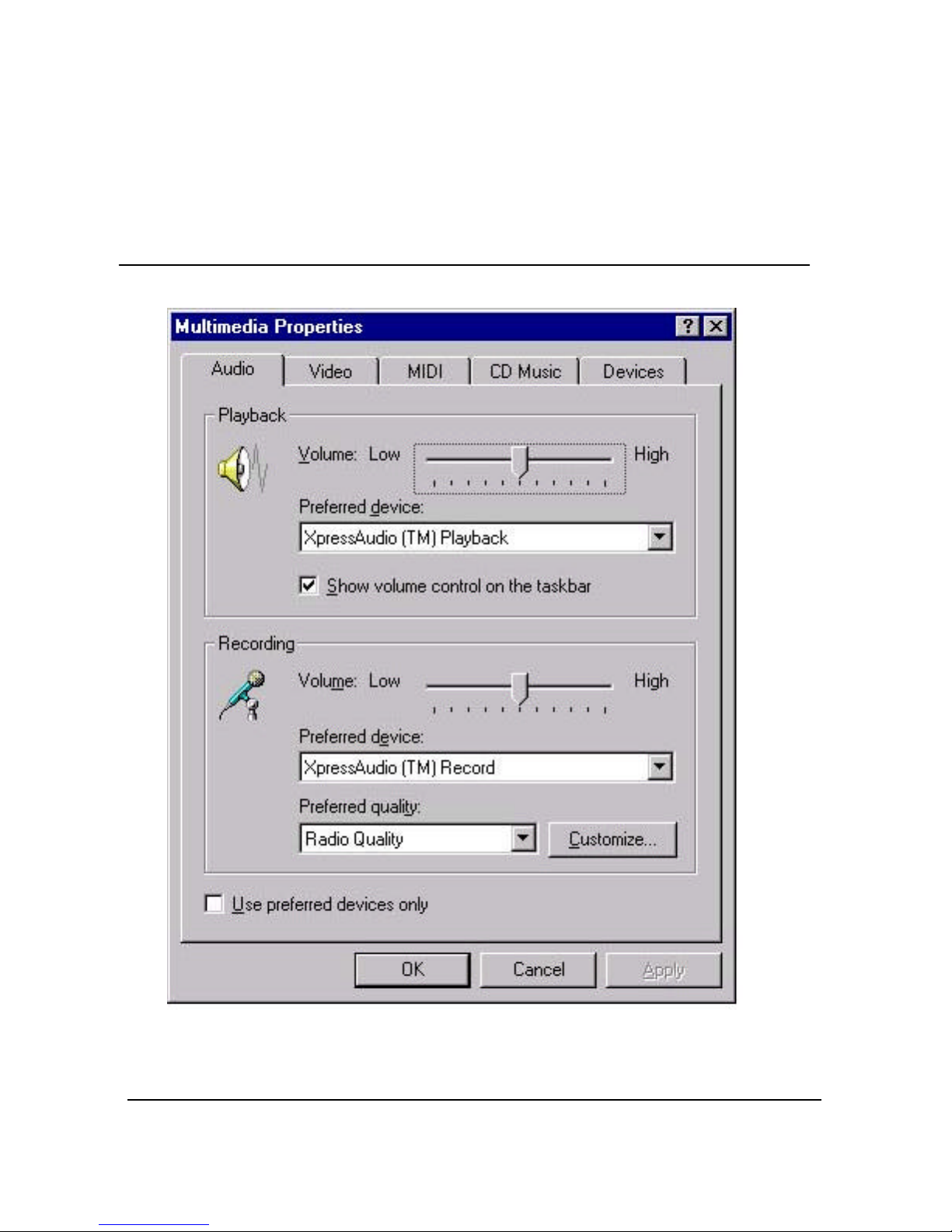

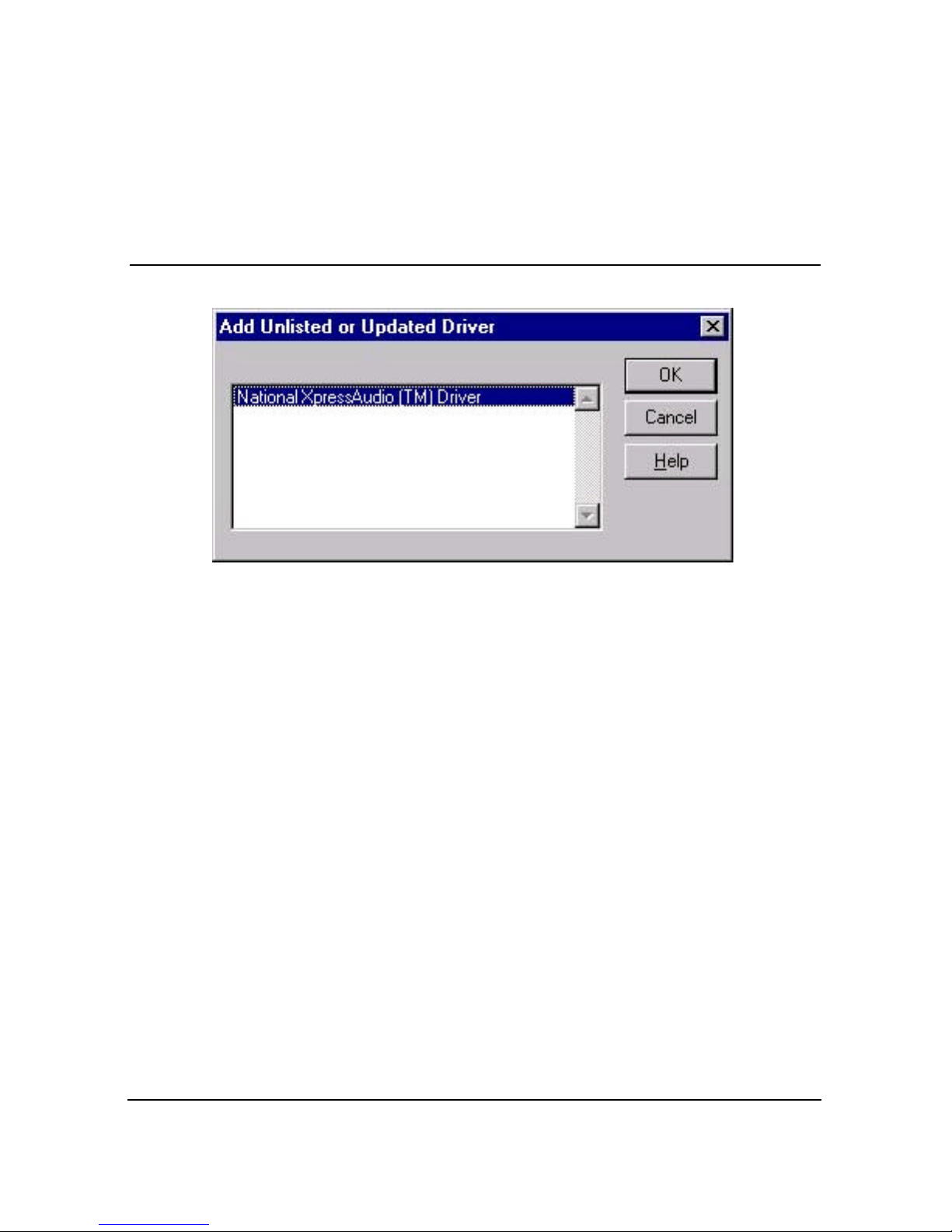

5.5 AUDIO DRIVER INSTALL FOR WIN NT4.0……………………………….54

3

Chapter-1

General Information

The HS-4020 is a ISA Bus Industrial Single Board Computer. The board design
combine together with all necessary input and output effects interfaces which
makes it an ideal all-in-one industrial single board computer.

The HS-4020 provides one set of PC/104 connector for 16bit ISA bus. The board
also design with an Cyrix® MediaGXm? 300MHz CPU, sound interface which
provides an ideas sound adapter in any sound application. The IDE interface with
DMA33 access of mode 4 to IDE drive interface architecture, supports with
maximum 33MB/sec in data transfer rating to two IDE drive connection and
provides an on board 10/100 based LAN for easy network connection.

A single Flash chip holds the system BIOS, and you can change the Flash BIOS
by the Utility Update. Advanced IR port also provide a faster data transmission.
You can also use the DOS version of the "DiskOnChip? " socket by issuing
commands from the DOS prompt without the necessity of other software
supports up to 144MB.

The board design with Cyrix® CX5530 VGA provides internal connections to CRT
or Panel display. The VGA is a share memory 4MB memory supported.

The HS-4020 supports SDRAM memory at one DIMM socket. This gives you the
flexibility of configuring your system from 8MB to 128MB SDRAM by using the
most economical DIMM memory modules for its on board system SDRAM.

If a non-expect program cause halts, the on board Watch-Dog Timer (WDT) will
automatically reset the CPU or generate an interrupt. The WDT is designed with
pure hardware and doesn’t need any arithmetical functions of a real-time clock
chip. This ensures the reliability in an unmanned or standalone system.

4

1.1 Major Features

?? Cyrix Geode G1 enhanced processor
?? One DIMM socket provides up to 128MB
?? Fast PCI enhanced IDE controller support two IDE disk drives
?? Three RS-232 and one RS-232/422/485 serial ports include 16C550

UART with 16byte FIFO

?? One enhanced bi-directional parallel port supports SPP/ECP/EPP
?? On board PS/2 Keyboard and PS/2 Mouse connector
?? On board super I/O chipset
?? On board CRT/Panel display controller
?? On board NS 83815 100 Based LAN
?? On board Cyrix CX5530 3D Sound
?? DiskOnChip memory size up to 144MB
?? Extra Power support
?? ATX Power Function support
?? PC/104 Bus connector

5

1.2 Specifications

?? CPU：Cyrix Geode G1 300MHz CPU
?? Bus Interface ： ISA Bus
?? Memory：One DIMM socket provides up to 128MB
?? Chipset：Cyrix Geode G1、Cyrix CX5530
?? I/O Chipset：Cyrix CX5530、SMC 37C669
?? VGA：Cyrix CX5530 share main memory 4MB support CRT/Panel

display up to 1024x768x64K colors

?? IDE：Two IDE disk drives support LBA mode with data rating 33MB/sec
?? Floppy：Support up to two floppy disk drives
?? Parallel Port：Support SPP/ECP/EPP
?? LAN：NS 83815 100 Based LAN
?? Sound：Cyrix CX5530 3D Sound
?? Serial Port：Three RS-232 and one RS-232/422/485 serial ports include

16C550 UART with 16byte FIFO

?? PC/104：PC/104 connector for 16bit ISA Bus
?? IR：One IrDA TX/RX header
?? USB：Support two USB ports
?? Keyboard：PS/2 6pin Mini Din or 5pin connector
?? Mouse：PS/2 6pin Mini Din
?? DiskOnChip：Socket for DiskOnChip and memory size up to 144MB
?? BIOS：Award Y2K PnP Flash BIOS
?? Watch-Dog Timer ：Set 1, 2, 10, 20, 110, 220 seconds activity trigger

with Reset or NMI

?? CMOS：Battery backup
?? DMA Channels：7
?? Interrupt Levels：15

6

?? Extra Power：One 5pin +5V/+12V/+5sb/ATX Power On connector
?? Power Voltage ： +5V、+12V、-12V
?? Operating Temperature ： 0~60°C
?? Board Size：7.3”(L) x 4.8”(W)

1.3 Delivery Package

The delivery package of HS -4020 includes all following items:

?? HS-4020 Industrial Single Board Computer
?? One IDE port Flat Cable
?? One FDD port Flat Cable
?? One Sound port Bracketed Cable
?? Two Com port Bracketed Flat Cable
?? One Printer Bracketed Flat Cable
?? 5pin ATX Power Connector Cable
?? Utility CD Disk
?? User’s Manual

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the delivery
package with pac king materials in case of you want to ship or store the
product in feature.

7

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware of
HS-4020. At first, please follow up sections 1.3, 2.1 and 2.2 in check the
delivery package and carefully unpacking. Following after, the jumpers
setting of switch, watchdog timer, and the DiskOnChip? address
selection etc.

2.1 Caution of Static Electricity

The HS -4020 has been well package with an anti-static bag in protect its
sensitive computer components and circuitry from the damage of static
electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

You should follow the steps as following to protect the b oard in against the
static electric discharge whenever you handle the board:

1. Please use a grounding wrist strap on whoever needs to handle the
HS-4020. Well clip the ALLIGATOR clip of the strap to the end of the
shielded wire lead from a grounded object. Please put on and connect
the strap before handle the HS-4020 for harmlessly discharge any static
electricity through the strap.

2. Please use anti-static pad for put any components or parts or tools on
the pad whenever you work on them outside the computer. You may
also in use the anti-static bag instead the pad. Please ask from your
local supplier in help up your necessary parts on anti-static requirement.

8

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS -4020 from electricity discharge. With refer to section

1.3, please check the delivery package again with following steps:

1. Unpacking the HS -4020, keep well storage of all packing material,

manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT INSTALL

IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF

HAPPENED.

4. Well check from your optional parts (i.e. CPU, SDRAM, FAN,

ROM-Disk etc.) for completed setting all necessary jumpers setting to
jumper pin-set and CMOS setup correctly. Please also reference to all
information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver Type

etc.) for completed add-in or connection and CM OS setup correctly.
Please also reference to all information of connector connection in this
manual.

6. Please keep all necessary manual and diskette in a good condition for

your necessary re-installation if you change your Operating System or
whatever needs.

9

2.3 HS-4020’s Layout

10

2.4 Quick Listing of Jumpers

S1 ? Bus Clock Select
JP1 ? Clear CMOS
JP2 ? CPU Clock Ratio Select
JP3 ? LCD Voltage Select
JP4 ? RS-422/485 Receiver Enable Controller
JP5 ? Audio Signal Connector
JP6 ? RS422/485 Transceiver Enable Controller

JP7(1-4) ? DiskOnChip

TM

Address Select

JP7(5-10) ? Watch-Dog Timer Select
JP8 ? Line In Connector
JP9 ? Default Setting
JP10 ? Watch-Dog Active Select
JP11 ? IR Connector
JP12 ? USB Connector
JP13 ? RS-232/422/485 Select
JP14 ? RS-232/422/485 Select

Attention
Battery Setup：Our default setting is set JP1 to 2-3,

please set JP1 to 1-2 when you start up your system.

11

2.5 Quick Listing of Connectors

CN1 ? 5pin Keyboard Connector
CN2 ? Front Panel Signal Connector
CN3 ? ATX ON/OFF Select Connector
CN4 ? 5pin ATX Power Control Connector
CN5 ? IDE Connector
CN6 ? Panel Connector
CN7 ? Floppy Connector
CN8 ? PC/104 64pin Connector
CN9 ? PC/104 40pin Connector
CN10 ? Parallel Connector
CN11 ? COM 1 Connector (5x2 Header)
CN12 ? COM 3 Connector (5x2 Header)
CN13 ? RS-422/485 Connector (5x2 Header)
CN14 ? COM 4 Connector (5x2 Header)
CN15 ? 4pin Mouse Connector
CN16 ? COM 2 Connector (5x2 Header)
CN17 ? RJ45 Connector
CN19 ? PS/2 6Pin Mini Din Mouse Connector
CN20 ? 15pin CRT Connector
CN22 ? PS/2 6pin Mini Din Keyboard Connector

12

2.6 Jumper Setting Description

A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over
two pins. A jumper pin-set is OFF as a open circuit with a plastic cap
inserted over one or no pin(s) between pins. The below figure 2.2 shows the
examples of different jumper pin-set setting as ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting may reference in this manual with a " * " symbol in front of the
selected item.

13

2.7 VGA Controller

The on board Cyrix® CX5530 chipset provides 4MB share memory VGA
with up to 1024x768x64K colors resolution. The board provides the user to
auto disable VGA if another ISA bus display card is pluged in into the ISA
slot.

There is no need to set any jumper to disable the on board VGA if any 2nd
ISA bus VGA card is pluged in into the ISA slot.

2.8 RTC Configuration

The HS-4020 provides a setting for the selection of the RTC Clear. Jumper
by JP1.

?? JP1 : RTC Controller

JP1 Description

1-2 CMOS backup by Battery

*2-3 Clear CMOS

Attention
Battery Setup：Our default setting is set JP1 to 2-3,

please set JP1 to 1-2 when you start up your system.

14

2.9 DiskOnChip? Address Setting

The HS-4020 provides an U10 socket to install the DiskOnChip? module.
A JP7(1-4) may select the starting memory address of the DiskOnChip?

(D.O.C.) for avoid the mapping area with any other memory devices. If you
have other memory devices in the system, please set both at different
memory address mapping.

?? JP7(1-4) : DiskOnChip? Address

PIN NO. Address

*1-2, 3-4 D000

3-4 D800

The D.O.C. function allows the system in using without FDD nor HDD. The
D.O.C. may be format as driver C: or driver A:. User may also uses the DOS's
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP
etc. This means that the D.O.C. may be used as driver-A if the system works
without FDD-A for ambient application. Please contact with your supplier fo r
different size D.O.C. module.

15

2.10 Setting the CPU of HS-4020

The HS-4020 provides all possibility in jumper setting, JP2 for internal Host
Bus Clock Ratio and S1 for CPU Clock-in Multiplex Weighted Value
setting as following. Please contact with your CPU’s supplier in

getting those information for correctly setting. Any wrong setting
may cause CPU defect.

?? JP2：Base Clock Select

Base Clock 1-2 3-4

24.85MHz OFF OFF

* 33.25MHz OFF ON

29.95MHz ON OFF

*) : default setting

16

2.11 Watch-Dog Timer

There are three access cycles of Watch-Dog Timer as Enable, Refresh
and Disable. The Enable cycle should proceed by READ PORT 443H. The
Disable cycle should proceed by READ PORT 043H. A continue Enable
cycle after a first Enable cycle means Refresh.

Once if the Enable cycle is active, a Refresh cycle is requested before the
time-out period for restarting counts the WDT Timer's period. Otherwise, it
will assume that the program operation is abnormal when the time
counting over the period preset of WDT Timer. A System Reset signal to
start again or a NMI cycle to the CPU comes if over.

The JP10 is using to select the active function of watch-dog timer in
disable the watch-dog timer, or presetting the watch-dog timer activity at
the reset trigger, or presetting the wat ch-dog timer activity at the NMI
trigger.

?? JP10 : Watch-Dog Active Type Setting

JP10 DESCRIPTION

*2-3 System Reset

1-2 Active NMI

OFF disable Watch-dog timer

?? JP7(5-10) : WDT Time - Out Period

PERIOD 5-6 7-8 9-10

*1 sec ON ON ON

2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON

110 sec ON ON OFF
220 sec OFF ON OFF

The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by an Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port (443H)
and a Disable cycle by reading the Watch-dog timer disable control port

17

(043H). After a Enable cycle of WDT, user must constantly proceed a
Refresh cycle to WDT before

18

its period setting comes ending of every 1, 2, 10, 20, 110 or 220 seconds
( Please reference to the selection table of JP7(5-10) for WDT Time-Out
period setting ). If the Refresh cycle does not active before WDT period
cycle, the on board WDT architecture will issue a Reset or NMI cycle to
the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.

The following sample programs is showing how to Enable, Disable and
Refresh the Watch-dog timer:

WDT_EN_RF EQU 0433H
WDT_DIS EQU 0043H

WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX

POP AX

19

RET

2.12 Audio Setting

The HS -4020 has an on board Cyrix® CX5530 sound interface. The
following are the connectors of LINE IN, and LINE OUT connector.

The LINE IN and LINE OUT connectors are for audio sound input and
output. The LINE IN provides for 4pin connection, and LINE OUT, MIC IN
provides for 8pin connection.

?? JP8 : LINE IN Connector

PIN NO. Description

1 LINE L
2 GND
3 GND
4 LINE R

?? JP5 : LINE OUT Connector

PIN NO.

Description PIN NO.

Description

1 AUDIO OUT/L 2 AUDIO OUT/R
3 GND 4 GND
5 MIC IN 6 N.C.
7 GND 8 GND

20

2.13 System Memory SDRAM

The HS -4020 provides SDRAM memory on board with one DIMM socket
for maximum 128MB memory capacity,.

2.14 ATX Power Control Connector

The HS -4020 support ATX Power function by the 5pin ATX Power via the
extension cable from the Backplane (from the VER:6.1).

?? CN4 : 5-Pin ATX Power Control

PIN NO. Description

1 +5V
2 5V_SB
3 +12V
4 PS_ON
5 GND

2.15 IR Connector

The HS -4020 provides a 5pin internal IR communication connector as
following JP11 pin information.

?? JP11 : IR Connector

PIN NO. Description

1 VCC
2 FIRRX
3 IRRX
4 GROUND
5 IRTX

21

22

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 VGA/LCD Connectors

The HS-4020 provides two possible connectors for VGA connections. One
standard CRT connector as following CN20 pin information. Others internal
44pin header for Panel connection as following CN6 pin information.

The HS -4020 provides a 3pin header connector (JP3) for 3.3V or 5V LCD
Panel type selection.

?? CN20 : 15pin CRT connector

PIN NO. Description PIN NO. Description

1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND

9 NC 10 GND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC

23

?? CN6 : 44pin Internal Panel Connector

+12V 1 2 +12V
GND 3 4 GND
+5V or +3V PVcc 5 6 ENAVdd
7 8 GND
NC 9 10 NC
P0 11 12 P1
P2 13 14 P3
P4 15 16 P5
NC 17 18 NC
P

6

19 20 P7

P

8

21 22 P9

P

10

23 24 P11
NC 25 26 NC
P

12

27 28 P13
P

14

29 30 P15
P16 31 32 P17
NC 33 34 NC
SHFCLK 35 36 VSYNC
Panel Enable 37 38 HSYNC
GND 39 40 ENABKL
NC 41 42 NC
NC 43 44 NC

?? JP3 : Panel Power Selection

JP3 Description

1-2 5V Power

2-3 3.3V Power

Note-1: Please setting the voltage correctly of individual panel by JP3.

24

3.2 Serial Ports Connectors

The HS-4020 offer four NSIGC550 compatible UARTS with Read/ Receive
16 byte FIFO serial ports with four internal 10pin connector. The HS-4020
also provides one RS -422/485 port, the CN13 for uses as or RS-422/485.
Please reference to the following for setting JP13 & JP14 at enable or
disable the RS -232 or RS-422/485 function.

?? CN11,16,12,14: 10pin Serial Port

PIN NO.

Description PIN NO. Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 NC

?? CN13: RS -422/485 Connector

PIN NO.

Description PIN NO. Description

1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 RTS-
7 RTS+ 8 CTS+
9 CTS- 10 NC

?? JP4: RS -422/485 Receiver Controller

JP4 Description

1-2 ON Always Enable
3-4 ON Enable by “-RTS” signal

*ALL OFF Always Disable

25

?? JP6: RS-422/485 Transceiver Controller

JP10 Description

1-2 ON Always Enable
3-4 ON Enable by “-RTS” signal
5-6 ON Enable by writing the REG:2 EFH BIT0=1

*ALL OFF Always Disable

?? JP13, JP14: RS -232 or RS-422/485 Selection

JP13 JP14

RS-232 1-3, 2-4 1-3, 2-4

RS-422/485 3-5, 4-6 3-5, 4-6

26

3.3 Keyboard Connector

The HS -4020 offers two possibilities for Keyboard connections to PS/2
keyboard at CN22 or 5pin header at CN1.

?? CN22 : PS/2 6pin Mini Din Keyboard

PIN NO. Description

1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock

*:CN22 provides Keyboard and Mouse single.

?? CN1 : 5pin Keyboard Connector

PIN NO. Description

1 Keyboard Clock
2 Keyboard Data
3 N/C
4 GND
5 +5V

27

3.4 Mouse Connector

The HS -4020 offers two possibilities for Mouse connections to PS/2
mouser at CN19 or 4pin header at CN15.

?? CN19 : PS/2 6Pin Mini Din Mouse

PIN NO. Description

1 Mouse Data
2 NC
3 GND
4 +5V
5 Mouse Clock
6 NC

?? CN15 : 4pin Mouse Connector

PIN NO. Description

1 Mouse clock
2 Mouse data
3 +5V
4 GND

28

3.5 PCI E-IDE Drive Connector

One standard 40pin header daisy-chain driver connector provides as CN5
with following pin assignment. Total two IDE (Integrated Device
Electronics) drivers may connect.

?? CN5 : IDE Interface Connector

PIN NO.

Description PIN NO.

Description

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

29

3.6 Parallel Port Connector

A standard 26pin flat cable driver connector provides as CN10 with
following pin assignment for connection to parallel printer.

?? CN10 : Parallel Port Connector

PIN NO.

Description

PIN NO.

Description

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE

11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN#

18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

30

3.7The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as CN7
with following pin assignment. Total two FDD drivers may connect.

?? CN7 : FDD Connector

PIN NO.

Description PIN NO. Description

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

31

3.8Fast Ethernet Connector

The Fast Ethernet controller provides with 32bit performance, PCI bus
master capability, and full compliance with IEEE 802.3 10/100Based-T
specifications.

For 10/100Base-T operation, please connect the network connection by
plugging one end of the cable into the RJ45 of the CN17 connector.

?? CN17 : RJ45 Connector

PIN NO.

Description PIN NO.

Description

1 TX+ 2 TX ­3 RX+ 4 RC-GND
5 RC-GND 6 RX ­7 RC-GND 8 RC-GND

32

3.9 PC/104 Bus Connection

The HS -4020’s PC/104 expansion bus provides you to connect all
kind of PC/104 modules. The PC/104 bus has been already become
the industrial embedded 16bit PC standard bus. You can easily install
over thousands type of PC/104 modules from hundreds of venders in
the world. The detailed pin assignment of the PC/104 expansion bus
connectors CN8 and CN9 are specified as following tables:

Note : The PC/104 connector allows to directly plug-in

Stack-thru PC/104 modules without the PC/104 mounting
kit.

33

?? CN8&CN9 : PC/104 Expansion Bus

(CN8 = 64pin female connector; CN9 = 40pin female connector.)

Pin

No.

CN8

Row A

Pin
No.

CN8

Row B

Pin

No.

CN9

Row D

Pin
No.

CN9

Row C
1 IOCHECK- 33 0V 1 0V 21 0V
2 SD7 34

RESETDRV

2 MEMCS16- 22 SBHE­3 SD6 35 +5V 3 IOSC16- 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW- 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0- 29 LA17

10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR­11 AEN 43 SMEMW- 11 DACK5- 31 MEMW­12 SA19 44 SMEMR- 12 DRQ5 32 SD8
13 SA18 45 IOW- 13 DACK6- 33 SD9
14 SA17 46 IOR- 14 DRQ6 34 SD10
15 SA16 47 DACK3- 15 DACK7- 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1- 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER- 38 SD14
19 SA12 51 REFRESH- 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2-
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC

34

31 SA0 63 0V
32 0V 64 0V

3.10 USB Ports Connector

The HS -4020 provides one 8pin connector for USB & USB ports. Please
refer to the following default pin information.

?? JP12 : USB Ports Connector

PIN NO. USB PIN NO. USB

1 VCC 2 VCC
3 USB PO- 4 USB P1­5 USB PO+ 6 USB P1+
7 GND 8 GND

3.11Front Panel Signal Connector

?? CN2 : Front Panel Signal Connector

PIN NO. Description PIN NO. Description

1 RESET 2 GND
3 N.C. 4 GND
5 SPEAKER 6 VCC5V
7 HDDLED 8 330Ω Pull +5V

3.12 ATX Power ON/OFF Connector

The HS -4020 provides ATX Power ON/OFF control.

?? CN3 : ATX Power ON/OFF Control

CN3 Description

1 Power ON/OFF
2 GND

35

36

Chapter-4

AWARD BIOS Setup

The HS -4020 uses Award BIOS for the system configuration. The
Award BIOS setup program is designed to provide the maximum
flexibility in configuring the system by offering various options which
could be selected for end-user requirements. This chapter is written to
assist you in the proper usage of these features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key
during memory testing when first power on. The Main Menu will be
displayed at this time.

37

4.1 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to enter the sub-menu.

ROM PCI/ISA BIOS (2A434D2B)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc : Quit

F10 : Save & Exit

???? : Select Item
(Shift)F2 : Change Color

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

38

4.2 Standard CMOS Setup

The Standard Set up is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the setup.
When the IDE hard disk drive you are using is larger than 528MB,
please set the HDD mode to LBA mode. Please use the IDE Setup
Utility in BIOS SETUP to install the HDD correctly.

ROM PCI/ISA BIOS (2A434D2B)

STANDARD CMOS SETUP
AWARD SOFTWARE, INC.

Data (mm:dd:yy) : Fri, Oct 19 1999
Time (hh:mm:ss) : 00:00:00

CYLS HEAD PRECOMP LANDZ SECTOR MODE
Driver C ? 0 ( 0Mb) 0 0 0 0 0 CHS
Driver D ? 0 ( 0Mb) 0 0 0 0 0 CHS

Drive A : 1.44M , 3.5in.
Drive B : None

Video : EGA/VGA

Halt On : All, But Keyboard
ESC : Quit

F1 : Help

???? : Select Item
(Shift) F2: Change Color

PU/PD/ + / - : Modify

39

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

ROM PCI/ISA BIOS (2A434D2B)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disabled Video BIOS Shadow : Disabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled

CC000-CFFFF Shadow : Disabled

Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled
Boot Sequence : A,C,SCSI D4000-D7FFF Shadow : Disabled
Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled
Boot Up Floppy Seek : Disabled DC000-DFFFF Shadow : Disabled

Boot Up NumLock Status : Off Cyrix 6x86/MII CPUID : Enabled
Boot Up System Speed : Low
Gate A20 Option : Normal
Memory Parity Check : Disabled
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled

OS Select For DRAM > 64MB : Non-OS2 ESC : Quit ??? ? : Select Item
Report No FDD For WIN 95 : No F1 : Help PU/PD/+/-: Modify

F5 : Old Values (Shift) F2 : Color
G6

: Load BIOS Defaults

G7

: Load Setup Defaults

40

4.4 Chipset Features Setup

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds
and the access to the system memory resources, such as DRAM and
the external cache. It also coordinates the communications between
the conventional ISA and PCI buses. It must be stated that these
items should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that
the data has been lost while using your system.

ROM PCI/ISA BIOS (2A434D2B)

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

SDRAM CAS latency Time : 3T
SDRAM Clock Ratio Div By : 4

16-bit I/O Recovery (CLK) : 5
8-bit I/O Recovery (CLK) : 5

USB Controller : Enabled
USB Legacy Support : Enabled

ESC : Quit ??? ? : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

41

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.
PIO means Programmed Input /Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them.
This is much simpler and more efficient (also faster).

ROM PCI/ISA BIOS (2A434D2B)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled
Primary IDE Channel : Enabled

Build in CPU Audio : Enabled

KBC input clock

12MHz
Onboard FDC Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2

2F8/IRQ3 Multiple Monitor Support : No Onboard
UR2 Mode : Standard
Onboard Parallel Port : 378/IRQ7 Video Memory Size : 2.5M
Parallel Port Mode : ECP+EPP Flat Panel Status : Enabled
ECP Mode Use DMA

3 Flat Panel Resolution : 800 x 600
Onboard Serial Port 3

3E8/IRQ10

Onboard Serial Port 4 : 2E8/ IRQ11

Panel Type
640 x 480

800 x 600

42

1024 x 768

4.6 Power Management Setup

The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.

ROM PCI/ISA BIOS (2A434D2B )
POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Power Management : Disabled IRQ1 (KeyBoard) : ON
* * PM Timers * *

IRQ3 (COM2) : OFF
Doze Mode : Disabled IRQ4 (COM1) : OFF
Standby Mode : Disabled IRQ5 (LPT2) : OFF
HDD POWER Down : Disabled IRQ6 (Floppy Disk) : OFF
MODEN Use IRQ : NA IRQ7 (LPT1) : OFF

IRQ9 (IRQ2 Redir) : OFF
Throttle Duty Cycle : 33.3% IRQ10 (Reserved) : OFF

IRQ11 (Reserved) : OFF
RING POWER ON Controller : Disabled IRQ12 (PS/2 Mouse) : OFF
Net POWER ON Controller : Disabled IRQ13 (Coprocessor) : OFF
Wake-Up System By PME : Disabled IRQ14 (Hard Disk) : OFF
RTC Alarm Function

IRQ15 (Reserved) : OFF
RTCOn by Time (hh:mm) : 7:0 ESC : Quit ???? : Select Item

F1 : Help PU/PD/+/-: Modify

F5 : Old Values (Shift) F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

43

Chapter-5

Software Utilities

This chapter the detailed information of VGA and LAN function. How to
install the configuration is also included.

Section include:

? VGA DRIVER INSTALLATION
? NETWORK DRIVER INSTALLATION
? AUDIO DRIVER INSTALLATION

44

5.1 VGA DRIVER INSTALL FOR WIN95&98

1. Click Start, then Setting, then Control Panel. Start the Display
applet program.

2. Select the setting page, push the advanced properties button.

3. Push the change button in the adapter area.

4. Continue to click “Next”. Select Display a list of all drivers in a
specific location, So you can select the drivers you want.

5. Click “Next”. Select the Specify a location checkbox and click
“Browse”.

6. Specify the path to the new driver and press the <ENTER> key.
(if in driver A:, select a: \win95)

7. The Select device dialog box will appear.

Select National Geode XpressGRAPHICS™

8. Continue choosing close until asked to restart machine.

9. After the system has restarted, you can go back into the display
applet and select alternate screen resolutions and color depths.

Note: Installation procedure for Windows 98 is similar to
Windows95.

45

46

5.2 VGA DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Setting and click on Control Panel.

2. Click on Display icon to start the Display Properties Window.

3. Click on the Settings tab, and then click on Display Type.

4. In the Change Display Type window, click on “Have Disk”.

5. Specify the path to the new driver and press the <ENTER>key.
(if in driver A:, type a: \nt40)

Select National Geode XpressGRAPHICS™

6. Click OK or press Enter

7. You will see warning panel about Third Party Drivers. Click on Yes to
finish the installation.

8. Once the installation is completed, the system must shut down and
restart for the new driver to take effect.

9. After restart, checking on the VGA driver, the properties of the driver
should look similar to the following figure.

47

48

49

5.3 NETWORK DRIVER INSTALL FOR WIN98&95

Win98

Windows 98 will detect the network driver automatically.

Win95

1. Click Start, then Setting, in the “Setting” select Control panel.

2. Start the network applet program. In the Network window, click
“Add”.

3. In the Select Network Component Type, select Adapter then click
“Add”. When the Select Network Component Type, Select Adapter,
then click “Add”.

4. Specify the path the new driver and press <ENTER> key.(If in driver
a:, type a: \) (If you’re not sure exactly where the drivers are, choose the
“Browse” button and find it)

Select National Semiconductor Corp.

DP83815 10/100 MacPhyter3v PCI
Adapter

5. Click OK.

6. Windows 95 will copy the network drivers to the proper directories
on your system.

7. Continue choosing “OK”, util asked to restart your system.

8. After restart, checking on the network driver, the Properties of the
driver should look similar to the following figure.

50

51

52

53

5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Setting and click on Control
Panel. Click on the Network icon to start the Network Window.

2. Click on the Adapters tab, and then click “Add”.

3. In the Select Network Adapter window, click “Have Disk”.

4. This will bring up the Insert Disk window.

5. Supply the directory where the Windows NT driver files are located.
(If in driver a: , type a: \)

6. The Select OEM Option window will show up.

Select National Semiconductor Corp.

DP83815 10/100 MacPhyter3v PCI Adapter

7. Click OK to finish the installation.

8. Once the installation is completed, the system must be shut down
and restarted for the new driver to take effect.

9. After restart, checking on the Network driver, the Properties of the
driver should look similar to the following figure.

54

55

56

5.5 AUDIO DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Setting and click on Control Panel.

2. Click on Display icon to start the Multi Media Window.

3. Click on the Settings tab, and then click on Multi Media Type.

4. In the Change Display Type window, click on “Have Disk” properties.

5. Click on “Unlisted or update driver” and press “OK”.

6. Specify the path to the new driver and press the <ENTER> key.
(if in driver A:, type a: \nt40)

Select “National XpressAudio

TM

Driver”

7. Click OK or press ENTER.

8. You will see “National XpressAudio

TM

Driver”. Click on “Contiun” to

finish the installation.

9. Once the installation is completed, the system must shut down and
restart for the new driver to take effect.

10. After restart, checking on the VGA driver, the properties of the driver
should look similar to the following figure.

57

58

59
