Boser HS-4010 User Manual

HS-4010

Half 486 Little Board

10 Base-T Network, Flat Panel, VGA Control.

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic
or machine readable form in whole or in part without prior written consent from
the manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for
any errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.

Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.

Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

© Copyright 1999
All Rights Reserved.
User Manual edition 1. 1, Aug.24.2001

CONTENTS

HS-4010...................................................................................................................1

GENERAL INFORMATION.........................................................................................3

1.1 MAJOR FEATURES..................................................................................................4

1.2 SPECIFICATIONS ......................................................................................................5

1.3 DELIVERY PACKAGE..............................................................................................7

HARDWARE INSTALLATION...................................................................................8

2.1 CAUTION OF STATIC ELECTRICITY........................................................................8

2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION......................................9

2.3 HS -4010’S LAYOUT............................................................................................10

2.4 QUICK LISTING OF JUMPERS.................................................................................11

2.5 QUICK LISTING OF CONNECTORS ........................................................................11

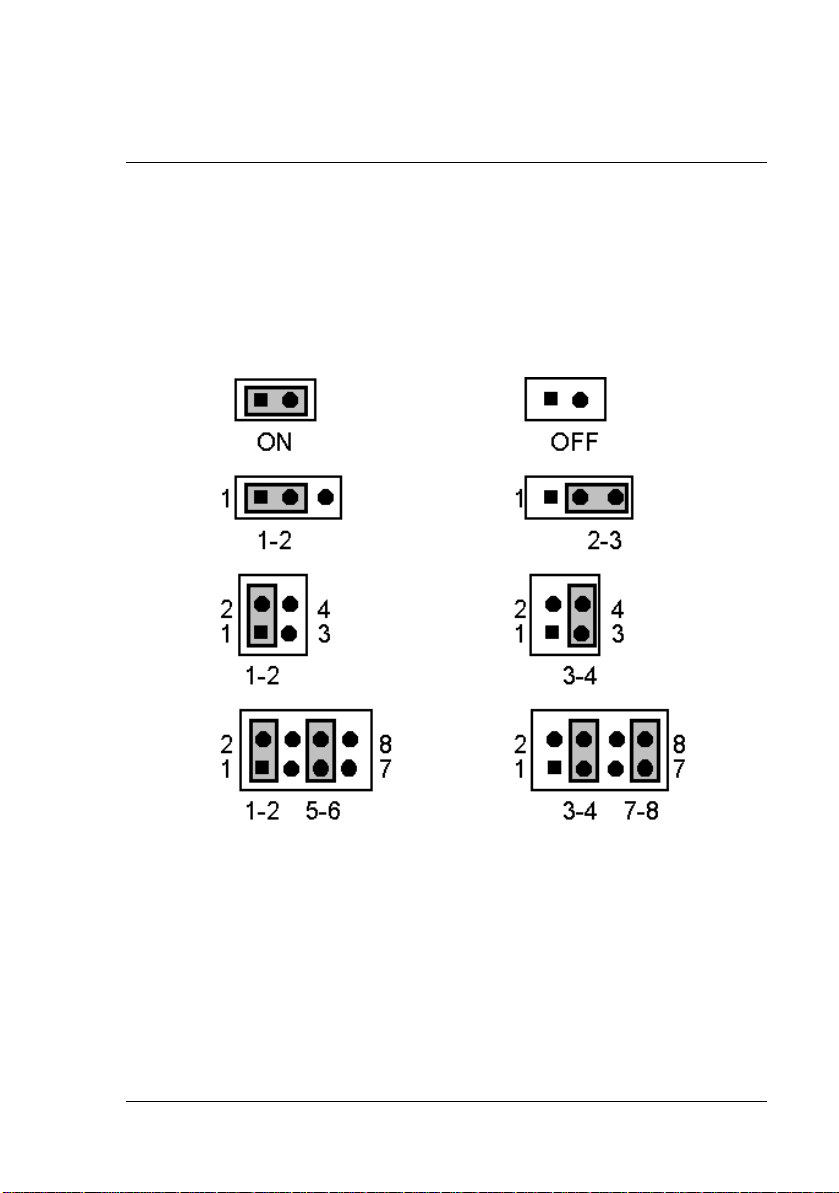

2.6 JUMPER SETTING DESCRIPTION............................................................................13

2.7 SETTING THE CPU OF HS-4010........................................................................14

2.8 SYSTEM MEMORY DRAM...................................................................................16

2.9 WATCH-DOG TIMER..............................................................................................16

2.12 VGA CONTROLLER............................................................................................18

2.13 DISKONCHIP? ADDRESS SETTING..................................................................19

CONNECTION..............................................................................................................20

3.1 THE FLOPPY DISK DRIVE CONNECTOR...............................................................20

3.2 PCI E-IDE DRIVE CONNECTOR..........................................................................21

3.3 PARALLEL PORT CONNECTOR............................................................................22

3.4 SERIAL PORTS CONNECTORS.............................................................................23

3.5 KEYBOARD CONNECTOR.....................................................................................24

3.6 POWER'S LED, FAN AND KEY-LOCK CONNECTORS......................................24

3.7 MOUSE CONNECTOR............................................................................................24

3.8 PS/2 MOUSE IRQ12 SELECTION CONNECTOR................................................25

3.9 VGA CONNECTOR................................................................................................25

3.11 FAST ETHERNET CONNECTOR..........................................................................26

3.12 FLAT-PANEL CONNECTOR................................................................................27

3.13 CONNECTIONS FOR FOUR STANDARD LCDS...................................................28

AWARD BIOS SETUP ...............................................................................................34

Contents ? i

4.1 MAIN MENU...........................................................................................................35

4.2 STANDARD CMOS SETUP..................................................................................36

4.3 BIOS FEATURES SETUP......................................................................................37

4.4 CHIPSET FEATURES SETUP..................................................................................38

4.5 POWER MANAGEMENT SETUP............................................................................39

4.6 PNP/PCI CONFIGURATION SETUP.....................................................................40

4.7 INTEGRATED PERIPHERAL SETUP........................................................................41

4.8 PANEL TYPE SELECT............................................................................................42

A BRIEF BROWSE OF 10 BASE-T LAN RTL-8019’S INSTALLATION

SOFTWARE..................................................................................................................43

ii ? Contents

Chapter-1

General Information

The HS -4010 is an all-in-one half size industrial single board with
design in Novell NE2000 compatible 16 bits ISA bus Ethernet, provides
10 BASE-T for directly network automation demand.

Supports for various 40-133 MHz 80486SX/DX/DX2/DX4, 5x86 CPUs
with 32-bit data bus and processing ability. Up to 64MB RAM by 72-pin
SIMM supported. Provides "DiskOnChip? " socket supported memory
size up to 72 MB.

Desinged with the on board 1MB memory VGA architecture, supports
direct interface to color and monochrome Single Drive (SD) and Dual
Drive (DD) STN, TFT & EL panels and resolutions up to 1024x768 256
colors to CRT monitor.

The HS -4010 support completed with all necessary I/O for industrial
application. Two PCI enhanced IDE ATA-2 IDE drivers; supports up to
two floppy disk drivers; provide two high speed serial RS-232 ports port
with compatible to 16C550 UART with 16-byte FIFO; one enhanced
bi-directional parallel port which support SPP/EPP/ECP. The board
also provides keyboard and PS/2 mouse connector.

3

1.1 Major Features

?? 80486SX/DX/DX2/DX4, 5x86 CPU supported.
?? ALi 1487/1489 chipset.
?? Supports DRAM up to 64 MB.
?? Fast PCI enhanced IDE controller supports two IDE drives.
?? Two high-speed serial RS-232 ports (supports 16C550 UART with

16-byte FIFO).

?? One enhanced bi-directional parallel port supports SPP/EPP/ECP.
?? Keyboard and PS/2 Mouse connector.
?? On-board SMSC 37C669 Super I/O.
?? On-board 32 bit PCI-BUS VGA/ Panel controller.
?? "DiskOnChip™" Socket Supported Memory Size up to 72 MB.
?? On-board 16 bit ISA bus Ethernet, Novell NE2000 compatible.

4

1.2 Specifications

?? CPU: 80486SX/DX/DX2/DX4/5X86.
?? Bus interface: ISA bus
?? Chipset: ALi 1487/1489
?? Data bus: 32-bit
?? Processing ability: 32-bit
?? PCI Flat Panel / VGA Controller: VGA Chipset with 1 MB

memory interface to color and monochrome Single Drive (SS)
and Dual Drive (DD) STN, TFT & EL panels. Support CRT
resolutions up to 1024x768 256 colors.

?? PCI Enhanced IDE interfaces: Supports up to two enhanced

IDE ATA -2).

?? RAM memory: Up to 64MB, uses two 72-pin SIMM sockets.
?? Cache memory: On board 128KB 2nd level cache.
?? Floppy disk drive interface: Supports up to two floppy disk

drives.

?? Parallel port: One parallel port supports SPP/ECP/EPP.
?? Serial port: Two RS-232 ports supports 16C550 UART with

16-byte FIFO.

?? BIOS: AWARD flash BIOS.
?? Watchdog timer: Hardware circuit can be set by 1, 2, 10, 20,

110, or 220 seconds period Reset or NMI was generated
when CPU did not periodically trigger the timer.

?? Ethernet: Realtek RTL8019, 16 bit ISA bus Ethernet, Novell

NE2000 compatible.

?? Keyboard / Mouse connector: 8-pin connector supports

standard PC/AT keyboard and a PS/2 mouse.

?? ISA bus: Standard ISA bus
?? Flash memory Disk: Reserved socket for "DiskOnChip™",

5

support up to 72MB Flash memory disk.

6

?? CMOS: Real-time clock/calendar and battery backup by

DS12B887 or equivalent device.

?? Power supply voltage: ±5V±5%, ±12V±5%.
?? Max. Power requirement: +5V @2.5A
?? Operating temperature: 0-55°C (CPU need cooler).

?? Board size: 8" (L) x 5.75" (W) (203mm x 146mm).

1.3 Delivery Package

The delivery package of HS -4010 includes all following items:

?? HS-4010 Industrial Single Board
?? Printer port Flat Cable
?? IDE port Flat Cable
?? FDD port Flat Cable
?? Serial port Cable
?? PS/2 Mouse and Keyboard Transfer Cable
?? Utility Diskette
?? User’s Manual

Please contact with your dealer if any of these items are
missing or damaged when purchasing. And please keep all
parts of the delivery package with packing materials in case of
you want to ship or store the product in feature.

7

Chapter-2

Hardware Installation

This chapter provides the information on how to install the
hardware of HS-4010. At first, please follow up sections 1.3, 2.1
and 2.2 in check the delivery package and carefully unpacking.
Following after, the jumpers setting of switch, watchdog timer,
and the DiskOnChip? address selection.

2.1 Caution of Static Electricity

The HS -4010 has been well package with a anti-static bag in
protect its sensitive computer components and circuitry from
the damage of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER

SENSITIVE COMPONENTS WITHOUT ALL
NECESSARY ANTI-STATIC PROTECTION.

You should follow the steps as following to protect the board in
against the static electric discharge whenever you handle the
board:

1. Please use a grounding wrist strap on whoever needs to
handle the HS -4010. Well clip the ALLIGATOR clip of the
strap to the end of the shielded wire lead from a grounded
object. Please put on and connect the strap before handle the
HS-4010 for harmlessly discharge any static electricity
through the strap.

2. Please use anti-static pad for put any components or parts or
tools on the pad whenever you work on them outside the
computer. You may also in use the anti-static bag instead the

8

pad. Please ask from your local supplier in help up your
necessary parts on anti-static requirement.

2.2 Caution on Unpacking and Before Installation

First of all, please follow the all necessary steps of section 2.1
in order to protection the HS -4010 from electricity discharge.
With refer to section 1.3, please check the delivery package
again with following steps:

1. Unpacking the HS-4010, keep well storage of all packing
material, manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO
NOT INSTALL IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL
IF HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM,
DRAM, ROM-Disk etc.) for completed setting all necessary
jumpers setting to jumper pin-set and CMOS setup correctly.
Please also reference to all information of jumpers setting in
this manual.

5. Well check from your external devices (i.e. Add-On-Card,
Driver Type etc.) for completed add-in or connection and
CMOS setup correctly. Please also reference to all
information of connector connection in this manual.

6. Please keep all necessary manual and diskette in a good
condition for your necessary re-installation if you change your
Operating System or whatever needs.

9

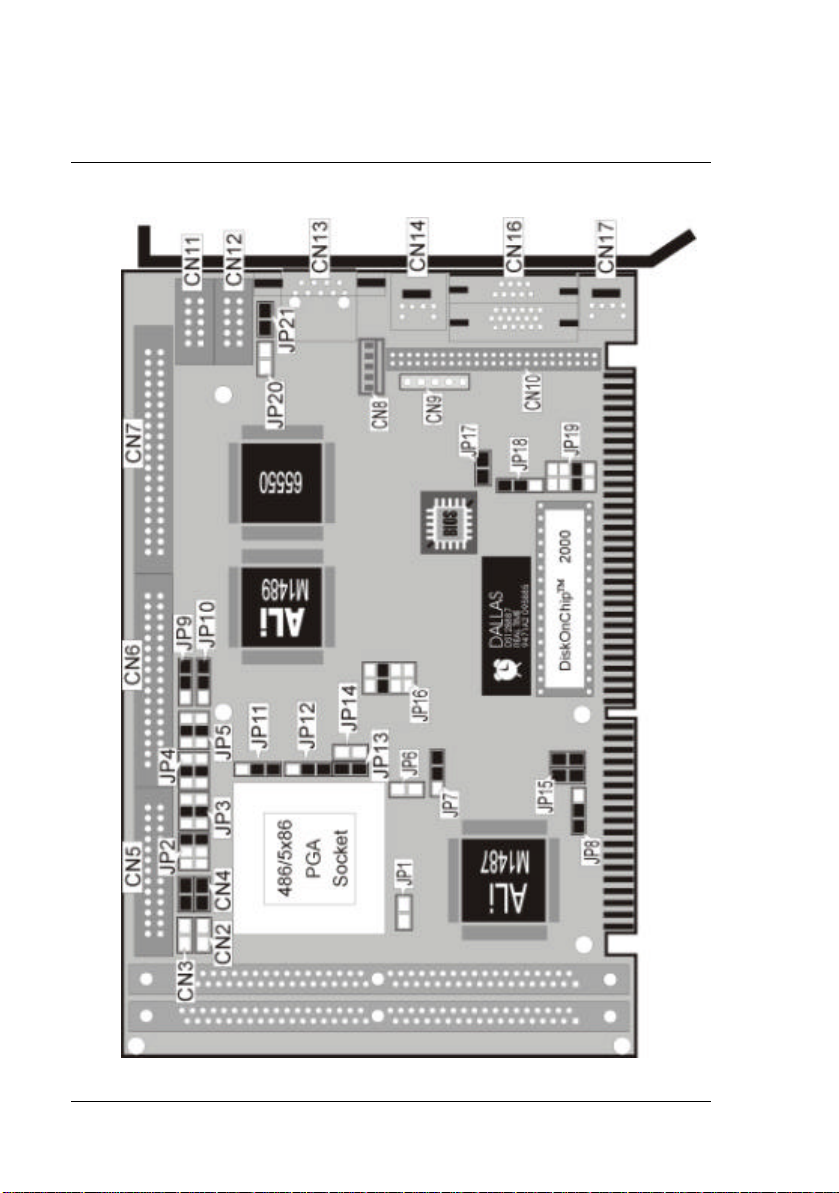

2.3 HS-4010’s Layout

10

2.4 Quick Listing of Jumpers

selection

JP2, 3, 4, 5, 9,10,11,12,13 — for CPU type setting
JP1 — CPU clock selection
JP6 — CPU's Vcore voltage level

setting

JP7 — CPU's operating voltage selection

setting
JP8 — PCI clock setting
JP14 — for AMD CPU type selection
JP15 — CPU Clock-in selection
JP16 — WATCH-DOG Time-out period

selection
JP17 — PS/2 Mouse IRQ selection
JP18 — WATCH-DOG Active selection
JP19 — for DiskOnChip™ address setting
JP21 — LAN jumpless selection setting
JP26 — LAN plug in play selection setting

2.5 Quick Listing of Connectors

CN2: RESET
CN3: SPEAKER
CN4: IDE LED CONNECTOR
CN5: HARDDISK CONNECTOR
CN6: FLOPPY DISK CONNECTOR
CN7: PARALLEL PORT
CN8: KEYBOARD CONNECTOR (HEADER 6 PIN)
CN9: POWER LED/ KEYLOCK
CN10: FLAT PANEL PORT
CN11: COM 1 (HEADER 5X2)
CN12: COM 2 (HEADER 5X2)
CN13: ETHERNET CONNECTOR
CN14: MOUSE CONNECTOR
CN16: VGA CONNECTOR

11

CN17: KEYBOARD CONNECTOR (MINI DIN TYPE)

12

2.6 Jumper Setting Description

A jumper pin-set is ON as a shorted circuit with a plastic cap inserted
over two pins. A jumper pin-set is OFF as a open circuit with a plastic
cap inserted over one or no pin(s) between pins. The below figure 2.2
shows the examples of different jumper pin-set setting as ON or OFF in
this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting may reference in this manual with a " * " symbol in front of the
selected item.

13

2.7 Setting the CPU of HS-4010

The HS-4010 provides all possibility in jumper setting for wide using all
types of 486 series CPU with JP1, JP2, JP3, JP4, JP5, JP7, JP8, JP9
and JP10 setting as following:

?? CPU Clock Setting

CPU JP2 JP3 JP5 JP4 JP9 JP1

1.IntelDX4™ OFF 3-4 3-4 3-4 2-3 2-3 1-2 OFF ON

5-6 3-4 3-4 3-4 2-3 2-3 2-3 2-3 ON

5-6 3-4 3-4 3-4 2-3 2-3 2-3 2-3 ON
1-2 5-6 5-6 5-6 2-3 2-3 1-2 1-2 ON

DX2/DX4

OFF OFF 1-2 OFF 2-3 2-3 1-2 OFF OFF

(NV8T)

1-3,5-6 3-4 3-4 3-4 2-3 2-3 2-3 2-3 ON
1-3,5-6 3-4 3-4 3-4 2-3 2-3 2-3 2-3 ON

(133MHz)

Correspond to different type CPU, it is request to set JP6 and JP7 for
match the CPU operating voltage. Here shows at below of the proper
jumper settings for their respective Vcc.

?? CPU power supply select

JP6 DESCRIPTION

ON 5V

* OFF 3V

JP7 DESCRIPTION

1-2 3.45V

*2-3 3.3V

For AMD type CPU, please set correctly of JP14 as following. For
others, please keep JP14 at OFF setting.

JP1

JP1

JP1

0

1

2

3

?? AMD CPU type select

14

JP14 DESCRIPTION

ON AMD DX2

*OFF AMD DX4

JP15 used to synchronize the CPU clock with the CPU type. Please
set the CPU clock with JP15, JP1 and JP8 jumpers according to the
base CPU speed.

?? CPU clock select

JP15 JP1 JP8 DESCRIPTION

OFF, OFF OFF 1-2 25 MHz

*1-2, 3-4 OFF 1-2 33 MHz

OFF, 3-4 ON 2-3 40 MHz
1-2, OFF ON 2-3 50 MHz

15

2.8 System Memory DRAM

The HS -4010 provides a wide range on-board DRAM memory sizes
from 1 MB to 16 MB by using 1, 2, 4, 8 or 16MB 72-pin SIMMs (Single
In-Line Memory Modules) with access time should be 70 n-second or
faster.

The HS -4010 provides two banks for memory installation by SIMM
RAM module on card. The banks are designated as Bank0 and Bank1.
See the figure on section 2.3 for get the identifying the banks. You
must use from Bank0 first if install one SIMM only. If you are using both
banks, the memory capacity of both SIMMs should be the same.

2.9 Watch -Dog Timer

There are three access cycles of Watch -Dog Timer as Enable, Refresh
and Disable. The Enable cycle should proceed by READ PORT 443H.
The Disable cycle should proceed by READ PORT 043H. A continue
Enable cycle after a first Enable cycle means Refresh.

Once if the Enable cycle activity, a Refresh cycle is request before the
time-out period for restart counting the WDT Timer's period. Otherwise,
it will assume that the program operation is abnormal when the time
counting over the period preset of WDT Timer. A System Reset signal
to start again or a NMI cycle to the CPU comes if over.

The JP18 is using for select the active function of watch-dog timer in
disable the watch -dog timer, or presetting the watch-dog timer activity
at the reset trigger, or presetting the watch-dog timer activity at the
NMI trigger.

?? JP18 : Watch-Dog Active Type Setting

JP18 DESCRIPTION

*1-2 System Reset

2-3 Active NMI

OFF disable Watch-dog timer

?? JP16 : WDT Time - Out Period

PERIOD

1-2 3-4 5-6 7-8

16

*1 sec OFF OFF ON OFF

2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec

110 sec
220 sec

OFF ON OFF ON

ON OFF OFF OFF
ON OFF OFF ON

The Watch-dog timer is disabled after the system Power-On. The
watch-dog timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port
(443H) and a Disable cycle by reading the Watch-dog timer disable
control port (043H). After a Enable cycle of WDT, user must constantly
proceed a Refresh cycle to WDT before its period setting comes
ending of every 1, 2, 10, 20, 110 or 120 seconds. If the Refresh cycle
does not active before WDT period cycle, the on board WDT
architecture will issue a Reset or NMI cycle to the system.

The Watch-Dog Timer is controlled by two I/O ports.

443H I/O Read The Enable cycle.
443H I/O Read The Refresh cycle.
043H I/O Read The Disable cycle.

The following sample programs showing how to Enable, Disable and
Refresh the Watch-dog timer:

WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H

WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Rresh PUSH AX ; keep AX, DX

17

PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET

WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX

POP AX

RET

2.12 VGA Controller

The C&T 655xx family supports a wide variety of monochrome and
color Single-Panel, Single-Drive (SS) and Dual-Panel, Dual Drive (DD)
standard and high-res passive STN and active matrix TFT/MIN LCD,
and EL panels. For monochrome panels, up to 64 gray scales are
supported. Up to 4096 different colors can be displayed on passive
STN LCDs and up to 16 M colors on 24-bit active matrix LCDs.

The HS -4010 uses C&T 65550 chipset. Provides 2.0 mm pitch 44-pin
on-board internal connector for flat panel connection; and a external
DB15 analogy R.G.B. output connector for CRT monitor. By BIOS
setup, user may use one of the display devices or both. Please use at
the same resolution when both display. Please contact with your
dealer if connection to a new specification flat panel.

The HS -4010 offers a variety of programmable features to optimize
display quality. Vertical centering and stretching are provided for
handling modes with less than 480 lines on 480 - line panels.
Horizontal and vertical stretching capabilities are also available for both
text and graphics modes for optimal display of VGA text and graphics
modes on 800x600 and 1024x768 panels.

18

2.13 DiskOnChip? Address Setting

The HS -4010 provides a U8 socket for install the DiskOnChip?
module.

A JP19 may select the starting memory address of the
DiskOnChip? (D.O.C.) for avoid the mapping area with any
other memory devices. If you have another extra memory
devices in the system with the same memory, neither the
HS-4010 nor the extra memory devices will function normally.
Please setting both at different memory address mapping.

?? JP19 : DiskOnChip? Address

PIN NO. Address

*1-2 D000

3-4 D800
5-6 E000
7-8 E800

*) : default setting

The D.O.C. function allows the system in using without FDD nor
HDD. The D.O.C. may formatting as driver C: or driver A:. User
may also easily uses the DOS's commands such as FORMAT,
SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc. This is
means that the D.O.C. may uses as driver-A if the system
without FDD-A for ambient application. Please contact with
your supplier for different size D.O.C. module.

19

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as CN6
with following pin assignment. Total two FDD drivers may connect.

?? CN6 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GRO UND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#

20

3.2 PCI E-IDE Drive Connector

A standard 40-pin header daisy-chain driver connector provides as CN9
with following pin assignment. Total two IDE (Integrated Device
Electronics) drivers may connect.

?? CN5(IDE 1) : Primary IDE Connector

PIN NO. DESCRIPTION PIN NO.

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND

DESCRIPTION

21

3.3 Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN1 with
following pin assignment for connection to parallel printer.

?? CN1 : Parallel Port Connector

PIN NO.

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN#
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

DESCRIPTION PIN NO.

18 GROUND

DESCRIPTION

22

3.4 Serial Ports Connectors

The HS -4010's CN11and 12 headers provides two high speeds
NS16C550 compatible UARTs with Read/Receive 16 byte FIFO serial
ports. Please see the following pin assignment. With the delivery
package, user may uses the 10-pin COM cable for plug into CN11 and
12 for get COM1 to COM2 connection. The pin number inside the ( )
are for the 10-pin cable.

?? CN11, 12 : Serial Port 10-pin Headers (COM1~COM2)

COM Port PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1(1) DCD 2(2) DSR

COM 1 3(3) RXD 4(4) RTX

( CN11 )

7(7) DTR 8(8) RI
9(9) GND 10(10) NC
1(1) DCD 2(2) DSR

COM 2 3(3) RXD 4(4) RTX

( CN 12 )

7(7) DTR 8(8) RI
9(9) GND 10(10) NC

5(5) TXD 6(6) CTX

5(5) TXD 6(6) CTX

23

3.5 Keyboard Connector

The HS-4010 provides a 6-pin mini din connector CN17 for connection
to Keyboard devices.

?? CN17 : 6-pin Mini Din Keyboard Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 KB-DATA 2 NC
3 GND 4 VCC
5 KB-CLK 6 NC

3.6 Pow er's LED, FAN and Key-Lock Connectors

The CN9 provides both Power's LED and Key -Lock connector as
following pin assignment.

?? CN9 : POWER LED & KEYLOCK

PIN NO. DESCRIPTION

1 POWER LED ANODE
2 KEY
3 GROUND
4 KEYLOCK
5 GROUND

3.7 Mouse Connect or

The HS-4010 provides a 6-pin mini din connector CN14 for connection
to Mouse devices.

?? CN14 : 6-pin Mini Din Keyboard Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 MS-DATA 2 NC
3 GND 4 VCC
5 MS-CLK 6 NC

24

3.8 PS/2 Mouse IRQ12 Selection Connector

The HS-4010 has an on-bard PS/2 mouse which using IRQ12. If you do
not use the PS/2 mouse and wish to assign IRQ12 for other purposes,
you should setting the JP17 to disconnect PS/2 interrupt from IRQ12.

JP17 SELECTION

OFF No interrupt for PS/2

*ON IRQ12

*) : default setting

3.9 VGA Connector

The HS -4010 has on-board 15-pin external VGA connector.

?? CN16 : VGA Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RED 2 GROUND
3 GREEN 4 GROUND
5 BLUE 6 GROUND
7 GROUND 8 GROUND

9 GROUND 10 GROUND
11 GROUND 12 SPCLK
13 HSYNC 14 VSYNC
15 SPD 16 NC

25

3.11 Fast Ethernet Connector

The Fast Ethernet controller provides with 16-bit performance, ISA bus
master capability, and full compliance with IEEE 802.3 10Base-T
specifications.

For 10Base-T RJ-45 operation, please connect the network connection
by plugging one end of the cable into the RJ-45 to CN13 Connector.

?? CN13 : Ethernet Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 TX+ 2 TX ­3 RX+ 4 GND
5 GND 6 RX ­7 GND 8 GND

26

3.12 Flat-Panel Connector

The HS -4010 provides a 44-pin 2.0 mm pitch header connector (CN8)
for Flat panel connection. The information here also provides some pin
information samples to Panel Sharp LM64183P, LM64C35P &
LM64C142 and NEC NL8060AC26 ,Sharp LQ64D34.

+12V 1 2 +12V
GND 3 4 GND
PVCC 5 6 PVCC
FPVee 7 8 GND
P0 9 10 P1
P2 11 12 P3
P4 13 14 P5
P6 15 16 P7
P8 17 18 P9
P

19 20 P11

10

P

21 22 P13

12

P

23 24 P15

14

P16 25 26 P17
P

27 28 P19

18

P

29 30 P21

20

P22 31 32 P23
GND 33 34 GND
SHFCLK 35 36 FLM
M 37 38 LP
GND 39 40 ENABKL
GND
VCC 43 44 V

41 42 ASHFCLK

CC

27

3.13 Connections for four standard LCDs

Connections to Sharp LM64183P

(640 x 480 DSTN MONO LCD)

Sharp LM64P83 HS-4010 CN10

Pin Pin name Pin Pin name

CN1-1 S 36 FLM
CN1-2 CP1 38 LP
CN1-3 CP2 35 SHFCLK
CN1-4 DISP 5 +5V
CN1-5 VDD 6 +5V
CN1-6 VSS 3 GND
CN1-7 VEE - -17 V (external power)
CN1-8 DU0 12 P3
CN1-9 DU1 11 P2
CN1-10 DU2 10 P1
CN1-11 DU3 9 P0
CN1-12 DL0 16 P7
CN1-13 DL1 15 P6
CN1-14 DL2 14 P5
CN1-15 DL3 13 P4

28

Connections to Sharp LM64C35P

(640 x 480 DSTN STN Color)

Sharp LM64C35P HS-4010 CN10

Pin Pin name Pin Pin name

CN1-1 DL4 16 P7
CN1-2 Vss 3 GND
CN1-3 DL5 15 P6
CN1-4 YD 36 FLM
CN1-5 DL6 14 P5
CN1-6 LP 38 LP
CN1-7 DL7 13 P4
CN1-8 Vss 4 GND
CN1-9 Vss 8 GND
CN1-10 XCK 35 SLFCHK
CN1-11 DL0 24 P15
CN1-12 Vcon - Contrast Adjust
CN1-13 DL1 23 P14
CN1-14 Vdd 5 +5V
CN1-15 Vss 33 GND
CN1-16 Vdd 6 +5V
CN1-17 DL2 22 P13
CN1-18 DISP 6 +5V
CN1-19 DL3 21 P12
CN1-20 NC - ­CN1-21 Vss 34 GND
CN1-22 DU3 17 P8
CN1-23 DU4 12 P3
CN1-24 DU2 18 P9
CN1-25 DU5 11 P2
CN1-26 DU1 19 P10
CN1-27 Vss 39 GND
CN1-28 DU0 20 P11
CN1-29 DU6 10 P1
CN1-30 Vss 39 GND
CN1-31 DU7 9 P0

29

Connections to NEC NL8060AC26 (800 x 600 TFT Color)

NEC NL8060AC26 HS-4010 CN10

Pin Pin name Pin Pin name

CN1-1 GND 3 GND
CN1-2 Dot Clock 35 SHFCLK
CN1-3 GND 4 GND
CN1-4 Hsync 38 LP
CN1-5 Hsync 38 FLM
CN1-6 GND 8 GND
CN1-7 GND 8 GND
CN1-8 GND 8 GND
CN1-9 R0 27 P18
CN1-10 R1 28 P19
CN1-11 R2 29 P20
CN1-12 GND 8 GND
CN1-13 R3 30 P21
CN1-14 R4 31 P22
CN1-15 R5 32 P23
CN1-16 GND 39 GND
CN1-17 GND 39 GND
CN1-18 GND 39 GND
CN1-19 G0 19 P10
CN1-20 G1 20 P11
CN1-21 G2 21 P12
CN1-22 GND 39 GND
CN1-23 G3 22 P13
CN1-24 G4 23 P14
CN1-25 G5 24 P15
CN1-26 GND 41 GND
CN1-27 GND 41 GND
CN1-28 GND 41 GND
CN1-29 B0 11 P2
CN1-30 B1 12 P3
CN1-31 B2 13 P4
CN1-32 GND 41 GND
CN1-33 B3 14 P5
CN1-34 B4 15 P6
CN1-35 B5 16 P7
CN1-36 GND 41 GND
CN1-37 DE 37 M
CN1-38 PVcc 43 PVcc

30

CN1-39 PVcc 44 PVcc
CN1-40 PVcc 5 PVcc
CN1-41 MODE - ---

31

Connections to Sharp LM64C142

(640 x 480 DSTN STN Color)

Sharp LM64C142 HS-4010 CN10

Pin Pin name Pin Pin name

CN1-1 YD 36 FLM
CN1-2 LP 38 LP
CN1-3 XCX 35 SHFCLK
CN1-4 DISP 5 +5V
CN1-5 PVdd 6 +5V
CN1-6 PVss 3 GND
CN1-7 PVee - +27 V (external power)
CN1-8 DU0 20 P11
CN1-9 DU1 19 P10
CN1-10 DU2 18 P9
CN1-11 DU3 17 P8
CN1-12 DU4 12 P3
CN1-13 DU5 11 P2
CN1-14 DU6 10 P1
CN1-15 DU7 9 P0
CN2-1 Vss 4 GND
CN2-2 DL0 24 P15
CN2-3 DL1 23 P14
CN2-4 DL2 22 P13
CN2-5 DL3 21 P12
CN2-6 DL4 16 P7
CN2-7 DL5 15 P6
CN2-8 DL6 14 P5
CN2-9 DL7 13 P4
CN2-10 Vss 8 GND

32

Connections to Sharp LQ64D34

(640 x 480 TFT Color)

Sharp LQ64D34 HS-4010 CN10

Pin Pin name Pin Pin name

CN1-1 GND 3 GND
CN1-2 CK 35 SHFCLK
CN1-3 HSYNC 38 LP
CN1-4 VSYNC 36 FLM
CN1-5 GND 4 GND
CN1-6 R0 27 P18
CN1-7 R1 28 P19
CN1-8 R2 29 P20
CN1-9 R3 30 P21
CN1-10 R4 31 P22
CN1-11 R5 32 P23
CN1-12 GND 33 GND
CN1-13 G0 19 P10
CN1-14 G1 20 P11
CN1-15 G2 21 P12
CN1-16 G3 22 P13
CN1-17 G4 23 P14
CN1-18 G5 24 P15
CN1-19 GND 34 GND
CN1-20 B0 11 P2
CN1-21 B1 12 P3
CN1-22 B2 13 P4
CN1-23 B3 14 P5
CN1-24 B4 15 P6
CN1-25 B5 16 P7
CN1-26 GND 39 GND
CN1-27 ENAB 37 DE
CN1-28 VCC 5 VCC
CN1-29 VCC 6 VCC
CN1-30 OAS N.C
CN1-31 N.C N.C

33

Chapter-4

AWARD BIOS Setup

For maintain the HS -4010's basic input/output system operating, the
HS-4010 is now using AWARD BIOS for the system configuration and
operation. The BIOS's setup program is designed to provide the
maximum flexibility in configuring the system by offering various
optional which allowing for select and meet all of the end-user
requirements.

To access AWARD BIOS Setup program, press <Del> key when after
Power-On-Reset memory test. The first show out prompt screen is the
BIOS setup Main Menu.

User is now may select for Standard CMOS Setup, Advanced COMS
Setup, Advanced Chipset Setup, Power Management Setup, PCI/PnP
Setup, Peripheral Setup, Auto-Detect Hard Disks, Change User
Password, Change Supervisor Password, Change Language Setting,
Auto Configuration with Optional Settings and Auto Configuration with
Fail Safe Settings. After any selecting or setting, please choice Save
Settings and Exit or choice Exit Without Saving.

Any miss type in parameters of BIOS setup may cause a screen error
display out. You may load again the default setting of the BIOS by
press End key and power-on.

34

4.1 Main Menu

Once when you enter the AWARD BIOS CMOS Setup Utility, the first
prompt out screen is the BIOS's Main Menu. From the Main Menu, the
BIOS allow you to select from several setup functions and two exit
choices. Use the arrow keys to select the demand items and press
<Enter> to accept and enter its sub-menu. Press Esc key if
abandoned the selection item.

ROM PCI/ISA BIOS (xxxxxxxx)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANGEMENT SETUP

PCI CONFIGURATION SETUP

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS
Esc : Quit

F10 : Save & Exit

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

HDD LOW LEVEL FORMAT

SAVE & EXIT SETUP

EXIT WITHOUT SAVING
??? ? : Select Item

(Shift)F2 : Change Color

35

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for this setup. When
the IDE hard disk drive you are using is larger than 528MB, please set
the HDD mode to LBA mode. Please use the IDE Setup Utility in BIOS
SETUP to install the HDD correctly.

Standard CMOS Setup

Data (mm:dd:yy) : Fri, Dec 19 1998
Time (hh:mm:ss) : 00:00:00

CYLS HEAD PRECOMP LANDZ SECTOR MODE
Driver C :AUTO ( 0Mb) 0 0 0 0 0 0 Auto
Driver D :AUTO ( 0Mb) 0 0 0 0 0 0 Auto

Drive A : 1.44M , 3.5in.
Drive B : None
Floppy 3 Mode Support : Disabled Base Memory : 640K
Extended Memory : 15360K
LCD&CRT: AUTO Other Memory : 384K

Halt On : All Errors Total Memory : 16384K

ESC : Quit
F1 : Help

??? ? : Select Item
(Shift) F2: Change Color

PU/PD/ + / - : Modify

36

4.3 BIOS Features Setup

This advanced setup is designed for the customers to achieve the
highest performance of the HS -4010 board. As for normal operations,
customers don't have to change any default settings. The default
setting is pre-set for most reliable operations. Please refer to the
following screen for the Advanced Setup.

BIOS FEATURES Setup

Virus Protection : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CFFFF Shadow : Disabled
External Cache : Enabled D0000-D7FFF Shadow : Disabled
Quick Power On Self Test : Disabled D8000-DFFFF Shadow : Disabled
Boot Sequence : C,A,SCSI
Swap Floppy Drive : Disabled
Boot Up NumLock Status : On
Boot Up System Speed : High
Gate A20 Option : Fast
Memory Parity Check : Disabled
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select For DRAM > 64MB : Non-OS2 ESC : Quit ??? ? : Select Item

F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults

37

4.4 Chipset Features Setup

The section allow you to configure the system based on the specific
feature of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default setting have been chosen because
they provide the best operating conditions for your system. You might
consider and make any changes only if you discover that the data has
been lost while using your system.

Chipset Features Setup

Auto Configuration : Enable

At-Bus Clock : CLK/4
DRAM Read Timing : Normal
DRAM Write Timing : Normal
SRAM Read Timing : 2- 1- 1- 1
SRAM Write Timing : 0 Wait

Hidden Refresh : Disabled
Memory Hole (15-16M) : Disabled

ISA I/O Recovery : Enable
Fast- back - to Back : Enable

ESC : Quit ??? ? : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

38

4.5 Power Management Setup

The Power Management Setup allows user to configure the system for
save energy in a most effective way while operating in a manner
consistent with his own style of computer use.

Power Management Setup

Power Management : Disabled IRQ5 (LPT2) : ON
PM Control by APM : Yes IRQ6 (Floppy Disk) : ON
Video Off Option : Susp,Stby

Video Off Method : V/H Sync Black IRQ8 (RTC Alarm) : OFF
MODEM Use IRQ : 3 IRQ9 (IRQ2 Redir) : ON

** PM Timers **
HDD Power Down : Disabled IRQ12 (PS/2 Mouse) : ON
Doze Mode : Disabled IRQ13 (Coprocessor) : OFF
Standby mode : Disabled IRQ14 (Hard Disk) : ON
Suspend Mode : Disabled IRQ15 (Reserved) : OFF
** PM Ecents **
VGA : OFF
FDD (3FXh) : ON
LPT & COM : LPT/COM
HDD & FDD : ON ESC : Quit ??? ? : Select Item
NMI : OFF F1 : Help PU/PD/+/ -: Modify
IRQ3(COM2) : ON F5 : Old Values (Shift) F2 : Color
IRQ4(COM1) : ON F6 : Load BIOS Defaults

->Off

IRQ10 (Reserved) : OFF
IRQ11 (Reserved) : OFF

F7 : Load Setup Defaults

IRQ7 (LPT1) : ON

39

4.6 PnP/PCI Configuration Setup

In this section, the PnP/PCI configuration setup allows you to
configure the ISA and PCI devices installed in your system by
manually or auto.

PnP BIOS Auto- configuration : Disabled CPU to PCI Write Buffer : Enabled

1st Available IRQ : 10
2nd Available IRQ : 11
3rd Available IRQ : 12
4th Available IRQ : 9
PCI IRQ Actived by : Level

PCI IDE IRQ Map to : PCI-AUTO
Primary IDE INT# : A
Secondary IDE INT# : B ESC : Quit ??? ? : Select Item

CPU to PCI Byte Merge : Enabled
PCI to DRAM Buffer : Enabled

F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

40

4.7 Integrated Peripheral Setup

For completed all input and output devices (i.e. FDD Drivers, IDE
Drivers, Serial Ports, IR and Parallel Port), please refer to the following
example.

Integrated Peripherals Setup

OnChip IDE LocalBus IDE : Enabled
IDE Buffer for Dos & Win : Enabled
The 2nd Channel IDE : Enabled
IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto

Onboard FDD Controller : Enabled
Onboard UART1 : 3F8/IRQ4
Onboard UART2 : 2F8/IRQ3
Onboard Parallel Port : 378/IRQ7
Onboard Parallel Mode : Normal

LCD Panel Type : Panel 5 F1 : Help PU/PD/+/ -: Modify

ESC : Quit ??? ? : Select Item

F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

41

4.8 Panel Type Select

User can select the different type of LCD panel by change the value of
“LCD Panel Type“ under the integrated peripherals setup.

The default setting is “Panel 5” , according with different usage, user
might change the value from 1 to 70, as list as the above table.

Default BIOS Panel Types

No Resolution

0 1024x768 Dual Scan STN Color
1 1280x1024 TFT Color

2 640x480 Dual Scan STN Color
3 800x600 Dual Scan STN Color

4 640x480 Sharp TFT Color

*5 640x480 18-bit TFT Color

6 1024x768 TFT Color
7 800x600 TFT Color

*) : default setting

Data

42

Chapter-5

A Brief Browse of 10 base-T LAN
RTL-8019’s Installation Software

The Boser HS -4010 provides an on board 16-bit ISA 10 base-T
Ethernet LAN interface RJ-45 connection for easy using the HS -4010
486 Little All-in-one L/VGA Industrial Single Board in connection
to-with Novell NE2000 compatible LAN network system.

The HS -4010’s design which is basing on RTL 8019 chipset with
provides an RJ-45 10 base-T NE2000 compatible interface. We here
provide some information on the installation for your first reference.

The delivery of the software packages with HS -4010 which including a
easy access help manual by files from. The version of this help manual
is 1.00 on dated Jun.19.1997. Please read all following help manual
first before your installation of this LAN system.

For completed information, please browse at

http:\\www.realtek.com.tw

If you want to select I/O must be Run "rset8019.exe" to configure and

test the adapter, and set the Operating Mode as follow:

set "Operating Mode" to "Jumperless" and set the proper IRQ and I/O.

(Write down the IRQ and I/O address for later use)

set "Operating Mode" to "Plug & Play", and reboot the system. (Run

rset8019.exe again, and write down the IRQ and I/O address for later
use)

Startup the Solaris and log on to Solaris as Superuser(root).

43
