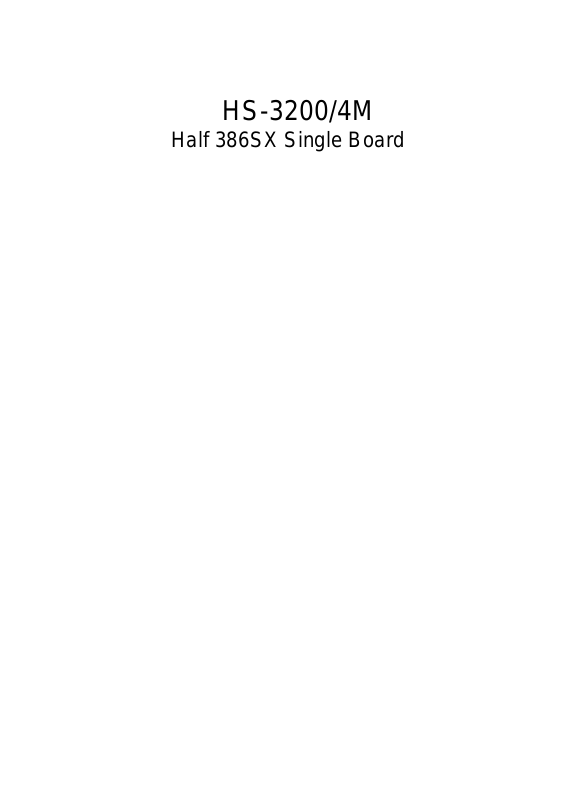

HS-3200/4M
Half 386SX Single Board
Copyrights
This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic
or machine readable form in whole or in part without prior written consent from
the manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no resp onsibility for any
errors or omissions, which may appear in this manual, nor does it make a
commitment to update the information contained herein.
Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.
All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2000
All Rights Reserved.
User Manual edition 1. 1 Aug.24 2001
CONTENTS
HS-3200/4M............................................................................................................1
GENERAL INFORMATION .........................................................................................5
1.1 SPECIFICATIONS......................................................................................................6
1.2 DELIVERY PACKAGE.............................................................................................7
HARDWARE INSTALLATION...................................................................................9
2.1 CAUTION OF STATIC ELECTRICITY .......................................................................9
2.2 HS -3200/4M'S LAYOUT.....................................................................................10
2.3 QUICK LISTING OF CONNECTORS........................................................................11
2.4 QUICK LISTING OF JUMPERS................................................................................12
2.5 JUMPER DESCRIPTION...........................................................................................13
2.6 SYSTEM MEMORY DRAM..................................................................................14
2.7 WATCH-DOG TIMER.............................................................................................15
2.8 VGA CONTROLLER.............................................................................................17
2.9 DISKONCHIP? ADDRESS SETTING....................................................................18
2.10 FLASH ROM VPP SELECTION.....................................................................18
2.11 JUMPER SETTING AND SELECTION OF RS-232/422/485..............................19
CONNECTION...............................................................................................................21
3.1 FLOPPY DISK DRIVE CONNECTOR......................................................................21
3.2 PCI E-IDE DRIVE CONNECTOR.........................................................................22
3.3 PARALLEL PORT..................................................................................................23
3.4 KEYBOARD CONNECTOR.....................................................................................24
3.5 EXTERNAL SWITCHES AND INDICATORS............................................................25
3.6 EXTERNAL SPEAKER...........................................................................................26
3.7 PS/2 6-PIN MINI DIN MOUSE CONNECTOR........................................................26
3.8 VGA CONNECTOR...............................................................................................27
3.9 PC/104 CONNECTION BUS.................................................................................27
3.10 LCD PANEL CONNECTOR.................................................................................29
3.11 EXTERNAL POWER CONNECTOR.....................................................................34
3.12 FAST ETHERNET CONNECTOR..........................................................................34
3
AMI BIOS SETUP .......................................................................................................35
4.1 MAIN MENU...........................................................................................................36
4.2 STANDARD CMOS SETUP.................................................................................37
4.3 ADVANCED CMOS SETUP.................................................................................38
4.4 ADVANCED CHIPSET SETUP................................................................................40
4
Chapter-1
General Information
The HS -3200/4M features an ALi® M6117 chipset, and one 72 pin SIMM
module. It allows up to 64 MB RAM and can run at 40 MHz with a single-sided
memory module. The HS -3200/4M provides 4MB system RAM on board.
The HS -3200/4M can support either a LCD Panel or VGA equipped monitor,
with a Intel® 65545 chipset carrying 1 MB memory support dual driver as well
as support STN, TFT, or many others with a VGA resolution up to 1024 by
768, at 256 colors.
The two super I/O chips support four RS -232 serial ports and one selectable
RS-422/485 port.
The parallel port includes the support for SPP/EPP/ECP and a bi-directional
floppy driver controller.
The HS -3200/4M can option a DiskOnChip? device with socket supporting
memory up to 144MB. That means you can issue the commands directly from
DOS without any other drivers or applications.
Thanks to the HS -3200/4M Watch-Dog, a hardware device operating on an
independent system, the system will reset again whenever the operations are
halted.
5
1.1 Specifications
The HS -3200/4M Industrial Single Board provides the following specification:
?? CPU : 386SX-40 (Embedded in M6117 chipset).
?? Bus interface : ISA bus.
?? Chipset : ALi
?? Data bus : 16-bit
?? Processing ability : 32-bit
?? Flat panel / CRT SVGA controller : Intel
memory. Various support interface to color and monochrome Single
Drive (SS) and Dual Drive (DD) STN, TFT panels. Supports CRT
resolutions up to 1024x768 256 colors.
?? Enhanced IDE interface : Supports up to two enhanced IDE hard disk,
or LBA mode hard disks.
?? RAM memory : Uses one 72-pin SIMM socket (Single-sided memory
module) and 4 MB RAM on board.
?? PC/104 : 104-pin connector for a 16 bit bus.
?? Floppy disk drive interface : Supports up to two floppy disk drives.
?? Parallel port : One bi-directional parallel port. Supports SPP/ECP/EPP
mode.
®
M6117
®
65545 Chipset with 1MB
?? Serial port : Four RS -232 ports. One RS-422/485 Serial port.
(compatible 16C550 UART with 16-byte FIFO).
?? BIOS : AMI flash BIOS or AWARD flash BIOS.
?? Watchdog timer : The hardware circuit can be set to 1, 2, 10, 20, 110 or
220 seconds period. A reset or NMI will be generated when the CPU does
not periodically trigger the timer.
?? DMA channels : 7
?? Interrupt levels : 15
6
?? LAN :RTL 8019AS 10 base Network.
?? Keyboard : PS/2 Mini Din 6-Pin connector or 5-pin header. Supports
standard PC/AT keyboard.
?? Mouse : Mini Din 6-Pin connector. Supports PS/2 standard mouse.
?? Flash memory disk : Reserved socket for the “DiskOnChip? ”. Supports
up to 144MB Flash memory disk.
?? External power : Supports a 4-PIN external power connector.
?? CMOS : Real-time clock/calendar and battery backup by DS12887 or
equivalent devices.
?? Power supply voltage : +5V (4.75 to 5.25V) power supply.
?? Max. power requirement : +5V @1.8A.
?? Operating temperature : 0~55?C
?? Dimension : 7.3”(L) x 4.8”(W) (185mm x 122mm)
1.2 Delivery Package
The HS -3200/4M package includes the following items:
?? HS-3200/4M Single Board Computer
?? Printer port Flat Cable
?? IDE port Flat Cable
?? FDD port Flat Cable
?? COM port Cable
?? 6-pin Mini-Din to 5-pin Din Key board Adapter Cable
?? VGA Utility Diskette
?? User’s Manual
7
If any of these items are missing or damaged please contact your dealer.
Keep all the shipping materials and the packing box in case of you want to
ship or store the product in feature.
8
Chapter-2
Hardware Installation
This chapter describes how to install the HS -3200/4M. At first, please follow
the unpacking information. The jumpers and switches setting, watchdog timer
setting, and the DiskOnChip? address selection, are also included.
2.1 Caution of Static Electricity
Your HS -3200/4M Industrial Single Board contains very sensitive electronic
components that can be easily damaged by the static electricity.
In this section, we describe the precautions that you should pay attention to
while unpacking as well as during the installation. It is very important that the
instructions to be followed correctly to avoid static damages and to
successfully install the board.
The system board can be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the
anti-static mat.
All inspecting the cardboard carton, extracting the system board and handling
may cause damages to your board. Be sure that there are no shipping and
handling damages on the board before processing.
After opening the cardboard carton, extract the system board and place it only
on a grounded anti-static surface component with the side up.
Again, inspect the board for damages. Press down on all the socketed IC’s to
make sure they are properly seated. Do this only when the board is placed on
a firm flat surface.
Note : DO NOT APPLY POWER TO THE BOARD IF IT HAS
BEEN DAMAGED.
You are now ready to install your HS -3200/4M Industrial Single Board.
9
2.2 HS-3200/4M’s Layout
10
2.3 Quick List ing of Connector
CN1: 4-Pin External Power Connector
CN2: Parallel Port Connector
CN3: Reset Switch Connector
CN4: Keylock Connector
CN5: Speaker Connector
CN6: IDE LED Connector
CN7: FDD Connector
CN8: PC/104 64-Pin Connector
CN9: PC/104 40-Pin Connector
CN10: IDE Connector
CN11: LCD PANEL Connector
CN12: RS -422/485 CONNECTOR (5x2 Header)
CN13: 10/100 Based LAN Connector (5x2 Header)
CN14: RS -232 COM 2 Connector (5x2 Header)
CN15: RS -232 COM 3 Connector (5x2 Header)
CN16: RS -232 COM 4 Connector (5x2 Header)
CN17: RS -232 COM 1 Connector (DB-9)
CN18: VGA CRT Connector
CN19: 5-Pin Keyboard Connector
CN20: PS/2 Mini Din 6-Pin Mouse Connector
CN21: PS/2 Mini Din 6-Pin Keyboard Connector
11
2.4 Quick Listing of Jumpers
JP1 ? RS-232 COM 4 Disable Select
JP8 ? IRQ12 Select
JP9 ? Watch-Dog Active Select
JP11 ? DiskOnChip? Address Select
JP12 ? RS-422/485 Receiver Enable Select
JP13 ? RS-422/485 Transceiver Enable Select
JP14 ? Watch-Dog Timer Select
JP15 ? Flash ROM VPP Select
12
2.5Jumper Description
This board’s default jumpers are present at the factory. If you want to change
the HS -3200/4M’s configuration, please follow the instructions.
A jumper switch is closed (sometimes referred to as shorted with a plastic
cap inserted over two pins of the jumper). A jumper is open with a plastic cap
inserted over one or no pin(s) of the jumper. Figure 2.2 below shows different
jumper settings which will be used in this chapter.
closed open
1 1
1-2 2-3
Figure 2.2
13
2.6System Memory DRAM
TheHS-3200/4M are sold without any system memory or DiskOnChip?
memory (except BIOS). The memory must be installed prior to using the
HS-3200/4M.
The HS-3200/4M has 1 SIMM (Single In-line Memory Module) DRAM module
socket. Each socket will accommodate a 72-pin DRAM module - 256K x 36
bit (1MB), 1M x 36 bit (4MB) or 4M x 36 bit (16MB). The memory access time
should be 70ns or less. The HS -3200/4M have 1 SIMM socket and 4 Mbytes
on board.
?? Memory Type Configuration
SM2 Total Memory
256K x 2 1 M Bytes
1 M Bytes
512K x 2 2 M Bytes
1M x 2 3 M Bytes
4M x 2 9 M Bytes
2 M Bytes
1M x 2 4 M Bytes
4M x 2 10 M Bytes
4 M Bytes
2M x 2 8 M Bytes
4M x 2 12 M Bytes
8 M Bytes
4M x 2 16 M Bytes
16M x 2 64 M Bytes
14
2.7Watch-Dog Timer
The Watch-Dog Timer is enabled by reading the port 443H. It should be
triggered before the time-out period ends; otherwise, it will assume that the
program operation is abnormal and will either issue a reset signal to start
again or activate a NMI to the CPU. The Watch-Dog Timer is disabled by
reading the port 043H.
JP9 determines the Watch -Dog timer function. It can disable the Watch-Dog
timer or connect the Watch-Dog timer to the reset trigger or NMI trigger.
?? JP9 : Watch-Dog Active Select
JP9 DESCRIPTION
*1-2 System Reset
2-3 Active NMI
OPEN Disabled Watch-Dog Timer
*) : default setting
?? JP14 : WDT Time - Out Period
PERIOD
*1 sec OFF OFF ON OFF
2 sec OFF OFF ON ON
10 sec OFF ON OFF OFF
20 sec
110 sec
220 sec
*) : default setting
When the power of the HS-3200/4M is turned on, the Watch-Dog timer is
disabled. The watch -dog timer can be enabled by reading the Watch -dog timer
enable/refresh control port (443H) and disabled by reading the Watch-dog
timer disable control port (43H). After the Watch-dog timer is enabled, the
user must constantly refresh the Watch-dog timer by reading the Watch-dog
timer enable/refresh port (443H) every 1, 2, 10, 20, 110 or 220 seconds. If the
user fails to do so or the system hangs, the watch-dog
1-2 3-4 5-6 7-8
OFF ON OFF ON
ON OFF OFF OFF
ON OFF OFF ON
timer will automatically reset the system or issue a NMI(Non-maskable
interrupt).
The Watch-Dog Timer is controlled by two I/O ports.
15
Dog
443H I/O Read Enable/refresh the Watch -
Timer.
043H I/O Read Disable the Watch-Dog Timer.
The following programs are the examples of how to enable, disable and refresh
the Watch-Dog timer:
WDT_EN_RF EQU 0443H
WDT_DIS EQU 0043H
WT_Enable PUSH AX ;save AX, DX
PUSH DX
MOV DX,WDT_EN_RF ;enable the watch-dog timer
IN AL,DX
POP DX ;reco AX, DX
POP AX
RET
WT_Rresh PUSH AX ;save AX, DX
PUSH DX
MOV DX,WDT_ET_RF ;refresh the watch-dog timer
IN AL,DX
POP DX ;reco AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS; disable the watch-dog timer
IN AL,DX
POP DX ;reco AX, DX
POP AX
RET
16
2.8VGA Controller
The HS -3200/4M is equipped with a VGA controller. It uses an Intel® 65545
ISA-bus VGA controller which supports up to 1280x1024 resolution. It also
provide the LCD Panel I/F to support panels.
?? Highly integrated design (Flat Panel/CRT VGA)
?? Bus : ISA bus 16-bit
?? Chipset: Intel
?? Video Memory : two 256K x 16 DRAM (1MB) used for improving the
performance with color DSTN panels
?? Supports panel resolutions up to 1280x1024 resolution
?? True-color and Hi-color display capability with a flat panel and CRT
monitors up to 640x480 resolution
?? Direct interface to the Color and Monochrome Dual Drive and Single Drive
Panels
?? Fully Compatible with IBM VGA
?? 40-pin LCD panel connector
®
65545
17
2.9DiskOnChip? Address Setting
Install the DiskOnChip? in U9 socket.
JP11 determines the memory address of the DiskOnChip? .If you have
another add-on card in the system with the same memory, neither the
HS-3200/4M nor the add-on card will function normally. Please change
the memory address.
?? JP11 : DiskOnChip? Address
PIN NO. Address
*1-2 D000
3-4 D800
5-6 E000
7-8 E800
*) : default setting
2.10LASH ROM VPP Selection
The JP15 provide in selection the VPP of Flash ROM.
?? JP15 : Flash ROM VPP selection
PIN NO. Type
*1-2 VPP=VCC
2-3 VPP=12V
*) : default setting
18
2.11Jumper Setting and Selection of RS-232/422/485
The HS-3200/4M provide you to select the board with CN16 RS -232 workable
or CN12 RS -422/485. Please refer to the following jumpers setting for detail.
?? JP1 : RS -232 COM 4 Disable Select
JP1 Selection
OPEN RS-232
*CLOSE RS-422/485
*) : default setting
?? JP12 : RS -422/485 Receiver Select
JP12 RS-422/485 Receiver
*1-2 Always Enable
3-4 ON for Wring the REG.2EFh Bit1 = 1.
5-6 Always Disable
*) : default setting
?? JP13 : RS -422-485 Transceiver Select
JP13 RS-422/485 Transceiver
*1-2 Always Enable
3-4 Enable by -RTS4
5-6 ON for Wring the REG.2EFh Bit0 = 1.
7-8 Always Disable
*) : default setting
The HS -3200/4M offers four high speed NS16C550 compatible UARTs with
Read/Receive 16 byte FIFO serial ports.
19
?? CN17 : Serial Port DB-9 Connector (ACE0)
PIN NO. DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
?? CN14, 15, 16 : Serial Port 10-pin Header (COM2~COM4)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC
?? CN12 : Serial 4 Connector (RS422/485)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX - 2 TX+
3 RX+ 4 RX 5 GND 6 RTS7 RTS+ 8 CTS+
9 CTS- 10 NC
* JP13 7-8 is HS -3200/4M v2.4 above only.
20
Chapter-3
Connection
This chapter describes how to connect the peripherals, switches and
indicators to the HS -3200/4M board.
3.1 Floppy Disk Drive Connector
HS-3200/4M board is equipped with a 34-pin daisy-chain driver connector
cable.
?? CN7 : FDC CONNECTOR
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 GROUND 34 DISK CHANGE#
21
3.2 PCI E-IDE Drive Connector
The HS -3200/4M has on board IDE interface. It can be connected up to two
IDE (Integrated Device Electronics) hard disk drives.
?? CN10 : IDE Interface Connector
PIN
NO.
1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND
DESCRIPTION PIN NO.
DESCRIPTION
22
3.3 Parallel Port
The HS-3200/4M includes an on board parallel port which accesses through a
26-pin flat -cable connector CN2.
?? CN2 : Parallel Port Connector
PIN NO.
1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN#
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND
DESCRIPTION PIN NO.
18 GROUND
DESCRIPTION
23
3.4Keyboard Connector
The HS -3200/4M provides two keyboard connectors.
?? CN19 : 5-Pin Header Keyboard Connector
PIN NO. DESCRIPTION
1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V
?? CN21 : PS/2 Mini Din 6-Pin Keyboard Connector
PIN NO. DESCRIPTION
1 KEYBOARD DATA
2 N/C
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 N/C
24
3.5External Switches and Indicators
There are many external switches and indicators to monitor and control your
CPU board.
?? CN4 : Keylock
PIN NO. DESCRIPTION
1 POWER LE D ANODE
2 KEY
3 GROUND
4 KEYLOCK
5 GROUND
?? CN3 : Reset Button
PIN NO. DESCRIPTION
1 EXTERNAL RESET
2 GROUND
?? CN6 : IDE LED connector
PIN NO. DESCRIPTION
1 +5V
2 HDD ACTIVE#
25
3.6External Speaker
The HS -3200/4M has its own buzzer, and CN5 allows user to connect to the
external speaker.
?? CN5 : Speaker Connector
PIN NO. DESCRIPTION
1 SPEAKER SIGNAL
2 NC
3 GROUND
4 +5V
3.7PS/2 6-Pin Mini Din Mouse Connector
The HS-3200/4M has a PS/2 mouse on board which uses IRQ12. If you do not
use the PS/2 mouse and wish to assign IRQ12 for other purposes, you may
change JP8 to disconnect PS/2 interrupt from IRQ12.
?? JP8 : IRQ12 Select
JP8 Display Type
OPEN No interrupt for PS/2
*CLOSE IRQ12
*) : default setting
?? CN20 : PS/2 Mouse Connector
PIN NO. DESCRIPTION
1 MS DATA
2 NC
3 GROUND
4 +5V
5 KBT1
6 NC
26
3.8VGA Connector
The HS -3200/4M has on board 15-pin external VGA connector.
?? CN18 : 15-pin Female VGA connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND
9 NC 10 GROUND
11 NC 12 NC
13 HSYNC 14 VSYNC
15 NC
3.9PC/104 Connection Bus
The HS-3200/4M’s PC/104 expansion bus can let you connect any kinds of the
PC/104 mo dules. The PC/104 bus has already become the industrial
embedded PC standard bus, so you can easily install over thousands of
PC/104 modules from hundreds of venders in the world. The detailed pin
assignment of the PC/104 expansion bus connectors CN8 and CN9 are
specified as following tables:
Note : The PC/104 connector allows to directly plug-in Stack -thru
PC/104 modules without the PC/104 mounting kit.
27
?? CN8&CN9 : PC/104 Expansion Bus
(CN8 = 64-pin female connector; CN9 = 40-pin female connector.)
Pin
No.
1 IOCHECK* 33 0V 1 0V 21 0V
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17
10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 0V
32 0V 64 0V
CN8
Row A
Pin
No.
CN8
Row B
Pin
No.
CN9
Row D
Pin
No.
CN9
Row C
28
3.10LCD-Panel Connector
The HS -3200/4M provides a 44-pin DIL box header connector (CN11) for the
Flat panel.
+12V 1 2 +12V
GND 3 4 GND
PVCC 5 6 PVCC
FPVee 7 8 GND
P0 9 10 P1
P2 11 12 P3
P4 13 14 P5
P6 15 16 P7
P8 17 18 P9
P10 19 20 P11
P12 21 22 P13
P14 23 24 P15
P16 25 26 P17
P18 27 28 P19
P20 29 30 P21
P22 31 32 P23
GND 33 34 GND
SHFCLK 35 36 FLM
M 37 38 LP
GND 39 40 ENABKL
GND
VCC 43 44 V
41 42 ASHFCLK
CC
29
Connections for four standard LCDs
Connections to Sharp LM64183P
(640 x 480 DSTN MONO LCD)
Sharp LM64P83 HS-3200/4M CN11
Pin Pin name Pin Pin name
CN1-1 S 36 FLM
CN1-2 CP1 38 LP
CN1-3 CP2 35 SHFCLK
CN1-4 DISP 5 +5V
CN1-5 VDD 6 +5V
CN1-6 VSS 3 GND
CN1-7 VEE - -17 V (external power)
CN1-8 DU0 12 P3
CN1-9 DU1 11 P2
CN1-10 DU2 10 P1
CN1-11 DU3 9 P0
CN1-12 DL0 16 P7
CN1-13 DL1 15 P6
CN1-14 DL2 14 P5
CN1-15 DL3 13 P4
30
Connections to Sharp LM64C35P
(640 x 480 DSTN Stn Color)
Sharp LM64C35P HS-3200/4M CN11
Pin Pin name Pin Pin name
CN1-1 DL4 16 P7
CN1-2 Vss 3 GND
CN1-3 DL5 15 P6
CN1-4 YD 36 FLM
CN1-5 DL6 14 P5
CN1-6 LP 38 LP
CN1-7 DL7 13 P4
CN1-8 Vss 4 GND
CN1-9 Vss 8 GND
CN1-10 XCK 35 SLFCHK
CN1-11 DL0 24 P15
CN1-12 Vcon - Contrast Adjust
CN1-13 DL1 23 P14
CN1-14 Vdd 5 +5V
CN1-15 Vss 33 GND
CN1-16 Vdd 6 +5V
CN1-17 DL2 22 P13
CN1-18 DISP 6 +5V
CN1-19 DL3 21 P12
CN1-20 NC - CN1-21 Vss 34 GND
CN1-22 DU3 17 P8
CN1-23 DU4 12 P3
CN1-24 DU2 18 P9
CN1-25 DU5 11 P2
CN1-26 DU1 19 P10
CN1-27 Vss 39 GND
CN1-28 DU0 20 P11
CN1-29 DU6 10 P1
CN1-30 Vss 39 GND
CN1-31 DU7 9 P0
31
Connections to NEC NL8060AC26
(800 x 600 TFT Color)
NEC NL8060AC26 HS-3200/4M CN11
Pin Pin name Pin Pin name
CN1-1 GND 3 GND
CN1-2 Dot Clock 35 SHFCLK
CN1-3 GND 4 GND
CN1-4 Hsync 38 LP
CN1-5 Hsync 38 FLM
CN1-6 GND 8 GND
CN1-7 GND 8 GND
CN1-8 GND 8 GND
CN1-9 R0 27 P18
CN1-10 R1 28 P19
CN1-11 R2 29 P20
CN1-12 GND 8 GND
CN1-13 R3 30 P21
CN1-14 R4 31 P22
CN1-15 R5 32 P23
CN1-16 GND 39 GND
CN1-17 GND 39 GND
CN1-18 GND 39 GND
CN1-19 G0 19 P10
CN1-20 G1 20 P11
CN1-21 G2 21 P12
CN1-22 GND 39 GND
CN1-23 G3 22 P13
CN1-24 G4 23 P14
CN1-25 G5 24 P15
CN1-26 GND 41 GND
CN1-27 GND 41 GND
CN1-28 GND 41 GND
CN1-29 B0 11 P2
CN1-30 B1 12 P3
CN1-31 B2 13 P4
CN1-32 GND 41 GND
CN1-33 B3 14 P5
CN1-34 B4 15 P6
CN1-35 B5 16 P7
CN1-36 GND 41 GND
CN1-37 DE 37 M
32
CN1-38 PVcc 43 PVcc
CN1-39 PVcc 44 PVcc
CN1-40 PVcc 5 PVcc
CN1-41 MODE - ---
Connections to Sharp LM64C142
(640 x 480 DSTN Stn Color)
Sharp LM64C142 HS-3200/4M CN11
Pin Pin name Pin Pin name
CN1-1 YD 36 FLM
CN1-2 LP 38 LP
CN1-3 XCX 35 SHFCLK
CN1-4 DISP 5 +5V
CN1-5 PVdd 6 +5V
CN1-6 PVss 3 GND
CN1-7 PVee - +27 V (external power)
CN1-8 DU0 20 P11
CN1-9 DU1 19 P10
CN1-10 DU2 18 P9
CN1-11 DU3 17 P8
CN1-12 DU4 12 P3
CN1-13 DU5 11 P2
CN1-14 DU6 10 P1
CN1-15 DU7 9 P0
CN2-1 Vss 4 GND
CN2-2 DL0 24 P15
CN2-3 DL1 23 P14
CN2-4 DL2 22 P13
CN2-5 DL3 21 P12
CN2-6 DL4 16 P7
CN2-7 DL5 15 P6
CN2-8 DL6 14 P5
CN2-9 DL7 13 P4
CN2-10 Vss 8 GND
33
3.11External Power Connector
The HS-3200/4M provides one 4-pin DC-Power connector as following CN1 pin
information.
?? CN1 : 4-Pin Power Connector
PIN NO. DESCRIPTION
1 +12V
2 GND
3 GND
4 VCC
3.12 Fast Ethernet Connector
The Fast Ethernet controller provides with 10 Based operation, please
connect the network connection by plugging one end of the cable into the to
CN13 Connector.
?? CN13 : Ethernet Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 LED 0
3 RX+ 4 RX5 LED 1 6 GND
7 LED 2 8 GND
9 TX+ 10 TX-
34
Chapter-4
AMI BIOS Setup
The HS-3200/4M uses the AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options which could be selected for
end-user requirements. This chapter is written to assist you in the proper
usage of these features.
To access AMI BIOS Setup program, press <Del> key. The Main Menu will be
displayed at this time.
35
4.1 Main Menu
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from several setup
functions and two exit choices. Use the arrow keys to select among the items
and press <Enter> to accept and enter the sub-menu.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.16
(C)1996 American Megatrends , Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Auto-Detect Hard Disk
Change User Password
Change Supervisor Password
Change Language Setting
Auto Configuration With Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Peripheral Setup
36
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC: Exit ?? : Sel F2/F3 : Color PgUp/PgDn : Modify
4.2 Standard CMOS Setup
Year :
The Standard Setup is used for the basic hardware system configuration. The
main function is for Data/Time and Floppy/Hard Disk Drive settings. Please
refer to the following screen for this setup.When the IDE hard disk drive you
are us ing is larger than 528MB, please set the HDD mode to LBA mode.
Please use the IDE Setup Utility in BIOS SETUP to install the HDD correctly.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C)1996 American Megatrends , Inc. All Rights Reserved
Date (mm/dd/yyyy) : Wed Nov 10,1999
Time (hh/mm/ss) : 08:41:50
Floppy Drive A : 1.44 MB 3 1/2
Floppy Drive B : Not installed
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master : Auto Off
Pri Slave : Auto
Boot Sector Virus Protection Disabled
Mouth : Jan -Dcc ESC: Exit ?? : Sel
Day : 01 -31 PgUp/PgDn : Modify
1902 -2099 F2/F3 : Color
640 KB
3MB
LBA BIK PIO 32Bit
37
4.3 Advanced CMOS Setup
This advanced setup is designed for the customers to achieve the highest
performance of the HS -3200/4M board. As for normal operations, customers
dont have to change any default settings. The default setting is pre-set for
most reliable operations. Please refer to the following screen for the Advanced
Setup.
This setup is mostly working for the Multi-I/O Chip (ALI M5113 or UM8669).
These options are us ed to change the ChipSet’s registers. Please carefully
change any default settings to meet your application requirements.
AMIBIOS SETUP – ADVANCED CMOS SETUP
(C)1996 American Megatrends , Inc. All Rights Reserved
1st Boot Device IDE-0 Available Options :
2nd Boot Device Floppy Disabled
3rd Boot Device ARMD-HDD
4th Boot Device Disabled IDE-1
Boot From Card BIOS Yes IDE-2
Try Other Boot Device Yes IDE-3
S.H.A.R.T. for Hard Disks Disabled Floppy
Quick Boot Disabled ARMD-FDD
BootUp Num -Lock On ARMD-HDD
Floppy Drive Swap Disabled RDROM
Floppy Drive Seek Disabled SCSI
Floppy Access Control Normal NETWORK
HDD Access Control Normal
PS/2 Mouse Support Enabled
System Keyboard Present
Primary Display VGA/EGA
Password Check Setup
System BIOS Cacheable Disabled
C000, 32K,Shadow Enabled
C800, 32K,Shadow Disabled
D000, 32K,Shadow Disabled
D800, 32K,Shadow Disabled ESC: Exit ?? : Sel
E000, 32K,Shadow Disabled PgUp/PgDn : Modify
E800, 32K,Shadow Disabled F2/F3 : Color
?IDE-0
38
Note: The default Flat Panel Display types currently are:
Default BIOS Panel Types
No Resolution
1 640x480 12bit Color TFT NL6448AC30-10 (NEC)
2 640x480 18bit Color TFT NL6448AC33-18 (NEC)
3 640x480 18bit Color TFT LQ10D41(SHARP)
4 800x600 18bit Color TFT NL8060AC26-11(NEC)
5 640x480 16 bit Dual-Scan Color STN LM64C08P(SHARP)
6 640x480 8 bit Dual-Scan Monochrome STN LM64P11(SHARP)
7 640x480 4 bit Plasma PG640480RM16-3(OKI)
8 640x480 8 bit Dual-Scan EL LJ64H052(SHARP)
Data Panel Type
Note: The DISPLAY MODE selects the type of display used for the primary
system monitor.
LCD: Display Flat -Panel only
CRT: Display CRT monitor only
Both: Both display monitor and Flat -Panel.
Auto : Auto detect LCD or CRT
39
4.4 Advanced Ch ipset Setup
This setup functions are mostly working for the Chipset (ALI M6117B). These
options are used to change the Chipset’s registers. Please carefully change
any default settings, otherwise the system could be unstable.
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C)1996 American Megatrends , Inc. All Rights Reserved
At Bus Clock 14.318/2 Available Options :
Slow Refresh 15 us
Memory Holo At 15-16 M Disabled PCLK2/3
RAS Precharge time 3.5T PCLK2/4
RAS Active Time Insert Wait Enabled PCLK2/5
CAS Precharge Time Insert Wait Enabled PCLK2/6
Memory Write Insert Wait Enabled PCLK2/8
Memory Miss Read Insert Wait Enabled PCLK2/10
ISA Write cycle and Insert Wait Enabled PCLK2/12
I/O Recovery Enabled
I/O Recovery Period 3.75 us
On-Chip I/O Recovery Disabled
16Bit ISA Insert Wait Enabled
******* Watch DOG Timer*********
WatchDog Timer Disabled
WDT Timeout Period Select 42 Sec
WatchDog Timeout Issue Signal Reset
ESC: Exit ?? : Sel
PgUp/PgDn : Modify
F2/F3 : Color
?14.318/2
40
Loading...
