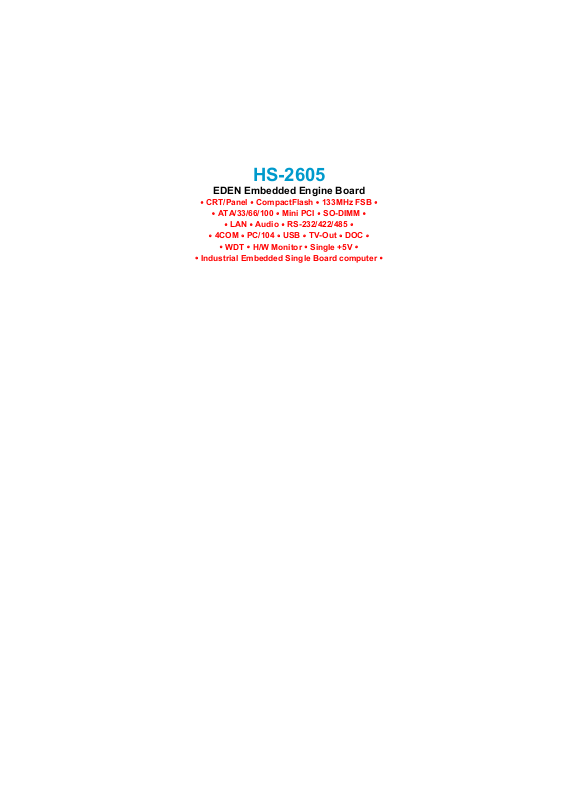

HS-2605
EDEN Embedded Engine Board
•CRT/Panel•CompactFlash•133MHz FSB•
ATA/33/66/100•Mini PCI•SO-DIMM•
•
•LAN•Audio•RS-232/422/485•
4COM•PC/104•USB•TV-Out•DOC•
•
•WDT•H/W Monitor•Single +5V•
Industrial Embedded Single Board computer•
•
Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd.
this document without due notice.
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
r
a
d
e
m
T
r
T
r
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
VIA is a registered trademark of VIA Technologies, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
a
d
e
m
a
a
d
e
m
a
reserves the right to change or improve the contents of
r
k
s
r
k
s
r
k
s
electronic, mechanical, photocopying, recording)
BOSER Technology Co., Ltd. assumes no
manufacturer will
© Copyright 2003 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.2, July 28, 2003
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 10
3.7 DiskOnChip Address Setting .......................................... 10
3.8 VGA Controller .................................................................... 12
3.9 PCI E-IDE Drive Connector................................................. 14
3.10 Floppy Disk Drive Connector ............................................. 15
3.11 Serial Port Connectors ....................................................... 16
3.12 Parallel Connector............................................................... 18
3.13 Ethernet Connector............................................................. 19
3.14 USB Connector .................................................................... 19
3.15 CMOS Data Clear................................................................. 19
3.16 Power and Fan Connectors................................................ 20
3.17 Keyboard/Mouse Connectors ............................................ 20
3.18 System Front Panel Connectors........................................ 21
3.19 Watchdog Timer .................................................................. 22
3.20 Mini PCI Connector ............................................................. 24
3.21 PC/104 Connectors ............................................................. 26
3.22 Audio Connectors ............................................................... 28
3.23 CompactFlash Connector................................................ 28
3.24 Game Port Connector ......................................................... 29
3.25 TV-Out Connector ............................................................... 30
Chapter 4 AMI BIOS Setup..................................... 31
4.1 Starting Setup...................................................................... 31
4.2 Using Setup ......................................................................... 32
4.3 Main Menu............................................................................ 33
4.4 Standard CMOS Setup........................................................ 34
4.5 Advanced CMOS Setup ...................................................... 35
4.6 Advanced Chipset Setup.................................................... 36
4.7 Power Management Setup ................................................. 37
4.8 PCI / Plug and Play Setup................................................... 38
4.9 Peripheral Setup.................................................................. 39
4.10 Hardware Monitor Setup..................................................... 40
4.11 Auto-Detect Hard Disks ...................................................... 40
4.12 Change Supervisor/User Password .................................. 41
4.13 Auto Configuration with Optimal Settings ....................... 42
4.14 Auto Configuration with Fail Safe Settings ...................... 43
4.15 Save Settings and Exit........................................................ 44
4.16 Exit Without Saving............................................................. 45
Chapter 5 Software Utilities..................................... 47
5.1 IDE Driver Installation ......................................................... 47
5.2 VGA Driver Installation ....................................................... 52
5.2.1 VGA Driver Installation for WIN95/98/2K........................................52
5.2.2 VGA Driver Installation for WIN NT4.0 ................................................55
5.3 LAN Driver Installation........................................................ 58
5.3.1 LAN Driver Installation for WIN95/98/2K.........................................58
5.3.2 LAN Driver Installation for WIN NT4.0 .................................................64
5.4 Audio Driver Installation..................................................... 74
Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the HS-2605 to ensure
harmlessly discharge any static electricity through the strap.
Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE:
DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.
Chapter 1
General Description
The HS-2605 is a 100/133MHz FSB VIA VT8606 chipset-based board
designed for Mini PCI Local Bus VIA C3 EDEN 400/667/733MHz
Embedded CPU. These features combine and make the HS-2605 an
ideal all-in-one industrial single board computer. Additional features
include an enhanced I/O with CRT/Panel, LAN, Audio, TV-Out, and
4COM ports interfaces.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-2605 to support data transfers of 33, 66 or 100MB/sec. to one
IDE drive connection. Designed with the VIA VT8606 core logic
chipset, the board supports VIA C3 EDEN 400/667/733MHz
Embedded CPU. The VIA VT8606 integrated S3 3D supporting
CRT/Panel displays up to 1920 x 1440.
System memory is also sufficient with the one SO-DIMM socket that
can support up to 256MB.
Additional onboard connectors include an advanced USB port
providing faster data transmission, a DOS-compatible DiskOnChip
socket with a maximum capacity of 288MB. And one external RJ-45
connector for 10/100 Based Ethernet use.
1
To ensure the reliability in an unmanned or standalone system
, the
Watchdog Timer (WDT) onboard HS-2605 is designed with pure
hardware that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard Watchdog Timer (WDT) will automatically reset the CPU or
generate an interrupt to resolve such condition.
1.1 Major Features
The HS-2605 comes with the following features:
VIA C3 EDEN 400/667/733MHz Embedded Low Power CPU
VIA VT8606/VT82C686B system chipset
Mini PCI Local Bus support
Supports 100/133MHz FSB
One SO-DIMM socket with a max. capacity of 256MB
SMC 37C669, VIA VT82C686B super I/O chipset
Fast PCI ATA/33/66/100 IDE controller
Three RS-232 and one RS-232/422/485 serial ports
PC/104 Bus connector
VIA VT8606 CRT/Panel display controller
RealTek RTL8100 10/100 Based LAN
AC97 3D audio controller
DiskOnChip socket supporting memory size of up to 288MB
Two USB connectors
Supports CompactFlash card reader
Supports TV-Out function (optional)
Supports Hardware Monitor function
Supports Single +5V power in
2
1.2 Specifications
CPU: VIA C3 EDEN 400/667/733MHz Embedded Low Power CPU
Bus Interface: Mini PCI Local Bus
Memory: One SO-DIMM socket supporting up to 256MB
Chipset: VIA VT8606/VT82C686B
I/O Chipset: SMC 37C669, VIA VT82C686B
CompactFlash:
One standard CompactFlash adapter
VGA: VIA VT8606 integrated S3 3D supporting CRT/Panel displays up
to 1920 x 1440
IDE: Two IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
FDD: Supports up to two floppy disk drives
Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
LAN: RealTek RTL8100 10/100 Based LAN
Audio:
AC97 3D audio controller
Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
PC/104: PC/104 connector for 16-bit ISA Bus
USB: Two USB connectors
TV-Out: Supports PAL or NTSC TV systems (optional)
Keyboard/Mouse: PS/2 6-pin Mini DIN or 6-pin connector
DiskOnChip: DiskOnChip socket supporting memory sizes of up to
288MB
BIOS: AMI PnP Flash BIOS
Watchdog Timer: Sets 1, 2, 10, 20, 110, 220 seconds, activity trigger
with Reset or NMI
CMOS: Battery backup
Power: Single +5V/3.2A power in
Operating Temperature: -15 ~ +60°C
Hardware Monitor: VIA VT82C686B
Board Size: 14.5 x 10.2 cm
3
1.3 Board Dimensions
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-2605 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-2605 delivery package
contains the following items:
HS-2605 Board x 1
Utility CD Disk x 1
IDE flat cable x 1
FDD flat cable x 1
Printer cable x 1
One PS/2 KB/MS Transfer cable x 1
One RS-232 COM Port cable x 4
8-pin USB split type cable x 1
MIC/Audio IN 8-pin cable x 1
2-pin Power cable x 1
Jumper Bag x 1
User’s Manual
5
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
6
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-2605. This chapter also contains information related to
jumper settings of switch, watchdog timer, and the DiskOnChip
address selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
7
3.2 Board Layout
8
3.3 Jumper List
Jumper
JP1 WDT Active Type Setting: Disabled All Open 22
JP2 Clear CMOS: Normal Operation Short 1-2 19
JP4(1-4) DOC Address Select: D000 Short 1-2, 3-4 10
JP4(5-10) WDT Timer Select: 1sec.
JP5
JP6
JP7 Panel Voltage Select: +3.3V Short 1-2 12
Default Setting Setting Page
Short 5-6, 7-8,
9-10
RS-422/485 Receiver
Enabled/Disabled Select: Disabled
COM2 Use RS-232 or RS-422/485
Select: RS-232
All Open 16
Open 16
22
3.4 Connector List
Connector Definition Page
CN1 USB Connector 19
CN2 5-pin ATX Power In Connector 20
CN3 PC/104 40-pin Connector 26
CN4 PC/104 64-pin Connector 26
CN5 2-pin Power In Connector 20
CN6 Game Port Connector 29
CN8
CN9 Line In/Audio Out Connector 28
CN10 RS-422/485 Connector (5x2 header) 16
CN11 RCA Connector 30
CN12 Parallel Connector 18
CN13
CN14 COM 3 Connector (5x2 header) 16
CN15 PS/2 6-pin Mini DIN KB/MS Connector 20
CN16 COM 1 Connector (5x2 header) 16
CN17 6-pin KB/MS Connector 20
CN18 COM 2 Connector (5x2 header) 16
CN19 COM 4 Connector (5x2 header) 16
CN20 CRT Connector 12
CN21 50-pin Panel Connector 12
CN22 LVDS Connector 12
CN23 IDE Connector 14
CN24 CompactFlash Connector 28
FDC Connector 15
RJ-45 Connector 19
. . . More on next page . . .
9
Connector Definition Page
CN25 External Reset Button 21
DM1 SO-DIMM Socket 10
FN1 Fan Connector 20
JP3 System Front Panel Connector 21
PC1 Mini PCI Connector 24
U1 DiskOnChipTM Socket 10
3.5 Configuring the CPU
The HS-2605 embedded with a VIA C3 EDEN 400/667/733MHz CPU.
User don’t need to adjust the frequently and check speed of VIA C3
EDEN CPU.
3.6 System Memory
The HS-2605 provides one SO-DIMM socket at locations DM1. The
maximum capacity of the onboard memory is 256MB.
3.7 DiskOnChip Address Setting
The DiskOnChip function allows the system to boot or operate
without a FDD or a HDD. DiskOnChip modules may be formatted as
drive C or A. With DiskOnChip, user may also execute DOS
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc.
The U1 location on the HS-2605 is the DiskOnChip module socket.
Jumper JP4(1-4) assigns the starting memory address of the installed
module. If you have another memory device that has a similar memory
capacity with that of the DOC in your system, please set both at
different memory address mapping to avoid the mapping area conflicts.
Failing to do so will not make the HS-2605 and the additional memory
device function properly.
JP4(1-4): DiskOnChip Address Select
Address PINS 1-2 PINS 3-4
D000 (default) Short Short
D800 Open Short
E000
10
Short Open
3.7.1 Installing DiskOnChip Modules
When installing a DiskOnChip module onto your board, please take
note of the following:
1. Orient yourself properly with the location of the DiskOnChip
socket. Try to locate the pin 1 location on your socket. Pin
numbers are usually printed on either the component side or the
solder side of your board.
2. Locate the Pin 1 location on your DiskOnChip module. More
often than not, Pin 1 can be found on the lower left corner of the
chip. Please refer to the diagram for the exact location.
3. Once you have figured out where the pin 1 locations are on both
chip and socket, align the module’s pins on an upright angle
against the socket. Using both thumbs, gently press the module
into the socket until all the pins are secured to their
designations.
D
i
s
k
O
n
C
h
i
p
Pin 1
Location
4. The installation is now complete and your module is now ready
for use.
NOTE:
If you encounter difficulty installing your DiskOnChip
module,
please consult a qualified technician or engineer to perform the
installation.
3.7.2 Removing DiskOnChip Modules
When removing a DiskOnChip module from its socket, please take
note of the following:
1. Loosen the contact of the module from its socket using a
screwdriver.
11
2. Insert the screwdriver’s flat head into a gap on either end of the
socket. Do not insert the screwdriver head on either side where
the pins are located. Doing so might damage the pins in the
process.
3. Slowly lift the screwdriver handle upwards. This will disengage
the module from its socket.
NOTE:
If you encounter difficulty removing your DiskOnChip
module,
please consult a qualified technician or engineer to remove it for
you.
3.8 VGA Controller
The HS-2605 provides three connection methods of a VGA device.
CN20 offers a single standard CRT connector while CN21 is the 50-pin
panel connector and CN22 is the LVDS interface connector onboard
reserved for flat panel installation.
CN20: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SCL
13 HSYNC 14 VSYNC
15 SDA
CN22: LVDS Interface Connector
PIN Description PIN Description
NOTE:
1 V
3 Y0(Y0M) 4 Y1(Y0P)
5 Y2(Y1M) 6 Y3(Y1P)
7 Y4(Y2M) 8 Y5(Y2P)
9 Y6(YCM) 10 Y7(YCP)
11 GND 12 GND
LVDS cable should be produced very carefully. Y0 & Y1 have to be
2 V
LCD
fabricated in twister pair (Y2 & Y3, Y4 & Y5, Y6 & Y7 and so on)
otherwise the signal won’t be stable. Please set the proper voltage
of your panel using JP7 before proceeding on installing it.
LCD
V
GND
1
5
12
LCD
Y0
Y2
Y4
Y6
6
11
10
15
V
LCD
Y1
Y3
Y5
Y7
GND
1211
12
CN21: 50-pin Panel Connector
PIN. Description PIN Description
1 +12V 2 +12V
3
5 V
GND
6 ENAVDD
LCD
4
7 ENAVEE 8 GND
9 PD0 10 PD1
11 PD2 12 PD3
13
PD4
14
15 PD6 16 PD7
17 PD8 18 PD9
19 PD10 20 PD11
21 PD12 22 PD13
23 PD14 24 PD15
25 PD16 26 PD17
27 PD18 28 PD19
29 PD20 30 PD21
31 PD22 32 PD23
33 PD24 34 PD25
35 SHFCLK 36 FLM
37 DE 38 LP
39 GND 40 ENABKL
41 P26 42 P27
43 P28 44 P29
45 P30 46 P31
47 P32 48 P33
49
P34
50
NOTE:
Please set the proper voltage of your panel using JP7 before
proceeding on installing it.
GND
PD5
P35
ENAVEE
SHFCLK
+12V
GND
V
LCD
PD0
PD2
PD4
PD6
PD8
PD10
PD12
PD14
PD16
PD18
PD20
PD22
PD24
DE
GND
P26
P28
P30
P32
P34
12
+12V
GND
ENAVDD
GND
PD1
PD3
PD5
PD7
PD9
PD11
PD13
PD15
PD17
PD19
PD21
PD23
PD25
FLM
LP
ENABKL
P27
P29
P31
P33
P35
5049
The HS-2605 has an onboard jumper that selects the working voltage
of the flat panel connected to the system. Jumper JP7 offers two
voltage settings for the user.
JP7: Panel Voltage Select
Options Settings
+3.3V (default) Short 1-2
+5V Short 2-3
+3.3V
V
+5V
1
LCD
3
13
3.9 PCI E-IDE Drive Connector
CN23 is a standard 44-pin 2.0mm pitch connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-2605.
A maximum of two ATA/33/66/100 IDE drives can be connected to the
HS-2605 via CN23.
CN23: IDE Connector
PIN Description PIN Description
1
IDERST
2
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27
PIORDY
28
29 PDDACK# 30 GND
31 IRQ14 32 N/C
33 PDA1 34 PD33/66
35 PDA0 36 PDA2
37
PDCS1#
38
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C
GND
470Ω with GND
PDCS3#
14
GND
PDD8
PDD9
PDD10
PDD11
2
1
PDD7
PDD6
PDD5
IDERST
PDD4
PDD12
PDD3
PDD13
PDD2
PDD14
PDD1
PDD15
PDD0
N/C
GND
GND’GND
PDDREQ
GND
470Ω with GND
GND
N/C
PD33/66
PDA2
PDCS3#
GND
VCC
N/C
44
43
VCC
IOR#
IOW#
PIORDY
PDA1
PDA0
IRQ14
PDDACK#
GND
PDCS1#
HDD ACTIVE
3.10 Floppy Disk Drive Connector
The HS-2605 uses a standard 34-pin header connector, CN8, for
floppy disk drive connection. A total of two FDD drives may be
connected to CN8 at any given time.
CN8: FDC Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11
GND
12
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21
GND
22
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31
GND
32
33 GND 34 DSKCHG#
DS1#
WDATA#
HDSEL#
DRVDEN0
N/C
DRVDEN1
INDEX#
MTR0#
DS1#
DS0#
MTR1#
DIR#
STEP#
WDATA#’WGATE#
TRAK00#
WRTPRT#
RDATA#
HDSEL#
DSKCHG#
GND
GND
34
33
15
2
u
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
3.11 Serial Port Connectors
The HS-2605 offers two NS16C550 compatible UARTs with
Read/Receive 16-byte FIFO serial ports and four internal 10-pin
headers and one RS-422/485 connector.
CN16: COM1 Connector (5x2 Header)
PIN Description PIN Description
1 DCD1 2 DSR1
3 RXD1 4 RTS1
5 TXD1 6 CTS1
7 DTR1 8 RI1
9 GND 10 N/C
CN18: COM2 Connector (5x2 Header)
PIN Description PIN Description
1 DCD2 2 DSR2
3
RXD2
4
5 TXD2 6 CTS2
7 DTR2 8 RI2
9 GND 10 N/C
CN14: COM3 Connector (5x2 Header)
PIN Description PIN Description
1 DCD3 2 DSR3
3 RXD3 4 RTS3
5 TXD3 6 CTS3
7 DTR3 8 RI3
9 GND 10 N/C
RTS2
DCD1
RXD1
TXD1
DTR1
GND
DCD2
RXD2
TXD2
DTR2
GND
DCD3
RXD3
TXD3
DTR3
GND
1
3
5
7
9
1
3
5
7
9
1
3
5
7
9
DSR1
2
RTS1
4
CTS1
6
8
RI1
10
N/C
DSR2
2
RTS2
4
CTS2
6
8
RI2
10
N/C
DSR3
2
RTS3
4
CTS3
6
8
RI3
10
N/C
16
CN19: COM4 Connector (5x2 Header)
PIN Description PIN Description
1 DCD4 2 DSR4
3 RXD4 4 RTS4
5 TXD4 6 CTS4
7 DTR4 8 RI4
9 GND 10 N/C
CN10: RS-422/485 Connector (5x2 Header, COM2)
PIN Description PIN Description
1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 RTS-
7
RTS+
8
CTS+
9 CTS- 10 N/C
NOTE:
The terminal resistance of RX & TX is set at 180
JP5: RS-422/485 Receiver Enabled/Disabled Select
Options Settings
Always Enable
Enable by “-RTS“ Signal Short 3-4
Always Disabled (default) All Open
JP6: COM2 use RS-232 or RS-422/485 Select
Short 1-2
Options Settings
RS-232 (default) Open
RS-422/485 Short
NOTE:
RS-422/485 port uses COM2. RS-232 of COM2 cannot be used
while RS-422/485 is selected.
DCD4
RXD4
TXD4
DTR4
GND
TX-
RX+
GND
RTS+
CTS-
1
3
5
7
9
1
3
5
7
9
Ω
1
2
1 2
DSR4
2
RTS4
4
CTS4
6
8
RI4
10
N/C
2
TX+
4
RX-
6
RTS-
8
CTS+
10
N/C
.
3
4
17
3.12 Parallel Connector
CN12 is a standard 26-pin flat cable connector deigned to
accommodate parallel port connection on the HS-2605.
CN12: Parallel Connector
PIN Description PIN Description
1 Strobe 14 Auto Form Feed
2
DATA 0
15
3 DATA 1 16 Initialize
4 DATA 2 17 Printer Select LN#
5 DATA 3 18 GND
6 DATA 4 19 GND
7
DATA 5
20
8 DATA 6 21 GND
9 DATA 7 22 GND
10 Acknowledge 23 GND
11 Busy 24 GND
12 Paper Empty 25 GND
13 Printer Select 26 GND
ERROR#
GND
18
14
Auto Form Feed
ERROR#
Initialize
Printer Select LN#
GND
GND
GND
GND
GND
GND
GND
GND
GND
26
Busy
13
Paper Empty
Printer Select
1
Strobe
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
Acknowledge
3.13 Ethernet Connector
The HS-2605 provides one external dual RJ-45 interface connector.
Please refer to the following for its pin information.
CN13: RJ-45 Connector
PIN Description
1 TX+
2 TX-
3 RX+
4 R/C GND
5 R/C GND
6 RX-
7 R/C GND
8 R/C GND
R/C GND
R/C GND
1
2
TX-
RX-
8
TX+
RX+
R/C GND
R/C GND
4
3.14 USB Connector
The HS-2605 provides one 8-pin connectors, at location CN1, for two
USB connections to the HS-2605.
CN1: USB Connector
PIN Description PIN Description
1 VCC 2 VCC
3 USBD1- 4 USBD0-
5
USBD1+
6
USBD0+
7 GND 8 GND
VCC
USBD0-
USBD0+
GND
2
1
VCC
USBD1-
8
7
GND
USBD1+
3.15 CMOS Data Clear
The HS-2605 has a Clear CMOS jumper on JP2.
JP2: Clear CMOS
Options Settings
Normal Operation (default) Short 1-2
Clear CMOS Short 2-3
13
GND
VBAT
VCC3
19
IMPORTANT:
Before you turn on the power of your system, please
set JP2 to Short 1-2 for normal operation.
3.16 Power and Fan Connectors
HS-2605 provides one 5-pin power connectors at CN2. And one 2-pin
power in at CN5.
CN2: 5-pin ATX Power In Connector
PIN Description PIN Description
1 GND 2 PS_ON
3
+12V
4
5 VCC
CN5: 2-pin Power In Connector
PIN Description
1 VCC
2 GND
FN1: Fan Connector
PIN Description
1 CPU Fan1
2
3 GND
+5V
5VSB
1
2
3
1
GND
1
VCC
GND
GND
+5V
Fan Speed
Connector FN1 onboard HS-2605 is a 3-pin fan power output
connector. And HS-2605 supports +5V Fan only.
VCC
+12V
PS_ON
5VSB
5
3.17 Keyboard/Mouse Connectors
The HS-2605 offers two possibilities for keyboard/mouse connections.
The connections are via CN15 for an external PS/2 type
keyboard/mouse or via CN17 for an internal 6-pin cable converter to an
keyboard/mouse.
20
CN15: PS/2 6-pin Mini DIN Keyboard/Mouse Connector
PIN Description
1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock
CN17: 6-pin Keyboard/Mouse Connector
PIN Description
1 Keyboard Clock
2 Keyboard Data
3 Mouse Data
4 GND
5 +5V
6 Mouse Clock
Keyboard
Clock
5
6
Mouse
Clock
123456
Data
Clock
Keyboard
Mouse
Keyboard
GND
3
Keyboard
1
Data
Mouse
2
Data
+5V
4
+5V
Data
GND
Clock
Mouse
3.18 System Front Panel Connectors
The HS-2605 has one LED at location JP3 that indicates the power-on
status. This visual feature of the IDE LED may also be connected to an
external IDE LED, Speaker, Reset Switch, Power LED, EXT SMI,
Power Button, and SLP Button via connector JP3(13-15), JP3(1-3-5-7),
JP3(9-11), JP3(2-4), JP3(6-8), JP3(10-12), JP3(14-16).
JP3: System Front Panel Connector
PIN Description PIN Description
1 +5V 2 330Ω Pull +5V
3 GND 4 GND
5 N/C 6 EXT SMI
7
Speaker
8
9 GND 10 PW Button
11 Reset Switch 12 GND
13 330Ω Pull +5V 14 SLP Button
15 HDD LED 16 GND
GND
21
Connector JP3 Orientation
2
SPEAKER
RST_SW
HD_LED
CN25: External Reset Button
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
PWR LED
EXT_SMI
PWR button
SLP button
PIN Description
1 Reset
2 GND
12
GND
Reset
3.19 Watchdog Timer
There are three access cycles of Watch-Dog Timer as Enable, Refresh
and Disable. The Enable cycle proceeds via READ PORT 443H
whereas the Disable cycle proceeds via READ PORT 045H. A
continued Enable cycle after a first Enable cycle means Refresh.
Once the Enable cycle is active, a Refresh cycle is requested before
the time-out period. This restarts counting of the WDT period. When
the time counting goes over the preset period of WDT, it will assume
that the program operation is abnormal. A System Reset signal to
re-start or a NMI cycle to the CPU transpires when such error happens.
Jumper JP1 is used to select the function of Watchdog Timer.
JP1: Watchdog Timer Active Type Setting
Options Settings
Active NMI Short 1-2
System Reset Short 2-3
Disabled WDT (default) Open
13
22
JP4(5-10): WDT Timeout Period Select
Period PINS 5-6 PINS 7-8 PINS 9-10
1 sec (default)
2 sec Open Short Short
10 sec Short Open Short
20 sec Open Open Short
110 sec Short Short Open
220 sec
Short Short Short
Open Short Open
The Watchdog Timer is disabled after the system Power-On. It can be
enabled via an Enable cycle and reading the control port (443H), or via
a Refresh cycle and reading the control port (443H), or via a Disable
cycle and reading the disable control port (045H).
After an Enable cycle of WDT, user must immediately execute a
Refresh cycle to WDT before its period setting comes to an end every
1, 2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not activate
before WDT period cycle, the onboard WDT architecture will issue a
Reset or NMI cycle to the system. There are three I/O ports that control
the Watchdog Timer.
443H I/O Read The Enable cycle
443H I/O Read The Refresh cycle
045H I/O Read The Disable cycle
The following sample program shows how to Enable, Disable and
Refresh the Watchdog Timer:
WDT_EN_RF EQU 0443H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
23
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the WDT
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
3.20 Mini PCI Connector
HS-2605 supports a Mini PCI connector. The peripheral
component with standard Type1 Mini PCI can be used. For
particular requirement, please refer to “BOSER Mini PCI series
product” on website or contact with us.
PC1: Mini PCI Connector
PIN Description PIN Description
1 INTB# 2 5V
3 3.3V 4 INTD#
5
7 GND 8 N/C
9 CLK 10 RST#
11 GND 12 3.3V
13 REQ# 14 GNT#
15
17 AD[31] 18 PME#
19 AD[29] 20 GNT1
21 GND 22 AD[30]
23 AD[27] 24 3.3V
25 AD[25] 26 AD[28]
27 REQ1 28 AD[26]
29 C/BE[3]# 30 AD[24]
31 AD[23] 32 AD[21]
33 GND 34 GND
35 AD[21] 36 AD[22]
37 AD[19] 38 AD[20]
39 GND 40 PAR
41
43 C/BE[2]# 44 AD[16]
45 IRDY# 46 GND
47 3.3V 48 FRAME#
49 N/C 50 TRDY#
INTA#
3.3V
AD[17]
6
16
42
. . . More on next page . . .
INTC#
GND
AD[18]
24
PIN Description PIN Description
51 SERR# 52 STOP#
53 GND 54 3.3V
55 PERR# 56 DEVSEL#
57 C/BE[1]# 58 GND
59 AD[14] 60 AD[15]
61 GND 62 AD[13]
63 AD[12] 64 AD[11]
65 AD[10] 66 GND
67 GND 68 AD[9]
69 AD[8] 70 C/BE[0]#
71 AD[7] 72 3.3V
73 3.3V 74 AD[6]
75
77 REQ2 78 AD[2]
79 AD[3] 80 AD[0]
81 5V 82 GNT2
83 AD[1] 84 GNT3
85
87 N/C 88 IRQ7
89 N/C 90 N/C
91 N/C 92 N/C
93 N/C 94 N/C
95 N/C 96 N/C
97 N/C 98 N/C
99 N/C 100 N/C
AD[5]
GND
76
86
AD[4]
GND
2
199
Mini PCI Socket
pin orientation
100
25
3.21 PC/104 Connectors
The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16-bit PC standard bus, thousands
of PC/104 modules from multiple venders can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors CN3 and CN4 are listed on the following tables:
NOTE：
PIN Description PIN Description
10 DRQ0 30 -MEMR
11 -DACK5 31 -MEMW
12 DRQ5 32 SD8
13 -DACK6 33 SD9
14 DRQ6 34 SD10
15
16 DRQ7 36 SD12
17 +5V 37 SD13
18 -MASTER 38 SD14
19 GND 39 SD15
20 GND 40 N/C
The PC/104 connector allows direct plugging or stack-through
piling of PC/104 modules without requiring the PC/104 mounting
kit.
CN3: PC/104 40-pin Connector
Connector diagram
1 GND 21 GND
2 -MEMCS16 22 -SBHE
3
4 IRQ10 24 SA22
5 IRQ11 25 SA21
6 IRQ12 26 SA20
7 IRQ15 27 SA19
8
9 -DACK0 29 SA17
-IOSC16
IRQ14
-DACK7
23
28
35
SA23
SA18
SD11
rotated 90 degrees
clockwise from
original position
121
20
40
26
CN4: PC/104 64-pin Connector
PIN Description PIN Description
1 -IOCHECK 33 GND
2 SD7 34 RESETDRV
3 SD6 35 +5V
4 SD5 36 IRQ9
5 SD4 37 -5V
6 SD3 38 N/C
7 SD2 39 -12V
8 SD1 40 N/C
9
10 IOCHRDY 42 GND
11 AEN 43 -SMEMW
12 SA19 44 -SMEMR
13 SA18 45 -IOW
14 SA17 46 -IOR
15 SA16 47 -DACK3
16 SA15 48 DRQ3
17 SA14 49 -DACK1
18 SA13 50 DRQ1
19 SA12 51 -REFRESH
20 SA11 52 SYSCLK
21
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 -DACK2
27 SA4 59 TC
28
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 N/C
32 GND 64 GND
SD0
SA10
SA3
41
53
60
+12V
IRQ7
BALE
Connector diagram
rotated 90 degrees
clockwise from
original position
133
6432
27
3.22 Audio Connectors
The HS-2605 has an onboard AC97 3D audio interface. The following
tables list the pin assignments of the Line In/Audio Out connector.
CN9: Line In/Audio Out Connector
PIN Description PIN Description
1 AOUTL 2 AOUTR
3
GND
4
5 MIC IN 6 N/C
7 GND 8 GND
GND
AOUT_L
GND
MIC IN
GND
12
78
AOUT_R
GND
N/C
GND
3.23 CompactFlash Connector
The HS-2605 also offers an optional CompactFlash connector which
is IDE interface located at the solder side of the board (beneath the
SO-DIMM connector). The designated CN24 connector, once soldered
with an adapter, can hold CompactFlash cards of various sizes.
Please turn off the power before inserting the CD card.
CN24: CompactFlash Connector
PIN Description PIN Description
1 GND 2 DATA 3
3 DATA 4 4 DATA 5
5 DATA 6 6 DATA 7
7
SDCS1#
8
9 GND 10 GND
11 GND 12 GND
13 VCC (+5V) 14 GND
15 GND 16 GND
17
GND
18
19 SDA1 20 SDA0
21 DATA 0 22 DATA 1
23 DATA 2 24 470Ω pull to GND
25 N/C 26 N/C
27 DATA 11 28 DATA 12
29 DATA 13 30 DATA 14
31 DATA 15 32 SDCS3#
. . . More on next page . . .
GND
SDA2
28
PIN Description PIN Description
33 N/C 34 IOR
35 IOW 36 EWE0
37 IRQ 38 VCC (+5V)
39 N/C 40 N/C
41 Reset 42 IORDY
43 N/C 44 REQ 0
45 IDE LED 46 PDIAG
47 DATA 8 48 DATA 9
49 DATA 10 50 GND
Inserting a CompactFlash card into the adapter is not a difficult task.
The socket and card are both keyed and there is only one direction for
the card to be completely inserted. Refer to the diagram on the
following page for the traditional way of inserting the card.
r
e
d
l
w
o
e
S
i
V
B
e
C
d
P
i
S
M
T
h
s
e
tFla
d
c
i
a
/
S
p
n
n
r
o
a
a
p
p
a
e
a
J
J
Com
R
u
n
i
A
F
e
e
d
C
u
a
q
i
M
r
b
a
F
E
C
3.24 Game Port Connector
CN6: Game Port Connector
PIN Description PIN Description
2
1
VCC
2
JBY
JAY
JAB2
JBB2
GNDJBB1
10
JBX
VCC
JAX
JAB1
1
3 JBX 4 JAY
5 JAX 6 JAB2
7 JAB1 8 JBB2
9 JBB1 10 GND
JBY
9
29
3.25 TV-Out Connector
HS-2605 can support TV-Out function which input could be up to 800 x
600 graphics resolutions. World Wide Video standards are supported
including NTSC-M (North America, Taiwan), NTSC-J (Japan), PAL-B,
D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N (Uruguay, Paraguay)
and PAL-NC (Argentina).
CN11: RCA Connector (for TV-Out function)
PIN Description PIN Description
1 SPDIFO 2 GND
3 GND 4 GND
GND
GND
GND
SPDIFO
30
Chapter 4
AMI BIOS Setup
The HS-2605 uses AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options that could be
selected for end-user requirements. This chapter is written to assist
you in the proper usage of these features.
4.1 Starting Setup
The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.
While the BIOS is in control, the Setup program can be activated in one
of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
31
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
and press <Esc> to quit. The following table provides more detail about
how to navigate in the Setup program using the keyboard.
Move to previous item
↑
↓ Move to next item
Move to previous item
←
→ Move to previous item
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
PgUp key Decrease the numeric value or make changes
PgDn key
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
F1 key Reserved
F2 key Change color from total 8 colors. F2 to select color forward
F3 key F2 to select color backward
F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved
F10 key
Increase the numeric value or make changes
Save all the CMOS changes, only for Main Menu
32
4.3 Main Menu
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Save Settings and Exit
Exit Without Saving
NOTE:
A brief description of the highlighted choice appears at the bottom
of the screen.
33
4.4 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the capacity of the IDE hard disk drive is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy) : Thu Apr 17, 2003 Base Memory : 639KB
Time (hh/mm/ss) : 19:04:12 Extd Memory : 55MB
Floppy Drive A: 1.44MB, 3 1/2
Floppy Drive B: Not Installed
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master : Auto ON
Pri Slave : Auto ON
Sec Master : Auto ON
Sec Slave : Auto ON
Boot Sector Virus Protection : Disabled
Month: Jan - Dec ESC: Exit
Day: 01 - 31 PgUp/PgDn: Modify
Year: 1980 - 2099 F2/F3: Color
mode. Please use the IDE Setup Utility in
LBA
: Sel
34
4.5 Advanced CMOS Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
AMIBIOS SETUP – ADVANCED CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Quick Boot Enabled
Pri Master ARMD Emulated as Auto
Pri Slave ARMD Emulated as Auto Enabled
Sec Master ARMD Emulated as Auto
Sec Slave ARMD Emulated as Auto
USB ARMD Emulated as Auto
1st Boot Device Floppy
2nd Boot Device IDE-0
3rd Boot Device CD-ROM
Try Other Boot Devices Yes
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
CPU MicroCode Updation Enabled
CPU Serial Number Enabled
L1 Cache Enabled
L2 Cache Enabled
System BIOS Cacheable Enabled
C000,32k Shadow Cache
C800,16k Shadow Disabled
CC00,16k Shadow Disabled
D000,16k Shadow Disabled
D400,16k Shadow Disabled ESC: Exit
D800,16k Shadow Disabled PgUp/PgDn: Modify
DC00,16k Shadow Disabled
S
Available Options:
`
Disabled
T
F2/F3: Color
: Sel
35
4.6 Advanced Chipset Setup
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
******** DRAM Timing ******** Available Options:
Configure SDRAM Timing by SPD Enabled
DRAM Frequency 133Mhz Enabled
SDRAM CAS# Latency 3
DRAM Bank Interleave Enabled
Memory Hole Disabled
AGP Mode 4x
AGP Fast Write Disabled
AGP Comp. Driving Auto
Manual AGP Comp. Driving CB
AGP Aperture Size 64MB
AGP Master 1 W/S Write Disabled
AGP Master 1 W/S Read Disabled
Search for MDA Resources Yes
PCI Delay Transaction Enabled
ISA Bus Clock PCI CLK/4
USB Controller USB Port 0&1
USB Device Legacy Support All Device ESC: Exit
Port 64/60 Emulation Disabled PgUp/PgDn: Modify
ATX Power Supply Enabled F2/F3: Color
`
Disabled
: Sel
36
4.7 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
ACPI Aware O/S No
ACPI Standby State Auto
USB Device Wakeup From S3-S5 Disabled Yes
Re-Call VGA BIOS at S3 Resuming Disabled
Power Management / APM Disabled
Video Power Down Mode Suspend
Hard Disk Power Down Mode Stand By
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50%~56.25%
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ12 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
System Thermal Disabled
Thermal Active Temperature 65°C / 149°F
Thermal Slow Clock Ratio 50%~56.25%
Power Button Function On / Off
Restore on AC / Power Loss Last State
Resume On Ring Disabled
Resume On LAN Disabled
Resume On PME# Disabled
Resume On KBC Disabled
Wake-Up Key N/A
Wake-Up Password N/A
Resume On PS/2 Mouse Disabled
Resume On RTC Alarm Disabled
RTC Alarm Date 15
RTC Alarm Hour 12 ESC: Exit
RTC Alarm Minute 30 PgUp/PgDn: Modify
RTC Alarm Second 30
S
Available Options:
`
No
T
F2/F3: Color
: Sel
37
4.8 PCI / Plug and Play Setup
This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.
AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Plug and Play Aware O/S No Available Options:
Clear NVRAM No
OnChip VGA Frame Buffer Size 8MB Yes
PCI Latency Timer (PCI Clocks) 32
Primary Graphics Adapter On Chip AGP
Boot Screen Select CRT
TV Out Type U.S NTSC
LCD Panel Type 0 640 x 480 TFT
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP ESC: Exit
IRQ14 PCI/PnP PgUp/PgDn: Modify
IRQ15 PCI/PnP F2/F3: Color
`
No
: Sel
38
4.9 Peripheral Setup
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them. This
is much simpler and more efficient (also faster).
(C)2001 American Megatrends, Inc. All Rights Reserved
AMIBIOS SETUP – PERIPHERAL SETUP
OnBoard FDC Auto Available Options:
OnBoard Serial Port 1 3F8/COM1
OnBoard Serial Port 2 2F8/COM2 Disabled
Serial Port2 Mode Normal Enabled
Duplex Mode N/A
OnBoard Prarllel Port 378
Parallel Port Mode ECP
EPP Version N/A
Parallel Port DMA Channel 3
Parallel Port IRQ 7
EPP Version
OnBoard Serial Port3 3E8/COM3
Serial Port3 IRQ 10
OnBoard Serial Port4 2E8/COM4
Serial Port4 Mode Normal
Serial Port4 IRQ 11
OnBoard IDE Both
OnBoard AC’97 Audio Enabled
OnBoard Legacy Audio Enabled
Sound Blaster Disabled
SB I/O Base Address 220h-22Fh
SB IRQ Select 5
SB DMA Select 1 ESC: Exit
MPU-401 Disabled PgUp/PgDn: Modify
MPU-401 I/O Address 330h-333h F2/F3: Color
`
Auto
: Sel
39
4.10 Hardware Monitor Setup
AMIBIOS SETUP – HARDWARE MONITOR SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
*** System Hardware Monitor *** Available Options:
TSENS1 Temperature
CPU Fan Speed Enabled
Vcore Reset
+ 2.500V
+ 3.300V
+ 5.000V
ESC: Exit
PgUp/PgDn: Modify
F2/F3: Color
`
Disabled
: Sel
4.11 Auto-Detect Hard Disks
This option detects the parameters of an IDE hard disk drive, and
automatically enters them into the Standard CMOS Setup screen.
Up to four IDE drives can be detected, with parameters for each
appearing in sequence inside a box. To accept the displayed entries,
press the “Y” key; to skip to the next drive, press the “N” key. If you
accept the values, the parameters will appear listed beside the drive
letter on the screen.
40
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Auto-detect all hard disk parameters
ESC: Exit : Sel F2/F3: Color F10: Save & Exit
4.12 Change Supervisor/User Password
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Enter new supervisor password: _
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC: Exit :Sel F2/F3: Color F10: Save & Exit
Change the Supervisor Password
You can set either supervisor or user password, or both of them. The
differences are:
supervisor password: can enter and change the options of the setup
menus.
user password:
options of the setup menus.
just can only enter but do not have the right to change the
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may
also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
41
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.
4.13 Auto Configuration with Optimal
Settings
When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Load high performance settings (Y/N) ? N
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Load configuration settings giving highest performance
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
42
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Change Supervisor Password
Save Settings and Exit
Exit Without Saving
4.14 Auto Configuration with Fail Safe
Settings
When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load failsafe settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Load failsafe configuration settings
43
4.15 Save Settings and Exit
Pressing <Enter> on this item asks for confirmation:
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Save current settings and exit (Y/N) ? Y
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Write the current setting to CMOS and exit
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system will be restarted again.
44
4.16 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.
AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Quit without saving (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Exit without saving the current setting
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Abandon all Data & Exit Setup
45
This page is intentionally left blank.
46
Chapter 5
Software Utilities
This chapter contains the detailed information of IDE, VGA and LAN
driver installation procedures.
5.1 IDE Driver Installation
The utility disk that came with the delivery package contains an
auto-run program that invokes the installation programs for the IDE,
VGA and Audio drivers. The following describes the installation
procedures of each driver.
1. Insert Utility CD Disk to your CD ROM. The main menu will pop
up as shown below.
47
2. Press “VIA 4 IN 1” and to go Setup.
3. Once the Welcome screen appears on the screen, make sure to
close any applications running and then click on the Next
button.
48
4. When the Readme window pops on the screen, you may read
the whole document including the license agreement or just
press Yes to skip through and continue installation.
5. The 4 in 1 Setup dialog is now displayed. Select on Normally
Install and then click on Next.
49
6. The next window lists all components detected in your system
and asks you to select the ones requiring drivers. Tick on all
items then proceed by clicking on the Next button below the
screen.
7. The program starts to install the ATAPI driver when you click the
Next button on the screen below.
8. When the ATAPI driver is completely installed. The utility then
displays your DMA mode status and allows you to enable it. Tick
on the box and press on the Next button to continue.
50
9. The following screen then gives you the choice of installing the
AGP driver in standard o turbo mode. Select on the Standard
Mode and then click on Next to proceed.
10. Installation of the AGP driver is now complete. Once the screen
below appears, select on restarting your computer to activate all
drivers/settings completed.
51
5.2 VGA Driver Installation
5.2.1 VGA Driver Installation for WIN95/98/2K
1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_8606 from the main menu.
52
2. Select the operating system of your computer to proceed with
the installation process.
53
3. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
4. When the display below appears on your screen, Setup is
already ready to install and copy the related files onto your hard
drive. Click on the Next button to proceed.
54
5. After the installation finishes, you will be prompted to restart
your system. We recommend you to reboot your computer to
allow the new settings to take effect. Click on the Finish button
to reboot.
5.2.2 VGA Driver Installation for WIN NT4.0
1. Click the
screen, then select
double-click on the
Properties
Display Type
Have Disk
Start
button on the lower left hand corner of your
Setting
Display
window. Click on the
. In the
.
. Choose
icon to launch its
Change Display Type
Control Panel
Settings
tab, and then choose
Display
window, click on
and
55
2. Specify the path of the new driver and then press on
driver D:, type d:\Vga/Via_8606/Nt40)
3. Select
S3 Graphics Twister
Enter
. (If in
6. Click OK or press
56
Enter
.
7. You will see warning panel about
Yes
to finish the installation.
8. Once the installation is completed, you must shut down the
system and restart for the new driver to take effect.
Third Party Drivers
. Click on
57
5.3 LAN Driver Installation
5.3.1 LAN Driver Installation for WIN95/98/2K
1. With the Utility CD Disk still in your CD ROM drive, right click on My
Computer icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the main
menu.
58
2. Select on Other Devices from the list of devices then double-click
on PCI Ethernet Controller.
59
3. The PCI Ethernet Controller Properties screen then appears,
allowing you to re-install the driver. Select Driver from the main
menu to proceed.
4. The window then displays the current status of your LAN driver.
Press on Update Driver button to continue.
5. The program will then launch the Update Device Driver Wizard
window that will install your device driver. Click on the Next button
to proceed to the next step.
60
6. When the succeeding window asks you what you wish Windows to
do, tick on the “Search for a better driver….” Click on the Next
button to proceed.
7. The Update Device Driver Wizard will then ask you to specify, by
ticking, the path of the new driver. Tick on the open boxes where
you require the program to search for the device driver then click
on the Browse button to manually specify the path.
61
8. Press on the OK button as soon as you have located the path of
your driver.
9. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the Next
button to continue.
10. Once the program detects the device driver (*.inf) file from your
specified location, it will automatically copy the files into your
hard drive.
62
11. When copying of driver files finishes, the program will then ask
you to insert your Windows.
12. The program then copies the necessary files from your Windows
installation disk to complete the driver setup process. Once the
driver is completely installed, the following message appears on
your display. Click on the Finish button to proceed.
13. Restart your computer to make the new system settings take
effect. Click on the Yes button when the screen below appears
and your LAN Driver for Win95 and Win98 are now completely
installed.
63
5.3.2 LAN Driver Installation for WIN NT4.0
1. With the Utility CD Disk still in your CD ROM drive, right click on
Network Neighborhood icon from the Windows menu. Select on
Properties.
2. The system automatically detects the absence of Windows NT
Networking. Click on the Yes button to start installation.
64
3. Tick on the “Wired to Network” once the following screen
appears. Click on the Next to proceed.
4. Click on the Start Search button for the program to locate the
Network Adapter.
65
5. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the Have Disk button to assign
the driver path location.
6. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.
66
7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press on
the OK button to accept and proceed.
8. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on Next to continue.
67
9. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and
then click on Next to continue.
10. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the Next
button once you are sure of your devices.
68
11. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press
Continue.
12. Once it finishes copying the files, Setup will now allow you to
choose the Duplex Mode of your LAN controller. Press on the
Continue button after making your selection.
69
13. When Setup asks if you wish to change the TCP/IP settings of
your system, select the appropriately. The default choice is No.
14. Setup then starts the Networking installation and copies the files.
70
15. When Setup finishes copying, the TCP/IP properties of your
system will then pop up on your screen like the one shown below.
Make the necessary changes then click on OK to continue.
16. When the screen below appears, click on Next to continue.
71
17. Setup then prompts you that it is ready to start the network. You
may complete the installation thereafter. Click on Next to
continue.
18. Assign the workgroup or domain setting of your computer. Click
on Next to continue.
72
19. Restart your computer once the screen below appears. Click on
Finish to continue.
20. Click on the Yes button to restart your computer. The LAN driver
installation for WIN NT4.0 is now complete.
73
5.4 Audio Driver Installation
1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_AC97 from the main menu.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
74
3. The Select Components dialog box is now displayed. Select on
Install driver and then click on Next.
4. The program will now require the Windows installation disk for
proper hardware installation. Insert the CD and then click on
Next.
75
5. When the display below appears on your screen, Setup is
already installing and copying the related files onto your hard
drive. Click on the Next button to proceed.
6. After the audio driver installation finishes, select the Finish
button to complete the installation process.
76
Loading...
