Boser HS-2601 User Manual

HS-2601

Celeron

TM

/Coppermine

• CRT/Panel•SODIMM•LAN•PC/104•Mini PCI•

• Flash Disk•IrDA•USB•Single +5V•

•Embedded35 Industrial Single Board Computer•

TM

VGA LAN

Copyrights

This manual is copyrighted and all rights are reserved. It is not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.

In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of inability to use the
product or documentation, even if advised of the possibility of such damages.

The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.

Trademarks

BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award International Inc.

All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or registered
trademarks of their respective companies or owners.

© Copyright 2003
All Rights Reserved.
User Manual edition 1.2, March 06, 2003

Contents

HS-2601 ......................................................................................................1

GENERAL INFORMATION .............................................................................3

AJOR FEATURES .....................................................................................4

1.1 M

PECIFICATIONS.........................................................................................5

1.2 S

ELIVERY PACKAGE...................................................................................6

1.3 D

HARDWARE INSTALLATION ........................................................................7

2.1 C

AUTION OF STATIC ELECTRICITY.............................................................7

AUTION ON UNPACKING AND BEFORE INSTALLATION .............................8

2.2 C

2.3 HS-2601’

UICK LISTING OF JUMPERS ...................................................................10

2.4 Q

UICK LISTING OF CONNECTORS ............................................................10

2.5 Q

UMPER SETTING DESCRIPTION..............................................................11

2.6 J

ETTING THE BUS-CLOCK FREQUENCY ..................................................12

2.7 S

YSTEM MEMORY DRAM........................................................................12

2.8 S

ETTING THE FLAT PANEL VOLTAGE.......................................................12

2.9 S

S LAYOUT...................................................................................9

CONNECTION .................................................................................................13

3.1 P

OWER AND FAN CONNECTORS ............................................................13

ESET BUTTON ........................................................................................14

3.2 R

LASH DISK ..............................................................................................14

3.3 F

3.4 PCI E-IDE D

PARALLEL PORT CONNECTOR .................................................................16

3.5

THE FLOPPY DISK DRIVE CONNECTOR ...................................................17

3.6

ERIAL PORTS CONNECTORS .................................................................18

3.7 S

EYBOARD/MOUSE CONNECTORS ..........................................................19

3.8 K

3.9 VGA CRT

3.10 IR C

ONNECTOR .....................................................................................22

3.11 USB P

3.12 LAN I

3.13 M

INI PCI CONNECTOR ..........................................................................24

3.14 PC/104 B

RIVE CONNECTOR ..............................................................15

AND LCD CONNECTORS .......................................................20

ORTS CONNECTOR.....................................................................23

NTERFACE CONNECTOR ..............................................................23

US CONNECTION ...................................................................25

Contents • i

AWARD BIOS SETUP....................................................................................27

AIN MENU ..............................................................................................28

4.1 M

TANDARD CMOS SETUP.......................................................................29

4.2 S

4.3 BIOS F

4.4 C

NTEGRATED PERIPHERALS .....................................................................32

4.5 I

4.6 P

4.7 P

EATURES SETUP..........................................................................30

HIPSET FEATURES SETUP.....................................................................31

OWER MANAGEMENT SETUP.................................................................34

NP/PCI CONFIGURATION SETUP ..........................................................35

SOFTWARE UTILITIES .................................................................................36

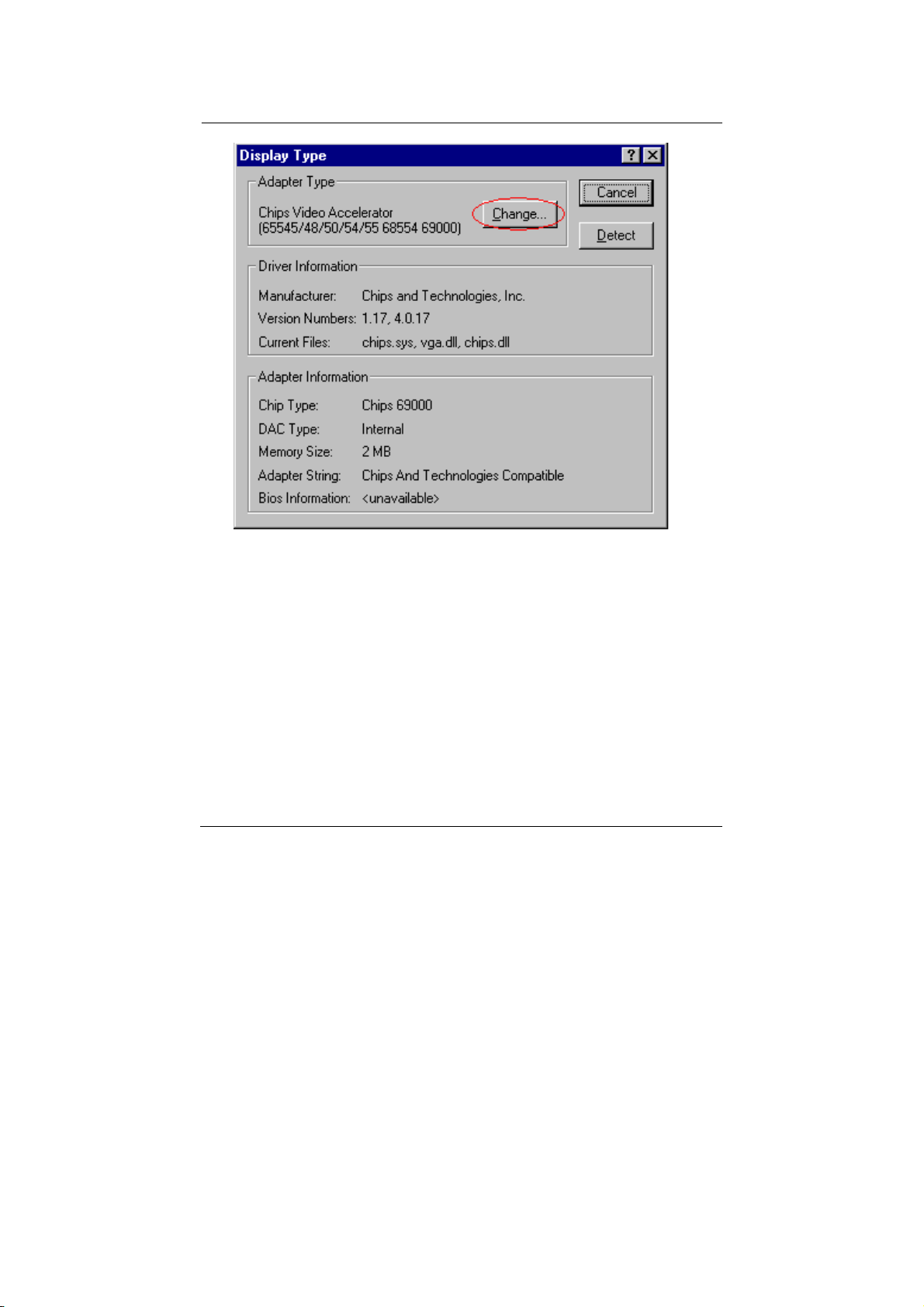

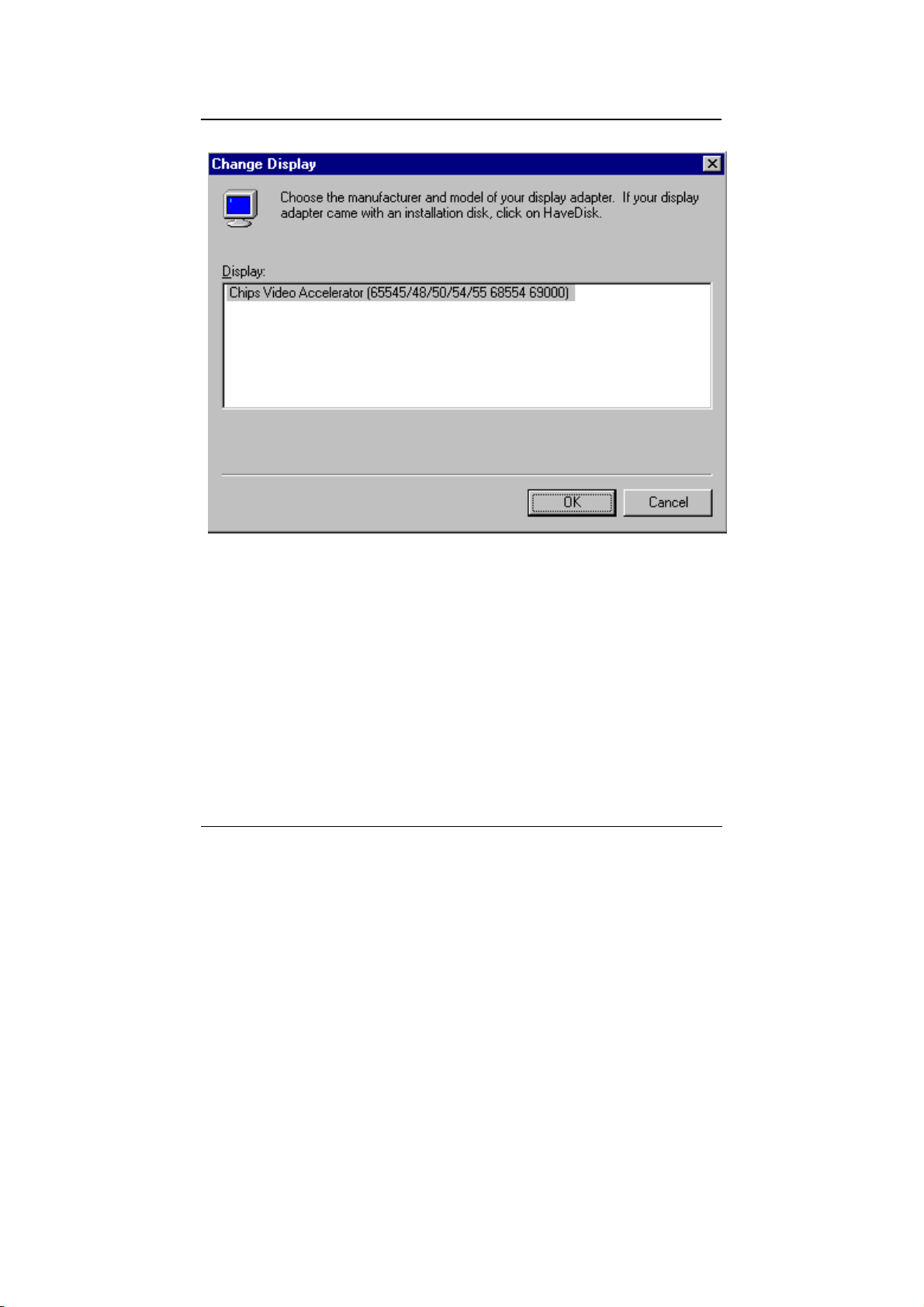

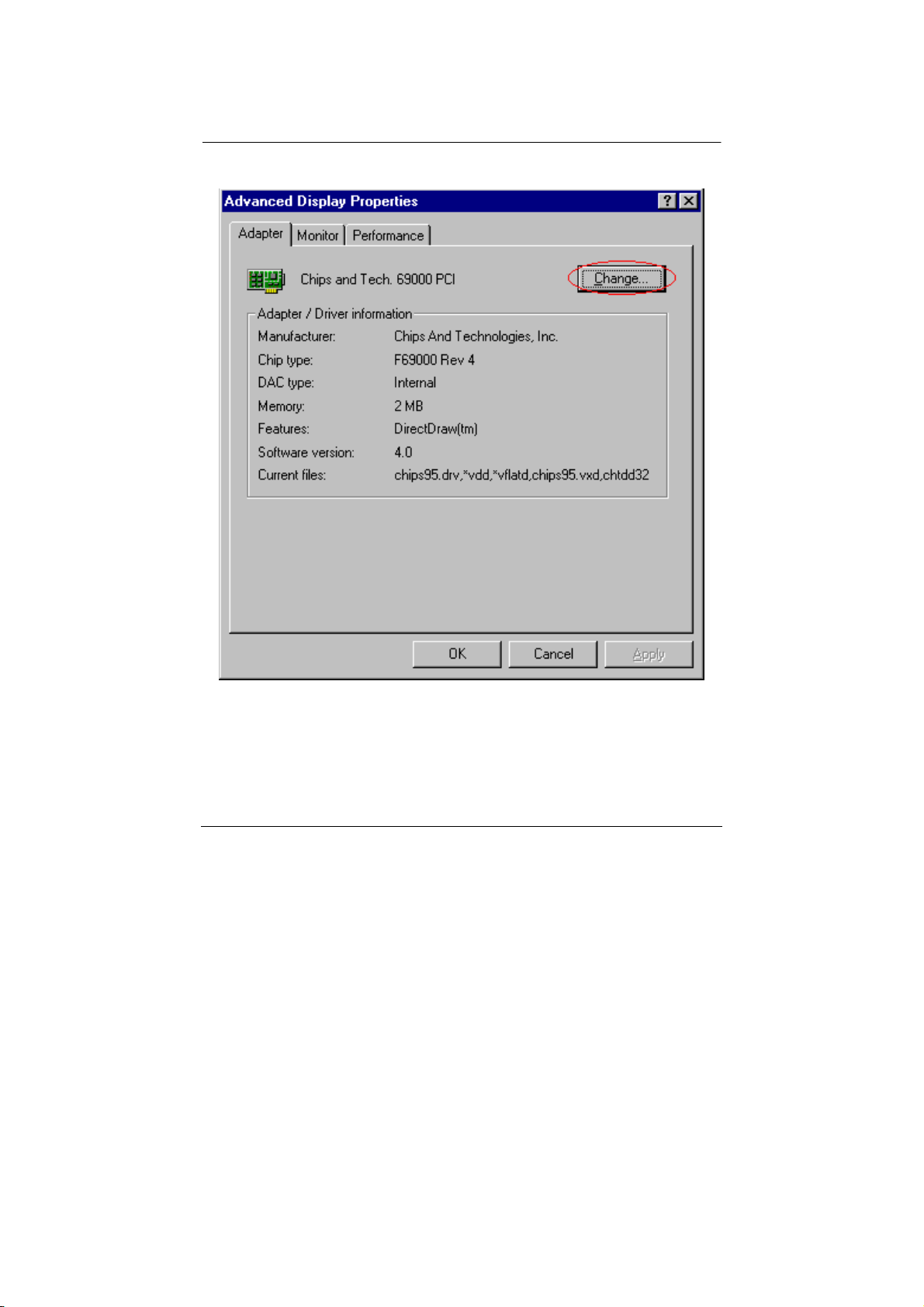

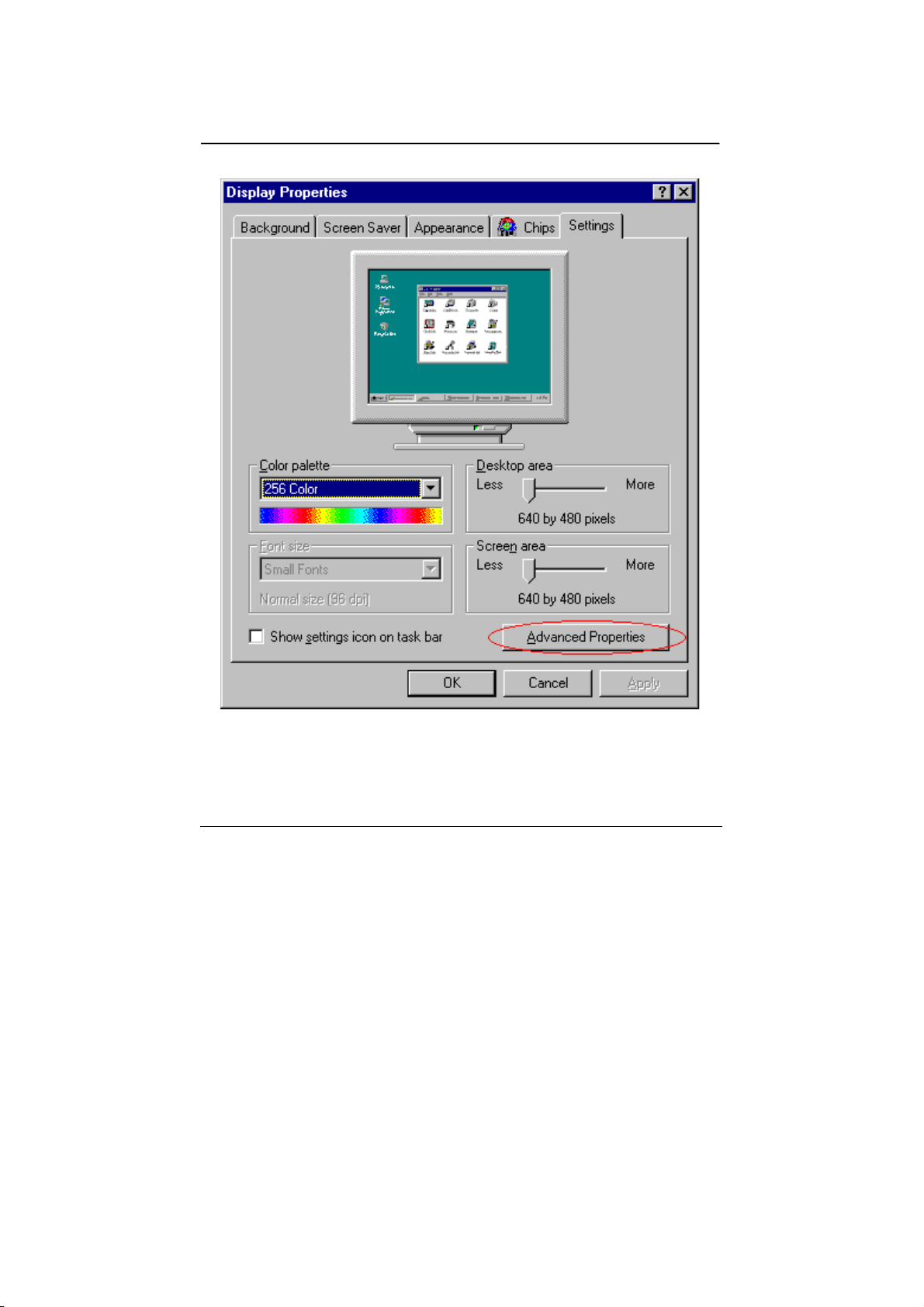

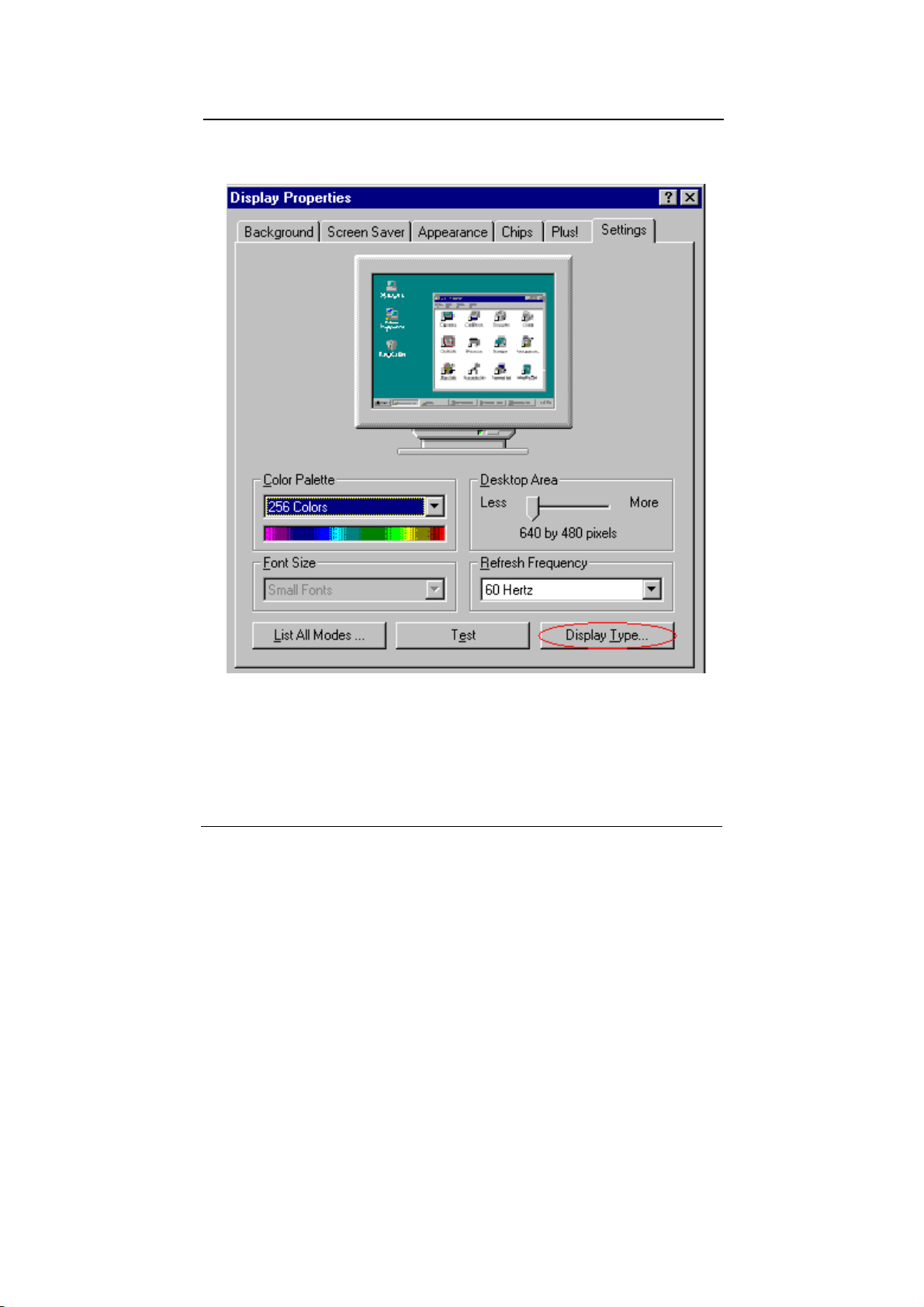

5.1 VGA DRIVER INSTALL FOR WIN95&98..........................................37

5.2 VGA DRIVER INSTALL

FOR WIN NT4.0..........................................40

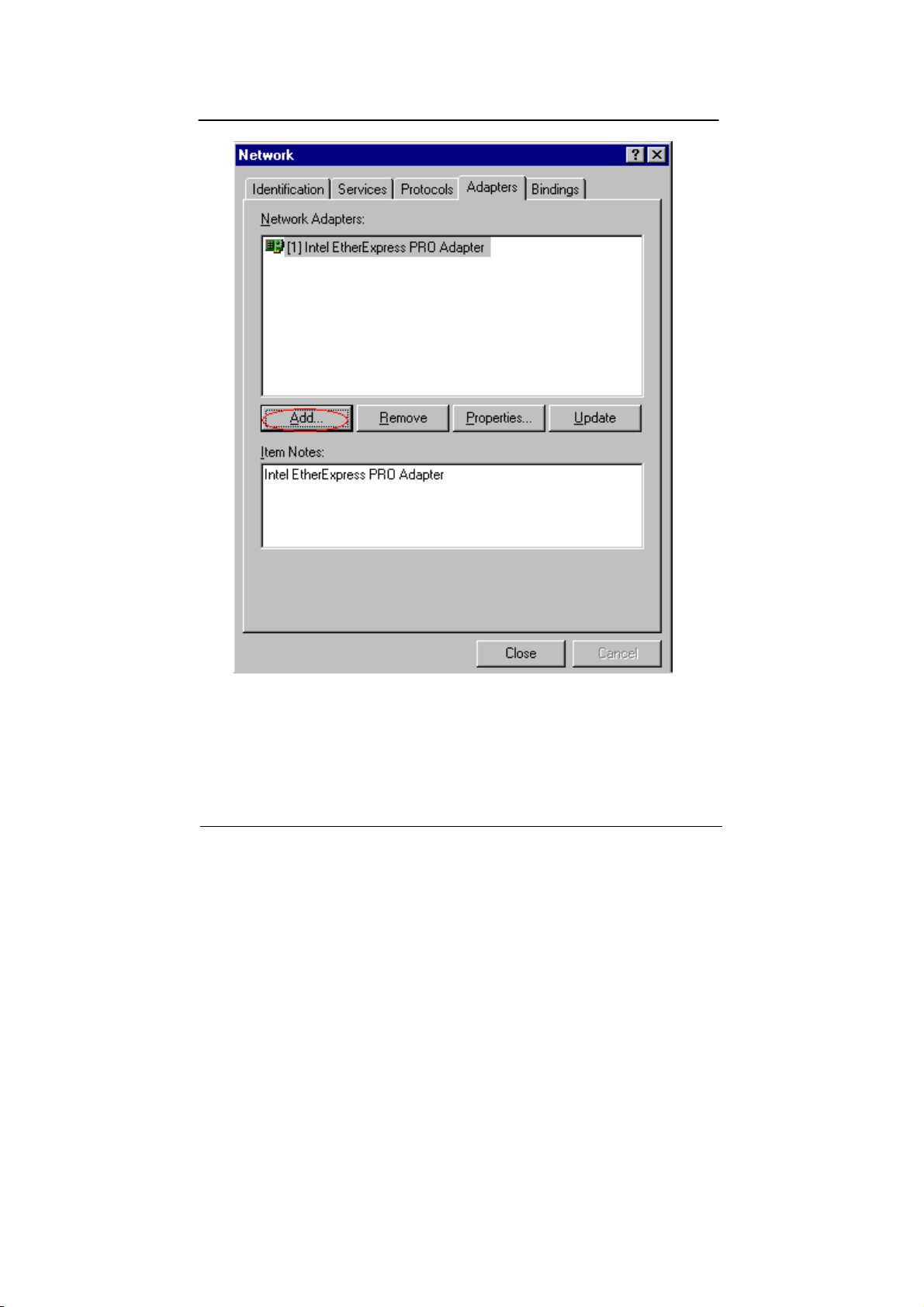

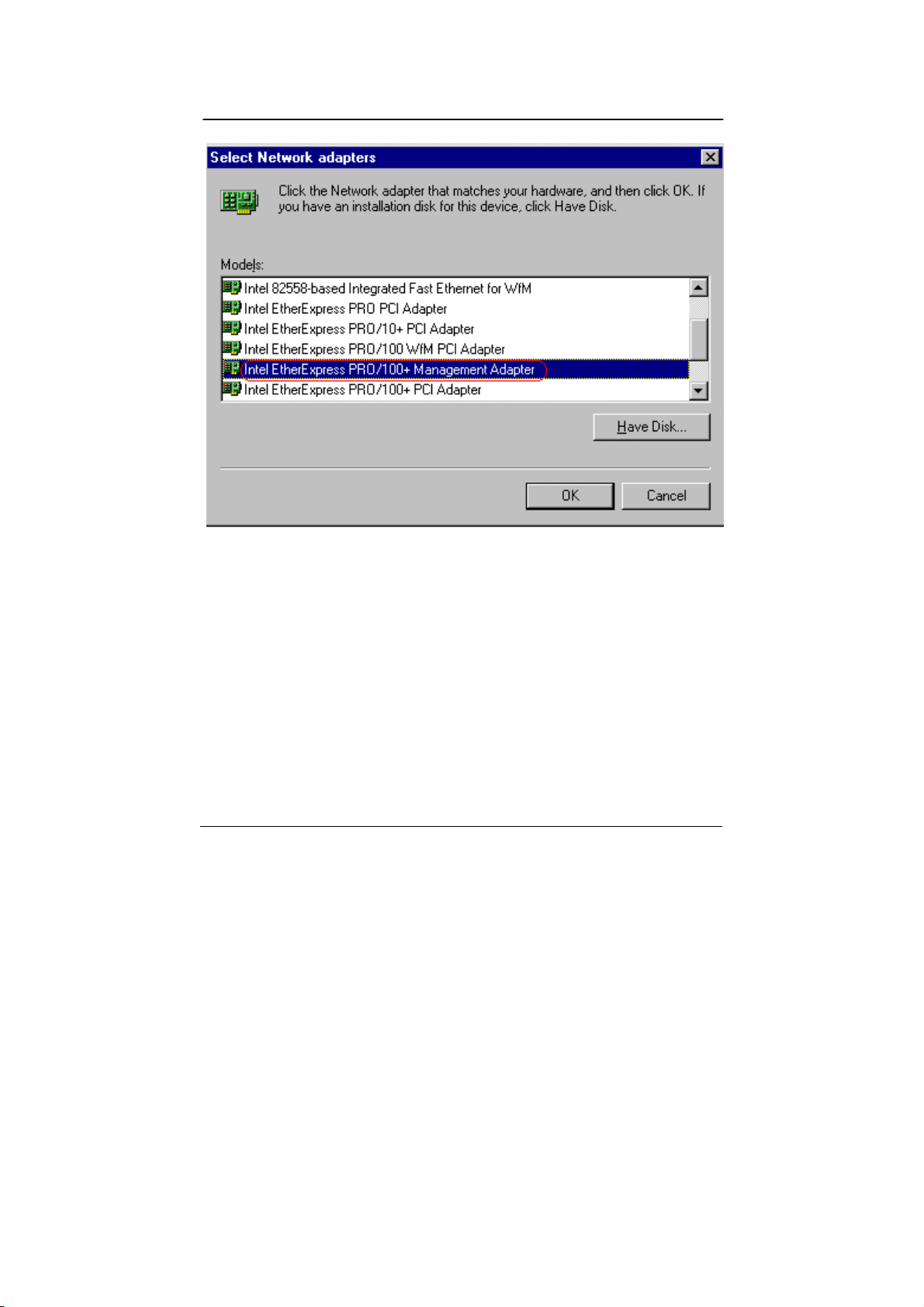

5.3 NETWORK DRIVER INSTALL FOR WIN98&95 ..............................44

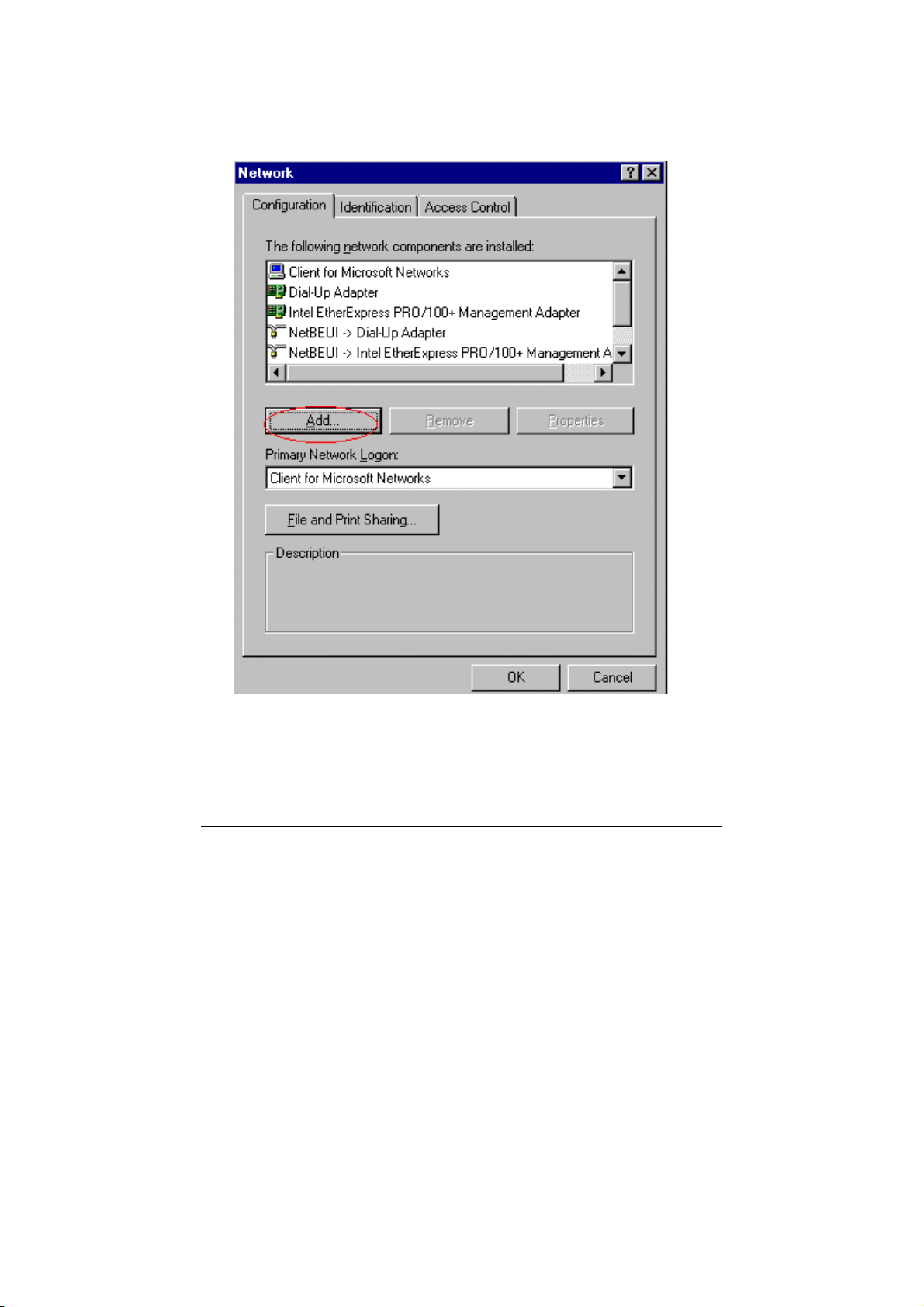

5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0..............................47

ii •Contents

Chapter-1

General Information

The HS-2601 is a 100MHz Bus Intel® BX chipset design 3.5” Embedded
Celeron™/Coppermine™ board with features combine together to make it an
ideal all-in-one industrial single board computer, enhanced I/O effects with
LAN and VGA interface.

With on board DMA33 of mode 3/4 to IDE drive interface architecture, the
HS-2601 supports with maximum 33.3 MB/sec in data transfer rating to 2
pieces IDE drive connection. Design with Intel
supports all series Celeron™/Coppermine™ operating. Intel
chipset supports up to 1280 x 1024 256 colors display resolution. And it also
provides one internal 50-pin connector for various type of the LCD Panel
connection.

The HS-2601 provides with one SODIMM socket support up to 256MB of
main system memory.

A single Flash chip holds the system BIOS, and you can easy update the
Flash BIOS by the Utility Update. Advanced USB and IR ports also provide
for faster and easily in data transmission.

The HS-2601 features include one Intel
board. With one external RJ-45 connector provides an easily for user’s LAN
application.

®

82443 BX core logic chipset

®

82559 100 Based LAN design on

®

69000 VGA

3

1.1 Major Features

 Socket 370 for Intel

®

Celeron™/Coppermine™ 266〜700 MHz

Processors

 Intel

 Provide Flash Disk on board

 One piece SODIMM socket supports DRAM up to 256MB

 Fast PCI DMA33 controller supports two IDE drives include large

®

82443 BX chipset

hard disks, CD-ROM and tape backup etc

 PnP I/O address & IRQ selection

 On board Intel

 Two high speeds RS-232 serial ports with 16C550 UART 16byte

®

82559 100 Based LAN

FIFO

 One enhanced bi-directional parallel port supports SPP/EPP/ECP

 On board PS/2 Keyboard/Mouse connector or 6-pin header

 On board Intel

 On board one 50-pin for various types LCD Panel connection

 On board two USB ports and one IrDA port

 Award PnP Y2K Flash BIOS

 Single +5V Power

®

69000 VGA controller

 Provide Mini PCI connector

 Provide PC/104 connector

4

1.2 Specifications

 CPU: Socket 370 for Intel® Celeron™/Coppermine™ 266-700 MHz

 Bus Interface: Mini PCI Local Bus

®

 Chipset: Intel

 Flash Disk：8~64MB (Option)

 Data Bus: 64bit

 Processing Ability: 64bit

 VGA Controller: Intel

CRT/Panel up to 1280x1024 256 colors. Provides internal 50-pin
LCD connector

 LAN: Intel

 IDE: Two IDE drives supports mode 3/4 with DMA33 function

provide data transfer rate up to 33MB/Sec

 Memory: One piece SODIMM socket provide up to 256MB

 Floppy: Supports up to two floppy disk drives

 Parallel Port: One bi-directional parallel port, supports

SPP/ECP/EPP

82443 BX with 100MHz Bus facility

®

69000 chipset with 2MB memory supports

®

82559 100 Based LAN provides 100 Based ability

 Serial Port: Two RS-232 serial ports include 16C550 UART with

16byte FIFO

 BIOS: Award PnP Y2K Flash BIOS

 DMA Channels: 7

 Interrupt Levels: 15

 Keyboard/Mouse: 6-pin Mini Din connector or 6-pin header

 USB: Supports 2 USB ports

 IR Interface: Supports one lrDA TX/RX header

5

 Extra Power Connector: Provides one 4-pin +5V/+12V power in

connector.

 Max. Power Requirement: +5V @5A(300MHz)

 Operating Temperature: 0-60°C

 Board Size: 103mm x 146mm

1.3 Delivery Package

The delivery package of HS-2601 includes all following items:

 One HS-2601 Industrial Single Board

 One Printer Ports Flat Cable

 One COM port Flat Cable

 One IDE port Flat Cable

 One FDD port Flat Cable

 One PS/2 Keyboard/Mouse Transfer Cable

 Utility Diskette

 User’s Manual

Please contact with your dealer if any of these items are missing or
damaged when purchasing. And please keep all parts of the
delivery package with packing materials in case of you want to ship
or store the product in feature.

6

Chapter-2

Hardware Installation

This chapter provides the information on how to install the hardware
of HS-2601. At first, please follow up sections 1.3, 2.1 and 2.2 in
check the delivery package and carefully unpacking. Following
after, the jumpers setting of switch selection.

2.1 Caution of Static Electricity

The HS-2601 has been well package with an anti-static bag in
protect its sensitive computer components and circuitry from the
damage of static electric discharge.

Note: DO NOT TOUCH THE BOARD OR ANY OTHER

SENSITIVE COMPONENTS WITHOUT ALL NECESSARY
ANTI-STATIC PROTECTION.

You should follow the steps as following to protect the board in
against the static electric discharge whenever you handle the
board:

1. Please use a grounding wrist strap on whoever needs to handle
the HS-2601. Well clip the ALLIGATOR clip of the strap to the end
of the shielded wire lead from a grounded object. Please put on
and connect the strap before handle the HS-2601 for harmlessly
discharge any static electricity through the strap.

2. Please use anti-static pad for put any components or parts or
tools on the pad whenever you work on them outside the
computer. You may also in use the anti-static bag instead the
pad. Please ask from your local supplier in help up your
necessary parts on anti-static requirement.

7

2.2 Caution on Unpacking and Before Installation

First of all, please follow with all necessary steps of section 2.1 in
protection the HS-2601 from electricity discharge. With refer to
section 1.3, please check the delivery package again with following
steps:

1. Unpacking the HS-2601, keep well storage of all packing material,

manual and diskette etc. if has.

2. Is there any components lose or drop from the board? DO NOT

INSTALL IF HAPPENED.

3. Is there any visual damaged of the board? DO NOT INSTALL IF

HAPPENED.

4. Well check from your optional parts (i.e. CPU, SRAM, DRAM,

ROM-Disk etc.) for completed setting all necessary jumpers
setting to jumper pin-set and CMOS setup correctly. Please also
reference to all information of jumpers setting in this manual.

5. Well check from your external devices (i.e. Add-On-Card, Driver

Type etc.) for completed add-in or connection and CMOS setup
correctly. Please also reference to all information of connector
connection in this manual.

6. Please keep all necessary manual and diskette in a good

condition for your necessary re-installation if you change your
Operating System or whatever needs.

8

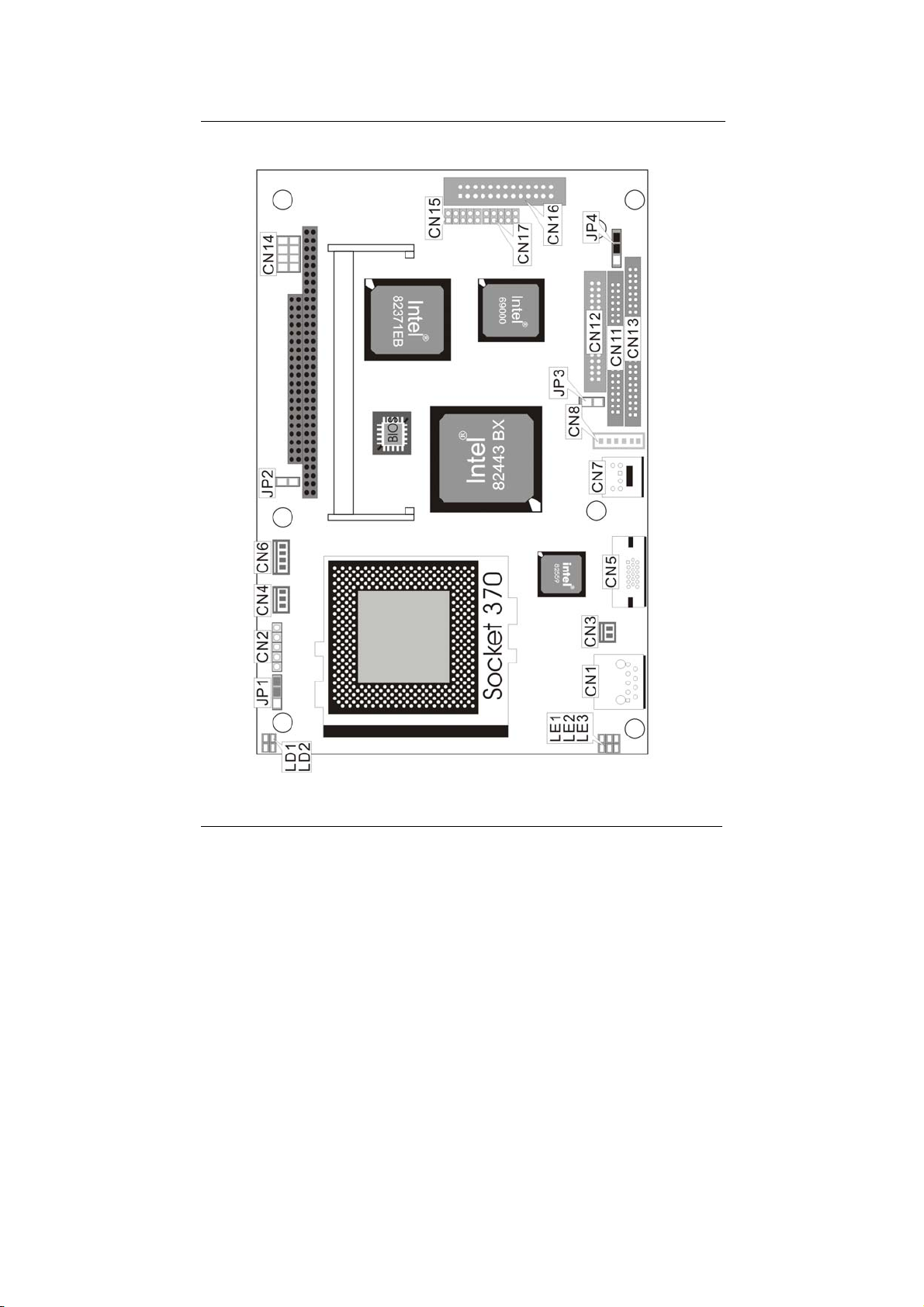

2.3 HS-2601’s Layout

9

2.4 Quick Listing of Jumpers

JP1 — FAN Voltage Select
JP2 — CPU Clock Select
JP3 — Reset
JP4 — LCD Voltage Select

2.5 Quick Listing of Connectors

CN1: LAN Connector
CN2: IR Connector
CN3: 2-pin 5V Power In
CN4: FAN Connector
CN5: CRT Connector
CN6: 4-pin EXT Power In
CN7: Keyboard/Mouse 6-pin Header
CN8: PS/2 6-pin Mini Din Keyboard/Mouse
CN9: PC/104 40-pin Connector
CN10: PC/104 64-pin Connector
CN11: IDE Connector
CN12: FDD Connector
CN13: LCD Panel Connector
CN14: USB Ports
CN15: COM2 (5x2 header)
CN16: Parallel Connector
CN17: COM1 (5x2 header)

10

2.6 Jumper Setting Description

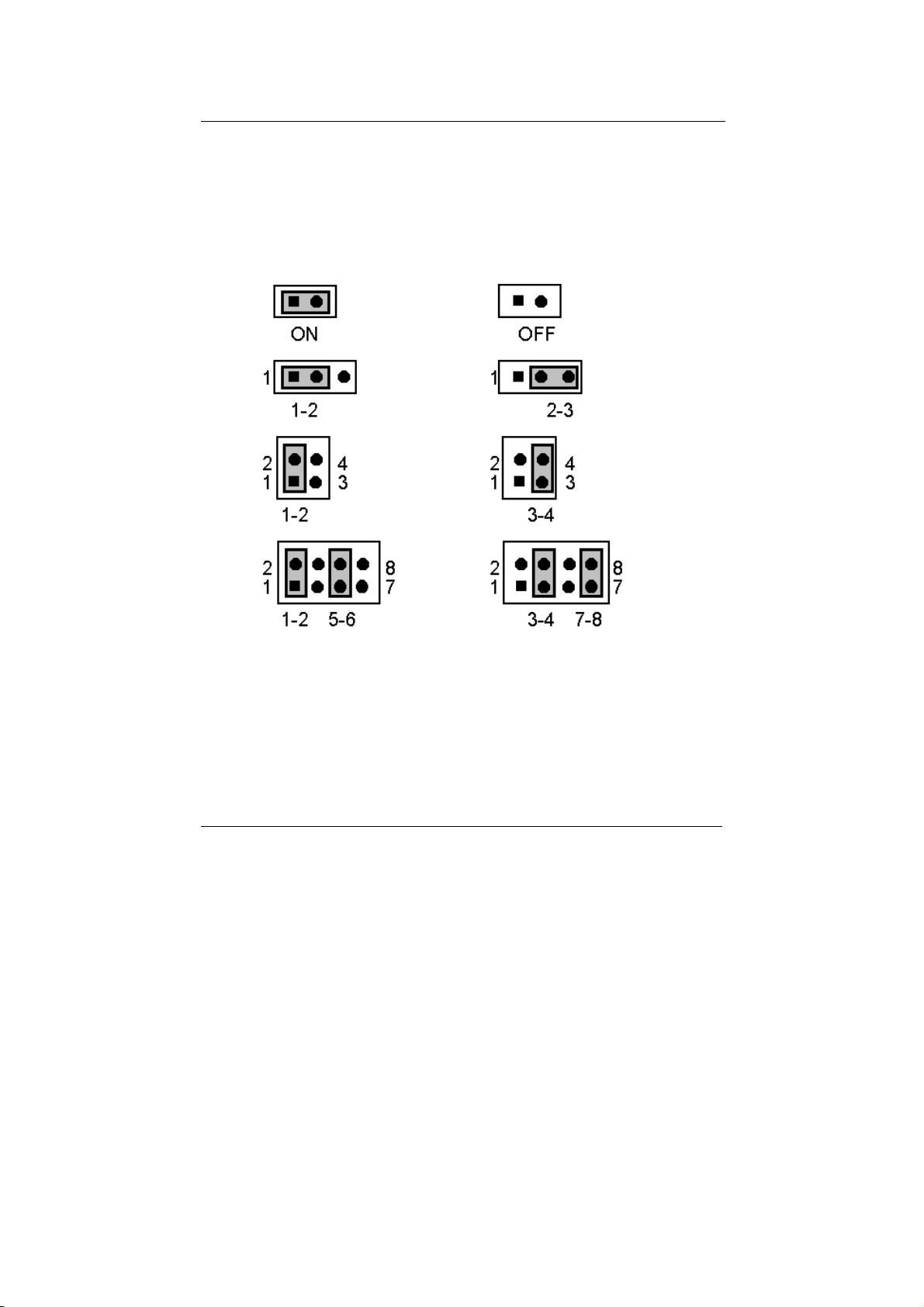

A jumper pin-set is ON as a shorted circuit with a plastic cap
inserted over two pins. A jumper pin-set is OFF as a open circuit
with a plastic cap inserted over one or no pin(s) between pins. The
below figure 2.2 shows the examples of different jumper pin-set
setting as ON or OFF in this manual.

Figure 2.2

All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The
default setting may reference in this manual with a " * " symbol in
front of the selected item.

11

2.7 Setting the Bus-Clock Frequency

The HS-2601 provides all necessary by jumper setting in using
Bus-Clock frequency as the system bus clocking with JP2 setting as
following:

 Bus-Clock Frequency Setting of JP2 :

Bus-Clock Frequency JP2

*66MHz ON

100MHz OFF

2.8 System Memory DRAM

The HS-2601 provides a single size SDRAM memory by one piece
SODIMM socket request the access time should meet PC-100
standard. The maximum capacity of the on board memory is
256MB.

2.9 Setting the Flat Panel Voltage

The HS-2601 provides a setting for the selection of the working
voltage of individual flat panel by JP4 setting as following:

 Flat Panel Voltage Selecting of JP4:

Panel’s Working Voltage JP4

5.0 V 1-2

* 3.3 V 2-3

Please contact with your flat panel supplier for make sure a correct
Panel’s Working Voltage. Any mistake will cause defect to your flat
panel.

12

Chapter-3

Connection

This chapter gives all necessary information of the peripheral's
connections, switches and indicators.

3.1 Power and FAN Connectors

The HS-2601 provides one 2-pin DC-Power connector as following
CN3 pin information. And also provides 4-pin EXT Power connector
as following CN6 pin information. FAN Connector as following CN4
pin information.

 CN3 : 2-Pin Power In Connector

PIN NO. Description

1 VCC(+5V)
2 GND

 CN4 : FAN Out Connector

PIN NO. Description

1 GND
2 +12V
3 N.C.

 CN6 : 4-Pin EXT Power Connector

PIN NO. Description

1 VCC
2 GND
3 GND
4 +12V

13

3.2 Reset Button

The HS-2601 has one Reset Button connection from JP3.

 JP3 : Reset Button

PIN NO. Description

1 Ground
2 External Reset

3.3 Flash Disk

HS-2601 also offer Flash Disk function. Capacity from 8MB to
64MB. HS-2601’s standard is equip with 16MB Flash Disk. But,
Boser can up grate the Flash Disk capacity base on customer’s
request. Boser’s Flash Disk is using IDE interface as IDE HDD,
T\there for no device drive necessary.

14

3.4 PCI E-IDE Drive Connector

One standard 44-pin header daisy-chain driver connector provides
as CN11 with following pin assignment. Total two IDE (Integrated
Device Electronics) drivers may connect.

 CN11: IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND# -DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GROUND
41 VCC 42 VCC
43 GROUND 44 VCC

15

3.5Parallel Port Connector

A standard 26-pin flat cable driver connector provides as CN16 with
following pin assignment for connection to parallel printer.

 CN16: Parallel Port Connector

PIN NO. Description PIN NO. Description

1 STROBE 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE

11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 GROUND

16

3.6 The Floppy Disk Drive Connector

A standard 34-pin header daisy-chain driver connector provides as
CN12 with following pin assignment. Total two FDD drivers may
connect.

 CN12 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 DISK SELECT 1
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE DATA#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 N/C 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT
33 N/C 34 DISK CHANGE#

17

3.7 Serial Ports Connectors

The HS-2601 offers two high speeds NS16C550 compatible UART
with Read/Receive 16 byte FIFO serial ports with two internal 10-pin
header.

 CN15/17 : Serial Port 10-pin Header (COM2/COM1)

PIN NO. Description PIN NO. Description

1 DCD 2 DSR
3 RXD 4 RTX
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

18

3.8 Keyboard/Mouse Connectors

The HS-2601 offers two possibilities for Keyboard/Mouse
connections to external PS/2 type at CN8, or an internal 6-pin
header at CN7.

 CN7: 6-pin Header Keyboard/Mouse Connector

PIN NO. Description

1 KEYBOARD CLOCK
2 MOUSE DATA
3 GROUND
4 VCC
5 KEYBOARD DATA
6 MOUSE CLOCK

 CN8 : 6-pin Mini Din Keyboard/Mouse Connector

PIN NO. Description

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 MOUSE DATA
4 GROUND
5 VCC
6 MOUSE CLOCK

19

3.9 VGA CRT and LCD Connectors

The HS-2601 provides two possible connectives of VGA
connections. One standard DB-15 external VGA connector as
following CN5 pin information. Another internal 50-pin header for
LCD Panel connection as following CN13 pin information.

 CN13 : 50-pin Internal LCD Panel Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +12V 2 +12V
3 Ground 4 Ground
5 3.3V / 5V
7 ENAVEE 8 Ground

9 P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 P24 34 P25
35 SHFCLK 36 FP
37 M 38 LP
39 Ground 40 FPBACK
41 P26 42 P27
43 P28 44 P29
45 P30 46 P31
47 P32 48 P33
49 P34 50 P35

Note-1: Please setting the voltage correctly of individual panel by JP4.

Note-1

6 ENAVDD

20

Flat Panel Display Interface (continued)

Mon

Mono Mono Color Color Color Color Color Color Color Color Color Color

HS-2601

PIN# Pin

9 P0 D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0

10 P1 D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0

11 P2 D2 UD1 UD5 B2 B0 B2 FB2 FB2 G2 B1 UB1 UB0 UB0

12 P3 D3 UD0 UD4 B3 B1 B3 FB3 FB3 R3 R2 UR2 UR1 LR0

13 P4 D4 UD3 UD3 B4 B2 B4 FB4 SB0 B3 G2 LR1 UR0 LG0

14 P5 D5 UD2 UD2 G0 B3 B5 FB5 SB1 G4 B2 LG1 LG0 LB0

15 P6 D6 UD1 UD1 G1 B4 B6 SB0 SB2 R5 R3 LB1 LB0 UR1

16 P7 D7 UD0 UD0 G2 B5 B7 SB1 SB3 B5 G3 LR2 LR1 UG1

17 P8 UD7 G3 G0 SB2 FG0 B3 UG1 UB1

18 P9 UD6 G4 G1 SB3 FG1 R4 UB1 LR1

19 P10 UD5 G5 G0 G2 SB4 FG2 G4 UR2 LG1

20 P11 UD4 R0 G1 G3 SB5 FG3 B4 UG2 LB1

21 P12 UD3 R1 G2 G4 FG0 SG0 R5 LG1 UR2

22 P13 UD2 R2 G3 G5 FG1 SG1 G5 LB1 UG2

23 P14 UD1 R3 G4 G6 FG2 SG2 B5 LR2 UB2

24 P15 UD0 R4 G5 G7 FG3 SG3 R6 LG2 LR2

25 P16 R0 FG4 FR0 LG2

26 P17 R1 FG5 FR1 LB2

27 P18 R0 R2 SG0 FR2 UR3

28 P19 R1 R3 SG1 FR3 UG3

29 P20 R2 R4 SG2 SR0 UB3

30 P21 R3 R5 SG3 SR1 UR3

31 P22 R4 R6 SG4 SR2 LG3

32 P23 R5 R7 SG5 SR3 LB3

33 P24 FR0

34 P25 FR1

41 P26 FR2

42 P27 FR3

43 P28 FR4

44 P29 FR5

45 P30 SR0

46 P31 SR1

47 P32 SR2

48 P33 SR3

49 P34 SR4

50 P35 SR5

35 SHFCLK: Pixel clock .Shift Clock

36 FLM.VSYNC: First line marker

37 M: Panel AC driver control

38 LP,DE,HSYNC: Latch pulse

40 ENABKL: Power sequencing control for enabling the backlight.(high active)

o

SS DD DD TFT TFT TFT TFT

8-bit 8-bit 16-bit

Name

9/12/16

bit 18bit

18/24

bit

STN-HRSTN-SSSTN-SSSTN-DDSTN-DD STN-D

36-bit 18/24

8-bit

16-bit

bit

(4bP)

(4bP)

8-bit

(4bP)

16-bit
(4bP)

D

24-bit

21

 CN5 : 15-pin DB15 Female VGA connector

PIN NO. Description PIN NO. Description

1 RED 2 GREEN

3 BLUE 4 NC

5 GROUND 6 GROUND

7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 DDC DATA
13 HSYNC 14 VSYNC
15 DDC CLK

3.10 IR Connector

The HS-2601 provides a 5-pin internal IR communication connector
as following CN2 pin information.

 CN2 : 5-pin IR Connector

PIN NO. Description

1 Vcc
2 FIRRX
3 IRRX
4 GROUND
5 IRTX

22

3.11 USB Ports Connector

The HS-2601 provides two internal 8-pin USB ports connectors. Please
refer to the following detail pin information.

 CN14: 8-pin Header USB Connector

PIN NO. CN14 PIN NO. CN14

1 Vcc 2 Vcc
3 BD0- 4 BD1­5 BD0+ 6 BD1+
7 GROUND 8 GROUND

3.12 LAN Interface Connector

The HS-2601 provides one external RJ-45 100 based LAN interface
connector. Please refer to the following detail of pin information.

 CN1 : RJ-45 LAN Connector

PIN NO. CN1

1 TX+
2 TX­3 RX+
4 N/C
5 N/C
6 RX­7 N/C
8 N/C
9 Ground

LED: There are three LED indicators provide the running conditions
of the LAN with LE1, LE2 and LE3:

Pin No. Description Pin No. Description

1 LILED 2 3V
3 ACTLED 4 3V
5 SPEDLED 6 5V

LE1: LINK LED
LE2: ACTIVE LED
LE3: SPEED LED

23

3.13 Mini PCI Connector

HS-2601 support Mini PCI interface which is very popular in
Notebook Computer’s expansion like Modem, Video, LAN and etc.
Mini PCI’s definition is as following.

 U5 : Mini PCI Connector Pin Information

PIN NO. U5 PIN NO. U5

1 INTB# 2 5V
3 3.3V 4 INTA#
5 RESERVED 6 RESERVED
7 GND 8 3.3VAUX

9 CLK 10 RST#
11 GND 12 3.3V
13 REQ# 14 GNT#
15 3.3V 16 GND
17 AD[31] 18 PME#
19 AD[29] 20 RESERVED
21 GND 22 AD[30]
23 AD[27] 24 3.3V
25 AD[25] 26 AD[28]
27 RESERVED 28 AD[26]
29 C/BE[3]# 30 AD[24]
31 AD[23] 32 IDSEL
33 GND 34 GND
35 AD[21] 36 AD[22]
37 AD[19] 38 AD[20]
39 GND 40 PAR
41 AD[17] 42 AD[18]
43 C/BE[2]# 44 AD[16]
45 IRDY# 46 GND
47 3.3V 48 FRAME#
49 CLKRUN# 50 TRDY#
51 SERR# 52 STOP#
53 GND 54 3.3V
55 PERR# 56 DEVSEL#
57 C/BE[1]# 58 GND
59 AD[14] 60 AD[15]
61 GND 62 AD[13]
63 AD[12] 64 AD[11]

24

65 AD[10] 66 GND
67 GND 68 AD[9]
69 AD[8] 70 C/BE[0]#
71 AD[7] 72 3.3V
73 3.3V 74 AD[6]
75 AD[5] 76 AD[4]
77 RESERVED 78 AD[2]
79 AD[3] 80 AD[0]
81 5V 82 RESERVED_WIP2
83 AD[1] 84 RESERVED_WIP2
85 GND 86 GND
87 AC_SYNC 88 M66EN
89 AC_SDATA_IN 90 AC_SDATA_OUT
91 AC_BIT_CLK 92 AC_CODEC_IDO#
93 AC_CODEC_ID1# 94 AC_RESET#
95 MOD_AUDIO_MON 96 RESERVED
97 AUDIO_GND 98 GND
99 SYS_AUDIO_OUT 100 SYS_AUDIO_IN

3.14PC/104 Bus Connection

The HS-2601’s PC/104 expansion bus provides you to connect all
kind of PC/104 modules. The PC/104 bus has been already
become the industrial embedded 16bit PC standard bus. You can
easily install over thousands type of PC/104 modules from
hundreds of venders in the world. The detailed pin assignment of
the PC/104 expansion bus connectors CN9 and CN10 are specified
as following tables:

Note : The PC/104 connector allows to directly plug-in

Stack-thru PC/104 modules without the PC/104
mounting kit.

25

 CN9&CN10 : PC/104 Expansion Bus

(CN10 = 64-pin female connector; CN9 = 40-pin female connector.)

Pin
No.

CN10

Row A

Pin
No.

CN10

Row B

Pin

No.

CN9

Row D

Pin
No.

CN9

Row C
1 IOCHECK* 33 0V 1 0V 21 0V
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 NOW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17

10 IOCHRDY 42 (KEY) 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 0V 39 SD15
20 SA11 52 SYSCLK 20 0V 40 (KEY)

21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 0V
32 0V 64 0V

26

Chapter-4

AWARD BIOS Setup

The HS-2601 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to
provide the maximum flexibility in configuring the system by offering
various options which could be selected for end-user requirements.
This chapter is written to assist you in the proper usage of these
features.

To access AWARD PCI/ISA BIOS Setup program, press <Del> key.
The Main Menu will be displayed at this time.

27

4.1 Main Menu

p

Once you enter the Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to
select from several setup functions and two exit choices. Use the
arrow keys to select among the items and press <Enter> to enter
the sub-menu.

ROM PCI/ISA BIOS (2A69KD2I)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANGEMENT SETUP

PnP/PCI CONFIGURATION

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc : Quit

F10 : Save & Exit Setu

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

 : Select Item

(Shift)F2 : Change Color

Note that a brief description of each highlighted selection appears at
the bottom of the screen.

28

4.2 Standard CMOS Setup

The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the
setup. When the IDE hard disk drive you are using is larger than
528MB, please set the HDD mode to LBA mode. Please use the
IDE Setup Utility in BIOS SETUP to install the HDD correctly.

Data (mm:dd:yy) : Fri, Dec 19 1998

Time (hh:mm:ss) : 00:00:00

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto ( 0Mb) 0 0 0 0 0 Auto
Primary Slave : Auto ( 0Mb) 0 0 0 0 0 Auto
Secondary Master : Auto ( 0Mb) 0 0 0 0 0 Auto
Secondary Slave : Auto ( 0Mb) 0 0 0 0 0 Auto

Drive A : 1.44M , 3.5in.
Drive B : None
LCD&CRT : Auto Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Halt On : All, But Keyboard Total Memory : 65535K
ESC : Quit
F1 : Help

 : Select Item
(Shift) F2: Change Color

PU/PD/ + / - : Modify

29

4.3 BIOS Features Setup

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFF Shadow : Disabled
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
Quick Power On Self Test : Disabled D8000-DBFFF Shadow : Disabled
Boot From LAN First : Enabled DC000-DFFFF Shadow : Disabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup ESC : Quit : Select Item
PS/2 mouse function conltrol : Enabled F1 : Help PU/PD/+/-: Modify
PCI/VGA Palette Snoop : Disabled F5 : Old Values (Shift) F2 : Color
OS Select For DRAM > 64MB : Non-OS2 F6 : Load BIOS Defaults
Report No FDD For WIN 95 : Yes F7 : Load Setup Defaults

30

4.4 Chipset Features Setup

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and the access to the system memory resources, such as
DRAM and the external cache. It also coordinates the
communications between the conventional ISA and PCI buses. It
must be stated that these items should never be altered. The default
settings have been chosen because they provide the best operating
conditions for your system. You might consider and make any
changes only if you discover that the data has been lost while using
your system.

Auto Configuration : Enabled Power-Supply Type : Auto
EDO DRAM Speed Selection : 60ns
EDO CASx# MA Wait State : 2 Auto Detect DIMM/PCI Clk : Enabled
EDO RASx# Wait State : 2 Spread Spectrum : Disabled
SDRAM RAS-to-CAS Delay : 3
SDRAM RAS Precharge Time : 3 CPU Warning Temperature : Disabled
SDRAM CAS latency Time : 3 Current CPU Temperature : Disabled
SDRAM Precharge Control : Enabled Current CPU Temperature : 40°C/104°F
DRAM Date Integrity Mode : Non-ECC Shutdown Temperature : 60°C/140°F
System BIOS Cacheable : Enabled

Video BIOS Cacheable : Enabled
Video RAM Cacheable : Enabled
8 Bit I/O Recovery : 3
16 Bit I/O Recovery : 2
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled ESC : Quit : Select Item
Delayed Transation : Disabled F1 : Help PU/PD/+/-: Modify
AGP Aperture Size : 64M F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

31

4.5 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship which is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and
a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input /Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it wants
and then let the controller and the CPU perform the complete task
by them. This is much simpler and more efficient (also faster).

IDE HDD Block Mode : Enabled Onboard Parallel Port : 378/IRQ7
IDE Primary Master PIO : Auto Onboard Parallel Mode : SPP
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto LCD Panel Type : Panel 5
IDE Secondary Slave PIO : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Secondary Master UDMA : Auto
IDE Secondary Slave UDMA : Auto
On Chip Primary PCI IDE : Enabled
On Chip Secondary PCI IDE : Enabled

USB Keyboard Support : Enabled
Init Display First : PCI Slot
KBC input clock : 8MHz
Onboard FDC Controller : Enabled ESC : Quit : Select Item
Onboard Serial Port 1 : 3F8/IRQ4 F1 : Help PU/PD/+/-: Modify
Onboard Serial Port 2 : 2F8/IRQ3 F5 : Old Values (Shift) F2 : Color
UART Mode Select : Normal F6 : Load BIOS Defaults
F7 : Load Setup Defaults

*It allows the system BIOS to select one of sixteen LCD panel types
upon power up.

32

Panel# Panel Type

0 1024*768 Dual Scan STN Color Panel
1 128*1024 TFT Color Panel
2 640*480 Dual Scan STN Color Panel
3 800*600 Dual Scan STN Color Panel
4 640*480 Sharp TFT Color Panel
5 640*480 18-bit TFT Color Panel
6 1024*768 TFT Color Panel
7 800*600 TFT Color Panel
8 800*600 TFT Color Panel (Large BIOS ONLY)

9 800*600 TFT Color Panel (Large BIOS ONLY)
10 800*600 Dual Scan STN Color Panel (Large BIOS ONLY)
11 800*600 Dual Scan STN Color Panel (Large BIOS ONLY)
12 1024*768 TFT Color Panel (Large BIOS ONLY)
13 1280*1024 Dual Scan STN Color Panel (Large BIOS ONLY)
14 1024*600 Dual Scan STN Color Panel (Lange BIOS ONLY)
15 1024*600 TFT Color Panel (Lange BIOS ONLY)

33

4.6 Power Management Setup

The Power Management Setup allows user to configure the system
for saving energy in a most effective way while operating in a
manner consistent with his own style of computer use.

ACPI function : Disabled
Power Management : User Define ** Reload Global Timer Events **
PM Control by APM : Yes IRQ3 [3-7, 9-15], NMI : Disabled
Video Off Method : V/H Sync + Blank Primary IDE0 : Disabled
Video Off After : Standby Primary IDE1 : Disabled
MODEM Use IRQ : 3 Secondary IDE0 : Disabled
Doze Mode : Disabled Secondary IDE1 : Disabled
Standby Mode : Disabled Floppy Disk : Disabled
Suspend Mode : Disabled Serial Port : Enabled
HDD Power Down : Disabled Parallel Port : Disabled
Throttle Duty Cycle : 25.0%
PCI/VGA Act-Monitor : Disabled
Soft-Off by PWR-BTTN : Instant-Off
CPU FAN Off In Suspend : Disabled
Power On by Ring : Disabled
Wake Up On LAM : Enabled
IRQ8 Break Suspend : Enabled
ESC : Quit : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

34

4.7 PnP/PCI Configuration Setup

In this section, the PnP/PCI configuration setup allows you to configure
the ISA and PCI devices installed in your system by manually or auto.

PnP OS Installed : Yes Assign IRQ For VGA : Enabled
Resources Controlled by : Auto Slot 1 Use IRQ No. : Auto
Reset Configuration Data : Disabled Slot 2 Use IRQ No. : Auto
Slot 3 Use IRQ No. : Auto
Slot 4 Use IRQ No. : Auto

Assign IRQ For USB : Enabled

ESC : Quit : Select Item
F1 : Help PU/PD/+/-: Modify
F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

35

Chapter-5

Software Utilities

This chapter the detailed information of VGA and LAN function. How to install the
configuration is also included.

Section include:

n

VGA DRIVER INSTALLATION

n NETWORK DRIVER INSTALLATION

36

5.1 VGA DRIVER INSTALL FOR WIN95&98

1. Click Start, then Setting, then Control Panel.

2. Start the Display applet program.

3. Select the setting page, push the Advanced properties button.

4. Push the change button in the adapter area.

5. Continue to click “Next”. Select

Display a list of all drivers in a specific location,

so you can select the drivers you want.

6. Click “Next”.

7. Select the Specify a location checkbox and click “Browse”.

8. Specify the path to the new driver and press the ,<ENTER> key.

(if in driver A:, select a:\win95)

9. The Select device dialog box will appear.

Select

10. Continue choosing close until asked to restart machine.

11. After the system has restarted, you can go back into the display
applet and select alternate screen resolutions and color depths.

Chips and Tech. 69000 PCI

Note: Installation procedure for Windows 98 is similar to
Windows95.

37

38

39

5.2 VGA DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Settings and click on Control Panel.

2. Click on Display icon to start the Display Properties window.

3. Click on the Settings tab, and then click on Display Type.

4. In the Change Display Type window, click on “Have Disk”.

5. Specify the path to the new driver and press the <ENTER>key.

(if in driver A:, type a:\nt40)

select

Chips Video Accelerator

(655545/48/50/54/55/68554 69000)

6. click OK or press Enter

7. You will then see warning panel about Third Party Drivers. Click on Yes to finish the
install.

8. Once the installation is complete, the system must shut down and restart for the
new driver to take effect.

9. After restart, checking on the VGA driver, the properties of the driver should look
similar to the following figure.

40

41

42

43

5.3 NETWORK DRIVER INSTALL FOR WIN98&95

Win98

Windows 98 will detect the network driver automatically.

Win95

1. Click Start, then Settings, in the “Setting” select Control panel.

2. Start the network applet program.

3. In the Network window, click Add.

4. In the Select Network Component Type, select Adapter then click Add.

5. When the Select Network Component Type, Select Adapter, then click Add.

6. Specify the path the new driver and press <ENTER> key.

(If in driver a:, type a:\)

(If you’re not sure exactly where the drivers are, choose the “Browse” button and find
it)

Select Intel EtherExpress PRO/100+ Management Adapter

7. Click OK.

8. Windows 95 will copy the network drivers to the proper directories on your system.

9. Continue choosing “OK”, util asked to restart your system.

10. After restart, checking on the network driver , the Properties of the driver should
look similar to the following figure.

44

45

46

5.4 NETWORK DRIVER INSTALL FOR WIN NT4.0

1. Click the Start button, then go to Settings and click on Control Panel.

2. Click on the Network icon to start the Network window.

3. Click on the Adapters tab, and then click on Add.

4. In the Select Network Adapter window, click on Have Disk.

5. This will bring up the Insert Disk window.

6. Supply the directory where the Windows NT driver file are located.

(If in driver a:, type a:\)

7. The Select OEM Option window will show up.

Select Intel EtherExpress PRO Adapter

8. Click OK to finish the install.

9. Once the installation is complete, the system must be shut down and restarted for
the new driver to take effect.

10. After restart, checking on the Network driver, the Properties of the driver should
look similar figure.

47

48
