Boser HS-1746 User Manual

Download

Page 1

HS-1746

Intel® Pentium® M/Celeron® M

processor mITX Board

‧400MHz FSB‧PCI Slot‧CRT/LVDS Panel‧

Dual Giga LAN‧Audio‧ATA/33/66/100‧

‧

‧IrDA‧USB2.0‧WDT‧H/W Monitor‧

Industrial mITX Board‧

‧

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, eve n i f ad vised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it ma ke any com mitme nt to update the informa tion conta ined herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 General Description..................................1

1.1

1.2

1.3

Major Features.............................................................2

Specifications ..............................................................3

Board Dimensions....................................................... 4

Chapter 2 Unpacking..................................................5

2.1

2.2

Opening the Delivery Package................................... 5

Inspection.....................................................................5

Chapter 3 Hardware Installation ..............................7

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

3.10

3.11

3.12

3.13

3.14

3.15

3.16

3.17

3.18

3.19

3.20

Before Installation....................................................... 7

Board Layout ...............................................................8

Jumper List .................................................................. 9

Connector List .................................. .... ....... .... .... .... ... .9

Configuring the CPU................................ ... .... .... .... ..10

System Memory.........................................................10

VGA Controller...........................................................10

PCI E-IDE Drive Connector.......................................12

Floppy Disk Drive Connector................................... 13

Parallel Connector..................................................... 14

Serial Port Connectors..............................................15

Ethernet Connector...................................................16

USB Connector.......................................................... 16

CMOS Data Clear.......................................................17

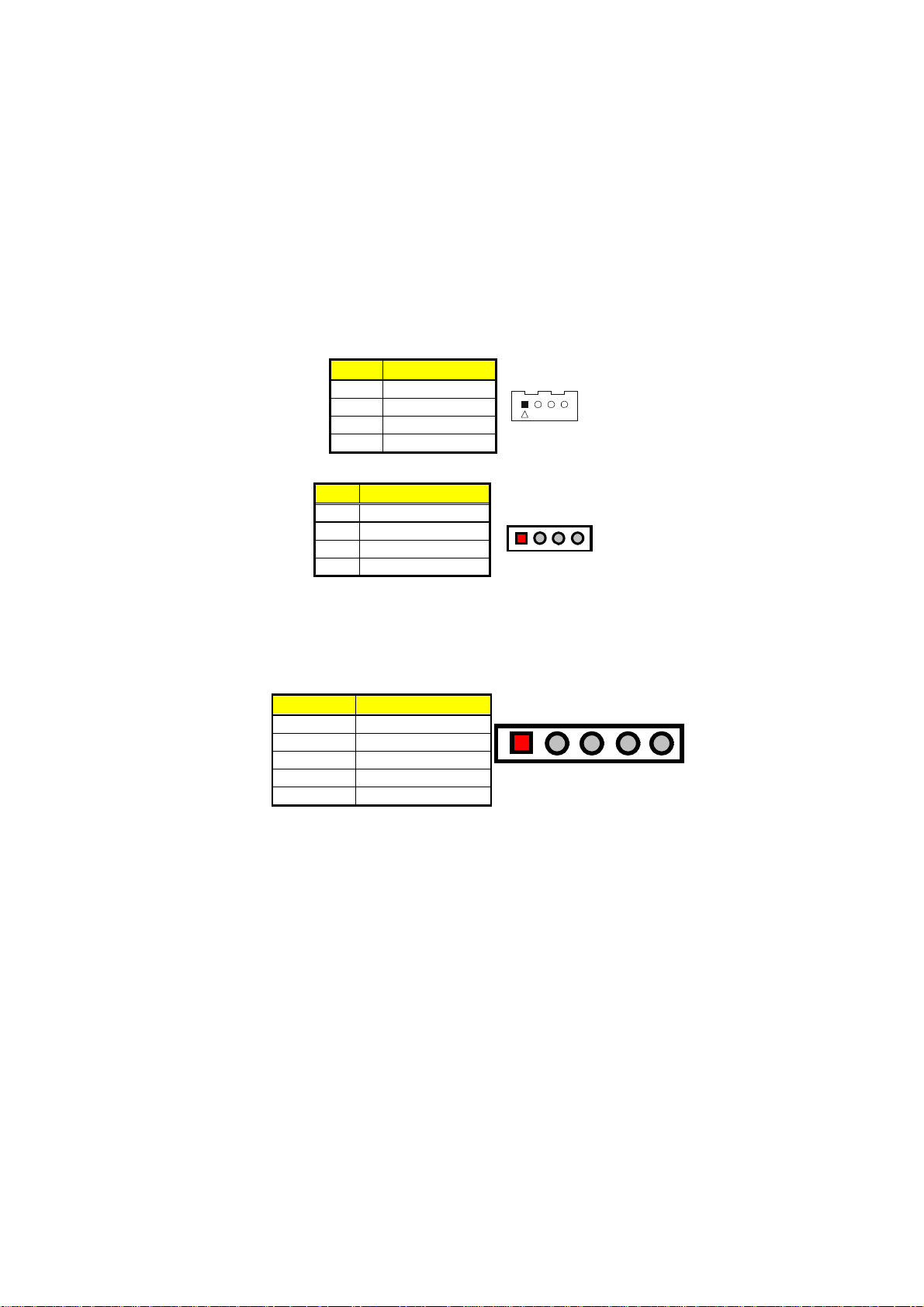

Power and Fan Connectors......................................17

Keyboard/Mouse Connector .................................... 19

System Front Panel Connectors..............................20

Watchdog Timer.................................... .... ... .... .... .... ..21

Audio Connectors .....................................................22

IrDA Connector.......................................................... 22

Page 4

Chapter 4 Award BIOS Setup .................................23

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

4.10

4.11

4.12

4.13

4.14

4.15

4.16

Starting Setup............................................................ 23

Using Setup................................................................24

4.2.1

Getting Help............................................................................................24

Main Menu.................................................................. 25

Standard CMOS Features.........................................26

Advanced BIOS Features ......................................... 27

Advanced Chipset Features..................................... 28

Integrated Peripherals...............................................29

Power Management Setup........................................ 31

PnP/PCI Configurations............................................ 32

PC Health Status........................................................ 33

Frequency/Voltage Control....................................... 33

Load Fail-Safe Defaults....................................... .... ..34

Load Optimized Defaults ..........................................35

Set Supervisor/User Password................... ....... .... ..35

Save & Exit Setup...................................................... 37

Exit Without Saving................................................... 38

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive t o static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to ins tall them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to disch arge any static electricity on your bo d y.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handling the HS-1746 to protect yourself from the discharge of any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENT WITHOUT ALL NECESSARY ANTI-S TATIC PROTECTION.

Page 6

Page 7

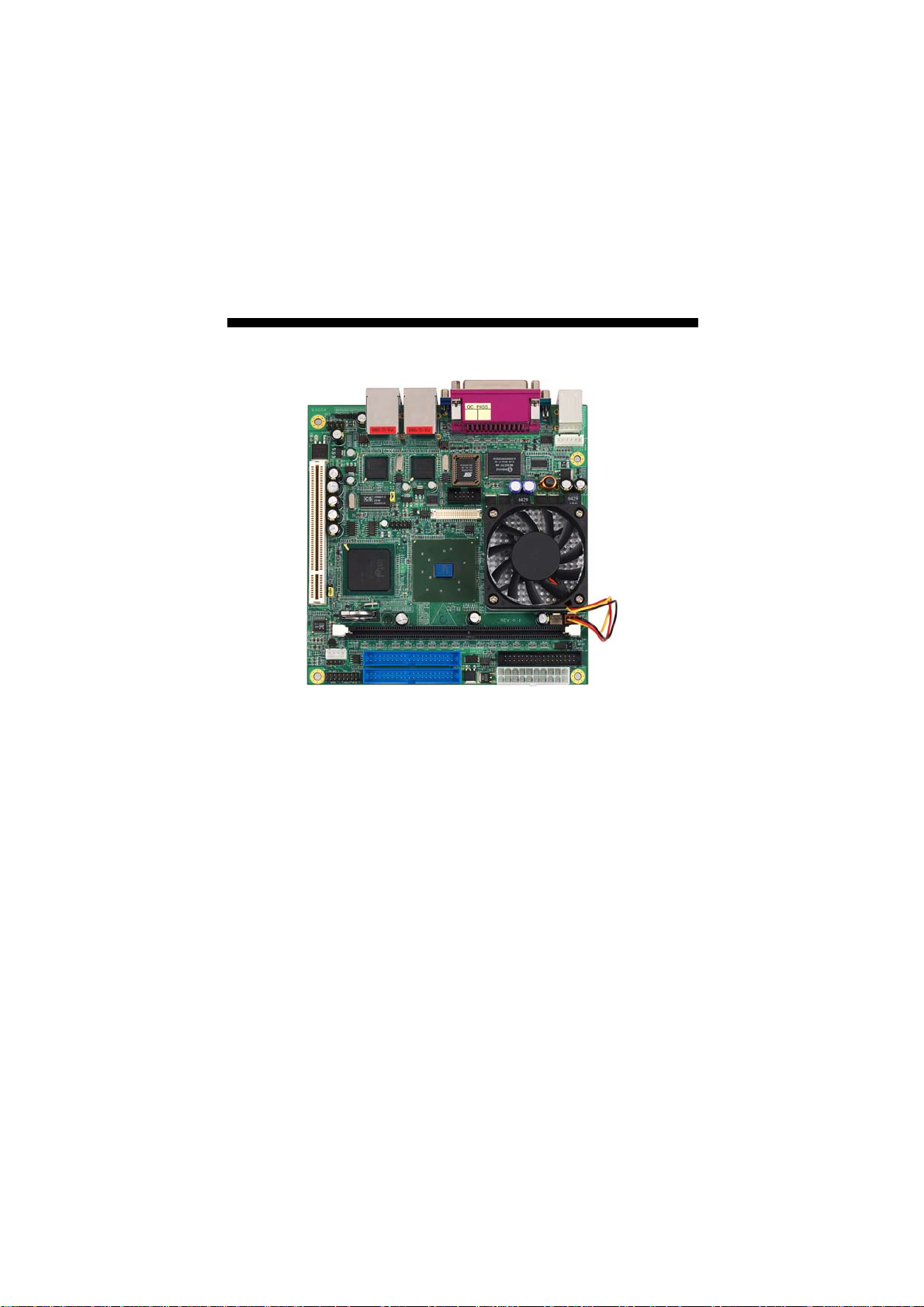

Chapter 1

General Description

The HS-1746 is an Intel® 855GME GMCH/ICH4 chipset-based board designed mITX board. Intel

1.3~2.0GHz compatibility. The combination of these features makes the HS-1746 an ideal all-in-one industrial mITX board. Additional features include an enhanced I/O with CRT/LVDS Panel, dual Giga LAN, audio, COM, IrDA and USB2.0 port interface.

Its onboard ATA/33/66/100 connected to IDE drive interface architecture allows the HS-1746 to supp ort data transfers of 33, 66 or 100MB/sec. for each IDE drive connection. De signed with the Intel 855GME GMCH/ICH4 core logic chipset, the bo ard supports all Intel® Pentium is Intel HS-1746 also provides 18-bit single channel/36-bit dual channel LVDS Panel display interface.

System memory is also sufficient with the one DIMM socket that can support up to 1GB. It also provides one standard PCI slot.

M/Celeron® M processor 1.3~2.0GHz. The display controller

855GME for CRT display, supporting up to 1600 x 1200 UXGA.

Pentium® M/Celeron® M processor

Page 8

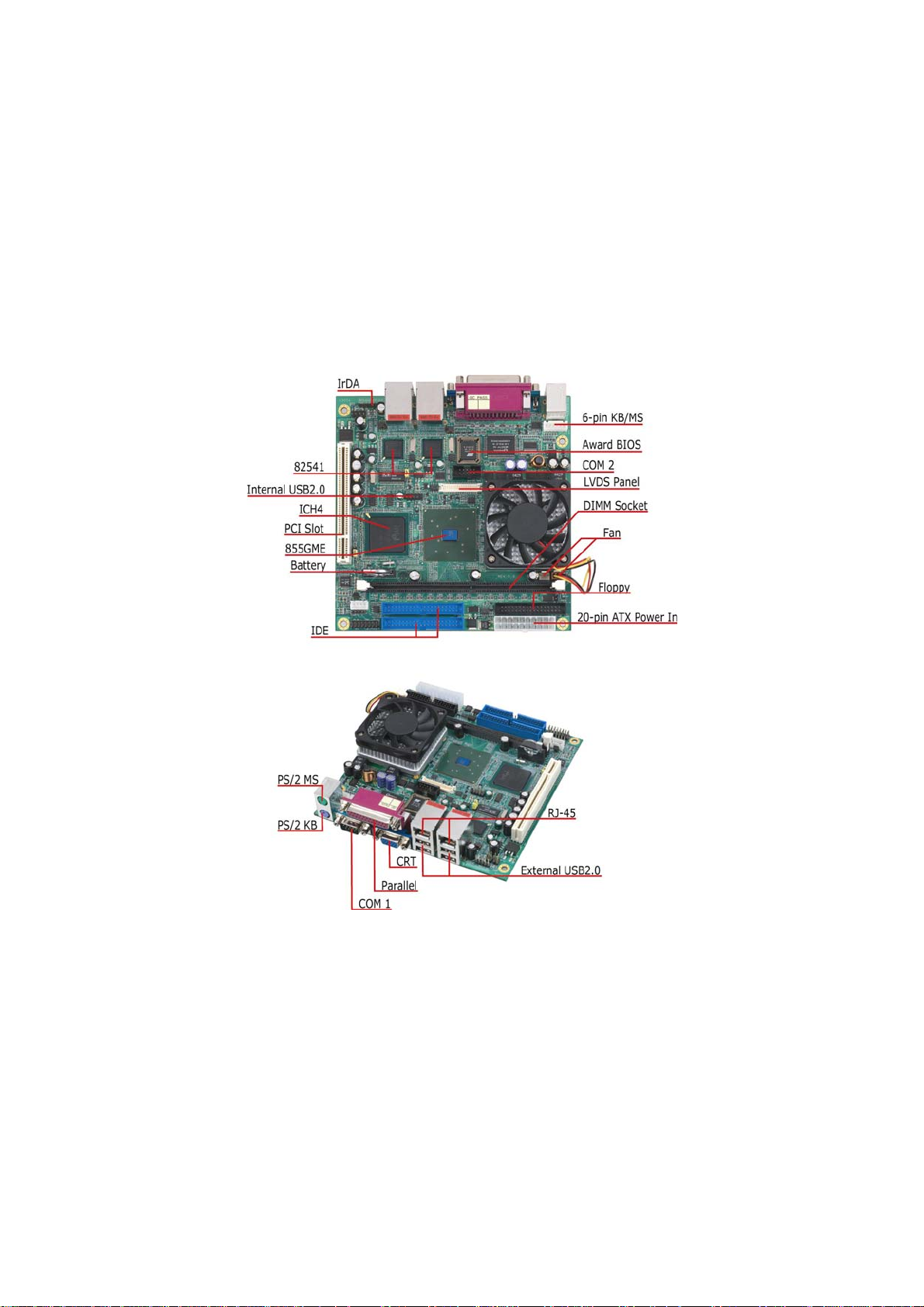

Additional onboard connectors include two internal and four external USB2.0 ports providing faster data transmission, and two external RJ-45 connectors for use of two 10/100/1000 Base-TX Ethernet interfaces.

1.1 Major Features

Page 9

The HS-1746 comes with the following features:

 Intel® Pentium® M/Celeron® M processor 1.3~2.0GHz  Supports 400MHz FSB  One DIMM socket with a max. capacity of 1GB  Intel  Winbond W83627HF-AW super I/O chipset  Intel  LVDS Panel display interface  Dual Intel  AC97 3D audio controller  Fast PCI ATA/33/66/100 IDE controller  Two COM, IrDA, six USB2.0 ports  Hardware Monitor function

855GME GMCH/ICH4 system chipset

855GME graphic controller

82541 Gigabit Ethernet controller

1.2 Specifications



     

CPU:

Intel

Pentium® M processor 1.6GHz

Pentium® M processor 760 2.0GHz

Intel

Pentium® M processor 745 1.8GHz

Intel

Celeron® M processor 370 1.5GHz

Intel

Celeron® M processor 320 1.3GHz

Front Side Bus: Supports 400MHz FSB Memory: One DIMM socket supporting up to 1GB Chipset: Intel® 855GME GMCH/ICH4 I/O Chipset: Winbond W83627HF-AW PCI Slot: One standard PCI slot VGA: Intel® 855GME for CRT display supporting up to 1600 x 1200

UXGA

 LVDS Panel: Supports 18-bit single channel/36-bit dual channel LVDS

Panel interface



Ethernet: Dual Intel® 82541 10/100/1000 Based LAN



Audio: AC97 3D audio controller



IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer rates of 33/66/100MB/sec.

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP



Serial Port: 16C550 UART-compatible RS-232 x 2 serial ports with 16-byte FIFO



IrDA: One IrDA TX/RX header

 USB: Six USB2.0 ports, two internal and four external

Page 10



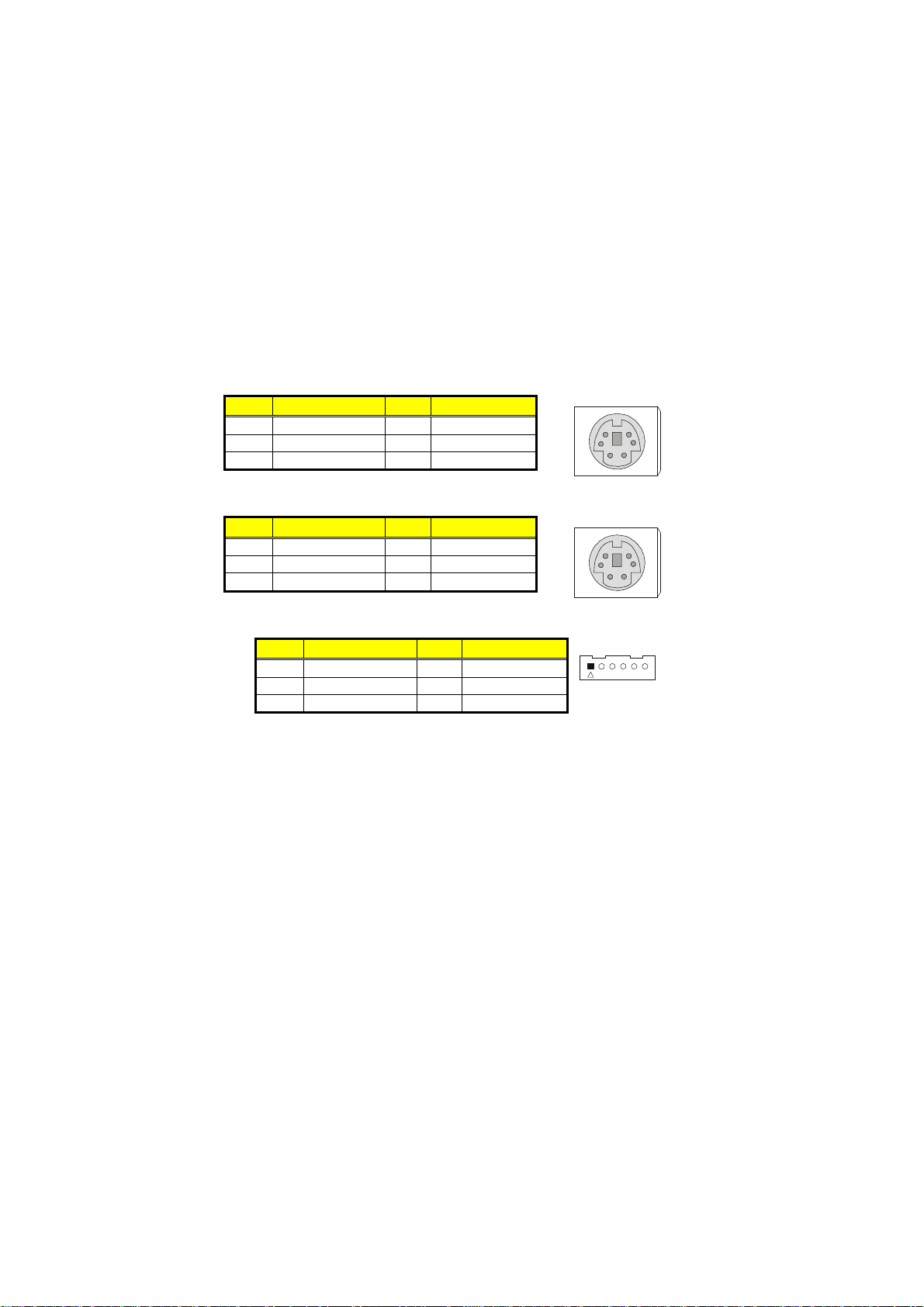

Keyboard/Mouse: PS/2 6-pin Mini DIN or 6-pin header

 BIOS: Award PnP Flash BIOS  Watchdog Timer: Software programmable time-out intervals from

1~256 sec.



CMOS: Battery backup



Hardware Monitor: Winbond W83627HF-AW



Board Size: 17.0(L) x 17.0(W ) cm

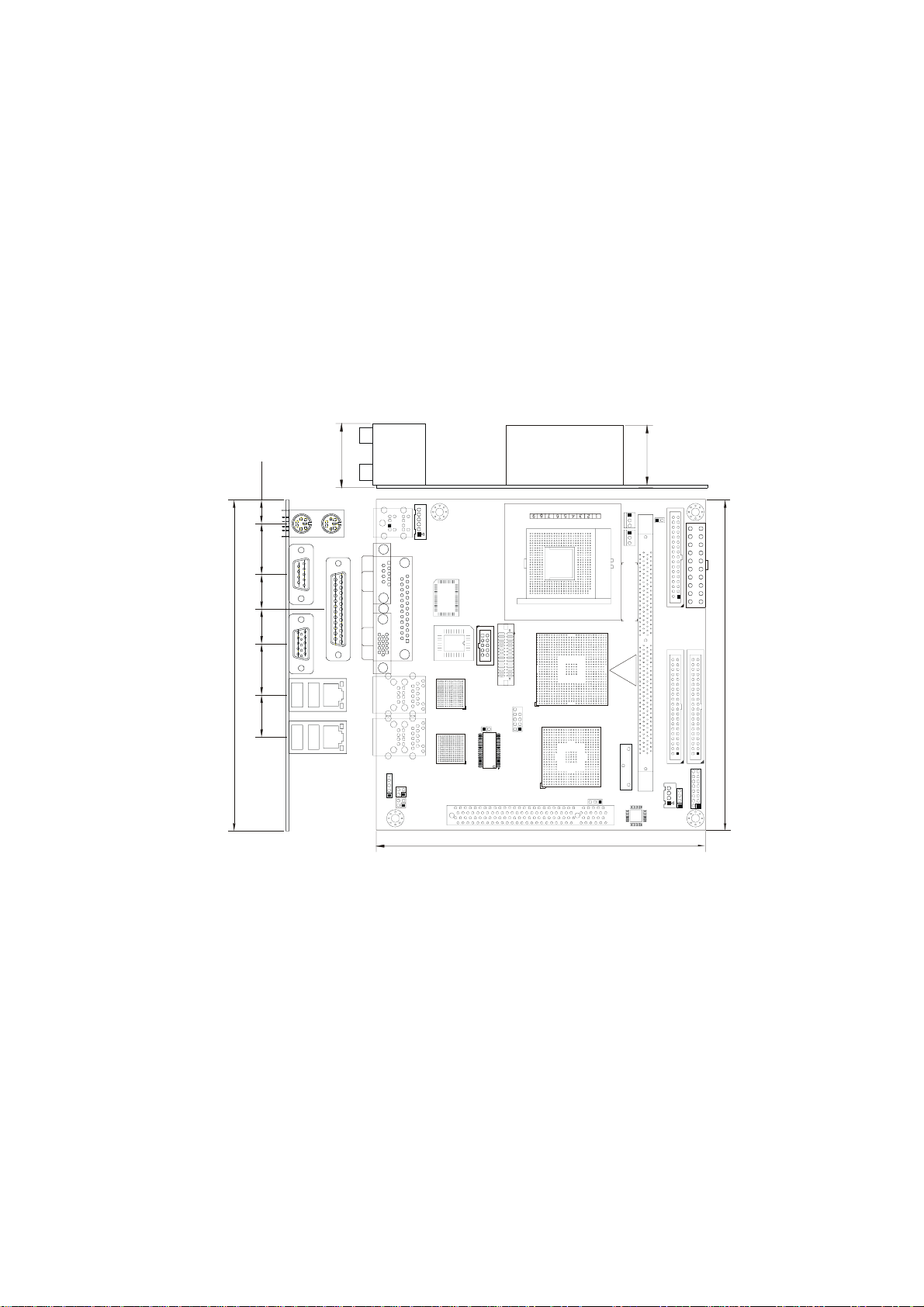

1.3 Board Dimensions

I/O COOLER

33 mm

12.17 mm

26.11 mm

17.90 mm

17.85 mm

170 mm

26.27 mm

21.72 mm

170 mm

32 mm

170 mm

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-1746 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, plac e it on a raised surface and carefu lly inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Make sure all integrated circuits, particularly the BIOS, processor, memory modules , R OM -D i sk , and keyboard controller c hip are firmly seated. The HS-1746 delivery package contains the following items:



HS-1746 Board x 1

 Utility CD Disk x 1 

Cables Package x 1

 Cooling Fan & Heat Sink x 1 

Jumper Bag x 1

 User’s Manual

Page 12

This page is intentionally left blank.

Page 13

Chapter 3

Hardware Installation

This chapter provides the inform ation on how to install the hardware using the HS-1746. This chapter also c ontains information related to jumper settings of switch, watchdog timer etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP4 Short 1-2)

2. Go through the con nections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the man u a l and diskette in good condition for future reference and use.

Page 14

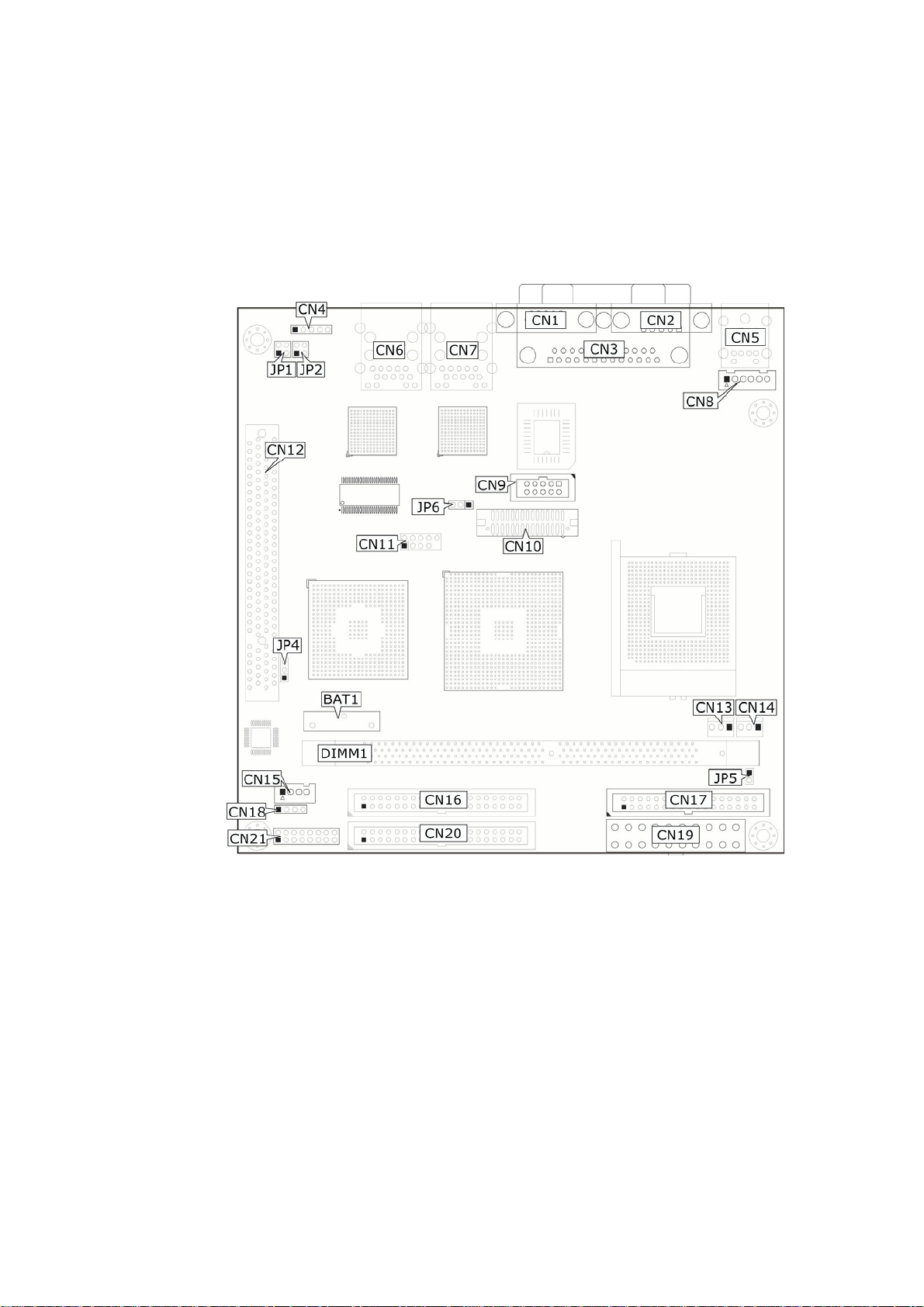

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper Default Setting Setting Page

JP4 Clear CMOS: Normal Operation Short 1-2 17 JP5 AT/Normal Mode Select: ATX Mode Open 17 JP6

Panel Voltage Select: +3.3V Short 1-2 10

3.4 Connector List

Connector Definition Page

CN1 15-pin CRT Connector 10 CN2 COM 1 Connector (DB9) 15 CN3 Parallel Connector 14 CN4 IrDA Connector 22 CN5

CN6/CN7 RJ-45 + Dual USB2.0 Port 16

CN8 6-pin KB/MS Header 19 CN9 COM 2 Connector (5x2 header) 15

CN10 LVDS Panel Connector 10 CN11 CN12 Standard PCI Expansion Slot ----

CN13/ CN14 Fan Power In Connector 17

CN15 Line Out Connector 22

CN20/CN16 Primary/Secondary IDE Connector 12

CN17 CN18 CD In Connector 22 CN19 20-pin ATX Power In Connector 17 CN21 System Front Panel Connector 20

DIMM1 SO-DIMM Socket 10

JP2/JP1 LAN1/LAN2 LED Connector 16

PS/2 6-pin Mini DIN KB and MS Connector 19

Internal USB2.0 Port 16

Floppy Connector 13

Page 16

3.5 Configuring the CPU

The HS-1746 provides Intel® Pentium® M/Celeron® M processor

1.3~2.0GHz. It offers the convenience in CPU installation with its auto-detect feature. After installing a new microp rocessor on board, the HS-1746 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby elimina ting the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-1746 provides one DIMM socket at location DIMM1. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The display controller is Intel® 855GME for CRT display supporting up to 1600 x 1200 UXGA. HS-1746 also provides 18-bit single channel or 36-bit dual channel LVDS Panel display interface. The HS-1746 provides two methods of connecting VGA d evice. CN1 offers a single standard CRT connector (DB15), or CN10 offers 18-bit/36-bit LVDS panel connectors.



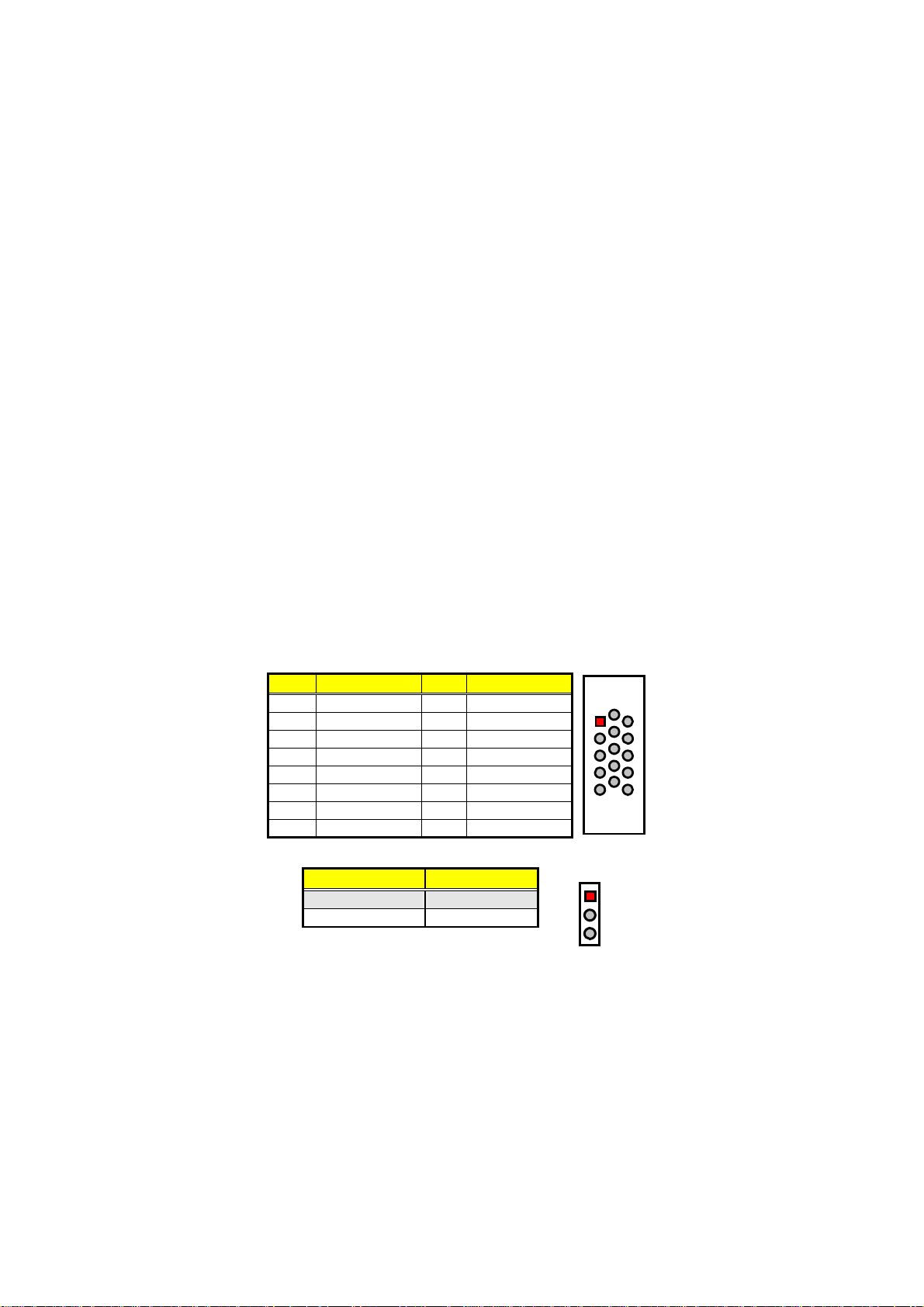

CN1: 15-pin CRT Connector (DB15)

PIN Description PIN Description

1 RED 2 GREEN 3 BLUE 4 N/C 5 GND 6 GND 7 GND 8 GND

9 VCC 10 GND 11 N/C 12 DDData 13 HSYNC 14 VSYNC 15



JP6: Panel Voltage Select

DDCLK

Options Settings

+3.3V (default) Short 1-2

+5V Short 2-3

+3.3V

+5V

LCD

Page 17



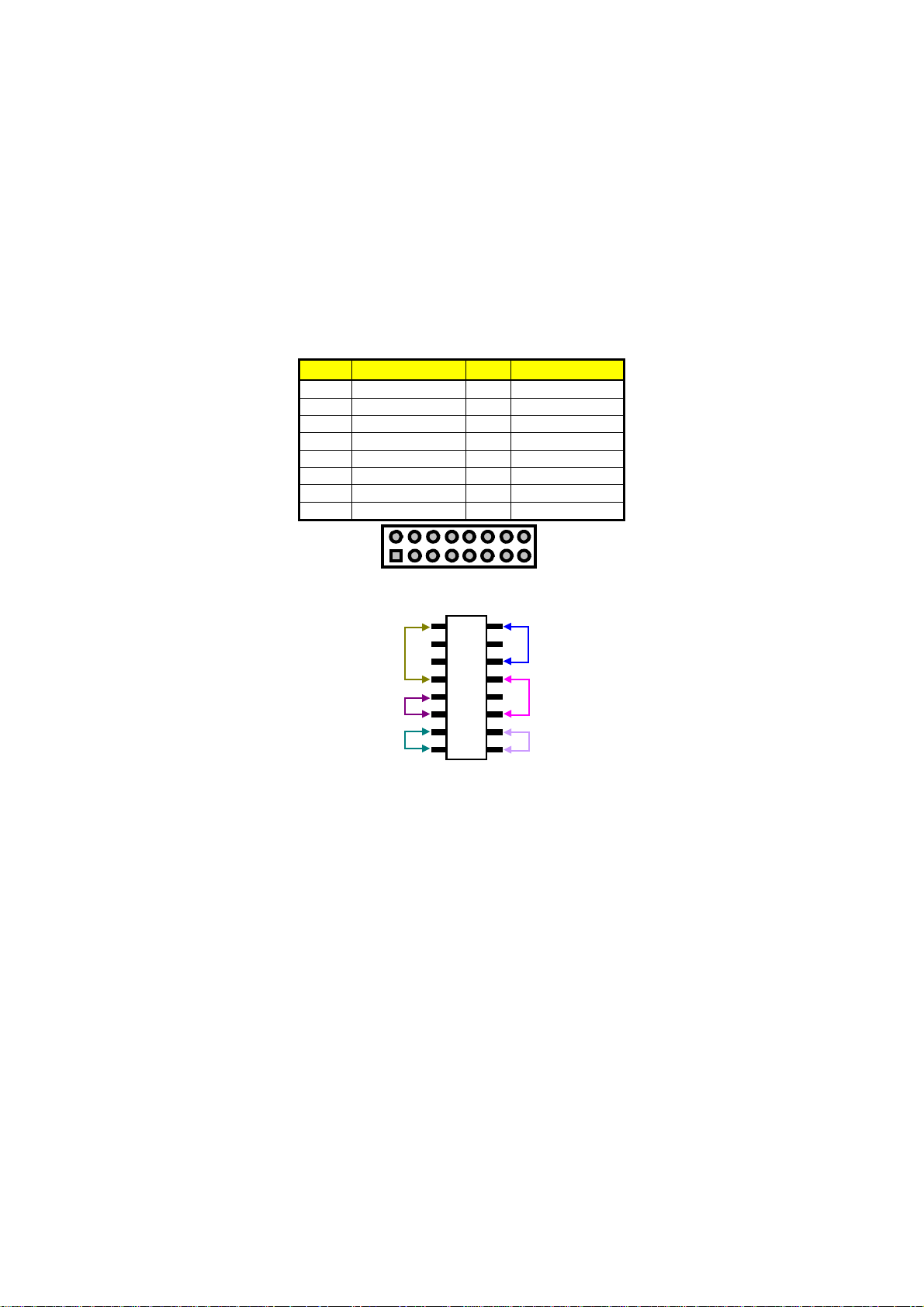

CN10: LVDS Panel Connector

PIN Description PIN Description

1 N/C 2 N/C 3 GND 4 GND 5 YAM0 6 YAM1 7 YAP0 8 YAP1

9 GND 10 GND 11 YAM2 12 CLKAM 13 YAP2 14 CLKAP 15 GND 16 GND 17 YAM3 18 YBM0 19 YAP3 20 YBP0 21 GND 22 GND 23 YBM1 24 YBM2 25 YBP1 26 YBP2 27 GND 28 GND 29 CLKBM 30 YBM3 31 CLKBP 32 YBP3 33 N/C 34 +12V 35 N/C 36 +12V 37 N/C 38 VCC_LCD 39 LCD_BKL 40 VCC_LCD

Page 18

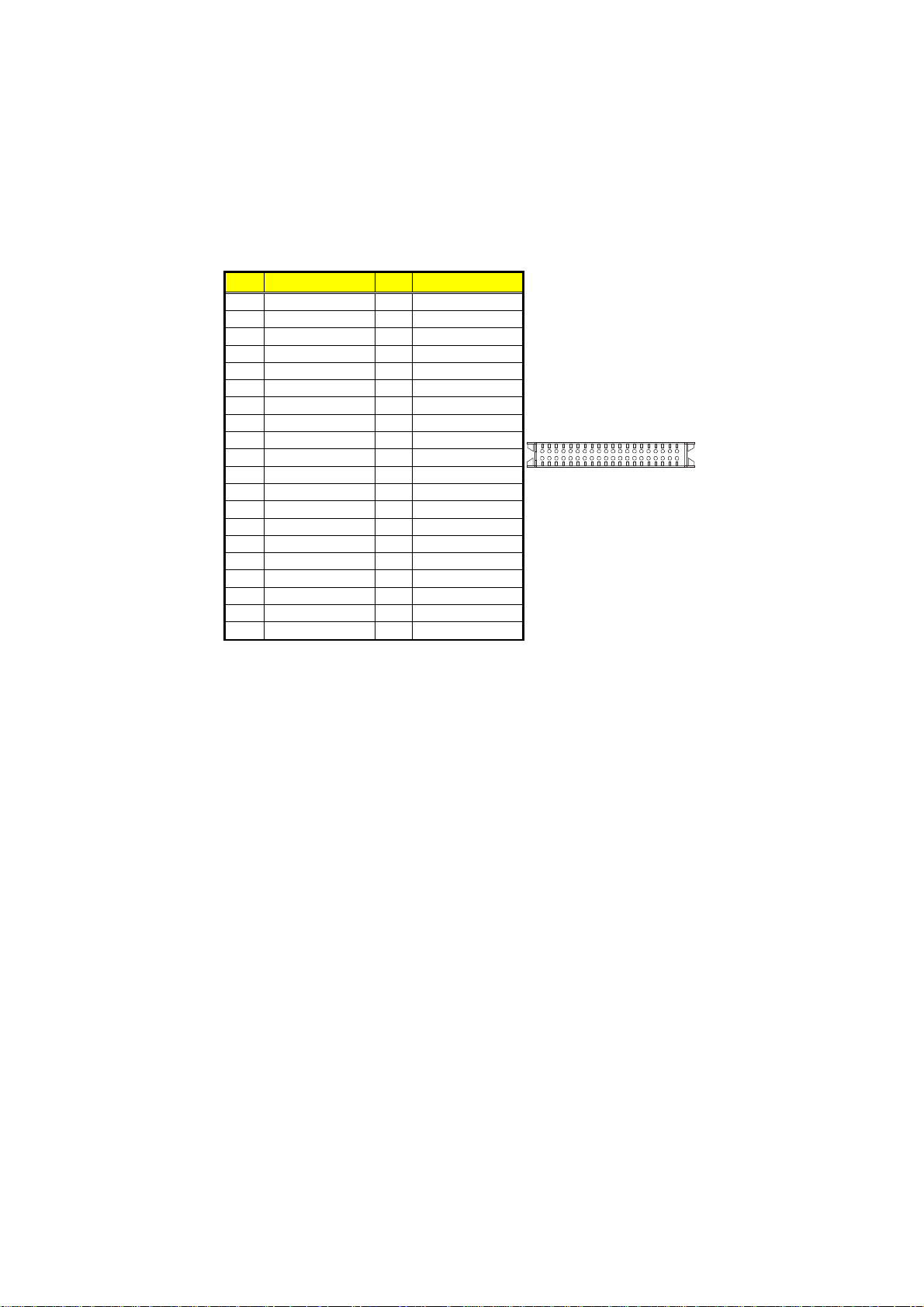

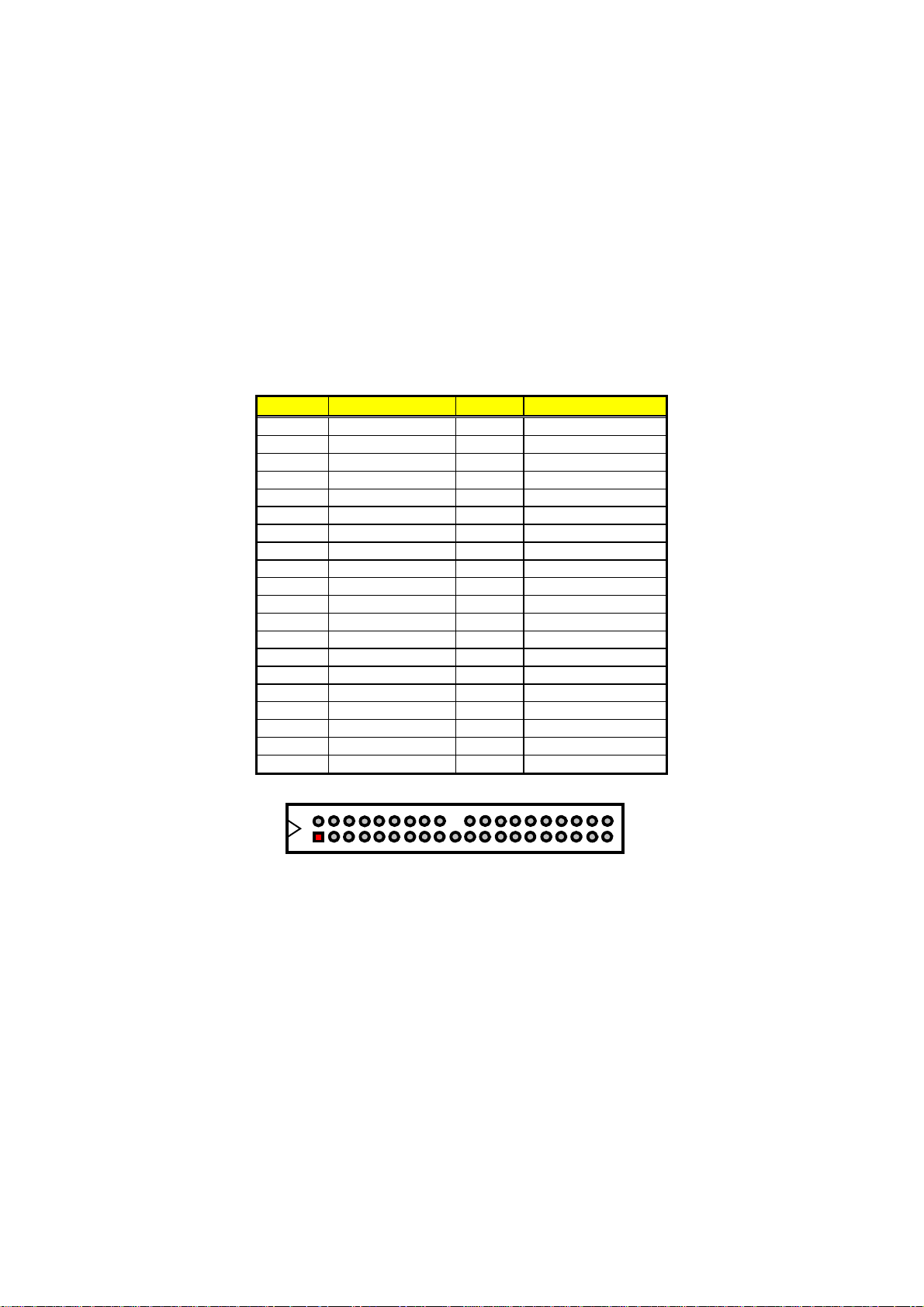

3.8 PCI E-IDE Drive Connector

CN20 and CN16 are standard 40-pin daisy-chain driver connector that serves the PCI E-IDE drive provisions onboard the HS-1746. A maximum of four ATA/33/66/100 IDE drives can be c onnected to the HS-1746 via CN20 and CN16.

 CN20/CN16: Primary/Secondary IDE Connector

PIN Description PIN Description

RESET

3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10 9 DATA 4 10 DATA 11

DATA 3

13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21

DRQ0

23 IOW 24 GND 25 IOR 26 GND 27 IOCHRDY 28 PD1- 29 DACK0 30 ALE 31 IRQ 14 32 N/C 33 Address 1 34 GND 35 Address 0 36 Address 2 37 Chip Select 0 38 Chip Select 1 39 HDD Active 40 GND

GND

DATA 12

GND

46810

3 5 7 9 17 19 21 23 25 27 29 31

12 14

11 13 15 35 37

202224 262830

16 36

32 34

Page 19

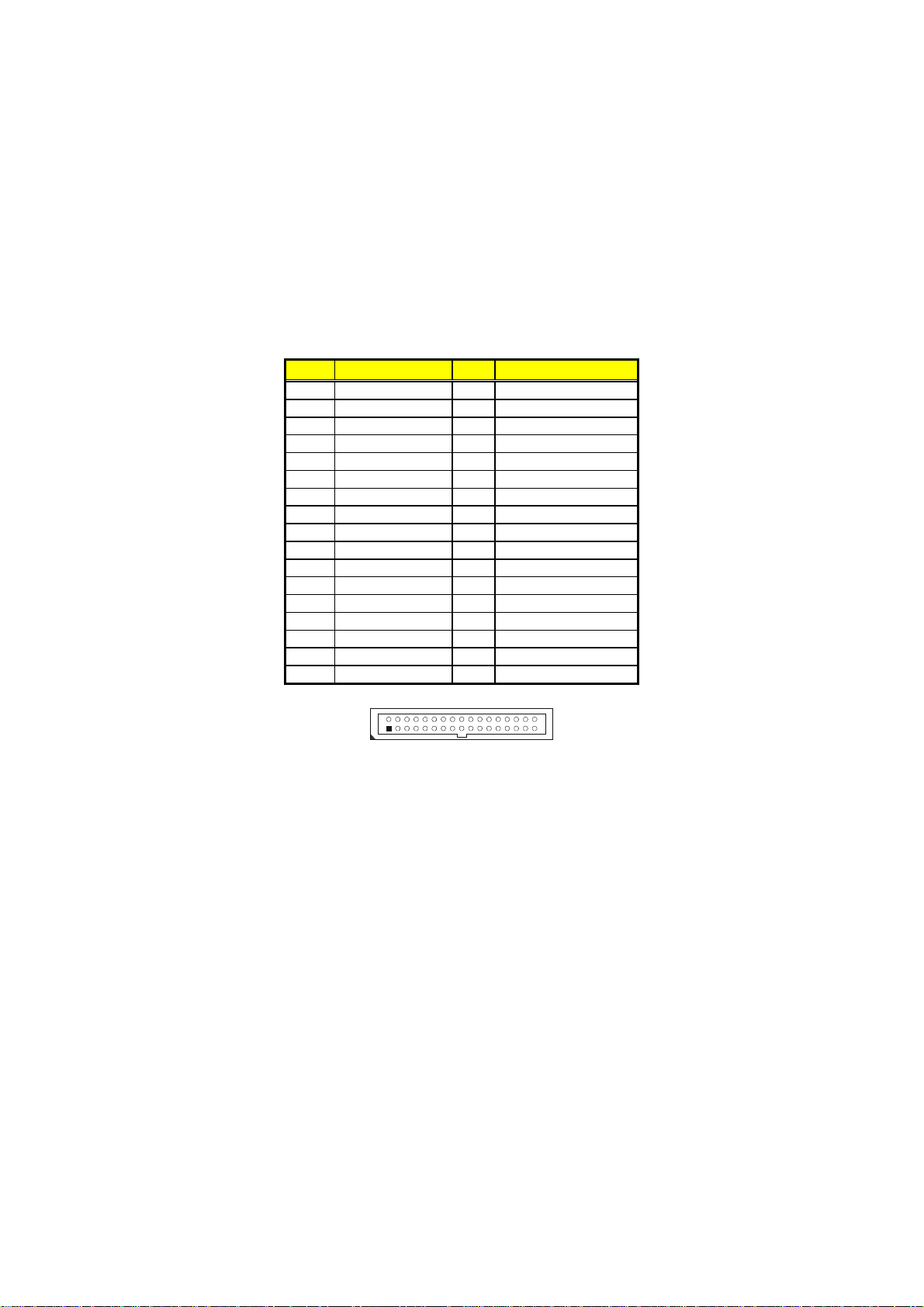

3.9 Floppy Disk Drive Connector

The HS-1746 uses a 26-pin connector, CN17 for two floppy disk drives connection.

 CN17: FDD Connector

PIN Description PIN Description

1 3 GND 4 N/C 5 GND 6 Drive Density Selection 7 GND 8 Index 9 GND 10 Motor Enable 0

11 13 GND 14 Drive Select 0 15 GND 16 Motor Enable 1 17 GND 18 Direction 19 GND 20 Step 21 23 GND 24 Write Gate 25 GND 26 Track 00 27 GND 28 Write Protect 29 N/C 30 Read Data 31 GND 32 Head Select 33 N/C 34 Diskette Change

GND

Drive Density Selection

Drive Select 1

Write Data

Page 20

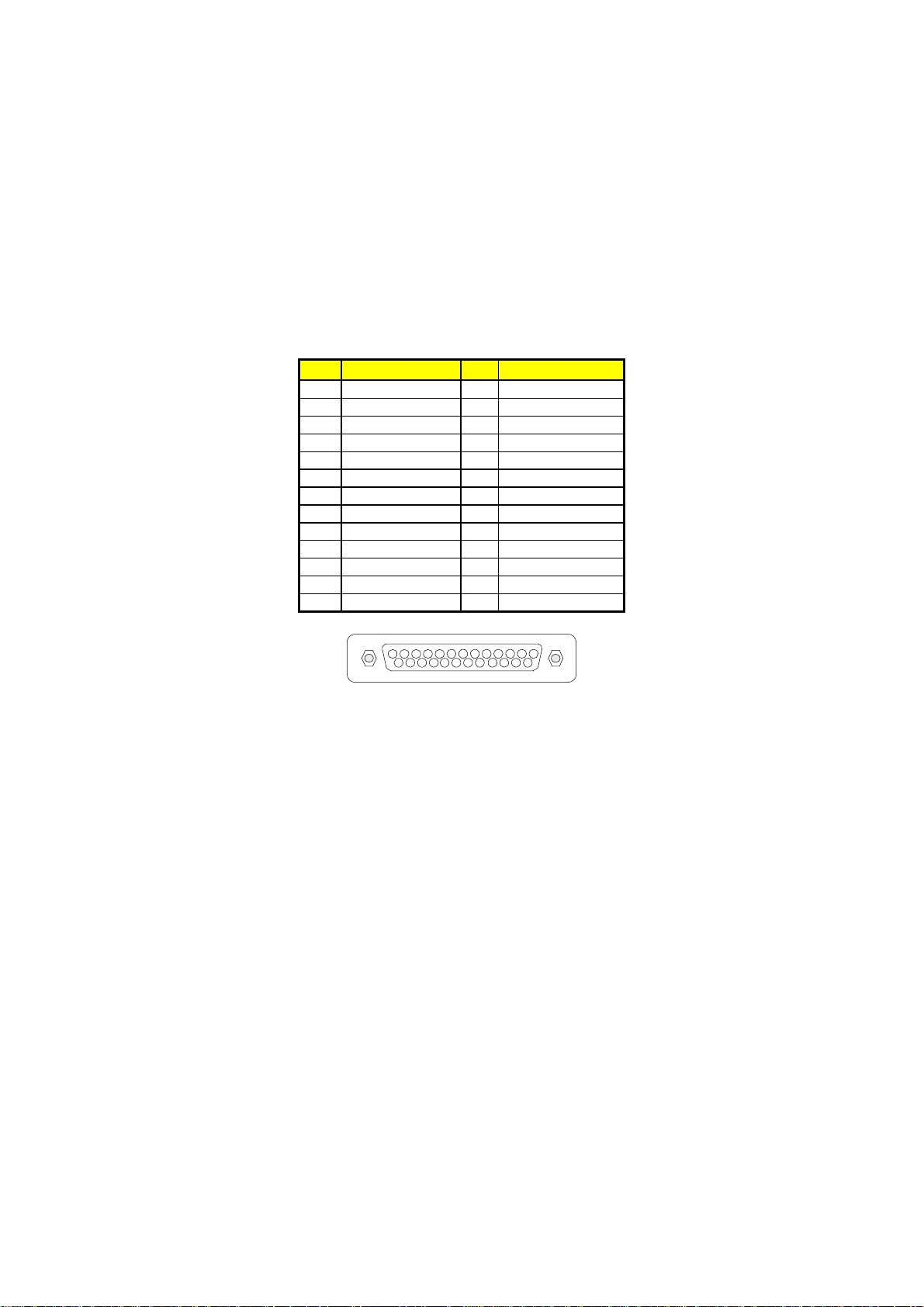

3.10 Parallel Connector

CN3 is a DB-25 connector designed to accommodate parallel port connection onboard the HS-1746.



CN3: Parallel Connector

PIN Description PIN Description

1 Line Printer Strobe 14 Auto Feed 2 PD0 15 Error 3 PD1 16 Initialize 4 PD2 17 Select 5 PD3 18 GND 6 PD4 19 GND 7 PD5 20 GND 8 PD6 21 GND

9 PD7 22 GND 10 ACK 23 GND 11 Busy 24 GND 12 13 Select

Paper Empty

GND

Page 21

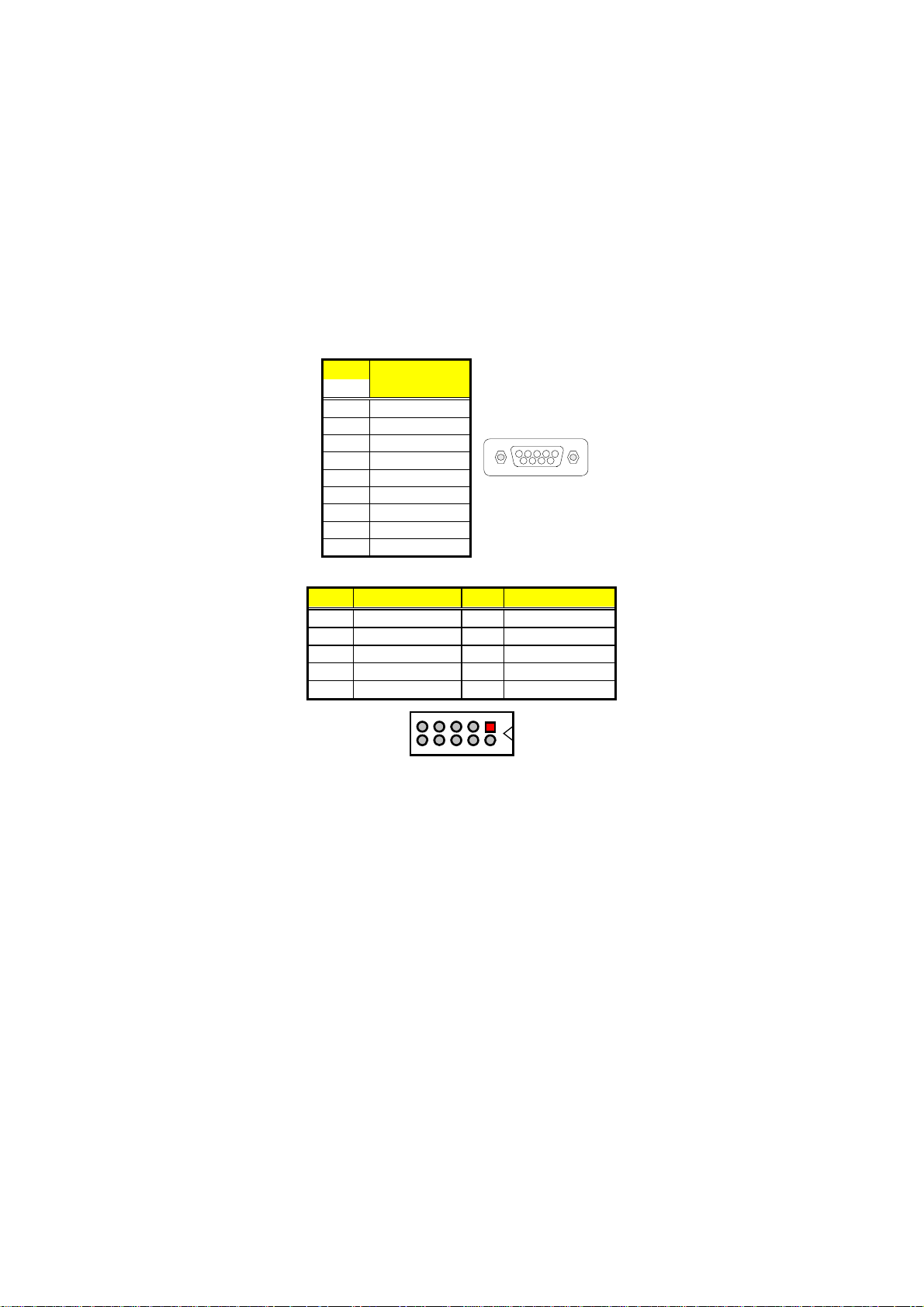

3.11 Serial Port Connectors

The HS-1746 offers NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports.

 CN2: COM 1 Connector (DB9)

PIN Descriptio

1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI

 CN9: COM 2 Connector (5x2 header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 5V

13579

246810

Page 22

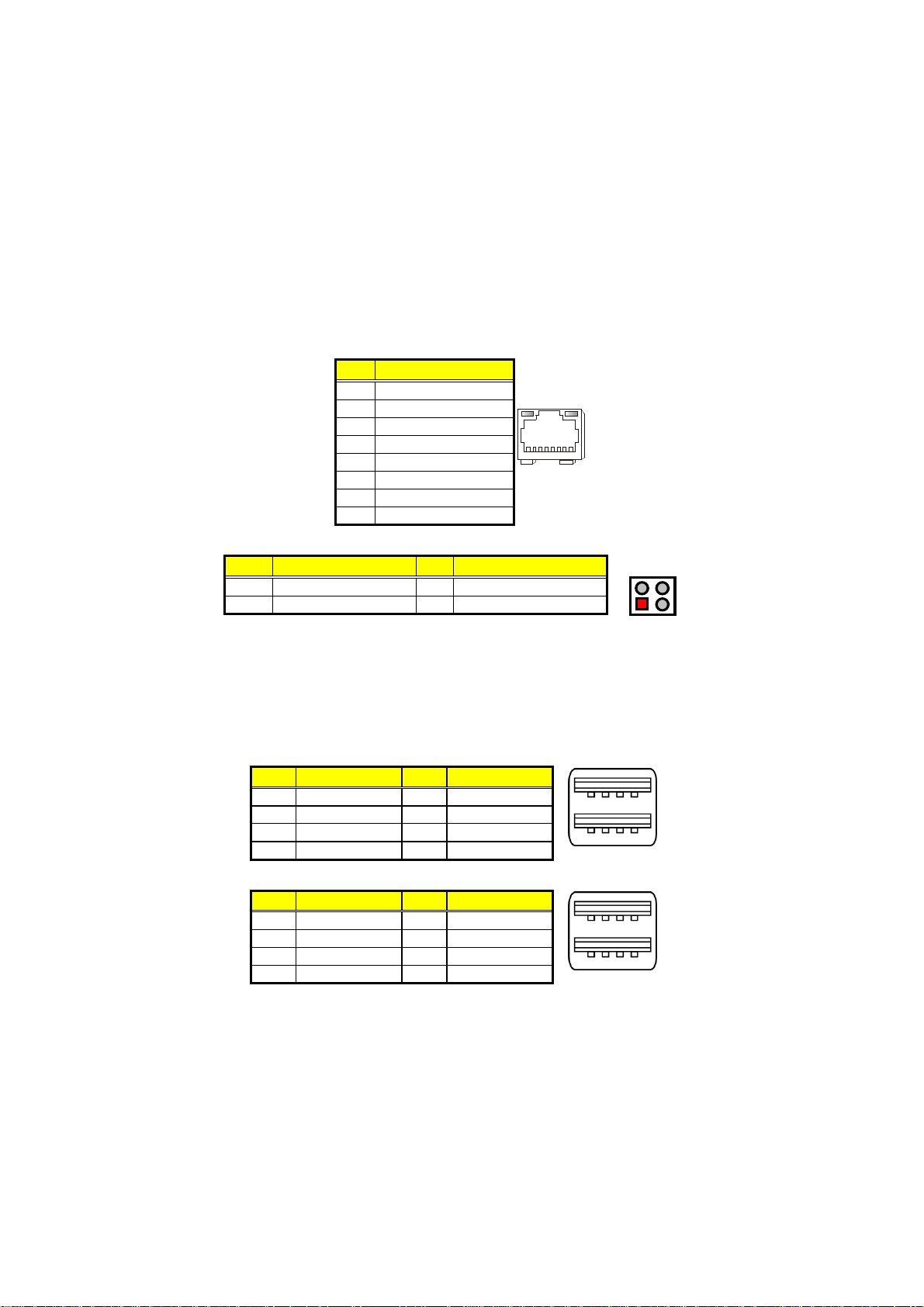

3.12 Ethernet Connector

The HS-1746 provides two 10/100/1000 Base-TX LAN interface connectors. Please refer to the following for its pin information.



CN6/CN7: RJ-45 Connector

PIN Description

1 Transmit Output (+) 2 T r ansmit Output (-) 3 Receive Input (+) 4 N/C 5 N/C 6 Receive Input (-) 7 N/C 8



JP2/JP1: LAN 1/LAN 2 LED Connector

PIN Description PIN

1 LINK_LED 2 VCC_3V 3

ACT_LED

N/C

Description

VCC_3V

3.13 USB Connector

The HS-1746 provides one 8-pin internal con nector at location CN11 and four 4-pin external connectors, at locations CN7/CN6, for four USB2.0 connections to the HS-1746.



CN7: External USB2.0 Connector

PIN Description PIN Description

1a VCC 1b VCC 2a USB0- 2b USB1- 3a USB0+ 3b USB1+ 4a GND 4b GND



CN6: External USB2.0 Connector

PIN Description PIN Description

1a VCC 1b VCC 2a USB2- 2b USB3- 3a USB2+ 3b USB3+ 4a GND 4b GND

Page 23



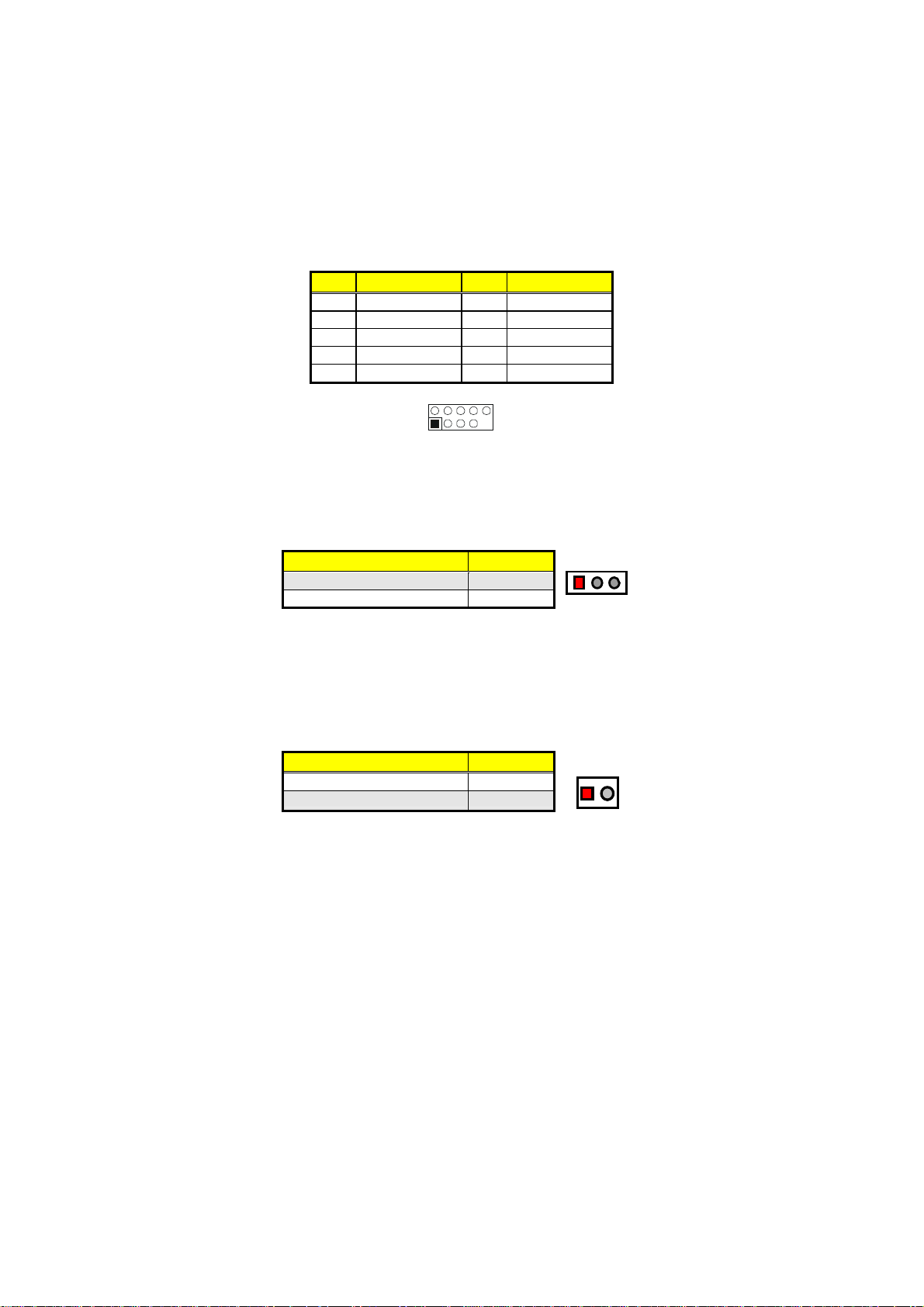

CN11: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 BD4- 4 BD5- 5 BD4+ 6 BD5+ 7 GND 8 GND 9 ---- 10 N/C

3.14 CMOS Data Clear

The HS-1746 has a Clear CMOS jumper on JP4.



JP4: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

Before you turn on the power of your system, please set JP4 to short 1-2 for normal operation.

3.15 Power and Fan Connectors

HS-1746 provides AT or normal mode, jumper setting at JP5.



JP5: AT/Normal Mode Select

Options Settings

AT Mode Short

Normal Mode (default)

Open

1 2

Page 24

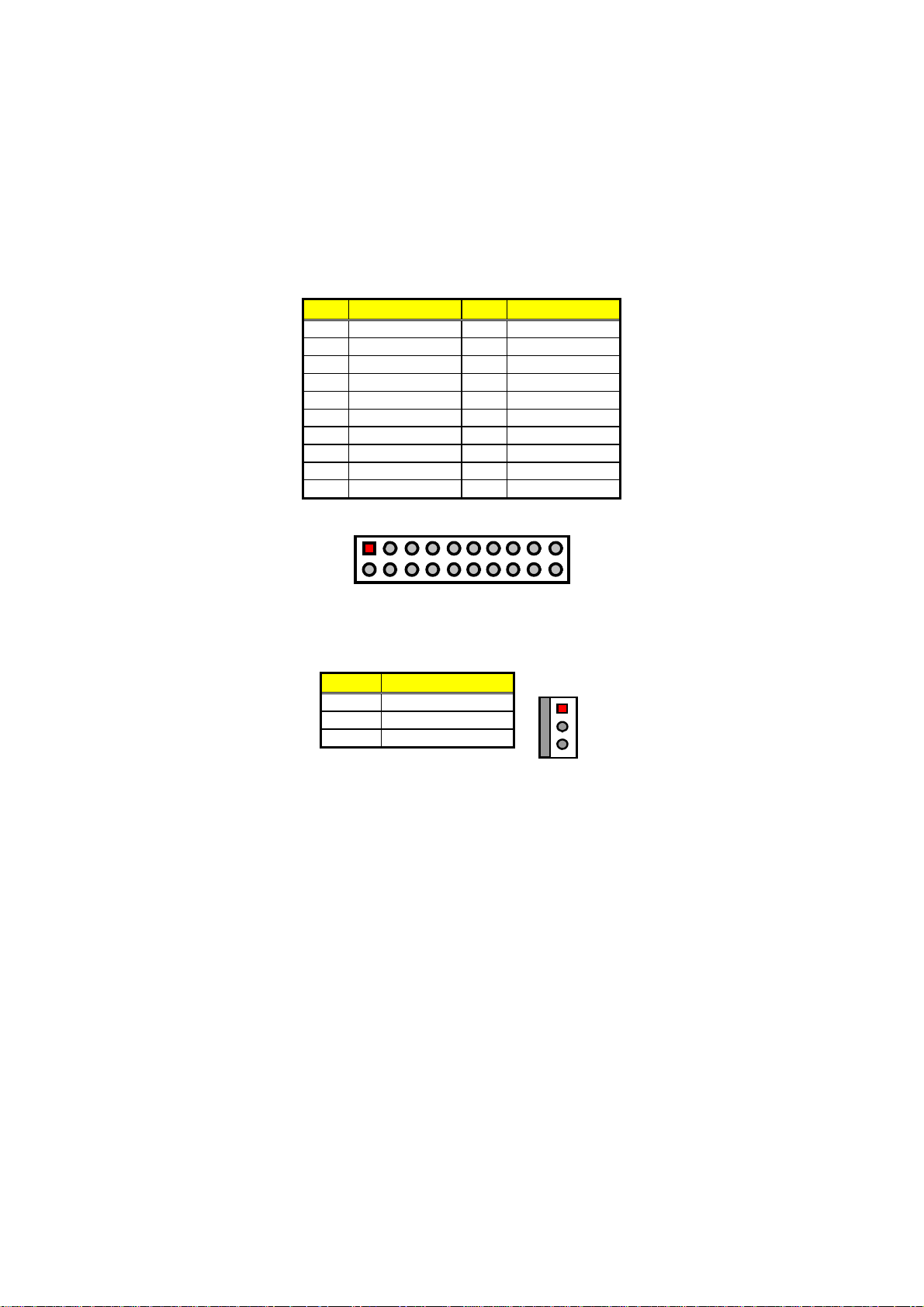

HS-1746 provides one 20-pin ATX power in connector at CN19.



CN19: 20-pin ATX Power In Connector

PIN Description PIN Description

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 GND 13 GND 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 N/C 18 -5V 9 +5Vsb 19 +5V

10 +12V 20 +5V

+3.3V

GND

PWORK

+5Vsb

+5V

111

-12V

GND

+3.3V

PS_ON

GND

+12V

1020

-5V

+5V

CN13/CN14 onboard HS-1746 is 3-pin fan power connector.



CN13/CN14: Fan Power Connector

PIN Description

1 GND 2 VCC 3 FAN In 1/FAN In 2

Page 25

3.16 Keyboard/Mouse Connector

The HS-1746 offers two methods for keyboard and mouse connections. The connections are done via CN5(Purple) for external PS/2 type keyboard and CN5(Green) for external PS/2 type mouse connection. And CN8 for 6-pin KB/MS header connector



CN5(Purple): PS/2 6-pin Mini DIN Keyboard Connector

PIN Description PIN Description

1 Keyboard Data 2 N/C 3 5 Keyboard Clock 6 N/C



CN5(Green): PS/2 6-pin Mini DIN Mouse Connector

GND

+5V

PIN Description PIN Description

1 Mouse Data 2 N/C 3 GND 4 +5V 5 Mouse Clock 6 N/C



CN8: 6-pin Keyboard/Mouse Connector

PIN Description PIN Description

1 MS Clock 2 MS Data 3 KB Clock 4 KB Data 5

GND

VCC

Page 26

3.17 System Front Panel Connectors

The HS-1746 has one system front panel at location CN21 that indicates the system front panel status.



CN21: System Front Panel Connector

PIN Description PIN Description

1 VCC 2 5V 3

N/C

5 BZ 6 GND 7 Speaker 8 KBLOCK 9 HDLED + 10 GND

HDLED -

13 Reset + 14 5VSB 15 Reset - 16 PWRBT -

N/C

115

Connector CN21 Orientation

SPEAKER

HDD LED

Reset Button

3 5 7 9 11 13 15

2 4 6

8 10 12 14 16

PWR LED

KEYLOCK

PWR ON

Page 27

3.18 Watchdog Timer

Once the Enable cycle is active, a Refresh cycle is reques ted before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal will re-start when such error happens.

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH

MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;------------- ------------------------------------------------------------------ MOV DX, 2EH MOV AL, AAH OUT DX, AL

User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H = 2sec to FFH = 255sec.

Page 28

3.19 Audio Connectors

The HS-1746 has an onboard AC97 3D audio interfac e. The following tables list the pin assignments of the MIC In/Line Out connectors.



CN15: Line Out Connector

PIN Description

1 LOUT_L 2 GND 3 GND 4



CN18: CD In Connector

LOUT_R

PIN Description

1 CD_IN_L 2 GND 3 GND 4 CD_IN_R

3.20 IrDA Connector

CN4 is a 5-pin internal IR communication connec tor for connection of an IrDA device.



CN4: IrDA Connector

PIN Description

1 +5V 2 FIRTX 3 IRRX 4 GND 5 IRTX

12345

Page 29

Chapter 4

Award BIOS Setup

The HS-1746 uses Award BIOS for the system configuration. The Award BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The Award BIOS is immediately activated when you first pow er o n the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switchin g th e system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 30

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and < PageDown> keys to c hange entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate the Setup program using the keyboard.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

Page Setup Menu

(Shift)F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

Option Page Setup Menu

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 k ey again.

Page 31

4.3 Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choic es. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Feature

` Advanced BIOS Feature ` Advanced Chipset Feature ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving



：Select Item

NOTE:

A brief description of the highli ghted choice appears at the bottom of the screen.

Page 32

4.4 Standard CMOS Features

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528 MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

Phoenix – AwardBIOS CMOS Setup Utility

Date (mm:dd:yy) Mon, Aug 9 2004 Item Help Time (hh:mm:ss) 10 : 32 : 57 Menu Level X

IDE Primary Master 13579 MB Change the day, month,

IDE Primary Slave None year and century

IDE Secondary Master None

X X IDE Secondary Slave None

Drive A 1.44M, 3.5in. Drive B None

Video EGA/VGA Halt On All, But Keyboard

Base Memory 640K Extended Memory 252928K Total Memory 253952K



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

Item Help

IDE HDD Auto-Detection Press Enter Menu Level X

IDE Primary Master Auto Change the day, month, Access Mode Auto year and century

Capacity 13579 MB

Cylinder 26310 Head 16 Precomp 0 Landing Zone 26309 Sector 63



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

mode. Please use the IDE Setup Utility in

LBA

Standard CMOS Features

IDE Primary Master

Page 33

4.5 Advanced BIOS Features

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced CMOS Features

CPU Feature

Virus Warning Disabled Menu Level X CPU L1 & Cache Enabled Quick Power On Self Test Enabled First Boot Device CDROM Second Boot Device HDD-0 Third Boot Device LS120 Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Gate A20 Option Fast Typematic Rate Setting Disabled

X Typematic Rate (Chars/Sec) 6 X Typematic Delay (Msec) 250

Security Option Setup APIC Mode Enabled MPS Version Control For OS 1.4 OS Select For DRAM > 64MB Non-OS2

Report No FDD For WIN95 No



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Press Enter Item Help

Phoenix – AwardBIOS CMOS Setup Utility

CPU Feature

Thermal Management Thermal Monitor 1 Item Help Menu Level X



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 34

4.6 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed ch ipset. This chipset m anages bus speeds an d the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best oper ating conditions for your system. You might consider making any changes only if you discover that the data has been lost while using your system.

Phoenix – AwardBIOS CMOS Setup Utility

Advanced Chipset Features

DRAM Timing Selectable By SPD Item Help

X CAS Latency Time 2.5 Menu Level X X Active to Precharge Delay 7 X DRAM RAS# to CAS# Delay 3 X DRAM RAS# Precharge 3 DRAM Data Integrity Mode Non-ECC

MGM Core Frequency Auto Max 266MHz System BIOS Cacheable Enabled Video BIOS Cacheable Disabled Memory Hole At 15M-16M Disabled Delayed Transaction Enabled Delay Prior to Thermal 16Min. AGP Aperture Size (MB) 64 ** ON-chip VGA Setting ** On-chip VGA Enabled On-chip Frame Buffer size 32MB Boot Display CRT Panel Number Auto



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 35

4.7 Integrated Peripherals

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect th e transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. This is much simpler and more efficient (also faster).

Phoenix – AwardBIOS CMOS Setup Utility

OnChip IDE Device

X XOnboard Device Press Enter Menu Level X

SuperIO Device Press Enter

Onboard Lan Boot ROM Disabled



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

On-Chip Primary PCI IDE Enabled Item Help IDE Primary Master PIO Auto Menu Level X IDE Primary Slave PIO Auto IDE Primary Master UDMA Auto IDE Primary Slave UDMA Auto On-Chip Secondary PCI IDE Enabled IDE Secondary Master PIO Auto IDE Secondary Slave PIO Auto IDE Secondary Master UDMA Auto IDE Secondary Slave UDMA Auto

IDE HDD Block Mode Enabled



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Integrated Peripherals

Press Enter Item Help

OnChip IDE Device

Page 36

Phoenix – AwardBIOS CMOS Setup Utility

USB Controller Enabled Item Help USB 2.0 Controller Enabled Menu Level X USB Keyboard Support Disabled USB Mouse Support Disabled AC97 Audio Auto Onboard LAN1 Device Enabled Onboard LAN2 Device Disabled Init Display First Onboard/AGP.



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

POWER ON Function BUTTON ONLY Item Help

X KB POWER ON Password Enter Menu Level X X Hot Key Power ON Ctrl-F1

Onboard FDC Controller Enabled

Onboard Serial Port 1 3F8/IRQ4

Onboard Serial Port 2 2F8/IRQ3

UART Mode Select Normal

RxD, TxD Active Hi, Lo

IR Transmission Delay Enabled

UR2 Duplex Mode Half

Use IR Pins IR-Rx2Tx2

Onboard Parallel Port 378/IRQ7

Parallel Port Mode SPP

X EPP Mode Select EPP1.7 X ECP Mode Use DMA 3

PWRON After PWR-Fail Off



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Onboard Device

SuperI/O Device

Page 37

4.8 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

Phoenix – AwardBIOS CMOS Setup Utility

Power Management Setup

Video Off Method DPMS Item Help

Video Off In Suspend Yes Menu Level X

Suspend Type Stop Grant

Suspend Mode Disabled

HDD Power Down Disabled

Soft-off by PWR-BTTN Instant-Off

CPU THRM-Throttling 50.0%

Wake-Up by PCI card Disabled

Resume by Alarm Disabled

X Date (of Month) Alarm 0 X Time (hh : mm : ss) Alarm 0 : 0 : 0

** Reload Global Timer Events **

Primary IDE 0 Disabled

Primary IDE 1 Disabled

Secondary IDE 0 Disabled

Secondary IDE 1 Disabled

FDD, COM, LPT Port Disabled

PCI PIRQ[A-D]# Disabled



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 38

4.9 PnP/PCI Configurations

This section describes the configuration of the PCI bus system. PCI, or

eripheral Components Interconnect, is a system that allows I/O

devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix – AwardBIOS CMOS Setup Utility

Reset Configuration Data Disabled Item Help

Menu Level X

Resources Controlled By Auto(ESCD)

X IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Phoenix – AwardBIOS CMOS Setup Utility

IRQ3 assigned to PCI Device Item Help

IRQ4 assigned to PCI Device Menu Level X

IRQ5 assigned to PCI Device

IRQ7 assigned to PCI Device

IRQ8 assigned to PCI Device

IRQ9 assigned to PCI Device

IRQ10 assigned to PCI Device

IRQ11 assigned to PCI Device

IRQ12 assigned to PCI Device

IRQ14 assigned to PCI Device

IRQ15 assigned to PCI Device



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PnP/PCI Configurations

IRQ Resources

Page 39

4.10 PC Health Status

Phoenix – AwardBIOS CMOS Setup Utility

CPU Warning Temperature Disabled Item Help

SYS Temperature

CPU Temperature

CPU Fan Speed 5010RPM

SYS Fan Speed 5213RPM

VCC_2V5 2.48V

VCORE 1.29V

3.3V 3.28V

+5V 4.97V

+12V 12.03V

-12V -11.54V

-5V -5.20V

VBAT (V) 3.02V

5VSB (V) 4.92V

Shutdown Temperature Disabled



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PC Health Status

34°C/93°F 40°C/104°F

Menu Level X

4.11 Frequency/Voltage Control

Phoenix – AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Auto Detect PCI Clk Enabled Item Help

Spread Specturm Disabled Menu Level X



: Select Item +/-/PU/PD: Value F10: Save ESC: Quit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 40

4.12 Load Fail-Safe Defaults

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values perm anently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default valu es for the most stable, minimal-performance system operations.

Phoenix – AwardBIOS CMOS Setup Utility

` Standard CMOS Features ` Frequency/Voltage Control ` Advanced BIOS Features Load Fail-Safe Defaults ` Advanced Chipset Features Load Optimized Defaults ` Integrated Peripherals Set Supervisor Password ` Power Management Load Fail-Safe Defaults (Y/N)? N word ` PnP/PCI Configurations Save & Exit Setup

PC Health Status Exit Without Saving



：

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Select Item

Page 41

4.13 Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults ` Integrated Peripherals Set Supervisor Password ` Power Manageme Load Optimized Defaults (Y/N)? N word ` PnP/PCI Configurations Save & Exit Setup ` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control



：Select Item

4.14 Set Supervisor/User Password

Phoenix – AwardBIOS CMOS Setup Utility

Power Manageme

PnP/PCI Configurations Save & Exit Setup

` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Enter Password: word

：

Select Item

Time, Date, Hard Disk Type…

Page 42

You can set either supervisor or user passw ord, or both of th em. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do no t have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist yo u in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message is confirmed and the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security o ption (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Page 43

4.15 Save & Exit Setup

Press <Enter> on this item for confirmation: Pressing “Y” stores the selections made in the menus in CMOS – a

special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Phoenix – AwardBIOS CMOS Setup Utility

` Standard CMOS Features ` Frequency/Voltage Control ` Advanced BIOS Features Load Fail-Safe Defaults ` Advanced Chipset Features Load Optimized Defaults ` Integrated Peripherals Set Supervisor Password ` Power Manageme SAVE to CMOS and EXIT (Y/N)? N word ` PnP/PCI Configurations Save & Exit Setup

PC Health Status Exit Without Saving



：

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Select Item

Page 44

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing any change in CMOS. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

Phoenix – AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features Load Fail-Safe Defaults

` Advanced Chipset Features Load Optimized Defaults ` Integrated Peripherals Set Supervisor Password ` Power Manageme Quit without Saving (Y/N)? N word ` PnP/PCI Configurations Save & Exit Setup ` PC Health Status Exit Without Saving

Esc：Quit F9：Menu in BIOS F10：Save & Exit Setup

Time, Date, Hard Disk Type…

Frequency/Voltage Control



：Select Item
