Chapter 1

General Description

The HS-1743 is an Intel® 945GME GMCH chipset-based board designed. The HS-1743 is an ideal all-in-one mini ITX board. Additional features include an enhanced I/O with CF, DVI-I/CRT/LVDS, dual GB LAN, audio, SATA, COM, and USB2.0 interfaces.

Designed with the Intel® 945GME GMCH, the board supports Socket M for Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M 400 series processor.

The Intel® ICH7-M serial ATA controller with two ports supporting transfer rates up to 150MB/sec.

1

Onboard Intel® 945GME GMCH for CRT display with DVMT or option CHRONTEL 7307 for DVI-I display supporting up to 2048 x 1536. It also supports 18-bit single/dual channel LVDS interface.

System memory is also sufficient with the one SO-DDR2 socket that can support up to 2GB.

Additional onboard connectors include eight USB2.0 ports providing faster data transmission. And two external RJ-45 connectors for 10/100/1000 Based Ethernet uses.

To secure the reliability in the unmanned or standalone system, the function of WDT (Watchdog Timer) in HS-1743 can be combined with the software which does not need arithmetical functions of a real-time clock chip. The WDT function can automatically reboot the system once programs crash in the system.

1.1 Major Features

The HS-1743 comes with the following features:

¾ Socket M for Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M

400 series processor, supports 667/533MHz FSB

¾ 1 x SO-DIMM up to 2GB DDR2 SDRAM ¾ Intel® 945GME/ICH7-M system chipset ¾ Intel® 945GME integrated VGA for DVI-I, CRT & LVDS ¾ 2 x Intel® 10/100/1000 Mbps ethernet ¾ AC’97 audio codec ¾ Provides 2W stereo power amplifier ¾ Supports CF, 1 x PCIe x1, 1 x mini PCI, 1 x PCI, 2 x SATA, 8 x COM,

8 x USB2.0

¾ Supports 18-bit LVDS, 8-bit GPIO, H/W Monitor function

1.2 Specifications

z System

 CPU:

Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M 400 series processor

 Front Side Bus:

667/533MHz FSB

 BIOS:

AMI PnP Flash BIOS

2



System Chipset:

Intel® 945GME/ICH7-M

 I/O Chipset:

Winbond W83627EHG

 System Memory:

1 x 200-pin SO-DIMM socket DDR2 667MHz up to 2GB

 Storage:

1 x Type II CF socket

 Watchdog Timer:

Software programmable time-out intervals from 1~255 sec. or 1~255 min.

 H/W Status Monitor:

Monitoring temperatures, voltages, and cooling fan status

 Expansion Interface:

1 x Type III mini PCI socket 1 x PCIe x1 socket (solder side) 1 x Non-standard PCI socket (solder side) for BOSER Riser Card

 Power Function:

Supports AT/ATX power mode

 Operating Temperature:

0~60 degrees C

 Operating Humidity

0~95%, non-condensing

 Size(L x W):

170 x 170 mm

z I/O Interface



MIO: 7 x RS-232 (2 x external, 5 x internal, COM 3/COM 4 support +5V or +12V/1A power output) 1 x RS-232/422/485 8 x USB2.0 (4 x internal, 4 x external) 1 x Parallel 2 x SATA 1 x PS/2 Mini DIN for KB 1 x PS/2 Mini DIN for MS

 GPIO:

8-bit general purpose input/output port

z Display

 Chipset:

Intel® 945GME integrated Intel® GMA950

 Display Memory:

224MB video memory with DVMT3.0

 LVDS:

18-bit single/dual-channel

3



Resolution:

2048 x 1536

 DVI Chipset:

Chrontel 7307

z Audio



Chipset:

RealTek ALC202A

 Audio Interface (w/audio jack):

MIC In, Line Out

 Amplifier:

Provides 2W stereo power amplifier

z Ethernet



Chipset:

Dual RTL8111C 10/100/1000 Mbps LAN

 Ethernet Interface:

2 x RS-45

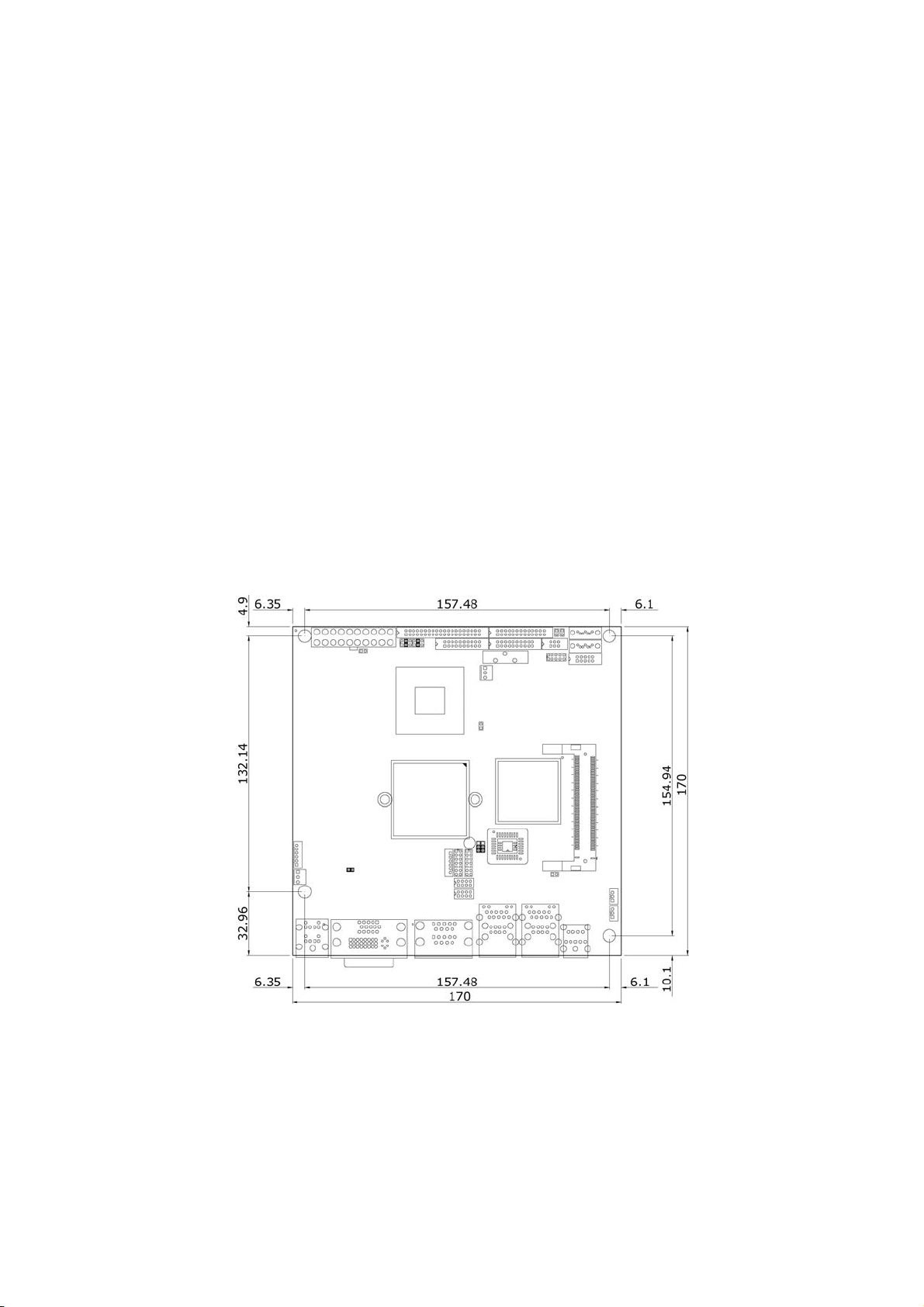

1.3 Board Dimensions

4

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-1743 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-1743 delivery package contains the following items:

 HS-1743 Board x 1  Utility CD Disk x 1, including User’s Manual  Cables (as following table)  Jumper Bag x 1

5

Cables Package

NO. Description QTY.

1 Print DB25-26P(2.0) flat cable 27cm 1 2 SATA cable 50cm (w/Lock) 1 3 COM DB9*4-40P(2.0) flat cable 22cm 1 4 SATA power cable 15cm 1

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Option Accessories

NO. Description

1 SATA power cable 2 SATA cable 50cm (w/Lock) 3 2RS232(2.0) flat cable 4 USB 1-to 2 cable 20cm 5 H=23mm CPU Cooler

6

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-1743. This chapter also contains information related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP8 open)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the driver CD in good condition for future reference and use.

7

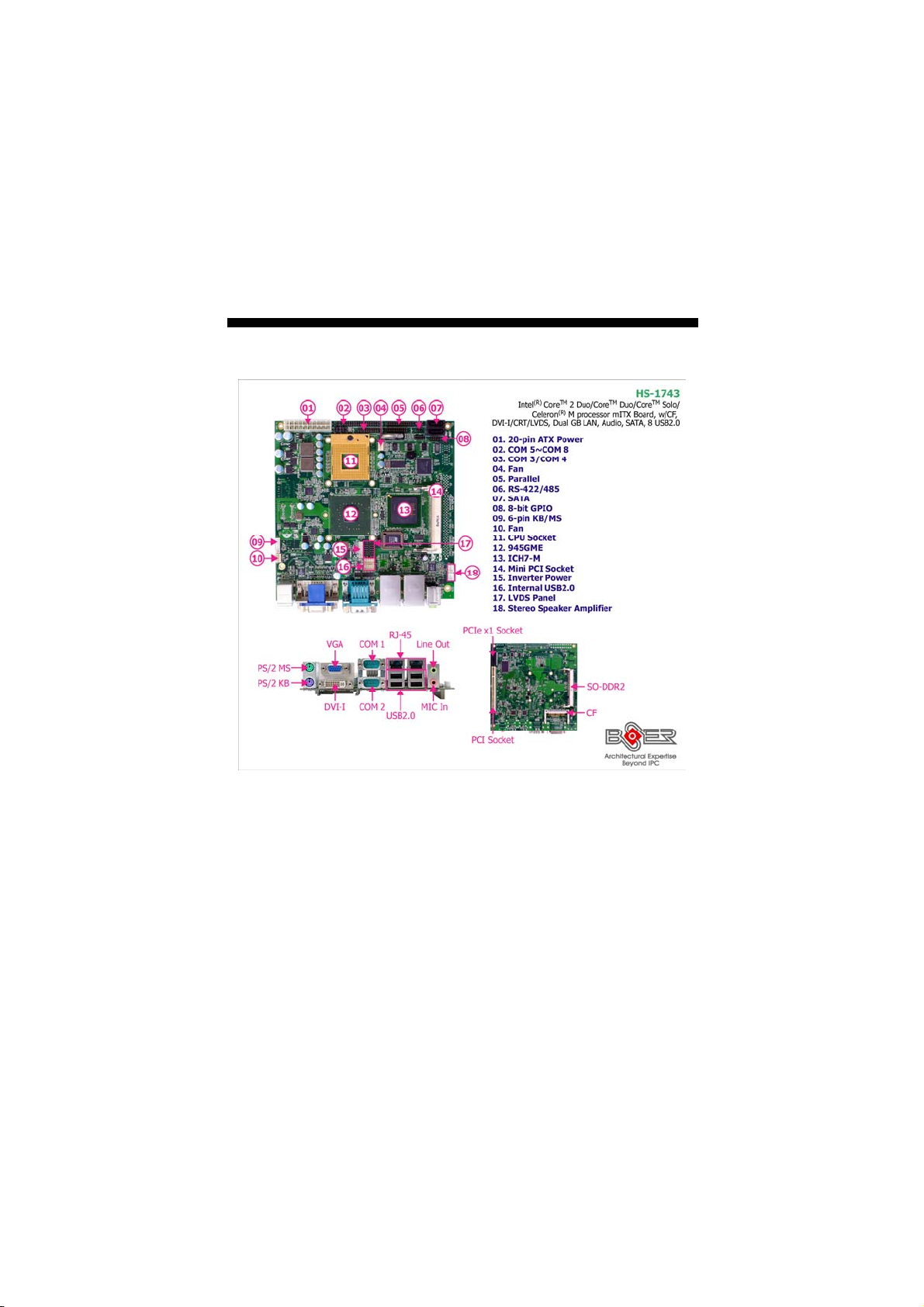

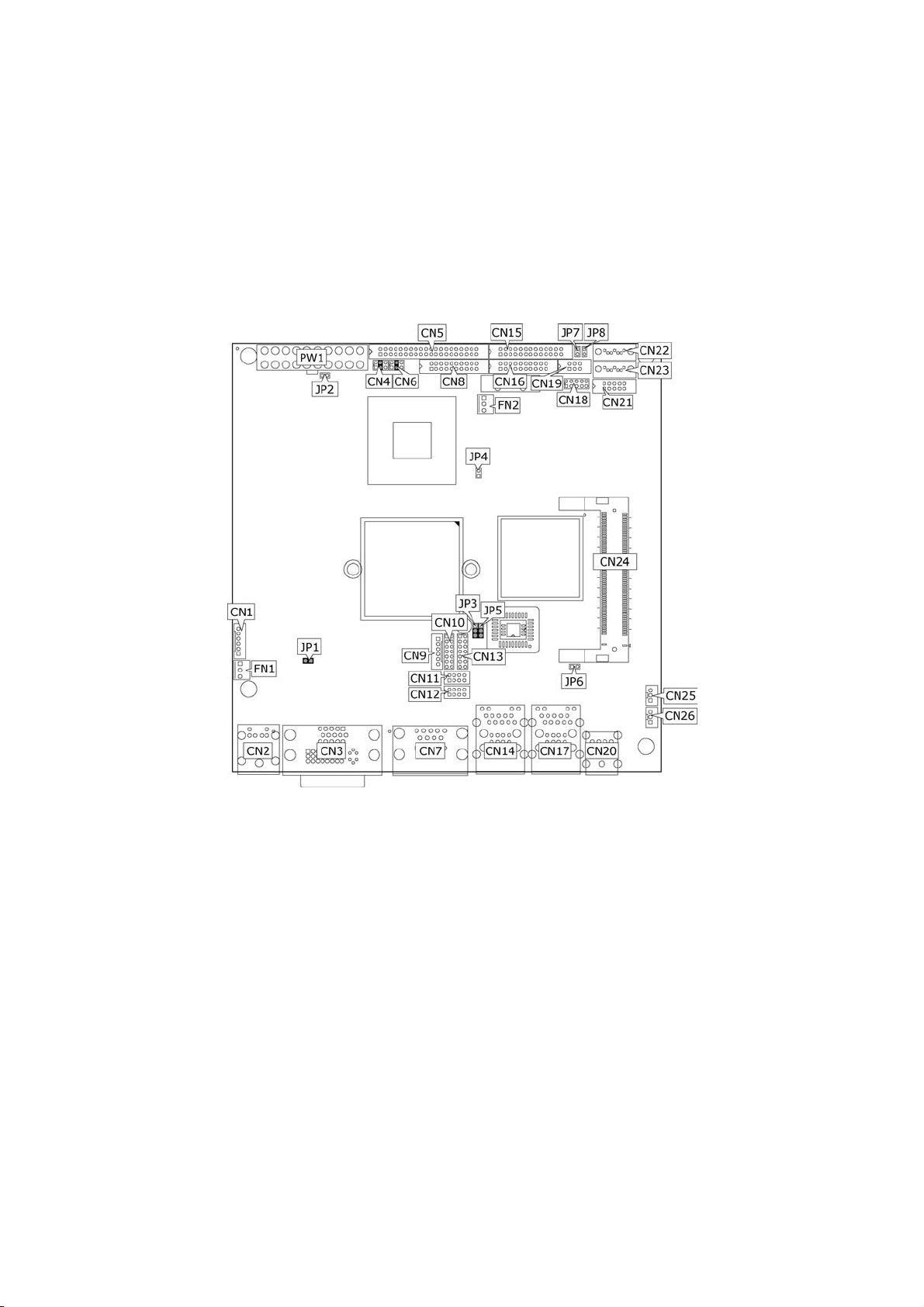

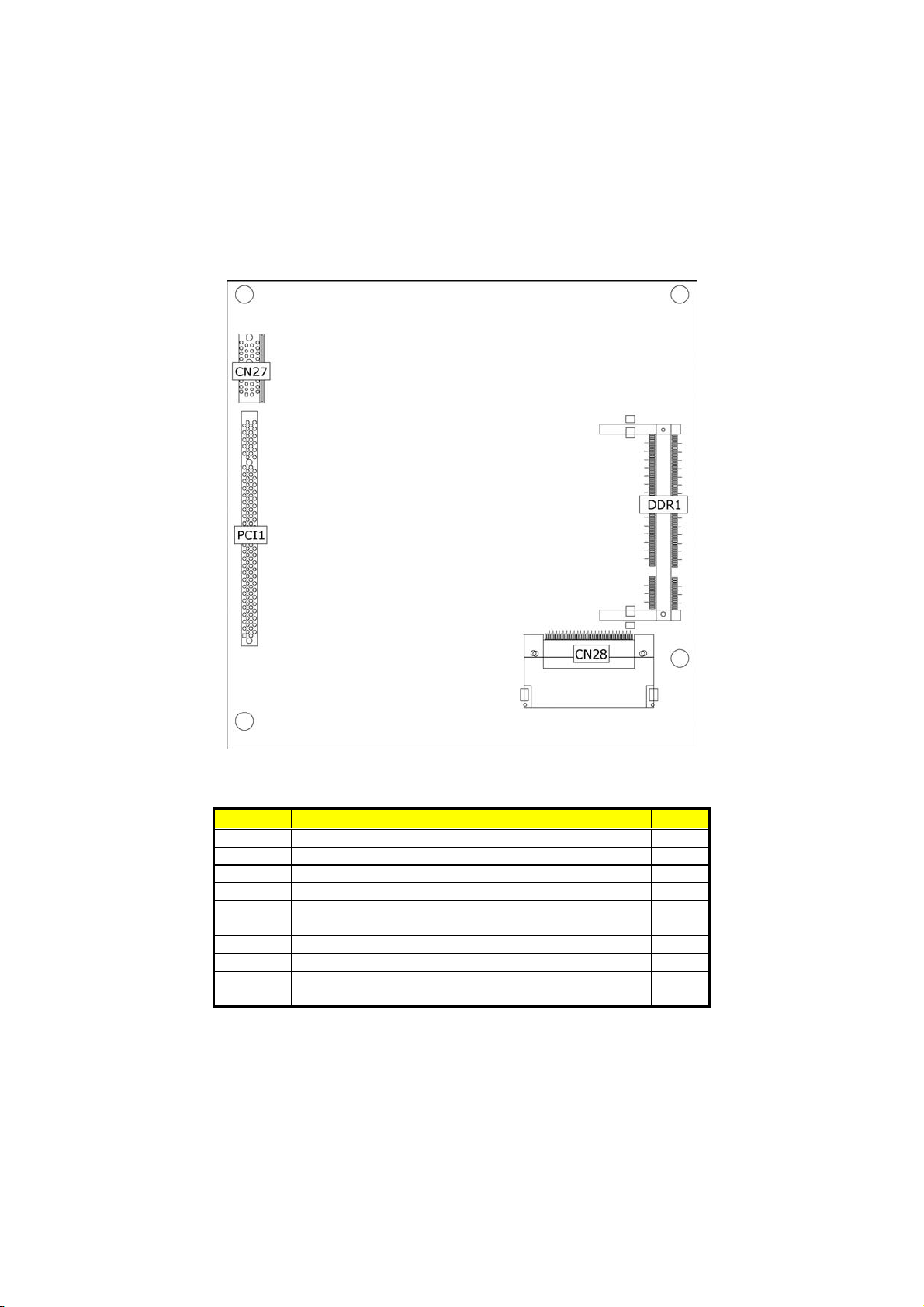

3.2 Board Layout

Top Side

8

Solder Side

3.3 Jumper List

Jumper Default Setting Setting Page

JP1 CF Use Master/Slave Select: Master Short 1-2 23

JP2/JP7 AT/ATX Power Mode Select: ATX Open 18

JP3 Panel Voltage Select: +3.3V Short 2-3 11 JP4 FSB Frequency Select: 667MHz Open 10 JP5 Inverter Voltage Select: +5V Short 2-3 11 JP6 LAN1 Enabled/Disabled Select: Enabled Open 16 JP8 Clear CMOS: Normal Operation Open 17

CN4/CN6 COM 3/COM 4 Power Pin Select: Normal Short 3-4 14

CN18

COM 2 Use RS-232 or RS-422/485 Select: RS-232

Open 14

9

3.4 Connector List

Connector Definition Page

CN1 Internal 6-pin KB/MS Connector 19 CN2 PS/2 6-pin Mini DIN KB & MS Connector 19 CN3 15-pin CRT/DVI-I Connector 11 CN5 COM 5 ~ COM 8 Connector (2x20 Header) 14 CN7 COM 1/COM 2 Connector (DB9) 14 CN8 COM 3/COM 4 Connector (2x10 Header) 14

CN9 Inverter Power Connector 11 CN10/CN13 LVDS Panel Connector 11 CN11/CN12 Internal USB2.0 Ports 17 CN14/CN17 RJ-45 + External USB2.0 Port 16/17

CN15 Parallel Port 13 CN16 System Front Panel Connector/LAN LED 20 CN19 RS-485 Connector (3x2 Header) 14 CN20 MIC In/Line Out Connector 22 CN21 8-bit GPIO 25

CN22/CN23 Serial ATA Connector 13

CN24 Mini PCI Socket 24

CN25/CN26 Stereo Speaker Amplifier 22

CN27 PCIe x1 Socket 24 CN28 CompactFlash Socket 23

DDR1 DDR2 Socket 10

PCI1 PCI Socket 24

FN1/FN2 Fan Power Connector 18

PW1 20-pin ATX Power Connector 18

3.5 Configuring the CPU

The HS-1743 provides with Socket M for Intel® Core™ 2 Duo/ Core™ Duo/Core™ Solo/Celeron® M 400 series processor.

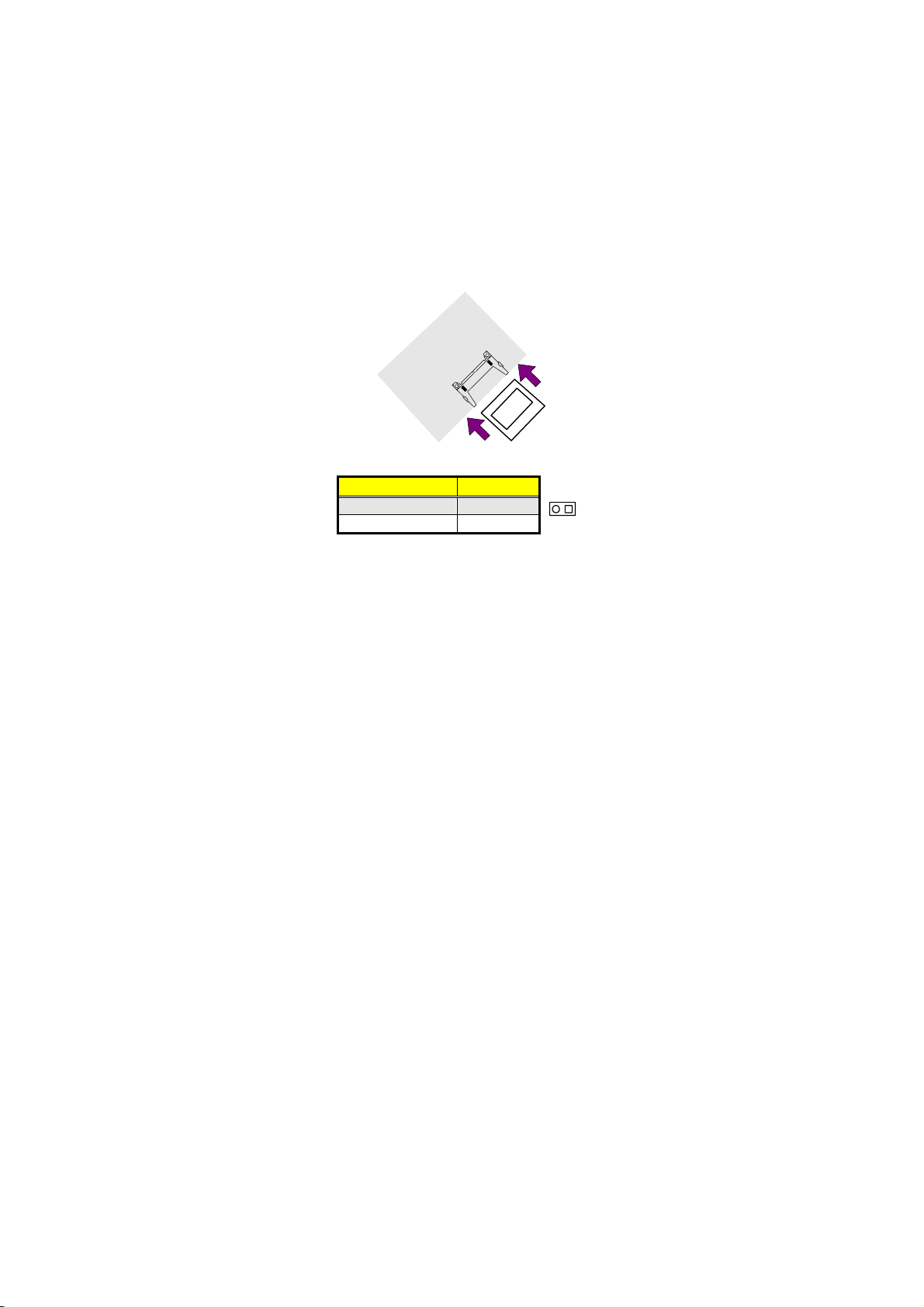

z JP4: FSB Frequency Select

Options Settings

533MHz FSB Short

667MHz FSB (default) Open

2 1

3.6 System Memory

The HS-1743 provides one SO-DDR2 socket at locations DDR1. The maximum capacity of the onboard memory is 2GB.

10

3.7 VGA Controller

The HS-1743 provides three types of connection for video output. CN3 offers a CRT/DVI-I connector and CN10/CN13 are the LVDS interface connectors onboard reserved for flat panel installation.

z CN3A: 15-pin CRT Connector

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 X 7 GND 8 GND

9 VCC 10 GND 11 N/C 12 SDA 13 HSYNC 14 VSYNC 15 SCL

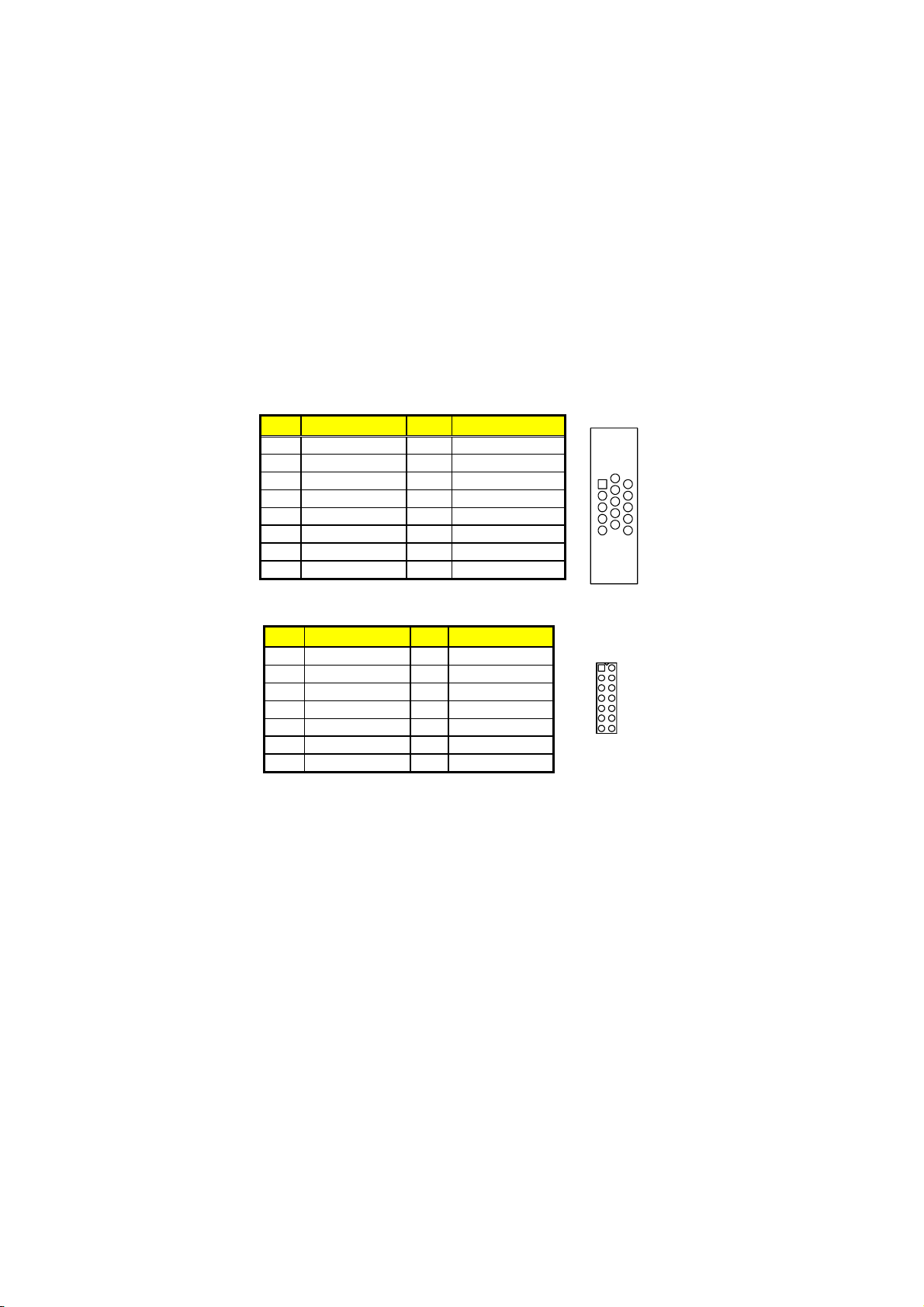

z CN10/CN13: LVDS Interface Connector

PIN Description PIN Description

1 V 3 GND 4 GND 5 Y0-/Z0- 6 Y0+/Z0+ 7 Y1-/Z1- 8 Y1+/Z1+

9 Y2-/Z2- 10 Y2+/Z2+ 11 CLK- 12 CLK+ 13 N/C 14 N/C

2 V

LCD

11

6

1

10

5

15

12

13 14

NOTE: LVDS cable should be produced very carefully. Y0- & Y0+ have to

be fabricated in twister pair (Y1- & Y1+, Y2- & Y2+ and so on) otherwise the signal won’t be stable. Please set the proper voltage of your panel using JP3 before proceeding on installing it.

NOTE: If use CN10 only, it just supports 18-bit single channel LVDS

panel; If want to use 18-bit dual channel LVDS panel, please use CN10 and CN13 combined.

11

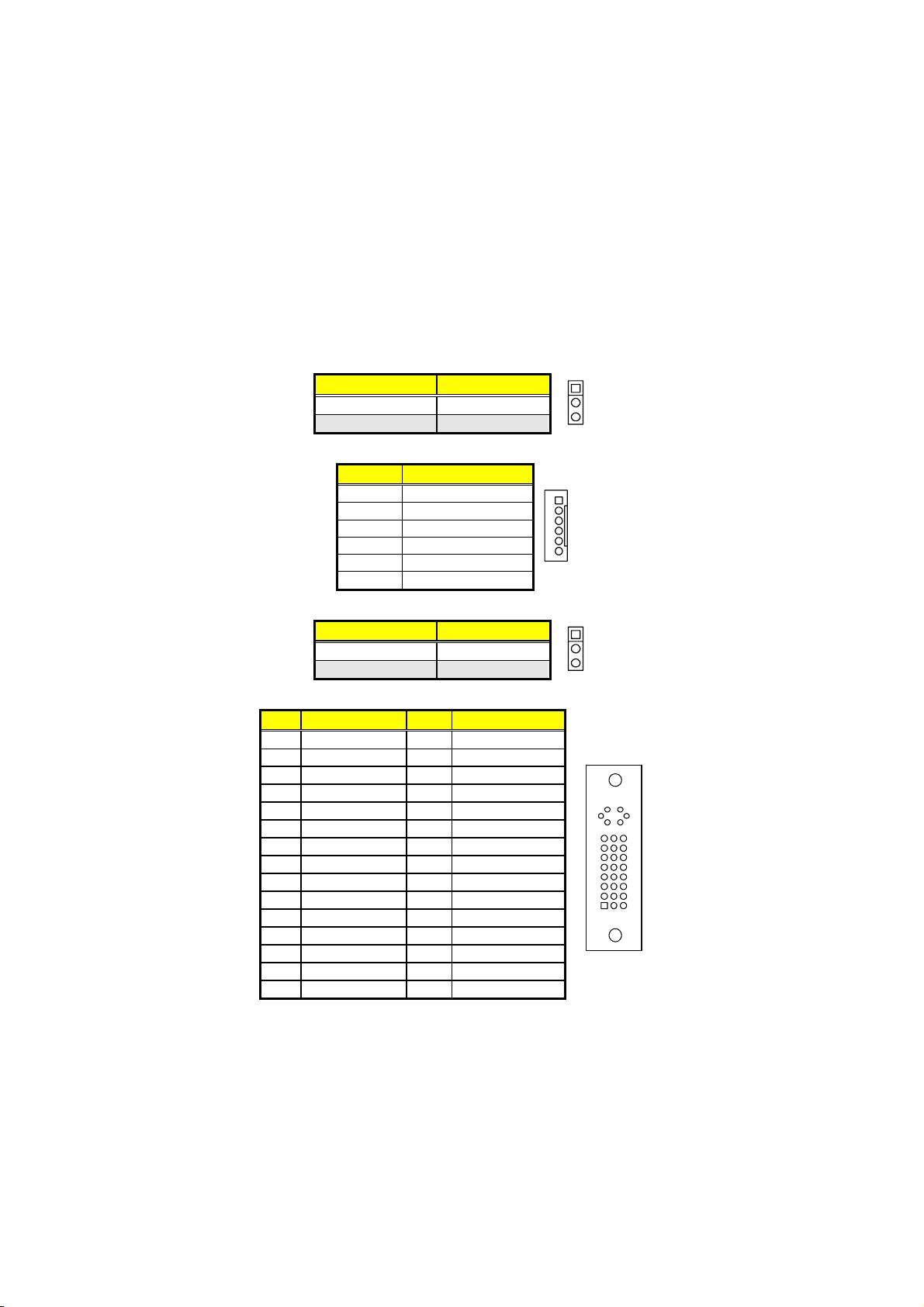

The HS-1743 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper JP3 offers two voltage settings for the user.

z JP3: Panel Voltage Select

Options Settings

+5V Short 1-2

+3.3V (default) Short 2-3

1

3

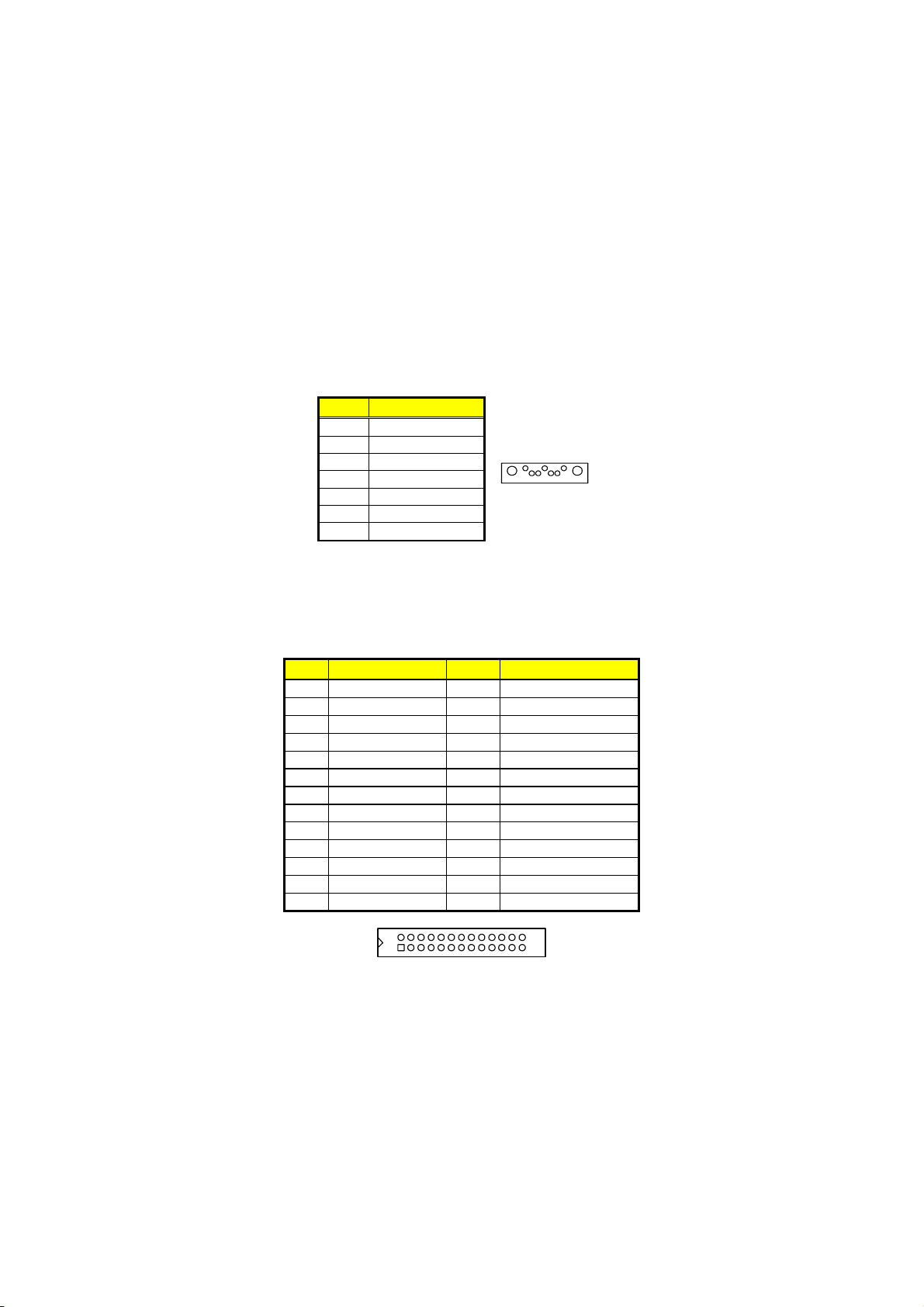

z CN9: Inverter Power Connector

PIN Description

1 +12V 2 +12V 3 +5V 4 BK_EN 5 LCD_EN 6 GND

1

6

z JP5: Inverter Voltage Select

Options Settings

+3.3V Short 1-2

+5V (default) Short 2-3

1

3

z CN3B: DVI-I Connector

PIN Description PIN Description

1 - DATA2 2 DATA2 3 GND 4 -DATA4 5 DATA4 6 DDCCLK 7 DDCDATA 8 VSYNC 9 -DATA1 10 DATA1

11 GND 12 -DATA3 13 DATA3 14 VCC5 15 GND 16 HPDET 17 -DATA0 18 DATA0 19 GND 20 -DATA5 21 DATA5 22 GND 23 CLK 24 -CLK 25 RED 26 GREEN 27 BLUE 28 HSYNC 29 GND 30 GND

12

3.8 Serial ATA Connector

You can connect the Serial ATA device that provides you high speeds transfer rates (150MB/sec.).

z CN22/CN23: Serial ATA Connector

PIN Description

1 GND 2 SATATXP 3 SATATXN 4 GND 5 SATARXN 6 SATARXP 7 GND

17

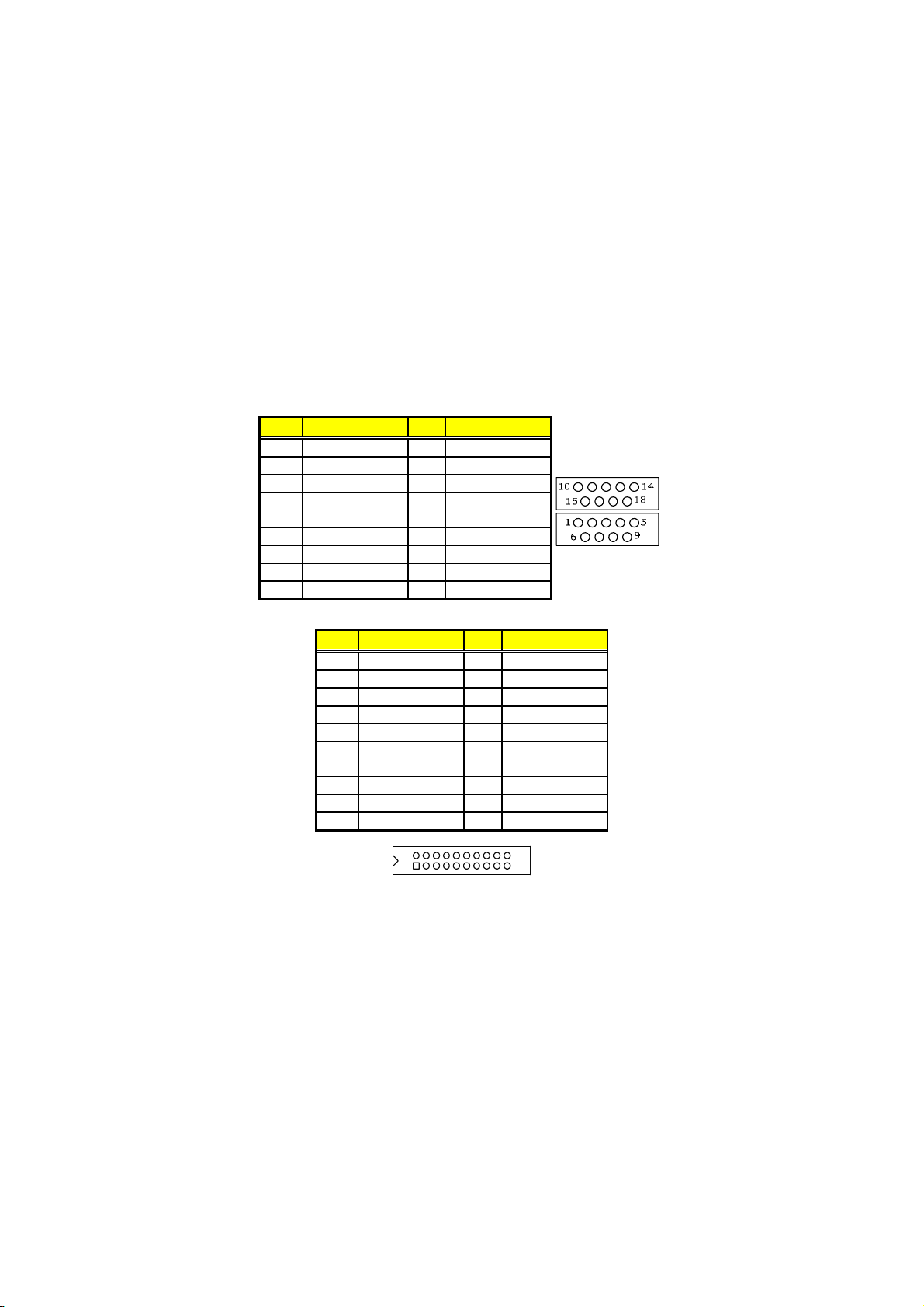

3.9 Parallel Connector

CN15 is a standard 26-pin flat cable connector designed to accommodate parallel port connection on the HS-1743.

z CN15: Parallel Port

PIN Description PIN Description

1 Strobe 14 Auto Form Feed 2 DATA 0 15 ERROR# 3 DATA 1 16 Initialize 4 DATA 2 17 Printer Select LN# 5 DATA 3 18 GND 6 DATA 4 19 GND 7 DATA 5 20 GND 8 DATA 6 21 GND

9 DATA 7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND 13 Printer Select 26 GND

2614

1

13

3.10 Serial Port Connectors

The HS-1743 offers 16C550 compatible UARTs with Send/ Receive 16-byte FIFO serial ports and six internal 10-pin headers for RS-232 and two RS-422/485 connectors.

z CN7: COM 1/COM 2 Connector (DB9)

PIN Description PIN Description

1 DCD2 10 DCD1 2 RXD2 11 RXD1 3 TXD2 12 TXD1 4 DTR2 13 DTR1 5 GND 14 GND 6 DSR2 15 DSR1 7 RTS2 16 RTS1 8 CTS2 17 CTS1 9 RI2 18 RI1

z CN8: COM 3/COM 4 Connector (2x10 Header)

PIN Description PIN Description

1 DCD3 2 DSR3 3 RXD3 4 RTS3 5 TXD3 6 CTS3 7 DTR3 8 RI3

9 GND 10 N/C 11 DCD4 12 DSR4 13 RXD4 14 RTS4 15 TXD4 16 CTS4 17 DTR4 18 RI4 19 GND 20 N/C

2

20

1

14

19

z CN5: COM 5~COM 8 Connector (2x20 Header)

PIN Description PIN Description

1 DCD 2 DSR

3 RXD 4 RTS

5 TXD 6 CTS

7 DTR 8 RI

9 GND 10 N/C 11 DCD 12 DSR 13 RXD 14 RTS 15 TXD 16 CTS 17 DTR 18 RI 19 GND 20 N/C 21 DCD 22 DSR 23 RXD 24 RTS 25 TXD 26 CTS 27 DTR 28 RI 29 GND 30 N/C 31 DCD 32 DSR 33 RXD 34 RTS 35 TXD 36 CTS 37 DTR 38 RI 39 GND 40 N/C

2

40

1

39

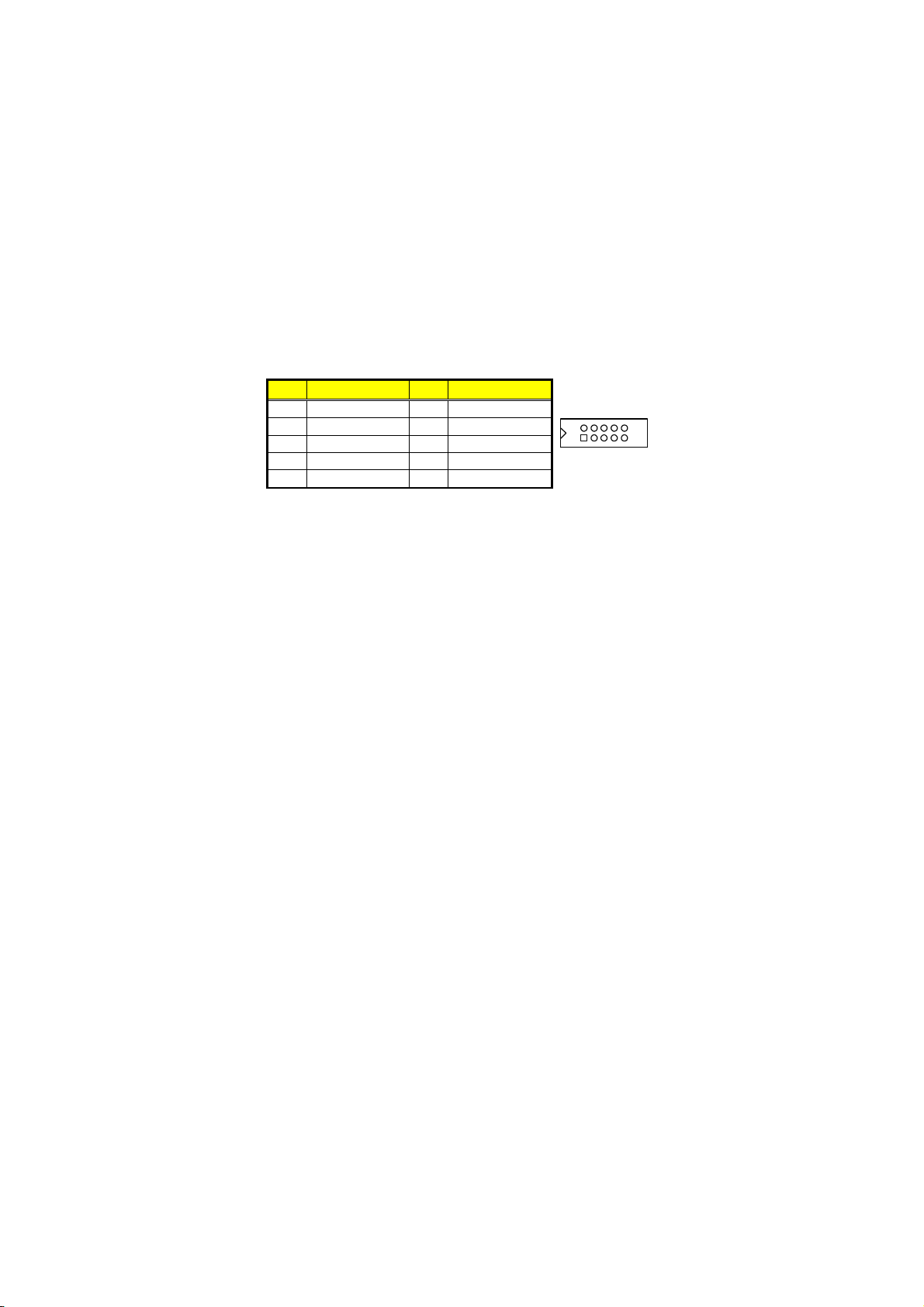

z CN19: RS-422/485 Connector (3x2 Header)

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 VCC

z CN4/CN6: COM 3/COM 4 Power Pin Select

Options

RI (default) Short 3-4 Short 3-4

+5V Short 5-6 Short 5-6

+12V Short 1-2 Short 1-2

Settings

CN4 CN6

6

125

6

15

62

15

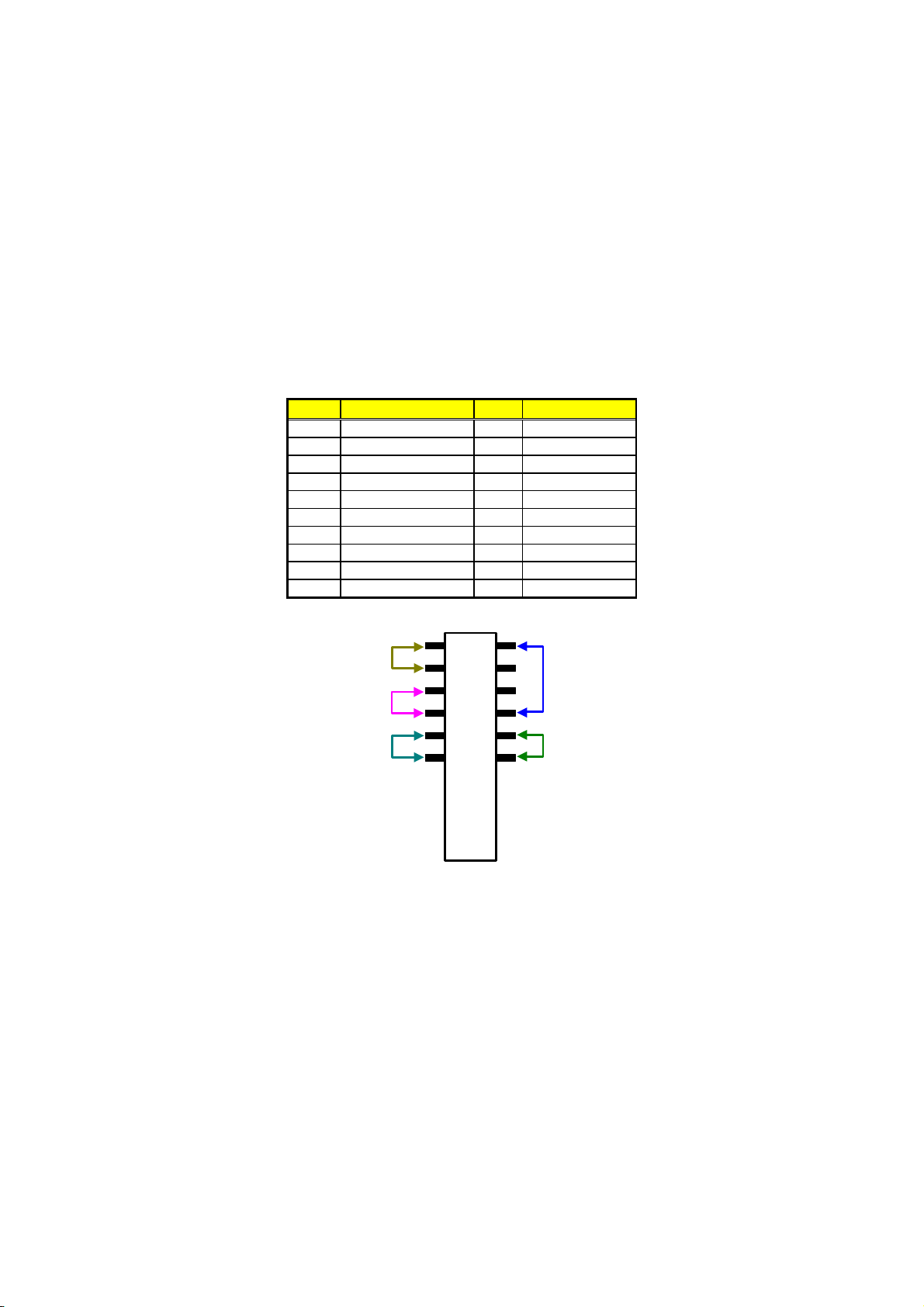

z CN18: COM 2 use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default) Open

RS-485 Transmit Only Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

10 2

19

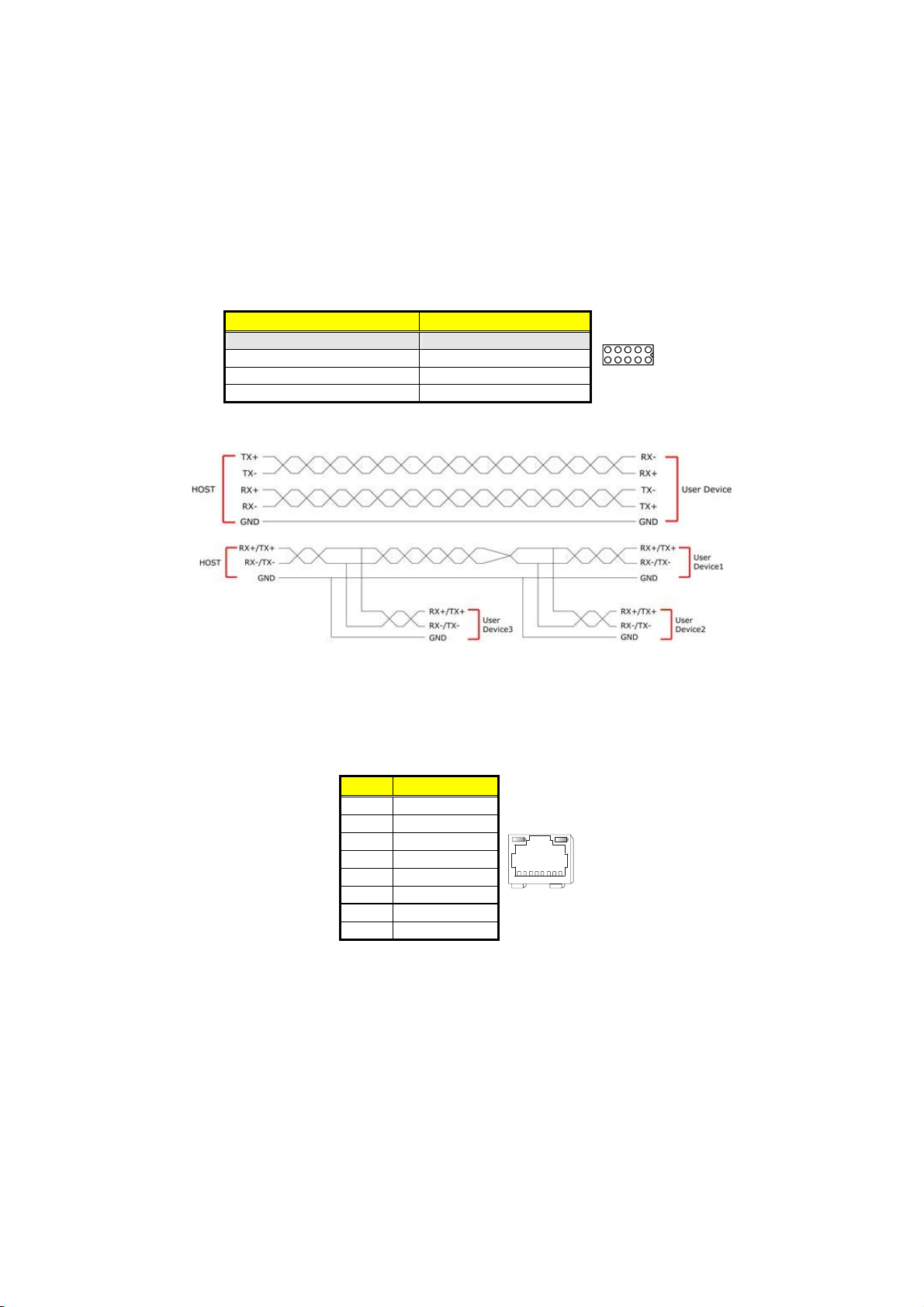

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

3.11 Ethernet Connector

The HS-1743 provides two external RJ-45 interface connectors. Please refer to the following for its pin information.

z CN14A/CN17A: RJ-45 Connector

PIN Description

1 TX+ 2 TX- 3 RX+ 4 R/C GND 5 R/C GND 6 RX- 7 R/C GND 8 R/C GND

1

8

16

z JP6: LAN 1 Enabled/Disabled Select

Options Settings

Disabled Short

Enabled (default) Open

21

3.12 USB Connector

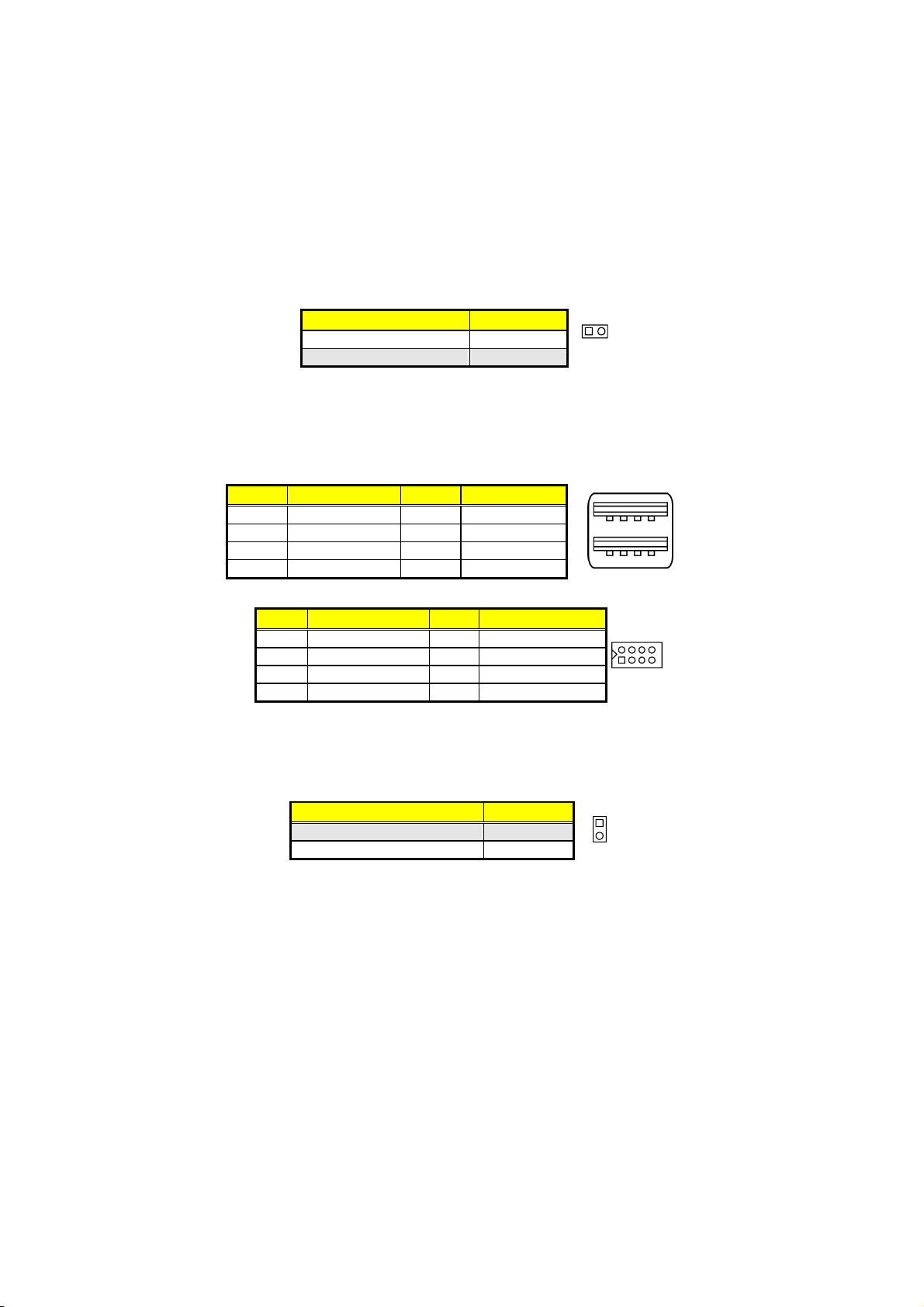

The HS-1743 provides two 8-pin connectors, at location CN11/CN12, for four USB2.0 ports, and four external USB2.0 port at CN14B/CN17B.

z CN14B/CN17B: External USB2.0 Port

PIN Description PIN Description

1 VCC 2 VCC 3 USBD0-/USB2- 4 USBD1-/USB3- 5 USBD0+/USB2+ 6 USBD1+/USB3+ 7 GND 8 GND

z CN11/CN12: Internal USB2.0 Ports

PIN Description PIN Description

1 VCC 2 VCC 3 USBD4-/USB6- 4 USBD5-/USB7- 5 USBD4+/USB6+ 6 USBD5+/USB7+ 7 GND 8 GND

28

17

3.13 CMOS Data Clear

The HS-1743 has a Clear CMOS jumper on JP8.

z JP8: Clear CMOS

Options Settings

Normal Operation (default) Open

Clear CMOS Short

IMPORTANT: Before turn on the power of your system, please set JP8 to

open for normal operation.

1

2

17

3.14 Power and Fan Connectors

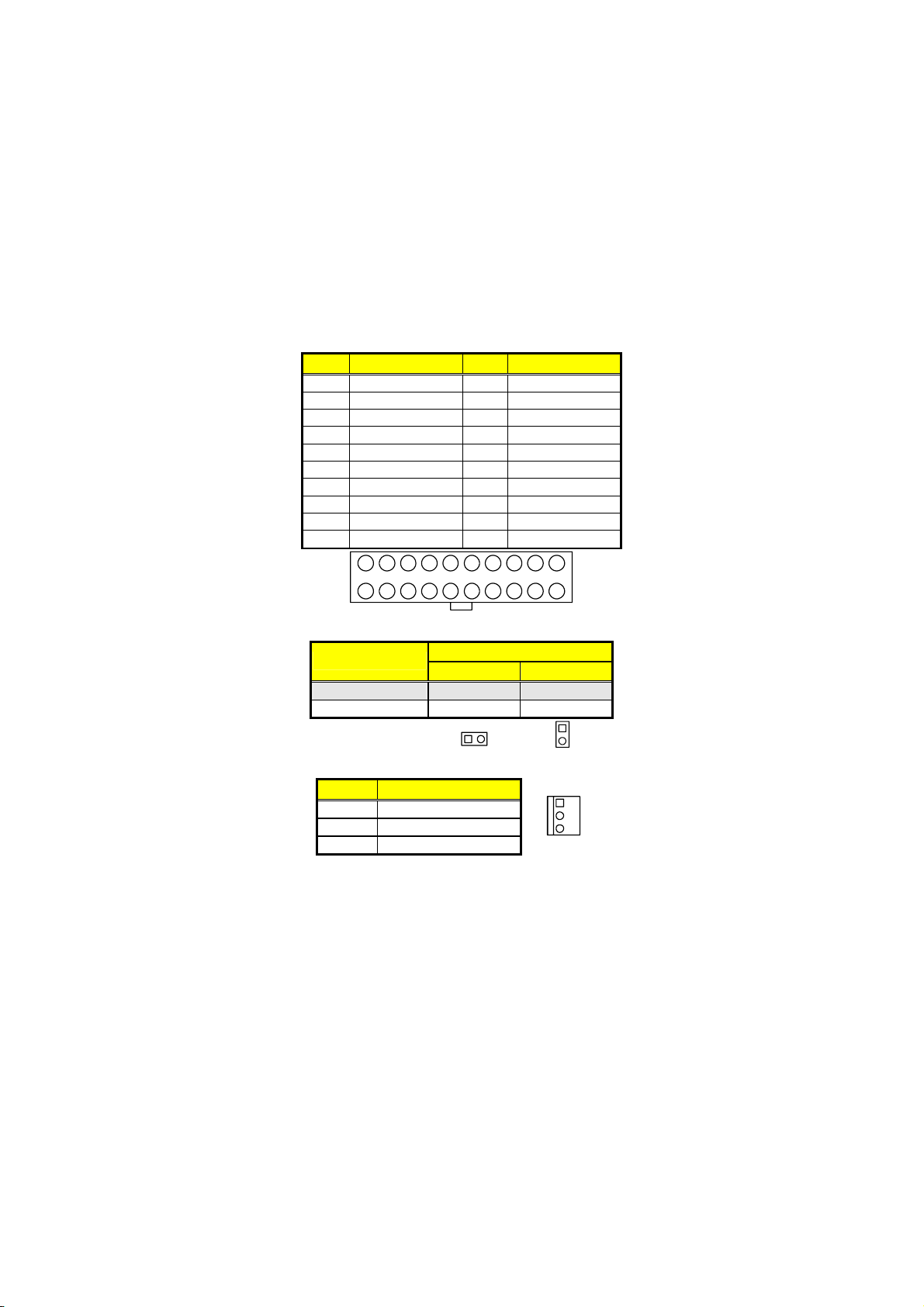

z PW1: 20-pin ATX Power Connector

PIN Description PIN Description

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 GND 13 GND 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 Power OK 18 N/C 9 5VSB 19 +5V

10 +12V 20 +5V

10

20

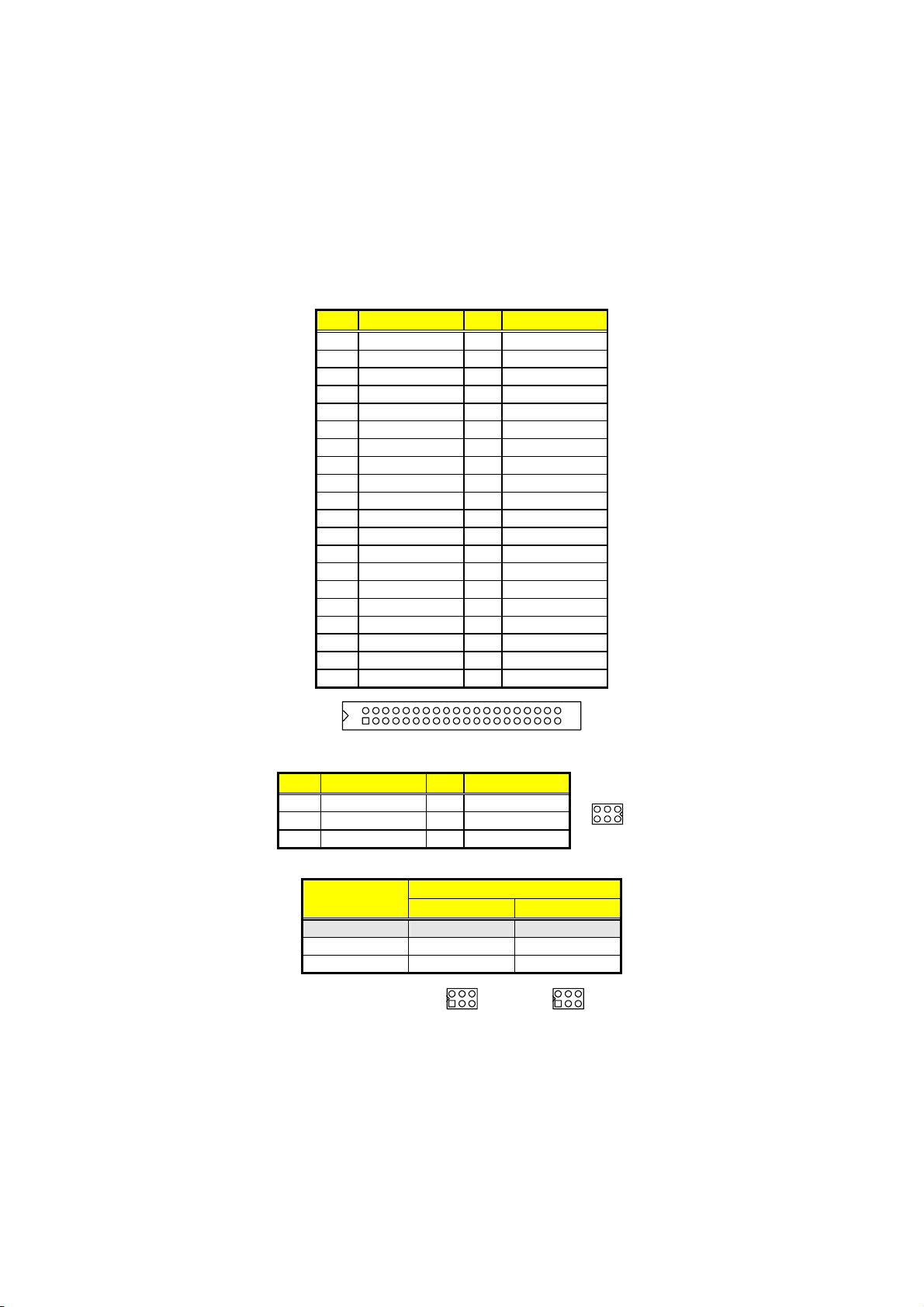

z JP2/JP7: AT/ATX Power Function Select

Options

ATX (default) Open Open

AT Short Short

Settings

JP2 JP7

21

z FN1/FN2: Fan Power Connector

PIN Description

1 GND 2 +12V 3 Fan In 1/Fan In 2

1

11

1

2

1

3

18

3.15 Keyboard/Mouse Connectors

The HS-1743 offers two possibilities for keyboard/mouse connections. The connection is via CN1 for an internal 6-pin cable converter to a keyboard/mouse.

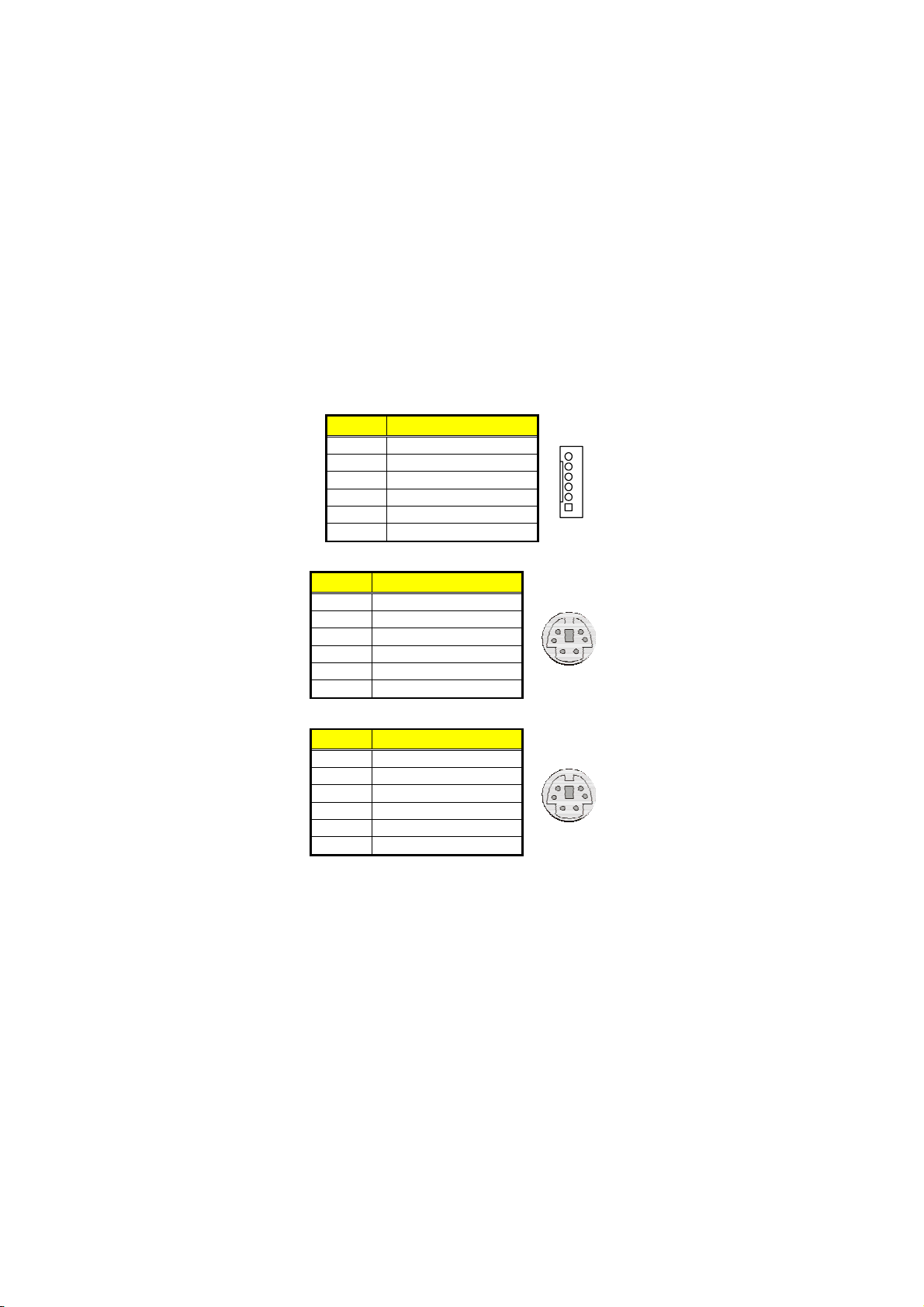

z CN1: Internal 6-pin KB/MS Connector

PIN Description

1 Keyboard Data 2 Mouse Data 3 GND 4 +5V 5 Keyboard Clock 6 Mouse Clock

z CN2A: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1 Keyboard Data 2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C

z CN2B: PS/2 6-pin Mini DIN Mouse Connector

PIN Description

1 Mouse Data 2 N/C 3 GND 4 +5V 5 Mouse Clock 6 N/C

6

1

56

34

12

56

34

12

19

3.16 System Front Panel Control

The HS-1743 has front panel control at location CN16 that indicates power-on, HDD and LAN action status.

z CN16: System Front Panel Control

PIN Description PIN Description

1 330Ω pull VCC 2 Speaker 3 HDD LED 4 N/C 5 ATX Power Button 6 VCC 7 VCC 8 330Ω pull VCC 9 Reset Switch 10 330Ω pull 3.3V

11 GND 12 Power LED 13 -Link_100_LED0 14 3V_Dual 15 -Link_1G_LED0 16 Link/Act_LED0 17 -Link_100_LED1 18 3V_Dual 19 -Link_1G_LED1 20 Link/Act_LED1

Connector CN16 Orientation

1

HDD LED

ATX Power

Button

Reset

Button

3

5

7

9

10

11

12

13 14

15 16

17 18

19 20

2

4

6

8

Speaker

PWR LED

20

3.17 Watchdog Timer

A user can set a value of Watchdog Timer in his software to reboot their hardware system. It is forced to reboot once user’s software fails to reset the Watchdog Timer before the counter of Watchdog Timer meets user’s setting value. This function, Watchdog Timer, prevents user’s software from crashing.

W83627EHG WDT Assembly sample code:

-----------------------------------Extended function mode

-----------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

------------------------------------Configure logical device 8

------------------------------------MOV DX,2EH MOV AL,07H OUT DX,AL MOV DX,2FH MOV AL,08H OUT DX,AL MOV DX,2EH MOV AL,30H ; Enable WDT OUT DX,AL MOV DX,2FH MOV AL,01H OUT DX,AL

-------------------------------------Configure time mode

-------------------------------------MOV DX,2EH MOV AL,F5H OUT DX,AL MOV DX,2FH MOV AL,00H ; Setup second mode, 08H for minute mode

21

OUT DX,AL

--------------------------------------Configure reset time interval

--------------------------------------- MOV DX,2EH MOV AL,F6H OUT DX,AL MOV DX,2FH MOV AL,05H ; Setup reset time 5, User can setup from 1~255 OUT DX,AL

Once the Enable cycle is active a Refresh cycle is requested before the time-out period of watchdog timer. The refresh cycle restarts counting of the WDT period. When the time counting goes over the preset period of WDT, it will assume that the program operation is abnormal. A reset signal will start when such error happens.

User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H=2sec….FFH=255sec.

3.18 Audio Connectors

The HS-1743 has an onboard AC97 3D audio controller. CN20(Green) is for Line Out, CN20(Pink) is for MIC in.

HS-1743 also support one extended speaker out with 2W amplifier.

z CN25/CN26: Stereo Speaker Amplifier

PIN Description

1 +SPK_RO/+SPK_LO 2 GND 3 -SPK_RO/-SPK_LO

3

1

22

3.19 CompactFlash Socket

The HS-1743 also offers a Type II CompactFlash socket via IDE interface located at the solder side of the board. The designated CN28 socket, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card.

z CN28: CompactFlash Socket

PIN Description PIN Description

1 GND 2 IDE_PDD3 3 IDE_PDD4 4 IDE_PDD5 5 IDE_PDD6 6 IDE_PDD7 7 IDE_PDCS1# 8 GND

9 GND 10 GND 11 GND 12 GND 13 +3.3V 14 GND 15 GND 16 GND 17 GND 18 IDE_PDA2 19 IDE_PDA1 20 IDE_PDA0 21 IDE_PDD0 22 IDE_PDD1 23 IDE_PDD2 24 GND 25 GND 26 GND 27 IDE_PDD11 28 IDE_PDD12 29 IDE_PDD13 30 IDE_PDD14 31 IDE_PDD15 32 IDE_PDCS3# 33 GND 34 IDE_PDIOR# 35 IDE_PDIOW# 36 +3.3V 37 INT_IRQ15 38 +3.3V 39 +3.3V 40 N/C 41 RESET# 42 IDE_PDIORDY 43 CF_PDERQ 44 CF_REGB 45 IDE_ACTP# 46 DETECT 47 IDE_PDD8 48 IDE_PDD9 49 IDE_PDD10 50 GND

Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.

23

r

e

d

l

w

o

e

S

i

V

B

e

C

d

P

i

S

M

T

h

s

la

e

tF

d

i

ac

/

S

p

n

r

o

a

m

p

a

p

a

o

a

e

J

C

R

u

n

i

A

F

e

d

C

u

a

q

i

M

r b a

F

E

C

z JP1: CF Use Master/Slave Select

Options Setting

Master (default) Short

Slave Open

21

3.20 Expansion Interface

The HS-1743 offers one Type III mini PCI socket at CN24, one PCIe x1 socket at CN27, and one PCI socket at PCI1.

24

3.21 8-bit GPIO Function

The HS-1743 offers one 8-bit general purpose input/output port.

z CN21: 8-bit GPIO

PIN Description PIN Description

1 VCC 2 GND 3 GD0 4 GD4 5 GD1 6 GD5 7 GD2 8 GD6 9 GD3 10 GD7

W83627EHG Digital I/O Assembly sample code

-----------------------------------Extended function mode

-----------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

------------------------------------Configure logical device 7

------------------------------------MOV DX,2EH MOV AL,07H OUT DX,AL MOV DX,2FH MOV AL,07H OUT DX,AL MOV DX,2EH MOV AL,30H ; Enable GPIO1 OUT DX,AL MOV DX,2FH MOV AL,01H OUT DX,AL

2

10

1

9

25

--------------------------------------Configure input / output

--------------------------------------- MOV DX,2EH MOV AL,F0H OUT DX,AL MOV DX,2FH MOV AL,FEH ; Setup GPIO bit0 as output, 0: output 1: input OUT DX,AL

26

Chapter 4

AMI BIOS Setup

The HS-1743 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <F1> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press F1 to Run SETUP.

27

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

↑ Move to previous item ↓ Move to next item ← Move to previous item → Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Move to top item PgDn key Move to bottom item

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes F1 key General Help F2 key Change background color forward F3 key Change background color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes

28

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit System Overview AMIBIOS

Version : 08.00.13 Build Date : 9/14/10 ID : HS17430F

Processor Type : Intel(R) Core(TM) Solo CPU U1500 Speed : 1333MHz Count : 1

System Memory Size : 1016MB

System Time [00:29:32] ª - System Date [Tue 01/01/2002] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.



Select Screen



Select Item

Change Field

29

4.4 Advanced Settings

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



SuperIO Configuration



Hardware Health Configuration



ACPI Configuration ª - Change Field



APM Configuration Tab Select Field



PCI Express Configuration F1 General Help



USB Configuration F10 Save and Exit

ESC Exit



Select Screen



Select Item

30

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure advanced CPU settings Module Version –13.04

Manufacturer : Intel Intel(R) Core(TM) Solo CPU U1500 @1.33GHz Frequency : 1.33GHz FSB Speed : 533MHz Cache L1 : 32 KB Cache L2 : 2048 KB Ratio Actual Value : 10

Max CPUID Value Limit [Disabled] Intel(R) Virtualization Tech [Enabled]



Select Screen



Select Item

Execute-disable bit capability [Enabled] ª - Change Field Hyper Threading Technology [Disabled] Tab Select Field DTS-based Thermal Management [Enabled] F1 General Help DTS Calibration [Enabled] F10 Save and Exit Intel(R) C-STATE tech. [Enabled] ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

IDE Configuration

ATA/IDE Configuration [Enhanced]

Configure SATA as [IDE] Configure SATA Channels [Before PATA] Port2 SATA AHCI Speed : GEN 1 (1.5 Gb/sec)



Primary IDE Master : [Not Detected]



Primary IDE Slave : [Hard Disk]



Secondary IDE Master : [Not Detected]



Secondary IDE Slave : [Not Detected]



Third IDE Master : [Not Detected]



Third IDE Slave : [Not Detected]

ª - Change Field Tab Select Field Hard Disk Write Protect [Disabled] F1 General Help IDE Detect Time Out (Sec) [35] F10 Save and Exit ESC Exit



Select Screen



Select Item

31

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure WIN627EHF Super IO Chipset

Parallel Port Address [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] Serial Port1 Address [3E8] Serial Port1 Mode [11] Serial Port2 Address [2E8] Serial Port2 Mode [10] Serial Port3 Address [2F0] Serial Port3 Mode [11] Serial Port4 Address [2E0] Serial Port4 Mode [10] Serial Port5 Address [2D8] Serial Port5 Mode [11] Serial Port6 Address [2D0] Serial Port6 Mode [10] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Hardware Health Configuration

System Temperature : 43°C/109°F CPU Temperature : 46°C/114°F

SYSFAN Speed : 0 RPM CPUFAN0 Speed : 6750 RPM

Vcore : 1.200 V +12V : 11.880 V +1.5V : 1.592 V +1.05V : 1.024 V ª - Change Field +5V : 5.094 V Tab Select Field VBAT : 3.216 V F1 General Help : F10 Save and Exit ESC Exit



Select Screen



Select Item



Select Screen



Select Item

32

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

ACPI Settings

ACPI Aware O/S [Yes]



Advanced ACPI Configuration



Chipset ACPI Configuration



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced ACPI Configuration

ACPI Version Features [ACPI v1.0] ACPI APIC support [Enabled] AMI 0EMB table [Enabled]



Select Screen



Select Item

Headless mode [Disabled] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Chipset ACPI Configuration

Energy Lake Feature [Disabled] APIC ACPI SCI IRQ [Disabled] USB Device Wakeup From S3/S4 [Disabled] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

33

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

APM Configuration

Power Management/APM [Enabled] Video Power Down Mode [Disabled] Hard Disk Power Down Mode [Disabled] Suspend Time Out [Disabled] Throttle Slow Clock Ratio [50%] Keyboard & PS/2 Mouse [MONITOR]

Power Button Mode [On/Off]

Advanced Resume Event Controls ª - Change Field Resume On Ring [Disabled] Tab Select Field Resume On LAN [Disabled] F1 General Help Resume On PME# [Disabled] F10 Save and Exit Resume On RTC Alarm [Disabled] ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Active State Power-Management [Disabled]

ª - Change Field Tab Select Field F1 General Help

F10 Save and Exit

ESC Exit



Select Screen



Select Item



Select Screen



Select Item

34

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to malfunction.

Clean NVRAM [No] Plug & Play O/S [No] PCI Latency Timer [64] Allocate IRQ to PCI VGA [Yes] Palette Snooping [Disabled] PCI IDE BusMaster [Enabled] Offboard PCI/ISA IDE Card [Auto]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

DMA Channel 0 [Available] DMA Channel 1 [Available] DMA Channel 3 [Available] DMA Channel 5 [Available] ª - Change Field DMA Channel 6 [Available] Tab Select Field DMA Channel 7 [Available] F1 General Help F10 Save and Exit Reserved Memory Size [Disabled] ESC Exit





Select Screen

Select Item

35

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings



Boot Settings Configuration



Boot Device Priority



Hard Disk Drives ª - Change Field



USB Drives Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot [Enabled] Quiet Boot [Disabled] LAN Boot ROM [Disabled] AddOn ROM Display Mode [Force BIOS] Bootup Nom-Lock [On] ª - Change Field PS/2 Mouse Support [Auto] Tab Select Field Wait For ‘F1’ If Error [Disabled] F1 General Help Hit ‘DEL’ Message Display [Disabled] F10 Save and Exit Interrupt 19 Capture [Disabled] ESC Exit



Select Screen



Select Item



Select Screen



Select Item

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password Change User Password ª - Change Field Boot Sector Virus Protection [Disabled] Tab Select Field F1 General Help Hard Disk Security F10 Save and Exit There are no supported Hard Disks. ESC Exit

36



Select Screen



Select Item

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings WARNING: Setting wrong values in below

sections may cause system to malfunction.



North Bridge Chipset Configuration



South Bridge Chipset Configuration

ª - Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

North Bridge Chipset Configuration

DRAM Frequency [Auto] Configure DRAM Timing by SPD [Enabled] Memory Hole [Disabled]

Boots Graphic Adapter Priority [PEG/PCI] Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Configuration PEG Port [Auto] PEG Force x1 [Disabled]

Chipset Thermal Throttling [Disabled] DT in SPD [Disabled] ª - Change Field TS on DIMM [Disabled] Tab Select Field F1 General Help



Video Function Configuration F10 Save and Exit

ESC Exit



Select Screen



Select Item



Select Screen



Select Item

37

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Video Function Configuration

DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [128MB]

Boot Display Device [CRT + DVI] ª - Change Field Flat Panel Type [1024x768 18bit 2CH] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

South Bridge Chipset Configuration

USB Function [8 USB Ports] USB 2.0 Controller [Enabled] Audio Controller [AC’97 Audio Only] SMBUS Controller [Enabled] ª - Change Field SLP_S4# Min. Assertion Width [1 to 2 seconds] Tab Select Field Restore on AC Power Loss [Power On] F1 General Help F10 Save and Exit ASF Support [Enabled] ESC Exit



Select Screen



Select Item



Select Screen



Select Item

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes ª - Change Field Load Optimal Defaults Tab Select Field Load Failsafe Defaults F1 General Help F10 Save and Exit ESC Exit

38



Select Screen



Select Item

Chapter 5

Software Utilities

This chapter contains the detailed information of audio driver installation procedures. The utility disk that comes with the delivery package contains an auto-run program that invokes the installation programs for the following based install the drivers matching the sections listed in this chapter.

sections describe the installation procedures of each driver

on

WIN2K/XP operating systems. It is recommended that you

IDE,

VGA, LAN and audio drivers. The

IDE,

VGA, LAN and

5.1 Chipset Driver Installation

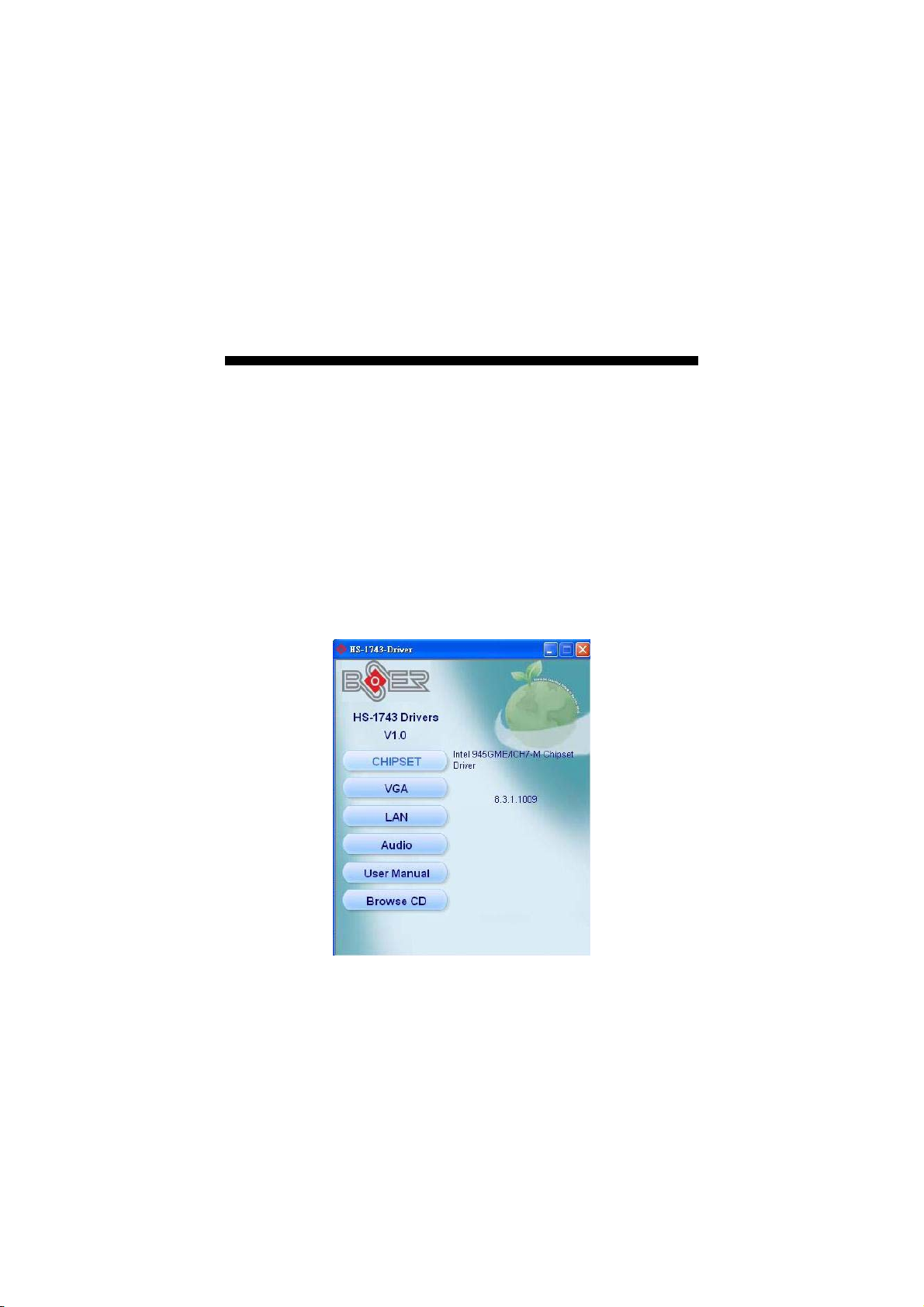

1. Insert the CD that comes with the board into the CD-ROM drive.

Click CHIPSET to install Intel® 945GME/ICH7-M chipset driver.

39

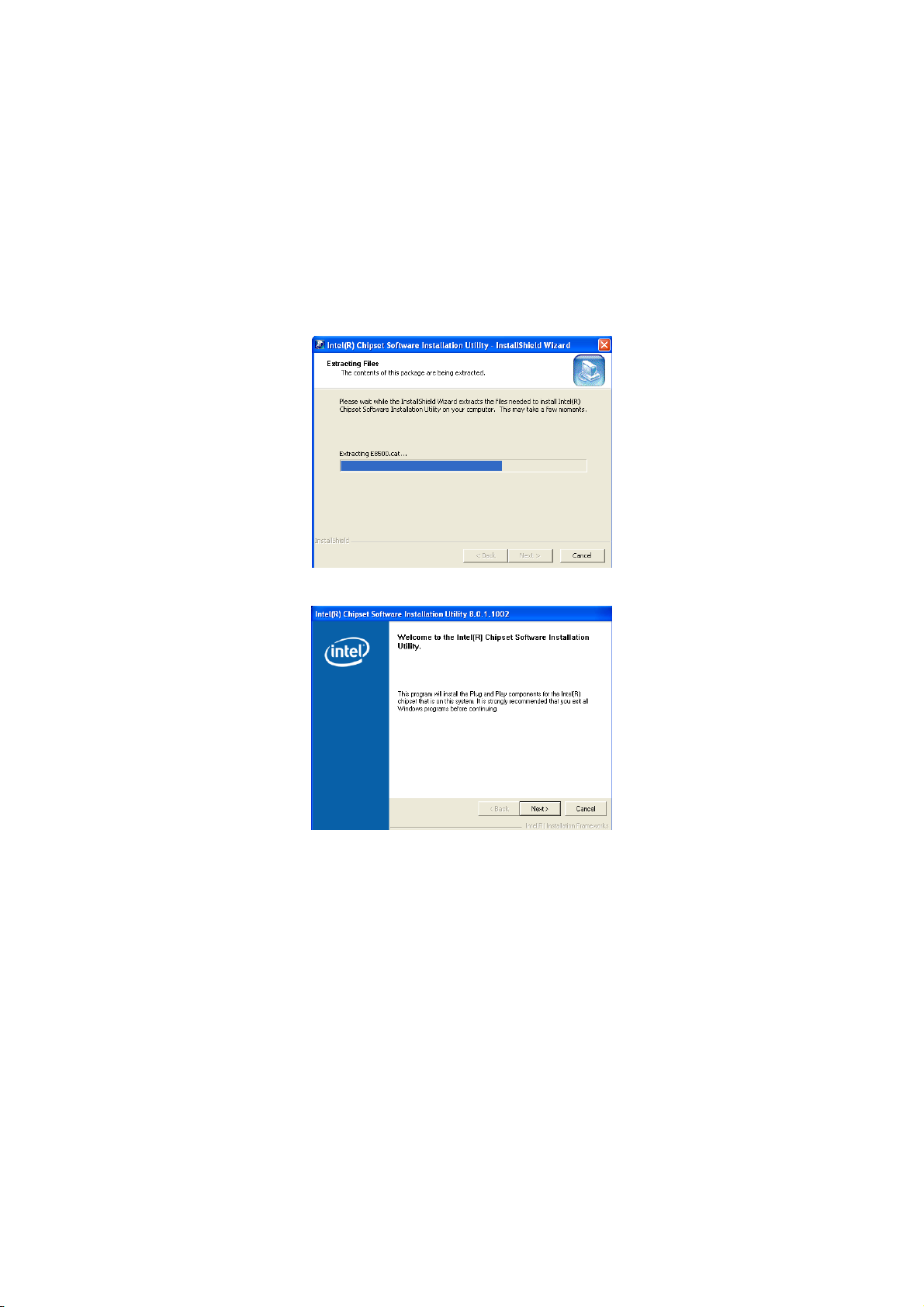

2. Once the Install Shield Wizard screen appears on the screen,

make sure to close applications that are running and then click on Next> button.

3. The Welcome screen is now displayed, and then click on

Next> button to continue.

40

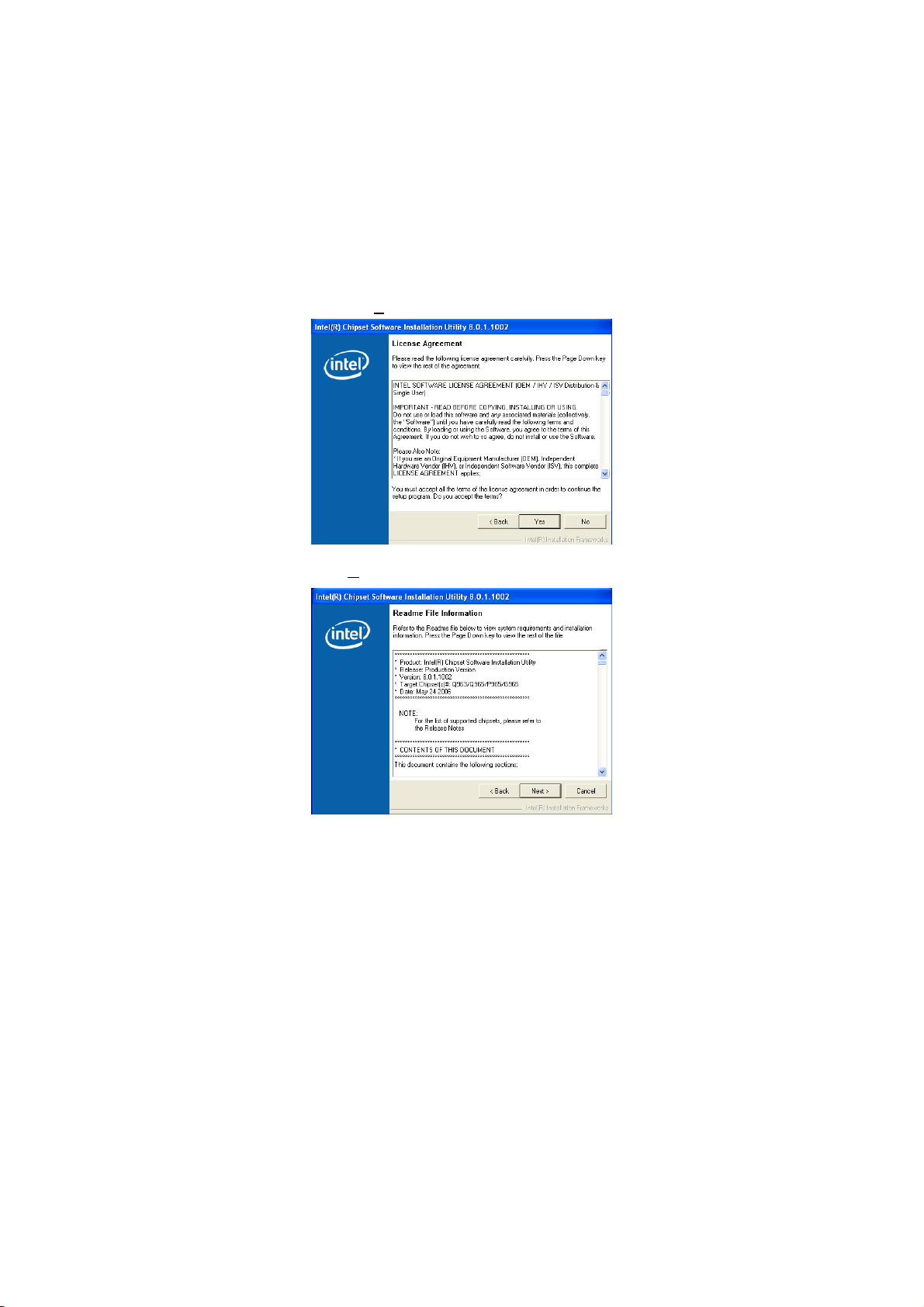

4. The License Agreement dialog box then appears on the

screen. Choose Y

5. When the Readme File Information dialog box pops up, just

click on the N

es to proceed.

ext > button to proceed.

41

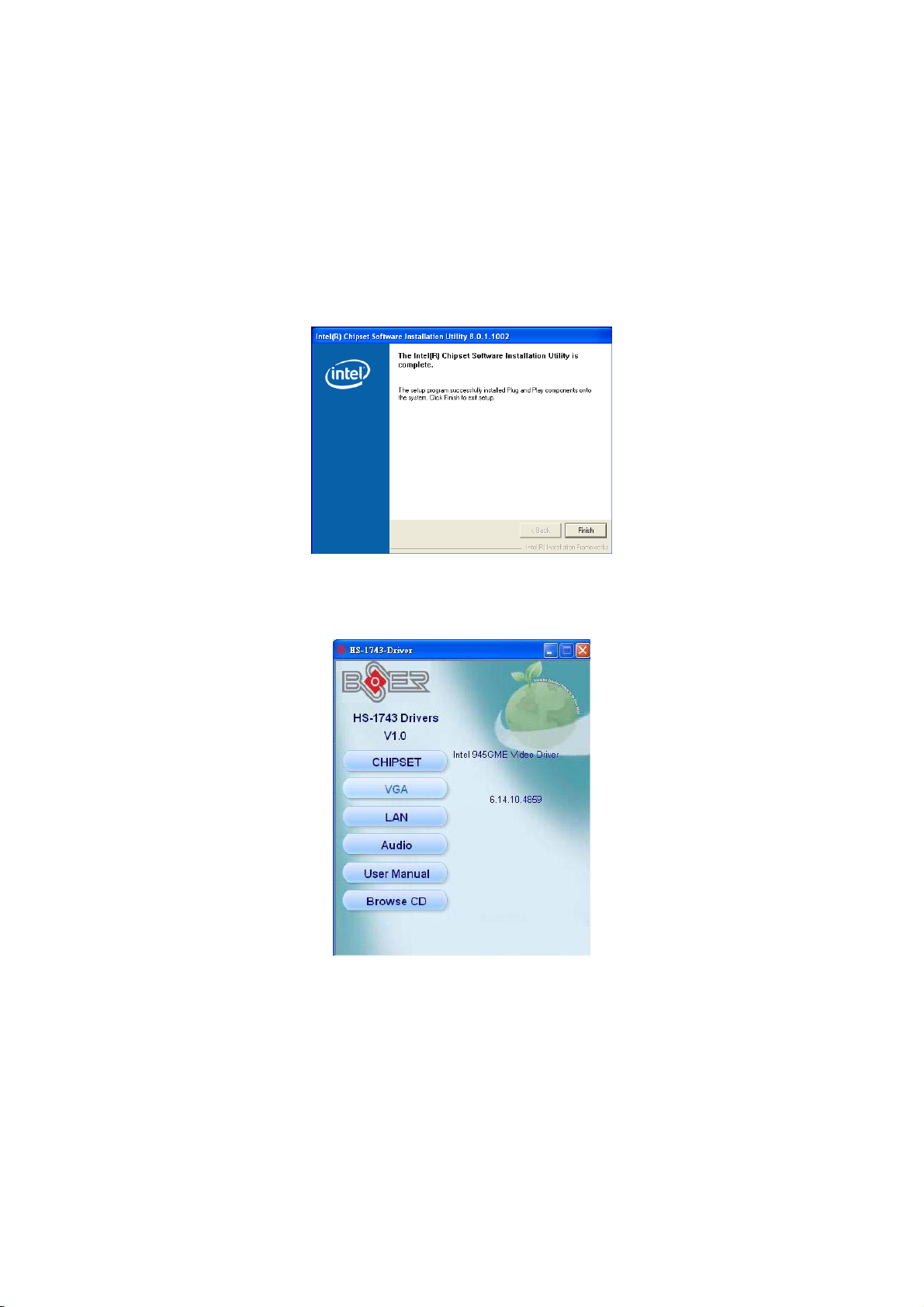

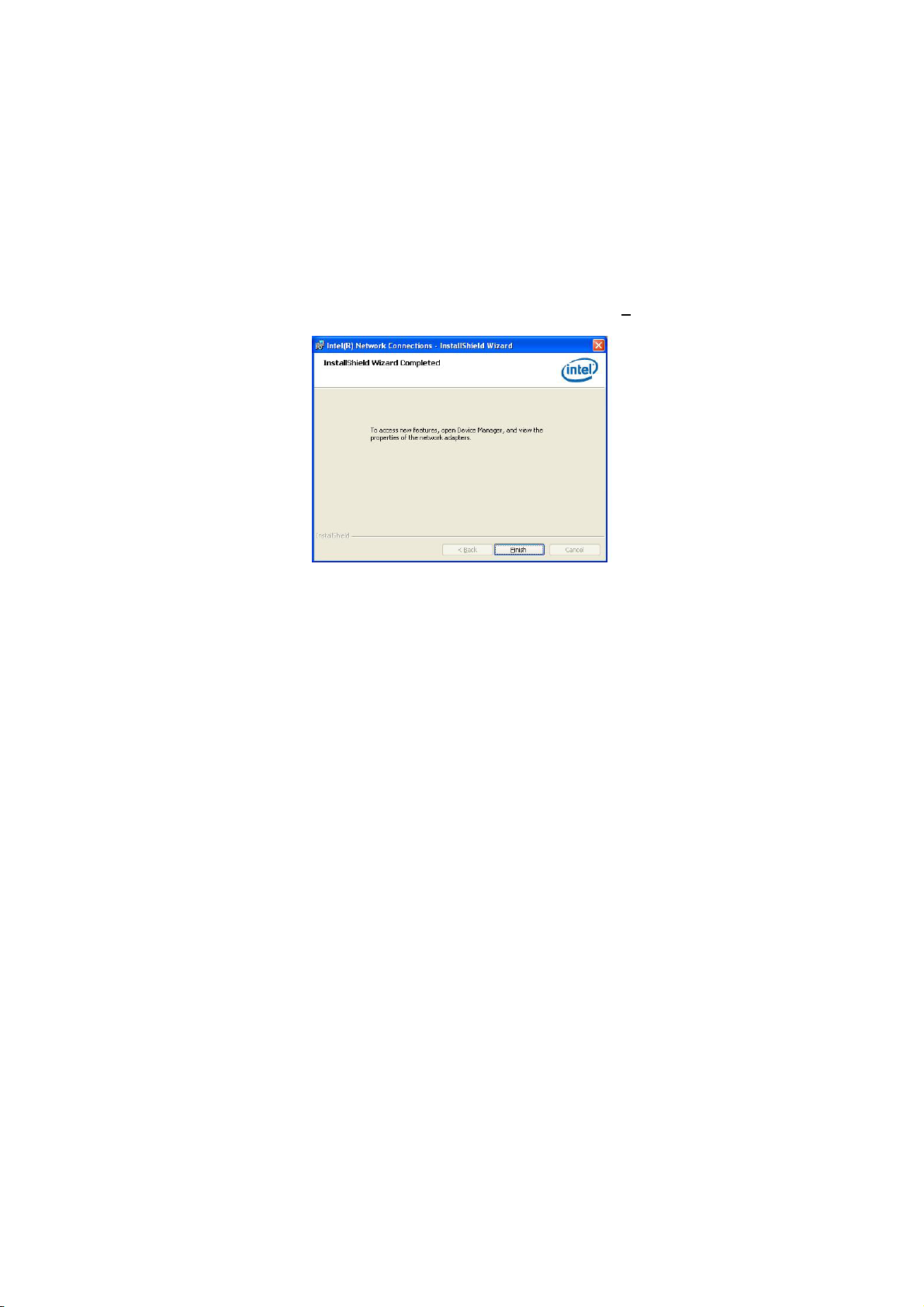

6. The Installation Utility successfully installed Plug and Play

components onto the system. Click Finish to exit setup.

5.2 VGA Driver Installation

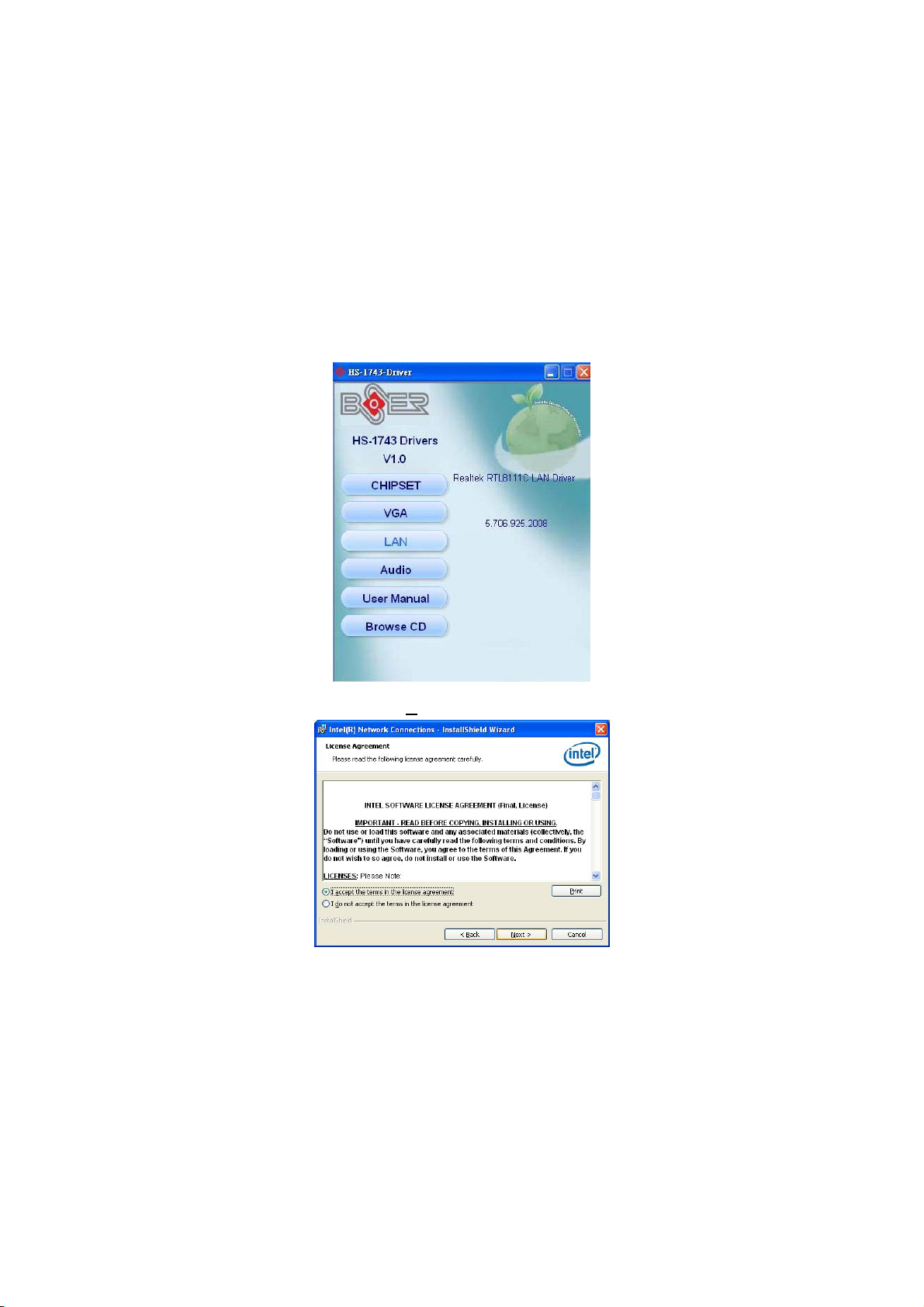

1. Insert the CD that comes with the board into the CD-ROM drive. Click VGA to install Intel® 945GME video driver.

42

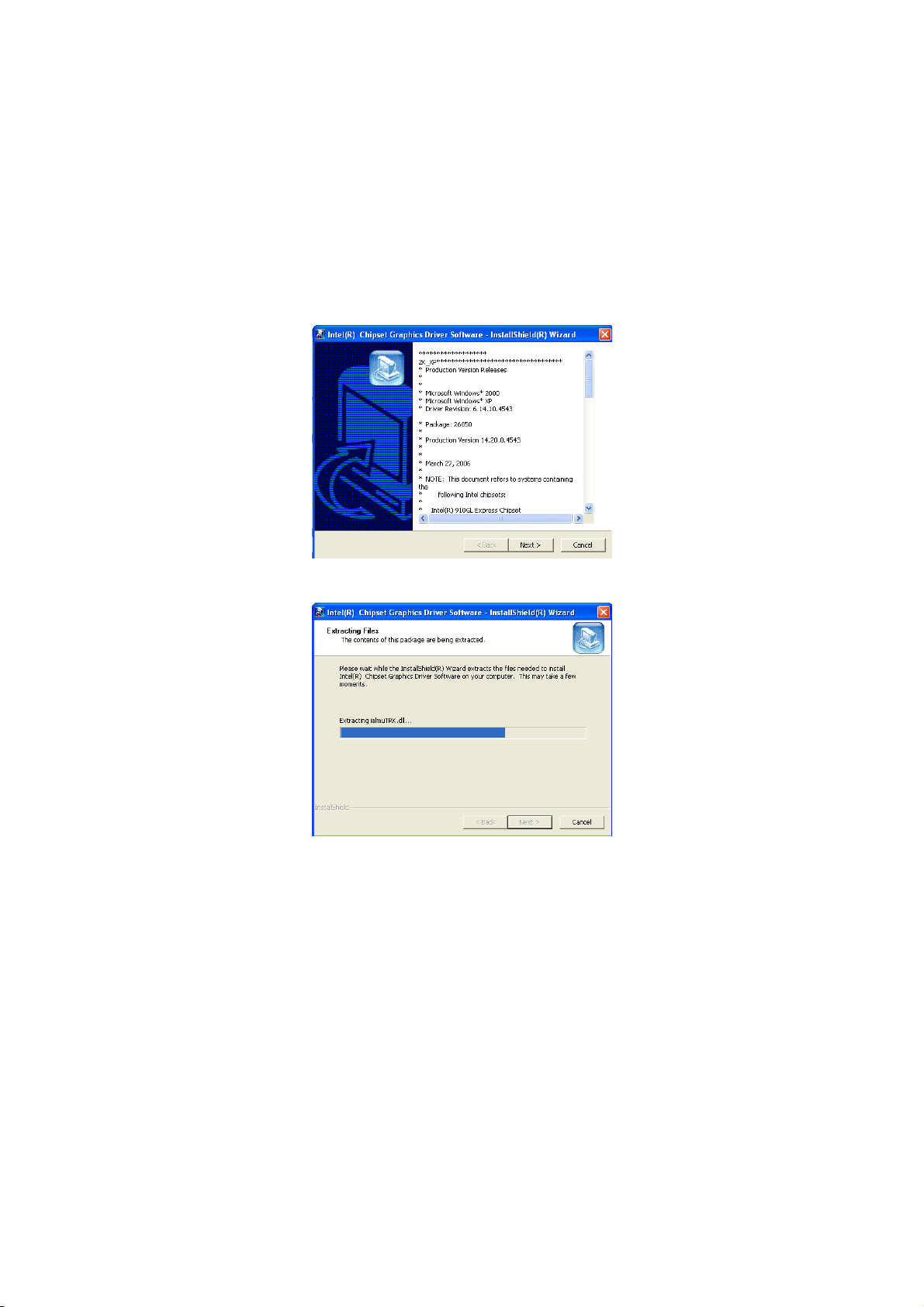

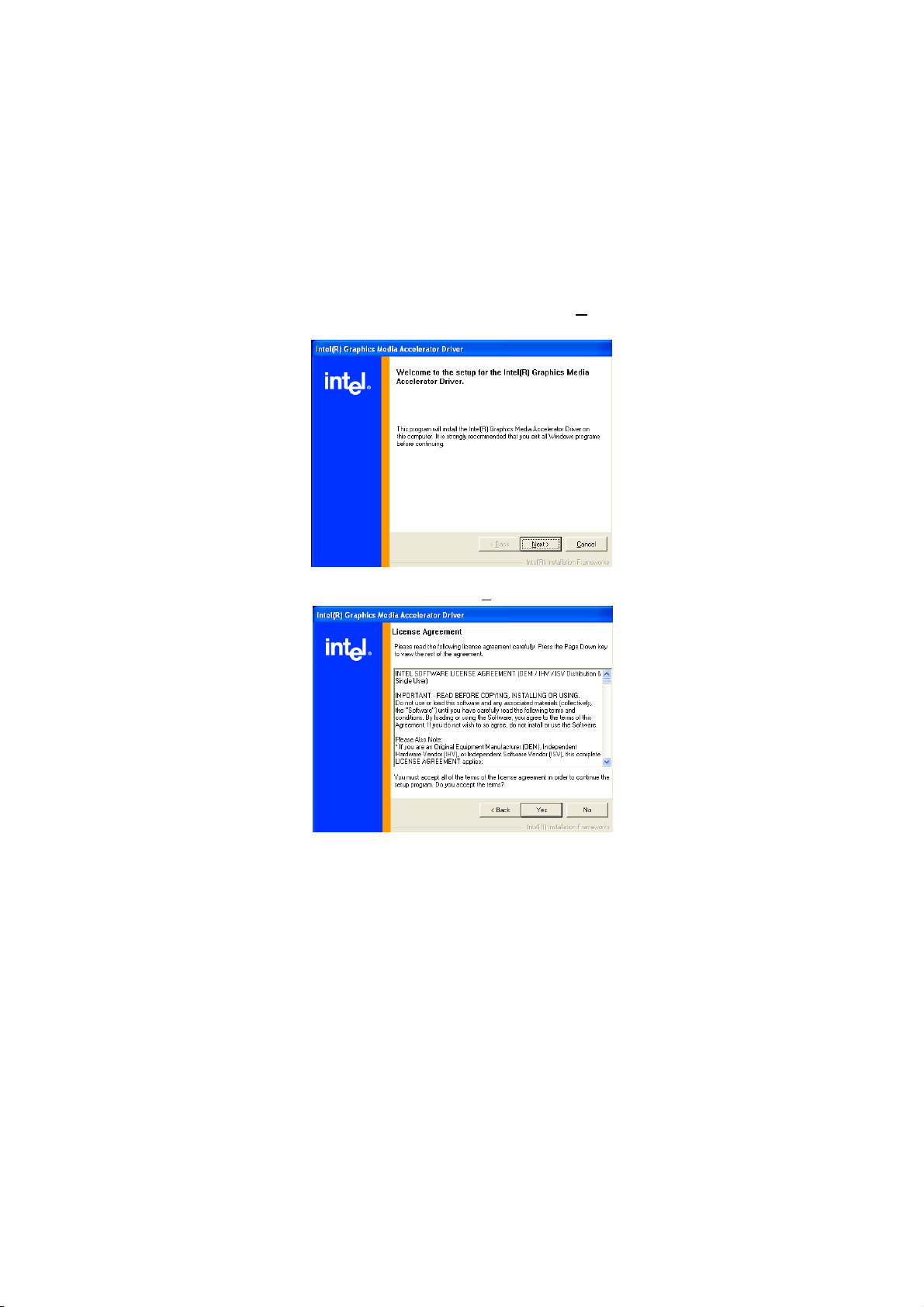

2. Once the InstallShield Wizard appears on the screen and click on the Next > button.

3. InstallShield Wizard will extracting files to your hard drive, and then click on Next> to continue.

43

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

5. The Intel® OEM Software License Agreement dialog box appears on the screen. Choose Y

es to proceed.

44

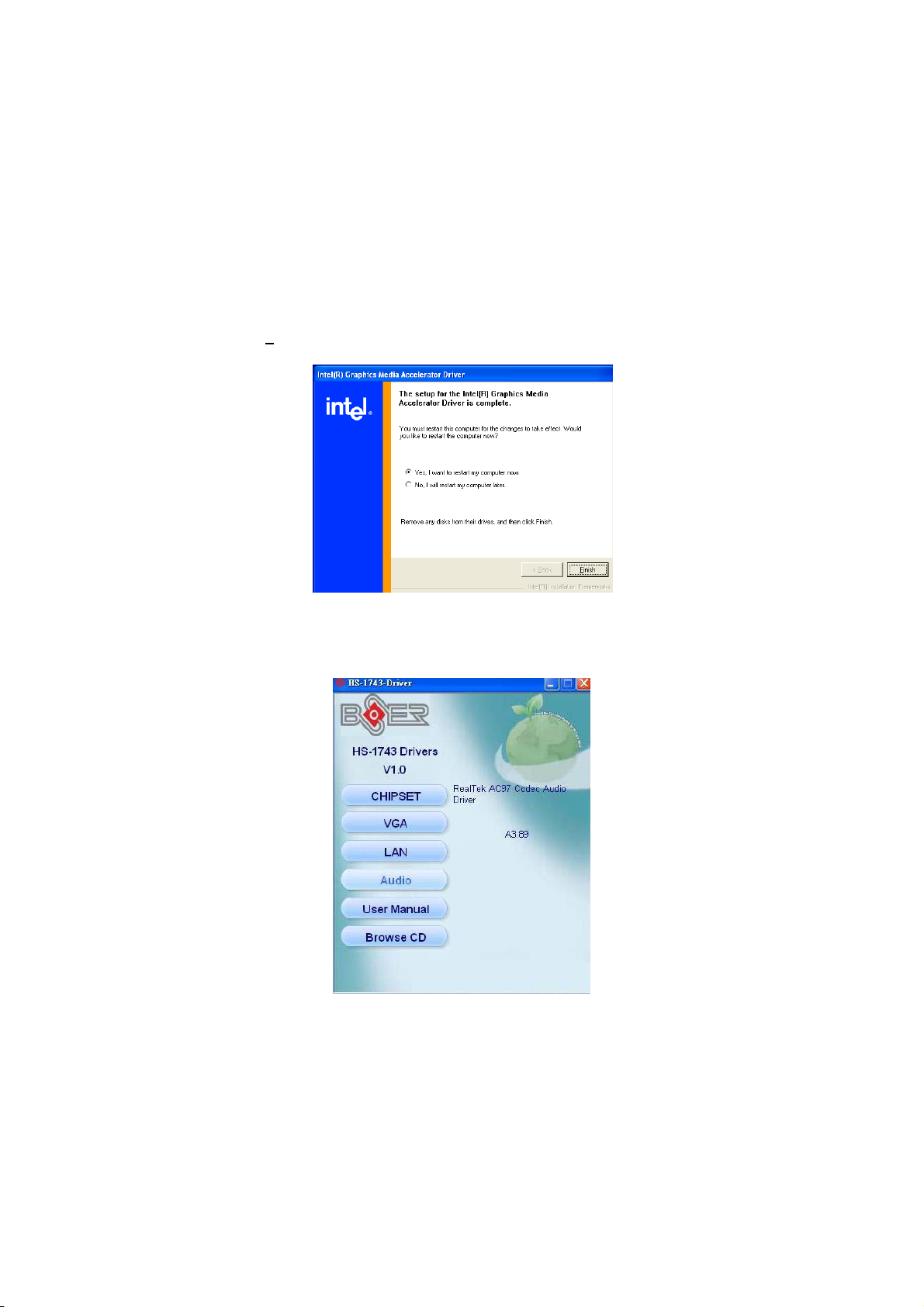

6. Once InstallShield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the F

inish button to reboot. Only after your computer reboot and

the new setting will be take effect.

5.3 Audio Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click Audio to install RealTek AC97 audio driver.

45

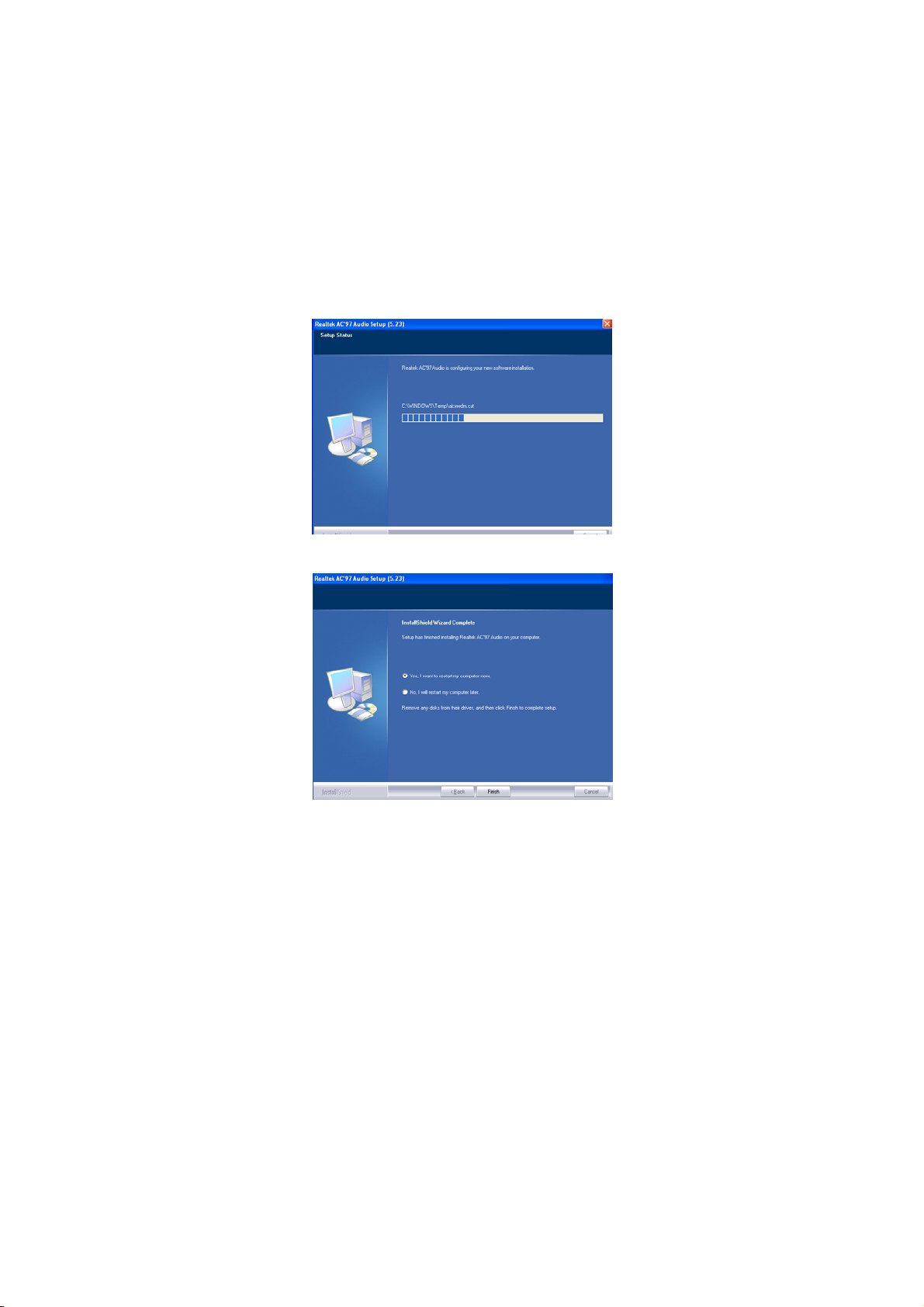

2. Once the Install Shield Wizard screen appears on the screen, make sure to close applications that are running.

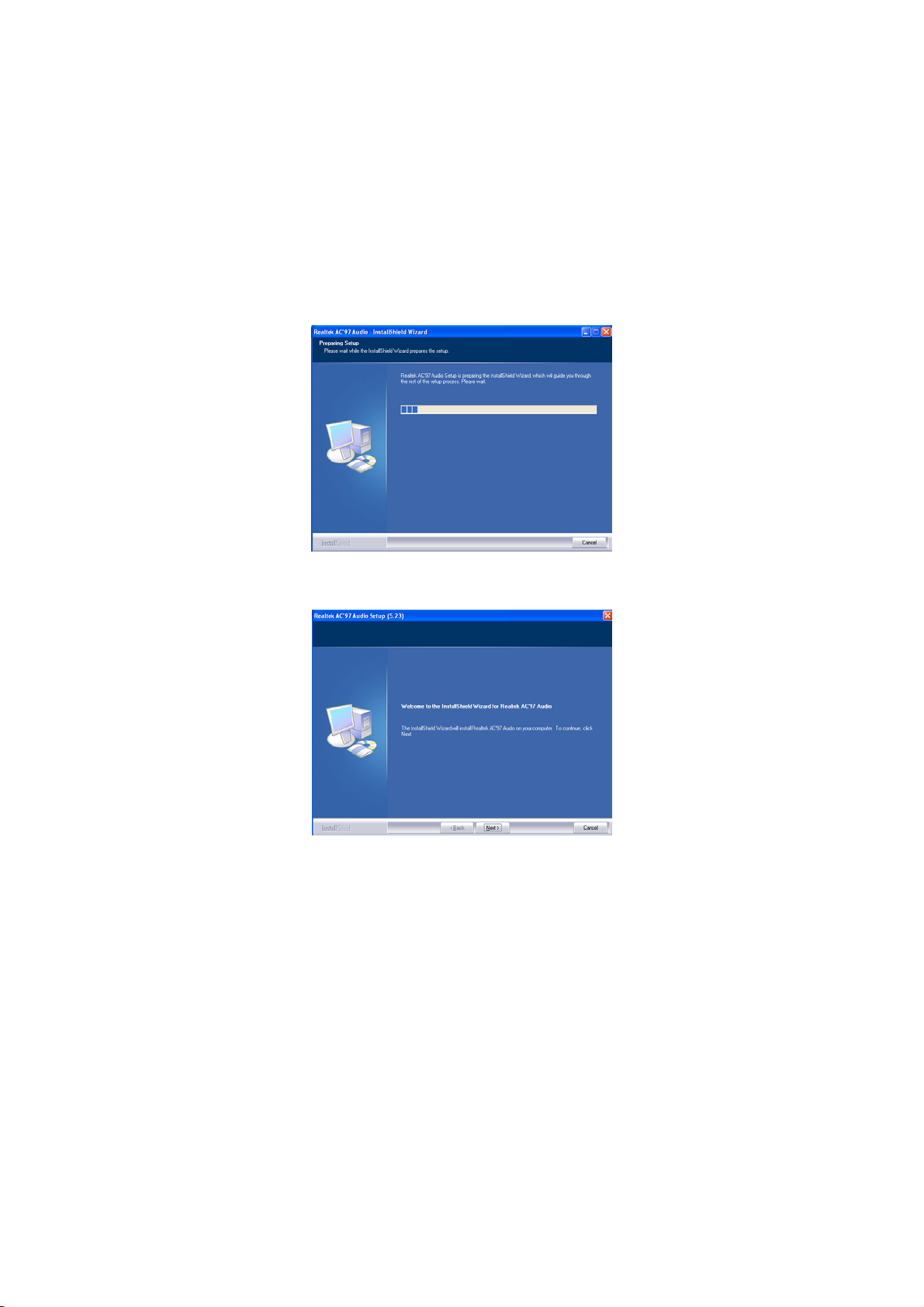

3. Realtek AC97 Audio Setup is preparing the Install Shield Wizard, which will guide you through the rest of the setup process. Click on Next> to process.

46
