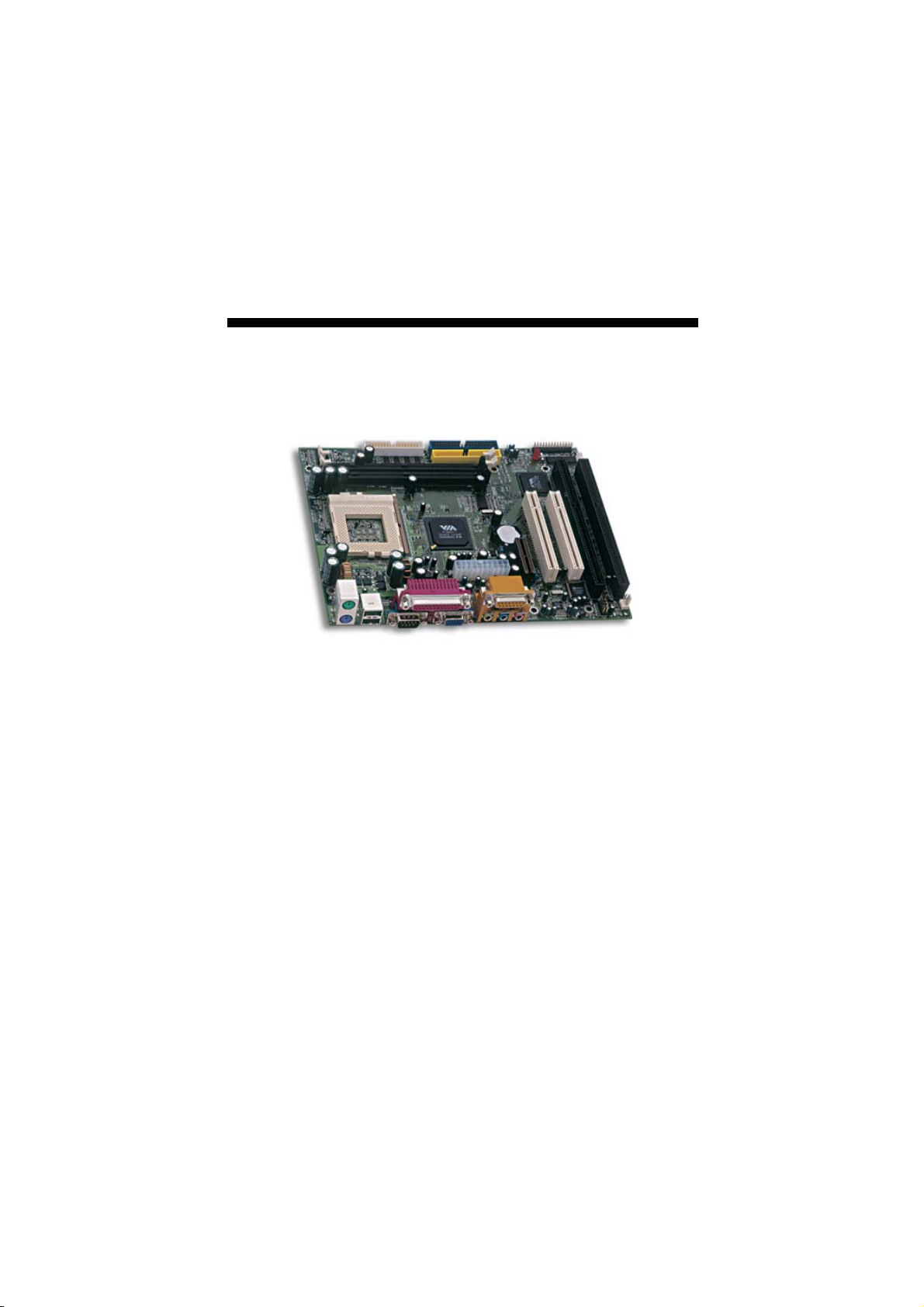

HS-1000
Socket 370 Industrial ATX Motherboard
•CRT•ATA/33/66/100•
Audio•COM•Game Port•
•
•USB•H/W Monitor•
Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review
before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is
not liable for any infringements of patents or other rights resulting from its use. The
manufacturer will not be responsible for any direct, indirect, special,
incidental or consequential damages arising from the use of this product or
documentation, even if advised of the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation,
and storage of any form and means (i.e.,
recording) of this document, in whole or partly, is prohibited, unless granted
permission by BOSER Technology Co., Ltd.
BOSER Technology Co., Ltd.
contents of this document without due notice.
assumes no responsibility for any errors or omissions that may appear in this
manual, nor does it make any commitment to update the information contained
herein.
T
r
a
d
e
m
a
r
k
s
T
r
a
d
e
m
T
r
a
d
e
m
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
r
k
s
a
r
k
s
reserves the right to change or improve the
electronic, mechanical, photocopying,
BOSER Technology Co., Ltd.
© Copyright 2004 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.0, July 12, 2004
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 10
3.7 VGA Controller .................................................................... 10
3.8 CMOS Data Clear................................................................. 10
3.9 PCI E-IDE Drive Connector................................................. 11
3.10 Floppy Disk Drive Connector ............................................. 13
3.11 Serial Port Connectors ....................................................... 14
3.12 Parallel Connector............................................................... 15
3.13 IrDA Connector .................................................................... 15
3.14 USB Connector .................................................................... 16
3.15 Power Connectors............................................................... 16
3.16 Keyboard and Mouse Connectors..................................... 17
3.17 System Front Panel............................................................. 18
3.18 Game Port ............................................................................ 19
3.19 Audio Connectors ............................................................... 19
Chapter 4 AMI BIOS Setup .....................................21
4.1 Starting Setup ...................................................................... 21
4.2 Using Setup.......................................................................... 22
4.3 Main Menu ............................................................................ 23
4.4 Standard CMOS Setup ........................................................ 24
4.5 Advanced CMOS Setup ...................................................... 25
4.6 Advanced Chipset Setup .................................................... 26
4.7 Power Management Setup ................................................. 27
4.8 PCI / Plug and Play Setup................................................... 28
4.9 Peripheral Setup.................................................................. 29
4.10 Hardware Monitor Setup..................................................... 30
4.11 Auto-Detect Hard Disks ...................................................... 31
4.12 Change Supervisor/User Password .................................. 32
4.13 Auto Configuration with Optimal Settings ....................... 33
4.14 Auto Configuration with Fail Safe Settings ...................... 34
4.15 Save Settings and Exit........................................................ 35
4.16 Exit Without Saving............................................................. 36
Chapter 5 Software Utilities..................................... 37
5.1 IDE and Audio Driver Installation ...................................... 37
5.1.1 VIA VT82C686B AGP Bus Driver Installation ...................................37
5.1.2 VIA IDE Tool Installation............................................................................ 42
5.1.3 Audio Driver Installation...........................................................................47
Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity.
To avoid damaging chips from electrostatic discharge, observe the
following precautions:
Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.
Before handling a board or integrated circuit, touch an unpainted portion
of the system unit chassis for a few seconds. This helps to discharge any
static electricity on your body.
Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR
clip of the strap to the end of the shielded wire lead from a grounded
object. Please wear and connect the strap before handle the HS-1000 to
ensure harmlessly discharge any static electricity through the strap.
Please use an anti-static pad when putting down any components or
parts or tools outside the computer. You may also use an anti-static bag
instead of the pad. Please inquire from your local supplier for additional
assistance in finding the necessary anti-static gadgets.
NOTE:
DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION
This page intentionally left blank.
Chapter 1
General Description
The HS-1000 is a VIA VT8601T chipset-based board designed with
Socket 370 for Intel® Celeron/Coppermine/Tualtain 633MHz~
1.3GHz CPU. These features combine and make the HS-1000 an ideal
industrial ATX motherboard. Additional features include an enhanced
I/O with CRT, audio, and game port interface.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-1000 to support data transfers of 33, 66 or 100MB/sec. to each
IDE drive connection. Designed with the VIA VT8601T core logic
chipset, the board supports Socket 370 for Intel®
Celeron/Coppermine/ Tualtain 633MHz~1.3GHz CPU. The VIA
VT8601T integrated Trident 3D supporting AGP Bus.
System memory is also sufficient with the two DIMM sockets that can
support up to 1GB. Additional onboard connectors include an
advanced USB and Game ports providing faster data transmission.
1
1.1 Major Features
The HS-1000 comes with the following features:
Socket 370 for Intel® Celeron/Coppermine/ Tualtain
633MHz~1.3GHz CPU
Two DIMM sockets with a max. capacity of 1GB
VIA VT8601T/VT82C686B system chipset
VIA VT82C686B super I/O chipset
Supports two PCI, two ISA, one AMR slots
VIA VT8601T CRT display controller
AC97 3D audio controller
Fast PCI ATA/33/66/100 IDE controller
One COM, one game port, four USB connectors
Supports Hardware Monitor
2
1.2 Specifications
CPU: Socket 370 for Intel® Celeron/Coppermine/ Tualtain
633MHz~1.3GHz CPU
Memory: Two DIMM sockets supporting up to 1GB
Chipset: VIA VT8601T/VT82C686B
I/O Chipset: VIA VT82C686B
Slot: Two PCI, two ISA, and one AMR slots
VGA: VIA VT8601T integrated Trident 3D supporting AGP Bus
Audio: AC97 3D audio controller supporting speaker out
IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of 33/66/100MB/sec.
FDD: Supports up to two floppy disk drives
Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
Serial Port: 16C550 UART-compatible RS-232 x 1 serial port with
16-byte FIFO
Game Port: Supports one Joystick game port
USB: Two internal and two external USB connectors
Keyboard: PS/2 6-pin Mini DIN
Mouse: PS/2 6-pin Mini DIN
BIOS: AMI PnP Flash BIOS
CMOS: Battery backup
Temperature: 0~60°C (operating)
Hardware Monitor: VIA VT82C686B
Board Size: 24.4 x 19.1 cm
3
1.3 Board Dimensions
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-1000 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-1000 delivery package
contains the following items:
HS-1000 Board x 1
Utility CD Disk x 1
ATA/100 IDE flat cable x 1
FDD flat cable x 1
Jumper Bag x 1
User’s Manual
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
5
This page intentionally left blank.
6
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-1000. This chapter also contains information related to
jumper settings of switch selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
7

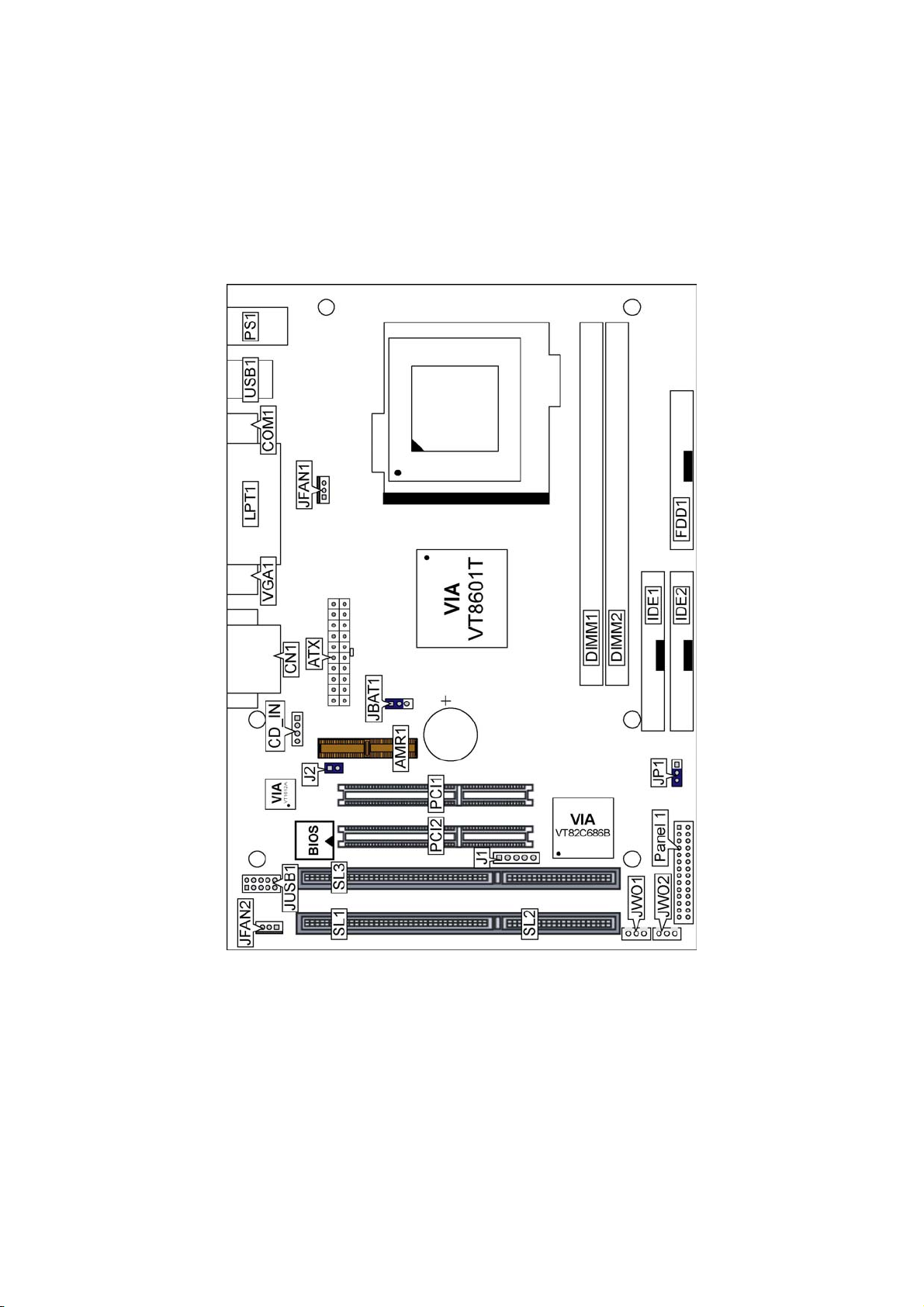

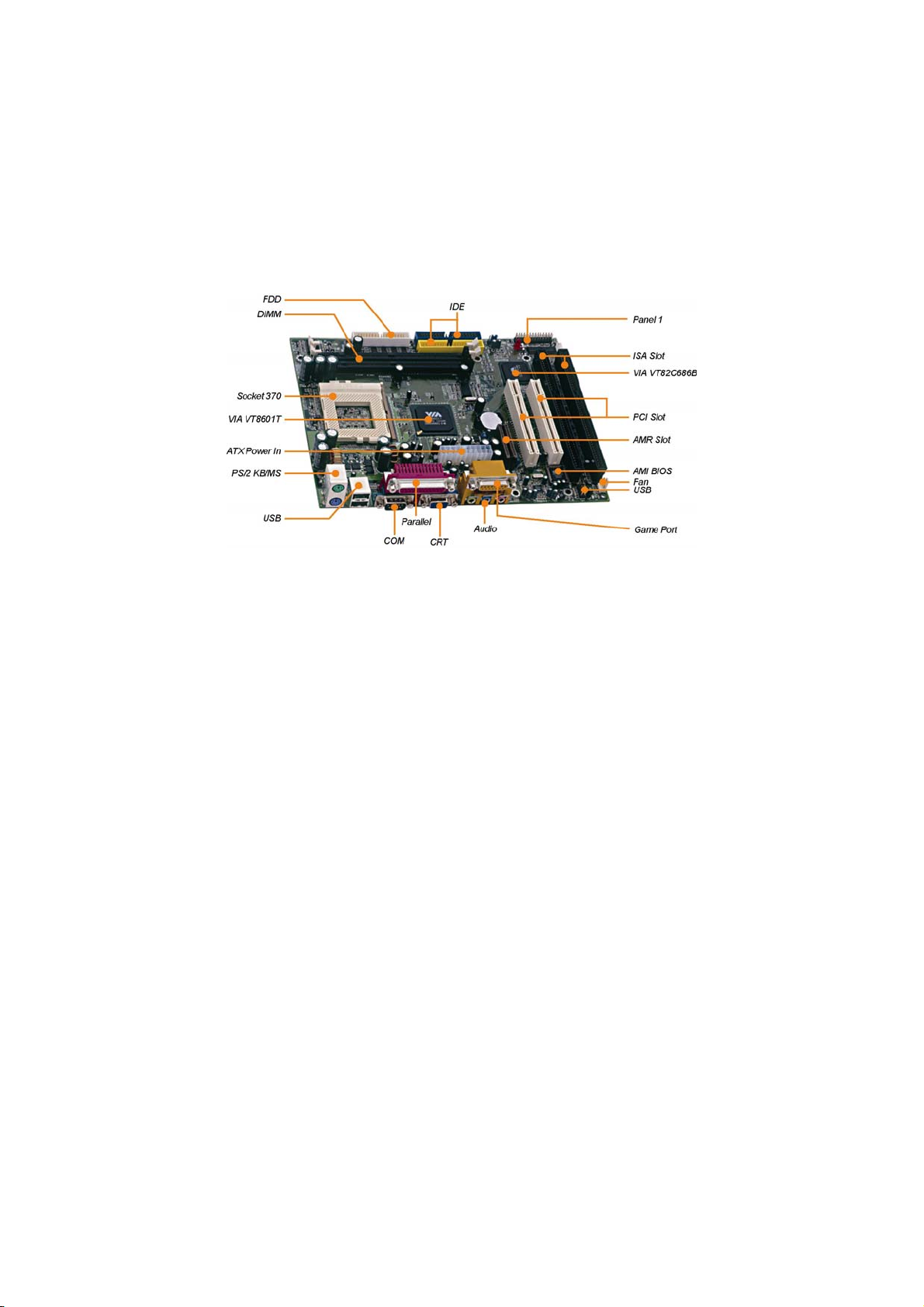

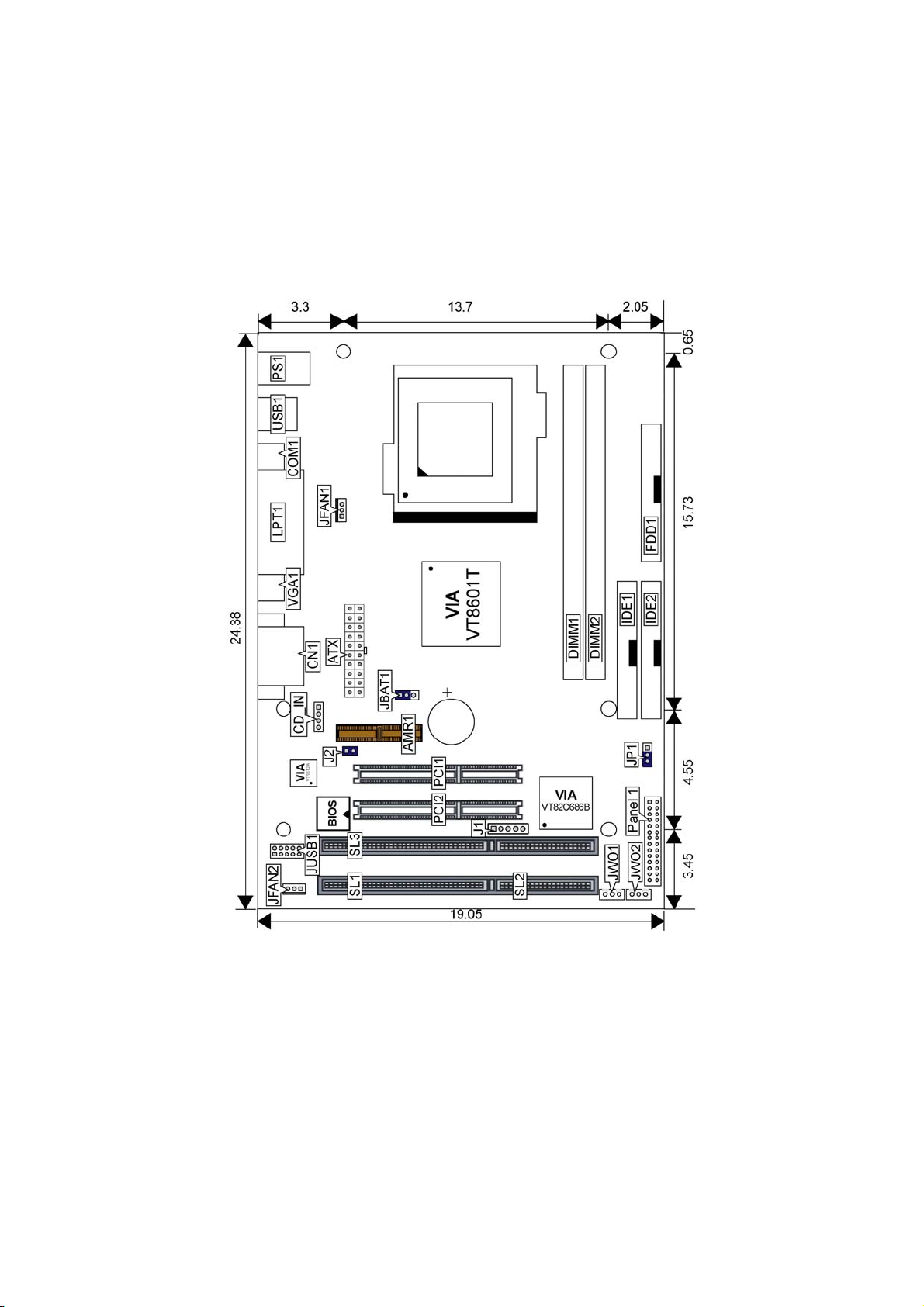

3.2 Board Layout
8

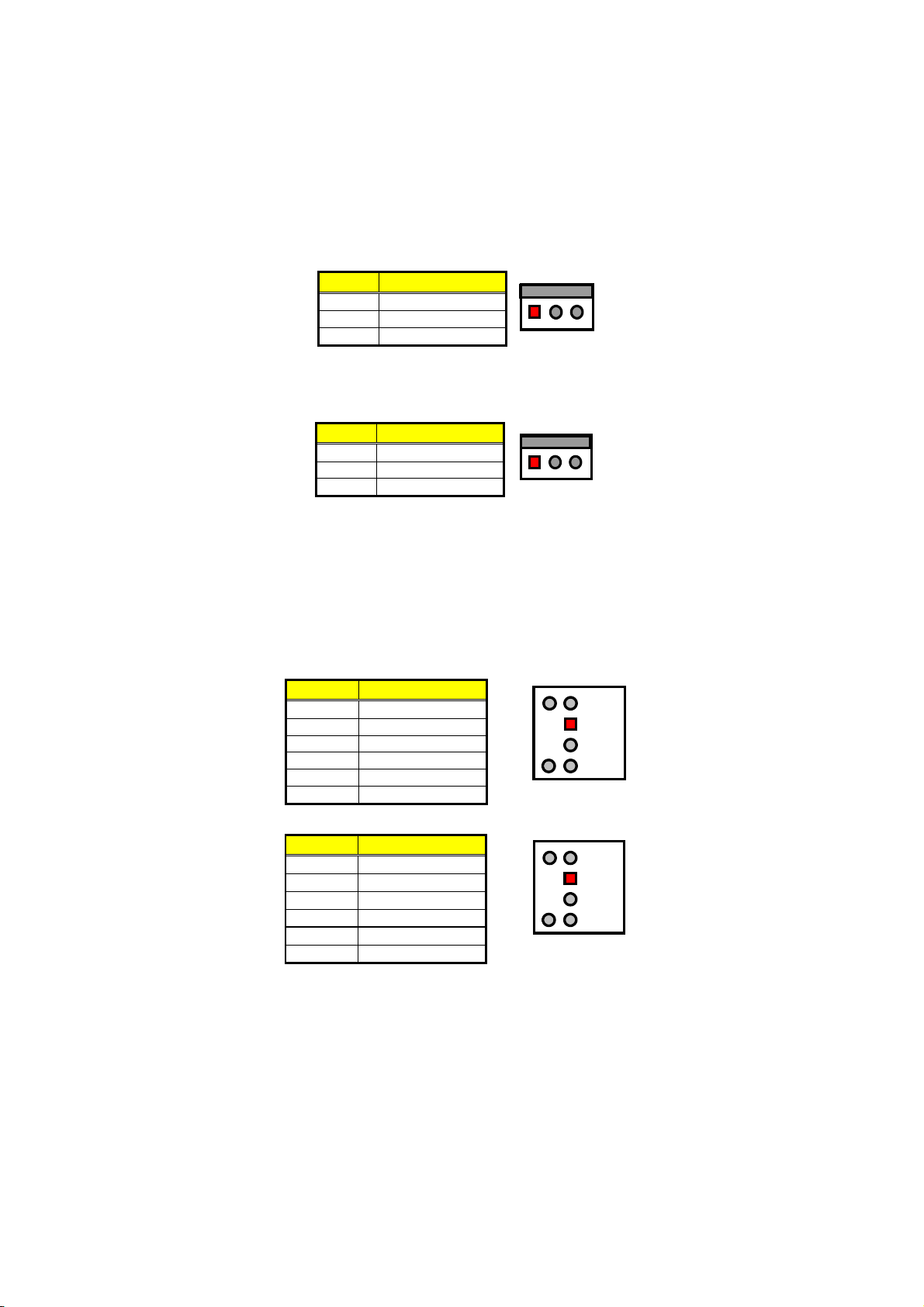

3.3 Jumper List
Jumper
J2 Use CODEC or AMR Slot Select: CODEC Short 19
JBAT1 Clear CMOS: Normal Operation Short 1-2 10
JP1 Power Down by Hardware or Software: Software Short 1-2 ----
Definition Setting Page
3.4 Connector List
Connector Definition Page
AMR1 AMR Slot ----
ATX 20-pin ATX Power Connector 16
CD_IN CD-ROM Analog Input Connector 19
CN1
CN1A Line In Connector 19
CN1B MIC In Connector 19
CN1C Line Out Connector 19
COM1
DIMM1/DIMM2 168-pin DIMM Sockets 10
FDD1 Floppy Connector 13
IDE1/IDE2 Primary/Secondary IDE Connectors 11
J1
JFAN1/JFAN2 Fan Power Connectors 16
JUSB1 Internal USB Connector 16
JWOL1 Wake On LAN Connector 14
JWOM1
LPT1 Parallel Connector 15
Panel1 Front Panel Connector 18
PS1 PS/2 6-pin Mini DIN Keyboard Connector 17
PS2
PCI1/PCI2 PCI Slots ----
SL1/SL3 ISA Slots ----
USB1 External USB Connector 16
VGA1
Game Port 19
COM 1 Connector (DB9) 14
IrDA Connector 15
Wake On Modem Connector 14
PS/2 6-pin Mini DIN Mouse Connector 17
15-pin VGA Connector 10
9
3.5 Configuring the CPU
The HS-1000 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-1000 automatically identifies the frequency of the installed
microprocessor chip.
3.6 System Memory
The HS-1000 provides two DIMM sockets at locations DIMM1 and
DIMM2. The maximum capacity of the onboard memory is 1GB.

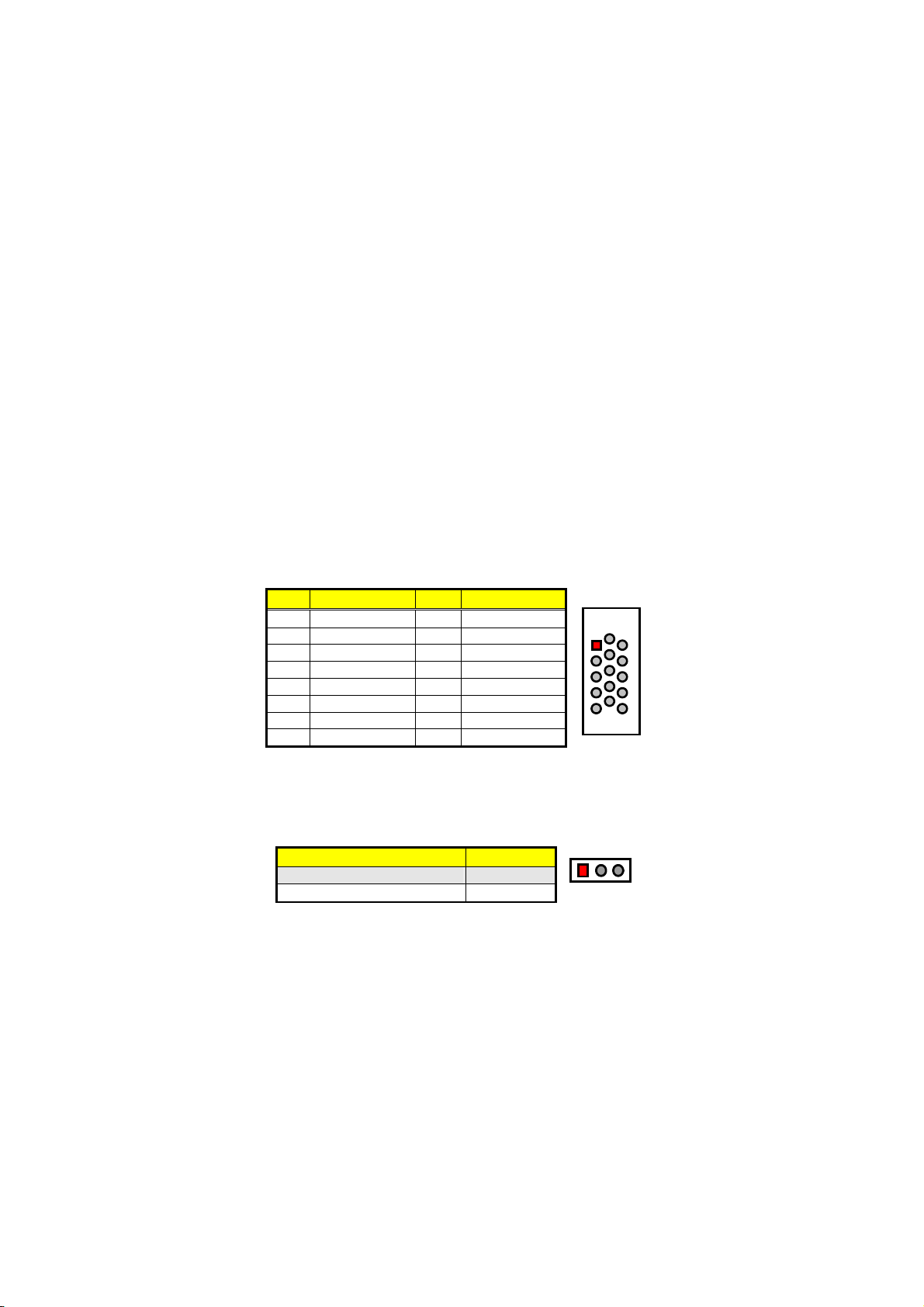

3.7 VGA Controller
The HS-1000 has an onboard VGA controller. The HS-1000 provides
one connection method of a VGA device. VGA1 offers a single
standard CRT connector (DB15).
VGA1: 15-pin CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
N/C
10
GND
6
1
11
10
15
5
3.8 CMOS Data Clear
The HS-1000 has a clear CMOS jumper on JBAT1.
JBAT1: Clear CMOS
Options Settings
Normal Operation (default) Short 1-2
Clear CMOS Short 2-3
NOTE:
10
Before you turn on the power of your system, please set JBAT1 to
short 1-2 for Normal Operation.
13

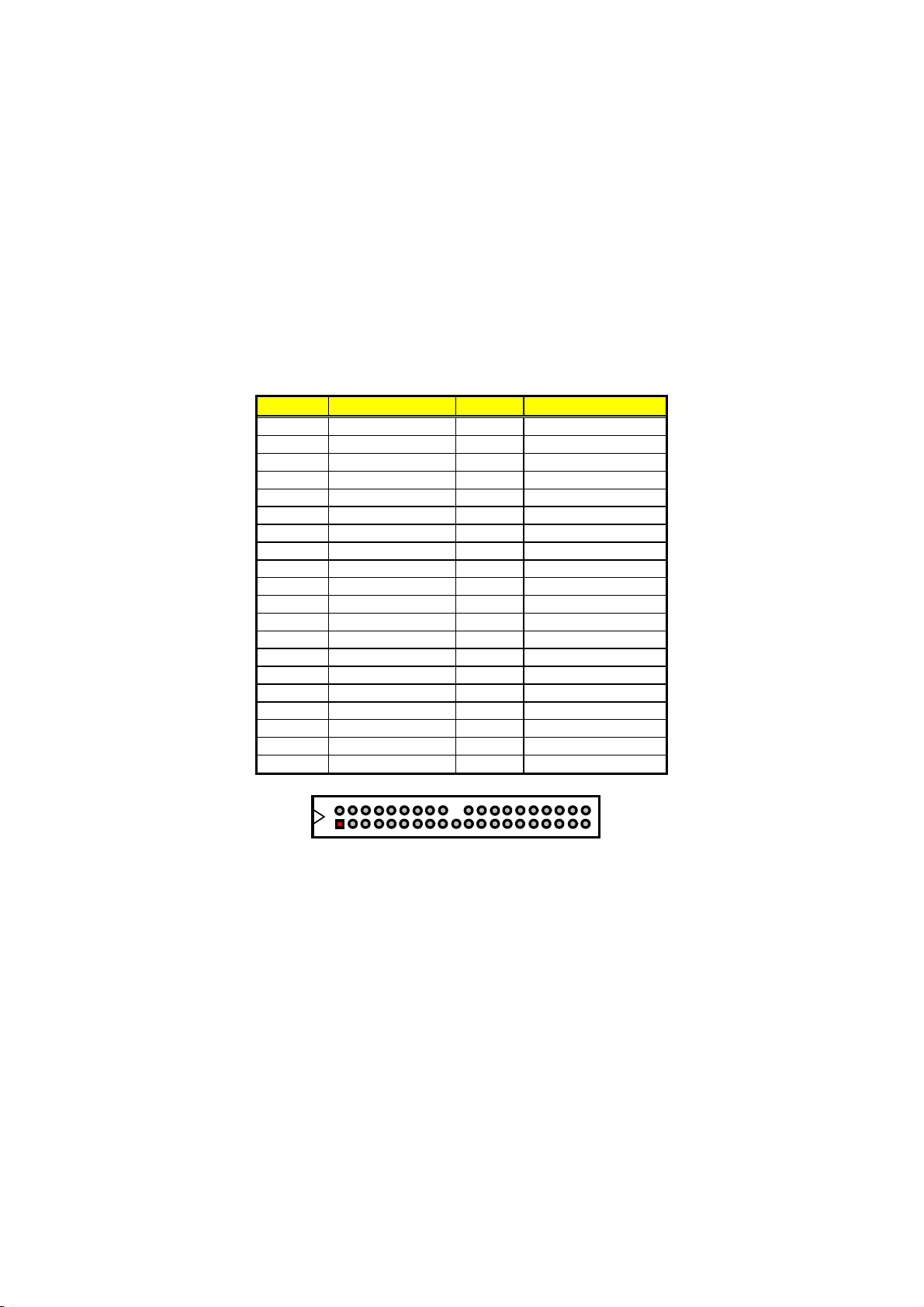

3.9 PCI E-IDE Drive Connector

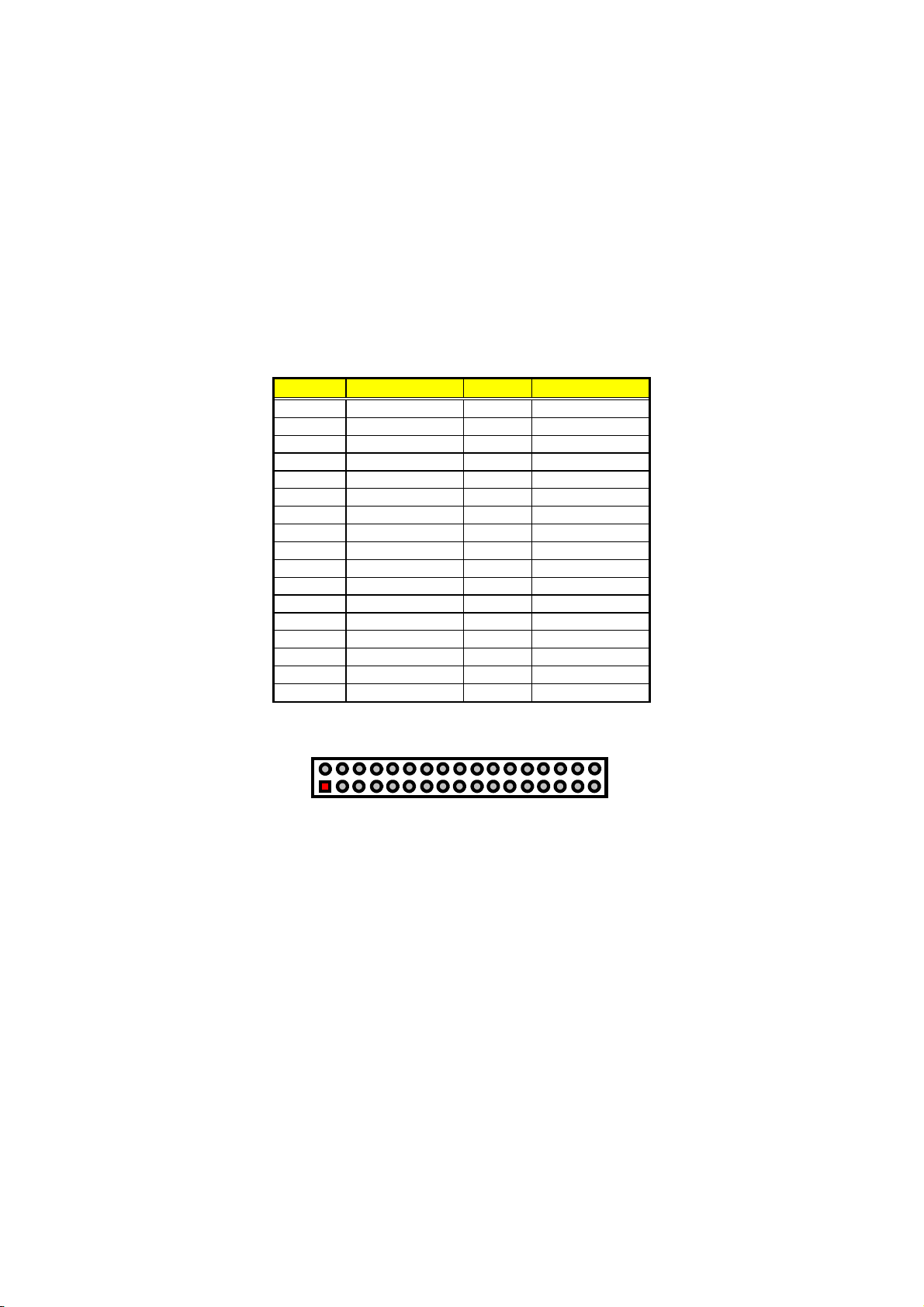

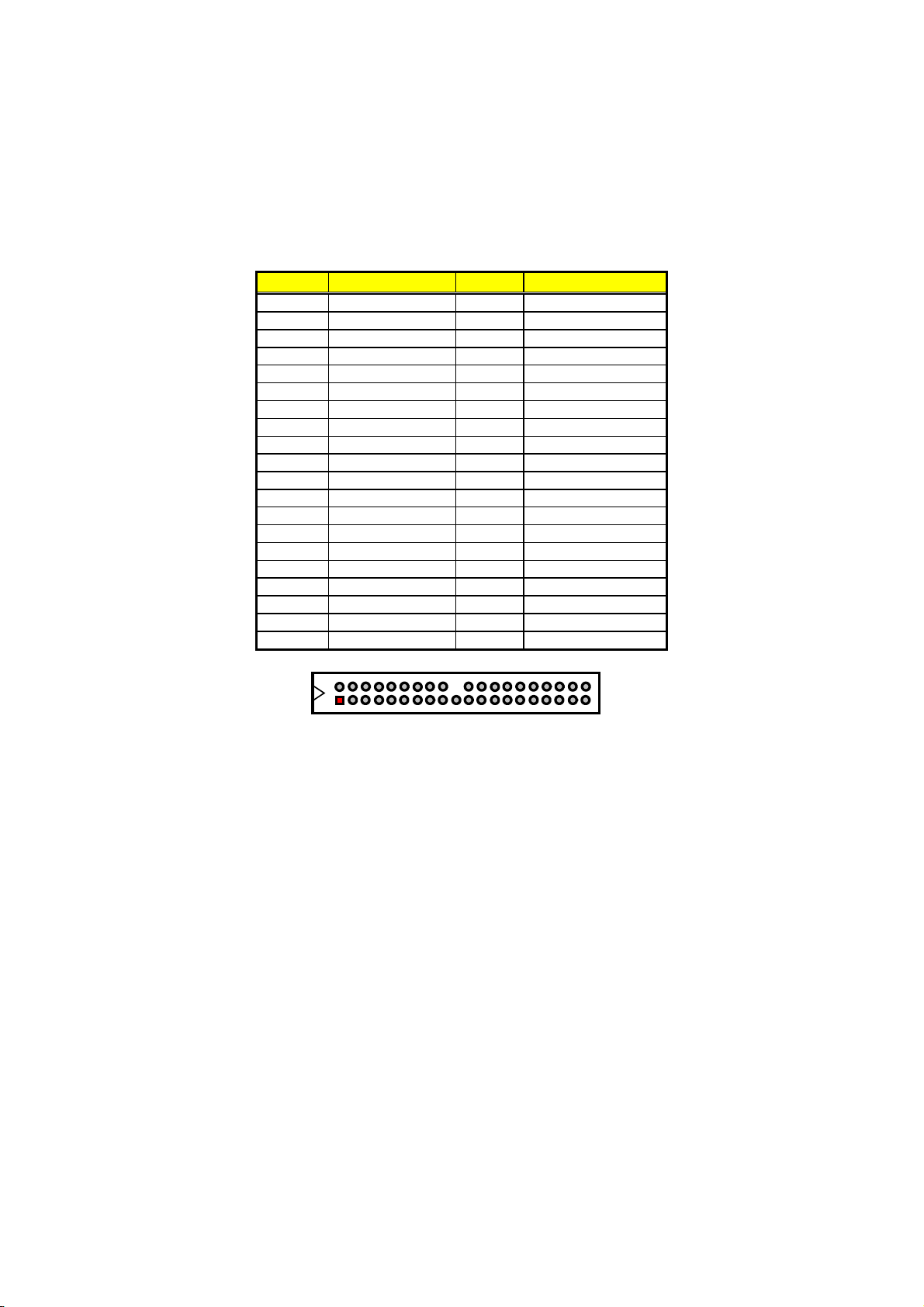

IDE1 and IDE2 are standard 40-pin connector daisy-chain driver
connectors serve the PCI E-IDE drive provisions onboard the HS-1000.
A maximum of four ATA/33/66/100 IDE drives can connect to the
HS-1000 via IDE1 and IDE2.
IDE1: Primary IDE Connector
PIN Description PIN Description
1
RESET
2
3 PDATA 7 4 PDATA 8
5 PDATA 6 6 PDATA 9
7 PDATA 5 8 PDATA 10
9 PDATA 4 10 PDATA 11
11
PDATA 3
12
13 PDATA 2 14 PDATA 13
15 PDATA 1 16 PDATA 14
17 PDATA 0 18 PDATA 15
19 GND 20 N/C
21
PDDREQ
22
23 PIOW# 24 GND
25 PIOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 INTERRUPT 32 N/C
33 RPDA1- 34 PATA66
35 RPDA0- 36 RPDA2-
37 RPCS1- 38 RPCS3-
39 HDD ACTIVE 40 GND
202224 262830
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
16 36
12 14
18
11 13 15 35 37
32 34
PDATA 12
38
33
GND
GND
40
39
11
IDE2: Secondary IDE Connector
PIN Description PIN Description
1 RESET 2 GND
3 SDATA 7 4 SDATA 8
5 SDATA 6 6 SDATA 9
7 SDATA 5 8 SDATA 10
9
11 SDATA 3 12 SDATA 12
13 SDATA 2 14 SDATA 13
15 SDATA 1 16 SDATA 14
17 SDATA 0 18 SDATA 15
19
21 SDDREQ 22 GND
23 SIOW# 24 GND
25 SIOR# 26 GND
27 SIORDY 28 SR1PD1-
29 SPDACK- 30 GND
31 INTERRUPT 32 N/C
33 RSDA1- 34 PATB66
35 RSDA0- 36 RSDA2-
37 RSCS1- 38 RSCS3-
39 HDD ACTIVE 40 GND
SDATA 4
GND
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
12 14
11 13 15 35 37
202224 262830
16 36
18
10
20
32 34
33
SDATA 11
N/C
38
40
39
12
3.10 Floppy Disk Drive Connector
The HS-1000 uses a standard 34-pin header connector, FDD1, for
floppy disk drive connection. A total of two FDD drives may be
connected to FDD1 at any given time.
FDD1: FDD Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29
GND
30
31 GND 32 HDSEL#
33 GND 34 DSKCHG#
RDATA#
DRVDEN0
N/C
DRVDEN1
INDEX#
MTR0#
DS1#
DS0#
MTR1#
DIR#
STEP#
WDATA#’WGATE#
TRAK00#
WRTPRT#
PDATA#
HDSEL#
2
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DSKCHG#
34
33
GND
GND
GND
13

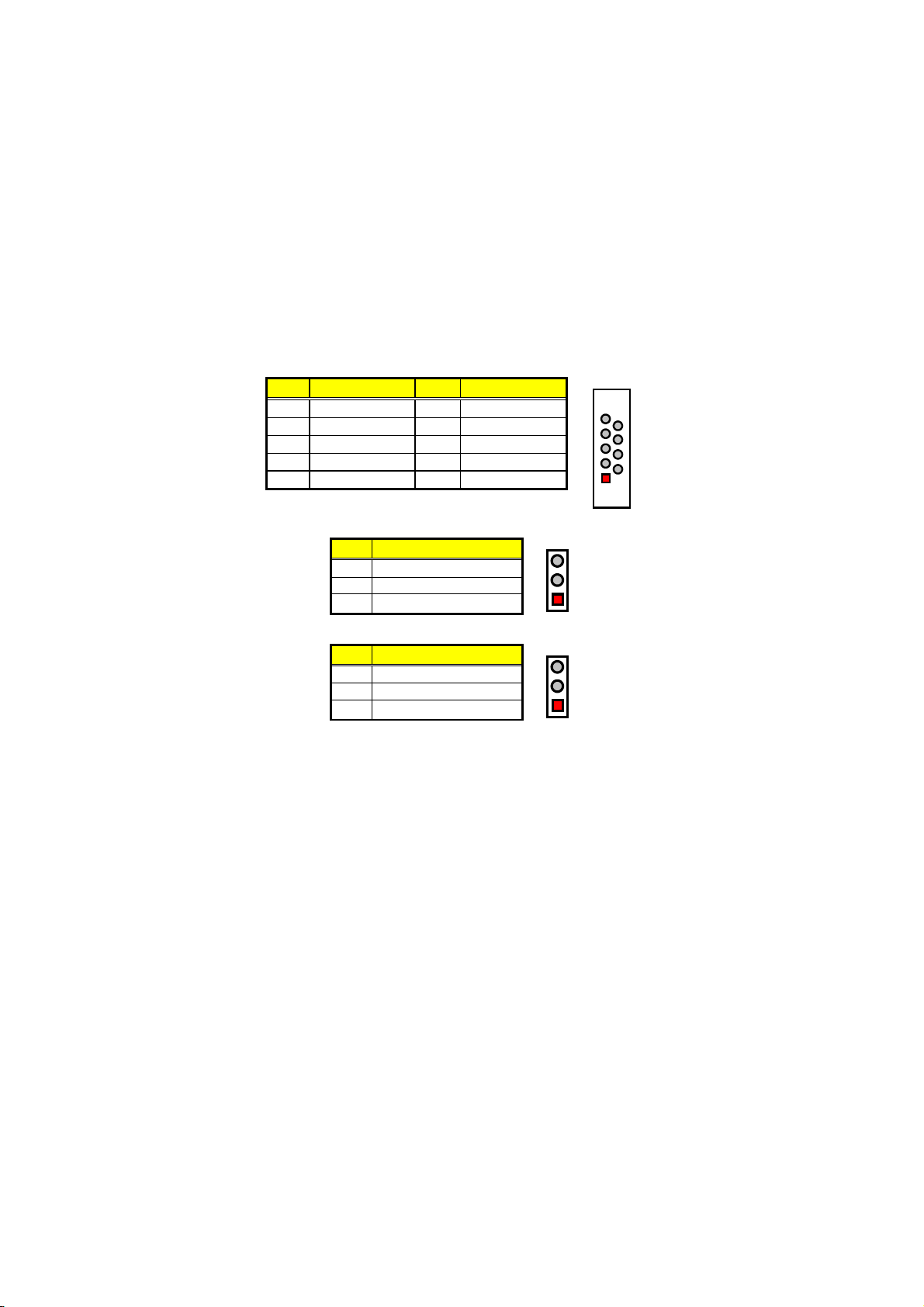

3.11 Serial Port Connectors
The HS-1000 offers one NS16C550 compatible UARTs with
Read/Receive 16-byte FIFO serial port and one external DB9
connector.
COM1: COM1 Connector (DB9)
PIN Description PIN Description
1 DCD 2 DSR
3
5 TXD 6 CTX
7 DTR 8 RI
9 GND
JWOL1: Wake On LAN Connector
JWOM1: Wake On Modem Connector
RXD
PIN
1 5VSB
2 GND
3 Wake On LAN
PIN
1 5VSB
2 GND
3 Wake On Modem
4
Description
Description
RTX
9
5
16
14

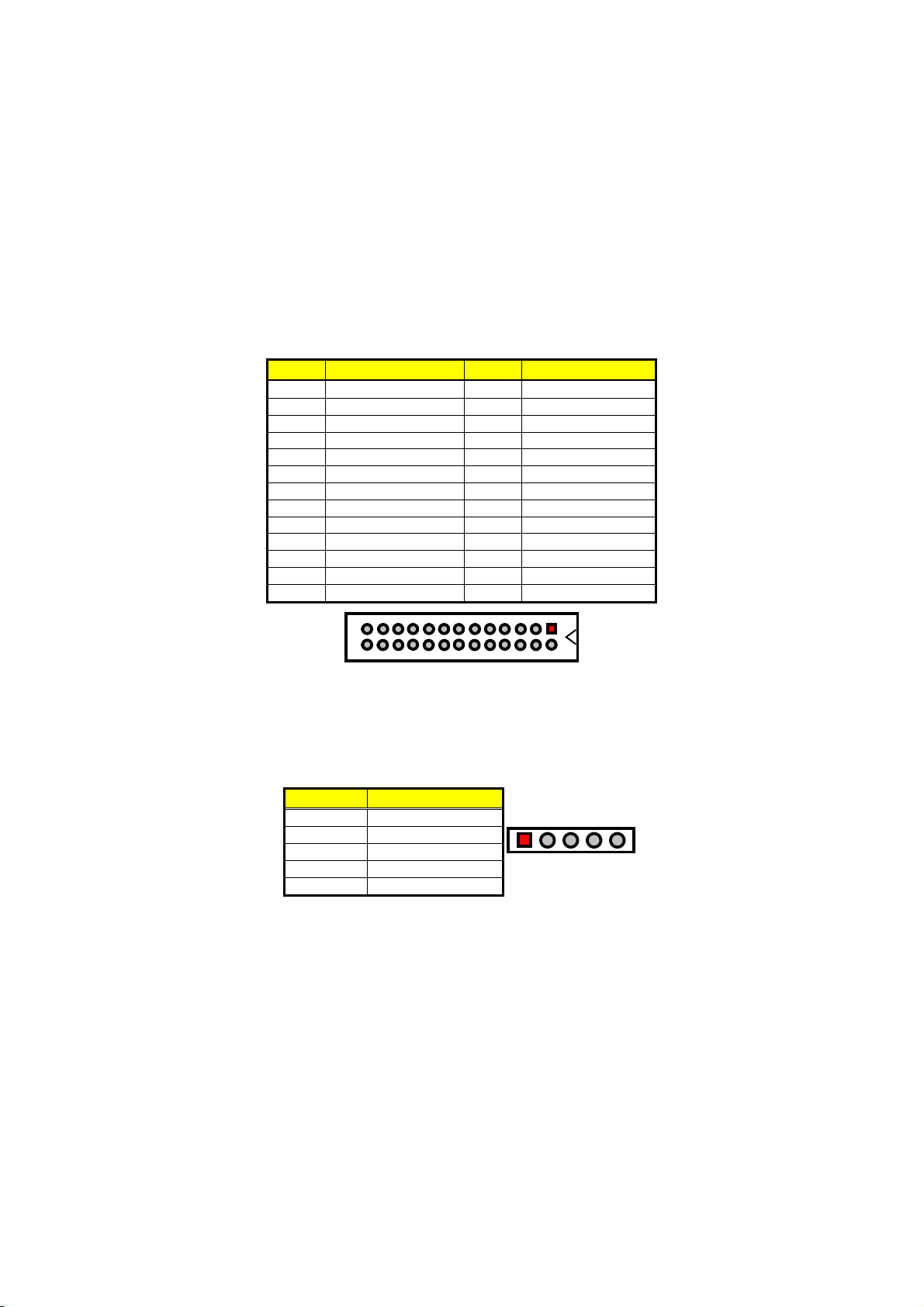

3.12 Parallel Connector
LPT1 is a standard 26-pin flat cable connector deigned to
accommodate parallel port connection onboard the HS-1000.
LPT1: Parallel Connector
PIN Description PIN Description
1 Strobe 14 Auto Form Feed
2 DATA 0 15 ERROR#
3
DATA 1
16
4 DATA 2 17 Printer Select LN#
5 DATA 3 18 GND
6 DATA 4 19 GND
7 DATA 5 20 GND
8 DATA 6 21 GND
9 DATA 7 22 GND
10
Acknowledge
23
11 Busy 24 GND
12 Paper Empty 25 GND
13 Printer Select 26 GND
Initialize
GND
13
26
1
14
3.13 IrDA Connector
J1 is a 5-pin internal IR communication connector for connection of an
IrDA device.
J1: IrDA Connector
PIN Description
1 VCC
2 N/C
3 IRRX
4 GND
5 IRTX
1
2345
N/C
VCC
IRRX
GND
IRTX
15

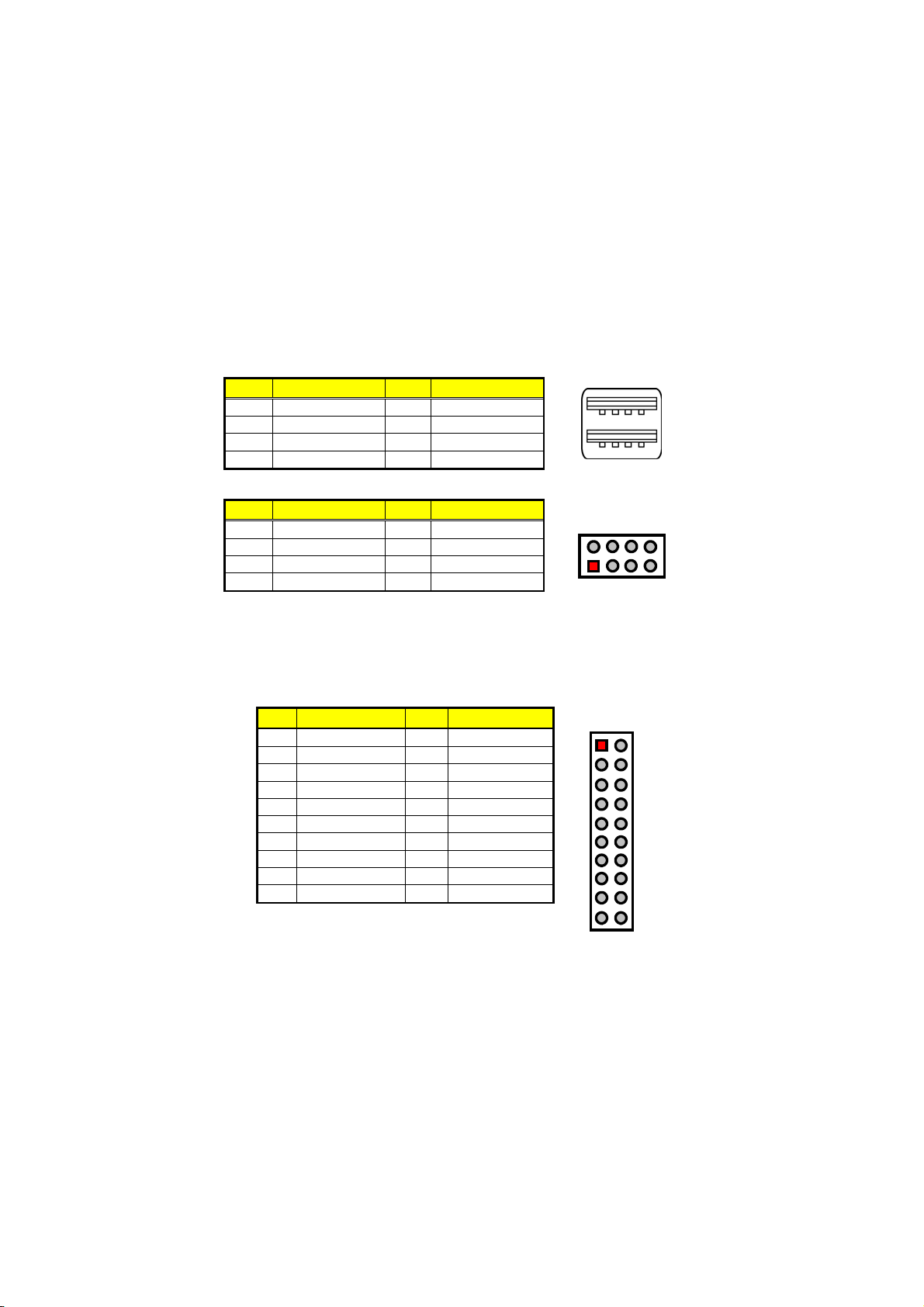

3.14 USB Connector
The HS-1000 provides one 8-pin connector, at locations JUSB1 and
two external connectors, at location USB1, for four USB connections to
the HS-1000.
USB1: External USB Connector
PIN Description PIN Description
1 VCC 2 VCC
3 BD0- 4 BD1-
5 BD0+ 6 BD1+
7
JUSB1: Internal USB Connector
GND
8
GND
PIN Description PIN Description
1 VCC 2 VCC
3 BD2- 4 BD3-
5 BD2+ 6 BD3+
7 GND 8 GND
VCC
2
1
VCC
GND
BD3+
BD3-
8
7
GND
BD2-
BD2+
3.15 Power Connectors
HS-1000 provides one 20-pin ATX power connector at ATX.
ATX: 20-pin ATX Power Connector
PIN Description PIN Description
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3
GND
13
GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7
GND
17
GND
8 PWORK 18 -5V
9 +5Vsb 19 +5V
10 +12V 20 +5V
Connector JFAN1 and JFAN2 onboard HS-1000 are 3-pin fan power
output connectors.
+3.3V
+3.3V
GND
+5V
GND
+5V
GND
PWORK
+5Vsb
+12V
111
10 20
+3.3V
-12V
GND
PS_ON
GND
GND
GND
-5V
+5V
+5V
16
JFN1: Fan Power Connector
PIN Description
1 Fan In 1
2 +12V
3 GND
13
Fan In 1
+12V
GND
JFN2: Fan Power Connector
PIN Description
1
2 +12V
3 GND
Fan In 2
13
Fan In 2
+12V
GND
3.16 Keyboard and Mouse Connectors
The HS-1000 offers two possibilities for keyboard connections. The
connections are via KB1 for an external PS/2 type keyboard or via CN1
for an internal 5-pin cable converter to an AT keyboard.
PS1: PS/2 6-pin Mini DIN Keyboard Connector
PIN Description
1
2 N/C
3 GND
4 +5V
5 Keyboard Clock
6 N/C
PS2: PS/2 6-pin Mini Din Mouse Connector
Keyboard Data
PIN Description
1 Mouse Data
2 N/C
3 GND
4 +5V
5 Mouse Clock
6 N/C
Keyboard
Clock
N/C
MS Clock
N/C
5
6
5
6
Keyboard
1
Data
2
N/C
+5V
4
GND
3
MS Data
1
2
N/C
+5V
4
GND
3
17

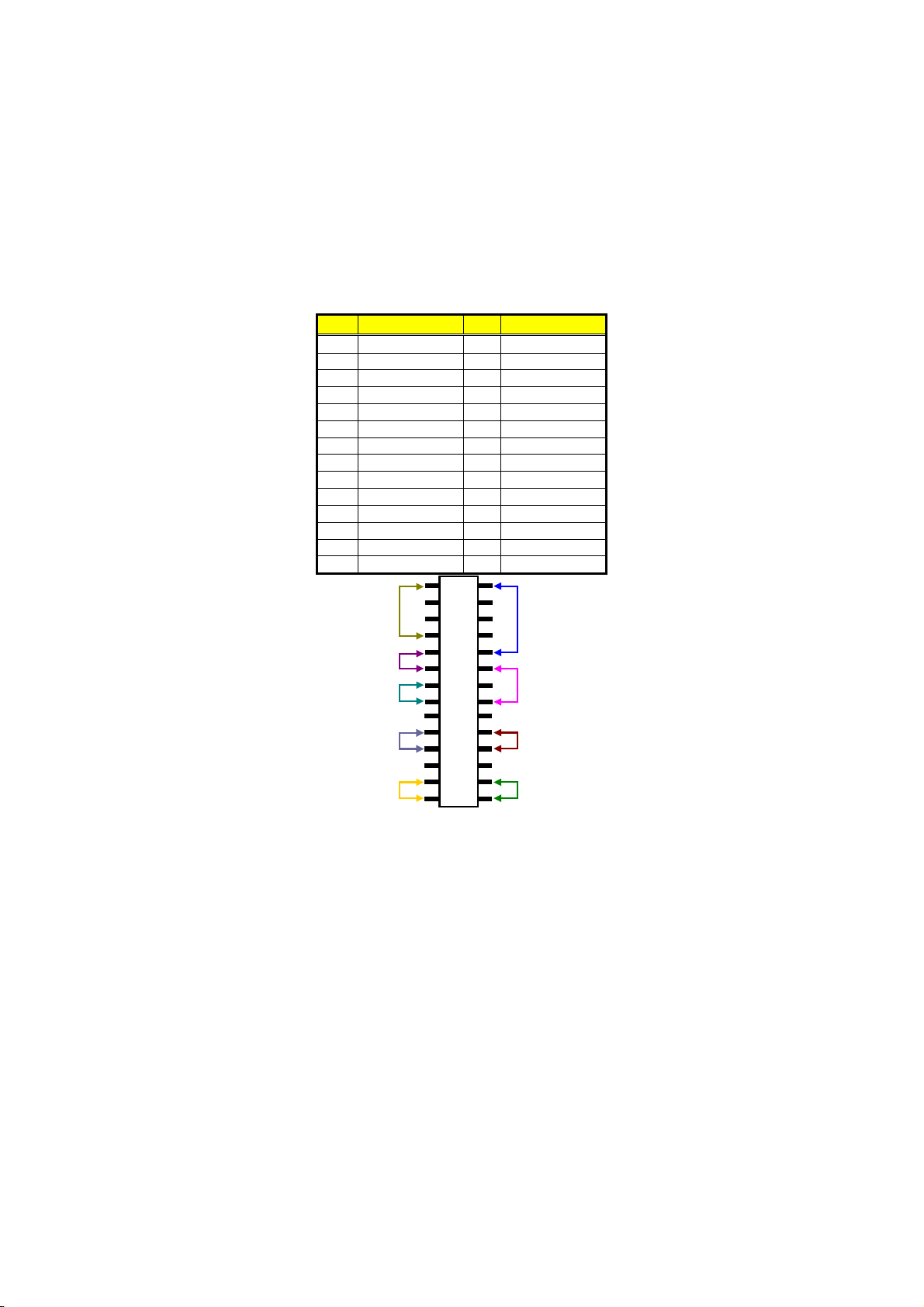

3.17 System Front Panel
Panel1: System Front Panel Connector
PIN Description PIN Description
RST_SW
TRB LED
HDD LED
VCC
GND
2
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
3 GND 4 N/C
5 N/C 6 GND
7 Speaker 8 N/C
9 GND 10 330Ω Pull +5V
11 Reset Switch 12 GND
13 330Ω Pull Up 14 330Ω Pull Up
15
17 N/C 18 N/C
19 330Ω Pull +5V 20 EXT SMI
21 HDD LED 22 GND
23 N/C 24 N/C
25 Sleep Button 26 Power Button
27 GND 28 GND
SPEAKER
SLP Button
GND
VCC
PWR LED
TUB_SW
EXT_SMI
PWR Button
18
3.18 Game Port
CN1: Game Port Connector
PIN Description PIN Description
1
2 JAB1 10 JBB1
3 JACX 11 JBCX
4 GND 12 MSO
5 GND 13 JBCY
6 JACY 14 JBB2
7 JAB2 15 MSI
8
VCC
VCC
9
VCC
8
15
1
9

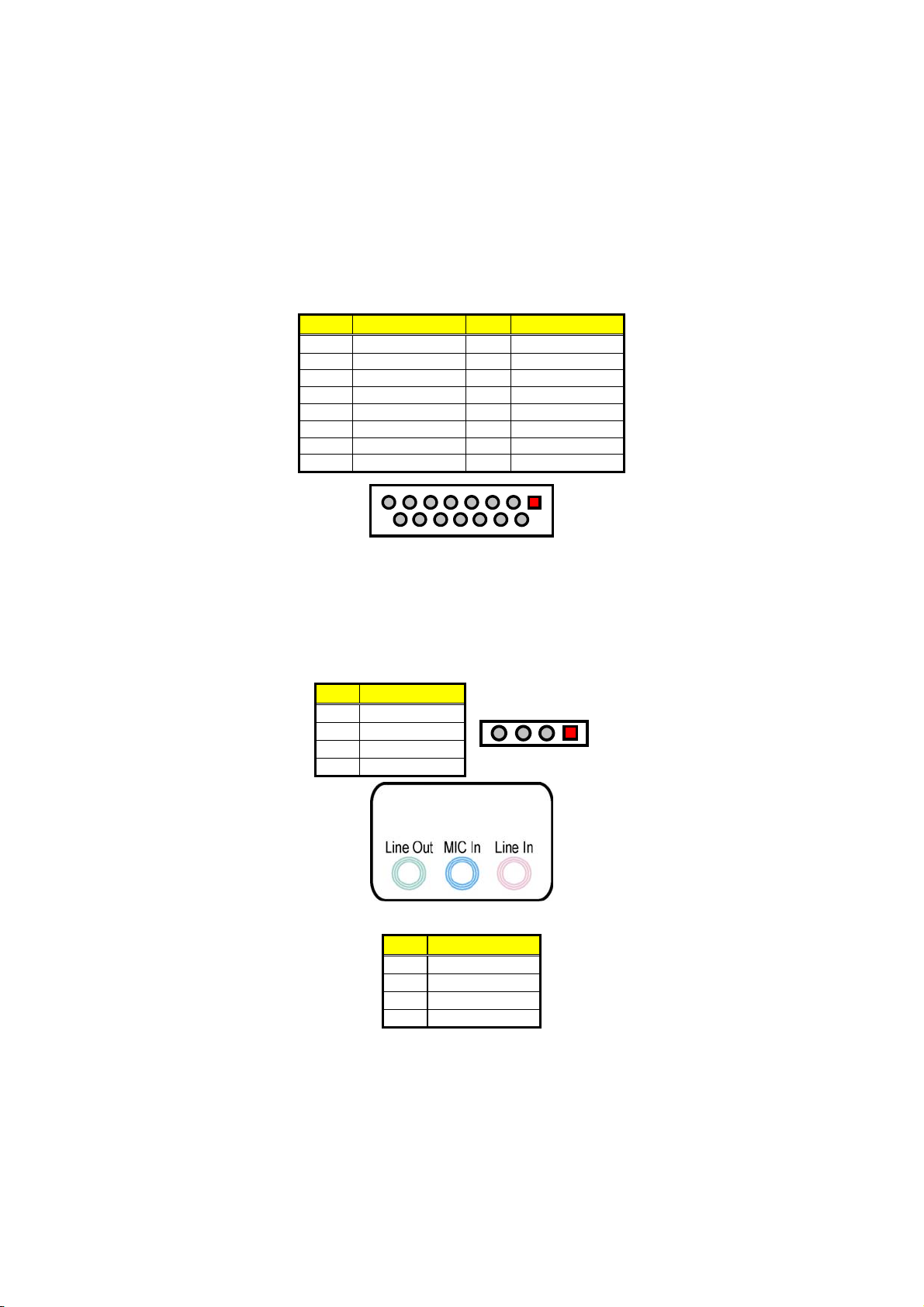

3.19 Audio Connectors
The HS-1000 has an onboard AC97 3D audio interface. The following
tables list the pin assignments of the CD-ROM Analog Input, the Line In
and the MIC In / Line Out connectors.
CD_IN: CD-ROM Analog Input Connector
PIN Description
1 CDL
2 GND
3
4 CDR
CN1A: Line In Connector (RED)
GND
PIN Description
1 LINE_R
2
3 GND
4 LINE_L
GND
14
19
CN1B: MIC In Connector (BLUE)
PIN Description
1 GND
2 MIC In
CN1C: Line Out Connector (GREEN)
PIN Description
1 LOL
2 N/C
3 LOW
4 GND
J2: Use CODEC or AMR Slot Select
Options Settings
Onboard CODEC (default) Short
AMR Slot Open
1
2
20
Chapter 4
AMI BIOS Setup
The HS-1000 uses AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options that could be
selected for end-user requirements. This chapter is written to assist
you in the proper usage of these features.
4.1 Starting Setup
The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.
While the BIOS is in control, the Setup program can be activated in one
of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
21
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
press <F1> for help and press <Esc> to quit. The following table
provides more detail about how to navigate in the Setup program using
the keyboard.
Up arrow
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu -- Quit and not save changes into CMOS
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key
- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
(Shift)F2 key Change color from total 16 colors. F2 to select color
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for
F6 key
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
Move to previous item
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
Increase the numeric value or make changes
Page Setup Menu
forward, (Shift) F2 to select color backward
Option Page Setup Menu
Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu
4.2.1 Getting Help
Press F1 to pop up a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit
the Help Window press <Esc> or the F1 key again.
22
4.3 Main Menu
Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
NOTE:
A brief description of the highlighted choice appears at the bottom
of the screen.
Save Settings and Exit
Exit Without Saving
23
4.4 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy) : Thu Jan 03, 2002 Base Memory : 0 KB
Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB
Floppy Drive A: 1.44MB, 3.5”
Floppy Drive B: Not Installed
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master : Auto
Pri Slave : Auto
Sec Master : Auto
Sec Slave : Auto
Boot Sector Virus Protection : Disabled
Month: Jan - Dec ESC:Exit
Day: 01 - 30 PgUp/PgDn: Modify
Year: 1980 - 2099 F1:Help F2/F3:Color
mode. Please use the IDE Setup Utility in
LBA
:Sel
24
4.5 Advanced CMOS Setup
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Quick Boot Enabled
Pri Master ARMD Emulated as Auto
Slave ARMD Emulated as Auto Enabled
Sec Master ARMD Emulated as Auto
Slave ARME Emulated as Auto
1st Boot Device Floppy
2nd Boot Device IDE-0
3rd Boot Device CD-ROM
Try Other Boot Devices Yes
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
Wait For ‘F1’ If Error Enabled
Hit ‘DEL’ Message Display Enabled
CPU MicroCode Updation Enabled
CPU Serial Number Enabled
L1 Cache Enabled
L2 Cache Enabled
System BIOS Cacheable Enabled
C000,32k Shadow Cached
C800,16k Shadow Disabled
CC00,16k Shadow Disabled
D000,16k Shadow Disabled
D400,16k Shadow Disabled ESC:Exit
D800,16k Shadow Disabled PgUp/PgDn: Modify
DC00,16k Shadow Disabled
S
Available Options:
`
Disabled
:Sel
T
F1:Help F2/F3:Color
25
4.6 Advanced Chipset Setup
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
******** DRAM Timing ******** Available Options:
Configure SDRAM Timing by SPD Enabled
DRAM Frequency Auto Enabled
SDRAM CAS# Latency 3
DRAM Bank Interleave Enabled
Memory Hole Disabled
AGP Mode 4x
AGP Read Synchronization Enabled
AGP Fast Write Disabled
AGP Aperture Size 64MB
AGP Master 1 W/S Write Disabled
AGP Master 1 W/S Read Disabled
Search for MDA Resources Yes
PCI Delay Transaction Enabled
ISA Bus Clock PCI CLK/4
USB Controller All USB Port
USB Device Legacy Support Disabled
Port 64/60 Emulation Disabled ESC:Exit
PgUp/PgDn: Modify
F1:Help F2/F3:Color
`
Disabled
:Sel
26
4.7 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
ACPI Aware O/S Ye s
ACPI Standby State Auto
USB Device Wakeup From S3-S5 Disabled Yes
Re-Call VGA BIOS at S3 Resuming Enabled
Power Management / APM Enabled
Video Power Down Mode Suspend
Hard Disk Power Down Mode Standby
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50%~56.25%
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ12 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
System Thermal Disabled
Thermal Active Temperature 65°C / 149°F
Thermal Slow Clock Ratio 50%~56.25%
Power Button Function On / Off
Restore on AC / Power Loss Last State
Resume On Ring Disabled
Resume On LAN Disabled
Resume On PME# Disabled
Resume On KBC Disabled
Wake-Up Key N/A
Wake-Up Password N/A
Resume On PS/2 Mouse Disabled
Resume On RTC Alarm Disabled
RTC Alarm Date 15
RTC Alarm Hour 12 ESC:Exit
RTC Alarm Minute 30 PgUp/PgDn: Modify
RTC Alarm Second 30
S
Available Options:
`
No
:Sel
T
F1:Help F2/F3:Color
27
4.8 PCI / Plug and Play Setup
This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.
AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
Plug and Play Aware O/S No Available Options:
Clear NVRAM No
OnChip VGA Frame Buffer Size 8MB
PCI Latency Timer (PCI Clocks) 32 Yes
Primary Graphics Adapter PCI
PCI IDE Bus Master Enabled
OffBoard PCI IDE Card Auto
Primary IRQ Disabled
Secondary IRQ Disabled
PCI Slot1 IRQ Priority Auto
PCI Slot2 IRQ Priority Auto
PCI Slot3 IRQ Priority Auto
PCI Slot4 IRQ Priority Auto
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP ESC:Exit
IRQ14 PCI/PnP PgUp/PgDn: Modify
IRQ15 PCI/PnP F1:Help F2/F3:Color
`
No
:Sel
28
4.9 Peripheral Setup
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary and a
secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them. This
is much simpler and more efficient (also faster).
(C)2001 American Megatrends, Inc. All Rights Reserved
AMIBIOS SETUP – PERIPHERAL SETUP
OnBoard FDC Auto Available Options:
OnBoard Prarllel Port Auto
Parallel Port Mode Normal Primary
EPP Version N/A Secondary
Parallel Port DMA Channel N/A Both
Parallel Port IRQ Auto
OnBoard IDE Both
OnBoard AC’97 Audio Enabled
OnBoard Legacy Audio Enabled
Sound Blaster Disabled
SB I/O Base Address 200h-22Fh
SB IRQ Select 5
SB DMA Select 1
Mpu-401 Disabled
Mpu-401 I/O Address 330h-333h ESC:Exit
FM Port (388-38Bh) Disabled PgUp/PgDn: Modify
Game Port (200h-207h) Enabled F1:Help F2/F3:Color
`
Disabled
:Sel
29
4.10 Hardware Monitor Setup
AMIBIOS SETUP – HARDWARE MONITOR SETUP
(C)2001 American Megatrends, Inc. All Rights Reserved
*** System Hardware Monitor *** Available Options:
Chassis Intrusion Disabled
TSENS1 Temperature Enabled
CPU Fan Speed Reset
Chassis Fan Speed
Vcore
+ 2.500V
+3.300V
+5.000V
+12.000V
ESC:Exit
PgUp/PgDn: Modify
F1:Help F2/F3:Color
`
Disabled
:Sel
30
4.11 Auto-Detect Hard Disks
This option detects the parameters of an IDE hard disk drive, and
automatically enters them into the Standard CMOS Setup screen.
Up to four IDE drives can be detected, with parameters for each
appearing in sequence inside a box. To accept the displayed entries,
press the “Y” key; to skip to the next drive, press the “N” key. If you
accept the values, the parameters will appear listed beside the drive
letter on the screen.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
31
4.12 Change Supervisor/User Password
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Enter new supervisor password: _
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
You can set either supervisor or user password, or both of then. The
differences between are:
supervisor password: can enter and change the options of the setup
menus.
user password: just can only enter but do not have the right to change the
options of the setup menus.
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may
also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
PASSWORD DISABLED.
32
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.
4.13 Auto Configuration with Optimal
Settings
When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load high performance settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
33
4.14 Auto Configuration with Fail Safe
Settings
When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Load failsafe settings (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
34
4.15 Save Settings and Exit
Pressing <Enter> on this item asks for confirmation:
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Save current settings and exit (Y/N) ? Y
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
35
4.16 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.54
(C)2001 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
Quit without saving (Y/N) ? N
Change Supervisor Password
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3: Color F10: Save & Exit
36
Abandon all Data & Exit Setup
Chapter 5
Software Utilities
This chapter contains the detailed information of IDE, VGA, Audio and
LAN driver installation procedures.
5.1 IDE and Audio Driver Installation
The utility disk that came with the delivery package contains an
auto-run program that invokes the installation programs for the IDE,
VGA and Audio drivers. The following describes the installation
procedures of each driver.
5.1.1 VIA VT82C686B AGP Bus Driver Installation

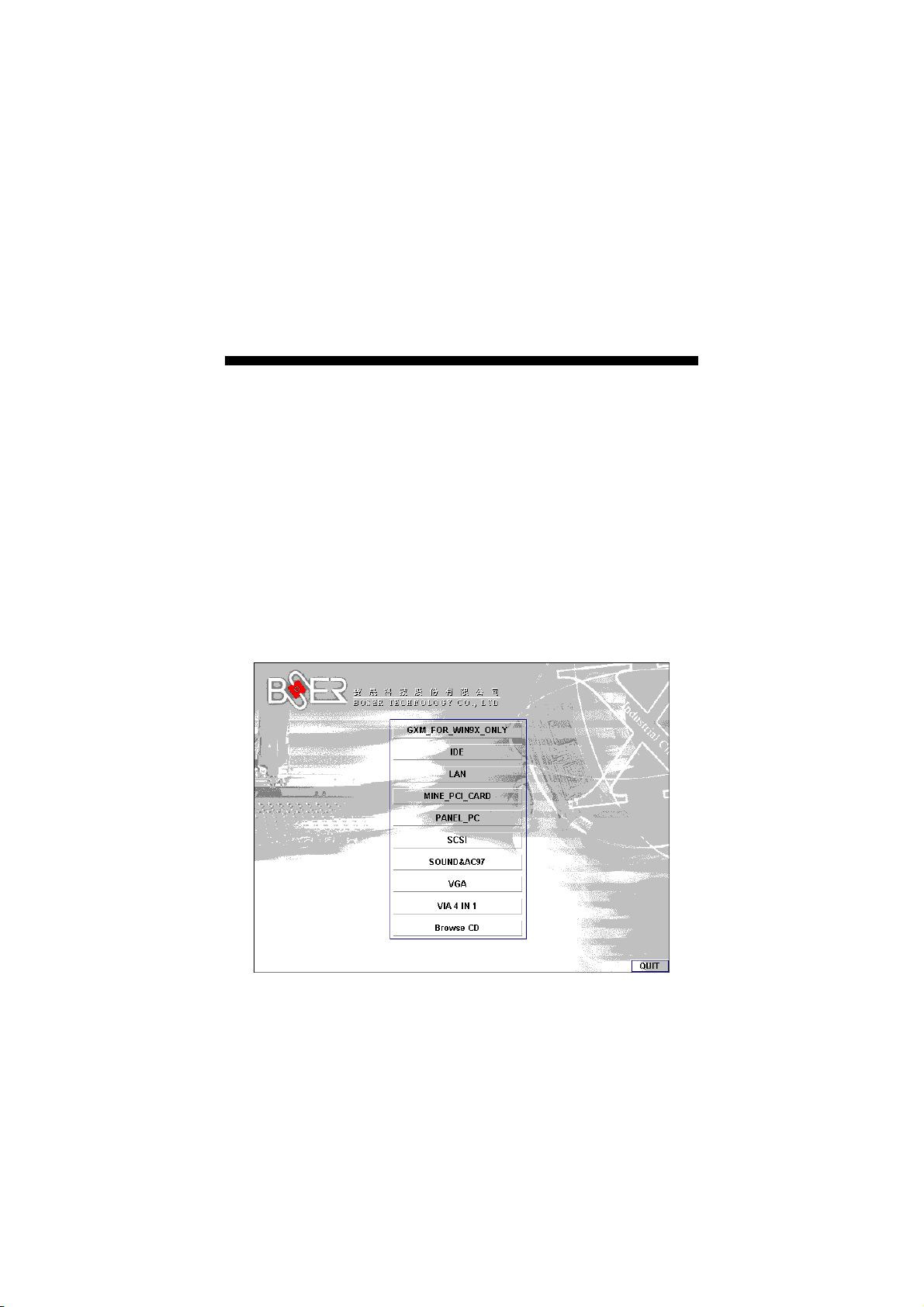

1. Insert Utility CD Disk to your CD ROM. The main menu will pop
up as shown below.
37
2. Press “VIA 4 IN 1” and to go Setup.

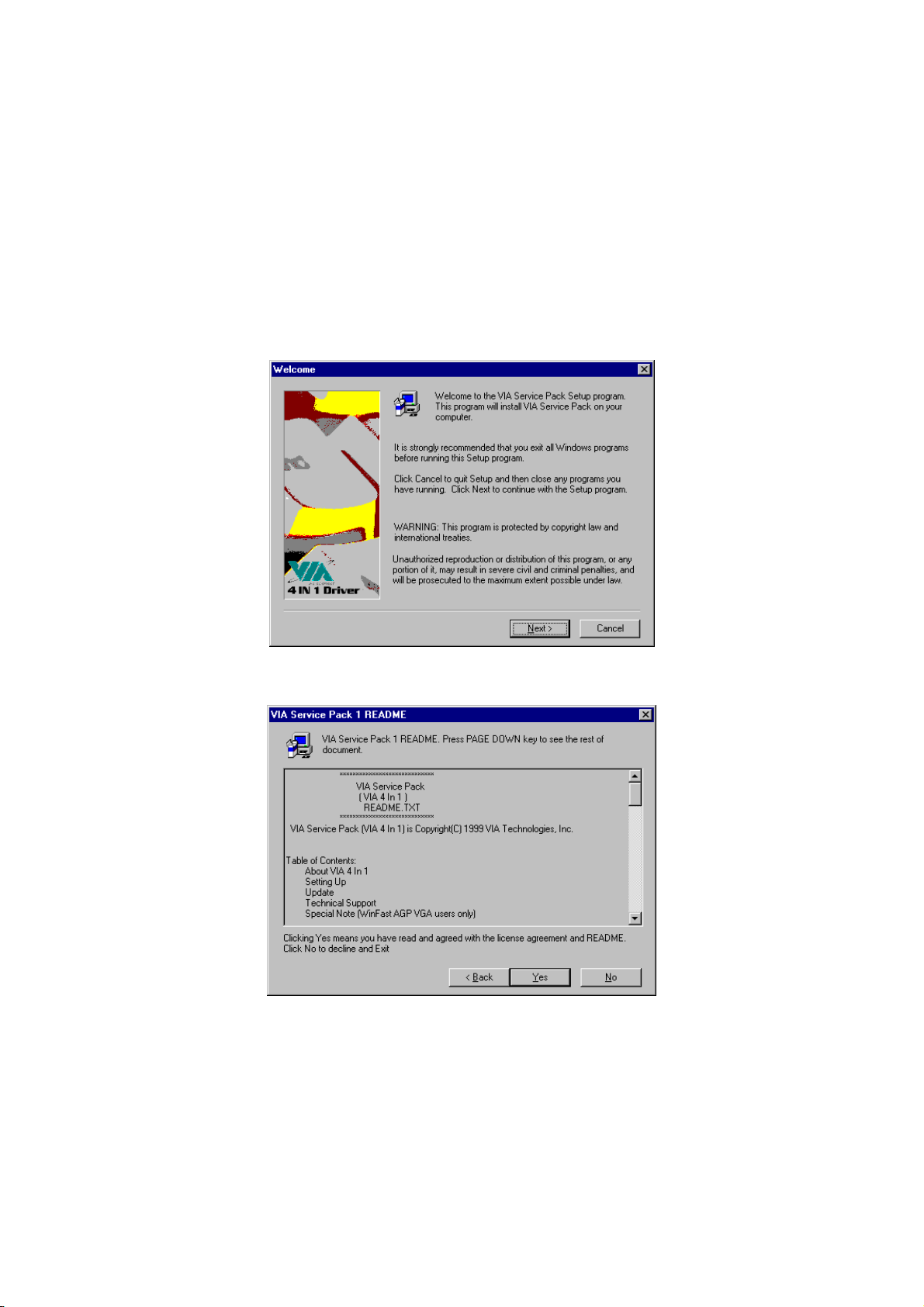

3. Once the Welcome screen appears on the screen, make sure to
close any applications running and then click on the Next
button.
4. When the Readme window pops on the screen, you may read
the whole document including the license agreement or just
press Yes to skip through and continue installation.
38

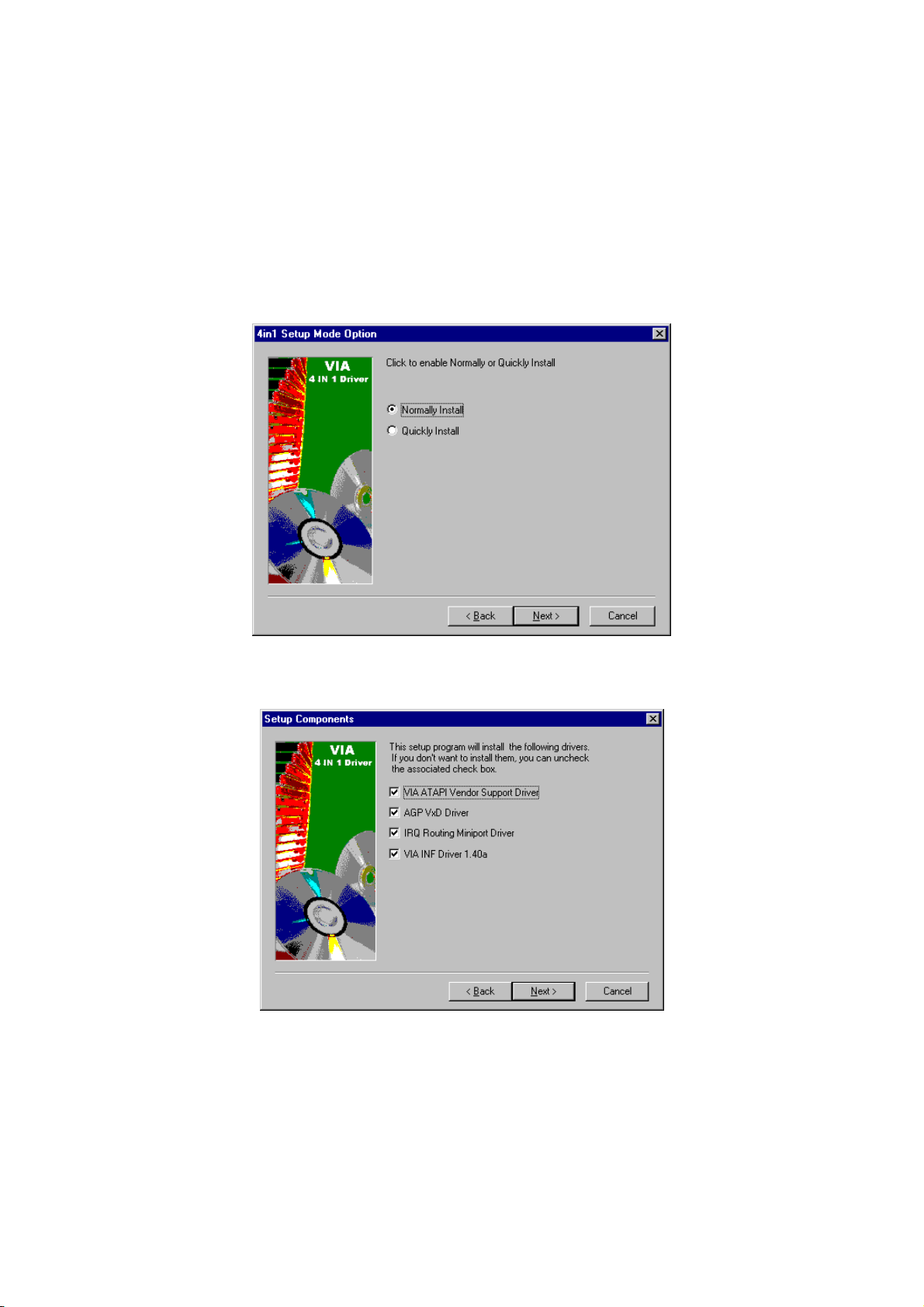

5. The 4 in 1 Setup dialog is now displayed. Select on Normally
Install and then click on Next.
6. The next window lists all components detected in your system
and asks you to select the ones requiring drivers. Tick on all
items then proceed by clicking on the Next button below the
screen.
39

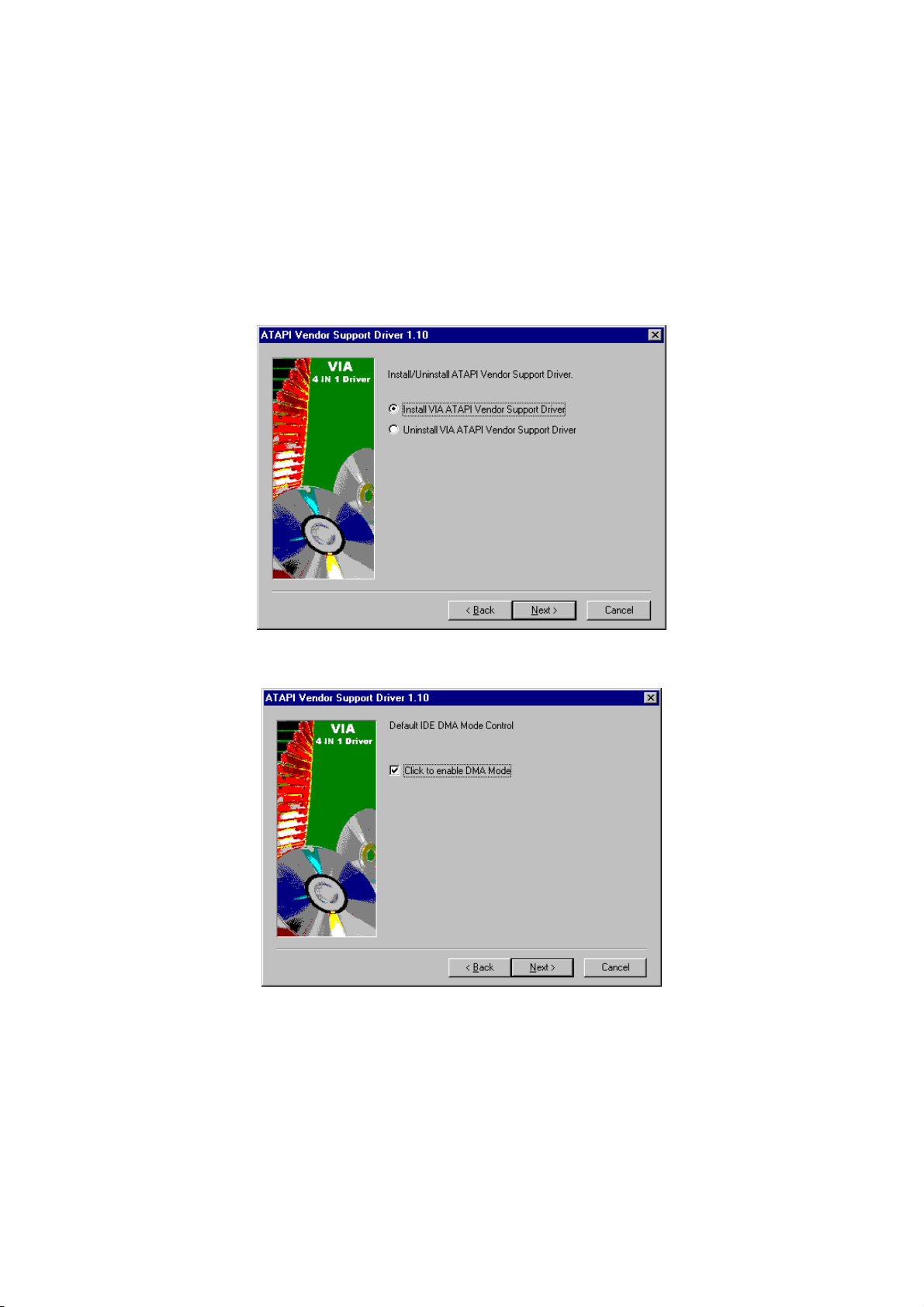

7. The program starts to install the ATAPI driver when you click the
Next button on the screen below.
8. When the ATAPI driver is completely installed. The utility then
displays your DMA mode status and allows you to enable it. Tick
on the box and press on the Next button to continue.
40

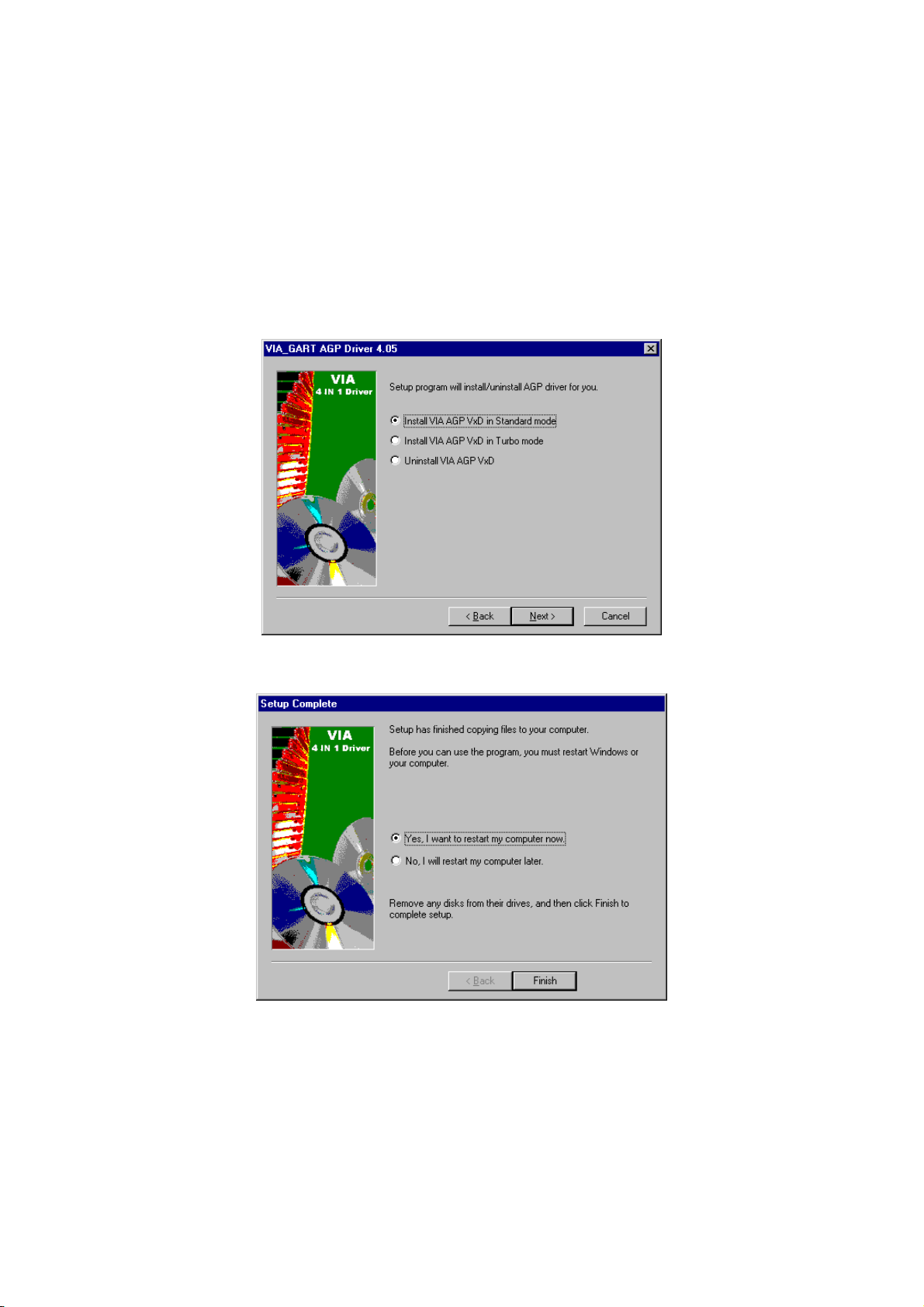

9. The following screen then gives you the choice of installing the
AGP driver in standard o turbo mode. Select on the Standard
Mode and then click on Next to proceed.
10. Installation of the AGP driver is now complete. Once the screen
below appears, select on restarting your computer to activate all
drivers/settings completed.
41
5.1.2 VIA IDE Tool Installation

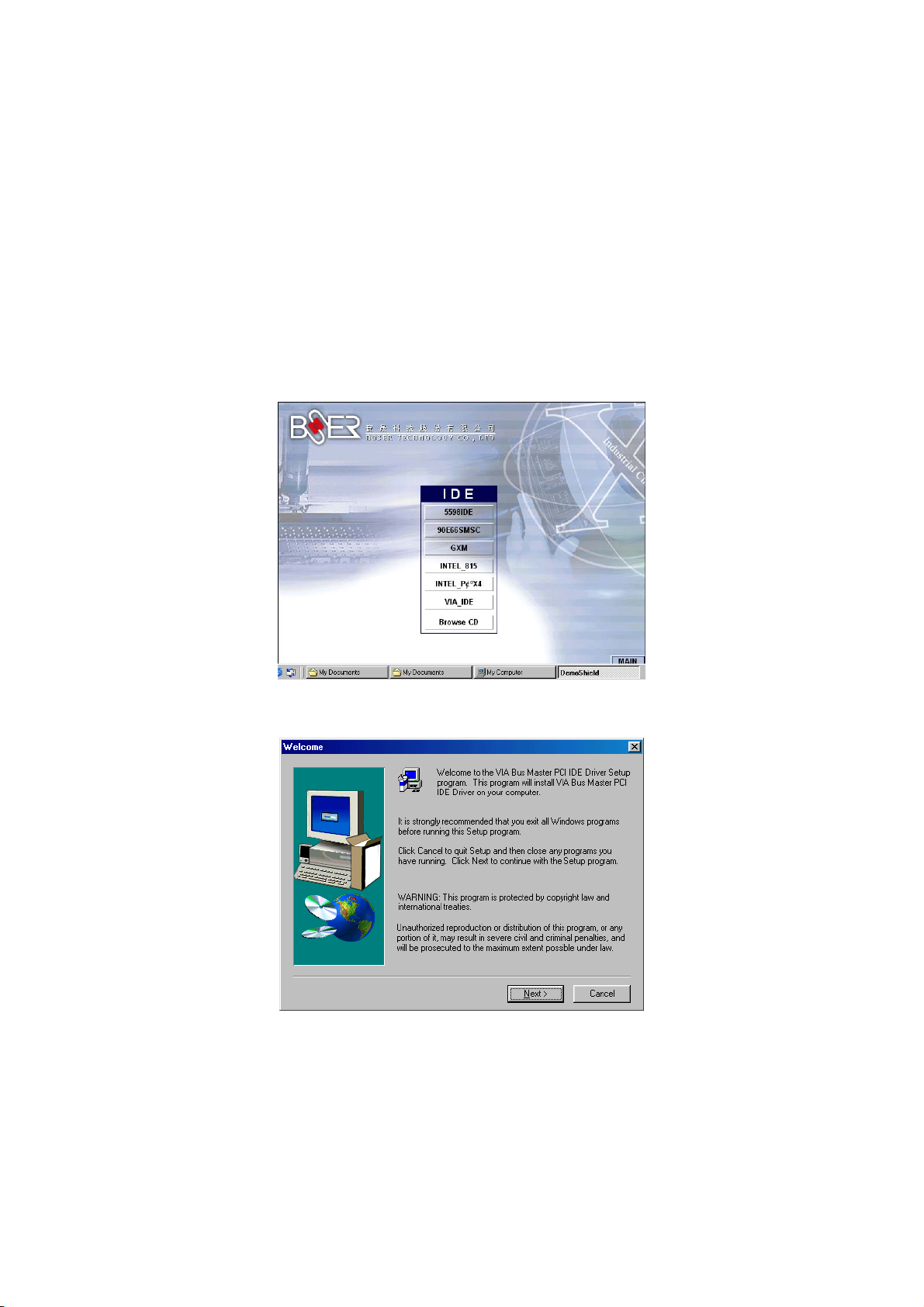

1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the following screen will appear on your
display. Click on VIA_IDE from the main menu to start installing
the VIA ID Tool.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
42

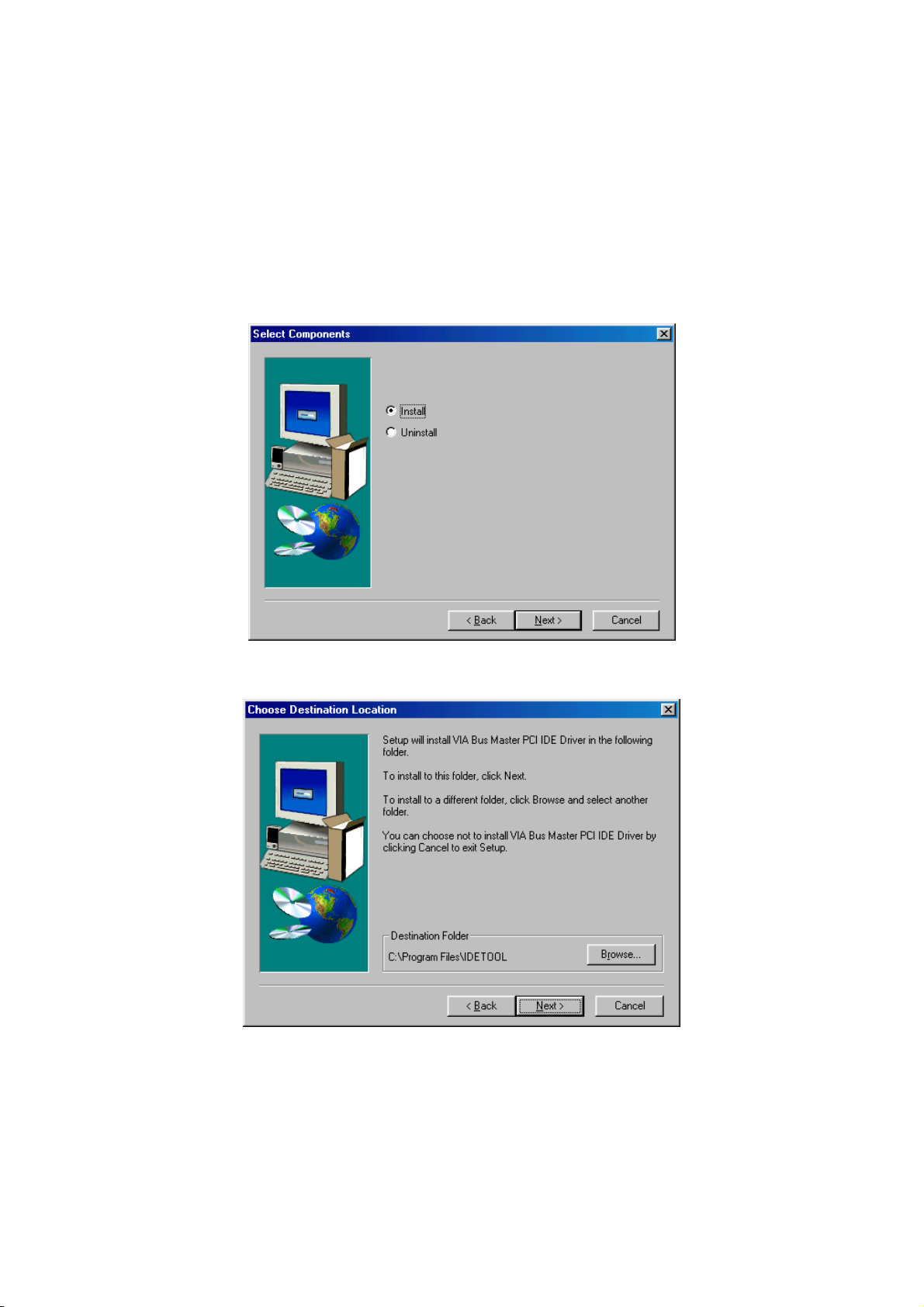

3. The Select Components dialog box is now displayed. Select on
Install and then click on Next.
4. Choose the folder to where the program will install the driver.
Select the default folder (C:\Program Files\IDETOOL) and then
click on Next to proceed.
43

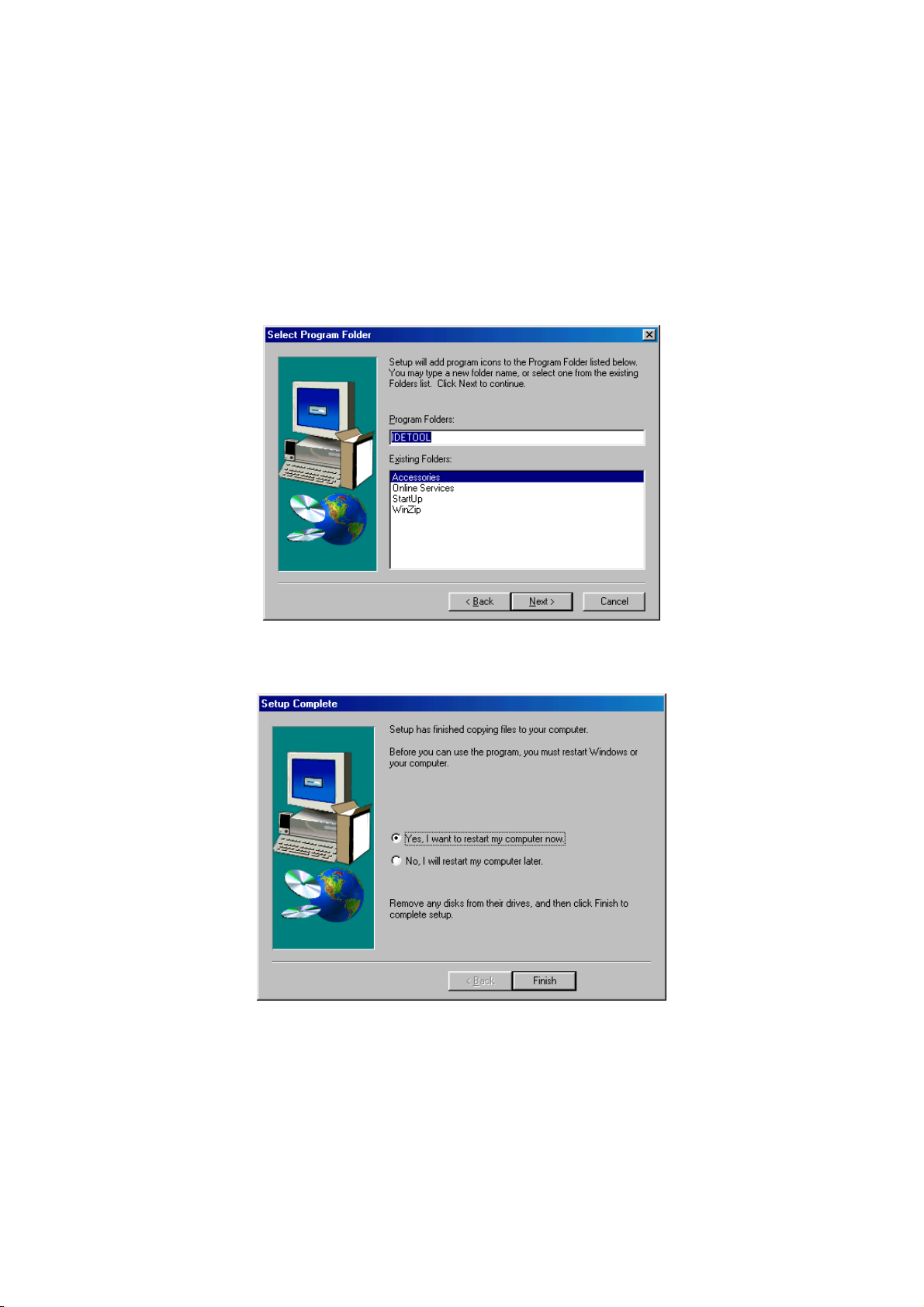

5. The program will now create an icon for the IDETOOL. Simply
press Next to continue with the installation.
6. The program now installs and transfers the files to your system.
After it finishes, you will be prompted to restart your system.
We recommend you to reboot your computer to allow the new
settings to take effect. Click on the Finish button to reboot.
44

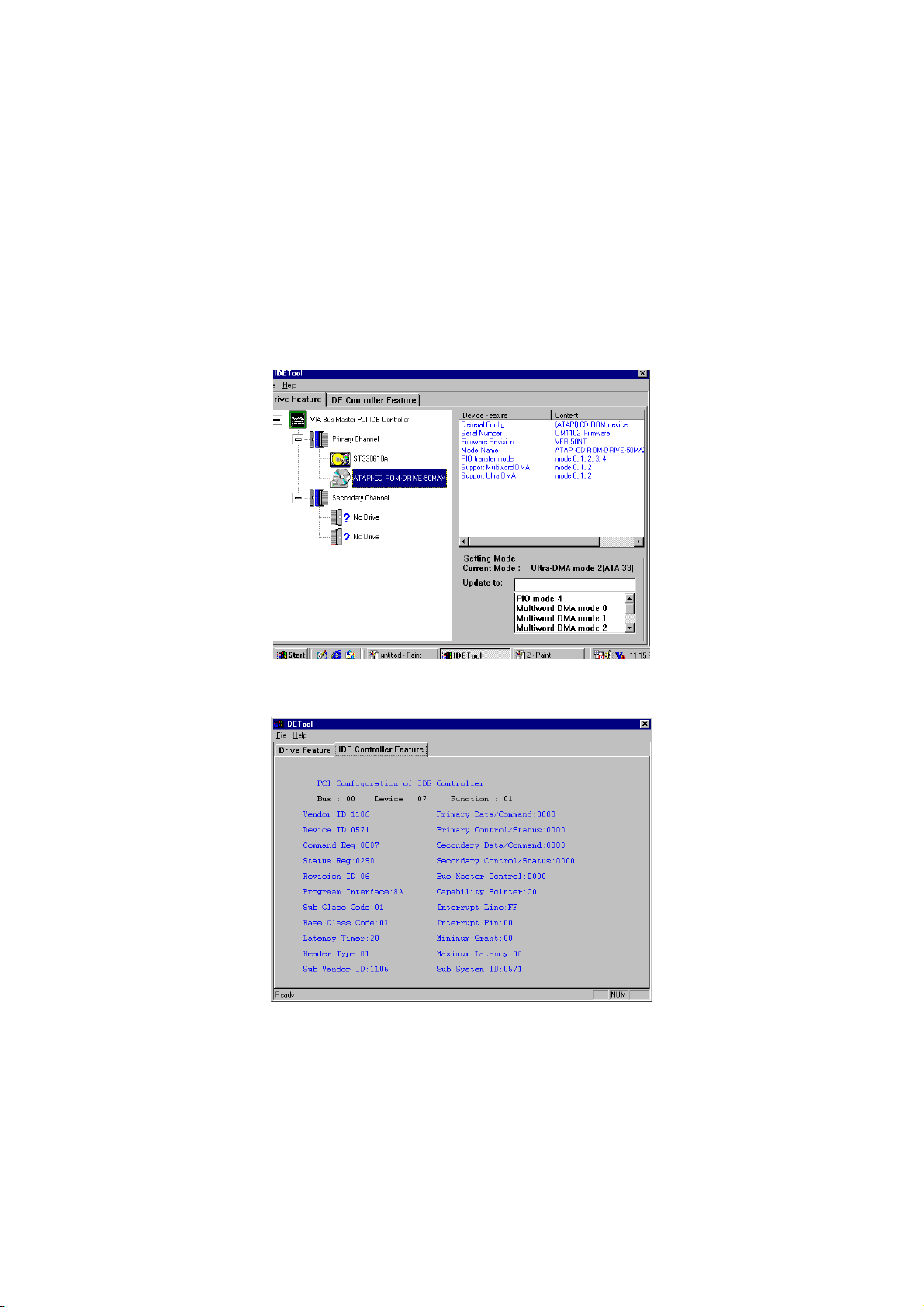

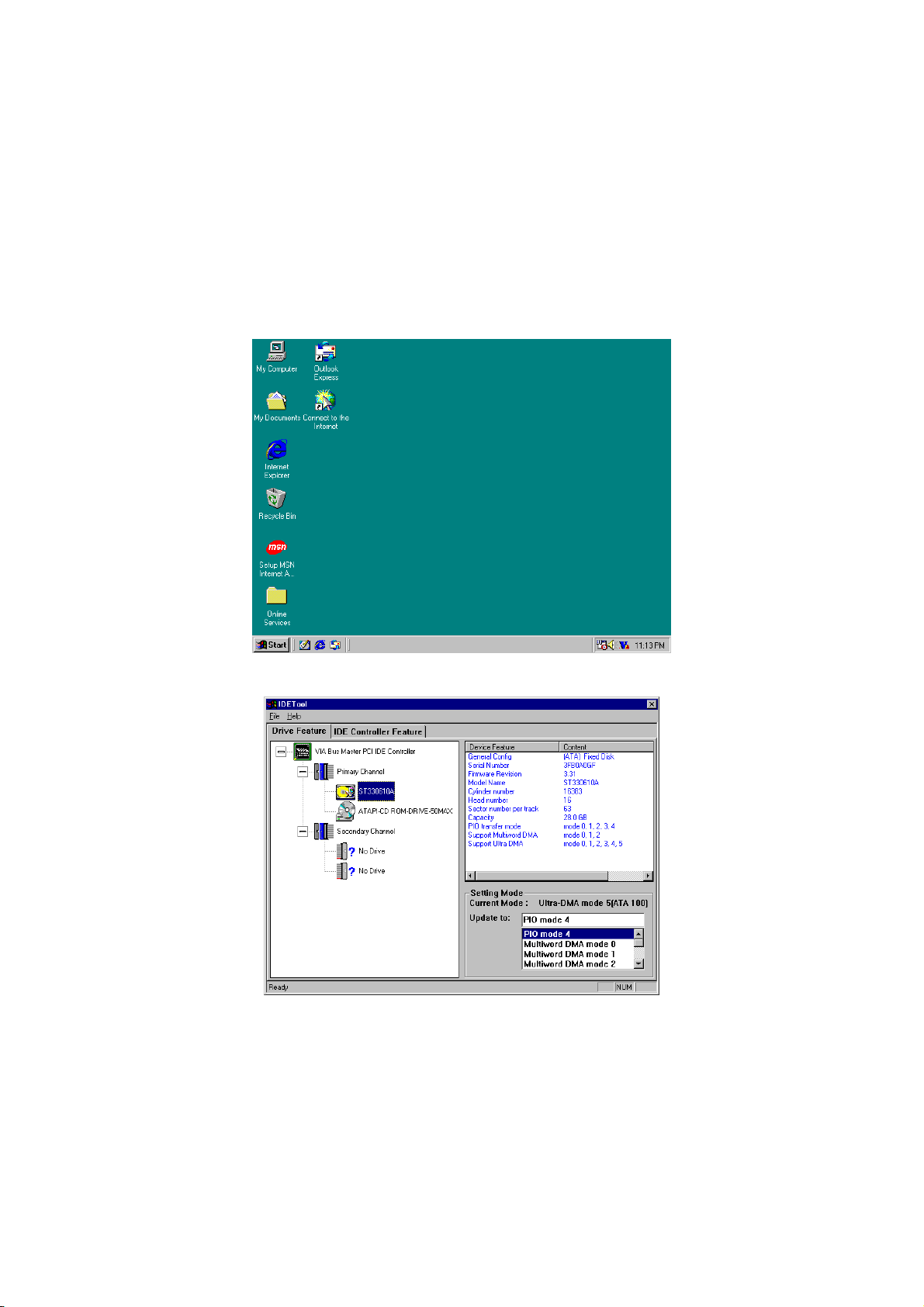

7. Once the system enters the main Windows screen, it will display
a new icon along the right hand task bar. This icon represents
the IDE Tool quick launch program.
8. Double-clicking on this new task bar icon will launch the IDE
Tool’s Drive Feature dialog box, as shown below.
45
9. The Drive Feature dialog box has 2 columns of information. The
left column lets you to view the hardware installed on your
system. When you select any hardware, the right column
displays the device’s information and specifications. You may
also update the settings of your devices from the right column.
10. Once you select the IDE Controller Feature from the IDE Tool
dialog box, a list of read-only information related to the
system’s IDE controller is shown.
46
5.1.3 Audio Driver Installation

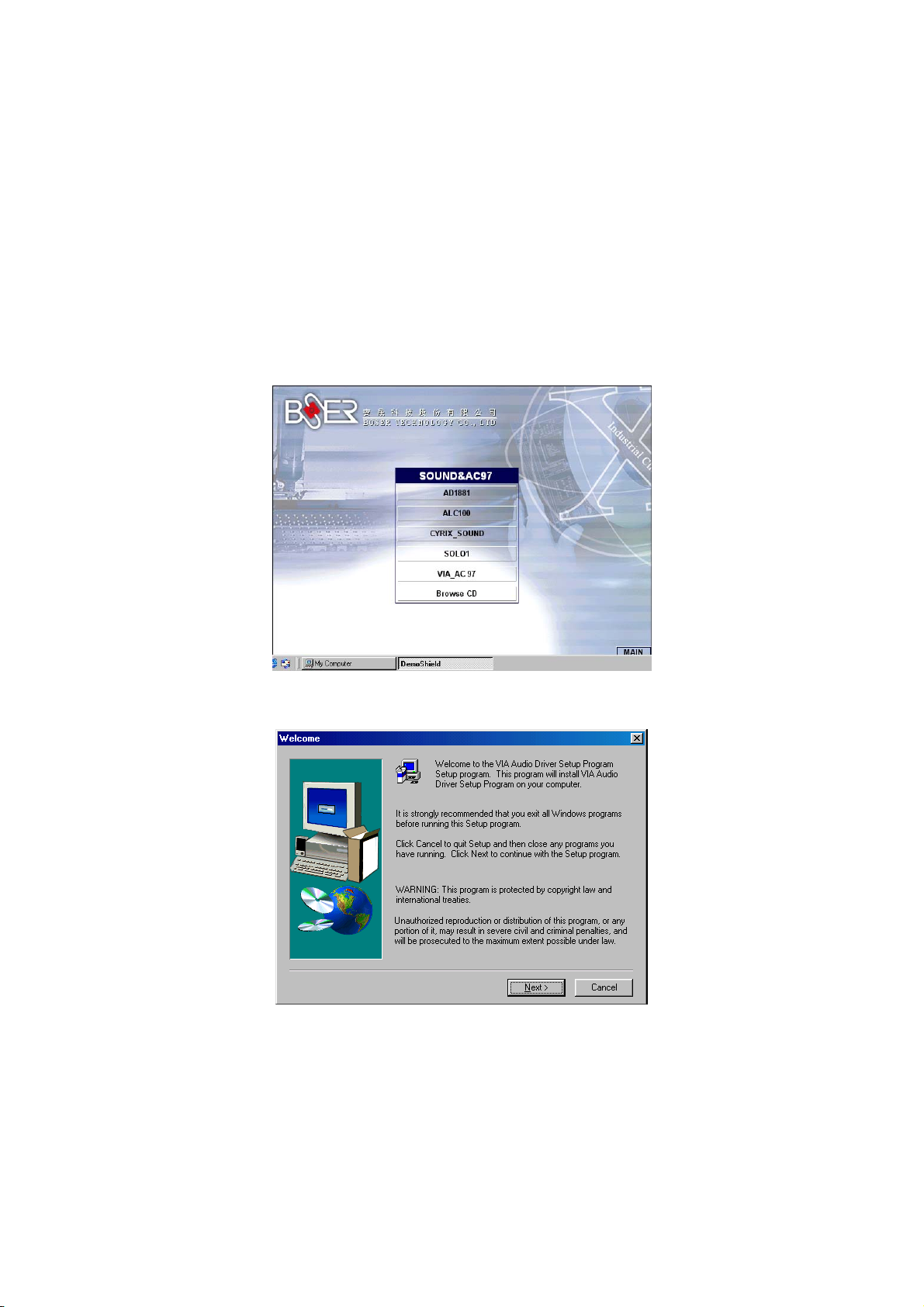

1. With the Utility CD Disk still in your CD ROM drive, open the File
Manager and then select the CD-ROM drive. As soon as the
system reads the disk, the VGA Menu screen below will appear
on your display. Click on VIA_AC97 from the main menu.
2. Once the Welcome screen appears on the screen, make sure to
close applications that are running and then click the Next
button.
47

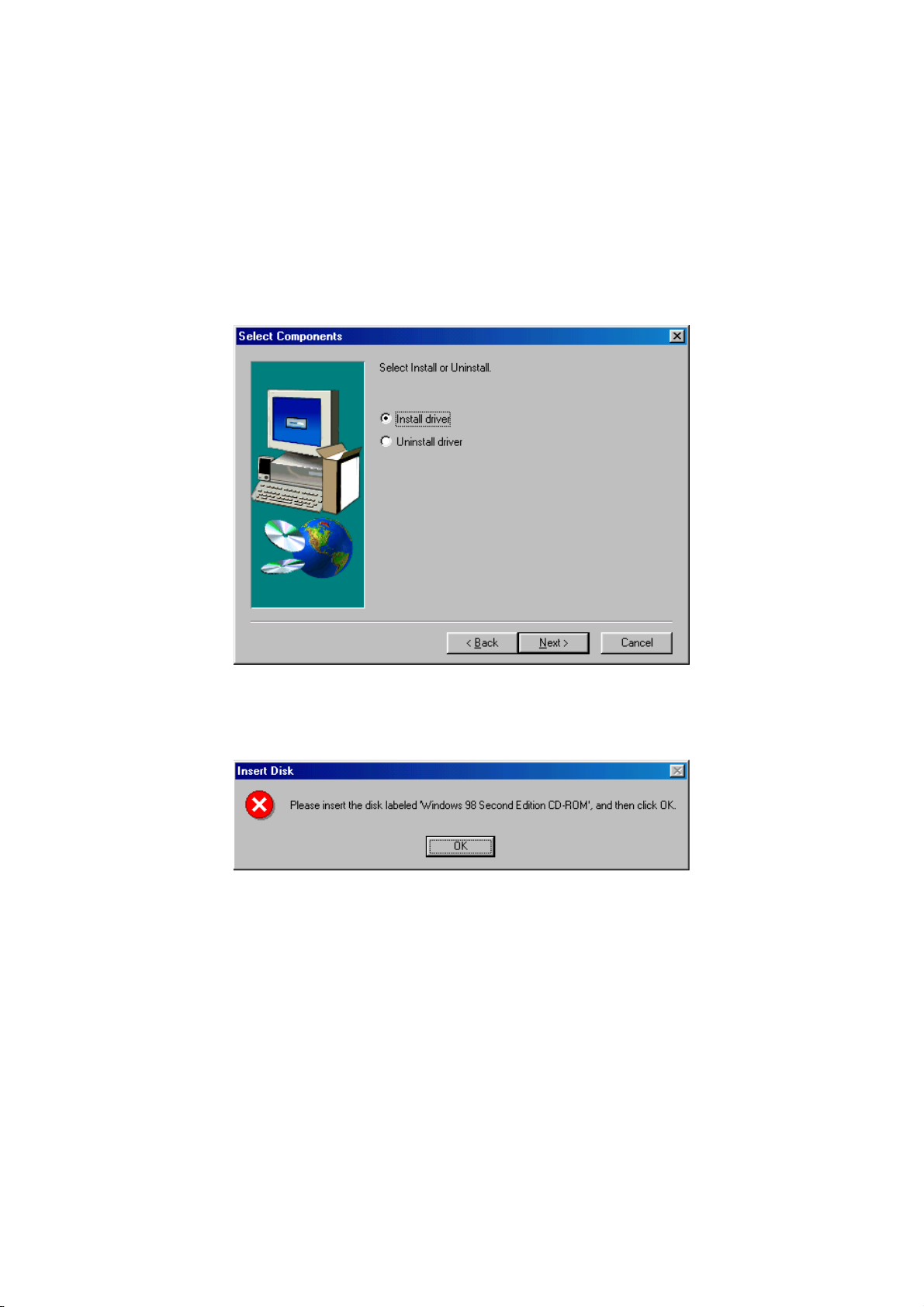

3. The Select Components dialog box is now displayed. Select on
Install driver and then click on Next.
4. The program will now require the Windows installation disk for
proper hardware installation. Insert the CD and then click on
Next.
48

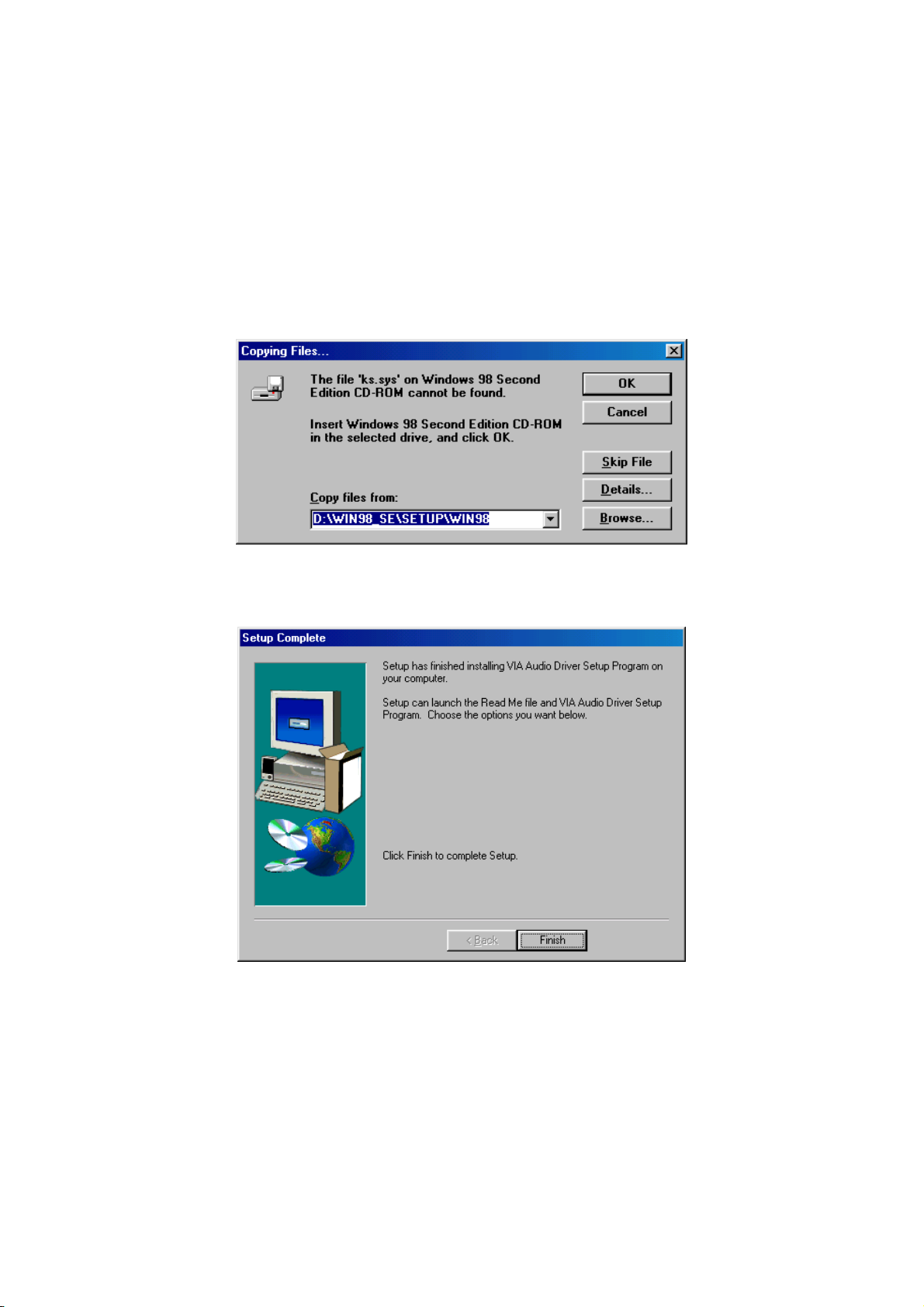

5. When the display below appears on your screen, Setup is
already installing and copying the related files onto your hard
drive. Click on the Next button to proceed.
6. After the audio driver installation finishes, select the Finish
button to complete the installation process.
49
This page intentionally left blank.
50
Loading...
