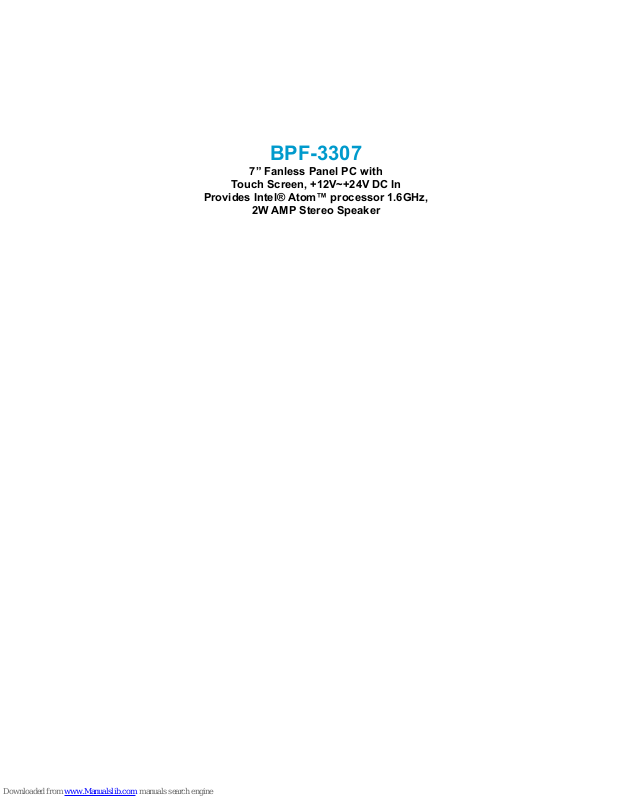

BPF-3307
7” Fanless Panel PC with
Touch Screen, +12V~+24V DC In
Provides Intel® Atom™ processor 1.6GHz,
2W AMP Stereo Speaker
Copyright Disclaimers
The accuracy of contents in this manual has passed through checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
r
a
d
e
m
T
r
T
r
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
a
d
e
m
a
a
d
e
m
a
r
k
s
r
k
s
r
k
s
electronic, mechanical, photocopying, recording)
manufacturer will
© Copyright 2010 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.0, March 18, 2010
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 2
1.3 Dimensions ............................................................................ 4
Chapter 2 Unpacking .................................................. 5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 HDD Installation..................................................................... 7
3.2 WLAN Device Installation..................................................... 8
3.3 Back Cover Installation......................................................... 9
3.4 Wall Mount Kit...................................................................... 10
Chapter 4 Touch Screen Driver Installation ..........11
4.1 Resistive Type Touch Screen Driver Installation............. 11
Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: BPF-3307
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.
Safety Instructions
The safety recommendations outlined in this section are to be read,
understood and followed before you operate the product. Keep this
information in a safe place for future reference. Failure to comply with any
of the following safety procedures could result in serious damage.
Do not operate product for any purposes other than its intended use
This product is intended for indoor use only
Do not operate product if power cord is damaged in anyway
Do not insert objects into openings
Do not immerse the product in water or permit liquids to spill inside
Turn off power when the product is unattended or not in use. Unplug product
before moving it or when it is not in use for an extended period of time. The
socket-outlet shall be installed near the equipment and shall be easily
accessible
Do not alter or extend electric plug. Plug is configured for appropriate
electrical supply
Do not overload electrical outlets beyond their capacity as this can result in a
fire
NOTE: DO NOT TOUCH THE PRODUCT OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.
Life Expectancy of Constituent Parts
This section describes the life expectancy of constituent parts (backlight,
power supply, internal cooling fan and touch screen) which make up to
BPF-3307.
TFT Display Backlight
Display brightness decreases over time with use. The expected operating
lifetime of the backlight time to reach 50% initial brightness is 30,000 hours
(assuming continuous lit state at 25 degrees C). Actual lifetime result may be
different.
Touch Screen
The operating lifetime of the touch screen is approximately 1 million
operations (as tested by mechanical manipulation under 100g of force at a
rate of two presses per second)
Chapter 1
General Description
The BPF-3307 is a latest Industrial Panel PC, Panel PC features an
anti-vibration design and is a best cost-effective alternation for users.
This precise streamline platform can be applied to Kiosks, DSA,
transaction terminals, POS, home security systems, ATM systems and
voting machines, etc.
It has a built-in ultra low power consumption. Intel® Atom™ N270
processor 1.6GHz is responsed to demands of cost-effective panel
system. All of BPF series Panel PC support resistive touch screens
and are highly expandable. It is an ideal for space-limited
environments, and furthermore supports an optional rotational WLAN
antenna for wireless network connection.
1
Anti-vibration
With an unique anti-vibration design, All of BPF series Panel PC have
been approved for vibration tests at Intel® Atom™ N270 processor
1.6GHz in operation mode with Hard Disk
Ultra slim design: 55~61 mm thickness
With streamlined mechanical layout, the BPF series panel PC has an
ultra slim thickness for space-limited environment. It does not only
decrease maintenance time but also saves the space considerably.
Cost-effective Fanless Embedded System
The BPF series Panel PC, a fanless embedded computer, is powered
by an ultra low power processor, Intel® Atom™ N270 processor
1.6GHz. The total power consumption of the system is under 27W
merely. It generates the best valve for both power usage and cost
saving. Without hard disk space and extra add-on cards, All of BPF
series panel PC present an ultra slim design and provides a
cost-effective alternative for users.
1.1 Major Features
The BPF-3307 series comes with the following features:
Fanless, aluminum front panel design
7” TFT color panel display
Built-in touch screen, HS-3658+Intel® Atom™ N270 processor 1.6GHz,
+12V~+24V DC in
Onboard graphics, GB ethernet, audio controller
1 x 2.5” SATA HDD space
Provides 2W AMP with Stereo Speaker
BPF-3307-S provides 2 x COM, 2 x USB2.0, mini PCI socket, mini
PCIex1 socket
1.2 Specifications
System
SBC Model
HS-3658
CPU
Intel® Atom™ N270 processor 1.6GHz
BIOS
Award PnP Flash BIOS
2
System Chipset:
Intel® 945GSE/ICH7-M
System Memory
1 x 200-pin SO-DIMM socket DDR 533MHz up to 2GB
Display Chipset
Intel® 945GSE integrated Intel® GMA950
Audio Chipset
RealTek ALC202A
2W AMP with Stereo Speaker
Ethernet Chipset
RealTek RTL8111C 10/100/1000 Mbps LAN
Drive Bay
1 x 2.5” SATA HDD space
Watchdog Timer
Software programmable time-out intervals from 1~255 sec. or 1~255
min.
Expansion
1 x Type III Mini PCI socket
1 x Mini PCIex1 socket
Dimensions (LxHxW)
24.0 x 15.5 x 5.5 cm
Cut Out Size (LxH)
21.8 x 13.9 cm
Operation/Storage Temperature
0~+45 degrees C/-20~+70 degrees C
EMC
FCC/CE
Front Panel Protection
IP65 compliance
Power In
+12V/2.1~+24V/1.1A DC in
Display
LCD Size
7”
Max Resolution
800(H) x 480(V)
Brightness (cd/m
400 cd/m
Contrast Ratio
400:1
2
2
)
3
Pixel Pitch (mm)
0.0635 x 0.1905
Back-light
LED
Touch Screen
7” resistive
I/O Interface
External I/O
PS/2 KB/MS, 2 x COM, LAN, 2 x USB2.0
Rear I/O
01. Power ON/OFF 05. COM 1
02. DC In 06. LAN
03. KB/MS 07. USB2.0 *2
04. COM 2
1.3 Dimensions
Dimension measured in cm
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The BPF-3307 is packed with an anti-static bag. The board contains
sensitive electricity components that are easily damaged by static
(electricity). Do not remove the anti-static wrapping until proper
grounding have been taken. Safety instructions has been described
the anti-static precautions and procedures in the previous.
2.2 Inspection
After unpacking the Panel PC, place it on a raised surface and carefully
inspect it for any damage that might have occurred during shipment.
Ground the board and exercise carefully to prevent any damage to the
board from static.
The BPF-3307 delivery package contains the following items:
BPF-3307 x 1
Power Cable x 1
Utility CD Disk x 1, including System Board User’s Manual x 1 and
BPF-3307 User’s Manual x 1
It is recommended that user keeps all the parts of the delivery package
intactness and store them in a safe/dry place for any reasons that
require for returning the product. In case you find any missing and/or
damaged items from the list, please contact your dealer or sale
representatives immediately.
5
This page intentionally left blank.
6
Chapter 3
Hardware Installation
This chapter illustrates how to install components into the Panel PC
system. Please refer to the external interface of the board manual of
the system.
3.1 HDD Installation
1. Follow the photo instructions to install the HDD mounting
bracket onto the HDD.
7
2. Follow the photo instruction to install the HDD_KIT onto the
chassis.
3.2 WLAN Device Installation
1. User can install the Network antenna module as below.
8
3.3 Back Cover Installation
1. Follow the photo instructions to install the back cover onto the
chassis.
9
3.4 Wall Mount Kit
1. Follow the photo instructions to install the wall mount kit onto
the chassis.
10
Chapter 4
Touch Screen Driver Installation
This chapter illustrates the detail information of touch screen driver
installation procedures. The utility disk that came with the delivery
package contains an auto-run program that invokes the installation
programs for the touch screen driver. The following sections describe
the installation procedures of driver based on WIN2000 operating
systems. Other operation systems may be slightly different.
4.1 Resistive Type Touch Screen Driver
Installation
4.1.1 Installing Touch Screen Driver in WIN95/98
1. Insert Utility CD disk to your CD-ROM drive. The main menu
will pop up as shown below.
2. The screen displays “PenMount Utilities Installation” screen
plus “welcome” message appear, click on N
ext>.
11
3. The next screen is “Software License Agreement”, select “I
accept” and click on N
4. Click “Install” to begin the installation.
ext>.
12
5. Once the Install Shield Wizard finishes updating your system,
it will prompt you to restart the computer. Click on F
exit the wizard.
inish to
4.1.2 Installing Touch Screen Driver in WIN2000
1. Insert Utility CD Disk to your CD-ROM drive. The main menu
will pop up as shown below.
2. The screen displays PenMount Utilities Installation screen plus
welcome message appear, click on N
ext>.
13
3. The next screen is Software License Agreement, select I accept
and click on N
4. The next screen is Ready to Install the Program, click on
I
nstall.
ext>.
14
5. Once the Install Shield Wizard finishes updating your system,
it will prompt you to restart the computer. Click on F
exit the wizard.
inish to
4.1.3 PenMount Control Panel
Calibrate
To adjust the display with touch screen, click on “Calibrate” button and
follow the calibrate point to do the calibration, there are five points on
screen for calibration.
15
Draw
Test or demonstrate PenMount touch screen operation, also the touch
location is shown on the display, touch DRAW to start.
About
It shows information about PenMount controller and driver version.
16
4.1.4 PenMount Monitor
The PenMount monitor icon is shown in the menu bar of Windows
system when you turn on PenMount monitor from PenMount Utilities.
There are several functions on PenMount monitor:
Control Panel
When select this function, there is a mouse icon shown in the
right-button place of screen. It shows Left Button being as default for
normal use, change Right/Left button by clicking the mouse icon box.
Blue area expresses which button has been selected or actived.
Right Button
Change Right/Left button by clicking the mouse icon box. Blue area
expresses which button has been or actived.
Beep
Turn on or off beep sound.
Exit
Close the PenMount Monitor function.
17
This page intentionally left blank.
18
Loading...
