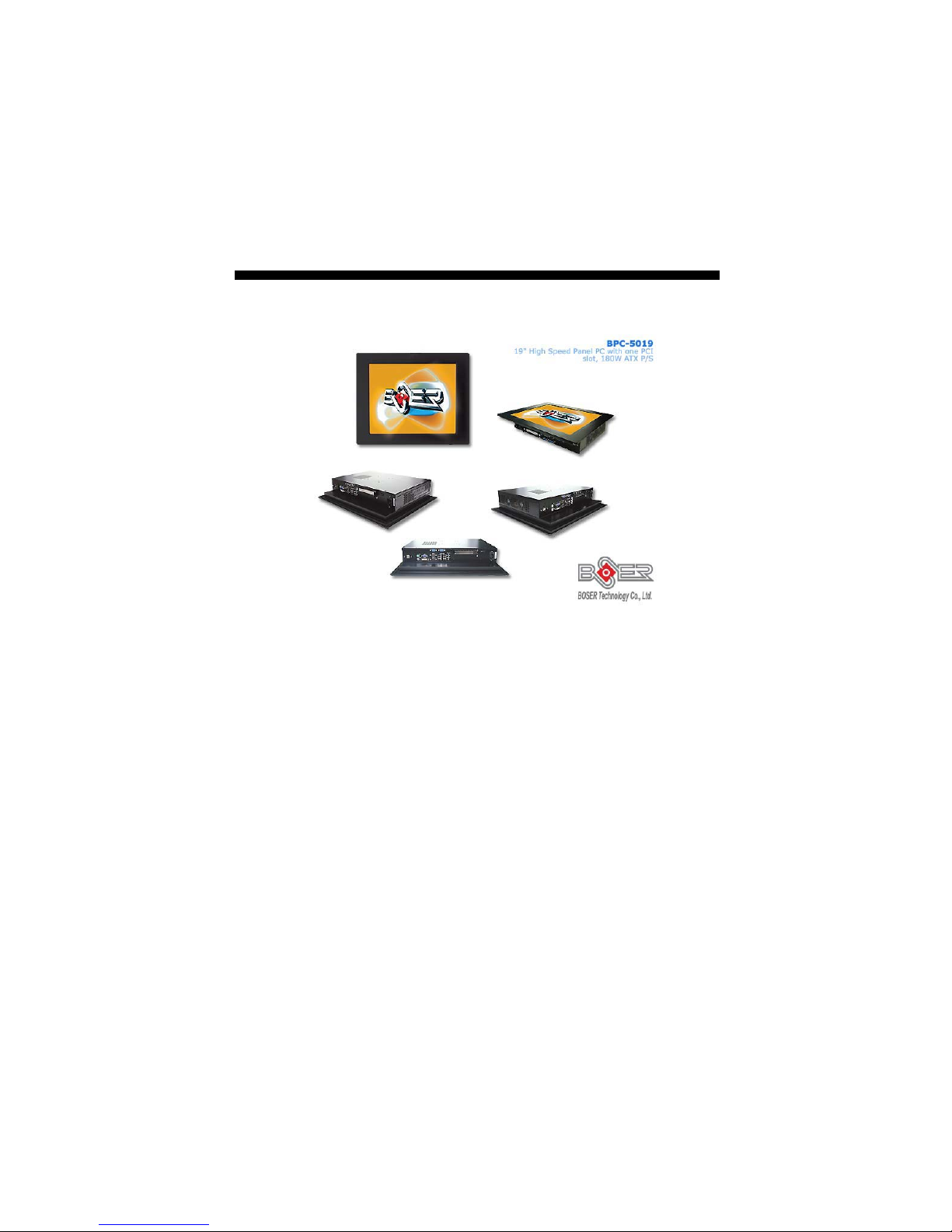

BPC-5019
19” High Speed Panel PC
with one PCI slot, 180W ATX P/S
Copyright Disclaimers
The accuracy of contents in this manual has passed through checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
r
a
d
e
m
T
r
T
r
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
a
d
e
m
a
a
d
e
m
a
r
k
s
r
k
s
r
k
s
electronic, mechanical, photocopying, recording)
manufacturer will
© Copyright 2008 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.0, May 15, 2009
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 2
1.3 Panel Specifications ............................................................. 3
1.4 Control Keys .......................................................................... 3
1.5 Dimensions ............................................................................ 4
Chapter 2 Unpacking .................................................. 5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 HDD/CD-ROM/PCI Card Installation .................................... 7
Chapter 4 Touch Screen Driver Installation ..........11
4.1 Touch Screen Driver Installation ....................................... 11
4.1.1 Installing Touch Screen Driver in WIN95/98................................. 11
4.1.2 Installing Touch Screen Driver in WIN2000 ...................................13
4.2 Driver Functions.................................................................. 16
4.2.1 PenMount Control Panel............................................................................16
4.2.2 PenMount Monitor ........................................................................................17
Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: BPC-5019
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.
Safety Instructions
The safety recommendations outlined in this section are to be read,
understood and followed before operating the product. Keep this
information in a safe place for future reference. Failure to comply with any
of the following safety procedures could result in serious damage.
Do not operate product for any purposes other than its intended use
This product is intended for indoor use only
Do not operate product if power cord is damaged in anyway
Do not insert objects into openings
Do not immerse product in water or permit liquids to spill inside
Turn off power when unattended or not in use. Unplug product before
moving it or when it is not in use for an extended period of time. The
socket-outlet shall be installed near the equipment and shall be easily
accessible
Do not alter or extend electric plug. Plug is configured for appropriate
electrical supply
Do not overload electrical outlets beyond their capacity as this can result in a
fire
NOTE: DO NOT TOUCH THE PRODUCT OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.
Life Expectancy of Constituent Parts
This section describes the life expectancy of constituent parts (backlight,
power supply, internal cooling fan and touch screen) which make up to
BPC-5019.
TFT Display Backlight
Display brightness decreases over time with use. The expected operating
lifetime of the backlight time to reach 50% initial brightness) is 30,000 hours
(assuming continuous lit state at 25 degrees C). Actual lifetime before result
may be different.
Touch Screen
The operating lifetime of the touch screen is approximately 1 million
operations (as tested by mechanical manipulation under 100g of force at a
rate of two presses per second)
Chapter 1
General Description
The BPC-5019 is an industrial-grade panel PC that provides one
convenient 5V PCI slot for expansion.
*NOTE: check PCI device specification that will not be blocked with
others first before you to do so.
The rear of BPC-5019 design with easy assembly when needed.
The BPC-5019 has a 19” touch screen that operates under all types of
working environment. It comes with a reliable power supply and 3 of
4cm ball bearing cooling fan that enhance system stability.
The unit can also be mounted in several configurations. A variety of
BOSER SBCs is compatible with the BPC-5019. Please see 1.2
Specification section for more detail.
The BPC-5019 is IBM PC/AT compatible and can draw
from a large body of hardware and software resources
worldwide
1
180W power supply with UL, CE, CSA, TUV approved
Variety of operation system can be used in BPC-5019
The BPC-5019 features an all-in-one flat display and
keyboard less operation.
The BPC-5019 can be use widely such as, Digital
signage, Factory Automation, oil Industry,
Entertainment, transportation, POS, and kiosk, etc...
You can select a mainboard from various range to meet
your optimal configuration and budget.
1.1 Major Features
The BPC-5019 series come with the following features:
Aluminum front panel design
19” TFT color panel display
Built-in OSD key, touch screen, HS-1750, 180W ATX P/S
Provides Intel® Core™ Duo T2050 processor
Onboard graphics, dual ethernet, audio controller
Standard 5V PCI expansion slot x 1
COM x 2, USB2.0 x 4
2.5” HDD space x 1, slim CD-ROM space x 1
4cm ball bearing cooling fan x 3
1.2 Specifications
BPC-5019-Q
CPU: Intel® Core™ Duo T2050 processor
Memory: Two 200-pin SO-DIMM Sockets up to 4GB DDR2 SDRAM
Chipset: Intel® 945GME/ICH7-M
PCI Slot: Standard 5V PCI expansion slot x 1
OSD: Provides OSD function
Touch Screen: 19” resistive touch screen
Display: Onboard graphics controller, provides CRT and DVI display
interface
Ethernet: Onboard dual 10/100/1000 Based controller
Audio: Onboard 5.1CH audio codec
Storage:
2.5” HDD space x 1
Slim CD-ROM space x 1
2
Serial Port: 2 ports (optional for 3)
USB: USB2.0 port x 4 (optional for 7)
Keyboard: PS/2 6-pin Mini DIN
Mouse: PS/2 6-pin Mini DIN
BIOS: Award BIOS with 4Mb Flash EEPROM
Watchdog Timer: Reset: 1 sec. ~ 255 min. and 1 sec. or 1 min./step
Thermal System: 4cm ball bearing cooling fan x 3
Power In: 180W ATX power supply
Temperature: 0~+45°C (operating); -20~+70°C (storage)
Dimensions: 49.0(L) x 39.0(H) x 9.82(W) cm
1.3 Panel Specifications
Screen Size: 19 inches
Active Area: 376.32(H) x 301.06(V) mm
Pixels H x V: 1280(x3) x 1024
Pixel Pitch: 0.294 (per one triad) x 0.294
Pixel Arrangement: R.G.B Vertical Stripe
White Luminance: 300 cd/m
2
@ 7.5mA
Contrast Ratio: 800:1 (Typ)
Optical Response Time: 5 ms (Typ, on/off)
Support Color: 16.7M colors (RGB 6-bit data + HiFRC data)
1.4 Control Keys

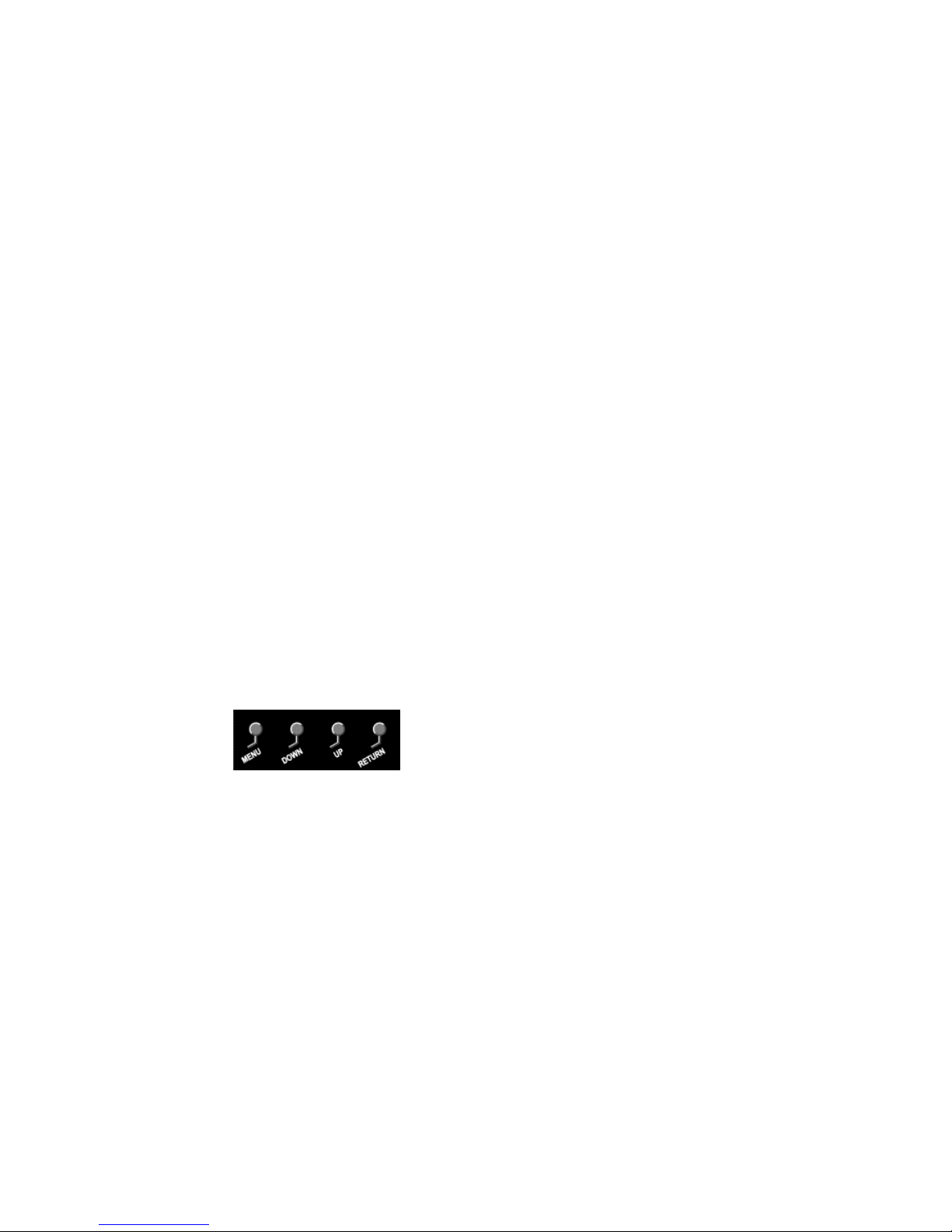

OSD Control Keys Define
Menu: Menu/Item select
Down: Cursor down control
Up: Cursor up control
Return: Return to menu
3

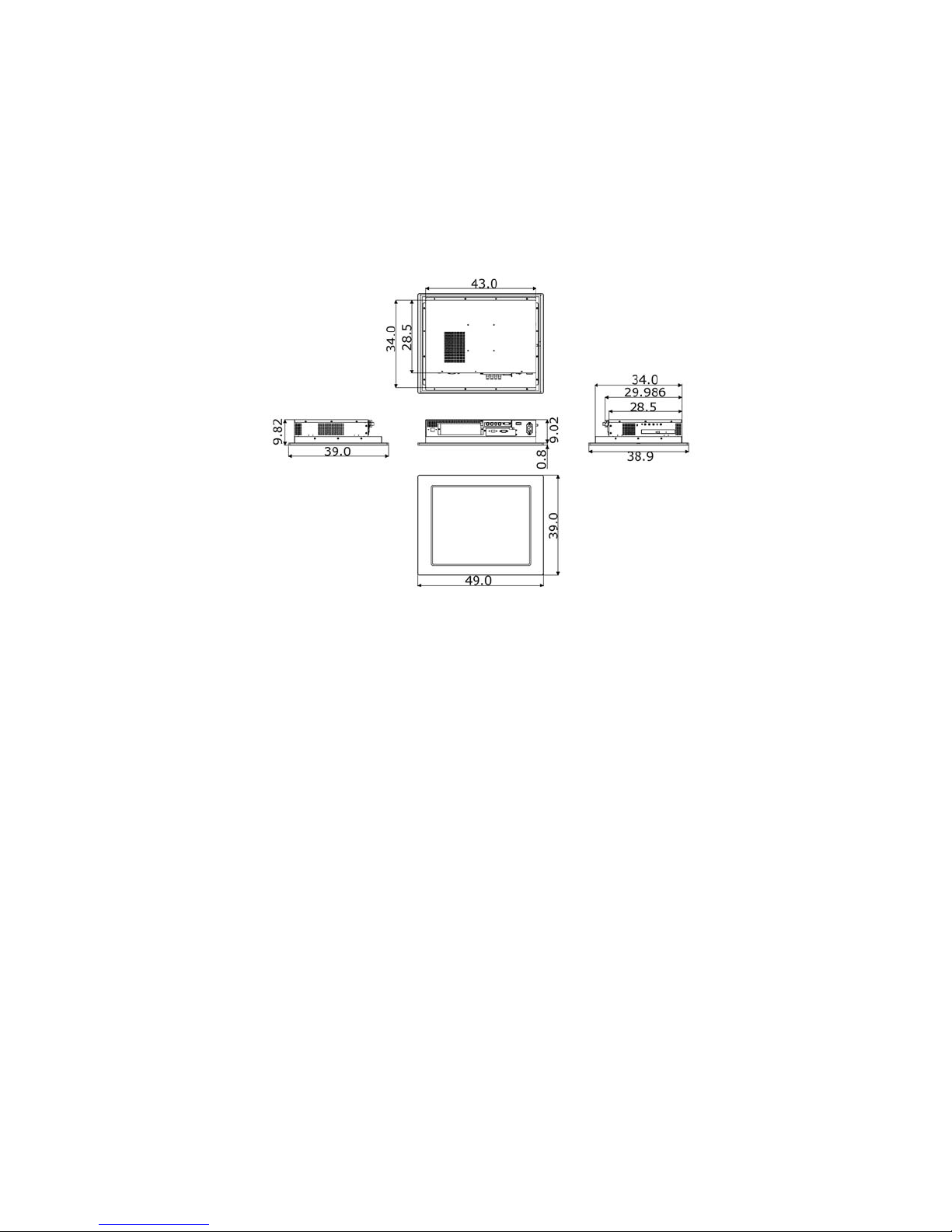

1.5 Dimensions
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The BPC-5019 is packed with an anti-static bag. The board contains
sensitive electrical components that are easily damaged by static
(electricity). Do not remove the anti-static wrapping until proper
grounding have been taken. Safety instruction has been described the
anti-static precautions and procedures in the previous.
2.2 Inspection
After unpacking the Panel PC, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Grounding the board and exercise extremely careful to
prevent any damages to the board from static.
Integrated circuits will sometimes come out from sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The BPC-5019 delivery package
contains the following items:
BPC-5019 x 1
Power Cable x 1
Mainboard Driver CD x 1
System Board User’s Manual x 1
BPC-5019 User’s Manual x 1
Touch Screen Driver CD x 1
It is recommended that user keeps all the parts of the delivery package
intactness and store them in a safe/dry place for any require the
returning the product. In case you find any missing and/or damaged
items from the list, please contact your dealer or sale representatives
immediately.
5
This page intentionally left blank.
6
Chapter 3
Hardware Installation
This chapter illustrates how to install components into the Panel PC
system. External interface please refers to system board’s manual.
3.1 HDD/CD-ROM/PCI Card Installation

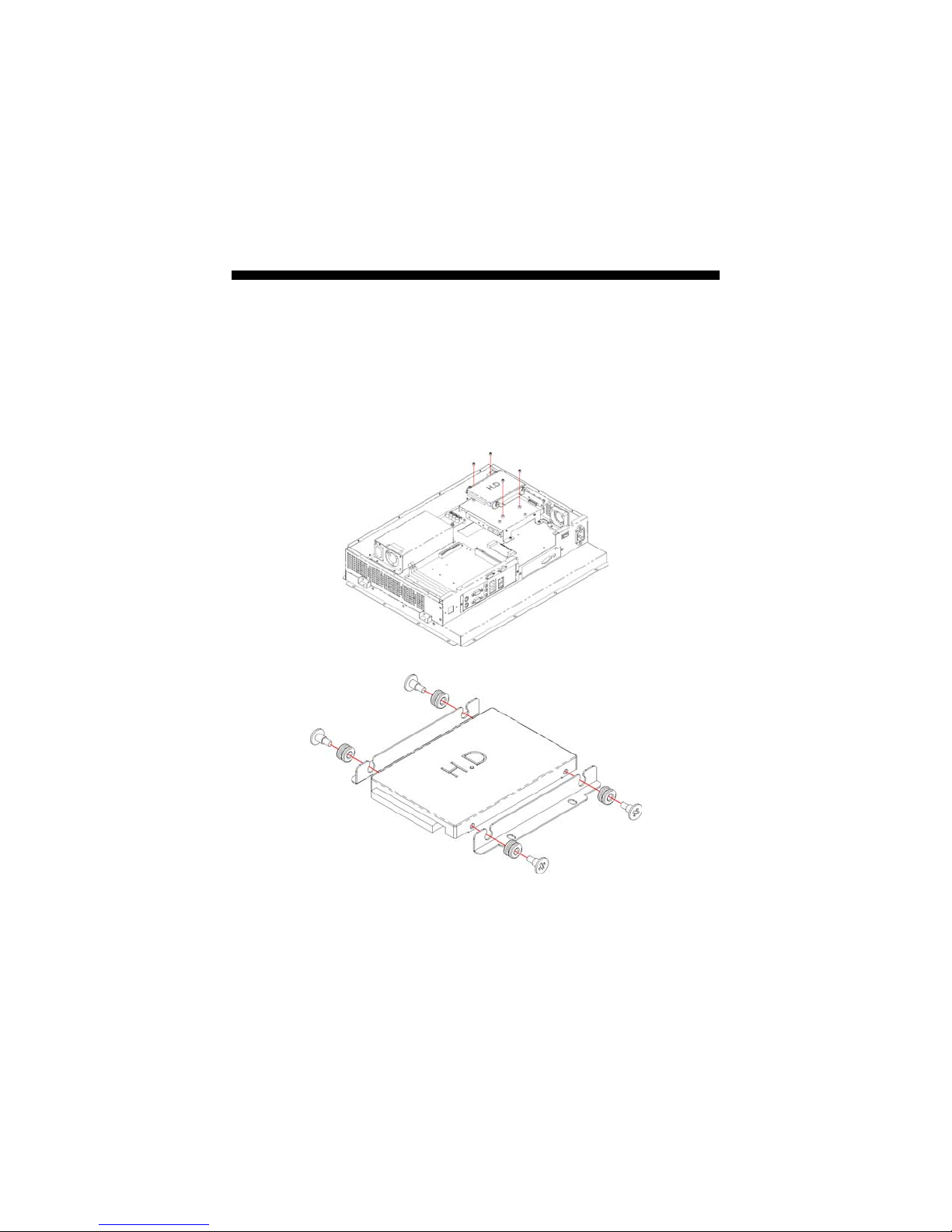

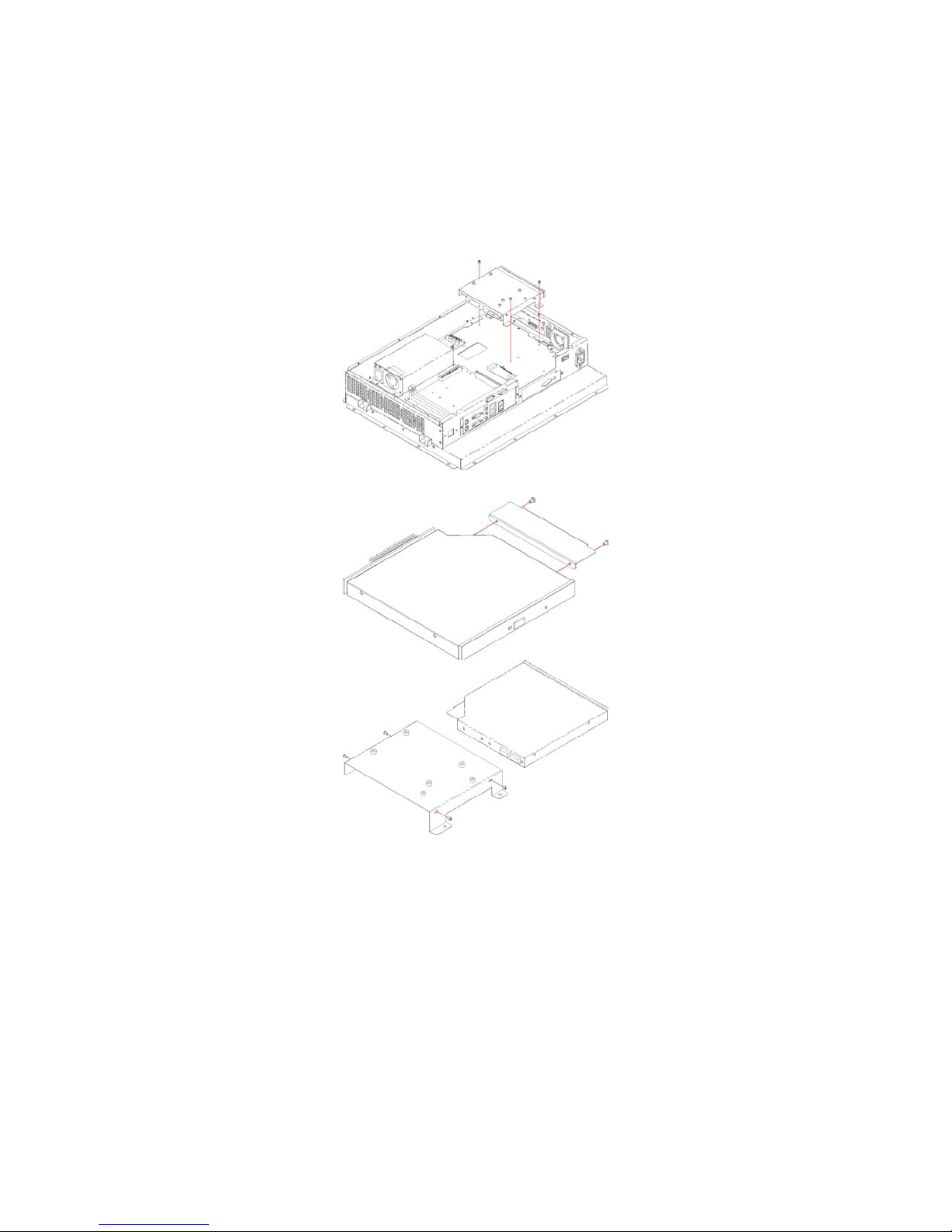

1. Remove the HDD drive bay holding bracket.
2. Install the holding bracket with HDD.
7
3. Remove the CD-ROM drive holding bracket.
4. Install the holding bracket with CD-ROM.
8

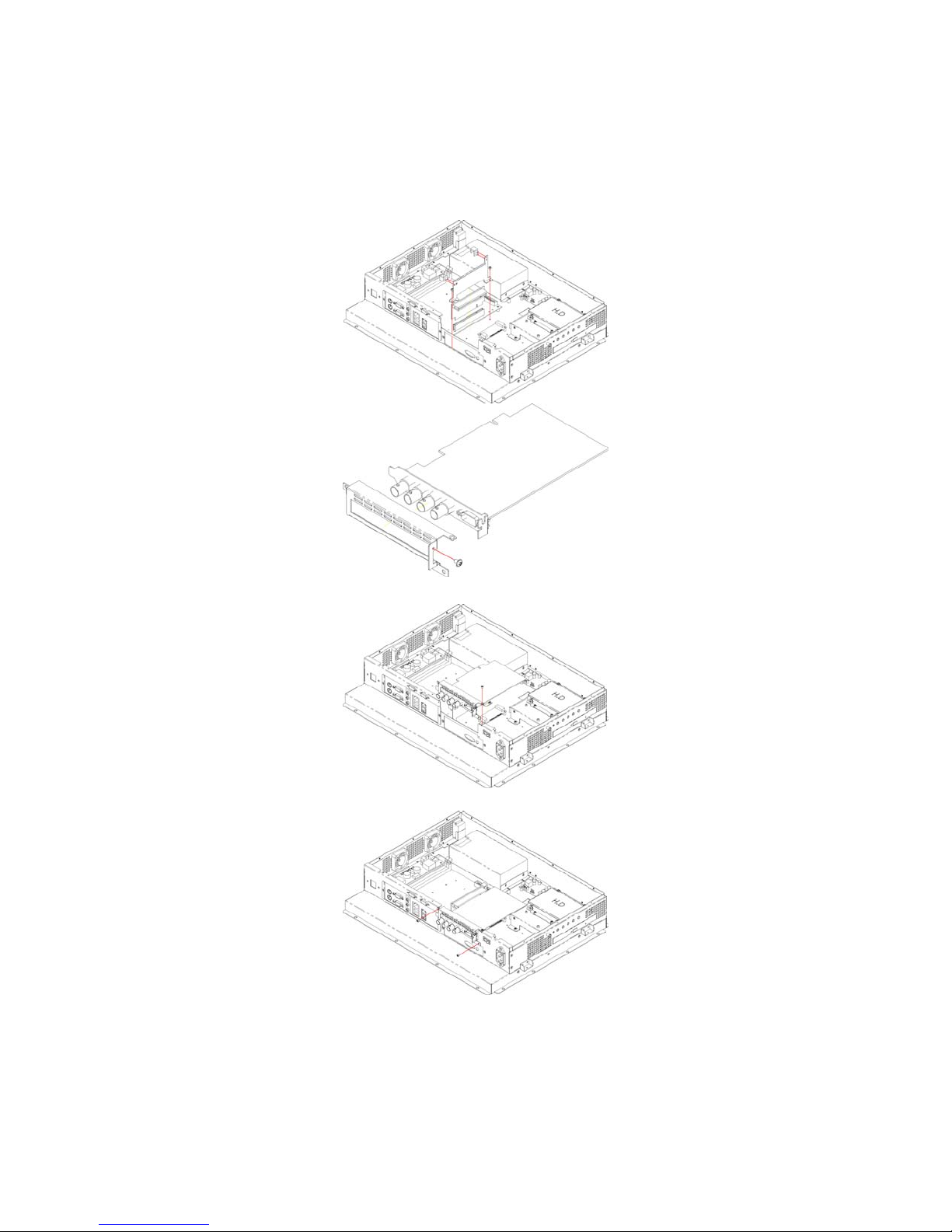

5. Install the PCI Card holding bracket.
6. Install the PCI Card with chassis.
7. Use two screws install PCI Card with front panel.
9
This page intentionally left blank.
10
Chapter 4
Touch Screen Driver Installation
This chapter illustrates the detailed information for touch screen driver
installation procedures. The utility disk that came with the delivery
package contains an auto-run program that invokes the installation
programs for the touch screen driver. The following sections describe
the installation procedures of driver based on WIN2000 operating
systems. Other operation system may slightly different.
4.1 Touch Screen Driver Installation
4.1.1 Installing Touch Screen Driver in WIN95/98

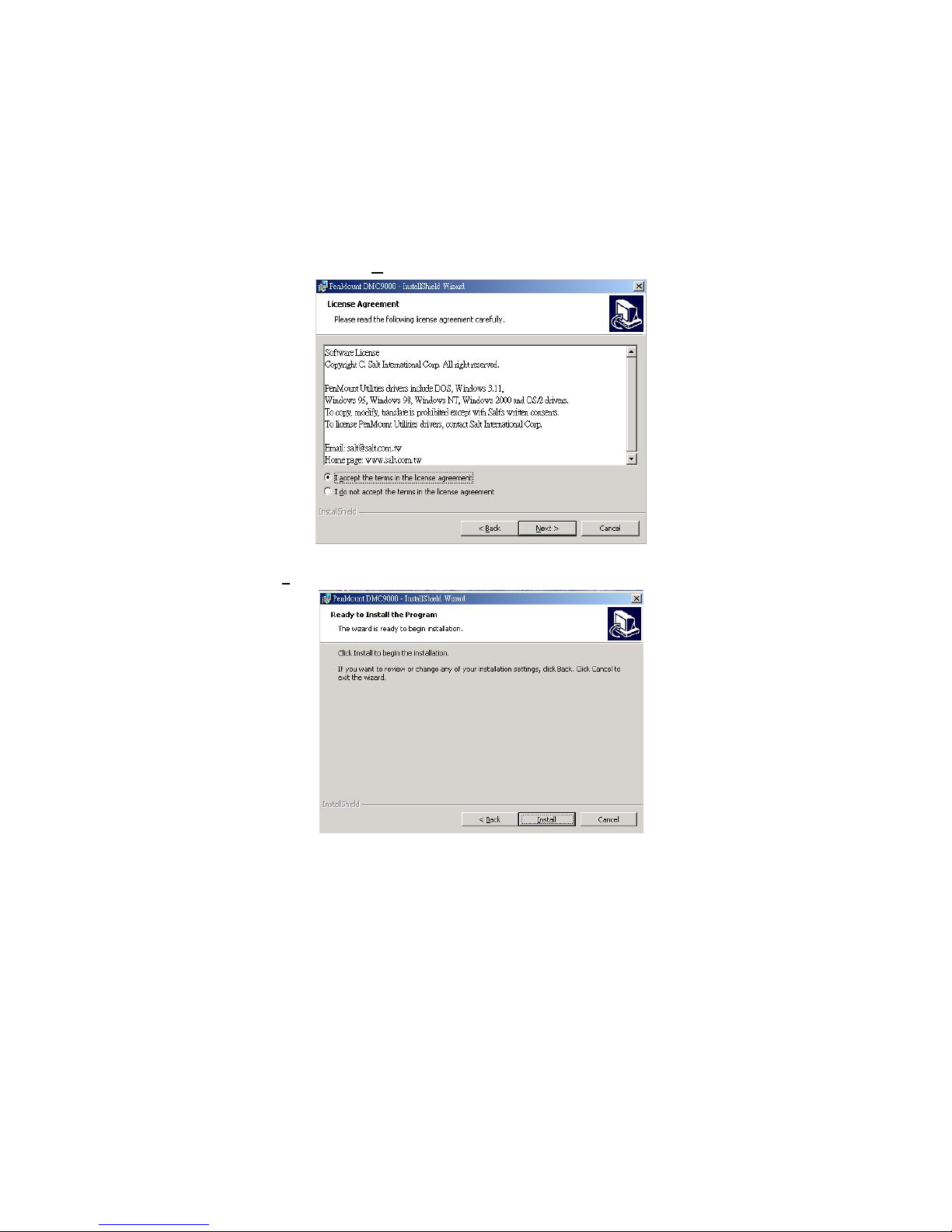

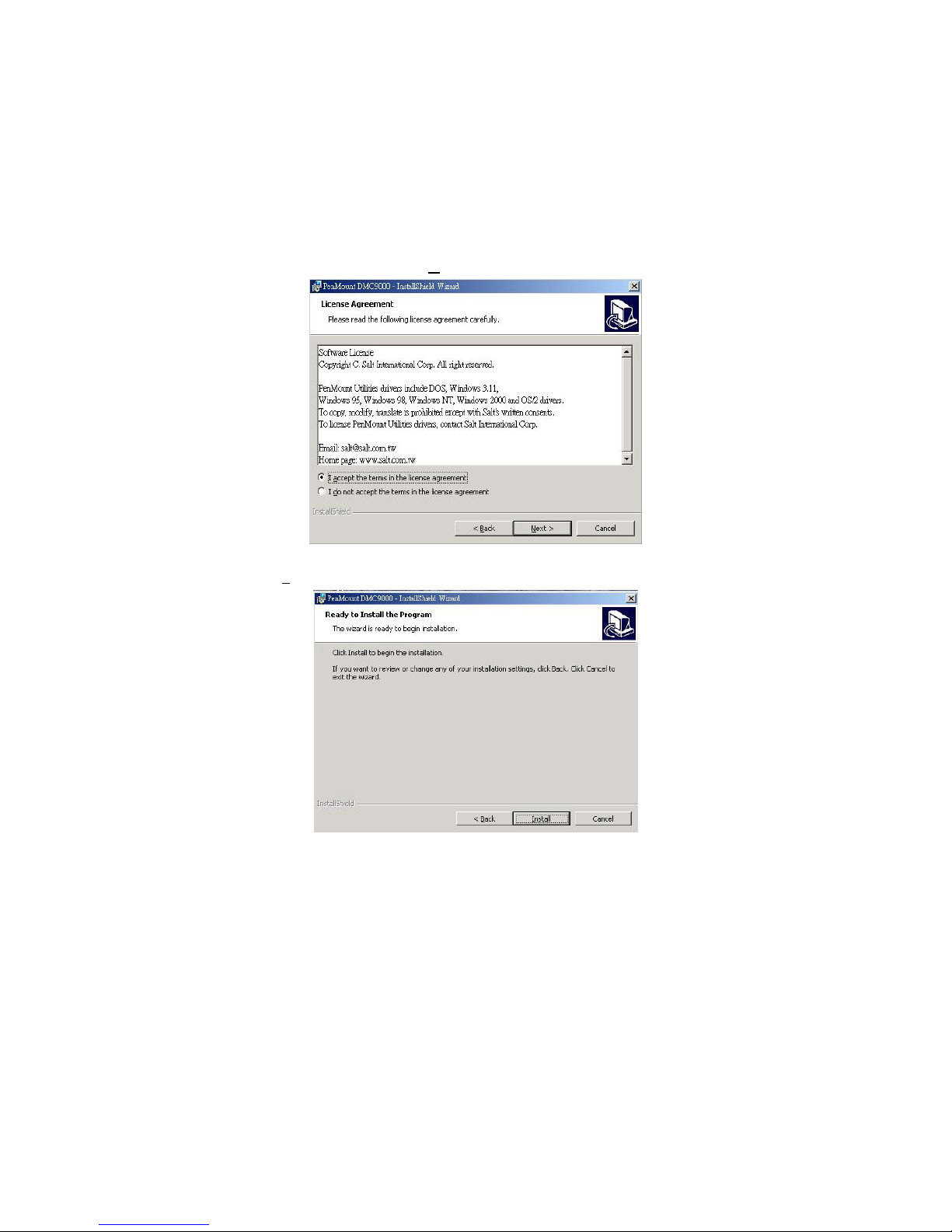

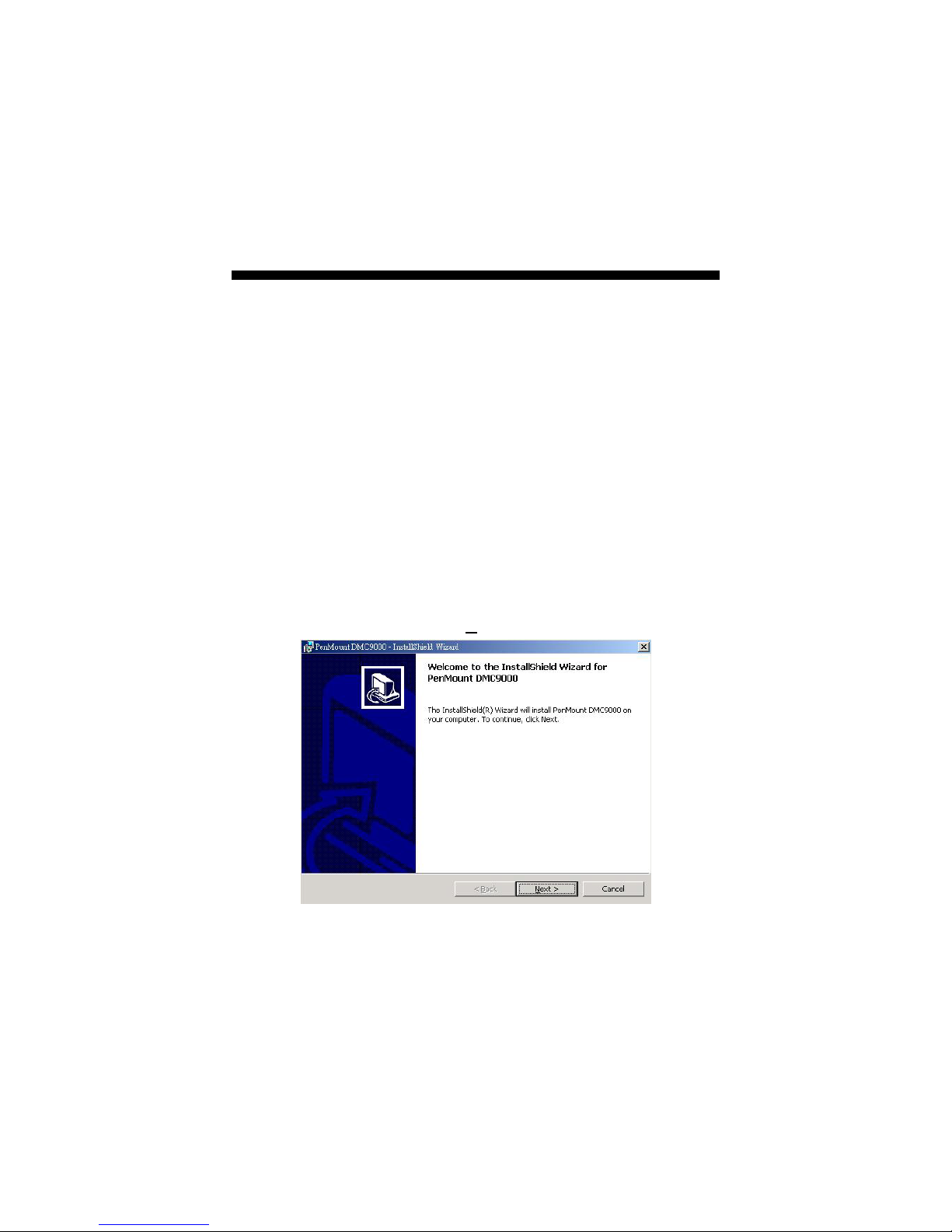

1. Insert Utility CD disk to your CD-ROM drive. The main menu
will pop up as shown below.

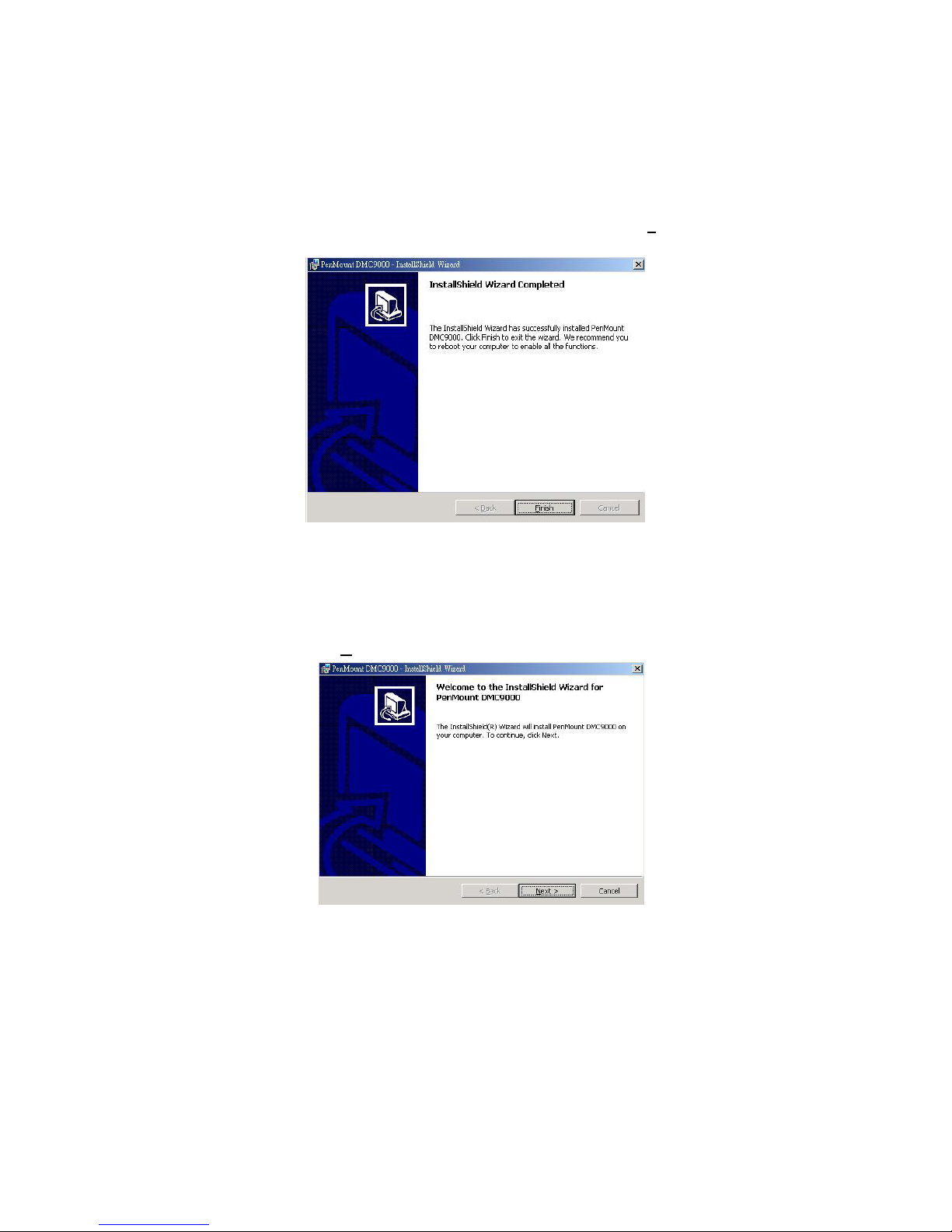

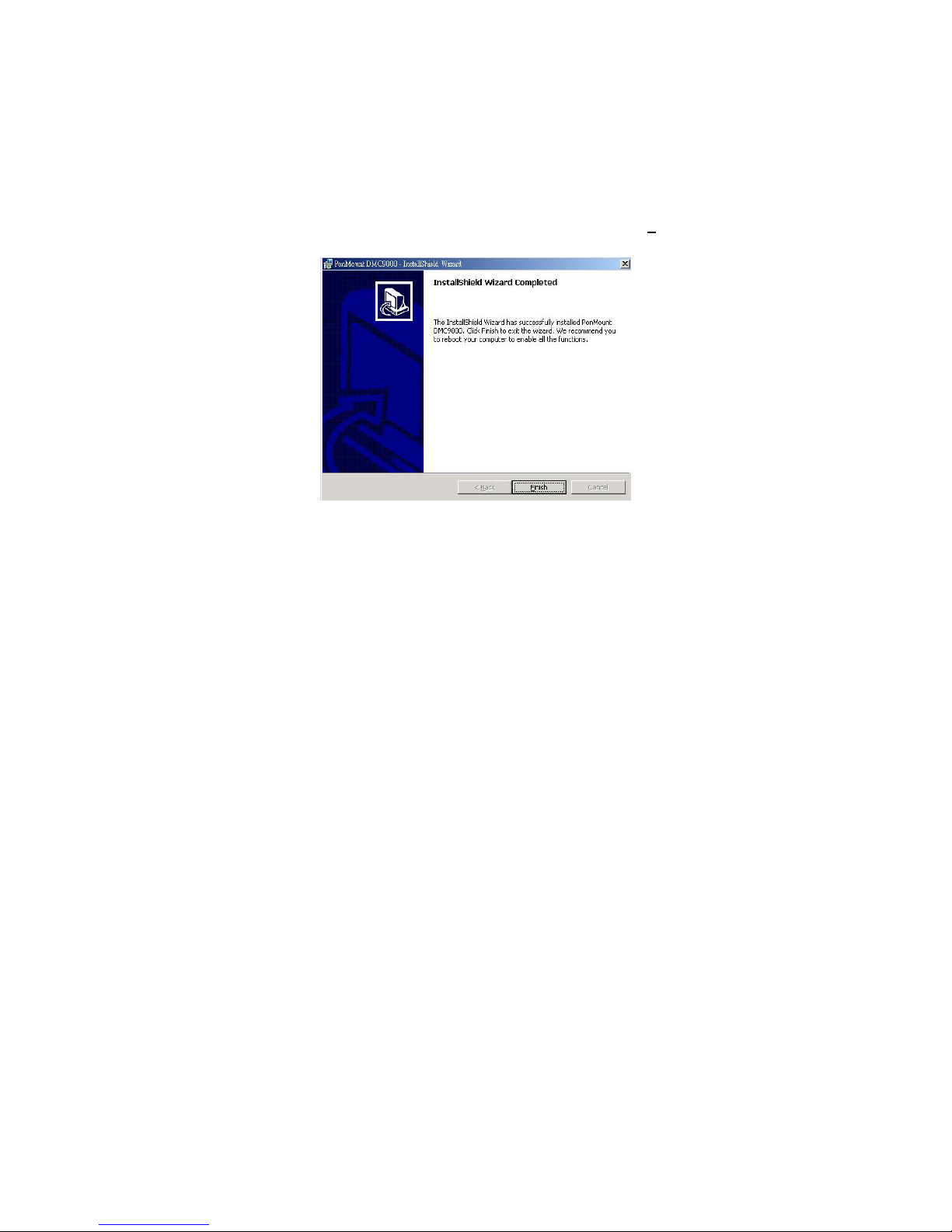

2. The screen displays copying “Installation Wizard” and
“PenMount Utilities Installation” screen plus “welcome”
message appear, click on N
ext>.
11
3. The next screen is “Software License Agreement”, select “I
accept” and click on N
4. The next screen is Ready to Install the Program, click on
I
nstall.
ext>.
12
5. Once the Install Shield Wizard finishes updating your system,
it will prompt you to restart the computer. Click on F
exit the wizard.
inish to
4.1.2 Installing Touch Screen Driver in WIN2000
1. Insert Utility CD Disk to your CD-ROM drive. The main menu
will pop up as shown below.
2. The screen displays copying Installation Wizard and PenMount
Utilities Installation screen plus welcome message appear,
click on N
ext>.
13
3. The next screen is Software License Agreement, select I accept
and click on N
4. The next screen is Ready to Install the Program, click on
I
nstall.
ext>.
14
5. Once the Install Shield Wizard finishes updating your system,
it will prompt you to restart the computer. Click on F
exit the wizard.
inish to
15
4.2 Driver Functions
4.2.1 PenMount Control Panel

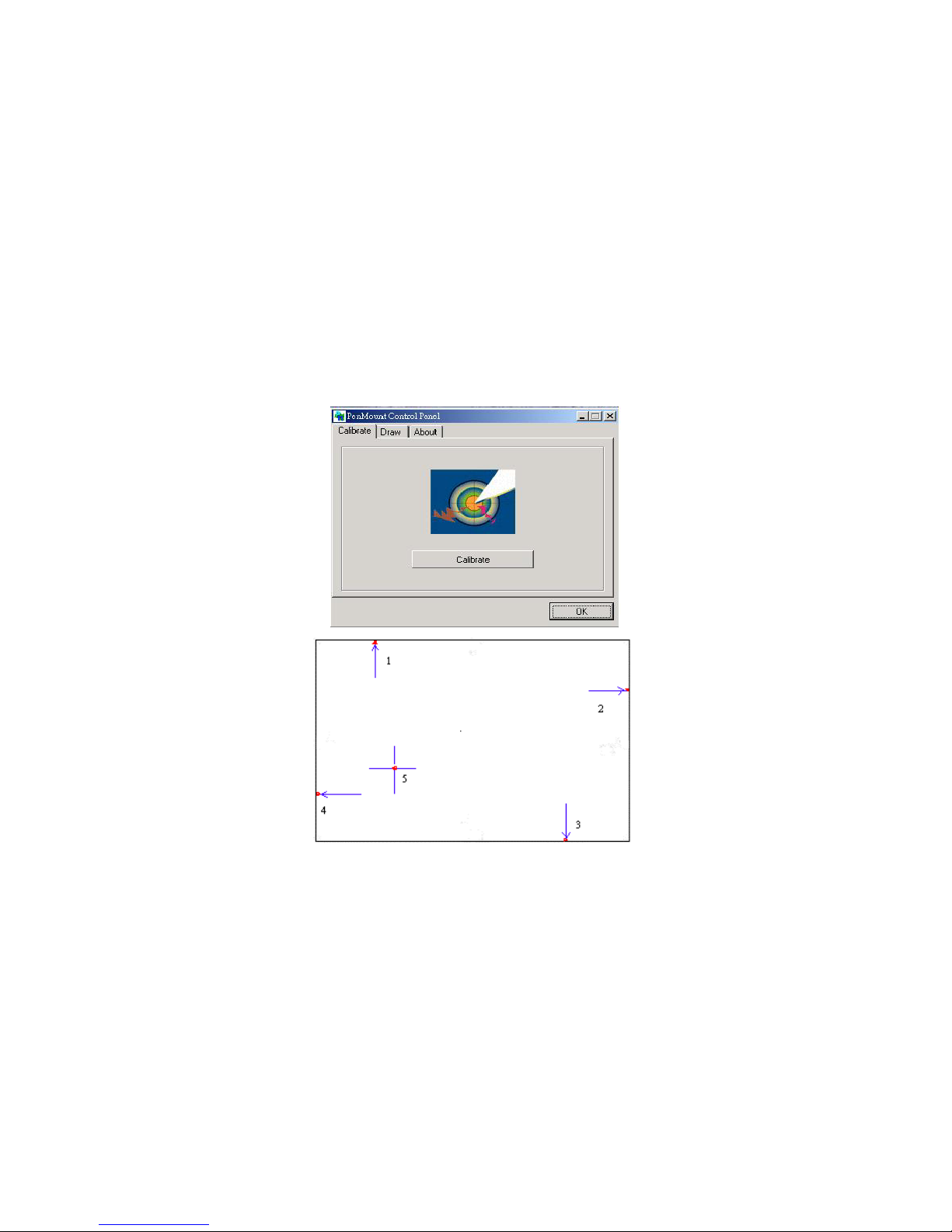

Calibrate
To adjust the display with touch screen, click on “Calibrate” button and
follow the calibrate point to do the calibration, there are five points on
screen for calibration.

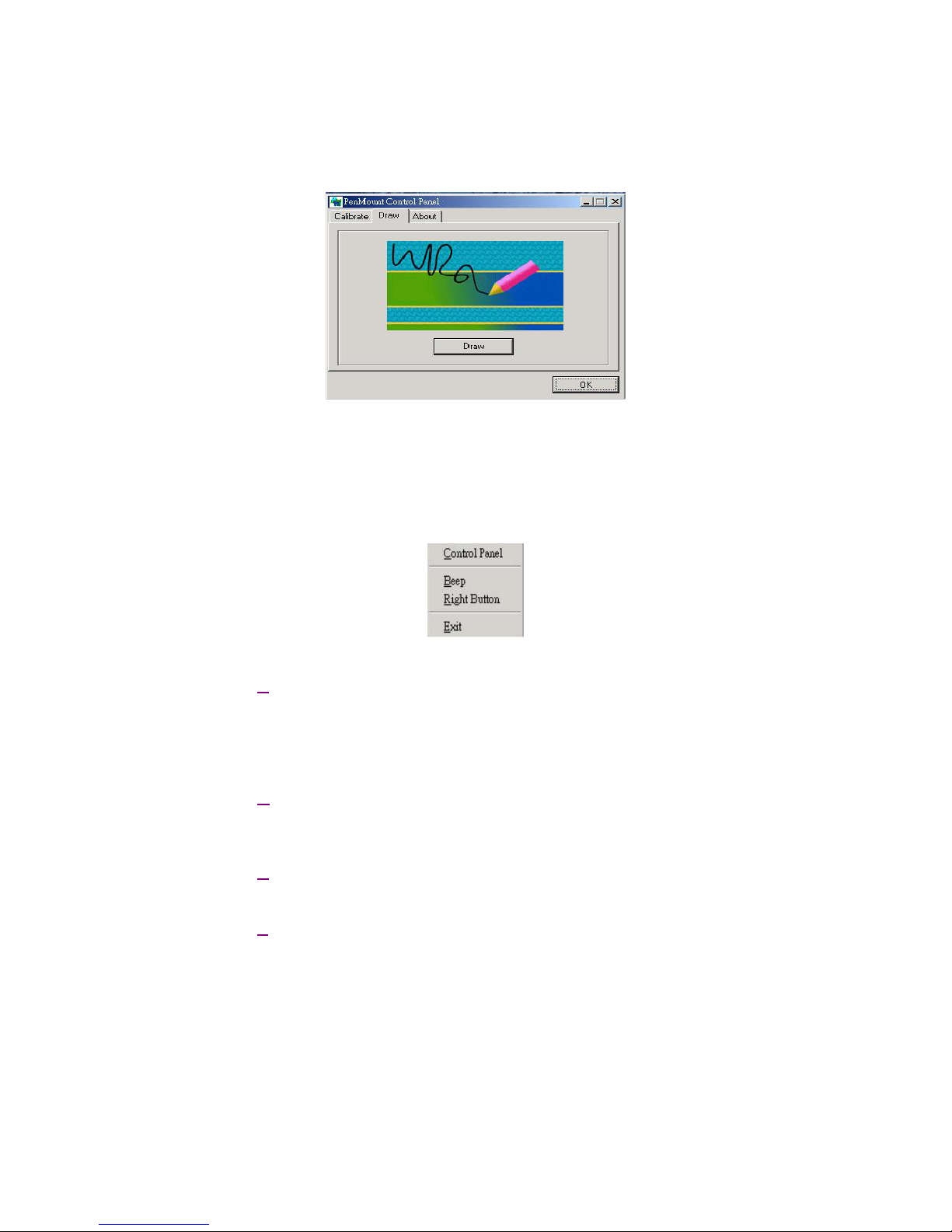

Draw
Test or demonstrate PenMount touch screen operation, also the touch
location is shown on the display, touch DRAW to start.
16
About
It shows information about PenMount controller and driver version.
4.2.2 PenMount Monitor
The PenMount monitor icon is shown in the menu bar of Windows
system when turn on PenMount monitor from PenMount Utilities.
There are several functions on PenMount monitor:
Control Panel
When select this function, there is a mouse icon shown in the
right-button place of screen. It shows Left Button being as default for
normal use, change Right/Left button by clicking the mouse icon box.
Blue area expresses what button has been selected or actived.
Right Button
Change Right/Left button by clicking the mouse icon box. Blue area
expresses what button has been or actived.
Beep
Turn on or off beep sound.
Exit
Close the PenMount Monitor function.
17
This page intentionally left blank.
18
Loading...
