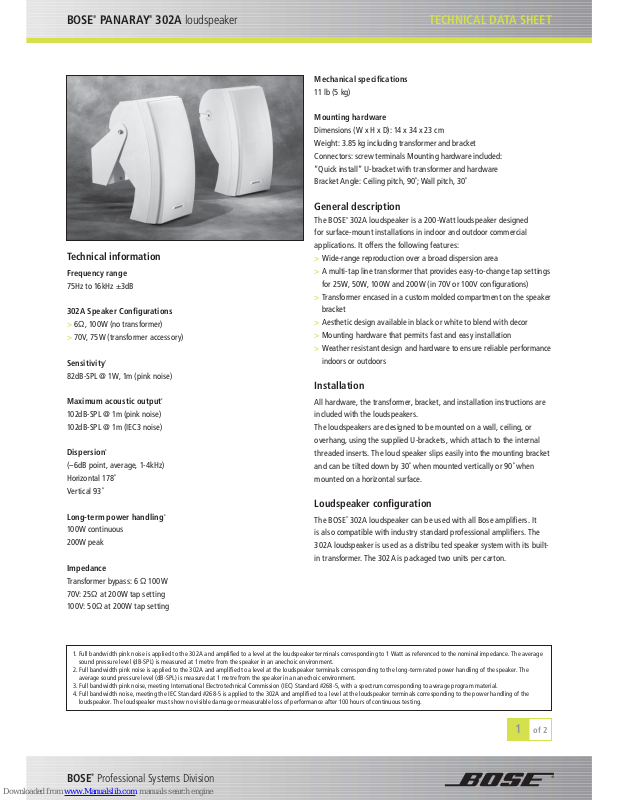

Bose PANARAY 302A Technical Data Sheet
BOSE® PANAR AY® 302A loudspeaker
Mechanical specifi cations
11 lb (5 kg)
Mounting hardware
Dimensions (W x H x D): 14 x 34 x 23 cm
Weight: 3.85 kg including transformer and bracket
Connectors: screw terminals Mounting hardware included:
“Quick install” U-bracket with transformer and hardware
Bracket Angle: Ceiling pitch, 90˚; Wall pitch, 30˚
General description
The BOSE® 302A loudspeaker is a 200-Watt loudspeaker designed
for surface-mount installations in indoor and outdoor commercial
applications. It offers the following features:
> Wide-range reproduction over a broad dispersion area
> A multi-tap line transformer that provides easy-to-change tap settings
for 25W, 50W, 100W and 200W (in 70V or 100V confi gurations)
> Transformer encased in a custom molded compartment on the speaker
bracket
> Aesthetic design available in black or white to blend with decor
> Mounting hardware that permits fast and easy installation
> Weather resistant design and hardware to ensure reliable performance
indoors or outdoors
Installation
All hardware, the transformer, bracket, and installation instructions are
included with the loudspeakers.
The loudspeakers are designed to be mounted on a wall, ceiling, or
overhang, using the supplied U-brackets, which attach to the internal
threaded inserts. The loud speaker slips easily into the mounting bracket
and can be tilted down by 30˚ when mounted vertically or 90˚ when
mounted on a horizontal surface.
Loudspeaker confi guration
The BOSE® 302A loudspeaker can be used with all Bose amplifi ers. It
is also compatible with industry standard professional amplifi ers. The
302A loudspeaker is used as a distribu ted speaker system with its builtin transformer. The 302A is packaged two units per carton.
BOSE® Professional Systems Division
TECHNICAL DATA SHEET
1
of 2
Technical information
Frequency range
75Hz to 16kHz ±3dB
302A Speaker Confi gurations
> 6Ω, 100W (no transformer)
> 70V, 75W (transformer accessory)
Sensitivity
1
82dB-SPL @ 1W, 1m (pink noise)
Maximum acoustic output
2
102dB-SPL @ 1m (pink noise)
102dB-SPL @ 1m (IEC3 noise)
Dispersion
3
(–6dB point, average, 1-4kHz)
Horizontal 178˚
Vertical 93˚
Long-term power handling
4
100W continuous
200W peak
Impedance
Transformer bypass: 6 Ω 100W
70V: 25Ω at 200W tap setting
100V: 50Ω at 200W tap setting
1. Full bandwidth pink noise is applied to the 302A and amplifi ed to a level at the loudspeaker terminals corresponding to 1 Watt as referenced to the nominal impedance. The average
sound pressure level (dB -SPL) is measured at 1 metre from the speaker in an anechoic environment.
2. Full bandwidth pink noise is applied to the 302A and amplifi ed to a level at the loudspeaker terminals corresponding to the long-term rated power handling of the speaker. The
average sound pressure level (dB-SPL) is measured at 1 metre from the speaker in an anechoic environment.
3. Full bandwidth pink noise, meeting International Electrotechnical Commission (IEC) Standard #268-5, with a spectrum corresponding to average program material.
4. Full bandwidth noise, meeting the IEC Standard #268-5 is applied to the 302A and amplifi ed to a level at the loudspeaker terminals corresponding to the power handling of the
loudspeaker. The loudspeaker must show no visible damage or measurable loss of performance after 100 hours of continuous testing.
Engineers’ and architects’ specifi cations
Bracket side view
Speaker side view
Mounted speaker side view
Bracket footprint
Mounted speaker top view
Engineers’ and architects’ specifi cations
The system shall consist of a loudspeaker with bracket that houses one
200-Watt transformer. The loudspeaker shall be an indoor/outdoor 200Watt, ported loudspeaker utilising one 13.3 cm environmental woofer
and two 6.4 cm environmental twiddlers arrayed for wide dispersion.
The transformer shall offer multiple taps of 25W, 50W, 100W and 200W.
The loudspeaker shall have a maximum acoustic output of 105dB-SPL @
1 m from 75Hz to 16kHz. The input connector to the transformer shall
be a terminal strip. The dispersion angle shall be 178˚ horizontal and 93˚
vertical. The loudspeaker shall be available in black and arctic white. The
loudspeaker shall be the Bose 302A loudspeaker.
Safety and regulatory compliance
All versions of the Bose 302A loudspeakers comply with ANSI/EIA 636,
recommended loudspeaker safety practices and EMC directive 89/336/
EEC and article 10 (1) of the directive in compliance with EN50081-1,
EN50082-1, as signifi ed by the CE mark.
U.L. Certifi cation
The FreeSpace® 203 loudspeaker meets current regulatory standards (as of
2001) for surfacemount loudspeakers and is U.L. listed as vandal resistant.
Warranty information
All versions of the Bose 302A loudspeaker are covered by a 5-year,
transferable limited warranty.
BOSE® PANAR AY® 302A loudspeaker
TECHNICAL DATA SHEET
2
of 2
For more information: pro.bose.com
All info rmation subje ct to change wit hout notice. ©20 07 Bose Corporat ion. Bose and Fr eeSpace are reg istered trade marks of Bose Co rporation.
