SoundDock 10 digital
music system

AC power cord

Remote control

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

Introduction

Thank you for purchasing the SoundDock 10 digital
music system. Offering a high-quality, room-filling
sound, the SoundDock 10 digital music system can
easily serve as the primary digital music system in your
home.

Outstanding features:

• Proprietary acoustic design delivers full, rich sound

• Remote controls basic system functions including
source selection

• Auxiliary input allows use with other audio devices

• Compatible with the iPhone and most iPod models,
including the iPod touch and any iPod featuring a click
wheel, including nano, mini, photo, video and classic
models.

• Charges your device while it is docked

• Provides video output connection for a TV or monitor

• Available Bluetooth

®

dock accessory

Unpacking

Check the carton for all the parts shown.
Save the carton and packing materials, which provide

the safest way to transport this product.
If any part of the product appears to be damaged, do not

attempt to use it. Contact your authorized Bose dealer
immediately or call Bose Customer Service. Refer to the
address list enclosed in the carton for contact information.

WARNING: To avoid danger of suffocation, keep plastic
bags out of the reach of children.

Now is a good time to find the serial number on the back
of your SoundDock 10 system and record it on the
previous page.

1

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12

Setting up your system

1. Place your SoundDock 10 digital music system on a

flat, stable surface.

2. Plug the small end of the AC power cord into the AC
power connector on the back of the unit.

3. Plug the other end into a live AC (mains) outlet. After
you hear two short tones from your SoundDock 10
system, it is ready to use.

AC IN

Note: The tonal quality of your SoundDock 10 system will vary

with placement. For example, moving the system toward a corner
will increase bass response; moving it away from the corner will
decrease bass response.

CAUTION: Do not cover the ventilation openings of the
product. The slots on the top provide ventilation for the
built-in electronic circuitry and shall not be blocked.

Note: When handling the SoundDock 10 system, the front

structure containing the iPod/iPhone dock may feel loose.
This is normal. This part of the system is intentionally designed
to prevent speaker vibration from interfering with the operation
of your iPod/iPhone.

System on/off control

You can turn on your SoundDock 10 system in any of the
following three ways:

• Dock a device.

• Press any key except OFF on the Bose

• Press any key on the docked device.
To turn off the SoundDock 10 system, do either one of

the following:

• Press OFF on the SoundDock 10 remote.

• Remove the docked device.

®

remote.

2

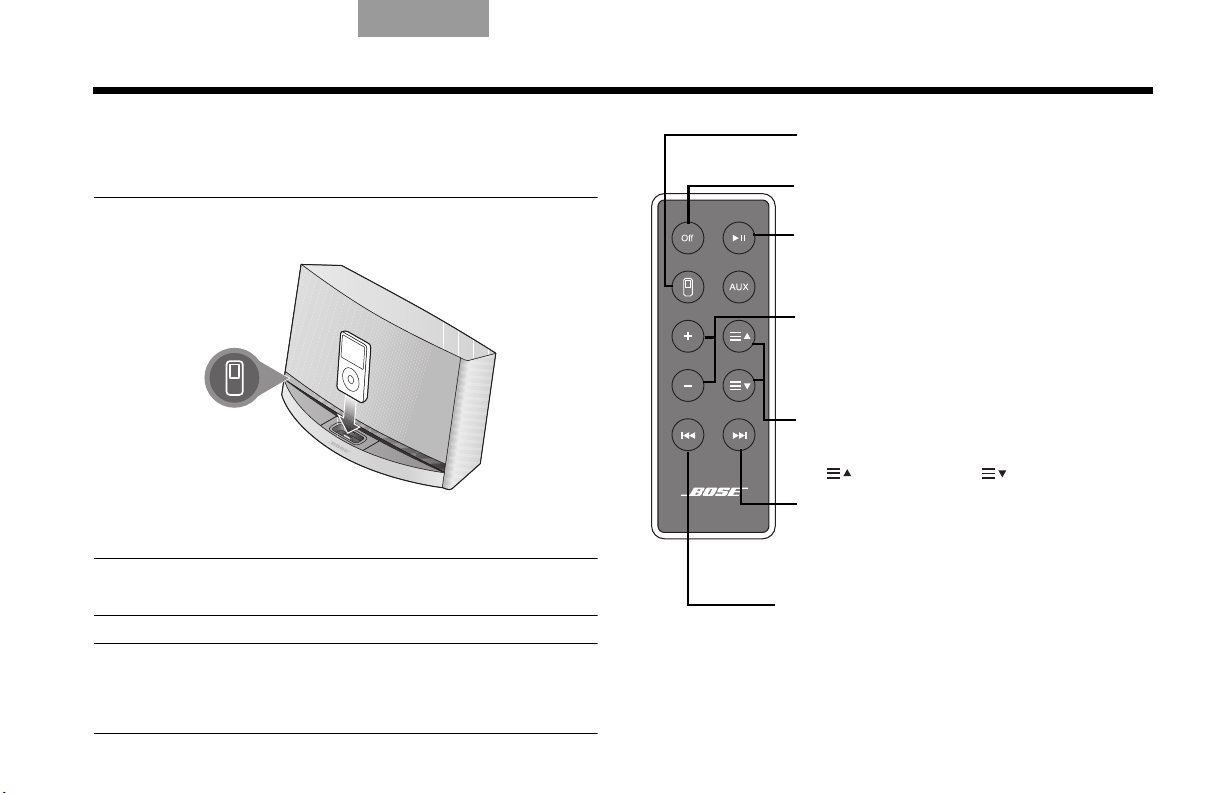

Dock
indicator

Off

• Press to turn off the system.

Dock

• Press to select the docked device.

Play/Pause

• Press to play or pause the current track

on the docked device.

Volume +/–

• Press to increase (+) or decrease (–) the

volume.

• Press and hold for faster adjustment.

Playlist select

• Press to select the next ( ) or

previous ( ) playlist.

Skip backward

• Press once to skip to the beginning

of the current track.

• Press twice to skip to the beginning

of the previous track.

• Press and hold to quickly scan

backward through a track.

Skip forward

• Press once to skip to the next track.

• Press and hold to quickly scan forward

through a track.

Listening to a docked device

1. Insert your iPod or iPhone into the dock. The dock

indicator glows on the front panel.

2. Use the Bose

Note: Your SoundDock

iPod/iPhone whenever it is docked.

Note: Your SoundDock 10 digital music system comes with a

universal dock adapter that can accommodate most iPod
models. If you prefer to use the adapter that came with your iPod,
see “Changing the dock adapter” on page 6.

®

remote to control system functions.

®

10 digital music system charges your

TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

3

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

3.5mm stereo cable
(not supplied)

Laptop PC

AUX IN

indicator

EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12

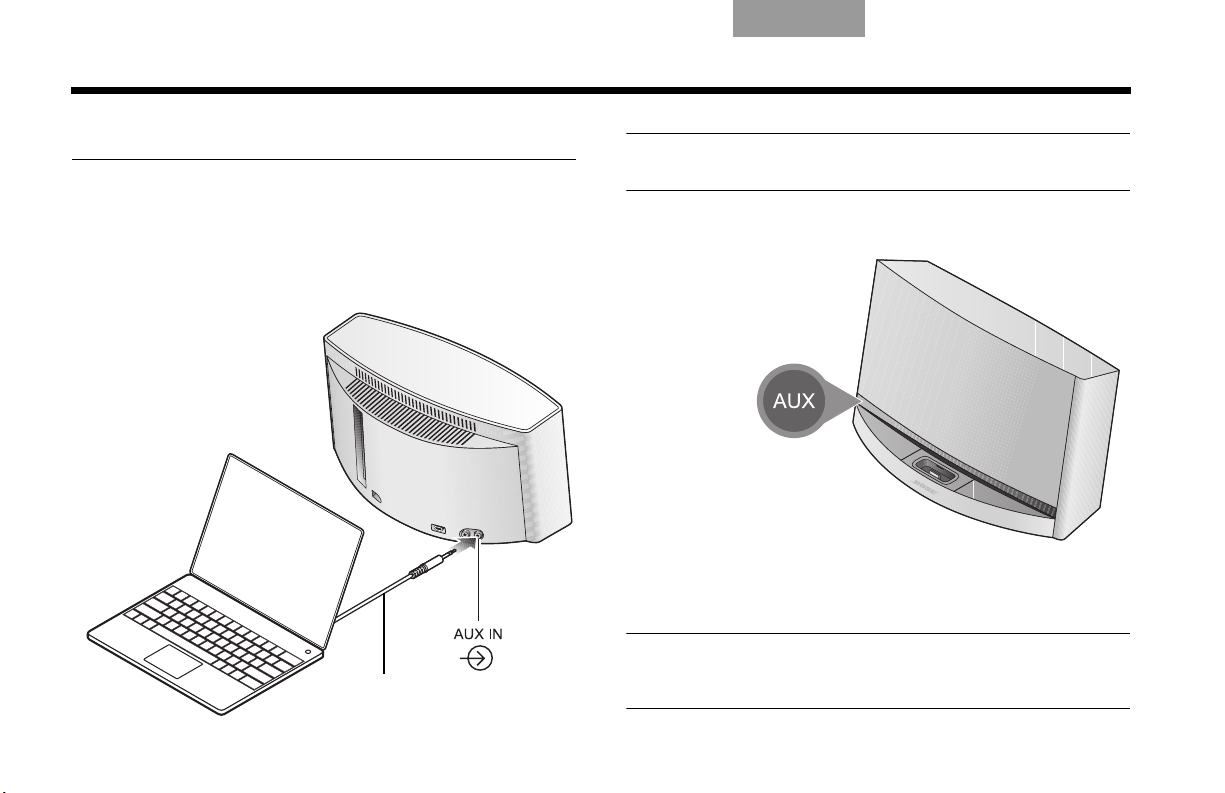

Listening to other devices

You can connect the audio output of a PC, CD player, TV,
MP3 player, or other type of audio device to the AUX IN
connector. The AUX IN connector accepts a 3.5mm
stereo cable plug.

1. Using the appropriate stereo cable, connect your
audio device to the AUX IN connector.

Note: A device must be plugged into the AUX IN connector in

order to select the AUX source.

2. Press AUX on the Bose® remote. The AUX IN
indicator glows on the front panel.

3. Turn on the audio device and start playing music.

4. Set the volume of the device to near maximum.

Note: The SoundDock 10 system is designed to provide the

best audio performance without any additional audio effects.
Make sure all audio effects are turned off in the connected device.

4

5. Use the Bose

Off

• Press to turn off the system.

AUX

• Press to select the AUX IN source.

Volume +/–

• Press to increase (+) or decrease (–)

the volume.

• Press and hold for faster

adjustment.

Composite
video cable
(not supplied)

Notes:

• The Bose remote will not control devices connected to

• A docked iPod/iPhone will continue charging while you

®

remote to increase or decrease the

system volume.

AUX IN.

listen to a device connected to AUX IN.

TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

Using the video output

When playing a docked iPhone or iPod with video
capability, the VIDEO OUT connector provides a
composite video output signal that can be viewed
on a TV or computer monitor.

To view this video output on your TV or monitor, connect
the VIDEO OUT to a video input using a standard
composite video cable. Be sure to select the correct
video input on your TV.

5

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12

Changing the dock adapter

The SoundDock 10 digital music system is ready for use
with an iPhone or a variety of iPod models.

If you prefer to use the dock adapter included with your
iPod:

1. Make sure the power cord is disconnected.

2. Lift up the back edge of the adapter and remove it

from the dock.
You may need to insert a thin, non-metallic utensil

into the slot to provide the required leverage to lift the
back edge.

Care and maintenance

Periodic maintaining may include cleaning your product
and replacing the remote control batteries.

Cleaning

To clean the exterior surface of your product, you can
wipe it using a soft, dry cloth. You can also lightly
vacuum the grille.

• Do not use solvents, chemicals, or sprays.

• Do not allow liquids to spill or objects to drop into any

openings.

Replacing the remote control batteries

When the remote stops operating or its range seems
reduced, it is time to change the remote battery.

1. Using a coin, turn the battery cover slightly counter­clockwise.

6

TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10

UPDATE

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

2. Remove the used battery and insert the new one
(CR2032 or DL2032). Refer to page ii for battery infor­mation and safety instructions. Be sure the battery is
flat side up, with the positive (+) symbol in view.

3. Reseat the cover and turn it clockwise until it locks
into place.

iPod/iPhone compatibility

If you have questions regarding the compatibility of your
iPod/iPhone with the SoundDock 10 digital music
system, see www.Bose.com for the most current
compatibility information.

UPDATE connector

The UPDATE connector on the back of your SoundDock
10 system is for potential software updates, only.

Troubleshooting

The following troubleshooting table should help solve
operating problems with your SoundDock 10 system.
However, before using the table, do the following:

• Remove your iPod/iPhone from the dock and check
for obstructions on the dock connector and on your
iPod/iPhone. Then firmly reseat it in the dock.

• Make sure you have the latest software on your iPod/
iPhone.

7

SOUNDDOCK® 10 DIGITAL MUSIC SYSTEM

Problem What to do

EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12

I do not hear any sound
from the SoundDock 10
system.

My iPod/iPhone is not
charging.

I cannot navigate the
playlists on my iPod/
iPhone.

My iPod/iPhone does not
respond to the remote
control.

My system does not
respond to any controls.

8

• Make sure the power cord is properly connected on the back of the SoundDock 10 system and that
the system is plugged into a live AC outlet.

• Press the source button (dock or AUX) on the remote for the source you are using.

• Press the Play/Pause button on the remote control.

• Increase the system volume.

• If listening to a device connected to AUX IN, increase the volume on the device.

• Remove your iPod/iPhone from the dock, wait 5 seconds, then reseat it.

• Unplug the power cable for 1 minute, then plug it back in to reset the system.

• Make sure the power cord is properly connected on the back of the unit.

• Make sure the system is plugged into a live AC outlet.

• Make sure that you have created playlists on your iPod/iPhone.

• Make sure there is a clear path between the remote and the system.

• Using a clean, dry cloth, wipe the small lens on the front end of the remote.

• Try the remote from a different location. You may be experiencing interference from bright room
lights or sunlight.

• Remove your iPod/iPhone from the dock, wait 5 seconds, then reseat it.

• Make sure the remote battery is installed correctly or replace it if it is old (refer to page 6).

• Unplug the power cable for 1 minute, then plug it back in to reset the system.

•Contact Bose

®

Customer Service.
