DIGITAL HOME THEATER SPEAKER SYSTEM

Operating Guide | Guía del usuario | Guide d’utilisation

M

ATE

1 SR

Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a different circuit than the one to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate

this equipment.
These devices comply with FCC and Industry Canada RF radiation exposure limits set forth for the general

population. They must not be co-located or be operating in conjunction with any other antennas or transmitters.
These devices comply with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) This device may not cause interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.

CAUTION: Refer to the CineMate® 1 SR setup guide for safety-related information.

Please complete and retain for your records:

Speaker array serial number (on bottom panel): __________________________________
Acoustimass module serial number (on back panel): ______________________________

Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,956,674; 5,974,380 and
6,487,535 & other worldwide patents issued & pending. DTS, the DTS Symbol
and DTS + the DTS Symbol are registered trademarks & the DTS logos are

trademarks of DTS, Inc. Product includes software. ©2010 DTS, Inc. All Rights Reserved.
©2011 Bose Corporation. No part of this work may be reproduced, modified, distributed, or

otherwise used without prior written permission.

2 – English

CONTENTS

CONTROLS AND INDICATORS 4

Universal remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Turning the system on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Controlling the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Programming the universal remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Reading the system indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Adjusting the bass level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CONTROLLING SOURCES 7

Changing the source control mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Watching a DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Navigating on-screen menus and guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using playback controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CARE AND MAINTENANCE 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Replacing the remote batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning your speaker system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

English – 3

CONTROLS AND INDICATORS

The system power button turns the CineMate 1 SR
system on or off.

Use this button to change the volume level:

• Press

+ to raise the volume.

• Press

– to lower the volume.

Press this button to mute or unmute the audio:

Universal remote control

The CineMate® 1 SR system includes a universal remote that can be programmed to
control your TV, DVD or Blu-ray Disc™ player, cable/satellite box, and VCR. With this
universal remote, you can enjoy the convenience of using only one remote control for
all your home theater equipment.

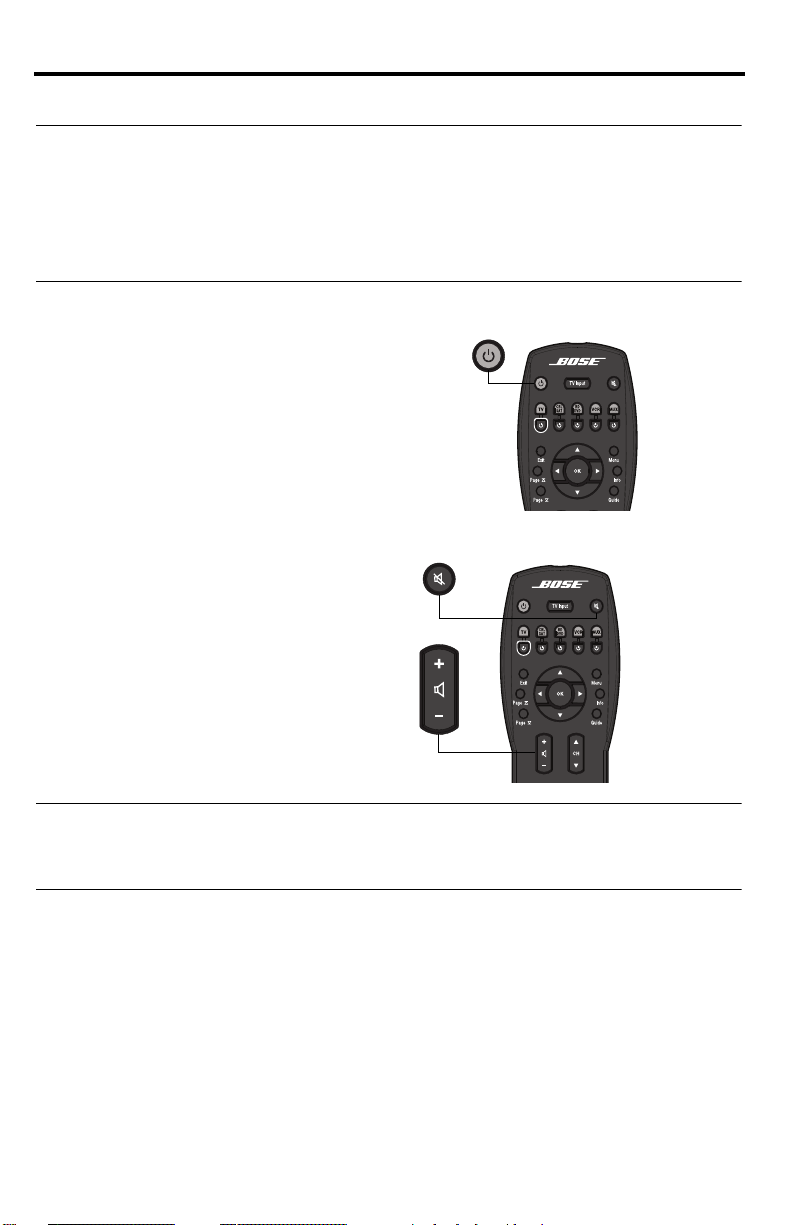

Basic functions

Turning the system on and off

Controlling the volume

Note: Make sure the internal speakers in your TV are turned off. To confirm, press Mute
on the Bose remote and check that no sound is coming from the TV. For more information,
refer to “Turning off the internal speakers in your TV” in the Setup Guide.

Programming the universal remote

The universal remote can be programmed to control up to five audio/video devices.

To program the remote to control your TV:

1. Locate the TV section in the Universal Remote Device Codes book included with

your system.

2. Locate the device code(s) for your brand of TV and select a code from the list.

4 – English

CONTROLS AND INDICATORS

Source buttons

Source power buttons

TV power

3. Press and hold until all five source buttons
light. The remote is now in the setup mode.

4. Press . Only this button will remain lit.

5. On the number keypad, enter the device code for

your brand of TV. The TV source button ( )
should blink twice and then turn off.

Note: If all five source buttons flash rapidly three times,
the code was invalid. Go back to Step 1 and try another
code.

6. Point the remote at your TV and press TV power.

If your TV does not respond, go back to Step 1 and
try another code.

To program the remote to control other devices:

Follow the same procedure for each of your other
devices, using the appropriate device code and
source button for each one.

To control a combination device:

• If you are programming the remote to control a

combination device that has more than one source,
such as a VCR/DVD unit, you can program the associated code for either source
button. For convenience, you may want to program the code twice – once for the
VCR button and once for the DVD button.

• To find the right device code, first search the “COMBINATION” listings in the

Universal Remote Device Codes book. If you cannot find a valid code there,
then search the listings for individual device types (TV, CBL, VCR, DVD, etc.).

English – 5

CONTROLS AND INDICATORS

Power indicator:

Solid white..................................... Power on

Fast blinking white........................ System is muted

Very fast blinking white................. System volume has reached the max or min limit

Status indicator:

Off .................................................. Speaker array and Acoustimass

®

module are connected

Slow blinking orange ....................Speaker array is available to make a wireless connection

Fast blinking orange .....................Speaker array is disconnected and trying to connect

Solid green ....................................ADAPTiQ

®

system is activated

Blinking green ...............................ADAPTiQ system is calculating data

Blinking green 5 secs.................... AC power applied

Solid red ........................................System error

PowerStatus

Status indicator:

Solid orange................................... Speaker array and Acoustimass module are connected

Blinks orange every 3 secs ........... Acoustimass module is disconnected from speaker array

(or speaker array is off: Acoustimass module standby)

Slow blinking orange..................... Acoustimass module is available to make wireless connection

Solid red......................................... System error

Status

Bass control knob

*For service use only

*

*

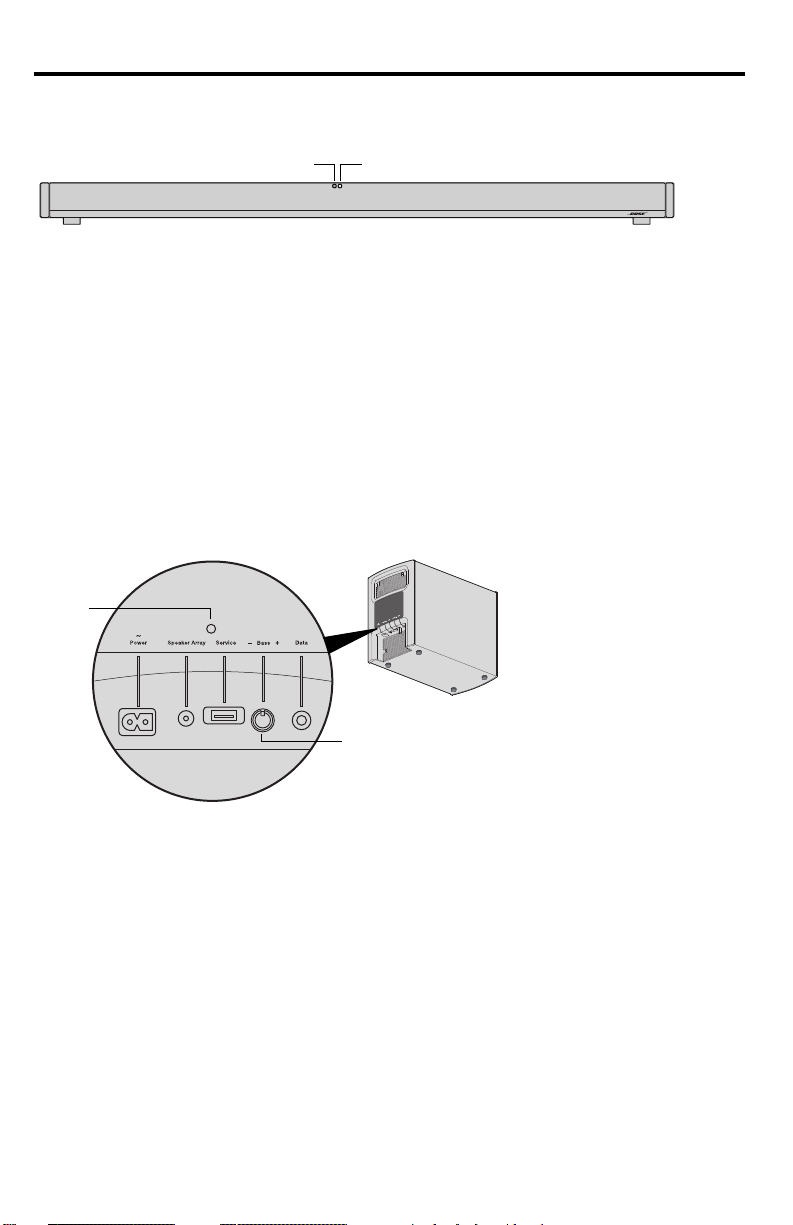

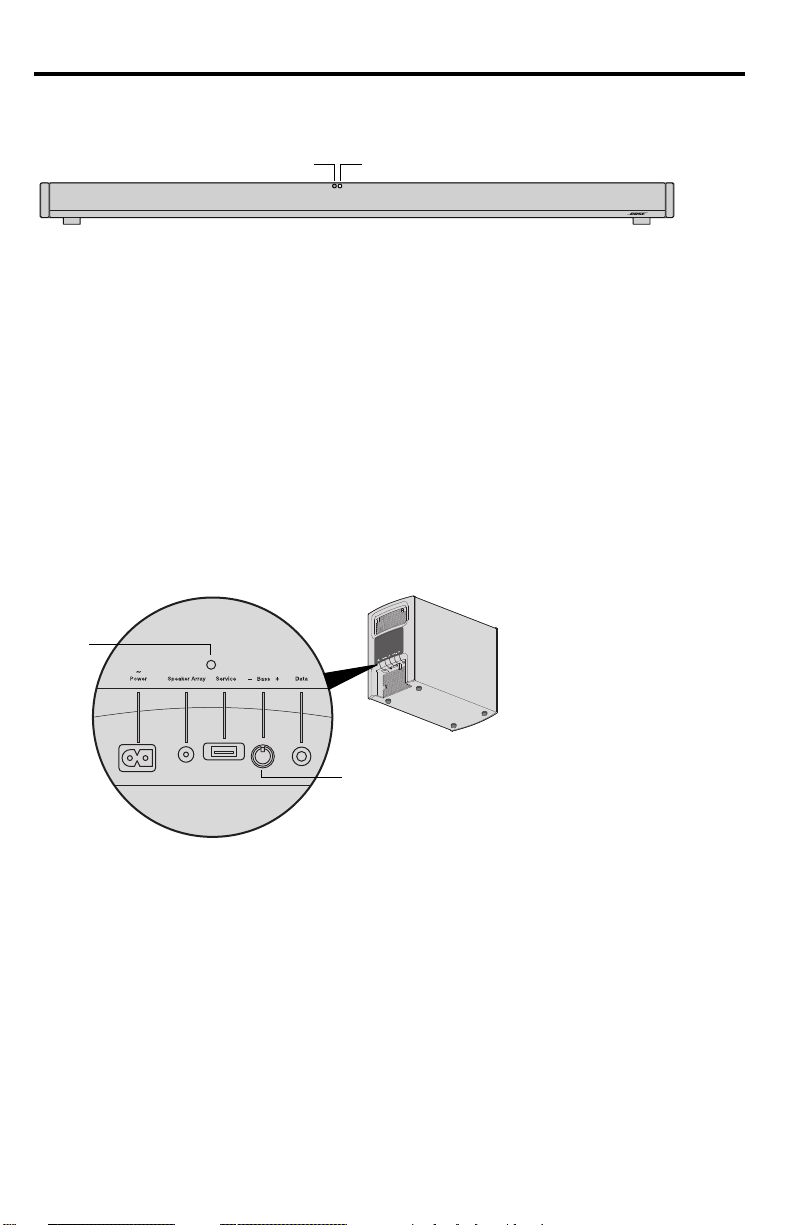

Reading the system indicators

Speaker array indicators

Acoustimass module indicator

Adjusting the bass level

The bass control knob located on the rear of the Acoustimass module allows you to
change the bass level output of the system. Turn the bass control knob clockwise to
increase the bass, counter-clockwise to decrease the bass.

6 – English

CONTROLLING SOURCES

Puts the remote in TV control mode. Allows you to control TV
functions, such as channel selection and menu navigation.

Puts the remote in control of your cable or satellite set top box.
Allows you to control cable/satellite set-top box functions, such
as channel selection and Electronic Program Guide navigation. If
your cable/satellite box includes a Digital Video Recorder (DVR),
the remote will control both cable/satellite and DVR functions.

Puts the remote in control of your Blu-ray Disc™, DVD or CD
player. Allows you to control the functions in the player you are

using.
Puts the remote in VCR control mode. Allows you to control VCR

functions, such as play options and menu navigation.

Puts the remote in control of the additional device that does not
have a dedicated remote source button. Allows you to control the
functions of the source designated as the AUX source.

Source power buttons. Press to turn the corresponding source on
or off.

Selects the input on your TV to
the source you want to watch.

Changing the source control mode

You can easily switch control from one source to another by pressing the appropriate
source button at the top of the remote. In addition to controlling the selected source,
the remote will always control the basic speaker functions (on/off, volume, mute) of
your CineMate® 1 SR system.

To control a source:

1. Press the power button ( ) for the source you want to turn on.

2. Press the button for the source you want to control.

The source button will flash to verify your choice.

3. If necessary, Press the TV Input button to select the correct input on your TV.
You may need to press the TV Input button several times in order to select the

correct TV input for the source you want to watch.
On some TVs, the TV Input button will display an onscreen menu. Put your Bose

remote in the TV control mode to navigate and close this menu.

Note: To control your TV and other devices using the Bose remote, you must first program the remote

with a device code for each device. See “Programming the universal remote” on page 4.

English – 7

CONTROLLING SOURCES

TV power

CBL-SAT power

CBL-SAT source

Press to return to the last channel selected

Enter a channel number
on the keypad to go to a
specific channel

Press to go down one channel

Press to go up one channel

Watching TV

To watch TV using your cable/satellite set-top box:

1. Press the TV power button to turn on your TV.

2. Press the TV Input button to select the correct input on your TV.

3. Press the CBL-SAT power button to turn on your cable/satellite set-top box.

4. Press the CBL-SAT source button to switch to cable/satellite mode.

The CBL-SAT button flashes to verify that the remote is in the CBL-SAT mode.

5. Select a channel:

To view and search through program guides, see “Navigating on-screen menus and
guides” on page 10.

8 – English

CONTROLLING SOURCES

TV power

TV source

TV power

BD-DVD power

BD-DVD power

To watch TV using the tuner in your TV:

1. Press the TV power button to turn on your TV.

2. Press the TV Input button to select the correct input on your TV.

3. Press the TV source button to switch to the TV mode (the TV button will flash).

4. Select a channel.

Watching a DVD or Blu-Ray™ disc

1. Press the TV power button to turn on your TV.

2. Press the TV Input button to select the correct input on your TV.

3. Press the BD-DVD power button to turn on your DVD player.

4. Press the BD-DVD source button to switch to DVD mode.

The BD-DVD button flashes to verify that the remote is in the BD-DVD mode.

5. Use the remote to control playback functions and navigate disc or player menus.

See “Using playback controls” on page 11 for a description of the playback buttons.

English – 9

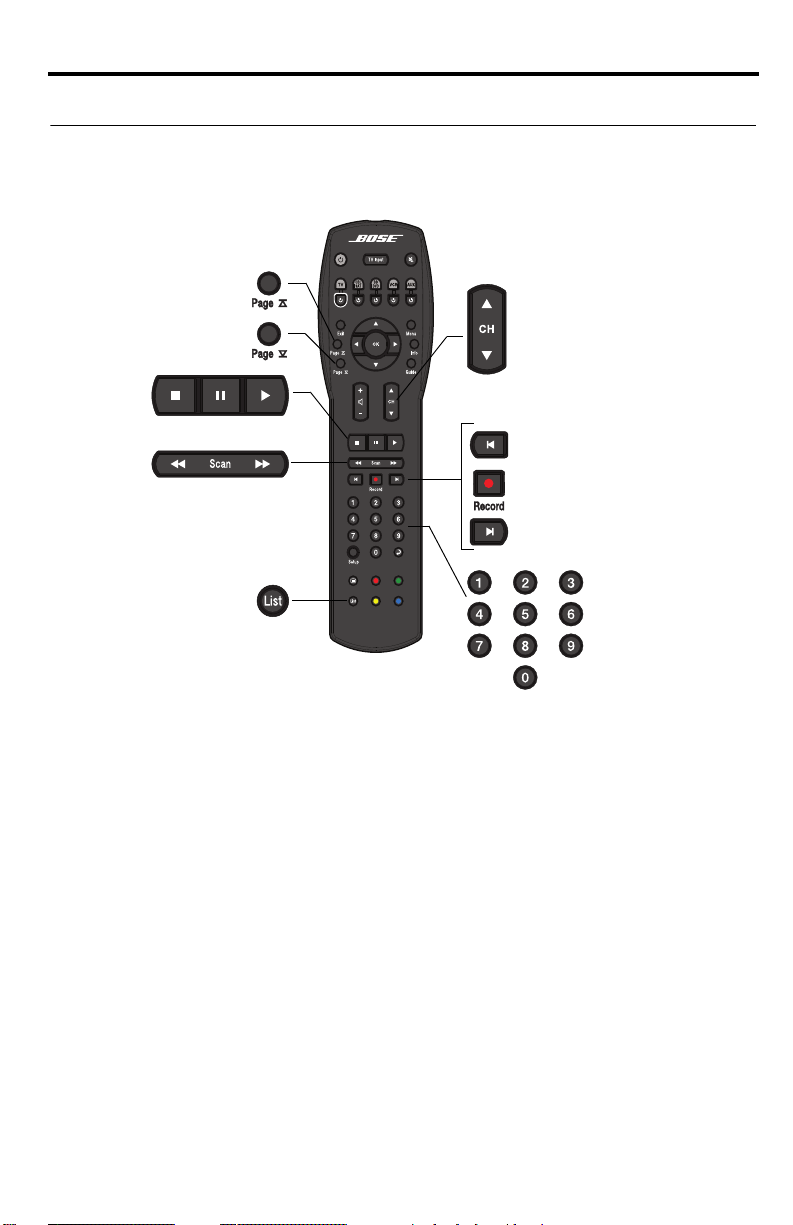

CONTROLLING SOURCES

Exits onscreen menus and
program guides

Displays the menu of the
selected source

Displays details of items in
an electronic program
guide

Displays an electronic
program guide when
available

Confirms a menu selection
or skips to the next level of
menu items

Skips ahead one page in
an onscreen program
guide

Skips back one page in
an onscreen program
guide

Moves the selection
highlight up, down,
left, or right

Perform specific functions in
the CBL-SAT and Teletext
(Europe only) modes

• Switches between
normal and
widescreen picture, or

• If supported, turns
Teletext mode on or off

Navigating on-screen menus and guides

The menu and program selection buttons will control only one source at a time. Select
the source you want to use first.

Note: If some navigation functions are not working for a particular source, try programming a different

device code into the remote.

10 – English

CONTROLLING SOURCES

Next DVD chapter or music
CD track

Stop, Pause, or Play

Start Instant Replay

Scan backward (rewind)
or Scan Forward

Input a chapter or
track number

Displays CBL-SAT
program information
or a list of recorded
DVR programs

Start recording
(Press and hold)

Quick Skip Forward

Previous DVD chapter or
music CD track

Next disc in a
multi-disc player

Previous disc in a
multi-disc player

Using playback controls

The functionality of the source playback buttons may vary depending on the type and
brand of your device. For more information, see the owner’s guide that came with your
device.

English – 11

CARE AND MAINTENANCE

Troubleshooting

Problem What to do

No sound • Make sure the CineMate® system is turned on and that the speaker array

Sound but no
picture, or sound
and picture do not
match

power indicator is on (solid white).

• Make sure the CineMate system is not muted.

• Increase the volume.

• Verify the wireless connection between the speaker array and the
Acoustimass

• Press the ADAPTiQ

®

module:

®

button behind the sliding cover on the end of

the speaker array.

• The status indicator should glow orange for 10 seconds if the wire-

less connection is good.

• If the speaker array status indicator is blinking orange:

• Check that the Acoustimass module is plugged into a live AC wall

outlet and the status indicator is glowing orange.

®

• Perform the pairing procedure. See “Pairing the Acoustimass

module with the speaker array” on page 14.

• Try moving any possible sources of wireless interference, such as a

wireless computer network router, another wireless device, or a
microwave oven, further away from the CineMate system.

• Make sure all cable connections are correct and secure on the speaker
array, TV, and other connected sources. Refer to the “Product Overview”
in the setup guide.

• Check that the correct TV input is selected. See “Changing the source
control mode” on page 7.

• Check that the TV’s audio output is enabled. See your TV owner’s guide
for information.

• If the speaker array is connected to a TV output labelled VARIABLE
(VAR), make sure the TV’s internal speakers are turned off, the TV
volume is turned up, and the TV is not muted.

• Make sure there is an audio connection from your sources to both your
TV and the speaker array.

• Make sure the TV is turned on.

• Make sure that the audio output on the TV is connected to the TV audio
input on the speaker array. Refer to “Putting the system together, Step 1”
in the setup guide.

• If you are using the AUX connections on the speaker array, make sure
that the audio outputs from your sources are connected to both your TV
and the AUX connectors on the speaker array. Refer to the “Product
overview” in the setup guide.

12 – English

CARE AND MAINTENANCE

Problem What to do

Remote control is
inconsistent or
does not work

Sound is distorted • Make sure all cable connections are secure on the speaker array, TV, and

Sound is coming
from the TV

TV does not
respond to remote
commands

Picture is blurry
when viewing 3D
content

Intermittent bass • Check that the status indicator on the Acoustimass module is orange

Too much or too
little bass

Red status
indicator

• Check the battery to be sure it is installed properly or needs to be

replaced. See “Replacing the remote batteries” on page 14.

• Point the remote control at the device you want to control.

• Check that the remote button for the selected source flashes when you

press the volume button.

• Check that the power indicator on the speaker array flashes when you

press the remote volume or mute button.

• There may be more than one device code for your brand of device. Find

your device and brand in the Universal Device Codes book. Try program-
ming another code, then check the device for improved functionality.

other connected sources.

• Make sure the protective film has been removed from the speaker array

and the Acoustimass

®

module.

• If the speaker array is connected to a TV output labelled VARIABLE

(VAR), reduce the TV volume.

• Turn off your TV’s internal speakers.

• Turn the TV volume all the way down.

• Make sure the speaker array is not blocking the IR sensor on the TV.

Change the position of the TV and speaker array so that the IR sensor is
not blocked.

• For details on the location of the TV’s IR sensor, refer to the owner’s

guide that came with your TV.

• Make sure your 3D glasses are tuned on.

• If the problem persists, make sure the speaker array is not blocking the

IR sensor on the TV. Change the position of the TV and speaker array so
that the IR sensor is not blocked.

• For details on the location of the TV’s IR sensor, refer to the owner’s

guide that came with your TV.

and not blinking.

• If the speaker array status indicator is blinking orange:

• Check that the Acoustimass module is plugged into a live AC wall
outlet and the status indicator is glowing orange.

®

• Perform the pairing procedure. See “Pairing the Acoustimass
module with the speaker array” on page 14.

• Try moving any possible sources of wireless interference, such as a
wireless computer network router, another wireless device, or a
microwave oven, further away from the CineMate

®

system.

• Adjust the bass level using the bass control on the Acoustimass module.
Refer to “Adjusting the bass level” on page 6.

• System error. Call Bose Customer Service.

English – 13

CARE AND MAINTENANCE

Battery cover

AA (IEC LR6)
batteries (2)

Pairing the Acoustimass® module with the speaker array

Your speaker array and Acoustimass module are paired at the factory. However, should

you ever need to pair them for any reason, do the following:

1. Unplug the Acoustimass module AC power cord.

2. Remove the door on the end of the speaker array.

®

3. Press and hold the ADAPTiQ
slowly blinking orange.

4. Plug the Acoustimass module AC power cord in the AC outlet.
Pairing is complete when the Acoustimass module status indicator becomes solid

orange and the speaker array status indicator turns off.

button for 3-4 seconds until the status indicator starts

Replacing the remote batteries

Replace both batteries when the remote control stops operating or its range seems

reduced. Alkaline batteries are recommended.

1. Slide open the battery compartment cover on the back of the remote.

2. Remove both batteries.

Be sure to dispose of the batteries according to the regulations in your area.

3. Insert two AA (IEC-LR6) 1.5V batteries, or the equivalent. Match the + and – symbols
on the batteries with the + and – markings inside the compartment.

4. Slide the battery compartment cover back into place.

Cleaning your speaker system

• You can clean the surface of the speaker array and Acoustimass® module with a soft,

dry cloth.

• Do not use any sprays near the speaker array. Do not use any solvents, chemicals,

or cleaning solutions containing alcohol, ammonia, or abrasives.

• Do not allow liquids to spill into any openings.

• The speaker grille requires no special care, although you may carefully vacuum it with

a brush attachment, if necessary.

14 – English
