Tumble dryer
WTH85VS8SN/WTH83V8PSN/WTH85VB8SN/WTH85VI8SN
en Installation and operating instructions
Your new tumble dryer
You have opted for a tumble dryer
manufactured by Bosch.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Bosch, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.boschhome.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
2
en
Contents
en Installation and operating instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .4
Children/people/pets . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 11
7 Environmental protection . . . . .12
Packaging/old appliance . . . . . . . . . 12
Coolant . . . . . . . . . . . . . . . . . . . . . . . 12
Energy-saving tips. . . . . . . . . . . . . . . 13
5 Installation and connection . . .13
Scope of delivery . . . . . . . . . . . . . . . 13
Installing and connecting the dryer. . 13
Optional accessories . . . . . . . . . . . . 15
Transport and frost protection . . . . . 15
Y The main points in brief . . . . . .16
* Getting to know your
appliance . . . . . . . . . . . . . . . . . .17
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . 17
Control panel . . . . . . . . . . . . . . . . . . 18
Display panel . . . . . . . . . . . . . . . . . . 19
Cancelling the programme . . . . . . . .25
Programme end . . . . . . . . . . . . . . . .25
Removing laundry and switching
off the dryer . . . . . . . . . . . . . . . . . . . .25
Emptying the condensate
container . . . . . . . . . . . . . . . . . . . . . .25
Clean the fluff filter . . . . . . . . . . . . . .26
M Signal setting. . . . . . . . . . . . . . . 27
> Noises. . . . . . . . . . . . . . . . . . . . . 28
D Cleaning . . . . . . . . . . . . . . . . . . . 29
Cleaning the dryer and the
control panel . . . . . . . . . . . . . . . . . . .29
Cleaning the moisture sensor . . . . . .29
Cleaning the EasyClean filter. . . . . . .29
3 Faults and what to do about
them . . . . . . . . . . . . . . . . . . . . . . 31
[ Consumption values. . . . . . . . . 33
Consumption values table . . . . . . . . .33
Most efficient programme for cotton
fabrics . . . . . . . . . . . . . . . . . . . . . . . .33
J Technical data . . . . . . . . . . . . . .34
Z Laundry. . . . . . . . . . . . . . . . . . . .20
Preparing the laundry . . . . . . . . . . . . 20
Sorting washing according to: . . . . . 20
/ Programmes and buttons . . . . .21
Programmes . . . . . . . . . . . . . . . . . . . 21
Buttons . . . . . . . . . . . . . . . . . . . . . . . 23
1 Operating the appliance . . . . . .24
Loading laundry and switching
on the dryer . . . . . . . . . . . . . . . . . . . 24
Setting a programme . . . . . . . . . . . . 24
Starting the programme . . . . . . . . . . 24
Programme sequence . . . . . . . . . . . 24
Changing the programme
or adding laundry . . . . . . . . . . . . . . . 25
J After-sales service . . . . . . . . . . 34
3
en Intended use
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is intended for use up
to a maximum height of
2000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
( Safety instructions
Safety instructions
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
4
Safety instructions en
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
5
en Safety instructions
Installation
:Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a
circuit that is regularly
switched on and off by a
utility.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
6
Safety instructions en
:Warning
Risk of fire/material damage/ damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material damage/damage to the appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ Incorrectly placing (stacking)
this appliance on top of a
washing machine may result
in injury, material damage
and/or damage to the
appliance.
If this appliance is to be
placed on top of a washing
machine, the washing
machine must be of at least
the same depth and width as
the appliance, and it must be
secured in place with the
appropriate connection set if
available. ~ Page 15
The appliance MUST be
secured with this connection
set. Stacking the appliance
in any other way is forbidden.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
7
en Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ If there is any residual
material left in the fluff filter,
this may ignite when drying
is in progress, or even cause
the appliance to catch fire or
explode.
Clean the fluff filter regularly.
Risk of explosions/fire!
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
8
Safety instructions en
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/ damage to the appliance!
The appliance contains R290, a
refrigerant that is
environmentally friendly but
flammable.
Keep open fire and ignition
sources away from the
appliance.
:Warning
Risk of fire/material damage/ damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning/material damage!
Condensation water is not
suitable for drinking and may
be contaminated with lint.
Contaminated condensation
water may be hazardous to
health and may cause material
damage.
Do not drink or reuse.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
9
en Safety instructions
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs. ~ Page 21
Material damage/damage to the appliance
■ If you operate the appliance
without a fluff catcher (e.g.
fluff filter, fluff depot,
depending on appliance
specifications), or if the fluff
catcher is incomplete or
defective, this may result in
damage to the appliance.
Do not operate the appliance
without a fluff catcher, or with
a fluff catcher that is
incomplete or defective.
Material damage/damage to the appliance
■ Light objects such as hair
and lint may be sucked into
the air inlet when the
appliance is in operation.
Keep these away from the
appliance.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Material damage/damage to the appliance
■ If the appliance overheats, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Make sure that the
appliance's air inlet is never
obstructed when the
appliance is in operation,
and that the area around the
appliance is adequately
ventilated.
10
Safety instructions en
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material damage/damage to the appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
11
en Environmental protection
:Warning
Risk of injury/material damage/damage to the appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
7 Environmental
protection
Environmental protection
Packaging/old appliance
)
Coolant
Caution!
Risk of fire/risk of poisoning/risk of
material damage and damage to the
appliance
The appliance contains refrigerant
which, although it is environmentally
friendly, is flammable R290. Failure to
dispose of it properly may result in a fire
or poisoning.
Dispose of the appliance properly and
do not damage the pipes in the
refrigerant circuit.
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
12
Installation and connection en
Energy-saving tips
■ Spin the laundry before drying.
The drier the laundry, the shorter
the drying time will be, thus
consuming less energy.
■ Load the dryer with the maximum
load.
Note: Do not exceed the maximum
load for the programs, as this
prolongs the drying time
and increases energy consumption.
■ Ventilate the room and keep the air
inlet on the dryer free to ensure air
exchange.
■ Clean the fluff filter after each drying
cycle. If the fluff filter is dirty,
the drying time is prolonged
and energy consumption is
increased.
■ Energy saving mode: If the dryer is
not operated for a prolonged period,
it automatically switches off before
the program starts and when
the program has ended to save
energy. The display panel
and indicator lamps go off after
a few minutes and the Start button
flashes. To activate the lighting,
press any button, open or close
the dryer door or turn the program
selector.
5 Installation and
connection
Installation and connection
Scope of delivery
■ Dryer
■ Installation and operating
instructions
■ Basket for woollens
■ Condensation drain*
Installing and connecting the dryer
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
■ Check the dryer for visible damage.
You must not operate the dryer if it is
damaged.
■ Before connecting the dryer to the
power supply, ensure that the
electric voltage specified on the
rating plate matches the voltage of
your socket.
■ Only use residual current circuit
breakers with the following
symbol: z.
■ Ensure that the mains cable is not
kinked or trapped, and that it does
not come into contact with heat
sources or sharp edges.
*
:Warning
Children could lock themselves in the dryer, putting their lives at risk!
Do not set up the dryer behind a door
or sliding door, as this may obstruct the
dryer door or prevent it from opening.
* Depending on the model
13
en Installation and connection
:Warning
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance!
The dryer contains refrigerant which,
although it is environmentally friendly, is
flammable R290.
■ Make sure that the air inlet on the
dryer is always kept clear and that
the room has sufficient ventilation.
■ Do not place the dryer near open
fires and ignition sources.
Caution!
Risk of injury
■ As the dryer is heavy, you could
injure yourself by trying to lift it.
Do not lift the dryer on your own.
■ You could cut your hands on the
sharp edges of the dryer. Do not
hold the dryer by the sharp edges.
■ Protruding parts on the dryer may
break off when it is lifted or pushed.
Do not move the dryer by holding
onto protruding parts.
Caution!
Risk of material damage to the dryer or
fabrics
■ Check the dryer for damage caused
during transportation. Never operate
a dryer if it is damaged.
■ Any residual water in the dryer may
freeze and damage the dryer. Do not
install the dryer in rooms that are at
risk of frost.
During installation, ensure that:
■ The dryer is placed on a clean, level
and firm surface,
■ The mains plug can be accessed at
all times,
■ The area around the dryer is kept
clean and
■ The dryer is levelled using the
threaded feet.
Note: Check the alignment of the
appliance with a spirit level and
correct if necessary. Change the
height by turning the appliance feet.
All appliance feet must stand firmly
on the ground.
Incorrect alignment may cause high
noise levels, vibrations and improper
movement of the drum.
Note: If in doubt, have the appliance
connected by a specialist.
14
Installation and connection en
Optional accessories
Order optional accessories* from
the after-sales service:
■ Washer-dryer stack connection set:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
The dryer must be fastened to
the washing machine using this
connection set.
Order number with pull-out worktop:
WTZ11400;
Order number without pull-out
worktop: WTZ20410.
■ Platform:
For easier loading and unloading,
raise your dryer with a platform.
Transport laundry with the clothes
basket integrated into the platform
drawer.
Order number: ~
■ Basket for woollens:
Dry individual woollen items, sports
shoes and soft toys in the basket for
woollens.
Order number: WMZ20600.
■ Connecting kit for the
condensation drain:
Use a hose to draw off
the condensation immediately.
Order number: WTZ1110.
– Y-connection adapter for the
water outlet
If you have a washing machine
connected to the same outlet,
you can secure the water outlet
hose and the drain hose (from
the connection kit) to the adapter
on the drain.
Order number: 15000490
Transport and frost protection

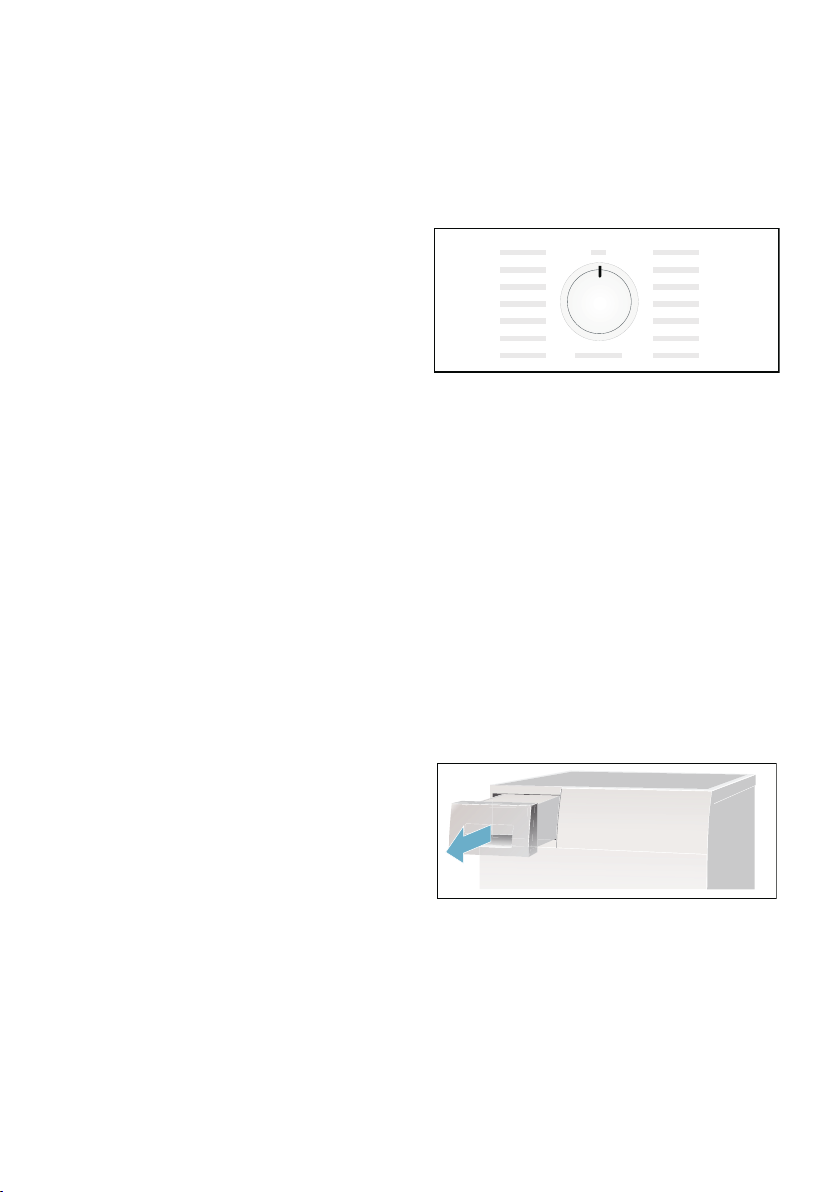

1. Empty the condensate container.
2. Select any programme using
the programme selector.
3. Press the Start button.
4. Wait for 5 minutes. Note: The condensation is drained.
5. Empty the condensate container
again.
6. Switch off the dryer.
Note: Despite draining, there will
always be some residual water in
the dryer.
Caution!
Any residual water may leak out
and cause material damage.
Transport the dryer in an upright
position.
Caution!
The dryer contains coolant and may be
damaged.
Allow the dryer to rest for two hours
before initial use.
* Depending on the model
15
en The main points in brief

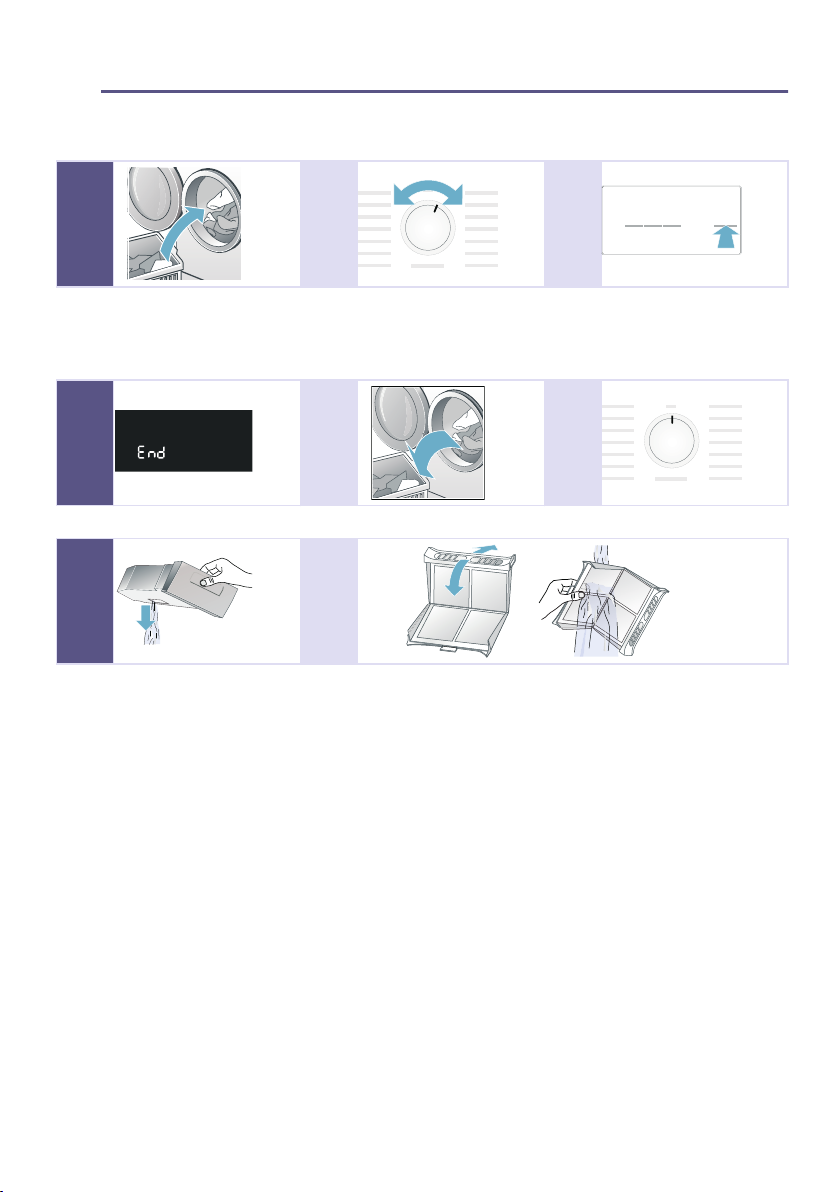

Y The main points in brief
The main points in bri ef
1 @ @
Load the laundry and close
the door.
Switch the dryer on by
turning the programme
Press the Start button.
selector to the required
--------
programme.
2 @ @
End of the programme. Remove the laundry. Switch the dryer off.
--------
3 @
Empty the condensate
container.
--------
Clean the fluff filter.
16
Getting to know your appliance en
* Getting to know your appliance
Getting to know your appliance

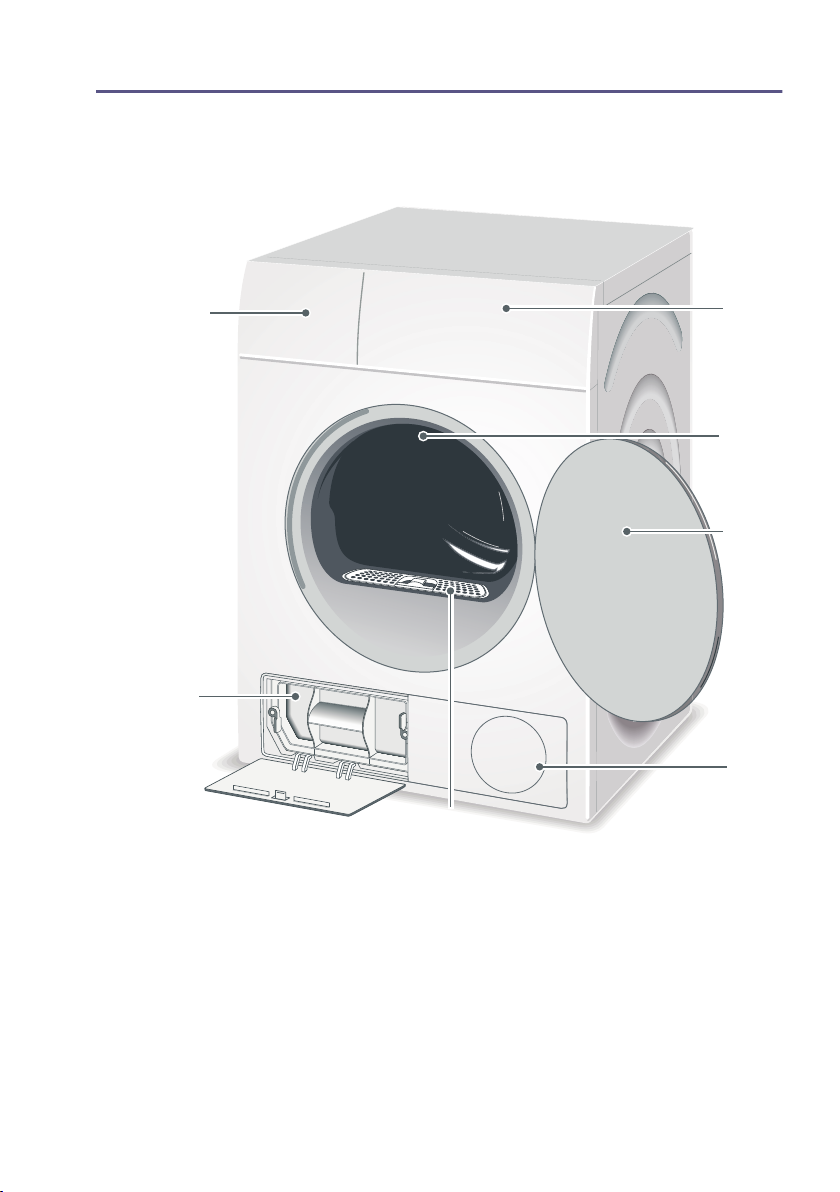

Dryer
;
#
+
3
( Condensate container
0 Control and display panel
8 Drum interior light*
@ Dryer door
H Air inlet
P Fluff filter
X EasyClean filter
* depending on the model
17
en Getting to know your appliance

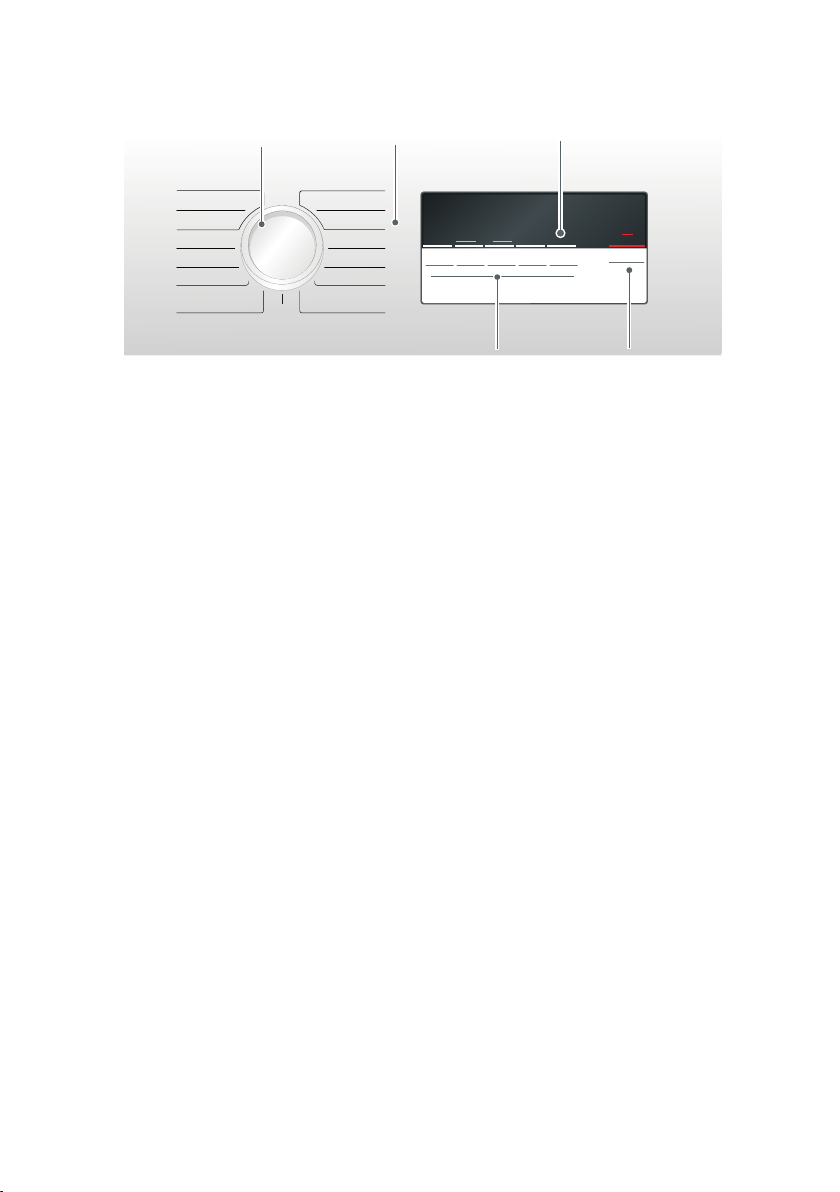

Control panel
#
+
VFKUDQ NWU RFNHQH[W UD
VFKUDQ NWU RFNHQ
%OXVHQ +HPGHQ
([W U D.XU ]
'DXQHQ
:RO OH IL QL VK
EJHOWURFNHQ
6SRU W VZHDU
+DQGW FK HU
0L[
VFKUDQN WU RFNHQH[W UD
VFKUDQ NWU RFNHQ
( Programme selector for switching the dryer on/off and selecting the
programme.
0 Programmes ~ Page 21.
8 Start button for starting or interrupting the programme ~ Page 23.
@ Buttons for applying default programme settings ~ Page 23.
H Display panel ~ Page 19.
18
Display panel
Getting to know your appliance en
Buttons on the display panel
( Degree of dryness.
0 Drying Time.
8 Ready in.
@ Anti-Crease.
H Low-Heat.
For a detailed description of all buttons,
see ~ Page 23 onwards.
#+
Display panel
ð Empty the condensation container
~ Page 25.
ç Clean the fluff filter ~ Page 26
and clean the EasyClean filter
~ Page 29.
e ö » Q - ˜ - “Ÿš: Programme
progress for Dry, Iron Dry,
Cupboard Dry, Anti-Crease, Pause
and End of programme.
E Childproof lock active .
” Anti-Crease selected.
s Low-Heat selected.
– Degree of dryness selected.
1:27 Expected programme duration in
hours and minutes.
3 h Programme will end in 3 h/hours
when the "Ready in" time is
selected.
19
en Laundry
Z Laundry
Laundry
Preparing the laundry
:Warning
Risk of explosion/fire!
Remove any cigarette lighters and
matches from pockets.
Caution!
The dryer drum and fabrics could be
damaged.
Remove all objects from pockets and
observe the following information:
■ Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■ Close zips, hooks and eyelets and
buttons. Button up large items of
laundry, such as covers.
■ Remove any metal objects, such as
paper clips, from pockets.
■ To ensure a consistent drying result,
sort laundry by fabric type and
drying programme.
■ Always dry very small items of
laundry, e.g. babies' socks, together
with large items such as towels.
■ Knitted fabrics such as T-shirts and
jerseys often shrink the first time they
are tumble-dried. Use a gentle
programme.
■ Do not overdry easy-care laundry.
This increases creasing of the
laundry.
■ Use timed programmes for single
garments.
■ Some detergents and care products,
e.g. starch or softeners, contain
particles which may be deposited on
the moisture sensor. This may impair
the sensor function and in
consequence the drying result.
Notes
– When washing laundry to be
tumble-dried, use the correct
amount of detergent and care
products as specified in the
manufacturer's instructions.
– Clean the moisture sensor
regularly ~ Page 29.
Sorting washing according to:
c Suitable for tumble drying
a Dry at normal temperature
` Dry at low temperature
b Do not tumble-dry
Note: Do not load laundry from the
washing machine directly into the
tumble dryer. Sort the spun laundry
before placing it in the dryer drum.
If you dry thin, thick and multi-layer
fabrics together, they will dry to differing
degrees. To achieve an even drying
result, you should therefore only dry
together laundry of the same type of
fabric and structure. If you feel that the
laundry is still too damp, you can select
a timed programme for subsequent
drying ~ Page 21.
Caution!
Possibility of material damage to the
dryer or laundry.
Do not tumble-dry the following fabrics:
■ Laundry contaminated with oil.
■ Unwashed fabrics.
■ Non-breathable fabrics (e.g. rubber-
coated).
■ Easily damaged fabrics such as silk,
synthetic curtains.
20
/ Programmes and buttons
Programmes and buttons
Programmes
Programmes and buttons en
Programme and fabrics Maximum load and programme
Name of the programme
Which fabrics is the programme suitable for?
Cotton Cupboard Dry Extra
Hard-wearing, heat-resistant fabrics that are made of more than one
layer of cotton or linen and do not dry readily.
Cotton Cupboard Dry
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen.
Cotton Iron Dry
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen that need to be damp after drying and are suitable for ironing or hanging up.
Easy Care Cupboard Dry Extra
Synthetic or blended fabrics that are made of more than one layer
and do not dry readily.
Easy Care Cupboard Dry
Normal synthetic or blended fabrics made of a single layer.
Easy Care Iron Dry
Normal synthetic or blended fabrics made of a single layer that need
to be damp after drying and are suitable for ironing or hanging up.
Sport
Weatherproof and outdoor clothing with a membrane coating
and water-repellent fabrics.
Towels
Hard-wearing towels made of cotton.
Mix
Mixed load consisting of cotton and synthetic fabrics.
settings/info
The maximum load is based on the
dry weight of the fabrics
Possible programme settings
8 kg
8 kg
8 kg
3.5 kg
3.5 kg
3.5 kg
1.5 kg
6 kg
3 kg
21
en Programmes and buttons
Time program warm
All types of fabric; time programme.
Suitable for pre-dried or slightly damp laundry and for drying off
multi-layered, thick laundry.
For drying individual items of laundry.
Notes
■ Only dry wool, sports shoes and soft toys with the basket for
woollens ~ Page 15.
■ In the time programme, the laundry's residual moisture is not
automatically detected. If the laundry is still too damp after
the drying programme, repeat the programme and, if required,
extend the programme length.
Time program cold
For loosening up or airing clothing that has hardly been worn.
For drying individual items of laundry.
Shirts/Blouses
Non-iron shirts or blouses made of cotton, linen, synthetic fibres
or blended fabrics.
Rapid 40’
Synthetics and light cottons.
Wool Finish
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
Delicate
For delicate, washable underwear, e.g. made of velvet, lace, Lycra,
silk or satin.
--------
3 kg
You can adjust the programme
length using the button for
the drying time.
3 kg
You can adjust the programme
length using the button for
the drying time.
1.5 kg
1 kg
0.5 kg
1 kg
22
Programmes and buttons en
Buttons
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
ô (Drying level) If your laundry is too damp after drying, you can adjust the drying settings, e.g. Cup-
5 (Drying time) Adjust the programme length for the time programmes. Between 20 minutes
ñ (Ready in) The programme will end in 1-24 hrs. Set the "Ready in" time in increments of one
Q (Less ironing) The drum moves the laundry at regular intervals after drying to prevent creasing. You
s (Gentle Dry) Reduced temperature for delicate fabrics, e.g. polyacrylic or elastane. Selecting the
E 3 sek.
(Childproof lock
3 sec.)
A (Start/Pause) Starts or pauses the programme.
--------
board Dry, using the drying level button. The drying setting can be increased in three
stages from – to • using the drying level button.
Once you have adjusted the drying level, this setting will be retained even after the
dryer has been switched off.
Note: The higher the degree of dryness, the longer the programme duration.
and 3 hours, in 10-minute increments.
hour to delay the start of the programme. The required number of hours after the
programme ends is displayed in the display panel.
can extend the automatic Anti-Crease function by 60 minutes after any programme
has finished.
button will extend the drying time.
Press and hold the "Ready in" time button and the drying time button at the same
time for 3 seconds to activate or deactivate the childproof lock.
23
en Operating the appliance
1 Operating
the appliance
Operating the appliance
Loading laundry and switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~ Page 13.
1. Place the laundry in the drum.
2. Turn the programme selector to any
programme to switch the dryer on.
3. Close the dryer door.
Caution!
Possibility of material damage to the
dryer or laundry.
Take care not to trap any laundry in the
door.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~ Page 23.
1. Select the required programme;
detailed information on the
programmes can be found on
~ Page 21 onwards.

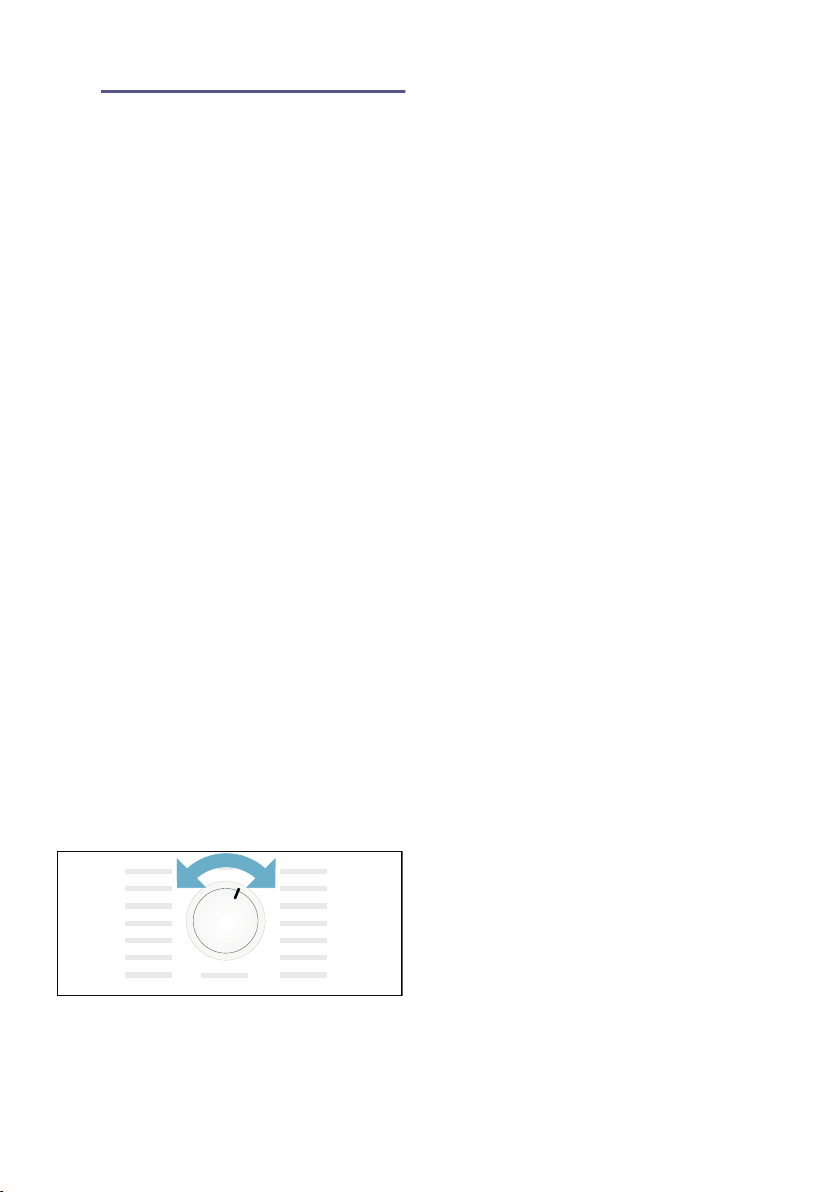

2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this on
~ Page 23 onwards.
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
adjusted inadvertently, you can select
the childproof lock, see ~ Page 23.
Programme sequence
The programme status is indicated in
the display field.
e.g.
1:27
e Dry
ö Iron Dry
» Cupboard Dry
Q AntiCrease
“Ÿš End
Expected programme duration
in hours and minutes.
Note: When a programme is
selected, the expected drying
time for the recommended load
is displayed. During drying
moisture sensors detect the
remaining moisture in the load
and adjust the programme
length (except timed
programmes). This is visible via
the time remaining leaping
forward.
Pause
- ˜ -
24
Operating the appliance en
Changing the programme or adding laundry
You can remove or add laundry and
change or alter the programme at any
time during drying.
1. To pause the programme, open the
dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Removing laundry and switching off the dryer
1. Remove the laundry.
2. Turn the programme selector to the
"off" position.
Emptying the condensate container
By default, the condensation from the
appliance runs into the condensation
container.
Alternatively, you have the option of
discharging the condensation water
supplied depending on the model. If you
choose to discharge the condensation
water into the waste-water system, you
will not need to empty the condensation
container during the drying programme
or after each time you use the dryer.
1. Pull out the condensate container
horizontally.
*
Programme end
“Ÿš appears in the display panel.
* into the waste-water system via a
drain hose
25
en Operating the appliance
2. Pour out the condensation water.
Caution!
Dirty condensation water may be harmful to your health and cause material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption and the
drying time.
Clean the fluff filter after each drying
cycle:
1. Open the dryer door and remove all
fluff from the door.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the recess in
the fluff filter.
26
Note: Ensure that no fluff falls into
the open shaft.
4. Pull apart the two-part fluff filter.
Signal setting en
5. Open both filters and remove all the
fluff.
6. Rinse away the fluff under warm,
running water.
7. Dry the fluff filter, close it and reinsert
the two-part fluff filter.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.
M Signal setting
Signal setti ng
You can change the following settings:
■ The speed at which the washing
machine was spun; only used if the
anticipated drying time needs to be
displayed more accurately,
■ The volume of the audible signal at
the end of the programme,
■ The volume of the audible button
signals.
You will need to activate the setting
mode in order to change these settings.
Activating the setting mode
1. Switch the dryer on.
2. Select the "Cottons" programme in
position 1 and wait for five seconds.
Setting mode is now activated. The
symbols go out on the display panel
and the programme duration is
displayed.
1. Press and hold the Start button and,
at the same time, turn the
programme selector clockwise to
position 2.
2. The spin speed is shown on the
display.
3. Press the "Ready in" time button or
the drying time button to change the
spin speed.
4. Turn the programme selector
clockwise to position 3.
27
en Noises
5. The volume for the audible signal at
the end of the programme is shown
on the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
6. Press the "Ready in" time button or
the drying time button to change the
volume.
7. Turn the programme selector
clockwise to position 4.
8. The volume for the audible button
signal is shown on the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
9. Press the "Ready in" time button or
the drying time button to change the
volume.
> Noises
Noises
Note: During drying, particularly in the
initial phase, operation of the appliance
results in noise from the compressor
and pump. This is perfectly normal and
does not impair proper functioning of
the appliance.
From time to time, the compressor in
the dryer generates a humming noise.
However, the volume may vary
depending on the programme and
progress of the drying process.
Every now and then, the compressor is
ventilated. This creates a whirring noise.
Note: You can select other positions
with the programme selector; however,
you will be unable to change these
settings.
Finishing setting mode
Turn the programme selector to the
"Off" position once you have set the
required spin speed and the volume.
The settings have now been saved.
28
The condensation is pumped into
the condensate container by a pump.
This generates pumping noises.
Cleaning en
D Cleaning
Cleaning
Cleaning the dryer and the control panel
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
Disconnect the dryer from the mains
before cleaning.
Clean the dryer using only water and a
soft, damp cloth.
Remove all detergent residue, spray
residue or other residues immediately.
Do not use cleaning agents or agents
for pre-treating laundry (e.g. prewash
sprays, stain removers). Do not use
high-pressure cleaners or steam jet
cleaners to clean your appliance.
Cleaning the moisture sensor
Note: The dryer is equipped with a
stainless-steel moisture sensor. The
moisture sensor measures how damp
the laundry is.
After long periods of usage the moisture
sensor may become covered by a fine
layer of limescale or residues of
detergents and care products. Such
residues must be removed regularly as
the sensor function and in consequence
the drying result may be impaired.
Open the door and clean the moisture
sensor with a coarse sponge.
Caution!
Moisture sensor may be damaged.
Do not clean moisture sensors with
abrasives and steel wool.
Cleaning the EasyClean filter
When ç appears in the display panel,
clean the EasyClean filter as follows:
1. First clean the fluff filter ~ Page 26.
2. Close the door of the dryer.
3. Open the maintenance flap on the
heat exchanger.
4. Release the levers on the EasyClean
filter.
5. Use the grip handle to pull the
EasyClean filter out.
29
en Cleaning
6. Now take off the filter mat.
7. Wash out the filter mat by hand
using clean water.
Notes
– If the filter mat is covered with
stubborn dirt, you can also
remove this carefully using a
vacuum cleaner.
– Do not use cleaning agents.
8. Dry the filter mat by squeezing the
water out.
Note: Only use the filter mat if it is
clean and dry.
9. Put the filter mat back on.
10.Check how dirty the dryer's heat
exchanger is before putting the
EasyClean filter back in. If it is very
dirty, use a vacuum cleaner with a
brush attachment to clean it carefully
from top to bottom.
Note: Take care not to bend or
damage the fins on the heat
exchanger when cleaning it.
Caution!
Risk of injury.
You could cut yourself on the fins of
the heat exchanger.
Do not touch these with your hands.
11.Slide the EasyClean filter in and
make sure it clicks into place.
12.Close the maintenance flap.
Note: Ensure that the filter mat is
not misshapen, torn or clogged.
Position the filter mat as shown
above.
30
13.Switch the dryer off.
You have now cleaned the EasyClean
filter.
Note: If your filter mat is damaged, you
can order a new one from the aftersales service using part number:
12007650.
Contact information for all countries can
be found on the enclosed after-sales
service list.
Faults and what to do about them en
3 Faults and what to do about them
Faults and what to do about them
Faults Cause/remedy
ð in the display panel
and drying was interrupted.
ç in the display panel. ■ Clean the fluff filter ~ Page 26.
The dryer will not start. ■ Start button selected?
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Programme duration displayed changes during
drying.
Laundry is not dried correctly or is still too damp.
* Depending on the model
■ Empty the condensation container and press the Start button.
■ If the optional condensation drain has been installed, the drain hose may be
blocked or kinked.If the optional condensation drain has been installed, the
drain hose may be blocked or kinked. Check the hose for deposits and
flush the hose through. Lay the hose without any kinks.
■ Clean the EasyClean filter ~ Page 29.
■ Mains plug plugged in or fuse/circuit breaker checked?
■ Programme selected? Select a programme.
■ Dryer door open? Close the door.
■ Childproof lock activated? Deactivate the childproof lock.
■ "Ready in" time selected? Programme starts after a delay.
the wrong programme for the type of fabric. All the required information
can be found in the programme table.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Not a fault. The moisture sensors detect the remaining moisture in the load and
adjust the programme length accordingly (except timed programmes).
■ After the end of the programme, warm laundry feels damper than it actually
is. Spread the laundry out and allow the heat to disperse.
■ Fine tune the dryness level. This extends the drying time but does not
increase the temperature. Your laundry will become drier ~ Page 23.
■ Select a programme with a longer drying time or increase the dryness level.
This does not increase the temperature.
■ Select a timed programme to add extra drying time for laundry that is still
damp ~ Page 21.
■ Select timed program for a small load and individual items of laundry.
■ If you have exceeded the maximum load for the programme, the laundry
may not be dried properly.
■ Clean the moisture sensor in the drum. The sensor may become covered in
a fine layer of limescale or detergent and care product residue, which then
impairs its performance. This prevents your laundry from being dried properly ~ Page 29.
■ Drying has stopped as a result of a power cut, because the condensation
container is full or because the maximum drying time has been exceeded.
Note: See also the laundry tips ~ Page 20.
31
en Faults and what to do about them
Faults Cause/remedy
Drying time too long? ■ The fluff filter or the EasyClean filter may be dirty, which will make the dry-
ing time longer. Clean the fluff filter or the EasyClean filter.
■ If the air inlet on the dryer is blocked or not freely accessible, this may
increase the drying time. Make sure that the air inlet remains unobstructed.
■ The optimum ambient temperature for drying is between 15 °C and 30 °C.
Outside of this range, the drying time may increase.
■ Insufficient air circulation in the room may increase the drying time. Venti-
late the room.
Display panel goes out
Not a fault. Energy saving mode is active ~ Page 12.
and Start button flashes.
Humidity in the room is
Not a fault. Make sure the room is adequately ventilated.
increasing.
Power failure. The drying programme is stopped. Remove the laundry and spread it out, or
restart the programme.
Unusual noises when dry-
Not a fault; see also ~ Page 28.
ing.
The dryer feels cold
Not a fault. The dryer can dry effectively at low temperatures using a heat pump.
despite drying.
* Depending on the model
Note: If you cannot rectify the fault yourself by turning the dryer off and then on
again, please contact our after-sales service.
32
[ Consumption values
Consumption values
Consumption values table
Consumption values en
Programme Spin speed used for
spinning the laundry
Cottons 8 kg 4 kg 8 kg 4 kg
Cupboard Dry* 1400 rpm 181 min 116 min 1.63 kWh 1.00 kWh
1000 rpm 205 min 130 min 1.87 kWh 1.14 kWh
800 rpm 230 min 145 min 2.11 kWh 1.28 kWh
Iron Dry* 1400 rpm 136 min 83 min 1.21 kWh 0.70 kWh
1000 rpm 160 min 97 min 1.45 kWh 0.84 kWh
800 rpm 185 min 112 min 1.69 kWh 0.98 kWh
Easy Care 3.5 kg 3.5 kg
Cupboard Dry* 800 rpm 72 min 0.60 kWh
600 rpm 84 min 0.71 kWh
* Programme setting for testing in accordance with the applicable EN 61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry to
be dried, residual moisture in the laundry, the degree of dryness that has been set, the amount of laundry being loaded, the environmental conditions, and any additional functions that have been activated.
Duration** Energy consumption**
Most efficient programme for cotton fabrics
The following "standard cottons programme" (identified with ü) is suitable for
drying normal, wet cotton laundry and is most efficient in terms of its combined
energy consumption for drying wet cotton laundry.
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme Load Energy consumption Programme length
ü Cotton Cupboard Dry 8 kg/4 kg 1.87 kWh/1.14 kWh 205 min./130 min.
Programme setting for testing and energy labelling in accordance with Directive 2010/30/EU.
33
en Technical data
J Technical data
Technical data
Dimensions:
85 x 60 x 60 cm
Height x width x depth
Weight:
Approx. 48 kg
Maximum load:
8 kg
Condensate container:
4.8 l
Connected voltage:
220 - 240 V
Connected load:
Max. 625 W
Fuse:
10 A
Drum interior light
Ambient temperature:
5 - 35 °C
Power consumption when
switched off:
0.10 W
Power consumption when
ready for use (left-on mode):
0.50 W
This product contains light sources from
energy efficiency class F. These light
sources are available as a spare part
and must only be replaced by trained
specialist staff.
*
J After-sales service
After-sales service
After-sales service
If you cannot rectify the fault yourself
(faults, what to do?), please contact our
after-sales service. We will always find
an appropriate solution to avoid
unnecessary visits by engineers.
The contact information for your nearest
after-sales service can be found here or
in the enclosed after-sales service
directory.
Please provide after-sales service with
the dryer's product number (E-no.) and
production number (FD).
(1U )'
You can find this information on the
inside of the dryer door or on the rear of
the dryer.
Trust the expertise of the
manufacturer.
Contact us. You can therefore be sure
that the repair is carried out by trained
service technicians who carry original
spare parts.
* Depending on the model
34
6
Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help? You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001569713*
9001569713 (0009)
en
Loading...
