Kitchen Experience and Design Guide

Volume 7

Contents

Contents | 32 | Contents

Bosch in Every Detail

Design Philosophy

Discover Bosch Benchmark® Series

Black Stainless Steel Kitchen

Small Space Living

Home Connect™

Cooktops

Built-in Wall Ovens

Microwaves & Drawers

Built-in Coffee Machine

Slide-in Ranges

Ventilation

Dishwashers

Refrigeration

24" Compact Laundry

100

118

154

178

212

Experience Bosch

Customer Service

Warranty

222

224

225

Bosch in Every Detail | 54 | Bosch in Every Detail

Savor every detail of Bosch.

No place means home more than the kitchen. It’s

where we gather with family and friends, exhale

after a long day, and savor so many of life’s simple

moments.

Through our products, we strive to enhance the

daily quality of everyday lives. Believing that a

cooktop should be a recipe for ease. That the joy

of simplicity is anything but minimal. And that

it’s important to sometimes stop and smell the

rosemary carrots. These are the true hallmarks of

Bosch quality. These are the details to savor.

A wholistic kitchen design considers appliances as an intrinsic part of the design process.

6 | Bosch in Every Detail Bosch in Every Detail | 7

Premium materials like

brushed stainless steel.

485 quality checks before leaving our

dishwasher factory in North Carolina.

Quality is in the details.

BEST OF

YEAR

The Bosch 800 Series is the best dishwasher we’ve ever tested.

– Reviewed.com

From the feel of an oven handle, to the quiet of a dishwasher, to the ease of

a cooktop, we believe the products we use and interact with everyday, can

enhance the daily quality of your life. It’s these small details, obsessed upon

by our engineers, and repeatedly tested in our factory, that manifest as the

tangible difference of Bosch quality.

8 | Design Philosophy Design Philosophy | 9

For over 100 years, Bosch appliances have embraced a tradition of timeless design that’s

Bosch design philosophy

These are the principles that guide every Bosch product .

Form + Function

Bosch design is equally purposeful and beautiful, creating a lasting and rewarding user experience.

Symmetry

Balanced, symmetrical lines offer a timeless look that’s pleasing to the eye and offers a distinctive family appearance.

both purposeful and beautiful. We see the beauty in simple, streamlined aesthetics that result from how our products are actually used.

Color Palette

From classic black and white, to metallic tones and red/white accent lighting, our afﬁnity for neutral colors helps seamlessly blend our appliances into a range of kitchens.

Alignment

Flush, well deﬁned surface contours, uniﬁed design elements and tight panel gaps indicate an elevated level of engineering precision.

Proportions

The harmonious arrangement of varying elements result in a sophisticated, wellbalanced design.

Materials

The use of premium materials makes our appliances visually arresting and offers a tactile sense of quality that you can feel.

Illumination

Subtle, purposeful illumination enhances usability while creating an emotional connection.

Subtlety

Subtle, thoughtful details delight the user in unexpected ways and improve the overall experience of our appliances.

Integration

From kitchen designs ranging from modern to transitional, Bosch appliances naturally integrate with any style.

Longevity

With enduring, timeless design and lasting quality, every Bosch appliance beautifully withstands the test of time.

10 | Discover Bosch Benchmark® Series Discover Bosch Benchmark® Series | 11

Steam Convection Oven Enjoy the endless versatility of steam to cook

meals that are both healthy and delicious.

The Benchmark® Series.

Discover Bosch Benchmark® Series.

Like the name, Benchmark® Series represents the pinnacle of Bosch design and performance. Our Benchmark® Series features

signature products like built-in refrigeration, steam and SideOpening wall ovens, and FlexInduction

or alone, our Benchmark

Series is sure to beautifully complement any kitchen. Available only at select dealers.

cooktops. Designed as a suite

MyWay® rack The third rack, reimagined.

Maximize loading space without sacriﬁcing it elsewhere.

FlexInduction® Cooktop Provides more ﬂexibility by combining

two cooking zones into one larger zone.

12 | Black Stainless Steel Black Stainless Steel | 13

Introducing the black

Makes a

stainless steel collection.

statement without leaving a mark.

Our black stainless steel is made from a special material, not simply

a black foil coating. So our kitchen appliances help guard against

scratches and ﬁngerprints to maintain their bold look.

Daringly different. Inﬁnitely beautiful.

Behold a daring new way to design your kitchen. Our black

stainless steel appliances perform as good as they look. Built

with the quality you expect from Bosch in a contemporary

style, the collection is strong, sturdy, and sleek.

Sleek. Clean. Sophisticated.

What’s beneath the surface is equally impressive.

Our black stainless steel collection is designed

with superior engineering and quality materials for

outstanding performance day in and day out.

A perfect complement to any style.

14 | Small Space Living Small Space Living | 15

From our 24" wall ovens which offer up to 10

cooking modes and Genuine European Convection,

Small space living.

to our 18" dishwashers with room to ﬁt 10 full place settings, to our 24" glass door refrigerator, Bosch’s small space appliances provide efﬁcient solutions that can elevate any kitchen or laundry space, regardless of size.

The big new movement.

v When it comes to small spaces, less is more.

Timeless design is the secret to creating smaller habitats that don’t sacriﬁce quality or style.

Small space living is no longer seen as a sacriﬁce or compromise. More and more, people are choosing smaller scale living out

of desire, rather than need. Designing for small spaces, especially kitchens, lends itself to embracing the beauty of simplicity

and efﬁciency. Clean, uncluttered lines. Easy aesthetics. And smaller-scaled appliances designed in correct proportions,

creating balance and harmony within the surrounding space. Bosch’s suite of 18" and 24" appliances are speciﬁcally designed

to ﬁt downscaled living, without sacriﬁcing upscale tastes. Premium in every way, Bosch small scale appliances feature the

quality and performance you’d expect in full-size appliances.

Provide streamlined beauty and efﬁciency to any project with Bosch small space appliances.

24" Pull-Out Visor Hoods

(see page 134 for details)

24" Wall Ovens

(see page 52 for details)

24" Speed Ovens

(see page 82 for details)

18" Dishwashers

(see page 174 for details)

24" Refrigerators

(see page 208 for details)

24" Compact Laundry

(see page 214 for details)

24" Cooktops

(see pages 24, 32 and 40

for details)

™

Home Connect™ | 1716 | Home Connect

Master your day, your way with

™

Home Connect

Bosch is satisfying the ever-growing desire for a smart, connected home, with a collection of

connected appliances that bring the design, innovation and efﬁciency you’d expect from Bosch.

Home Connect™ is the intelligent platform that allows a variety of Bosch home appliances to be

remotely monitored and controlled with a single app, for a new level of ease and convenience.

From remotely starting the dishwasher or washer at work, to keeping an eye on dinner in the oven,

to brewing a frothy latte from bed, the Home Connect™ app allows you to be in effortless control

from your smartphone or tablet. And with a variety of Home Connect partner applications such

as Amazon Dash, you can even handle simple tasks like reordering dishwasher detergent. Most

importantly, Home Connect™ helps you take hold of your day, in your way.

Home Connect™ partners:

Cooktops

Cooktops | 1918 | Cooktops

Bosch cooktops are designed to deliver perfect results with minimal effort. Whether you choose induction, gas or electric, every Bosch cooktop combines simplicity with intuitive usability. So recipes are followed more efﬁciently, meals are made quickly, and cleanup happens easily. Because at the end of a long day, Bosch believes cooking should bring joy, not frustration.

20 | Cooktops | Benchmark® Series

Our Benchmark® Series cooktops offer three powerful and versatile ways to cook— induction, electric or gas.

Benchmark® Series | Cooktops | 21

Cooktops — Benchmark

PowerMove

Lets you divide your

FlexInduction

three conveniently preset

power level zones. Simply

slide cookware across the

cooktop into a different zone

to adjust the temperature. It’s

great for recipes with various

stages of cooking required.

cooktop into

Benchmark® Series Cooktops

Series

InductionGas Electric

FlexInduction

FlexInduction® allows you to combine two cooking zones into one to accommodate large

pans or griddles perfectly. Or, use the cooking zones individually. Either way, enjoy even cooking—no matter the size of your pan.

Home Connect™

With Home Connect™, remotely monitor the status of every cooking zone so you’ll never

need to wonder whether you switched off your cooktop. You’ll also have access to remote diagnostics for streamlined service assistance, a world of diverse recipes, and more.

Hood Control

From your smart device or cooktop control panel you can program your Wi-Fi synced

hood to turn on the fan and lighting when turning on your cooktop.

Flexible cooking options

With 5 burners, including an 11" 3,080-watt triple-ring heating element, our 36"

Benchmark

AutoChef

AutoChef® applies the perfect amount of heat, without having to ﬁdget with temperature settings. From making pancakes to searing steak, it takes the guesswork out of cooking.

Series electric cooktop provides the ultimate ﬂexibility when cooking.

Dual-stacked burner

Our Benchmark® Series gas cooktop features a powerful 20,000 BTU center, dual-stacked burner that delivers faster boiling and low simmering for greater cooking ﬂexibility.

Induction Cooktops — Benchmark

Benchmark® Series Induction CooktopsBenchmark® Series Induction Cooktops

30" Benchmark® Series NITP069UC (Frameless) NITP069SUC (Frame)

• FlexInduction

Element

• 11" Cooking Zone

• PowerMove

• Home Connect™

• SpeedBoost

+ Indicates a step-up feature

General Properties

Home Connect™ (Wi-Fi Enabled) Yes Yes

Controls PreciseSelect® Touch PreciseSelect® Touch

Element Performance

Power of full zone left & right heating element (in boost) N/A 3,300 W (3,600 W)

Power of full zone left heating element (in boost) 3,300 W (3,600 W) N/A

Power of front left heating element (in boost) 2,200 W (3,600 W) 2,200 W (3,600 W)

Power of back left heating element (in boost) 2,200 W (3,600 W) 2,200 W (3,600 W)

Power of center heating element (in boost) N/A 3,300 / 2,200 W (3,700 / 3,400 W)

Power of back right heating element (in boost) 2,600 W (3,700 W) 2,200 W (3,600 W)

Power of front right heating element (in boost) 1,400 W (2,200 W) 2,200 W (3,600 W)

Burners with booster All* All**

Element Size

Dimension of front left heating element 8" x 9" 7" x 8"

Dimension of back left heating element 8" x 9" 7" x 8"

Dimension of center heating element N/A 12", 9"

Dimension of back right heating element 11" 7" x 8"

Dimension of front right heating element 6" 7" x 8"

Technical Details

Watts 7,200 W 12,000 W

Circuit breaker 30 A 50 A

Volts 208 – 240 V 208 240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Power cord length 37" 37"

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 43 lbs 53 lbs

*For 30" model Boost function may be used simultaneously in 2 zones only. See User Manual. **For 36" model Boost function may be used simultaneously in 3 zones only. See User Manual.

30" 36"

Black – NITP069UC Black with Stainless Steel Frame – NITP069SUC

/4" +4 1/8" x 31" x 21 1/4"

/8" x 28 7/8" x 20" 4 1/8" x 34 7/8" x 20"

/4" 2 1/4"

Black – NITP669UC Black with Stainless Steel Frame – NITP669SUC

/16" +4 1/8" x 37" x 21 1/4"

36" Benchmark® Series NITP669UC (Frameless) NITP669SUC (Frame)

• FlexInduction

+ 12" Dual-Ring Center

Cooking Zone PowerMove

•

• Home Connect™

• SpeedBoost

Element

30" Cooktop and Cutout Dimensions

36" Cooktop and Cutout Dimensions

30" & 36" Cooktop Installation Above Wall Oven Electrical Location

Series

Optional Accessories

HEZ390512

Teppanyaki

*For use with 36" models

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan* for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

24 | Cooktops | 500 Series | Induction

500 Series 24" Induction Cooktop

Induction | 500 Series | Cooktops | 25

24" Induction Cooktop — 500 Series

500 Series 24" Induction Cooktop

24" 500 Series NIT5469UC

• 11" Cooking Zone

• 17 Power Levels

• Each Cooking Zone Has an Independent Countdown Timer

• SpeedBoost

Element Performance

Power of back left heating element 2,600 W

Power of back left heating element (in boost) 3,700 W

Power of back right heating element 1,800 W

Power of back right heating element (in boost) 3,100 W

Power of front right heating element 1,400 W

Power of front right heating element (in boost) 2,200 W

Burners with booster All

Element Size

Dimension of back left heating element 11"

Dimension of back right heating element 7"

Dimension of front right heating element 6"

Technical Details

Watts 7,200 W

Circuit breaker 30 A

Volts 208 – 240 V

Frequency 60 Hz

Plug type No plug

Power cord length 37"

Energy source Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4

Minimum distance from counter front 2

Minimum distance from rear wall 2"

Net weight 24 lbs

500 Series

Black – NIT5469UC

/4" +4 1/8" x 24" x 20 9/16"

/8" x 22" x 19 1/4"

/4"

24" Cooktop and Cutout Dimensions

24" Cooktop Installation Above Wall Oven Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

26 | Cooktops | 500 / 800 Series | Induction

500 / 800 Series 30" Induction Cooktops

Induction | 500 / 800 Series | Cooktops | 27

30" Induction Cooktops — 500 / 800 Series

500 / 800 Series 30" Induction Cooktops

30" 500 Series NIT5068UC

• 11" Cooking Zone

• 17 Power Levels

• Each Cooking Zone Has an Independent Countdown Timer

• SpeedBoost

+ Indicates a step-up feature

General Properties

Home Connect™ (Wi-Fi Enabled) No Yes

Controls Touch PreciseSelect® Touch

Element Performance

Power of front left heating element 1,400 W 1,400 W

Power of front left heating element (in boost) 2,200 W 2,200 W

Power of back left heating element 2,200 W 2,200 W

Power of back left heating element (in boost) 3,700 W 3,700 W

Power of back right heating element 2,600 W 2,600 W

Power of back right heating element (in boost) 3,700 W 3,700 W

Power of front right heating element 1,400 W 1,400 W

Power of front right heating element (in boost) 2,200 W 2,200 W

Burners with booster All All

Element Size

Dimension of front left heating element 6" 6"

Dimension of back left heating element 9" 9"

Dimension of back right heating element 11" 11"

Dimension of front right heating element 6" 6"

Technical Details

Watts 7,200 W 7,200 W

Circuit breaker 30 A 30 A

Volts 208 – 240 V 208 – 240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Power cord length 37" 37"

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 41 lbs 41 lbs

500 Series 800 Series

Black – NIT5068UC Black – NIT8069UC

/4" +4 1/8" x 31" x 21 1/4"

/8" x 28 7/8" x 20" 4 1/8" x 28 7/8" x 20"

/4" 2 1/4"

NIT8069UC (Frameless) NIT8069SUC (Frame)

+ AutoChef + Home Connect + Hood Control + PreciseSelect® Control + Framed and Frameless Options

Black with Stainless Steel Frame – NIT8069SUC

/4" +4 1/8" x 31" x 21 1/4"

30" Cooktop and Cutout Dimensions30" 800 Series

™

30" Cooktop Installation Above Wall Oven Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

28 | Cooktops | 500 / 800 Series | Induction

500 / 800 Series 36" Induction Cooktops

Induction | 500 / 800 Series | Cooktops | 29

36" Induction Cooktops — 500 / 800 Series

500 / 800 Series 36" Induction Cooktops

36" 500 Series NIT5668UC

• 12" Dual-Ring Center Cooking Zone

• 17 P

ower Levels

• Each Cooking Zone Has an Independent Countdown Timer

• SpeedBoost

+ Indicates a step-up feature

General Properties

Home Connect™ (Wi-Fi Enabled) No Yes

Controls Touch PreciseSelect® Touch

Element Performance

Power of front left heating element (in boost) 1,800 W (3,100 W) 1,800 W (3,100 W)

Power of back left heating element (in boost) 1,800 W (3,100 W) 1,800 W (3,100 W)

Power of center heating element (in boost) 3,300 / 2,200 W (5,400 / 3,700 W) 3,300 / 2,200 W (5,400 / 3,700 W)

Power of back right heating element (in boost) 1,400 W (2,200 W) 1,400 W (2,200 W)

Power of front right heating element (in boost) 2,200 W (3,700 W) 2,200 W (3,700 W)

Burners with booster All All

Element Size

Dimension of front left heating element 7" 7"

Dimension of back left heating element 7" 7"

Dimension of center heating element 12", 9" 12", 9"

Dimension of back right heating element 6" 6"

Dimension of front right heating element 9" 9"

Technical Details

Watts 9,600 W 9,600 W

Circuit breaker 40 A 40 A

Volts 208 – 240 V 208 – 240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Power cord length 37" 37"

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 53 lbs 53 lbs

500 Series 800 Series

Black – NIT5668UC Black – NIT8669UC

/16" +4 1/8" x 37" x 21 1/4"

/8" x 34 7/8" x 20" 4 1/8" x 34 7/8" x 20"

/4" 2 1/4"

Black with Stainless Steel Frame – NIT8669SUC

/16" +4 1/8" x 37" x 21 1/4"

36" 800 Series NIT8669UC (Frameless) NIT8669SUC (Frame)

+ AutoChef + Home Connect

™

+ Hood Control + PreciseSelect® Control + Framed and Frameless Options

36" Cooktop and Cutout Dimensions

36" Cooktop Installation Above Wall Oven Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

Cooktop

Built-in Oven

Notes:

Dimensions based on standard countertop height (36" with 4

" toe kick

including base plate).

Measurements in inches (mm)

30" Built-in oven - under gas cooktop

The built-in oven can be installed below the gas cooktop as long as there is

no contact between the bottom of the cooktop and the top of the oven.

(22)

see notes

245/

(625)

43/

" (121)

61/16"

(169)

(76)

/16"

(97)

/16"

(674)

29"

(737)

36"

(915)

/4"

(718)

Floor

Arrow on the

pressure regulator

shows the direction

of gas flow

Rough-in Cooktop Box

Side View Gas Cooktop Installation

power cord

" (1.524)

gas regulator

/8"

NPT

/2"

NPT

120 V receptacle

flexible

gas line

gas cut-off valve

gas supply line

stub-out

Measurements in inches (mm)

313/

" (97)

33/8" (86)

30" Benchmark

Series

NGMP056UC

• 20K Max. BTU Performance

• 5 Burners

• Dual-Stacked Hi / Lo Burner

• Distinctive Red LED Light Burner Indicators

36" Benchmark® Series NGMP656UC

• 20K Max. BTU Performance

• 5 Burners

• Dual-Stacked Hi / Lo Burner

• Distinctive Red LED Light Burner Indicators

Benchmark® Series Gas CooktopsBenchmark® Series Gas Cooktops

30" Cooktop and Cutout Dimensions

Gas | Benchmark® Series | Cooktops | 3130 | Cooktops | Benchmark® Series | Gas

Gas Cooktops — Benchmark

36" Cooktop and Cutout Dimensions

30" 36"

Stainless Steel – NGMP056UC Stainless Steel – NGMP656UC

General Properties

Knob material Metal Metal

Sealed burners Yes Yes

Grate material Cast iron Cast iron

Element Performance

Total BTU load (NG / LP) 51,000 / 43,200 59,500 / 47,300

Power of front left burner (NG / LP) 10,000 / 9,100 12,000 / 9,100

Power of back left burner (NG / LP) 5,500 / 5,000 10,000 / 9,100

Power of center burner (NG / LP) 20,000 / 15,000 20,000 / 15,000

Power of back right burner (NG / LP) 10,000 / 9,100 5,500 / 5,000

Power of front right burner (NG / LP) 5,500 / 5,000 12,000 / 9,100

Technical Details

Watts 360 W 360 W

Circuit breaker 15 A 15 A

Volts 120 V 120 V

Frequency 60 Hz 60 Hz

Plug type 3 prong 3 prong

Power cord length 60" 60"

Energy source Gas Gas

Convertible to LP (kit required) Yes Yes

Dimensions & Weight

Overall appliance dimensions (HxWxD) 3

Required cutout size (HxWxD) 3

Minimum distance from counter front 1

Minimum distance from rear wall 3" 3"

Net weight 38 lbs 39 lbs

Accessories – Included

Included LP conversion kit LP conversion kit

/16" x 31" x 21 1/4" 3 13/16" x 37" x 21 1/4"

/16" x 28 15/16" x 19 1/8" 3 13/16" x 34 15/16" x 19 1/8"

/8" 1 7/8"

30" & 36" Cooktop Installation Above Wall Oven Gas Location

Series

Optional Accessories

HEZ298102

Wok ring (For use with 36" NGMP656UC only)

HEZGR301

Griddle (For use with 36" NGMP656UC only)

1–800–944–2904 | bosch-home.com/us

Gas | 500 Series | Cooktops | 3332 | Cooktops | 500 Series | Gas

24" Gas Cooktop — 500 Series

500 Series 24" Gas Cooktop500 Series 24" Gas Cooktop

24" 500 Series NGM5456UC

• 11.5K Max. BTU Performance

• 4 Burners

• Metal Knobs

500 Series

Stainless Steel – NGM5456UC

General Properties

Knob material Metal

Sealed burners Yes

Grate material Cast iron

Element Performance

Total BTU load (NG / LP) 30,800 / 27,000

Power of front left burner (NG / LP) 5,000 / 5,000

Power of back left burner (NG / LP) 9,300 / 7,000

Power of center burner (NG / LP) N/A

Power of back right burner (NG / LP) 11,500 / 10,000

Power of front right burner (NG / LP) 5,000 / 5,000

Technical Details

Watts 360 W

Circuit breaker 15 A

Volts 120 V

Frequency 60 Hz

Plug type 3 prong

Power cord length 60"

Energy source Gas

Convertible to LP (kit required) Yes

Dimensions & Weight

Overall appliance dimensions (HxWxD) 2

Required cutout size (HxWxD) 2

Minimum distance from counter front 1

Minimum distance from rear wall 3"

Net weight 32 lbs

Accessories – Included

Included LP conversion kit

/4" x 23" x 20 1/2"

/4" x 20 7/8" x 19 1/4"

/4"

24" Cooktop and Cutout Dimensions 24" Cooktop Gas Location

24" Cooktop Installation Above Wall Oven

1–800–944–2904 | bosch-home.com/us

Floor

Arrow on the

pressure regulator

shows the direction

of gas flow

Rough-in Cooktop Box

Side View Gas Cooktop Installation

power cord

" (1.524)

gas regulator

/8"

NPT

/2"

NPT

120 V receptacle

flexible

gas line

gas cut-off valve

gas supply line

stub-out

Measurements in inches (mm)

" (97)

33/8" (86)

Gas | 500 / 800 Series | Cooktops | 3534 | Cooktops | 500 / 800 Series | Gas

Cooktop

Built-in Oven

Notes:

Dimensions based on standard countertop height (36" with 4

" toe kick

including base plate).

Measurements in inches (mm)

30" Built-in oven - under gas cooktop

The built-in oven can be installed below the gas cooktop as long as there is

no contact between the bottom of the cooktop and the top of the oven.

/8"

(22)

see notes

(625)

43/

" (121)

61/16"

(169)

(76)

313/16"

(97)

/16"

(674)

29"

(737)

36"

(915)

/4"

(718)

30" Gas Cooktops — 500 / 800 Series

500 / 800 Series 30" Gas Cooktops500 / 800 Series 30" Gas Cooktops

30" 500 Series NGM5056UC

• 16K Max. BTU Performance

• Black Metal Knobs

• OptiSim® burner

30" 800 Series NGM8056UC (Stainless Steel) NGM8046UC (Black w/Black Stainless Knobs)

+ 19K Max. BTU Performance + 5 Burners + Distinctive Red LED Light

Burner Indicators

+ Stainless Steel Knobs (Black

Stainless Metal Knobs on Black Model)

+ Indicates a step-up feature

General Properties

Knob material Metal Metal

Sealed burners Yes Yes

Grate material Cast iron Cast iron

Element Performance

Total BTU load (NG / LP) 41,500 / 38,200 NGM8056UC: 50,000 / 43,200

Power of front left burner (NG / LP) 10,000 / 9,100 NGM8056UC: 10,000 / 9,100

Power of back left burner (NG / LP) 10,000 / 9,100 5,500 / 5,000

Power of center burner (NG / LP) N/A 18,000 / 15,000

Power of back right burner (NG / LP) 5,500 / 5,000 NGM8056UC: 10,000 / 9,100

Power of front right burner (NG / LP) 16,000 / 15,000 5,500 / 5,000

Technical Details

Watts 360 W 360 W

Circuit breaker 15 A 15 A

Volts 120 V 120 V

Frequency 60 Hz 60 Hz

Plug type 3 prong 3 prong

Power cord length 60" 60"

Energy source Gas Gas

Convertible to LP (kit required) Yes Yes

Dimensions & Weight

Overall appliance dimensions (HxWxD) 3

Required cutout size (HxWxD) 3

Minimum distance from counter front 1

Minimum distance from rear wall 3" 3"

Net weight 37 lbs 37 lbs

Accessories – Included

Included LP conversion kit LP conversion kit

500 Series 800 Series

Stainless Steel – NGM5056UC Stainless Steel – NGM8056UC

/16" x 31" x 21 1/4" 3 13/16" x 31" x 21 1/4"

/16" x 28 15/16" x 19 1/8" 3 13/16" x 28 15/16" x 19 1/8"

/8" 1 7/8"

Black w/Black Stainless Knobs – NGM8046UC

NGM8046UC: 48,600 / 43,200

NGM8046UC: 9,300 / 9,100

30" Cooktop and Cutout Dimensions 30" Cooktop Gas Location

30" Cooktop Installation Above Wall Oven

1–800–944–2904 | bosch-home.com/us

Floor

Arrow on the

pressure regulator

shows the direction

of gas flow

Rough-in Cooktop Box

Side View Gas Cooktop Installation

power cord

" (1.524)

gas regulator

/8"

NPT

/2"

NPT

120 V receptacle

flexible

gas line

gas cut-off valve

gas supply line

stub-out

Measurements in inches (mm)

313/

" (97)

33/8" (86)

Gas | 500 / 800 Series | Cooktops | 3736 | Cooktops | 500 / 800 Series | Gas

Cooktop

Built-in Oven

Notes:

Dimensions based on standard countertop height (36" with 4

" toe kick

including base plate).

Measurements in inches (mm)

30" Built-in oven - under gas cooktop

The built-in oven can be installed below the gas cooktop as long as there is

no contact between the bottom of the cooktop and the top of the oven.

(22)

see notes

(625)

43/

" (121)

61/16"

(169)

(76)

313/16"

(97)

/16"

(674)

29"

(737)

36"

(915)

/4"

(718)

36" Gas Cooktops — 500 / 800 Series

500 / 800 Series 36" Gas Cooktops500 / 800 Series 36" Gas Cooktops

36" 500 Series NGM5656UC

• 16K Max. BTU Performance

• Black Metal Knobs

• OptiSim® burner

36" 800 Series NGM8656UC (Stainless Steel) NGM8646UC (Black w/Black Stainless Knobs)

+ 19K Max. BTU Performance

+ Distinctive Red LED Light

Burner Indicators

+ Stainless Steel Knobs (Black

Stainless Metal Knobs on Black Model)

+ Indicates a step-up feature

General Properties

Knob material Metal Metal

Sealed burners Yes Yes

Grate material Cast iron Cast iron

Element Performance

Total BTU load (NG / LP) 51,500 / 47,300 NGM8656UC: 58,500 / 47,300

Power of front left burner (NG / LP) 10,000 / 9,100 NGM8656UC: 12,000 / 9,100

Power of back left burner (NG / LP) 10,000 / 9,100 NGM8656UC: 10,000 / 9,100

Power of center burner (NG / LP) 16,000 / 15,000 19,000 / 15,000

Power of back right burner (NG / LP) 5,500 / 5,000 5,500 / 5,000

Power of front right burner (NG / LP) 10,000 / 9,100 NGM8656UC: 12,000 / 9,100

Technical Details

Watts 360 W 360 W

Circuit breaker 15 A 15 A

Volts 120 V 120 V

Frequency 60 Hz 60 Hz

Plug type 3 prong 3 prong

Power cord length 60" 60"

Energy source Gas Gas

Convertible to LP (kit required) Yes Yes

Dimensions & Weight

Overall appliance dimensions (HxWxD) 3

Required cutout size (HxWxD) 3

Minimum distance from counter front 1

Minimum distance from rear wall 3" 3"

Net weight 39 lbs 39 lbs

Accessories – Included

Included LP conversion kit LP conversion kit

500 Series 800 Series

Stainless Steel – NGM5656UC Stainless Steel – NGM8656UC

/16" x 37" x 21 1/4" 3 13/16" x 37" x 21 1/4"

/16" x 34 15/16" x 19 1/8" 3 13/16" x 34 15/16" x 19 1/8"

/8" 1 7/8"

Black w/Black Stainless Knobs – NGM8646UC

NGM8646UC: 52,400 / 47,300

NGM8646UC: 9,300 / 9,100

36" Cooktop and Cutout Dimensions 36" Gas Location

36" Cooktop Installation Above Wall Oven

Optional Accessories

HEZ298102

Wok ring

HEZGR301

Griddle

1–800–944–2904 | bosch-home.com/us

Electric Cooktops — Benchmark

Benchmark® Series Electric CooktopsBenchmark® Series Electric Cooktops

30" Benchmark® Series NETP068SUC

• Five Elements

• 9", 3,600 W Dual-Ring Element

• 7", 2,000 W Dual-Ring Element

• AutoChef

• SpeedBoost

36" Benchmark® Series NETP668SUC

• Five Elements

• 11", 3,080 W Triple-Ring Element

• 8", 1,900 W Dual-Ring Element

• AutoChef

+ Bridge Element

30" 36"

Black with Stainless Steel Frame – NETP068SUC Black with Stainless Steel Frame – NETP668SUC

Element Performance

Power of front left heating element 2,000 / 800 W 1,800 W

Power of back left heating element 1,200 W 1,800 W

Power of center heating element 3,600 / 1,400 W 3,080 / 2,200 / 1,050 W

Power of back right heating element 1,200 W 1,200 W

Power of front right heating element 1,500 W 1,900 / 800 W

Element Size

Dimension of front left heating element 7", 5" 7"

Dimension of back left heating element 6" 7"

Dimension of center heating element 9", 6" 11", 8", 6"

Dimension of back right heating element 6" 6"

Dimension of front right heating element 7" 8", 5"

Technical Details

Watts 9,000 W 9,700 W

Circuit breaker 40 A 40 A

Volts 208 – 240 V 208 – 240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4" x 28

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 32 lbs 33 lbs

/4" +4" x 31" x 21 1/4"

/8" x 20" 4" x 34 7/8" x 20"

/4" 2 1/4"

/4" +4" x 37" x 21 1/4"

30" Cooktop and Cutout Dimensions 36" Cooktop and Cutout Dimensions

Series

Cooktop Installation Above Wall Oven Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

24" Electric Cooktop — 500 Series

500 Series 24" Electric Cooktop500 Series 24" Electric Cooktop

24" 500 Series NEM5466UC

• 8", 2,200 W Element

• 6", 1,850 W Element

• Residual Heat Indicator

• Stainless Steel Color Knobs

500 Series

Black Frameless – NEM5466UC

General Properties

Knob material Plastic

Element Performance

Power of front left heating element 1,850 W

Power of back left heating element 2,200 W

Power of back right heating element 1,200 W

Power of front right heating element 1,800 W

Element Size

Dimension of front left heating element 6"

Dimension of back left heating element 8"

Dimension of back right heating element 6"

Dimension of front right heating element 7"

Technical Details

Watts 7,100 W

Circuit breaker 30 A

Volts 208‒240 V

Frequency 60 Hz

Plug type No plug

Energy source Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4

Minimum distance from counter front 2

Minimum distance from rear wall 2"

Net weight 24 lbs

/8" +4 1/3" x 23" x 20 1/5"

/3" x 22" x 19 1/4"

/4"

Cooktop and Cutout Dimensions Gas Location

Cooktop Installation Above Wall Oven

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

Installation above Wall Ovens

30" Electric Cooktops — 500 / 800 Series

500 / 800 Series 30" Electric Cooktops500 / 800 Series 30" Electric Cooktops

30" 500 Series NEM5066UC

• 7" Dual-Ring Element

• 9", 2,500 W Element

• Residual Heat Indicator

• Stainless Steel Color Knobs

+ Indicates a step-up feature

General Properties

Knob material Stainless steel color – plastic N/A

Element Performance

Power of front left heating element 1,700 / 700 W 1,800 W

Power of back left heating element 1,800 W 1,800 W

Power of back right heating element 1,200 W 3,600 / 1,400 W

Power of front right heating element 2,500 W 1,200 W

Element Size

Dimension of front left heating element 7", 5" 7"

Dimension of back left heating element 7" 7"

Dimension of back right heating element 6" 9", 6"

Dimension of front right heating element 9" 6"

Technical Details

Watts 7,200 W 8,300 W

Circuit breaker 30 A 40 A

Volts 208‒240 V 208‒240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4" x 28

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 25 lbs 31 lbs

30" 800 Series NET8068UC (Frameless) NET8068SUC (Frame)

+ PreciseSelect

Control

+ 9", 3,600 W Dual-Ring Element + Countdown Element Shut

Off Timer

ramed and Frameless Options

+ F

500 Series 800 Series

Black Frameless – NEM5066UC Black Frameless – NET8068UC

/4" +4" x 31" x 21 1/4"

/8" x 20" 4" x 28 7/8" x 20"

/4" 2 1/4"

Black with Stainless Steel Frame – NET8068SUC

/4" +4" x 31" x 21 1/4"

30" Cooktop and Cutout Dimensions

Cooktop Installation Above Wall Oven

500 Series – Cooktop Electrical Location

800 Series – Cooktop Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

30" Built-in oven - under electric cooktop

Cooktop

Built-in Oven

" (119)

Cooktop conduit fitting

/16"

(21)

see notes

(625)

" (121)

(169)

(76)

313/

(96)

(674)

29"

(737)

36"

(915)

(718)

Installation above Wall Ovens

" toe kick

Measurements in inches (mm)

3/4

" (121)

(76)

9/16

(674)

29"

(737)

36"

(915)

1/4

(718)

30" Built-in oven - under electric cooktop

Notes:

Dimensions based on standard countertop height (36" with 4

" toe kick

including base plate).

The built-in oven can be installed below the electric cooktop as long as there is

no contact between the bottom of the cooktop and the top of the oven.

Cooktop

Built-in Oven

" (119)

Cooktop conduit fitting

/16"

(21)

see notes

(625)

" (121)

(169)

(76)

313/

(96)

(674)

29"

(737)

36"

(915)

(718)

Installation above Wall Ovens

36" Electric Cooktops — 500 / 800 Series

500 / 800 Series 36" Electric Cooktops500 / 800 Series 36" Electric Cooktops

36" 500 Series NEM5666UC

• Residual Heat Indicator

• 9", 2,500 W Dual-Ring Element

• 7", 1,700 W Dual-Ring Element

• Stainless Steel Color Knobs

+ Indicates a step-up feature

General Properties

Knob material Stainless steel color – plastic N/A

Element Performance

Power of front left heating element 1,700 / 700 W 1,800 W

Power of back left heating element 1,800 W 1,800 W

Power of center heating element 1,800 W 3,600 / 1,400 W

Power of back right heating element 1,200 W 1,200 W

Power of front right heating element 2,500 / 1,100 W 1,900 / 800 W

Element Size

Dimension of front left heating element 7", 5" 7"

Dimension of back left heating element 7" 7"

Dimension of center heating element 7" 9", 6"

Dimension of back right heating element 6" 6"

Dimension of front right heating element 9", 6" 8", 5"

Technical Details

Watts 9,000 W 10,200 W

Circuit breaker 40 A 50 A

Volts 208‒240 V 208‒240 V

Frequency 60 Hz 60 Hz

Plug type No plug No plug

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD)

Required cutout size (HxWxD) 4" x 34

Minimum distance from counter front 2

Minimum distance from rear wall 2" 2"

Net weight 30 lbs 37 lbs

36" 800 Series NET8668UC (Frameless) NET8668SUC (Frame)

+ PreciseSelect + 9", 3,600 W Center Element + Countdown Element Shut

Off Timer Framed and Frameless Options

+ + SpeedBoost

500 Series 800 Series

Black Frameless – NEM5666UC Black Frameless – NET8668UC

/4" +4" x 37" x 21 1/4"

/8" x 20" 4" x 34 7/8" x 20"

/4" 2 1/4"

Black with Stainless Steel Frame – NET8668SUC

/4" +4" x 37" x 21 1/4"

Control

36" Cooktop and Cutout Dimensions

Cooktop Installation Above Wall Oven

500 Series – Cooktop Electrical Location

800 Series – Cooktop Electrical Location

Optional Accessories

HEZ390210

8" AutoChef® pan for 6" element

HEZ390220

9" AutoChef® pan for 7" element

HEZ390230

10" AutoChef® pan for 8" and 9" elements

1–800–944–2904 | bosch-home.com/us

46 | Built-in Wall Ovens Built-in Wall Ovens | 47

Built-in Wall Ovens

Bosch ovens are designed to beautifully enhance any kitchen. Whether cooking a quiche for two or preparing a roast for twelve, our ovens are engineered with innovative technologies that perform ﬂawlessly, day in and day out. Bosch ovens let you cook with creativity and ease, with intuitive features like

QuietClose shut after a hectic day. Genuine European Convection provides even baking on all three racks. With an understated, built-in look that makes a timeless statement, the Bosch oven complements your taste in both cooking and design.

doors that never slam

48 | Built-in Wall Ovens | Benchmark® Series

Benchmark® Series Built-in Wall Ovens

SideOpening door

Benchmark® Series | Built-in Wall Ovens | 49

Built-in Wall Ovens — Benchmark

Enjoy the intuitive ease of our left or right SideOpening door, available on Benchmark oven cavity, allowing you to remove heavy dishes effortlessly.

Series wall ovens. It provides better ergonomic access to the

Designed to integrate

Single wall ovens are designed to integrate seamlessly into your kitchen. Install ﬂush, for a sleek, timeless look or proud for a more traditional look.

Easy, touch controls

Color TFT Control Panel with SteelTouch® buttons provides easy oven operation. The high-deﬁnition display features extra sharp images and easy-to-read text.

Series

Steam convection

The Benchmark® Series steam convection oven prepares dishes that are tender on the inside and crisp on the outside. Steam cooking helps vegetables retain their intended color, nutrients and ﬂavor.

Built-in Wall Ovens — Benchmark

Benchmark® Series Single OvensBenchmark® Series Single Ovens

Standard Opening Door HBLP451UC

SideOpening Left Swing Door HBLP451LUC

SideOpening Right Swing Door HBLP451RUC

30" Benchmark® Series Single Ovens

• Color TFT Contr

ol Panel

• Halogen Lights

• AutoProbe

30" Benchmark® Series

Standard Opening Stainless Steel – HBLP451UC SideOpening Left Swing Stainless Steel – HBLP451LUC SideOpening Right Swing Stainless Steel – HBLP451RUC

General Properties

Cooking modes Bake, Variable Broil (Hi & Low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil,

Cleaning type Self clean

Telescopic rack 1

Illumination type Halogen

Interior lights 2

Oven Performance

Bake element wattages 2,400 W

Broil element wattages 3,800 W

Convection element wattages 2,000 W

Technical Details

Watts (W) 6,325 W

Circuit breaker (A) 30 A

Volts (V) 240 / 208 V

Frequency (Hz) 60 Hz

Power cord length (in) 50"

Plug type Fixed connection, no plug

Energy source Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD) (in) 29" x 29

Required cutout size (HxWxD) (in) 27" – 28

Oven cavity size (cu. ft.) 4.6 cu. ft.

Overall oven interior dimensions (HxWxD) (in) 17

Usable oven interior dimensions (HxWxD) (in) 12

Net weight (lbs) 149 lbs

Accessories – Included

Included 1 Telescopic and 2 standard oven racks, temperature probe, broiler pan

Convection Roast, Pizza, Multi Rack Genuine European Convection, Convection Conversion, AutoProbe, Fast Preheat, EcoChef, Speed Convection (Frozen Foods)

/4" x 24 1/2"

/8" x 28 1/2" x 23 1/2"

/16" x 24 1/8" x 18"

/16" x 23 1/4" x 15 1/4"

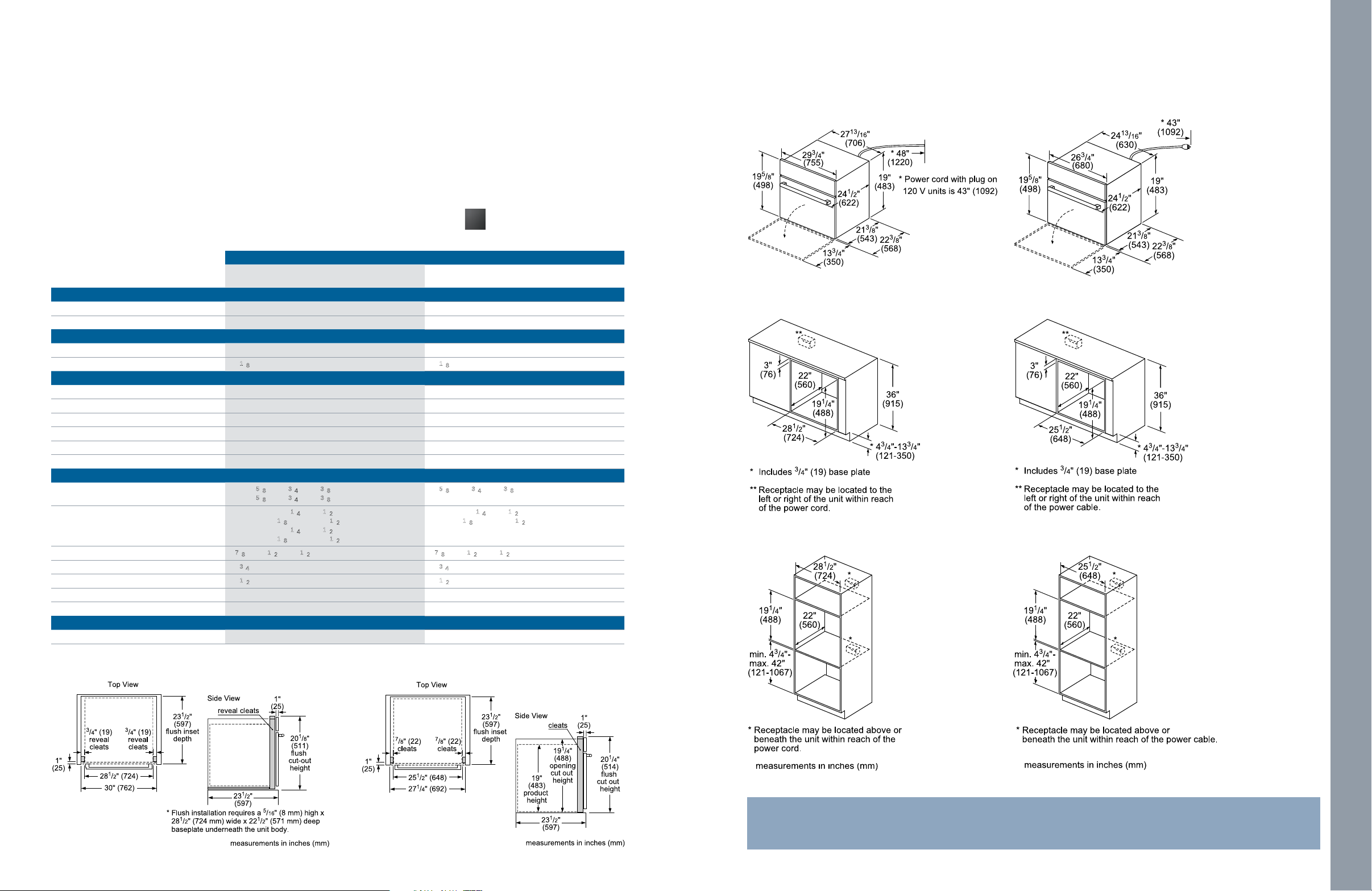

30" Single Wall Oven

Under-Counter Installation

* Includes 3/4" (19) base plate

** For single ovens installed under a

countertop, the junction box may be located to the left or right of the unit within reach of the power conduit.

30" SideOpening Left Swing Door Flush Installation

30" SideOpening Left Swing Door

Allow 3/4" (19 mm) gap to nearest cabinet face for door swing on SideOpening models

Wall-Mounted Installation

* For single ovens installed into a wall

cabinet, the junction box may be located above or beneath the unit within reach of the power conduit.

measurements in inches (mm)

30" SideOpening Right Swing Door Flush Installation

30" SideOpening Right Swing Door

Allow 3/4" (19 mm) gap to nearest cabinet face for door swing on SideOpening models

30" Single Wall Oven Flush Install

Single Wall Oven Flush Installation

Series Single

Optional Accessories

HEZTR301

30" Telescopic rack

NOTE: Bosch single wall ovens can be installed in combination with other Bosch cooking products. See pages 67–69 for details.

1–800–944–2904 | bosch-home.com/us

For single ovens installed under a countertop, the junction box may be located to the left, or the right of the unit within reach of the power conduit.

43/4"-10"

(121-254)

231/2"

(597)

(76)

36"

(915)

221/8"

(560)

231/16"

(585)

For single ovens installed under a countertop, the junction box may be located to the left, or the right of the unit within reach of the power conduit.

Measurements in inches (mm)

For ergonomic reasons, it is recommended to install the oven as high as possible.

* For wall installations, the junction box

may be located above or below the unit

within reach of the power conduit.

231/16"

(585)

231/2"

(597)

43/4"-431/2"

(121-1105)

221/8" (560)

* For wall installations, the junction box

may be located above or below the unit

within reach of the power conduit.

Measurements in inches (mm)

Flush Installation

Flush Install

Top View

Side View

reveal cleats

235/8"

(600)

flush

cut-out

height

235/8"

(600)

flush inset

depth

13/16

" (21)

reveal

cleats

13/16

" (21)

reveal

cleats

3/4

(19)

3/4

(19)

221/16"

(560)

233/4" (603)

235/8"

(600)

Side View

reveal cleats

235/8"

(600)

flush

cut-out

height

3/4

(19)

235/8"

(600)

Measurements in inches (mm)

235/8"

(600)

flush

cut-out

height

/4"

(19)

235/8"

(600)

Built-in Wall Ovens — 500 Series 24" Single

500 Series 24" Single Ovens500 Series 24" Single Ovens

24" 500 Series HBE5451UC

• 2.8 cu. ft.

• Genuine European Convection

• Telescopic Extension Rail

• DualClean

+ Indicates a step-up feature

General Properties

Home Connect

Cooking modes Bake, Broil Plus, Convection Bake, Convection Broil,

Cleaning type DualClean

Telescopic rack 1 N/A

Illumination type Halogen Halogen

Interior lights 2 1

Oven Performance

Bake / broil element wattages 1,300 / 3,060 W 1,420 / 3,050 W

Convection element wattages 2,200 W 2,300 W

Technical Details

Watts (W) 3,300 W 3,840 W

Circuit breaker (A) 20 A 20 A

Volts (V) 240 / 208 V 240 / 208 V

Frequency (Hz) 60 Hz 60 Hz

Power cord length (in) 47

Plug type Fixed connection, no plug Fixed connection, no plug

Energy source Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD) (in) 23

Required cutout size – Standard (HxWxD) (in) 22

Required cutout size – Flush (HxWxD) (in) 23

Oven cavity size (cu. ft.) 2.8 cu. ft. 2.5 cu. ft.

Overall oven interior dimensions (HxWxD) (in) 15

Usable oven interior dimensions (HxWxD) (in) 11" x 17

Net weight (lbs) 87 lbs 83 lbs

Accessories – Included

Included 1 standard rack, 1 telescopic extension rail, 1 enamel

™

(Wi-Fi enabled) N/A Yes

System

500 Series 500 Series

24" Stainless Steel – HBE5451UC 24" Stainless Steel – HBE5452UC

Convection Broil Plus, Multi-Rack Genuine European Convection, Pie, Warm, Defrost, Frozen Foods

to burn off most grease)

baking pan

System (uses the cavity coating and heat

/4" 60"

/16" x 23 1/2" x 22 1/2" 23 7/16" x 23 7/16" x 22 13/16"

/16" – 23 1/16" x 21 15/16" x 22 1/16" 23 1/16" x 22 1/8" x 23 1/2"

/16" x 23 3/4" x 22 15/16" 23 5/8" x 23 3/4" x 23 5/8"

/16" x 18 3/16" x 17 11/16" 14 1/2" x 18 7/8" x 17 3/8"

/4" x 16 1/4" 11 1/2" x 15 1/2" x 15 5/8"

24" 500 Series HBE5452UC

• 2.5 cu. ft.

• Genuine European Convection

+ EcoClean

System

+ Ring Control with TFT Display + Home Connect

Convection Multi-Rack, Bake, Pizza, Roast, Proof, Convection Broil, Broil, Slow Cooking, Defrost, Plate Warming, Warming

EcoClean® Coating

3 standard oven racks

™

HBE5451UC Single Wall Oven HBE5452UC Single Wall Oven

HBE5451UC Single Oven Under-Counter Installation HBE5452UC Single Oven Under-Counter Installation

HBE5451UC Single Oven Wall-Mounted Installation HBE5452UC Single Oven Wall-Mounted Installation

HBE5451UC Single Wall Oven Flush Installation HBE5452UC Single Wall Oven Flush Installation

1–800–944–2904 | bosch-home.com/us

Built-in Wall Ovens — 500 / 800 Series Single

500 / 800 Series Single Ovens500 / 800 Series Single Ovens

30" 500 Series HBL5351UC

• 4.6 cu. ft.

• Thermal Cooking

• Stainless Steel Knobs

27"

500 Series 30" HBL5451UC 27" HBN5451UC

• 4.6 cu. ft. (27" is 3.9 cu. ft.)

European Convection

• Stainless Steel Knobs

Black

Black Stainless Steel

+ Indicates a step-up feature

General Properties

Cooking modes Bake, Variable Broil (Hi & Low),

Cleaning type Self clean Self clean Self clean

Telescopic rack 0 0 1

Illumination type Incandescent Incandescent Incandescent

Interior lights 1 30": 1; 27": 2 2

Oven Performance

Bake / broil element wattages 2,400 / 3,800 W 2,400 / 3,800 W 2,400 / 3,800 W

Convection element wattages N/A 2,000 W 2,000 W

Technical Details

Watts (W) 6,275 W 6,325 W 6,325 W

Circuit breaker (A) 30 A 30 A 30 A

Volts (V) 240 / 208 V 240 / 208 V 240 / 208 V

Frequency (Hz) 60 Hz 60 Hz 60 Hz

Power cord length (in) 50" 50" 50"

Plug type Fixed connection, no plug Fixed connection, no plug Fixed connection, no plug

Energy source Electric Electric Electric

Dimensions & Weight

Overall appliance dimensions (HxWxD) (in) 29" x 29

Required cutout size (HxWxD) (in) 27" – 28

Oven cavity size (cu. ft.) 4.6 cu. ft. 30": 4.6 cu. ft.; 27": 3.9 cu. ft. 30": 4.6 cu. ft.; 27": 3.9 cu. ft.

Overall oven interior dimensions (HxWxD) (in) 17

Usable oven interior dimensions (HxWxD) (in) 12

Net weight (lbs) 149 lbs 27": 127 lbs; 30": 149 lbs 27": 127 lbs; 30": 149 lbs

Accessories – Included

Included 2 Standard oven racks 2 Standard oven racks 1 Telescopic and 2 standard oven

Optional Accessories for 30" Single Wall Ovens

HEZTR301

30" Telescopic rack

500 Series 500 Series 800 Series

30" Stainless Steel – HBL5351UC 30" Stainless Steel – HBL5451UC

Roast, Warm, Sabbath

/4" x 24 1/2" 30": 29" x 29 3/4" x 24 1/2"

/8" x 28 1/2" x 23 1/2" 30": 27" – 28 5/8" x 28 1/2" x 23 1/2"

/16" x 24 1/8" x 18" 30": 17 13/16" x 24 1/8" x 18"

/16" x 23 1/4" x 15 1/4" 30": 12 5/16" x 23 1/4" x 15 1/4"

27" Stainless Steel – HBN5451UC

Bake, Variable Broil (Hi & Low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Multi Rack Genuine European Convection, Convection Conversion

27": 29" x 26 3/4" x 24 1/2"

27": 27" – 28 5/8" x 25 1/2" x 23 1/2"

27": 17 13/16" x 21 1/16" x 18"

27": 12 5/16" x 20 1/4" x 15 1/4"

30" Stainless Steel – HBL8451UC 30" Black Stainless Steel – HBL8442UC 30" Black – HBL8461UC 27" Stainless Steel – HBN8451UC

Bake, Variable Broil (Hi & Low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Multi Rack Genuine European Convection, Convection Conversion, Temperature Probe, Fast Preheat

30": 29" x 29 3/4" x 24 1/2" 27": 29" x 26 3/4" x 24 1/2"

30": 27" – 28 5/8" x 28 1/2" x 23 1/2" 27": 27" – 28 5/8" x 25 1/2" x 23 1/2"

30": 17 13/16" x 24 1/8" x 18" 27": 17 13/16" x 21 1/16" x 18"

30": 12 5/16" x 23 1/4" x 15 1/4" 27": 12 5/16" x 20 1/4" x 15 1/4"

racks, temperature probe

800 Series 30" HBL8451UC 30" HBL8442UC 30" HBL8461UC 27" HBN8451UC

• 4.6 cu. ft.

+ Quie + Touch Control + Extension Rack

27"

+ Meat Probe

(27" is 3.9 cu. ft.)

Door

tClose

30" Single Wall Oven 30" Single Oven Under-Counter

Installation

27" Single Wall Oven 27" Single Oven Under-Counter

Installation

30" Single Wall Oven Flush Install 27" Single Wall Oven Flush Install

NOTE: Bosch single wall ovens can be installed in combination with other Bosch cooking products. See pages 72–73 for details. Horizontal installation of a 27" oven next to a 27" speed oven with warming drawer is possible, but the speed oven and warming drawer require either two or one cutout with a shelf support in between.

30" Single Oven Wall-Mounted Installation

* For single ovens installed into a wall

cabinet, the junction box may be located above or beneath the unit within reach of the power conduit.

measurements in inches (mm)

27" Single Oven Wall-Mounted Installation

* For single ovens installed into a wall

cabinet, the junction box may be located above or beneath the unit within reach of the power conduit.

measurements in inches (mm)

Single Wall Oven Flush Installation

1–800–944–2904 | bosch-home.com/us

Built-in Wall Ovens — Benchmark

Benchmark® Series Steam Convection OvenBenchmark® Series Steam Convection Oven

30" Benchmark® Series Steam Convection HSLP451UC

• 1.4 cu. f

• Color TFT Control Panel

• Halogen Lights

• Chicken and Vegetable Program

• No Trim Kit Needed

30" Steam Convection

Stainless Steel – HSLP451UC

General Properties

Cooking modes Steam, Steam Convection, European Convection, Reheat, Keep Warm, Defrost, Slow Cook, Proof,

Cleaning type Steam clean

Illumination type Halogen

Interior lights 1

Oven Performance

Steam element wattage 1,960 W

Convection element wattages 1,960 W

Technical Details

Watts (W) 1,960 W

Circuit breaker (A) 15 A

Volts (V) 240 / 208 V

Frequency (Hz) 60 Hz

Power cord length (in) 48"

Plug type Fixed connection, no plug

Energy source Electric

Installation Type Non-plumbed

Dimensions & Weight

Overall appliance dimensions (HxWxD) (in) 19

Oven cavity size (cu. ft.) 1.4 cu. ft.

Required cutout size (HxWxD) (in) 19

Net weight (lbs) 70 lbs

Accessories – Included

Included Wire rack, perforated cooking pan – full size, baking tray, perforated cooking pan – half size, cooking

Dish Warming, 2 Chicken and 7 Vegetable Programs

/8" x 29 3/4" x 22 3/8"

/4" x 28 1/2" x 23 1/2"

Product Dimensions Under-Counter Installation

Wall Mounted Installation

Flush Installation

NOTE: Bosch steam convection oven can be installed in combination with other Bosch cooking products. See page 67 for details.

Series Steam Convection

Optional Accessories

HEZ36D453

Cooking pan – full size, 1 5/8" deep [not included with product]

HEZ36D452

Baking tray – full size, 1 1/8" deep

HEZ36D153G

Perforated cooking pan – half size, 1 5/8" deep

HEZ36D153

Cooking pan – half size, 1 5/8" deep

1–800–944–2904 | bosch-home.com/us

Benchmark® Series Speed & Steam

Built-in Wall Ovens — Benchmark

Benchmark® Series Speed & Steam

Combination Ovens

30" Benchmark® Series Speed Combination Oven HBLP752UC

• 240V Speed Oven (U)

• Color TFT Control Panel (U&L)

• Halogen Lights (U&L)

• AutoProbe (L)

U=Upper; L=Lower

General Properties

Cooking modes – upper cavity Microwave; 12 Auto Programs (Including Auto Defrost,

Cooking modes – lower cavity Bake, Variable Broil (Hi & Low), Roast, Warm, Sabbath,

Cleaning type – lower cavity Self clean Self clean

Telescopic rack 1 1

Illumination type Halogen (upper and lower) Halogen (upper and lower)

Interior lights – upper / lower cavity 1 / 2 1 / 2

Oven Performance

Microwave power – upper cavity 1000 W N/A

Bake / broil element wattages – upper cavity 600 / 1,750 W 1,960 W*

Bake / broil element wattages – lower cavity 2,400 / 3,800 W 2,400 / 3,800 W

Convection element wattages – upper cavity / lower cavity

Technical Details

Watts (W) 9,725 W 8,325 W

Circuit breaker (A) 40 A 40 A

Volts (V); Frequency (Hz) 240 / 208 V; 60 Hz 240 / 208 V; 60 Hz

Power cord length (in) 50" 50"

Plug type Fixed connection, no plug Fixed connection, no plug

Energy source Electric Electric

Installation type N/A Non-plumbed

Dimensions & Weight

Overall appliance dimensions (HxWxD)(in) 49" x 29

Required cutout size (HxWxD) (in) 48

Oven cavity size (cu. ft.) 4.6 cu. ft. 4.6 cu. ft.

Overall lower oven interior dimensions (HxWxD) (in)

Usable lower oven interior dimensions (HxWxD) (in)

Net weight (lbs) 259 lbs 219 lbs

Accessories – Included

Included Upper oven: metal turntable, square rack, ceramic

*Element below water reservoir that generates steam

30" Speed Combination 30" Steam Convection Combination

Stainless Steel – HBLP752UC Stainless Steel – HSLP751UC

Melt Butter, Soften Ice Cream, Pizza), 9 Sensor Cook Programs, 9 AutoChef European Convection, Keep Warm, Frozen Foods

Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Multi Rack Genuine European Convection, Convection Conversion, AutoProbe, Fast Preheat, EcoChef, Speed Convection (Frozen Foods)

1,700 W / 2,000 W 1,960 W / 2,000 W

/4" x 24 1/2" 49" x 29 3/4" x 24 1/2"

/8" x 28 1/2" x 23 1/2" 48 5/8" x 28 1/2" x 23 1/2"

/16" x 24 1/8" x 18" 17 13/16" x 24 1/8" x 18"

/16" x 23 1/4" x 15 1/4" 12 5/16" x 23 1/4" x 15 1/4"

cooking tray; Lower oven: 1 telescopic and 2 standard oven racks, temperature probe, broiler pan

Speed Programs, Hi & Lo Broil,

30" Benchmark® Series Steam Convection Combination Oven HSLP751UC

• Steam Convection Oven (U)

• Color TFT Control Panel (L)

• Halogen Lights (U&L)

• AutoProbe (L)

Steam, Steam Convection, European Convection, Reheat, Keep Warm, Defrost, Slow Cook, Proof, Dish Warming, 2 Chicken and 7 Vegetable Programs

Upper oven: wire rack, perforated cooking pan – full size, baking tray, perforated cooking pan – half size, cooking pan – half size; Lower oven: 1 telescopic and 2 standard oven racks, temperature probe, broiler pan

Combination Ovens

Product Dimensions Cutout Dimensions

Flush Installation

Optional Accessories for Speed Combination Oven

HEZTR301

30" Telescopic rack

Optional Accessories for Steam Convection Combination Oven

HEZ36D453

Cooking pan – full size, 1 5/8" deep [not included with product]

HEZ36D452

Baking tray – full size, 1 1/8" deep

HEZ36D153G

Perforated cooking pan – half size, 1 5/8" deep

HEZ36D153

Cooking pan – half size, 1 5/8" deep

NOTE: Bosch combination wall ovens can be installed in combination with other Bosch cooking products. See page 71 for details.

Series Speed & Steam Combination

1–800–944–2904 | bosch-home.com/us

+ 84 hidden pages
