en Installation and operating instructions
Your new tumble dryer
You have opted for a tumble dryer
manufactured by Bosch.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Bosch, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.boschhome.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
2
en
Contents
en Installation and operating instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .4
Children/people/pets . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 11
7 Environmental protection . . . . .12
Packaging/old appliance . . . . . . . . . 12
Energy-saving tips. . . . . . . . . . . . . . . 13
5 Installation and connection . . .13
Scope of delivery . . . . . . . . . . . . . . . 13
Installing and connecting the dryer. . 13
Optional accessories . . . . . . . . . . . . 15
Transport and frost protection . . . . . 15
Y The main points in brief . . . . . .16
* Getting to know
your appliance . . . . . . . . . . . . . .17
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . 17
Control panel . . . . . . . . . . . . . . . . . . 18
Display panel . . . . . . . . . . . . . . . . . . 19
1 Operating the appliance . . . . . .24
Loading laundry
and switching on the dryer . . . . . . . .24
Setting a programme. . . . . . . . . . . . .24
Starting the programme . . . . . . . . . .24
Programme sequence . . . . . . . . . . . .24
Changing the programme
or adding laundry . . . . . . . . . . . . . . .25
Cancelling the programme . . . . . . . .25
Programme end . . . . . . . . . . . . . . . .25
Removing laundry
and switching off the dryer . . . . . . . .25
Clean the fluff filter . . . . . . . . . . . . . .25
Emptying the condensate container .26
M Setting the signal
and current. . . . . . . . . . . . . . . . . 27
D Cleaning . . . . . . . . . . . . . . . . . . . 29
Cleaning the dryer
and the control panel . . . . . . . . . . . .29
Cleaning the heat exchanger. . . . . . .29
Cleaning the moisture sensor . . . . . .30
3 Faults and what to do
about them . . . . . . . . . . . . . . . . . 31
Z Laundry. . . . . . . . . . . . . . . . . . . .20
Preparing the laundry . . . . . . . . . . . . 20
Sorting washing according to: . . . . . 20
/ Programmes and buttons . . . . .21
Programmes . . . . . . . . . . . . . . . . . . . 21
Buttons . . . . . . . . . . . . . . . . . . . . . . . 23
J After-sales service . . . . . . . . . . 33
[ Consumption values. . . . . . . . . 34
Consumption values table . . . . . . . . .34
Most efficient programme
for cotton fabrics . . . . . . . . . . . . . . . .35
J Technical data . . . . . . . . . . . . . .36
3
en Intended use
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
( Safety instructions
Safety instructions
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
4
Safety instructions en
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
5
en Safety instructions
Installation
:Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a
circuit that is regularly
switched on and off by a
utility.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
6
Safety instructions en
:Warning
Risk of fire/material damage/ damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material damage/damage to the appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ Incorrectly placing (stacking)
this appliance on top of a
washing machine may result
in injury, material damage
and/or damage to the
appliance.
If this appliance is to be
placed on top of a washing
machine, the washing
machine must be of at least
the same depth and width as
the appliance, and it must be
secured in place with the
appropriate connection set if
available. ~ Page 15
The appliance MUST be
secured with this connection
set. Stacking the appliance
in any other way is forbidden.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
7
en Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ If there is any residual
material left in the fluff filter,
this may ignite when drying
is in progress, or even cause
the appliance to catch fire or
explode.
Clean the fluff filter regularly.
Risk of explosions/fire!
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/ damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
8
Safety instructions en
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning/material damage!
Condensation water is not
suitable for drinking and may
be contaminated with lint.
Contaminated condensation
water may be hazardous to
health and may cause material
damage.
Do not drink or reuse.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of burns!
The exterior of the appliance's
rear panel becomes very hot
during operation.
Never touch the surface of the
appliance's rear panel when it
is hot, and keep children away.
9
en Safety instructions
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs. ~ Page 21
Material damage/damage to the appliance
■ If you operate the appliance
without a fluff catcher (e.g.
fluff filter, fluff depot,
depending on appliance
specifications), or if the fluff
catcher is incomplete or
defective, this may result in
damage to the appliance.
Do not operate the appliance
without a fluff catcher, or with
a fluff catcher that is
incomplete or defective.
Material damage/damage to the appliance
■ Light objects such as hair
and lint may be sucked into
the air inlet when the
appliance is in operation.
Keep these away from the
appliance.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Material damage/damage to the appliance
■ If the appliance overheats, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Make sure that the
appliance's air inlet is never
obstructed when the
appliance is in operation,
and that the area around the
appliance is adequately
ventilated.
10
Safety instructions en
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material damage/damage to the appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
11
en Environmental protection
:Warning
Risk of injury/material damage/damage to the appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
7 Environmental
protection
Environmental protection
Packaging/old appliance
)
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
12
Installation and connection en
Energy-saving tips
■ Spin the laundry before drying.
The drier the laundry, the shorter
the drying time will be, thus
consuming less energy.
■ Load the dryer with the maximum
load.
Note: Do not exceed the maximum
load for the programs, as this
prolongs the drying time
and increases energy consumption.
■ Ventilate the room and keep the air
inlet on the dryer free to ensure air
exchange.
■ Clean the fluff filter after each drying
cycle. If the fluff filter is dirty,
the drying time is prolonged
and energy consumption is
increased.
■ Energy saving mode: If the dryer is
not operated for a prolonged period,
it automatically switches off before
the program starts and when
the program has ended to save
energy. The display panel
and indicator lamps go off after
a few minutes and the Start button
flashes. To activate the lighting,
press any button, open or close
the dryer door or turn the program
selector.
5 Installation and
connection
Installation and connection
Scope of delivery
■ Dryer
■ Installation and operating
instructions
■ Basket for woollens
■ Condensation drain*
Installing and connecting the dryer
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
■ Check the dryer for visible damage.
You must not operate the dryer if it is
damaged.
■ Before connecting the dryer to the
power supply, ensure that the
electric voltage specified on the
rating plate matches the voltage of
your socket.
■ Only use residual current circuit
breakers with the following symbol:
z.
■ Ensure that the mains cable is not
kinked or trapped and that it does
not come into contact with heat
sources or sharp edges.
*
* Depending on the model
13
en Installation and connection
:Warning
Children could lock themselves in the dryer, putting their lives at risk!
Do not set up the dryer behind a door
or sliding door as this may obstruct the
dryer door or prevent it from opening.
Caution!
Risk of injury
■ As the dryer is heavy, you could
injure yourself by trying to lift it.
Do not lift the dryer on your own.
■ You could cut your hands on the
sharp edges of the dryer. Do not
hold the dryer by the sharp edges.
■ Protruding parts on the dryer may
break off when it is lifted or pushed.
Do not move the dryer by holding on
to protruding parts.
Caution!
Risk of material damage to the dryer or
fabrics
■ Check the dryer for damage caused
during transportation. Never operate
a dryer if it is damaged.
■ Any residual water in the dryer may
freeze and damage the dryer. Do not
install the dryer in rooms that are at
risk of frost.
During installation ensure that:
■ The dryer is placed on a clean, level
and firm surface,
■ The mains plug can be accessed at
all times,
■ The air inlet on the dryer is kept clear
and there is sufficient ventilation,
■ The area around the dryer is kept
clean and
■ The dryer is levelled using the
threaded feet.
Note: Check the alignment of the
appliance with a spirit level and
correct if necessary. Change the
height by turning the appliance feet.
All appliance feet must stand firmly
on the ground.
Incorrect alignment may cause high
noise levels, vibrations and improper
movement of the drum.
Note: If in doubt, have the appliance
connected by a specialist.
14
Installation and connection en
Optional accessories
Order optional accessories* from
the after-sales service:
■ Washer-dryer stack connection set:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
The dryer must be fastened to
the washing machine using this
connection set.
Order number with pull-out worktop:
WTZ11400;
Order number without pull-out
worktop: WTZ20410.
■ Basket for woollens:
Dry individual woollen items, sports
shoes and soft toys in the basket for
woollens.
Order number: WMZ20600.
Transport and frost protection
To empty the condensate container:
1. Use the programme selector to
select any programme.
2. Press the Start button.
3. Wait for 5 minutes. Note: The condensation is drained.
4. Empty the condensate container
again.
5. Switch off the dryer.
Caution!
Any residual water may leak out
and cause material damage.
Transport the dryer in an upright
position.
* Depending on the model
15
en The main points in brief
Y The main points in brief
The main points in bri ef
1 @ @
Load the laundry and close
the door.
Switch on the dryer. Select a programme and,
if necessary, adjust
the programme default
--------
settings.
2 @ @
Select the start button A. Dry. Unload the laundry.
--------
3 @ @
Switch off the dryer. Empty the condensate
--------
container.
Clean the fluff filter.
16
Getting to know your appliance en
#
+
3
* Getting to know your appliance
Getting to know your appliance
Dryer
;
( Condensate container
0 Control and display panel
8 Drum interior light (depending on the model)
@ Dryer door
H Air inlet
P Fluff filter
X Heat exchanger
17
en Getting to know your appliance
Control panel
( Use the programme selector to switch the dryer on and off and to select
the programme.
0 Programmes ~ Page 21.
8 Start button for starting or interrupting the programme ~ Page 23.
@ Buttons ~ Page 23.
H Display panel with buttons ~ Page 19.
+
#
18
Display panel
Getting to know your appliance en
Buttons in the display panel
#+ ;3
( Select the degree of dryness.
0 Select the drying time.
8 Select the Ready in time.
@ Select Anti-Crease.
H Select Low-Heat Drying.
P Switch the signal on or off.
X Select Start/Pause.
For a detailed description of all buttons,
see ~ Page 23 onwards.
Display panel
È
” "Anti-Crease" selected.
– Fine adjustment of the dryness
level.
5 Time programme selected.
ñ "Ready in" time selected.
E Childproof lock selected.
0 Spin speed selected.
s Low-Heat Drying selected.
C Audible signal active.
A Start or Pause selected.
3 h Programme delay in hours
when "Ready in" time is
selected.
1:27 Expected programme duration
in hours and minutes.
Ù ö » Q “Ÿš - ˜ -
Programme progress: Dry;
Iron Dry; Cupboard Dry; AntiCrease; End and Pause.
ð Empties the condensate
container; ~ Page 26.
é Cleans the fluff filters;
~ Page 25.
19
en Laundry
Z Laundry
Laundry
Preparing the laundry
:Warning
Risk of explosion/fire!
Remove any cigarette lighters and
matches from pockets.
Caution!
The dryer drum and fabrics could be
damaged.
Remove all objects from pockets and
observe the following information:
■ Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■ Close zips, hooks and eyelets and
buttons. Button up large items of
laundry, such as covers.
■ Remove any metal objects, such as
paper clips, from pockets.
■ To ensure a consistent drying result,
sort laundry by fabric type and
drying programme.
■ Always dry very small items of
laundry, e.g. babies' socks, together
with large items such as towels.
■ Knitted fabrics such as T-shirts and
jerseys often shrink the first time they
are tumble-dried. Use a gentle
programme.
■ Do not overdry easy-care laundry.
This increases creasing of the
laundry.
■ Use timed programmes for single
garments.
■ Some detergents and care products,
e.g. starch or softeners, contain
particles which may be deposited on
the moisture sensor. This may impair
the sensor function and in
consequence the drying result.
Notes
– When washing laundry to be
tumble-dried, use the correct
amount of detergent and care
products as specified in the
manufacturer's instructions.
– Clean the moisture sensor
regularly ~ Page 30.
Sorting washing according to:
c Suitable for tumble drying
a Dry at normal temperature
` Dry at low temperature
b Do not tumble-dry
Note: Do not load laundry from the
washing machine directly into the
tumble dryer. Sort the spun laundry
before placing it in the dryer drum.
If you dry thin, thick and multi-layer
fabrics together, they will dry to differing
degrees. To achieve an even drying
result, you should therefore only dry
together laundry of the same type of
fabric and structure. If you feel that the
laundry is still too damp, you can select
a timed programme for subsequent
drying ~ Page 21.
Caution!
Possibility of material damage to the
dryer or laundry.
Do not tumble-dry the following fabrics:
■ Laundry contaminated with oil.
■ Unwashed fabrics.
■ Non-breathable fabrics (e.g. rubber-
coated).
■ Easily damaged fabrics such as silk,
synthetic curtains.
20
/ Programmes and buttons
Programmes and buttons
Programmes
Programmes and buttons en
Programme and fabrics Maximum load and programme
Name of the programme
Which fabrics is the programme suitable for?
Algodón (Cottons) i
Extra seco para guardar (Cupboard Dry Plus) Ò
Hard-wearing, heat-resistant fabrics that are made of more than one
layer of cotton or linen and do not dry readily.
Algodón (Cottons)i
Seco para guardar (Cupboard Dry) ±
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen.
Algodón (Cottons) i
Seco (Iron Dry) ö
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen that need to be damp after drying and are suitable for ironing or hanging up.
Sintéticos (Easy-Care) f
Extra seco para guardar (Cupboard Dry Plus) Ò
Synthetic or blended fabrics that are made of more than one layer
and do not dry readily.
Sintéticos (Easy-Care) f
Seco para guardar (Cupboard Dry) ±
Normal synthetic or blended fabrics made of a single layer.
Sintéticos (Easy-Care) f
Seco (Iron Dry) ö
Normal synthetic or blended fabrics made of a single layer that need
to be damp after drying and are suitable for ironing or hanging up.
Sport w
Weatherproof and outdoor clothing with a membrane coating
and water-repellent fabrics.
Antialergias (Towels) ;
Hard-wearing towels made of cotton.
Mix o
Mixed load consisting of cotton and synthetic fabrics.
settings/info
The maximum load is based on the
dry weight of the fabrics
Possible programme settings
8 kg
8 kg
8 kg
3.5 kg
3.5 kg
3.5 kg
1.5 kg
6 kg
3 kg
21
en Programmes and buttons
Caliente (Time programme warm) 5
All types of fabric; time programme.
Suitable for pre-dried or slightly damp laundry and for drying off
multi-layered, thick laundry.
Notes
■ Only dry wool, sports shoes and soft toys with the basket for
woollens ~ Page 15.
■ In the time programme, the laundry's residual moisture is not
automatically detected. If the laundry is still too damp after
the drying programme, repeat the programme and, if required,
extend the programme length.
Frío (Timed programme cold) 5
All types of fabric. For freshening up or airing items of laundry
that have not been worn for long.
Rápido 15 min (Shirts/Blouses 15’) For optimum drying results, dry a maximum of 5 shirts at one time.
After drying, iron the laundry or hang it up and leave for a period
of time: Residual moisture is then distributed evenly.
Rápido 40 min (Rapid 40) ñ
Synthetics and light cottons.
Plumas (Down) t
Fabrics, pillows, bedspreads or eiderdowns filled with down.
Dry large items individually.
Acabado lana (Woollens finish) l
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
--------
3 kg
You can adjust the programme
length using the button for
the drying time.
3 kg
You can adjust the programme
length using the button for
the drying time.
1 kg
2 kg
1.5 kg
0.5 kg
22
Programmes and buttons en
Buttons
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
Ajuste secado
(Degree
of dryness) ó
Duración
(Drying time) 5
Terminado en
(Ready in) ñ
Menos
(Anti-crease) Q
Delicado
(Gentle Dry) s
C (Signal) A signal sounds after the programme has ended.
E 3 seg.
(Childproof lock)
A Inicio/Pausa
+ Carga
(Start/Pause)
--------
If the laundry is too damp after drying, you can finely adjust the dryness level e.g.
Cupboard Dry. The dryness level can be increased with the degree of dryness in
three stages, from – to •.
If you have adjusted the dryness level, the setting for all programmes with a selectable dryness level is retained even after the dryer is switched off.
Note: The higher the degree of dryness, the longer the programme duration.
Adjust the programme length for the time programmes. Between 20 minutes
and 3 hours, in 10-minute increments.
The programme will end in 1-24 hrs. Set the "Ready in" time in increments of one
hour to delay the start of the programme. The required number of hours after the
programme ends is displayed in the display panel.
The drum moves the laundry at regular intervals for 60 or 120 minutes after drying,
in any programme, to prevent creasing.
Reduced temperature for delicate fabrics, e.g. polyacrylic or elastane. Selecting the
button will extend the drying time.
Press and hold the "Ready in" time button and the drying time button at the same
time for 3 seconds to activate or deactivate the childproof lock.
Starts or pauses the programme.
23
en Operating the appliance
1 Operating
the appliance
Operating the appliance
Loading laundry and switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~ Page 13.
1. Place the laundry in the drum.
2. Turn the programme selector to any
programme to switch the dryer on.
3. Close the dryer door.
Caution!
Possibility of material damage to the
dryer or laundry.
Take care not to trap any laundry in the
door.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~ Page 23.
1. Select the required programme;
detailed information on the
programmes can be found from
~ Page 21 onwards.
2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this from
~ Page 21 onwards.
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
adjusted inadvertently, you can select
the childproof lock, see ~ Page 23.
Programme sequence
The programme status is indicated in
the display field.
e.g.
1:27
Ù Dry
ö Iron Dry
» Cupboard Dry
Q AntiCrease
“Ÿš End
Expected programme duration
in hours and minutes.
Note: When a programme is
selected, the expected drying
time for the recommended load
is displayed. During drying
moisture sensors detect the
remaining moisture in the load
and adjust the programme
length (except timed
programmes). This is visible via
the time remaining leaping
forward.
Pause
- ˜ -
24
Operating the appliance en
Changing the programme or adding laundry
You can remove or add laundry and
change or alter the programme at any
time during drying.
1. To pause the programme, open the
dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Removing laundry and switching off the dryer

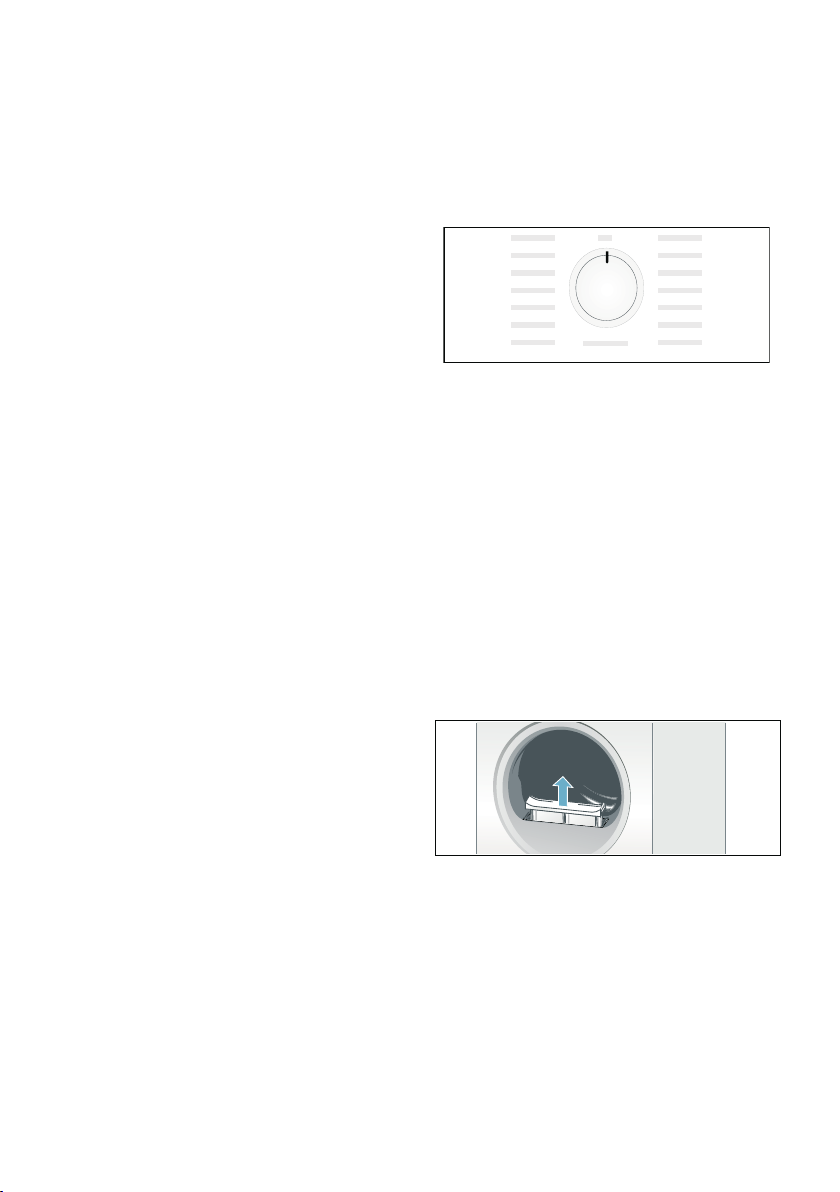

1. Remove the laundry.
2. Turn the programme selector to the
"off" position.
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter.
If the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption
and the drying time.
Clean the fluff filter after each drying
cycle:

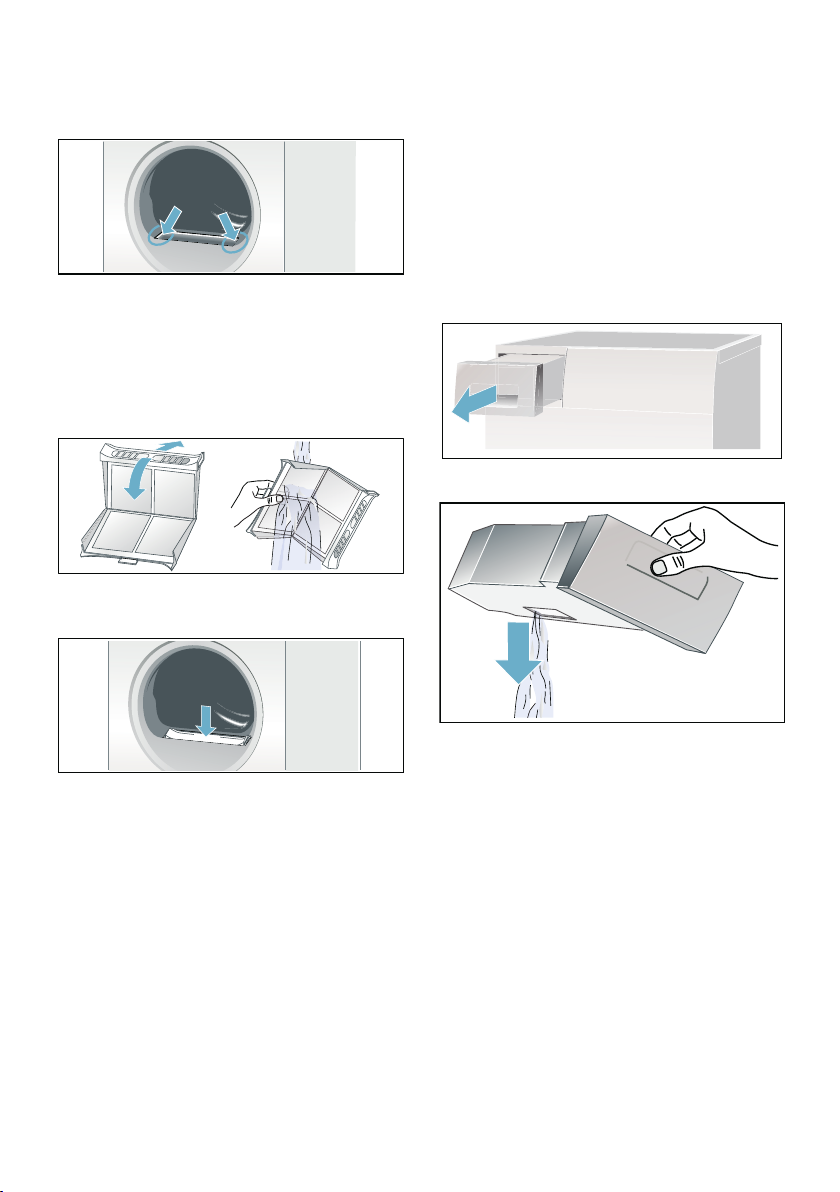

1. Open the dryer door and remove
all fluff from the door.
2. Remove the fluff filter.
Programme end
“Ÿš appears in the display panel.
25
en Operating the appliance
3. Remove the fluff from the recess in
the fluff filter.
Note: Ensure that no fluff falls into
the open shaft.
4. Open the fluff filter and remove
all the fluff.
5. Rinse away the fluff under running
water or clean the fluff filter in
the dishwasher.
6. Dry the fluff filter, close it and reinsert
the fluff filter.
Emptying the condensate container
Note: After each drying cycle, empty
the condensate container; otherwise
the next drying programme may be
cancelled as a result of the condensate
container being full.

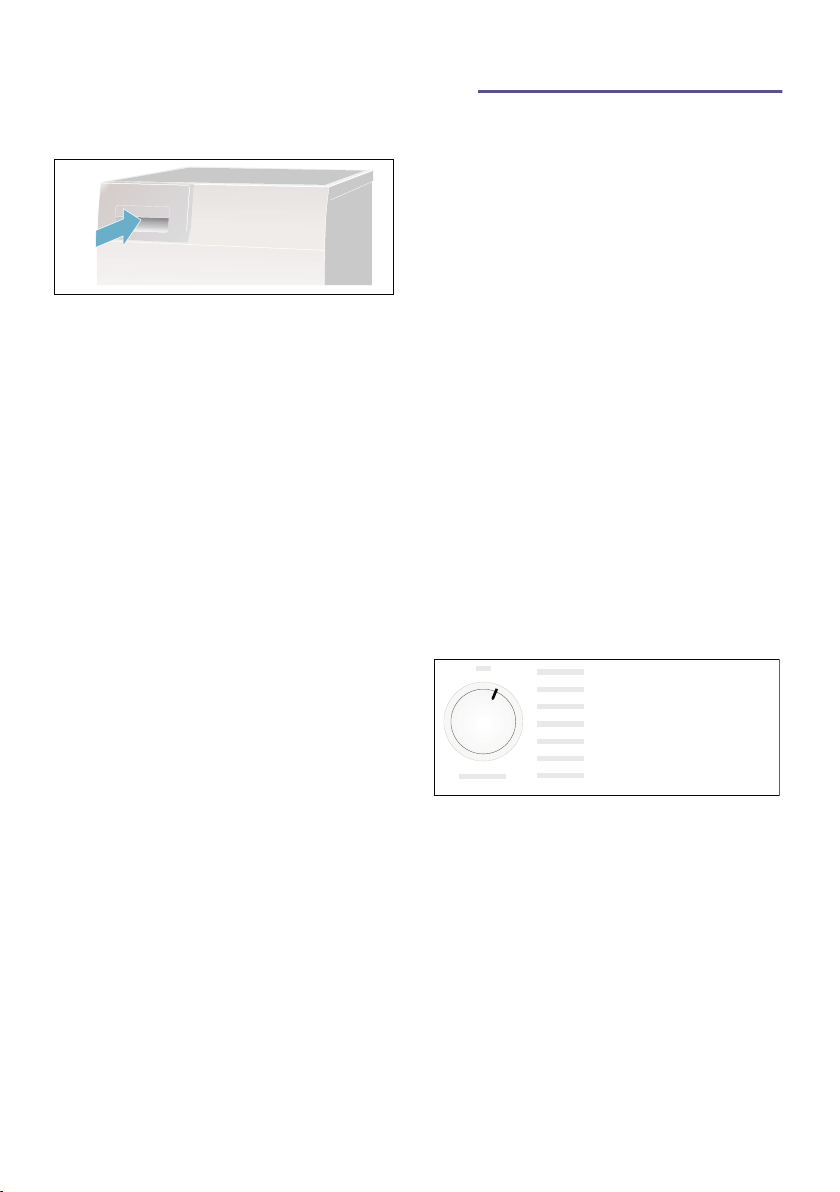

1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.
26
Caution!
Dirty condensation water may be harmful to your health and cause material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
Setting the signal and current en
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
M Setting the signal and
current
Setting the signal and current
You can change the following settings:
■ The spin speed that was used for
spinning in the washing machine;
used exclusively to more accurately
display the anticipated drying time,
■ the volume of the audible signal at
the end of the programme,
■ the volume of the audible button
signals,
■ the current rating for your dryer's
fuse (10 A or 13 A).
Note: The values for the energy
label are determined using a circuit
breaker/fuse rating of 13 A. If the
circuit breaker/fuse rating is
changed to 10 A, the drying time
and energy consumption will be
higher. You can find details on this in
the consumption values table.
~ Page 34
You will need to activate setting mode
before you can change these settings.
27
en Setting the signal and current
Activating setting mode
1. Switch the dryer on.
2. Select the "Cottons" programme in
position 1 and wait for five seconds.
Setting mode is now activated. The
symbols go out on the display panel
and the programme duration is
displayed.
1. Press and hold the Start button and,
at the same time, turn the
programme selector clockwise to
position 2.
2. The spin speed is shown on the
display.
3. Press the "Ready in" time button or
the drying time button to change the
spin speed.
4. Turn the programme selector
clockwise to position 3.
5. The volume for the audible signal at
the end of the programme is shown
on the display.

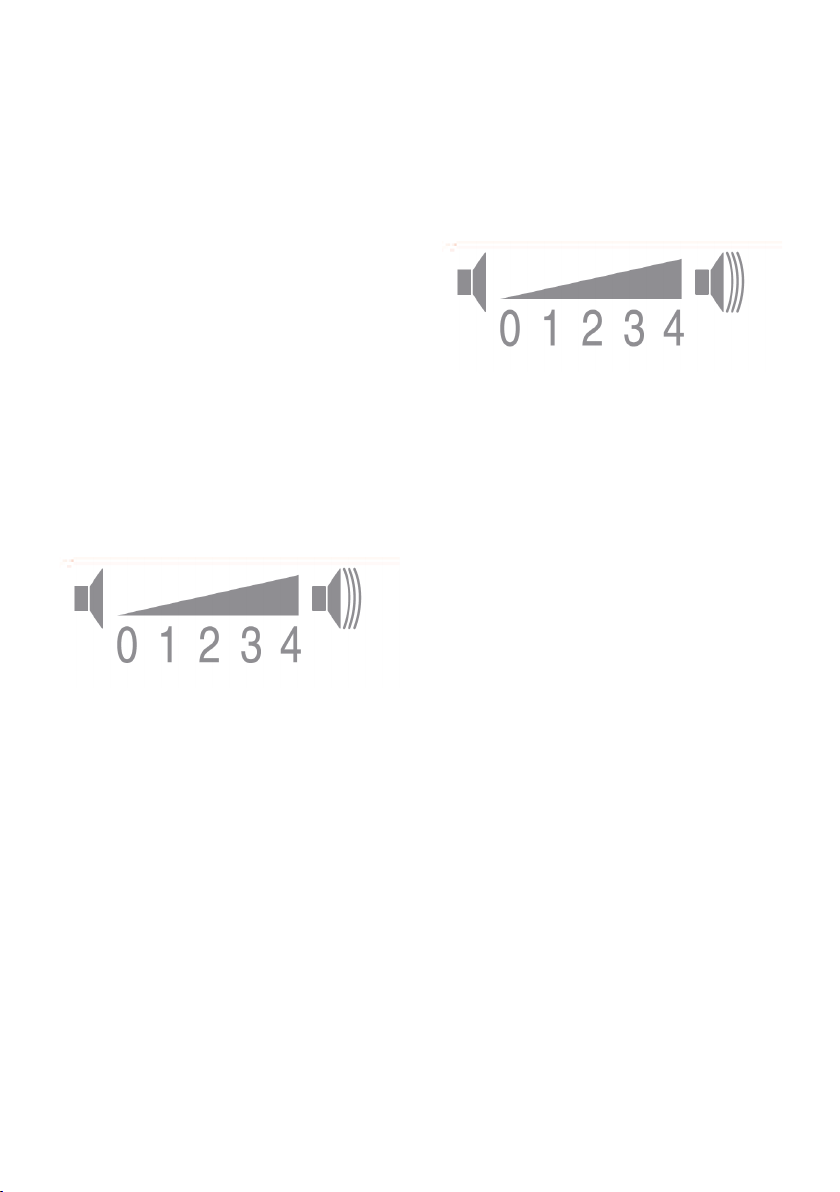

0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
6. Press the "Ready in" time button or
the drying time button to change the
volume.
7. Turn the programme selector
clockwise to position 4.
8. The volume for the audible button
signal is shown on the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
9. Press the "Ready in" time button or
the drying time button to change the
volume.
10.Turn the programme selector
clockwise to position 5.
11.The current is shown on the display.
LO = 10 A
HI = 13 A
12.Press the "Ready in" time button or
the drying time button to change the
current.
Exiting setting mode
Turn the programme selector to the
"Off" position once you have set the
required spin speed, volume or fuse
current rating. The settings have now
been saved.
28
Cleaning en
D Cleaning
Cleaning
Cleaning the dryer and the control panel
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
Disconnect the dryer from the mains
before cleaning.
Clean the dryer using only water and a
soft, damp cloth.
Remove all detergent residue, spray
residue or other residues immediately.
Do not use cleaning agents or agents
for pre-treating laundry (e.g. prewash
sprays, stain removers). Do not use
high-pressure cleaners or steam jet
cleaners to clean your appliance.
Cleaning the heat exchanger
Notes
■ Clean the heat exchanger several
times a month if you use the dryer
more than twice a week.
■ If there is debris in the heat
exchanger, this will increase the
amount of time required for drying
and will compromise the drying
results.

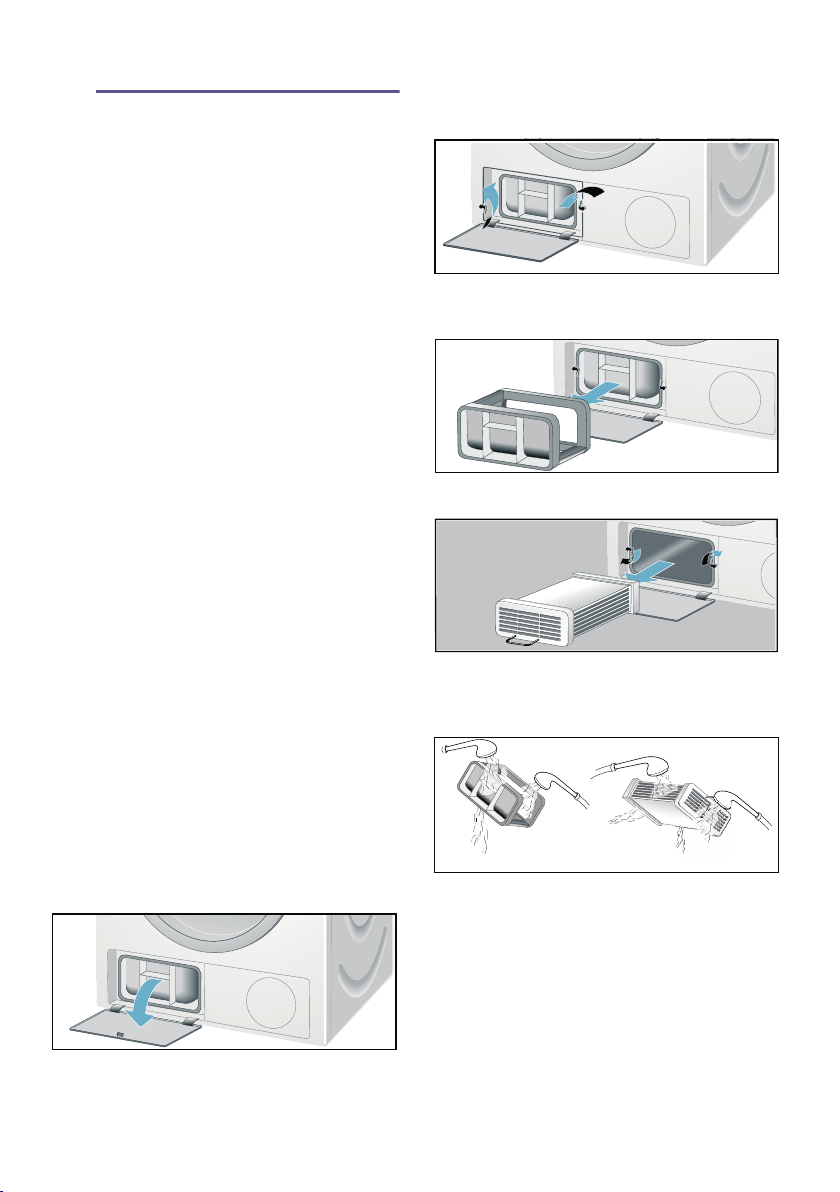

3. Turn both locking levers towards
each other.
4. Remove the top cap from the heat
exchanger.
5. Remove the heat exchanger.
6. Flush water through the heat
exchanger from all sides to
completely remove all fluff.

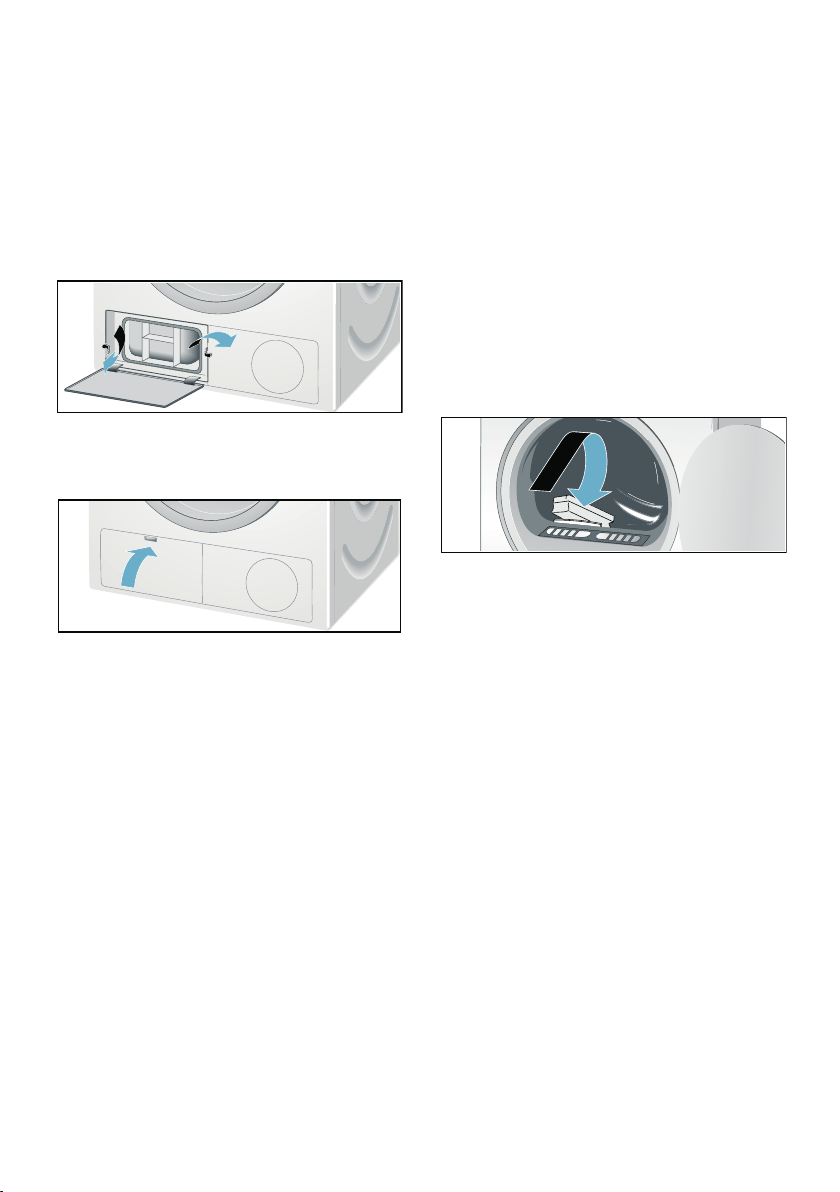

1. Allow the dryer to cool down and
place an absorbent cloth beneath
the maintenance flap.
Note: Residual water may leak out.
2. Open the maintenance flap fully.
Caution!
There is a risk of damage to the heat exchanger.
Only use water to clean the heat
exchanger, and do not use any hard
objects or objects with sharp edges
to remove the fluff.
29
en Cleaning
7. Remove all fluff from the seals on
the dryer and on the heat exchanger.
8. Allow all the water to drip off.
9. First insert the heat exchanger, and
then fit the heat exchanger's top cap
in place.
10.Turn both locking levers back and
close the maintenance flap until it
locks into place.
11.Close the maintenance flap and
press on it until you feel it click in
place.
Cleaning the moisture sensor
Note: The dryer is equipped with a
stainless-steel moisture sensor. The
moisture sensor measures how damp
the laundry is.
After long periods of usage the moisture
sensor may become covered by a fine
layer of limescale or residues of
detergents and care products. Such
residues must be removed regularly as
the sensor function and in consequence
the drying result may be impaired.
Open the door and clean the moisture
sensor with a coarse sponge.
Caution!
Moisture sensor may be damaged.
Do not clean moisture sensors with
abrasives and steel wool.
30
Faults and what to do about them en
3 Faults and what to do about them
Faults and what to do about them
Faults Cause/remedy
ð on the display panel
and drying has been
interrupted.
é on the display panel. Clean the fluff filter and/or the heat exchanger, then select the Start button
Dryer does not start. ■ Mains plug plugged in or fuse checked?
Display panel goes off
and Start button flashes.
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Change in the
programme duration
displayed during drying.
Laundry is not dried
correctly or is still too
damp.
* Depending on the model
■ Empty the condensate container and press the Start button ~ Page 26.
■ If the optional condensation drain is installed, the drain hose may be
blocked. Check the hose for deposits and flush the hose out.
~ Page 25; ~ Page 29.
■ Programme selected? Select a programme.
■ Dryer door open? Close the door.
■ Childproof lock activated? Deactivate the childproof lock.
■ "Ready in" time selected? Programme starts after a delay.
Not a fault. Energy saving mode is active ~ Page 13.
the wrong programme for the type of fabric. All the required information
can be found in the programme table.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Not a fault. The moisture sensors detect the remaining moisture in the load and
adjust the programme length (except timed programmes).
■ After the end of the programme, warm laundry feels damper than it actually
is. Spread the laundry out and allow the heat to disperse.
■ Finely adjust the dryness level – this extends the drying time but does not
increase the temperature. Your laundry will become drier ~ Page 23.
■ Select a programme with a longer drying time or increase the drying level.
This does not increase the temperature.
■ Select a timed programme for subsequent drying of laundry that is still
damp ~ Page 21.
■ If you have exceeded the maximum load for the programme, the laundry
may not be dried properly.
■ Clean the moisture sensor in the drum. The sensor may become covered by
a fine layer of limescale or residues of detergents and care products which
then impair its function. Your laundry is not being dried correctly
~ Page 30.
■ Drying has been interrupted as a result of a power cut, because
the condensate container is full or because the maximum drying time has
been exceeded.
Note: See also the laundry tips ~ Page 20.
31
en Faults and what to do about them
Faults Cause/remedy
Drying time too long? ■ The fluff filter may be dirty and cause a longer drying time. Clean the fluff fil-
ter.
■ If the air inlet on the dryer is blocked or not freely accessible, this may
increase the drying time. Make sure that the air inlet remains unobstructed.
■ If the ambient temperature is higher than 35 °C, this may extend the drying
time.
■ Insufficient air circulation in the room may increase the drying time. Venti-
late the room.
Humidity in the room
Not a fault. Make sure the room is sufficiently ventilated.
increases.
Power cut. The drying programme is interrupted. Remove the laundry and spread it out,
or restart the programme.
* Depending on the model
Note: If you cannot rectify the fault yourself by turning the dryer off and on, please
contact our after-sales service.
32
J After-sales service
After-sales service
After-sales service
If you cannot rectify the fault yourself
(faults, what to do?), please contact our
after-sales service. We will always find
an appropriate solution to avoid
unnecessary visits by engineers.
The contact information for your nearest
after-sales service can be found here or
in the enclosed after-sales service
directory.
Please provide after-sales service with
the dryer's product number (E-no.) and
production number (FD).
(1U )'
You can find this information on the
inside of the dryer door or on the rear of
the dryer.
Trust the expertise of the
manufacturer.
Contact us. You can therefore be sure
that the repair is carried out by trained
service technicians who carry original
spare parts.
After-sales service en
33
en Consumption values
[ Consumption values
Consumption values
Consumption values table
Spin speed
Programme
Cottons 8 kg 4 kg 8 kg 4 kg
Cupboard Dry* 1400 rpm 136 min/
Iron Dry* 1400 rpm 113 min/
Easy-Care 3.5 kg 3.5 kg
Cupboard Dry* 800 rpm 52 min/
* Programme setting for testing in accordance with the applicable EN 61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry to
be dried, residual moisture in the laundry, the degree of dryness that has been set, the amount of laundry being loaded, the environmental conditions, and any additional functions that have been activated.
used for spinning the laun-
dry
10/13 A 10/13 A 10/13 A 10/13 A
115 min
1000 rpm 158 min/
137 min
800 rpm 180 min/
159 min
86 min
1000 rpm 135 min/
108 min
800 rpm 157 min/
130 min
46 min
600 rpm 65 min/
56 min
Duration** Energy consumption**
85 min/
65 min
106 min/
82 min
113 min/
93 min
64 min/
48 min
78 min/
62 min
92 min/
76 min
4.52 kWh/
4.41 kWh
4.76 kWh/
4.63 kWh
5.01 kWh/
4.85 kWh
3.41 kWh/
3.39 kWh
3.65 kWh/
3.61 kWh
3.90 kWh/
3.83 kWh
1.46 kWh/
1.42 kWh
1.79 kWh/
1.74 kWh
2.54 kWh/
2.49 kWh
2.68 kWh/
2.61 kWh
2.81 kWh/
2.73 kWh
1.94 kWh/
1.91 kWh
2.08 kWh/
2.03 kWh
2.21 kWh/
2.15 kWh
34
Consumption values en
Most efficient programme for cotton fabrics
The following "standard cottons programme" (identified with ü) is suitable for
drying normal, wet cotton laundry and is most efficient in terms of its combined
energy consumption for drying wet cotton laundry.
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme Load Energy consumption Programme length
13 A 13 A
ü Cottons
Cupboard Dry
Programme setting for testing and energy labelling in accordance with Directive 2010/30/EU.
The consumption values are determined using a circuit breaker/fuse rating of 13 A.
8 kg/4 kg
4.63 kWh/2.61 kWh 137 min./82 min.
35
en Technical data
J Technical data
Technical data
Dimensions:
85 x 60 x 60 cm
Height x width x depth
Weight:
Approx. 45 kg
Maximum load:
8 kg
Condensate container:
4.6 l
Connected voltage:
220 - 240 V
Connected load:
Max. 2800/2100 W
Fuse:
13 A / 10 A
Drum interior light
Ambient temperature:
5 - 35 °C
Power consumption when
switched off:
0.10 W
Power consumption when
ready for use (left-on mode):
0.75 W
*
* Depending on the model
36
666
Thank you for buying a Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help? You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001486918*
9001486918 (9909)
en
Loading...
