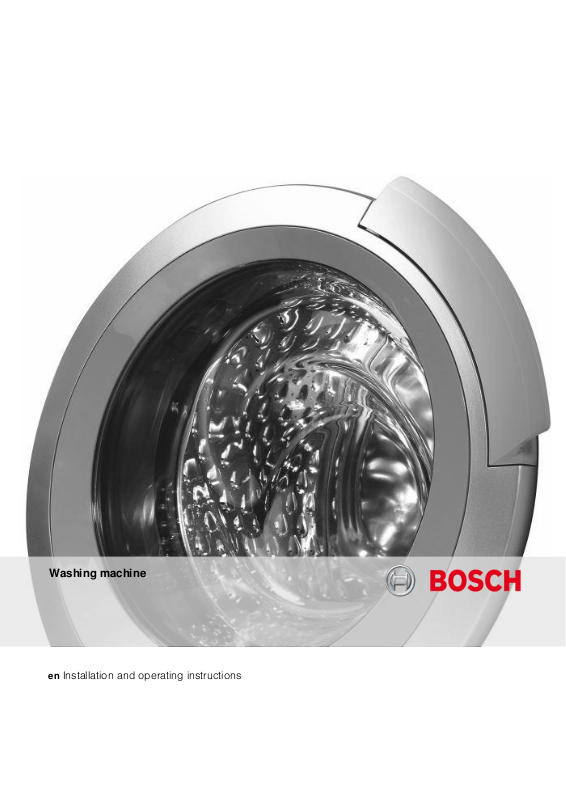

Page 1
Washing machine
en Installation and operating instructions
Page 2
Table of contents
General safety information ......................................................... 3
Operating instructions
Installation instructions
Appendix
Environmental protection/economy tips .................................. 4
Your new washing machine ....................................................... 5
Before washing for the first time ............................................... 7
Preparing and sorting the laundry ............................................ 7
Detergents and care products ................................................... 9
Programmes ...............................................................................11
Washing options ........................................................................12
Washing .......................................................................................13
Cleaning and care ..................................................................... 15
What to do if... ............................................................................ 18
After-sales service ..................................................................... 21
Installation instructions .............................................................22
Table of programmes ............................................................... 27
Consumption rates .................................................................... 28
Index .............................................................................................29
Please read the installation and operating instructions and all the other
information supplied and handle the appliance accordingly.
Keep all documents in a safe place for future reference, or to pass on to the next owner.
For further information and a selection of our products, visit our website:
www.bosch-home.com
2
Page 3
General safety information
This washing machine is intended:
Intended use
This washing machine complies with relevant safety regulations.
Hazard warnings
– exclusively for domestic use.
– for washing machine-washable fabrics and hand-washable woollens in
detergent solution.
– for operation using cold drinking water and standard detergents and
care products which are suitable for use in washing machines.
– Risk of electric shock.
– To remove the mains plug, only pull directly on the plug itself, not
on the plug cable.
– Never insert or pull out the plug if your hands are wet.
– Risk of suffocation. Keep packaging, plastic film and packing parts
out of the reach of children.
– Danger of death. When appliances have reached the end of their
service life, pull out the mains plug. Cut off the mains cable and remove
it with the plug. Destroy the loading door lock. Children cannot then
lock themselves in and put their life in danger.
– Risk of poisoning. Keep detergents and care products out of the
reach of children.
– Risk of explosion. After being placed in the washing machine, items
of laundry which have been pretreated with cleaning agents containing
solvent (e.g. stain remover or cleaning solvents) may cause an explosion. Hand-rinse items of laundry thoroughly beforehand.
– Risk of injury.
– The loading door can become very hot.
– Exercise caution when emptying hot detergent solution.
– Do not climb onto the washing machine.
– Do not lean on the loading door when it is open.
– Do not reach into the drum if it is still turning.
Before using for the first
time
When washing
To protect the washing
machine
WEEE
– Install the washing machine according to the installation instructions
page 23.
– Remove the transport locks and keep them in a safe place.
– Do not operate the washing machine if it shows visible signs of
damage. If you are in any doubt, please consult with the after-sales
service or your dealer.
– Remove all objects from pockets, paying particular attention to
sources of ignition (e.g. lighters, matches, etc.).
– Do not leave children unsupervised near the washing machine.
– The washing machine must not be used by children or persons who
have not been instructed in its use.
– Keep pets away from the washing machine.
– Exercise caution when emptying hot detergent solution.
– The door can become very hot during operation.
– Do not climb onto the washing machine.
– Do not lean on the door of the washing machine when it is open.
– Do not install the washing machine in an area which is prone to frost
because hoses may burst or tear if they freeze.
– Do not transport the washing machine without the transport locks in
place.
This appliance is designated according to European Directive 2002/96/
EC, which governs waste electrical and electronic equipment - WEEE).
The directive provides a framework for the return and recycling of used
appliances, which is applicable across the EU.
)
3
Page 4
Environmental protection/economy
tips
– Separate out the various waste materials of the packaging and take
them to the nearest collection point.
– Always fill the appliance with the maximum amount of laundry for each
programme.
– Wash normally soiled laundry without a prewash.
–Instead of the Resistentes/ Algod. (Cottons) 90 °C programme, select
Resistentes/ Algod. (Cottons) 60 °C intensivo (intensive) page 11.
Comparable cleaning with considerably lower energy consumption.
– Measure the detergent according to the manufacturer's instructions
and in line with the local water hardness.
– If the laundry is subsequently dried in a tumble drier, select the spin
speed according to the tumble drier manufacturer's instructions
.
4
Page 5
Your new washing machine
Loading door
You have chosen to buy a modern, high-quality Bosch domestic
Description of the
washing machine
appliance. A distinctive feature of your washing machine is its low energy
consumption.
Every machine which leaves our factory is carefully checked to ensure
that it operates correctly and is in perfect condition.
N.B.: The water inlet hose and water outlet hose must be correctly
attached during washing page 25.
The water tap must be turned open.
A safety device prevents the door from being opened during operation.
Before opening
Make sure that there is no water in the drum and that the drum is not
moving.
Emergency release
In the event of a power cut, the door can be released mechanically
page 20.
5
Page 6
Control panel
Function selection buttons with indicator lights
Show the selected settings:
– $ Flot antiarrugas: Rinse stop
–
C 0: reduce maximum spin speed by
200 rpm (depending on model).
Function selection buttons
Operating condition
Indicator lights for
programme progress
Shows the programme
progress and the
programme status.
Programme selector page 11
Switches the washing machine
on and off and for selecting the
programme, turnable in both
directions.
Do not change the position of the
programme selector during
washing.
Programme selector
% Inicio/ Pausa
% Inicio/Pausa (Start/Pause)
button page 12.
Starts the selected
programme.
– Reset function:
Resets to the original
settings page 14.
6
Page 7
Before washing for the first time
i i i
The washing machine was tested before leaving the factory.
In order to remove any testing water which may be remaining, run the first
washing cycle without any laundry.
Make sure that the transport locks on the back of the washing machine
have been removed page 23.
Do not load any laundry.
Close the loading door.
Turn on the water tap.
Pull out the detergent drawer.
Add ½ a measuring cup of detergent to compartment II page 9.
Do not use detergents for woollens or delicates (these cause foaming).
Close the detergent drawer.
Turn the program selector to a 60°C programme.
Press the % Inicio/Pausa (Start/Pause) button.
At the end of the programme, set the programme selector to
Stop (Off).
Open the door.
Leave the loading door open in order that the inside of the washing
machine can dry.
Preparing and sorting the laundry
– Check the manufacturer's care instructions and care labels.
Sorting laundry for
washing
The laundry may be damaged if you do not observe the fabric care
symbols. Knitwear made of wool or which contains a proportion of wool
must have the label “machine-washable”.
– Wash white laundry separately from coloureds.
– Sort according to type, colour, level of soiling and temperature.
New coloured laundry should be washed separately.
Risk of discolouration.
– Unhemmed or torn items should not be washed in the machine, as they
may fray.
– Do not exceed the permissible load capacity page 27.
7
Page 8
Preparing laundry for
Sorting laundry according
to the information on the
care labels
Care label Type of laundry
<;
Cottons 90 °C.
:98
Coloureds 60 °C, 40 °C, 30 °C.
BA>
Easy-care 60 °C, 40 °C, 30 °C.
uFAE>
Hand- and machine-washable silk and wool, cold,
40 °C, 30 °C.
washing
Only wash laundry with the following care labels:
Laundry with care symbol Do not wash.
Loose foreign bodies (e.g. coins, paper-clips, needles, nails) may damage
the laundry and components of the washing machine (e.g. the drum).
Empty the pockets of all items.
Brush any sand out of pockets and collars.
Pretreat any stains.
Close zips, do up cover buttons.
Remove curtain fittings or place curtains in a laundry bag.
Wash the following in a laundry bag/pillowcase:
– Delicates, (e.g. tights, curtains),
– small items of laundry (e.g socks or handkerchief),
– underwired bras (the underwiring may come loose during the
washing process and cause damage).
Turn trousers, knitwear and jersey fabrics, e.g. hosiery, T-shirts or
sweatshirts, inside out.
Loading the laundry
Before loading the washing machine, make sure that there are no
inappropriate objects or pets in the drum.
Risk of explosion. Items that have been pretreated with cleaning agents
containing solvents, e.g. stain remover or stain solvent, must be carefully
rinsed by hand before they are loaded into the machine.
Unfold the laundry and place it loosely into the drum.
Load large and small items together.
Check the maximum drum loads,
programme table page 27.
Take care n o t to trap ite m s o f laundry between the door and the rubber
seal.
Close the door. You will hear it click shut.
Measure out appropriate amounts of detergent and care products and
pour into the machine.
Turn on the water tap.
8
Page 9
Detergents and care products
II
I
i
II
I
i
i
The detergent drawer is divided into three compartments
Detergent drawer
Compartment I : Detergent for prewash.
Compartment II : Detergent for main wash.
Compartment i : Liquid additives such as starch and fabric softener.
Additives are automatically flushed into the machine during the last wash
cycle.
– Do not exceed the maximum capacity, otherwise compartment i may
be emptied too early.
– Dilute viscous additives with water before adding them to the detergent
drawer compartment to prevent blockages.
Liquid detergent insert: must be folded down before liquid detergents
are used.
To do this:
Pull out the detergent drawer as far as the stop.
Press on the blue zone marked PUSH and fully remove the detergent
drawer page 15.
Pull the blue insert in compartment II fully forward and fold
downwards.
Insert the detergent drawer.
Detergents and care
products
Do not use the insert (push upwards):
– with gel-type detergents and washing powder, or
– if using programmes with +Prewash.
Risk of poisoning
Keep detergents and care products out of the reach of children.
Risk of injury
Exercise caution when opening the detergent drawer. There may still be
detergent residues left in the drawer.
Select the correct dosage for the detergent according to:
– the amount of laundry,
– the instructions of the detergent manufacturer,
– how dirty the laundry is,
– water hardness. You can find out about the water hardness in your area
from your local waterworks.
Using the correct dosage reduces the impact on the environment and
gives a good washing result.
9
Page 10
Normally soiled laundry
Measuring washing powder
i
Measuring liquid detergent
i
i
Set the programme.
Add all the detergent, according to the manufacturer's instructions, to
compartment II of the detergent drawer.
– Only use pH-neutral wool detergent for woollens programmes.
– Add fabric softener to compartment i.
Heavily soiled laundry
Set programme with prewash.
Add 1/4 of the recommended amount of detergent to compartment I
of the detergent drawer and 3/4 of the detergent to compartment II.
Only use liquid detergent for the main wash cycle.
To do this:
Add the recommended amount of detergent to a liquid detergent
measuring aid and place it in the drum.
or
After folding down the liquid detergent insert, pour the detergent into
compartment II of the detergent drawer.
Use the scale on the liquid detergent insert as a guide for the dosage of
liquid detergent.
If compartment II is used for washing powder, the liquid detergent insert
must be folded up.
10
Page 11
Programmes
(*Depending on model)
Programme selector
Washing programmes
The programme selector is used to set the washing and drying programmes.
Resistentes/ Algod. (Cottons)
Suitable for hard-wearing fabrics, heat-resistant fabrics made from cotton
or linen.
– Coloureds up to 60 °C.
– Whites 60 °C up to 90 °C.
Resistentes/ Algod. (Cottons) 60°C Intensivo (Intensive)
Energy-saving programme. Because of the extended washing time which
also consumes considerably less energy, a level of cleaning comparable
to the 90°C programme is achieved.
Resistentes/ Algod. (Cottons)+ Prelav. (Prewash)
for heavily soiled laundry with additional prewash.
Sintéticos (easy-care) (cold*, 40°C, 60°C)
Washing programme for less robust fabrics made of cotton, linen,
synthetic fibre or blended fabrics. Sorting by colour is recommended.
Special programmes
Delicados (Delicates) frio (cold*)
Low heat programme for delicate, washable fabrics, e.g. made of silk,
satin, synthetic fibre or blended fabrics (e.g. curtains). Gentle spinning
between wash cycles and reduced final spin speed.
Lana/La (Wool) (cold*, 30°C)
Wool becomes matted under the influence of heat, moisture and movement. The woollens programme takes account of these properties and
finds the optimum way between drum standstill and movement.
Suitable for hand- or machine-washable fabrics made from wool or a wool
blend.
O / C (Rinse + Spin)
Wash cycle followed by spinning. Fabric softener or starch can also be
used in this programme.
C (Spin)
Separate spin cycle; Detergent solution or water used for rinsing are
emptied before the spin cycle starts.
[ (Empty)
Emptying of the water used for rinsing without final spin cycle after
selecting a washing programme with the setting
D (Rinse stop).
11
Page 12
Washing options
Unbalanced load detection
system
The maximum spin speed* (*depending on model, programme table
Button C 0
$ button Flot
antiarrugas
(Rinse stop)
page 27) is reduced by 200 rpm. This programme reduces the
formation of creases.
By repeatedly starting and stopping drum spinning, the unbalanced load
detection system ensures that the laundry is evenly distributed. For safety
reasons, the speed of the final spin is reduced or the spin cycle is not run
if the laundry is very unevenly distributed.
The laundry remains in the last water used for rinsing. Suitable for
delicate fabrics and curtains page 13
% Inicio/Pausa button
(Start/Pause)
Programme progress
Press % Inicio/ Pausa (Start/Pause) to start the selected programme.
Display of programme progress by indicator lights lighting up:
preparado (ready)
lavar (wash)
- After switching on the washing machine, the indicator lights
lavar (wash) (preparado (ready) flash.
- When the programme is started, lavar (wash) remains constantly lit.
aclar / enx. (rinse)
- The light remains lit during rinsing.
- Rinse stop selected: all indicator lights are switched off. Button
(Rinse stop) flashes.
centrifugar (spin)
- Light remains lit during spinning.
- When spinning has finished, centrifugar (spin) (terminado (finished))
flashes.
terminado (finished)
D 0
12
Page 13
Washing
$ Flot antiarrugas (Rinse stop)
i
Washing
Set the programme selector to the desired programme,
e.g. Resistentes/ Algod. (Cottons) 60°C.
The lavar (wash) (preparado (ready)) indicator light flashes
End of the programme
Where required, reduce the spin speed or select $ Flot antiarrugas
(Rinse stop) page 12.
Load the laundry page 8.
– Observe the maximum load,
Programme table page 27.
Press the % Inicio/Pausa (Start/Pause) button.
– The washing programme starts.
–The lavar (wash) indicator light lights up.
The washing programmes are automatically ended.
Set the programme selector to Stop (Off).
Remove the washing from the drum.
Leave the loading door open in order that the inside of the washing
machine can dry.
Turn off the water tap.
If the spin function was deactivated at the start of washing,
$ Flot antiarrugas (Rinse stop) (Without final spin = laundry remains in
the last water used for rinsing), the washing programme is stopped after
the last rinse.
In order to drain the rinsing water and, if required, spin the laundry:
Set the programme selector to centrifugar (spin).
- By pressing the
rpm. The water is emptied and the washing machine spins.
C 0 button, the spin speed can be reduced by 200
Programme change
The maximum spin speed depends on the selected washing programme.
If you do not wish to spin the laundry:
Set the programme selector to [ (Empty). The water is emptied but
the washing machine does not spin. The programme has finished
when the terminado (finished) indicator light flashes.
Set the programme selector to Stop (Off).
Remove the laundry.
Leave the loading door open in order that the inside of the washing
machine can dry.
You have selected an incorrect programme by mistake:
Select the programme again and press
% Inicio/Pausa (Start/Pause). The new programme starts from the
beginning.
13
Page 14
Adding laundry
Programme termination
If you want to add laundry after the programme has started, press and
hold the % Inicio/Pausa (Start/Pause) button until the lavar (wash)
flashes. The washing machine checks whether adding laundry is
possible.
Select the % Inicio/Pausa (Start/Pause) button to continue the
programme.
Note: If the water level and/or temperature is high or if the machine is
spinning, the loading door remains locked for safety reasons. Press and
hold the % Inicio/Pausa (Start/Pause) button until all three programme
progress lights light up.
To continue the programme, select the % Inicio/Pausa (Start/Pause)
button.
Press and hold the % Inicio/Pausa (Start/Pause) button for three
seconds.
For washing programmes at high temperatures:
– Cooling the laundry: select O / C (Rinse + Spin).
–Select % Inicio/Pausa (Start/Pause).
For programmes with a low temperature:
–Select O / C (Rinse + Spin) or [ (Empty).
–Select % Inicio/Pausa (Start/Pause).
Reset function
– You can use the Reset function to return to the original settings. To do
this, press and hold the % Inicio/Pausa (Start/Pause) button until all
three programme progress lights light up.
14
Page 15
Cleaning and care
Risk of electric shock.
Safety information
Housing and control
panel
The appliance must first be disconnected from the mains. Never clean
the washing machine with a jet of water.
Risk of explosion
Never clean the washing machine with solvents.
Risk of scalding
Hot detergent solution must be allowed to cool before being drained.
– Remove detergent residues immediately.
– Wipe away with a soft, damp cloth.
– Cleaning with a jet of water is prohibited.
Washing drum
Detergent drawer
Descaling the washing
machine
– Remove any foreign bodies from the drum and rubber seals.
– Leave the loading door open in order that drum can dry.
– Use chlorine-free cleaning agents. Follow the information provided by
the manufacturer. Never use steel wool.
If there are detergent or care product residues:
Pull out the detergent drawer as far as the stop.
Press on the zone marked PUSH and take out the detergent drawer.
Clean the detergent drawer guide.
Remove the fabric softener compartment insert.
Clean the detergent drawer and fabric softener compartment insert
under running water.
Insert the fabric softener compartment insert.
Insert the detergent drawer.
Not necessary if the correct measures of detergent are used but, if still
required, follow the information provided by the descaler manufacturer.
Suitable descalers can be ordered via our website or from our after-sales
service page 21.
15
Page 16
Detergent solution
Set the programme selector to Stop (Off).
Use a screwdriver to release the lock pins.
Fold up the servicing panel and remove it
upwards.
Draining the water
Cleaning the detergent solution pump
i
pump
Notes on blockages
Remove the drain hose from its retainer.
Remove the sealing cap from the drain tube and allow the water to
drain off.
– The container for the drained water may have to be emptied several
times.
– When no more water emerges, refit the sealing cap.
Place the drain hose into the retainer.
Carefully unscrew the pump cover (remaining water).
– Clean the interior, pump cover threads and pump housing (it must
be possible to turn the impeller).
Replace the pump cover and screw it down.
Place the servicing flap into the 4 clip-in slots and fasten to the housing
with the lock pin.
To prevent detergent flowing unused into the outlet the next time laundry
is washed:
Pour 1 litre of water into compartment II and start the Empty programme.
16
Page 17
Filter in the water inlet
Cleaning the filter on the tap
Cleaning the filter on the washing machine
Cleaning the filter on the washing machine
*Water inlet hose depending on model
If no water, or an insufficient amount of water, runs into the washing
machine, first release the water pressure in the inlet hose:
Turn off the water tap.
Select any programme (except O / C (Rinse + Spin) / [ (Empty).
Press the % Inicio/Pausa (Start/Pause) button.
Allow the programme to run for approximately 40 seconds.
Set the programme selector to Stop (Off).
Unplug the mains plug from the socket.
Unscrew the water inlet hose from the tap.
Clean the filter with a small brush.
Reconnect the hose.
Turn on the water tap.
Check whether water comes out of the end of the hose.
If water is escaping, check that the filter is correctly seated.
Remove the hose from the water tap.
Rinse out the filter under running water.
Connect the hose.
Remove the hose from the rear of the washing machine.
Pull out the filter and rinse out under running water.
Insert the filter and connect the hose.
Turn on the tap and check whether water still escapes. If water still
escapes, check that the filter is seated correctly.
Turn off the water tap.
17
Page 18
What to do if...
Fault code rapid flashing of the
following indicator lights
Remedial action
lavar (wash) The door is not properly closed. Close the door.
centrifugar (spin) +
lavar (wash) +
C 0
Water is not flowing in. See Fault Water not running in.
aclar / enx. (rinse) + lavar
(wash) + $ Flot
antiarrugas (Rinse stop)
The water is not drained. See Fault Water is not emptied.
Risk of electric shock.
Repairs must only be carried out by customer services or authorised
technicians.
If repairs are needed, or if you cannot rectify a fault yourself with the help
of the following table:
Set the programme selector to Off.
Disconnect the washing machine from the mains.
Turn off the tap.
Call the after-sales service page 21.
Other fault codes are intended exclusively for the after-sales service.
Note down the fault code for the after-sales service.
Fault Possible cause Remedial action
Programme does not start. Start/Pause button not pressed? Press the % Inicio/Pausa
(Start/Pause) button.
Power failure? Start programme immediately:
Press the % Inicio/Pausa
(Start/Pause) button.
The door is not properly closed. Close the door.
Plug not inserted properly into socket. Insert plug correctly.
Washing machine not reacting.
The water is not drained. Outlet hose is twisted. Fit the outlet hose correctly.
Programme fault? You can use the Reset function to
return to the original settings. To do
this, press and hold the % Inicio/Pausa
(Start/Pause) button until all three
programme progress lights light up.
Detergent solution pump is blocked. Clean the detergent solution pump
page 16.
Detergent residues in the
detergent drawer.
Damp or lumpy detergent. Clean and dry the detergent drawer
page 15.
Use the measuring aid for liquid
detergent.
18
Page 19
Water is not flowing in. The mains plug is not correctly
plugged in.
The door is not properly closed. Close the door.
The tap is not turned on. Turn on the tap.
Filter in the water inlet hose is blocked Clean the filter in the water inlet hose
Plug in the mains plug correctly.
page 17.
Intense vibrations during
spinning.
Constant inflow of water.
The water is pumped out
again directly through the
outlet hose.
No water can be seen in the
drum.
Water emerges from
beneath the washing
machine.
Foam escapes from
detergent drawer.
The water inlet hose is pinched or
kinked.
The washing machine is not correctly
levelled.
The transport locks have not been removed.
Outlet hose fitted too low. Fit the outlet hose correctly
Not a fault. During certain programmes the water
Inlet hose screw connection is leaking. Tighten the screw connection.
Outlet hose is leaking. Have the outlet hose replaced by the
Water pump cover not properly closed. Clean the detergent solution pump
Too much detergent has been used. Only use fabric-compatible detergent
Check the water inlet hose.
Level the washing machine
page 23.
Remove the transport locks
page 23.
page 25.
level is below the visible range.
after-sales service.
page 16.
which is suitable for use in washing
machines.
Make sure that you use the correct
dosage.
Several attempts to start
spinning.
Washing is not spun
properly.
Washing results not
satisfactory.
Detergent residues on the
washing.
Not a fault.
The unbalanced load detection system
attempts to redistribute an unbalanced
load by repeatedly starting to spin.
Large items are not distributed evenly
in the drum. Spin speed is
automatically reduced for safety
reasons.
Soiling heavier than assumed. Select a suitable programme, e.g. a
Too little or incorrect detergent used. Use the correct dosage of a suitable
Maximum load exceeded. Select the correct load for the
Some phosphate-free detergents
contain water-insoluble residues which
appear on washing as light specks.
Always wash large and small items
together.
Always wash large and small items
together.
programme with prewash. Pretreat
stains if necessary.
detergent, in accordance with the
manufacturer's instructions.
programme.
Rinse washing again or change to
liquid detergent.
Brush washing after drying.
19
Page 20
Grey residues on the
washing.
Soiling caused by ointments, grease or
oil
Amount of detergent too low.
Wash the laundry using the maximum
detergent dosage and the maximum
permissible temperature – see the
care label.
Programme terminated
unexpectedly.
The fabric softener is not
completely flushed in or too
much water remains in the
compartment i
No response from the
indicator lights.
The door cannot be opened.
% Inicio/Pausa (Start/Pause) button
selected by mistake.
The fabric softener compartment insert
is not correctly attached or is blocked.
Power failure. Programme will continue when power
Press the button again to restart the
programme.
Clean the fabric softener compartment
insert and fit it correctly in the
compartment i page 15.
is restored. If washing is removed
during a power failure, first drain off the
water, page 16. Check whether:
- the plug is plugged into the socket
correctly
-the circuit breaker (fuse) has tripped.
Call the after-sales service.
D (Rinse stop) selected. Select the programme[ (Empty) and
press % Inicio/Pausa (Start/Pause).
The programme is running or the door
is locked for safety reasons.
Power failure. Unlock the loading door mechanically.
Set the programme selector to
Stop (Off).
Wait until the End indicator light
flashes.
Select any programme. The washing
machine checks whether opening the
loading door is possible. Otherwise,
see Programme termination
page 14.
Emergency release In order to unlock the door mechanically in the event of a power failure, you will
have to:
set the programme selector to Stop (Off) and unplug the mains plug from
the socket.
open the base panel and drain out the water page 16.
pull the emergency release downwards and open the loading door at the
same time.
– Before opening the loading door, make sure that there is no water or hot
washing water in the appliance.
Under no circumstances open the door with the emergency release while the
drum is still turning.
If you cannot correct a fault yourself (switching on/off) or a repair is required:
– Set the programme selector to Stop (Off) and unplug the mains plug from the socket.
– Turn off the tap and call the after-sales service
page 21.
20
Page 21
After-sales service
Before you call the after-sales service, please check first whether you can
correct the fault yourself page 18.
You will be charged if a technician is called out, even during the warranty
period.
You can find your nearest after-sales service here or in the enclosed aftersales service directory (depending on model).
Please give the after-sales service the product number (E-no.) and
production number (FD) of the appliance.
Enter the numbers of your appliance here.
You can find this information on the rating plate in the frame of the loading
door.
Please help us to avoid unnecessary after-sales service call-outs by
quoting the appliance and production numbers. This will also save you the
related additional costs.
Trust the expertise of the manufacturer. Contact us for assistance. In
this way, you can rest assured that the repair will be carried out by trained
service technicians using original spare parts.
21
Page 22
Installation instructions
Num-
ber
Description
4 Covers for openings left after removing the transport locks
1 Spanner for removing the transport locks and adjusting the feet
1 1 24-40 mm dia. hose clamp for connection to a siphon
1 Door template
2 Door hinges with screws
1 Screw with washer for decor door
The Washing machine is very heavy. Exercise caution when lifting.
Safety information
Included with the
Do not operate the washing machine if it shows visible signs of damage.
If you are in any doubt, please consult with the after-sales service or your
dealer.
Do not install the washing machine outdoors or in areas which are prone
to frost Frozen hoses may tear or burst. The washing machine could
suffer damage.
Do not stand the washing machine upside down or place it on its side.
Do not lift the washing machine by any of the protruding parts
(e.g. loading door).
Remove the transport locks and cross connectors and store in a safe
place.
In addition to the instructions provided in this document, special
regulations from the relevant water and electric utility companies may
apply.
If in doubt, have a technician connect the appliance.
appliance
On the rear of the washing machine/drum:
–Water outlet hose
–Water inlet hose
– Mains cable with plug
– Instruction manual and booklet containing after-sales service
addresses
Moisture may remain in the drum following the final inspection which
every washing machine undergoes before leaving the factory.
22
Page 23
Removing the transport
locks
Positioning and
levelling
Levelling
Unscrew all four screws
using the spanner
supplied.
Insert the protective
covers.
– Appliance stability is essential to ensure that the washing machine
does not “creep” during spin cycles.
– The installation area must be firm, clean and level.
– Parquet floors and soft floor coverings, e.g. carpets or foam-backed
floor coverings, are unsuitable.
Intense noise, vibrations and “wandering” may be the result of incorrect
levelling.
– All four appliance feet must stand firmly on the ground.
– The washing machine must not rock.
– Check the alignment of the washing machine with a spirit level and
adjust if necessary.
– The washing machine must not rest against the side panels of the
installation recess.
– The lock nuts on the front feet of the appliance must be screwed firmly
against the housing with the spanner.
Completely remove all transport locks and
take the mains cable out of the retainers.
– Before using the appliance for the first
time, ensure that all transport locks have
been removed and kept safe for any
subsequent transport.
– For transporting at a later stage: You must
make sure that the transport locks are
refitted, which will prevent the washing
machine from being damaged.
.
23
Page 24
Dimensions
Width x depth x height 596 mm x 585 mm x 818 mm
Weight 76 kg
Hose and cable lengths
Left-hand connection or Right-hand connection
Water connection
– To prevent leaks or water damage, you must observe the instructions
in this section.
– N.B.: Operate the washing machine only with cold drinking water.
– Do not connect to the mixer tap of an unpressurised hot water boiler.
– If in doubt, have a technician connect the appliance.
– Do not use a used inlet hose. Only use the inlet hose supplied or one
which was purchased from an authorised specialist retailer.
– The water inlet and outlet hoses can be routed to the left of right,
depending on installation conditions.
24
Page 25
Water inlet
Drainage into a siphon
Water outlet
Do not allow the water inlet hose to be:
– Kinked or squashed, modified and cut (strength no longer guaranteed).
Note the water pressure in the mains supply:
– The water pressure should be between 50-900 kPa (0.5-9 bar) (at least
8 litres of water per minute flow when the tap is open).
– If the water pressure is higher, a pressure reducing valve must be
installed.
Connect the inlet hose to the ¾" cold water tap.
Tighten the screw connections only by hand. Do not remove the filter from
the inlet hose.
After connecting the water inlet hose:
– Open the water tap carefully, checking the leak tightness of the connec-
tion points.
– N.B.: The screw connection is under mains water pressure.
– Do not kink the outlet hose or pull it lengthways.
– Height difference between the installation surface and the drain:
max. 90 cm, min. 50 cm.
Electrical connection
Secure the connection point with the 24-40 mm hose clamp.
The washing machine must only be connected to an alternating current
via a properly installed earthed socket.
Only use earth-leakage circuit breakers with the following symbol:
The mains voltage must correspond to the voltage specifications on the
washing machine (rating plate).
The connected load and fuse required are specified on the rating plate.
Make sure that:
– the mains plug fits the socket.
– the cable cross-section is adequate.
– the earthing system is properly installed.
– the appliance is not standing on the mains cable,
– the mains plug is accessible at all times.
Changes to the mains cable may only be carried out by a qualified
electrician.
Do not use multiple plugs/adapters or extension cables.
Mains plug:
– Do not insert the plug into the socket or pull it out if your hands are wet.
– When removing the plug from the socket, pull on the plug body only,
not the cable.
– Never pull the plug out during operation.
25
Page 26
Fitting the door hinges
to the washing machine
After the washing machine has been installed in the fitted kitchen, it can
be concealed by a door. In this case, the hinges included in the delivery
must be fitted to the washing machine.
26
Page 27
Table of programmes
Observe the information on care labels, fabric type and load quantity.
Type of laundry Options*
Programmes* °C max. load max. spin speed*
Resistentes/
Algod.
(Cottons)
Sintéticos
(easy-care)
Delicados
(Delicates)
Lana/La (Wool)
*Programmes and options depend on the model
cold-90
6 kg
cold-40
cold
cold-30 800 rpm Suitable for hand or machine-washable fabrics
3kg
2kg
1200 rpm Hard-wearing fabrics, heat-resistant fabrics made of
800 rpm Easy-care fabrics made of cotton, linen, synthetic
600 rpm For delicate, washable fabrics, e.g. made of silk,
cotton or linen.
fibre or blended fabrics.
satin, synthetic fibres or blended fabrics
(e.g. curtains).
made from wool or a wool blend.
$ Flot antiarrugas
(Rinse stop)
G G
G G
G A
G G
C 0
27
Page 28
Consumption rates
Washing
Programme Load Power** Water** Programme
duration**
Resistentes/ Algod. (Cottons)
frio (cold)
Resistentes/ Algod. (Cottons)
40 °C
Resistentes/ Algod. (Cottons)
60 °C intensivo (Intensive)*
Sintéticos (Easy-care) 40 °C 3 kg 0.45 kWh 40 l 1:32 h
Delicados (Delicates) frio (cold)
Lana/La (Wool) frio (cold) 0.05 kWh 49 l 0:47 h
Lana/La (Wool) 30 °C 0.20 kWh 49 l 0:47 h
*Programme setting for testing in accordance with applicable standard EN60456.
Note for comparison tests: For testing the test programmes with specified load quantity and maximum spin speed, wash by
selecting the Intensive option.
**The values may deviate from the indicated values depending on water pressure, water hardness and inlet temperature,
ambient temperature, type, amount and soiling of the laundry, detergent used, fluctuations in the power supply and which
additional functions are selected.
6 kg
2kg
0.40 kWh 60 l 1:51 h
0.80 kWh 60 l 1:51 h
1.02 kWh 45 l 2:06 h
0.11 kWh 35 l 0:36 h
28
Page 29
Index
A
Adding laundry 14
C
Care information
-Washing 8
Care product 9
Cleaning
-Control panel
15
-Detergent drawer 15
-Detergent solution pump 16
-Drum 15
-Housing 15
-Water inlet hose 17
Connection fittings 24
Consumption rates 28
Control panel 6
D
Delicates
-Programmes 11, 27, 28
Descaling 15
Detergent 9
-Liquid detergent insert 9, 10
Detergent drawer
-Cleaning 15
-Description 9
Detergent solution pump
-Cleaning 16
Dimensions 24
Display
-Fault message 18
F
Fault message 18
Faults 18
Filter
-Water inlet hose 17
First wash 7
Function selection buttons 6
H
Hazard warnings
-Detergent 9
Housing
-Cleaning 15
-Cleaning 15
Cottons
-Programmes 11, 13, 28
Door 13
Draining the water 16
Drum
-Cleaning 15
E
Easy-care
-Programmes 11, 27
Economy tips 4
Electrical connection 25
Emergency release 20
Empty 11
-Special programmes 11, 13,
14, 17, 20
End of the programme 13
Environmental protection 4
29
Page 30
I
Included with the appliance 22
S
Safety information 3, 15, 18, 22
W
Washing 13
Installation surface 22
L
Laundry
-Loading 8
-Preparing for washing 8
-Sorting for washing 7
Levelling 23
Liquid detergent insert 9
Loading door 5
P
Power 28
Programme change 13
Programme duration 28
Programme progress
-Control panel 6
Programme selector 6, 11
Special programmes 11
Spin
-Special programmes 11
Spin speed
-Control panel 6
-Washing options 12
Start/Pause
-Button 12
-Control panel 6
T
Table of programmes 27
Transport locks 23
U
Unbalanced load detection
system 12
Washing options
-Indicator lights 6
Washing programmes 11
Water 28
Water inlet 25
Water inlet hose
-Cleaning 17
Water outlet 25
WEEE 3
Woollens
-Programmes 11
Programme termination 14
R
Remedial action 18
Reset function 14
Rinse + Spin
-Special programmes 11, 14,
17
Rinse stop
-Control panel 6
30
Page 31
31
Page 32
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
DEUTSCHLAND
WIA20000EE
12.2010
9000586357
19291009400
Loading...
