Washing machine
WAJ2006APL
[en] User manual and installation
instructions
Register your
new device on
MyBosch now and
get free benefits:
bosch-home.com/
welcome
en
Table of contents
Safety...............................................4
General information..........................4
Intended use.....................................4
Restriction on user group.................5
Safe installation ................................5
Safe use ...........................................7
Safe cleaning and maintenance.......9
Preventing material damage ........11
Environmental protection and
saving energy................................12
Disposing of packaging .................12
Save energy and conserve re-
sources...........................................12
Energy saving mode ......................13
Installation and connection..........13
Unpacking the appliance ...............13
Contents of package......................14
Requirements for the installation
location ...........................................14
Removing the transit bolts .............15
Connecting the appliance ..............17
Aligning the appliance....................18
Familiarising yourself with
your appliance...............................19
Appliance .......................................19
Detergent drawer............................20
Controls ..........................................20
Display ...........................................21
Buttons ..........................................23
Programmes ..................................24
Accessories...................................27
Before using for the first time ......27
Starting an empty washing cycle ...27
Laundry..........................................28
Preparing the laundry.....................28
Sorting laundry ...............................29
Degrees of soiling ..........................29
Care symbols on the care labels ...29
Detergents and care products......30
Detergent recommendation ...........30
Detergent dosage ..........................31
Basic operation .............................31
Switching on the appliance ............31
Setting a programme .....................31
Adjusting the programme set-
tings................................................32
Loading laundry..............................32
Using a measuring aid for liquid
detergent ........................................32
Adding detergent and care
product ...........................................33
Starting the programme .................33
Soaking laundry .............................33
Adding laundry ...............................33
Cancelling the programme ............34
Resuming the programme when
the programme status is Rinse
Hold ................................................34
Unloading the laundry ....................34
Switching off the appliance ............34
Childproof lock..............................35
Activating the childproof lock.........35
Deactivating the childproof lock.....35
Basic settings................................36
Overview of the basic settings .......36
Changing the basic settings ..........36
Cleaning and servicing.................37
Tips on appliance care...................37
Cleaning the drum..........................37
Cleaning the detergent drawer ......37
Descaling........................................38
Cleaning the drain pump ...............38
2
Cleaning the water outlet hose
at the siphon...................................40
Clean the water inlet filters. ............41
Troubleshooting............................43
Error code / Fault display / Sig-
nal...................................................43
Malfunctions ...................................44
Noise ..............................................47
Problem with results.......................48
Leakage..........................................48
Odours............................................49
Emergency release ........................50
Transportation, storage and
disposal .........................................50
Removing the appliance ................50
Inserting the transit bolts................50
Using the appliance again .............51
Disposing of old appliance ............51
Customer Service..........................52
Product number (E-Nr.) and pro-
duction number (FD) ......................52
en
Consumption values.....................53
Technical specifications...............53
3
en Safety
Safety
Please read the safety information to ensure that you use the appliance safely.
General information
You can find general information about this instruction manual
here.
¡ Read this instruction manual carefully. Only this will ensure you
use the appliance safely and efficiently.
¡ This manual is intended for the installer and the user of the ap-
pliance.
¡ Follow the safety instructions and warnings.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Check the appliance after unpacking it. Do not connect the ap-
pliance if it has been damaged in transit.
Intended use
Read the information on intended use to ensure that you use the
appliance correctly and safely.
Only use this appliance:
¡ According to this installation and instruction manual.
¡ For washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ With tap water and commercially available detergents and care
products suitable for washing machines.
¡ In private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of max. 4000m above sea level.
4
Safety en
Restriction on user group
Avoid risks to children and vulnerable persons.
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safe installation
Take note of the safety instructions when installing the appliance.
WARNING‒Risk of electric shock!
¡ Improper installation is dangerous.
▶
Connect and operate the appliance only in accordance with
the specifications on the rating plate.
▶
Connect the appliance to a power supply with alternating
current only via a properly installed socket with earthing.
▶
The protective conductor system of the domestic electrical
installation must be properly installed. The installation must
have a sufficiently large cross section.
▶
When using a residual current circuit breaker, only use a
type with the mark.
▶
Never equip the appliance with an external switching
device, e.g. a timer or remote control.
▶
When the appliance is installed, the mains plug of the
power cord must be freely accessible. If free access is not
possible, an all-pole isolating switch must be installed in the
permanent electrical installation according to the installation
regulations.
▶
When installing the appliance, check that the power cable is
not trapped or damaged.
5
en Safety
¡ If the insulation of the power cord is damaged, this is danger-
ous.
▶
Never let the power cord come into contact with hot appliance parts or heat sources.
▶
Never let the power cord come into contact with sharp
points or edges.
▶
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.
▶
Do not use extension cables or multiple socket strips.
▶
If the power cord is too short, contact Customer Service.
▶
Only use adapters approved by the manufacturer.
WARNING‒Risk of injury!
¡ The high weight of the appliance may result in injury when lif-
ted.
▶
Do not lift the appliance on your own.
¡ If this appliance is not correctly installed in a washer-dryer
stack, the installed appliance may fall.
▶
Only stack the dryer on a washing machine using the connection kit from the dryer manufacturer . No other installation method is permitted.
▶
Do not install the appliance in a washer-dryer stack if the
dryer manufacturer does not offer a suitable connection kit.
▶
Do not install appliances from different manufacturers and
with varying depths and widths in a washer-dryer stack.
▶
Do not install a washer-dryer stack on a platform; the appliances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶
Keep packaging material away from children.
▶
Do not let children play with packaging material.
6
Safety en
CAUTION‒Risk of injury!
¡ The appliance may vibrate or move when in use.
▶
Place the appliance on a clean, even, solid surface.
▶
Align the appliance using the appliance feet and a spirit
level.
¡ If hoses and power cords have been laid incorrectly, this
causes a tripping hazard.
▶
Lay hoses and power cords in such a way that there is no
risk of tripping.
¡ If the appliance is moved by holding onto protruding compon-
ents, such as the appliance door, the parts may break off.
▶
Do not move the appliance by holding onto protruding
parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶
Do not touch the sharp edges on the appliance.
▶
Wear protective gloves when installing and transporting the
appliance.
Safe use
Follow these safety instructions when using the appliance.
WARNING‒Risk of electric shock!
¡ If the appliance or the power cord is damaged, this is danger-
ous.
▶
Never operate a damaged appliance.
▶
Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶
If the appliance or the power cord is damaged, immediately
unplug the power cord or switch off the fuse in the fuse box
and turn off the water tap.
▶
Call Customer Service. →Page52
▶
Repairs to the appliance should only be carried out by
trained specialist staff.
¡ An ingress of moisture can cause an electric shock.
▶
Only use the appliance in enclosed spaces.
7
en Safety
▶
Never expose the appliance to intense heat or humidity.
▶
Do not use steam- or high-pressure cleaners, hoses or
sprays to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶
Do not install the appliance behind a door as this may obstruct the appliance door or prevent it from opening.
▶
With redundant appliances, unplug the power cord. Then
cut through the cord and damage the lock on the appliance
door beyond repair so that the appliance door will no longer
close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them
to suffocate.
▶
Keep small parts away from children.
▶
Do not let children play with small parts.
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if consumed.
▶
If accidentally swallowed, seek medical advice.
▶
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with cleaning agents that
contain solvents may cause an explosion in the appliance.
▶
Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
¡ The worktop may break if you stand on or climb onto the ap-
pliance.
▶
Do not stand on or climb onto the appliance.
8
Safety en
¡ The appliance may tip over if you sit on or lean against the
open door.
▶
Do not sit on or lean against the appliance door.
▶
Do not place any objects on the appliance door.
¡ Reaching into the drum while it is still turning may cause hand
injuries.
▶
Wait for the drum to come to a complete stop before reaching inside.
CAUTION‒Risk of burns!
When washing at high temperatures, the glass in the appliance door becomes hot.
▶
Do not touch the appliance door when it is hot.
▶
Keep children away from the appliance door when it is hot.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution
gets hot.
▶
Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care
products may spray out from the appliance. Contact with eyes
or skin may cause irritation.
▶
Rinse eyes and/or skin thoroughly with clean water if they
come into contact with detergents or care products.
▶
If accidentally swallowed, seek medical advice.
▶
Keep detergents and care products out of the reach of children.
Safe cleaning and maintenance
Take note of the safety instructions when cleaning and performing
maintenance work on the appliance.
WARNING‒Risk of electric shock!
¡ Improper repairs are dangerous.
▶
Repairs to the appliance should only be carried out by
trained specialist staff.
9
en Safety
▶
Only use genuine spare parts when repairing the appliance.
▶
If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, the manufacturer's Customer
Service or a similarly qualified person in order to prevent
any risk.
¡ An ingress of moisture can cause an electric shock.
▶
Do not use steam- or high-pressure cleaners, hoses or
sprays to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories is dangerous.
▶
Only use the manufacturer's original spare parts and original accessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents
that contain solvents.
▶
Do not use cleaning agents that contain solvents.
10
Preventing material damage en
Preventing material damage
Preventing material damage
Follow these instructions to avoid material damage and damage to the appliance.
ATTENTION!
¡ The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener,
detergent, care product or cleaning agent.
▶
Follow the dosage recommendations from the manufacturer.
¡ Exceeding the maximum load ca-
pacity impairs the function of the
appliance.
▶
Observe the maximum load capacity →Page24 for each programme and do not exceed it.
¡ The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been removed may result in material damage and damage to the appliance.
▶
Before starting up the appliance,
remove the transit bolts completely and keep them in a safe
place.
▶
Before transport, fit the transit
bolts fully in order to prevent
damage in transit.
¡ Material damage may be caused if
the water inlet hose is connected
incorrectly.
▶
Tighten the screw connections
on the water inlet until they are
hand-tight.
▶
Ideally, connect the water inlet
hose directly to the water tap,
without any additional connecting elements such as adapters,
extensions, valves or similar.
▶
Ensure that the inner diameter
of the water tap is at least 17
mm.
▶
Make sure that the length of the
thread on the connection to the
water tap is at least 10 mm.
¡ If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶
Make sure that the water pressure in the water supply system
is min. 100kPa (1bar) and
max. 1000kPa (10bar).
▶
If the water pressure exceeds
the maximum value specified, a
pressure-reducing valve must be
installed between the drinking
water connection and the hose
set of the appliance.
▶
Do not connect the appliance to
the mixer tap of an unpressurised hot-water boiler.
¡ Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶
Never kink, crush, modify or cut
through water hoses.
▶
Only use the water hoses supplied with the appliance or genuine spare hoses.
▶
Never re-use water hoses that
have been used before.
¡ Operating the appliance using wa-
ter that is dirty or too hot may
cause material damage.
▶
Only operate the appliance with
cold mains water.
¡ Unsuitable cleaning products may
damage the surfaces of the appliance.
▶
Do not use harsh or abrasive
detergents.
▶
Do not use cleaning products
with a high alcohol content.
▶
Do not use hard scouring pads
or cleaning sponges.
▶
Clean the appliance with nothing
but water and a soft, damp
cloth.
11
en Environmental protection and saving energy
▶
Remove all detergent residue,
spray residue or other residues
immediately if they come into
contact with the appliance.
Environmental protection and saving energy
Environmental protection
and saving energy
Help protect the environment by using your appliance in a way that conserves resources and by disposing of
reusable materials properly.
Disposing of packaging
Add →Page31 detergent based on
the laundry's degree of soiling.
For light to normal soiling, a smaller amount of detergent is sufficient. Observe the dosage recommendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label
are also sufficient.
The packaging materials are environmentally compatible and can be recycled.
▶
Sort the individual components by
type and dispose of them separately.
Information about current disposal
methods are available from your
specialist dealer or local authority.
Save energy and conserve resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low temperatures and longer wash times and
use maximum load capacity
→Page24.
Energy consumption and water
consumption is most efficient.
Set the maximum spin speed if you
want to dry the laundry in a tumble
dryer afterwards.
The drier the laundry, the shorter
the programme duration when drying which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in
the laundry and increases the
volume of the spin noise.
Wash the laundry without prewash.
Washing with prewash increases
the programme duration and increases energy and water consumption.
The appliance has a continuous
automatic load adjustment function.
Depending on the type of fabric
and load capacity, the continuous
automatic load adjustment function optimally adjusts the water
consumption and programme duration.
12
Installation and connection en
Energy saving mode
If you do not use the appliance for an
extended period, it automatically
switches to energy-saving mode. All
displays go out and / Dodaj
pranie flashes.
Energy-saving mode ends when you
use the appliance again, e.g. if you
open or close the door.
Installation and connection
Installation and connection
You can find out where and how best
to install your appliance here. You
will also learn how to connect the appliance to the water and power supply.
Unpacking the appliance
1. Remove any packaging and pro-
tective covers completely from the
appliance.
2. Check the appliance for visible
damage.
3. ATTENTION! Objects remaining in
the drum that are not designed for
operation with the appliance may
cause material damage and damage to the appliance.
▶
Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
Open the door and remove the accessory from the drum.
13
en Installation and connection
1 2 3
4
1
2
3
4
Contents of package
After unpacking all parts, check for any damage in transit and completeness of
the delivery.
Washing machine
Accompanying documents
Water inlet hose
Cover caps
14
Requirements for the installation location
The appliance may "wander" when it
spins. Observe the instructions for
the installation location.
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
Installation and connection en
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶
Do not operate the appliance
without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶
Always secure the feet of the appliance to a base using the manufacturer's fixing brackets →Page27
before using the appliance for the
first time.
ATTENTION!
¡ If the appliance is installed in
areas exposed to frost or outdoors, frozen residual water may
damage the appliance and frozen
hoses may crack or split.
▶
Do not install or operate this appliance anywhere that is liable to
experience frost and/or outdoors.
¡ The appliance underwent a func-
tion test before leaving the factory
and may, therefore, contain residual water. This residual water may
leak out if the appliance is tilted at
an angle greater than 40°.
▶
Tilt the appliance carefully.
Installation location Requirements
On a base Secure the appliance
with fixing brackets
→Page27.
Installation location Requirements
On a wooden joist
floor
Place the appliance
on a water-resistant
wooden board which
is screwed tightly to
the floor. The wooden
board should be at
least 30mm thick.
In a kitchen unit ¡ A niche width of
60cm is required.
¡ Only install the ap-
pliance underneath a continuous
worktop that is securely connected
to adjacent cabinets.
On a wall Do not trap the hoses
between the wall and
the appliance.
Note:If you want to install the washing machine with a dryer as a
washer-dryer stack, your washing machine's worktop must be replaced
first.
To replace the worktop, please contact customer service →Page52.
Removing the transit bolts
The appliance is secured for transportation using transit bolts on the
rear of the appliance.
Notes
¡ Please read the information in the
Safety →Page4 and Preventing
material damage →Page11 sections to ensure that you use the
appliance safely.
¡ Keep the transit bolts, screws and
sleeves in a safe place for future
transport →Page50.
15
en Installation and connection
1
2
1. Pull the hoses out of the holders.
2. Unscrew and remove all four
screws for the transit bolts with a
WAF 13 wrench.
5. Put on the four cover caps.
6. Press down on the four cover
caps.
3. Pull the power cord out of the
holder.
4. Remove the four sleeves.
16
Installation and connection en
2
1
¾˝
min.
min.
10 mm
17 mm
Connecting the appliance
Connect your appliance to the power
supply, water inlet and water outlet.
Connecting the water inlet hose
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Connect the water inlet hose.
2. Connect the water inlet hose to a
tap (26.4mm=3/4").
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed connection point.
▶
Secure the water outlet hose
against unintentional loosening.
Drainage into a siphon.
Secure the connection point with a (24–
40 mm) hose clamp.
Drainage into a wash
basin.
Fix and secure the water outlet hose with an
elbow →Page27.
Drainage into a plastic
pipe with rubber
sleeve.
Fix and secure the water outlet hose with an
elbow →Page27.
3. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
Connecting the appliance to the electricity supply
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appliance can be found under Technical data →Page53.
2. Check the mains plug is inserted
properly.
17
en Installation and connection
Aligning the appliance
In order to reduce noise and vibration and to prevent the appliance
from moving, align the appliance correctly.
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Loosen the lock nuts using a WAF
17 wrench by turning it in a clockwise direction.
In doing so, hold the foot tight and
do not adjust its height.
2. To align the appliance, turn the ap-
pliance feet. Check that the appliance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3. Screw the lock nuts tightly against
the housing using a WAF 17
wrench.
18
Familiarising yourself with your appliance en
1
2
4
6
3
5
7
7
1
2
3
4
5
6
7
Familiarising yourself with your appliance
Familiarising yourself with your appliance
Familiarise yourself with the parts of your appliance.
Appliance
You can find an overview of the parts of your appliance here.
On certain models, specific details such as the colour and shape may differ
from those pictured.
Maintenance flap for the drain pump
→Page38
Door
Detergent drawer →Page20
Controls →Page20
Water outlet hose →Page17
Power cord →Page17
Transit bolts →Page15
19
en Familiarising yourself with your appliance
1 2 3
1
2
3
2
3
1 1
44
1
2
3
4
Detergent drawer
Below is an overview of the structure
of the detergent drawer.
Controls
The controls are used to configure all functions of your appliance and to obtain
information about the operating status.
Compartment II:
¡ Detergent for main wash
¡ Water softener
¡ Bleach
¡ Stain remover
Compartment :
¡ Fabric softener
¡ Liquid starch
¡ Waterproofing agent
Compartment I:
¡ Detergent for prewash
¡ Hygiene detergent
Programmes →Page24
20
Programme selector →Page31
Display →Page21
Buttons →Page23
Display
Display
The display shows the current settings, options or relevant information.
Display Designation Description
1
0:40
1
10h
1
7 kg
––– - 1000 Spin speed Set spin speed in rpm.
Wash Programme status
Rinse Programme status
Spin Programme status
––– Rinse Hold Programme status
End End of programme Programme status
1
Example
Programme duration/
programme time re-
Approximate expected programme duration or programme time remaining.
maining
"Ready in" time The programme end has been set and the remaining
number of hours is displayed.
→"Buttons", Page23
Recommended load The maximum load capacity for the selected pro-
gramme in kg.
→"Buttons", Page23
0= No final spin, only draining
–––: Rinse Hold, no draining
Display en
21
en Display
Display Designation Description
Childproof lock ¡ Lights up: The childproof lock is activated.
¡ Flashes: The childproof lock is active and the pro-
gramme selector has been adjusted.
→"Deactivating the childproof lock", Page35
SpeedPerfect Short wash activated.
→"Buttons", Page23
Door ¡ Lights up: The door is locked and cannot be
opened.
¡ Flashes: The door is not closed properly.
¡ Off: The door is unlocked and can be opened.
Tap ¡ No water pressure.
→"Error code / Fault display / Signal", Page43
¡ The water pressure is too low.
E:60 / -2B
1
Error Error code, error display, signal.
→"Error code / Fault display / Signal", Page43
1
Example
22
Buttons en
Buttons
Buttons
Below is an overview of the buttons and their setting options.
The selection of programme settings depends on the selected programme. You
can see the selection options for each programme in the overview for
→"Programmes", Page24.
Button Selection Description
/ Dodaj pranie
(Start/ Reload)
Speed Perfect ¡ Activate
Gotowe za (Ready in) 1–24 hours Set the programme end.
Wirowanie (Spin) ––– - 1000 Adjust the spin speed or activate ––– (Rinse
3 sek. (3 sec.) ¡ Activate
¡ Start
¡ Cancel
¡ Pause
¡ Deactivate
¡ Deactivate
Start, cancel or pause the programme.
Activate or deactivate a short washing programme.
Note:Energy consumption increases.
The washing result is not affected by this.
The programme duration is already included in
the set number of hours.
Once the programme has started, the programme duration is displayed.
Hold).
If ––– is selected, the water is not drained at the
end of the washing cycle and the spin cycle is deactivated. The laundry remains in the water used
for rinsing.
Activate or deactivate the childproof lock.
Disable the control panel to prevent unwanted or
accidental operation.
If the childproof lock is activated and the appliance has been switched off, the childproof lock
remains activated.
→"Childproof lock", Page35
23
en Programmes
Wirowanie –
–– (Rinse
Hold)
Speed Perfect
Max. spin
speed (rpm)
Max. temperature (°C)
1
1
Max. load (kg)
–
7 90 1000
7 40 1000
–
7 – 1000
Programmes
Programmes
Below is an overview of the programmes. You can find information on the load and on the adjustable pro-
gramme options.
24
blended fabrics.
Also suitable as a short programme for normally soiled
laundry when you activate Speed Perfect. If Speed Per-
fect is activated, the maximum load capacity is reduced
to 4kg.
Wash hard-wearing items made from cotton, linen or
blended fabrics.
Energy-saving programme.
Note:To save energy, the actual washing temperature
may deviate from the set washing temperature. The
washing performance meets legal requirements.
Suitable for normally soiled items.
Note:Textiles which can be washed as per the care
symbol at 40 °C or at 60 °C can be washed to-
gether. In order to achieve the best possible energy effi-
ciency, the optimum washing temperature for this pro-
Programme setting
→"Care symbols on the care labels", Page29
Programme Description
Tip:The laundry's care labels provide you with additional information on programme selection.
Bawełna (Cotton) Wash hard-wearing items made from cotton, linen or
Bawełna Intensywny (Cotton
Intensive)
Eco 40-60 Wash items made from cotton, linen or blended fabrics.
1
Wirowanie –
–– (Rinse
Hold)
Programmes en
Speed Perfect
Max. spin
speed (rpm)
Max. temperature (°C)
1
1
Max. load (kg)
7 40 1000
4 40 1000
–
2 30 800
–
2 30 800
–
– – 1000
Programme Description
gramme was saved.
The washing temperature is activated and cannot be
changed.
Wash hard-wearing items made from cotton, linen or
blended fabrics.
Programme with prewash for heavily soiled laundry.
Divide the detergent between the detergent drawer for
the prewash and the main wash.
Bawełna Pranie wstęp. (Cot-
ton Prewash)
→"Detergent drawer", Page20
blended fabrics.
Suitable for lightly soiled laundry.
Wash delicate, washable items made from silk, viscose
and synthetics.
Syntetyki (Easy Care) Wash items made from synthetic or blended fabrics. 4 40 1000
Mix szybki (Quick/ Mix) Wash items made from cotton, linen, or synthetic or
Delikatne/ Jedwab (Delic-
ate / Silk)
Use a detergent that is suitable for delicates or silk.
Note:Wash especially delicate items or items with
hooks, eyelets or clips in a mesh laundry bag.
wool or contain wool.
To prevent the laundry from shrinking, the drum moves
the items very gently with long pauses.
Use a detergent that is suitable for wool.
water.
Programme setting
Wełna (Wool) Hand- or machine-washable items that are made from
Płukanie (Rinse) Rinses and then spins the laundry, and then drains the
1
25
en Programmes
Wirowanie –
–– (Rinse
Hold)
Speed Perfect
Max. spin
speed (rpm)
Max. temperature (°C)
1
1
Max. load (kg)
– –
– – 1000
4 30 1000
Programme Description
26
Spins and drains the water.
If you only want to drain the water, activate 0. The laun-
dry is not spun.
Wash items made from cotton, synthetic or blended fab-
rics.
Short programme for small items of lightly soiled laun-
dry.
The programme duration is approx. 30 minutes.
If you wish to reduce the programme duration to 15
Wirowanie/ Odpompow.
(Spin / Drain)
Super krótki 15'/30' (Super
15'/30')
minutes, activate Speed Perfect. The maximum load is
reduced to 2kg.
Programme setting
1
Accessories en
Accessories
Accessories
Only use original accessories. These have been made especially for your appliance. Here you can find an overview of your appliance's accessories and how
to use them.
Use Order number
Water inlet hose extension Extend the water inlet hose for
WMZ2381
cold water or AquaStop (approx.
2.50 m).
Fixing brackets Improves the stability of the ap-
WMZ2200
pliance.
Longer water inlet hose Replace the standard water in-
00353925
let hose with a longer hose
(2.20 m).
Elbow Secure the water outlet hose in
00655300
place.
Liquid detergent insert Measure liquid detergent. 00637516
Before using for the first time
Before using for the
first time
Prepare the appliance for use.
Starting an empty washing cycle
Your appliance was inspected thoroughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Turn the programme selector to
Bawełna 90°.
2. Close the door.
3. Pull out the detergent drawer.
27
en Laundry
4. Pour approx. 1 litre of tap water
into compartment II.
5. Pour washing powder into com-
partmentII.
To prevent foaming, use only half
of the amount of detergent recommended by the detergent manufacturer for light soiling. Do not use
detergent suitable for woollens or
delicates.
6. Push in the detergent drawer.
7. Press / Dodaj pranie (Start/
Reload) to start the programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: "End".
8. Start the first wash cycle or set the
programme selector to
Wyłączenie to switch off the appliance.
→"Basic operation", Page31
Laundry
Laundry
You can wash all items that the manufacturer has marked as machinewashable on the care label and fabrics made from hand-washable wool
using your appliance.
Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶
Remove all items from any pockets in your laundry before using
the appliance.
▶
To protect your appliance and the
laundry, prepare the laundry beforehand.
– Empty all pockets
– Brush sand out of all collars and
pockets
– Close bed covers and cushion
covers
– Close all zips, Velcro fasteners,
hooks and eyes
– Tie cloth belts and apron strings
together or use a mesh laundry
bag
– Remove curtain hooks and lead
strips or use a mesh laundry
bag
28
Laundry en
– Use a mesh laundry bag for
small items of laundry such as
children's socks
– Separate items of laundry and
shake them out
– Wash large and small items of
laundry together
– Dab fresh stains with soapy wa-
ter (do not rub them)
– Some stubborn or dried-in stains
can be removed by washing
several times
▶
To improve washing results and
prevent discolouration, sort the
laundry according to the following
criteria before washing.
– Type of fabric and fibre type
– Whites
– Colours
Wash new coloured items
separately the first time you
wash them.
– Soiling →Page29
– Care symbols on the care labels
→Page29
Sorting laundry
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
Degrees of soiling
Degree of soiling Soiling Examples
Light ¡ No dirt or stains are visible
¡ Laundry has absorbed odours
Normal Dirt or light stains are visible ¡ T-shirts, shirts or blouses are
Heavy Dirt or stains are clearly visible Tea towels, baby items or work
Light summer clothing or sports
clothing that has been worn for a
just a few hours
sweat-soaked or have been
worn a few times
¡ Towels or bedding that has
been used for up to one week
clothing
Care symbols on the care labels
The symbols indicate the recommended programme and the numbers in the
symbols indicate the maximum recommended washing temperature.
Symbol Washing process Recommended programme
Normal Cottons
Gentle Easy Care
Particularly gentle Delicates/Silk for washing by
hand
Hand wash Wool
29
en Detergents and care products
Symbol Washing process Recommended programme
Not suitable for machine-washing –
Tip:You can find more information
about care symbols at www.ginetex.ch.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
Detergents and care products
Detergents and care
products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products. You can use all detergents
and care products which are suitable
for domestic washing machines.
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
¡ Only use liquid detergents that are
self-flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products which have
developed a top layer or are highly
congealed
¡ Do not use products containing
solvents, caustic agents or volatile
substances (e.g. bleach)
¡ Use dyes sparingly as salt may
damage stainless steel
¡ Do not use bleaching agents in the
appliance
Detergent recommendation
This information helps you to choose the right detergent for your fabrics.
Detergent Fabrics Programme Temperature
Standard detergent with optical brighteners
Detergent for colours
without bleach or optical
brighteners
Detergent for colours/delicates without optical brighteners
Detergent for delicates Delicate fabrics made from
Detergent for woollens Wool Wool From cold up to 40°C
Heat-resistant white fabrics
made from cotton or linen
Coloured fabrics made from
linen or cotton
Coloured fabrics made from
easy-care fibres or synthetic
materials
silk or viscose
Cottons From cold up to 90°C
Cottons From cold up to 60°C
Easy Care From cold up to 60°C
Delicates/Silk From cold up to 40°C
Tip:Visit www.cleanright.eu to find
further information on detergents,
care products and cleaning agents
for domestic use.
30
Detergent dosage
Basic operation en
Use the correct detergent dosage to
achieve optimal washing results and
save resources.
The detergent dosage depends on:
¡ The amount of laundry
¡ Water hardness
You can find out how hard your
water is from your local water company or measure it yourself using
a water hardness tester.
¡ Degree of soiling
Water hardness
Hardness range Total hardness in mmol/l German degrees in °dH
soft (I) 0–1.5 0–8.4
medium (II) 1.5– 2.5 8.4–14
hard (III) over 2.5 over 14
Example of a manufacturer's
instructions for detergent
These example values refer to a
standard load of 4–5 kg.
Soiling Light Normal Heavy
Water hardness: Soft/medium 40ml 55ml 80ml
Water hardness: Hard/very hard 55ml 80ml 105ml
The dosages can be found on the
manufacturer's packaging.
¡ Adjust the dosage to the actual
load.
Basic operation
Basic operation
You can find out everything you need
to know about operating your appliance here.
Switching on the appliance
▶
Turn the programme selector to a
programme.
Setting a programme
1. Set the programme selector to the
required programme →Page24.
31
en Basic operation
1
2
2. If necessary, adjust the pro-
gramme settings →Page32.
Adjusting the programme settings
Depending on the programme and
programme progress, you can adjust
or activate/deactivate the settings.
Note:Overview of all programme settings:
→"Buttons", Page23
Requirement:A programme has
been set.
▶
Adjust the programme settings.
The programme settings are not
saved permanently for the programme.
Loading laundry
Notes
¡ Please read the information in the
Safety →Page4 and Preventing
material damage →Page11 sections to ensure that you use the
appliance safely.
¡ To prevent creasing, take note of
the maximum load for the relevant
programme →Page24.
Requirement:Prepare and sort the
laundry.
→"Laundry", Page28
1. Open the door.
2. Ensure that the drum is empty.
3. Separate the laundry and place it
in the drum.
4. Note:Ensure that there is no laun-
dry trapped in the door.
Close the door.
Using a measuring aid for liquid detergent
If you order the measuring aid as an
accessory, you must use the measuring aid.
1. Press down on the insert and re-
move the detergent drawer.
2. Insert the measuring aid.
32
3. Insert the detergent drawer.
Adding detergent and care product
Notes
¡ Please read the information in the
Safety →Page4 and Preventing
material damage →Page11 sections to ensure that you use the
appliance safely.
¡ Do not use the measuring aid for
liquid detergent for gel detergents,
washing powder, or if Prewash or
"Ready in" time are activated.
Requirement:Find out the optimum
dosage for detergent and care
product. →Page30
1. Pull out the detergent drawer.
2. Pour in detergent.
→"Detergent drawer", Page20
3. If required, add the care product.
4. Push in the detergent drawer.
Basic operation en
Starting the programme
Note:If you want to change the time
until the programme ends, set the
"Ready in" time first.
▶
Press / Dodaj pranie.
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows either the pro-
gramme duration or the "Ready in"
time.
a After the programme has ended,
the display shows: "End".
Soaking laundry
You can soak the laundry before
washing in the appliance by pausing
the programme.
Note:No additional detergent is required. The washing solution is then
used for washing.
1. Start the programme.
2. To pause the programme, after ap-
prox. 10 minutes, press /
Dodaj pranie.
3. To resume the programme, after
the desired soaking time, press
/ Dodaj pranie.
Adding laundry
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Press / Dodaj pranie.
The appliance is paused and
checks whether it is possible to
add or remove laundry. Take note
of the programme status.
→"Display", Page21
2. Add or remove laundry.
3. Close the door.
33
en Basic operation
4. Press / Dodaj pranie.
Cancelling the programme
Once the programme has started,
you can cancel it at any time.
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Press / Dodaj pranie.
2. Open the door.
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Płukanie programme.
– If the water level is high: Start
the Wirowanie or Odpompow-
anie programme.
3. Remove the laundry.
Resuming the programme when the programme status is Rinse Hold
1. Set the Wirowanie or Odpompow-
anie programme.
2. Press / Dodaj pranie.
Switching off the appliance
1. Turn the programme selector to
Wyłączenie.
2. Turn off the tap.
3. Wipe the rubber gasket dry and re-
move any foreign objects.
Unloading the laundry
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Open the door.
2. Remove the laundry.
34
4. Leave the door and detergent
drawer open so that residual water
can evaporate.
Childproof lock
Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
Activating the childproof lock
▶
Press and hold the two 3 sek.
buttons for approx. 3seconds.
a The display shows .
a The controls are locked.
a The childproof lock remains active
even after the appliance has been
switched off.
Deactivating the childproof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶
Press and hold the two 3 sek.
buttons for approx. 3seconds.
So that the programme currently
running is not cancelled, the programme selector must be set to
the initial programme.
a goes out in the display.
Childproof lock en
35
en Basic settings
Basic settings
Basic settings
You can configure the appliance to meet your needs.
Overview of the basic settings
Below is an overview of the basic settings on your appliance.
Basic setting Programme pos-
Value Description
ition
End signal 2 0 (off)
1 (quiet)
2 (medium)
3 (loud)
4 (very loud)
Button signal 3 0 (off)
1 (quiet)
2 (medium)
3 (loud)
4 (very loud)
Changing the basic settings
1. Set the programme selector to po-
sition 1.
Set the volume of the signal at the end of
the programme.
The volume of the audible signal emitted
when the buttons are pressed.
36
Cleaning and servicing en
1
2
2. Press / Dodaj pranieand, at
the same time, turn the programme selector to position2.
a The display shows the current
value.
3. Set the programme selector to the
required position.
→"Overview of the basic settings",
Page36
4. To change the value, press Go-
towe za.
5. To save the changes, switch off
the appliance.
Cleaning and servicing
Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important
to clean and maintain it carefully.
Tips on appliance care
Follow the tips for appliance care to
ensure your appliance works correctly in the long term.
Wipe down the housing and the control
panel with nothing but
water and a damp
cloth.
Remove all detergent
residue, spray residue
or other residues immediately.
Keep the appliance
door and detergent
drawer open after
use.
The appliance parts
remain clean and hygienic.
Fresh deposits are
easier to remove
without leaving any
residue.
This allows the residual water to dry, reducing odours in the appliance.
Cleaning the drum
If you often wash at a washing temperature of 40°C and lower or the
appliance has not been used for a
long period, clean the drum.
▶
Run the Bawełna 90° programme
without laundry.
Add washing powder.
Cleaning the detergent drawer
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Pull out the detergent drawer.
2. Press down on the insert and re-
move the detergent drawer.
3. Press out the insert upwards from
below.
37
en Cleaning and servicing

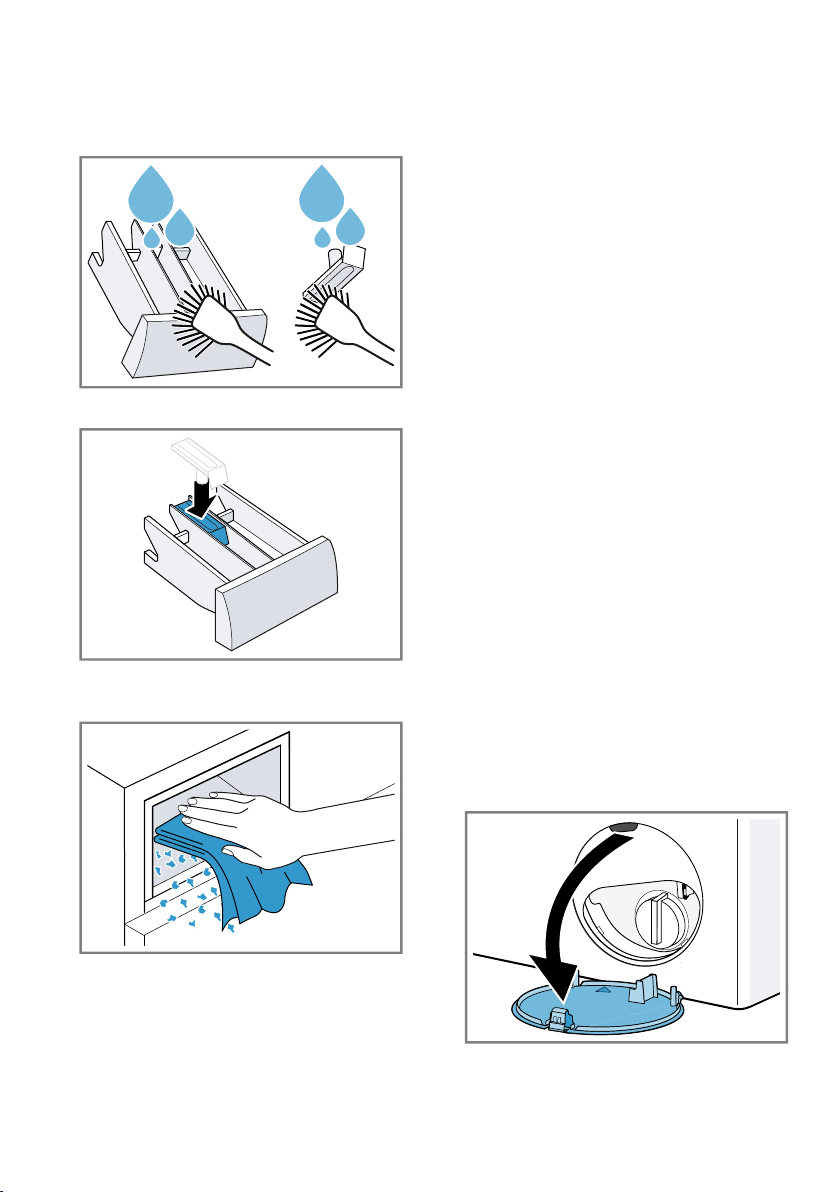

4. Clean the detergent drawer and in-
sert with water and a brush, and
then dry them.
5. Fit the insert and lock it into place.
6. Cleaning the opening for the deter-
gent drawer.
Descaling
If you add detergent correctly, you do
not need to descale your appliance.
If you still wish to use descaler, follow
the manufacturer's instructions for
use.
ATTENTION!
The use of unsuitable descaling
agents, e.g. for coffee machines, may
damage the appliance.
▶
For this appliance, only use descaling agents that are available
from the manufacturer's website or
our after-sales service.
Cleaning the drain pump
Clean the drain pump in the event of
faults, e.g. blockages or rattling
noises.
Emptying the drain pump
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
1. Turn off the water tap.
2. Switch off the appliance.
3. Disconnect the appliance's mains
plug from the power supply.
4. Open the maintenance flap.
7. Push in the detergent drawer.
38
5. Push a receptacle under the open-
ing.
Cleaning and servicing en
6. To allow the detergent solution to
flow out into the container, remove
the pump cap carefully.
Cleaning the drain pump
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
Requirement:The drain pump is
empty. →Page38
1. Since water may remain in the
drain pump, unscrew the pump
cap carefully.
‒ The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
2. Clean the interior, the thread on
the pump cap and the pump housing.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
3. Make sure that the impeller in the
drain pump can be rotated.
4. Ensure that the parts of the pump
cap are correctly assembled.
5. Insert the pump cap and screw it
on.
39
en Cleaning and servicing
90°
1
1
2
The handle on the pump cap must
be in a vertical position.
6. Insert the maintenance flap and
lock it into place.
7. Close the maintenance flap.
Cleaning the water outlet hose at the siphon
If the water outlet hose at the siphon
is dirty or the detergent solution is
not being pumped out, you must
clean these.
1. Switch off the appliance.
2. Disconnect the appliance's mains
plug from the power supply.
3. Loosen the hose clamp and care-
fully remove the water outlet hose.
Residual water may leak out.
4. Clean the water outlet hose and si-
phon connecting piece.
Before the next wash
To prevent unused detergent from
flowing straight into the outlet in the
next wash, run the Odpompowanie
programme after you have emptied
the drain pump.
1. Turn on the tap.
2. Insert the mains plug.
3. Switch on the appliance.
4. Pour 1litre of water into compart-
ment II.
5. Start the Odpompowanie pro-
gramme.
40
5. Reattach the water outlet hose and
secure the connection point using
the hose clamp.
Clean the water inlet filters.
Clean the filter in the water inlet in
the event of blockages or if the water
pressure is too low.
Emptying the water inlet hose
1. Turn off the tap.
2. Set a programme, except for
Płukanie, Wirowanie or Odpompowanie.
3. Start the programme and leave it
to run for approx. 40seconds.
4. Switch off the appliance.
5. Disconnect the appliance's mains
plug from the power supply.
Cleaning and servicing en
2. Clean the filter with a small brush.
3. Connect the water inlet hose and
check for leaks.
Cleaning the filter on the tap
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
Requirement:The water inlet hose is
empty.
1. Remove the water inlet hose from
the tap.
Cleaning the filter on the appliance
Note:Please read the information in
the Safety →Page4 and Preventing
material damage →Page11 sections
to ensure that you use the appliance
safely.
41
en Cleaning and servicing
1
2
2
1
Requirement:The water inlet hose is
empty.
→"Emptying the water inlet hose",
Page41
1. Disconnect the hose from the rear
of the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Reinsert the filter.
5. Connect the hose and check for
leaks.
42
Troubleshooting en
Troubleshooting
Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
▶
Repairs to the appliance should only be carried out by trained specialist
staff.
▶
Only use genuine spare parts when repairing the appliance.
▶
If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Error code / Fault display / Signal
Fault Cause troubleshooting
The display goes out and
/ Dodaj pranie flashes.
Energy-saving mode is active
"E:36 / -10" Drain pipe or water outlet
hose is blocked.
Drain pipe or water drain
hose is caught or jammed.
Drain pump is blocked.
The water outlet hose is connected too high.
Pump cover is not correctly
assembled.
"E:36 / -25 / -26" Drain pump is blocked.
▶
Press any button.
a The symbol lights up again.
▶
Clean the drain pipe and the water
outlet hose.
▶
Ensure that the drain pipe and water drain hose are not kinked or
trapped.
▶
→"Cleaning the drain pump",
Page38
▶
Install the water outlet hose at a
maximum height of 1 metre.
→"Technical specifications",
Page54
▶
Correctly assemble the pump
cover.
→"Cleaning the drain pump",
Page39
▶
→"Cleaning the drain pump",
Page38
43
en Troubleshooting
Fault Cause troubleshooting
"E:60 / -2B" The unbalanced load detec-
tion system has interrupted
the spin cycle because the
laundry is unevenly distributed.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
The water pressure is low. No remedial action possible.
The filters in the water inflow
are blocked.
The tap is turned off.
The water inlet hose is
kinked or jammed.
▶
Clean the filters in the water inflow
→Page41.
▶
Turn on the tap.
▶
Ensure that the water inlet hose is
not kinked or jammed.
lights up. The temperature is too high.▶Wait until the temperature has
dropped.
▶
→"Cancelling the programme",
Page34
Water level is too high.
▶
Start the Odpompowanieprogramme.
Laundry is caught in the
door.
1. Open the door again.
2. Remove any trapped laundry.
3. Close the door.
4. Press / Dodaj pranie to start
the programme.
flashes. Door is not closed. 1. Close the door.
2. Press / Dodaj pranie to start
the programme.
All other error codes. Malfunction
▶
Call the after-sales service.
→"Customer Service", Page52
Malfunctions
Fault Cause troubleshooting
The appliance is not working.
44
The mains plug of the power
cord is not plugged in.
The circuit breaker is faulty.
There has been a power cut.▶Check whether the lighting in your
▶
Connect the appliance to the power
supply.
▶
Check the circuit breaker in the
fuse box.
kitchen or other appliances are
working.
Fault Cause troubleshooting
The programme does not
start.
You have not pressed /
Dodaj pranie.
▶
Press / Dodaj pranie.
Door is not closed. 1. Close the door.
2. Press / Dodaj pranie to start
the programme.
Childproof lock is activated.
▶
→"Deactivating the childproof
lock", Page35
Gotowe za is activated.
▶
Check whether Gotowe za is activated.
→"Buttons", Page23
Laundry is caught in the
door.
1. Open the door again.
2. Remove any trapped laundry.
3. Close the door.
4. Press / Dodaj pranie to start
the programme.
The door cannot beopened. ––– is activated.
▶
Continue the programme by selecting Wirowanie or Odpompowanie
and pressing / Dodaj pranie.
→"Resuming the programme when
the programme status is Rinse
Hold", Page34
The temperature is too high.▶Wait until the temperature has
dropped.
▶
→"Cancelling the programme",
Page34
Water level is too high.
▶
Start the Odpompowanieprogramme.
Power failure.
▶
Open the door using the emergency
release.
→"Emergency release", Page50
The water is not draining. Drain pipe or water outlet
hose is blocked.
Drain pipe or water drain
hose is caught or jammed.
▶
Clean the drain pipe and the water
outlet hose.
▶
Ensure that the drain pipe and water drain hose are not kinked or
trapped.
Drain pump is blocked.
▶
→"Cleaning the drain pump",
Page38
––– is activated.
▶
Continue the programme by selecting Wirowanie or Odpompowanie
and pressing / Dodaj pranie.
Troubleshooting en
45
en Troubleshooting
Fault Cause troubleshooting
The water is not draining. →"Resuming the programme when
the programme status is Rinse
Hold", Page34
The water outlet hose is connected too high.
▶
Install the water outlet hose at a
maximum height of 1 metre.
→"Technical specifications",
Page54
Pump cover is not correctly
assembled.
▶
Correctly assemble the pump
cover.
→"Cleaning the drain pump",
Page39
Water is not flowing in. Detergent is not being dispensed.
The spin cycle runs several
times.
You have not pressed /
Dodaj pranie.
The filters in the water inflow
are blocked.
The tap is turned off.
The water inlet hose is
kinked or jammed.
The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.
▶
Press / Dodaj pranie.
▶
Clean the filters in the water inflow
→Page41.
▶
Turn on the tap.
▶
Ensure that the water inlet hose is
not kinked or jammed.
▶
Not a fault – no action required.
Note:When loading, where possible,
place large and small items of laundry
together in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
The programme duration
changes during the wash
cycle.
The programme operation is
optimised electronically.
This may change the pro-
▶
Not a fault – no action required.
gramme duration.
The unbalanced load detec-
tion system eliminates an imbalance by repeatedly redistributing the laundry.
▶
Not a fault – no action required.
Note:When loading, where possible,
place large and small items of laundry
together in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
Foam detection system
▶
Not a fault – no action required.
switches on a rinse cycle if
foam build-up is too high.
No water is visible in the
drum.
Drum jerks after the programme starts.
Water is below the visible
area.
This is caused by an internal
motor test.
▶
Not a fault – no action required.
▶
Not a fault – no action required.
46
Fault Cause troubleshooting
Residual water is present in
the compartment .
Vibrations and movement of
the appliance whilst spinning.
Insert in compartment is
blocked.
Appliance is not correctly
aligned.
The appliance feet are not
fixed.
Transit bolts have not been
▶
→"Cleaning the detergent drawer",
Page37
▶
Aligning the appliance
▶
Secure the appliance feet. Aligning
the appliance
▶
Removing the transit bolts
removed.
Drum does not turn, water
does not flow in.
Load detection is active.
▶
Not a fault – no action required.
Note:The load detection can take up
to two minutes.
Heavy foam build-up Detergent dosage is too
high.
▶
Immediate measure: Mix one table-
spoon of fabric softener with 0.5
litres of water and pour the mixture
into the left-hand compartment (not
for outdoor clothing, sportswear or
items stuffed with down).
▶
Reduce the amount of detergent for
the next washing cycle with the
same load.
Troubleshooting en
Noise
Fault Cause troubleshooting
Rushing, hissing noise. Water is flushed under pres-
sure into the detergent
drawer.
Loud noises during the spin
cycle.
Appliance is not correctly
aligned.
The appliance feet are not
fixed.
Transit bolts have not been
removed.
Banging noises, rattling in
the drain pump.
Slurping, rhythmical suction
noise.
Foreign bodies have got into
the drain pump.
The drain pump is active, the
detergent solution is
pumped out.
▶
Not a fault – normal operating
noise.
▶
Aligning the appliance
▶
Secure the appliance feet. Aligning
the appliance
▶
Removing the transit bolts
▶
→"Cleaning the drain pump",
Page38
▶
Not a fault – normal operating
noise.
47
en Troubleshooting
Problem with results
Fault Cause troubleshooting
Creasing. The spin speed is too high.
The load is too large.
The wrong programme is selected for the type of fabric.
Detergent or fabric softener
drips off the seal and collects on the door or in the
Too much detergent/fabric
softener in the detergent
drawer.
seal fold.
The spin result is not satis-
A low spin speed is selected.▶The next time you run a wash cycle,
factory. The laundry is too
wet/too damp.
The unbalanced load detection system has interrupted
the spin cycle because the
laundry is unevenly distributed.
Detergent residue on the
damp washing.
Detergents may contain water-insoluble substances that
deposit on the laundry.
Detergent residue on the dry
laundry.
Detergents may contain water-insoluble substances that
deposit on the laundry.
▶
The next time you run a wash cycle,
set a lower spin speed.
▶
The next time you run a wash cycle,
reduce the amount of laundry being
loaded.
▶
Select the programmes that are
suitable for the type of fabric.
→"Programmes", Page24
▶
When dosing liquid detergent and
fabric softener, observe the mark-
ing in the detergent drawer and do
not dose above this.
set a higher spin speed.
▶
Start the Wirowanieprogramme.
▶
Redistribute the laundry in the
drum.
Note:Where possible, mix large and
small items in the drum. Different sized
items of laundry distribute themselves
better during the spin cycle.
▶
Start the Wirowanieprogramme.
▶
Start the Płukanieprogramme.
▶
Brush out the laundry after washing
and drying.
Leakage
Fault Cause troubleshooting
Water is leaking out at the
water inlet hose.
Water is leaking out at the
water outlet hose.
48
Water inlet hose is not correctly/securely connected.
The water outlet hose is
damaged.
1. Connect the water supply hose cor-
rectly. Connecting the water inlet
hose
2. Tighten the screw connection.
▶
Replace the damaged water outlet
hose.
Fault Cause troubleshooting
Water is leaking out at the
water outlet hose.
Water outlet hose is not connected correctly.
▶
Connect the water outlet hose cor-
rectly. Water outlet connection
types
Odours
Fault Cause troubleshooting
Odours have formed in the
appliance.
Humidity and detergent
residue may promote the
formation of bacteria.
▶
→"Cleaning the drum", Page37
▶
If you are not using the appliance,
leave the door and detergent
drawer open so that residual water
can evaporate.
Troubleshooting en
49
en Transportation, storage and disposal
Emergency release
To remove the laundry in the event of
a power failure, for example, you can
manually release the door.
Releasing the door
Requirement:The drain pump is
empty. →Page38
1. ATTENTION! Escaping water may
cause material damage.
▶
Do not open the door if you can
see water through the glass.
Pull the emergency release downwards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.
4. Unplug the appliance's mains plug.
5. Drain the remaining detergent
solution.
→"Cleaning the drain pump",
Page38
6. Detach the hoses.
Inserting the transit bolts
Secure the appliance for transportation using transit bolts in order to prevent damage.
1. Remove the four cover caps.
‒ If necessary, use a screwdriver
to remove the cover caps.
Keep the cover caps.
2. Insert the four sleeves.
Transportation, storage and disposal
Transportation, storage
and disposal
You can find out here how to prepare
your appliance for transportation and
storage. You will also find out how to
dispose of old appliances.
Removing the appliance
1. Turn off the tap.
2.
→"Emptying the water inlet hose",
Page41.
3. Switch off the appliance.
50
3. Insert all screws into the four
transit bolts and tighten slightly.
Transportation, storage and disposal en
1
2
3. Start the Odpompowanie pro-
gramme.
a The unused detergent cannot flow
straight into the outlet during the
next wash.
Disposing of old appliance
Valuable raw materials can be reused by recycling.
4. Insert the power cord into the
holder and tighten all four
screws for the transit bolts with a
WAF 13 wrench .
5. Insert the hose into holder.
Using the appliance again
1. Remove the transit bolts.
2. Pour approx. 1 litre of water into
compartment II in the detergent
drawer.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶
Do not install the appliance behind
a door as this may obstruct the appliance door or prevent it from
opening.
▶
With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning
used electrical and electronic
appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the
framework for the return and recycling of used appliances as
applicable throughout the EU.
51
en Customer Service
Customer Service
Customer Service
If you have any queries on use, are
unable to rectify faults on the appliance yourself or if your appliance
needs to be repaired, contact Customer Service.
You can solve many problems yourself by consulting the information on
eliminating faults in this instruction
manual or on our website. If this is
not the case, contact our Customer
Service.
We will always find an appropriate
solution and try to avoid unnecessary
visits being made by a Customer Service technician.
With any warranty claims we will
make sure that your appliance is repaired by trained Customer Service
technicians using original spare
parts, including after the manufacturer's warranty has expired.
For safety reasons repairs to the appliance should only be carried out by
trained specialist staff. The warranty
claim becomes void if repairs or interventions have been carried out by
persons not authorised by us for that
purpose or if our appliances have
been fitted with spare, supplementary
or accessory parts that were not
genuine parts and then resulted in a
defect.
Function-relevant genuine spare parts
according to the corresponding Ecodesign Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.
Detailed information on the warranty
period and terms of warranty in your
country is available from our Customer Service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (ENr.) and the production number (FD)
of your appliance.
The contact details for Customer Service can be found in the enclosed
Customer Service directory or on our
website.
Product number (E-Nr.) and production number (FD)
You can find the product number (ENr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's details and the Customer Service telephone number to find them again
quickly.
52
Consumption values en
Consumption values
Consumption values
The following information is given according to the EU-Ecodesign-Regulation.
The values given for programs other than the Eco 40-60 are indicative only and
have been determined in accordance with the applicable standard EN60456.
Programme Load
(kg)
Eco 40-60
Eco 40-60
Eco 40-60
2
2
2
7,0 3:20 1,048 58,0 46 1000 60
3,5 2:38 0,584 43,0 36 1000 61
2,0 2:33 0,292 30,0 24 1000 66
Programme
duration
(hr:min)
1
Energy
consumption
(kWh/
cycle)
Water
consumption (l/
cycle)
1
1
Maximum
temperature
(°C) 5
1
mins
Spin
speed
(rpm)
1
Residual
moisture (%)
Bawełna20°C 7,0 2:59 0,290 80,0 23 1000 63
Bawełna40°C 7,0 2:59 1,050 80,0 44 1000 63
Bawełna60°C 7,0 2:59 1,300 80,0 56 1000 63
Bawełna Pranie
7,0 3:29 1,070 80,0 44 1000 63
wstęp.40°C
Syntetyki40°C 4.0 2:29 0,770 63,0 43 1000 35
Mix szybki40°C 4.0 1:00 0,620 44,0 41 1000 65
Wełna 30°C 2.0 0:41 0,220 40,0 22 800 25
1
Due to the influence of water pressure, hardness and inlet temperature, ambient temperature,
type, amount and soiling of laundry, detergent used, fluctuations in the power supply and the selected additional functions, the actual values may deviate from the stated values.
2
Test programme in accordance with the EU Ecodesign Directive and the EU Energy Labelling Regulation with cold water (15°C).
Technical specifications
Technical specifications
Facts and figures for your appliance
can be found here.
Appliance height 85,0cm
Appliance width 60,0cm
Appliance depth 55,0cm
Weight 65 - 70kg
Maximum load capa-
7kg
city
1
Depending on the appliance specifications
1
Mains voltage 220 - 240V, 50Hz
Minimum installa-
10A
tion protection
Rated power 2300W
Power consumption ¡ Off mode: 0,12 W
¡ Left-on mode:
0,50W
Water pressure ¡ Minimum: 100kPa
(1bar)
¡ Maximum:
1000kPa (10bar)
1
Depending on the appliance specifications
1
53
en Technical specifications
Length of the water in-
150cm
let hose
Length of the water
150cm
outlet hose
Length of the power
160cm
cord
Max. draining height 100cm
Minimum draining
60cm
height
1
Depending on the appliance specifications
More information about your model
can be found online at https://energylabel.bsh-group.com1. This web
address is linked to the official EU
EPREL product database. At the time
of printing its web address had not
yet been published. Please then follow the instructions on searching for
models. The model identifier is made
up of the characters before the slash
in the product number (E-Nr.) on the
rating plate. Alternatively you can
also find the model identifier in the
first line of the EU energy label.
1
Only applies to countries in the European Economic Area
54
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
www.bosch-home.com
*9001538305*
9001538305 (000214)
en
Loading...
