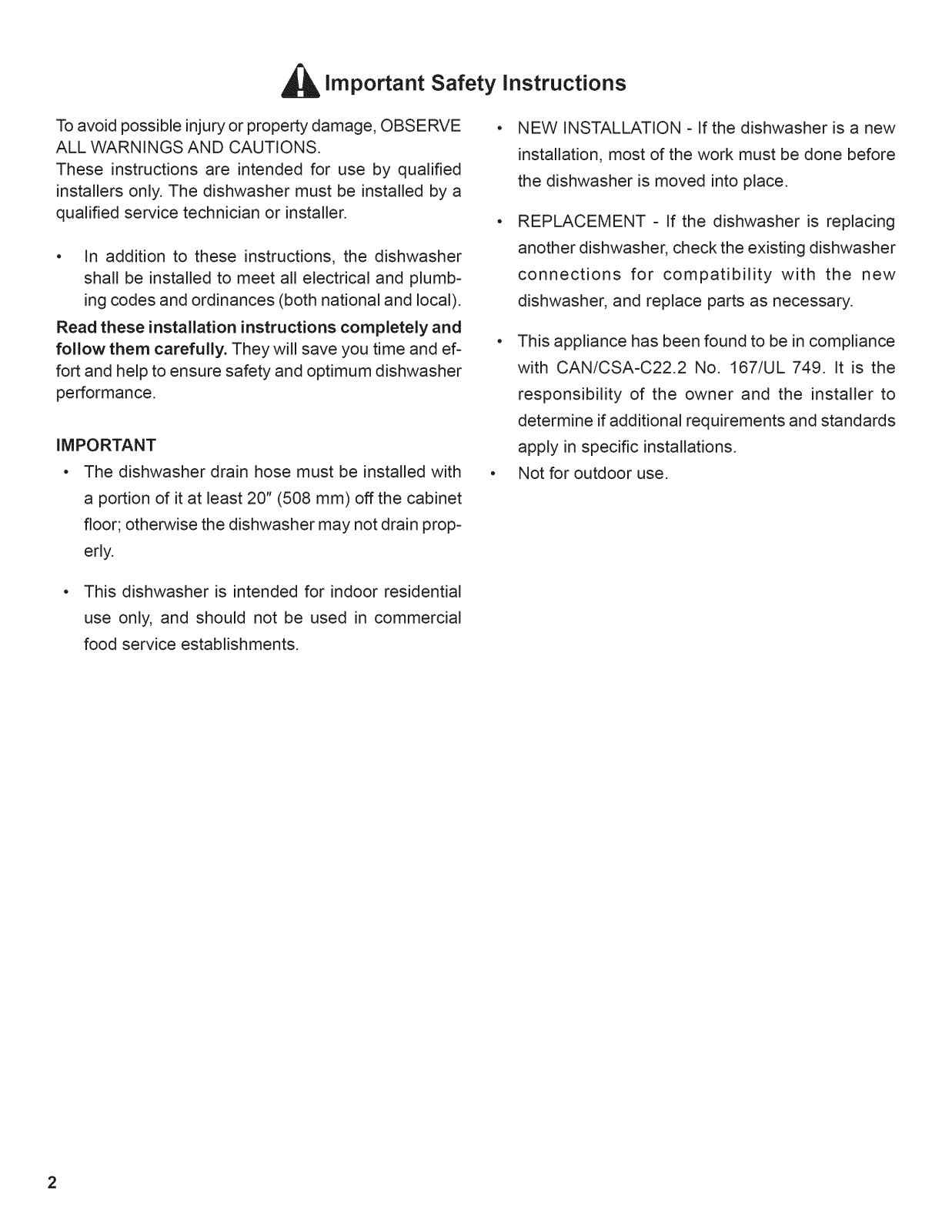

Important Safety instructions
To avoid possible injury or property damage, OBSERVE ALL WARNINGS AND CAUTIONS.
These instructions are intended for use by qualified installers only. The dishwasher must be installed by a qualified service technician or installer.
shall be installed to meet all electrical and plumb- ing codes and ordinances (both national and local).
Read these installation instructions completely and follow them carefully. They will save you time and ef- fort and help to ensure safety and optimum dishwasher performance.
IMPORTANT
, The dishwasher drain hose must be installed with
a portion of it at least 20" (508 mm) off the cabinet floor; otherwise the dishwasher may not drain prop- erly.
NEW INSTALLATION - If the dishwasher is a new installation, most of the work must be done before
the dishwasher is moved into place.
REPLACEMENT - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.
, This appliance has been found to be in compliance
with CAN/CSA-C22.2 No. 167/UL 749. It is the responsibility of the owner and the installer to
determine if additional requirements and standards apply in specific installations.
, Not for outdoor use.
This dishwasher is intended for indoor residential use only, and should not be used in commercial
food service establishments.
A

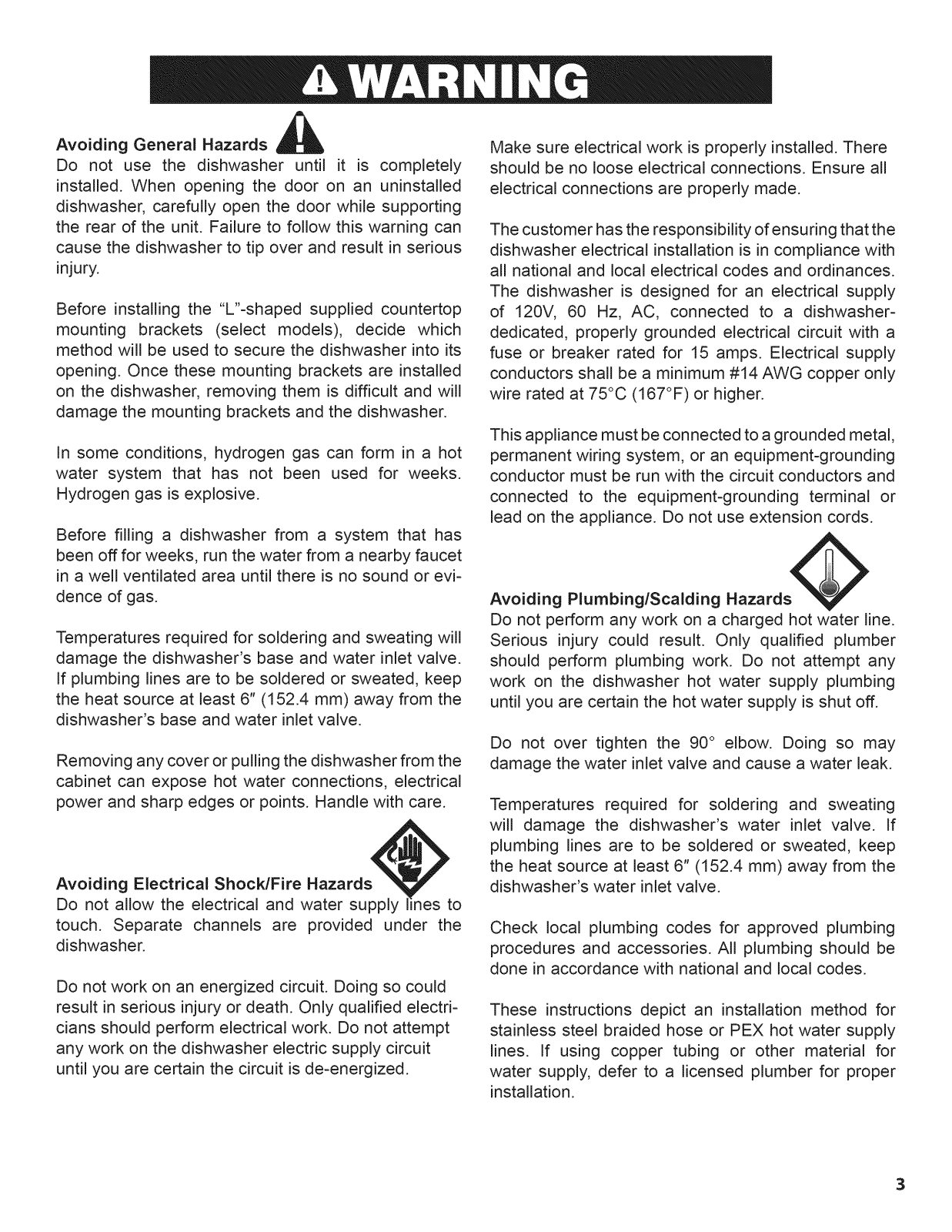

Avoiding General Hazards Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled
dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can cause the dishwasher to tip over and result in serious injury.
Before installing the "L"-shaped supplied countertop mounting brackets (select models), decide which
method will be used to secure the dishwasher into its opening. Once these mounting brackets are installed
on the dishwasher, removing them is difficult and will damage the mounting brackets and the dishwasher.
in some conditions, hydrogen gas can form in a hot water system that has not been used for weeks. Hydrogen gas is explosive.
Before filling a dishwasher from a system that has been off for weeks, run the water from a nearby faucet
in a well ventilated area until there is no sound or evi- dence of gas.
Temperatures required for soldering and sweating will damage the dishwasher's base and water inlet valve. If plumbing lines are to be soldered or sweated, keep the heat source at least 6" (152.4 mm) away from the
dishwasher's base and water inlet valve.
Removing any cover or pulling the dishwasher from the cabinet can expose hot water connections, electrical power and sharp edges or points. Handle with care.
Avoiding Electrical Shock/Fire Hazards .._. Do not allow the electrical and water supply lines to
touch. Separate channels are provided under the dishwasher.
Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualified electri-
cians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized.
Make sure electrical work is properly installed. There should be no loose electrical connections. Ensure all
electrical connections are properly made.
The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with
all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply
of 120V, 60 Hz, AC, connected to a dishwasher- dedicated, properly grounded electrical circuit with a
fuse or breaker rated for 15 amps. Electrical supply conductors shall be a minimum #14 AWG copper only wire rated at 75°C (167°F) or higher.
This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or
lead on the appliance. Do not use extension cords.
Avoiding Plumbing/Scalding Hazards'_
Do not perform any work on a charged hot water line.
Serious injury could result. Only qualified plumber should perform plumbing work. Do not attempt any
work on the dishwasher hot water supply plumbing until you are certain the hot water supply is shut off.
Do not over tighten the 90 ° elbow. Doing so may
damage the water inlet valve and cause a water leak.
Temperatures required for soldering and sweating will damage the dishwasher's water inlet valve. If plumbing lines are to be soldered or sweated, keep
the heat source at least 6" (152.4 mm) away from the dishwasher's water inlet valve.
Check local plumbing codes for approved plumbing procedures and accessories. All plumbing should be
done in accordance with national and local codes.
These instructions depict an installation method for stainless steel braided hose or PEX hot water supply lines. If using copper tubing or other material for
water supply, defer to a licensed plumber for proper installation.
3

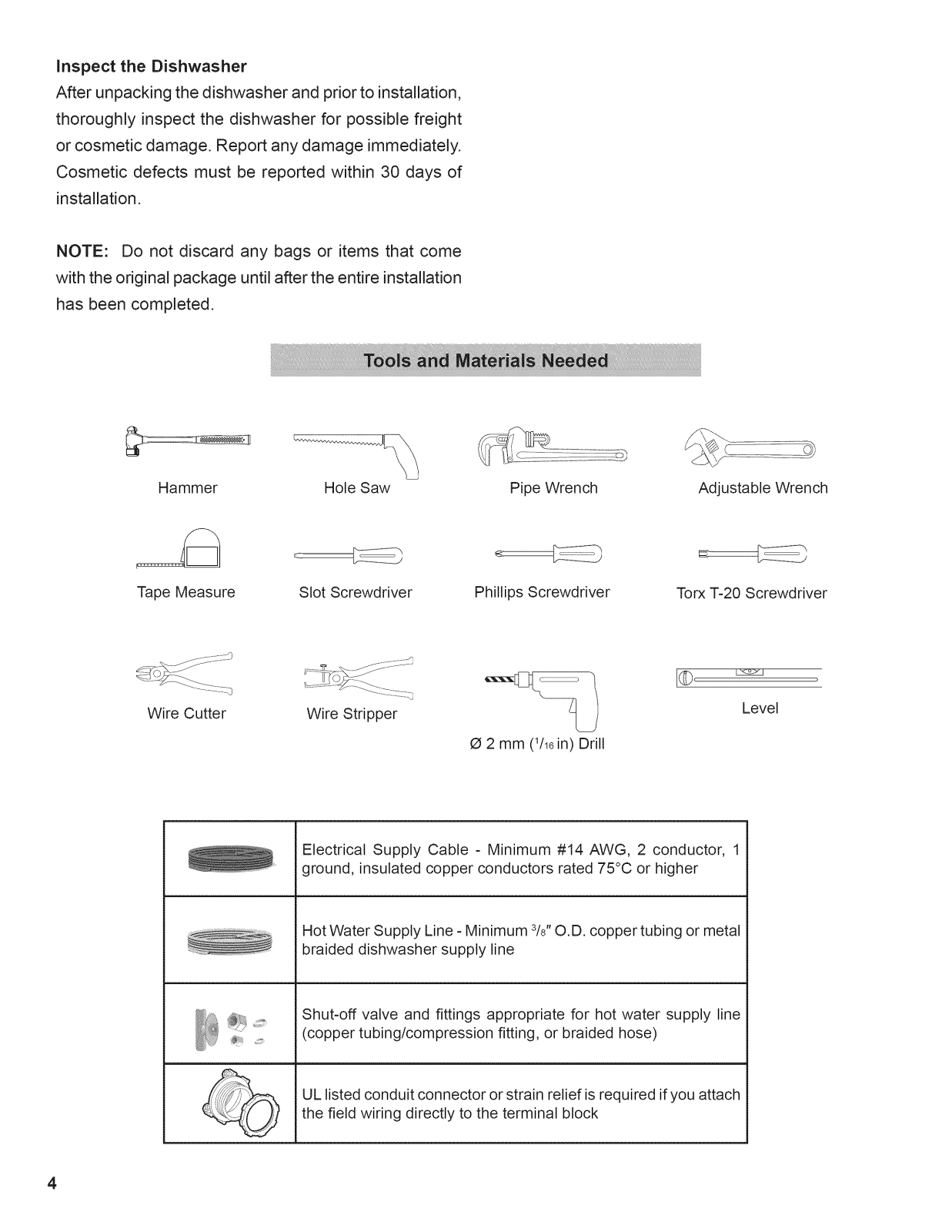

Inspectthe Dishwasher Afterunpackingthedishwasherandpriortoinstallation,
thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately. Cosmetic defects must be reported within 30 days of
installation.
NOTE: Do not discard any bags or items that come with the original package until after the entire installation has been completed.
Hammer
Tape Measure
Wire Cutter Wire Stripper
Hole Saw
Slot Screwdriver
Electrical Supply Cable - Minimum #14 AWG, 2 conductor, 1
ground, insulated copper conductors rated 75°C or higher
Hot Water Supply Line - Minimum 3/8"O.D. copper tubing or metal braided dishwasher supply line
Pipe Wrench
Phillips Screwdriver
O 2 mm (1/16in) Drill
Adjustable Wrench
Torx -I--20Screwdriver
Level
@/ii
Shut-off valve and fittings appropriate for hot water supply line (copper tubing/compression fitting, or braided hose)
UL listed conduit connector or strain relief is required if you attach the field wiring directly to the terminal block
O 4x17 mm
4xl 3 mm_

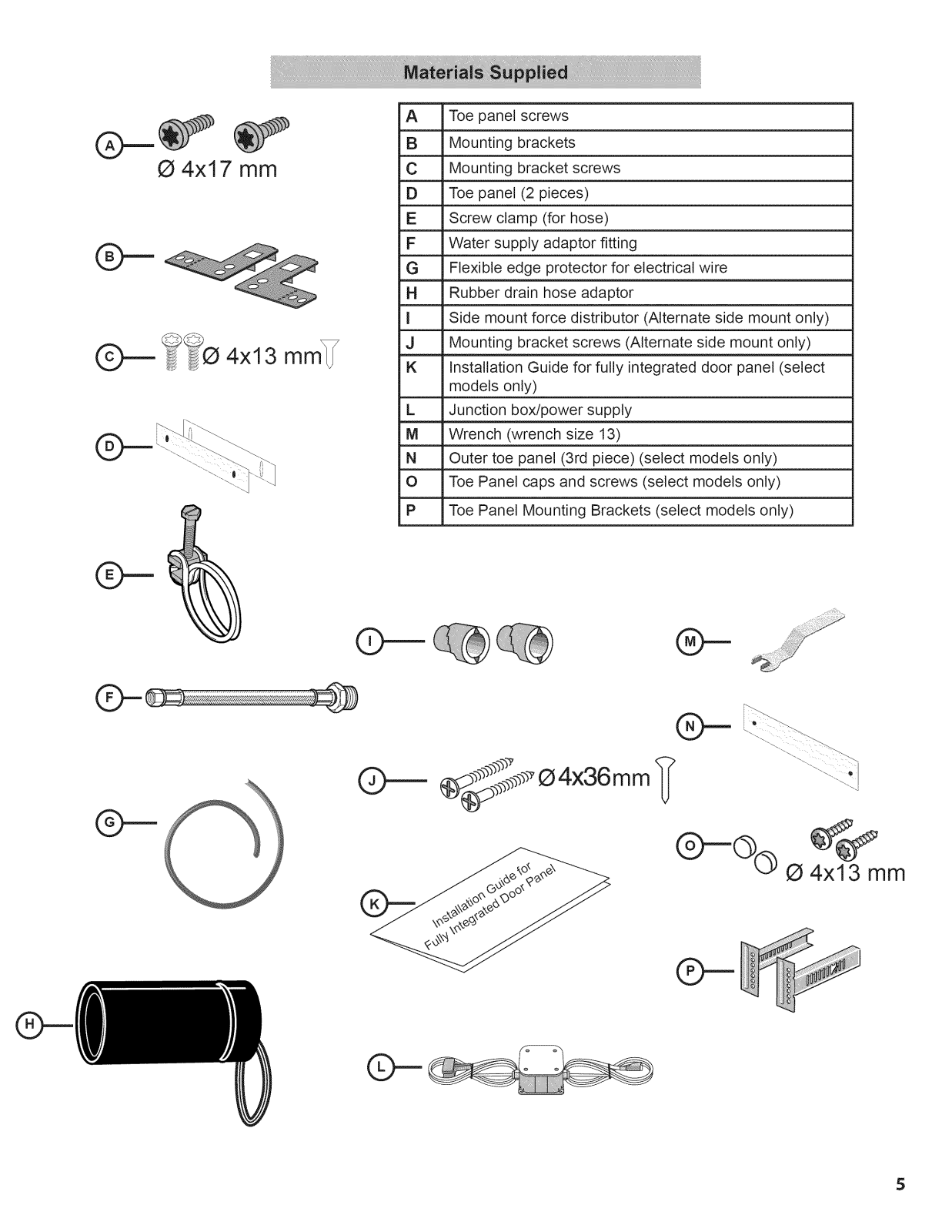

A Toe panel screws B Mounting brackets C Mounting bracket screws
D Toe panel (2 pieces) E Screw clamp (for hose) F Water supply adaptor fitting G Flexible edge protector for electrical wire H Rubber drain hose adaptor I Side mount force distributor (Alternate side mount only) J Mounting bracket screws (Alternate side mount only) K Installation Guide for fully integrated door panel (select
models only)
L Junction box/power supply M Wrench (wrench size 13)
N Outer toe panel (3rd piece) (select models only) O Toe Panel caps and screws (select models only)
P Toe Panel Mounting Brackets (select models only)
O 4x13 mm
5
