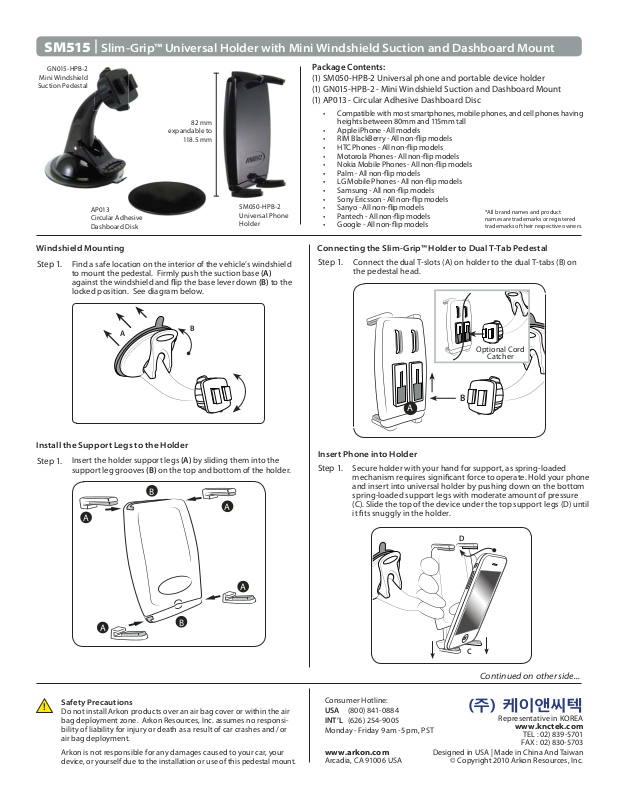

SM515 | Slim-Grip™ Universal Holder with Mini Windshield Suction and Dashboard Mount
GN015-HPB-2
Mini Windshield
Suction Pedestal
Step 1.
Find a safe location on the interior of the vehicle’s windshield
to mount the pedestal. Firmly push the suction base (A)
against the windshield and fl ip the base lever down (B) to the
locked position. See diagram below.
AP013
Circular Adhesive
Dashboard Disk
A
82 mm
expandable to
118 .5 mm
B
SM050-HPB-2
Universal Phone
Holder
Package Contents:
(1) SM050-HPB-2 Universal phone and portable device holder
(1) GN015-HPB-2 - Mini Windshield Suction and Dashboard Mount
(1) AP013 - Circular Adhesive Dashboard Disc
Compatible with most smartphones, mobile phones, and cell phones having •
heights bet ween 80mm and 115mm tall
Apple iPhone - All models•
RIM BlackBerry - All non-fl ip models•
HTC Phones - All non-fl ip models•
Motorola Phones - All non-fl ip models•
Nokia Mobile Phones - All non-fl ip models•
Palm - All non-fl ip models•
LG Mobile Phones - All non-fl ip models•
Samsung - All non-fl ip models•
Sony Ericsson - All non-fl ip models•
Sanyo - All non-fl ip models•
Pantech - All non-fl ip models•
Google - All non-fl ip models•
*All brand nam es and product
names are t rademarks or r egistered
trademarks of their respective owners.
Connecting the Slim-Grip™ Holder to Dual T-Tab PedestalWindshield Mounting
Step 1.
Connect the dual T-slots (A) on holder to the dual T-tabs (B) on
the pedestal head.
Optional Cord
Catcher
Install the Support Legs to the Holder
Step 1.
Insert the holder support legs (A) by sliding them into the
support leg grooves (B) on the top and bottom of the holder.
B
A
A
B
A
B
Insert Phone into Holder
Step 1.
Secure holder with your hand for support, as spring-loaded
mechanism requires signifi cant force to operate. Hold your phone
and insert into universal holder by pushing down on the bottom
spring-loaded support legs with moderate amount of pressure
A
(C). Slide the top of the device under the top support legs (D) until
it fi ts snuggly in the holder.
D
A
C
Continued on other side...
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsibility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Frid ay 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
࣬৹ࢄߔ
Representative in KOREA
www.knctek.com
TEL : 02) 839-5701
Designed in USA | Made in China And Taiwan
© Copyright 2010 Arkon Resources, Inc.
FAX : 02) 830-5703
SM515 | Slim-Grip™ Universal Holder with Mini Windshield Suction and Dashboard Mount
Step 5.
Adjusting Holder to Fit Phone
E
E
Push the pedestal suction cup (A) down onto the disk (C). Flip the
lever (B) down to secure the suction cup. Adjust the angle of the
pedestal head as needed.
Step 1.
Dashboard or Console Mounting Instructions
Step 1.
Step 2.
Step 3.
Step 4.
If necessary, adjust the support legs (E) on top and bottom by
sliding them laterally to avoid any buttons or ports that may be
on your phone.
Choose a suitable location for disc (and pedestal) installation.
Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road or hinder vehicle
operation.
Clean the dashboard or console surface area thoroughly with
the included alcohol pad. Allow the area dry before applying
the mounting disc.
Remove the paper backing of the disc and place on the
cleaned surface. Press the top of the disc down fi rmly to allow
the adhesive to stick to the surface. Allow 24 hours for the
adhesive to cure to the surface before applying any pressure.
Place the suction cup of the pedestal fi rmly down on the center
of the mounting disc and lower the securing lever.
B
A
C
Continued in
next column...
