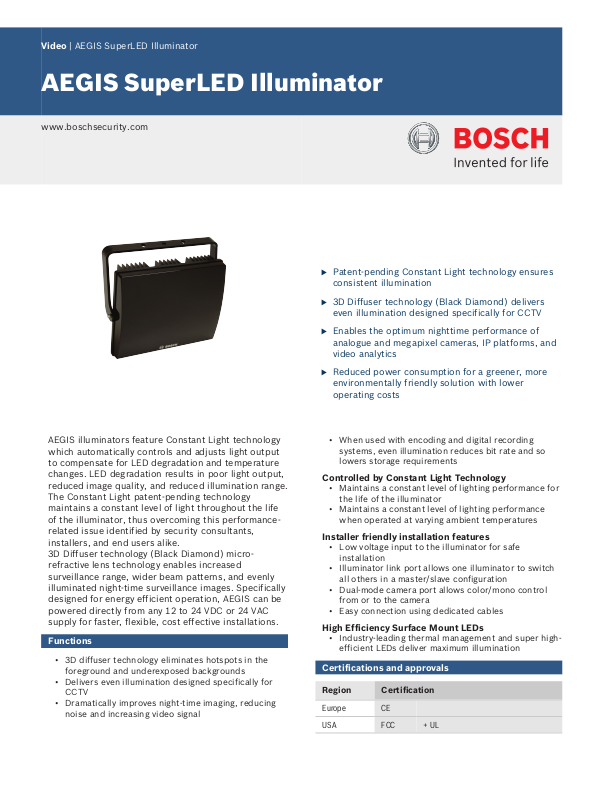

AEGIS illuminators feature Constant Light technology which automatically controls and adjusts light output to compensate for LED degradation and temperature changes. LED degradation results in poor light output, reduced image quality, and reduced illumination range. The Constant Light patent-pending technology maintains a constant level of light throughout the life of the illuminator, thus overcoming this performancerelated issue identified by security consultants, installers, and end users alike.
3D Diffuser technology (Black Diamond) microrefractive lens technology enables increased surveillance range, wider beam patterns, and evenly illuminated night-time surveillance images. Specifically designed for energy efficient operation, AEGIS can be powered directly from any 12 to 24 VDC or 24 VAC supply for faster, flexible, cost effective installations.
Functions
•3D diffuser technology eliminates hotspots in the foreground and underexposed backgrounds
•Delivers even illumination designed specifically for CCTV
•Dramatically improves night-time imaging, reducing noise and increasing video signal
uPatent-pending Constant Light technology ensures consistent illumination
u3D Diffuser technology (Black Diamond) delivers even illumination designed specifically for CCTV
uEnables the optimum nighttime performance of analogue and megapixel cameras, IP platforms, and video analytics
uReduced power consumption for a greener, more environmentally friendly solution with lower operating costs
•When used with encoding and digital recording systems, even illumination reduces bit rate and so lowers storage requirements
Controlled by Constant Light Technology
•Maintains a constant level of lighting performance for the life of the illuminator
•Maintains a constant level of lighting performance when operated at varying ambient temperatures
Installer friendly installation features
•Low voltage input to the illuminator for safe installation
•Illuminator link port allows one illuminator to switch all others in a master/slave configuration
•Dual-mode camera port allows color/mono control from or to the camera
•Easy connection using dedicated cables
High Efficiency Surface Mount LEDs
•Industry-leading thermal management and super highefficient LEDs deliver maximum illumination
Certifications and approvals
Region |
Certification |
|
|
|
|
Europe |
CE |
|
USA |
FCC |
+ UL |
|
|
|
2 | AEGIS SuperLED Illuminator
Installation/configuration notes
Dimensions |
114 (4.49) |
71 (2.8) |
132 (5.2) |
27 (1.06) |
500 (20.68) |
MM (IN)
270 (10.63)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
214 (8.43) |
|
239 (9.41) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
102 (4) |
Ø10 |
9 (0.35) |
6 (0.24) |
297 (11.7) |
Technical specifications
|
|
AEGIS SuperLED Infrared |
|
|||
|
|
|
|
|
||
Wavelength |
|
850 nm and 940 nm |
|
|||
|
|
|
|
|||
Color |
|
Black anodized heat sink with black front fascia |
||||
|
|
|
|
|||
LEDs |
|
High efficiency surface mounted LED array with |
||||
|
|
current-limited integral power circuit |
||||
|
|
|
|
|
||
Beam Patterns |
|
10°, 20°, 30°, 60°, 95°, 120° |
|
|||
|
|
|
|
|
||
Consumption |
|
50–90 W (90 W max power) |
|
|||
|
|
|
|
|||
Input Voltage |
|
12 to 24 VDC or 24 VAC, 50/60 Hz |
||||
|
|
|
|
|||
Temperature |
|
–40°C to +50°C (–40°F to 122°F) max. on full |
||||
Range |
|
power |
|
|
||
|
|
|
|
|
|
|
Environmental |
|
IP66 |
|
|
|
|
|
|
|
|
|||
Construction |
|
Robust, aluminum construction with acrylic front |
||||
|
|
fascia |
|
|
|
|
|
|
|
|
|
|
|
Weight |
|
3.8 kg (8.4 lb) |
|
|
||
|
|
|
|
|||
Dimensions |
|
305 x 240 x 110 mm (11.9 x 9.4 x 4.4 in) |
||||
|
|
|
|
|
|
|
Power Cable |
|
4 m (13 ft) |
|
|
||
|
|
|
|
|
||
Bracket |
|
Wall mount U-bracket supplied |
|
|||
|
|
|
|
|||
AEGIS SuperLED Performance Ranges |
|
|||||
|
|
|
|
|
||
Model |
Wavele |
|
Beam |
Achievable |
HFOV |
|
|
ngth |
|
Patter |
Distance* |
|
|
|
|
|
|
ns |
|
|
|
|
|
|
|
|
|
SLED10-8B |
850 n |
|
10º |
320 m |
52 m |
|
D |
m |
|
|
(1050 ft) |
(170 ft) |
|
|
|
|
|
|
|
|
SLED20-8B |
850 n |
20º |
200 m |
70 m |
D |
m |
|
(655 ft) |
(230 ft) |
|
|
|
|
|
SLED30-8B |
850 n |
30º |
160 m |
85 m |
D |
m |
|
(525 ft) |
(275 ft) |
|
|
|
|
|
SLED60-8B |
850 n |
60º |
110 m |
130 m |
D |
m |
|
(360 ft) |
(425f)t |
|
|
|
|
|
SLED95-8B |
850 n |
95º |
85 m |
185 m |
D |
m |
|
(275 ft) |
(605 ft) |
|
|
|
|
|
SLED120-8B |
850 n |
120º |
55m |
190 m |
D |
m |
|
(180 ft) |
(625 ft) |
|
|
|
|
|
SLED10-9B |
940 n |
10º |
190 m |
32 m |
D |
m |
|
(625 ft |
(105 ft) |
|
|
|
|
|
SLED20-9B |
940 n |
20º |
120 m |
42 m |
D |
m |
|
(395 ft) |
(135 ft) |
|
|
|
|
|
SLED30-9B |
940 n |
30º |
95m |
50 m |
D |
m |
|
(310 ft) |
(165 ft) |
|
|
|
|
|
SLED60-9B |
940 n |
60º |
65 m |
75 m |
D |
m |
|
(210 ft) |
(245 ft) |
|
|
|
|
|
SLED95-9B |
940 n |
95º |
45 m |
100 m |
D |
m |
|
(145 ft) |
(330 ft) |
|
|
|
|
|
SLED120-9B |
940 |
120º |
30 m |
110 m |
D |
nm |
|
(100 ft) |
(360 ft) |
|
|
|
|
|
* Actual illumination distance achieved is dependent on camera and lens characteristics. Use a high performance 1/2-inch format camera and IR-corrected lens at F1.4 to achieve a minimum SN ratio of 20dB.
Ordering information
SLED10 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 10°, 850 nm
Order number SLED10-8BD
SLED20 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 20°, 850 nm
Order number SLED20-8BD
SLED30 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 30°, 850 nm
Order number SLED30-8BD
SLED60 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 60°, 850 nm
Order number SLED60-8BD
SLED95 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 95°, 850 nm
Order number SLED95-8BD
SLED120 8BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 120°, 850 nm
Order number SLED120-8BD
SLED10 9BD AEGIS Illuminator
AEGIS Intelligent-IR SLED illuminator, 10°, 940 nm
Order number SLED10-9BD
