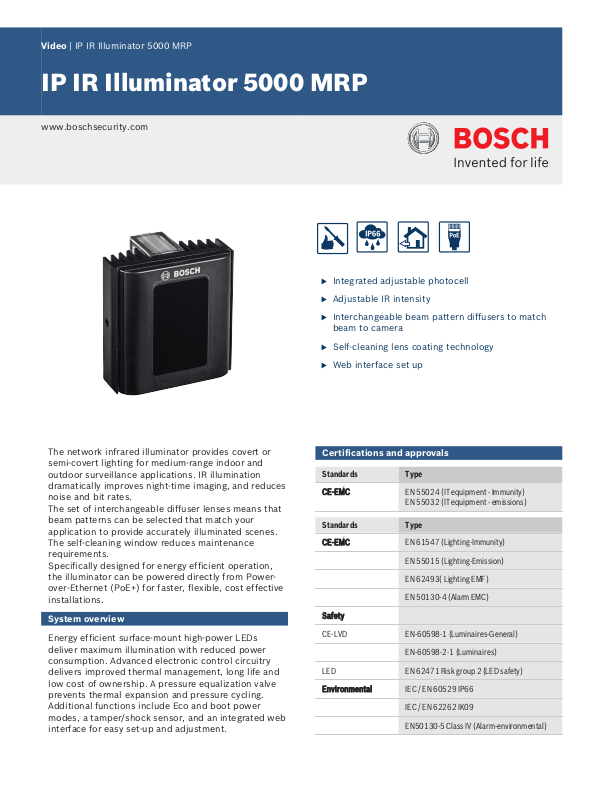

Video | IP IR Illuminator 5000 MRP
IP IR Illuminator 5000 MRP
www.boschsecurity.com
u Integrated adjustable photocell
u Adjustable IR intensity
u Interchangeable beam pattern diffusers to match
beam to camera
The network infrared illuminator provides covert or
semi-covert lighting for medium-range indoor and
outdoor surveillance applications. IR illumination
dramatically improves night-time imaging, and reduces
noise and bit rates.
The set of interchangeable diffuser lenses means that
beam patterns can be selected that match your
application to provide accurately illuminated scenes.
The self-cleaning window reduces maintenance
requirements.
Specifically designed for energy efficient operation,
the illuminator can be powered directly from Powerover-Ethernet (PoE+) for faster, flexible, cost effective
installations.
System overview
Energy efficient surface-mount high-power LEDs
deliver maximum illumination with reduced power
consumption. Advanced electronic control circuitry
delivers improved thermal management, long life and
low cost of ownership. A pressure equalization valve
prevents thermal expansion and pressure cycling.
Additional functions include Eco and boot power
modes, a tamper/shock sensor, and an integrated web
interface for easy set-up and adjustment.
u Self-cleaning lens coating technology
u Web interface set up
Certifications and approvals
Standards Type
CE-EMC EN 55024 (IT equipment - Immunity)
EN 55032 (IT equipment - emissions)
Standards Type
CE-EMC EN 61547 (Lighting-Immunity)
EN 55015 (Lighting-Emission)
EN 62493( Lighting EMF)
EN 50130-4 (Alarm EMC)
Safety
CE-LVD EN-60598-1 (Luminaires-General)
EN-60598-2-1 (Luminaires)
LED EN 62471 Risk group 2 (LED safety)
Environmental IEC / EN 60529 IP66
IEC / EN 62262 IK09
EN50130-5 Class IV (Alarm-environmental)
Page 2
76 (2.99)
mm (in)
115 (4.53)
2 | IP IR Illuminator 5000 MRP
Standards Type
EN 50581 RoHS,
USA cULus UL 2108 Low Voltage Lighting Systems
UL 8750 Light Emitting Diode (LED)
equipment for use in lighting systems
CSA C22.2 No. 250.0-08 Luminaires
FCC, Class B
AUS RCM AS / NZS CISPR 22 Class B
Region Regulatory compliance/quality marks
Europe CE
Installation/configuration notes
Dimensions
Optical
Day/night switch Photocell, sensitivity adjustable (20 lx to 70
lx)
Beam angles 10° (circular), 20°, 30°, 60°, 80°, and 95°
(eliipticals)
Range 850 nm
Beam pattern
diffuser
10º 220 m (722 ft) 38 m (126 ft)
20° 150 m (492 ft) 53 m (174 ft)
30º 110 m (361 ft) 59 m (193 ft)
60° 70 m (230 ft) 81 m (265 ft)
80° 50 m (164 ft) 84 m (275 ft)
95º 35 m (115 ft) 76 m (251 ft)
Range 940 nm
Beam pattern
diffuser
10º 135 m (443 ft) 24 m (77 ft)
Achievable
Distance*
Achievable
Distance*
HFOV
HFOV
Technical specifications
Power
Power supply Power-over-Ethernet (PoE+) (IEEE 802.3at
compliant)
Power consumption 26 W
20° 80 m (262 ft) 28 m (93 ft)
30º 65 m (213 ft) 35 m (114 ft)
60° 40 m (131 ft) 46 m (152 ft)
80° 30 m (98 ft) 50 m (165 ft)
95º 20 m (66 ft) 44 m (143 ft)
* Actual illumination distance achieved is dependent
on camera and lens characteristics.
Mechanical
Housing Robust anodized aluminum extrusion, black
Front window Polycarbonate high transmittance (vandal-
resistant) with self-cleaning technology
Mount Black powder coated stainless steel U-bracket
(adjustable with M6 socket-head wrench)
Cable 1m with connector
Dimensions
(W x H x D)
Bracket dimensions
(W x H x D)
Weight 1.06 kg (2.3 lbs)
110 x 115 x 76 mm (4.33 x 4.53 x 2.99 in.)
110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in.)
Optical
Wavelength 850 nm or 940 nm
IR control Adjustable IR intensity (0% to 100%)
Bracket weight 0.2 kg (0.44 lbs)
Page 3
3 | IP IR Illuminator 5000 MRP
Represented by:
Europe, Middle East, Africa: Germany: North America: Asia-Pacific:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
[email protected]
emea.boschsecurity.com
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
© Bosch Security Systems 2018 | Data subject to change without notice
23605958923 | en, V9, 09. Feb 2018
Environmental
Operation
-50 °C to +50 °C (-58 °F to +122 °F)
Temperature Range
Protection IP66
Ordering information
NIR-50850-MRP Illuminator, 850nm, medium range, PoE
+
Medium range IR illuminator powered by PoE+
850 nm
Order number NIR-50850-MRP
NIR-50940-MRP Illuminator, 940nm, medium range, PoE
+
Medium range IR illuminator powered by PoE+
940 nm
Order number NIR-50940-MRP
Accessories
IIR-MNT-SLB Bracket for illuminator, single L, black
Illuminator single L-bracket, black
Order number IIR-MNT-SLB
IIR-MNT-DLB Bracket for illuminator, double L, black
Illuminator double L-bracket, black
Order number IIR-MNT-DLB
IIR-MNT-TLB Bracket for illuminator, triple L, black
Illuminator triple L-bracket, black
Order number IIR-MNT-TLB
IIR-MNT-PMB Bracket for illuminator, pole mount
Illuminator pole mount bracket, black
Order number IIR-MNT-PMB
