Video | FLEXIDOME IP starlight 7000 VR

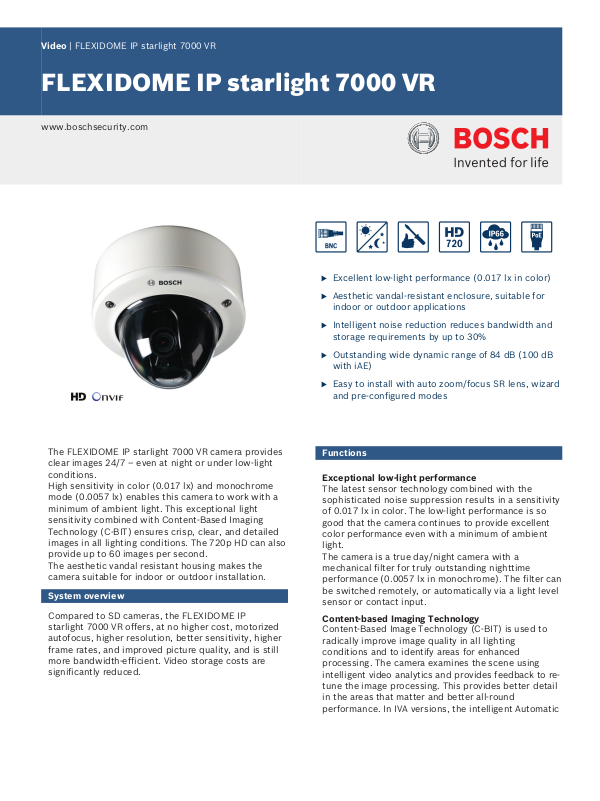

FLEXIDOME IP starlight 7000 VR
www.boschsecurity.com
u Excellent low-light performance (0.017 lx in color)
u Aesthetic vandal-resistant enclosure, suitable for
indoor or outdoor applications
The FLEXIDOME IP starlight 7000 VR camera provides
clear images 24/7 – even at night or under low-light
conditions.
High sensitivity in color (0.017 lx) and monochrome
mode (0.0057 lx) enables this camera to work with a
minimum of ambient light. This exceptional light
sensitivity combined with Content-Based Imaging
Technology (C-BIT) ensures crisp, clear, and detailed
images in all lighting conditions. The 720p HD can also
provide up to 60 images per second.
The aesthetic vandal resistant housing makes the
camera suitable for indoor or outdoor installation.
System overview
Compared to SD cameras, the FLEXIDOME IP
starlight 7000 VR offers, at no higher cost, motorized
autofocus, higher resolution, better sensitivity, higher
frame rates, and improved picture quality, and is still
more bandwidth-efficient. Video storage costs are
significantly reduced.
u Intelligent noise reduction reduces bandwidth and
storage requirements by up to 30%
u Outstanding wide dynamic range of 84 dB (100 dB
with iAE)
u Easy to install with auto zoom/focus SR lens, wizard
and pre-configured modes
Functions
Exceptional low-light performance
The latest sensor technology combined with the
sophisticated noise suppression results in a sensitivity
of 0.017 lx in color. The low-light performance is so
good that the camera continues to provide excellent
color performance even with a minimum of ambient
light.
The camera is a true day/night camera with a
mechanical filter for truly outstanding nighttime
performance (0.0057 lx in monochrome). The filter can
be switched remotely, or automatically via a light level
sensor or contact input.
Content-based Imaging Technology
Content-Based Image Technology (C-BIT) is used to
radically improve image quality in all lighting
conditions and to identify areas for enhanced
processing. The camera examines the scene using
intelligent video analytics and provides feedback to retune the image processing. This provides better detail
in the areas that matter and better all-round
performance. In IVA versions, the intelligent Automatic
Page 2
| FLEXIDOME IP starlight 7000 VR
2
Exposure (iAE) technology, for example, allows you to
view moving objects in bright and dark areas of a
scene.
Low bandwidth consumption
The intelligent Dynamic Noise Reduction (iDNR)
actively analyzes the contents of the scene to reduce
bandwidth and storage requirements. This removes
noise artifacts so effectively, that compression
efficiency is very high (up to 30% improvement). This
results in reduced-bandwidth streams that still retain a
high image quality and smooth motion. The camera
provides the most usable image possible by cleverly
optimizing the detail-to-bandwidth ratio via temporal
and spatial noise filtering.
Area-based encoding reduces unnecessary bandwidth.
Compression parameters for up to eight user-definable
regions can be set. This allows uninteresting regions
to be highly compressed, thus lowering bandwidth
consumption and storage requirements. Important
regions can be tuned for best image quality, thus
allowing the user to allocate bandwidth to important
parts of the scene.
Fast performance
The 60 images-per-second mode provides for optimum
performance in fast action scenes and is particularly
suitable for casino and banking applications.
Flexible lens choice
The camera comes with a choice of AVF (Automatic
Varifocal) lenses for easy installation. These SR (Super
Resolution) lenses have an advanced iris design to
ensure that the high resolution HD sensor produces
the sharpest image possible, even in the corners.
Simple installation
The camera has a very intuitive user interface that
allows fast and easy configuration. Six configurable
user modes are provided with the best settings for a
variety of applications:
• Indoor – general day-to-night changes without sun
highlights and street lighting
• Outdoor – general day-to-night changes with sun
highlights and street lighting
• Motion – monitoring traffic or fast moving objects;
motion artifacts are minimized
• Lowlight – optimized for sufficient details at low light.
• Intelligent AE (BLC on non-IVA models) – for people
moving in front of a bright background
• Vibrant – enhanced contrast, sharpness and
saturation
The automatic zoom/focus lens wizard makes it easy
for an installer to accurately zoom and focus the
camera for both day and night operation. The wizard is
activated from the PC or from the on-board camera
push button making it easy to choose the workflow
that suits best.
The AVF (Automatic Varifocal) feature means that the
zoom can be changed without opening the camera.
The automatic motorized zoom/focus adjustment with
1:1 pixel mapping ensures the camera is always
accurately focused.
Streams
The innovative multi-streaming feature delivers various
H.264 streams together with an M‑JPEG stream. These
streams facilitate bandwidth-efficient viewing and
recording as well as integration with third-party video
management systems.
An upright mode can be selected for the second
stream. In this mode an image of 400 x 720 (9:16
aspect ratio) is cropped from the full sensor image.
When the scene to be monitored is suitable to this
mode, the bandwidth and storage requirements are
reduced.
Storage management
Recording management can be controlled by the
Bosch Video Recording Manager (VRM) or the camera
can use iSCSI targets directly without any recording
software.
Edge recording
The internal MicroSD card slot supports up to 2 TB of
storage capacity. A microSD card can be used for local
alarm recording. Pre-alarm recording in RAM reduces
recording bandwidth on the network, or — if microSD
card recording is used — extends the effective life of
the storage medium.
Video Analytics
With built-in video content analysis, the camera
reinforces the Intelligence-at-the-Edge concept where
edge devices become increasingly intelligent. The
MOTION+ video motion analysis system that is built
into all camera versions is the perfect solution for
applications where standard video content analysis
features are required.
The IVA version of the camera uses the latest
generation of the Bosch Intelligent Video Analysis (IVA)
software. This IVA system is the guard-assistant
system of choice when reliable indoor or outdoor
video analytics is needed. The state-of-the-art system
reliably detects, tracks, and analyzes moving objects
while suppressing unwanted alarms from spurious
sources in the image.
The face detection feature detects faces in the scene
and forwards a high quality JPEG image of the best
shot of each face when the face disappears from the
scene.
Retrospective forensic search capabilities are available
remotely from the web browser or the Bosch Video
Client.
Regions of interest
Two Regions of Interest (ROI) can be user defined.
The remote electronic pan, tilt and zoom controls
allow you to select specific areas of the parent image.
These regions produce separate streams for remote
Page 3
3 | FLEXIDOME IP starlight 7000 VR
viewing and recording. These streams, together with
the main stream, allow the operator to separately
monitor the most interesting part of a scene while still
retaining situational awareness.
The IVA Intelligent tracker can also follow objects
within the defined regions of interest. The Intelligent
tracker can autonomously detect and track moving
objects or the user can click on an object which the
Intelligent tracker will then follow.
Aesthetic vandal resistant design
Ideal for indoor or outdoor use, the compact aesthetic
design is suitable for installations where housing size
and appearance are very important. The cast-aluminum
housing, polycarbonate window, and hardened inner
liner can withstand the equivalent of 55 kg (120 lbs) of
force (IK10). The camera is protected against water
and dust to IP 66 (NEMA Type 4X) standards. Using
the proprietary pan/tilt/rotation mechanism, installers

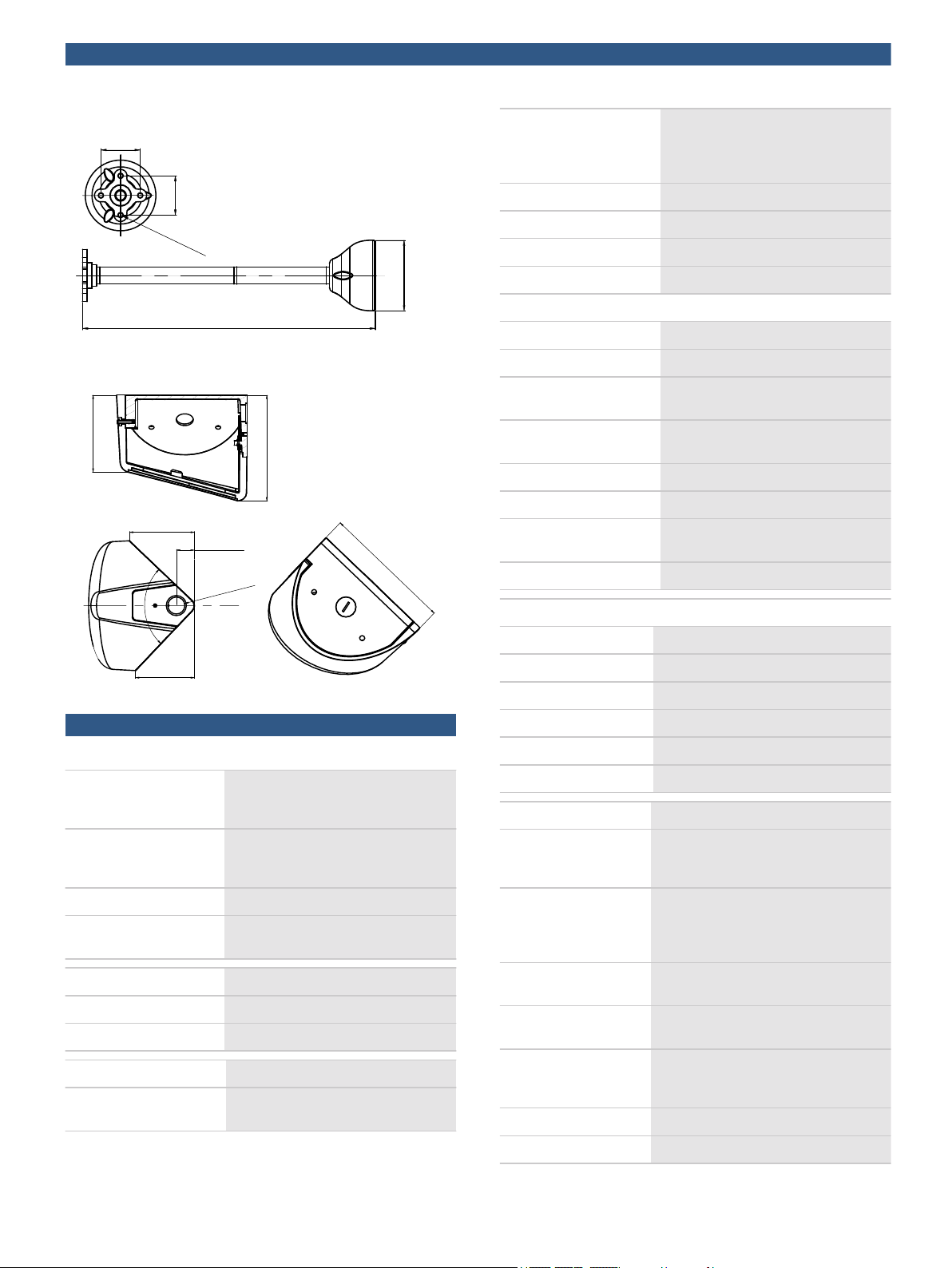

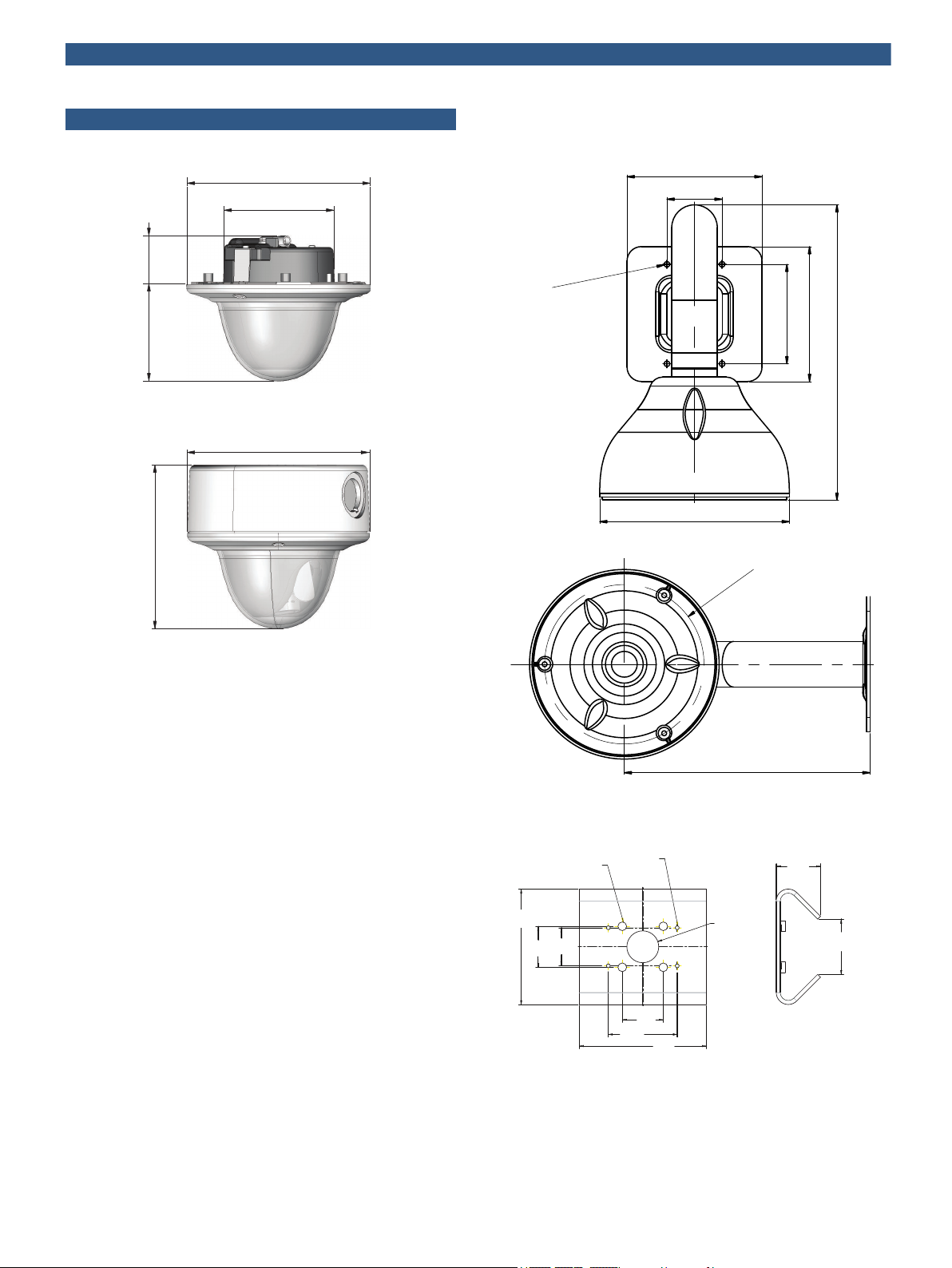

can select the exact field of view. Mounting options
are numerous, including surface, wall, corner, and
suspended-ceiling mounting.
Access Security
Password protection with three levels and 802.1x
authentication is supported. To secure Web browser
access, use HTTPS with a SSL certificate stored in the
camera. The video and audio communication channels
can be independently AES encrypted with 128-bit keys
by installing the optional encryption site license.
Surveillance software
There are many ways to access the camera’s video and
IVA-based features: using a web browser, with the
Bosch Video Management System, with the Bosch
Recording System, with the free-of-charge Bosch Video
Client, or with the video security mobile App.
The Bosch Video Client PC surveillance software offers
a user-friendly interface to support easy installation
and configuration. It also provides easy live viewing of
multiple cameras, playback, forensic search and
export.
Access to IVA metadata is available to integrators via
RTSP.
Video security App
The Bosch video security mobile App has been
developed to enable Anywhere access to HD
surveillance images allowing you to view live images
from any location. The App is designed to give you
complete control of all your cameras, from panning
and tilting to zoom and focus functions. It’s like taking
your control room with you.
This App, together with the separately available Bosch
transcoder, will allow you to fully utilize our dynamic
transcoding features so you can play back images even
over low-bandwidth connections.
Hybrid mode
An analog video output enables the camera to operate
in hybrid mode. This mode provides simultaneous high
resolution HD video streaming and an analog video
output via a BNC connector. The hybrid functionality
offers an easy migration path from legacy CCTV to a
modern IP-based system.
Connections
The camera conforms to the ONVIF (Open Network
Video Interface Forum) Profile S specification. This
guarantees interoperability between network video
products regardless of manufacturer. For trouble-free
network cabling, the camera supports Auto-MDIX
which allows the use of straight or cross-over cables.
Third-party integrators can easily access the internal
feature set of the camera for integration into large
projects. Visit the Bosch Integration Partner Program
(IPP) website (ipp.boschsecurity.com) for more
information.
Camera power is supplied via PoE (Power-overEthernet) or via the 24 VAC/12 VDC connector.
Certifications and approvals
HD Standards
Complies with the 296M-2001 Standard in:
– Resolution: 1280x720
– Scan: Progressive
– Color representation: complies with ITU-R BT.709
– Aspect ratio: 16:9
– Frame rate: 25/30 and 50/60 frames/s
Standards
Emission EN 55022 Class B
Immunity EN 50130-4 (PoE, +12 VDC, 24 VAC)*
Safety EN 60950-1
Vibration Camera with lens as per IEC 60068-2-6 (5 m/s2,
ONVIF
conformance
* Chapters 7 and 8 (mains voltage supply requirement) are not applicable to the camera.
However, if the system in which this camera is used needs to comply with this standard,
then any power supplies used must comply with this standard.
Region
Europe CE
USA UL
FCC Part 15 Class B
EN 50121-4
UL 60950-1 (2nd edition)
CAN/CSA-C 22.2 No. 60950-1
operational)
EN 50132-5-2; IEC 62676-2-3
Certification
CE accessories
FCC
Page 4
Ø158 (6.22)
Ø95 (3.7)
mm (in)
39 (1.54)
85 (3.35)
141 (5.55)
Ø158 (6.22)
mm (in)
205 (8.07)
mm (in)
247 (9.71)
46 (1.81)
83 (3.27)
Ø133 (5.24)
Ø4.8 (0.19)
Ø158 (6.23)
113 (4.43)
113 (4.43)
M8 Thread
Typ 4 Places
6-32 Thread
Typ 4 Places
139.1
(5.48)
53.3
(2.10)
66.5
(2.62)
(1.81)
49.4
(1.95)
49.4
45.8
(1.95)
(6.00)
82.9
(3.27)
152.4
38.4
(1.51)
Hole
mm
(in.)
| FLEXIDOME IP starlight 7000 VR
4
Installation/configuration notes
Dimensions flush mounting
Dimensions surface mounting
Brackets (not included)
VDA-WMT-DOME –Pendant Wall Mount
LTC 9213/01 Pole Mount Adapter
Page 5
656 (25.82) mm (in)
Ø158 (6.23)
88 (3.47)
88 (3.47)
Ø11 (0.43)
90°
90 (3.54)
81 (3.21)
mm (in)
25 (0.98)
107 (4.19)
146 (5.75)
180 (7.09)
3-3/4"NPT
5 | FLEXIDOME IP starlight 7000 VR
VDA-PMT-DOME –Pendant Pipe Mount
VDA-CMT-DOME –Corner Mount
Streaming Multiple individually configurable
streams in H.264 and M-JPEG,
configurable frame rate and bandwidth.
Regions of Interest (ROI)
Overall IP Delay Min. 120 ms, Max. 240 ms
GOP structure IP, IBP, IBBP
Encoding interval 1 to 60 (50) ips
Resolutions (H x V)
• 720p HD 1280 x 720
• D1 4:3 (cropped) 704 x 480
• SD upright
400 x 720
(cropped)
• 480p SD Encoding: 704 x 480;
Displayed: 854 x 480
• 432p SD 768 x 432
• 288p SD 512 x 288
• 240p SD Encoding: 352 x 240;
Displayed: 432 x 240
• 144p SD 256 x 144
Technical specifications
Electrical
Power Supply 24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption 500 mA | 600 mA IVA (12 VDC)
450 mA | 500 mA IVA (24 VAC)
150 mA | 175 mA IVA (PoE 48 VDC)
Power Consumption 6 W | 7.2 W IVA
PoE IEEE 802.3af (802.3at Type 1)
Sensor
Type 1/3‑inch CMOS HD
Sensor Pixels 1312 x 1069 (1.4MP)
Video streams
Video compression H.264 (ISO/IEC 14496-10); M- JPEG,
JPEG
Sensitivity (3200 K, scene reflectivity 89%, 30 IRE)
Lens 3 - 9 mm (F1.2)
• Color 0.017 lx (0.0017 fc)
• Monochrome 0.0057 lx (0.00057 fc)
Lens 10 - 23 mm (F1.6)
• Color 0.03 lx (0.003 fc)
• Monochrome 0.01 lx (0.001 fc)
Day/Night Color, Monochrome, Auto
White Balance ATW (2500 to 10000K), ATW hold and
manual
Indoor and Outdoor ATW
Shutter Automatic Electronic Shutter (AES)
Fixed (1/60 [1/50] to 1/150000)
selectable
Default shutter
Backlight compensation
Off/Auto/IntelligentAE (iAE)
(IVA)
Backlight compensation
Off/Auto/BLC
(non-IVA)
Noise reduction Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial
adjustments
Contrast enhancement On/off
Sharpness Sharpness enhancement level selectable
Page 6
6 | FLEXIDOME IP starlight 7000 VR
Dynamic Range 84 dB WDR
Privacy Masking Four independent areas, fully
Video Motion Analysis Intelligent Video Analysis
Audio
Standard AAC
Signal-to-noise ratio > 50 dB
Audio Streaming Full duplex / half duplex
100 dB WDR (with iAE)
programmable
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Input/output
Analog Video out CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm
Analog Video out
(service only)
Audio 1 x mono line in, 1 x mono line out
• signal line in 12 kOhm typical, 1 Vrms max
• signal line out 1 Vrms at 1.5 kOhm typical,
Alarm 2 inputs
• activation
voltage
Relay 1 output
• voltage 30 VAC or +40 VDC
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pullup resistor)
Maximum 0.5 A continuous, 10VA
Ethernet 10/100 Base-T, auto-sensing, half/full
Ethernet connector RJ45
Connectivity ONVIF Profile S, Auto-MDIX
duplex
Optical
Lens 3 to 9 mm Automatic Varifocal (AVF) SR
Adjustment Motorized zoom/focus
Iris control Automatic iris control
Viewing angle (3 to
9 mm)
Viewing angle (10 to
23 mm)
lens (IR corrected)
- or –
10 to 23 mm Automatic Varifocal (AVF) SR
lens (IR corrected)
Wide: 96º x 52º (H x V)
Tele: 32º x 18º (H x V )
Wide: 28º x 15º (H x V)
Tele: 12.4º x 6.9º (H x V )
Mechanical
Dimensions (D x H) 158 x 124 mm (6.22 x 4.89 in)
Weight 0.85 kg (1.87 lb)
Mounting Flush mount or surface mount
Color White (RAL9010) trim ring with black inner
Adjustment range 360º pan, 90º tilt, ±90º twist
Dome bubble Polycarbonate, clear with UV blocking anti-
1.28 kg (2.82 lb) with SMB
liner
scratch coating
Local Storage
Internal RAM 10 s pre-alarm recording
Memory card slot Supports SDHC and SDXC microSD cards
Recording Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration Via web browser or Configuration Manager
Software update Remote programmable
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS,
RTP/RTCP, IGMP V2/V3, ICMP,
ICMPv6, RTSP, FTP, Telnet, ARP,
DHCP, SNTP, SNMP (V1, MIB‑II),
802.1x, DNS, DNSv6, DDNS, SMTP,
iSCSI, UPnP (SSDP), DiffServ (QoS),
LLDP, SOAP, Dropbox, CHAP, Digest
Authentication.
Encryption TLS 1.0, SSL, DES, 3DES, AES
(optional)
Trim ring Aluminum
Environmental
Operating temperature -30 ºC to +50 ºC (-22 ºF to +122 ºF)
Cold start temperature -20 ºC (-4 ºF)
Storage temperature -50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity 5% to 93% relative humidity
Storage humidity Up to 98% relative humidity
Impact protection EN 50102, IK10
Water/dust protection IP 66 and NEMA Type 4X
Environmental
Test Method
EN 50130-5:2011 Alarm systems Part 5
(Class IV Outdoor in general)
Ordering information
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; ROI; H.
264 quad-streaming; cloud services; free viewing Apps;
3 to 9 mm SR lens; MOTION+
Order number NIN-733-V03P
Page 7
7 | FLEXIDOME IP starlight 7000 VR
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; iAE;
ROI; H.264 quad-streaming; cloud services; free
viewing Apps; 3 to 9 mm SR lens; IVA
Order number NIN-733-V03IP
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; ROI; H.
264 quad-streaming; cloud services; free viewing Apps;
3 to 9 mm SR lens; MOTION+, SMB
Order number NIN-733-V03PS
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; iAE;
ROI; H.264 quad-streaming; cloud services; free
viewing Apps; 3 to 9 mm SR lens; IVA; SMB
Order number NIN-733-V03IPS
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; ROI; H.
264 quad-streaming; cloud services; free viewing Apps;
10 to 23 mm SR lens; MOTION+
Order number NIN-733-V10P
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; iAE;
ROI; H.264 quad-streaming; cloud services; free
viewing Apps; 10 to 23 mm SR lens; IVA
Order number NIN-733-V10IP
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; ROI; H.
264 quad-streaming; cloud services; free viewing Apps;
10 to 23 mm SR lens; MOTION+; SMB
Order number NIN-733-V10PS
FLEXIDOME IP starlight 7000 VR
High-performance IP dome camera for HD surveillance
in low light. 720p60; Hybrid; IP66; IK10; iDNR; iAE;
ROI; H.264 quad-streaming; cloud services; free
viewing Apps; 10 to 23 mm SR lens; IVA; SMB
Order number NIN-733-V10IPS
Accessories
VDA-WMT-DOME Wall Pendant Mount Bracket
Wall pendant mount bracket for FlexiDome cameras
Order number VDA-WMT-DOME
VDA-CMT-DOME Corner Mount Bracket
Corner mount bracket for FlexiDome cameras
Order number VDA-CMT-DOME
VDA-PMT-DOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for FlexiDome cameras
Order number VDA-PMT-DOME
LTC 9213/01 Pole Mount Adapter
Flexible pole mount adapter for camera mounts. Max.
9 kg (20 lb); 3 to 15 inch diameter pole; stainless steel
straps
Order number LTC 9213/01
VDA-PLEN-DOME In-ceiling Housing for Plenums Kit
FLEXIDOME in-ceiling housing installation kit (plenumrated) for various FLEXIDOME cameras
Order number VDA-PLEN-DOME
VGA-IC-SP In-ceiling Support Kit for Various Bosch
Dome Cameras
Suspended ceiling support kit for various families of
Bosch dome cameras
Order number VGA-IC-SP
UPA-2420-50 Power Supply
Power supply for cameras. 220 VAC, 50 Hz In; 24 VAC,
20 VA Out
Order number UPA-2420-50
UPA-2430-60 Power Supply
Power supply for camera. 120 VAC, 60 Hz; 24 VAC,
30 VA Out
Order number UPA-2430-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor power supply for camera. 220 VAC, 50 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-60
VDA-455TBL Tinted bubble
Tinted bubble for FlexiDome series
Order number VDA-455TBL
VDA-455CBL Clear bubble
Clear Bubble for FlexiDome series
Order number VDA-455CBL
S1460 Service/Monitor Cable
2.5 mm jack to BNC video connector cable. 1 m
Order number S1460
VJT-XTCXF
Dynamic transcoder to enable HD video viewing.
HD1080; IVA; H.264 streaming; web interface
Order number VJT-XTCXF
Surface Mount Box FLEXIDOME VR
Surface Mount Box for FLEXIDOME VR Cameras
Order number VDA-455SMB-IP
NIN-DMY Dummy Camera
FLEXIDOME VR family dummy camera
Order number NIN-DMY
Page 8
8 | FLEXIDOME IP starlight 7000 VR
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone +86 21 22181111
Fax: +86 21 22182398
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: +55 19 2103 2860
Fax: +55 19 2103 2862
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
9736868363 | en, V9, 13. Dec 2013
Software Options
BVIP AES 128 Bit Encryption
Single installation licence for BVIP AES 128‑bit
encryption site. Enables encrypted communication
between BVIP devices and management stations.
Order number MVS-FENC-AES
Loading...
