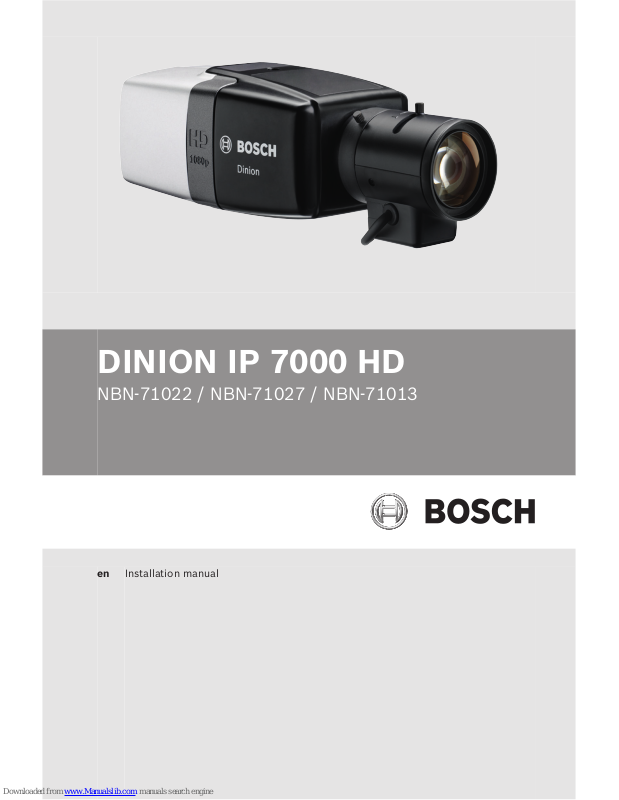

Bosch NBN-71027, NBN-71022, NBN-71013 Installation Manual
DINION IP 7000 HD
NBN-71022 / NBN-71027 / NBN-71013
en Installation manual
Table of contents
1
Safety 5
1.1 Safety message explanation 5
1.2 Safety precautions 5
1.3 Important safety instructions 6
1.4 Connection in applications 7
1.5 FCC and ICES compliance 8
1.6 Notices 9
2
Short Information 10
2.1 Copyrights 10
3
System Overview 11
3.1 Using the camera 12
4
Planning 13
4.1 Unpacking 13
4.2 System requirements 13
5
Installation 14
5.1 Lens mounting 14
5.2 Mounting the camera 15
5.3 Local storage 16
6
Connection 17
6.1 Network (and PoE power) connection 17
6.2 Auxiliary power connector 18
6.3 Alarm connector 19
6.4 Audio connectors 20
6.5 Video service monitor connector 21
6.6 Data connector 22
7
Configuration 23
7.1 Setting the field of view 23
7.1.1 Using the MENU button 23
7.1.2 Using the install wizard 24
7.2 Day/Night switching 25
7.3 Camera configuration 25
7.4 Browser connection 26
7.4.1 Establishing the connection 26
DINION IP 7000 HD Table of Contents | en 3
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
7.4.2 Protected network 26
8
Troubleshooting 27
8.1 Function test 27
8.2 Resolving problems 27
8.3 Testing the network connection 31
8.4 Customer service 31
8.5 Terminal program 32
9
Maintenance 34
9.1 Cleaning 34
9.2 Reset 34
9.3 Repair 34
10
Decommissioning 35
10.1 Transfer 35
10.2 Disposal 35
11
Technical data 36
11.1 Specifications (NBN-71022) 36
11.2 Specifications (NBN-71027) 39
11.3 Specifications (NBN-71013) 42
11.4 Standard specifications 45
4 en | Table of Contents DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
Safety
Safety message explanation
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
Safety precautions
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code (NEC
800 CEC Section 60) or applicable local codes.
!
Caution!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).
!
Caution!
This device must be connected to earth (ground).
Safety (power) ground is indicated by the symbol.
1
1.1
1.2
DINION IP 7000 HD Safety | en 5
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings before operating the
unit.
1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.
2. Do not install unit near any heat sources such as radiators,
heaters, stoves, or other equipment (including amplifiers)
that produce heat.
3. Never spill liquid of any kind on the unit.
4. Take precautions to protect the unit from power and
lightning surges.
5. Adjust only those controls specified in the operating
instructions.
6. Operate the unit only from the type of power source
indicated on the label.
7. Unless qualified, do not attempt to service a damaged unit
yourself. Refer all servicing to qualified service personnel.
8. Install in accordance with the manufacturer's instructions in
accordance with applicable local codes.
9. Use only attachments/accessories specified by the
manufacturer.
10. Connect the earth terminal of the camera
to the system
earth of the installation to ensure correct safety and
EMC/RFI protection.
1.3
6 en | Safety DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
Connection in applications
Grounding
Safety (power) ground is indicated by the symbol on the
rear of the camera.
U.S.A.: - section 810 of the National Electrical Code, ANSI/NFPA
No.70, provides information regarding proper grounding.
12 VDC / 24 VAC power source: This unit is intended to operate
with a limited power source. The unit is intended to operate at
either 12 VDC or 24 VAC (if PoE is not available). User supplied
wiring must be in compliance with electrical codes (Class 2
power levels).
PoE: Use only approved PoE devices. Power-over-Ethernet can
be connected at the same time as a 12 VDC or 24 VAC power
supply.
If auxiliary power (12 VDC or 24 VAC) and PoE is applied
simultaneously, the camera selects PoE and shuts off the
auxiliary input.
1.4
DINION IP 7000 HD Safety | en 7
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
FCC and ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the
dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
1.5
8 en | Safety DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
Notices
Notice!
Optical elements are sensitive and should be protected at all
times. Do not allow objects to come into contact with glass
surfaces and do not touch optical elements with your fingers.
Notice!
Video loss is inherent to digital video recording; therefore,
Bosch Security Systems cannot be held liable for any damage
that results from missing video information.
To minimize the risk of losing information, we recommend
multiple, redundant recording systems, and a procedure to
back up all analog and digital information.
Notice!
We recommend that SD cards only be used for local storage of
alarm recordings.
1.6
DINION IP 7000 HD Safety | en 9
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
Short Information
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
Trademarks
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
Copyrights
This manual is the intellectual property of Bosch Security
Systems and is protected by copyright.
All rights reserved.
2
2.1
10 en | Short Information DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
System Overview
The DINION IP 7000 HD family are high-performance HD
surveillance cameras with superior imaging qualities.
These IP cameras operate as network video servers and transmit
video and control signals over Ethernet LANs and the Internet.
The integrated encoder uses H.264 compression technology to
give clear images while reducing bandwidth and storage
requirements. The cameras use Content-Based Image
Technology (C-BIT) to improve image quality in all lighting
conditions and to identify areas for enhanced processing. The
camera examines the scene using intelligent video analytics and
provides feedback to re-tune the image processing.
The cameras conform to the ONVIF (Open Network Video
Interface Forum) Profile S specification which guarantees
interoperability between network video products regardless of
manufacturer. The cameras work seamlessly with a wide range
of security software and recording solutions from Bosch and
other industry providers.
The cameras are easy to install and ready to use, and are
eminently suitable for integration into large video surveillance
systems.
Features include:
– Progressive scan CMOS HD sensor
– Excellent low-light performance
– Intelligent dynamic noise reduction (iDNR)
– True Day/Night performance with switchable IR filter
– Simultaneous analog video and IP video output (full hybrid
operation)
– MicroSD card slot
– ONVIF conformant
– Two-way audio and audio alarm
– Alarm input and alarm output to external devices
– Pre-programmed operation modes
3
DINION IP 7000 HD System Overview | en 11
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
– Enhanced video motion detection
– Integrated Ethernet interface (10/100 Base-T)
– Video and data transmission over IP data networks
– Multiple streams
– Power-over-Ethernet (PoE)
– Data interface RS485/RS422/RS232 for PTZ control
– Password protection
– Multicast function
– Integrated Web server for live viewing and configuration via
a browser
– Firmware update through web browser
Using the camera
To access the features of the camera, use a web browser. The
browser provides live viewing of the camera streams in the
interface window, and also allows you to access and change the
extensive list of settings and parameters for camera
configuration. Refer to the software manual for more
information on the browser interface.
The camera recording and storage functions include local alarm
recording and recording to iSCSI-based systems. The camera
can also use the Bosch Video Recording Manager (VRM) to
control recording and storage. Integration with the many Bosch
recording solutions is seamless.
3.1
12 en | System Overview DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
Planning
Unpacking
Unpack carefully and handle the equipment with care. The
packaging contains:
– DINION IP 7000 HD camera
– Sensor protection cap (mounted on camera)
– Power connector
– Alarm I/O connector
– Data connector
– C/CS lens mount adapter
– Quick install instructions and safety instructions
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
System requirements
– Computer with Windows XP/Vista/7 operating system,
network access, and Microsoft Internet Explorer web
browser version 9.0 or later (32-bit)
-or-
– Computer with network access and reception software, for
example Bosch Video Client and Bosch Video Management
System
4
4.1
4.2
DINION IP 7000 HD Planning | en 13
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
Installation
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code (NEC
800 CEC Section 60) or applicable local codes.
Lens mounting
Notice!
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
The camera accepts CS or C‑mount lenses. SR lenses or DC-iris
lenses are recommended for best performance. The camera can
optimize image performance for SR lenses.
5
5.1
14 en | Installation DINION IP 7000 HD
2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems
Pin DC iris lens
1 Damp -
2 Damp +
3 Drive +
4 Drive -
Note:
If a short circuit is detected on the lens connector, the lens
circuit is automatically disabled to avoid internal damage.
Remove the lens connector and check the pin connections.
Mounting the camera
Notice!
Do not expose the image sensors to direct sunlight.
Do not obstruct the free flow of air around the camera.
The camera can be mounted either from the top or from the
bottom (1/4" 20 UNC thread).
1/4”-20 UNC
5.2
DINION IP 7000 HD Installation | en 15
Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674
Loading...
