LC1 Modular Ceiling Loudspeaker Range
www.boschsecurity.com
u Excellent speech and music reproduction
u Easy installation with one grille size and one
complete set of accessories
u Choice of different ceiling mounting methods
The LC1 Modular Ceiling Loudspeaker range can be
used for a wide variety of ceiling environments. They
provide excellent speech and music in indoor public
address applications. The range offers a choice of five
loudspeakers distinguished by input power, opening
angle and sound reproduction.
It includes three 6 W single cone loudspeakers offering
a choice of opening angle and two high performance
12 W and 24 W coaxial loudspeaker drivers. They all
have the same grille size and can be used in
combination with the same mounting accessories.
The loudspeakers are suitable for use in air‑handling
spaces when installed with the LC1‑MFD enclosure.
The loudspeaker frame includes provision for
mounting the optional pilot-tone indication board or
WLS board and has standard a light conductor to
indicate the pilot-tone status.
u Optional Pilot Tone indication
u EN 54‑24, UL2043, UL1480 certified
System overview
| LC1 Modular Ceiling Loudspeaker Range
2
Safety According to EN 60065
* Emergency According to BS 5839‑8
According to EN 54‑24
According to EN 60849
UL listed 1480/2043
Ball‑proof According to DIN VDE 0710 part
13
** Water and dust protection According to EN 60529 IP21
*** Water and dust protection According to EN 60529 IP33
Type number versus features
Functions
Voice Alarm applications
Voice alarm loudspeakers are specifically designed for
use in buildings where system performance for verbal
evacuation announcements is governed by regulations.
The LC1 Modular Ceiling Loudspeaker range is
designed for use in voice alarm systems and is
EN 54‑24 certified and compliant with British standard
BS 5839‑8.
Protection
The loudspeakers have built-in protection to ensure
that fire damage to the loudspeakers does not cause
failure of the connected circuit. In this way system
integrity is maintained, ensuring loudspeakers in other
areas can still be used to inform people of the
situation.
The loudspeakers can also be used in combination
with a metal fire-dome to increase protection of the
cable termination.
Connections
The loudspeakers have a ceramic screw-terminal
connection block, thermal fuse and heat-resistant,
high-temperature wiring.
Certifications and approvals
All Bosch loudspeakers are designed to withstand
operating at their rated power for 100 hours in
accordance with IEC 268‑5 Power Handling Capacity
(PHC) standards.
Bosch has also developed the Simulated Acoustical
Feedback Exposure (SAFE) test to demonstrate that
they can withstand two times their rated power for
short durations.
This ensures extra reliability under extreme conditions,
leading to higher customer satisfaction, longer
operating life, and much less chance of failure or
performance deterioration. All plastic parts are self
extinguishing according to UL 94 V0.
**** Salt mist According to IEC‑68‑2‑11 Ka
* Only in combination with the LC1‑MFD or LC1-CSMB
(+LC1-MSK) or LC1-CMR + LC1-CBB.
** Only in combination with the LC1‑MFD or LC1‑CMR
including LC1‑CBB.
*** and **** only LC1‑WC06E8 with LC1‑CMR including
LC1‑CBB.
Notice
UL 1480 requires installation with the LC1‑MFD or
LC1‑CSMB, or the LC1‑CMR including LC1‑CBB.
LC1‑UM06E8 and LC1‑UM12E8 have UL 1480 F
certification listed for use in Fire Alarm and/or
Emergency Communication Systems.
Region Certification
Europe CPR LC1
Poland CNBOP
USA UL
Installation/configuration notes
The LC1 Modular Ceiling Loudspeaker range is very
installation friendly. The loudspeaker consists of a
frame with the loudspeaker driver and metal or ABS
grille with integrated light conductor, matching
transformer and ceramic screw terminal connection
block. On the loudspeaker are provisions for mounting
the optional pilot-tone indication board and optional
line/loudspeaker surveillance board.
Power tapping on the 70 V / 100 V matching
transformer allows selection of full-power, half-power,
quarter-power and eight-power radiation.
Ordering information
Due to the modular concept of this system, it is
important to order not only the ceiling loudspeaker
unit, but also the flush ceiling mounting accessory of
your choice, as mentioned here below. The
loudspeakers can be flush mounted into the ceiling by
means of the “U” shaped Metal Mounting support
bracket LC1‑MMSB or the ABS Ceiling Mounting ring
LC1‑CMR with optional Back Box LC1‑CBB.
| LC1 Modular Ceiling Loudspeaker Range
3
In order to take full advantage of the modular
architecture, all parts are separately packaged in the
order in which they are required for installation.
LC1-MMSB Mounting Support Bracket
The metal Mounting Support Bracket has two ceiling
clamps, which are secured with thumb screws in the
ceiling hole. The bracket is also provided with two 4
mm holes for mounting the bracket with two screws
into thin (metal) ceilings. Two spring catchers (for
accepting the V-shaped loudspeaker springs) are
provided. The bracket provides a provision for
attaching an optional safety steel cord.
LC1-MMSB Metal Mounting Support Bracket
LC1-CMR Mounting Ring
The LC1‑CMR is an alternative for the ceiling mounting
support bracket. The ABS Mounting Ring has two
screw driving clamps to fix the mounting ring into the
ceiling board. Inside the ring, two spring catchers (for
accepting the V-shaped loudspeaker springs) are
provided.
LC1-CBB Back Box
On top of the mounting ring, provisions are present to
“click-on” the optional Back Box. The combination of
Mounting Ring and Back Box prevents sound traveling
via the ceiling cavity to adjacent areas, and fully
protects the loudspeaker from dust, falling objects.
The Back Box has knock‑out holes for two grommets
(11 mm/0.80 in) and for two cable glands (20.5 mm/
0.80 in)
point suspension of the assembly of Ceiling
Loudspeaker and Surface Mounting Box, a separate
metal suspension kit, LC1‑MSK is available.
LC1-CSMB Surface Mounting Box
LC1‑MSK Metal Suspension Kit
This kit contains a tri‑angled metal plate to be
attached by three screws (supplied) onto the rear of
the Surface Mounting Box and includes three
suspension chains, converged in an eye‑hook.
LC1-CMR and LC1-CBB Ceiling Mounting Ring and Back
Box assembly
LC1-CSMB Surface Mounting Box
This ABS Surface Mounting Box is available for
securing the ceiling loudspeaker to walls or hard
ceilings. The Surface Mounting Box has at the side two
holes standard covered opposite positioned and four
knock‑out holes on the rear side. For optional single
LC1‑MSK Metal Suspension Kit
LC1-MFD Metal Fire Dome
Ease of installation for individual loudspeaker and
loudspeaker/fire-dome combinations. The Fire Dome
mounting is fixed in the ceiling, prior to the ceiling
speaker mounting. The Fire Dome has a dual
connection entry, enabling loop‑through cabling and
provision for attaching an optional safety steel cord.
Connections are made using an innovative ceramic
screw terminal connection block on the metal fire
dome with loop-through facility.
Suitable for use in air‑handling spaces.
| LC1 Modular Ceiling Loudspeaker Range
4
LM1-TB Tile bridge / C‑Ring
Type number overview
LC1‑WC06E8 Ceiling Loudspeaker (6 W)
LC1-MFD Metal Fire Dome with innovative ceramic
connector
LC1-PIB Pilot‑tone Indication Board
The loudspeakers have provision for optional mounting
of the Pilot‑tone Indication Board. This small PCB with
LED can fixed into a holder, connected to a light
conductor standard fitted. The presence of the
pilot‑tone can be visually checked by means of the
flashing of the LED, integrated in the front grille rim.
The required level of the pilot tone signal is 4 V rms @
20 kHz and the load to the amplifier from these boards
is negligible.
LC1‑PIB fitted on the loudspeaker and showing the light
conductor
LC1‑WM06E8 Ceiling Loudspeaker (6 W)
LC1‑UM06E8 Ceiling Loudspeaker (6 W)
LC1‑UM12E8 Ceiling Loudspeaker (12 W)
LC1‑UM24E8 Ceiling Loudspeaker (24 W)
LC1‑MMSB Mounting support bracket
LC1‑CMR Mounting Ring
LC1‑CBB Back Box
LC1‑CSMB Surface Mounting Box
LC1‑MSK Metal Suspension Kit
LC1‑MFD Metal Fire Dome
LC1‑PIB Pilot‑Tone Indication Board
LM1‑TB Tile bridge / C-ring
Rear view LC1-WM06E8 showing the optional mounting
for LC1-PIB and line/loudspeaker supervision board
LM1-TB Tile bridge / C-ring
This accessory consists of a C‑ring and two tile rails, to
be used for reinforce the ceiling material and to
spread out the pressure from the ceiling speaker
clamps. The C‑ring can be guided through the cut‑out
opening in the ceiling and placed on the back side of
the hole before inserting the loudspeaker. The tile rails
are suitable for 600 mm distance ceiling tile support
rails. This accessory consists of a set of two pieces.
LC1 Modular Ceiling Loudspeaker Range overview
220 mm (8.67 in)
39 mm (1.53 in)
23 mm (0.9 in)
62 mm (2.44 in)
4
6W
3W
1.5W
0.75W
-
70V
-W
6W
3W
1.5W
0.75W
100V
00
60
70
80
90
100
110
10
100
1000
10000
100000
dB SPL
125 250 500 1000
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
1000 2000 4000 8000
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
5 | LC1 Modular Ceiling Loudspeaker Range

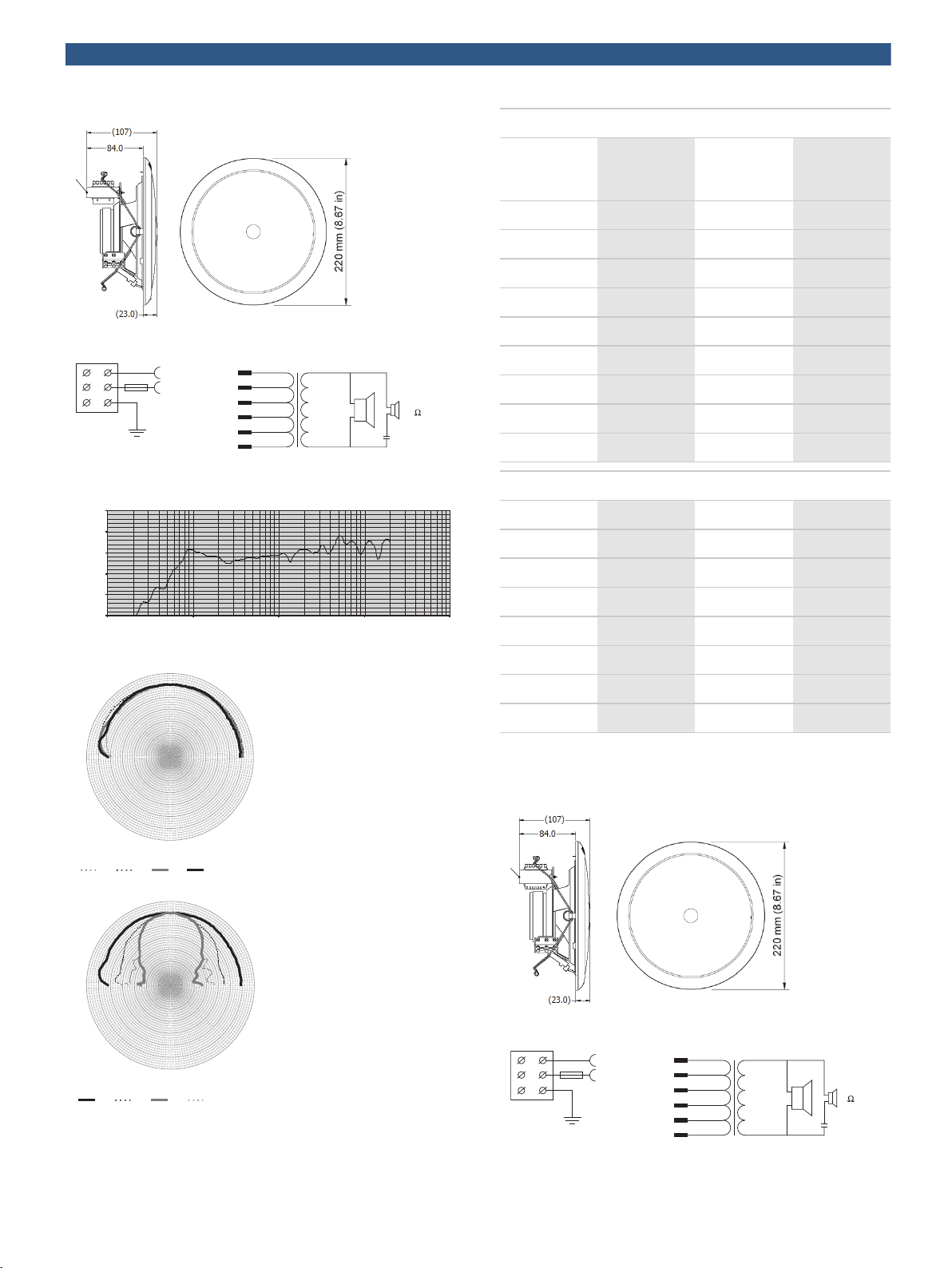

LC1‑WC06E8 Dimensions in mm (in)
LC1‑WC06E8 Circuit diagram
LC1‑WC06E8_Frequency response
LC1‑WC06E8 Polar diagrams
6 | LC1 Modular Ceiling Loudspeaker Range
Octave band sensitivity LC1-WC06E8
Octave SPL
1W/1m
Total octave
SPL
1W/1m
125 Hz 85.3 - -
250 Hz 88.3 - -
500 Hz 87.5 - -
1000 Hz 88.4 - -
2000 Hz 93.4 - -
4000 Hz 93.8 - -
8000 Hz 88.0 - -
A-weighted - 89.0 106.2
Lin-weighted - 89.7 107.1
Total octave
SPL
Pmax/1m
220 mm (8.67 in)
43 mm (1.69 in)
23 mm (0.9 in)
66 mm (2.59 in)
4
0
6W
3W
1.5W
0.75W
-
70V
0
-W
6W
3W
1.5W
0.75W
100V
60
70
80
90
100
110
10 100 1000 10000 100000
dB SPL
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
125 250 500 1000
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
1000 2000 4000 8000
7 | LC1 Modular Ceiling Loudspeaker Range
Octave band opening angles LC1-WC06E8
Horizontal Vertical
125 Hz 180 180
250 Hz 180 180
500 Hz 180 180
1000 Hz 180 180
2000 Hz 180 180
4000 Hz 75 75
8000 Hz 96 96
LC1‑WC06E8 Acoustical performance specified per
octave. * (all measurements are done with a pink noise
signal; the values are in dBSPL).
LC1‑WM06E8 Dimensions in mm (in)
LC1‑WM06E8 Circuit diagram
LC1‑WM06E8 Frequency response
LC1‑WM06E8 Polar diagrams
Octave band sensitivity LC1-WM06E8
Octave SPL
1W/1m
Total octave
SPL
1W/1m
Total octave
SPL
Pmax/1m
125 Hz 83.4 - -
250 Hz 86.1 - -
500 Hz 85.1 - -
1000 Hz 87.8 - -
2000 Hz 91.2 - -
4000 Hz 89.7 - -
8000 Hz 89.3 - -
A-weighted - 86.9 94.2
Lin-weighted - 88.1 94.9
Octave band opening angles LC1-WM06E8
Horizontal Vertical
125 Hz 180 180
250 Hz 180 180
500 Hz 180 180
1000 Hz 180 180
2000 Hz 120 120
4
0
6W
3W
1.5W
0.75W
-
70V
0
-W
6W
3W
1.5W
0.75W
100V
60
70
80
90
100
110
10 100 1000 10000 100000
dB SPL
BOSCH
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
125 250 500 1000
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
1000 2000 4000 8000
| LC1 Modular Ceiling Loudspeaker Range
8
4000 Hz 128 128
8000 Hz 75 75
LC1‑WM06E8 Acoustical performance specified per
octave. * (all measurements are done with a pink noise
signal; the values are in dBSPL).
LC1‑UM06E8 Polar diagrams
Octave band sensitivity LC1-UM06E8
LC1‑UM06E8 Dimensions in mm
LC1‑UM06E8 Circuit diagram
LC1‑UM06E8 Frequency response
Octave SPL
1W/1m
Total octave
SPL
1W/1m
Total octave
SPL
Pmax/1m
125 Hz 93.4 - -
250 Hz 88.4 - -
500 Hz 86.3 - -
1000 Hz 88.5 - -
2000 Hz 91.4 - -
4000 Hz 93.9 - -
8000 Hz 92.6 - -
A-weighted - 88.9 95.8
Lin-weighted - 90.4 96.5
Octave band opening angles LC1-UM06E8
Horizontal Vertical
125 Hz 180 180
250 Hz 180 180
500 Hz 180 180
1000 Hz 180 180
2000 Hz 108 108
4000 Hz 62 62
8000 Hz 38 38
LC1‑UM06E8 Acoustical performance specified per
octave. * (all measurements are done with a pink noise
signal; the values are in dBSPL).
4
0
12W
6W
3W
1.5W
-
70V
0
-W
12W
6W
3W
1.5W
100V
60
70
80
90
100
110
10 100 1000 10000 100000
dB SPL
-30
-25
-20
-15
-10
-5
0
5
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
125 250 500 1000
0
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
1000 2000 4000 8000
pink noise octave
0
24W
12W
6W
3W
-
70V
0
-W
24W
12W
6W
3W
100V
4
| LC1 Modular Ceiling Loudspeaker Range
9
Octave band sensitivity LC1-UM12E8
LC1‑UM12E8 Dimensions in mm
LC1‑UM12E8 Circuit diagram
Octave SPL
1W/1m
Total octave
SPL
1W/1m
Total octave
SPL
Pmax/1m
125 Hz 89.4 - -
250 Hz 87.3 - -
500 Hz 86.5 - -
1000 Hz 88.6 - -
2000 Hz 90.0 - -
4000 Hz 94.0 - -
8000 Hz 93.7 - -
A-weighted - 88.9 99.3
Lin-weighted - 90.3 100.2
Octave band opening angles LC1-UM12E8
Horizontal Vertical
125 Hz 180 180
250 Hz 180 180
500 Hz 180 180
LC1‑UM12E8 Frequency response
LC1‑UM12E8 Polar diagrams
1000 Hz 180 180
2000 Hz 108 108
4000 Hz 64 64
8000 Hz 62 62
LC1‑UM12E8 Acoustical performance specified per
octave. * (all measurements are done with a pink noise
signal; the values are in dBSPL).
LC1‑UM24E8 Dimensions in mm
LC1‑UM24E8 Circuit diagram
60
70
80
90
100
110
10 100 1000 10000 100000
dB SPL
BOSCH
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
125 250 500 1000
-30
-25
-20
-15
-10
-5
0
5
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
1000 2000 4000 8000
10 | LC1 Modular Ceiling Loudspeaker Range
125 Hz 180 180
250 Hz 180 180
500 Hz 180 180
1000 Hz 180 180
LC1‑UM24E8 Frequency response
LC1‑UM24E8 Polar diagrams
Octave band sensitivity LC1-UM24E8
Octave SPL
1W/1m
Total octave
SPL
1W/1m
Total octave
SPL
Pmax/1m
2000 Hz 106 106
4000 Hz 58 58
8000 Hz 57 57
LC1‑UM24E8 Acoustical performance specified per
octave. * (all measurements are done with a pink noise
signal; the values are in dBSPL).
Technical specifications
Electrical*
LC1‑WC06E8
Description Ceiling loudspeaker
Maximum power 9 W
Rated power 6 W (6 / 3 / 1.5 / 0.75 W)
Sound Pressure Level at
96 dB / 88 dB
rated power / 1 W
(1 kHz, 1 m)
Sound Pressure Level at
84 dB / 78 dB
rated power / 1 W
(1 kHz, 4 m)
Opening angle at
180° / 75°
1 kHz / 4 kHz
(-6 dB)
Effective frequency
85 Hz to 20 kHz
range (-10 dB)
Rated voltage
Rated impedance
70 V 100 V
6 W 833 Ohm 1667 Ohm
125 Hz 89.9 - -
250 Hz 88.3 - -
500 Hz 89.0 - -
1000 Hz 88.6 - -
2000 Hz 91.5 - -
4000 Hz 95.6 - -
8000 Hz 93.8 - -
A-weighted - 90.0 103.1
Lin-weighted - 91.3 103.8
Octave band opening angles LC1-UM24E8
Horizontal Vertical
3 W 1667 Ohm 3333 Ohm
1.5 W 3333 Ohm 6666 Ohm
0.75 W 6666 Ohm 13333 Ohm
Connector 3‑pole screw-terminal
block
LC1‑WM06E8 LC1‑UM06E8
Description Ceiling loudspeaker Ceiling loudspeaker
Maximum
9 W 9 W
power
Rated power 6 W (6 / 3 / 1.5 /
6 W (6 / 3 / 1.5 / 0.75 W)
0.75 W)
11 | LC1 Modular Ceiling Loudspeaker Range
Sound
Pressure
Level at
rated
power / 1 W
(1 kHz, 1 m)
Sound
Pressure
Level at
rated
power / 1 W
(1 kHz, 4 m)
Opening
angle at
1 kHz / 4 kHz
(-6 dB)
Effective
frequency
range
(-10 dB)
Rated
voltage
Rated
impedance
Connector 3‑pole screw-terminal block
LC1‑UM12E8 LC1‑UM24E8
Description Ceiling loudspeaker Ceiling loudspeaker
Maximum
power
Rated
power
96 dB / 88 dB 97 dB / 89 dB
87 dB / 79 dB 88 dB / 80 dB
180° / 128° 180° / 62°
85 Hz to 20 kHz 70 Hz to 20 kHz
70 V 100 V
6 W 833 Ohm 1667 Ohm
3 W 1667 Ohm 3333 Ohm
1.5 W 3333 Ohm 6666 Ohm
0.75 W 6666 Ohm 13333 Ohm
18 W 36 W
12 W (12 / 6 / 3 / 1.5 W) 24 W (24 / 12 / 6 / 3 W)
Opening
angle at
1 kHz /
4 kHz
(-6 dB)
Effective
frequency
range
(-10 dB)
Rated
voltage
Rated
impedance
Connector 3‑pole screw-terminal
180° / 64° 180° / 58°
55 Hz to 20 kHz 55 Hz to 20 kHz
70 V 100 V 70 V 100 V
12 W416
Ohm
6 W 833
Ohm
3 W 1667
Ohm
1.5 W3333
Ohm
block
833
Ohm
1667
Ohm
3333
Ohm6 W
6666
Ohm3 W
24 W208
Ohm
12 W416
Ohm
833
Ohm
1667
Ohm
3‑pole screw-terminal
block
* Technical performance data acc. to IEC 60268-5
Mechanical
LC1‑WC06E8
Description Ceiling loudspeaker
Diameter 220 mm (8.67 in)
Maximum depth* 125 mm (4.92 in)
Color White (RAL 9010)
Material (frame / front
grille)
Weight 820 g (1.81 lb)
ABS
416
Ohm
833
Ohm
1667
Ohm
3333
Ohm
Sound
Pressure
Level at
rated
power / 1 W
(1 kHz,
1 m)
Sound
Pressure
Level at
rated
power / 1 W
(1 kHz,
4 m)
100 dB / 89 dB 103 dB / 89 dB
88 dB / 77 dB 91 dB / 77 dB
LC1‑WM06E8 LC1‑UM06E8
Description Ceiling loudspeaker Ceiling loudspeaker
Diameter 220 mm (8.67 in) 220 mm (8.67 in)
Maximum depth* 125 mm (4.92 in) 125 mm (4.92 in)
Color White (RAL 9010) White (RAL 9010)
Material (frame / front
grille)
Weight 1.18 kg (2.6 lb) 1.16 kg (2.56 lb)
LC1‑UM12E8 LC1‑UM24E8
Description Ceiling loudspeaker Ceiling loudspeaker
Diameter 220 mm (8.67 in) 220 mm (8.67 in)
Maximum depth* 125 mm (4.92 in) 125 mm (4.927 in)
Steel Steel
12 | LC1 Modular Ceiling Loudspeaker Range
Color White (RAL 9010) White (RAL 9010)
Material (frame / front
grille)
Weight 1.3 kg (2.86 lb) 1.75 kg (3.86 lb)
LC1‑MMSB LC1‑CMR
Description Mounting Support
Dimensions 215 x 125 x 56 m
Mounting cut‑out 190 mm (7.48 in) 200 mm (7.88 in)
Cut‑out template
Max. ceiling thickness 50 mm (1.97 in) 25 mm (0.98 in)
Material Steel ABS
Color Zinc plated White (RAL 9010)
Weight 390 g (0.70 lb) 210 g (0.46 lb)
LC1‑CBB LC1‑CSMB
Description Back Box Surface Mounting
Dimensions 196 x 70 mm
Material ABS ABS
Color White (RAL 9010) White (RAL 9010)
Weight 174 g (0.38 lb) 690 g (1.52 lb)
Steel Steel
Ceiling Mounting
Bracket
m (8.47 x 4.92 x
2.2 in)
included
(7.72 x 2.75 in)
Ring
215 x 70 mm
(8.47 x 2.75 in)
Cut‑out template
included
Box
220 x 128 mm
(8.67 x 5.04 in)
LM1‑TB LC1‑MSK
Description Tile Bridge / C‑Ring Metal Suspension
Kit
Dimensions
Chain length n.a 320 mm (12.59 in)
Tile rails 643 x 34 mm
(25.33 x 1.34 in)
C‑Ring 250 x 30 mm
(9.85 x 1.18 in)
Material Steel Steel
Color Zinc plated Zinc plated
Weight 939 g (2.07 lb) 174 g (0.38 lb)
n.a
n.a
* with LC1‑MMSB mounting support bracket
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage and transport
temperature
Relative humidity <95%
-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Note:
• The specification data is measured in an anechoic
chamber, on a standard baffle
• The reference axis is perpendicular to the center
point of the front grille
• The reference plane is perpendicular to the center of
the reference axis
• The horizontal plane is perpendicular to the center of
the reference plane
LC1‑MFD LC1‑PIB
Description Metal Fire Dome
(including ceramic
connector)
Dimensions 215 x 155 mm
(8.47 x 6.1 in)
Mounting cut‑out 190 mm (7.48 in) n.a.
Cut‑out template
included
Material Steel n.a.
Color Flame red
(RAL 3000)
Certified B15 According to
DIN4102‑8
Weight 1 kg (2.20 lb) 3 g (0.006 lb)
Pilot‑tone
Indication Board
20 x 30 mm (0.78
x 1.18 in)
n.a
n.a.
n.a.
CE label
Ordering information
ABS grille Ceiling Loudspeaker 6 W
Ceiling loudspeaker, 6 W, ABS circular grille, 4-inch
driver, without flush ceiling-mounting accessory,
EN54-24 certified, white RAL 9010.
Order number LC1-WC06E8
13 | LC1 Modular Ceiling Loudspeaker Range
Ceiling loudspeaker 6 W
Ceiling loudspeaker, 6 W, integrated circular metal
grille, 4-inch driver, without flush ceiling-mounting
accessory, EN54-24 certified, white RAL 9010.
Order number LC1-WM06E8
Ceiling loudspeaker 6 W
Ceiling loudspeaker, 6 W, integrated circular metal
grille, 6-inch driver, without flush ceiling-mounting
accessory, EN54-24 certified, white RAL 9010.
Order number LC1-UM06E8
Ceiling loudspeaker 12 W
Ceiling loudspeaker, 12 W, integrated circular metal
grille, 6-inch coax (two-way system) driver, without
flush ceiling-mounting accessory, EN54-24 certified,
white RAL 9010.
Order number LC1-UM12E8
Ceiling loudspeaker 24 W
Ceiling loudspeaker, 24 W, integrated circular metal
grille, 6-inch coax (two-way system) driver, without
flush ceiling-mounting accessory, EN54-24 certified,
white RAL 9010.
Order number LC1-UM24E8
Accessories
Mounting Support Bracket
Metal mounting support bracket with two ceiling
clamps for securing LC1 ceiling loudspeakers in the
ceiling.
Order number LC1-MMSB
Metal Suspension Kit
Metal suspension kit for single-point suspension of
LC1 ceiling loudspeaker and LC1-CSMB surface
mounting box assembly.
Order number LC1-MSK
Pilot Tone Ind. Board (set of 6 pcs)
Pilot-tone indication board for mounting in LC1 ceiling
loudspeakers, enables optional visualization of
presence of pilot tone (set of six pieces).
Order number LC1-PIB
Tile Bridge (set of 2 pcs)
Tile bridge/C-ring, an installation accessory for
reinforcing the ceiling material and distributing the
pressure from the ceiling speaker clamps.
Order number LM1-TB
Mounting Ring
Ceiling mounting ring with screw driving ceiling clamps
for securing the LC1 ceiling loudspeakers in the
ceiling, EN54-24 certified, white RAL 9010.
Order number LC1-CMR
Back Box
Back box for mounting onto the LC1-CMR, fully
protects the LC1 loudspeaker from dust and dripping
water, makes the unit vermin proof and prevents
sound traveling via the ceiling cavity to adjacent areas,
EN54-24 certified, white RAL 9010.
Order number LC1-CBB
Metal Fire Dome
Metal fire dome for use with the LC1 ceiling
loudspeakers, including ceramic terminal connector
with cable loop-through facility, EN54-24 certified,
flame red RAL 3000.
Order number LC1-MFD
Surface Mounting Box
Surface mounting box, ABS, for securing LC1 ceiling
loudspeaker to walls or hard ceilings.
Order number LC1-CSMB
14 | LC1 Modular Ceiling Loudspeaker Range
Represented by:
Europe, Middle East, Africa: Germany: North America: Asia-Pacific:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
emea.securitysystems@bosch.com
emea.boschsecurity.com
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
onlinehelp@us.bosch.com
www.boschsecurity.us
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
© Bosch Security Systems 2017 | Data subject to change without notice
1922600971 | en, V14, 16. Mar 2017
Loading...
