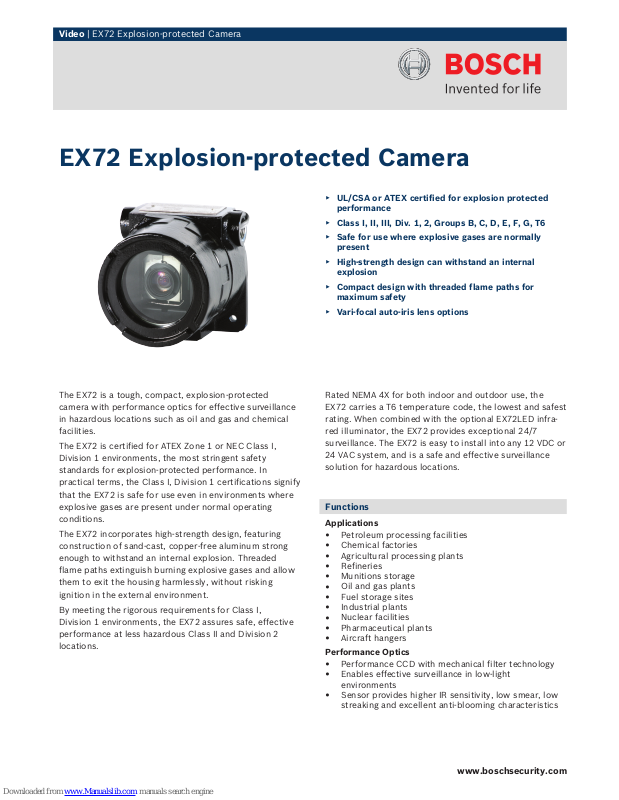

Video | EX72 Explosion‑protected Camera
The EX72 is a tough, compact, explosion-protected camera with performance optics for effective surveillance in hazardous locations such as oil and gas and chemical facilities.
The EX72 is certified for ATEX Zone 1 or NEC Class I, Division 1 environments, the most stringent safety standards for explosion-protected performance. In practical terms, the Class I, Division 1 certifications signify that the EX72 is safe for use even in environments where explosive gases are present under normal operating conditions.
The EX72 incorporates high-strength design, featuring construction of sand-cast, copper-free aluminum strong enough to withstand an internal explosion. Threaded flame paths extinguish burning explosive gases and allow them to exit the housing harmlessly, without risking ignition in the external environment.
By meeting the rigorous requirements for Class I, Division 1 environments, the EX72 assures safe, effective performance at less hazardous Class II and Division 2 locations.
Rated NEMA 4X for both indoor and outdoor use, the EX72 carries a T6 temperature code, the lowest and safest rating. When combined with the optional EX72LED infra­red illuminator, the EX72 provides exceptional 24/7 surveillance. The EX72 is easy to install into any 12 VDC or 24 VAC system, and is a safe and effective surveillance solution for hazardous locations.
Functions
Applications
•
Petroleum processing facilities
•
Chemical factories
•
Agricultural processing plants
•
Refineries
•
Munitions storage
•
Oil and gas plants
•
Fuel storage sites
•
Industrial plants
•
Nuclear facilities
•
Pharmaceutical plants
•
Aircraft hangers
Performance Optics
•
Performance CCD with mechanical filter technology
•
Enables effective surveillance in low-light environments
•
Sensor provides higher IR sensitivity, low smear, low streaking and excellent anti-blooming characteristics
EX72 Explosion‑protected Camera
▶
UL/CSA or ATEX certified for explosion protected performance
▶
Class I, II, III, Div. 1, 2, Groups B, C, D, E, F, G, T6
▶
Safe for use where explosive gases are normally present
▶
High-strength design can withstand an internal explosion
▶
Compact design with threaded flame paths for maximum safety
▶
Vari-focal auto-iris lens options
www.boschsecurity.com
Page 2
2 | EX72 Explosion‑protected Camera
Compact Ruggedized Construction
•
Small, unobtrusive and discreet housing
•
Certified CSA Type 4X design for indoor and outdoor performance
•
High-strength reinforced aluminum construction strong enough to withstand an internal explosion.
•
Threaded flame paths extinguish burning explosive gases, allowing them to exit the housing harmlessly, without risking ignition in the external environment
Installer-Friendly Features
•
Varifocal lens 4 to 9 mm or 9 to 22 mm
•
12 VDC / 24 VAC operation
•
Optional pan-tilt brackets
•
Optional wall and pole adapter plates
Certifications and Approvals
Region Certification
Europe CE ATEX
Canada CSA
CSA/NRTL LR 113310
Class 2258 / 82 - Process Control Equipment - For Hazardous Lo-
cations - Certified to US Standard
2258 / 02 - Process Control Equipment - For Hazardous Locations
Safety UL / CSA / ATEX
UL 508, 16th Edition - Industrial Control Equipment
UL 698, 11th Edition - Industrial Control Equipment for Use in Hazardous (Classified) Locations
UL 1203, 2nd Edition - Explosion-Proof and Dust-Ignition­Proof Elec. Eqmt for Use in Hazardous (Classified) Loca­tions
CSA C22.2 No.0-M1991 - General Requirements - Canadi­an Electrical Code Part II
CSA C22.2 No.0.4-M1982 - Bonding and Grounding of Electrical Equipment (Protective Grounding)
CSA C22.2 No.25-M1966 - Enclosures for Use in Class II Groups E, F and G Hazardous Locations
CSA C22.2 No.30-M1986 - Explosion-proof Enclosures for Use in Class I Hazardous Locations
CSA C22.2 No.94-M1991 - Special Purpose Enclosures
CSA C22.2 No.142-M1987 - Process Control Equipment
Class I, Division 1 and 2, Groups B, C, and D
Class II, Division 1 and 2, Groups E, F, G
Class III
ATEX Ex II 2G certified - Equipment or Protective System intended for use in Potentially Explosive Atmospheres; Di­rective 94/9/EC
ATEX Ex d IIC T6 certified - Equipment or Protective Sys­tem intended for use in Potentially Explosive Atmos­pheres; Directive 94/9/EC
Operational Temperature Code T6 (At ambient operational temperature
of 40ºC, the maximum unit surface temperature will not ex­ceed 85ºC.)
Environ­mental
CSA / NEMA TYPE 4X
Installation/Configuration Notes
Dimensions
103.6 (4.08)
146
(5.75)
Ø8
(0.31)
146
(5.75)
17
(0.67)
135
(5.30)
79 min.
(3.10)
150 min.
(5.91)
Flexible Mounting Options
•
Wall mounting
-
use a combination of EXMB.072B (EX72 adapter plate), EXMB.028B (pan/tilt bracket) and EXMB. 017B (wall mount adapter).
•
Pole mounting
-
use a combination of EXMB.072B (EX72 adapter plate), EXMB.028B (pan/tilt bracket) and EXMB. 015B (pole mount adapter).
•
Ceiling mounting
-
use a combination of EXMB.072B (EX72 adapter plate) and EXMB.004B (ceiling bracket).
All brackets are available as optional accessories.
Page 3
EX72 Explosion‑protected Camera | 3
Technical Specifications
Color Cameras
CCD MX4 CCD Mechanical
Filter
C7 High Resolution Col­or
Image Sensor 1/3 in CCD 1/3 in Interline Super-
HAD
Resolution 540 TVL color/ 540 TVL
mono
500 TVL
Effective Pixels (NTSC)
768 (H) x 494 (V) 768 (H) x 494 (V)
Effective Pixels (PAL)
752 (H) x 582 (V) 768 (H) x 582 (V)
Sensitivity 0.02 lux at F1.4 2.7 lux at F1.4
S/N Ratio Greater than 48 dB Greater than 48 dB
Output Signal 0.45
Gamma On / Off selectable
Gain Control AGC
Electronics Iris 1/60 to 1/100,000
(NTSC)
1/50 to 1/100,000 (PAL)
Lens Varifocal 4 to 9 mm or 9 to 22 mm auto-iris lens
Voltage 12 VDC or 24 VAC
Power consumption 3.9 W (max.)
Cabling holes Two 3/4-inch NPT conduit entries
Operation Tempera­ture Range
-50 ºC to +40 ºC (-58 ºF to 104 ºF)
Weight 1.4 kg (3.1 lbs)
Dimensions 117 x 117 x 99 mm (4.6 x 4.6 x 3.9 in)
Note To order a CSA/ UL certified product use
product codes without the AT suffix. To order an ATEX certified product use product codes with the AT suffix.
Ordering Information
EX72C7V0409‑N Explosion-protected Camera
1/3 in color CCD, 500 TVL, varifocal 4 to 9 mm lens, NTSC, CSA/UL Certified
EX72C7V0409-N
EX72C7V0409‑P Explosion-protected Camera
1/3 in color CCD, 500 TVL, varifocal 4 to 9 mm lens, PAL, CSA/UL Certified
EX72C7V0409-P
EX72C7V0922‑N Explosion-protected Camera
1/3 in color CCD, 500 TVL, varifocal 9 to 22 mm lens, NTSC, CSA/UL Certified
EX72C7V0922-N
EX72C7V0922‑P Explosion-protected Camera
1/3 in color CCD, 500 TVL, varifocal 9 to 22 mm lens, PAL, CSA/UL Certified
EX72C7V0922-P
Ordering Information
EX72MX4V0409‑N Explosion-protected Camera
Day/Night 1/3 in CCD, 540/540 TVL, mech filter, varifocal 4 to 9 mm lens, NTSC, CSA/ UL Certified
EX72MX4V0409-N
EX72MX4V0409‑P Explosion-protected Camera
Day/Night 1/3 in CCD, 540/540 TVL, mech filter, varifocal 4 to 9 mm lens, PAL, CSA/UL Certified
EX72MX4V0409-P
EX72MX4V0922‑N Explosion-protected Camera
Day/Night 1/3 in CCD, 540/540 TVL, mech filter, varifocal 9 to 22 mm lens, NTSC, CSA/ UL Certified
EX72MX4V0922-N
EX72MX4V0922‑P Explosion-protected Camera
Day/Night 1/3 in CCD, 540/540 TVL, mech filter, varifocal 9 to 22 mm lens, PAL, CSA/UL Certified
EX72MX4V0922-P
EX72C7V0409AT-P Explosion-protected Camera
1/3 in color CCD, 500 TVL, varifocal 4 to 9 mm lens, PAL, ATEX Certified
EX72C7V0409AT-P
EX72MX4V0409AT-P Explosion-protected Camera
Day/Night 1/3 in CCD, 540/540 TVL, mech. filter, varifocal 4 to 9 mm lens, PAL, ATEX Certified
EX72MX4V0409AT­P
Accessories
EXMB.028B Cable Managed Wall Bracket
Cable-managed arm bracket, black
EXMB.028B
EXMB.072B Adapter Bracket
EXMB72 Adapter Bracket, Black
EXMB.072B
EXMB.015B Pole Mount Adapter Bracket
Pole Mount Adapter, black
EXMB.015B
EXMB.017B Wall Mount Adapter Bracket
Wall Mount Adapter, Black
EXMB.017B
EXMB.004B Ceiling and Pedestal Bracket
Mounting Bracket, HD, Pan/Tilt Adjust - Ceil­ing Mount for EX52, EX62, black
EXMB.004B
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
UPA-2430-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
UPA-2420-50
www.boschsecurity.com
Page 4
4 | EX72 Explosion‑protected Camera
Americas:
Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180 [email protected] www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V. P.O. Box 80002 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 [email protected] www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6258 5511 Fax: +65 6571 2698 [email protected] www.boschsecurity.asia
Represented by
© Bosch Security Systems 11 | Data subject to change without notice T4824105355 | Cur: en-US, V26, 7 Jun 2011
