Video | EX62XF Explosion-protected Camera

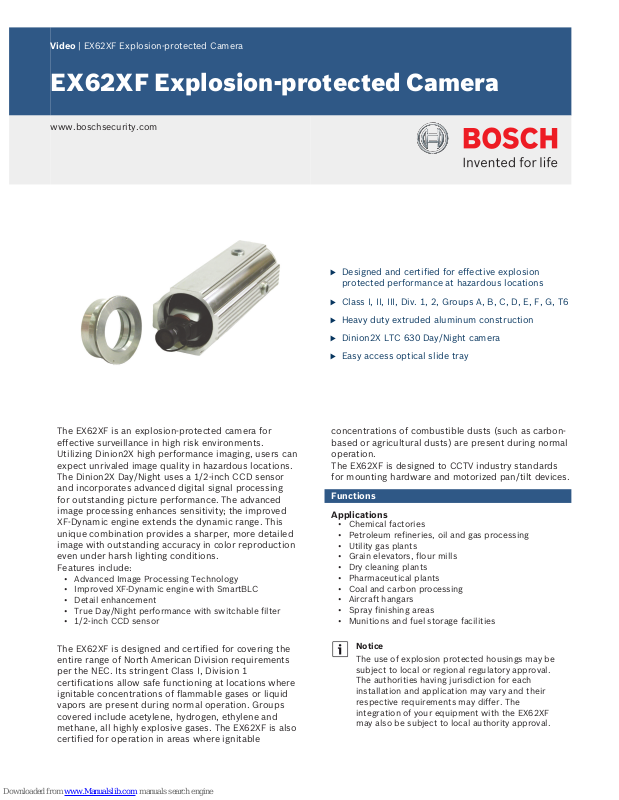

EX62XF Explosion-protected Camera
www.boschsecurity.com
u Designed and certified for effective explosion
protected performance at hazardous locations
u Class I, II, III, Div. 1, 2, Groups A, B, C, D, E, F, G, T6
u Heavy duty extruded aluminum construction
u Dinion2X LTC 630 Day/Night camera
u Easy access optical slide tray
The EX62XF is an explosion-protected camera for
effective surveillance in high risk environments.
Utilizing Dinion2X high performance imaging, users can
expect unrivaled image quality in hazardous locations.
The Dinion2X Day/Night uses a 1/2-inch CCD sensor
and incorporates advanced digital signal processing
for outstanding picture performance. The advanced
image processing enhances sensitivity; the improved
XF-Dynamic engine extends the dynamic range. This
unique combination provides a sharper, more detailed
image with outstanding accuracy in color reproduction
even under harsh lighting conditions.
Features include:
• Advanced Image Processing Technology
• Improved XF-Dynamic engine with SmartBLC
• Detail enhancement
• True Day/Night performance with switchable filter
• 1/2-inch CCD sensor
The EX62XF is designed and certified for covering the
entire range of North American Division requirements
per the NEC. Its stringent Class I, Division 1
certifications allow safe functioning at locations where
ignitable concentrations of flammable gases or liquid
vapors are present during normal operation. Groups
covered include acetylene, hydrogen, ethylene and
methane, all highly explosive gases. The EX62XF is also
certified for operation in areas where ignitable
concentrations of combustible dusts (such as carbonbased or agricultural dusts) are present during normal
operation.
The EX62XF is designed to CCTV industry standards
for mounting hardware and motorized pan/tilt devices.
Functions
Applications
• Chemical factories
• Petroleum refineries, oil and gas processing
• Utility gas plants
• Grain elevators, flour mills
• Dry cleaning plants
• Pharmaceutical plants
• Coal and carbon processing
• Aircraft hangars
• Spray finishing areas
• Munitions and fuel storage facilities
Notice
The use of explosion protected housings may be
subject to local or regional regulatory approval.
The authorities having jurisdiction for each
installation and application may vary and their
respective requirements may differ. The
integration of your equipment with the EX62XF
may also be subject to local authority approval.
Page 2
Certifications and approvals
CSA-NRTL LR 113310
Class 9098 01 / 81 - Miscellaneous - for Hazardous
Locations
Safety UL / CSA
UL 508, Sixteenth Edition - Industrial Control
Equipment
UL 698, Eleventh Edition - Industrial Control
Equipment for Use in Hazardous (Classified)
Locations
UL 1203 Explosion-Proof and Dust-Ignition-Proof
Electrical Equipment for Use in Hazardous
(Classified) Locations
CSA C22.2 No.0-M1991 General Electrical
Requirements
CSA C22.2 No.0.4-M1982 Bonding and Grounding
of Electrical Equipment (Protective Grounding)
CSA C22.2 No.25-M1966 Enclosures for Use in
Class II Groups E, F, and G Hazardous Locations
CSA C22.2 No.30-M1986 Explosion-proof
Enclosures for Use in Class I Hazardous Locations
CSA C22.2 No.94-M1991 Special Purpose
Enclosures
CSA C22.2 No.142-M1987 Process Control
Equipment
Class I, Div 1, 2, Groups A, B, C, D
Class II, Div 1, 2, Groups E, F, G
Class III
Operational Temperature Code T6 at maximum ambient
temperature 50ºC (122ºF)
Environmental CSA / NEMA TYPE 4
Notice
Product is not ATEX certified.
Region Certification
Canada CSA
Installation/configuration notes
Dimensions
149 (5.9)
max
154 (6.1) max 368 (14.5)
128 (5.0)
89 (3.5)
mm (in)
Ø 108 (4.3)
Technical specifications
Electrical
Rated Voltage 12‑24 VDC
12‑24 VAC (50/60 Hz)
Power Consumption 40 W
Imager Interline transfer CCD, 1/2-inch image
format
Active Pixels
PAL Model 752 H x 582 V
NTSC Model 768 H x 492 V
Sensitivity (3200 K, scene reflectivity 89%, F1.2)
Full video
(100 IRE)
Usable
(50 IRE)
Usable picture
(30 IRE)
Color 1.40 lx
(0.13 fc)
0.31 lx
(0.029 fc)
0.0991 lx
(0.0097 fc)
Color
+ SensUp 10x
0.14 lx
(0.013 fc)
0.031 lx
(0.0029 fc)
0.00991 lx
(0.0009 fc)
Monochrome 0.57 lx
(0.053 fc)
0.121 lx
(0.0112 fc)
0.0391 lx
(0.0036 fc)
Monochrome
+ SensUp 10x
0.057 lx
(0.0053 f
c)
0.0121 lx
(0.00112 fc
)
0.00391 lx
(0.00036 fc)
Horizontal Resolution 540 TVL
Signal-to-Noise-Ratio > 50 dB
Video Output 1 Vpp, 75 Ohm
Y/C Output Y: 1 Vpp / C: 0.3 Vpp
2 | EX62XF Explosion-protected Camera
Page 3
Synchronization Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Shutter Auto (1/50 [1/60] to 1/10000)
selectable
Auto (1/50 [1/60] to 1/50000) automatic
flickerless, fixed selectable
Sensitivity up Adjustable from Off up to 10x
Day/Night Color, Mono, Auto
Auto Black Automatic continuous, Off
Dynamic engine XF-Dynamic, SmartBLC
Dynamic range 96 dB (16-bit image processing)
Dynamic Noise
Reduction
Auto, On/off selectable
Sharpness Sharpness enhancement level selectable
SmartBLC On/Off
AGC AGC On or Off (0 – 30 dB) selectable
Peak White Invert On/Off
White Balance ATW, ATWhold and manual (2500 to
10000K)
Alarm Output VMD or Bilinx
Alarm Input (TTL) Profile switching, +3.3 V nominal,
+40 VDC max.
Alarm Output Relay 30 VAC or +40 VDC, Max 0.5 A
continuous, 10 VA
External Synchronization
Input
75 ohm or high impedance selectable
Cable Compensation Up to 1000 m (3000 ft) coax without
external amplifiers (automatic set-up in
combination with Bilinx coaxial
communication)
Camera ID 17 character editable string, position
selectable
Lens Types 4‑12 mm IR-corrected, or
10‑40 mm IR-corrected
Modes 6 preset programmable modes
Remote Control Bilinx coaxial bi-directional
communication
Video Motion Detection One area, fully programmable
Privacy Masking Four independent areas, fully
programmable
Controls OSD with soft-key operation (multi-lingual)
Mechanical
Construction Robust copper-free aluminum extrusion
with four ¾-in NPT conduit entries
Brackets Cradle with stainless steel straps included
View Window Tempered glass
Weight 8.5 kg (18 lb)
Dimensions 149 x 154 x368 mm
(5.9 x 6.1 x 14.5 in)
including bracket and straps
Environmental
Operating Temperature -50°C to +50°C (-58°F to +122°F)
Ordering information
EX62XF6V0412H-N Explosion-protected Camera
Explosion-protected housing with Dinion2XF
LTC 0630, 4‑12 mm lens, heater/blower, NTSC
Order number EX62XF6V0412H-N
EX62XF6V1040H-N Explosion Protected Camera
Explosion-protected housing with Dinion2X LTC 0630,
10‑40 mm lens, heater/blower, NTSC
Order number EX62XF6V1040H-N
EX62XF6V0412H-P Explosion Protected Camera
Explosion-protected housing with Dinion2X LTC 0630,
4‑12 mm lens, heater/blower, PAL
Order number EX62XF6V0412H-P
EX62XF6V1040H-P Explosion Protected Camera
Explosion-protected housing with Dinion2X LTC 0630,
10‑40 mm lens, heater/blower, PAL
Order number EX62XF6V1040H-P
Accessories
EX62-HSG Explosion Protected Camera Housing
14 in. Explosion protected camera housing
Order number EX62-HSG
EX62-HSG-H Explosion Protected Camera Housing
14 in. Explosion protected camera housing with
24 VAC heater/blower
Order number EX62-HSG-H
EXSH.62 Sunhood
Sunhood
Order number EXSH.62
EXMB.004B Ceiling and Pedestal Bracket
Mounting Bracket, HD, Pan/Tilt Adjust - Ceiling Mount
for EX52, EX62, black
Order number EXMB.004B
EXMB.005B Heavy Duty Wall Bracket
Mounting Bracket, HD, Pan/Tilt Adjust - Wall Mount,
black
Order number EXMB.005B
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number UPA-2450-60
3 | EX62XF Explosion-protected Camera
Page 4
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number UPA-2450-50
Software Options
VP‑CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
Order number VP-CFGSFT
4 | EX62XF Explosion-protected Camera
