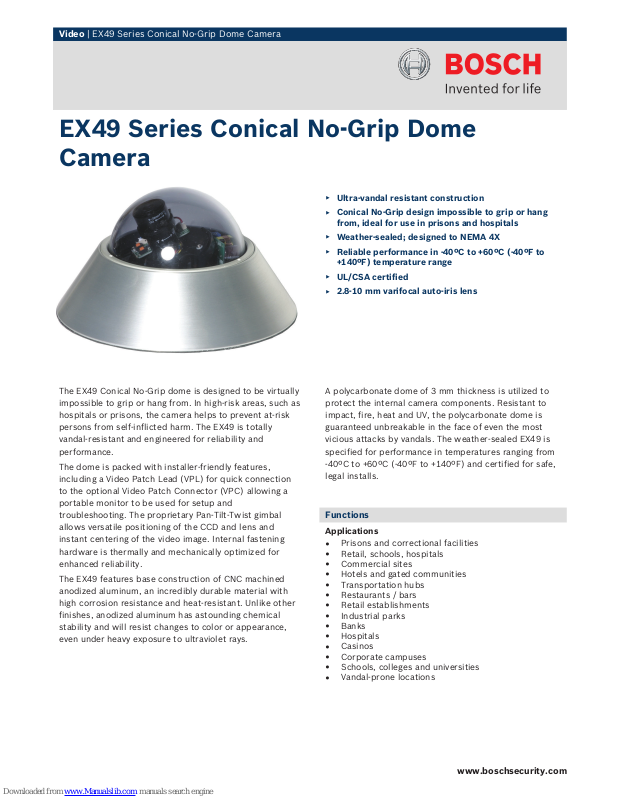

Video | EX49 Series Conical No‑Grip Dome Camera
The EX49 Conical No-Grip dome is designed to be virtually impossible to grip or hang from. In high-risk areas, such as hospitals or prisons, the camera helps to prevent at-risk persons from self-inflicted harm. The EX49 is totally vandal-resistant and engineered for reliability and performance.
The EX49 features base construction of CNC machined anodized aluminum, an incredibly durable material with high corrosion resistance and heat-resistant. Unlike other finishes, anodized aluminum has astounding chemical stability and will resist changes to color or appearance, even under heavy exposure to ultraviolet rays.
A polycarbonate dome of 3 mm thickness is utilized to protect the internal camera components. Resistant to impact, fire, heat and UV, the polycarbonate dome is guaranteed unbreakable in the face of even the most vicious attacks by vandals. The weather-sealed EX49 is specified for performance in temperatures ranging from
-40ºC to +60ºC (-40ºF to +140ºF) and certified for safe, legal installs.
Functions
Applications
•
Prisons and correctional facilities
•
Retail, schools, hospitals
•
Commercial sites
•
Hotels and gated communities
•
Transportation hubs
•
Restaurants / bars
•
Retail establishments
•
Industrial parks
•
Banks
•
Hospitals
•
Casinos
•
Corporate campuses
•
Schools, colleges and universities
•
Vandal-prone locations
EX49 Series Conical No‑Grip Dome Camera
▶
Ultra-vandal resistant construction
▶
Conical No-Grip design impossible to grip or hang from, ideal for use in prisons and hospitals
▶
Weather-sealed; designed to NEMA 4X
▶
Reliable performance in -40ºC to +60ºC (-40ºF to +140ºF) temperature range
▶
UL/CSA certified
▶
2.8-10 mm varifocal auto-iris lens
www.boschsecurity.com
Page 2
2 | EX49 Series Conical No‑Grip Dome Camera
Certifications and Approvals
CSA Type 4X Outdoor Weather Rating
CSA C22.2 No 0-M1991 General Electrical Requirements,
Part II
CSA C22.2 No 1-M94 Audio, Video, and Similar Equipment
CSA C22.2 No 94-M91 Special Purpose Enclosures
UL Std No 50 Enclosures for Electrical Equipment
UL Std No 2044 Commercial CCTV Equipment
FCC Class B Applicable Health Care Facility Re-
quirements
Installation/Configuration Notes
Dimensions
90 (3.5)
mm (in)
176 (6.9)
Ø86 (3.4)
Ø93 (3.7)
R2.4 (0.09) typ
38.1 (1.5)
Ø 2x 1/2" NPT
60°
Technical Specifications
Image Sensor MX4 Hi-Resolution
Day/Night CCD
C7 High Resolution Color
Resolution 540 TVL color /
540 TVL mono
500 TVL
Effective Pixels NTSC 768(H) x 494(V) 768 (H) x 494 (V)
Effective Pixels PAL 752(H) x 582(V) 752 (H) x 582 (V)
Daytime Sensitivity 0.02 lux with F1.4 lens 2.7 lux at F1.4
Night-time Sensitivity 0 lux with infrared (B/W)N/A
S/N Ratio Greater than 48dB
(AGC off)
Greater than 48dB
Output Signal 1 Vpp, 75 Ohm
Gamma 0.45
BLC On / Off selectable
Gain Control AGC automatic
Electronics Iris 1/60 to 1/100,000 (NTSC) • 1/50
to 1/100,000 (PAL)
Gimbal Pan-Tilt-Twist for easy installation
Voltage 12-24 VAC (50/60 Hz)
12-24 VDC
Power Draw 5 W Max.
Dome Construction Polycarbonate dome, 3 mm thick
Domes Half-tint and clear included
Base Construction CNC Anodized Aluminum
Weight 1.4 kg (3 lb)
Operational Range -40ºC to +60ºC (-40ºF to 140ºF)
Overall Dimension (including bottom gasket)
176 x 91 mm (6.93 x 3.58 in)
Ordering Information
EX49C7V0310BH‑P Ultra Vandal-Proof Dome
Extreme dome, 1/3-inch color, 500 TVL,
2.8-10 mm lens, black base, PAL
EX49C7V0310BH‑P
EX49C7V0310BH‑N Ultra Vandal-Proof Dome
Extreme dome, 1/3-inch color, 500 TVL,
2.8-10 mm lens, black base, NTSC
EX49C7V0310BH‑N
EX49MX4V0310BH‑P Ultra Vandal-Proof Dome
Extreme dome, extended day/night, 540 TVL, 2.8-10 mm lens, black base, PAL
EX49MX4V0310BH ‑P
EX49MX4V0310BH‑N Ultra Vandal-Proof Dome
Extreme dome, extended day/night, 540 TVL, 2.8-10 mm lens, black base, NTSC
EX49MX4V0310BH ‑N
EX49MX4V0310AH‑N Ultra Vandal-Proof Dome
Extreme dome, extended day/night, 540 TVL, 2.8-10 mm lens, clear aluminum base, NTSC
EX49MX4V0310AH ‑N
EX49MX4V0310AH-P Ultra Vandal-Proof Dome
Extreme dome, extended day/night, 540 TVL, 2.8-10 mm lens, clear aluminum base, PAL
EX49MX4V0310AH
-P
Page 3
EX49 Series Conical No‑Grip Dome Camera | 3
Ordering Information
EX49C7V0310AH-N Ultra Vandal-Proof Dome
Extreme dome, 1/3-inch, color, 500 TVL,
2.8-10 mm lens, clear aluminum base, NTSC
EX49C7V0310AH-N
EX49C7V0310AH-P Ultra Vandal-Proof Dome
Extreme dome, 1/3-inch, color, 500 TVL,
2.8-10 mm lens, clear aluminum base, PAL
EX49C7V0310ah-p
Accessories
EX-VPC Video Patch Connector
Video patch connector for EX40 and EX49
EX-VPC
EX-Dome-C
Clear replacement dome for EX40/49
EX-Dome-C
EX-Dome-H
Half-tint replacement dome for EX40/49
EX-Dome-H
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
UPA-2430-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
UPA-2420-50
EX49AH-DY Dummy Dome
EX49 Dummy Dome, clear aluminum base, half-tint
EX49AH-DY
EX49BH-DY Dummy Dome
EX49 Dummy Dome, black base, half-tint
EX49BH-DY
www.boschsecurity.com
Page 4
4 | EX49 Series Conical No‑Grip Dome Camera
Americas:
Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180 [email protected] www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V. P.O. Box 80002 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 [email protected] www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6258 5511 Fax: +65 6571 2698 [email protected] www.boschsecurity.asia
Represented by
© Bosch Security Systems 11 | Data subject to change without notice T5625897995 | Cur: en-US, V17, 7 Jun 2011
