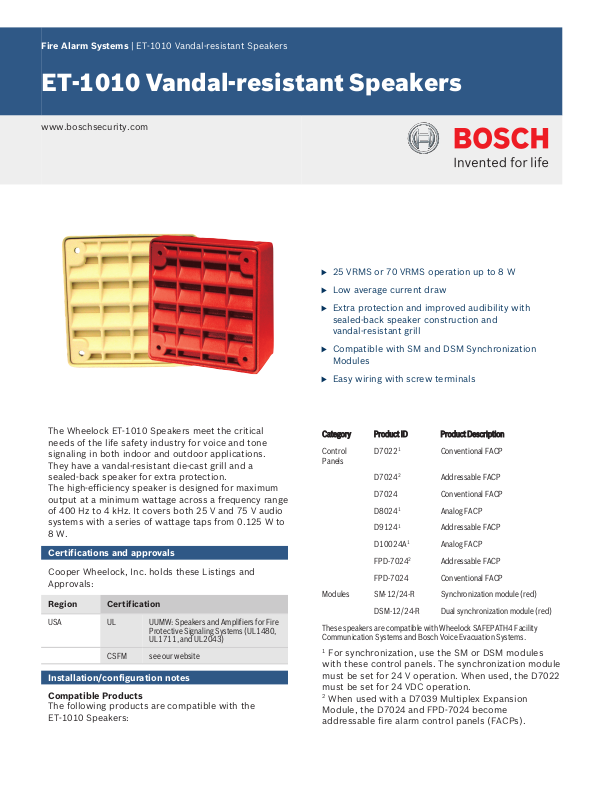

Fire Alarm Systems | ET‑1010 Vandal‑resistant Speakers
ET‑1010 Vandal‑resistant Speakers
www.boschsecurity.com
u 25 VRMS or 70 VRMS operation up to 8 W
u Low average current draw
u Extra protection and improved audibility with
sealed‑back speaker construction and
vandal‑resistant grill
The Wheelock ET‑1010 Speakers meet the critical
needs of the life safety industry for voice and tone
signaling in both indoor and outdoor applications.
They have a vandal‑resistant die‑cast grill and a
sealed‑back speaker for extra protection.
The high‑efficiency speaker is designed for maximum
output at a minimum wattage across a frequency range
of 400 Hz to 4 kHz. It covers both 25 V and 75 V audio
systems with a series of wattage taps from 0.125 W to
8 W.
Certifications and approvals
Cooper Wheelock, Inc. holds these Listings and
Approvals:
Region
Certification
USA UL UUMW: Speakers and Amplifiers for Fire
Protective Signaling Systems (UL1480,
UL1711, and UL2043)
CSFM see our website
Installation/configuration notes
Compatible Products
The following products are compatible with the
ET‑1010 Speakers:
u Compatible with SM and DSM Synchronization
Modules
u Easy wiring with screw terminals
Category Product ID Product Description
Control
D7022
1
Conventional FACP
Panels
D7024
2
Addressable FACP
D7024 Conventional FACP
D8024
D9124
D10024A
FPD-7024
1
1
1
2
Analog FACP
Addressable FACP
Analog FACP
Addressable FACP
FPD-7024 Conventional FACP
Modules SM‑12/24‑R Synchronization module (red)
DSM‑12/24‑R Dual synchronization module (red)
These speakers are compatible with Wheelock SAFEPATH4 Facility
Communication Systems and Bosch Voice Evacuation Systems.
1
For synchronization, use the SM or DSM modules
with these control panels. The synchronization module
must be set for 24 V operation. When used, the D7022
must be set for 24 VDC operation.
2
When used with a D7039 Multiplex Expansion
Module, the D7024 and FPD-7024 become
addressable fire alarm control panels (FACPs).
2 | ET‑1010 Vandal‑resistant Speakers
Mounting
These speakers mount on the indicated back boxes for
the indicated applications:
Conduit
Applications
Surface
Mounted
Flush Mounted
Four‑inch square* •
SBB Back Box • •
* Requires an SER extension ring.
Wiring
The input terminals accept wires with diameters
between 18 AWG and 12 AWG (ISO 0.75 mm2 and
4 mm2).
Parts included
Quant. Component
1 Speaker
1 Hardware pack
1 Literature pack
Technical specifications
Electrical
Voltage (Input): 24 VDC nominal;
16 VDC or FWR to 33 VDC or FWR
Ordering information
ET‑1010‑R Vandal‑Resistant Speaker (red)
Red, vandal‑resistant, 24 VDC device providing dual
voltage capability (25 VRMS or 70 VRMS),and fieldselectable taps from 1/8 W to 8 W
Order number ET-1010-R
ET‑1010‑W Vandal‑Resistant Speaker (white)
White, vandal‑resistant, 24 VDC device providing dual
voltage capability (25 VRMS or 70 VRMS),and fieldselectable taps from 1/8 W to 8 W
Order number ET-1010-W
Accessories
SBB‑R Surface‑mount Back Box (red)
14 cm (5.5 in.) x 14.2 cm (5.6 in.) x 9.1 cm (3.6 in.)
Order number SBB-R
SBB‑W Surface‑mount Back Box (white)
14 cm (5.5 in.) x 14.2 cm (5.6 in.) x 9.1 cm (3.6 in.)
Order number SBB-W
SFP‑R Semi‑flush Plate (red)
15.2 cm (6 in.) square by 0.8 cm (0.3125 in.) thick
Order number SFP-R
SSB‑4 Ceiling Support Bridge
60.3 cm (23.75 in.) long by 16.5 cm (6.5 in.) wide
Order number SSB-4
Environmental
Relative Humidity: Up to 95%, non‑condensing
Temperature (Operating): -31°F to +150°F (-35°C to +66°C)
Mechanical
Dimensions: 4.375 in. square x 4.125 in. deep
(11.1 cm square x 10.5 cm deep1)
Material: Die‑cast, high‑impact plastic
1
When used in flush-mount installations, the unit
extends 1.9375 in. (4.9 cm) from the mounting
surface.
Speaker dB at 10 ft (3 m)
1/8 W 78 dB
1/4 W 81 dB
1/2 W 84 dB
1 W 87 dB
2 W 89 dB
4 W 93 dB
8 W 96 dB
