Bosch EN1260 Specsheet

Intrusion Alarm Systems | EN1260 PIR Motion Sensor Transmitter (Commercial and High-end Domestic Applications)

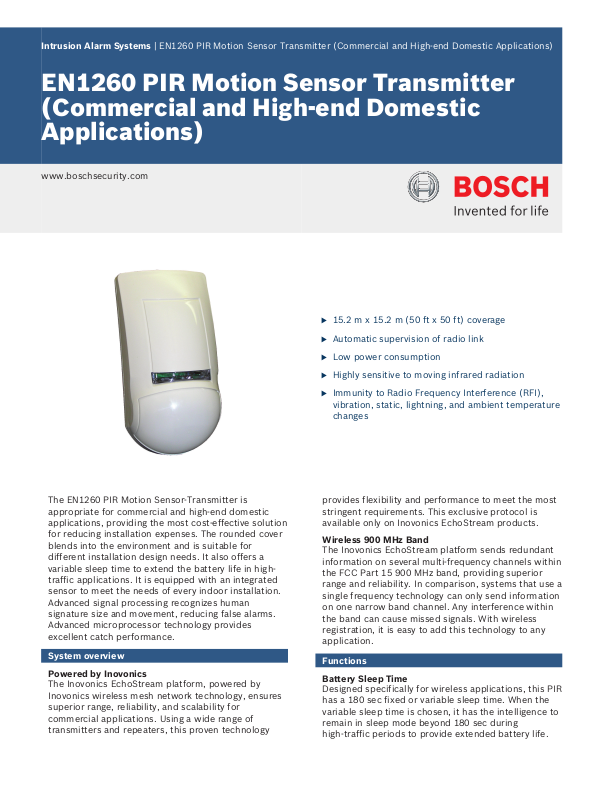

EN1260 PIR Motion Sensor Transmitter
(Commercial and High-end Domestic
Applications)

www.boschsecurity.com

u 15.2 m x 15.2 m (50 ft x 50 ft) coverage

The EN1260 PIR Motion Sensor‑Transmitter is
appropriate for commercial and high‑end domestic
applications, providing the most cost-effective solution
for reducing installation expenses. The rounded cover
blends into the environment and is suitable for
different installation design needs. It also offers a
variable sleep time to extend the battery life in high­traffic applications. It is equipped with an integrated
sensor to meet the needs of every indoor installation.
Advanced signal processing recognizes human
signature size and movement, reducing false alarms.
Advanced microprocessor technology provides
excellent catch performance.

System overview

Powered by Inovonics

The Inovonics EchoStream platform, powered by
Inovonics wireless mesh network technology, ensures
superior range, reliability, and scalability for
commercial applications. Using a wide range of
transmitters and repeaters, this proven technology

u Automatic supervision of radio link

u Low power consumption

u Highly sensitive to moving infrared radiation

u Immunity to Radio Frequency Interference (RFI),

vibration, static, lightning, and ambient temperature
changes

provides flexibility and performance to meet the most
stringent requirements. This exclusive protocol is
available only on Inovonics EchoStream products.

Wireless 900 MHz Band

The Inovonics EchoStream platform sends redundant
information on several multi-frequency channels within
the FCC Part 15 900 MHz band, providing superior
range and reliability. In comparison, systems that use a
single frequency technology can only send information
on one narrow band channel. Any interference within
the band can cause missed signals. With wireless
registration, it is easy to add this technology to any
application.

Functions

Battery Sleep Time

Designed specifically for wireless applications, this PIR
has a 180 sec fixed or variable sleep time. When the
variable sleep time is chosen, it has the intelligence to
remain in sleep mode beyond 180 sec during
high‑traffic periods to provide extended battery life.

0 m

0 m

2 m

2 m

2 m

4 m

4 m

4 m

6 m

6 m

6 m

0 ft

13 ft

13 ft

8 m 10 m

12 m

13 ft

26 ft 39 ft

8 m

8 m

14 m

16 m

52 ft

26 ft

26 ft

7.6 m

25 ft

7.6 m

15.2 m

25 ft

50 ft

0 m

0 m

2 m

2 m

4 m 6 m

0 ft

7.1 ft

8 m 10 m

12 m

13 ft 26 ft 39 ft

14 m

16 m

52 ft

50 ft

15.2 m

| EN1260 PIR Motion Sensor Transmitter (Commercial and High-end Domestic Applications)

2

Supervision

The cover tamper and battery activity are supervised.
Monitoring helps ensure reliable operation.

Wall and Cover Tampers

The optional wall tamper switch provides increased
security and is ideal for high‑end residential
applications. The wall tamper switch notifies the

Side View: 2.2 m x 15.2 m (7.1 ft x 50 ft)

system when the transmitter is removed from its
mounted surface. The cover tamper switch notifies the

Parts included

system when an intruder attempts to remove the
sensor cover.

Certifications and approvals

Quantity Component

1 Sensor‑transmitter with cover and wall tampers

1 3.0 V lithium battery

Inovonics Wireless Corporation holds the following approvals:

FCC Conforms to FCC Part 15 regulations

Installation/configuration notes

Compatibility Information

The EN1260 PIR Motion Sensor‑Transmitter is
compatible with the following products:

Technical specifications

Electrical

Power: 3.0 V, 2.2 Ah

Battery Replacement: Duracell DL123A, Panasonic CR123A,

or approved equivalent. Not all brands
are equivalent. Use the brands specified.

Receivers

Battery Life (Average): 2 years. Typical battery life shown is for

EN4016SK Survey Receiver

EN4200 Serial Receiver

EN4204R LED Receiver

Repeater

EN5040‑T High‑power Repeater

Mounting Height and Coverage Patterns

Mount the sensor‑transmitter at a height between 2.1

Sleep Time: Fixed or variable - has a standard fixed

Environmental

supervised operation using
recommended check-in times. The
battery life of a PIR sensor is highly
dependent on traffic in its coverage area.

sleep time of 180 sec; variable sleep
time allows remaining in sleep mode
longer to extend battery life in
high‑traffic environments.

m and 2.7 m (7 ft to 9 ft). The coverage patterns for
the standard lens and optional lenses are as follows:

EN1260 Standard Coverage

Relative Humidity: Up to 90%, non‑condensing

Temperature (operating): -20°C to +60°C

(-4°F to +140°F)

Top View: 30.4 m x 15.2 m (99.7 ft x 50 ft)

Mechanical

Dimensions: 11.5 cm x 6.4 cm x 4.1 cm

(4.5 in. x 2.5 in. x 1.6 in.)

Transmission Characteristics

Frequency: 902 MHz to 928 MHz

Radio Frequency
Interference (RFI)

Greater than 30 V/m for frequencies
from 26 MHz to 1 GHz

Immunity:

Trademarks

Trademark names are used throughout this document.
In most cases, these designations are claimed as
trademarks or registered trademarks in one or more
countries by their respective owners. Rather than
placing a trademark symbol in every occurrence of a
trademark name, Bosch Security Systems, Inc. uses

3 | EN1260 PIR Motion Sensor Transmitter (Commercial and High-end Domestic Applications)

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2013 | Data subject to change without notice
2577510283 | en, V1, 01. Oct 2013

the names only in an editorial fashion and to the
benefit of the trademark owner with no intention of
infringing the trademark.

Duracell is a registered trademark of the Gillette Company, USA, in the
United States and/or other countries.

Inovonics is a trademark of Inovonics Wireless Corporation.

Panasonic is a registered trademark of Matsushita Electric Industrial
Co., Ltd.

Ordering information

EN1260 PIR Motion Sensor Transmitter (Commercial
and High-end Domestic Applications)

Provides 15.2 m x 15.2 m (50 ft x 50 ft) coverage.
Includes cover and wall tamper and battery.

Order number EN1260
